CEILING FAN REMOTE CONTROLLER
OPERATION AND INSTALLATION INSTRUCTIONS
(Please keep this instruction pamphlet.)
IMPORTANT POINTS TO REMEMBER:
1. Read and save these instructions.
2. Please note that all fixed wiring appliances should be installed by a qualified electrician.
3. The supply to the remote control receiver should be connected through a mains switch, i.e.
existing wall switch.
4. Disconnect from power supply at wall switch before working on remote control receiver or
ceiling fan.
5. Install receiver into the ceiling fan canopy of the fan to ensure proper protection.
6. This unit is to be used for the control of ceiling fan and in an AC120V 60Hz power supply only.
7. Do not install in damp locations or immerse in water. (For indoor use only.)
8. Do not pull on or cut leads shorter.
9. Do not drop or bump the unit.
10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking takes
place as this will damage the transmitter. Dispose of used battery properly, and keep the
battery out of reach of children.
11. CAUTION: To reduce the risk of fire or injury, do not use this product in conjunction with any
variable (rheostat) wall control.
INSTALLATION INSTRUCTIONS
1. Ceiling fan must be set at HIGH speed and light kit (If any) at ON position by pressing the “Light
Switch” after installation.

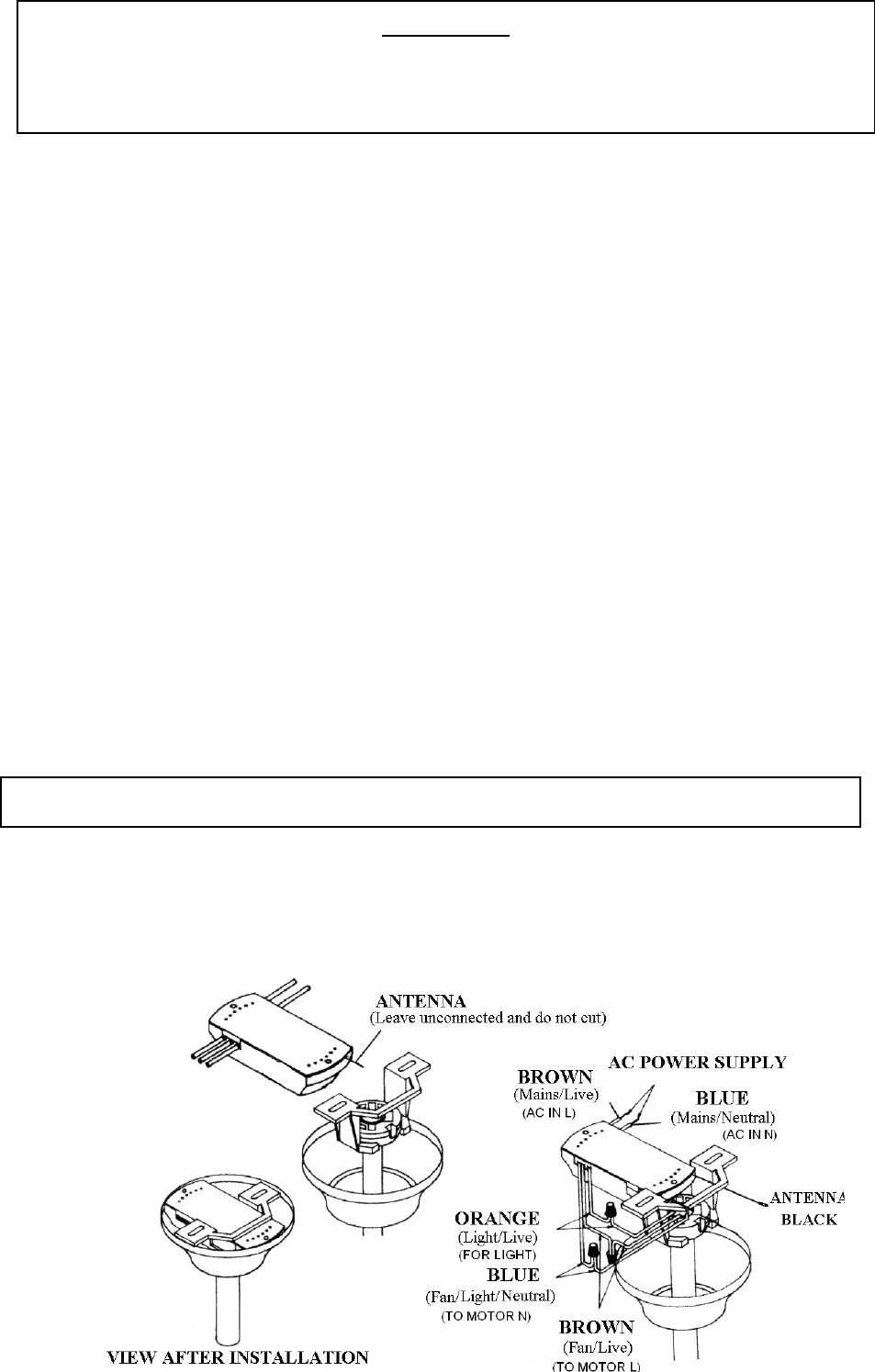

2. Once the connection has been made, the receiver inserts into the drop rod hanging bracket.
The canopy comes up to cover the receiver and bracket.
IMPORTANT
YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED AND LIGHT
KIT (IF ANY) TO ON POSITION BEFORE OPERATING REMOTE CONTROL.
CAUTION: INCORRECT WIRE CONNECTION WOULD DAMAGE THIS RECEIVER.
LEARNING PROCESS
1. This unit finished learning process inside manufactory, if replace transmitter or receiver, user
need to redo learning process before using this unit. Receiver could remember up to 5pcs
transmitter.
2. After installing the unit and power on, open battery cover (with battery, DC12V/A23 1pc,
installed) and press and use a ball pen to hold ”LEARNING” key 1~3seconds, FAN will be turn
off and the turn to medium speed, which indicate that learning process finished. Learning effect
distance is same with remote’s. Please note that must press the “LEARNING KEY” within 30
seconds after power on. If just replace batteries, no need to re-learn.
3. Please note that the transmitter can learn in multiple receiver, when doing learning process
please make sure not learn in other receiver. Suggest to separate power switches of fans in 2
meter range.
FUNCTIONS OF TRANSMITTER

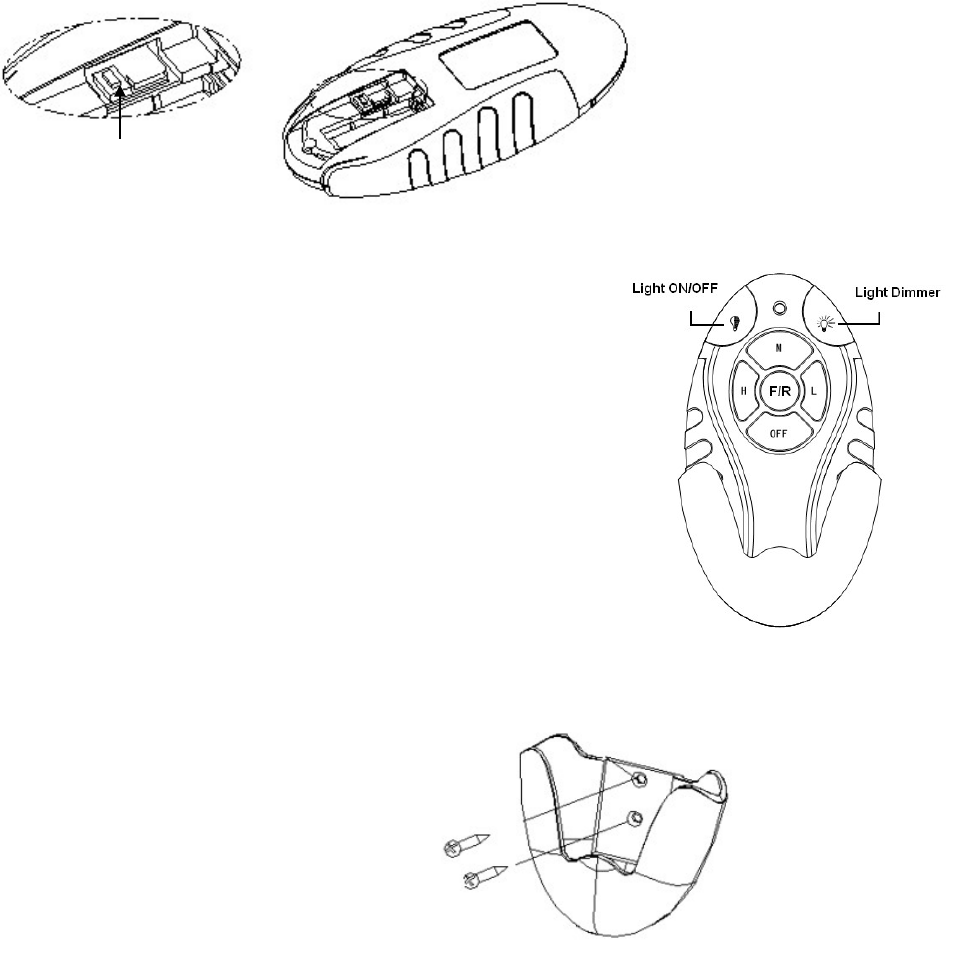

LIGHT : ON/OFF- Press and release immediately to turn
on
or off the light.
DIMMER-Press and hold to dim or brighten light
to the desired level and release.
OFF : Turn off the ceiling fan.
H :Turn on the fan at high speed
M :Turn on the fan at medium speed
L :Turn on the fan at low speed
F/R : Press and release immediately to set fan wind direction up or down
LEARNING
KEY
Installation of Transmitter
Wall Mount Holder with two
screws.
TR32B-L
CAUTION:
To assure continued FCC compliance:
FCC ID：KUJCE10719
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Any changes or modifications not expressly approved by the grantee of this device could
void the user's authority to operate the equipment.
