User Manual
CEILING FAN REMOTE CONTROLLER
OPERATION AND INSTALLATION INSTRUCTIONS
(Please keep this instruction pamphlet.)
IMPORTANT POINTS TO REMEMBER:
1. Read and save these instructions.
2. Please note that all fixed wiring appliances should be installed by a qualified electrician.
3. The supply to the remote control receiver should be connected through a mains switch, i.e.
existing wall switch.
4. Disconnect from power supply at wall switch before working on remote control receiver or
ceiling fan.
5. Install receiver into the ceiling fan canopy of the fan to ensure proper protection.
6. This unit is to be used for the control of ceiling fan and in an AC120V 60Hz power supply only.
7. Do not install in damp locations or immerse in water. (For indoor use only.)
8. Do not pull on or cut leads shorter.
9. Do not drop or bump the unit.
10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking
takes place as this will damage the transmitter. Dispose of used battery properly, and keep
the battery out of reach of children.
11. CAUTION: To reduce the risk of fire or injury, do not use this product in conjunction with any
variable (rheostat) wall control.
INSTALLATION INSTRUCTIONS

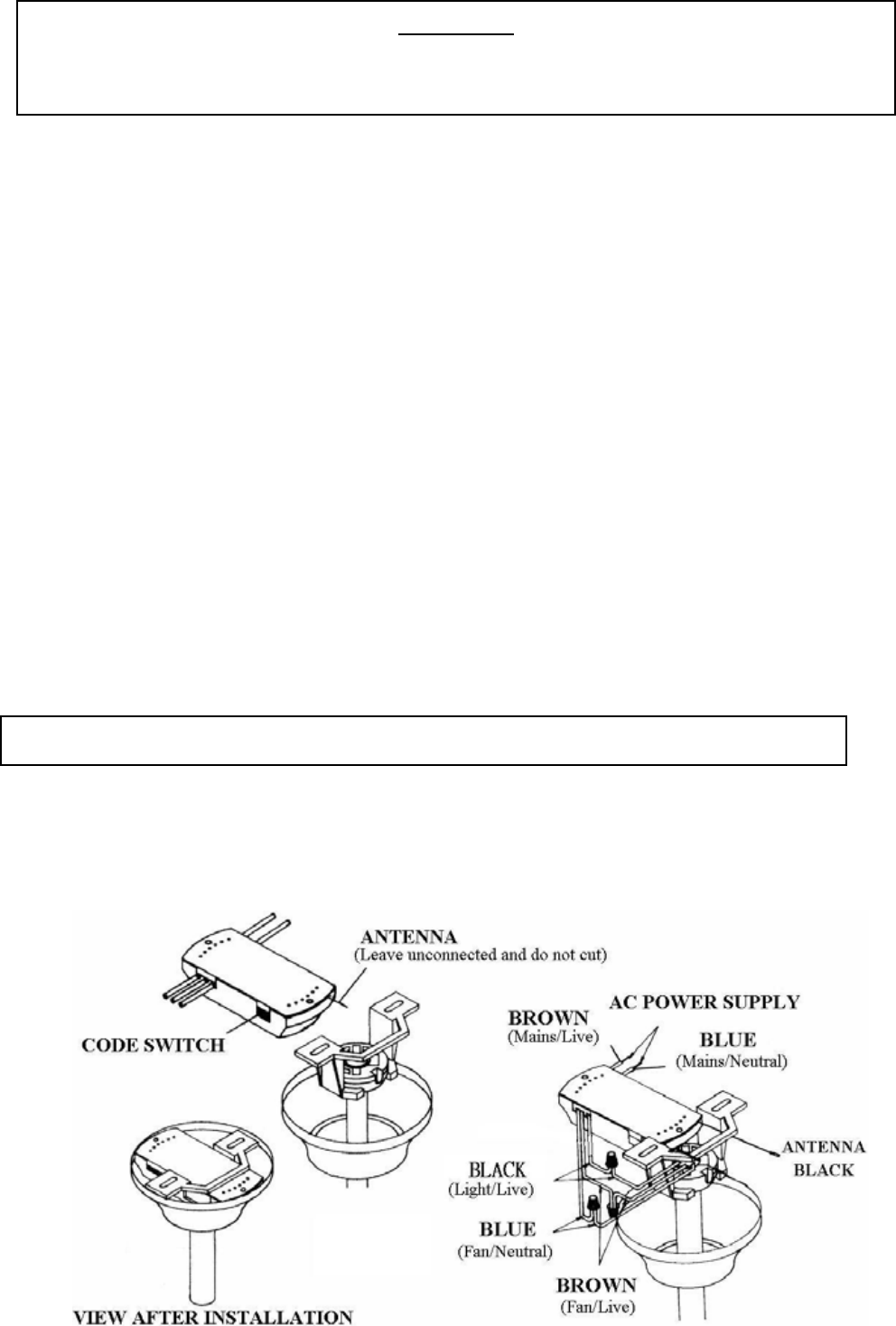

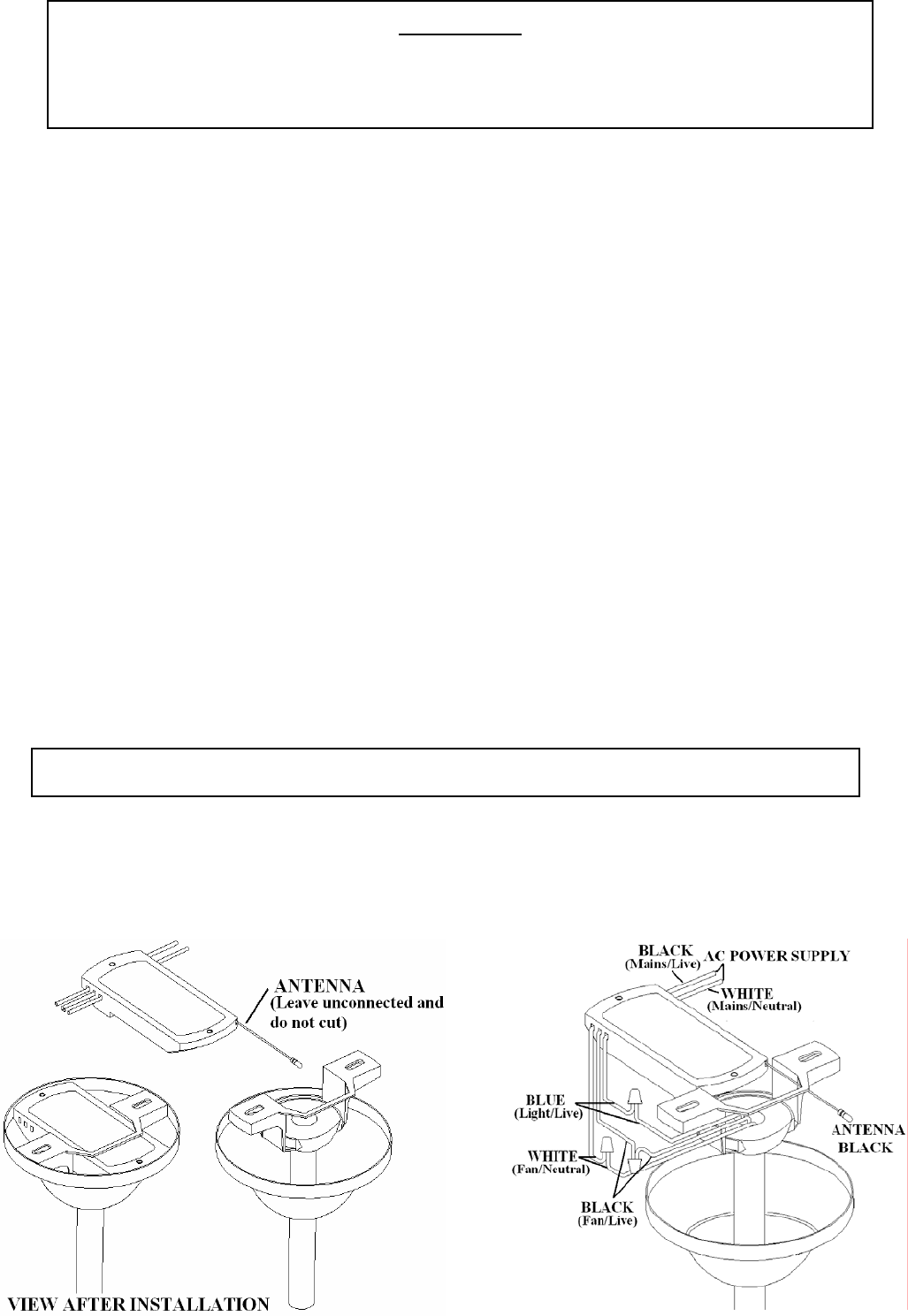

1. Ceiling fan must be set at HIGH speed and light kit (If any) at ON position by pressing the
“Light Switch” after installation.
2. Once the connection has been made, the receiver inserts into the drop rod hanging bracket.
The canopy comes up to cover the receiver and bracket.
IMPORTANT
YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED AND LIGHT
KIT (IF ANY) TO ON POSITION BEFORE OPERATING REMOTE CONTROL.
CAUTION: INCORRECT WIRE CONNECTION WOULD DAMAGE THIS RECEIVER.

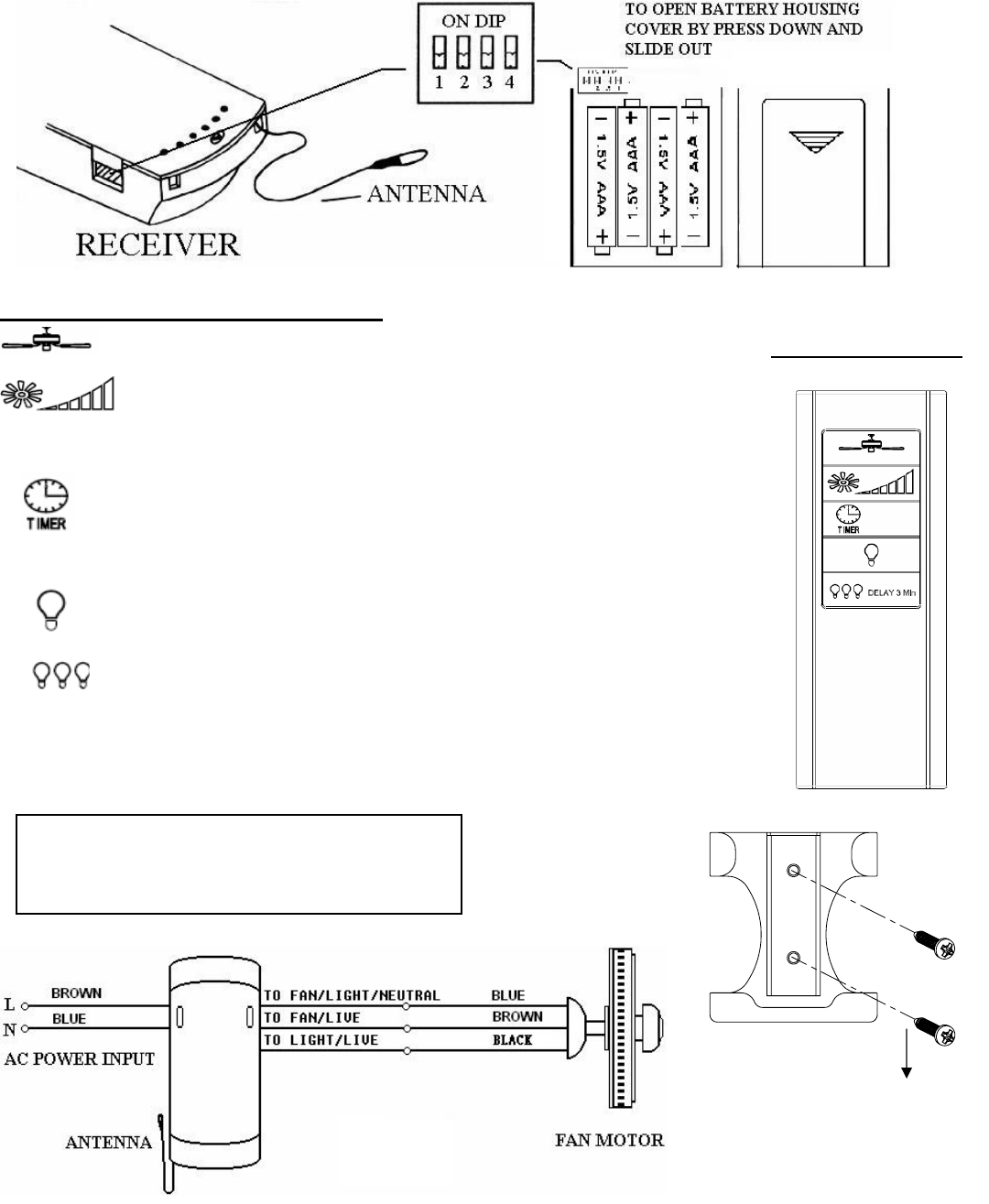

LEARNING PROCESS
1. This unit finished learning process inside manufactory, if replace transmitter or receiver, user
need to redo learning process before using this unit. Receiver could remember up to 5pcs
transmitter.
2. After installing the unit and power on, open battery cover (with batteries, DC1.5V/AAA 4pcs,
installed) and press and use a ball pen to hold ”LEARNING” key 1~3seconds, FAN will be turn
off and the turn to medium speed, which
indicate that learning process finished. Learning
effect distance is same with remote’s. Please
note that must press the “LEARNING KEY”
within 60sensonds after power on. If just
replace batteries, no need to re-learn.
3. Please note that the transmitter can learn in
multiple receiver,
when doing learning process please make sure
not learn in other receiver. Suggest to separate
power switches of fans in 2 meter range.

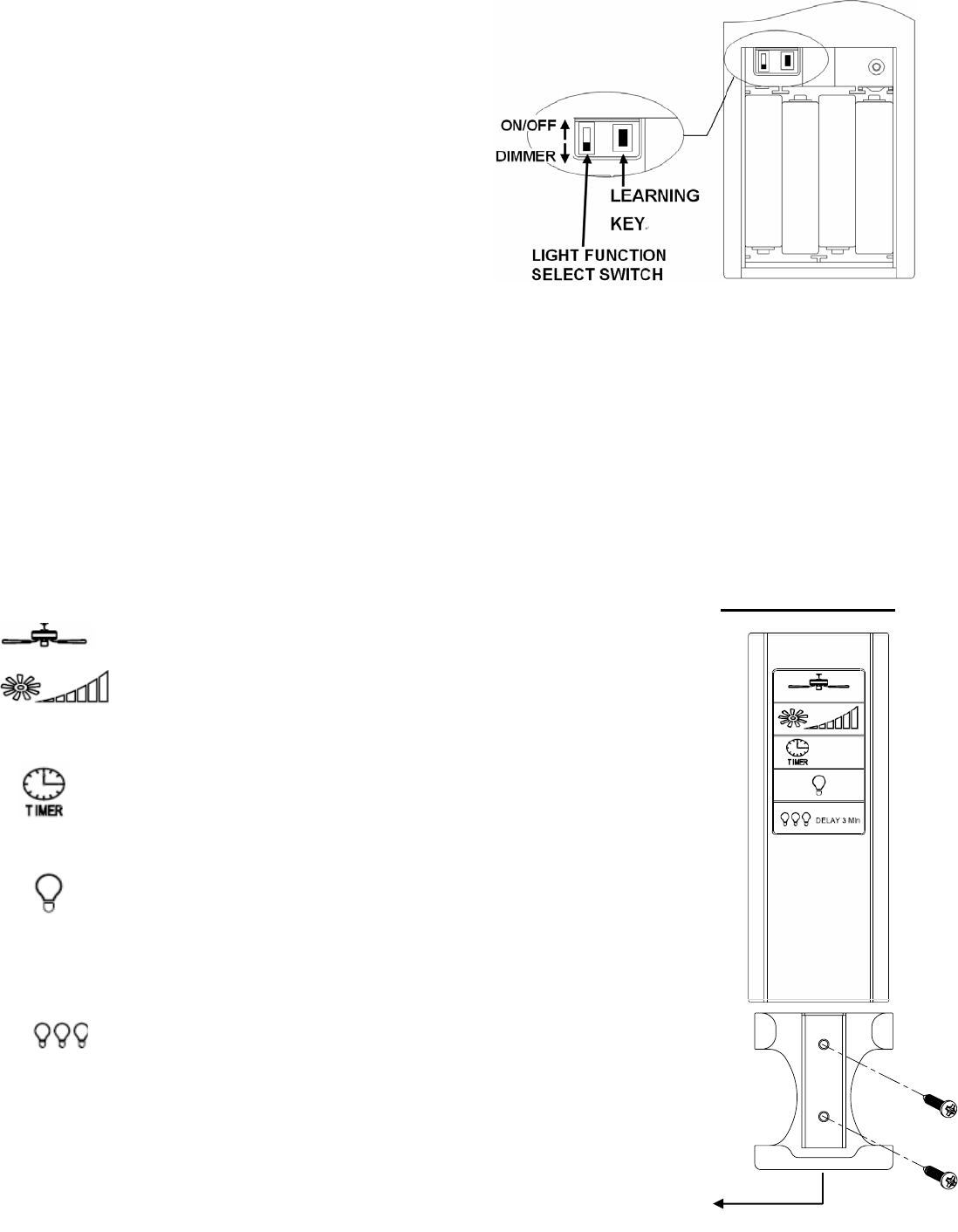

LIGHT FUNCTION SELECT SWITCH
1. If installed energy light onto ceiling fan, please slide the “light function select switch” to on/off
position. If installed tungsten light onto ceiling fan, please slide the “light function select switch”
to dimmer position.
2. Light load: 190W (Max.) If overload, the receiver will cut off light power automatically. Please change
the light load.
FUNCTIONS OF TRANSMITTER
: Touch and release immediately to turn on or off the fan.
: Touch and release immediately to turn on the fan
at low/medium/high speed.
: Touch this key to select the desired time from 1~12 hours, then fan
will turn off automatically after that time.
: Touch and release immediately to turn on or off the light.
Touch and release this key to brighten light to the desired level.
(Tungsten only and light function select switch on dimmer position.)
DELAY 3 Min :
Touch and release immediately, then the light will automatically turn off 3 minutes when the
light is on. But when light is off, touch this key, the light will turn on and then turn off after 3
minutes.
TRANSMITTER
Installation of Transmitter Wall Mount
Holder with two screws.
