Chungear Co CE9810 Ceiling Fan Remote Controller (Transmitter) User Manual
Chungear Industrial Co Ltd Ceiling Fan Remote Controller (Transmitter)
User Manual
CEILING FAN REMOTE CONTROLLER
OPERATION AND INSTALLATION INSTRUCTIONS
(Please keep this instruction pamphlet.)
IMPORTANT POINTS TO REMEMBER:
1. Read and save these instructions.
2. Please note that all fixed wiring appliances should be installed by a qualified electrician.
3. The supply to the remote control receiver should be connected through a mains switch, i.e.
existing wall switch.
4. Disconnect from power supply at wall switch before working on remote control receiver or
ceiling fan.
5. Install receiver into the ceiling fan canopy of the fan to ensure proper protection.
6. This unit is to be used for the control of ceiling fan and in an AC120V 60Hz power supply only.
7. Do not install in damp locations or immerse in water. (For indoor use only.)
8. Do not pull on or cut leads shorter.
9. Do not drop or bump the unit.
10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking
takes place as this will damage the transmitter. Dispose of used battery properly, and keep
the battery out of reach of children.
11. CAUTION: To reduce the risk of fire or injury, do not use this product in conjunction with any
variable (rheostat) wall control.
INSTALLATION INSTRUCTIONS

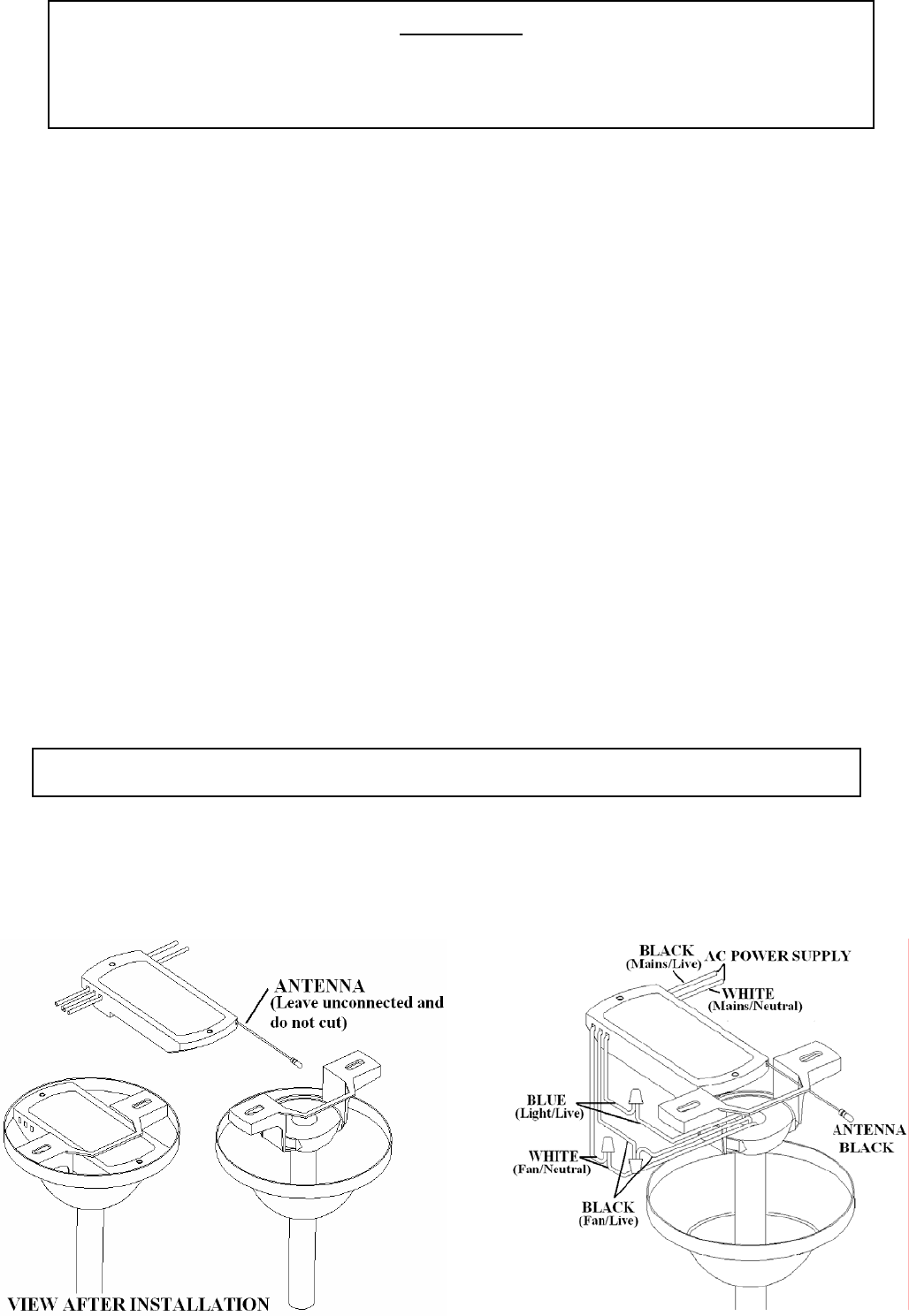

1. Ceiling fan must be set at HIGH speed and light kit (If any) at ON position by pressing the
“Light Switch” after installation.
2. Once the connection has been made, the receiver inserts into the drop rod hanging bracket.
The canopy comes up to cover the receiver and bracket.
IMPORTANT
YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED AND LIGHT
KIT (IF ANY) TO ON POSITION BEFORE OPERATING REMOTE CONTROL.
CAUTION: INCORRECT WIRE CONNECTION WOULD DAMAGE THIS RECEIVER.
LEARNING PROCESS
1. This unit finished learning process inside manufactory, if replace transmitter or receiver, user
need to redo learning process before using this unit. Receiver could remember up to 5pcs
transmitter.
2. After installing the unit and power on, open battery cover (with battery, DC12V/A23 1pc,
installed) and press and use a ball pen to hold ”LEARNING” key 1~3seconds, FAN will be turn
off and the turn to medium speed, which indicate that learning process finished. Learning effect
distance is same with remote’s. Please note that must press the “LEARNING KEY” within
60sensonds after power on. If just replace batteries, no need to re-learn.
3. Please note that the transmitter can learn in multiple receiver, when doing learning process
please make sure not learn in other receiver. Suggest to separate power switches of fans in 2
meter range.

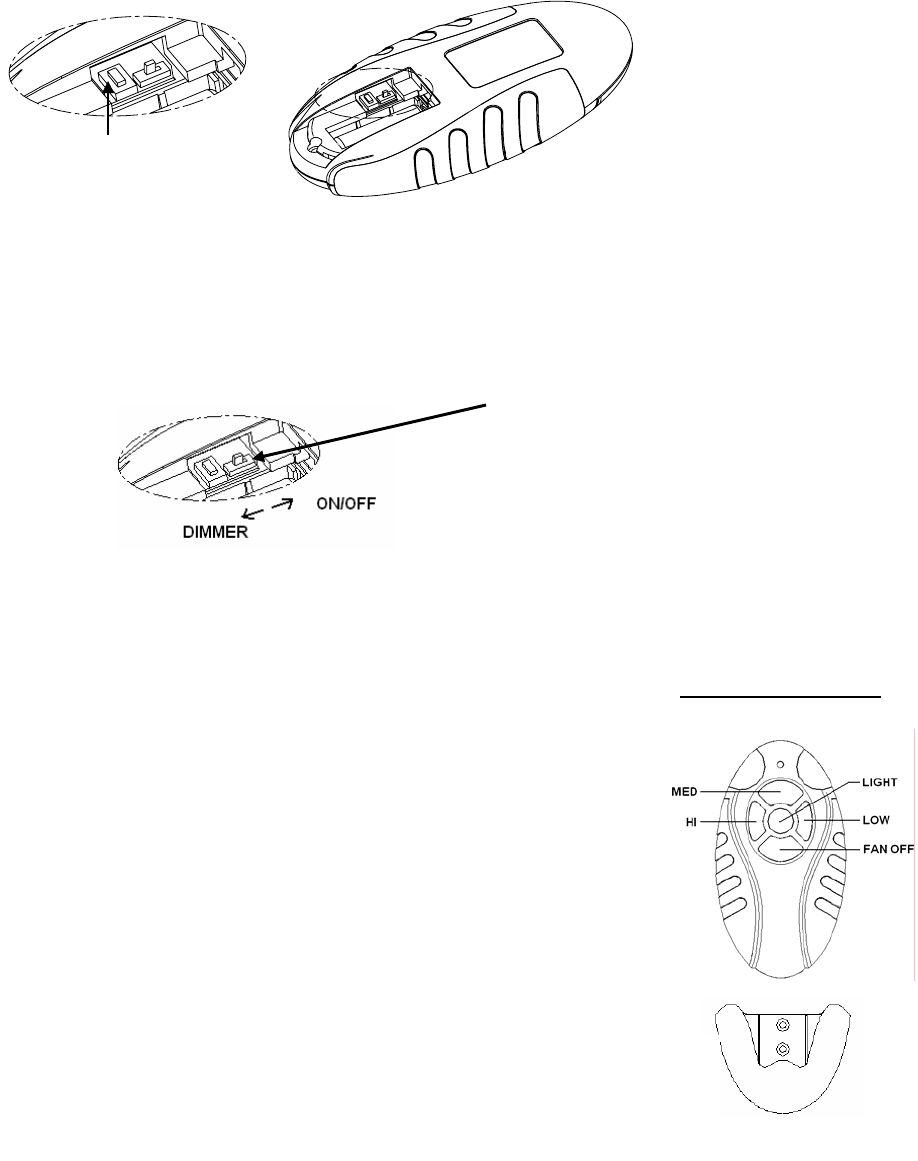

LIGHT FUNCTION SELECT SWITCH
1. If installed energy light onto ceiling fan, please slide the “light function select switch” to on/off
position. If installed tungsten light onto ceiling fan, please slide the “light function select switch”
to dimmer position.
2. Light load: 190W (Max.) If overload, the receiver will cut off light power automatically. Please change
the light load.
FUNCTIONS OF TRANSMITTER
LIGHT : ON/OFF- Press and release immediately to turn on or off
the light.
DIMMER-Press and hold to dim or brighten light
to the desired level and release.
(Tungsten only and light function select switch on dimmer
position.)
FAN OFF : Turn off the ceiling fan.
HI :Turn on the fan at high speed
MED :Turn on the fan at medium speed
LOW : Turn on the fan at low speed
TRANSMITTER
LEARNING
KEY
Installation of Transmitter
Wall Mount Holder with two
screws.
LIGHT FUNCTION
SELECT SWITCH
FEDERAL COMMUNICATIONS COMMISSION
INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are desi
g
ned to
p
rovide reasonable
p
rotection a
g
ainst harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television rece
p
tion
,
which can be determined b
y
turnin
g
the e
q
ui
p
ment off and on
,
the user is encoura
g
ed to tr
y
to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
To assure continued FCC compliance:
Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to
operate the equipment.
FCC ID：KUJCE9810
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
