Chungear Co ST18003 CEILING FAN REMOTE CONTROLLER User Manual TR318A Instructions
Chungear Industrial Co Ltd CEILING FAN REMOTE CONTROLLER TR318A Instructions
User Manual
CEILING FAN REMOTE CONTROLLER
OPERATION AND INSTALLATION INSTRUCTIONS
(Please keep this instruction pamphlet.)
IMPORTANT POINTS TO REMEMBER:
1. Read and save these instructions.
2. Please note that all fixed wiring appliances should be installed by a qualified electrician.
3. The supply to the remote control receiver should be connected through a mains switch, i.e. existing wall switch.
4. Disconnect from power supply at wall switch before working on remote control receiver or ceiling fan.
5. Install receiver into the ceiling fan canopy of the fan to ensure proper protection.
6. This unit is to be used for the control of ceiling fan and in an AC120V 60Hz power supply only.
7. Do not install in wet locations or immerse in water.
8. Do not pull on or cut leads shorter.
9. Do not drop or bump the unit.
10. PLEASE NOTE: The battery will weaken with age and should be replaced before leaking takes place as this will
damage the transmitter. Dispose of used battery properly, keep the battery out of reach of children.
11. CAUTION: To reduce the risk of fire or injury, do not use this product in conjunction with any variable (rheostat)
wall control.
INSTALLATION INSTRUCTIONS
1. Ceiling fan must be set at HIGH speed and light kit (If any) at ON position by pulling the “Pull Switch” after
installation.

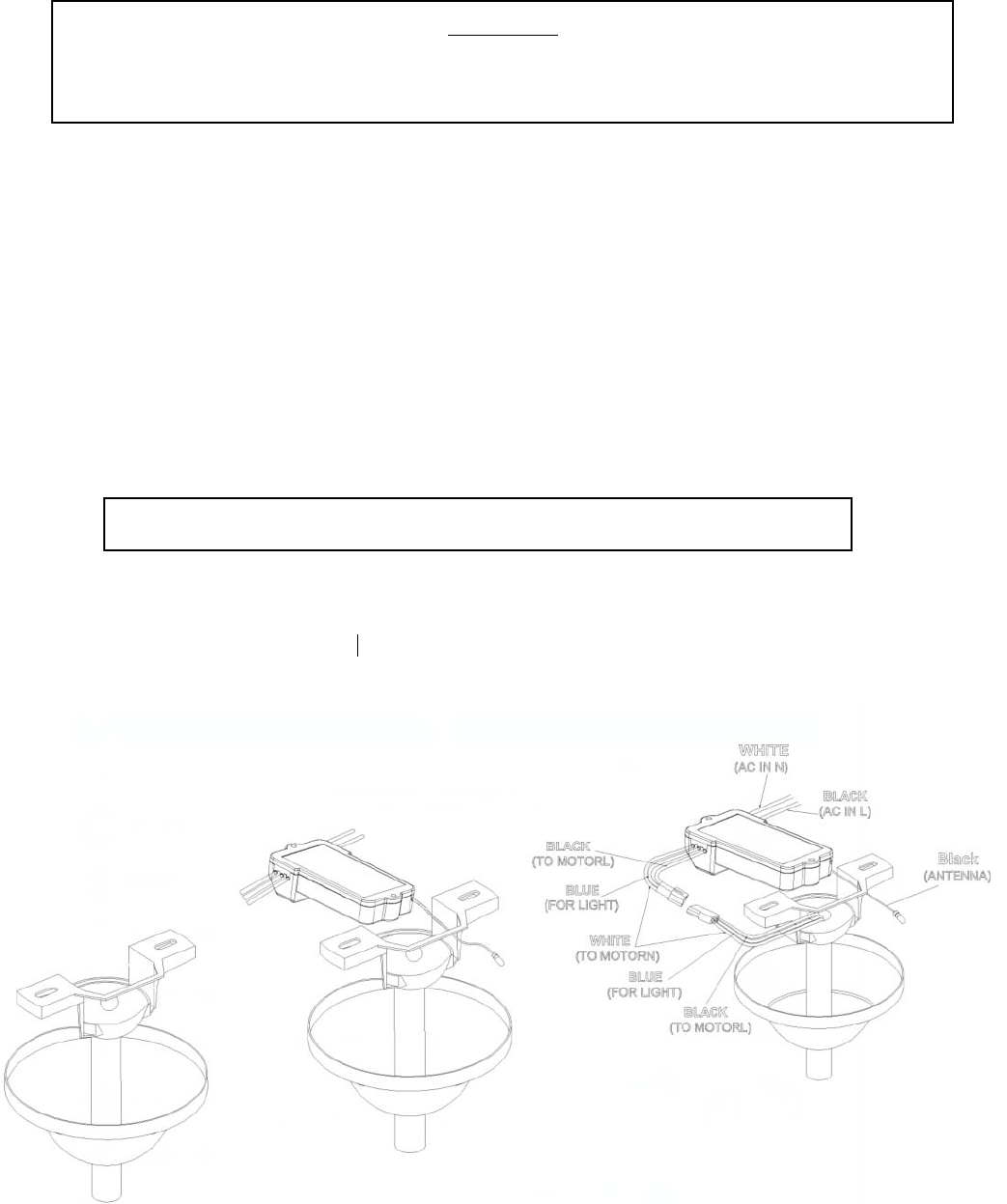

2. Once the connection has been made, the receiver inserts into the drop rod hanging bracket. The canopy comes
up to cover the receiver and bracket.
CHANNEL SETTING STEPS:

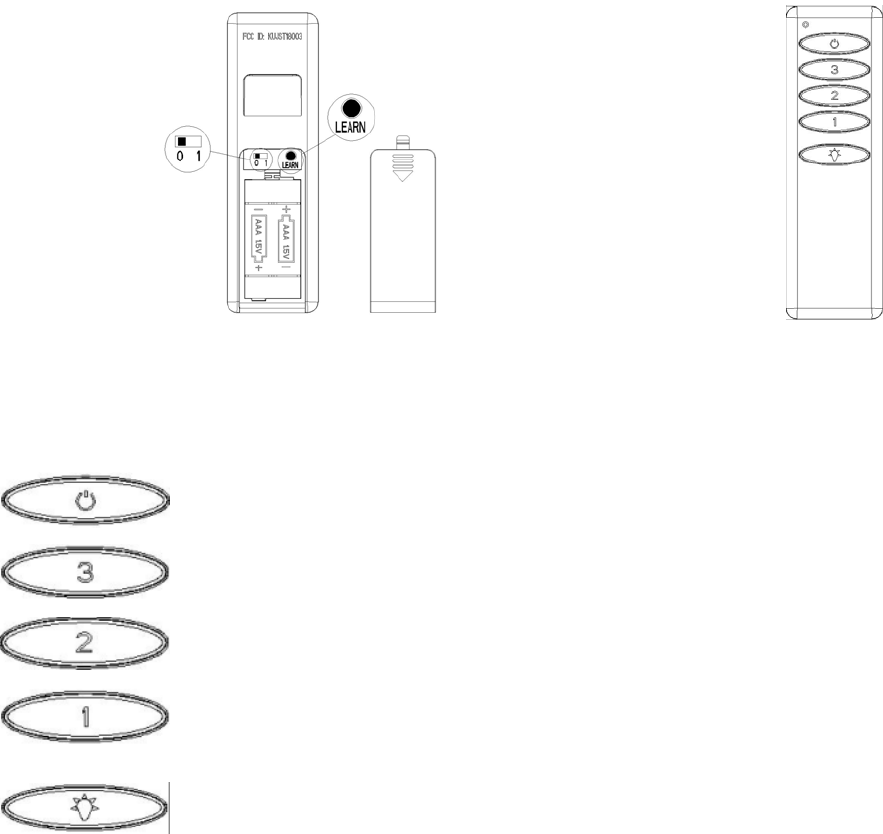

1. Make sure power to the fan is off. Open the remote battery cover and install 2pcs DC1.5V,AAA batteries.
(Fig. 2).
2. Change the dip switch from 0 to 1 (Fig. 2).
3. Turn on power to the fan, and within 30 seconds press and hold the “Learn” button for 5 seconds to
allow the handset and receiver to pair. Fan will turn on at low speed and light (if installed) will turn off.
This confirms that the setting is active and ok.
IMPORTANT
YOU MUST SET CEILING FAN MANUAL SWITCH TO HIGH SPEED AND LIGHT KIT (IF ANY) TO ON
POSITION BEFORE OPERATING REMOTE CONTROL.
CAUTION: INCORRECT WIRE CONNECTION WOULD DAMAGE THIS RECEIVER.
FIG. 1
DIP SWITCH – 0 & 1
0: All handsets and receivers are factory pre-set to the same channel. You can operate the fan without
doing a channel setting above but we recommend that you set an individual channel for your fan.
1: This is to allow for each handset and receiver to be set on an individual channel.
FUNCTIONS OF TRANSMITTER
The power button will turn the fan power on or off when press this button within 3 seconds.
Turn on high speed
Turn on medium speed
Turn on low speed
ON/OFF- Press and release immediately to turn on or off the light
DIMMER- Press and hold on to dimmer or brighten the light.
To assure continued FCC compliance:
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the
dealer or an experienced radio/TV technician for help.
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTE 1: Any changes or modifications not expressly approved by the grantee of this device could void the user's
authority to operate the equipment.
FIG. 2 FIG. 3
