WIRELESS IMAGER

Reference Manual

International Edition, Rev. B5

Wireless FuzzyScan

Reference Manual

Revision History

Rev. No. Released Date Description

Rev. A Oct 16, 2009 First Release

Rev. A1 Oct 22, 2009  Page 6 Revise “Clone Function” operation method.

 Page 68 Add “Save Configuration” and “Master Default” to System Commands.

Rev. A2 Nov 27, 2009

 Page 53 “Bluetooth Device Name” – Modify user define characters from 1 – 14

characters to 1 – 16 characters.

 Page 69 Add “Indications”.

Rev. A3 Mar 05, 2010

 Page 25 Modify UPC-E/EAN-8 expansion and UPC-A standardization.

 Page 43 Rename “Time Out Control” to “Serial Response Time-out”.

 Page 45 Rename “Presentation Scanning Mode” to “Presentation Control”.

 Page 48 Rename “Auto Power Off Duration” to “Light Source On Time”.

Add “Extremely short” option to Good Read Duration.

 Page 49 Rename “Presentation Scanning Auto-sense” to “Presentation Auto-sense”.

Add “Presentation Sensitivity”

Rev. A4 Apr 27, 2010  Page 38 Hands Free Time-out – Add “Disable”.

 Page 43 Baud Rate – Add 57.6K BPS and 115.2K BPS.

Rev. A5 Jun 28, 2010

 Page 27 Add “UPC/EAN Security Level”.

 Page 49 Add “Time Delay to Low Power Trigger”

 Page 47 Add “Good Read Indicator”.

 Page 48 Add “Scan Voting”.

Rev. A6 Sep 20, 2010

 Page 25,26 Rename ”Scan Voting” to “Supplement Scan Voting” and add “Supplement

Scan Voting” in Symbology Reading Control

 Page 27 Add “EAN Supplement Control”

 Page 38 Keyboard Layout – Add “Czech (QWERTY)”, remove “Universal”, and rename

Spain (QWERTY) to Spain (Spanish QWERTY), Latin America (QWERTY) to

Spain (Latin America, QWERTY)

Wireless FuzzyScan

Reference Manual

Revision History

Rev. No. Released Date Description

Rev. A6 Sep 20, 2010

 Page 48 Remove ”Scan Voting” and add “Scan Rate Control ”

 Page 54 Add “<Scanned Data><Field Delimiter><Quantity>”

parameter selection in Batch Data

Quantity Output Format.

Rev. A7 Nov 10, 2010  Page 44 Baud Rate – Cancel Baud Rate 300/600 BPS.

Rev. A8 Jan 2, 2011

 Page 47 Buzzer Tone Adjust – Modify No power-on beep behavior. The setting of

No power-on beep will impact both Bluetooth Scanner and Smart Cradle.

Add “Beeping Control” setting.

Rev. A9 Mar 04, 2011  Page 44 Baud Rate – Revise 57.6K BPS and 115.2K BPS option code from 6.7. to 8.9.

Rev. B1 Mar 22, 2011

 Page 23 Add ”Code 39 Security Level”.

 Page 45 Add “NAK Retry Count”.

Add “ACK/NAK Transmission Indication”.

 Page 69 Add “Numeric Bar Codes ”.

 Page 73 Add “Connecting Apple iOS Devices Quick Sets”.

Rev. B2 Jul 22, 2011

 Page 19, 29, 34, 67 UCC/EAN-128 was renamed GS1-128.

 Page 45 Rename “ACK/NAK Transmission Indication” to “ACK Indication”.

 Page 45 Rename the 2 parameters of the “ACK Indication”.

(Disable Disable ACK Time-out Indication, Enable Enable ACK Time-

out

Indication)

 Page 45 Add 2 new parameters to “ACK Indication”.(Disable ACK Indication, Enable

ACK Indication)

 Page 47 Add 6 parameters to “Serial response time -out”. (800 mseconds, 3 seconds, 4

seconds, 8 seconds, 10 seconds, 15 seconds)

 Page 47 Cancel the parameter "User defined value (seconds)” of “

Serial response time

-out”.

 Page 54 Add “Laser Aiming Control” function.

Wireless FuzzyScan

Reference Manual

Revision History

Rev. No. Released Date Description

Rev. B3 Nov 04, 2011  Page 3, 5, 10 “Paging/ Reset button” is changed from 3 seconds to 5 seconds.

 Page 24 Add a new function “Codabar Check Digit Settings”

Rev. B4 Jan 03, 2012

 Page 49 Cancel 1 parameter of “Code 39/Code 128 Emulation”

.(Disable standard code

39 emulation - -0)

 Page 49 Change of default setting to Enable standard code 39 skip emulation in “

Code

39/Code 128 Emulation”.

(Disable standard code 39 emulation (0) Enable standard code 39 skip

emulation (1))

Rev. B5 Mar 05, 2012  Page 56 Add 3 new functions:”1D Barcode Forward-reading Indication”, “1D Barcode

Backward-reading Indication”, “1D Barcode Direction Indication Transmission”

Wireless FuzzyScan

Reference Manual

Cino makes no warranty of any kind with regard to this publication, including, but not limited to, the implied warranty of

merchantability and fitness for any particular purpose. Cino shall not be liable for errors contained herein or for incidental

consequential damages in connection with the furnishing, performance, or use of this publication. This publication contains

proprietary information that is protected by copyright. All rights are reserved. No part of this publication may be photocopied,

reproduced or translated into any language, in any forms, in an electronic retrieval system or otherwise, without prior written

permission of Cino. All product information and specifications shown in this document may be changed without prior notice.

Warranty

Cino warrants its products against defects in workmanship and materials from the date of shipment, provided that the

product is operated under normal and proper conditions. The warranty provisions and durations are furnished by different

warranty programs. The above warranty does not apply to any product which has been (i) misused; (ii) damaged by accident

or negligence; (iii) modified or altered by the purchaser or other party; (iv) repaired or tampered by unauthorized

representatives; (v) operated or stored beyond the specified operational and environmental parameters; (vi) applied

software, accessories or parts are not supplied by Cino; (vii) damaged by circumstances out of Cino’s control, such as, but

not limited to, lightning or fluctuation in electrical power. Any defective product must follow the warranty program and RMA

procedures to return Cino for inspection.

Regulatory

FCC part 15B, FCC part 15C

EN61000-6-2, EN61000-6-3, EN60950-1, EN301 489-1, EN301 489-17, EN300 328

CNS13438, CNS14336

AS/NZS CISPR 22:2009 Class B

LP0002

Wireless FuzzyScan

Reference Manual

MIC T401

LED Eye Safety

IEC62471 Exempt group

Laser Eye Safety

IEC60825-1 Class 1

Wireless FuzzyScan

Reference Manual

Table of Contents

Getting Started

Getting Familiar with Your FuzzyScan 1

Preparation before Using 2

Decide Your Radio Link Mode 3

Using FuzzyScan in PAIR Mode 4

Using FuzzyScan in PICO Mode 5

Using FuzzyScan in HID Mode 7

Using FuzzyScan in SPP Mode 8

Out-of-range Scanning/Presentation Scanning/Paging Function 10

Batch Scanning (Inventory Mode) 11

Configure Your FuzzyScan

Bar Code Programming Manual 13

Programming Procedures 14

Host Interface Selection 18

Symbology Reading Control 19

Keyboard Interface Control 38

Serial Interface Control 42

Wand/Laser Emulation Control 45

Operation Control 46

Condensed DataWizard 56

Appendix

Symbology ID Table 63

Keyboard Function Code Table 64

ASCII Input Shortcut 65

Link Mode Quick Set/Operation Mode Quick Set 66

Host Interface Quick Set 67

Option Codes 68

System Commands 69

Indications 70

Wireless FuzzyScan

Reference Manual

Getting Started

Getting Familiar with Your FuzzyScan

Thank you for choosing Cino FuzzyScan Bluetooth Cordless Image Scanner. Powered by the combination of cutting-edge

FuzzyScan 2.0 Imaging Technology and Bluetooth 2.1 EDR wireless technology, it not only provides outstanding reading

performance, but also delivers the convenience and freedom of mobility. This document provides a quick reference for

installation and operation purposes. The complete documentation is available at www.cino.com.tw.

F700BT Series Scanner HB2110 Smart Cradle (Base)

F600BT Series Scanner HB2100 Charging Cradle (Base)

Center Indicator

Side Indicators

Paging/Reset Button

Host Interface Port

DC Power Jack

Power Indicator

Reserved

DC Power Jack

Link Indicator

Status Indicator

Beeper

Scan Window

Trigger

Reset Button

Battery Cavity

End Cap

Wireless FuzzyScan

Reference Manual

Getting Started

Preparation before Using

Install the Battery

Charging the Battery

There are 4 different power plugs in your power suppl

y kit. Choose the appropriate local

plug and slot it onto the power adapter cavity until it is locked.

Plug the AC power plug into the appropriate AC wall socket.

Plug the DC power cord of the power supply unit into the DC power jack of the cradle.

The smart cradle will issue the power on beeps and the center indicator will give

one

blue blink

. If you use the charging cradle, please check the power indicator of the

charging cradle turns steady blue.

Place the scanner on the cradle. The status indicator of scanner will turn steady red

the battery is not fully charged. When the battery is fully charged, the status indicator of

scanner will flash green at regular interval.

Please charge the new battery pack for 8 hours prior to the first use.

Ensure the battery co

ntacts

of the battery pack are facing the charging contacts inside

the battery cavity.

Slide the battery pack into the battery cavity until hearing a click sound before locking it

with the end cap.

The scanner will give 4 bee

ps when the battery pack is installed

properly if the battery pack still has power.

Secure the end cap with the screw provided, and make sure the end cap is secured

properly before using the scanner.

Wireless FuzzyScan

Reference Manual

Getting Started

Decide Your Radio Link Mode

The FuzzyScan Bluetooth image scanner provides several radio link modes to communicate with most host devices. When

the Bluetooth-enabled host device is not available, it can work with the smart cradle in PAIR mode (one to one connection) or

PICO mode (multiple connections) to provide a plug-and-play cordless migration of your existing non-Bluetooth-enabled IT

assets. Moreover, you are also able to use the scanner to work with Bluetooth-enabled host devices via SPP master/slave

modes and HID mode.

After losing the radio link, the scanner is capable of resuming the radio connection automatically while it returns to the

communication coverage. But please note that this feature is not available in SPP slave mode. If you would like to change

the radio link mode, you have to scan the “Uninstall” command to revert the scanner to uninstall state.

PAIR Mode

If the Bluetooth device is not available in your existing system, this is the simplest plug-and-play solution. In this mode, one

scanner can only work with one smart cradle. The smart cradle not only provides the Bluetooth radio link with the scanner,

but also offers the legacy cabled interfaces to the host device, including USB HID, USB COM, PS/2(DOS/V) Keyboard

Wedge and RS232 Serial.

PICO Mode

For the requirement of multiple connections, up to 7 scanners can be connected to one smart cradle concurrently. If you

would like to un-pair all paired scanners and smart cradle, you can simply press and hold the paging/reset button of the

smart cradle for over 5 seconds. If you just want to un-pair part of the paired scanners, please take those paired scanners to

scan the “Uninstall” command one by one.

HID Mode

Through the most helpful HID service, the scanner can work like a Bluetooth keyboard. In this mode, the scanner is

discoverable by the radio connection request issued by a remote host device. For security purpose, you will be requested to

input the PIN Code to establish the Bluetooth connection in most time.

SPP Master/Slave Mode

Through the standard SPP service, the scanner can work like a serial input device. In SPP master mode, the scanner

initiates the radio connection request to a remote slave device. In SPP slave mode, the scanner is discoverable by the radio

connection request issued by a remote master device.

Wireless FuzzyScan

Reference Manual

Getting Started

Using FuzzyScan in PAIR Mode

Ensure the battery is fully charged. You may refer to the section of Preparations before Using for details.

Please choose your desired interface cable, then plug it into the host interface port of the smart cradle and connect it to

the host device.

Turn on the power of your host device.

Please note that the scanner has been pre-paired already, if the scanner is shipped together with the smart cradle. You

will see the link indicator of scanner gives 1 blue blink per 2.5 seconds and the middle indicator of smart cradle turns

steady blue. If the scanner and smart cradle just give alternating red and green blinks (in “Uninstall” state), please

follow steps 5-6 to establish the connection between the scanner and the smart cradle.

Scan “PAIR mode” command. The status indicator of scanner will turn steady red.

Uninstall

PAIR Mode

Place the scanner on the smart cradle, then you will hear one short beep to indicate the pairing process is activated. The

scanner will give continuous short clicks and the link indicator of scanner will flash blue quickly during the pairing process.

When you hear 4 beeps in ascending tone, the pairing process is completed. You will see the link indicator of scanner

giving 1 blue blink per 2.5 seconds and the center indicator of the smart cradle turning steady blue.

If the scanner pairing process failed or it’s not placed on the smart cradle within 20 seconds, you will hear 2 “Di-do Di-do”

beeps to indicate pair failure, the scanner will return to uninstall state automatically.

Scan the corresponding host interface quick set command to complete the installation.

The default host interface of smart cradle is preset to USB HID. If you want to set the host interface to USB COM, you have to

install the USB virtual COM driver into your host device before using the scanner. Please visit the CINO website to download

the software driver.

USB

PS/2

RS232

Wireless FuzzyScan

Reference Manual

Getting Started

Using FuzzyScan in PICO Mode

Ensure the battery is fully charged and choose your desired interface cable, then plug it into the host interface port of the

smart cradle and connect it to the host device.

Turn on the power of your host device.

Ensure the side indicators of the smart cradle give alternative red and green blinks (in “Uninstall” state). If the smart

cradle is paired with other scanners, you can press and hold the paging/reset button for over 5 seconds to un-pair all

paired scanners. Then the smart cradle will return to uninstall state automatically.

Prepare the scanners you desire to pair with smart cradle. Ensure the status indicator of each scanner give alternative

red and green blinks (in “Uninstall” state). If the scanner is not in uninstall state, please scan the “Uninstall” command to

un-pair the scanner. Then scan the “PICO mode” command, and the status indicator of scanner will turn steady red.

Uninstall

PICO Mode

Place the scanner on the smart cradle, then you will hear one short beep to indicate the pairing process is activated. The

scanner will give continuous short clicks and the link indicator of scanner will flash blue quickly during the pairing process.

When you hear 4 beeps in ascending tone, the pairing process is completed. You will see the link indicator of scanner

giving 1 blue blink per 2.5 seconds, the center indicator of the smart cradle turning steady blue and its side indicators

turning steady green.

If the scanner pairing process failed or it’s not placed on the smart cradle within 20 seconds, you will hear 2 “Di-do Di-do”

beeps to indicate pair failure, the scanner will return to uninstall state automatically.

Scan the corresponding host interface quick set command to complete the installation.

Please follow the same procedures to pair the other scanners with the smart cradle.

For user’s convenience, the smart cradle will automatically assign the ID numbers to each scanner. After completed all

pairing processes, you can scan the “System Information” command to check the assigned ID number of each scanner.

USB

PS/2

RS232

Wireless FuzzyScan

Reference Manual

Getting Started

Clone Function

For the user’s convenience, the clone function will help you to clone the host interface related parameters (please refer to

following table for details) from one of the paired scanners to the rest of paired scanners under PICO mode. You can use

one of the paired scanners to set the host interface related parameters first and then scan “Save Configuration” command.

After that, please take the other paired scanners to scan “Clone” command one by one to clone the host interface related

parameters.

Please ensure to keep those paired scanners in connected status when you use the “Clone” function. Because the host

interface related parameters can’t be cloned to the paired scanner in disconnected status.

Save Configuration

Clone

The below host interface related parameters will be impacted by clone function:

Data Transmission Parameter Serial Interface Control

Field Delimiter Handshaking Protocol

Data Transmission Format Intermessage Delay

Host Interface Control Interfunction Delay

Host interface Selection Intercharacter Delay

Keyboard Interface Control Baud Rate

Keyboard Layout Data Frame

Intermessage Delay Time Out Control

Interfunction Delay Wand Emulation Control

Intercharacter Delay Output Polarity

Caps Lock Control Initial Signal State

Caps Lock Release Control Margin Time

Function Key Emulation Module Time

Key Pad Emulation Narrow/Wide Ratio

Upper/Lower Case Code39 Emulation

Wireless FuzzyScan

Reference Manual

Getting Started

Using FuzzyScan in HID Mode

Ensure the battery is fully charged. Power on the scanner within radio range and ensure the status indicator of scanner

gives alternating red and green blinks (in “Uninstall” state). If the scanner is not in uninstall state, please scan the

“Uninstall” command first. Then scan the “HID Mode” command, and the link indicator of scanner will give 3 blue blinks

per 2 seconds.

Uninstall

HID Mode

Execute the Bluetooth Discovery procedure to find all available Bluetooth devices in your remote host. You will see ‘’CINO

FxxxBT-xxxx’’ is shown in the list if the scanner is successfully discovered already.

Double click the “CINO FxxxBT-xxxx” in the discovered Bluetooth device list. If the PIN Code or Passkey is requested for

security connection, please enter “00000000” (default setting). You will see “Keyboard on CINO FxxxBT-xxxx”, and

double click this HID service to establish the connection between the scanner and the remote host device.

The scanner will give 4 beeps in ascending tone to indicate the radio is connected. At the same time, the link indicator of

scanner will give 1 blue blink per 2.5 seconds to indicate the scanner is in radio-connected state.

Please note that if the scanner is not connected to the host device within 1 minute after scanning the “HID Mode”

command, the scanner will go to sleep automatically. You just need to press the trigger to wake up the scanner to

continue the installation.

1. The installation procedures vary on different remote host devices, operation systems and the Bluetooth software driver.

Please consult your professional IT consultant to obtain necessary support if any problem has been encountered during

the installation processes.

2. While using HID mode, beware of potential error in the data transmitted at the same time when radio link quality is poor.

You are suggested to use the scanner under the communication coverage all the times.

Wireless FuzzyScan

Reference Manual

Getting Started

Using FuzzyScan in SPP Mode

Establish SPP Master Connection

Ensure the battery is fully charged. Please go to the folder of “Hardware” located in Bluetooth Advanced Setting of the

remote host device to check its device MAC address. Then prepare a 12-character Code 128 barcode of the remote host

device MAC address, or follow the step 4 to input MAC address by scanning 12 option codes.

Ensure a virtual COM port is available in your remote host for connecting the scanner. If not, please go to the folder of

“Local Services” located in Bluetooth Advanced Setting. Click the “Add Serial Services” to add one more Bluetooth

COM port.

Power on the scanner within radio range and ensure the status indicator of scanner gives alternating red and green

blinks (in “Uninstall” state). If the scanner is not in uninstall state, please scan the “Uninstall” command first. Then scan

the “SPP Master Mode” command, and the status indicator of scanner will turn steady red.

Uninstall

SPP Master Mode

Scan a 12-character MAC address barcode, or scan 12 option codes and “FIN” command to confirm your inputs. The

scanner will give continuous short clicks and the link indicator of the scanner will flash blue quickly during the radio

connecting process. If the PIN Code or Passkey is requested for security connection, please enter “00000000” (default

setting).

The scanner will give 4 beeps in ascending tone to indicate the radio is connected. At the same time, the link indicator of

scanner will give 1 blue blink per 2.5 seconds to indicate the scanner is in radio-connected state.

Please note that if the scanner failed to connect to the host device within 30 seconds, the link indicator will give 3 blue

blinks per 2 seconds. But the scanner is still continuing to discover the host device for another 30 seconds before go to

sleep. In the interim, you still can scan “Uninstall” command to revert the scanner to uninstall state. If the scanner goes to

sleep already, you just need to press the trigger to wake up the scanner to continue the installation.

The installation procedures vary on different remote host devices, operating systems and the Bluetooth software driver.

Please consult your professional IT consultant to obtain necessary support if any problem has been encountered during the

installation processes.

Wireless FuzzyScan

Reference Manual

Getting Started

Establish SPP Slave Connection

Ensure the battery is fully charged and a virtual COM port is available in your remote host for connecting the scanner. If

not, please go to the folder of “Client Applications” located in Bluetooth Advanced Setting. Click the “Add COM Port” to

add one more Bluetooth COM port.

Power on the scanner within radio range and ensure the status indicator of scanner gives alternating red and green

blinks (in “Uninstall” state). If the scanner is not in uninstall state, please scan the “Uninstall” command first. Then scan

the “SPP Slave Mode” command, and the link indicator of scanner will give 3 blue blinks per 2 seconds.

Uninstall

SPP Slave Mode

Execute the Bluetooth Discovery procedure to find all available Bluetooth device list in your remote host. You will see

‘’CINO FxxxBT-xxxx’’ is shown in the list if the scanner is successfully discovered already.

Double click the “CINO FxxxBT-xxxx” on the discovered Bluetooth devices. If the PIN Code or Passkey is requested for

security connection, please enter “00000000” (default setting). You will see “Serial Port on CINO FxxxBT-xxxx”, and

double click this SPP service to establish the connection between the scanner and the remote host device.

The scanner will give 4 beeps in ascending tone to indicate the radio is connected. At the same time, the link indicator of

scanner will give 1 blue blink per 2.5 seconds to indicate the scanner is in radio-connected state.

Please note that if the scanner is not connected to the host device within 1 minute, the scanner will go to sleep. You can

press the trigger to wake up the scanner to continue the installation.

The installation procedures vary on different remote host devices, operating systems and the Bluetooth software drivers.

Please consult your professional IT consultant to obtain necessary support if any problem has been encountered during the

installation processes.

Wireless FuzzyScan

Reference Manual

Getting Started

Out-of-range Scanning

When the radio is connected between the scanner and the remote host device, the scanner will transmit each scanned data

right after scanning the barcode. However, the scanner is preset for unable to scan any barcode data when it loses the radio

connection with the remote host device.

If you enable the out-of-range scanning function, the scanner is able to continue scanning barcode data while it is out of

working range. All scanned data will be temporarily stored into the memory buffer until radio link resumed.

Enable Out-of-range Scannning

Disable Out-of-range Scanning

In case of the scanner is out of working range, you will hear 4 beeps in descending tone to indicate the radio connection lost.

The link indicator of scanner will give 3 blue blinks per 2 seconds. Once the scanner is back to working range, you will hear 4

beeps in ascending tone to indicate the radio connection rebuilt and the scanner will give 1 blue blink per 2.5 seconds. At the

same time, all stored scanned data will be transmitted automatically right after the radio link is resumed.

Presentation Scanning

The Presentation Scanning is designed for hand-free applications for user’s convenience. If the “Presentation Scanning

Auto-sense” function is enabled, the scanner is capable of automatically switching to presentation mode when you place it

onto the SmartStand or cradle.

Paging Function

The paging function is helpful for you to locate the paired smart cradle or scanner. If you would like to page the paired smart

cradle, you can scan “Paging” command. If you would like to page the paired scanner, you can press the paging/rest button

of the smart cradle no longer than 5 seconds.

Enable Presentation Scanning Auto-sense

Disable Presentation Scanning Auto-sense

Paging

Paging/Reset Button

Wireless FuzzyScan

Reference Manual

Getting Started

Batch Scanning (Inventory Mode)

Thanks to the specially designed Batch Scanning function, the scanner is capable of storing the barcode data up to 20,000

EAN-13 labels. It is an ideal cost-saving solution for inventory applications.

Once you scan the “Enter Batch Scanning” command to activate this function, all scanned barcode data will be stored into

the memory storage, and the status indicator of scanner will give green blink at regular interval during batch scanning. You

can scan and store the barcode data till the memory storage is full. If the storage is full, you will hear 2 long beeps and the

status indicator will give 2 red blinks to indicate out of storage. To terminate the batch scanning, please scan the “Exit Batch

Scanning” command.

Enter Batch Scanning

Exit Batching Scanning

How to Transmit Stored Data

The scanner is preset to scan the “Transmit Stored Data” command to transmit all stored data. During the transmission

process, the scanner will give continuous short clicks and blue blinks. Then the scanner will give two short beeps after data

transmission is completed.

Transmit Stored Data

But you are still able to set the scanner to transmit the stored data by placing the scanner onto the cradle as well.

Transmit Stored Data by Scanning

Barcode Command

Transmit Stored Data by Scanning Barcode

or Placing Scanner onto Cradle

Transmit Stored Data by

Placing Scanner onto Cradle

The scanner is preset to keep all the stored data until you scan the “Clear All Stored Data” command. But you are still able to

change the setting to “Auto Delete Stored Data after Transmission” as well.

Clear All Stored Data

Wireless FuzzyScan

Reference Manual

Getting Started

Auto Delete Stored Data

after Transmission

Keep Stored Data after

Transmission

If you scanned a wrong barcode, the “Delete Last Scanned Data’’ command is helpful to recover mistake. By scanning the

‘’Delete Last Scanned Data’’ command, the last stored data can be deleted.

Delete Last Scanned Data

Using Quantity Feature

If you want to input the quantity information of barcode data, you can enter the quantity from 1 to 9999 by scanning the

quantity barcodes right after you scanned the barcode data. The quantity information will be stored into the memory storage

together with the barcode data.

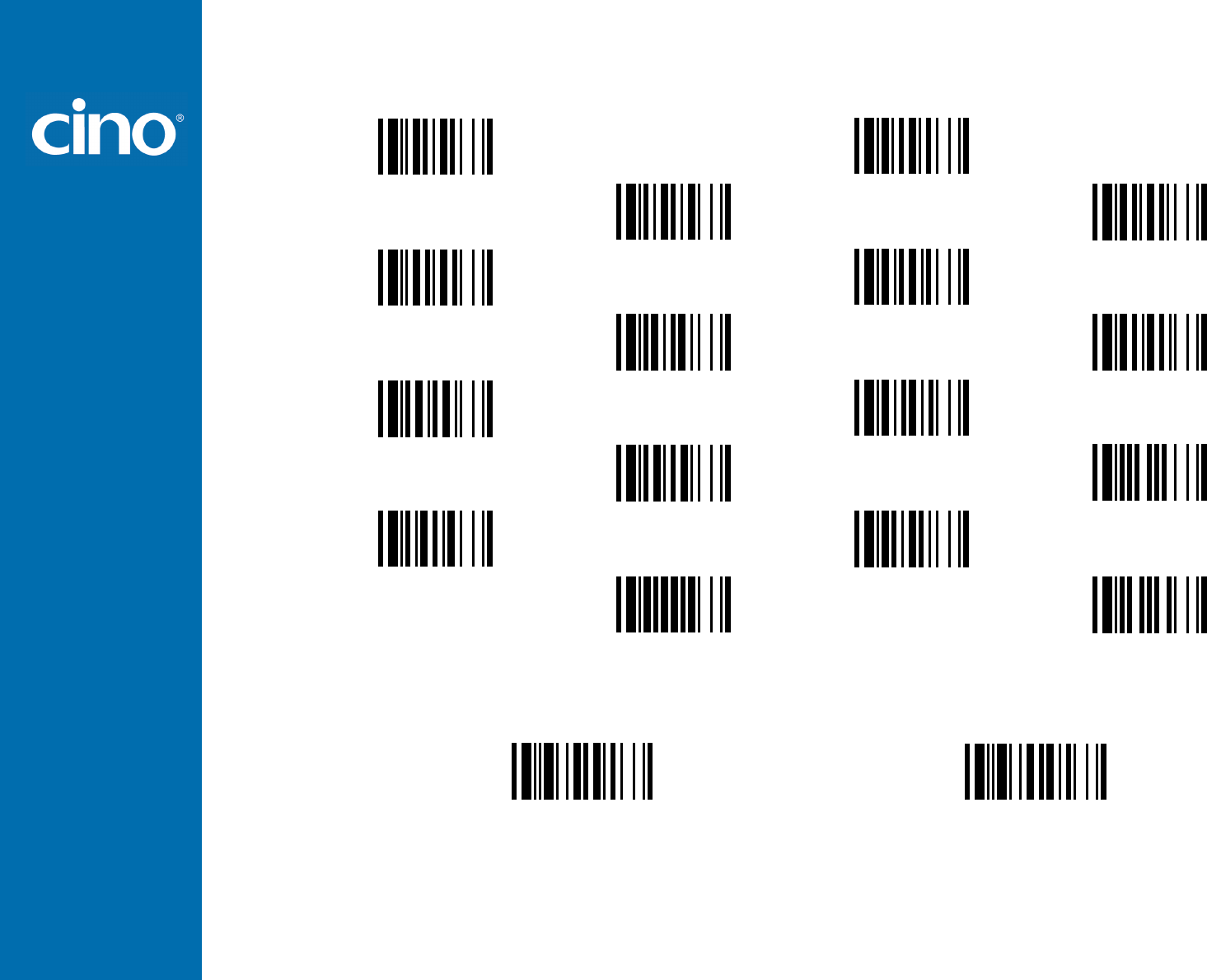

Quantity 0 Quantity 5

Quantity 3 Quantity 8

Quantity 1 Quantity 6

Quantity 4 Quantity 9

Quantity 2 Quantity 7

There are two ways to output the stored barcode data and quantity information. Please refer to following for details:



Stored data is transmitted as many times as the quantity indicated.



Stored data is transmitted together with quantity information in two fields. Please scan “Enable Quantity Field

Transmission” command to enable this function. The preset delimiter is “ “, but you are able to choose your desired one

from FuzzyScan Wireless Reference Manual for details.

Disable Quantity Field Transmission

Enable Quantity Field Transmission

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

Bar Code Programming Menu

The FuzzyScan bar code commands are specially designed

Proprietary bar code labels which allow you to set the

FuzzyScan internal programming parameters. There are

System Command, Family Code and Option Code for

programming purpose.

Each programmable family and bar code command label is

listed on the same page with major system commands. The

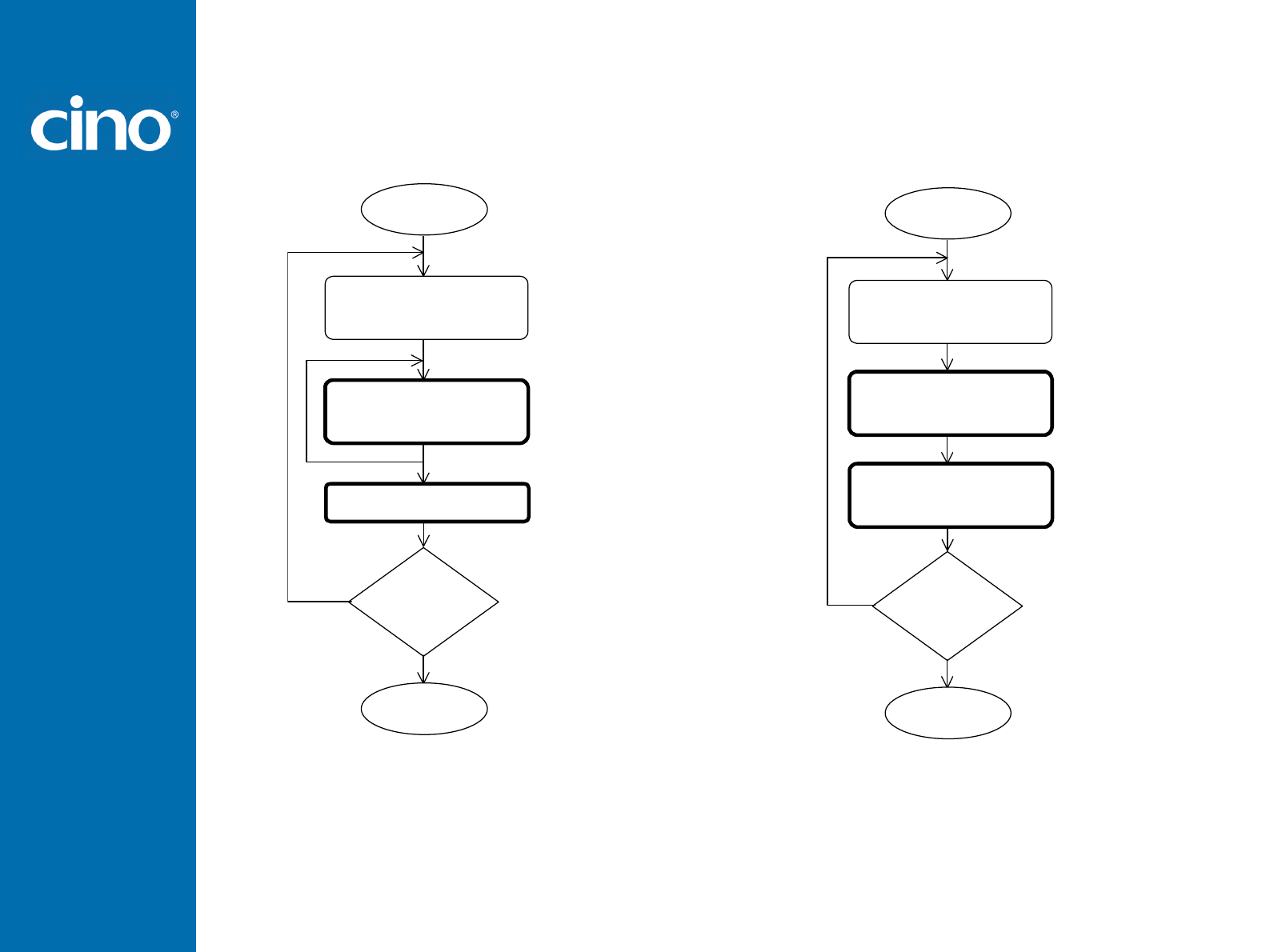

detailed explanations and special programming flowchart are

printed on facing or following pages. You can read the

explanation and set the FuzzyScan concurrently.

A supplemental bar code command menu incorporates the

bar code command labels of System Command and Option

Code. As you set the FuzzyScan, open the bar code

command menu to find the option code page. You may scan

the desired family code and option code to set FuzzyScan. If

you want to change the programming family for multiple

settings, you need only turn over the programming page to

find next desired programming family.

System Command

System CommandSystem Command

System Command

The System Command is the highest level bar code

command which directs FuzzyScan to perform immediate

operations, such as entering programming mode

(PROGRAM), exiting programming mode (EXIT), listing

system information (SYSLIST), recovering to factory

preset configurations (M_DEFAULT), and so on. Please

note that all system commands will take a few seconds to

complete the operations. User must wait for the

completion beeps before scanning another bar code.

Family Code

Family CodeFamily Code

Family Code

The Family Code is scanned to select the user desired

programming family. FuzzyScan has already provided

more than one hundred programming families to meet any

specific requirements.

Option Code

Option CodeOption Code

Option Code

The Option Codes is a set of bar code commands

represented by “0–9”, “A–F” and finishing selection (FIN).

For most setting, you must select at least one option code

following the family code selection to set the desired

parameter for the selected programming family.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

Programming Procedures

Programming ProceduresProgramming Procedures

Programming Procedures

As you scan the bar code command to select the desired

parameters, information about the final selected parameters

represented by the bar code commands are stored in the

FuzzyScan’s internal Flash Memory ASIC or non-volatile

memory. If you turn off the unit, the Flash Memory ASIC or

non-volatile memory retains all programming options. You

need not re-program the FuzzyScan if you want to keep the

existing configurations in the next power on.

The programming procedures of FuzzyScan are designed

as simple as possible for ease of setting. Most

programming families take the Single Scan Selection

programming procedure. But several programming families

have more complex and flexible programmable options,

and you must take Multiple Scans Selection, Cycling

Scan Selection or Dual Level Selection to complete their

programming procedures. Each kind of programming

procedure is listed in the following pages for your reference.

Please give careful attention to become familiar with each

programming procedure.

If the programming family must take multiple scans

selection, cycling scan selection, or dual level selection

procedures, the family of the programming menu will be

marked with the matched representing symbol of

Programming Category (P.C.) in bold font listed in the

following table. You can easily find the bold mark in the

programming menu, and refer to their flowcharts for details.

Before setting the FuzzyScan, please also refer to the

“Beeping Indications” listed in Appendix to understand the

details of programming beeping indications. It will be very

helpful for you to know the existing status while you are

programming the FuzzyScan.

Conventions of Programming Menu

Conventions of Programming MenuConventions of Programming Menu

Conventions of Programming Menu

Conventions Descriptions







Factory Default Value

P.C. Programming Category

SS : Signle scan selection

MS : Multiple scans selection

CS : Cycling scan selection

DS : Dual level scan selection

( ) Necessary Option Code

[ ] Selectable Option Code

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

Scan

“END”

FuzzyScan will exit programming mode, and store all

parameters in Flash Memory ASIC or non-volatile memory,

then issue the completion beeping.

Scan

“PROGRAM”

FuzzyScan will enter programming mode,

and inhibit all non-programming functions.

Scan

“SYSLIST”

FuzzyScan will list the product information and

revision number to host via selected host interface,

then issue the completion beeping.

Scan

“

M_DEFAULT

”

FuzzyScan will recover all programmable

parameters into factory preset configurations,

then issue the completion beeping.

Program & End

Program & EndProgram & End

Program & End

Please note that the FuzzyScan will take 3-4 seconds to

store parameters in internal Flash Memory ASIC or

non-volatile memory after you scan the “END”. Please

don’t turn off the power before the completion beeping. It

may destroy all configured parameters.

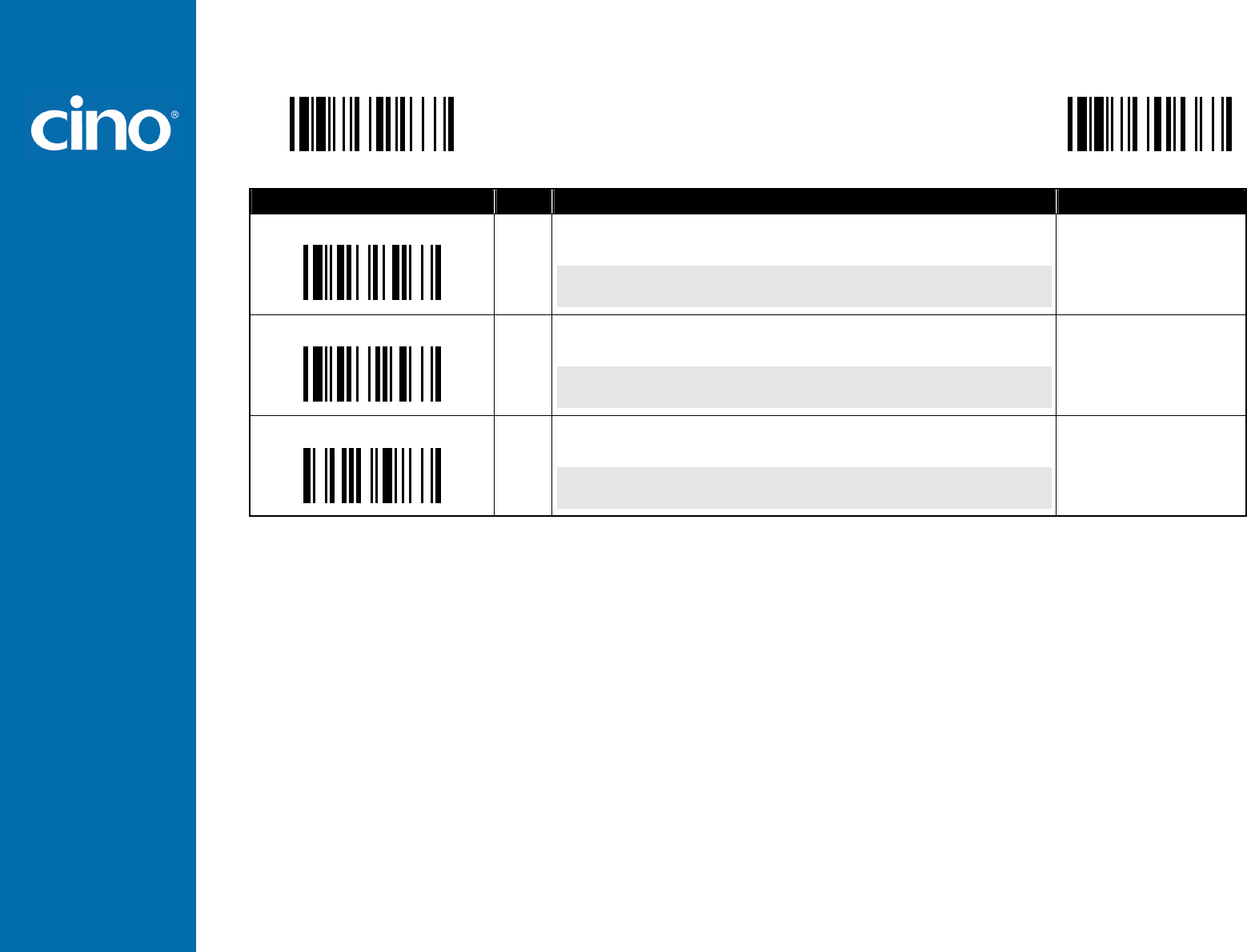

System List, Group & Master Default

System List, Group & Master DefaultSystem List, Group & Master Default

System List, Group & Master Default

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

Single scan selection

Single scan selectionSingle scan selection

Single scan selection

Multiple scans selection

Multiple scans selectionMultiple scans selection

Multiple scans selection

Scan

“PROGRAM”

Scan

One of Family Codes

Scan

One of Option Codes

Repeat

Selection

Scan

“END”

Yes

Enter programming mode.

Select one of desired

programming families.

Select one option code of

desired parameter.

Want to select another

programming family?

Exit programming mode.

Enter programming mode.

Select one of desired

programming families.

1. Select one or several

option codes to select

desired parameters.

2. If it’s necessary, scan

“FIN” to terminate

option code selection.

Want to select another

programming family?

Exit programming mode.

Scan

“PROGRAM”

Scan

One of Family Codes

Scan One or

Several Option Codes

Repeat

Selection

Scan

“END”

Yes

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

Cycling scan selection

Cycling scan selectionCycling scan selection

Cycling scan selection

Dual level selection

Dual level selectionDual level selection

Dual level selection

Enter programming mode.

Select one of desired

programming families.

Cycling select one or

several option codes of

desired parameters as

“Single” or “Multiple”

scans selection.

Finish cycling selection.

(If necessary)

Want to select another

programming family?

Exit programming mode.

Scan

“PROGRAM”

Scan

One of Family Codes

Scan

One of Option Codes

Repeat

Selection

Scan

“END”

Yes

Scan “FIN”

Enter programming mode.

Select one of desired

programming families.

Select several option codes

of desired parameters.

1. Select one or several

option codes of desired

parameters.

2. If it’s necessary, scan

“FIN” to terminate

option code selection.

Want to select another

programming family?

Exit programming mode.

Scan

One of Family Codes

(1st) Scan

Several Option Codes

Yes

Scan

“PROGRAM”

Repeat

Selection

Scan

“END”

(2nd) Scan One or

Several Option Codes

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

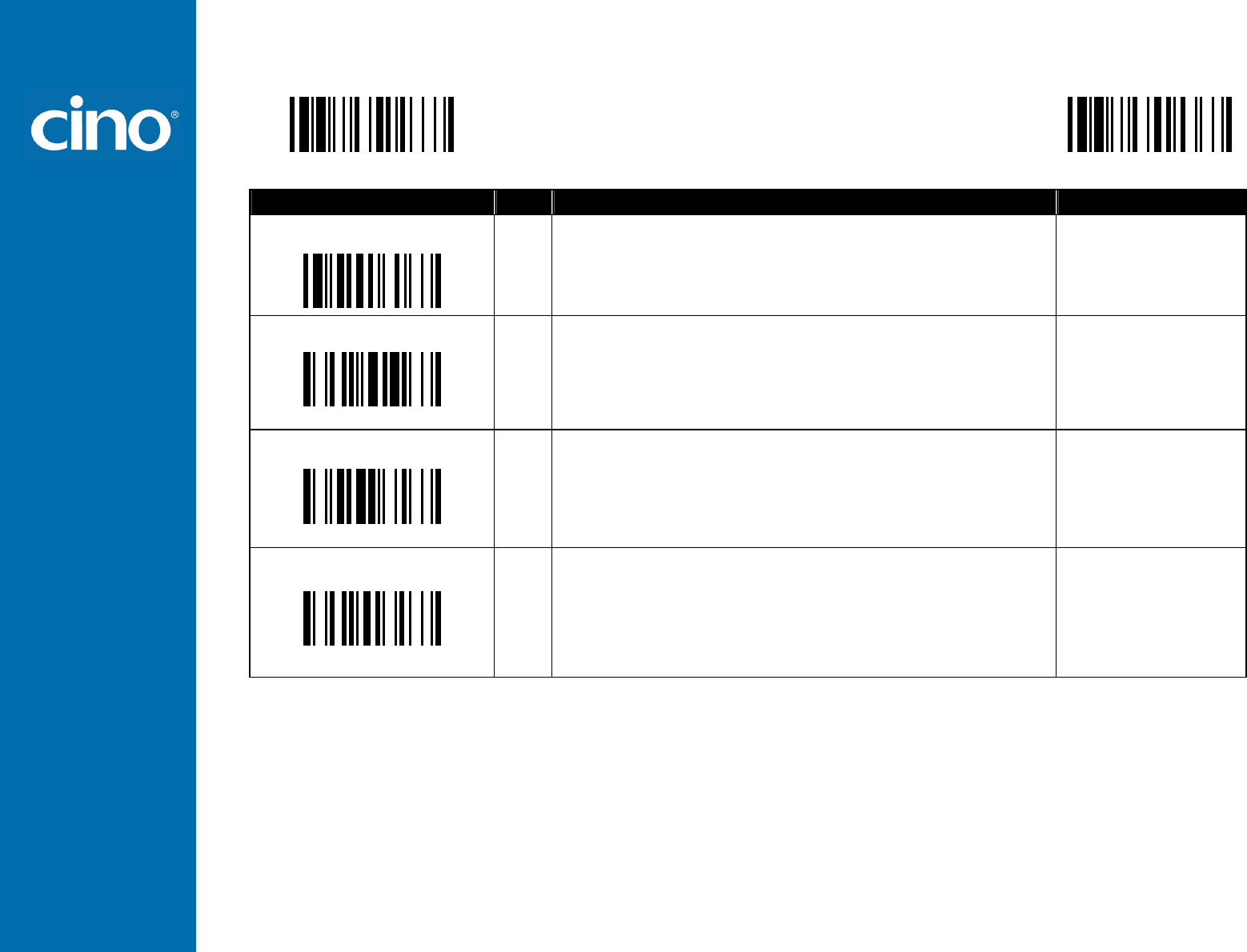

PROGRAM

Host Interface Selection

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Host Interface Selection

IBM PS/2, 25-30 series keyboard wedge interface

Standard/TTL RS-232 peer-to-peer serial

Wand emulation

USB Com Port Emulation

PS/2 (DOS/V) direct link (keyboard replacement)

PS/2 (DOS/V) keyboard wedge turbo mode

PS/2 (DOS/V) keyboard wedge standard mode

Laser emulation

USB HID standard mode 

USB HID turbo mode

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

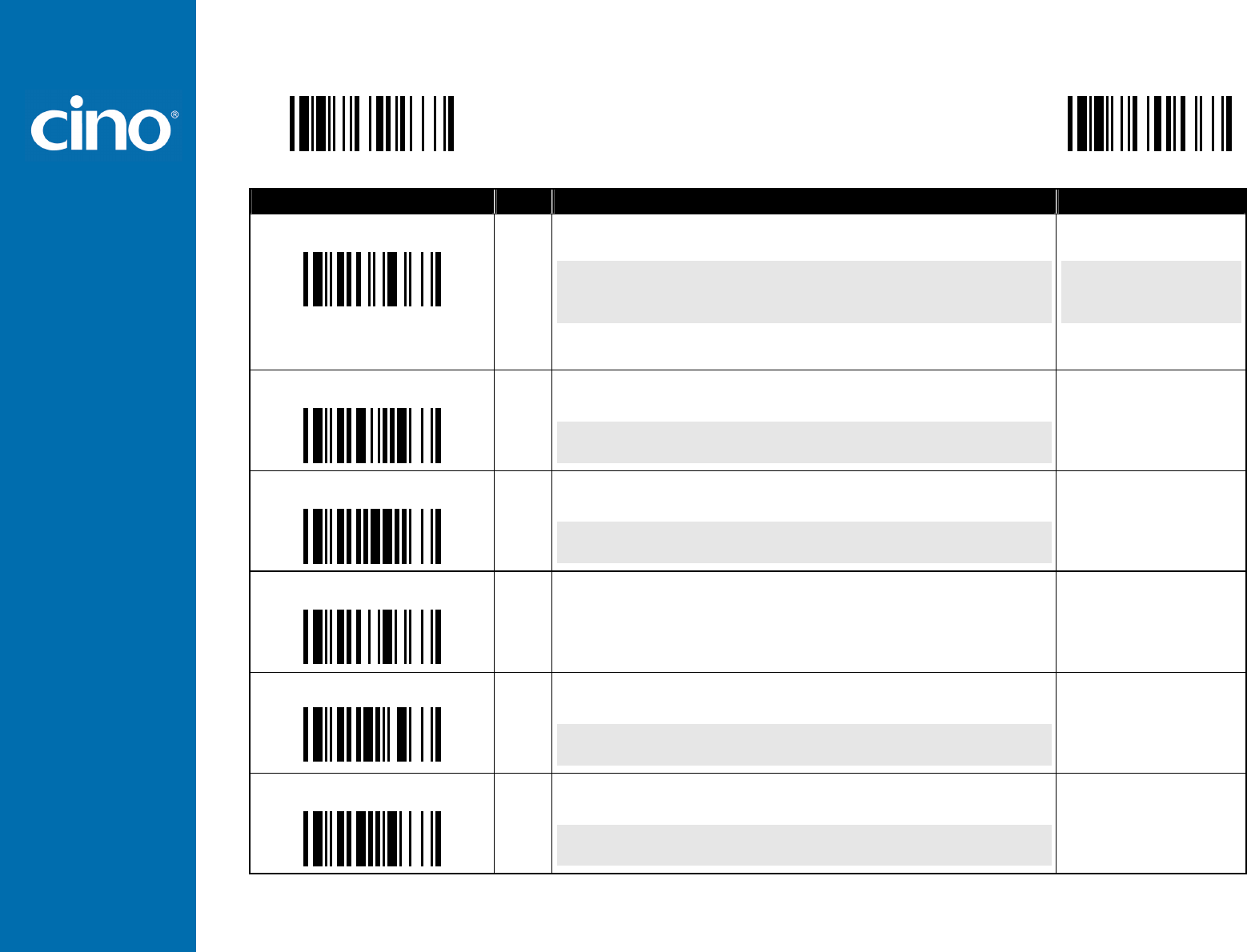

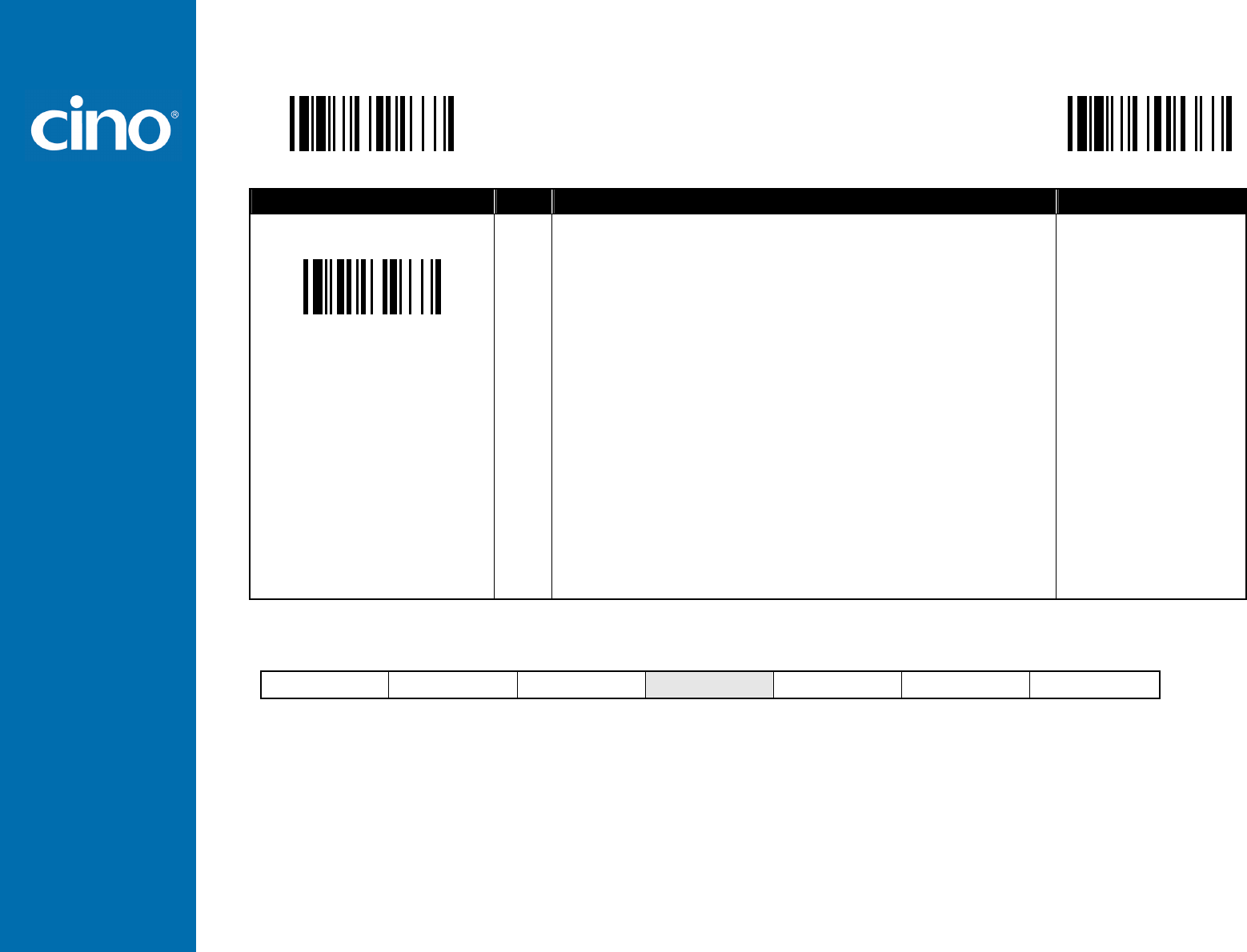

PROGRAM

Symbology Reading Control

♦

♦♦

♦ User Defined Symbol ID ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code 2nd Option Code

Symbol ID : 1 character

DS Code 128 (default=B)

GS1-128 (default=C)

UPC-A (default=A)

EAN-13 (default=F)

Codabar/NW-7 (default=D)

Code 39/Code 32 (default=G)

Code 93 (default=H)

Standard/Industrial 2 of 5 (default=I)

Interleaved 2 of 5 (default=J)

Matrix 2 of 5 (default=K)

China Postal Code (default=L)

German Postal Code (default=M)

IATA (default=O)

Code 11 (default=P)

MSI/Plessey (default=R)

UK/Plessey (default=S)

Telepen (default=T)

GS1 DataBar (default=X)

UPC-E (default=E)

EAN-8 (default=N)

Trioptic Code 39 (Default=W)

UCC Coupon Extended Code (Default=Z)

PDF417/Micro PDF417 (default=V)

Codablock F (default=Y)

Korea Post Code (default =a)

(1 character)

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Symbology Reading Control

♦

♦♦

♦ Symbology ID Transmission ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Symbology ID Transmission

Disable symbology ID transmission 

Enable prefix CINO symbology ID transmission

Enable suffix CINO symbology ID transmission

Enable both prefix and suffix CINO symbology ID transmission

Enable prefix AIM symbology ID transmission

Enable suffix AIM symbology ID transmission

Enable both prefix and suffix AIM symbology ID transmission

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Symbology Reading Control

♦

♦♦

♦ Readable Bar Code Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Readable Symbology Setting

Auto 

Code 128 *

UPC-A *

UPC-E *

EAN-13 *

EAN-8 *

Codabar/NW-7 *

Code 39 *

Trioptic Code 39

Standard/Industrial 2 of 5

Matrix 2 of 5

Interleaved 2 of 5 *

China Postal Code

German Postal Code

Code 93 *

Code 11

MSI/Plessey

UK/Plessey

Telepen

GS1 DataBar (RSS-14) *

IATA

PDF417/Micro PDF417

Codablock F

Korea Post Code



If your application is known, you may select those known symbologies only to increase the reading speed and decrease the possibility of reading error. Furthermore, to add

the “Symbology ID” into the transmitted data is also helpful to identify the specific symbology.



Above symbologies marketed with * are enable as default. When you select “Auto”, the scanner only read those symbologies marked with *



When you set the minimum and maximum length of each symbology, please note the data length of scanned bar code doesn’t include star/stop characters.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Symbology Reading Control

♦

♦♦

♦ Code 39/Code 32 Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Code 39 Family Setting

Disable Code 39

Enable Code 39

Select Standard Code 39 as primary format 

Select Full ASCII Code 39 as primary format

Select Code 32 (PARAF, Italian Pharmaceutical) as primary format

Disable start/stop symbol transmission 

Enable start/stop symbol transmission

Disable Code 32 leading A transmission 

Enable Code 32 leading A transmission

Disable MOD 43 check digit verification 

Enable MOD 43 check digit verification

Disable check digit transmission 

Enable check digit transmission

Disable Code 39 buffering 

Enable Code 39 buffering

Trioptic Code 39 Setting

Disable Trioptic Code 39 

Enable Trioptic Code 39

Code 39 Min. Length

Default (01) 

01-Maximum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate

this selection automatically.

FIN

(2 digits)

Code 39 Max. Length

Default (98) 

98-Minimum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate

this selection automatically.

FIN

(2 digits)



Trioptic Code 39 and Code 39 Full ASCII cannot be enabled simultaneously.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Symbology Reading Control

♦

♦♦

♦ Code 39 Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Code 39 Security Level

Level 0

Level 1

Level 2 

Level 3

 Code 39 Security Level

The scanner offers four levels of decode security for Code39 bar codes:

Level 0: If you are experiencing misread of poorly-printed or serious out-of-spec. bar codes in level 1, please select level 0.

Level 1: If you are experiencing misread of poorly-printed or out-of-spec. bar codes in level 2, please select level 1.

Level 2: This is the default setting which allows the scanner to operate fastest, while providing sufficient security in decoding “in-spec” Code39 bar codes.

Level 3: If you failed to read poorly-printed or out-of-spec. bar codes in level 2, please select level 3. This is the most aggressive setting and may increase the misread.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Symbology Reading Control

♦

♦♦

♦ Codabar/NW-7 Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Codabar Setting

Disable Codabar

Enable Codabar 

Select Codabar standard format 

Select Codabar ABC format

Select Codabar CLSI format

Select Codabar CX format

Disable start/stop symbol transmission 

Enable ABCD/ABCD start/stop symbol transmission

Enable abcd/abcd start/stop symbol transmission

Enable ABCD/TN*E start/stop symbol transmission

Enable abcd/tn*e start/stop symbol transmission

Disable check digit verification 

Enable check digit verification

Disable check digit transmission 

Enable check digit transmission

Codabar Check Digit Settings

Modulus 16 

Modulus 10/weight 3

Modulus 11

Modulus 10/weight 2

7 check DR

Weight Modulus 11

Runes (Modulus 10/weight 2)

Codabar Min. Length

Default (04) 

01-Maximum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate

this selection automatically.

FIN

(2 digits)

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Symbology Reading Control

♦

♦♦

♦ Codabar/NW-7 Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Codabar Max. Length

Default (98) 

98-Minimum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate

this selection automatically.

FIN

(2 digits)

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Symbology Reading Control

♦

♦♦

♦ UPC-A & UPC-E Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

UPC Family Setting

Disable UPC-A

Enable UPC-A 

Disable UPC-E

Enable UPC-E 

Disable UPC-E expansion 

Enable UPC-E expansion

Disable UPC standardization 

Enable UPC standardization

Disable UPC numeric system

Enable UPC numeric system 

Disable UPC-A check digit transmission

Enable UPC-A check digit transmission 

Disable UPC-E check digit transmission

Enable UPC-E check digit transmission 

Disable UPC “leading 1” portion 

Enable UPC “leading 1” portion



When enable UPC-E expansion, the UPC-E decoded data will be converted to UPC-A format and affected by related setting, such as UPC standardization, UPC numeric

system, UPC-A check digit transmission.



UPC-E & EAN-8 Expansion : Expand the 8-digit UPC-E and 8-digit ENA-8 to 12-digit UPC-A and 13-digit EAN-13.



UPC-A/E Standardization : Expand the 12-digit UPC-A to 13-digit EAN-13 with 1 zero insertion.



UPC Lead 1 Numeric System : Enable to read UPC leading with the 1 numeric system, you must enable this option.

WPC Selection

(UPC/EAN/CAN) Basic Length Disable

Check Digit

Disable

Numeric System

With 2-digit

Addendum

With 5-digit

Addendum

Enable

Standardization

Enable

Expansion

UPC-A 12 - 1 - 1 + 2 + 5 + 1 0

UPC-E 8 - 1 - 1 + 2 + 5 + 1 + 4

EAN-13 13 - 1 NC + 2 + 5 NC 0

EAN-8 8 - 1 NC + 2 + 5 NC + 5

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Symbology Reading Control

♦

♦♦

♦ UPC-A & UPC-E Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

UPC Supplement Setting

Select UPC without supplement digits 

Select UPC with only 2 supplement digits

Select UPC with only 5 supplement digits

Select UPC with 2/5 supplement digits

Disable force supplement digits output 

Enable force supplement digits output

UPC Family Addenda Separator Off 

UPC Family Addenda Separator On

UPC/EAN Security Level

Level 0

Level 1 

Level 2

Only available for UPC-A & EAN-13

Supplement Scan Voting

None

Level 1

Level 2

Level 3 

Level 4

Level 5

Level 6

Level 7

Level 8

Level 9

Level 10

Level 11

Level 12

Level 13

 UPC/EAN Security Level

The scanner offers three levels of decode security for UPC/EAN bar codes:

Level 0: If you are experiencing misread of poorly-printed or out-of-spec. bar codes, especially in characters 1, 2, 7, and 8 in level 1, please select level 0. Selection of this

security level may significantly impair the decoding ability of the scanner.

Level 1: This is the default setting which allows the scanner to operate fastest, while providing sufficient security in decoding “in-spec” UPC/EAN bar codes.

Level 2: If you are experiencing misread of poorly-printed, soiled or damage bar codes in level 1, please select level 2. This is the most aggressive setting and may

increase the misread.



The Supplement Scan Voting is the number of times the same UPC/EAN with 2/5 supplement digits has to be decoded before it is transmitted. It is helpful when decoding

a mix of UPC/EAN symbols with and without supplement digits. This function is effective when you select UPC/EAN with only 2 supplement digits, UPC/EAN with only 5

supplement digits or UPC/EAN with 2/5 supplement digits. The default value is Level 3. When you select higher level, it may impact the reading speed on poorly-printed,

low contrast or damage barcode labels.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Symbology Reading Control

♦

♦♦

♦ EAN Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

EAN Setting

Disable EAN-13

Enable EAN-13 

Disable EAN-8

Enable EAN-8 

Disable EAN-8 expansion 

Enable EAN-8 expansion

Disable EAN-13 check digit transmission

Enable EAN-13 check digit transmission 

Disable EAN-8 check digit transmission

Enable EAN-8 check digit transmission 

Disable ISBN/ISSN Conversion reading check 

Enable ISBN/ISSN Conversion reading check

EAN Supplement Setting

Select EAN without supplement digits 

Select EAN with only 2 supplement digits

Select EAN with only 5 supplement digits

Select EAN with 2/5 supplement digits

Disable force supplement digits output 

Enable force supplement digits output

EAN Addenda Separator Off 

EAN Addenda Separator On

Supplement Scan Voting

None

Level 1

Level 2

Level 3 

Level 4

Level 5

Level 6

Level 7

Level 8

Level 9

Level 10

Level 11

Level 12

Level 13



The Supplement Scan Voting is the number of times the same UPC/EAN with 2/5 supplement digits has to be decoded before it is transmitted. It is helpful when decoding

a mix of UPC/EAN symbols with and without supplement digits. This function is effective when you select UPC/EAN with only 2 supplement digits, UPC/EAN with only 5

supplement digits or UPC/EAN with 2/5 supplement digits. The default value is Level 3. When you select higher level, it may impact the reading speed on poorly-printed,

low contrast or damage barcode labels.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Symbology Reading Control

♦

♦♦

♦ EAN Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

UPC/EAN Security Level

Level 0

Level 1 

Level 2

Only available for UPC-A & EAN-13

EAN Supplement Control

Disable all specific prefix supplement digital output 

Enable all specific prefix supplement digital output

Enable 491 Supplement Digit Output

Enable 978/979 Supplement Digit Output

Enable 977 Supplement Digit Output

Enable 378/379 Supplement Digit Output

Enable 414/419 Supplement Digit Output

Enable 434/439 Supplement Digit Output

 UPC/EAN Security Level

The scanner offers three levels of decode security for UPC/EAN bar codes:

Level 0: If you are experiencing misread of poorly-printed or out-of-spec. bar codes, especially in characters 1, 2, 7, and 8 in level 1, please select level 0. Selection of this

security level may significantly impair the decoding ability of the scanner.

Level 1: This is the default setting which allows the scanner to operate fastest, while providing sufficient security in decoding “in-spec” UPC/EAN bar codes.

Level 2: If you are experiencing misread of poorly-printed, soiled or damage bar codes in level 1, please select level 2. This is the most aggressive setting and may

increase the misread.

 EAN Supplement Control

If you select EAN with only 2, or 5 or 2/5 supplement digits and enable 491 prefix supplement digit output, the scanner will transmit EAN with 2, or 5 or 2/5 supplement

digits bar codes starting with 491 prefix. The EAN without supplement digit will not be transmitted.

If you select EAN with only 2, or 5 or 2/5 supplement digits and enable the other except 491 prefix supplement digit output, the scanner will transmit EAN with 2, or 5, or 2/5

supplement digits bar codes starting with specific prefix. The EAN without supplement digit will be transmitted.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Symbology Reading Control

♦

♦♦

♦ UCC Coupon Extended Code Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

UCC Coupon Extended Code

Disable UCC Coupon Extended Code 

Enable UCC Coupon Extended Code



UCC Coupon Extended Code

When UCC coupon extended code function is enabled, scanner decodes UPC-A barcodes starting with digit “5”, EAN-13 barcodes starting with digit “99” and GS1-128

Coupon Codes. UPC-A, EAN-13 and EAN-128 must be enabled to scan all types of Coupon Codes.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Symbology Reading Control

♦

♦♦

♦ IATA & Interleaved 2 of 5 Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

IATA Setting

Disable IATA 

Enable IATA

Select 15-digit fixed length IATA checking 

Select variable length IATA

Disable check digit verification 

Enable check digit automatic verification

Enable S/N checking digit verification only

Enable CPN checking digit verification only

Enable CPN, Airline and S/N check digit verification

Disable check digit transmission 

Enable check digit transmission

Disable start/stop symbol transmission 

Enable start/stop symbol transmission

Interleaved 2 of 5 Setting

Disable Interleaved 2 of 5

Enable Interleaved 2 of 5 

Select Interleaved 2 of 5 as primary format 

Select German Postal Code as primary format

No check character 

Validate USS check digit

Validate OPCC check digit

Disable check digit transmission 

Enable check digit transmission

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Symbology Reading Control

♦

♦♦

♦ Code 25 Family Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Code 25 Setting

Disable Standard/Industrial 2 of 5 

Enable Standard/Industrial 2 of 5

Disable Matrix 2 of 5 

Enable Matrix 2 of 5

Disable China Postal Code 

Enable China Postal Code

Disable check digit verification 

Enable check digit verification

Disable check digit transmission 

Enable check digit transmission

Code 25 Family Min. Length

Default (04) 

01-Maximum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate

this selection automatically.

FIN

(2 digits)

Code 25 Family Max. Length

Default (98) 

98-Minimum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate

this selection automatically.

FIN

(2 digits)



For Code25 setting, we recommend you to select only one type of Code 25 or set the maximum/minimum bar code length. To decode all types of Code 25 or to variable

length of Code 25 will increase the possibility of reading error.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Symbology Reading Control

♦

♦♦

♦ Code 11 & Code 93 Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Code 11 Setting

Disable Code 11 

Enable Code 11

Disable check digit verification 

Select 1-check digit verification

Select 2-check digit verification

Disable check digit transmission 

Enable check digit transmission

Code 11 Min. Length

Default (04) 

01-Maximum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate

this selection automatically.

FIN

(2 digits)

Code 11 Max. Length

Default (98) 

98-Minimum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate

this selection automatically.

FIN

(2 digits)

Code 93 Setting

Disable Code 93

Enable Code 93 

Disable check digit transmission 

Enable check digit transmission

Code 93 Min. Length

Default (01) 

01-Maximum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate

this selection automatically.

FIN

(2 digits)

Code 93 Max. Length

Default (98) 

98-Minimum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate

this selection automatically.

FIN

(2 digits)

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Symbology Reading Control

♦

♦♦

♦ MSI/Plessey Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

MSI/Plessey Setting

Disable MSI/Plessy 

Enable MSI/Plessy

Select MOD 10 check digit 

Select MOD 10-10 check digit

Select MOD 11-10 check digit

Disable check digit transmission 

Enable check digit transmission

MSI/Plessey Min. Length

Default (04) 

01-Maximum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate

this selection automatically.

FIN

(2 digits)

MSI/Plessey Max. Length

Default (98) 

98-Minimum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate

this selection automatically.

FIN

(2 digits)

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Symbology Reading Control

♦

♦♦

♦ Code 128 & UCC/EAN 128 Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Code 128/EAN-128 Setting

Disable Code 128 and GS1-128

Enable Code 128 and GS1-128 

Disable function code conversion 

Enable function code conversion

ISBT Concatenation Off 

ISBT Concatenation On

Code 128/EAN-128 Min. Length

Default (01) 

01-Maximum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate

this selection automatically.

FIN

(2 digits)

Code 128/EAN-128 Max. Length

Default (98) 

98-Minimum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate

this selection automatically.

FIN

(2 digits)

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Symbology Reading Control

♦

♦♦

♦ UK/Plessey Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

UK/Plessey Setting

Disable UK/Plessey 

Enable UK/Plessey

Select UK/Plessey Standard Format 

Select UK/Plessey CLSI Format

Disable Convert X to A-F 

Enable Convert X to A-F

Disable check digit transmission 

Enable check digit transmission

UK/Plessey Min. Length

Default (04) 

01-Maximum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate

this selection automatically.

FIN

(2 digits)

UK/Plessey Max. Length

Default (98) 

98-Minimum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate

this selection automatically.

FIN

(2 digits)

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Symbology Reading Control

♦

♦♦

♦ Telepen Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Telepen Setting

Disable Telepen 

Enable Telepen

Select Telepen Numeric mode 

Select Telepen Full ASCII mode

Disable check digit transmission 

Enable check digit transmission

Telepen Min. Length

Default (04) 

01-Maximum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate

this selection automatically.

FIN

(2 digits)

Telepen Max. Length

Default (98) 

98-Minimum

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate

this selection automatically.

FIN

(2 digits)

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Symbology Reading Control

♦

♦♦

♦ GS1 DataBar Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

GS1 DataBar Setting

Disable GS1 DataBar (RSS-14)

Enable GS1 DataBar (RSS-14) 

Disable GS1 DataBar Limited

Enable GS1 DataBar Limited 

Disable GS1 DataBar Expanded

Enable GS1 DataBar Expanded 

GS1 DataBar Min. Length

Default (04) 

01-Maximum

Only available for Expanded GS1 Databar.

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate

this selection automatically.

FIN

(2 digits)

GS1 DataBar Max. Length

Default (74) 

74-Minimum

Only available for Expanded GS1 Databar.

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate

this selection automatically.

FIN

(2 digits)

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Symbology Reading Control

♦

♦♦

♦ Linear-stacked & Korea Post Code Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Composite Codes Setting

Disable composite codes 

Enable composite codes

UPC Composite Mode: UPC never linked 

UPC Composite Mode: UPC always linked

PDF417/MicroPDF417 Setting

Disable PDF417

Enable PDF417 

Disable MicroPDF417 

Enable MicroPDF417

Codablock F Setting

Disable 

Enable

Korea Post Code Setting

Disable 

Enable

Length fixed in 6 characters.



Composite Codes Setting

If UPC Composite Mode: UPC never linked is selected, UPC barcodes are transmitted regardless of whether a MicroPDF417 symbol is detected.

If UPC Composite Mode: UPC always linked is selected, UPC barcodes are only transmitted when the MicroPDF417 is detected.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Keyboard Interface Control

♦

♦♦

♦ Keyboard Layout (Language) Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Keyboard Layout

USA (QWERTY) 

France (AZERTY)

Germany (QWERTZ)

United Kingdom - UK (QWERTY)

Canadian French (QWERTY)

Spain (Spanish, QWERTY)

Sweden/Finland (QWERTY)

Portugal (QWERTY)

Norway (QWERTY)

Spain (Latin America, QWERTY)

Italy (QWERTY)

Netherlands (QWERTY)

Denmark (QWERTY)

Belgium (AZERTY)

Switzerland-Germany (QWERTY)

Iceland (QWERTY)

Japan (DOS/V)

Czech (QWERTY)



Please refer to the ASCII/HEX Table listed in the Appendix to determine HEX codes for characters, symbols, and functions to be used as premble or postamble.



To set preamble or postamble as function key output, you must enable the “Function Key Emulation” feature as listed in page 3-25 first.



Keyboard Interface Message String :

Preamble Data Length Prefix Symbol ID Scanned Data Suffix Symbol ID Postamble Record Suffix

1-15 characters 2-3 digits 1 or 2 characters Variable length 1 or 2 characters 1-15 characters 1 character

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Keyboard Interface Control

♦

♦♦

♦ Record Suffix, Preamble, Postamble & Caps Lock ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Record Suffix

None

RETURN 

TAB

SPACE

ENTER (Numeric Key Pad)

User defined character (1 character)

5, (00-7F)

Preamble

None 

1-15 characters

Maximum 15-character input; scan “FIN” to terminate this selection.

FIN

[00-7F], [FIN]

Postamble

None 

1-15 characters

Maximum 15-character input; scan “FIN” to terminate this selection.

FIN

[00-7F], [FIN]

Caps Lock Control

“Caps Lock Off” State 

“Caps Lock On” State

Auto Detect (PC/AT, PS/2, Keyboard Replacement and DOS/V Machines only)

Caps Lock Release Control

“Caps Lock On, Caps Off” 

“Caps Lock On, Shift Off”



The function of “Caps Lock Control” and “Key Pad Emulation” are only available for IBM PC/AT, PS/VP, PS/2 series personal computers and compatible machines.

While selecting the other host interfaces, these selections don’t perform the above functions for you.



Please check the actual Caps Lock state in use while software application is running. If the Caps Lock state is off, select “Caps Lock Off” state, then FuzzyScan will

perform normal data transmission. If the Caps Lock state is on, select “Caps Lock On” state. Select “Auto Detect”, FuzzyScan will perform special transmission

handshaking without changing the status of Caps Lock switch.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Keyboard Interface Control

♦

♦♦

♦ Delay Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Intermessage Delay

None 

1-99 (x10) msec.

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate

this selection automatically.

FIN

(2 digits)

Intercharacter Delay

None 

1-99 (x5) msec.

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate

this selection automatically.

FIN

(2 digits)

Interfunction Delay

None 

1-99 (x5) msec.

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate

this selection automatically.

FIN

(2 digits)



Intermessage Delay is a time delay between messages output by FuzzyScan. Increasing this delay will help host applications process the incoming data on time.



Intercharacter Delay is a time delay between data characters output by FuzzyScan. These two parameters are used to synchronize data communication when : 1) the data

transmission speed is too fast, characters may be skipped; 2) multitasking operation system or host computers in a network may slow down the keyboard handling; 3)

various notebook or desktop PC systems require different timing parameter settings. Please always add one extra unit as safety margin when adjusting these two

parameters.



Interfunction Delay is a time delay between the transmission of each segment of the message string.



Intermessage Delay, Intercharacter Delay and Interfunction Delay cannot be only worked under SPP and HID modes.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Keyboard Interface Control

♦

♦♦

♦ Emulation Setting & Upper/Lower Case Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Function Key Emulation

Enable ASCII 00-31 code as keyboard function code output 

Ctrl-Output

Refer to Appendix – Keyboard Function Code Table for details.

Key Pad Emulation

Disable key pad emulation 

Enable numeric output as key pad (Num Lock On) output

Upper/Lower Case

Normal case (neglect the upper/lower case control) 

Inverse case (change all characters output to inverse case)

Upper case (force all characters output as upper case)

Lower case (force all characters output as lower case)

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Serial Interface Control

♦

♦♦

♦ Record Suffix, Preamble ,Postamble Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

STX/ETX Control

Disable STX/ETX transmission 

Enable STX/ETX transmission

STX/ETX are two characters used to indicate the starting and ending of the total

data frame transmitted via serial interface.

Record Suffix

None

CR (0DH) 

LF (0AH)

CRLF (0D0AH)

TAB (09H)

SPACE (20H)

User defined character (1 character)

6, (00-7F)

Preamble

None 

1-15 characters

Maximum 15-character input; scan “FIN” to terminate this selection.

FIN

[00-7F], [FIN]

Postamble

None 

1-15 characters

Maximum 15-character input; scan “FIN” to terminate this selection.

FIN

[00-7F], [FIN]



Serial Interface Message String (RS232, USB COM) :

STX Preamble Data Length Prefix Symbol ID

Scanned Data

Suffix Symbol ID

Postamble ETX Record Suffix

1 character 1-15 characters

2-3 digits 1 or 2 characters

Variable length

1 or 2 characters

1-15 characters

1 character 1 character

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Serial Interface Control

♦

♦♦

♦ Delay Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Intermessage Delay

None 

1-99 (x10) msec.

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate

this selection automatically.

FIN

(2 digits)

Intercharacter Delay

None 

1-99 (x5) msec.

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate

this selection automatically.

FIN

(2 digits)

Interfunction Delay

None 

1-99 (x5) msec.

Scan 2 digits from the option code chart in Appendix, then FuzzyScan will terminate

this selection automatically.

FIN

(2 digits)



Intermessage Delay is a time delay between messages output by FuzzyScan. Increasing this delay will help host applications process the incoming data on time.



Intercharacter Delay is a time delay between data characters output by FuzzyScan. These two parameters are used to synchronize data communication when : 1) the data

transmission speed is too fast, characters may be skipped; 2) multitasking operation system or host computers in a network may slow down the keyboard handling; 3)

various notebook or desktop PC systems require different timing parameter settings. Please always add one extra unit as safety margin when adjusting these two

parameters.



Interfunction Delay is a time delay between the transmission of each segment of the message string.



Intermessage Delay, Intercharacter Delay and Interfunction Delay cannot be only worked under SPP and HID modes.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Serial Interface Control

♦

♦♦

♦ Protocol, ACK/NAK Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Handshaking Protocol

None (free running mode) 

RTS/CTS (hardware handshaking)

ACK/NAK (software handshaking)

Xon/Xoff (software handshaking)

NAK Retry Count

3 times 

0~255 times

FIN

(3 digits)

ACK Indication

Disable ACK Time-out Indication

Enable ACK Time-out Indication 

Disable ACK Indication 

Enable ACK Indication



USB COM doesn’t support RTS/CTS handshaking protocol.



When the ACK/NAK Software Handshaking option is selected, the FuzzyScan waits for an ACK (acknowledge) or NAK (not acknowledge) from the host computer after

each data transmission. If the NAK is received, FuzzyScan will re-send the data until receiving ACK.

ACK/NAK handshaking protocol is workable under following conditions:

1) Pair mode by using RS232 or USB COM interface.

2) SPP master or slave mode.



NAK Retry Count

After transmitting data, the scanner expects a NAK response from the host up to the preset “Serial Response Time-out”. If the scanner doesn’t get a response, the scanner

will issue an error indication and discard the data. When a NAK is received, the scanner transmits the same data again and waits for either an ACK or NAK. The scanner

issues an error indication and discards the data under following two conditions:

1) After preset NAK retry counts is received within the preset serial response time-out.

2) If the preset time-out is up but the preset NAK retry counts haven’t come to the end.

The default retry counts are three times. If you program “0 time”, the scanner won’t resend the data to the host when the scanner receives a NAK. The scanner will discard

the data. If you program “255 times”, the scanner can receive unlimited NAKs from the host within the pre-set serial response time-out.

This function is not available for batch mode. When you enable this function in on-line mode, the out-of-range function will be disable automatically.



ACK Indication:

Disable: There’s neither LED nor beeping indication for this setting.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

Enable: There’s a specific LED and beeping indication for this setting.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Serial Interface Control

♦

♦♦

♦Time Out Setting, Baud Rate, Data Frame ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Serial Response Time-out

None

200 mseconds

500 mseconds 

800 mseconds

1 second

2 seconds

3 seconds

4 seconds

5 seconds

8 seconds

10 seconds

15 seconds

Baud Rate (BPS)

38.4K BPS

19.2K BPS

9600 BPS 

4800 BPS

2400 BPS

1200 BPS

57.6K BPS

115.2K BPS

Data Frame

8, None, 1 

8, Odd, 1

8, Even, 1

8, Space, 1

8, Mark, 1

8, None, 2

7, Odd, 1

7, Even, 1

7, Space, 1

7, Mark, 1

7, None, 2

7, Odd, 2

7, Even, 2

7, Space, 2

7, Mark, 2



When the RTS/CTS Hardware Handshaking option is selected, the RTS (request to send) and CTS (clear to send) signals will be issued before normal data

communication. This option is very helpful to ensure the reliability of data communication.



The Serial Response Time-out is a pre-defined delay time for FuzzyScan to wait for handshaking, acknowledgment or non-acknowledgment from the host computer.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Wand/Laser Emulation Control

♦

♦♦

♦

Code 39/Code 128 Emulation ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Output Polarity

High level (5Vdc) on Bar (low level on Space) 

Low level (0Vdc) on Bar (high level on Space)

Determine the output voltage level for both bar and space.

Initial Signal State

High Level (5Vdc) 

Low Level (0Vdc)

Determine the initial state of output voltage level.

Margin Time

10 msec.

15 msec.

20 msec. 

25 msec.

30 msec.

50 msec.

100 msec.

Delay time before data transmission

Module Time

Extremely short

Short

Medium 

Long

Time base of minimum narrow bar

Narrow/Wide Ratio

1:2 

1:2.5

1:3

Code 39/Code 128 Emulation

Enable standard Code 39 skip emulation 

Enable standard Code 39 replace emulation

Enable Full ASCII Code 39 emulation

Enable Code 128 emulation



[ Code 39 Skip] : When this option is selected, all scanned data will be translated as Standard Code 39 wand/laser emulation output. If any lower case characters are read,

they will be translated to upper case characters. Any other characters that are not available in Code 39 symbology set will be skipped.



[ Code 39 Replace] : Any character not normally available in the standard Code 39 symbology set, will be translated as Space.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Operation Control

♦

♦♦

♦ Operation Mode ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Operation Mode

Trigger mode 

Presentation mode



Trigger Mode (Low Power Triggering) The scanner goes into standby state after scanning the bar code. You must press the trigger to turn on the light source of the

scanner before scanning the bar code.



Presentation Mode (Auto Detection) Presentation mode uses ambient light to detect the bar codes. The light source is off until the scanner detects an image which is

similar to a barcode. Then the light source turns on automatically to read the bar code. If the light level in the room is not high enough, Presentation Mode may not work

properly. You can choose different level of “Presentation Sensitivity” to meet your application (Please refer to the setting of “ Presentation Sensitivity”).

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Operation Control

♦

♦♦

♦ Buzzer, Indicator, Vibrator, Inverse Reading ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Buzzer Tone Adjust

Buzzer tone – mute

Buzzer tone – low

Buzzer tone – medium 

Buzzer tone – high

Buzzer tone - extremely high

Power-on beep 

No power-on beep

Power On Indicator

Disable (LED off)

LED steady on 

LED flash

Good Read Indicator

Disable

Enable 

Vibrator Control

Disable

Enable 

Optional function, only available for vibrator model.

Inverse Reading

Disable 

Enable

Beeping Control

Radio Connected/ Disconnected Beep On 

Radio Connected/ Disconnected Beep Off

Battery Power Low Beep On 

Battery Power Low Beep Off

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Operation Control

♦

♦♦

♦ Dollar Sign Control, Redundancy, Scan Rate Control

♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Dollar Sign Control

Dollar sign output as “ $ “ 

Dollar sign output as “ “

Dollar sign output as “ € “

Dollar sign output as “ £ “

Dollar sign output as “ ¢ “

Redundancy

None

Level 1 

Level 2

Level 3

Level 4

Level 5

To prevent potential miss reading.

Scan Rate Control

Dynamic 

Fixed



The Redundancy is the number of times the same bar code label has to be decoded before it is transmitted.



Scan Rate Control: The scanner will have better motion tolerance when you select “Fixed” scan rate. It’s suitable for application which needs higher motion tolerance on

the move. But this may impact to the reading distance.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Operation Control

♦

♦♦

♦ Delay Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Reread Delay

(Double Scan Verification)

Disable

Immediate time out 

Short time out

Medium time out

Long time out

Force verification

Good Read Delay

None 

200 msec.

500 msec.

1 sec.

1.5 sec.

2 sec.

3 sec.



The Reread Delay (Double Scan Verification) is designed to inhibit FuzzyScan from reading the same bar code label twice in pre-defined short duration. Force Verification

will not allow reading of the same bar code twice.



This Good Read Delay is the minimum amount of time before the scanner can read another bar code.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Operation Control

♦

♦♦

♦ Time-out Setting, Good Read Duration ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Light Source On Time

Short 

Medium

Long

Extremely long

Hands Free Time-out

Short 

Medium

Long

Extremely long

Disable

Good Read Duration

Short

Medium 

Long

Extremely long

Extremely short

Time Delay to Low Power Trigger

1 sec

3 secs

5 secs

7 secs

9 secs

Immediate 



The Light Source On Time is a pre-defined light source time out counter for Alternative Mode, Presentation Mode and Level Mode. The scanner keeps the light source on

till the pre-defined light source on time is up. You can adjust this parameter to meet your own application requirement.



The Presentation Mode is referred to as “hands free” mode. The hands free mode will be automatically changed to manual trigger mode when you press the trigger. You

can remain the scanner in manual trigger mode by setting the Hands Free Time-Out. Once the time-out duration is up (if there’s no any trigger operation), the imager will

revert to the original hands free mode.



The Time Delay to Low Power Trigger sets the time for scanner to enter low power trigger mode after any scanning activity.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Operation Control

♦

♦♦

♦ Presentation Scanning Setting, Laser Aiming Control ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

SmartStand Power Off Timeout

3 mins 

5 mins

10 mins

Only available for FuuzzyScan Laser model

Presentation Auto-sense

Disable 

Enable

Presentation Sensitivity

Level 1

Level 2

Level 3

Level 4

Level 5 

Level 6

Level 7

Laser Aiming Control

Disable

Enable

Only available for L series laser imaging scanner.



The SmartStand Power Off Timeout is a pre-defined duration for scanner’s light source on time when the scanner is placed on SmartStand. While the scanner is placed

on SmartStand, the scanner’s will be switched from hand-held scanning to presentation scanning and the light source will be forced on automatically. The light source will

be off when the pre-defined duration is up.



When enable the Presentation Auto-sense, the scanner can be switched between hands free scanning and hand-held scanning automatically when working with the

SmartStand or cradle.



The Presentation Sensitivity is used to configure the sensitivity level when the scanner is set as presentation mode. The higher lever means higher sensitivity for detecting

the barcode.

 You can disable or enable laser aiming line when you scan PDF barcode.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Operation Control

♦

♦♦

♦1D Barcode Direction Indication Transmission, etc. ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

1D Barcode Forward-reading

Indication

None

“S”

User defined character(1 character)

2 00-7F

1D Barcode Backward-reading

Indication

None

“X”

User defined character(1 character)

2 00-7F

1D Barcode Direction

Indication Transmission

Disable 

Enable prefix direction mark transmission

Enable suffix direction mark transmission

Enable both prefix and suffix direction mark transmission

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Operation Control

♦

♦♦

♦ Out-of-range Scanning, Sleep Time-out Control ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Out-of-range Scanning

Disable 

Enable

Link Supervision Time-out

1 sec

3 secs 

5 secs

7 secs

9 secs

Only available in PAIR & PICO modes

Sleep Time-out of Connect State

6 (x5) minutes 

0-99 (x5) minutes

If you don’t want the scanner to enter sleep mode, please set time-out to “0”

FIN

(2 digits)

Sleep Time-out of Disconnect State

1 minute 

0-99 minutes

If you don’t want the scanner to enter sleep mode, please set time-out to “0”

FIN

(2 digits)



Out-of-range Scanning When radio link is built between the scanner and remote host device, the scanner will transmit each scanned data right after scanning the barcode

data. However, the scanner is preset for unable to scan any barcode data when it loses the radio connection. You can enable the Out-of-range Scanning function to

continue scanning barcode data into memory buffer until radio link resumed.



The Link Supervision Time-out is a pre-defined radio link supervision timeout setting. The scanner will supervise the radio link status every preset seconds.



The Sleep Time-out Control can be set under radio connection or disconnection state. If the scanner is not used within the preset time-out duration, it will automatically

enter “Sleep State” for power saving purpose. You are able to disable this function by setting the time-out duration to “0”.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Operation Control

♦

♦♦

♦ Batch Scanning Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Batch Scanning Link Control

Radio disable

Radio enable 

Stored Data Transmission

All

On cradle

Scan barcode 

Delete Stored Data after

Transmission

Disable 

Enable



The Batch Scanning Link Control is a pre-defined radio option to control the radio-on or radio-off status under batch scanning operation. Please note that if the radio

disable is activated, the radio link will be disconnected once you enter batching scanning. The radio link will be resumed when you transmit the stored data or exit batch

scanning.



The Stored Data Transmission is a pre-defined approach when you want to transmit the scanned data under batch scanning operation. You can transmit the scanned data

by placing the scanner onto the cradle or scanning “Transmit Stored Data” command, or by either one of both methods.



In batching scanning, the default setting of Delete Stored Data after Transmission is disable. The scanner will keep all stored data after transmission until you scan the

“Clear All Stored Data” command. You are also able to delete all stored data after transmission automatically by enabling this function.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Operation Control

♦

♦♦

♦ Batch Scanning Data Transmission Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Field Delimiter

None



SPACE

–

User define

5, [00-7F]

Batch Data Quantity Output Format

As many times as the quantity indicates 

Data Transmission Format

Disable (scanned data only) 

Leading with MAC address (MAC address and scanned data)

Leading with ID No. (scanner ID and scanned data)

Only available for RS232, USB HID and USB COM interface in PAIR & PICO modes



The Field Delimiter is used to separate the specific information and scanned data into two fields. You can choose desired delimiter format.



The Batch Data Quantity Output Format If you want to input the quantity information of barcode data, you can enter the quantity from 1 to 9999 by scanning the quantity

barcodes right after you scanned the barcode data. The quantity information will be stored into the memory storage together with the barcode data. There are three ways to

output the stored barcode data and quantity information.



In PICO mode, up to 7 scanners can be connected with one smart cradle. The Data Transmission Format can help user to identify the source of the transmitted data.

You can choose to transmit the scanned data leading with MAC address or pre-assigned ID.

Example format: <MAC address><Field Delimiter><Data> or <ID><Field Delimiter><Data>.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Operation Control

♦

♦♦

♦ Bluetooth Device Name & Security Setting♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Bluetooth Device Name

Default device name 

User define, 1-16 characters

FIN

[00-7F], FIN

Bluetooth PIN Code

Default Bluetooth PIN Code

User define, 1-8 numbers

FIN

[30-39], FIN

Bluetooth Authentication

Disable

Enable 



The default Bluetooth Device Name is “CINO FxxxBT-xxxx”, you will be able to change the device name by scanning HEX values (1-16 characters).



The default Bluetooth PIN Code is “00000000”, you will be able to change the PIN Code by scanning HEX values (1-8 numbers).



The Bluetooth Authentication You can enable or disable the Bluetooth Authentication between the scanner and remote host device. If this function is enabled, when the

scanner wants to connect itself and sends the data to the host device, the host device has to return a link key shared between the scanner and the host device.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Operation Control

♦

♦♦

♦ Bluetooth Other Settings ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

HID Link Quality Setting

Disable

Enable 

Bluetooth Power Saving Mode

Disable 

Enable



The HID Link Quality Setting While using the HID radio link mode, some errors may occur during the data transmission when the radio link is disconnected. You can

enable this function to prevent such error from occurring.



The Bluetooth Power Saving Mode Bluetooth module will enter low consumption mode when you enable this function.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Condensed DataWizard

♦

♦♦

♦ Preamble, Postamble, Data Length & Symbol ID Trans. ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

Preamble

None 

1-15 characters

Maximum 15-character input; scan “FIN” to terminate this selection.

FIN

[00-7F], [FIN]

Postamble

None 

1-15 characters

Maximum 15-character input; scan “FIN” to terminate this selection.

FIN

[00-7F], [FIN]

Data Length Transmission

Disable 

Enable 2 digits data length transmission

If data length exceeds 99, 3-digit data length will be transmitted.

Symbology ID Transmission

Disable symbology ID transmission 

Enable prefix symbology ID transmission

Enable suffix symbology ID transmission

Enable both prefix and suffix symbology ID transmission

Enable prefix AIM symbology ID transmission

Enable suffix AIM symbology ID transmission

Enable both prefix and suffix AIM symbology ID transmission



DataWizard is the most powerful, Artificial-Intelligence based data editing expert system provided specially for the FuzzyScan family bar code readers. Through DataWizard,

you can process the scanned data prior the transmissions in many ways as: Insert, Delete, Match, Verify, Replace, Reorganize, and Repeat Transmission. It will help

you to arrange the transmission of scanned data to any specific format without software modification.



Due to the resources used by this system, Full-feature DataWizard is only supported by PowerTool. Through the PowerTool, all settings and configurations can be done

on-screen, under Windows 95/98/NT/2000/XP environment.



A Condensed Version DataWizard is provided by each FuzzyScan series. Through this menu, the condensed DataWizard can be utilized via bar code menu readings with

ease.



Please note that all “Character” input should be referred to the ASCII/HEX Table listed in Appendix to find matched HEX value.



If you have any problem to use DataWizard, please refer to following pages for details and consult your local FuzzyScan vendor or our web site for any assistance.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Condensed DataWizard

♦

♦♦

♦ Data Formatter Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

2nd

Option Code

Formatter Control

Disable 

Select one bar code symbology

Select all bar code symbologies

FIN

(2 digits)

automatic termination

1st Insertion

Disable 

Enable

2-digits identified position; max. 3 insertion characters

FIN

(2 digits)

position

[1-3 characters], [FIN]

2nd Insertion

Disable 

Enable

2-digits identified position; max. 3 insertion characters

FIN

(2 digits)

position

[1-3 characters], [FIN]

3rd Insertion

Disable 

Enable

2-digits identified position; max. 3 insertion characters

FIN

(2 digits)

position

[1-3 characters], [FIN]

4th Insertion

Disable 

Enable

2-digits identified position; max. 3 insertion characters

FIN

(2 digits)

position

[1-3 characters], [FIN]



The Data Formatter is used to edit the scanned raw data prior to transmitting the data to the host computers or terminals. It allows you to select desired bar code

symbologies for formatter control, and provides Multiple Position Insertion and Multiple Character Insertion (max three characters) in the identified position.



While the Data Formatter is enabled, it arranges only scanned data without Preamble, Postamble, STX, ETX, Data Length, Prefix/Suffix Symbolology ID or Record

Suffix. All of the above programmable parameters perform the same function depending on your setting.



Regarding the “Bar Code Selection” and “Position Calculation” of data formatter, please refer to page 60 for details.



Please note that all “Character” input should be referred to the ASCII/HEX Table listed in Appendix to find matched HEX value.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Condensed DataWizard

♦

♦♦

♦ Data Verifier Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

2nd

Option Code

Verifier Control

Disable 

Select one bar code symbology

Select all bar code symbologies

FIN

(2 digits)

automatic termination

Identified Data Length

Disable 

Enable

Determine the identified data length for verification.

FIN

(2 digits)

1st Identified Character

Disable 

Enable

2-digits checking position; 1 identified character

FIN

(2 digits)

position

[00-7F]

2nd Identified Character

Disable 

Enable

2-digits checking position; 1 identified character

FIN

(2 digits)

position

[00-7F]

3rd Identified Character

Disable 

Enable

2-digits checking position; 1 identified character

FIN

(2 digits)

position

[00-7F]



The Data Verifier is used to provide advanced verification for error-free scanning and to work as an Embedded Data Transmitting Filter.



All data must conform to the Identified Bar Code Symbologies, Identified Data Length, and one to three Identified Characters in the checking position. Otherwise, the

FuzzyScan will not transmit the data to the host computers or terminals, but will instead issue 3 long beeps for verification error and skip the scanned data.



The Data Verifier checks only scanned data without Preamble, Postamble, STX, ETX, Data Length, Prefix/Suffix Symbology ID or Record Suffix.



Regarding the “Bar Code Selection” and “Position Calculation” of Data Verifier, please refer to page 60 for details.



Please note that all “Character” input should be referred to the ASCII/HEX Table listed in Appendix to find matched HEX value.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Condensed DataWizard

♦

♦♦

♦ Data Replacer Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

2nd

Option Code

Replacer Control

Disable 

Select one bar code symbology

Select all bar code symbologies

FIN

(2 digits)

automatic termination

1st Replacement

Disable 

Enable

2-digits identified position; 1 replacement character

FIN

(2 digits)

position

[00-7F]

2nd Replacement

Disable 

Enable

2-digits identified position; 1 replacement character

FIN

(2 digits)

position

[00-7F]

3rd Replacement

Disable 

Enable

2-digits identified position; 1 replacement character

FIN

(2 digits)

position

[00-7F]



The Data Replacer is used to edit the scanned raw data prior to transmitting the data to the host computers or terminals. It allows you to select desired bar code

symbologies for replacer control, and provides Multiple Position Replcement in the identified position.



All data must conform to the Identified Bar Code Symbologies, and one to three Identified Characters in the identified position While the Data Replacer is enabled, it

arranges only scanned data without Preamble, Postamble, STX, ETX, Data Length, Prefix/Suffix Symbology ID or Record Suffix.



Regarding the “Bar Code Selection” and “Position Calculation” of Data Replacer, please refer to page 60 for details.



Please note that all “Character” input should be referred to the ASCII/HEX Table listed in Appendix to find mathced HEX value.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

PROGRAM

Condensed DataWizard

♦

♦♦

♦ Data Organizer Setting ♦

♦♦

♦

F_DEFAULT

Family Code Selection P.C

Parameter Selection Option Code

2nd Option Code

Organizer Control

Disable 

Select one bar code symbology

Select all bar code symbologies

FIN

(2 digits)

automatic termination

1st Organization

Disable 

Enable

2-digits identified position;

Forward/backward data transmission setting

FIN

(2 digits)

position

direction

0 (Forward) 

1 (Backward)

2nd Organization

Disable 

Enable

2-digits identified position;

Forward/backward data transmission setting

FIN

(2 digits)

position

direction

0 (Forward) 

1 (Backward)

Include/Exclude Control

Transmitted data excluded the data of identified position 

Transmitted data included the data of identified position



The Data Organizer is used to edit the scanned raw data prior to transmitting the data to the host computers or terminals. It allows you to select desired bar code

symbologies for organizer control, and provides maximum two identified positions to send the data forward or backward. It also allows you to control the transmitted data

including or excluding the data of identification position. Please refer to the application example listed in page 60 for details.



While the Data Organizer is enabled, it arranges only scanned data without Preamble, Postamble, STX, ETX, Data Length, Prefix/Suffix Symbology ID or Record

Suffix.



Regarding the “Bar Code Selection” and “Position Calculation” of Data Organizer, please refer to page 60 for details.



Please note that all “Character” input should be referred to the ASCII/HEX Table.

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

Select a Bar Code Symbology

Select a Bar Code SymbologySelect a Bar Code Symbology

Select a Bar Code Symbology

You can select one or all types of bar code symbologies to

use Condensed DataWizard for advanced transmission

arrangement. If you scan “00” to select all types, the

FuzzyScan will arrange all incoming data to meet your

pre-defined format. If you want to select only one type bar

code, please select one of the option code listed below.

Code 128 : 01

UCC/EAN 128 : 31

UPC-A : 02

UPC-A with 2 supple.: 32

UPC-A with 5 supple.: 42

UPC-E : 03

UPC-E with 2 supple.: 33

UPC-E with 5 supple.: 43

EAN-13 : 04

EAN-13 with 2 supple. : 34

EAN-13 with 5 supple. : 44

EAN-8 : 05

EAN-8 with 2 supple : 35

EAN-8 with 5 supple.: 45

Codabar/NW-7 : 06

Code 39 : 07

Code 32 : 37

Trioptic Code 39: 47

Matrix 2 of 5 : 38

Interleaved 2 of 5 : 48

China Postal Code : 58

German Postal Code : 68

Code 93 : 09

Code 11 : 10

MSI/Plessey : 11

UK/Plessey : 12

Telepen : 13

GS1 Data Bar : 14

IATA : 15

Coupon Code : 16

PDF417/MicroPDF417: 22

Codablock: 23

Korea Post Code: 26

Position Calculation

Position CalculationPosition Calculation

Position Calculation

[Data Formatter]

If there is a 5-character input data string, refer to the following

to calculate the actual position for insertion:

[Data Verifier, Data Replacer, Data Organizer]

If there is a 11-character data string, please refer to the

following to calculate the actual position for identification.

Application Example

Application ExampleApplication Example

Application Example

If your bar code label is a 16-digit Interleaved 2 of 5 which

includes the information of 6-digit date code, 6-digit serial

number and 4-digit unit price, you want the FuzzyScan do

the following for you without software modification:

 Apply only Interleaved 2 of 5 to the condensed

DataWizard.

 Check bar code is actually with 16-digit length.

 Allow bar code output whose date code is leading with

“9”.

 Three outputs with “TAB” suffix.

 The date code output should skip “9” and replaced it by

“A”.

 The serial number output should be led with “SN”.

 The unit price output should be skipped the first 2

digits.

 Test Bar Code : 9 8 1 0 2 5 1 2 3 4 5 6 9 8 7 6

 Actual Output : A81025[TAB]SN123456[TAB]76[TAB]

Wireless FuzzyScan

Reference Manual

Configure Your FuzzyScan

Programming Procedure

Programming ProcedureProgramming Procedure

Programming Procedure

[Data Verifier]

 Scan “Program” to enter the programming mode.

 Scan “Verifier Control” and set bar code symbology to “48”

(Interleaved 2 of 5).

 Scan “Identified Data Length” and set the length to “16”.

 Scan “1st Identified Character” and set the identified

position to “00”, then set the identified character to “39”

(Hex Code of 9).

[Data Formatter]

 Scan “Formatter Control” and set bar code symbology to

“48”.

 Scan 1st Insertion” and set the identified position to “06”,

then inserted characters to “09” (Hex Code of TAB), “53”

(Hex Code of S), “4E” (Hex Code of N).

 Scan “2nd Insertion” and set the identified position to “12”,

then inserted character to “09”. In the final, you must scan

“FIN” (Finish) code to terminate this selection.



Scan “3rd Insertion” and set the identified position to “16”,

then inserted character to “09”. In the final, you must scan

“FIN” (Finish) code to terminate this selection.

[Data Replacer]

 Scan “Replacer Control” and set bar code symbology

to “48”.



Scan “1st Replacement” and set the identified position

to “00”, then replaced character to “41” (Hex Code of

A).

[Data Organizer]

 Scan “Organizer Control” and set bar code symbology

to “48”.

 Scan “1st Organization” and set the identified position

to “16”, then set the data transmission to “0” (forward).

 Scan “2nd Organization” and set the identified position

to “17”, then set the data transmission to “1”

(backward).



Scan “END” (Exit) to terminate the programming.

[Important Notice]

Please note that Condensed DataWizard will follow the

preset working flow as below:

Verifier 



 Formatter 



 Replacer 



 Organizer

So when you set the identified position in Data Organizer,

you must consider the inserted data which you already set

via Data Formatter.

Wireless FuzzyScan

Reference Manual

Appendix

Symbology ID Table

Each AIM Code Identifier contains the three-character string ]cm where:

] = Flag Character

c = Code Character

m = Modifier Character

Cino ID AIM ID Cino ID AIM ID

Code Family

Primary Format Code

Character

Code

Character

Modified

Character

Code Family

Primary Format Code

Character

Code

Character

Modified

Character

UPC-A m EAN/JAN-8 4

UPC-A with 2 supple. 1 EAN/JAN-8 with 2 supple. 1

UPC-A with 5 supple.

2 EAN/JAN-8 with 5 supple.

N E

UPC-E m EAN/JAN-13 m

UPC-E with 2 supple. 1 EAN/JAN-13 with 2 supple. 1

UPC-E with 5 supple.

2 EAN/JAN-13 with 5 supple.

F E

UPC

Example: A UPC-A bar code 012345678950 with 2 supplement 12 is

transmitted as ]E0012345678950]E112

EAN/JAN

Example: A EAN/JAN-8 bar code 49123562 with 5 supplement 12345 is

transmitted as ]E449123562]E212345

Code 128 B m Code 93 Code 93 H G m

Code 128 GS1-128 C C 1 Code 11 Code 11 P H m

Codabar Codabar/NW-7 D F m MSI/Plessey MSI/Plessey R M m

Standard/Industrial 2 of 5 I S 0 UK/Plessey UK/Plessey S P 0

Matrix 2 of 5 K X 0 Telepen Telepen T B m

Interleaved 2 of 5 J I m GS1 DataBar

GS1 Databar

Compsoite Composite Code X e 0

China Postal Code L X 0 Code 39 G A m

Code 25

German Postal Code M I 3 Code 39 Trioptic W X 0

IATA IATA O R m

Code 39

Code 32 G A 0

UCC Coupon Code Z PDF417 PDF417/Micro PDF417 V L 0

Codablock Codablock F Y O 0

Korea Post Korea Post Code a X 0

UCC Coupon

Example : A UPC-A 512345678900 + GS1-128 81010123451297 bar

code is transmitted as]E0512345678900]C181010123451297

Example: A EAN-13 9923456789019 + GS1-128 81010123451297 bar

code is transmitted as ]E09923456789019]C181010123451297 Remark: Above examples are given for the transmission of AIM ID.

Wireless FuzzyScan

Reference Manual

Appendix

Keyboard Function Code Table

No. ANSI ASCII

Key Function No. ANSI ASCII

Key Function

00 NUL 00H RESERVED 16 DLE 10H F7

01 SOH 01H CTRL (Left) 17 DC1 11H F8

02 STX 02H ALT (Left) 18 DC2 12H F9

03 ETX 03H SHIFT 19 DC3 13H F10

04 EOT 04H CAPS LOCK 20 DC4 14H F11

05 ENQ 05H NUM LOCK 21 NAK 15H F12

06 ACK 06H ESC 22 SYN 16H INS (Insert) (Edit)

07 BEL 07H F1 23 ETB 17H DEL (Delete) (Edit)

08 BS 08H BACK SPACE 24 CAN 18H HOME (Edit)

09 HT 09H TAB 25 EM 19H END (Edit)

10 LF 0AH F2 26 SUB 1AH PAGE UP (Edit)

11 VT 0BH F3 27 ESC 1BH PAGE DOWN (Edit)

12 FF 0CH F4 28 FS 1CH UP (Edit)

13 CR 0DH ENTER (CR) 29 GS 1DH DOWN (Edit)

14 SO 0EH F5 30 RS 1EH LEFT (Edit)

15 SI 0FH F6 31 US 1FH RIGHT (Edit)

To emulate the keyboard function key input for user definable parameters, user must configure actual content using the

Reserved ASCII 0 – 31 characters, and also Enable the “Function Key Emulation”. Otherwise, the Ctrl output will be done

by the scanner. Please refer to the above Keyboard Function Code Table which is for IBM PC/XT/AT, PS/2, PS/VP,

COMPAQ PC, HP Vectra PC, Notebook PC, APPLE and PowerMac, and WYSE PC Enhanced or fully compatible machines.

Wireless FuzzyScan

Reference Manual

Appendix

ASCII Input Shortcut

To configure the user definable parameters of FuzzyScan via

programming menu, FuzzyScan will ask you to scan your

desired ASCII value in HEX form. You have to refer to the

“HEX/ASCII Table” for details.

Example:

If you want the scanned data output leading with a Dollar

Sign, you have to set the “Preamble” to “$”. The configuration

procedure is listed below for reference.

 Scan the system command – PROGRAM listed on page

3-24 to enter programming mode.

 Scan family code – PREAMBLE to select this family.

 Refer to the Hex/ASCII Table, you will find the HEX value

of “$” is 24.

 Scan the option code – 2 listed on the fold out back cover.

 Scan the option code – 4 listed on the fold out back cover.

 Scan the system command – FIN (Finish) to terminate

Preamble setting.

 Scan the system command – End to exit the programming

mode for normal operation.

HEX/ASCII Reference Table

L 0 1 2 3 4 5 6 7

0 NUL

DLE

SPACE

0 @ P ` p

1 SOH

DC1

! 1 A Q a q

2 STX

DC2

" 2 B R b r

3 ETX

DC3

# 3 C S c s

4 EOT

DC4

$ 4 D T d t

5 ENQ

NAK

% 5 E U e u

6 ACK

SYN

& 6 F V f v

7 BEL

ETB

' 7 G W g w

8 BS CAN

( 8 H X h x

9 HT EM ) 9 I Y i y

A LF SUB

* : J Z j z

B VT ESC

+ ; K [ k {

C FF FS , < L \ l |

D CR GS - = M ] m }

E SO RS . > N ^ n ~

F SI US / ? O _ o DEL

Example : ASCII “A” → HEX “41”; ASCII “a” → “61”

: High Byte of HEX Value

: Low Byte of HEX Value

Wireless FuzzyScan

Reference Manual

Appendix

Numeric Bar Codes

Wireless FuzzyScan

Reference Manual

Appendix

Link Mode Quick Set

Uninstall

SPP Slave Mode

PAIR Mode

HID Mode

SPP Master Mode

PICO Mode

Operation Mode Quick Set

Trigger Mode Presentation Mode

Wireless FuzzyScan

Reference Manual

Appendix

Host Interface Quick Set

(Work with Smart Cradle only)

RS232 Serial PS/2 (DOS/V) KBW Standard Mode

USB HID Standard Mode 





Keyboard Replacement PS/2 (DOS/V) KBW Turbo Mode

USB HID Turbo Mode

USB Com Port Emulation

Wireless FuzzyScan

Reference Manual

Appendix

Option Codes

0 8

4 C

1 9

5 D

2 A

6 E

3 B

7 F

FIN (Finish)

END (Exit)

Wireless FuzzyScan

Reference Manual

Appendix

Connecting Apple iOS Devices Quick Sets

Enable Variable PIN Code

Disable Variable PIN Code

BT PIN Code

Please refer to Quick Reference Guide of “Connecting FuzzyScan Bluetooth Cordless Scanners with your Apple iOS

Devices” for more details.

Wireless FuzzyScan

Reference Manual

Appendix

System Commands

PROGRAM

(Enter Programming Mode) Save Configuration

Sleep

FIN (Finish) Clone

Paging

END

(Exit Programming Mode)

Factory Default

PowerTool Host Link

System Information List

(SYSLIST)

Master Default

 Factory Default: After scanning” Factory Default” command, all parameters will be returned to factory default value (The radio link will be disconnected and the

scanner will revert to uninstall state).

 Master Default: After scanning “Master Default” command, the scanner will remain the pre-set parameters of Host Interface Selection, Keyboard Interface

Control (except Record Suffix; Preamble; Postamble), Serial Interface Control (except Record Suffix; Preamble; Postamble), Wand/Laser Emulation Control,

Bluetooth Device Name, Bluetooth PIN Code, and Out-of-range Scanning, the rest of parameters will be returned to default value (The radio link is still keep

on).

Save User Default User Default

 User Default: After scanning” Save User Default” command, all current parameters will be stored to the flash memory. Once you change the parameter and

would like to return to previous setting, please scan “User Default”.

Wireless FuzzyScan

Reference Manual

Appendix

Indications

Descriptions Link Indicator Beeper

Radio connected 1 blue blink per 2.5 sec. Off

Radio disconnected 3 blue blinks per 2 sec. Off

During connection Quick blue blinks Short clicks

Radio connection built 1 blue blink per 2.5 sec. 4 beeps in ascending tone

Radio connection lost 3 blue blinks per 2 sec. 4 beeps in descending tone

Data Transmission Quick blue blink Short clicks

Descriptions Status Indicator Beeper

Under charging (on cradle) Steady red Off

Fully charged (on cradle) 1 green blink at regular interval Off

Under batch scanning 1 green blink per 2.5 sec. Off

Pair failure Steady red 2 Di-do Di-do beeps

Out of memory 2 red blinks 2 long beeps

Battery power low 1 red blink at regular interval 1 beep at regular interval

Battery power extremely low 8 red blinks 8 beeps

Good read 1 green blink 1 good read beep

Under Configuration Steady red Off

Uninstall state Alternative red and green blinks Off

Upgrade state Steady red Short click

Time out warning Off 3 long beeps

Paged by smart cradle Off 6 page beeps

Sleep state / Battery no power Off Off

Link

Indicator

Status Indicator

Wireless FuzzyScan

Reference Manual

Appendix

HB2100 Charging Cradle Indication

Descriptions Power Beeper

Power on Steady blue Off

HB2110 Smart Cradle Indications

Indicators

Descriptions Center Side Beeper

Power on 1 blue blink Off Power on beeps

Smart Cradle Upgrade State Off Steady red Short clicks

Uninstall state Off Alternative red-green blinks

Off

Radio Connected Steady blue Steady Green Off

PICO Mode Radio Disconnected

Off Steady red Off

Radio Connected Steady blue Off Off

PAIR Mode Radio Disconnected

Off Steady red Off

PICO Mode Steady blue Steady green 6 page beeps

Smart cradle paged

by scanner PAIR Mode Steady blue Off 6 page beeps

Center Indicator

Side Indicators

CINO GROUP

FuzzyScan Wireless Reference Manual

PC WORTH INT’L CO., LTD. www.cino.com.tw

Cino F700Bt Users Manual FuzzyScan Wireless Scanner Reference Manual_ Rev B5_B20312

F700BT to the manual 6dbb7ba5-5c9c-4378-9074-14b4bba1192c

Navigation menu

Versions of this User Manual:

Views

Navigation
