CipherLab 1664 Bluetooth Barcode Scanner User Manual 1664 Scanner User Guide v1 00 E
CipherLab Co., Ltd. Bluetooth Barcode Scanner 1664 Scanner User Guide v1 00 E
manual
1664 Bluetooth Barcode Scanne
r
Setup barcodes included.
Version 1.00
Copyright © 2011 CIPHERLAB CO., LTD.
All rights reserved
The software contains proprietary information of CIPHERLAB CO., LTD.; it is provided
under a license agreement containing restrictions on use and disclosure and is also
protected by copyright law. Reverse engineering of the software is prohibited.
Due to continued product development this information may change without notice. The
information and intellectual property contained herein is confidential between CIPHERLAB
and the client and remains the exclusive property of CIPHERLAB CO., LTD. If you find
any problems in the documentation, please report them to us in writing. CIPHERLAB
does not warrant that this document is error-free.
No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical, photocopying,
recording or otherwise without the prior written permission of CIPHERLAB CO., LTD.
For product consultancy and technical support, please contact your local sales
representative. Also, you may visit our web site for more information.
The CipherLab logo is a registered trademark of CIPHERLAB CO., LTD.
All brand, product and service, and trademark names are the property of their registered
owners.
The editorial use of these names is for identification as well as to the benefit of the
owners, with no intention of infringement.
CIPHERLAB CO., LTD.
Website: http://www.cipherlab.com
IMPORTANT NOTICES
FOR USA
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
FOR CANADA
This digital apparatus does not exceed the Class B limits for radio noise emissions from
digital apparatus as set out in the interference-causing equipment standard entitled
"Digital Apparatus," ICES-003 of Industry Canada. This device complies with Part 15 of
the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Cet appareil numerique respecte les limites de bruits radioelectriques applicables aux
appareils numeriques de Classe B prescrites dans la norme sur le material brouilleur:
"Appareils Numeriques," NMB-003 edictee par l'Industrie.
FOR HAND-HELD PRODUCT WITH RF FUNCTIONS
The 1664 unit (FCC ID: Q3N-1664) complies with FCC radiation exposure limits set forth
for uncontrolled environment and meets the FCC radio frequency (RF) Exposure
Guidelines in Supplement C to OET65. The unit has very low level of RF energy that it is
deemed to comply without testing of specific absorption ratio (SAR).
The 3610 unit (FCC ID: Q3N-3610) complies with FCC radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed and operated with
minimum distance 20 cm between the radiator & body. It only operated in hand-held
used. If only transfer data to the host cordless, please keep the minimum distance 20 cm
between machine & body.
SAFETY PRECAUTIONS
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
The use of any batteries or charging devices, which are not originally sold or
manufactured by CipherLab, will void your warranty and may cause damage to
human body or the product itself.
DO NOT disassemble, incinerate or short circuit the battery.
DO NOT expose the scanner or the battery to any flammable sources.
For green-environment issue, it's important that batteries should be recycled in a
proper way.
Under no circumstances, internal components are self-serviceable.
CARE & MAINTENANCE
Use a clean cloth to wipe dust off the scanning window and the body of the scanner
as well as the charging device. DO NOT use/mix any bleach or cleaner.
If you want to put away the scanner for a period of time, download the collected data
to a host computer when in the memory mode, and then take out the battery. Store
the scanner and battery separately.
When the scanner resumes its work, make sure the battery is fully charged before
use.
If you shall find the scanner malfunctioning, write down the specific scenario and
consult your local sales representative.
Version Date Notes
1.00 Nov. 30, 2011 Initial release
RELEASE NOTES
CONTENTS
IMPORTANT NOTICES ........................................................................................................................... - 2 -
For USA ................................................................................................................................................. - 3 -
For Canada ........................................................................................................................................... - 3 -
For Hand-held Product with RF Functions ....................................................................................... - 4 -
Safety Precautions .............................................................................................................................. - 4 -
Care & Maintenance ........................................................................................................................... - 4 -
RELEASE NOTES ................................................................................................................................... - 5 -
INTRODUCTION ......................................................................................................................................... 1

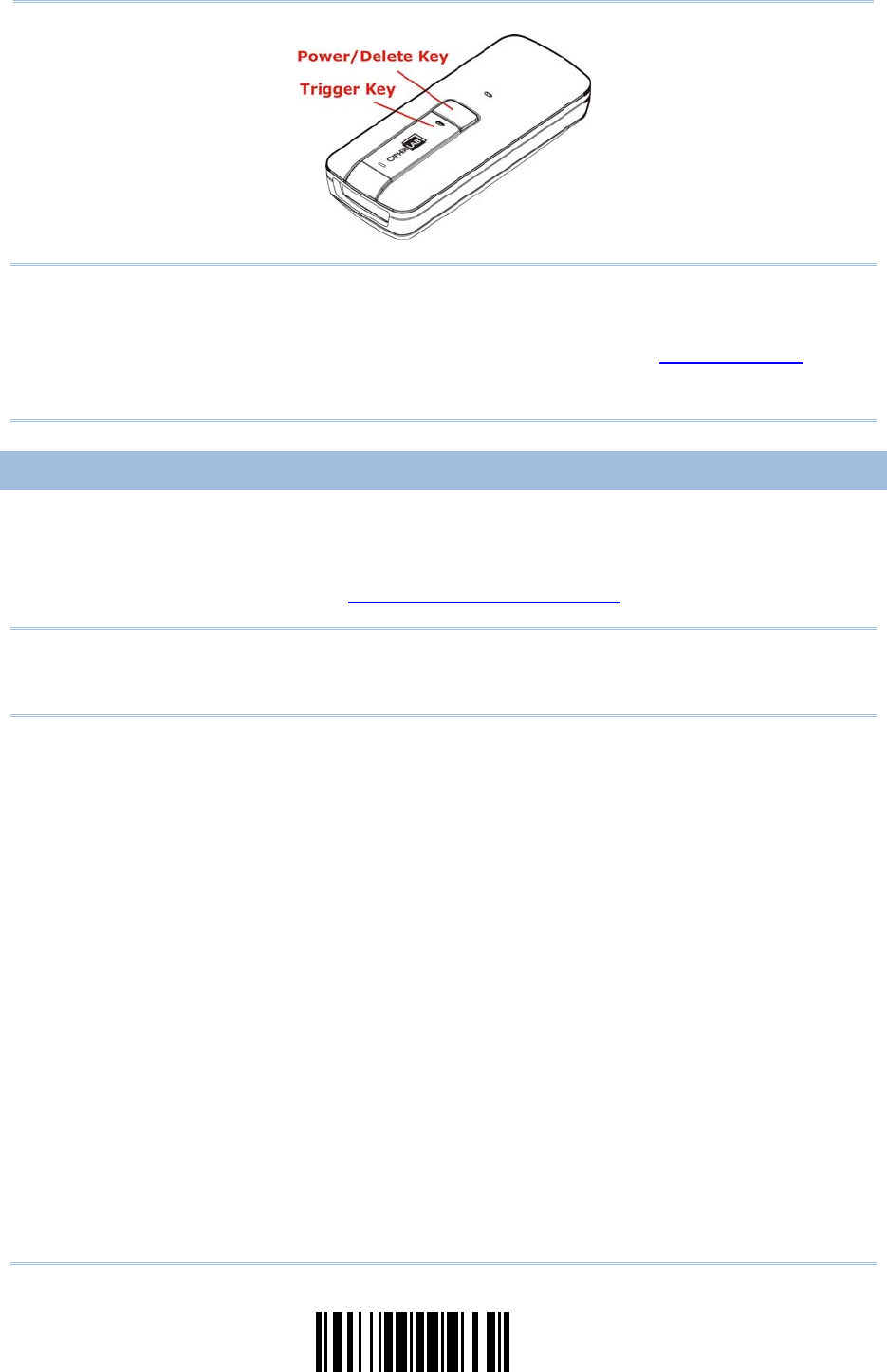

Getting Familiarized with 1664 and 3610 ......................................................................................... 2
Installing the Battery to 1664 ......................................................................................................... 2
Charging the Battery ......................................................................................................................... 3
Charging the Battery via Charger .................................................................................................... 4
Using 3610 ......................................................................................................................................... 5
Inside the Package ................................................................................................................................. 6
Product Highlights ................................................................................................................................... 6
Symbologies Supported ......................................................................................................................... 7
QUICK START ............................................................................................................................................. 9
Enter Configuration Mode ................................................................................................................... 11
Exit Configuration Mode ...................................................................................................................... 11
Default Settings .................................................................................................................................... 12
Save User Settings as Defaults .................................................................................................... 12
Restore User Defaults .................................................................................................................... 12
Restore System Defaults ............................................................................................................... 12
Read a Setup Barcode ........................................................................................................................ 13
Configure Parameters .................................................................................................................... 13
List the Current Settings ................................................................................................................ 17
Create One-Scan Setup Barcodes ..................................................................................................... 19
UNDERSTANDING THE BARCODE SCANNER ....................................................................................... 21
1.1 Battery ............................................................................................................................................ 21
1.1.1 How to Operate the Scanner .............................................................................................. 22
1.1.2 Auto Power Off & Power-Saving ........................................................................................ 23
1.2 Memory ........................................................................................................................................... 26
1.2.1 Transmit Buffer ..................................................................................................................... 26
1.2.2 Memory Mode ....................................................................................................................... 27
1.3 LED Indicator ................................................................................................................................. 29
1.3.1 Good Read LED ..................................................................................................................... 30
1.3.2 Good Read LED Duration .................................................................................................... 30
1.4 Beeper ............................................................................................................................................. 31
1.4.1 Beeper Volume ..................................................................................................................... 32
1664 Barcode Scanner User Guide
1.4.2 Good Read Beep ................................................................................................................... 33
1.4.3 Low Battery Alarm ................................................................................................................ 34
1.5 Vibrator ........................................................................................................................................... 34
1.5.1 Good Read Vibrator .............................................................................................................. 34
1.5.2 Good Read Vibrator Duration ............................................................................................. 34
1.6 Send “NR” to Host ......................................................................................................................... 35
1.7 Scan Modes .................................................................................................................................... 36
1.7.1 Laser Mode ............................................................................................................................ 36
1.7.2 Auto Off Mode ....................................................................................................................... 37
1.7.3 Auto Power Off Mode ........................................................................................................... 37
1.7.4 Aiming Mode ......................................................................................................................... 38
1.7.5 Multi-Barcode Mode ............................................................................................................. 38
1.8 Scanning Timeout ......................................................................................................................... 39
1.9 Delay between Re-read ................................................................................................................ 40
1.10 Read Redundancy for All Symblogies ..................................................................................... 41
1.11 Addon Security for UPC/EAN Barcodes ................................................................................... 42
1.12 Negative Barcodes...................................................................................................................... 42
1.13 Using Direct USB Cable .............................................................................................................. 43
1.13.1 Direct USB Interface .......................................................................................................... 43
1.13.2 Disable Direct USB Interface ............................................................................................ 43
1.14 Picklist Mode ............................................................................................................................... 44
1.15 Pager Beep Duration .................................................................................................................. 44
1.16 Time Stamp ................................................................................................................................. 45
1.16.1 DATE AND TIME SETTINGS ............................................................................................... 45
1.16.2 SEPARATOR FOR DATE AND TIME .................................................................................. 47
1.16.3 DATE FORMAT .................................................................................................................... 48
1.17 2D Decode Setting ..................................................................................................................... 49
1.17.1 Aiming Pattern ................................................................................................................... 49
1.17.2 Decoding Illumination ....................................................................................................... 49
1.18 Hardware Reset .......................................................................................................................... 50
1.18.1 Restore System Defaults .................................................................................................. 50
1.18.2 Reset Connection ............................................................................................................... 50
SELECTING OUTPUT INTERFACE ........................................................................................................... 51
2.1 Bluetooth® HID .............................................................................................................................. 52
2.1.1 Activate Bluetooth® HID & Select Keyboard Type ........................................................... 53
2.1.2 Reset Connection ................................................................................................................. 54

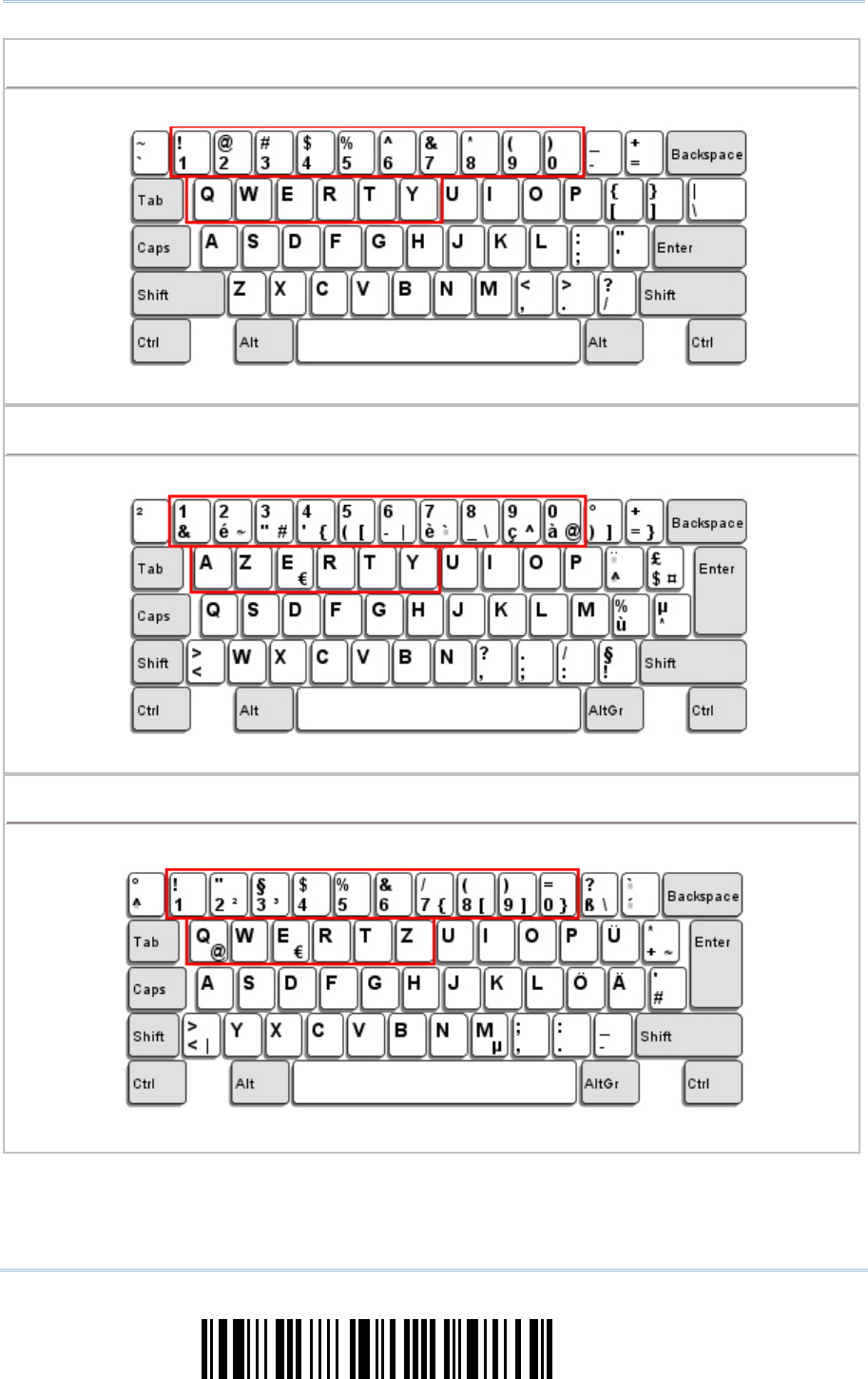

2.1.3 Keyboard Settings ................................................................................................................ 55
2.1.4 Inter-Character Delay ........................................................................................................... 62
2.1.5 Inter-Function Delay ............................................................................................................. 62
2.1.6 HID Character Transmit Mode ............................................................................................ 63
2.1.7 Keypad Support for iPhone/iPad ....................................................................................... 63
2.2 Bluetooth® SPP Slave ................................................................................................................... 64
2.2.1 Activate Bluetooth® SPP Slave Mode ............................................................................... 64
2.2.2 Inter-Function Delay ............................................................................................................. 64
2.2.3 ACK/NAK Timeout ................................................................................................................ 65
2.3 Bluetooth® SPP Master ................................................................................................................ 66
2.3.1 Activate Bluetooth® SPP Master Mode ............................................................................. 66
1664 Barcode Scanner User Guide
2.3.2 Inter-Function Delay ............................................................................................................. 68
2.3.3 ACK/NAK Timeout ................................................................................................................ 69
2.3.4 Switch between Master/Slave Mode ................................................................................ 69
2.4 USB HID via 3610 ......................................................................................................................... 70
2.4.1 Activate USB HID & Select Keyboard Type ....................................................................... 71
2.4.2 Keyboard Settings ................................................................................................................ 72
2.4.3 Inter-Character Delay ........................................................................................................... 79
2.4.4 Inter-Function Delay ............................................................................................................. 79
2.4.5 HID Character Transmit Mode ............................................................................................ 80
2.5 USB Virtual COM via 3610 ........................................................................................................... 81
2.5.1 Activate USB Virtual COM .................................................................................................... 81
2.5.2 Inter-Function Delay ............................................................................................................. 81
2.5.3 ACK/NAK Timeout ................................................................................................................ 82
2.6 Direct USB HID ............................................................................................................................... 83
2.6.1 Activate USB HID & Select Keyboard Type ....................................................................... 84
2.6.2 Keyboard Settings ................................................................................................................ 85
2.6.3 Inter-Character Delay ........................................................................................................... 92
2.6.4 Inter-Function Delay ............................................................................................................. 92
2.6.5 HID Character Transmit Mode ............................................................................................ 93
2.7 Direct USB Virtual COM ................................................................................................................ 94
2.7.1 Activate USB Virtual COM .................................................................................................... 94
2.7.2 Inter-Function Delay ............................................................................................................. 94
2.7.3 ACK/NAK Timeout ................................................................................................................ 95

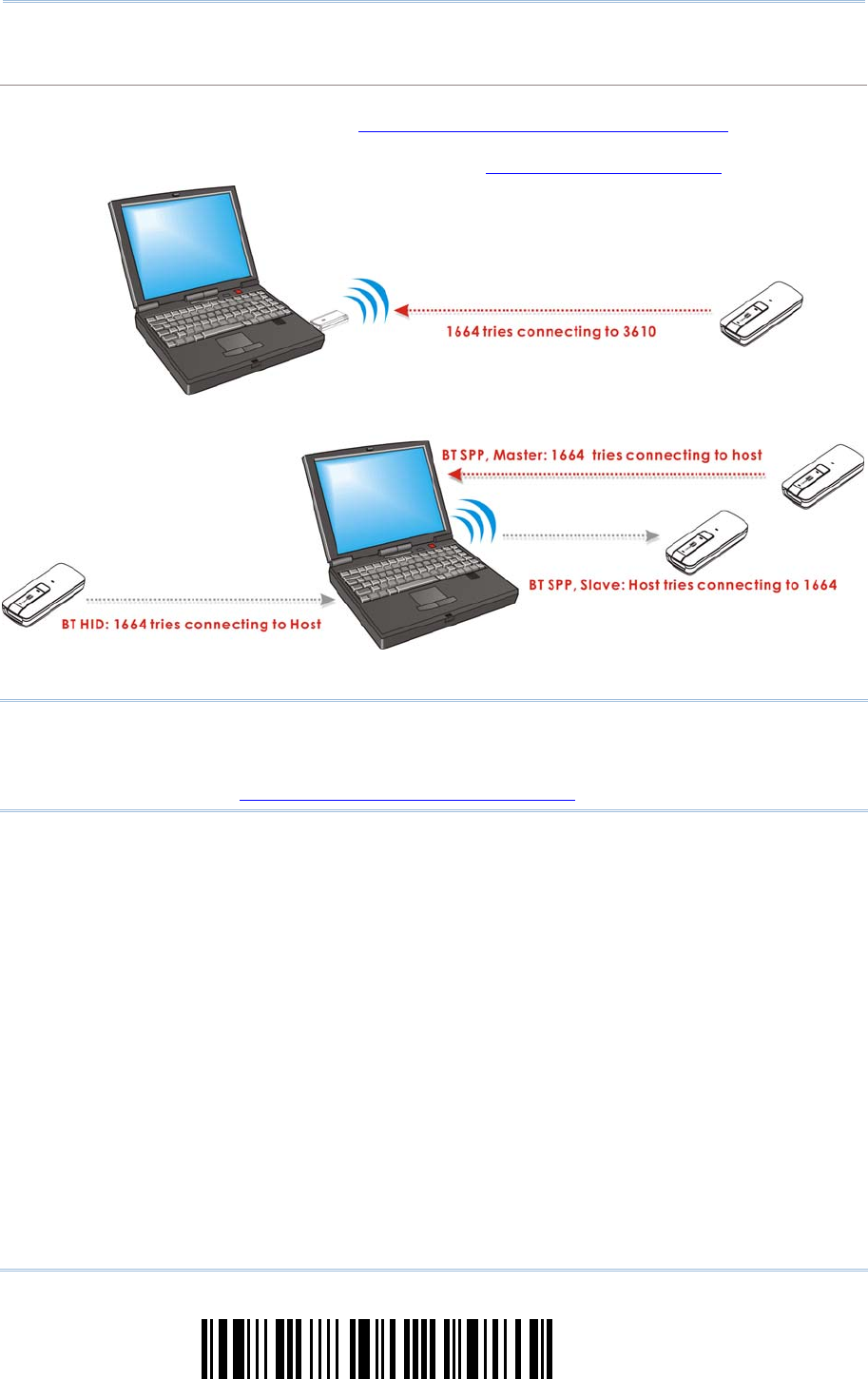

SETTING UP A WPAN CONNECTION ...................................................................................................... 97

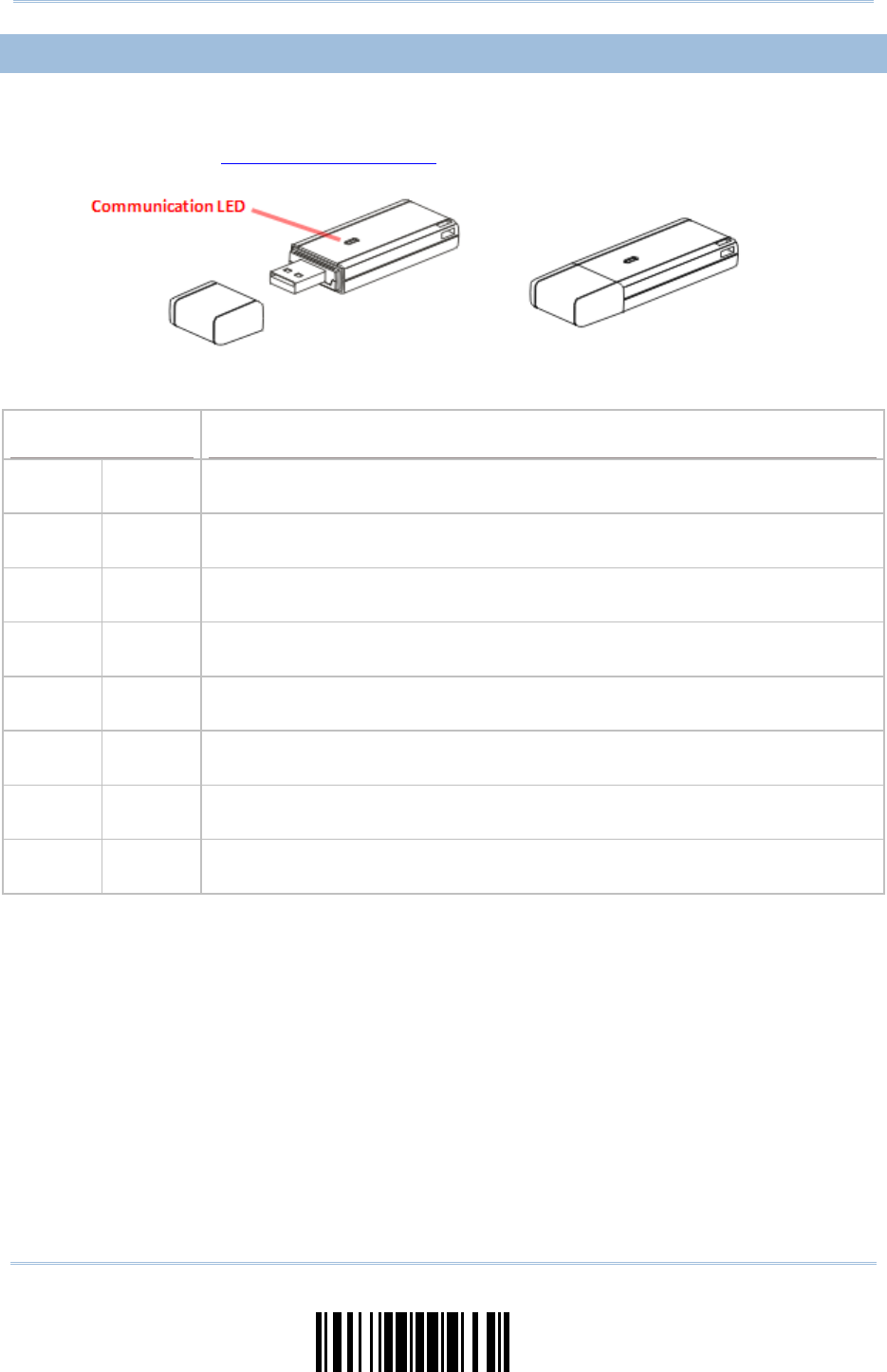

3.1 Connecting via 3610 .................................................................................................................... 98
3.1.1 Connect to 3610 ................................................................................................................... 98
3.1.2 Change Interface .................................................................................................................. 99
3.1.3 Configure Related Settings ............................................................................................... 100

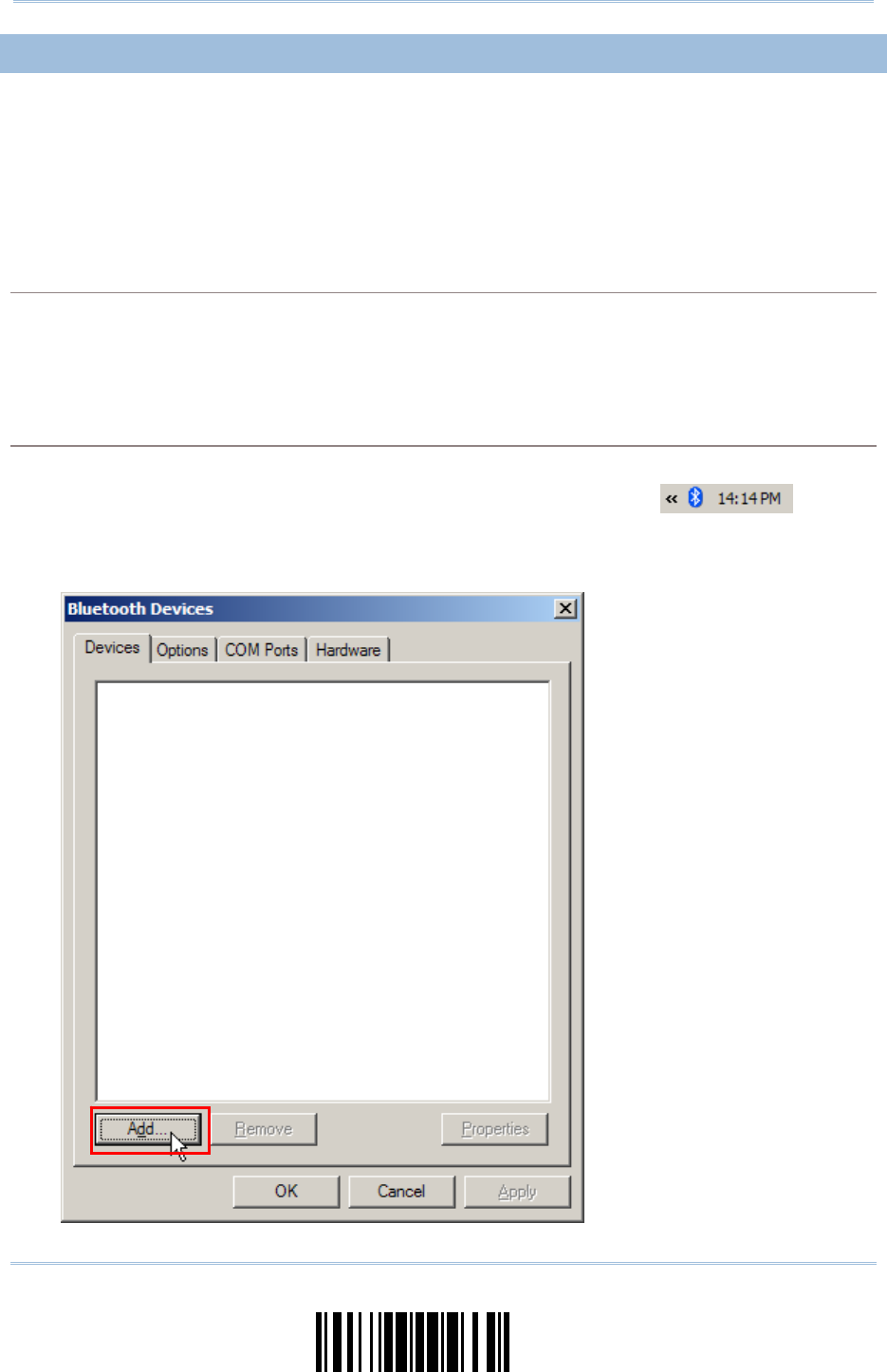

3.2 Connecting via Bluetooth® Dongle ........................................................................................... 101
3.2.1 Change Interface ................................................................................................................ 101
3.2.2 Configure Related Settings ............................................................................................... 102
3.2.3 Connect to Dongle .............................................................................................................. 105
CHANGING SYMBOLOGY SETTINGS .................................................................................................... 113
4.1 Codabar ........................................................................................................................................ 114
4.1.1 Start/Stop Transmission ................................................................................................... 114
4.1.2 CLSI Conversion .................................................................................................................. 114
4.1.3 Code Length Qualification................................................................................................. 115
4.2 Code 25 – Industrial 25 ............................................................................................................. 116
4.2.1 Code Length Qualification................................................................................................. 117
4.3 Code 25 – Interleaved 25 .......................................................................................................... 118
4.3.1 Verify Check Digit ............................................................................................................... 118
4.3.2 Transmit Check Digit ......................................................................................................... 118
4.3.3 Convert to EAN-13 .............................................................................................................. 119
4.3.4 Code Length Qualification................................................................................................. 120
4.4 Code 25 – Matrix 25 ................................................................................................................... 121
4.4.1 Verify Check Digit ............................................................................................................... 121
4.4.2 Transmit Check Digit ......................................................................................................... 121
4.4.3 Code Length Qualification................................................................................................. 122
4.5 Code 25 – Chinese 25 ................................................................................................................ 123
1664 Barcode Scanner User Guide
4.6 Italian Pharmacode (Code 32) .................................................................................................. 124
4.7 Code 39 ........................................................................................................................................ 125
4.7.1 Verify Check Digit ............................................................................................................... 125
4.7.2 Transmit Check Digit ......................................................................................................... 125
4.7.3 Standard/Full ASCII Code 39 ........................................................................................... 126
4.7.4 Code Length Qualification................................................................................................. 127
4.8 Trioptic Code 39 .......................................................................................................................... 128
4.9 Code 93 ........................................................................................................................................ 129
4.9.1 Code Length Qualification................................................................................................. 130
4.10 Code 128 ................................................................................................................................... 131
4.11 GS1-128 (EAN-128) .................................................................................................................. 132
4.11.1 Transmit Code ID ............................................................................................................. 132
4.11.2 Field Separator (GS Character) ...................................................................................... 132
4.12 ISBT 128 .................................................................................................................................... 133
4.12.1 ISBT Concatenation ......................................................................................................... 133
4.12.2 ISBT Concatenation Redundancy .................................................................................. 134
4.13 GS1 DataBar (RSS Family) ...................................................................................................... 135
4.13.1 Select Code ID .................................................................................................................. 135
4.13.2 GS1 DataBar Omnidirectional (RSS-14) ...................................................................... 136
4.13.3 GS1 DataBar Expanded (RSS Expanded) ..................................................................... 137
4.13.4 GS1 DataBar Limited (RSS Limited) ............................................................................. 138
4.13.5 Convert to UPC/EAN ........................................................................................................ 139
4.14 MSI .............................................................................................................................................. 140
4.14.1 Verify Check Digit ............................................................................................................. 140
4.14.2 Transmit Check Digit ....................................................................................................... 140
4.14.3 Code Length Qualification .............................................................................................. 141
4.15 EAN-8 .......................................................................................................................................... 142
4.16 EAN-13 ........................................................................................................................................ 143
4.16.1 Convert to ISBN ................................................................................................................ 144
4.16.2 Convert to ISSN ................................................................................................................ 144
4.17 UCC Coupon Extended Code ................................................................................................... 145
4.18 UPC-A .......................................................................................................................................... 146
4.18.1 Transmit System Number ............................................................................................... 147
4.18.2 Transmit Check Digit ....................................................................................................... 147
4.19 UPC-E .......................................................................................................................................... 148
4.19.1 Select System Number ................................................................................................... 149
4.19.2 Convert to UPC-A .............................................................................................................. 149
4.19.3 Transmit System Number ............................................................................................... 150
4.19.4 Transmit Check Digit ....................................................................................................... 150
4.20 Code 11 ...................................................................................................................................... 151
4.20.1 Verify Check Digit ............................................................................................................. 151
4.20.2 Transmit Check Digit ....................................................................................................... 151
4.20.3 Code Length Qualification .............................................................................................. 152
4.21 Composite Code ........................................................................................................................ 153
4.21.1 Composite CC-A/B ........................................................................................................... 153
4.21.2 Composite CC-C ................................................................................................................ 153
4.21.3 Composite TLC-39............................................................................................................ 153
4.21.4 UPC Composite Mode...................................................................................................... 154
1664 Barcode Scanner User Guide
4.21.5 GS1-128 Emulation Mode for UCC/EAN Composite Codes ...................................... 154
4.22 US Postal Code .......................................................................................................................... 155
4.22.1 US Postnet ........................................................................................................................ 155
4.22.2 US Planet ........................................................................................................................... 155
4.22.3 Transmit Check Digit ....................................................................................................... 155
4.23 UK Postal Code.......................................................................................................................... 156
4.23.1 UK Postal ........................................................................................................................... 156
4.23.2 Transmit Check Digit ....................................................................................................... 156
4.24 More Postal Code ..................................................................................................................... 157
4.24.1 Japan Postal ..................................................................................................................... 157
4.24.2 Australian Postal .............................................................................................................. 157
4.24.3 Dutch Postal ..................................................................................................................... 157
4.24.4 USPS 4CB/One Code/Intelligent Mail .......................................................................... 157
4.24.5 UPU FICS Postal ............................................................................................................... 158
4.25 2D Symbologies ........................................................................................................................ 159
4.25.1 PDF417 ............................................................................................................................. 159
4.25.2 MicroPDF417 .................................................................................................................... 159
4.25.3 Data Matrix ....................................................................................................................... 160
4.25.4 Maxicode ........................................................................................................................... 161
4.25.5 QR Code ............................................................................................................................. 161
4.25.6 MicroQR ............................................................................................................................. 161
4.25.7 Aztec .................................................................................................................................. 161
4.26 Macro PDF ................................................................................................................................. 162
4.26.1 Transmit/Decode Mode .................................................................................................. 162
4.26.2 Escape Characters ........................................................................................................... 163
4.26.3 Transmit Control Header ................................................................................................ 163
DEFINING OUTPUT FORMAT ................................................................................................................ 165

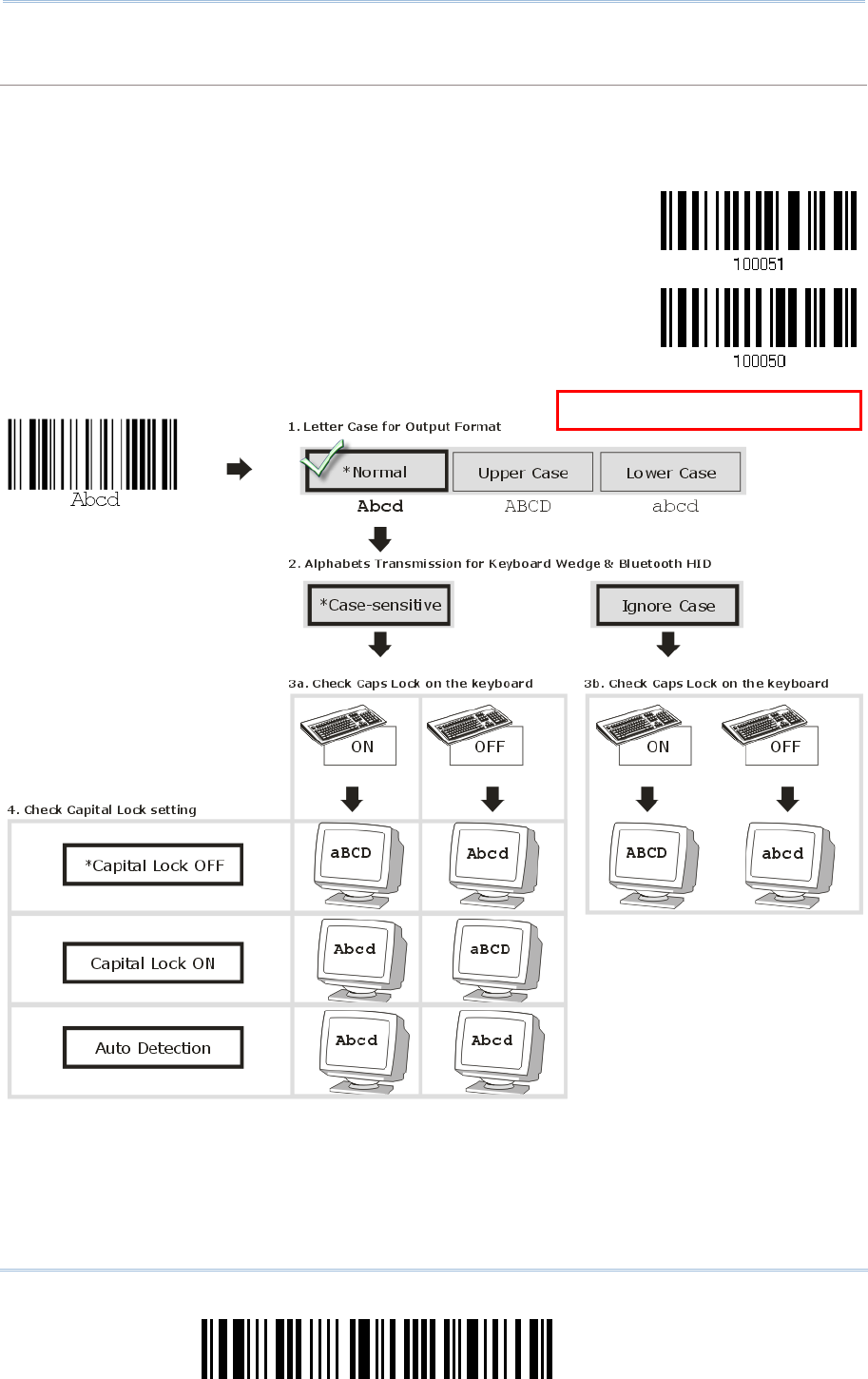

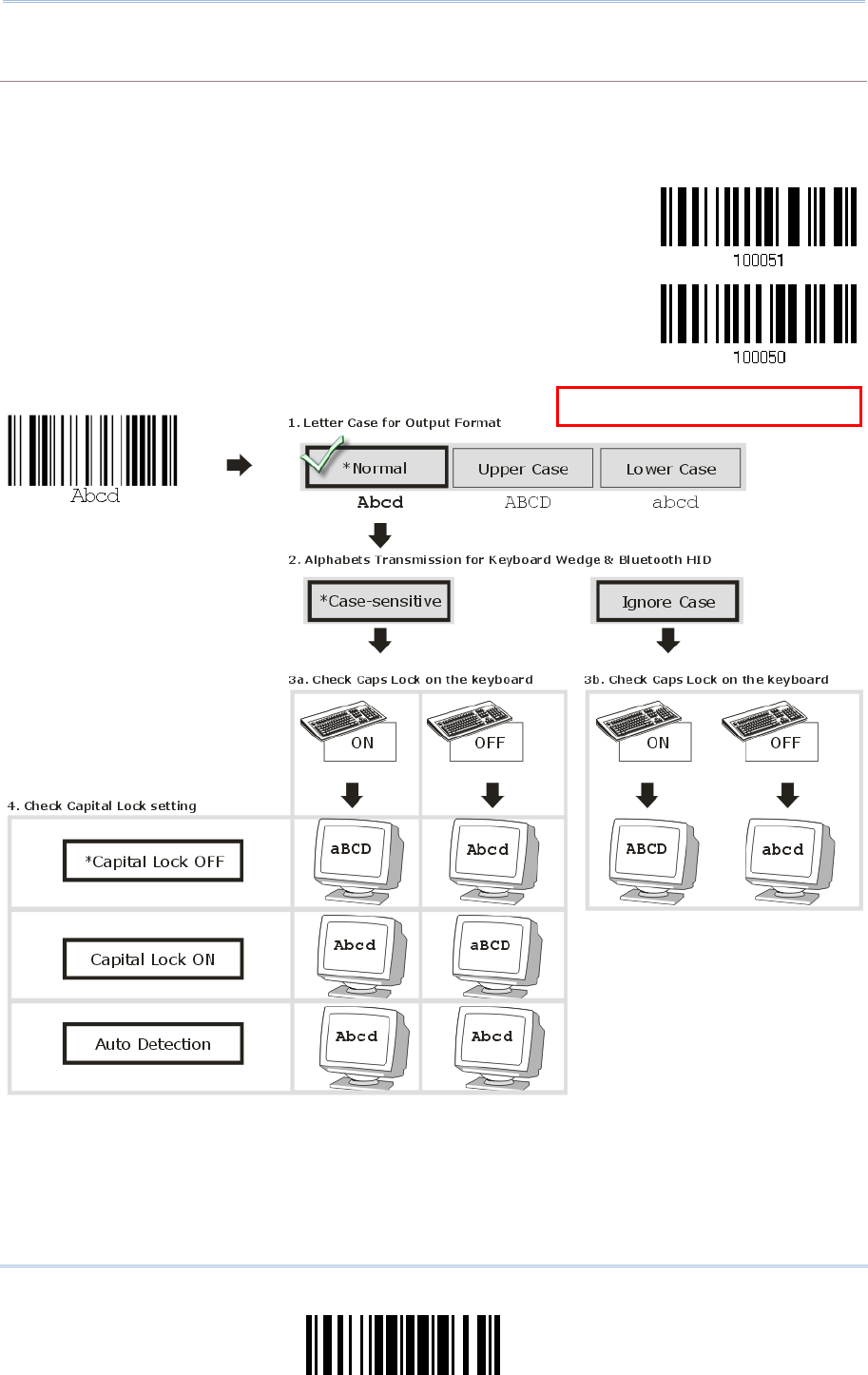

5.1 Letter Case ................................................................................................................................... 165
5.2 Character Substitution ............................................................................................................... 166
5.2.1 Select a Set for Character Substituion ............................................................................ 167
5.2.2 Symbologies for Character Substitution (All 3 Sets) .................................................... 168
5.3 Prefix/Suffix Code ....................................................................................................................... 178
5.4 Code ID ......................................................................................................................................... 179
5.4.1 Select Pre-defined Code ID ............................................................................................... 179
5.4.2 Change Code ID .................................................................................................................. 182
5.4.3 Clear Code ID Settings ....................................................................................................... 185
5.5 Length Code ................................................................................................................................. 186
5.6 Multi-Barcode Editor ................................................................................................................... 194
5.6.1 Edit a Concatenation of Barcodes ................................................................................... 195
5.6.2 Activate the Concatenation of Barcodes ........................................................................ 197
5.7 Removal of Special Character .................................................................................................. 198
APPLYING FORMATS FOR DATA EDITING .......................................................................................... 199
6.1 Activating Editing Formats ........................................................................................................ 200
6.1.1 Activate Editing Formats ................................................................................................... 200
6.1.2 Exclusive Data Editing ....................................................................................................... 201

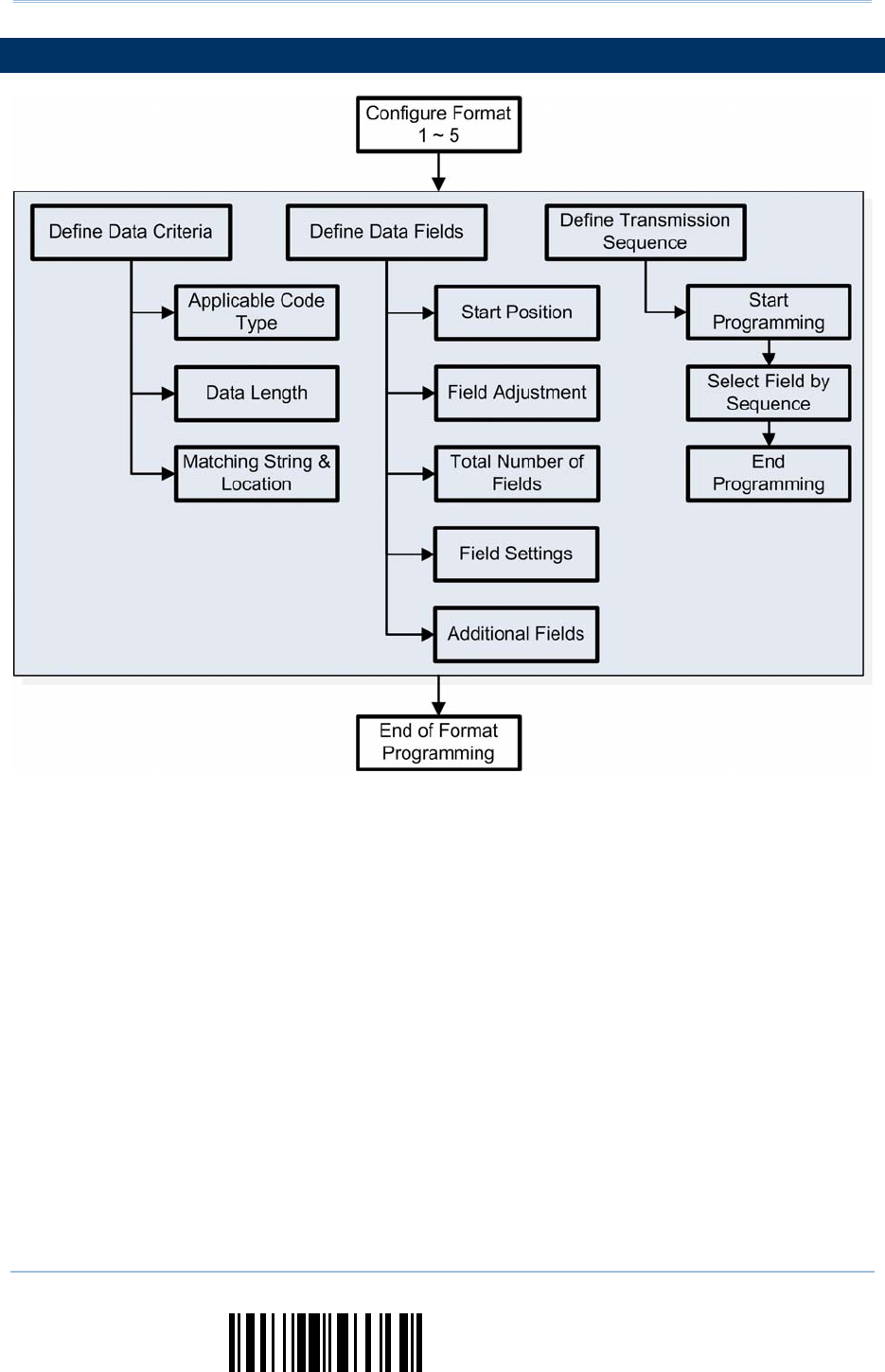

6.2 How to Configure Editing Formats ............................................................................................ 202
6.2.1 Select Format to Configure ............................................................................................... 203
1664 Barcode Scanner User Guide
6.2.2 Restore Default Format ..................................................................................................... 204
6.3 Configuring Format — Define Data Criteria ............................................................................. 205
6.3.1 Applicable Code Type ........................................................................................................ 205
6.3.2 Data Length ......................................................................................................................... 215
6.3.3 Matching String & Location .............................................................................................. 216
6.4 Configuring Format — Define Data Field ................................................................................. 217
6.4.1 Start Position ...................................................................................................................... 217
6.4.2 Field Adjustment ................................................................................................................ 217
6.4.3 Total Number of Fields ...................................................................................................... 218
6.4.4 Field Settings ...................................................................................................................... 219
6.4.5 Pause Field Setting ............................................................................................................ 225
6.5 Configuring Format — Define Transmission Sequence ......................................................... 226
6.6 Programming Examples ............................................................................................................ 228
6.6.1 Example I ............................................................................................................................. 228
6.6.2 Example II ............................................................................................................................ 229
SPECIFICATIONS ................................................................................................................................... 231
FIRMWARE UPGRADE .......................................................................................................................... 233
How to Upgrade Firmware ................................................................................................................ 233
Using 3610 .................................................................................................................................... 233
Using Direct USB Virtual COM ..................................................................................................... 235
Using Bluetooth® Dongle ............................................................................................................. 236
How to Upgrade 3610 Firmware ..................................................................................................... 238
Upgrading 3610 CPU Firmware .................................................................................................. 238
Upgrading 3610 USB Bridge Firmware ..................................................................................... 239
HOST SERIAL COMMANDS .................................................................................................................. 241
Serial Commands .............................................................................................................................. 241
Example ......................................................................................................................................... 242
3610 Setup Barcodes & Serial Commands .................................................................................. 243
3610 Serial Command Table ..................................................................................................... 244
Example ......................................................................................................................................... 246
KEYBOARD WEDGE TABLE .................................................................................................................. 247
Key Type & Status .............................................................................................................................. 248
Key Type ......................................................................................................................................... 248
Key Status ...................................................................................................................................... 248
Example ............................................................................................................................................... 249
NUMERAL SYSTEMS ............................................................................................................................. 251
Decimal System ................................................................................................................................. 251
Hexadecimal System ......................................................................................................................... 252
ASCII Table .......................................................................................................................................... 253
Entering PIN Code for Authentication ............................................................................................. 254
Use Preset PIN .............................................................................................................................. 254
Disable Authentication or Use Random PIN ............................................................................ 255
1
Update
CipherLab’s small-form-factor 1600 Series Barcode Scanners are specifically designed to
answer the mobile demands. The palm-sized scanners are designed to help accelerate
productivity while lowering the total cost of ownership. Intensive data collection jobs are
made easier with fast, accurate barcode scanning in various working environments,
especially in small businesses. Integrating short-distance cordless technology to
small-form-factor scanners, the scanners are ideal for carrying as in pocket, and thus
give workers tether-free mobility anytime anywhere and get job done more efficiently.
This line of scanners deliver data over a cordless personal network at a range of up to 10
meters and a prolonged battery life to keep business running. 1664 is a new ordering
option provided for adapting a 2D scan engine to read both 1D and 2D barcodes.
Owing to the compact design, extremely low power consumption, and powerful decoding
capability, the 1600 Series Barcode Scanners are the best choice for the following
applications –
Receiving in Retail
Product labeling & Tracking
Shelf Product Replenishment
Mobile Point of Sale (POS)
Mobile Inventory Management
Order Picking & Staging
Work-In-Process Tracking
Material Flow Control
Transportation & Distribution
Warehousing
Asset Management
This manual contains information on operating the scanner and using its features. We
recommend you to keep one copy of the manual at hand for quick reference or
maintenance purposes. To avoid any improper disposal or operation, please read the
manual thoroughly before use.
Thank you for choosing CipherLab products!
INTRODUCTION
2
Enter Setup
1664 Barcode Scanner User Guide

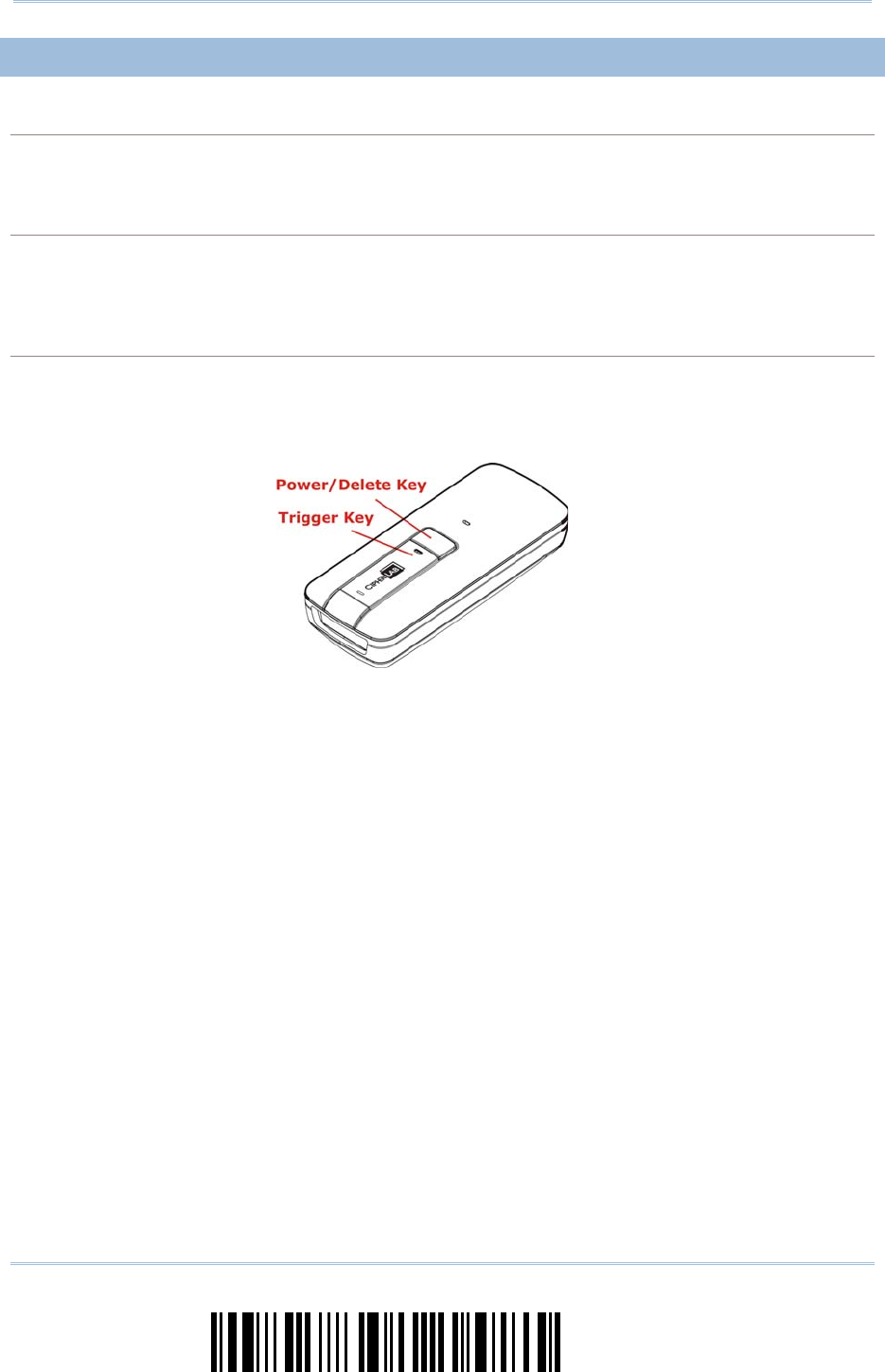

GETTING FAMILIARIZED WITH 1664 AND 3610
INSTALLING THE BATTERY TO 1664
1) Hold the scanner face down in one hand, press the battery cover, and slide the
battery cover.
2) Remove the battery cover to the other hand.
3) Push battery lock to unlocked position.
4) Hold the scanner still and insert the battery into the battery compartment.
For 1664, install a rechargeable 3.7V/850mAh Li-ion battery into the battery
compartment.
5) Push battery lock to lock the battery firmly.
6) Replace the battery cover.
7) Hold down the [Power/Delete] key for about 2 seconds to turn on the scanner.
The scanner will respond with a long beep (high tone) and its LED indicator will
become solid red and go off quickly.
3
Update
錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Note: (1) To turn off the scanner, press the [Power/Delete] key for 2 seconds. The
scanner will respond with two short beeps (high tone) and the LED will finally
become solid red. Release the key then. Otherwise, let the scanner turn off
automatically in specific circumstances. Refer to settings of “Auto Power Off”.
(2) For shipping and storage purposes, save the scanner and the batteries
separately. This will keep the batteries in good condition for future use.
CHARGING THE BATTERY
The battery may not be charged to full for shipment. For first receive the package, it is
better to charge the battery to full before using the scanner. For 1664, use the Direct
USB cable to connect the scanner to PC for charging. It takes approximately 4 hours to
charge the battery to full. Refer to 1.13 Using Direct USB Cable.
Note: Battery charging stops when the temperature drops below 0°C or exceeds 40°C. It
is recommended to charge the battery at room temperature (18°C to 25°C) for
optimal performance.
1) Install the battery to 1664.
2) Connect 1664 to host computer or notebook via the USB cable.
3) The scanner LED will be flashing red during charging.
When the charging is done, the LED will turn off.
When charging error occurs, the LED will turn solid red. For example, a bad or
missing battery issue occurs.
4
Enter Setup
1664 Barcode Scanner User Guide
CHARGING THE BATTERY VIA CHARGER
The battery charger is provided for charging the battery only. You may purchase the
charger separately. It takes approximately 3 hours to charge the battery to full.
Note: Battery charging stops when the temperature drops below 0°C or exceeds 40°C. It
is recommended to charge the battery at room temperature (18°C to 25°C) for
optimal performance.
1) Insert the battery.
2) Connect the power supply cord to the charger.
3) Connect the other end of the power cord to a suitable power outlet.
Status LED Meaning
Red,
solid --- Charger power ON (LED on for 0.5 second)
Red,
solid --- Charging battery
--- Green,
solid Charging done
--- --- Power or battery not ready
5
Update
錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
USING 3610
The CipherLab Dongle(3610) is specifically designed for the scanner to communicate with
a host computer cordless. The connection between the scanners and 3610 is made easy
and reliable. Refer to 3.1.1 Connect to 3610.
There is one LED indicator provided for communications status.
Communication LED Meaning
--- Blue,
solid Initialize
Red,
solid --- Failed to establish a USB connection
Red,
solid Blue,
flashing Serial command mode with USB Virtual COM: wait 3 seconds for starting a
serial command
Red,
flashing Blue,
flashing Serial command mode with USB HID: wait 3 seconds for pressing [Num
Lock] or [Caps Lock] 5 times via keyboard
--- Blue,
flashing Wait for connection request from the scanner (Slow flash at 0.5 Hz)
--- Blue,
flashing Connected with the scanner (Fast flash at 1 Hz)
Red,
solid Blue,
flashing Failed to send data to host via USB Virtual COM (Fast flash at 1 Hz)
Red,
flashing --- Enter Download Mode
6
Enter Setup
1664 Barcode Scanner User Guide
INSIDE THE PACKAGE
The items included in the package may be different, depending on your order. Save the
box and packaging material for future use in case you need to store or ship the scanner.
1664 Scanner
CipherLab Dongle (3610) Optional
Rechargeable Li-ion Battery Pack
Direct USB Cable
Wristband
Setup Cards
Quick Start Guide
Product CD
Note: The CD-ROM includes this manual and Windows-based ScanMaster software for
configuration, as well as the USB Virtual COM driver.
PRODUCT HIGHLIGHTS
Small-form-factor and built tough to survive drop test
Extremely low power consumption
Firmware upgradeable
Supports most popular barcode symbologies, including GS1-128 (EAN-128), GS1
DataBar (RSS), etc.
Supports negative barcodes
Supports a variety of 2D symbologies, Time Stamp and Paging function
Supports different scan modes, including Aiming Mode and Multi-Barcode ModeNote
User feedback via LED indicator, beeper and vibrator
Beeping tone and duration programmable for Good Read
4MB flash memory for Memory Mode operation, storing over 240,000 scans based on
EAN-13 barcodes
Provides up to 10 KB SRAM for reserve buffer while getting out of range over a
wireless personal area network (WPAN), storing up to 640 scans based on EAN-13
barcodes
Capable of transmitting scanned data, emulating a serial cable (Bluetooth® SPP) or as
keyboard input (Bluetooth® HID), to a notebook computer or PDA with Bluetooth®
wireless technology
Programmable parameters include data output format, editing format, symbologies,
etc.
Easy configuration through ScanMaster
Easy connection through CipherConnect, available via online marketplace for mobile
devices running on Android 2.x, BlackBerry 5.x, or Windows Mobile 6.x
7
Update
錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
SYMBOLOGIES SUPPORTED
Most of the popular barcode symbologies are supported, as listed below. Each can be
individually enabled or disabled. The scanner will automatically discriminate and
recognize all the symbologies that are enabled. Refer to Chapter 4 Changing Symbology
Settings for details of each symbology.
Symbologies Supported: Enable/Disable Default
Codabar Enabled
Code 93 Enabled
MSI Disabled
Code 128 Code 128 Enabled
GS1-128 (EAN-128) Enabled
ISBT 128 Enabled
Code 2 of 5 Industrial 25 Enabled
Interleaved 25 Enabled
Matrix 25 Disabled
Chinese 25 Disabled
Code 3 of 9 Code 39 Enabled
Italian Pharmacode Disabled
Trioptic Code 39 Disabled
EAN/UPC EAN-8 Enabled
EAN-8 Addon 2 Disabled
EAN-8 Addon 5 Disabled
EAN-13 Enabled
EAN-13 & UPC-A Addon 2 Disabled
EAN-13 & UPC-A Addon 5 Disabled
ISBN Disabled
UPC-E0 Enabled
UPC-E1 Disabled
UPC-E Addon 2 Disabled
UPC-E Addon 5 Disabled
UPC-A Enabled
GS1 DataBar
(RSS) GS1 DataBar Omnidirectional (RSS-14) Disabled
GS1 DataBar Truncated Disabled
GS1 DataBar Stacked Disabled
GS1 DataBar Stacked Omnidirectional Disabled
8
Enter Setup
1664 Barcode Scanner User Guide
GS1 DataBar Limited (RSS Limited) Disabled
GS1 DataBar Expanded (RSS Expanded) Disabled
GS1 DataBar Expanded Stacked Disabled
Code 11 Disabled
Composite
Code Composite CC-A/B Disabled
Composite CC-C Disabled
Composite TLC-39 Disabled
Postal Code US Postnet Enabled
US Planet Enabled
UK Postal Enabled
Japan Postal Enabled
Australian Postal Enabled
Dutch Postal Enabled
USPS 4CB/One Code/Intelligent Mail Disabled
UPU FICS Postal Disabled
2D
Symbologies PDF417 Enabled
MicroPDF417 Disabled
Data Matrix Enabled
Maxicode Enabled
QR Code Enabled
MicroQR Enabled
Aztec Enabled
9
Update
The configuration of the scanner can be done by reading the setup barcodes contained in
this manual or via the ScanMaster software.
This section describes the procedure of configuring the scanner by reading the setup
barcodes and provides some examples for demonstration.
Configuration Mode
1. Hold down the [Power/Delete] key for about 2 seconds to turn on the scanner. It will respond
with a long beep and its LED will come on-off shortly.
2. Have the scanner read the “Enter Setup” barcode. It will respond with six beeps and its LED
indicator will become flashing red after reading the barcode.
3. Have the scanner read more setup barcodes… Most of the setup barcodes are normal, and the
scanner will respond with two beeps (low-high tone). For special setup barcodes, it requires
reading more than one setup barcode to complete the setting.
4. Have the scanner read the “Update” or “Abort” barcode. It will respond with six beeps and its
LED indicator will become flashing red after reading the barcode.
5. The scanner will restart automatically upon reading the “Update” or “Abort” barcode. It will
respond with a long beep and its LED will come on-off shortly.
Note: Refer to Appendix II Host Serial Commands for how to configure the 3610 dongle
by having the scanner read 3610-related setup barcodes or using serial
commands.
QUICK START
10
Enter Setup
1664 Barcode Scanner User Guide
Working Mode

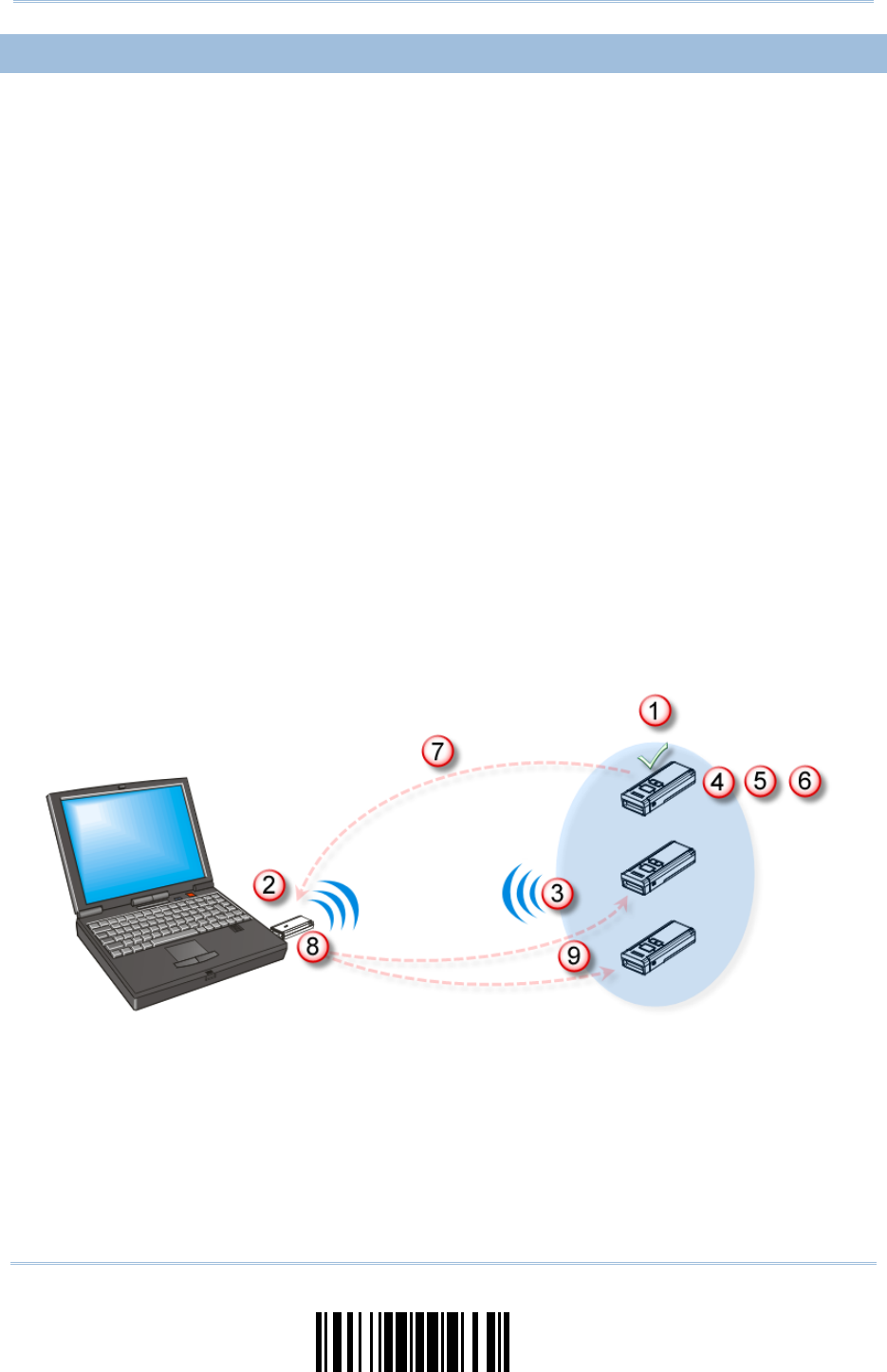

Upon powering up, the scanner will try to establish a connection with 3610 or a computer with
Bluetooth® wireless technology. Refer to Chapter 3 - Setting up a WPAN Connection for details. The
connection between the scanners and 3610 is made easy and reliable. Now, it also supports
Bluetooth® SPP Master Mode as an alternative. Refer to 2.3 Bluetooth® SPP Master.
Note: If USB Virtual COM or Bluetooth® SPP is selected for output interface, the host can
directly send serial commands to configure the scanner. For example, run
HyperTerminal.exe and type the 6-digit command located under each setup
barcode. Refer to Appendix II Host Serial Commands.
11
Update
錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
ENTER CONFIGURATION MODE
For the scanner to enter the configuration mode, you must have it read the "Enter Setup"
barcode, which can be located at the bottom of almost every even page of this manual.
The scanner will respond with six beeps and its LED indicator will become flashing red
after reading the barcode.
Enter Setup
For configuring scanner parameters, see “Read a Setup Barcode” below.

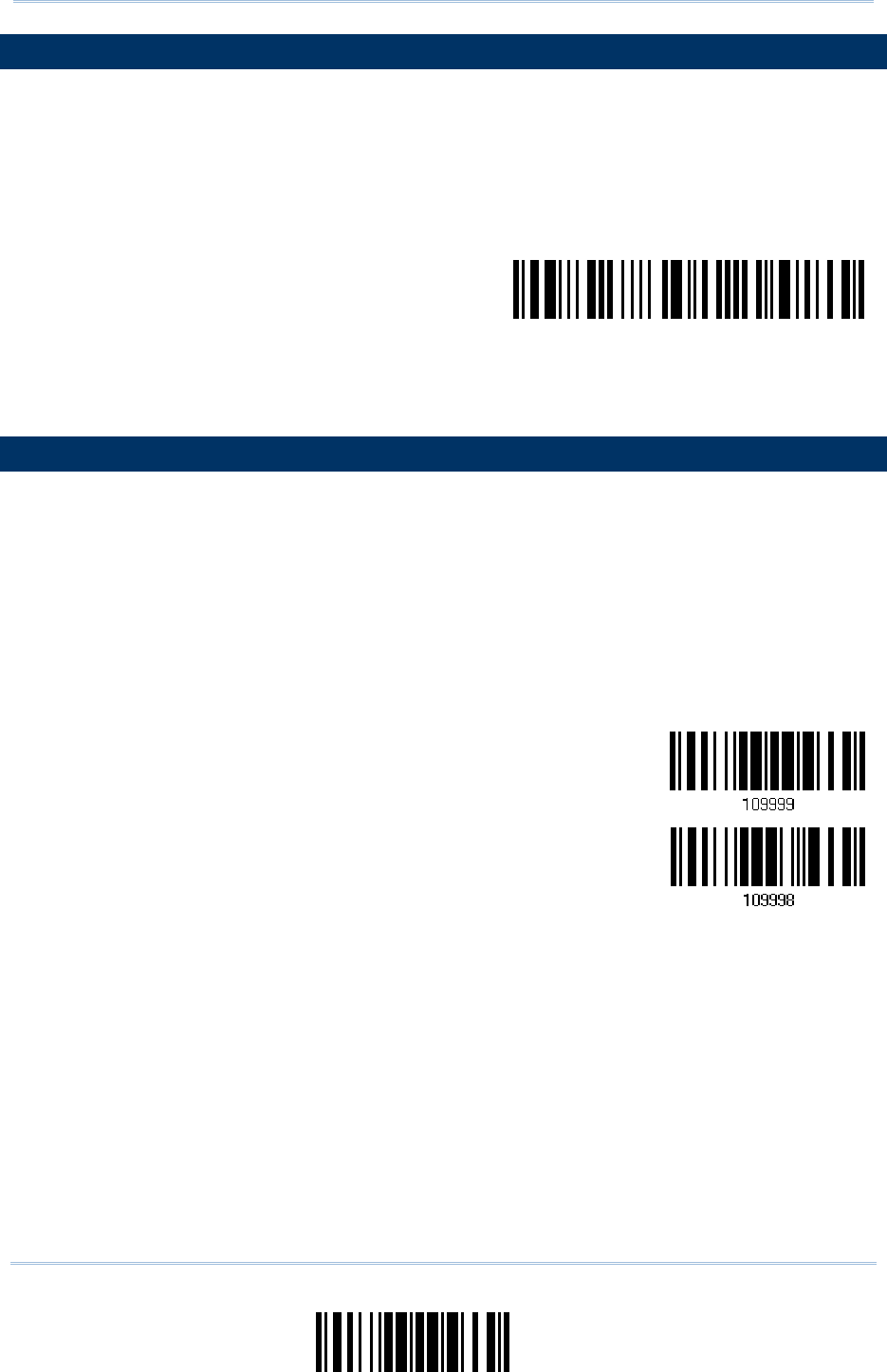

EXIT CONFIGURATION MODE
For the scanner to save settings and exit the configuration mode, read the “Update”
barcode, which can be located at the bottom of almost every odd page of this manual.
Exit the configuration mode without saving any changes; have the scanner read the
“Abort” barcode instead.
Just like reading the “Enter Setup” barcode, the scanner will respond with six beeps
and its LED indicator will become flashing red after reading the barcode. Wait for a
few seconds for the scanner to restart itself.
Update
Abort
12
Enter Setup
1664 Barcode Scanner User Guide

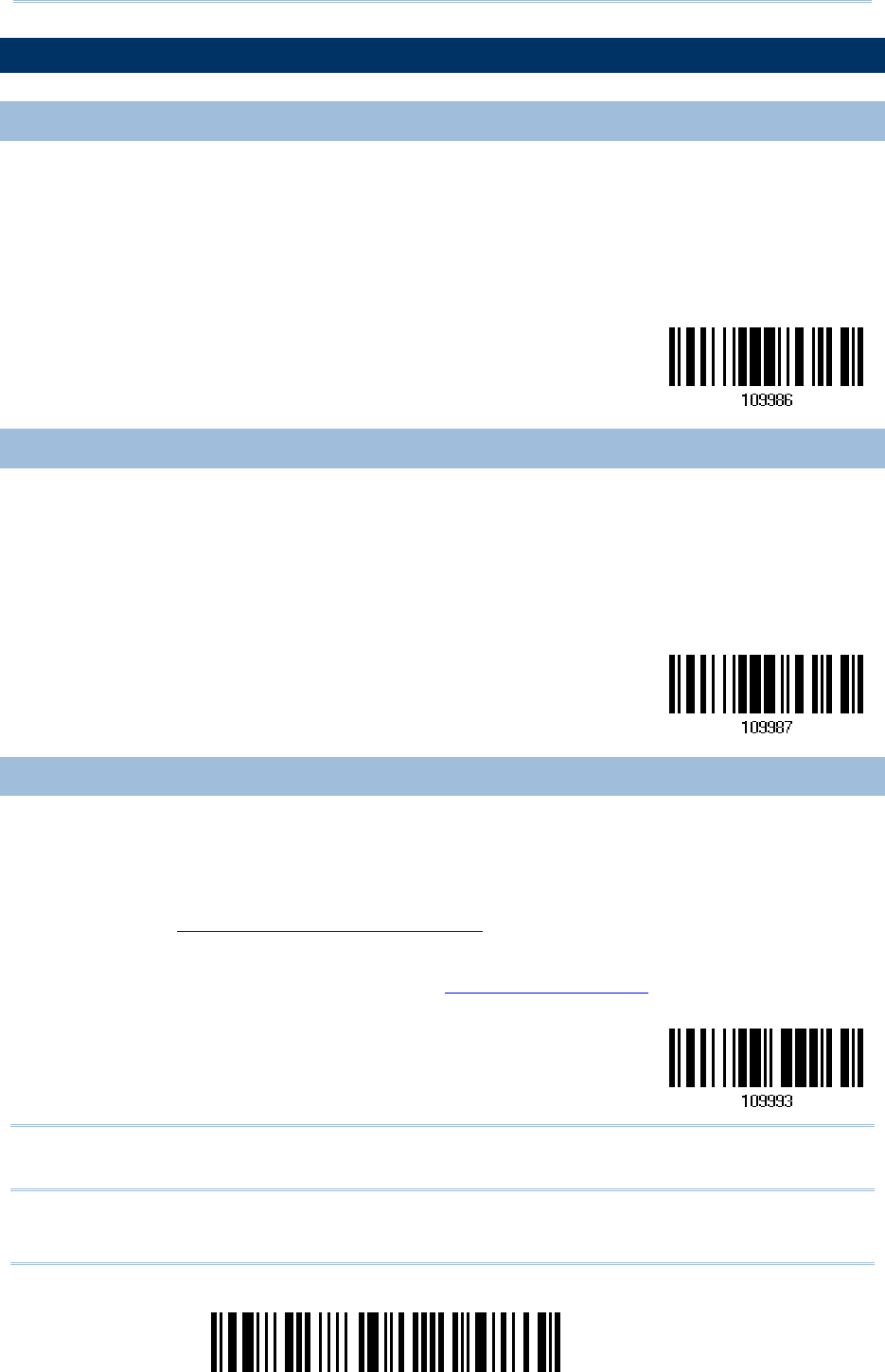

DEFAULT SETTINGS
SAVE USER SETTINGS AS DEFAULTS
For the scanner to keep the customized settings as user defaults, you must have it read
the “Save as User Defaults” barcode. This is a normal setup barcode, and the scanner will
respond with two beeps (low-high tone).
After reading the “Update” barcode, the current settings will be saved as user
defaults.
S
ave as User
Defaults
RESTORE USER DEFAULTS
For the scanner to restore the user defaults, which you have saved earlier, you must
have it read the “Restore User Defaults” barcode. This is a normal setup barcode, and the
scanner will respond with two beeps (low-high tone).
After reading the “Update” barcode, all the parameters of the scanner will return to
their customized values.
Restore User
Defaults
RESTORE SYSTEM DEFAULTS
For the scanner to restore the factory defaults, have it read the “Restore System
Defaults” barcode. This is a normal setup barcode, and the scanner will respond with two
beeps (low-high tone). After reading the “Update” barcode, all the parameters of the
scanner will return to their default values. The current connection record will be cleared
as well. Refer to 1.18.1 Restore System Defaults for the key combination used to restore
defaults during operation.
For 3610 to restore factory defaults, refer to 3610 Setup Barcodes & Serial Commands.
Restore System
Defaults
Note: The system default value (if there is) for each setting is indicated by an asterisk
“*”.
13
Update
錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
READ A SETUP BARCODE
CONFIGURE PARAMETERS
For most of the scanner parameters, only one read is required to set them to new values.
The scanner will respond with two beeps (low-high tone) when each parameter is set
successfully. Refer to Create One-Scan Setup Barcodes.

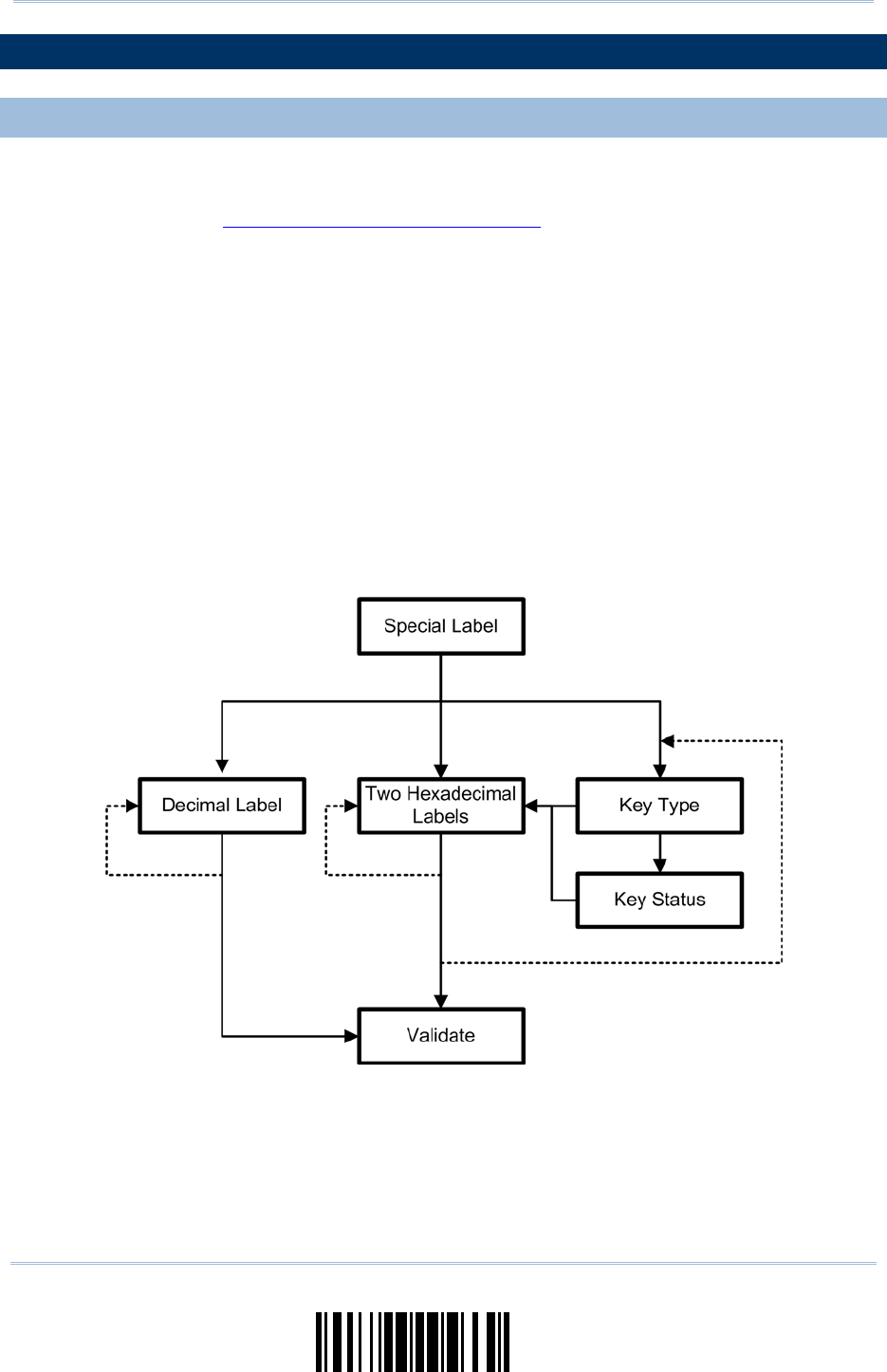

But for a number of special parameters, multiple reads are required to complete the
setting. In this case, the scanner will respond with a short beep to indicate it needs to
read more setup barcodes. These special parameters may require reading one or more
setup barcodes, such as
Numeric barcodes, say, for keyboard type, inter-character delay, length qualification
Hexadecimal barcodes, say, for character strings as prefix, suffix, etc.
When “Bluetooth® HID” or “USB HID” is configured for interface, Key Type and Key
Status will then become applicable. Decide whether to change key status when
“Normal Key” is selected for Key Type.
To complete the configuration of these special parameters, it requires reading the
“Validate” barcode, and the scanner will respond with two beeps (low-high tone) to
indicate the input values are validated.
14
Enter Setup
1664 Barcode Scanner User Guide
The example below shows how to save your settings as “User Default” so that you may
restore user defaults at a later time:
Steps Action User Feedback if Successful
1 Power on the scanner…
T
he scanner will respond with a long beep
(high tone) and its LED indicator will
become solid red and go off quickly.
2 Enter the Configuration Mode…
T
he scanner will respond with six beeps
(high-low tone repeats three times), and
its LED indicator will be flashing red.
3 Read a Setup barcode…
For example,
T
he scanner will respond with two beeps
(low-high tone) if reading a normal setup
barcode.
4 Exit the Configuration Mode…
OR
Same as for Enter the Configuration Mode.
5 The scanner will automatically restart itself… Same as for Power on the scanner.
* When any configuration error occurs...
T
he scanner will respond with one long
beep (low tone).
15
Update
錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
The example below shows how to set numeric parameters:
Steps Action User Feedback if Successful
1 Power on the scanner... The scanner will respond with a long beep
(high tone) and its LED indicator will
become solid red and go off quickly.
2 Enter the Configuration Mode…
T
he scanner will respond with six beeps
(high-low tone repeats three times), and
its LED indicator will become flashing red.
3 Read a Setup barcode...
For example,
T
he scanner will respond with two beeps
(low-high tone) if reading a normal setup
barcode.
T
he scanner will respond with one short
beep if reading a special setup barcode
such as “Max. Length”, indicating the
setup requires reading more barcodes.
Read the “Decimal Value” barcode(s).
Refer to Appendix IV
“
Decimal
System”
T
he scanner will respond with two beeps
(low-high tone) when the input values are
validated.
4 Exit the Configuration Mode…
OR
Same as for Enter the Configuration Mode.
5 The scanner will automatically restart itself… Same as for Power on the scanner.
N
ormal setup
barcode
N
ormal setup
barcode
Special setup
barcode
Decimal barcodes
16
Enter Setup
1664 Barcode Scanner User Guide
The example below shows how to set string parameters:
Steps Action User Feedback if Successful
1 Power on the scanner...
T
he scanner will respond with a long beep
(high tone) and its LED indicator will
become solid red and go off quickly.
2 Enter the Configuration Mode…
T
he scanner will respond with six beeps
(high-low tone repeats three times), and
its LED indicator will become flashing red.
3 Read a Setup barcode...
For example,
T
he scanner will respond with one short
beep if reading a special setup barcode
such as “Prefix Code”, indicating the setup
requires reading more barcodes.
When “Bluetooth® HID” or “USB HID” is
configured for interface, Key Type and Key
Status will then become applicable. You
may decide whether or not to change key
status when “Normal Key” is selected for
Key Type.
Refer to Appendix III
Read the “Hexadecimal Value” barcodes
for the desired character string. For
example, read “2” and “B” for the scanner
to prefix the character “+”.
Refer to Appendix IV “Hexadecimal
System”
The scanner will respond with two beeps
(low-high tone) when the input values are
validated.
4 Exit the Configuration Mode…
OR
Same as for Enter the Configuration Mode.
5 The scanner will automatically restart itself… Same as for Power on the scanner.
Special setup
barcodes
Hexadecimal
barcodes
17
Update
錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。

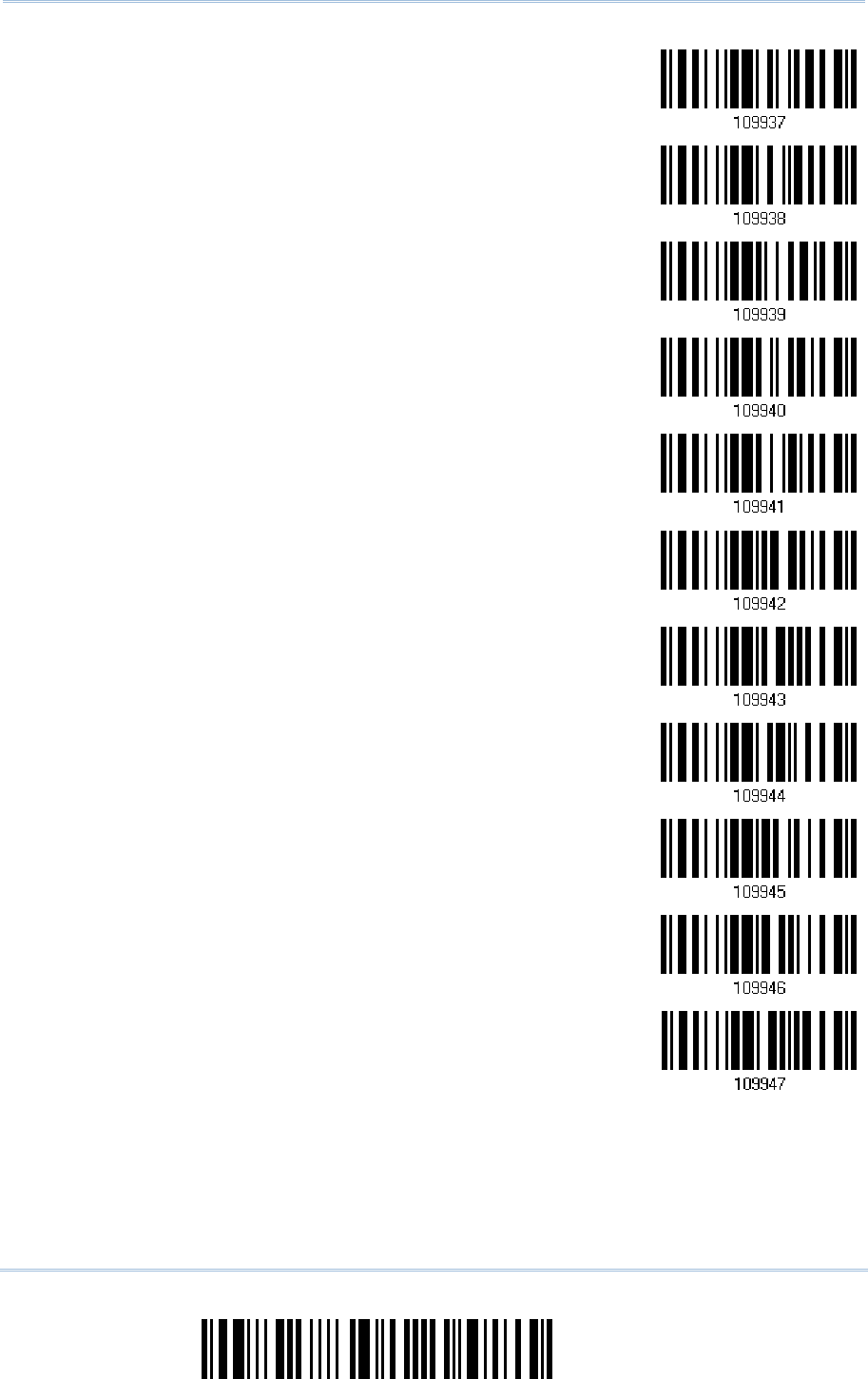

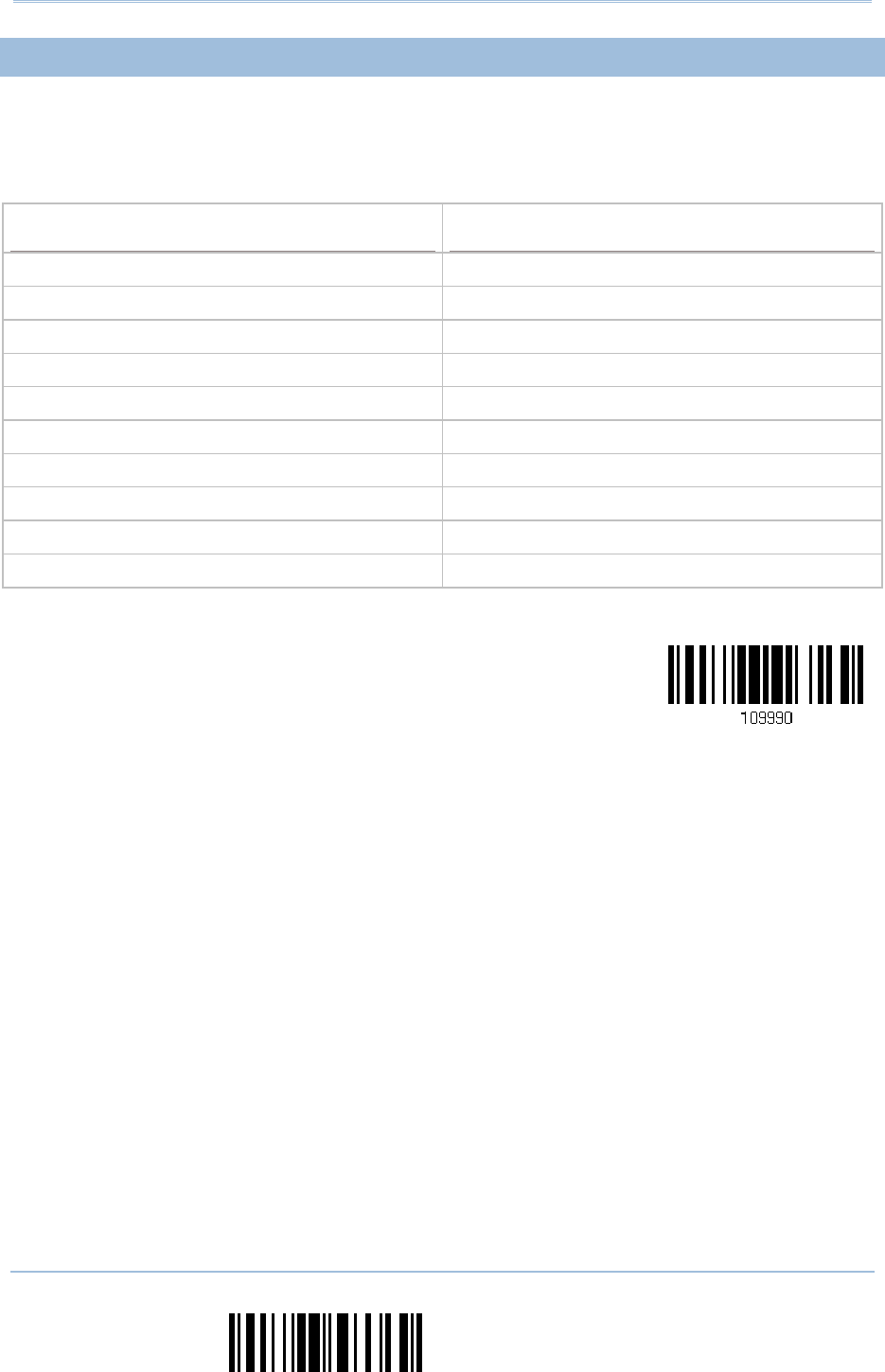

LIST THE CURRENT SETTINGS
The current settings of all scanner parameters can be sent to the host computer for user
inspection. The listing includes pages as shown below. You can select the page of interest
by having the scanner read the “List Page x” barcode. The scanner will respond with two
beeps (low-high tone) and send the selected page to the host immediately.
List settings regarding Firmware Version, Serial
Number, Interface, Buzzer, and Other Scanner
Parameters List Page 1
List settings regarding Prefix, Suffix, and Length
Code Setting (1/2) List Page 2
List settings regarding Prefix, Suffix, and Length
Code Setting (2/2) List Page 3
List settings regarding Code ID List Page 4
List settings regarding: Readable Symbologies
(1/2) List Page 5
List settings regarding: Readable Symbologies
(2/2) List Page 6
List settings regarding Symbology Parameters
(1/3) List Page 7
List settings regarding Symbology Parameters
(2/3) List Page 8
List settings regarding Symbology Parameters
(3/3) List Page 9
Reserved List Page 10
18
Enter Setup
1664 Barcode Scanner User Guide
List settings regarding Editing Format 1
(1/2) List Page 11
List settings regarding Editing Format 1
(2/2) List Page 12
List settings regarding Editing Format 2
(1/2) List Page 13
List settings regarding Editing Format 2
(2/2) List Page 14
List settings regarding Editing Format 3
(1/2) List Page 15
List settings regarding Editing Format 3
(2/2) List Page 16
List settings regarding Editing Format 4
(1/2) List Page 17
List settings regarding Editing Format 4
(2/2) List Page 18
List settings regarding Editing Format 5
(1/2) List Page 19
List settings regarding Editing Format 5
(2/2) List Page 20
List settings presently
List Page 21
19
Update
錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。

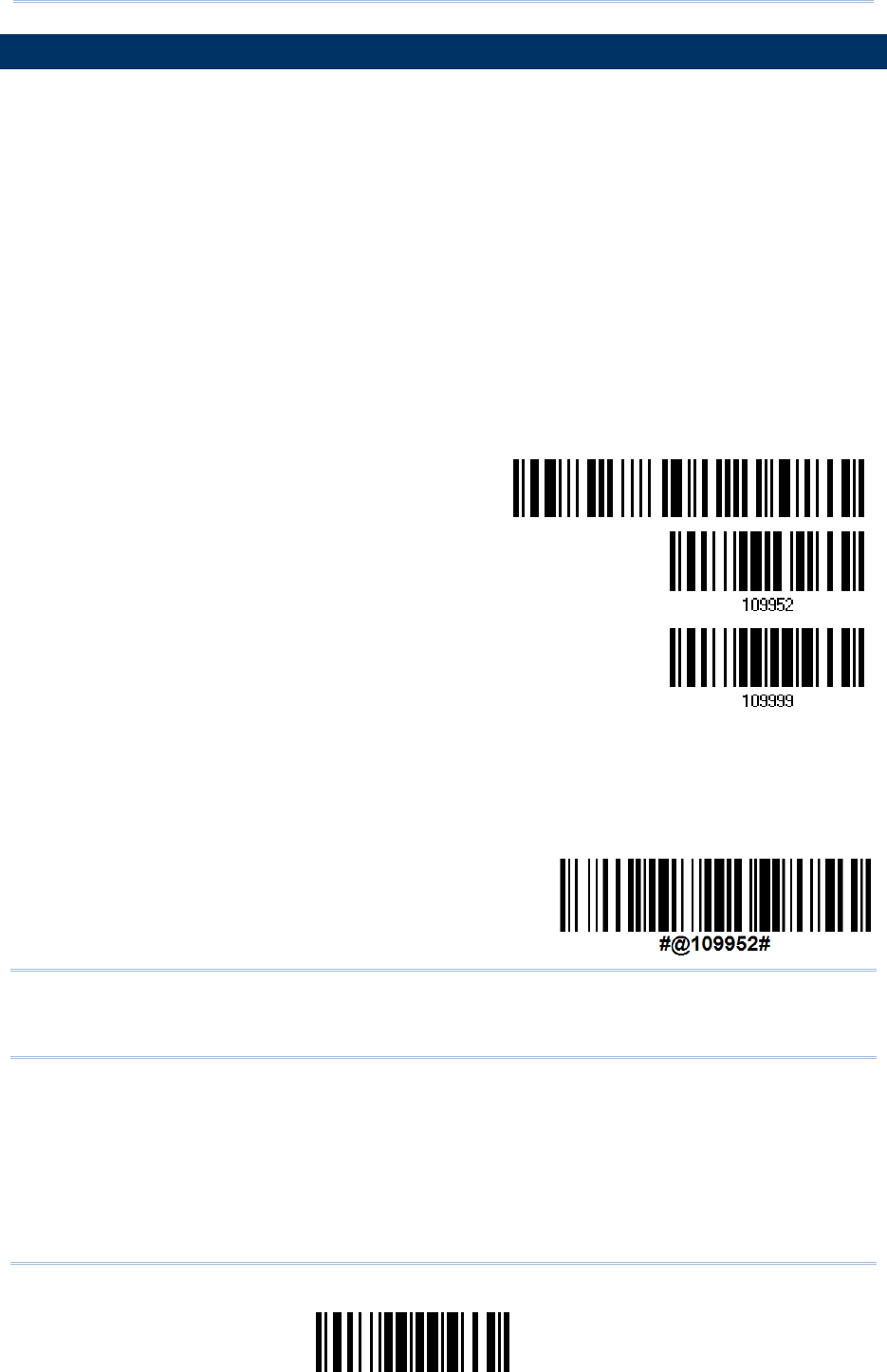

CREATE ONE-SCAN SETUP BARCODES
The fact is most of the scanner parameters require only one read for setting new values.
To facilitate configuring the scanner, you may create One-Scan setup barcodes for use.
The requirements of a One-Scan setup barcode are:
a prefix of the “#@” characters
the six digits of command parameters
a suffix of the “#”character
For example, the scanner needs reading three setup barcodes for the command
parameter “109952” to take effect:
Enter Setup
List Page 3
Update
Now, it requires only one read:
One-Scan Setup Barcode
for 109952
Note: The scanner will restart automatically upon reading the One-Scan setup barcode
for (1) changing the interface or (2) setting memory mode, enable or disable. It
will respond with a long beep and its LED will come on-off shortly.
20
Enter Setup
1664 Barcode Scanner User Guide
21
Update
This chapter explains the features and usage of the barcode scanner.
IN THIS CHAPTER
1.1 Battery ..................................................................... 21
1.2 Memory .................................................................... 26
1.3 LED Indicator ............................................................ 29
1.4 Beeper ..................................................................... 31
1.5 Vibrator .................................................................... 34
1.6 Send “NR” to Host ..................................................... 35
1.7 Scan Modes .............................................................. 36
1.8 Scanning Timeout ...................................................... 39
1.9 Delay between Re-read............................................... 40
1.10 Read Redundancy for All Symblogies ........................... 41
1.11 Addon Security for UPC/EAN Barcodes ........................ 42
1.12 Negative Barcodes ................................................... 42
1.13 Using Direct USB Cable ............................................. 43
1.14 Picklist Mode ........................................................... 44
1.15 Pager Beep Duration ................................................. 44
1.16 Time Stamp ............................................................ 45
1.17 2D Decode Setting ................................................... 49
1.18 Hardware Reset ....................................................... 50
1.1 BATTERY
The scanner is battery-powered: Use a rechargeable 3.7 V/850 mAh Li-ion battery. For
intensive data collection, please prepare spare battery or batteries for non-stop
operation.
Note: (1) The rechargeable battery for 1664 may not be charged to full for shipment. We
suggest charging it to full before use. (2)
The scanner can be configured to save battery power. Refer to settings of “Auto
Power Off & Power-Saving”, “Sniff Mode”, as well as “Low Battery Alarm”.
Chapter 1
UNDERSTANDING THE BARCODE SCANNER
22
Enter Setup
1664 Barcode Scanner User Guide
1.1.1 HOW TO OPERATE THE SCANNER
Turn on the scanner…
Press the [Power/Delete] key for about 2 seconds. The scanner will respond with a long beep (high
tone), and its LED indicator will become solid red and go off quickly.
Turn off the scanner…
Press the [Power/Delete] key for about 2 seconds. The scanner will respond with two short beeps
(high tone) and the LED will finally become solid red. Release the key then. Otherwise, let the
scanner turn off automatically in specific circumstances.
Delete the last collected data when in memory mode …
Press the [Power/Delete] key. The scanner will respond with two short beeps (high tone) and the
LED will become solid red. Before the LED goes off (within 1 second), press the [Power/Delete] key
again to confirm the deletion.
23
Update
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
1.1.2 AUTO POWER OFF & POWER-SAVING
The scanner will stay active at power-on, which may be followed by a transition from full
CPU speed to low CPU speed (Power-Saving) to auto shutdown (Auto Power Off).
Power-Saving (1~254 min.; 0= Disable): By default, it is set to stand by at full-speed
for 2 minutes before it enters low-speed mode. If this feature is not desired, set it to
0.
Auto Power Off (1~254 min.; 0= Disable): By default, it is set to automatically shut
down after 10 minutes. If this feature is not desired, set it to 0.
Note: The Power-Saving setting will still take effect once a connection has been
established successfully, via Bluetooth® HID or SPP.
Before establishing a WPAN connection successfully…
1. The scanner will stay active for a specified period of time (2 minutes by default) for the
following scenarios. Its CPU is running at full speed, and the LED is flashing blue (On/Off ratio
0.5 s: 0.5 s).
(a) waiting for a connection request from the host (Bluetooth® SPP Slave Mode)
(b) trying to connect to the host (Bluetooth® HID or Bluetooth® SPP Master Mode)
(c) trying to connect to 3610
2. If it fails to connect within 2 minutes, the scanner will become inactive to save power for the
remaining period of time (the specified value minus 2 minutes). Its CPU is running at low
speed, and the LED is flashing red (On/Off ratio 0.3 s: 2.5 s).
Press the [Trigger] key to wake up the scanner when it becomes inactive, and the scanner will
stay active again.
3. If it fails to connect again and again, and finally stays inactive until the specified time interval
for Auto Power Off has elapsed, the scanner will automatically turn off in order to conserve
battery power.
Hold down the [Power/Delete] key for about 2 seconds to turn it on.
Note: For scenarios (a) and (b) in step 1, on your computer you may need to search for
the scanner again.
24
Enter Setup
1664 Barcode Scanner User Guide
After establishing a WPAN connection successfully…
1. Once a WPAN connection is established successfully, the scanner will stay active for a specified
period of time (2 minutes by default) for data transmission. Its CPU is running at full speed,
and the LED is flashing blue (On/Off ratio 0.02 s: 3 s).
2. If it is idle within 2 minutes, the scanner will become inactive to save power for the remaining
period of time (the specified value minus 2 minutes). Its CPU is running at low speed, and the
LED is flashing red (On/Off ratio 0.3 s: 2.5 s).
Press the [Trigger] key to wake up the scanner when it becomes inactive, and the scanner will
stay active again.
3. If it is idle and finally stays inactive until the specified time interval for Auto Power Off has
elapsed, the scanner will automatically turn off in order to conserve battery power. The three
short beeps will ring out, tone descending from high to low.
Hold down the [Power/Delete] key for about 2 seconds to turn it on.
For Bluetooth® HID, the scanner will resume connection with the host upon powering on
again, as long as the host application is running. The three short beeps will ring out, tone
ascending from low to high. If the scanner fails to resume connection, it will try every 5
seconds to re-connect to the host unless the scanner read the “Reset Connection”
barcode.
For Bluetooth® SPP Slave Mode, the scanner must wait for the host to re-connect.
For Bluetooth® SPP Master Mode, the scanner will resume connection with the host upon
powering on again, as long as the host application is running. The three short beeps will
ring out, tone ascending from low to high. If the scanner fails to resume connection, it will
try every 5 seconds to re-connect to the host unless the scanner read the “Reset
Connection” or “Restore System Defaults” barcode.
With the use of 3610, the scanner will try re-connecting to 3610 unless to turn off the
scanner.
25
Update
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。

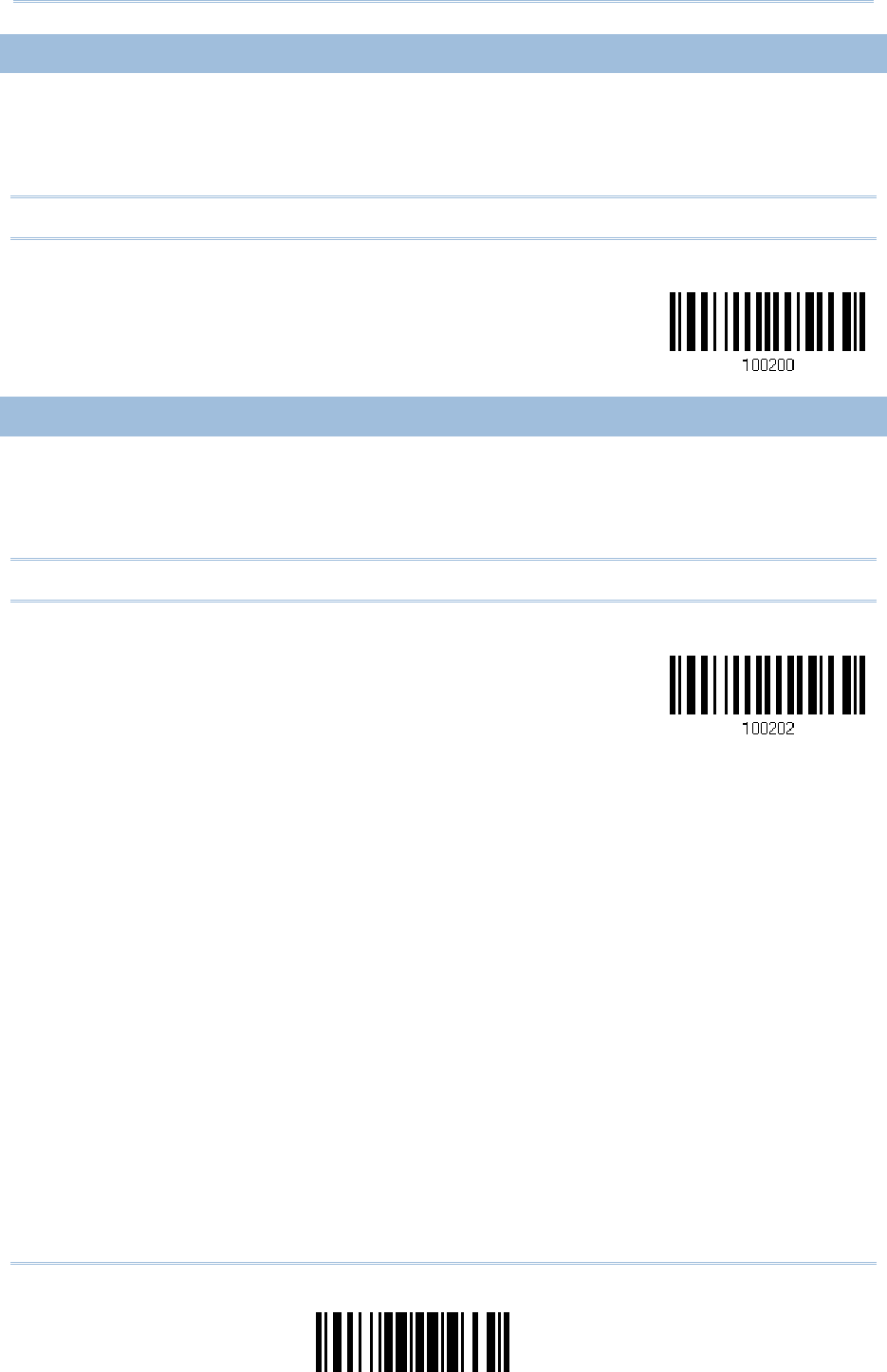

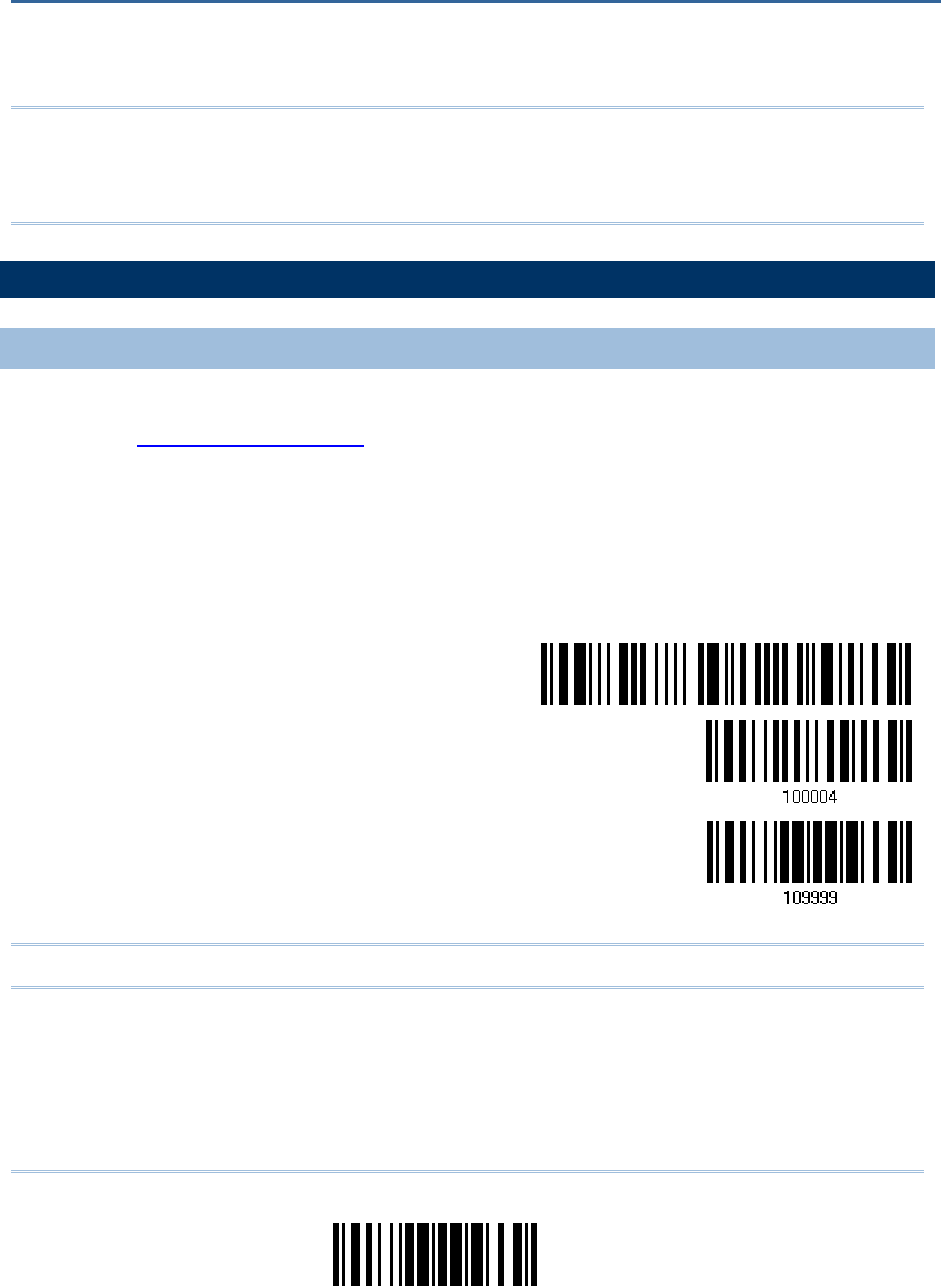

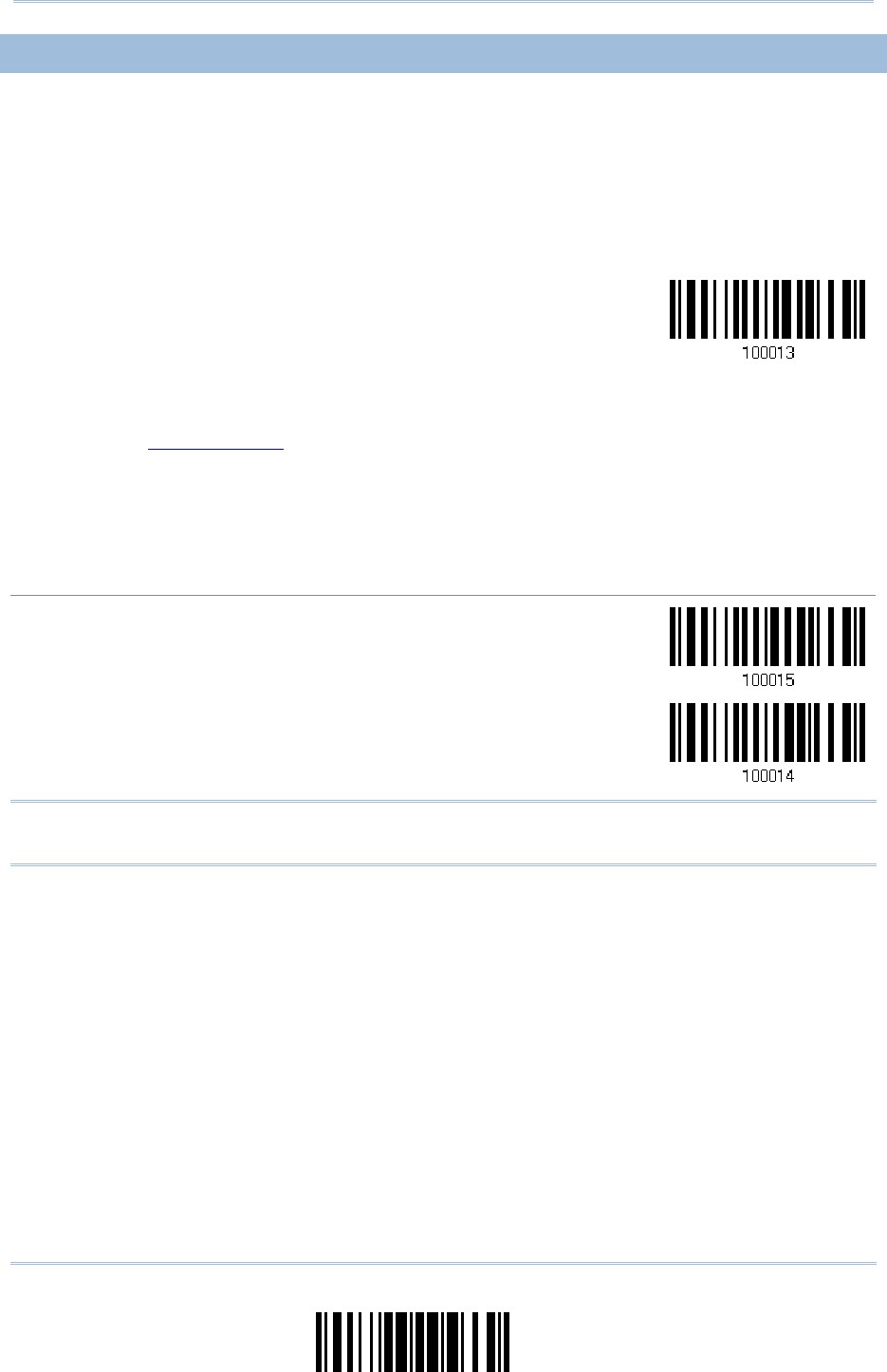

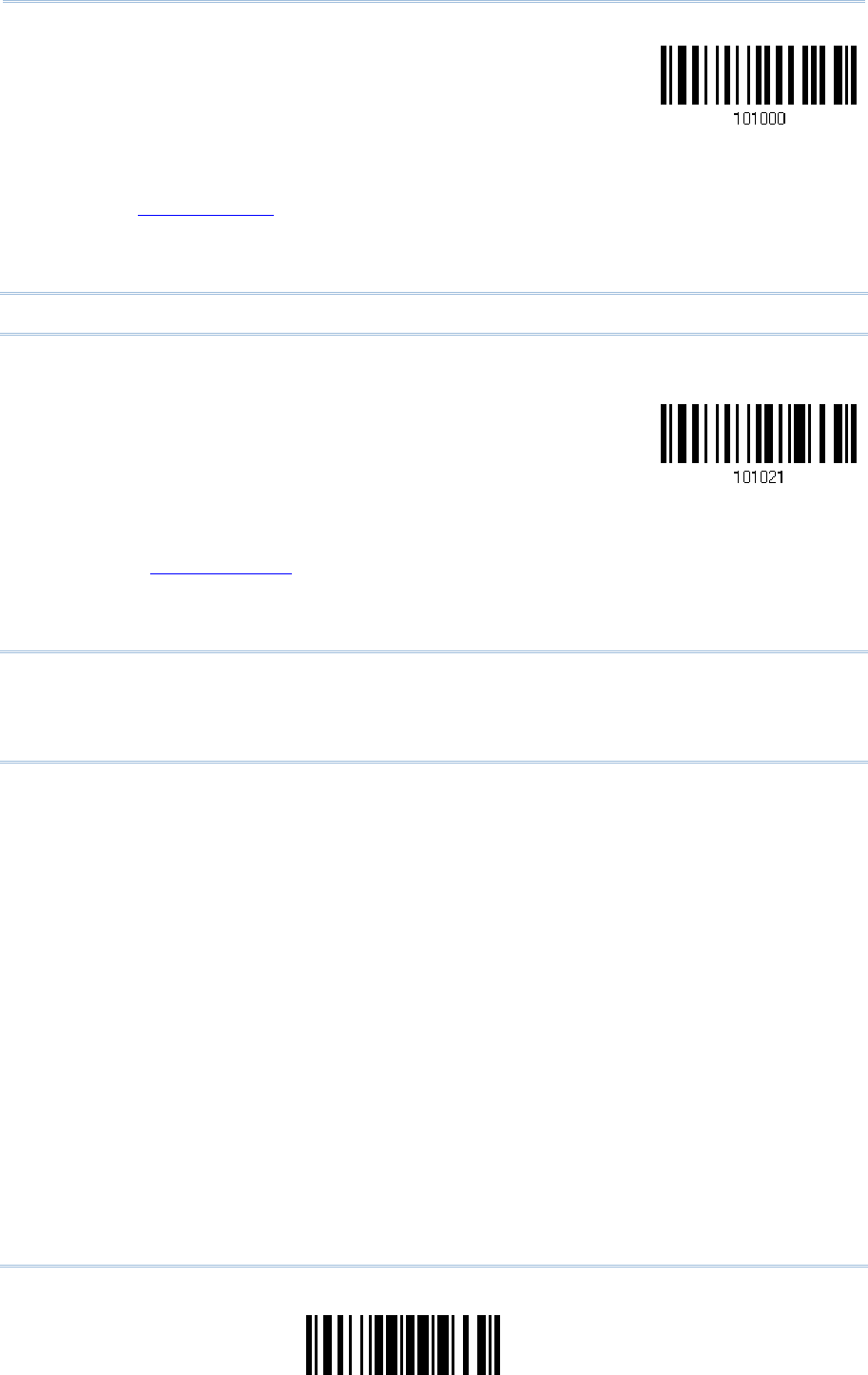

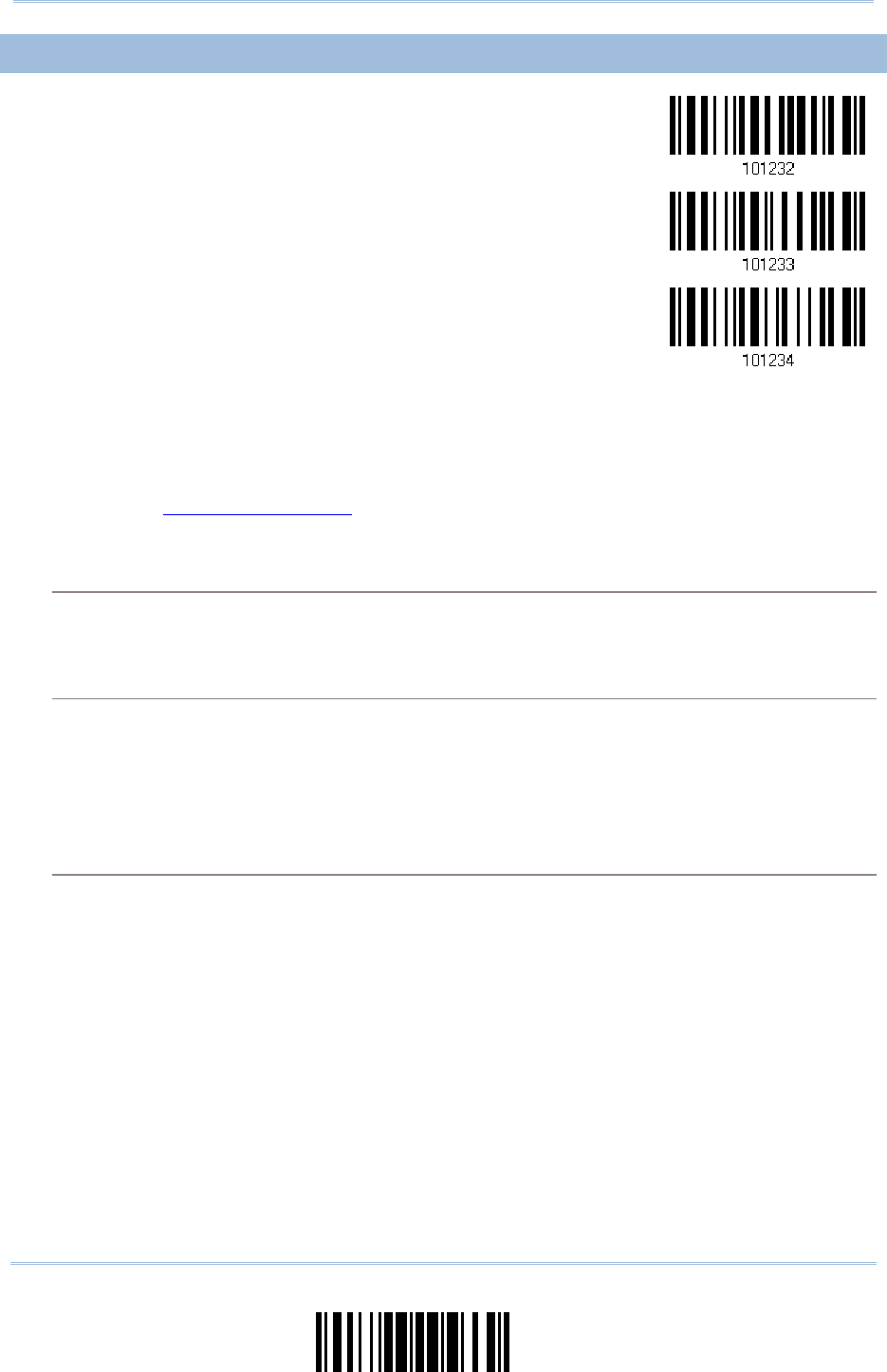

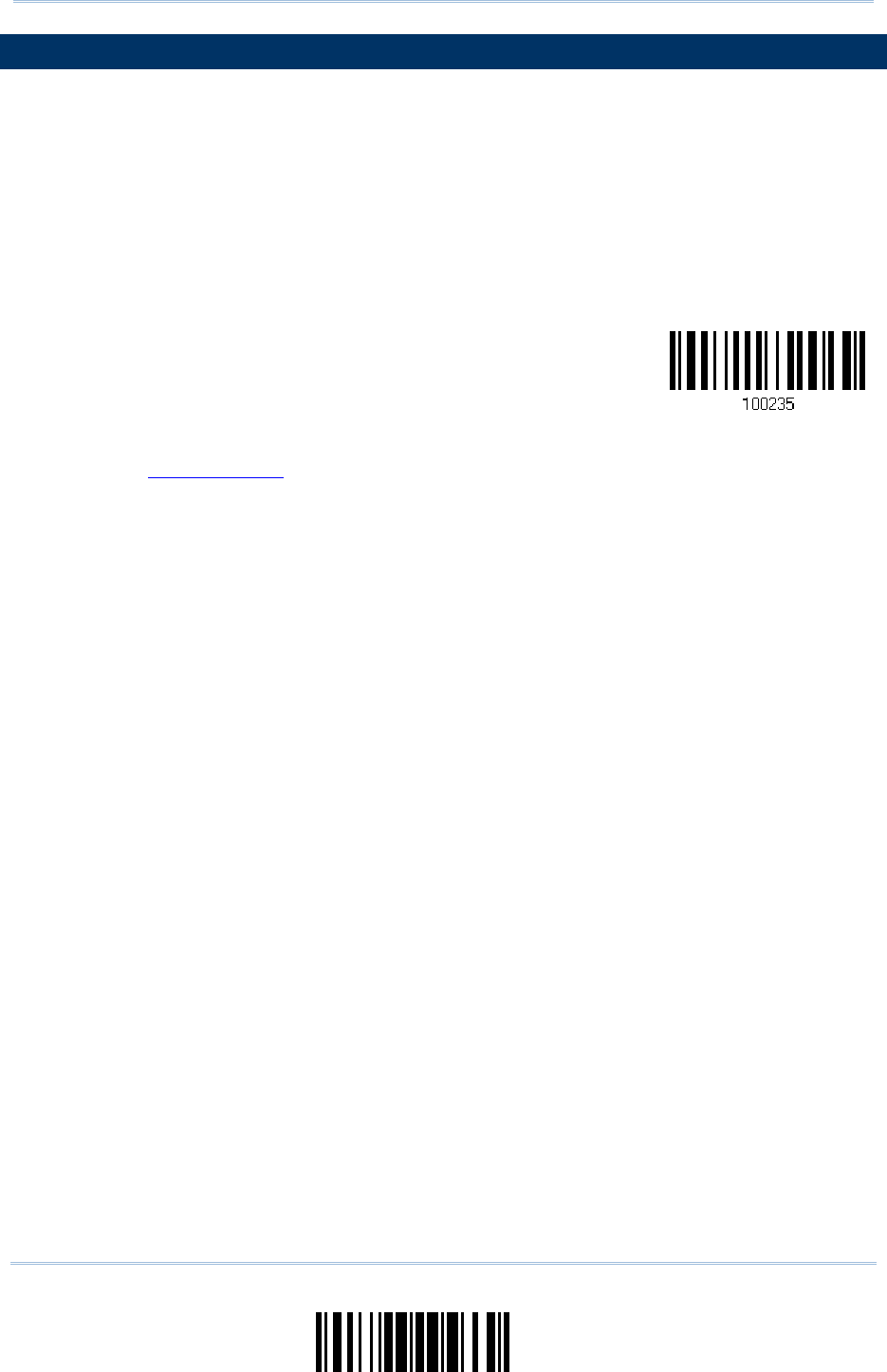

Auto Off after
0~254 min. (*10)
1) Read the barcode above to specify the time interval before the scanner automatically
turns off.
2) Read the “Decimal Value” barcode on page 251. For example, read “1” and “5” for the
scanner to automatically turn off after being idle for 15 minutes.
3) Read the “Validate” barcode on the same page to complete this setting.
Note: Auto Power Off will not take effect when the scanner is in the configuration mode.
Power-
S
aving after
0~254 min. (*2)
1) Read the barcode above to specify the time interval before the scanner enters
low-speed mode.
2) Read the “Decimal Value” barcode on page 251. For example, read “5” for the
scanner to enter low-speed mode after being idle for 5 minutes.
3) Read the “Validate” barcode on the same page to complete this setting.
Note: Power-Saving will not take effect when one of the following conditions is met:
(1) The scanner is in the configuration mode.
(2) The Power-Saving value is set to 0.
(3) The setting value of Power-Saving is greater than that of Auto Power Off.
26
Enter Setup
1664 Barcode Scanner User Guide
1.2 MEMORY
The collected data can be sent back to a host computer one by one via the WPAN
connection or stored in flash memory when the scanner is set to Memory mode.

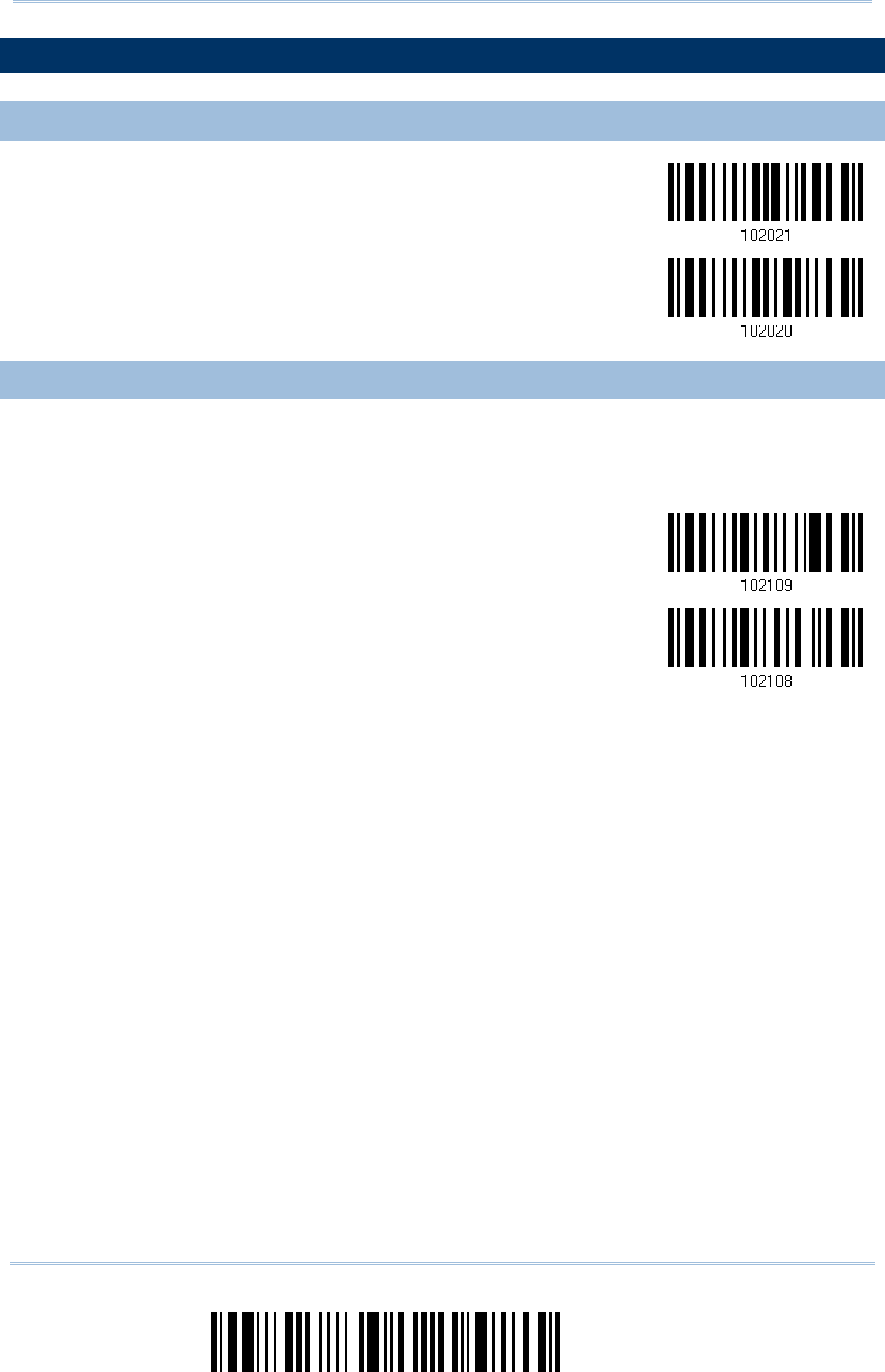

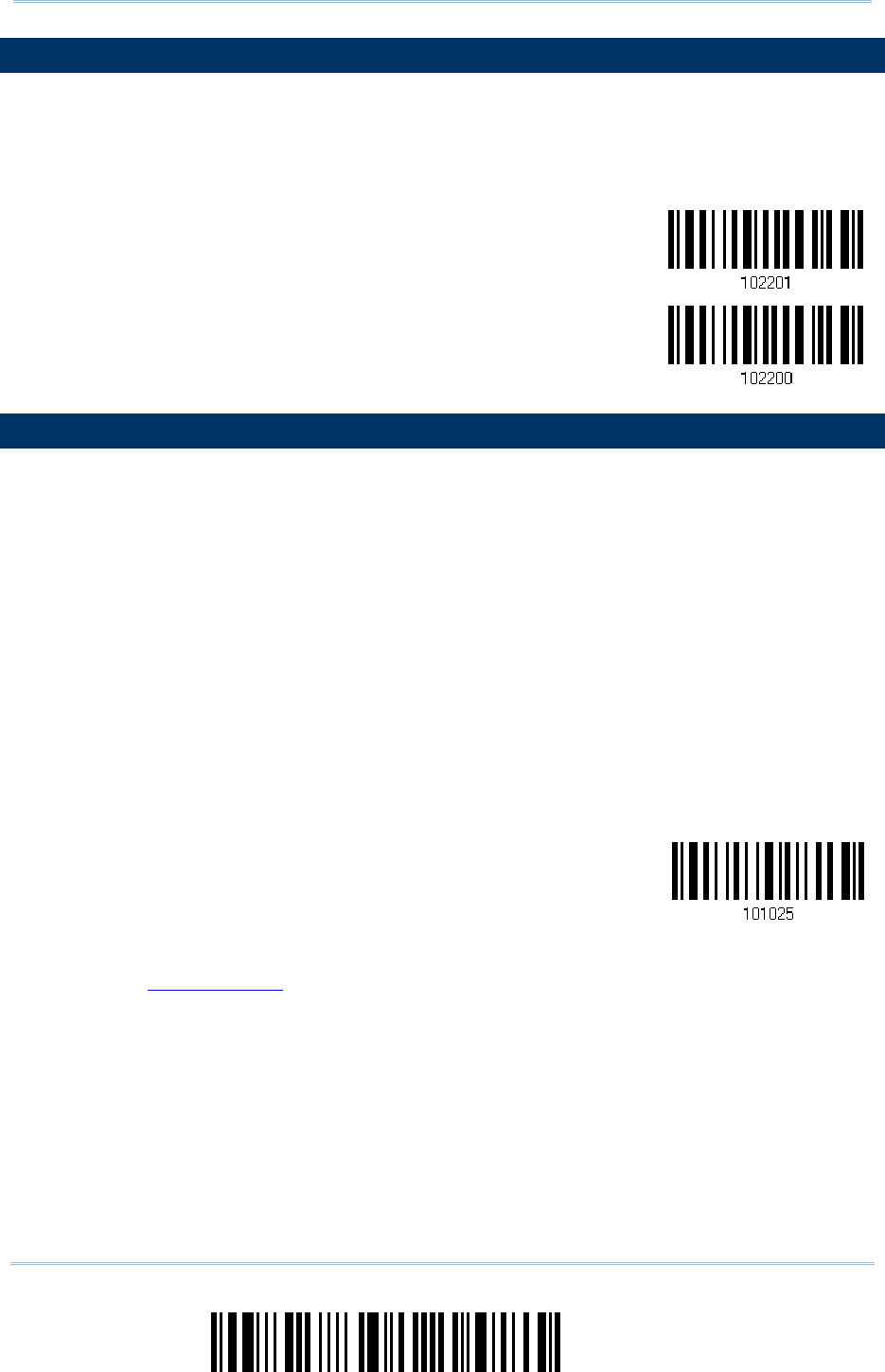

1.2.1 TRANSMIT BUFFER
By default, transmit buffer is enabled and for use when the scanner is out of range. Upon
reading a barcode successfully within range, the scanner responds with one short beep
(high tone) and its LED indicator becomes solid green and goes off quickly. However, the
host computer may not receive the data immediately if getting out of range. With the 10
KB transmit buffer, the scanner can ignore the transmission status and keep on reading
barcodes until the buffer is full.
When transmit buffer is enabled…
If the scanner is out of range, it will respond with two short beeps, high-low tone, upon reading a
barcode successfully.
When transmit buffer is full, the scanner will respond with one long beep (low tone) and its LED
indicator will become solid red and go off quickly. You are advised to get back to range.
When transmit buffer is disabled…
If the scanner is out of range, it will respond with one long beep (low tone) and its LED indicator
will become solid red and go off quickly. You are advised to get back to range.

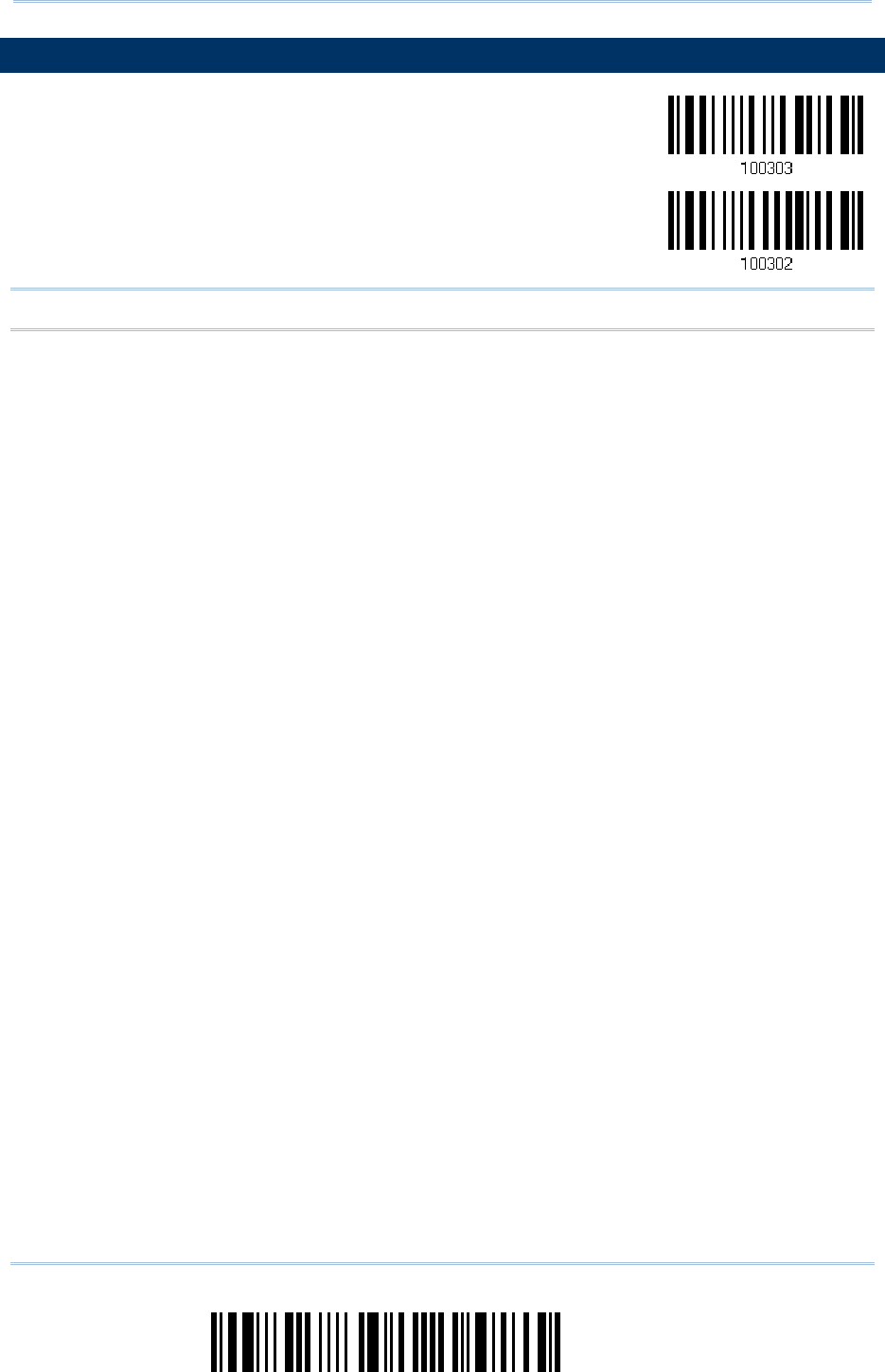

*Enable
Disable
Note: The 10 KB transmit buffer on the scanner can hold as many as 640 scans based on
EAN-13 barcodes. Data will be cleared out once the scanner is turned off or
running out of battery power!
27
Update
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。

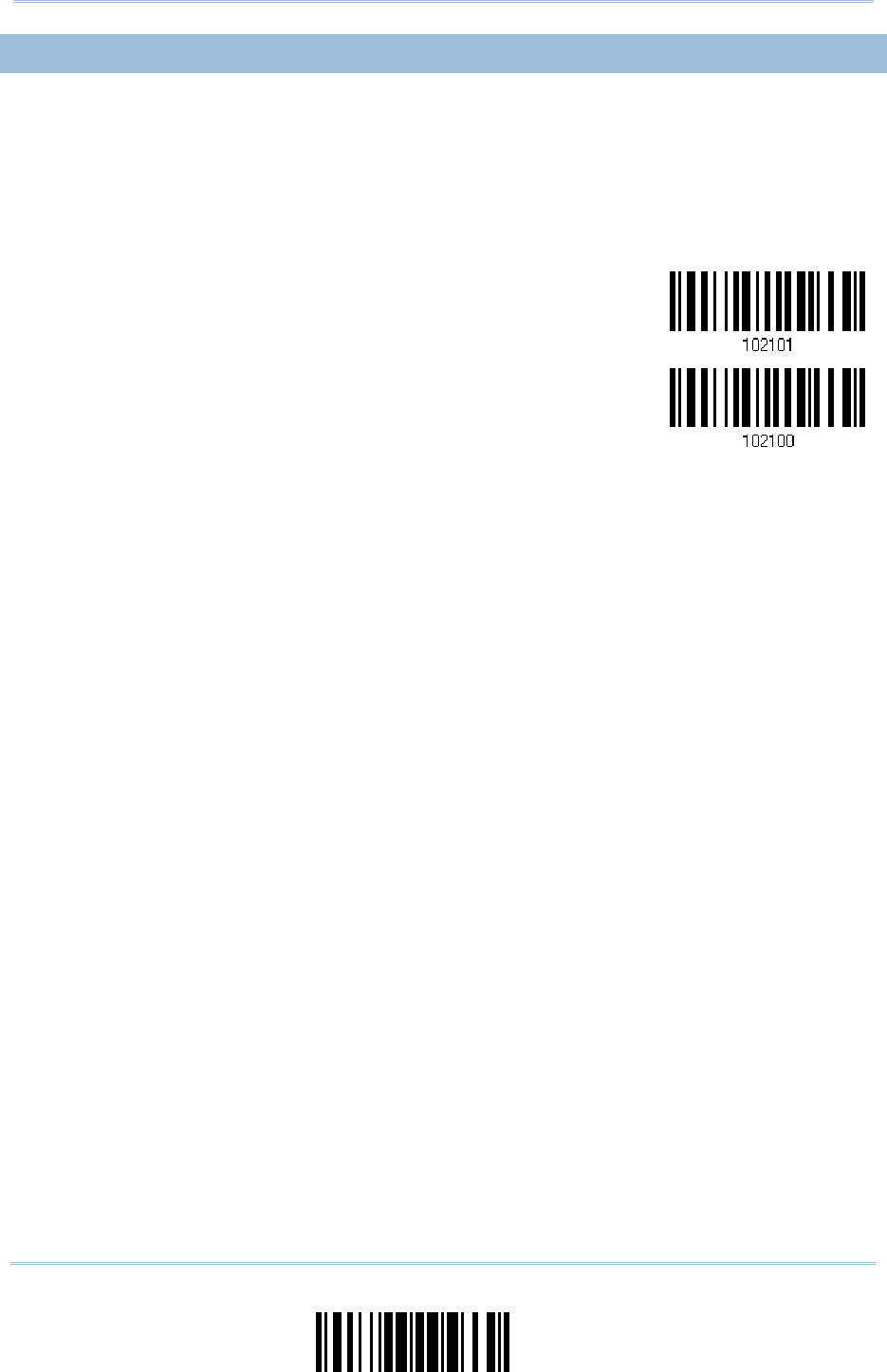

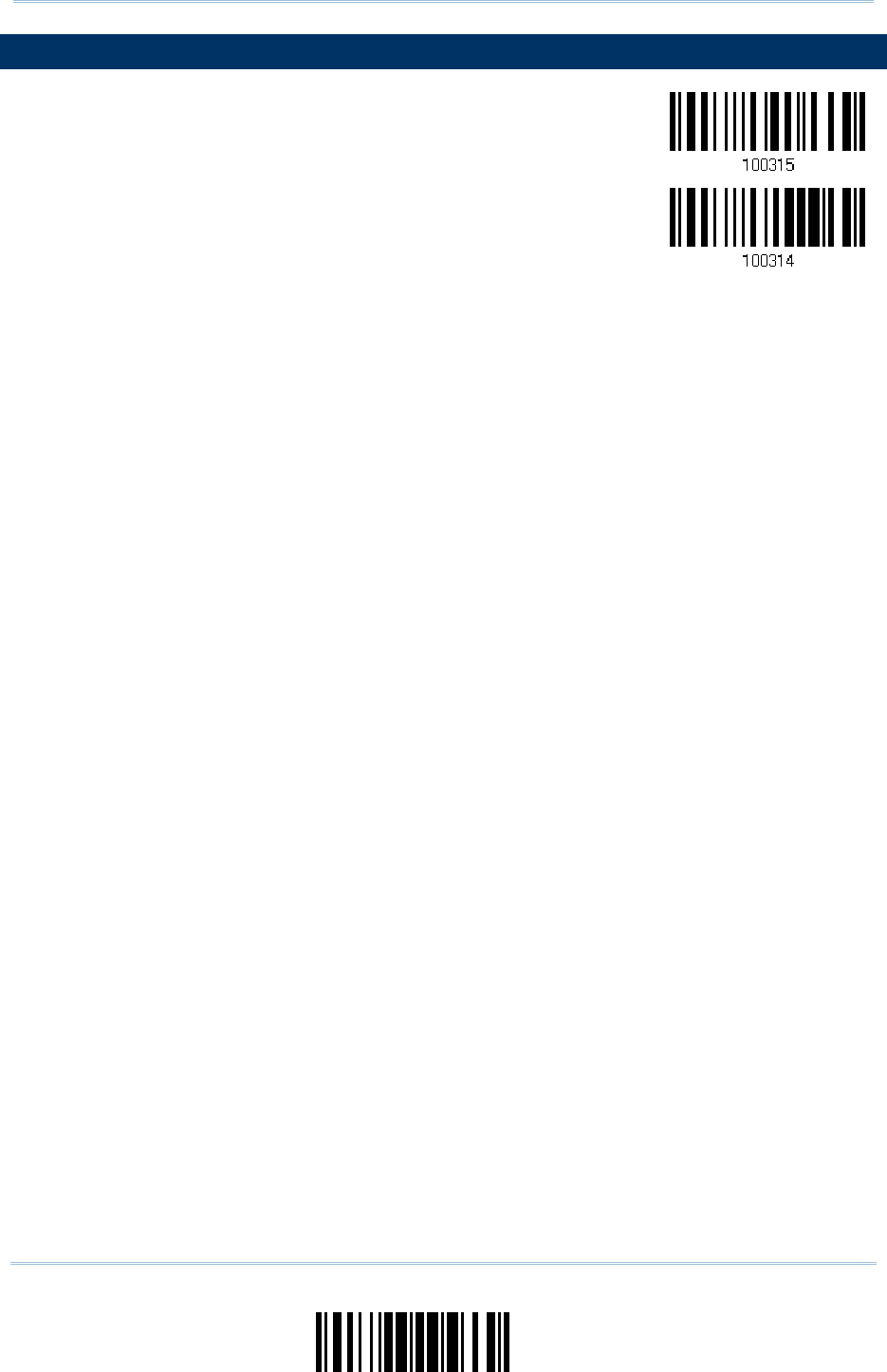

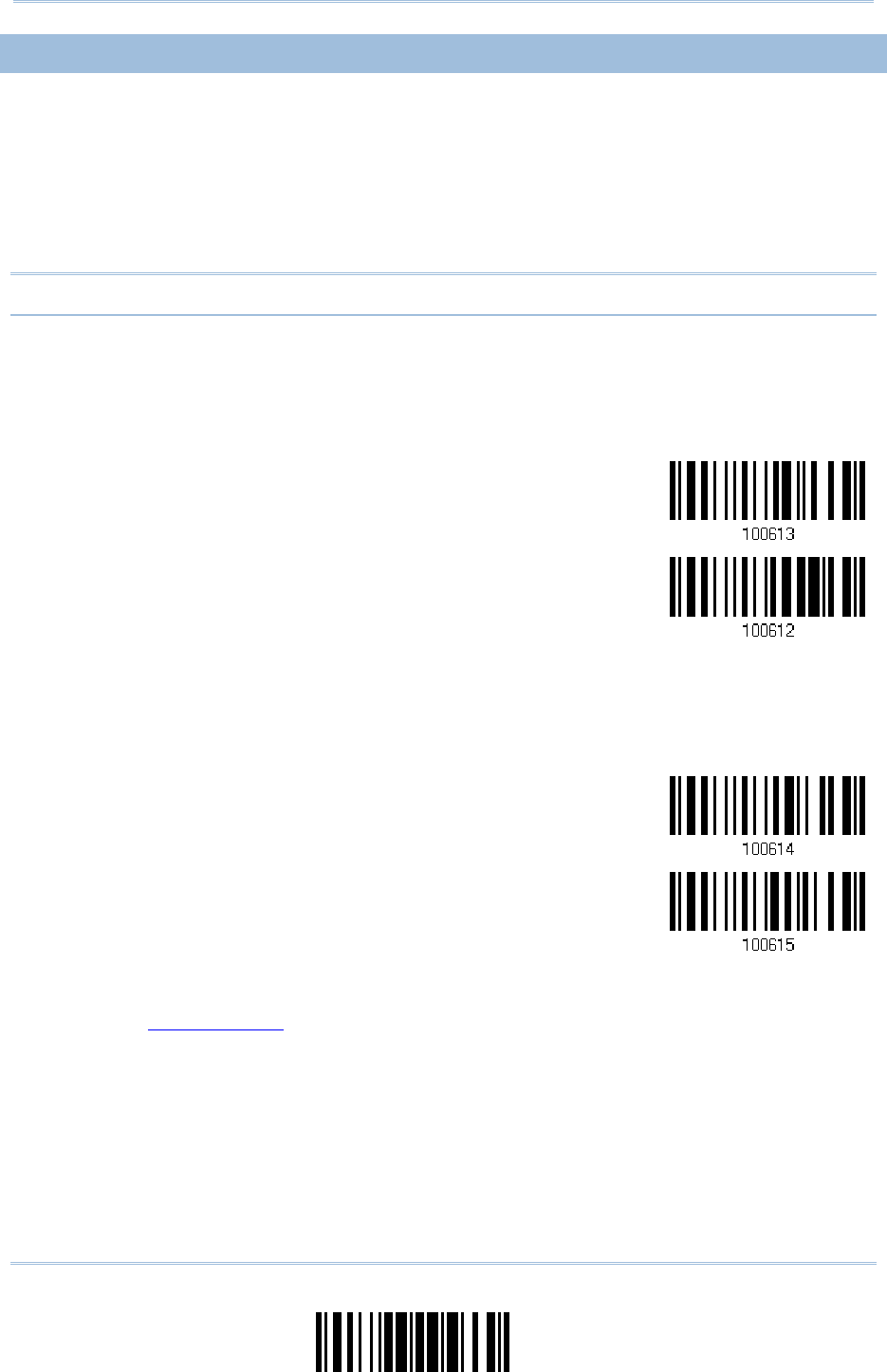

1.2.2 MEMORY MODE
When the scanner is in memory mode, it means any real-time connection established
with the host is disabled. 1664 scanner keeps 4MB flash memory for memory mode
operation, which can store over 240,000 scans based on EAN-13 barcodes.
Enable
*Disable
Warning: No real-time connection is allowed unless the memory mode is disabled.

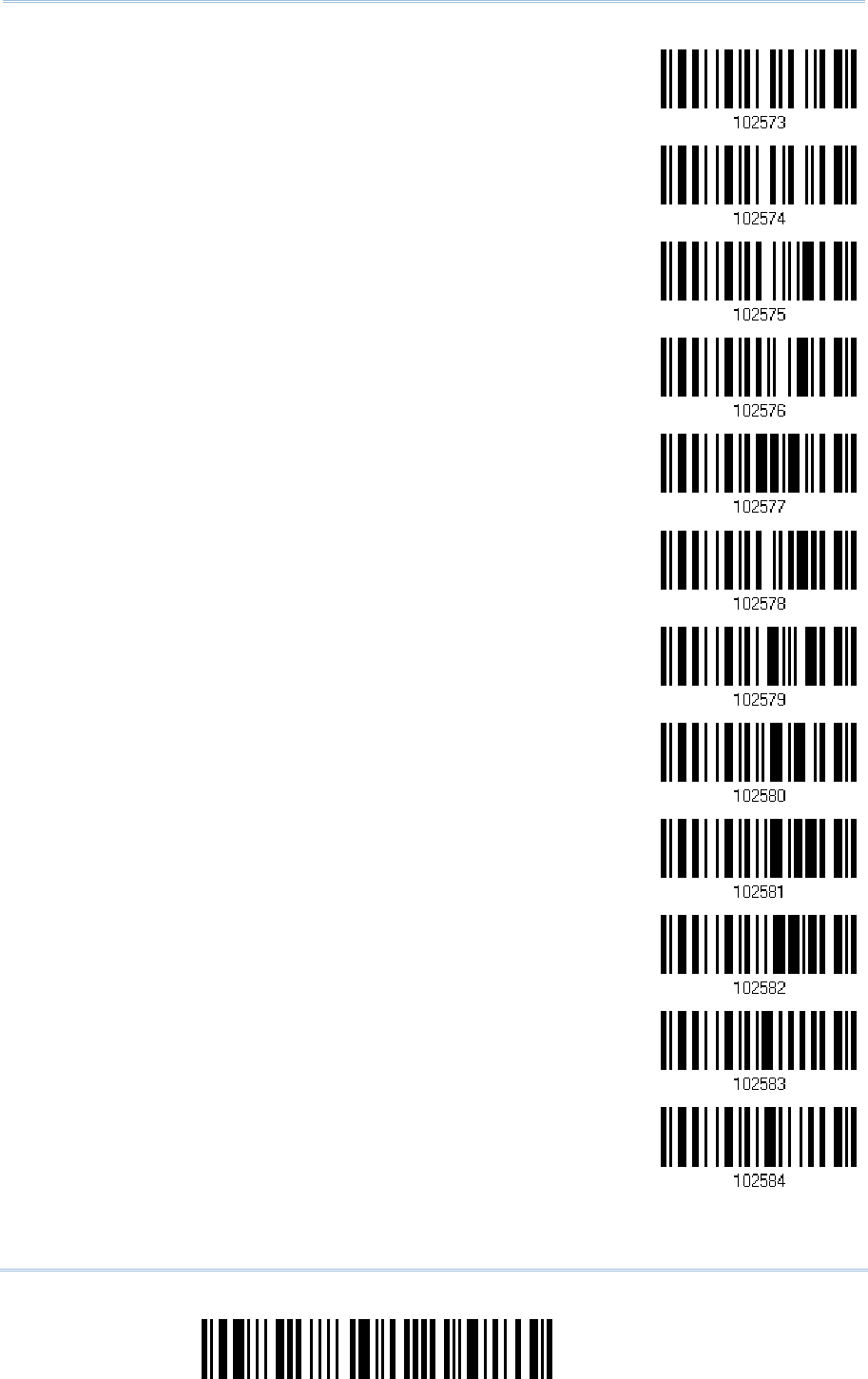

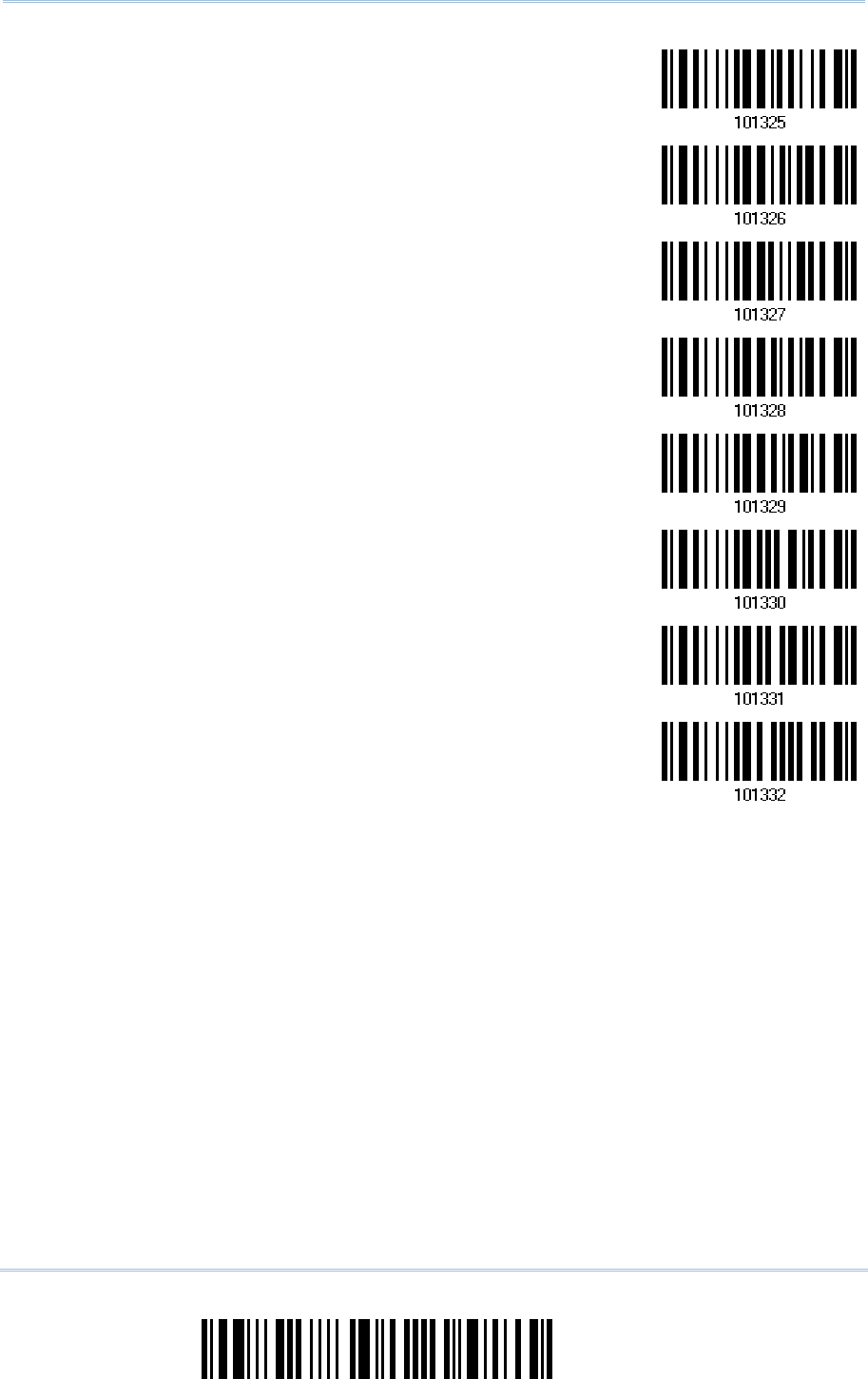

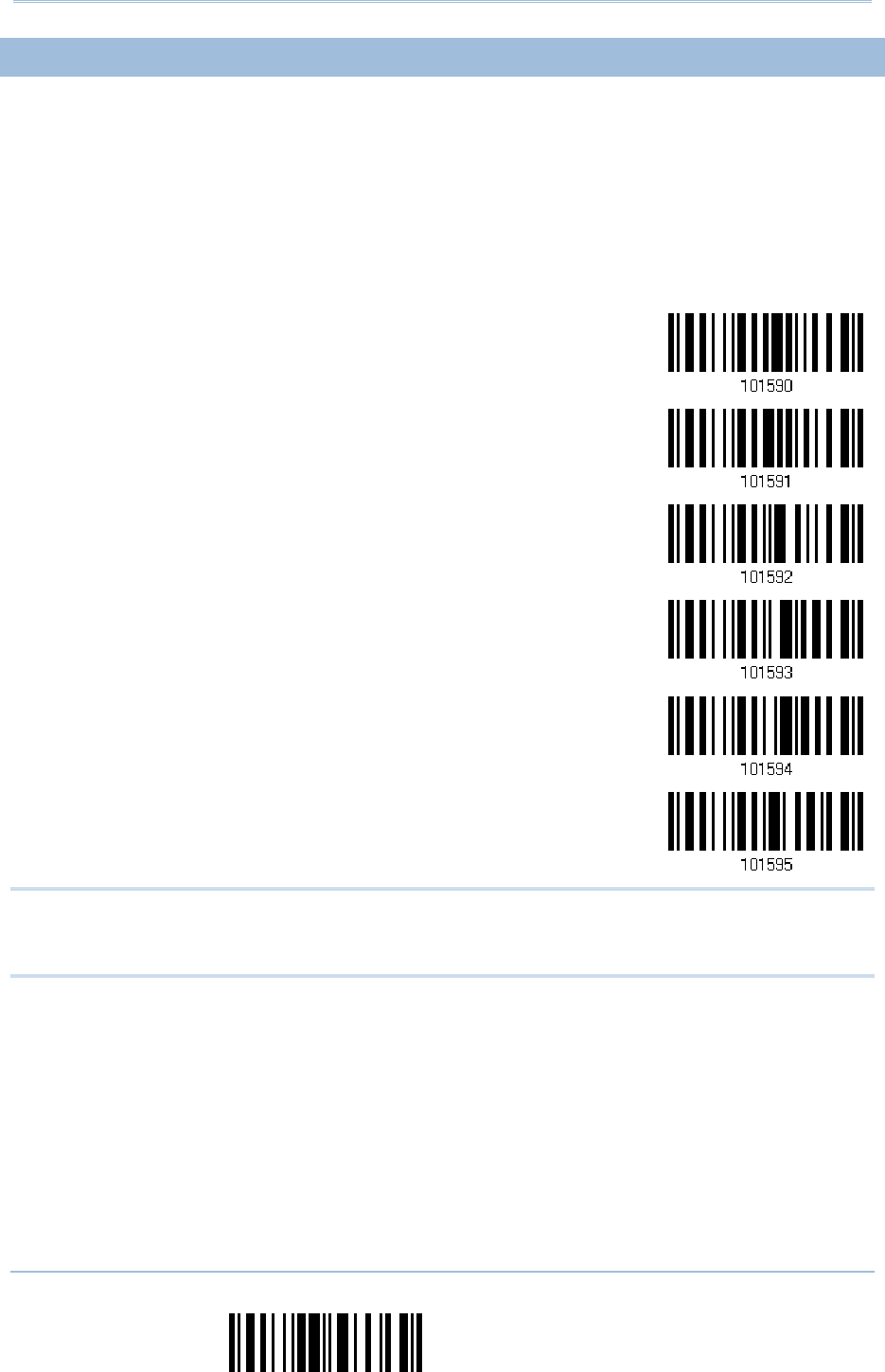

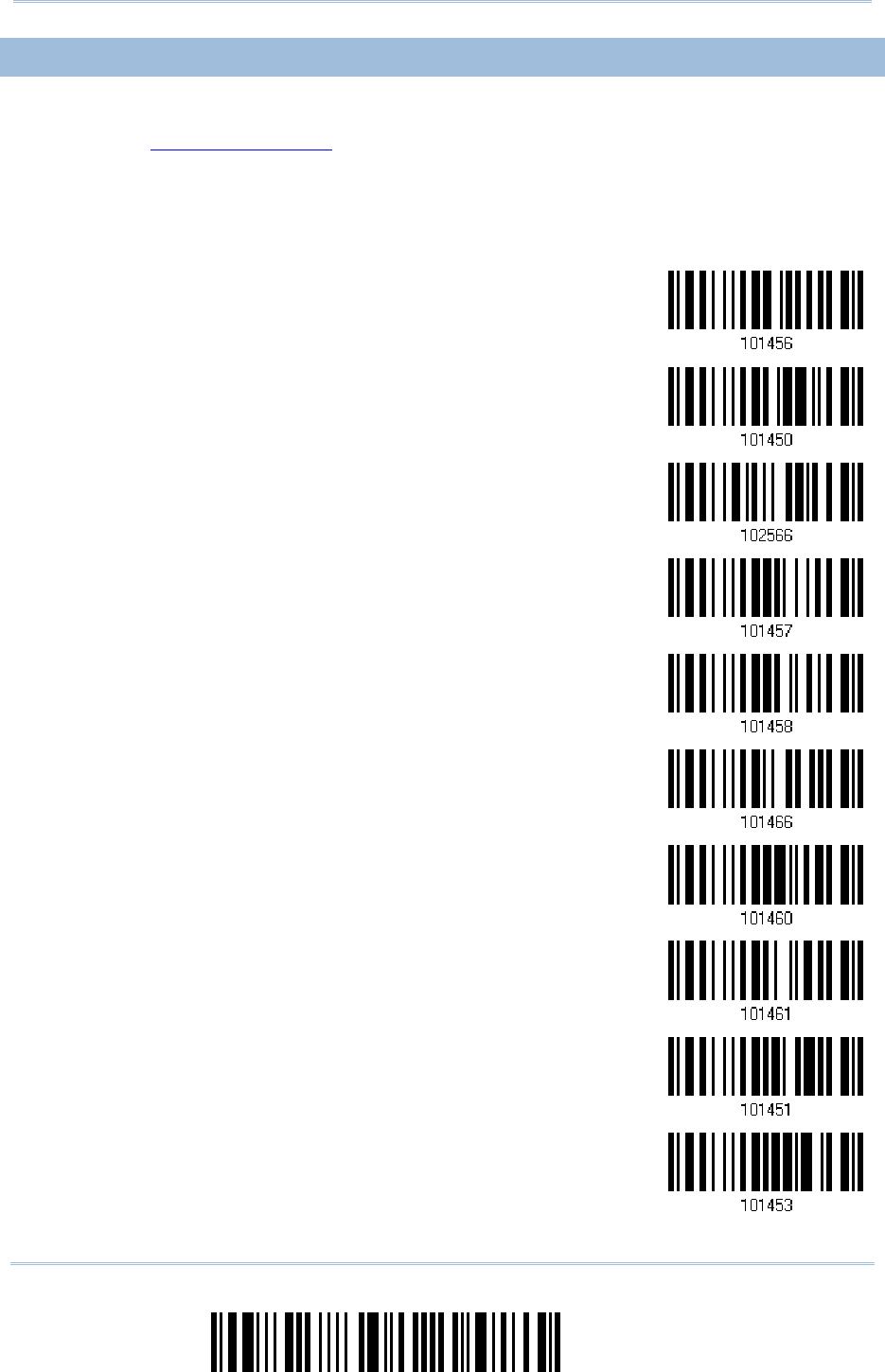

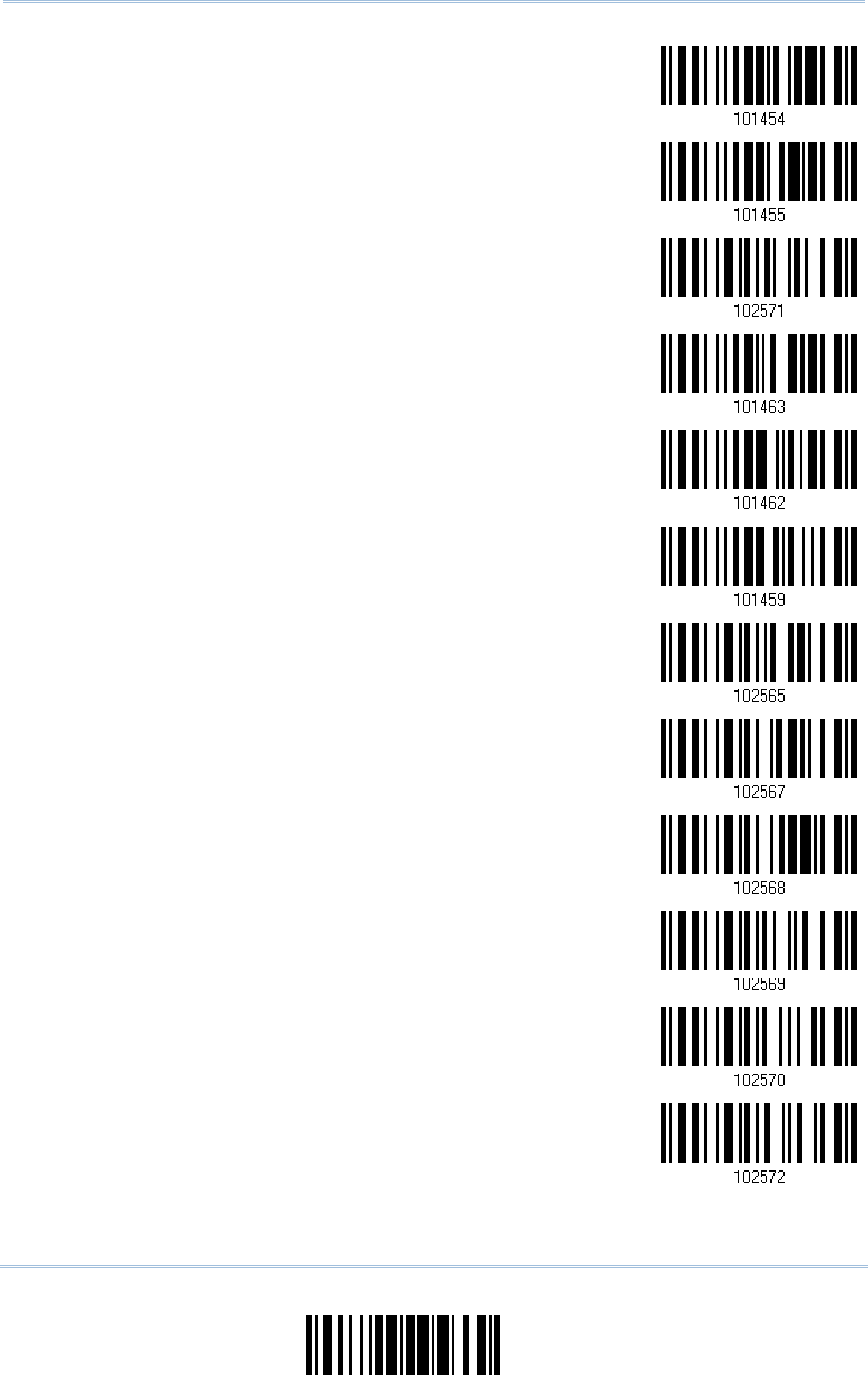

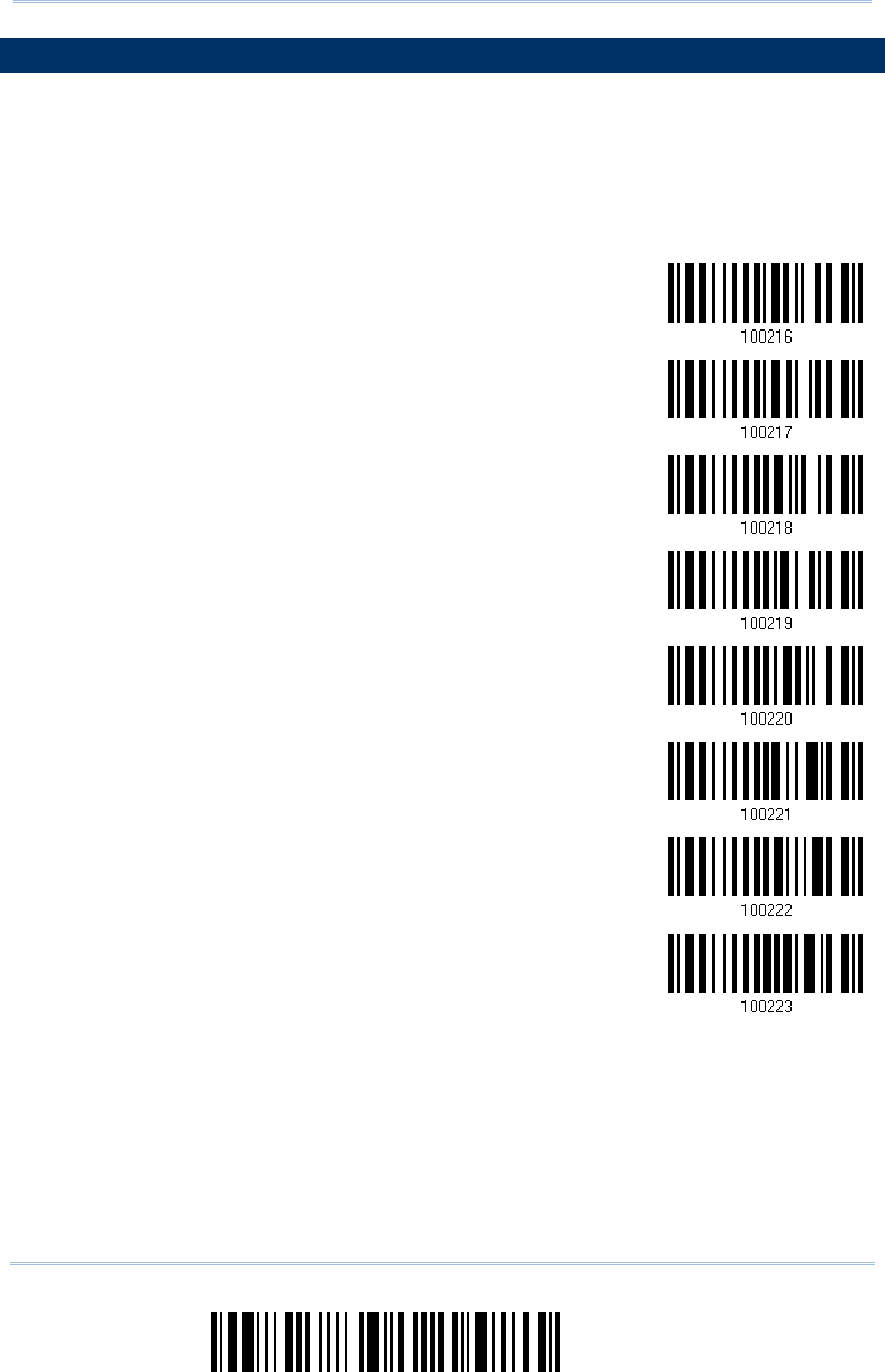

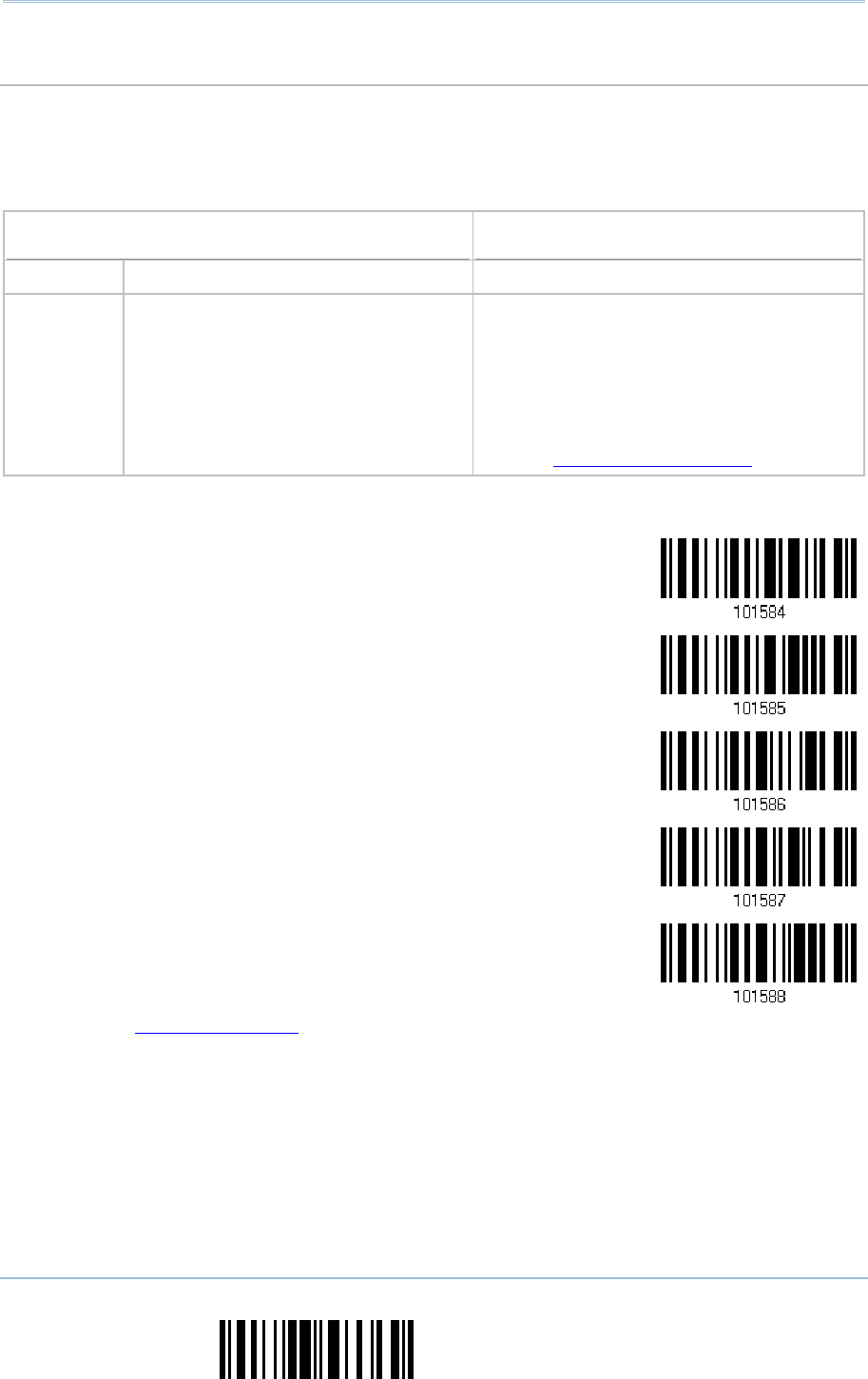

Memory Data Delay
You may set a delay between each data record while transmitting data back to the host.
*None
250 ms
500 ms
1 sec
2 sec
3 sec
5 sec
28
Enter Setup
1664 Barcode Scanner User Guide
8 sec

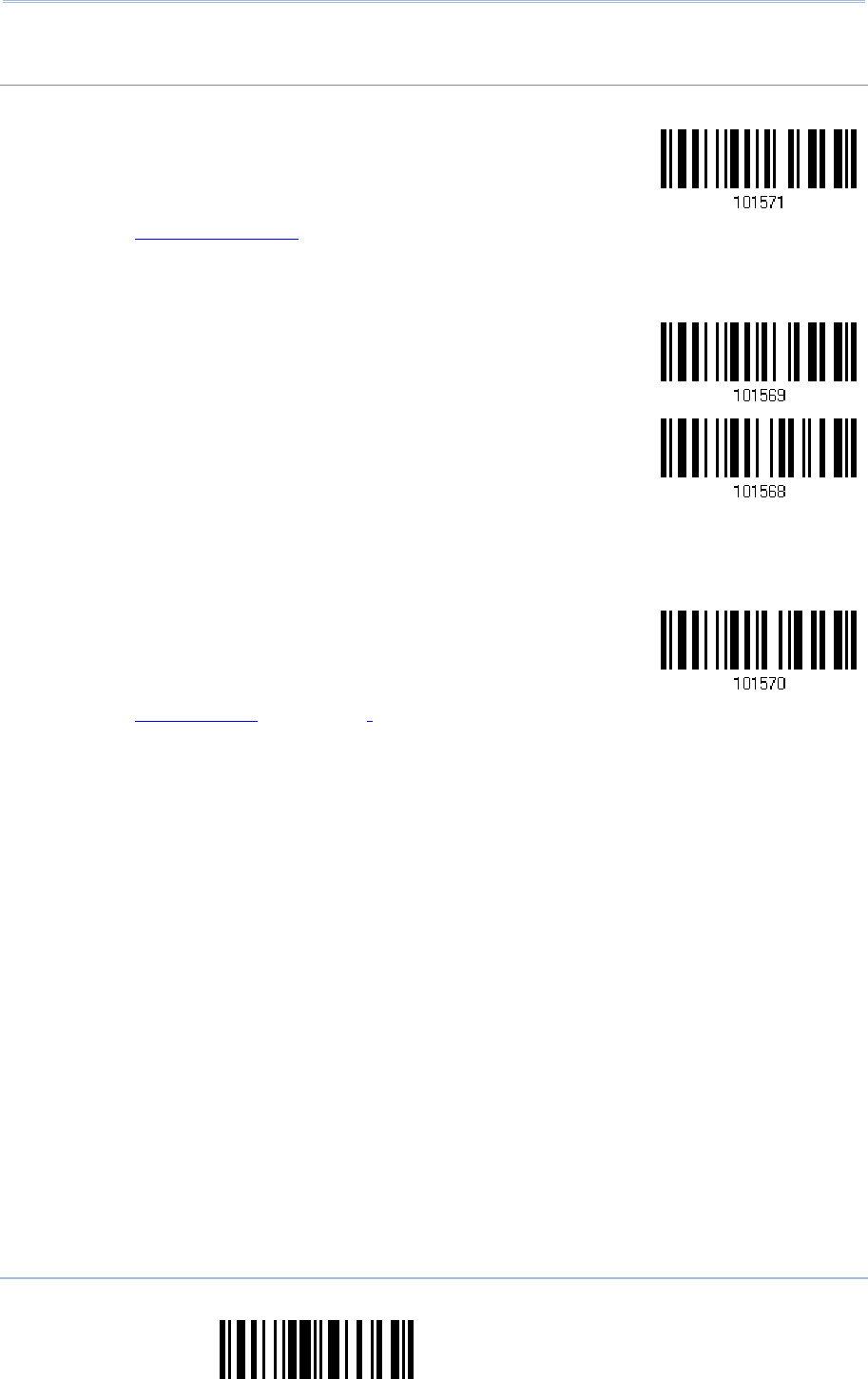

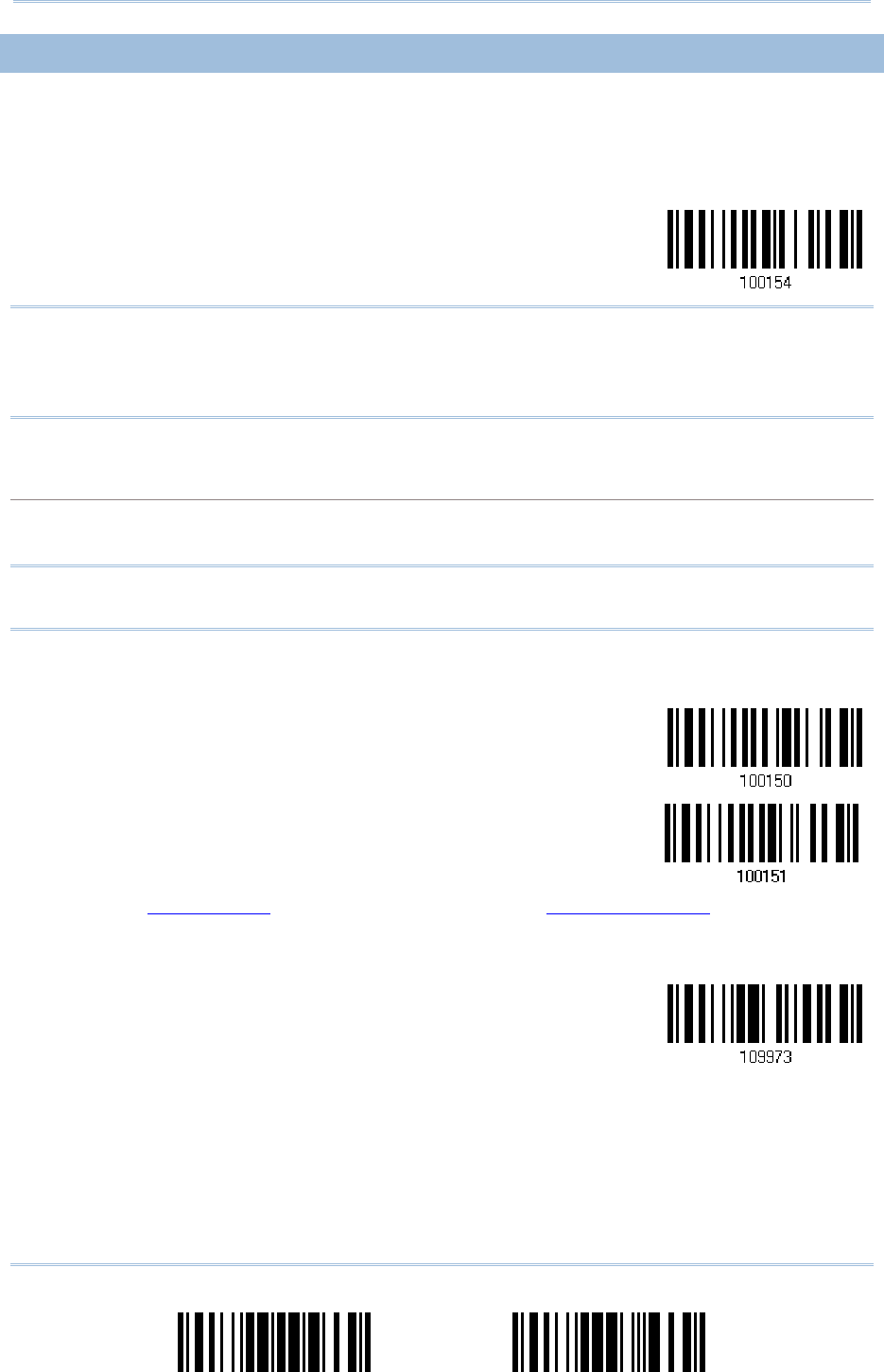

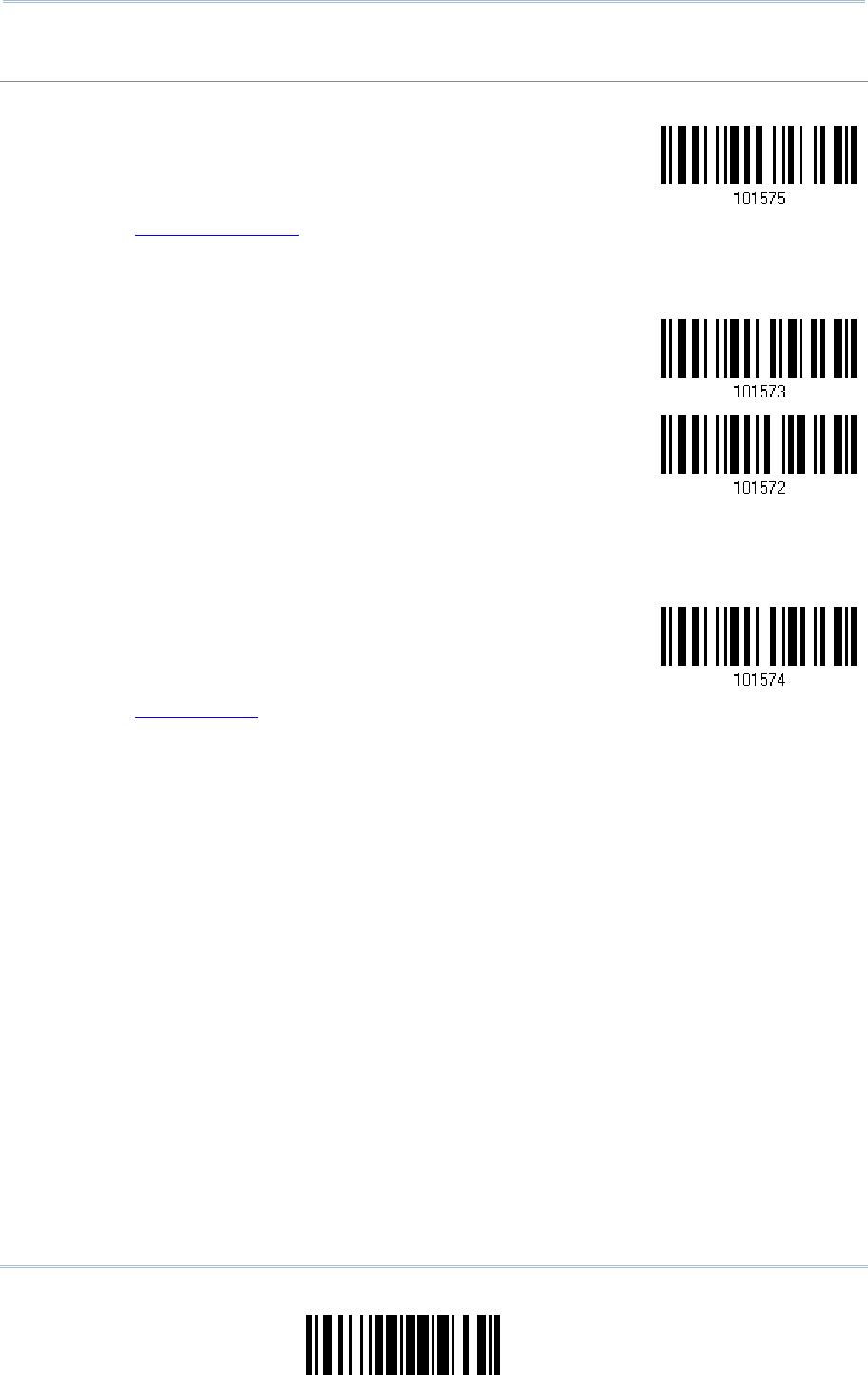

Send Data
When the memory is used up, the scanner will respond with two short beeps (high-low tone) as a
warning. It is advised to send data to the host immediately by having the scanner read the “Send
Data” barcode below.
1664 can send data via “Direct USB” interface once the computer has found the USB connection.
Refer to 1.13 Using Direct USB Cable. Because the time-out value is set to 0 by default, connect
the cable before having the scanner read the “Send Data” barcode. Otherwise, the scanner will try
to temporarily resume the previous WPAN connection with the host, if there is any.
During data transmission upon memory mode, if the data is transmitted fail, the scanner will flash
red (On/Off ratio 0.2 s: 0.2 s) after responding two short beeps (high-low tone) and go back to
previous working mode. Press trigger or power key to stop flashing.
Send Data
Send Data Time-out
if a time-out value other than zero is given, it will first try to send data via “Direct USB” interface
within the specified period of time. Connect the cable before it times out. When the attempt fails, it
will try to temporarily resume the previous WPAN connection with the host, if there is any.
If 1664 has never been connected to the host cordless, it will not be able to send data until to
connect the Direct USB cable!
Send Data Time-Out
a
fter 0~15 sec.
(*0)
Clear Data & Confirm
Even though data has been sent back to the host, the flash memory is still occupied unless you
erase the memory by having the scanner read two barcodes – “Clear Data” and “Confirm”.
1. Read the “Clear Data” barcode to clear the flash memory.
2. Read the “Confirm” barcode to confirm the action.
Clear Data
Confirm
29
Update
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。

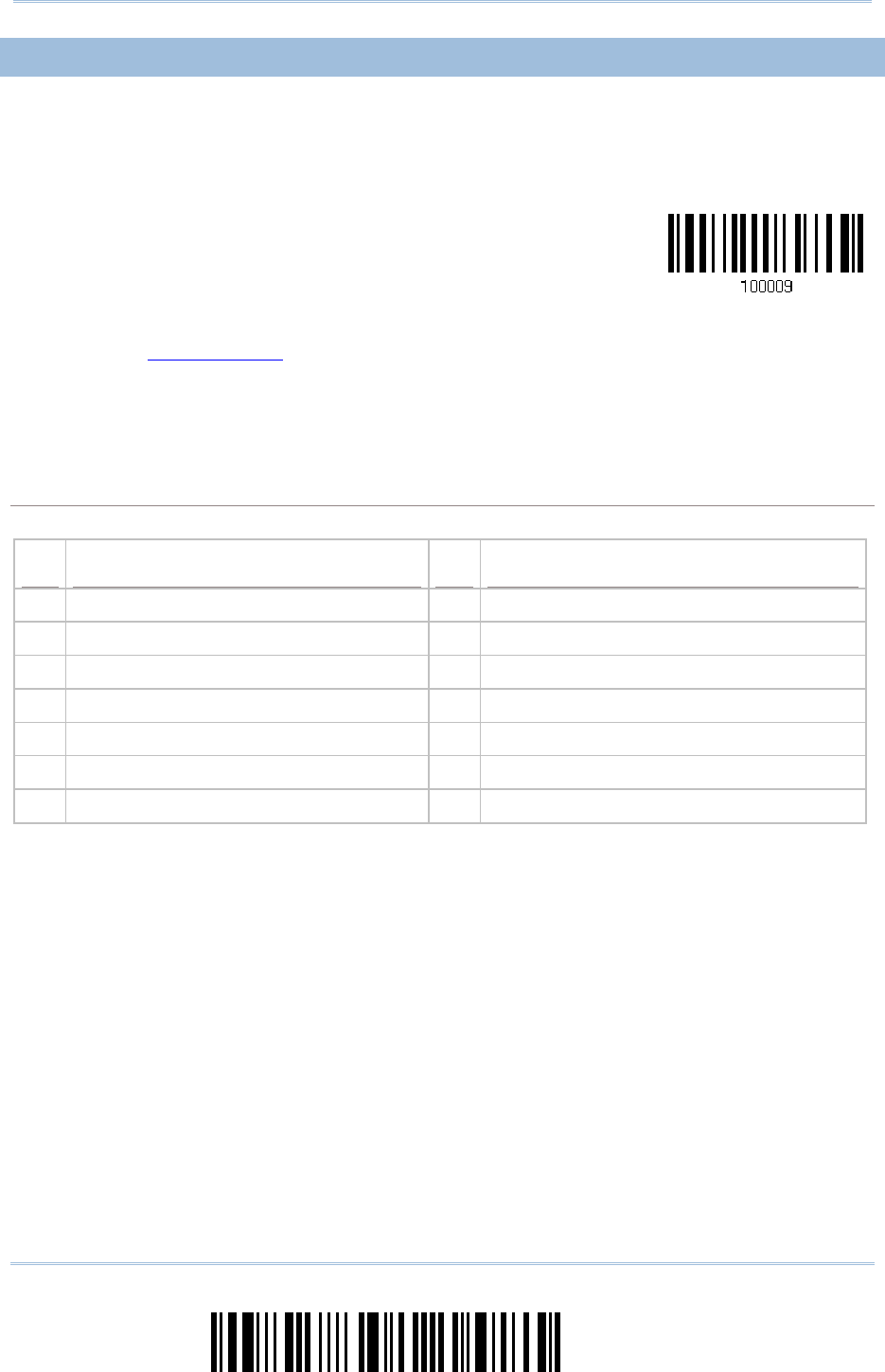

1.3 LED INDICATOR
The triple-color LED on top of the scanner is used to provide user feedback. For example,
the LED becomes solid red and goes off quickly upon powering on or running out of
transmit buffer. You may tell the difference by the beeps – you will hear a long beep of
high tone when powering on the scanner, and a long beep of low tone when the transmit
buffer becomes full.
Scanner LED Meaning
Red,
on-off --- --- Power on, with one long beep (high tone, LED on for 1
second)
Data saved to buffer when transmit buffer is enabled and the
scanner is out of range, with two short beeps (high-low tone)
Transmit buffer full, with one long beep (low tone)
Transmit buffer disabled, with one long beep (low tone)
Delete the last collected data in memory mode, with two
short beeps (high tone, LED on for 1 second)
Memory full in memory mode, with two short beeps (high-low
tone)
Red,
flashing --- --- Flashing red (On/Off ratio 0.3 s: 2.5 s) indicates the scanner
is inactive and its CPU running at low speed to save power
(because no WPAN connection is established after waiting for
two minutes)
Configuration Mode (On/Off ratio 0.5 s: 0.5 s)
--- --- Green,
on-off Good Read, with one short beep (high tone) and beeper pitch and
duration programmable
--- Blue,
flashing --- First, flashing blue (On/Off ratio 0.5 s: 0.5 s) for two minutes
indicates the scanner is waiting for connection, and goes off if no
connection is established, then flashing red (On/Off ratio 0.3 s:
2.5 s) indicates the scanner is inactive.
It is ready for connection only while the LED is flashing blue —
SPP Slave: waiting host to connect
HID or SPP Master: trying to connect to host
Using 3610: trying to connect to 3610
--- Blue,
flashing --- Flashing blue (On/Off ratio 0.1 s: 0.1 s) indicates the scanner
receives a PIN code request from host (flashing more quickly
than waiting connection).
--- Blue,
flashing --- Flashing blue (On/Off ratio 0.02 s: 3 s) indicates the scanner has
established a WPAN connection successfully.
--- Blue,
flashing Green,
flashing Flashing blue and green (On/Off ratio 0.1 s: 0.1 s) indicates an
error occurs while entering the PIN code. Press the [Trigger] key
to get ready for re-connecting.
Red,
flashing --- --- Flashing red (On/Off ratio 0.2 s: 0.2 s) indicates the scanner has
transmit fail upon memory mode. Press any key to stop flashing.
30
Enter Setup
1664 Barcode Scanner User Guide

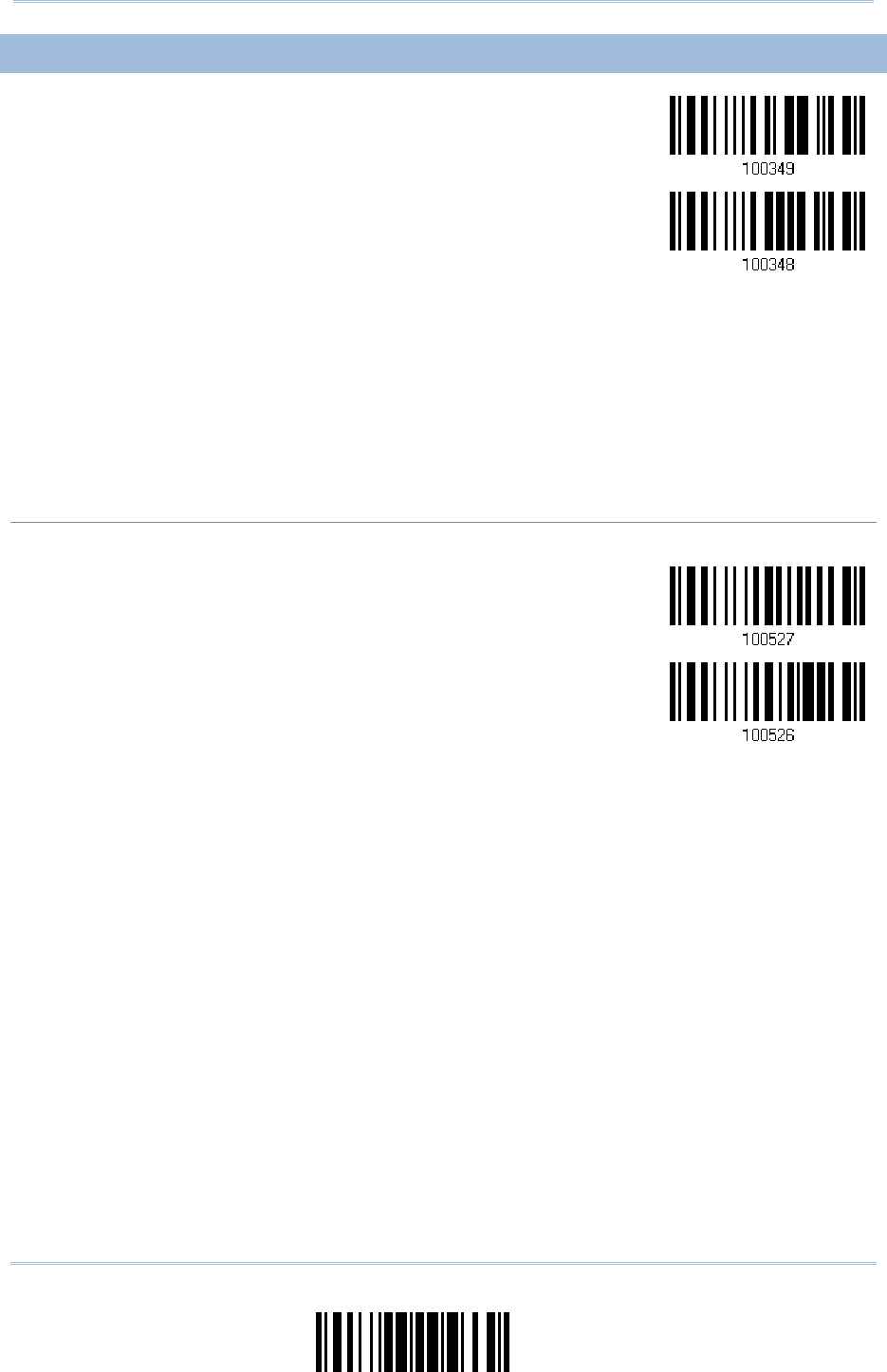

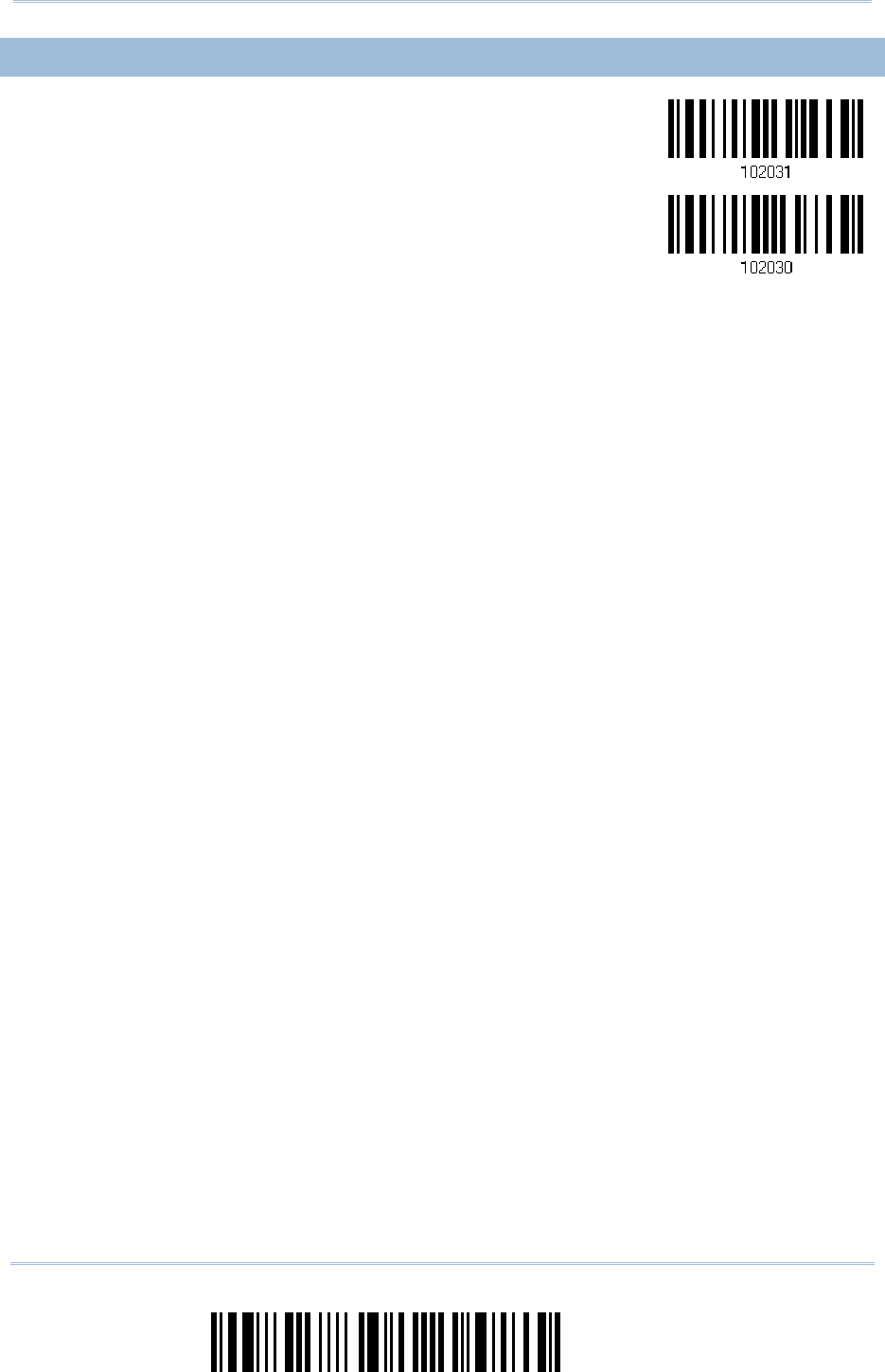

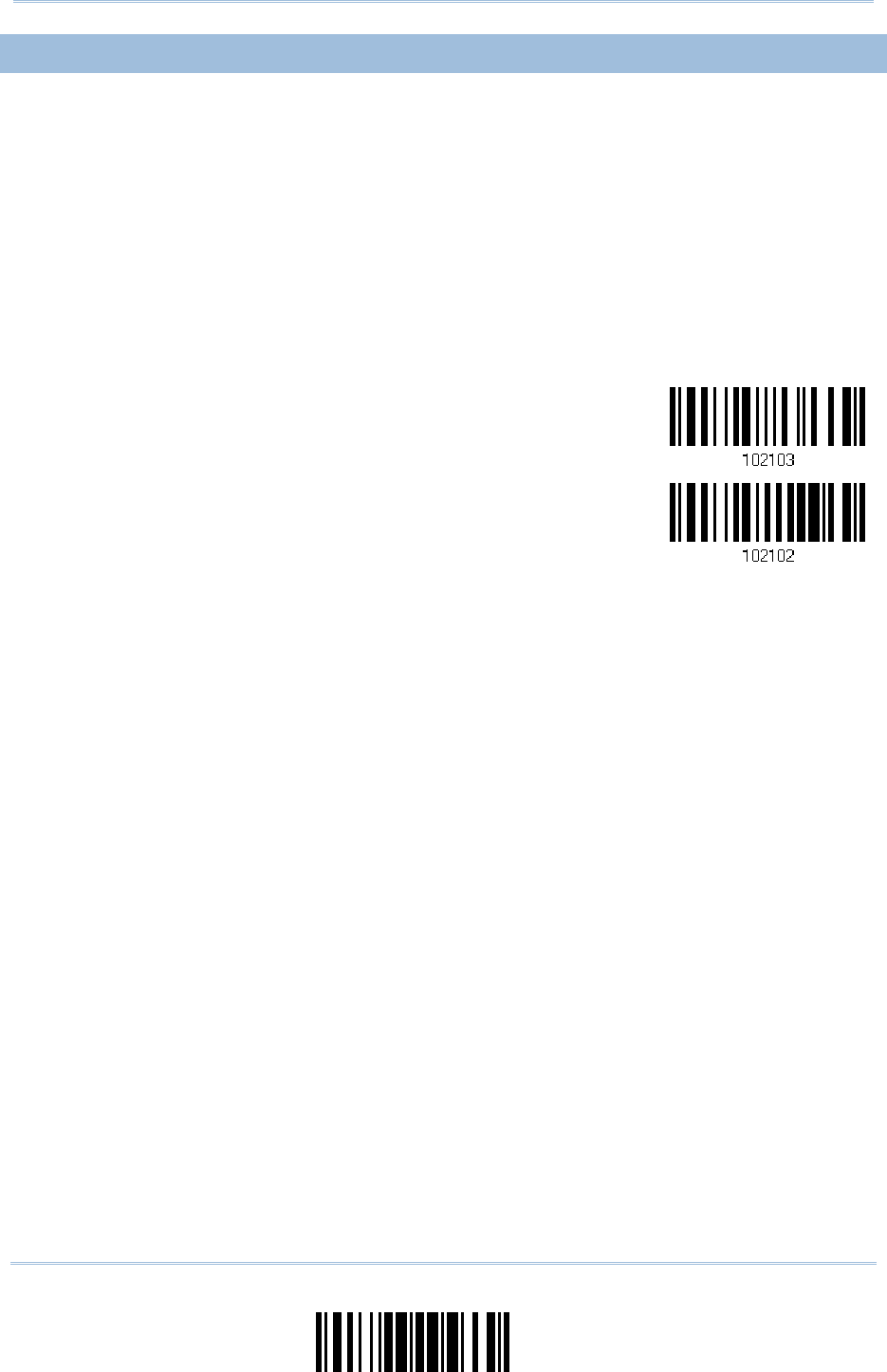

1.3.1 GOOD READ LED
*
Enable
Good Read LED
D
isable
Good Read LED

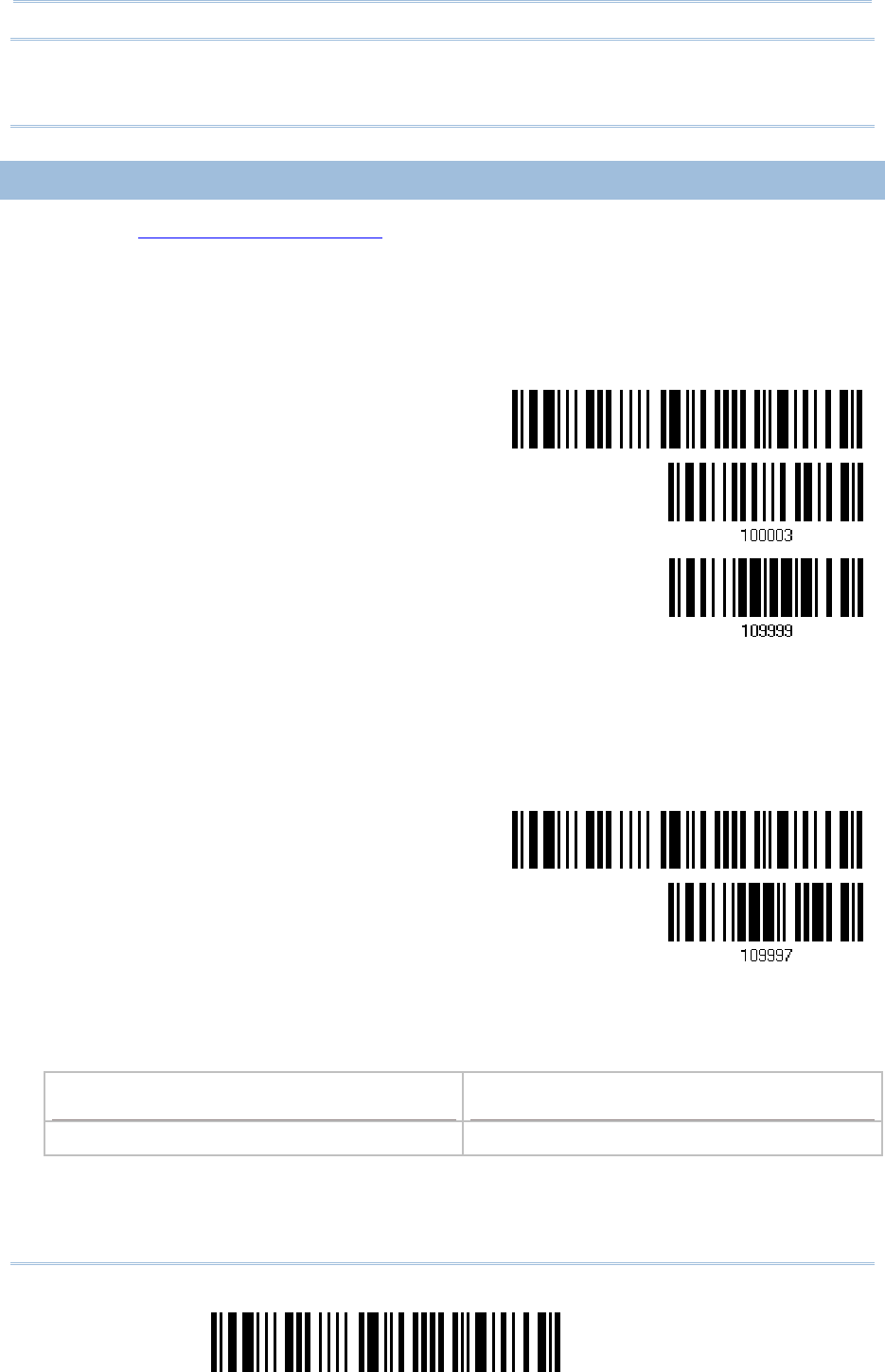

1.3.2 GOOD READ LED DURATION
By default, the Good Read LED stays on for 40 milliseconds. Specify a value, ranging
from 1 to 254 in units of 10 milliseconds.
Good Read LED
Time-out after
0
.01~2.54 sec.
(*40 ms)
1) Read the barcode above to specify the time interval before the Good Read LED goes
off.
2) Read the “Decimal Value” barcode on page 251. For example, read “1” and “5” for the
LED to go off after 150 milliseconds.
3) Read the “Validate” barcode on the same page to complete this setting.
31
Update
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。

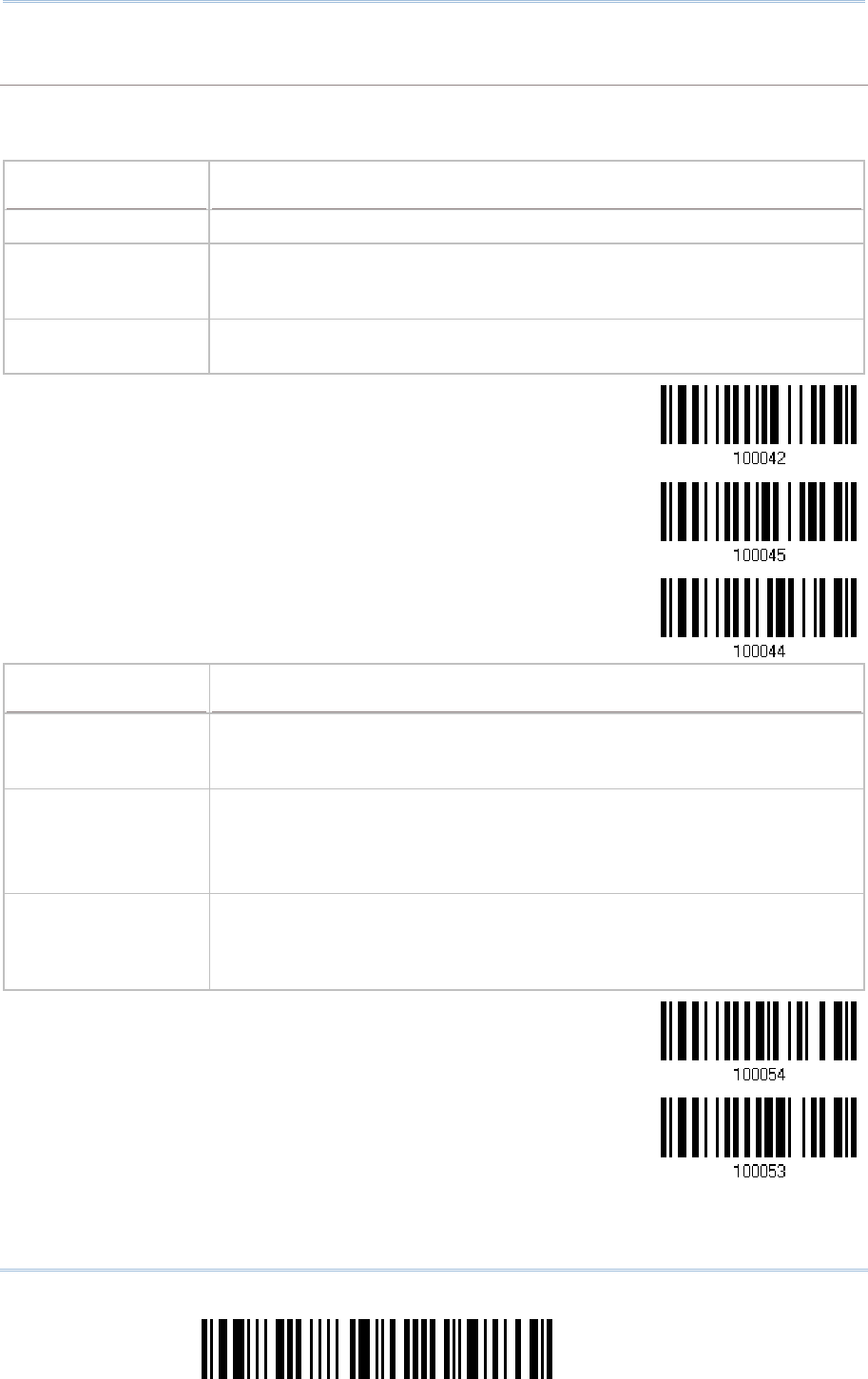

1.4 BEEPER
The scanner has a buzzer to provide user feedback in various operating conditions.
Beeping Meaning
One long beep, high tone Power on, with red LED on (1 second) and off quickly
One long beep, low tone Transmit buffer full, with red LED on-off quickly
Transmit buffer disabled, with red LED on-off quickly
Configuration error (Wrong barcode…)
PIN code input error
Reject random PIN request
Fail to send data in memory mode
One short beep, high tone
Programmable, default to 4 KHz
Good Read, with green LED on-off quickly
One short beep, high tone More setup barcode required
Input PIN code
Clear PIN code
One short beep, low tone More barcodes required to complete the “output sequence”
requirements of Multi-Barcode Editor, with green LED on-off
quickly (Upon completion, same as Good Read.)
Six short beeps
High-low tone repeats three
times
Enter Configuration Mode, with red LED flashing
Exit Configuration Mode
Two short beeps, low-high tone Setup barcode read successfully
Two short beeps, high tone Low Battery Alarm
Power off, with red LED on (until the key is released)
Delete the last collected data in memory mode, with red
LED on (1 second) and off quickly
Wake up the scanner depends on the paging setting
value until pressing the power key or reaching the
sleeping time out.
Two short beeps, high-low tone Data saved to buffer when transmit buffer is enabled
and the scanner is out of range, with red LED on-off
quickly
Memory Mode – Memory full, with red LED on-off quickly
Memory Mode – Transmitting fail, with red LED flashing
Two long beeps, high-low tone Multi-Barcode Mode – Buffer full
Three short beeps, tone ascending
from high to low WPAN connection out of range or suspended
Three short beeps, tone ascending
from low to high
WPAN connection established, with blue LED flashing
WPAN connection resumed, with blue LED flashing
32
Enter Setup
1664 Barcode Scanner User Guide

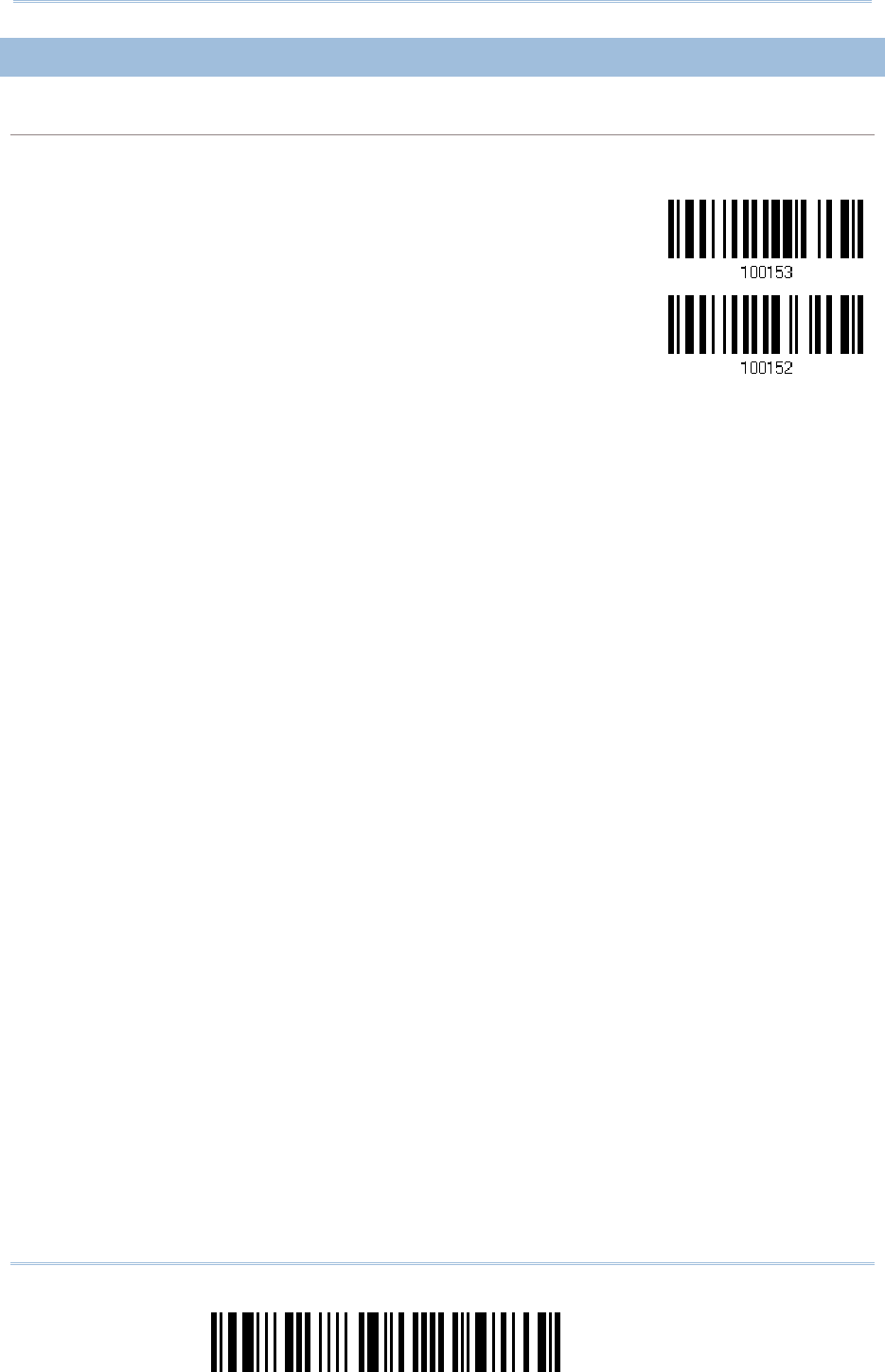

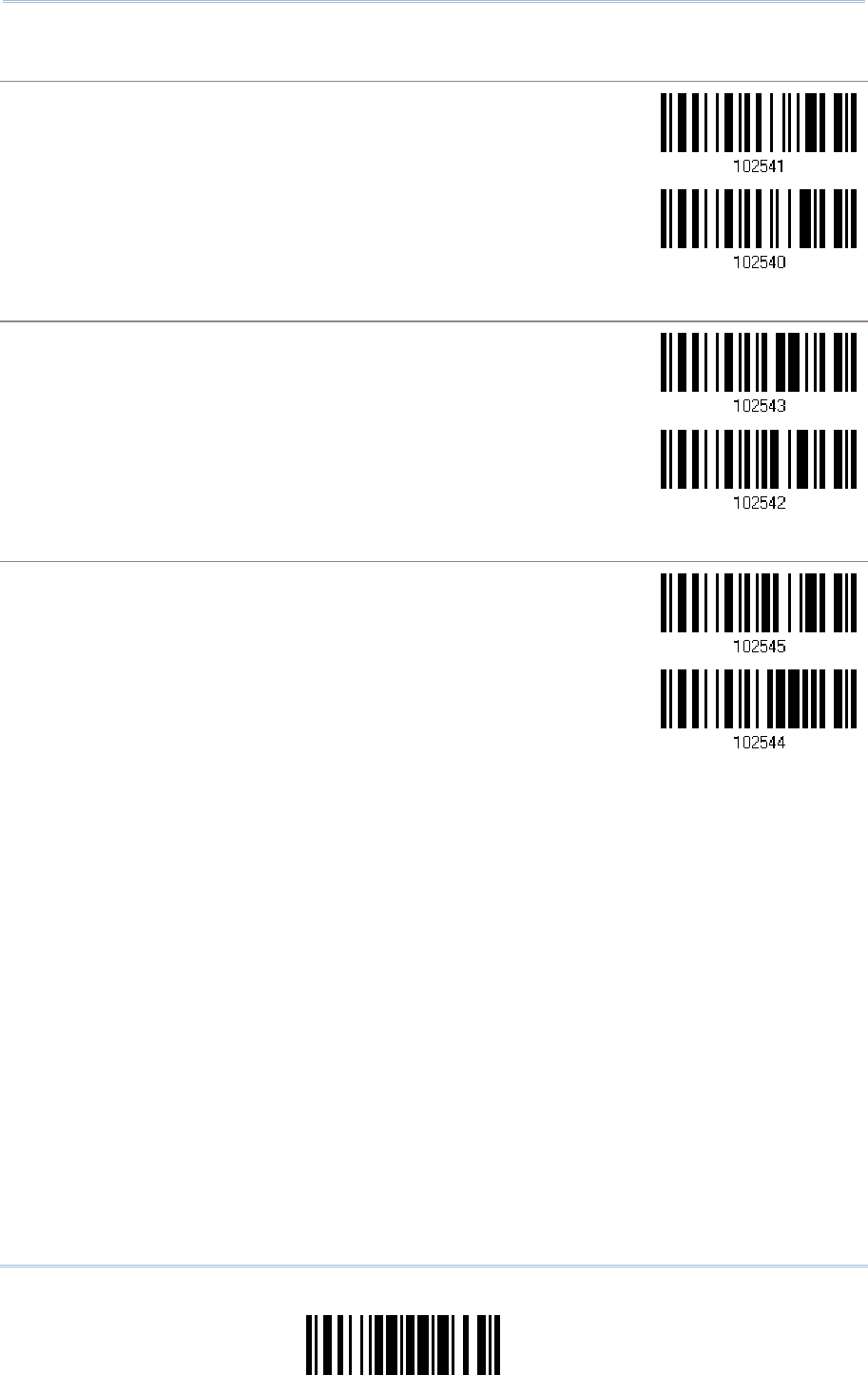

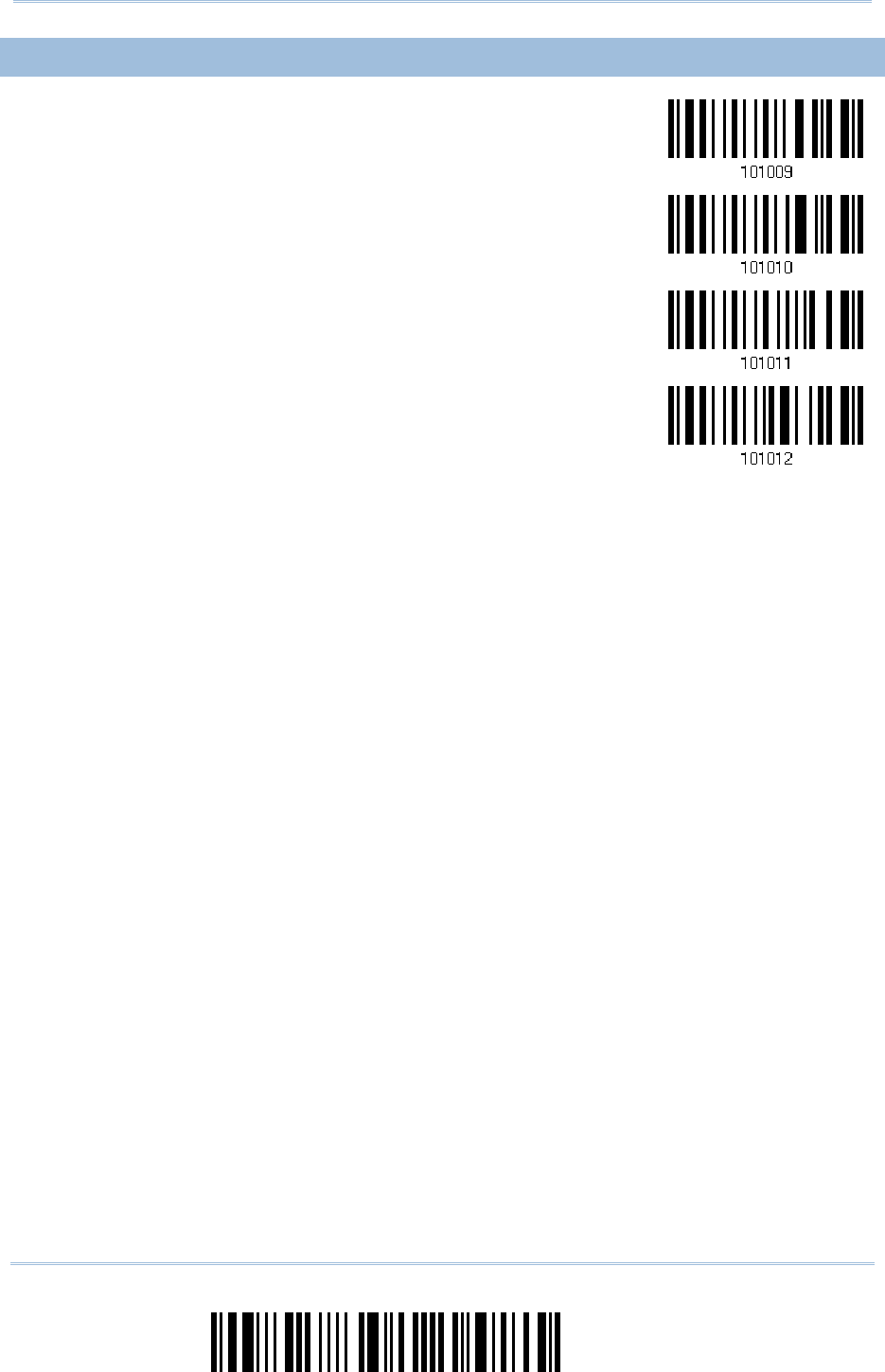

1.4.1 BEEPER VOLUME
Mute
Minimum Volume
Medium Volume
*Maximum Volume
33
Update
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。

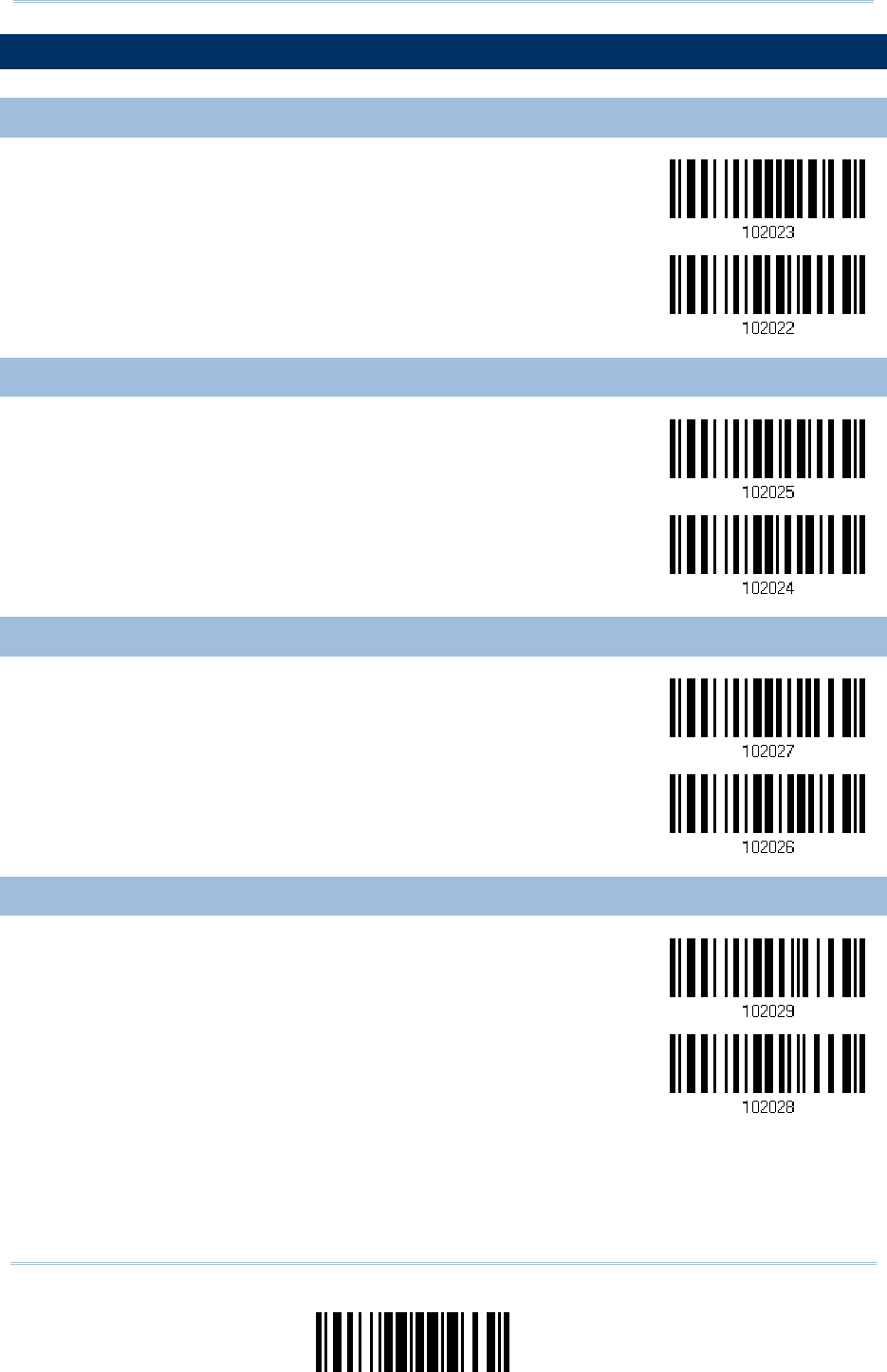

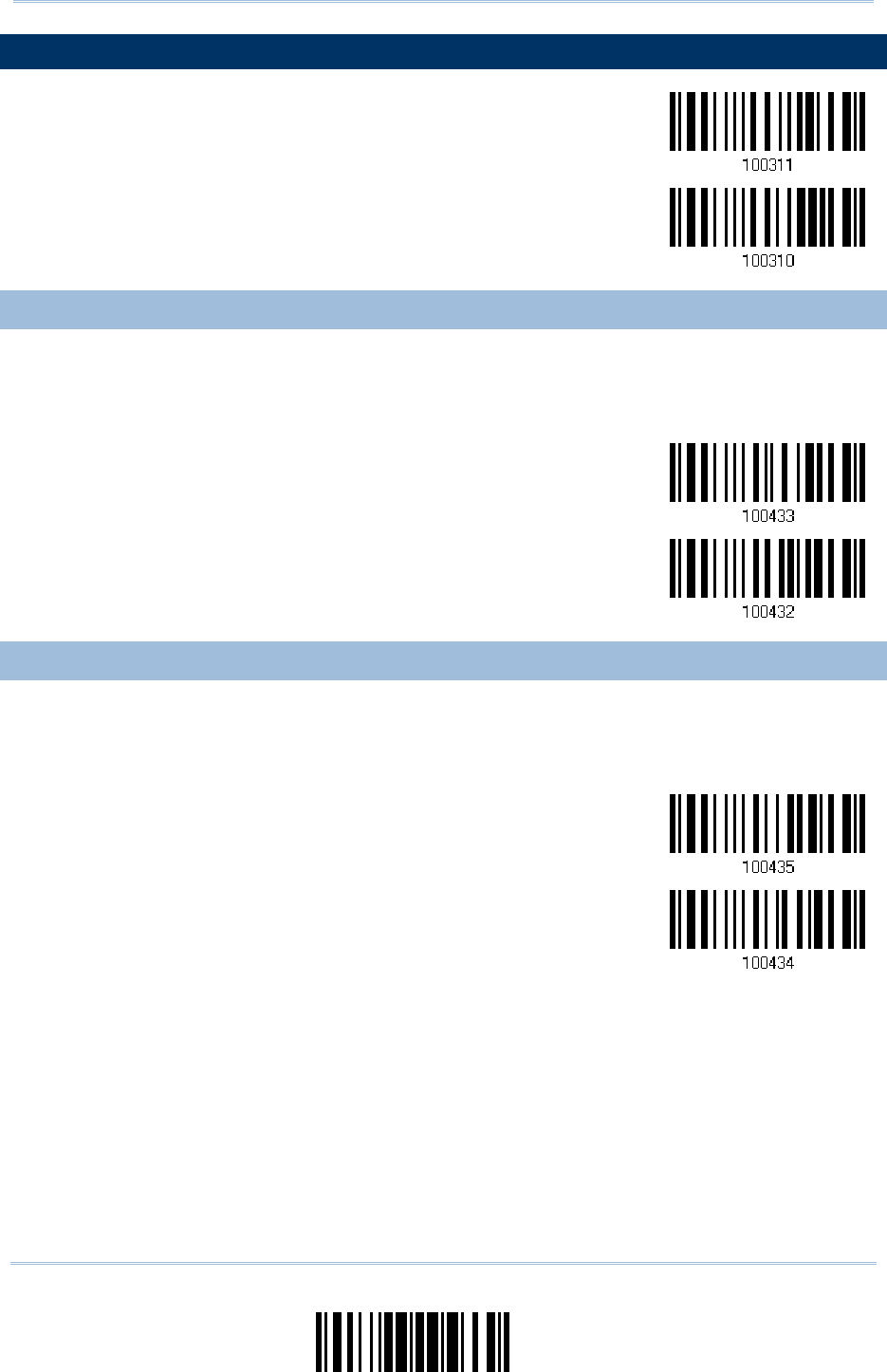

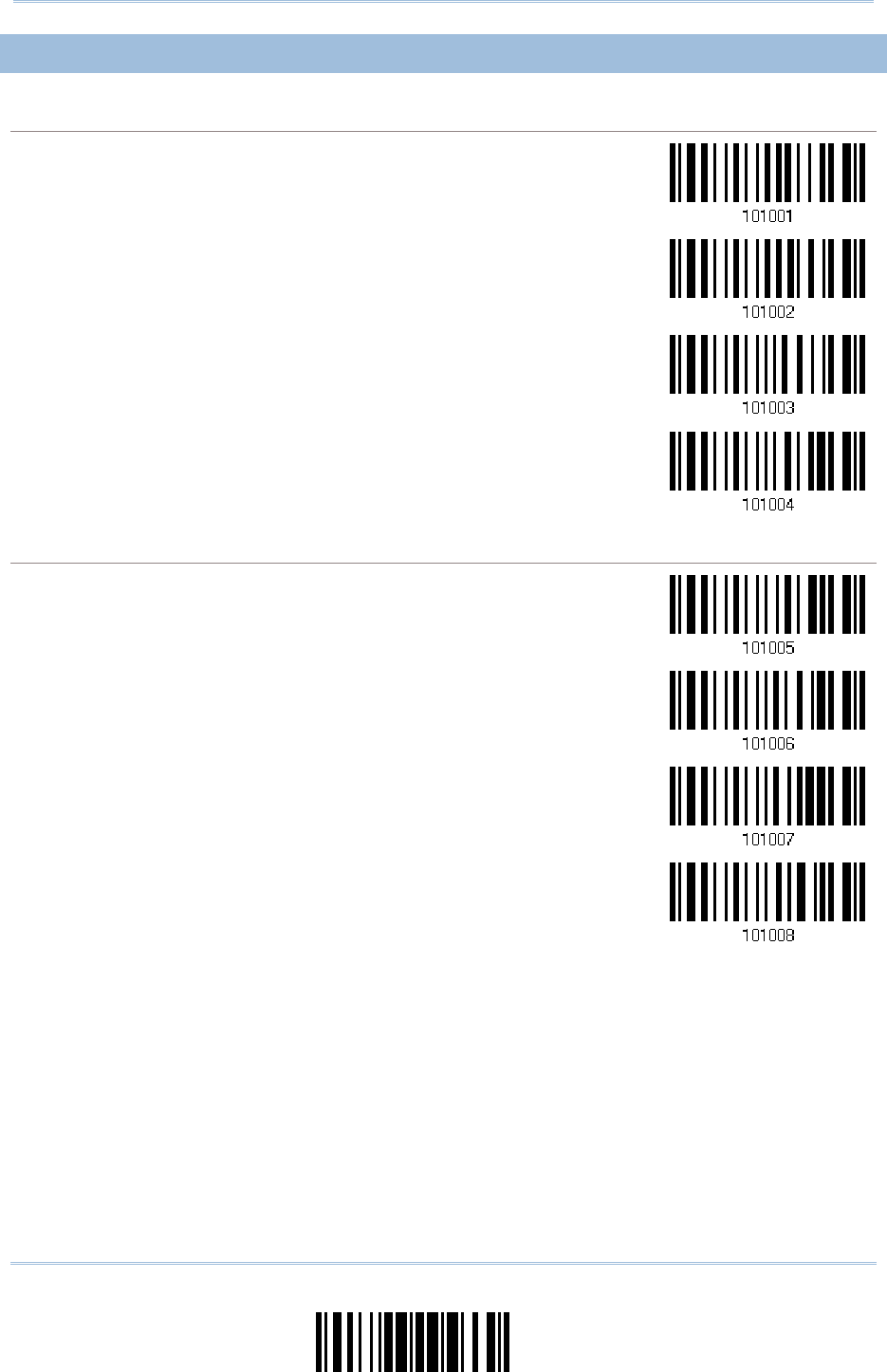

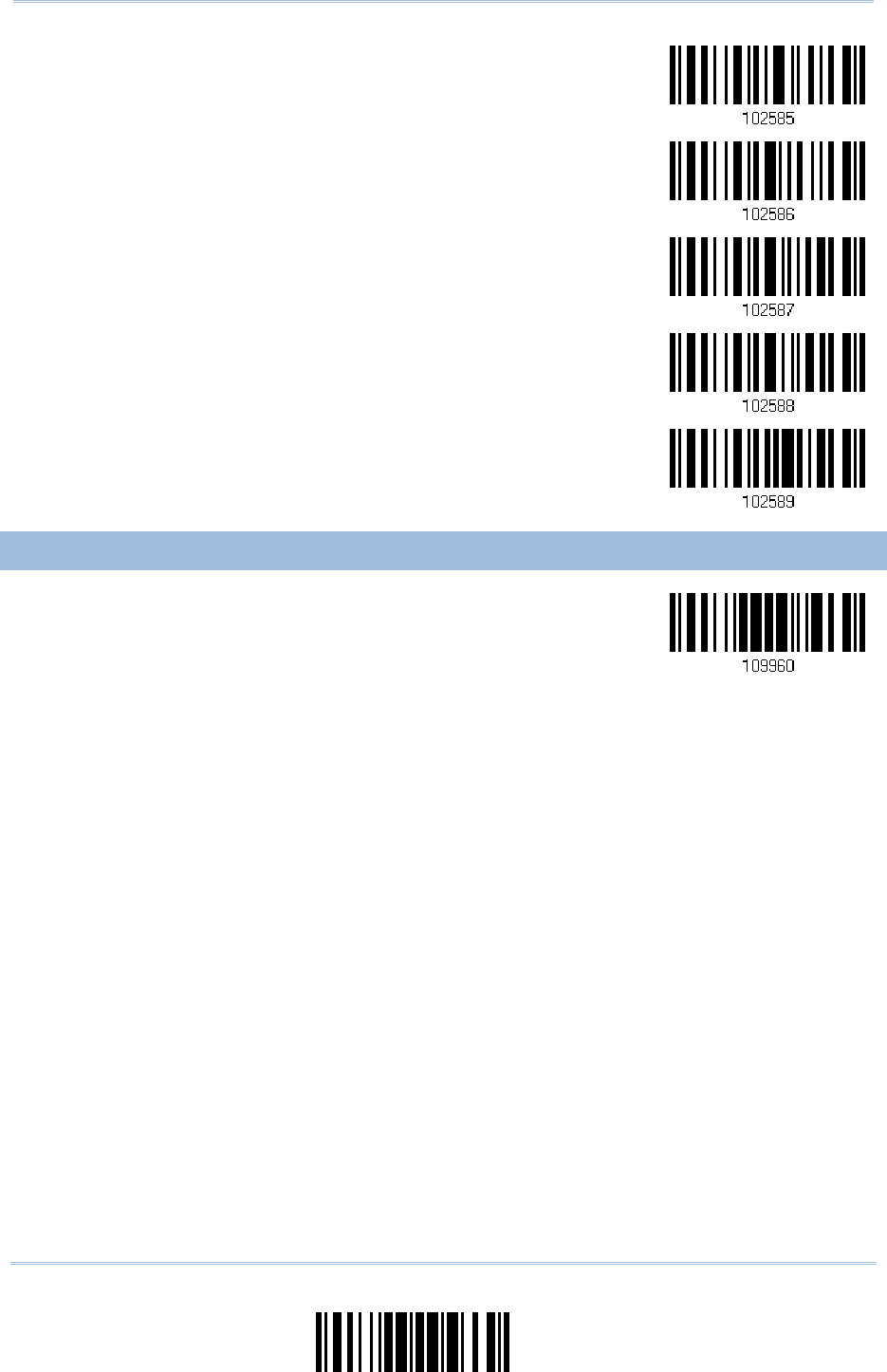

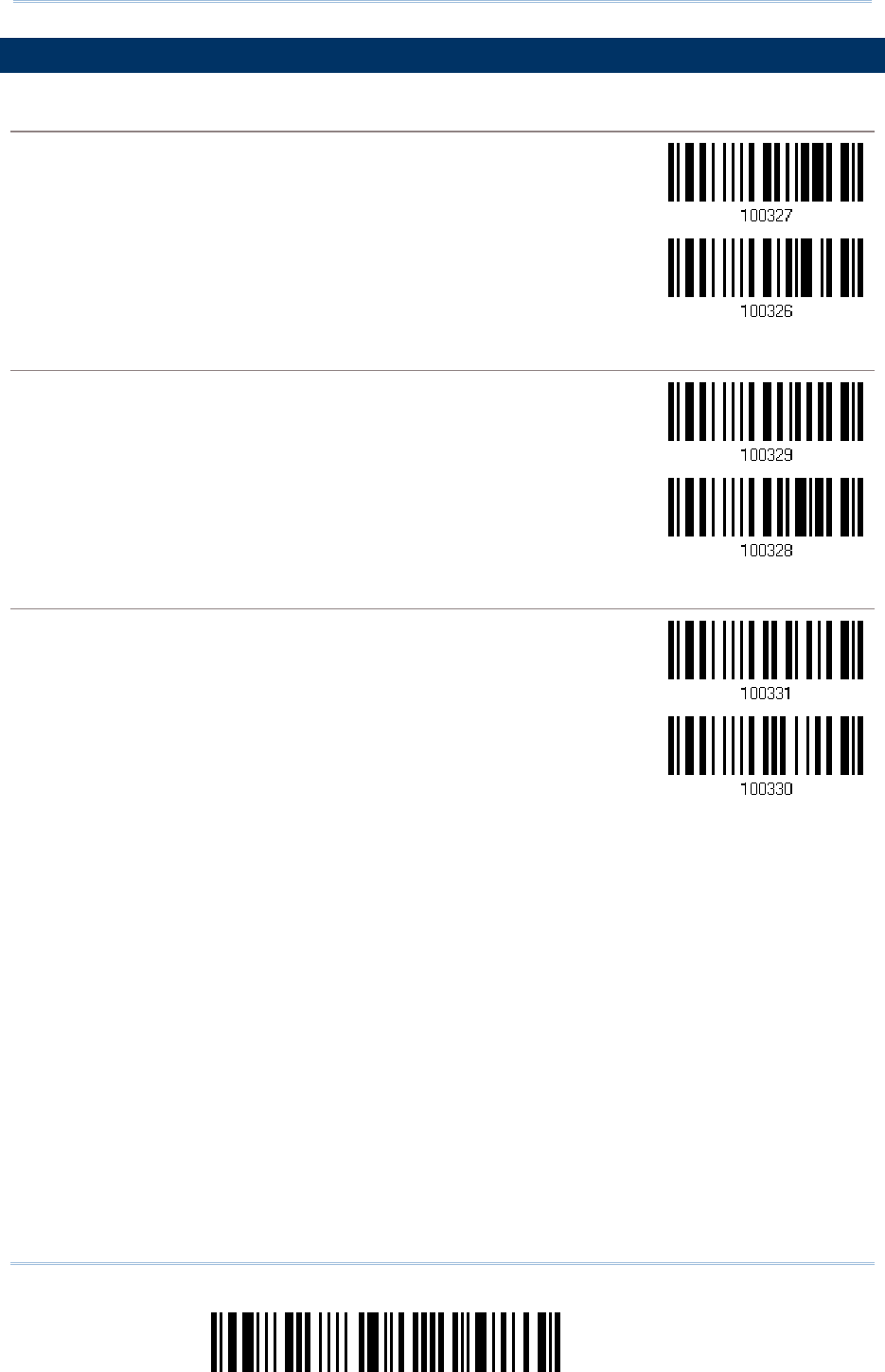

1.4.2 GOOD READ BEEP
Frequency
8 kHz
*4 kHz
2 kHz
1 kHz
Duration
*Shortest
Shorter
Longer
Longest
34
Enter Setup
1664 Barcode Scanner User Guide

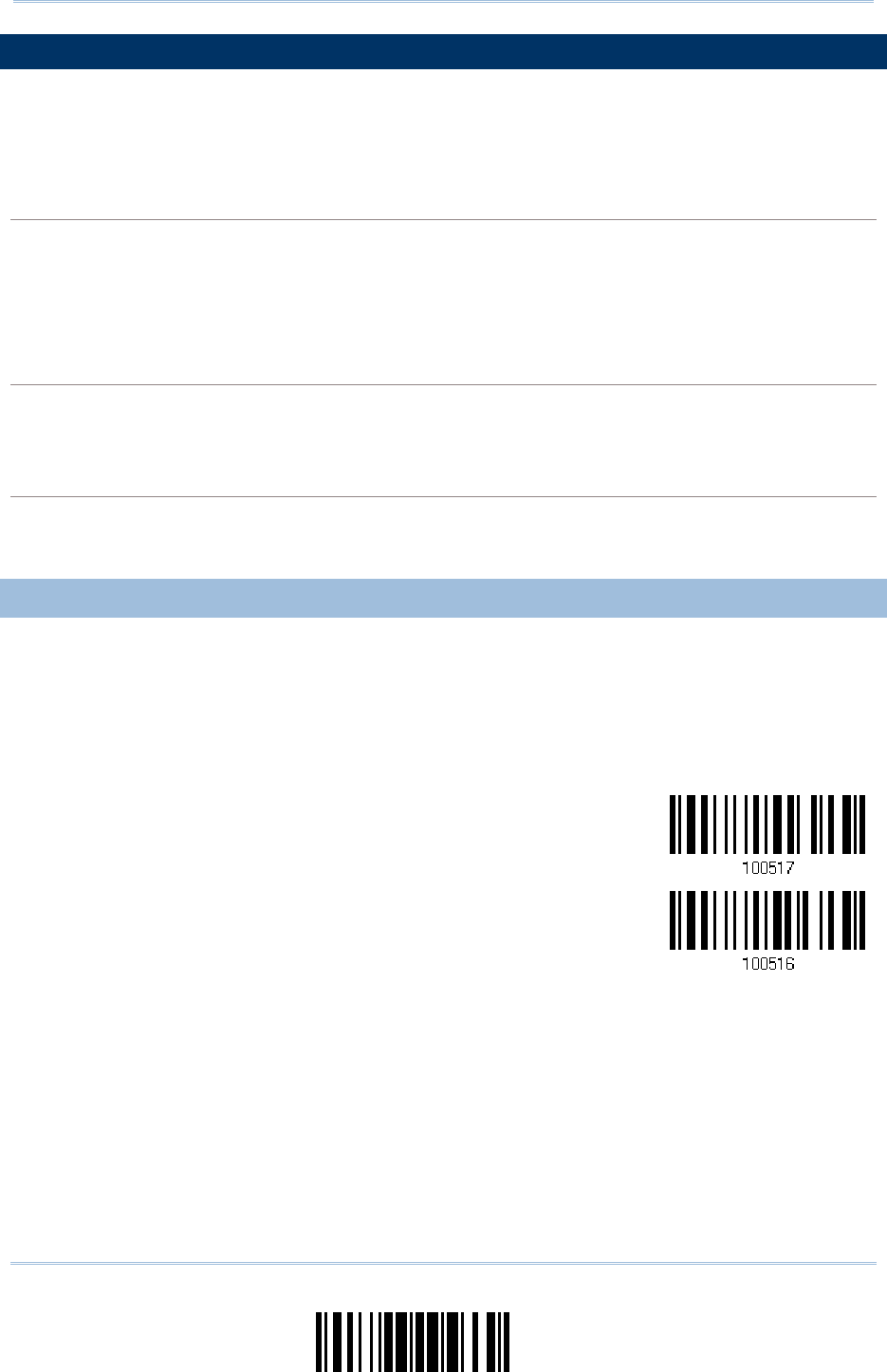

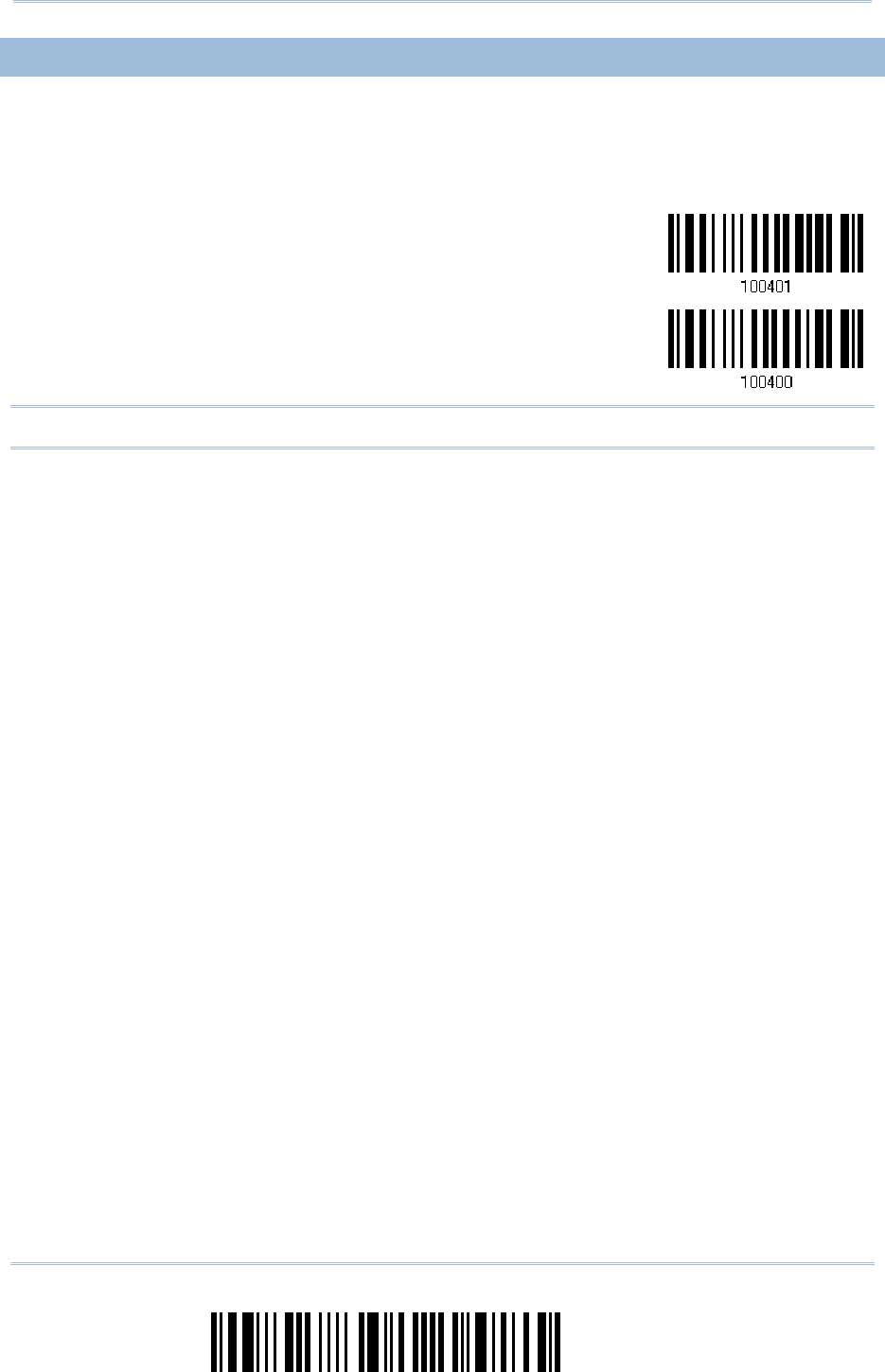

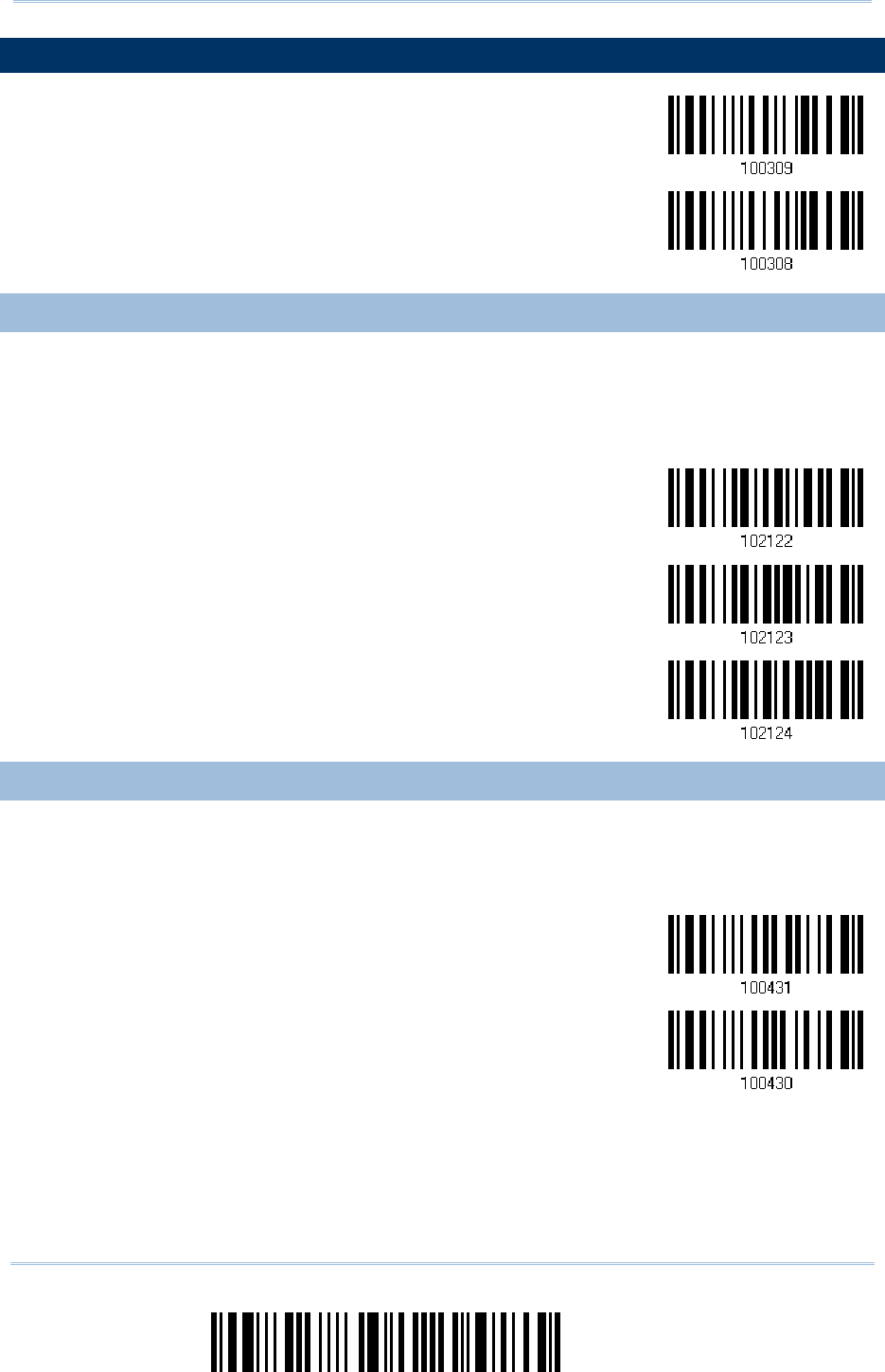

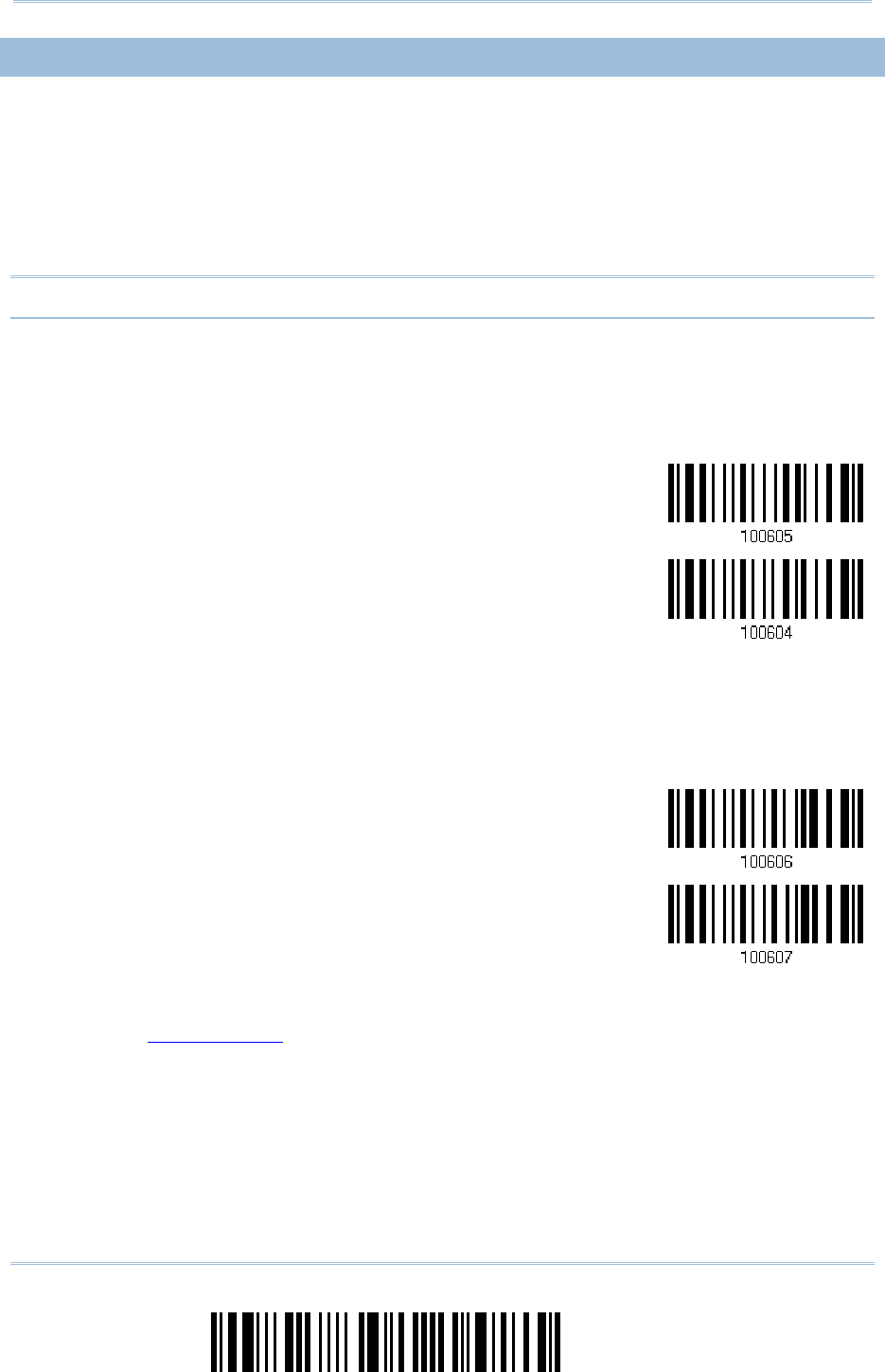

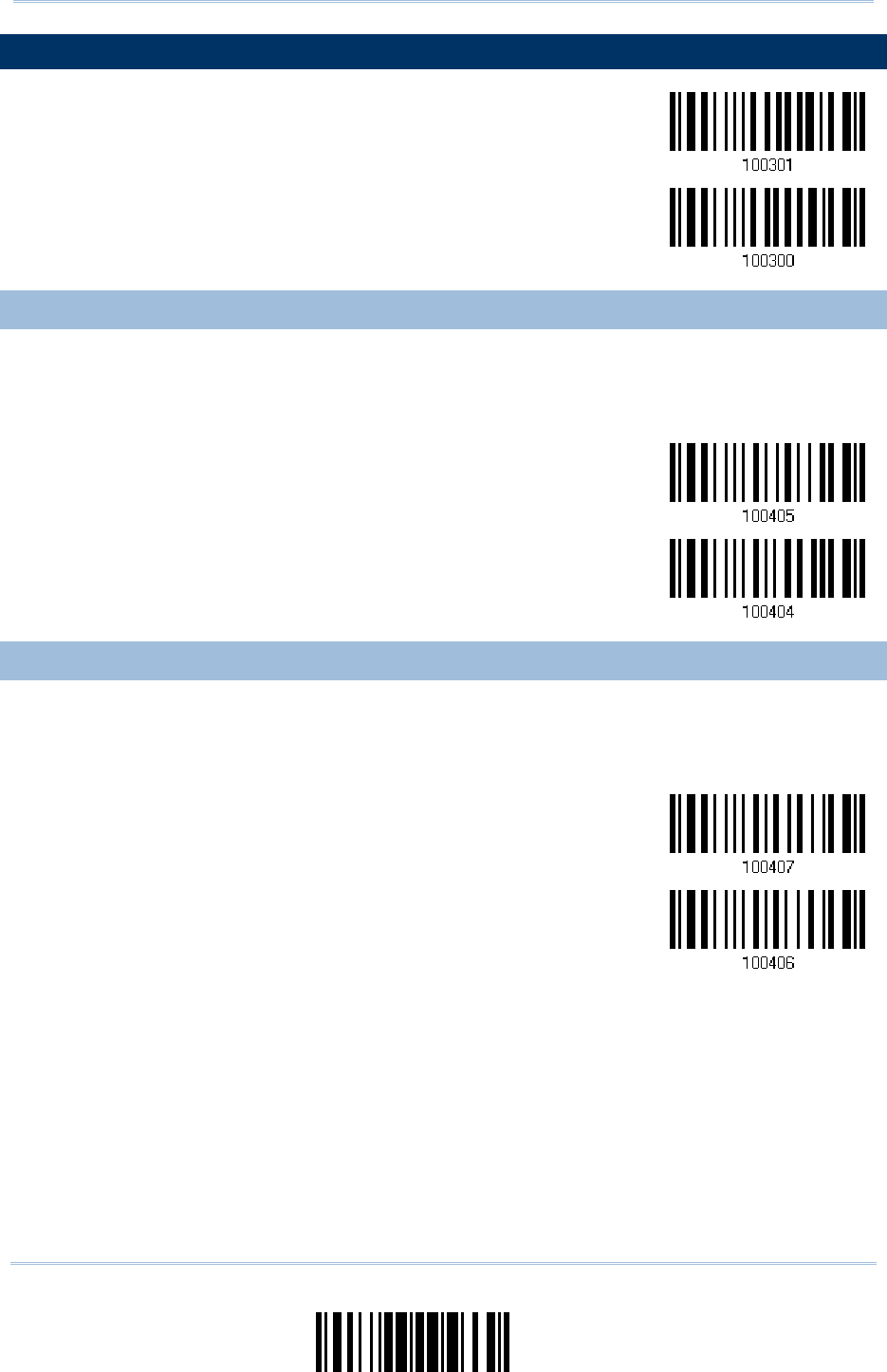

1.4.3 LOW BATTERY ALARM
By default, it will activate the beeper to give a warning when the battery charge gets low.
In order to prevent data loss, it is advised to replace the battery immediately when
hearing two short beeps (high tone).
Disable
*Enable
1.5 VIBRATOR
1.5.1 GOOD READ VIBRATOR
E
nable
Good Read Vibrator
*
Disable
Good Read Vibrator
1.5.2 GOOD READ VIBRATOR DURATION
By default, the Good Read Vibration stays on for 1 second. Specify a value, ranging from
1 to 254 in units of 100 milliseconds.
Good Read Vibrator
Time-out after
0
.1~25.4 sec.
(*1 s)
1) Read the barcode above to specify the time interval before the Good Read Vibrator
goes off.
2) Read the “Decimal Value” barcode on page 251. For example, read “1” and “5” for the
vibrator to vibrate after 1.5 seconds good read.
3) Read the “Validate” barcode on the same page to complete this setting.
35
Update
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。

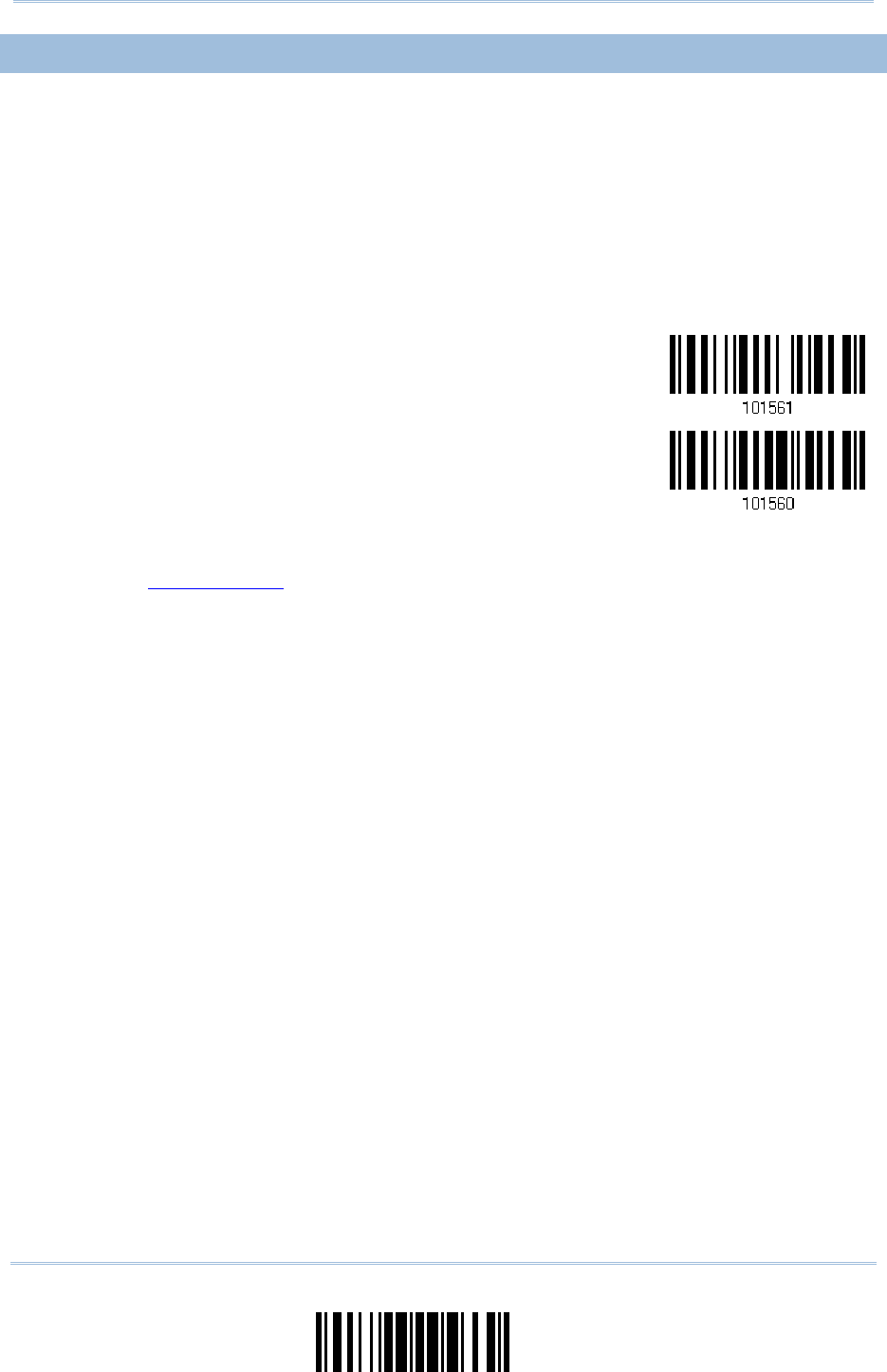

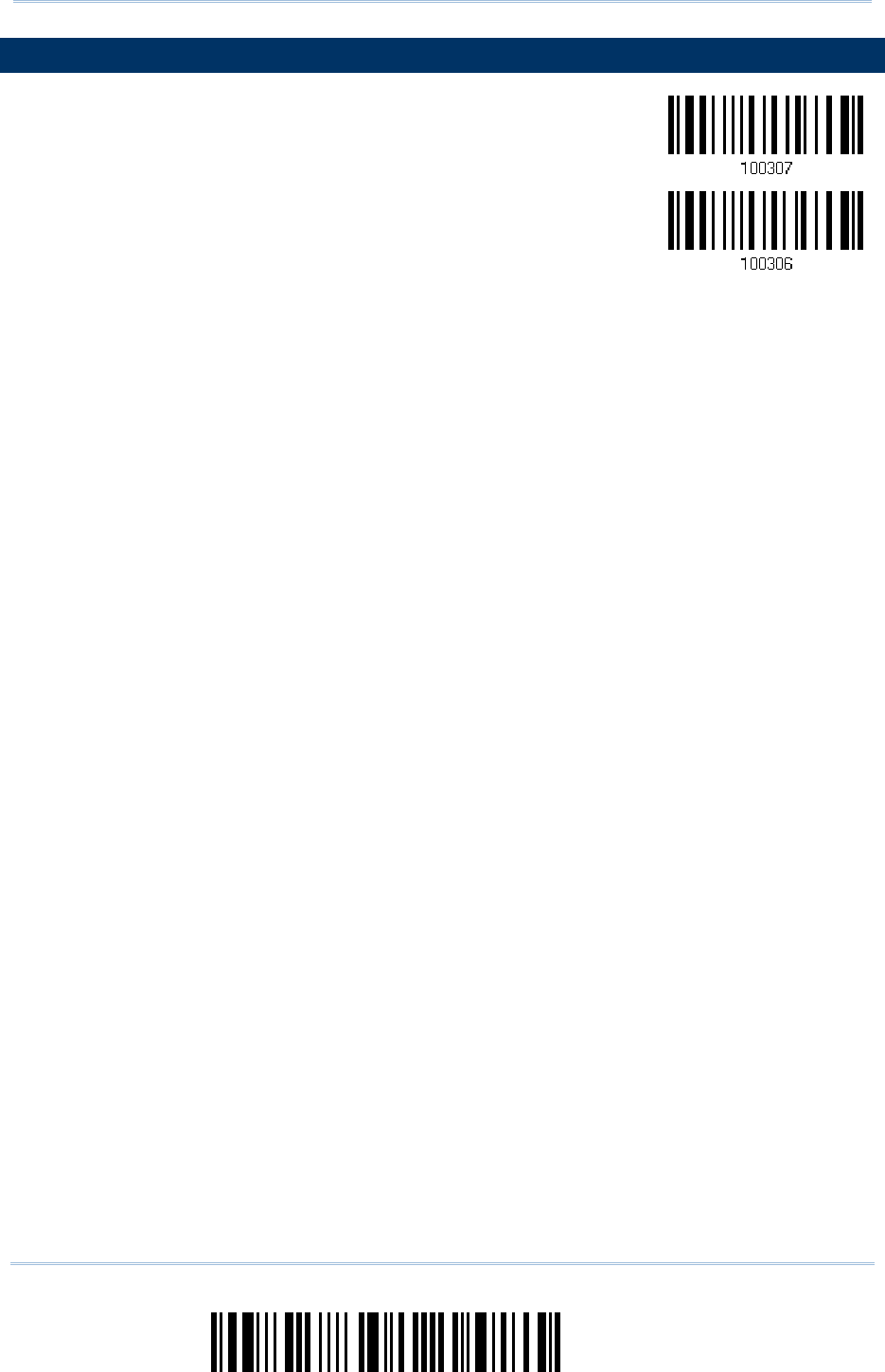

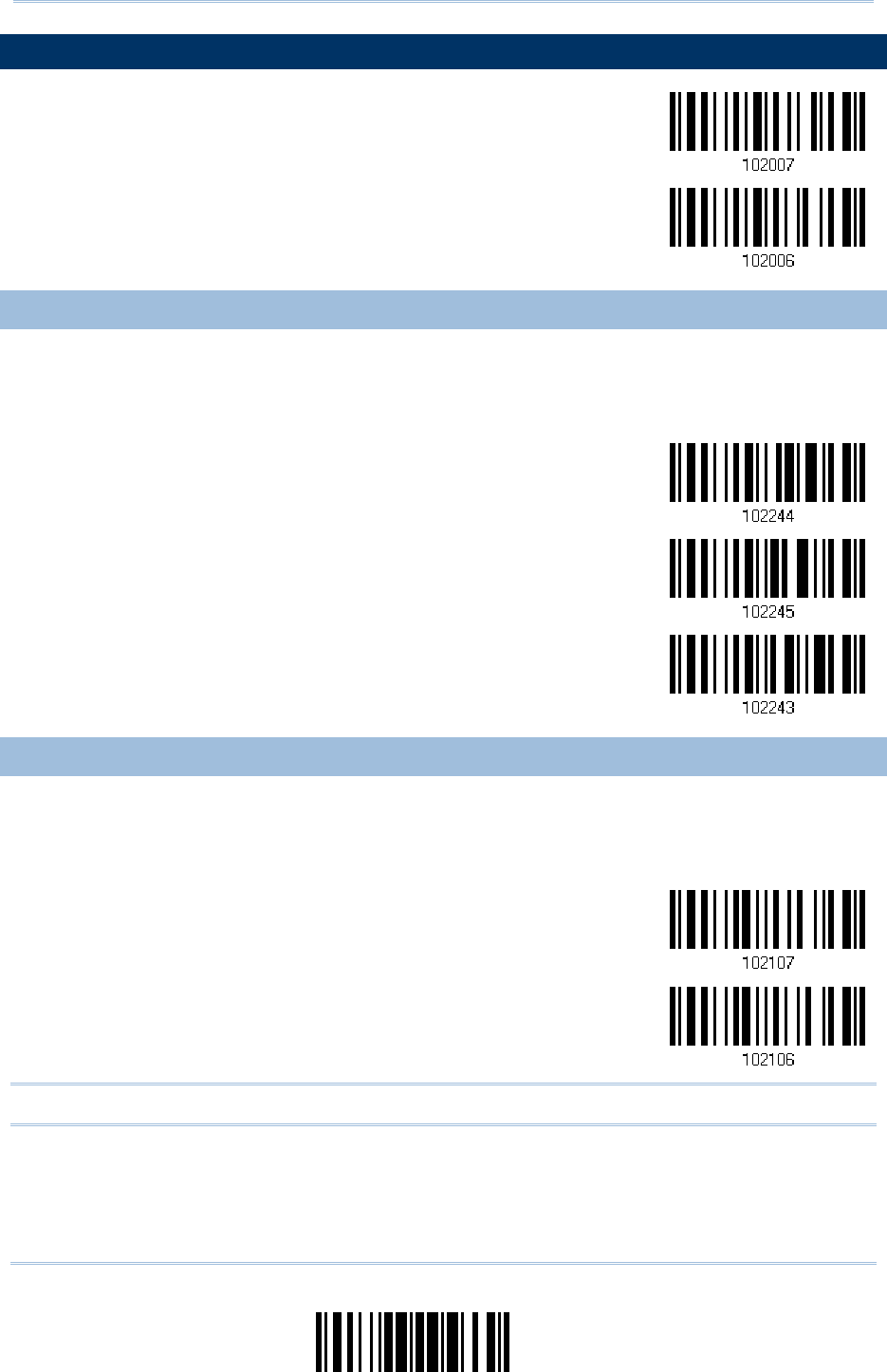

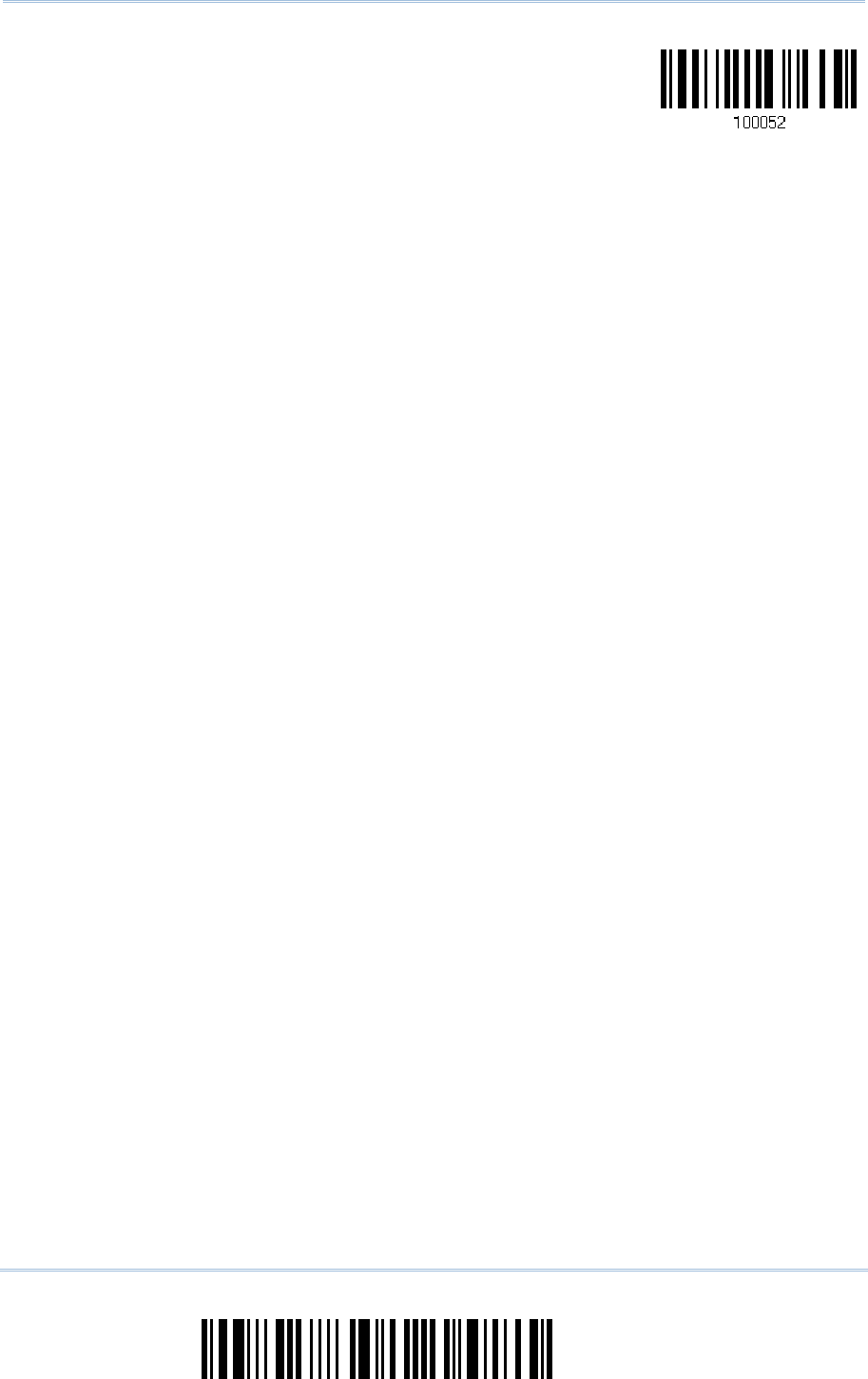

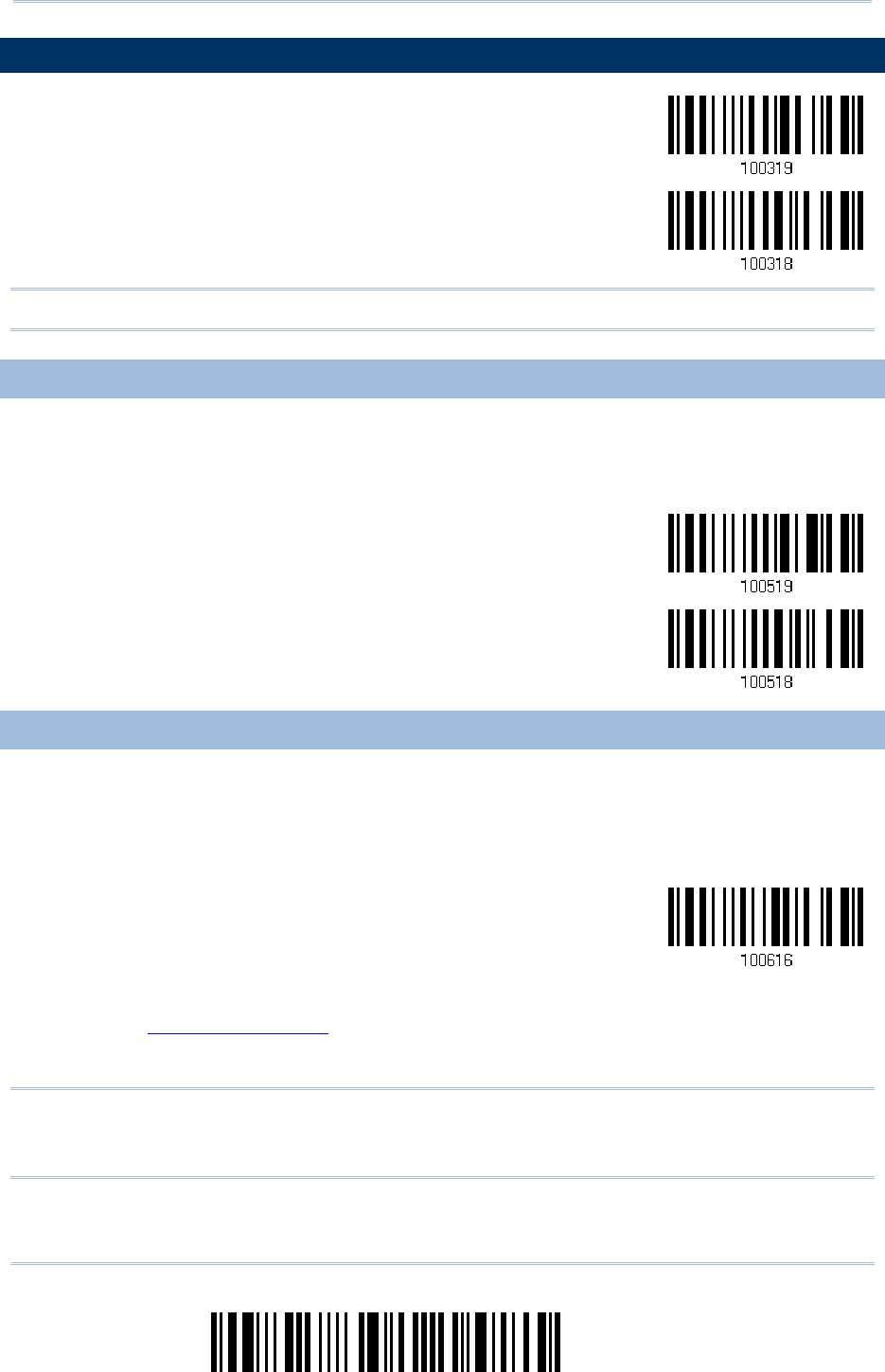

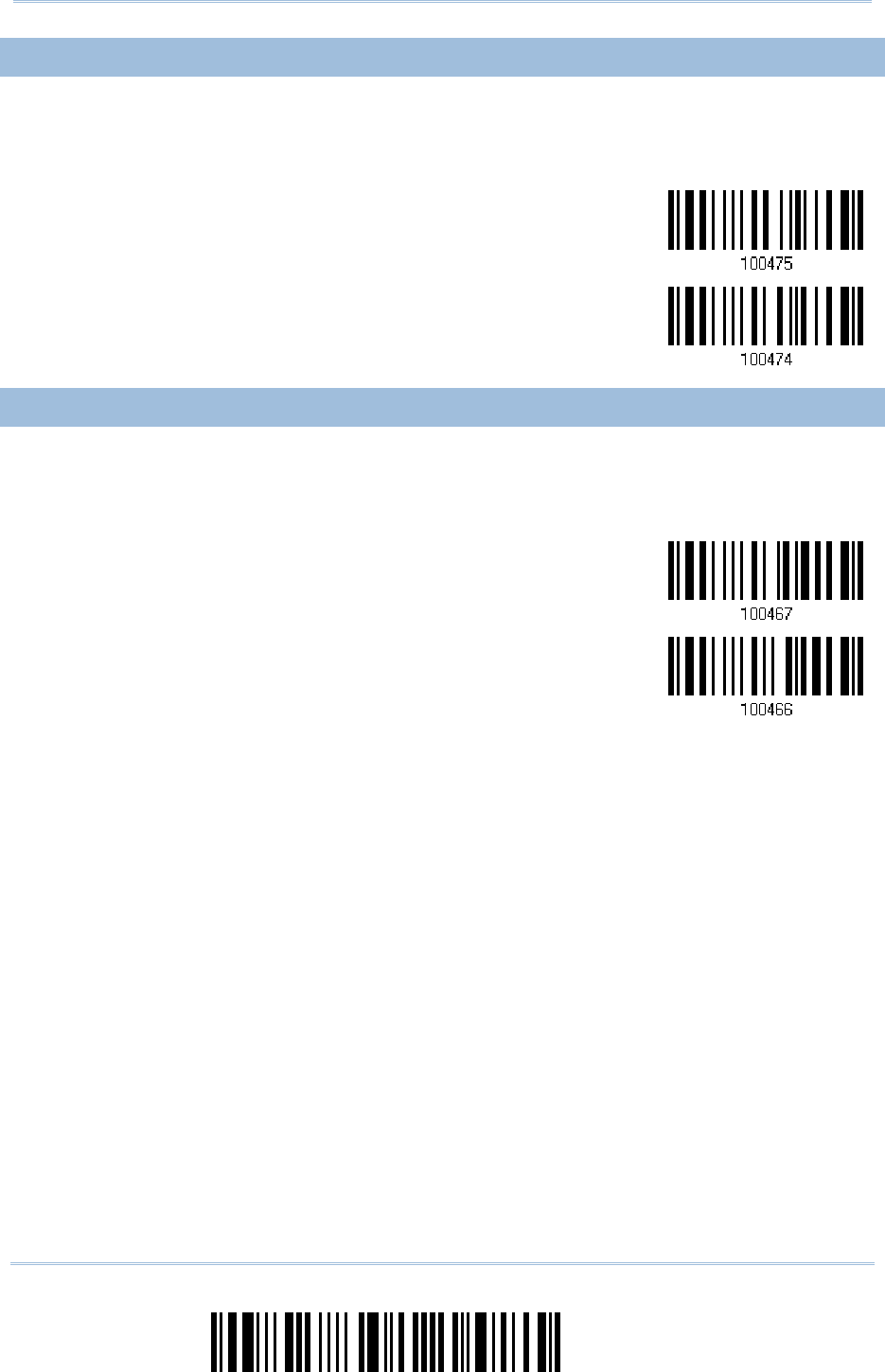

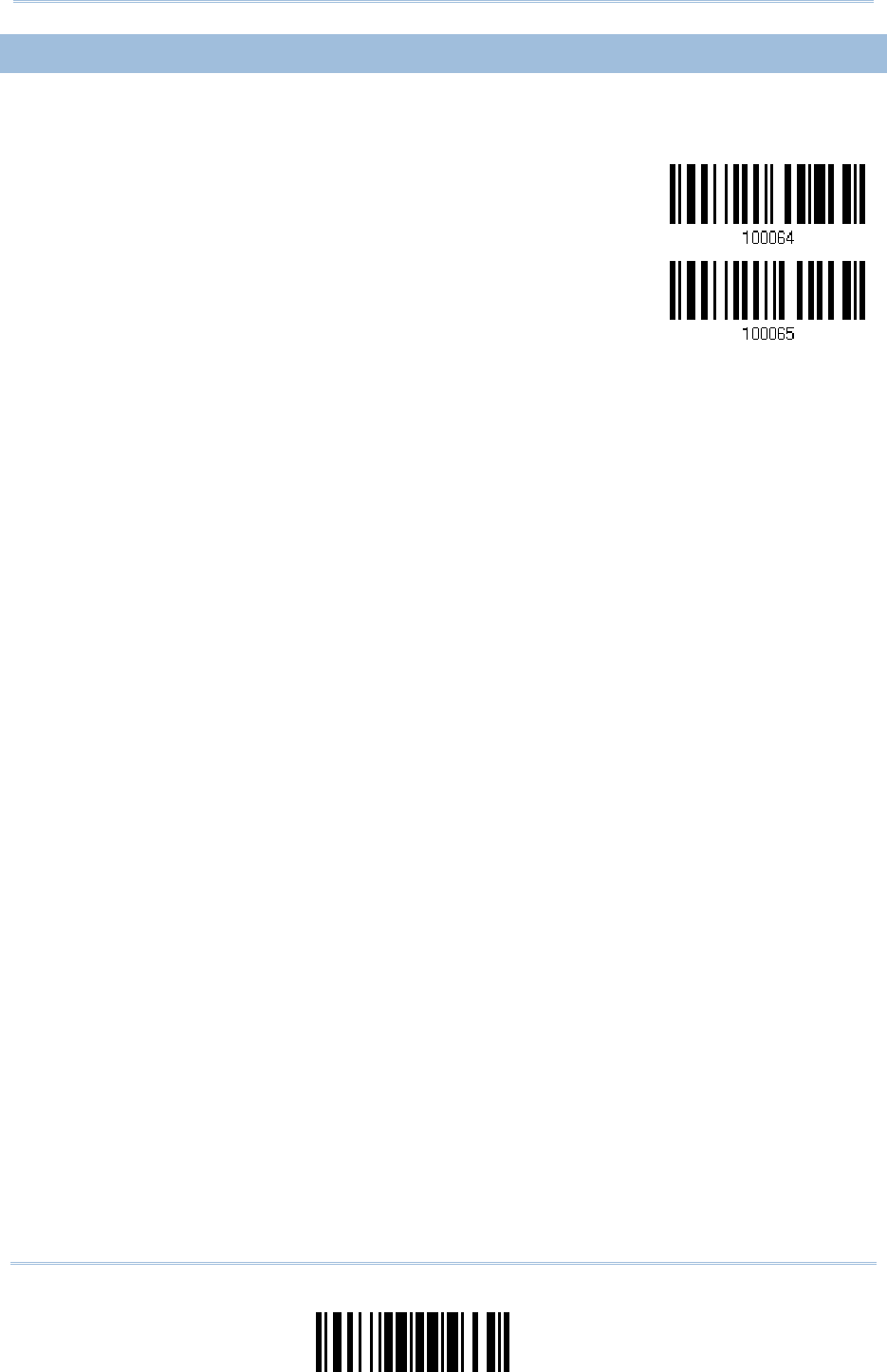

1.6 SEND “NR” TO HOST
The scanner can send the “NR” string to the host to notify the No Read event.
Enable
*Disable
36
Enter Setup
1664 Barcode Scanner User Guide

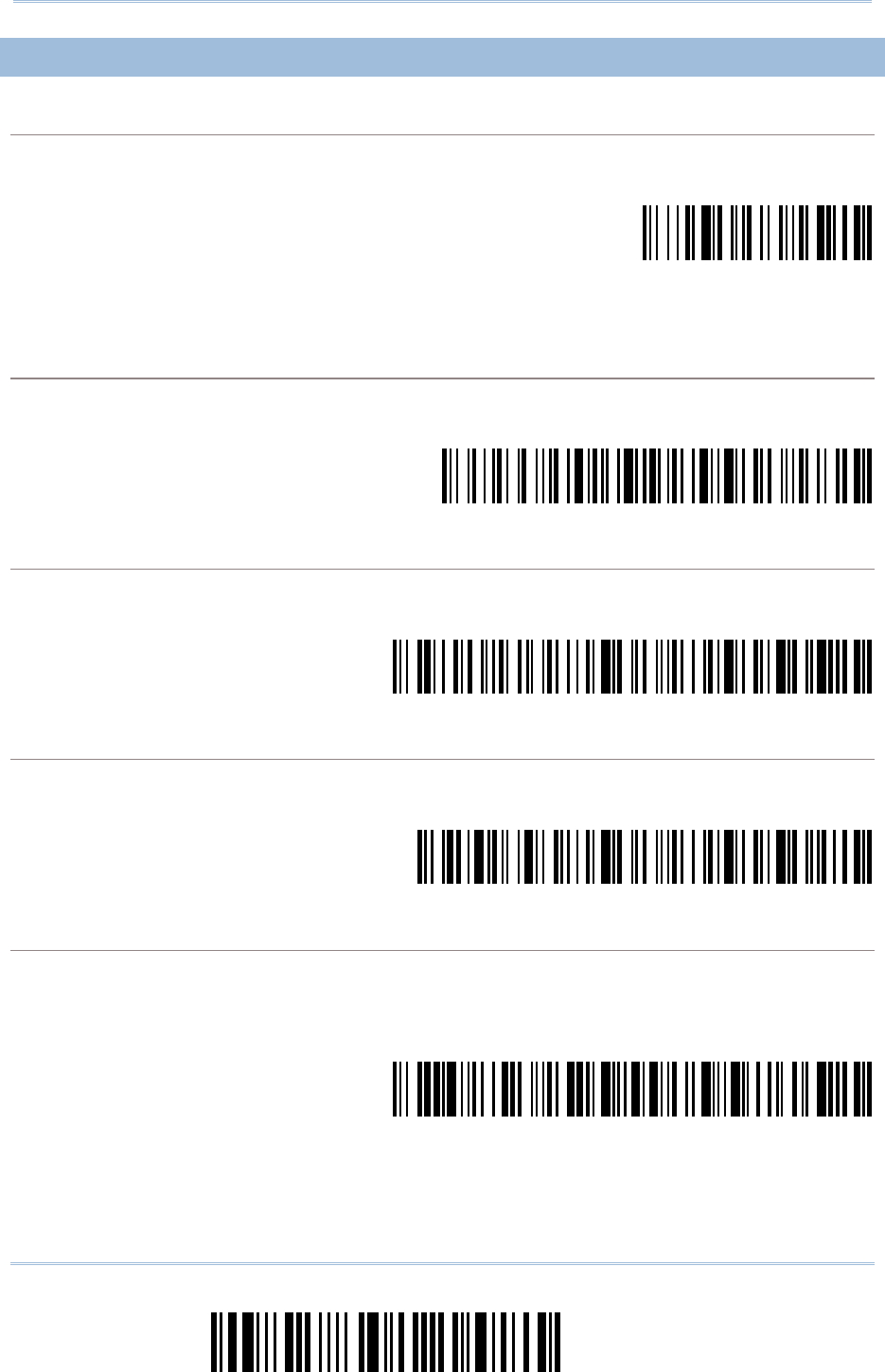

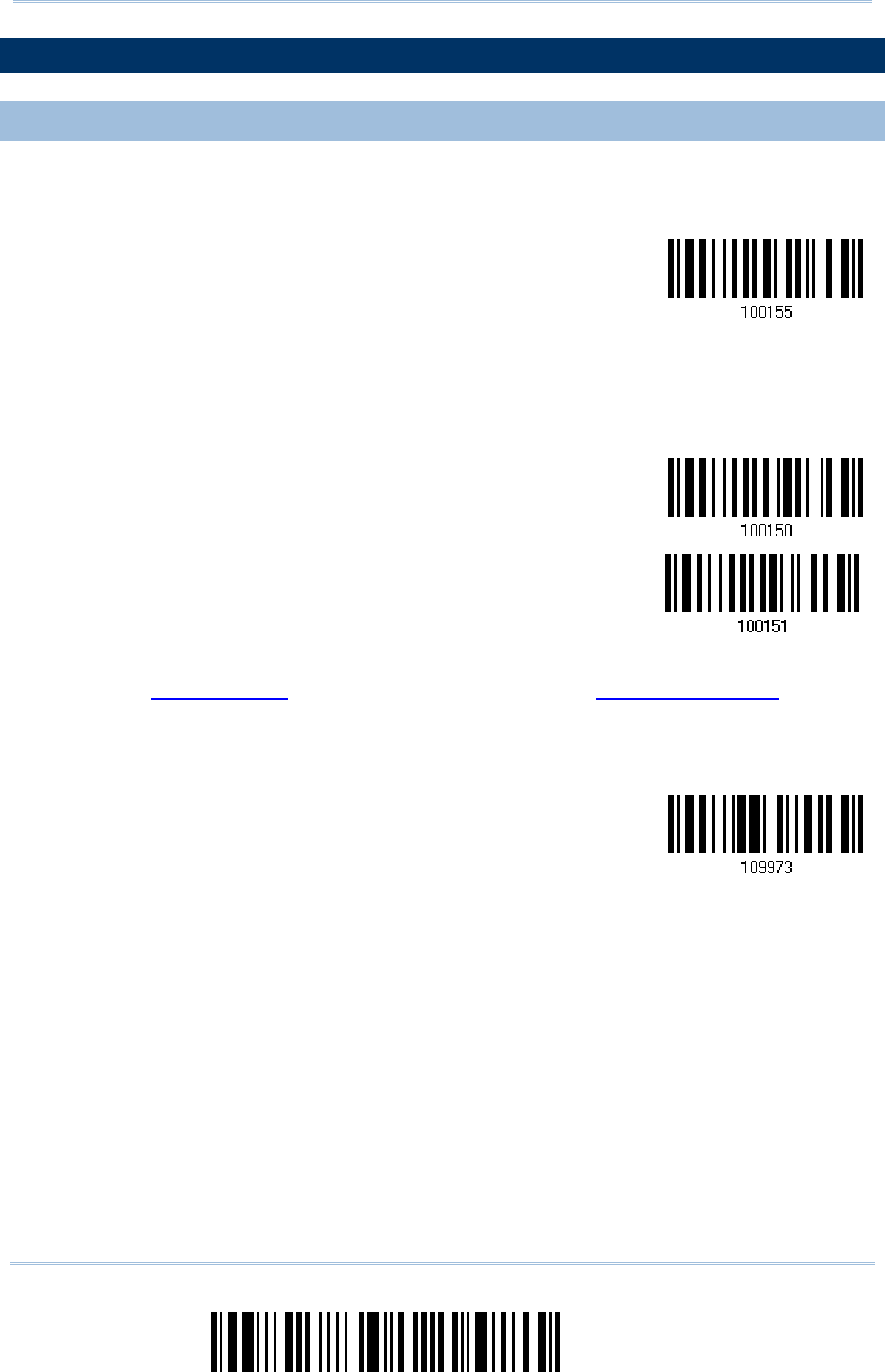

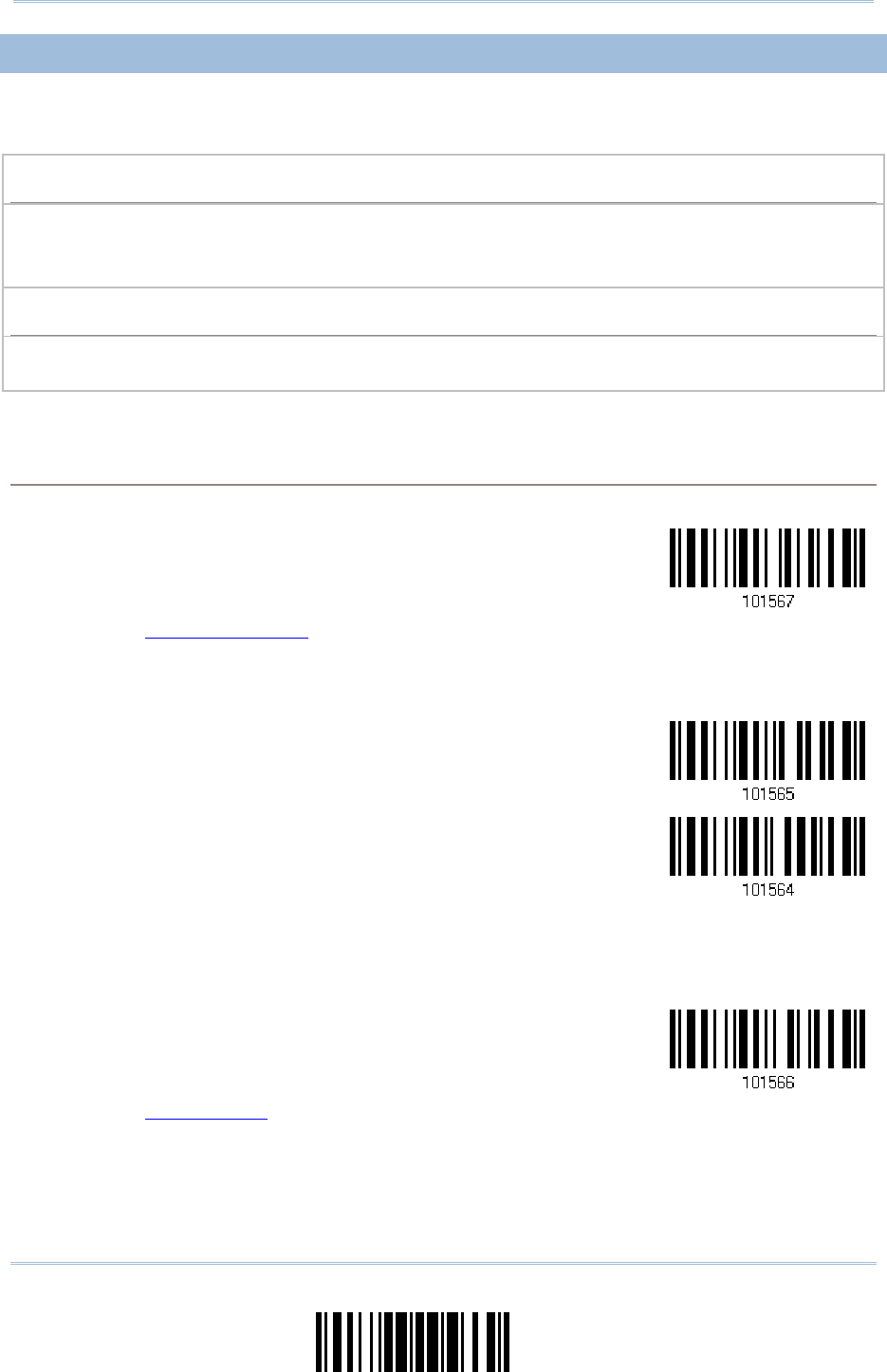

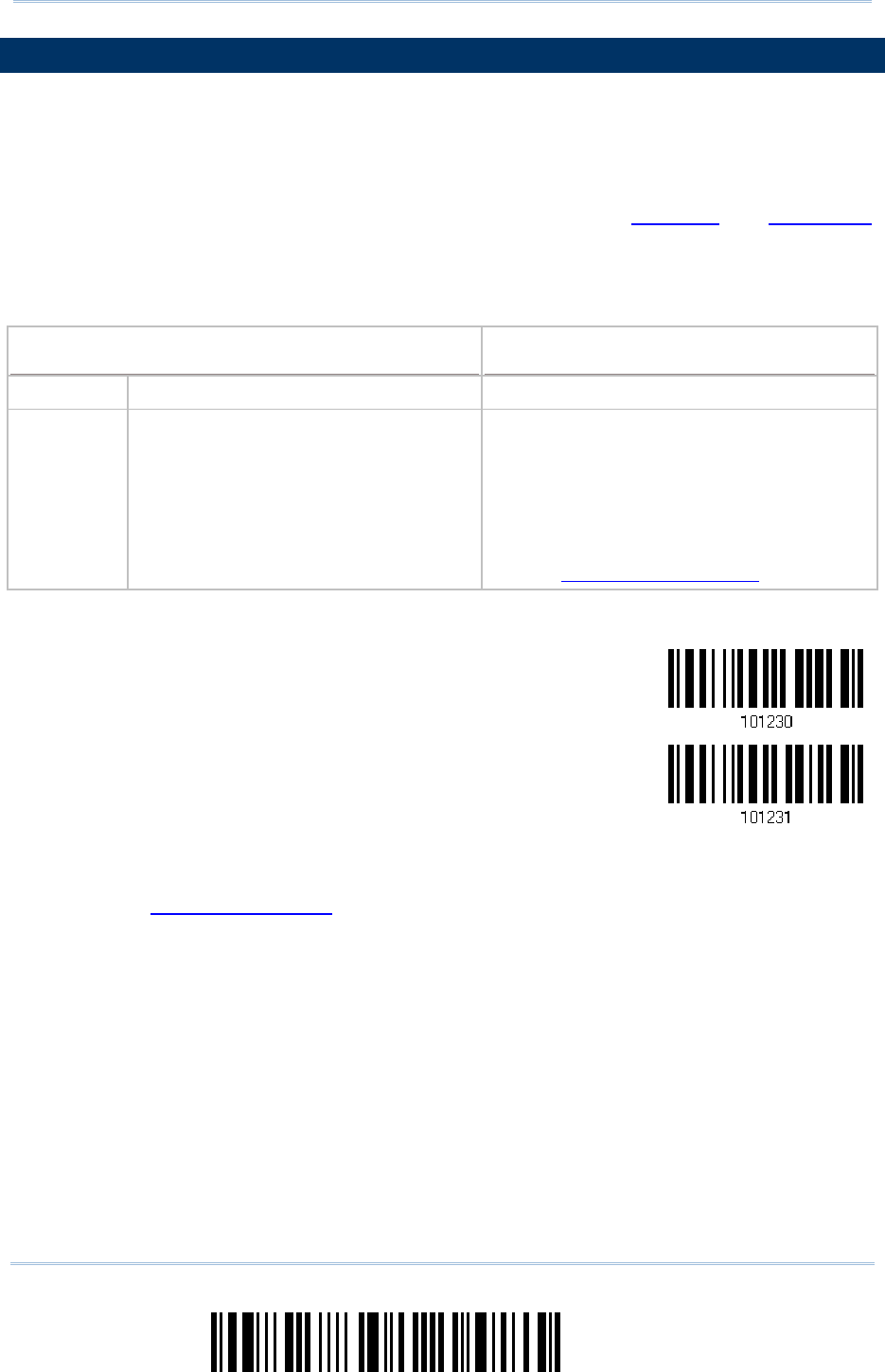

1.7 SCAN MODES
Different scan modes are supported – select the scan mode that best suits the
requirements of a specific application. Refer to the comparison table below.
Scan Mode Start to Scan Stop Scanning
Always Press
trigger
once
Hold
trigger Press
trigger
twice
Release
trigger Press
trigger
once
Barcode
being
read
Timeout
Laser mode
Auto Off mode
Auto Power Off
mode
Aiming mode
Multi-Barcode
mode
Note: By default, the scan mode is set to Laser mode.

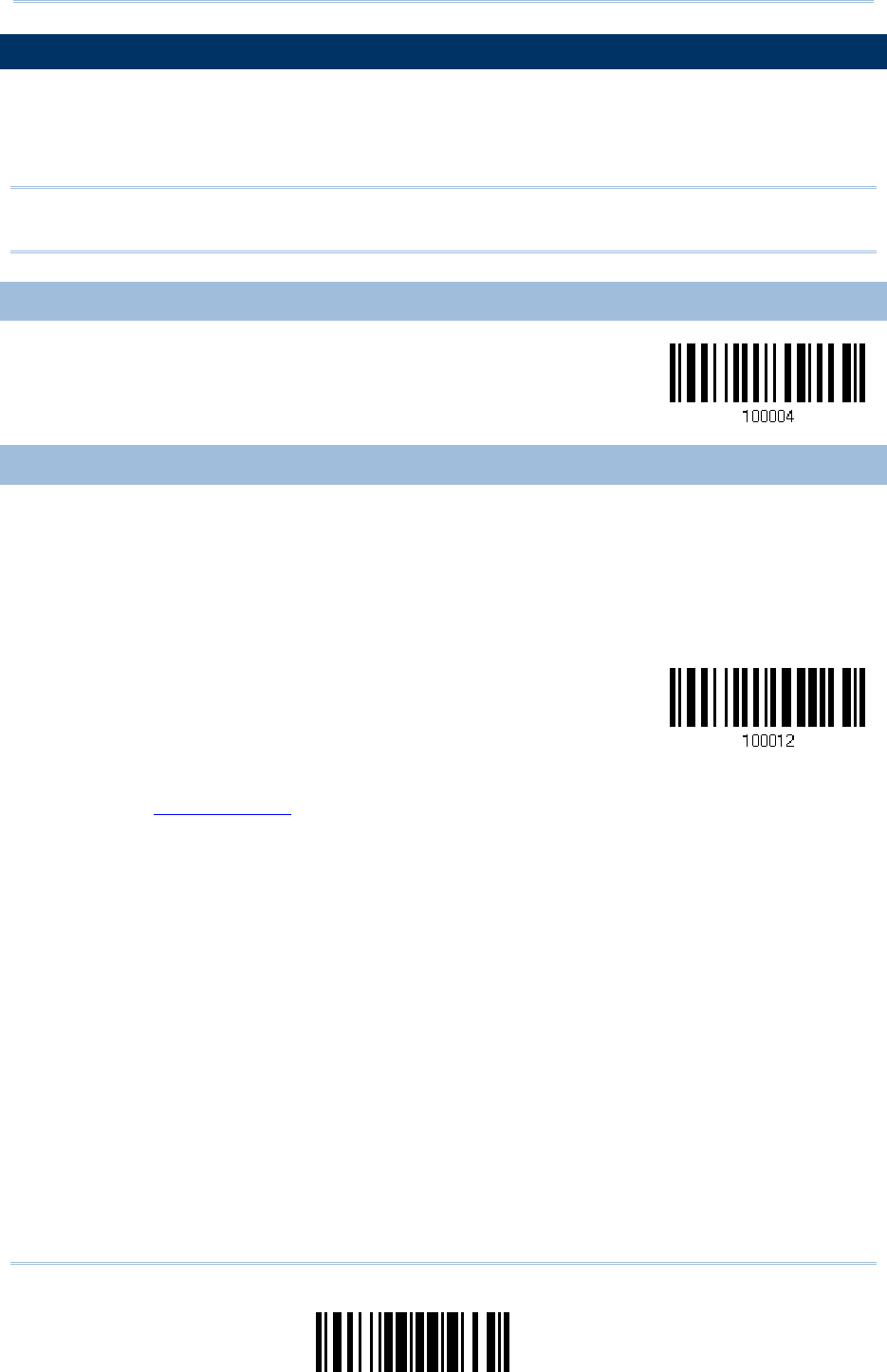

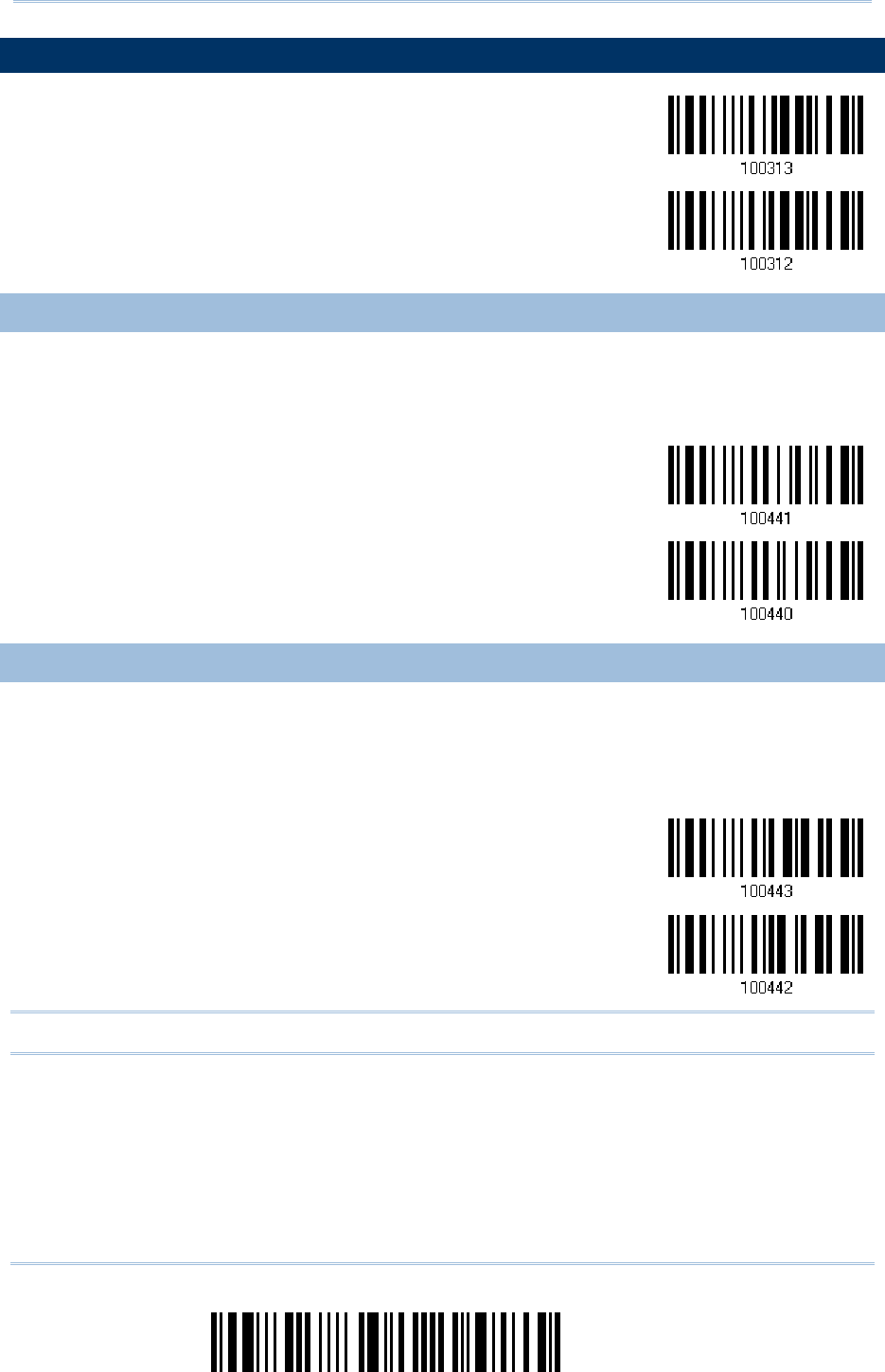

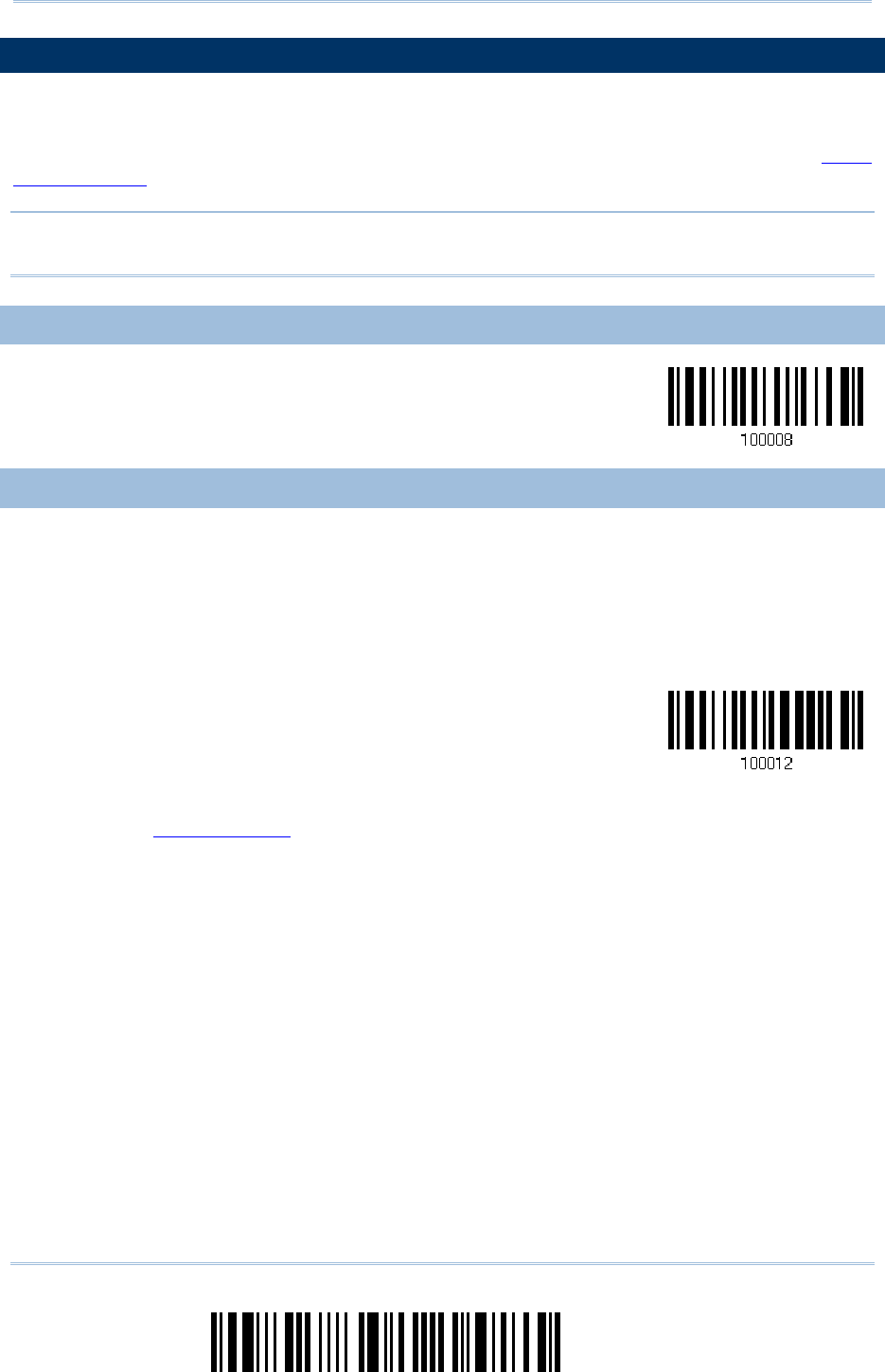

1.7.1 LASER MODE
The scanner will start scanning once the trigger is held down.
The scanning won't stop until (1) a barcode is decoded, (2) the pre-set timeout
expires, or (3) you release the trigger.
Note: Refer to “Scanning Timeout”.
*Laser Mode
37
Update
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。

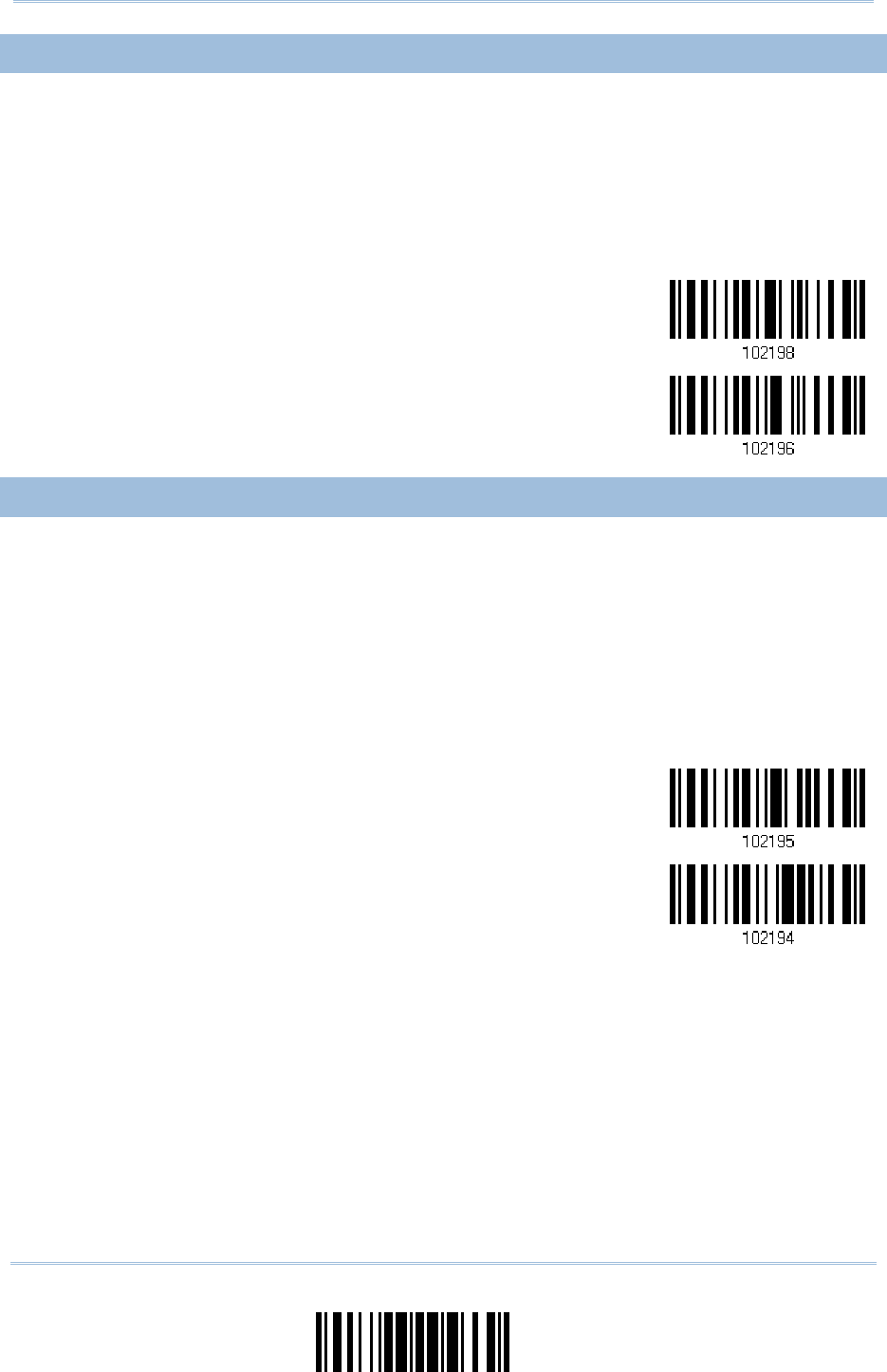

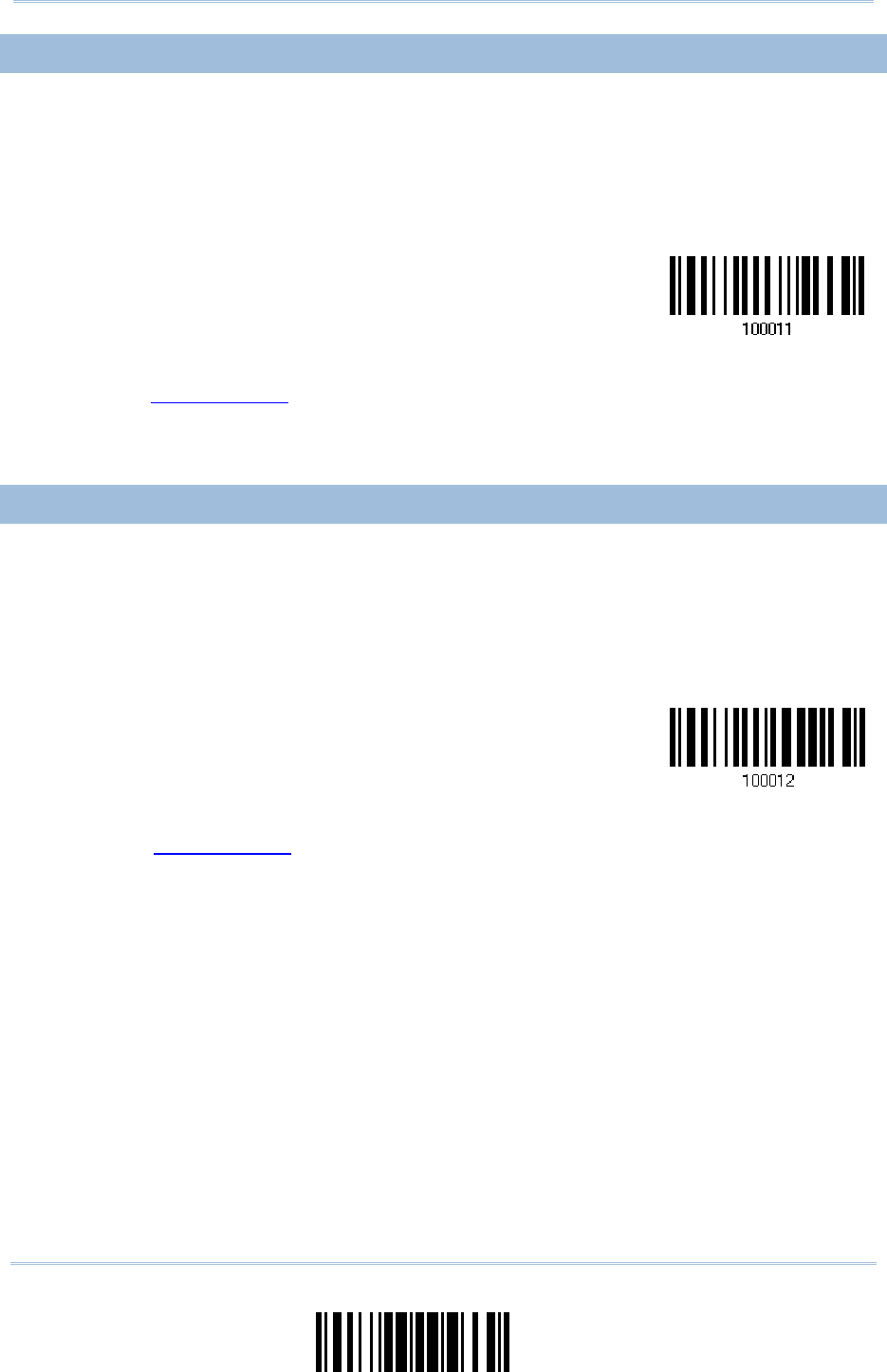

1.7.2 AUTO OFF MODE
The scanner will start scanning once the trigger is pressed.
The scanning won't stop until (1) a barcode is decoded, and (2) the pre-set timeout
expires.
Note: Refer to “Scanning Timeout”.
Auto Off Mode

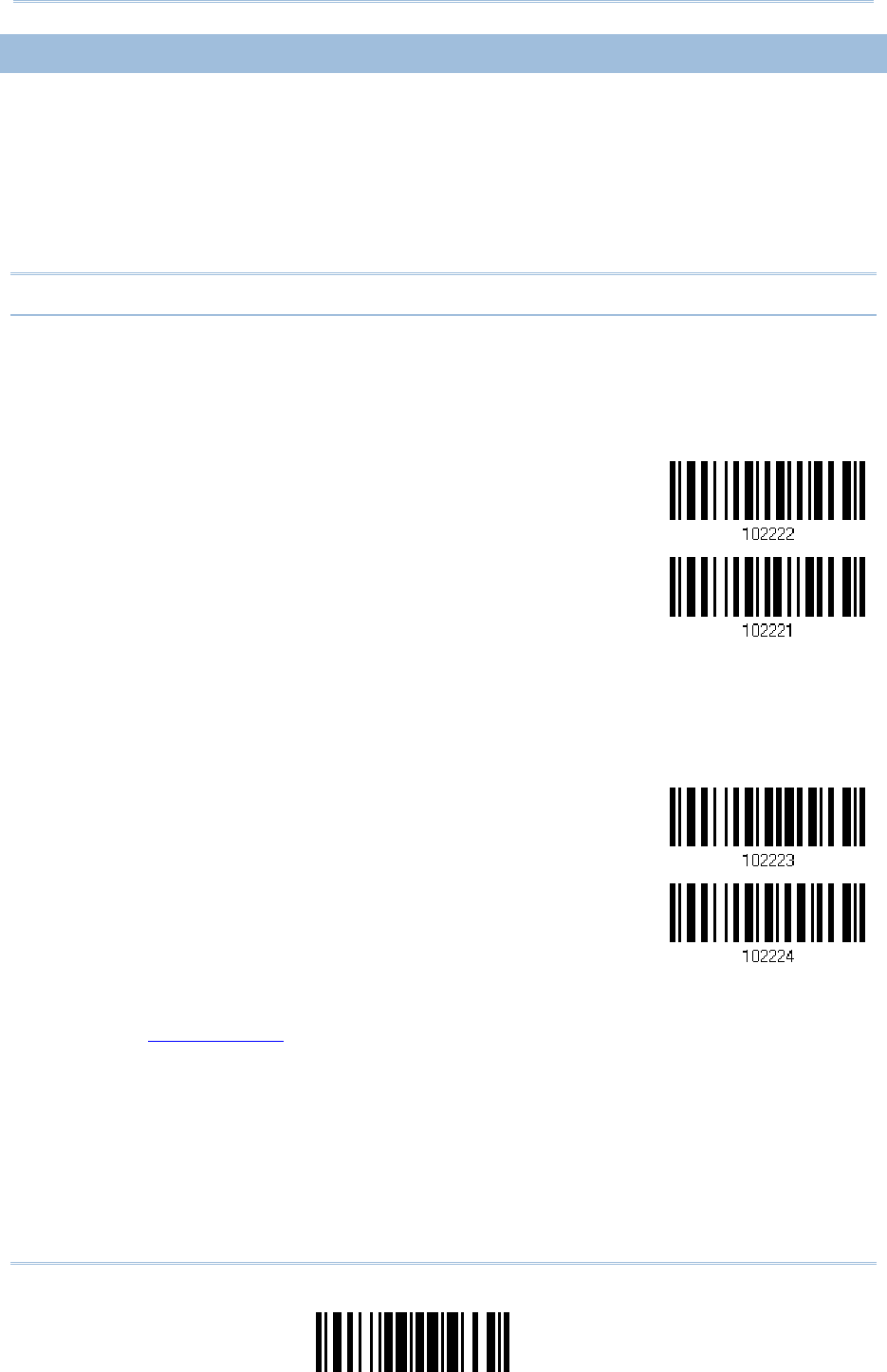

1.7.3 AUTO POWER OFF MODE
The scanner will start scanning once the trigger is pressed.
The scanning won't stop until the pre-set timeout expires, and, the pre-set timeout
period re-counts after each successful decoding.
Note: Refer to “Delay between Re-read” and “Scanning Timeout”.
Auto Power Off Mode
38
Enter Setup
1664 Barcode Scanner User Guide

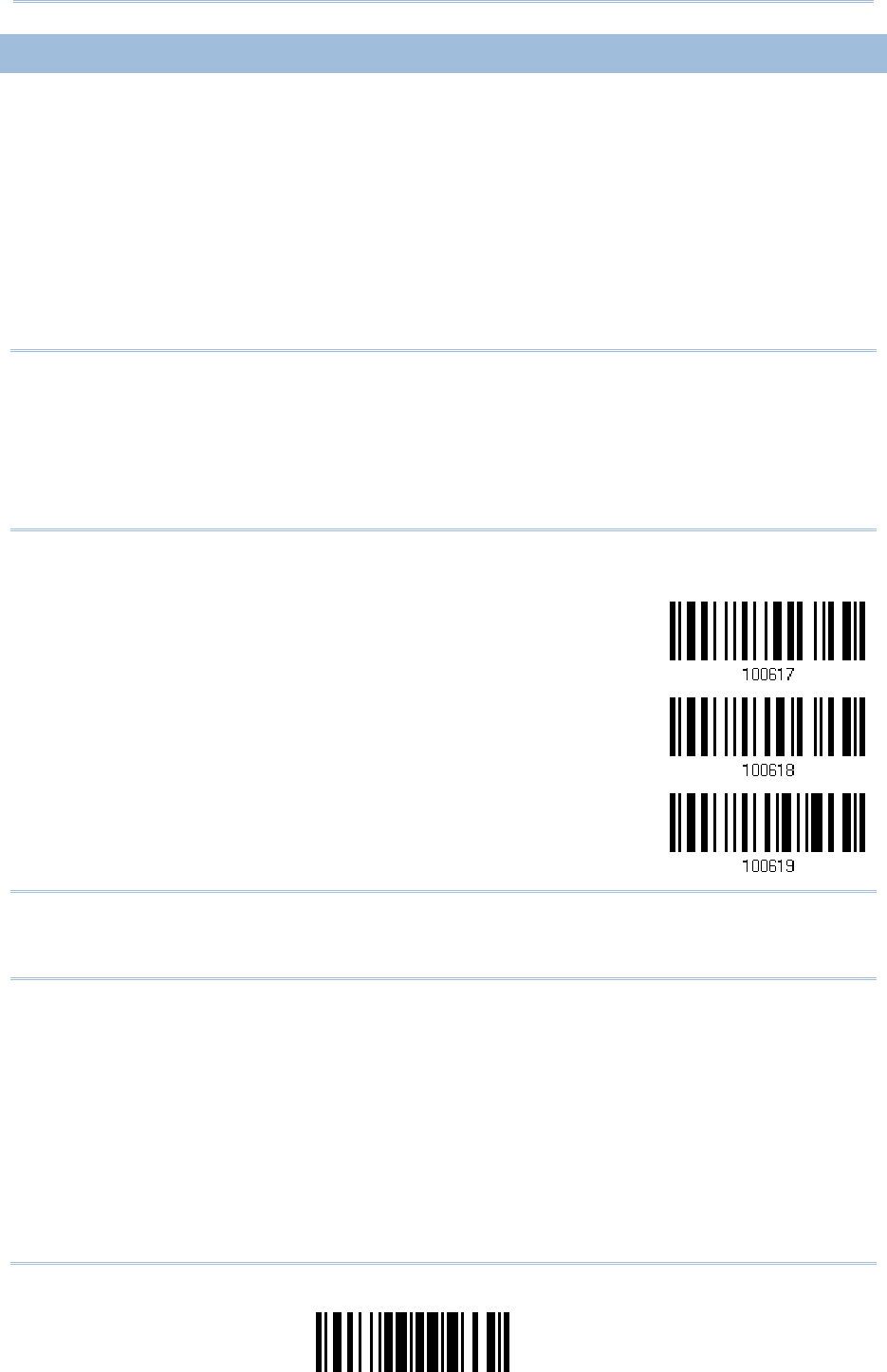

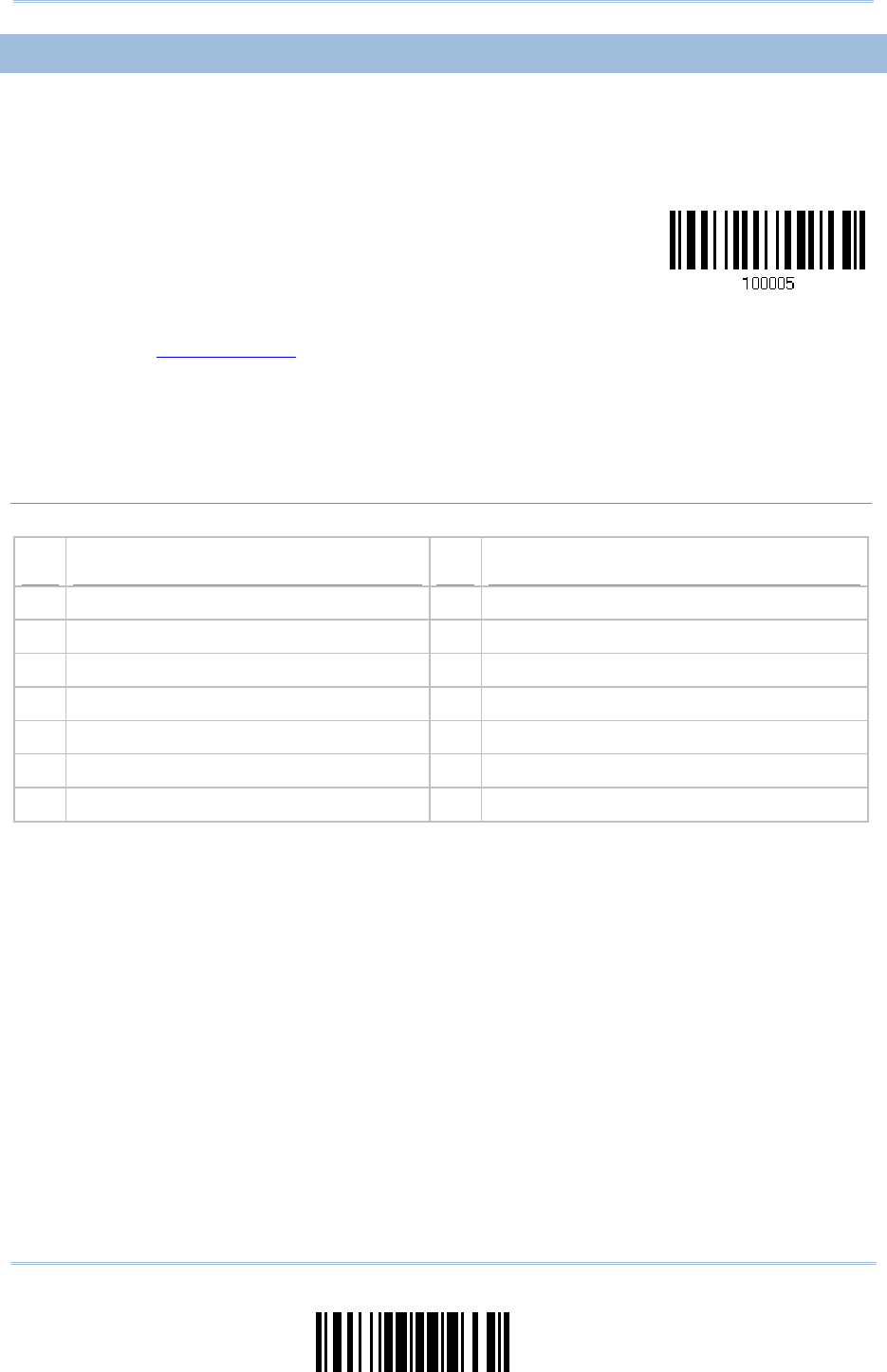

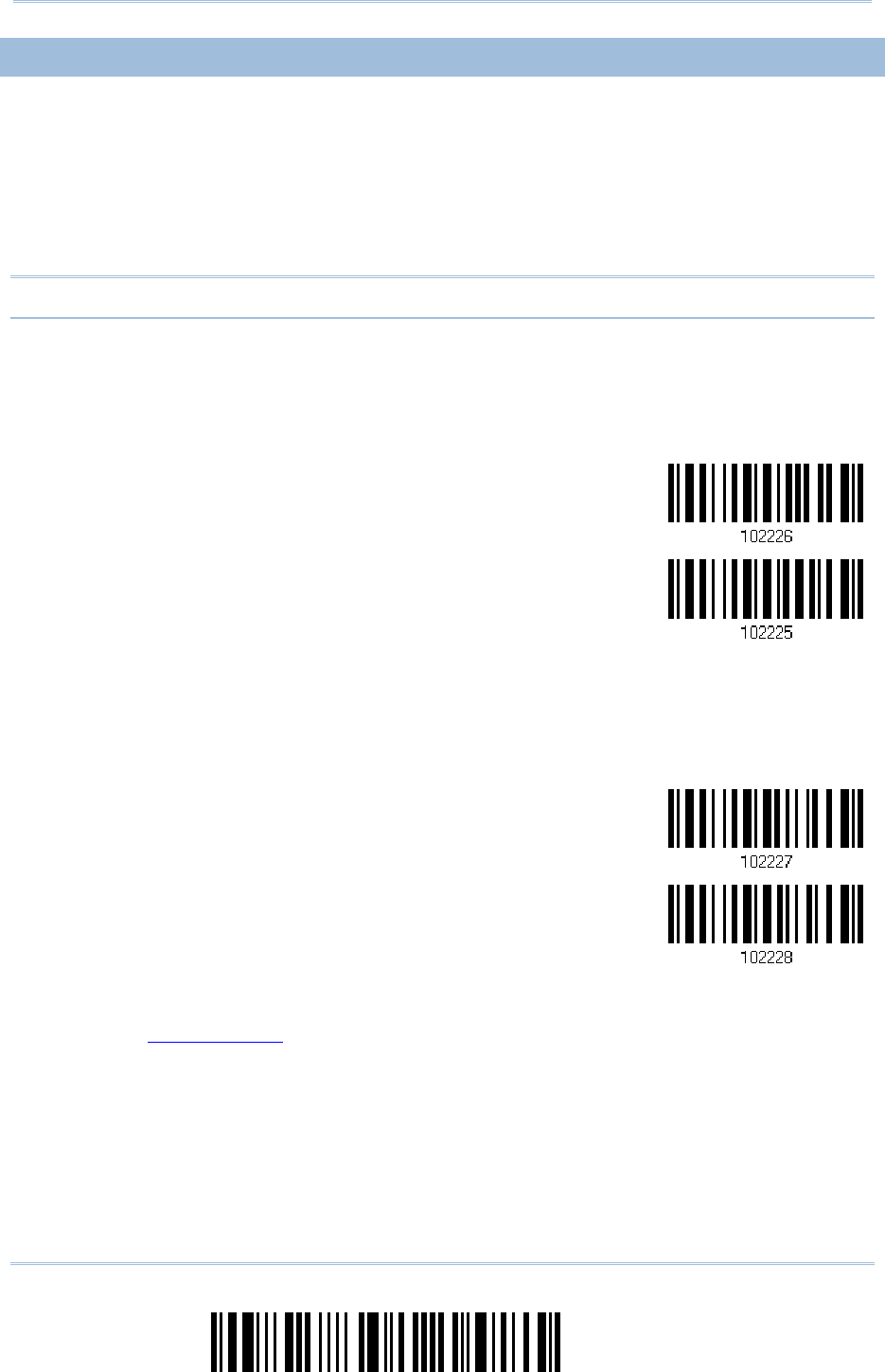

1.7.4 AIMING MODE
The scanner will aim at a barcode once the trigger is pressed, and start scanning when
the trigger is pressed again within one second.
The scanning won't stop until (1) a barcode is decoded, and (2) the pre-set timeout
expires.
Aiming Mode
Aiming Timeout
You can limit the aiming time interval (1~15). By default, the scanner time-out is set to 1 second.
Aiming Time-out
a
fter 1~15 sec.
(*1)
1. Read the barcode above to specify the time interval before aiming ends. (It is set to 1 by
default.)
2. Read the “Decimal Value” barcode on page 251. For example, read “1” and “0” for the scanner
to automatically shut down after being idle for 10 seconds.
3. Read the “Validate” barcode on the same page to complete this setting.
1.7.5 MULTI-BARCODE MODE
The scanner will be scanning as long as the trigger is held down, capable of decoding one
single barcode, as well as multiple unique barcodes one at a time. While decoding a
bunch of unique barcodes, if a barcode is decoded twice, its subsequent decoding will be
ignored and the scanner is expecting another unique barcode.
The scanning won't stop until you release the trigger.
Multi-Barcode Mode
Note: (1) A barcode is considered unique when its Code Type or data is different from
others.
(2) Multi-Barcode Mode has nothing to do with the Multi-Barcode Editor.
39
Update
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。

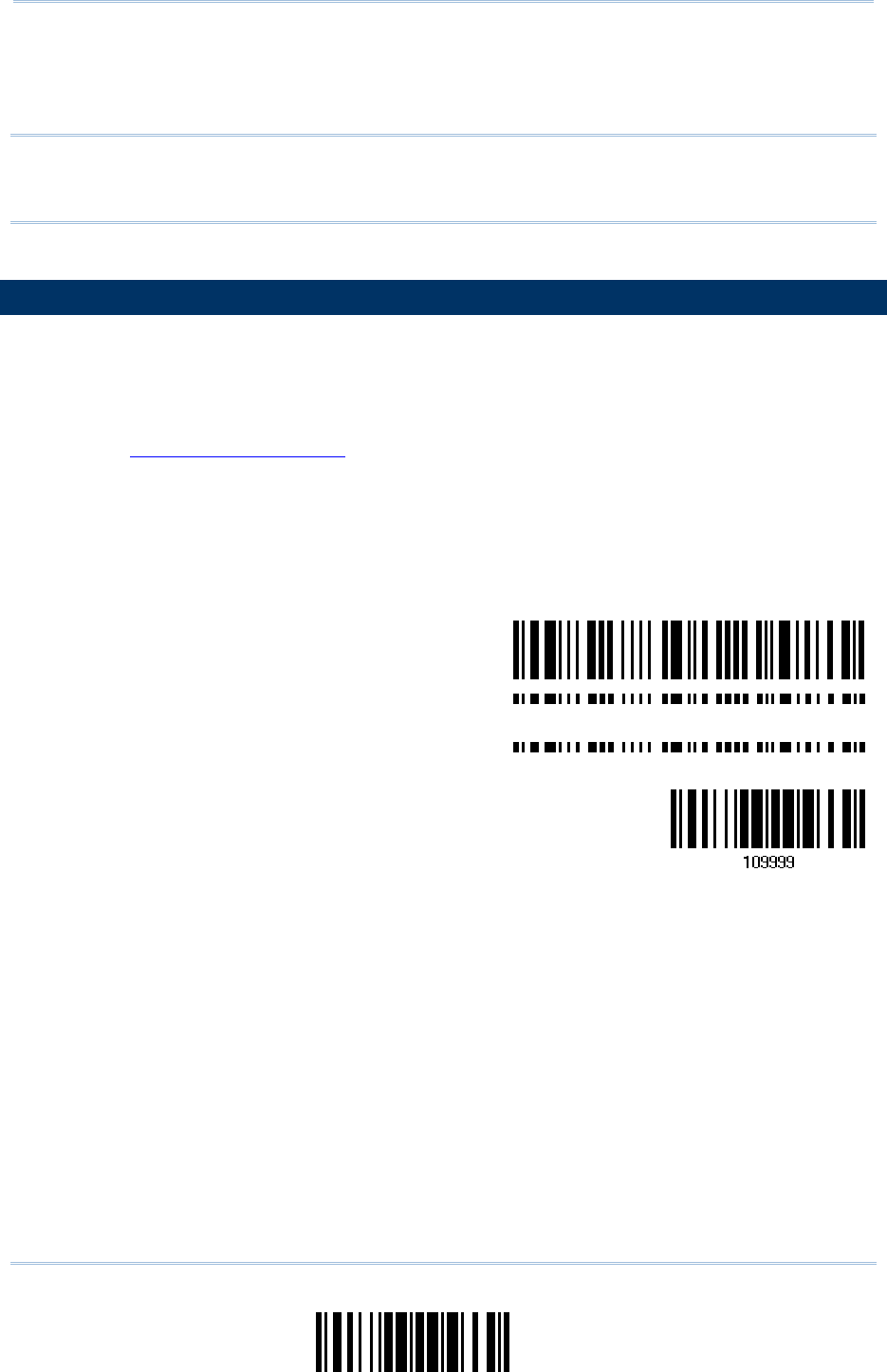

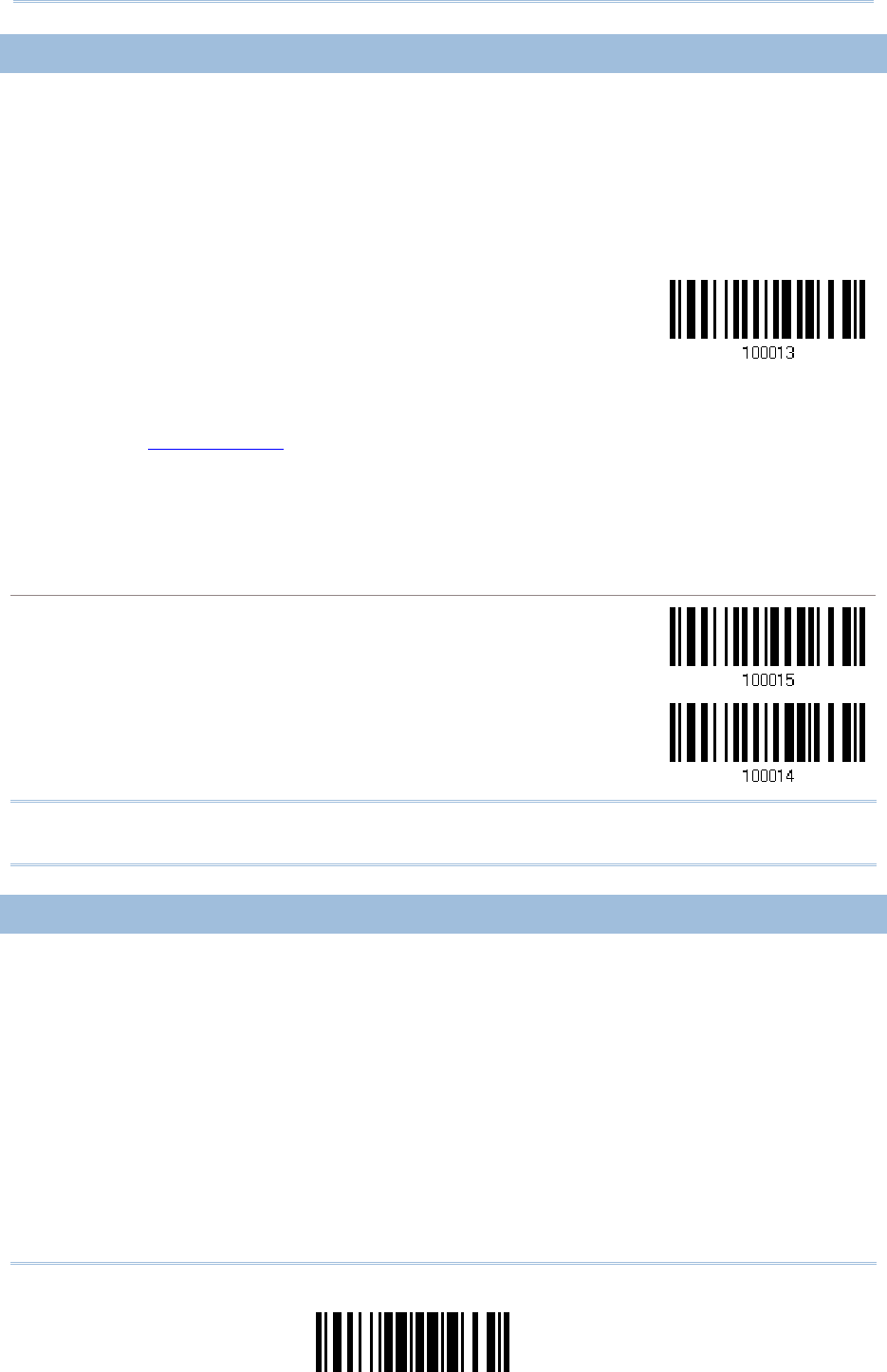

1.8 SCANNING TIMEOUT
Specify the scanning time interval (1~254 sec.; 0= Disable) when the scan mode is set
to any of the following –
Laser mode
Auto Off mode
Auto Power Off mode
Aiming mode
Scanner Time-out
a
fter 0~254 sec.
(*10)
1) Read the barcode above to specify the time interval before the scan engine times out.
2) Read the “Decimal Value” barcode on page 251. For example, read “1” and “5” for the
scanner to shut down automatically after being idle for 15 seconds.
3) Read the “Validate” barcode on the same page to complete this setting.
40
Enter Setup
1664 Barcode Scanner User Guide

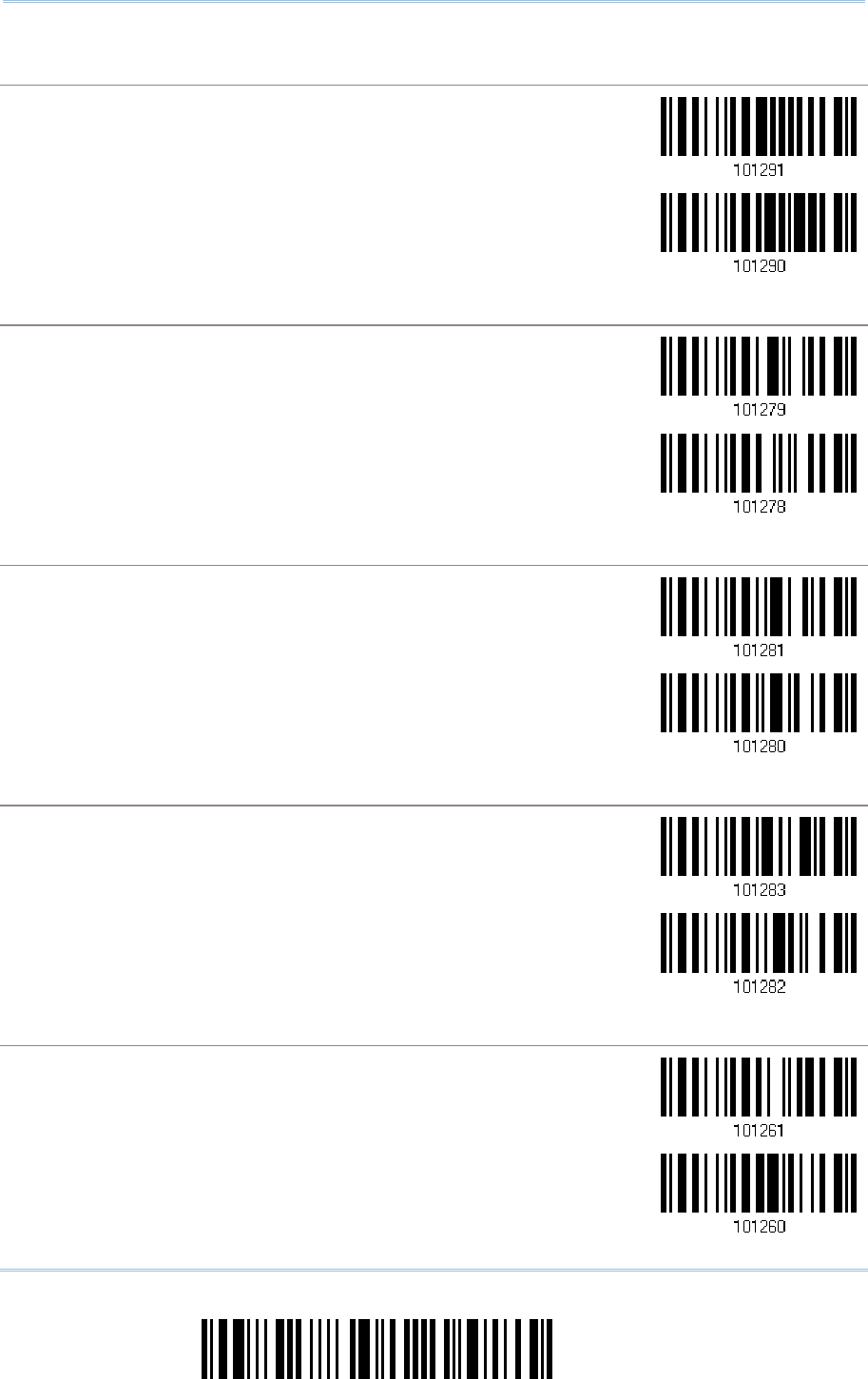

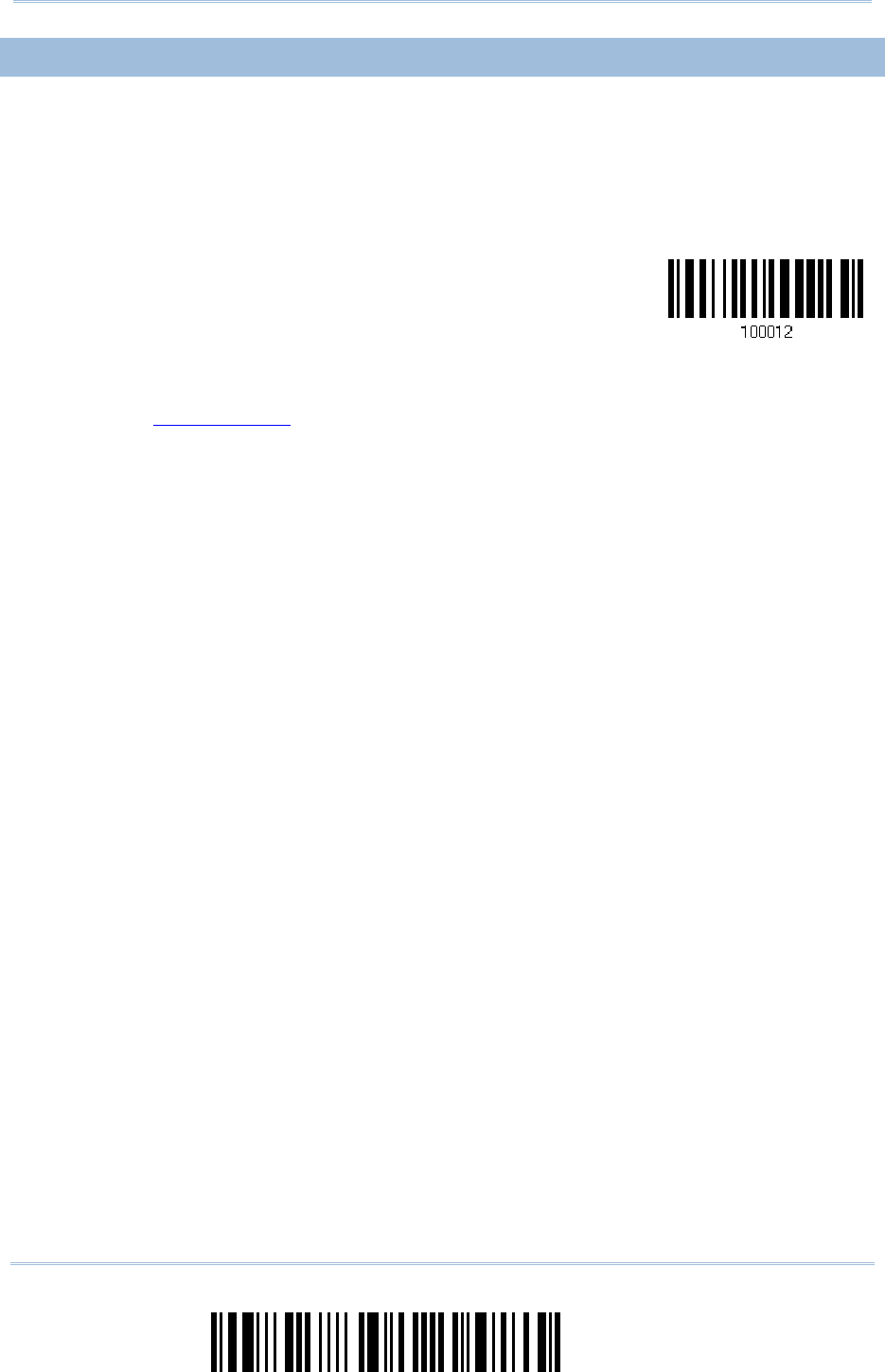

1.9 DELAY BETWEEN RE-READ
This is also referred to as the “Blocking Time”, which is used to prevent the scanner from
accidentally reading the same barcode twice when the scan mode is set to any of the
following –
Auto Power Off mode
100 ms
200 ms
*400 ms
800 ms
1 sec
2 sec
3 sec
5 sec
41
Update
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。

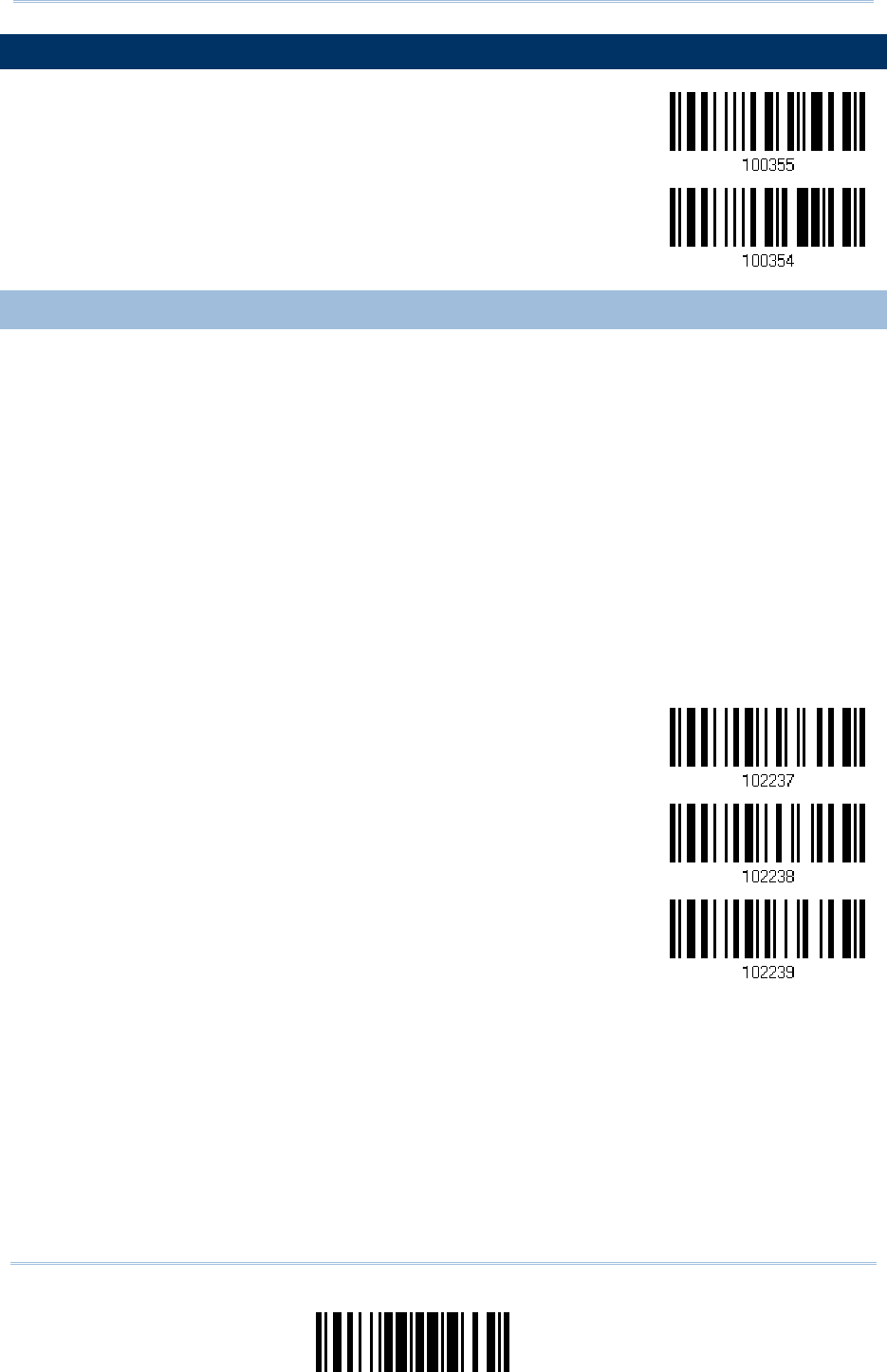

1.10 READ REDUNDANCY FOR ALL SYMBLOGIES
Select the level of reading security. For example,
If "No Redundancy" is selected, one successful decoding will make the reading valid
and induce the "READER Event".
If "Three Times" is selected, it will take a total of four consecutive successful
decoding of the same barcode to make the reading valid. The higher the reading
security is (that is, the more redundancy the user selects), the slower the reading
speed gets.
It is obvious that the more redundancy selected, the higher the reading security is, and
thus, the slower the reading speed becomes. It has to compromise between reading
security and decoding speed.
*No Redundancy
One Time
Two Times
Three Times
42
Enter Setup
1664 Barcode Scanner User Guide

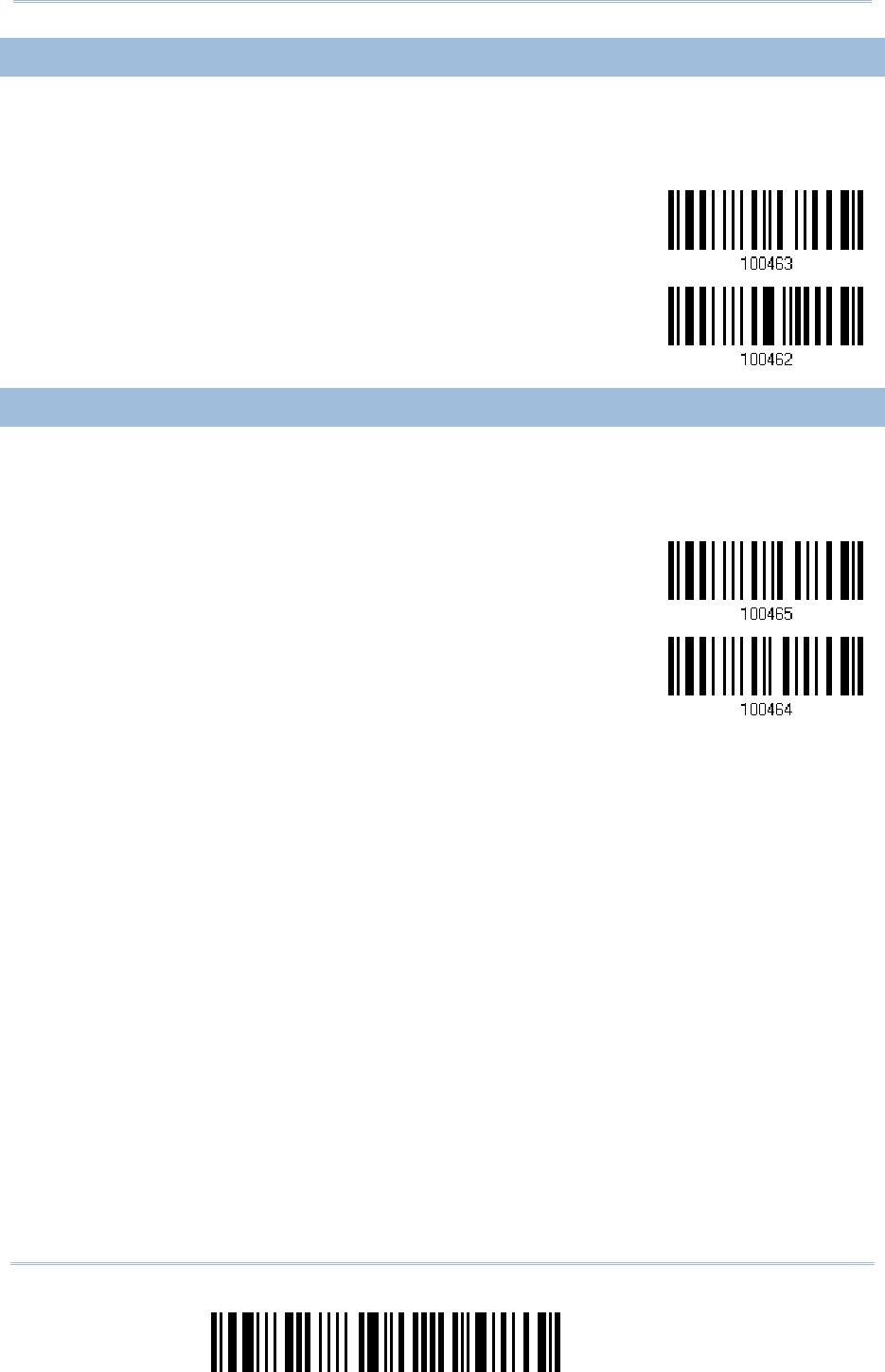

1.11 ADDON SECURITY FOR UPC/EAN BARCODES
The scanner is capable of decoding a mix of UPC/EAN barcodes with and without addons.
The read redundancy (0~30 times) allows changing the number of times to decode a
UPC/EAN barcode before transmission. The more redundancy selected, the higher the
reading security is, and thus, the slower the reading speed becomes. It has to
compromise between reading security and decoding speed.
Note: UPC/EAN Addon 2 and Addon 5 must be enabled individually for this setting to
take effect.
Addon Security Level
(*0~30)
1) Read the barcode above to specify the read redundancy for UPC/EAN barcodes. (It is
set to 0 by default.)
2) Read the “Decimal Value” barcode on page 251. For example, read “1” and “2” for the
scanner to re-read the barcode for 12 times.
3) Read the “Validate” barcode on the same page to complete this setting.
1.12 NEGATIVE BARCODES
Normally, barcodes are printed with the color of the bars darker than that of the spaces.
But for negative barcodes, they are printed in the opposite sense just like negative films.
The spaces of negative barcodes are printed with a color darker than that of the bars.
Configure the scanner to be able to read negative barcodes.
Enable
*Disable
43
Update
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。

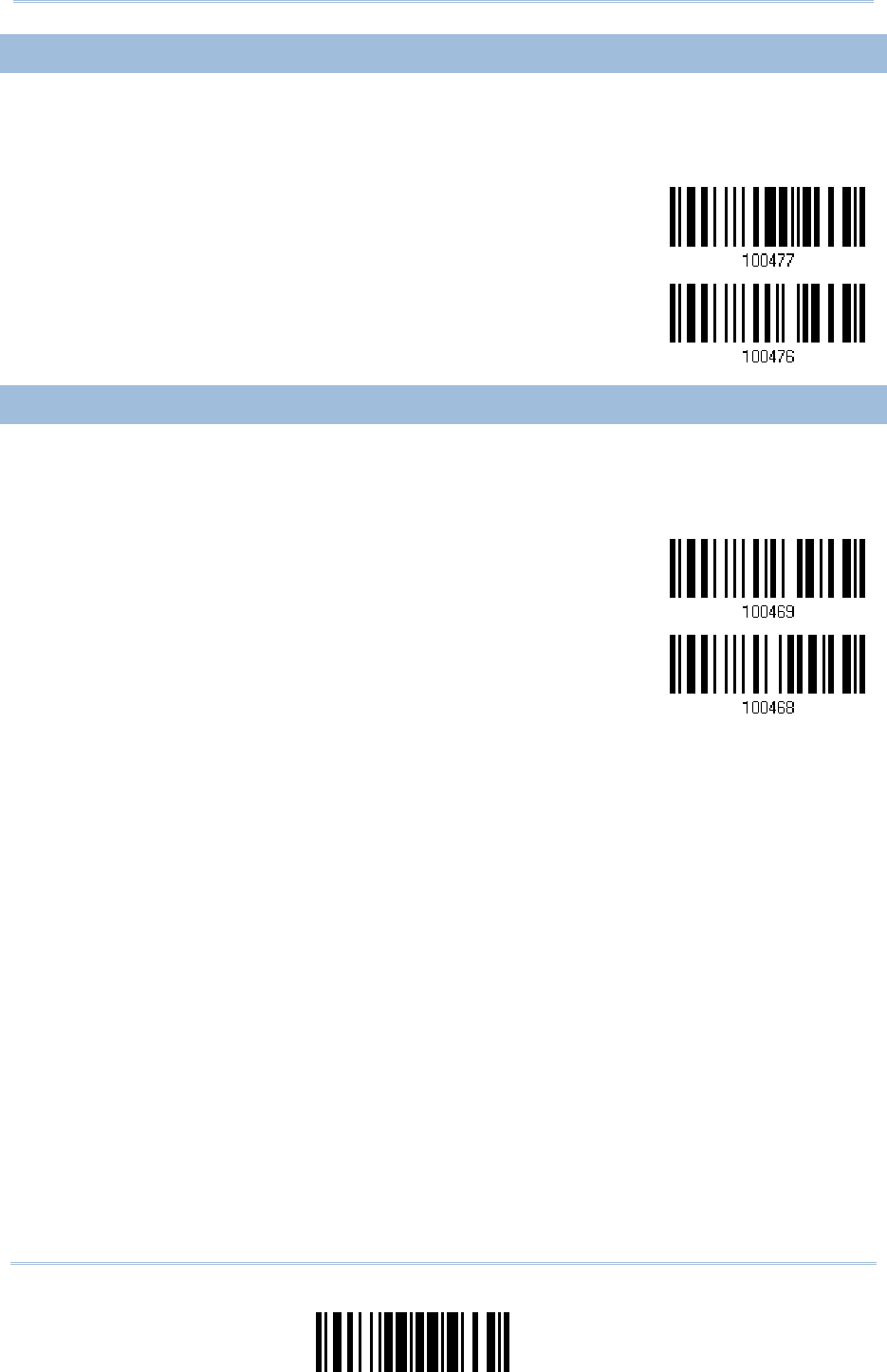

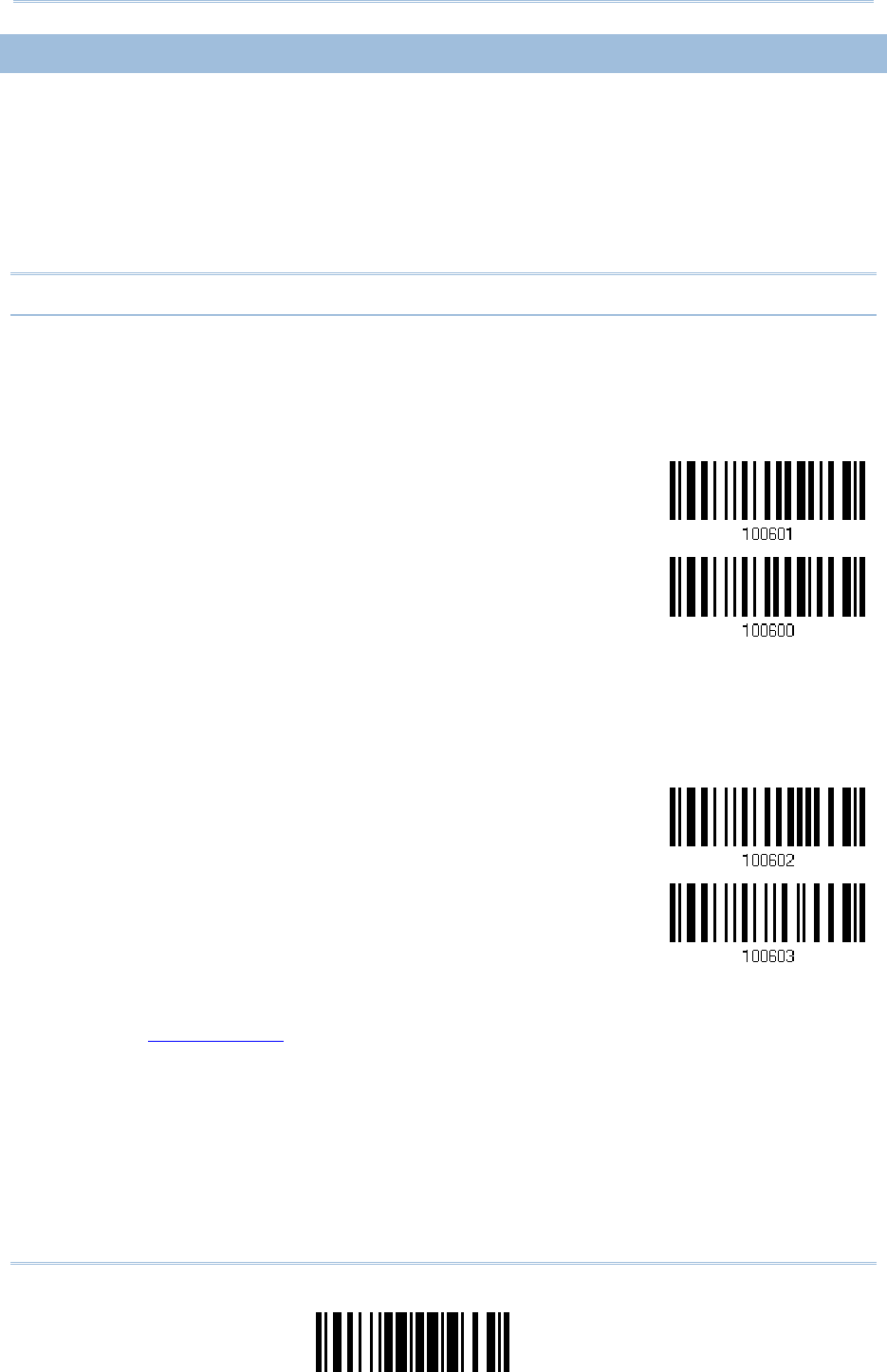

1.13 USING DIRECT USB CABLE
1664 supports Direct USB interface for charging the battery and/or sending data to the
host in memory mode. Refer to 1.2.2 Memory Mode.
Note: The scanner is not allowed to function when it is solely on USB power and without
a battery loaded.
1.13.1 DIRECT USB INTERFACE
When it is set to Memory Mode and connected to computer via the Direct USB cable, the
default output interface becomes “Direct USB Virtual COM”. Change it to “Direct USB
HID”.
For details on configuring the interface settings, refer to the following sections:
2.6 Direct USB HID
2.7 Direct USB Virtual COM
*Activate Direct
USB Virtual COM
Activate Direct
USB HID

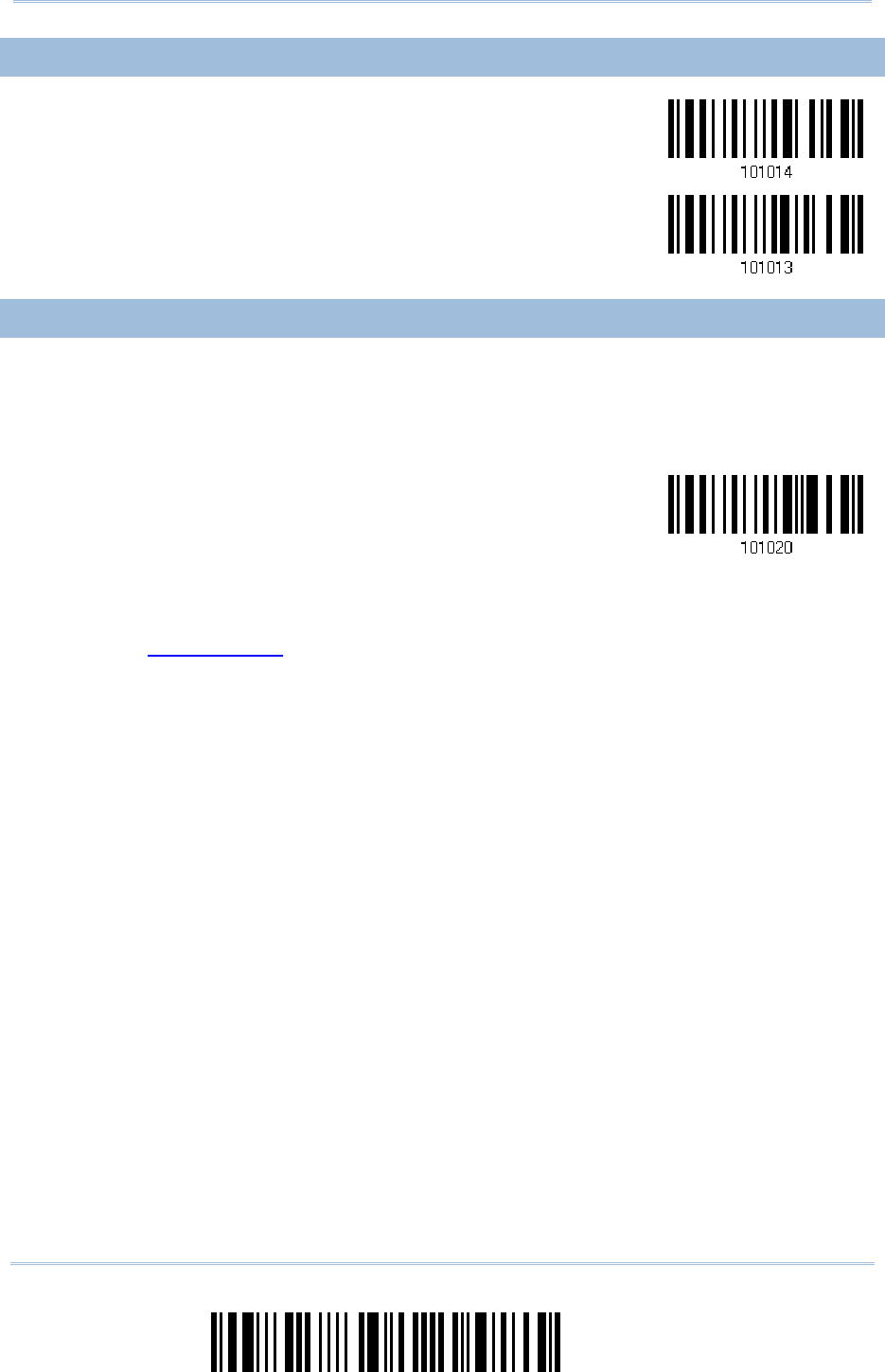

1.13.2 DISABLE DIRECT USB INTERFACE
When connecting the Direct USB cable, have the scanner to read the “Disable Direct
USB” barcode in advance to avoid sending data to the host in memory mode via the
cable. It will then allow charging the battery only.
Disable Direct USB
44
Enter Setup
1664 Barcode Scanner User Guide

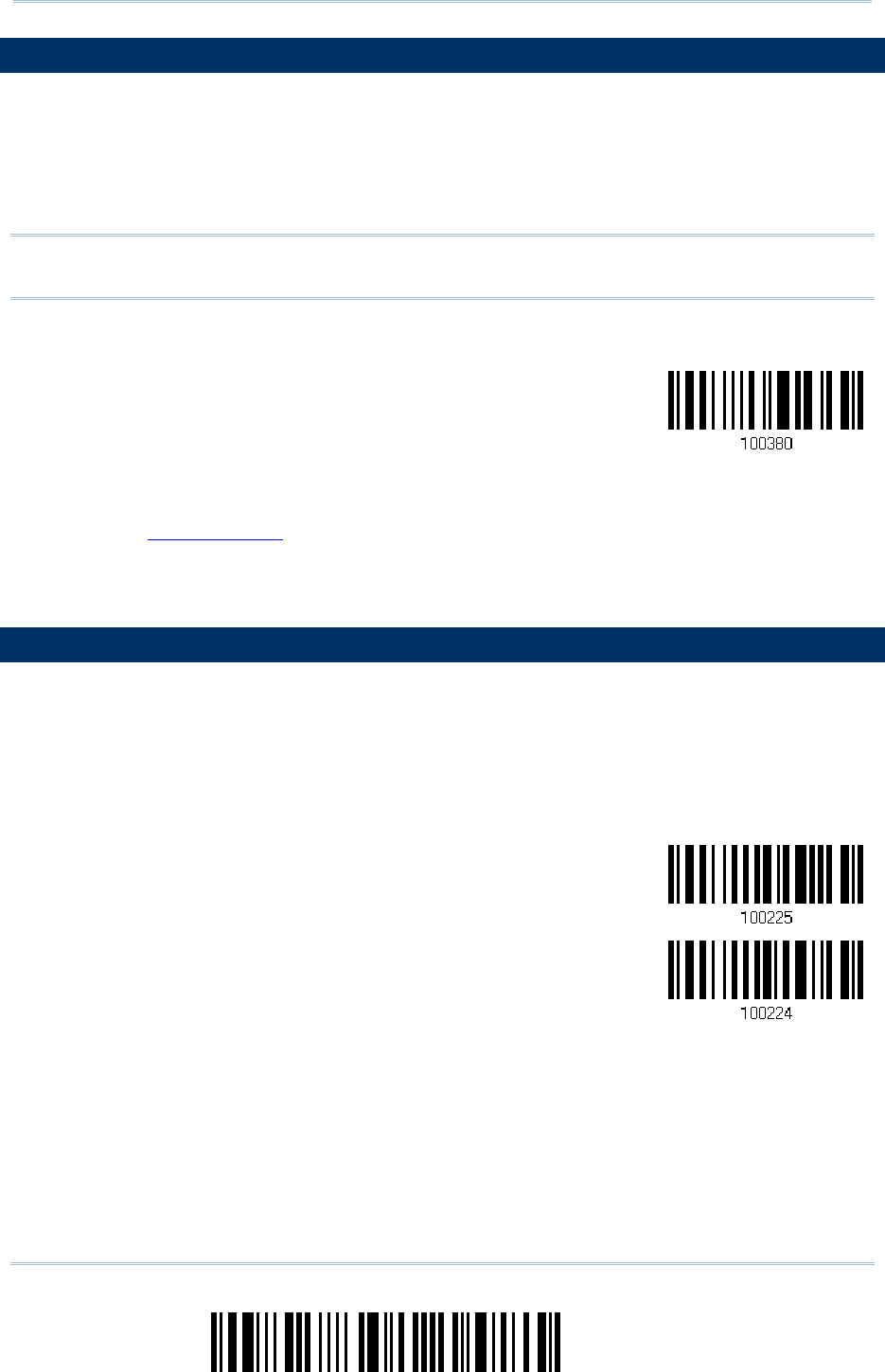

1.14 PICKLIST MODE
Picklist mode enables the decoder to decode only the barcodes aligned under the center
of the laser aiming pattern.
Enable
*Disable
1.15 PAGER BEEP DURATION
Paging function is only activated when 1664 is in Power-Saving mode. 1664 can be
waked up via receiving any Bluetooth signal or press any specific key upon Bluetooth
connection. The buzzer will make two short beeps with high tone when the pager beep
duration setting time is up for each time, then stop to beep until next Power-Saving time
out is reached or power key is pressed.
By default, the pager beep duration is 5 seconds. Specify a value, ranging from 0 to 15.
(0~15 sec.; 0= Disable)
Bluetooth HID profile: Press any key among “Scroll Lock”, “Number Lock” or “Caps
Lock” on the host computer to trigger the waking up of 1664.
Bluetooth SPP Profile: Any signal sent from serial port will trigger the waking up of
1664.
Pager Beep Duration
0
~15 sec.
(*5 s)
1) Read the barcode above to specify the activated reminding time interval.
2) Read the “Decimal Value” barcode on page 251. For example, read “1” and “5” for the
pager beep function to be activated each 15 seconds after entering Power-Saving
mode.
3) Read the “Validate” barcode on the same page to complete this setting.
45
Update
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。

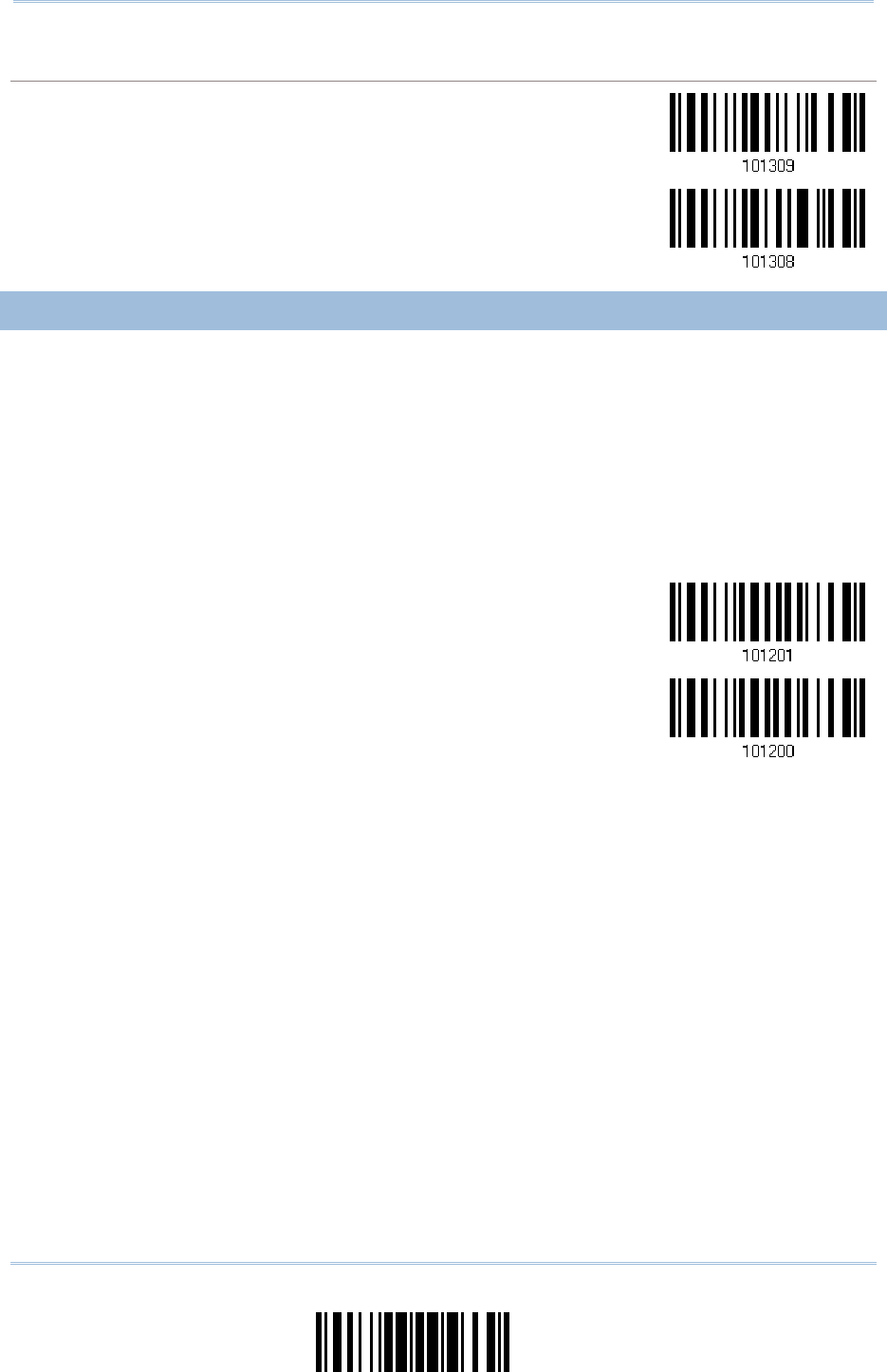

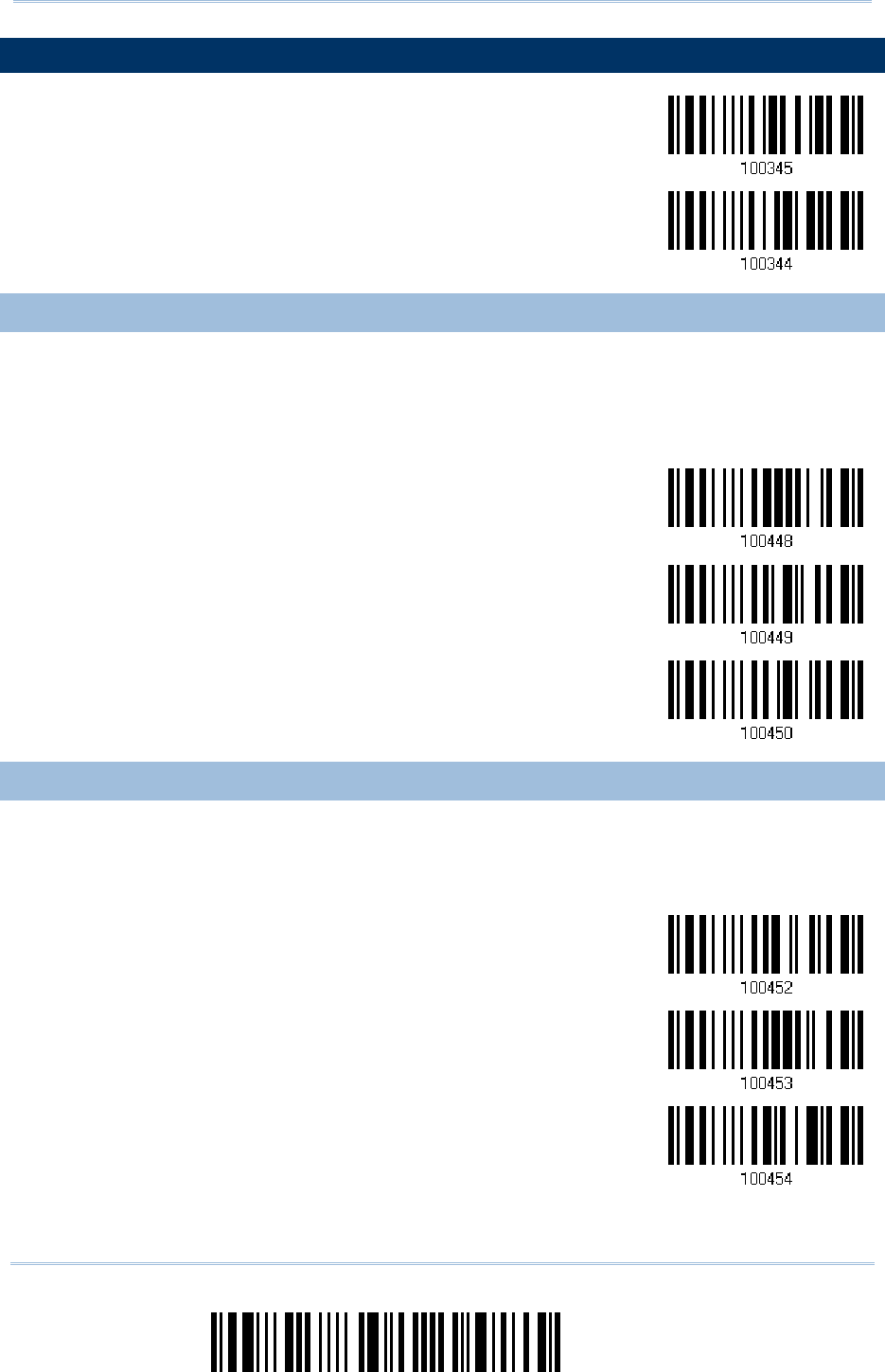

1.16 TIME STAMP
Specify time stamp format added to the prefix or suffix of a data. Up to three settings
can be configured:
No Time Stamp
Add Time Stamp in front of data
Add Time Stamp to the end of data
If added in front of data, it means front of prefix field. Alternatively, to the end of data
means added it after additional field.
No Time Stamp
*Disable
Add Time Stamp
in front of Data
Add Time Stamp
to the end of Data

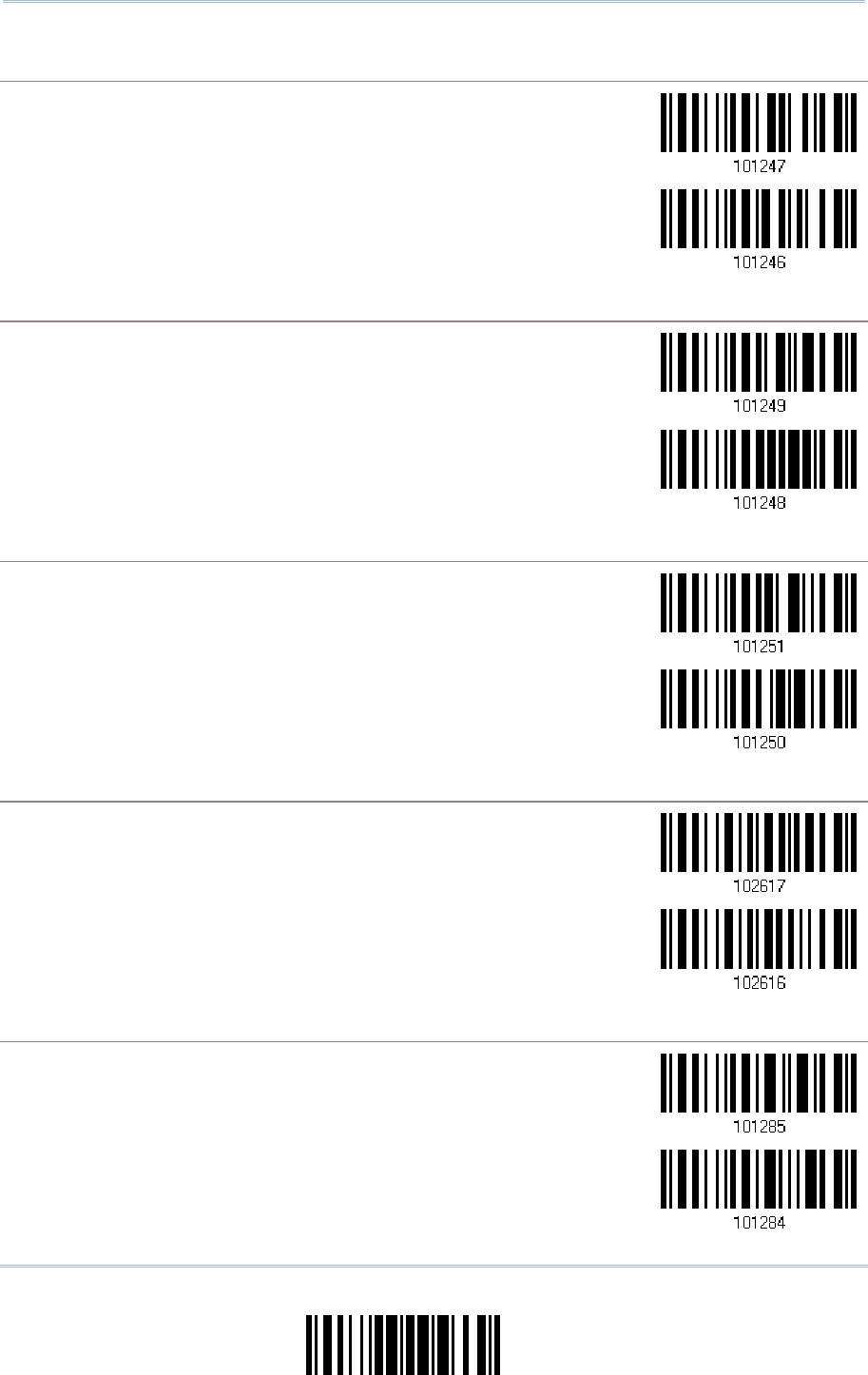

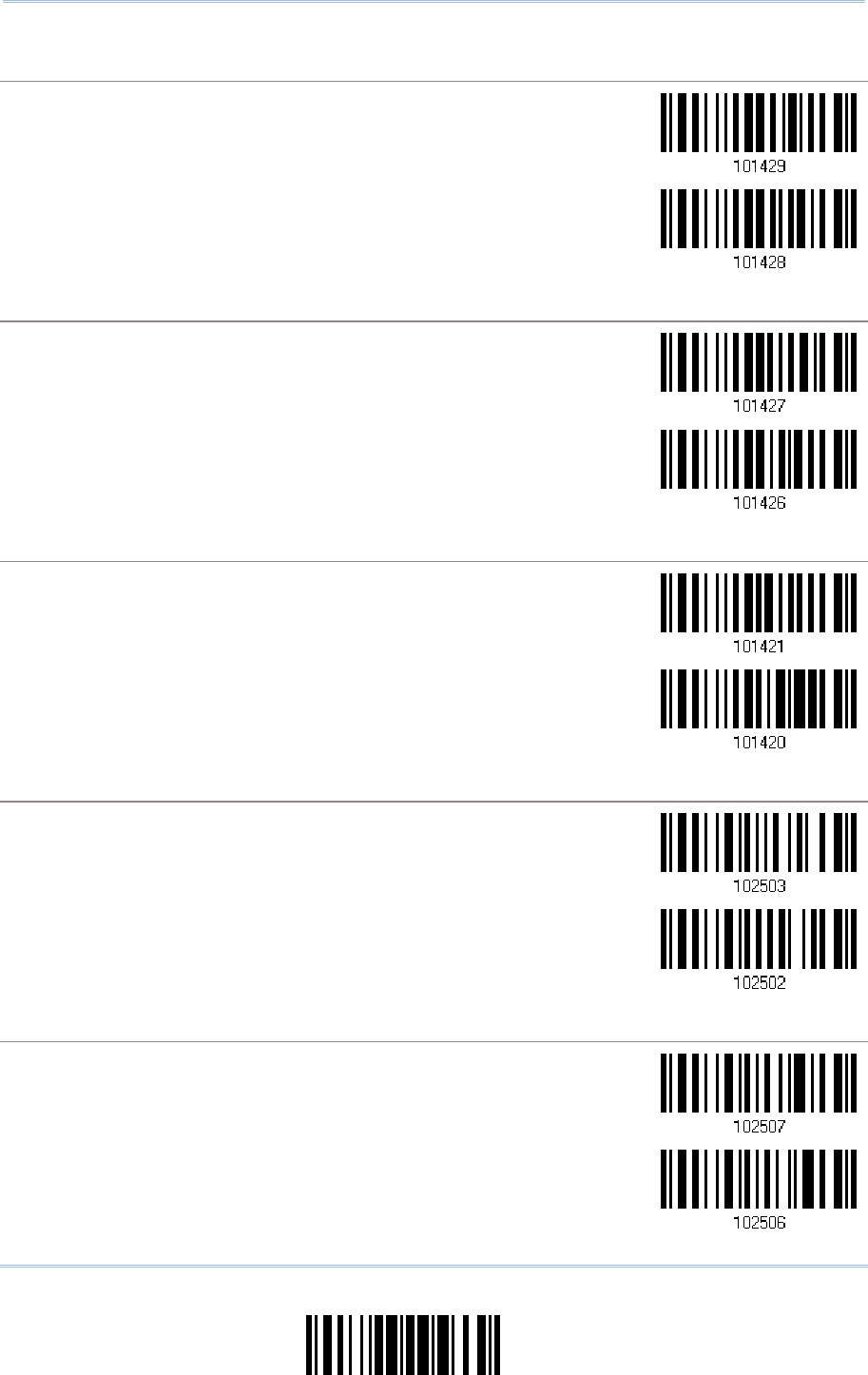

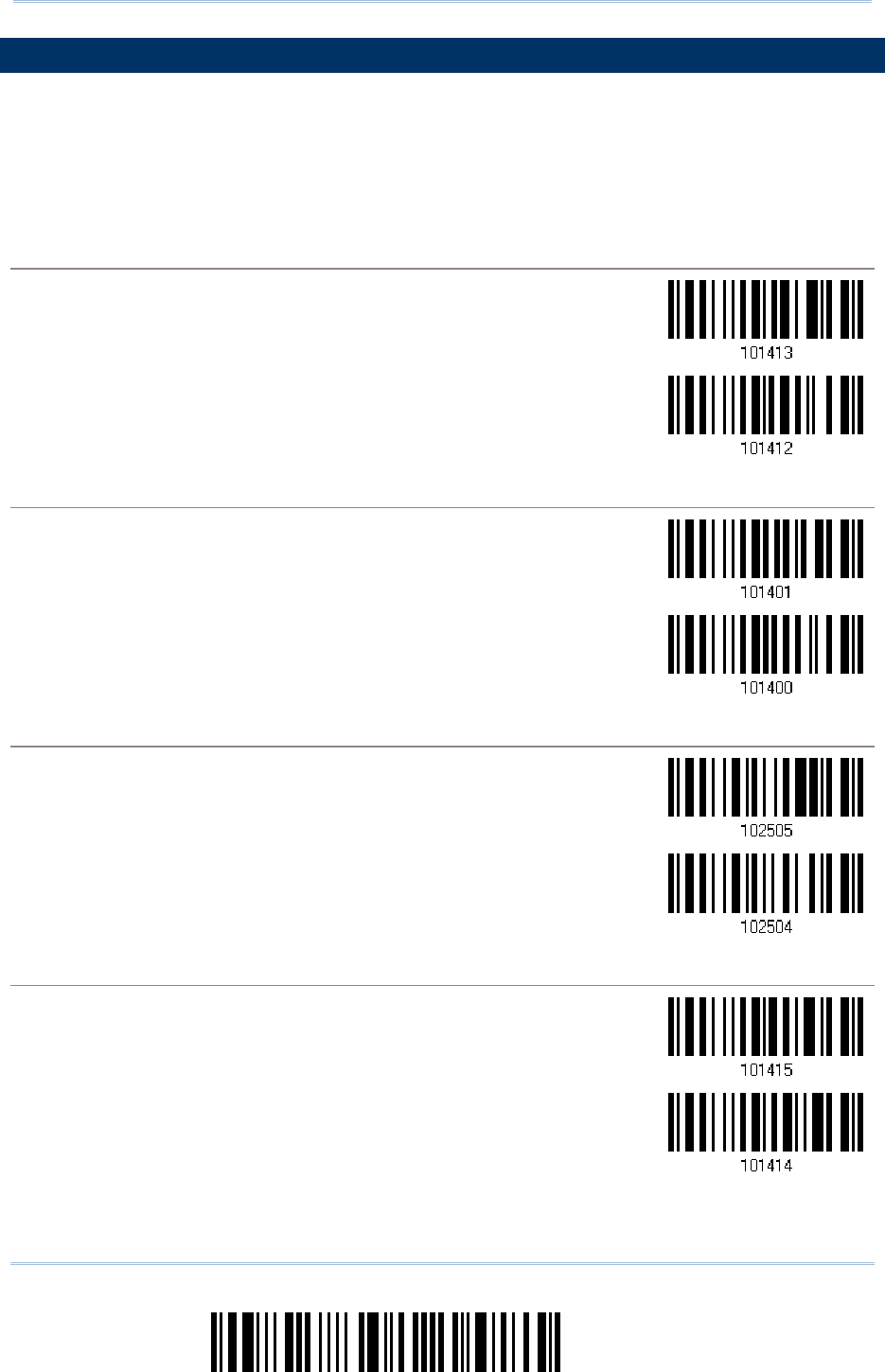

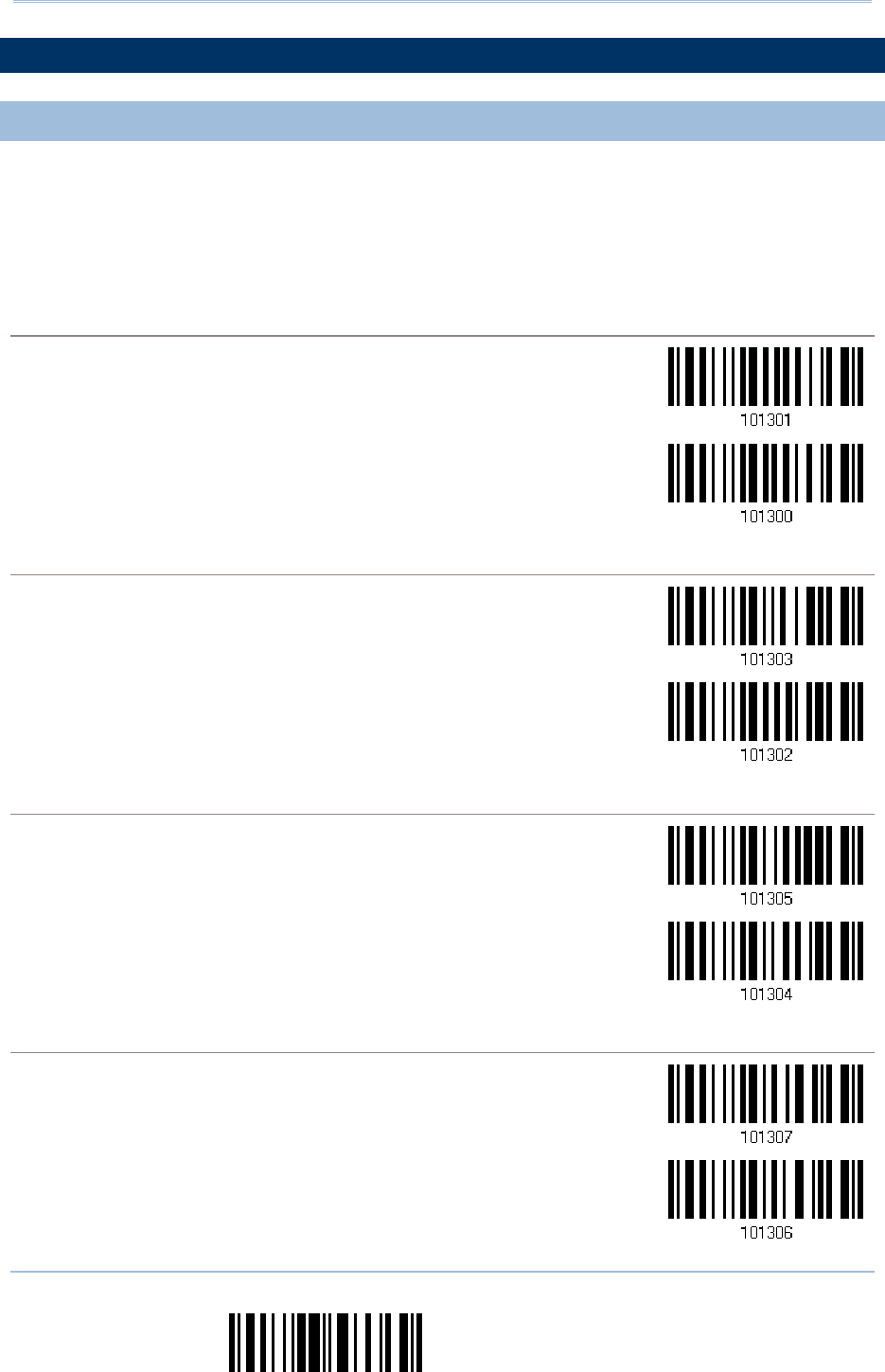

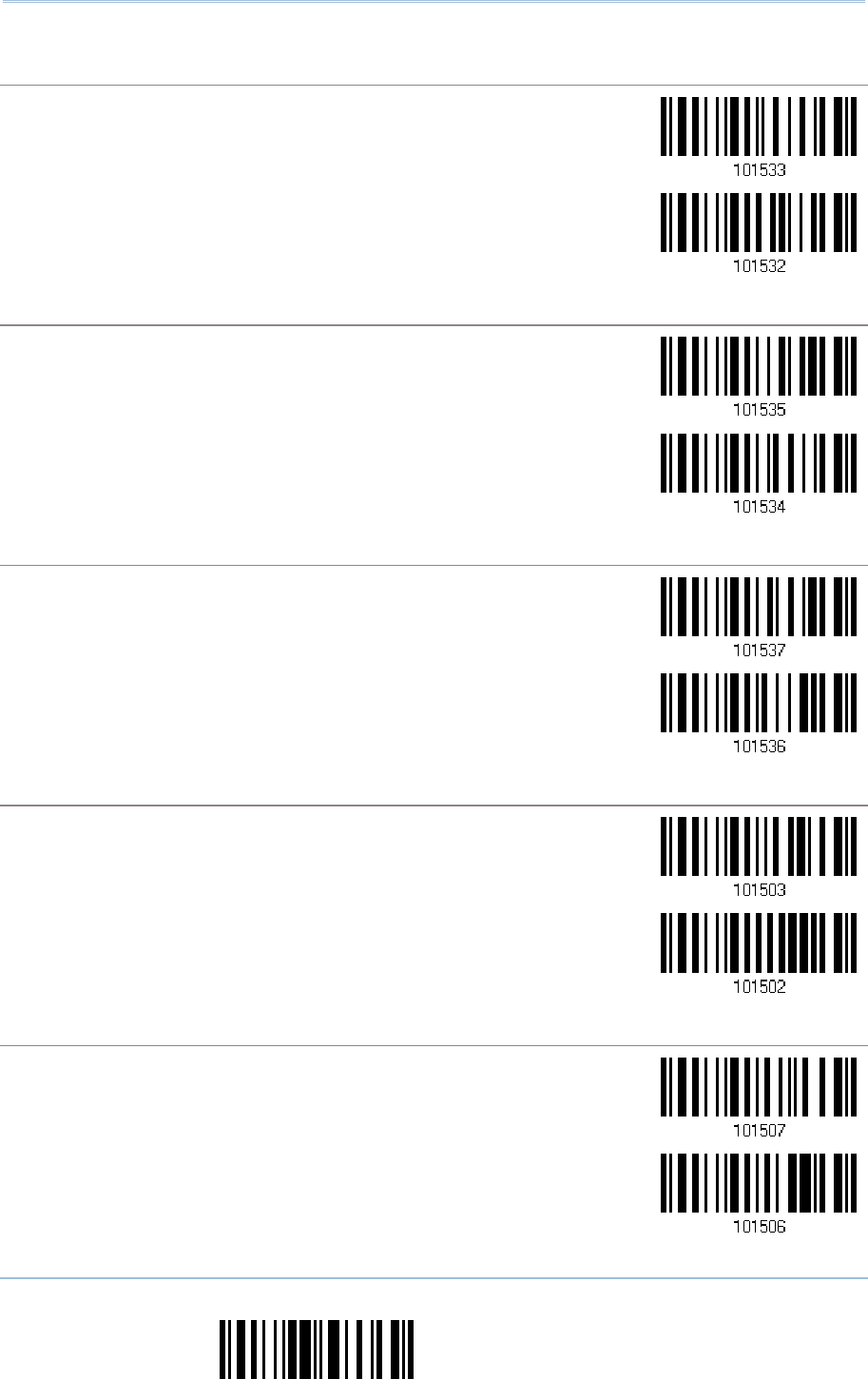

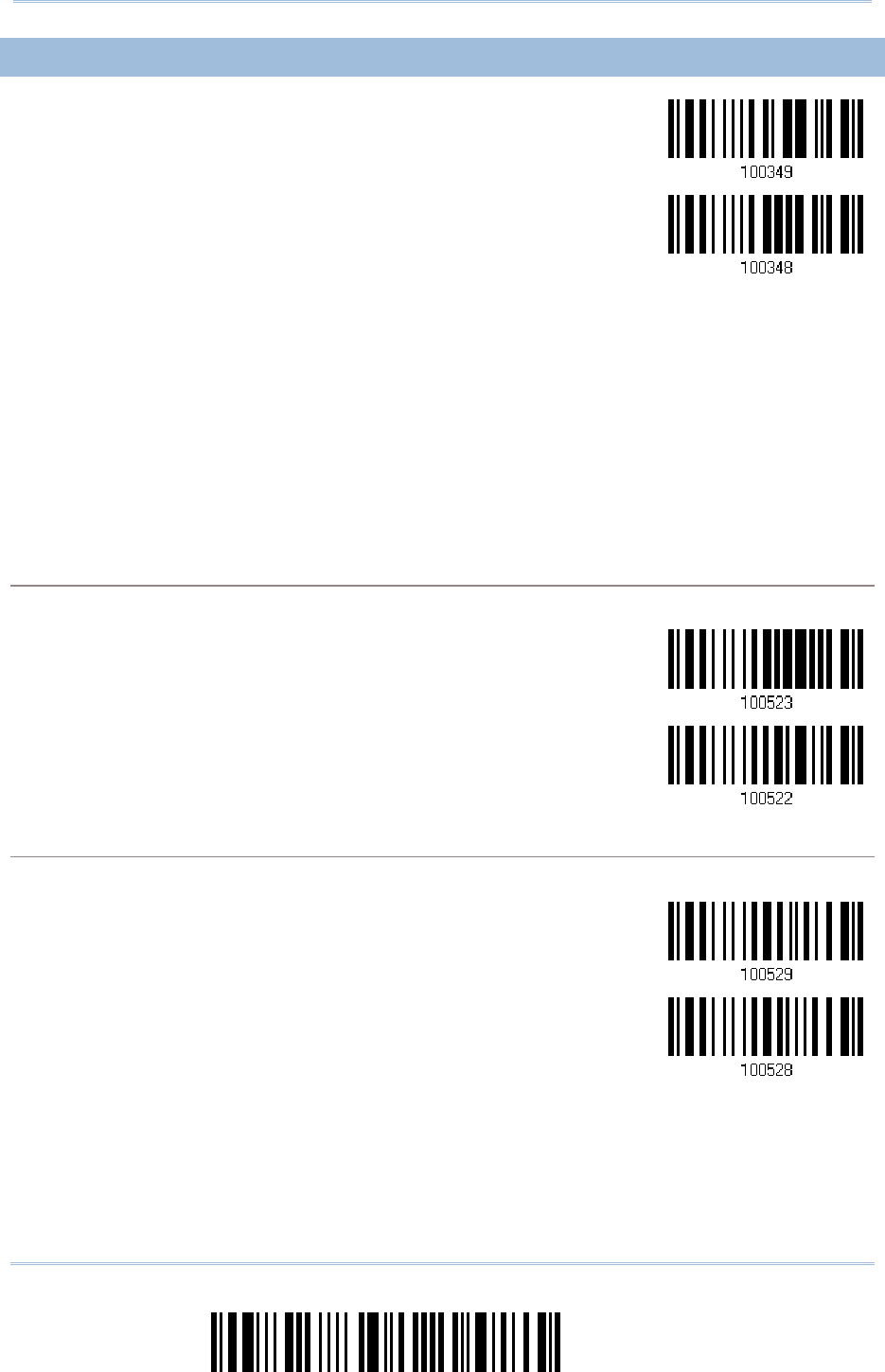

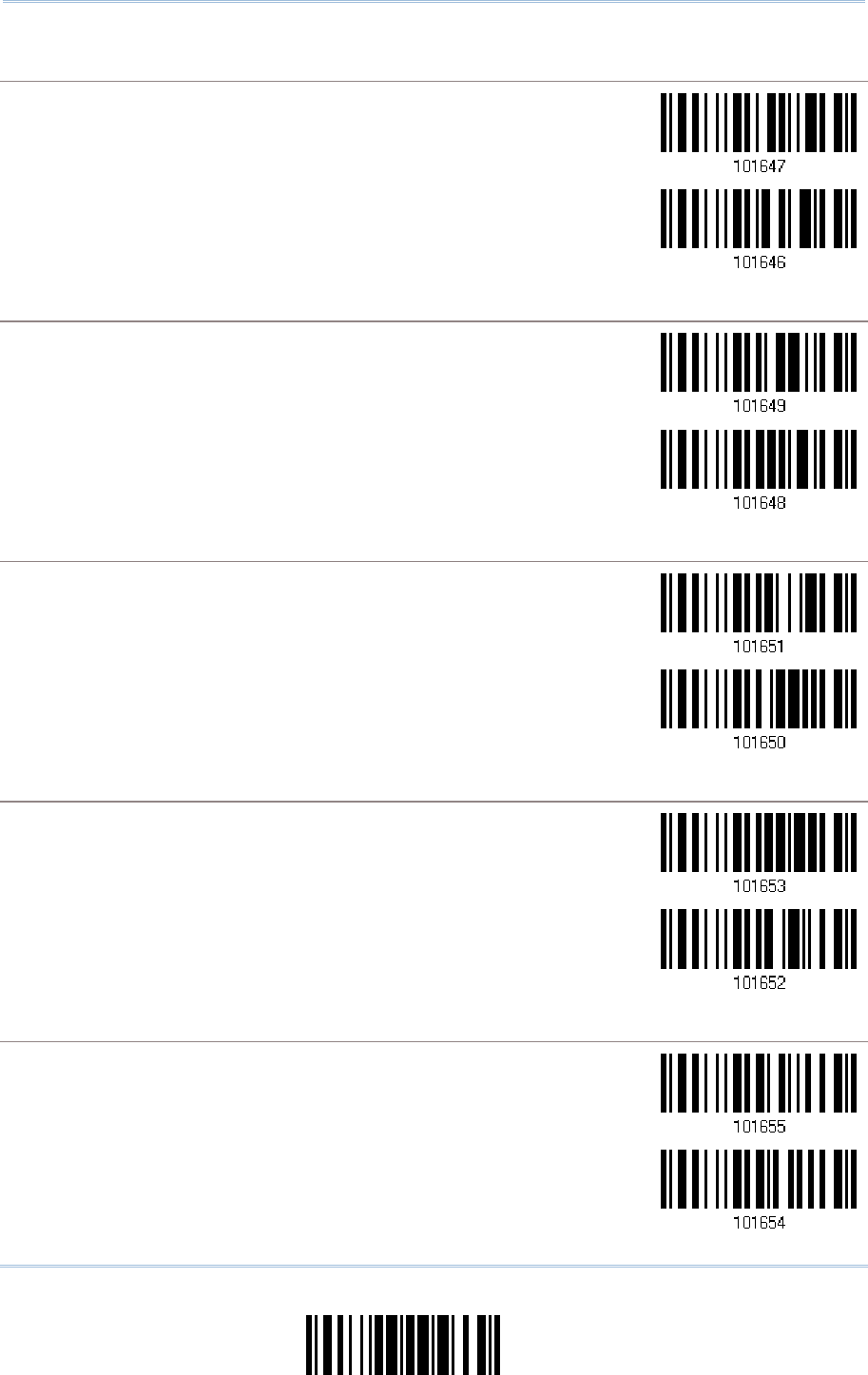

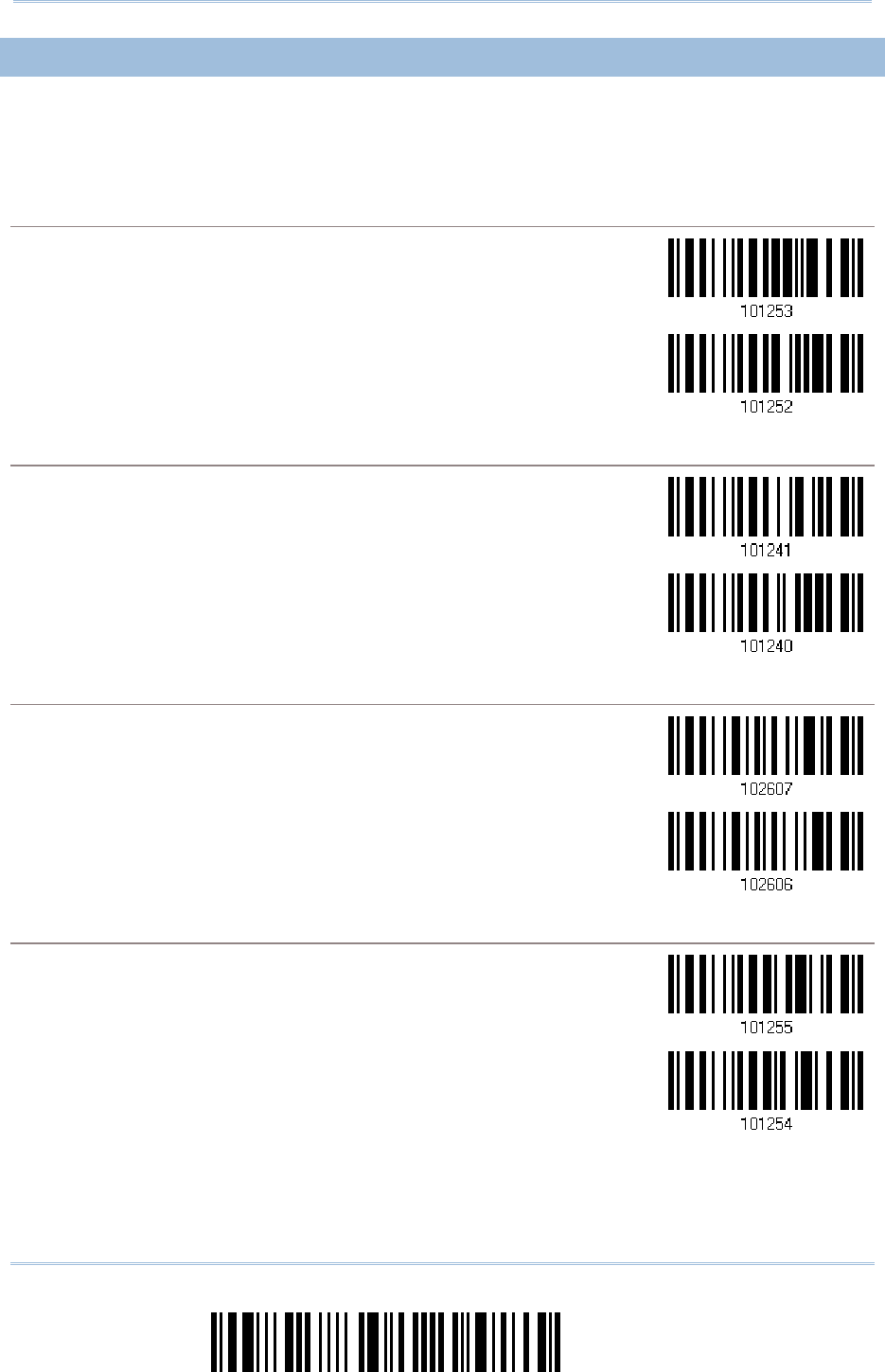

1.16.1 DATE AND TIME SETTINGS
Read the barcode below to disable/enable Date and Time function.
Year Output
*Enable
Year Output
Disable
Month Output
*Enable
Month Output
Disable
46
Enter Setup
1664 Barcode Scanner User Guide

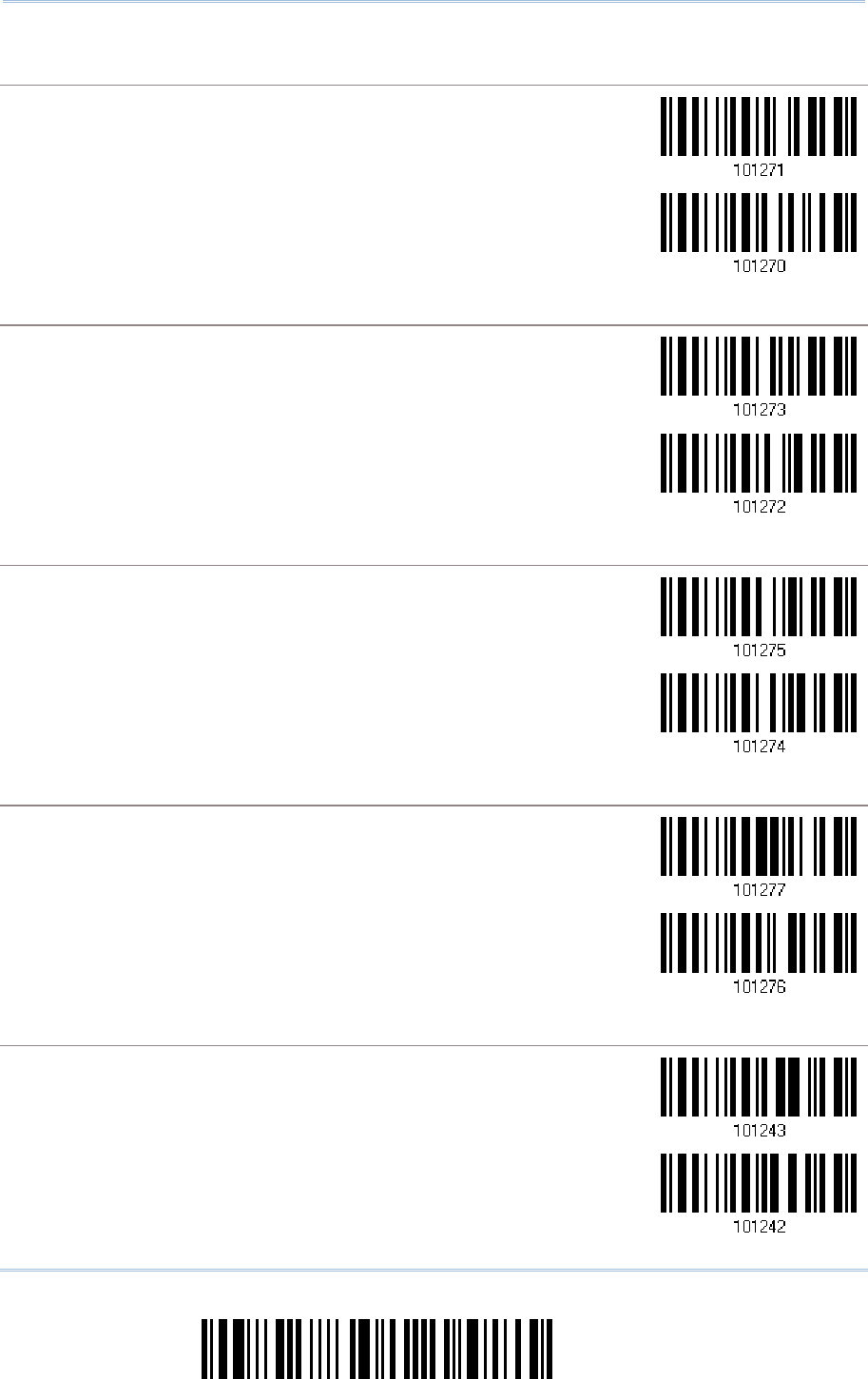

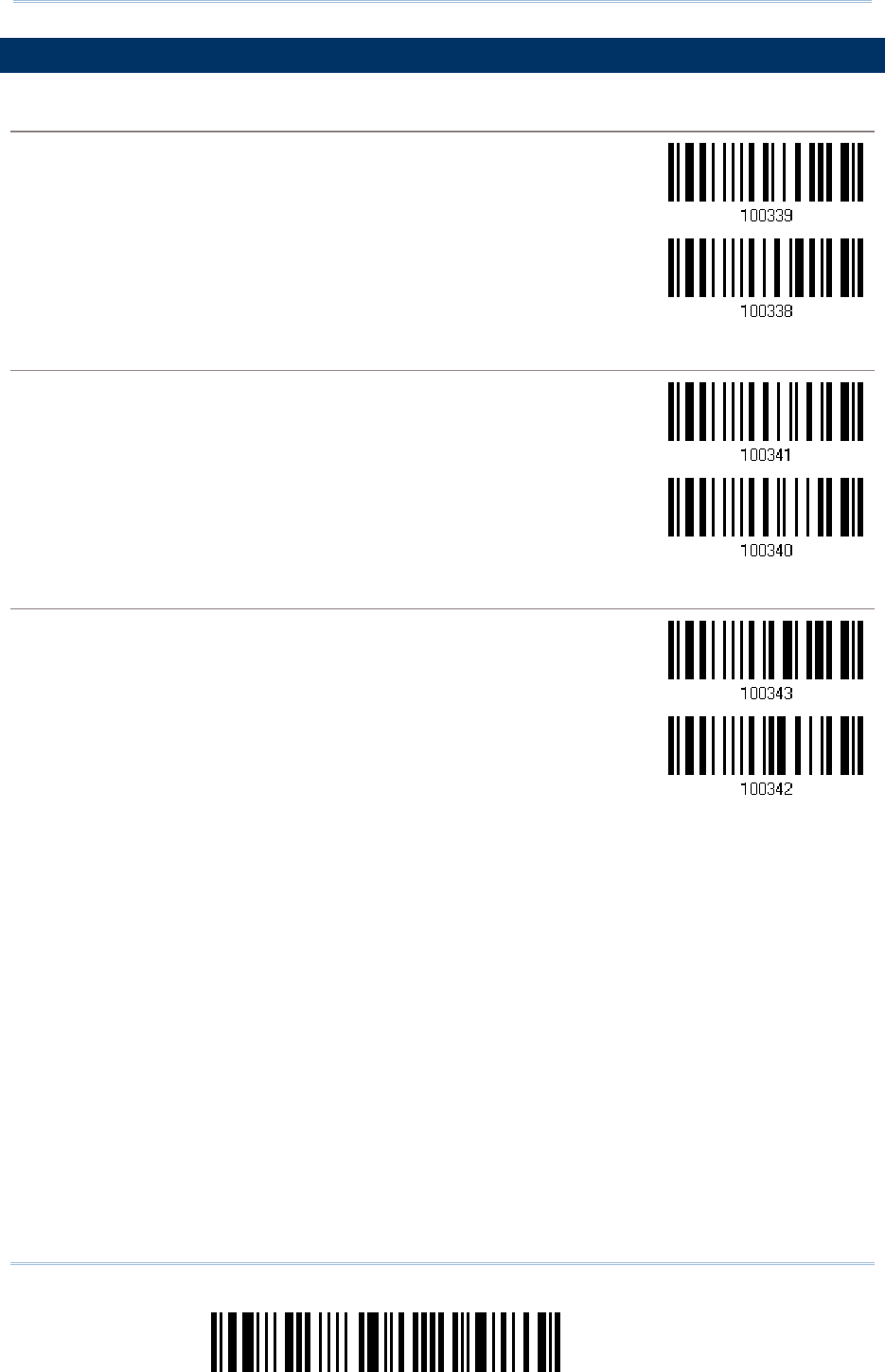

Date Output
*Enable
Date Output
Disable
Hour Output
*Enable
Hour Output
Diable
Minute Output
*Enable
Minute Output
Disalbe
Second Output
*Enable
Second Output
Diable
47
Update
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Decoding Data and Time
Year Setup
Date Setup
Time Setup
1) Read the barcode above to apply time or date code separately, and follow steps 2~3.
2) Read the “Decimal Value” barcode on page 251 for the desired character string. For
example:
Year: Read “2”, “0”, “1”, “1” for the year setting as year=2011.
Date: Read “1”, “1”, ”2”, “0” for the date setting as date=Nov.20.
Time: Read “1”, “8”, “5”, “9” for the time setting as time=18:59.
3) Read the “Validate” barcode for each setting on the same page.
1.16.2 SEPARATOR FOR DATE AND TIME
The Date and Time can be split with a pre-selected separator, for example, “/” as
YYYY/MM/DD or “:” as HH:MM:SS
Separator for
Date/Time
*“-”
Separator for
Month/Date
*“/”
Separator for
Hour/Minute
*“:”
1) Read the barcode above to apply separator to date or time separately, and follow
steps 2~3.
2) Read the “Hexadecimal Value” barcode on page 252 for the desired character string.
For example, read “3” and “A” for the separator to split the data with character [:].
3) Read the “Validate” barcode on the same page to complete this setting.
48
Enter Setup
1664 Barcode Scanner User Guide

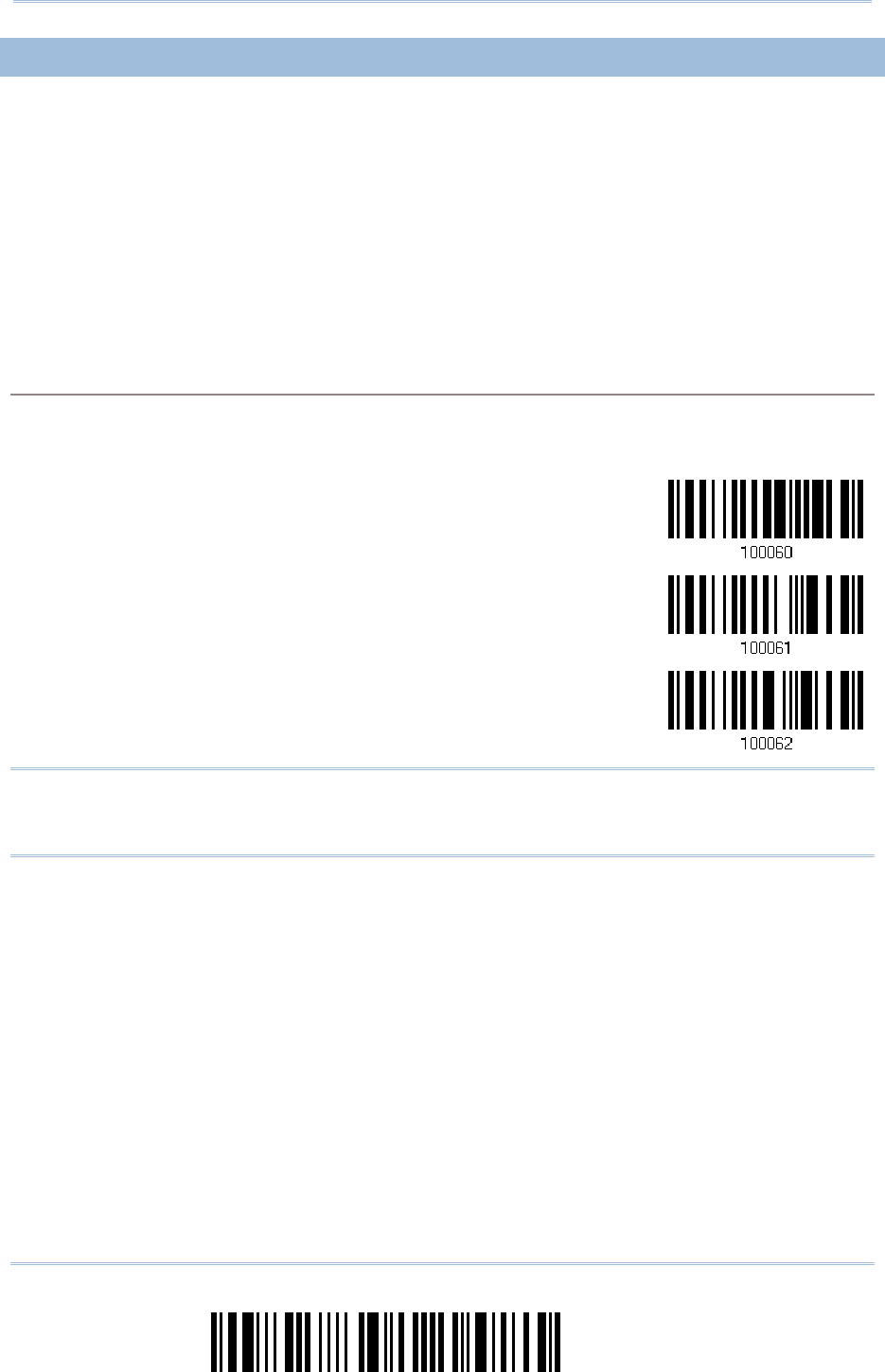

1.16.3 DATE FORMAT
The date format includes year, month and day. There are three kinds of combinations
can be configured to specify Year, Month and Day:
Year/Month/Day (YYYY/MM/DD) or (YY/MM/DD)
Month/Day/Year (MM/DD/YYYY) or (MM/DD/YY)
Day/Month/Year (DD/MM/YYYY) or (DD/MM/YY)

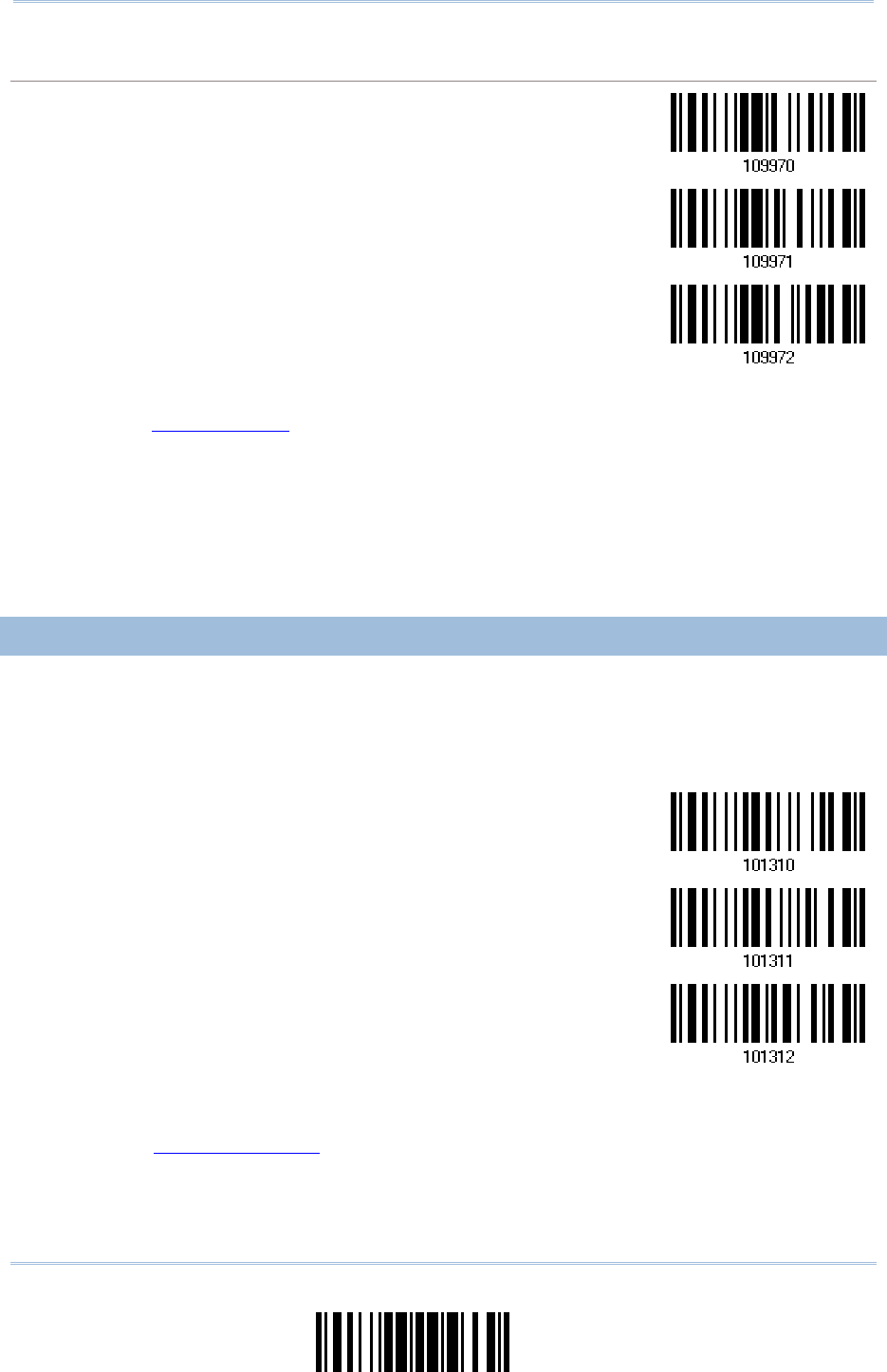

*Year/Month/Day
Month/Day/Year
Day/Month/Year
About Year Format:
Year format can be pre-selected as 2-digit or 4-digit. For example, if year format is YYYY, the
output year is 2011 for 4-digit, alternatively is 11 for 2-digit.
*Year for 4-digit
Year for 2-digit
49
Update
Chapter 1 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。

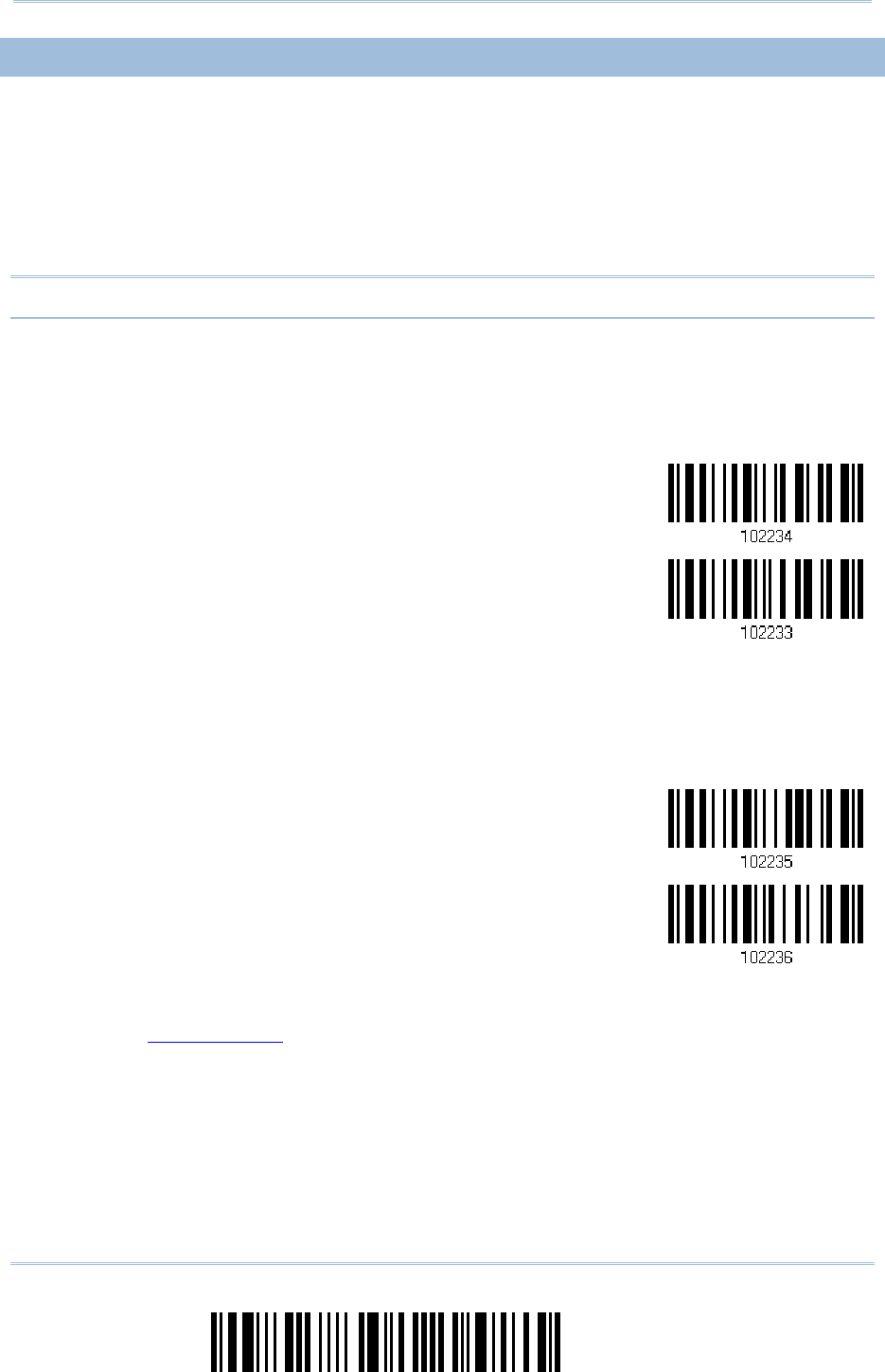

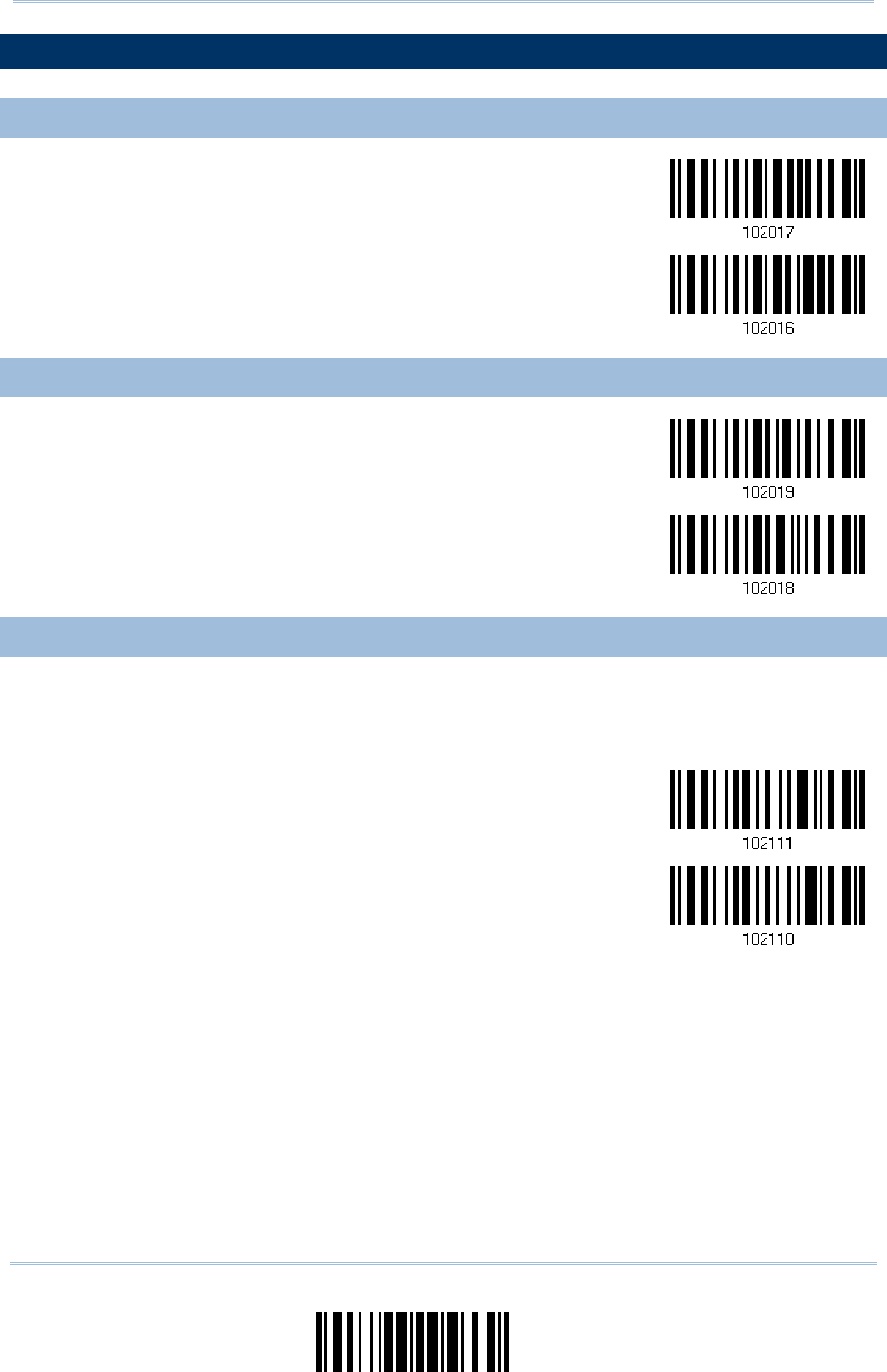

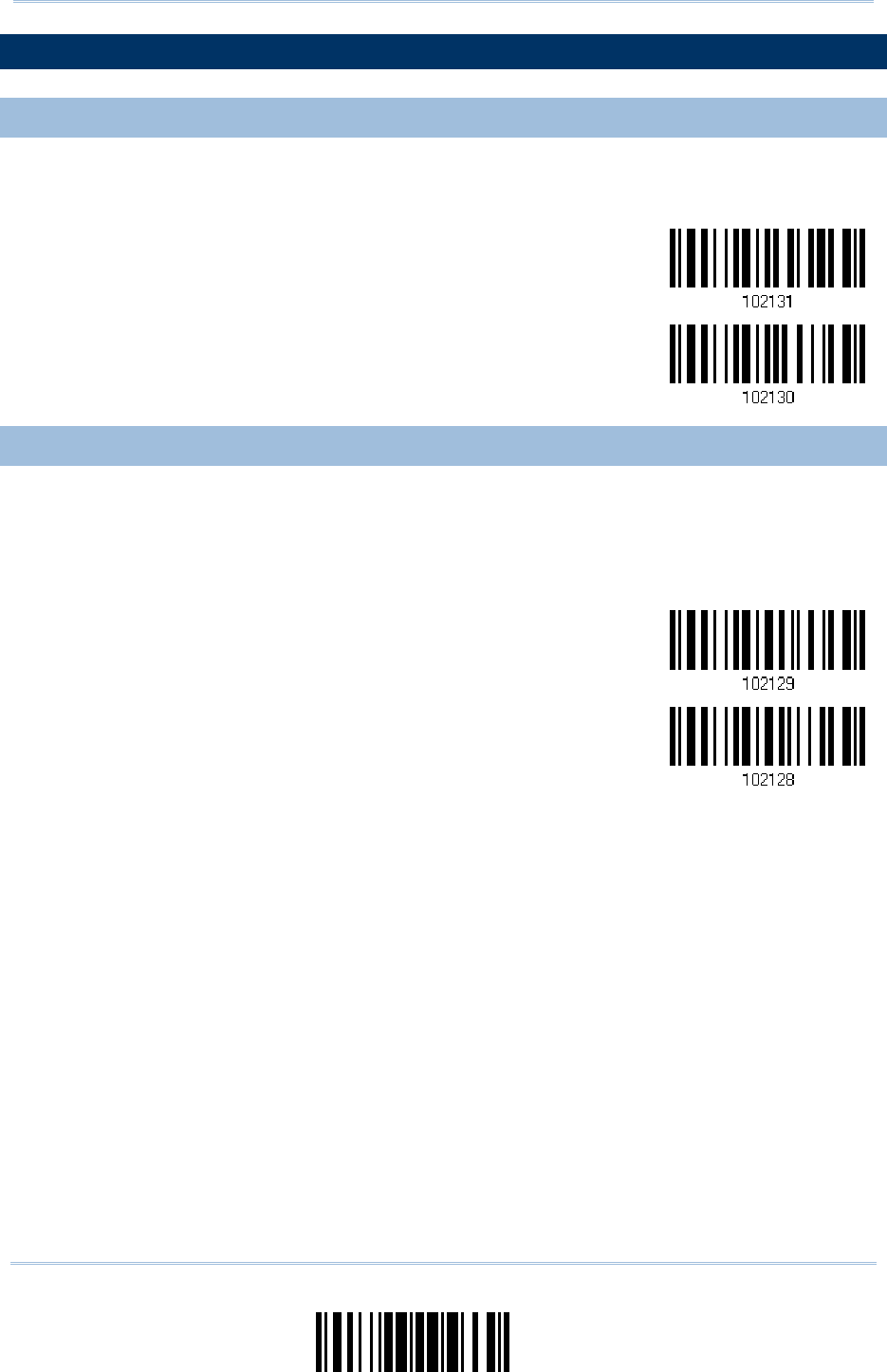

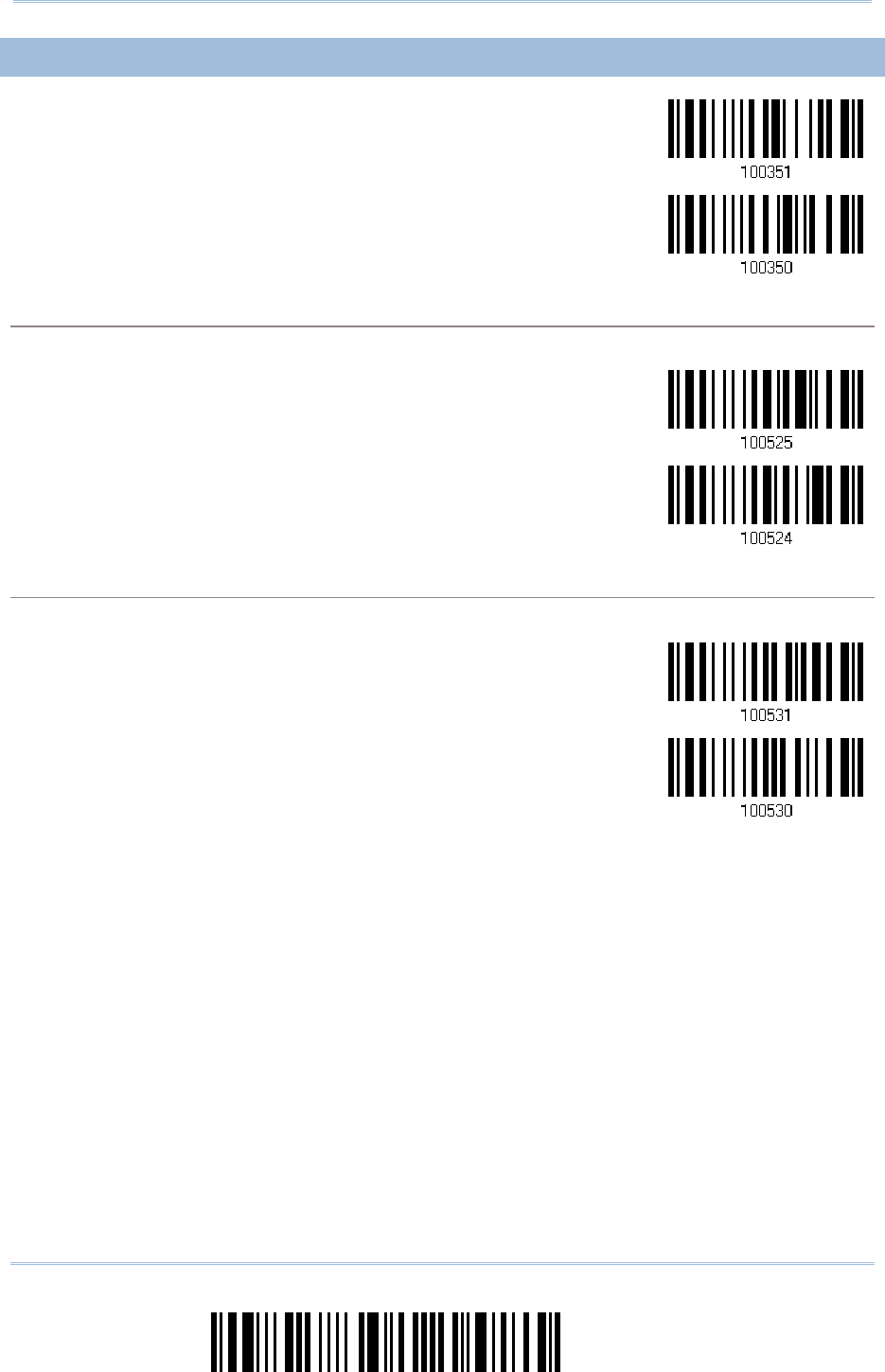

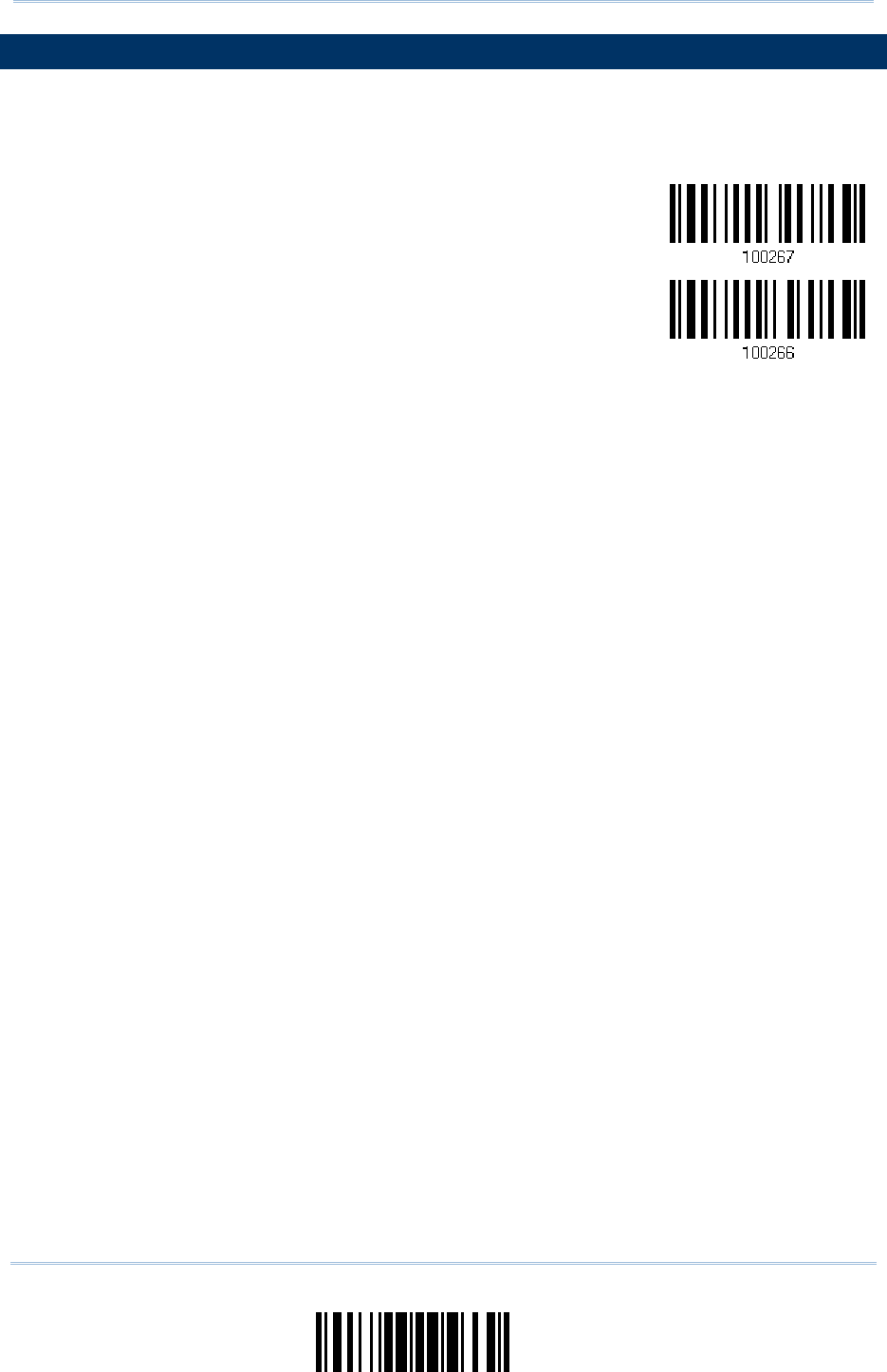

1.17 2D DECODE SETTING
1.17.1 AIMING PATTERN
Decide whether to allow the decoder to project the aiming pattern during a barcode
capture.
*Enable
Disable
1.17.2 DECODING ILLUMINATION
Decide whether to cause the decoder to flash illumination on every image capture to aid
decoding.
Enabling illumination usually results in superior images. The effectiveness of the
illumination decreases as the distance to the target increases.
*Enable
Disable
50
Enter Setup
1664 Barcode Scanner User Guide

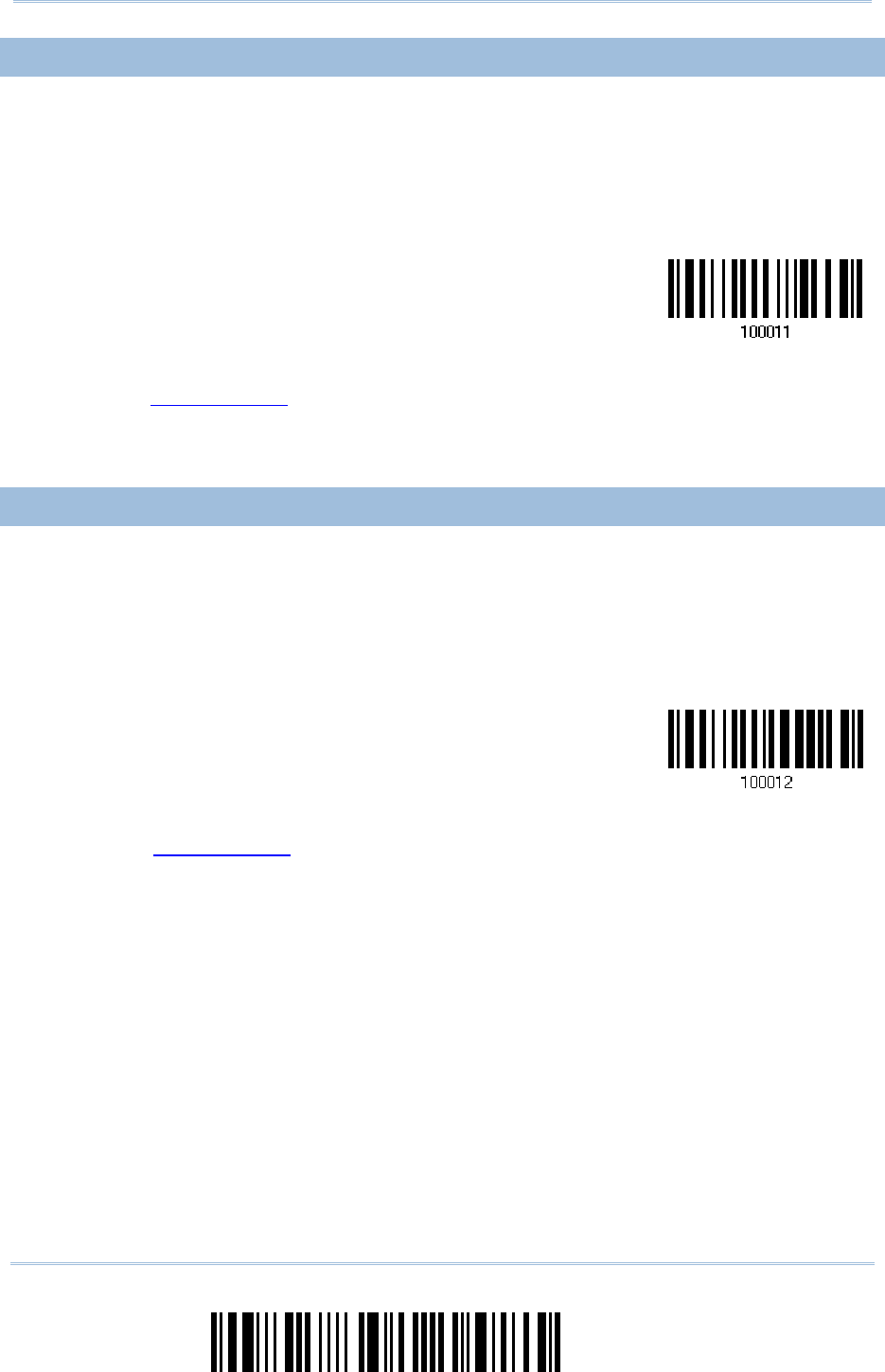

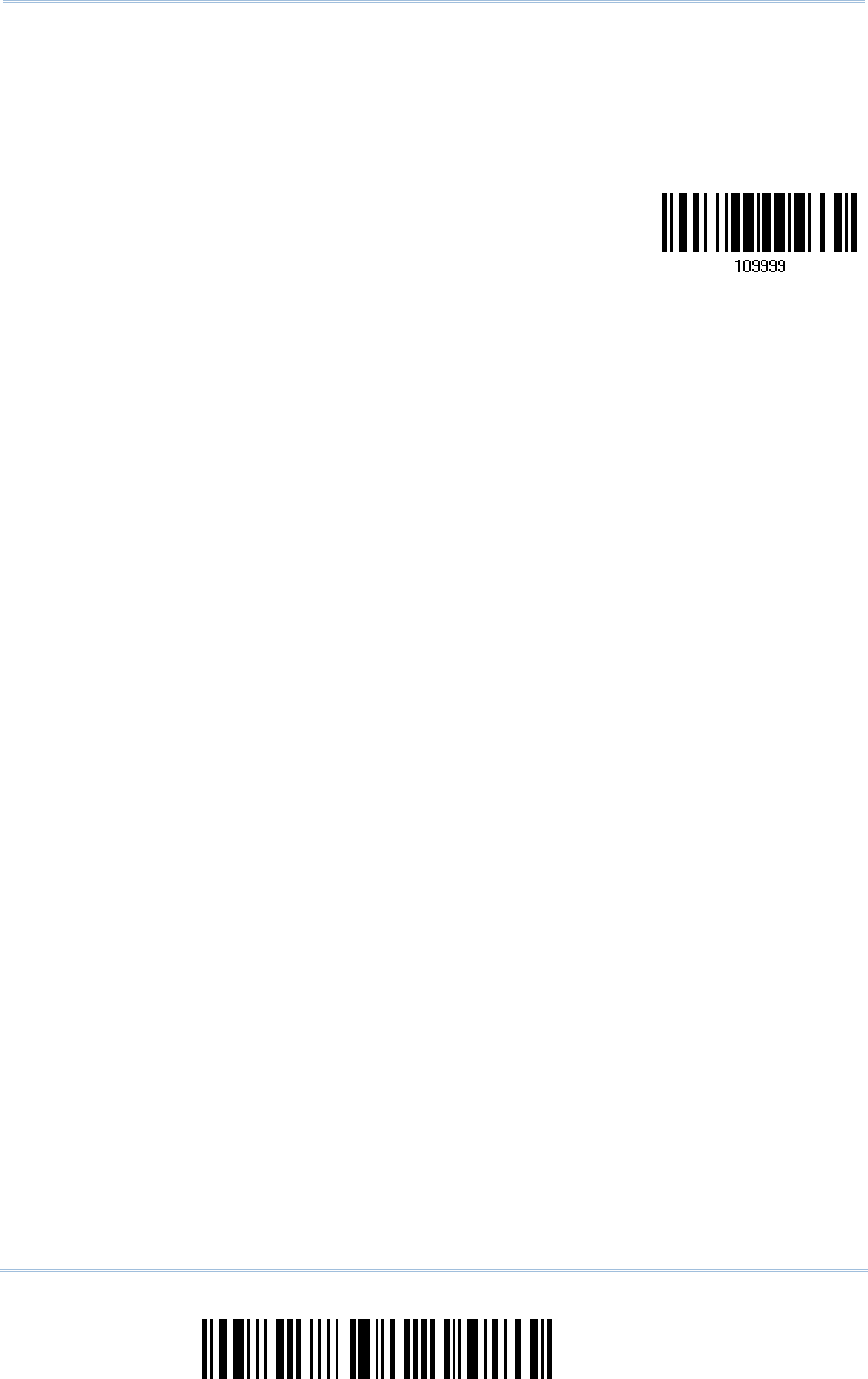

1.18 HARDWARE RESET
1.18.1 RESTORE SYSTEM DEFAULTS
Instead of having the scanner read “Restore System Defaults” barcode, use key
combination, as described below, to restore system defaults during operation.
1) Hold down the [Power/Delete] key.
2) When the scanner responds with two short beeps (high tone), press the [Trigger] key
for about 5 seconds. The scanner LED indicator becomes solid red for a while and
then goes off.
3) When the scanner responds with a long beep (high tone), release the keys. Its LED
indicator becomes solid red and goes off quickly.
Note: The scanner will restart itself automatically.
1.18.2 RESET CONNECTION
When the output interface is Bluetooth® HID or Bluetooth® SPP Master, the scanner will
attempt to maintain an established connection. To stop such re-connection, it may need
to have the scanner read “Reset Connection” or “Restore System Defaults” barcode to
clear the current connection record. Alternatively, use key combination as described
below to reset connection during operation.
1) Hold down the [Trigger] key, and then press the [Power/Delete] key for at least 5
seconds.
2) The scanner will respond with two short beeps (high tone). Wait for a while until the
scanner responds with a long beep (high tone), release the keys.
Note: After reset connection by hardware, the scanner will not restart itself automatically.
It will resume to its previous operation except no connection.
51
Update
In order to establish a proper connection between host computer and the scanner, we
suggest following these instructions –
1) Install batteries and hold down the [Power/Delete] key for about 2 seconds to turn on
the scanner.
2) Have the scanner read the “Enter Setup” barcode to enter the configuration mode.
3) Have the scanner read the associated barcodes to activate the desired interface.
See the following sections for output interfaces supported.
4) Have the scanner read the barcodes for related settings.
5) Have the scanner read the “Update” barcode to exit the configuration mode.
6) Turn on host computer or laptop and establish a WPAN connection with the scanner.
Refer to Chapter 3 – Setting up a WPAN Connection.
Note: (1) By default, the output interface is set to “Bluetooth® HID”.
(2) When set to Memory Mode and connected to computer via the Direct USB
cable, the default output interface becomes “Direct USB Virtual COM”.
IN THIS CHAPTER
2.1 Bluetooth® HID ......................................................... 52
2.2 Bluetooth® SPP Slave ................................................. 64
2.3 Bluetooth® SPP Master ............................................... 66
2.4 USB HID via 3610 ...................................................... 70
2.5 USB Virtual COM via 3610 ........................................... 81
2.6 Direct USB HID .......................................................... 83
2.7 Direct USB Virtual COM ............................................... 94
Chapter 2
SELECTING OUTPUT INTERFACE
52
Enter Setup

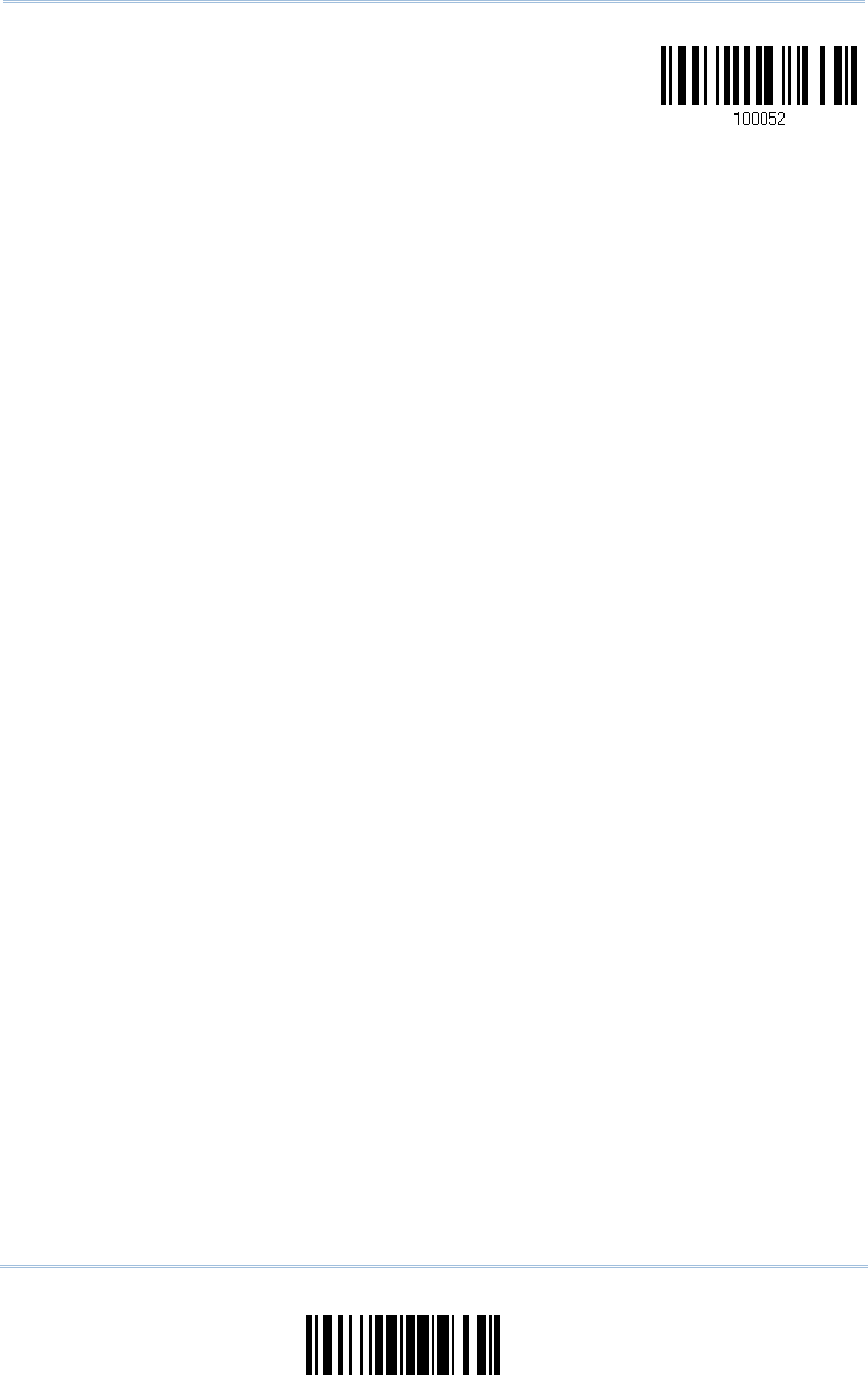

1664 Barcode Scanner User Guide
2.1 BLUETOOTH® HID
For Bluetooth® HID, refer to Chapter 3 – Setting up a WPAN Connection for related
connection settings. Run any text editor on your computer, and the scanned data will be
transmitted to the computer.
HID Settings Defaults
Keyboard Type PCAT (US)
Alphabets Layout Normal
Digits Layout Normal
Capital Lock Type Normal
Capital Lock State Off
Alphabets Transmission Case-sensitive
Digits Transmission Alphanumeric keypad
Kanji Transmission Disable
Inter-Character Delay 0 (ms)
Inter-Function Delay 0 (ms)
53
Update
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。

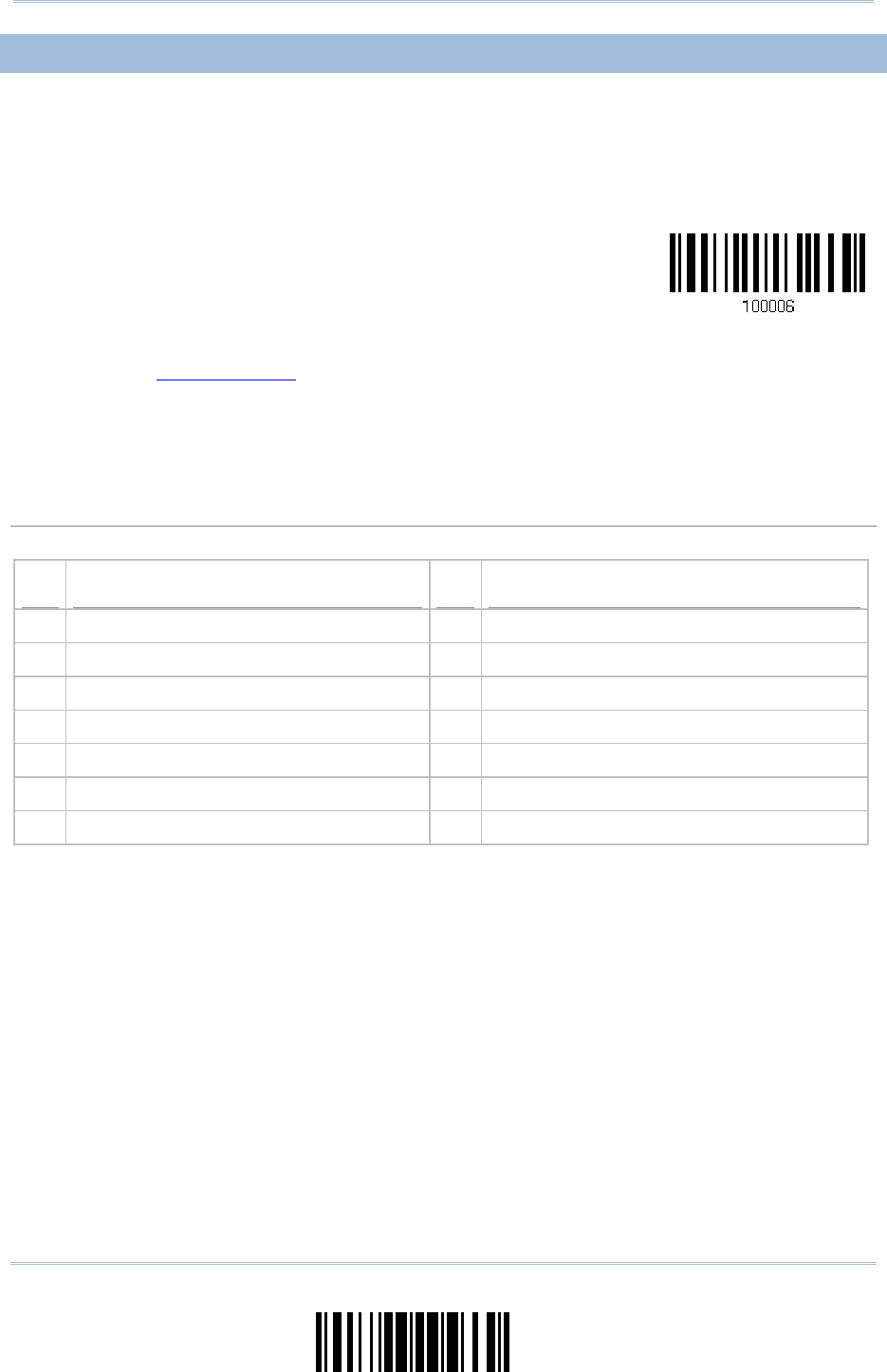

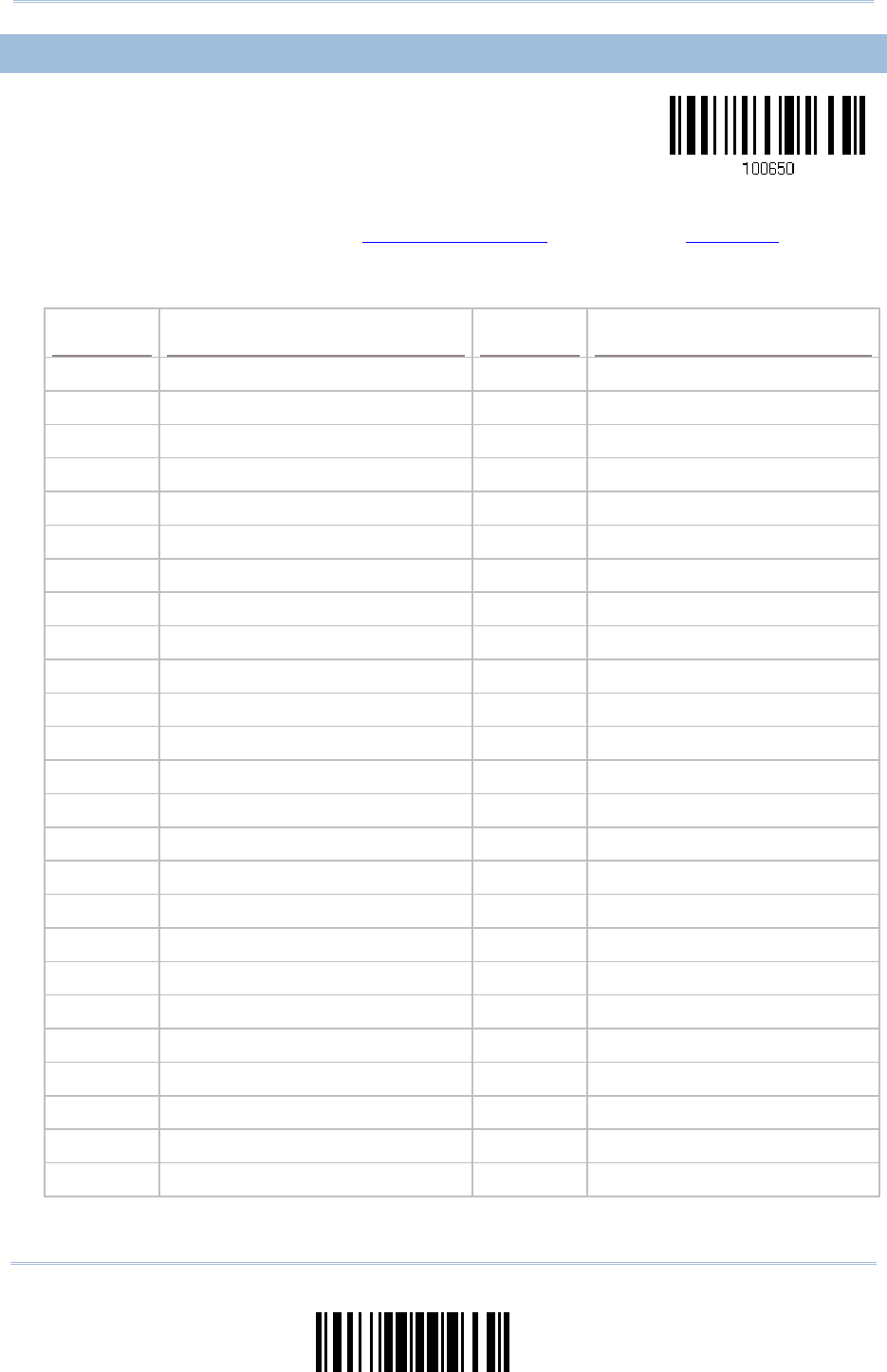

2.1.1 ACTIVATE BLUETOOTH® HID & SELECT KEYBOARD TYPE
When Bluetooth® HID interface is activated, you will have to select a keyboard type to
complete this setting. By default, Bluetooth® HID is activated on the scanner, and the
keyboard type is set to PCAT (US).

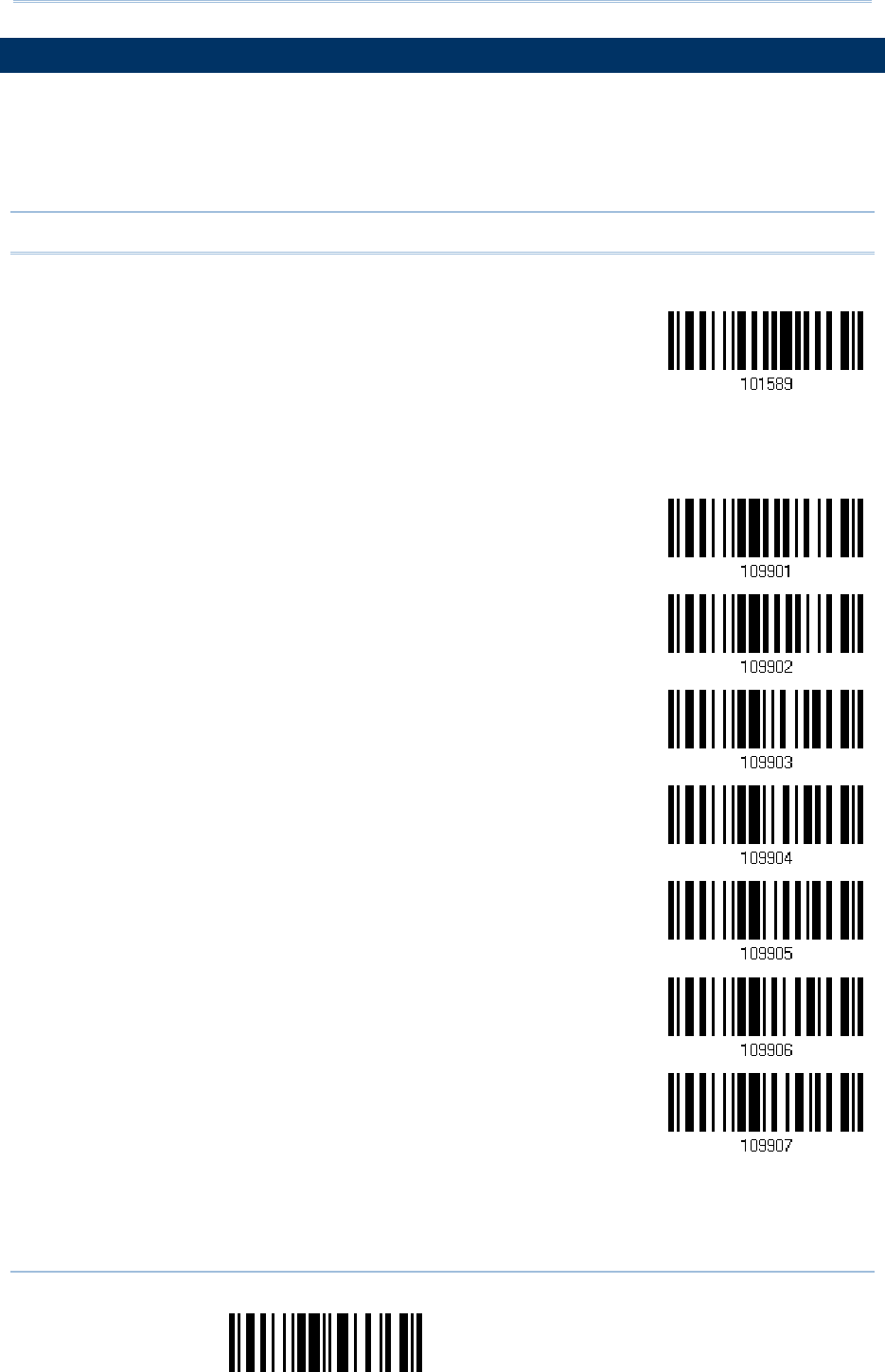

Activate Bluetooth®
HID & Select Keyboard
Type…
1) Read the barcode above to activate Bluetooth® HID and select a keyboard type.
2) Read the “Decimal Value” barcode on page 251. Refer to the table below for the
number of desired keyboard type.
3) Read the “Validate” barcode on the same page to complete this setting.

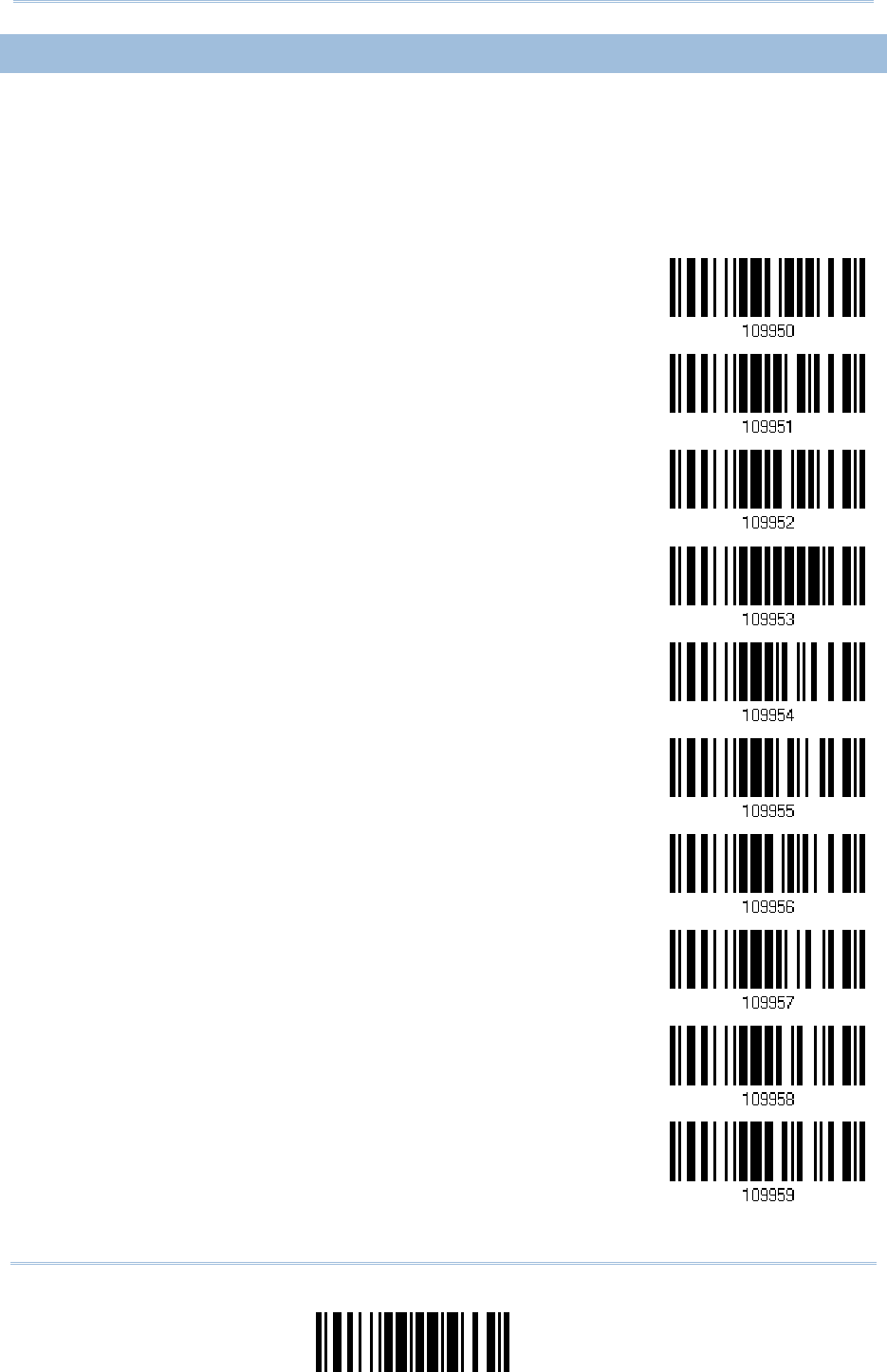

Bluetooth® HID
By default, the keyboard type is set to PCAT (US). The following keyboard types are supported —
No. Keyboard Type No.
Keyboard Type
64 PCAT (US) 71 PCAT (Belgium)
65 PCAT (French) 72 PCAT (Spanish)
66 PCAT (German) 73 PCAT (Portuguese)
67 PCAT (Italy) 74 PS55 A01-2 (Japanese)
68 PCAT (Swedish) 75 User-defined table
69 PCAT (Norwegian) 76 PCAT (Turkish)
70 PCAT (UK) 77 PCAT (Hungarian)
54
Enter Setup
1664 Barcode Scanner User Guide
2.1.2 RESET CONNECTION
For Bluetooth® HID, you can only have the scanner connected to one computer at a time.
If you want to connect the scanner to another host, you must have it read the “Reset
Connection” barcode so that the current connection record will be cleared. Then, the
scanner will restart itself automatically. Go through the whole process in 3.2.3 Connect to
Dongle to establish a new connection.
Refer to 1.18 Hardware Reset.
Reset Connection
Note: The “Restore System Defaults” barcode will have the current connection record
cleared as well.
55
Update
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。

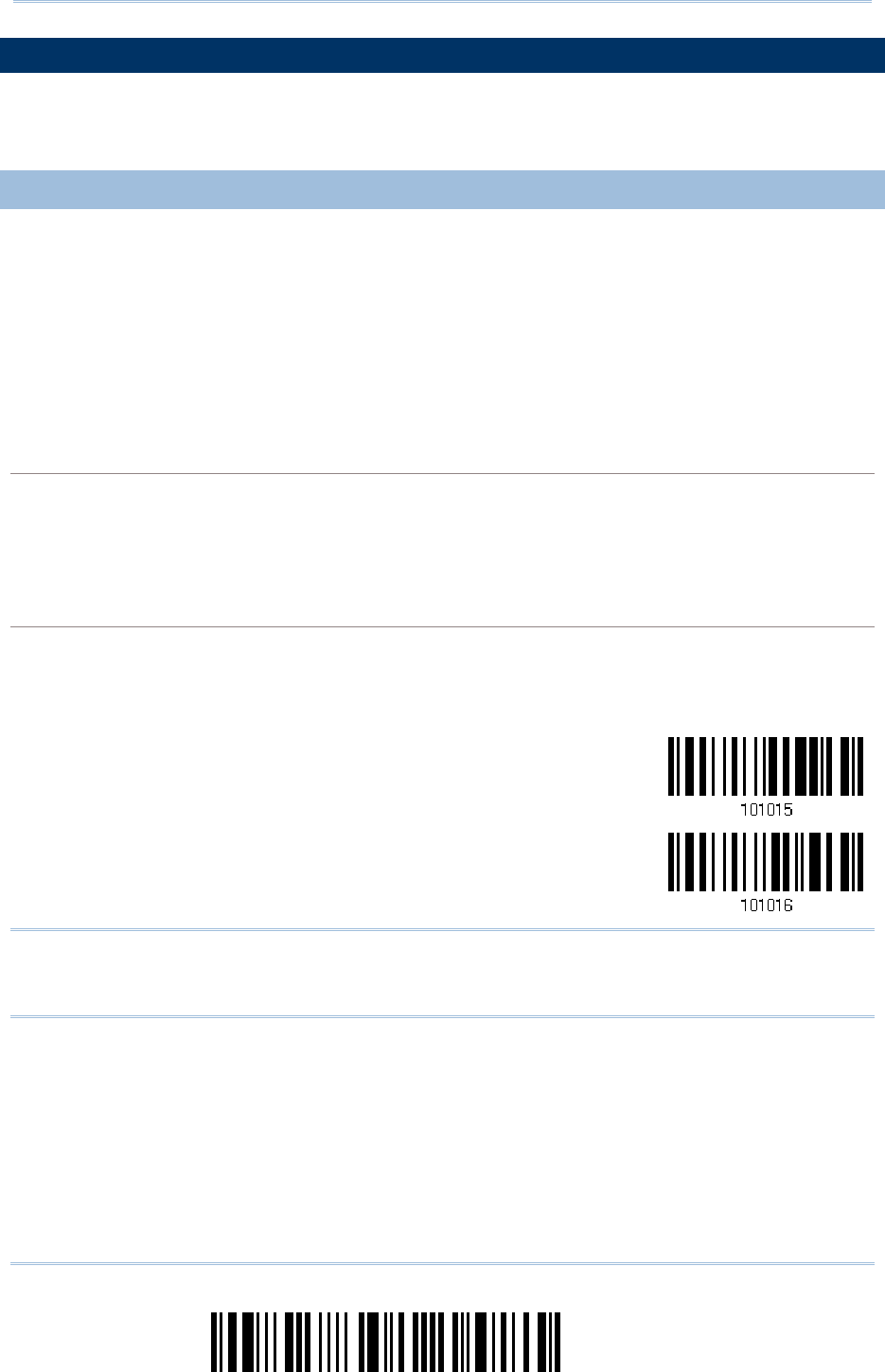

2.1.3 KEYBOARD SETTINGS
Alphabets Layout
Digits Layout
Capital Lock Type
Capital Lock Setting
Alphabets Transmission
Digits Transmission
Kanji Transmission

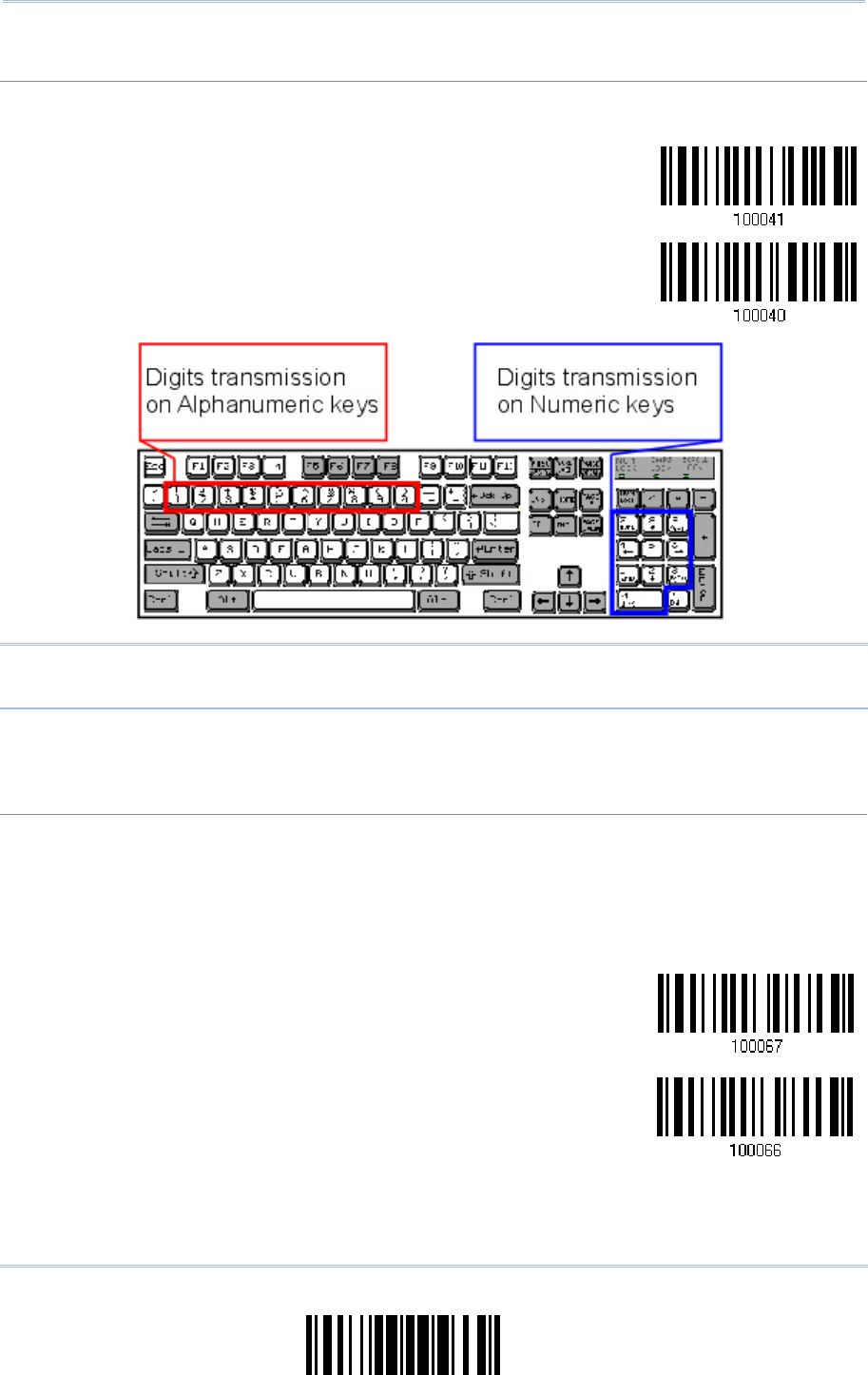

Note: Bluetooth® HID does not support these functions on PDAs – (1) Capital Lock
Setting: Auto Detection (2) Digits Transmission: Numeric Key

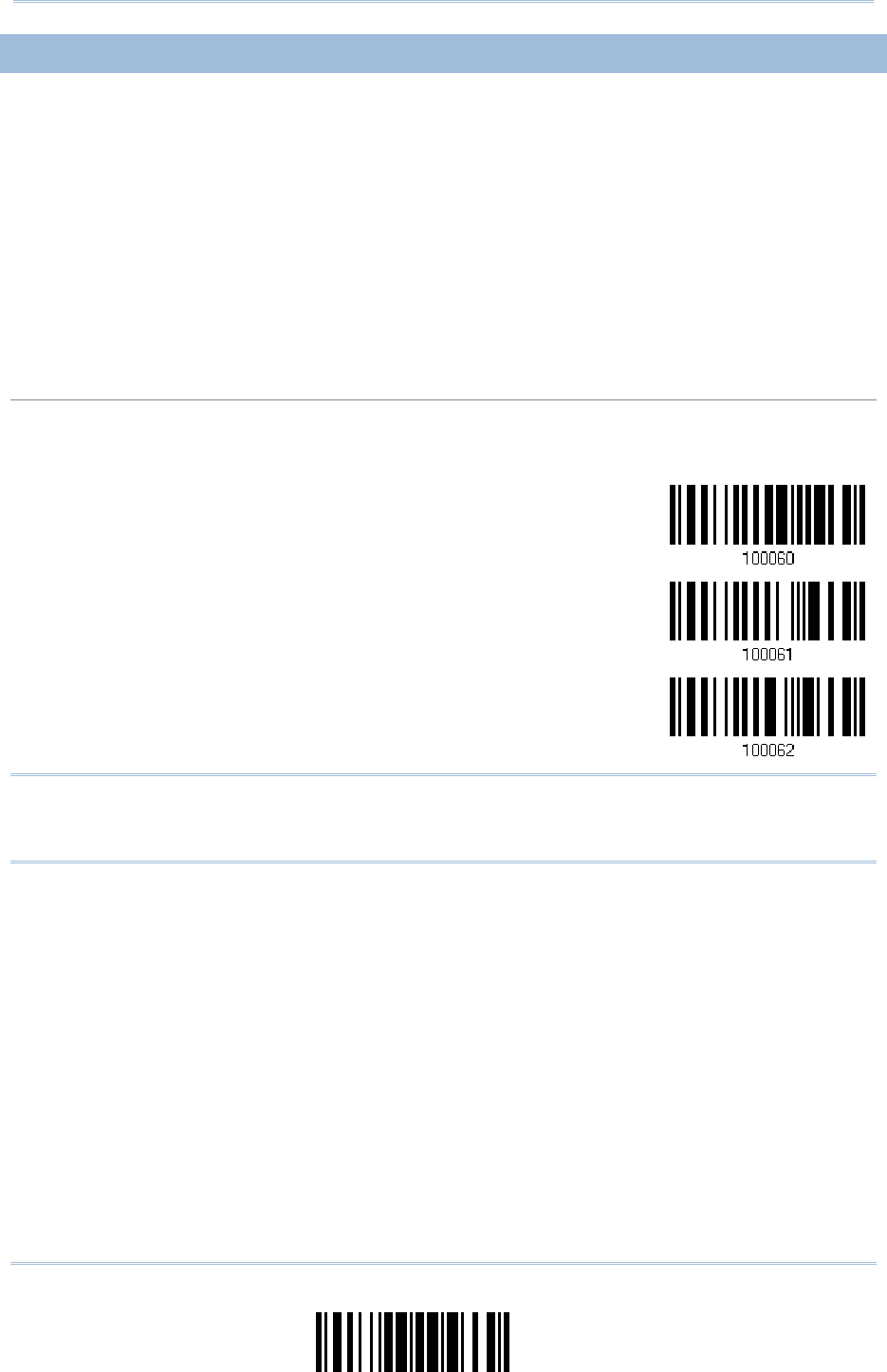

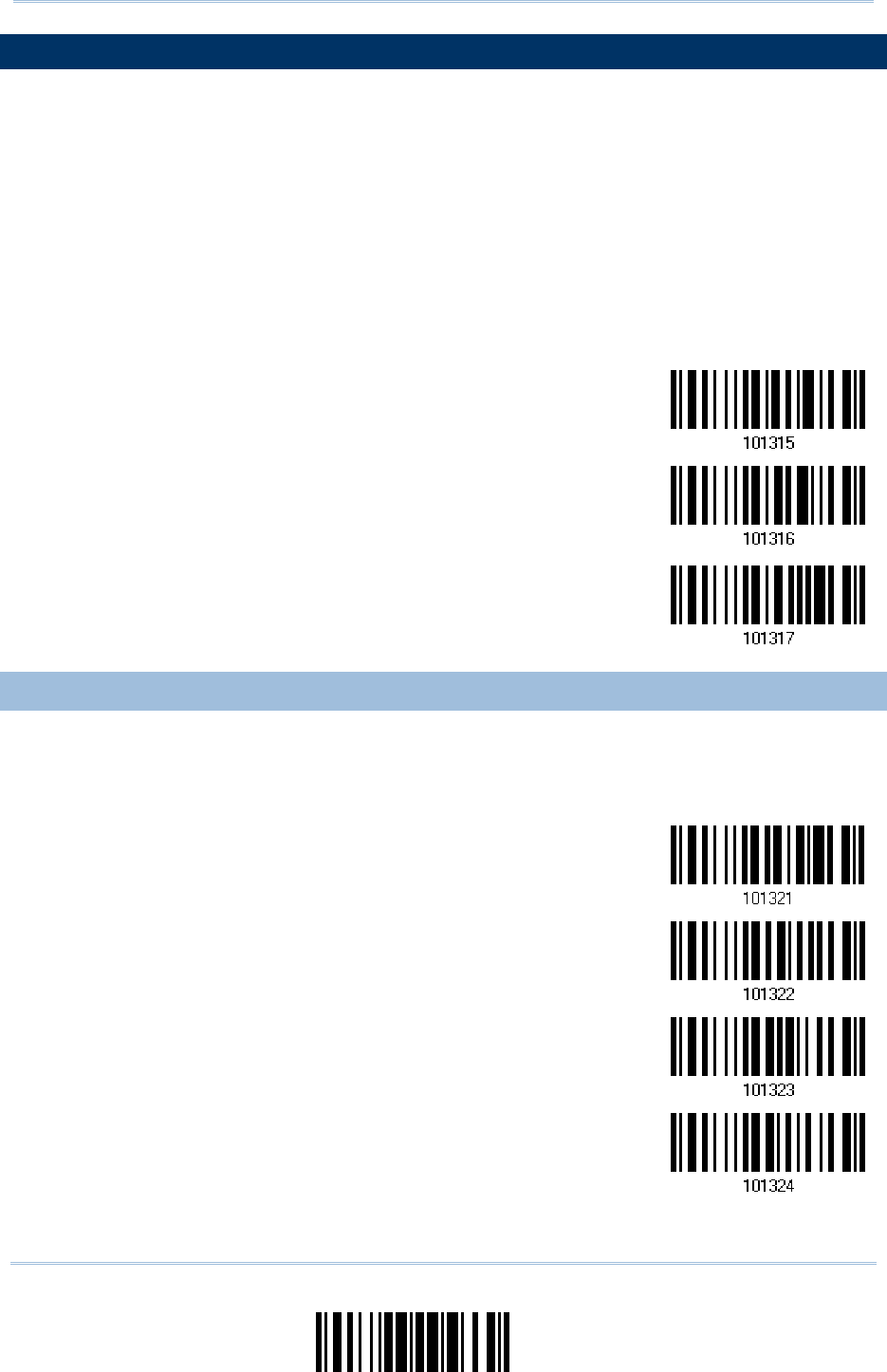

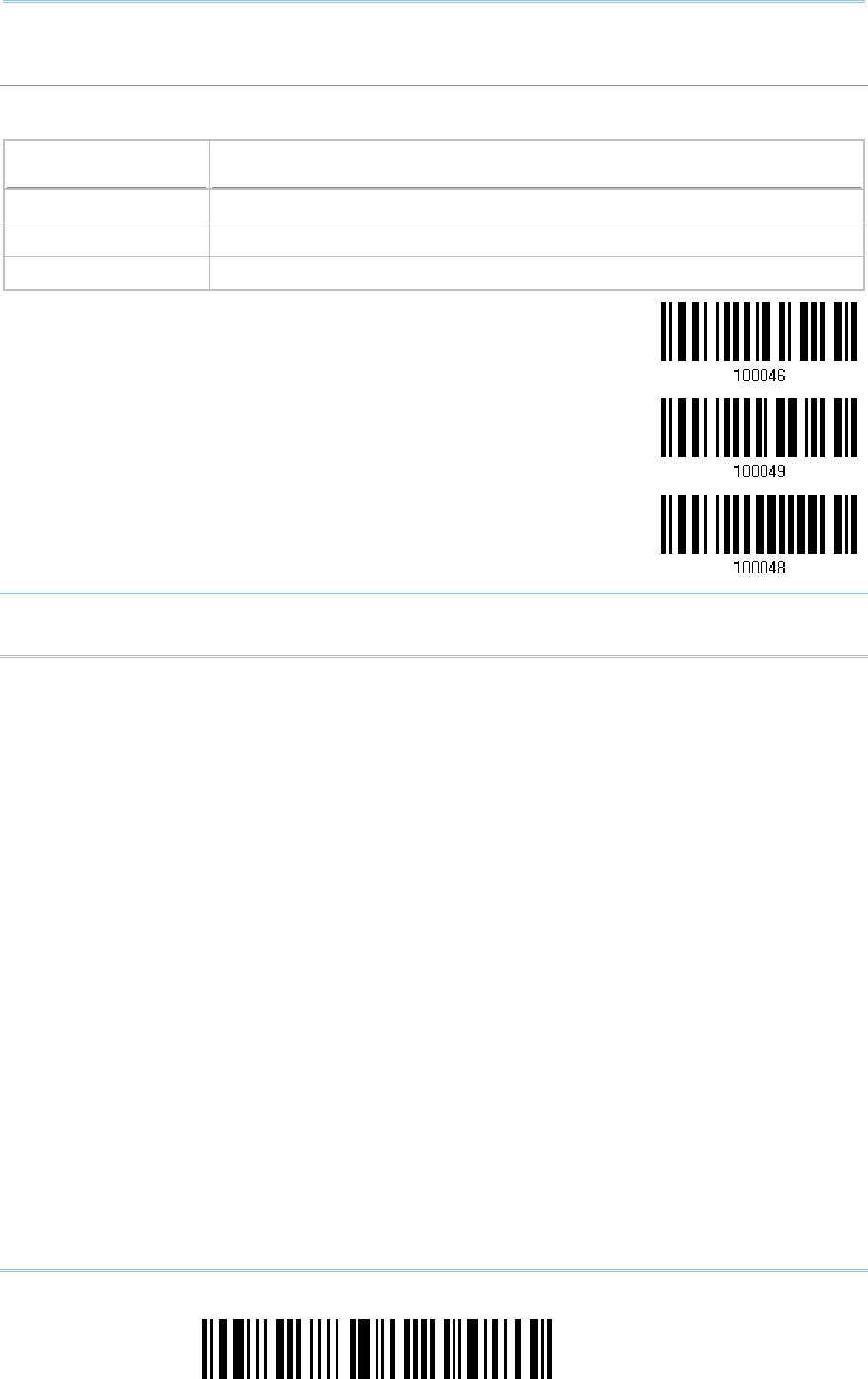

Alphabets Layout
By default, the alphabets layout is set to normal mode, also known as the standard English layout.
Select French or German keyboard layout if necessary. The scanner will make adjustments when
sending the "A", "Q", "W", "Z", "Y", and "M" characters according to this setting.
*Normal
AZERTY
QWERTZ
Note: This setting only works when the keyboard type selected is US keyboard, such as
PCAT (US). The Alphabets Layout and Digits Layout setting must match your
keyboard.
56
Enter Setup
1664 Barcode Scanner User Guide
US Keyboard Style – Normal
QWERTY layout, which is normally used in western countries.
Select “Lower Row” for the “Digits Layout” setting for the upper row is for special characters.
French Keyboard Style – AZERTY
French layout; see below for French Keyboard Style.
Select “Upper Row” for the “Digits Layout” setting for the lower row is for special characters.
German Keyboard Layout – QWERTZ
German layout; see below for German Keyboard Style.
Select “Lower Row” for the “Digits Layout” setting for the upper row is for special characters.
57
Update
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。

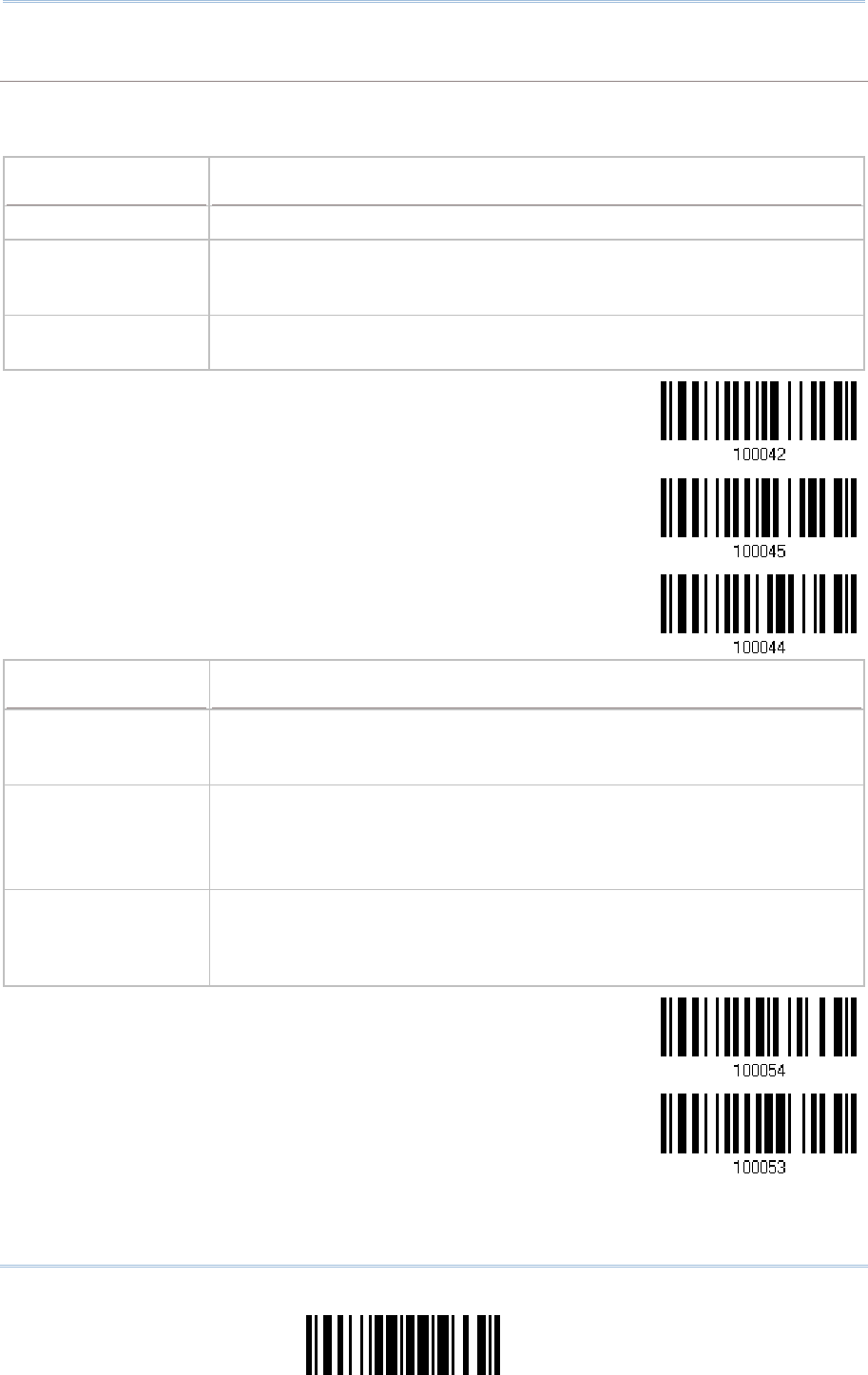

Digits Layout
Select a proper layout that matches the alphabets layout. The scanner will make adjustments
according to this setting.
Options Description
Normal Depends on the [Shift] key or [Shift Lock] setting
Lower Row For QWERTY or QWERTZ keyboard
Upper Row For AZERTY keyboard
*Normal
Upper Row
Lower Row
Note: This setting is to be used with the Character Substitution setting when support to
certain keyboard types (languages) is unavailable but required.
58
Enter Setup
1664 Barcode Scanner User Guide

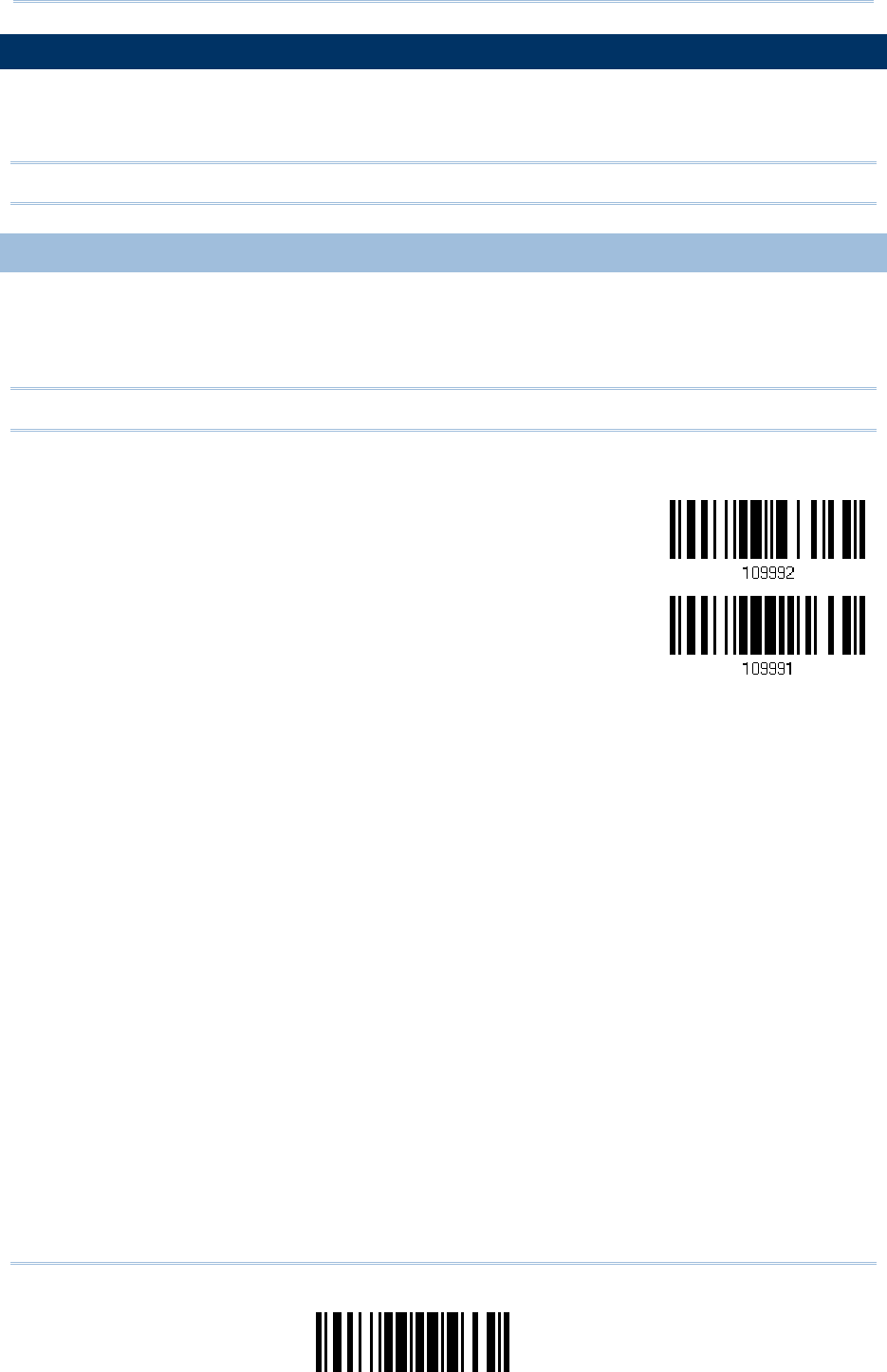

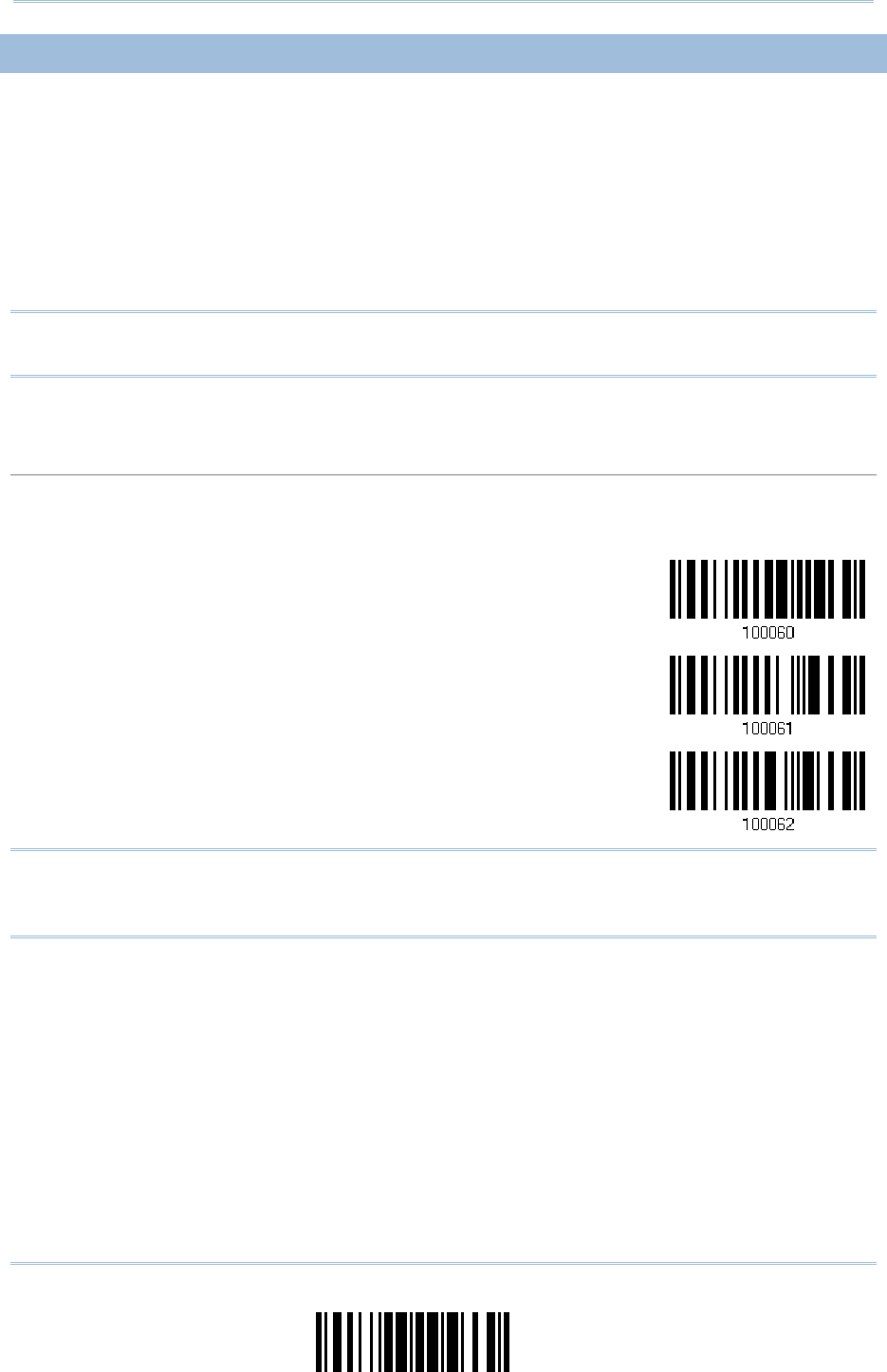

Capital Lock Type & Setting
In order to send the alphabets with correct case, the scanner needs to know the status of Caps
Lock on the keyboard. Incorrect settings may result in reversed case of the alphabets being
transmitted.

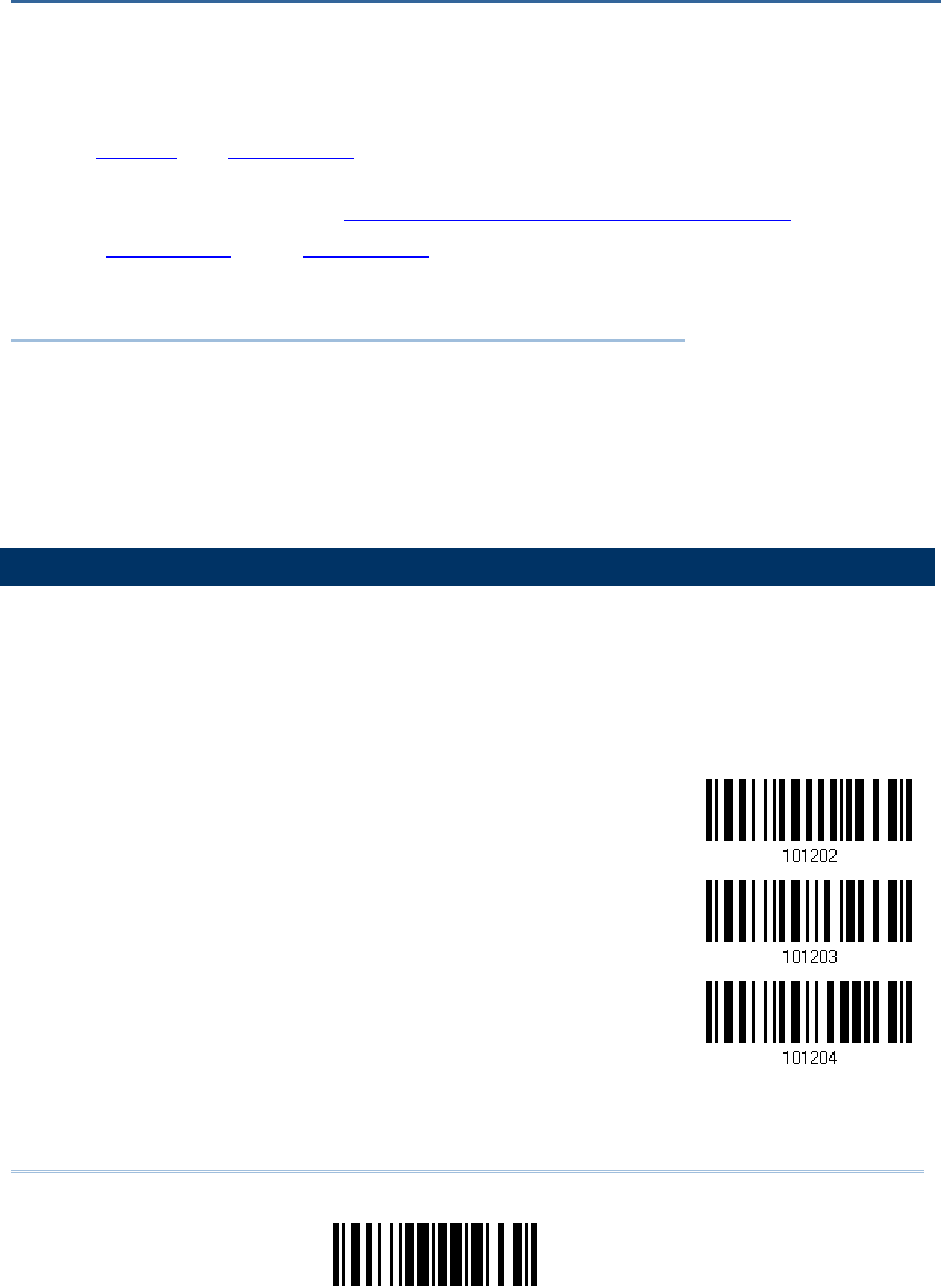

Cap Lock Type Description
Normal Normal type
Capital Lock When enabled, the keys of alphabetic characters will be interpreted as
capital letters. However, this does not affect the number or punctuation
keys.
Shift Lock When enabled, the keys of alphabetic characters will be interpreted as
capital letters. In addition, this affects the number or punctuation keys.
*Normal
Shift Lock
Capital Lock
Capital Lock State Description
Capital Lock OFF Assuming that the status of Caps Lock on the keyboard is OFF,
transmitted characters are exactly the same as in the barcode (when
"case-sensitive" is selected for Alphabets Transmission).
Capital Lock ON Assuming that the status of Caps Lock on the keyboard is ON, transmitted
characters are exactly the same as in the barcode (when "case-sensitive"
is selected for Alphabets Transmission).
Refer to the Capital Lock Type above.
Auto Detection
T
he scanner will automatically detect the status of Caps Lock on the
keyboard before data is transmitted; transmitted characters are exactly
the same as in the barcode (when "case-sensitive" is selected for
Alphabets Transmission).
This setting is not supported on PDAs.
Auto Detect
Capital Lock ON
59
Update
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
*Capital Lock OFF
60
Enter Setup
1664 Barcode Scanner User Guide
Alphabets Transmission
By default, the alphabets transmission is case-sensitive, meaning that the alphabets will be
transmitted according to their original case, the status of Caps Lock on the keyboard, as well as the
Capital Lock setting. Select [Ignore Case] to have alphabets transmitted according to the status of
Caps Lock on the keyboard only.
Ignore Case
*Case-sensitive
R
efer to 5.1 Letter Case.
61
Update
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。

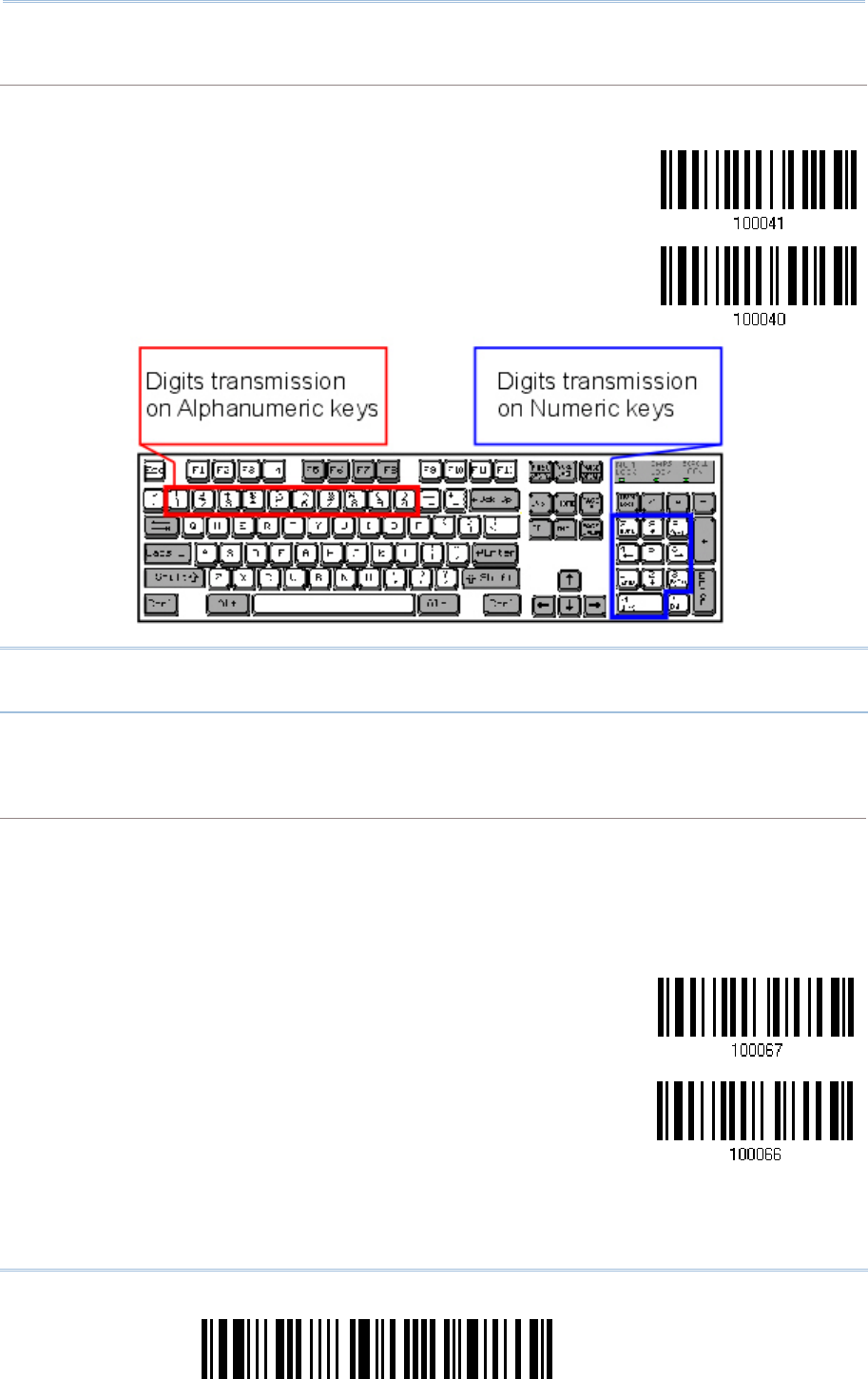

Digits Transmission
By default, the alphanumeric keypad is used for transmitting digits. Select “Numeric Keypad” if you
wish to use the keys on the numeric keypad.
Numeric Key
*Alphanumeric Key
Note: If you select “Numeric Keypad”, the Num Lock status of the physical keyboard
should be “ON”. This setting is not supported on PDAs.

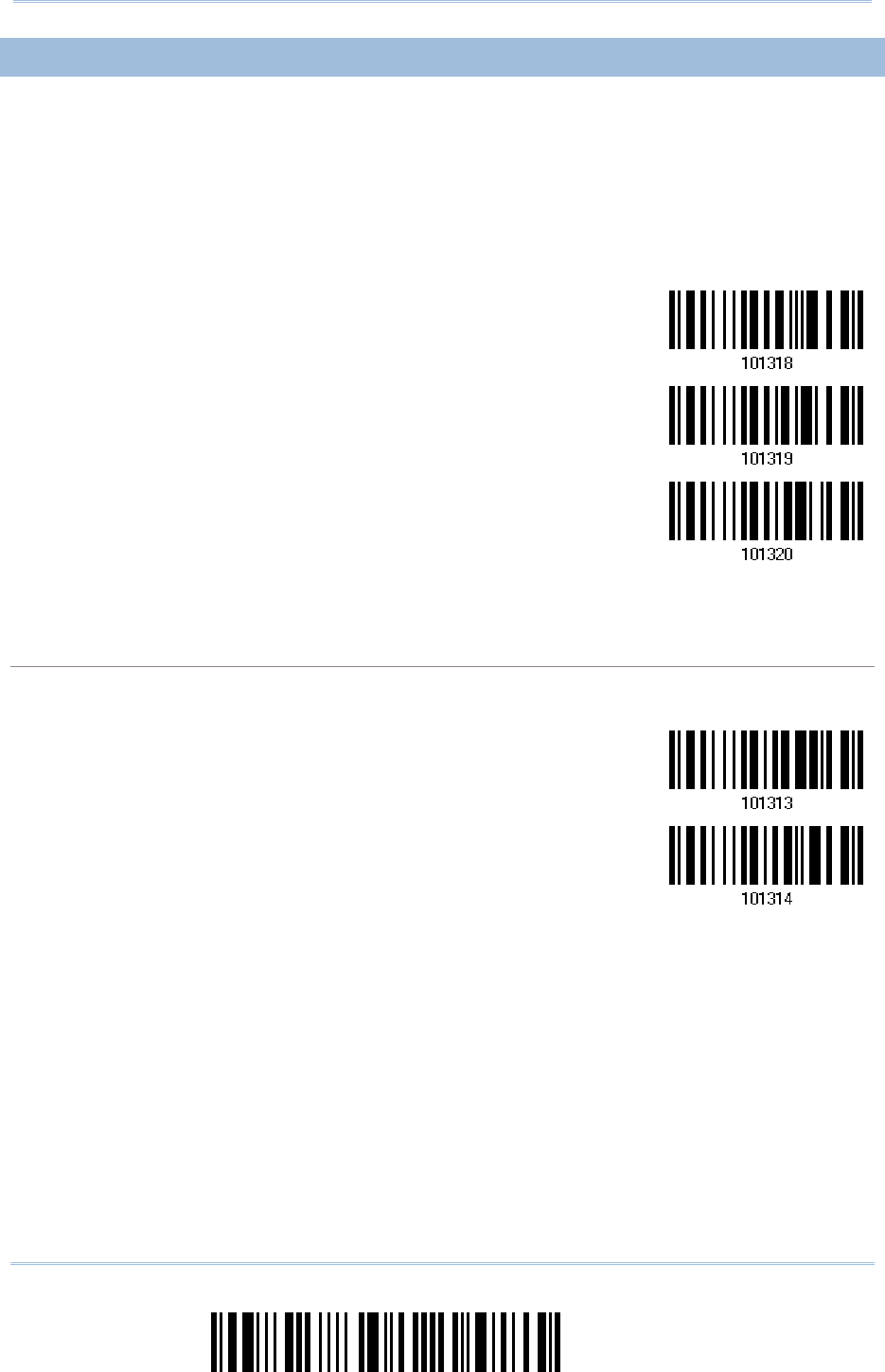

Kanji Transmission
Kanji Transmission is supported by the scanner when either Bluetooth® HID or USB HID is selected
for the output interface. By Kanji Transmission, when the host computer is running on Japanese
Windows O.S., the scanner is able to transmit Japanese characters including the Chinese
characters used in modern Japanese writing system.
Kanji Transmission is disabled by default. Enable/disable scanner’s Kanji Transmission by reading
the following barcodes:
Enable
*Disable
62
Enter Setup
1664 Barcode Scanner User Guide
2.1.4 INTER-CHARACTER DELAY
By default, the inter-character delay is set to zero. Specify a value, ranging from 0 to
254 in units of millisecond, to match the computer response time of the keyboard
interface. Such delay time is inserted between every character being transmitted. The
longer the delay time is, the slower the transmission speed will be.
Inter-Character
Delay… (*0~254)
1) Read the barcode above to specify the inter-character delay.
2) Read the “Decimal Value” barcode on page 251 for the desired inter-character delay
(millisecond).
3) Read the “Validate” barcode on the same page to complete this setting.
2.1.5 INTER-FUNCTION DELAY
By default, the inter-function delay is set to zero. Specify a value, ranging from 0 to 254
in units of millisecond, to match the computer response time of the keyboard interface.
Such delay time is inserted between every function code (0x01 ~ 0x1F) being
transmitted. The longer the delay time is, the slower the transmission speed will be.
Inter-Function
Delay… (*0~254)
1) Read the barcode above to specify the inter-function delay.
2) Read the “Decimal Value” barcode on page 251 for the desired inter-function delay
(millisecond).
3) Read the “Validate” barcode on the same page to complete this setting.
63
Update
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。

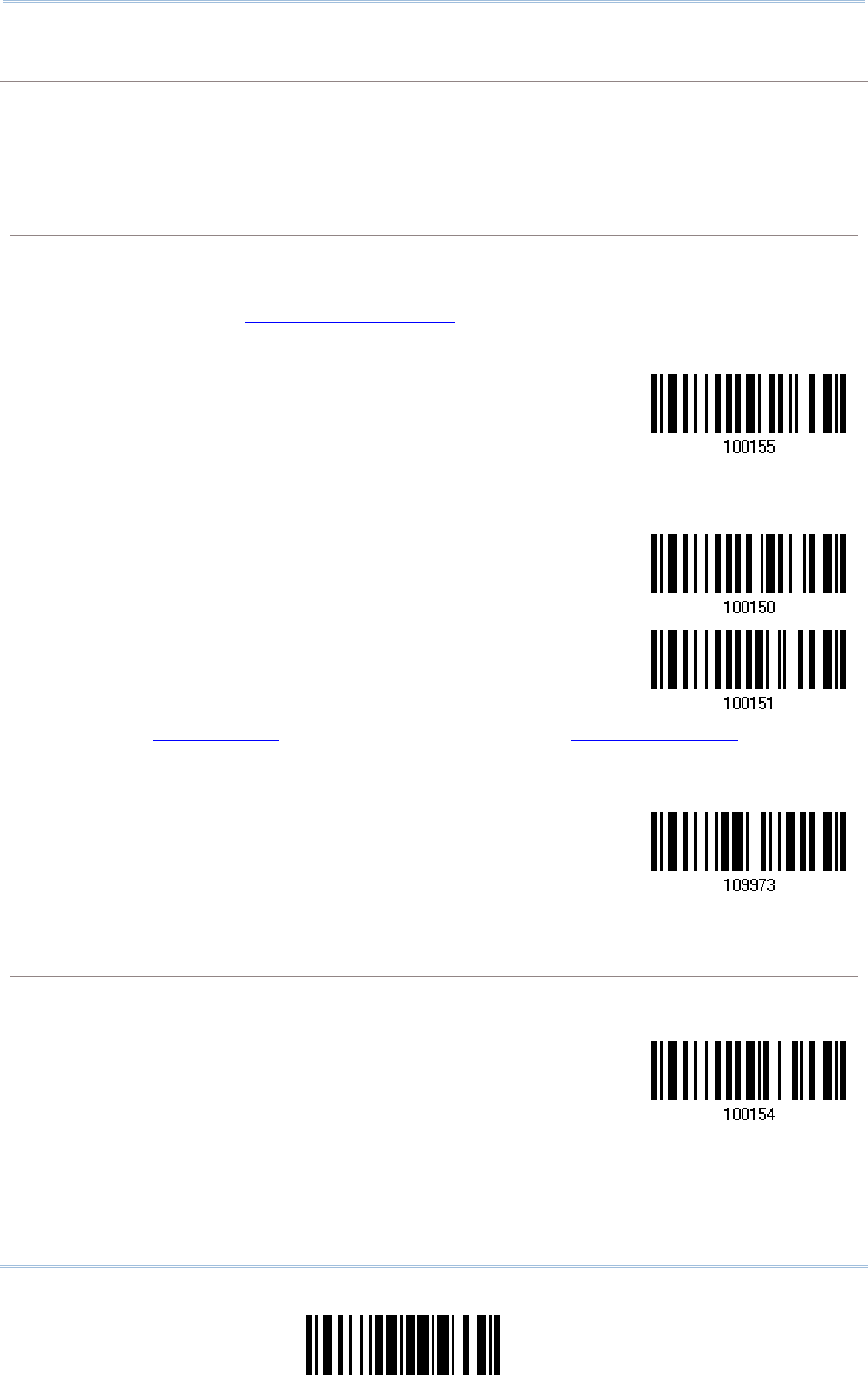

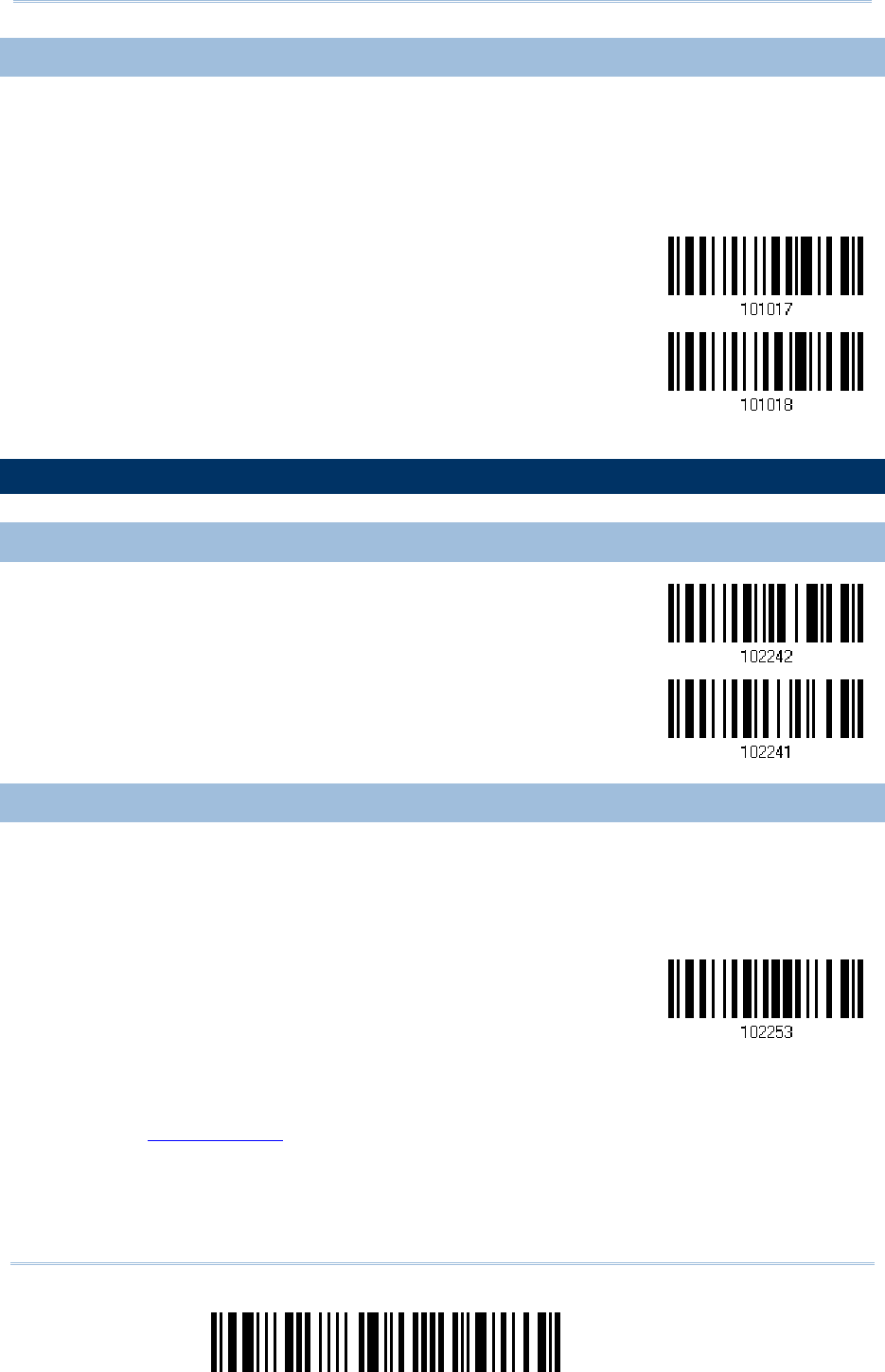

2.1.6 HID CHARACTER TRANSMIT MODE
By default, HID interface sends data to the host in batch. You may have the scanner read
the “By Character” barcode to process data one character at a time.
*Batch Processing
By Character
Note: “By Character” transmit mode is required when working with iPhone or iPad.
2.1.7 KEYPAD SUPPORT FOR IPHONE/IPAD
When the scanner has been successfully connected to iPhone or iPad for data collection,
the onscreen keypad of iPhone or iPad will disappear. Have the scanner read the “Use
POWER Key to Show or Hide Keypad” barcode in advance. Then, it will allow pressing the
[Power/Delete] key to show or hide the onscreen keypad.
*Normal
Use POWER Key to
Show or Hide Keypad
Instead of using the [Power/Delete] key, also may have the scanner read the following
barcode to show or hide the keypad.
Show or Hide Keypad
Note: This function only works for
(1) iPhone 4 and 3GS version 4.1 or later, and (2) iPad version 4.2 or later.
64
Enter Setup
1664 Barcode Scanner User Guide
2.2 BLUETOOTH® SPP SLAVE
For Bluetooth® SPP Slave, refer to Chapter 3 – Setting up a WPAN Connection for related
connection settings.
2.2.1 ACTIVATE BLUETOOTH® SPP SLAVE MODE
This is SPP Slave Mode.
Activate Bluetooth®
SPP, Slave Mode
2.2.2 INTER-FUNCTION DELAY
By default, the inter-function delay is set to zero. Specify a value, ranging from 0 to 254
in units of millisecond, to match the computer response time of the keyboard interface.
Such delay time is inserted between every function code (0x01 ~ 0x1F) being
transmitted. The longer the delay time is, the slower the transmission speed will be.
Inter-Function
Delay… (*0~254)
1) Read the barcode above to specify the inter-function delay.
2) Read the “Decimal Value” barcode on page 251 for the desired inter-function delay
(millisecond).
3) Read the “Validate” barcode on the same page to complete this setting.
65
Update
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
2.2.3 ACK/NAK TIMEOUT
By default, the scanner sends data to the host without waiting for an ACK/NAK response
before sending more data. Specify a value, ranging from 1 to 99 in units of 0.1 second. If
no response within the specified period of time, the scanner will attempt to send the
same data two more times. If all three attempts fail without any notification, data loss
will occur.
ACK/NAK Time-out
after … (*0~99)
1) Read the barcode above to specify the time interval for the scanner to send data and
wait for a response from the host.
2) Read the “Decimal Value” barcode on page 251. For example, read “1” and “0” for the
scanner to automatically shut down after being idle for 1 second.
3) Read the “Validate” barcode on the same page to complete this setting.
ACK/NAK Error Beep
Enable Error Beep
*Disable Error Beep
Note: We suggest enabling the error beep so that you will be notified of such data loss
and have the scanner re-read data.
66
Enter Setup
1664 Barcode Scanner User Guide
2.3 BLUETOOTH® SPP MASTER
As a SPP master device, the scanner will be able to resume connection with the host
upon powering on again, as long as the host application is running. If the scanner fails to
resume connection, it will try every 5 seconds to re-connect to the host unless you have
the scanner read the “Reset Connection” or “Restore System Defaults” barcode.
For Bluetooth® SPP Master, refer 3.2.2 Configure Related Settings for related connection
settings.
Note: In SPP Master Mode, scanner has to connect within the specified period of time (2
minutes by default). During the connection, the scanner will into idle mode for
saving power. It will automatically turn off when the time is up. Refer to 1.1.2
Auto Power Off & Power-Saving.

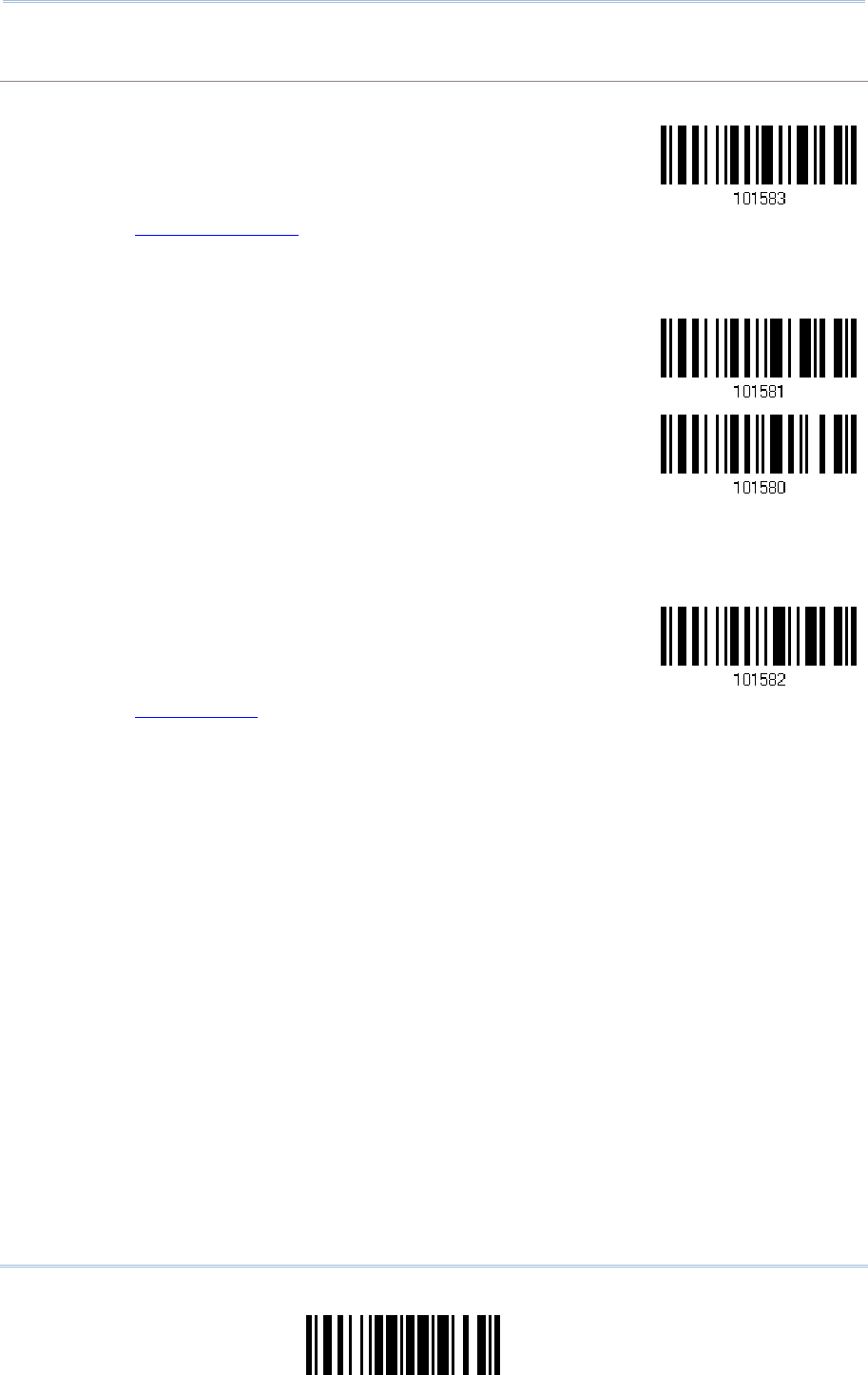

2.3.1 ACTIVATE BLUETOOTH® SPP MASTER MODE
This is SPP Master Mode.
Activate Bluetooth®
SPP, Master Mode
How to connect with the target device?
Produce two setup barcodes for the target SPP slave device, just like what we do for 3610.
“Set Connection”
“MAC ID”
Note: The “MAC ID” barcode must have a prefix of two characters, either “0x” or “0X”,
followed by the real MAC address of the target device.
Usage:
1. Read the “Activate Bluetooth® SPP, Master Mode” barcode above and barcodes for connection
settings, such as authentication and preset PIN. Skip this step if no connection settings are
desired.
2. Read the “Set Connection” and “MAC ID” barcodes. The scanner will respond with one beep
upon reading each of the barcodes.
Set Connection
P
refix “0X” to target MAC address
67
Update
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Note: Read the “Set Connection” barcode first, and then the “MAC ID” barcode within 10
seconds.
Instead of producing the “MAC ID” barcode, you may have the scanner read the setup barcodes for
entering the MAC address.
Have the scanner read the “Abort” barcode to cancel the operation at any time while reading
setup barcodes for the MAC address. If the MAC address has not been completed yet, having
the scanner read the “Validate” barcode can cancel the operation as well.
Enter MAC ID in
Hexadecimal…
Usage:
1. Read the barcode above.
2. Read the “Hexadecimal Value” barcode on page 252 for the desired MAC address.
3. Read the “Validate” barcode on the same page to complete this setting.

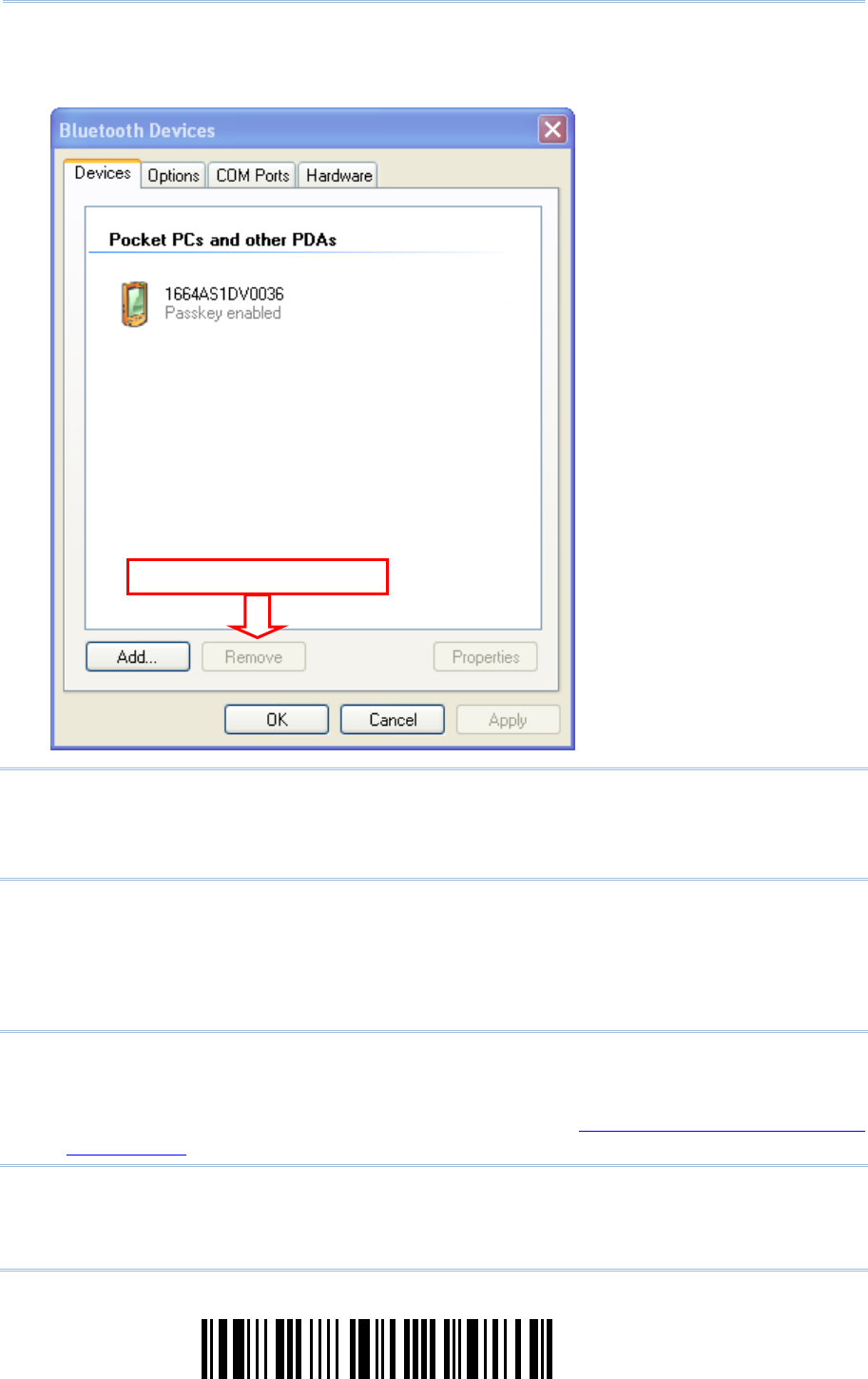

Exit SPP Master Mode
To stop such re-connection, have the scanner read “Reset Connection” or “Restore System
Defaults” barcode so that the current connection record (= MAC ID) will be cleared. Then, the
scanner will restart itself automatically. Go through the whole process in 3.2.3 Connect to Dongle
to establish a new WPAN connection.
Reset Connection
68
Enter Setup
1664 Barcode Scanner User Guide
2.3.2 INTER-FUNCTION DELAY
By default, the inter-function delay is set to zero. Specify a value, ranging from 0 to 254
in units of millisecond, to match the computer response time of the keyboard interface.
Such delay time is inserted between every function code (0x01 ~ 0x1F) being
transmitted. The longer the delay time is, the slower the transmission speed will be.
Inter-Function
Delay… (*0~254)
1) Read the barcode above to specify the inter-function delay.
2) Read the “Decimal Value” barcode on page 251 for the desired inter-function delay
(millisecond).
3) Read the “Validate” barcode on the same page to complete this setting.
69
Update
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
2.3.3 ACK/NAK TIMEOUT
By default, the scanner sends data to the host without waiting for an ACK/NAK response
before sending more data. Specify a value, ranging from 1 to 99 in units of 0.1 second. If
no response within the specified period of time, the scanner will attempt to send the
same data two more times. If all three attempts fail without any notification, data loss
will occur.
ACK/NAK Time-out
after … (*0~99)
1) Read the barcode above to specify the time interval for the scanner to send data and
wait for a response from the host.
2) Read the “Decimal Value” barcode on page 251. For example, read “1” and “0” for the
scanner to automatically shut down after being idle for 1 second.
3) Read the “Validate” barcode on the same page to complete this setting.
ACK/NAK Error Beep
Enable Error Beep
*Disable Error Beep
Note: We suggest enabling the error beep so that you will be notified of such data loss
and have the scanner re-read data.
2.3.4 SWITCH BETWEEN MASTER/SLAVE MODE
After the scanner has established a connection as a SPP slave device, you may have it
read the “Activate Bluetooth® SPP, Master Mode” setup barcode to switch to SPP Master
Mode. This will result in easy and reliable re-connection, just like connecting with 3610.
70
Enter Setup
1664 Barcode Scanner User Guide
2.4 USB HID VIA 3610
For USB HID, connect 3610 to the USB port of PC, and then connect the scanner to 3610.
Run any text editor on a computer, and the scanned data will be transmitted to the
computer.
HID Settings Defaults
Keyboard Type PCAT (US)
Digits Layout Normal
Capital Lock Type Normal
Capital Lock State Off
Alphabets Transmission Case-sensitive
Digits Transmission Alphanumeric keypad
Kanji Transmission Disable
Inter-Character Delay 0 (ms)
Inter-Function Delay 0 (ms)
71
Update
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
2.4.1 ACTIVATE USB HID & SELECT KEYBOARD TYPE
When USB HID interface is activated, you will have to select a keyboard type to complete
this setting.
Activate
3610 USB HID & Select
Keyboard Type…
1) Read the barcode above to activate USB HID and select a keyboard type.
2) Read the “Decimal Value” barcode on page 251. Refer to the table below for the
number of desired keyboard type.
3) Read the “Validate” barcode on the same page to complete this setting.
USB HID
By default, the keyboard type is set to PCAT (US). The following keyboard types are supported —
No. Keyboard Type No.
Keyboard Type
64 PCAT (US) 71 PCAT (Belgium)
65 PCAT (French) 72 PCAT (Spanish)
66 PCAT (German) 73 PCAT (Portuguese)
67 PCAT (Italy) 74 PS55 A01-2 (Japanese)
68 PCAT (Swedish) 75 User-defined table
69 PCAT (Norwegian) 76 PCAT (Turkish)
70 PCAT (UK) 77 PCAT (Hungarian)
72
Enter Setup
1664 Barcode Scanner User Guide
2.4.2 KEYBOARD SETTINGS
Alphabets Layout
Digits Layout
Capital Lock Type
Capital Lock Setting
Alphabets Transmission
Digits Transmission
Kanji Transmission
Alphabets Layout
By default, the alphabets layout is set to normal mode, also known as the standard English layout.
Select French or German keyboard layout if necessary. The scanner will make adjustments when
sending the "A", "Q", "W", "Z", "Y", and "M" characters according to this setting.
*Normal
AZERTY
QWERTZ
Note: This setting only works when the keyboard type selected is US keyboard, such as
PCAT (US). The Alphabets Layout and Digits Layout setting must match your
keyboard.
73
Update
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
US Keyboard Style – Normal
QWERTY layout, which is normally used in western countries.
Select “Lower Row” for the “Digits Layout” setting for the upper row is for special characters.
French Keyboard Style – AZERTY
French layout; see below for French Keyboard Style.
Select “Upper Row” for the “Digits Layout” setting for the lower row is for special characters.
German Keyboard Layout – QWERTZ
German layout; see below for German Keyboard Style.
Select “Lower Row” for the “Digits Layout” setting for the upper row is for special characters.
74
Enter Setup
1664 Barcode Scanner User Guide
Digits Layout
Select a proper layout that matches the alphabets layout. The scanner will make adjustments
according to this setting.
Options Description
Normal Depends on the [Shift] key or [Shift Lock] setting
Lower Row For QWERTY or QWERTZ keyboard
Upper Row For AZERTY keyboard
*Normal
Upper Row
Lower Row
Note: This setting is to be used with the Character Substitution setting when support to
certain keyboard types (languages) is unavailable but required.
75
Update
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Capital Lock Type & Setting
In order to send the alphabets with correct case, the scanner needs to know the status of Caps
Lock on the keyboard. Incorrect settings may result in reversed case of the alphabets being
transmitted.
Cap Lock Type Description
Normal Normal type
Capital Lock When enabled, the keys of alphabetic characters will be interpreted as
capital letters. However, this does not affect the number or punctuation
keys.
Shift Lock When enabled, the keys of alphabetic characters will be interpreted as
capital letters. In addition, this affects the number or punctuation keys.
*Normal
Shift Lock
Capital Lock
Capital Lock State Description
Capital Lock OFF Assuming that the status of Caps Lock on the keyboard is OFF,
transmitted characters are exactly the same as in the barcode (when
"case-sensitive" is selected for Alphabets Transmission).
Capital Lock ON Assuming that the status of Caps Lock on the keyboard is ON, transmitted
characters are exactly the same as in the barcode (when "case-sensitive"
is selected for Alphabets Transmission).
Refer to the Capital Lock Type above.
Auto Detection
T
he scanner will automatically detect the status of Caps Lock on the
keyboard before data is transmitted; transmitted characters are exactly
the same as in the barcode (when "case-sensitive" is selected for
Alphabets Transmission).
Auto Detect
Capital Lock ON
76
Enter Setup
1664 Barcode Scanner User Guide
*Capital Lock OFF
77
Update
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Alphabets Transmission
By default, the alphabets transmission is case-sensitive, meaning that the alphabets will be
transmitted according to their original case, the status of Caps Lock on the keyboard, as well as the
Capital Lock setting. Select [Ignore Case] to have alphabets transmitted according to the status of
Caps Lock on the keyboard only.
Ignore Case
*Case-sensitive
R
efer to 5.1 Letter Case.
78
Enter Setup
1664 Barcode Scanner User Guide
Digits Transmission
By default, the alphanumeric keypad is used for transmitting digits. Select “Numeric Keypad” if you
wish to use the keys on the numeric keypad.
Numeric Key
*Alphanumeric Key
Note: If you select “Numeric Keypad”, the Num Lock status of the physical keyboard
should be "ON".
Kanji Transmission
Kanji Transmission is supported by the scanner when either Bluetooth® HID or USB HID is selected
for the output interface. By Kanji Transmission, when the host computer is running on Japanese
Windows O.S., the scanner is able to transmit Japanese characters including the Chinese
characters used in modern Japanese writing system.
Kanji Transmission is disabled by default. Enable/disable scanner’s Kanji Transmission by reading
the following barcodes:
Enable
*Disable
79
Update
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
2.4.3 INTER-CHARACTER DELAY
By default, the inter-character delay is set to zero. Specify a value, ranging from 0 to
254 in units of millisecond, to match the computer response time of the keyboard
interface. Such delay time is inserted between every character being transmitted. The
longer the delay time is, the slower the transmission speed will be.
Inter-Character
Delay… (*0~254)
1) Read the barcode above to specify the inter-character delay.
2) Read the “Decimal Value” barcode on page 251 for the desired inter-character delay
(millisecond).
3) Read the “Validate” barcode on the same page to complete this setting.
2.4.4 INTER-FUNCTION DELAY
By default, the inter-function delay is set to zero. Specify a value, ranging from 0 to 254
in units of millisecond, to match the computer response time of the keyboard interface.
Such delay time is inserted between every function code (0x01 ~ 0x1F) being
transmitted. The longer the delay time is, the slower the transmission speed will be.
Inter-Function
Delay… (*0~254)
1) Read the barcode above to specify the inter-function delay.
2) Read the “Decimal Value” barcode on page 251 for the desired inter-function delay
(millisecond).
3) Read the “Validate” barcode on the same page to complete this setting.
80
Enter Setup
1664 Barcode Scanner User Guide
2.4.5 HID CHARACTER TRANSMIT MODE
By default, HID interface sends data to the host in batch. You may have the scanner read
the “By Character” barcode to process data one character at a time.
*Batch Processing
By Character
81
Update
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
2.5 USB VIRTUAL COM VIA 3610
Connect 3610 to the USB port of PC, and then connect the scanner to 3610. May run
HyperTerminal.exe on a computer, and the scanned data will be transmitted to the
computer.
Note: If you are using USB Virtual COM for the first time, you must install its driver from
the CD-ROM. Driver version 5.3 or later is required. Please remove older versions!
2.5.1 ACTIVATE USB VIRTUAL COM
Activate 3610
USB Virtual COM
2.5.2 INTER-FUNCTION DELAY
By default, the inter-function delay is set to zero. Specify a value, ranging from 0 to 254
in units of millisecond, to match the computer response time of the keyboard interface.
Such delay time is inserted between every function code (0x01 ~ 0x1F) being
transmitted. The longer the delay time is, the slower the transmission speed will be.
Inter-Function
Delay… (*0~254)
1) Read the barcode above to specify the inter-function delay.
2) Read the “Decimal Value” barcode on page 251 for the desired inter-function delay
(millisecond).
3) Read the “Validate” barcode on the same page to complete this setting.
82
Enter Setup
1664 Barcode Scanner User Guide
2.5.3 ACK/NAK TIMEOUT
By default, the scanner sends data to the host without waiting for an ACK/NAK response
before sending more data. Specify a value, ranging from 1 to 99 in units of 0.1 second. If
no response within the specified period of time, the scanner will attempt to send the
same data two more times. If all three attempts fail without any notification, data loss
will occur.
ACK/NAK Time-out
after … (*0~99)
1) Read the barcode above to specify the time interval for the scanner to send data and
wait for a response from the host.
2) Read the “Decimal Value” barcode on page 251. For example, read “1” and “0” for the
scanner to automatically shut down after being idle for 1 second.
3) Read the “Validate” barcode on the same page to complete this setting.
ACK/NAK Error Beep
Enable Error Beep
*Disable Error Beep
Note: We suggest enabling the error beep so that you will be notified of such data loss
and have the scanner re-read data.
83
Update
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
2.6 DIRECT USB HID
1664 supports “Direct” USB HID interface for memory mode. Use the provided USB cable
to connect 1664 to the USB port of PC. Run any text editor on a computer, and the
scanned data will be transmitted to the computer. Refer to 1.2.2 Memory Mode.
HID Settings Defaults
Keyboard Type HID PCAT (US)
Digits Layout Normal
Capital Lock Type Normal
Capital Lock State OFF
Alphabets Transmission Case Sensitive
Digits Transmission Alphanumeric Keypad
Kanji Transmission Disable
Alphabets Layout Normal
Inter-Character Delay 0 (ms)
Inter-Function Delay 0 (ms)
84
Enter Setup
1664 Barcode Scanner User Guide
2.6.1 ACTIVATE USB HID & SELECT KEYBOARD TYPE
When USB HID interface is activated, please select a keyboard type to complete this
setting.
Activate
Direct USB HID &
Select Keyboard
Type…
1) Read the barcode above to activate USB HID and select a keyboard type.
2) Read the “Decimal Value” barcode page 251 . Refer to the table below for the number
of desired keyboard type.
3) Read the “Validate” barcode on the same page to complete this setting.
USB HID
By default, the keyboard type is set to PCAT (US). The following keyboard types are supported —
No. Keyboard Type No.
Keyboard Type
64 HID PCAT (US) 71 HID PCAT (Belgium)
65 HID PCAT (French) 72 HID PCAT (Spanish)
66 HID PCAT (German) 73 HID PCAT (Portuguese)
67 HID PCAT (Italy) 74 HID A01-2 (Japanese)
68 HID PCAT (Swedish) 75 User-Defined Table
69 HID PCAT (Norwegian) 76 HID PCAT (Turkish)
70 HID PCAT (UK) 77 HID PCAT (Hungarian)
85
Update
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
2.6.2 KEYBOARD SETTINGS
Alphabets Layout
Digits Layout
Capital Lock Type
Capital Lock Setting
Alphabets Transmission
Digits Transmission
Kanji Transmission
Alphabets Layout
By default, the alphabets layout is set to normal mode, also known as the standard English layout.
Select French or German keyboard layout if necessary. The scanner will make adjustments when
sending the "A", "Q", "W", "Z", "Y", and "M" characters according to this setting.
*Normal
AZERTY
QWERTZ
Note: This setting only works when the keyboard type selected is US keyboard, such as
PCAT (US). The Alphabets Layout and Digits Layout setting must match using
keyboard.
86
Enter Setup
1664 Barcode Scanner User Guide
US Keyboard Style – Normal
QWERTY layout, which is normally used in western countries.
Select “Lower Row” for the “Digits Layout” setting for the upper row is for special characters.
French Keyboard Style – AZERTY
French layout; see below for French Keyboard Style.
Select “Upper Row” for the “Digits Layout” setting for the lower row is for special characters.
German Keyboard Layout – QWERTZ
German layout; see below for German Keyboard Style.
Select “Lower Row” for the “Digits Layout” setting for the upper row is for special characters.
87
Update
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Digits Layout
Select a proper layout that matches the alphabets layout. The scanner will make adjustments
according to this setting.
Options Description
Normal Depends on the [Shift] key or [Shift Lock] setting
Lower Row For QWERTY or QWERTZ keyboard
Upper Row For AZERTY keyboard
*Normal
Upper Row
Lower Row
Note: This setting is to be used with the Character Substitution setting when support to
certain keyboard types (languages) is unavailable but required.
88
Enter Setup
1664 Barcode Scanner User Guide
Capital Lock Type & Setting
In order to send the alphabets with correct case, the scanner needs to know the status of Caps
Lock on the keyboard. Incorrect settings may result in reversed case of the alphabets being
transmitted.
Cap Lock Type Description
Normal Normal type
Capital Lock When enabled, the keys of alphabetic characters will be interpreted as
capital letters. However, this does not affect the number or punctuation
keys.
Shift Lock When enabled, the keys of alphabetic characters will be interpreted as
capital letters. In addition, this affects the number or punctuation keys.
*Normal
Shift Lock
Capital Lock
Capital Lock State Description
Capital Lock OFF Assuming that the status of Caps Lock on the keyboard is OFF,
transmitted characters are exactly the same as in the barcode (when
"case-sensitive" is selected for Alphabets Transmission).
Capital Lock ON Assuming that the status of Caps Lock on the keyboard is ON, transmitted
characters are exactly the same as in the barcode (when "case-sensitive"
is selected for Alphabets Transmission).
Refer to the Capital Lock Type above.
Auto Detection
T
he scanner will automatically detect the status of Caps Lock on the
keyboard before data is transmitted; transmitted characters are exactly
the same as in the barcode (when "case-sensitive" is selected for
Alphabets Transmission).
Auto Detect
Capital Lock ON
89
Update
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
*Capital Lock OFF
90
Enter Setup
1664 Barcode Scanner User Guide
Alphabets Transmission
By default, the alphabets transmission is case-sensitive, meaning that the alphabets will be
transmitted according to their original case, the status of Caps Lock on the keyboard, as well as the
Capital Lock setting. Select [Ignore Case] to have alphabets transmitted according to the status of
Caps Lock on the keyboard only.
Ignore Case
*Case-sensitive
R
efer to 5.1 Letter Case.
91
Update
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Digits Transmission
By default, the alphanumeric keypad is used for transmitting digits. Select “Numeric Keypad” if
want to use the keys on the numeric keypad.
Numeric Key
*Alphanumeric Key
Note: If selecting “Numeric Keypad”, the Num Lock status of the physical keyboard
should be "ON".
Kanji Transmission
Kanji Transmission is supported by the scanner when either Bluetooth® HID or USB HID is selected
for the output interface. By Kanji Transmission, when the host computer is running on Japanese
Windows O.S., the scanner is able to transmit Japanese characters including the Chinese
characters used in modern Japanese writing system.
Kanji Transmission is disabled by default. Enable/disable scanner’s Kanji Transmission by reading
the following barcodes:
Enable
*Disable
92
Enter Setup
1664 Barcode Scanner User Guide
2.6.3 INTER-CHARACTER DELAY
By default, the inter-character delay is set to zero. Specify a value, ranging from 0 to
254 in units of millisecond, to match the computer response time of the keyboard
interface. Such delay time is inserted between every character being transmitted. The
longer the delay time is, the slower the transmission speed will be.
Inter-Character
Delay… (*0~254)
1) Read the barcode above to specify the inter-character delay.
2) Read the “Decimal Value” barcode on page 251 for the desired inter-character delay
(millisecond).
3) Read the “Validate” barcode on the same page to complete this setting.
2.6.4 INTER-FUNCTION DELAY
By default, the inter-function delay is set to zero. Specify a value, ranging from 0 to 254
in units of millisecond, to match the computer response time of the keyboard interface.
Such delay time is inserted between every function code (0x01 ~ 0x1F) being
transmitted. The longer the delay time is, the slower the transmission speed will be.
Inter-Function
Delay… (*0~254)
1) Read the barcode above to specify the inter-function delay.
2) Read the “Decimal Value” barcode on page 251 for the desired inter-function delay
(millisecond).
3) Read the “Validate” barcode on the same page to complete this setting.
93
Update
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
2.6.5 HID CHARACTER TRANSMIT MODE
By default, HID interface sends data to the host in batch, or use the scanner to read the
“By Character” barcode to process data one character at a time.
*Batch Processing
By Character
94
Enter Setup
1664 Barcode Scanner User Guide
2.7 DIRECT USB VIRTUAL COM
1664 support “Direct” USB Virtual COM interface for memory mode. Use the provided
USB cable to connect 1664 to the USB port of PC. May run HyperTerminal.exe on a
computer, and the scanned data will be transmitted to the computer. Refer to 1.2.2
Memory Mode.
Note: If using USB Virtual COM for the first time, it must install its driver from the
CD-ROM. Driver version 5.3 or later is required. Please remove older versions!
2.7.1 ACTIVATE USB VIRTUAL COM
*
Activate Direct USB
Virtual COM
2.7.2 INTER-FUNCTION DELAY
By default, the inter-function delay is set to zero. Specify a value, ranging from 0 to 254
in units of millisecond, to match the computer response time of the keyboard interface.
Such delay time is inserted between every function code (0x01 ~ 0x1F) being
transmitted. The longer the delay time is, the slower the transmission speed will be.
Inter-Function
Delay… (*0~254)
1) Read the barcode above to specify the inter-function delay.
2) Read the “Decimal Value” barcode on page 251 for the desired inter-function delay
(millisecond).
3) Read the “Validate” barcode on the same page to complete this setting.
95
Update
Chapter 2 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
2.7.3 ACK/NAK TIMEOUT
By default, the scanner sends data to the host without waiting for an ACK/NAK response
before sending more data. Specify a value, ranging from 1 to 99 in units of 0.1 second. If
no response within the specified period of time, the scanner will attempt to send the
same data two more times. If all three attempts fail without any notification, data loss
will occur.
ACK/NAK Time-out
after … (*0~99)
1) Read the barcode above to specify the time interval for the scanner to send data and
wait for a response from the host.
2) Read the “Decimal Value” barcode on page 251. For example, read “1” and “0” for the
scanner to automatically shut down after being idle for 1 second.
3) Read the “Validate” barcode on the same page to complete this setting.
ACK/NAK Error Beep
Enable Error Beep
*Disable Error Beep
Note: It suggests enabling the error beep so that the issue has notified of such data loss
and has the scanner re-read data.
96
Enter Setup
1664 Barcode Scanner User Guide
97
Update
The scanner can be configured to send data to a host computer wirelessly via the 3610
dongle, or to a notebook computer or PDA with Bluetooth® wireless technology. Upon
powering up, the scanner will be ready for establishing a WPAN connection.
To establish a connection via 3610 after reading “Set Connection” and “Serial No.” labels …
Interface Option Reference
USB HID 2.4 USB HID via 3610
USB Virtual COM 2.5 USB Virtual COM via 3610
To establish a connection via Bluetooth® dongle after pairing…
Interface Option Reference
Bluetooth® HID 2.1 Bluetooth® HID
Bluetooth® SPP 2.2 Bluetooth® SPP Slave, 2.3 Bluetooth®
SPP Master
IN THIS CHAPTER
3.1 Connecting via 3610 .................................................. 98
3.2 Connecting via Bluetooth® Dongle ............................... 101
Chapter 3
SETTING UP A WPAN CONNECTION
98
Enter Setup
1664 Barcode Scanner User Guide
3.1 CONNECTING VIA 3610
By default, the interface of 3610 is set to “USB HID”. Use the interface cable to connect
the scanner via 3610 to PC. You can have up to seven scanners connected to one
computer at the same time.
Note: If you are using USB Virtual COM for the first time, you must install its driver from
the CD-ROM. Driver version 5.3 or later is required. Please remove older versions!
3.1.1 CONNECT TO 3610
Connect any scanner to 3610 by having the scanner read the two labels at the back of
3610. The scanner will respond with one beep upon reading each of the labels.
“Set Connection” label
“Serial Number” label
After reading these labels, the scanner will stay active for a specified period of time (2
minutes by default) trying to connect to the 3610 stand while its LED is flashing blue
(On/Off ratio 0.5 s: 0.5 s). Once connected, the scanner will respond with three beeps
(tone ascending from low to high), and the LED becomes flashing blue (On/Off ratio 0.02
s: 3 s). When getting out of range, the scanner will respond with three short beeps (tone
descending from high to low).
Read the “Set Connection” label first, and then the “Serial Number” label. If the “Set
Connection” label on 3610 is illegible, try this one —
Set Connection
Note: The 3610 settings will overwrite the interface-related settings on the scanners that
are currently connected to 3610.
99
Update
Chapter 3 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
3.1.2 CHANGE INTERFACE
If want to change the interface 3610, use one of the connected scanners to configure the
interface-related settings and it will pass the new settings to 3610, which will then
initialize and pass the settings to any other connected scanners.
1) Have the scanners read the “Set Connection” and “Serial Number” labels at the back
of 3610.
2) Within two minutes, connect 3610 to the USB port of PC. For USB Virtual COM, it may
need to install its driver first!
3) The scanners will connect to the computer via 3610.
4) Have one scanner read the “Enter Setup” barcode to enter the configuration mode.
5) Have the scanner read the desired interface barcode and configure its related
settings –
“Activate USB HID & Select Keyboard Type”
“Activate USB Virtual COM”
6) Have the scanner read the “Update” barcode to exit the configuration mode.
7) After the scanner resumes connection with 3610, it will pass the interface-related
settings to 3610.
8) Upon receipt of the new settings, 3610 will initialize itself.
9) Updated with new settings, 3610 will pass the settings to other connected scanners.
100
Enter Setup
1664 Barcode Scanner User Guide
3.1.3 CONFIGURE RELATED SETTINGS
Sniff Mode (Power-saving)
By default, this feature is enabled, meaning the scanner will listen to the wireless network at a
reduced rate.
*Enable
Disable
101
Update
Chapter 3 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
3.2 CONNECTING VIA BLUETOOTH® DONGLE
3.2.1 CHANGE INTERFACE
Below is the procedure to configure the scanner before establishing a WPAN connection
via Bluetooth® dongle.
1) Have the scanner read the “Enter Setup” barcode to enter the configuration mode.
2) Have the scanner read the desired interface barcode –
“Activate Bluetooth® HID & Select Keyboard Type”
“Activate Bluetooth® SPP Slave Mode”
“Activate Bluetooth® SPP Master Mode”
3) Have the scanner read the barcodes related to WPAN settings, such as Device Name
Broadcasting, Authentication & PIN Code, etc.
4) Have the scanner read the “Update” barcode to exit the configuration mode.
5) The scanner will stay active for a specified period of time (2 minutes by default)
waiting for a connection request from the host (SPP Slave Mode) or trying to connect
to the host (HID or SPP Master Mode). Its CPU is running at full speed, and the LED is
flashing blue (On/Off ratio 0.5 s: 0.5 s).
Once connected, when getting out of range, the scanner will respond with three short
beeps (tone descending from high to low).
102
Enter Setup
1664 Barcode Scanner User Guide
3.2.2 CONFIGURE RELATED SETTINGS
Sniff Mode (Power-saving)
By default, this feature is enabled, meaning the scanner will listen to the wireless network at a
reduced rate.
*Enable
Disable
Note: When connecting more than two scanners to a notebook computer or PDA with
Bluetooth® wireless technology, we suggest that you disable the power-saving
setting for a more reliable connection.
Device Name Broadcasting
The scanner can be configured to hide itself from other devices equipped with Bluetooth® wireless
technology. Simply disable the device name broadcasting setting so that it won’t be discovered by
any other computer or PDA. However, broadcasting must be enabled for establishing an initial
connection with the scanner. For example, disable device name broadcasting after successfully
connecting the scanner to WorkStation1. Such connection will be maintained automatically unless
the scanner is removed from the paired device list (called unpairing) by WorkStation1 or any
changes made to authentication and the PIN code. If want WorkStation2 to connect to the scanner,
it have to enable device name broadcasting first.
*Enable
Disable
Note: By default, device name broadcasting is enabled (which is required for initial
connection).
103
Update
Chapter 3 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Authentication
When any changes are made to authentication and PIN code on the scanner side, you will have to
remove the scanner from the paired device list (called unpairing) and go through the whole process
to re-establish the connection.
The scanner allows up to 16 characters for a PIN code and provides two options for authentication:
Enable Authentication with Preset PIN
Have the scanner read the “Use preset PIN” barcode, and change the preset PIN if necessary.
This means you will have to enter exactly the same string for your computer or PDA to connect
to the scanner. If the PIN or passkey is incorrect, any connection attempt will be turned down by
the scanner. See step 8 in 3.2.3 Connect to Dongle.
1. Read the “Use preset PIN” barcode to enable authentication with a preset PIN.
Use Preset PIN
2. Read one of the barcodes to specify the PIN code, in decimal or hexadecimal.
By default, the PIN code is set to “0000”. Maximum 16 characters are allowed.
Enter PIN in
Hexadecimal …
Enter PIN in
Decimal…
3. Read the “Decimal Value” barcode on page 251 or the “Hexadecimal Value” barcode on
page 252 for the desired digits or character string.
Read the “Clear PIN Code” barcode first if you need to re-input the PIN code.
Clear PIN Code
4. Read the “Validate” barcode to complete this setting.
Enable Authentication with Random PIN or No Authentication
By default, it is set to “No PIN or use random PIN”, which depends on the setting of the target
device. (No PIN = No authentication.)
*
No PIN or
use random PIN
104
Enter Setup
1664 Barcode Scanner User Guide

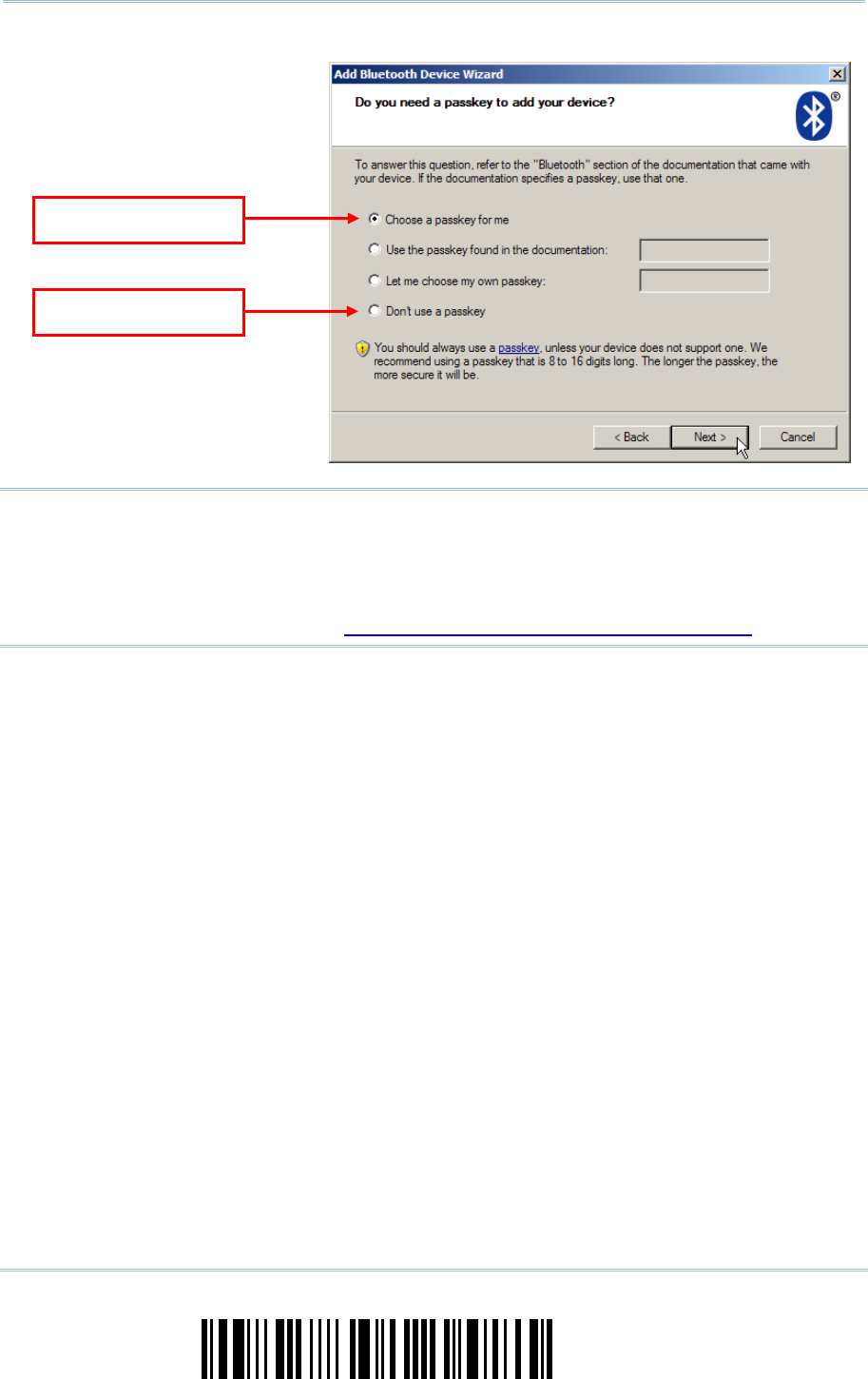

Note: When using Bluetooth® HID, some device driver may not support pre-defined PIN
code for authentication. In this case, make sure you have the scanner set to “No
PIN or use random PIN” before pairing. While pairing, the host PIN code will be
displayed on the computer screen. Have the scanner read the setup barcode
“Enter PIN Code in Decimal” or “Enter PIN Code in Hexadecimal” to input the
matching PIN code. Refer to Disable Authentication or Use Random PIN.
Use random PIN
No PIN required
105
Update
Chapter 3 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
3.2.3 CONNECT TO DONGLE
The procedure goes through associating devices for establishing a WPAN connection,
which is pretty much the same except for the software you are using. If your computer is
running Microsoft® Windows® XP Service Pack 3 (SP3) or Windows Vista® Service Pack 1
(SP1), you can use the software support that Windows® includes, or you can use the
driver that the device manufacturer provides. Now, let’s try using the software support
that Windows® XP Service Pack 2 includes.
Bluetooth® HID Procedure
By default, Bluetooth® HID is activated on the scanner, and the keyboard type is set to PCAT (US).
When Bluetooth® HID is re-activated, you will have to select a keyboard type to complete this
setting.
The procedure is the same as for Bluetooth® SPP. Refer to steps 1~11 below.
Bluetooth® SPP Procedure
1. Turn on the Bluetooth® function on your computer, running Windows XP SP2.
2. Double-click the Bluetooth® icon from the lower right of the taskbar.
Alternatively, you may go to Control Panel > Bluetooth Devices.
3. Click [Add] to search devices nearby.
106
Enter Setup
1664 Barcode Scanner User Guide
4. Turn on the scanner with correct WPAN settings, such as select Bluetooth® SPP or Bluetooth®
HID, broadcasting enabled, authentication enabled, and PIN code specified, etc. Select the
check box of [My device is set up and ready to be found] on your computer.
5. Click [Next].
6. Wait for a few seconds for the Wizard to search available devices nearby.
The scanner will appear with its “serial number” as the device name. You may double-check
the “Serial Number” label on the scanner to ensure connecting with the correct scanner.
Select the target scanner. If the target scanner does not appear on the list, click [Search
Again] to refresh the list. The scanner might enter Suspend Mode now, and you can press the
trigger to have it active again (=discoverable). It will then stay active for a specified period of
time (2 minutes by default) and wait for PC to establish a connection.
107
Update
Chapter 3 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
7. Click [Next].

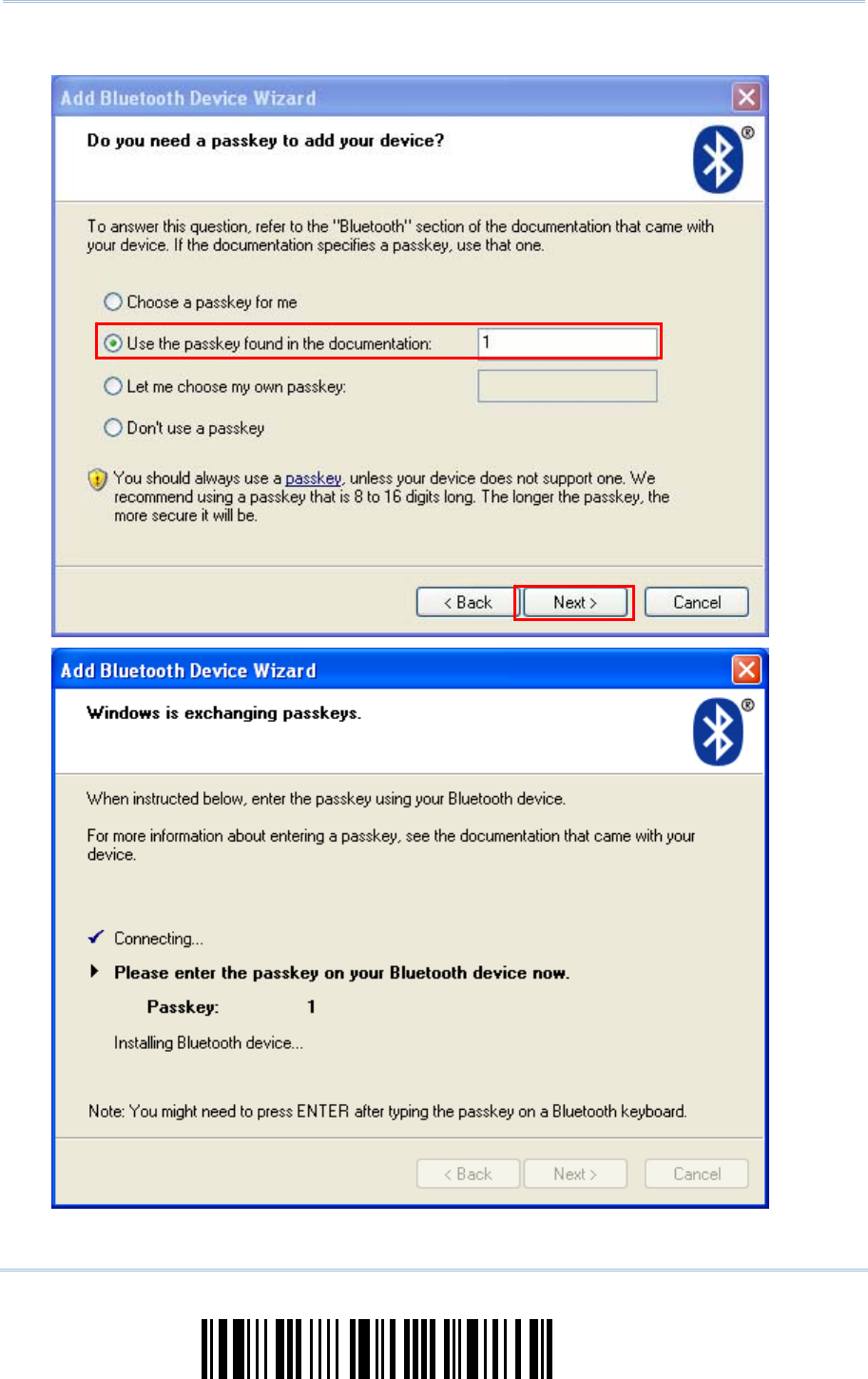

8. Enter the passkey for authentication, which must be exactly the same as configured for the
scanner.
108
Enter Setup
1664 Barcode Scanner User Guide
9. Click [Next]. Wait for a few seconds for Windows to exchange passkeys.
109
Update
Chapter 3 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Note: When Bluetooth security is enabled without providing a pre-set PIN code, dynamic
input of PIN code is supported.
10. Click [Finish].
1664 as Bluetooth
®
SPP Slave
1664 as Bluetooth
®
SPP Master
110
Enter Setup
1664 Barcode Scanner User Guide
11. Now the target scanner will be listed as shown below.
You can have up to seven scanners connected to one computer at the same time.
Note: When any changes are made to authentication and PIN code on the scanner side,
or you want to change to use Bluetooth® HID, it is suggested that you remove the
scanner from the paired device list (called unpairing) and go through the whole
process to re-establish the connection.
12. Run the desired application on your computer, such as HyperTerminal.exe if using Bluetooth®
SPP or Notepad.exe if using Bluetooth® HID.

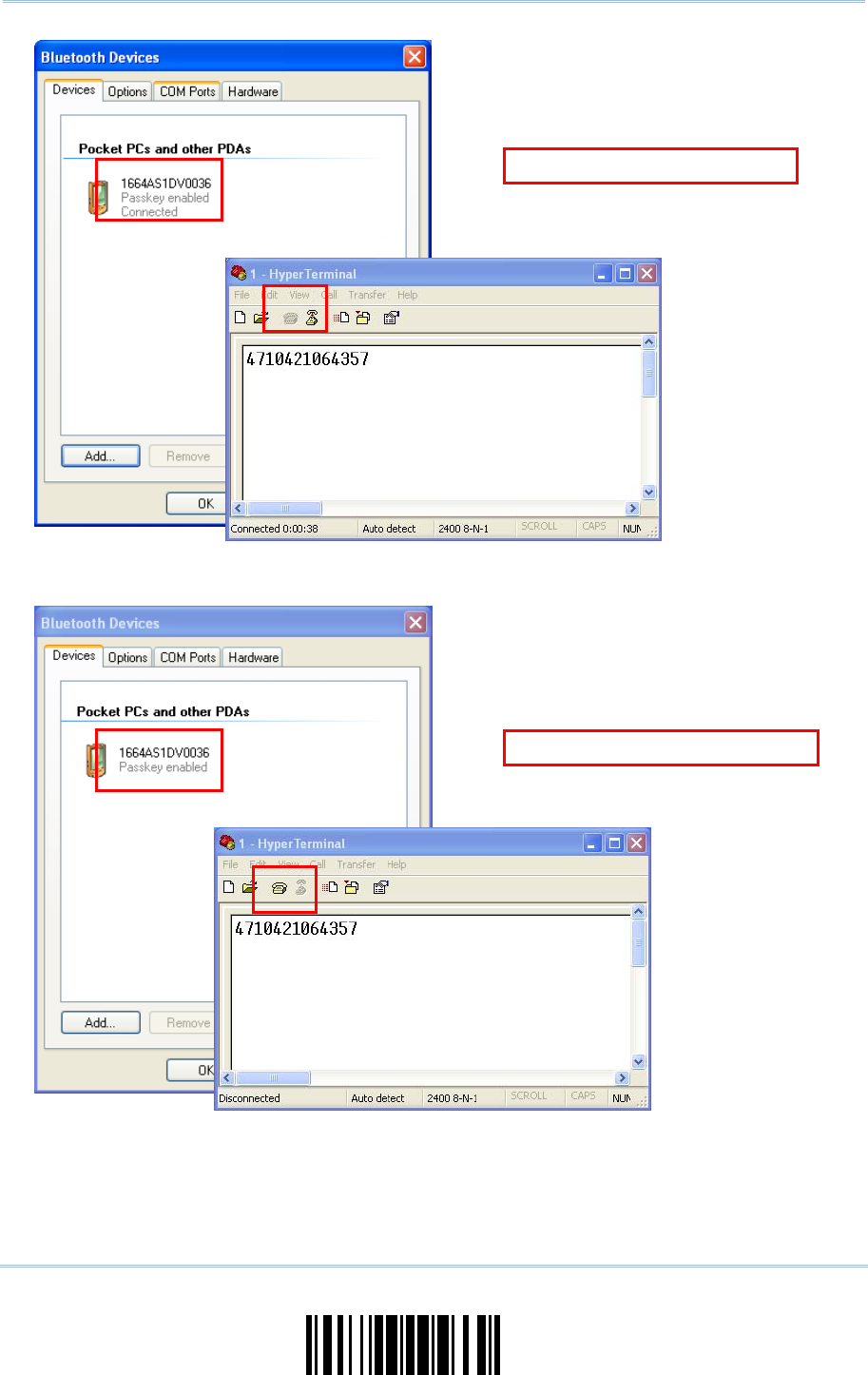

The status of the scanner listed on the device list will be updated to “Connected”, indicating
the WPAN connection is established successfully via the outgoing COM port if using
Bluetooth® SPP.
Note: Even though the scanner is connected to the host with authentication disabled (=
no PIN code required), the host may still request a PIN code while the application
is opening COM port. Dynamic input of PIN code is supported so that you may
input a matching PIN code on the scanner. Refer to Disable Authentication or Use
Random PIN.
Select and Remove
111
Update
Chapter 3 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
B
luetooth
®
S
PP Connecte
d
B
luetooth
®
S
PP Disconnecte
d
112
Enter Setup
1664 Barcode Scanner User Guide
113
Update
In this chapter, a brief on the symbology settings is provided for your reference.
IN THIS CHAPTER
4.1 Codabar .................................................................. 114
4.2 Code 25 – Industrial 25 ............................................. 116
4.3 Code 25 – Interleaved 25 ........................................... 118
4.4 Code 25 – Matrix 25 .................................................. 121
4.5 Code 25 – Chinese 25 ............................................... 123
4.6 Italian Pharmacode (Code 32) ................................... 124
4.7 Code 39 .................................................................. 125
4.8 Trioptic Code 39 ....................................................... 128
4.9 Code 93 .................................................................. 129
4.10 Code 128 ............................................................... 131
4.11 GS1-128 (EAN-128) ............................................... 132
4.12 ISBT 128 ............................................................... 133
4.13 GS1 DataBar (RSS Family) ....................................... 135
4.14 MSI ....................................................................... 140
4.15 EAN-8 ................................................................... 142
4.16 EAN-13 .................................................................. 143
4.17 UCC Coupon Extended Code ..................................... 145
4.18 UPC-A ................................................................... 146
4.19 UPC-E ................................................................... 148
4.20 Code 11 ................................................................. 151
4.21 Composite Code ...................................................... 153
4.22 US Postal Code ....................................................... 155
4.23 UK Postal Code ....................................................... 156
4.24 More Postal Code .................................................... 157
4.25 2D Symbologies ...................................................... 159
4.26 Macro PDF ............................................................. 162
Chapter 4
CHANGING SYMBOLOGY SETTINGS
114
Enter Setup
1664 Barcode Scanner User Guide

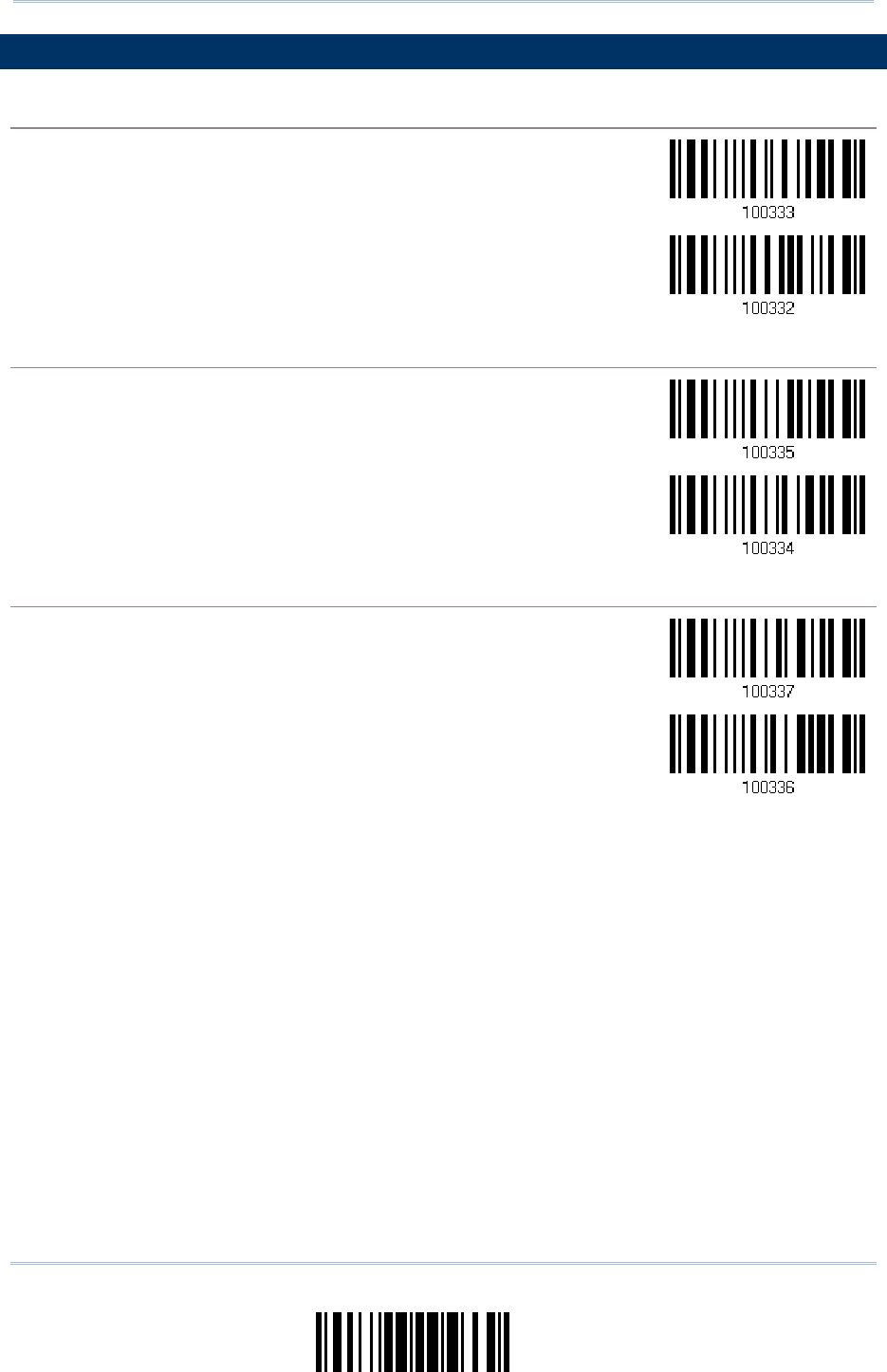

4.1 CODABAR
*Enable
Disable
4.1.1 START/STOP TRANSMISSION
Decide whether to include the start/stop characters in the data being transmitted.
Transmit Start/Stop
Characters
*Do Not Transmit
4.1.2 CLSI CONVERSION
When enabled, the CLSI editing strips the start/stop characters and inserts a space after
the first, fifth, and tenth characters of a 14-character Codabar barcode.
Apply CLSI Editing
*Do Not Apply
Note: The 14-character barcode length does not include start/stop characters.
115
Update
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4.1.3 CODE LENGTH QUALIFICATION
To prevent the "short scan" error, define the "Length Qualification" settings to ensure
that the correct barcode is read by qualifying the allowable code length.
If "Max/Min Length" is selected, the maximum length and the minimum length must
be specified. It only accepts those barcodes with lengths that fall between max/min
lengths specified.
If “Fixed Length” is selected, up to 2 fixed lengths can be specified.
Note: The specified length(s) must include the check digit(s) the barcode contains.
1) Read the barcode to enable either Max. /Min. Length qualification or Fixed Length(s)
qualification.
*Enable Max./Min.
Length (1~55)…
Enable Fixed
Length(s)…
2) Read the barcode for Max. Length or Fixed Length 1, and follow steps 3~4.
Repeat steps 2~4 for Min. Length or Fixed Length 2.
Max. Length (*55) or
Fixed Length 1
Min. Length (*4) or
Fixed Length 2
3) Read the “Decimal Value” barcode on page 251 for the desired length.
4) Read the “Validate” barcode on the same page to complete this setting.
116
Enter Setup
1664 Barcode Scanner User Guide
4.2 CODE 25 – INDUSTRIAL 25
*Enable
Disable
117
Update
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4.2.1 CODE LENGTH QUALIFICATION
To prevent the "short scan" error, define the "Length Qualification" settings to ensure
that the correct barcode is read by qualifying the allowable code length.
If "Max/Min Length" is selected, the maximum length and the minimum length must
be specified. It only accepts those barcodes with lengths that fall between max/min
lengths specified.
If “Fixed Length” is selected, up to 2 fixed lengths can be specified.
Note: The specified length(s) must include the check digit(s) the barcode contains.
1) Read the barcode to enable either Max. /Min. Length qualification or Fixed Length(s)
qualification.
*Enable Max./Min.
Length (1~55)…
Enable Fixed
Length(s)…
2) Read the barcode for Max. Length or Fixed Length 1, and follow steps 3~4.
Repeat steps 2~4 for Min. Length or Fixed Length 2.
Max. Length (*55) or
Fixed Length 1
Min. Length (*4) or
Fixed Length 2
3) Read the “Decimal Value” barcode on page 251 for the desired length.
4) Read the “Validate” barcode on the same page to complete this setting.
118
Enter Setup
1664 Barcode Scanner User Guide
4.3 CODE 25 – INTERLEAVED 25
*Enable
Disable
4.3.1 VERIFY CHECK DIGIT
Decide whether to verify the check digit. When desired, select one of the algorithms, USS
or OPCC. If incorrect, the barcode will not be accepted.
*Do Not Verify
USS Check Digit
OPCC Check Digit
4.3.2 TRANSMIT CHECK DIGIT
Decide whether to include the check digit in the data being transmitted.
*Transmit
I
nterleaved 25
Check Digit
Do Not Transmit
119
Update
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4.3.3 CONVERT TO EAN-13
Decide whether to convert a 14-character barcode into EAN-13 if the following
requirements are met:
The barcode must have a leading 0 and a valid EAN-13 check digit.
“Verify Check Digit” must be disabled.
Convert to EAN-13
*Do Not Convert
120
Enter Setup
1664 Barcode Scanner User Guide
4.3.4 CODE LENGTH QUALIFICATION
To prevent the "short scan" error, define the "Length Qualification" settings to ensure
that the correct barcode is read by qualifying the allowable code length.
If "Max/Min Length" is selected, the maximum length and the minimum length must
be specified. It only accepts those barcodes with lengths that fall between max/min
lengths specified.
If “Fixed Length” is selected, up to 2 fixed lengths can be specified.
Note: The specified length(s) must include the check digit(s) the barcode contains.
1) Read the barcode to enable either Max. /Min. Length qualification or Fixed Length(s)
qualification.
*Enable Max./Min.
Length (1~55)…
Enable Fixed
Length(s)…
2) Read the barcode for Max. Length or Fixed Length 1, and follow steps 3~4.
Repeat steps 2~4 for Min. Length or Fixed Length 2.
Max. Length (*55) or
Fixed Length 1
Min. Length (*4) or
Fixed Length 2
3) Read the “Decimal Value” barcode on page 251 for the desired length.
4) Read the “Validate” barcode on the same page to complete this setting.
121
Update
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4.4 CODE 25 – MATRIX 25
Enable
*Disable
4.4.1 VERIFY CHECK DIGIT
Decide whether to verify the check digit. If incorrect, the barcode will not be accepted.
Verify Matrix 25
Check Digit
*Do Not Verify
4.4.2 TRANSMIT CHECK DIGIT
Decide whether to include the check digit in the data being transmitted.
*Transmit Matrix 25
Check Digit
Do Not Transmit
122
Enter Setup
1664 Barcode Scanner User Guide
4.4.3 CODE LENGTH QUALIFICATION
To prevent the "short scan" error, define the "Length Qualification" settings to ensure
that the correct barcode is read by qualifying the allowable code length.
If "Max/Min Length" is selected, the maximum length and the minimum length must
be specified. It only accepts those barcodes with lengths that fall between max/min
lengths specified.
If “Fixed Length” is selected, up to 2 fixed lengths can be specified.
Note: The specified length(s) must include the check digit(s) the barcode contains.
1) Read the barcode to enable either Max. /Min. Length qualification or Fixed Length(s)
qualification.
*Enable Max./Min.
Length (1~55)…
Enable Fixed
Length(s)…
2) Read the barcode for Max. Length or Fixed Length 1, and follow steps 3~4.
Repeat steps 2~4 for Min. Length or Fixed Length 2.
Max. Length (*55) or
Fixed Length 1
Min. Length (*4) or
Fixed Length 2
3) Read the “Decimal Value” barcode on page 251 for the desired length.
4) Read the “Validate” barcode on the same page to complete this setting.
123
Update
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4.5 CODE 25 – CHINESE 25
Enable
*Disable
124
Enter Setup
1664 Barcode Scanner User Guide
4.6 ITALIAN PHARMACODE (CODE 32)
Enable
*Disable
Note: Code 39 must be enabled first.
125
Update
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4.7 CODE 39
*Enable
Disable
4.7.1 VERIFY CHECK DIGIT
Decide whether to verify the check digit. If incorrect, the barcode will not be accepted.
Verify Code 39
Check Digit
*Do Not Verify
4.7.2 TRANSMIT CHECK DIGIT
Decide whether to include the check digit in the data being transmitted.
*Transmit Code 39
Check Digit
Do Not Transmit
126
Enter Setup
1664 Barcode Scanner User Guide
4.7.3 STANDARD/FULL ASCII CODE 39
Decide whether to support Code 39 Full ASCII that includes all the alphanumeric and
special characters.
Code 39 Full ASCII
*Standard Code 39
Note: Trioptic Code 39 and Code 39 Full ASCII cannot be enabled at the same time.
127
Update
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4.7.4 CODE LENGTH QUALIFICATION
To prevent the "short scan" error, define the "Length Qualification" settings to ensure
that the correct barcode is read by qualifying the allowable code length.
If "Max/Min Length" is selected, the maximum length and the minimum length must
be specified. It only accepts those barcodes with lengths that fall between max/min
lengths specified.
If “Fixed Length” is selected, up to 2 fixed lengths can be specified.
Note: The specified length(s) must include the check digit(s) the barcode contains.
1) Read the barcode to enable either Max. /Min. Length qualification or Fixed Length(s)
qualification.
*Enable Max./Min.
Length (1~55)…
Enable Fixed
Length(s)…
2) Read the barcode for Max. Length or Fixed Length 1, and follow steps 3~4.
Repeat steps 2~4 for Min. Length or Fixed Length 2.
Max. Length (*55) or
Fixed Length 1
Min. Length (*4) or
Fixed Length 2
3) Read the “Decimal Value” barcode on page 251 for the desired length.
4) Read the “Validate” barcode on the same page to complete this setting.
128
Enter Setup
1664 Barcode Scanner User Guide
4.8 TRIOPTIC CODE 39
Decide whether to decode Trioptic Code 39.
Trioptic Code 39 is a variant of Code 39 used in the marking of computer tap
cartridges. It always contains six characters.
Enable
*Disable
Note: Trioptic Code 39 and Code 39 Full ASCII cannot be enabled at the same time.
129
Update
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4.9 CODE 93
*Enable
Disable
130
Enter Setup
1664 Barcode Scanner User Guide
4.9.1 CODE LENGTH QUALIFICATION
To prevent the "short scan" error, define the "Length Qualification" settings to ensure
that the correct barcode is read by qualifying the allowable code length.
If "Max/Min Length" is selected, the maximum length and the minimum length must
be specified. It only accepts those barcodes with lengths that fall between max/min
lengths specified.
If “Fixed Length” is selected, up to 2 fixed lengths can be specified.
Note: The specified length(s) must include the check digit(s) the barcode contains.
1) Read the barcode to enable either Max. /Min. Length qualification or Fixed Length(s)
qualification.
*Enable Max./Min.
Length (1~55)…
Enable Fixed
Length(s)…
2) Read the barcode for Max. Length or Fixed Length 1, and follow steps 3~4.
Repeat steps 2~4 for Min. Length or Fixed Length 2.
Max. Length (*55) or
Fixed Length 1
Min. Length (*4) or
Fixed Length 2
3) Read the “Decimal Value” barcode on page 251 for the desired length.
4) Read the “Validate” barcode on the same page to complete this setting.
131
Update
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4.10 CODE 128
*Enable
Disable
132
Enter Setup
1664 Barcode Scanner User Guide
4.11 GS1-128 (EAN-128)
*Enable
Disable
Note: GS1-128 barcodes can be decoded only when this setting is enabled.
4.11.1 TRANSMIT CODE ID
Decide whether to include the Code ID (“]C1”) in the data being transmitted.
Transmit GS1-128
Code ID
*Do Not Transmit
4.11.2 FIELD SEPARATOR (GS CHARACTER)
Decide whether to apply a field separator (to convert the FNC1 control character to human
readable character).
Enable Field
Separator…
1) Read the barcode above to enable field separator.
2) Read the “Hexadecimal Value” barcode on page 252 for the desired character string.
3) Read the “Validate” barcode to complete this setting.
Note: GS1-128 barcodes start with the FNC1 control character to distinguish themselves
from other uses of Code 128. FNC1 is also used to separate data fields in the
GS1-128 barcodes.
133
Update
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4.12 ISBT 128
*Enable
Disable
4.12.1 ISBT CONCATENATION
Decide whether to decode and concatenate pairs of ISBT barcodes.
Disable ISBT Concatenation
It will not concatenate pairs of ISBT barcodes it encounters.
Enable ISBT Concatenation
There must be two ISBT barcodes in order for the scanner to decode and perform
concatenation. It does not decode single ISBT barcodes.
Auto-discriminate ISBT Concatenation
It decodes and concatenates pairs of ISBT barcodes immediately. If only a single ISBT
barcode is present, the scanner must decode 10 times before transmitting its data to
confirm that there is no additional ISBT barcode.
Disable
Enable
*Auto-discriminate
134
Enter Setup
1664 Barcode Scanner User Guide
4.12.2 ISBT CONCATENATION REDUNDANCY
Specify the concatenation redundancy (2~20 times) when ISBT concatenation is enabled.
ISBT Concatenation
Redundancy 2~20
(*10)
1) Read the barcode above to specify the concatenation redundancy.
2) Read the “Decimal Value” barcode on page 251 for the desired redundancy.
3) Read the “Validate” barcode on the same page to complete this setting.
135
Update
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4.13 GS1 DATABAR (RSS FAMILY)
It is categorized into three groups:
Group I — GS1 DataBar Omnidirectional (RSS-14)
This group consists of the following:
GS1 DataBar Omnidirectional
GS1 DataBar Truncated
GS1 DataBar Stacked
GS1 DataBar Stacked Omnidirectional
Group II — GS1 DataBar Expanded (RSS Expanded)
This group consists of the following:
GS1 DataBar Expanded
GS1 DataBar Expanded Stacked
Group III — GS1 DataBar Limited (RSS Limited)
This group consists of the following:
GS1 DataBar Limited
4.13.1 SELECT CODE ID
Select a desired Code ID to use:
“]e0“ (GS1 DataBar Code ID)
“]C1” (GS1-128 Code ID)
Use “]C1”
*Use “]e0”
136
Enter Setup
1664 Barcode Scanner User Guide
4.13.2 GS1 DATABAR OMNIDIRECTIONAL (RSS-14)
Enable RSS-
1
4 &
RSS Expanded
(Groups I, II)
*Disable
The settings below apply to Group I symbologies only:
GS1 DataBar Omnidirectional
GS1 DataBar Truncated
GS1 DataBar Stacked
GS1 DataBar Stacked Omnidirectional
Transmit Code ID
Decide whether to include the Code ID in the data being transmitted.
*Transmit RSS-14
Code ID
Do Not Transmit
Transmit Application ID
Decide whether to include the Application ID ("01") in the data being transmitted.
*Transmit RSS-14
Application ID
Do Not Transmit
137
Update
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4.13.3 GS1 DATABAR EXPANDED (RSS EXPANDED)
Enable RSS-
1
4 &
RSS Expanded
(Groups I, II)
*Disable
The settings below apply to Group II symbologies only:
GS1 DataBar Expanded
GS1 DataBar Expanded Stacked
Transmit Code ID
Decide whether to include the Code ID in the data being transmitted.
*
Transmit
RSS Expanded Code ID
Do Not Transmit
138
Enter Setup
1664 Barcode Scanner User Guide
4.13.4 GS1 DATABAR LIMITED (RSS LIMITED)
Enable RSS Limited
(Group III)
*Disable
Transmit Code ID
Decide whether to include the Code ID in the data being transmitted.
*
Transmit
RSS Limited Code ID
Do Not Transmit
Transmit Application ID
Decide whether to include the Application ID ("01") in the data being transmitted.
*
Transmit
RSS Limited
Application ID
Do Not Transmit
139
Update
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4.13.5 CONVERT TO UPC/EAN
This only applies to GS1 DataBar Omnidirectional and GS1 DataBar Limited barcodes not
decoded as part of a Composite barcode.
Convert to EAN-13: It will strip the leading “010” from barcodes.
“01” is the Application ID and must be followed by a single zero (the first digit
encoded).
Convert to UPC-A: It will strip the leading “0100” from barcodes.
“01” is the Application ID and must be followed by two or more zeros (but not six
zeros).
Convert to UPC/EAN
*Do Not Convert
140
Enter Setup
1664 Barcode Scanner User Guide
4.14 MSI
Enable
*Disable
4.14.1 VERIFY CHECK DIGIT
Select one of the three calculations to verify check digit(s) when decoding barcodes. If
incorrect, the barcode will not be accepted.
*Single Modulo 10
Double Modulo 10
Modulo 10 & 11
4.14.2 TRANSMIT CHECK DIGIT
Decide whether to include the check digit(s) in the data being transmitted.
*Last Digit Not
Transmitted
Both Digits
Transmitted
B
oth Digits
Not Transmitted
141
Update
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4.14.3 CODE LENGTH QUALIFICATION
To prevent the "short scan" error, define the "Length Qualification" settings to ensure
that the correct barcode is read by qualifying the allowable code length.
If "Max/Min Length" is selected, the maximum length and the minimum length must
be specified. It only accepts those barcodes with lengths that fall between max/min
lengths specified.
If “Fixed Length” is selected, up to 2 fixed lengths can be specified.
Note: The specified length(s) must include the check digit(s) the barcode contains.
1) Read the barcode to enable either Max. /Min. Length qualification or Fixed Length(s)
qualification.
*Enable Max./Min.
Length (1~55)…
Enable Fixed
Length(s)…
2) Read the barcode for Max. Length or Fixed Length 1, and follow steps 3~4.
Repeat steps 2~4 for Min. Length or Fixed Length 2.
Max. Length (*55) or
Fixed Length 1
Min. Length (*4) or
Fixed Length 2
3) Read the “Decimal Value” barcode on page 251 for the desired length.
4) Read the “Validate” barcode on the same page to complete this setting.
142
Enter Setup
1664 Barcode Scanner User Guide
4.15 EAN-8
EAN-8
*Enable EAN-
8
(No Addon)
Disable
EAN-8 Addon 2
Enable EAN-8 Addon 2
*Disable
EAN-8 Addon 5
Enable EAN-8 Addon 5
*Disable
143
Update
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4.16 EAN-13
EAN-13
*Enable EAN-
1
3
(No Addon)
Disable
EAN-13 Addon 2
Enable EAN-13 Addon 2
*Disable
EAN-13 Addon 5
Enable EAN-13 Addon 5
*Disable
144
Enter Setup
1664 Barcode Scanner User Guide
4.16.1 CONVERT TO ISBN
Decide whether to convert the EAN-13 barcode, starting with 978 and 979, to ISBN.
Convert EAN-13 to
ISBN
*Do Not Convert
4.16.2 CONVERT TO ISSN
Decide whether to convert the EAN-13 barcode, starting with 977 to ISSN.
Convert EAN-13 to
ISSN
*Do Not Convert
145
Update
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4.17 UCC COUPON EXTENDED CODE
Decide whether to decode the following barcodes as Coupon Code.
UPC-A barcodes starting with digit “5”
EAN-13 barcodes starting with digits “99”
UPC-A/EAN-128 Coupon Codes
Enable
*Disable
Note: Depending on your requirements, UPC-A, EAN-13 and EAN-128 must be enabled
first!
146
Enter Setup
1664 Barcode Scanner User Guide
4.18 UPC-A
UPC-A
*Enable UPC-A
(No Addon)
Disable
UPC-A Addon 2
Enable UPC-A Addon 2
*Disable
UPC-A Addon 5
Enable UPC-A Addon 5
*Disable
147
Update
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4.18.1 TRANSMIT SYSTEM NUMBER
Decide whether to include the system number in the data being transmitted.
*Transmit UPC-A
System Number
Do Not Transmit
4.18.2 TRANSMIT CHECK DIGIT
Decide whether to include the check digit in the data being transmitted.
*Transmit UPC-A
Check Digit
Do Not Transmit
148
Enter Setup
1664 Barcode Scanner User Guide
4.19 UPC-E
UPC-E
*Enable UPC-
E
(No Addon)
Disable
UPC-E Addon 2
Enable UPC-E Addon 2
*Disable
UPC-E Addon 5
Enable UPC-E Addon 5
*Disable
149
Update
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4.19.1 SELECT SYSTEM NUMBER
Decide whether to decode the ordinary UPC-E barcodes only or both UPC-E0 and UPC-E1
barcodes.
System number 0 enabled for decoding UPC-E0 barcodes.
System number 1 enabled for decoding UPC-E1 barcodes.
System Number 0 & 1
*System Number 0 Only
Warning: Because of the way system number 1 is encoded, if both system numbers
are enabled, the user might suffer from short scanning UPC-A or EAN-13
barcodes into UPC-E1 barcodes.
4.19.2 CONVERT TO UPC-A
Decide whether to expand the read UPC-E barcode, as well as its addons, into UPC-A.
After conversion, the data follows UPC-A format and is affected by UPC-A
programming selections (e.g. System Number, Check Digit).
Convert UPC-E to
UPC-A
*Do Not Convert
150
Enter Setup
1664 Barcode Scanner User Guide
4.19.3 TRANSMIT SYSTEM NUMBER
Decide whether to include the system number in the data being transmitted.
Transmit UPC-E
System Number
*Do Not Transmit
4.19.4 TRANSMIT CHECK DIGIT
Decide whether to include the check digit in the data being transmitted.
*Transmit UPC-E
Check Digit
Do Not Transmit
151
Update
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4.20 CODE 11
Enable
*Disable
4.20.1 VERIFY CHECK DIGIT
Decide whether to verify the check digit(s). If incorrect, the barcode will not be accepted.
Verify One
Check Digit
Verify Two
Check Digit
*Do Not Verify
4.20.2 TRANSMIT CHECK DIGIT
Decide whether to include the check digit(s) in the data being transmitted.
Transmit Code 11
Check Digit
*Do Not Transmit
Note: "Verify Check Digit" must be enabled first.
152
Enter Setup
1664 Barcode Scanner User Guide
4.20.3 CODE LENGTH QUALIFICATION
To prevent the "short scan" error, define the "Length Qualification" settings to ensure
that the correct barcode is read by qualifying the allowable code length.
If "Max/Min Length" is selected, the maximum length and the minimum length must
be specified. It only accepts those barcodes with lengths that fall between max/min
lengths specified.
If “Fixed Length” is selected, up to 2 fixed lengths can be specified.
Note: The specified length(s) must include the check digit(s) the barcode contains.
1) Read the barcode to enable either Max. /Min. Length qualification or Fixed Length(s)
qualification.
*Enable Max./Min.
Length (1~55)…
Enable Fixed
Length(s)…
2) Read the barcode for Max. Length or Fixed Length 1, and follow steps 3~4.
Repeat steps 2~4 for Min. Length or Fixed Length 2.
Max. Length (*55) or
Fixed Length 1
Min. Length (*4) or
Fixed Length 2
3) Read the “Decimal Value” barcode on page 251 for the desired length.
4) Read the “Validate” barcode on the same page to complete this setting.
153
Update
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4.21 COMPOSITE CODE
4.21.1 COMPOSITE CC-A/B
Enable Composite
CC-A/B
*Disable
4.21.2 COMPOSITE CC-C
Enable Composite
CC-C
*Disable
4.21.3 COMPOSITE TLC-39
Enable Composite
TLC-39
*Disable
154
Enter Setup
1664 Barcode Scanner User Guide
4.21.4 UPC COMPOSITE MODE
UPC barcodes can be “linked” with a 2D barcode during transmission as if they were one
barcode.
UPC Never Linked
Transmit UPC barcodes regardless of whether a 2D barcode is detected.
UPC Always Linked
Transmit UPC barcodes and the 2D portion. If the 2D portion is not detected, the UPC
barcode will not be transmitted.
Note: CC-A/B or CC-C must be enabled!
Auto-discriminate UPC Composites
Transmit UPC barcodes as well as the 2D portion if present.
UPC Never Linked
*UPC Always Linked
Auto-discriminate
4.21.5 GS1-128 EMULATION MODE FOR UCC/EAN COMPOSITE CODES
Decide whether to transmit UCC/EAN Composite Code data as if it was encoded in
GS1-128 barcodes.
Enable GS1-128
Emulation Mode
*Disable
155
Update
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4.22 US POSTAL CODE
4.22.1 US POSTNET
*Enable US Postnet
Disable
4.22.2 US PLANET
*Enable US Planet
Disable
4.22.3 TRANSMIT CHECK DIGIT
Decide whether to include the check digit in the data being transmitted.
*Transmit US Postal
Check Digit
Do Not Transmit
156
Enter Setup
1664 Barcode Scanner User Guide
4.23 UK POSTAL CODE
4.23.1 UK POSTAL
*Enable UK Postal
Disable
4.23.2 TRANSMIT CHECK DIGIT
Decide whether to include the check digit in the data being transmitted.
*Transmit UK Postal
Check Digit
Do Not Transmit
157
Update
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4.24 MORE POSTAL CODE
4.24.1 JAPAN POSTAL
*Enable Japan Postal
Disable
4.24.2 AUSTRALIAN POSTAL
*Enable Australian
Postal
Disable
4.24.3 DUTCH POSTAL
*Enable Dutch Postal
Disable
4.24.4 USPS 4CB/ONE CODE/INTELLIGENT MAIL
E
nable USPS 4CB/
One Code/
Intelligent Mail
*Disable
158
Enter Setup
1664 Barcode Scanner User Guide
4.24.5 UPU FICS POSTAL
Enable UPU FICS
Postal
*Disable
159
Update
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4.25 2D SYMBOLOGIES
4.25.1 PDF417
*Enable PDF417
Disable
4.25.2 MicroPDF417
Enable MicroPDF417
*Disable
160
Enter Setup
1664 Barcode Scanner User Guide
4.25.3 DATA MATRIX
*Enable Data Matrix
Disable
Data Matrix Mirror
Decide whether to decode mirror image Data Matrix barcodes.
Never — do not decode Data Matrix barcodes that are mirror images.
Always — decode only Data matrix barcodes that are mirror images.
Auto — decode both mirrored and unmirrored Data Matrix barcoes.
*Never
Always
Auto
161
Update
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4.25.4 MAXICODE
*Enable Maxicode
Disable
4.25.5 QR CODE
*Enable QR Code
Disable
4.25.6 MicroQR
*Enable MicroQR
Disable
4.25.7 AZTEC
*Enable Aztec
Disable
162
Enter Setup
1664 Barcode Scanner User Guide
4.26 MACRO PDF
Macro PDF is a special feature for concatenating multiple PDF barcodes into one file,
known as Macro PDF417 or Macro MicroPDF417.
Note: When printing barcodes, keep each Macro PDF sequence separate, as each has a
unique identifier. Do not mix barcodes from several Macro PDF sequences, even if
they encode the same data. When you scan Macro PDF sequences, scan the entire
Macro PDF sequence without interruption!
4.26.1 TRANSMIT/DECODE MODE
Decide how to handle Macro PDF decoding.
Buffer All Symbols / Transmit Macro PDF When Complete
Transmit all decoded data from an entire Macro PDF sequence only when the entire
sequence is scanned and decoded. If the decoded data exceeds the limit of 50
symbols, no transmission because the entire sequence was not scanned!
Transmit Any Symbol in Set / No Particular Order
Transmit data from each Macro PDF symbol as decoded, regardless of the sequence.
Passthrough All Symbols
Transmit and decode all Macro PDF symbols and perform no processing. In this mode,
the host is responsible for detecting and parsing the Macro PDF sequences.
B
uffer All Symbols /
Transmit When Complete
T
ransmit Any Symbol in Set /
No Particular Order
*Passthrough All Symbols
163
Update
Chapter 4 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4.26.2 ESCAPE CHARACTERS
When enabled, it uses the backslash "\" as an Escape character for systems that can
process transmissions containing special data sequences. It will format special data
according to the Global Label Identifier (GLI) protocol, which only affects the data portion
of a Macro PDF symbol transmission. The Control Header, if enabled, is always sent with
GLI formatting.
GLI Protocol
*None
4.26.3 TRANSMIT CONTROL HEADER
The control header contains the segment index and file ID. For example, the field may be
“\92800000\725\120\343”. The five digits after the \928 are the segment index (or block
index), and \725\120\343 is the file ID.
Enable this when selecting “Transmit Any Symbol in Set/ No Particular Order”.
Disable this when selecting “Buffer All Symbols/Transmit Macro PDF When Complete”.
This option has no effect when selecting "Passthrough All Symbols".
Transmit Control
Header
*Do Not Transmit
164
Enter Setup
1664 Barcode Scanner User Guide
165
Update
You may configure in which format the collected data will be output to the host computer.
Barcode read by the scanner will be processed in the following sequence –
1) Perform character substitution on the data scanned.
2) Add Code ID and Length Code to the front of the data:[Code ID][Length Code][Data]
3) Process the whole data in step 2 with user formats. Data is now divided into fields by
user specified rules. Refer to Chapter 6 Applying Formats for Data Editing.
4) Add Prefix Code and Suffix Code before transmission:[Prefix Code][Processed
Data][Suffix Code]
IN THIS CHAPTER
5.1 Letter Case .............................................................. 165
5.2 Character Substitution ............................................... 166
5.3 Prefix/Suffix Code ..................................................... 178
5.4 Code ID ................................................................... 179
5.5 Length Code ............................................................ 186
5.6 Multi-Barcode Editor .................................................. 194
5.7 Removal of Special Character ..................................... 198
5.1 LETTER CASE
By default, the alphabets transmission is case-sensitive, meaning that the alphabets will
be transmitted according to their original case. Ignoring the original letter case, select
[Upper Case] to output data in upper case only; otherwise, select [Lower Case] to output
data in lower case only.
*Normal
Upper Case
Lower Case
Chapter 5
DEFINING OUTPUT FORMAT
166
Enter Setup
1664 Barcode Scanner User Guide
5.2 CHARACTER SUBSTITUTION
Character substitution is performed on every occurrence of the first character specified. If
only one character is specified, every occurrence of that character in the barcode will be
taken away.
The first character will be replaced by the second character(s).
Up to three sets of character substitution can be configured.
If “Bluetooth® HID” or “USB HID” is configured for interface, Key Type and Key Status
will then become applicable. You may decide whether or not to apply Key Status
when “Normal Key” is selected for Key Type.
Key Type Key Status
Scan Code Only 1 scan code value is allowed.
Refer to 5.2.1 Select a Set for
Character Substituion.
N/A
Normal Key Up to 3 character strings are allowed. Add Shift
Add Left Ctrl
Add Left Alt
Add Right Ctrl
Add Right Alt
Refer to Keyboard Wedge Table.
Note: The character substitution is performed only on the barcode itself and before the
processing of editing formats. It is not applicable to the Prefix/Suffix Code, Code
ID, Length Code, or any Additional Field.
167
Update
Chapter 5 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
5.2.1 SELECT A SET FOR CHARACTER SUBSTITUION
Configure Set 1
Configure Set 2
Configure Set 3
1) Read the barcode above to enable character substitution by set.
For example, have the scanner read the “Set 1” barcode to configure the first set of
character substitution. The scanner will respond with one short beep, high tone, to
indicate more setup barcodes are required.
2) Read the “Hexadecimal Value” barcode on page 252 for the desired character
substitution. For example,
KEY TYPE = NORMAL
Read “3”, “0”, “2”, and “D” to replace the character “0” with a dash “-”.
Read “3”, “0”, “2”, “D”, “3”, and “0” to replace the character “0” with a dash “-0”.
KEY TYPE = SCAN CODE
If you want to replace the character “0” with “a” (= “1C” on the scan code table):
1. Read “3” and “0”.
2. Read the “Scan Code” barcode.
3. Read “1” and “C”.
KEY TYPE = NORMAL + KEY STATUS = SHIFT
If you want to replace the character “0” with “!” (= “Shift” + “1” on keyboard):
1. Read “3” and “0”.
2. Read the “Add Shift” barcode.
3. Read “3” and “1”.
3) Read the “Validate” barcode to complete this setting. (The defined set or sets will be
applied to all symbologies by default.)
168
Enter Setup
1664 Barcode Scanner User Guide
5.2.2 SYMBOLOGIES FOR CHARACTER SUBSTITUTION (ALL 3 SETS)
By default character substitution will be performed on all symbologies. If the character
substitution is not desired with one or more symbologies, read the “Do Not Apply”
barcode for each undesired symbologies and all the three sets will be ignored for them.
Character Substitution for Codabar
*Apply
Do Not Apply
Character Substitution for Code 39
*Apply
Do Not Apply
Character Substitution for Trioptic Code 39
*Apply
Do Not Apply
Character Substitution for Code 93
*Apply
Do Not Apply
169
Update
Chapter 5 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Character Substitution for Code 128
*Apply
Do Not Apply
Character Substitution for GS1-128
*Apply
Do Not Apply
Character Substitution for ISBT 128
*Apply
Do Not Apply
Character Substitution for EAN-8 (No Addon)
*Apply
Do Not Apply
Character Substitution for EAN-8 Addon 2
*Apply
Do Not Apply
170
Enter Setup
1664 Barcode Scanner User Guide
Character Substitution for EAN-8 Addon 5
*Apply
Do Not Apply
Character Substitution for EAN-13 (No Addon)
*Apply
Do Not Apply
Character Substitution for EAN-13 Addon 2
*Apply
Do Not Apply
Character Substitution for EAN-13 Addon 5
*Apply
Do Not Apply
Character Substitution for Italian Pharmacode
*Apply
Do Not Apply
171
Update
Chapter 5 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Character Substitution for Industrial 25
*Apply
Do Not Apply
Character Substitution for Interleaved 25
*Apply
Do Not Apply
Character Substitution for Matrix 25
*Apply
Do Not Apply
Character Substitution for Chinese 25
*Apply
Do Not Apply
Character Substitution for MSI
*Apply
Do Not Apply
172
Enter Setup
1664 Barcode Scanner User Guide
Character Substitution for GS1 DataBar
*Apply
Do Not Apply
Character Substitution for UPC-A (No Addon)
*Apply
Do Not Apply
Character Substitution for UPC-A Addon 2
*Apply
Do Not Apply
Character Substitution for UPC-A Addon 5
*Apply
Do Not Apply
Character Substitution for UPC-E (No Addon)
*Apply
Do Not Apply
173
Update
Chapter 5 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Character Substitution for UPC-E Addon 2
*Apply
Do Not Apply
Character Substitution for UPC-E Addon 5
*Apply
Do Not Apply
Character Substitution for UCC Coupon Extended Code
*Apply
Do Not Apply
Character Substitution for Code 11
*Apply
Do Not Apply
Character Substitution for Composite CC-A/B
*Apply
Do Not Apply
174
Enter Setup
1664 Barcode Scanner User Guide
Character Substitution for Composite CC-C
*Apply
Do Not Apply
Character Substitution for Composite TLC-39
*Apply
Do Not Apply
Character Substitution for US Postnet
*Apply
Do Not Apply
Character Substitution for US Planet
*Apply
Do Not Apply
Character Substitution for UK Postal
*Apply
Do Not Apply
175
Update
Chapter 5 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Character Substitution for Japan Postal
*Apply
Do Not Apply
Character Substitution for Australian Postal
*Apply
Do Not Apply
Character Substitution for Dutch Postal
*Apply
Do Not Apply
Character Substitution for USPS 4CB/One Code/Intelligent Mail
*Apply
Do Not Apply
Character Substitution for UPU FICS Postal
*Apply
Do Not Apply
176
Enter Setup
1664 Barcode Scanner User Guide
Character Substitution for PDF417
*Apply
Do Not Apply
Character Substitution for MicroPDF417
*Apply
Do Not Apply
Character Substitution for Data Matrix
*Apply
Do Not Apply
Character Substitution for Maxicode
*Apply
Do Not Apply
Character Substitution for QR Code
*Apply
Do Not Apply
177
Update
Chapter 5 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Character Substitution for MicroQR
*Apply
Do Not Apply
Character Substitution for Aztec
*Apply
Do Not Apply
178
Enter Setup
1664 Barcode Scanner User Guide
5.3 PREFIX/SUFFIX CODE
By default, there is no prefix code, and [ENTER] or [CR] (Carriage Return) is configured
to be suffix code. Up to 8 characters can be configured, for example, “Barcode_”, and
you will have the string appear in front of the barcode read, like this –
“Barcode_1234567890”.
If “Bluetooth® HID” or “USB HID” is configured for interface, Key Type and Key Status
will then become applicable. You may decide whether or not to apply Key Status
when “Normal Key” is selected for Key Type.
Key Type Key Status
Scan Code Up to 4 scan code values are allowed. N/A
Normal Key Up to 8 character strings are allowed. Add Shift
Add Left Ctrl
Add Left Alt
Add Right Ctrl
Add Right Alt
Refer to Keyboard Wedge Table.
Configure Prefix
Configure Suffix
1) Read the barcode above to apply prefix code or suffix code separately, and follow
steps 2~3. (Max. 8 characters each)
2) Read the “Hexadecimal Value” barcode on page 252 for the desired character string.
For example, read “2” and “B” for the scanner to prefix or suffix the character [+].
3) Read the “Validate” barcode to complete this setting.
179
Update
Chapter 5 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
5.4 CODE ID
Up to two characters for Code ID can be configured for each symbology. To make the
Code ID configuration easier, the scanner provides five pre-defined Code ID sets that you
can select one and make necessary changes on it.
If “Bluetooth® HID” or “USB HID” is configured for interface, Key Type and Key Status
will then become applicable. You may decide whether or not to apply Key Status
when “Normal Key” is selected for Key Type.
Key Type Key Status
Scan Code Only 1 scan code value is allowed. N/A
Normal Key Up to 2 character strings are allowed. Add Shift
Add Left Ctrl
Add Left Alt
Add Right Ctrl
Add Right Alt
Refer to Keyboard Wedge Table.
Note: "]C1" is the Code ID of GS1-128 (EAN-128) barcodes; "]e0" is the default Code ID
of GS1 DataBar (RSS) barcodes.
5.4.1 SELECT PRE-DEFINED CODE ID
Apply Code ID Set 1
Apply Code ID Set 2
Apply Code ID Set 3
Apply Code ID Set 4
Apply Code ID Set 5
180
Enter Setup
1664 Barcode Scanner User Guide
Code ID options Set 1 Set 2 Set 3 Set 4 Set 5
Code 39 A C Y M A
Trioptic Code 39 A C Y M X
Italian Pharmacode A C Y M A
Industrial 25 C H H H S
Interleaved 25 D I Z I S
Matrix 25 E G G G S
Chinese 25 Q M P S X
Codabar F N X N F
Code 93 I L L L G
Code 128 H K K K C
ISBT 128 H K K K C
UPC-E S E C E E
EAN-8 P B B FF E
EAN-13 M A A F E
UPC-A J A A A E
MSI V V D P M
UCC Coupon Code G F I C C
Code 11 K J J D H
Composite CC-A/B L X M J La
Composite CC-C N Y N O Lc
Composite TLC-39 O Z O R L2
US Postnet h a s i X
US Planet i b t j X
UK Postal j c u k X
Japan Postal k d v l X
Australian Postal l e w m X
Dutch Postal m f x n X
USPS 4 CB / One Code / Intelligent Mail n g y o X
UPU FICS Postal o h z p X
PDF417 a O W T L
MicroPDF417 b P V U L
Data Matrix c Q U V d
Maxicode d R T W U
QR Code e S S X Q
181
Update
Chapter 5 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
MicroQR f T R Y Q
Aztec g U Q Z z
IATA z z r h S
Macro PDF417 p i a q L
Macro MicroPDF417 q j b r L
182
Enter Setup
1664 Barcode Scanner User Guide
5.4.2 CHANGE CODE ID
1) Read the barcode below to change code ID of a specific symbology.
2) Read the “Hexadecimal Value” barcode on page 252 for the desired character string.
For example, read “4” and “4” for applying the character [D] for Code ID.
3) Read the “Validate” barcode to complete this setting.
Configure Code ID for
Codabar
Configure Code ID for
Code 39
Configure Code ID for
Trioptic Code 39
Configure Code ID for
Code 93
Configure Code ID for
Code 128
Configure Code ID for
ISBT 128
Configure Code ID for
EAN-8
Configure Code ID for
EAN-13
Configure Code ID for
Italian Pharmacode
Configure Code ID for
Industrial 25
183
Update
Chapter 5 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Configure Code ID for
Interleaved 25
Configure Code ID for
Matrix 25
Configure Code ID for
Chinese 25
Configure Code ID for
MSI
Configure Code ID for
UPC-A
Configure Code ID for
UPC-E
Configure Code ID for
UCC Coupon Code
Configure Code ID for
Code 11
Configure Code ID for
Composite CC-A/B
Configure Code ID for
Composite CC-C
Configure Code ID for
Composite TLC-39
Configure Code ID for
US Postnet
184
Enter Setup
1664 Barcode Scanner User Guide
Configure Code ID for
US Planet
Configure Code ID for
UK Postal
Configure Code ID for
Japan Postal
Configure Code ID for
Australian Postal
Configure Code ID for
Dutch Postal
Configure Code ID for
USPS 4CB / One Code /
Intelligent Mail
Configure Code ID for
UPU FICS Postal
Configure Code ID for
PDF417
Configure Code ID for
MicroPDF417
Configure Code ID for
Data Matrix
Configure Code ID for
Maxicode
Configure Code ID for
QR Code
185
Update
Chapter 5 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Configure Code ID for
MicroQR
Configure Code ID for
Aztec
Configure Code ID for
IATA
Configure Code ID for
Macro PDF417
Configure Code ID for
Macro MicroPDF417
5.4.3 CLEAR CODE ID SETTINGS
Clear All Code ID
Settings
186
Enter Setup
1664 Barcode Scanner User Guide
5.5 LENGTH CODE
A 4-digit code representing the length of barcode data (character count) can be inserted
in front of data being transmitted. Such "Length" code can be individually enabled or
disabled for each symbology.
Length Code for Codabar
Apply
*Do Not Apply
Length Code for Code 39
Apply
*Do Not Apply
Length Code for Trioptic Code 39
Apply
*Do Not Apply
Length Code for Code 93
Apply
*Do Not Apply
187
Update
Chapter 5 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Length Code for Code 128
Apply
*Do Not Apply
Length Code for GS1-128 & GS1 DataBar
Apply
*Do Not Apply
Length Code for ISBT 128
Apply
*Do Not Apply
Length Code for EAN-8
Apply
*Do Not Apply
Length Code for EAN-13
Apply
*Do Not Apply
188
Enter Setup
1664 Barcode Scanner User Guide
Length Code for Italian Pharmacode
Apply
*Do Not Apply
Length Code for Industrial 25
Apply
*Do Not Apply
Length Code for Interleaved 25
Apply
*Do Not Apply
Length Code for Matrix 25
Apply
*Do Not Apply
Length Code for Chinese 25
Apply
*Do Not Apply
189
Update
Chapter 5 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Length Code for MSI
Apply
*Do Not Apply
Length Code for UPC-A
Apply
*Do Not Apply
Length Code for UPC-E
Apply
*Do Not Apply
Length Code for UCC Coupon Extended Code
Apply
*Do Not Apply
Length Code for Code 11
Apply
*Do Not Apply
190
Enter Setup
1664 Barcode Scanner User Guide
Length Code for Composite CC-A/B
Apply
*Do Not Apply
Length Code for Composite CC-C
Apply
*Do Not Apply
Length Code for Composite TLC-39
Apply
*Do Not Apply
Length Code for US Postnet
Apply
*Do Not Apply
Length Code for US Planet
Apply
*Do Not Apply
191
Update
Chapter 5 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Length Code for UK Postal
Apply
*Do Not Apply
Length Code for Japan Postal
Apply
*Do Not Apply
Length Code for Australian Postal
Apply
*Do Not Apply
Length Code for Dutch Postal
Apply
*Do Not Apply
Length Code for USPS 4CB/One Code/Intelligent Mail
Apply
*Do Not Apply
192
Enter Setup
1664 Barcode Scanner User Guide
Length Code for UPU FICS Postal
Apply
*Do Not Apply
Length Code for PDF417
Apply
*Do Not Apply
Length Code for MicroPDF417
Apply
*Do Not Apply
Length Code for Data Matrix
Apply
*Do Not Apply
Length Code for Maxicode
Apply
*Do Not Apply
193
Update
Chapter 5 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Length Code for QR Code
Apply
*Do Not Apply
Length Code for MicroQR
Apply
*Do Not Apply
Length Code for Aztec
Apply
*Do Not Apply
194
Enter Setup
1664 Barcode Scanner User Guide
5.6 MULTI-BARCODE EDITOR
The Multi-Barcode Editor allows deciding the output sequence of a concatenation of
barcodes. Up to five barcodes can be specified. When enable this mode, it will force the
scanner to apply Laser mode as the scan mode.
Note: The Multi-Barcode Editor has nothing to do with Multi-Barcode Mode.
The barcodes that are found meeting the specified criteria below will be arranged in the
desired sequence.
Code Type
4-digit barcode length, excluding prefix, suffix, length code, etc.
Matching the first character of barcode data
195
Update
Chapter 5 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
5.6.1 EDIT A CONCATENATION OF BARCODES
Edit Output Sequence
1) Read the barcode above to start editing a concatenation of barcodes.
2) Code Type setting – read the “Hexadecimal Value” barcode on page 252 for Code
Type of the (first) barcode. For example, read “4” and “1” for Code 39.
Code Type Symbology Code Type Symbology
40 (@) ISBT 128
41 (A) Code 39
42 (B) Italian Pharmacode
43 (C) N/A
44 (D) Industrial 25 64 (d) TLC-39 (TCIF Linked Code 39)
45 (E) Interleaved 25 65 (e) Trioptic Code 39
46 (F) Matrix 25
47 (G) Codabar (NW7) 67 (g) Code 11
48 (H) Code 93
49 (I) Code 128
4A (J) UPC-E0 / UPC-E1 6A (j) Composite CC-C
4B (K) UPC-E with Addon 2 6B (k) PDF417
4C (L) UPC-E with Addon 5 6C (l) MicroPDF417
4D (M) EAN-8 6D (m) Data Matrix
4E (N) EAN-8 with Addon 2 6E (n) Maxicode
4F (O) EAN-8 with Addon 5 6F (o) QR Code
50 (P) EAN-13 70 (p) US Postnet
51 (Q) EAN-13 with Addon 2 71 (q) US Planet
52 (R) EAN-13 with Addon 5 72 (r) UK Postal
53 (S) MSI 73 (s) Japan Postal
54 (T) N/A 74 (t) Australian Postal
55 (U) GS1-128 (EAN-128) 75 (u) Dutch Postal
56 (V) UPC-A 76 (v) Composite CC-A/B
57 (W) UPC-A with Addon 2 77 (w) Macro PDF417
58 (X) UPC-A with Addon 5 78 (x) Macro MicroPDF417
196
Enter Setup
1664 Barcode Scanner User Guide
79 (y) Chinese 25
5A (Z) N/A 7A (z) Aztec
5B ( [ ) GS1 DataBar (RSS) 7B ({) Micro QR
7C (|) USPS 4CB / One Code /
Intelligent Mail
7D (}) UPU FICS Postal
7E (~) UCC Coupon Extended Code
3) Barcode Length setting – read the “Decimal Value” barcode on page 251 for the
4-digit length of the (first) barcode. For example, read “0065” for barcode length of
65 characters or read “0000” for any length.
Note: If not reading 0000 for any length, the 4-digit length must exclude prefix, suffix
(0x0d by default), length code, etc.
4) Matching Character setting – read the “Hexadecimal Value” barcode on page 252 for
the 1st character that must be found matching in the (first) barcode. For example,
read “4” and “1” for matching character “A” as the first character in the barcode or
read “00” for any character.
5) Read twice the “F” barcode on page 252 (“FF”) to complete the setting of each
barcode.
6) Read the “Validate” barcode to end the editing of the barcode set.
197
Update
Chapter 5 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
5.6.2 ACTIVATE THE CONCATENATION OF BARCODES
By default, the output sequence editing of the concatenation of barcodes is not applied.
When “Enforce Output Sequence” is enabled, all barcodes read by the scanner must meet
with the criteria for the concatenation. If data is found excluded from all output sequence
sets (= not meeting with the criteria), the scanner will not accept the reading, and
therefore, data will not be transmitted.
When “Apply Output Sequence” is enabled, only barcodes found meeting with the criteria
are counted for the concatenation. Those found not meeting with the criteria are
processed normally and individually.
Note: When it requires reading more barcodes to complete the “output sequence”
requirements, the scanner will respond with one short beep (low tone). After
reading an acceptable barcode, its LED indicator will become solid green and go off
quickly (= Good Read).
Upon completion of reading acceptable barcodes, the scanner will respond with
one short beep (high tone) and its LED indicator will become solid green and go off
quickly (= Good Read).
*Ignore Output
Sequence
Enforce Output
Sequence
Apply Output
Sequence
Warning: When you disable the Multi-Barcode Editor later, the scan mode remains
unchanged. If Laser mode is not desired, proceed to select a scan mode
best suits your application.
198
Enter Setup
1664 Barcode Scanner User Guide
5.7 REMOVAL OF SPECIAL CHARACTER
You can only specify 1 character, but it will remove every matching character
encountered from the starting position of barcode data until a different character is met.
For example, if it is configured to remove the character “0” (hex value is “30”), one or
more zeros will be stripped off the barcode data “012345” and “00012345”. However, for
barcode data “010333”, only the first zero will be stripped off.
Remove Special
Character
1) Read the barcode above to remove the specified character.
2) Read the “Hexadecimal Value” barcode on page 252 for the desired character string.
For example, read “3” and “0” for the scanner to remove the character “0”.
3) Read the “Validate” barcode to complete this setting.
199
Update
The scanner allows advanced data editing by applying user-configured editing formats.
The whole processed data can be divided into fields by user-specified rules. These fields
together with the user-configurable additional fields consist of the data actually sent to
the host computer.
For 1664 to apply any editing format, the maximum output data length of a barcode is 7
KB after configuration. When the data length exceeds 7 KB, editing format will not take
effect.
[Prefix Code] [Code ID] [Length Code] [Data] [Suffix Code] Additional
Field(s)
None
by default None
by default None
by default Barcode itself 0x0d
by default
IN THIS CHAPTER
6.1 Activating Editing Formats.......................................... 200
6.2 How to Configure Editing Formats ............................... 202
6.3 Configuring Format — Define Data Criteria ................... 205
6.4 Configuring Format — Define Data Field ....................... 217
6.5 Configuring Format — Define Transmission Sequence .... 226
6.6 Programming Examples ............................................. 228
Chapter 6
APPLYING FORMATS FOR DATA EDITING
200
End Programming Format
1664 Barcode Scanner User Guide
6.1 ACTIVATING EDITING FORMATS
6.1.1 ACTIVATE EDITING FORMATS
If you have already configured any editing format before, you may directly apply the
editing format. If not, you must start with configuring an editing format first, and then,
activate the editing format when it is desired in use.
Editing Format 1
Enable
*Disable
Editing Format 2
Enable
*Disable
Editing Format 3
Enable
*Disable
Editing Format 4
Enable
*Disable
201
Update
Chapter 6 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Editing Format 5
Enable
*Disable
6.1.2 EXCLUSIVE DATA EDITING
By default, only barcodes found meeting with the criteria are processed by the editing
formats. Those found not meeting with the criteria are processed normally.
When “Exclusive Data Editing” is enabled, all barcodes read by the scanner must be
processed by the editing formats. If data is found excluded from all enabled editing
formats (= not meeting with the specified criteria), the scanner will not accept the
reading, and therefore, data will not be transmitted.
Yes
*No
202
End Programming Format
1664 Barcode Scanner User Guide
6.2 HOW TO CONFIGURE EDITING FORMATS
203
Update
Chapter 6 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
6.2.1 SELECT FORMAT TO CONFIGURE
Start Programming Format
Select one editing format (Format 1~5) and the parameters pertaining to the editing format can
then be configured – applicable code type, data length, matching string & location, start position,
field adjustment, total number of fields, field settings (field-dividing rule), additional fields, and
field transmission sequence.
Up to five different formats can be specified.
Configure Format 1
Configure Format 2
Configure Format 3
Configure Format 4
Configure Format 5
Note: Before completing the programming of an editing format, if have the scanner read
any barcode for parameters other than those pertaining to the editing format, it
will automatically abort the programming process.
End Programming Format
After having configured all the desired parameters, you must have the scanner read the “End
Programming Format” barcode, which can be located at the bottom of every even page in this
chapter.
End Programming
Format
204
End Programming Format
1664 Barcode Scanner User Guide
6.2.2 RESTORE DEFAULT FORMAT
You may select an existing editing format and have the defaults restored. The default
settings of an editing format are listed below.
Editing format Defaults
Applicable Code Type All
Data Length 0 (No qualification)
Matching String Disable
Matching String Location None
Start Position From head
Field Adjustment No adjustment
Total Number of Fields 1
Field Setting – field-dividing rule Not configured
Additional Fields None
Field Transmission Sequence F1
Restore Default
Format
205
Update
Chapter 6 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
6.3 CONFIGURING FORMAT — DEFINE DATA CRITERIA
Three applicable conditions can be configured to check whether the data read by the
scanner can be processed by the particular editing format.
Note: Data editing cannot be performed unless the three conditions are all met.
6.3.1 APPLICABLE CODE TYPE
By default, barcodes of all the supported symbologies will be processed by any editing
format, if having been configured and enabled. For quick configuration, you may first
clear all, and then select the desired symbologies.
Note: You must have at least one symbology selected.
*Apply to All
Clear All
206
End Programming Format
1664 Barcode Scanner User Guide
Editing Format for Codabar
*Apply
Do Not Apply
Editing Format for Code 39
*Apply
Do Not Apply
Editing Format for Trioptic Code 39
*Apply
Do Not Apply
Editing Format for Code 93
*Apply
Do Not Apply
Editing Format for Code 128
*Apply
Do Not Apply
207
Update
Chapter 6 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Editing Format for GS1-128 & GS1 DataBar
*Apply
Do Not Apply
Editing Format for ISBT 128
*Apply
Do Not Apply
Editing Format for EAN-8
*Apply
Do Not Apply
Editing Format for EAN-8 Addon 2
*Apply
Do Not Apply
Editing Format for EAN-8 Addon 5
*Apply
Do Not Apply
208
End Programming Format
1664 Barcode Scanner User Guide
Editing Format for EAN-13
*Apply
Do Not Apply
Editing Format for EAN-13 Addon 2
*Apply
Do Not Apply
Editing Format for EAN-13 Addon 5
*Apply
Do Not Apply
Editing Format for Italian Pharmacode
*Apply
Do Not Apply
Editing Format for Industrial 25
*Apply
Do Not Apply
209
Update
Chapter 6 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Editing Format for Interleaved 25
*Apply
Do Not Apply
Editing Format for Matrix 25
*Apply
Do Not Apply
Editing Format for Chinese 25
*Apply
Do Not Apply
Editing Format for MSI
*Apply
Do Not Apply
Editing Format for UPC-A
*Apply
Do Not Apply
210
End Programming Format
1664 Barcode Scanner User Guide
Editing Format for UPC-A Addon 2
*Apply
Do Not Apply
Editing Format for UPC-A Addon 5
*Apply
Do Not Apply
Editing Format for UPC-E
*Apply
Do Not Apply
Editing Format for UPC-E Addon 2
*Apply
Do Not Apply
Editing Format for UPC-E Addon 5
*Apply
Do Not Apply
211
Update
Chapter 6 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Editing Format for UCC Coupon Extended Code
*Apply
Do Not Apply
Editing Format for Code 11
*Apply
Do Not Apply
Editing Format for Composite CC-A/B
*Apply
Do Not Apply
Editing Format for Composite CC-C
*Apply
Do Not Apply
Editing Format for Composite TLC-39
*Apply
Do Not Apply
212
End Programming Format
1664 Barcode Scanner User Guide
Editing Format for US Postnet
*Apply
Do Not Apply
Editing Format for US Planet
*Apply
Do Not Apply
Editing Format for UK Postal
*Apply
Do Not Apply
Editing Format for Japan Postal
*Apply
Do Not Apply
Editing Format for Australian Postal
*Apply
Do Not Apply
213
Update
Chapter 6 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Editing Format for Dutch Postal
*Apply
Do Not Apply
Editing Format for USPS 4CB/One Code/Intelligent Mail
*Apply
Do Not Apply
Editing Format for UPU FICS Postal
*Apply
Do Not Apply
Editing Format for PDF417
*Apply
Do Not Apply
Editing Format for MicroPDF417
*Apply
Do Not Apply
214
End Programming Format
1664 Barcode Scanner User Guide
Editing Format for Data Matrix
*Apply
Do Not Apply
Editing Format for Maxicode
*Apply
Do Not Apply
Editing Format for QR Code
*Apply
Do Not Apply
Editing Format for MicroQR
*Apply
Do Not Apply
Editing Format for Aztec
*Apply
Do Not Apply
215
Update
Chapter 6 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
6.3.2 DATA LENGTH
The length must include prefix, suffix (0x0d by default), length code, etc. By default,
barcodes of any length (character count) are eligible for data editing.
It can be specified a value from 0 to 254.
When zero is given to both, the scanner will not perform the length qualification.
1) Read the barcode below to specify Max. Length or Min. Length separately, and follow
steps 2~3.
Max. Length
Min. Length
2) Read the “Decimal Value” barcode on page 251 for the desired length.
3) Read the “Validate” barcode on the same page to complete this setting.
216
End Programming Format
1664 Barcode Scanner User Guide
6.3.3 MATCHING STRING & LOCATION
By default, no matching string is specified, and therefore, it is disabled. You may enable
this feature by specifying a matching string; up to four characters are allowed.
When the Matching String Location is zero, the scanner will only check for the
existence of the matching string in the barcode data.
Specify a value from 1 to 254 to indicate where the matching string starts in the
barcode data.
1) Read the barcode to specify a matching string.
Matching String…
2) Read the “Hexadecimal Value” barcode on page 252 for the desired character string.
3) Read the “Validate” barcode to complete this setting.
4) Read the barcode to specify the location of the matching string.
Location of Matching
String…
5) Read the “Decimal Value” barcode on page 251 for the desired location.
6) Read the “Validate” barcode on the same page to complete this setting.
217
Update
Chapter 6 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
6.4 CONFIGURING FORMAT — DEFINE DATA FIELD
6.4.1 START POSITION
Data can be divided into fields in one of the following direction –
from head (F1) to tail (F5)
from tail (F1) to head (F5)
*From Head
From Tail
6.4.2 FIELD ADJUSTMENT
You may apply equal length to all fields, if necessary. If data is found longer than
specified, it will be truncated automatically. When data is found shorter, it will add
“Space” (0x20) to field.
*No adjustment
Set length to adjust
fields… (*0)
1) Read the barcode above to adjust field by length.
2) Read the “Decimal Value” barcode on page 251 for the desired field length.
3) Read the “Validate” barcode on the same page to complete this setting.
218
End Programming Format
1664 Barcode Scanner User Guide
6.4.3 TOTAL NUMBER OF FIELDS
Data can be divided into at most 6 fields; each of them is numbered from F1 to F6
accordingly. However, only F1~F5 can be configured.
The total number of fields must be specified correctly. If three fields are configured
for the editing format, the data characters after F3 will be assigned to F4
automatically. This feature is quite useful especially when data of variable lengths is
processed by editing formats.
*One Field
Two Fields
Three Fields
Four Fields
Five Fields
Six Fields
Note: The number of configurable fields is always one less than the total number of
fields specified. The extra data characters beyond the last field configured will be
automatically assigned to the next field.
219
Update
Chapter 6 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
6.4.4 FIELD SETTINGS
Data eligible for editing formats is divided into fields by user-specified rules – either
using the field terminating string or specified field length.
By Terminating String
Specify the field terminating string. Up to two characters are allowed. The scanner will search for
the occurrence of this particular string in the data.
By default, this string will be included in the field. You may discard it.
By Length
Alternatively, you may simply specify the field length. The scanner will assign the next specified
number of characters into the field.
Field 1 Setting
1. Read the barcode below to divide field 1 by a specified terminating string.
S
elect
F
ield Separator
to Divide Field 1…
2. Read the “Hexadecimal Value” barcode on page 252 for the desired character string.
3. Read the “Validate” barcode to complete this setting.
4. Read the “Discard Separator” barcode if the field separator is not desired in the field.
*Include Separator
Discard Separator
If not dividing the field by a specific separator, you may divide it by a specified length.
1. Read the barcode below to divide field 1 by length.
D
ivide Field 1
by Length
2. Read the “Decimal Value” barcode on page 251 for the desired field length.
3. Read the “Validate” barcode on the same page to complete this setting.
220
End Programming Format
1664 Barcode Scanner User Guide
Field 2 Setting
1. Read the barcode below to divide field 2 by a specified terminating string.
S
elect
F
ield Separator
to Divide Field 2…
2. Read the “Hexadecimal Value” barcode on page 252 for the desired character string.
3. Read the “Validate” barcode to complete this setting.
4. Read the “Discard Separator” barcode if the field separator is not desired in the field.
*Include Separator
Discard Separator
If not dividing the field by a specific separator, you may divide it by a specified length.
1. Read the barcode below to divide field 2 by length.
D
ivide Field 2
by Length
2. Read the “Decimal Value” barcode on page 251 for the desired field length.
3. Read the “Validate” barcode on the same page to complete this setting.
221
Update
Chapter 6 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Field 3 Setting
1. Read the barcode below to divide field 3 by a specified terminating string.
S
elect
F
ield Separator
to Divide Field 3…
2. Read the “Hexadecimal Value” barcode on page 252 for the desired character string.
3. Read the “Validate” barcode to complete this setting.
4. Read the “Discard Separator” barcode if the field separator is not desired in the field.
*Include Separator
Discard Separator
If not dividing the field by a specific separator, you may divide it by a specified length.
1. Read the barcode below to divide field 3 by length.
D
ivide Field 3
by Length
2. Read the “Decimal Value” barcode on page 251 for the desired field length.
3. Read the “Validate” barcode on the same page to complete this setting.
222
End Programming Format
1664 Barcode Scanner User Guide
Field 4 Setting
1. Read the barcode below to divide field 4 by a specified terminating string.
S
elect
F
ield Separator
to Divide Field 4…
2. Read the “Hexadecimal Value” barcode on page 252 for the desired character string.
3. Read the “Validate” barcode to complete this setting.
4. Read the “Discard Separator” barcode if the field separator is not desired in the field.
*Include Separator
Discard Separator
If not dividing the field by a specific separator, you may divide it by a specified length.
1. Read the barcode below to divide field 4 by length.
D
ivide Field 4
by Length
2. Read the “Decimal Value” barcode on page 251 for the desired field length.
3. Read the “Validate” barcode on the same page to complete this setting.
223
Update
Chapter 6 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Field 5 Setting
1. Read the barcode below to divide field 5 by a specified terminating string.
S
elect
F
ield Separator
to Divide Field 5…
2. Read the “Hexadecimal Value” barcode on page 252 for the desired character string.
3. Read the “Validate” barcode to complete this setting.
4. Read the “Discard Separator” barcode if the field separator is not desired in the field.
*Include Separator
Discard Separator
If not dividing the field by a specific separator, you may divide it by a specified length.
1. Read the barcode below to divide field 5 by length.
D
ivide Field 5
by Length
2. Read the “Decimal Value” barcode on page 251 for the desired field length.
3. Read the “Validate” barcode on the same page to complete this setting.
224
End Programming Format
1664 Barcode Scanner User Guide
Additional Fields
Up to five additional fields can be created for each editing format; each of them is numbered from
AF1 to AF5 accordingly.
If “Bluetooth® HID” or “USB HID” is configured for interface, Key Type and Key Status will then
become applicable. You may decide whether or not to apply Key Status when “Normal Key” is
selected for Key Type.
Key Type Key Status
Scan Code Up to 2 scan code values are allowed.
N/A
Normal Key Up to 4 character strings are allowed. Add Shift
Add Left Ctrl
Add Left Alt
Add Right Ctrl
Add Right Alt
Refer to Keyboard Wedge Table.
1. Read the barcode below to specify an additional field, one at a time.
Additional Field 1…
Additional Field 2…
Additional Field 3…
Additional Field 4…
Additional Field 5…
2. Read the “Hexadecimal Value” barcode on page 252 for the desired additional field.
3. Read the “Validate” barcode to complete this setting.
225
Update
Chapter 6 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
6.4.5 PAUSE FIELD SETTING
Pause Field Time
You can limit the pause time interval (1~16). By default, it is set to 1 second.
Pause Field Tim
e
1
~16 sec.
(*1)
1. Read the barcode above to specify the time interval for the Pause Field. (It is set to 1 by
default.)
2. Read the “Decimal Value” barcode on page 251. For example, read “1” and “0” for setting the
Pause Field Time to 10 seconds.
3. Read the “Validate” barcode on the same page to complete this setting.
226
End Programming Format
1664 Barcode Scanner User Guide
6.5 CONFIGURING FORMAT — DEFINE TRANSMISSION SEQUENCE
After configuring the data fields and additional fields, you must now program the
transmission sequence of these fields that comprise the final data. This field transmission
sequence can be assigned in any desired order and fields can be assigned multiple times
as well.
Note: Up to twelve fields can be assigned.
1) Read the “Start” barcode to begin with programming the field transmission sequence.
Start Programming…
2) Program the transmission sequence by reading the desired fields as well as additional
fields.
Field 1
Field 2
Field 3
Field 4
Field 5
Field 6
Additional Field 1
227
Update
Chapter 6 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Additional Field 2
Additional Field 3
Additional Field 4
Additional Field 5
Pause Field
Null Character Field
3) Read the “End” barcode to complete this setting.
End Programming…
228
End Programming Format
1664 Barcode Scanner User Guide
6.6 PROGRAMMING EXAMPLES
6.6.1 EXAMPLE I
Extract data from the 10th character to the 19th character...
The editing format should be configured as follows:
1. Read the “Enter Setup” barcode to enter the Configuration Mode.
2. Read the “Configure Format 1” barcode.
3. Read the “Clear All” and “Code 128” barcodes for applicable code type.
4. Read the “Three Fields” barcode.
5. Read the “Divide Field 1 by Length” barcode, and set length to 9.
Field 1 data starts from the 1st character to the 9th character.
6. Read the “Divide Field 2 by Length” barcode, and set length to 10.
Field 2 data starts from the 10th character to the 19th character.
7. Read the “Start (Programming)” barcode to program the transmission sequence.
8. Read the “Field 2” barcode.
9. Read the “End” barcode to complete the transmission sequence setting.
10. Read the “End Programming Format” barcode to complete the setting of Editing Format 1.
11. Read the “Enable Format 1” barcode to apply Editing Format 1 to Code 128.
12. Read the “Update” barcode to exit the Configuration Mode.
229
Update
Chapter 6 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
6.6.2 EXAMPLE II
Extract the date code, item number, and quantity information from barcodes.
Data in a barcode is encoded like this:
From the 1st character to the 6th character is the date code.
From the 7th character to the dash ‘-’ character is the item number.
After the dash ‘-’ character is the quantity information.
Data will be transmitted like this:
The item number goes first, then a TAB character, followed by the date code, then another TAB
character, and finally the quantity information.
The editing format should be configured as follows:
1. Read the “Enter Setup” barcode to enter the Configuration Mode.
2. Read the “Configure Format 2” barcode.
3. Read the “Three Fields” barcode.
4. Read the “Divide Field 1 by Length” barcode, and set length to 6.
Field 1 data starts from the 1st character to the 6th character.
5. Read the “Select Field Separator to Divide Field 2” barcode, and use a dash ‘-’ character.
Field 2 data starts from the 7th character until the dash ‘-’ character is met.
6. Read the “Additional Field 1” barcode, and use a tab character for the field.
7. Read the “Start (Programming)” barcode to program the transmission sequence.
8. Read the “Field 2”, “Additional Field 1”, “Field 1”, “Additional Field 1”, “Field 3” barcodes.
9. Read the “End” barcode to complete the transmission sequence (F2 A1 F1 A1 F3) setting.
10. Read the “End Programming Format” barcode to complete the setting of Editing Format 1.
11. Read the “Enable Format 2” barcode to apply Editing Format 2 to all code types.
12. Read the “Update” barcode to exit the Configuration Mode.
230
End Programming Format
1664 Barcode Scanner User Guide
231
Update
Optical Characteristics 1664
Scan Engine 2D Imager
Light Source Visible red LED
RF Characteristics
WPAN Module Bluetooth® Class 2 compliance
Coverage (line-of-sight) 20 meters with 3610
Interface Supported Serial Port Profile (Bluetooth® SPP)
Human Interface Device Profile (Bluetooth® HID)
3610
Direct USB HID
Direct USB Virtual COM
Physical Characteristics
Memory 10 KB for transmit buffer
4MB flash for memory mode
Switch Push-button switch for [Trigger] key, plus [Power/Delete] key
Indication Triple-color LED (Red/Green/Blue) and beeper
Dimensions 110 x 45 x 25 mm
Weight <130g
SPECIFICATIONS
232
Enter Setup
1664 Barcode Scanner User Guide
Electrical Characteristics
Battery Rechargeable Li-ion battery — 3.7 V, 850 mAh
Power Adaptor
Input AC 100~240 V (50/60 Hz)
Output DC 5V 2A (Battery Charger)
Operating Temperature 0 °C to 40 °C
Environmental Characteristics
Temperature Operating
Storage
0 °C to 50 °C
-20 °C to 60 °C
Humidity
(Non-condensing) Operating
Storage
10% to 90%
5% to 95%
Resistance
Electrostatic Discharge ± 15 kV air discharge, ± 8 kV contact discharge
Programming Support
Configuration via Setup Barcodes Use setup barcodes or host serial commands.
Software Windows®-based ScanMaster
Firmware upgradeable Download firmware updates via the download utility.
Accessories (√ means “supported”)
CipherLab Dongle(3610) √
Rechargeable Li-ion Battery √
Direct USB Cable √
Wristband √
Protective Cover (Pouch) √
Single Battery Charger √
233
Update
Upgrade firmware of one scanner at a time. For example, turn off each of the rest
scanners when there is more than one scanner connected to host computer.
Note: 1. In case it fails downloading due to low battery, make sure the targe scanner is
loaded with good battery and the battery charge is enough.
2. In order to avoid the data losing during firmware upgrade. Please save or
upload all the data from the flash memory before beginning firmware upgrade.
HOW TO UPGRADE FIRMWARE
USING 3610
1) Connect 3610 to the USB port of PC after installing its driver.
2) Refer to 3.1.1 Connect to 3610 the target scanner to connect to 3610.
Read the “Set Connection” label first, and then the “Serial Number” label. Both labels
can be located at the back of 3610.
3) Read the following barcodes in sequence to configure the scanner to use USB Virtual
COM as download interface.
Enter Setup
Activate 3610 USB
Virtual COM
Update
Note: For 1664, also choose to use “Direct” USB Virtual COM interface.
4) Read the following barcodes in sequence for the scanner to enter the download mode.
The scanner will respond with beeps to indicate it is ready for downloading.
Appendix I
FIRMWARE UPGRADE
234
Enter Setup
1664 Barcode Scanner User Guide
Enter Setup
Download
5) Run the download utility “ProgLoad.exe” on your computer.
Kernel Program User Program
K1664_V*.shx STD1664_V*.shx
For the communication settings, select
“RS-232” and the correct COM port for USB
Virtual COM interface.
Ignore the baud rate setting.
For the file option, click [Browse] to select
the target file for firmware update.
Click [OK].
6) After upgrading kernel, you will need to manually restart the scanner.
After upgrading the user program, the scanner will automatically restart itself once
the download is completed successfully.
Note: The output interface remains unchanged as specified in step 3 (= USB Virtual
COM).
235
Update
Appendix I 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
USING DIRECT USB VIRTUAL COM
1) Use the provided USB cable to connect 1661/1664 to the USB port of PC. It may need
to install its driver first!
2) Read the following barcodes in sequence to configure 1664 to use Direct USB Virtual
COM as download interface and enter the download mode. The scanner will respond
with beeps to indicate it is ready for downloading.
Enter Setup
Activate Direct
USB Virtual COM
for download
3) Run the download utility “ProgLoad.exe” on host computer.
Kernel Program User Program
K1664_V*.shx STD1664_V*.shx
For the communication settings, select
“RS-232” and the correct COM port for
Direct USB Virtual COM interface.
Ignore the baud rate setting.
For the file option, click [Browse] to select
the target file for firmware update.
Click [OK].
4) After upgrading kernel, it needs to restart the scanner manually.
After upgrading the user program, the scanner will restart itself automatically once
the download is completely.
236
Enter Setup
1664 Barcode Scanner User Guide
Note: Because 1664 supports to download firmware via Direct USB Virtual COM interface,
the output interface will be set to the previous used one upon completion of
firmware upgrade.
USING BLUETOOTH® DONGLE
1) Refer to 3.2.3 Connect to Dongle for the target scanner to accept the connection
request from your computer.
2) Read the following barcodes in sequence to configure the scanner to use Bluetooth®
SPP as download interface.
Enter Setup
Activate Bluetooth®
SPP
Update
3) Read the following barcodes in sequence for the scanner to enter the download mode.
The scanner will respond with beeps to indicate it is ready for downloading.
Enter Setup
Download
4) Run the download utility “ProgLoad.exe” on your computer.
Kernel Program User Program
K1664_V*.shx STD1664_V*.shx
237
Update
Appendix I 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
For the communication settings, select
“RS-232” and the correct COM port for
Bluetooth® SPP interface.
Ignore the baud rate setting.
For the file option, click [Browse] to select
the target file for firmware update.
Click [OK].
5) After upgrading kernel, you will need to manually restart the scanner.
After upgrading the user program, the scanner will automatically restart itself once
the download is completed successfully.
Note: The output interface remains unchanged as specified in step 2 (=Bluetooth® SPP).
238
Enter Setup
1664 Barcode Scanner User Guide
HOW TO UPGRADE 3610 FIRMWARE
Connect 3610 to the USB port of PC after installing its driver. Refer to 3.1.1 Connect to
3610 for the target scanner to connect to 3610.
UPGRADING 3610 CPU FIRMWARE
1) Read the following barcodes in sequence for 3610 to enter the download mode. The
Communication LED on 3610 will be flashing red to indicate it is ready for
downloading.
Enter Setup
Download 3610
CPU Firmware
2) Run the download utility “ProgLoad.exe” on your computer.
Kernel Program User Program
K3610_V*.shx STD3610_V*.shx
For the communication settings, select
“RS-232” and the correct COM port for USB
Virtual COM interface.
Ignore the baud rate setting.
For the file option, click [Browse] to select
the target file for firmware update.
Click [OK].
3) The 3610 will automatically restart itself when upgrading firmware is completed
successfully.
239
Update
Appendix I 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
4) Read the “Update” barcode for the scanner to resume its operation (exit the
configuration mode).
Update
UPGRADING 3610 USB BRIDGE FIRMWARE
1) Read the following barcodes in sequence for 3610 to enter the download mode. The
Communication LED on 3610 will be flashing red to indicate it is ready for
downloading.
Enter Setup
Download 3610
USB Bridge Firmware
2) Run the download utility “ProgLoad.exe” on your computer.
Kernel Program User Program
K3610Bridge_V*.shx STD3610Bridge_V*.shx
For the communication settings, select
“RS-232” and the correct COM port for USB
Virtual COM interface.
Ignore the baud rate setting.
For the file option, click [Browse] to select
the target file for firmware update.
Click [OK].
240
Enter Setup
1664 Barcode Scanner User Guide
3) The 3610 will automatically restart itself when upgrading firmware is completed
successfully.
4) Read the “Update” barcode for the scanner to resume its operation (exit the
configuration mode).
Update
241
Update
SERIAL COMMANDS
D
Purpose To disable the scanner.
Remarks “D”
E
Purpose To enable the scanner.
Remarks “E”
#@ nnnnnn <CR>
Purpose To configure the scanner.
Remarks nnnnnn – the six digits of command parameters.
For example, “109952” is to list the current Code ID settings.
“0x23” + “0x40” + “0x31” + “0x30” + “0x39” + “0x39” + “0x35” + “0x32” + “0x0d”
Note: After configuring the scanner, you may send the serial command “#@109999” to
save the settings.
#@ - - - -<CR>
Purpose To halt the scanner.
Remarks “0x23” + “0x40” + “0x2d” + “0x2d” + “0x2d” + “0x2d” + “0x0d”
#@ . . . . <CR>
Purpose To resume operation.
Remarks “0x23” + “0x40” + “0x2e” + “0x2e” + “0x2e” + “0x2e” + “0x0d”
#@////<CR>
Purpose To respond with a beep.
Remarks “0x23” + “0x40” + “0x2f” + “0x2f” + “0x2f” + “0x2f” + “0x0d”
Appendix II
HOST SERIAL COMMANDS
S
erial Comman
d
L
ist Page 3
242
Enter Setup
1664 Barcode Scanner User Guide
#@TRIGOFF<CR>
Purpose To disable the software trigger
Remarks “0x23” + “0x40” + “0x54” + “0x52” + “0x49” + “0x47” + “0x4f” + “0x46” + “0x46”
+ “0x0d”
#@TRIGON<CR>
Purpose To enable the software trigger
Remarks “0x23” + “0x40” + “0x54” + “0x52” + “0x49” + “0x47” + “0x4f” + “0x4e” + “0x0d”
#@RDSN<CR>
Purpose Read serial number
Remarks “0x23” + “0x40” + “0x52” + “0x44” + “0x53” + “0x4E” + “0x0D”
EXAMPLE
You may run HyperTerminal.exe on the host computer to send serial commands to the
scanner via USB Virtual COM or Bluetooth® SPP.
For the scanner to stop immediately –
D
For the scanner to resume working –
E
For the scanner to change the beeper to medium volume and beep –
#@101011<CR>
#@////<CR>
For the scanner to change the beeper to minimal volume and beep –
#@101010<CR>
#@////<CR>
For the scanner to change the beeper frequency to 8 kHz (for Good Read Beep only)
and beep –
#@101001<CR>
#@////<CR>
For the scanner to change the beeper length to longest (for Good Read Beep only)
and beep –
#@101008<CR>
#@////<CR>
For the scanner to save the settings, send the serial command “#@109999” –
#@101011<CR>
#@109999<CR>
243
Update
Appendix II 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
For the scanner to read the serial number and beep -
#@RDSN<CR>
#@////<CR>
Note: (1) For USB Virtual COM, only configure the first scanner that connects to 3610.
To identify the scanner, send the serial command to have it respond with a beep.
(2) For Bluetooth® SPP, allows configuring up to seven scanners at the same time.
3610 SETUP BARCODES & SERIAL COMMANDS
Normally, configure the 3610 dongle by having a connected scanner read 3610-related
setup barcodes.
1) Connect 3610 to the USB port of PC. 3610 needs to install its driver first!
2) Refer to 3.1.1 Connect to 3610 for the target scanner to connect to 3610.
Read the “Set Connection” label first, and then the “Serial Number” label. Both labels
can be located at the back of 3610.
3) Read the following barcodes in sequence to configure 3610.
Enter Setup
Update
For 3610-related setup barcodes, refer to the Serial Command table below. Note that for
the “Version” and “GetID” barcodes, it must run HyperTerminal.exe or any text editor to
receive the information.
If the output interface is USB Virtual COM, run HyperTerminal.exe on the host
computer to receive the information.
If the output interface is USB HID, run any text editor to receive the information.
(3610-related setup barcodes)
244
Enter Setup
1664 Barcode Scanner User Guide
3610 SERIAL COMMAND TABLE
Config<CR>
Purpose To configure 3610.
Here is the setup barcode for this serial command:
Config
Remarks A list of the current settings will be displayed. Run HyperTerminal.exe on your
computer and change the settings one by one.
DefaultSetting<CR>
Purpose To restore the default settings.
Here is the setup barcode for this serial command:
DefaultSetting
SingleConnection<CR>
Purpose To allow only one scanner connecting to 3610.
Here is the setup barcode for this serial command:
SingleConnection
MultiConnection<CR>
Purpose To allow up to seven scanners connecting to 3610.
Here is the setup barcode for this serial command:
MultiConnection
UseOnePortforAll<CR>
Purpose To use one Virtual COM port for all whenever connecting 3610 to PC via USB. This
setting requires to connect one 3610 at a time, and will facilitate configuring a great
amount of 3610 via the same Virtual COM port (for administrators’ or factory use).
Here is the setup barcode for this serial command:
UseOnePortforAll
245
Update
Appendix II 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
UseVariablePort<CR>
Purpose To use variable Virtual COM port when connecting more than one 3610 to PC via
USB.
Here is the setup barcode for this serial command:
UseVariablePort
Version<CR>
Purpose To get the firmware versions (CPU+USB Bridge).
Here is the setup barcode for this serial command:
Version
GetID<CR>
Purpose To get MAC ID.
Here is the setup barcode for this serial command:
GetID
Download<CR>
Purpose To download CPU firmware to 3610.
Here is the setup barcode for this serial command:
Download
LoadBridge<CR>
Purpose To download USB Bridge firmware to 3610.
Here is the setup barcode for this serial command:
LoadBridge
246
Enter Setup
1664 Barcode Scanner User Guide
EXAMPLE
Without using the scanner to read the above setup barcodes for configuring the 3610
dongle, run HyperTerminal.exe on the host computer to send serial commands to 3610
via USB Virtual COM.
1) Connect 3610 to the USB port of PC.
2) The Communication LED will indicate when 3610 can accept serial commands after
initializing. Refer to the table below.
If the output interface is USB Virtual COM, run HyperTerminal.exe on the host
computer. While the Communication LED on 3610 is purple (red with flashing blue),
type the serial command within 3 seconds.
If the output interface is USB HID, press the “Num Lock” or “Caps Lock” key via the
keyboard 5 times within 3 seconds while the Communication LED on 3610 is flashing
red and blue. This will change the interface from USB HID to USB Virtual COM and the
Communication LED will become purple (red with flashing blue). Then, run
HyperTerminal.exe on the host computer. While the Communication LED on 3610 is
purple (red with flashing blue), type the serial command within 3 seconds. After
configuring via serial commands, the interface will reset to USB HID after
re-connecting 3610.
Communication LED Meaning
--- Blue,
solid Initialize
Red,
solid Blue,
flashing Serial command mode with USB Virtual COM: wait 3 seconds for starting a
serial command
Red,
flashing Blue,
flashing Serial command mode with USB HID changed to USB Virtual COM first: wait
3 seconds for pressing [Num Lock] or [Caps Lock] 5 times via keyboard
247
Update
0 1 2 3 4 5 6 7 8
0 F2 SP 0 @ P ` p
1 INS F3 ! 1 A Q a q
2 DLT F4 " 2 B R b r
3 Home F5 # 3 C S c s
4 End F6 $ 4 D T d t
5 Up F7 % 5 E U e u
6 Down F8 & 6 F V f v
7 Left F9 ' 7 G W g w
8 BS F10 ( 8 H X h x
9 HT F11 ) 9 I Y i y
A LF F12 * : J Z j z
B Right ESC + ; K [ k {
C PgUp Exec , < L \ l |
D CR CR* - = M ] m }
E PgDn . > N ^ n ~
F F1 / ? O _ o Dly ENTER*
Note: (1) ~: Digits of numeric keypad.
(2) CR*/Send/ENTER*: ENTER key on the numeric keypad.
Appendix III
KEYBOARD WEDGE TABLE
248
Enter Setup
1664 Barcode Scanner User Guide
KEY TYPE & STATUS
KEY TYPE
If “Bluetooth® HID” or “USB HID” is configured for interface, Key Type and Key Status
will then become applicable.
*Normal
Scan Code
KEY STATUS
Decide whether or not to change key status when “Normal Key” is selected for Key Type.
Add Shift
Add Left Ctrl
Add Right Ctrl
Add Left Alt
Add Right Alt
249
Update
Appendix III 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
EXAMPLE
KEY TYPE = NORMAL
For example, if you want to program the character “!” as the prefix code:
1. Read the “Configure Prefix” barcode.
2. Read the “Hexadecimal Value” barcode on page 252 for “2” and “1”.
3. Read the “Validate” barcode to complete this setting.
KEY TYPE = SCAN CODE
For example, if you want to program the character “a” (= “1C” on the scan code table) as the
prefix code:
1. Read the “Configure Prefix” barcode.
2. Read the “Scan Code” barcode.
3. Read the “Hexadecimal Value” barcode on page 252 for “1” and “C”.
4. Read the “Validate” barcode to complete this setting.
KEY TYPE = NORMAL + KEY STATUS = SHIFT
For example, if you want to program the character “!” (= “Shift” + “1” on keyboard) as the prefix
code:
1. Read the “Configure Prefix” barcode.
2. Read the “Add Shift” barcode.
3. Read the “Hexadecimal Value” barcode on page 252 for “3” and “1”.
4. Read the “Validate” barcode to complete this setting.
KEY TYPE = NORMAL + KEY STATUS = CTRL
For example, if you want to program “Ctrl+A” and “Ctrl+$” as the prefix code:
1. Read the “Configure Prefix” barcode.
2. Read the “Add Left Ctrl” barcode.
3. Read the “Hexadecimal Value” barcode on page 252 for “4”, “1” (= “A”).
4. Read the “Add Left Ctrl” barcode.
5. Read the “Hexadecimal Value” barcode on page 252 for “2”, “4” (= “$”).
6. Read the “Validate” barcode to complete this setting.
250
Enter Setup
1664 Barcode Scanner User Guide
251
Update
A
bort
DECIMAL SYSTEM
Decimal
Validate the Values
Appendix IV
NUMERAL SYSTEMS
0 1
2
3
4
5
6
7
8
9
V
alidate
252
Enter Setup
1664 Barcode Scanner User Guide
HEXADECIMAL SYSTEM
Hexadecimal
0
1
2
3
4 5
6
7
8 9
A B
C
D
E F
253
Appendix IV 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Update
A
bort
Validate the Values
ASCII TABLE
0 1 2 3 4 5 6 7
0 DLE SP 0 @ P ` p
1 SOH DC1 ! 1 A Q a q
2 STX DC2 " 2 B R b r
3 ETX DC3 # 3 C S c s
4 EOT DC4 $ 4 D T d t
5 ENQ NAK % 5 E U e u
6 ACK SYN & 6 F V f v
7 BEL ETB ' 7 G W g w
8 BS CAN ( 8 H X h x
9 HT EM ) 9 I Y i y
A LF SUB * : J Z j z
B VT ESC + ; K [ k {
C FF FS , < L \ l |
D CR GS - = M ] m }
E SO RS . > N ^ n ~
F SI US / ? O _ o DEL
Validate
254
Enter Setup
1664 Barcode Scanner User Guide
ENTERING PIN CODE FOR AUTHENTICATION
USE PRESET PIN
1) In the configuration mode, read the barcode below to use a preset PIN for
authentication.
Use Preset PIN
2) Read one of the barcodes to specify the PIN code, in decimal or hexadecimal.
By default, the PIN code is set to “0000”. Maximum 16 characters are allowed.
Enter PIN in
Hexadecimal…
E
nter PIN in
Decimal…
3) Read the “Decimal Value” barcode on page 251 or the “Hexadecimal Value” barcode
on page 252 for the desired digits or character string.
Read the “Clear PIN Code” barcode first if you need to re-input the PIN code.
Clear PIN Code
4) Read the “Validate” barcode to complete this setting.
255
Appendix IV 錯誤! 使用 [常用] 索引標籤將 Heading 1 套用到您想要在此處顯示的文字。
Update
A
bort
DISABLE AUTHENTICATION OR USE RANDOM PIN
In the configuration mode, read the barcode below to disable authentication (= No PIN)
or use a random PIN for authentication.
*
No PIN or
use random PIN
Note: When using Bluetooth® HID, some device driver may not support pre-defined PIN
code for authentication. In this case, make sure you have the scanner set to “No
PIN or use random PIN” before pairing. While pairing, the host PIN code will be
displayed on the computer screen.
Use Random PIN
When the target device is set to use a random PIN for authentication, wait until the random PIN is
displayed on the target device while pairing, and then input the matching PIN code on the scanner.
Note: Follow the steps below to enter the matching PIN on the scanner. There is no need
to enter the configuration mode!
1. Read one of the barcodes to specify the PIN code, in decimal or hexadecimal.
Enter PIN in
Hexadecimal…
E
nter PIN in
Decimal…
2. Read the “Decimal Value” barcode on page 251 or the “Hexadecimal Value” barcode on page
252 for the desired digits or character string.
Read the “Clear PIN Code” barcode first if you need to re-input the PIN.
Clear PIN Code
256
Enter Setup
1664 Barcode Scanner User Guide
3. Read the “Validate” barcode to complete this setting.
Reject Random PIN Request
When the random PIN is displayed on the target device while pairing, you can reject the PIN
request by having the scanner read the “Validate” barcode.
Press the
pin tip
against the
connector
and release
the cable.
