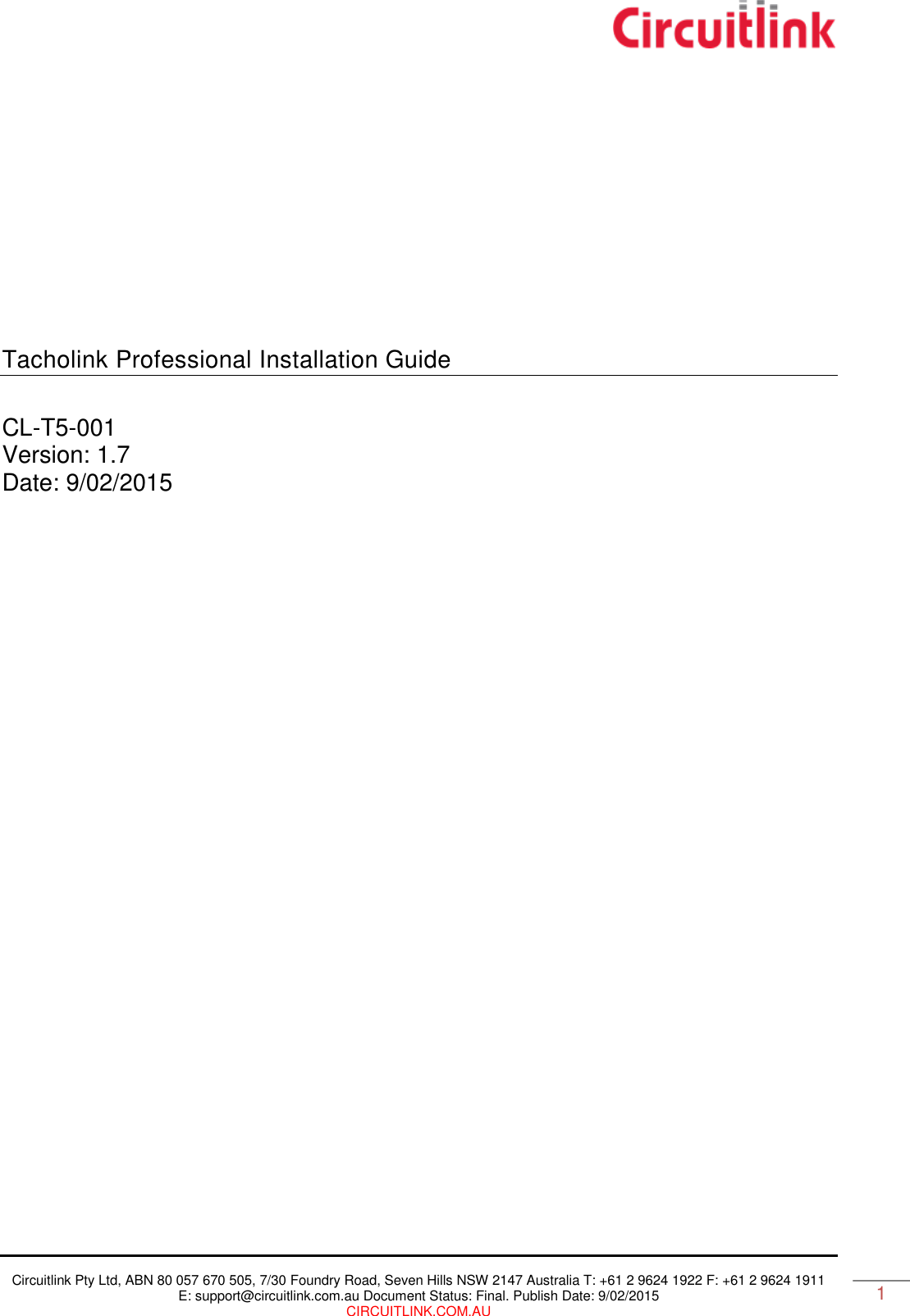

Circuitlink Pty Ltd, ABN 80 057 670 505, 7/30 Foundry Road, Seven Hills NSW 2147 Australia T: +61 2 9624 1922 F: +61 2 9624 1911 E: support@circuitlink.com.au Document Status: Final. Publish Date: 9/02/2015 CIRCUITLINK.COM.AU 1 Tacholink Professional Installation Guide CL-T5-001 Version: 1.7 Date: 9/02/2015

Circuitlink Pty Ltd, ABN 80 057 670 505, 7/30 Foundry Road, Seven Hills NSW 2147 Australia T: +61 2 9624 1922 F: +61 2 9624 1911 E: support@circuitlink.com.au Document Status: Final. Publish Date: 9/02/2015 CIRCUITLINK.COM.AU 2 Legal Notice This document contains confidential and proprietary information of Circuitlink and is for the use of and disclosure to employees, Circuitlink Authorized Service Providers and their employees. The use of this document by or disclosure of this document to, any other person or entity is strictly prohibited.

Circuitlink Pty Ltd, ABN 80 057 670 505, 7/30 Foundry Road, Seven Hills NSW 2147 Australia T: +61 2 9624 1922 F: +61 2 9624 1911 E: support@circuitlink.com.au Document Status: Final. Publish Date: 9/02/2015 CIRCUITLINK.COM.AU 3 Contents Legal Notice .......................................................................................................................................................................... 2 Figures .................................................................................................................................................................................. 4 Safety Warnings .................................................................................................................................................................... 5 Installation ......................................................................................................................................................................... 5 FCC RF Radiation Exposure Statement ........................................................................................................................... 5 FCC Warning Statement ................................................................................................................................................... 6 Australian Communications and Media Authority Notice. ................................................................................................. 6 Modifications ..................................................................................................................................................................... 6 Specifications ........................................................................................................................................................................ 6 Electrical ........................................................................................................................................................................... 6 Enclosure .......................................................................................................................................................................... 7 Connecting to the Tacholink 5 ............................................................................................................................................... 7 Blunt Cut Hardwired .......................................................................................................................................................... 8 Samtec 20 pin (Blunt Cut) ............................................................................................................................................... 10 Samtec 40 Pin (Blunt Cut) .............................................................................................................................................. 11 T5 Standard External OBDII (PN 3400123) .................................................................................................................... 12 T5 Standard J1939 + Power (PN 3400124) .................................................................................................................... 13 T5 Power Loom (PN 3400133) ....................................................................................................................................... 13 T5 CAN Bus Loom (PN 3400134) ................................................................................................................................... 14 Remote Accelerometer ........................................................................................................................................................ 14 Installation ........................................................................................................................................................................... 15 Under Seat Mounting ...................................................................................................................................................... 15 Cabinet / Panel Mounting ................................................................................................................................................ 15 Dashbox .......................................................................................................................................................................... 15 T5 Standard External OBDII (PN 3400123) .................................................................................................................... 15 Connecting the T5 ............................................................................................................................................................... 16 Removing the Face Plate .................................................................................................................................................... 16 Loading Fleet Configuration File ......................................................................................................................................... 17 Event Data Recorder ...................................................................................................................................................... 17 Remote Accelerometer ................................................................................................................................................... 17 Troubleshooting .................................................................................................................................................................. 18 Circuitlink Configuration Utility ........................................................................................................................................ 18 LED Activity .................................................................................................................................................................... 21 FCC Approved Antennas .................................................................................................................................................... 22 MA600 ............................................................................................................................................................................ 22 MA206 ............................................................................................................................................................................ 22 ANT-2.4-CW-RH ............................................................................................................................................................. 23 Contact Information ............................................................................................................................................................. 24 Revision History .................................................................................................................................................................. 25

Circuitlink Pty Ltd, ABN 80 057 670 505, 7/30 Foundry Road, Seven Hills NSW 2147 Australia T: +61 2 9624 1922 F: +61 2 9624 1911 E: support@circuitlink.com.au Document Status: Final. Publish Date: 9/02/2015 CIRCUITLINK.COM.AU 4 Figures Figure - Cinch ModICE LE Enclosure Dimensions ............................................................................................................... 7 Figure - 3400124 ................................................................................................................................................................ 13 Figure - 3400133 ................................................................................................................................................................ 13 Figure - 3400134 ................................................................................................................................................................ 14 Figure - Locating the T5 when there are multiple COM ports ............................................................................................. 18 Figure - Circuitlink Configuration Utility during a live connection ........................................................................................ 19

Circuitlink Pty Ltd, ABN 80 057 670 505, 7/30 Foundry Road, Seven Hills NSW 2147 Australia T: +61 2 9624 1922 F: +61 2 9624 1911 E: support@circuitlink.com.au Document Status: Final. Publish Date: 9/02/2015 CIRCUITLINK.COM.AU 5 Safety Warnings Installation The T5 unit must be installed by a professional installer familiar with vehicle systems and RF signals. Incorrect installation may interfere with vehicle safety systems such as ABS, stability control and airbags or engine management CAN bus signalling. The T5 Unit must be mounted in a secure and hidden location to deter driver tampering. When mounting the T5 Unit, find a suitable location that will not interfere with the safe operation of the vehicle (e.g., braking, clutch operation, or other electronic equipment). The T5 Unit must be secured in the vehicle. Use tie wraps, screws, nut/bolts. The use of double sided tape to secure the unit is not recommended, the T5 unit needs to be firmly fixed to a flat surface to allow the correct operation of the internal accelerometer with all axes’ square to the direction of travel. Caution The T5 must be mounted at least 25cm away from any transmitting antennas. Do Not Mount the T5 Unit : – To Air Lines or any vehicle cabling – In direct exposure to the elements – In excessive heat areas (exhaust manifolds, etc.) – In excessive cold areas (refrigeration units) – In high vibration areas (engine compartments, transmission) – Near corrosive fluids and gases (acids, petroleum) – In direct exposure to water – In areas where excessive dust is present Caution Vehicles equipped with air bags. An air bag inflates with great force. Do not place objects, including this device, in the area over the air bag or in the air bag deployment area. Serious injury could result if in-vehicle wireless equipment is incorrectly installed and the air bag inflates. FCC RF Radiation Exposure Statement This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 25 centimeters between the radiator and your body.

Circuitlink Pty Ltd, ABN 80 057 670 505, 7/30 Foundry Road, Seven Hills NSW 2147 Australia T: +61 2 9624 1922 F: +61 2 9624 1911 E: support@circuitlink.com.au Document Status: Final. Publish Date: 9/02/2015 CIRCUITLINK.COM.AU 6 FCC Warning Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Australian Communications and Media Authority Notice. Warning This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Modifications This product does not contain any user serviceable components. Any unauthorised product changes or modifications will invalidate warranty and all applicable regulatory certifications and approvals. Specifications Electrical Input Voltage 9-32VDC Current 0.21A at 9V 0.11A at 32V The Tacholink 5 is fitted with internal self-resetting thermal fuses to limit current in the event of a fault. To protect the vehicle against faults in the external wiring, the use of a 5A slow-blow fuse is recommended.

Circuitlink Pty Ltd, ABN 80 057 670 505, 7/30 Foundry Road, Seven Hills NSW 2147 Australia T: +61 2 9624 1922 F: +61 2 9624 1911 E: support@circuitlink.com.au Document Status: Final. Publish Date: 9/02/2015 CIRCUITLINK.COM.AU 7 Enclosure Figure 1 - Cinch ModICE LE Enclosure Dimensions Connecting to the Tacholink 5

Circuitlink Pty Ltd, ABN 80 057 670 505, 7/30 Foundry Road, Seven Hills NSW 2147 Australia T: +61 2 9624 1922 F: +61 2 9624 1911 E: support@circuitlink.com.au Document Status: Final. Publish Date: 9/02/2015 CIRCUITLINK.COM.AU 8 Blunt Cut Hardwired Cable 1 (3400163) NEAREST AWG NO. OF CORES CONDUCTIOR NO/DIA (MM) INSULATION THICKNESS (mm) NOM. DIA (mm) 28 20 7/0.2 TC 0.2 7 Signal Colour Installer Notes Shield NOT CONNECTED GND GREEN PWR IN RED Ignition YELLOW Speed WHITE RPM BLUE PWR Out BLACK GND BROWN PWM 1 PURPLE PWM 2 ORANGE PWM 3 PINK PWM 4 TURQUOISE 1WIRE GREY RS485 RxA RED / BLUE RS485 TxA GREEN / RED RS485 RxB YELLOW / RED RS485 TxB WHITE / RED RS485 BR RED / BLACK CAN0V RED/BROWN CANL YELLOW/BLUE CANH WHITE/BLUE CANS NOT CONNECTED

Circuitlink Pty Ltd, ABN 80 057 670 505, 7/30 Foundry Road, Seven Hills NSW 2147 Australia T: +61 2 9624 1922 F: +61 2 9624 1911 E: support@circuitlink.com.au Document Status: Final. Publish Date: 9/02/2015 CIRCUITLINK.COM.AU 9 Cable 2 (3400164) NEAREST AWG NO. OF CORES CONDUCTIOR NO/DIA (MM) INSULATION THICKNESS (mm) NOM. DIA (mm) 28 20 7/0.2 TC 0.2 7 Signal Colour Installer Notes ANALOG IN 1 GREEN ANALOG IN 2 RED ANALOG IN 3 YELLOW ANALOG IN 4 WHITE ANALOG IN 5 BLUE ANALOG IN 6 BLACK ANALOG IN 7 BROWN ANALOG IN 8 PURPLE RELAY 1 ORANGE RELAY 2 PINK RELAY 3 TURQUOISE RELAY 4 GREY RS232 TX RED / BLUE RS232 RX GREEN / RED RS232 RTS YELLOW / RED RS232 CTS WHITE / RED GND RED / BLACK Cable 3 (3400165) NEAREST AWG NO. OF CORES CONDUCTIOR NO/DIA (MM) INSULATION THICKNESS (mm) NOM. DIA (mm) 28 20 7/0.2 TC 0.2 7 Signal Colour Installer Notes ADDITIONAL INPUT 1 GREEN ADDITIONAL INPUT 2 RED ADDITIONAL INPUT 3 YELLOW ADDITIONAL INPUT 4 WHITE ADDITIONAL INPUT 5 BLUE CANSHIELD/J1939 BLACK CANGND/J1939 BROWN CANL/J1939 PURPLE CANH/J1939 ORANGE

Circuitlink Pty Ltd, ABN 80 057 670 505, 7/30 Foundry Road, Seven Hills NSW 2147 Australia T: +61 2 9624 1922 F: +61 2 9624 1911 E: support@circuitlink.com.au Document Status: Final. Publish Date: 9/02/2015 CIRCUITLINK.COM.AU 10 Samtec 20 pin (Blunt Cut) NEAREST AWG NO. OF CORES CONDUCTIOR NO/DIA (MM) INSULATION THICKNESS (mm) NOM. DIA (mm) 28 20 7/0.2 TC 0.2 7 Signal Colour Installer Notes Ground BLACK Power In BROWN Ignition RED Speed ORANGE RPM YELLOW Power Out GREEN Ground BLUE PWM 1 PURPLE PWM 2 GREY PWM 3 WHITE PWM 4 PINK 1 Wire LIGHT GREEN RS485 RxA BLACK / WHITE RS485 TxA BROWN / WHITE RS485 RxB RED / WHITE RS485 TxB ORANGE / WHITE RS232 Br GREEN / WHITE CAN 0V BLUE / WHITE CAN Low PURPLE / WHITE CAN High RED / BLACK

Circuitlink Pty Ltd, ABN 80 057 670 505, 7/30 Foundry Road, Seven Hills NSW 2147 Australia T: +61 2 9624 1922 F: +61 2 9624 1911 E: support@circuitlink.com.au Document Status: Final. Publish Date: 9/02/2015 CIRCUITLINK.COM.AU 11 Samtec 40 Pin (Blunt Cut) NEAREST AWG NO. OF CORES CONDUCTIOR NO/DIA (MM) INSULATION THICKNESS (mm) NOM. DIA (mm) 28 40 7/0.2 TC 0.2 7 Signal Colour Installer Notes Analog Input 1 BLACK Analog Input 2 BROWN Analog Input 3 RED Analog Input 4 ORANGE Analog Input 5 YELLOW Analog Input 6 GREEN Analog Input 7 BLUE Analog Input 8 PURPLE Relay 1 GREY Relay 2 WHITE Relay 3 PINK Relay 4 LIGHT GREEN RS232 TX BLACK/WHITE RS232 RX BROWN/WHITE RS232 RTS RED/WHITE RS232 CTS ORANGE/WHITE Ground GREEN/WHITE Additional Input 1 LIGHT BLUE/BLUE Additional Input 2 LIGHT BLUE/GREEN Additional Input 3 GRAY/RED Additional Input 4 GRAY/GREEN Additional Input 5 PURPLE/BLACK CAN SHEILD/J1939 BLUE/BLACK CAN GROUND/J1939 LIGHT GREEN/BLACK CAN LOW/J1939 LIGHT GREEN/RED CAN HIGH/J1939 LIGHT GREEN/BLUE Wires 18-31 are not connected.

Circuitlink Pty Ltd, ABN 80 057 670 505, 7/30 Foundry Road, Seven Hills NSW 2147 Australia T: +61 2 9624 1922 F: +61 2 9624 1911 E: support@circuitlink.com.au Document Status: Final. Publish Date: 9/02/2015 CIRCUITLINK.COM.AU 12 T5 Standard External OBDII (PN 3400123) Figure 2 - 3400123 J1962 Male + Female Signal Terminal Installer Notes Ground 4 (B) Power In 16 (A) CAN GROUND 5 (C) CAN LOW 14 (B) CAN HIGH 6 (A) Both Male and Female connectors have the same pin outs. JST-PH-12 The JST-PH-12 connector is used for attaching the Dashbox (PN 5060107) to the T5.

Circuitlink Pty Ltd, ABN 80 057 670 505, 7/30 Foundry Road, Seven Hills NSW 2147 Australia T: +61 2 9624 1922 F: +61 2 9624 1911 E: support@circuitlink.com.au Document Status: Final. Publish Date: 9/02/2015 CIRCUITLINK.COM.AU 13 T5 Standard J1939 + Power (PN 3400124) Figure 3 - 3400124 Deutsch DT04 Signal Terminal Installer Notes CAN GROUND/J1939 C CAN LOW/J1939 B CAN HIGH/J1939 A Delphi Weatherpack 2 Cavity Female Signal Terminal Installer Notes Ground B Power In A T5 Power Loom (PN 3400133) Figure 4 - 3400133 Delphi Weatherpack 2 Cavity Female Signal Terminal Installer Notes Ground B Power In A

Circuitlink Pty Ltd, ABN 80 057 670 505, 7/30 Foundry Road, Seven Hills NSW 2147 Australia T: +61 2 9624 1922 F: +61 2 9624 1911 E: support@circuitlink.com.au Document Status: Final. Publish Date: 9/02/2015 CIRCUITLINK.COM.AU 14 T5 CAN Bus Loom (PN 3400134) Figure 5 - 3400134 Deutsch DT04 Signal Terminal Installer Notes CAN GROUND/J1939 C CAN LOW/J1939 B CAN HIGH/J1939 A Remote Accelerometer The Tacholink T5 Remote Accelerometer uses the same hardware platform as the Tacholink T5 EDR. Mount the T5 RA to the vehicle using the same method as the T5 EDR. Both devices use the same power and J1939 connectors The Tacholink T5 Remote accelerometer acts as a transducer; sending all of it’s information across the CANBus network to other device. The T5 RA does not store data or broadcast it wirelessly

Circuitlink Pty Ltd, ABN 80 057 670 505, 7/30 Foundry Road, Seven Hills NSW 2147 Australia T: +61 2 9624 1922 F: +61 2 9624 1911 E: support@circuitlink.com.au Document Status: Final. Publish Date: 9/02/2015 CIRCUITLINK.COM.AU 15 Installation To make full use of the internal accelerometer and gyroscope, the T5 must be firmly mounted with any of its axis perpendicular to the direction of travel. Under Seat Mounting Care should be taken when securing the T5 under seating in vehicles. Make sure the unit and its cables are properly mounted away from any passengers and moving parts. Caution - Care should be taken when drilling into the floor of any vehicle as there may be wiring or parts on the other side. - When mounting on the driver’s side of the vehicle, it is extremely important to ensure that the T5 is secured and cannot interfere with the safe operation of the vehicle - Do not expose the T5 or any of its peripherals to temperatures outside of 0°C - 80°C Cabinet / Panel Mounting Although we design our equipment to operate in IP rated environments, we recommend when the unit is not installed within the cabin of a vehicle that it be placed in a protected area. Avoid mounting equipment and cabling where it may come in contact with moving parts and liquids as it will reduce its lifespan and reliability. Different design configurations will change the IP rating depending on the front panel connectors. For more information, contact Circuitlink. Firmly secure the unit with bolts M5 or equivalent, using washers to distribute force evenly. Cable ties may be used for temporary mounting and should be firmly tightened. Do not use double sided tape or any permanent adhesives. Dashbox Secure the Dashbox unit within the reach of the operator careful for it not to interfere with the operation of the vehicle. Avoid placing the Dashbox where it could be exposed to weather as it does not have the same protection as the EDR. T5 Standard External OBDII (PN 3400123) The J1962 interconnect harness is designed to integrate with the existing diagnostic port and piggyback off it. 1. Locate and unscrew the existing connector from its mounting position. Typically it will be located within 1m of the drivers position however may differ based on the make and model. 2. Connect the wiring assembly to the vehicles socket and mount the piggyback extension in the existing position. 3. Secure the connection between the vehicles J1962 socket and the harness by using a cable tie around the housings. 4. Tidy cabling by securing excess wires away, careful not to kink or allow them to become tangled.

Circuitlink Pty Ltd, ABN 80 057 670 505, 7/30 Foundry Road, Seven Hills NSW 2147 Australia T: +61 2 9624 1922 F: +61 2 9624 1911 E: support@circuitlink.com.au Document Status: Final. Publish Date: 9/02/2015 CIRCUITLINK.COM.AU 16 Connecting the T5 Caution - The vehicle should be turned off when disconnecting any connectors on the T5 - Ensure when inserting the Samtec connector it is plugged in straight to avoid damaging the fine pitched pins within the connector. Warning Only use cable assemblies described in this guide. Using assemblies for other models may damage the unit and other equipment on the vehicle. 1. Attach and firmly tighten the SMA connectors for the GPS, GSM and WIFI antennas. When antennas are not in use it is recommended to keep the antenna attached or use (PN 3400139 - SMA plug cap) to protect the connector from dust and water. 2. With power to the unit disconnected, connect the I/O cables from the unit to the vehicle. Removing the Face Plate For any reason you are required to remove the T5 from its housing either to change SIM cards or as directed by Circuitlink, you must follow these steps. For best results, use PN 5991111611 available from Cinch. 1. With power to the unit disconnected, remove the I/O and antenna cables from the T5. 2. If possible, remove the T5 from where it is mounted as you need access to all sides. 3. With a small flat blade screw driver, gently release the one of the side tabs and let it balance without re-seating. Starting from the top of the case, prise each of the tabs along the top, then along the bottom to release the face plate. 4. Finally release the last side tab and gently slide the unit from the case. 5. When re-inserting the unit, make sure there are no internal wires caught and gently press the face plate back into the housing making sure not to damage the rubber sealing gasket until all the tabs click into place. Warning Do not place the PCB on any conductive or wet surfaces. Where possible, follow steps to protect against ESD damage. Improper removal of the face plate will compromise its IP rating and reliability of the device

Circuitlink Pty Ltd, ABN 80 057 670 505, 7/30 Foundry Road, Seven Hills NSW 2147 Australia T: +61 2 9624 1922 F: +61 2 9624 1911 E: support@circuitlink.com.au Document Status: Final. Publish Date: 9/02/2015 CIRCUITLINK.COM.AU 17 Loading Fleet Configuration File Configuration files use the .PV2 file extension. Fleet and Dynamic configuration files hold different variables for each device. Fleet contain parameters required to set how the data recorder operates. This can be anything from accelerometer configuration to CAN/OBD packet settings. The process and handling of configuration files in the EDR and Remote Accelerometer is different due to the differences in firmware and flash storage architecture. As the Remote Accelerometer is a transducer that does not store any data, the available storage to hold configuration files is only a few kilobytes. Because of this, it will not hold multiple copies of the same file like how the EDR operates. Do not delete or modify the Device configuration file. This file is required for the device to operate Event Data Recorder The process for updating configuration is the same for all event data recorders regardless of the firmware version or family. 1. Connect the T5 to power and allow it to boot up. 2. Connect a USB cable from the T5 to your PC 3. Open My Computer and navigate to the removable storage device with the label that of the T5 4. Place the desired configuration file in the PARAMS. 5. Disconnect the USB to reinitialise the device Remote Accelerometer The Remote Accelerometer will only hold one fleet configuration file in its internal storage at any time. 1. Connect the RA to power and allow it to boot up. 2. Connect a USB cable from the RA to your PC 3. Open My Computer and navigate to the removable storage device with the label that of the RA 4. Place the desired configuration file in the root of the drive. The device will reinitialise and process the file. A status file will be present in the drive indicating if the update was successful. 5. Disconnect the USB to reinitialise the device A completed unit ready for use.

Circuitlink Pty Ltd, ABN 80 057 670 505, 7/30 Foundry Road, Seven Hills NSW 2147 Australia T: +61 2 9624 1922 F: +61 2 9624 1911 E: support@circuitlink.com.au Document Status: Final. Publish Date: 9/02/2015 CIRCUITLINK.COM.AU 18 Troubleshooting Circuitlink Configuration Utility View Live Data Circuitlink has developed an application to interactively monitor live inputs and activity on the Tacholink T5 1. With the T5 connected to the vehicle and turned on, unscrew the dust cover from the USB port and connect a mini USB B to USB A from it to your computer. 2. The T5 will mount itself as a volume in My Computer and set up a virtual COM port. 3. Download and install CLConfig from : http://t5production.circuitlink.com.au:2370/CLConfig/publish.htm 4. If you have multiple serial devices connected, open Device Manager to determine which port to use. (Start > Run > devmgmt.msc). i. Expand your computer name > Ports (COM & LPT). ii. Identify the COM# affixing the Kinetis MSC-CDC COM Port device. Figure 6 - Locating the T5 when there are multiple COM ports 5. Launch CLConfig. Do not disconnect the USB cable while the application is running. This will cause unexpected results when trying to reconnect the unit.

Circuitlink Pty Ltd, ABN 80 057 670 505, 7/30 Foundry Road, Seven Hills NSW 2147 Australia T: +61 2 9624 1922 F: +61 2 9624 1911 E: support@circuitlink.com.au Document Status: Final. Publish Date: 9/02/2015 CIRCUITLINK.COM.AU 19 6. From the Communication menu, connect to the COM port for your unit as found in step 4. 7. If you have the configuration file available, you can populate the labels for each input by adding the configuration file. For best results, this can be located by navigating to the PARAMS folder on the unit after selecting the Add config file button in the menu. The T5 operating system is designed to select the latest configuration file from this folder. The configuration file follows the following scheme : Fleet-YYYY-MM-DD-HH-MM-SS.pv2 8. When you are finished with the utility disconnect the device by selecting Disconnect from the Communication menu. If the device was removed without disconnecting it first, the serial port may remain locked by the application. With the USB cable disconnected, close the Configuration Utility and restart the T5. With power applied to the unit, reconnect the USB cable and launch the configuration utility. Figure 7 - Circuitlink Configuration Utility during a live connection

Circuitlink Pty Ltd, ABN 80 057 670 505, 7/30 Foundry Road, Seven Hills NSW 2147 Australia T: +61 2 9624 1922 F: +61 2 9624 1911 E: support@circuitlink.com.au Document Status: Final. Publish Date: 9/02/2015 CIRCUITLINK.COM.AU 20 View .TRD files Viewing .TRD files allows you to analyse previous events and see some configuration parameters. 1. Open the Circuitlink Configuration Utility 2. From the File menu, Select Open and navigate to the .trd file you wish to view. If you’re retrieving this from your device, it will be located in the DATA folder on the root of the drive. 3. Raw Data will show data in chronological order as it was received by the unit whereas Latest data will show the latest entry for each data input. Information can be sorted by selecting the corresponding header and sorting ascending or descending. An example of data received in a .trd file

Circuitlink Pty Ltd, ABN 80 057 670 505, 7/30 Foundry Road, Seven Hills NSW 2147 Australia T: +61 2 9624 1922 F: +61 2 9624 1911 E: support@circuitlink.com.au Document Status: Final. Publish Date: 9/02/2015 CIRCUITLINK.COM.AU 21 LED Activity The LED’s on the face of the unit server to give a visual indicator of the activity currently occurring. Different firmware may display different results as of the publication of this document GPS Description LED Pattern Failed to get valid NMEA message from GPS module Solid Red Received valid NMEA message from GPS module but hasn't received a valid position yet. Solid Orange Antenna open circuit, not connected Flash Red Slow Antenna short circuit. Flash Red Fast Received GPS valid position Flash Green DATA Solid Amber OFF Flashing Green Initialising after start-up No activity Receiving CAN data COMS Amber Flashing Green Flashing Red - Failed to connect to server - Connected to server successfully but failed to transfer all files to FTP server - Open Live socket successfully - Transferred all file successfully through FTP - Login FTP successfully and transferring files. WIFI: - Failed to connect to router - Router failed to connect to internet GSM: - Failed to connect to GSM Modem - SIM card error - Failed to connect to GPRS network - The GPRS network failed to connect to internet Often the LED’s will show a grouped message meaning there may be an issue with the system. For more information regarding this, contact Circuitlink Support.

Circuitlink Pty Ltd, ABN 80 057 670 505, 7/30 Foundry Road, Seven Hills NSW 2147 Australia T: +61 2 9624 1922 F: +61 2 9624 1911 E: support@circuitlink.com.au Document Status: Final. Publish Date: 9/02/2015 CIRCUITLINK.COM.AU 22 FCC Approved Antennas The following antennas are FCC approved for use with the Tacholink 5 in the United States. Installation and use of alternate antennas without written permission from Circuitlink Pty Ltd will void equipment warranty and may void FCC approval to operate. The MA600 and MA206 are combination antennas, the Linx antenna is Wi-Fi only. The following table summarizes the capabilities of each antenna and the matching Tacholink 5 models. ANTENNA WIFI GPS CELLULAR TACHOLINK 5 MODEL MA600 Combination Yes Yes Yes TACHO5A, 5B, 5C MA.206 Combination Yes Yes No TACHO5B Linx ANT-2.4-CW-RH Yes No No TACHO5B Only one of the above antennas may be connected to the Tacholink 5 at one time. The best choice of antenna for the TACHO5B will be determined by installation requirements. MA600 This is a combined GPS/Cellular/2.4GHz 802.11 antenna manufactured by Taoglas, part number MA600.A.ABC.006. Antenna Type The cellular WWAN and 2.4GHz 802.11 Wi-Fi antennas within the MA600.A.ABC.006 are a type known as ‘planar inverted F antennas’ (PIFA). Cellular Antenna Gain Frequency (GHz) 824 ~ 896 1710 ~ 1880 1850 ~ 1990 Peak Gain (dBi) 2.1 2.9 3.0 Average Gain (dBi) -4.7 -2.7 -3.1 802.11 WiFi Antenna Gain Frequency (GHz) 2.4 – 2.6 Peak Gain (dBi) 2.1 Average Gain (dBi) -2.3 Antenna Cable Length The MA600.A.ABC.006 is supplied with 3m +/-30mm cables for the Cellular, 802.11 and GPS antennas. MA206 This is a combined GPS/2.4GHz 802.11 antenna manufactured by Taoglas, part number MA206.A.AB.004. Antenna Type The 2.4GHz 802.11 WiFi antenna within the MA206.A.AB.004 is a dipole. 802.11 WiFi Antenna Gain Frequency (GHz) 2.4 – 2.5 Peak Gain (dBi) 3.4 Antenna Cable Length The MA206.A.AB.004 is supplied with 3m +/-30mm cables for the 802.11 and GPS antennas.

Circuitlink Pty Ltd, ABN 80 057 670 505, 7/30 Foundry Road, Seven Hills NSW 2147 Australia T: +61 2 9624 1922 F: +61 2 9624 1911 E: support@circuitlink.com.au Document Status: Final. Publish Date: 9/02/2015 CIRCUITLINK.COM.AU 23 ANT-2.4-CW-RH This is a 2.4GHz 802.11 antenna manufactured by Linx, part number ANT-2.4-CW-RH-SMA. Antenna Type The antenna is a ¼ wave helical whip. Antenna Gain Frequency (GHz) 2.39 – 2.49 Peak Gain (dBi) -0.9 Antenna Cable Length This antenna has no cable. It is fitted with an SMA connector for direct connection to the Tacholink 5.

Circuitlink Pty Ltd, ABN 80 057 670 505, 7/30 Foundry Road, Seven Hills NSW 2147 Australia T: +61 2 9624 1922 F: +61 2 9624 1911 E: support@circuitlink.com.au Document Status: Final. Publish Date: 9/02/2015 CIRCUITLINK.COM.AU 24 Contact Information For questions and or amendments to this guide, please contact: Circuitlink Pty Ltd 7/30 Foundry Road, Seven Hills NSW 2147 Australia T: +61 2 9624 1922 F: +61 2 9624 1911 E: support@circuitlink.com.au W: CIRCUITLINK.COM.AU General Support Enquiries: support@circuitlink.com.au
