Users Manual
![](/img.php?id=1965576&img=bg1.png)
mylevana.com
Manual / Manuel / Manual
Digital Baby Video Monitor
CAUTION: Keep small parts away from children.
ATTENTION: Gardez les petites pièces hors de la portée des enfants.
PRECAUCIÓN: Mantenga las piezas pequeñas fuera del alcance de los niños.
Moniteur vidéo bébé numérique
Video Monitor Digital para Bebé
Lila™
30000_31000_32000_LILA E_F_S.indd 1 07/01/2013 4:37:33 PM
![](/img.php?id=1965576&img=bg2.png)
SAFETY INSTRUCTIONS
CAUTION: Keep small parts away from children.
Strangulation Hazard: Children can become entangled in cords. Power cords
should be kept more than 3 feet away from the crib and baby’s reach at all
times. Baby monitors and cameras with power cords should never be hung on
or near the crib.
This product is not a toy and should be kept out of children’s reach.
This product contains small parts. Exercise care when unpacking and
assembling the product.
Read and Keep Instructions: All the safety and operating instructions should be
read before the video baby monitor is operated.
This product cannot replace responsible adult supervision.
Water and Moisture: This product is designed for indoor use only. The unit should not
be exposed to rain, moisture, dripping or splashing. No objects filled with liquid should
be placed on top of, or beside the product, such as a glass or vase. This item should
not be used near water.
Non-Use Periods: Always unplug the AC adapters from the wall outlets during long
periods of non-use.
Ventilation: This baby monitor should not be used on a bed, sofa, rug or similar surface
that may block the ventilation openings, or be placed in an enclosed area, such as a
bookcase or drawer that may impede air flow.
Keep Away from Sources of Heat: This unit should not be exposed to direct heat
sources such as a candle, fireplace, radiator, heat register, stove or other appliance that
emits heat. The unit should not be left in direct sunlight.
Power Source: This unit should only be used with the AC power adapters included in
this package (rated 6V 800mA)
Damage Requiring Service: This unit should be serviced by qualified personnel
only when:
a. Objects have fallen or liquid has been spilled into the product
b. The units have been exposed to rain
c. The units do not appear to operate normally or exhibits a distinct change in
performance
d. The units have been dropped or the enclosure damaged
2mylevana.com
30000_31000_32000_LILA E_F_S.indd 2 07/01/2013 4:37:33 PM
![](/img.php?id=1965576&img=bg3.png)
e
e
t
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1)
This device may not cause harmful interference.
(2)
This device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING
IC STATEMENT:
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the
user’s authority to operate the equipment.
FCC STATEMENT
3mylevana.com
30000_31000_32000_LILA E_F_S.indd 3 07/01/2013 4:37:33 PM
Any Changes or modifications not expressly approved by the party responsible
for compliance could void the users authority to operate the equipment
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC /IC radiation exposure limits set forth for
This transmitter must not be co-located or operating in conjunction
an uncontrolled environment .This equipment should be installed and
operated with minimum distance 20cm between the radiator& your body.
with any other antenna or transmitter.
This device complies with Industry Canada licence-exempt RSS standard(s).
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
Operation is subject to the following two conditions:
undesired operation of the device.
Under Industry Canada regulations, this radio transmitter may only operate using
an antenna of a type and maximum (or lesser) gain approved for the transmitter
by Industry Canada. To reduce potential radio interference to other users, the
antenna type and its gain should be so chosen that the equivalent isotropically
radiated power (e.i.r.p.) is not more than that necessary for successful communication
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner
avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada.
Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs,
il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.)
ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.
![](/img.php?id=1965576&img=bg4.png)
We take quality very seriously. That is why all of our products come with a
one-year warranty from the original purchase date against defects in workmanship
and materials. If you have warranty or support issues, please contact us using any of
the following methods:
Web: www.mylevana.com Support: www.mylevana.com/support
LEVANA Canada LEVANA USA
4080 Montrose Road 60 Industrial Parkway #Z64
Niagara Falls, ON Cheektowaga NY
Canada L2H 1J9 USA 14227
Warranty Terms
1. LEVANA® products are guaranteed for a period of one year from the date of
purchase against defects in workmanship and materials. This warranty is limited to
the repair, replacement or refund of the purchase price at LEVANA’s option.
2. This warranty becomes void if the product shows evidence of having been
misused, mishandled or tampered with contrary to the applicable instruction
manual.
3. Routine cleaning, normal cosmetic and mechanical wear and tear are not covered
under the terms of this warranty.
4. The warranty expressly provided for herein is the sole warranty provided in
connection with the product itself and no other warranty, expressed or implied is
provided. LEVANA assumes no responsibilities for any other claims not specifically
mentioned in this warranty.
5. This warranty does not cover the shipping cost, insurance or any other
incidental charges.
6. You MUST contact LEVANA at www.mylevana.com/support before sending
any product back for repair. You will be sent a Return Authorization form with
return instructions. When returning the product for warranty service, please pack
it carefully in the original box with all supplied accessories, and enclose your
original receipt or copy, and a brief explanation of the problem (include RA #).
7. This warranty is valid only in Canada and the continental U.S.
8. This warranty cannot be re-issued.
a
.com
Please visit our website at www.mylevana.com for
information about your product’s warranty.
4mylevana.com
30000_31000_32000_LILA E_F_S.indd 4 07/01/2013 4:37:33 PM
![](/img.php?id=1965576&img=bg5.png)
TABLE OF CONTENTS
SAFETY INSTRUCTIONS ...............................................................................................................2
FCC STATEMENT ............................................................................................................................3
WARRANTY .....................................................................................................................................4
WHAT’S INCLUDED .......................................................................................................................6
BUTTONS AND CONNECTIONS - MONITOR ..........................................................................7
BUTTONS AND CONNECTIONS - CAMERA .............................................................................8
SETUP ...............................................................................................................................................9
Battery installation .........................................................................................................9
Get the Most Out of Your Rechargeable Battery .....................................................9
Connecting Power to the Monitor / Charging Battery .........................................10
Connecting Power to the Camera ...........................................................................10

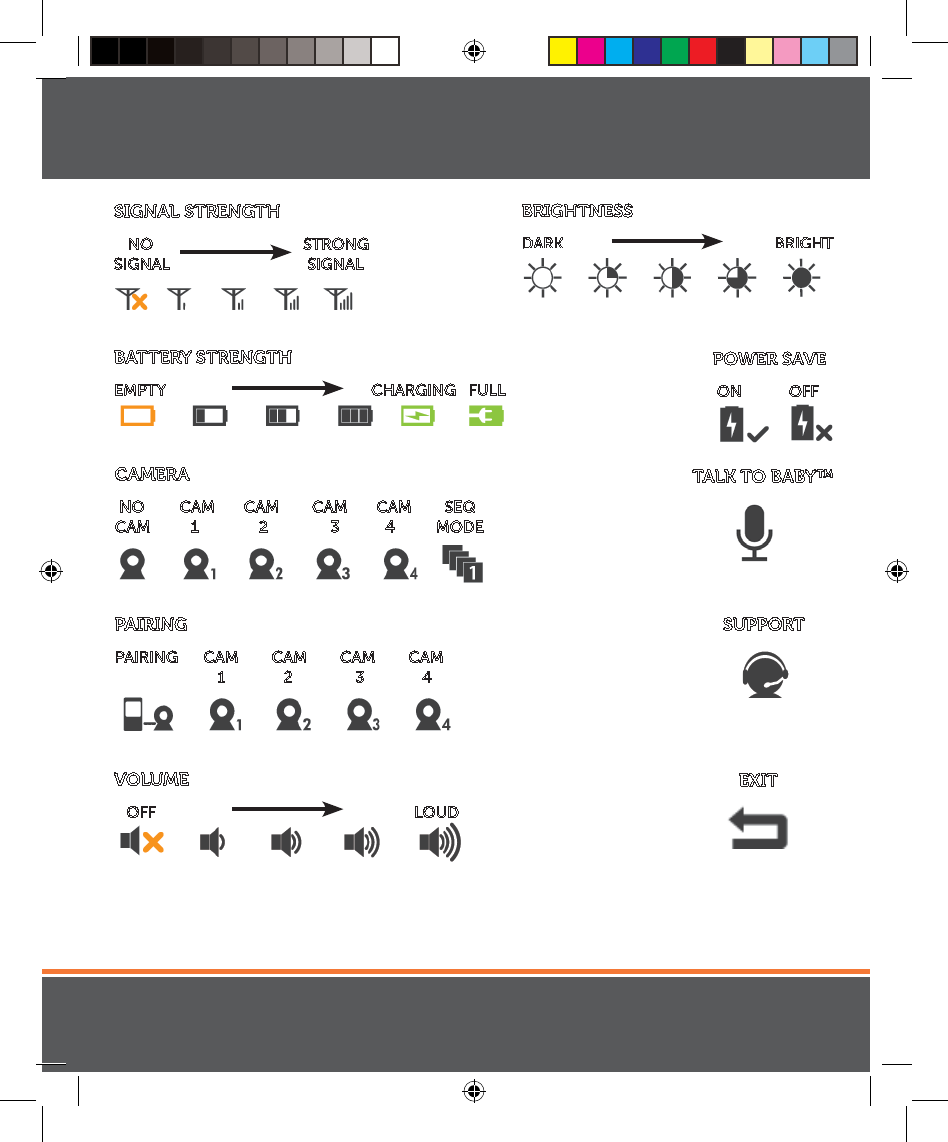

Screen Icons ................................................................................................................. 11
OPERATION ..................................................................................................................................12
Turn on the Monitor ....................................................................................................12

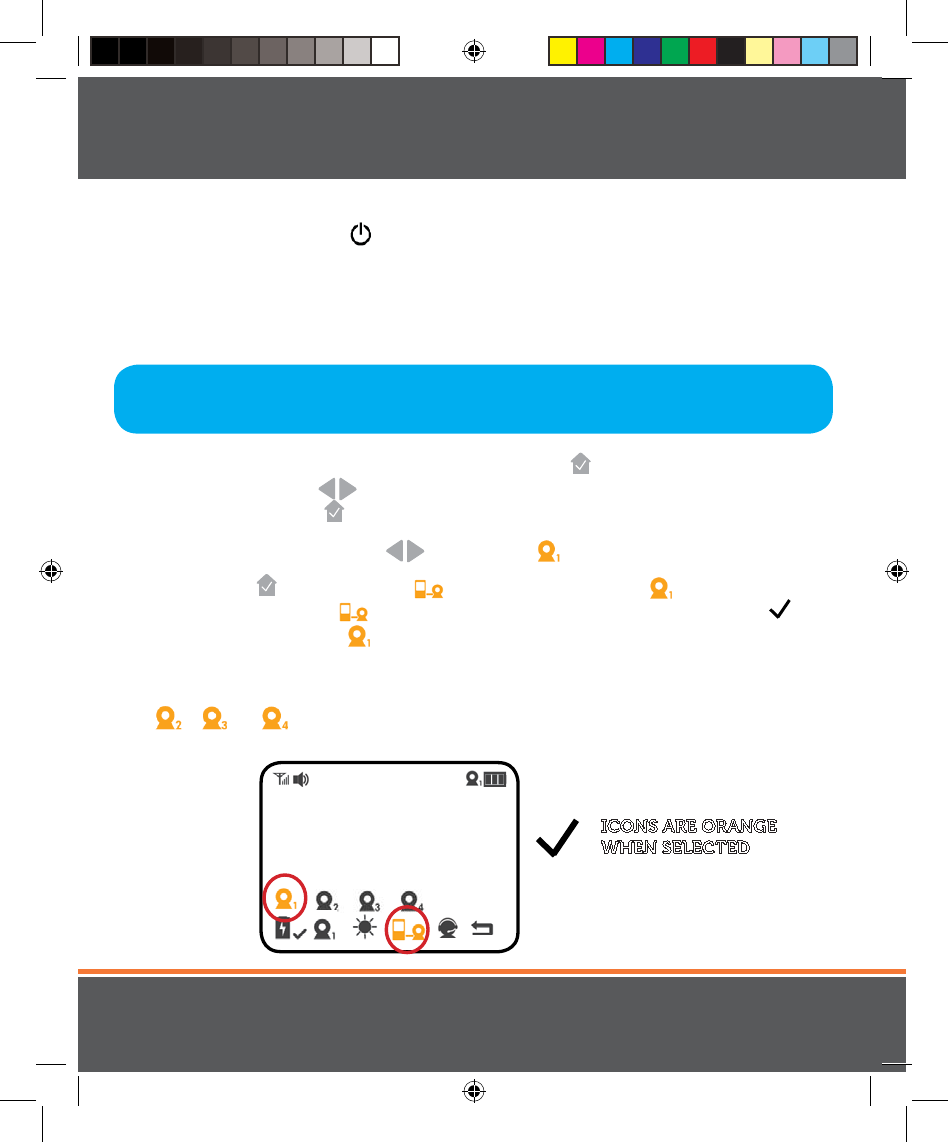

Pairing the Cameras & Monitor .................................................................................12
Placement of the Monitor ..........................................................................................13
Placement of the Camera ..........................................................................................13
Mounting the Camera on a Tabletop Safely ...........................................................13
Mounting the Camera on a Wall Safely ...................................................................14
Night Vision ...................................................................................................................15

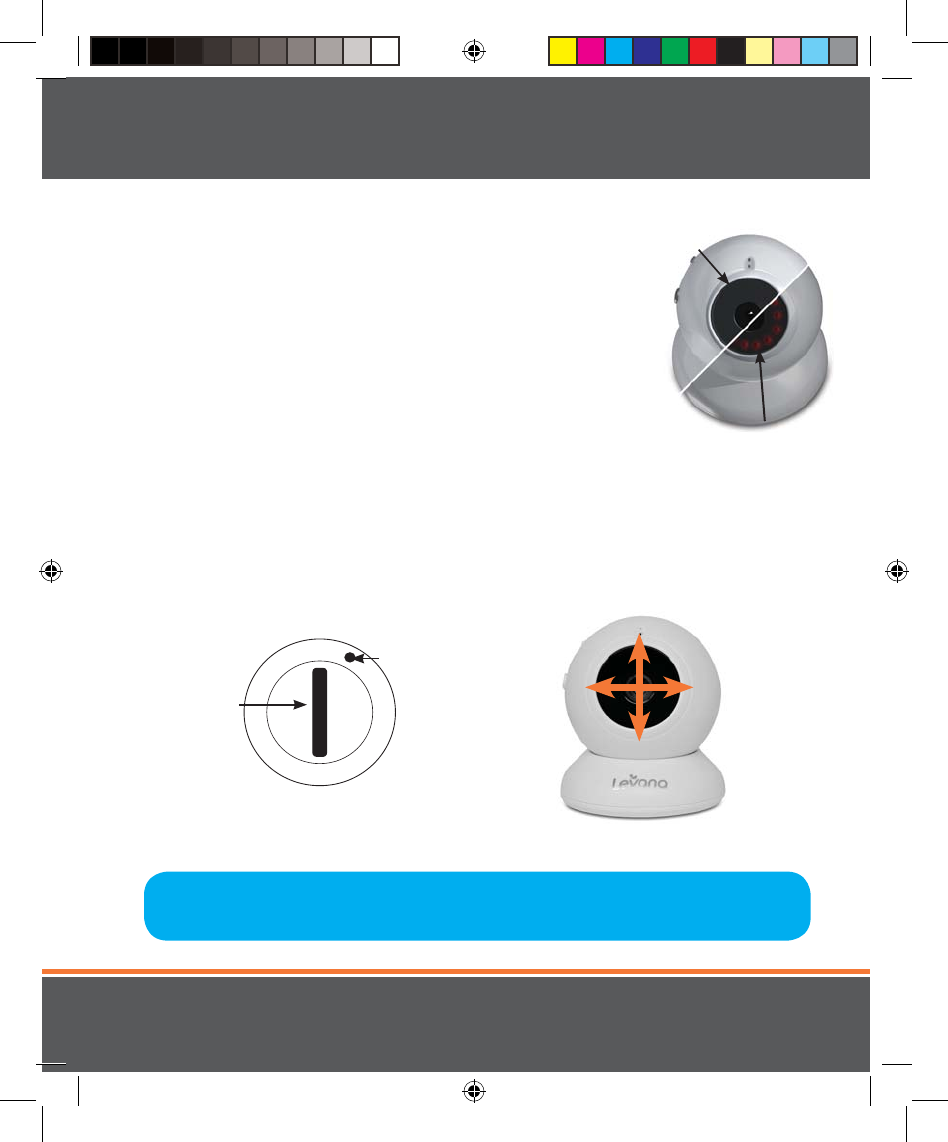

Adjusting the Camera Angle ......................................................................................15
MONITOR ......................................................................................................................................16

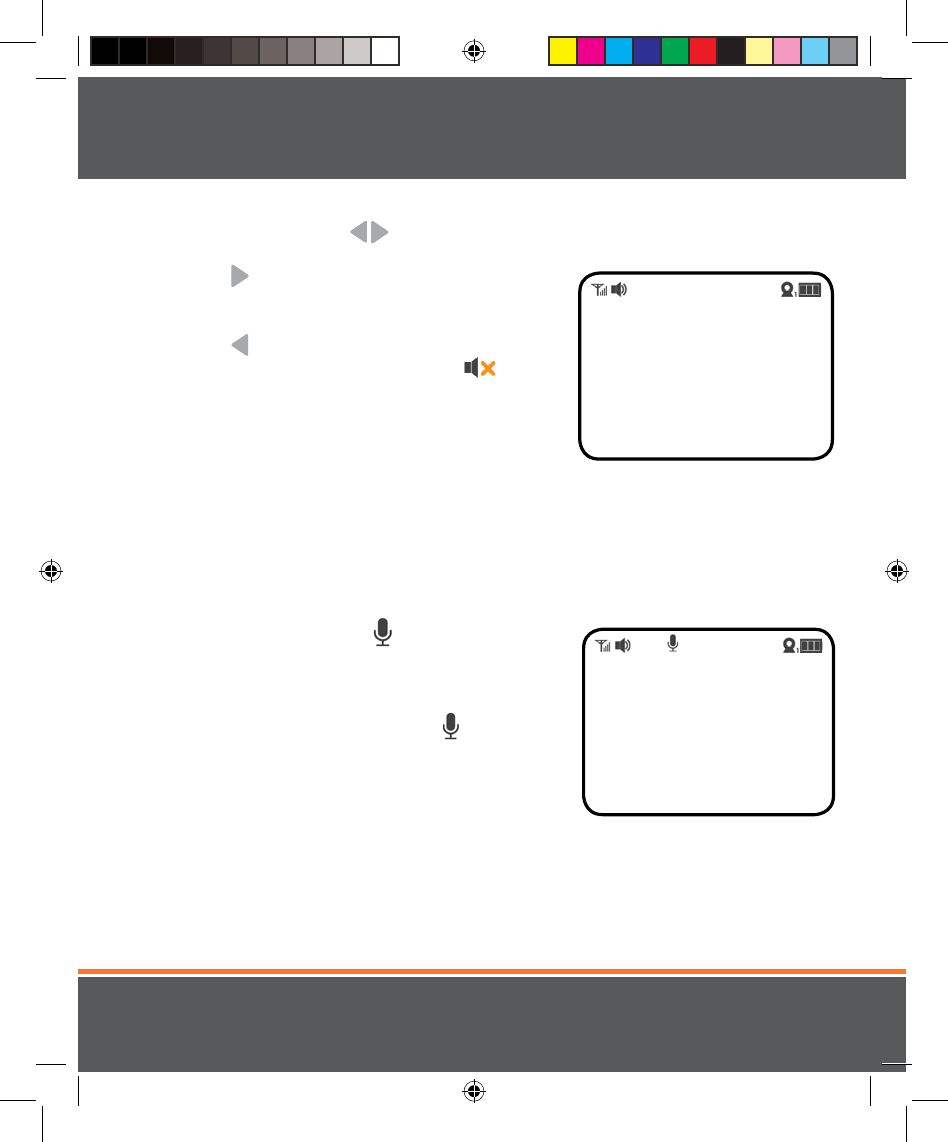

Volume ...........................................................................................................................16
Using the Talk to Baby™ Two-Way Intercom .........................................................16

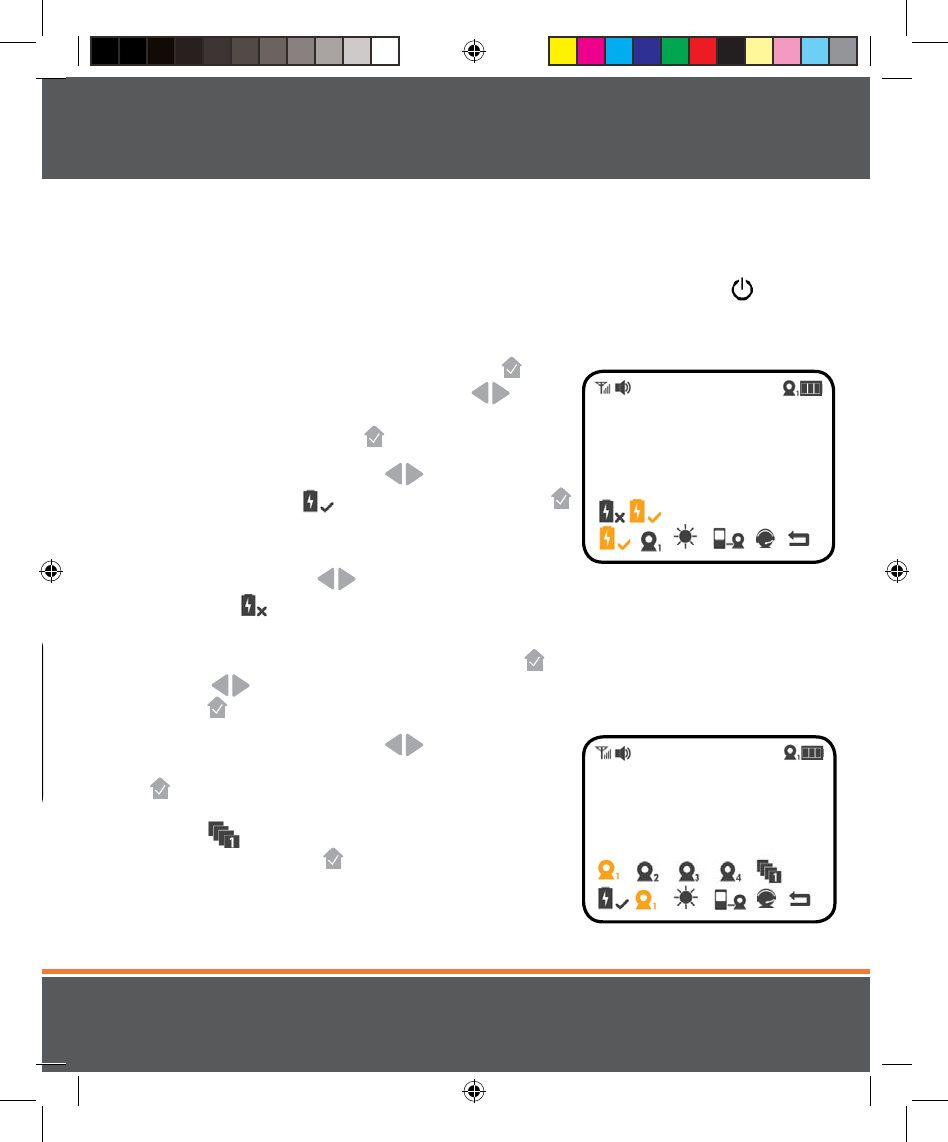

Using Power Save ........................................................................................................17
Selecting a dierent camera view ............................................................................17
Setting the Brightness .................................................................................................18
Contacting Customer Support ..................................................................................18
TROUBLESHOOTING ..................................................................................................................19
MAINTENANCE ............................................................................................................................19
5mylevana.com
30000_31000_32000_LILA E_F_S.indd 5 07/01/2013 4:37:33 PM
![](/img.php?id=1965576&img=bg6.png)
Ŕ /JHIU7JTJPO$BNFSB
Ŕ #BCZ7JEFP.POJUPS
Ŕ 3FDIBSHFBCMF#BUUFSZ
Ŕ 1PXFS"EBQUFST
Ŕ *OTUSVDUJPO.BOVBM
Ŕ :FBS8BSSBOUZ
Ŕ -JGFUJNF-JWF$VTUPNFS4VQQPSU
This product is not a toy.
This product contains small parts. Exercise care when unpacking and assembling the product.
This product does not replace responsible adult supervision. Check on your child at regular
intervals and make sure your monitor is always adequately charged.
LEVANA® does not endorse any LEVANA® products for illegal activities. Levana is not responsible
or liable in any way for any damage, vandalism, theft or any other action that may occur while a
LEVANA® product is in use by the purchaser.
We reserve the right to change models, configuration, or specifications without notice or liability.
Product may not be exactly as shown.
©2012 LEVANA®. All rights reserved. LEVANA®, the LEVANA® logo, Lila™ and other LEVANA® marks
may be registered. All other Trademarks are the property of their respective owners.
WHAT’S INCLUDED
6
mylevana.com
30000_31000_32000_LILA E_F_S.indd 6 07/01/2013 4:37:35 PM
![](/img.php?id=1965576&img=bg7.png)
1
2
3
5
4
6
8
7
10
9
11
13
12

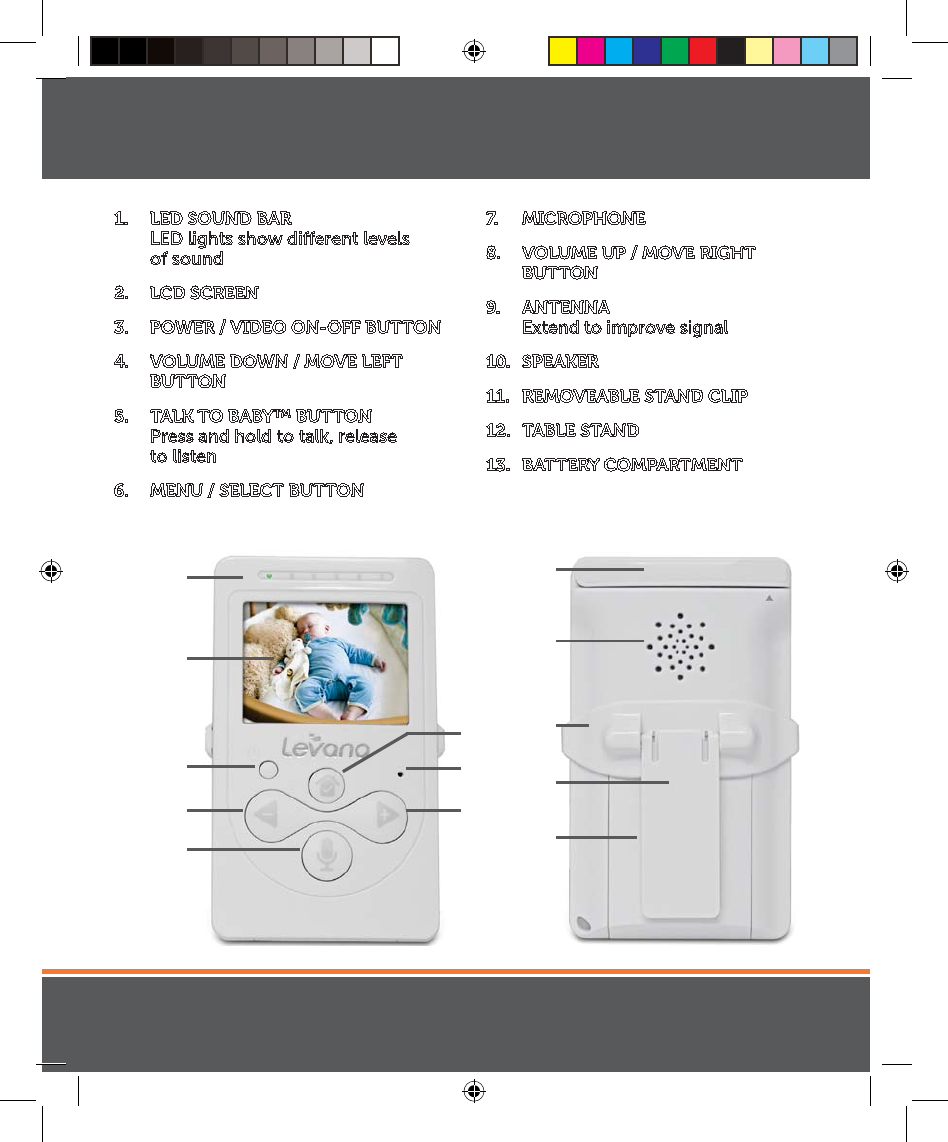

1. LED SOUND BAR
LED lights show dierent levels
of sound
2. LCD SCREEN
3. POWER / VIDEO ON-OFF BUTTON
4. VOLUME DOWN / MOVE LEFT
BUTTON
5. TALK TO BABY™ BUTTON
Press and hold to talk, release
to listen
6. MENU / SELECT BUTTON
7. MICROPHONE
8. VOLUME UP / MOVE RIGHT
BUTTON
9. ANTENNA
Extend to improve signal
10. SPEAKER
11. REMOVEABLE STAND CLIP
12. TABLE STAND
13. BATTERY COMPARTMENT
MONITOR
7mylevana.com
30000_31000_32000_LILA E_F_S.indd 7 07/01/2013 4:37:37 PM
![](/img.php?id=1965576&img=bg8.png)

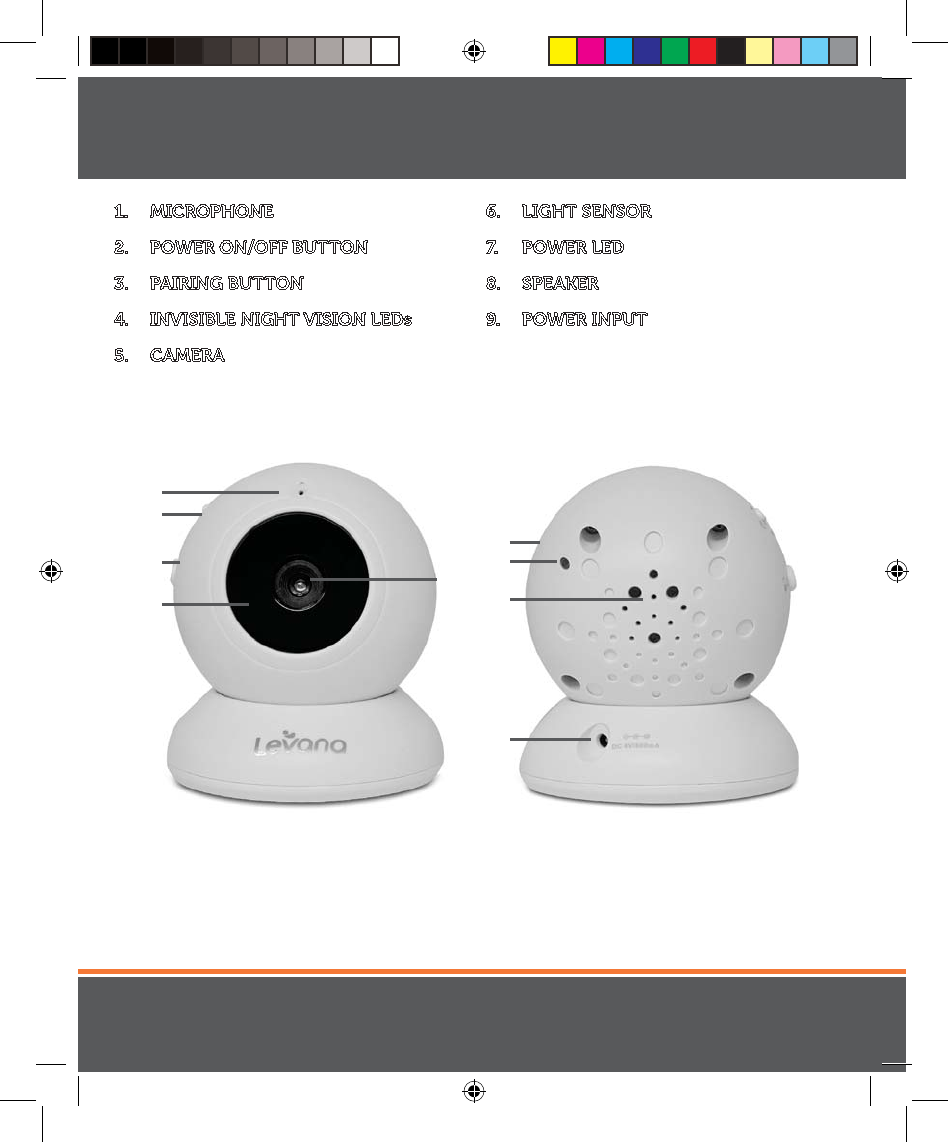

1. MICROPHONE
2. POWER ON/OFF BUTTON
3. PAIRING BUTTON
4. INVISIBLE NIGHT VISION LEDs
5. CAMERA
6. LIGHT SENSOR
7. POWER LED
8. SPEAKER
9. POWER INPUT
7
6
9
8
1
2
4
35
CAMERA
8
mylevana.com
30000_31000_32000_LILA E_F_S.indd 8 07/01/2013 4:37:39 PM
![](/img.php?id=1965576&img=bg9.png)
LET’S GET STARTED!

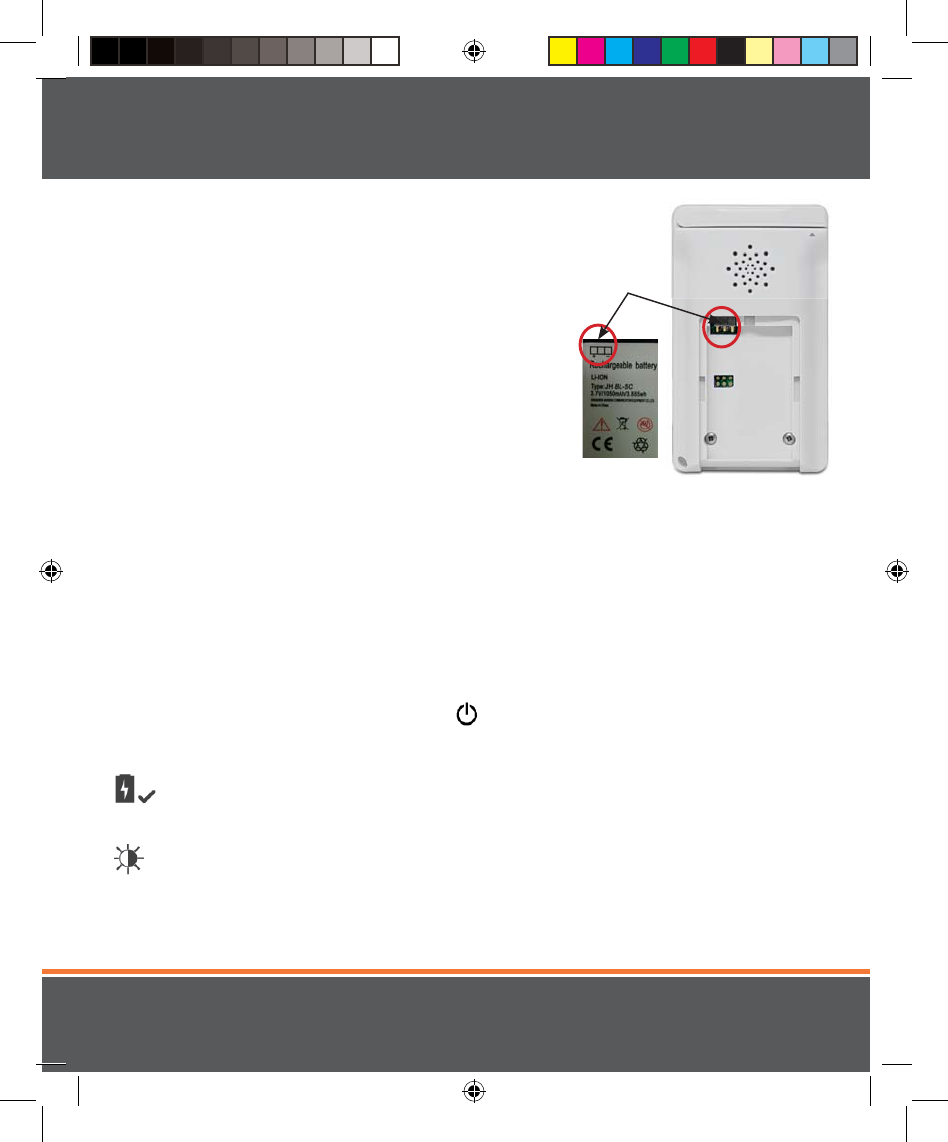

Battery Installation
1. Gently remove the STAND CLIP on the back of
the monitor to allow access to the BATTERY
COMPARTMENT COVER.
2. Slide the BATTERY COMPARTMENT COVER down
to remove.
3. Insert the battery with the words "Rechargeable
Battery" facing towards you. The battery
connectors should line up with the connectors
inside the battery compartment.
4. Slide the BATTERY COMPARTMENT COVER back into place and reinstall the
STAND CLIP.
Get the Most Out of Your Rechargeable Battery
Ŕ Fully charge battery (4 hours) before first use.
Ŕ To maximize battery life, charge battery before battery is fully drained.
Ŕ Avoid extreme heat or cold as this will aect the life of the battery.
Ŕ Turn LCD screen OFF; press POWER button on the front of the monitor ONCE.
Ŕ Lila™ menu settings that increase battery life:
Power Save Mode: After 1 minute of inactivity, monitor enters
standby/sleep mode.
Adjustable Brightness: Decreasing screen brightness will extend battery life.
6. For extended periods of non-use, please remove battery from baby monitor.
SETUP
Battery
connectors
s
9mylevana.com
30000_31000_32000_LILA E_F_S.indd 9 07/01/2013 4:37:40 PM
![](/img.php?id=1965576&img=bga.png)
Note: Baby monitors and cameras with power cords should never be hung on or near the
crib as it is a strangulation hazard. Power cords should be kept no less than 3 feet away
from the crib and the baby’s reach at all times.

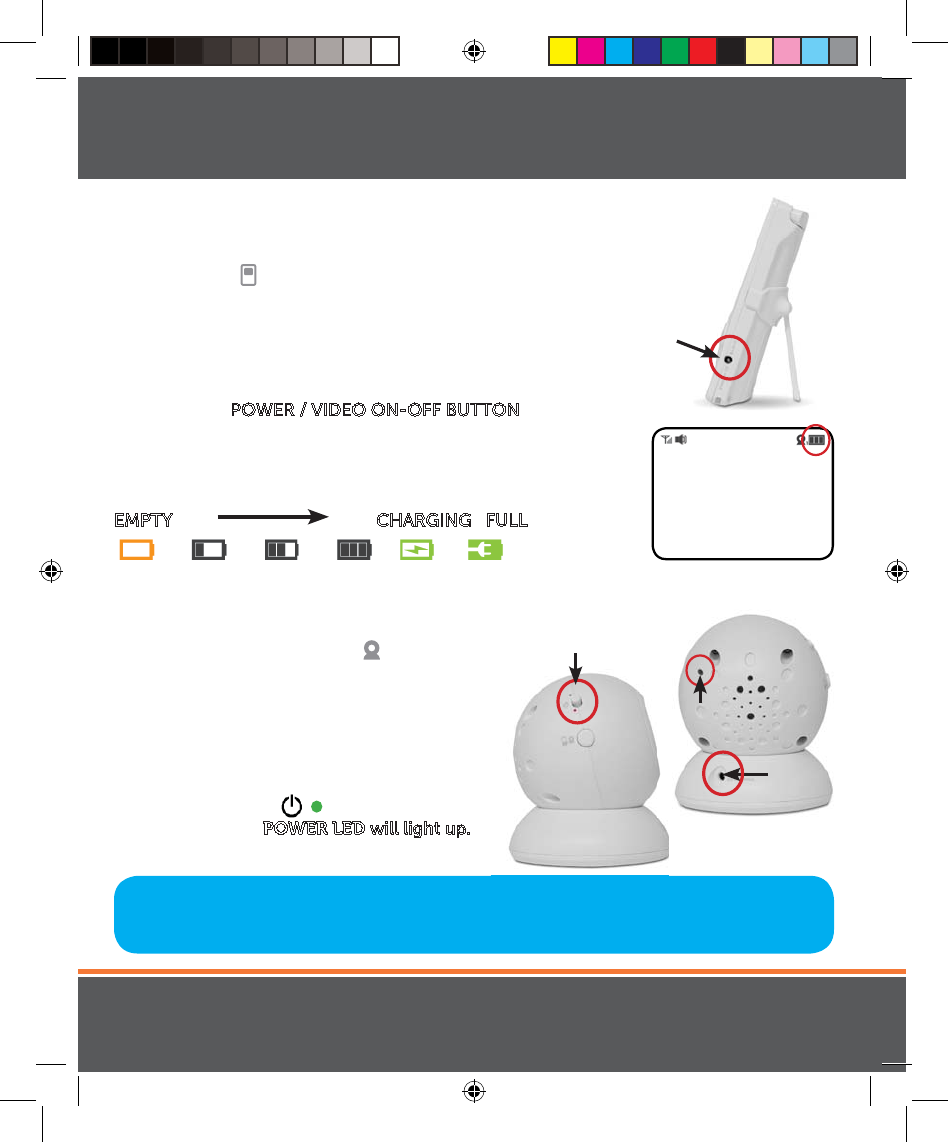

Connecting Power to the Monitor / Charging Battery
1. Connect the small end of power adapter marked
MONITOR into the DC input on the side of the
monitor as shown in the diagram.
2. Connect the other end of the adapter into an available
wall outlet. For safety reasons, ONLY use the adapters
included in the package.
3. Press the
POWER / VIDEO ON-OFF BUTTON
4. The icon in the top right corner of the main screen will
show you the battery power status.
EMPTY CHARGING FULL
Connecting Power to the Camera
1. Connect the small end of the power
adapter marked CAMERA into the DC
input on the back of the camera base as
shown in the diagram. For safety reasons,
ONLY use the adapters included in the
package.
2. On the side of the camera, slide the
POWER switch UP to the ON
position. The POWER LED will light up.
DC Input
p
ut
,
ON / OFF
Switch
DC Input
Power LED
SETUP
10
mylevana.com
30000_31000_32000_LILA E_F_S.indd 10 07/01/2013 4:37:43 PM
![](/img.php?id=1965576&img=bgb.png)
u
t
SIGNAL STRENGTH
NO STRONG
SIGNAL SIGNAL
BATTERY STRENGTH
EMPTY CHARGING FULL
VOLUME
OFF LOUD
TALK TO BABY™
POWER SAVE
ON OFF
BRIGHTNESS
DARK BRIGHT
CAMERA
NO CAM CAM CAM CAM SEQ
CAM 1 2 3 4 MODE
PAIRING
PAIRING CAM CAM CAM CAM
1 2 3 4
SCREEN ICONS
SUPPORT
EXIT
11 mylevana.com
30000_31000_32000_LILA E_F_S.indd 11 07/01/2013 4:37:44 PM
![](/img.php?id=1965576&img=bgc.png)
Turn on the MONITOR
Press and hold the POWER button on the front of the monitor.
Pairing the Camera(s) and Monitor
The camera and monitor come paired (connected) to each other automatically. However,
if upon opening this package the devices do not automatically connect and transmit, you
may do so manually.
1. To pair your camera and monitor, press the MENU button. Using the
navigational arrows +
– on the front of the monitor, highlight the PAIRING icon
and press the MENU button once to select.
2. Use the navigational arrows +
– to select the icon.
3. Press MENU . When you see flashing next to camera icon, quickly press
and hold the PAIRING button on the side of the camera. A checkmark will
appear next to camera confirming pairing is successful. Video/audio will be
transmitted automatically.
4. To pair additional cameras, repeat steps 1 to 3 and be sure to select camera number
, or in the Pairing menu when pairing each additional camera.
Note: Before you begin pairing, be sure to have the monitor and the camera(s)
side by side.
ICONS ARE ORANGE
WHEN SELECTED
OPERATION
12mylevana.com
30000_31000_32000_LILA E_F_S.indd 12 07/01/2013 4:37:45 PM
![](/img.php?id=1965576&img=bgd.png)
r,
o
u
e
r

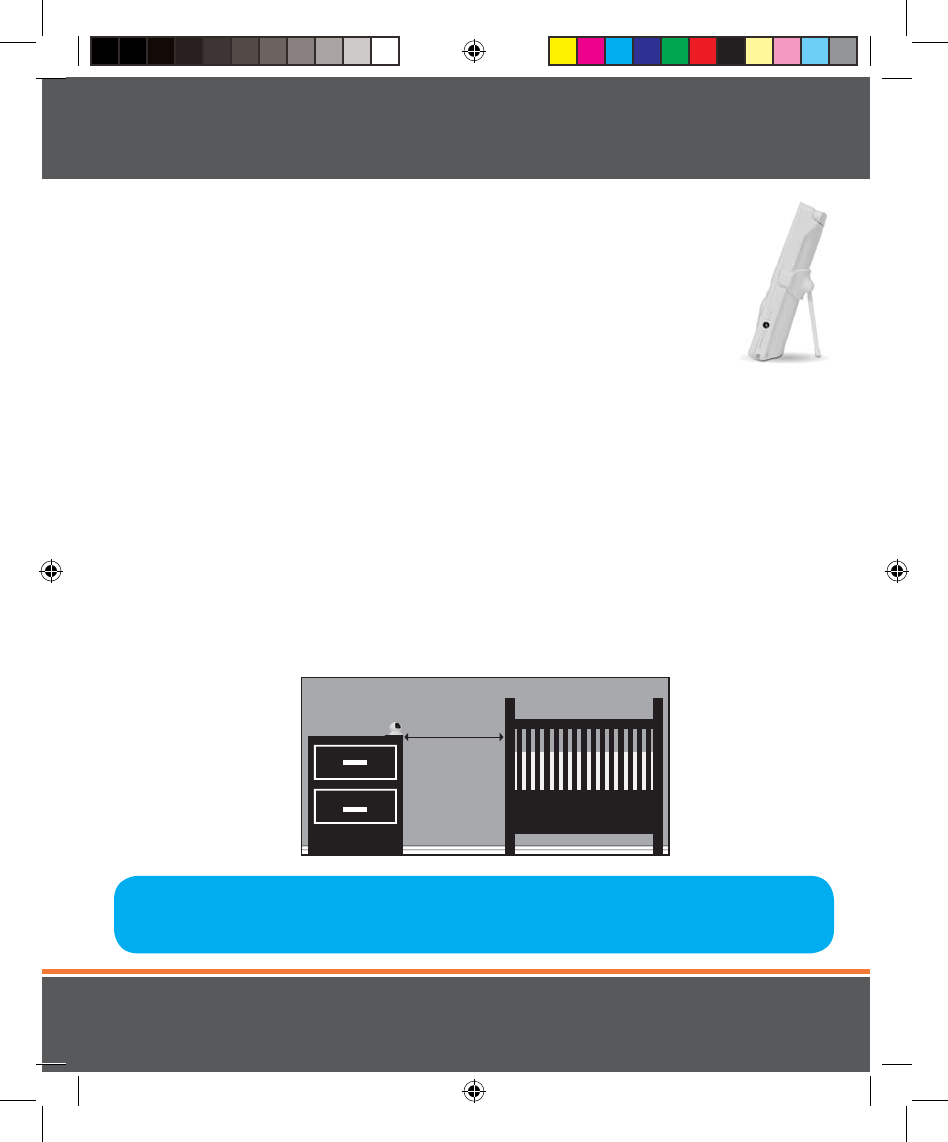

Placement of the Monitor
This monitor can be placed on a tabletop.
Ŕ You can place the monitor on a tabletop by using the retractable table
stand on the back of the monitor. When not in use, simply tuck the
table stand away into the back of the monitor until you hear a "click".
Placement of the Camera
This camera can be placed on a tabletop or hung on the wall above the
area being monitored.
Ŕ Place the camera within 15 feet of the area being monitored for best picture
results.
Ŕ Do not place objects within 2 feet of the field of vision of the camera as the
night vision will not activate correctly if objects are too close.
Mounting the Camera on a Tabletop Safely:
1. Place the camera on a tabletop no less than 3 feet away from your baby’s crib.
2. Feed the power cord down the back of the table or use wall clips (not included)
to secure the cord away so the baby cannot reach it.
3. Plug in the power cord, check the monitor to ensure that you are getting a
good view of your child and there are no obstructions.
Note: Baby monitors and cameras with power cords should never be hung on or
near the crib as it is a strangulation hazard. Power cords should be kept no less
than 3 feet away from the crib and the baby’s reach at all times.
OPERATION
3 ft
13 mylevana.com
30000_31000_32000_LILA E_F_S.indd 13 07/01/2013 4:37:47 PM
![](/img.php?id=1965576&img=bge.png)

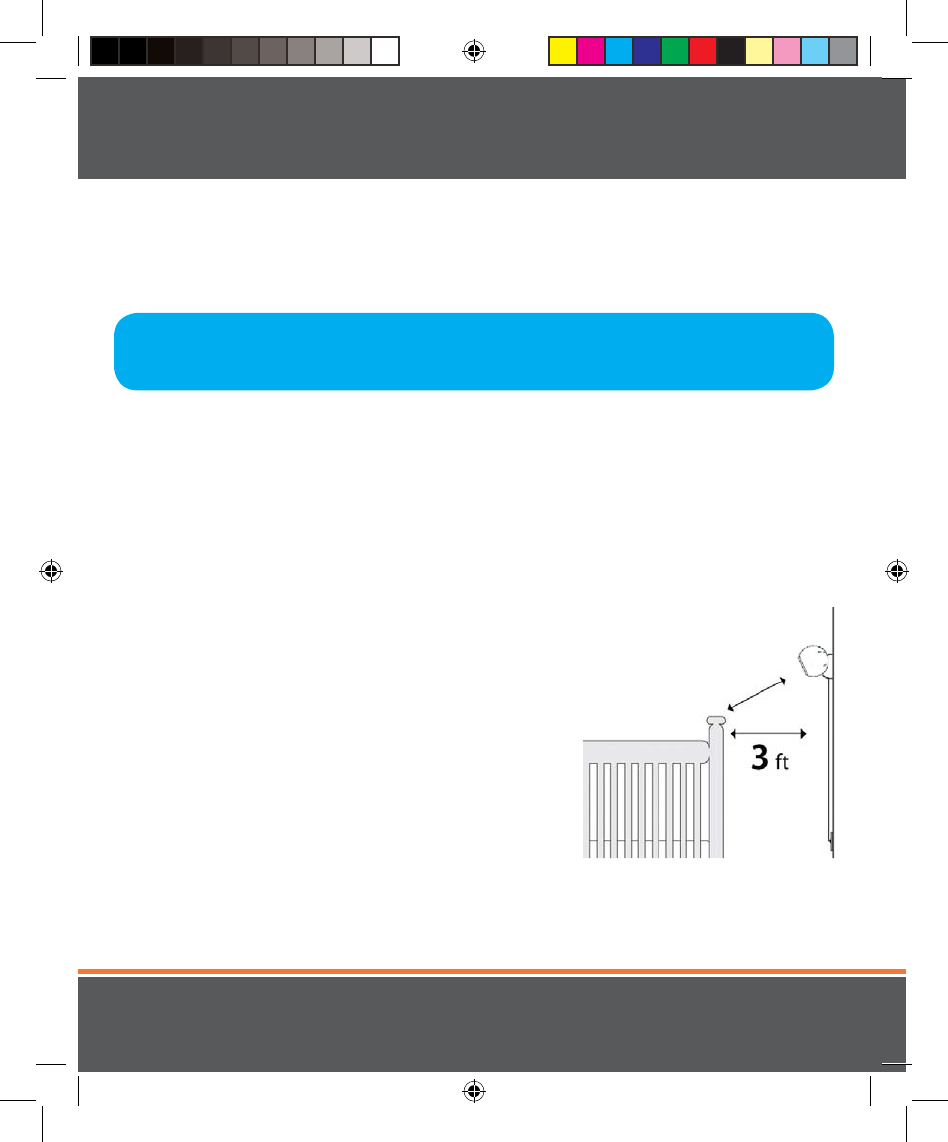

Mounting the Camera on a Wall Safely:
Before drilling the holes, it is important to check the reception and camera positioning
in the intended location on the wall. Ensure you are hanging the camera no less than 3
feet away from baby’s crib.
1. Pre-drill two holes in the wall using a 3/16”, 4.8mm drill bit.
2. Insert wall anchors (not included) into each hole and tap gently with a hammer
until the anchor is flush with the wall.
3. Insert a screw (not included) into each wall anchor and tighten until the screws
only stick out about a 1/2 inch.
4. Plug the power cord into the power input of the camera.
5. Locate the wall mounting holes on the bottom of
the camera base.
6. Slide the holes over the screws sticking out of
the wall.
7. Confirm that the camera is secure, if it is loose
you may have to tighten the screws more.
8. Use wall clips (not included) to secure the power
cord away from the crib or the baby’s reach.
9. Connect the other end of the adapter into an
available wall outlet.
OPERATION
Note: Baby monitors and cameras with power cords should never be hung on or
near the crib as it is a strangulation hazard. Power cords should be kept no less
than 3 feet away from the crib and the baby’s reach at all times.
14
mylevana.com
30000_31000_32000_LILA E_F_S.indd 14 07/01/2013 4:37:47 PM
![](/img.php?id=1965576&img=bgf.png)
Night Vision
The camera is equipped with NEW Invisible IR (infrared)
LEDs which keep the nursery dark. The LEDs are located on
the front of the camera and allow you to see up to 12 feet
in complete darkness so you can check on your baby at any
time of night. The night vision LEDs will activate automatically
when the Light Sensor on the camera detects that the light
levels are too low.
Adjusting the Camera Angle
The camera has a track built into the base. The track allows the camera to pivot UP
and DOWN and turn side to side. Always return the camera to the CENTER POSITION
before changing the camera angle.
FRONT
OF
CAMERA
DC
INPUT
TRACK
Note: Camera does not rotate freely 360°. Rotating it past the point where
resistance is felt will result in permanent damage to the device.
CENTER POSITION
OPERATION
INVISIBLE
LEDs
TRADITIONAL
LEDs
15 mylevana.com
30000_31000_32000_LILA E_F_S.indd 15 07/01/2013 4:37:49 PM
![](/img.php?id=1965576&img=bg10.png)
Volume
Use the navigational arrows +
– to increase /decrease /mute the VOLUME.
Ŕ Press the + button to INCREASE the volume
in LIVE VIEW; the VOLUME icon will display the
volume level in the top left corner of the screen.
Ŕ Press the – button to DECREASE the volume; to
MUTE, decrease the volume until the icon
appears in the top left corner of the screen.
Using the Talk to Baby™ Two-Way Intercom
With the simple press of a button you can talk to your child at any time without
entering the nursery.
1. To talk, press and hold the button on the front
of the monitor and release to listen.
2. To talk when using multiple cameras, select the
camera in the MENU and press the button,
release to listen.
MONITOR
16mylevana.com
30000_31000_32000_LILA E_F_S.indd 16 07/01/2013 4:37:49 PM
![](/img.php?id=1965576&img=bg11.png)
Using Power Save
When in Power Save Mode, the monitor enters standby/sleep mode after 1 minute of
inactivity. When sound is detected, the screen changes to live view.
Ŕ To access live view manually when the screen is o, press the POWER
button ONCE.
Ŕ Power Save Mode extends the battery life over 48 hours.
1. To set Power Save Mode, press the MENU
button. Using the navigational arrows +
– on the
front of the monitor, highlight the POWER SAVE
icon and press the MENU button once to select.
2. Use the navigational arrows +
– to select the
POWER SAVE ON icon and press the MENU
button once to select.
3. To return to continuous live view, use the
navigational arrows +
– to select the POWER
SAVE OFF icon.
Selecting a Dierent Camera View
1. To change the camera view, press the MENU button. Using the navigational
arrows +
– on the front of the monitor, highlight the CAMERA icon and press the
MENU button once to select.
2. Use the navigational arrows +
– to select the
CAMERA icon of your choice and press the MENU
button once to select.
3. Select to cycle though cameras 1 through 4
and press the MENU button once.
17
MONITOR
mylevana.com
30000_31000_32000_LILA E_F_S.indd 17 07/01/2013 4:37:51 PM
![](/img.php?id=1965576&img=bg12.png)

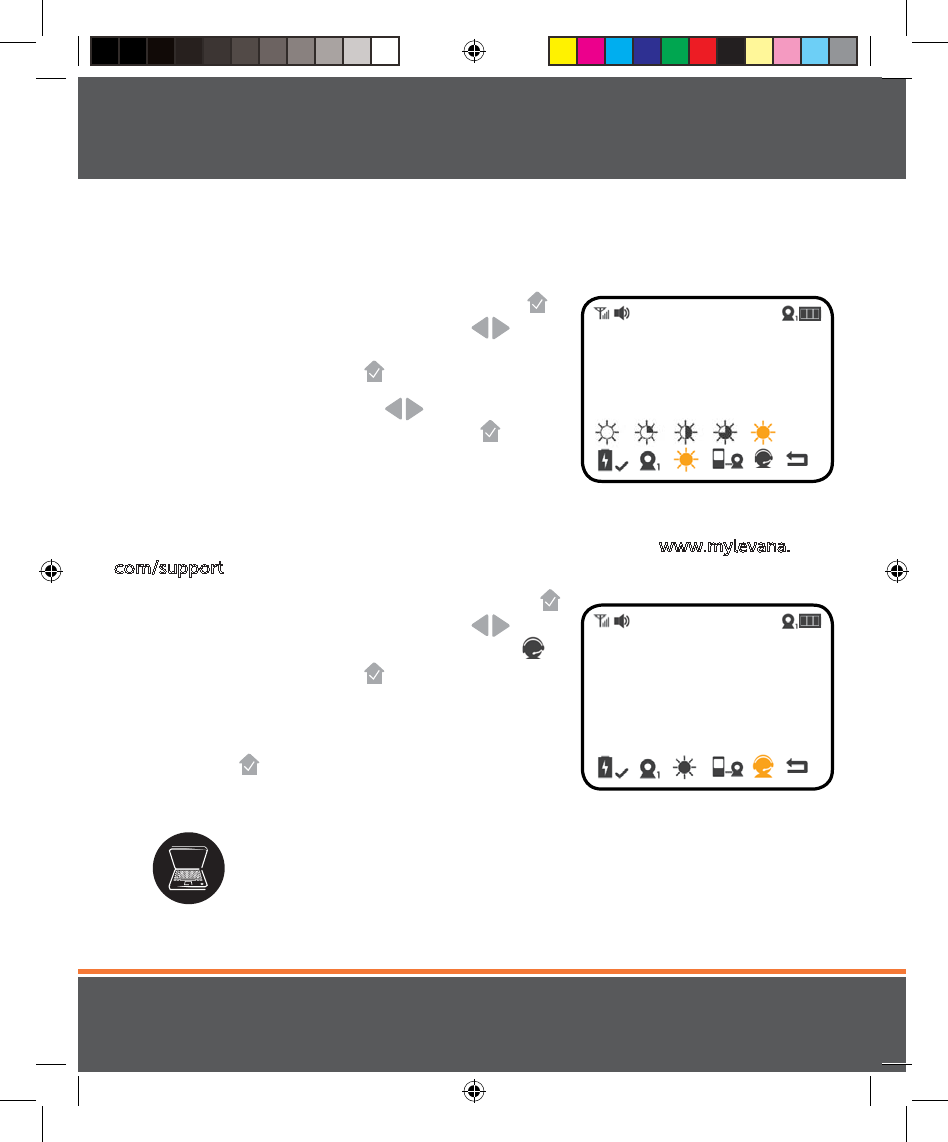

Setting the Brightness
Brightness Mode sets the brightness of the screen. Reducing the brightness also
extends the battery life.
1. To set the Brightness Mode, press the MENU
button. Using the navigational arrows +
– on the
front of the monitor, highlight the BRIGHTNESS
icon and press the MENU button once to select.
2. Use the navigational arrows +
– to select the
desired brightness and press the MENU button
once to select.
Contacting Customer Support
Customer Support is just a click away whenever you need it! Our customer support
team can be reached by email, live web chat or on our website at www.mylevana.
com/support. Our experts will be happy to assist you in English, French and Spanish.
1. To access Customer Support, press the MENU
button. Using the navigational arrows +
– on the
front of the monitor, highlight the SUPPORT
icon and press the MENU button once to select.
2. This will take you to the screen which displays
Customer Support contact information. Press
the MENU button once to EXIT the Customer
Support screen.
18
Support: www.mylevana.com/support
Web: www.mylevana.com
Online Live Web Chat: www.mylevana.com
MONITOR
mylevana.com
30000_31000_32000_LILA E_F_S.indd 18 07/01/2013 4:37:53 PM
![](/img.php?id=1965576&img=bg13.png)
ISSUE POSSIBLE SOLUTION
Equipment does not function Ŕ Confirm that the camera and monitor are ON
Ŕ The battery may be depleted; charge battery
Ŕ The power adapters may not be properly
connected
No reception Ŕ Camera and monitor may not be properly paired;
follow PAIRING instructions
Ŕ Camera may be too far away from the monitor
Ŕ Extend the antenna on the monitor
Reception Interference
(static)
Ŕ The camera and monitor may be too far apart
Ŕ The battery power may be too low
Ŕ Other electronic devices may be interfering with
the signal
Ŕ The camera or monitor may be placed too close
to many metal objects
Feedback (screeching, static) Ŕ The camera and monitor may be too close
together
Ŕ The volume on the monitor may be set too high
Noise (static, beeping) Ŕ Battery power may be too low
Picture works but there is no
sound
Ŕ Volume setting may be too low
Picture is black and white Ŕ Night vision LEDs may be ON; increase the
amount of light in the room being monitored
The rechargeable battery will
not charge
Ŕ The power adapters may not be connected
Ŕ Battery pack may not be properly connected
inside the battery compartment
Maintenance
Ŕ Clean the surfaces of the camera and monitor with a soft, lint-free cloth
Ŕ If the units become dirty, use a lightly damp cloth to wipe surfaces, taking care to
not allow water into any openings
Ŕ Never use cleaning agents or solvents
TROUBLESHOOTING
19 mylevana.com
30000_31000_32000_LILA E_F_S.indd 19 07/01/2013 4:37:53 PM
![](/img.php?id=1965576&img=bg14.png)
mylevana.com
30000_31000_32000_LILA E_F_S.indd 56 07/01/2013 4:38:36 PM
