Circus World Displays Limited Powered Bookshelf Speaker Users Manual
Users Manual
Fluance Ai60 Quick Start Guide
Quick Start Guide
Ai60 - Powered 6.5" Bookshelf Speakers
Fluance Ai60 Quick Start Guide
Fluance Ai60 Quick Start Guide
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. if the provided plug does not t into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit form the apparatus.
11. Only use attachments/accessories specied by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specied by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/ apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualied service personnel. Servicing is required when the
apparatus has been damaged in anyway, such as power supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
15. The use of apparatus in moderate climates.
CAUTION
• Minimum 5cm around the apparatus for sufcient ventilation.
• The ventilation should not be impeded by covering the ventilation openings with items,
such as newspapers, table-cloths, curtains, etc.
• No naked ame sources, such as lighted candles, should be placed on the apparatus.
• Should be drawn to the environmental aspects of the battery disposal.
• To reduce the risk of re or electric shock, do not expose this apparatus to rain or
moisture.
• Battery shall not be exposed to excessive heat such as sunshine, re or the like.
• The mains plug or an appliance coupler is used as the disconnect device, the disconnect
device shall remain readily operable.
Fluance Ai60 Quick Start Guide
Précautions De Sécurité Importantes a Lire En Premier
1. Lisez ces instructions.
2. Conservez ces instructions.
3. Tenez compte de tous les avertissements.
4. Suivez toutes les instructions.
5. N’utilisez pas cet appareil près de l’eau.
6. Nettoyer uniquement avec un chiffon sec.
7. Ne bloquez aucune ouverture de ventilation. Installez conformément aux instructions du
fabricant.
8. Ne pas installer à proximité de sources de chaleur telles que des radiateurs, des registres
de chaleur, des poêles ou d’autres appareils (y compris des amplicateurs) qui produis-
ent de la chaleur.
9. Ne détournez pas le but de sécurité de la prise polarisée ou de mise à la terre. Une
che polarisée comporte deux pales dont une plus large que l’autre. Une che de type
à la terre a deux lames et une troisième broche de mise à la terre. La lame large ou la
troisième broche sont fournies pour votre sécurité. Si la che fournie ne rentre pas dans
votre prise, consultez un électricien pour le remplacement de la sortie obsolète.
10. Protégez le cordon d’alimentation avant d’être piétiné ou pincé en particulier sur les
bouchons, les prises de courant et le point où ils sortent de l’appareil.
11. N’utilisez que des accessoires / accessoires spéciés par le fabricant.
12. Utilisez uniquement avec le chariot, le support, le trépied, le support
ou la table spéciés par le fabricant ou vendus avec l’appareil. Lorsqu’un
chariot est utilisé, soyez prudent lorsque vous déplacez la combinaison
panier / appareil pour éviter les blessures causées par le renversement.
13. Débranchez cet appareil pendant les orages ou lorsqu’il n’est pas utilisé pendant de
longues périodes.
14. Référer tous les services à un personnel qualié. Un entretien est nécessaire lorsque
l’appareil a été endommagé de toute façon, comme le cordon d’alimentation ou la che
est endommagé, le liquide a été renversé ou les objets sont tombés dans l’appareil,
l’appareil a été exposé à la pluie ou à l’humidité, s’il ne fonctionne pas normalement ou
s’il est tombé.
15. L’utilisation d’appareils dans les climats modérés.
ATTENTION
• 5cm minimale autour de l’appareil pour une aération sufsante.
• il convient que l’aeration ne soit pas gênée par l’obstruction des ouvertures d’aération par des
objets tels que journaux, nappes, rideaux, etc...
• il convent de ne pas placer sur l’appareil de sources de ammes nues, telles que des bougies
allumées.
• il convent d’attirer l’attention sur les problèmes d’environnement dus à la mise au déchet des
piles.
• le mode d’emploi doit stipuler que l’appareil ne doit pas être exposé à des égouttements d’eau
ou des éclaboussures et de plus qu’aucun objet rempli de liquide tel que des vases ne doit être
placé sur l’appareil.
• Un avertissement selon lequel les batteries (bloc de batteries ou batteries installées) ne doivent
pas être exposées à une chaleur excessive telle que celle du soleil, d’un feu ou d’origine simi-
laire.
• lorsque la prise du RESEAU D’ALIMENTATION ou une prise placée sur l’appareil est utilisée
comme appareil de déconnecxion, cet appareil doit demeurer aisément accessible.
Fluance Ai60 Quick Start Guide
Introduction
Thank you for your purchase of your Fluance product. We hope you enjoy your experience. If
you have any questions please visit us at www.Fluance.com/support.
Fluance has successfully revolutionized the home audio industry. Fluance develops a broad
line of high-delity products based on ve key aspects: Sound Quality, Solid Construction,
Performance, Style, and Value. These distinctive points make Fluance the most reliable and
respected name among our fans and ensure your music is heard the way your favorite artist
intended.
Today, Fluance expands on this vision and takes its approach to a new level. With our
dedicated team, Fluance assures its products meet the most stringent marks of quality
control - overseeing each step from design to manufacturing - and has raised the industry
bar in customer experience and quality to be second-to-none.
Break-in Period
Our speakers have a Butyl rubber ring surrounding the cone. The break-in period allows
the rubber to loosen and stretch, allowing the cone a larger range of movement, resulting
in better sound reproduction. We recommend 10-12 hours of play at moderate volume to
achieve this. For additional product information, please consult the manual at:
Fluance.com/support
What’s Included
Ai60 Passive
Speaker
(Left Channel)
Quick Start
Guide
AUX-to-RCA
Cable
Speaker
Wire
LIFETIME
Customer Support
Lifetime
Customer Support
2 Year
Warranty
Ai60 Active
Speaker
(Right Channel)
VOL +
++
VOL -
TREBLE BASS
Remote
Control
2 ‘AAA’
Batteries
Power
Adapter
Fluance Ai60 Quick Start Guide
Front & Back Panel Layout
1. Control Knob
• Volume
• Input Selection
• Power ON/OFF
2. Source LED
• Blue (Solid) - Bluetooth® Paired
• Blue (Flashing) - Bluetooth® Pairing Mode
• Yellow (Solid) - RCA
• White (Solid) - Optical
• Purple (Solid) - USB
• Red (Solid) - Standby Mode
• Red (Flashing) - Mute
• Red (Flash x1) - Max Volume
• Red (Flash x2) - Bass/Treb Set to -6 or +6
• Source Color: Blue/Yellow/White/Purple
(Flash x2) - Bass/Treb Set to 0
3. IR Sensor
4. Speaker Input
5. Bluetooth® Reset Pairing
6. USB Input (Audio Playback Only)
7. Optical Input
8. RCA Input
9. Subwoofer Output
10. Left Speaker Output
11. DC Input
Remote Control Layout
12. Power ON/OFF
13. Volume UP/DOWN
14. Source
15. Treble UP/DOWN
16. Mute
17. Play/Pause & Bluetooth® Pairing Reset*
*To enable Bluetooth® Pairing Reset, press + hold for 3 seconds.
18. Forward/Back
19. LED Brightness - (100% > 25% > OFF)
20. Bass UP/DOWN
1
2
3
5
6
7
8
9
10
11
4
VOL +
++
VOL -
TREBLE BASS
12 16
14 19
13
15 20
17
18
Passive SpeakerActive Speaker
Active Speaker (Back)
Fluance Ai60 Quick Start Guide
Product Setup
1. Position the speakers with the Active Speaker on the right and the Passive Speaker
on the left.
Passive Speaker Active Speaker
NOTE: If placing the speakers in a cabinet or on a shelf, position the front of the
speakers as close as possible to the front edge of the shelf for optimum audio
performance.
2. Connect one end of the speaker wire to the binding posts on the back of the
Active Speaker and connect the other end of speaker wire to the binding posts on the
back of the Passive Speaker.
IMPORTANT: Ensure the same wire is connected to the same color binding post on
each speaker.
3. Connect the power adapter to the back of the Active Speaker.
Passive Speaker Active Speaker
Loosen the
binding post
Insert speaker
wire through
hole
Tighten the
binding post
Fluance Ai60 Quick Start Guide
EQ Adjustment
Use the Bass/Treble buttons on the Remote to adjust each from -6 to +6.
LED Behavior:
Red (Flash 2x) - Bass/Treble Set to -6 or +6
Source Color (Flash 2x) - Bass/Treble Set to 0
Note: If using a source device, with it’s own EQ settings, ensure it is set to at(0).
RCA Input
1. Connect the RCA cable to your
source device (Turntable, Smart-
phone, Computer…).
2. Connect the other end of the RCA
cable to back of the Active Speaker.
4. Adjust volume on Ai60 as well as
source device.
3. Press the Control Knob to select the
RCA input (Yellow LED).
*RCA to RCA cable not included
Fluance Ai60 Quick Start Guide
Bluetooth® Pairing
1. Press the Control Knob to select the
Bluetooth® input (Blue LED).
3. Use the Remote to control playback
on your source device.
2. Pair to “Fluance Ai60” on your
source device.
4. If your device cannot nd “Fluance
Ai60”, you can reset Bluetooth®
pairing.
Note: Unit will attempt to auto-pair to
the last paired device.
Bluetooth
MY DEVICES
Settings
Fluance Ai60
VOL +
++
VOL -
TREBLE BASS
• Press and hold on the
Remote for 3 seconds to reset
Bluetooth® pairing.
• Press and hold the Bluetooth®
Pairing Reset Button on the back
of the unit.
OR
Note: How you access your device’s Bluetooth®
settings may vary from one manufacturer to
another. Maximum line of sight for Bluetooth®
range is 33ft. Obstacles may decrease
transmission distance.
Fluance Ai60 Quick Start Guide

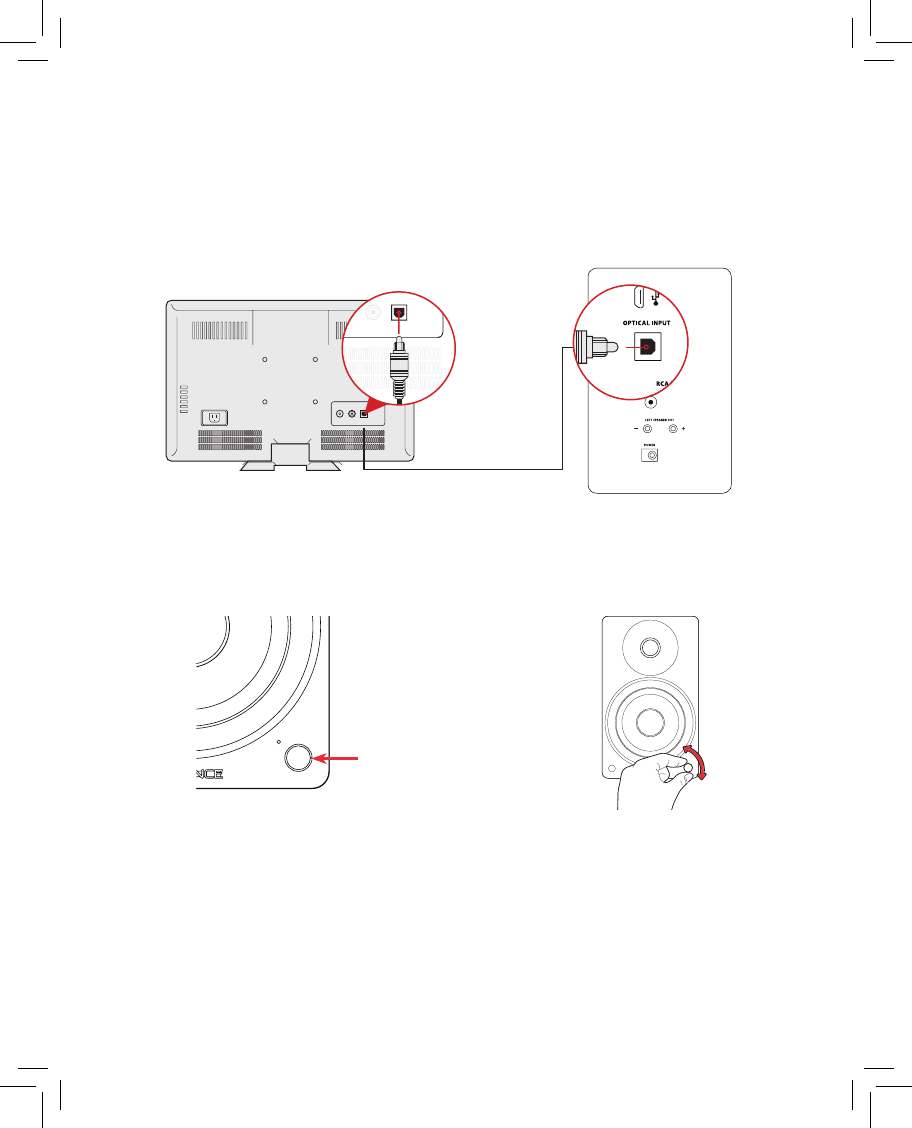

Optical Input
1. Connect the Optical cable to your source
device (TV, Computer, Game Console...).
2. Connect the other end of the Optical
cable to the back of the Active Speaker.
4. Adjust the volume on Ai60 as well
as source device.
3. Press the Control Knob to select the
Optical Input (White LED).
Optical Audio Signal Compatibility
The Ai60 does not support Dolby Digital Audio or DTS Audio. Locate the audio output settings
on your source device and ensure Dolby Digital is turned off. The correct audio output setting is
commonly referred to as PCM or Stereo.
Some TVs also require that audio output be enabled. This setting may be referred to as External
Speakers. Ensure this is selected as your speaker/audio output.
For instructions on a specic device, please consult the device’s user manual.
*Optical cable not included
Fluance Ai60 Quick Start Guide

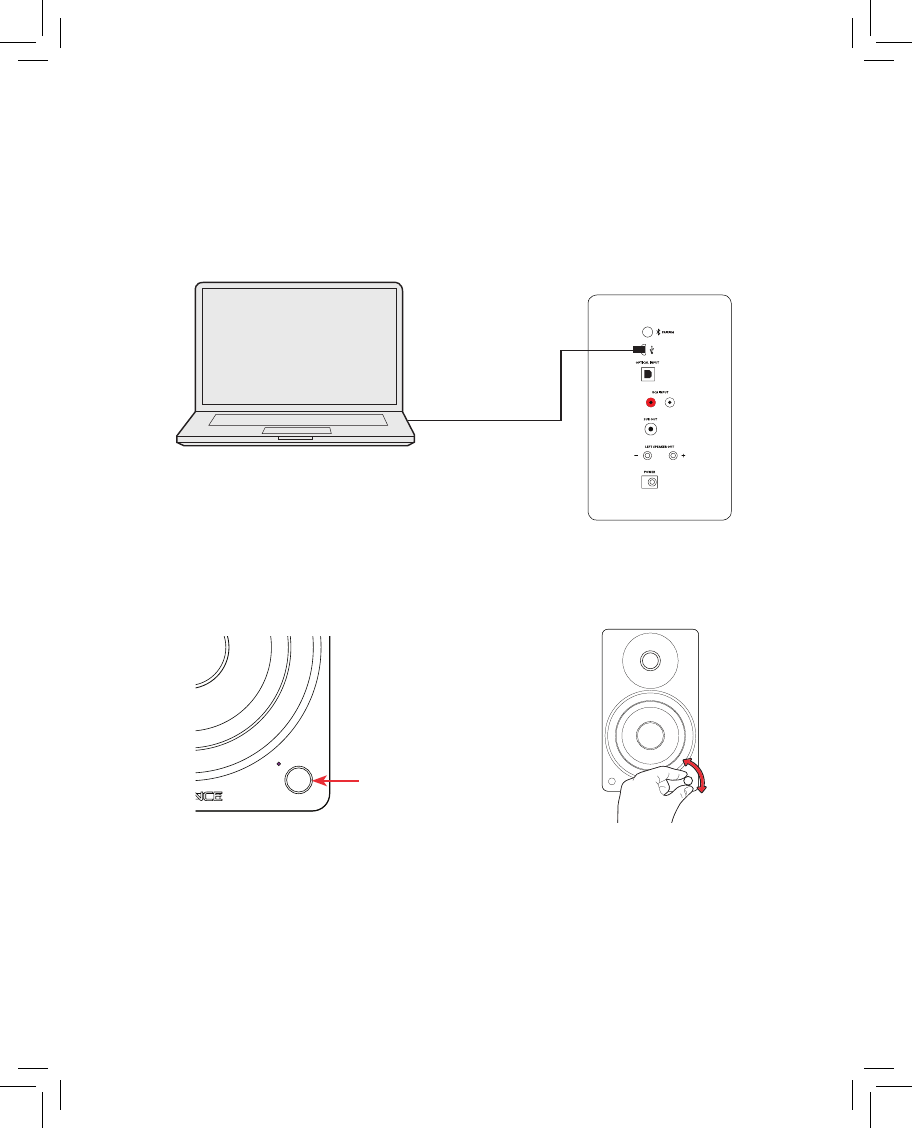

USB Input
1. Connect the USB cable to your source
device (Laptop, Desktop...).
2. Connect the other end of the USB
cable to the Micro USB port on the
back of the Active Speaker.
4. Adjust the volume on Ai60 as well
as source device.
3. Press the Control Knob to select the
USB Input (Purple LED).
USB Audio Output Settings
You may need to enable USB audio output on your source device. Here are the directions for
most Windows® and Apple® Computers.
Windows®: Control Panel > Sound > USB Audio
Apple®: System Preferences > Sound > Output > USB
It is also important to check that any sound enhancements, effects, or EQ settings are disabled
on your source device.
IMPORTANT: The USB input on the Ai60 is for
USB audio playback and not for USB charging.
*USB cable not included
Fluance Ai60 Quick Start Guide
Frequently Asked Questions
What is “auto-pairing” and how does it work?
Auto-pairing is a convenient connection feature included in all Fluance Bluetooth® Speakers.
If the connected Bluetooth®-enabled device leaves the connection range of the Ai60 and
returns at a later time, the device will automatically connect. If the device’s Bluetooth®
function is disabled and then enabled at a later time, the device will automatically connect
as well.
*Note: The Fluance Ai60 will only auto-pair to the last device that it was connected to.
Another device is connected to my Fluance Ai60 and I want to connect my device.
You can reset any Bluetooth® connection by pressing and holding the Bluetooth® Pairing
Reset button on the back of the Active Speaker for 1 second. You can also press and hold
“Play/Pause” on the Remote for 3 seconds.
What is the range of my Bluetooth® Connection?
The Fluance Ai60 operates with Power Class 2 Bluetooth® devices, which have a range of
approximately 33 feet (line of sight).
What are the power adapter specications for the Ai60?
Brand: Fluance
Model: DQS751-240300-3
Input: AC 100-240V~50/60Hz 2A
Output: DC 24V 3.0A
Subwoofer Output
1. Connect the Subwoofer cable to your powered subwoofer.
2. Connect the other end of the Subwoofer cable to the back of the Active Speaker.
3. Adjust the volume on the Subwoofer for the best listening experience.
Fluance offers matching subwoofers for the ultimate audio experience. For more information
visit: www.Fluance.com/subwoofer.
DB10
*Subwoofer cable not included
Fluance Ai60 Quick Start Guide
Certification Information
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turn-
ing the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:(1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment. This equipment complies with FCC
radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20cm between the radiator & your body.
The device has been evaluated to meet general RF exposure requirement. The device can be
used in portable exposure condition without restriction.
IC Warning
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2) This device must accept any interference,
including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
Changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment. This equipment complies with IC
radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20cm between the radiator & your body. This
transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
Fluance Ai60 Quick Start Guide
Warranty Information
Fluance gives the following warranty to the original customer of each new Fluance product
purchased from a dealer authorized by Fluance. Fluance warrants that each new product,
under normal use, is free from defects, subject to the terms and conditions set forth. If a
defect should occur within the warranty period, repairs will be made free of charge for parts
and labor when such defects are determined by us to be attributable to faulty materials or
workmanship at time of manufacture.
Warranty Period
The Fluance products listed below are warranted for parts and labor for the stated
period from the date of original purchase and are subject to the terms and conditions of
the warranty.
Home Audio Passive Speakers: Lifetime Warranty
Active/Powered Speakers: 2 Year Warranty
HiFi Turntables: 2 Year Warranty
Warranty Exclusions
• Products purchased from a dealer not authorized by Fluance.
• Products with the serial number defaced, altered or missing.
• Defects resulting from disaster, accident, abuse, misuse, lightning, power surges, neglect,
unauthorized modication or water damage.
• Defects or damage as a result of repairs performed by a person or party not authorized
by Fluance.
• Defects or damage occurring during shipping (claims should be made with the shipping
company).
To Obtain Warranty Service
Should your Fluance product require warranty service, please contact your Fluance Autho-
rized Dealer and send your product fully insured and freight prepaid to the nearest Fluance
authorized service center. Before sending to Fluance, you will be required to get a Return
Authorization Number from your dealer.
Products shipped without a valid Return Authorization Number will be refused. To avoid
possible shipping damage, make sure the product is properly packaged and well protected.
Include a copy of your original bill of sale as proof of warranty along with your name, home
and/or work telephone number(s), a complete return address and a detailed description of
the faults.
Products repaired within warranty will be returned freight prepaid. This warranty in itself is
not considered a valid proof of purchase. When applying for warranty repairs, you must
present the original copy of your bill of sale as proof of warranty.
Fluance Ai60 Quick Start Guide
Fluance Ai60 Quick Start Guide
Fluance.com
