Circus World Displays FI70 Bluetooth Speaker User Manual

Circus World Displays Ltd. Bluetooth Speaker

User Manual

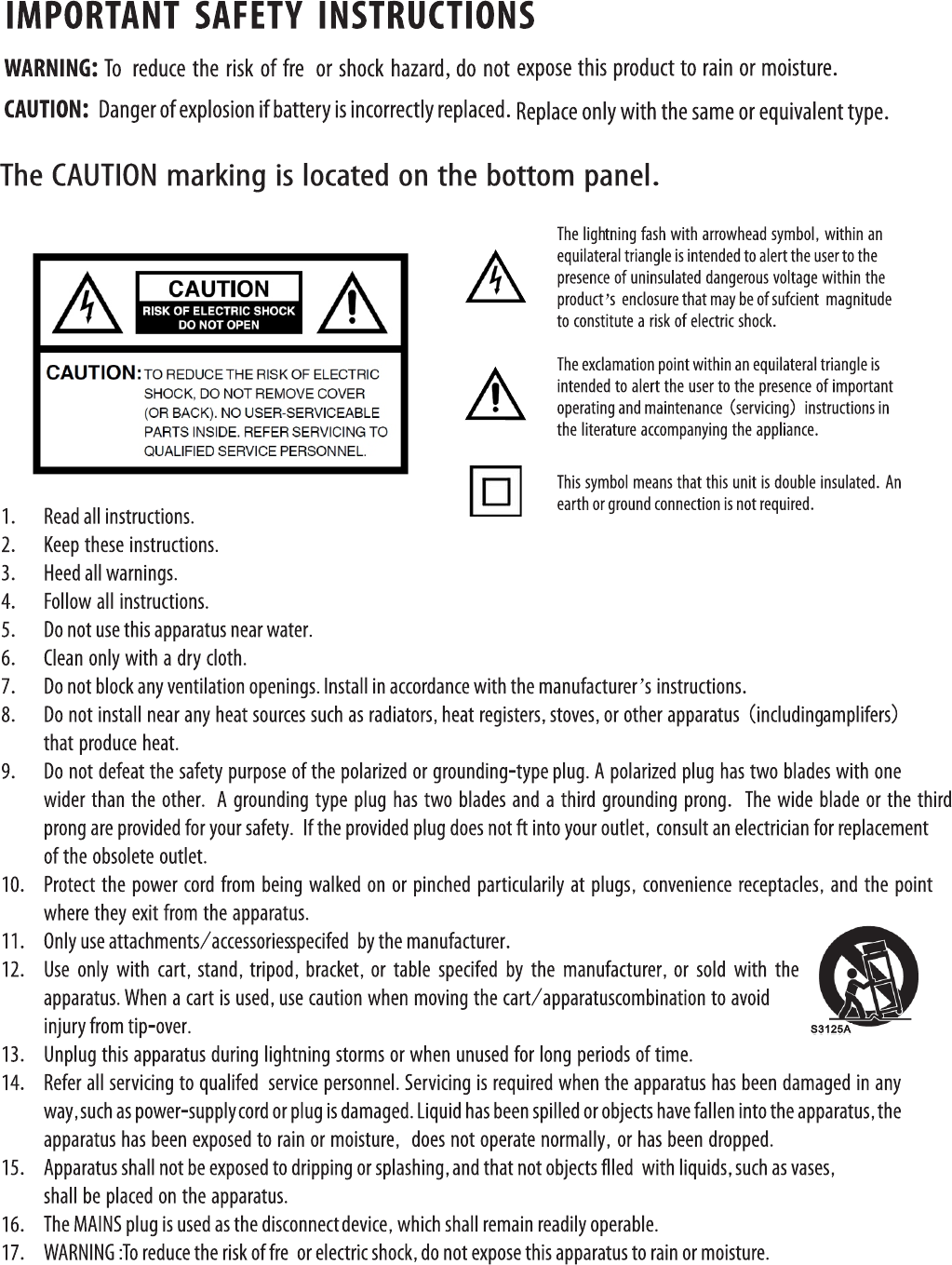

18.Thebatteryshallnotbeexposedtoexcessiveheatsuchassunshine,fireorthelike.
-1-
-2-
Buttonsandfunctions
Note:Rememberthatcertainbuttonsonboththespeaker'scontrolpanelandtheremote
controlsharethesamefunctions.Example:Howtoturnonthespeaker:Press[](1).The
speakerwillturnonandthedisplaywillcomeon.Thecorrespondingbutton[](9)onthe
remoteisthereforenotdescribedinthismanual.
Controlpanelanddisplay
1 2 3 4 5 6 7 8
Power Source(in) Set Previous Play/Pause Next Volume Decrease Volmel Increase
1.[]Standby
2.[]Inputsource:Bluetooth,AUX,OPTI,FMorAM
3.[]Settings
4.[]Previoustrack,time-,alarm-andtuner-settings
5.[]Play/pause
6.[]Nexttrack,time-,alarm-andtuner-settings
7.[]Volume-
8.[]Volume+
-3-
Note:Theremotecontrolisdesignedtobeusedwithvariousmodelssosomeofthebuttons
maynothaveafunctionforthisparticularmodel.Pointtheremotedirectlyatthespeaker
duringuse.Detectionrange:Max5mwithina30°angle.
RemoteControl
Power ON/OFF
Previous / Back
Volume Down
Input
Treble DOWN
Bass DOWN
VOL +
TRE - TRE +
BAS - BAS +
VOL -
TREBLE
BASS
Display
Volume Up
Next / Forward
Play / Pause
Setup
Treble UP
Bass UP
1
2
3
4
5
6
7
9
10
11
12
13
8
1.[]Standby
2.[]Display
3.[VOL+]Volumeup
3.[]Previoustrack,time-,alarm-andtuner-settings
4.[]Nexttrack,time-,alarm-andtuner-settings
5.[]Play/pause
6.[VOL+]Volumedown
7.[]Inputsource:Bluetooth,AUX,OPTI,FMorAM
8.[]Settings
9.[TRE-]Trebledown
10.[TRE+]Trebleup
11.[BAS-]Bassdown
12.[BAS+]Bassup
-4-
BACK
OFF
ON
120 V~60 Hz
280 W
FM AM
DC 5V 2.1A
Model:Fi70
HIGH PER FORMANCE
BLU ETOOTH MUSIC SYSTEM

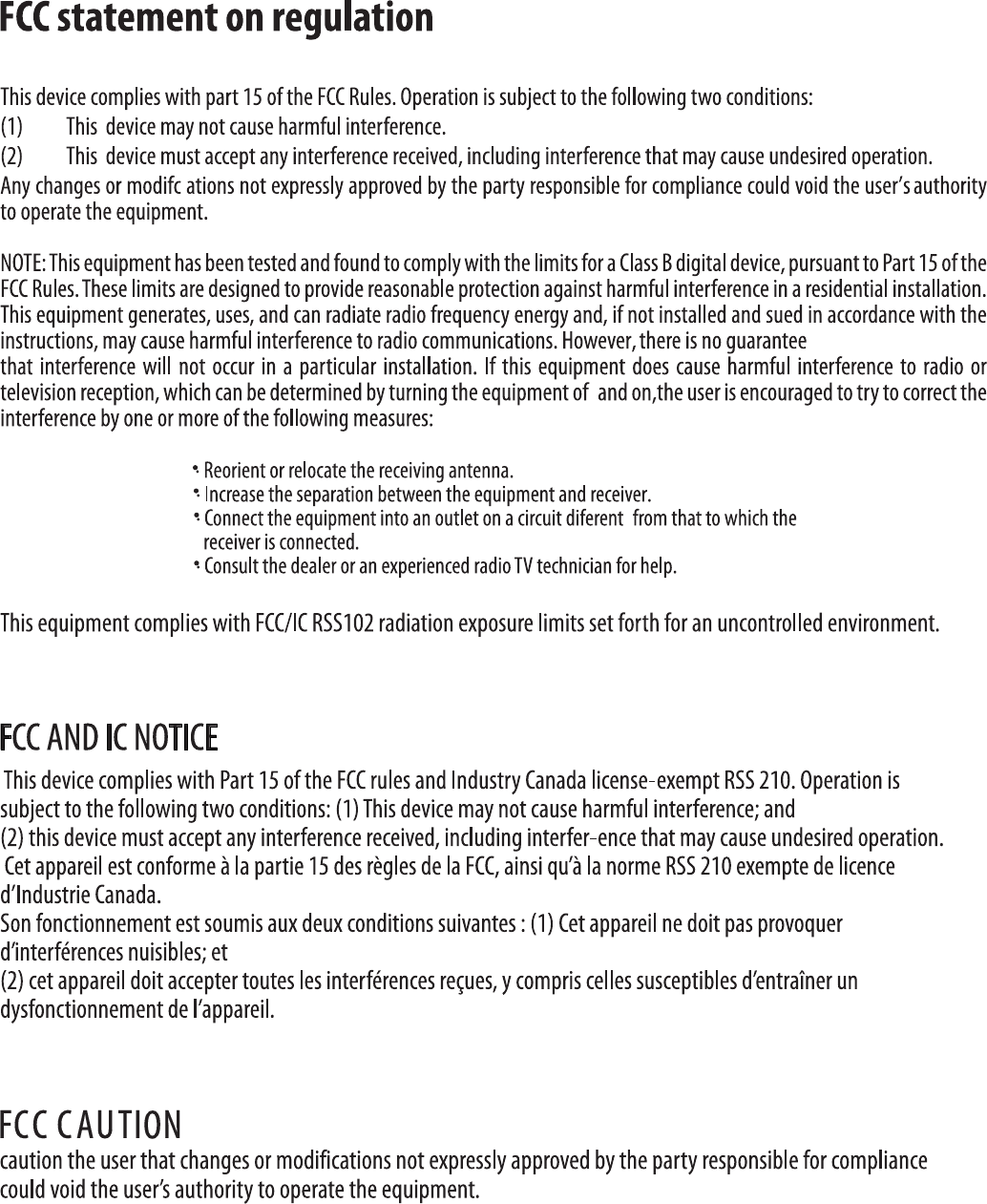

THISDEVICECOMPLIESWITHPART15OFTHEFCCRULES.OPERATIONISSUBJECTTOTHE
FOLLOWINGTWOCONDITIONS:(1)THISDEVICEMAYNOT CAUSEHARMFULINTERENCE,AND
(2)THISDEVICEMUSTACCEPTANYINTERFERENCERECEIVED,INCLUDINGINTERFERENCETHAT
MAYCAUSEUNDESIREDOPERATION.
CANICES-3(B)/NMB-3(B).
THISDEVICECOMPLIESWITHINDUSTRYCANADAʼSLICENCE-EXEMPTRSSSTANDARD(S).
OPERATIONISSUBJECTTOTHEFOLLOWINGTWOCONDITIONS:
(1)THISDEVICEMAYNOTCAUSEINTERFERENCE;AND
(2)THISDEVICEMUSTACCEPTANYINTERFERENCE,INCLUDINGINTERFERENCETHATMAYCAUSE
UNDESIREDOPERATIONOFTHEDEVICE.
PEK FI70 4593A-FI70
POWER AUX IN OPTICAL
USB CHARGING
RAD IO
Pr oduct date: 2 015 .10
123
4456
7
1.Powerleadsocket
2.On/Off
3.“AUXIN”,ExternalaudioconnectionforCD/DVDplayers,etc.
4.“OPTICALIN”,ExternalaudioconnectionforCD/DVDplayers,etc.
5.75ΩFMaerialconnection,FMaerialconnectionforincludedorseparateaerial
6.300ΩAMaerialconnection,AMaerialconnectionforincludedAMaerial
7.USBCharging,supplyDC5V2.1A
-5-
Switchingthespeakeron
1.Connectthemainsleadtothepowersocket(22)onbackofthespeakerandplugthe
otherendintoapowerpoint.
2.Turnthepowerswitch(23)totheONposition.
3.Press[](1).Thespeakerwillpoweronandthedisplaywillbelit.
Switchingthespeakeroff
1.Press[](1).Thespeakerwillnowgointostandbymode.
2.Turnthepowerswitch(23)toOFF.
3.PulltheplugfromthewallsockettodisconnecttheBluetoothspeakercompletelyfrom
themains.
Selectinganinputsource
AUX→FM→AM→OPTI→BT→AUX
Press[](2)onthecontrolpanelseveraltimesor[](16)ontheremotetoselectan
inputsource.
ConnectinganexternalBluetoothdevice
1.TurnonthespeakerasdescribedaboveandselectBTastheinputsource.
2.Afterafewsecondsthe“BT”indicatordotwillbeginflashingquicklyonthedisplay
whichmeansthatthespeakerisnowmadedetectableforotherBluetoothdevices.
3.ActivateBluetoothonthechosendevicetobepairedandplaceitinsearchmode.
4.Thespeakerwillbelistedas“Fi70”onyourdevice,selectittoconnecttothespeaker.
Refertoyourdevice'sinstructionmanualifyouareunsure.
5.Oncecontacthasbeenestablishedthe“BT”indicatordotwillbeginflashingslowly.
6.Startplaybackonthepaireddevice.
7.Adjustthevolumebothonthedeviceandspeakertoachievethedesiredvolumelevel.
8.OnceyourdevicehasbeenconnectedtothespeakerviaBluetooth,itwillautomatically
connectitselfinthefuturewhenevertheyareturnedonandinrangeofeachother.
-6-
ConnectinganexternaldeviceviatheAUXjack
1.ConnecttheexternaldevicebyconnectingittotheAUXsocket(24)onthespeaker's
backpanel.
2.TurnonthespeakerasdescribedaboveandselectAUXastheinputsource.
3.Startandcheckforproperplaybackfromtheexternaldevice.
Radio
1.TurnonthespeakerasdescribedaboveandselectFMorAMastheinputsource.The
currentradiostationfrequencywillthenbedisplayed.
2.Press[SET]twice.Thestationfrequencywillbeginflashingonthedisplay.
Press[]or[]tomanuallysetthedesiredstationfrequency.
Holdin[]or[]anreleasetoautomaticallysearchforthenextdetectablestation.
-7-
Fi70
7
7
7
7
7
7
7
7
7
-8-
