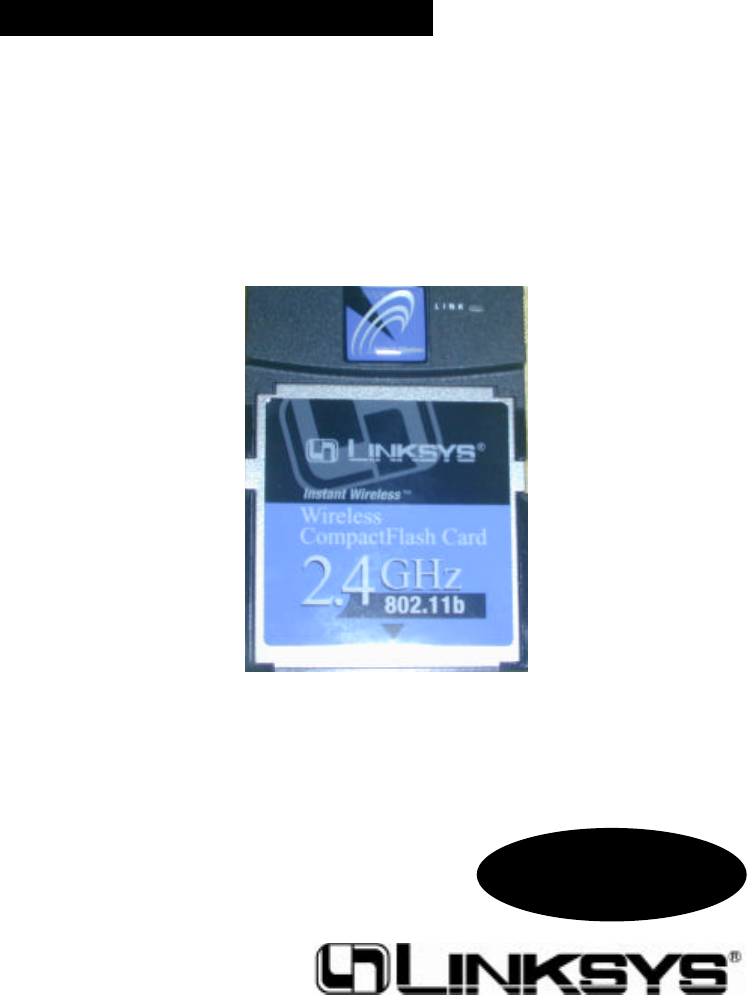

Instant WirelessTM Series

Wireless Network

CF Card

User Guide

Use this Guide to install: WCF12

mark of Linksys. Microsoft, Windows, and the Windows logo are registered trademarks

of Microsoft Corporation. All other trademarks and brand names are the property of their

respective proprietors.

LIMITED WARRANTY

Linksys guarantees that every Instant Wireless™ Wireless Network CF Card is free from

physical defects in material and workmanship for one year from the date of purchase,

when used within the limits set forth in the Specification section of this User Guide. If

these products prove defective during this warranty period, call Linksys Customer

Support in order to obtain a Return Authorization Number. BE SURE TO HAVE YOUR

PROOF OF PURCHASE AND A BARCODE FROM THE PRODUCT'S PACKAGING ON

HAND WHEN CALLING. RETURN REQUESTS CANNOT BE PROCESSED WITHOUT

PROOF OF PURCHASE. When returning a product, mark the Return Authorization

Number clearly on the outside of the package and include your original proof of pur-

chase. All customers located outside of the United States of America and Canada shall

be held responsible for shipping and handling charges.

IN NO EVENT SHALL LINKSYS’ LIABILITY EXCEED THE PRICE PAID FOR THE PROD-

UCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAM-

AGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFT-

WARE, OR ITS DOCUMENTATION. LINKSYS DOES NOT OFFER REFUNDS FOR ANY

PRODUCT. Linksys makes no warranty or representation, expressed, implied, or statuto-

ry, with respect to its products or the contents or use of this documentation and all

accompanying software, and specifically disclaims its quality, performance, mer-

chantability, or fitness for any particular purpose. Linksys reserves the right to revise or

update its products, software, or documentation without obligation to notify any individ-

ual or entity. Please direct all inquiries to:

Linksys P.O. Box 18558, Irvine, CA 92623.

FCC STATEMENT

This product have been tested and complies with the specifications for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide rea-

sonable protection against harmful interference in a residential installation. This equip-

ment generates, uses, and can radiate radio frequency energy and, if not installed and

used according to the instructions, may cause harmful interference to radio communi-

cations. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television

reception, which is found by turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment or device

• Connect the equipment to an outlet other than the receiver’s

• Consult a dealer or an experienced radio/TV technician for assistance

UG-WCF12-020425NC KL

Introduction

Experience the same speed and ease of wireless networking with your

CompactFlash Type II ready personal digital assistant as you do with your lap-

top or desktop computer with the Instant Wireless™ Wireless Network CF

Card. This Type II CompactFlash card connects directly to your PDA—just

plug it in and you’re ready to share data, printers, or high speed Internet access

over your existing wireless network. User-friendly software makes it simple to

set up.

Not only is the Instant Wireless™ Wireless Network CF Card easy to install

and use, it’s also powerful. You can send and receive data at speeds up to

11Mbps. A high-powered built-in antenna means that you’re connected at dis-

tances of up to 1500 feet. It’s also versatile and easily configurable through

your PC.

So for full wireless flexibility and convenience, the Instant Wireless™ Wireless

Network CF Card puts wireless networking in the palm of your hand!

• Up to 11 Mbps High-Speed Data Transfer Rate

• Compatible with Windows CE

• Low Interference and High Sensitivity to Guarantee Reliable Performance

• User-Friendly Software Provides Hassle-Free Installation and

Configuration

• Plug-and-Play Operation Provides Easy Setup

• Built-in Antenna with Link LED

• Works with Virtually All Standard Internet Applications

• Interoperable with IEEE 802.11b (DSSS) 2.4GHz-Compliant Equipment

• Capable of up to 128-Bit WEP Encryption

• Free Software Driver Upgrades

• Free Technical Support-24 Hours a Day, 7 Days a Week for North America

Only

• 1-Year Limited Warranty

Features

The Instant WirelessTM Wireless Network CF Card

Table of Contents

Introduction 1

The Instant WirelessTM Wireless Network CF Card 1

Features 1

Package Contents 2

System Requirements 2

Planning Your Wireless Network 3

Network Topology 3

Roaming 3

Ad-Hoc Versus Infrastructure Mode 4

Installing the Drivers 5

Before You Start 5

Driver Installation 5

Installing the Wireless PCI Card 14

Configuration Utility 12

Using the Configuration Utility 12

Troubleshooting 18

Common Problems and Solutions 18

Frequently Asked Questions 18

Glossary 22

Specifications 27

Environmental 27

Warranty Information 28

Contact Information 29

Instant WirelessTM Series Wireless Network CF Card

Planning Your Wireless Network

Network Topology

A wireless LAN is exactly like a regular LAN, except that each Personal

Digital Assistant (PDA) in the LAN uses an Instant Wireless™ Wireless

Network CF Card to connect to the network using no wires. PDAs in a wire-

less LAN must be configured to share the same radio channel.

The Instant Wireless™ Wireless Network CF Card provides LAN access for

PDAs. An integrated wireless and wired LAN is called an Infrastructure con-

figuration. A group of Network CF Card users and an Access Point compose

a Basic Service Set (BSS). Each PDA equipped with a Network CF Card in a

BSS can talk to any computer in a wired LAN infrastructure via the Access

Point also allows you to synchronize the PDA through wireless connection.

An infrastructure configuration extends the accessibility of a Network CF Card

PDA to a wired LAN, and doubles the effective wireless transmission range for

two Network CF Card PDAs. Since the Access Point is able to forward data

within its BSS, the effective transmission range in an infrastructure LAN is

doubled.

The use of a unique ID in a Basic Service Set is essential.

The Wireless LAN Infrastructure configuration is appropriate for enterprise-

scale wireless access to a central database, or as a wireless application for

mobile users.

Infrastructure mode also supports roaming capabilities for mobile users. More

than one BSS can be configured as an Extended Service Set (ESS). This con-

tinuous network allows users to roam freely within an ESS. All Network CF

Card PDAs within one Extended Service Set must be configured with the same

SSID.

Selecting a feasible radio channel and optimum Access Point position is rec-

ommended. Proper Access Point positioning combined with a clear radio sig-

nal will greatly enhance performance.

Roaming

• One Instant Wireless™ Wireless Network CF Card

• One Setup CD-ROM with Drivers and User Guide

• One Registration Card (not shown)

• Windows 9x or higher PC with CD-ROM (to load drivers)

• PDA with available Type II CompactFlash Slot

• Windows CE

Package Contents

System Requirements

Instant Wir

eless

TM Series Wir

eless Netw

ork CF Car

Installing the Drivers

Your new Instant Wireless™ Wireless Network CF Card comes with an auto-

mated software installation procedure that interacts with the Windows operat-

ing system on your PC and the Windows CE operating systems on your PDA.

This procedure automatically installs the drivers and Configuration Utility

while the Network CF Card is installed on your PDA.

1. With the Network CF Card inserted into your PDA while your PDA is con-

nected to your PC, insert the Setup CD into your PC’s CD-ROM drive.

Unless you have deactivated the auto-run feature of Windows, the follow-

ing screen should appear automatically.

If this screen does not appear automatically, you can access the installation

by pressing the Start button and choosing Run. In the drop down box pro-

vided, type D:\setup.exe (where D: is the letter of your CD-ROM drive).

Alternately, double-click My Computer, and then double-click the CD-

ROM drive where the Setup CD is located. Then double-click the

Setup.exe icon that appears.

Before You Start

Driver Installation

Wir

eless Netw

ork CF Car

Unlike wired networks, wireless networks have two different modes in which

they may be set up: Infrastructure and Ad-Hoc. Choosing between these two

modes depends on whether or not the wireless network needs to share data or

peripherals with a wired network or not.

If the computers on the wireless network need to be accessible by a wired net-

work or need to share a peripheral, such as a printer, with the wired network

computers, the wireless network should be set up in the Infrastructure mode.

The basis of Infrastructure mode centers around an access point, which serves

as the main point of communications in a wireless network. Access points

transmit data to PCs

equipped with wireless

network card, which can

roam within a certain

radial range of the access

point. Multiple access

points can be arranged to

work in succession to

extend the roaming

range, and can be set up

to communicate with

your Ethernet hardware

as well.

If the wireless network is relatively small and needs to share resources only

with the other computers on the wireless network, then the Ad-Hoc mode can

be used. Ad-Hoc mode allows computers equipped with wireless transmitters

and receivers to communicate directly with each other, eliminating the need for

an access point. The drawback of this mode is in the fact that, in Ad-Hoc mode,

wireless-equipped computers are not able to communicate with computers on

a wired network.

And, of course,

communication

between the wire-

less-equipped com-

puters is limited by

the distance and

interference directly

between them.

Ad-Hoc versus Infrastructure Mode

Instant Wir

eless

TM Series

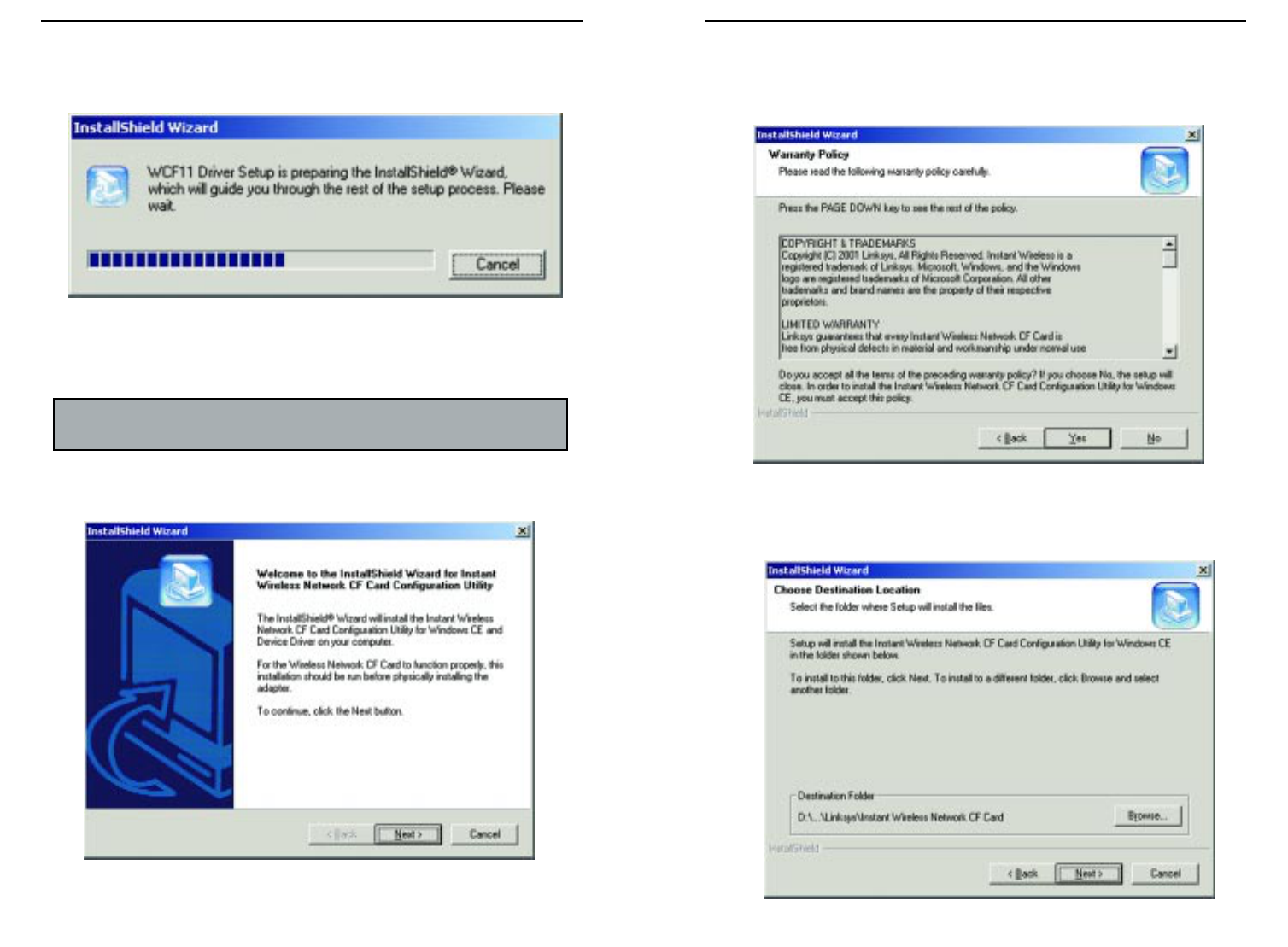

4. The next screen that appears will show the Warranty Policy. Read the entire

policy by clicking the Page Down button on your keyboard. Click the Yes

button if you agree, or No if you disagree. Clicking No will terminate the

installation. If you click Yes, the installation will continue.

5. From the following screen, you will determine where the driver will be

installed. If you would like the drivers installed to the default directory,

click the Next button. If you would like to choose an alternate directory,

click the Browse button and select the appropriate folder.

Wireless Network CF Card

2. The first tab across the top of the screen, labeled Install, should now be high-

lighted. Click on the Install button. The following screen should appear,

indicating that Windows is preparing the installation.

If, for whatever reason, you need to abort or terminate the installation, click

the Cancel button at any time during the installation. Otherwise the instal-

lation will continue automatically.

3. The following screen will indicate that Windows is ready to continue the

installation. Click the Next button.

Note: If you stop the installation before it has finished, you will have to

run the installation completely again before installing your hardware.

Instant WirelessTM Series

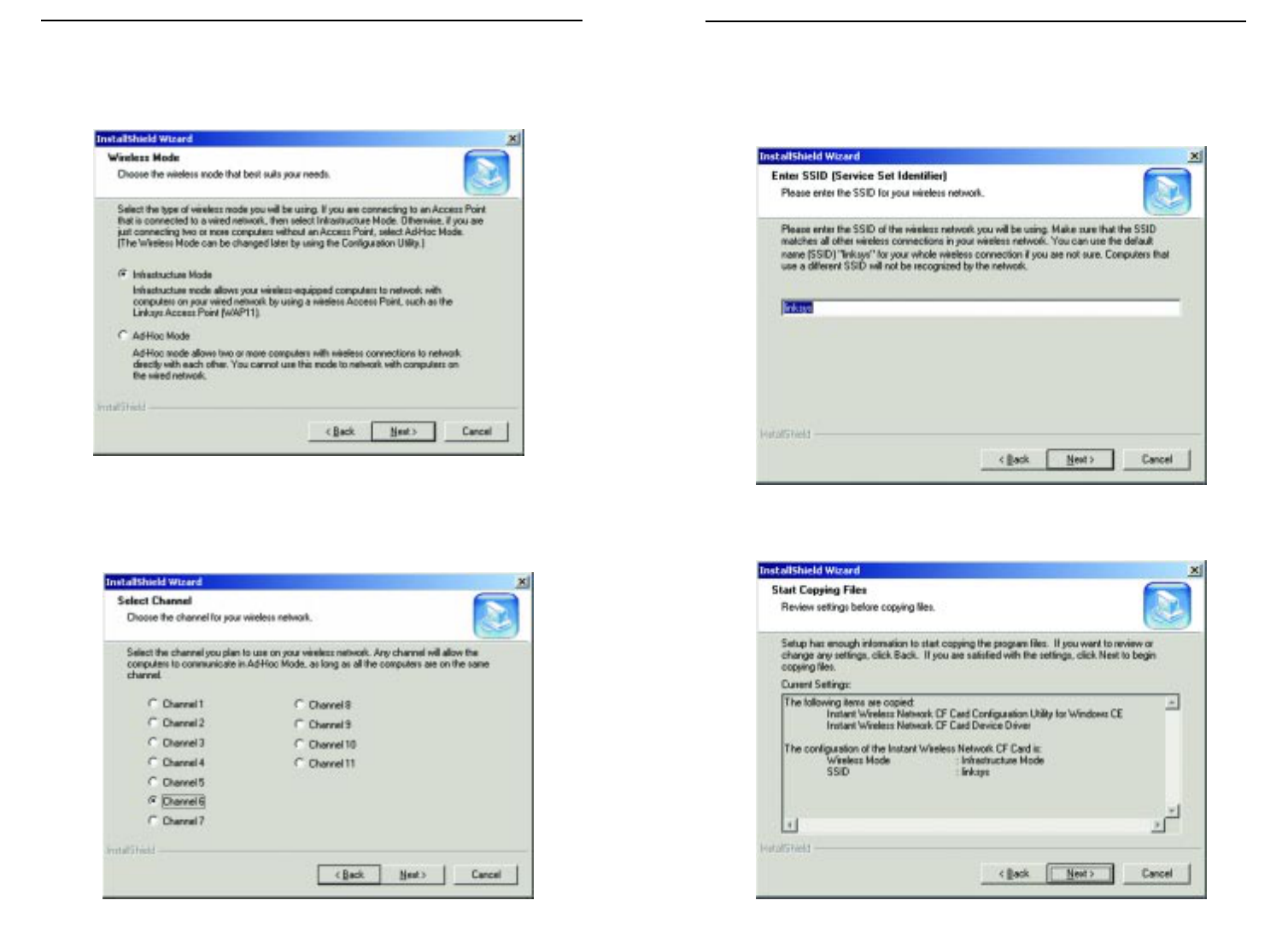

7b. If you chose Infrastructure Mode from the screen shown in step six, enter

your wireless network’s SSID name. The SSID must be identical for all

points in the network. To join any available SSID, type ANY. The default

setting is linksys (all lowercase). Enter this information and click the Next

button.

8. At this point, the Wizard will ask you to review your settings before start-

ing to copy files. Select Back to review or change any settings or Next if

you are satisfied with your settings.

6. When the following screen appears, choose either Infrastructure mode or

Ad-Hoc mode, depending on your needs. If you are unsure whether to

choose Infrastructure or Ad-Hoc, refer to the next section for more infor-

mation. Once you have made your choice, click the Next button.

7a. If you chose Infrastructure Mode, go on to Step 7b now. If you chose Ad-

Hoc Mode, choose the correct operating channel that applies to your net-

work. The channel you choose should be set as the same as the other points

in your wireless network. The default channel is set to Channel 6. Select

the appropriate channel and click the Next button.

Wireless Network CF Card

Instant WirelessTM Series

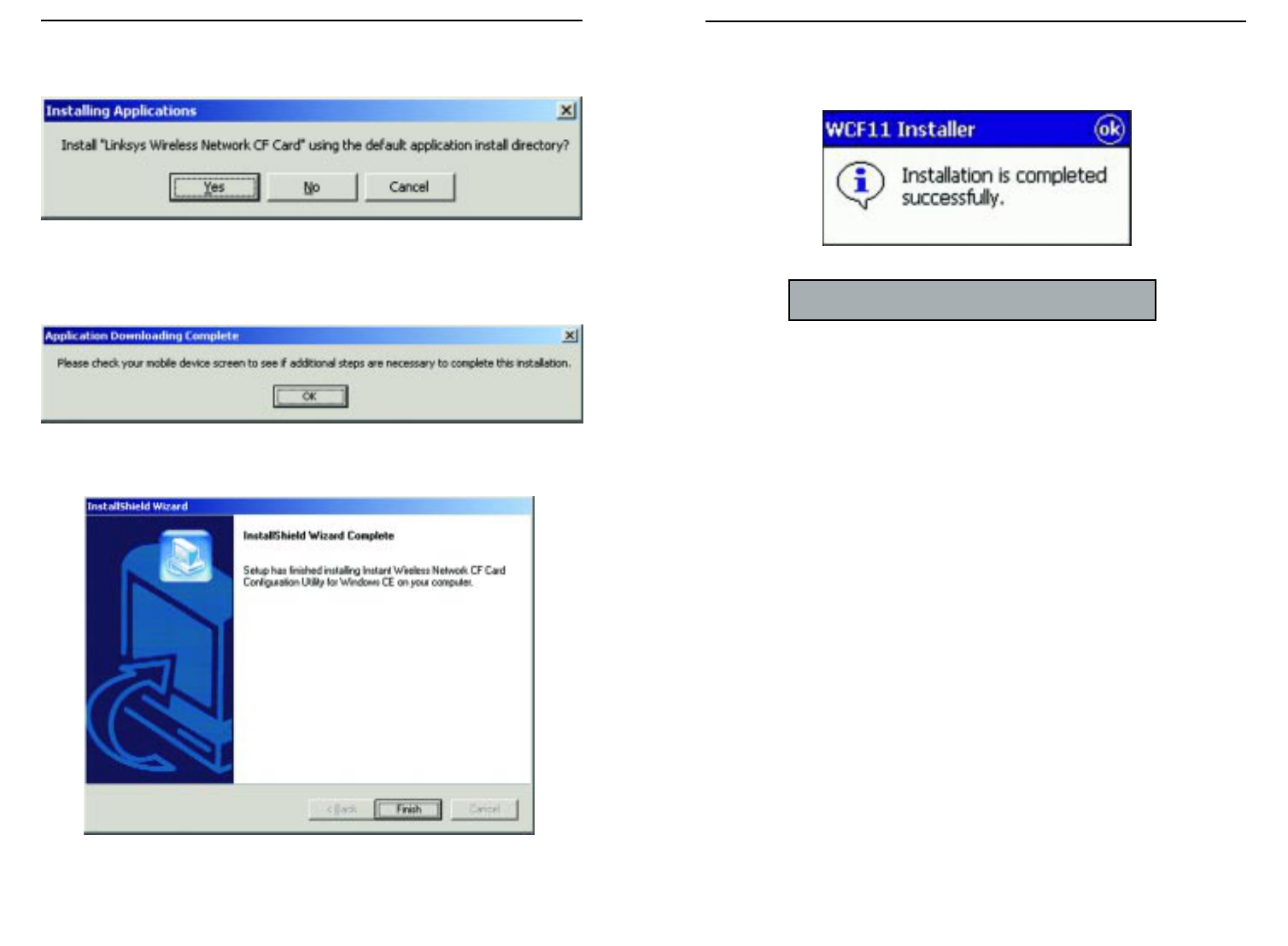

9. The following screen will ask if you wish to install the driver in the default

directory. Click the Yes button to continue.

10. When you see the following screen, check your PDA to see if additional

steps are required. Follow the steps requested by your PDA. Once this is

done, or if none are requested, click the OK button.

11. Once the installation wizard is complete, click the Finish button.

12. The following screen will also appear on your PDA, showing that the device

has been successfully installed. When you see this, click the OK button.

Note: Check your network setting to set IP Address.

1110

Wireless Network CF Card

Instant WirelessTM Series

You can save any of your configuration settings by setting up a Profile. To do

this, type the profile’s name in the Profile bar and click the Apply button to

save your changes under that profile.

Mode allows you to choose between Infrastructure or Ad-Hoc, depending on

your network type. The Ad-Hoc mode is used for a simple peer-to-peer net-

work and allows the sharing of local resources only between PDAs using the

Network CF Card without needing an Access Point. The Infrastructure mode

allows a wireless network to be integrated into an existing wired network

through an Access Point. Infrastructure networks permit roaming between

Access Points while maintaining a connection to all network resources.

An acronym for Service Set Identifier, SSID is the unique name shared among

all points in a wireless network. The SSID setting must be identical for all

points in the network. It is case sensitive and must not exceed 32 characters.

The Transmit Rate field shows the current transfer rate for the Network CF

Card. To optimize performance and range, the Transmit Rate should be set to

Auto Rate, which will automatically adjust the transfer speed for best perform-

ance and longest range.

Power Saving Enabled allows your PDA to enter "sleep" mode if your network

connection experiences more than 1 second of no network activity. This

depends on PDA power saving mode.

The Ad-Hoc Channel setting specifies the channel used in wireless communi-

cation and should be set to the same channel as the other points in the wireless

network. This setting can only be adjusted in Ad-Hoc mode.

To undo any changes, click the Undo button. To use the default settings and

eliminate those changes you’ve already made, click the Default button. To save

all of your changes, click the Apply button. To save all of your changes and

close the Configuration Utility, click the OK button at the top of the screen.

Wir

eless Netw

ork CF Car

Configuration Utility

The Configuration Utility is provided to allow you further customization of

the Network CF Card in your wireless network.

Once the Configuration Utility has been installed,

an icon will be placed in two places on your PDA,

under Programs and settings under the System tab

in Settings. Tapping this icon will open the

Configuration Utility.

CONFIGURATION

The Configuration screen allows you to change your Network CF Card’s gen-

eral settings.

Instant Wir

eless

TM Series

Using the Configuration Utility

1514

Encryption (WEP) can be Disabled, or set to 64-bit or 128-bit encryption as

a hexadecimal number for each key that you wish to encrypt. Make sure that

the values entered in these fields for WEP is identical to the encryption keys

used on the other wireless devices on the network.

Once enabled, you can create an encryption key by using a Passphrase, or by

entering the key manually. The Passphrase can be any text string with a max-

imum of 31 alphanumeric characters.

If you select to Create Keys Manually, enter a hexadecimal number for each

key that you wish to encrypt. Make sure that the values entered in these fields

for WEP are identical to the encryption keys used on the other wireless devices

on the network.

Once you have chosen your key encryption method and entered either the

Passphrase or manual key, click the Apply button to save your changes or

Undo to delete them. To save your changes and close the Configuration Utility,

click the OK button.

LINK

The Link screen provides information about the current link between the

Network CF Card and the wireless network.

The State field displays information on the Access Point with which the

Network CF Card is communicating.

The Current Channel field shows to what channel the Network CF Card is set.

The Current Tx Rate field shows the transfer rate in megabits per second.

Clicking the Rescan button refreshes the information displayed.

The Throughput fields show the rate at which data is transferred and received

in bytes per second.

The Link Quality field will display a bar indicating the percentage, between 0

and 100 percent, of the quality of the link. The higher the percentage, the bet-

ter the link.

Wireless Network CF Card

Note: Creating and using the passphrase is recommended for easy WEP con-

figuration and security purposes.

ENCRYPTION

The 64-bit or 128-bit WEP keys can be generated here from a user-defined

passphrase or entered manually.

An acronym for Wired Equivalent Privacy, WEP is an encryption scheme used

to protect your wireless data communications. WEP uses a combination of 64-

bit or 128-bit keys to provide access control to your network and encryption

security for every data transmission. To decode a data transmission, each point

in a network must use an identical 64-bit or 128-bit key. Higher encryption

levels mean higher levels of security, but, due to the complexity of the encryp-

tion, they may mean decreased network performance.

Instant WirelessTM Series

ABOUT

The About screen shows the release information for the Driver Version,

Configuration Utility Version, and Firmware Version.

Wireless Network CF Card

The Signal Strength field will display a bar indicating the percentage, between

0 and 100 percent, of the strength of the signal. The higher the percentage, the

stronger the signal.

Instant WirelessTM Series

What is Ad-Hoc?

An Ad-Hoc wireless LAN is a group of computers, each with a WLAN card

connected as an independent wireless LAN. Ad hoc wireless LAN is applica-

ble at a departmental scale for a branch or SOHO operation.

What is Infrastructure?

An integrated wireless and wired LAN is called an Infrastructure configura-

tion. Infrastructure is applicable to enterprise scale for wireless access to cen-

tral database, or wireless application for mobile workers.

What is Roaming?

Roaming is the ability of a portable computer user to communicate continu-

ously while moving freely throughout an area greater than that covered by a sin-

gle Access Point. Before using the roaming function, the workstation must

make sure that it is the same channel number with the Access Point of dedicat-

ed coverage area.

To achieve true seamless connectivity, the wireless LAN must incorporate a

number of different functions. Each node and Access Point, for example, must

always acknowledge receipt of each message. Each node must maintain contact

with the wireless network even when not actually transmitting data. Achieving

these functions simultaneously requires a dynamic RF networking technology

that links Access Points and nodes. In such a system, the user’s end node under-

takes a search for the best possible access to the system. First, it evaluates such

factors as signal strength and quality, as well as the message load currently

being carried by each Access Point and the distance of each Access Point to the

wired backbone. Based on that information, the node next selects the right

Access Point and registers its address. Communications between end node and

host computer can then be transmitted up and down the backbone.

As the user moves on, the end nodes RF transmitter regularly checks the sys-

tem to determine whether it is in touch with the original Access Point or

whether it should seek a new one. When a node no longer receives acknowl-

edgment from its original Access Point, it undertakes a new search. Upon find-

ing a new Access Point, it then reregisters, and the communication process con-

tinues.

What is BSS ID?

A specific Ad hoc LAN is called a Basic Service Set (BSS). Computers in a

BSS must be configured with the same BSS ID.

1918

Wireless Network CF Card

Troubleshooting

This chapter provides solutions to problems usually occurring during the instal-

lation and operation of the Network CF Card. Read the description below to

solve your problems. If you can’t find an answer here, check the Linksys web-

site at www.linksys.com.

1.My PDA does not recognize the Wireless CF Network Card.

• Make sure that the Network CF Card is properly inserted into the

CompactFlash port.

• Make sure the link led is solid.

2.The Wireless CF Network Card does not work properly.

• Reinsert the Network CF Card into the PDA's CompactFlash port.

• Uninstall the driver software from your PC and PDA device.

• Restart your PC and repeat the hardware and software installation as speci-

fied in this User Guide.

3.I cannot communicate with the Access Point via Ethernet in the

Infrastructure configuration.

• Make sure that the Access Point is powered on.

• Make sure that your Network CF Card is configured on the same channel,

SSID, and WEP as the Access Point.

What is IEEE 802.11b standard?

The IEEE 802.11b Wireless LAN standards subcommittee, which is formulat-

ing a standard for the industry. The objective is to enable wireless LAN hard-

ware from different manufacturers to communicate.

What IEEE 802.11b features are supported?

The product supports the following IEEE 802.11b functions:

• CSMA/CA plus Acknowledge protocol

• Multi-Channel Roaming

• Automatic Rate Selection

• RTS/CTS feature

• Fragmentation

• Power Management

Common Problems and Solutions

Frequently Asked Questions

Instant WirelessTM Series

Would the information be intercepted while transmitting on air?

WLAN features two-fold protection in security. On the hardware side, as with

Direct Sequence Spread Spectrum technology, it has the inherent security fea-

ture of scrambling. On the software side, WLAN series offer the encryption

function (WEP) to enhance security and Access Control. Users can set it up

depending upon their needs.

Can Instant WirelessTM products support printer sharing?

Instant WirelessTM products perform the same function as LAN products.

Therefore, Instant Wireless™ products can work with NetWare, Windows

2000, or other LAN operating systems to support printer or file sharing.

What is WEP?

WEP is Wired Equivalent Privacy, a data privacy mechanism based on a 40 bit

shared key algorithm, as described in the IEEE 802.11b standard.

What is ESS ID?

An Infrastructure configuration could also support roaming capability for

mobile workers. More than one BSS can be configured as an Extended Service

Set (ESS). Users within an ESS could Roam freely between BSSs while served

as a continuous connection to the network wireless stations and Access Points

within an ESS must be configured with the same ESS ID and the same radio

channel.

What is ISM band?

The FCC and their counterparts outside of the U.S. have set aside bandwidth

for unlicensed use in the ISM (Industrial, Scientific and Medical) band.

Spectrum in the vicinity of 2.4 GHz, in particular, is being made available

worldwide. This presents a truly revolutionary opportunity to place convenient

high-speed wireless capabilities in the hands of users around the globe.

What is Spread Spectrum?

Spread Spectrum technology is a wideband radio frequency technique devel-

oped by the military for use in reliable, secure, mission-critical communica-

tions systems. It is designed to trade off bandwidth efficiency for reliability,

integrity, and security. In other words, more bandwidth is consumed than in the

case of narrowband transmission, but the trade off produces a signal that is, in

effect, louder and thus easier to detect, provided that the receiver knows the

parameters of the spread-spectrum signal being broadcast. If a receiver is not

tuned to the right frequency, a spread-spectrum signal looks like background

noise. There are two main alternatives, Direct Sequence Spread Spectrum

(DSSS) and Frequency Hopping Spread Spectrum (FHSS).

What is DSSS? What is FHSS? And what are their differences?

Frequency-Hopping Spread-Spectrum (FHSS) uses a narrowband carrier that

changes frequency in a pattern that is known to both transmitter and receiver.

Properly synchronized, the net effect is to maintain a single logical channel. To

an unintended receiver, FHSS appears to be short-duration impulse noise.

Direct-Sequence Spread-Spectrum (DSSS) generates a redundant bit pattern

for each bit to be transmitted. This bit pattern is called a chip (or chipping

code). The longer the chip, the greater the probability that the original data can

be recovered. Even if one or more bits in the chip are damaged during trans-

mission, statistical techniques embedded in the radio can recover the original

data without -the need for retransmission. To an unintended receiver, DSSS

appears as low power wideband noise and is rejected (ignored) by most nar-

rowband receivers.

Wireless Network CF Card

Instant WirelessTM Series

DSSS (Direct-Sequence Spread-Spectrum) - DSSS generates a redundant bit

pattern for each bit to be transmitted. This bit pattern is called a chip (or chip-

ping code). The longer the chip, the greater the probability that the original data

can be recovered. Even if one or more bits in the chip are damaged during

transmission, statistical techniques embedded in the radio can recover the orig-

inal data without -the need for retransmission. To an unintended receiver, DSSS

appears as low power wideband noise and is rejected (ignored) by most nar-

rowband receivers.

Encryption - A security method that applies a specific algorithm to data in

order to alter the data's appearance and prevent other devices from reading the

information.

ESS - More than one BSS in a network.

Ethernet - IEEE standard network protocol that specifies how data is placed

on and retrieved from a common transmission medium. Having a transfer rate

of 10 Mbps., this forms the underlying transport vehicle used by several upper-

level protocols.

FHSS - Also known as "Frequency Hopping Spread Spectrum". Frequency

hopping spread spectrum (FHSS) continuously changes the center frequency of

a conventional carrier several times per second according to a pseudo-random

set of channels, while chirp spread spectrum changes the carrier frequency.

Because a fixed frequency is not used, illegal monitoring of spread spectrum

signals is extremely difficult, if not downright impossible depending on the

particular method.

Firmware - Programming that is inserted into programmable read-only mem-

ory (programmable read-only memory), thus becoming a permanent part of a

computing device.

Fragmentation - Breaking a packet into smaller units when transmitting over

a network medium that cannot support the original size of the packet.

Unlike e-mail programs in which graphics and program files have to be

"attached," FTP is designed to handle binary files directly and does not add the

overhead of encoding and decoding the data.

Wireless Network CF Card

Glossary

Ad-hoc Network - An ad-hoc network is a wireless network or other small net-

work in which some of the network devices are part of the network only for the

duration of a communications session while in some close proximity to the rest

of the network.

Backbone - The part of a network that connects most of the systems and net-

works together and handles the most data.

Bandwidth - The transmission capacity of a given facility, in terms of how

much data the facility can transmit in a fixed amount of time; expressed in bits

per second (bps).

Bit - A binary digit. The value - 0 or 1-used in the binary numbering system.

Also, the smallest form of data.

BSS (Basic Service Set) - A group of Network CF Card users and an Access

Point.

CompactFlash - A flash memory format card that plugs into a CompactFlash

socket or into a standard Type II PC Card slot with an adapter.

CSMA/CD (Carrier Sense Multiple Access/Collision Detection) - The LAN

access method used in Ethernet. When a device wants to gain access to the net-

work, it checks to see if the network is quiet (senses the carrier). If it is not, it

waits a random amount of time before retrying. If the network is quiet and two

devices access the line at exactly the same time, their signals collide. When the

collision is detected, they both back off and each wait a random amount of time

before retrying.

Database - A database is a collection of data that is organized so that its con-

tents can easily be accessed, managed, and updated.

Driver - A software module that provides an interface between a network inter-

face card and the upper-layer protocol software running in the computer.

Instant WirelessTM Series

Passphrase - Used much like a password, a passphrase simplifies the WEP

encryption process by automatically generating the WEP encryption keys for

Linksys products.

PC Card - A credit-card sized removable module that contains memory, I/O,

or a hard disk.

PDA - (Personal Digital Assistant) Any small mobile hand-held device that pro-

vides computing and information storage and retrieval capabilities for person-

al or business use.

Plug-and-Play - The ability of a computer system to configure expansion

boards and other devices automatically without requiring the user to turn off

the system during installation.

Port - A pathway into and out of the computer or a network device. For exam-

ple, the serial and parallel ports on a personal computer are external sockets for

plugging in communications lines, modems and printers.

Roaming - The ability to use a wireless device and be able to move from one

access point's range to another without losing the connection.

RTS (Request To Send) - An RS-232 signal sent from the transmitting station

to the receiving station requesting permission to transmit.

Software - Instructions for the computer. A series of instructions that performs

a particular task is called a "program." The two major categories of software are

"system software" and "application software." System software is made up of

control programs such as the operating system and database management sys-

tem (DBMS). Application software is any program that processes data for the

user.

A common misconception is that software is data. It is not. Software tells the

hardware how to process the data.

SOHO (Small Office/Home Office) - Market segment of professionals who

work at home or in small offices.

Spread Spectrum - Spread Spectrum technology is a wideband radio frequen-

cy technique developed by the military for use in reliable, secure, mission-crit-

ical communications systems. It is designed to trade off bandwidth efficiency

for reliability, integrity, and security. In other words, more bandwidth is con-

Wireless Network CF Card

Hardware - Hardware is the physical aspect of computers, telecommunica-

tions, and other information technology devices. The term arose as a way to dis-

tinguish the "box" and the electronic circuitry and components of a computer

from the program you put in it to make it do things. The program came to be

known as the software.

IEEE - The Institute of Electrical and Electronics Engineers. The IEEE

describes itself as "the world's largest technical professional society -- promot-

ing the development and application of electrotechnology and allied sciences

for the benefit of humanity, the advancement of the profession, and the well-

being of our members."

The IEEE fosters the development of standards that often become national and

international standards. The organization publishes a number of journals, has

many local chapters, and several large societies in special areas, such as the

IEEE Computer Society.

Infrastructure - An infrastructure network is a wireless network or other small

network in which the wireless network devices are made a part of the network

through the Access Point which connects them to the rest of the network.

ISM band - The FCC and their counterparts outside of the U.S. have set aside

bandwidth for unlicensed use in the ISM (Industrial, Scientific and Medical)

band. Spectrum in the vicinity of 2.4 GHz, in particular, is being made avail-

able worldwide. This presents a truly revolutionary opportunity to place con-

venient high-speed wireless capabilities in the hands of users around the globe.

LAN - A local area network (LAN) is a group of computers and associated

devices that share a common communications line and typically share

resources within a small geographic area (for example, within an office build-

ing).

Mbps (MegaBits Per Second) - One million bits per second; unit of measure-

ment for data transmission.

Network - A system that transmits any combination of voice, video and/or data

between users.

Packet - A unit of data routed between an origin and a destination in a network.

Instant WirelessTM Series

Specifications

Standards: IEEE 802.11b

Channels: 11 Channels (US, Canada)

13 Channels (Europe)*

14 Channels (Japan)*

Operating Range:

Indoors: up to 30M (100 ft.) @ 11 Mbps

up to 50M (165 ft.) @ 5.5 Mbps

up to 70M (230 ft.) @ 2 Mbps

up to 91M (300 ft.) @ 1 Mbps

Outdoors: up to 152M (500 ft.) @ 11 Mbps

up to 270M (885 ft.) @ 5.5 Mbps

up to 396M (1300 ft.) @ 2 Mbps

up to 457M (1500 ft.) @ 1 Mbps

Data Rate (Mbps): up to 11Mbps (with automatic scale back)

LEDs: Link

* will require different firmware and driver

Dimensions: 4.5” x 2” x .3” (115mm x 54mm x 8mm)

Unit Weight: 1.65 oz. (47g)

Power: 3.3V DC, 300 mA

Certifications: FCC Class B, CE Mark Commercial

Operating Temp.: 32ºF to 131ºF (0ºC to 55ºC)

Storage Temp.: -13ºF to 158ºF (-25ºC to 70ºC)

Operating Hum.: 10% to 90% Non-Condensing

Storage Hum.: 10% to 95% Non-Condensing

Environmental

Wireless Network CF Card

sumed than in the case of narrowband transmission, but the trade off produces

a signal that is, in effect, louder and thus easier to detect, provided that the

receiver knows the parameters of the spread-spectrum signal being broadcast.

If a receiver is not tuned to the right frequency, a spread-spectrum signal looks

like background noise. There are two main alternatives, Direct Sequence

Spread Spectrum (DSSS) and Frequency Hopping Spread Spectrum (FHSS).

Storage - The semi-permanent or permanent holding place for digital data.

Throughput - The amount of data moved successfully from one place to anoth-

er in a given time period.

Topology - A network's topology is a logical characterization of how the

devices on the network are connected and the distances between them. Most

large networks contain several levels of interconnection, the most important of

which include edge connections, backbone connections, and wide-area con-

nections.

TX Rate - Transmission Rate.

Upgrade - To replace existing software or firmware with a newer version.

WEP (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-

bit or 128-bit shared key algorithm, as described in the IEEE 802.11 standard.

Instant WirelessTM Series

Contact Information

For help with the installation or operation of this product, contact Linksys

Customer Support at one of the phone numbers or Internet addresses below.

Sales Information 800-546-5797 (LINKSYS)

Tech Support 866-242-8558

RMA Issues 949-261-1288

Fax 949-261-8868

Email support@linksys.com

Web http://www.linksys.com

FTP Site ftp.linksys.com

Wireless Network CF Card

Warranty Information

BE SURE TO HAVE YOUR PROOF OF PURCHASE AND A BARCODE

FROM THE PRODUCT'S PACKAGING ON HAND WHEN CALLING.

RETURN REQUESTS CANNOT BE PROCESSED WITHOUT PROOF OF

PURCHASE.

IN NO EVENT SHALL LINKSYS’ LIABILITY EXCEED THE PRICE PAID

FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDEN-

TAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE

OF THE PRODUCT, ITS ACCOMPANYING SOFTWARE, OR ITS DOCU-

MENTATION. LINKSYS DOES NOT OFFER REFUNDS FOR ANY PROD-

UCT.

LINKSYS OFFERS CROSS SHIPMENTS, A FASTER PROCESS FOR PRO-

CESSING AND RECEIVING YOUR REPLACEMENT. LINKSYS PAYS

FOR UPS GROUND ONLY. ALL CUSTOMERS LOCATED OUTSIDE OF

THE UNITED STATES OF AMERICA AND CANADA SHALL BE HELD

RESPONSIBLE FOR SHIPPING AND HANDLING CHARGES. PLEASE

CALL LINKSYS FOR MORE DETAILS.

Instant WirelessTM Series

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one of the

following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and

receiver.

- Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for

help.

FCC Caution: To assure continued compliance, (example -

use only shielded interface cables when connecting to

computer or peripheral devices). Any changes or

modifications not expressly approved by the party responsible

for compliance could void the user's authority to operate this

equipment.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept any interference received,

including interference that may cause undesired

operation.

IMPORTANT NOTE:

FCC RF Radiation Exposure Statement:

This transmitter must not be co-located or operating in

conjunction with any other antenna or transmitter.

Caution: This device can emit RF energy. For compliance with

FCC RF exposure rule, the user has to keep at least 2.5 cm

separation distance between the radiator and the body of the

user.

R&TTE Compliance Statement

This equipment complies with all the requirements of the DIRECTIVE

1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL

of 9 March 1999 on radio equipment and telecommunication terminal

Equipment and the mutual recognition of their conformity (R&TTE).

The R&TTE Directive repeals and replaces in the directive

98/13/EEC (Telecommunications Terminal Equipment and Satellite

Earth Station Equipment) As of April 8, 2000.

Safety

This equipment is designed with the utmost care for the safety of

those who install and use it. However, special attention must be paid

to the dangers of electric shock and static electricity when working

with electrical equipment. All guidelines of this manual and of the

computer manufacturer must therefore be allowed at all times to

ensure the safe use of the equipment.

EU Countries Intended for Use

The ETSI version of this device is intended for home and office use in

Austria, Belgium, Denmark, Finland, France (with Frequency channel

restrictions), Germany, Greece, Iceland, Ireland, Italy, Luxembourg,

Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and

United Kingdom.

The ETSI version of this device is also authorized for use in EFTA

member states Iceland, Liechtenstein, Norway and Switzerland.

EU Countries Not Intended for Use

None.

Potential Restrictive Use

France: Only channels 10,11,12, and13

http://www.linksys.com

Cisco Linksys WCF12 Wireless Network Compact Flash Card User Manual wcf11 user guide

Cisco-Linksys, LLC Wireless Network Compact Flash Card wcf11 user guide

Manual

Navigation menu

Namespaces

Views

Navigation
