Manual Part 1
Instant Wireless
®
Series
Dual-Band Wireless A+B
Broadband Router
Use this guide to install:
WRT51AB
User Guide
FCC RF Radiation Exposure Statement
To comply with the FCC and ANSI C95.1 RF exposure limits, the antenna(s) for this
device must comply with the following:
1. Access points with 2.4 GHz or 5 GHz integrated antenna must operate with a sepa-
ration distance of at least 20 cm from all persons using the cable provided and must
not be co-located or operating in conjunction with any other antenna or transmitter.
2. The Access Point's co-located 2.4 GHz and 5 GHz integrated antennas support a
minimum separation distance of 10 cm (3.9 in.) and are compliant with the applica-
ble FCC RF exposure limit when transmitting simultaneously.
End-users must be provided with specific operations for satisfying RF exposure compli-
ance.
Note: Dual antennas used for diversity operation are not considered co-located.
Canadian Department of Communications Industry Canada (IC) Notice
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 et CNR-210
du Canada.
"To prevent radio interference to the licensed service, this device is intended to be oper-
ated indoors and away from windows to provide maximum shielding. Equipment (or its
transmit antenna) that is installed outdoors is subject to licensing."
" Pour empêcher que cet appareil cause du brouillage au service faisant l'objet d'une
licence, il doit être utilisé à l'intérieur et devrait être placé loin des fenêtres afin de fournir
un écran de blindage maximal. Si le matériel (ou son antenne d'émission) est installé à
l'extérieur, il doit faire l'objet d'une licence. "
EC DECLARATION OF CONFORMITY (EUROPE)
Linksys Group declares that the Instant Wireless®Series products included in the Instant
Wireless®Series conform to the specifications listed below, following the provisions of the
European R&TTE directive 1999/5/EC, EMC directive 89/336/EEC, and Low Voltage
directive 73/23/EEC:
For 11Mpbs, 2.4 GHz access points with 100 mW radios, the following standards were
applied:
• ETS 300-826, 301 489-1 General EMC requirements for Radio equipment.
• EN 609 50 Safety
• ETS 300-328-2 Technical requirements for Radio equipment.
For 54 Mpbs, 5 GHz access points with 40 mW radios, the following standards were
applied:
• ETS 301 489-1, 301 489-17 General EMC requirements for Radio equipment.
• EN 609 50 Safety
• ETS 301-893 Technical requirements for Radio equipment.
Caution: The frequencies used by 802.11a wireless LAN devices are not yet harmonized
within the European community, 802.11a products are designed for use only in specific
countries, and are not allowed to be operated in countries other than those of designat-
ed use. Contact local Authority for procedure to follow.
Caution: This equipment is intended to be used in all EU and EFTA countries. Outdoor
use may be restricted to certain frequencies and/or may require a license for operation.
Contact local Authority for procedure to follow.
Note: Combinations of power levels and antennas resulting in a radiated power level of
above 100 mW equivalent isotropic radiated power (EIRP) are considered as not com-
pliant with the above mentioned directive and are not allowed for use within the European
community and countries that have adopted the European R&TTE directive 1999/5/EC
and/or the CEPT recommendation Rec 70.03.
For more details on legal combinations of power levels and antennas, contact Linksys
Corporate Compliance.
COPYRIGHT & TRADEMARKS
Copyright © 2002 Linksys, All Rights Reserved. Instant Wireless, Linksys, and the
Linksys logo are registered trademarks of Linksys Group, Inc. Microsoft, Windows, and
the Windows logo are registered trademarks of Microsoft Corporation. All other trade-
marks and brand names are the property of their respective proprietors.
LIMITED WARRANTY
Linksys guarantees that every Instant Wireless Dual-Band Wireless A+B Broadband
Router will be free from physical defects in material and workmanship for one year from
the date of purchase, when used within the limits set forth in the Specifications section
of this User Guide. If the product proves defective during this warranty period, call
Linksys Technical Support in order to obtain a Return Authorization number. BE SURE TO
HAVE YOUR PROOF OF PURCHASE ON HAND WHEN CALLING. When returning a
product, mark the Return Authorization number clearly on the outside of the package and
include a copy of your original proof of purchase. RETURN REQUESTS CANNOT BE
PROCESSED WITHOUT PROOF OF PURCHASE. All customers located outside of the
United States of America and Canada shall be held responsible for shipping and han-
dling charges.
IN NO EVENT SHALL LINKSYS'S LIABILITY EXCEED THE PRICE PAID FOR THE PROD-
UCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAM-
AGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFT-
WARE, OR ITS DOCUMENTATION. LINKSYS OFFERS NO REFUNDS FOR ITS PROD-
UCTS. Linksys makes no warranty or representation, expressed, implied, or statutory,
with respect to its products or the contents or use of this documentation and all accom-
panying software, and specifically disclaims its quality, performance, merchantability, or
fitness for any particular purpose. Linksys reserves the right to revise or update its prod-
ucts, software, or documentation without obligation to notify any individual or entity.
Please direct all inquiries to:
Linksys P.O. Box 18558, Irvine, CA 92623.
SAFETY AND REGULATORY NOTICES
FCC STATEMENT
The Instant Wireless Dual-Band Wireless A+B Broadband Router has been tested and
found to comply with the specifications for a Class B digital device, pursuant to Part 15
of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio fre-
quency energy and, if not installed and used according to the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that inter-
ference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which is found by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment or devices
• Connect the equipment to an outlet other than the receiver's
• Consult a dealer or an experienced radio/TV technician for assistance
FCC Caution: Any change or modification to the product not expressly approved by
Linksys could void the user's authority to operate the device.
UG-WRT51AB-102202NC JL
Instant Wireless®Series Dual-Band Wireless A+B Broadband Router
Table of Contents
Chapter 1:Introduction 1
The Dual-Band Wireless A+B Broadband Router 1
Features 2
The Router’s Functions 2
IPAddresses 3
Router Setup Overview 4
Chapter 2:Getting to Know the Dual-Band
Wireless A+BBroadband Router 6
The Router’s Back Panel 6
The Router’s Front Panel LEDs 7
Chapter 3:Connect theRouter 10
Overview 10
Wired Connection to a PC 10
Wireless Connection to a PC 12
Chapter 4: Configure the PCs 13
Overview 13
Configuring Windows 98 and Millennium PCs 14
Configuring Windows 2000 PCs 16
Configuring Windows XP PCs 18
Chapter 5:Configure the Router’s Basic Settings20
Chapter 6: The Router’s Web-based Utility 25
Overview 25
How to Access the Web-based Utility 25
Setup 26
Password 38
Status 39
DHCP 42
Log 44
Help 45
Advanced Tabs 47
Advanced Wireless 48
Filters 55
Port Forwarding 58
Routing 60
DMZ Host 63
MAC Address Clone 64
• Linksys Group vakuuttaa täten että Instant Wireless Dual-Band A+B Broadband
Router tyyppinen laite on direktiivin 1999/5/EY, direktiivin 89/336/EEC ja direktiivin
73/23/EEC oleellisten vaatimusten ja sitä koskevien näiden direktiivien muiden ehto-
jen mukainen.
• Linksys Group déclare que la Instant Wireless Dual-Band A+B Broadband Router est
conforme aux conditions essentielles et aux dispositions relatives à la directive
1999/5/EC, la directive 89/336/EEC, et à la directive 73/23/EEC.
• Belgique B L'utilisation en extérieur est autorisé sur le canal 11 (2462 MHz), 12 (2467
MHz), et 13 (2472 MHz). Dans le cas d'une utilisation privée, à l'extérieur d'un bâti-
ment, au-dessus d'un espace public, aucun enregistrement n'est nécessaire pour
une distance de moins de 300m. Pour une distance supérieure à 300m un enreg-
istrement auprès de l'IBPT est requise. Pour une utilisation publique à l'extérieur de
bâtiments, une licence de l'IBPT est requise. Pour les enregistrements et licences,
veuillez contacter l'IBPT.
• France F:
2.4 GHz Bande : les canaux 10, 11, 12, 13 (2457, 2462, 2467, et 2472 MHz respec-
tivement) sont complétement libres d'utilisation en France (en utilisation intérieur).
Pour ce qui est des autres canaux, ils peuvent être soumis à autorisation selon le
départment. L'utilisation en extérieur est soumis à autorisation préalable et très
restreint.
5 GHz Bande: Conformément aux décisions de la CEPT, l'utilisation des fréquences
de la bande 5150 MHz - 5350 MHz est autorisée à l'intérieur des bâtiments avec une
puissance maximale de 200 mW, et interdite en extérieur. La bande 5470 MHz - 5725
MHz n'est pas ouverte aujourd'hui.
Vous pouvez contacter l'Autorité de Régulation des Télécommunications
(http://www.art-telecom.fr) pour de plus amples renseignements.
2.4 GHz Band: only channels 10, 11, 12, 13 (2457, 2462, 2467, and 2472 MHz
respectively) may be used freely in France for indoor use. License required for out-
door installations.
5 GHz Band: frequencies in the 5150 MHz - 5350 MHz band may be used indoor
with maximum power of 200 mW. Their use is forbidden outdoors. The 5470 MHz -
5725 MHz band is not currently open.
Please contact ART (http://www.art-telecom.fr) for procedure to follow.
• Deutschland D: Anmeldung im Outdoor-Bereich notwending, aber nicht genehmi-
gungspflichtig. Bitte mit Händler die Vorgehensweise abstimmen.
• Germany D: License required for outdoor installations. Check with reseller for proce-
dure to follow.
• Italia I: E' necessaria la concessione ministeriale anche per l'uso interno. Verificare
con i rivenditori la procedura da seguire. L'uso per installazione in esterni non e' per-
messa.
• Italy I: License required for indoor use. Use with outdoor installations not allowed.
• The Netherlands NL License required for outdoor installations. Check with reseller for
procedure to follow.
• Nederlands NL Licentie verplicht voor gebruik met buitenantennes. Neem contact op
met verkoper voor juiste procedure.
Dual-Band Wireless A+B Broadband Router
Chapter 1:Introduction
s EtherFast®Cable/DSL Router
The Dual-Band Wireless A+B Broadband Router is like four devices in one
box! The Router function lets you securely share one high-speed Internet con-
nection among your entire network, while the 4-port, 10/100 switch jump-starts
your wired Ethernet network. Connect four PCs directly, or daisy-chain out to
more hubs and switches to create as big a network as you need.
The Dual-Band Wireless A+B Broadband Router also contains two wireless
access points, which let you connect with wirelessly networked PCs using
either the popular 2.4GHz, 802.11b standard at 11Mbps, or the new, almost five
times faster, 5GHz, 802.11a standard. Since both standards are built-in, you can
protect your investment in existing 802.11b equipment today, and migrate to
the 802.11a standard as your needs grow.
In addition to up to 152-bit encryption of wireless transmissions, the two access
points in the Dual-Band Wireless A+B Broadband Router support the industri-
al-strength wireless security of 802.1x authentication and authorization. The
Router also serves as a DHCP server, has NAT technology to protect against
Internet intruders, supports VPN pass-through, and can be configured to filter
internal users’ access to the Internet. Configuration is a snap with the web
browser-based configuration utility.
With the Linksys Dual-Band Wireless A+B Broadband Router at the center of
your home or office network, you can share a high-speed Internet connection,
files, printers, and multi-player games with the flexibility, speed, and security
you need!
1
The Dual-Band Wireless A+B Broadband Router
Instant Wireless®Series
Appendix A: Troubleshooting 66
Common Problems and Solutions 66
Frequently Asked Questions 77
Appendix B: How to Ping Your ISP’s E-mail &
Web Addresses 86
Appendix C: Configuring Wireless Security 89
Background 89
WEP Encryption 90
802.1x Authentication 91
MD5 Authentication for Windows XP 92
Digital Certificate Installation 97
TLS Authentication for Windows XP 101
Appendix D: Finding the MAC Address and IP
Address for Your Ethernet Adapter 105
Appendix E: Glossary 108
Appendix F: Specifications 126
Environmental 127
Appendix G: Warranty Information 128
Appendix H: Contact Information 129
Dual-Band Wireless A+B Broadband Router
3
What’s an IP Address?
IP stands for Internet Protocol. Every device on an IP-based network, including
PCs, print servers, and routers, requires an IP address to identify its “location,” or
address, on the network. This applies to both the Internet and LAN connections.
There are two ways of assigning an IP address to your network devices. You can
assign static IP addresses or use the Router to assign IP addresses dynamically.
Static IP Addresses
A static IP address is a fixed IP address that you assign manually to a PC or
other device on the network. Since a static IP address remains valid until you
disable it, static IP addressing ensures that the device assigned it will always
have that same IP address until you change it. Static IP addresses must be
unique and are commonly used with network devices such as server PCs or
print servers.
If you use the Router to share your cable or DSL Internet connection, contact
your ISP to find out if they have assigned a static IP address to your account.
If so, you will need that static IP address when configuring the Router. You can
get that information from your ISP.
IP Addresses
Note: Since the Router is a device that connects two networks, it
needs two IP addresses—one for the LAN, and one for the Internet. In
this User Guide, you’ll see references to the “Internet IP address” and
the “LAN IP address.”
Since the Router uses NAT technology, the only IP address that can be
seen from the Internet for your network is the Router’s Internet IP
address.
However, even this Internet IP address can be blocked, so that the
Router and network seem invisible to the Internet—see the Block
WAN Requests description under Filters in “Chapter 6: The Router’s
Web-based Utility.”
Instant Wireless®Series
2
•Compatibility with 802.11a (5GHz) and 802.11b (2.4GHz) Standards
•Built-in, 4-Port, 10/100 Switch Supports Wired Ethernet Clients
•All Ethernet Ports Support Auto-MDI/MDI-X—No Need for Crossover
Cables
•Unsurpassed Security Using 802.1x Authentication with up to 152-bit WEP
Encryption
•Enhanced Security Management Functions: Port Filtering, MAC and IP
Address Filtering, DMZ Hosting, and NAT Technology
•Access Your Corporate Network Remotely through Virtual Private
Networking (VPN)—Supports IPSec and PPTP Pass-Through
•Easily Configurable through a Web Browser—Locally and over the Internet
•DHCP Server Capability to Assign IP Addresses Automatically
•Supports Static and Dynamic Routing (RIP1 and 2)
•Free Technical Support—24 Hours a Day, 7 Days a Week, Toll-Free US Calls
•1-Year Limited Warranty
Simply put, a router is a network device that connects two networks together.
In this instance, the Router connects your Local Area Network (LAN), or the
group of PCs in your home or office, to the Internet. The Router processes and
regulates the data that travels between these two networks.
The Router’s NAT feature protects your network of PCs so users on the public,
Internet side cannot “see” your PCs. This is how your network remains private.
The Router protects your network by inspecting every packet coming in
through the Internet port before delivery to the appropriate PC on your net-
work. The Router inspects Internet port services like the web server, ftp server,
or other Internet applications, and, if allowed, it will forward the packet to the
appropriate PC on the LAN side.
Remember that the Router’s ports connect to two sides. The 10/100 LAN ports
connect to the LAN, and the Internet port connects to the Internet. The LAN
ports transmit data at 10 Mbps or 100 Mbps, and the broadband port, or
Internet port, transmits data at 10/100 Mbps.
The Router’s Functions
Features
Dual-Band Wireless A+B Broadband Router
This User Guide covers the steps for setting up a network with the Router. After
going through “Chapter 2: Getting to Know the Dual-Band Wireless A+B
Broadband Router,” most users will only need to use the following chapters:
•Chapter 3: Connect the Router
This chapter instructs you on how to connect a cable or DSL modem to the
Router and connect your PC(s) to the Router.
•Chapter 4: Configure the PCs
This chapter instructs you on how to configure your PCs to be DHCP clients,
if you have previously set static IP addresses on your PCs.
•Chapter 5: Configure the Router’s Basic Settings
This chapter explains how to configure the Router using your web browser
and the Router’s web-based utility. You will configure the Router for Internet
access using the settings provided by your ISP.
When you’re finished with these basic steps, you will be ready to connect to the
Internet. You can also modify the Router’s settings further; for example, you
can adjust security features and other settings to enable online gaming (see
“Chapter 6: The Router’s Web-based Utility”).
5
Instant Wireless®Series
4

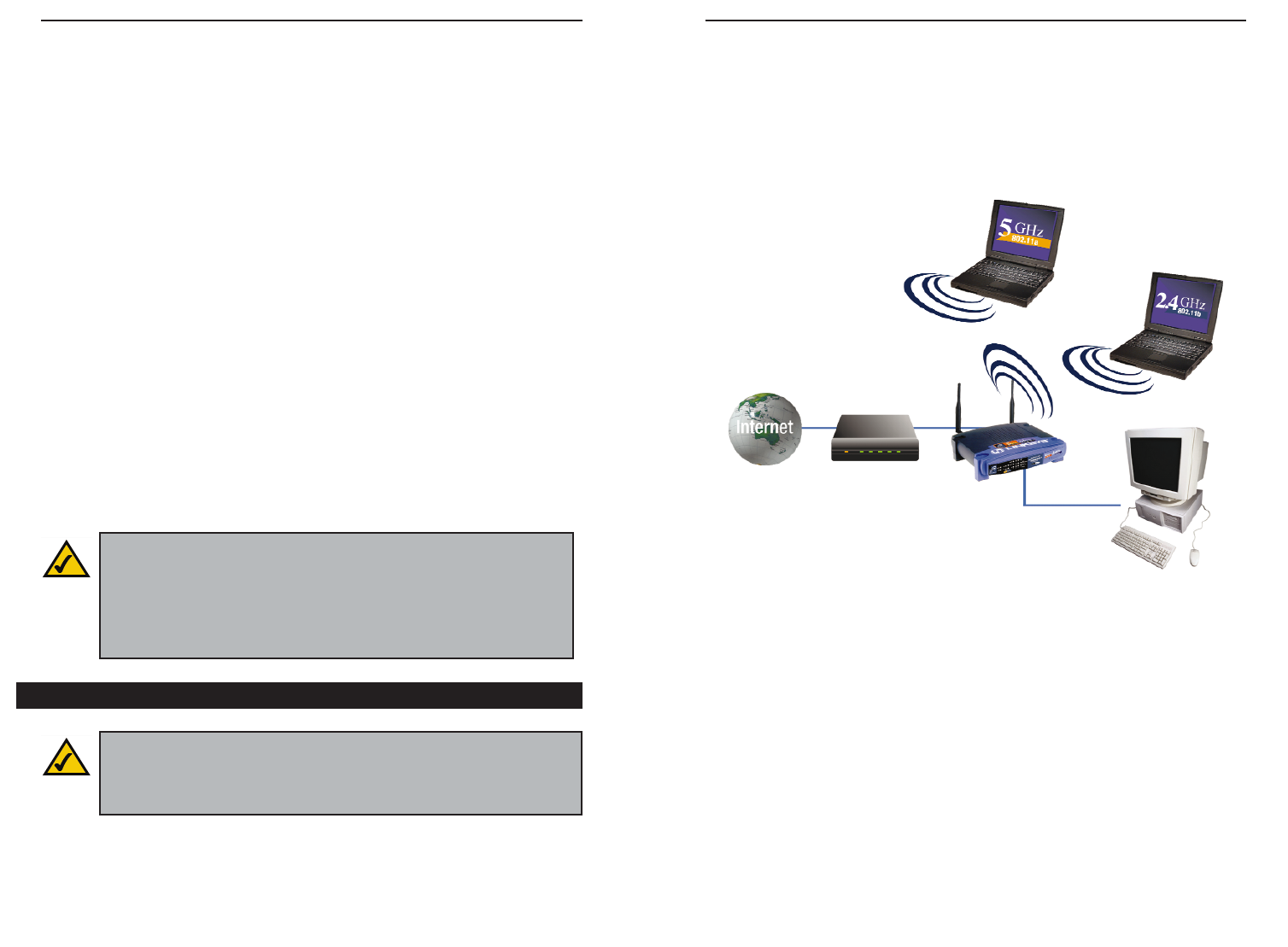

Figure 1-1
Cable or DSL Modem Router
PC with
Ethernet
Adapter
Notebook with
Wireless Adapter
Notebook with
Wireless Adapter
Dynamic IP Addresses
A dynamic IP address is automatically assigned to a device on the network,
such as PCs and print servers. These IP addresses are called “dynamic”
because they are only temporarily assigned to the PC or device. After a certain
time period, they expire and may change. If a PC logs onto the network (or the
Internet) and its dynamic IP address has expired, the DHCP server will auto-
matically assign it a new dynamic IP address.
DHCP (Dynamic Host Configuration Protocol) Servers
PCs and other network devices using dynamic IP addressing are assigned a new
IP address by a DHCP server. The PC or network device obtaining an IP
address is called the DHCP client. DHCP frees you from having to assign IP
addresses manually every time a new user is added to your network.
A DHCP server can either be a designated PC on the network or another net-
work device, such as the Router. By default, the Router’s DHCP Server func-
tion is enabled.
If you already have a DHCP server running on your network, you must disable
one of the two DHCP servers. If you run more than one DHCP server on your
network, you will experience network errors, such as conflicting IP addresses.
To disable DHCP on the Router, see the DHCP section in “Chapter 6: The
Router’s Web-based Utility.”
Router Setup Overview
Note: Even if you assign a static IP address to a PC, other PCs can
still use DHCP’s dynamic IP addressing, as long as the static IP
address is not within the DHCP range of the LAN IP Addresses.
If the dynamic IP addressing fails to provide a dynamic IP address,
refer to “Appendix A: Troubleshooting.”
Note: You should always you run the Setup Wizard CD-ROM to con-
figure the Router for Internet access. If you wish to manually config-
ure the Router, you may follow the instructions in the Quick
Installation guide or this User Guide.
Dual-Band Wireless A+B Broadband Router
7
Instant Wireless®Series
6
The Router’s LEDs display information about the Router’s status.
Power Green. The Power LED lights up when the Router is powered
on.
Diag Red. The Diag LED lights up when the Router goes through
its self-diagnosis mode during every boot-up. It will turn off
upon successful completion of the diagnosis.
If this LED stays on for one minute or longer, see “Appendix
A: Troubleshooting.”
The Router’s Front Panel LEDs
Figure 2-2
The Reset Button
The Reset button can be used in one of two ways:
1. If the Router is having problems connecting to the Internet, press the Reset
button for just a moment with a paper clip or a pencil tip. This clears up any
jammed connections, and is similar to pressing the Reset button on your PC
to reboot it.
This will reboot the Router while keeping all of the Router’s settings.
2. If you are experiencing extreme problems with the Router and have tried all
other troubleshooting measures, press the Reset Button and hold it down for
10 seconds.
This will restore factory defaults and clear all of the Router’s settings,
including settings such as a new password or wireless settings.
Chapter 2:Getting to Know the
Dual-Band Wireless A+B
Broadband Router

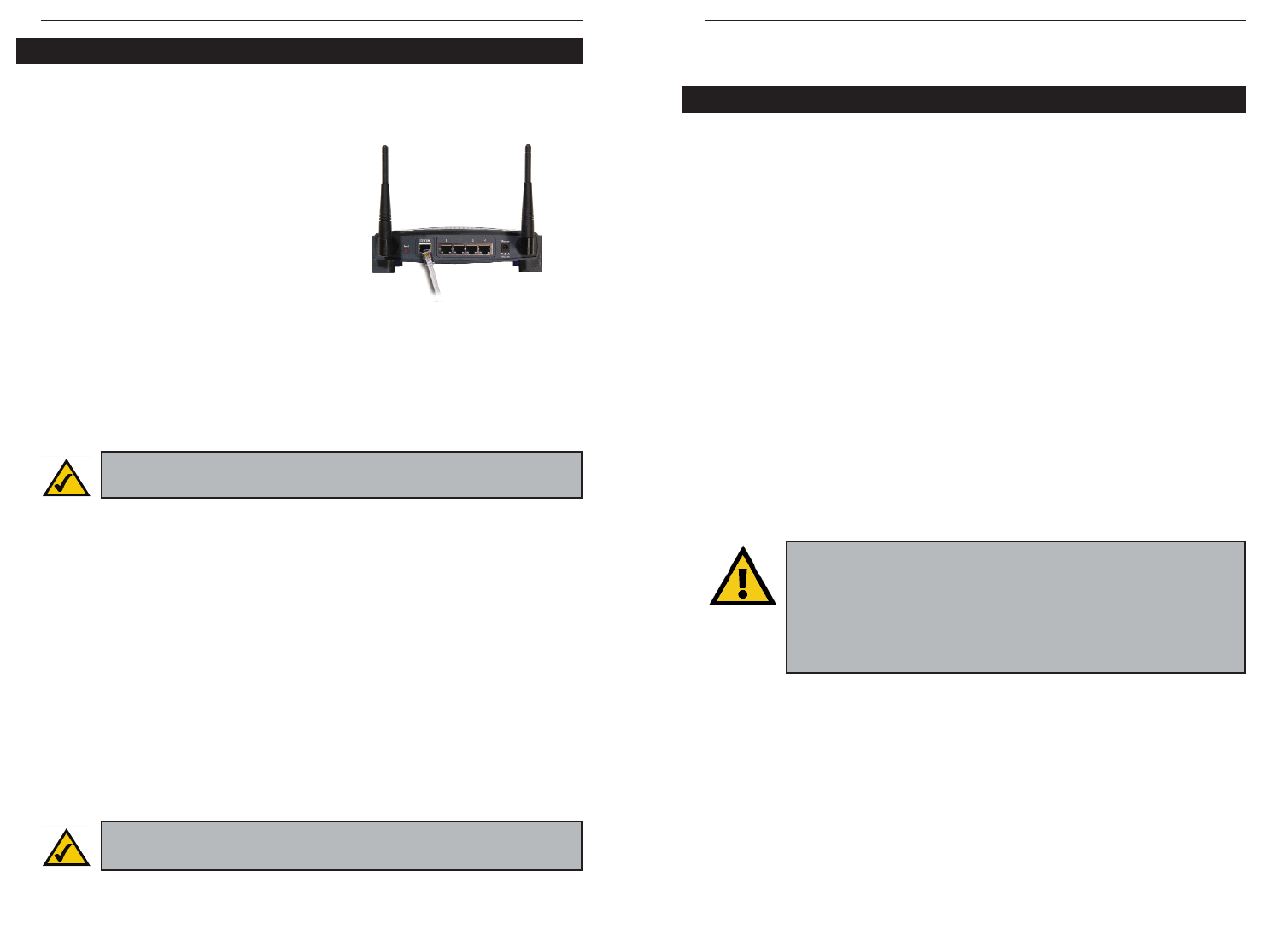

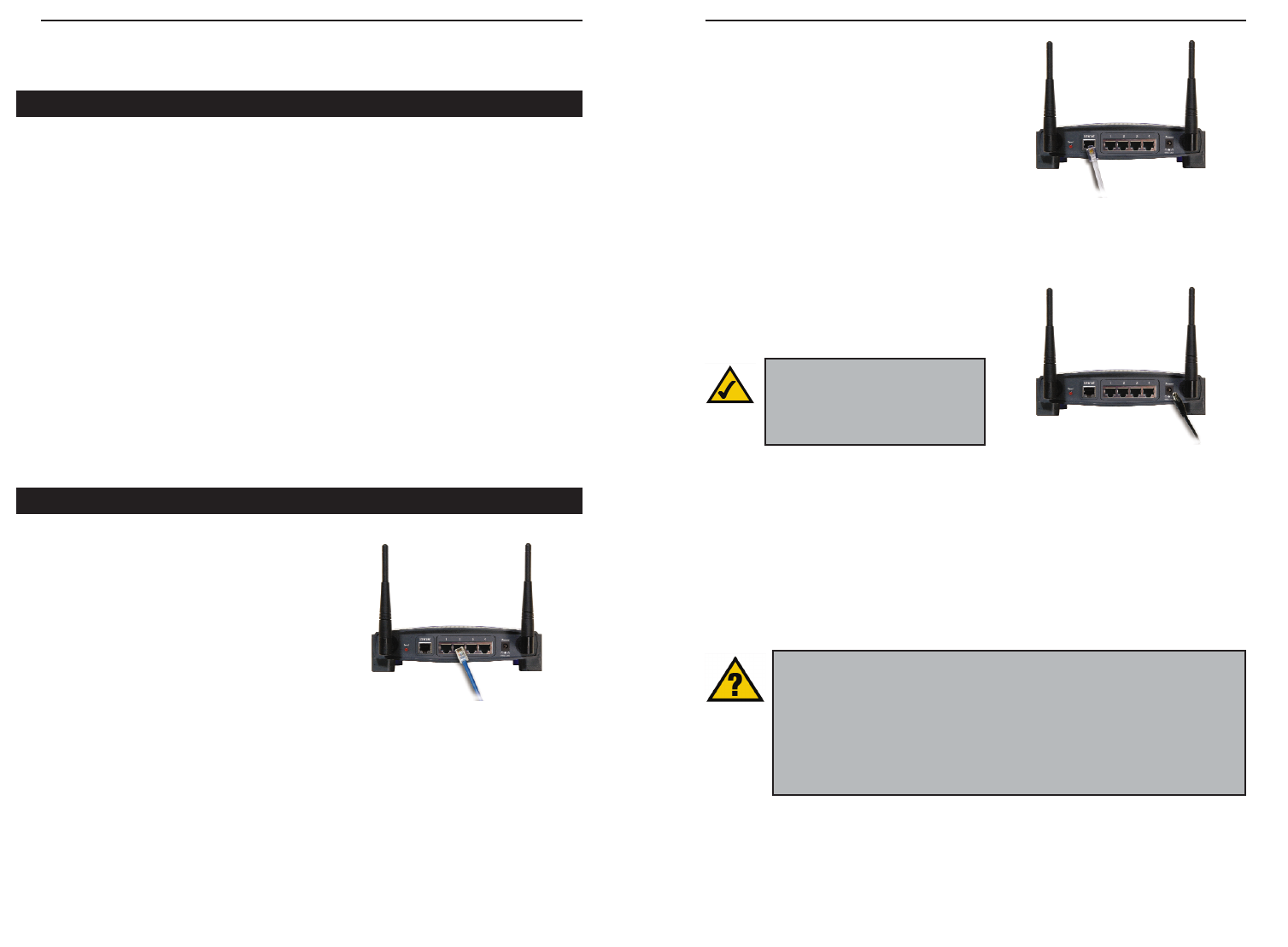

The Router’s ports are located on the Router’s back panel.
Internet The Internet port is where you connect your cable or
DSL modem through an Ethernet network cable.
Your modem connection will not work from any
other port.
Ports 1-4 These four LAN (Local Area Network) ports con-
nect to network devices, such as PCs, print servers,
and network attached storage (NAS). Each of the
ports will auto-detect whether a straight-through or
crossover cable is plugged into it, so there is no need
for an uplink port. Any one of the four ports can
serve as an uplink port to other network devices.
Power The Power port is where you will connect the power
adapter.

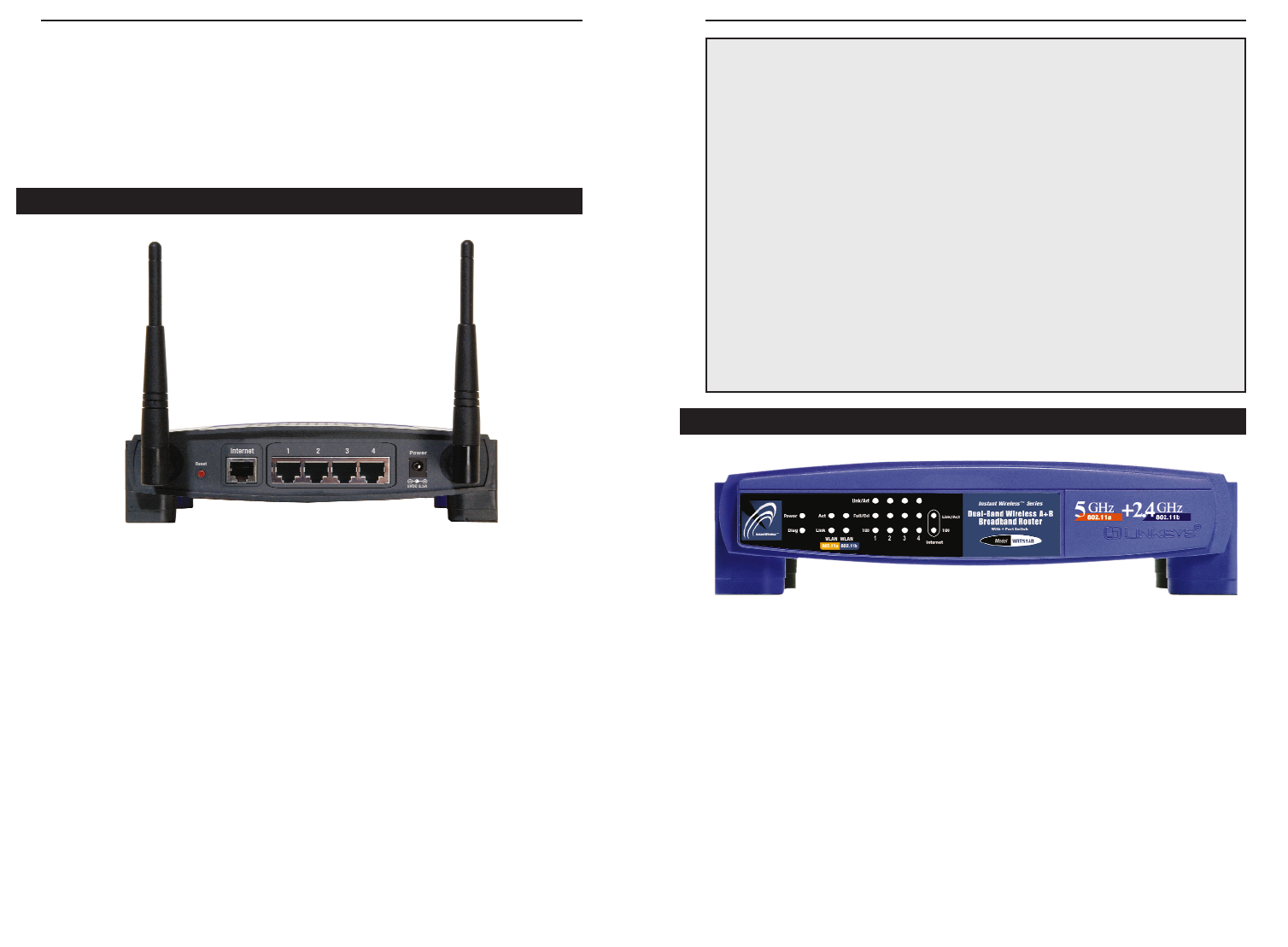

The Router’s Back Panel
Figure 2-1
Dual-Band Wireless A+B Broadband Router
The Internet Indicators
Link/Act Green. The Link/Act LED lights up when a successful con-
nection is made between the Router and your cable or DSL
modem (the Internet). The Link/Act LED flickers when the
Router is sending or receiving data over the Internet port.
100 Orange. The 100 LED lights up when a successful 100Mbps
connection is made through the corresponding port.
If this LED does not light up, then your connection speed is
10Mbps.
Proceed to “Chapter 3: Connect the Router.”
9
Instant Wireless®Series
8
The 802.11a WLAN Indicators
Act Green. When the Act LED flickers, the 802.11a wireless net-
work is active.
Link Green. When the Link LED is continuously lit, the 802.11a
wireless network is available.
The 802.11b WLAN Indicators
Act Green. When the Act LED flickers, the 802.11b wireless net-
work is active.
Link Green. When the Link LED is continuously lit, the 802.11b
wireless network is available.
The LAN Indicators
Link/Act Green. The Link/Act LED serves two purposes. If the LED
is continuously lit, the Router is successfully connected to a
device through the corresponding port. If the LED is flicker-
ing, the Router is actively sending or receiving data over that
port.
Full/Col Green. The Full/Col LED also serves two purposes. If this
LED is lit up solidly, the connection made through the corre-
sponding port is running in Full Duplex mode. If the LED
flickers, the connection is experiencing collisions (when two
PCs send data at the same time). Infrequent collisions are
normal.
100 Orange. The 100 LED lights up when a successful 100Mbps
connection is made through the corresponding port.
If this LED does not light up, then your connection speed is
10Mbps.
Dual-Band Wireless A+B Broadband Router
11
Instant Wireless®Series
10
3. Connect a different Ethernet network
cable from your cable or DSL modem
to the Internet port on the Router’s rear
panel. This is the only port that will
work for your modem connection.
4. Power on the cable or DSL modem.
5. Connect the power adapter to the
Router’s Power port, and then plug the
power adapter into a power outlet.
•The Power LED on the front panel will
light up green as soon as the power adapter is connected properly.
•The Diag LED will light up red for a few seconds. It will turn off when the
self-test is complete. If this LED stays on for one minute or longer, see
“Appendix A: Troubleshooting.”
6. Power on one of your PCs.
Note: You should always plug
the Router’s power adapter into
a power strip with surge pro-
tection.
Figure 3-2
Figure 3-3
Have you checked that the Link/Act LEDs for all your LAN con-
nections and the Link LED for your Internet connection light up?
If all of your Link LEDs are not lighting up, make sure that all your
cables are securely plugged in, and that all of your hardware is pow-
ered on properly. Verify that the modem is plugged into the Internet
port on the Router.
Chapter 3:Connect the Router
The Router’s setup consists of more than simply plugging hardware together.
You will have to configure your networked PCs to accept the IP addresses that
the Router assigns them (if applicable), and you will also have to configure the
Router with setting(s) provided by your Internet Service Provider (ISP).
The installation technician from your ISP should have left the setup informa-
tion for your modem with you after installing your broadband connection. If
not, you can call your ISP to request that data.
Once you have the setup information you need for your specific type of Internet
connection, you can begin installation and setup of the Router.
If you want to use a PC with an Ethernet adapter to configure the Router, go to
“Wired Connection to a PC and Boot-Up.” If you want to use a PC with a wire-
less adapter to configure the Router, go to “Wireless Connection to a PC and
Boot-Up.”
1. Before you begin, make sure that all of
your network’s hardware is powered
off, including the Router, PCs, and
cable or DSL modem.
2. Connect one end of an Ethernet net-
work cable to one of the LAN ports
(labeled 1-4) on the back of the
Router, and the other end to an
Ethernet port on a PC.
Repeat this step to connect more PCs, a switch, or other network devices to
the Router.
Overview
Wired Connection to a PC
Figure 3-1
Dual-Band Wireless A+B Broadband Router
Chapter 4: Configure the PCs
The instructions in this chapter will help you configure each of your comput-
ers to be able to communicate with the Router.
To do this, you need to configure your PC’s network settings to obtain an IP (or
TCP/IP) address automatically, so your PC can function as a DHCP client.
Computers use IP addresses to communicate with the Router and each other
across a network, such as the Internet.
First, find out which Windows operating system your computer is running. You
can find out by clicking the Start button. Read the side panel of the Start menu
to find out which operating system your PC is running.
You may need to do this for each computer you are connecting to the Router.
The next few pages tell you, step by step, how to configure your network set-
tings based on the type of Windows operating system you are using. Make sure
that an Ethernet or wireless adapter (also known as a network adapter) has been
successfully installed in each PC you will configure. Once you’ve configured
your computers, continue to “Chapter 5: Configure the Router’s Basic
Settings.”
13
Instant Wireless®Series
12
Important: By default Windows 98, 2000, Me, and XP has
TCP/IP installed and set to obtain an IP address automatically.
If your PC does not have TCP/IP installed, click Start and then
Help. Search for the keyword TCP/IP. Then follow the instruc-
tions to install TCP/IP.
Overview
If you want to use a wireless connection to access the Router, follow these
instructions:
1. Before you begin, make sure that all of
your network’s hardware is powered
off, including the Router, PCs, and
cable or DSL modem.
2. Connect an Ethernet network cable
from your cable or DSL modem to the
Internet port on the Router’s rear
panel. This is the only port that will
work for your modem connection.
3. Power on the cable or DSL modem.
4. Connect the power adapter to the Power port, and then plug the power
adapter into a power outlet.
•The Power LED on the front panel will light up green as soon as the power
adapter is connected properly.
•The Diag LED will light up red for a few seconds and turn off when the self-
test is complete. If this LED stays on for one minute or longer, see “Appendix
A: Troubleshooting.”
4. Power on one of the PCs on your wireless network(s).
5. For initial access to the Router through a wireless connection, make sure the
PC’s wireless adapter has its SSID set to linksys (the Router’s default set-
ting), and its WEP encryption is disabled. After you have accessed the
Router, you can change the Router and this PC’s adapter settings to match
the your usual network settings.
The Router’s hardware installation is now complete.
Go to “Chapter 4: Configure the PCs.”
Wireless Connection to a PC
Note:You should always plug the Router’s power adapter into a power
strip with surge protection.
Figure 3-4
Note: You should always change the SSID from its default, linksys,
and enable WEP encryption.
Dual-Band Wireless A+B Broadband Router
3. Click the IP Address tab. Select Obtain an IP address automatically.
4. Now click the Gateway tab, and verify that the Installed Gateway field is
blank. Click the OK button.
5. Click the OK button again. Windows may ask you for the original Windows
installation disk or additional files. Check for the files at
c:\windows\options\cabs, or insert your Windows CD-ROM into your CD-
ROM drive and check the correct file location, e.g., D:\win98, D:\win9x,
etc. (if “D” is the letter of your CD-ROM drive).
6. Windows may ask you to restart your PC. Click the Yes button. If Windows
does not ask you to restart, restart your computer anyway.
Go to “Chapter 5: Configure the Router’s Basic Settings.”
15
Instant Wireless®Series

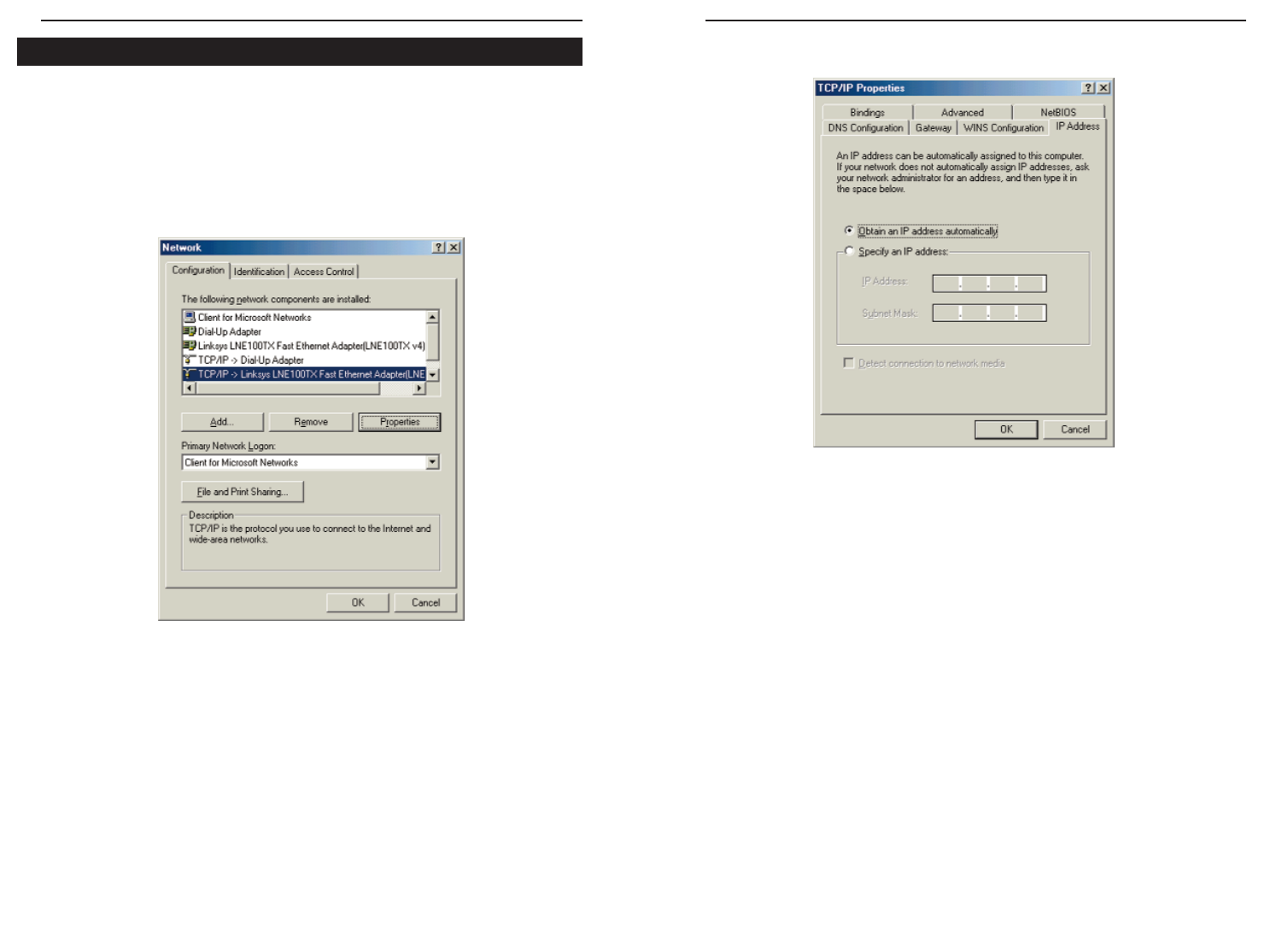

1. Click the Start button. Select Settings and click the Control Panel icon.
Double-click the Network icon.
2. On the Configuration tab, select the TCP/IP line for the applicable
Ethernet adapter. Do not choose a TCP/IP entry whose name mentions
DUN, PPPoE, VPN, or AOL. If the word TCP/IP appears by itself, select
that line. Click the Properties button.
14
Figure 4-2
Figure 4-1
Configuring Windows 98 and Millennium PCs
Dual-Band Wireless A+B Broadband Router
3. Make sure the box next to Internet Protocol (TCP/IP) is checked. Highlight
Internet Protocol (TCP/IP), and click the Properties button.
4. Select Obtain an IP address automatically. Once the new window
appears, click the OK button. Click the OK button again to complete the
PC configuration.
5. Restart your computer.
Go to “Chapter 5: Configure the Router’s Basic Settings.”
17
Instant Wireless®Series

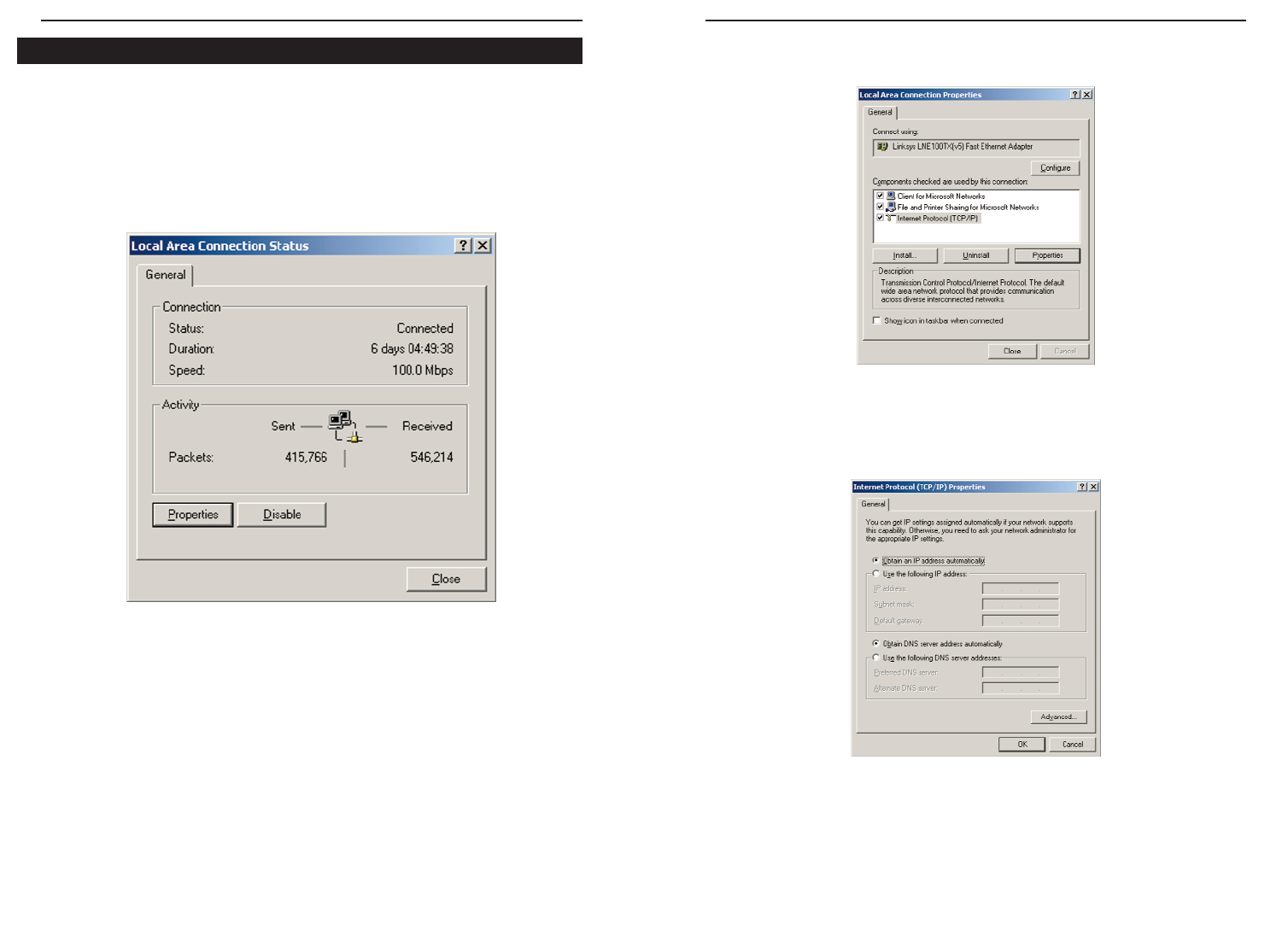

1. Click the Start button. Select Settings and click the Control Panel icon.
Double-click the Network and Dial-up Connections icon.
2. Select the Local Area Connection icon for the applicable Ethernet adapter
(usually it is the first Local Area Connection listed). Double-click the
Local Area Connection. Click the Properties button.
16
Figure 4-4
Figure 4-5
Configuring Windows 2000 PCs
Figure 4-3
Dual-Band Wireless A+B Broadband Router
3. Make sure the box next to Internet Protocol (TCP/IP) is checked. Highlight
Internet Protocol (TCP/IP), and click the Properties button.
4. Select Obtain an IP address automatically. Once the new window
appears, click the OK button. Click the OK button again to complete the
PC configuration.
5. Restart your computer.
Go to “Chapter 5: Configure the Router’s Basic Settings.”
19
Instant Wireless®Series
The following instructions assume you are running Windows XP with the
default interface. If you are using the Classic interface (where the icons and
menus look like previous Windows versions), please follow the instructions for
Windows 2000.

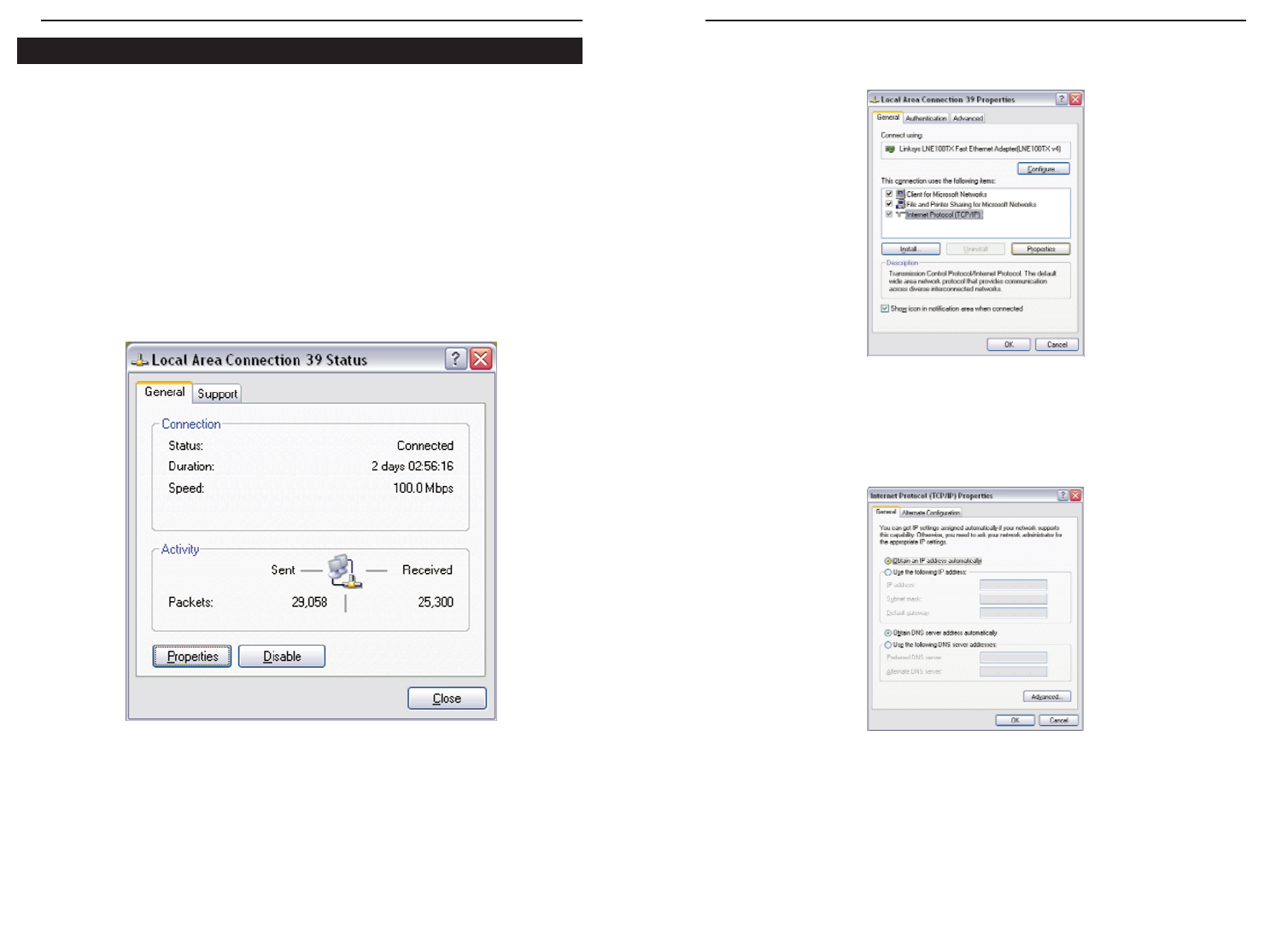

1. Click the Start button and then the Control Panel icon. Click the Network
and Internet Connections icon. Then click the Network Connections
icon.
2. Select the Local Area Connection icon for the applicable Ethernet adapter
(usually it is the first Local Area Connection listed). Double-click the
Local Area Connection. Click the Properties button.
18
Figure 4-7
Figure 4-8
Configuring Windows XP PCs
Figure 4-6
Dual-Band Wireless A+B Broadband Router
21
Instant Wireless®Series
20

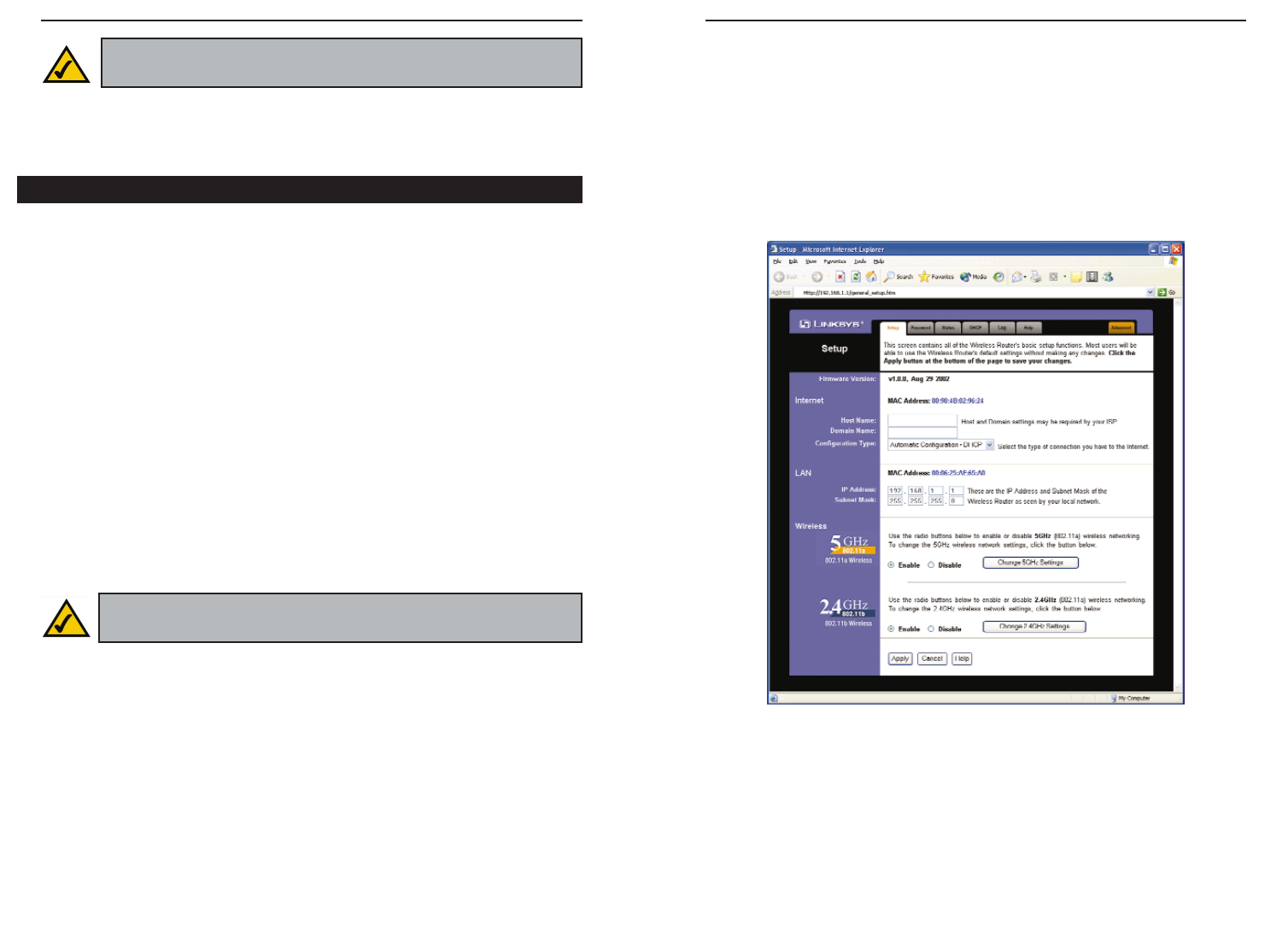

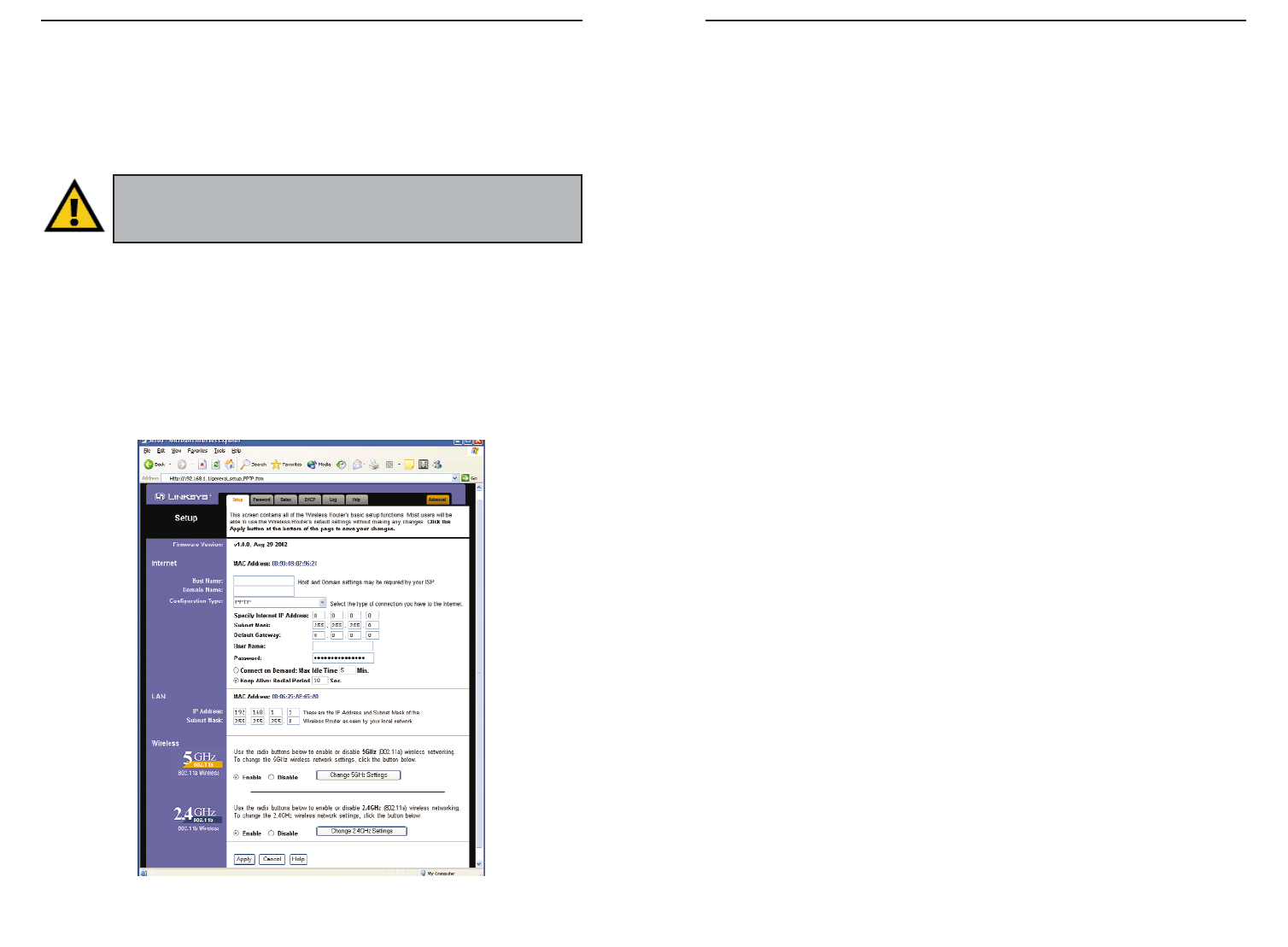

3. The web-based utility will appear with the Setup tab selected. Based on the
setup instructions from your ISP, you may need to provide the Host Name
and Domain Name (usually cable ISPs require them). These fields allow
you to provide a host name and domain name for the Router and are usual-
ly left blank.
The values for the Router’s LAN IP Address and Subnet Mask are shown
on the Setup screen. The default values are 192.168.1.1 for the IP Address
and 255.255.255.0 for the Subnet Mask.

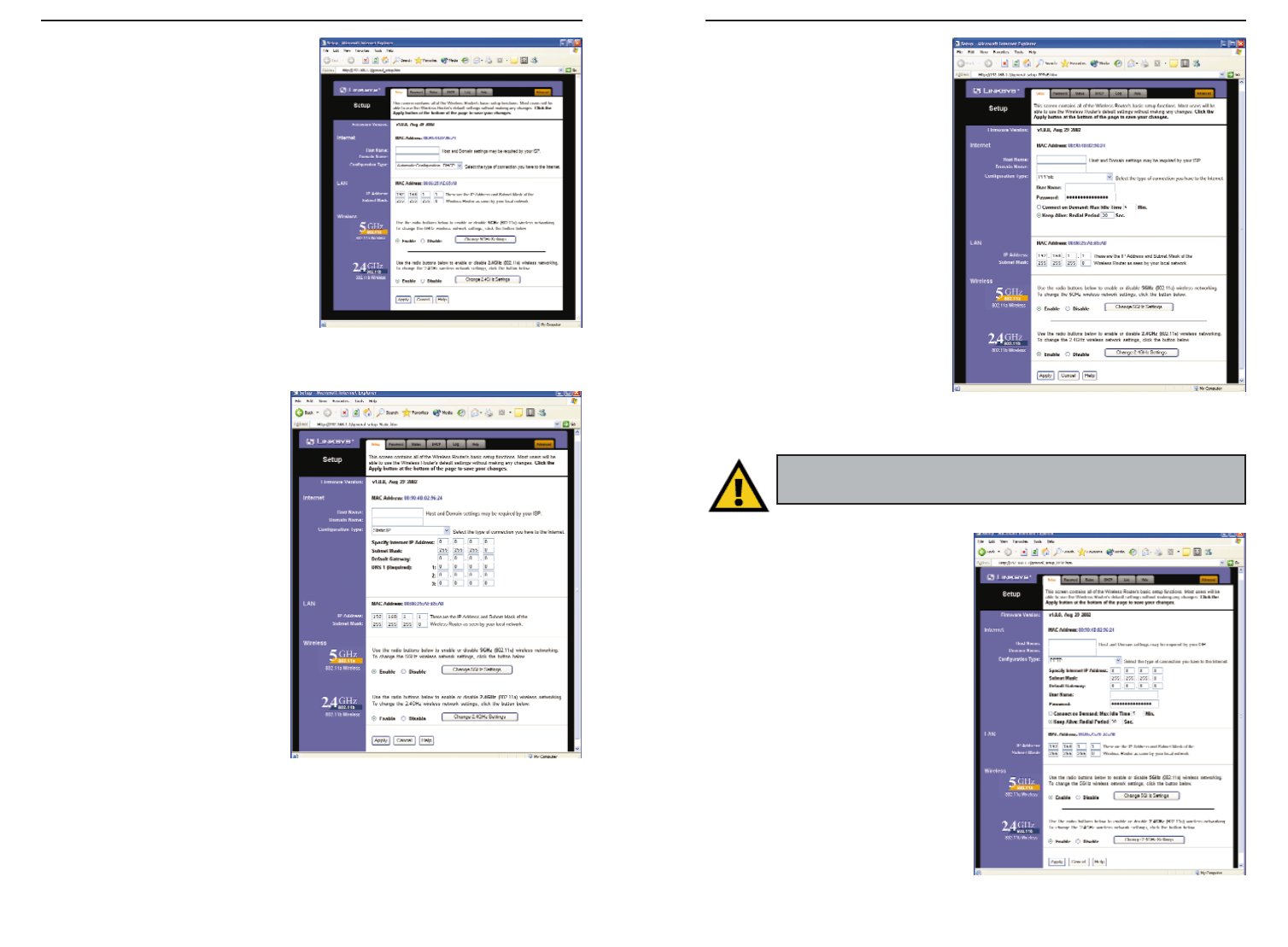

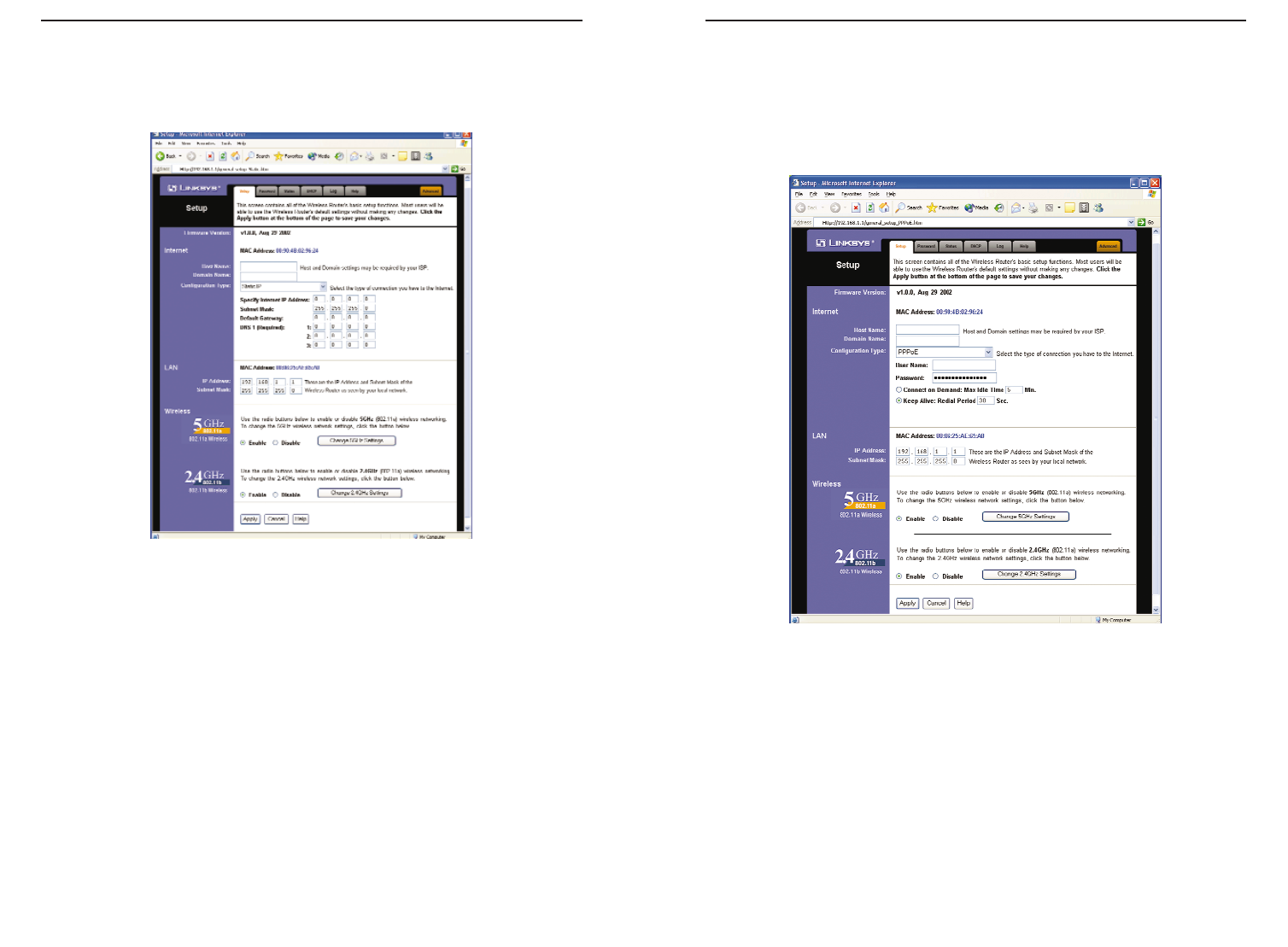

4. The Router supports four connection types: Automatic Configuration -
DHCP (obtain an IP automatically), Static IP, PPPoE, and PPTP. These
types are listed in the drop-down menu for the Configuration Type setting.
Each Setup screen and available features will differ depending on what kind
of connection type you select. Proceed to the instructions for the connec-
tion type you are using, and then continue to step 5.
IMPORTANT: If you have previously enabled any Internet-sharing
proxy server software on any of your PCs, you must disable it now.
Some examples of Internet-sharing software are Internet LanBridge,
Wingate, ICS, and Sygate. To disable your Internet-sharing software:
• If you are running Netscape Navigator, click Edit, Preferences,
Advanced, and Proxies. Click Direct Connection to the Internet.
• If you are running Internet Explorer 5.x or higher, click Tools,
Settings, Control Panel, Internet Options, Connections, and
LAN Settings. Remove checkmarks from all three boxes. Click the
OK button to continue.
You must also disable any Internet log-on software (such as Ivasion
Winpoet or Enternet 300) and any firewall software (such as
ZoneAlarm and Watchdog) on all of your PCs.
Chapter 5:Configure the
Router’s Basic Settings
This chapter will show you how to configure the Router to function in your
network and gain access to the Internet through your Internet Service Provider
(ISP). Detailed description of the Router’s web-based utility can be found in
“Chapter 6: The Router’s Web-based Utility.”
The instructions from your ISP tell you how to set up your PC for Internet
access. Because you are now using the Router to share Internet access among
several computers, you will use the setup information to configure the Router
instead of your PC. You only need to configure the Router once using the first
computer you set up.

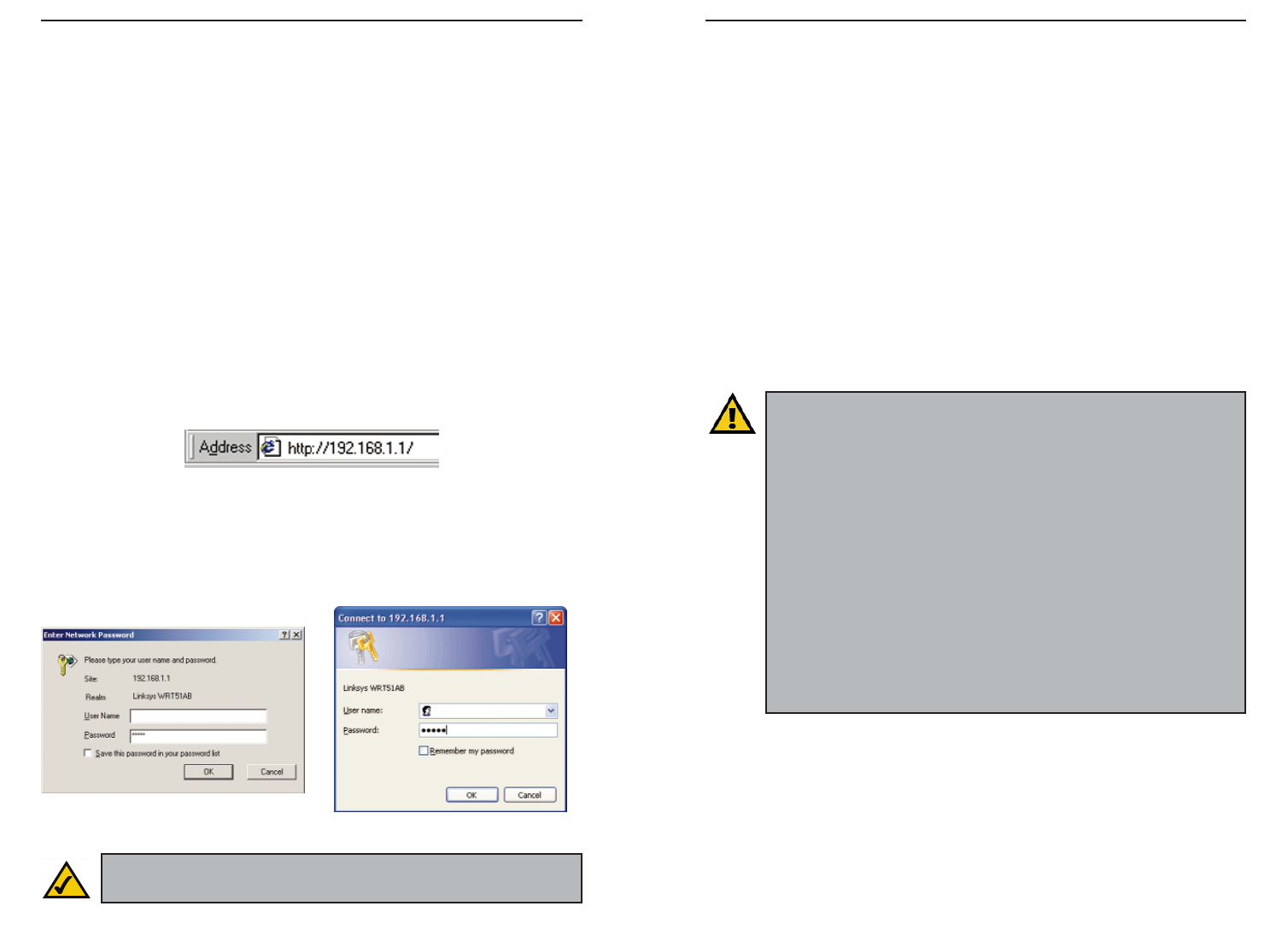

1. Open your web browser. Enter http://192.168.1.1 (the Router’s default IP
address) in the web browser’s Address field. Press the Enter key.
2. An Enter Network Password window, shown in Figure 5-2, will appear.
Windows XP users will see a Connect to 192.168.1.1 window, shown in
Figure 5-3. Leave the User Name field empty, and enter admin in lowercase
letters in the Password field (admin is the default password). Then, click the
OK button.
Figure 5-1
Figure 5-2 Figure 5-3
Note: For added security, you should change the password through
the Password screen of the web-based utility.
Dual-Band Wireless A+B Broadband Router
23
Instant Wireless®Series
Automatic Configuration - DHCP
If you are connecting through DHCP or
a dynamic IP address from your ISP,
perform these steps:
A. Keep the default setting,Automatic
Configuration - DHCP, as the
Configuration Type.
B. Click the Apply button to save the set-
ting, or click the Cancel button to
clear the setting and start over. When
you are finished, proceed to step 5.
Static (or Fixed) IP Address
If you are connecting through a
static or fixed IP address from your
ISP, perform these steps:
A. Select Static IP as the
Configuration Type.
B. Enter the Internet IP Address.
C. Enter the Subnet Mask.
D. Enter the Default Gateway.
E. Enter the DNS in the 1, 2,
and/or 3 fields. You need to
enter at least one DNS address.
F. Click the Apply button to save
the settings, or click the Cancel
button to clear the settings and
start over. When you are fin-
ished, proceed to step 5.
22
PPPoE
If your DSL provider says that you
are connecting through PPPoE
(you use a user name and password
to access the Internet), perform
these steps:
A. Select PPPoE as the
Configuration Type.
B. Enter the User Name.
C. Enter the Password.
D. Click the Apply button to save
the settings, or click the Cancel
button to clear the settings and
start over. When you are fin-
ished, proceed to step 5.
PPTP
PPTP is a service used in Europe
only. If you are using a PPTP connec-
tion, check with your ISP for the nec-
essary setup information.
After you have entered your setup
information, click the Apply button to
save the settings, or click the Cancel
button to clear the settings and start over.
When you are finished, proceed to
step 5.
Figure 5-6
Figure 5-7
Important: If you enable PPPoE, remember to remove any PPPoE
applications already installed on any of your PCs.
Figure 5-4
Figure 5-5
Dual-Band Wireless A+B Broadband Router
Chapter 6:The Router’s
Web-based Utility
Use the Router’s web-based utility to administer it. This chapter will describe
each web page in the Utility and each page’s key functions. The utility can be
accessed via your web browser through use of a computer connected to the
Router.
The Setup, Password, Status, DHCP, Log, and Help screens are available for
basic setup. For advanced setup, click the Advanced tab to access these
screens: Advanced Wireless (including 802.1x), Filters, Port Forwarding,
Routing, DMZ Host, and MAC Address Clone.

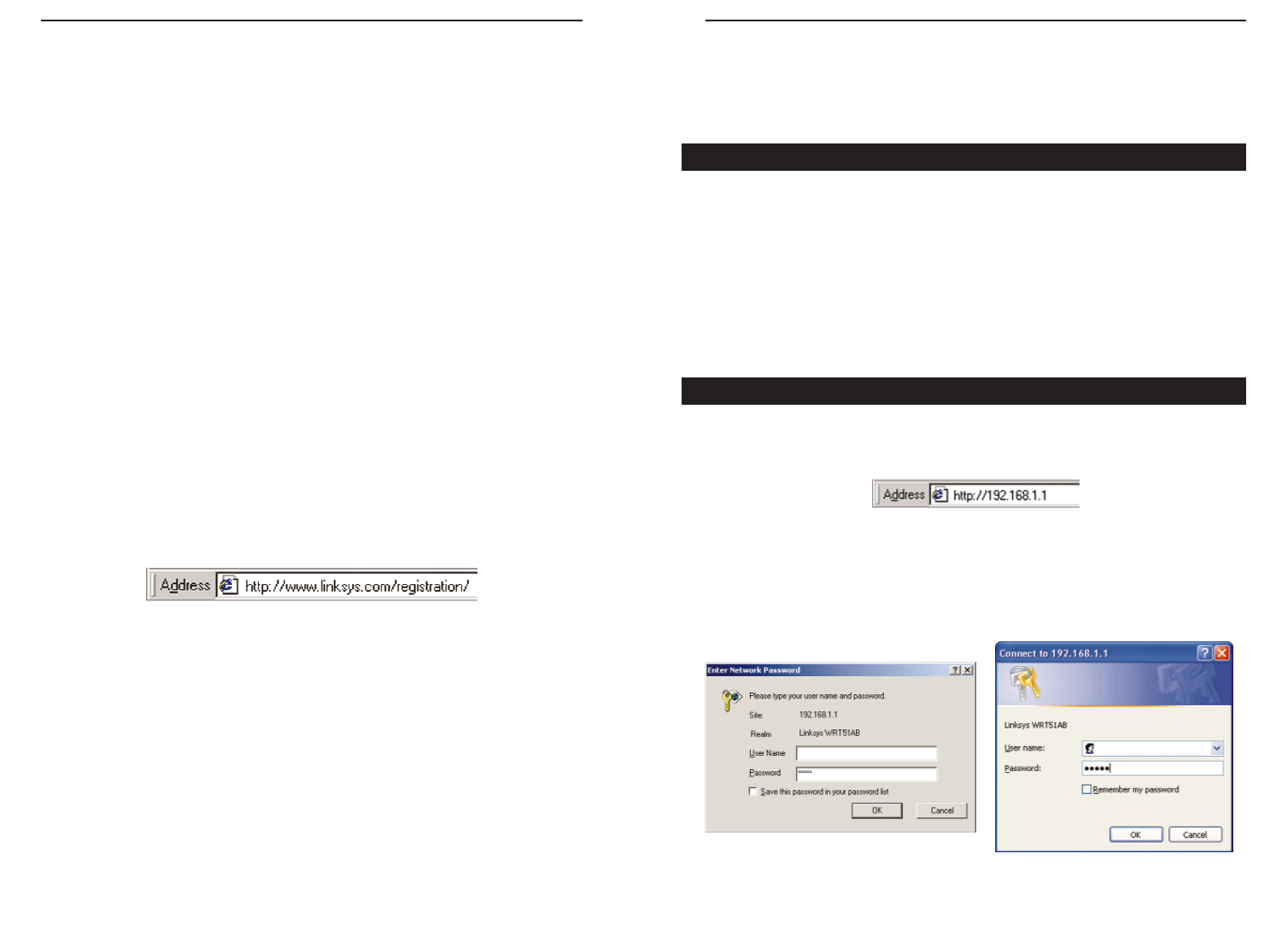

To access the web-based utility, launch Internet Explorer or Netscape
Navigator, and enter the Router’s default IP address, 192.168.1.1, in the
Address field. Then press Enter.
A password request page, shown in Figure 6-2 will pop up. (Windows XP users
will see a Connect to 192.168.1.1 window, shown in Figure 6-3). Leave the
User Name field blank, and enter admin (the default password) in the
Password field. Then click the OK button.
25
Instant Wireless®Series
5. To configure the Router for your wireless network(s), perform these steps:
A. To enable 5GHz, 802.11a wireless networking, make sure the 5GHz,
802.11a Enable radio button is selected. Then click the Change 5GHz
Settings button, and customize the SSID, Channel, and WEP encryption
settings as needed. Then click the Apply button to save your changes. For
more information, refer to “Chapter 6: The Router’s Web-based Utility.”
B. To enable 2.4GHz, 802.11b wireless networking, make sure the 2.4GHz,
802.11b Enable radio button is selected. Then click the Change 2.4GHz
Settings button, and customize the SSID, Channel, and WEP encryption
settings as needed. Then click the Apply button to save your changes. For
more information, refer to “Chapter 6: The Router’s Web-based Utility.”
6. If you haven’t already done so, click the Apply button to save your Setup
settings. Close the web browser.
7. Restart your computers so that they can obtain the Router’s new settings.
If you need more details or advanced setting information, please refer to
“Chapter 6: The Router’s Web-based Utility” or the Linksys support web-
site at support.linksys.com.
Test the setup by opening your web browser from any computer and enter-
ing http://www.linksys.com/registration.
Congratulations! You’ve successfully configured the Router.
If you are unable to reach our website, you may want to review what you
did in this section or refer to “Appendix A: Troubleshooting.”
Proceed to “Chapter 6: The Router’s Web-based Utility” for more details
and advanced settings information.
24
Overview
How to Access the Web-based Utility
Figure 6-1
Figure 6-2 Figure 6-3
Figure 5-8
Dual-Band Wireless A+B Broadband Router
Automatic Configuration - DHCP
By default, the Router’s Configuration Type is set to Automatic
Configuration - DHCP, and it should be kept only if your ISP supports
DHCP or you are connecting through a dynamic IP address.
To apply any of the settings you change on this page, click the Apply button.
To cancel any changes you’ve entered on this page, click the Cancel button.
To get more information about the features, click the Help button.
27
Instant Wireless®Series
26
Figure 6-5
To apply any of the settings you change on a page, click the Apply button. To
cancel any changes you’ve entered on any page, click the Cancel button. To get
additional information about any screen’s features, click the Help button.
The Setup screen is the first screen you see when you access the web-based
utility. If you have already installed and set up the Router, you have already
seen this screen and properly configured all of the screen’s values.
Firmware Version This shows the version and date of the firmware you are
using. Future versions of the Router’s firmware will be posted and available
for download on the Linksys website at www.linksys.com.
Host Name and Domain Name These fields allow you to supply a host and
domain name for the Router. Some ISPs, usually cable ISPs, require these
names as identification. You may have to check with your ISP to see if your
broadband Internet service has been configured with a host and domain name.
In most cases, leaving these fields blank will work.
Configuration Type The Router supports four connection types: Automatic
Configuration - DHCP, Static IP, PPPoE, and PPTP. Each Setup screen and
available features will differ depending on what kind of connection type you
select.
Setup
Note: You can verify that the Internet configuration settings are cor-
rect by successfully connecting to the Internet.
Note: For added security, you should always change the password
through the Password screen of the web-based utility.
Dual-Band Wireless A+B Broadband Router
29
Instant Wireless®Series
28
PPPoE
Some DSL-based ISPs use PPPoE (Point-to-Point Protocol over Ethernet)
to establish Internet connections. If you are connected to the Internet
through a DSL line, check with your ISP to see if they use PPPoE. If they
do, you will have to enable PPPoE.
User Name and Password Enter the User Name and Password provided
by your ISP.
Connect on Demand: Max Idle Time You can configure the Router to cut
the Internet connection after it has been inactive for a specified period of
time (Max Idle Time). If your Internet connection has been terminated due
to inactivity, Connect on Demand enables the Router to automatically re-
establish your connection as soon as you attempt to access the Internet
again. If you wish to activate Connect on Demand, click the radio button. In
the Max Idle Time field, enter the number of minutes you want to have
elapsed before your Internet connection terminates.
Figure 6-7
Static IP
If you are required to use a permanent IP address to connect to the Internet,
then select Static IP.
Specify Internet IP Address This is the Router’s IP address, when seen
from the WAN, or the Internet. Your ISP will provide you with the IP
Address you need to specify here.
Subnet Mask This is the Router’s Subnet Mask, as seen by external users
on the Internet (including your ISP). Your ISP will provide you with the
Subnet Mask.
Default Gateway Your ISP will provide you with the Default Gateway
Address, which is the ISP server’s IP address.
DNS 1 (Required) and DNS 2-3 (Optional) Your ISP will provide you with
at least one DNS (Domain Name System) Server IP Address.
To apply any of the settings you change on this page, click the Apply button.
To cancel any changes you’ve entered on this page, click the Cancel button.
To get more information about the features, click the Help button.
Figure 6-6
Dual-Band Wireless A+B Broadband Router
31
Instant Wireless®Series
30
Specify Internet IP Address This is the Router’s IP address, when seen
from the Internet. Your ISP will provide you with the IP Address you need
to specify here.
Subnet Mask This is the Router’s Subnet Mask, as seen by external users
on the Internet (including your ISP). Your ISP will provide you with the
Subnet Mask.
Default Gateway Your ISP will provide you with the Default Gateway
Address.
User Name and Password Enter the User Name and Password provided
by your ISP.
Connect on Demand: Max Idle Time You can configure the Router to cut
the Internet connection after it has been inactive for a specified period of
time (Max Idle Time). If your Internet connection has been terminated due
to inactivity, Connect on Demand enables the Router to automatically re-
establish your connection as soon as you attempt to access the Internet
again. If you wish to activate Connect on Demand, click the radio button. In
the Max Idle Time field, enter the number of minutes you want to have
elapsed before your Internet connection terminates.
Keep Alive Option: Redial Period If you select this option, the Router will
periodically check your Internet connection. If you are disconnected, then
the Router will automatically re-establish your connection. To use this
option, click the radio button next to Keep Alive. To use this option, click
the radio button next to Keep Alive. In the Redial Period field, you specify
how often you want the Router to check the Internet connection. The default
Redial Period is 30 seconds.
To apply any of the settings you change on this page, click the Apply button.
To cancel any changes you’ve entered on this page, click the Cancel button.
To get more information about the features, click the Help button.
LAN IP Address and LAN Subnet Mask The values for the Router’s IP
Address and Subnet Mask are shown here. The default values are 192.168.1.1
for the LAN IP Address and 255.255.255.0 for the Subnet Mask.

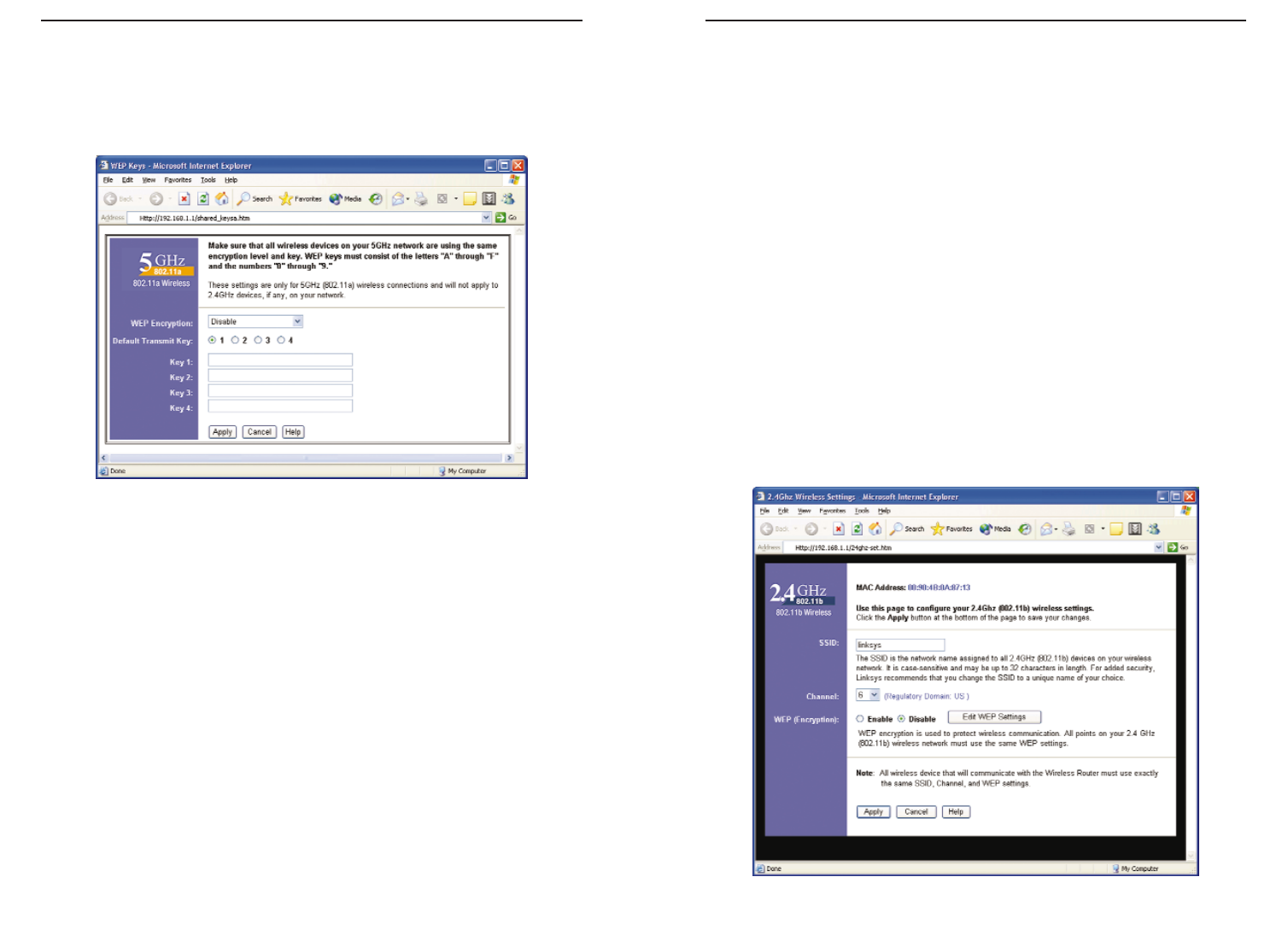

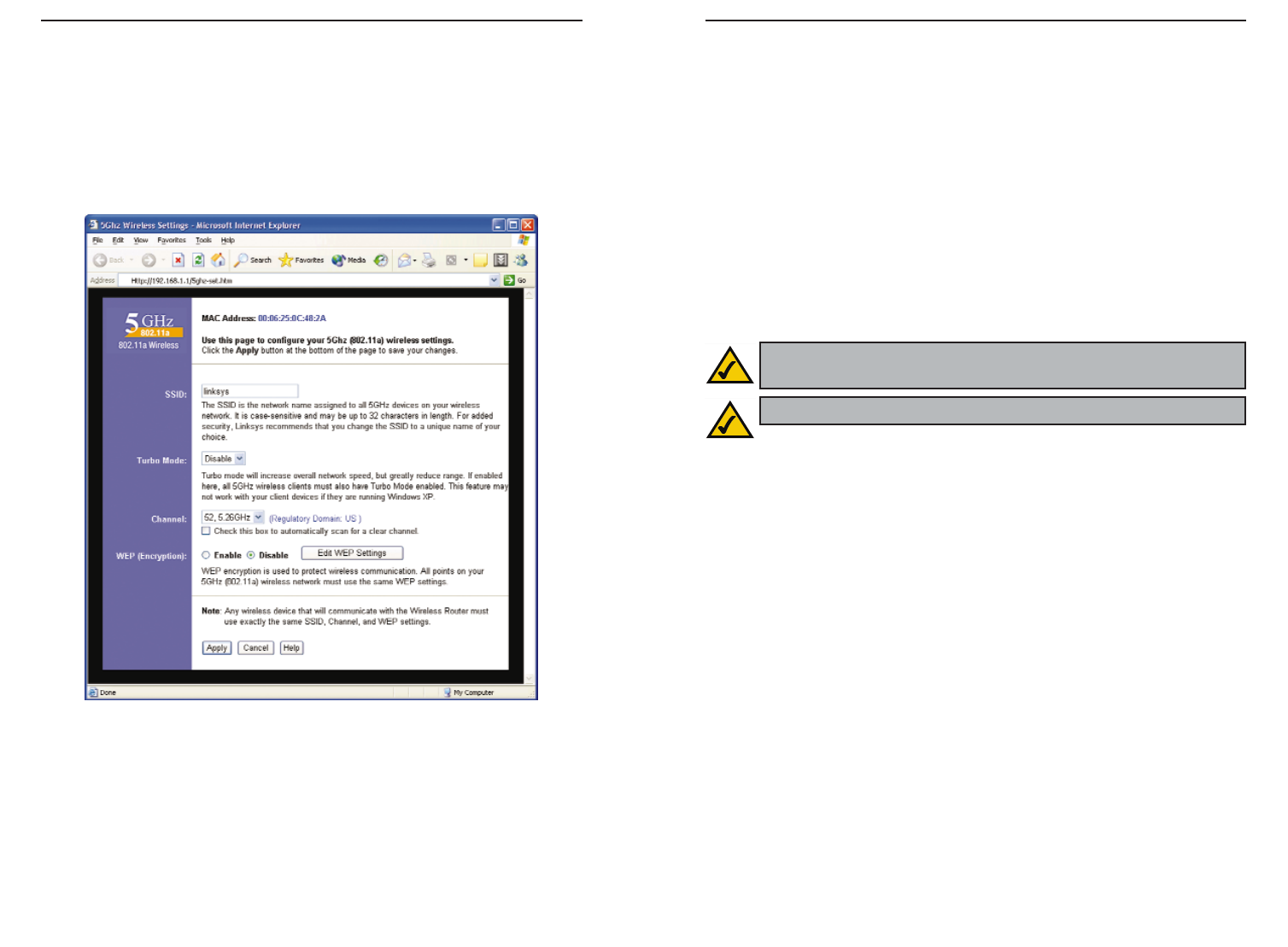

5GHz, 802.11a Wireless To enable 5GHz, 802.11a wireless networking, make
sure the Enable radio button is selected. Click the Change 5GHz Settings but-
ton to customize the 802.11a configuration (see Figure 6-9).
Keep Alive Option: Redial Period If you select this option, the Router will
periodically check your Internet connection. If you are disconnected, then
the Router will automatically re-establish your connection. To use this
option, click the radio button next to Keep Alive. In the Redial Period field,
you specify how often you want the Router to check the Internet connection.
The default Redial Period is 30 seconds.
To apply any of the settings you change on this page, click the Apply button.
To cancel any changes you’ve entered on this page, click the Cancel button.
To get more information about the features, click the Help button.
PPTP
Point to Point Tunneling Protocol (PPTP) is a service that applies to con-
nections in Europe only.
Figure 6-8
Important: For ADSL users, if you enable PPPoE, remember to
remove any PPPoE applications that are already installed on any of
your PCs.
Dual-Band Wireless A+B Broadband Router
Turbo Mode This enables high-speed connections, but severely limits
range. Turbo Mode must be enabled on both the Router and the wireless PCs
to function. Turbo Mode is not compatible with Windows XP and functions
only with Linksys 5GHz, 802.11a wireless adapters.
Select Enable to increase the speed of your wireless transmissions up to 72
Mbps. Keep in mind that the Router’s range diminishes in Turbo Mode. If
you do not wish to utilize Turbo Mode, select Disable.
Channel Select the appropriate channel from the list provided to corre-
spond with your network settings, between 36 and 64. All devices in your
wireless network must use the same channel in order to function correctly.
If you want the Router to automatically scan for a clear channel, then click
the checkbox.
WEP (Encryption) An acronym for Wired Equivalent Privacy, WEP is an
encryption method used to protect your wireless data communications.
WEP uses 64-bit, 128-bit, or 152-bit keys to provide access control to your
network and encryption security for every data transmission. To decode a
data transmission, each device in a network must use an identical key.
Higher encryption levels offer higher levels of security, but due to the com-
plexity of the encryption, they may decrease network performance. Click
the Edit WEP Settings button to configure the WEP keys for your 5GHz,
802.11a network (see Figure 6-10).
Check all the values, and click theApply button to save your 5GHz, 802.11a
settings. To cancel any changes you’ve entered on this page, click the Cancel
button. To get more information about the features, click the Help button.
33
Instant Wireless®Series
2.4GHz 802.11b Wireless To enable 2.4GHz, 802.11b wireless networking,
make sure the Enable radio button is selected. Click the Change 2.4GHz
Settings button to customize the 802.11b configuration (see Figure 6-11).
5GHz, 802.11a
The 5GHz, 802.11a screen allows you to configure your 5GHz, 802.11a
network settings.
SSID The SSID is the network name shared among all points in a wireless
network. The SSID must be identical for all points in the wireless network.
It is case-sensitive and must not exceed 32 characters (use any of the char-
acters on the keyboard). Make sure this setting is the same for all points in
your wireless network. For added security, you should change the default
SSID (linksys) to a unique name.
32
Note: If Turbo Mode is enabled, then auto-scan will not function, and
you must select one of the following channels: 42, 50, or 58.
Note: If auto-scan is enabled, then you cannot specify a channel setting.
Figure 6-9
Dual-Band Wireless A+B Broadband Router
35
Instant Wireless®Series
5GHz, 802.11a (WEP)
The 5GHz, 802.11a (WEP) screen allows you to configure your 5GHz,
802.11a WEP settings. WEP encryption should always be enabled to
increase the security of your wireless network.
WEP Encryption Keys 1-4 offer 64-bit, 128-bit, or 152-bit encryption;
select the type of encryption you want from the drop-down box. To disable
WEP Encryption, select Disable.
Default Transmit Key Select which WEP key (1-4) will be used when the
Router sends data. Make sure the receiver is using the same key.
Keys 1-4 WEP keys enable you to create an encryption scheme for wireless
LAN transmissions. Manually enter a set of values. (Do not leave a key
field blank, and do not enter all zeroes. These are not valid key values.)
Keys 1-4 offer 64-bit, 128-bit, or 152-bit encryption.
If you are using 64-bit WEP encryption, then the key must be exactly 10
hexadecimal characters in length. If you are using 128-bit WEP encryption,
then the key must be exactly 26 hexadecimal characters in length. If you are
using 152-bit WEP encryption, then the key must be exactly 32 hexadecimal
characters in length. Valid hexadecimal characters are “0”-“9” and “A”-“F”.
34
Check all the values, and click theApply button to save your 5GHz, 802.11a
WEP settings. To cancel any changes you’ve entered on this page, click the
Cancel button. To get more information about the features, click the Help
button.
2.4GHz, 802.11b
The 2.4GHz, 802.11b screen allows you to configure your 2.4GHz, 802.11b
network settings.
SSID The SSID is the network name shared among all points in a wireless
network. The SSID must be identical for all points in the wireless network.
It is case-sensitive and must not exceed 32 characters (use any of the char-
acters on the keyboard). Make sure this setting is the same for all points in
your wireless network. For added security, you should change the default
SSID (linksys) to a unique name.
Channel Select the appropriate channel from the list provided to corre-
spond with your network settings, between 1 and 11 (in North America). All
devices in your wireless network must use the same channel in order to
function correctly.
Figure 6-11
Figure 6-10
Dual-Band Wireless A+B Broadband Router
37
Instant Wireless®Series
36
Default Transmit Key Select which WEP key (1-4) will be used when the
Router sends data. Make sure the receiver is using the same key.
Passphrase Instead of manually entering WEP keys, you can enter a
Passphrase. This Passphrase is used to generate one or more WEP keys. It
is case-sensitive and should not be longer than 16 alphanumeric characters.
This Passphrase function is compatible with Linksys wireless products only.
[If you want to communicate with non-Linksys wireless products, enter the
WEP key(s) manually on the non-Linksys wireless products.] After you
enter the Passphrase, click the Generate button to create WEP keys.
Keys 1-4 WEP keys enable you to create an encryption scheme for wireless
LAN transmissions. Manually enter a set of values. (Do not leave a key
field blank, and do not enter all zeroes. These are not valid key values.)
Keys 1-4 offer 64-bit or 128-bit encryption.
If you are using 64-bit WEP encryption, then the key must be exactly 10
hexadecimal characters in length. If you are using 128-bit WEP encryption,
then the key must be exactly 26 hexadecimal characters in length. Valid
hexadecimal characters are “0”-“9” and “A”-“F”.
Check all the values, and click the Apply button to save your 2.4GHz,
802.11b WEP settings.
To apply any of the settings you change on this page, click the Apply button. To
cancel any changes you’ve entered on this page, click the Cancel button. To get
more information about the features, click the Help button.
WEP (Encryption) An acronym for Wired Equivalent Privacy, WEP is an
encryption method used to protect your wireless data communications.
WEP uses a combination of 64-bit or 128-bit keys to provide access control
to your network and encryption security for every data transmission. To
decode a data transmission, each device in a network must use an identical
64-bit or 128-bit key. Higher encryption levels offer higher levels of securi-
ty, but due to the complexity of the encryption, they may decrease network
performance. Click the 2.4GHz WEP Settings button to configure the
WEP keys for your 2.4GHz, 802.11b network (see Figure 6-12).
Check all the values, and click the Apply button to save your 2.4GHz,
802.11b settings. To cancel any changes you’ve entered on this page, click
the Cancel button. To get more information about the features, click the
Help button.

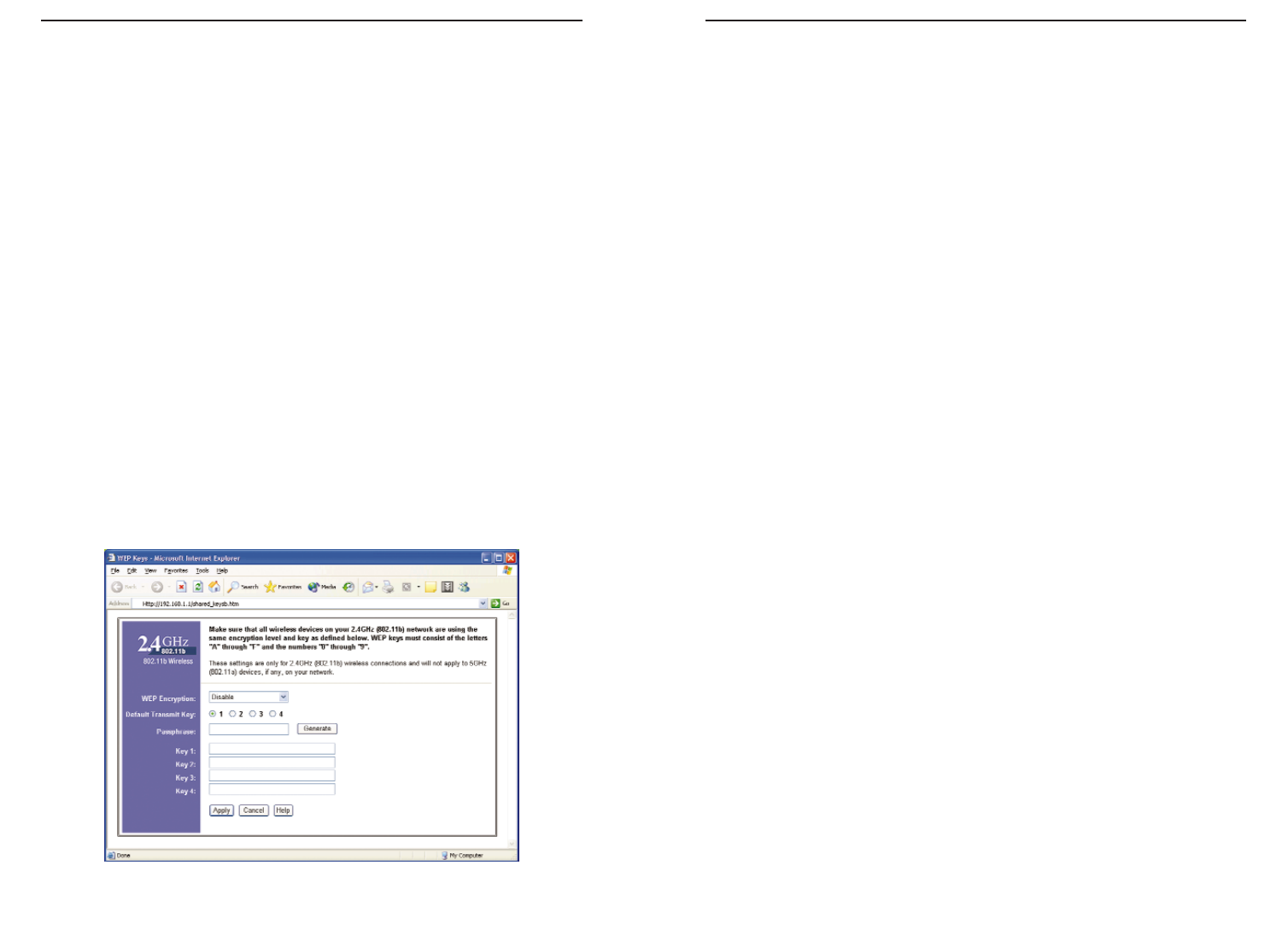

2.4GHz, 802.11b (WEP)
The 2.4GHz, 802.11b (WEP) screen allows you to configure your 2.4GHz,
802.11b WEP settings. WEP encryption is recommended to increase the
security of your wireless network.
WEP Encryption Keys 1-4 offer 64-bit or 128-bit encryption; select the
type of encryption you want from the drop-down box. To disable WEP
Encryption, select Disable.
Figure 6-12
Dual-Band Wireless A+B Broadband Router
39
Instant Wireless®Series
38

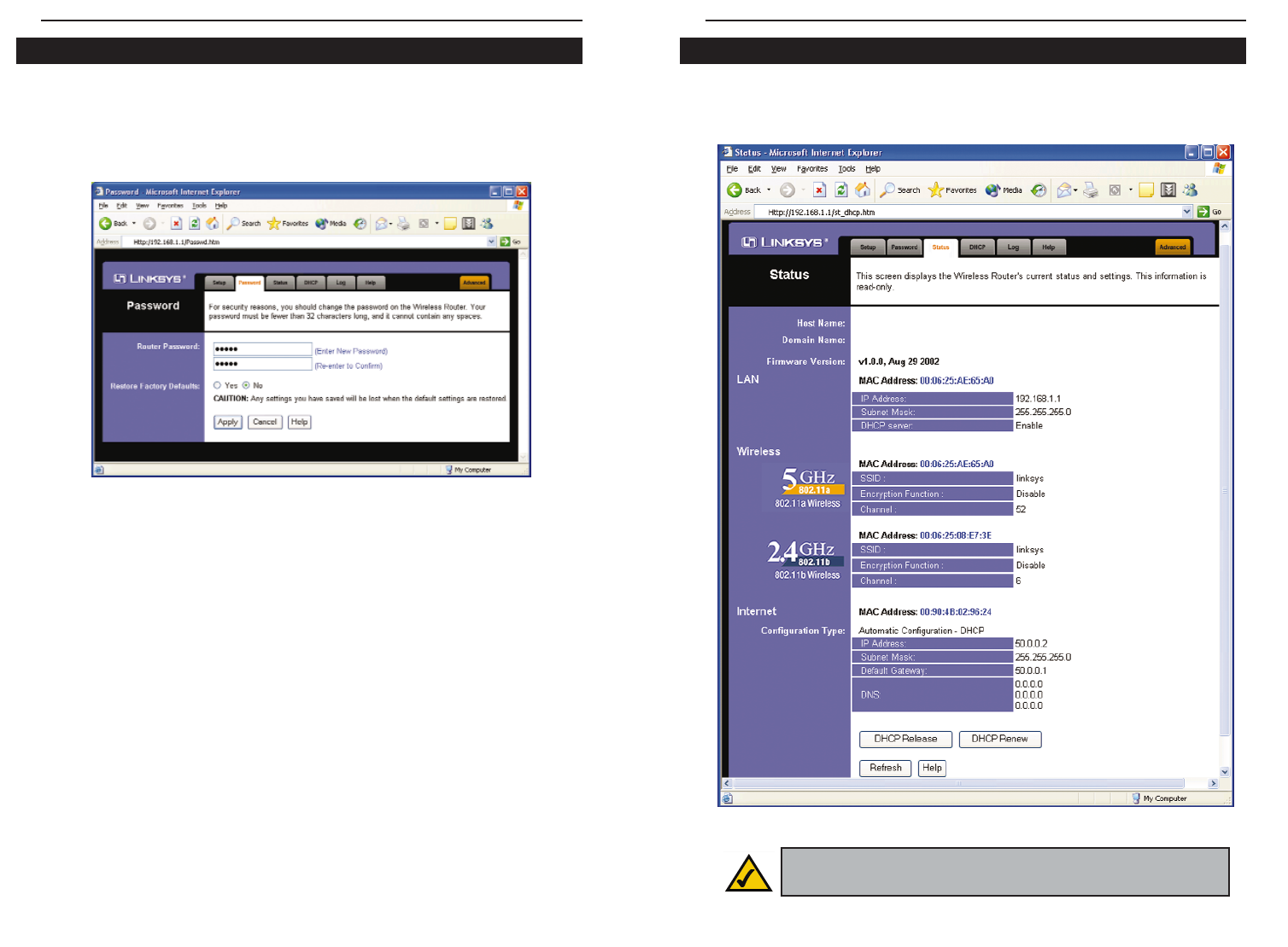

The Status screen displays the Router’s current status and configuration. All
information is read-only.
Status
Figure 6-14
Note: The information provided and buttons available may vary
depending on the Router’s settings.
The Password screen allows you to change the Router’s password. You should
change the factory default password, which is admin, to your own as soon as
possible All users who try to access the Router’s web-based utility will be
prompted for the Router’s password.
Router Password The new Password must not exceed 32 characters in length
and must not include any spaces. Enter the new Password in the second field to
confirm it.
Restore Factory Defaults Click the Yes button to reset all configuration set-
tings to their default values. Any settings you have saved will be lost when the
default settings are restored. Click the No button to disable the Restore Factory
Defaults feature.
To apply any of the settings you change on this page, click the Apply button. To
cancel any changes you’ve entered on this page, click the Cancel button. To get
more information about the features, click the Help button.
Password
Figure 6-13
Dual-Band Wireless A+B Broadband Router
Internet
Configuration Type The type of Internet connection is displayed here.
Status For PPPoE or PPTP, the status of the Internet connection is displayed
here. If there is no connection, you can click the Connect button to re-estab-
lish it. If there is a connection, you can click the Disconnect button to end it.
IP Address, Subnet Mask, and Default Gateway The Router’s IP Address,
Subnet Mask, and Default Gateway Address, as seen by external users on the
Internet, are displayed here.
DNS The DNS (Domain Name System) IP Addresses currently used by the
Router are shown here. Multiple DNS IP settings are common. In most cases,
the first available DNS entry is used.
DHCP Release Click the DHCP Release button to delete the Router’s current
Internet IP address.
DHCP Renew Click the DHCP Renew button to get a new Internet IP
address for the Router.
To refresh the Status screen, click the Refresh button. To get more information
about the features, click the Help button.
41
Instant Wireless®Series
40
Host Name The Host Name is the name of the Router. This entry is necessary
for some ISPs.
Domain Name The Domain Name is the name of the Router's domain. This
entry is necessary for some ISPs.
Firmware Version The version number of the firmware currently installed is
displayed here.
LAN
IP Address and Subnet Mask The current IP Address and Subnet Mask of
the Router, as seen by users on your local area network (LAN), are displayed
here.
DHCP Server The status of the Router's DHCP server function is displayed
here.
Wireless 5GHz, 802.11a
SSID The SSID of the 5GHz, 802.11a network is displayed here.
Encryption Function The status of the WEP encryption is displayed here.
Channel The channel for the 5GHz, 802.11a wireless network is displayed
here.
Wireless 2.4GHz, 802.11b
SSID The SSID of the 2.4GHz, 802.11b network is displayed here.
Encryption Function The status of the WEP encryption is displayed here.
Channel The channel for the 2.4GHz, 802.11b wireless network is displayed
here.
Dual-Band Wireless A+B Broadband Router

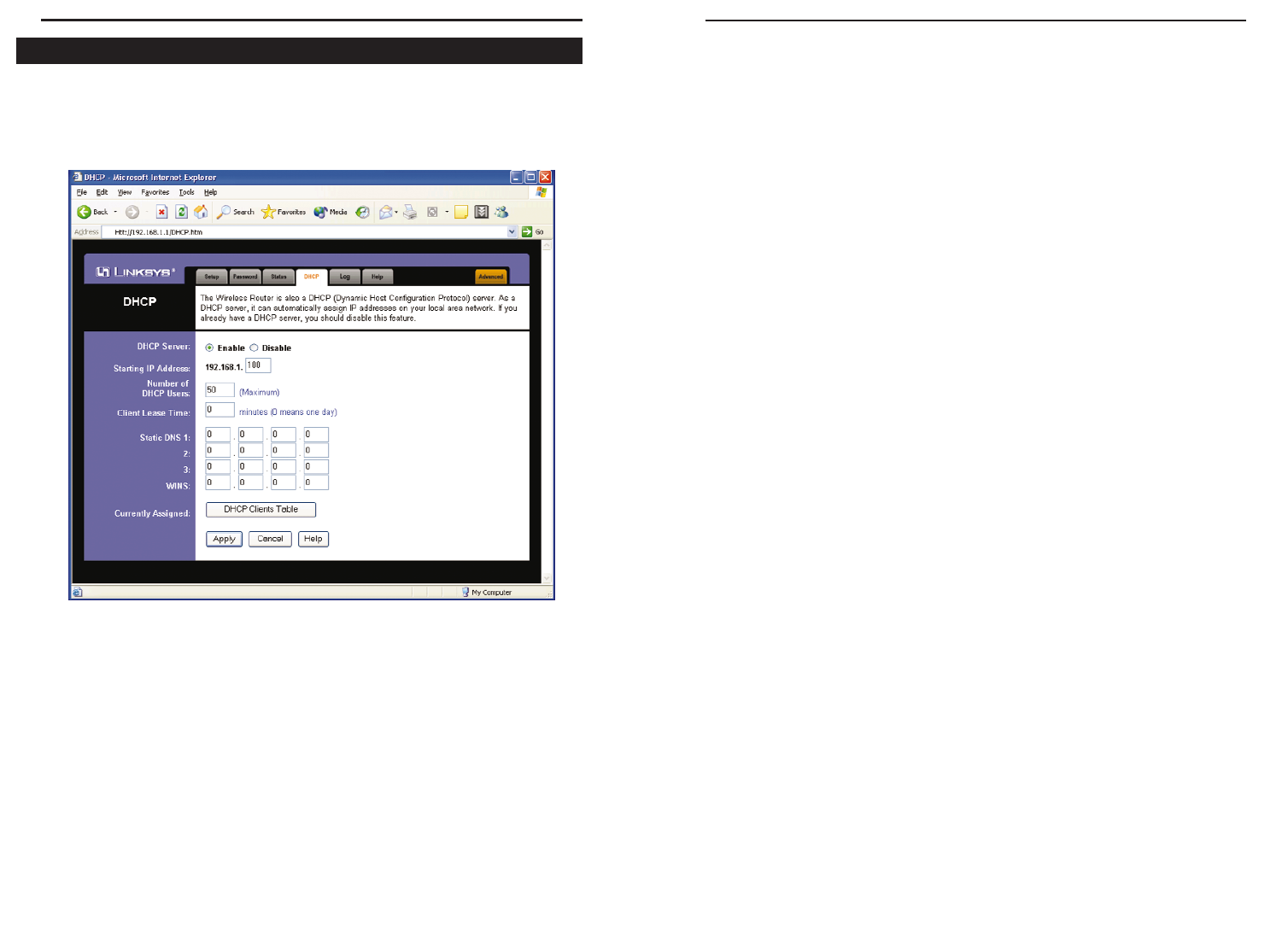

Starting IP Address Enter a value for the DHCP server to start with when
issuing IP addresses. Because the Router’s default IP address is 192.168.1.1,
the Starting IP Address must be 192.168.1.2 or greater, but smaller than
192.168.1.253. The default Starting IP Address is 192.168.1.100.
Number of DHCP Users (Optional) Enter the maximum number of PCs that
you want the DHCP server to assign IP addresses to. This number cannot be
greater than 253. The default is 50.
Client Lease Time The Client Lease Time is the amount of time a network
user will be allowed connection to the Router with their current dynamic IP
address. Enter the amount of time, in minutes, that the user will be “leased” this
dynamic IP address. After the time is up, the user will be automatically
assigned a new dynamic IP address. The default is 0minutes, which means one
day.
Static DNS 1-3 The Domain Name System (DNS) is how the Internet trans-
lates domain or website names into Internet addresses or URLs. Your ISP will
provide you with at least one DNS Server IP Address. If you wish to use anoth-
er, type that IP Address in one of these fields. You can type up to three DNS
Server IP Addresses here. The Router will use these for quicker access to func-
tioning DNS servers.
WINS The Windows Internet Naming Service (WINS) manages each PC’s
interaction with the Internet. If you use a WINS server, enter that server’s IP
Address here. Otherwise, leave this blank.
Currently Assigned: DHCP Clients Table Click the DHCP Clients Table
button to view the list of PCs that are given IP addresses by the Router. For each
PC, the list shows the client hostname, IP address, MAC address, and and the
amount of DHCP client lease time left. Click the Refresh button to display the
most current information.
To apply any of the settings you change on this page, click the Apply button. To
cancel any changes you’ve entered on this page, click the Cancel button. To get
more information about the features, click the Help button.
43
Instant Wireless®Series
42
The DHCP screen allows you to configure the settings for the Router’s Dynamic
Host Configuration Protocol (DHCP) server function. The Router can be used as
a DHCP server for your network. A DHCP server automatically assigns an IP
address to each computer on your network.
If you choose to enable the Router’s DHCP server option, you must configure all
of your network PCs to connect to a DHCP server (the Router), and make sure
there is no other DHCP server on your network.
If you disable the Router’s DHCP server function, you must have a separate
DHCP server for your network, or you must configure the IP Address, Subnet
Mask, and DNS for each network computer (make sure each IP Address is
unique).
DHCP Server DHCP is enabled by factory default. If you already have a
DHCP server on your network, or you don’t want a DHCP server, then click the
Disable radio button.
DHCP
Figure 6-15
Dual-Band Wireless A+B Broadband Router

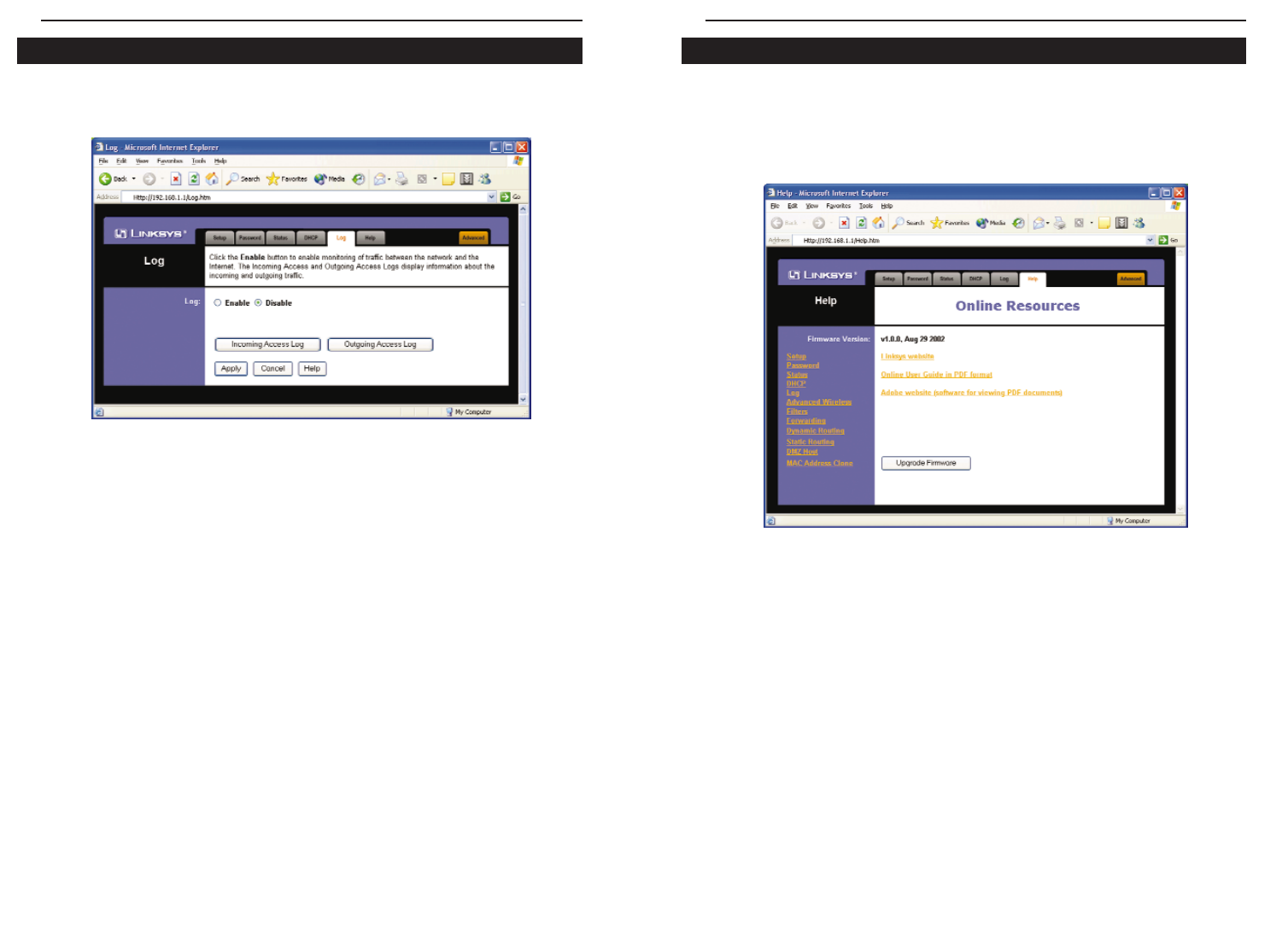

The Help screen offers links to all of the Router’s technical support resources
and the application that upgrades the Router’s firmware. For additional infor-
mation about each screen of the web-based utility, click the appropriate link on
the lefthand side of the Help screen.
Firmware Version The version number of the firmware currently installed is
displayed here. Firmware should only be upgraded if you are experiencing
problems with the Router. Visit www.linksys.com to find out if there is updated
firmware.
Linksys Website Clicking this link will take you to Linksys’s website,
www.linksys.com, provided you are connected to the Internet.
Online User Guide in PDF Format and Adobe Website Clicking the Online
User Guide in PDF format link opens the Router’s User Guide. The User
Guide is in Adobe Acrobat Portable Document File (.pdf) format, so you need
the Adobe Acrobat Reader to view it. If you do not have the Acrobat Reader,
click the Adobe website link to download it.
45
Instant Wireless®Series
44
Help
Figure 6-17
The Log screen provides you with a log of all incoming or outgoing traffic for
your Internet connection.
Log To monitor traffic between the network and the Internet, select the Enable
radio button next to Access Log. The Log function can be disabled by clicking
the Disable radio button.
Incoming Access Log and Outgoing Access Log Temporary logs can be
accessed by clicking either the Incoming Access Log or Outgoing Access Log
button. The Incoming Access Log gives you a log of all the incoming Internet
traffic, displaying the source IP address and port number of the Router for each
activity. The Outgoing Access Log gives you a log of all outgoing Internet traf-
fic. For each activity, it displays the LAN IP address, the URL or IP address of
the Internet site accessed, as well as the service or port number used.
To apply any of the settings you change on this page, click the Apply button. To
cancel any changes you’ve entered on this page, click the Cancel button. To get
more information about the features, click the Help button.
Log
Figure 6-16
Dual-Band Wireless A+B Broadband Router
The following instructions are for advanced users or users whose setup needs
require special configuration. When you click the Advanced tab, you will be
able to set up these features. There are six additional tabs available.
Advanced Wireless - Allows you to customize data transmission and 802.1x
settings for your wireless network(s).
Filters - Enables you to set up filters that block specific internal users from
Internet access.
Port Forwarding - Lets you set up public services on your network, such as an
ftp server, mail server, or web server.
Routing - Enables you to configure the routing mode of the Router.
DMZ Host - Allows one local user to be exposed to the Internet for use of spe-
cial-purpose services such as online gaming or videoconferencing.
MAC Address Clone - Allows you to copy or “clone” your Ethernet adapter’s
MAC address onto the Router.
If you need to access the basic configuration tabs, click the Setup tab.
47
Instant Wireless®Series
46
Advanced Tabs

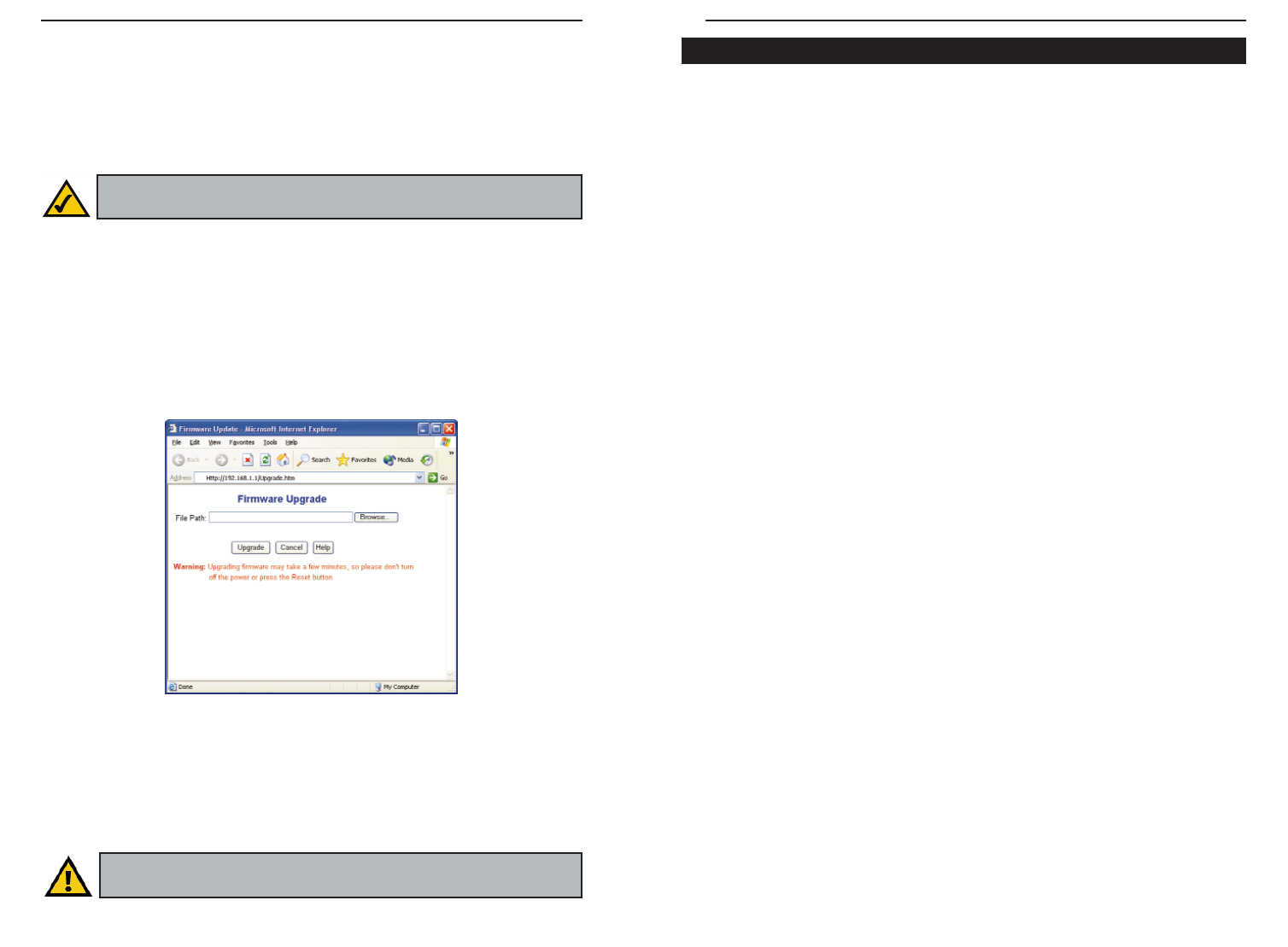

Upgrade Firmware New firmware versions are posted at www.linksys.com
and can be downloaded for free. If the Router already works well, there’s no
need to download a newer firmware version, unless that version has a new fea-
ture that you want to use. (To learn about any new firmware with new features,
visit www.linksys.com.) Loading new firmware onto the Router does not always
enhance the speed or the quality of your connection.
To upgrade the Router’s firmware:
1. Download the firmware upgrade file from www.linksys.com, and extract
the file using a file archive utility such as WinZip.
2. Select the Help tab, if you haven’t already (see Figure 6-17).
3. Click Upgrade Firmware to display a new window, shown in Figure 6-18.
4. Click the Browse... button to find the firmware upgrade file you extracted.
5. Double-click the firmware upgrade file you extracted.
6. Click the Upgrade button, and follow the on-screen instructions.
Note: By upgrading the Router’s firmware, you may lose the Router’s
configuration settings.
Figure 6-18
Important: When you are upgrading the firmware, do NOT turn off
the Router, and do NOT press the Reset button.
