WWW. LINKS YS . C O M

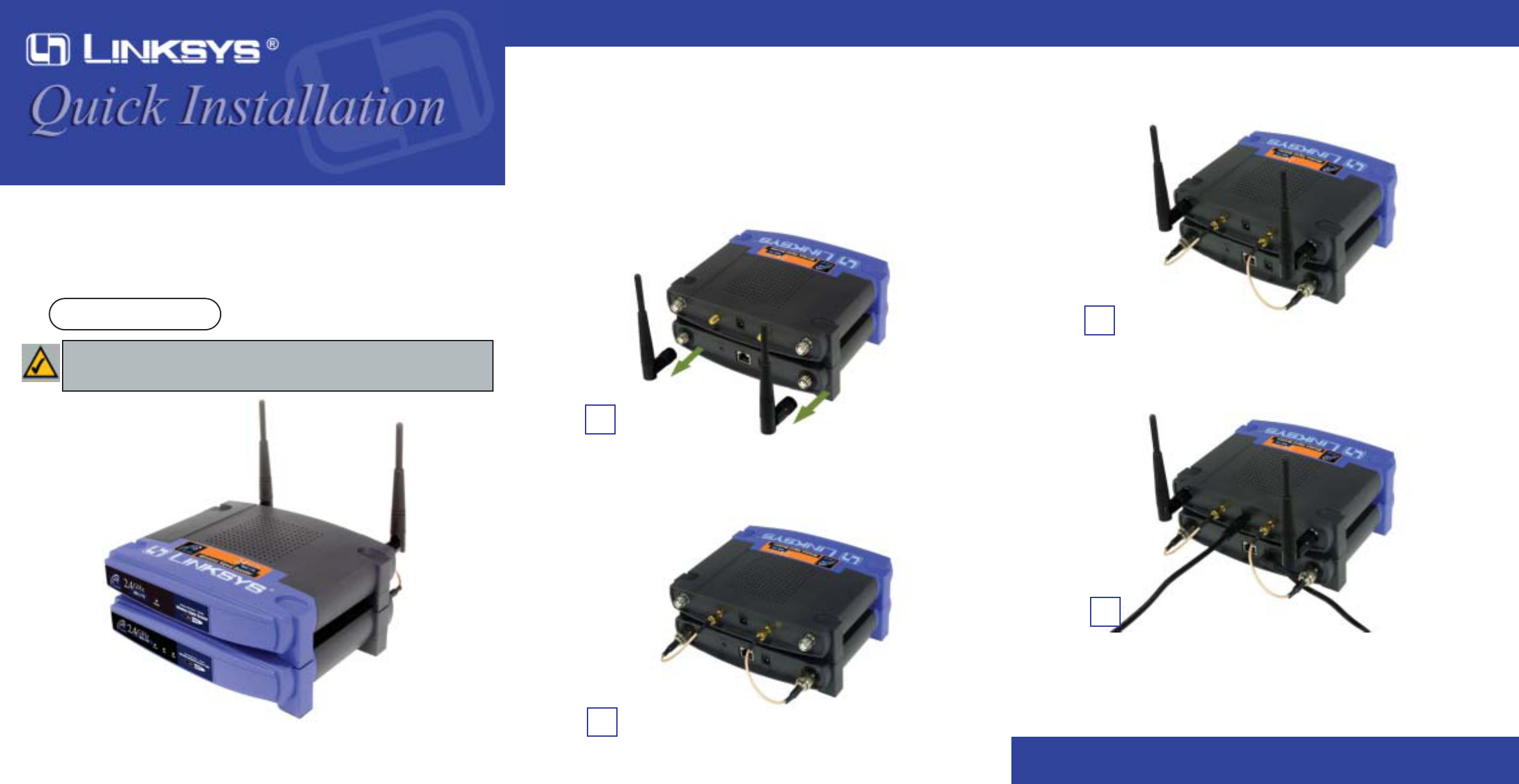

A. With your Access Point/Router powered off, place the Wireless Signal

Booster on top of the Access Point/Router.

B. Disconnect the Access Point’s/Router’s antennas.

C. Connect the Signal Booster Cables from the Access Point’s/Router’s anten-

na ports to the Wireless Signal Booster’s cable ports.

D. Connect the antennas to the Wireless Signal Booster’s antenna ports.

E. Connect the appropriate power adapters to both the Access Point/Router

and Wireless Signal Booster.

F. Now you are ready to use the Wireless Signal Booster in your wireless

network.

Connecting the Wireless Signal Booster to

Your Linksys Access Point/Router

QI-WSB24-10/25/02NC BW

Package Contents

• One Linksys Wireless Signal Booster

• Two Signal Booster Cables

• Two Power Adapters

• One Quick Installation and User Guide

• One Wireless Access Point. WAP11

Wireless Signal

Booster

Instant Wireless®

WSB24

The Wireless Signal Booster with Access Point C

Note: The images in this document show the Wireless Signal Booster being con-

nected to an Access Point; the same directions can be followed when connecting the

Wireless Signal Booster to a wireless Router.

wsb24 quick install-1.qxd 2002/12/20 ¤U¤È 04:02 Page 1

names are the property of their respective proprietors.

LIMITED WARRANTY

Linksys guarantees that every Wireless Signal Booster WSB24 is free from physical

defects in material and workmanship under normal use for one years from the date

of purchase. If the product proves defective during this warranty period, call Linksys

Customer Support in order to obtain a Return Authorization Number. BE SURE TO

HAVE YOUR PROOF OF PURCHASE ON HAND WHEN CALLING. RETURN

REQUESTS CANNOT BE PROCESSED WITHOUT PROOF OF PURCHASE.

When returning a product, mark the Return Authorization Number clearly on the out-

side of the package and include a copy of your original proof of purchase. All cus-

tomers outside of the United States of America and Canada shall be held responsi-

ble for shipping and handling charges.

IN NO EVENT SHALL LINKSYS’ LIABILITY EXCEED THE PRICE PAID FOR THE

PRODUCT FROM DEFECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSE-

QUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, ITS

ACCOMPANYING SOFTWARE, OR ITS DOCUMENTATION. LINKSYS DOES NOT

ISSUE REFUNDS. WARRANTY DOES NOT COVER NATURAL DISASTERS OR

ACTS OF NATURE.

Linksys makes no warranty or representation, expressed, implied, or statutory, with

respect to its products or the contents use of this documentation and all accompany-

ing software, and specially disclaims its quality, performance, merchantability, or fit-

ness for any particular purpose. Linksys reserves the right to revise or update its

products, software, or documentation without obligation to notify any individual or

entity. Please direct all inquiries to :

Linksys P.O.Box 18558, Irvine, CA 92623

CAUTION : ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED

IN THIS MANUAL COULD VOID YOUR AUTHORIZATION TO USE

THIS DEVICE.

This device should be operated

at least 2.0m away from any person

FCC STATEMENT

The Wireless Signal Booster WSB24 has been tested and found to comply with the

limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference in a resi-

dential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interfer-

ence to radio communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful interfer-

ence to radio or television reception, which can be determined by turning the equip-

ment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

—-Reorient or relocate the receiving antenna.

—-Increase the separation between the equipment and receiver.

—-Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

—-Consult the dealer or an experienced radio/TV technician for help.

Regulatory information / Disclaimers

Installation and use of this Wireless LAN device must be in strict accordance with

the instructions included in the user documentation provided with the product. Any

changes or modifications (including the antennas) made to this device that are not

expressly approved by the manufacturer may void the user’s authority to operate

the equipment. The manufacturer is not responsible for any radio or television inter-

ference caused by unauthorized modification of this device, or the substitution of the

connecting cables and equipment other than manufacturer specified. It is the respon-

sibility of the user to correct any interference caused by such unauthorized modifica-

tion, substitution or attachment. Manufacturer and its authorized resellers or distribu-

tors will assume no liability for any damage or violation of government regulations

arising from failing to comply with these guidelines.

CAUTION: To maintain compliance with FCC’sRF exposure guidelines, this

equipment should be installed and operated with minimum distance

20cm between the radiator and your body. Use on the supplied

antenna. Unauthorized antenna, modification, or attachments could

damage the transmitter and may violate FCC regulations.

MPE Statement (Safety Information)

Your device contains a low power transmitter. When device is transmitted it sends

out Radio Frequency (RF) signal.

Safety Information

In order to maintain compliance with the FCC RF exposure guidelines, this equip-

ment should be installed and operated with minimum distance 20cm between the

radiator and your body.

Use only with supplied antenna. Unauthorized antenna, modification, or attachments

could damage the transmitter and may violate FCC regulations.

Caution Statement of the FCC Radio Frequency

Exposure

This Wireless LAN radio device has been evaluated under FCC Bulletin OET 65C

and found compliant to the requirements as set forth in CFR 47 Sections 2.1091,

2.1093, and 15.247(b)(4) addressing RF Exposure from radio frequency devices.

The radiation output power of this Wireless LAN device is far below the FCC radio

frequency exposure limits. Nevertheless, this device shall be used in such a manner

that the potential for human contact during normal operation-as a mobile or portable

device but use in a body-worn way is strictly prohibit. When using this device, a cer-

tain separation distance between antenna and nearby persons has to be kept to

ensure RF exposure compliance. In order to comply with the RF exposure limits

established in the ANSI C95.1 standards, the distance between the antennas and

the user should not be less than 20cm.

Contact Information

For help with the installation or operation of this product, contact Linksys

Technical Support at one of the phone numbers or Internet addresses below.

Sales Information 800-546-5797 (LINKSYS)

Technical Support 800-326-7114

RMA Issues 949-261-1288

Fax 949-261-8868

Email support@linksys.com

Web http://www.linksys.com

FTP Site ftp.linksys.com

wsb24 quick install-1.qxd 2002/12/20 ¤U¤È 04:02 Page 2

Instant Wireless®Series

Wireless Network

Access Point

Use this guide to install: WAP11 ver. 2.6 User Guide

Linksys logo are registered trademarks of Linksys Group, Inc. Microsoft, Windows, and

the Windows logo are registered trademarks of Microsoft Corporation. All other trade-

marks and brand names are the property of their respective proprietors.

LIMITED WARRANTY

Linksys guarantees that every Wireless Network Access Point is free from physical

defects in material and workmanship under normal use for one year from the date of pur-

chase.

If the product proves defective during this warranty period, go to the Linksys website at

www.linksys.com

for complete Return Merchandise Authorization (RMA) assistance. You

can also call Linksys Technical Support in order to obtain a RMA Number. BE SURE TO

HAVE YOUR PROOF OF PURCHASE AND A BARCODE FROM THE PRODUCT’S PACK-

AGING ON HAND WHEN CALLING. RETURN REQUESTS CANNOT BE PROCESSED

WITHOUT PROOF OF PURCHASE. When returning a product, mark the RMA Number

clearly on the outside of the package and include a copy of your original proof of pur-

chase. All customers located outside of the United States of America and Canada shall

be held responsible for shipping and handling charges.

IN NO EVENT SHALL LINKSYS’ LIABILITY EXCEED THE PRICE PAID FOR THE PROD-

UCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAM-

AGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFT-

WARE, OR ITS DOCUMENTATION. LINKSYS DOES NOT OFFER REFUNDS FOR ANY

PRODUCT. Linksys makes no warranty or representation, expressed, implied, or statuto-

ry, with respect to its products or the contents or use of this documentation and all

accompanying software, and specifically disclaims its quality, performance, mer-

chantability, or fitness for any particular purpose. Linksys reserves the right to revise or

update its products, software, or documentation without obligation to notify any individ-

ual or entity. Please direct all inquiries to:

Linksys P.O. Box 18558, Irvine, CA 92623.

FCC STATEMENT

This product has been tested and complies with the specifications for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide rea-

sonable protection against harmful interference in a residential installation. This equip-

ment generates, uses, and can radiate radio frequency energy and, if not installed and

used according to the instructions, may cause harmful interference to radio communi-

cations. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television

reception, which is found by turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment or devices

• Connect the equipment to an outlet other than the receiver’s

• Consult a dealer or an experienced radio/TV technician for assistance

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance

20cm between the radiator and your body.

UG-WAP11 ver. 2.6-111402D JL

Wireless Network Access Point

Table of Contents

Chapter 1: Introduction 1

The Instant Wireless Network Access Point 1

Features 1

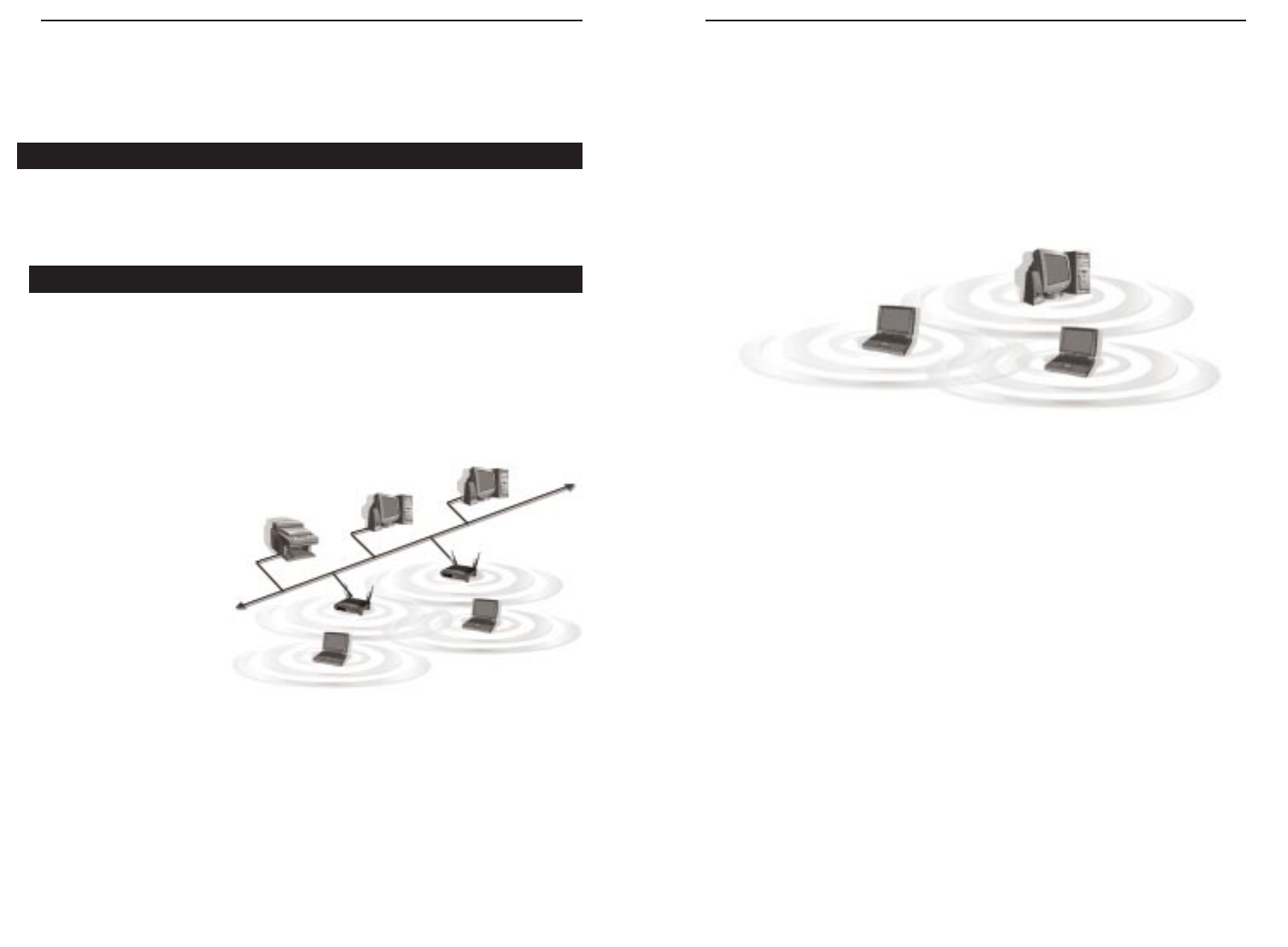

Chapter 2: Planning Your Wireless Network 2

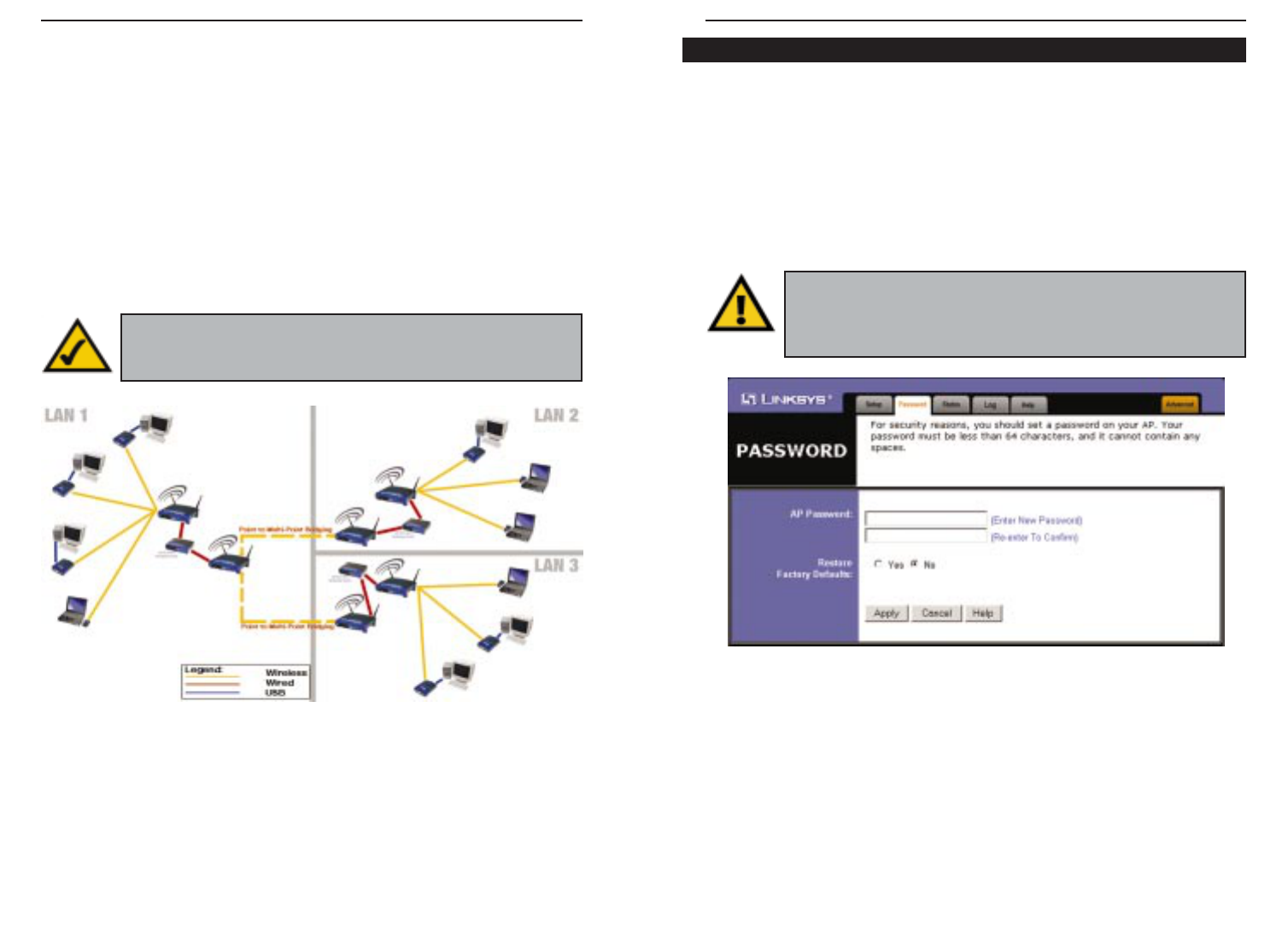

Network Topology 2

Ad-Hoc versus Infrastructure Mode 2

Chapter 3: Getting to Know the Wireless Network

Access Point 4

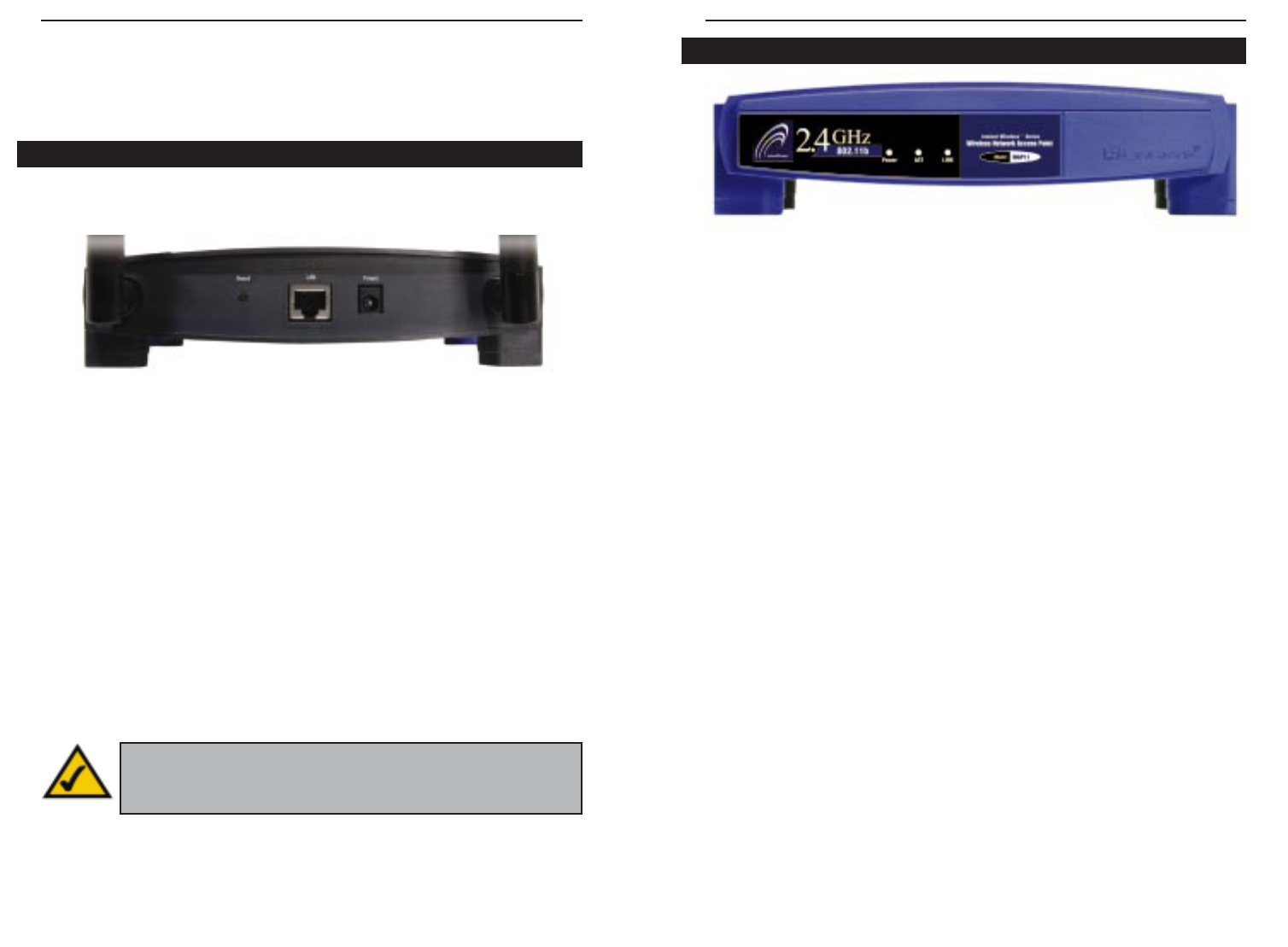

The Wireless Network Access Point’s Ports 4

The Wireless Network Access Point’s LEDs 5

Chapter 4: Connecting the Wireless Network

Access Point 6

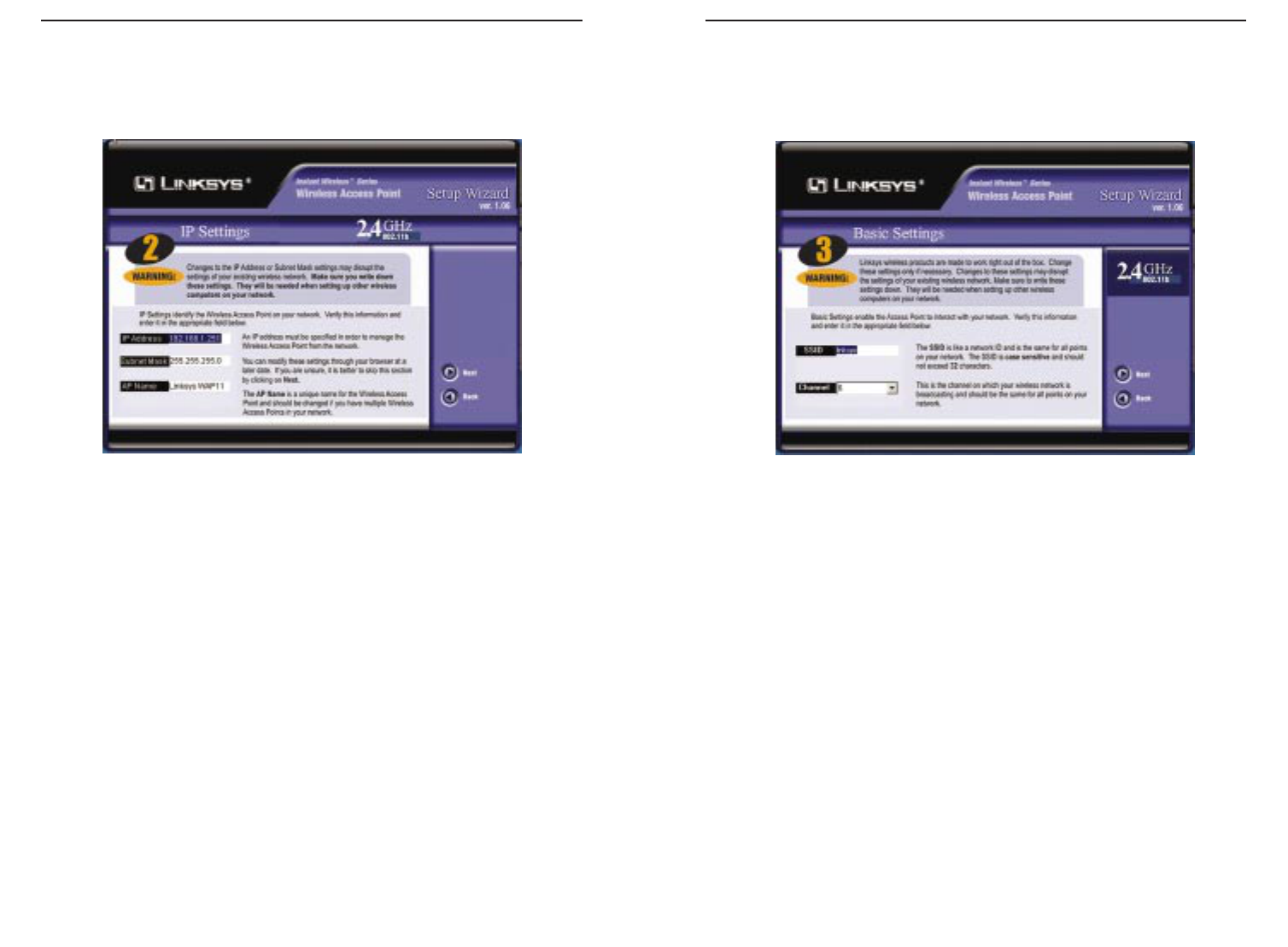

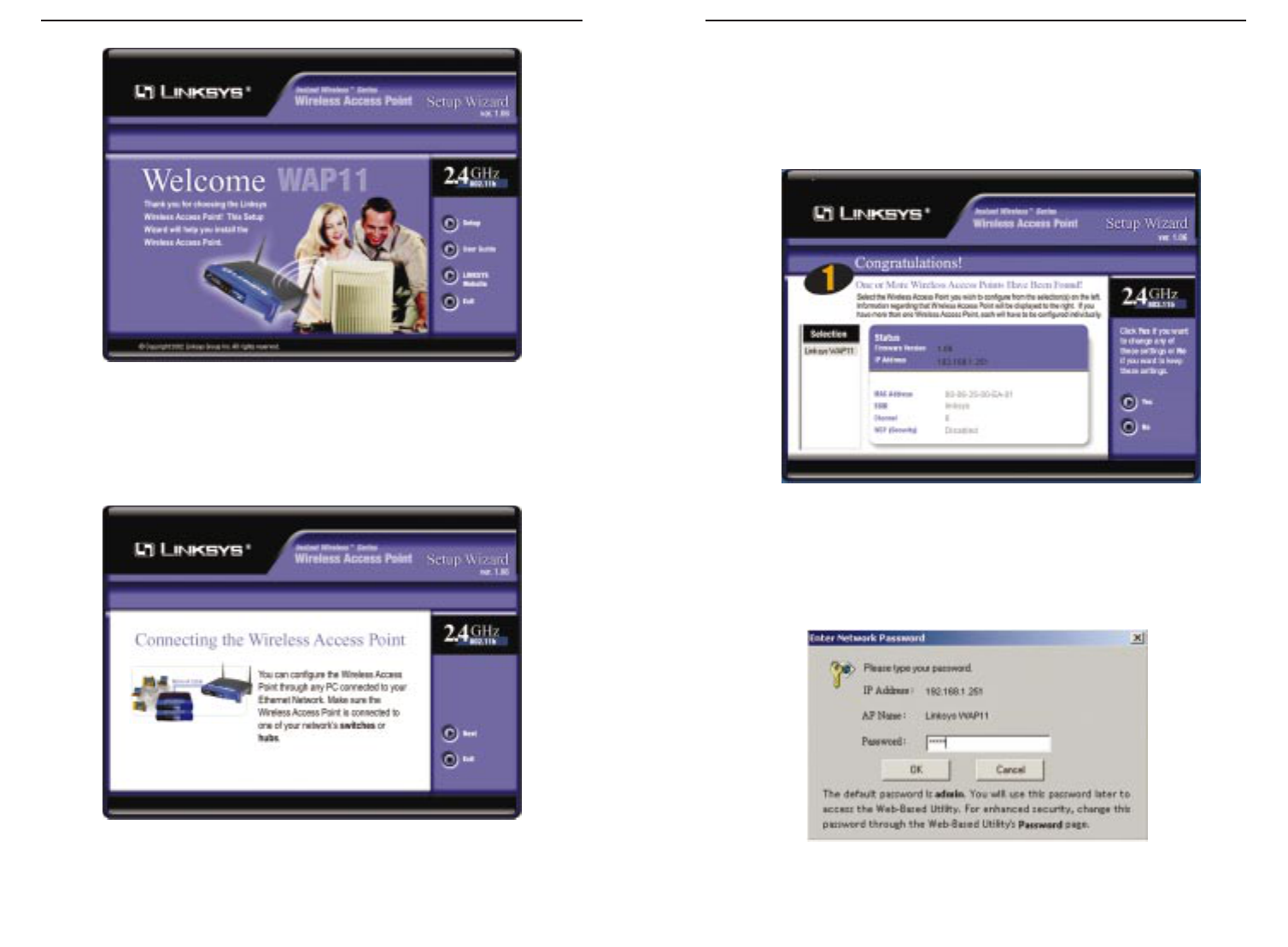

Chapter 5: Setting Up the Wireless Network

Access Point 7

Chapter 6: Configuring the Wireless Network

Access Point 15

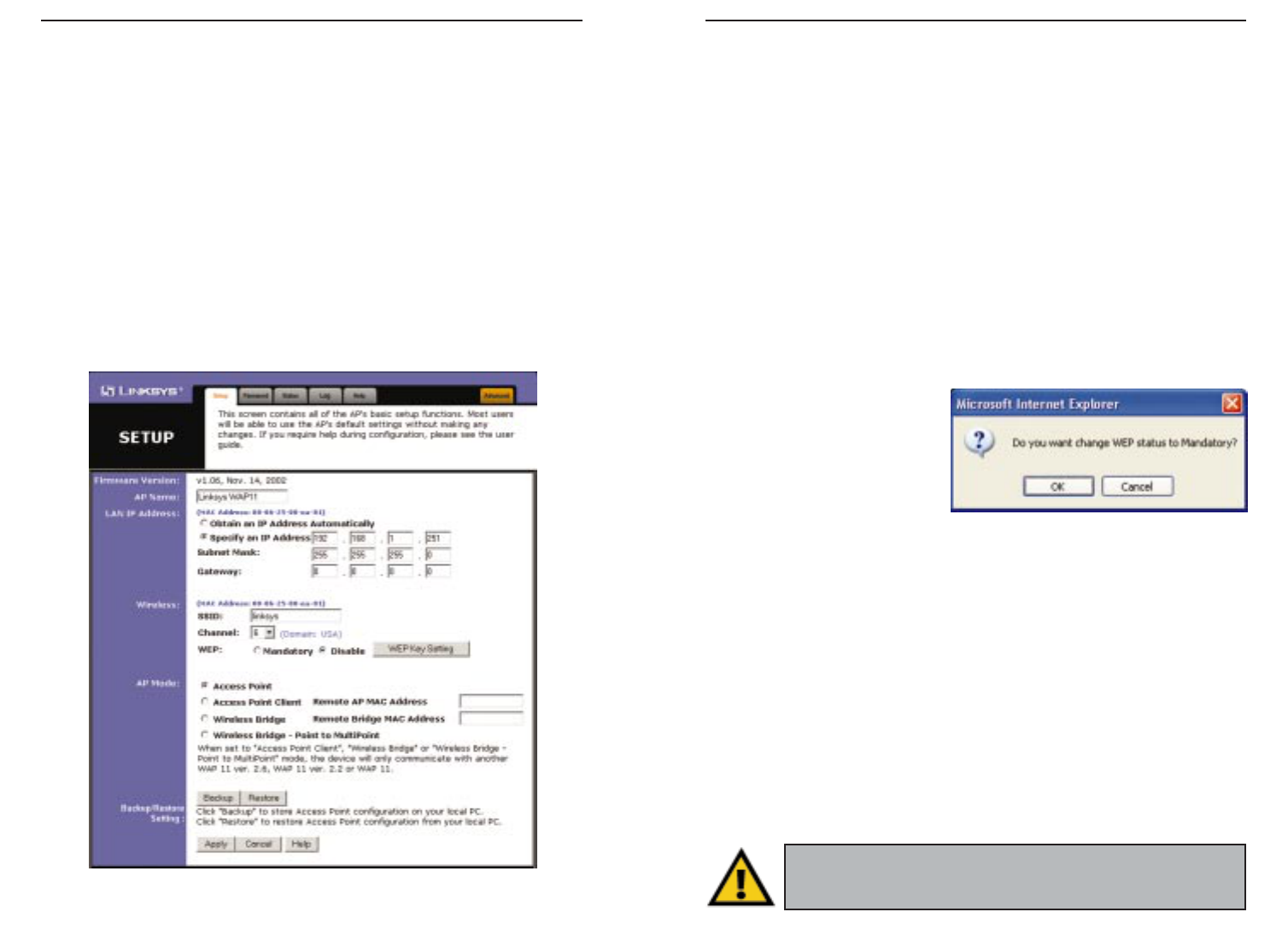

The Setup Tab 15

The Password Tab 21

The Status Tab 22

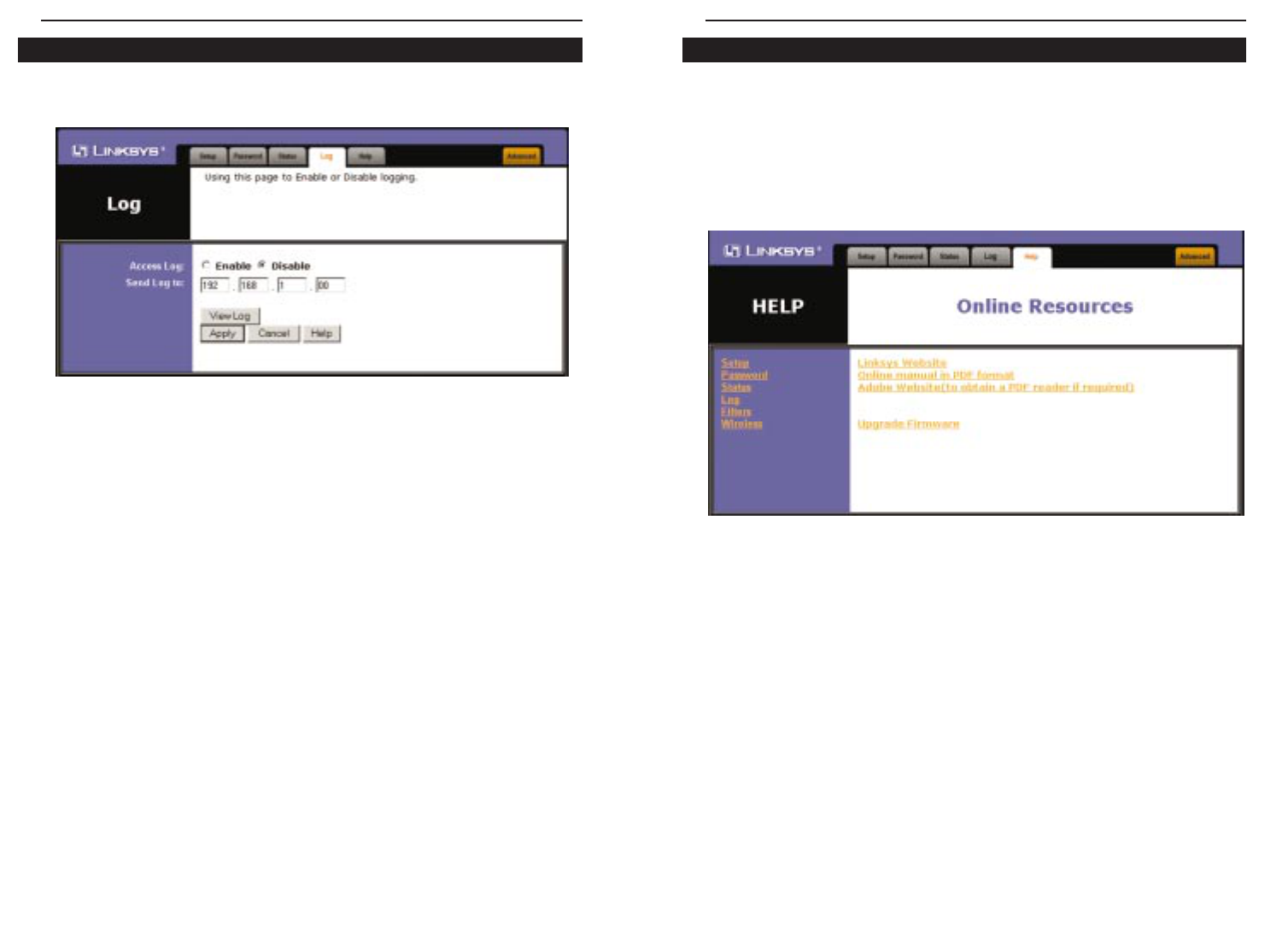

The Log Tab 24

The Help Tab 25

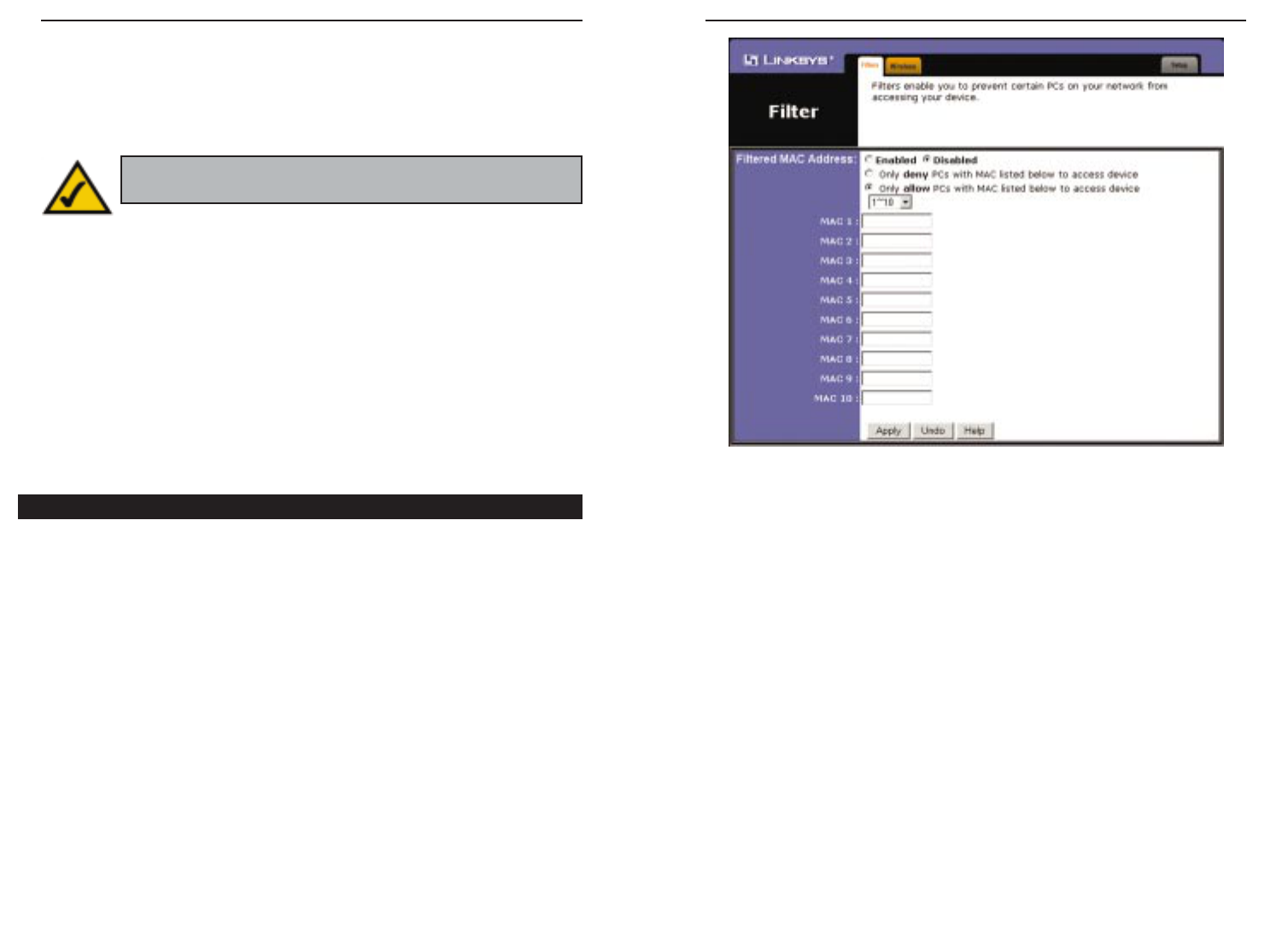

The Filter Tab 26

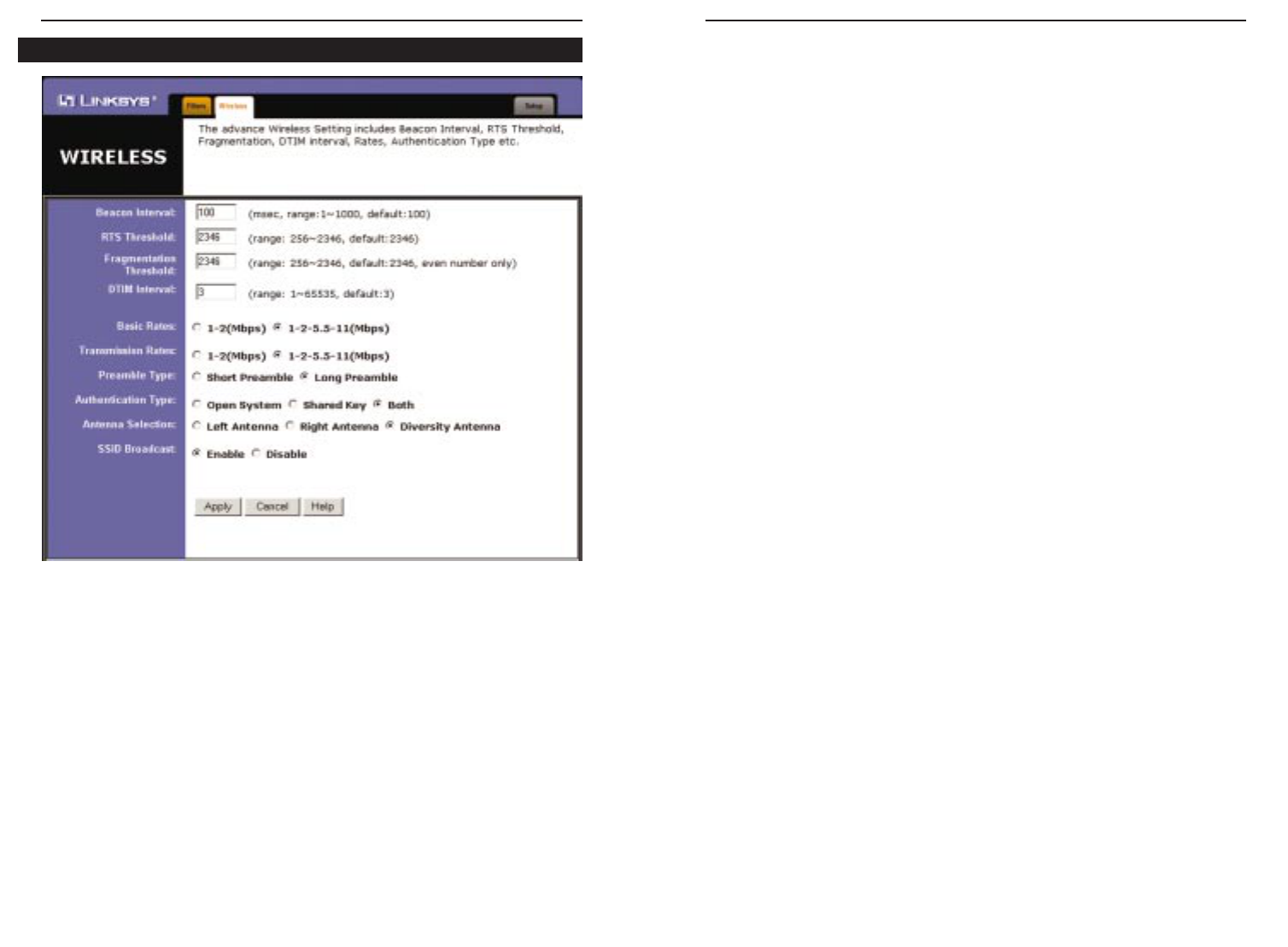

The Wireless Tab 28

Appendix A: Troubleshooting 31

Frequently Asked Questions 31

Appendix B: Setting Up the TCP/IP Protocol 35

Setting Up TCP/IP in Windows 35

TCP/IP Setup for Windows 98 and Millennium 36

TCP/IP Setup for Windows 2000 37

TCP/IP Setup for Windows XP 38

INDUSTRY CANADA (CANADA)

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

The use of this device in a system operating either partially or completely outdoors may require

the user to obtain a license for the system according to the Canadian regulations.

EC DECLARATION OF CONFORMITY (EUROPE)

Linksys Group declares that the Instant Wireless®Series products included in the Instant

Wireless®Series conform to the specifications listed below, following the provisions of the

EMC Directive 89/336/EEC and Low Voltage Directive 73/23/EEC:

• ETS 300-826, 301 489-1 General EMC requirements for Radio equipment.

• EN 609 50 Safety

• ETS 300-328-2 Technical requirements for Radio equipment.

Note: This equipment is intended to be used in all EU and EFTA countries. Outdoor use may

be restricted to certain frequencies and/or may require a license for operation. For more

details, contact Linksys Corporate Compliance.

Note: Combinations of power levels and antennas resulting in a radiated power level of

above 100 mW are considered as not compliant with the above mentioned directive and are

not allowed for use within the European community and countries that have adopted the

European R&TTE directive 1999/5/EC and/or the CEPT recommendation Rec 70.03. For

more details on legal combinations of power levels and antennas, contact Linksys Corporate

Compliance.

• Linksys Group vakuuttaa täten että Instant Wireless IEEE 802.11 PC Card tyyppinen laite

on direktiivin 1999/5/EY, direktiivin 89/336/EEC ja direktiivin 73/23/EEC oleellisten vaa-

timusten ja sitä koskevien näiden direktiivien muiden ehtojen mukainen.

• Linksys Group déclare que la carte PC Instant Wireless IEEE 802.11 est conforme aux

conditions essentielles et aux dispositions relatives à la directive 1999/5/EC, la directive

89/336/EEC, et à la directive 73/23/EEC.

• Belgique B L’utilisation en extérieur est autorisé sur le canal 11 (2462 MHz), 12 (2467

MHz), et 13 (2472 MHz).

Dans le cas d’une utilisation privée, à l’extérieur d’un bâtiment, au-dessus d’un espace

public, aucun enregistrement n’est nécessaire pour une distance de moins de 300m.

Pour une distance supérieure à 300m un enregistrement auprès de l’IBPT est requise.

Pour une utilisation publique à l’extérieur de bâtiments, une licence de l’IBPT est req-

uise. Pour les enregistrements et licences, veuillez contacter l’IBPT.

• France F: Bande de fréquence restreinte: seuls les canaux 10, 11, 12, 13 (2457, 2462,

2467, et 2472 MHz respectivement) doivent être utilisés en France. Toute utilisation,

qu'elle soit intérieure ou extérieure, est soumise à autorisation. Vous pouvez contacter

l'Autorité de Régulation des Télécommuniations (http://www.art-telecom.fr) pour la

procédure à suivre.

• France F: Restricted frequency band: only channels 10, 11, 12, 13 (2457, 2462, 2467,

and 2472 MHz respectively) may be used in France. License required for every indoor

and outdoor installations. Please contact ART for procedure to follow.

• Deutschland D: Anmeldung im Outdoor-Bereich notwending, aber nicht genehmi-

gungspflichtig. Bitte mit Händler die Vorgehensweise abstimmen.

• Germany D: License required for outdoor installations. Check with reseller for procedure

to follow.

• Italia I: E' necessaria la concessione ministeriale anche per l'uso interno. Verificare con i

rivenditori la procedura da seguire. L'uso per installazione in esterni non e' permessa.

• Italy I: License required for indoor use. Use with outdoor installations not allowed.

• the Netherlands NL License required for outdoor installations. Check with reseller for

procedure to follow.

• Nederlands NL Licentie verplicht voor gebruik met buitenantennes. Neem contact op

met verkoper voor juiste procedure.

Instant Wireless

Series

Wireless Network Access Point

Chapter 1: Introduction

Don’t be bound by cabling restrictions any longer! The Wireless Access Point

from Linksys delivers the freedom to configure your network your way.

Utilization of “state-of-the-art” wireless technology gives you the ability to set

up workstations in ways you never thought possible; no cables to install means

less expense and less hassle.

The Wireless Access Point’s high-powered antennas offer a wide range of oper-

ation, so you get seamless roaming throughout your wireless LAN infrastruc-

ture. An advanced user authentication feature ensures a high level of network

security, and Windows-based diagnostics and statistic tools ensure that you’ll

always be in control. The Wireless Access Point is easy-to-install and easy-to-

use—just plug it in and you’re ready to go!

When all of these features come together in one compact, lightweight, and

power-efficient unit, you have the ultimate in flexible networking—the Linksys

Wireless Access Point.

• High-Speed Data Transfer Rates of up to 11Mbps

• Interoperable with IEEE 802.11b (DSSS), 2.4GHz Compliant Equipment

• Provides Roaming, Best Access Point Selection, Load Balancing, and

Network Traffic Filtering

• Wireless Access Point Roaming and Bridging

• Hardware Wired Equivalent Privacy (WEP)

• Free Software Driver Upgrades

• Compatible with Virtually All Major Operating Systems

• Free Technical Support—24 Hours a Day, 7 Days a Week, Toll-Free US

Calls

• 1-Year Limited Warranty

Appendix C: Glossary 39

Appendix D: Specifications 47

Environmental 48

Appendix E: Warranty Information 49

Appendix F: Contact Information 50

Features

The Instant Wireless Network Access Point

Wireless Network Access Point

If the wireless network is relatively small and needs to share resources only

with the other computers on the wireless network, then the ad-hoc mode can

be used. (See Figure 2-2.) Ad-hoc mode allows computers equipped with wire-

less transmitters and receivers to communicate directly with each other, elimi-

nating the need for an access point. The drawback of this mode is that, in Ad-

Hoc mode, wireless-equipped computers are not able to communicate with

computers on a wired network. And, of course, communication between the

wireless-equipped computers is limited by the distance and interference direct-

ly between them.

Instant Wireless

Series

Chapter 2: Planning Your

Wireless Network

A wireless local area network (WLAN) is exactly like a regular local area net-

work (LAN), except that each computer in the WLAN uses a wireless device to

connect to the network. Computers in a WLAN share the same frequency

channel and SSID, which is an identification name for wireless devices.

Unlike wired networks, wireless networks have two different modes in which

they may be set up: infrastructure and ad-hoc. An infrastructure configura-

tion is a WLAN and wired LAN communicating to each other through an

access point. An ad-hoc configuration is wireless-equipped computers com-

municating directly with each other. Choosing between these two modes

depends on whether or not the wireless network needs to share data or periph-

erals with a wired network or not.

If the computers on the

wireless network need to

be accessed by a wired

network or need to share a

peripheral, such as a print-

er, with the wired network

computers, the wireless

network should be set up

in infrastructure mode.

(See Figure 2-1.) The

basis of infrastructure

mode centers around an

access point, which serves

as the main point of com-

munications in a wireless network. Access points transmit data to PCs equipped

with wireless network cards, which can roam within a certain radial range of

the access point. Multiple access points can be arranged to work in succession

to extend the roaming range, and can be set up to communicate with your

Ethernet (wired) hardware as well.

Network Topology

Ad-Hoc versus Infrastructure Mode

Figure 2-1

Figure 2-2

Wireless Network Access Point

Instant Wireless

Series

Chapter 3: Getting to Know the

Wireless Network Access Point

The Access Point’s ports, where a network cable is connected, are located on

the Access Point’s rear panel.

Dipole Antenna

Connectors These two round connections are where the antennas are

connected to the Access Point.

LAN This LAN (Local Area Network) port connects to

Ethernet network devices, such as a hub, switch, or

router.

Power The Power port is where you will connect the power

adapter.

Reset Button There are two ways to reset the Access Point’s factory

defaults. Briefly press the Reset Button for approximately

ten seconds, or use the Password tab of the Access Point’s

Web-based Utility.

Power Red. The Power LED lights up when the Access Point is

powered on.

ACT Green. If the LED is flickering, the Access Point is actively

sending or receiving data to or from one of the devices on the

wireless network.

LINK Orange. The LINK LED serves two purposes. If the LED is

continuously lit up, the Access Point is successfully connect-

ed to a device through the LAN port. If the LED is flicker-

ing, it is an indication of any wired network activity.

The Wireless Network Access Point’s LEDs

Figure 3-2

The Wireless Network Access Point’s Ports

Figure 3-1

Important: Resetting the Access Point will erase all of your settings

(WEP Encryption, Wireless, and LAN settings, etc.) and replace

them with the factory defaults.

Wireless Network Access Point

Chapter 5: Setting Up the

Wireless Network Access Point

Now that you’ve connected the Access Point to your wired network, you are

ready to begin setting it up. This Setup Wizard will take you through all the

steps necessary to get the Access Point connecting your wireless network to

your wired network and communicating more efficiently.

1. Insert the Setup Wizard CD into your PC’s CD-ROM drive. Optimally, your

PC should be on your wired network.

2. The screen in Figure 5-1 should appear on your monitor. If it does not, this

means the autorun is not functioning. Start the autorun manually by click-

ing the Start button, selecting Run, and typing D:\setup.exe (if “D” is your

PC’s CD-ROM drive). Click the Setup button to run the Setup Wizard.

Clicking the User Guide button opened this User Guide. To access the

Linksys website on an active Internet connection, click the LINKSYS

WEB button, or to exit this Setup Wizard, click the Exit button.

Instant Wireless

Series

Chapter 4: Connecting the

Wireless Network Access Point

1. Locate an optimum location for the Access Point. The best place for the

Access Point is usually at the center of your wireless network, with line of

sight to all of your mobile stations.

2. Fix the direction of the antenna. Try to place it in a position which can best

cover your wireless network. Normally, the higher you place the antenna,

the better the performance will be. The antenna’s position enhances the

receiving sensitivity. Both antennas should be perpendicular to the ground

and parallel to each other.

3. Connect the included Category 5 Ethernet network cable to the Access

Point. Then, connect the other end of the Ethernet cable to a switch or hub.

The Access Point will then be connected to your 10/100 network.

4. Connect the AC power adapter to the Access Point’s Power port. Only use

the power adapter supplied with the Access Point. Use of a different adapter

may result in product damage.

Now that the hardware installation is complete, proceed to “Chapter 5: Setting

Up the Wireless Network Access Point” for directions on how to set up the

Access Point.

Have You: Connected the Access Point to a hub, switch, or router

on your wired network as shown in “Chapter 4: Connecting the

Wireless Network Access Point”?

Note: While the Access Point has been designed to work correctly

right out of the box, setting it up on a wireless computer will

require you to use the Linksys default settings. These settings can

then be changed through the Web-based Utility.

Note: In order for all other wireless devices to communicate with

the Access Point, those devices must be operating in the infrastruc-

ture mode. If any wireless devices are configured in the ad-hoc

mode, they will not be recognized by the Access Point.

Wireless Network Access Point

4. The next screen to appear, shown in Figure 5-3, will display a list of access

points on your network, along with the status information for each access

point. If there is only one access point on your network, it will be the only

one displayed. If there are more than one displayed, select the Access Point

by clicking on it, and click the Yes button to continue or No to exit the Setup

Wizard.

5. On the Enter Network Password screen, enter the default password, admin,

in the Password field. Then click the OK button. For added security,

remember to change this password later through the Web-based Utility’s

Password screen.

Figure 5-3

Instant Wireless

Series

3. You can configure the Access Point through any PC connected to your

Ethernet network. Make sure the Access Point is connected to one of your

network switches or hubs. Click the Next button to continue or Exit to exit

the Setup Wizard.

Figure 5-2

Figure 5-1

Figure 5-4

Wireless Network Access Point

7. As shown in Figure 5-6, the Basic Settings screen will now appear. Enter

your wireless network’s SSID, and select the channel at which the network

broadcasts its wireless signal. Then, click the Next button to continue or

Back to return to the previous page.

• SSID. The SSID is the unique name shared among all points in a wireless

network. The SSID must be identical for all points in the wireless net-

work. It is case-sensitive and must not exceed 32 characters, which may

be any keyboard character. Make sure this setting is the same for all

points in your wireless network.

• Channel. Select the appropriate channel from the list provided to corre-

spond with your network settings, between 1 and 11 (in North America).

All points in your wireless network must use the same channel in order

to function correctly.

Instant Wireless

Series

6. As shown in Figure 5-5, the IP Settings screen will appear next. Enter an IP

Address and Subnet Mask appropriate to your network. Then enter a unique

name in the AP Name field. Click the Next button to continue or Back to return

to the previous page.

• IP Address. This IP address must be unique to your network. (The

default IP address is 192.168.1.251.) As this is a private IP address, there

is no need to purchase a separate IP address from your service provider.

• Subnet Mask. The Access Point’s Subnet Mask must be the same as your

Ethernet network.

• AP Name. You may assign any name to the Access Point. Unique, mem-

orable names are helpful, especially if you are using multiple access

points on the same wireless network.

Figure 5-6

Figure 5-5

Wireless Network Access Point

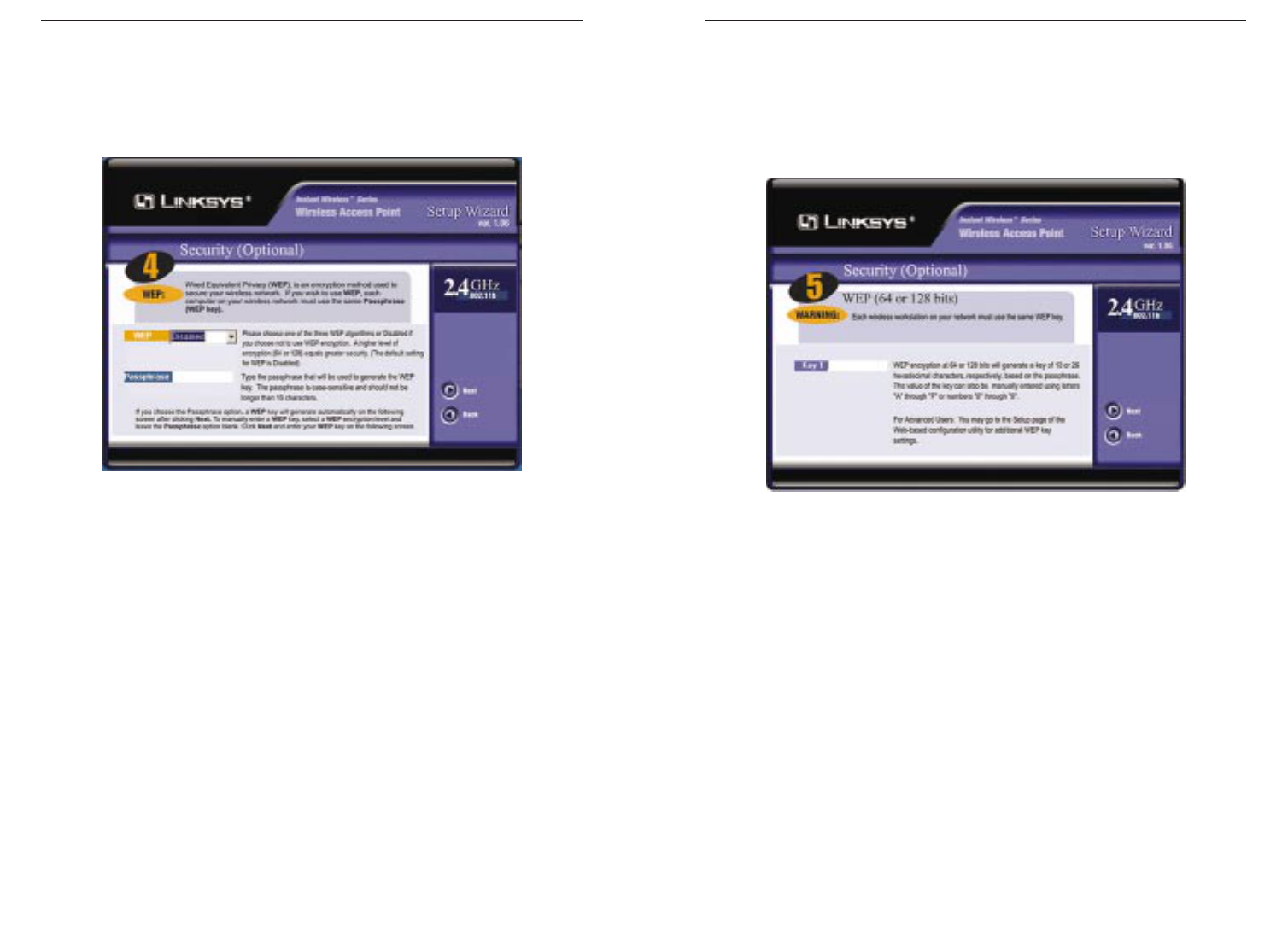

9. The second Security Settings screen, shown in Figure 5-8, shows the WEP

key. If you entered a passphrase, then the Key 1 field will display the auto-

matically generated WEP key. If you did not enter a passphrase, then enter

a WEP key in the Key 1 field. Each point in your wireless network must use

the same WEP key for the network to function properly. Click the Next but-

ton to continue or Back to return to the previous page.

• Key 1. WEP keys enable you to create an encryption scheme for wire-

less LAN transmissions. If the WEP key hasn’t been automatically gen-

erated, then manually enter a set of values. (Do not leave the field blank,

and do not enter all zeroes. These are not valid key values.) If you are

using 64-bit WEP encryption, then each key must consist of exactly 10

hexadecimal characters in length. If you are using 128-bit WEP encryp-

tion, then each key must consist of exactly 26 hexadecimal characters in

length. Valid hexadecimal characters are “0”-“9” and “A”-“F”.

Instant Wireless

Series

8. The Security Settings screen (Figure 5-7) will appear next. From this

screen, you will set the Wired Equivalent Privacy (WEP) encryption for

your wireless network. Select a WEP configuration method and a

passphrase. Click the Next button to continue or Back to return to the pre-

vious page.

• WEP (Disable/64-bit (10 hex digits)/128-bit 26 hex digits). In order to

utilize WEP encryption, select the WEP setting from the pull-down

menu, 64-bit (10 hex digits) or 128-bit (26 hex digits). If you do not

wish to utilize WEP encryption, make sure Disabled is selected. The

Access Point’s WEP encryption is unique to Linksys and may conflict

with other vendors’ WEP encryption.

• Passphrase. Instead of manually entering WEP keys, you can enter a

Passphrase. This Passphrase is used to generate one or more WEP keys.

It is case-sensitive and should not be longer than 16 alphanumeric char-

acters. (The Passphrase function is compatible with Linksys wireless

products only. If you want to communicate with non-Linksys wireless

products, you will need to enter your WEP keys manually on the non-

Linksys wireless products.)

Figure 5-8

Figure 5-7

Wireless Network Access Point

Instant Wireless

Series

10. The next screen (Figure 5-9) will allow you to review your settings. If these

settings are correct, click the Yes button to save these settings. If there are

any problems with the settings, click the No button to exit the Setup Wizard.

10. At this point, the configuration performed with the Setup Wizard is com-

plete, as shown in Figure 5-10. To configure any other access points in your

network, you can run this Setup Wizard again. Click the Exit button to exit

the Setup Wizard.

Chapter 6: Configuring the

Wireless Network Access Point

The Access Point has been designed to be functional right out of the box, with

the default settings in the Setup Wizard. However, if you’d like to change these

settings, the Access Point can be configured through your web browser with the

Web-based Utility. This chapter explains how to configure the Access Point in

this manner.

Open your web browser and type the

IP Address you entered in the Setup

Wizard (the default IP address is

192.168.1.251). Press the Enter key

and the following screen, shown in

Figure 6-1, will appear. Leave the

User Name field blank. The first time

you open the Web-based Utility, use

the default password admin. You can

set a new password on the Password

screen shown in Figure 6-7.

The first screen that appears, shown in Figure 6-2, is the Setup tab. This allows

you to change the Access Point’s general settings. Change these settings as

described here, and click the Apply button to apply your changes or Cancel to

cancel your changes. If you require online help, click the Help button.

• Firmware Version. This displays the current version of the Access Point’s

firmware. Firmware should only be upgraded if you experience problems

with the Access Point and can be upgraded from the Help tab.

• AP Name. You may assign any name to the Access Point. Unique, memo-

rable names are helpful, especially if you are employing multiple access

points on the same network. Verify this is the name you wish to use and

click the Apply button to set it.

Figure 6-1

The Setup Tab

Note: The Access Point is designed to function properly after

using the Setup Wizard. This chapter is provided solely for those

who wish to perform more advanced configuration or monitoring.

Figure 5-10

Figure 5-9

Wireless Network Access Point

Instant Wireless

Series

• SSID. The SSID is the unique name shared among all points in a wireless

network. The SSID must be identical for all points in the wireless network.

It is case-sensitive and must not exceed 32 alphanumeric characters, which

may be any keyboard character. Make sure this setting is the same for all

points in your wireless network.

• Channel. Select the appropriate channel from the list provided to corre-

spond with your network settings, between 1 and 11 (in North America). All

points in your wireless network must use the same channel in order to func-

tion correctly.

• WEP. The WEP Encryption method is set to Disable by default. To enable

WEP, click the Mandatory radio button, and then click the WEP Key

Setting button to configure the WEP settings.

SETTING WEP ENCRYPTION:

If the Disable radio button is

selected and you click the WEP

Key Setting button, then the screen

shown in Figure 6-3 will appear.

Click the OK button to enable

WEP encryption or Cancel to

return to the Setup screen.

Set WEP Encryption through the Web-based Utility by clicking the WEP Key

Setting button on the Setup screen as shown in Figure 6-2.

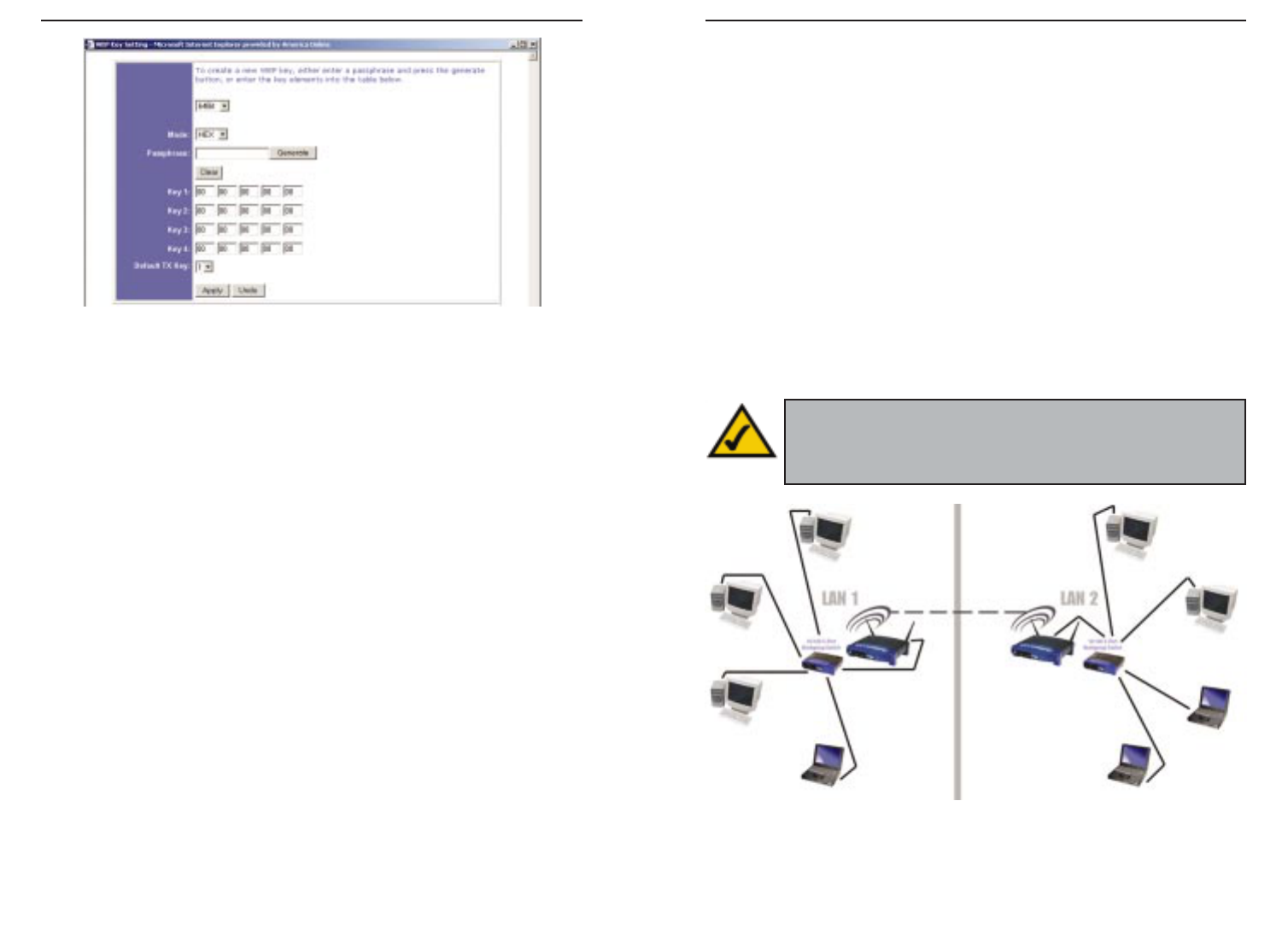

This will open the WEP Key Setting screen, Figure 6-4. From this screen, you

can select the type of WEP encryption to use and set the Passphrase for that

encryption.

From the pull-down menu at the top of the screen, select 64-bit or 128-bit WEP

encryption.

The Mode pull-down menu will allow you to set the Passphrase in hexadecimal

or ASCII characters. Hexadecimal characters on your keyboard are the letters

“A” through “F” and the numbers “0” through “9”, while ASCII characters are

any character on your keyboard.

Figure 6-3

Important: Always remember that each point in your wireless net-

work MUST use the same WEP encryption method and encryption

key, or else your wireless network will not function properly.

• Obtain an IP Address Automatically. Click this radio button to allow the

Access Point to obtain a dynamic IP address from a DHCP server.

• Specify an IP Address. This IP address must be unique to your network.

We suggest you use the default IP address of 192.168.1.251. As this is a pri-

vate IP address, there is no need to purchase a separate IP address from

your service provider. Verify the address and click the Apply button to save

changes.

• Subnet Mask. The Access Point’s Subnet Mask (or IP Mask) must be the

same as your Ethernet network. Verify this is correct and click the Apply

button to set it.

• Gateway. If you have assigned a static IP address to the Access Point, then

enter the IP address of your network’s Gateway, such as a router, in the

Gateway field. If your network does not have a Gateway, then leave this

field blank.

Figure 6-2

Wireless Network Access Point

Instant Wireless

Series

less clients. A separate network attached to the Access Point Client can then

be wirelessly bridged to the remote access point. Enter the required LAN

MAC address of the remote access point in the Remote AP MAC Address

field.

• Wireless Bridge - If you are trying to make a wireless connection between

two wired networks, as shown in Figure 6-5, select Wireless Bridge. This

mode connects two physically separated wired networks with two access

points.

To configure a Wireless Bridge environment, click Wireless Bridge and

enter the LAN MAC address of the remote access point in the Remote

Bridge MAC Address field. The remote access point also needs to be set up

as a Wireless Bridge.

Note: All devices on each wired network must be connected through a hub

or switch.

• Wireless Bridge Point to MultiPoint- If you are trying to make a wireless

connection between more than two wired networks, as shown in Figure 6-6,

Note: In Wireless Bridge mode, the Access Point can ONLY be

accessed by another access point in Wireless Bridge mode. In order

for your other wireless devices to access the Access Point, you must

reset it to Access Point mode. The two modes are mutually exclusive.

Figure 6-5

There are two ways to create WEP encryption keys. The first method is by typ-

ing a Passphrase into that field and clicking the Generate button. This will

generate WEP encryption keys based upon that passphrase. A second method

is to manually enter the WEP encryption keys in the available fields.

Click the Clear button to clear the Passphrase and Key 1-4 fields.

In the Default TX Key drop-down menu, select the number of the key you want

to use.

Click the Apply button to apply your changes, or click Undo to cancel your

most recent change.

SETTING THE AP MODE:

The Access Point offers four modes of operation: Access Point, Access Point

Client, Wireless Bridge, and Wireless Bridge Point to MultiPoint. For all bridg-

ing modes, make sure the channel, SSID, and WEP keys are the same.

• Access Point - The Operational Mode is set to Access Point by default.

This connects your wireless PCs to a wired network. In most cases, no

change is necessary.

• Access Point Client - When set to Access Point Client mode, the Access

Point Client is able to talk to one remote access point within its range. This

mode allows the Access Point Client to act as a client of a remote access

point. The Access Point Client cannot communicate directly with any wire-

Figure 6-4

Wireless Network Access Point

The Password tab, shown in Figure 6-7, allows you to change the Access Point’s

password and restore factory defaults.

Changing the password for the Access Point is as easy as typing the password

into the AP Password field. Then, type it again into the second field to confirm.

To restore the Access Point’s factory default settings, click the Yes button

beside Restore Factory Defaults.

Click the Apply button to apply your changes or Cancel to cancel your

changes. If you require online help, click the Help button.

Instant Wireless

Series

select Wireless Bridge Point to MultiPoint. This mode allows you to con-

struct a network that has multiple access points bridging wirelessly.

To configure a Wireless Bridge Point to MultiPoint environment, click

Wireless Bridge Point to MultiPoint for the access point used in LAN 1.

No MAC address binding is needed. Then, set the access points in LAN 2

and LAN 3 to Wireless Bridge, and have them look for the MAC address of

the access point in LAN 1.

Only one of the access points must be in Point to MultiPoint mode. For all

other bridged access points, select the Wireless Bridge option, and enter

the Remote LAN MAC Address of the Access Point set to Point to

MultiPoint.

• Backup and Restore. Clicking the Backup button will store the Access

Point’s configuration to your PC’s hard drive. You can restore this informa-

tion by clicking the Restore button.

Click the Apply button to apply your changes or Cancel to cancel your

changes. If you require online help, click the Help button.

The Password Tab

Important: Restoring the Access Point’s factory defaults will erase

all of your settings (WEP Encryption, Wireless and LAN settings,

etc.), replacing them with the factory defaults. Do not reset the

Access Point if you want to retain these settings

Note: Linksys recommends bridging no more than three remote

LANs in Wireless Bridge Point to MultiPoint mode. Bridging addi-

tional remote LANs will result in a significant decrease in bandwidth.

Figure 6-6

Figure 6-7

Wireless Network Access Point

• Gateway. This displays the IP address of your network’s Gateway.

• Send and Recv. The Send and Recv fields display the number of success-

ful or dropped packets that have been sent or received.

Wireless

• SSID. The unique name shared among all points in your wireless network

is displayed here.

• Encryption Function. The encryption method you chose in the Setup

Wizard or changed from the Setup tab of this Web-based Utility is displayed

here.

• Channel. The wireless channel shared by all wireless devices connected to

this Access Point is displayed here.

• Send and Recv. The Send and Recv fields display the number of success-

ful or dropped packets that have been sent or received. Some packet loss is

normal in wireless networking.

Instant Wireless

Series

The Status tab, shown in Figure 6-8, will display current information on the

Access Point, its settings, and its performance.

• Firmware Version. This displays the current version of the Access Point’s

firmware. Firmware should only be upgraded if you experience problems

with the Access Point and can be upgraded from the Help tab.

LAN

• IP Address. This IP address is the unique IP address of the Access Point.

• Subnet Mask. The Access Point’s Subnet Mask (also known as an IP

Mask), matches the Subnet Mask of your Ethernet network.

Figure 6-8

The Status Tab

Wireless Network Access Point

For help on the various tabs in this Web-based Utility, along with upgrading the

Access Point’s firmware and viewing this User Guide, click the Help tab,

shown in Figure 6-10.

The help files for the various tabs in this Web-based Utility are listed by tab

name on the lefthand side of the screen.

Click the Linksys Website link to connect to the Linksys homepage for

Knowledgebase help files and information about other Linksys products, pro-

vided you have an active Internet connection.

For an Online manual in PDF format, click that text link. The User Guide will

appear in Adobe pdf format. If you do not have the Adobe PDF Reader installed

on your computer, click the Adobe Website link or go to the Setup Wizard CD-

ROM to download this software. (To access the Adobe website, you will need an

active Internet connection.) To download from the CD-ROM, click the Start but-

ton and select Run. Type D:\Acrobat (if “D” is the letter of your CD-ROM drive).

Instant Wireless

Series

To view a log of the Access Point’s activity, select the Log tab, shown in Figure

6-9.

To enable permanent logging activity, click the Enable radio button beside

Access Log. The default setting for this function is Disable.

If you have chosen to monitor the Access Point’s traffic, then you can designate

a PC that will receive permanent log files periodically. In the Send Log to field,

enter the IP address of this PC. To view these permanent logs, you must use

Logviewer software, which can be downloaded free of charge from

www.linksys.com.

To see a temporary log of the Access Point’s most recent activities, click the

View Log button.

Click the Apply button to apply your changes or Cancel to cancel your

changes. If you require online help, click the Help button.

The Log Tab

Figure 6-9

The Help Tab

Figure 6-10

Wireless Network Access Point

Then, type the MAC Address(es) you wish to filter in the MAC Address fields.

When you’ve completed making any changes on this tab, click the Apply but-

ton to save those changes or Undo to cancel your changes. For more informa-

tion on this tab, click the Help button.

Instant Wireless

Series

New firmware versions are posted at www.linksys.com and can be downloaded

for free. If the Access Point is not experiencing difficulties, then there is no

need to download a more recent firmware version, unless that version has a

new feature that you want to use. Loading new firmware does not always

enhance the speed or quality of your Internet connection.

To upgrade the Access Point’s firmware:

1. Download the firmware upgrade file from the Linksys website.

2. Extract the firmware upgrade file.

3. Click the Upgrade Firmware button on the Help screen.

4. Enter the location of the firmware upgrade file in the File Path field, or

click the Browse button to find the firmware upgrade file.

5. Double-click the firmware upgrade file.

6. Click the Upgrade button, and follow the on-screen instructions.

Click the Cancel button to cancel the firmware upgrade.

To access the Filter tab, first click the Advanced tab. The Filter tab, shown in

Figure 6-11, allows you to control which computers may or may not commu-

nicate with the Access Point—depending on their MAC addresses.

To enable filtering of computers by their MAC Addresses, click the Enable

radio button. To disable this feature, click the Disable radio button.

Next, determine if the Access Point will deny access only to the MAC address-

es you will specify, OR if the Access Point will allow access only to the MAC

Addresses you will specify. Click the radio button next to the option that is

appropriate.

Above the MAC Address fields, there is a pull-down menu. This pull-down

menu is for selecting the number of computers on your wireless network. For

computers one through ten on your wireless network, 1~10 is selected by

default. If you have more than ten computers on your wireless network, use this

pull-down menu to select 11~20, 21~30, etc., up to a maximum of 50 MAC

Addresses.

Figure 6-11

The Filter Tab

Note: When you upgrade the Access Point’s firmware, you may

lose the Access Point’s current configuration settings.

Wireless Network Access Point

Instant Wireless

Series

Before making any changes to the Wireless tab, shown in Figure 6-12, please

check your wireless settings on your other systems, as these changes will alter

the effectiveness of the Access Point. In most cases, these wireless settings do

not need to be changed.

• Beacon Interval. This value indicates the frequency interval of the beacon.

A beacon is a packet broadcast by the Access Point to keep the network syn-

chronized. A beacon includes the wireless LAN service area, the AP

address, the Broadcast destination addresses, a time stamp, Delivery Traffic

Indicator Maps, and the Traffic Indicator Message (TIM).

• RTS Threshold. This value should remain at its default setting of 2346.

Should you encounter inconsistent data flow, only minor reductions are rec-

ommended.

• Fragmentation Threshold. This value specifies the maximum size for a

packet before data is fragmented into multiple packets. It should remain at

its default setting of 2346. A smaller setting means smaller packets, which

will create more packets for each transmission. Only minor reductions of

this value are recommended.

• DTIM Interval. This value indicates the interval of the Delivery Traffic

Indication Message (DTIM). A DTIM field is a countdown field informing

clients of the next window for listening to broadcast and multicast mes-

sages. When the Access Point has buffered broadcast or multicast messages

for associated clients, it sends the next DTIM with a DTIM Interval value.

Access Point Clients hear the beacons and awaken to receive the broadcast

and multicast messages.

• Basic Rates. The basic rate is the minimum speed at which a wireless client

is allowed to connect to the Access Point.

• Transmission Rates.The transmission rates should be set depending on the

speed of your wireless network. You must select 1-2 (Mbps) if you have

older 802.11 compliant equipment on your network, such as wireless

adapters that support only 1 or 2 Mbps. Selecting 1-2 (Mbps), however,

does NOT limit the transmission rates of faster adapters.

• Preamble Type. The preamble defines the length of the CRC block for

communication between the Access Point and a roaming wireless network

adapter. (High network traffic areas should use the shorter preamble type.)

Select the appropriate preamble type and click the Apply button to set it.

All wireless points (nodes) on your network should use the same preamble

type.

• Authentication Type. You may choose between Open System, Shared

Key, and Both. The Authentication Type default is set to Open System.

Shared Key is when both the sender and the recipient share a secret key. All

points on your network must use the same authentication type. It is recom-

mended that you use the default setting.

• Antenna Selection. This selection is for choosing which antenna transmits

data. By default, the Diversity Antenna selection, used to increase recep-

tion, is chosen.

The Wireless Tab

Figure 6-12

Wireless Network Access Point

Instant Wireless

Series

• SSID Broadcast. For security purposes, this selection can be disabled,

allowing only those wireless network adapters with the Access Point’s SSID

to communicate with the Access Point. By default, this selection is enabled,

allowing all wireless network adapters in your wireless network to commu-

nicate with the Access Point.

When you’ve completed making any changes on this tab, click the Apply but-

ton to save those changes or Cancel to cancel your changes. For more infor-

mation on this tab, you can click the Help button.

Appendix A: Troubleshooting

This chapter provides a list of questions and answers regarding the operation of

the Access Point. Read the description below to solve your problems. If you

can’t find an answer here, check the Linksys website at www.linksys.com.

Can the Access Point act as my DHCP Server?

No. The Access Point is nothing more than a wireless hub, and as such, cannot

be configured to handle DHCP capabilities.

Can I run an application from a remote computer over the wireless network?

This will depend on whether or not the application is designed to be used over

a network. Consult the application’s user guide to determine if it supports oper-

ation over a network.

Can I play multiplayer games with other users of the wireless network?

Yes, as long as the game supports multiple players over a LAN (local area net-

work). Refer to the game’s user guide for more information.

What is the IEEE 802.11b standard?

It is one of the IEEE standards for wireless networks. The 802.11b standard

allows wireless networking hardware from different manufacturers to commu-

nicate, provided that the hardware complies with the 802.11b standard. The

802.11b standard states a maximum data transfer rate of 11Mbps and an oper-

ating frequency of 2.4GHz.

What IEEE 802.11b features are supported?

The product supports the following IEEE 802.11 functions:

• CSMA/CA plus Acknowledge protocol

• Multi-Channel Roaming

• Automatic Rate Selection

• RTS/CTS feature

• Fragmentation

• Power Management

What is ad-hoc mode?

When a wireless network is set to ad-hoc mode, the wireless-equipped com-

puters are configured to communicate directly with each other. The ad-hoc

wireless network will not communicate with any wired network.

Frequently Asked Questions

Important: The Access Point will not be recognized by “site-sur-

vey” utilities, such as the Microsoft®Windows®XP Zero

Configuration Utility, if SSID Broadcast is disabled.

Wireless Network Access Point

What is Spread Spectrum?

Spread Spectrum technology is a wideband radio frequency technique devel-

oped by the military for use in reliable, secure, mission-critical communica-

tions systems. It is designed to trade off bandwidth efficiency for reliability,

integrity, and security. In other words, more bandwidth is consumed than in the

case of narrowband transmission, but the trade-off produces a signal that is, in

effect, louder and thus easier to detect, provided that the receiver knows the

parameters of the spread-spectrum signal being broadcast. If a receiver is not

tuned to the right frequency, a spread-spectrum signal looks like background

noise. There are two main alternatives, Direct Sequence Spread Spectrum

(DSSS) and Frequency Hopping Spread Spectrum (FHSS).

What is DSSS? What is FHSS? And what are their differences?

Frequency Hopping Spread Spectrum (FHSS) uses a narrowband carrier that

changes frequency in a pattern that is known to both transmitter and receiver.

Properly synchronized, the net effect is to maintain a single logical channel. To

an unintended receiver, FHSS appears to be short-duration impulse noise.

Direct Sequence Spread Spectrum (DSSS) generates a redundant bit pattern for

each bit to be transmitted. This bit pattern is called a chip (or chipping code).

The longer the chip, the greater the probability that the original data can be

recovered. Even if one or more bits in the chip are damaged during transmis-

sion, statistical techniques embedded in the radio can recover the original data

without the need for retransmission. To an unintended receiver, DSSS appears

as low power wideband noise and is rejected (ignored) by most narrowband

receivers.

Would the information be intercepted while transmitting on air?

Instant Wireless products feature two-fold protection in security. On the hard-

ware side, as with Direct Sequence Spread Spectrum technology, it has the

inherent security feature of scrambling. On the software side, Instant Wireless

products offer the encryption function (WEP) to enhance security and access

control. Users can set it up depending upon their needs.

Can Instant Wireless products support file and printer sharing?

Instant Wireless products perform the same function as LAN products.

Therefore, Instant Wireless products can work with NetWare, Windows

NT/2000, or other LAN operating systems to support printer or file sharing.

What is WEP?

WEP is Wired Equivalent Privacy, a data privacy mechanism based on a 40/64

bit shared key algorithm, as described in the IEEE 802.11 standard.

Instant Wireless

Series

What is infrastructure mode?

When a wireless network is set to infrastructure mode, the wireless network is

configured to communicate with a wired network through a wireless access

point.

What is roaming?

Roaming is the ability of a portable computer user to communicate continu-

ously while moving freely throughout an area greater than that covered by a

single wireless network access point. Before using the roaming function, the

workstation must make sure that it is the same channel number as the wireless

network access point of the dedicated coverage area.

To achieve true seamless connectivity, the wireless LAN must incorporate a

number of different functions. Each node and wireless network access point,

for example, must always acknowledge receipt of each message. Each node

must maintain contact with the wireless network even when not actually trans-

mitting data. Achieving these functions simultaneously requires a dynamic RF

networking technology that links wireless network access points and nodes. In

such a system, the user’s end node undertakes a search for the best possible

access to the system. First, it evaluates such factors as signal strength and qual-

ity, as well as the message load currently being carried by each wireless net-

work access point and the distance of each wireless network access point to the

wired backbone. Based on that information, the node next selects the right

wireless network access point and registers its address. Communications

between end node and host computer can then be transmitted up and down the

backbone.

As the user moves on, the end node’s RF transmitter regularly checks the sys-

tem to determine whether it is in touch with the original wireless network

access point or whether it should seek a new one. When a node no longer

receives acknowledgment from its original wireless network access point, it

undertakes a new search. Upon finding a new wireless network access point, it

then re-registers, and the communication process continues.

What is ISM band?

The FCC and their counterparts outside of the U.S. have set aside bandwidth

for unlicensed use in the ISM (Industrial, Scientific and Medical) band.

Spectrum in the vicinity of 2.4 GHz, in particular, is being made available

worldwide. This presents a truly revolutionary opportunity to place convenient

high speed wireless capabilities in the hands of users around the globe.

Wireless Network Access Point

Instant Wireless

Series

What is a MAC Address?

The Media Access Control (MAC) address is a unique number assigned by the

manufacturer to any Ethernet networking device, such as a network adapter,

that allows the network to identify it at the hardware level. For all practical pur-

poses, this number is usually permanent. Unlike IP addresses, which can

change every time a computer logs on to the network, the MAC address of a

device stays the same, making it a valuable identifier for the network.

Appendix B: Setting Up the TCP/IP

Protocol

Before a computer can communicate with the Access Point, it must be config-

ured with the TCP/IP protocol. If you know how to set up TCP/IP on your com-

puters, do so now. Otherwise, use the guidelines below to help get TCP/IP

installed on all of the computers that need to communicate with the Access

Point. If you are unable to successfully install TCP/IP on one or more comput-

ers after following the directions, contact the manufacturer of your computer’s

network operating system for further assistance. Check with your network

administrator for your TCP/IP settings.

The directions below provide general guidelines for coming up with IP address-

es and subnet masks. Check with your network administrator to see if you need

to use specific IP addresses or DHCP settings.

First, each computer on the network will require an IP address, which is a series

of numbers, separated by periods, identifying the PC on the network. To make

things simple, it is recommended you use the following numbering scheme:

192.168.1.X

In this example, X is a unique, arbitrarily assigned number from 1 to 254. Each

computer must have its own unique X number. Note: Never use 0 or 255 for X.

These numbers are reserved by TCP/IP for other uses.

For example, if you have three computers, you could number them as follows:

192.168.1.17

192.168.1.44

192.168.1.126

In this case, 17, 44, and 126 are arbitrary numbers between 1 and 254.

Each computer will also require a subnet mask, which is a numerical “filter”

that tells a computer what kinds of TCP/IP data packets to accept. If you’re not

sure which mask to use, the following mask is recommended:

255.255.255.0

Setting Up TCP/IP in Windows

Wireless Network Access Point

1. At the Windows 2000 desktop, right-click My Network Places. Then,

right-click Local Area Connection. Choose Properties.

2. If the TCP/IP Protocol is listed for your network adapter, go to step five.

Otherwise, click the Install button.

3. When the Component Type window appears, select Protocol, and click the

Install button.

4. Select Internet Protocol (TCP/IP) from the list, and click the OK button.

5. When the Network window reappears, select TCP/IP, and click the

Properties button.

6. Select Use the following IP Address.

7. Enter an IP Address for the computer, along with a Subnet Mask and

Default Gateway. Then, click the OK button. If you do not have these val-

ues, consult your network administrator.

8. When the Network window reappears, click the OK button. Restart your

computer. TCP/IP has now been successfully installed.

Instant Wireless

Series

The following instructions are provided as examples for reference only. For

complete instructions on installing and troubleshooting TCP/IP, consult your

Windows operating system documentation.

1. Click the Start button, and select Settings. Open the Control Panel. Inside

the Control Panel, double-click the Network icon.

2. If the TCP/IP Protocol is listed for your network adapter, go to step five.

Otherwise, click the Add button.

3. When the Component Type window appears, select Protocol, and click the

Add button.

4. Select Microsoft in the Manufacturers list and choose TCP/IP in the

Network Protocols list. Then, click the OK button.

5. When the Network window reappears, click TCP/IP, and then click the

Properties button.

6. Select Specify an IP Address.

7. Enter an IP Address for the computer, along with a Subnet Mask. Click the

OK button. If you do not have these values, consult your network adminis-

trator.

8. When the Network window reappears, click the OK button. Restart your

machine. TCP/IP has now been successfully installed.

TCP/IP Setup for Windows 2000

TCP/IP Setup for Windows 98 and Millennium

Wireless Network Access Point

Instant Wireless

Series

1. At the Windows XP desktop, click Start. Then click the Control Panel

icon. Click Network and Internet Connections. Click Network

Connections. Then double-click the appropriate Local Area Connection,

and click the Properties button.

2. If the TCP/IP Protocol is listed for your network adapter, go to step five.

Otherwise, click the Install button.

3. Select Protocol, and then click the Add button.

4. Select Internet Protocol (TCP/IP) from the list, and click the OK button.

5. Select TCP/IP, and click the Properties button.

6. Select Use the following IP Address.

7. Enter an IP address for the computer, along with a Subnet mask and Default

gateway address. Then, click the OK button. If you do not have these val-

ues, consult your network administrator.

8. When you’re finished, click the Close button. Restart your computer.

TCP/IP has now been successfully installed.

Appendix C: Glossary

Adapter - Printed circuit board that plugs into a PC to add to capabilities or

connectivity to a PC. In a networked environment, a network interface card is

the typical adapter that allows the PC or server to connect to the intranet and/or

Internet.

Ad-hoc Network - An ad-hoc network is a group of computers, each with a

wireless adapter, connected as an independent 802.11 wireless LAN. Ad-hoc

wireless computers operate on a peer-to-peer basis, communicating directly

with each other without the use of an access point. Ad-hoc mode is also

referred to as an Independent Basic Service Set (IBSS) or as peer-to-peer

mode, and is useful at a departmental scale or SOHO operation.

Backbone - The part of a network that connects most of the systems and net-

works together and handles the most data.

Bandwidth - The transmission capacity of a given facility, in terms of how

much data the facility can transmit in a fixed amount of time; expressed in bits

per second (bps).

Beacon Interval - A beacon is a packet broadcast by the Access Point to keep

the network synchronized. A beacon includes the wireless LAN service area,

the AP address, the Broadcast destination addresses, a time stamp, Delivery

Traffic Indicator Maps, and the Traffic Indicator Message (TIM).

Bit - A binary digit. The value - 0 or 1-used in the binary numbering system.

Also, the smallest form of data.

Browser - A browser is an application program that provides a way to look at

and interact with all the information on the World Wide Web or PC. The word

“browser” seems to have originated prior to the Web as a generic term for user

interfaces that let you browse text files online.

BSS (Basic Service Set) - An infrastructure network connecting wireless

devices to a wired network using a single access point.

Buffer - A buffer is a shared or assigned memory area used by hardware

devices or program processes that operate at different speeds or with different

sets of priorities. The buffer allows each device or process to operate without

TCP/IP Setup for Windows XP

Wireless Network Access Point

Instant Wireless

Series

DHCP supports static addresses for computers containing Web servers that

need a permanent IP address.

Download - To receive a file transmitted over a network. In a communications

session, download means receive, upload means transmit.

Driver - A workstation or server software module that provides an interface

between a device and the upper-layer protocol software running in the comput-

er; it is designed for a specific device, and is installed during the initial instal-

lation of a network-compatible client or server operating system.

DSSS (Direct-Sequence Spread-Spectrum) - DSSS generates a redundant bit

pattern for all transmitted data. This bit pattern is called a chip (or chipping

code). Even if one or more bits in the chip are damaged during transmission,

statistical techniques embedded in the receiver can recover the original data

without the need for retransmission. To an unintended receiver, DSSS appears

as low power wideband noise and is rejected (ignored) by most narrowband

receivers. However, to an intended receiver (i.e. another wireless LAN end-

point), the DSSS signal is recognized as the only valid signal, and interference

is inherently rejected (ignored).

DTIM (Delivery Traffic Indication Message) - A DTIM field is a countdown

field informing clients of the next window for listening to broadcast and mul-

ticast messages. When the AP has buffered broadcast or multicast messages for

associated clients, it sends the next DTIM with a DTIM Interval value. AP

Clients hear the beacons and awaken to receive the broadcast and multicast

messages.

Dynamic IP Address - An IP address that is automatically assigned to a client

station in a TCP/IP network, typically by a DHCP server. Network devices that

serve multiple users, such as servers and printers, are usually assigned static IP

addresses.

Encryption - A security method that applies a specific algorithm to data in

order to alter the data's appearance and prevent other devices from reading the

information.

ESS (Extended Service Set) - A set of more than two or more BSSs (multiple

access points) forming a single network.

Ethernet - IEEE standard network protocol that specifies how data is placed

on and retrieved from a common transmission medium. Has a transfer rate of

being held up by the other. In order for a buffer to be effective, the size of the

buffer and the algorithms for moving data into and out of the buffer need to be

considered by the buffer designer. Like a cache, a buffer is a "midpoint holding

place” but exists not so much to accelerate the speed of an activity as to sup-

port the coordination of separate activities.

CSMA/CA (Carrier Sense Multiple Access/Collision Avoidance) - In local

area networking, this is the CSMA technique that combines slotted time-divi-

sion multiplexing with carrier sense multiple access/collision detection

(CSMA/CD) to avoid having collisions occur a second time. This works best if

the time allocated is short compared to packet length and if the number of sit-

uations is small.

CSMA/CD (Carrier Sense Multiple Access/Collision Detection) - The LAN

access method used in Ethernet. When a device wants to gain access to the net-

work, it checks to see if the network is quiet (senses the carrier). If it is not, it

waits a random amount of time before retrying. If the network is quiet and two

devices access the line at exactly the same time, their signals collide. When the

collision is detected, they both back off and each wait a random amount of time

before retrying.

Database - A database is a collection of data that is organized so that its con-

tents can easily be accessed, managed, and updated.

DHCP (Dynamic Host Configuration Protocol) - A protocol that lets network

administrators manage centrally and automate the assignment of Internet

Protocol (IP) addresses in an organization's network. Using the Internet's set of

protocol (TCP/IP), each machine that can connect to the Internet needs a

unique IP address. When an organization sets up its computer users with a con-

nection to the Internet, an IP address must be assigned to each machine.

Without DHCP, the IP address must be entered manually at each computer and,

if computers move to another location in another part of the network, a new IP

address must be entered. DHCP lets a network administrator supervise and dis-

tribute IP addresses from a central point and automatically sends a new IP

address when a computer is plugged into a different place in the network.

DHCP uses the concept of a “lease” or amount of time that a given IP address

will be valid for a computer. The lease time can vary depending on how long a

user is likely to require the Internet connection at a particular location. It's espe-

cially useful in education and other environments where users change fre-

quently. Using very short leases, DHCP can dynamically reconfigure networks

in which there are more computers than there are available IP addresses.

Wireless Network Access Point

Instant Wireless

Series

Infrastructure Network - An infrastructure network is a group of computers

or other devices, each with a wireless adapter, connected as an 802.11 wireless

LAN. In infrastructure mode, the wireless devices communicate with each

other and to a wired network by first going through an access point. An infra-

structure wireless network connected to a wired network is referred to as a

Basic Service Set (BSS). A set of two or more BSS in a single network is

referred to as an Extended Service Set (ESS). Infrastructure mode is useful at

a corporation scale, or when it is necessary to connect the wired and wireless

networks.

IP Address - In the most widely installed level of the Internet Protocol

(Internet Protocol) today, an IP address is a 32-binary digit number that identi-

fies each sender or receiver of information that is sent in packet across the

Internet. When you request an HTML page or send e-mail, the Internet

Protocol part of TCP/IP includes your IP address in the message (actually, in

each of the packets if more than one is required) and sends it to the IP address

that is obtained by looking up the domain name in the Uniform Resource

Locator you requested or in the e-mail address you're sending a note to. At the

other end, the recipient can see the IP address of the Web page requestor or the

e-mail sender and can respond by sending another message using the IP address

it received.

ISM band - The FCC and their counterparts outside of the U.S. have set aside

bandwidth for unlicensed use in the ISM (Industrial, Scientific and Medical)

band. Spectrum in the vicinity of 2.4 GHz, in particular, is being made avail-

able worldwide. This presents a truly revolutionary opportunity to place con-

venient high-speed wireless capabilities in the hands of users around the globe.

LAN - A local area network (LAN) is a group of computers and associated

devices that share a common communications line and typically share the

resources of a single processor or server within a small geographic area (for

example, within an office building).

MAC (Media Access Control) Address - A unique number assigned by the

manufacturer to any Ethernet networking device, such as a network adapter,

that allows the network to identify it at the hardware level.

Mbps (MegaBits Per Second) - One million bits per second; unit of measure-

ment for data transmission.

Multicasting - Sending data to a group of nodes instead of a single destination.

10 Mbps. Forms the underlying transport vehicle used by several upper-level

protocols, including TCP/IP and XNS.

FHSS (Frequency Hopping Spread Spectrum) - FHSS continuously changes

the center frequency of a conventional carrier several times per second accord-

ing to a pseudo-random set of channels, while chirp spread spectrum changes

the carrier frequency. Because a fixed frequency is not used, illegal monitoring

of spread spectrum signals is extremely difficult, if not downright impossible

depending on the particular method.

Firmware - Code that is written onto read-only memory (ROM) or program-

mable read-only memory (PROM). Once firmware has been written onto the

ROM or PROM, it is retained even when the device is turned off.

Fragmentation - Breaking a packet into smaller units when transmitting over

a network medium that cannot support the original size of the packet.

Gateway - A device that interconnects networks with different, incompatible

communications protocols.

Hardware - Hardware is the physical aspect of computers, telecommunica-

tions, and other information technology devices. The term arose as a way to dis-

tinguish the “box” and the electronic circuitry and components of a computer

from the program you put in it to make it do things. The program came to be

known as the software.

Hub - The device that serves as the central location for attaching wires from

workstations. Can be passive, where there is no amplification of the signals; or

active, where the hubs are used like repeaters to provide an extension of the

cable that connects to a workstation.

IEEE (The Institute of Electrical and Electronics Engineers) - The IEEE

describes itself as “the world's largest technical professional society, promoting

the development and application of electrotechnology and allied sciences for

the benefit of humanity, the advancement of the profession, and the well-being

of our members.”

The IEEE fosters the development of standards that often become national and

international standards. The organization publishes a number of journals, has

many local chapters, and several large societies in special areas, such as the

IEEE Computer Society.

Wireless Network Access Point

Software - Instructions for the computer. A series of instructions that performs

a particular task is called a “program.” The two major categories of software are

“system software” and “application software.” System software is made up of

control programs such as the operating system and database management sys-

tem (DBMS). Application software is any program that processes data for the

user.

A common misconception is that software is data. It is not. Software tells the

hardware how to process the data.

SOHO (Small Office/Home Office) - Market segment of professionals who

work at home or in small offices.

Spread Spectrum - Spread Spectrum technology is a wideband radio frequen-

cy technique developed by the military for use in reliable, secure, mission-crit-

ical communications systems. It is designed to trade off bandwidth efficiency

for reliability, integrity, and security. In other words, more bandwidth is con-

sumed than in the case of narrowband transmission, but the trade off produces

a signal that is, in effect, louder and thus easier to detect, provided that the

receiver knows the parameters of the spread-spectrum signal being broadcast.

If a receiver is not tuned to the right frequency, a spread-spectrum signal looks

like background noise. There are two main alternatives, Direct Sequence

Spread Spectrum (DSSS) and Frequency Hopping Spread Spectrum (FHSS).

SSID (Service Set Identifier) - A unique name shared among all points in a

wireless network. The SSID must be identical for each point in the wireless

network and is case-sensitive. Also known as “ESSID.”

Static IP Address - A permanent IP address that is assigned to a node in an IP

or a TCP/IP network.

Subnet Mask - The method used for splitting IP networks into a series of sub-

groups, or subnets. The mask is a binary pattern that is matched up with the IP

address to turn part of the host ID address field into a field for subnets.

Switch - 1. A data switch connects computing devices to host computers,

allowing a large number of devices to share a limited number of ports. 2. A

device for making, breaking, or changing the connections in an electrical cir-

cuit.

TCP (Transmission Control Protocol) - A method (protocol) used along with

the IP (Internet Protocol) to send data in the form of message units (datagram)

Instant Wireless

Series

Network - A system that transmits any combination of voice, video and/or data

between users.

Node - A network junction or connection point, typically a computer or work

station.

Packet - A unit of data routed between an origin and a destination in a network.

Passphrase - Used much like a password, a passphrase simplifies the WEP

encryption process by automatically generating the WEP encryption keys for

Linksys products.

PC Card - A credit-card sized removable module that contains memory, I/O,

or a hard disk.

Port - A pathway into and out of the computer or a network device such as a

switch or router. For example, the serial and parallel ports on a personal com-

puter are external sockets for plugging in communications lines, modems and

printers.

RJ-45 (Registered Jack-45) - A connector similar to a telephone connector that

holds up to eight wires, used for connecting Ethernet devices.

Roaming - In an infrastructure mode wireless network, this refers to the abili-

ty to move out of one access point's range and into another and transparently

reassociate and reauthenticate to the new access point. This reassociation and

reauthentication should occur without user intervention and ideally without

interruption to network connectivity. A typical scenario would be a location

with multiple access points, where users can physically relocate from one area

to another and easily maintain connectivity.

Router - Protocol-dependent device that connects subnetworks together.

Routers are useful in breaking down a very large network into smaller subnet-

works; they introduce longer delays and typically have much lower throughput

rates than bridges.

RTS (Request To Send) - An RS-232 signal sent from the transmitting station

to the receiving station requesting permission to transmit.

Server - Any computer whose function in a network is to provide user access

to files, printing, communications, and other services.

Wireless Network Access Point

Appendix D: Specifications

Standards IEEE 802.3 (10BaseT), IEEE 802.3u (100BaseTX)

IEEE 802.11b (Wireless)

Channels 11 Channels (US, Canada)

13 Channels (Europe)

14 Channels (Japan)

Ports One 10/100 RJ-45 Port

Cabling Type UTP Category 5 or better

Data Rate Up to 11Mbps (Wireless), 10/100Mbps (Ethernet)

LEDs Power,Act, Link (Wired - Link/Activity)

Transmit 18 dBm

Receive Sensitivity -84 dBm

Modulation DSSS, BPSK, QPSK, CCK

Network Protocols TCP/IP

Instant Wireless

Series

between network devices over a LAN or WAN. While IP takes care of handling

the actual delivery of the data (routing), TCP takes care of keeping track of the

individual units of data (called packets) that a message is divided into for effi-

cient delivery over the network. TCP is known as a "connection oriented" pro-

tocol due to requiring the receiver of a packet to return an acknowledgment of

receipt to the sender of the packet resulting in transmission control.

TCP/IP (Transmission Control Protocol/Internet Protocol) - The basic com-

munication language or set of protocols for communications over a network

(developed specifically for the Internet). TCP/IP defines a suite or group of

protocols and not only TCP and IP.

Throughput - The amount of data moved successfully from one place to anoth-

er in a given time period.

Topology - A network's topology is a logical characterization of how the

devices on the network are connected and the distances between them. The

most common network devices include hubs, switches, routers, and gateways.

Most large networks contain several levels of interconnection, the most impor-

tant of which include edge connections, backbone connections, and wide-area

connections.

Upgrade - To replace existing software or firmware with a newer version.

Upload - To transmit a file over a network. In a communications session,

upload means transmit, download means receive.

UTP - Unshielded twisted pair is the most common kind of copper telephone

wiring. Twisted pair is the ordinary copper wire that connects home and many

business computers to the telephone company. To reduce crosstalk or electro-

magnetic induction between pairs of wires, two insulated copper wires are

twisted around each other. Each signal on twisted pair requires both wires.

Since some telephone sets or desktop locations require multiple connections,

twisted pair is sometimes installed in two or more pairs, all within a single

cable.

WEP (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-

bit, 128-bit, or 256-bit shared key algorithm, as described in the IEEE 802.11

standard.

Wireless Network Access Point

Instant Wireless

Series

Appendix E: Warranty

Information

BE SURE TO HAVE YOUR PROOF OF PURCHASE AND A BARCODE

FROM THE PRODUCT’S PACKAGING ON HAND WHEN CALLING.

RETURN REQUESTS CANNOT BE PROCESSED WITHOUT PROOF OF

PURCHASE.

IN NO EVENT SHALL LINKSYS’S LIABILITY EXCEED THE PRICE

PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCI-

DENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE

USE OF THE PRODUCT, ITS ACCOMPANYING SOFTWARE, OR ITS

DOCUMENTATION. LINKSYS DOES NOT OFFER REFUNDS FOR ANY

PRODUCT.

LINKSYS OFFERS CROSS SHIPMENTS, A FASTER PROCESS FOR PRO-

CESSING AND RECEIVING YOUR REPLACEMENT. LINKSYS PAYS

FOR UPS GROUND ONLY. ALL CUSTOMERS LOCATED OUTSIDE OF

THE UNITED STATES OF AMERICA AND CANADA SHALL BE HELD

RESPONSIBLE FOR SHIPPING AND HANDLING CHARGES. PLEASE

CALL LINKSYS FOR MORE DETAILS.

Dimensions 7.31" x 6.16" x 1.88" (186 mm x 154 mm x 48 mm)

Power 5V, 2.5 A

Certifications FCC Class B, CE Mark

Operating Temp. 0ºC to 40ºC (32ºF to 104ºF)

Storage Temp. 0ºC to 70ºC (-4ºF to 158ºF)

Operating Humidity 10% to 85%, Non-Condensing

Storage Humidity 5% to 90%, Non-Condensing

Environmental

Instant Wireless

Series

Appendix F: Contact Information

For help with the installation or operation of this product, contact Linksys

Technical Support at one of the phone numbers or Internet addresses below.

Sales Information 800-546-5797 (LINKSYS)

Technical Support 800-326-7114

RMA (Return Merchandise

Authorization) Issues www.linksys.com (or call 949-271-5461)

Fax 949-265-6655

E-mail support@linksys.com

Web http://www.linksys.com

FTP Site ftp.linksys.com

http://www.linksys.com
