Wireless Compact USB Adapter
Table of Contents
Chapter 1: Introduction 1
The Wireless Compact USB Adapter 1
Features 1
Package Contents 2
System Requirements 2
Chapter 2: Planning Your Wireless Network 3
Network Topology 3
Roaming 3
Chapter 3: About USB 5
Overview 5
USB Icon 5
USB Cabling 6
Chapter 4: Getting To Know the Wireless Compact
USB Adapter 7
The Wireless Compact USB Adapter’s Port and LEDs 7
Chapter 5: Software Installation and Configuration
for Windows 98SE, Me, and 2000 8
Overview 8
Instructions for Windows 98SE, Me, and 2000 9
Instant WirelessTM Series
Chapter 6: Connecting the Wireless Compact
USB Adapter 13
Hardware Detection for Windows 98SE, Me, and 2000 14
Chapter 7: Driver Installation and Configuration
for Windows XP 15
Overview 15
Driver Installation for Windows XP 15
Windows XP Wireless Zero Configuration 17
Chapter 8: Using the WLAN Monitor for
Windows 98SE, Me, and 2000 19
Overview 19
Starting the WLAN Monitor 19
Link Information 20
Site Survey 21
Profiles 23
Creating a New Profile 25
Using the Expert Mode 32
Appendix A: Troubleshooting 38
Common Problems and Solutions 38
Frequently Asked Questions 38
Instant Wireless™Series
Appendix B: Glossary 42
Appendix C: Specifications 47
Environmental 48
Appendix D: Warranty Information 49
Appendix E: Contact Information 50
Wireless Compact USB Adapter
Chapter 1:Introduction
Add your PC to your wireless network the easy way—with the Wireless
Compact USB Adapter. It’s so easy to install—simply connect the Compact
Adapter to your PC’s USB port, click open the antenna, and run the Linksys
Setup Wizard. Your PC is ready to share high-speed Internet access, files, and
printers through the network—without wires.
The Adapter’s compact design and hot-swappable flexibility are tremendous
advantages for notebook users. Take the pocket-sized Adapter wherever you go.
When you want to join a wireless network, install the Adapter on the fly—no
need to reboot. The Adapter draws power from the PC, so you don’t need an
external power supply.
Transfer data at speeds up to 11Mbps. Improved error correction keeps the
Adapter operating at higher transmission rates for longer distances. With the
Wireless Compact USB Adapter, you get the mobility of wireless networking
combined with the convenience of USB.
• Pocket-Sized Design and Convenient Neck Strap for Portability
• Compliant with USB 1.1 Specification
• Compliant with 802.11b, DSSS, 2.4GHz Standard
• High-Speed Data Transfer Rates up to 11Mbps with Automatic Fall-Back
• Plug-and-Play Compatibility with Windows 98SE, 2000, Millennium, and
XP
• Hot-swappable Flexibility for Instant Wireless Network Access
• Supports up to 128-bit WEP Encryption Security
• Uses Direct Sequence Spread Spectrum (DSSS) to Maintain Connectivity
• Integrated Equalizer Recovers Weak Signals and Enhances Sensitivity
• Clear Channel Assessment Increases Network Throughput
• Hardware Buffer Chaining Provides High Performance While Reading and
Writing Buffers
• Conveniently Powered by Host Computer
• Toll-Free Technical Support—24 Hours a Day, 7 Days a Week for U.S. Only
• 1-Year Limited Warranty
The Wireless Compact USB Adapter
Features
1
Wireless Compact USB Adapter
3
Chapter 2:Planning Your
Wireless Network
A wireless local area network (WLAN) is exactly like a regular local area net-
work (LAN), except that each computer in the WLAN uses a wireless device to
connect to the network. Computers in a WLAN share the same frequency
channel and SSID, which is an identification name for wireless devices.
The Wireless Compact USB Adapter provides access to a wired LAN for wire-
less computers.
Unlike wired networks, wireless networks have two different modes in which
they may be set up: infrastructure and ad-hoc. An infrastructure configura-
tion is a WLAN and wired LAN communicating to each other through an
access point. An ad-hoc configuration is wireless-equipped computers com-
municating directly with each other. Choosing between these two modes
depends on whether or not the wireless network needs to share data or periph-
erals with a wired network or not.
If the computers on the
wireless network need to
be accessed by a wired
network or need to share a
peripheral, such as a print-
er, with the wired network
computers, the wireless
network should be set up
in infrastructure mode.
(See Figure 2-1.) The
basis of infrastructure
mode centers around an
access point, which serves
as the main point of com-
munications in a wireless network. Access points transmit data to PCs
equipped with wireless network cards, which can roam within a certain radial
range of the access point. Multiple access points can be arranged to work in
succession to extend the roaming range, and can be set up to communicate with
your Ethernet (wired) hardware as well.
Network Topology
Ad-Hoc versus Infrastructure Mode
Figure 2-1
Instant Wireless™Series
2
• One Wireless Compact USB Adapter
• One USB Extension Cable
• One Neck Strap
• One Setup Wizard CD-ROM with User Guide
• One Quick Installation guide
• One Registration Card
One PC with the following:
• 90MHz or Higher CPU
• Minimum 32MB RAM
• Windows 98SE, Millennium, 2000, or XP
• Available USB Port
• CD-ROM Drive
System Requirements
Package Contents
Figure 1-1
Wireless Compact USB Adapter
5
Instant Wireless™Series
If the wireless network is relatively small and needs to share resources only
with the other computers on the wireless network, then the ad-hoc mode can
be used. (See Figure 2-2.) Ad-hoc mode allows computers equipped with wire-
less transmitters and receivers to communicate directly with each other, elimi-
nating the need for an access point. The drawback of this mode is that, in Ad-
Hoc mode, wireless-equipped computers are not able to communicate with
computers on a wired network. And, of course, communication between the
wireless-equipped computers is limited by the distance and interference direct-
ly between them.
4
Chapter 3:About USB
USB, which is short for Universal Serial Bus, is a technology designed to
make it easier to connect devices to computers. First developed in 1996 by a
group of computer industry leaders that included Compaq, Digital, IBM, Intel,
Microsoft, NEC, and Northern Telecom, USB is one of the most widely used
technologies for users who want to add peripherals to their computers.
USB is unique because it is Plug-and-Play, which allows a computer to instant-
ly recognize when a device like a keyboard, mouse, or scanner has been con-
nected to it. Once the device has been recognized, it’s ready to go—no special
setup is required. Similarly, USB supports hot-swapping, the insertion or
removal of devices while the computer is turned on. You can swap one device
for another without having to power down your system or install any special
software—it really is that easy.
The USB 1.1 standard supports two speed modes, 1.5 and up to 12Mbps.
The USB icon marks a USB port on a PC or device.
Figure 3-1
Overview
USB Icon
Figure 2-2
Wireless Compact USB Adapter
7
Instant Wireless™Series
6
Chapter 4: Getting to Know the
Wireless Compact USB Adapter
The USB Port
USB Port The USB Port connects to your PC’s USB port or the includ-
ed USB extension cable.
The LED Indicators
Power Green. The Power LED lights up when the Wireless
Compact USB Adapter is powered on.
Link Green. The Link LED lights up when the Adapter has an
active connection.
The Wireless Compact USB Adapter’s Port and LEDs
Figure 4-1
There are two kinds of USB connectors, Type A and Type B. Type A is a rec-
tangular connector, and Type B is a square connector.
The USB extension cable that comes with the Adapter has Type A connectors
on both ends. One is a male Type A connector that plugs into the PC’s USB
port, and the other is a female Type A connector that plugs into the Adapter.
Figure 3-4 shows two USB ports as they might appear on your
computer. Note the two USB icons marking the ports.
Figure 3-2
USB Cabling
Figure 3-4
USB Type A USB Type B
Male USB Type A Female USB Type A
Figure 3-3
Wireless Compact USB Adapter
9
Instant Wireless™Series
8

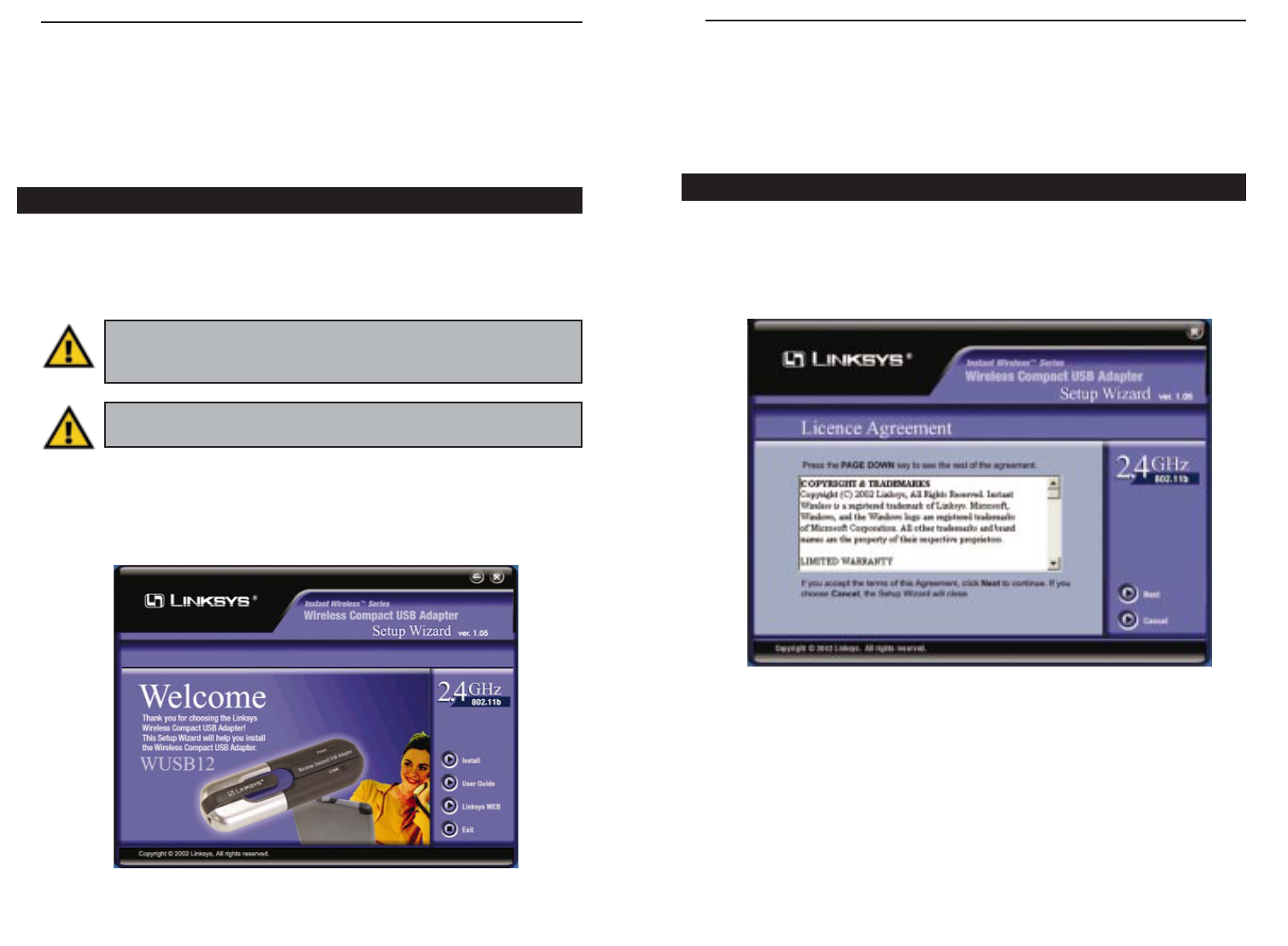

•Install - Click the Install button to begin the software installation process.
•User Guide - Click the User Guide button to open the PDF file of this User
Guide.
•LINKSYS Web - Click the LINKSYS Web button to access the Linksys
website using an active Internet connection.
•Exit - Click the Exit button to exit the Setup Wizard.
1. To install the Adapter, click the Install button on the Welcome screen.
2. After reading the License Agreement, click the Next button if you agree, or
click the Cancel button to end the installation.
Instructions for Windows 98SE, Me, and 2000
Figure 5-2
Chapter 5:Software Installation
and Configuration for Windows
98SE, Me, and 2000
The Wireless Compact USB Adapter Setup Wizard will guide you through the
installation procedure for Windows 98SE, Me, and 2000. The Setup Wizard
will install the WLAN Monitor and Device Driver, as well as configure the
Adapter.
Insert the Setup Wizard CD-ROM into your CD-ROM drive. The Setup
Wizard should run automatically, and Figure 5-1 should appear. If it does not,
click the Start button and choose Run. In the field that appears, enter
D:\setup.exe (where “D” is the letter of your CD-ROM drive).
Important for Windows 98SE, Me, and 2000 users: You must run
the Setup Wizard to install the software before installing the hardware.
Figure 5-1
Important for Windows XP users: Do NOT run the Wireless
Network Adapter Setup Wizard. Proceed directly to “Chapter 6:
Connecting the Wireless Compact USB Adapter.”
Overview
Wireless Compact USB Adapter
11
Instant Wireless™Series
10
4. If you chose Infrastructure Mode, go to Step 5 now. If you chose Ad-Hoc
Mode, select the correct operating channel for your network. The channel
you choose should match the channel set on the other devices in your wire-
less network. Click the Next button, and go to Step 5.
5. The Setup Wizard will ask you to review your settings before it starts to copy
files. Click the Next button to save these settings, or click the Back button
to change any settings.
Figure 5-5
3. The Setup Wizard will ask you to choose a wireless mode. Click the
Infrastructure Mode radio button if you want your wireless computers to
network with computers on your wired network using a wireless access
point. Click the Ad-Hoc Mode radio button if you want multiple wireless
computers to network directly with each other. Do not use the Ad-Hoc mode
if you want your wireless computers to communicate with computers on
your wired network.
In the SSID field, enter the SSID of your wireless network. The SSID must
be identical for all devices in the network. The default setting is linksys (all
lowercase). Click the Next button.
Figure 5-3
Figure 5-4
Wireless Compact USB Adapter
13
Chapter 6:Connecting the
Wireless Compact USB Adapter
1.Connect one end of the USBcable to the Adapter.
2.Connect the other end of the USBcable to the USB port on your computer.
Because the Adapter gets its power from the PC’s USB port, there is no exter-
nal power supply. The Power LED should light up when the Adapter is
plugged in and the PC is on.
3.To release the antenna, slide the blue bar in the direction of its arrow.
If your PC is running Windows 98SE,Me,or 2000,proceed to the next
section,“Hardware Detection for Windows 98SE,Me,and 2000.”
If your PC is running Windows XP,proceed to “Chapter 7:Driver
Installation and Configuration for Windows XP.”
Important for Windows 98,Me,and 2000 users:You must run the
Setup Wizard to install the software before installing the hardware.
Important for Windows XP users:You must install the Adapter’s
hardware before installing the software.
Figure 6-2
Figure 6-1
Important:Make sure the antenna is positioned straight up into the
air, at a 90º angle from the Adapter (see Figure 6-2). This will ensure
optimum wireless operating range and performance.
Instant Wireless™Series
12
6.After the files have been successfully copied, the screen in Figure 5-6 will
appear. Click the Exit button.
Proceed to “Chapter 6:Connecting the Wireless Compact USBAdapter.”
Figure 5-6
Wireless Compact USB Adapter
15
Instant Wireless™Series
After the Adapter has been physically connected to your computer, Windows
will detect the new hardware. For Windows 2000, you may be informed that a
digital signature has not been found (see Figure 6-3). This is normal, and it has
been verified that the Adapter does work with Windows 2000. Click the Yes
button to continue.
Windows will begin installing the driver files. If Windows asks you for the
original Windows CD-ROM, insert the CD-ROM, and direct Windows to the
proper location for the CD-ROM (e.g., D:\).
Congratulations! The installation of the Wireless Compact USB Adapter
is complete. If you want to check the link information, search for
available wireless networks, or make additional configuration changes,
proceed to “Chapter 8: Using the WLAN Monitor for Windows 98SE,
Me, and 2000.”
14
Chapter 7:Driver Installation and
Configuration for Windows XP
After connecting the Wireless Compact USB Adapter to your computer, you
will install the driver and configure the Adapter.
1. Windows XP will automatically detect the Adapter. Insert the Setup Wizard
CD into your CD-ROM drive. Click the radio button next to Install the soft-
ware automatically (Recommended). Then click the Next button.
Important for Windows XP users: Do NOT run the Wireless
Compact USB Adapter Setup Wizard. If the Setup Wizard runs auto-
matically after the Setup Wizard CD-ROM has been inserted, click the
Exit tab.
Figure 7-1
Overview
Driver Installation for Windows XP
Figure 6-3
Hardware Detection for Windows 98SE, Me, and 2000
Wireless Compact USB Adapter
17
Instant Wireless™Series
16
1. After installing the Adapter,
the Windows XP Wireless
Zero Configuration icon
will appear in your comput-
er’s system tray (see Figure
7-4). Double-click the icon.

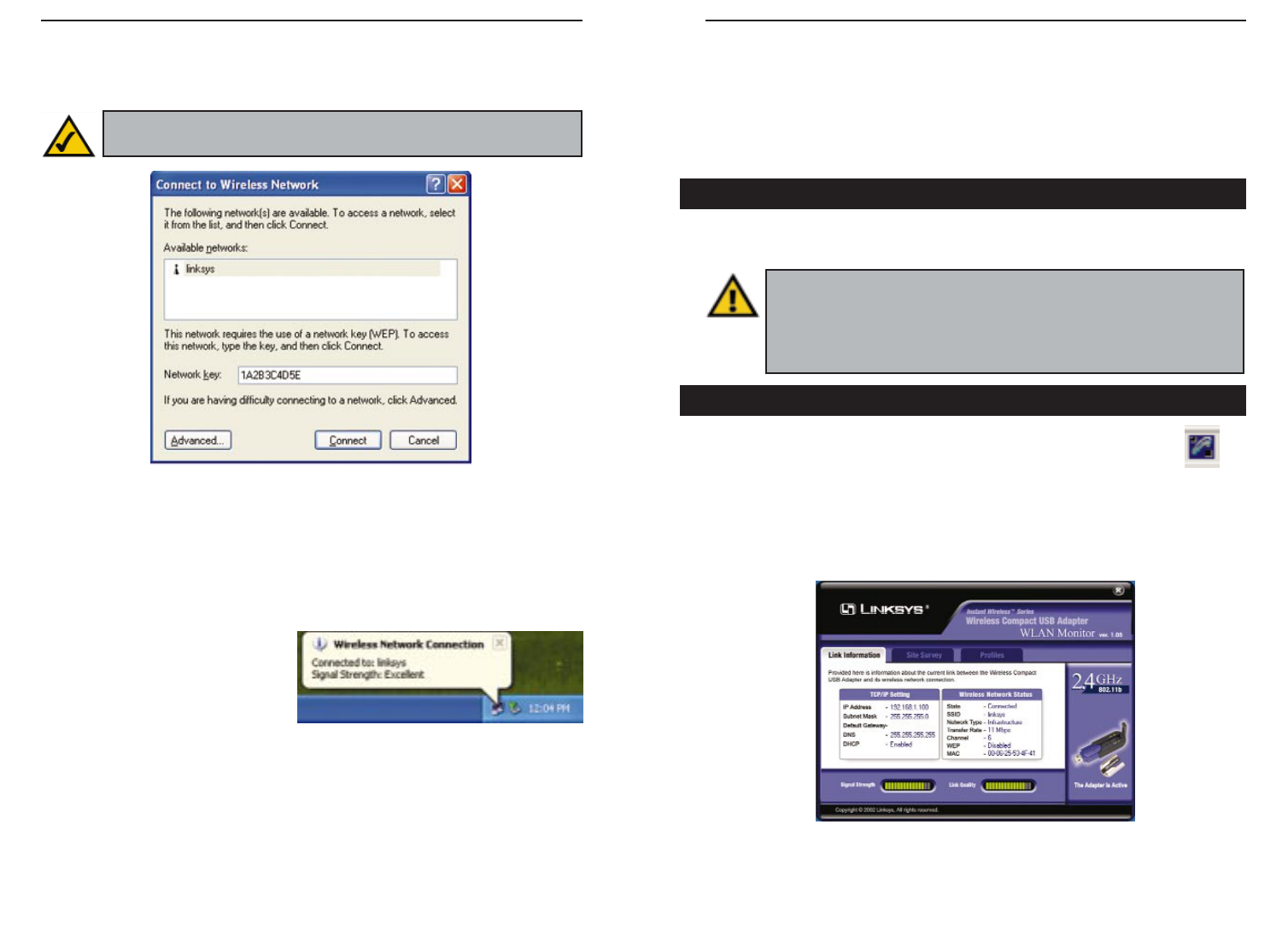

2. The screen that appears will show any available wireless network. Select a
network, and then click the Connect button.
Windows XP Wireless Zero Configuration
Important for Windows XP users: Windows XP has a built-in con-
figuration tool. Use the Windows XP Wireless Zero Configuration (in
the system tray at the bottom of your screen) to configure the Adapter.
Figure 7-4
Figure 7-5
2. Windows will notify you that the driver has not passed Windows Logo test-
ing. This is normal, and it has been verified that the Adapter does work with
Windows XP. Click the Continue Anyway button.
3. When Windows has finished installing the driver, click the Finish button.
You have now completed the driver installation for
the Wireless Compact USB Adapter. To configure the Adapter, proceed
to the next section, “Windows XP Wireless Zero Configuration.”
Figure 7-2
Figure 7-3
Wireless Compact USB Adapter
19
Instant Wireless™Series
18
Chapter 8:Using the WLAN
Monitor for Windows 98SE, Me,
and 2000
Use the WLAN Monitor to check the link information, search for available
wireless networks, or make additional configuration changes.
After installing the Adapter, the Wireless Compact USB Adapter
WLAN Monitor icon will appear in your system tray. Double-
click the icon (see Figure 8-1).
The Link Information screen will appear, displaying the settings for your cur-
rent wireless connection. To search for available wireless networks, click the
Site Survey tab. To perform configuration changes, click the Profiles tab.
Figure 8-1
Figure 8-2
Important for Windows XP users: Windows XP has a built-in con-
figuration tool. Use the Windows XP Wireless Zero Configuration
(in the system tray at the bottom of your screen) to configure the
Adapter. See “Chapter 7: Driver Installation and Configuration for
Windows XP.”
Starting the WLAN Monitor
Overview

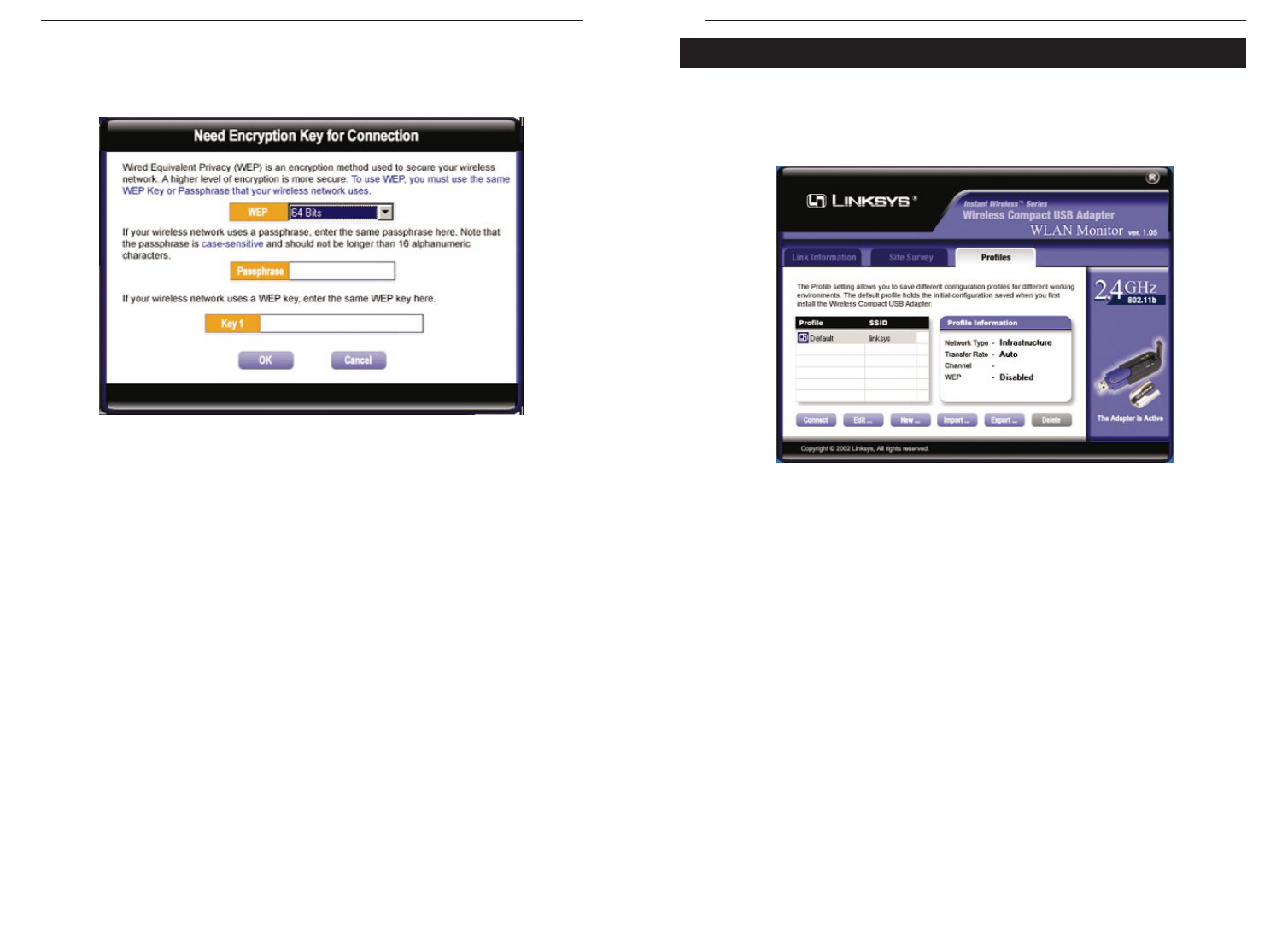

3. If your access point has WEP encryption enabled, the screen in Figure 7-6
will appear. Enter the WEP key of your wireless network in the Network key
field. Click the Connect button.
To find the WEP encryption key settings of the other wireless devices in
your network, such as the WAP11 Wireless Access Point, you may use any
device’s web-based utility to check the WEP encryption screen for the cor-
rect key entries. If you are using other manufacturers’ access points, refer
to their documentation for more information about WEP encryption.
4. The screen in Figure 7-7 will
appear if your connection is
active.
For more information about WEP,
refer to your access point’s user
guide, or visit www.linksys.com.
For more information about wireless networking on a Windows XP computer,
enter the keyword wireless in the Windows XP search engine.
Congratulations! The installation of the Wireless Compact USB Adapter
is complete.
Figure 7-6
Note: Windows XP does not support the use of a passphrase. Enter the
exact WEP key used by your access point.
Figure 7-7
Wireless Compact USB Adapter
21
Instant Wireless™Series
The Link Information screen shows you the settings of your current connection.
TCP/IP Setting
IP Address - The IP Address of the Adapter.
Subnet Mask - The Subnet Mask of the Adapter.
Default Gateway - The Default Gateway address of the Adapter.
DNS - The DNS address of the Adapter.
DHCP - The status of the DHCP client.
Wireless Network Status
State - The status of the wireless network connection.
SSID - The SSID of the wireless network.
Network Type - The wireless mode currently in use.
Transfer Rate - The data transfer rate of the current connection.
Channel - The channel to which the wireless network devices are set.
WEP - The status of the WEP encryption security feature.
MAC - The MAC address of the wireless network’s access point.
Signal Strength - The Signal Strength bar indicates signal strength, from 0 to
100%.
Link Quality - The Link Quality bar indicates the quality of the wireless net-
work connection, from 0 to 100%.
Click the X (Close) button in the upper right corner to exit the WLAN Monitor.
20
The Site Survey screen shows a list of wireless devices available for network
connection.
SSID - The SSID of the wireless network.
Signal - The percentage of signal strength, from 0 to 100%.
Site Information
Network Type - The wireless mode currently in use.
Channel - The channel to which the wireless network devices are set.
WEP - The status of the WEP encryption security feature.
MAC - The MAC address of the wireless network’s access point.
Surveyed at - The time at which the wireless network was scanned.
Refresh - Click the Refresh button to perform a new search for wireless
devices.
Figure 8-4
Site SurveyLink Information
Figure 8-3
Wireless Compact USB Adapter
The Profiles screen lets you save different configuration profiles for different
network setups. You can also import or export profiles. The default profile
holds the initial configuration saved when you first install the Adapter.
Profile - Name of the connection profile.
SSID - The wireless network’s SSID, as set in the connection profile.
Profile Information
Network Type - The wireless mode currently in use.
Transfer Rate - The data transfer rate of the current connection: 1Mbps,
2Mbps, 1 or 2Mbps, 5.5Mbps, 11Mbps, or Auto (in Auto mode, the Adapter
dynamically shifts to the fastest data transfer rate possible at any given time).
Channel - The channel to which the wireless network devices are set.
WEP - The status of the WEP encryption security feature.
Connect - To connect to a wireless network using a specific profile, select the
profile,and click the Connect button.
Edit - Select a profile, and click the Edit button to change an existing profile.
New - Click the New button to create a new profile. See the next section,
“Creating a New Profile.”
23
Figure 8-6
Profiles
Instant Wireless™Series
Connect - To connect to one of the networks on the list, select the wireless net-
work,and click the Connect button to connect. If the wireless network has
WEP encryption enabled, you will see the screen shown in Figure 8-5.
In the WEP drop-down box, select the type of WEP encryption used by the
wireless network: 64-bit or 128-bit WEP.
If the wireless network uses a passphrase, enter the passphrase in the
Passphrase field. If the wireless network uses a WEP key, enter the WEP key
in the Key 1 field.
Click the OK button to complete the network connection and return to the Site
Survey screen, or click the Cancel button to cancel the network connection and
return to the Site Survey screen.
On the Site Survey screen, click the X (Close) button in the upper right corner
to exit the WLAN Monitor.
22
Figure 8-5
Wireless Compact USB Adapter
There are two ways to create a new profile. You will be asked if you want to use
the Profile Wizard or Expert Mode. If you want to be guided through all the
steps, choose the Profile Wizard, and proceed to step 1. If you are an advanced
user knowledgeable about wireless networking, choose Expert Mode, and pro-
ceed to the next section, “Using Expert Mode.”
1. On the Profiles screen, click the New button to create a new profile.
2. Enter a name for the new profile.
3. Select Profile Wizard, and click the Next button.
25
Creating a New Profile
Figure 8-9
Figure 8-10
Instant Wireless™Series
Import - Click the Import button to import a profile that has been saved in
another location. Select the appropriate file, and click the Open button.
Export - To save the profile(s) in a different location, click the Export button.
Direct Windows to the appropriate folder, and click the OK button.
Delete - Click the Delete button to delete a profile.
Click the X (Close) button in the upper right corner to exit the WLAN Monitor.
24
Figure 8-7
Figure 8-8
Note: If you have more than one profile, all profiles will be automati-
cally selected and exported to the same folder.
Wireless Compact USB Adapter
27
Instant Wireless™Series
26
5. The Basic Settings screen will now appear. Enter your wireless network’s
SSID. Select the Transfer Rate to determine the speed(s) at which the
Adapter will send and receive data. Select the Channel at which the net-
work broadcasts its wireless signal (available only for Ad-Hoc Mode). Then
click the Next button to continue or the Back button to return to the previ-
ous screen.
SSID - The SSID is the unique name shared among all points in a wireless
network. The SSID must be identical for all points in the wireless network.
It is case-sensitive and must not exceed 32 characters (use any of the char-
acters on the keyboard). Make sure this setting is the same for all devices in
your wireless network.
Transfer Rate - Select the data transfer rate for your wireless connection.
Choose from 1Mbps, 2Mbps, 1 or 2Mbps, 5.5Mbps, 11Mbps, or Auto.
When you select Auto, the Adapter dynamically shifts to the fastest data
transfer rate possible at any given time.
Channel - From the drop-down box, select the appropriate channel that cor-
responds with your network settings. All devices in your wireless network
must use the same channel in order to function correctly.
Figure 8-12
4. The Choose a network type screen shows a choice of two wireless modes.
Click the Infrastructure Mode radio button if you want your wireless
computers to communicate with computers on your wired network via a
wireless access point. Click the Ad-Hoc Mode radio button if you want
multiple wireless computers to communicate directly with each other.
Click the Next button to continue or the Back button to return to the previ-
ous screen.
Infrastructure Mode - This mode allows wireless and wired networks to
communicate through an access point.
Ad-Hoc Mode - This mode allows wireless-equipped computers to com-
municate directly with each other. No access point is used.
Figure 8-11
Wireless Compact USB Adapter
29
Instant Wireless™Series
28
7. The Network Setting - Specify IP address screen will appear next. Enter an
IP Address, Subnet Mask, Default Gateway, and DNS appropriate for
your network. You must specify the IP Address and Subnet Mask on this
screen. If you are unsure about the Default Gateway and DNS address, then
leave these fields blank. Click the Next button to continue or the Back but-
ton to return to the previous screen.
IP Address - This IP Address must be unique to your network. Enter the IP
Address in this format: xxx.xxx.xxx.xxx (the x’s represent your IP
Address).
Subnet Mask - The Adapter’s Subnet Mask must be the same as your wired
network’s Subnet Mask. Enter the Subnet Mask in this format:
xxx.xxx.xxx.xxx (the x’s represent your Subnet Mask).
Default Gateway - Enter the IP address of your network’s Gateway here.
Enter the Default Gateway in this format: xxx.xxx.xxx.xxx (the x’s repre-
sent your Default Gateway).
DNS - Enter the DNS address of your Ethernet (wired) network here. Enter
the DNS address in this format: xxx.xxx.xxx.xxx (the x’s represent your
DNS address).
Figure 8-14
Note: If your PC is running Windows 98SE or Millennium, the
Network Setting - Specify IP address screen will not be available.
6. If your PC is running Windows 98SE or Millennium, go to step 8.
If your PC is running Windows 2000, the Network Setting screen will
appear next.
If your network has a DHCP server, click the radio button next to Obtain
an IP address automatically (DHCP). Click the Next button to continue
or the Back button to return to the previous screen. Then go to step 8.
If your network does not have a DHCP server, click the radio button next to
Specify the IP address. Click the Next button to continue or the Back but-
ton to return to the previous screen. Then go to step 7.
Figure 8-13
Note: If your PC is running Windows 98SE or Millennium, the
Network Setting screen will not be available.
Wireless Compact USB Adapter
9. The Confirm New Settings screen will appear next. The former and new set-
tings are shown. To save the new settings, click the Yes button. To cancel
the settings and return to the Profiles screen, click the No button. To edit
the new settings, click the Back button to return to the previous screen.
10. The Congratulations screen will appear next. Click Activate new settings
now to implement the new settings immediately, and return to the Link
Information screen. Click Activate new settings later to keep the current
settings active and return to the Profiles screen.
You have successfully created a connection profile. Click the X (Close)
button in the upper right corner to exit the WLAN Monitor.
31
Instant Wireless™Series
30
Figure 8-16
Figure 8-17
8. The Security Setting screen will appear next. Configure the Wired
Equivalent Privacy (WEP) encryption settings for your wireless network.
WEP (Disabled/64-bit WEP/128-bit WEP) - If you do not want to use
WEP encryption, choose Disabled. To use WEP encryption, select 64-bit
or 128-bit WEP from the drop-down menu (recommended).
If you select 64-bit or 128-bit WEP, you have two choices. Enter the
passphrase of your wireless network in the Passphrase field, or enter the
WEP key of your wireless network in the Key 1 field.
Passphrase - This passphrase must match the passphrase of your wireless
network. This is the code used when logging a wireless device onto the
wireless network. The passphrase is case-sensitive and should not be longer
than 16 alphanumeric characters. Based upon the passphrase created by
you, WEP key settings are automatically generated. This passphrase is com-
patible only with other Linksys wireless products.
Key 1 - This WEP key must match the WEP key of your wireless network.
If you are using 64-bit WEP encryption, then the key must consist of exact-
ly 10 hexadecimal characters in length. If you are using 128-bit WEP
encryption, then the key must consist of exactly 26 hexadecimal characters
in length. Valid hexadecimal characters are “0” to “9” and “A” to “F”.
Click the Next button to continue or the Back button to return to the previ-
ous screen.
Figure 8-15
Note: The screen you see may vary slightly from the one shown in
Figure 8-15.
Wireless Compact USB Adapter
33
Instant Wireless™Series
1. On the Profiles screen, click the New button to create a new profile.
2. Enter a name for the new profile.
2. Choose Expert Mode. Then click the Next button.
3. The Profile - Basic Setting screen will appear. Configure the basic network
type and wireless connection setting on this screen.
Network Type
Infrastructure Mode - Click the Infrastructure Mode radio button if you
want your wireless computers to communicate with computers on your
wired network using a wireless access point. Click the Power-Saving Mode
button if you want the Adapter to enter sleep mode when the wireless con-
nection is inactive.
Ad-Hoc Mode - Click the Ad-Hoc Mode radio button if you want multi-
ple wireless computers to communicate directly with each other.
32
Name - The profile’s Name is automatically displayed.
SSID - Enter your wireless network’s SSID.
Transfer Rate - Select the Transfer Rate for your wireless connection.
Choose from 1Mbps, 2Mbps, 1 or 2Mbps, 5.5Mbps, 11Mbps, or Auto.
When you select Auto, the Adapter dynamically shifts to the fastest data
transfer rate possible.
Channel - Select the Channel at which the network broadcasts its wireless
signal (available only for Ad-Hoc Mode).
Network Setting - Click the Network Setting button to configure network
settings. (If your PC is running Windows 98SE or Millennium, this button
will not be available.)
Security Setting - Click the Security Setting button to configure security
settings.
Click the OK button to save the profile you have configured. Click the Back
button to return to the Profiles screen.
Figure 8-20
Note: The screen you see may vary slightly from the one shown in
Figure 8-20.
Using the Expert Mode
Figure 8-18
Figure 8-19
Wireless Compact USB Adapter
35
Instant Wireless™Series
4. If your PC is running Windows 98SE or Millennium, go to step 5. If your
PC is running Windows 2000, click the Network Setting button, and the
Profile - Network Setting screen will appear. Select the appropriate settings
for the Adapter’s network.
Obtain an IP address automatically - If your network has a DHCP serv-
er, click the radio button next to Obtain an IP address automatically
(DHCP).
Use the following IP address - If your network does not have a DHCP
server, click the radio button next to Use the following IP address. Enter
the IP Address, Subnet Mask, and Default Gateway appropriate for your
network.
Obtain DNS server address automatically - Select this feature if you want
the Adapter to automatically get a DNS server address.
Use the following DNS server address - Select this feature if you want to
specify a DNS server address. Enter the DNS server address in the field
provided.
Click the OK button to save the settings and return to the Profile - Basic
Setting screen. Click the Back button to cancel the settings and return to the
Profile - Basic Setting screen.
34
5. Click the Security Setting button, and the Profile - Security Setting screen
will appear. Set the Wired Equivalent Privacy (WEP) encryption for your
wireless network.
WEP (Disabled/64-bit WEP/128-bit WEP) - If you do not want to use
WEP encryption, choose Disabled.
To use WEP encryption, select 64-bit or 128-bit WEP from the drop-down
menu. The Adapter’s WEP encryption is unique to Linksys and may conflict
with other manufacturers’ WEP encryption.
If you select 64-bit or 128-bit WEP, you have two ways to generate WEP
key(s), entering a passphrase or entering manual WEP key(s).
Passphrase - Click Use Passphrase, and enter the passphrase of your wire-
less network in the Passphrase field. The WEP key(s) will be automatical-
ly generated.
Key 1-4 - Enter the WEP key(s) of your wireless network in the Key fields.
Specify the format of your WEP key(s) by selecting Binary Format Key or
ASCII Format Key.
Figure 8-22
Figure 8-21
Note: If your PC is running Windows 98SE or Millennium, the
Profile - Network Setting screen will not be available.
Wireless Compact USB Adapter
7. The Congratulations screen will appear next. Click Activate new settings
now to implement the new settings immediately and return to the Link Info
screen. Click Activate new settings later to keep the current settings active
and return to the Profiles screen.
You have successfully created a connection profile. Click the X (Close)
button in the upper right corner to exit the WLAN Monitor.
37
Instant Wireless™Series
Default Tx Key - In the drop-down box provided, select the WEP key you
want to use as the default.
Click the OK button to save the settings and return to the Profile - Basic
Setting screen. Click the Back button to cancel the settings and return to the
Profile - Basic Setting screen.
6. On the Profile - Basic Setting screen, click the OK button to save the pro-
file you have configured. The Confirm New Settings screen will appear next
and display the former and new settings. To save the new settings, click the
Yes button. To cancel the settings, click the No button and return to the
Profiles screen. To edit the new settings, click the Back button to return to
the previous screen.
36
Figure 8-24
Figure 8-23
Wireless Compact USB Adapter
39
Instant Wireless™Series
38
What is the IEEE 802.11b standard?
It is one of the IEEE standards for wireless networks. The 802.11b standard
allows wireless networking hardware from different manufacturers to commu-
nicate, provided that the hardware complies with the 802.11b standard. The
802.11b standard states a maximum data transfer rate of 11Mbps and an oper-
ating frequency of 2.4GHz.
What IEEE 802.11b features are supported?
The product supports the following IEEE 802.11b functions:
• CSMA/CA plus Acknowledge protocol
• Multi-Channel Roaming
• Automatic Rate Selection
• RTS/CTS feature
• Fragmentation
• Power Management
What is ad-hoc mode?
When a wireless network is set to ad-hoc mode, the wireless-equipped com-
puters are configured to communicate directly with each other. The ad-hoc
wireless network will not communicate with any wired network.
What is infrastructure mode?
When a wireless network is set to infrastructure mode, the wireless network is
configured to communicate with a wired network through a wireless access
point.
What is roaming?
Roaming is the ability of a portable computer user to communicate continu-
ously while moving freely throughout an area greater than that covered by a sin-
gle access point. Before using the roaming function, the workstation must make
sure that it is the same channel number with the access point of dedicated cov-
erage area.
To achieve true seamless connectivity, the wireless LAN must incorporate a
number of different functions. Each node and access point, for example, must
always acknowledge receipt of each message. Each node must maintain contact
with the wireless network even when not actually transmitting data. Achieving
these functions simultaneously requires a dynamic RF networking technology
that links access points and nodes. In such a system, the user’s end node under-
takes a search for the best possible access to the system. First, it evaluates such
factors as signal strength and quality, as well as the message load currently
being carried by each access point and the distance of each access point to the
Appendix A:Troubleshooting
This chapter provides solutions to problems that may occur during the installa-
tion and operation of the Wireless Compact USB Adapter. Read the descrip-
tions below to solve your problems. If you can’t find an answer here, check the
Linksys website at www.linksys.com.
1.My computer does not recognize the Wireless Compact USB Adapter.
• Make sure that the Adapter is properly inserted into the USB port.
• Also, make sure that the USB Controller is enabled in the BIOS. Refer to
your motherboard’s user guide for more information.
2.The Wireless Compact USB Adapter does not work properly.
• Reinsert the Adapter into the notebook or desktop’s USB port.
• For Windows 98SE or Me, right-click My Computer, and select Properties.
Select the Device Manager tab, and select the Adapter. You will find the
Wireless Compact USB Adapter if it has been installed successfully. If you
see a yellow exclamation mark, the resources may be in conflict, and you
must follow the steps below:
• Uninstall the driver software from your PC.
• Restart your PC and repeat the hardware and software installation as spec-
ified in this User Guide.
3.I cannot communicate with a wired computer linked via an access point in the
infrastructure configuration.
• Make sure that the notebook or desktop PC is powered on.
• Make sure that the Wireless Compact USB Adapter is configured with the
same channel, SSID, and WEP encryption as the other computers in the
infrastructure LAN.
Can I run an application from a remote computer over the wireless network?
This will depend on whether or not the application is designed to be used over
a network. Consult the application’s user guide to determine if it supports oper-
ation over a network.
Can I play computer games with other members of the wireless network?
Yes, as long as the game supports multiple players over a LAN (local area net-
work). Refer to the game’s user guide for more information.
Common Problems and Solutions
Frequently Asked Questions
Wireless Compact USB Adapter
Would the information be intercepted while transmitting on air?
WLAN features two-fold protection in security. On the hardware side, as with
Direct Sequence Spread Spectrum technology, it has the inherent security fea-
ture of scrambling. On the software side, WLAN offers the encryption function
(WEP) to enhance security and access control.
Can Instant Wireless products support printer sharing?
Instant Wireless products perform the same function as LAN products.
Therefore, Instant Wireless products can work with NetWare, Windows
NT/2000, or other network operating systems to support printer or file sharing.
What is WEP?
WEP is Wired Equivalent Privacy, a data privacy mechanism based on a 40/64
bit shared key algorithm, as described in the IEEE 802.11 standard.
41
Instant Wireless™Series
40
wired backbone. Based on that information, the node next selects the right
access point and registers its address. Communications between end node and
host computer can then be transmitted up and down the backbone.
As the user moves on, the end node’s RF transmitter regularly checks the sys-
tem to determine whether it is in touch with the original access point or whether
it should seek a new one. When a node no longer receives acknowledgment
from its original access point, it undertakes a new search. Upon finding a new
access point, it then re-registers, and the communication process continues.
What is ISM band?
The FCC and their counterparts outside of the U.S. have set aside bandwidth
for unlicensed use in the ISM (Industrial, Scientific and Medical) band.
Spectrum in the vicinity of 2.4 GHz, in particular, is being made available
worldwide. This presents a truly revolutionary opportunity to place convenient
high-speed wireless capabilities in the hands of users around the globe.
What is Spread Spectrum?
Spread Spectrum technology is a wideband radio frequency technique devel-
oped by the military for use in reliable, secure, mission-critical communica-
tions systems. It is designed to trade off bandwidth efficiency for reliability,
integrity, and security. In other words, more bandwidth is consumed than in the
case of narrowband transmission, but the trade-off produces a signal that is, in
effect, louder and thus easier to detect, provided that the receiver knows the
parameters of the spread-spectrum signal being broadcast. If a receiver is not
tuned to the right frequency, a spread-spectrum signal looks like background
noise. There are two main alternatives, Direct Sequence Spread Spectrum
(DSSS) and Frequency Hopping Spread Spectrum (FHSS).
What is DSSS? What is FHSS? And what are their differences?
Frequency-Hopping Spread-Spectrum (FHSS) uses a narrowband carrier that
changes frequency in a pattern that is known to both transmitter and receiver.
Properly synchronized, the net effect is to maintain a single logical channel. To
an unintended receiver, FHSS appears to be short-duration impulse noise.
Direct-Sequence Spread-Spectrum (DSSS) generates a redundant bit pattern
for each bit to be transmitted. This bit pattern is called a chip (or chipping
code). The longer the chip, the greater the probability that the original data can
be recovered. Even if one or more bits in the chip are damaged during trans-
mission, statistical techniques embedded in the radio can recover the original
data without the need for retransmission. To an unintended receiver, DSSS
appears as low power wideband noise and is rejected (ignored) by most nar-
rowband receivers.
Wireless Compact USB Adapter
43
Instant Wireless™Series
42
DHCP supports static addresses for computers containing Web servers that
need a permanent IP address.
DNS - The domain name system (DNS) is the way that Internet domain name
are located and translated into Internet Protocol (IP) addresses. A domain name
is a meaningful and easy-to-remember “handle” for an Internet address.
DSSS (Direct-Sequence Spread Spectrum) - DSSS generates a redundant bit
pattern for all transmitted data. This bit pattern is called a chip (or chipping
code). Even if one or more bits in the chip are damaged during transmission,
statistical techniques embedded in the receiver can recover the original data
without the need for retransmission. To an unintended receiver, DSSS appears
as low power wideband noise and is rejected (ignored) by most narrowband
receivers. However, to an intended receiver (i.e. another wireless LAN end-
point), the DSSS signal is recognized as the only valid signal, and interference
is inherently rejected (ignored).
Dynamic IP Address - An IP address that is automatically assigned to a client
station in a TCP/IP network, typically by a DHCP server. Network devices that
serve multiple users, such as servers and printers, are usually assigned static IP
addresses.
ESS (Extended Service Set) - A set of more than two or more BSSs (multiple
access points) forming a single network.
Firmware - Code that is written onto read-only memory (ROM) or program-
mable read-only memory (PROM). Once firmware has been written onto the
ROM or PROM, it is retained even when the device is turned off.
Hot Swap - The ability to replace a card or other hardware part in a hardware
device without turning it off or losing functionality.
IEEE - The Institute of Electrical and Electronics Engineers. The IEEE
describes itself as “the world’s largest technical professional society—promot-
ing the development and application of electrotechnology and allied sciences
for the benefit of humanity, the advancement of the profession, and the well-
being of our members.”
The IEEE fosters the development of standards that often become national and
international standards. The organization publishes a number of journals, has
many local chapters, and several large societies in special areas, such as the
IEEE Computer Society.
Appendix B:Glossary
802.11b - One of the IEEE standards for wireless networking hardware.
Products that adhere to a specific IEEE standard will work with each other,
even if they are manufactured by different companies. The 802.11b standard
specifies a maximum data transfer rate of 11Mbps, an operating frequency of
2.4GHz, and WEP encryption for security. 802.11b networks are also referred
to as Wi-Fi networks.
Ad-hoc Network - An ad-hoc network is a group of computers, each with a
wireless adapter, connected as an independent 802.11 wireless LAN. Ad-hoc
wireless computers operate on a peer-to-peer basis, communicating directly
with each other without the use of an access point. Ad-hoc mode is also
referred to as an Independent Basic Service Set (IBSS) or as peer-to-peer
mode, and is useful at a departmental scale or SOHO operation.
CTS (Clear To Send) - An RS-232 signal sent from the receiving station to the
transmitting station that indicates it is ready to accept data.
Default Gateway - The router used to forward all traffic that is not addressed
to a station within the local subnet.
DHCP (Dynamic Host Configuration Protocol) - A protocol that lets network
administrators manage centrally and automate the assignment of Internet
Protocol (IP) addresses in an organization’s network. Using the Internet’s set of
protocol (TCP/IP), each machine that can connect to the Internet needs a
unique IP address. When an organization sets up its computer users with a con-
nection to the Internet, an IP address must be assigned to each machine.
Without DHCP, the IP address must be entered manually at each computer and,
if computers move to another location in another part of the network, a new IP
address must be entered. DHCP lets a network administrator supervise and dis-
tribute IP addresses from a central point and automatically sends a new IP
address when a computer is plugged into a different place in the network.
DHCP uses the concept of a “lease” or amount of time that a given IP address
will be valid for a computer. The lease time can vary depending on how long a
user is likely to require the Internet connection at a particular location. It’s espe-
cially useful in education and other environments where users change fre-
quently. Using very short leases, DHCP can dynamically reconfigure networks
in which there are more computers than there are available IP addresses.
Wireless Compact USB Adapter
45
Instant Wireless™Series
44
Plug-and-Play - The ability of a computer system to configure expansion
boards and other devices automatically without requiring the user to turn off
the system during installation.
Roaming - In an infrastructure mode wireless network, this refers to the abili-
ty to move out of one access point's range and into another and transparently
reassociate and reauthenticate to the new access point. This reassociation and
reauthentication should occur without user intervention and ideally without
interruption to network connectivity. A typical scenario would be a location
with multiple access points, where users can physically relocate from one area
to another and easily maintain connectivity.
SSID (Service Set Identifier) - An identification name that wireless devices
use to make connections. In order for wireless devices to communicate, they
must all be set to the same channel and they all must use the same SSID. For
instance, if you are using an access point to connect two computers using wire-
less devices, the access point and each of the wireless devices must use the
same SSID. Even if they are set to the same channel, they cannot communicate
unless the SSID is the same.
Static IP Address - A permanent IP address that is assigned to a node in a
TCP/IP network.
Subnet Mask - The method used for splitting IP networks into a series of sub-
groups, or subnets. The mask is a binary pattern that is matched up with the IP
address to turn part of the host ID address field into a field for subnets.
TCP (Transmission Control Protocol) - A method (protocol) used along with
the IP (Internet Protocol) to send data in the form of message units (datagram)
between network devices over a LAN or WAN. While IP takes care of handling
the actual delivery of the data (routing), TCP takes care of keeping track of the
individual units of data (called packets) that a message is divided into for effi-
cient delivery over the network. TCP is known as a "connection oriented" pro-
tocol due to requiring the receiver of a packet to return an acknowledgment of
receipt to the sender of the packet resulting in transmission control.
TCP/IP (Transmission Control Protocol/Internet Protocol) - The basic com-
munication language or set of protocols for communications over a network
(developed specifically for the Internet). TCP/IP defines a suite or group of
protocols and not only TCP and IP.
Infrastructure Network - An infrastructure network is a group of computers
or other devices, each with a wireless adapter, connected as an 802.11 wireless
LAN. In infrastructure mode, the wireless devices communicate with each
other and to a wired network by first going through an access point. An infra-
structure wireless network connected to a wired network is referred to as a
Basic Service Set (BSS). A set of two or more BSS in a single network is
referred to as an Extended Service Set (ESS). Infrastructure mode is useful at
a corporation scale, or when it is necessary to connect the wired and wireless
networks.
IP Address - In the most widely installed level of the Internet Protocol (IP)
today, an IP address is a 32-binary digit number that identifies each sender or
receiver of information that is sent in packet across the Internet. When you
request an HTML page or send e-mail, the Internet Protocol part of TCP/IP
includes your IP address in the message (actually, in each of the packets if more
than one is required) and sends it to the IP address that is obtained by looking
up the domain name in the Uniform Resource Locator you requested or in the
e-mail address you're sending a note to. At the other end, the recipient can see
the IP address of the Web page requester or the e-mail sender and can respond
by sending another message using the IP address it received.
IPCONFIG - A utility that provides for querying, defining and managing IP
addresses within a network. A commonly used utility, under Windows NT and
2000, for configuring networks with static IP addresses.
ISP - An ISP (Internet service provider) is a company that provides individuals
and companies access to the Internet and other related services such as Web site
building and virtual hosting.
LAN - A local area network (LAN) is a group of computers and associated
devices that share a common communications line and typically share the
resources of a single processor or server within a small geographic area (for
example, within an office building).
MAC Address - The MAC (Media Access Control) address is your computer’s
unique hardware number.
mIRC - mIRC runs under Windows and provides a graphical interface for log-
ging onto IRC servers and listing, joining and leaving channels.
Network Mask - also known as the “Subnet Mask.”
Wireless Compact USB Adapter
47
Instant Wireless™Series
46
Appendix C:Specifications
Model Number WUSB12
Standards IEEE 802.11b, USB 1.1
Channels 11 Channels (USA)
13 Channels (Europe)
14 Channels (Japan)
Port One USB Type A
Transmit 14 dBm
Receive Sensitivity -83 dBm
Modulation BPSK, QPSK, CCK
Network Protocols IPX/SPX,TCP/IP, NetBEUI
LEDs Power, Link
UDP (User Datagram Protocol) - A method (protocol) used along with the IP
(Internet Protocol) to send data in the form of message units (datagram)
between network devices over a LAN or WAN. While IP takes care of handling
the actual delivery of the data (routing), UDP takes care of keeping track of the
individual units of data (called packets) that a message is divided into for effi-
cient delivery over the network. UDP is known as a “connection-less” protocol
due to NOT requiring the receiver of a packet to return an acknowledgment of
receipt to the sender of the packet (as opposed to TCP).
USB (Universal Serial Bus) - A “plug-and-play” interface between a computer
and peripherals, such as digital cameras, scanners, game controllers, speakers,
keyboards, portable data storage, or printers. With USB, you can add a new
peripheral to your computer without having to add an adapter card or powering
down the computer. USB also supports hot-swapping, the addition or removal
of devices while the computer is running.
USB 1.1-compliant devices support data rates of 1.5Mbps (low-speed) and up
to 12Mbps (full-speed). USB 2.0-compliant devices are backward compatible
with earlier USB devices, and they support data rates of 1.5Mbps (low-speed),
12Mbps (full-speed), and up to 480Mbps (high-speed).
WEP (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-
bit shared key algorithm, as described in the IEEE 802.11b standard.
WINIPCFG - Configuration utility based on the Win32 API for querying,
defining and managing IP addresses within a network. A commonly used util-
ity under Windows 95, 98, and Me.
WLAN (Wireless Local Area Network) - A group of computers and associat-
ed devices that communicate with each other wirelessly.
Wireless Compact USB Adapter
49
Instant Wireless™Series
Dimensions 1.21" x 0.82" x 3.91"
(W x H x D) (30.78 mm x 20.74 mm x 99.39 mm)
Antenna Height 1.99" (50.5 mm)
Unit Weight 1.5 oz. (0.04 kg)
Power 5V DC
Certifications FCC Class B, Wi-Fi,TELEC
Operating Temp. 32ºF to 122ºF (0ºC to 50ºC)
Storage Temp. -13ºF to 158ºF (-25ºC to 70ºC)
Operating Humidity 0% to 70%, Non-Condensing
Storage Humidity 10% to 90%, Non-Condensing
48
Appendix D:Warranty Information
BE SURE TO HAVE YOUR PROOF OF PURCHASE AND A BARCODE
FROM THE PRODUCT’S PACKAGING ON HAND WHEN CALLING.
RETURN REQUESTS CANNOT BE PROCESSED WITHOUT PROOF OF
PURCHASE.
IN NO EVENT SHALL LINKSYS’ LIABILITY EXCEED THE PRICE PAID
FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDEN-
TAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE
OF THE PRODUCT, ITS ACCOMPANYING SOFTWARE, OR ITS DOCU-
MENTATION. LINKSYS DOES NOT OFFER REFUNDS FOR ANY PROD-
UCT.
LINKSYS OFFERS CROSS SHIPMENTS, A FASTER PROCESS FOR PRO-
CESSING AND RECEIVING YOUR REPLACEMENT. LINKSYS PAYS
FOR UPS GROUND ONLY. ALL CUSTOMERS LOCATED OUTSIDE OF
THE UNITED STATES OF AMERICA AND CANADA SHALL BE HELD
RESPONSIBLE FOR SHIPPING AND HANDLING CHARGES. PLEASE
CALL LINKSYS FOR MORE DETAILS.
Environmental
Instant Wireless™Series
50
Appendix E:Contact Information
For help with the installation or operation of the Wireless Compact USB
Adapter, contact Linksys Technical Support at one of the phone numbers or
Internet addresses below.
Sales Information 800-546-5797 (LINKSYS)
Technical Support 800-326-7114
RMA Issues 949-271-5461
Fax 949-265-6655
E-mail support@linksys.com
Web http://www.linksys.com
FTP Site ftp.linksys.com
© Copyright 2002 Linksys,All Rights Reserved.
http://www.linksys.com
