Part Number 40-00460-00R
Revision A, Version 1.0, PV1.1
August 15, 2006
Proprietary
All information disclosed by this document is the proprietary property of Navini Networks, Inc. and is protected
by copyright, trademark, and/or trade secret laws. All rights therein are expressly reserved.
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
TABLE OF CONTENTS
PERMISSIONS, TRADEMARKS & DISTRIBUTION.............................................................................4
SAFETY .......................................................................................................................................................5
REGULATORY INFORMATION ..............................................................................................................6
INTRODUCTION.......................................................................................................................................7
PMX MODELS...........................................................................................................................................7
MINIMUM COMPUTING REQUIREMENTS......................................................................................7
PHYSICAL CHARACTERISTICS..........................................................................................................8

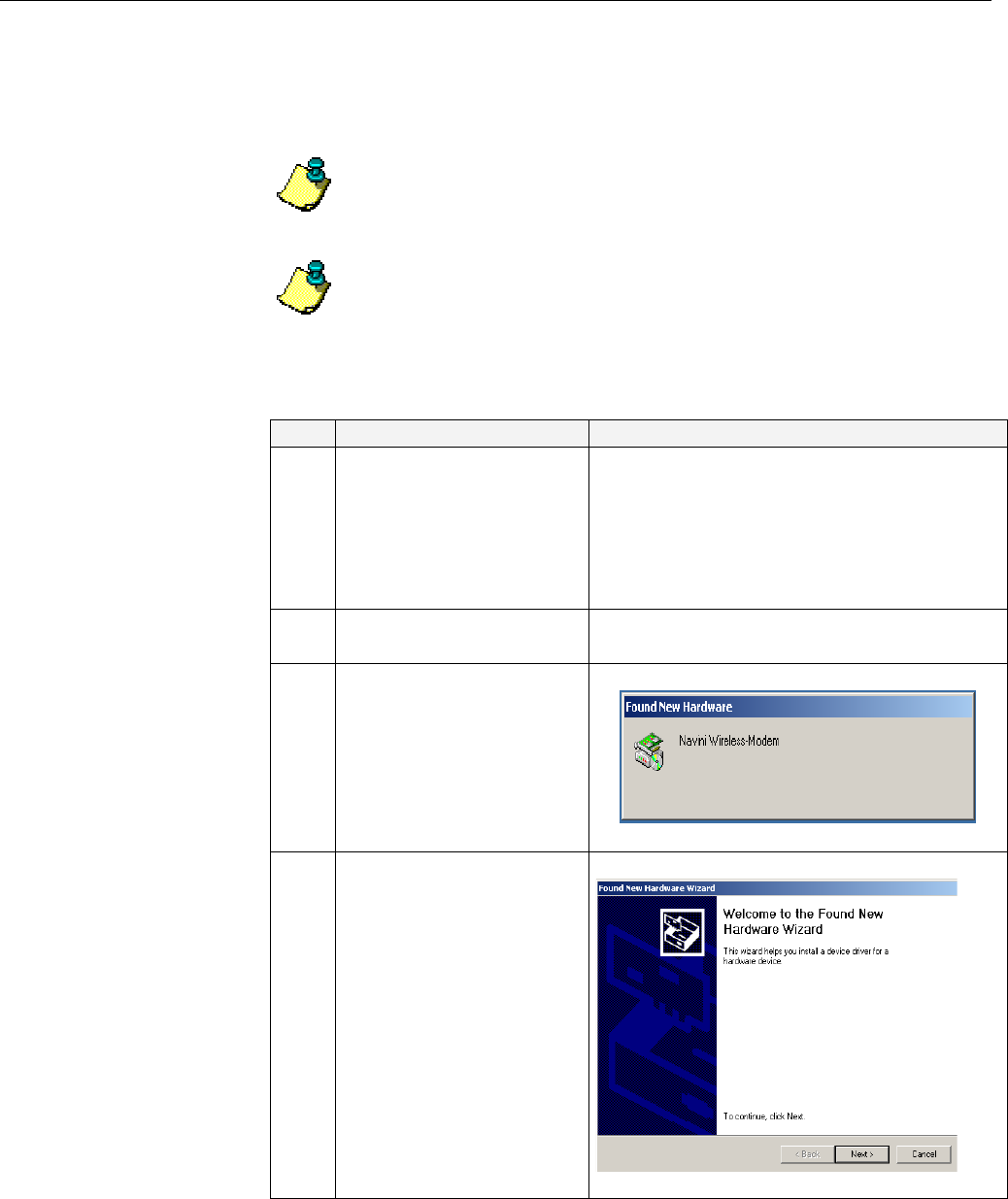

INSTALLING YOUR PMX.......................................................................................................................9
ACCESSING THE INTERNET..............................................................................................................11

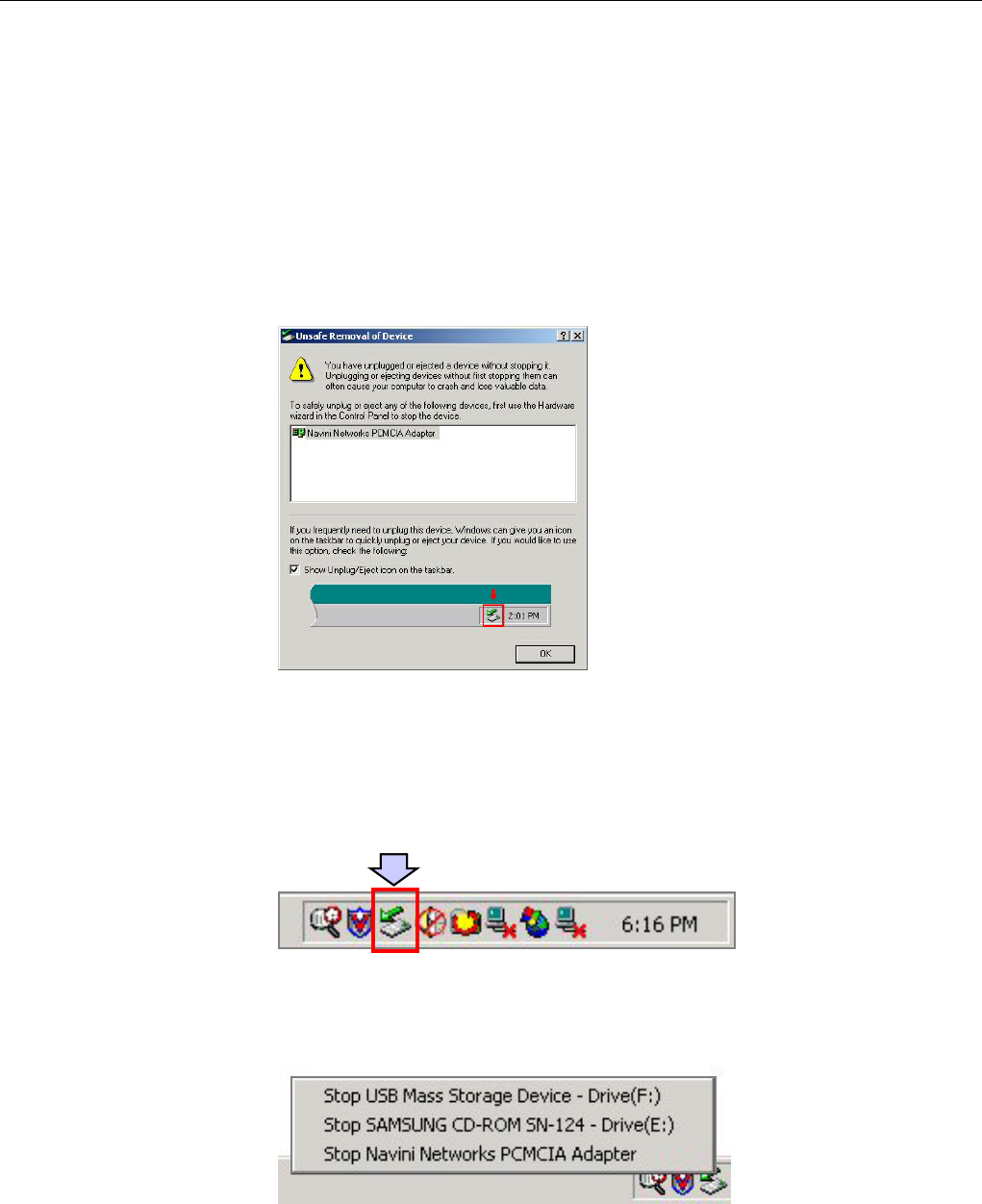

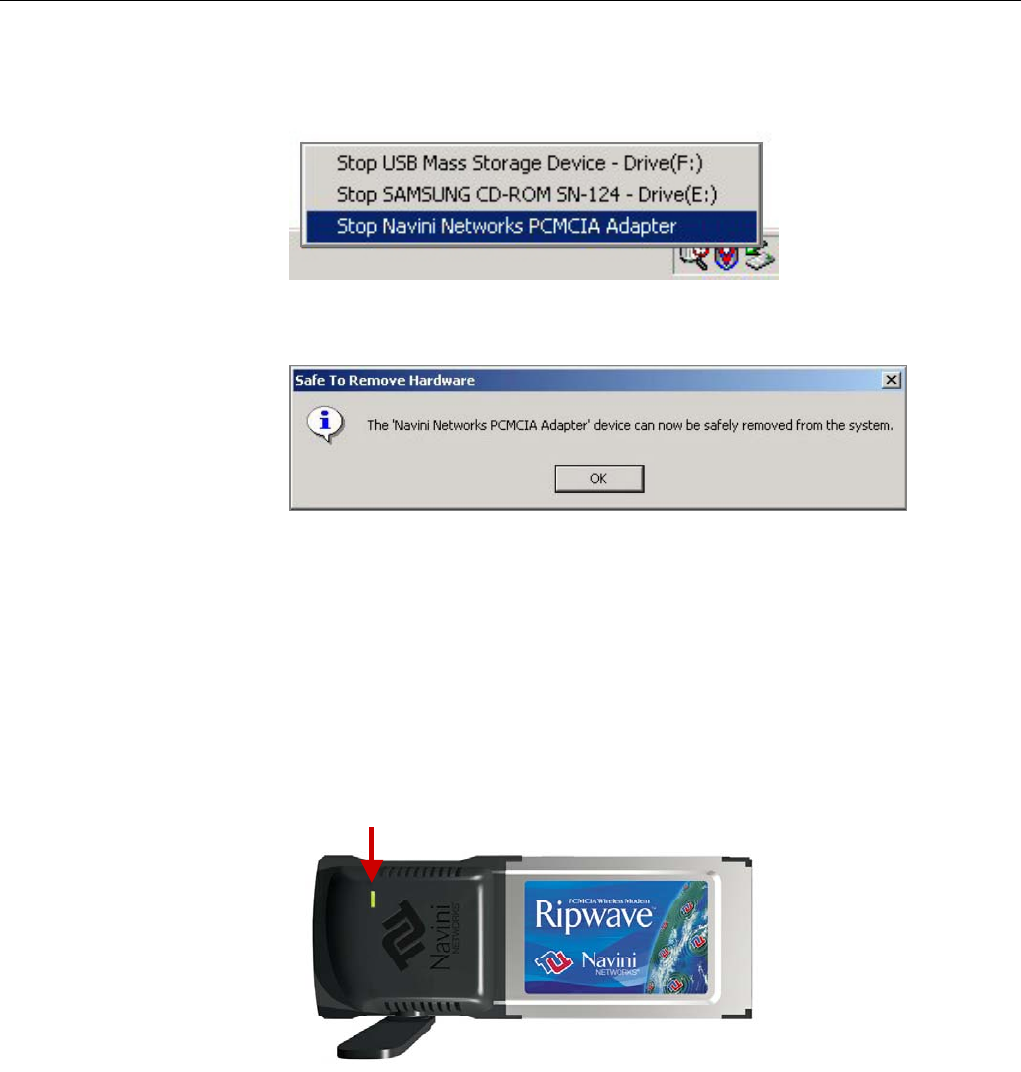

REMOVING YOUR PMX.......................................................................................................................12
INDICATOR LIGHT...............................................................................................................................13
TROUBLESHOOTING...........................................................................................................................14

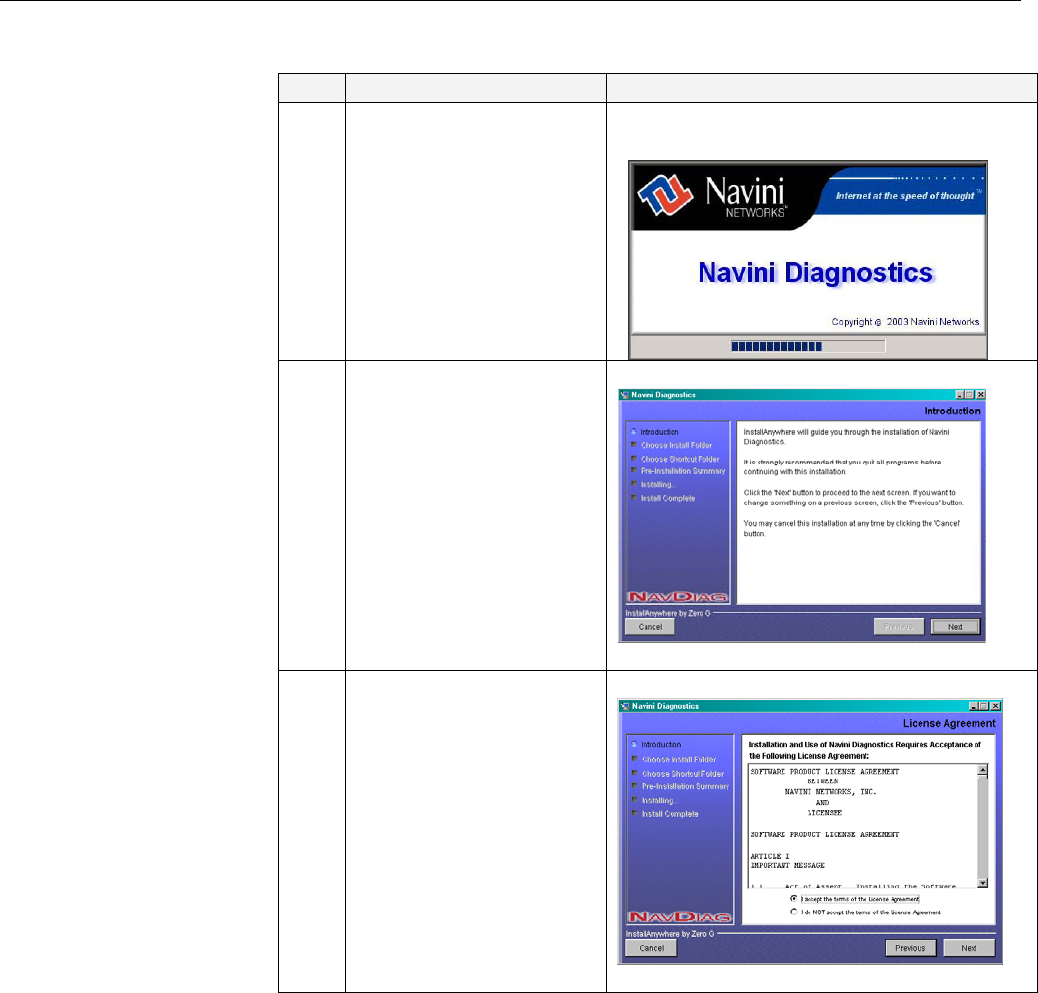

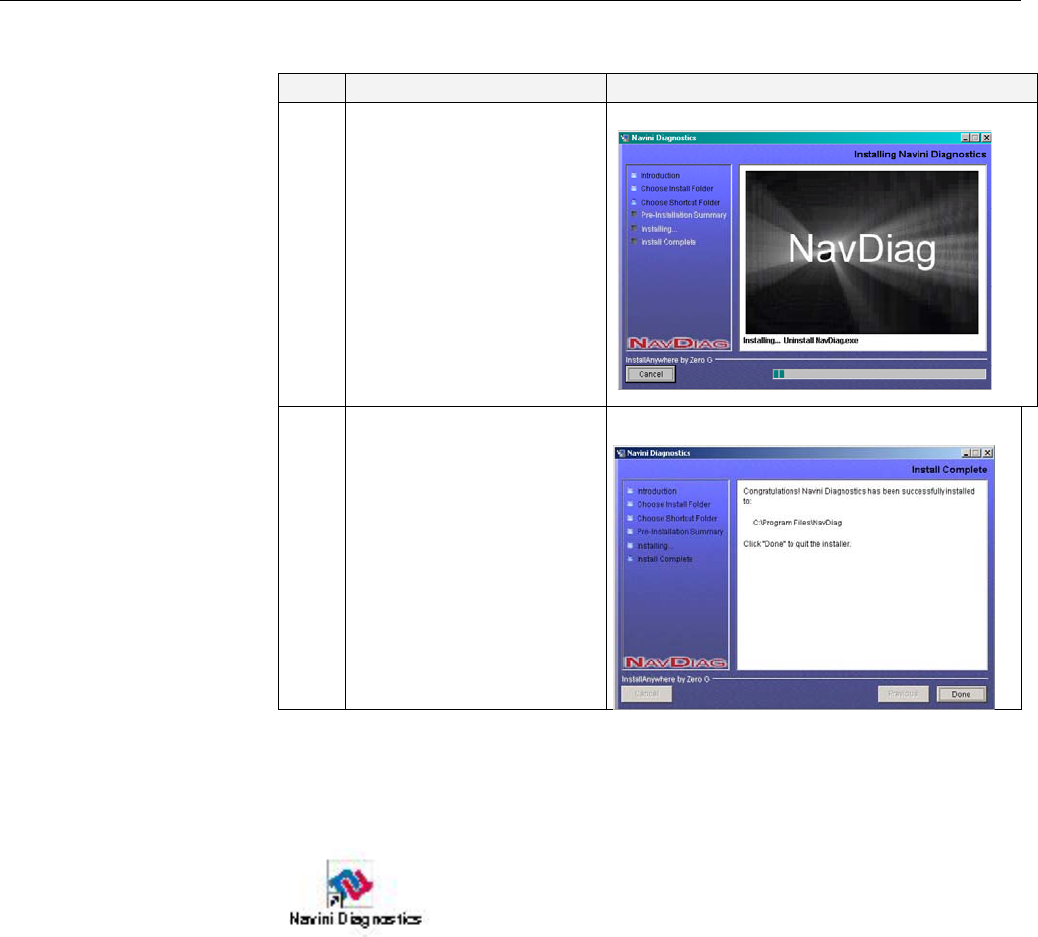

INSTALLING NAVINI DIAGNOSTICS (NAVDIAG)........................................................................14
TROUBLESHOOTING USING NAVINI DIAGNOSTICS.................................................................18
TROUBLESHOOTING USING NAVINI DIAGNOSTICS, CONTINUED ......................................19

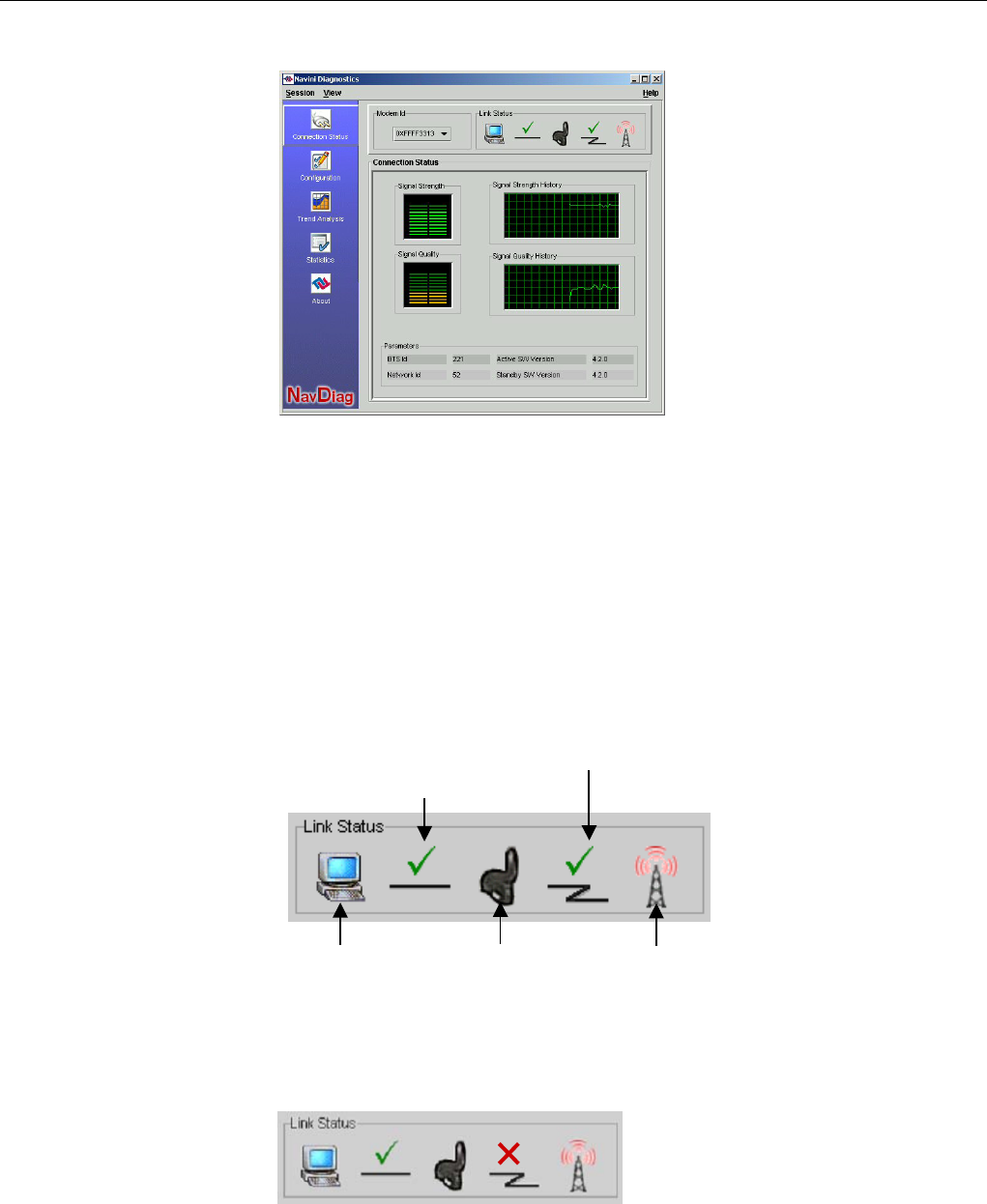

THE ICONS ...............................................................................................................................................19

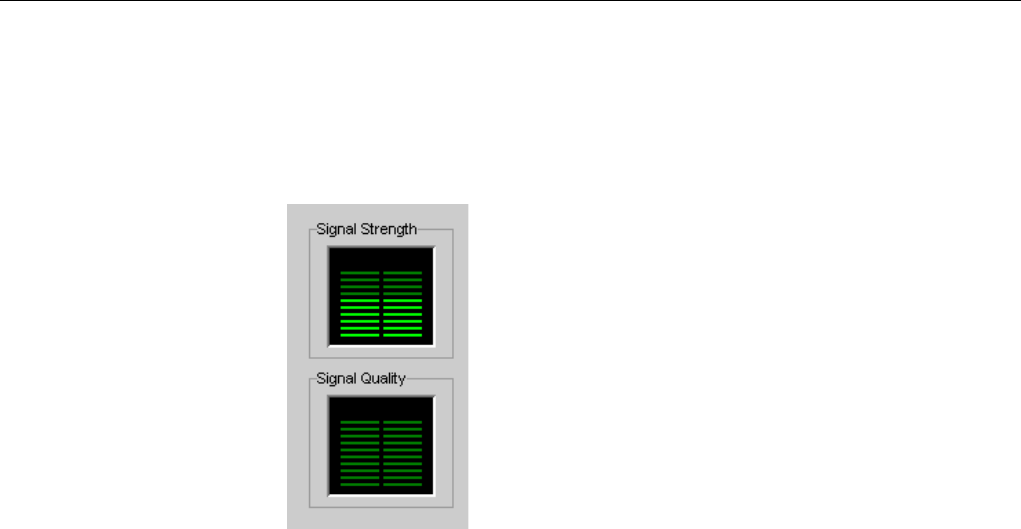

THE SIGNAL STRENGTH AND SIGNAL QUALITY BARS ...........................................................19
THE SIGNAL STRENGTH AND SIGNAL QUALITY BARS ...........................................................20
HOW TO INCREASE THE STRENGTH AND QUALITY OF THE SIGNAL ..........................................................21

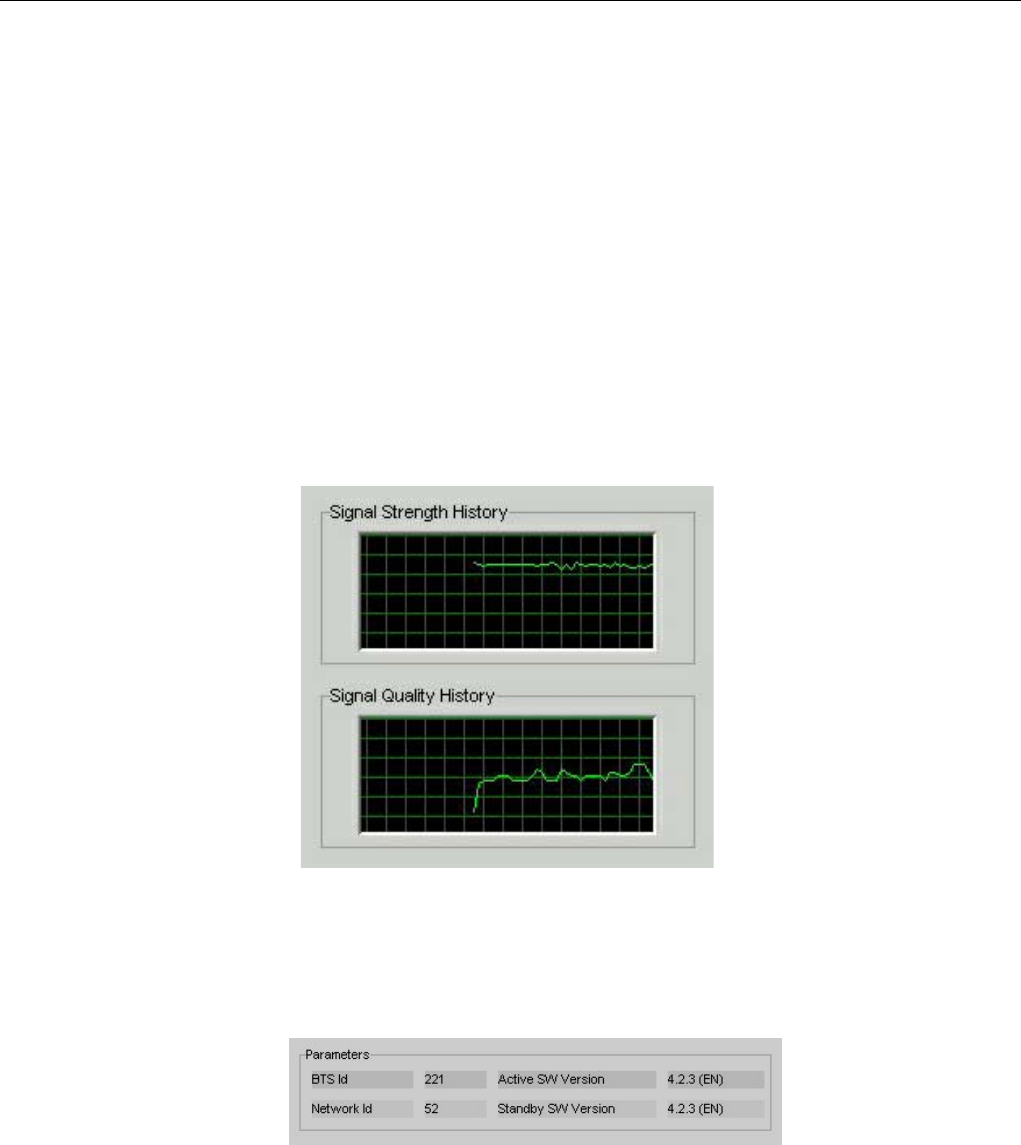

THE HISTORY GRAPHS.............................................................................................................................21
THE PARAMETERS....................................................................................................................................21
THE SCREEN OPTION BUTTONS................................................................................................................22

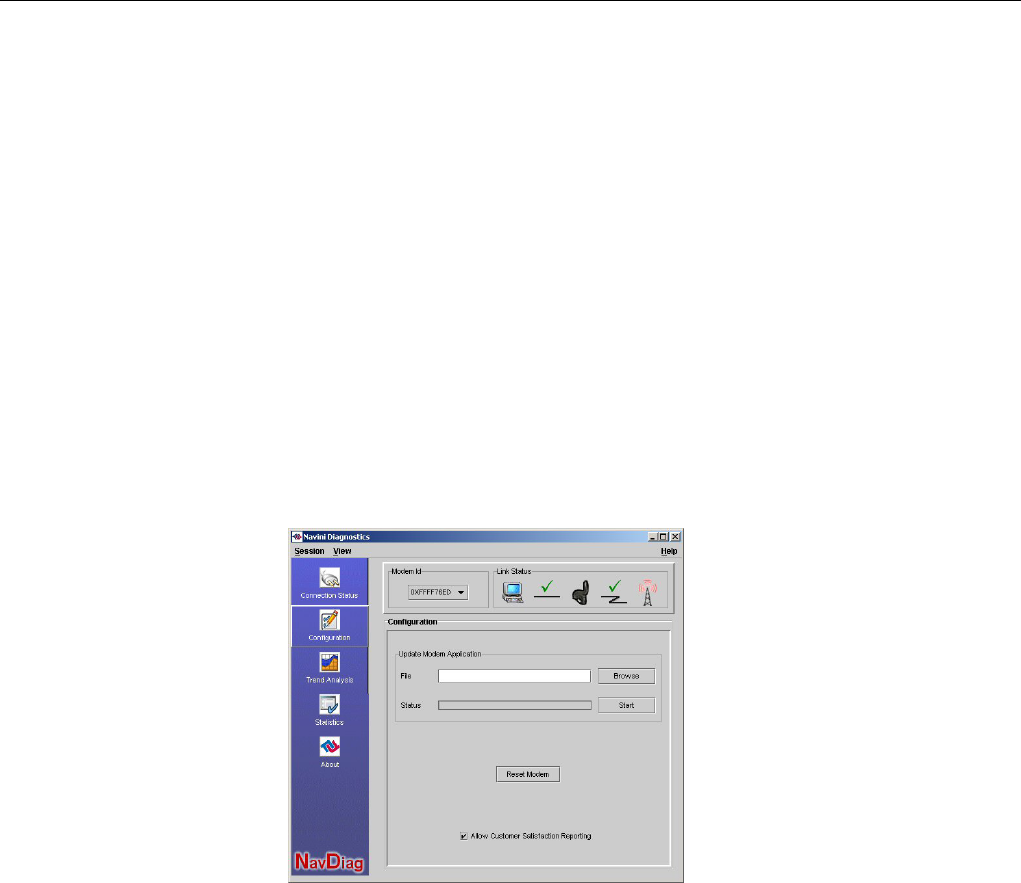

THE CONFIGURATION SCREEN .................................................................................................................22

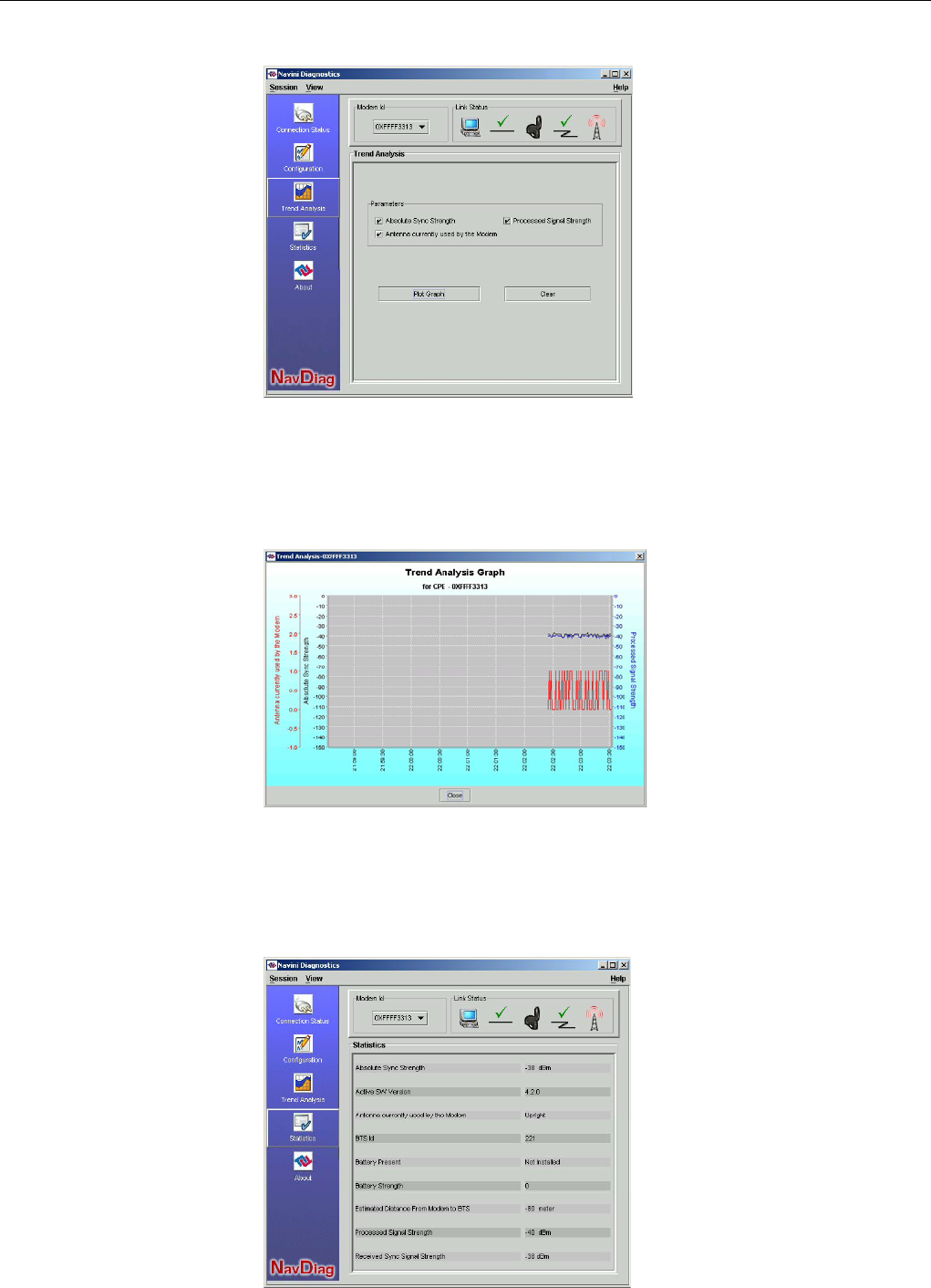

THE TREND ANALYSIS SCREEN................................................................................................................22
THE STATISTICS SCREEN..........................................................................................................................23

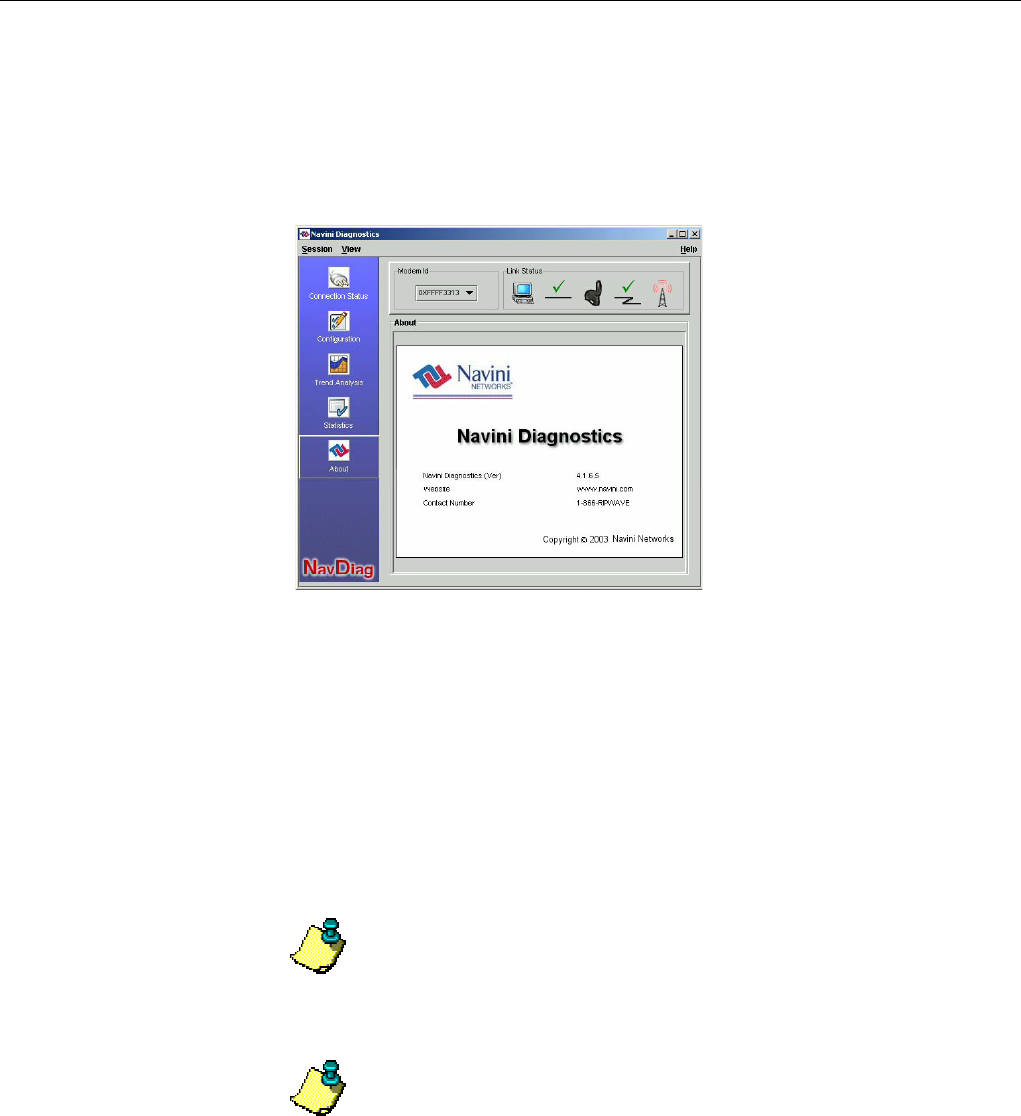

THE ABOUT SCREEN ................................................................................................................................24
THE HELP BUTTON ..................................................................................................................................24
UNINSTALLING NAVINI DIAGNOSTICS SOFTWARE.................................................................24
OPTIONAL DESKTOP ANTENNA ......................................................................................................26

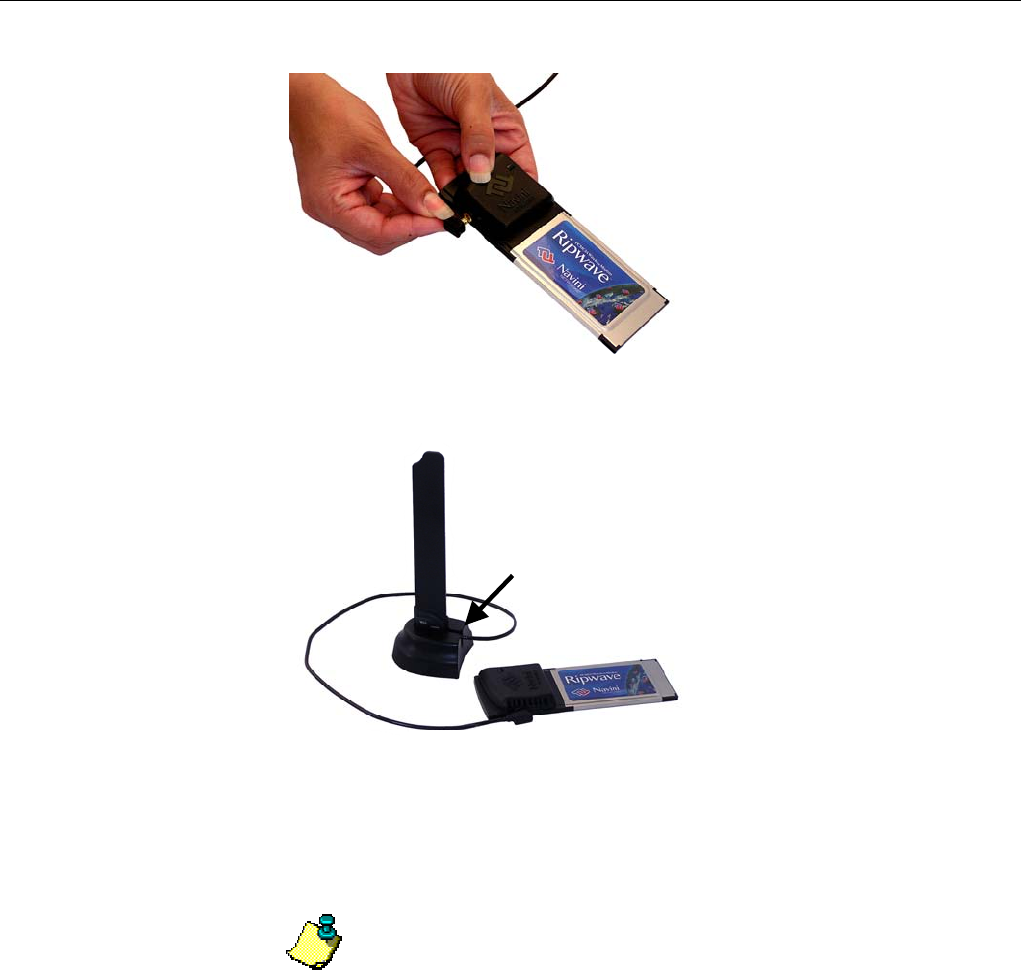

CONNECTING THE DESKTOP ANTENNA ....................................................................................................26
DISCONNECTING THE DESKTOP ANTENNA...............................................................................................27
CARE AND MAINTENANCE................................................................................................................28
Page 2
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
UPGRADING THE PMX ........................................................................................................................28
ADDENDUM 1: PMX - PC TROUBLESHOOTING ...........................................................................30
ADDENDUM 2: END USER SOFTWARE LICENSE AGREEMENT.............................................34
Page 3
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
Permissions, Trademarks & Distribution
Copyright© 2006, Navini Networks, Inc. All information contained herein and disclosed by this
document is confidential and the proprietary property of Navini Networks, Inc. and all rights therein are
expressly reserved. Acceptance of this material signifies agreement by the recipient that the information
contained in this document is confidential and that it will be used solely for the purposes set forth herein.
Acceptance of this material signifies agreement by the recipient that it will not be used, reproduced in
whole or in part, disclosed, distributed, or conveyed to others in any manner or by any means – graphic,
electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval
systems – without the express written permission of Navini Networks, Inc.
Navini Networks and Ripwave are registered trademarks. The Navini Networks logo, Smart WiMax,
Zero-Install, and Unwired by Navini are trademarks of Navini Networks, Inc. Other product and
company names mentioned herein may be trademarks and/or service marks of their respective owners.
Except for the hardware warranty, nothing herein constitutes any representation, warranty,
assurance, or guaranty of any kind.
Because of continuing developments and improvements in design, manufacturing, and deployment,
material in this document is subject to change without notification and does not represent any
commitment or obligation on the part of Navini Networks, Inc.
Navini Networks, Inc. shall have no liability for any error or damages resulting from the use of this
document.
All Navini Networks logos and trademarks are the property of Navini Networks, Inc. Unauthorized usage
is strictly prohibited without the express written permission of Navini Networks, Inc.
© 2006 Navini Networks, Inc. All rights reserved.
Page 4
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
Safety
To optimize safety and expedite installation and service, read this document thoroughly. Follow all
warnings, cautions, and instructions marked on the equipment and included in this document.
To aid in the prevention of injury and damage to property, cautionary symbols have been placed in this
document to alert the reader to known potentially hazardous situations, or hazards to equipment or
procedures. The symbols are placed before the information to which they apply. However, any situation
that involves heavy equipment and electricity can become hazardous, and caution and safety should be
practiced at all times when installing, servicing, or operating the equipment.
Caution Symbol - possible equipment or property damage.
Warning Symbol - could cause personal injury or otherwise be hazardous to
your health
Navini Networks, Inc., expressly requires that when using Navini electronic equipment always follow the
basic safety precautions to reduce the risk of electrical shock, fire, and injury to people and/or property.
1. Follow all warnings and instructions that come with the equipment.
2. Do not use the equipment while you are in a bathtub, shower, pool, or spa. Exposure of the
equipment to water could cause severe electrical shock or serious damage to the equipment.
3. Do not allow any type of liquid to come in contact with the equipment. Unplug the equipment from
the power source before cleaning. Use a damp cloth for cleaning. Do not use any soaps or liquid
cleaners.
4. Follow all airport and FAA regulations when using the equipment on or near aircraft.
5. Do not use the PMX near medical equipment, life support equipment, or any equipment that may be
susceptible to any form of radio interference. In such areas, the PMX must be powered off.
6. The driver or operator of any vehicle should not operate the PMX while in control of a vehicle. Doing
so will detract from the driver or operator’s control and operation of the vehicle.
7. Do not disassemble the equipment. Removing covers exposes dangerous voltages or other risks and
also voids the warranty. Incorrect reassembly can cause equipment damage or electrical shock. Only
an authorized repair technician should service this product.
8. Do not expose the equipment to extreme hot or cold temperatures.
9. Do not use the equipment under the following conditions:
• When the equipment has been exposed to water or moisture.
• When the equipment has been damaged.
• When the equipment does not operate properly or shows a distinct change in performance.
Page 5
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
Regulatory Information
This Ripwave MX PC Card (PMX) has been tested with a typical laptop computer with a side loading
PCMCIA bay. This PMX must not be co-located or operated in conjunction with any antenna (other than
the one furnished by Navini and included in the package) or transmitter. Use of this device in any other
configuration may exceed the FCC, ETSI, or other regulatory bodies RF Exposure compliance limit.
If this equipment causes interference to radio or television reception, which can be determined by turning
the equipment off and on, the user should try to correct the interference by one or more of the following
measures:
1) Reorient or relocate the receiving antenna,
2) Increase the separation between the equipment and the receiver,
3) Consult the dealer or an experienced radio technician for additional suggestions.
FCC guidelines stipulate that the antenna should be more than 2.5 cm (1”) from bystanders and 1.2 cm
(0.472”) from the user. When in use, the antenna should be pointed vertically upward. When using the
Desktop Antenna with the PMX, a minimum distance of 20 centimeters (8 inches) is required from the
user or bystander.
This product conforms with the Australian Standard for Human Exposure to Radiation at a distance of
2.5 cm. Closer contact, such as touching the aerial will result in radiation in excess of safe limits.
SAR, or Specific Absorption Rate, is the measurement for the rate at which electromagnetic energy is
absorbed by the human body during exposure. The FCC states the body SAR limit is 1.6 W/kg. The
highest reported SAR value for the PMX card is 0.560 W/kg.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver. Connect the equipment into an outlet on
a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Page 6
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
Introduction
PMX Models
Minimum
Computing
Requirements
(See, also, Addendum 1)
Congratulations! Your Ripwave MX PC Card (PMX) is a user-
friendly, easy-to-install device that helps you connect wirelessly to
the Internet using the PCMCIA port on your laptop computer. The
PMX can work with today’s MC-SCDMA technology and the
OFDM-based 802.16e technology that Navini will trial late 2006.
The PMX provides complete broadband Internet access to
residential and small office/home office (SOHO) users without the
necessity of professional hardware installation.
The PMX also provides portable Internet service. A computer with
the PMX can be moved from room-to-room, location-to-location,
or even city-to-city as long as there is coverage and appropriate
reception in the area.
This manual will guide you through the simple process of installing
the PMX and its monitoring software.
Currently, the PMX comes in one model. However, other models
will be introduced in the future. The model indicates the frequency
the PMX will operate in (for example, 3.4 GHz). The frequency
number appears on the PMX’s label. The current model is detailed
in the table below.
Model Model Number Frequency
Range MHz Operating Band
2.3 GHz 2305-2360 PMX 2305-2360 International Only
2.5-2.6 GHz 2.5-2.6 PMX 2500-2686 EBS
3.4 GHz 3410-3525 PMX 3410-3525 WLL
3.5 GHz 3475-3600 PMX 3475 - 3600 WLL
The following table lists the minimum requirements your computer
should meet before connecting to the PMX.
Operating
System1: Windows 2000, Windows 2003, or Windows XP. It
is assumed the latest Windows service pack is
installed on the Operating System.
Note: The PMX is not supported on MacIntosh
systems or Linux/Unix systems.
CPU: Pentium level or higher
RAM: 32 MB or the Operating System minimum,
whichever is greater
Hard Drive: 50 MB free disk space for the optional Navini
Diagnostics software
Monitor: 256 colors, 800 x 600 resolution
Page 7
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
Physical
Characteristics
NOTE1: If you are going to upgrade your Operating System after
loading the Navini Diagnostics software, you must first uninstall Navini
Diagnostics prior to upgrading the OS. Otherwise, the PMX will continue
to operate, but the Navini Diagnostics will not work. See Uninstall
instructions in this Guide.
The PMX fits into a standard Type II PCMCIA slot. A 68-pin
connector resides on the end of the card that is inserted into the
slot.
The PMX
68-pin connector
Two internal inverted-F antennas reside inside the PMX. All
models also have an external antenna.
Following is a picture of the external antenna in the upright
position. To raise the antenna to its upright position, raise the
antenna counterclockwise. Do not turn the antenna beyond its
upright position.
Page 8
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
Installing Your
PMX
The following instructions explain how to install the PMX and its
driver software on your computer. Please read all instructions
before attempting the installation.
Note: The laptop should be used preferably on a desk when
the PMX is installed. Using the laptop with the PMX close to the
body, such as on the lap, is undesirable.
Note: The screenshots shown in these instructions were taken
from a laptop operating with Windows 2000. If you have a
Windows XP operating system, the screens you see may vary from
the screens shown in the instructions.
Step Action Illustration
1. Insert the PMX into the
Type II card slot on your
computer. Be sure to
insert the end that has
the 68-pin connector
into the card slot.
2. Raise the antenna to the
upright position.
3. The Found New
Hardware box appears
indicating the PC sees
the PMX.
Windows 2000 Screen
4. The Welcome to the
Found New Hardware
Wizard dialog box
appears. Click Next to
continue.
Windows 2000 Screen
Page 9
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
Installing Your PMX,
continued
Step Action Illustration
5. The Install Hardware
Device Drivers box
appears. Select ‘Search
for a suitable driver for
my device
(recommended).’ Click
Next to continue.
Windows 2000 Screen
6. The Locate Driver Files
box appears. Select ‘CD
ROM.’ Insert the
Installation CD into the
computer’s CD-ROM
drive. Click Next to
continue.
Windows 2000 Screen
7. The Driver Files Search
Results box appears.
Click Next to install the
driver.
Windows 2000 Screen
Page 10
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
Installing Your PMX,
continued
Accessing the
Internet
Step Action Illustration
8.
The Hardware Install
box appears, along with
a Digital Signature Not
Found box. Click Yes
on the Digital Signature
Not Found box, and then
click Yes on the
Hardware Install box. If
the sound is turned up
on your computer, two
beeps are heard.
Note: Windows 98, XP,
or ME systems may
show a screen stating the
PCMCIA Adapter has
not passed Windows
Logo testing and asking
if you want to continue
installation. Select the
option that continues the
installation.
Windows 2000 Screen
9. After the files are
copied, a Completing
the Found New
Hardware Wizard box
appears indicating the
driver installation is
complete. Click Finish
to close the Wizard.
Windows 2000 Screen
Now that your PMX is installed and your computer is on, you e he
should be able to access the Internet (that is, assuming you hav
signed up with a Service Provider). To access the Internet, open t
web browser that is installed on your computer, (for example,
Netscape, Internet Explorer, etc.).
Page 11
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
Removing Your
PMX
Before you store your PC in a computer case, you should remove
the PMX from the PC. Also, turn the antenna to its original down
position. Leaving the PMX in the PC or the antenna in the upright
position while storing the PC in a computer case may damage the
PMX or the antenna.
To properly remove the PMX from your computer, you must first
stop the driver software. If you do not stop the driver software first,
the following box will appear:
To safely remove the PMX, click on the PMX icon indicated in the
following illustration. Depending on your computer’s setup, this
icon is probably located in the lower right-hand corner of your
computer.
nce you click on the icon, a list with one or more elements will
emoving Your PMX, continued
O
appear. This list is dependent on the devices currently installed on
your PC. For example:
R
Page 12
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
Indicator Light
elect Stop Navini Networks PCMCIA Adapter.
S
ext, the Stop a Hardware Device dialog box appears. Click OK. N
ou can now pull the PMX out of your computer. If the sound on
n indicator light on the top of the PMX’s black encasement ht
Y
your computer is turned on, you may hear a beep indicating the
PMX was unplugged.
A
provides information about the PMX’s operation. When the lig
blinks, the PMX is trying to synchronize with a BTS. When the
light is solid, the PMX has acquired synchronization with a Base
Station.
Indicator Light
Page 13
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
Troubleshooting
Installing Navini
Diagnostics
(NavDiag)
If you experience difficulties with your Internet connection after
you have installed the PMX driver software, please review the
Minimum Computing Requirements and Addendum 1. Ensure your
computer meets those requirements. Also, review the installation
procedures and ensure all steps were completed properly. If you are
still experiencing difficulties, troubleshoot using the Navini
Diagnostics (NavDiag) monitoring software or contact your
Service Provider.
The NavDiag software assists you in solving connection problems
and provides other valuable information. This software is provided
on the Installation CD that came in your PMX package. This
section explains how to install this software.
Note: To install NavDiag on a Windows 2000, you must have
administrative privileges. To check your account privileges, open
your Control Panel. Double-click on the Users and Passwords
symbol. You should see Administrator under the Users tab.
Note: The screenshots shown in the instructions were taken
from a laptop with Windows 2000. If you have a Windows XP
operating system, the screens you see may vary from the screens
shown in the instructions.
Step Action Illustration
1. Before installing the
NavDiag software, shut
down all programs,
including anti-virus
software programs.
2. Insert the Installation
CD into the CD-ROM
drive.
3. Open the CD by clicking
on the My Computer
icon. Double-click on
the folder named
Navini_Diagnostics.
Page 14
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
Installing NavDiag,
continued
Step Action Illustration
4. Double-click on the icon
for the file
navdiag_windows.exe*.
This will automatically
start the installation of
NavDiag.
Example
5. The InstallAnywhere
window appears. The
progress bar indicates
that InstallAnywhere has
initialized.
Windows 2000 Screen
Doubleclick
this file.
6. The Navini Diagnostics
Language screen
appears* (see Note
above). Select a
language, and click OK
to continue.
Note: NavDiag may
automatically attempt to
match the language set
on your PC under
Regional Options. The
language selection
affects how NavDiag
displays its screens. If
you receive an error
message concerning the
language, click OK and
NavDiag will default to
English. At this time,
NavDiag supports three
languages: 1. English
(U.S.), 2.Spanish
(Spain), and 3. Dutch
(Holland).
Windows 2000 Screen
Page 15
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
Installing NavDiag,
continued
Step Action Illustration
7. The progress bar
indicates the files are
being installed.
Windows 2000 Screen
8. The NavDiag
Introduction screen
appears. Click Next to
continue.
Windows 2000 Screen
9. The License Agreement
t to
the License ot ot
Windows 2000 Screen
screen appears. Read the
Licensing Agreement.
Select the I Accept
option, and click Nex
continue.
If
Agreement is n
accepted, you cann
install the software.
Page 16
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
Installing NavDiag,
continued
Step Action Illustration
10. The Choose Install
Folder screen appears.
Enter the name of the
folder where you wish to
install the software.
Click Next to continue.
The default installation
folder provided by the
software is shown in the
illustration.
Windows 2000 Screen
11. The Choose Shortcut
Folder screen appears.
Accept the default and
click Next to continue.
Windows 2000 Screen
12. The Pre-Installation
he .
or your installation and
at is
Windows 2000 Screen
Summary screen
appears. Review t
contents for accuracy
Click Install to
continue.
F
computer, this screen
may have different
information than wh
shown in the illustration.
Page 17
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
Installing NavDiag,
continued
Troubleshooting
Using Navini
Diagnostics
Step Action Illustration
13. The Installing screen
will change as the
application files are
loaded.
Windows 2000 Screen
14. At the Install Complete
screen, click Done to
close the window.
Windows 2000 Screen
To open the Navini Diagnostics software application, double-click
on the Navini Diagnostics icon on your desktop.
he Connection Status screen will open and display data if the
T
PMX is in use. The screen will refresh live data every second.
Page 18
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
Troubleshooting Using
Navini Diagnostics,
continued
The Icons
The following sections describe the various parts of the Connection
Status screen.
The icons that appear on the top right side of the screen represent
the PC, the connection between the PC and the Modem, the
Modem, the connection between the Modem and the Base Station,
and the Base Station to which the Modem is communicating.
Check marks over the connections indicate working connections.
PC
Connection between
PC & Modem
Modem Base Station
Connection between
Modem & Base Station
PC
Connection between
PC & Modem
Modem Base Station
Connection between
Modem & Base Station
If the connection between the PC and the PMX or between the
PMX and the Base Station is interrupted, an “X” is positioned over
the corresponding icon.
Page 19
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
The Signal
Strength and
Signal Quality
Bars
Signal Strength and Signal Quality are dynamic bar areas that
indicate how well your PMX is receiving signals from the Base
Station.
In particular, the Signal Strength bar area graphically represents the
strength of the synchronization signal your Modem is receiving
from BTS. The strength of the signal is represented by a group of
colored bars. The higher the pile of bars goes, the stronger the
signal is. The color of the bars also gives an indication of the
strength of the signal. Green lines indicate an excellent signal.
Orange lines indicate a good signal while red lines indicate a weak
signal.
The Signal Quality bar area graphically represents the Signal-to-
Noise Ratio (SNR) received by your Modem. Again, the quality of
the signal is represented by a group of colored bars. The higher the
pile of bars goes, the better the SNR of the signal. The color of the
bars also gives an indication of the quality of the signal. Green
lines indicate an excellent signal or an SNR greater than 21.
Orange lines indicate a good signal or an SNR greater than or equal
to 13 but less than or equal to 21. Red lines indicate a weak signal
or an SNR less than 13.
Page 20
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
How to Increase
the Strength and
Quality of the
Signal
The History Graphs
The Parameters
To increase the strength and quality of the signal, change the
location of the PC in which the PMX is inserted. Try moving it
closer to a window, to a higher location, away from other wireless
devices (microwave ovens, cordless phones), and away from metal
objects (shelves, file cabinets). As you reposition your PC, watch
the Signal Strength and Quality bars on the NavDiag screen. Place
your PC in the location where you receive the most green signal
strength and quality bars.
The History graphs plot the change in signal strength and signal
quality over time. The graphs cover the last minute and are updated
every second. Read the graphs from right to left. The right side of
the graph represents the most recent status of your PMX.
At the bottom of the Connection Status screen are four parameters.
These parameters are BTS ID, Network ID, Active SW Version,
and Standby SW Version.
The BTS ID indicates the BTS to which the PMX is currently
synchronized. The Network ID indicates the network in which
the PMX is operating. Active SW Version and Standby SW
Version
Page 21
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
The Parameters, continued
The Screen Option
Buttons
The Configuration
Screen
The Trend Analysis
Screen
indicate the version number of the software currently loaded in the
“active side” and “standby side” of the PMX’s flash memory. The
two letters in parenthesis following the release number indicate the
type of software load. JD indicates Joint Detection while EN
indicates Enhanced Nulling.
On the left-hand side of the screen, there are five screen option
buttons: Connection Status, Configuration, Trend Analysis,
Statistics, and About. Each of these screens provides unique
capabilities.
The Configuration screen enables you to update your PMX’s
software if directed to do so by your Service Provider. To access
the Configuration screen, press the Configuration button.
If you must update your PMX’s software, your Service Provider
will provide you with instructions regarding what to do.
At the bottom of the screen is an Allow Customer Satisfaction
Reporting box. This box currently is not supported on the PMX.
The Trend Analysis screen lets you view PMX parameters that
evolve over time. With this screen, you can select up to three
parameters to plot. To view the Trend Analysis screen, press the
Trend Analysis button.
Page 22
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
The Trend Analysis
Screen, continued
The Statistics
Screen
By pressing the Plot Graph button, the following screen appears.
This screen displays the value of the selected parameters over the
last five minutes, updated once every second. The graphic scrolls
from right to left.
The Statistics screen lets you view the current value of selected
parameters. These values are updated as they change over time. To
view the Statistics screen, press the Statistics button.
Page 23
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
The About Screen
The Help Button
Uninstalling
Navini
Diagnostics
Software
The About screen provides vital information such as the version of
the Navini Diagnostics software currently installed on your
computer. It also provides a website address and telephone number
where you can contact your Service Provider. To view the About
screen, press the About button.
A Help button appears on the top right corner of all the NavDiag
windows. The Help button gives you two options. The first option,
On NavDiag, provides help text on the functionality of the
NavDiag program. The second option, About NavDiag, is
equivalent to clicking on the About icon.
If for some reason you need to uninstall the NavDiag software,
e.g., to upgrade your Operating System software, follow the
procedure below.
Note: If you are going to upgrade your PC Operating System
after loading the Navini Diagnostics software, you must first
uninstall NavDiag prior to upgrading the OS. Otherwise, NavDiag
will not work.
Note: The screenshots shown in these instructions were taken
from a laptop with Windows 2000. If you have a Windows XP
operating system, the screens you see may vary from the screens
shown in the instructions.
Page 24
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
Uninstalling NavDiag
Software, continued
Step Action Illustration
1. On your computer
screen lower left corner,
click on Start >
Programs > NavDiag >
Uninstall.
2. The Install-Anywhere
Uninstaller screen
appears. Click
Uninstall.
Windows 2000 Screen
3. The screen indicates the
application files are
uninstalled.
Windows 2000 Screen
4. The Uninstall Complete
screen appears when
finished. Click on Quit
to close the Uninstall
screen.
Windows 2000 Screen
5. Restart the PC to
complete the uninstall
process. This ensures the
uninstall process
completes successfully.
Page 25
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
Optional
Desktop
Antenna
Connecting the
Desktop Antenna
An optional desktop antenna is available for the PMX. This
antenna connects to the PMX and then sits on a surface next to the
laptop. The laptop should be used preferably on a desk when the
PMX is installed. Using the laptop with the PMX close to the body,
such as on the lap, is undesirable.
This antenna should be used if optimal reception cannot be
obtained through the PMX antenna. Following is a picture of the
optional desktop antenna.
To connect the desktop antenna to the PMX, you must first remove
the antenna attached to the PMX. To remove the antenna, turn the
antenna down so that it is lying parallel with the PMX. Grasp the
base of the antenna near its connection point and firmly pull the
antenna away from the card.
o not grasp the top or middle of the antenna as it may break when
nce the PMX antenna is removed, connect the desktop antenna by
D
you try to pull the antenna away.
O
inserting its connector into the port on the PMX.
Page 26
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
Connecting the Desktop
isconnecting the
sert the antenna into the base unit.
o disconnect the desktop antenna from the PMX, hold the
onnector at its connection point and gently pull the connector out
f the card.
ntly connecting and disconnecting the desktop antenna
the PMX as frequent connection/disconnection may cause the
Antenna, continued
D
Desktop Antenna
In
T
c
o
Note: If a desktop antenna is required for optimal reception,
avoid freque
Base
from
connector on the desktop antenna to break.
Page 27
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
Care and
Maintenance
Upgrading the
PMX
The PMX is designed to give you years of trouble-free service. To
ensure operation, read the following care and maintenance
instructions.
Keep the PMX free of dust and moisture. If the PMX gets wet,
use a towel to dry it immediately.
Handle the PMX gently. Dropping it or mishandling it can
cause damage to the metal/plastic shell or the electronic
circuitry.
Keep the PMX away from high temperatures. Heat can cause
damage to the metal/plastic shell or the electronic circuitry.
To clean the external areas of the PMX, use only an electrical
contact cleaner that is non-conductible and a soft, damp, lint-
free cloth. Do not use any chemicals or abrasives to clean the
PMX. Also use caution around the connection pins.
If there is a problem with the PMX, do not attempt to repair it
yourself. Report the problem to your Service Provider.
Do not apply adhesive labels to the PMX. This may cause the
PMX to become jammed inside the card slot.
The PMX should fit easily into the PC slot. Do not force the
PMX into the PC slot. Forcing the PMX into the slot may cause
damage to the connector pins.
If you are going to upgrade your computer Operating System
after loading the NavDiag software, you must first uninstall
NavDiag prior to upgrading the OS. Otherwise, NavDiag will
not work. See the Uninstall instructions in this Guide.
There are two different ways to upgrade the software that makes
the PMX work.
Your Service Provider may perform an over-the-air (OTA)
upgrade, where the up-to-date software files are transferred
wirelessly from a Base Station to your PMX. This method will
normally be transparent to you; in other words, you should not
experience any noticeable service interruption.
Page 28
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
You Service Provider may provide a downloadable web file or
CD-ROM with software that is installed on your PC and used
to upgrade the PMX software. This method is used only if the
PMX was not inserted and “on” during the OTA upgrade
process. If you must upgrade your software using this method,
your Service Provider will give you instructions on what to do.
This method takes a minimal amount of time to complete.
Note: If you must upgrade the PMX Driver to the latest
driver, Windows will tell you that the current driver is the latest
driver. Ignore this message, and force Windows to update the
driver.
Page 29
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
ADDENDUM 1: PMX - PC Troubleshooting
- For Use With the Ripwave MX PC Card (PMX) & Navini Diagnostics Software -
PC Operating Systems
Prior to installing the Navini Diagnostics (NavDiag) software, please check to ensure that the PC
Operating System meets the criteria given in the table below. If these criteria are not met,
unpredictable problems may occur as a result of installation. It is recommended that the user
have the latest Windowsc updates installed prior to installing the NavDiag software.
Operating System PMX Interface Notes
Win 2000 Supported 1, 3
Win 2003 Supported 3
Win XP Supported 2, 3
Note 1: Internet Explorer 3.0 or higher is required
Note 2: Requires Service Pack 1
Note 3: To load the NavDiag software, the user MUST have Administrative privileges.
Results of Correct NavDiag Installation
Experienced PC users can check the results of the Navini Diagnostics installation by looking at
the log file that is created during the installation process. The log file is named
“Ripwave_Diagnostics_InstallLog.log.” It is located under c:\Program Files\Navini
Diagnostics.
-------
Install Begin: Tue Jul 20 12:15:22 CDT 2004
Install End: Tue Jul 20 12:15:30 CDT 2004
Created with Zero G's InstallAnywhere 4.5.3 Enterprise Build 1394
Summary
-------
Installation: Successful with warnings.
2 SUCCESSES
1 WARNINGS
0 NONFATAL ERRORS
0 FATAL ERRORS
Action Notes:
None.
Page 30
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
Install Log Detail:
Check Disk Space: C:\Program Files\NavDiag
Status: SUCCESSFUL
Additional Notes: NOTE - Required Disk Space: 29,363,315; Free Disk Space: 30,806,179,840
Install Directory: C:\Program Files\NavDiag\
Status: SUCCESSFUL
Get Registry Entry: Key: HKEY_LOCAL_MACHINE\SOFTWARE\Navini Networks\NavDiag, ValueName:
InstallDirectory
Status: WARNING
Additional Notes: WARNING - Win32Exception
Make Registry Entry: Key: HKEY_LOCAL_MACHINE\SOFTWARE\Navini Networks, Value Name: , Value
Data:
Status: SUCCESSFUL
Make Registry Entry: Key: HKEY_LOCAL_MACHINE\SOFTWARE\Navini Networks\NavDiag, Value Name:
, Value Data:
Status: SUCCESSFUL
Make Registry Entry: Key: HKEY_LOCAL_MACHINE\SOFTWARE\Navini Networks\NavDiag, Value Name:
InstallDirectory, Value Data: C:\Program Files\NavDiag
Status: SUCCESSFUL
Install Directory: C:\Program Files\NavDiag\Uninstall\
Status: SUCCESSFUL
Install Uninstaller: Navini Diagnostics (Install All Uninstaller Components)
Status: SUCCESSFUL
Install Directory: C:\Program Files\NavDiag\jre
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\Uninstall\Uninstall NavDiag.exe
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\Uninstall\Uninstall NavDiag.lax
Status: SUCCESSFUL
Install Directory: C:\Program Files\NavDiag\Uninstall\resource\
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\Uninstall\resource\iawin32.dll
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\Uninstall\resource\remove.exe
Status: SUCCESSFUL
Make Registry Entry: Key:
HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Uninstall\Navini Diagnostics,
Value Name: DisplayName, Value Data: Navini Diagnostics
Status: SUCCESSFUL
Page 31
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
Make Registry Entry: Key:
HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Uninstall\Navini Diagnostics,
Value Name: UninstallString, Value Data: "C:\Program Files\NavDiag\Uninstall\Uninstall NavDiag.exe"
Status: SUCCESSFUL
Install Uninstaller: Navini Diagnostics (Install All Uninstaller Components)
Status: SUCCESSFUL
Create LaunchAnywhere: Navini Diagnostics.exe (Install All LaunchAnywhere Java Executable Components)
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\Navini Diagnostics.exe
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\Navini Diagnostics.lax
Status: SUCCESSFUL
Create LaunchAnywhere: Navini Diagnostics.exe (Install All LaunchAnywhere Java Executable Components)
Status: SUCCESSFUL
Install Directory: C:\Program Files\NavDiag\data\
Status: SUCCESSFUL
Install Directory: C:\Program Files\NavDiag\data\images\
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\data\images\billboard.gif
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\data\images\splash.gif
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\data\images\buttonbar.gif
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\data\images\about2.gif
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\data\images\about1.gif
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\data\images\about.gif
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\data\images\uninstall.gif
Status: SUCCESSFUL
Install Directory: C:\Program Files\NavDiag\data\log\
Status: SUCCESSFUL
Install Directory: C:\Program Files\NavDiag\data\lib\
Status: SUCCESSFUL
Page 32
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
Install File: C:\Program Files\NavDiag\data\lib\ctl.jar
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\data\lib\navDiag.jar
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\data\lib\jfreechart-0.9.13.jar
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\data\lib\jcommon-0.8.8.jar
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\data\lib\log4j.jar
Status: SUCCESSFUL
Install Directory: C:\Program Files\NavDiag\data\doc\
Status: SUCCESSFUL
Install Directory: C:\Program Files\NavDiag\config\
Status: SUCCESSFUL
Install File: C:\Program Files\NavDiag\config\NavDiag.lcf
Status: SUCCESSFUL
Install Directory: C:\Documents and Settings\luis\Start Menu\Programs\NavDiag\
Status: SUCCESSFUL
Create Shortcut: C:\Documents and Settings\luis\Start Menu\Programs\NavDiag\Navini Diagnostics.lnk
Status: SUCCESSFUL
Create Shortcut: C:\Documents and Settings\luis\Start Menu\Programs\NavDiag\Uninstall.lnk
Status: SUCCESSFUL
Install Directory: C:\Documents and Settings\luis\Desktop\
Status: SUCCESSFUL
Additional Notes: NOTE - Directory already existed
Create Shortcut: C:\Documents and Settings\luis\Desktop\Navini Diagnostics.lnk
Status: SUCCESSFUL
Page 33
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
ADDENDUM 2: End User Software License Agreement
between
Navini Networks, Inc.
and
Buyer
ARTICLE 1
IMPORTANT MESSAGE
1.1 Act of Assent. Installing the Software indicates that you have read, understand and accept
this License Agreement.
ARTICLE 2
LICENSES
2.1 Grant of License. The Software and related Documentation, are the intellectual property
of Navini Networks, Inc. and are protected by law. Navini Networks, Inc. grants to
Buyer a personal, nonexclusive, nontransferable worldwide license, for revocable use (as
permitted herein) of the Software based on the terms and conditions of this License
Agreement and the Master Supply Agreement to which it is attached. Buyer is permitted
to install and use the Software on its server, but only in conjunction with the Navini
Hardware. Buyer is not permitted to rent, sell or otherwise transfer the Software to any
third parties.
2.2 Ownership Rights. Under this Agreement, Buyer does not acquire any rights of
ownership in the Software and related Documentation and subsequent releases and
versions licensed by Navini Networks, Inc. to Buyer pursuant to this License Agreement,
whether in printed or machine-readable format. Buyer acquires only the right to use the
Software and related Documentation subject to the terms and conditions of this
Agreement. Buyer promises to keep the Software in confidence for the benefit of Navini
Networks, Inc. and agrees to destroy or return the Software and all copies at such time as
Buyer chooses to cease using the Software or upon termination or cancellation of this
License Agreement for any reason.
2.3 Backup Copies. Buyer may copy the Software for safekeeping (archival) or backup
purposes, provided that all such copies of the Software are subject to the provisions of
this License Agreement, and also provided that each copy shall include in readable
format any and all confidential, proprietary, and copyright notices or markings contained
in the original.
2.4 Assignment. The rights granted in this License Agreement are restricted for use solely by
Buyer and may not be assigned, transferred, or sublicensed, however Buyer may grant
access to its server to End-Users. Each Buyer shall be authorized to make use of the
Software in the form in which it is provided to Buyer solely for Buyer’s own computer
server location. Buyer represents that it will not use the Software for any purpose that is
not expressly delineated in this Agreement. Further Buyer represents that it will comply
with all export, re-export, and other laws in its use of the Software.
Page 34
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
2.5 Suitability.
a. Buyer alone is responsible for determining which software best suits Buyer’s
needs, for installing and operating the Software, and for the results obtained.
Accordingly, each Buyer should determine its needs, and evaluate the Software’s
capabilities before making a final decision about licensing the software.
b. Navini Networks, Inc. makes no representation that the Software conforms to or
satisfies any federal, state, or local laws. Buyer is encouraged to engage
professional assistance from attorneys and engineers to evaluate the suitability of
the Software for Buyer’s use.
c. Navini Networks, Inc. makes no claims that the Software is suitable for Buyer’s
intended purposes.
2.6 Remote Digital Access. Navini Networks, Inc. reserves the right, but is not obligated to
digitally access the Software for the purposes of upgrading and maintaining the Software.
2.7 U.S. GOVERNMENT RESTRICTED RIGHTS. All Software provided to the U.S.
Government pursuant to solicitations issued on or after December 1, 1995 is provided
with the commercial license rights and restrictions described elsewhere herein. All
Software provided to the U.S. Government pursuant to solicitations issued prior to
December 1, 1995 is provided with “Restricted Rights” as provided for in FAR, 48 CFR
52.227-14 (June 1987) or DFAR, 48 CFR 252.227-7013 (Oct 1988), as applicable
ARTICLE 3
TRADE SECRETS
3.1 Trade Secret. Navini Networks, Inc. considers the licensed Software covered by this
License Agreement to be a trade secret. Navini Networks, Inc. does not disclose any
information to Navini Networks, Inc. competitors or potential competitors. Buyer shall
not disclose any design, code, or technological know-how gained by access to the
Software to Licensor’s competitors. Buyer shall not use design, code, or documentation
gained by access to the Software to develop a similar technology or a competing software
product. To attempt to or to do so, the Parties acknowledge, understand and agree,
constitute a material breach of this License Agreement.
3.2 Third Party Intellectual Property. Buyer acknowledges, understands and agrees that the
licensed Software covered by this License Agreement may contain Intellectual Property
owned by Third Parties and duly licensed to Navini Networks, Inc. Copyright, Patent
and other laws protect Third Party Intellectual Property manufactured with, marketed
with, or otherwise bundled with the licensed Software. Buyer promises to keep such
Third Party Intellectual Property in confidence to the benefit of the Third Party, agrees
not to reverse engineer or otherwise decompile Third Party Intellectual Property, and
agrees to stop using, destroy and/or return such Third Party owned Intellectual Property
under the same terms and conditions as the licensed Software as set forth in this License
Agreement.
Page 35
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
ARTICLE 4
INDEMNIFICATIONS AND WARRANTY
4.1 Intellectual Property Indemnification; Entire Liability. ARTICLE 15 OF THE SUPPLY
AGREEMENT TO WHICH THIS AGREEMENT IS ATTACHED STATES THE
ENTIRE LIABILITY OF NAVINI NETWORKS, INC. WITH RESPECT TO
INFRINGEMENT OF COPYRIGHTS, TRADE SECRETS, TRADEMARKS,
PATENTS, AND OTHER INTELLECTUAL PROPERTY RIGHTS BY THE
LICENSED SOFTWARE, DOCUMENTATION, OR ANY PARTS THEREOF, AND
NAVINI NETWORKS, INC. SHALL HAVE NO ADDITIONAL LIABILITY WITH
RESPECT TO ANY ALLEGED OR PROVEN INFRINGEMENT.
4.2 Warranty. EXCEPT AS GRANTED IN THE BODY OF THE SUPPLY AGREEMENT
TO WHICH THIS LICENSE AGREEMENT IS ATTACHED, THE LICENSED
SOFTWARE IS PROVIDED BY NAVINI NETWORKS, INC. “AS IS” AND
WITHOUT WARRANTY OF ANY KIND OR NATURE, WRITTEN OR ORAL,
EXPRESS OR IMPLIED, INCLUDING (WITHOUT LIMITATION) THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. THIS LIMITATION OF WARRANTIES WAS A MATERIAL FACTOR
IN THE ESTABLISHMENT OF THE LICENSE FEE CHARGED FOR EACH
SPECIFIC ITEM OF SOFTWARE LICENSED.
ARTICLE 5
LIMITATION OF LIABILITY
5.1 Consequential Damages. TO THE MAXIMUM EXTENT PERMITTED BY THE
APPLICABLE LAW, IN NO EVENT SHALL NAVINI NETWORKS, INC. OR ANY
THIRD PARTY INVOLVED IN THE CREATION, PRODUCTION, DELIVERY, OR
LICENSING OF THE SOFTWARE BE LIABLE FOR ANY LOST REVENUES,
PROFITS OR DATA OR OTHER SPECIAL, INDIRECT, INCIDENTAL,
CONSEQUENTIAL, OR PUNITIVE DAMAGES, HOWEVER CAUSED AND
REGARDLESS OF THEORY OF LIABILITY, EVEN IF NAVINI NETWORKS, INC.
HAS, OR SHOULD HAVE HAD ANY KNOWLEDGE, ACTUAL OR
CONSTRUCTIVE, OF THE POSSIBILITY OF SUCH DAMAGES.
5.2 License-Fee Limitation. Except for the indemnification provisions of Article 15, Navini
Networks, Inc.’s maximum liability for damages is limited to the license fees paid by
Buyer under this Agreement for the particular licensed Software that caused the damages.
5.3 Loss of Data. Software error can cause a significant loss of data. Navini Networks, Inc.
shall not be responsible for any loss of data. Navini Networks, Inc.’s responsibility is to
correct the Software error as provided in this License Agreement or the Supply
Agreement to which it is attached. It is Licensee’s responsibility to have adequate
backup procedures to protect Buyer from significant loss of valid data.
Page 36
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)
Navini Networks, Inc. Ripwave MX PC Card (PMX) User’s Guide
ARTICLE 6
OBJECT CODE ONLY-NO MODIFICATIONS
6.1 Modifications. In order to maintain the “trade secret” status of the information contained
in the Licensed Software, Navini Networks, Inc. provides the Software in object-code
form only. Buyer shall not modify, enhance, adapt, disassemble, translate, decompile or
otherwise decode any portion of the object code of the Software module. Buyer shall not
use the Software without a license to the Software object code. The object code contains
the license number, date of license, and other license information. This information is
placed in the object-code portions to prevent unauthorized and unlicensed distributions of
the Software. Buyer shall not subvert or change any of this information. Further Buyer
shall not make, full or partial, copies of any documentation whether printed or machine-
readable media supplied with the Licensed Software unless expressly granted prior
written permission by Navini Networks, Inc.
6.2 Responsibility for Damages. Buyer is subject to the provisions of the Supply Agreement
with respect to the Software (including Section 16). Buyer is fully liable and responsible
for any damages, indirect or direct, and costs that Navini Networks, Inc. may incur if
Buyer appoints a subcontractor who accesses the Software without Navini’s prior written
consent. Buyer shall defend, indemnify, and hold Navini Networks, Inc., its directors,
officers, employees, agents, Authorized Partners, and other representatives harmless
accordingly for all costs and direct and indirect damages sustained by Navini Networks,
Inc. However, if the subcontractor is pre-approved by Navini in writing for access to the
Software, then this Section shall not apply.
6.3 Copyright Notices. Buyer shall not remove any copyright or proprietary rights notice or
identification that indicates Navini Networks, Inc. ownership from any part of the
licensed Software, it being expressly understood and agreed that the existence of such
copyright notice should not be construed as an admission or presumption that publication
of the licensed Software has occurred.
END OF AGREEMENT
Copyright © 2004-2006 Navini Networks, Inc.
All rights reserved. Printed in the USA.
Navini Networks is a registered trademark. Zero-Install, Ripwave, and Unwired by Navini are
trademarks of Navini Networks, Inc. Other product and company names mentioned herein may
be trademarks and/or service marks of their respective owners. Rev. 052302
Page 37
060815_pv1.1_Ripwave MX PC Card (PMX) User’s Guide_40-00460-00Ra(4.5)

Navigation menu
