Cisco ONS 15310-MA SDH Reference Manual

Americas Headquarters

Cisco Systems, Inc.

170 West Tasman Drive

San Jose, CA 95134-1706

USA

http://www.cisco.com

Tel: 408 526-4000

800 553-NETS (6387)

Fax: 408 527-0883

Cisco ONS 15310-MA SDH Reference

Manual

Product and Documentation Release 9.1 and Release 9.2

August 2012

Text Part Number: 78-19417-01

THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL

STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT

WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.

THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT

SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE

OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.

The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant

to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required

to correct the interference at their own expense.

The following information is for FCC compliance of Class B devices: The equipment described in this manual generates and may radiate radio-frequency energy. If it is not

installed in accordance with Cisco’s installation instructions, it may cause interference with radio and television reception. This equipment has been tested and found to

comply with the limits for a Class B digital device in accordance with the specifications in part 15 of the FCC rules. These specifications are designed to provide reasonable

protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation.

Modifying the equipment without Cisco’s written authorization may result in the equipment no longer complying with FCC requirements for Class A or Class B digital

devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television

communications at your own expense.

You can determine whether your equipment is causing interference by turning it off. If the interference stops, it was probably caused by the Cisco equipment or one of its

peripheral devices. If the equipment causes interference to radio or television reception, try to correct the interference by using one or more of the following measures:

• Turn the television or radio antenna until the interference stops.

• Move the equipment to one side or the other of the television or radio.

• Move the equipment farther away from the television or radio.

• Plug the equipment into an outlet that is on a different circuit from the television or radio. (That is, make certain the equipment and the television or radio are on circuits

controlled by different circuit breakers or fuses.)

Modifications to this product not authorized by Cisco Systems, Inc. could void the FCC approval and negate your authority to operate the product.

The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public

NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH

ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT

LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF

DEALING, USAGE, OR TRADE PRACTICE.

IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING,

WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO

OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this

URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership

relationship between Cisco and any other company. (1110R)

Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command display output, and figures included in the

document are shown for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and coincidental.

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and 9.2

iii

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

CONTENTS

Preface xxi

Revision History xxi

Document Objectives xxii

Audience xxii

Category

Static

IP-Over-CLNS TL1 Tunnel Comments

4-20

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 4 Cisco Transport Controller Operation

Database Backup

From the node view, select a card and right-click to open a menu with the hard-reset and soft-reset

commands. A card must be in the Out-of-Service and Management, Maintenance

(locked-enabled,maintenance) service state before you can perform a hard reset.

4.10 Database Backup

You can store a back-up version of the database on the workstation running CTC. This operation should

be part of a regular ONS 15310-MA SDH maintenance program performed at approximately weekly

intervals and should also be completed when preparing an ONS 15310-MA SDH for a pending natural

disaster, such as a flood.

A database backup may be restored in two ways, partial or complete. A partial database restore operation

restores only the provisioning data. A complete database restore operation restores both system and

provisioning data. For more information on restore database, refer to the Cisco ONS 15310-MA SDH

Procedure Guide.

Note The following parameters are not backed up and restored: node name, IP address, mask and gateway, and

Internet Inter-ORB Protocol (IIOP) port. If you change the node name and then restore a backed up

database with a different node name, the circuits will map to the new node name. Cisco recommends

keeping a record of the old and new node names.

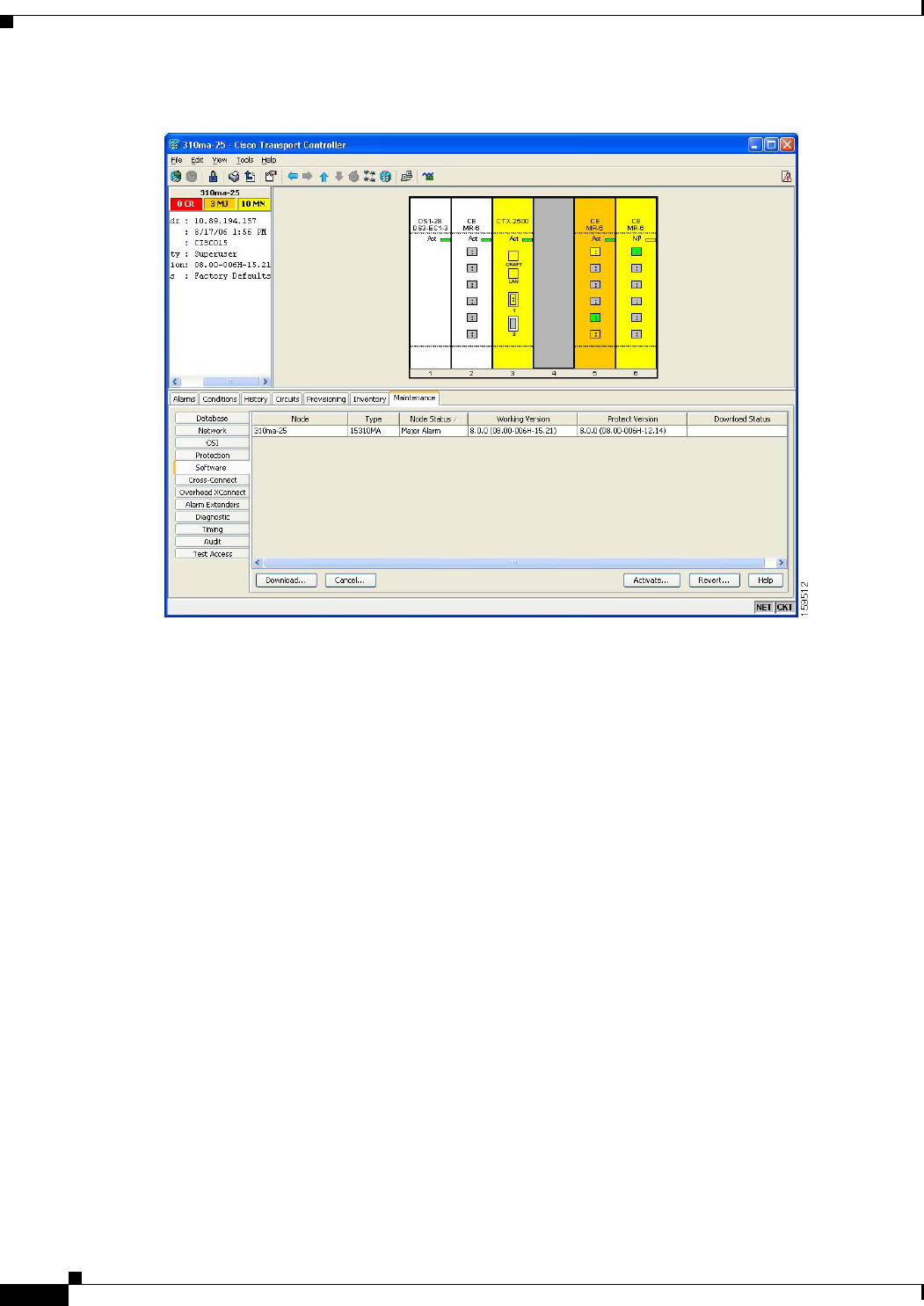

4.11 Software Revert

When you click the Activate button after a software upgrade, the 15310E-CTX-K9 copies the current

working database and saves it in a reserved location in the 15310E-CTX-K9 flash memory. If you later

need to revert to the original working software load from the protect software load, the saved database

installs automatically. You do not need to restore the database manually or recreate circuits.

The revert feature is useful if a maintenance window closes while you are upgrading CTC software. You

can revert to the standby software load without losing traffic. When the next maintenance window opens,

complete the upgrade and activate the new software load.

Circuits that were created and provisioning that was performed after a software load is activated

(upgraded to a higher release) do not reinstate with a revert. The database configuration at the time of

activation is reinstated after a revert. This does not apply to maintenance reverts (for example 8.0.1 to

8.0.0), because maintenance releases use the same database.

CHAPTER

5-1

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Security

This chapter provides information about Cisco ONS 15310-MA SDH user security. To provision

security, refer to the Cisco ONS 15310-MA SDH Procedure Guide.

Chapter topics include:

• 5.1 Users IDs and Security Levels, page 5-1

• 5.2 User Privileges and Policies, page 5-2

• 5.3 Audit Trail, page 5-7

• 5.4 RADIUS Security, page 5-8

5.1 Users IDs and Security Levels

A CISCO15 user ID is provided with the ONS 15310-MA SDH for use with initial login. Use this ID to

set up other ONS 15310-MA SDH user IDs. (For instructions, see the “Turn Up a Node” chapter in the

Cisco ONS 15310-MA SDH Procedure Guide.)

Note Cisco Transport Controller (CTC) does not display the CISCO15 user ID when you log in.

An ONS 15310-MA SDH node can support up to 500 user IDs. Each CTC or Transaction Language 1

(TL1) user ID can be assigned one of the following security levels:

• Retrieve—Users can retrieve and view CTC information but cannot set or modify parameters.

• Maintenance—Users can access only the ONS 15310-MA SDH maintenance options.

• Provisioning—Users can access provisioning and maintenance options.

• Superuser—Users can perform all of the functions of the other security levels as well as set names,

passwords, and security levels for other users.

By default, multiple concurrent user ID sessions are permitted on the node; that is, multiple users can

log into a node using the same user ID. However, you can provision the node to allow only a single login

per user ID and prevent concurrent logins for all users.

See Table 5-3 on page 5-6 for idle user timeout information for each security level.

5-2

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 5 Security

User Privileges and Policies

5.2 User Privileges and Policies

This section lists user privileges for each CTC action and describes the security policies available to

Superusers.

5.2.1 User Privileges by CTC Action

Table 5-1 shows the actions that each user privilege level can perform in node view.

Table 5-1 ONS 15310-MA SDH Security Levels—Node View

CTC Tab Subtab [Subtab]: Actions Retrieve Maintenance Provisioning Superuser

Alarms — Synchronize/Filter/Delete

Cleared Alarms

XXXX

Conditions — Retrieve/Filter X X X X

History Session Filter X X X X

Shelf Retrieve/Filter X X X X

Circuits Circuits Create/Edit/Delete — — X X

Filter/Search X X X X

Rolls Complete/Force Valid

Signal/Finish

—— X X

Provisioning General Edit — — Partial1X

Network General: Edit — — — X

Static Routing: Create/Edit/

Delete

—— X X

OSPF: Create/Edit/Delete — — X X

RIP: Create/Edit/Delete — — X X

Proxy: Create/Edit/Delete — — — X

Firewall: Create/Edit/Delete — — — X

OSI Main Setup: Edit — — — X

TARP: Config: Edit — — X X

TARP: Static TDC:

Add/Edit/Delete

—— X X

TARP: MAT: Add/Edit/Delete — — X X

Routers: Setup: Edit — — — X

Routers: Subnets:

Edit/Enable/Disable

—— X X

Tunnels: Create/Edit/Delete — — X X

Protection Create/Delete/Edit — — X X

5-3

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 5 Security

User Privileges and Policies

Provisioning

(continued)

Security Users: Create/Delete/Clear

Security Intrusion Alarm

———X

Users: Change Same user Same user Same user All users

Active Logins: View/Logout/

Retrieve Last Activity Time

———X

Policy: Edit/View

(Prevent superuser disable - NE

Default)

———X

Data Comm: Edit/View — — — X

Access: Edit/View — — — X

RADIUS Server:

Create/Edit/Delete/Move Up/

Move Down/View

———X

Legal Disclaimer: Edit — — — X

SNMP Create/Edit/Delete — — X2X

Browse trap destinations X X X X

Comm Channels RS-DCC: Create/Edit/Delete — — X X

MS-DCC: Create/Edit/Delete — — X X

PPC: Create/Edit/Delete — — X X

Timing General/BITS Facilities: Edit — — X X

Orderwire Enable Buzzer — — X X

Alarm Extenders External Alarms: Edit — — X X

External Controls: Edit — — X X

Alarm Profiles Alarm Behavior: Edit — — X X

Alarm Profile Editor:

Store/Delete3

—— X X

Alarm Profile Editor:

New/Load/Compare/Available/

Usage

XXXX

Defaults Edit/Import — — — X

Reset/Export X X X X

Inventory — Delete — — X X

Hard Reset/Soft Reset — X X X

Maintenance Database Backup — X X X

Restore ———X

Network Routing Table: Retrieve X X X X

RIP Routing Table: Retrieve X X X X

Table 5-1 ONS 15310-MA SDH Security Levels—Node View (continued)

CTC Tab Subtab [Subtab]: Actions Retrieve Maintenance Provisioning Superuser

5-4

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 5 Security

User Privileges and Policies

Table 5-2 shows the actions that each user privilege level can perform in network view.

Maintenance

(continued)

OSI IS-IS RIB: Refresh X X X X

ES-IS RIB: Refresh X X X X

TDC: TID to NSAP/Flush

Dynamic Entries

—XXX

TDC: Refresh X X X X

Protection Switch/Lock out/

Lock-on/Clear/ Unlock

—XXX

Software Download — X X X

Activate/Revert — — — X

Cross-Connect Resource Usage: Delete — — X X

Resource Usage: Refresh X X X X

Overhead

XConnect

View XXXX

Alarm Extenders External Alarms: View X X X X

External Controls: View X X X X

Virtual Wires: View/Retrieve X X X X

Overhead Termination: View X X X X

Diagnostic Retrieve Tech Support Log

Node Diagnostic Logs

(Release 9.2)

—— X

Lamp Test —XXX

Timing Source: Edit — X X X

Report: View/Refresh X X X X

Audit Retrieve ———X

Archive — — X X

Test Access View X X X X

1. Provisioner user cannot change node name, contact, location, or Virtual Tributary alarm indication signal (AIS-V) insertion on VC3 signal degrade (SD)

parameters.

2. Provisioner user cannot perform this task in secure mode.

3. The action buttons in the subtab are active for all users, but the actions can be completely performed only by the users with the required security levels.

Table 5-1 ONS 15310-MA SDH Security Levels—Node View (continued)

CTC Tab Subtab [Subtab]: Actions Retrieve Maintenance Provisioning Superuser

Table 5-2 ONS 15310-MA SDH Security Levels—Network View

CTC Tab Subtab [Subtab]: Actions Retrieve Maintenance Provisioning Superuser

Alarms — Synchronize/Filter/Delete

cleared alarms

XXXX

Conditions — Retrieve/Filter X X X X

History— Filter XXXX

5-5

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 5 Security

User Privileges and Policies

5.2.2 Security Policies

Users with the Superuser security privilege can provision security policies on the ONS 15310-MA SDH.

These security policies include idle user timeouts, password changes, password aging, and user lockout

parameters. In addition, a Superuser can access the ONS 15310-MA SDH through the LAN port on the

front of the node. If enabled in the NE defaults, superusers can be configured to override the inactive

user timeout interval.

Circuits Circuits Create/Edit/Delete — — X X

Filter/Search X X X X

Rolls Complete/ Force Valid Signal/

Finish

—— X X

Provisioning Security Users: Create/Delete/Clear

Security Intrusion Alarm

———X

Users: Change Same User Same User Same User All Users

Active logins: Logout/Retrieve

Last Activity Time

———X

Policy: Change — — — X

Alarm Profiles Store/Delete1—— X X

New/Load/Compare/Available/

Usage

XXXX

MS-SPRing Create/Delete/Edit/Upgrade — — X X

Overhead

Circuits

Create/Delete/Edit/Merge — — X X

Search XXXX

Provisionable

Patchcords (PPC)

Create/Edit/Delete — — X X

Server Trails Create/Edit/Delete — — X X

VLAN DB

Profile

Load/Store/Merge/Circuits X X X X

Add/Remove Rows — — X X

Maintenance Software Download/Cancel — X X X

Diagnostic OSPF Node Information:

Retrieve/Clear

XXXX

APC Run APC/Disable APC — — — X

Refresh X X X X

1. The action buttons in the subtab are active for all users, but the actions can be completely performed only by the users assigned with the required security

levels.

Table 5-2 ONS 15310-MA SDH Security Levels—Network View (continued)

CTC Tab Subtab [Subtab]: Actions Retrieve Maintenance Provisioning Superuser

5-6

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 5 Security

User Privileges and Policies

5.2.2.1 Superuser Privileges for Provisioning Users

Superusers can grant permission to Provisioning users to perform a set of tasks. The tasks include

retrieving an audit log, restoring a database, clearing performance monitoring (PM) parameters, and

activating and reverting software loads. These privileges, except the PM clearing privilege, can only be

granted using CTC network element (NE) defaults. See Appendix C, “Network Element Defaults” for

more information. To grant the PM clearing privilege using CTC, click the Provisioning > Security >

Access tabs. For more information about setting up Superuser privileges, refer to the “Change Node

Settings” chapter in the Cisco ONS 15310-MA SDH Procedure Guide.

5.2.2.2 Idle User Timeout

Each ONS 15310-MA SDH CTC or TL1 user can be idle during his or her login session for a specified

amount of time before the CTC window is locked. A lockout prevents unauthorized users from making

changes. Higher-level users have shorter default idle periods and lower-level users have longer or

unlimited default idle periods, as shown in Table 5-3. The user idle period can be modified by a

Superuser; refer to the “Change Node Settings” chapter in the Cisco ONS 15310-MA SDH Procedure

Guide for instructions.

5.2.2.3 User Password, Login, and Access Policies

Superusers can view real-time lists of users who are logged in via CTC or TL1 for each node. Superusers

can also provision the following password, login, and node access policies:

• Password length, expiration and reuse—Superusers can configure the password length using NE

defaults. The password length, by default, is set to a minimum of six and a maximum of 20

characters. You can configure the default values in CTC node view using the Provisioning > NE

Defaults > Node > security > password Complexity tabs. The minimum length can be set to eight,

ten, or twelve characters, and the maximum length to 80 characters. The password must be a

combination of alphanumeric (a-z, A-Z, 0-9) and special (+, #,%) characters, where at least two

characters are nonalphabetic and at least one character is a special character. Superusers can specify

when users must change their passwords and how frequently passwords can be reused.

• Login attempts and locking out users—Superusers can specify the maximum number of times that

a user can unsuccessfully attempt to log in before being locked out of CTC. Superusers can also

provision the length of time before the lockout is removed.

• Disabling users—Superusers can provision the length of time before inactive user IDs are disabled.

• Node access and user sessions—Superusers can limit the number of CTC sessions one user can have,

and they can prohibit access to the ONS 15310-MA SDH using the LAN connection.

Table 5-3 Default User Idle Times

Security Level Idle Time

Superuser 15 minutes

Provisioning 30 minutes

Maintenance 60 minutes

Retrieve Unlimited

5-7

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 5 Security

Audit Trail

• Secure shell—Superusers can select secure shell (SSH) instead of Telnet at the CTC Provisioning >

Security > Access tab. SSH is a terminal-remote host Internet protocol that uses encrypted links. It

provides authentication and secure communication over channels that are not secure. Port 22 is the

default port and cannot be changed.

5.3 Audit Trail

The ONS 15310-MA SDH maintain a GR-839-CORE-compliant audit trail log that resides on the

15310E-CTX-K9 cards. Audit trails are useful for maintaining security, recovering lost transactions, and

tracing user activities. The audit trail log shows who has accessed the node and what operations were

performed during a given period of time. The log includes authorized Cisco support logins and logouts

using the operating system command line interface (CLI), CTC, and TL1; the log also includes FTP actions,

circuit creation/deletion, and user/system generated actions.

Event monitoring is also recorded in the audit log. An event is defined as a change in status of an element

within the network. External events, internal events, attribute changes, and software upload/download

activities are recorded in the audit trail.

To view the audit trail log, refer to the Cisco ONS 15310-MA SDH Procedure Guide. Users can access

the audit trail logs from any management interface (CTC, Cisco Transport Manager [CTM], or TL1).

The audit trail is stored in persistent memory and is not corrupted by processor switches or upgrades.

Note The ONS 15310-MA SDH do not support a real-time clock with battery backup. Therefore, when you

reset 15310E-CTX-K9 card, the audit log is reset to 1970 until you set the date and time again.

5.3.1 Audit Trail Log Entries

Audit trail records capture various types of activities. Individual audit entries contain some or all of the

following information:

• User—Name of the user performing the action

• Host—Host from where the activity is logged

• Device ID—IP address of the device involved in the activity

• Application—Name of the application involved in the activity

• Task—Name of the task involved in the activity (view a dialog box, apply configuration, and so on)

• Connection Mode—The service used to connect to the node (for example, Telnet, console, or Simple

Network Management Protocol [SNMP])

• Category—Type of change: Hardware, Software, or Configuration

• Status—Status of the user action: Read, Initial, Successful, Timeout, or Failed

• Time—Time of change

• Message Type—Denotes whether the event succeeded or failed

• Message Details—A description of the change

5-8

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 5 Security

RADIUS Security

5.3.2 Audit Trail Capacities

The ONS 15310-MA SDH is able to store 640 log entries.When this limit is reached, the oldest entries

are overwritten with new events. When the log server is 80 percent full, an AUD-LOG-LOW condition

is raised and logged.

When the log server reaches the maximum capacity of 640 entries and begins overwriting records that

were not archived, an AUD-LOG-LOSS condition is raised and logged. This event indicates that audit

trail records have been lost. Until you off-load the file, this event will not occur a second time regardless

of the amount of entries that are overwritten by incoming data. To export the audit trail log, refer to the

Cisco ONS 15310-MA SDH Procedure Guide.

5.4 RADIUS Security

Users with Superuser security privileges can configure nodes to use Remote Authentication Dial In User

Service (RADIUS) authentication. Cisco Systems uses a strategy known as authentication,

authorization, and accounting (AAA) for enabling, verifying, and tracking the actions of remote users.

RADIUS server supports IPv6 addresses and can process authentication requests from a GNE or an ENE

that uses IPv6 addresses.

5.4.1 RADIUS Authentication

RADIUS is a system of distributed security that secures remote access to networks and network services

against unauthorized access. RADIUS contains three components:

• A protocol with a frame format that utilizes User Datagram Protocol (UDP)/IP

• A server

• A client

The server runs on a central computer, typically at a customer site, while the clients reside in the dial-up

access servers and can be distributed throughout the network.

ONS 15310-MA SDH nodes operate as clients of the RADIUS server. The client is responsible for

passing user information to designated RADIUS servers, and then acting on the response that is returned.

RADIUS servers are responsible for receiving user connection requests, authenticating the user, and

returning all configuration information necessary for the client to deliver service to the user. The

RADIUS servers can act as proxy clients to other kinds of authentication servers. Transactions between

the RADIUS client and server are authenticated through the use of a shared secret, which is never sent

over the network. In addition, any user passwords are sent encrypted between the client and RADIUS

server. This prevents someone monitoring an unsecured network from determine a user's password.

Refer to the Cisco ONS 15310-MA SDH Procedure Guide to implement RADIUS authentication.

5.4.2 Shared Secrets

A shared secret is a text string that serves as a password between:

• A RADIUS client and a RADIUS server

• A RADIUS client and a RADIUS proxy

• A RADIUS proxy and a RADIUS server

5-9

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 5 Security

RADIUS Security

For a configuration that uses a RADIUS client, a RADIUS proxy, and a RADIUS server, the shared

secret that is used between the RADIUS client and the RADIUS proxy can be different from the shared

secret used between the RADIUS proxy and the RADIUS server.

Shared secrets are used to:

• Verify that RADIUS messages, with the exception of the Access-Request message, are sent by a

RADIUS-enabled device that is configured with the same shared secret.

• Verify that the RADIUS message has not been modified in transit (message integrity).

• Encrypt some RADIUS attributes, such as User-Password and Tunnel-Password.

When creating and using a shared secret:

• Use the same case-sensitive shared secret on both RADIUS devices.

• Use a different shared secret for each RADIUS server-RADIUS client pair.

• Generate a random sequence at least 22 characters long to ensure a random shared secret.

• Use any standard alphanumeric and special characters.

• Use a shared secret of up to 128 characters in length. To protect your server and your RADIUS

clients from brute force attacks, use long shared secrets (more than 22 characters).

• Make the shared secret a random sequence from each of the following three categories: letters (upper

or lower case), numbers, and punctuation.

• Change the shared secret often to protect your server and your RADIUS clients from dictionary

attacks. An example of a strong shared secret is

8d#>9fq4bV)H7%a3-zE13sW$hIa32M#m<PqAa72(.

5-10

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 5 Security

RADIUS Security

CHAPTER

6-1

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Timing

This chapter provides information about Cisco ONS 15310-MA SDH timing. To provision timing, refer

to the Cisco ONS 15310-MA SDH Procedure Guide.

Chapter topics include:

• 6.1 Timing Parameters, page 6-1

• 6.2 Network Timing, page 6-2

• 6.3 Synchronization Status Messaging, page 6-2

6.1 Timing Parameters

Node Timing parameters must be set for each ONS 15310-MA SDH. Each ONS 15310-MA SDH

independently accepts its timing reference from one of three sources:

• The building integrated timing supply (BITS) port on the ONS 15310-MA SDH.

• An STM-N/E1 port on the ONS 15310-MA SDH. The port is connected to a node that receives

timing through a BITS source.

• The internal G.813/SMC clock on the CTX card.

You can set ONS 15310-MA SDH timing to one of three modes: external, line, or mixed. If timing is

coming from the BITS port, set ONS 15310-MA SDH timing to external. If the timing comes from an

STM-N and E1 port, set the timing to line. Typical ONS 15310-MA SDH networks have the following

timing configurations:

• One node is set to external. The external node derives its timing from a BITS source wired to the

CTX port. The BITS source derives its timing from a primary reference source (PRS) such as a

Stratum 1 clock or global positioning satellite (GPS) signal.

• The other nodes are set to line. The line nodes derive timing from the externally timed node through

the E1 port and STMN trunk (span) port.

You can set three timing references for each ONS 15310-MA SDH. The first two references are typically

one BITS-level sources, or two line-level sources optically connected to a node with a BITS source. The

third reference is usually assigned to the internal clock provided on every ONS 15310-MA SDH CTX

card. However, if you assign all three references to other timing sources, the internal clock is always

available as a backup timing reference. The internal clock is a SETS (G.813) in ONS 15310-MA SDH.

If a node becomes isolated, timing is maintained at the SETS level.

The CTC Maintenance > Timing > Report tabs show current timing information for an ONS 15310-MA

SDH, including the timing mode, clock state and status, switch type, and reference data.

6-2

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 6 Timing

Network Timing

Caution Mixed timing allows you to select both external and line timing sources. However, Cisco does not

recommend its use because it can create timing loops. Use mixed timing mode with caution.

6.2 Network Timing

Figure 6-1 shows an example of an ONS 15310-MA SDH network timing setup. Node 1 is set to external

timing. One reference is set to BITS, the two references are set to internal. The BITS output pins on the

CTX cards of Node 3 provide timing to outside equipment, such as a digital access line multiplexer.

Figure 6-1 ONS 15310-MA SDH Timing Example

6.3 Synchronization Status Messaging

Synchronization status messaging (SSM) is an SDH protocol that communicates information about the

quality of the timing source. SSM messages are carried on the S1 byte of the SDH line layer. They enable

SDH devices to automatically select the highest quality timing reference and to avoid timing loops.

Node 4

Timing Line

Ref 1: Slot 4

Ref 2: Slot 3

Ref 3: Internal (ST3)

Node 2

Timing Line

Ref 1: Slot 3

Ref 2: Slot 4

Ref 3: Internal (ST3)

Node 1

Timing External

Ref 1: BITS

Ref 2: Internal

Ref 3: Internal (ST3)

Node 3

Timing Line

Ref 1: Slot 3

Ref 2: Slot 4

Ref 3: Internal (ST3)

BITS

out

BITS

source

Third party

equipment

Slot 3

Slot 4

124893

6-3

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 6 Timing

Synchronization Status Messaging

If you enable SSM for the ONS 15310-MA SDH, consult your timing reference documentation to

determine which message set to use. Table 6-1 and Table 6-2 show the Generation 1 and Generation 2

message sets.

Table 6-1 SSM Message Set

Message Quality Description

G811 1 Primary reference clock

STU 2 Sync traceability unknown

G812T 3 Transit node clock traceable

G812L 4 Local node clock traceable

SETS 5 Synchronous equipment

DUS 6 Do not use for timing synchronization

Table 6-2 SSM Generation 2 Message Set

Message Quality Description

PRC 1 Primary reference source—Stratum 1

STU 2 Synchronization traceability unknown

ST2 3 Stratum 2

TNC 4 Transit node clock

G.813E 5 Stratum 3E

G.813 6 PRC

SMC 7 SDH minimum clock

ST4 8 Stratum 4

DUS 9 Do not use for timing synchronization

RES Reserved; quality level set by user

6-4

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 6 Timing

Synchronization Status Messaging

CHAPTER

7-1

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Circuits and Tunnels

Note The terms “Unidirectional Path Switched Ring” and “UPSR” may appear in Cisco literature. These terms

do not refer to using Cisco ONS 15xxx products in a unidirectional path switched ring configuration.

Rather, these terms, as well as “Path Protected Mesh Network” and “PPMN,” refer generally to Cisco's

path protection feature, which may be used in any topological network configuration. Cisco does not

recommend using its path protection feature in any particular topological network configuration.

This chapter explains Cisco ONS 15310-MA SDH synchronous transport signal (VC high-order path)

and Virtual Tributary (VC low-order path) circuits and VC low-order path and data communications

channel (DCC) tunnels. To provision circuits and tunnels, refer to the Cisco ONS 15310-MA SDH

Procedure Guide.

Chapter topics include:

• 7.1 Overview, page 7-1

• 7.2 Circuit Properties, page 7-2

• 7.3 VC-12 Bandwidth, page 7-8

• 7.4 VC Low-order Path Tunnels and Aggregation Points, page 7-8

• 7.5 DCC Tunnels, page 7-8

• 7.6 Subnetwork Connection Protection Circuits, page 7-9

• 7.7 Virtual Concatenated Circuits, page 7-11

• 7.8 Section and Path Trace, page 7-17

• 7.9 Bridge and Roll, page 7-18

• 7.10 Merged Circuits, page 7-22

• 7.11 Reconfigured Circuits, page 7-23

• 7.12 Server Trails, page 7-23

7.1 Overview

You can create circuits across and within ONS 15310-MA SDH nodes and assign different attributes to

circuits. For example, you can:

• Create one-way, two-way (bidirectional), or broadcast circuits.

• Assign user-defined names to circuits.

7-2

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 7 Circuits and Tunnels

Circuit Properties

• Assign different circuit sizes.

• Automatically or manually route circuits.

• Automatically create multiple circuits with autoranging. VC low-order path tunnels do not use

autoranging.

• Provide full protection to the circuit path.

• Provide only protected sources and destinations for circuits.

• Define a secondary circuit source or destination that allows you to interoperate an ONS 15310-MA

SDH Linear Multiplex Section Protection configuration with third-party equipment Linear

Multiplex Section Protection configurations.

• Set Linear Multiplex Section Protection circuits as revertive or nonrevertive.

For the ONS 15310-MA SDH CE-100T-8, CE-MR-6 (ONS 15310-MA SDH only), or ML-100T-8 cards,

you can provision circuits either before or after the cards are installed if the slots are provisioned. For

the 15310-MA SDH 15310E-CTX-K9 card, you must preprovision the small form-factor pluggables

(SFPs) (called pluggable port modules [PPMs] in CTC) before you can create an optical circuit.

However, circuits do not carry traffic until the cards and SFPs are installed and the ports are In-Service

and Normal (unlocked-enabled); Out-of-Service and Autonomous, Automatic In-Service

(OO-AU,Automatic In Service); or Out-of-Service and Management, Maintenance

(locked-enabled,maintenance).

7.2 Circuit Properties

You can view information about circuits in the ONS 15310-MA SDH Circuits window, which appears in

network, node, and card view. The Circuits window shows the following information:

• Name—The name of the circuit. The circuit name can be manually assigned or automatically

generated.

• Type—The circuit types are: VC high-order path (VC high-order path circuit), VC low-order path

(VC low-order path circuit), LOP Tunnel (VC low-order path tunnel), LAP (VC low-order path

aggregation point), HOP-V (VC virtual concatenated [VCAT] circuit), or VC low-order path-V (VC

low-order path VCAT circuit).

• Size—The circuit size. VC low-order path circuits are VC12 and VC3. ONS 15310-MA SDH VC

high-order path circuits are VC4, VC4-2c, VC4-3c, or VC4-4c, VC4-8c, and VC4-16c. VCAT

circuits are VC-12-nv or VC3-nv, where n is the number of members.

• Protection—The type of circuit protection.

• Direction—The circuit direction, either two-way or one-way.

• Status—The circuit status. See the “7.2.1 Circuit Status” section on page 7-3.

• Source—The circuit source in the format: node/slot/port “port name”/VC. (Port name appears in

quotes.) Node and slot always appear; port “port name”/VC might appear, depending on the source

card, circuit type, and whether a name is assigned to the port. If the port uses a pluggable port

module (PPM), the port format is PPM-port number, for example, p2-1. If the port is a E1, DS3, or

E3 port, port type is indicated, for example, pE1. If the circuit size is a concatenated size (3c, 6c,

9c, 12c), VCs used in the circuit are indicated by an ellipsis, for example, S7..9, (VCs 7, 8, and 9)

or S10..12 (VCs 10, 11, and 12).

• Destination—The circuit destination in the same format as the circuit source.

• # of Spans—The number of internode links that constitute the circuit. Right-clicking the column

displays a shortcut menu from which you can choose to show or hide circuit span detail.

7-3

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 7 Circuits and Tunnels

Circuit Properties

• State—The circuit state. See the “7.2.2 Circuit States” section on page 7-4.

The Filter button allows you to filter the circuits in network, node, or card view based on circuit name,

size, type, direction, and other attributes. In addition, you can export the Circuit window data in HTML,

comma-separated values (CSV), or tab-separated values (TSV) format using the Export command from

the File menu.

7.2.1 Circuit Status

The circuit statuses that appear in the Circuit window Status column are generated by Cisco Transport

Controller (CTC) based on conditions along the circuit path. Table 7-1 shows the statuses that can appear

in the Status column.

Table 7-1 ONS 15310-MA SDH Circuit Status

Status Definition/Activity

CREATING CTC is creating a circuit.

DISCOVERED CTC created a circuit. All components are in place and a complete path

exists from circuit source to destination.

DELETING CTC is deleting a circuit.

PARTIAL A CTC-created circuit is missing a cross-connect or network span or a

complete path from source to destination(s) does not exist.

In CTC, circuits are represented using cross-connects and network

spans. If a network span is missing from a circuit, the circuit status is

PARTIAL. However, a PARTIAL status does not necessarily mean a

circuit traffic failure has occurred, because traffic might flow on a

protect path.

Network spans are in one of two states: up or down. On CTC circuit and

network maps, up spans appear as green lines, and down spans appear as

gray lines. If a failure occurs on a network span during a CTC session,

the span remains on the network map but its color changes to gray to

indicate that the span is down. If you restart your CTC session while the

failure is active, the new CTC session cannot discover the span and its

span line does not appear on the network map.

Subsequently, circuits routed on a network span that goes down appear

as DISCOVERED during the current CTC session, but appear as

PARTIAL to users who log in after the span failure.

DISCOVERED_TL1 A TL1-created circuit or a TL1-like CTC-created circuit is complete. A

complete path from source to destinations exists.

PARTIAL_TL1 A TL1-created circuit or a TL1-like CTC-created circuit is missing a

cross-connect or circuit span (network link), and a complete path from

source to destinations does not exist.

CONVERSION_PENDING An existing circuit in a topology upgrade is set to this status. The circuit

returns to the DISCOVERED status when the topology upgrade is

complete. For more information about in-service topology upgrades, see

Chapter 9, “SDH Topologies and Upgrades.”

7-4

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 7 Circuits and Tunnels

Circuit Properties

7.2.2 Circuit States

The circuit service state is an aggregate of the cross-connect states within the circuit.

• If all cross-connects in a circuit are in the unlocked-enabled service state, the circuit service state is

In-Service (unlocked).

• If all cross-connects in a circuit are in an Out-of-Service (locked) service state, such as

locked-enabled,maintenance; Out-of-Service and Autonomous, Automatic In-Service

(locked-disabled,Automatic In Service); or Out-of-Service and Management, Disabled

(locked-enabled,disabled), the circuit service state is locked.

• PARTIAL is appended to the locked circuit service state when circuit cross-connect states are mixed

and not all states are unlocked-enabled. The locked-PARTIAL state can occur during automatic or

manual transitions between states. locked-PARTIAL can appear during a manual transition caused

by an abnormal event such as a CTC crash or communication error, or if one of the cross-connects

could not be changed. Refer to the Cisco ONS 15310-MA SDH Troubleshooting Guide for

troubleshooting procedures.

You can assign a state to circuit cross-connects at two points:

• During circuit creation, you can set the state on the Create Circuit wizard.

• After circuit creation, you can change a circuit state in the Edit Circuit window or from the

Tools > Circuits > Set Circuit State menu.

Note After you have created an initial circuit in a CTC session, the subsequent circuit states default to the

circuit state of the initial circuit, regardless of which nodes in the network the circuits traverse or the

node.ckt.state default setting.

During circuit creation, you can apply a service state to the drop ports in a circuit. You cannot transition

a drop port from the unlocked-enabled service state to the locked-enabled,disabled service state; you

must first put the port in the locked-enabled,maintenance state before changing it to the

locked-enabled,disabled state. For more information about port service state transitions, see

Appendix B, “Administrative and Service States.”

Circuits do not use the soak timer, but ports do. The soak period is the amount of time that the port

remains in the locked-disabled,Automatic In Service service state after a signal is continuously received.

When the cross-connects in a circuit are in the locked-disabled,Automatic In Service service state, the

ONS 15310-MA SDH monitor the cross-connects for an error-free signal. It changes the state of the

circuit from locked to unlocked or to locked-PARTIAL as each cross-connect assigned to the circuit path

PENDING_MERGE Any new circuits created to represent an alternate path in a topology

upgrade are set to this status to indicate that the circuit is temporary.

These circuits can be deleted if a topology upgrade fails. For more

information about in-service topology upgrades, see Chapter 9, “SDH

Topologies and Upgrades.”

DROP_PENDING A circuit is set to this status when a new circuit drop is being added.

Table 7-1 ONS 15310-MA SDH Circuit Status (continued)

Status Definition/Activity

7-5

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 7 Circuits and Tunnels

Circuit Properties

is completed. This allows you to provision a circuit using TL1, verify its path continuity, and prepare the

port to go into service when it receives an error-free signal for the time specified in the port soak timer.

Two common examples of state changes you see when provisioning circuits using CTC are:

• When assigning the Automatic In Service administrative state to cross-connects in VC-12 circuits

and VC low-order path tunnels, the source and destination ports on the VC-12 circuits remain in the

locked-disabled,Automatic In Service service state until an alarm-free signal is received for the

duration of the soak timer. When the soak timer expires and an alarm-free signal is found, the VC-12

source port and destination port service states change to unlocked-enabled and the circuit service

state becomes unlocked.

• When assigning the Automatic In Service administrative state to cross-connects in VC high-order

path circuits, the circuit source and destination ports transition to the locked-disabled,Automatic In

Service service state. When an alarm-free signal is received, the source and destination ports remain

locked-disabled,Automatic In Service for the duration of the soak timer. After the port soak timer

expires, VC high-order path source and destination ports change to unlocked-enabled and the circuit

service state to unlocked.

To find the remaining port soak time, choose the Maintenance > Automatic In Service Soak tabs in card

view and click the Retrieve button. If the port is in the locked-disabled,Automatic In Service service state

and has a good signal, the Time Until unlocked column shows the soak count down status. If the port is

locked-disabled,Automatic In Service and has a bad signal, the Time Until unlocked column indicates

that the signal is bad. You must click the Retrieve button to obtain the latest time value.

Note Although the ML-100T-8 card does not use the Telcordia GR-1093-CORE state model, you can also set

a soak timer for ML-100T-8 card ports. The soak period is the amount of time that the ML-100T-8 port

remains in the Down state after an error-free signal is continuously received before changing to the Up

state. To find the remaining port soak time, choose the Maintenance > Ether/POS Port Soak tabs in

ML-100T-8 card view and click the Retrieve button.

For more information about port and cross-connect service states, see Appendix B, “Administrative and

Service States.”

7.2.3 Circuit Protection Types

The Protection column on the Circuit window shows the card (line) and SDH topology (path) protection

used for the entire circuit path. Table 7-2 shows the protection type indicators that you see in this

column.

Table 7-2 Circuit Protection Types

Protection Type Description

LMSP The circuit is protected by a LMSP protection group.

N/A A circuit with connections on the same node is not protected.

Protected The circuit is protected by diverse SDH topologies, for example, a Linear Multiplex

Section Protection and 1+1.

Unknown A circuit has a source and destination on different nodes and communication is

down between the nodes. This protection type appears if not all circuit components

are known.

Unprot (black) A circuit with a source and destination on different nodes is not protected.

7-6

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 7 Circuits and Tunnels

Circuit Properties

7.2.4 Circuit Information in the Edit Circuits Window

You can edit a selected circuit using the Edit button on the Circuits window. The tabs that appear depend

on the circuit chosen:

• General—Displays general circuit information and allows you to edit the circuit name.

• Monitors—Displays possible monitor sources and allows you to create a monitor circuit.

• Subnetwork Connection Protection—Allows you to change linear multiplex section protection

selectors. For more information, see the “7.6 Subnetwork Connection Protection Circuits” section

on page 7-9.

• Subnetwork Connection Protection Switch Counts—Allows you to change linear multiplex section

protection switch protection paths. For more information, see the “7.6 Subnetwork Connection

Protection Circuits” section on page 7-9.

• State—Allows you to edit cross-connect service states.

• Merge—Allows you to merge aligned circuits. For more information, see the “7.10 Merged

Circuits” section on page 7-22.

Using the Export command from the File menu, you can export data from the Linear Multiplex Section

Protection Selectors, Linear Multiplex Section Protection Switch Counts, State, and Merge tabs in

HTML, comma-separated values (CSV), or tab-separated values (TSV) format.

The Show Detailed Map checkbox in the Edit Circuit window updates the graphical view of the circuit

to show more detailed routing information, such as:

• Circuit direction (unidirectional/bidirectional)

• The nodes, VCs, and VTs through which the circuit passes including slots and port numbers

• The circuit source and destination points

• Open Shortest Path First (OSPF) area IDs

• Link protection (linear multiplex section protection, unprotected, 1+1) and bandwidth (STMN)

Alarms and states can also be viewed on the circuit map, including:

• Alarm states of nodes on the circuit route

• Number of alarms on each node, organized by severity

• Port service states on the circuit route

• Alarm state/color of most severe alarm on port

• Loopbacks

• Path trace states

• Path selectors states

Unprot (red) A circuit created as a fully protected circuit is no longer protected due to a system

change, such as removal of a 1+1 protection group.

SNCP

Table 7-2 Circuit Protection Types

Protection Type Description

7-7

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 7 Circuits and Tunnels

Circuit Properties

By default, the working path on the detailed circuit map is indicated by a green bidirectional arrow, and

the protect path is indicated by a purple bidirectional arrow. Source and destination ports are shown as

circles with an S and D. Port states are indicated by colors, shown in Table 7-3.

Notations within or next to the squares or selector pentagons on each node indicate switches and other

conditions. For example:

• F = Force switch

• M = Manual switch

• L = Lockout switch

• Arrow = Facility (outward) or terminal (inward) loopback (Figure 7-1)

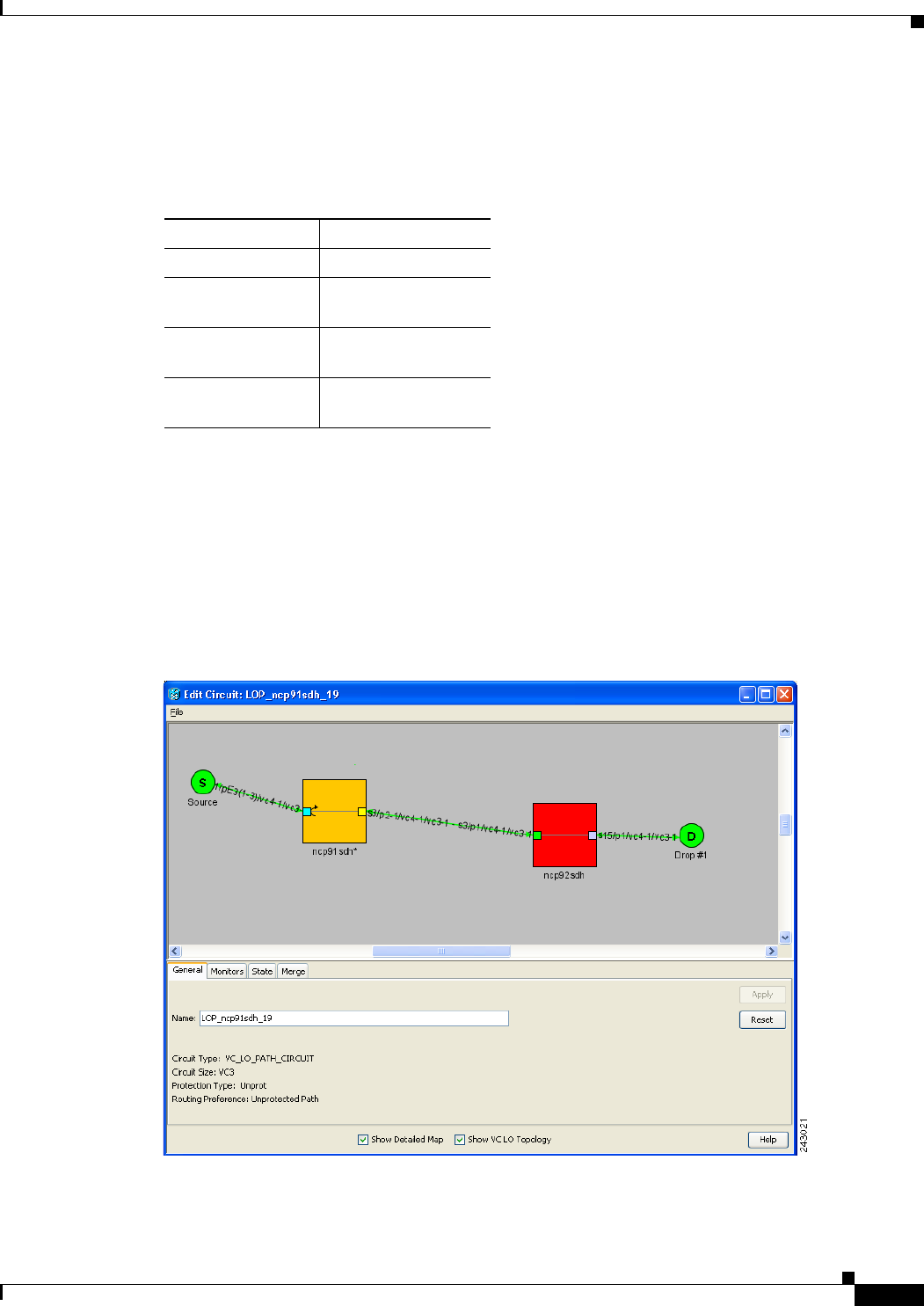

Figure 7-1 Terminal Loopback in the Edit Circuits Window

Move the mouse cursor over nodes, ports, and spans to see tooltips with information including the

number of alarms on a node (organized by severity), a port’s service state, and the protection topology.

Table 7-3 Port State Color Indicators

Port Color State

Green unlocked-enabled

Gray locked-enabled,disab

led

Purple locked-disabled,Auto

matic In Service

Light blue locked-enabled,main

tenance

7-8

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 7 Circuits and Tunnels

VC-12 Bandwidth

Right-click a node, port, or span on the detailed circuit map to initiate certain circuit actions:

• Right-click a unidirectional circuit destination node to add a drop to the circuit.

• Right-click a port containing a path-trace-capable card to initiate the path trace.

• Right-click a linear multiplex section protection span to change the state of the path selectors in the

linear multiplex section protection circuit.

7.3 VC-12 Bandwidth

The 15310E-CTX-K9 in the ONS 15310-MA SDH performs port-to-port time-division multiplexing

(TDM). The VC low-order path matrix for the 15310E-CTX-K9 has 96 logical VC high-order path ports.

All VC-12 multiplexing is achieved through these logical VC high-order path ports. Although the

15310E-CTX-K9 can support up to 2016 VC-12 cross-connects and 1344 bidirectional VC low-order

path circuits, the maximum number of VC12s that can be provisioned for Software Release 9.1 and 9.2

is 2016 VC 12 low-order path cross-connects and 1008 bidirectional VC12 low-order path circuits.

To view VC low-order path matrix resource usage, use the Maintenance > Cross-connect > Resource

Usage subtabs.

7.4 VC Low-order Path Tunnels and Aggregation Points

To maximize VC-12 cross-connect resources, you can tunnel VC-12 circuits through ONS 15310-MA

SDH nodes. VC-12 tunnels do not use VC low-order path matrix capacity at pass-through nodes, thereby

freeing the cross-connect resources for other VC-12 circuits.

VC low-order path aggregation points (VAPs) allow you to provision circuits from multiple VC-12

sources to a single VC high-order path destination. Like circuits, a LAP has a source and a destination.

The source is the VC high-order path grooming end, the node where the VC-12 circuits are aggregated

into a single VC high-order path. The LAP VC high-order path must be an STMn port. VC low-order

path matrix resources are not used on the LAP source node, which is the key advantage of VAPs. The

LAP destination is the node where the VC-12 circuits originate. Circuits can originate on any ONS

15310-MA SDH card or port.

7.5 DCC Tunnels

Each SDH frame provides four DCCs for network element (NE) Operations, Administration,

Maintenance, and Provisioning (OAM&P): one on the SDH Section layer (DCC1) and three on the SDH

Line layer (DCC2, DCC3, DCC4). The ONS 15310-MA SDH use the Section DCC (RS-DCC) or Line

DCC (MS-DCC) for management and provisioning. When multiple DCC channels exist between two

neighboring nodes, the ONS 15310-MA SDH balances traffic over the existing DCC channels using a

load-balancing algorithm. This algorithm chooses a DCC for packet transport by considering packet size

and DCC utilization. You can tunnel third-party SDH equipment across ONS 15310-MA SDH networks

using one of two tunneling methods, a traditional DCC tunnel or an IP-encapsulated tunnel.

7-9

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 7 Circuits and Tunnels

Subnetwork Connection Protection Circuits

7.5.1 Traditional DCC Tunnels

In traditional DCC tunnels, you can use the three available channels of the MS-DCC and/or the single

channel of the RS-DCC, when not used for ONS 15310-MA SDH DCC terminations, to tunnel

third-party SDH equipment across ONS networks. A DCC tunnel endpoint is defined by slot, port, and

DCC channel. You can connect any of the four available channels to any other available channel. To

create a DCC tunnel, you connect the tunnel endpoints from one ONS 15310-MA SDH optical port to

another.

Table 7-4 shows the DCC tunnels that you can create.

When you create DCC tunnels, keep the following guidelines in mind:

• An optical port used for a DCC termination cannot be used as a DCC tunnel endpoint, and an optical

port that is used as a DCC tunnel endpoint cannot be used as a DCC termination.

• All DCC tunnel connections are bidirectional.

7.5.2 IP-Encapsulated Tunnels

An IP-encapsulated tunnel puts an RS-DCC in an IP packet at a source node and dynamically routes the

packet to a destination node. To compare traditional DCC tunnels with IP-encapsulated tunnels, a

traditional DCC tunnel is configured as one dedicated path across a network and does not provide a

failure recovery mechanism if the path is down. An IP-encapsulated tunnel is a virtual path, which adds

protection when traffic travels between different networks.

IP-encapsulated tunneling has the potential to flood the DCC network with traffic, which causes CTC

performance to degrade. The data originating from an IP tunnel can be throttled to a user-specified rate,

which is a percentage of the total RS-DCC bandwidth.

Each ONS 15310-MA SDH supports one IP-encapsulated tunnel. You can convert a traditional DCC

tunnel to an IP-encapsulated tunnel or an IP-encapsulated tunnel to a traditional DCC tunnel. Only

tunnels in the Discovered status can be converted.

Caution Converting from one tunnel type to the other is service-affecting.

7.6 Subnetwork Connection Protection Circuits

From the Subnetwork Connection Protection Selectors subtab in the Edit Circuits window, you can

perform the following:

• View the Subnetwork Connection Protection(SNCP) circuit’s working and protection paths.

Ta b l e 7- 4 D C C Tu n n e l s

DCC SDH Layer SDH Bytes STM1, STM4

DCC1 Section D1 to D3 Yes

DCC2 Line D4 to D6 Yes

DCC3 Line D7 to D9 Yes

DCC4 Line D10 to D12 Yes

7-10

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 7 Circuits and Tunnels

Subnetwork Connection Protection Circuits

• Edit the reversion time.

• Set the hold-off timer (HOT) for linear multiplex section protection selector switching.

• Edit the Signal Fail (SF)/Signal Degrade (SD) bit error rate (BER) thresholds.

• Change path payload defect indication (PDI-P) settings.

Note On the Subnetwork Connection Protection Selectors tab, the SF Ber Level and SD Ber Level columns

display “N/A” for those nodes that do not support VC low-order path signal BER monitoring.

In the Subnetwork Connection Protection Switch Counts subtab, you can:

• Perform maintenance switches on the circuit selector.

• View switch counts for the selectors.

7.6.1 Open-Ended Subnetwork Connection Protection Circuits

If ONS 15310-MA SDH nodes are connected to a third-party network, you can create an open-ended

Subnetwork Connection Protection circuit to route a circuit through the network. To do this, you create

four circuits. One circuit is created on the source network. This circuit has one source and two

destinations, with each destination provisioned to the interface that is connected to the third-party

network. The second and third circuits are created on the third-party network so that the circuit travels

across the network on two diverse paths to the far-end node. At the destination node, the fourth circuit

is created with two sources, one at each node interface connected to the third-party network. A selector

at the destination node chooses between the two signals that arrive at the node, similar to a regular

Subnetwork Connection Protection circuit.

7.6.2 Go-and-Return Subnetwork Connection Protection Routing

The go-and-return Subnetwork Connection Protection routing option allows you to route the Subnetwork

Connection Protection working path on one fiber pair and the protect path on a separate fiber pair

(Figure 7-2). The working path will always be the shortest path. If a fault occurs, neither the working or

protection fibers are affected. This feature only applies to bidirectional Subnetwork Connection

Protection circuits. The go-and-return option appears on the Circuit Attributes page of the Circuit

Creation wizard.

7-11

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 7 Circuits and Tunnels

Virtual Concatenated Circuits

Figure 7-2 Subnetwork Connection Protection Go-and-Return Routing

7.7 Virtual Concatenated Circuits

Virtual concatenated (VCAT) circuits, also called VCAT groups (VCGs), transport traffic using

noncontiguous TDM time slots, avoiding the bandwidth fragmentation problem that exists with

contiguous concatenated (CCAT) circuits. The ONS 15310-MA SDH cards that support VCAT circuits

are the CE-100T-8, CE-MR-6, and ML-100T-8 cards.

In a VCAT circuit, circuit bandwidth is divided into smaller circuits called VCAT members. The

individual members act as independent TDM circuits. All VCAT members should be the same size and

must originate/terminate at the same end points.

To enable end-to-end connectivity in a VCAT circuit that traverses through a third-party network, you

must create a server trail between the ports. For more details, refer to the “Create Circuits and VC

low-order path Tunnels” chapter in the Cisco ONS 15310-MA SDH Procedure Guide.

7.7.1 VCAT Circuit States

The state of a VCAT circuit is an aggregate of its member circuits. You can view whether a VCAT

member is In Group or Out of Group in the VCAT State column in the Edit Circuits window.

• If all member circuits are unlocked, the VCAT circuit is unlocked.

• If all In Group member circuits are locked, the VCAT circuit state is locked.

• If no member circuits exist or if all are Out of Group, the state of a VCAT circuit is locked.

Node B

Go and Return working connection

Go and Return protecting connection

Node A

96953

Any network Any network

7-12

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 7 Circuits and Tunnels

Virtual Concatenated Circuits

• A VCAT circuit is locked-PARTIAL when In Group member states are mixed and not all member

states are unlocked.

7.7.2 VCAT Member Routing

The automatic and manual routing selection applies to the entire VCAT circuit, that is, all members are

manually or automatically routed. Bidirectional VCAT circuits are symmetric, which means that the

same number of members travel in each direction. With automatic routing, you can specify the

constraints for individual members; with manual routing, you can select different spans for different

members.

Two types of automatic and manual routing are available for VCAT members on CE-100T-8, CE-MR-6,

and ML-100T-8 cards: common fiber routing and split fiber routing. In common fiber routing, all VCAT

members travel on the same fibers, which eliminates delay between members. Three protection options

are available for common fiber routing: Fully Protected, PCA, and Unprotected. Split fiber routing

allows the individual members to be routed on different fibers or each member to have different routing

constraints. This mode offers the greatest bandwidth efficiency and also the possibility of differential

delay, which is handled by the buffers on the terminating cards or ports. Three protection options are

available for split fiber routing: Fully Protected, Unprotected, and DRI. In both common fiber and split

fiber routing, each member can use a different protection scheme; however, for common fiber routing,

CTC checks the combination to make sure that a valid route exists. If it does not, the user must modify

the protection type.

In both common fiber and split fiber routing, intermediate nodes treat the VCAT members as normal

circuits that are independently routed and protected by the SDH network. At the terminating nodes, these

member circuits are multiplexed into a contiguous stream of data. Figure 7-3 shows an example of

common fiber routing.

Figure 7-3 VCAT Common Fiber Routing

Member 1

VCG-2

Member 2

271783

Intermediate

Member 1

VCG-1

Member 2

Member 1

VCG-2

Member 2

Member 1

VCG-1

Member 2

VCAT

Function

VCAT

Function

VCAT

Function

VCAT

Function

VC3

STS-2

STS-3

STS-4

VC3

STS-2

STS-3

STS-4

CE-100T-8 CE-100T-8

7-13

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 7 Circuits and Tunnels

Virtual Concatenated Circuits

Figure 7-4 shows an example of split fiber routing.

Figure 7-4 VCAT Split Fiber Routing

Note The switch time values shown in Table 7-5 does not include differential delay. The maximum

differential delay for CE100T-8 is 48ms. This differential delay is added to the switch time to

get the maximum time.

7.7.3 Link Capacity Adjustment

The CE-100T-8, CE-MR-6, and ML-100T-8 cards support the Link Capacity Adjustment Scheme

(LCAS), which is a signaling protocol that allows dynamic bandwidth adjustment of VCAT circuits.

When a member fails, LCAS temporarily removes the failed member from the VCAT circuit for the

duration of the failure, leaving the remaining members to carry the traffic. When the failure clears, the

member circuit is automatically added back into the VCAT circuit. You can select LCAS during VCAT

circuit creation.

124065

VCAT

Function

Source VCAT at NE

Traffic Traffic

Virtually

Concatenated

Group Member #1

Member #2

Member #3

Intermediate

VCAT

Function

with

Differential

Delay Buffer

Destination VCAT at NE

Intermediate

Table 7-5 Switch Times

Type of circuit For CE100T-8 card For CE-MR-6 card

CCAT 60 ms 60 ms

HO VCAT 60 ms 90 ms

HO LCAS190 ms 148 ms

LO VCAT 202 ms 202 ms

LO LCAS 202 m 256 ms

SWLCAS — 500 ms

1. The calculated number for HO LCAS includes all the inherent delays of the protocol. Also the CE-100-T

numbers are for a group size of only three members.

7-14

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 7 Circuits and Tunnels

Virtual Concatenated Circuits

Note Although LCAS operations are errorless, an SDH error can affect one or more VCAT members. If this

occurs, the VCAT Group Degraded (VCG-DEG) alarm is raised. For information about clearing this

alarm, refer to the “Alarm Troubleshooting” chapter in the Cisco ONS 15310-MA SDH Troubleshooting

Guide.

SW-LCAS is a limited form of LCAS that allows the VCAT circuit to adapt to member failures and keep

traffic flowing at a reduced bandwidth. SW-LCAS is necessary when interoperating with the ONS 15454

ML-Series cards. SW-LCAS uses legacy SDH failure indicators like path alarm indication signal

(AIS-P) and path remote defect indication (RDI-P) to detect member failure. You can select SW-LCAS

during VCAT circuit creation.

In addition, you can create non-LCAS VCAT circuits, which do not use LCAS or SW-LCAS. While

LCAS and SW-LCAS member cross-connects can be in different service states, all In Group non-LCAS

members must have cross-connects in the same service state. A non-LCAS circuit can mix Out of Group

and In Group members if the In Group members are in the same service state. Non-LCAS members do

not support the locked-enabled,outOfGroup service state; to put a non-LCAS member in the Out of

Group VCAT state, use locked-enabled,disabled.

Note Protection switching for LCAS and non-LCAS VCAT circuits might exceed 60 ms. Traffic loss for VC

low-order path VCAT circuits is approximately two times more than traffic loss for a VC high-order path

VCAT circuit. You can minimize traffic loss by reducing path differential delay.

7.7.4 VCAT Circuit Size

Table 7-6 lists supported VCAT circuit rates and the number of members for each card.

Use the Members tab in the Edit Circuit window to add or delete members from a VCAT circuit. The

capability to add or delete members depends on whether the VCAT circuit is LCAS, SW-LCAS, or

non-LCAS:

• For VCAT LCAS circuits, you can add or delete members without affecting service. Before deleting

a member, Cisco recommends that you put the member in the locked-enabled,outOfGroup service

state.

Table 7-6 ONS 15310-MA SDH Card VCAT Circuit Rates and Members

Card Circuit Rate Number of Members

CE-100T-8 1

1. A VCAT circuit with an ONS 15310-MA SDH CE-100T-8 or ML-100T-8 card as a source

or destination and an ONS 15454 ML-Series card as a source or destination can have only

two members.

VC12 1–63

VC3 1-3

ML-100T-8 1VC3 1–2

CE-MR-6 VC12 1-63

VC3 1-21

VC4 1-7

7-15

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 7 Circuits and Tunnels

Virtual Concatenated Circuits

• For SW-LCAS circuits used when interoperating with ONS 15454 ML-Series cards, you cannot add

or delete members.

• For non-LCAS VCAT circuits that use CE-100T-8 or CE-MR-6 cards, adding and deleting members

to/from the circuit is possible, but service-affecting. For ML-100T-8 cards, you cannot add or delete

members from non-LCAS VCAT circuits without affecting the entire VCAT circuit.

Table 7-7 summarizes the VCAT capabilities for the CE-100T-8 and ML-100T-8 cards.

7.7.5 Open-Ended VCAT

For applications where the complete end-to-end VCAT circuit is not in a CTC managed network, CTC

will only see either the source or the destination of the Virtual Concatenated Group (VCG) and some of

the intermediate nodes. Figure 7-5 shows an end-to-end VCAT circuit. The termination points of the

end-to-end VCAT circuit, with VCAT functionality, are referred to as the VCAT-Source and

VCAT-Destination. The termination points of the CTC managed circuit, which is the Open-Ended VCAT

circuit, is referred to as simply the Source and Destination.

Table 7-7 ONS 15310-MA SDH VCAT Card Capabilities

Card Mode

Add a

Member

Delete a

Member

Support

locked-enabled,o

utOfGroup

CE-100T-8 LCAS Yes Yes Yes

SW-LCASNoNoNo

Non-LCAS Yes1

1. For CE-100T-8 cards, you can add or delete members after creating a VCAT circuit with no protection. During

the time it takes to add or delete members (from seconds to minutes), the entire VCAT circuit will be unable

to carry traffic.

Yes1No

ML-100T-8 LCAS Yes Yes Yes

SW-LCASNoNoNo

Non-LCAS No No No

CE-MR-6 LCAS Yes Yes Yes

SW-LCAS Yes Yes No

Non-LCAS Yes Yes No

7-16

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 7 Circuits and Tunnels

Virtual Concatenated Circuits

Figure 7-5 Open-Ended VCAT

Open-ended VCAT circuits can originate or terminate on any pair of OC-N ports and you can route

open-ended VCAT circuits using any of the cards and ports supported by VCAT. The CTC circuit

creation wizard provides an additional check box in the VCAT attributes pane to enable Open-VCAT

circuit creation. Enabling the check box differentiates open-ended VCAT from regular VCAT Circuits.

The routing preferences for an open-ended VCAT circuit must be specified in the initial stages of circuit

provisioning. For example, if the circuit is independent fiber routing, then multiple OC-N ports can be

involved. Alternatively, the source of an open-VCAT circuit should always be a card capable of

participating in a VCG. This allows CTC to determine which routing preferences are permissible.

7.7.5.1 Open-Ended VCAT Protection

Table 7-8 summarizes the protection options for open-ended VCAT circuits. Note that members can have

different routing preferences.

240645

Source

Open-ended VCAT Circuit

VCAT-Source

CTC Managed

Network

SONET/SDH Port

Destination

End-to-end VCAT Circuit

VCAT-Destination

Non-CTC Managed

Network

Table 7-8 Protection options for Open-Ended VCAT Circuits

Routing Preferences Routing Mode Protection Options

Common fiber Manual/Auto • Fully protected (Line only)

• Unprotected

• PCA

7-17

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 7 Circuits and Tunnels

Section and Path Trace

7.8 Section and Path Trace

SDH J0 section and J1 and J2 path trace are repeated, fixed-length strings composed of 16 or 64

consecutive bytes. You can use the strings to monitor interruptions or changes to circuit traffic. For the

ONS 15310-MA SDH node, J0 section trace is supported for optical and E3 ports on the

15310E-CTX-K9, E1_21_E3_DS3_3, or E1_63_E3_DS3_3 cards. Table 7-9 shows the ONS 15310-MA

SDH cards and/or ports that support J1 and/or J2 path trace.

If the string received at a circuit drop port does not match the string that the port expects to receive, an

alarm is raised. Two path trace modes are available:

• Automatic—The receiving port assumes that the first string it receives is the baseline string.

• Manual—The receiving port uses a string that you manually enter as the baseline string.

Split fiber Manual/Auto • Fully protected (Line only)

• Unprotected

• PCA

• DRI

Note Path protection is not supported.

Split fiber with secondary

destinations

Manual/Auto • Fully protected

Note Line protection is not supported.

• DRI

Table 7-8 Protection options for Open-Ended VCAT Circuits

Routing Preferences Routing Mode Protection Options

Table 7-9 ONS 15310-MA SDH Cards/Ports Capable of J1/J2 Path Trace

Trace Function J1 or J2 Cards/Ports

Transmit and receive J1 CE-MR-6

ML-100T-8

J1 and J2 CE-100T-8

J2 ONS 15310-MA SDH STMN, and E1 ports

Receive J1 ONS 15310-MA SDH STMN, E1, and DS3

ports

7-18

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 7 Circuits and Tunnels

Bridge and Roll

7.9 Bridge and Roll

The CTC Bridge and Roll wizard reroutes live traffic without interrupting service. The bridge process

takes traffic from a designated “roll from” facility and establishes a cross-connect to the designated “roll

to” facility. When the bridged signal at the receiving end point is verified, the roll process creates a new

cross-connect to receive the new signal. When the roll completes, the original cross-connects are

released. You can use the bridge and roll feature for maintenance functions such as card or facility

replacement, or for load balancing. You can perform a bridge and roll on the following ONS platforms:

ONS 15600, ONS 15600 SDH, ONS 15454, ONS 15454 SDH, and ONS 15310-MA SDH.

7.9.1 Rolls Window

The Rolls window lists information about a rolled circuit before the roll process is complete. You can

access the Rolls window by clicking the Circuits > Rolls tabs in either network or node view. Figure 7-6

shows the Rolls window.

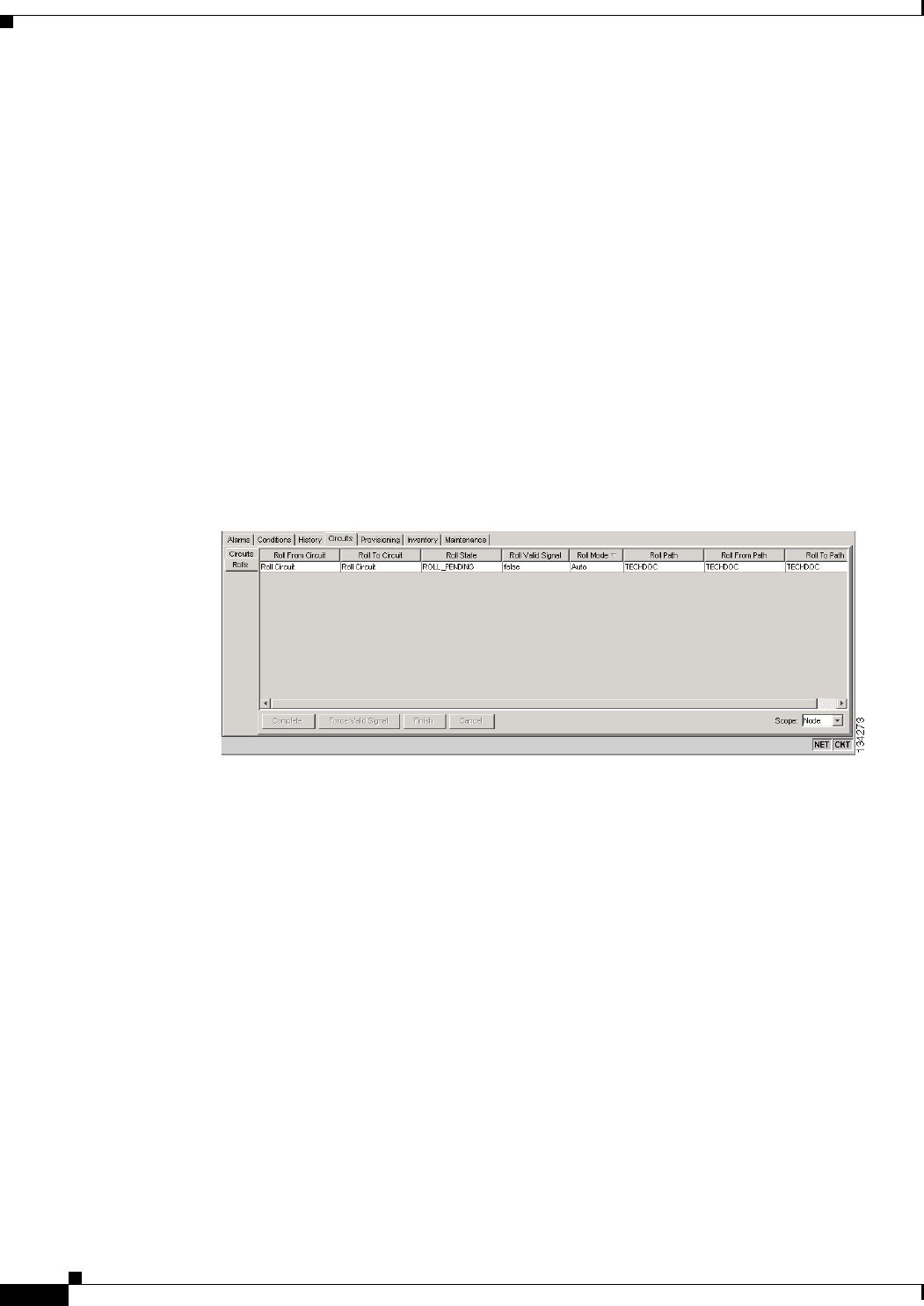

Figure 7-6 Rolls Window

The Rolls window information includes:

• Roll From Circuit—The circuit with connections that will no longer be used when the roll process

is complete.

• Roll To Circuit—The circuit that will carry the traffic when the roll process is complete. The Roll

To Circuit is the same as the Roll From Circuit if a single circuit is involved in a roll.

• Roll State—The roll status; see the “7.9.2 Roll Status” section on page 7-19 for information.

• Roll Valid Signal—If the Roll Valid Signal status is true, a valid signal was found on the new port.

If the Roll Valid Signal status is false, a valid signal was not found. It is not possible to get a true

Roll Valid Signal status for a one-way destination roll.

• Roll Mode—The mode indicates whether the roll is automatic or manual.

CTC implements a roll mode at the circuit level. TL1 implements a roll mode at the cross-connect

level. If a single roll is performed, CTC and TL1 behave the same. If a dual roll is performed, the

roll mode specified in CTC might be different than the roll mode retrieved in TL1. For example, if

you select Automatic, CTC coordinates the two rolls to minimize possible traffic hits by using the

Manual mode behind the scenes. When both rolls have a good signal, CTC signals the nodes to

complete the roll.

–

Automatic—When a valid signal is received on the new path, CTC completes the roll on the

node automatically. One-way source rolls are always automatic.

7-19

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 7 Circuits and Tunnels

Bridge and Roll

–

Manual—You must complete a manual roll after a valid signal is received. One-way destination

rolls are always manual.

• Roll Path—The fixed point of the roll object.

• Roll From Path— The old path that is being rerouted.

• Roll To Path—The new path where the Roll From Path is rerouted.

• Complete—Completes a manual roll after a valid signal is received. You can complete a manual roll

if it is in a ROLL_PENDING status and you have not yet completed the roll or have not cancelled

its sibling roll.

• Force Valid Signal—Forces a roll onto the Roll To Circuit destination without a valid signal. If you

choose Force Valid Signal, traffic on the circuit that is involved in the roll will be dropped when the

roll is completed.

• Finish—Completes the circuit processing of both manual and automatic rolls and changes the circuit

status from ROLL_PENDING to DISCOVERED. After a roll, the Finish button also removes any

cross-connects that are no longer used from the Roll From Circuit field.

• Cancel—Cancels the roll process. When the roll mode is Manual, cancel roll is only allowed before

you click the Complete button. When the roll mode is Auto, cancel roll is only allowed before a good

signal is detected by the node or before you click the Force Valid Signal button.

7.9.2 Roll Status

Table 7-10 lists the roll statuses. You can only reroute circuits that have a DISCOVERED status. (See

Table 7-1 on page 7-3 for a list of circuit statuses.) You cannot reroute circuits that are in the

ROLL_PENDING status.

Table 7-10 Roll Statuses

State Description

ROLL_PENDING The roll is awaiting completion or cancellation.

ROLL_COMPLETED The roll is complete. Click the Finish button.

ROLL_CANCELLED The roll has been canceled.

TL1_ROLL A TL1 roll was initiated.

Note If a roll is created using TL1, a CTC user cannot complete or

cancel the roll. Also, if a roll is created using CTC, a TL1 user

cannot complete or cancel the roll. You must use the same

interface to complete or change a roll.

INCOMPLETE This state appears when the underlying circuit becomes incomplete. To

correct this state, you must fix the underlying circuit problem before the

roll state will change.

For example, a circuit traveling on Nodes A, B, and C can become

INCOMPLETE if Node B is rebooted. The cross connect information is

lost on Node B during a reboot. The Roll State on Nodes A and C will

change to INCOMPLETE.

7-20

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 7 Circuits and Tunnels

Bridge and Roll

7.9.3 Single and Dual Rolls

Circuits have an additional layer of roll types: single and dual. A single roll on a circuit is a roll on one

of its cross-connects. Use a single roll to:

• Change either the source or destination of a selected circuit (Figure 7-7 and Figure 7-8,

respectively).

• Roll a segment of the circuit onto another chosen circuit (Figure 7-9 on page 7-20). This roll also

results in a new destination or a new source.

In Figure 7-7, you can select any available VC high-order path on Node 1 for a new source.

Figure 7-7 Single Source Roll

In Figure 7-8, you can select any available VC high-order path on Node 2 for a new destination.

Figure 7-8 Single Destination Roll

Figure 7-9 shows one circuit rolling onto another circuit at the destination. The new circuit has

cross-connects on Node 1, Node 3, and Node 4. CTC deletes the cross-connect on Node 2 after the roll.

Figure 7-9 Single Roll from One Circuit to Another Circuit (Destination Changes)

Figure 7-10 shows one circuit rolling onto another circuit at the source.

83267

Node 1

Node 2

Original leg

New leg

83266

Node 1

Node 2

Original leg

New leg

78703

Node 1

Node 2

Node 4Node 3

Original leg

New leg

7-21

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 7 Circuits and Tunnels

Bridge and Roll

Figure 7-10 Single Roll from One Circuit to Another Circuit (Source Changes)

Note Create a Roll To Circuit before rolling a circuit with the source on Node 3 and the destination on Node 4.

A dual roll involves two cross-connects. It allows you to reroute intermediate segments of a circuit, but

keep the original source and destination. If the new segments require new cross-connects, use the Bridge

and Roll wizard or create a new circuit and then perform a roll.

Caution Only single rolls can be performed using TL1. Dual rolls require the network-level view that only CTC

or CTM provide.

Dual rolls have several constraints:

• You must complete or cancel both cross-connects rolled in a dual roll. You cannot complete one roll

and cancel the other roll.

• When a Roll To circuit is involved in the dual roll, the first roll must roll onto the source of the

Roll To circuit and the second roll must roll onto the destination of the Roll To circuit.

Figure 7-11 illustrates a dual roll on the same circuit.

Figure 7-11 Dual Roll to Reroute a Link

Figure 7-12 illustrates a dual roll involving two circuits.

134274

Node 1

Node 2

Node 4Node 3

Original leg

New leg

83268

Node 1

Node 2

Original leg

New leg

7-22

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 7 Circuits and Tunnels

Merged Circuits

Figure 7-12 Dual Roll to Reroute to a Different Node

Note If a new segment is created on Nodes 3 and 4 using the Bridge and Roll wizard, the created circuit has

the same name as the original circuit with the suffix _ROLL**. The circuit source is on Node 3 and the

circuit destination is on Node 4.

7.9.4 Two-Circuit Bridge and Roll

When using the bridge and roll feature to reroute traffic using two circuits, the following constraints

apply:

• DCC must be enabled on the circuits involved in a roll before roll creation.

• A maximum of two rolls can exist between any two circuits.

• If two rolls are involved between two circuits, both rolls must be on the original circuit. The second

circuit should not carry live traffic. The two rolls loop from the second circuit back to the original

circuit. The roll mode of the two rolls must be identical (either automatic or manual).

• If a single roll exists on a circuit, you must roll the connection onto the source or the destination of

the second circuit and not an intermediate node in the circuit.

7.9.5 Protected Circuits

CTC allows you to roll the working or protect path regardless of which path is active. You can upgrade

an unprotected circuit to a fully protected circuit or downgrade a fully protected circuit to an unprotected

circuit with the exception of a Linear Multiplex Section Protection circuit. When using bridge and roll

on Linear Multiplex Section Protection circuits, you can roll the source or destination or both path

selectors in a dual roll. However, you cannot roll a single path selector.

7.10 Merged Circuits

A circuit merge combines a single selected circuit with one or more circuits. You can merge VC

low-order path tunnels, LAP circuits, orderwire and user data channel (UDC) overhead circuits,

CTC-created traffic circuits, and TL1-created traffic circuits. To merge circuits, you choose a master

circuit on the CTC Circuits tab. Then, you choose the circuits that you want to merge with the master

circuit on the Merge tab in the Edit Circuits window. The Merge tab shows only the circuits that are

available for merging with the master circuit:

83102

Node 1

Node 2

Node 4Node 3

Original leg

New leg

7-23

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 7 Circuits and Tunnels

Reconfigured Circuits

• Circuit cross-connects must create a single, contiguous path.

• Circuits types must be a compatible. For example, you can combine a VC high-order path circuit

with a LAP circuit to create a longer LAP circuit, but you cannot combine a VC low-order path

circuit with a VC high-order path circuit.

• Circuit directions must be compatible. You can merge a one-way and a two-way circuit, but not two

one-way circuits in opposing directions.

• Circuit sizes must be identical.

• Circuit endpoints must send or receive the same framing format.

• The merged circuits must become a DISCOVERED circuit.

If all connections from the master circuit and all connections from the merged circuits align to form one

complete circuit, the merge is successful. If all connections from the master circuit and some, but not

all, connections from the other circuits align to form a single complete circuit, CTC notifies you and

gives you the chance to cancel the merge process. If you choose to continue, the aligned connections

merge successfully into the master circuit, and the unaligned connections remain in the original circuits.

All connections in the completed master circuit use the original master circuit name.

All connections from the master circuit and at least one connection from the other selected circuits must

be used in the resulting circuit for the merge to succeed. If a merge fails, the master circuit and all other

circuits remain unchanged. When the circuit merge completes successfully, the resulting circuit retains

the name of the master circuit.

7.11 Reconfigured Circuits

You can reconfigure multiple circuits, which is typically necessary when a large number of circuits are

in the PARTIAL status. When reconfiguring multiple circuits, the selected circuits can be any

combination of DISCOVERED, PARTIAL, DISCOVERED_TL1, or PARTIAL_TL1 circuits. You can

reconfigure tunnels, LAP circuits, CTC-created circuits, and TL1-created circuits. The Reconfigure

command maintains the names of the original cross-connects.

Use the CTC Tools > Circuits > Reconfigure Circuits command to reconfigure selected circuits. During

reconfiguration, CTC reassembles all connections of the selected circuits into circuits based on path size,

direction, and alignment. Some circuits might merge and others might split into multiple circuits. If the

resulting circuit is a valid circuit, it appears as a DISCOVERED circuit. Otherwise, the circuit appears

as a PARTIAL or PARTIAL_TL1 circuit.

Note PARTIAL tunnel circuits do not split into multiple circuits during reconfiguration.

7.12 Server Trails

A server trail is a non-DCC (logical or virtual) link across a third-party network that connects two CTC

network domains. A server trail allows A-Z circuit provisioning when no DCC is available. You can

create server trails between two distant optical or STM-1E ports. The end ports on a server trail can be

different types (for example, an STM-4 port can be linked to an STM-1 port). Server trails are not

allowed on DCC-enabled ports.

7-24

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 7 Circuits and Tunnels

Server Trails

The server trail link is bidirectional and can be VC3, VC11, VC12, VC4, VC4-2c, VC4-3c, VC4-4c,

VC4-6c, VC4-8c, VC4-12c, VC4-16c, VC4-32c, and VC4-64c; you cannot change an existing server

trail to another size. It must be deleted and recreated. A circuit provisioned over a server trail must match

the type and size of the server trail it uses. For example, an VC4-3c server trail can carry only VC4-3c

circuits and not three VC4 circuits.

Note There is no OSPF or any other management information exchange between NEs over a server trail.

7.12.1 Server Trail Protection Types

The server trail protection type determines the protection type for any circuits that traverse it. A server

trail link can be one of the following protection types:

• Preemptible—PCA circuits will use server trails with the Preemptible attribute.

• Unprotected—In Unprotected Server Trail, CTC assumes that the circuits going out from that

specific port will not be protected by provider network and will look for a secondary path from

source to destination if you are creating a protected circuit.

• Fully Protected—In Fully Protected Server Trail, CTC assumes that the circuits going out from that

specific port will be protected by provider network and will not look for a secondary path from

source to destination.

Note Only SNCP protection is available on server trails. MS-SPRing procection is not available on server trail.

7.12.2 VCAT Circuit Routing over Server Trails

An VC4-3c server trail can be used to route VC4-3c circuits and an VC4 server trail can be used to route

VC4 circuits. Similarly, a VC3 server trail can be used to route VC3 circuits.

For example, to route a VC4-3c-2v circuit over a server trail, you must enable split fiber routing and

create two VC4-3c server trails and route each member manually or automatically over each server trail.

To route a VC4-12c-2v circuit over a server trail, you must enable split fiber routing and create two VC4

server trails and route each member manually or automatically over each server trail.

Note Server trails can only be created between any two optical ports or STM-1E ports.

VCAT circuities can be created over server trails in the following ways:

• Manual routing

• Automatic routing

–

Diverse routing: This method enables VCAT circuit routing over diverse server trail links.

Note When creating circuits or VCATs, you can choose a server trail link during manual circuit routing. CTC

may also route circuits over server trail links during automatic routing. VCAT common-fiber automatic

routing is not supported.

7-25

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 7 Circuits and Tunnels

Server Trails

For a detailed procedure on how to route a VCAT circuit over a server trail, refer “Chapter 6, Create

Circuits and VT Tunnels, Section NTP-A264, Create an Automatically Routed VCAT Circuit and

Section NTP-A265, Create a Manually Routed VCAT Circuit” in the Cisco ONS 15454 Procedure

Guide.

7.12.2.1 Shared Resource Link Group

The Shared Resource Link Group (SRLG) attribute can be assigned to a server trail link using a

commonly shared resource such as port, fiber or span. For example, if two server trail links are routed

over the same fiber, an SRLG attribute can be assigned to these links. SRLG is used by Cisco Transport

Manager (CTM) to specify link diversity. If you create multiple server trails from one port, you can

assign the same SRLG value to all the links to indicate that they originate from the same port.

7-26

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 7 Circuits and Tunnels

Server Trails

CHAPTER

8-1

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Management Network Connectivity

This chapter provides an overview of Cisco ONS 15310-MA SDH data communications network (DCN)

connectivity. Cisco Optical Networking System (ONS) network communication is based on IP, including

communication between Cisco Transport Controller (CTC) computers and ONS 15310-MA SDH nodes,

and communication among networked ONS 15310-MA SDH nodes. The chapter provides scenarios

showing ONS 15310-MA SDH nodes in common IP network configurations as well as information about

provisionable patchcords, the IP routing table, external firewalls, and open gateway network element

(GNE) networks.

Although ONS 15310-MA SDH DCN communication is based on IP, ONS 15310-MA SDH nodes can

be networked to equipment that is based on the Open System Interconnection (OSI) protocol suites. This

chapter describes the OSI implementation and provides scenarios that show how the ONS 15310-MA

SDH can be networked within a mixed IP and OSI environment.

Chapter topics include:

• 8.1 IP Networking Overview, page 8-2

• 8.2 IP Addressing Scenarios, page 8-2

• 8.3 Routing Table, page 8-16

• 8.4 External Firewalls, page 8-18

• 8.5 Open GNE, page 8-20

• 8.6 TCP/IP and OSI Networking, page 8-22

• 8.7 IPv6 Network Compatibility, page 8-40

• 8.8 IPv6 Native Support, page 8-40

• 8.9 FTP Support for ENE Database Backup, page 8-42

Note This chapter does not provide a comprehensive explanation of IP networking concepts and procedures,

nor does it provide IP addressing examples to meet all networked scenarios. For networking setup

instructions, refer to the “Turn Up a Node” chapter of the Cisco ONS 15310-MA SDH Procedure Guide.

Note To connect ONS 15310-MA SDH nodes to an IP network, you must work with a LAN administrator or

other individual at your site who has IP networking training and experience.

8-2

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

IP Networking Overview

8.1 IP Networking Overview

ONS 15310-MA SDH nodes can be connected in many different ways within an IP environment:

• They can be connected to LANs through direct connections or a router.

• IP subnetting can create ONS 15310-MA SDH login node groups, which allow you to provision

non-data communications channel (DCC) connected nodes in a network.

• Different IP functions and protocols can be used to achieve specific network goals. For example,

Proxy Address Resolution Protocol (ARP) enables one LAN-connected ONS 15310-MA SDH to

serve as a gateway for ONS 15310-MA SDH nodes that are not connected to the LAN.

• You can create static routes to enable connections among multiple Cisco Transport Controller (CTC)

sessions with ONS 15310-MA SDH nodes that reside on the same subnet with multiple CTC

sessions.

• If ONS 15310-MA SDH nodes are connected to Open Shortest Path First (OSPF) networks, ONS

15310-MA SDH network information is automatically communicated across multiple LANs and

WANs.

• The ONS 15310-MA SDH proxy server controls the visibility and accessibility between CTC

computers and ONS 15310-MA SDH element nodes.

8.2 IP Addressing Scenarios

ONS 15310-MA SDH IP addressing generally has seven common scenarios or configurations. Use the

scenarios as building blocks for more complex network configurations. Table 8-1 provides a general list

of items to check when setting up ONS 15310-MA SDH nodes in IP networks.

Table 8-1 General P Troubleshooting Checklist

Item What to Check

Link integrity Verify that link integrity exists between:

• CTC computer and network hub/switch

• ONS 15310-MA SDH nodes (RJ-45 ports labeled LAN) and network

hub/switch

• Router ports and hub/switch ports

Node hub/switch

ports

Verify connectivity. If connectivity problems occur, set the hub or switch port

that is connected to the ONS 15310-MA SDH to 10 Mbps half-duplex.

Ping Ping the node to test connections between computers and ONS 15310-MA

SDH nodes.

IP addresses/subnet

masks

Verify that ONS 15310-MA SDH IP addresses and subnet masks are set up

correctly.

Optical connectivity Verify that ONS 15310-MA SDH optical trunk ports are in service and that a

DCC is enabled on each trunk port.

8-3

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

IP Addressing Scenarios

8.2.1 Scenario 1: CTC and ONS 15310-MA SDH Nodes on the Same Subnet

Scenario 1 shows a basic ONS 15310-MA SDH LAN configuration (Figure 8-1). The ONS 15310-MA

SDH nodes and CTC computer reside on the same subnet. All

nodes connect to LAN A and have DCC connections.

Figure 8-1 Scenario 1: CTC and ONS 15310-MA SDH Nodes on the Same Subnet

8.2.2 Scenario 2: CTC and ONS 15310-MA SDH Nodes Connected to a Router

In Scenario 2 the CTC computer resides on a subnet (192.168.1.0) and attaches to LAN A (Figure 8-2).

The ONS 15310-MA SDH nodes reside on a different subnet (192.168.2.0) and attach to LAN B. A

router connects LAN A to LAN B. The IP address of router interface A is set to LAN A (192.168.1.1),

and the IP address of router interface B is set to LAN B (192.168.2.1).

On the CTC computer, the default gateway is set to router interface A. If the LAN uses Dynamic Host

Configuration Protocol (DHCP), the default gateway and IP address are assigned automatically. In

Figure 8-2, a DHCP server is not available.

CTC Workstation

IP Address 192.168.1.100

Subnet Mask 255.255.255.0

Default Gateway = N/A

Host Routes = N/A

ONS 15310 #1

IP Address 192.168.1.10

Subnet Mask 255.255.255.0

Default Router = N/A

Static Routes = N/A

ONS 15310 #2

IP Address 192.168.1.20

Subnet Mask 255.255.255.0

Default Router = N/A

Static Routes = N/A

ONS 15310 #3

IP Address 192.168.1.30

Subnet Mask 255.255.255.0

Default Router = N/A

Static Routes = N/A

LAN A

SDH RING

271789

8-4

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

IP Addressing Scenarios

Figure 8-2 Scenario 2: CTC and ONS 15310-MA SDH Nodes Connected to Router

8.2.3 Scenario 3: Using Proxy ARP to Enable an ONS 15310-MA SDH Gateway

ARP matches higher-level IP addresses to the physical addresses of the destination host. It uses a lookup

table (called ARP cache) to perform the translation. When the address is not found in the ARP cache, a

broadcast is sent out on the network with a special format called the ARP request. If one of the machines

on the network recognizes its own IP address in the request, it sends an ARP reply back to the requesting

host. The reply contains the physical hardware address of the receiving host. The requesting host stores

this address in its ARP cache so that all subsequent datagrams (packets) to this destination IP address

can be translated to a physical address.

Proxy ARP enables one LAN-connected ONS 15310-MA SDH to respond to the ARP request for ONS

15310-MA SDH nodes not connected to the LAN. (Proxy ARP requires no user configuration.) For the

proxy ARP node to require no user confirmation, the DCC-connected nodes must reside on the same

subnet. When a LAN device sends an ARP request to an ONS 15310-MA SDH that is not connected to

the LAN, the gateway ONS 15310-MA SDH returns its MAC address to the LAN device. The LAN

device then sends the datagram for the remote ONS 15310-MA SDH to the MAC address of the proxy

node. The proxy ONS 15310-MA SDH uses its routing table to forward the datagram to the non-LAN

ONS 15310-MA SDH.

CTC Workstation

IP Address 192.168.1.100

Subnet Mask 255.255.255.0

Default Gateway = 192.168.1.1

Host Routes = N/A

Router

IP Address of interface ìAî to LAN ìAî 192.168.1.1

IP Address of interface ìBî to LAN ìBî 192.168.2.1

Subnet Mask 255.255.255.0

Default Router = N/A

Host Routes = N/A

ONS 15310 #1

IP Address 192.168.2.10

Subnet Mask 255.255.255.0

Default Router = 192.168.2.1

Static Routes = N/A

ONS 15310 #2

IP Address 192.168.2.20

Subnet Mask 255.255.255.0

Default Router = 192.168.2.1

Static Routes = N/A

ONS 15310 #3

IP Address 192.168.2.30

Subnet Mask 255.255.255.0

Default Router = 192.168.2.1

Static Routes = N/A

LAN B

LAN A

Int "A"

Int "B"

SDH RING

271790

8-5

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

IP Addressing Scenarios

Scenario 3 is similar to Scenario 1, but only one ONS 15310-MA SDH node (#1) connects to the LAN

(Figure 8-3). Two ONS 15310-MA SDH nodes (#2 and #3) connect to Node 1 through the SDH DCC.

Because all three nodes are on the same subnet, Proxy ARP enables Node 1 to serve as a gateway for

Nodes 2 and 3.

Note This scenario assumes all CTC connections are to Node 1. If you connect a laptop to either Node 2 or

Node 3, network partitioning occurs, and neither the laptop or the CTC computer is able to see all nodes.

If you want laptops to connect directly to end network elements, you need to create static routes (see

Scenario 5) or enable the ONS 15310-MA SDH proxy server (see Scenario 7).

Figure 8-3 Scenario 3: Using Proxy ARP

You can also use proxy ARP to communicate with hosts attached to the craft Ethernet ports of

DCC-connected nodes (Figure 8-4). The node with an attached host must have a static route to the host.

Static routes are propagated to all DCC peers using OSPF. The existing proxy ARP node is the gateway

for additional hosts. Each node examines its routing table for routes to hosts that are not connected to

the DCC network but are within the subnet. The existing proxy server replies to ARP requests for these

additional hosts with the node MAC address. The existence of the host route in the routing table ensures

that the IP packets addressed to the additional hosts are routed properly. Other than establishing a static

route between a node and an additional host, no provisioning is necessary. The following restrictions

apply:

• Only one node acts as the proxy ARP server for any given additional host.

• A node cannot be the proxy ARP server for a host connected to its Ethernet port.

In Figure 8-4, Node 1 announces to Node 2 and 3 that it can reach the CTC host. Similarly, Node 3

announces that it can reach the ONS 152xx. The ONS 152xx is shown as an example; any network

element can be set up as an additional host.

CTC Workstation

IP Address 192.168.1.100

Subnet Mask 255.255.255.0

Default Gateway = N/A

ONS 15310 #2

IP Address 192.168.1.20

Subnet Mask 255.255.255.0

Default Router = N/A

Static Routes = N/A

ONS 15310 #1

IP Address 192.168.1.10

Subnet Mask 255.255.255.0

Default Router = N/A

Static Routes = N/A

ONS 15310 #3

IP Address 192.168.1.30

Subnet Mask 255.255.255.0

Default Router = N/A

Static Routes = N/A

LAN A

SDH RING

271791

8-6

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

IP Addressing Scenarios

Figure 8-4 Scenario 3: Using Proxy ARP with Static Routing

8.2.4 Scenario 4: Default Gateway on CTC Computer

Scenario 4 is similar to Scenario 3, but ONS 15310-MA SDH Node 2 and Node 3 reside on different

subnets, 192.168.2.0 and 192.168.3.0, respectively (Figure 8-5). Node 1 and the CTC computer are on

subnet 192.168.1.0. Proxy ARP is not used because the network includes different subnets. For the CTC

computer to communicate with Nodes 2 and 3, Node 1 is entered as the default gateway on the CTC

computer.

CTC Workstation

IP Address 192.168.1.100

Subnet Mark at CTC Workstation 255.255.255.0

Default Gateway = N/A

ONS 15310 #2

IP Address 192.168.1.20

Subnet Mask 255.255.255.0

Default Router = N/A

Static Routes = N/A

ONS 15310 #1

IP Address 192.168.1.10

Subnet Mask 255.255.255.0

Default Router = N/A

Static Routes = Destination 192.168.1.100

Mask 255.255.255.0

Next Hop 192.168.1.10

ONS 15310 #3

IP Address 192.168.1.30

Subnet Mask 255.255.255.0

Default Router = N/A

Static Routes = Destination 192.168.1.31

Mask 255.255.255.255

Next Hop 192.168.1.30

ONS 152xx

IP Address 192.168.1.31

Subnet Mask 255.255.255.0

LAN A

SDH

271890

8-7

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

IP Addressing Scenarios

Figure 8-5 Scenario 4: Default Gateway on a CTC Computer

8.2.5 Scenario 5: Using Static Routes to Connect to LANs

Static routes are used for two purposes:

• To connect ONS 15310-MA SDH nodes to CTC sessions on one subnet that are connected by a

router to ONS 15310-MA SDH nodes residing on another subnet. (These static routes are not needed

if OSPF is enabled. Scenario 6 shows an OSPF example.)

• To enable multiple CTC sessions among ONS 15310-MA SDH nodes residing on the same subnet.

In Figure 8-6, one CTC residing on subnet 192.168.1.0 connects to a router through interface A. (The

router is not set up with OSPF.) ONS 15310-MA SDH nodes residing on different subnets are connected

through Node 1 to the router through interface B. Because Nodes 2 and 3 are on different subnets, proxy

ARP does not enable Node 1 as a gateway. To connect to CTC computers on LAN A, a static route is

created on Node 1.

CTC Workstation

IP Address 192.168.1.100

Subnet Mask 255.255.255.0

Default Gateway = 192.168.1.10

Host Routes = N/A

ONS 15310 #2

IP Address 192.168.2.20

Subnet Mask 255.255.255.0

Default Router = N/A

Static Routes = N/A

ONS 15310 #1

IP Address 192.168.1.10

Subnet Mask 255.255.255.0

Default Router = N/A

Static Routes = N/A

ONS 15310 #3

IP Address 192.168.3.30

Subnet Mask 255.255.255.0

Default Router = N/A

Static Routes = N/A

LAN A

SDH RING

271792

8-8

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

IP Addressing Scenarios

Figure 8-6 Scenario 5: Static Route with One CTC Computer Used as a Destination

The destination and subnet mask entries control access to the ONS 15310-MA SDH nodes:

• If a single CTC computer is connected to a router, enter the complete CTC “host route” IP address

as the destination with a subnet mask of 255.255.255.255.

• If CTC computers on a subnet are connected to a router, enter the destination subnet (in this example,

192.168.1.0) and a subnet mask of 255.255.255.0.

• If all CTC computers are connected to a router, enter a destination of 0.0.0.0 and a subnet mask of

0.0.0.0. Figure 8-7 shows an example.

The IP address of router interface B is entered as the next hop, and the cost (number of hops from source

to destination) is 2.

CTC Workstation

IP Address 192.168.1.100

Subnet Mask 255.255.255.0

Default Gateway = 192.168.1.1

Host Routes = N/A

Router

IP Address of interface ìAî to LAN A 192.168.1.1

IP Address of interface ìBî to LAN B 192.168.2.1

Subnet Mask 255.255.255.0

Default Router = N/A

Static Routes = Destination 192.168.3.20 Gateway 192.168.2.10

Destination 192.168.4.30 Gateway 192.168.2.10

ONS 15310 #2

IP Address 192.168.3.20

Subnet Mask 255.255.255.0

Default Router = N/A

Static Routes = N/A

ONS 15310 #1

IP Address 192.168.2.10

Subnet Mask 255.255.255.0

Default Router = 192.168.2.1

Static Routes = Destination 192.168.1.100

Mask 255.255.255.255

Next Hop 192.168.2.1

Cost = 2

ONS 15310 #3

IP Address 192.168.4.30

Subnet Mask 255.255.255.0

Default Router = N/A

Static Routes = N/A

LAN B

LAN A

Int "A"

Int "B"

SDH RING

271793

8-9

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

IP Addressing Scenarios

Figure 8-7 Scenario 5: Static Route with Multiple LAN Destinations

8.2.6 Scenario 6: Using OSPF

Open Shortest Path First (OSPF) is a link-state Internet routing protocol. Link-state protocols use a

“hello protocol” to monitor their links with adjacent routers and to test the status of their links to their

neighbors. Link-state protocols advertise their directly connected networks and their active links. Each

link state router captures the link state “advertisements” and puts them together to create a topology of

the entire network or area. From this database, the router calculates a routing table by constructing a

shortest path tree. Routes are recalculated when topology changes occur.

CTC Workstation

IP Address 192.168.1.100

Subnet Mask 255.255.255.0

Default Gateway = 192.168.1.1

Host Routes = N/A

Router #1

IP Address of interface îAî to LAN ìAî 192.168.1.1

IP Address of interface ìBî to LAN ìBî 192.168.2.1

Subnet Mask 255.255.255.0

ONS 15310 #2

IP Address 192.168.2.20

Subnet Mask 255.255.255.0

Default Router = N/A

Static Routes = N/A

ONS 15310 #1

IP Address 192.168.2.10

Subnet Mask 255.255.255.0

Default Router = 192.168.2.1

ONS 15310 #3

IP Address 192.168.2.30

Subnet Mask 255.255.255.0

Default Router = N/A

Static Routes = N/A

LAN B

LAN A

Int "A" Int "B"

SDH RING

Static Routes

Destination 0.0.0.0

Mask 0.0.0.0

Next Hop 192.168.2.1

Cost = 2

LAN C

LAN D

Router #3

Router #2

271794

8-10

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

IP Addressing Scenarios

The ONS 15310-MA SDH uses OSPF protocol in internal ONS 15310-MA SDH networks for node

discovery, circuit routing, and node management. You can enable OSPF on the ONS 15310-MA SDH so

that the ONS 15310-MA SDH topology is sent to OSPF routers on a LAN. Advertising the ONS

15310-MA SDH network topology to LAN routers eliminates the need to enter static routes for ONS

15310-MA SDH subnetworks manually.

OSPF divides networks into smaller regions, called areas. An area is a collection of networked end

systems, routers, and transmission facilities organized by traffic patterns. Each OSPF area has a unique

ID number, known as the area ID. Every OSPF network has one backbone area called “area 0.” All other

OSPF areas must connect to area 0.

When you enable an ONS 15310-MA SDH OSPF topology for advertising to an OSPF network, you

must assign an OSPF area ID in decimal format to the network. Coordinate the area ID number

assignment with your LAN administrator. All DCC-connected ONS 15310-MA SDH nodes should be

assigned the same OSPF area ID.

Figure 8-8 shows a network enabled for OSPF.

Figure 8-8 Scenario 6: OSPF Enabled

Figure 8-9 shows the same network without OSPF. Static routes must be manually added to the router

for CTC computers on LAN A to communicate with Nodes 2 and 3 because these nodes reside on

different subnets.

CTC Workstation

IP Address 192.168.1.100

Subnet Mask 255.255.255.0

Default Gateway = 192.168.1.1

Host Routes = N/A

Router

IP Address of interface ìAî to LAN A 192.168.1.1

IP Address of interface ìBî to LAN B 192.168.2.1

Subnet Mask 255.255.255.0

ONS 15310 #2

IP Address 192.168.3.20

Subnet Mask 255.255.255.0

Default Router = N/A

Static Routes = N/A

ONS 15310 #1

IP Address 192.168.2.10

Subnet Mask 255.255.255.0

Default Router = 192.168.2.1

Static Routes = N/A

ONS 15310 #3

IP Address 192.168.4.30

Subnet Mask 255.255.255.0

Default Router = N/A

Static Routes = N/A

LAN B

LAN A

Int "A"

Int "B"

SDH RING

271795

8-11

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

IP Addressing Scenarios

Figure 8-9 Scenario 6: OSPF Not Enabled

8.2.7 Scenario 7: Provisioning the ONS 15310-MA SDH Proxy Server

The ONS 15310-MA SDH proxy server is a set of functions that allows you to network ONS 15310-MA

SDH nodes in environments where visibility and accessibility between nodes and CTC computers must

be restricted. For example, you can set up a network so that field technicians and network operating

center (NOC) personnel can both access the same nodes while preventing the field technicians from

accessing the NOC LAN. To do this, one ONS 15310-MA SDH node is provisioned as a gateway

network element (GNE) and the other nodes are provisioned as end network elements (ENEs). The GNE

tunnels connections between CTC computers and ENEs, which provides management capability while

preventing access for non-ONS 15310-MA SDH management purposes.

The ONS 15310-MA SDH proxy server performs the following tasks:

CTC Workstation

IP Address 192.168.1.100

Subnet Mask 255.255.255.0

Default Gateway = 192.168.1.1

Host Routes = N/A

Router

IP Address of interface ìAî to LAN A 192.168.1.1

IP Address of interface ìBî to LAN B 192.168.2.1

Subnet Mask 255.255.255.0

Static Routes = Destination 192.168.3.20 Next Hop 192.168.2.10

Destination 192.168.4.30 Next Hop 192.168.2.10

ONS 15310 #2

IP Address 192.168.3.20

Subnet Mask 255.255.255.0

Default Router = N/A

Static Routes = N/A

ONS 15310 #1

IP Address 192.168.2.10

Subnet Mask 255.255.255.0

Default Router = 192.168.2.1

Static Routes

Destination = 192.168.1.100

Mask = 255.255.255.255

Next Hop = 192.168.2.1

Cost = 2

ONS 15310 #3

IP Address 192.168.4.30

Subnet Mask 255.255.255.0

Default Router = N/A

Static Routes = N/A

LAN B

LAN A

Int "A"

Int "B"

SDH RING

271815

8-12

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

IP Addressing Scenarios

• Isolates DCC IP traffic from Ethernet (CRAFT port) traffic and accepts packets based on filtering

rules. The filtering rules depend on whether the packet arrives at the DCC or CRAFT port Ethernet

interface. Table 8-3 on page 8-15 and Table 8-4 on page 8-16 provide the filtering rules.

• Processes SNTP (Simple Network Timing Protocol) and NTP (Network Timing Protocol) requests.

Element ONS 15310-MA SDH NEs can derive time-of-day from an SNTP/NTP LAN server through

the GNE.

• Process SNMPv1 traps. The GNE receives SNMPv1 traps from the ENE and forwards them to all

provisioned SNMPv1 trap destinations.

The ONS 15310-MA SDH proxy server is provisioned using the Enable proxy server on port check box

on the Provisioning > Network > General tab. If checked, the ONS 15310-MA SDH serves as a proxy

for connections between CTC clients and ONS 15310-MA SDH nodes that are DCC-connected to the

proxy ONS 15310-MA SDH. The CTC client establishes connections to DCC-connected nodes through

the proxy node. The CTC client can connect to nodes that it cannot directly reach from the host on which

it runs. If the Enable proxy server on port check box is not checked, the node does not proxy for any CTC

clients, although any established proxy connections continue until the CTC client exits. In addition, you

can set the proxy server as an ENE or a GNE:

• External Network Element (ENE)—If set as an ENE, the ONS 15310-MA SDH neither installs nor

advertises default or static routes. CTC computers can communicate with the node using the craft

port, but they cannot communicate directly with any other DCC-connected node.

In addition, firewall is enabled, which means that the node prevents IP traffic from being routed

between the DCC and the LAN port. The ONS 15310-MA SDH can communicate with machines

connected to the LAN port or connected through the DCC. However, the DCC-connected machines

cannot communicate with the LAN-connected machines, and the LAN-connected machines cannot

communicate with the DCC-connected machines. A CTC client using the LAN to connect to the

firewall-enabled node can use the proxy capability to manage the DCC-connected nodes that would

otherwise be unreachable. A CTC client connected to a DCC-connected node can only manage other

DCC-connected nodes and the firewall itself.

• Gateway Network Element (GNE)—If set as a GNE, the CTC computer is visible to other

DCC-connected nodes and firewall is enabled.

• Proxy-only—If Proxy-only is selected, CTC cannot communicate with any other DCC-connected

ONS 15310-MA SDH nodes and firewall is not enabled.

Note If you launch CTC against a node through a NAT (Network Address Translation) or PAT (Port Address

Translation) router and that node does not have proxy enabled, your CTC session starts and initially

appears to be fine. However CTC never receives alarm updates and disconnects and reconnects every two

minutes. If the proxy is accidentally disabled, it is still possible to enable the proxy during a reconnect

cycle and recover your ability to manage the node, even through a NAT/PAT firewall.

Note ENEs that belong to different private subnetworks do not need to have unique IP addresses. Two ENEs

that are connected to different GNEs can have the same IP address. However, ENEs that connect to the

same GNE must always have unique IP addresses.

Figure 8-10 shows an ONS 15310-MA SDH proxy server implementation. A GNE is connected to a

central office LAN and to ENEs. The central office LAN is connected to a NOC LAN, which has CTC

computers. The NOC CTC computer and craft technicians must both be able to access the ENEs.

However, the craft technicians must be prevented from accessing or seeing the NOC or central office

LANs.

8-13

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

IP Addressing Scenarios

In the example, the GNE is assigned an IP address within the central office LAN and is physically

connected to the LAN through its LAN port. ENEs are assigned IP addresses that are outside the central

office LAN and given private network IP addresses. If the ENEs are collocated, the LAN ports could be

connected to a hub. However, the hub should have no other network connections.

Figure 8-10 ONS 15310-MA SDH Proxy Server with GNE and ENEs on the Same Subnet

Table 8-2 shows recommended settings for ONS 15310-MA SDH GNEs and ENEs in the configuration

shown in Figure 8-10.

Figure 8-11 shows the same proxy server implementation with ONS 15310-MA SDH ENEs on different

subnets. In this example, GNEs and ENEs are provisioned with the settings shown in Table 8-2.

NOC CTC

station

Local CTC station

IP 10.10.10.10

NOC LAN

97.1.1.x

Interface 0/0

97.1.1.1

Interface 0/1

86.1.1.1

Interface 0/1

192.168.20.1

ONS 15310-MA SDH

GNE

IP 192.168.20.20

Default gateway

192.168.20.1

Interface 0/0

86.1.1.3

ONS 15310-MA SDH

ENE

ONS 15310-MA SDH

ENE

ONS 15310-MA SDH

ENE

IP 192.168.20.0/24

Central Office LAN

86.x.x.x

271796

Table 8-2 ONS 15310-MA SDH GNE and ENE Settings

Setting ONS 15310-MA SDH GNE ONS 15310-MA SDH ENE

OSPF Off Off

SNTP Server (if used) SNTP server IP address Set to node GNE IP address

SNMP (if used) SNMPv1 trap destinations Set SNMPv1 trap destinations to node

GNE

8-14

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

IP Addressing Scenarios

Figure 8-11 Scenario 7: Proxy Server with GNE and ENEs on Different Subnets

Figure 8-12 shows the implementation with ONS 15310-MA SDH ENEs in multiple rings. In this

example, GNEs and ENEs are provisioned with the settings shown in Table 8-2.

NOC CTC

station

Local CTC station

IP 10.10.10.10

NOC LAN

97.1.1.x

Interface 0/0

97.1.1.1

Interface 0/1

86.1.1.1

ONS 15310-MA SDH

GNE

IP 86.10.10.100

Default gateway

86.1.1.1

ONS 15310-MA SDH

ENE

ONS 15310-MA SDH

ENE

ONS 15310-MA SDH

ENE

IP 192.168.0.0/24

Central Office LAN

86.x.x.x

271797

8-15

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

IP Addressing Scenarios

Figure 8-12 Scenario 7: Proxy Server with ENEs on Multiple Rings

Table 8-3 shows the rules the ONS 15310-MA SDH follows to filter packets when Enable Firewall is

enabled.

Table 8-4 shows additional rules that apply if the packet addressed to the ONS 15310-MA SDH is

discarded. Rejected packets are silently discarded.

NOC CTC

station NOC LAN

97.1.1.x

Interface 0/0

97.1.1.1

Interface 0/1

86.1.1.1

Switch

ONS 15310-MA SDH

GNE

ONS 15310-MA SDH

ENE

ONS 15310-MA SDH

ENE

IP 192.168.0.0/24

Central Office LAN

86.x.x.x

ONS 15310-MA SDH

GNE

ONS 15310-MA SDH

ENE

Local CTC station

IP 10.10.10.10

ONS 15310-MA SDH

ENE

ONS 15310-MA SDH

ENE

IP 192.0.0.0/24

ONS 15310-MA SDH

ENE

271798

Table 8-3 Proxy Server Firewall Filtering Rules

Packets arriving at: Are accepted if the IP destination address is:

15310E-CTX-K9

Ethernet interface

• The ONS 15310-MA SDH shelf itself

• The ONS 15310-MA SDH’s subnet broadcast address

• Within the 224.0.0.0/8 network (reserved network used for standard

multicast messages)

• Subnet mask = 255.255.255.255

DCC interface • The ONS 15310-MA SDH itself

• Any destination that is connected through another DCC interface

• Within the 224.0.0.0/8 network

8-16

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

Routing Table

If you implement the proxy server, keep the following rules in mind:

1. All DCC-connected ONS 15310-MA SDH nodes on the same Ethernet segment must have the same

Craft Access Only setting. Mixed values produce unpredictable results, and might leave some nodes

unreachable through the shared Ethernet segment.

2. All DCC-connected ONS 15310-MA SDH nodes on the same Ethernet segment must have the same

Enable Firewall setting. Mixed values produce unpredictable results. Some nodes might become

unreachable.

3. If you check Enable Firewall, always check Enable Proxy. If Enable Proxy is unchecked, CTC is not

able to see nodes on the DCC side of the ONS 15310-MA SDH.

4. If Craft Access Only is checked, check Enable Proxy. If Enable Proxy is not checked, CTC is not

able to see nodes on the DCC side of the ONS 15310-MA SDH.

If nodes become unreachable in cases 1, 2, and 3, you can correct the setting with one of the following

actions:

• Disconnect the craft computer from the unreachable ONS 15310-MA SDH. Connect to the ONS

15310-MA SDH through another ONS 15310-MA SDH in the network that has a DCC connection

to the unreachable node.

• Disconnect the Ethernet cable from the unreachable ONS 15310-MA SDH. Connect a CTC

computer directly to the ONS 15310-MA SDH.

8.3 Routing Table

ONS 15310-MA SDH routing information appears on the Maintenance > Routing Table tabs. The

routing table provides the following information:

• Destination—Displays the IP address of the destination network or host.

• Mask—Displays the subnet mask used to reach the destination host or network.

• Gateway—Displays the IP address of the gateway used to reach the destination network or host.

• Usage—Shows the number of times the listed route has been used.

• Interface—Shows the ONS 15310-MA SDH interface used to access the destination.

Table 8-4 Proxy Server Firewall Filtering Rules When the Packet is Addressed to the ONS

15310-MA SDH

Packets Arrive At Accepts Rejects

15310E-CTX-K9

LAN port

• All User Datagram Protocol (UDP)

packets except those in the

Rejected column

• UDP packets addressed to the

SNMP trap relay port (391)

DCC interface • All UDP packets

• All TCP packets except those

packets addressed to the Telnet and

SOCKS proxy server ports

• OSPF packets

• Internet Control Message Protocol

(ICMP) packets

• TCP packets addressed to the

Telnet port

• TCP packets addressed to the proxy

server port

• All packets other than UDP, TCP,

OSPF, ICMP

8-17

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

Routing Table

–

cpm0—The ONS 15310-MA SDH Ethernet interface (RJ45 LAN jack)

–

pdcc0—An RS-DCC interface, that is, an STMN trunk port identified as the RS-DCC

termination

–

lo0—A loopback interface

Table 8-5 shows sample routing entries for an ONS 15310-MA SDH.

Entry 1 shows the following:

• Destination (0.0.0.0) is the default route entry. All undefined destination network or host entries on

this routing table is mapped to the default route entry.

• Mask (0.0.0.0) is always 0 for the default route.

• Gateway (172.20.214.1) is the default gateway address. All outbound traffic that cannot be found in

this routing table or is not on the node’s local subnet is sent to this gateway.

• Interface (cpm0) indicates that the ONS 15310-MA SDH Ethernet interface is used to reach the

gateway.

Entry 2 shows the following:

• Destination (172.20.214.0) is the destination network IP address.

• Mask (255.255.255.0) is a 24-bit mask, meaning all addresses within the 172.20.214.0 subnet can

be a destination.

• Gateway (172.20.214.92) is the gateway address. All outbound traffic belonging to this network is

sent to this gateway.

• Interface (cpm0) indicates that the ONS 15310-MA SDH Ethernet interface is used to reach the

gateway.

Entry 3 shows the following:

• Destination (172.20.214.92) is the destination host IP address.

• Mask (255.255.255.255) is a 32-bit mask, meaning only the 172.20.214.92 address is a destination.

• Gateway (127.0.0.1) is a loopback address. The host directs network traffic to itself using this

address.

• Interface (lo0) indicates that the local loopback interface is used to reach the gateway.

Entry 4 shows the following:

• Destination (172.20.214.93) is the destination host IP address.

• Mask (255.255.255.255) is a 32-bit mask, meaning only the 172.20.214.93 address is a destination.

• Gateway (0.0.0.0) means the destination host is directly attached to the node.

Table 8-5 Sample Routing Table Entries

Entry Destination Mask Gateway Interface

1 0.0.0.0 0.0.0.0 172.20.214.1 cpm0

2 172.20.214.0 255.255.255.0 172.20.214.92 cpm0

3 172.20.214.92 255.255.255.255 127.0.0.1 lo0

4 172.20.214.93 255.255.255.255 0.0.0.0 pdcc0

5 172.20.214.94 255.255.255.255 172.20.214.93 pdcc0

8-18

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

External Firewalls

• Interface (pdcc0) indicates that an SDH RS-DCC interface is used to reach the destination host.

Entry 5 shows a DCC-connected node that is accessible through a node that is not directly connected:

• Destination (172.20.214.94) is the destination host IP address.

• Mask (255.255.255.255) is a 32-bit mask, meaning only the 172.20.214.94 address is a destination.

• Gateway (172.20.214.93) indicates that the destination host is accessed through a node with IP

address 172.20.214.93.

• Interface (pdcc0) indicates that an SDH RS-DCC interface is used to reach the gateway.

8.4 External Firewalls

Table 8-6 shows the ports that are used by the 15310E-CTX-K9 cards.

Table 8-6 Ports Used by the 15310E-CTX-K9

Port Function Action1

0 Never used D

20 FTP D

21 FTP control D

22 SSH (Secure Shell) D

23 Telnet D

80 HTTP D

111 SUNRPC (Sun Remote Procedure Call) NA

161 SNMP traps destinations D

162 SNMP traps destinations D

513 rlogin NA

683 CORBA IIOP OK

1080 Proxy server (socks) D

2001-2017 I/O card Telnet D

2018 DCC processor on active 15310-MA

SDH-CTX

2361 TL1 D

3082 Raw TL1 D

3083 TL1 D

5001 Multiplex-section shared protection ring

(MS-SPRing) server port

5002 MS-SPRing client port D

7200 SNMP alarm input port D

9100 EQM port D

9401 TCC boot port D

9999 Flash manager D

8-19

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

External Firewalls

The following access control list (ACL) examples show a firewall configuration when the proxy server

gateway setting is not enabled. In the example, the CTC workstation address is 192.168.10.10 and the

ONS 15310-MA SDH address is 10.10.10.100. The firewall is attached to the GNE, so the inbound path

is CTC to the GNE and the outbound path is from the GNE to CTC. The CTC CORBA Standard constant

is 683 and the TCC CORBA Default is TCC Fixed (57790).

access-list 100 remark *** Inbound ACL, CTC -> NE ***

access-list 100 remark

access-list 100 permit tcp host 192.168.10.10 host 10.10.10.100 eq www

access-list 100 remark *** allows initial contact with the 15310-MA SDH using http (port

80) ***

access-list 100 remark

access-list 100 permit tcp host 192.168.10.10 host 10.10.10.100 eq 57790

access-list 100 remark *** allows CTC communication with the 15310-MA SDH GNE (port 57790)

***

access-list 100 remark

access-list 101 remark

access-list 101 permit tcp host 10.10.10.100 host 192.168.10.10 eq 683

access-list 101 remark *** allows alarms etc., from the 15310-MA SDH (random port) to the

CTC workstation (port 683) ***

access-list 100 remark

access-list 101 permit tcp host 10.10.10.100 host 192.168.10.10 established

access-list 101 remark *** allows ACKs from the 15310-MA SDH GNE to CTC ***

The following ACL examples show a firewall configuration when the proxy server gateway setting is

enabled. As with the first example, the CTC workstation address is 192.168.10.10 and the

ONS 15310-MA SDH address is 10.10.10.100. The firewall is attached to the GNE, so the inbound path

is CTC to the GNE and the outbound path is from the GNE to CTC. The CTC CORBA Standard constant

is 683 and the TCC CORBA Default is TCC Fixed (57790).

access-list 100 remark *** Inbound ACL, CTC -> NE ***

access-list 100 remark

access-list 100 permit tcp host 192.168.10.10 host 10.10.10.100 eq www

access-list 100 remark *** allows initial contact with the 15310-MA SDH using http (port

80) ***

access-list 100 remark

access-list 100 permit tcp host 192.168.10.10 host 10.10.10.100 eq 1080

access-list 100 remark *** allows CTC communication with the 15310-MA SDH GNE proxy server

(port 1080) ***

access-list 100 remark

access-list 100 permit tcp host 192.168.10.10 host 10.10.10.100 established

access-list 100 remark *** allows ACKs from CTC to the 15310-MA SDH GNE ***

access-list 101 remark *** Outbound ACL, NE -> CTC ***

access-list 101 remark

access-list 101 permit tcp host 10.10.10.100 eq 1080 host 192.168.10.10

access-list 101 remark *** allows alarms and other communications from the 15310-MA SDH

(proxy server) to the CTC workstation

(port 683) ***

access-list 100 remark

access-list 101 permit tcp host 10.10.10.100 host 192.168.10.10 established

access-list 101 remark *** allows ACKs from the 15310-MA SDH GNE to CTC ***

10240-12287 Proxy client D

57790 Default TCC listener port OK

1. D = deny, NA = not applicable, OK = do not deny

Table 8-6 Ports Used by the 15310E-CTX-K9 (continued)

Port Function Action1

8-20

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

Open GNE

8.5 Open GNE

The ONS 15310-MA SDH can communicate with non-ONS nodes that do not support point-to-point

protocol (PPP) vendor extensions or OSPF type 10 opaque link-state advertisements (LSA), both of

which are necessary for automatic node and link discovery. An open GNE configuration allows the

DCC-based network to function as an IP network for non-ONS nodes.

To configure an open GNE network, you can provision RS-DCC and MS-DCC terminations to include

a far-end, non-ONS node using either the default IP address of 0.0.0.0 or a specified IP address. You

provision a far-end, non-ONS node by checking the “Far End is Foreign” check box during RS-DCC and

MS-DCC creation. The default 0.0.0.0 IP address allows the far-end, non-ONS node to provide the IP

address; if you set an IP address other than 0.0.0.0, a link is established only if the far-end node identifies

itself with that IP address, providing an extra level of security.

By default, the proxy server only allows connections to discovered ONS peers and the firewall blocks

all IP traffic between the DCC network and LAN. You can, however, provision proxy tunnels to allow

up to 12 additional destinations for SOCKS version 5 connections to non-ONS nodes. You can also

provision firewall tunnels to allow up to 12 additional destinations for direct IP connectivity between the

DCC network and LAN. Proxy and firewall tunnels include both a source and destination subnet. The

connection must originate within the source subnet and terminate within the destination subnet before

either the SOCKS connection or IP packet flow is allowed.

To set up proxy and firewall subnets in CTC, use the Provisioning > Network > Proxy and Firewalls

subtabs. The availability of proxy and/or firewall tunnels depends on the network access settings of the

node:

• If the node is configured with the proxy server enabled in GNE or ENE mode, you must set up a

proxy tunnel and/or a firewall tunnel.

• If the node is configured with the proxy server enabled in proxy-only mode, you can set up proxy

tunnels. Firewall tunnels are not allowed.

• If the node is configured with the proxy server disabled, neither proxy tunnels or firewall tunnels

are allowed.

Figure 8-13 shows an example of a foreign node connected to the DCC network. Proxy and firewall

tunnels are useful in this example because the GNE would otherwise block IP access between the PC

and the foreign node.

8-21

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

Open GNE

Figure 8-13 Proxy and Firewall Tunnels for Foreign Terminations

Figure 8-14 shows a remote node connected to an ENE Ethernet port. Proxy and firewall tunnels are

useful in this example because the GNE would otherwise block IP access between the PC and foreign

node. This configuration also requires a firewall tunnel on the ENE.

Remote CTC

10.10.20.10

10.10.20.0/24

10.10.10.0/24

Interface 0/0

10.10.20.1

Router A

Interface 0/1

10.10.10.1

ONS 15310-MA SDH

Gateway NE

10.10.10.100/24

ONS 15310-MA SDH

External NE

10.10.10.250/24

Non-ONS node

Foreign NE

130.94.122.199/28

ONS 15310-MA SDH

External NE

10.10.10.150/24

ONS 15310-MA SDH

External NE

10.10.10.200/24

271799

Local/Craft CTC

192.168.20.20

Ethernet

SDH

8-22

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

TCP/IP and OSI Networking

Figure 8-14 Foreign Node Connection to an ENE Ethernet Port

8.6 TCP/IP and OSI Networking

ONS 15310-MA SDH DCN communication is based on the TCP/IP protocol suite. However,

ONS 15310-MA SDH nodes can also be networked with equipment that uses the OSI protocol suite.

While TCP/IP and OSI protocols are not directly compatible, they do have the same objectives and

occupy similar layers of the OSI reference model. Table 8-7 shows the protocols that are involved when

TCP/IP-based NEs are networked with OSI-based NEs.

Remote CTC

10.10.20.10

10.10.20.0/24

10.10.10.0/24

Interface 0/0

10.10.20.1

Router A

Interface 0/1

10.10.10.1

ONS 15310-MA SDH

Gateway NE

10.10.10.100/24

ONS 15310-MA SDH

External NE

10.10.10.250/24

ONS 15310-MA SDH

External NE

10.10.10.150/24

ONS 15310-MA SDH

External NE

10.10.10.200/24

271800

Local/Craft CTC

192.168.20.20

Ethernet

SDH

Non-ONS node

Foreign NE

130.94.122.199/28

8-23

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

TCP/IP and OSI Networking

8.6.1 Point-to-Point Protocol

Point-to-Point protocol (PPP) is a data link (Layer 2) encapsulation protocol that transports datagrams

over point-to-point links. Although PPP was developed to transport IP traffic, it can carry other protocols

including the OSI Connectionless Network Protocol (CLNP). PPP components used in the transport of

OSI include:

• High-level data link control (HDLC)—Performs the datagram encapsulation for transport across

point-to-point links.

• Link control protocol (LCP)—Establishes, configures, and tests point-to-point connections.

CTC automatically enables IP over PPP whenever you create an RS-DCC or MS-DCC. The RS-DCC or

MS-DCC can be provisioned to support OSI over PPP.

Table 8-7 TCP/IP and OSI Protocols

OSI Model IP Protocols OSI Protocols IP-OSI Tunnels

Layer 7

Application

• TL1

• FTP

• HTTP

• Telnet

• IIOP

• TARP1

1. TARP = TID Address Resolution Protocol

• TL1 (over

OSI)

• FTAM2

• ACSE3

2. FTAM = File Transfer and Access Management

3. ACSE = association-control service element

Layer 6

Presentation

• Administrative S

tate4

4. Administrative State = Presentation layer

Layer 5

Session

• Session

Layer 4

Transport

• TCP

• UDP

• TP (Transport)

Class 4

• IP-over-CLNS5

tunnels

5. CLNS = Connectionless Network Layer Service

Layer 3

Network

• IP

• OSPF

• CLNP6

• ES-IS7

• IS-IS8

6. CLNP = Connectionless Network Layer Protocol

7. ES-IS = End System-to-Intermediate System

8. IS-IS = Intermediate System-to-Intermediate System

Layer 2 Data

link

• PPP • PPP

• LAP-D9

9. LAP-D = Link Access Protocol on the D Channel

Layer 1

Physical

DCC, LAN, fiber,

electrical

DCC, LAN, fiber, electrical

8-24

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

TCP/IP and OSI Networking

8.6.2 Link Access Protocol on the D Channel

LAP-D is a data link protocol used in the OSI protocol stack. LAP-D is assigned when you provision an

ONS 15310-MA SDH RS-DCC as OSI-only. Provisionable LAP-D parameters include:

• Transfer Service—One of the following transfer services must be assigned:

–

Acknowledged Information Transfer Service (AITS)—(Default) Does not exchange data until

a logical connection between two LAP-D users is established. This service provides reliable

data transfer, flow control, and error control mechanisms.

–

Unacknowledged Information Transfer Service (UITS)—Transfers frames containing user data

with no acknowledgement. The service does not guarantee that the data presented by one user

will be delivered to another user, nor does it inform the user if the delivery attempt fails. It does

not provide any flow control or error control mechanisms.

• Mode—LAP-D is set to either Network or User mode. This parameter sets the LAP-D frame

command/response (C/R) value, which indicates whether the frame is a command or a response.

• Maximum transmission unit (MTU)—The LAP-D N201 parameter sets the maximum number of

octets in a LAP-D information frame. The range is 512 to 1500 octets.

Note The MTU must be the same size for all NEs on the network.

• Transmission Timers—The following LAP-D timers can be provisioned:

–

The T200 timer sets the timeout period for initiating retries or declaring failures.

–

The T203 timer provisions the maximum time between frame exchanges, that is, the trigger for

transmission of the LAP-D “keep-alive” Receive Ready (RR) frames.

Fixed values are assigned to the following LAP-D parameters:

• Terminal Endpoint Identifier (TEI)—A fixed value of 0 is assigned.

• Service Access Point Identifier (SAPI)—A fixed value of 62 is assigned.

• N200 supervisory frame retransmissions—A fixed value of 3 is assigned.

8.6.3 OSI Connectionless Network Service

OSI connectionless network service is implemented by using the Connectionless Network Protocol

(CLNP) and Connectionless Network Service (CLNS). CLNP and CLNS are described in the ISO 8473

standard. CLNS provides network layer services to the transport layer through CLNP. CLNS does not

perform connection setup or termination because paths are determined independently for each packet

that is transmitted through a network. CLNS relies on transport layer protocols to perform error detection

and correction.

CLNP is an OSI network layer protocol that carries upper-layer data and error indications over

connectionless links. CLNP provides the interface between the CLNS and upper layers. CLNP performs

many of the same services for the transport layer as IP. The CLNP datagram is very similar to the IP

datagram. It provides mechanisms for fragmentation (data unit identification, fragment/total length, and

offset). Like IP, a checksum computed on the CLNP header verifies that the information used to process

the CLNP datagram is transmitted correctly, and a lifetime control mechanism (Time to Live) limits the

amount of time a datagram is allowed to remain in the system.

8-25

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

TCP/IP and OSI Networking

CLNP uses network service access points (NSAPs) to identify network devices. The CLNP source and

destination addresses are NSAPs. In addition, CLNP uses a network element title (NET) to identify a

network-entity in an end system (ES) or intermediate system (IS). NETs are allocated from the same

name space as NSAP addresses. Whether an address is an NSAP address or a NET depends on the

network selector value in the NSAP.

The ONS 15310-MA SDH support the ISO Data Country Code (ISO-DCC) NSAP address format as

specified in ISO 8348. The NSAP address is divided into an initial domain part (IDP) and a

domain-specific part (DSP). NSAP fields are shown in Table 8-8. NSAP field values are in hexadecimal

format. All NSAPs are editable and shorter NSAPs can be used; however, NSAPs for all NEs residing

within the same OSI network area usually have the same NSAP format.

Table 8-8 NSAP Fields

Field Definition Description

IDP

AFI Authority and

format identifier

Specifies the NSAP address format. The initial value is 39 for the

ISO-DCC address format.

IDI Initial domain

identifier

Specifies the country code. The initial value is 840F, the United States

country code padded with an F.

DSP

DFI DSP format

identifier

Specifies the DSP format. The initial value is 80, indicating the DSP

format follows American National Standards Institute (ANSI)

standards.

ORG Organization Organization identifier. The initial value is 000000.

Reserved Reserved Reserved NSAP field. The Reserved field is normally all zeros (0000).

RD Routing domain Defines the routing domain. The initial value is 0000.

AREA Area Identifies the OSI routing area to which the node belongs. The initial

value is 0000.

8-26

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

TCP/IP and OSI Networking

Figure 8-15 shows the default ISO-DCC NSAP address delivered with the ONS 15310-MA SDH. The

System ID is automatically populated with the node’s MAC address.

Figure 8-15 ISO-DCC NSAP Address

The ONS 15310-MA SDH main NSAP address is shown on the node view Provisioning > OSI > Main

Setup subtab. This address is also the Router 1 primary manual area address, which is viewed and edited

on the Provisioning > OSI > Routers subtab. See the “8.6.6 OSI Virtual Routers” section on page 8-32

for information about the OSI router and manual area addresses in CTC.

System System identifier The ONS 15310-MA SDH system identifier is set to its IEEE 802.3

MAC address.

SEL Selector The selector field directs the protocol data units (PDUs) to the correct

destination using the CLNP network layer service. Selector values

supported by the ONS 15310-MA SDH include:

• 00—Network Entity Title (NET). Used to exchange PDUs in the

ES-IS and IS-IS routing exchange protocols. (See the

“8.6.4.1 End System-to-Intermediate System Protocol” section

on page 8-28, and the “8.6.4.2 Intermediate

System-to-Intermediate System Protocol” section on page 8-28.)

• 1D—Selector for Transport Class 4 (and for FTAM and TL1

applications

• AF—Selector for the TARP protocol

• 2F—Selector for the GRE IP-over-CLNS tunnel (ITU/RFC

standard)

• CC—Selector for the Cisco IP-over-CLNS tunnels (Cisco

specific)

• E0—Selector for the OSI ping application (Cisco specific)

NSELs are only advertised when the node is configured as an ES.

They are not advertised when a node is configured as an IS. Tunnel

NSELs are not advertised until a tunnel is created.

Table 8-8 NSAP Fields (continued)

Field Definition Description

39.840F.80.000000.0000.0000.0000.xxxxxxxxxxxx.00

131598

AFI IDI Reserved Area System IDRDORG

Authority

and

Format

Identifier

SEL

NSAP

Selector

DFI

DSP

Format

Identifier

Routing

Domain

Initial

Domain

Identifier

8-27

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

TCP/IP and OSI Networking

8.6.4 OSI Routing

OSI architecture includes ESs and ISs. The OSI routing scheme includes:

• A set of routing protocols that allow ESs and ISs to collect and distribute the information necessary

to determine routes. Protocols include the ES-IS and IS-IS protocols. ES-IS routing establishes

connectivity among ESs and ISs attached to the same (single) subnetwork.

• A routing information base (RIB) containing this information, from which routes between ESs can

be computed. The RIB consists of a table of entries that identify a destination (for example, an

NSAP), the subnetwork over which packets should be forwarded to reach that destination, and a

routing metric. The routing metric communicates characteristics of the route (such as delay

properties or expected error rate) that are used to evaluate the suitability of a route compared to

another route with different properties, for transporting a particular packet or class of packets.

• A routing algorithm, Shortest Path First (SPF), that uses information contained in the RIB to derive

routes between ESs.

In OSI networking, discovery is based on announcements. An ES uses the ES-IS protocol end system

hello (ESH) message to announce its presence to ISs and ESs connected to the same network. Any ES

or IS that is listening for ESHs gets a copy. ISs store the NSAP address and the corresponding

subnetwork address pair in routing tables. ESs might store the address, or they might wait to be informed

by ISs when they need such information.

An IS composes intermediate system hello (ISH) messages to announce its configuration information to

ISs and ESs that are connected to the same broadcast subnetwork. Like the ESHs, the ISH contains the

addressing information for the IS (the NET and the subnetwork point-of-attachment address [SNPA])

and a holding time. ISHs might also communicate a suggested ES configuration time recommending a

configuration timer to ESs.

The exchange of ISHs is called neighbor greeting or initialization. Each router learns about the other

routers with which they share direct connectivity. After the initialization, each router constructs a

link-state packet (LSP). The LSP contains a list of the names of the IS’s neighbors and the cost to reach

each of the neighbors. Routers then distribute the LSPs to all of the other routers. When all LSPs are

propagated to all routers, each router has a complete map of the network topology (in the form of LSPs).

Routers use the LSPs and the SPF algorithm to compute routes to every destination in the network.

OSI networks are divided into areas and domains. An area is a group of contiguous networks and

attached hosts that is designated as an area by a network administrator. A domain is a collection of

connected areas. Routing domains provides full connectivity to all ESs within the domains. Routing

within the same area is known as Level 1 routing. Routing between two areas is known as Level 2

routing. LSPs that are exchanged within a Level 1 area are called L1 LSPs. LSPs that are exchanged

across Level 2 areas are called L2 LSPs. Figure 8-16 shows an example of Level 1 and Level 2 routing.

Note The ONS 15310-MA SDH do not support Level 1/Level 2 routing. Level 1/Level 2 routing is supported

by the ONS 15454, ONS 15454 SDH, and the ONS 15600.

8-28

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

TCP/IP and OSI Networking

Figure 8-16 Level 1 and Level 2 OSI Routing

When you provision an ONS 15310-MA SDH for a network with NEs that use both the TCP/IP and OSI

protocol stacks, you will provision it as one of the following:

• End System—The ONS 15310-MA SDH performs OSI ES functions and relies upon an IS for

communication with nodes that reside within its OSI area.

• Intermediate System Level 1—The ONS 15310-MA SDH performs OSI IS functions. It

communicates with IS and ES nodes that reside within its OSI area. It depends upon an IS L1/L2

node to communicate with IS and ES nodes that reside outside its OSI area.

8.6.4.1 End System-to-Intermediate System Protocol

ES-IS is an OSI protocol that defines how ESs (hosts) and ISs (routers) learn about each other. ES-IS

configuration information is transmitted at regular intervals through the ES and IS hello messages. The

hello messages contain the subnetwork and network layer addresses of the systems that generate them.

The ES-IS configuration protocol communicates both OSI network layer addresses and OSI subnetwork

addresses. OSI network layer addresses identify either the NSAP, which is the interface between OSI

Layer 3 and Layer 4, or the NET, which is the network layer entity in an OSI IS. OSI SNPAs are the

points at which an ES or IS is physically attached to a subnetwork. The SNPA address uniquely identifies

each system attached to the subnetwork. In an Ethernet network, for example, the SNPA is the 48-bit

MAC address. Part of the configuration information transmitted by ES-IS is the NSAP-to-SNPA or

NET-to-SNPA mapping.

8.6.4.2 Intermediate System-to-Intermediate System Protocol

IS-IS is an OSI link-state hierarchical routing protocol that floods the network with link-state

information to build a complete, consistent picture of a network topology. IS-IS distinguishes between

Level 1 and Level 2 ISs. Level 1 ISs communicate with other Level 1 ISs in the same area. Level 2 ISs

route between Level 1 areas and form an intradomain routing backbone. Level 1 ISs need to know only

how to get to the nearest Level 2 IS. The backbone routing protocol can change without impacting the

intra-area routing protocol.

OSI routing begins when the ESs discover the nearest IS by listening to ISH packets. When an ES wants

to send a packet to another ES, it sends the packet to one of the ISs on its directly attached network. The

router then looks up the destination address and forwards the packet along the best route. If the

destination ES is on the same subnetwork, the local IS knows this from listening to ESHs and forwards

Level 2

routing

Area 1

IS IS

Area 2

Domain

Level 1

routing

Level 1

routing

131597

8-29

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

TCP/IP and OSI Networking

the packet appropriately. The IS also might provide a redirect (RD) message back to the source to tell it

that a more direct route is available. If the destination address is an ES on another subnetwork in the

same area, the IS knows the correct route and forwards the packet appropriately. If the destination

address is an ES in another area, the Level 1 IS sends the packet to the nearest Level 2 IS. Forwarding

through Level 2 ISs continues until the packet reaches a Level 2 IS in the destination area. Within the

destination area, the ISs forward the packet along the best path until the destination ES is reached.

Link-state update messages help ISs learn about the network topology. Each IS generates an update

specifying the ESs and ISs to which it is connected, as well as the associated metrics. The update is then

sent to all neighboring ISs, which forward (flood) it to their neighbors, and so on. (Sequence numbers

terminate the flood and distinguish old updates from new ones.) Using these updates, each IS can build

a complete topology of the network. When the topology changes, new updates are sent.

IS-IS uses a single required default metric with a maximum path value of 1024. The metric is arbitrary

and typically is assigned by a network administrator. Any single link can have a maximum value of 64,

and path links are calculated by summing link values. Maximum metric values were set at these levels

to provide the granularity to support various link types while at the same time ensuring that the

shortest-path algorithm used for route computation is reasonably efficient. Three optional IS-IS metrics

(costs)—delay, expense, and error—are not supported by the ONS 15310-MA SDH. IS-IS maintains a

mapping of the metrics to the quality of service (QoS) option in the CLNP packet header. IS-IS uses the

mappings to compute routes through the internetwork.

8.6.5 TARP

TARP is used when TL1 target identifiers (TIDs) must be translated to NSAP addresses. The

TID-to-NSAP translation occurs by mapping TIDs to the NETs, then deriving NSAPs from the NETs by

using the NSAP selector values (see Table 8-8 on page 8-25).

TARP uses a selective PDU propagation methodology in conjunction with a distributed database (that

resides within the NEs) of TID-to-NET mappings. TARP allows NEs to translate between TID and NET

by automatically exchanging mapping information with other NEs. The TARP PDU is carried by the

standard CLNP Data PDU. TARP PDU fields are shown in Table 8-9.

Table 8-9 TARP PDU Fields

Field Abbreviation Size (bytes) Description

TARP Lifetime tar-lif 2 The TARP time-to-live in hops.

TARP Sequence

Number

tar-seq 2 The TARP sequence number used for loop detection.

Protocol

Address Type

tar-pro 1 Used to identify the type of protocol address that the

TID must be mapped to. The value FE is used to

identify the CLNP address type.

TARP Type

Code

tar-tcd 1 The TARP Type Code identifies the TARP type of

PDU. Five TARP types, shown in Table 8-10, are

defined.

TID Target

Length

tar-tln 1 The number of octets that are in the tar-ttg field.

TID Originator

Length

tar-oln 1 The number of octets that are in the tar-tor field.

Protocol

Address Length

tar-pln 1 The number of octets that are in the tar-por field.

8-30

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

TCP/IP and OSI Networking

Table 8-10 shows the TARP PDU types that govern TARP interaction and routing.

8.6.5.1 TARP Processing

A TARP data cache (TDC) is created at each NE to facilitate TARP processing. In CTC, the TDC is

displayed and managed on the node view Maintenance > OSI > TDC subtab. The TDC subtab contains

the following TARP PDU fields:

• TID—TID of the originating NE (tar-tor).

• NSAP—NSAP of the originating NE.

• Type— Indicates whether the TARP PDU was created through the TARP propagation process

(dynamic) or manually created (static).

Provisionable timers, shown in Table 8-11, control TARP processing.

TID of Target tar-ttg n = 0, 1, 2... TID value for the target NE.

TID of

Originator

tar-tor n = 0, 1, 2... TID value of the TARP PDU originator.

Protocol

Address of

Originator

tar-por n = 0, 1, 2... Protocol address (for the protocol type identified in the

tar-pro field) of the TARP PDU originator. When the

tar-pro field is set to FE (hex), tar-por will contain a

CLNP address (that is, the NET).

Table 8-9 TARP PDU Fields (continued)

Field Abbreviation Size (bytes) Description

Table 8-10 TARP PDU Types

Type Description Procedure

1 Sent when a device has a TID for which

it has no matching NSAP.

After an NE originates a TARP Type 1 PDU, the PDU

is sent to all adjacencies within the NE’s routing area.

2 Sent when a device has a TID for which

it has no matching NSAP and no

response was received from the Type 1

PDU.

After an NE originates a TARP Type 2 PDU, the PDU

is sent to all Level 1 and Level 2 neighbors.

3 Sent as a response to Type 1, Type 2, or

Type 5 PDUs.

After a TARP Request (Type 1 or 2) PDU is received,

a TARP Type 3 PDU is sent to the request originator.

Type 3 PDUs do not use the TARP propagation

procedures.

4 Sent as a notification when a change

occurs locally, for example, a TID or

NSAP change. It might also be sent

when an NE initializes.

A Type 4 PDU is a notification of a TID or Protocol

Address change at the NE that originates the

notification. The PDU is sent to all adjacencies inside

and outside the NE’s routing area.

5 Sent when a device needs a TID that

corresponds to a specific NSAP.

When a Type 5 PDU is sent, the CLNP destination

address is known, so the PDU is sent to only that

address. Type 5 PDUs do not use the TARP

propagation procedures.

8-31

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

TCP/IP and OSI Networking

Table 8-12 shows the main TARP processes and the general sequence of events that occurs in each

process.

8.6.5.2 TARP Loop Detection Buffer

The TARP loop detection buffer (LDB) can be enabled to prevent duplicate TARP PDUs from entering

the TDC. When a TARP Type 1, 2, or 4 PDU arrives, TARP checks its LDB for the NET address of the

PDU originator match. If no match is found, TARP processes the PDU and assigns a tar-por, tar-seq

(sequence) entry for the PDU to the LDB. If the tar-seq is zero, a timer associated with the LDB entry

is started using the provisionable LDB entry timer on the node view OSI > TARP > Config tab. If a match

exists, the tar-seq is compared to the LDB entry. If the tar-seq is not zero and is less than or equal to the

LDB entry, the PDU is discarded. If the tar-seq is greater than the LDB entry, the PDU is processed and

the tar-seq field in the LDB entry is updated with the new value. The Cisco ONS 15310-MA SDH LDB

holds approximately 500 entries. The LDB is flushed periodically based on the time set in the LDB Flush

timer on the node view OSI > TARP > Config tabs.

Table 8-11 TARP Timers

Timer Description

Default

(seconds)

Range

(seconds)

E1 Waiting for response to TARP Type 1 Request PDU 15 0–3600

T2 Waiting for response to TARP Type 2 Request PDU 25 0–3600

DS3/E3 Waiting for response to address resolution request 40 0–3600

T4 Timer starts when T2 expires (used during error recovery) 20 0–3600

Table 8-12 TARP Processing Flow

Process General TARP Flow

Find a NET that

matches a TID

1. TARP checks its TDC for a match. If a match is found, TARP returns the

result to the requesting application.

2. If no match is found, a TARP Type 1 PDU is generated and Timer E1 is

started.

3. If Timer E1 expires before a match if found, a Type 2 PDU is generated and

Timer T2 is started.

4. If Timer T2 expires before a match is found, Timer T4 is started.

5. If Timer T4 expires before a match is found, a Type 2 PDU is generated and

Timer T2 is started.

Find a TID that

matches a NET

A Type 5 PDU is generated. Timer DS3/E3 is used. However, if the timer

expires, no error recovery procedure occurs, and a status message is provided to

indicate that the TID cannot be found.

Send a notification

of TID or protocol

address change

TARP generates a Type 4 PDU in which the tar-ttg field contains the NE’s TID

value that existed prior to the change of TID or protocol address. Confirmation

that other NEs successfully received the address change is not sent.

8-32

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

TCP/IP and OSI Networking

8.6.5.3 Manual TARP Adjacencies

TARP adjacencies can be manually provisioned in networks where ONS 15310-MA SDH nodes must

communicate across routers or non-SDH NEs that lack TARP capability. In CTC, manual TARP

adjacencies are provisioned on the node view Provisioning > OSI > TARP > MAT (Manual Area Table)

subtab. The manual adjacency causes a TARP request to hop through the general router or non-SDH NE,

as shown in Figure 8-17.

Figure 8-17 Manual TARP Adjacencies

8.6.5.4 Manual TID to NSAP Provisioning

TIDs can be manually linked to NSAPs and added to the TDC. Static TDC entries are similar to static

routes. For a specific TID, you force a specific NSAP. Resolution requests for that TID always return

that NSAP. No TARP network propagation or instantaneous replies are involved. Static entries allow you

to forward TL1 commands to NEs that do not support TARP. However, static TDC entries are not

dynamically updated, so outdated entries are not removed after the TID or the NSAP changes on the

target node.

8.6.6 OSI Virtual Routers

The ONS 15310-MA SDH support one OSI virtual router. The router is provisioned on the Provisioning

> OSI > Routers tabs. The router has an editable manual area address and a unique NSAP System ID that

is set to the node MAC address. The router can be enabled and connected to different OSI routing areas.

The Router 1 manual area address and System ID create the NSAP address assigned to the node’s TID.

Router 1 supports OSI TARP and tunneling functions. These include:

• TARP data cache

• IP-over-CLNS tunnels

• LAN subnet

131957

Generic

router

DCN

Manual

adjacency

8-33

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

TCP/IP and OSI Networking

In addition to the primary manual area address, you can also create two additional manual area addresses.

These manual area addresses can be used to:

• Split up an area—Nodes within a given area can accumulate to a point that they are difficult to

manage, cause excessive traffic, or threaten to exceed the usable address space for an area.

Additional manual area addresses can be assigned so that you can smoothly partition a network into

separate areas without disrupting service.

• Merge areas—Use transitional area addresses to merge as many as three separate areas into a single

area that shares a common area address.

• Change to a different address—You might need to change an area address for a particular group of

nodes. Use multiple manual area addresses to allow incoming traffic intended for an old area address

to continue being routed to associated nodes.

8.6.7 IP-over-CLNS Tunnels

IP-over-CLNS tunnels are used to encapsulate IP for transport across OSI NEs. The ONS 15310-MA

SDH supports two tunnel types:

• GRE—Generic Routing Encapsulation is a tunneling protocol that encapsulates one network layer

for transport across another. GRE tunnels add both a CLNS header and a GRE header to the tunnel

frames. GRE tunnels are supported by Cisco routers and some other vendor NEs.

• Cisco IP—The Cisco IP tunnel directly encapsulates the IP packet with no intermediate header.

Cisco IP is supported by most Cisco routers.

Figure 8-18 shows the protocol flow when an IP-over-CLNS tunnel is created through four NEs (A, B,

C, and D). The tunnel ends are configured on NEs A and D, which support both IP and OSI. NEs B and

C only support OSI, so they only route the OSI packets.

Figure 8-18 IP-over-CLNS Tunnel Flow

131956

NE-D

SNMP

RMON

HTTP

FTP

Telnet

UDP

IPv4

GRE

Tunnel

LLC1

LAN

CLNP

LAPD

DCC

TCP

EMS

SNMP

RMON

HTTP

FTP

Telnet

UDP

IPv4

LLC1

LAN

TCP

NE-A (GNE)

IPv4

GRE

Tunnel

LLC1

LAN

CLNP

LAPD

DCC

NE-C

CLNP

LAPD

DCC

NE-B

CLNP

LAPD

DCC

8-34

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

TCP/IP and OSI Networking

8.6.7.1 Provisioning IP-over-CLNS Tunnels

IP-over-CLNS tunnels must be carefully planned to prevent nodes from losing visibility or connectivity.

Before you begin a tunnel, verify that the tunnel type, either Cisco IP or GRE, is supported by the

equipment at the other end. Always verify IP and NSAP addresses. Provisioning of IP-over-CLNS

tunnels in CTC is performed on the node view Provisioning > OSI > IP over CLNS Tunnels tab. For

procedures, see the “Turn Up a Node” chapter in the Cisco ONS 15310-MA SDH Procedure Guide.

Provisioning IP-over-CLNS tunnels on Cisco routers requires the following prerequisite tasks, as well

as other OSI provisioning:

• (Required) Enable IS-IS

• (Optional) Enable routing for an area on an interface

• (Optional) Assign multiple area addresses

• (Optional) Configure IS-IS interface parameters

• (Optional) Configure miscellaneous IS-IS parameters

The Cisco IOS commands used to create IP-over-CLNS tunnels (CTunnels) are shown in Table 8-13.

If you are provisioning an IP-over-CLNS tunnel on a Cisco router, always follow procedures provided

in the Cisco IOS documentation for the router you are provisioning. For information about ISO CLNS

provisioning including IP-over-CLNS tunnels, refer to the “Configuring ISO CLNS” chapter in the

Cisco IOS Apollo Domain, Banyon VINES, DECnet, ISO CLNS, and XNS Configuration Guide.

8.6.7.2 IP Over CLNS Tunnel Scenario 1: ONS Node to Other Vendor GNE

Figure 8-19 shows an IP-over-CLNS tunnel created from an ONS node to another vendor GNE. The

other vendor NE has an IP connection to an IP DCN to which a CTC computer is attached. An OSI-only

(LAP-D) RS-DCC and a GRE tunnel are created between the ONS NE 1 to the other vender GNE.

IP-over-CLNS tunnel provisioning on the ONS NE 1:

• Destination: 10.10.10.100 (CTC 1)

• Mask: 255.255.255.255 for host route (CTC 1 only), or 255.255.255.0 for subnet route (all CTC

computers residing on the 10.10.10.0 subnet)

• NSAP: 39.840F.80.1111.0000.1111.1111.cccccccccccc.00 (other vendor GNE)

• Metric: 110

Table 8-13 IP Over CLNS Tunnel Cisco IOS Commands

Step Step Purpose

1 Router (config) # interface ctunnel

interface-number

Creates a virtual interface to transport IP over a

CLNS tunnel and enters interface configuration

mode. The interface number must be unique for each

CTunnel interface.

2 Router (config-if # ctunnel destination

remote-nsap-address

Configures the destination parameter for the

CTunnel. Specifies the destination NSAP1 address of

the CTunnel, where the IP packets are extracted.

3 Router (config-if) # ip address

ip-address mask

Sets the primary or secondary IP address for an

interface.

8-35

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

TCP/IP and OSI Networking

• Tunnel Type: GRE

IP-over-CLNS tunnel provisioning on the other vender GNE:

• Destination: 10.20.30.30 (ONS NE 1)

• Mask: 255.255.255.255 for host route (ONS NE 1 only), or 255.255.255.0 for subnet route (all ONS

nodes residing on the 10.30.30.0 subnet)

• NSAP: 39.840F.80.1111.0000.1111.1111.dddddddddddd.00 (ONS NE 1)

• Metric: 110

• Tunnel Type: GRE

Figure 8-19 IP Over CLNS Tunnel Scenario 1: ONS NE to Other Vender GNE

8.6.7.3 IP-Over-CLNS Tunnel Scenario 2: ONS Node to Router

Figure 8-20 shows an IP-over-CLNS tunnel from an ONS node to a router. The other vendor NE has an

OSI connection to a router on an IP DCN, to which a CTC computer is attached. An OSI-only (LAP-D)

RS-DCC is created between the ONS NE 1 and the other vender GNE. The OSI-over-IP tunnel can be

either the Cisco IP tunnel or a GRE tunnel, depending on the tunnel types supported by the router.

134355

CTC 1

10.10.10.100/24

DCN

IP/OSI

Vendor GNE

10.10.30.20/24

39.840F.80. 111111.0000.1111.1111.cccccccccccc.00

ONS NE 1

10.10.30.30/24

39.840F.80. 111111.0000.1111.1111.dddddddddddd.00

Other vendor

OSI

OSI-only

DCC (LAPD)

GRE tunnel

OSI

Router 2

Interface 0/0: 10.10.10.10/24

Interface 0/1: 10.10.20.10/24

39.840F.80.111111.0000.1111.1111.aaaaaaaaaaaa.00

Router 1

Interface 0/0: 10.10.20.20/24

Interface 0/1: 10.10.30.10/24

39.840F.80. 111111.0000.1111.1111.bbbbbbbbbbbb.00

8-36

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

TCP/IP and OSI Networking

IP-over-CLNS tunnel provisioning on ONS NE 1:

• Destination: 10.10.30.10 (Router 1, Interface 0/1)

• Mask: 255.255.255.255 for host route (Router 1 only), or 255.255.255.0 for subnet route (all routers

on the same subnet)

• NSAP: 39.840F.80.1111.0000.1111.1111.bbbbbbbbbbbb.00 (Router 1)

• Metric: 110

• Tunnel Type: Cisco IP

CTunnel (IP over CLNS) provisioning on Router 1:

ip routing

clns routing

interface ctunnel 102

ip address 10.10.30.30 255.255.255.0

ctunnel destination 39.840F.80.1111.0000.1111.1111.dddddddddddd.00

interface Ethernet0/1

clns router isis

router isis

net 39.840F.80.1111.0000.1111.1111.bbbbbbbbbbbb.00

8-37

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

TCP/IP and OSI Networking

Figure 8-20 IP-Over-CLNS Tunnel Scenario 2: ONS Node to Router

8.6.7.4 IP-Over-CLNS Tunnel Scenario 3: ONS Node to Router Across an OSI DCN

Figure 8-21 shows an IP-over-CLNS tunnel from an ONS node to a router across an OSI DCN. The other

vendor NE has an OSI connection to an IP DCN to which a CTC computer is attached. An OSI-only

(LAP-D) RS-DCC is created between the ONS NE 1 and the other vender GNE. The OSI-over-IP tunnel

can be either the Cisco IP tunnel or a GRE tunnel, depending on the tunnel types supported by the router.

IP-over-CLNS tunnel provisioning on ONS NE 1:

• Destination: Router 2 IP address

• Mask: 255.255.255.255 for host route (CTC 1 only), or 255.255.255.0 for subnet route (all CTC

computers on the same subnet)

• NSAP: Other vender GNE NSAP address

• Metric: 110

• Tunnel Type: Cisco IP

IP-over-OSI tunnel provisioning on Router 2 (sample Cisco IOS provisioning):

134356

CTC 1

10.10.10.100/24

DCN

OSI

Other vendor

GNE

Other vendor

OSI

OSI-only

DCC (LAPD)

GRE or

Cisco IP tunnel

OSI

ONS NE 1

10.10.30.30/24

39.840F.80. 111111.0000.1111.1111.dddddddddddd.00

Router 2

Interface 0/0: 10.10.10.10/24

Interface 0/1: 10.10.20.10/24

39.840F.80.111111.0000.1111.1111.aaaaaaaaaaaa.00

Router 1

Interface 0/0: 10.10.20.20/24

Interface 0/1: 10.10.30.10/24

39.840F.80. 111111.0000.1111.1111.bbbbbbbbbbbb.00

8-38

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

TCP/IP and OSI Networking

ip routing

clns routing

interface ctunnel 102

ip address 10.10.30.30 255.255.255.0

ctunnel destination 39.840F.80.1111.0000.1111.1111.dddddddddddd.00

interface Ethernet0/1

clns router isis

router isis

net 39.840F.80.1111.0000.1111.1111.aaaaaaaaaaaa.00

Figure 8-21 IP-Over-CLNS Tunnel Scenario 3: ONS Node to Router Across an OSI DCN

134357

CTC 1

10.10.10.100/24

OSI

DCN

OSI

Other vendor

GNE

Other vendor

OSI

OSI-only

DCC (LAPD)

GRE or

Cisco IP tunnel

OSI

ONS NE 1

10.10.30.30/24

39.840F.80. 111111.0000.1111.1111.dddddddddddd.00

Router 2

Interface 0/0: 10.10.10.10/24

Interface 0/1: 10.10.20.10/24

39.840F.80.111111.0000.1111.1111.aaaaaaaaaaaa.00

Router 1

Interface 0/0: 10.10.20.20/24

Interface 0/1: 10.10.30.10/24

39.840F.80. 111111.0000.1111.1111.bbbbbbbbbbbb.00

8-39

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

TCP/IP and OSI Networking

8.6.8 Provisioning OSI in CTC

Table 8-14 shows the OSI actions that can be performed in CTC using the node view Provisioning tab.

Refer to the Cisco ONS 15310-MA SDH Procedure Guide for OSI procedures and tasks.

Table 8-15 shows the OSI actions that can be performed in CTC using the node view Maintenance tab.

Table 8-14 OSI Actions from the CTC Node View Provisioning Tab

Tab Actions

OSI > Main Setup • View and edit Primary Area Address.

• Change OSI routing mode.

• Change LSP buffers.

OSI > TARP > Config Configure the TARP parameters:

• PDU L1/L2 propagation and origination.

• TARP data cache and loop detection buffer.

• LAN storm suppression.

• Type 4 PDU on startup.

• TARP timers: LDB, E1, T2, DS3/E3, T4.

OSI > TARP > Static TDC Add and delete static TARP data cache entries.

OSI > TARP > MAT Add and delete static manual area table entries.

OSI > Routers > Setup • Enable and disable routers.

• Add, delete, and edit manual area addresses.

OSI > Routers > Subnets Edit RS-DCC, MS-DCC, and LAN subnets that are provisioned for

OSI.

OSI > Tunnels Add, delete, and edit Cisco and IP-over-CLNS tunnels.

Comm Channels > RS-DCC • Add OSI configuration to an RS-DCC.

• Choose the data link layer protocol, PPP or LAP-D.

Comm Channels > MS-DCC • Add OSI configuration to an RS-DCC.

Table 8-15 OSI Actions from the CTC Maintenance Tab

Tab Actions

OSI > ISIS RIB View the IS-IS routing table.

OSI > ESIS RIB View ESs that are attached to ISs.

OSI > TDC • View the TARP data cache and identify static and dynamic entries.

• Perform TID to NSAP resolutions.

• Flush the TDC.

8-40

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

IPv6 Network Compatibility

8.7 IPv6 Network Compatibility

IPv6 simplifies IP configuration and administration and has a larger address space than IPv4 to support

the future growth of the Internet and Internet related technologies. It uses 128-bit addresses as against

the 32-bit used in IPv4 addresses. Also, IPv6 gives more flexibility in designing newer addressing

architectures.

Cisco ONS 15310-MA SDH can function in an IPv6 network when an Internet router that supports

Network Address Translation-Protocol Translation (NAT-PT) is positioned between the GNE, such as an

ONS 15310-MA SDH, and the client workstation. NAT-PT is a migration tool that helps users transition

from IPv4 networks to IPv6 networks. NAT-PT is defined in RFC-2766. IPv4 and IPv6 nodes

communicate with each other using NAT-PT by allowing both IPv6 and IPv4 stacks to interface between

the IPv6 DCN and the IPv4 DCC networks.

8.8 IPv6 Native Support

Cisco ONS 15310-MA SDH Software R9.0 and later supports native IPv6. ONS 15310-MA SDH can be

managed over IPv6 DCN networks by enabling the IPv6 feature. After you enable IPv6 in addition to

IPv4, you can use CTC, TL1, and SNMP over an IPv6 DCN to manage ONS 15310-MA SDH. Each NE

can be assigned an IPv6 address in addition to the IPv4 address. You can access the NE by entering the

IPv4 address, an IPv6 address or the DNS name of the device. The IPv6 address is assigned only on the

LAN interface of the NE. DCC/GCC interfaces use the IPv4 address.

By default, when IPv6 is enabled, the node processes both IPv4 and IPv6 packets on the LAN interface.

If you want to process only IPv6 packets, you need to disable IPv4 on the node. Before you disable IPv4,

ensure that IPv6 is enabled and the node is not in multishelf mode.

Figure 8-22 shows how an IPv6 DCN interacts with and IPv4 DCC.

Figure 8-22 IPv6-IPv4 Interaction

270827

IPv6

DCN

DCC IPv4 Network

ENE C

IPv6 Address:

3ffe:b00:ffff:1::4

IPv4 Address:

10.10.10.20

ENE B

IPv6 Address:

3ffe:b00:ffff:1::3

IPv4 Address:

10.10.10.10

GNE A

IPv6 Address:

3ffe:b00:ffff:1::5

IPv4 Address:

10.10.20.40

ENE D

IPv6 Address:

3ffe:b00:ffff:1::6

IPv4 Address:

10.10.20.30

NMS

IPv6 Address:

3ffe:b00:ffff:1::2

8-41

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

IPv6 Native Support

You can manage MSTP multishelf nodes over IPv6 DCN. RADIUS, FTP, SNTP, and other network

applications support IPv6 DCN. To enable IPv6 addresses, you need to make the necessary configuration

changes from the CTC or TL1 management interface. After you enable IPv6, you can start a CTC or TL1

session using the provisioned IPv6 address. The ports used for all IPv6 connections to the node are the

same as the ports used for IPv4.

An NE can either be in IPv6 mode or IPv4 mode. In IPv4 mode, the LAN interface does not have an IPv6

address assigned to it. An NE, whether it is IPv4 or IPv6, has an IPv4 address and subnet mask.

TCC2/TCC2P cards do not reboot automatically when you provision an IPv6 address, but a change in

IPv4 address initiates a TCC2/TCC2P card reset. Table 8-16 describes the differences between an IPv4

node and an IPv6 node.

8.8.1 IPv6 Enabled Mode

The default IP address configured on the node is IPv4. You can use either CTC or the TL1 management

interface to enable IPv6. For more information about enabling IPv6 from the CTC interface, see the

Cisco ONS 15310-MA SDH Procedure Guide. For more information about enabling IPv6 using TL1

commands, see the Cisco ONS 15454 SDH, Cisco ONS 15600 SDH, and Cisco ONS 15310 MA SDH TL1

Command Guide.

8.8.2 IPv6 Disabled Mode

You can disable IPv6 either from the CTC or from the TL1 management interface. For more information

about disabling IPv6 from the CTC interface, see the Cisco ONS 15310-MA SDH Procedure Guide. For

more information about disabling IPv6 using TL1 commands, see the Cisco ONS 15454 SDH, Cisco ONS

15600 SDH, and Cisco ONS 15310 MA SDH TL1 Command Guide.

Table 8-16 Differences Between an IPv6 Node and an IPv4 Node

IPv6 Node IPv4 Node

Has both IPv6 address and IPv4 address assigned

to its craft Ethernet interface.

Does not have an IPv6 address assigned to its craft

Ethernet interface.

The default router has an IPv6 address for IPv6

connectivity, and an IPv4 address for IPv4

connectivity.

The default router has an IPv4 address.

Cannot enable OSPF on LAN. Cannot change

IPv4 NE to IPv6 NE if OSPF is enabled on the

LAN.

Can enable OSPF on the LAN.

Cannot enable RIP on the LAN. Cannot change

IPv4 NE to IPv6 NE if RIP is enabled on the LAN.

Can enable static routes/RIP on the LAN.

Not supported on static routes, proxy tunnels, and

firewall tunnels.

Supported on static routes, proxy tunnels, and

firewall tunnels.

Routing decisions are based on the default IPv6

router provisioned.

8-42

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 8 Management Network Connectivity

FTP Support for ENE Database Backup

8.8.3 IPv6 in Non-secure Mode

In non-secure mode, IPv6 is supported on the front and the rear Ethernet interfaces. You can start a CTC

or TL1 session using the IPv6 address provisioned on the on the front and rear ports of the NE.

8.8.4 IPv6 in Secure Mode

In secure mode, IPv6 is only supported on the rear Ethernet interface. The front port only supports IPv4

even if it is disabled on the rear Ethernet interface. For more information about provisioning IPv6

addresses in secure mode, see the Cisco ONS 15310-MA SDH Procedure Guide.

8.8.5 IPv6 Limitations

IPv6 has the following configuration restrictions:

• You can provision an NE as IPv6 enabled only if the node is a SOCKS-enabled or firewall-enabled

GNE/ENE.

• IPSec is not supported.

• OSPF/RIP cannot be enabled on the LAN interface if NE is provisioned as an IPv6 node.

• Static route/firewall/proxy tunnel provisioning is applicable only to IPv4 addresses even if the IPv6

is enabled.

• In secure mode, IPv6 is supported only on the rear Ethernet interface. IPv6 is not supported on the

front port.

• ONS platforms use NAT-PT internally for providing IPv6 native support. NAT-PT uses the IPv4

address range 128.x.x.x for packet translation. Do not use the 128.x.x.x address range when you

enable IPv6 feature.

8.9 FTP Support for ENE Database Backup

The Cisco ONS 15310-MA SDH provides FTP database backup and restore download to ENEs when

proxy/firewall is enabled. This feature allows you to provision a list of legal FTP hosts in CTC, that can

be used with TL1 commands to perform database backup/restore or software download. The FTP hosts

can be provisioned to elapse after a specified time interval with the enable FTP relay function.

Once FTP host are provisioned, and FTP Relay is enabled, TL1 users can then use the COPY-RFILE

command to perform database backup/restore or software download to and from this list of legal FTP

hosts that are provisioned to ENEs. Also, TL1 supports TID to IP address translation for the GNE TID

that is specified in the FTP URL of COPY-RFILE and COPY-IOSCFG commands.

Using the FTP Host provisioning feature in CTC and TL1 you can configure up to 12 valid FTP hosts.

ENEs are allowed access through the firewall according to the time configured in the FTP Relay Timer

in CTC or TL1. The time interval is 1 to 60 minutes, and once the timer elapses, all FTP access to the

FTP host is blocked again. A time of 0 disallows ENE access to FTP commands through the firewall.

When the firewall is not enabled (Proxy only), all FTP operations to the ENE will be allowed – software

download, database backup/restore and IOS config file backup/restore. All FTP operations to the ENEs

will be blocked when firewall is enabled.

CHAPTER

9-1

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

SDH Topologies and Upgrades

Note The terms “Unidirectional Path Switched Ring” and “UPSR” may appear in Cisco literature. These terms

do not refer to using Cisco ONS 15xxx products in a unidirectional path switched ring configuration.

Rather, these terms, as well as “Path Protected Mesh Network” and “PPMN,” refer generally to Cisco's

path protection feature, which may be used in any topological network configuration. Cisco does not

recommend using its path protection feature in any particular topological network configuration.

This chapter explains Cisco ONS 15310-MA SDH topologies and upgrades. To provision topologies,

refer to the Cisco ONS 15310-MA SDH Procedure Guide.

Chapter topics include:

• 9.1 Subnetwork Connection Protection Configurations, page 9-1

• 9.3 Interoperability, page 9-4

• 9.2 Terminal Point-to-Point and Linear ADM Configurations, page 9-3

• 9.4 Path-Protected Mesh Networks, page 9-6

• 9.5 Four Node Configurations, page 9-8

• 9.6 STMN Speed Upgrades, page 9-8

• 9.7 Overlay Ring Circuits, page 9-9

9.1 Subnetwork Connection Protection Configurations

Subnetwork Connection Protection (SNCP) configurations provide duplicate fiber paths around the ring.

Working traffic flows in one direction and protection traffic flows in the opposite direction. If a problem

occurs with the working traffic path, the receiving node switches to the path coming from the opposite

direction.

CTC automates ring configuration. Subnetwork Connection Protection traffic is defined within the

ONS 15310-MA SDH on a circuit-by-circuit basis. If a path-protected circuit is not defined within a 1+1

line protection scheme and Subnetwork Connection Protection is available and specified, CTC uses

Subnetwork Connection Protection as the default.

A Subnetwork Connection Protection circuit requires two data communications channel

(DCC)-provisioned optical spans per node. Subnetwork Connection Protection circuits can be created

across these spans until their bandwidth is consumed.

9-2

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 9 SDH Topologies and Upgrades

Subnetwork Connection Protection Configurations

Note If a Subnetwork Connection Protection circuit is created manually by TL1, DCCs are not needed.

Therefore, Subnetwork Connection Protection circuits are limited by the cross-connection bandwidth or

the span bandwidth, but not by the number of DCCs.

Because each traffic path is transported around the entire ring, Subnetwork Connection Protection

configurations are best suited for networks where traffic concentrates at one or two locations and is not

widely distributed. Subnetwork Connection Protection capacity is equal to its bit rate. Services can

originate and terminate on the same Subnetwork Connection Protection configuration, or they can be

passed to an adjacent access or interoffice ring for transport to the service-terminating location.

9.1.1 Subnetwork Connection Protection Bandwidth

The span bandwidth consumed by a Subnetwork Connection Protection circuit is two times the circuit

bandwidth, because the circuit is duplicated. The cross-connection bandwidth consumed by a

Subnetwork Connection Protection circuit is three times the circuit bandwidth at the source and

destination nodes only. For the ONS 15310-MA SDH, the spans can be STM1, STM4, or STM16.

9.1.2 Subnetwork Connection Protection Application Example

Figure 9-1 shows a basic Subnetwork Connection Protection configuration. If Node ID 0 sends a signal

to Node ID 2, the working signal travels on the working traffic path through Node ID 1. The same signal

is also sent on the protect traffic path through Node ID 3.

Figure 9-1 Basic Four-Node SNCP Ring

If a fiber break occurs (Figure 9-2), Node ID 2 switches its active receiver to the protect signal coming

through Node ID 3.

15310-MA SDH

Node ID 0

15310-MA SDH

Node ID 1

15310-MA SDH

Node ID 2

15310-MA SDH

Node ID 3

243022

= Fiber 1

= Fiber 2

9-3

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 9 SDH Topologies and Upgrades

Terminal Point-to-Point and Linear ADM Configurations

Figure 9-2 Subnetwork Connection Protection with a Fiber Break

9.2 Terminal Point-to-Point and Linear ADM Configurations

You can configure Cisco ONS 15310-MAs in a terminal point-to-point network (two nodes) or as a line

of add/drop multiplexers (ADMs) (3 or more nodes) by configuring the STMN ports as the working path

and a second set as the protect path. Unlike rings, terminal and linear ADMs require that the STMN port

at each node be in 1+1 protection to ensure that a break to the working line is automatically routed to

the protect line.

Note In a linear ADM configuration, two STMN ports in 1+1 protection are connected to two STMN ports in

1+1 protection on a second node. On the second node, two more STMN ports are connected to a third

node. The third node can be connected to a fourth node, and so on, depending on the number of nodes

in the linear ADM. The 15310-MA SDH has four optical ports, so it can operate either as a terminal or

intermediate node in a linear ADM network.

Figure 9-3 shows three ONS 15310-MAs in a linear ADM configuration. In this example, working traffic

flows from Node 1/Slot 3/Port 2-1 to Node 2/Slot 4/Port 2-1, and from Node 2/Slot 3/Port 2-1 to the

Node 3/Slot 4/Port 2-1. You create the protect path by placing Slot 3/Port 2-1 in 1+1 protection with

Slot 4/Port 2-2 at Nodes 1 through 3.

Fiber

break

Source

Destination

243023

15310-MA SDH

Node ID 0

15310-MA SDH

Node ID 1

15310-MA SDH

Node ID 2

15310-MA SDH

Node ID 3

= Fiber 1

= Fiber 2

9-4

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 9 SDH Topologies and Upgrades

Interoperability

Figure 9-3 ONS 15310-MA SDH Linear ADM Configuration

9.3 Interoperability

The ONS 15310-MA SDH supports up to four SDH SDCCs and two Subnetwork Connection Protection

configurations per node. You can install ONS 15310-MA SDH nodes into a network comprised entirely

of ONS 15310-MA nodes or into a network that has a mix of ONS 15310-MA SDH, and ONS 15454

nodes. The ONS 15310-MA SDH nodes interoperate with the ONS 15454 nodes in linear or Subnetwork

Connection Protection configurations. Because connection procedures for these types of nodes are the

same (for example, adding or dropping nodes from a Subnetwork Connection Protection or linear

configuration, or creating DCCs), follow the instructions in the “Add and Remove Nodes” chapter of the

Cisco ONS 15310-MA SDH Procedure Guide whenever you make connections between ONS 15310-MA

SDH, and ONS 15454 nodes.

9.3.1 Subtending Rings

Subtending rings reduce the number of nodes and cards required and reduce external shelf-to-shelf

cabling. Figure 9-4 shows an ONS 15454 SDH with two subtending rings using ONS 15310-MA SDH

nodes.

Figure 9-4 ONS 15454 SDH with Two ONS 15310-MA SDH Nodes Subtending Linear Multiplex

Section Protection Configurations

Figure 9-5 shows an ONS 15310-MA SDH with two subtending rings Linear Multiplex Section

Protection configurations.

Node 1

Node 3

Node 2

Slot 3 Port 2-1 to

Slot 4 Port 2-1

Working Path

Protect Path

271784

Slot 3 Port 2-1 to

Slot 4 Port 2-1

ONS 15310-MA SDH ONS 15310-MA SDH

ONS 15310-MA SDH

Slot 3 Port 2-2 to

Slot 4 Port 2-2 Slot 3 Port 2-2 to

Slot 4 Port 2-2

271814

ONS 15454

ONS 15310-MA

SDH

ONS 15310-MA

SDH

9-5

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 9 SDH Topologies and Upgrades

Interoperability

Figure 9-5 ONS 15310-MA SDH with Two Subtending Linear Multiplex Section Protection

Configurations

Figure 9-6 shows a ring of ONS 15310-MA SDH nodes subtended from a ring of ONS 15454 nodes.

Figure 9-6 ONS 15310-MA SDH Ring Subtended from an ONS 15454 Ring

9.3.2 Linear Connections

Figure 9-7 shows a basic linear or Linear Multiplex Section Protection connection between ONS 15454

nodes.

Figure 9-7 Linear or Linear Multiplex Section Protection Connection Between ONS 15454 and

ONS 15310-MA SDH Nodes

271785

ONS 15454

ONS 15310-MA

SDH

ONS 15310-MA

SDH

ONS 15454

BLSR

ONS 15310-MA SDH

STM1, STM4, or STM16

271786

1+1 Linear (Point-to-Point)

ONS 15310-MA SDH ONS 15454

271787

9-6

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 9 SDH Topologies and Upgrades

Path-Protected Mesh Networks

9.4 Path-Protected Mesh Networks

In addition to single Linear Multiplex Section Protection (LMSP) configurations, terminal point-to-point

or linear ADMs, you can extend ONS 15310-MA SDH traffic protection by creating path-protected mesh

networks (PPMNs). PPMNs include multiple ONS 15310-MA SDH topologies and extend the protection

provided by a single LMSP configuration to the meshed architecture of several interconnecting rings. In

a PPMN, circuits travel diverse paths through a network of single or multiple meshed rings. When you

create circuits, CTC can automatically route circuits across the PPMN or you can manually route them.

You can also choose levels of circuit protection. For example, if you choose full protection, CTC creates

an alternate route for the circuit in addition to the main route. The second route follows a unique path

through the network between the source and destination and sets up a second set of cross-connections.

For example, in Figure 9-8, a circuit is created from the ONS 15454 shown at Node 3 to the ONS 15454

shown at Node 9. CTC determines that the shortest route between the two nodes passes through Node 8

and Node 7, shown by the dotted line, and automatically creates cross-connections at Nodes 3, 8, 7, and

9 to provide the primary circuit path.

If full protection is selected, CTC creates a second unique route between Nodes 3 and 9 which, in this

example, passes through Nodes 2, 1, and 11. Cross-connections are automatically created at Nodes 3, 2,

1, 11, and 9, shown by the dashed line. If a failure occurs on the primary path, traffic switches to the

second circuit path. In this example, Node 9 switches from the traffic coming in from Node 7 to the

traffic coming in from Node 11 and service resumes. The switch occurs within 50 ms.

Figure 9-8 Path-Protected Mesh Network for ONS 15310-MA SDH Nodes

For example, in Figure 9-9, a circuit is created from Node 3 to Node 9. CTC determines that the shortest

route between the two nodes passes through Node 8 and Node 7, shown by the dotted line, and

automatically creates cross-connections at Nodes 3, 8, 7, and 9 to provide the primary circuit path.

= Primary path

= Secondary path

Working traffic

Protect traffic

Source

Node

Destination

Node

124462

Node 1

Node 11

Node 2

Node 4

Node 5

Node 6

Node 7

Node 8Node 10

Node 9

Node 3

9-7

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 9 SDH Topologies and Upgrades

Path-Protected Mesh Networks

If full protection is selected, CTC creates a second unique route between Nodes 3 and 9 which, in this

example, passes through Nodes 2, 1, and 11. Cross-connections are automatically created at Nodes 3, 2,

1, 11, and 9, shown by the dashed line. If a failure occurs on the primary path, traffic switches to the

second circuit path. In this example, Node 9 switches from the traffic coming in from Node 7 to the

traffic coming in from Node 11 and service resumes. The switch occurs within 50 ms.

Figure 9-9 Path-Protected Mesh Network for ONS 15310-MA SDH Nodes

PPMN also allows spans with different SDH speeds to be mixed together in “virtual rings.” Figure 9-10

shows an ONS 15310-MA SDH with Nodes 1, 2, 3, and 4 in a standard STM16 ring. Nodes 5, 6, 7, and

8 link to the backbone ring through the STM4 fiber. The virtual ring formed by Nodes 5, 6, 7, and 8 use

both the STM16 and STM4 cards.

= Primary path

= Secondary path

Working traffic

Protect traffic

Source

Node

Destination

Node

145956

Node 1

Node 11

Node 2

Node 4

Node 5

Node 6

Node 7

Node 8Node 10

Node 9

Node 3

9-8

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 9 SDH Topologies and Upgrades

Four Node Configurations

Figure 9-10 Virtual Ring for ONS 15310-MA SDH

9.5 Four Node Configurations

You can link multiple ONS 15310-MA SDH nodes using their STMN ports (also known as creating a

fiber-optic bus) to accommodate more access traffic than a single ONS 15310-MA SDH can support.

You can link nodes with STMN fiber spans as you would link any other two network nodes. The nodes

can be grouped in one facility to aggregate more local traffic.

9.6 STMN Speed Upgrades

A span is the optical fiber connection between two ONS 15310-MA SDH nodes. In a span (optical speed)

upgrade, the transmission rate of a span is upgraded from an STM1 to STM4 signal (ONS 15310-MA

SDH), from an STM4 to STM16 signal (ONS 15310-MA SDH only), or from an STM1 to STM16 signal

(ONS 15310-MA SDH only), but all other span configuration attributes remain unchanged. With

multiple nodes, a span upgrade is a coordinated series of upgrades on all nodes in the ring or protection

group. The ONS 15310-MA SDH nodes support the span upgrade wizard if you are upgrading two

ONS 15310-MAs with 1+1 protection from STM1 to STM4, STM4 to STM16, or STM1 to STM16.

To perform a span upgrade, the higher-rate pluggable port module (PPM) must replace the lower-rate

PPM in the same slot. If you are using a multi-rate PPM, you do not need to physically replace the PPM.

All spans in the network must be upgraded. The 1+1 protection configuration of the original lower-rate

PPM is retained for the higher-rate PPM.

When performing span upgrades, Cisco recommends that you upgrade all spans in a network

consecutively and in the same maintenance window. Until all spans are upgraded, mismatched PPM

types will be present.

If you are upgrading two ONS 15310-MA SDH nodes with 1+1 protection from STM1 to STM4, STM4

to STM16, or STM1 to STM16, Cisco recommends using the Span Upgrade Wizard to perform span

upgrades. Although you can also use the manual span upgrade procedures, the manual procedures are

STM16 STM4STM4

271788

ONS 15310-MA SDH

Node 5

ONS 1510-MA

Node 1

ONS 15310-MA SDH

Node 6

ONS 15310-MA SDH

Node 2

ONS 15310-MA SDH

Node 4

ONS 15310-MA SDH

Node 8

ONS 15310-MA SDH

Node 3

ONS 15310-MA SDH

Node 7

9-9

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 9 SDH Topologies and Upgrades

Overlay Ring Circuits

mainly provided as error recovery for the wizard. The Span Upgrade Wizard and the manual span

upgrade procedures require at least two technicians (one at each end of the span) who can communicate

with each other during the upgrade. Upgrading a span is non-service affecting and will cause no more

than three switches, each of which is less than 50 ms in duration. To initiate the span upgrade, right-click

the span and choose Span Upgrade.

Note Span upgrades do not upgrade SDH topologies (for example, a 1+1 group to a Linear Multiplex Section

Protection configuration). Refer to the “Convert Network Configurations” chapter of the

Cisco ONS 15310-MA SDH Procedure Guide for topology upgrade procedures.

9.6.1 Span Upgrade Wizard

The Span Upgrade Wizard automates all steps in the manual 1+1 span upgrade procedure, if you are

upgrading two ONS 15310-MA SDH nodes. The wizard can upgrade both lines of a 1+1 group. The Span

Upgrade Wizard requires that spans have DCCs enabled.

The Span Upgrade Wizard provides no way to back out of an upgrade. In the case of an error, you must

exit the wizard and initiate the manual procedure to either continue with the upgrade or back out of it.

To continue with the manual procedure, examine the standing conditions and alarms to identify the stage

in which the wizard failure occurred.

9.6.2 Manual Span Upgrades

Manual span upgrades are mainly provided as error recovery for the Span Upgrade Wizard, but they can

be used to perform span upgrades. You can perform a manual span upgrade on a 1+1 protection group,

if you are upgrading two ONS 15310-MA SDH nodes.

Downgrading can be performed to back out of a span upgrade. The procedure for downgrading is the

same as upgrading except that you provision a lower-rate PPM (STM1 or STM4 for the 15310-MA SDH)

and install a lower-rate PPM (if you are not using a multi-rate PPM). You cannot downgrade if circuits

exist on the VCs that will be removed (the higher VCs).

9.7 Overlay Ring Circuits

An overlay ring configuration consists of a core ring and subtended rings (Figure 9-11). An Overlay

Ring Circuit routes traffic around multiple rings in an overlay ring configuration, passing through one

or more nodes more than once. This results in multiple cross-connections on the nodes connecting the

core ring to the subtended rings. For example, a customer having a core ring with cross-connects

provisioned using TL1 can create cross-connects on subtended rings, due to a business need, without

having to hamper the existing cross-connects on the core ring. This circuit can be either protected or

unprotected.

A typical path protected overlay ring configuration is shown in Figure 9-11, where the circuit traverses

the nodes B, D, and F twice resulting in two cross-connections on these nodes for the same circuit. In

Figure 9-11, the circuits on the STM4 path are unprotected. The DS3/E3 drop traffic is protected on the

drop nodes by provisioning a primary and secondary destination, making it a path protected circuit.

9-10

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 9 SDH Topologies and Upgrades

Overlay Ring Circuits

Figure 9-11 Overlay Ring Circuit

Overlay ring supports circuit sizes; VC-3, VC4, VC4-2c, VC4-3c, VC4-4c, VC4-8c, VC4-12c, VC4-16c,

and VC4-64c. Both unidirectional and bidirectional circuits are supported. Overlay ring circuits are

contiguous concatenated (CCAT) and not virtual concatenated (VCAT) circuits.

Manual routing is mandatory while provisioning the overlay ring circuit. Overlay ring circuits created

using Transaction Language 1 (TL1) are discovered by CTC and the status “DISCOVERED” is

displayed.

If the overlay ring circuit is deleted, the cross-connects on the core ring and subtended rings get deleted.

Cross-connects on a subtended ring can be deleted through TL1 but would reflect as a partial overlay

ring circuit in CTC, i.e. core ring will continue having cross-connects.

Subtended

Ring

STM4

Path Protection

Subtended

Rings

Core

Ring

271891

DS3 PASS-THRU

DS3 DROP

DS3 CIRCUIT

STM1 OVERLAY RING

DS3 PASS-THRU

DS3 DROP

Node C

Node A Node B Node D

Node G

Node F

Node E

STM1

Path

Protection

STM1

Path

Protection

STM1

Path

Protection

CHAPTER

10-1

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Alarm Monitoring and Management

This chapter describes Cisco Transport Controller (CTC) alarm management. To troubleshoot specific

alarms, refer to the Cisco ONS 15310-MA SDH Troubleshooting Guide. Chapter topics include:

• 10.1 Overview, page 10-1

• 10.2 Viewing Alarms, page 10-1

• 10.3 Alarm Severities, page 10-9

• 10.4 Alarm Profiles, page 10-9

• 10.5 Alarm Suppression, page 10-12

• 10.6 External Alarms and Controls, page 10-13

10.1 Overview

Cisco Transport Controller (CTC) detects and reports SDH alarms generated by the Cisco

ONS 15310-MA SDH and the larger SDH network. You can use CTC to monitor and manage alarms at

the card, node, or network level. You can set alarm severities in customized alarm profiles or suppress

CTC alarm reporting. For a detailed description of the standard Telcordia categories employed by

Optical Networking System (ONS) nodes, refer the Cisco ONS 15310-MA SDH Procedure Guide.

Note ONS 15310-MA SDH alarms can also be monitored and managed through Transaction Language One

(TL1) or a network management system (NMS).

10.2 Viewing Alarms

You can use the Alarms tab to view card, node, or network-level alarms. This means that if a network

problem causes two alarms, such as loss of frame (LOF) and loss of signal (LOS), CTC only shows the

LOS alarm in this window because it supersedes LOF. (The LOF alarm can still be retrieved in the

Conditions window.)

The Path Width column in the Alarms and Conditions tabs expands upon alarmed object information

contained in the access identifier (AID) string (such as “VC-4-1-3”) by giving the number of

synchronous transport signals (VCs) contained in the alarmed path. For example, the Path Width will tell

you whether a Critical alarm applies to an VC3 or an VC4-16c. The column reports the width as a 1, 3,

6, 12, 48, etc. as appropriate, understood to be “VC-N.”

10-2

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 10 Alarm Monitoring and Management

Viewing Alarms

Table 10-1 lists the Alarms tab column headings and the information recorded in each column.

Table 10-2 lists the color codes for alarm and condition severities. In addition to the severities listed in

the table, CTC alarm profiles list inherited (I) and unset (U) severities.

Table 10-1 Alarms Column Descriptions

Column Information Recorded

New Indicates a new alarm. To change this status, click either the Synchronize button or the

Delete Cleared Alarms button.

Date Date and time of the alarm.

Node Shows the name of the node where the condition or alarm occurred. (Visible in network

view.)

Object TL1 AID for the alarmed object. For an VCMON-LP or VTmon, this is the monitored

VC high-order path or VC low-order path object, which is explained in Table 10-3 on

page 10-3.

Eqpt Type Card type in this slot (appears only in network and node view).

Shelf For DWDM configurations, the shelf where the alarmed object is located. Visible in

network view.

Slot Slot where the alarm occurred (appears only in network and node view).

Port Port where the alarm is raised. For VCTRM-LP and VTTerm, the port refers to the

upstream card it is partnered with.

Path Width Indicates how many VCs are contained in the alarmed path. This information

compliments the alarm object notation, which is explained in Table 10-3 on page 10-3.

Sev Severity level: CR (Critical), MJ (Major), MN (Minor), NA (Not-Alarmed), NR

(Not-Reported).

ST Status: R (raised), C (clear).

SA When checked, indicates a service-affecting alarm.

Cond The error message/alarm name. These names are alphabetically defined in the “Alarm

Troubleshooting” chapter of the Cisco ONS 15310-MA SDH Troubleshooting Guide.

Description Description of the alarm.

Num Num (number) is the quantity of alarm messages received and is increments

automatically as alarms occur to display the current total of received error messages.

(The column is hidden by default; to view it, right-click a column and choose Show

Column > Num.)

Ref Ref (reference) is a unique identification number assigned to each alarm to reference a

specific alarm message that is displayed. (The column is hidden by default; to view it,

right-click a column and choose Show Column > Ref.)

Table 10-2 Color Codes for Alarm and Condition Severities

Color Description

Red Raised Critical (CR) alarm

Orange Raised Major (MJ) alarm

Yellow Raised Minor (MN) alarm

10-3

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 10 Alarm Monitoring and Management

Viewing Alarms

In network view, CTC identifies VC high-order path and VC low-order path alarm objects using a

TL1-type AID, as shown in Table 10-3.

10.2.1 Viewing Alarms With Each Node’s Time Zone

By default, alarms and conditions are displayed with the time stamp of the CTC workstation where you

are viewing them. But you can set the node to report alarms (and conditions) using the time zone where

the node is located by clicking Edit > Preferences, and clicking the Display Events Using Each Node’s

Timezone check box.

Magenta Raised Not-Alarmed (NA) condition

Blue Raised Not-Reported (NR) condition

White Cleared (C) alarm or condition

Table 10-2 Color Codes for Alarm and Condition Severities (continued)

Color Description

Table 10-3 VC high-order path and Alarm Object Identification

VC high-order path and VC low-order path Alarm Numbering

MON Object

(Optical) Syntax and Examples

STM1/STM4 VC

high-order path

Syntax: VC-<Slot>-<Ppm>-<Port>-<VC>

Ranges: VC-{2}-{1-2}-{1}-{1-n}1

Example: VC-2-1-1-6

1. The maximum number of VC high-order paths depends on the rate and size of the VC.

STM1/STM4 VC

low-order path

Syntax: VT1-<Slot>-<Ppm>-<Port>-<VC>-<VT Group>-<VT>

Ranges: VT1-{2}-{1-2}-{1}-{1-n1}-{1-7}-{1-4}

Example: VT1-2-1-1-6-1-1

TERM Object

(Electrical) Syntax and Examples

E1 VC high-order

path

Syntax: VC-<Slot>-<VC>

Ranges: VC-{2}-{1-n}1

Example: VC-2-6

E1 VC low-order

path

Syntax: VT1-<Slot>-<VC>-VT Group>-<VT>

Ranges: VT1-{2}-{1-n}1-{1-7}-{1-3}

Example: VT1-2-6-1-1

DS3/E3 VC

high-order path

Syntax: VC-<Slot>-<Port>-<VC>

Ranges: VC-{2}-{1-3}-{1-n}1

Example: VC-2-1-6

DS3/E3 VC

low-order path

VC low-order path not supported

10-4

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 10 Alarm Monitoring and Management

Viewing Alarms

10.2.2 Controlling Alarm Display

You can control the display of the alarms shown in the Alarms window. Table 10-4 shows the actions

you can perform in the Alarms window.

10.2.3 Filtering Alarms

The alarm display can be filtered to prevent display of alarms with certain severities or alarms that

occurred between certain dates and times. You can set the filtering parameters by clicking the Filter

button at the bottom-left of the Alarms window. You can turn the filter on or off by clicking the Filter

tool at the bottom-right of the window. CTC retains your filter activation setting. For example, if you

turn the filter on and then log out, CTC keeps the filter active the next time you log in.

10.2.4 Viewing Alarm-Affected Circuits

To view which ONS 15310-MA SDH circuits are affected by a specific alarm, right-click an alarm in the

Alarm window. A shortcut menu appears, as shown in Figure 10-1. (This figure illustrates the

ONS 15310-MA SDH Select Affected Circuits shortcut menu.) When you select the Select Affected

Circuits option, the Circuits window opens to show the circuits that are affected by the alarm.

Table 10-4 Alarm Display

Button/Check box/Tool Action

Filter button Allows you to change the display in the Alarms window to show only

alarms that meet a certain severity level, occur in a specified time frame,

and/or reflect specific conditions. For example, you can set the filter so that

only Critical alarms are displayed in the window.

If you enable the Filter feature by clicking the Filter tool in one CTC view,

such as node view, it is enabled in the others as well (card view and network

view).

Synchronize button Updates the alarm display. Although CTC displays alarms in real time, the

Synchronize button allows you to verify the alarm display. This is

particularly useful during provisioning or troubleshooting.

Delete Cleared Alarms

button

Deletes, from the view, alarms that have been cleared.

AutoDelete Cleared

Alarms check box

If checked, CTC automatically deletes cleared alarms.

Filter tool Enables or disables alarm filtering in the card, node, or network view. When

enabled or disabled, this state applies to other views for that node and for

all other nodes in the network. For example, if the Filter tool is enabled in

the node (default login) view Alarms window, the network view Alarms

window and card view Alarms window also show the tool enabled. All other

nodes in the network also show the tool enabled.

10-5

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 10 Alarm Monitoring and Management

Viewing Alarms

Figure 10-1 ONS 15310-MA SDH Select Affected Circuits Option

10.2.5 Conditions Tab

The Conditions window displays retrieved fault conditions. A condition is a fault or status detected by

ONS 15310-MA SDH hardware or software. When a condition occurs and continues for a minimum

period, CTC raises a standing condition, which is a flag showing that this particular condition currently

exists on the ONS 15310-MA SDH.

The Conditions window, in contrast with the Alarms window, shows all conditions that occur, including

those that are superseded. For instance, if a network problem causes two alarms, such as LOF and LOS,

CTC shows both the LOF and LOS conditions in this window (even though LOS supersedes LOF).

Having all conditions visible can be helpful when troubleshooting the ONS 15310-MA SDH. If you want

to retrieve conditions that obey a root-cause hierarchy (that is, LOS supersedes and replaces LOF), you

can exclude the same root causes by checking “Exclude Same Root Cause” check box in the window.

Fault conditions include reported alarms and Not-Reported or Not-Alarmed conditions. Refer to the

trouble notifications information in the Cisco ONS 15310-MA SDH Troubleshooting Guide for more

information about alarm and condition classifications.

10.2.6 Controlling the Conditions Display

You can control the display of the conditions on the Conditions window. Table 10-5 shows the actions

you can perform in the window.

10-6

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 10 Alarm Monitoring and Management

Viewing Alarms

10.2.6.1 Retrieving and Displaying Conditions

The current set of all existing conditions maintained by the alarm manager can be seen when you click

the Retrieve button. The set of conditions retrieved is relative to the view. For example, if you click the

button while displaying the node view, node-specific conditions appear. If you click the button while

displaying the network view, all conditions for the network (including ONS 15310-MA SDH nodes and

other connected nodes) appear, and the card view shows only card-specific conditions.

You can also set a node to display conditions using the time zone where the node is located, rather than

the time zone of the PC where they are being viewed. Refer to the Cisco ONS 15310-MA SDH Procedure

Guide for instructions.

10.2.6.2 Conditions Column Descriptions

Table 10-6 lists the Conditions window column headings and the information recorded in each column.

Table 10-5 Conditions Display

Button Action

Retrieve Retrieves the current set of all existing fault conditions (maintained by the

alarm manager) from the ONS 15310-MA SDH.

Filter Allows you to change the Conditions window display to only show the

conditions that meet a certain severity level or occur in a specified time. For

example, you can set the filter so that only Critical conditions display on the

window.

There is a Filter tool on the lower-right of the window that allows you to

enable or disable the filter feature.

Table 10-6 Conditions Column Description

Column Information Recorded

Date Date and time of the condition.

Node Shows the name of the node where the condition or alarm occurred. (Visible in network

view.)

Object TL1 AID for the condition object. For an VCMON-LP or VTmon, this is the monitored

VC high-order path or VC low-order path object, which is explained in Table 10-3 on

page 10-3.

Eqpt Type Card type in this slot (appears only in network and node view).

Shelf For DWDM configurations, the shelf where the alarmed object is located. Visible in

network view.

Slot Slot where the condition occurred (appears only in network and node view).

Port Port where the condition occurred. For VCTRM-LP and VTTerm, the port refers to the

upstream card it is partnered with.

Path Width Width of the signal path

10-7

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 10 Alarm Monitoring and Management

Viewing Alarms

10.2.6.3 Filtering Conditions

The condition display can be filtered to prevent the appearance of conditions (including alarms) with

certain severities or that occurred between certain dates. You can set the filtering parameters by clicking

the Filter button at the bottom-left of the Conditions window. You can turn the filter on or off by clicking

the Filter tool at the bottom-right of the window. CTC retains your filter activation setting. For example,

if you turn the filter on and then log out, CTC keeps the filter active the next time you log in.

10.2.7 Viewing History

The History window displays historic alarm or condition data for the node or for your login session. You

can chose to display only alarm history, only events, or both by checking check boxes in the

History > Shelf window. You can view network-level alarm and condition history, such as for circuits,

for all the nodes visible in network view. At the node level, you can see all port (facility), card, VC

high-order path, and system-level history entries for that node. For example, protection-switching events

or performance-monitoring threshold crossings appear here. If you double-click a card, you can view all

port, card, and VC high-order path alarm or condition history that directly affects the port.

Note In the Preference dialog General tab, the Maximum History Entries value only applies to the Session

window.

Different views of CTC display different kinds of history:

• The History > Session window is shown in network view, node view, and card view. It shows alarms

and conditions that occurred during the current user CTC session.

• The History > Shelf window is only shown in node view. It shows the alarms and conditions that

occurred on the node since CTC software was operated on the node.

• The History > Card window is only shown in card view. It shows the alarms and conditions that

occurred on the card since CTC software was installed on the node.

Tip Double-click an alarm in the History window to display the corresponding view. For example,

double-clicking a card alarm takes you to card view. In network view, double-clicking a node alarm takes

you to node view.

Sev1Severity level: CR (Critical), MJ (Major), MN (Minor), NA (Not-Alarmed), NR

(Not-Reported).

SA1Indicates a service-affecting alarm (when checked).

Cond The error message/alarm name; these names are alphabetically defined in the Cisco and

ONS 15310-MA SDH Troubleshooting Guide.

Description Description of the condition.

1. All alarms, their severities, and service-affecting statuses are also displayed in the Condition tab unless you choose to filter

the alarm from the display using the Filter button.

Table 10-6 Conditions Column Description (continued)

Column Information Recorded

10-8

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 10 Alarm Monitoring and Management

Viewing Alarms

If you check the History window Alarms check box, you display the node history of alarms. If you check

the Events check box, you display the node history of Not Alarmed and transient events (conditions). If

you check both check boxes, you retrieve node history for both.

10.2.7.1 History Column Descriptions

Table 10-7 lists the History window column headings and the information recorded in each column.

10.2.7.2 Retrieving and Displaying Alarm and Condition History

You can retrieve and view the history of alarms and conditions, as well as transients (passing

notifications of processes as they occur) in the CTC history window. The information in this window is

specific to the view where it is shown (that is, network history in the network view, node history in the

node view, and card history in the card view).

The node and card history views are each divided into two tabs. In node view, when you click the

Retrieve button, you can see the history of alarms, conditions, and transients that have occurred on the

node in the History > Shelf window, and the history of alarms, conditions, and transients that have

occurred on the node during your login session in the History > Session window. In the card-view history

window, after you retrieve the card history, you can see the history of alarms, conditions, and transients

Ta b l e 10 - 7 H i s t o r y C o lumn Description

Column Information Recorded

Num An incrementing count of alarm or condition messages. (The column is hidden by

default; to view it, right-click a column and choose Show Column > Num.)

Ref The reference number assigned to the alarm or condition. (The column is hidden by

default; to view it, right-click a column and choose Show Column > Ref.)

Date Date and time of the condition.

Node Shows the name of the node where the condition or alarm occurred. (Visible in network

view.)

Object TL1 AID for the condition object. For an VCMON-LP or VTmon, this is the monitored

VC high-order path or VC low-order path object, which is explained in Table 10-3 on

page 10-3.

Eqpt Type Card type in this slot (only displays in network view and node view).

Shelf For DWDM configurations, the shelf where the alarmed object is located. Visible in

network view.

Slot Slot where the condition occurred (only displays in network view and node view).

Port Port where the condition occurred. For VCTRM-LP and VTTerm, the port refers to the

upstream card it is partnered with.

Path Width Width of the signal path.

Sev Severity level: Critical (CR), Major (MJ), Minor (MN), Not-Alarmed (NA),

Not-Reported (NR).

ST Status: raised (R), cleared (C), or transient (T).

SA A service-affecting alarm (when checked).

Description Description of the condition.

Cond Condition name.

10-9

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 10 Alarm Monitoring and Management

Alarm Severities

on the card in the History > Card window, or a history of alarms, conditions, and transients that have

occurred during your login session in the History > Session window. You can also filter the severities

and occurrence period in these history windows.

10.2.8 Alarm History and Log Buffer Capacities

The ONS 15310-MA SDH alarm history log, stored in the 15310E-CTX-K9 RSA memory, contains four

categories of alarms. These include:

• CR severity alarms

• MJ severity alarms

• MN severity alarms

• the combined group of cleared, Not Alarmed severity, and Not Reported severity alarms

Each category can store between 4 and 640 alarm chunks, or entries. In each category, when the upper

limit is reached, the oldest entry in the category is deleted. The capacity is not user-provisionable.

CTC also has a log buffer, separate from the alarm history log, that pertains to the total number of entries

displayed in the Alarms, Conditions, and History windows. The total capacity is provisionable up to

5,000 entries. When the upper limit is reached, the oldest entries are deleted.

10.3 Alarm Severities

A condition may be Alarmed at a severity of Critical (CR), Major (MJ), or Minor (MN) with a severity

of Not Alarmed (NA) or Not Reported (NR). These severities are reported in the CTC software Alarms,

Conditions, and History windows at all levels: network, node, and card.

ONS equipment provides a standard profile named “Default” that lists all alarms and conditions with

severity settings, but users can create their own profiles with different settings for some or all conditions

and apply these wherever needed. (See the “10.4 Alarm Profiles” section on page 10-9 for more

information.) For example, in a custom alarm profile, the default severity of a carrier loss (CARLOSS)

alarm on an Ethernet port can be changed from Major to Critical.

Critical and Major severities are only used for service-affecting alarms. If a condition is set as Critical

or Major by profile, it will raise as a Minor alarm in the following situations:

• In a protection group, if the alarm is on a standby entity (side not carrying traffic)

• If the alarmed entity has no traffic provisioned on it, so no service is lost

Because the alarm might be raised at two different levels, the alarm profile pane shows Critical as “CR

/ MN” and Major as “MJ / MN.”

10.4 Alarm Profiles

The alarm profiles feature allows you to change default alarm severities by creating unique alarm profiles

for individual ONS 15310-MA SDH ports, cards, or nodes. A created alarm profile can be applied to any

node on the network. Alarm profiles can be saved to a file and imported elsewhere in the network, but

the profile must be stored locally on a node before it can be applied to the node, cards, or ports.

10-10

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 10 Alarm Monitoring and Management

Alarm Profiles

CTC can store up to ten active alarm profiles at any time to apply to the node. Custom profiles can take

eight of these active profile positions. Two other profiles, Default profile and Inherited profile, are

reserved by the NE, and cannot be edited. The reserved Inherited profile allows port alarm severities to

be governed by the card-level severities, or card alarm severities to be determined by the node-level

severities.

If one or more alarm profiles is stored as files from elsewhere in the network onto the local PC or server

hard drive where CTC resides, you can use as many profiles as you can physically store by deleting and

replacing them locally in CTC so that only eight are active at any given time.

10.4.1 Creating and Modifying Alarm Profiles

Alarm profiles are created in the network view using the Provisioning > Alarm Profiles tabs. After

loading the default profile or another profile on the node, you can use the Clone feature to create custom

profiles. After the new profile is created, the Alarm Profiles window shows the original

profile—frequently Default—and the new profile.

Tip To see the full list of profiles including those available for loading or cloning, click the Available button.

You must load a profile before you can clone it.

In the Inherited profile, alarms inherit, or copy severity from the next-highest level. For example, a card

with an Inherited alarm profile copies the severities used by the node housing the card. If you choose the

Inherited profile from the network view, the severities at the lower levels (node and card) are copied from

this selection.

You do not have to apply a single severity profile to the node, card, and port level alarms. Different

profiles can be applied at different levels. For example, you could use the inherited or default profile on

a node and on all cards and ports, but apply a custom profile that downgrades an alarm on one particular

card. Or you might choose to downgrade an STMN unequipped path alarm (UNEQ-P) from Critical (CR)

to Not Alarmed (NA) on an optical card because this alarm is raised and then clears every time you create

a circuit. UNEQ-P alarms for the card with the custom profile would not display on the Alarms tab (but

they would still be recorded on the Conditions and History tabs).

When you modify severities in an alarm profile:

• All Critical (CR) or Major (MJ) default or user-defined severity settings are demoted.

• Default severities are used for all alarms and conditions until you create a new profile and apply it.

10.4.2 Alarm Profile Buttons

The Alarm Profiles window displays six buttons at the bottom. Table 10-8 lists and describes each of the

alarm profile buttons and their functions.

Table 10-8 Alarm Profile Buttons

Button Description

New Adds a new alarm profile.

Load Loads a profile from a node or a file.

Store Saves profiles on a node (or nodes) or in a file.

Delete Deletes profiles from a node.

10-11

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 10 Alarm Monitoring and Management

Alarm Profiles

10.4.3 Alarm Profile Editing

Table 10-9 lists and describes the five profile-editing options available when you right-click an alarm

item in the profile column.

10.4.4 Alarm Severity Options

To change or assign alarm severity, left-click the alarm severity you want to change in the alarm profile

column. Seven severity levels appear for the alarm:

• Not-reported (NR)

• Not-alarmed (NA)

• Minor (MN)

• Major (MJ)

• Critical (CR)

• Use Default

• Inherited (I)

Inherited and Use Default severity levels only appear in alarm profiles. They do not appear when you

view alarms, history, or conditions.

Compare Displays differences between alarm profiles (for example, individual alarms that

are not configured equivalently between profiles).

Available Displays all profiles available on each node.

Usage Displays all entities (nodes and alarm subjects) present in the network and which

profiles contain the alarm. Can be printed.

Table 10-8 Alarm Profile Buttons (continued)

Button Description

Table 10-9 Alarm Profile Editing Options

Button Description

Store Saves a profile in a node or in a file.

Rename Changes a profile name.

Clone Creates a profile that contains the same alarm severity settings as the profile

being cloned.

Reset Restores a profile to its previous state or to the original state (if it has not yet

been applied).

Remove Removes a profile from the table editor.

10-12

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 10 Alarm Monitoring and Management

Alarm Suppression

10.4.5 Row Display Options

In the network view, the Alarm Profiles window displays two check boxes at the bottom of the window:

• Hide reference values—Highlights alarms with non-default severities by clearing alarm cells with

default severities. This check-box is normally greyed out. It becomes active only when more than

one profile is listed in the Alarm Profile Editor window. (The check box text changes to “Hide

Values matching profile Default” in this case.

• Hide identical rows—Hides rows of alarms that contain the same severity for each profile.

10.4.6 Applying Alarm Profiles

In CTC node view, the Alarm Behavior window displays alarm profiles for the node. In card view, the

Alarm Behavior window displays the alarm profiles for the selected card. Alarm profiles form a

hierarchy. A node alarm profile applies to all cards in the node except cards that have their own profiles.

A card alarm profile applies to all ports on the card except ports that have their own profiles.

At the node level, you can apply profile changes on a card-by-card basis or set a profile for the entire

node. At the card view, you can apply profile changes on a port-by-port basis or set alarm profiles for all

ports on that card. Figure 10-2 shows an ONS 15310-MA SDH 15310E-CTX-K9 card alarm profile.

Figure 10-2 Alarm Profile for a 15310-MA SDH 15310E-CTX-K9 Card

10.5 Alarm Suppression

The following sections explain alarm suppression features for the ONS 15310-MA SDH.

10-13

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 10 Alarm Monitoring and Management

External Alarms and Controls

10.5.1 Alarms Suppressed for Maintenance

When you place a port in locked, maintenance administrative state, this raises the alarm suppressed for

maintenance (AS-MT) condition in the Conditions and History windows1 and causes subsequently raised

alarms for that port to be suppressed.

While the facility is in the locked, maintenance state, any alarms or conditions that are raised and

suppressed on it (for example, a transmit failure [TRMT] alarm) are reported in the Conditions window

and show their normal severity in the Sev column. The suppressed alarms are not shown in the Alarms

and History windows. (These windows only show AS-MT). When you place the port back into

Automatic In Service administrative state, the AS-MT condition is resolved in all three windows.

Suppressed alarms remain raised in the Conditions window until they are cleared.

10.5.2 Alarms Suppressed by User Command

In the Provisioning > Alarm Profiles > Alarm Behavior tabs, the ONS 15310-MA SDH have an alarm

suppression option that clears raised alarm messages for the node, chassis, one or more slots (cards), or

one or more ports. Using this option raises the alarms suppressed by user command, or AS-CMD

condition. The AS-CMD condition, like the AS-MT condition, appears in the Conditions, and History1

windows. Suppressed conditions (including alarms) appear only in the Conditions window—showing

their normal severity in the Sev column. When the Suppress Alarms check box is unchecked, the

AS-CMD condition is cleared from all three windows.

A suppression command applied at a higher level does not supersede a command applied at a lower level.

For example, applying a node-level alarm suppression command makes all raised alarms for the node

appear to be cleared, but it does not cancel out card-level or port-level suppression. Each of these

conditions can exist independently and must be cleared independently.

Caution Use alarm suppression with caution. If multiple CTC or TL1 sessions are open, suppressing the alarms

in one session suppresses the alarms in all other open sessions.

10.6 External Alarms and Controls

External alarm physical connections are made with the ONS 15310-MA SDH ALARM port. However,

the alarms are provisioned using the 15310E-CTX-K9 card view for external sensors such as an open

door and flood sensors, temperature sensors, and other environmental conditions. External control

outputs on the 15310E-CTX-K9 cards allow you to drive external visual or audible devices such as bells

and lights. They can control other devices such as generators, heaters, and fans.

Provision external alarms in the 15310E-CTX-K9 card view Provisioning > External Alarms tab and

provision controls in the 15310E-CTX-K9 card view Provisioning > External Controls tab. Up to 32

alarm contact inputs and 8 alarm contact outputs are available with the 15310E-CTX-K9 cards.

10.6.1 External Alarm Input

You can provision each alarm input separately. Provisionable characteristics of external alarm inputs

include:

1. AS-MT can be seen in the Alarms window as well if you have set the Filter dialog box to show NA severity

events.

10-14

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 10 Alarm Monitoring and Management

External Alarms and Controls

• Alarm type

• Alarm severity (CR, MJ, MN, NA, and NR)

• Alarm-trigger setting (open or closed); open means that the normal condition is to have current

flowing through the contact, and the alarm is generated when the current stops flowing; closed

means that normally no current flows through the contact, and the alarm is generated when current

does flow.

• Virtual wire associated with the alarm

• CTC alarm log description (up to 63 characters)

Note If you provision an external alarm to raise when a contact is open, and you have not attached the

alarm cable, the alarm will remain raised until the alarm cable is connected.

Note When you provision an external alarm, the alarm object is ENV-IN-nn. The variable nn refers to

the external alarm’s number, regardless of the name you assign.

10.6.2 External Control Output

You can provision each alarm output separately. Provisionable characteristics of alarm outputs include:

• Control type

• Trigger type (alarm or virtual wire)

• Description for CTC display

• Closure setting (manually or by trigger). If you provision the output closure to be triggered, the

following characteristics can be used as triggers:

–

Local NE alarm severity—A chosen alarm severity (for example, Major) and any

higher-severity alarm (in this case, Critical) causes output closure

–

Remote NE alarm severity—Similar to local NE alarm severity trigger setting, but applies to

remote alarms

–

Virtual wire entities—You can provision an alarm that is input to a virtual wire to trigger an

external control output

For information about provisioning alarms for external devices, refer to the Chapter, “Manage alarms”,

Section, “Provision External Alarms and Controls” in the Cisco ONS 15310-MA SDH Procedure Guide.

CHAPTER

11-1

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Performance Monitoring

Note The terms “Unidirectional Path Switched Ring” and “UPSR” may appear in Cisco literature. These terms

do not refer to using Cisco ONS 15xxx products in a unidirectional path switched ring configuration.

Rather, these terms, as well as “Path Protected Mesh Network” and “PPMN,” refer generally to Cisco's

path protection feature, which may be used in any topological network configuration. Cisco does not

recommend using its path protection feature in any particular topological network configuration.

Performance monitoring (PM) parameters are used by service providers to gather, store, threshold, and

report performance data for early detection of problems. In this chapter, PM parameters and concepts

are defined for electrical cards, Ethernet cards, and optical cards in the Cisco ONS 15310-MA SDH.

For information about enabling and viewing PM parameters, refer to the Cisco ONS 15310-MA SDH

Procedure Guide.

Chapter topics include:

• 11.1 Threshold Performance Monitoring, page 11-1

• 11.2 Intermediate-Path Performance Monitoring, page 11-3

• 11.3 Pointer Justification Count Performance Monitoring, page 11-3

• 11.4 Performance Monitoring Parameter Definitions, page 11-4

• 11.5 Performance Monitoring for Electrical Ports, page 11-13

• 11.6 Performance Monitoring for Ethernet Cards, page 11-19

• 11.7 Performance Monitoring for Optical Ports, page 11-25

Note When circuits transition from the out-of-service state to the in-service state, the performance monitoring

counts during the out-of-service circuit state are not part of the accumulation cycle.

11.1 Threshold Performance Monitoring

Thresholds are used to set error levels for each PM parameter. You can program PM parameter threshold

ranges from the Provisioning > Line Thresholds tab in card view. For procedures for provisioning card

thresholds, such as line, path, and SDH thresholds, refer to the Cisco ONS 15310-MA SDH Procedure

Guide.

11-2

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Threshold Performance Monitoring

During the accumulation cycle, if the current value of a PM parameter reaches or exceeds its

corresponding threshold value, a threshold crossing alert (TCA) is generated by the node and is sent to

CTC. TCAs provide early detection of performance degradation. When a threshold is crossed, the node

continues to count the errors during a given accumulation period. If 0 is entered as the threshold value,

the PM parameter is disabled.

Change the threshold if the default value does not satisfy your error monitoring needs. For example,

customers with a critical E1 installed for 911 calls must guarantee the best quality of service on the line;

therefore, they lower all thresholds so that the slightest error raises a TCA.

When TCAs occur, CTC displays them in the Alarms tab. For example, in Figure 11-1, T-UASP-P is

shown under the Cond column. The “T-” indicates a threshold crossing alert.

For the E1 and E3/DS3 electrical ports on the 15310-MA SDH E1_21_E3_DS3_3 and

E1_63_E3_DS3_3 cards, RX or TX is appended to the TCA description (see the red circles in

Figure 11-1). RX indicates that the TCA is associated with the receive direction, and TX indicates the

TCA is associated with the transmit direction.

Figure 11-1 TCAs Displayed in CTC

For electrical ports, only the receive direction is detected and appended to TCA descriptions. The E1 and

E3/DS3 ports for which RX is appended to TCA descriptions are shown in Table 11-1.

Table 11-1 Electrical Ports that Report RX Direction for TCAs

Port Line Path

Near End Far End Near End Far End

E1 YES YES YES YES

DS-3 YES — YES YES

E3 YES YES YES YES

11-3

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Intermediate-Path Performance Monitoring

11.2 Intermediate-Path Performance Monitoring

Intermediate-path performance monitoring (IPPM) allows transparent monitoring of a constituent

channel of an incoming transmission signal by a node that does not terminate that channel. You can

program IPPM from the Provisioning > Optical > SDH VC high-order path tab in card view. Many large

ONS 15310-MA SDH networks only use line terminating equipment (LTE), not path terminating

equipment (PTE).

ONS 15310-MA SDH allows monitoring of near-end PM parameter data on individual VC high-order

path payloads by enabling IPPM. After enabling IPPM provisioning on the line card, service providers

can monitor large amounts of synchronous transport signal (VC high-order path) traffic through

intermediate nodes, thus making troubleshooting and maintenance activities more efficient.

IPPM occurs only on VC high-order path paths that have IPPM enabled, and TCAs are raised only for

PM parameters on the selected IPPM paths. The monitored IPPM parameters are VC high-order path

CV-P, VC ES-P, VC SES-P, VC UAS-P.

Note Far-end IPPM is not supported. However, SDH path PM parameters can be monitored by logging into

the far-end node directly.

The ONS 15310-MA SDH perform IPPM by examining the overhead in the monitored path and by

reading all of the near-end path PM parameters in the incoming direction of transmission. The IPPM

process allows the path signal to pass bidirectionally through the node completely unaltered.

For detailed information about specific PM parameters, locate the card name in the following sections

and review the appropriate definition.

11.3 Pointer Justification Count Performance Monitoring

Pointers are used to compensate for frequency and phase variations. Pointer justification counts indicate

timing errors on SDH networks. When a network is out of sync, jitter and wander occurs on the

transported signal. Excessive wander can cause terminating equipment to slip. It also causes slips at the

synchronous digital hierarchy (SDH) and plesiochronous digital hierarchy (PDH) boundaries.

Slips cause different effects in service. Voice service has intermittent audible clicks. Compressed voice

technology has short transmission errors or dropped calls. Fax machines lose scanned lines or experience

dropped calls. Digital video transmission has distorted pictures or frozen frames. Encryption service

loses the encryption key, causing data to be transmitted again.

Pointers provide a way to align the phase variations in VC high-order path and VC low-order path

payloads. The VC high-order path payload pointer is located in the H1 and H2 bytes of the line overhead.

Clocking differences are measured by the offset in bytes from the pointer to the first byte of the VC

high-order path synchronous payload envelope (SPE), called the J1 byte. Clocking differences that

exceed the normal range of 0 to 782 can cause data loss.

You can enable positive pointer justification count (PPJC) and negative pointer justification count

(NPJC) PM parameters for LTE cards. PPJC is a count of path-detected (PPJC-Pdet) or path-generated

(PPJC-Pgen) positive pointer justifications. NPJC is a count of path-detected (NPJC-Pdet) or

path-generated (NPJC-Pgen) negative pointer justifications, depending on the specific PM parameter.

A consistent pointer justification count indicates clock synchronization problems between nodes. A

difference between the counts means that the node transmitting the original pointer justification has

timing variations with the node detecting and transmitting this count. Positive pointer adjustments occur

when the frame rate of the SPE is too slow in relation to the rate of the VC3.

11-4

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring Parameter Definitions

For pointer justification count definitions, depending on the cards in use, see the “11.7.1 STM1 Port

Performance Monitoring Parameters” section on page 11-25 and the “11.7.2 STM4 Port Performance

Monitoring Parameters” section on page 11-27.

In CTC, the count fields for PPJC and NPJC PM parameters appear white and blank unless they are

enabled on the Provisioning > Optical > Line tab PJVC4MON# drop-down list.

11.4 Performance Monitoring Parameter Definitions

Table 11-2 gives a definition for each type of PM parameter found in the ONS 15310-MA SDH.

Table 11-2 Performance Monitoring Parameters

Parameter Definition

AISS-P AIS Seconds Path (AISS-P) is a count of one-second intervals containing

one or more alarm indication signal (AIS) defects.

BBE Path Background Block Error (BBE) is an errored block not occurring as

part of a severely errored second (SES).

BBE-PM Path Monitoring Background Block Errors (BBE-PM) indicates the

number of background block errors recorded in the optical transfer

network (OTN) path during the PM time interval.

BBER Path Background Block Error Ratio (BBER) is the ratio of BBE to total

blocks in available time during a fixed measurement interval. The count of

total blocks excludes all blocks during SESs.

BBER-PM Path Monitoring Background Block Errors Ratio (BBER-PM) indicates the

background block errors ratio recorded in the OTN path during the PM

time interval.

BBER-SM Section Monitoring Background Block Errors Ratio (BBER-SM) indicates

the background block errors ratio recorded in the OTN section during the

PM time interval.

BBE-SM Section Monitoring Background Block Errors (BBE-SM) indicates the

number of background block errors recorded in the optical transport

network (OTN) section during the PM time interval.

BIE The number of bit errors (BIE) corrected in the dense wavelength division

multiplexing (DWDM) trunk line during the PM time interval.

BIEC The number of Bit Errors Corrected (BIEC) in the DWDM trunk line

during the PM time interval.

CGV Code Group Violations (CGV) is a count of received code groups that do

not contain a start or end delimiter.

CVCP-P Code Violation Path (CVCP-P) is a count of CP-bit parity errors occurring

in the accumulation period.

CVCP-PFE Code Violation (CVCP-PFE) is a parameter that is counted when the three

far-end block error (FEBE) bits in a M-frame are not all collectively set

to 1.

MS-EB Indicates the number of coding violations occurring on the line. This

parameter is a count of BPVs and EXZs occurring over the accumulation

period.

11-5

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring Parameter Definitions

CVP-P Code Violation Path (CVP-P) is a code violation parameter for M23

applications. CVP-P is a count of P-bit parity errors occurring in the

accumulation period.

DCG Date Code Groups (DCG) is a count of received data code groups that do

not contain ordered sets.

EB Path Errored Block (EB) indicates that one or more bits are in error within

a block.

ES Path Errored Second (ES) is a one-second period with one or more errored

blocks or at least one defect.

ESCP-P Errored Second Path (ESCP-P) is a count of seconds containing one or

more CP-bit parity errors, one or more severely errored framing (SEF)

defects, or one or more AIS defects. ESCP-P is defined for the C-bit parity

application.

ESCP-PFE Far-End Errored Second CP-bit Path (ESCP-PFE) is a count of one-second

intervals containing one or more M-frames with the three FEBE bits not all

collectively set to 1 or one or more far-end SEF/AIS defects.

MS-ES Errored Seconds Line (ES-L) is a count of the seconds containing one or

more anomalies (BPV + EXZ) and/or defects (loss of signal) on the line.

ES-P Path Errored Second (ES-P) is a one-second period with at least one defect.

ES-PM Path Monitoring Errored Seconds (ES-PM) indicates the errored seconds

recorded in the OTN path during the PM time interval.

ESP-P Errored Second Path (ESP-P) is a count of seconds containing one or more

P-bit parity errors, one or more SEF defects, or one or more AIS defects.

ESR Path Errored Second Ratio (ESR) is the ratio of errored seconds to total

seconds in available time during a fixed measurement interval.

ESR-P Path Errored Second Ratio (ESR-P) is the ratio of errored seconds to total

seconds in available time during a fixed measurement interval.

ESR-PM Path Monitoring Errored Seconds Ratio (ESR-PM) indicates the errored

seconds ratio recorded in the OTN path during the PM time interval.

ESR-SM Section Monitoring Errored Seconds Ratio (ESR-SM) indicates the errored

seconds ratio recorded in the OTN section during the PM time interval.

ES-SM Section Monitoring Errored Seconds (ES-SM) indicates the errored

seconds recorded in the OTN section during the PM time interval.

FC-PM Path Monitoring Failure Counts (FC-PM) indicates the failure counts

recorded in the OTN path during the PM time interval.

FC-SM Section Monitoring Failure Counts (FC-SM) indicates the failure counts

recorded in the OTN section during the PM time interval.

HP-BBE High-Order Path Background Block Error (HP-BBE) is an errored block

not occurring as part of an SES.

HP-BBER High-Order Path Background Block Error Ratio (HP-BBER) is the ratio of

BBE to total blocks in available time during a fixed measurement interval.

The count of total blocks excludes all blocks during SESs.

Table 11-2 Performance Monitoring Parameters (continued)

Parameter Definition

11-6

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring Parameter Definitions

HP-EB High-Order Path Errored Block (HP-EB) indicates that one or more bits are

in error within a block.

HP-ES High-Order Path Errored Second (HP-ES) is a one-second period with one

or more errored blocks or at least one defect.

HP-ESR High-Order Path Errored Second Ratio (HP-ESR) is the ratio of errored

seconds to total seconds in available time during a fixed measurement

interval.

HP-NPJC-Pdet High-Order, Negative Pointer Justification Count, Path Detected

(HP-NPJC-Pdet) is a count of the negative pointer justifications detected

on a particular path on an incoming SDH signal.

HP-NPJC-Pdet High-Order Path Negative Pointer Justification Count, Path Detected

(HP-NPJC-Pdet) is a count of the negative pointer justifications detected

on a particular path on an incoming SDH signal.

HP-NPJC-Pgen High-Order, Negative Pointer Justification Count, Path Generated

(HP-NPJC-Pgen) is a count of the negative pointer justifications generated

for a particular path.

HP-PJCDiff High-Order Path Pointer Justification Count Difference (HP-PJCDiff) is

the absolute value of the difference between the total number of detected

pointer justification counts and the total number of generated pointer

justification counts. That is, HP-PJCDiff is equal to

(HP-PPJC-PGen – HP-NPJC-PGen) – (HP-PPJC-PDet – HP-NPJC-PDet).

HP-PJCS-Pdet High-Order Path Pointer Justification Count Seconds (HP-PJCS-PDet) is a

count of the one-second intervals containing one or more HP-PPJC-PDet

or HP-NPJC-PDet.

HP-PJCS-Pgen High-Order Path Pointer Justification Count Seconds (HP-PJCS-PGen) is

a count of the one-second intervals containing one or more HP-PPJC-PGen

or HP-NPJC-PGen.

HP-PPJC-Pdet High-Order, Positive Pointer Justification Count, Path Detected

(HP-PPJC-Pdet) is a count of the positive pointer justifications detected on

a particular path on an incoming SDH signal.

HP-PPJC-Pgen High-Order, Positive Pointer Justification Count, Path Generated

(HP-PPJC-Pgen) is a count of the positive pointer justifications generated

for a particular path.

HP-SES High-Order Path Severely Errored Seconds (HP-SES) is a one-second

period containing 30 percent or more errored blocks or at least one defect.

SES is a subset of ES.

HP-SESR High-Order Path Severely Errored Second Ratio (HP-SESR) is the ratio of

SES to total seconds in available time during a fixed measurement interval.

HP-UAS High-Order Path Unavailable Seconds (HP-UAS) is a count of the seconds

when the VC path was unavailable. A high-order path becomes unavailable

when ten consecutive seconds occur that qualify as HP-SESs, and it

continues to be unavailable until ten consecutive seconds occur that do not

qualify as HP-SESs.

Table 11-2 Performance Monitoring Parameters (continued)

Parameter Definition

11-7

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring Parameter Definitions

IOS Idle Ordered Sets (IOS) is a count of received packets containing idle

ordered sets.

IPC A count of received packets that contain errored data code groups that have

start and end delimiters.

LBC-MIN LBC-MIN is the minimum percentage of Laser Bias Current.

LBC-AVG Laser Bias Current—Average (LBC-AVG) is the average percentage of

laser bias current.

LBC-MAX Laser Bias Current—Maximum (LBC-MAX) is the maximum percentage

of laser bias current.

LBC-MIN Laser Bias Current—Minimum (LBC-MIN) is the minimum percentage of

laser bias current.

LOSS-L Line Loss of Signal Seconds (LOSS-L) is a count of one-second intervals

containing one or more LOS defects.

LP-BBE Low-Order Path Background Block Error (LP-BBE) is an errored block not

occurring as part of an SES.

LP-BBER Low-Order Path Background Block Error Ratio (LP-BBER) is the ratio of

BBE to total blocks in available time during a fixed measurement interval.

The count of total blocks excludes all blocks during SESs.

LP-EB Low-Order Path Errored Block (LP-EB) indicates that one or more bits are

in error within a block.

LP-ES Low-Order Path Errored Second (LP-ES) is a one-second period with one

or more errored blocks or at least one defect.

LP-ESR Low-Order Path Errored Second Ratio (LP-ESR) is the ratio of errored

seconds to total seconds in available time during a fixed measurement

interval.

LP-SES Low-Order Path Severely Errored Seconds (LP-SES) is a one-second

period containing greater than or equal to 30 percent errored blocks or at

least one defect. SES is a subset of ES.

LP-SESR Low-Order Path Severely Errored Second Ratio (LP-SESR) is the ratio of

SES to total seconds in available time during a fixed measurement interval.

LP-UAS Low-Order Path Unavailable Seconds (LP-UAS) is a count of the seconds

when the VC path was unavailable. A low-order path becomes unavailable

when ten consecutive seconds occur that qualify as LP-SESs, and it

continues to be unavailable until ten consecutive seconds occur that do not

qualify as LP-SESs.

MS-BBE Multiplex Section Background Block Error (MS-BBE) is an errored block

not occurring as part of an SES.

MS-BBER Multiplex Section Background Block Error Ratio (MS-BBER) is the ratio

of BBE to total blocks in available time during a fixed measurement

interval. The count of total blocks excludes all blocks during SESs.

MS-EB Multiplex Section Errored Block (MS-EB) indicates that one or more bits

are in error within a block.

Table 11-2 Performance Monitoring Parameters (continued)

Parameter Definition

11-8

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring Parameter Definitions

MS-ES Multiplex Section Errored Second (MS-ES) is a one-second period with

one or more errored blocks or at least one defect.

MS-ESR Multiplex Section Errored Second Ratio (MS-ESR) is the ratio of errored

seconds to total seconds in available time during a fixed measurement

interval.

MS-NPJC-Pgen Multiplex Section Negative Pointer Justification Count, Path Generated

(MS-NPJC-Pgen) is a count of the negative pointer justifications generated

for a particular path.

MS-PPJC-Pgen Multiplex Section Positive Pointer Justification Count, Path Generated

(MS-PPJC-Pgen) is a count of the positive pointer justifications generated

for a particular path.

MS-PSC (1+1 protection) In a 1+1 protection scheme for a working card, Multiplex Section

Protection Switching Count (MS-PSC) is a count of the number of times

service switches from a working card to a protection card plus the number

of times service switches back to the working card.

For a protection card, MS-PSC is a count of the number of times service

switches to a working card from a protection card plus the number of times

service switches back to the protection card.

MS-PSC1 (MS-SPRing) For a protect line in a two-fiber multiplex section-shared protection ring

(MS-SPRing), Multiplex Section Protection Switching Count (MS-PSC)

refers to the number of times a protection switch has occurred either to a

particular span’s line protection or away from a particular span’s line

protection. Therefore, if a protection switch occurs on a two-fiber

MS-SPRing, the MS-PSC of the protection span to which the traffic is

switched will increment, and when the switched traffic returns to its

original working span from the protect span, the MS-PSC of the protect

span will increment again.

MS-PSC-R1In a four-fiber MS-SPRing, Multiplex Section Protection Switching

Count-Ring (MS-PSC-R) is a count of the number of times service

switches from a working line to a protection line plus the number of times

it switches back to a working line. A count is only incremented if ring

switching is used.

MS-PSC-S In a four-fiber MS-SPRing, Multiplex Section Protection Switching

Count-Span (MS-PSC-S) is a count of the number of times service

switches from a working line to a protection line plus the number of times

it switches back to the working line. A count is only incremented if span

switching is used.

Table 11-2 Performance Monitoring Parameters (continued)

Parameter Definition

11-9

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring Parameter Definitions

MS-PSC-W For a working line in a two-fiber MS-SPRing, Multiplex Section Protection

Switching Count-Working (MS-PSC-W) is a count of the number of times

traffic switches away from the working capacity in the failed line and back

to the working capacity after the failure is cleared. MS-PSC-W increments

on the failed working line and MS-PSC increments on the active protect

line.

For a working line in a four-fiber MS-SPRing, MS-PSC-W is a count of the

number of times service switches from a working line to a protection line

plus the number of times it switches back to the working line. MS-PSC-W

increments on the failed line and MS-PSC-R or MS-PSC-S increments on

the active protect line.

MS-PSD Multiplex Section Protection Switching Duration (MS-PSD) applies to the

length of time, in seconds, that service is carried on the protection line. For

a working line, MS-PSD is a count of the number of seconds that service

was carried on the protection line.

For the protection line, MS-PSD is a count of the seconds that the line was

used to carry service. The MS-PSD PM is only applicable if revertive

line-level protection switching is used. MS-PSD increments on the active

protect line and MS-PSD-W increments on the failed working line.

MS-PSD-R In a four-fiber MS-SPRing, Multiplex Section Protection Switching

Duration-Ring (MS-PSD-R) is a count of the seconds that the protection

line was used to carry service. A count is only incremented if ring

switching is used.

MS-PSD-S In a four-fiber MS-SPRing, Multiplex Section Protection Switching

Duration-Span (MS-PSD-S) is a count of the seconds that the protection

line was used to carry service. A count is only incremented if span

switching is used.

MS-PSD-W For a working line in a two-fiber MS-SPRing, Multiplex Section Protection

Switching Duration-Working (MS-PSD-W) is a count of the number of

seconds that service was carried on the protection line. MS-PSD-W

increments on the failed working line and PSD increments on the active

protect line.

MS-SES Multiplex Section Severely Errored Second (MS-SES) is a one-second

period which contains 30 percent or more errored blocks or at least one

defect. SES is a subset of ES. For more information, refer to ITU-T G.829

Section 5.1.3.

MS-SESR Multiplex Section Severely Errored Second ratio (MS-SESR) is the ratio

of SES to total seconds in available time during a fixed measurement

interval.

MS-UAS Multiplex Section Unavailable Seconds (MS-UAS) is a count of the

seconds when the section was unavailable. A section becomes unavailable

when ten consecutive seconds occur that qualify as MS-SESs, and it

continues to be unavailable until ten consecutive seconds occur that do not

qualify as MS-SESs. When the condition is entered, MS-SESs decrement

and then count toward MS-UAS.

Table 11-2 Performance Monitoring Parameters (continued)

Parameter Definition

11-10

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring Parameter Definitions

NIOS Non-Idle Ordered Sets (NIOS) is a count of received packets containing

non-idle ordered sets.

OPR Optical Power Received (OPR) is the measure of average optical power

received as a percentage of the nominal OPT.

OPR-AVG Average Receive Optical Power (dBm).

OPR-MAX Maximum Receive Optical Power (dBm).

OPR-MIN Minimum Receive Optical Power (dBm).

OPT Optical Power Transmitted (OPT) is the measure of average optical power

transmitted as a percentage of the nominal OPT.

OPT-AVG Average Transmit Optical Power (dBm).

OPT-MAX Maximum Transmit Optical Power (dBm).

OPT-MIN Minimum Transmit Optical Power (dBm).

RS-BBE Regenerator Section Background Block Error (RS-BBE) is an errored

block not occurring as part of an SES.

RS-BBER Regenerator Section Background Block Error Ratio (RS-BBER) is the

ratio of BBE to total blocks in available time during a fixed measurement

interval. The count of total blocks excludes all blocks during SESs.

RS-EB Regenerator Section Errored Block (RS-EB) indicates that one or more bits

are in error within a block.

RS-ES Regenerator Section Errored Second (RS-ES) is a one-second period with

one or more errored blocks or at least one defect.

RS-ESR Regenerator Section Errored Second Ratio (RS-ESR) is the ratio of errored

seconds to total seconds in available time during a fixed measurement

interval.

RS-SES Regenerator Section Severely Errored Second (RS-SES) is a one-second

period which contains 30 percent or more errored blocks or at least one

defect. SES is a subset of ES.

RS-SESR Regenerator Section Severely Errored Second Ratio (RS-SESR) is the ratio

of SES to total seconds in available time during a fixed measurement

interval.

RS-UAS Regenerator Section Unavailable Second (RS-UAS) is a count of the

seconds when the regenerator section was unavailable. A section becomes

unavailable when ten consecutive seconds occur that qualify as RS-UASs,

and it continues to be unavailable until ten consecutive seconds occur that

do not qualify as RS-UASs.

Rx AISS-P Receive Path Alarm Indication Signal Seconds (AISS-P) means that an

alarm indication signal occurred on the receive end of the path. This

parameter is a count of seconds containing one or more AIS defects.

Rx BBE-P Receive Path Background Block Error (BBE-P) is an errored block not

occurring as part of an SES.

Rx EB-P Receive Path Errored Block (EB-P) indicates that one or more bits are in

error within a block.

Table 11-2 Performance Monitoring Parameters (continued)

Parameter Definition

11-11

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring Parameter Definitions

Rx ES-P Receive Path Errored Second (ES-P) is a one-second period with one or

more errored blocks or at least one defect.

Rx ESR-P Receive Path Errored Second Ratio (ESR-P) is the ratio of errored seconds

to total seconds in available time during a fixed measurement interval.

Rx SES-P Receive Path Severely Errored Seconds (SES-P) is a one-second period

containing 30 percent or more errored blocks or at least one defect; SES is

a subset of ES.

Rx SESR-P Receive Path Severely Errored Second Ratio (SESR-P) is the ratio of SES

to total seconds in available time during a fixed measurement interval.

Rx UAS-P Receive Path Unavailable Seconds (UAS-P) is a count of one-second

intervals when the E-1 path is unavailable on the signal receive end. The

E-1 path is unavailable when ten consecutive SESs occur. The ten SESs are

included in unavailable time. After the E-1 path becomes unavailable, it

becomes available when ten consecutive seconds occur with no SESs. The

ten seconds with no SESs are excluded from unavailable time.

Rx BBER-P Receive Path Background Block Error Ratio (BBER-P) is the ratio of BBE

to total blocks in available time during a fixed measurement interval. The

count of total blocks excludes all blocks during SESs.

SASCP-P SEF/AIS Second (SASCP-P) is a count of one-second intervals containing

one or more near-end SEF/AIS defects.

SASP-P SEF/AIS Seconds Path (SASP-P) is a count of one-second intervals

containing one or more SEFs or one or more AIS defects on the path.

SES Severely Errored Seconds (SES) is a one-second period containing 30

percent or more errored blocks or at least one defect. SES is a subset of ES.

SESCP-P Severely Errored Seconds CP-bit Path (SESCP-P) is a count of seconds

containing more than 44 CP-bit parity errors, one or more SEF defects, or

one or more AIS defects.

SESCP-PFE Severely Errored Seconds CP-bit Path Far End (SESCP-PFE) is a count of

one-second intervals containing one or more 44 M-frames with the three

FEBE bits not all collectively set to 1, or with one or more far-end SEF/AIS

defects.

MS-SES A count of the seconds containing more than a particular quantity of

anomalies (BPV + EXZ > 44) and/or defects on the line.

SES-P Severely Errored Seconds Path (SES-P) is a one-second period containing

at least one defect. SES-P is a subset of ES-P.

SES-PFE Far-End Path Severely Errored Seconds (SES-PFE) is a one-second period

containing at least one defect. SES-PFE is a subset of ES-PFE.

SES-PM Path Monitoring Severely Errored Seconds (SES-PM) indicates the

severely errored seconds recorded in the OTN path during the PM time

interval.

SESP-P Severely Errored Seconds Path (SESP-P) is a count of seconds containing

more than 44 P-bit parity violations, one or more SEF defects, or one or

more AIS defects.

Table 11-2 Performance Monitoring Parameters (continued)

Parameter Definition

11-12

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring Parameter Definitions

SESR-P Path Severely Errored Second Ratio (SESR-P) is the ratio of SES to total

seconds in available time during a fixed measurement interval.

SESR-PM Path Monitoring Severely Errored Seconds Ratio (SESR-PM) indicates the

severely errored seconds ratio recorded in the OTN path during the PM

time interval.

SES-SM Section Monitoring Severely Errored Seconds (SES-SM) indicates the

severely errored seconds recorded in the OTN section during the PM time

interval.

Tx AISS-P Transmit Path Alarm Indication Signal (AISS-P) means that an alarm

indication signal occurred on the transmit end of the path. This parameter

is a count of seconds containing one or more AIS defects.

Tx BBE-P Transmit Path Background Block Error (BBE-P) is an errored block not

occurring as part of an SES.

Tx ES-P Transmit Path Errored Second (ES-P) is a one-second period with one or

more errored blocks or at least one defect.

Tx ESR-P Transmit Path Errored Second Ratio (ESR-P) is the ratio of errored seconds

to total seconds in available time during a fixed measurement interval.

Tx SES-P Transmit Path Severely Errored Seconds (SES-P) is a one-second period

containing 30 percent or more errored blocks or at least one defect; SES is

a subset of ES.

Tx SESR-P Transmit Path Severely Errored Second Ratio (SESR-P) is the ratio of SES

to total seconds in available time during a fixed measurement interval.

Tx UAS-P Transmit Path Unavailable Seconds (UAS-P) is a count of one-second

intervals when the E-1 path is unavailable on the transmit end of the signal.

The E-1 path is unavailable when ten consecutive SESs occur. The ten

SESs are included in unavailable time. After the E-1 path becomes

unavailable, it becomes available when ten consecutive seconds occur with

no SESs. The ten seconds with no SESs are excluded from unavailable

time.

Tx BBER-P Transmit Path Background Block Error Ratio (BBER-P) is the ratio of BBE

to total blocks in available time during a fixed measurement interval. The

count of total blocks excludes all blocks during SESs.

Tx EB-P Transmit Path Errored Block (EB-P) indicates that one or more bits are in

error within a block.

UAS Path Unavailable Seconds (UAS) is a count of the seconds when the VC

path was unavailable. A high-order path becomes unavailable when ten

consecutive seconds occur that qualify as HP-SESs, and it continues to be

unavailable until ten consecutive seconds occur that do not qualify as

HP-SESs.

UASCP-P Unavailable Seconds CP-bit Path (UASCP-P) is a count of one-second

intervals when the DS3 path is unavailable. A DS3 path becomes

unavailable when ten consecutive SESCP-Ps occur. The ten SESCP-Ps are

included in unavailable time. After the DS3 path becomes unavailable, it

becomes available when ten consecutive seconds with no SESCP-Ps occur.

The ten seconds with no SESCP-Ps are excluded from unavailable time.

Table 11-2 Performance Monitoring Parameters (continued)

Parameter Definition

11-13

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring for Electrical Ports

Note PPJC-PGEN-P, NPJC-PGEN-P, and PJCS-PGEN-P are not supported in Cisco ONS 15310-MA SDH

R9.1 and 9.2.

11.5 Performance Monitoring for Electrical Ports

The following sections define PM parameters for the E1 and DS3 electrical ports.

UASCP-PFE Unavailable Seconds CP-bit Far End Path (UASCP-PFE) is a count of

one-second intervals when the DS3 path becomes unavailable. A DS3 path

becomes unavailable when ten consecutive far-end CP-bit SESs occur. The

ten CP-bit SESs are included in unavailable time. After the DS3 path

becomes unavailable, it becomes available when ten consecutive seconds

occur with no CP-bit SESs. The ten seconds with no CP-bit SESs are

excluded from unavailable time.

UAS-P Path Unavailable Seconds (UAS-P) is a count of the seconds when the path

was unavailable. A path becomes unavailable when ten consecutive

seconds occur that qualify as P-SESs, and it continues to be unavailable

until ten consecutive seconds occur that do not qualify as P-SESs.

UAS-PFE Far-End Path Unavailable Seconds (UAS-PFE) is a count of the seconds

when the path was unavailable. A path becomes unavailable when ten

consecutive seconds occur that qualify as P-SESs, and it continues to be

unavailable until ten consecutive seconds occur that do not qualify as

P-SESs.

UAS-PM Path Monitoring Unavailable Seconds (UAS-PM) indicates the unavailable

seconds recorded in the OTN path during the PM time interval.

UASP-P Unavailable Second Path (UASP-P) is a count of one-second intervals

when the DS3 path is unavailable. A DS3/E3 path becomes unavailable

when ten consecutive SESP-Ps occur. The ten SESP-Ps are included in

unavailable time. After the DS3 path becomes unavailable, it becomes

available when ten consecutive seconds with no SESP-Ps occur. The ten

seconds with no SESP-Ps are excluded from unavailable time.

UAS-SM Section Monitoring Unavailable Seconds (UAS-SM) indicates the

unavailable seconds recorded in the OTN section during the PM time

interval.

UNC-WORDS The number of uncorrectable words detected in the DWDM trunk line

during the PM time interval.

VPC A count of received packets that contain non-errored data code groups that

have start and end delimiters.

1. 4-fiber MS-SPRing is not supported on the STM-4 and STM4 SH 1310-4 cards; therefore, the MS-PSC-S and MS-PSC-R PM

parameters do not increment.

Table 11-2 Performance Monitoring Parameters (continued)

Parameter Definition

11-14

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring for Electrical Ports

11.5.1 E1 Port Performance Monitoring Parameters

Figure 11-2 shows the signal types that support near-end and far-end PM parameters.

Figure 11-2 Monitored Signal Types for the E1 Ports

Note The XX in Figure 11-2 represents all PM parameters listed in Figure 11-3 with the given prefix and/or

suffix.

Figure 11-3 shows where overhead bytes detected on the application-specific integrated circuits (ASICs)

produce PM parameters for the E1 ports.

ONS 15310-MA SDH

PTE

E1 STM-N Fiber

E1 Signal

E1 Path (E1 XX) PMs Near and Far End Supported

E1 Signal

ONS 15310-MA SDH

E1STM-N

VT Path (XX-V) PMs Near and Far End Supported

VC Path (VC XX-P) PMs Near and Far End Supported

PTE

271801

11-15

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring for Electrical Ports

Figure 11-3 PM Parameter Read Points on the E1 Ports

The PM parameters for the E1 ports are listed in Table 11-3.

243068

ONS 15310-MA SDH

E1 Card

LIU

Framer

BTC

Tx/Rx

Cross-Connect

Card STM-N

CV-L

ES-L

SES-L

Rx P-EB

Rx P-BBE

Rx P-ES

Rx P-SES

Rx P-UAS

Rx P-ESR

Rx P-SESR

Rx P-BBER

Tx P-EB

Tx P-BBE

Tx P-ES

Tx P-SES

Tx P-UAS

Tx P-ESR

Tx P-SESR

Tx P-BBER

E1 Side

Low-

Order

Path

Level

SDH Side

LP-EB

LP-BBE

LP-ES

LP-SES

LP-UAS

LP-ESR

LP-SESR

LP-BBER

PMs read on Framer

PMs read on LIU

Table 11-3 PM Parameters for E1 Ports

Line (NE)1

1. SDH path PMs do not increment unless IPPM is enabled. See the 11.2 Intermediate-Path

Performance Monitoring section.

Tx/Rx Path (NE)2 , 3 VC12 LP (NE/FE) Tx/Rx Path (FE) 2.,3.

CV-L

ES-L

SES-L

LOSS-L

AISS-P

BBE-P

BBER-P

EB-P

ES-P

ESR-P

SES-P

SESR-P

UAS-P

LP-EB

LP-ES

LP-SES

LP-UAS

LP-BBE

LP-ESR

LP-SESR

LP-BBER

AISS-PFE

BBE-PFE

BBER-PFE

EB-PFE

ES-PFE

ESR-PFE

SES-PFE

SESR-PFE

UAS-PFE

11-16

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring for Electrical Ports

Note Under the Provisioning > E1 > SDH Threshold tab, the E1_21_E3_DS3_3, and E1_63_E3_DS3_3 cards

have user-defined thresholds for the E1 receive (Rx) path PM parameters. In the SDH Threshold tab they

appear as CV, ES, FC, SES, and UAS without the Rx prefix.

Note Under the Performance tab, the displayed E1 Tx path PM parameter values are based on calculations

performed by the card and therefore have no user-defined thresholds. The tab is labeled Elect[rical] Path

Threshold.

11.5.2 E3 Port Performance Monitoring Parameters

Figure 11-4 shows the signal types that support near-end and far-end PM parameters for the E3 Ports.

Figure 11-4 Monitored Signal Types for the E3 Ports

Figure 11-5 shows where overhead bytes detected on the ASICs produce performance monitoring

parameters for the E3 ports.

2. Transmit and receive CEPT and CRC4 framing path PM parameters for the near-end and far-end

E1-N-14 and E1-42 cards.

3. Under the Provisioning > Threshold tab, the E1-N-14 card and the E1-42 card have user-defined

thresholds for the E-1 Rx path PM parameters. In the Threshold tab, they are displayed as EB, BBE,

ES, SES, and UAS without the Rx prefix.

243071

ONS 15310-MA

SDH

E3 STM16

Fiber

Near End

E3 Signal

E3 Path Near End PMs Supported

ONS 15310-MA

SDH

E3STM16

Far End

E3 Signal

VC3 Low-Order Path PMs Supported for Near and Far-End

VC4 High-Order Path PMs Supported for Near and Far-End

11-17

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring for Electrical Ports

Figure 11-5 PM Read Points on the E3 Ports

The PM parameters for the E3 ports are listed in Table 11-4. The parameters are defined in Table 11-2

on page 11-4.

11.5.3 DS3 Port Performance Monitoring Parameters

Figure 11-6 shows the signal types that support near-end and far-end PM parameters for the DS3 Port.

Figure 11-7 shows where overhead bytes detected on the ASICs produce performance monitoring

parameters for the DS3/E3 Port.

243069

ONS 15310-MA SDH

E3 Card

LIU Mux/Demux ASIC

BTC

ASIC

Cross-Connect

Card STM-N

E3 Side

Low-

Order

Path

Level

SDH Side

LP-EB

LP-BBE

LP-ES

LP-SES

LP-UAS

LP-ESR

LP-SESR

LP-BBER

HP-EB

HP-BBE

HP-ES

HP-SES

HP-UAS

HP-ESR

HP-SESR

HP-BBER

CV-L

ES-L

SES-L

LOSS-L

P-ES

P-SES

P-UAS

P-ESR

P-SESR

PMs read on Mux/Demux ASIC

PMs read on LIU High-

Order

Path

Level

Table 11-4 PM Parameters for the E3 Ports

Line (NE) Path (NE) VC3 Low-End Path (NE/FE) VC4 HP Path (NE/FE)

CV-L

ES-L

SES-L

LOSS-L

ES-P

ESR-P

SES-P

SESR-P

UAS-P

LP-BBE

LP-BBER

LP-EB

LP-ES

LP-ESR

LP-SES

LP-SESR

LP-UAS

HP-BBE

HP-BBER

HP-EB

HP-ES

HP-ESR

HP-SES

HP-SESR

HP-UAS

11-18

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring for Electrical Ports

Figure 11-6 Monitored Signal Types for the DS3 Port

Figure 11-7 PM Read Points on the DS3 Port

The PM parameters for the DS3 port are listed in Table 11-5. The parameters are defined in Table 11-2

on page 11-4.

243072

ONS 15310-MA

SDH

DS3 STM16

Fiber

Near End

DS3 Signal

C-Bit and M23 Framing DS3 Path Near-End PMs Are Supported

ONS 15310-MA

SDH

DS3STM16

Far End

DS3 Signal

VC3 Low-Order Path PMs Supported for Near and Far-End

VC4 High-Order Path PMs Supported for Near and Far-End

243070

ONS 15310-MA SDH

DS3 Card

LIU

Mux/Demux ASIC

BTC

ASIC

Cross-Connect

Card STM-N

DS3 Side SDH Side

CV-L

ES-L

SES-L

LOSS-L

AISS-P

CVP-P

ESP-P

SASP-P

SESP-P

UASP-P

CVCP-P

ESCP-P

SASCP-P

SESCP-P

UASCP-P

CVCP-PFE

ESCP-PFE

SASCP-PFE

SESCP-PFE

UASCP-PFE PMs read on Mux/Demux ASIC

PMs read on LIU

Low-

Order

Path

Level

SDH Side

LP-EB

LP-BBE

LP-ES

LP-SES

LP-UAS

LP-ESR

LP-SESR

LP-BBER

HP-EB

HP-BBE

HP-ES

HP-SES

HP-UAS

HP-ESR

HP-SESR

HP-BBER

High-

Order

Path

Level

11-19

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring for Ethernet Cards

11.6 Performance Monitoring for Ethernet Cards

The following sections define PM parameters and definitions for the CE-100T-8, CE-MR-6, and

ML-100T-8 Ethernet cards.

11.6.1 CE-100T-8, CE-MR-6, ML-100T-8 Card Ethernet Performance Monitoring

Parameters

CTC provides Ethernet performance information, including line-level parameters, port bandwidth

consumption, and historical Ethernet statistics. The CE-100T-8, CE-MR-6, and ML-100T-8 card

Ethernet performance information is divided into Ether Ports and POS Ports tabbed windows within the

card view Performance tab window.

11.6.1.1 CE-100T-8, CE-MR-6, and ML-100T-8 Card Ether Ports Statistics Window

The Ether Ports statistics window lists Ethernet parameters at the line level. The Ether Ports Statistics

window provides buttons to change the statistical values shown. The Baseline button resets the displayed

statistics values to zero. The Refresh button manually refreshes statistics. Auto-Refresh sets a time

interval at which automatic refresh occurs. The window also has a Clear button. The Clear button sets

the values on the card to zero, but does not reset the CE-100T-8, and ML-100T-8 cards.

During each automatic cycle, whether auto-refreshed or manually refreshed (using the Refresh button),

statistics are added cumulatively and are not immediately adjusted to equal total received packets until

testing ends. To see the final PM count totals, allow a few moments for the PM window statistics to finish

testing and update fully. PM counts are also listed in the CE-100T-8 and ML-100T-8 card Performance >

History window.

Table 11-6 defines the CE-100T-8, CE-MR-6, and ML-100T-8 card Ether Ports statistics parameters.

Table 11-5 DS3 Port PMs

Line (NE) Path (NE)1, 2

1. C-Bit and M23 framing path PM parameters

2. The C-bit PMs (PMs that contain the text “CP-P”) are applicable only if line format is C-bit.

Path (FE)1, 2 VC3 Low-End Path (NE/FE) VC4 HP Path (NE/FE)

MS-EB

MS-ES

MS-SES

LOSS-L

AISS-P

CVP-P

ESP-P

SASP-P3

SESP-P

UASP-P

CVCP-P

ESCP-P

SASP-P

SESCP-P

UASCP-P

3. DS3 ports support SAS-P only on the Rx path.

CVCP-PFE

ESCP-PFE

SASCP-PFE

SESCP-PFE

UASCP-PFE

LP-BBE

LP-BBER

LP-EB

LP-ES

LP-ESR

LP-SES

LP-SESR

LP-UAS

HP-BBE

HP-BBER

HP-EB

HP-ES

HP-ESR

HP-SES

HP-SESR

HP-UAS

11-20

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring for Ethernet Cards

Table 11-6 CE-100T-8, CE-MR-6, and ML-100T-8 Ether Ports Statistics Parameters

Parameter Definition

Time Last Cleared A time stamp indicating the last time statistics were reset.

Link Status Indicates whether the Ethernet link is receiving a valid Ethernet

signal (carrier) from the attached Ethernet device; up means link

integrity is present, and down means link integrity is not present.

iflnOctets The total number of octets received on the interface, including

framing octets.

rxTotalPkts The total number of receive packets.

iflnUcastPkts The total number of unicast packets delivered to an appropriate

protocol.

ifInMulticastPkts Number of multicast frames received error free.

ifInBroadcastPkts The number of packets, delivered by this sublayer to a higher

(sub)layer, that were addressed to a broadcast address at this

sublayer.

ifInDiscards The number of inbound packets that were chosen to be discarded

even though no errors had been detected to prevent them from being

deliverable to a higher-layer protocol.

iflnErrors Number of inbound packets discarded because they contain errors.

ifOutOctets The total number of transmitted octets, including framing packets.

txTotalPkts The total number of transmit packets.

ifOutUcastPkts The total number of unicast packets requested to transmit to a single

address.

ifOutMulticastPkts Number of multicast frames transmitted error free.

ifOutBroadcastPkts The total number of packets that higher-level protocols requested be

transmitted, and that were addressed to a broadcast address at this

sublayer, including those that were discarded or not sent.

dot3statsAlignmentErrors The number of frames with an alignment error, that is, frames with

a length that is not an integral number of octets and where the frame

cannot pass the frame check sequence (FCS) test.

dot3StatsFCSErrors The number of frames with frame check errors, that is, where there

is an integral number of octets, but an incorrect FCS.

dot3StatsSingleCollisionFrames The number of successfully transmitted frames that had exactly one

collision.

dot3StatsFrameTooLong The count of frames received on a particular interface that exceed the

maximum permitted frame size.

etherStatsUndersizePkts The number of packets received with a length less than 64 octets.

etherStatsFragments The total number of packets that are not an integral number of octets

or have a bad FCS, and that are less than 64 octets long.

etherStatsPkts64Octets The total number of packets received (including error packets) that

were 64 octets in length.

etherStatsPkts65to127Octets The total number of packets received (including error packets) that

were 65 to 172 octets in length.

11-21

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring for Ethernet Cards

etherStatsPkts128to255Octets The total number of packets received (including error packets) that

were 128 to 255 octets in length.

etherStatsPkts256to511Octets The total number of packets received (including error packets) that

were 256 to 511 octets in length.

etherStatsPkts512to1023Octets The total number of packets received (including error packets) that

were 512 to 1023 octets in length.

etherStatsPkts1024to1518Octet

The total number of packets received (including error packets) that

were 1024 to 1518 octets in length.

etherStatsBroadcastPkts The total number of good packets received that were directed to the

broadcast address. This does not include multicast packets.

etherStatsMulticastPkts The total number of good packets received that were directed to a

multicast address. This number does not include packets directed to

the broadcast.

etherStatsOversizePkts The total number of packets received that were longer than

1518 octets (excluding framing bits, but including FCS octets) and

were otherwise well formed.

etherStatsJabbers The total number of packets longer than 1518 octets that were not an

integral number of octets or had a bad FCS.

etherStatsOctets The total number of octets of data (including those in bad packets)

received on the network (excluding framing bits but including FCS

octets).

etherStatsCollisions The best estimate of the total number of collisions on this segment.

etherStatsCRCAlignErrors The total number of packets with a length between

64 and 1518 octets, inclusive, that had a bad FCS or were not an

integral number of octets in length.

etherStatsDropEvents The total number of events in which packets were dropped by the

probe due to lack of resources. This number is not necessarily the

number of packets dropped; it is just the number of times this

condition has been detected.

rxPauseFrames Number of received pause frames.

Note rxPauseFrames is not supported on CE-100T-8

txPauseFrames Number of transmitted pause frames.

Note txPauseFrames is not supported on CE-100T-8

ifOutDiscards Number of outbound packets that were chosen to be discarded even

though no errors had been detected to prevent their transmission. A

possible reason for discarding such packets could be to create buffer

space.

Table 11-6 CE-100T-8, CE-MR-6, and ML-100T-8 Ether Ports Statistics Parameters (continued)

Parameter Definition

11-22

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring for Ethernet Cards

11.6.1.2 CE-100T-8, CE-MR-6, and ML-100T-8 Card Ether Ports Utilization Window

The Ether Ports Utilization window shows the percentage of Tx and Rx line bandwidth used by the

Ethernet ports during consecutive time segments. The Ether Ports Utilization window provides an

Interval drop-down list that enables you to set time intervals of 1 minute, 15 minutes, 1 hour, and 1 day.

Line utilization for Ethernet ports is calculated with the following formulas:

Rx = (inOctets + inPkts * 20) * 8 / 100% interval * maxBaseRate

Tx = (outOctets + outPkts * 20) * 8 / 100% interval * maxBaseRate

The interval is defined in seconds. The maxBaseRate is defined by raw bits per second in one direction

for the Ethernet port (that is, 1 Gbps). The maxBaseRate for CE-100T-8, CE-MR-6, and ML-100T-8

Ethernet cards is shown in Table 11-7.

Note Line utilization numbers express the average of ingress and egress traffic as a percentage of capacity.

11.6.1.3 CE-100T-8, CE-MR-6, and ML-100T-8 Card Ether Ports History Window

The Ether Ports History window lists past Ethernet statistics for the previous time intervals. Depending

on the selected time interval, the Ether Ports History window displays the statistics for each port for the

number of previous time intervals as shown in Table 11-8. The parameters are defined in Table 11-6 on

page 11-20.

11.6.1.4 CE-100T-8, CE-MR-6, and ML-100T-8 Card POS Ports Statistics Parameters

In the CE-100T-8, CE-MR-6, and ML-100T-8 POS Ports window, the parameters that appear depend on

the framing mode employed by the cards. The two framing modes for the packet-over-SDH (POS) port

on the CE-100T-8, CE-MR-6, and ML-100T-8 cards are high-level data link control (HDLC) and

frame-mapped generic framing procedure (GFP-F). For more information on provisioning a framing

mode, refer to Cisco ONS 15310-MA SDH Procedure Guide.

The POS Ports statistics window lists POS parameters at the line level.

Table 11-7 maxBaseRate for VC high-order path Circuits

VC high-order path maxBaseRate

VC3 51840000

VC4 155000000

VC4-2c 311000000

VC4-4c 622000000

Table 11-8 Ethernet History Statistics per Time Interval

Time Interval Number of Intervals Displayed

1 minute 60 previous time intervals

15 minutes 32 previous time intervals

1 hour 24 previous time intervals

1 day (24 hours) 7 previous time intervals

11-23

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring for Ethernet Cards

Table 11-9 defines the CE-100T-8, CE-MR-6, and ML-100T-8 card POS ports parameters for HDLC

mode.

Table 11-10 defines the CE-100T-8, CE-MR-6, and ML-100T-8 card POS ports parameter for GFP-F

mode.

Table 11-9 CE-100T-8, CE-MR-6, and ML-100T-8 POS Ports Parameters for HDLC Mode

Parameter Definition

Time Last Cleared A time stamp indicating the last time statistics were reset.

Link Status Indicates whether the Ethernet link is receiving a valid Ethernet

signal (carrier) from the attached Ethernet device; up means

present, and down means not present.

iflnOctets The total number of octets received on the interface, including

framing octets.

txTotalPkts The total number of transmit packets.

ifInDiscards The number of inbound packets that were chosen to be discarded

even though no errors had been detected to prevent their being

deliverable to a higher-layer protocol.

iflnErrors Number of inbound packets discarded because they contain errors.

ifOutOctets The total number of transmitted octets, including framing packets.

rxTotalPkts The total number of receive packets.

ifOutOversizePkts Number of packets larger than 1518 bytes sent out into SDH.

Packets larger than 1600 bytes do not get transmitted.

mediaIndStatsRxFramesBadCRC A count of the received Fibre Channel frames with errored CRCs.

hdlcRxAborts Number of received packets aborted before input.

ifInPayloadCRCErrors The number of receive data frames with payload CRC errors.

ifOutPayloadCRCErrors The number of transmit data frames with payload CRC errors.

ifOutDiscards Number of outbound packets that were chosen to be discarded

even though no errors had been detected to prevent their

transmission. A possible reason for discarding such packets could

be to create buffer space.

Note ifOutDiscards is not supported on ML cards.

Table 11-10 CE-100T-8, CE-MR-6, and ML-100T-8 POS Ports Parameters for GFP-F Mode

Parameter Definition

Time Last Cleared A time stamp indicating the last time statistics were reset.

Link Status Indicates whether the Ethernet link is receiving a valid Ethernet

signal (carrier) from the attached Ethernet device; up means

present, and down means not present.

iflnOctets The total number of octets received on the interface, including

framing octets.

11-24

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring for Ethernet Cards

11.6.1.5 CE-100T-8, CE-MR-6, and ML-100T-8 Card POS Ports Utilization Window

The POS Ports Utilization window shows the percentage of Tx and Rx line bandwidth used by the POS

ports during consecutive time segments. The POS Ports Utilization window provides an Interval

drop-down list that enables you to set time intervals of 1 minute, 15 minutes, 1 hour, and 1 day. Line

utilization for POS ports is calculated with the following formulas:

Rx = (inOctets * 8) / (interval * maxBaseRate)

Tx = (outOctets * 8) / (interval * maxBaseRate)

The interval is defined in seconds. The maxBaseRate is defined by raw bits per second in one direction

for the Ethernet port (that is, 1 Gbps).

Refer to Table 11-7 on page 11-22 for maxBaseRate values for VC high-order path circuits.

Note Line utilization numbers express the average of ingress and egress traffic as a percentage of capacity.

txTotalPkts The total number of transmit packets.

ifInDiscards The number of inbound packets that were chosen to be discarded

even though no errors had been detected to prevent their being

deliverable to a higher-layer protocol.

iflnErrors Number of inbound packets discarded because they contain errors.

ifOutOctets The total number of transmitted octets, including framing packets.

rxTotalPkts The total number of receive packets.

ifOutOversizePkts Number of packets larger than 1518 bytes sent out into SDH.

Packets larger than 1600 bytes do not get transmitted.

gfpStatsRxSBitErrors Receive frames with single bit errors (cHEC, tHEC, eHEC).

gfpStatsRxMBitErrors Receive frames with multibit errors (cHEC, tHEC, eHEC).

gfpStatsRxTypeInvalid Receive frames with invalid type (PTI, EXI, UPI).

gfpStatsRxCRCErrors Receive data frames with payload CRC errors.

gfpStatsRxCIDInvalid Receive frames with invalid CID.

gfpStatsCSFRaised Number of Rx client management frames with client signal fail

indication.

ifInPayloadCRCErrors The number of receive data frames with payload CRC errors.

ifOutPayloadCRCErrors The number of transmit data frames with payload CRC errors.

gfpStatsRxFrame Number of received GFP frames.

gfpStatsTxOctets Number of GFP bytes transmitted.

ifOutDiscards Number of outbound packets that were chosen to be discarded even

though no errors had been detected to prevent their transmission. A

possible reason for discarding such packets could be to create buffer

space.

Note ifOutDiscards is not supported on ML cards.

Table 11-10 CE-100T-8, CE-MR-6, and ML-100T-8 POS Ports Parameters for GFP-F Mode (continued)

Parameter Definition

11-25

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring for Optical Ports

11.6.1.6 CE-100T-8, CE-MR-6, and ML-100T-8 Card POS Ports History Window

The Ethernet POS Ports History window lists past Ethernet POS Ports statistics for the previous time

intervals. Depending on the selected time interval, the History window displays the statistics for each

port for the number of previous time intervals as shown in Table 11-8 on page 11-22. The listed

parameters are defined in Table 11-6 on page 11-20.

11.7 Performance Monitoring for Optical Ports

The following sections list the PM parameters for the STM1, STM4 and STM16 ports. The listed

parameters are defined in Table 11-2 on page 11-4.

11.7.1 STM1 Port Performance Monitoring Parameters

Figure 11-8 shows the signal types that support near-end and far-end PM parameters.

Figure 11-8 Monitored Signal Types for the STM1 Port

Figure 11-9 shows where overhead bytes detected on the ASICs produce PM parameters for the STM1

port.

ONS 15310-MA SDH

PTE

STM1 STM-N

Fiber

STM1Signal STM1Signal

ONS 15310-MA SDH

STM1STM-N

VC Path (VC XX-P) PMs Near and Far End Supported

PTE

271807

11-26

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring for Optical Ports

Figure 11-9 PM Parameter Read Points on the STM1 Port

The PM parameters for the STM1 ports are listed in Table 11-11. The listed parameters are defined in

Table 11-2 on page 11-4.

Note The parameters listed below are applicable for STM1 optical and Electrical SFPs.

ONS 15310-MA SDH

STM1 Port

Pointer Processors

BTC

ASIC

Cross Connect STM-N

RS-EB

RS-ES

RS-SES

MS-EB

MS-ES

SMS-ES

MS-UAS

PPJC-Pdet

NPJC-Pdet

PPJC-Pgen

NPJC-Pgen

PJC-DIFF-P

PJCS-PDET-P

PJCS-PGEN-P

Path

Level

VC CV-P

VC ES-P

VC SES-P

VC UAS-P

VC CV-PFE

VC ES-PFE

VC FE

VC SES-PFE

VC UAS-PFE

PMs read on BTC ASIC

PMs read on PMC

271808

Table 11-11 STM1 Port PM Parameters

RS (NE) MS (NE/FE)

MS (NE/FE) 1+1

LMSP (NE)1, 2

1. For information about troubleshooting subnetwork connection protection (SNCP) switch counts, refer to the

“Alarm Troubleshooting” chapter in the Cisco ONS 15310-MA SDH Troubleshooting Guide. For information about

creating circuits that perform a switch, refer to Chapter 7, “Circuits and Tunnels”.

2. MS-SPRing is not supported on the STM-1 card and STM-1E card; therefore, the MS-PSD-W, MS-PSD-S, and

MS-PSD-R PM parameters do not increment.

PJC (NE)3

3. In CTC, the count fields for the HP-PPJC and HP-NPJC PM parameters appear white and blank unless they are

enabled on the Provisioning > Line tab. See the 11.3 Pointer Justification Count Performance Monitoring section.

VC4 and VC4-Xc HP

Path (NE/FE44)5

RS-BBE

RS-EB

RS-ES

RS-SES

RS-UAS

MS-BBE

MS-EB

MS-ES

MS-SES

MS-UAS

MS-PSC (1+1)

MS-PSD

HP-PPJC-Pdet

HP-NPJC-Pdet

HP-PPJC-Pgen

HP-NPJC-Pgen

HP-PJCS-Pdet

HP-PJCS-Pgen

HP-PJCDiff

HP-BBE

HP-BBER

HP-EB

HP-ES

HP-ESR

HP-SES

HP-SESR

HP-UAS

11-27

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring for Optical Ports

Note For information about troubleshooting Linear Multiplex Section Protection switch counts, refer to the

Cisco ONS 15310-MA SDH Troubleshooting Guide. For information about creating circuits that perform

a switch, refer to the Cisco ONS 15310-MA SDH Procedure Guide.

11.7.2 STM4 Port Performance Monitoring Parameters

Figure 11-10 shows the signal types that support near-end and far-end PM parameters. Figure 11-11

shows where overhead bytes detected on the ASICs produce PM parameters for the STM4 ports.

Figure 11-10 Monitored Signal Types for the STM4 Ports

Note The XX in Figure 11-10 represents all PM parameters listed in Figure 11-11 with the given prefix and/or

suffix.

4. Far-end high-order VC4 and VC4-Xc path PM parameters applies only to the STM1-4 card. Also, MRC-12 and

OC192/STM64-XFP based cards support far-end path PM parameters. All other optical cards do not support far-end

path PM parameters.

5. SDH path PM parameters do not increment unless IPPM is enabled. See the 11.2 Intermediate-Path Performance

Monitoring section.

ONS 15310-MA SDH

PTE

STM4 STM-N

Fiber

STM4 Signal STM4 Signal

ONS 15310-MA SDH

STM4STM-N

STS Path (STS XX-P) PMs Near and Far End Supported

PTE

271809

11-28

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring for Optical Ports

Figure 11-11 PM Parameter Read Points on the STM4 Ports

Note For PM locations relating to protection switch counts, see the Telcordia GR-1230-CORE document.

The PM parameters for the STM4 ports are listed in Table 11-12. The listed parameters are defined in

Table 11-2 on page 11-4.

ONS 15310-MA SDH

STM4 Port

Pointer Processors

BTC

ASIC

Cross Connect STM-N

RS-EB

RS-ES

RS-SES

MS-EB

MS-ES

SMS-ES

MS-UAS

PPJC-Pdet

NPJC-Pdet

PPJC-Pgen

NPJC-Pgen

Path

Level

VC CV-P

VC ES-P

VC SES-P

VC UAS-P

PPJC-PDET

NPJC-PDET

PPJC-PGEN

NPJC-PGEN

PJC-DIFF-P

PJCS-PDET-P

PJCS-PGEN-P

PMs read on BTC ASIC

PMs read on PMC

271810

Table 11-12 STM4 Port PM Parameters

RS (NE) MS (NE/FE)

MS (NE/FE) 1+1

LMSP (NE)1, 2

1. For information about troubleshooting subnetwork connection protection (SNCP) switch counts, refer to the “Alarm

Troubleshooting” chapter in the Cisco ONS 15310-MA SDH Troubleshooting Guide. For information about creating

circuits that perform a switch, refer to Chapter 7, “Circuits and Tunnels”.

2. MS-SPRing is not supported on the STM-1 card and STM-1E card; therefore, the MS-PSD-W, MS-PSD-S, and

MS-PSD-R PM parameters do not increment.

PJC (NE)3

3. In CTC, the count fields for the HP-PPJC and HP-NPJC PM parameters appear white and blank unless they are

enabled on the Provisioning > Line tab. See the 11.3 Pointer Justification Count Performance Monitoring section.

VC4 and VC4-Xc

HP Path

(NE/FE44)5

RS-BBE

RS-EB

RS-ES

RS-SES

MS-BBE

MS-EB

MS-ES

MS-SES

MS-UAS

MS-PSC (1+1)

MS-PSD

HP-PPJC-Pdet

HP-NPJC-Pdet

HP-PPJC-Pgen

HP-NPJC-Pgen

HP-PJCS-Pdet

HP-PJCS-Pgen

HP-PJCDiff

HP-BBE

HP-BBER

HP-EB

HP-ES

HP-ESR

HP-SES

HP-SESR

HP-UAS

11-29

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring for Optical Ports

Note For information about troubleshooting Linear Multiplex Section Protection switch counts, refer to the

Cisco ONS 15310-MA SDH Troubleshooting Guide. For information about creating circuits that perform

a switch, refer to the Cisco ONS 15310-MA SDH Procedure Guide.

11.7.3 STM16 Port Performance Monitoring Parameters for ONS 15310-MA SDH

Figure 11-12 shows the signal types that support near-end and far-end PM parameters. Figure 11-13

shows where overhead bytes detected on the ASICs produce PM parameters for the STM16 ports.

Figure 11-12 Monitored Signal Types for the STM16 Ports

Note PM parameters on the protect VC high-order path are not supported for MS-SPRing. The XX in

Figure 11-12 represents all PM parameters listed in Figure 11-13 with the given prefix and/or suffix.

4. Far-end high-order VC4 and VC4-Xc path PM parameters applies only to the STM1-4 card. Also, MRC-12 and

OC192/STM64-XFP based cards support far-end path PM parameters. All other optical cards do not support far-end

path PM parameters.

5. SDH path PM parameters do not increment unless IPPM is enabled. See the 11.2 Intermediate-Path Performance

Monitoring section.

ONS 15310-MA SDHPTE

STM16 STM-N

Fiber

STM16 Signal STM16 Signal

ONS 15310-MA SDH

STM16STM-N

VC Path (VC XX-P) and VT Path PMs Near and Far End Supported

PTE

271812

11-30

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring for Optical Ports

Figure 11-13 PM Parameter Read Points on the STM16 Ports

Note For PM locations relating to protection switch counts, see the Telcordia GR-1230-CORE document.

The PM parameters for the STM16 ports are listed in Table 11-13. The listed parameters are defined in

Table 11-2 on page 11-4.

ONS 15310-MA SDH-MA

STM16 Port

Pointer Processors

BTC

ASIC

Cross Connect STM-N

RS-EB

RS-ES

RS-SES

MS-EB

MS-ES

MS-SES

MS-UAS

PPJC-Pdet

NPJC-Pdet

PPJC-Pgen

NPJC-Pgen

Path

Level

VC CV-P

VC ES-P

VC SES-P

VC UAS-P

PPJC-PDET

NPJC-PDET

PPJC-PGEN

NPJC-PGEN

PJC-DIFF-P

PJCS-PDET-P

PJCS-PGEN-P

PMs read on BTC ASIC

PMs read on PMC

271813

Table 11-13 STM16 Port PM Parameters

RS (NE) MS (NE/FE)

MS (NE/FE) 1+1

LMSP (NE)1, 2

1. For information about troubleshooting subnetwork connection protection (SNCP) switch counts, refer to the “Alarm

Troubleshooting” chapter in the Cisco ONS 15310-MA SDH Troubleshooting Guide. For information about creating

circuits that perform a switch, refer to Chapter 7, “Circuits and Tunnels”.

2. MS-SPRing is not supported on the STM-1 card and STM-1E card; therefore, the MS-PSD-W, MS-PSD-S, and

MS-PSD-R PM parameters do not increment.

PJC (NE)3

3. In CTC, the count fields for the HP-PPJC and HP-NPJC PM parameters appear white and blank unless they are

enabled on the Provisioning > Line tab. See the 11.3 Pointer Justification Count Performance Monitoring section.

VC4 and VC4-Xc

HP Path

(NE/FE44)5

RS-BBE

RS-EB

RS-ES

RS-SES

MS-BBE

MS-EB

MS-ES

MS-SES

MS-UAS

MS-PSC (1+1)

MS-PSD

HP-PPJC-Pdet

HP-NPJC-Pdet

HP-PPJC-Pgen

HP-NPJC-Pgen

HP-PJCS-Pdet

HP-PJCS-Pgen

HP-PJCDiff

HP-BBE

HP-BBER

HP-EB

HP-ES

HP-ESR

HP-SES

HP-SESR

HP-UAS

11-31

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring for Optical Ports

Note For information about troubleshooting Linear Multiplex Section Protection switch counts, refer to the

Cisco ONS 15310-MA SDH Troubleshooting Guide. For information about creating circuits that perform

a switch, refer to the Cisco ONS 15310-MA SDH Procedure Guide.

4. Far-end high-order VC4 and VC4-Xc path PM parameters applies only to the STM1-4 card. Also, MRC-12 and

OC192/STM64-XFP based cards support far-end path PM parameters. All other optical cards do not support far-end

path PM parameters.

5. SDH path PM parameters do not increment unless IPPM is enabled. See the 11.2 Intermediate-Path Performance

Monitoring section.

11-32

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 11 Performance Monitoring

Performance Monitoring for Optical Ports

CHAPTER

12-1

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

SNMP

This chapter explains Simple Network Management Protocol (SNMP) as implemented by the

Cisco ONS 15310-MA SDH.

For SNMP set up information, refer to the Cisco ONS 15310-MA SDH Procedure Guide.

Chapter topics include:

• 12.1 SNMP Overview, page 12-1

• 12.2 SNMP Basic Components, page 12-2

• 12.3 SNMP Version Support, page 12-4

• 12.4 SNMP Message Types, page 12-4

• 12.5 SNMP Management Information Bases, page 12-5

• 12.6 SNMP Trap Content, page 12-11

• 12.7 SNMPv1/v2 Community Names, page 12-12

• 12.8 SNMPv1/v2 Proxy Support Over Firewalls, page 12-13

• 12.9 SNMPv3 Proxy Configuration, page 12-13

• 12.10 SNMP Remote Monitoring, page 12-14

12.1 SNMP Overview

SNMP is an application-layer communication protocol that allows network devices to exchange

management information. SNMP enables network administrators to manage network performance, find

and solve network problems, and plan network growth. Up to ten SNMP trap destinations and five

concurrent Cisco Transport Controller (CTC) user sessions are allowed per node.

The ONS 15310-MA SDH use SNMP to provide asynchronous event notification to a network

management system (NMS). ONS SNMP implementation uses standard Internet Engineering Task Force

(IETF) management information bases (MIBs) to convey node-level inventory, fault, and performance

management information for E1, DS3, SDH, and Ethernet read-only management. SNMP allows limited

management of the ONS 15310-MA SDH by a generic SNMP manager—for example, HP OpenView

Network Node Manager (NNM) or Open Systems Interconnection (OSI) NetExpert.

The ONS 15310-MA SDH supports SNMP Version 1 (SNMPv1), SNMP Version 2c (SNMPv2c), and

SNMP Version 3 (SNMPv3). As compared to SNMPv1, SNMPv2c includes additional protocol

operations. SNMPv3 provides authentication, encryption, and message integrity and is more secure. This

chapter describes the SNMP versions and explains how to configure SNMP on the ONS 15310-MA

SDH.

12-2

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 12 SNMP

SNMP Basic Components

Note It is recommended that the SNMP Manager timeout value be set to 60 seconds. Under certain conditions,

if this value is lower than the recommended time, the TCC card can reset. However, the response time

depends on various parameters such as object being queried, complexity, and number of hops in the

node, etc.

Note In Release 9.1 and 9.2, you can retrieve automatic in service state and soak time through the SNMP and

Transaction Language One (TL1) interfaces.

Note The CERENT-MSDWDM-MIB.mib and CERENT-FC-MIB.mib in the CiscoV2 directory support 64-bit

performance monitoring counters. However, the SNMPv1 MIB in the CiscoV1 directory does not

contain 64-bit performance monitoring counters, but supports the lower and higher word values of the

corresponding 64-bit counter. The other MIB files in the CiscoV1 and CiscoV2 directories are identical

in content and differ only in format.

Figure 12-1 illustrates a basic network managed by SNMP.

Figure 12-1 Basic Network Managed by SNMP

12.2 SNMP Basic Components

An SNMP-managed network consists of three primary components: managed devices, agents, and

management systems. A managed device is a network node that contains an SNMP agent and resides on

an SNMP-managed network. Managed devices collect and store management information and use

SNMP to make this information available to management systems that use SNMP. Managed devices

include routers, access servers, switches, bridges, hubs, computer hosts, and network elements such as

the ONS 15310-MA SDH.

52582

12-3

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 12 SNMP

SNMP Basic Components

An agent is a software module that resides in a managed device. An agent has local knowledge of

management information and translates that information into a form compatible with SNMP. The SNMP

agent gathers data from the MIB, which is the repository for device parameter and network data. The

agent can also send traps, which are notifications of certain events (such as changes), to the manager.

Figure 12-2 illustrates these SNMP operations.

Figure 12-2 SNMP Agent Gathering Data from a MIB and Sending Traps to the Manager

A management system such as HP OpenView executes applications that monitor and control managed

devices. Management systems provide the bulk of the processing and memory resources required for

network management. One or more management systems must exist on any managed network.

Figure 12-3 illustrates the relationship between the three key SNMP components.

Figure 12-3 Example of the Primary SNMP Components

get, get-next, get-bulk

Network device

get-response, traps

32632

SNMP Manager

NMS

MIB

SNMP Agent

Management

Entity

Agent

Management

Database

Agent

NMS

Management

Database

Managed Devices

Agent

Management

Database

33930

12-4

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 12 SNMP

SNMP Version Support

12.3 SNMP Version Support

The ONS 15310-MA SDH support SNMP v1, SNMPv2c and SNMPv3 traps and get requests. The

SNMP MIBs in the ONS 15310-MA SDH systems define alarms, traps, and status. Through SNMP,

NMS applications can use a supported MIB to query a management agent. The functional entities include

Ethernet switches and SDH multiplexers. Refer to the Cisco ONS 15310-MA SDH Procedure Guide for

procedures to set up or change SNMP settings.

12.3.1 SNMPv3 Support

Cisco ONS 15310-MA SDH Software R9.0 and later supports SNMPv3 in addition to SNMPv1 and

SNMPv2c. SNMPv3 is an interoperable standards-based protocol for network management. SNMPv3

provides secure access to devices by a combination of authentication and encryption packets over the

network based on the User Based Security Model (USM) and the View-Based Access Control Model

(VACM).

• User-Based Security Model—The User-Based Security Model (USM) uses the HMAC algorithm

for generating keys for authentication and privacy. SNMPv3 authenticates data based on its origin,

and ensures that the data is received intact. SNMPv1 and v2 authenticate data based on the plain text

community string, which is less secure when compared to the user-based authentication model.

• View-Based Access Control Model—The view-based access control model controls the access to

the managed objects. RFC 3415 defines the following five elements that VACM comprises:

–

Groups—A set of users on whose behalf the MIB objects can be accessed. Each user belongs to

a group. The group defines the access policy, notifications that users can receive, and the

security model and security level for the users.

–

Security level—The access rights of a group depend on the security level of the request.

–

Contexts—Define a named subset of the object instances in the MIB. MIB objects are grouped

into collections with different access policies based on the MIB contexts.

–

MIB views—Define a set of managed objects as subtrees and families. A view is a collection or

family of subtrees. Each subtree is included or excluded from the view.

–

Access policy—Access is determined by the identity of the user, security level, security model,

context, and the type of access (read/write). The access policy defines what SNMP objects can

be accessed for reading, writing, and creating.

Access to information can be restricted based on these elements. Each view is created with different

access control details. An operation is permitted or denied based on the access control details.

You can configure SNMPv3 on a node to allow SNMP get and set access to management information

and configure a node to send SNMPv3 traps to trap destinations in a secure way. SNMPv3 can be

configured in secure mode, non-secure mode, or disabled mode.

SNMP, when configured in secure mode, only allows SNMPv3 messages that have the authPriv security

level. SNMP messages without authentication or privacy enabled are not allowed. When SNMP is

configured in non-secure mode, it allows SNMPv1, SNMPv2, and SNMPv3 message types.

12.4 SNMP Message Types

The ONS 15310-MA SDH SNMP agents communicate with an SNMP management application using

SNMP messages. Table 12-1 describes these messages.

12-5

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 12 SNMP

SNMP Management Information Bases

12.5 SNMP Management Information Bases

A managed object, sometimes called a MIB object, is one of many specific characteristics of a managed

device. The MIB consists of hierarchically organized object instances (variables) that are accessed by

network-management protocols such as SNMP.

12.5.1 IETF-Standard MIBs for the ONS 15310-MA SDH

Table 12-2 lists the IETF standard MIBs implemented in the ONS 15310-MA SDH SNMP agent. You

must first compile the MIBs inTable 12-2. Compile the MIBS in Table 12-3 next.

Caution If you do not compile MIBs the correct order, one or more might not compile correctly.

Table 12-1 SNMP Message Types

Operation Description

get-request Retrieves a value from a specific variable.

get-next-request Retrieves the value following the named variable; this operation is often used

to retrieve variables from within a table. With this operation, an SNMP

manager does not need to know the exact variable name. The SNMP manager

searches sequentially to find the needed variable from within the MIB.

get-response Replies to a get-request, get-next-request, get-bulk-request, or set-request

sent by an NMS.

get-bulk-request Fills the get-response with up to the max-repetition number of get-next

interactions, similar to a get-next-request.

set-request Provides remote network monitoring (RMON) MIB.

trap Indicates that an event has occurred. An unsolicited message is sent by an

SNMP agent to an SNMP manager.

Table 12-2 IETF Standard MIBs Implemented in the ONS 15310-MA SDH SNMP Agent

RFC1

Number Module Name Title/Comments

— IANAifType-MIB.mib Internet Assigned Numbers Authority (IANA) ifType

1213

1907

RFC1213-MIB-rfc1213.mib,

SNMPV2-MIB-rfc1907.mib

Management Information Base for Network

Management of TCP/IP-based internets:MIB-II

Management Information Base for Version 2 of the

Simple Network Management Protocol (SNMPv2)

1253 RFC1253-MIB-rfc1253.mib OSPF Version 2 Management Information Base

1493 BRIDGE-MIB-rfc1493.mib Definitions of Managed Objects for Bridges

(This defines MIB objects for managing MAC bridges

based on the IEEE 802.1D-1990 standard between

Local Area Network (LAN) segments.)

2819 RMON-MIB-rfc2819.mib Remote Network Monitoring MIB

12-6

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 12 SNMP

SNMP Management Information Bases

12.5.2 Proprietary ONS 15310-MA SDH MIBs

Each ONS 15310-MA SDH is shipped with a software CD containing applicable proprietary MIBs.

Table 12-3 lists the proprietary MIBs for the ONS 15310-MA SDH.

2737 ENTITY-MIB-rfc2737.mib Entity MIB (Version 2)

2233 IF-MIB-rfc2233.mib Interfaces Group MIB using SMIv2

2358 EtherLike-MIB-rfc2358.mib Definitions of Managed Objects for the Ethernet-like

Interface Types

2493 PerfHist-TC-MIB-rfc2493.mib Textual Conventions for MIB Modules Using

Performance History Based on 15 Minute Intervals

2495 E1-MIB-rfc2495.mib Definitions of Managed Objects for the E1, E1, DS2

and E2 Interface Types

2496 DS3-MIB-rfc2496.mib Definitions of Managed Object for the DS3/E3

Interface Type

2558 SDH-MIB-rfc2558.mib Definitions of Managed Objects for the SDH Interface

Type

2674 P-BRIDGE-MIB-rfc2674.mib

Q-BRIDGE-MIB-rfc2674.mib

Definitions of Managed Objects for Bridges with

Traffic Classes, Multicast Filtering and Virtual LAN

Extensions

— CISCO-DOT3-OAM-MIB A Cisco proprietary MIB defined for IEEE 802.3ah

ethernet OAM.

3413 SNMP-NOTIFICATION-MIB Defines the MIB objects that provide mechanisms to

remotely configure the parameters used by an SNMP

entity for generating notifications.

3413 SNMP-TARGET-MIB Defines the MIB objects that provide mechanisms to

remotely configure the parameters that are used by an

SNMP entity for generating SNMP messages.

3413 SNMP-PROXY-MIB Defines MIB objects that provide mechanisms to

remotely configure the parameters used by a proxy

forwarding application.

3414 SNMP-USER-BASED-SM-MIB The management information definitions for the

SNMP User-Based Security Model.

3415 SNMP-VIEW-BASED-ACM-MIB The management information definitions for the

View-Based Access Control Model for SNMP.

1. RFC = Request for Comment

Table 12-2 IETF Standard MIBs Implemented in the ONS 15310-MA SDH SNMP Agent

RFC1

Number Module Name Title/Comments

12-7

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 12 SNMP

SNMP Management Information Bases

Table 12-3 ONS 15310-MA SDH Proprietary MIBs

MIB

Number Module Name

1 CERENT-GLOBAL-REGISTRY.mib

2 CERENT-TC.mib

3 CERENT-454.mib (for ONS 15454 only)

4 CERENT-GENERIC.mib (for ONS 15327 only)

5 CISCO-SMI.mib

6 CISCO-VOA-MIB.mib

7 CERENT-MSDWDM-MIB.mib

8 CERENT-OPTICAL-MONITOR-MIB.mib

9 CERENT-HC-RMON-MIB.mib

10 CERENT-ENVMON-MIB.mib

11 CERENT-GENERIC-PM-MIB.mib

12 BRIDGE-MIB.my

13 CERENT-454-MIB.mib

14 CERENT-ENVMON-MIB.mib

15 CERENT-FC-MIB.mib

16 CERENT-GENERIC-MIB.mib

17 CERENT-GENERIC-PM-MIB.mib

18 CERENT-GLOBAL-REGISTRY.mib

19 CERENT-HC-RMON-MIB.mib

20 CERENT-IF-EXT-MIB.mib

21 CERENT-MSDWDM-MIB.mib

22 CERENT-OPTICAL-MONITOR-MIB.mib

23 CERENT-TC.mib

24 CISCO-IGMP-SNOOPING-MIB.mib

25 CISCO-OPTICAL-MONITOR-MIB.mib

26 CISCO-OPTICAL-PATCH-MIB.mib

27 CISCO-SMI.mib

28 CISCO-VOA-MIB.mib

29 CISCO-VTP-MIB.mib

30 INET-ADDRESS-MIB.mib

31 OLD-CISCO-TCP-MIB.my

32 OLD-CISCO-TS-MIB.my

33 RFC1155-SMI.my

34 RFC1213-MIB.my

35 RFC1315-MIB.my

12-8

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 12 SNMP

SNMP Management Information Bases

36 BGP4-MIB.my

37 CERENT-454-MIB.mib

38 CERENT-ENVMON-MIB.mib

39 CERENT-FC-MIB.mib

40 CERENT-GENERIC-MIB.mib

41 CERENT-GENERIC-PM-MIB.mib

42 CERENT-GLOBAL-REGISTRY.mib

43 CERENT-HC-RMON-MIB.mib

44 CERENT-IF-EXT-MIB.mib

45 CERENT-MSDWDM-MIB.mib

46 CERENT-OPTICAL-MONITOR-MIB.mib

47 CERENT-TC.mib

48 CISCO-CDP-MIB.my

49 CISCO-CLASS-BASED-QOS-MIB.my

50 CISCO-CONFIG-COPY-MIB.my

51 CISCO-CONFIG-MAN-MIB.my

52 CISCO-ENTITY-ASSET-MIB.my

53 CISCO-ENTITY-EXT-MIB.my

54 CISCO-ENTITY-VENDORTYPE-OID-MI

55 CISCO-FRAME-RELAY-MIB.my

56 CISCO-FTP-CLIENT-MIB.my

57 CISCO-HSRP-EXT-MIB.my

58 CISCO-HSRP-MIB.my

59 CISCO-IGMP-SNOOPING-MIB.mib

60 CISCO-IMAGE-MIB.my

61 CISCO-IP-STAT-MIB.my

62 CISCO-IPMROUTE-MIB.my

63 CISCO-MEMORY-POOL-MIB.my

64 CISCO-OPTICAL-MONITOR-MIB.mib

65 CISCO-OPTICAL-PATCH-MIB.mib

66 CISCO-PING-MIB.my

67 CISCO-PORT-QOS-MIB.my

68 CISCO-PROCESS-MIB.my

69 CISCO-PRODUCTS-MIB.my

70 CISCO-RTTMON-MIB.my

Table 12-3 ONS 15310-MA SDH Proprietary MIBs (continued)

MIB

Number Module Name

12-9

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 12 SNMP

SNMP Management Information Bases

71 CISCO-SMI.mib

72 CISCO-SMI.my

73 CISCO-SYSLOG-MIB.my

74 CISCO-TC.my

75 CISCO-TCP-MIB.my

76 CISCO-VLAN-IFTABLE-RELATIONSHI

77 CISCO-VOA-MIB.mib

78 CISCO-VTP-MIB.mib

79 CISCO-VTP-MIB.my

80 ENTITY-MIB.my

81 ETHERLIKE-MIB.my

82 HC-PerfHist-TC-MIB.my

83 HC-RMON-MIB.my

84 HCNUM-TC.my

85 IANA-RTPROTO-MIB.my

86 IANAifType-MIB.my

87 IEEE-802DOT17-RPR-MIB.my

88 IEEE8023-LAG-MIB.my

89 IF-MIB.my

90 IGMP-MIB.my

91 INET-ADDRESS-MIB.my

92 IPMROUTE-STD-MIB.my

93 OSPF-MIB.my

94 PIM-MIB.my

95 RMON-MIB.my

96 RMON2-MIB.my

97 SNMP-FRAMEWORK-MIB.my

98 SNMP-NOTIFICATION-MIB.my

99 SNMP-TARGET-MIB.my

100 SNMPv2-MIB.my

101 SNMPv2-SMI.my

102 SNMPv2-TC.my

103 TCP-MIB.my

104 TOKEN-RING-RMON-MIB.my

105 UDP-MIB.my

Table 12-3 ONS 15310-MA SDH Proprietary MIBs (continued)

MIB

Number Module Name

12-10

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 12 SNMP

SNMP Management Information Bases

Note If you cannot compile the ONS 15310-MA SDH MIBs, call the Cisco Technical Assistance Center

(Cisco TAC). Contact information for Cisco TAC is listed in the Obtaining Documentation and

Submitting a Service Request section in Preface.

106 BRIDGE-MIB-rfc1493.mib

107 DS1-MIB-rfc2495.mib

108 DS3-MIB-rfc2496.mib

109 ENTITY-MIB-rfc2737.mib

110 EtherLike-MIB-rfc2665.mib

111 HC-RMON-rfc3273.mib

112 HCNUM-TC.mib

113 IANAifType-MIB.mib

114 IF-MIB-rfc2233.mib

115 INET-ADDRESS-MIB.mib

116 P-BRIDGE-MIB-rfc2674.mib

117 PerfHist-TC-MIB-rfc2493.mib

118 Q-BRIDGE-MIB-rfc2674.mib

119 RFC1213-MIB-rfc1213.mib

120 RFC1253-MIB-rfc1253.mib

121 RIPv2-MIB-rfc1724.mib

122 RMON-MIB-rfc2819.mib

123 RMON2-MIB-rfc2021.mib

124 RMONTOK-rfc1513.mib

125 SNMP-FRAMEWORK-MIB-rfc2571.mib

126 SNMP-MPD-MIB.mib

127 SNMP-NOTIFY-MIB-rfc3413.mib

128 SNMP-PROXY-MIB-rfc3413.mib

129 SNMP-TARGET-MIB-rfc3413.mib

130 SNMP-USER-BASED-SM-MIB-rfc3414.mib

131 SNMP-VIEW-BASED-ACM-MIB-rfc3415.mib

132 SNMPv2-MIB-rfc1907.mib

133 SONET-MIB-rfc2558.mib

Table 12-3 ONS 15310-MA SDH Proprietary MIBs (continued)

MIB

Number Module Name

12-11

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 12 SNMP

SNMP Trap Content

12.6 SNMP Trap Content

The ONS 15310-MA SDH use SNMP traps to generate all alarms and events, such as raises and clears.

The traps contain the following information:

• Object IDs that uniquely identify each event with information about the generating entity such as

the slot or port, synchronous transport signal (VC high-order path), and Virtual Tributary (VC

low-order path).

• Severity of the alarm (critical, major, minor, or event) and service effect (service-affecting or

non-service-affecting).

• Date and time stamp when the alarm occurred.

12.6.1 Generic and IETF Traps

The ONS 15310-MA SDH support the generic and IETF traps listed in Table 12-4.

Table 12-4 Supported IETF Traps for the ONS 15310-MA SDH

Trap

From RFC No.

MIB Description

coldStart RFC1907-MIB Agent up, cold start.

warmStart RFC1907-MIB Agent up, warm start.

authenticationFailure RFC1907-MIB Community string does not match.

newRoot RFC1493/

BRIDGE-MIB

Sending agent is the new root of the spanning tree.

topologyChange RFC1493/

BRIDGE-MIB

A port in a bridge has changed from Learning to

Forwarding or Forwarding to Blocking.

entConfigChange RFC2737/

ENTITY-MIB

The entLastChangeTime value has changed.

dsx1LineStatusChange RFC2495/

E1-MIB

A dsx1LineStatusChange trap is sent when the value of

an instance of dsx1LineStatus changes. The trap can be

used by an NMS to trigger polls. When the line status

change results from a higher-level line status change (for

example, a DS3), no traps for the E1 are sent.

dsx3LineStatusChange RFC2496/

DS3-MIB

A dsx3LineStatusLastChange trap is sent when the value

of an instance of dsx3LineStatus changes. This trap can

be used by an NMS to trigger polls. When the line status

change results in a lower-level line status change (for

example, a E1), no traps for the lower-level are sent.

risingAlarm RFC2819/

RMON-MIB

The SNMP trap that is generated when an alarm entry

crosses the rising threshold and the entry generates an

event that is configured for sending SNMP traps.

fallingAlarm RFC2819/

RMON-MIB

The SNMP trap that is generated when an alarm entry

crosses the falling threshold and the entry generates an

event that is configured for sending SNMP traps.

12-12

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 12 SNMP

SNMPv1/v2 Community Names

12.6.2 Variable Trap Bindings

Each SNMP trap contains variable trap bindings that are used to create MIB tables. ONS 15310-MA

SDH traps and bindings are listed in Table 12-5.

12.7 SNMPv1/v2 Community Names

You can provision community names for all SNMP requests from the SNMP Trap Destination dialog box

in CTC. When community names are assigned to traps, the ONS 15310-MA SDH treat the request as

valid if the community name matches one provisioned in CTC. If the community name does not match

the provisioned list, SNMP drops the request.

Table 12-5 Supported ONS 15310-MA SDH SNMPv2 Trap Variable Bindings

Trap

Number ONS 15454 Name ONS 15310-MA SDH Name Description

1 sysUpTime sysUpTime The first variable binding in the variable

binding list of an SNMPv2-Trap-PDU.

2 snmpTrapOID snmpTrapOID The second variable binding in the variable

binding list of an SNMPv2-Trap-PDU.

3 cerent454NodeTime cerentGenericNodeTime The time that an event occurred

4 cerent454AlarmState cerentGenericAlarmState The alarm severity and service-affecting status.

Severities are Minor, Major, and Critical.

Service- affecting statuses are service-affecting

and non-service affecting.

5 cerent454AlarmObjectType cerentGenericAlarmObjectType The entity type that raised the alarm. The NMS

should use this value to decide which table to

poll for further information about the alarm.

6 cerent454AlarmObjectIndex cerentGenericAlarmObjectIndex Every alarm is raised by an object entry in a

specific table. This variable is the index of the

objects in each table; if the alarm is

interface-related, this is the index of the

interfaces in the interface table.

7 cerent454AlarmSlotNumber cerentGenericAlarmSlotNumber The slot of the object that raised the alarm. If a

slot is not relevant to the alarm, the slot number

is zero.

8 cerent454AlarmPortNumber cerentGenericAlarmPortNumber The port of the object that raised the alarm. If a

port is not relevant to the alarm, the port number

is zero.

9 cerent454AlarmLineNumber cerentGenericAlarmLineNumber The object line that raised the alarm. If a line is

not relevant to the alarm, the line number is

zero.

10 cerent454AlarmObjectName cerentGenericAlarmObjectName The TL1-style user-visible name that uniquely

identifies an object in the system.

12-13

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 12 SNMP

SNMPv1/v2 Proxy Support Over Firewalls

12.8 SNMPv1/v2 Proxy Support Over Firewalls

Firewalls, often used for isolating security risks inside networks or from outside, have traditionally

prevented SNMP and other NMS monitoring and control applications from accessing NEs beyond a

firewall.

An application-level proxy is available at each firewall to transport SNMP protocol data units (PDU)

between the NMS and NEs. This proxy, integrated into the firewall NE SNMP agent, exchanges requests

and responses between the NMS and NEs and forwards NE autonomous messages to the NMS. The

usefulness of the proxy feature is that network operations centers (NOCs) can fetch performance

monitoring data such as remote monitoring (RMON) statistics across the entire network with little

provisioning at the NOC and no additional provisioning at the NEs.

The firewall proxy interoperates with common NMS such as HP-OpenView. It is intended to be used

with many NEs through a single NE gateway in a gateway network element (GNE)-end network element

(ENE) topology. Up to 64 SNMP requests (such as get, getnext, or getbulk) are supported at any time

behind single or multiple firewalls.

For security reasons, the SNMP proxy feature must be turned on at all receiving and transmitting NEs

to be enabled. For instructions to do this, refer to the Cisco ONS 15310-MA SDH Procedure Guide. The

feature does not interoperate with earlier releases.

12.9 SNMPv3 Proxy Configuration

The GNE can act as a proxy for the ENEs and forward SNMP requests to other SNMP entities (ENEs)

irrespective of the types of objects that are accessed. For this, you need to configure two sets of users,

one between the GNE and NMS, and the other between the GNE and ENE. In addition to forwarding

requests from the NMS to the ENE, the GNE also forwards responses and traps from the ENE to the

NMS.

The proxy forwarder application is defined in RFC 3413. Each entry in the Proxy Forwarder Table

consists of the following parameters:

• Proxy Type—Defines the type of message that may be forwarded based on the translation

parameters defined by this entry. If the Proxy Type is read or write, the proxy entry is used for

forwarding SNMP requests and their response between the NMS and the ENE. If the Proxy Type is

trap, the entry is used for forwarding SNMP traps from the ENE to the NMS.

• Context Engine ID/Context Name—Specifies the ENE to which the incoming requests should be

forwarded or the ENE whose traps should be forwarded to the NMS by the GNE.

• TargetParamsIn—Points to the Target Params Table that specifies the GNE user who proxies on

behalf of an ENE user. When the proxy type is read or write, TargetParamsIn specifies the GNE user

who receives requests from an NMS, and forwards requests to the ENE. When the proxy type is trap,

TargetParamsIn specifies the GNE user who receives notifications from the ENE and forwards them

to the NMS. TargetParamsIn and the contextEngineID or the contextName columns are used to

determine the row in the Proxy Forwarder Table that could be used for forwarding the received

message.

• Single Target Out—Refers to the Target Address Table. After you select a row in the Proxy

Forwarder Table for forwarding, this object is used to get the target address and the target parameters

that are used for forwarding the request. This object is used for requests with proxy types read or

write, which only requires one target.

12-14

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 12 SNMP

SNMP Remote Monitoring

Multiple Target Out (Tag)—Refers to a group of entries in the Target Address Table. Notifications are

forwarded using this tag. The Multiple Target Out tag is only relevant when proxy type is Trap and is

used to send notifications to one or more NMSs.

12.10 SNMP Remote Monitoring

The ONS 15310-MA SDH incorporate RMON to allow network operators to monitor Ethernet card

performance and events. The RMON thresholds are user-provisionable in CTC. Refer to the

Cisco ONS 15310-MA SDH Procedure Guide for provisioning procedures.

Note Typical RMON operations, other than threshold provisioning, are invisible to the CTC user.

ONS 15310-MA SDH system RMON is based on the IETF-standard MIB RFC2819 and includes the

following five groups from the standard MIB: Ethernet Statistics, History Control, Ethernet History,

Alarm, and Event.

RMON is sampled at one of four possible intervals. Each interval, or period, contains specific history

values called buckets. Table 12-6 on page 12-15 lists the four sampling periods and corresponding

buckets.

Certain statistics measured on the ML card are mapped to standard MIB if one exists else mapped to a

non standard MIB variable. The naming convention used by the standard/non-standard MIB is not the

same as the statistics variable used by the card. Hence when these statistics are obtained via

get-request/get-next-request/SNMP Trap they don’t match the name used on the card or as seen by

CTC/TL1.

• For ex: STATS_MediaIndStatsRxFramesTooLong stats is mapped to

cMediaIndependentInFramesTooLong variable in CERENT MIB. STATS_RxTotalPkts is mapped to

mediaIndependentInPkts in HC-RMON-rfc3273.mib

12.10.1 Ethernet Statistics Group

The Ethernet Statistics group contains the basic statistics for each monitored subnetwork in a single table

named etherstats. The group also contains 64-bit statistics in the etherStatsHighCapacityTable.

12.10.1.1 Row Creation in etherStatsTable

The SetRequest PDU for creating a row in this table contains all needed values to activate a table row in

a single operation as well as assign the status variable to createRequest. The SetRequest PDU OID)

entries must have an instance value, or type OID, of 0.

In order to create a row, the SetRequest PDU should contain the following:

• The etherStatsDataSource and its desired value

• The etherStatsOwner and its desired value (up to 32 characters)

• The etherStatsStatus with a value of createRequest (2)

The etherStatsTable creates a row if the SetRequest PDU is valid according to these rules. The SNMP

agent decides the value of etherStatsIndex when the row is created and this value changes when an

Ethernet interface is added or deleted; it is not sequentially allotted or contiguously numbered. A newly

12-15

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 12 SNMP

SNMP Remote Monitoring

created row will have an etherStatsStatus value of valid (1). If the etherStatsTable row already exists, or

if the SetRequest PDU values are insufficient or do not make sense, the SNMP agent returns an error

code.

Note EtherStatsTable entries are not preserved if the SNMP agent is restarted.

12.10.1.2 Get Requests and GetNext Requests

Get requests and getNext requests for the etherStatsMulticastPkts and etherStatsBroadcastPkts columns

return a value of zero because the variables are not supported by ONS 15310-MA SDH Ethernet

operations.

12.10.1.3 Row Deletion in etherStatsTable

To delete a row in the etherStatsTable, the SetRequest PDU should contain an etherStatsStatus “invalid”

value (4). The OID marks the row for deletion. If required, a deleted row can be recreated.

12.10.1.4 64-Bit etherStatsHighCapacity Table

The Ethernet statistics group contains 64-bit statistics in the etherStatsHighCapacityTable, which

provides 64-bit RMON support for the HC-RMON-MIB. The etherStatsHighCapacityTable is an

extension of the etherStatsTable that adds 16 new columns for performance monitoring data in 64-bit

format. There is a one-to-one relationship between the etherStatsTable and etherStatsHighCapacityTable

when rows are created or deleted in either table.

12.10.2 History Control Group

The History Control group defines sampling functions for one or more monitor interfaces in the

historyControlTable. The values in this table, as specified in RFC 2819, are derived from the

historyControlTable and etherHistoryTable.

12.10.2.1 History Control Table

The historyControlTable maximum row size is determined by multiplying the number of ports on a card

by the number of sampling periods.

Table 12-6 RMON History Control Periods and History Categories

Sampling Periods

(historyControlValue Variable)

Total Values, or Buckets

(historyControl Variable)

15 minutes 32

24 hours 7

1 minute 60

60 minutes 24

12-16

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 12 SNMP

SNMP Remote Monitoring

12.10.2.2 Row Creation in historyControlTable

To activate a historyControlTable row, the SetRequest PDU must contain all needed values and have a

status variable value of 2 (createRequest). All OIDs in the SetRequest PDU should be type OID.0 for

entry creation.

To create a SetRequest PDU for the historyControlTable, the following values are required:

• The historyControlDataSource and its desired value

• The historyControlBucketsRequested and it desired value

• The historyControlInterval and its desired value

• The historyControlOwner and its desired value

• The historyControlStatus with a value of createRequest (2)

The historyControlBucketsRequested OID value is ignored because the number of buckets allowed for

each sampling period, based upon the historyControlInterval value, is already fixed as listed in

Table 12-6.

The historyControlInterval value cannot be changed from the four allowed choices. If you use another

value, the SNMP agent selects the closest smaller time period from the set buckets. For example, if the

set request specifies a 25-minute interval, this falls between the 15-minute (32 bucket) variable and the

60-minute (24 bucket) variable. The SNMP agent automatically selects the lower, closer value, which is

15 minutes, so it allows 32 buckets.

If the SetRequest PDU is valid, a historyControlTable row is created. If the row already exists, or if the

SetRequest PDU values do not make sense or are insufficient, the SNMP agent does not create the row

and returns an error code.

12.10.2.3 Get Requests and GetNext Requests

These PDUs are not restricted.

12.10.2.4 Row Deletion in historyControl Table

To delete a row from the table, the SetRequest PDU should contain a historyControlStatus value of 4

(invalid). A deleted row can be recreated.

12.10.3 Ethernet History RMON Group

The ONS 15310-MA SDH implement the etherHistoryTable as defined in RFC 2819. The group is

created within the bounds of the historyControlTable and does not deviate from the RFC in its design.

12.10.3.1 64-Bit etherHistoryHighCapacityTable

64-bit Ethernet history for the HC-RMON-MIB is implemented in the etherHistoryHighCapacityTable,

which is an extension of the etherHistoryTable. The etherHistoryHighCapacityTable adds four columns

for 64-bit performance monitoring data. These two tables have a one-to-one relationship. Adding or

deleting a row in one table will effect the same change in the other.

12-17

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 12 SNMP

SNMP Remote Monitoring

12.10.4 Alarm RMON Group

The Alarm group consists of the alarmTable, which periodically compares sampled values with

configured thresholds and raises an event if a threshold is crossed. This group requires the

implementation of the event group, which follows this section.

12.10.4.1 Alarm Table

The NMS uses the alarmTable to determine and provision network performance alarmable thresholds.

12.10.4.2 Row Creation in alarmTable

To create a row in the alarmTable, all OIDs in the SetRequest PDU should be type OID.0. The table has

a maximum number of 256 rows.

To create a SetRequest PDU for the alarmTable, the following values are required:

• The alarmInterval and its desired value

• The alarmVariable and its desired value

• The alarmSampleType and its desired value

• The alarmStartupAlarm and its desired value

• The alarmOwner and its desired value

• The alarmStatus with a value of createRequest (2)

If the SetRequest PDU is valid, an alarmTable row is created. If the row already exists, or if the

SetRequest PDU values do not make sense or are insufficient, the SNMP agent does not create the row

and returns an error code.

In addition to the required values, the following restrictions must be met in the SetRequest PDU:

• The alarmOwner is a string of length 32 characters.

• The alarmRisingEventIndex always takes value 1.

• The alarmFallingEventIndex always takes value 2.

• The alarmStatus has only two values supported in SETs: createRequest (2) and invalid (4).

• The AlarmVariable is of the type OID.ifIndex, where ifIndex gives the interface this alarm is created

on and OID is one of the OIDs supported in Table 12-7.

Table 12-7 OIDs Supported in the AlarmTable

No. Column Name OID Status

1 ifInOctets {1.3.6.1.2.1.2.2.1.10} —

2 IfInUcastPkts {1.3.6.1.2.1.2.2.1.11} —

3 ifInMulticastPkts {1.3.6.1.2.1.31.1.1.1.2} Unsupported in E100/E1000

4 ifInBroadcastPkts {1.3.6.1.2.1.31.1.1.1.3} Unsupported in E100/E1000

5 ifInDiscards {1.3.6.1.2.1.2.2.1.13} Unsupported in E100/E1000

6 ifInErrors {1.3.6.1.2.1.2.2.1.14} —

7 ifOutOctets {1.3.6.1.2.1.2.2.1.16} —

12-18

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 12 SNMP

SNMP Remote Monitoring

12.10.4.3 Get Requests and GetNext Requests

These PDUs are not restricted.

8 ifOutUcastPkts {1.3.6.1.2.1.2.2.1.17} —

9 ifOutMulticastPkts {1.3.6.1.2.1.31.1.1.1.4} Unsupported in E100/E1000

10 ifOutBroadcastPkts {1.3.6.1.2.1.31.1.1.1.5} Unsupported in E100/E1000

11 ifOutDiscards {1.3.6.1.2.1.2.2.1.19} Unsupported in E100/E1000

12 Dot3StatsAlignmentErrors {1.3.6.1.2.1.10.7.2.1.2} —

13 Dot3StatsFCSErrors {1.3.6.1.2.1.10.7.2.1.3} —

14 Dot3StatsSingleCollisionFrames {1.3.6.1.2.1.10.7.2.1.4} —

15 Dot3StatsMultipleCollisionFrames {1.3.6.1.2.1.10.7.2.1.5} —

16 Dot3StatsDeferredTransmissions {1.3.6.1.2.1.10.7.2.1.7} —

17 Dot3StatsLateCollisions {1.3.6.1.2.1.10.7.2.1.8} —

18 Dot3StatsExcessiveCollisions {13.6.1.2.1.10.7.2.1.9} —

19 Dot3StatsFrameTooLong {1.3.6.1.2.1.10.7.2.1.13} —

20 Dot3StatsCarrierSenseErrors {1.3.6.1.2.1.10.7.2.1.11} Unsupported in E100/E1000

21 Dot3StatsSQETestErrors {1.3.6.1.2.1.10.7.2.1.6} Unsupported in E100/E1000

22 etherStatsUndersizePkts {1.3.6.1.2.1.16.1.1.1.9} —

23 etherStatsFragments {1.3.6.1.2.1.16.1.1.1.11} —

24 etherStatsPkts64Octets {1.3.6.1.2.1.16.1.1.1.14} —

25 etherStatsPkts65to127Octets {1.3.6.1.2.1.16.1.1.1.15} —

26 etherStatsPkts128to255Octets {1.3.6.1.2.1.16.1.1.1.16} —

27 etherStatsPkts256to511Octets {1.3.6.1.2.1.16.1.1.1.17} —

28 etherStatsPkts512to1023Octets {1.3.6.1.2.1.16.1.1.1.18} —

29 etherStatsPkts1024to1518Octets {1.3.6.1.2.1.16.1.1.1.19} —

30 EtherStatsBroadcastPkts {1.3.6.1.2.1.16.1.1.1.6} —

31 EtherStatsMulticastPkts {1.3.6.1.2.1.16.1.1.1.7} —

32 EtherStatsOversizePkts {1.3.6.1.2.1.16.1.1.1.10} —

33 EtherStatsJabbers {1.3.6.1.2.1.16.1.1.1.12} —

34 EtherStatsOctets {1.3.6.1.2.1.16.1.1.1.4} —

35 EtherStatsCollisions {1.3.6.1.2.1.16.1.1.1.13} —

36 EtherStatsCollisions {1.3.6.1.2.1.16.1.1.1.8} —

37 EtherStatsDropEvents {1.3.6.1.2.1.16.1.1.1.3} Unsupported in E100/E1000

and G1000

Table 12-7 OIDs Supported in the AlarmTable (continued)

No. Column Name OID Status

12-19

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 12 SNMP

SNMP Remote Monitoring

12.10.4.4 Row Deletion in alarmTable

To delete a row from the table, the SetRequest PDU should contain an alarmStatus value of 4 (invalid).

A deleted row can be recreated.

Note Entries in the alarmTable are preserved if the SNMP agent is restarted.

12.10.5 Event RMON Group

The event group controls event generation and notification. It consists of two tables: the eventTable,

which is a read-only list of events to be generated, and the logTable, which is a writable set of data

describing a logged event. The ONS 15310-MA SDH implement the logTable as specified in RFC 2819.

12.10.5.1 Event Table

The eventTable is read-only and unprovisionable. The table contains one row for rising alarms and

another row for falling ones. This table has the following restrictions:

• The eventType is always log-and-trap (4).

• The eventCommunity value is always a zero-length string, indicating that this event causes the trap

to be despatched to all provisioned destinations.

• The eventOwner column value is always “monitor.”

• The eventStatus column value is always valid(1).

12.10.5.2 Log Table

The logTable is implemented exactly as specified in RFC 2819. The logTable is based upon data that is

cached locally on a controller card. If there is a controller card protection switch, the existing logTable

is cleared and a new one is started on the newly active controller card. The table contains as many rows

as provided by the alarm controller.

12-20

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Chapter 12 SNMP

SNMP Remote Monitoring

A-1

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

APPENDIX

Specifications

Note The terms “Unidirectional Path Switched Ring” and “UPSR” may appear in Cisco literature. These terms

do not refer to using Cisco ONS 15xxx products in a unidirectional path switched ring configuration.

Rather, these terms, as well as “Path Protected Mesh Network” and “PPMN,” refer generally to Cisco's

path protection feature, which may be used in any topological network configuration. Cisco does not

recommend using its path protection feature in any particular topological network configuration.

This appendix contains the following:

• Shelf, card, and Small Form-factor Pluggable (SFP) specifications for Cisco ONS 15310-MA SDH.

• Cabinet, power, and environmental specifications for the Purcell FLX25GT (ONS 15310-MA SDH

OSP cabinet).

• OSP cabinet configuration details.

A.1 Cisco ONS 15310-MA SDH Shelf Specifications

This section provides ONS 15310-MA SDH topologies; Cisco Transport Controller (CTC)

specifications; LAN, TL1, modem, alarm, and electrical interface assembly (EIA) interface

specifications; timing, power, and environmental specifications; and shelf dimensions.

Note The UDC Interface, TL1 Craft Interface, and BITS Interface are not used in OSP installations.

A.1.1 Alarm Interface

The ONS 15310-MA SDH alarm interface has the following specifications:

• The alarm interface provides 32 alarm inputs and 8 contacts for alarm outputs.

• Connector J6: Alarm inputs

• Connector J7: Alarm outputs

A-2

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix A Specifications

Cisco ONS 15310-MA SDH Shelf Specifications

A.1.2 UDC Interface

The ONS 15310-MA SDH 64-kbps user data channel (UDC) digital interface has the following

specifications:

• The 64- kbps digital interface provides a digital input and output.

• Any F1 byte that is accessible on the system is interfaced at the UDC connector.

• The UDC provides a simplex interface. Protection for UDC overhead channel(s) follows interface

line protection for traffic.

• The UDC can be enabled or disabled through the management interfaces. The default state is

disabled.

• The physical interface is defined in ITU-T G.703 as a 120-ohm, twisted pair connection. The jitter

specification is defined in ITU-T G.823.

• The UDC supports a serial port interface adaptation function to overhead bytes F1. This is an

EIA/TIA-232 interface capable of 9.6-, 19.2-, 38.4-, and 56-kbps operation. The rate is selectable

through the management interface. The default is 56 kbps with no parity and 1 stop bit.

• Connector J3: UDC

A.1.3 Cisco Transport Controller LAN Interface

The ONS 15310-MA SDH CTC LAN interface has the following specifications:

• 10/100BaseT

• 15310E-CTX-K9 access: RJ-45 connector

• Connector J3: LAN port

A.1.4 TL1 Craft Interface

The ONS 15310-MA SDH TL1 craft interface has the following specifications:

• Speed: 9600 baud, no parity, 1 stop bit

• 15310E-CTX-K9: EIA/TIA-232 with RJ-45 type connector

• Connector J2: Craft port

A.1.5 Configurations

The ONS 15310-MA SDH supports the following configurations:

• Two-fiber path protection

• 1+1 protection

• Extended SNCP

• Add/drop multiplexer (ADM)

• Point-to-point (PPP) terminal mode

A-3

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix A Specifications

Cisco ONS 15310-MA SDH Shelf Specifications

A.1.6 LEDs

Table A-1 describes the system-level LEDs, located on the on the ONS 15310-MA SDH fan tray, and the

possible LED colors and their significance.

A.1.7 Push Buttons

The ONS 15310-MA SDH has the following push buttons:

• Lamp test: When momentarily pushed, lights all LEDs on the ONS 15310-MA SDH front panel. If

an LED has more than one color, all the colors will be cycled when the lamp test button is pushed.

Note Another use for the lamp test button is to reset the CTC password to its default value

(otbu+1). To reset the password, press the lamp test button for at least five seconds, release

it for a maximum of five seconds, then press it again for at least five seconds. After the

button is released, the default password is set.

A.1.8 BITS Interface

The ONS 15310-MA SDH has the following building integrated timing supply (BITS) specifications:

–

Supports two BITS inputs and two BITS outputs

–

The BITS I/O ports support a 100-ohm termination for external 2.048 Mbps for E1.

–

Connector J4: BITS1; Connector J5: BITS2

A.1.9 System Timing

The ONS 15310-MA SDH has the following timing specifications:

• +/– 20 ppm SDH Synchronous Equipment Timing Source (SETS) free-running internal clock

• Maintains SETS holdover (+/– 4.6 ppm for first 24 hours) in the event of reference frequency loss

• Timing reference: External BITS, line optical port, any E1 clock, and internal clock

Table A-1 LED Description

LED Color and Meaning

FAIL Red indicates system failure or during initialization

CR Red indicates a critical alarm is present on the shelf assembly.

MJ Red indicates a major alarm is present on the shelf assembly.

MN Amber indicates a minor alarm is present on the shelf assembly.

REM Red indicates a remote alarm is present on the shelf assembly.

PWR A

PWR B

Green indicates that a DC power source present and within normal operating

range.

Red indicates that DC power source is not present, or is present and not within

normal operating range.

A-4

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix A Specifications

Cisco ONS 15310-MA SDH Shelf Specifications

A.1.10 Power Specifications

The ONS 15310-MA SDH has the following power specifications:

• Input power: –48 VDC nominal

• Maximum power consumption

–

Chassis with no cards installed (fan tray only): 55 W

–

Chassis with cards installed: 347 W

• Power requirements: –44 to –52 VDC

• Power terminals: Three-prong male locking connector

Note The DC power Battery Return (BR) or positive terminal, must be grounded at the source end (power feed

or DC mains power end). The DC power BR input terminal of the of the ONS 15xxx is not connected to

the equipment frame (chassis).

A.1.11 Environmental Specifications

The ONS 15310-MA SDH has the following environmental specifications:

• Operating temperature: -40 to +65 degree Celsius (-40 to + 149 degrees Fahrenheit)

• Operating humidity: 5 to 85 percent relative humidity.

A.1.12 Fan-Tray Assembly Specifications

• Environmental

–

Operating temperature: -40 to +65 degrees Celsius (-40 to 149 degrees Fahrenheit)

–

Operating humidity: 5 to 85 percent, noncondensing. Operation is guaranteed for 96 hours at 95

percent relative humidity.

• Power

–

50 W, 4.2 Amps (at 12 V), 170 BTU/hr

• Shelf Acoustics (NEBS acoustic noise compliant)

–

Normal fan speed: 58 dBA

–

High fan speed: 64 dBA

A.1.13 Shelf Dimensions

The ONS 15310-MA SDH has the following shelf dimensions:

• Height: 6 Rack Units (RUs), 10.44 inches (26.51 cm)

• Width:

–

10.67 inches (27.10 cm)

• Depth:

A-5

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix A Specifications

Card Specifications

–

12 inches (20.5 cm) without cables installed

–

13.7 inches (34.8 cm) with cables installed

• Weight:

–

25 lbs. (11.3 kg) maximum (line cards, fan-tray assembly, and two electrical interface

assemblies (EIAs) installed)

A.2 Card Specifications

This section provides specifications for the 15310-MA SDH electrical and 15310E-CTX-K9 cards. For

compliance information, refer to the Cisco Optical Transport Products Safety and Compliance

Information document.

A.2.1 15310E-CTX-K9 Card

The 15310E-CTX-K9 card is installed in Slots 3 and 4 of the ONS 15310-MA SDH only. The

15310E-CTX-K9 has the following specifications.

• LAN Port

–

Supports a 10/100-Mbps Ethernet interface for Cisco Transport Controller/Transaction

Language One (CTC/TL1) provisioning.

–

For node access in secure mode, SSL (for TL1) and HTTPS (for CTC) security protocols are

supported.

• CRAFT Port

–

An EIA/TIA-232 craft interface is provided and is used for TL1 provisioning.

–

The craft interface is set to 9600 baud, no parity, and 1 stop bit by default.

• Nonvolatile memory

–

128 MB, Compact Flash card

• Optical ports: Line

–

Bit rate: STM1 (155.520 Mbps), STM4, (622.080 Mbps), and STM16 (2488.320 Mbps),

depending on the SFP installed

Note Both optical interfaces on the card can be configured as STM1, STM4, or STM16.

–

Code: Scrambled NRZ

–

Fiber: depends on the SFP used

(see the “A.3 SFP Specifications” section on page A-9)

–

Loopback modes: Terminal and facility

–

Connectors: LC duplex connector for each SFP

–

Compliance: ITU-T G.707, ITU-T G.957

• Optical ports: Transmitter

–

Maximum transmitter output power: Depends on the SFP used

(see the “A.3 SFP Specifications” section on page A-9)

A-6

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix A Specifications

Card Specifications

–

Minimum transmitter output power: Depends on the SFP used

(see the “A.3 SFP Specifications” section on page A-9)

–

Center wavelength: See wavelength plan

–

Center wavelength accuracy: 1 nm to 4 nm, depending on the SFP used

–

Transmitter: DFB laser

• Optical ports: Receiver

–

Maximum receiver level: Depends on the SFP used

(see the “A.3 SFP Specifications” section on page A-9)

–

Minimum receiver level: Depends on the SFP used

(see the “A.3 SFP Specifications” section on page A-9)

–

Receiver: PIN PD

–

Receiver input wavelength range: Depends on the SFP used

• Environmental

–

Operating temperature:

C-Temp: +23 to +131 degrees Fahrenheit (–5 to +55 degrees Celsius)

I-Temp: –40 to +149 degrees Fahrenheit (–40 to +65 degrees Celsius)

–

Operating humidity: 5 to 85 percent, noncondensing. Operation is guaranteed for 96 hours at 95

percent relative humidity.

–

Power consumption: 9.28 W, 0.19 A, 31.68 BTU/hr

• Dimensions

–

Height: 6.94 in. (167.28 mm)

–

Width: 1.45 in. (36.83 mm)

–

Depth: 8.35 in. (212.09 mm)

–

Weight not including clam shell: 1.6 lb (0.73 kg)

LAN Port

• Supports a 10/100-Mbps Ethernet interface for Cisco Transport Controller/Transaction Language

One (CTC/TL1) provisioning.

CRAFT Port

• An EIA/TIA-232 craft interface is provided and is used for TL1 provisioning.

• The craft interface is set to 9600 baud, no parity, and 1 stop bit by default.

A.2.2 Nonvolatile Memory

The ONS 15310-MA SDH nonvolatile memory has a 128 MB Compact Flash card

A.2.3 CE-100T-8 and ML-100T-8 Cards

The CE-100T-8 and ML-100T-8 cards have the following specifications:

• Environmental

–

Operating temperature

A-7

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix A Specifications

Card Specifications

C-Temp: 0 to +55 degrees Celsius (32 to 131 degrees Fahrenheit)

–

Operating humidity: 5 to 85 percent, noncondensing. Operation is guaranteed for 96 hours at 95

percent relative humidity.

–

Power consumption: 1.10 A, 53 W

• Dimensions

–

Height: 176 mm (6.93 in.)

–

Width: 34.29 mm (1.35 in.)

–

Depth: 238.25 mm (9.38 in.)

–

Weight (not including clam shell): 0.499 kg (1.1 lb)

Caution Do not install CE-100T-8 and ML-100T-8 cards in OSP.

A.2.4 CE-MR-6 Card

The CE-MR-6 card has the following specifications:

• Environmental

–

Operating temperature

I-Temp: -40 to +65 degrees Celsius (-40 to +149 degrees Fahrenheit)

–

Operating humidity: 5 to 85 percent, noncondensing. Operation is guaranteed for 96 hours at 95

percent relative humidity.

–

Power consumption: 63.00 W, 1.32 A at -48 V, 214.96 BTU/hr

• Dimensions

–

Height: 176.28 mm (6.94 in.)

–

Width: 34.29 mm (1.35 in.)

–

Depth: 236.68 mm (9.318 in.)

–

Weight (not including clam shell): 0.499 kg (1.1 lb)

A.2.5 E1_21_E3_DS3_3 and E1_63_E3_DS3_3 Cards

The E1_21_E3_DS3_3 and E1_63_E3_DS3_3 cards have the following specifications:

For E1:

• Environmental

–

Operating temperature:

I-Temp: -40 to +65 degrees Celsius

–

Operating humidity: 5 to 85 percent, noncondensing. Operation is guaranteed for 96 hours at 95

percent relative humidity.

–

Power consumption:

E1_63_E3_DS3_3: 40.00 W, 0.96 A

E1_21_E3_DS3_3: 27.60 W, 0.70 A

A-8

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix A Specifications

Card Specifications

• Input

–

Bit rate: 2.048 Mbps +/- 50 ppm

–

Frame format: E1_MF, E1_CRCMF, E1 unframed

–

Line code: HDB3

–

Termination: AMP Champ

–

Input impedance: 120 ohms

–

Cable loss: Max 655 feet ABAM #22 or #24 AWG

–

AIS: TR-TSY-000191 compliant

• Output

–

Bit rate: 2.048 Mbps +/- 50 ppm

–

Frame format: E1_MF, E1_CRCMF, E1 unframed

–

Line code: HDB3

–

Termination: AMP Champ

–

Input impedance: 120 ohms

–

Cable loss: Max 655 feet ABAM #22 or #24 AWG

–

AIS: TR-TSY-000191 compliant

–

Power level: 12.5 to 17.9 dBm, centered at 772 KHz, –16.4 to –11.1 dBm centered at 1544 KHz

–

Pulse shape: Telcordia GR-499-CORE Figure 9-5

–

Pulse amplitude: 2.4 to 3.6 V peak-to-peak

–

Loopback modes: Terminal and facility

–

Line build out: 0 - 131 ft., 132 - 262 ft., 263 - 393 ft., 394 - 524 ft., 525 - 655 ft.

• Electrical interface: 64-pin Champ connectors on high-density EIA

For DS3:

• Input

–

Bit rate: 44.736 Mbps +/- 20 ppm

–

Frame format: Unframed, M13, C-bit

–

Line code: B3ZS

–

Termination: Unbalanced coaxial cable

–

Input impedance: 75 ohms +/-5 percent

–

Cable loss: Max 450 feet with 734A or 728A

–

AIS: TR-TSY-000191 compliant

• Output

–

Bit rate: 44.736 Mbps +/- 20 ppm

–

Frame format: Unframed, M13, C-bit

–

Line code: B3ZS

–

Termination: Unbalanced coaxial cable

–

Input impedance: 75 ohms +/-5 percent

–

Cable loss: Max 450 feet with 734A or 728A cable

A-9

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix A Specifications

SFP Specifications

–

AIS: TR-TSY-000191 compliant

–

Power level: -1.8 to +5.7 dBm

–

Pulse shape: ANSI E1.102-1988 Figure 8

–

Pulse amplitude: 0.36 to 0.85 V peak

–

Loopback modes: Terminal and facility

–

Line build out: 0 to 225 feet, 226 to 450 feet

• Electrical interface: BNC Connectors on high-density EIA

A.2.6 Filler Cards

The 15310-EXP-FILLER card has the following specifications:

• Environmental

–

Operating temperature

I-Temp: –40 to +65 degrees Celsius (–40 to 149 degrees Fahrenheit)

–

Operating humidity: 5 to 85 percent, noncondensing. Operation is guaranteed for 96 hours at 95

percent relative humidity.

• Dimensions

–

Height: 6.93 in. (176 mm)

–

Width:1.35 in. (34.29 mm)

–

Depth: 9.38 in. (238.25 mm)

–

Card weight (not including clam shell): 0.9 lb (0.45 kg)

The 15310-CTX-FILLER card has the following specifications:

• Environmental

–

Operating temperature

I-Temp: -40 to +65 degrees Celsius (-40 to 149 degrees Fahrenheit)

–

Operating humidity: 5 to 85 percent, noncondensing. Operation is guaranteed for 96 hours at 95

percent relative humidity.

• Dimensions

–

Height: 6.94 in. (167.28 mm)

–

Width: 1.450 in. (36.83 mm)

–

Depth:8.35 in. (212.09 mm)

–

Weight not including clam shell: 0.51 lb (0.23 kg)

A.3 SFP Specifications

Table A-2 lists specifications for available SFPs that can be used with the 15310E-CTX-K9 card.

Table A-3 lists specifications for available SFPs that can be used only with the CE-MR-6 card (ONS

15310-MA only).

A-10

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix A Specifications

SFP Specifications

The 15310-CL-CTX card does not have a faceplate because it is located inside the chassis; therefore, the

two SFP slots are located on the ONS 15310-CL faceplate, just to the left of the LAN port. The two SFP

slots on the 15310E-CTX-K9 are located on 15310E-CTX-K9 faceplate.

Table A-2 SFP Specifications

SFP Product ID Interface

Transmitter Output

Power Min/Max (dBm)

Receiver Input Power

Min/Max (dBm)

ONS-SI-155-L1 OC-3 –5.0 to 0 –34 to –10

ONS-SI-155-L2 OC-3 –5.0 to 0 –34 to –10

ONS-SI-155-I1 OC-3 –15 to –8.0 –28 to –8

ONS-SI-622-L1 OC-12 –3.0 to 2.0 –28 to –8

ONS-SI-622-L2 OC-12 –3.0 to 2.0 –28 to –8

ONS-SI-622-I1 OC-12/OC-3 –15 to –8.0 –28 to –8

ONS-SI-155-SR-MM= OC-3/STM-1 –20 to –14 –30 to –14

ONS-SE-155-1470= through

ONS-SE-155-1610=

OC-3 0 to +5 –34 to –3 (at BER

10-10)

ONS-SE-622-1470= through

ONS-SE-622-1610=

OC-12 0 to +5 –28 to –3 (at BER

10-10)

ONS-SI-2G-I1= OC-48 –5.0 to 0 –18 to –0

ONS-SI-2G-L1= OC-48 –3 to +2 –27 to –9

ONS-SI-2G-L2= OC-48 –3 to +2 –28 to –9

ONS-SI-2G-S1= OC-48 –10 to -3 –18 to –3

ONS-SC-2G-28.7=1 through

ONS-SC-2G-60.6=

1. ONS-SC-2G-28.7, ONS-SC-2G-33.4, ONS-SC-2G-41.3, ONS-SC-2G-49.3, and ONS-SC-2G-57.3 are supported from

Release 8.5 and later.

OC-48 0 to +4 –28 to –9

ONS-SE-Z1= OC-3/STM1

OC-12/STM-4

OC-48/STM-16

Fibre Channel

(1 and 2 Gbps)

–5 to 0 –18 (OC-48/STM-16)

–22 (GE)

–23 (OC-12/STM-4)

–23 (OC-3/STM-1)

ONS-SI-155-SR-MM= OC-3, STM-1 –19 to –14 –14 to –5

ONS-SC-155-EL STM1 — —

Table A-3 CE-MR-6 SFP Specifications

SFP Product ID Interface

Transmitter Output

Power Min/Max (dBm)

Receiver Input Power

Min/Max (dBm)

ONS-SI-GE-SX GE –9.5 to 0 –17 to 0

ONS-SI-GE-LX GE –9.5 to –3 –19 to –3

ONS-SI-GE-ZX GE 0 to 5 –23 to –3

A-11

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix A Specifications

SFP Specifications

Table A-4 provides cabling specifications for the single-mode fiber (SMF) SFPs that can be used with

the ONS 15310-MA CTX-2500. The ports of the listed SFPs have LC-type connectors. Table A-5

provides cabling specifications for multimode fiber (MMF) SFPs that can only be used with the ONS

15310-MA CTX-2500 card.

ONS-SI-100-FX FE — —

ONS-SI-100-LX10 FE — —

ONS-SE-ZE-EL1E, FE, or GE — —

ONS-SE-100-BX10U FE –14 to –8 –28.2 to –7

ONS-SE-100-BX10D FE –14 to –8 –28.2 to –7

1. Due to mechanical constraints related to the dimensions of the pluggable device, two ONS-SE-ZE-EL copper SFPs cannot be

inserted in the same SFP double cage receptacle. They can only be inserted into slots 1 or 2, 3 or 4, and 5 or 6. Upto three

ONS-SE-ZE-EL copper SFPs can be inserted in one CE-MR-6 card.

Table A-3 CE-MR-6 SFP Specifications (continued)

SFP Product ID Interface

Transmitter Output

Power Min/Max (dBm)

Receiver Input Power

Min/Max (dBm)

Table A-4 Single-Mode Fiber SFP Port Cabling Specifications

SFP Product ID Wavelength1Fiber Type Cable Distance

ONS-SI-155-L1 Long Reach 1310 nm 9 micro SMF 50 km (31.07 miles)

ONS-SI-155-L2 Long Reach 1550 nm 9 micro SMF 100 km (62.15 miles)

ONS-SI-155-I1 Intermediate Reach 1310 nm 9 micro SMF 21 km (13.05 miles)

ONS-SI-622-L1 Long Reach 1310 nm 9 micron SMF 42 km (26.10 miles)

ONS-SI-622-L2 Long Reach 1550 nm 9 micron SMF 85 km (52.82 miles)

ONS-SI-622-I1 Intermediate Reach 1310 nm 9 micron SMF 21 km (13.05 miles)

ONS-SE-155-1470 through

ONS-SE-155-1610 (CWDM)

1470 nm through

1610 nm,

according to the

wavelength

indicated in the

SFP’s product ID

9 micron SMF 120 km (74.56 miles)

ONS-SE-622-1470 through

ONS-SE-622-1610 (CWDM)

1470 nm through

1610 nm,

according to the

wavelength

indicated in the

SFP’s product ID

9 micron SMF 100 km (62.14 miles)

ONS-SI-2G-I1 1310 nm 9 micron SMF 15 km (9.3 miles)

ONS-SI-2G-L1 1310 nm 9 micron SMF 40 km (25.80 miles)

ONS-SI-2G-L2 1550 nm 9 micron SMF 80 km (49.71 miles)

A-12

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix A Specifications

Purcell FLX25GT Cabinet Specifications

A.4 Purcell FLX25GT Cabinet Specifications

The following Purcell FLX25GT outdoor enclosure specifications (accessories) are tested and complaint

with OSP cabinet and WW EMC requirements:

• Purcell 25RU FLX25GT Equipment Bay

• 25RU Blank Equipment Bay Door

• Battery Bracket Kit

• GT 14-inch Battery Pedestal

• 25RU GT 16-inch PMTM with Battery pedestal

• 8 Position AC Load Center w/ TVSS (Transient Voltage Suppression Module for AC power)- PN

#AC2050M-07 (NEBS and WW complaint)

• AC load center (Europe and WW) - PN MCD-01-950-01 w/ Surge Srrestors DEHNguard T275,

DEHNgap TC255

• 25RU GT Solar shield with 14-inch Battery pedestal

• Heat Exchanger 80W/C (1539 W, GR-487 complaint) rear door

• GT Anchor Plate - 1EB + 16-inch PMTM Left

• E1 100-Pair Protector Blocks e/w 710 connectors PN #6659 1 105-00/06A

• ADC CPAUS240A1 E1 Protectors

• ADC E1 Cross-connect block - Per-Term Assy - NT 28-ckt PN #6634 1 971-07

• ADC DS3/E3 protector module mounting panels - P3C-175002

ONS-SI-2G-S1 1310 nm 9 micron SMF 2 km (1.2 miles)

ONS-SC-2G-28.72 through

ONS-SC-2G-60.6 (DWDM)

When using ONS-SC-2G-xx.x on

CTX-2500 the

Cisco ONS 15310-MA operating

temperature specification is limited

to –5 to +55 degrees Celsius (+23 to

+131 degrees Fahrenheit).

1528.77 nm

through

1560.60 nm,

according to the

wavelength

indicated in the

SFP’s product ID

9 micron SMF N/A3

1. Typical loss on a 1310-nm wavelength SMF is 0.6 dB/km.

2. ONS-SC-2G-28.7, ONS-SC-2G-33.4, ONS-SC-2G-41.3, ONS-SC-2G-49.3, and ONS-SC-2G-57.3 are supported from

Release 8.5 and later.

3. ONS-SC-2G-xx.x cable distance varies depending on DWDM system installation.

Table A-5 Multimode Fiber SFP Port Cabling Specifications

SFP Product ID Wavelength Fiber Type Cable Distance

ONS-SI-155-SR-MM=

Intermediate Reach

1310 nm 62.5/125

micron MMF

2 km (1.2 miles)

Table A-4 Single-Mode Fiber SFP Port Cabling Specifications (continued)

SFP Product ID Wavelength1Fiber Type Cable Distance

A-13

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix A Specifications

Purcell FLX25GT Cabinet Specifications

• ADC DS3/E3 protector modules - P3M-PB2001

• ADC 23-inch 84 position DSX-1 panel - DI-G2CU1

• Four feet F/M 32 pair (Champ) Amp extension cables

• Hubbell Gen Plug and cover (60 A)

• Valere Power Plant e/w- 3-20 A Rectifiers, AC Cords, Controller, Temperature Probe and Alarm

Cable - Shelf CD8D-ANN-VC

• Cylix E1 secondary protection module - # 050-612-00 (NEBS)

• ADC DI-M3GU1 Front cross connect 84 ckt, Cisco WW & 64 AMP DSX- 1

• PCI Alarm Panel cable for ONS 15310-MA

• Eight-hour Battery backup - NorthStar NSB 170FT

• E1 cables from ONS 15310-MA SDH to E1 secondary protector module - HRC-2835-005

• E1 Cables from E1 secondary protector module to primary protector module - HRC 2835-006

• OSP E1 50-pins/25-pair cables with 3M - 710 connectors - HRC-2840-030 (shielded cables

ground-terminated at both ends)

• Steward ferrites PN 28B2000-100 applied to OSP E1cables (2 turns) on the cabinet unshielded

section

• Flat copper braids, 1-inch wide, for grounding the following:

–

OSP cabinet

–

Bonding of different cabinet sections

–

ONS 15310-MA chassis

Note The tested braids are consolidated tinned copper braid # 1398, for information, see www.conwire.com.

• 50 feet DS3/E3 BNC/BNC cables

• 3 feet DS3/E3 BNC/BNC (ONS 15310-MA SDH to DS3 secondary protection module)

• 3 feet DS3/E3, BNC/BNC (DS3 secondary protection module to DS3 non-protected, cross-connect,

and block)

A.4.1 Power Specifications

The Purcell FLX25GT cabinet and accessories has the following power specifications:

• AC input power: Minimum 15 A

• AC input voltage: 230Vac, 50Hz, 16 A single-phase (Line, Neutral, Ground)

A.4.2 Environmental Specifications

The Purcell FLX25GT cabinet and accessories has the following environmental specifications (AC

power Europe + other countries w/same AC power):

• Minimum required rate @ maximum operating temperature for ONS 15310-MA SDH: 0.93 m3/min,

33 CFM

A-14

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix A Specifications

Purcell FLX25GT Cabinet Specifications

• Minimum required rate @ maximum operating temperature for ONS 15310-MA SDH + cabinet: NA

• Maximum allowable rate for ONS 15310-MA SDH: 1.02 m3/min, 36 CFM

• Maximum allowable rate for ONS 15310-MA SDH + cabinet: NA

• Volumetric flow rate for ONS 15310-MA: 0.93 to 1.02 m3/min

• Volumetric flow rate for ONS 15310-MA SDH + cabinet: NA

• Pressure drop through equipment for minimum required and maximum allowable flow rates for

15310-MA SDH: 0.44 inch

• Pressure drop through equipment for minimum required and maximum allowable flow rates for

15310-MA SDH + cabinet: 1.36 wg

• Heat dissipation for maximum load and minimum load on ONS 15310-MA SDH stand alone full

chassis: 234 W

• Heat dissipation for maximum load and minimum load on cabinet AC power with fully populated

15310-MA: 390 W

• Heat dissipation for maximum load and minimum load on ONS 15310-MA SDH stand alone empty

chassis+fan tray: 48.15 W

• Heat dissipation for maximum load and minimum load on cabinet AC power with empty

15310-MA:181 W

• Power drop (Power in minus Power out) cabinet ONS 15310-MA SDH: power abs 390 W

• Power drop (Power in minus Power out) ONS 15310-MA SDH stand alone: power abs 234 W

• Intake and exhaust temperature (Delta) on cabinet: 2,9

• Intake and exhaust temperature (Delta) on ONS 15310-MA SDH: 7,9

• EC Class of Equipment for Cooling configuration: Class 1 for ONS 15310-MA SDH + cabinet

• EC Class of Equipment for Cooling configuration: Class 2 for ONS 15310-MA SDH stand alone

A.4.3 ONS 15310-MA SDH OSP Statements

The ONS 15310-MA SDH can be installed in OSP with a sealed/weatherproof and GR-487-CORE,

Issue 2 complaint OSP cabinet.

The ONS 15310-MA SDH OSP was tested and qualified for sealed/weather-protected locations

environmental requirements of GR-487-CORE, Issue 2.

The ONS 15310E-MA SDH OSP was tested and qualified to the non-weather protected locations

environmental requirements of EN300-019 1-4 and 2-4 Class T 4.2H and 4M5.

The ONS 15310E-MA SDH OSP was tested and qualified for the weather-protected locations

environmental requirements of EN 300-019-1-3 and EN 300-019-1-3 Class 3.3 and for WW EMC

requirements.

NEBS compliance covers FCC and other WW EMC requirements (based on CISPR22 and IEC

61000-4-2 to12 standards).

A-15

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix A Specifications

Purcell FLX25GT Cabinet Specifications

A.4.4 ONS 15310-MA OSP configuration

The following ONS 15310-MA SDH OSP accessories were tested and is complaint with OSP and WW

EMC requirements:

–

15310(E)-MA-SA(=)

–

15310-MA-FTA(=)

–

15310-EIA-HD-A(=)

–

15310-EIA-HD-B(=)

–

15310E-EIA-HDA(=)

–

15310E-EIA-HDB(=)

–

15310(E)-28WBE-3BBE(=)

–

15310(E)-84WBE-3BBE(=)

–

15310-CE-MR-6(=)

–

15310-CTX-2500-K9(=)

–

15310E-CTX-K9(=)

To install ONS 15310-MA SDH in an OSP with a different cabinet and if NEBS compliance is required,

the cabinet must be GR-487 compliant. In addition, the ONS 15310-MA SDH installed in the cabinet

must be tested to NEBS requirements and following components must be installed:

–

DS1 primary and secondary surge protection modules.

To install ONS 15310-MA SDH in an OSP with a different cabinet, which does not require NEBS

compliance, and if FCC and or other WW EMC requirements must be covered, the following primary

surge protection modules must be installed:

–

DS1 ADC ComProtect DS1 protection module (ComProtect® Solid-State)

–

DS3 ADC ComProtect DS3 protection module (ADC P3M)

To install ONS 15310-MA SDH in an OSP with a different cabinet and safety compliance with UL

60950-1 is required, the following components must be installed:

–

E1/DS1 insulation transformer (rated 1500Vac rms)

–

Two Cylix DS1/E1 Secondary Protection Modules PCI 050-628-02.

–

Cylix DS3/E3 Secondary Protection Module PCI 050-631-01 and DS3 primary protection

modules.

Turn off or on AC power in Purcell FLX25GT OSP cabinet

Complete the following steps to turn off or on AC power in Purcell FLX25GT OSP cabinet:

Step 1 Turn off the main breaker in the AC load center.

Step 2 Turn off the two Valere rectifier breakers in the AC load center.

Figure A-1 shows Valere rectifier breakers in the AC load center.

A-16

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix A Specifications

Purcell FLX25GT Cabinet Specifications

Figure A-1 Valere rectifier breakers in AC load center

Step 3 Unplug the cabinet’s AC power cord.

Note The ONS 15310-MA SDH inside the OSP cabinet does not turn off and runs on batteries if the batteries

are charged. The batteries in the OSP cabinet run on the DC power from the Valere rectifiers and the

battery charge lasts for approximately eight hours.

Step 4 To turn on AC power, plug the AC cord.

Step 5 Turn on the two Valere rectifier breakers in the AC load center.

Step 6 Turn on the main breaker in the AC load center.

Stop. You have completed this procedure.

274028

Main breaker

Valere rectifiers

breakers

B-1

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

APPENDIX

Administrative and Service States

This appendix describes the administrative and service states for Cisco ONS 15310-MA SDH cards,

ports, and cross-connects. For circuit state information, see Chapter 7, “Circuits and Tunnels.” Software

Release 6.0 and later states are based on the generic state model defined in Telcordia GR-1093 Core,

Issue 2 and ITU-T X.731.

B.1 Service States

Service states include a Administrative State , a Operational State, and one or more Secondary

States (SST). Table B-1 lists the service state PSTs and PSTQs supported by the ONS 15310-MA SDH.

Table B-2 defines the SSTs supported by the ONS 15310-MA SDH.

Table B-1 ONS 15310-MA SDH Service State Primary States and Primary State Qualifiers

Primary State, Primary

State Qualifier Definition

unlocked-enabled (In-Service and Normal) The entity is fully operational and will perform as

provisioned.

locked-disabled (Out-of-Service and Autonomous) The entity is not operational because of

an autonomous event.

locked-disabled (Out-of-Service and Autonomous Management) The entity is not operational

because of an autonomous event and has also been manually removed from

service.

locked-enabled (Out-of-Service and Management) The entity has been manually removed

from service.

B-2

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix B Administrative and Service States

Administrative States

B.2 Administrative States

Administrative states are used to manage service states. Administrative states consist of a Administrative

State and an SST. Table B-3 lists the administrative states supported by the ONS 15310-MA SDH. See

Table B-2 on page B-2 for SST definitions.

Note A change in the administrative state of an entity does not change the service state of supporting or

supported entities.

Table B-2 ONS 15310-MA SDH Secondary States

Secondary State Definition

Automatic In

Service

(Automatic In-Service) The entity is delayed before transitioning to the

unlocked-enabled service state. The transition to unlocked-enabled depends on

correction of conditions, or on a soak timer. Alarm reporting is suppressed, but

traffic is carried. Raised fault conditions, whether or not their alarms are reported,

can be retrieved on the CTC Conditions tab or by using the TL1 RTRV-COND

command.

disabled (Disabled) The entity was manually removed from service and does not provide

its provisioned functions. All services are disrupted; the entity is unable to carry

traffic.

FLT (Fault) The entity has a raised alarm or condition.

loopback (Loopback) The entity is in loopback mode.

mismatchofEquip

ment

(Mismatched Equipment) An improper card is installed. For example, an installed

card is not compatible with the card preprovisioning or the slot. This SST applies

only to cards.

maintenance (Maintenance) The entity has been manually removed from service for a

maintenance activity but still performs its provisioned functions. Alarm reporting

is suppressed, but traffic is carried. Raised fault conditions, whether or not their

alarms are reported, can be retrieved on the CTC Conditions tab or by using the

TL1 RTRV-COND command.

outOfGroup (Out of Group) The virtual concatenated (VCAT) member cross-connect is not

used to carry VCAT group traffic. This state is used to put a member circuit out

of the group and to stop sending traffic. locked-enabled,outOfGroup only applies

to the cross-connects on an end node where VCAT resides. The cross-connects on

intermediate nodes are in the locked-enabled,maintenance service state.

softwareDownload (Software Download) The card is involved in a software and database download.

This SST applies only to cards.

unassigned (Unassigned) The card is not provisioned in the database. This SST applies only

to cards.

notInstalled (Unequipped) The card is not physically present (that is, an empty slot). This SST

applies only to cards.

B-3

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix B Administrative and Service States

Service State Transitions

B.3 Service State Transitions

This section describes the transition from one service state to the next for cards, ports, and

cross-connects. A service state transition is based on the action performed on the entity.

Note When an entity is put in the locked, maintenance administrative state, the ONS 15310-MA SDH

suppresses all standing alarms on that entity. All alarms and events appear on the Conditions tab. You

can change this behavior for the LPBKFACILITY and LPBKTERMINAL alarms. To display these

alarms on the Alarms tab, set the NODE.general.ReportLoopbackConditionsOnOOS-MTPorts to TRUE

on the NE Defaults tab.

B.3.1 Card Service State Transitions

Table B-4 lists card service state transitions.

Table B-3 ONS 15310-MA SDH Administrative States

Administrative State

(PST,SST) Definition

unlocked Puts the entity in-service.

Automatic In Service Puts the entity in automatic in-service.

locked, disabled Removes the entity from service and disables it.

locked, maintenance Removes the entity from service for maintenance.

locked, outOfGroup (VCAT circuits only) Removes a VCAT member cross-connect

from service and from the group of members.

Table B-4 ONS 15310-MA SDH Card Service State Transitions

Current Service State Action Next Service State

unlocked-enabled Change the administrative state

to locked, maintenance.

locked-enabled,maintenance

Delete the card. locked-disabled,unassigned

Pull the card. locked-disabled,notInstalled

Reset the card. locked-disabled,softwareDownl

oad

Alarm/condition is raised. locked-disabled,FLT

locked-disabled,Automatic In

Service and

mismatchofEquipment

Pull the card. locked-disabled,Automatic In

Service & notInstalled

Delete the card. locked-disabled,unassigned if

the card is valid

locked-disabled,mismatchofEqu

ipment & unassigned if the card

is invalid

B-4

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix B Administrative and Service States

Service State Transitions

locked-disabled,Automatic In

Service & softwareDownload

Restart completed. unlocked-enabled

Pull the card. locked-disabled,Automatic In

Service & notInstalled

locked-disabled,Automatic In

Service & notInstalled

Insert a valid card. locked-disabled,Automatic In

Service & softwareDownload

Insert an invalid card. locked-disabled,Automatic In

Service &

mismatchofEquipment

Delete the card. locked-disabled,unassigned &

notInstalled

locked-disabled,FLT Pull the card. locked-disabled,notInstalled

Delete the card. locked-disabled,unassigned

Change the administrative state

to locked, maintenance.

locked-disabled,FLT &

maintenance

Reset the card. locked-disabled,softwareDownl

oad

Alarm/condition is cleared. unlocked-enabled

locked-disabled,mismatchofEqu

ipment

Pull the card. locked-disabled,notInstalled

Delete the card. locked-disabled,unassigned if

the card is valid

locked-disabled,mismatchofEqu

ipment & unassigned if the card

is invalid

Change the administrative state

to locked, maintenance.

locked-disabled,mismatchofEqu

ipment & maintenance

locked-disabled,softwareDownl

oad

Restart completed. unlocked-enabled

Pull the card. locked-disabled,notInstalled

locked-disabled,notInstalled Insert a valid card. locked-disabled,softwareDownl

oad

Insert an invalid card. locked-disabled,mismatchofEqu

ipment

Delete the card. locked-disabled,unassigned &

notInstalled

Change the administrative state

to locked, maintenance.

locked-disabled,maintenance &

notInstalled

Table B-4 ONS 15310-MA SDH Card Service State Transitions (continued)

Current Service State Action Next Service State

B-5

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix B Administrative and Service States

Service State Transitions

locked-disabled,FLT &

maintenance

Pull the card. locked-disabled,maintenance &

notInstalled

Delete the card. locked-disabled,unassigned

Change the administrative state

to unlocked.

locked-disabled,FLT

Reset the card. locked-disabled,maintenance &

softwareDownload

Alarm/condition is cleared. locked-enabled,maintenance

locked-disabled,mismatchofEqu

ipment & maintenance

Change the administrative state

to unlocked.

locked-disabled,mismatchofEqu

ipment

Pull the card. locked-disabled,maintenance &

notInstalled

Delete the card. locked-disabled,unassigned if

the card is valid

locked-disabled,mismatchofEqu

ipment & unassigned if the card

is invalid

locked-disabled,mismatchofEqu

ipment & unassigned

Pull the card. locked-disabled,unassigned &

notInstalled

Provision the card. locked-disabled,mismatchofEqu

ipment

locked-disabled,maintenance &

softwareDownload

Restart completed. locked-enabled,maintenance

Pull the card. locked-disabled,maintenance &

notInstalled

locked-disabled,maintenance &

notInstalled

Change the administrative state

to unlocked.

locked-disabled,notInstalled

Insert a valid card. locked-disabled,maintenance &

softwareDownload

Insert an invalid card. locked-disabled,mismatchofEqu

ipment & maintenance

Delete the card. locked-disabled,unassigned &

notInstalled

locked-disabled,unassigned Pull the card. locked-disabled,unassigned &

notInstalled

Provision an invalid card. locked-disabled,mismatchofEqu

ipment

Provision a valid card. locked-disabled,softwareDownl

oad

Table B-4 ONS 15310-MA SDH Card Service State Transitions (continued)

Current Service State Action Next Service State

B-6

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix B Administrative and Service States

Service State Transitions

B.3.2 Port and Cross-Connect Service State Transitions

Table B-5 lists the port and cross-connect service state transitions. Port states do not impact

cross-connect states with one exception. A cross-connect in the locked-disabled,Automatic In Service

service state cannot transition autonomously into the unlocked-enabled service state until the parent port

is in the unlocked-enabled service state.

You cannot transition a port from the unlocked-enabled service state to the locked-enabled,disabled

service state. You must first put the port in the locked-enabled,maintenance service state. Once a port is

in the locked-enabled,maintenance state, the NODE.general.ForceToOosDsbldStateChange default

setting of TRUE allows you to put a port in locked-enabled,disabled even if the following conditions

exist:

• The port is a timing source.

• The port is used for line, section, or tunneling DCC.

• The port supports 1+1 protection or bidirectional line switched rings (MS_SPRings).

• Cross-connects are present on the port.

• Overhead connections or overhead terminations are in use (such as express orderwire, local

orderwire, or user data channels [UDCs]).

To change this behavior so that you cannot put a port in locked-enabled,disabled if any of these

conditions exist, set the NODE.general.ForceToOosDsbldStateChange default setting to FALSE. For the

procedure to change node defaults, refer to the “Maintain the Node” chapter in the Cisco ONS 15310-MA

SDH Procedure Guide.

Note Deleting a port or cross-connect removes the entity from the system. The deleted entity does not

transition to another service state.

locked-disabled,unassigned &

notInstalled

Insert a valid card. locked-disabled,softwareDownl

oad

Insert an invalid card. locked-disabled,mismatchofEqu

ipment & unassigned

Preprovision a card. locked-disabled,Automatic In

Service & notInstalled

locked-enabled,maintenance Change the administrative state

to unlocked.

unlocked-enabled

Delete the card. locked-disabled,unassigned

Pull the card. locked-disabled,maintenance &

notInstalled

Reset the card. locked-disabled,maintenance &

softwareDownload

Alarm/condition is raised. locked-disabled,FLT &

maintenance

Table B-4 ONS 15310-MA SDH Card Service State Transitions (continued)

Current Service State Action Next Service State

B-7

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix B Administrative and Service States

Service State Transitions

Table B-5 ONS 15310-MA SDH Port and Cross-Connect Service State

Transitions

Current Service State Action Next Service State

unlocked-enabled Put the port or cross-connect in

the locked, maintenance

administrative state.

locked-enabled,maintenance

Put the port or cross-connect in

the Automatic In Service

administrative state.

locked-disabled,Automatic In

Service

Put the VCAT cross-connect in

the locked, outOfGroup

administrative state.

locked-enabled,maintenance &

outOfGroup

Alarm/condition is raised. locked-disabled,FLT

locked-disabled,FLT &

outOfGroup for a VCAT

cross-connect

(Cross-connect only) Put the

cross-connect in the locked,

disabled administrative state.

locked-enabled,disabled

locked-enabled,disabled &

outOfGroup for a VCAT

cross-connect

locked-disabled,Automatic In

Service

Put the port or cross-connect in

the unlocked administrative

state.

unlocked-enabled

Put the port or cross-connect in

the locked, maintenance

administrative state.

locked-enabled,maintenance

Put the port or cross-connect in

the locked, disabled

administrative state.

locked-enabled,disabled

locked-enabled,disabled &

outOfGroup for a VCAT

cross-connect

Put the VCAT cross-connect in

the locked, outOfGroup

administrative state.

locked-enabled,maintenance and

outOfGroup

Alarm/condition is raised. locked-disabled,Automatic In

Service & FLT

locked-disabled,Automatic In

Service & FLT & outOfGroup

for a VCAT cross-connect

B-8

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix B Administrative and Service States

Service State Transitions

locked-disabled,Automatic In

Service & FLT

Alarm/condition is cleared. locked-disabled,Automatic In

Service

Put the port or cross-connect in

the unlocked administrative

state.

locked-disabled,FLT

Put the port or cross-connect in

the locked, disabled

administrative state.

locked-enabled,disabled

Put the port or cross-connect in

the locked, maintenance

administrative state.

locked-disabled,FLT &

maintenance

Put the VCAT cross-connect in

the locked, outOfGroup

administrative state.

locked-disabled,FLT &

maintenance & outOfGroup

locked-disabled,Automatic In

Service & FLT & outOfGroup

Alarm/condition is cleared. locked-disabled,Automatic In

Service or

locked-enabled,maintenance

• If an In Group member is

unlocked-enabled or

locked-disabled,Automatic

In Service, the member

transitions to

locked-disabled,Automatic

In Service.

• If an In Group member is

locked-enabled,maintenanc

e, the member transitions to

locked-enabled,maintenanc

Put the VCAT cross-connect in

the unlocked administrative

state.

locked-disabled,FLT &

outOfGroup

Put the VCAT cross-connect in

the locked, disabled

administrative state.

locked-enabled,disabled &

outOfGroup

Put the VCAT cross-connect in

the locked, maintenance

administrative state.

locked-disabled,FLT &

maintenance & outOfGroup

Table B-5 ONS 15310-MA SDH Port and Cross-Connect Service State

Transitions (continued)

Current Service State Action Next Service State

B-9

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix B Administrative and Service States

Service State Transitions

locked-disabled,FLT Alarm/condition is cleared. unlocked-enabled

Put the port or cross-connect in

the Automatic In Service

administrative state.

locked-disabled,Automatic In

Service & FLT

Put the port or cross-connect in

the locked, disabled

administrative state.

locked-enabled,disabled

locked-enabled,disabled &

outOfGroup for a VCAT

cross-connect

Put the port or cross-connect in

the locked, maintenance

administrative state

locked-disabled,FLT &

maintenance

Put the VCAT cross-connect in

the locked, outOfGroup

administrative state.

locked-disabled,FLT &

maintenance & outOfGroup

locked-disabled,FLT &

outOfGroup

Alarm/condition is cleared. unlocked-enabled or

locked-enabled,maintenance

• If an In Group member is

unlocked-enabled or

locked-disabled,Automatic

In Service, the member

transitions to

unlocked-enabled.

• If an In Group member is

locked-enabled,maintenanc

e, the member transitions to

locked-enabled,maintenanc

Put the VCAT cross-connect in

the Automatic In Service

administrative state.

locked-disabled,Automatic In

Service & FLT & outOfGroup

Put the VCAT cross-connect in

the locked, disabled

administrative state.

locked-enabled,disabled &

outOfGroup

Put the VCAT cross-connect in

the locked, maintenance

administrative state.

locked-disabled,FLT &

maintenance & outOfGroup

locked-disabled,FLT & loopback

& maintenance

Release the loopback. locked-disabled,FLT &

maintenance

Alarm/condition is cleared. locked-enabled,loopback &

maintenance

Table B-5 ONS 15310-MA SDH Port and Cross-Connect Service State

Transitions (continued)

Current Service State Action Next Service State

B-10

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix B Administrative and Service States

Service State Transitions

locked-disabled,FLT & loopback

& maintenance & outOfGroup

Release the loopback. locked-disabled,FLT &

maintenance & outOfGroup

Alarm/condition is cleared. locked,

maintenance,maintenance &

outOfGroup

locked-disabled,FLT &

maintenance

Alarm/condition is cleared. locked-enabled,maintenance

Put the port or cross-connect in

the unlocked administrative

state.

locked-disabled,FLT

Put the port or cross-connect in

the Automatic In Service

administrative state.

locked-disabled,Automatic In

Service & FLT

Put the port or cross-connect in

the locked, disabled

administrative state.

locked-enabled,disabled

locked-enabled,disabled &

outOfGroup for a VCAT

cross-connect

Put the port or cross-connect in a

loopback.

locked-disabled,FLT & loopback

& maintenance

Put the VCAT cross-connect in

the locked, outOfGroup

administrative state.

locked-disabled,FLT &

maintenance & outOfGroup

Table B-5 ONS 15310-MA SDH Port and Cross-Connect Service State

Transitions (continued)

Current Service State Action Next Service State

B-11

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix B Administrative and Service States

Service State Transitions

locked-disabled,FLT &

maintenance & outOfGroup

Alarm/condition is cleared. locked-enabled,maintenance &

outOfGroup

Put the VCAT cross-connect in

the unlocked administrative

state.

Note VCAT In Group

members are in the

locked-disabled,FLT or

unlocked-enabled

service state.

locked-disabled,FLT &

outOfGroup

Put the VCAT cross-connect in

the Automatic In Service

administrative state.

Note VCAT In Group

members are in the

locked-disabled,Automa

tic In Service & FLT or

unlocked-enabled

service state.

locked-disabled,Automatic In

Service & FLT & outOfGroup

Put the VCAT cross-connect in

the locked, disabled

administrative state.

locked-enabled,disabled &

outOfGroup

Put the VCAT cross-connect in

the locked, maintenance

administrative state.

Note VCAT In Group

members are in the

locked-enabled,FLT &

maintenance service

state.

locked-enabled,FLT &

maintenance

Operate a loopback. locked-enabled,FLT & loopback

& maintenance & outOfGroup

Table B-5 ONS 15310-MA SDH Port and Cross-Connect Service State

Transitions (continued)

Current Service State Action Next Service State

B-12

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix B Administrative and Service States

Service State Transitions

locked-enabled,disabled Put the port or cross-connect in

the unlocked administrative

state.

unlocked-enabled

Put the port or cross-connect in

the Automatic In Service

administrative state.

locked-disabled,Automatic In

Service

Put the port or cross-connect in

the locked, maintenance.

locked-enabled,maintenance

Put the VCAT cross-connect in

the locked, outOfGroup

administrative state.

locked-enabled,maintenance &

outOfGroup

Put the VCAT cross-connect in

the locked, outOfGroup

administrative state.

locked-enabled,maintenance &

outOfGroup

locked-enabled,loopback &

maintenance

Release the loopback.

Note While in

locked-enabled,loopbac

k & maintenance, both

Cisco Transport

Controller (CTC) and

Transaction Language

One (TL1) allow a

cross-connect to be

deleted, which also

removes the loopback.

This applies only to the

cross-connect, not the

ports.

locked-enabled,maintenance

Alarm/condition is raised. locked-disabled,FLT & loopback

& maintenance

locked-disabled,FLT & loopback

& maintenance & outOfGroup

for a VCAT cross-connect

locked-enabled,loopback &

maintenance & outOfGroup

Alarm/condition is raised. locked-disabled,FLT & loopback

& maintenance & outOfGroup

Table B-5 ONS 15310-MA SDH Port and Cross-Connect Service State

Transitions (continued)

Current Service State Action Next Service State

B-13

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix B Administrative and Service States

Service State Transitions

B.3.3 Pluggable Equipment Service State Transitions

The service state transitions for pluggable equipment are the same as for other equipment with the

exceptions listed in Table B-6.

Note Pluggable equipment (pluggable interface modules [PIMs] and pluggable port modules [PPMs]) will

transition out of the unassigned state when inserted if the software can read the EEPROM and identify

information on the pluggable equipment. If the software cannot read the pluggable equipment, the

equipment is considered invalid and will not transition out of the unassigned state.

locked-enabled,maintenance Put the port or cross-connect in

the unlocked administrative

state.

unlocked-enabled

Put the port or cross-connect in

the Automatic In Service

administrative state.

locked-disabled,Automatic In

Service

Put the port or cross-connect in

the locked, disabled

administrative state.

locked-enabled,disabled

locked-enabled,disabled &

outOfGroup for a VCAT

cross-connect

Put the port or cross-connect in a

loopback.

locked-enabled,loopback &

maintenance

Put the VCAT cross-connect in

the locked, outOfGroup

administrative state.

locked-enabled,maintenance &

outOfGroup

Alarm/condition is raised. locked-disabled,FLT &

maintenance

locked-disabled,FLT &

maintenance & outOfGroup for a

VCAT cross-connect

outOfGroup-MA,maintenance &

outOfGroup

Alarm/condition is raised. locked-disabled,FLT &

maintenance & outOfGroup

Table B-5 ONS 15310-MA SDH Port and Cross-Connect Service State

Transitions (continued)

Current Service State Action Next Service State

Table B-6 ONS 15310-MA SDH Pluggable Equipment Service State Transitions

Current Service State Action Next Service State

unlocked-enabled Reset the pluggable equipment. unlocked-enabled

Provision an unsupported service rate. locked-disabled,mismatchofEq

uipment

Pluggable equipment does not work

with the board configuration.

B-14

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix B Administrative and Service States

Service State Transitions

locked-disabled,Automati

c In Service &

notInstalled

Insert valid pluggable equipment. unlocked-enabled

Insert pluggable equipment with the

incorrect rate.

locked-disabled,mismatchofEq

uipment

Pluggable equipment does not work

with the board configuration.

locked-disabled,mismatc

hofEquipment

Delete unsupported service rate or

modify provisioning so that the

pluggable equipment is no longer a

mismatch.

unlocked-enabled

locked-disabled,notInstal

led

Insert valid pluggable equipment. unlocked-enabled

locked-disabled,mismatc

hofEquipment &

maintenance

Delete unsupported service rate or

modify provisioning so that the

pluggable equipment is no longer a

mismatch.

locked-enabled,maintenance

locked-disabled,maintena

nce & notInstalled

Insert valid pluggable equipment. locked-enabled,maintenance

locked-disabled,unassign

Provision valid pluggable equipment. unlocked-enabled

locked-disabled,unassign

ed & notInstalled

Insert valid pluggable equipment. unlocked-enabled

Insert pluggable equipment with the

incorrect rate.

locked-disabled,mismatchofEq

uipment

Pluggable equipment does not work

with the board configuration.

locked-enabled,maintena

nce

Reset the pluggable equipment. locked-enabled,maintenance

Provision an unsupported service rate. locked-disabled,mismatchofEq

uipment & maintenance

Pluggable equipment does not work

with the board configuration.

Table B-6 ONS 15310-MA SDH Pluggable Equipment Service State Transitions (continued)

Current Service State Action Next Service State

C-1

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

APPENDIX

Network Element Defaults

Note The terms “Unidirectional Path Switched Ring” and “UPSR” may appear in Cisco literature. These terms

do not refer to using Cisco ONS 15xxx products in a unidirectional path switched ring configuration.

Rather, these terms, as well as “Path Protected Mesh Network” and “PPMN,” refer generally to Cisco's

path protection feature, which may be used in any topological network configuration. Cisco does not

recommend using its path protection feature in any particular topological network configuration.

This appendix describes the factory-configured (default) network element (NE) settings for the

Cisco ONS 15310-MA SDH. It includes descriptions of card default settings, node default settings, and

Cisco Transport Controller (CTC) default settings. For procedures for importing, exporting, and editing

the settings, refer to the “Maintain the Node” chapter of the Cisco ONS 15310-MA SDH Procedure

Guide. Cards that are not listed in this appendix are not supported by user-configurable NE defaults

settings.

To change card settings individually (that is, without directly changing the NE defaults), refer to the

“Change Port Settings” chapter of the Cisco ONS 15310-MA SDH Procedure Guide. To change node

settings, refer to the “Change Node Settings” chapter of the Cisco ONS 15310-MA SDH Procedure

Guide.

This appendix includes the following sections:

• C.1 Network Element Defaults Description, page C-1

• C.2 CTC Default Settings, page C-2

• C.3 Cisco ONS 15310-MA SDH Card Default Settings, page C-2

• C.4 Cisco ONS 15310-MA SDH Node Default Settings, page C-29

C.1 Network Element Defaults Description

The NE defaults are preinstalled on each Cisco ONS 15310-MA SDH common control card. Cisco also

ships a file named 15310MA-defaults.txt for the ONS 15310-MA SDH on the CTC software CD if you

want to import the defaults onto existing common control cards. The NE defaults include card-level,

CTC-level, and node-level defaults.

Changes to card provisioning that are made manually using procedures in the “Change Card Settings”

chapter of the Cisco ONS 15310-MA SDH Procedure Guide override default settings. If you use the CTC

Defaults editor (on the node view Provisioning > Defaults tab) or import a new defaults file, any changes

to card or port settings only affect cards that are installed or preprovisioned after the defaults have

changed.

C-2

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

CTC Default Settings

Changes that are made manually to most node-level default settings override the current settings,

whether default or provisioned. If you change node-level default settings, either by using the Defaults

editor or by importing a new defaults file, the new defaults reprovision the node immediately for all

settings except those relating to protection (1+1 bidirectional switching, 1+1 reversion time, and 1+1

revertive). Settings relating to protection apply to subsequent provisioning.

Note Changing some node-level provisioning through NE defaults can cause CTC disconnection or a reboot

of the node in order for the provisioning to take effect. Before you change a default, check in the Side

Effects column of the Defaults editor (right-click a column header and select Show Column > Side

Effects) and be prepared for the occurrence of any side effects listed for that default.

C.2 CTC Default Settings

Table C-1 lists the CTC-level default settings for the Cisco ONS 15310-MA SDH. CTC-level settings

affect CTC sessions for the entire network. Cisco provides the following types of user-configurable

defaults for CTC:

• Automatic Routing—Set circuit creation with the Route Automatically check box selected by

default.

• Create TL1-like—Set whether to create only TL1-like circuits; that is, instruct the node to create

only cross-connects, allowing the resulting circuits to be in an upgradable state.

• Network Map—Set the default network map (which country’s map is displayed in CTC network

view).

Note The CTC.network.LocalDomainCreationAndViewing NE default has been removed. You can provision

this setting in the CTC Preferences page.

C.3 Cisco ONS 15310-MA SDH Card Default Settings

The tables in this section list the default settings for Cisco ONS 15310-MA SDH common control,

electrical, and data cards. Cisco provides several types of user-configurable defaults for these cards.

Types of card defaults can be broadly grouped by function, as outlined in the following subsections. For

information about individual card settings, refer to the “Change Port Settings” chapter of the

Cisco ONS 15310-MA SDH Procedure Guide.

Table C-1 CTC Default Settings

Default Name Default Value Default Domain

CTC.circuits.CreateLikeTL1 FALSE TRUE, FALSE

CTC.circuits.RouteAutomatically TRUE TRUE, FALSE

CTC.circuits.RouteAutomaticallyDefaultOverridable TRUE TRUE, FALSE

CTC.network.Map United States -none-, Germany, Japan, Netherlands, South Korea,

United Kingdom, United States

C-3

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Card Default Settings

Note When the card level defaults are changed, the new provisioning done after the defaults have changed is

affected. Existing provisioning remains unaffected.

The following types of defaults are defined for Cisco ONS 15310-MA SDH cards.

C.3.1 Configuration Defaults

Most card-level and port-level configuration defaults correspond to settings found in the CTC card-level

Provisioning tabs.

Note The full set of ALS configuration defaults can be found in the CTC card-level Maintenance > Optical >

ALS tabs for supported cards. ALS defaults are supported for PPM (SFP) STMN ports on the

15310E-CTX-K9 card.

Note ML-100T-8 console port access and RADIUS server access defaults can be found in the CTC card-level

IOS tab for ML-100T-8 cards.

Configuration defaults that correspond to settings that are reachable from the CTC card-level

Provisioning tabs (except as noted) include the following types of options (arranged by CTC subtab):

• Broadband Ports—(E1_21_E3_DS3_3 and E1_63_E3_DS3_3 cards only) Set the BBE port rate as

DS3, E3, or unassigned (DS3 is the default).

• E1—(E1_21_E3_DS3_3 and E1_63_E3_DS3_3 cards only) E1 rate port-level line configuration

settings.

• DS3—(E1_21_E3_DS3_3 and E1_63_E3_DS3_3 cards only) DS3 rate port-level line configuration

settings.

• Pluggable Port Modules—(15310E-CTX-K9 cards only) PPM (SFP) slot and port rate configuration

settings.

• Optical—(15310E-CTX-K9 cards only) STMN rate port-level line configuration and SDH VC

high-order path settings.

• ALS (card-level Maintenance > Optical > ALS tab)—(15310E-CTX-K9 cards only) PPM (SFP)

STMN port ALS configuration defaults.

• IOS (card-level IOS tab)—(ML-100T-8 cards only) Console port and RADIUS server access

settings.

• Ether Ports—(CE-100T-8 cards only) Line configuration settings (including IEEE 802.1p CoS and

IP ToS).

• POS Ports—(CE-100T-8 cards only) Line configuration settings.

Note Line configuration defaults for the CE-100T-8 apply to both Ethernet port and POS port settings, where

the same setting exists for both.

C-4

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Card Default Settings

Note PPM (SFP) slots and ports are unassigned by default. You can optionally use the Defaults editor to

change these defaults to automatically assign PPM slots to take a single-port PPM, and to automatically

assign PPM port STMN rates. However, use discretion in changing the default PPM port rate in cases

where single-rate PPMs might be inserted in a card, since preprovisioned PPM port rates that are applied

to a single-rate PPM of the wrong rate will result in a mismatch of equipment and software.

Note For further information about the supported features of each individual card, see Chapter 2, “Card

Reference.”For further information about the supported features of Ethernet cards, consult the

Cisco ONS 15310-CL and Cisco ONS 15310-MA Ethernet Card Software Feature and Configuration

Guide.

C.3.2 Threshold Defaults

Threshold default settings define the default cumulative values (thresholds) beyond which a TCA will

be raised, making it possible to monitor the network and detect errors early.

Card threshold default settings are provided as follows:

• PM thresholds—(15310E-CTX-K9, E1_21_E3_DS3_3, and E1_63_E3_DS3_3 cards) Applicable to

E1, DS3, E3, and STMN ports. Can be expressed in counts or seconds; includes line, electrical, and

SDH thresholds.

• Physical Layer thresholds—(15310E-CTX-K9 cards only) Applicable to STMN ports. Expressed in

percentages; includes optics thresholds.

Threshold defaults are defined for near end and/or far end, at 15-minute and one-day intervals.

Thresholds are further broken down by type, such as Section, Line, VC high-order path, or VC low-order

path for PM thresholds, and TCA (warning) or Alarm (for physical thresholds). PM threshold types

define the layer to which the threshold applies. Physical threshold types define the level of response

expected when the threshold is crossed.

Note For full descriptions of the thresholds you can set for each card, see Chapter 11, “Performance

Monitoring.”

Note For additional information regarding PM parameter threshold defaults as defined by Telcordia

specifications, refer to Telcordia GR-820-CORE and GR-253-CORE.

C.3.3 Defaults by Card

In the tables that follow, card defaults are defined by the default name, its factory-configured value, and

the domain of allowable values that you can assign to it.

Note Some default values, such as certain thresholds, are interdependent. Before changing a value, review the

domain for that default and any other related defaults for potential dependencies.

C-5

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Card Default Settings

C.3.3.1 15310E-CTX-K9 Card Default Settings

Table C-2 lists the 15310E-CTX-K9 card default settings.

Table C-2 15310E-CTX-K9 Card Default Settings

Default Name Default Value Default Domain

CTX-2500.PPM.portAssignment UNASSIGNED UNASSIGNED;

STM1-PORT;

STM4-PORT;

STM16-PORT

CTX-2500.PPM.slotAssignment UNASSIGNED UNASSIGNED; PPM

(1 Port)

CTX-2500.STM1-PORT.config.line.AINSSoakTime 08:00

(hours:mins)

00:00; 00:15; 00:30 ..

48:00

CTX-2500.STM1-PORT.config.line.AdminSSMIn STU G811; STU; G812T;

G812L; SETS; DUS

CTX-2500.STM1-PORT.config.line.PJVC4Mon# 0 (VC4 #) 0 - 1

CTX-2500.STM1-PORT.config.line.SDBER 1.00E-07 1E-5; 1E-6; 1E-7; 1E-8;

1E-9

CTX-2500.STM1-PORT.config.line.SFBER 1.00E-04 1E-3; 1E-4; 1E-5

CTX-2500.STM1-PORT.config.line.Send<FF>DoNotUse FALSE FALSE when

SendDoNotUse TRUE;

FALSE; TRUE when

SendDoNotUse FALSE

CTX-2500.STM1-PORT.config.line.SendAISOnFacilityLoopback TRUE TRUE; FALSE

CTX-2500.STM1-PORT.config.line.SendAISOnTerminalLoopback TRUE FALSE

CTX-2500.STM1-PORT.config.line.SendDoNotUse FALSE FALSE; TRUE

CTX-2500.STM1-PORT.config.line.State unlocked;

automaticInSer

vice

unlocked; locked;

disabled; locked;

maintenance; unlocked;

automaticInService

CTX-2500.STM1-PORT.config.line.SyncMsgIn TRUE FALSE; TRUE

CTX-2500.STM1-PORT.config.vc4.IPPMEnabled FALSE TRUE; FALSE

CTX-2500.STM1-PORT.config.vclo.IPPMEnabled FALSE TRUE; FALSE

CTX-2500.STM1-PORT.pmthresholds.ms.farend.15min.BBE 1312 (count) 0 - 137700

CTX-2500.STM1-PORT.pmthresholds.ms.farend.15min.EB 1312 (count) 0 - 137700

CTX-2500.STM1-PORT.pmthresholds.ms.farend.15min.ES 87 (seconds) 0 - 900

CTX-2500.STM1-PORT.pmthresholds.ms.farend.15min.SES 1 (seconds) 0 - 900

CTX-2500.STM1-PORT.pmthresholds.ms.farend.15min.UAS 3 (seconds) 0 - 900

CTX-2500.STM1-PORT.pmthresholds.ms.farend.1day.BBE 13120 (count) 0 - 13219200

CTX-2500.STM1-PORT.pmthresholds.ms.farend.1day.EB 13120 (count) 0 - 13219200

CTX-2500.STM1-PORT.pmthresholds.ms.farend.1day.ES 864 (seconds) 0 - 86400

CTX-2500.STM1-PORT.pmthresholds.ms.farend.1day.SES 4 (seconds) 0 - 86400

C-6

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Card Default Settings

CTX-2500.STM1-PORT.pmthresholds.ms.farend.1day.UAS 10 (seconds) 0 - 86400

CTX-2500.STM1-PORT.pmthresholds.ms.nearend.15min.BBE 1312 (count) 0 - 137700

CTX-2500.STM1-PORT.pmthresholds.ms.nearend.15min.EB 1312 (count) 0 - 137700

CTX-2500.STM1-PORT.pmthresholds.ms.nearend.15min.ES 87 (seconds) 0 - 900

CTX-2500.STM1-PORT.pmthresholds.ms.nearend.15min.PSC 1 (count) 0 - 600

CTX-2500.STM1-PORT.pmthresholds.ms.nearend.15min.PSD 300 (seconds) 0 - 900

CTX-2500.STM1-PORT.pmthresholds.ms.nearend.15min.SES 1 (seconds) 0 - 900

CTX-2500.STM1-PORT.pmthresholds.ms.nearend.15min.UAS 3 (seconds) 0 - 900

CTX-2500.STM1-PORT.pmthresholds.ms.nearend.1day.BBE 13120 (count) 0 - 13219200

CTX-2500.STM1-PORT.pmthresholds.ms.nearend.1day.EB 13120 (count) 0 - 13219200

CTX-2500.STM1-PORT.pmthresholds.ms.nearend.1day.ES 864 (seconds) 0 - 86400

CTX-2500.STM1-PORT.pmthresholds.ms.nearend.1day.PSC 5 (count) 0 - 57600

CTX-2500.STM1-PORT.pmthresholds.ms.nearend.1day.PSD 600 (seconds) 0 - 86400

CTX-2500.STM1-PORT.pmthresholds.ms.nearend.1day.SES 4 (seconds) 0 - 86400

CTX-2500.STM1-PORT.pmthresholds.ms.nearend.1day.UAS 10 (seconds) 0 - 86400

CTX-2500.STM1-PORT.pmthresholds.path.farend.15min.BBE 25 (count) 0 - 2159100

CTX-2500.STM1-PORT.pmthresholds.path.farend.15min.EB 15 (count) 0 - 13305600

CTX-2500.STM1-PORT.pmthresholds.path.farend.15min.ES 12 (seconds) 0 - 900

CTX-2500.STM1-PORT.pmthresholds.path.farend.15min.SES 3 (seconds) 0 - 900

CTX-2500.STM1-PORT.pmthresholds.path.farend.15min.UAS 10 (seconds) 0 - 900

CTX-2500.STM1-PORT.pmthresholds.path.farend.1day.BBE 250 (count) 0 - 207273600

CTX-2500.STM1-PORT.pmthresholds.path.farend.1day.EB 125 (count) 0 - 691200000

CTX-2500.STM1-PORT.pmthresholds.path.farend.1day.ES 100 (seconds) 0 - 86400

CTX-2500.STM1-PORT.pmthresholds.path.farend.1day.SES 7 (seconds) 0 - 86400

CTX-2500.STM1-PORT.pmthresholds.path.farend.1day.UAS 10 (seconds) 0 - 86400

CTX-2500.STM1-PORT.pmthresholds.path.nearend.15min.BBE 25 (count) 0 - 2159100

CTX-2500.STM1-PORT.pmthresholds.path.nearend.15min.EB 15 (count) 0 - 7200000

CTX-2500.STM1-PORT.pmthresholds.path.nearend.15min.ES 12 (seconds) 0 - 900

CTX-2500.STM1-PORT.pmthresholds.path.nearend.15min.NPJC-PDET 60 (count) 0 - 7200000

CTX-2500.STM1-PORT.pmthresholds.path.nearend.15min.NPJC-PGEN 60 (count) 0 - 7200000

CTX-2500.STM1-PORT.pmthresholds.path.nearend.15min.PJCDIFF 60 (count) 0 - 14400000

CTX-2500.STM1-PORT.pmthresholds.path.nearend.15min.PJCS-PDET 100 (seconds) 0 - 900

CTX-2500.STM1-PORT.pmthresholds.path.nearend.15min.PJCS-PGEN 100 (seconds) 0 - 900

CTX-2500.STM1-PORT.pmthresholds.path.nearend.15min.PPJC-PDET 60 (count) 0 - 7200000

CTX-2500.STM1-PORT.pmthresholds.path.nearend.15min.PPJC-PGEN 60 (count) 0 - 7200000

CTX-2500.STM1-PORT.pmthresholds.path.nearend.15min.SES 3 (seconds) 0 - 900

Table C-2 15310E-CTX-K9 Card Default Settings (continued)

Default Name Default Value Default Domain

C-7

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Card Default Settings

CTX-2500.STM1-PORT.pmthresholds.path.nearend.15min.UAS 10 (seconds) 0 - 900

CTX-2500.STM1-PORT.pmthresholds.path.nearend.1day.BBE 250 (count) 0 - 207273600

CTX-2500.STM1-PORT.pmthresholds.path.nearend.1day.EB 125 (count) 0 - 691200000

CTX-2500.STM1-PORT.pmthresholds.path.nearend.1day.ES 100 (seconds) 0 - 86400

CTX-2500.STM1-PORT.pmthresholds.path.nearend.1day.NPJC-PDET 5760 (count) 0 - 691200000

CTX-2500.STM1-PORT.pmthresholds.path.nearend.1day.NPJC-PGEN 5760 (count) 0 - 691200000

CTX-2500.STM1-PORT.pmthresholds.path.nearend.1day.PJCDIFF 5760 (count) 0 - 1382400000

CTX-2500.STM1-PORT.pmthresholds.path.nearend.1day.PJCS-PDET 9600

(seconds)

0 - 86400

CTX-2500.STM1-PORT.pmthresholds.path.nearend.1day.PJCS-PGEN 9600

(seconds)

0 - 86400

CTX-2500.STM1-PORT.pmthresholds.path.nearend.1day.PPJC-PDET 5760 (count) 0 - 691200000

CTX-2500.STM1-PORT.pmthresholds.path.nearend.1day.PPJC-PGEN 5760 (count) 0 - 691200000

CTX-2500.STM1-PORT.pmthresholds.path.nearend.1day.SES 7 (seconds) 0 - 86400

CTX-2500.STM1-PORT.pmthresholds.path.nearend.1day.UAS 10 (seconds) 0 - 86400

CTX-2500.STM1-PORT.pmthresholds.rs.nearend.15min.BBE 10000 (count) 0 - 138600

CTX-2500.STM1-PORT.pmthresholds.rs.nearend.15min.EB 10000 (count) 0 - 138600

CTX-2500.STM1-PORT.pmthresholds.rs.nearend.15min.ES 500 (seconds) 0 - 900

CTX-2500.STM1-PORT.pmthresholds.rs.nearend.15min.OFS 500 (seconds) 0 - 900

CTX-2500.STM1-PORT.pmthresholds.rs.nearend.15min.SES 500 (seconds) 0 - 900

CTX-2500.STM1-PORT.pmthresholds.rs.nearend.15min.UAS 3 (seconds) 0 - 900

CTX-2500.STM1-PORT.pmthresholds.rs.nearend.1day.BBE 100000

(count)

0 - 13305600

CTX-2500.STM1-PORT.pmthresholds.rs.nearend.1day.EB 100000

(count)

0 - 13305600

CTX-2500.STM1-PORT.pmthresholds.rs.nearend.1day.ES 5000

(seconds)

0 - 86400

CTX-2500.STM1-PORT.pmthresholds.rs.nearend.1day.OFS 5000

(seconds)

0 - 86400

CTX-2500.STM1-PORT.pmthresholds.rs.nearend.1day.SES 5000

(seconds)

0 - 86400

CTX-2500.STM1-PORT.pmthresholds.rs.nearend.1day.UAS 10 (seconds) 0 - 86400

CTX-2500.STM1-PORT.pmthresholds.vclo.farend.15min.BBE 15 (count) 0 - 539100

CTX-2500.STM1-PORT.pmthresholds.vclo.farend.15min.EB 15 (count) 0 - 1800000

CTX-2500.STM1-PORT.pmthresholds.vclo.farend.15min.ES 12 (seconds) 0 - 900

CTX-2500.STM1-PORT.pmthresholds.vclo.farend.15min.SES 3 (seconds) 0 - 900

CTX-2500.STM1-PORT.pmthresholds.vclo.farend.15min.UAS 10 (seconds) 0 - 900

CTX-2500.STM1-PORT.pmthresholds.vclo.farend.1day.BBE 150 (count) 0 - 51753600

Table C-2 15310E-CTX-K9 Card Default Settings (continued)

Default Name Default Value Default Domain

C-8

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Card Default Settings

CTX-2500.STM1-PORT.pmthresholds.vclo.farend.1day.EB 125 (count) 0 - 172800000

CTX-2500.STM1-PORT.pmthresholds.vclo.farend.1day.ES 100 (seconds) 0 - 86400

CTX-2500.STM1-PORT.pmthresholds.vclo.farend.1day.SES 7 (seconds) 0 - 86400

CTX-2500.STM1-PORT.pmthresholds.vclo.farend.1day.UAS 10 (seconds) 0 - 86400

CTX-2500.STM1-PORT.pmthresholds.vclo.nearend.15min.BBE 15 (count) 0 - 539100

CTX-2500.STM1-PORT.pmthresholds.vclo.nearend.15min.EB 15 (count) 0 - 1800000

CTX-2500.STM1-PORT.pmthresholds.vclo.nearend.15min.ES 12 (seconds) 0 - 900

CTX-2500.STM1-PORT.pmthresholds.vclo.nearend.15min.SES 3 (seconds) 0 - 900

CTX-2500.STM1-PORT.pmthresholds.vclo.nearend.15min.UAS 10 (seconds) 0 - 900

CTX-2500.STM1-PORT.pmthresholds.vclo.nearend.1day.BBE 150 (count) 0 - 51753600

CTX-2500.STM1-PORT.pmthresholds.vclo.nearend.1day.EB 125 (count) 0 - 172800000

CTX-2500.STM1-PORT.pmthresholds.vclo.nearend.1day.ES 100 (seconds) 0 - 86400

CTX-2500.STM1-PORT.pmthresholds.vclo.nearend.1day.SES 7 (seconds) 0 - 86400

CTX-2500.STM1-PORT.pmthresholds.vclo.nearend.1day.UAS 10 (seconds) 0 - 86400

CTX-2500.STM16-PORT.config.line.AINSSoakTime 08:00

(hours:mins)

00:00; 00:15; 00:30 ..

48:00

CTX-2500.STM16-PORT.config.line.AdminSSMIn STU G811; STU; G812T;

G812L; SETS; DUS

CTX-2500.STM16-PORT.config.line.AlsMode Disabled Disabled; Auto Restart;

Manual Restart; Manual

Restart for Test

CTX-2500.STM16-PORT.config.line.AlsRecoveryPulseDuration 2.0 (seconds) 2.0; 2.1; 2.2 .. 100.0

when AlsMode

Disabled; Auto Restart;

Manual Restart; 80.0;

80.1; 80.2 .. 100.0 when

AlsMode Manual

Restart for Test

CTX-2500.STM16-PORT.config.line.AlsRecoveryPulseInterval 100 (seconds) 60 - 300

CTX-2500.STM16-PORT.config.line.PJVC4Mon# 0 (VC4 #) 0 - 16

CTX-2500.STM16-PORT.config.line.SDBER 1.00E-07 1E-5; 1E-6; 1E-7; 1E-8;

1E-9

CTX-2500.STM16-PORT.config.line.SFBER 1.00E-04 1E-3; 1E-4; 1E-5

CTX-2500.STM16-PORT.config.line.Send<FF>DoNotUse FALSE FALSE when

SendDoNotUse TRUE;

FALSE; TRUE when

SendDoNotUse FALSE

CTX-2500.STM16-PORT.config.line.SendAISOnFacilityLoopback TRUE TRUE; FALSE

CTX-2500.STM16-PORT.config.line.SendAISOnTerminalLoopback TRUE FALSE

CTX-2500.STM16-PORT.config.line.SendDoNotUse FALSE FALSE; TRUE

Table C-2 15310E-CTX-K9 Card Default Settings (continued)

Default Name Default Value Default Domain

C-9

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Card Default Settings

CTX-2500.STM16-PORT.config.line.State unlocked;

automaticInSer

vice

unlocked; locked;

disabled; locked;

maintenance; unlocked;

automaticInService

CTX-2500.STM16-PORT.config.line.SyncMsgIn TRUE FALSE; TRUE

CTX-2500.STM16-PORT.config.vc4.IPPMEnabled FALSE TRUE; FALSE

CTX-2500.STM16-PORT.config.vclo.IPPMEnabled FALSE TRUE; FALSE

CTX-2500.STM16-PORT.pmthresholds.ms.farend.15min.BBE 21260 (count) 0 - 2212200

CTX-2500.STM16-PORT.pmthresholds.ms.farend.15min.EB 21260 (count) 0 - 2212200

CTX-2500.STM16-PORT.pmthresholds.ms.farend.15min.ES 87 (seconds) 0 - 900

CTX-2500.STM16-PORT.pmthresholds.ms.farend.15min.SES 1 (seconds) 0 - 900

CTX-2500.STM16-PORT.pmthresholds.ms.farend.15min.UAS 3 (seconds) 0 - 900

CTX-2500.STM16-PORT.pmthresholds.ms.farend.1day.BBE 212600

(count)

0 - 212371200

CTX-2500.STM16-PORT.pmthresholds.ms.farend.1day.EB 212600

(count)

0 - 212371200

CTX-2500.STM16-PORT.pmthresholds.ms.farend.1day.ES 864 (seconds) 0 - 86400

CTX-2500.STM16-PORT.pmthresholds.ms.farend.1day.SES 4 (seconds) 0 - 86400

CTX-2500.STM16-PORT.pmthresholds.ms.farend.1day.UAS 10 (seconds) 0 - 86400

CTX-2500.STM16-PORT.pmthresholds.ms.nearend.15min.BBE 21260 (count) 0 - 2212200

CTX-2500.STM16-PORT.pmthresholds.ms.nearend.15min.EB 21260 (count) 0 - 2212200

CTX-2500.STM16-PORT.pmthresholds.ms.nearend.15min.ES 87 (seconds) 0 - 900

CTX-2500.STM16-PORT.pmthresholds.ms.nearend.15min.PSC 1 (count) 0 - 600

CTX-2500.STM16-PORT.pmthresholds.ms.nearend.15min.PSC-W 1 (count) 0 - 600

CTX-2500.STM16-PORT.pmthresholds.ms.nearend.15min.PSD 300 (seconds) 0 - 900

CTX-2500.STM16-PORT.pmthresholds.ms.nearend.15min.PSD-W 300 (seconds) 0 - 900

CTX-2500.STM16-PORT.pmthresholds.ms.nearend.15min.SES 1 (seconds) 0 - 900

CTX-2500.STM16-PORT.pmthresholds.ms.nearend.15min.UAS 3 (seconds) 0 - 900

CTX-2500.STM16-PORT.pmthresholds.ms.nearend.1day.BBE 212600

(count)

0 - 212371200

CTX-2500.STM16-PORT.pmthresholds.ms.nearend.1day.EB 212600

(count)

0 - 212371200

CTX-2500.STM16-PORT.pmthresholds.ms.nearend.1day.ES 864 (seconds) 0 - 86400

CTX-2500.STM16-PORT.pmthresholds.ms.nearend.1day.PSC 5 (count) 0 - 57600

CTX-2500.STM16-PORT.pmthresholds.ms.nearend.1day.PSC-R 5 (count) 0 - 57600

CTX-2500.STM16-PORT.pmthresholds.ms.nearend.1day.PSC-S 5 (count) 0 - 57600

CTX-2500.STM16-PORT.pmthresholds.ms.nearend.1day.PSC-W 5 (count) 0 - 57600

CTX-2500.STM16-PORT.pmthresholds.ms.nearend.1day.PSD 600 (seconds) 0 - 86400

Table C-2 15310E-CTX-K9 Card Default Settings (continued)

Default Name Default Value Default Domain

C-10

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Card Default Settings

CTX-2500.STM16-PORT.pmthresholds.ms.nearend.1day.PSD-R 600 (seconds) 0 - 86400

CTX-2500.STM16-PORT.pmthresholds.ms.nearend.1day.PSD-S 600 (seconds) 0 - 86400

CTX-2500.STM16-PORT.pmthresholds.ms.nearend.1day.PSD-W 600 (seconds) 0 - 86400

CTX-2500.STM16-PORT.pmthresholds.ms.nearend.1day.SES 4 (seconds) 0 - 86400

CTX-2500.STM16-PORT.pmthresholds.ms.nearend.1day.UAS 10 (seconds) 0 - 86400

CTX-2500.STM16-PORT.pmthresholds.path.farend.15min.BBE 25 (count) 0 - 2159100

CTX-2500.STM16-PORT.pmthresholds.path.farend.15min.EB 15 (count) 0 - 13305600

CTX-2500.STM16-PORT.pmthresholds.path.farend.15min.ES 12 (seconds) 0 - 900

CTX-2500.STM16-PORT.pmthresholds.path.farend.15min.SES 3 (seconds) 0 - 900

CTX-2500.STM16-PORT.pmthresholds.path.farend.15min.UAS 10 (seconds) 0 - 900

CTX-2500.STM16-PORT.pmthresholds.path.farend.1day.BBE 250 (count) 0 - 207273600

CTX-2500.STM16-PORT.pmthresholds.path.farend.1day.EB 125 (count) 0 - 691200000

CTX-2500.STM16-PORT.pmthresholds.path.farend.1day.ES 100 (seconds) 0 - 86400

CTX-2500.STM16-PORT.pmthresholds.path.farend.1day.SES 7 (seconds) 0 - 86400

CTX-2500.STM16-PORT.pmthresholds.path.farend.1day.UAS 10 (seconds) 0 - 86400

CTX-2500.STM16-PORT.pmthresholds.path.nearend.15min.BBE 25 (count) 0 - 2159100

CTX-2500.STM16-PORT.pmthresholds.path.nearend.15min.EB 15 (count) 0 - 7200000

CTX-2500.STM16-PORT.pmthresholds.path.nearend.15min.ES 12 (seconds) 0 - 900

CTX-2500.STM16-PORT.pmthresholds.path.nearend.15min.NPJC-PDET 60 (count) 0 - 7200000

CTX-2500.STM16-PORT.pmthresholds.path.nearend.15min.NPJC-PGEN 60 (count) 0 - 7200000

CTX-2500.STM16-PORT.pmthresholds.path.nearend.15min.PJCDIFF 60 (count) 0 - 14400000

CTX-2500.STM16-PORT.pmthresholds.path.nearend.15min.PJCS-PDET 100 (seconds) 0 - 900

CTX-2500.STM16-PORT.pmthresholds.path.nearend.15min.PJCS-PGEN 100 (seconds) 0 - 900

CTX-2500.STM16-PORT.pmthresholds.path.nearend.15min.PPJC-PDET 60 (count) 0 - 7200000

CTX-2500.STM16-PORT.pmthresholds.path.nearend.15min.PPJC-PGEN 60 (count) 0 - 7200000

CTX-2500.STM16-PORT.pmthresholds.path.nearend.15min.SES 3 (seconds) 0 - 900

CTX-2500.STM16-PORT.pmthresholds.path.nearend.15min.UAS 10 (seconds) 0 - 900

CTX-2500.STM16-PORT.pmthresholds.path.nearend.1day.BBE 250 (count) 0 - 207273600

CTX-2500.STM16-PORT.pmthresholds.path.nearend.1day.EB 125 (count) 0 - 691200000

CTX-2500.STM16-PORT.pmthresholds.path.nearend.1day.ES 100 (seconds) 0 - 86400

CTX-2500.STM16-PORT.pmthresholds.path.nearend.1day.NPJC-PDET 5760 (count) 0 - 691200000

CTX-2500.STM16-PORT.pmthresholds.path.nearend.1day.NPJC-PGEN 5760 (count) 0 - 691200000

CTX-2500.STM16-PORT.pmthresholds.path.nearend.1day.PJCDIFF 5760 (count) 0 - 1382400000

CTX-2500.STM16-PORT.pmthresholds.path.nearend.1day.PJCS-PDET 9600

(seconds)

0 - 86400

CTX-2500.STM16-PORT.pmthresholds.path.nearend.1day.PJCS-PGEN 9600

(seconds)

0 - 86400

Table C-2 15310E-CTX-K9 Card Default Settings (continued)

Default Name Default Value Default Domain

C-11

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Card Default Settings

CTX-2500.STM16-PORT.pmthresholds.path.nearend.1day.PPJC-PDET 5760 (count) 0 - 691200000

CTX-2500.STM16-PORT.pmthresholds.path.nearend.1day.PPJC-PGEN 5760 (count) 0 - 691200000

CTX-2500.STM16-PORT.pmthresholds.path.nearend.1day.SES 7 (seconds) 0 - 86400

CTX-2500.STM16-PORT.pmthresholds.path.nearend.1day.UAS 10 (seconds) 0 - 86400

CTX-2500.STM16-PORT.pmthresholds.rs.nearend.15min.BBE 10000 (count) 0 - 2151900

CTX-2500.STM16-PORT.pmthresholds.rs.nearend.15min.EB 10000 (count) 0 - 2151900

CTX-2500.STM16-PORT.pmthresholds.rs.nearend.15min.ES 500 (seconds) 0 - 900

CTX-2500.STM16-PORT.pmthresholds.rs.nearend.15min.OFS 500 (seconds) 0 - 900

CTX-2500.STM16-PORT.pmthresholds.rs.nearend.15min.SES 500 (seconds) 0 - 900

CTX-2500.STM16-PORT.pmthresholds.rs.nearend.15min.UAS 3 (seconds) 0 - 900

CTX-2500.STM16-PORT.pmthresholds.rs.nearend.1day.BBE 100000

(count)

0 - 206582400

CTX-2500.STM16-PORT.pmthresholds.rs.nearend.1day.EB 100000

(count)

0 - 206582400

CTX-2500.STM16-PORT.pmthresholds.rs.nearend.1day.ES 5000

(seconds)

0 - 86400

CTX-2500.STM16-PORT.pmthresholds.rs.nearend.1day.OFS 5000

(seconds)

0 - 86400

CTX-2500.STM16-PORT.pmthresholds.rs.nearend.1day.SES 5000

(seconds)

0 - 86400

CTX-2500.STM16-PORT.pmthresholds.rs.nearend.1day.UAS 10 (seconds) 0 - 86400

CTX-2500.STM16-PORT.pmthresholds.vclo.farend.15min.BBE 15 (count) 0 - 539100

CTX-2500.STM16-PORT.pmthresholds.vclo.farend.15min.EB 15 (count) 0 - 1800000

CTX-2500.STM16-PORT.pmthresholds.vclo.farend.15min.ES 12 (seconds) 0 - 900

CTX-2500.STM16-PORT.pmthresholds.vclo.farend.15min.SES 3 (seconds) 0 - 900

CTX-2500.STM16-PORT.pmthresholds.vclo.farend.15min.UAS 10 (seconds) 0 - 900

CTX-2500.STM16-PORT.pmthresholds.vclo.farend.1day.BBE 150 (count) 0 - 51753600

CTX-2500.STM16-PORT.pmthresholds.vclo.farend.1day.EB 125 (count) 0 - 172800000

CTX-2500.STM16-PORT.pmthresholds.vclo.farend.1day.ES 100 (seconds) 0 - 86400

CTX-2500.STM16-PORT.pmthresholds.vclo.farend.1day.SES 7 (seconds) 0 - 86400

CTX-2500.STM16-PORT.pmthresholds.vclo.farend.1day.UAS 10 (seconds) 0 - 86400

CTX-2500.STM16-PORT.pmthresholds.vclo.nearend.15min.BBE 15 (count) 0 - 539100

CTX-2500.STM16-PORT.pmthresholds.vclo.nearend.15min.EB 15 (count) 0 - 1800000

CTX-2500.STM16-PORT.pmthresholds.vclo.nearend.15min.ES 12 (seconds) 0 - 900

CTX-2500.STM16-PORT.pmthresholds.vclo.nearend.15min.SES 3 (seconds) 0 - 900

CTX-2500.STM16-PORT.pmthresholds.vclo.nearend.15min.UAS 10 (seconds) 0 - 900

CTX-2500.STM16-PORT.pmthresholds.vclo.nearend.1day.BBE 150 (count) 0 - 51753600

Table C-2 15310E-CTX-K9 Card Default Settings (continued)

Default Name Default Value Default Domain

C-12

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Card Default Settings

CTX-2500.STM16-PORT.pmthresholds.vclo.nearend.1day.EB 125 (count) 0 - 172800000

CTX-2500.STM16-PORT.pmthresholds.vclo.nearend.1day.ES 100 (seconds) 0 - 86400

CTX-2500.STM16-PORT.pmthresholds.vclo.nearend.1day.SES 7 (seconds) 0 - 86400

CTX-2500.STM16-PORT.pmthresholds.vclo.nearend.1day.UAS 10 (seconds) 0 - 86400

CTX-2500.STM4-PORT.config.line.AINSSoakTime 08:00

(hours:mins)

00:00; 00:15; 00:30 ..

48:00

CTX-2500.STM4-PORT.config.line.AdminSSMIn STU G811; STU; G812T;

G812L; SETS; DUS

CTX-2500.STM4-PORT.config.line.PJVC4Mon# 0 (VC4 #) 0 - 4

CTX-2500.STM4-PORT.config.line.SDBER 1.00E-07 1E-5; 1E-6; 1E-7; 1E-8;

1E-9

CTX-2500.STM4-PORT.config.line.SFBER 1.00E-04 1E-3; 1E-4; 1E-5

CTX-2500.STM4-PORT.config.line.Send<FF>DoNotUse FALSE FALSE when

SendDoNotUse TRUE;

FALSE; TRUE when

SendDoNotUse FALSE

CTX-2500.STM4-PORT.config.line.SendAISOnFacilityLoopback TRUE TRUE; FALSE

CTX-2500.STM4-PORT.config.line.SendAISOnTerminalLoopback TRUE FALSE

CTX-2500.STM4-PORT.config.line.SendDoNotUse FALSE FALSE; TRUE

CTX-2500.STM4-PORT.config.line.State unlocked;

automaticInSer

vice

unlocked; locked;

disabled; locked;

maintenance; unlocked;

automaticInService

CTX-2500.STM4-PORT.config.line.SyncMsgIn TRUE FALSE; TRUE

CTX-2500.STM4-PORT.config.vc4.IPPMEnabled FALSE TRUE; FALSE

CTX-2500.STM4-PORT.config.vclo.IPPMEnabled FALSE TRUE; FALSE

CTX-2500.STM4-PORT.pmthresholds.ms.farend.15min.BBE 5315 (count) 0 - 552600

CTX-2500.STM4-PORT.pmthresholds.ms.farend.15min.EB 5315 (count) 0 - 552600

CTX-2500.STM4-PORT.pmthresholds.ms.farend.15min.ES 87 (seconds) 0 - 900

CTX-2500.STM4-PORT.pmthresholds.ms.farend.15min.SES 1 (seconds) 0 - 900

CTX-2500.STM4-PORT.pmthresholds.ms.farend.15min.UAS 3 (seconds) 0 - 900

CTX-2500.STM4-PORT.pmthresholds.ms.farend.1day.BBE 53150 (count) 0 - 53049600

CTX-2500.STM4-PORT.pmthresholds.ms.farend.1day.EB 53150 (count) 0 - 53049600

CTX-2500.STM4-PORT.pmthresholds.ms.farend.1day.ES 864 (seconds) 0 - 86400

CTX-2500.STM4-PORT.pmthresholds.ms.farend.1day.SES 4 (seconds) 0 - 86400

CTX-2500.STM4-PORT.pmthresholds.ms.farend.1day.UAS 10 (seconds) 0 - 86400

CTX-2500.STM4-PORT.pmthresholds.ms.nearend.15min.BBE 5315 (count) 0 - 552600

CTX-2500.STM4-PORT.pmthresholds.ms.nearend.15min.EB 5315 (count) 0 - 552600

CTX-2500.STM4-PORT.pmthresholds.ms.nearend.15min.ES 87 (seconds) 0 - 900

Table C-2 15310E-CTX-K9 Card Default Settings (continued)

Default Name Default Value Default Domain

C-13

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Card Default Settings

CTX-2500.STM4-PORT.pmthresholds.ms.nearend.15min.PSC 1 (count) 0 - 600

CTX-2500.STM4-PORT.pmthresholds.ms.nearend.15min.PSC-W 0 (count) 0 - 600

CTX-2500.STM4-PORT.pmthresholds.ms.nearend.15min.PSD 300 (seconds) 0 - 900

CTX-2500.STM4-PORT.pmthresholds.ms.nearend.15min.PSD-W 0 (seconds) 0 - 900

CTX-2500.STM4-PORT.pmthresholds.ms.nearend.15min.SES 1 (seconds) 0 - 900

CTX-2500.STM4-PORT.pmthresholds.ms.nearend.15min.UAS 3 (seconds) 0 - 900

CTX-2500.STM4-PORT.pmthresholds.ms.nearend.1day.BBE 53150 (count) 0 - 53049600

CTX-2500.STM4-PORT.pmthresholds.ms.nearend.1day.EB 53150 (count) 0 - 53049600

CTX-2500.STM4-PORT.pmthresholds.ms.nearend.1day.ES 864 (seconds) 0 - 86400

CTX-2500.STM4-PORT.pmthresholds.ms.nearend.1day.PSC 5 (count) 0 - 57600

CTX-2500.STM4-PORT.pmthresholds.ms.nearend.1day.PSC-W 0 (count) 0 - 57600

CTX-2500.STM4-PORT.pmthresholds.ms.nearend.1day.PSD 600 (seconds) 0 - 86400

CTX-2500.STM4-PORT.pmthresholds.ms.nearend.1day.PSD-W 0 (seconds) 0 - 86400

CTX-2500.STM4-PORT.pmthresholds.ms.nearend.1day.SES 4 (seconds) 0 - 86400

CTX-2500.STM4-PORT.pmthresholds.ms.nearend.1day.UAS 10 (seconds) 0 - 86400

CTX-2500.STM4-PORT.pmthresholds.path.farend.15min.BBE 25 (count) 0 - 2159100

CTX-2500.STM4-PORT.pmthresholds.path.farend.15min.EB 15 (count) 0 - 13305600

CTX-2500.STM4-PORT.pmthresholds.path.farend.15min.ES 12 (seconds) 0 - 900

CTX-2500.STM4-PORT.pmthresholds.path.farend.15min.SES 3 (seconds) 0 - 900

CTX-2500.STM4-PORT.pmthresholds.path.farend.15min.UAS 10 (seconds) 0 - 900

CTX-2500.STM4-PORT.pmthresholds.path.farend.1day.BBE 250 (count) 0 - 207273600

CTX-2500.STM4-PORT.pmthresholds.path.farend.1day.EB 125 (count) 0 - 691200000

CTX-2500.STM4-PORT.pmthresholds.path.farend.1day.ES 100 (seconds) 0 - 86400

CTX-2500.STM4-PORT.pmthresholds.path.farend.1day.SES 7 (seconds) 0 - 86400

CTX-2500.STM4-PORT.pmthresholds.path.farend.1day.UAS 10 (seconds) 0 - 86400

CTX-2500.STM4-PORT.pmthresholds.path.nearend.15min.BBE 25 (count) 0 - 2159100

CTX-2500.STM4-PORT.pmthresholds.path.nearend.15min.EB 15 (count) 0 - 7200000

CTX-2500.STM4-PORT.pmthresholds.path.nearend.15min.ES 12 (seconds) 0 - 900

CTX-2500.STM4-PORT.pmthresholds.path.nearend.15min.NPJC-PDET 60 (count) 0 - 7200000

CTX-2500.STM4-PORT.pmthresholds.path.nearend.15min.NPJC-PGEN 60 (count) 0 - 7200000

CTX-2500.STM4-PORT.pmthresholds.path.nearend.15min.PJCDIFF 60 (count) 0 - 14400000

CTX-2500.STM4-PORT.pmthresholds.path.nearend.15min.PJCS-PDET 100 (seconds) 0 - 900

CTX-2500.STM4-PORT.pmthresholds.path.nearend.15min.PJCS-PGEN 100 (seconds) 0 - 900

CTX-2500.STM4-PORT.pmthresholds.path.nearend.15min.PPJC-PDET 60 (count) 0 - 7200000

CTX-2500.STM4-PORT.pmthresholds.path.nearend.15min.PPJC-PGEN 60 (count) 0 - 7200000

CTX-2500.STM4-PORT.pmthresholds.path.nearend.15min.SES 3 (seconds) 0 - 900

Table C-2 15310E-CTX-K9 Card Default Settings (continued)

Default Name Default Value Default Domain

C-14

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Card Default Settings

CTX-2500.STM4-PORT.pmthresholds.path.nearend.15min.UAS 10 (seconds) 0 - 900

CTX-2500.STM4-PORT.pmthresholds.path.nearend.1day.BBE 250 (count) 0 - 207273600

CTX-2500.STM4-PORT.pmthresholds.path.nearend.1day.EB 125 (count) 0 - 691200000

CTX-2500.STM4-PORT.pmthresholds.path.nearend.1day.ES 100 (seconds) 0 - 86400

CTX-2500.STM4-PORT.pmthresholds.path.nearend.1day.NPJC-PDET 5760 (count) 0 - 691200000

CTX-2500.STM4-PORT.pmthresholds.path.nearend.1day.NPJC-PGEN 5760 (count) 0 - 691200000

CTX-2500.STM4-PORT.pmthresholds.path.nearend.1day.PJCDIFF 5760 (count) 0 - 1382400000

CTX-2500.STM4-PORT.pmthresholds.path.nearend.1day.PJCS-PDET 9600

(seconds)

0 - 86400

CTX-2500.STM4-PORT.pmthresholds.path.nearend.1day.PJCS-PGEN 9600

(seconds)

0 - 86400

CTX-2500.STM4-PORT.pmthresholds.path.nearend.1day.PPJC-PDET 5760 (count) 0 - 691200000

CTX-2500.STM4-PORT.pmthresholds.path.nearend.1day.PPJC-PGEN 5760 (count) 0 - 691200000

CTX-2500.STM4-PORT.pmthresholds.path.nearend.1day.SES 7 (seconds) 0 - 86400

CTX-2500.STM4-PORT.pmthresholds.path.nearend.1day.UAS 10 (seconds) 0 - 86400

CTX-2500.STM4-PORT.pmthresholds.rs.nearend.15min.BBE 10000 (count) 0 - 553500

CTX-2500.STM4-PORT.pmthresholds.rs.nearend.15min.EB 10000 (count) 0 - 553500

CTX-2500.STM4-PORT.pmthresholds.rs.nearend.15min.ES 500 (seconds) 0 - 900

CTX-2500.STM4-PORT.pmthresholds.rs.nearend.15min.OFS 500 (seconds) 0 - 900

CTX-2500.STM4-PORT.pmthresholds.rs.nearend.15min.SES 500 (seconds) 0 - 900

CTX-2500.STM4-PORT.pmthresholds.rs.nearend.15min.UAS 3 (seconds) 0 - 900

CTX-2500.STM4-PORT.pmthresholds.rs.nearend.1day.BBE 100000

(count)

0 - 53136000

CTX-2500.STM4-PORT.pmthresholds.rs.nearend.1day.EB 100000

(count)

0 - 53136000

CTX-2500.STM4-PORT.pmthresholds.rs.nearend.1day.ES 5000

(seconds)

0 - 86400

CTX-2500.STM4-PORT.pmthresholds.rs.nearend.1day.OFS 5000

(seconds)

0 - 86400

CTX-2500.STM4-PORT.pmthresholds.rs.nearend.1day.SES 5000

(seconds)

0 - 86400

CTX-2500.STM4-PORT.pmthresholds.rs.nearend.1day.UAS 10 (seconds) 0 - 86400

CTX-2500.STM4-PORT.pmthresholds.vclo.farend.15min.BBE 15 (count) 0 - 539100

CTX-2500.STM4-PORT.pmthresholds.vclo.farend.15min.EB 15 (count) 0 - 1800000

CTX-2500.STM4-PORT.pmthresholds.vclo.farend.15min.ES 12 (seconds) 0 - 900

CTX-2500.STM4-PORT.pmthresholds.vclo.farend.15min.SES 3 (seconds) 0 - 900

CTX-2500.STM4-PORT.pmthresholds.vclo.farend.15min.UAS 10 (seconds) 0 - 900

CTX-2500.STM4-PORT.pmthresholds.vclo.farend.1day.BBE 150 (count) 0 - 51753600

Table C-2 15310E-CTX-K9 Card Default Settings (continued)

Default Name Default Value Default Domain

C-15

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Card Default Settings

C.3.3.2 E1_21_E3_DS3_3 Card Default Settings

Table C-3 lists the E1_21_E3_DS3_3 card default settings.

CTX-2500.STM4-PORT.pmthresholds.vclo.farend.1day.EB 125 (count) 0 - 172800000

CTX-2500.STM4-PORT.pmthresholds.vclo.farend.1day.ES 100 (seconds) 0 - 86400

CTX-2500.STM4-PORT.pmthresholds.vclo.farend.1day.SES 7 (seconds) 0 - 86400

CTX-2500.STM4-PORT.pmthresholds.vclo.farend.1day.UAS 10 (seconds) 0 - 86400

CTX-2500.STM4-PORT.pmthresholds.vclo.nearend.15min.BBE 15 (count) 0 - 539100

CTX-2500.STM4-PORT.pmthresholds.vclo.nearend.15min.EB 15 (count) 0 - 1800000

CTX-2500.STM4-PORT.pmthresholds.vclo.nearend.15min.ES 12 (seconds) 0 - 900

CTX-2500.STM4-PORT.pmthresholds.vclo.nearend.15min.SES 3 (seconds) 0 - 900

CTX-2500.STM4-PORT.pmthresholds.vclo.nearend.15min.UAS 10 (seconds) 0 - 900

CTX-2500.STM4-PORT.pmthresholds.vclo.nearend.1day.BBE 150 (count) 0 - 51753600

CTX-2500.STM4-PORT.pmthresholds.vclo.nearend.1day.EB 125 (count) 0 - 172800000

CTX-2500.STM4-PORT.pmthresholds.vclo.nearend.1day.ES 100 (seconds) 0 - 86400

CTX-2500.STM4-PORT.pmthresholds.vclo.nearend.1day.SES 7 (seconds) 0 - 86400

CTX-2500.STM4-PORT.pmthresholds.vclo.nearend.1day.UAS 10 (seconds) 0 - 86400

Table C-2 15310E-CTX-K9 Card Default Settings (continued)

Default Name Default Value Default Domain

Table C-3 E1_21_E3_DS3_3 Card Default Settings

Default Name Default Value Default Domain

E1-21-E3-DS3-3.Broadband.portAssignment E3-PORT DS3-PORT; E3-PORT

E1-21-E3-DS3-3.DS3-PORT.config.AINSSoakTime 08:00

(hours:mins)

00:00; 00:15; 00:30 ..

48:00

E1-21-E3-DS3-3.DS3-PORT.config.FeInhibitLpbk TRUE TRUE; FALSE

E1-21-E3-DS3-3.DS3-PORT.config.LineLength 0 - 225 ft 0 - 225 ft; 226 - 450 ft

E1-21-E3-DS3-3.DS3-PORT.config.LineType M13 UNFRAMED; M13; C

BIT

E1-21-E3-DS3-3.DS3-PORT.config.SDBER 1.00E-05 1E-5; 1E-6; 1E-7; 1E-8;

1E-9

E1-21-E3-DS3-3.DS3-PORT.config.SFBER 1.00E-03 1E-3; 1E-4; 1E-5

E1-21-E3-DS3-3.DS3-PORT.config.SendAISOnFacilityLoopback TRUE TRUE; FALSE

E1-21-E3-DS3-3.DS3-PORT.config.SendAISOnTerminalLoopback TRUE TRUE; FALSE

E1-21-E3-DS3-3.DS3-PORT.config.State unlocked;

automaticInSer

vice

unlocked; locked;

disabled; locked;

maintenance; unlocked;

automaticInService

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.farend.15min.CV 382 (BIP

count)

0 - 38700

C-16

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Card Default Settings

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.farend.15min.ES 25 (seconds) 0 - 900

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.farend.15min.SAS 2 (seconds) 0 - 900

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.farend.15min.SES 4 (seconds) 0 - 900

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.farend.15min.UAS 10 (seconds) 0 - 900

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.farend.1day.CV 3820 (BIP

count)

0 - 3715200

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.farend.1day.ES 250

(seconds)

0 - 86400

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.farend.1day.SAS 8 (seconds) 0 - 86400

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.farend.1day.SES 40 (seconds) 0 - 86400

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.farend.1day.UAS 10 (seconds) 0 - 86400

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.nearend.15min.CV 382 (BIP

count)

0 - 38700

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.nearend.15min.ES 25 (seconds) 0 - 900

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.nearend.15min.SES 4 (seconds) 0 - 900

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.nearend.15min.UAS 10 (seconds) 0 - 900

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.nearend.1day.CV 3820 (BIP

count)

0 - 3715200

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.nearend.1day.ES 250

(seconds)

0 - 86400

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.nearend.1day.SES 40 (seconds) 0 - 86400

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.nearend.1day.UAS 10 (seconds) 0 - 86400

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.line.nearend.15min.CV 387 (BPV

count)

0 - 38700

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.line.nearend.15min.ES 25 (seconds) 0 - 900

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.line.nearend.15min.LOSS 10 (seconds) 0 - 900

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.line.nearend.15min.SES 4 (seconds) 0 - 900

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.line.nearend.1day.CV 3865 (BPV

count)

0 - 3715200

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.line.nearend.1day.ES 250

(seconds)

0 - 86400

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.line.nearend.1day.LOSS 10 (seconds) 0 - 86400

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.line.nearend.1day.SES 40 (seconds) 0 - 86400

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.pbitpath.nearend.15min.AISS 10 (seconds) 0 - 900

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.pbitpath.nearend.15min.CV 382 (BIP

count)

0 - 38700

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.pbitpath.nearend.15min.ES 25 (seconds) 0 - 900

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.pbitpath.nearend.15min.SAS 2 (seconds) 0 - 900

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.pbitpath.nearend.15min.SES 4 (seconds) 0 - 900

Table C-3 E1_21_E3_DS3_3 Card Default Settings (continued)

Default Name Default Value Default Domain

C-17

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Card Default Settings

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.pbitpath.nearend.15min.UAS 10 (seconds) 0 - 900

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.pbitpath.nearend.1day.AISS 10 (seconds) 0 - 86400

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.pbitpath.nearend.1day.CV 3820 (BIP

count)

0 - 3715200

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.pbitpath.nearend.1day.ES 250

(seconds)

0 - 86400

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.pbitpath.nearend.1day.SAS 8 (seconds) 0 - 86400

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.pbitpath.nearend.1day.SES 40 (seconds) 0 - 86400

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.pbitpath.nearend.1day.UAS 10 (seconds) 0 - 86400

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.vc4.farend.15min.CV 15 (G1

count)

0 - 2160000

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.vc4.farend.15min.ES 12 (seconds) 0 - 900

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.vc4.farend.15min.FC 10 (count) 0 - 72

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.vc4.farend.15min.SES 3 (seconds) 0 - 900

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.vc4.farend.15min.UAS 10 (seconds) 0 - 900

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.vc4.farend.1day.CV 125 (G1

count)

0 - 207360000

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.vc4.farend.1day.ES 100

(seconds)

0 - 86400

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.vc4.farend.1day.FC 40 (count) 0 - 6912

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.vc4.farend.1day.SES 7 (seconds) 0 - 86400

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.vc4.farend.1day.UAS 10 (seconds) 0 - 86400

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.vc4.nearend.15min.CV 15 (B3 count) 0 - 2160000

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.vc4.nearend.15min.ES 12 (seconds) 0 - 900

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.vc4.nearend.15min.FC 10 (count) 0 - 72

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.vc4.nearend.15min.SES 3 (seconds) 0 - 900

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.vc4.nearend.15min.UAS 10 (seconds) 0 - 900

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.vc4.nearend.1day.CV 125 (B3

count)

0 - 207360000

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.vc4.nearend.1day.ES 100

(seconds)

0 - 86400

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.vc4.nearend.1day.FC 40 (count) 0 - 6912

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.vc4.nearend.1day.SES 7 (seconds) 0 - 86400

E1-21-E3-DS3-3.DS3-PORT.pmthresholds.vc4.nearend.1day.UAS 10 (seconds) 0 - 86400

E1-21-E3-DS3-3.E1-PORT.config.AINSSoakTime 08:00

(hours:mins)

00:00; 00:15; 00:30 ..

48:00

E1-21-E3-DS3-3.E1-PORT.config.LineCoding HDB3 HDB3

E1-21-E3-DS3-3.E1-PORT.config.LineType E1_MF E1_MF; E1_CRCMF;

UNFRAMED

Table C-3 E1_21_E3_DS3_3 Card Default Settings (continued)

Default Name Default Value Default Domain

C-18

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Card Default Settings

E1-21-E3-DS3-3.E1-PORT.config.RetimingEnabled FALSE TRUE; FALSE

E1-21-E3-DS3-3.E1-PORT.config.SDBER 1.00E-07 1E-5; 1E-6; 1E-7; 1E-8;

1E-9

E1-21-E3-DS3-3.E1-PORT.config.SFBER 1.00E-04 1E-3; 1E-4; 1E-5

E1-21-E3-DS3-3.E1-PORT.config.SaBit SA Bit 4 SA Bit 4; SA Bit 5; SA

Bit 6; SA Bit 7; SA Bit 8

E1-21-E3-DS3-3.E1-PORT.config.SendAISOnFacilityLoopback TRUE TRUE; FALSE

E1-21-E3-DS3-3.E1-PORT.config.SendAISOnTerminalLoopback TRUE TRUE; FALSE

E1-21-E3-DS3-3.E1-PORT.config.SendAISVOnDefects FALSE FALSE; TRUE

E1-21-E3-DS3-3.E1-PORT.config.SendDoNotUse FALSE TRUE; FALSE

E1-21-E3-DS3-3.E1-PORT.config.State unlocked;

automaticInSer

vice

unlocked; locked;

disabled; locked;

maintenance; unlocked;

automaticInService

E1-21-E3-DS3-3.E1-PORT.config.SyncMsgIn FALSE FALSE; TRUE

E1-21-E3-DS3-3.E1-PORT.config.TreatLOFAsDefect FALSE FALSE; TRUE

E1-21-E3-DS3-3.E1-PORT.pmthresholds.line.nearend.15min.CV 9 (BPV

count)

0 - 1388700

E1-21-E3-DS3-3.E1-PORT.pmthresholds.line.nearend.15min.ES 65 (seconds) 0 - 900

E1-21-E3-DS3-3.E1-PORT.pmthresholds.line.nearend.15min.LOSS 10 (seconds) 0 - 900

E1-21-E3-DS3-3.E1-PORT.pmthresholds.line.nearend.15min.SES 10 (seconds) 0 - 900

E1-21-E3-DS3-3.E1-PORT.pmthresholds.line.nearend.1day.CV 90 (BPV

count)

0 - 133315200

E1-21-E3-DS3-3.E1-PORT.pmthresholds.line.nearend.1day.ES 648

(seconds)

0 - 86400

E1-21-E3-DS3-3.E1-PORT.pmthresholds.line.nearend.1day.LOSS 10 (seconds) 0 - 900

E1-21-E3-DS3-3.E1-PORT.pmthresholds.line.nearend.1day.SES 100

(seconds)

0 - 86400

E1-21-E3-DS3-3.E1-PORT.pmthresholds.path.nearend.15min.AISS 10 (seconds) 0 - 900

E1-21-E3-DS3-3.E1-PORT.pmthresholds.path.nearend.15min.BBE 9 (count) 0 - 287100

E1-21-E3-DS3-3.E1-PORT.pmthresholds.path.nearend.15min.EB 9 (count) 0 - 450000

E1-21-E3-DS3-3.E1-PORT.pmthresholds.path.nearend.15min.ES 65 (seconds) 0 - 900

E1-21-E3-DS3-3.E1-PORT.pmthresholds.path.nearend.15min.SES 10 (seconds) 0 - 900

E1-21-E3-DS3-3.E1-PORT.pmthresholds.path.nearend.15min.UAS 10 (seconds) 0 - 900

E1-21-E3-DS3-3.E1-PORT.pmthresholds.path.nearend.1day.AISS 10 (seconds) 0 - 86400

E1-21-E3-DS3-3.E1-PORT.pmthresholds.path.nearend.1day.BBE 90 (count) 0 - 27561600

E1-21-E3-DS3-3.E1-PORT.pmthresholds.path.nearend.1day.EB 90 (count) 0 - 43200000

E1-21-E3-DS3-3.E1-PORT.pmthresholds.path.nearend.1day.ES 648

(seconds)

0 - 86400

Table C-3 E1_21_E3_DS3_3 Card Default Settings (continued)

Default Name Default Value Default Domain

C-19

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Card Default Settings

E1-21-E3-DS3-3.E1-PORT.pmthresholds.path.nearend.1day.SES 100

(seconds)

0 - 86400

E1-21-E3-DS3-3.E1-PORT.pmthresholds.path.nearend.1day.UAS 10 (seconds) 0 - 86400

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vc4.farend.15min.ES 12 (seconds) 0 - 900

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vc4.farend.15min.FC 10 (count) 0 - 72

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vc4.farend.15min.SES 3 (seconds) 0 - 900

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vc4.farend.15min.UAS 10 (seconds) 0 - 900

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vc4.farend.1day.ES 100

(seconds)

0 - 86400

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vc4.farend.1day.FC 40 (count) 0 - 6912

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vc4.farend.1day.SES 7 (seconds) 0 - 86400

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vc4.farend.1day.UAS 10 (seconds) 0 - 86400

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vc4.nearend.15min.ES 12 (seconds) 0 - 900

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vc4.nearend.15min.FC 10 (count) 0 - 72

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vc4.nearend.15min.SES 3 (seconds) 0 - 900

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vc4.nearend.15min.UAS 10 (seconds) 0 - 900

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vc4.nearend.1day.ES 100

(seconds)

0 - 86400

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vc4.nearend.1day.FC 40 (count) 0 - 6912

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vc4.nearend.1day.SES 7 (seconds) 0 - 86400

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vc4.nearend.1day.UAS 10 (seconds) 0 - 86400

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vclo.farend.15min.ES 65 (seconds) 0 - 900

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vclo.farend.15min.FC 10 (count) 0 - 72

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vclo.farend.15min.SES 10 (seconds) 0 - 900

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vclo.farend.15min.UAS 10 (seconds) 0 - 900

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vclo.farend.1day.ES 648

(seconds)

0 - 86400

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vclo.farend.1day.FC 40 (count) 0 - 6912

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vclo.farend.1day.SES 100

(seconds)

0 - 86400

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vclo.farend.1day.UAS 10 (seconds) 0 - 86400

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vclo.nearend.15min.ES 65 (seconds) 0 - 900

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vclo.nearend.15min.FC 10 (count) 0 - 72

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vclo.nearend.15min.SES 10 (seconds) 0 - 900

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vclo.nearend.15min.UAS 10 (seconds) 0 - 900

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vclo.nearend.1day.ES 648

(seconds)

0 - 86400

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vclo.nearend.1day.FC 40 (count) 0 - 6912

Table C-3 E1_21_E3_DS3_3 Card Default Settings (continued)

Default Name Default Value Default Domain

C-20

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Card Default Settings

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vclo.nearend.1day.SES 100

(seconds)

0 - 86400

E1-21-E3-DS3-3.E1-PORT.pmthresholds.vclo.nearend.1day.UAS 10 (seconds) 0 - 86400

E1-21-E3-DS3-3.E3-PORT.config.AINSSoakTime 08:00

(hours:mins)

00:00; 00:15; 00:30 ..

48:00

E1-21-E3-DS3-3.E3-PORT.config.SDBER 1.00E-07 1E-5; 1E-6; 1E-7; 1E-8;

1E-9

E1-21-E3-DS3-3.E3-PORT.config.SFBER 1.00E-04 1E-3; 1E-4; 1E-5

E1-21-E3-DS3-3.E3-PORT.config.SendAISOnFacilityLoopback TRUE TRUE; FALSE

E1-21-E3-DS3-3.E3-PORT.config.SendAISOnTerminalLoopback TRUE TRUE; FALSE

E1-21-E3-DS3-3.E3-PORT.config.State unlocked;

automaticInSer

vice

unlocked; locked;

disabled; locked;

maintenance; unlocked;

automaticInService

E1-21-E3-DS3-3.E3-PORT.pmthresholds.line.nearend.15min.CV 387 (BPV

count)

0 - 29700

E1-21-E3-DS3-3.E3-PORT.pmthresholds.line.nearend.15min.ES 25 (seconds) 0 - 900

E1-21-E3-DS3-3.E3-PORT.pmthresholds.line.nearend.15min.LOSS 10 (seconds) 0 - 900

E1-21-E3-DS3-3.E3-PORT.pmthresholds.line.nearend.15min.SES 4 (seconds) 0 - 900

E1-21-E3-DS3-3.E3-PORT.pmthresholds.line.nearend.1day.CV 3865 (BPV

count)

0 - 2851200

E1-21-E3-DS3-3.E3-PORT.pmthresholds.line.nearend.1day.ES 250

(seconds)

0 - 86400

E1-21-E3-DS3-3.E3-PORT.pmthresholds.line.nearend.1day.LOSS 10 (seconds) 0 - 86400

E1-21-E3-DS3-3.E3-PORT.pmthresholds.line.nearend.1day.SES 40 (seconds) 0 - 86400

E1-21-E3-DS3-3.E3-PORT.pmthresholds.path.nearend.15min.ES 25 (seconds) 0 - 900

E1-21-E3-DS3-3.E3-PORT.pmthresholds.path.nearend.15min.SES 4 (seconds) 0 - 900

E1-21-E3-DS3-3.E3-PORT.pmthresholds.path.nearend.15min.UAS 10 (seconds) 0 - 900

E1-21-E3-DS3-3.E3-PORT.pmthresholds.path.nearend.1day.ES 250

(seconds)

0 - 86400

E1-21-E3-DS3-3.E3-PORT.pmthresholds.path.nearend.1day.SES 40 (seconds) 0 - 86400

E1-21-E3-DS3-3.E3-PORT.pmthresholds.path.nearend.1day.UAS 10 (seconds) 0 - 86400

E1-21-E3-DS3-3.E3-PORT.pmthresholds.vc4.farend.15min.BBE 25 (count) 0 - 2159100

E1-21-E3-DS3-3.E3-PORT.pmthresholds.vc4.farend.15min.EB 15 (count) 0 - 7200000

E1-21-E3-DS3-3.E3-PORT.pmthresholds.vc4.farend.15min.ES 12 (seconds) 0 - 900

E1-21-E3-DS3-3.E3-PORT.pmthresholds.vc4.farend.15min.SES 3 (seconds) 0 - 900

E1-21-E3-DS3-3.E3-PORT.pmthresholds.vc4.farend.15min.UAS 10 (seconds) 0 - 900

E1-21-E3-DS3-3.E3-PORT.pmthresholds.vc4.farend.1day.BBE 250 (count) 0 - 207273600

E1-21-E3-DS3-3.E3-PORT.pmthresholds.vc4.farend.1day.EB 125 (count) 0 - 691200000

Table C-3 E1_21_E3_DS3_3 Card Default Settings (continued)

Default Name Default Value Default Domain

C-21

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Card Default Settings

C.3.3.3 E1_63_E3_DS3_3 Card Default Settings

Table C-4 lists the E1_63_E3_DS3_3 card default settings.

E1-21-E3-DS3-3.E3-PORT.pmthresholds.vc4.farend.1day.ES 100

(seconds)

0 - 86400

E1-21-E3-DS3-3.E3-PORT.pmthresholds.vc4.farend.1day.SES 7 (seconds) 0 - 86400

E1-21-E3-DS3-3.E3-PORT.pmthresholds.vc4.farend.1day.UAS 10 (seconds) 0 - 86400

E1-21-E3-DS3-3.E3-PORT.pmthresholds.vc4.nearend.15min.BBE 25 (count) 0 - 2159100

E1-21-E3-DS3-3.E3-PORT.pmthresholds.vc4.nearend.15min.EB 15 (count) 0 - 7200000

E1-21-E3-DS3-3.E3-PORT.pmthresholds.vc4.nearend.15min.ES 12 (seconds) 0 - 900

E1-21-E3-DS3-3.E3-PORT.pmthresholds.vc4.nearend.15min.SES 3 (seconds) 0 - 900

E1-21-E3-DS3-3.E3-PORT.pmthresholds.vc4.nearend.15min.UAS 10 (seconds) 0 - 900

E1-21-E3-DS3-3.E3-PORT.pmthresholds.vc4.nearend.1day.BBE 250 (count) 0 - 207273600

E1-21-E3-DS3-3.E3-PORT.pmthresholds.vc4.nearend.1day.EB 125 (count) 0 - 691200000

E1-21-E3-DS3-3.E3-PORT.pmthresholds.vc4.nearend.1day.ES 100

(seconds)

0 - 86400

E1-21-E3-DS3-3.E3-PORT.pmthresholds.vc4.nearend.1day.SES 7 (seconds) 0 - 86400

E1-21-E3-DS3-3.E3-PORT.pmthresholds.vc4.nearend.1day.UAS 10 (seconds) 0 - 86400

Table C-3 E1_21_E3_DS3_3 Card Default Settings (continued)

Default Name Default Value Default Domain

Table C-4 E1_63_E3_DS3_3 Card Default Settings

Default Name Default Value Default Domain

E1-63-E3-DS3-3.Broadband.portAssignment E3-PORT DS3-PORT; E3-PORT

E1-63-E3-DS3-3.DS3-PORT.config.AINSSoakTime 08:00

(hours:mins)

00:00; 00:15; 00:30 ..

48:00

E1-63-E3-DS3-3.DS3-PORT.config.FeInhibitLpbk TRUE TRUE; FALSE

E1-63-E3-DS3-3.DS3-PORT.config.LineLength 0 - 225 ft 0 - 225 ft; 226 - 450 ft

E1-63-E3-DS3-3.DS3-PORT.config.LineType M13 UNFRAMED; M13; C

BIT

E1-63-E3-DS3-3.DS3-PORT.config.SDBER 1.00E-05 1E-5; 1E-6; 1E-7; 1E-8;

1E-9

E1-63-E3-DS3-3.DS3-PORT.config.SFBER 1.00E-03 1E-3; 1E-4; 1E-5

E1-63-E3-DS3-3.DS3-PORT.config.SendAISOnFacilityLoopback TRUE TRUE; FALSE

E1-63-E3-DS3-3.DS3-PORT.config.SendAISOnTerminalLoopback TRUE TRUE; FALSE

E1-63-E3-DS3-3.DS3-PORT.config.State unlocked;

automaticInSer

vice

unlocked; locked;

disabled; locked;

maintenance; unlocked;

automaticInService

C-22

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Card Default Settings

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.farend.15min.CV 382 (BIP

count)

0 - 38700

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.farend.15min.ES 25 (seconds) 0 - 900

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.farend.15min.SAS 2 (seconds) 0 - 900

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.farend.15min.SES 4 (seconds) 0 - 900

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.farend.15min.UAS 10 (seconds) 0 - 900

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.farend.1day.CV 3820 (BIP

count)

0 - 3715200

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.farend.1day.ES 250

(seconds)

0 - 86400

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.farend.1day.SAS 8 (seconds) 0 - 86400

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.farend.1day.SES 40 (seconds) 0 - 86400

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.farend.1day.UAS 10 (seconds) 0 - 86400

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.nearend.15min.CV 382 (BIP

count)

0 - 38700

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.nearend.15min.ES 25 (seconds) 0 - 900

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.nearend.15min.SES 4 (seconds) 0 - 900

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.nearend.15min.UAS 10 (seconds) 0 - 900

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.nearend.1day.CV 3820 (BIP

count)

0 - 3715200

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.nearend.1day.ES 250

(seconds)

0 - 86400

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.nearend.1day.SES 40 (seconds) 0 - 86400

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.cpbitpath.nearend.1day.UAS 10 (seconds) 0 - 86400

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.line.nearend.15min.CV 387 (BPV

count)

0 - 38700

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.line.nearend.15min.ES 25 (seconds) 0 - 900

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.line.nearend.15min.LOSS 10 (seconds) 0 - 900

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.line.nearend.15min.SES 4 (seconds) 0 - 900

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.line.nearend.1day.CV 3865 (BPV

count)

0 - 3715200

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.line.nearend.1day.ES 250

(seconds)

0 - 86400

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.line.nearend.1day.LOSS 10 (seconds) 0 - 86400

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.line.nearend.1day.SES 40 (seconds) 0 - 86400

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.pbitpath.nearend.15min.AISS 10 (seconds) 0 - 900

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.pbitpath.nearend.15min.CV 382 (BIP

count)

0 - 38700

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.pbitpath.nearend.15min.ES 25 (seconds) 0 - 900

Table C-4 E1_63_E3_DS3_3 Card Default Settings (continued)

Default Name Default Value Default Domain

C-23

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Card Default Settings

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.pbitpath.nearend.15min.SAS 2 (seconds) 0 - 900

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.pbitpath.nearend.15min.SES 4 (seconds) 0 - 900

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.pbitpath.nearend.15min.UAS 10 (seconds) 0 - 900

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.pbitpath.nearend.1day.AISS 10 (seconds) 0 - 86400

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.pbitpath.nearend.1day.CV 3820 (BIP

count)

0 - 3715200

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.pbitpath.nearend.1day.ES 250

(seconds)

0 - 86400

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.pbitpath.nearend.1day.SAS 8 (seconds) 0 - 86400

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.pbitpath.nearend.1day.SES 40 (seconds) 0 - 86400

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.pbitpath.nearend.1day.UAS 10 (seconds) 0 - 86400

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.vc4.farend.15min.CV 15 (G1

count)

0 - 2160000

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.vc4.farend.15min.ES 12 (seconds) 0 - 900

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.vc4.farend.15min.FC 10 (count) 0 - 72

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.vc4.farend.15min.SES 3 (seconds) 0 - 900

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.vc4.farend.15min.UAS 10 (seconds) 0 - 900

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.vc4.farend.1day.CV 125 (G1

count)

0 - 207360000

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.vc4.farend.1day.ES 100

(seconds)

0 - 86400

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.vc4.farend.1day.FC 40 (count) 0 - 6912

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.vc4.farend.1day.SES 7 (seconds) 0 - 86400

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.vc4.farend.1day.UAS 10 (seconds) 0 - 86400

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.vc4.nearend.15min.CV 15 (B3 count) 0 - 2160000

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.vc4.nearend.15min.ES 12 (seconds) 0 - 900

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.vc4.nearend.15min.FC 10 (count) 0 - 72

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.vc4.nearend.15min.SES 3 (seconds) 0 - 900

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.vc4.nearend.15min.UAS 10 (seconds) 0 - 900

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.vc4.nearend.1day.CV 125 (B3

count)

0 - 207360000

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.vc4.nearend.1day.ES 100

(seconds)

0 - 86400

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.vc4.nearend.1day.FC 40 (count) 0 - 6912

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.vc4.nearend.1day.SES 7 (seconds) 0 - 86400

E1-63-E3-DS3-3.DS3-PORT.pmthresholds.vc4.nearend.1day.UAS 10 (seconds) 0 - 86400

E1-63-E3-DS3-3.E1-PORT.config.AINSSoakTime 08:00

(hours:mins)

00:00; 00:15; 00:30 ..

48:00

Table C-4 E1_63_E3_DS3_3 Card Default Settings (continued)

Default Name Default Value Default Domain

C-24

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Card Default Settings

E1-63-E3-DS3-3.E1-PORT.config.LineCoding HDB3 HDB3

E1-63-E3-DS3-3.E1-PORT.config.LineType E1_MF E1_MF; E1_CRCMF;

UNFRAMED

E1-63-E3-DS3-3.E1-PORT.config.RetimingEnabled FALSE TRUE; FALSE

E1-63-E3-DS3-3.E1-PORT.config.SDBER 1.00E-07 1E-5; 1E-6; 1E-7; 1E-8;

1E-9

E1-63-E3-DS3-3.E1-PORT.config.SFBER 1.00E-04 1E-3; 1E-4; 1E-5

E1-63-E3-DS3-3.E1-PORT.config.SaBit SA Bit 4 SA Bit 4; SA Bit 5; SA

Bit 6; SA Bit 7; SA Bit 8

E1-63-E3-DS3-3.E1-PORT.config.SendAISOnFacilityLoopback TRUE TRUE; FALSE

E1-63-E3-DS3-3.E1-PORT.config.SendAISOnTerminalLoopback TRUE TRUE; FALSE

E1-63-E3-DS3-3.E1-PORT.config.SendAISVOnDefects FALSE FALSE; TRUE

E1-63-E3-DS3-3.E1-PORT.config.SendDoNotUse FALSE TRUE; FALSE

E1-63-E3-DS3-3.E1-PORT.config.State unlocked;

automaticInSer

vice

unlocked; locked;

disabled; locked;

maintenance; unlocked;

automaticInService

E1-63-E3-DS3-3.E1-PORT.config.SyncMsgIn FALSE FALSE; TRUE

E1-63-E3-DS3-3.E1-PORT.config.TreatLOFAsDefect FALSE FALSE; TRUE

E1-63-E3-DS3-3.E1-PORT.pmthresholds.line.nearend.15min.CV 9 (BPV

count)

0 - 1388700

E1-63-E3-DS3-3.E1-PORT.pmthresholds.line.nearend.15min.ES 65 (seconds) 0 - 900

E1-63-E3-DS3-3.E1-PORT.pmthresholds.line.nearend.15min.LOSS 10 (seconds) 0 - 900

E1-63-E3-DS3-3.E1-PORT.pmthresholds.line.nearend.15min.SES 10 (seconds) 0 - 900

E1-63-E3-DS3-3.E1-PORT.pmthresholds.line.nearend.1day.CV 90 (BPV

count)

0 - 133315200

E1-63-E3-DS3-3.E1-PORT.pmthresholds.line.nearend.1day.ES 648

(seconds)

0 - 86400

E1-63-E3-DS3-3.E1-PORT.pmthresholds.line.nearend.1day.LOSS 10 (seconds) 0 - 900

E1-63-E3-DS3-3.E1-PORT.pmthresholds.line.nearend.1day.SES 100

(seconds)

0 - 86400

E1-63-E3-DS3-3.E1-PORT.pmthresholds.path.nearend.15min.AISS 10 (seconds) 0 - 900

E1-63-E3-DS3-3.E1-PORT.pmthresholds.path.nearend.15min.BBE 9 (count) 0 - 287100

E1-63-E3-DS3-3.E1-PORT.pmthresholds.path.nearend.15min.EB 9 (count) 0 - 450000

E1-63-E3-DS3-3.E1-PORT.pmthresholds.path.nearend.15min.ES 65 (seconds) 0 - 900

E1-63-E3-DS3-3.E1-PORT.pmthresholds.path.nearend.15min.SES 10 (seconds) 0 - 900

E1-63-E3-DS3-3.E1-PORT.pmthresholds.path.nearend.15min.UAS 10 (seconds) 0 - 900

E1-63-E3-DS3-3.E1-PORT.pmthresholds.path.nearend.1day.AISS 10 (seconds) 0 - 86400

E1-63-E3-DS3-3.E1-PORT.pmthresholds.path.nearend.1day.BBE 90 (count) 0 - 27561600

Table C-4 E1_63_E3_DS3_3 Card Default Settings (continued)

Default Name Default Value Default Domain

C-25

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Card Default Settings

E1-63-E3-DS3-3.E1-PORT.pmthresholds.path.nearend.1day.EB 90 (count) 0 - 43200000

E1-63-E3-DS3-3.E1-PORT.pmthresholds.path.nearend.1day.ES 648

(seconds)

0 - 86400

E1-63-E3-DS3-3.E1-PORT.pmthresholds.path.nearend.1day.SES 100

(seconds)

0 - 86400

E1-63-E3-DS3-3.E1-PORT.pmthresholds.path.nearend.1day.UAS 10 (seconds) 0 - 86400

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vc4.farend.15min.ES 12 (seconds) 0 - 900

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vc4.farend.15min.FC 10 (count) 0 - 72

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vc4.farend.15min.SES 3 (seconds) 0 - 900

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vc4.farend.15min.UAS 10 (seconds) 0 - 900

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vc4.farend.1day.ES 100

(seconds)

0 - 86400

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vc4.farend.1day.FC 40 (count) 0 - 6912

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vc4.farend.1day.SES 7 (seconds) 0 - 86400

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vc4.farend.1day.UAS 10 (seconds) 0 - 86400

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vc4.nearend.15min.ES 12 (seconds) 0 - 900

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vc4.nearend.15min.FC 10 (count) 0 - 72

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vc4.nearend.15min.SES 3 (seconds) 0 - 900

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vc4.nearend.15min.UAS 10 (seconds) 0 - 900

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vc4.nearend.1day.ES 100

(seconds)

0 - 86400

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vc4.nearend.1day.FC 40 (count) 0 - 6912

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vc4.nearend.1day.SES 7 (seconds) 0 - 86400

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vc4.nearend.1day.UAS 10 (seconds) 0 - 86400

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vclo.farend.15min.ES 65 (seconds) 0 - 900

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vclo.farend.15min.FC 10 (count) 0 - 72

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vclo.farend.15min.SES 10 (seconds) 0 - 900

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vclo.farend.15min.UAS 10 (seconds) 0 - 900

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vclo.farend.1day.ES 648

(seconds)

0 - 86400

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vclo.farend.1day.FC 40 (count) 0 - 6912

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vclo.farend.1day.SES 100

(seconds)

0 - 86400

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vclo.farend.1day.UAS 10 (seconds) 0 - 86400

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vclo.nearend.15min.ES 65 (seconds) 0 - 900

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vclo.nearend.15min.FC 10 (count) 0 - 72

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vclo.nearend.15min.SES 10 (seconds) 0 - 900

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vclo.nearend.15min.UAS 10 (seconds) 0 - 900

Table C-4 E1_63_E3_DS3_3 Card Default Settings (continued)

Default Name Default Value Default Domain

C-26

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Card Default Settings

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vclo.nearend.1day.ES 648

(seconds)

0 - 86400

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vclo.nearend.1day.FC 40 (count) 0 - 6912

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vclo.nearend.1day.SES 100

(seconds)

0 - 86400

E1-63-E3-DS3-3.E1-PORT.pmthresholds.vclo.nearend.1day.UAS 10 (seconds) 0 - 86400

E1-63-E3-DS3-3.E3-PORT.config.AINSSoakTime 08:00

(hours:mins)

00:00; 00:15; 00:30 ..

48:00

E1-63-E3-DS3-3.E3-PORT.config.SDBER 1.00E-07 1E-5; 1E-6; 1E-7; 1E-8;

1E-9

E1-63-E3-DS3-3.E3-PORT.config.SFBER 1.00E-04 1E-3; 1E-4; 1E-5

E1-63-E3-DS3-3.E3-PORT.config.SendAISOnFacilityLoopback TRUE TRUE; FALSE

E1-63-E3-DS3-3.E3-PORT.config.SendAISOnTerminalLoopback TRUE TRUE; FALSE

E1-63-E3-DS3-3.E3-PORT.config.State unlocked;

automaticInSer

vice

unlocked; locked;

disabled; locked;

maintenance; unlocked;

automaticInService

E1-63-E3-DS3-3.E3-PORT.pmthresholds.line.nearend.15min.CV 387 (BPV

count)

0 - 29700

E1-63-E3-DS3-3.E3-PORT.pmthresholds.line.nearend.15min.ES 25 (seconds) 0 - 900

E1-63-E3-DS3-3.E3-PORT.pmthresholds.line.nearend.15min.LOSS 10 (seconds) 0 - 900

E1-63-E3-DS3-3.E3-PORT.pmthresholds.line.nearend.15min.SES 4 (seconds) 0 - 900

E1-63-E3-DS3-3.E3-PORT.pmthresholds.line.nearend.1day.CV 3865 (BPV

count)

0 - 2851200

E1-63-E3-DS3-3.E3-PORT.pmthresholds.line.nearend.1day.ES 250

(seconds)

0 - 86400

E1-63-E3-DS3-3.E3-PORT.pmthresholds.line.nearend.1day.LOSS 10 (seconds) 0 - 86400

E1-63-E3-DS3-3.E3-PORT.pmthresholds.line.nearend.1day.SES 40 (seconds) 0 - 86400

E1-63-E3-DS3-3.E3-PORT.pmthresholds.path.nearend.15min.ES 25 (seconds) 0 - 900

E1-63-E3-DS3-3.E3-PORT.pmthresholds.path.nearend.15min.SES 4 (seconds) 0 - 900

E1-63-E3-DS3-3.E3-PORT.pmthresholds.path.nearend.15min.UAS 10 (seconds) 0 - 900

E1-63-E3-DS3-3.E3-PORT.pmthresholds.path.nearend.1day.ES 250

(seconds)

0 - 86400

E1-63-E3-DS3-3.E3-PORT.pmthresholds.path.nearend.1day.SES 40 (seconds) 0 - 86400

E1-63-E3-DS3-3.E3-PORT.pmthresholds.path.nearend.1day.UAS 10 (seconds) 0 - 86400

E1-63-E3-DS3-3.E3-PORT.pmthresholds.vc4.farend.15min.BBE 25 (count) 0 - 2159100

E1-63-E3-DS3-3.E3-PORT.pmthresholds.vc4.farend.15min.EB 15 (count) 0 - 7200000

E1-63-E3-DS3-3.E3-PORT.pmthresholds.vc4.farend.15min.ES 12 (seconds) 0 - 900

E1-63-E3-DS3-3.E3-PORT.pmthresholds.vc4.farend.15min.SES 3 (seconds) 0 - 900

Table C-4 E1_63_E3_DS3_3 Card Default Settings (continued)

Default Name Default Value Default Domain

C-27

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Card Default Settings

E1-63-E3-DS3-3.E3-PORT.pmthresholds.vc4.farend.15min.UAS 10 (seconds) 0 - 900

E1-63-E3-DS3-3.E3-PORT.pmthresholds.vc4.farend.1day.BBE 250 (count) 0 - 207273600

E1-63-E3-DS3-3.E3-PORT.pmthresholds.vc4.farend.1day.EB 125 (count) 0 - 691200000

E1-63-E3-DS3-3.E3-PORT.pmthresholds.vc4.farend.1day.ES 100

(seconds)

0 - 86400

E1-63-E3-DS3-3.E3-PORT.pmthresholds.vc4.farend.1day.SES 7 (seconds) 0 - 86400

E1-63-E3-DS3-3.E3-PORT.pmthresholds.vc4.farend.1day.UAS 10 (seconds) 0 - 86400

E1-63-E3-DS3-3.E3-PORT.pmthresholds.vc4.nearend.15min.BBE 25 (count) 0 - 2159100

E1-63-E3-DS3-3.E3-PORT.pmthresholds.vc4.nearend.15min.EB 15 (count) 0 - 7200000

E1-63-E3-DS3-3.E3-PORT.pmthresholds.vc4.nearend.15min.ES 12 (seconds) 0 - 900

E1-63-E3-DS3-3.E3-PORT.pmthresholds.vc4.nearend.15min.SES 3 (seconds) 0 - 900

E1-63-E3-DS3-3.E3-PORT.pmthresholds.vc4.nearend.15min.UAS 10 (seconds) 0 - 900

E1-63-E3-DS3-3.E3-PORT.pmthresholds.vc4.nearend.1day.BBE 250 (count) 0 - 207273600

E1-63-E3-DS3-3.E3-PORT.pmthresholds.vc4.nearend.1day.EB 125 (count) 0 - 691200000

E1-63-E3-DS3-3.E3-PORT.pmthresholds.vc4.nearend.1day.ES 100

(seconds)

0 - 86400

E1-63-E3-DS3-3.E3-PORT.pmthresholds.vc4.nearend.1day.SES 7 (seconds) 0 - 86400

E1-63-E3-DS3-3.E3-PORT.pmthresholds.vc4.nearend.1day.UAS 10 (seconds) 0 - 86400

Table C-4 E1_63_E3_DS3_3 Card Default Settings (continued)

Default Name Default Value Default Domain

C-28

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Card Default Settings

C.3.3.4 Ethernet Card Default Settings

Table C-6 lists the CE-MR-6, CE-100T-8, and ML-100T-8 card default settings for the ONS 15310-MA

SDH.

Table C-5 CE-MR-6, CE-100T-8, and ML-100T-8 Card Default Settings

CE-100T-8.config.A

INSSoakTime

08:00 (hours:mins) 00:00; 00:15; 00:30 .. 48:00

CE-100T-8.config.S

tate

locked; disabled unlocked; locked; disabled;

locked; maintenance; unlocked;

automaticInService

CE-100T-8.etherPor

tConfig.802-1Q-Vla

nCoS

7 (count) 0 - 7

CE-100T-8.etherPor

tConfig.IP-ToS

255 (count) 0 - 255

CE-100T-8.etherPor

tConfig.liTimer

200 (ms) 200 - 5000

CE-MR.config.AIN

SSoakTime

08:00 (hours:mins) 00:00; 00:15; 00:30 .. 48:00

CE-MR.config.State

locked; disabled unlocked; locked; disabled;

locked; maintenance; unlocked;

automaticInService

CE-MR.etherPortCo

nfig.802-1Q-VlanC

7 (count) 0 - 7

CE-MR.etherPortCo

nfig.IP-ToS

255 (count) 0 - 255

CE-MR.etherPortCo

nfig.liTimer

200 (ms) 200 - 5000

C-29

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Node Default Settings

C.4 Cisco ONS 15310-MA SDH Node Default Settings

Table C-7 on page C-31 lists the node-level default settings for the Cisco ONS 15310-MA SDH. Cisco

provides the following types of node-level user-configurable defaults:

• Circuit settings—Set the administrative state and Linear Multiplex Section Protection circuit

defaults.

• General settings—Set general node management defaults, including whether to use DST, whether

to insert AIS-LO in each VC low-order path when the carrying VC high-order path crosses the SD

path BER threshold, the IP address of the NTP/SNTP server to be used, the time zone where the

node is located, the SD path BER value, the defaults description, whether to raise a condition on an

empty card slot, whether automatic autonomous TL1 reporting of PM data is enabled for

cross-connect paths on the node, whether or not to allow ports to be disabled when they are

providing services (when the default is set to FALSE users must remove or disable the services first,

then put the ports out of service), and whether to report loopback conditions on ports with an locked,

maintenance service state.

• Network settings—Set whether to prevent the display of node IP addresses in CTC (applicable for

all users except Superusers), default gateway node type, and whether to raise an alarm when the

backplane LAN cable is disconnected.

• OSI settings—Set the OSI main setup, GRE tunnel, LAP-D, the router subnet, and the TARP

settings.

Table C-6 Ethernet Card Default Settings

Default Name Default Value Default Domain

CE-100T-8.config.AINSSoakTime 08:00

(hours:mins)

00:00; 00:15; 00:30 .. 48:00

CE-100T-8.config.State locked; disabled unlocked; locked; disabled; locked; maintenance;

unlocked; automaticInService

CE-100T-8.etherPortConfig.802-1Q-VlanCoS 7 (count) 0 - 7

CE-100T-8.etherPortConfig.IP-ToS 255 (count) 0 - 255

CE-100T-8.etherPortConfig.liTimer 200 (ms) 200 - 5000

CE-MR.config.AINSSoakTime 08:00

(hours:mins)

00:00; 00:15; 00:30 .. 48:00

CE-MR.config.State locked; disabled unlocked; locked; disabled; locked; maintenance;

unlocked; automaticInService

CE-MR.etherPortConfig.802-1Q-VlanCoS 7 (count) 0 - 7

CE-MR.etherPortConfig.IP-ToS 255 (count) 0 - 255

CE-MR.etherPortConfig.liTimer 200 (ms) 200 - 5000

ML100T.config.PreServiceAlarmSuppression FALSE TRUE, FALSE

ML100T.config.SoakTime 08:00 (hours:mins) 00:00, 00:15, 00:30 .. 48:00

ML100T.ios.consolePortAccess TRUE TRUE, FALSE

ML100T.ios.radiusServerAccess FALSE TRUE, FALSE

C-30

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Node Default Settings

• 1+1 and Optimized 1+1 protection settings—Set whether or not protected circuits have bidirectional

switching, are revertive, and what the reversion time is; set optimized 1+1 detection, recovery, and

verify guard timer values.

• Legal Disclaimer—Set the legal disclaimer that warns users at the login screen about the possible

legal or contractual ramifications of accessing equipment, systems, or networks without

authorization.

• Security Access settings—Set default security settings for LAN access, shell access, serial craft

access, EMS access (including IIOP listener port number), TL1 access, and SNMP access.

• Security Grant Permissions—Set default user security levels for activating/reverting software, PMC

learning, database restoring, and retrieving audit logs.

• Security RADIUS settings—Sets default RADIUS server settings for the accounting port number

and the authentication port number, and whether to enable the node as a final authenticator.

• Security Policy settings—Set the allowable failed logins before lockout, idle user timeout for each

user level, optional lockout duration or manual unlock enabled, password reuse and change

frequency policies, number of characters difference that is required between the old and new

password, password aging by security level, enforced single concurrent session per user, and option

to disable inactive user after a set inactivity period.

• Security Password settings—Set when passwords can be changed, how many characters they must

differ by, whether or not password reuse is allowed, and whether a password change is required on

first login to a new account; set password aging enforcement and user-level specific aging and

warning periods; set how many consecutive identical characters are allowed in a password,

maximum password length, minimum password length, minimum number and combination of

nonalphabetical characters required, and whether or not to allow a password that is a reversal of the

• BITS Timing settings—Set the AIS threshold, coding, framing, State, and State Out settings for

BITS-1 and BITS-2 timing.

• General Timing settings—Set the mode (External, Line, or Mixed), quality of reserved (RES) timing

(the rule that defines the order of clock quality from lowest to highest), revertive, reversion time,

and synchronization status messaging (SSM) message set for node timing.

Note Any node level defaults changed using the Provisioning > Defaults tab, changes existing node level

provisioning. Although this is service affecting, it depends on the type of defaults changed, for example,

general, and all timing and security attributes. The “Changing default values for some node level

attributes overrides the current provisioning.” message is displayed. The Side Effects column of the

Defaults editor (right-click a column header and select Show Column > Side Effects) explains the effect

of changing the default values. However, when the card level defaults are changed using the

Provisioning > Defaults tab, existing card provisioning remains unaffected.

Note For more information about each individual node setting, refer to the “Change Node Settings” chapter

of the Cisco ONS 15310-MA SDH Procedure Guide.

Note For Cisco ONS 15310-MA SDH CTC level default settings refer to the “C.2 CTC Default Settings”

section on page C-2.

C-31

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Node Default Settings

Table C-7 ONS 15310-MA SDH Node Default Settings

Default Name Default Value Default Domain

NODE.circuits.State unlocked;

automaticInS

ervice

unlocked; locked;

disabled; locked;

maintenance;

unlocked;

automaticInServi

NODE.circuits.sncp.HO_SDBER 1.00E-06 1E-5; 1E-6;

1E-7; 1E-8; 1E-9

NODE.circuits.sncp.HO_SFBER 1.00E-04 1E-3; 1E-4; 1E-5

NODE.circuits.sncp.LO_SDBER 1.00E-06 1E-5; 1E-6;

1E-7; 1E-8; 1E-9

NODE.circuits.sncp.LO_SFBER 1.00E-04 1E-3; 1E-4; 1E-5

NODE.circuits.sncp.ProvisionWorkingGoAndReturnOnPrimaryPath TRUE TRUE; FALSE

NODE.circuits.sncp.ReversionTime 5.0

(minutes)

0.5; 1.0; 1.5 ..

12.0

NODE.circuits.sncp.Revertive FALSE TRUE; FALSE

NODE.circuits.sncp.SwitchOnPDIP FALSE TRUE; FALSE

NODE.general.AllowServiceAffectingPortChangeToDisabled TRUE FALSE; TRUE

NODE.general.AutoPM FALSE FALSE; TRUE

NODE.general.BackupNtpSntpServer 0.0.0.0 IP Address

NODE.general.DefaultsDescription Factory

Defaults

Free form field

NODE.general.InsertAISVOnSDP FALSE TRUE; FALSE

NODE.general.NtpSntpServer 0.0.0.0 IP Address

NODE.general.RaiseConditionOnEmptySlot FALSE TRUE; FALSE

NODE.general.ReportLoopbackConditionsOnOOS-MTPorts FALSE FALSE; TRUE

NODE.general.SDPBER 1.00E-06 1E-5; 1E-6;

1E-7; 1E-8; 1E-9

NODE.general.TimeZone (GMT-08:00

) Pacific

Time (US &

Canada),

Tijuana

(For applicable

time zones, see

Table C-4 on

page C-21.)

NODE.general.UseDST TRUE TRUE; FALSE

NODE.network.general.AlarmMissingBackplaneLAN FALSE TRUE; FALSE

NODE.network.general.CtcIpDisplaySuppression FALSE TRUE; FALSE

NODE.network.general.GatewaySettings None None; ENE;

GNE;

ProxyOnlyNode

NODE.osi.greTunnel.OspfCost 110 110 - 65535

C-32

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Node Default Settings

NODE.osi.greTunnel.SubnetMask 24 (bits) 8; 9; 10 .. 32

NODE.osi.lapd.MTU 512 512; 513; 514 ..

1500

NODE.osi.lapd.Mode AITS AITS; UITS

NODE.osi.lapd.Role Network Network; User

NODE.osi.lapd.T200 200 (ms) 200; 300; 400 ..

20000

NODE.osi.lapd.T203 10000 (ms) 4000; 4100;

4200 .. 120000

NODE.osi.mainSetup.L1LSPBufferSize 512 (bytes) 512 - 1500

NODE.osi.mainSetup.NodeRoutingMode End System End System;

Intermediate

System Level 1

NODE.osi.subnet.DISPriority 63 1; 2; 3 .. 127

NODE.osi.subnet.ESH 10 (sec) 10; 20; 30 .. 1000

NODE.osi.subnet.IIH 3 (sec) 1; 2; 3 .. 600

NODE.osi.subnet.ISH 10 (sec) 10; 20; 30 .. 1000

NODE.osi.subnet.LANISISCost 20 1; 2; 3 .. 63

NODE.osi.subnet.LDCCISISCost 40 1; 2; 3 .. 63

NODE.osi.subnet.SDCCISISCost 60 1; 2; 3 .. 63

NODE.osi.tarp.L1DataCache TRUE FALSE; TRUE

NODE.osi.tarp.LANStormSuppression TRUE FALSE; TRUE

NODE.osi.tarp.LDB TRUE FALSE; TRUE

NODE.osi.tarp.LDBEntry 5 (min) 1 - 10

NODE.osi.tarp.LDBFlush 5 (min) 0 - 1440

NODE.osi.tarp.PDUsL1Propagation TRUE FALSE; TRUE

NODE.osi.tarp.PDUsOrigination TRUE FALSE; TRUE

NODE.osi.tarp.T1Timer 15 (sec) 0 - 3600

NODE.osi.tarp.T2Timer 25 (sec) 0 - 3600

NODE.osi.tarp.T3Timer 40 (sec) 0 - 3600

NODE.osi.tarp.T4Timer 20 (sec) 0 - 3600

NODE.osi.tarp.Type4PDUDelay 0 (sec) 0 - 255

NODE.protection.lmsp.BidirectionalSwitching FALSE TRUE; FALSE

NODE.protection.lmsp.ReversionTime 5.0

(minutes)

0.5; 1.0; 1.5 ..

12.0

NODE.protection.lmsp.Revertive FALSE TRUE; FALSE

Table C-7 ONS 15310-MA SDH Node Default Settings (continued)

Default Name Default Value Default Domain

C-33

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Node Default Settings

NODE.security.dataComm.CtcBackplaneIpDisplaySuppression TRUE FALSE; TRUE

when

isSecureModeSu

pportedOnContro

lCard TRUE;

(NOT

SUPPORTED)

when

isSecureModeSu

pportedOnContro

lCard FALSE

NODE.security.dataComm.DefaultTCCEthernetIP 10.0.0.1 IP Address

NODE.security.dataComm.DefaultTCCEthernetIPNetmask 24 (bits) 8; 9; 10 .. 32

NODE.security.dataComm.SecureModeLocked FALSE FALSE; TRUE

when

isSecureModeSu

pportedOnContro

lCard TRUE;

(NOT

SUPPORTED)

when

isSecureModeSu

pportedOnContro

lCard FALSE

NODE.security.dataComm.SecureModeOn (May reboot node) FALSE FALSE; TRUE

when

isSecureModeSu

pportedOnContro

lCard TRUE;

(NOT

SUPPORTED)

when

isSecureModeSu

pportedOnContro

lCard FALSE

NODE.security.dataComm.isSecureModeSupportedOnControlCard TRUE FALSE; TRUE

NODE.security.emsAccess.AccessState NonSecure NonSecure;

Secure

NODE.security.emsAccess.IIOPListenerPort (May reboot node) 57790

(port #)

0 - 65535

NODE.security.grantPermission.ActivateRevertSoftware Superuser Provisioning;

Superuser

NODE.security.grantPermission.PMClearingPrivilege Provisioning Provisioning;

Superuser

NODE.security.grantPermission.RestoreDB Superuser Provisioning;

Superuser

Table C-7 ONS 15310-MA SDH Node Default Settings (continued)

Default Name Default Value Default Domain

C-34

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Node Default Settings

NODE.security.grantPermission.RetrieveAuditLog Superuser Provisioning;

Superuser

NODE.security.idleUserTimeout.Maintenance 01:00

(hours:mins)

00:00; 00:01;

00:02 .. 16:39

NODE.security.idleUserTimeout.Provisioning 00:30

(hours:mins)

00:00; 00:01;

00:02 .. 16:39

NODE.security.idleUserTimeout.Retrieve 00:00

(hours:mins)

00:00; 00:01;

00:02 .. 16:39

NODE.security.idleUserTimeout.Superuser 00:15

(hours:mins)

00:00; 00:01;

00:02 .. 16:39

NODE.security.lanAccess.LANAccess (May disconnect CTC from node) Front &

Backplane

No LAN Access;

Backplane Only;

Front Only; Front

& Backplane

NODE.security.lanAccess.RestoreTimeout 5 (minutes) 0 - 60

NODE.security.legalDisclaimer.LoginWarningMessage

<html><cent

er><b>WAR

NING</b></

center>This

system is

restricted to

authorized

users for

business

purposes.

Unauthorize

d<p>access

is a violation

of the law.

This service

may be

monitored

for

administrativ

e<p>and

security

reasons. By

proceeding;

you consent

to this

monitoring.

Free form field

NODE.security.other.DisableInactiveUser FALSE FALSE; TRUE

Table C-7 ONS 15310-MA SDH Node Default Settings (continued)

Default Name Default Value Default Domain

C-35

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Node Default Settings

NODE.security.other.InactiveDuration 45 (days) 1; 2; 3 .. 99 when

nothing TRUE;

45 when nothing

FALSE

NODE.security.other.PreventInactiveSuperuserDisable FALSE TRUE; FALSE

NODE.security.other.SingleSessionPerUser FALSE TRUE; FALSE

NODE.security.passwordAging.EnforcePasswordAging FALSE TRUE; FALSE

NODE.security.passwordAging.maintenance.AgingPeriod 45 (days) 20 - 90

NODE.security.passwordAging.maintenance.WarningPeriod 5 (days) 2 - 20

NODE.security.passwordAging.provisioning.AgingPeriod 45 (days) 20 - 90

NODE.security.passwordAging.provisioning.WarningPeriod 5 (days) 2 - 20

NODE.security.passwordAging.retrieve.AgingPeriod 45 (days) 20 - 90

NODE.security.passwordAging.retrieve.WarningPeriod 5 (days) 2 - 20

NODE.security.passwordAging.superuser.AgingPeriod 45 (days) 20 - 90

NODE.security.passwordAging.superuser.WarningPeriod 5 (days) 2 - 20

NODE.security.passwordChange.CannotChangeNewPassword FALSE TRUE; FALSE

NODE.security.passwordChange.CannotChangeNewPasswordForNDays 20 (days) 20 - 95

NODE.security.passwordChange.NewPasswordMustDifferFromOldByNCharacters 1

(characters)

1 - 5

NODE.security.passwordChange.PreventReusingLastNPasswords 1 (times) 1 - 10

NODE.security.passwordChange.RequirePasswordChangeOnFirstLoginToNewAccount FALSE TRUE; FALSE

NODE.security.passwordComplexity.IdenticalConsecutiveCharactersAllowed 3 or more 0-2; 3 or more

NODE.security.passwordComplexity.MaximumLength 20 20; 80

NODE.security.passwordComplexity.MinimumLength 6 6; 8; 10; 12

NODE.security.passwordComplexity.MinimumRequiredCharacters 1 num; 1

letter & 1

TL1 special

1 num; 1 letter &

1 TL1 special; 1

num; 1 letter & 1

special; 2 each of

any 2 of num;

upper; lower &

TL1 special; 2

each of any 2 of

num; upper;

lower & special

NODE.security.passwordComplexity.ReverseUserIdAllowed TRUE TRUE; FALSE

NODE.security.radiusServer.AccountingPort 1813 (port) 0 - 32767

NODE.security.radiusServer.AuthenticationPort 1812 (port) 0 - 32767

NODE.security.radiusServer.EnableNodeAsFinalAuthenticator TRUE FALSE; TRUE

NODE.security.serialCraftAccess.EnableCraftPortA TRUE TRUE; FALSE

NODE.security.serialCraftAccess.EnableCraftPortB TRUE TRUE; FALSE

Table C-7 ONS 15310-MA SDH Node Default Settings (continued)

Default Name Default Value Default Domain

C-36

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Node Default Settings

NODE.security.shellAccess.AccessState NonSecure Disabled;

NonSecure;

Secure

NODE.security.shellAccess.EnableShellPassword FALSE TRUE; FALSE

NODE.security.shellAccess.TelnetPort 23 23 - 9999

NODE.security.snmpAccess.AccessState NonSecure Disabled;

NonSecure

NODE.security.tl1Access.AccessState NonSecure Disabled;

NonSecure;

Secure

NODE.security.userLockout.FailedLoginsAllowedBeforeLockout 5 (times) 0 - 10

NODE.security.userLockout.LockoutDuration 00:30

(mins:secs)

00:00; 00:05;

00:10 .. 10:00

NODE.security.userLockout.ManualUnlockBySuperuser FALSE TRUE; FALSE

NODE.timing.bits-1.AISThreshold DUS G811; STU;

G812T; G812L;

SETS; DUS

NODE.timing.bits-1.AdminSSMIn STU G811; STU;

G812T; G812L;

SETS; DUS

NODE.timing.bits-1.CableType 120 ohm 75 ohm; 120 ohm

NODE.timing.bits-1.Coding HDB3 HDB3; AMI

when

FacilityType E1;

N/A when

FacilityType

2MHz

NODE.timing.bits-1.CodingOut HDB3 HDB3; AMI

when

FacilityTypeOut

E1; N/A when

FacilityTypeOut

2MHz; AMI

when

FacilityTypeOut

6MHz

NODE.timing.bits-1.FacilityType E1 E1; 2MHz

NODE.timing.bits-1.FacilityTypeOut E1 E1; 2MHz

Table C-7 ONS 15310-MA SDH Node Default Settings (continued)

Default Name Default Value Default Domain

C-37

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Node Default Settings

NODE.timing.bits-1.Framing

FAS+CAS+

CRC

FAS+CRC;

FAS+CAS;

FAS+CAS+CRC;

FAS; Unframed

when

FacilityType E1;

N/A when

FacilityType

2MHz

NODE.timing.bits-1.FramingOut

FAS+CAS+

CRC

FAS+CRC;

FAS+CAS;

FAS+CAS+CRC;

FAS; Unframed

when

FacilityTypeOut

E1; N/A when

FacilityTypeOut

2MHz

NODE.timing.bits-1.SaBit SA Bit 4 SA Bit 4; SA Bit

5; SA Bit 6; SA

Bit 7; SA Bit 8

when

FacilityType E1;

N/A when

FacilityType

2MHz

NODE.timing.bits-1.State unlocked unlocked;

locked; disabled

NODE.timing.bits-1.StateOut unlocked unlocked;

locked; disabled

NODE.timing.bits-2.AISThreshold DUS G811; STU;

G812T; G812L;

SETS; DUS

NODE.timing.bits-2.AdminSSMIn STU G811; STU;

G812T; G812L;

SETS; DUS

NODE.timing.bits-2.CableType 120 ohm 75 ohm; 120 ohm

NODE.timing.bits-2.Coding HDB3 HDB3; AMI

when

FacilityType E1;

N/A when

FacilityType

2MHz

Table C-7 ONS 15310-MA SDH Node Default Settings (continued)

Default Name Default Value Default Domain

C-38

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Node Default Settings

NODE.timing.bits-2.CodingOut HDB3 HDB3; AMI

when

FacilityTypeOut

E1; N/A when

FacilityTypeOut

2MHz

NODE.timing.bits-2.FacilityType E1 E1; 2MHz

NODE.timing.bits-2.FacilityTypeOut E1 E1; 2MHz

NODE.timing.bits-2.Framing

FAS+CAS+

CRC

FAS+CRC;

FAS+CAS;

FAS+CAS+CRC;

FAS; Unframed

when

FacilityType E1;

N/A when

FacilityType

2MHz

NODE.timing.bits-2.FramingOut

FAS+CAS+

CRC

FAS+CRC;

FAS+CAS;

FAS+CAS+CRC;

FAS; Unframed

when

FacilityTypeOut

E1; N/A when

FacilityTypeOut

2MHz

NODE.timing.bits-2.SaBit SA Bit 4 SA Bit 4; SA Bit

5; SA Bit 6; SA

Bit 7; SA Bit 8

when

FacilityType E1;

N/A when

FacilityType

2MHz

NODE.timing.bits-2.State unlocked unlocked;

locked; disabled

NODE.timing.bits-2.StateOut unlocked unlocked;

locked; disabled

NODE.timing.general.Mode External External; Line;

Mixed

NODE.timing.general.ReversionTime 5.0

(minutes)

0.5; 1.0; 1.5 ..

12.0

NODE.timing.general.Revertive FALSE TRUE; FALSE

Table C-7 ONS 15310-MA SDH Node Default Settings (continued)

Default Name Default Value Default Domain

C-39

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Node Default Settings

C.4.1 Time Zones

Table C-8 lists the time zones that apply for node time zone defaults. Time zones in the table are ordered

by their relative relationships to Greenwich Mean Time (GMT), and the default values are displayed in

the correct format for valid default input.

Table C-8 Time Zones

Time Zone (GMT +/– Hours) Default Value

GMT-11:00 (GMT-11:00) Midway Islands, Samoa

GMT-10:00 (GMT-10:00) Hawaiian Islands, Tahiti

GMT-09:00 (GMT-09:00) Anchorage - Alaska

GMT-08:00 (GMT-08:00) Pacific Time (US & Canada), Tijuana

GMT-07:00 (GMT-07:00) Mountain Time (US & Canada)

GMT-07:00 (GMT-07:00) Phoenix - Arizona

GMT-06:00 (GMT-06:00) Central Time (US & Canada)

GMT-06:00 (GMT-06:00) Mexico City

GMT-06:00 (GMT-06:00) Costa Rica, Managua, San Salvador

GMT-06:00 (GMT-06:00) Saskatchewan

GMT-05:00 (GMT-05:00) Bogota, Lima, Quito

GMT-05:00 (GMT-05:00) Eastern Time (US & Canada)

GMT-05:00 (GMT-05:00) Havana

GMT-05:00 (GMT-05:00) Indiana (US)

GMT-04:00 (GMT-04:00) Asuncion

GMT-04:00 (GMT-04:00) Caracas, La Paz, San Juan

GMT-04:00 (GMT-04:00) Atlantic Time (Canada), Halifax, Saint John, Charlottetown

GMT-04:00 (GMT-04:00) Santiago

GMT-04:00 (GMT-04:00) Thule (Qaanaaq)

GMT-03:30 (GMT-03:30) St. John's - Newfoundland

GMT-03:00 (GMT-03:00) Brasilia, Rio de Janeiro, Sao Paulo

GMT-03:00 (GMT-03:00) Buenos Aires, Georgetown

GMT-03:00 (GMT-03:00) Godthab (Nuuk) - Greenland

GMT-02:00 (GMT-02:00) Mid-Atlantic

GMT-01:00 (GMT-01:00) Azores, Scoresbysund

GMT-01:00 (GMT-01:00) Praia - Cape Verde

GMT 00:00 (GMT 00:00) Casablanca, Reykjavik, Monrovia

GMT (GMT) Greenwich Mean Time

GMT 00:00 (GMT 00:00) Dublin, Edinburgh, London, Lisbon

GMT+01:00 (GMT+01:00) Amsterdam, Berlin, Rome, Stockholm, Paris

GMT+01:00 (GMT+01:00) Belgrade, Bratislava, Budapest, Ljubljana, Prague

C-40

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Node Default Settings

GMT+01:00 (GMT+01:00) Brussels, Copenhagen, Madrid, Vienna

GMT+01:00 (GMT+01:00) Sarajevo, Skopje, Sofija, Vilnius, Warsaw, Zagreb

GMT+01:00 (GMT+01:00) West Central Africa, Algiers, Lagos, Luanda

GMT+01:00 (GMT+01:00) Windhoek (Namibia)

GMT+02:00 (GMT+02:00) Al Jizah, Alexandria, Cairo

GMT+02:00 (GMT+02:00) Amman

GMT+02:00 (GMT+02:00) Athens, Bucharest, Istanbul

GMT+02:00 (GMT+02:00) Beirut

GMT+02:00 (GMT+02:00) Cape Town, Harare, Johannesburg, Pretoria

GMT+02:00 (GMT+02:00) Jerusalem

GMT+02:00 (GMT+02:00) Kaliningrad, Minsk

GMT+03:00 (GMT+03:00) Aden, Antananarivo, Khartoum, Nairobi

GMT+03:00 (GMT+03:00) Baghdad

GMT+03:00 (GMT+03:00) Kuwait, Riyadh

GMT+03:00 (GMT+03:00) Moscow, St. Petersburg, Novgorod

GMT+03:30 (GMT+03:30) Tehran

GMT+04:00 (GMT+04:00) Abu Dhabi, Mauritius, Muscat

GMT+04:00 (GMT+04:00) Aqtau, T'bilisi

GMT+04:00 (GMT+04:00) Baku

GMT+04:00 (GMT+04:00) Yerevan, Samara

GMT+04:30 (GMT+04:30) Kabul

GMT+05:00 (GMT+05:00) Chelyabinsk, Prem, Yekaterinburg, Ufa

GMT+05:00 (GMT+05:00) Islamabad, Karachi, Tashkent

GMT+05:30 (GMT+05:30) Calcutta, Mumbai, New Delhi, Chennai

GMT+05:45 (GMT+05:45) Kathmandu

GMT+06:00 (GMT+06:00) Almaty

GMT+06:00 (GMT+06:00) Colombo, Dhaka, Astana

GMT+06:00 (GMT+06:00) Novosibirsk, Omsk

GMT+06:30 (GMT+06:30) Cocos, Rangoon

GMT+07:00 (GMT+07:00) Bangkok, Hanoi, Jakarta

GMT+07:00 (GMT+07:00) Krasnoyarsk, Norilsk, Novokuznetsk

GMT+08:00 (GMT+08:00) Irkutsk, Ulaan Bataar

GMT+08:00 (GMT+08:00) Beijing, Shanghai, Hong Kong, Urumqi

GMT+08:00 (GMT+08:00) Perth

GMT+08:00 (GMT+08:00) Singapore, Manila, Taipei, Kuala Lumpur

GMT+09:00 (GMT+09:00) Chita, Yakutsk

Table C-8 Time Zones (continued)

Time Zone (GMT +/– Hours) Default Value

C-41

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Node Default Settings

GMT+09:00 (GMT+09:00) Osaka, Sapporo, Tokyo

GMT+09:00 (GMT+09:00) Palau, Pyongyang, Seoul

GMT+09:30 (GMT+09:30) Adelaide, Broken Hill

GMT+09:30 (GMT+09:30) Darwin

GMT+10:00 (GMT+10:00) Brisbane, Port Moresby, Guam

GMT+10:00 (GMT+10:00) Canberra, Melbourne, Sydney

GMT+10:00 (GMT+10:00) Hobart

GMT+10:00 (GMT+10:00) Khabarovsk, Vladivostok

GMT+10:30 (GMT+10:30) Lord Howe Island

GMT+11:00 (GMT+11:00) Honiara, Magadan, Soloman Islands

GMT+11:00 (GMT+11:00) Noumea - New Caledonia

GMT+11:30 (GMT+11:30) Kingston - Norfolk Island

GMT+12:00 (GMT+12:00) Andyra, Kamchatka

GMT+12:00 (GMT+12:00) Auckland, Wellington

GMT+12:00 (GMT+12:00) Marshall Islands, Eniwetok

GMT+12:00 (GMT+12:00) Suva - Fiji

GMT+12:45 (GMT+12:45) Chatham Island

GMT+13:00 (GMT+13:00) Nuku'alofa - Tonga

GMT+13:00 (GMT+13:00) Rawaki, Phoenix Islands

GMT+14:00 (GMT+14:00) Line Islands, Kiritimati - Kiribati

Table C-8 Time Zones (continued)

Time Zone (GMT +/– Hours) Default Value

C-42

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

Appendix C Network Element Defaults

Cisco ONS 15310-MA SDH Node Default Settings

IN-1

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

INDEX

Numerics

1+1 optical port protection

creating linear ADMs 9-3

description (ONS 15310-MA) 3-4

1:1 electrical card protection (ONS 15310-MA) 3-2

15310-MA SDH-CTX2500 card

resetting 4-19

adapter cable 2-13

ADM. See linear ADM

administrative states B-2

AIC-I card

orderwire 1-24

air filter 1-24

AISS-P parameter definition 11-4

alarm cable. See external alarms and controls

ALARM port

Alarm In and Alarm Out on the ONS 15310-MA

SDH 1-18

alarm profiles

applying 10-12

changing 10-10

comparing 10-11

creating 10-10

deleting 10-10

description 10-9

displaying by node 10-11

editing 10-11

loading 10-10

row display options 10-12

saving 10-10

alarms

autodelete 10-4

changing default severities. See alarm profiles

changing display 10-4

deleting 10-4

entries in session 10-7

filtering 10-4

object identification 10-3

retrieving history 10-8

severities 10-9, 10-11

suppressing 10-12, 10-13

synchronizing 10-4

tab description 10-2

time zone 10-3

viewing 10-1

viewing circuits affected by 10-4

viewing history 10-7

applying alarm profiles 10-12

APS. See automatic protection switching

audit trail

capacities 5-8

log entries 5-7

overview 5-7

automatic protection switching

nonrevertive 3-5

revertive 3-5

balancing DCC loads 7-8

bandwidth

path protection configurations 9-2

Index

IN-2

Cisco ONS 15310-MA SDH Reference Manual, Release 9.1 and Release 9.2

78-19417-01

percentage used for Ethernet ports 11-22, 11-24

VT1.5 7-8

BBE parameter definition 11-4

BBE-PM parameter definition 11-4

BBER parameter definition 11-4

BBER-PM parameter definition 11-4

BBER-SM parameter definition 11-4

BBE-SM parameter definition 11-4

BIEC parameter definition 11-4

BIE parameter definition 11-4

bipolar violations, CV-L parameter 11-4

BITS

BITS cable (ONS 15310-MA SDH) 1-20

external node timing source 6-1

pin assignments (ONS 15310-MA SDH) 1-20

specifications A-3

BNC connectors 1-12

BNC tool 1-15

BPV. See bipolar violations

bridge and roll 7-18

cables
