Ethernet Card Software Feature and Configuration Guide

Corporate Headquarters

Cisco Systems, Inc.

170 West Tasman Drive

San Jose, CA 95134-1706

USA

http://www.cisco.com

Tel: 408 526-4000

800 553-NETS (6387)

Fax: 408 526-4100

Ethernet Card Software Feature and

Configuration Guide

For the Cisco ONS 15454, Cisco ONS 15454 SDH, and Cisco ONS 15327

Cisco IOS Release 12.2 (29a) sv

CTC and Documentation Release 7.2

Last Updated: January 2009

Text Part Number: 78-17736-02

THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL

STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT

WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.

THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT

SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE

OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.

The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant

to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required

to correct the interference at their own expense.

The following information is for FCC compliance of Class B devices: The equipment described in this manual generates and may radiate radio-frequency energy. If it is not

installed in accordance with Cisco’s installation instructions, it may cause interference with radio and television reception. This equipment has been tested and found to

comply with the limits for a Class B digital device in accordance with the specifications in part 15 of the FCC rules. These specifications are designed to provide reasonable

protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation.

Modifying the equipment without Cisco’s written authorization may result in the equipment no longer complying with FCC requirements for Class A or Class B digital

devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television

communications at your own expense.

You can determine whether your equipment is causing interference by turning it off. If the interference stops, it was probably caused by the Cisco equipment or one of its

peripheral devices. If the equipment causes interference to radio or television reception, try to correct the interference by using one or more of the following measures:

• Turn the television or radio antenna until the interference stops.

• Move the equipment to one side or the other of the television or radio.

• Move the equipment farther away from the television or radio.

• Plug the equipment into an outlet that is on a different circuit from the television or radio. (That is, make certain the equipment and the television or radio are on circuits

controlled by different circuit breakers or fuses.)

Modifications to this product not authorized by Cisco Systems, Inc. could void the FCC approval and negate your authority to operate the product.

The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public

NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH

ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT

LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF

DEALING, USAGE, OR TRADE PRACTICE.

IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING,

WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO

OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

CCDE, CCENT, Cisco Eos, Cisco HealthPresence, the Cisco logo, Cisco Lumin, Cisco Nexus, Cisco StadiumVision, Cisco TelePresence, Cisco WebEx, DCE, and Welcome

to the Human Network are trademarks; Changing the Way We Work, Live, Play, and Learn and Cisco Store are service marks; and Access Registrar, Aironet, AsyncOS,

Bringing the Meeting To You, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, CCSP, CCVP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS,

Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unity, Collaboration Without Limitation, EtherFast, EtherSwitch, Event Center, Fast Step,

Follow Me Browsing, FormShare, GigaDrive, HomeLink, Internet Quotient, IOS, iPhone, iQuick Study, IronPort, the IronPort logo, LightStream, Linksys, MediaTone,

MeetingPlace, MeetingPlace Chime Sound, MGX, Networkers, Networking Academy, Network Registrar, PCNow, PIX, PowerPanels, ProConnect, ScriptShare, SenderBase,

SMARTnet, Spectrum Expert, StackWise, The Fastest Way to Increase Your Internet Quotient, TransPath, WebEx, and the WebEx logo are registered trademarks of

Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.

All other trademarks mentioned in this document or website are the property of their respective owners. The use of the word partner does not imply a partnership relationship

between Cisco and any other company. (0812R)

Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command display output, and figures included in the

document are shown for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and coincidental.

Ethernet Card Software Feature and Configuration Guide for the Cisco ONS 15454, Cisco ONS 15454 SDH, and Cisco ONS 15327, Release 7.2

iii

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

CONTENTS

About this Guide xxvii

Revision History xxvii

Document Objectives xxviii

Audience xxviii

Document Organization xxviii

Related Documentation

Use the Ethernet Card Software Feature and Configuration Guide, R7.2 in conjunction with the

following general ONS 15454 or ONS 15454 SDH system publications:

• Cisco ONS 15454 Procedure Guide

Provides procedures to install, turn up, provision, and maintain a Cisco ONS 15454 node and

network.

• Cisco ONS 15454 SDH Procedure Guide

Provides procedures to install, turn up, provision, and maintain a Cisco ONS 15454 SDH node and

network.

• Cisco ONS 15454 Reference Manual

Provides detailed card specifications, hardware and software feature descriptions, network topology

information, and network element defaults.

• Cisco ONS 15454 SDH Reference Manual

Provides detailed card specifications, hardware and software feature descriptions, network topology

information, and network element defaults.

• Cisco ONS 15454 Troubleshooting Guide

Provides alarm descriptions, alarm and general troubleshooting procedures, error messages, and

performance monitoring and SNMP parameters.

• Cisco ONS 15454 SDH Troubleshooting Guide

Provides general troubleshooting procedures, alarm descriptions and troubleshooting procedures,

error messages, and performance monitoring and SNMP parameters.

• Cisco ONS SONET TL1 Command Guide

Provides a full TL1 command and autonomous message set including parameters, AIDs, conditions,

and modifiers for the Cisco ONS 15454, ONS 15327, ONS 15600, ONS 15310-CL, and ONS

15310-MA systems.

• Cisco ONS 15454 SDH TL1 Command Guide

Provides a full TL1 command and autonomous message set including parameters, AIDs, conditions

and modifiers for the Cisco ONS 15454 SDH.

• Cisco ONS SONET TL1 Reference Guide

Provides general information and procedures for TL1 in the Cisco ONS 15454, ONS 15327, ONS

15600, ONS 15310-CL, and Cisco ONS 15310-MA systems.

• Cisco ONS 15454 SDH TL1 Reference Guide

Provides general information and procedures for TL1 in the Cisco ONS 15454 SDH.

• Cisco ONS 15454 SDH TL1 Reference Guide

Provides general information, procedures, and errors for TL1 in the Cisco ONS 15454 SDH.

• Release Notes for the Cisco ONS 15454 Release 7.0

Provides caveats, closed issues, and new feature and functionality information.

• Release Notes for the Cisco ONS 15454 SDH Release 7.0

Provides caveats, closed issues, and new feature and functionality information.

• Release Notes for the Cisco ONS 15327 Release 7.0

Provides caveats, closed issues, and new feature and functionality information.

xxxi

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

About this Guide

The ML-Series card employs the Cisco IOS Modular QoS CLI (MQC). For more information on general

MQC configuration, refer to the following Cisco IOS documents:

• Cisco IOS Quality of Service Solutions Configuration Guide, Release 12.2

• Cisco IOS Quality of Service Solutions Command Reference, Release 12.2

The ML-Series card employs Cisco IOS 12.2. For more general information on Cisco IOS 12.2, refer to

the extensive Cisco IOS documentation at:

• http://www.cisco.com/

Document Conventions

This publication uses the following conventions:

Note Means reader take note. Notes contain helpful suggestions or references to material not covered in the

document.

Caution Means reader be careful. In this situation, the user might do something that could result in equipment

damage or loss of data.

Convention Application

boldface Commands and keywords in body text.

italic Command input that is supplied by the user.

[ ] Keywords or arguments that appear within square brackets are optional.

{ x | x | x } A choice of keywords (represented by x) appears in braces separated by

vertical bars. The user must select one.

Ctrl The control key. For example, where Ctrl + D is written, hold down the

Control key while pressing the D key.

screen font Examples of information displayed on the screen.

boldface screen font Examples of information that the user must enter.

< > Command parameters that must be replaced by module-specific codes.

xxxii

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

About this Guide

Warning

IMPORTANT SAFETY INSTRUCTIONS

This warning symbol means danger. You are in a situation that could cause bodily injury. Before you

work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar

with standard practices for preventing accidents. Use the statement number provided at the end of

each warning to locate its translation in the translated safety warnings that accompanied this

device.

Statement 1071

SAVE THESE INSTRUCTIONS

Waarschuwing

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan

veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij

elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van de standaard

praktijken om ongelukken te voorkomen. Gebruik het nummer van de verklaring onderaan de

waarschuwing als u een vertaling van de waarschuwing die bij het apparaat wordt geleverd, wilt

raadplegen.

BEWAAR DEZE INSTRUCTIES

Varoitus

TÄRKEITÄ TURVALLISUUSOHJEITA

Tämä varoitusmerkki merkitsee vaaraa. Tilanne voi aiheuttaa ruumiillisia vammoja. Ennen kuin

käsittelet laitteistoa, huomioi sähköpiirien käsittelemiseen liittyvät riskit ja tutustu

onnettomuuksien yleisiin ehkäisytapoihin. Turvallisuusvaroitusten käännökset löytyvät laitteen

mukana toimitettujen käännettyjen turvallisuusvaroitusten joukosta varoitusten lopussa näkyvien

lausuntonumeroiden avulla.

SÄILYTÄ NÄMÄ OHJEET

Attention

IMPORTANTES INFORMATIONS DE SÉCURITÉ

Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant

entraîner des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez

conscient des dangers liés aux circuits électriques et familiarisez-vous avec les procédures

couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions des

avertissements figurant dans les consignes de sécurité traduites qui accompagnent cet appareil,

référez-vous au numéro de l'instruction situé à la fin de chaque avertissement.

CONSERVEZ CES INFORMATIONS

Warnung

WICHTIGE SICHERHEITSHINWEISE

Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen

kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und

den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder

Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten

Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.

BEWAHREN SIE DIESE HINWEISE GUT AUF.

xxxiii

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

About this Guide

Avvertenza

IMPORTANTI ISTRUZIONI SULLA SICUREZZA

Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle

persone. Prima di intervenire su qualsiasi apparecchiatura, occorre essere al corrente dei pericoli

relativi ai circuiti elettrici e conoscere le procedure standard per la prevenzione di incidenti.

Utilizzare il numero di istruzione presente alla fine di ciascuna avvertenza per individuare le

traduzioni delle avvertenze riportate in questo documento.

CONSERVARE QUESTE ISTRUZIONI

Advarsel

VIKTIGE SIKKERHETSINSTRUKSJONER

Dette advarselssymbolet betyr fare. Du er i en situasjon som kan føre til skade på person. Før du

begynner å arbeide med noe av utstyret, må du være oppmerksom på farene forbundet med

elektriske kretser, og kjenne til standardprosedyrer for å forhindre ulykker. Bruk nummeret i slutten

av hver advarsel for å finne oversettelsen i de oversatte sikkerhetsadvarslene som fulgte med denne

enheten.

TA VARE PÅ DISSE INSTRUKSJONENE

Aviso

INSTRUÇÕES IMPORTANTES DE SEGURANÇA

Este símbolo de aviso significa perigo. Você está em uma situação que poderá ser causadora de

lesões corporais. Antes de iniciar a utilização de qualquer equipamento, tenha conhecimento dos

perigos envolvidos no manuseio de circuitos elétricos e familiarize-se com as práticas habituais de

prevenção de acidentes. Utilize o número da instrução fornecido ao final de cada aviso para

localizar sua tradução nos avisos de segurança traduzidos que acompanham este dispositivo.

GUARDE ESTAS INSTRUÇÕES

¡Advertencia!

INSTRUCCIONES IMPORTANTES DE SEGURIDAD

Este símbolo de aviso indica peligro. Existe riesgo para su integridad física. Antes de manipular

cualquier equipo, considere los riesgos de la corriente eléctrica y familiarícese con los

procedimientos estándar de prevención de accidentes. Al final de cada advertencia encontrará el

número que le ayudará a encontrar el texto traducido en el apartado de traducciones que acompaña

a este dispositivo.

GUARDE ESTAS INSTRUCCIONES

Varning!

VIKTIGA SÄKERHETSANVISNINGAR

Denna varningssignal signalerar fara. Du befinner dig i en situation som kan leda till personskada.

Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och

känna till vanliga förfaranden för att förebygga olyckor. Använd det nummer som finns i slutet av

varje varning för att hitta dess översättning i de översatta säkerhetsvarningar som medföljer denna

anordning.

SPARA DESSA ANVISNINGAR

xxxiv

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

About this Guide

xxxv

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

About this Guide

Aviso

INSTRUÇÕES IMPORTANTES DE SEGURANÇA

Este símbolo de aviso significa perigo. Você se encontra em uma situação em que há risco de lesões

corporais. Antes de trabalhar com qualquer equipamento, esteja ciente dos riscos que envolvem os

circuitos elétricos e familiarize-se com as práticas padrão de prevenção de acidentes. Use o

número da declaração fornecido ao final de cada aviso para localizar sua tradução nos avisos de

segurança traduzidos que acompanham o dispositivo.

GUARDE ESTAS INSTRUÇÕES

Advarsel

VIGTIGE SIKKERHEDSANVISNINGER

Dette advarselssymbol betyder fare. Du befinder dig i en situation med risiko for

legemesbeskadigelse. Før du begynder arbejde på udstyr, skal du være opmærksom på de

involverede risici, der er ved elektriske kredsløb, og du skal sætte dig ind i standardprocedurer til

undgåelse af ulykker. Brug erklæringsnummeret efter hver advarsel for at finde oversættelsen i de

oversatte advarsler, der fulgte med denne enhed.

GEM DISSE ANVISNINGER

xxxvi

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

About this Guide

Obtaining Optical Networking Information

This section contains information that is specific to optical networking products. For information that

pertains to all of Cisco, refer to the Obtaining Documentation and Submitting a Service Request section.

xxxvii

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

About this Guide

Where to Find Safety and Warning Information

For safety and warning information, refer to the Cisco Optical Transport Products Safety and

Compliance Information document that accompanied the product. This publication describes the

international agency compliance and safety information for the Cisco ONS 15454 system. It also

includes translations of the safety warnings that appear in the ONS 15454 system documentation.

Cisco Optical Networking Product Documentation CD-ROM

Optical networking-related documentation, including Cisco ONS 15xxx product documentation, is

available in a CD-ROM package that ships with your product. The Optical Networking Product

Documentation CD-ROM is updated periodically and may be more current than printed documentation.

Obtaining Documentation and Submitting a Service Request

For information on obtaining documentation, submitting a service request, and gathering additional

information, see the monthly What’s New in Cisco Product Documentation, which also lists all new and

revised Cisco technical documentation, at:

http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html

Subscribe to the What’s New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed

and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free

service and Cisco currently supports RSS version 2.0.

xxxviii

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

About this Guide

CHAPTER

1-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

ML-Series Card Overview

This chapter provides an overview of the ML1000-2, ML100T-12, and ML100X-8 cards for the

ONS 15454 (SONET) and ONS 15454 SDH. It lists Ethernet and SONET/SDH capabilities and

Cisco IOS and Cisco Transport Controller (CTC) software features, with brief descriptions of selected

features.

This chapter contains the following major sections:

• ML-Series Card Description, page 1-1

• ML-Series Feature List, page 1-2

ML-Series Card Description

The ML-Series cards are independent Gigabit Ethernet (ML1000-2) or Fast Ethernet (ML100T-12 and

ML100X-8) Layer 3 switches that process up to 5.7 million packets per second (Mpps). The ML-Series

cards are integrated into the ONS 15454 SONET or the ONS 15454 SDH.

The ML-Series card uses Cisco IOS, and the Cisco IOS command-line interface (CLI) is the primary

user interface for the ML-Series card. Most configuration for the card, such as Ethernet port, bridging,

and VLAN, can be done only through the Cisco IOS CLI.

However, CTC, the ONS 15454 SONET/SDH graphical user interface (GUI), also supports the

ML-Series card. SONET/SDH circuits cannot be provisioned through Cisco IOS, but must be configured

through CTC or TL1. CTC offers ML-Series card status information, SONET/SDH alarm management,

Cisco IOS Telnet session initialization, Cisco IOS configuration file management, provisioning,

inventory, and other standard functions.

The ML100T-12 features twelve RJ-45 interfaces, and the ML100X-8 and ML1000-2 features two Small

Form-factor Pluggable (SFP) slots supporting short wavelength (SX) and long wavelength (LX) optical

modules. All three cards use the same hardware and software base and offer similar feature sets. For

detailed card specifications, refer to the “Ethernet Cards” chapter of the Cisco ONS 15454 Reference

Manual or the Cisco ONS 15454 SDH Reference Manual.

The ML-Series card features two virtual packet-over-SONET/SDH (POS) ports, which function in a

manner similar to OC-N/STM-N card ports. The SONET/SDH circuits are provisioned through CTC in

the same manner as standard OC-N/STM-N card circuits. The ML-Series POS ports support virtual

concatenation (VCAT) of SONET/SDH circuits and a software link capacity adjustment scheme

(SW-LCAS).

1-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 1 ML-Series Card Overview

ML-Series Feature List

The ML100T-12, ML100X-8, and ML1000-2 cards have the following features:

• Layer 1 data features:

–

10/100BASE-TX half-duplex and full-duplex data transmission

–

100BASE-FX full-duplex data transmission with Auto-MDIX (ML100X-8)

–

1000BASE-SX, 1000BASE-LX full-duplex data transmission

–

IEEE 802.3z (Gigabit Ethernet) and IEEE 802.3x (Fast Ethernet) Flow Control

• SONET/SDH features:

–

High-level data link control (HDLC) or frame-mapped generic framing procedure (GFP-F)

framing mechanism for POS

–

Two POS virtual ports

–

LEX, Cisco HDLC, or Point-to-Point Protocol/Bridging Control Protocol (PPP/BCP)

encapsulation for POS

–

VCAT with SW-LCAS

–

G-Series card and ONS 15327 E-Series card compatible (with LEX encapsulation only)

• Layer 2 bridging features:

–

Transparent bridging

–

MAC address learning, aging, and switching by hardware

–

Protocol tunneling

–

Multiple Spanning Tree (MST) protocol tunneling

–

255 active bridge group maximum

–

60,000 MAC address maximum per card and 8,000 MAC address maximum per bridge group

–

Integrated routing and bridging (IRB)

–

IEEE 802.1P/Q-based VLAN trunking

–

IEEE 802.1Q VLAN tunneling

–

IEEE 802.1D Spanning Tree Protocol (STP) and IEEE 802.1W Rapid Spanning Tree Protocol

(RSTP)

–

IEEE 802.1D STP instance per bridge group

–

Ethernet over Multiprotocol Label Switching (EoMPLS)

–

EoMPLS traffic engineering (EoMPLS-TE) with RSVP

–

VLAN-transparent and VLAN-specific services (Ethernet Relay Multipoint Service [ERMS])

• RPR-IEEE data path features supported:

–

Bridging is supported, as specified in the IEEE 802.17b spatially aware sublayer amendment.

–

Shortest path forwarding through topology discovery is supported.

–

Addressing is supported, including unicast, multicast, and simple broadcast data transfers.

–

Bidirectional multicast frames flood around the ring using both east and west ringlets.

–

The time to live (TTL) of the multicast frames is set to the equidistant span in a closed ring and

the failed span in an open ring.

1-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 1 ML-Series Card Overview

ML-Series Feature List

• RPR-IEEE service qualities supported:

–

Per-service-quality flow-control protocols regulate traffic introduced by clients.

–

Class A allocated or guaranteed bandwidth has low circumference-independent jitter.

–

Class B allocated or guaranteed bandwidth has bounded circumference-dependent jitter. This

class allows for transmissions of excess information rate (EIR) bandwidths (with class C

properties).

–

Class C provides best-effort services.

• RPR-IEEE design strategies increase effective bandwidths beyond those of a broadcast ring:

–

Clockwise and counterclockwise transmissions can be concurrent.

–

Bandwidths can be reallocated on nonoverlapping segments.

–

Bandwidth reclamation. Unused bandwidths can be reclaimed by opportunistic services.

–

Spatial bandwidth reuse. Opportunistic bandwidths are reused on nonoverlapping segments.

–

Temporal bandwidth reuse. Unused opportunistic bandwidth can be consumed by others.

• RPR-IEEE fairness features ensure proper partitioning of opportunistic traffic:

–

Weighted fairness allows a weighted fair access to available ring capacity.

–

Aggressive fairness is supported.

–

Single Choke Fairness Supports generation, termination, and processing of Single Choke

Fairness frames on both spans.

• RPR-IEEE plug-and-play automatic topology discovery and advertisement of station capabilities

allow systems to become operational without manual intervention.

• RPR-IEEE multiple features support robust frame transmissions:

–

Service restoration time is less than 60 milliseconds after a station or link failure.

–

Queue and shaper specifications avoid frame loss in normal operation.

–

Fully distributed control architecture eliminates single points of failure.

–

Operations, administration, and maintenance support service provider environments.

• RPR-IEEE non-supported features:

–

EoMPLS is not supported.

–

IP forwarding is not supported.

–

Wrapping, the optional IEEE 802.17b protection scheme, is not supported. Steering, the

protection scheme mandated by the standard, is supported.

–

Layer 3 routing is not supported.

1-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 1 ML-Series Card Overview

ML-Series Feature List

• Cisco Proprietary RPR:

–

Ethernet frame check sequence (FCS) preservation for customers

–

Cyclic redundancy check (CRC) error alarm generation

–

FCS detection and threshold configuration

–

Shortest path determination

–

Keep alives

• Fast EtherChannel (FEC) features (ML100T-12):

–

Bundling of up to four Fast Ethernet ports

–

Load sharing based on source and destination IP addresses of unicast packets

–

Load sharing for bridge traffic based on MAC addresses

–

IRB

–

IEEE 802.1Q trunking

–

Up to 6 active FEC port channels

• Gigabit EtherChannel (GEC) features (ML1000-2):

–

Bundling the two Gigabit Ethernet ports

–

Load sharing for bridge traffic based on MAC addresses

–

IRB

–

IEEE 802.1Q trunking

–

Auto-negotiation with Remote Fault Indication (RFI)

• POS channel:

–

Bundling the two POS ports

–

LEX encapsulation only

–

IRB

–

IEEE 802.1Q trunking

• Layer 3 routing, switching, and forwarding:

–

Default routes

–

IP unicast and multicast forwarding

–

Simple IP access control lists (ACLs) (both Layer 2 and Layer 3 forwarding path)

–

Extended IP ACLs in software (control-plane only)

–

IP and IP multicast routing and switching between Ethernet ports

–

Reverse Path Forwarding (RPF) multicast (not RPF unicast)

–

Load balancing among equal cost paths based on source and destination IP addresses

–

Up to 18,000 IP routes

–

Up to 20,000 IP host entries

–

Up to 40 IP multicast groups

–

IRB routing mode support

• Supported routing protocols:

–

Virtual Private Network (VPN) Routing and Forwarding Lite (VRF Lite)

1-5

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 1 ML-Series Card Overview

ML-Series Feature List

–

Intermediate System-to-Intermediate System (IS-IS) Protocol

–

Routing Information Protocol (RIP and RIP II)

–

Enhanced Interior Gateway Routing Protocol (EIGRP)

–

Open Shortest Path First (OSPF) Protocol

–

Protocol Independent Multicast (PIM)—Sparse, sparse-dense, and dense modes

–

Secondary addressing

–

Static routes

–

Local proxy ARP

–

Border Gateway Protocol (BGP)

–

Classless interdomain routing (CIDR)

• Quality of service (QoS) features:

–

Multicast priority queuing classes

–

Service level agreements (SLAs) with 1-Mbps granularity

–

Input policing

–

Guaranteed bandwidth (weighted round-robin [WDRR] plus strict priority scheduling)

–

Low latency queuing support for unicast Voice-over-IP (VoIP)

–

Class of service (CoS) based on Layer 2 priority, VLAN ID, Layer 3 Type of Service/DiffServ

Code Point (TOS/DSCP), and port

–

CoS-based packet statistics

• Security features:

–

Cisco IOS login enhancements

–

Secure Shell connection (SSH Version 2)

–

Disabled console port

–

Authentication, Authorization, and Accounting/Remote Authentication Dial-In User Service

(AAA/RADIUS) stand alone mode

–

AAA/RADIUS relay mode

• Additional protocols:

–

Cisco Discovery Protocol (CDP) support on Ethernet ports

–

Dynamic Host Configuration Protocol (DHCP) relay

–

Hot Standby Router Protocol (HSRP) over 10/100 Ethernet, Gigabit Ethernet, FEC, GEC, and

Bridge Group Virtual Interface (BVI)

–

Internet Control Message Protocol (ICMP)

• Management features:

–

Cisco IOS

–

CTC

–

CTM

–

Remote monitoring (RMON)

–

Simple Network Management Protocol (SNMP)

1-6

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 1 ML-Series Card Overview

ML-Series Feature List

–

Transaction Language 1 (TL1)

• System features:

–

Automatic field programmable gate array (FPGA) Upgrade

–

Network Equipment Building Systems 3 (NEBS3) compliant

–

Multiple microcode images

• CTC features:

–

Framing Mode Provisioning

–

Standard STS/STM and VCAT circuit provisioning for POS virtual ports

–

SONET/SDH alarm reporting for path alarms and other ML-Series card specific alarms,

including RPR-WRAP

–

Raw port statistics

–

Standard inventory and card management functions

–

J1 path trace

–

Cisco IOS CLI Telnet sessions from CTC

–

Cisco IOS startup configuration file management from CTC

CHAPTER

2-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

CTC Operations

This chapter covers Cisco Transport Controller (CTC) operations of the ML-Series card. All operations

described in the chapter take place at the card-level view of CTC. CTC shows provisioning information

and statistics for both the Ethernet and packet-over-SONET/SDH (POS) ports of the ML-Series card.

For the ML-Series cards, CTC manages SONET/SDH alarms and provisions STS/STM circuits in the

same manner as other ONS 15454 SONET/SDH traffic cards.

Use CTC to load a Cisco IOS configuration file or to open a Cisco IOS command-line interface (CLI)

session. See Chapter 3, “Initial Configuration.”

This chapter contains the following major sections:

• Displaying ML-Series POS And Ethernet Statistics on CTC, page 2-1

• Displaying ML-Series Ethernet Ports Provisioning Information on CTC, page 2-2

• Displaying ML-Series POS Ports Provisioning Information on CTC, page 2-3

• Provisioning Card Mode, page 2-4

• Managing SONET/SDH Alarms, page 2-4

• Displaying the FPGA Information, page 2-4

• Provisioning SONET/SDH Circuits, page 2-5

• J1 Path Trace, page 2-5

Displaying ML-Series POS And Ethernet Statistics on CTC

The POS statistics window lists POS port-level statistics. Display the CTC card view for the ML-Series

card and click the Performance > POS Ports tabs to display the window.

The Ethernet statistics window lists Ethernet port-level statistics. It is similar in appearance to the POS

statistics window. The ML-Series Ethernet ports are zero based. Display the CTC card view for the

ML-Series card and click the Performance > Ether Ports tabs to display the window. Table 2-1

describes the buttons in the POS Ports and Ether Ports window.

A different set of statistics appears for the ML-Series card depending on whether the card is using HDLC

or GFP-F framing. For definitions of ML-Series card statistics, refer to the “Performance Monitoring”

chapter of the Cisco ONS 15454 SONET and DWDM Troubleshooting Guide or the Cisco ONS 15454

SDH Troubleshooting Guide.

2-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 2 CTC Operations

Displaying ML-Series Ethernet Ports Provisioning Information on CTC

Displaying ML-Series Ethernet Ports Provisioning Information

on CTC

The Ethernet port provisioning window displays the provisioning status of the Ethernet ports. Click the

Provisioning > Ether Ports tabs to display this window. For ML-Series cards, only the Port Name field

can be provisioned from CTC. The user must configure ML-Series ports using the Cisco IOS CLI.

Auto in a column indicates the port is set to autonegotiate capabilities with the attached link partner.

All ML-Series cards do not display all columns. Table 2-2 details the information displayed under the

Provisioning > Ether Ports tab:

Table 2-1 ML-Series POS and Ethernet Statistics Fields and Buttons

Button Description

Refresh Manually refreshes the statistics.

Baseline Resets the software counters (in that particular CTC client only) temporarily to zero

without affecting the actual statistics on the card. From that point on, only counters

displaying the change from the temporary baseline are displayed by this CTC client.

These new baselined counters are shown only as long as the user displays the

Performance window. If the user navigates to another CTC window and comes back

to the Performance window, the true actual statistics retained by the card are shown.

Auto-Refresh Sets a time interval for the automatic refresh of statistics.

Table 2-2 CTC Display of Ethernet Port Provisioning Status

Column Description ML1000-2 ML100T-12 ML100X-8

Port The fixed number identifier for the

specific port.

0 or 1 0-11 0-7

Port Name Configurable 12-character

alphanumeric identifier for the port.

User specific User specific User

specific

Admin State Configured port state, which is

administratively active or inactive.

UP and DOWN UP and

DOWN

UP and

DOWN

Link State Status between signaling points at port

and attached device.

UP and DOWN UP and

DOWN

UP and

DOWN

MTU (Maximum Transmission Unit) Largest

acceptable packet size configured for

that port.

Default value is

1500

Default value

is 1500

Default

value is

1500

Speed Ethernet port transmission speed. —Auto,

10Mbps, or

100Mbps

Duplex Setting of the duplex mode for the port. —Auto, Full, or

Half

Full

2-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 2 CTC Operations

Displaying ML-Series POS Ports Provisioning Information on CTC

Note The 100 FX value in the Optics column of the ML100X-8 represent the short wavelength (SX) SFP.

Note The port name field configured in CTC and the port name configured in Cisco IOS are independent of

each other. The name for the same port under Cisco IOS and CTC does not match, unless the same name

is used to configure the port name in both CTC and Cisco IOS.

Displaying ML-Series POS Ports Provisioning Information on

CTC

The POS ports provisioning window displays the provisioning status of the card’s POS ports. Click the

Provisioning > POS Ports tabs to display this window. For ML-Series cards, only the POS Port Name

field can be provisioned from CTC. The user must configure ML-Series ports through the Cisco IOS

CLI.

Table 2-3 details the information displayed under the Provisioning > POS Ports tab.

Flow

Control

Flow control mode negotiated with peer

device. These values are displayed but

not configureable in CTC.

Asymmetrical,

Symmetrical or

None

Symmetrical

or None

Symmetrical

or None

Optics Small form-factor pluggable (SFP)

physical media type.

Unplugged,

1000 SX, or

1000 LX

—Unplugged,

100 FX, or

100 LX

Table 2-2 CTC Display of Ethernet Port Provisioning Status (continued)

Column Description ML1000-2 ML100T-12 ML100X-8

Table 2-3 CTC Display of POS Port Provisioning Status

Column Description

Port The fixed number identifier for the specific port.

Port Name Configurable 12-character alphanumeric identifier for the port.

Admin State Configured port state, which is administratively active or inactive. Possible

values are UP and DOWN. For the UP value to appear, a POS port must be

both administratively active and have a SONET/SDH circuit provisioned.

Link State Status between signaling points at port and attached device. Possible values

are UP and DOWN.

MTU The maximum transfer unit, which is the largest acceptable packet size

configured for that port. The maximum setting is 9000. The default size is

1500 for the G-Series card compatible encapsulation (LEX) and 4470 for

Cisco HDLC and Point-to-Point Protocol/Bridging Control Protocol

(PPP/BCP) encapsulation.

Framing Type HDLC or frame-mapped generic framing procedure (GFP-F) framing type

shows the POS framing mechanism being employed on the port.

2-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 2 CTC Operations

Provisioning Card Mode

Note The port name field configured in CTC and the port name configured in Cisco IOS are independent of

each other. The name for the same port under Cisco IOS and CTC does not match, unless the same name

is used to configure the port name in both CTC and Cisco IOS.

Provisioning Card Mode

The card mode provisioning window shows the mode currently configured on the ML-Series card and

allows the user to change it to either HDLC, GFP-F, or 802.17 RPR. For more information on HDLC or

GFP-F, see the "POS on ONS Ethernet Cards" chapter.

The user may also pre-provision the card mode of an ML-Series card before the card is physically

installed. The ML-Series card will then boot up into the pre-provisioned mode. If the correct microcode

image is not already loaded, setting the card mode to 802.17 will automatically download and enable the

correct microcode image for IEEE compliant 802.17b.

Caution The ML-Series card reboots after the card mode is changed.

Click the Provisioning > Card tabs to display this window. Use the Mode drop-down list and then click

Apply to provision the card mode type. Click Yes at the Reset Card dialog box that appears.

Managing SONET/SDH Alarms

CTC manages the ML-Series SONET/SDH alarm behavior in the same manner as it manages alarm

behavior for other ONS 15454 SONET/SDH cards. Refer to the “Manage Alarms” chapter of the

Cisco ONS 15454 Procedure Guide or the Cisco ONS 15454 SDH Procedure Guide for detailed

information. For information on specific alarms, refer to the “Alarm Troubleshooting” chapter of the

Cisco ONS 15454 Troubleshooting Guide or Cisco ONS 15454 SDH Troubleshooting Guide for detailed

information.

To view the window, click the Provisioning > Alarm Profiles tabs for the Ethernet and POS port alarm

profile information.

Displaying the FPGA Information

CTC displays information for the field programmable gate array (FPGA) on the ML-Series card. Click

the Maintenance > Info tabs to display this window.

The FPGA on the ML100T-12, ML100X-8 and ML1000-2 provides the interface and buffering between

the card’s network processor and the SONET/SDH cross-connect. FPGA Image Version 3.x supports

HDLC framing, and FPGA Image Version 4.x supports GFP-F Framing. Both images support virtual

concatenation (VCAT). In Release 5.0 and later, the correct FPGA is automatically loaded when the

framing mode is changed by the user.

Note ML-Series cards manufactured prior to Software Release 4.6 need an updated version of the FPGA to

support VCAT.

2-5

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 2 CTC Operations

Provisioning SONET/SDH Circuits

Caution Do not attempt to use current FPGA images with an earlier CTC software release.

Provisioning SONET/SDH Circuits

CTC provisions and edits STS/STM level circuits for the two virtual SONET/SDH ports of the

ML-Series card in the same manner as it provisions other ONS 15454 SONET/SDH OC-N cards. The

ONS 15454 ML-Series card supports both contiguous concatenation (CCAT) and virtual concatenation

(VCAT) circuits.

For step-by-step instructions to configure an ML-Series card SONET CCAT or VCAT circuit, refer to

the “Create Circuits and VT Tunnels” chapter of the Cisco ONS 15454 Procedure Guide. For

step-by-step instructions to configure an ML-Series card SDH CCAT or VCAT circuit, refer to the

“Create Circuits and Tunnels” chapter of the Cisco ONS 15454 SDH Procedure Guide. For more

general information on VCAT circuits, refer to the “Circuits and Tunnels” chapter of the Cisco ONS

15454 Reference Manual or the Cisco ONS 15454 SDH Reference Manual.

J1 Path Trace

The J1 Path Trace is a repeated, fixed-length string comprised of 64 consecutive J1 bytes. You can use

the string to monitor interruptions or changes to SONET/SDH circuit traffic. For information on J1 Path

Trace, refer to the Cisco ONS 15454 Reference Manual or the Cisco ONS 15454 SDH Reference

Manual.

2-6

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 2 CTC Operations

J1 Path Trace

CHAPTER

3-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Initial Configuration

This chapter describes the initial configuration of the ML-Series card and contains the following major

sections:

• Hardware Installation, page 3-1

• Cisco IOS on the ML-Series Card, page 3-2

• Startup Configuration File, page 3-7

• Multiple Microcode Images, page 3-11

• Changing the Working Microcode Image, page 3-12

• Cisco IOS Command Modes, page 3-13

• Using the Command Modes, page 3-15

Hardware Installation

This section lists hardware installation tasks, including booting up the ML-Series card. Because

ONS 15454 SONET/SDH card slots can be preprovisioned for an ML-Series line card, the following

physical operations can be performed before or after the provisioning of the slot has taken place.

1. Install the ML-Series card into the ONS 15454 SONET/SDH. See Chapter 2, “Install Cards and

Fiber-Optic Cable” of the Cisco ONS 15454 Procedure Guide or Cisco ONS 15454 SDH Procedure

Guide for information.

2. Connect the cables to the front ports of the ML-Series card.

3. (Optional) Connect the console terminal to the ML-Series card.

Note A NO-CONFIG condition is reported in CTC under the Alarms pane when an ML-Series card is inserted

and no valid Cisco IOS startup configuration file exists. Loading or creating this file clears the condition.

See the “Startup Configuration File” section on page 3-7 for information on loading or creating the file.

3-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 3 Initial Configuration

Cisco IOS on the ML-Series Card

The Cisco IOS software image used by the ML-Series card is not permanently stored on the ML-Series

card but in the flash memory of the TCC2/TCC2P card. During a hard reset, when a card is physically

removed and reinserted or power is otherwise lost to the card, the Cisco IOS software image is downloaded

from the flash memory of the TCC2/TCC2P to the memory cache of the ML-Series card. The cached

image is then decompressed and initialized for use by the ML-Series card.

During a soft reset, when the ML-Series card is reset through CTC or the Cisco IOS command line

interface (CLI) command reload, the ML-Series card checks its cache for a Cisco IOS image. If a valid

and current Cisco IOS image exists, the ML-Series card decompresses and initializes the image. If the

image does not exist, the ML-Series requests a new copy of the Cisco IOS image from the TCC2/TCC2P.

Caching the Cisco IOS image provides a significant time savings when a warm reset is performed.

There are four ways to access the ML-Series card Cisco IOS configuration. The two out-of-band options

are opening a Cisco IOS session on CTC and telnetting to the node IP Address and slot number plus

2000. The two-in-band signalling options are telnetting to a configured management interface and

directly connecting to the console port.

Opening a Cisco IOS Session Using CTC

Users can initiate a Cisco IOS CLI session for the ML-Series card using CTC. Click the IOS tab at the

card-level CTC view, then click the Open IOS Command Line Interface (CLI) button (Figure 3-1). A

window opens and a standard Cisco IOS CLI User EXEC command mode prompt appears.

Note A Cisco IOS startup configuration file must be loaded and the ML-Series card must be installed and

initialized prior to opening a Cisco IOS CLI session on CTC. See the “Startup Configuration File”

section on page 3-7 for more information.

3-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 3 Initial Configuration

Telnetting to the Node IP Address and Slot Number

Figure 3-1 CTC IOS Window

Telnetting to the Node IP Address and Slot Number

Users can telnet to the Cisco IOS CLI using the IP address and the slot number of the

ONS 15454 SONET/SDH plus 2000.

Note A Cisco IOS startup configuration file must be loaded and the ML-Series card must be installed and

initialized prior to telnetting to the IP address and slot number plus 2000. See the “Startup Configuration

File” section on page 3-7 for more information.

Note If the ONS 15454 SONET/SDH node is set up as a proxy server, where one ONS 15454 SONET/SDH

node in the ring acts as a gateway network element (GNE) for the other nodes in the ring, telnetting over

the GNE firewall to the IP address and slot number of a non-GNE or end network element (ENE) requires

the user’s Telnet client to be SOCKS v5 aware (RFC 1928). Configure the Telnet client to recognize the

GNE as the Socks v5 proxy for the Telnet session and to recognize the ENE as the host.

Step 1 Obtain the node IP address from the LCD on the front of the physical ONS 15454 SONET/SDH or the

IP Addr field shown at the CTC node view (Figure 3-2).

Step 2 Identify the slot number containing the targeted ML-Series card from either the physical

ONS 15454 SONET/SDH or the CTC node view (Figure 3-2). For example, Slot 13.

3-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 3 Initial Configuration

Telnetting to a Management Port

Figure 3-2 CTC Node View Showing IP Address and Slot Number

Step 3 Use the IP address and the total of the slot number plus 2000 as the Telnet address in your preferred

communication program. For example, for an IP address of 10.92.18.124 and Slot 13, you would enter

or telnet 10.92.18.124 2013.

Telnetting to a Management Port

Users can access the ML-Series through a standard Cisco IOS management port in the same manner as

other Cisco IOS platforms. For further details about configuring ports and lines for management access,

refer to the Cisco IOS Configuration Fundamentals Configuration Guide.

As a security measure, the vty lines used for Telnet access are not fully configured. In order to gain

Telnet access to the ML-Series card, you must configure the vty lines via the serial console connection

or preload a startup-configuration file that configures the vty lines. A port on the ML-Series must first

be configured as the management port; see “Configuring the Management Port” section on page 3-8.

ML-Series IOS CLI Console Port

The ML-Series card has an RJ-11 serial console port on the card faceplate labeled CONSOLE. The

console port is wired as data circuit-terminating equipment (DCE). It enables communication from the

serial port of a PC or workstation running terminal emulation software to the Cisco IOS CLI on a specific

ML-Series card.

131940

Node IP address

3-5

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 3 Initial Configuration

ML-Series IOS CLI Console Port

RJ-11 to RJ-45 Console Cable Adapter

Due to space limitations on the ML-Series card faceplate, the console port is an RJ-11 modular jack

instead of the more common RJ-45 modular jack. Cisco supplies an RJ-11 to RJ-45 console cable adapter

(P/N 15454-CONSOLE-02) with each ML-Series card. After connecting the adapter, the console port

functions like the standard Cisco RJ-45 console port. Figure 3-3 shows the RJ-11 to RJ-45 console cable

adapter.

Figure 3-3 Console Cable Adapter

Table 3-1 shows the mapping of the RJ-11 pins to the RJ-45 pins.

Connecting a PC or Terminal to the Console Port

Use the supplied cable, an RJ-11 to RJ-45 console cable adapter, and a DB-9 adapter to connect a PC to

the ML-Series console port.

The PC must support VT100 terminal emulation. The terminal-emulation software—frequently a PC

application such as HyperTerminal or Procomm Plus—makes communication between the ML-Series

and your PC or terminal possible during the setup program.

Step 1 Configure the data rate and character format of the PC or terminal to match these console port default

settings:

• 9600 baud

• 8 data bits

• 1 stop bit

• No parity

Step 2 Insert the RJ-45 connector of the supplied cable into the female end of the supplied console cable

adapter.

78970

Table 3-1 RJ-11 to RJ-45 Pin Mapping

RJ-11 Pin RJ-45 Pin

1 1

2 2

3 3

4 4

None 5

5 6

None 7

6 8

3-6

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 3 Initial Configuration

ML-Series IOS CLI Console Port

Step 3 Insert the RJ-11 modular plug end of the supplied console cable adapter into the RJ-11 serial console

port, labeled CONSOLE, on the ML-Series card faceplate. Figure 3-4 shows the ML1000-2 faceplate

with console port. For the ML100T-12 and ML100X-8, the console port is at the bottom of the card

faceplate.

Figure 3-4 Connecting to the Console Port

Step 4 Attach the supplied RJ-45-to-DB-9 female DTE adapter to the nine-pin DB-9 serial port on the PC.

Step 5 Insert the other end of the supplied cable in the attached adapter.

ML1000

FAIL

ACT

CONSOLE

ACT

LINK

ACT

LINK

78994

RJ-45 Cable

RJ-11 to RJ-45

Console Port Adapter Cable

ML1000-2 CONSOLE Port

for RJ-11 Module Plug

3-7

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 3 Initial Configuration

Startup Configuration File

The ML-Series card needs a startup configuration file in order to configure itself beyond the default

configuration when the card is reset. If no startup configuration file exists in the TCC2/TCC2P flash

memory, then the card boots up to a default configuration. Users can manually set up the startup

configuration file through the serial console port and the Cisco IOS CLI configuration mode or load a

Cisco IOS supplied sample startup configuration file through CTC. A running configuration becomes a

startup configuration file when saved with a copy running-config startup-config command.

It is not possible to establish a Telnet connection to the ML-Series card until a startup configuration filed

is loaded onto the ML-Series card. Access is available through the console port.

Caution The copy running-config startup-config command saves a startup configuration file to the flash

memory on the ML-Series card. This operation is confirmed by the appearance of [OK] in the Cisco IOS

CLI session. The startup configuration file is also saved to the ONS node’s database restoration file after

approximately 30 additional seconds.

Caution Accessing the read-only memory monitor mode (ROMMON) on the ML-Series card without the

assistance of Cisco personnel is not recommended. This mode allows actions that can render the

ML-Series card inoperable. The ML-Series card ROMMON is preconfigured to boot the correct Cisco

IOS software image for the ML-Series card.

Caution The maximum size of the startup configuration file is 98356 bytes (characters).

Note When the running configuration file is altered, a RUNCFG-SAVENEED condition appears in CTC. This

condition is a reminder to enter a copy running-config startup-config command in the Cisco IOS CLI,

or the changes will be lost when the ML-Series card reboots.

Manually Creating a Startup Configuration File Through the Serial Console Port

Configuration through the serial console port is familiar to those who have worked with other products

using Cisco IOS. At the end of the configuration procedure, the copy running-config startup-config

command saves a startup configuration file.

The serial console port gives the user visibility to the entire booting process of the ML-Series card.

During initialization the ML-Series card first checks for a locally, valid cached copy of Cisco IOS. It

then either downloads the Cisco IOS software image from the TCC2/TCC2P or proceeds directly to

decompressing and initializing the image. Following Cisco IOS initialization the CLI prompt appears,

at which time the user can enter the Cisco IOS CLI configuration mode and setup the basic ML-Series

configuration.

3-8

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 3 Initial Configuration

Manually Creating a Startup Configuration File Through the Serial Console Port

Passwords

There are two types of passwords that you can configure for an ML-Series card: an enable password and

an enable secret password. For maximum security, make the enable password different from the enable

secret password.

• Enable password—The enable password is a non-encrypted password. It can contain any number of

uppercase and lowercase alphanumeric characters. Give the enable password only to users permitted

to make configuration changes to the ML-Series card.

• Enable secret password—The enable secret password is a secure, encrypted password. By setting an

encrypted password, you can prevent unauthorized configuration changes. On systems running

Cisco IOS software, you must enter the enable secret password before you can access global

configuration mode.

An enable secret password can contain from 1 to 25 uppercase and lowercase alphanumeric

characters. The first character cannot be a number. Spaces are valid password characters. Leading

spaces are ignored; trailing spaces are recognized.

Passwords are configured in the “Configuring the Management Port” section on page 3-8.

Configuring the Management Port

Because there is no separate management port on ML-Series cards, any Fast Ethernet interface (0-11 on

the ML100T-12 card and 0-7 on the ML100X-8), any Gigabit Ethernet interface (0-1 on the ML1000-2

card), or any POS interface (0-1 on any ML-Series card) can be configured as a management port. For

the packet over SONET (POS) interface to exist, an STS or STM circuit must first be created through

CTC or TL1.

You can remotely configure the ML-Series card through the management port, but first you must

configure an IP address so that the ML-Series card is reachable or load a startup configuration file. You

can manually configure the management port interface from the Cisco IOS CLI via the serial console

connection.

To configure Telnet for remote management access, perform the following procedure, beginning in user

EXEC mode:

Command Purpose

Step 1 Router> enable

Router#

Activates user EXEC (or enable) mode.

The # prompt indicates enable mode.

Step 2 Router# configure terminal

Router(config)#

Activates global configuration mode. You can abbreviate

the command to config t. The Router(config)# prompt

indicates that you are in global configuration mode.

Step 3 Router(config)# enable password

password

Sets the enable password. See the “Passwords” section

on page 3-8.

Step 4 Router(config)# enable secret

password

Allows you to enter an enable secret password. See the

“Passwords” section on page 3-8. A user must enter the

enable secret password to gain access to global

configuration mode.

Step 5 Router(config)# interface

type number

Router(config-if)#

Activates interface configuration mode on the interface.

Step 6 Router(config-if)# ip address

ip-address subnetmask

Allows you to enter the IP address and IP subnet mask

for the interface specified in Step 5.

3-9

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 3 Initial Configuration

CTC and the Startup Configuration File

After you have completed configuring remote management on the management port, you can use Telnet

to remotely assign and verify configurations.

Configuring the Hostname

In addition to the system passwords and enable password, your initial configuration should include a

hostname to easily identify your ML-Series card. To configure the hostname, perform the following task,

beginning in enable mode:

CTC and the Startup Configuration File

CTC allows a user to load the startup configuration file required by the ML-Series card. A

Cisco-supplied sample Cisco IOS startup configuration file, named Basic-IOS-startup-config.txt, is

available on the Cisco ONS 15454 SONET/SDH software CD. CISCO15 is the Cisco IOS CLI default

line password and the enable password for this configuration. Users can also create their own startup

configuration file, see the “Manually Creating a Startup Configuration File Through the Serial Console

Port” section on page 3-7.

CTC can load a Cisco IOS startup configuration file into the TCC2/TCC2P card flash before the

ML-Series card is physically installed in the slot. When installed, the ML-Series card downloads and

applies the Cisco IOS software image and the preloaded Cisco IOS startup-configuration file. Preloading

the startup configuration file allows an ML-Series card to immediately operate as a fully configured card

when inserted into the ONS 15454 SONET/SDH.

Step 7 Router(config-if)# no shutdown Enables the interface.

Step 8 Router(config-if)# exit

Router(config)#

Returns to global configuration mode.

Step 9 Router(config)# line vty

line-number

Router(config-line)#

Activates line configuration mode for virtual terminal

connections. Commands entered in this mode control the

operation of Telnet sessions to the ML-Series card.

Step 10 Router(config-line)# password

password

Allows you to enter a password for Telnet sessions.

Step 11 Router(config-line)# end

Router#

Returns to privileged EXEC mode.

Step 12 Router# copy running-config

startup-config

(Optional) Saves your configuration changes to

NVRAM.

Command Purpose

Step 1 Router# configure terminal

Router(config)#

Activates global configuration mode.

Step 2 Router(config)# hostname

name-string

Allows you to enter a system name. In this

example, we set the hostname to “Router.”

Step 3 Router(config)# end

Router#

Returns to privileged EXEC mode.

Step 4 Router# copy running-config

startup-config

(Optional) Copies your configuration changes

to NVRAM.

3-10

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 3 Initial Configuration

CTC and the Startup Configuration File

If the ML-Series card is booted up prior to the loading of the Cisco IOS startup configuration file into

TCC2/TCC2P card flash, then the ML-Series card must be reset to use the Cisco IOS startup

configuration file or the user can issue the command copy start run at the Cisco IOS CLI to configure

the ML-Series card to use the Cisco IOS startup configuration file.

Loading a Cisco IOS Startup Configuration File Through CTC

This procedure details the initial loading of a Cisco IOS Startup Configuration file through CTC.

Step 1 At the card-level view of the ML-Series card, click the IOS tab.

The CTC IOS window appears (Figure 3-1 on page 3-3).

Step 2 Click the IOS startup config button.

The config file dialog box appears.

Step 3 Click the Local -> TCC button.

Step 4 The sample Cisco IOS startup configuration file can be installed from either the ONS 15454

SONET/SDH software CD or from a PC or network folder:

• To install the Cisco supplied startup config file from the ONS 15454 SONET/SDH software CD,

insert the CD into the CD drive of the PC or workstation. Using the CTC config file dialog, navigate

to the CD drive of the PC or workstation and double-click the Basic-IOS-startup-config.txt file.

• To install the Cisco supplied config file from a PC or network folder, navigate to the folder

containing the desired Cisco IOS startup config file and double-click the desired Cisco IOS startup

config file.

Step 5 At the Are you sure? dialog box, click the Yes button.

The Directory and Filename fields on the configuration file dialog update to reflect that the Cisco IOS

startup config file is loaded onto the TCC2/TCC2P.

Step 6 Load the IOS startup config file from the TCC2/TCC2P to the ML-Series card:

a. If the ML-Series card has already been installed, right-click on the ML-Series card at the node level

or card level CTC view and select Reset Card.

After the reset, the ML-Series card runs under the newly loaded Cisco IOS startup config.

b. If the ML-Series card is not yet installed, installing the ML-Series card into the slot loads and runs

the newly loaded Cisco IOS startup configuration on the ML-Series card.

Note When the Cisco IOS startup configuration file is downloaded and parsed at initialization, if there

is an error in the parsing of this file, an ERROR-CONFIG alarm is reported and appears under

the CTC alarms pane or in TL1. No other Cisco IOS error messages regarding the parsing of text

are reported to the CTC or in TL1. An experienced Cisco IOS user can locate and troubleshoot

the line in the startup configuration file that produced the parsing error by opening the Cisco IOS

CLI and entering a copy start run command.

3-11

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 3 Initial Configuration

Multiple Microcode Images

Note A standard ONS 15454 SONET/SDH database restore reinstalls the Cisco IOS startup config file

on the TCC2/TCC2P, but does not implement the Cisco IOS startup config on the ML-Series.

See the “Database Restore of the Startup Configuration File” section on page 3-11 for additional

information.

Database Restore of the Startup Configuration File

The ONS 15454 SONET/SDH includes a database restoration feature. Restoring the database will

reconfigure a node and the installed line cards to the saved provisioning, except for the ML-Series card.

The ML-Series card does not automatically restore the startup configuration file saved in the

TCC2/TCC2P database.

A user can load the saved startup configuration file onto the ML-Series card in two ways. He can revert

completely to the saved startup configuration and lose any additional provisioning in the unsaved

running configuration, which is a restoration scheme similar to other ONS cards, or he can install the

saved startup configuration file on top of the current running configuration, which is a merging

restoration scheme used by many Cisco Catalyst devices.

To revert completely to the startup configuration file saved in the restored database, the user needs to

reset the ML-Series card. Right-click the ML-Series card in CTC and choose Reset or use the Cisco IOS

CLI reload command to reset the ML-Series card.

Caution Resetting the ONS 15454 ML-Series card causes a loss of traffic and closes any Telnet

sessions to the card.

To merge the saved startup configuration file with the running configuration, use the Cisco IOS CLI copy

startup-config running-config command. This restoration scheme should only be used by experienced

users with an understanding of the current running configuration and the Cisco IOS copy command. The

copy startup-config running-config command will not reset the ML-Series card. The user also needs

to use the Cisco IOS CLI copy running-config startup-config command to save the new merged

running configuration to the startup configuration file.

Multiple Microcode Images

The primary packet processing and forwarding on the ML-Series card is done by the network processor,

which is controlled by microcode. This microcode is a set of instructions (software) loaded into the

network processor and executed at high speed. The network processor has limited microcode storage

space.

Some of the ML-Series card features require significant amounts of microcode, and this additional

microcode exceeds the storage capacity of the network processor. These features are added as new

microcode images (separate microcode programs). The network processor can only hold one microcode

image at a time, and changing the loaded microcode image requires resetting the network processor.

The user can choose from several microcode images for the ML-Series card. Table 3-2 compares the

features available with the different microcode images.

3-12

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 3 Initial Configuration

Changing the Working Microcode Image

Caution Configuring topology discovery or shortest path load balancing on an ML-Series card with the SW-RPR

microcode image disables support for Cisco Proprietary RPR DRPRI.

Changing the Working Microcode Image

The user can change the microcode image using Cisco IOS CLI configuration and a reset of the

ML-Series card. Using this configuration method, you can load any microcode image except 802.17. To

automatically download and enable the 802.17 microcode image, use CTC to set the card mode to

802.17. For more information, see the “Provisioning Card Mode” section on page 2-4.

To configure a working microcode image, perform the following procedure, beginning in global

configuration mode:

Table 3-2 Microcode Image Feature Comparison

Features Base Enhanced EoMPLS SW-RPR 802.17

Packet Classification Yes Yes Yes Yes Yes

Policing and QoS Yes Yes Yes Yes Yes

Layer 2 Bridging Yes Yes Yes Yes Yes

IP Unicast Switching Yes Yes Yes Yes No

IP Fragmentation Yes No No No No

IP Multicast Switching Yes No No No No

EoMPLS No No Yes No Future

Cisco Proprietary RPR Encapsulation Yes Yes Yes Yes No

Cisco Proprietary RPR Resiliency Enhancements:

• Cisco Proprietary RPR Keep Alive

• Cisco Proprietary RPR CRC Threshold

Configuration, Detection, and Wrap

• Cisco Proprietary RPR Customer Ethernet

FCS Preservation

• Cisco Proprietary RPR CRC Error Alarm

Generation

• Cisco Proprietary RPR Shortest Path

Determination and Topology Discovery

No No Yes Yes No

PPP/HDLC/LEX Encapsulation Support Yes Yes Yes No No

IEEE 802.17b No No No No Yes

Enhanced PM No Yes No Yes Yes

Redundant Interconnect No No Yes Yes Yes

3-13

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 3 Initial Configuration

Cisco IOS Command Modes

The Cisco IOS user interface has several different modes. The commands available to you depend on

which mode you are in. To get a list of the commands available in a given mode, type a question mark

(?) at the system prompt.

Command Purpose

Step 1 Router(config)#

microcode

{base | enhanced

| fail system-reload | mpls | spr}

Configures the ML-Series card with the selected

microcode image:

base—(Default) Enables base features only. Base

features include Multicast routing and IP

fragmentation.

enhanced—Enables ERMS, enhanced packet

statistics, and enhanced DRPRI. Disables

multicast routing and IP fragmentation.

fail system-reload—This command and feature

are specific to ML-Series card. In the event of a

microcode failure, it configures the ML-Series

card to save information to the flash memory and

then reboot. The information is saved for use by

the Cisco Technical Assistance Center (Cisco

TAC ). To contact TAC, see the “Obtaining

Documentation and Submitting a Service

Request” section on page xxxvii.

mpls—Enables MPLS. Disables IP multicast, IP

fragmentation, and ERMS support.

spr—Enables SPR encapsulation, Enhanced

Packet Statistics, DRPRI, and Keepalives.

Disables Multicast routing or IP Fragmentation.

Step 2 Router(config)# exit Exits global configuration mode.

Step 3 Router# copy running-config startup-config Saves the configuration changes to Flash memory.

The running configuration file configured with the

new microcode image choice must be saved as a

startup configuration file for the ML-Series card to

reboot with the new microcode image choice.

Step 4 Router# reload Resets the ML-Series card and loads the new

microcode image.

Caution Resetting the ML-Series card causes a

loss of traffic and closes any Telnet

sessions to the card.

Step 5 Router# show microcode Shows the microcode image currently loaded and

the microcode image that loads when the

ML-Series card resets.

3-14

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 3 Initial Configuration

Cisco IOS Command Modes

Table 3-3 describes the most commonly used modes, how to enter the modes, and the resulting system

prompts. The system prompt helps you identify which mode you are in and, therefore, which commands

are available to you.

Note When a process makes unusually heavy demands on the CPU of the ML-Series card, it may impair CPU

response time and cause a CPUHOG error message to appear on the console. This message indicates

which process used a large number of CPU cycles, such as the updating of the routing table with a large

number of routes due to an event. Seeing this message as a result of card reset or other infrequent events

should not be a cause for concern.

When you start a session on the ML-Series card, you begin in user EXEC mode. Only a small subset of

the commands are available in user EXEC mode. To have access to all commands, you must enter

privileged EXEC mode, also called Enable mode. From privileged EXEC mode, you can type in any

EXEC command or access global configuration mode. Most of the EXEC commands are single-use

Table 3-3 Cisco IOS Command Modes

Mode What You Use It For How to Access Prompt

User EXEC Connect to remote devices,

change terminal settings on a

temporary basis, perform basic

tests, and display system

information.

Privileged EXEC

(also called Enable

mode)

Set operating parameters. The

privileged command set includes

the commands in user EXEC

mode, as well as the configure

command. Use this command

mode to access the other

command modes.

From user EXEC mode, enter the

enable command and the enable

password.

Router#

Global configuration Configure features that affect the

system as a whole.

From privileged EXEC mode,

enter the configure terminal

command.

Router(config)#

Interface configuration Enable features for a particular

interface. Interface commands

enable or modify the operation

of a Fast Ethernet, Gigabit

Ethernet or POS port.

From global configuration mode,

enter the interface type number

command.

For example, enter

interface fastethernet 0 for Fast

Ethernet or

interface gigabitethernet 0 for

Gigabit Ethernet interfaces or

interface pos 0 for Packet over

SONET interfaces.

Router(config-if)#

Line configuration Configure the console port or vty

line from the directly connected

console or the virtual terminal

used with Telnet.

From global configuration mode,

enter the line console 0

command to configure the

console port or the line vty

line-number command to

configure a vty line.

Router(config-line)#

3-15

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 3 Initial Configuration

Using the Command Modes

commands, such as show commands, which show the current configuration status, and clear commands,

which clear counters or interfaces. The EXEC commands are not saved across reboots of the ML-Series

card.

The configuration modes allow you to make changes to the running configuration. If you later save the

configuration, these commands are stored across ML-Series card reboots. You must start in global

configuration mode. From global configuration mode, you can enter interface configuration mode,

subinterface configuration mode, and a variety of protocol-specific modes.

ROMMON mode is a separate mode used when the ML-Series card cannot boot properly. For example,

your ML-Series card might enter ROM monitor mode if it does not find a valid system image when it is

booting, or if its configuration file is corrupted at startup.

Using the Command Modes

The Cisco IOS command interpreter, called the EXEC, interprets and executes the commands you enter.

You can abbreviate commands and keywords by entering just enough characters to make the command

unique from other commands. For example, you can abbreviate the show command to sh and the

configure terminal command to config t.

Exit

When you type exit, the ML-Series card backs out one level. In general, typing exit returns you to global

configuration mode. Enter end to exit configuration mode completely and return to privileged EXEC

mode.

Getting Help

In any command mode, you can get a list of available commands by entering a question mark (?).

Router> ?

To obtain a list of commands that begin with a particular character sequence, type in those characters

followed immediately by the question mark (?). Do not include a space. This form of help is called word

help, because it completes a word for you.

Router# co?

configure

To list keywords or arguments, enter a question mark in place of a keyword or argument. Include a space

before the question mark. This form of help is called command syntax help, because it reminds you

which keywords or arguments are applicable based on the command, keywords, and arguments you have

already entered.

Router#configure ?

memory Configure from NV memory

network Configure from a TFTP network host

overwrite-network Overwrite NV memory from TFTP network host

terminal Configure from the terminal

<cr>

To redisplay a command you previously entered, press the Up Arrow key. You can continue to press the

Up Arrow key to see more of the previously issued commands.

3-16

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 3 Initial Configuration

Getting Help

Tip If you are having trouble entering a command, check the system prompt, and enter the question mark (?)

for a list of available commands. You might be in the wrong command mode or using incorrect syntax.

You can press Ctrl-Z or type end in any mode to immediately return to privileged EXEC (enable) mode,

instead of entering exit, which returns you to the previous mode.

CHAPTER

4-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Configuring Interfaces

This chapter describes basic interface configuration for the ML-Series card to help you get your

ML-Series card up and running. Advanced packet-over-SONET/SDH (POS) interface configuration is

covered in Chapter 5, “Configuring POS.” For more information about the Cisco IOS commands used in

this chapter, refer to the Cisco IOS Command Reference publication.

This chapter contains the following major sections:

• General Interface Guidelines, page 4-1

• Basic Interface Configuration, page 4-3

• Basic Fast Ethernet, Gigabit Ethernet, and POS Interface Configuration, page 4-4

• CRC Threshold Configuration, page 4-11

• Monitoring Operations on the Fast Ethernet and Gigabit Ethernet Interfaces, page 4-12

Note Complete the initial configuration of your ML-Series card before proceeding with configuring

interfaces.

General Interface Guidelines

The main function of the ML-Series card is to relay packets from one data link to another. Consequently,

you must configure the characteristics of the interfaces that receive and send packets. Interface

characteristics include, but are not limited to, IP address, address of the port, data encapsulation method,

and media type.

Many features are enabled on a per-interface basis. Interface configuration mode contains commands

that modify the interface operation (for example, of an Ethernet port). When you enter the interface

command, you must specify the interface type and number.

The following general guidelines apply to all physical and virtual interface configuration processes:

• All interfaces have a name that is composed of an interface type (word) and a Port ID (number). For

example, FastEthernet 2.

• Configure each interface with a bridge-group or IP address and IP subnet mask.

• VLANs are supported through the use of subinterfaces. The subinterface is a logical interface

configured separately from the associated physical interface.

• Each physical interface, including the internal POS interfaces, has an assigned MAC address.

4-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 4 Configuring Interfaces

MAC Addresses

Every port or device that connects to an Ethernet network needs a MAC address. Other devices in the

network use MAC addresses to locate specific ports in the network and to create and update routing

tables and data structures.

To find MAC addresses for a device, use the show interfaces command, as follows:

Router# sh interfaces fastEthernet 0

FastEthernet0 is up, line protocol is up

Hardware is epif_port, address is 0005.9a39.6634 (bia 0005.9a39.6634)

MTU 1500 bytes, BW 100000 Kbit, DLY 100 usec,

reliability 255/255, txload 1/255, rxload 1/255

Encapsulation ARPA, loopback not set

Keepalive set (10 sec)

Full-duplex, Auto Speed, 100BaseTX

ARP type: ARPA, ARP Timeout 04:00:00

Last input 00:00:01, output 00:00:18, output hang never

Last clearing of "show interface" counters never

Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 0

Queueing strategy: fifo

Output queue :0/40 (size/max)

5 minute input rate 0 bits/sec, 0 packets/sec

5 minute output rate 0 bits/sec, 0 packets/sec

11 packets input, 704 bytes

Received 0 broadcasts, 0 runts, 0 giants, 0 throttles

0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored

0 watchdog, 11 multicast

0 input packets with dribble condition detected

3 packets output, 1056 bytes, 0 underruns

0 output errors, 0 collisions, 0 interface resets

0 babbles, 0 late collision, 0 deferred

0 lost carrier, 0 no carrier

0 output buffer failures, 0 output buffers swapped out

Interface Port ID

The interface port ID designates the physical location of the interface within the ML-Series card. It is

the name that you use to identify the interface that you are configuring. The system software uses

interface port IDs to control activity within the ML-Series card and to display status information.

Interface port IDs are not used by other devices in the network; they are specific to the individual

ML-Series card and its internal components and software.

The ML100T-12 port IDs for the twelve Fast Ethernet interfaces are Fast Ethernet 0 through 11. The

ML100X-8 port IDs for the eight Fast Ethernet interfaces are Fast Ethernet 0 through 7. The ML1000-2

port IDs for the two Gigabit Ethernet interfaces are Gigabit Ethernet 0 and 1. Both ML-Series cards

feature two POS ports, and the ML-Series card port IDs for the two POS interfaces are POS 0 and POS 1.

You can use user-defined abbreviations such as f0 to configure the Fast Ethernet interfaces, gi0 or gi1 to

configure the two Gigabit Ethernet interfaces, and POS0 and POS1 to configure the two POS ports.

You can use Cisco IOS show commands to display information about any or all the interfaces of the

ML-Series card.

Caution Do not use the abbreviations g0 or g1 for Gigabit Ethernet user-defined abbreviations. This creates an

unsupported group asynchronous interface.

4-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 4 Configuring Interfaces

Basic Interface Configuration

The following general configuration instructions apply to all interfaces. Before you configure interfaces,

develop a plan for a bridge or routed network.

To configure an interface, do the following:

Step 1 Enter the configure EXEC command at the privileged EXEC prompt to enter global configuration mode.

Router> enable

Password:

Router# configure terminal

Router(config)#

Step 2 Enter the interface command, followed by the interface type (for example, fastethernet, gigabitethernet,

or pos), and its interface port ID (see the “Interface Port ID” section on page 4-2).

For example, to configure a Gigabit Ethernet port, enter this command:

Router(config)# interface gigabitethernet

number

Step 3 Follow each interface command with the interface configuration commands required for your particular

interface.

The commands that you enter define the protocols and applications that will run on the interface. The

ML-Series card collects and applies commands to the interface command until you enter another

interface command or a command that is not an interface configuration command. You can also enter

end to return to privileged EXEC mode.

Step 4 Check the status of the configured interface by entering the EXEC show interface command.

Router# sh interface fastEthernet 0

FastEthernet0 is up, line protocol is up

Hardware is epif_port, address is 0005.9a39.6634 (bia 0005.9a39.6634)

MTU 1500 bytes, BW 100000 Bit, DLY 100 use,

reliability 255/255, txload 1/255, rxload 1/255

Encapsulation ARPA, loopback not set

Keepalive set (10 sec)

Full-duplex, Auto Speed, 100BaseTX

ARP type: ARPA, ARP Timeout 04:00:00

Last input 00:00:01, output 00:00:18, output hang never

Last clearing of "show interface" counters never

Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 0

Queueing strategy: fifo

Output queue :0/40 (size/max)

5 minute input rate 0 bits/sec, 0 packets/sec

5 minute output rate 0 bits/sec, 0 packets/sec

11 packets input, 704 bytes

Received 0 broadcasts, 0 runts, 0 giants, 0 throttles

0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored

0 watchdog, 11 multicast

0 input packets with dribble condition detected

3 packets output, 1056 bytes, 0 underruns

0 output errors, 0 collisions, 0 interface resets

0 babbles, 0 late collision, 0 deferred

0 lost carrier, 0 no carrier

0 output buffer failures, 0 output buffers swapped out

4-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 4 Configuring Interfaces

Basic Fast Ethernet, Gigabit Ethernet, and POS Interface Configuration

Basic Fast Ethernet, Gigabit Ethernet, and POS Interface

Configuration

ML-Series cards support Fast Ethernet, Gigabit Ethernet, and POS interfaces. This section provides

some examples of configurations for all interface types.

To configure an IP address or bridge-group number on a Fast Ethernet, Gigabit Ethernet, or POS

interface, perform the following procedure, beginning in global configuration mode:

Configuring the Fast Ethernet Interfaces for the ML100T-12

To configure the IP address or bridge-group number, speed, duplex, and flow control on an ML100T-12

Fast Ethernet interface, perform the following procedure, beginning in global configuration mode:

Command Purpose

Step 1 Router(config)# interface

type number

Activates interface configuration mode to

configure either the Gigabit Ethernet interface, the

Fast Ethernet interface, or the POS interface.

Step 2 Router(config-if)# {ip address

ip-address

subnet-mask

| bridge-group

bridge-group-number

}

Sets the IP address and IP subnet mask to be

assigned to the interface.

Assigns a network interface to a bridge group.

Step 3 Router(config-if)# no shutdown Enables the interface by preventing it from

shutting down.

Step 4 Router(config)# end Returns to privileged EXEC mode.

Step 5 Router# copy running-config startup-config (Optional) Saves configuration changes to timing

and control card (TCC2/TCC2P) flash database.

Command Purpose

Step 1 Router(config)# interface fastethernet

number

Activates interface configuration mode to

configure the Fast Ethernet interface.

Step 2 Router(config-if)# {ip address

ip-address

subnet-mask

| bridge-group

bridge-group-number

}

Sets the IP address and IP subnet mask to be

assigned to the interface.

Assigns a network interface to a bridge group.

Step 3 Router(config-if)# [no] speed {10 | 100 |

auto}

Configures the transmission speed for 10 or

100 Mbps. If you set the speed or duplex for auto,

you enable autonegotiation on the system. In this

case, the ML-Series card matches the speed and

duplex mode of the partner node.

Step 4 Router(config-if)# [no] duplex {full | half

| auto}

Sets full duplex, half duplex, or autonegotiate

mode.

4-5

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 4 Configuring Interfaces

Configuring the Fast Ethernet Interfaces for the ML100X-8

Example 4-1 shows how to do the initial configuration of an ML100T-12 Fast Ethernet interface with an

IP address and autonegotiation.

Example 4-1 Initial Configuration of a ML100T-12 Fast Ethernet Interface

Router(config)# interface fastethernet 1

Router(config-if)# ip address 10.1.2.4 255.0.0.0

Router(config-if)# negotiation auto

Router(config-if)# no shutdown

Router(config-if)# end

Router# copy running-config startup-config

Configuring the Fast Ethernet Interfaces for the ML100X-8

The ML100X-8 supports 100BASE-FX full-duplex data transmission. You cannot configure

autonegotiation or speed on its Fast Ethernet interfaces. The card also features automatic

medium-dependent interface crossover (Auto-MDIX) enabled by default. Auto-MDIX automatically

detects the required cable connection type (straight-through or crossover) and configures the connection

appropriately. To configure the IP address or bridge-group number, or flow control on a Fast Ethernet

interface, perform the following procedure, beginning in global configuration mode:

Step 5 Router(config-if)# flowcontrol send {on |

off | desired}

(Optional) Sets the send flow control value for an

interface. Flow control works only with port-level

policing. ML-Series card Fast Ethernet port flow

control is IEEE 802.3x compliant.

Note Since Fast Ethernet ports support only

symmetric flow control the flowcontrol

send command controls both the receive

and send flow control operations.

Step 6 Router(config-if)# no shutdown Enables the interface by preventing it from

shutting down.

Step 7 Router(config)# end Returns to privileged EXEC mode.

Step 8 Router# copy running-config startup-config (Optional) Saves your configuration changes to

TCC2/TCC2P flash database.

Command Purpose

Step 1 Router(config)# interface fastethernet

number

Activates interface configuration mode to

configure the Fast Ethernet interface.

Step 2 Router(config-if)# {ip address

ip-address

subnet-mask

| bridge-group

bridge-group-number

}

Sets the IP address and IP subnet mask to be

assigned to the interface.

Assigns a network interface to a bridge group.

4-6

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 4 Configuring Interfaces

Configuring the Gigabit Ethernet Interface for the ML1000-2

To configure IP address or bridge-group number, autonegotiation, and flow control on an ML1000-2

Gigabit Ethernet interface, perform the following procedure, beginning in global configuration mode:

Note The default setting for the negotiation mode is auto for the Gigabit Ethernet and Fast Ethernet interfaces.

The Gigabit Ethernet port always operates at 1000 Mbps in full-duplex mode.

Step 3 Router(config-if)# flowcontrol send {on |

off | desired}

(Optional) Sets the send flow control value for an

interface. Flow control works only with port-level

policing. ML-Series card Fast Ethernet port flow

control is IEEE 802.3x compliant.

Note Since Fast Ethernet ports support only

symmetric flow control the flowcontrol

send command controls both the receive

and send flow control operations.

Step 4 Router(config-if)# no shutdown Enables the interface by preventing it from

shutting down.

Step 5 Router(config)# end Returns to privileged EXEC mode.

Step 6 Router# copy running-config startup-config (Optional) Saves your configuration changes to

TCC2/TCC2P flash database.

Command Purpose

Step 1 Router# interface gigabitethernet

number

Activates interface configuration mode to

configure the Gigabit Ethernet interface.

Step 2 Router(config-if)# {ip address

ip-address

subnet-mask

| bridge-group

bridge-group-number

}

Sets the IP address and subnet mask.

Assigns a network interface to a bridge group.

Step 3 Router(config-if)# [no] negotiation auto Sets negotiation mode to auto. The Gigabit

Ethernet port attempts to negotiate the link with

the partner port.

If you want the port to force the link up no matter

what the partner port setting is, set the Gigabit

Ethernet interface to no negotiation auto.

Step 4 Router(config-if)# flowcontrol {send |

receive} {on | off | desired}

(Optional) Sets the send or receive flow control

value for an interface. Flow control works only

with port-level policing. ML-Series card Gigabit

Ethernet port flow control is IEEE 802.3z

compliant.

Step 5 Router(config-if)# no shutdown Enables the interface by preventing it from

shutting down.

4-7

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 4 Configuring Interfaces

Configuring Gigabit Ethernet Remote Failure Indication (RFI)

Example 4-2 shows how to do an initial configuration of a Gigabit Ethernet interface with

autonegotiation and an IP address.

Example 4-2 Initial Configuration of a Gigabit Ethernet Interface

Router(config)# interface gigabitethernet 0

Router(config-if)# ip address 10.1.2.3 255.0.0.0

Router(config-if)# negotiation auto

Router(config-if)# no shutdown

Router(config-if)# end

Router# copy running-config startup-config

Configuring Gigabit Ethernet Remote Failure Indication (RFI)

Remote Failure Indication (RFI) is part of the IEEE 802.3z standard and is sent to exchange failure

information as part of link negotiation. This feature improves communication between non-Cisco

equipment and the ML1000-2. RFI is not on by default but can be turned on by the user. Disabling RFI

is sometimes necessary when a non-Cisco piece of equipment does not support the IEEE 802.3z standard

implementation of RFI.

RFI on the ML-Series card supports bi-directional RFI. When there is a a local fault on the ML-Series

card, the ML-Series card will raise a local CARLOSS alarm and send its link partner an RFI. If an

ML-Series card receives an RFI from its link partner, it raises the AUTONEG-RFI alarm and shuts down

the Gigabit Ethernet port.

To enable RFI on a Gigabit Ethernet interface, perform the following procedure, beginning in global

configuration mode:

Example 4-3 shows how to do an initial configuration of RFI on a Gigabit Ethernet interface.

Example 4-3 RFI Configuration of a Gigabit Ethernet Interface

Router(config)# interface gigabitethernet 0

Router(config-if)# rfi auto

Router(config-if)# end

Step 6 Router(config)# end Returns to privileged EXEC mode.

Step 7 Router# copy running-config startup-config (Optional) Saves configuration changes to

TCC2/TCC2P flash database.

Command Purpose

Step 1 Router (config)# interface gigabitethernet

number

Activates interface configuration mode to

configure the Gigabit Ethernet interface.

Step 2 Router(config-if)# [no] rfi auto Enables IEEE 802.3z standard RFI.

The no form of the command disables RFI.

Step 3 Router(config)# end Returns to privileged EXEC mode.

Step 4 Router# copy running-config startup-config (Optional) Saves configuration changes to

TCC2/TCC2P flash database.

4-8

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 4 Configuring Interfaces

Monitoring and Verifying Gigabit Ethernet Remote Failure Indication (RFI)

Router# copy running-config startup-config

Monitoring and Verifying Gigabit Ethernet Remote Failure Indication (RFI)

After RFI is configured, you can verify that RFI is enabled by using the global command show running

configuration. Example 4-4 shows the output from this command, and the “rfi auto” line under each of

the Gigabit Ethernet port’s output signifies RFI is enabled on these ports.

More specific RFI information is revealed with the global show controller gigabit ethernet [ 0 | 1]

command:

• Example 4-5 shows the full output from this command on a near-end ML-Series card when no faults

are detected at the near-end or far-end. The Remote Fault Indication is 00 or no error, and the Local

Fault Indication is 00 or no error.

• Example 4-6 shows the partial output from this command on a near-end ML-Series card when a

fault is detected at the near-end. The Remote Fault Indication is 00 or no error, but the Local Fault

Indication is 01 or link error.

• Example 4-7 shows the partial output from this command on a far-end ML-Series card when a fault

is detected at the near-end. The Remote Fault Indication is 01 or link error, and the Local Fault

Indication is 00 or no error.

Note If the far-end link partner resets within approximately two minutes of the near-end ML-Series card

sending an RFI signalling link error, the link partner will not display the RFI link error indication when

back up.

Example 4-4 show run Command Output for RFI

Router# show running configuration

Building configuration...

Current configuration : 806 bytes

! No configuration change since last restart

version 12.2

no service pad

service timestamps debug uptime

service timestamps log uptime

no service password-encryption

hostname Interop-261-TOP-

boot-start-marker

boot-end-marker

enable password lab

clock timezone PST -8

clock summer-time PDT date Apr 2 2006 2:00 Oct 29 2006 2:00

ip subnet-zero

no mpls traffic-eng auto-bw timers frequency 0

interface GigabitEthernet0

no ip address

rfi auto

4-9

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 4 Configuring Interfaces

Monitoring and Verifying Gigabit Ethernet Remote Failure Indication (RFI)

interface GigabitEthernet1

no ip address

rfi auto

Example 4-5 show controller Command Output for RFI on near-end card with no faults detected

Near_End# show controller gigabit ethernet 0

IF Name: GigabitEthernet0

Port Status UP

Port rxLosState Signal present

Remote Fault Indication 00 (no error)

Local Fault Indication 00 (no error)

Port 0 Gmac Loopback false

SFP EEPROM information

----------------------

0x0 : 03 04 07 00 00 00 02 12 00 01 01 01 0C 00 0A 64

0x10: 37 37 00 00 46 49 4E 49 53 41 52 20 43 4F 52 50

0x20: 2E 20 20 20 00 00 FFFFFF90 65 46 54 52 4A 2D 31 33 31

0x30: 39 2D 37 44 2D 43 53 43 00 00 00 00 05 1E 00 00

GBIC Type: GBIC_1000BASE_LH

Send Flow Control: Enabled (Port level policing required to send pause frames)

Receive Flow Control : Enabled

CRC-ALARM: FALSE

MAC registers:

GCR: 0x0 CMCR : 0x00000803 (Tx Enabled, Rx Enabled)

MII registers of External GMAC:

Control Register (0x00): 0x1140 (Auto negotation Enabled)

Status Register (0x01): 0x16D (Link Status Up)

Auto Neg. Advt. Register (0x04): 0x1A0 (Dir 1, Sym 1)

Auto Neg. Partner Ability Reg (0x05): 0x41A0 (Dir 1, Sym 1)

TR_IPG_TIME Register (0x10): 0x7

PAUSE_TIME Register (0x11): 0x100

PAUSE_SA1 Register (0x13): 0x0

PAUSE_SA2 Register (0x14): 0x0

PAUSE_SA3 Register (0x15): 0x0

Pause Upper Threshold Reg. (0x19): 0x80

Pause Lower Threshold Reg. (0x1A): 0xFF

TX Full Threshold Register (0x1B): 0x40

Memory Address Register (0x1C): 0xF008

Sync Status Register (0x1D): 0x40

Sys Status Register (0x1E): 0x98

Sys Control Register (0x1F): 0x14

Auto Neg Ctrl Register (0xF004): 0x7

Rx Uinfo Registerter-GMAC (0xF006): 0x0

RX control Register-GMAC (0xF009): 0x3

RX Oversize Register-GMAC (0xF00A): 0x5F4

Statistics control register (0xF008): 0x1

Counters :

MAC receive conters:

Bytes 1952660

pkt64 0

pkts64to127 0

pkts128to255 0

pkts256to511 5485

pkts512to1023 0

pkts1024to1518 0

pkts1519to1530 0

pkts_good_giants 0

4-10

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 4 Configuring Interfaces

Configuring the POS Interfaces (ML100T-12, ML100X-8 and ML1000-2)

pkts_error_giants 0

pkts_good_runts 0

pkts_error_runts 0

pkts_ucast 0

pkts_mcast 5485

pkts_bcast 0

Rx Sync Loss 0

Overruns 0

FCS_errors 0

GMAC drop count 0

Symbol error 0

Rx Pause frames 0

MAC Transmit Counters

5d00h: %LINK-3-UPDOWN: Interface GigabitEthernet0, changed state to down

5d00h: %ETHERCHAN-5-MEMREMOVED: GigabitEthernet0 taken out of port-channel1

5d00h: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0, changed

staBytes 1952660

pkts64 0

pkts65to127 0

pkts128to255 0

pkts256to511 5485

pkts512to1023 0

pkts1024to1518 0

pkts1519to1530 0

Good Giants 0

Unicast packets 0

Multicast packets 5485

Broadcast packets 0

FCS errors 0

Tx Pause frames 0

Ucode drops 0

Example 4-6 show controller Command Output for RFI on Near-end Card with Near-end Fault

Near_End# show controller gigabit ethernet 0

IF Name: GigabitEthernet0

Port Status DOWN

Port rxLosState No signal

Remote Fault Indication 00 (no error)

Local Fault Indication 01 (link error)

Port 0 Gmac Loopback false

Example 4-7 show controller Command Output for RFI on Far-end Card with Near-end Fault

Far_End# show controller gigabit ethernet 0

IF Name: GigabitEthernet0

Port Status DOWN

Port rxLosState Signal present

Remote Fault Indication 01 (link error)

Local Fault Indication 00 (no error)

Port 0 Gmac Loopback false

Configuring the POS Interfaces (ML100T-12, ML100X-8 and ML1000-2)

Encapsulation changes on POS ports are allowed only when the interface is in a manual shutdown

(ADMIN_DOWN). For advanced POS interface configuration, see Chapter 5, “Configuring POS.”

4-11

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 4 Configuring Interfaces

CRC Threshold Configuration

To configure the IP address, bridge group, or encapsulation for the POS interface, perform the following

procedure, beginning in global configuration mode:

CRC Threshold Configuration

You can configure a span shutdown when the ML-Series card receives CRC errors at a rate that exceeds

the configured threshold and configured soak time. ML cards support CRC threshold configuration

functionality on FE / GE / POS and RPR-IEEE interfaces. For configuration sample for RPR IEEE

interfaces, see Chapter 26, “Configuring IEEE 802.17b Resilient Packet Ring.”

To enable and configure the triggers for CRC errors on POS , perform the following procedure,

beginning in global configuration mode:

Command Purpose

Step 1 Router(config)# interface pos

number

Activates interface configuration mode to

configure the POS interface.

Step 2 Router(config-if)# {ip address

ip-address

subnet-mask

| bridge-group

bridge-group-number

}

Sets the IP address and subnet mask.

Assigns a network interface to a bridge group.

Step 3 Router(config-if)# shutdown Manually shuts down the interface. Encapsulation

changes on POS ports are allowed only when the

interface is shut down (ADMIN_DOWN).

Step 4 Router(config-if)# encapsulation

type

Sets the encapsulation type. Valid values are:

• hdlc—Cisco HDLC

• lex—(Default) LAN extension, special

encapsulation for use with Cisco ONS

Ethernet line cards

• ppp—Point-to-Point Protocol

Step 5 Router(config-if)# no shutdown Restarts the shutdown interface.

Step 6 Router(config)# end Returns to privileged EXEC mode.

Step 7 Router# copy running-config startup-config (Optional) Saves configuration changes to

NVRAM.

Command Purpose

Step 1

Router(config)#int pos0

Router(config-if)#trigger crc-error

threshold <threshold_value>

Sets the CRC threshold value. If the percentage of

CRC errored frames received on this interface is

greater than this value, we consider this interface

as seeing excessive CRC. The valid values are 2, 3

and 4 indicating thresholds of 10e-2 (1%),

10e-3(0.1%) and 10e-4(.01%). The default value

is 3.

Step 2 Router(config-if)#no trigger crc-error

threshold < threshold_value>

Sets the threshold value back to the default value

4-12

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 4 Configuring Interfaces

Monitoring Operations on the Fast Ethernet and Gigabit Ethernet Interfaces

Monitoring Operations on the Fast Ethernet and Gigabit Ethernet

Interfaces

To verify the settings after you have configured the interfaces, enter the show interface command. For

additional information about monitoring the operations on POS interfaces, see the “Configuring POS”

chapter.

Example 4-8 shows the output from the show interface command, which displays the status of the

interface including port speed and duplex operation.

Example 4-8 show interface Command Output

Router# show interface fastEthernet 0

FastEthernet1 is administratively down, line protocol is down

Hardware is epif_port, address is 000d.bd5c.4c85 (bia 000d.bd5c.4c85)

MTU 1500 bytes, BW 100000 Kbit, DLY 100 usec,

reliability 255/255, txload 1/255, rxload 1/255

Encapsulation ARPA, loopback not set

Keepalive set (10 sec)

Auto-duplex, Auto Speed, 100BaseTX

ARP type: ARPA, ARP Timeout 04:00:00

Last input never, output never, output hang never

Last clearing of "show interface" counters never

Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 0

Queueing strategy: fifo

Output queue: 0/40 (size/max)

5 minute input rate 0 bits/sec, 0 packets/sec

5 minute output rate 0 bits/sec, 0 packets/sec

0 packets input, 0 bytes

Received 0 broadcasts (0 IP multicast)

0 runts, 0 giants, 0 throttles

0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored

0 watchdog, 0 multicast

0 input packets with dribble condition detected

0 packets output, 0 bytes, 0 underruns

0 output errors, 0 collisions, 0 interface resets

0 babbles, 0 late collision, 0 deferred

0 lost carrier, 0 no carrier

0 output buffer failures, 0 output buffers swapped out

Step 3 Router(config)#int pos0

Router(config-if)#trigger crc-error delay

<soak_time_in_minutes>

Sets the number of consecutive minutes for which

excessive CRC errors should be seen to raise an

excessive CRC indication. The valid values are

from 3 minutes to 10 minutes. Default is

10minutes.

Step 4

Router(config-if)#no trigger crc-error

delay <soak_time_in_minutes>

Sets the soak value back to the default of 10

minutes.

Step 5 Router(config)#int pos0

Router(config-if)#trigger crc-error action

Enable trigger action. This configuration will

bring the interface down on seeing CRC errors

greater than configured <threshold value> for soak

time period.

Step 6 Router(config-if)#no trigger crc-error

action

Disables trigger action.

Command Purpose

4-13

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 4 Configuring Interfaces

Monitoring Operations on the Fast Ethernet and Gigabit Ethernet Interfaces

Enter the show controller command to display information about the Fast Ethernet controller chip.

Example 4-9 shows the output from the show controller command, which shows statistics including

initialization block information.

Example 4-9 show controller Command Output

Router# show controller fastEthernet 0

IF Name: FastEthernet0

Port Status DOWN

Send Flow Control : Disabled

Receive Flow Control : Enabled

MAC registers

CMCR : 0x0000042D (Tx Enabled, Rx Disabled)

CMPR : 0x150B0A80 (Long Frame Disabled)

FCR : 0x0000A00B (Rx Pause detection Enabled)

MII registers:

Control Register (0x0): 0x4000 (Auto negotiation disabled)

Status Register (0x1): 0x7809 (Link status Down)

PHY Identification Register 1 (0x2): 0x40

PHY Identification Register 2 (0x3): 0x61D4

Auto Neg. Advertisement Reg (0x4): 0x1E1 (Speed 100, Duplex Full)

Auto Neg. Partner Ability Reg (0x5): 0x0 (Speed 10, Duplex Half)

Auto Neg. Expansion Register (0x6): 0x4

100Base-X Aux Control Reg (0x10): 0x2000

100Base-X Aux Status Register(0x11): 0x0

100Base-X Rcv Error Counter (0x12): 0x0

100Base-X False Carr. Counter(0x13): 0x0

Enter the show run interface [type number] command to display information about the configuration of

the Fast Ethernet interface. The command is useful when there are multiple interfaces and you want to

look at the configuration of a specific interface.

Example 4-10 shows output from the show run interface [type number] command, which includes

information about the IP address or lack of IP address and the state of the interface.

Example 4-10 show run interface Command Output

daytona# show run interface FastEthernet 1

Building configuration...

Current configuration : 56 bytes

interface FastEthernet1

no ip address

shutdown

end

4-14

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 4 Configuring Interfaces

Monitoring Operations on the Fast Ethernet and Gigabit Ethernet Interfaces

CHAPTER

5-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Configuring POS

This chapter describes advanced packet-over-SONET/SDH (POS) interface configuration for the

ML-Series card. Basic POS interface configuration is included in Chapter 4, “Configuring Interfaces.”

For more information about the Cisco IOS commands used in this chapter, refer to the Cisco IOS

Command Reference publication. POS operation on ONS Ethernet cards, including the ML-Series card,

is described in Chapter 20, “POS on ONS Ethernet Cards.”

This chapter contains the following major sections:

• POS on the ML-Series Card, page 5-1

• Monitoring and Verifying POS, page 5-9

• POS Configuration Examples, page 5-11

POS on the ML-Series Card

Ethernet and IP data packets need to be framed and encapsulated into SONET/SDH frames for transport

across the SONET/SDH network. This framing and encapsulation process is known as POS and is done

in the ML-Series card. Chapter 20, “POS on ONS Ethernet Cards,” explains POS in greater detail.

The ML-Series card takes the standard Ethernet ports on the front of the card and the virtual POS ports

and includes them all as switch ports. Under Cisco IOS, the POS port is an interface similar to the other

Ethernet interfaces on the ML-Series card. It is usually used as a trunk port. Many standard Cisco IOS

features, such as IEEE 802.1 Q VLAN configuration, are configured on the POS interface in the same

manner as on a standard Ethernet interface. Other features and configurations are done strictly on the

POS interface. The configuration of features limited to POS ports is shown in this chapter.

ML-Series SONET and SDH Circuit Sizes

SONET is an American National Standards Institute (ANSI) standard (T1.1051988) for optical digital

transmission at hierarchical rates from 51.840 Mbps (STS-1) to 2.488 Gbps (STS-48) and greater. SDH

is the international standard for optical digital transmission at hierarchical rates from 155.520 Mbps

(STM-1) to 2.488 Gbps (STM-16) and greater.

Both SONET and SDH are based on a structure that has a basic frame and speed. The frame format used

by SONET is the synchronous transport signal (STS), with STS-1 being the base level signal at

51.84 Mbps. A STS-1 frame can be carried in an OC-1 signal. The frame format used by SDH is the

synchronous transport module (STM), with STM-1 being the base level signal at 155.52 Mbps. A STM-1

frame can be carried in an OC-3 signal.

5-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 5 Configuring POS

VCAT

Both SONET and SDH have a hierarchy of signaling speeds. Multiple lower level signals can be

multiplexed together to form higher level signals. For example, three STS-1 signals can be multiplexed

together to form a STS-3 signal, and four STM-1 signals can be multiplexed together to form a STM-4

signal.

SONET circuit sizes are defined as STS-n, where n is a multiple of 51.84 Mbps and n is equal to or

greater than 1. SDH circuit sizes are defined as STM-n, where n is a multiple of 155.52 Mbps and n is

equal to or greater than 0. Table 5-1 shows STS and STM line rate equivalents.

For step-by-step instructions on configuring an ML-Series card SONET STS circuit, refer to the “Create

Circuits and VT Tunnels” chapter of the Cisco ONS 15454 Procedure Guide. For step-by-step

instructions on configuring an ML-Series card SDH STM circuit, refer to the “Create Circuits and

Tunnels” chapter of the Cisco ONS 15454 SDH Procedure Guide.

VCAT

VCAT significantly improves the efficiency of data transport over SONET/SDH by grouping the

synchronous payload envelopes (SPEs) of SONET/SDH frames in a nonconsecutive manner into VCAT

groups. VCAT group circuit bandwidth is divided into smaller circuits called VCAT members. The

individual members act as independent circuits.

Intermediate nodes treat the VCAT members as normal circuits that are independently routed and

protected by the SONET/SDH network. At the terminating nodes, these member circuits are multiplexed

into a contiguous stream of data. VCAT avoids the SONET/SDH bandwidth fragmentation problem and

allows finer granularity for provisioning of bandwidth services.

The ONS 15454 SONET and ONS 15454 SDH ML-Series card VCAT circuits must also be routed over

common fiber and be both bidirectional and symmetric. Only high order (HO) VCAT circuits are

supported. The ML-Series card supports a maximum of two VCAT groups, with each group

corresponding to one of the POS ports. Each VCAT group can contain two circuit members. A VCAT

circuit originating from an ML-Series card must terminate on another ML-Series card or a CE-Series

card. Table 5-2 shows supported VCAT circuit sizes for the ML-Series.

Table 5-1 SONET STS Circuit Capacity in Line Rate Mbps

SONET Circuit Size SDH Circuit Size Line Rate in Mbps

STS-1 (OC-1) VC-31

1. VC-3 circuit support requires an XCVL card to be installed.

52 Mbps

STS-3c (OC-3) STM-1 (VC4) 156 Mbps

STS-6c (OC-6) STM-2 (VC4-2c) 311 Mbps

STS-9c (OC-9) STM-3 (VC4-3c) 466 Mbps

STS-12c (OC-12) STM-4 (VC4-4c) 622 Mbps

STS-24c (OC-24) STM-8 (VC4-8c) 1244 Mbps (1.24 Gbps)

5-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 5 Configuring POS

SW-LCAS

For step-by-step instructions on configuring an ML-Series card SONET VCAT circuit, refer to the

“Create Circuits and VT Tunnels” chapter of the Cisco ONS 15454 Procedure Guide. For step-by-step

instructions on configuring an ML-Series card SDH VCAT circuit, refer to the “Create Circuits and

Tunnels” chapter of the Cisco ONS 15454 SDH Procedure Guide. For more general information on

VCAT circuits, refer to the “Circuits and Tunnels” chapter of the Cisco ONS 15454 Reference Manual

or the Cisco ONS 15454 SDH Reference Manual.

Note ML-Series card POS interfaces normally send an alarm for signal label mismatch failure in the ONS

15454 STS path overhead (PDI-P) to the far end when the POS link goes down or when RPR wraps.

ML-Series card POS interfaces do not send PDI-P to the far-end when PDI-P is detected, when a remote

defection indication alarm (RDI-P) is being sent to the far end, or when the only defects detected are

generic framing procedure (GFP)-loss of frame delineation (LFD), GFP client signal fail (CSF), virtual

concatenation (VCAT)-loss of multiframe (LOM), or VCAT-loss of sequence (SQM).

Note For nodes not connected by DCC (open ended nodes), VCAT must be configured through TL-1.

SW-LCAS

A link capacity adjustment scheme (LCAS) increases VCAT flexibility by allowing the dynamic

reconfiguration of VCAT groups without interrupting the operation of noninvolved members. Software

link capacity adjustment scheme (SW-LCAS) is the software implementation of a LCAS-type feature.

SW-LCAS differs from LCAS because it is not errorless and uses a different handshaking mechanism.

SW-LCAS on the ONS 15454 SONET/SDH ML-Series cards allows the automatic addition or removal

of a VCAT group member in the event of a failure or recovery on a two-fiber bidirectional line switched

ring (BLSR). The protection mechanism software operates based on ML-Series card link events.

SW-LCAS allows service providers to configure VCAT member circuits on the ML-Series as protection

channel access (PCA) circuits. This PCA traffic is dropped in the event of a protection switch, but is

suitable for excess or noncommited traffic and can double the total available bandwidth on the circuit.

For step-by-step instructions on configuring SW-LCAS, refer to the “Create Circuits and VT Tunnels”

chapter of the Cisco ONS 15454 Procedure Guide or the “Create Circuits and Tunnels” chapter of the

Cisco ONS 15454 SDH Procedure Guide. For more general information on SW-LCAS, refer to the

“Circuits and Tunnels” chapter of the Cisco ONS 15454 Reference Manual or the

Cisco ONS 15454 SDH Reference Manual.

Table 5-2 VCAT Circuit Sizes Supported by ML100T-12, ML100X-8, and ML1000-2 Cards

SONET VCAT Circuit Size SDH VCAT Circuit Size

STS-1-2v VC-3-2v

STS-3c-2v VC-4-2v

STS-12c-2v VC-4-4c-2v

5-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 5 Configuring POS

Framing Mode, Encapsulation, and CRC Support

The ML-Series cards on the ONS 15454 and ONS 15454 SDH support two modes of the POS framing

mechanism, GFP-F framing and HDLC framing (default). The framing mode, encapsulation, and CRC

size on source and destination POS ports must match for a POS circuit to function properly. Chapter 20,

“POS on ONS Ethernet Cards,” explains the framing mechanisms, encapsulations, and cyclic

redundancy check (CRC) bit sizes in detail.

Supported encapsulation and CRC sizes for the framing types are detailed in Table 5-3.

Note ML-Series card POS interfaces normally send PDI-P to the far-end when the POS link goes down or RPR

wraps. ML-Series card POS interfaces do not send PDI-P to the far-end when PDI-P is detected, when

RDI-P is being sent to the far-end or when the only defects detected are GFP LFD, GFP CSF, VCAT

LOM or VCAT SQM.

Configuring POS Interface Framing Mode

You configure framing mode on an ML-Series card only through CTC. For more information on

configuring framing mode in CTC, see Chapter 2, “CTC Operations.”

Configuring POS Interface Encapsulation Type

The default Cisco EoS LEX is the primary encapsulation of ONS Ethernet cards. This encapsulation is

used under HDLC framing with the protocol field set to the values specified in Internet Engineering Task

Force (IETF) Request For Comments (RFC) 1841. Under GFP-F framing, the Cisco IOS CLI also uses

the keyword lex. With GFP-F framing, the lex keyword is used to represent standard mapped Ethernet

over GFP-F according to ITU-T G.7041.

To configure the encapsulation type for a ML-Series card, perform the following steps beginning in

global configuration mode:

Table 5-3 Supported Encapsulation, Framing, and CRC Sizes for ML-Series Cards on the

ONS 15454 and ONS 15454 SDH

Encapsulations for

HDLC Framing CRC Sizes for HDLC

Framing Encapsulations for

GFP-F Framing CRC Sizes for

GFP-F Framing

ML-Series LEX (default)

Cisco HDLC

PPP/BCP

16-bit

32-bit (default)

LEX (default)

Cisco HDLC

PPP/BCP

32-bit (default)

Command Purpose

Step 1 Router(config)# interface pos

number

Activates interface configuration mode to

configure the POS interface.

Step 2 Router(config-if)# shutdown Manually shuts down the interface. Encapsulation

changes on POS ports are allowed only when the

interface is shut down (ADMIN_DOWN).

5-5

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 5 Configuring POS

Framing Mode, Encapsulation, and CRC Support

Configuring POS Interface CRC Size in HDLC Framing

To configure additional properties to match those of the interface at the far end, perform the following

steps, beginning in global configuration mode:

Setting the MTU Size

To set the maximum transmission unit (MTU) size, perform the following steps, beginning in global

configuration mode:

Step 3 Router(config-if)# encapsulation

type

Sets the encapsulation type. Valid values are:

• hdlc—Cisco HDLC

• lex—(default) LAN extension, special

encapsulation for use with Cisco ONS

Ethernet line cards. When the lex keyword is

used with GFP-F framing it is standard

Mapped Ethernet over GFP-F according to

ITU-T G.7041.

• ppp—Point-to-Point Protocol

Step 4 Router(config-if)# no shutdown Restarts the shutdown interface.

Step 5 Router(config)# end Returns to privileged EXEC mode.

Step 6 Router# copy running-config startup-config (Optional) Saves configuration changes to

NVRAM.

Command Purpose

Step 1 Router(config)# interface pos

number

Activates interface configuration mode to

configure the POS interface.

Step 2 Router(config-if)# crc {16 | 32}Sets the CRC value for HDLC framing. If the

device to which the POS module is connected does

not support the default CRC value of 32, set both

devices to use a value of 16.

Note The CRC value is fixed at a value of 32

under GFP-F framing.

Step 3 Router(config-if)# end Returns to the privileged EXEC mode.

Step 4 Router# copy running-config startup-config (Optional) Saves configuration changes to

NVRAM.

Command Purpose

Step 1 Router(config)# interface pos

number

Activates interface configuration mode to

configure the POS interface.

Step 2 Router(config-if)# mtu

bytes

Configures the MTU size up to a maximum of

9000 bytes. See Table 5-4 for default MTU sizes.

5-6

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 5 Configuring POS

SONET/SDH Alarms

Table 5-4 shows the default MTU sizes.

Configuring Keep Alive Messages

To configure keep alive messages for the ML-Series card, perform the following steps beginning in

global configuration mode:

SONET/SDH Alarms

The ML-Series cards report SONET/SDH alarms under both Cisco IOS and CTC/TL1. A number of path

alarms are reported in the Cisco IOS console. Configuring Cisco IOS console alarm reporting has no

effect on CTC alarm reporting. The “Configuring SONET/SDH Alarms” procedure specifies the alarms

reported to the Cisco IOS console.

CTC/TL1 has sophisticated SONET/SDH alarm reporting capabilities. As a card in the ONS node, the

ML-Series card reports alarms to CTC/TL-1 like any other ONS card. On the ONS 15454 SONET, the

ML-Series card reports Telcordia GR-253 SONET alarms in the Alarms panel of CTC. For more

information on alarms and alarm definitions, refer to the “Alarm Troubleshooting” chapter of the

Cisco ONS 15454 Troubleshooting Guide, or the Cisco ONS 15454 SDH Troubleshooting Guide.

Step 3 Router(config-if)# end Returns to the privileged EXEC mode.

Step 4 Router# copy running-config startup-config (Optional) Saves configuration changes to

NVRAM.

Command Purpose

Table 5-4 Default MTU Size

Encapsulation Type Default Size

LEX (default) 1500

HDLC 4470

PPP 4470

Command Purpose

Step 1 Router(config)# interface pos

number

Enters interface configuration mode and specifies the POS

interface to configure.

Step 2 Router(config-if)# [no] keepalive Configures keep alive messages.

Keep alive messages are on by default and are recommended,

but not required.

The no form of this command turns off keep alive messages.

Step 3 Router(config-if)# end Returns to the privileged EXEC mode.

Step 4 Router# copy running-config

startup-config

(Optional) Saves configuration changes to NVRAM.

5-7

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 5 Configuring POS

SONET/SDH Alarms

Configuring SONET/SDH Alarms

All SONET/SDH alarms appear by default But to provision the reporting of SONET/SDH alarms on the

Cisco IOS CLI, perform the following steps beginning in global configuration mode:

To determine which alarms are reported on the POS interface and to display the bit error rate (BER)

thresholds, use the show controllers pos command, as described in the “Monitoring and Verifying POS”

section on page 5-9.

Note Cisco IOS alarm reporting commands apply only to the Cisco IOS CLI. SONET/SDH alarms reported

to the TCC2/TCC2P are not affected.

Configuring SONET/SDH Delay Triggers

You can set path alarms listed as triggers to bring down the line protocol of the POS interface. When you

configure the path alarms as triggers, you can also specify a delay for the triggers using the pos trigger

delay command. You can set the delay from 200 to 2000 ms. If you do not specify a time interval, the

default delay is set to 200 ms.

Command Purpose

Step 1 Router(config)# interface pos

number

Enters interface configuration mode and specifies the POS

interface to configure.

Step 2 Router(config-if)# pos report

{all | encap | pais | plop | ppdi

sd-ber-b3 | sf-ber-b3}

Permits console logging of selected SONET/SDH alarms.

Use the no form of the command to disable reporting of a

specific alarm.

The alarms are as follows:

• all—All alarms/signals

• encap—Path encapsulation mismatch

• pais—Path alarm indication signal

• plop—Path loss of pointer

• ppdi—Path payload defect indication

• pplm—Payload label, C2 mismatch

• prdi—Path remote defect indication

• ptim—Path trace identifier mismatch

• puneq—Path label equivalent to zero

• sd-ber-b3—PBIP BER in excess of SD threshold

• sf-ber-b3—PBIP BER in excess of SF threshold

Step 3 Router(config-if)# end Returns to the privileged EXEC mode.

Step 4 Router# copy running-config

startup-config

(Optional) Saves configuration changes to NVRAM.

CTC/TL1 has sophisticated SONET/SDH alarm reporting capabilities. As a card in the ONS node, the

ML-Series card reports alarms to CTC/TL-1 like any other ONS card. On the ONS 15454 SONET, the

ML-Series card reports Telcordia GR-253 SONET alarms in the Alarms panel of CTC. For more

information on alarms and alarm definitions, refer to the “Alarm Troubleshooting” chapter of the

Cisco ONS 15454 Troubleshooting Guide, or the Cisco ONS 15454 SDH Troubleshooting Guide.

Configuring SONET/SDH Alarms

All SONET/SDH alarms are logged on the Cisco IOS CLI by default. But to provision or disable the

reporting of SONET/SDH alarms on the Cisco IOS CLI, perform the following steps beginning in global

configuration mode:

To determine which alarms are reported on the POS interface and to display the bit error rate (BER)

thresholds, use the show controllers pos command, as described in the “Monitoring and Verifying POS”

section on page 5-9.

Note Cisco IOS alarm reporting commands apply only to the Cisco IOS CLI. SONET/SDH alarms reported

to the TCC2/TCC2P are not affected.

Command Purpose

Step 1 Router(config)# interface pos

number

Enters interface configuration mode and specifies the POS

interface to configure.

Step 2 Router(config-if)# pos report

{all | encap | pais | plop | ppdi

sd-ber-b3 | sf-ber-b3}

Permits logging of selected SONET/SDH alarms. Use the no

form of the command to disable reporting of a specific alarm.

The alarms are as follows:

• all—All alarms/signals

• encap—Path encapsulation mismatch

• pais—Path alarm indication signal

• plop—Path loss of pointer

• ppdi—Path payload defect indication

• pplm—Payload label, C2 mismatch

• prdi—Path remote defect indication

• ptim—Path trace identifier mismatch

• puneq—Path label equivalent to zero

• sd-ber-b3—PBIP BER in excess of SD threshold

• sf-ber-b3—PBIP BER in excess of SF threshold

Step 3 Router(config-if)# end Returns to the privileged EXEC mode.

Step 4 Router# copy running-config

startup-config

(Optional) Saves configuration changes to NVRAM.

5-8

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 5 Configuring POS

C2 Byte and Scrambling

To configure path alarms as triggers and specify a delay, perform the following steps beginning in global

configuration mode:

C2 Byte and Scrambling

One of the overhead bytes in the SONET/SDH frame is the C2 byte. The SONET/SDH standard defines

the C2 byte as the path signal label. The purpose of this byte is to communicate the payload type being

encapsulated by the SONET framing overhead (FOH). The C2 byte functions similarly to EtherType and

Logical Link Control (LLC)/Subnetwork Access Protocol (SNAP) header fields on an Ethernet network;

it allows a single interface to transport multiple payload types simultaneously. The C2 byte is not

configurable. Table 5-5 provides C2 byte hex values.

Command Purpose

Step 1 Router(config)# interface pos

number

Enters interface configuration mode and specifies the POS

interface to configure.

Step 2 Router(config-if)# pos trigger

defect {all | ber_sf_b3 | encap

prdi | ptim | puneq}

Configures certain path defects as triggers to bring down the

POS interface. The configurable triggers are as follows:

• all—All link down alarm failures

• ber_sd_b3—PBIP BER in excess of SD threshold

failure

• ber_sf_b3—PBIP BER in excess of SD threshold failure

(default)

• encap—Path Signal Label Encapsulation Mismatch

failure (default)

• pais—Path Alarm Indication Signal failure (default)

• plop—Path Loss of Pointer failure (default)

• ppdi—Path Payload Defect Indication failure (default)

• pplm—Payload label mismatch path (default)

• prdi—Path Remote Defect Indication failure (default)

• ptim—Path Trace Indicator Mismatch failure (default)

• puneq—Path Label Equivalent to Zero failure (default)

Step 3 Router(config-if)# pos trigger

delay

millisecond

Sets waiting period before the line protocol of the interface

goes down. Delay can be set from 200 to 2000 ms. If no time

intervals are specified, the default delay is set to 200 ms.

Step 4 Router(config-if)# end Returns to the privileged EXEC mode.

Step 5 Router# copy running-config

startup-config

(Optional) Saves configuration changes to NVRAM.

Table 5-5 C2 Byte and Scrambling Default Values

Signal Label SONET/SDH Payload Contents

0x01 LEX Encapsulation with 32-bit CRC with or without scrambling

0x05 LEX Encapsulation with 16-bit CRC with or without scrambling

0xCF Cisco HDLC or PPP/BCP without scrambling

5-9

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 5 Configuring POS

Monitoring and Verifying POS

Third-Party POS Interfaces C2 Byte and Scrambling Values

If a Cisco POS interface fails to come up when connected to a third-party device, confirm the scrambling

and cyclic redundancy check (CRC) settings as well as the advertised value in the C2 byte. On routers

from Juniper Networks, configuring RFC 2615 mode sets the following three parameters:

• Scrambling enabled

• C2 value of 0x16

• CRC-32

Previously, when scrambling was enabled, these third-party devices continued to use a C2 value of 0xCF,

which did not properly reflect the scrambled payload.

Configuring SPE Scrambling

SPE scrambling is on by default. To configure POS SONET/SDH Payload (SPE) scrambling, perform

the following steps, beginning in global configuration mode:

Monitoring and Verifying POS

The show controller pos [0 | 1] command (Example 5-1) outputs the receive and transmit values and the

C2 value. Thus, changing the value on the local end does not change the value in the show controller

command output.

Example 5-1 show controller pos [0 | 1] Command

ML_Series# sh controllers pos 0

Interface POS0

Hardware is Packet/Ethernet over Sonet

Framing Mode: HDLC

0x16 Cisco HDLC or PPP/BCP with scrambling

0x1B GFP-F

Table 5-5 C2 Byte and Scrambling Default Values (continued)

Signal Label SONET/SDH Payload Contents

Command Purpose

Step 1 Router(config)# interface pos

number

Enters interface configuration mode and specifies the POS

interface to configure.

Step 2 Router(config-if)# no pos

scramble-spe

Disables payload scrambling on the interface. Payload

scrambling is on by default.

Step 3 Router(config-if)# no shutdown Enables the interface with the previous configuration.

Step 4 Router(config-if)# end Returns to the privileged EXEC mode.

Step 5 Router# copy running-config

startup-config

(Optional) Saves configuration changes to NVRAM.

5-10

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 5 Configuring POS

Monitoring and Verifying POS

Concatenation: CCAT

Alarms reportable to CLI: PAIS PLOP PUNEQ PTIM PPLM ENCAP PRDI PPDI BER_SF_B3 BER_SD_B3

VCAT_OOU_TPT LOM SQM

Link state change defects: PAIS PLOP PUNEQ PTIM PPLM ENCAP PRDI PPDI BER_SF_B3

Link state change time : 200 (msec)

*************** Path ***************

Circuit state: IS

PAIS = 0 PLOP = 0 PRDI = 0 PTIM = 0

PPLM = 0 PUNEQ = 0 PPDI = 0 PTIU = 0

BER_SF_B3 = 0 BER_SD_B3 = 0 BIP(B3) = 0 REI = 0

NEWPTR = 0 PSE = 0 NSE = 0 ENCAP = 0

Active Alarms : PAIS

Demoted Alarms: None

Active Defects: PAIS

DOS FPGA channel number : 0

Starting STS (0 based) : 0

VT ID (if any) (0 based) : 255

Circuit size : STS-3c

RDI Mode : 1 bit

C2 (tx / rx) : 0x01 / 0x01

Framing : SONET

Path Trace

Mode : off

Transmit String :

Expected String :

Received String :

Buffer : Stable

Remote hostname :

Remote interface:

Remote IP addr :

B3 BER thresholds:

SFBER = 1e-4, SDBER = 1e-7

0 total input packets, 0 post-HDLC bytes

0 input short packets, 0 pre-HDLC bytes

0 input long packets , 0 input runt packets

0 input CRCerror packets , 0 input drop packets

0 input abort packets

0 input packets dropped by ucode

0 total output packets, 0 output pre-HDLC bytes

0 output post-HDLC bytes

Carrier delay is 200 msec

The show interface pos {0 | 1} command (Example 5-2) shows scrambling.

Example 5-2 show interface pos [0 | 1] Command

ML_Series# show interface pos 0

POS0 is administratively down, line protocol is down

Hardware is Packet/Ethernet over Sonet, address is 0011.2130.b340 (bia 0011.2130.b340)

MTU 1500 bytes, BW 145152 Kbit, DLY 100 usec,

reliability 255/255, txload 1/255, rxload 1/255

Encapsulation: Cisco-EoS-LEX, crc 32, loopback not set

Keepalive set (10 sec)

Scramble enabled

ARP type: ARPA, ARP Timeout 04:00:00

Last input 01:21:02, output never, output hang never

Last clearing of "show interface" counters 00:12:01

Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 0

Queueing strategy: fifo

Output queue: 0/40 (size/max)

5 minute input rate 0 bits/sec, 0 packets/sec

5 minute output rate 0 bits/sec, 0 packets/sec

0 packets input, 0 bytes

5-11

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 5 Configuring POS

POS Configuration Examples

Received 0 broadcasts (0 IP multicast)

0 runts, 0 giants, 0 throttles

0 parity

0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored

0 input packets with dribble condition detected

0 packets output, 0 bytes, 0 underruns

0 output errors, 0 applique, 0 interface resets

0 babbles, 0 late collision, 0 deferred

0 lost carrier, 0 no carrier

0 output buffer failures, 0 output buffers swapped out

0 carrier transitions

POS Configuration Examples

The following sections show ML-Series card POS configuration examples for connecting to other ONS

Ethernet cards and POS-capable routers. These examples are only some of the ML-Series card

configurations available to connect to other ONS Ethernet cards and POS-capable routers. For more

specifics about the POS characteristics of ONS Ethernet cards, see Chapter 20, “POS on ONS Ethernet

Cards.”

ML-Series Card to ML-Series Card

Figure 5-1 illustrates a POS configuration between two ONS 15454 or ONS 15454 SDH ML-Series

cards.

Figure 5-1 ML-Series Card to ML-Series Card POS Configuration

Example 5-3 shows the commands associated with the configuration of ML-Series card A.

Example 5-3 ML-Series Card A Configuration

hostname ML_Series_A

interface FastEthernet0

ip address 192.168.1.1 255.255.255.0

interface POS0

ip address 192.168.2.1 255.255.255.0

crc 32

pos flag c2 1

router ospf 1

ONS 15454

with ML100T-12

fast ethernet 0

pos 0pos 0

fast ethernet 0

ML_Series_A

SONET/SDH

192.168.1.1

192.168.2.1 192.168.2.2

192.168.3.1

ONS 15454

with ML100T-12

ML_Series_B

83127

5-12

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 5 Configuring POS

ML-Series Card to Cisco 12000 GSR-Series Router

log-adjacency-changes

network 192.168.1.0 0.0.0.255 area 0

network 192.168.2.0 0.0.0.255 area 0

Example 5-4 shows the commands associated with the configuration of ML Series B.

Example 5-4 ML-Series Card B Configuration

hostname ML_Series_B

interface FastEthernet0

ip address 192.168.3.1 255.255.255.0

interface POS0

ip address 192.168.2.2 255.255.255.0

crc 32

pos flag c2 1

router ospf 1

log-adjacency-changes

network 192.168.2.0 0.0.0.255 area 0

network 192.168.3.0 0.0.0.255 area 0

ML-Series Card to Cisco 12000 GSR-Series Router

Figure 5-2 illustrates a POS configuration between an ML-Series card and a Cisco 12000 GSR-Series

router. PPP/BCP encapsulation or Cisco HDLC encapsulation may be used for interoperation.

Figure 5-2 ML-Series Card to Cisco 12000 Series Gigabit Switch Router (GSR) POS Configuration

Example 5-5 shows the commands associated with configuration of ML-Series card A.

Example 5-5 ML-Series Card A Configuration

hostname ML_Series_A

interface FastEthernet0

ip address 192.168.1.1 255.255.255.0

interface POS0

ip address 192.168.2.1 255.255.255.0

encapsulation ppp

ONS 15454

with ML100T-12

fast ethernet 0

pos 1/0pos 0

fast ethernet 0

ML_Series_A

SONET/SDH

192.168.1.1

192.168.2.1 192.168.2.2

192.168.3.1

Cisco 12000 Series

Gigabit Switch Router

(GSR)

83126

5-13

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 5 Configuring POS

ML-Series Card to G-Series Card

crc 32

router ospf 1

log-adjacency-changes

network 192.168.1.0 0.0.0.255 area 0

network 192.168.2.0 0.0.0.255 area 0

Example 5-6 shows the commands associated with the configuration of the GSR-12000.

Example 5-6 GSR-12000 Configuration

hostname GSR

interface FastEthernet1/0

ip address 192.168.3.1 255.255.255.0

interface POS2/0

ip address 192.168.2.2 255.255.255.0

crc 32

encapsulation PPP

pos scramble-atm

router ospf 1

log-adjacency-changes

network 192.168.2.0 0.0.0.255 area 0

network 192.168.3.0 0.0.0.255 area 0

The default encapsulation for the ML-Series card is LEX and the corresponding default MTU is

1500 bytes. When connecting to an external POS device, it is important to ensure that both the

ML-Series switch and the external device uses the same configuration for the parameters listed in

Table 5-6.

ML-Series Card to G-Series Card

Figure 5-3 illustrates a POS configuration between an ML-Series card and a G-Series card.

Table 5-6 ML-Series Parameter Configuration for Connection to a Cisco 12000 GSR-Series

Router

Command Parameter

Router(config-if)# encapsulation ppp

Router(config-if)# encapsulation hdlc

Encapsulation—Default encapsulation on the Cisco

12000 GSR Series is HDLC, which is supported by the

ML-Series. PPP is also supported by both the ML-Series

card and the Cisco 12000 GSR Series.

The Cisco 12000 GSR Series does not support LEX,

which is the default encapsulation on the ML-Series

card.

Router(config-if)# show controller

pos

C2 Byte—Use the show controller pos command to

verify that the transmit and receive C2 values are the

same.

Router(config-if)# pos flag c2

value

Sets the C2 byte value. Valid choices are 0 to 255

(decimal). The default value is 0x01 (hex) for LEX.

5-14

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 5 Configuring POS

ML-Series Card to ONS 15310 ML-100T-8 Card

Figure 5-3 ML-Series Card to G-Series Card POS Configuration

Example 5-7 shows the commands associated with the configuration of ML-Series card A.

Example 5-7 ML-Series Card A Configuration

hostname ML_Series_A

interface FastEthernet0

ip address 192.168.1.1 255.255.255.0

interface POS0

ip address 192.168.2.1 255.255.255.0

crc 32

router ospf 1

log-adjacency-changes

network 192.168.1.0 0.0.0.255 area 0

network 192.168.2.0 0.0.0.255 area 0

ML-Series Card to ONS 15310 ML-100T-8 Card

Figure 5-4 illustrates a POS configuration between an ML-Series card and an ONS 15310 ML-100T-8

card. For step-by-step circuit configuration procedures for the connected ML-100T-8 card, refer to the

Cisco ONS 15310-CL and Cisco ONS 15310-MA Ethernet Card Software Feature and Configuration

Guide.

Figure 5-4 ML-Series Card to ONS 15310 CE-100T-8 Card Configuration

ONS 15454

with ML100T-12

fast ethernet 0

pos 0

ML_Series_A

SONET/SDH

192.168.1.1

192.168.2.1

ONS 15454

with G-Series

Ethernet

83125

ONS 15454

with ML100T-12

fast ethernet 0

pos 0pos 0

fast ethernet 0

ML_Series_A

SONET/SDH

192.168.1.1

192.168.2.1 192.168.2.2

192.168.3.1

ONS 15310

with ML-100T-8

ML_Series_B

115725

5-15

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 5 Configuring POS

ML-Series Card to ONS 15310 ML-100T-8 Card

Example 5-8 shows the commands associated with the configuration of ML-Series card A.

Example 5-8 ML-Series Card A Configuration

hostname ML_Series_A

interface FastEthernet0

ip address 192.168.1.1 255.255.255.0

interface POS0

ip address 192.168.2.1 255.255.255.0

crc 32

router ospf 1

log-adjacency-changes

network 192.168.1.0 0.0.0.255 area 0

network 192.168.2.0 0.0.0.255 area 0

5-16

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 5 Configuring POS

ML-Series Card to ONS 15310 ML-100T-8 Card

CHAPTER

6-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Configuring Bridges

This chapter describes how to configure bridging for the ML-Series card. For more information about

the Cisco IOS commands used in this chapter, refer to the Cisco IOS Command Reference publication.

This chapter includes the following major sections:

• Understanding Basic Bridging, page 6-1

• Configuring Basic Bridging, page 6-2

• Monitoring and Verifying Basic Bridging, page 6-3

• Transparent Bridging Modes of Operation, page 6-5

Caution Cisco Inter-Switch Link (ISL) and Cisco Dynamic Trunking Protocol (DTP) are not supported by the

ML-Series cards, but the ML-Series broadcast forwards these formats. Using ISL or DTP on connecting

devices is not recommended. Some Cisco devices attempt to use ISL or DTP by default.

Understanding Basic Bridging

The ML-Series card supports transparent bridging for Fast Ethernet, Gigabit Ethernet and POS ports. It

supports a maximum of 255 active bridge groups. For information on the modes of transparent bridging,

see the “Transparent Bridging Modes of Operation” section on page 6-5.

To configure bridging, you must perform the following tasks in the modes indicated:

• In global configuration mode:

–

Enable bridging of IP packets.

–

Select the type of Spanning Tree Protocol (STP) (optional).

• In interface configuration mode:

–

Determine which interfaces belong to the same bridge group.

The ML-Series card bridges all nonrouted traffic among the network interfaces comprising the

bridge group. If spanning tree is enabled, the interfaces became part of the same spanning tree.

Interfaces not participating in a bridge group cannot forward bridged traffic.

If the destination address of the packet is known in the bridge table, the packet is forwarded on

a single interface in the bridge group. If the packet’s destination is unknown in the bridge table,

the packet is flooded on all forwarding interfaces in the bridge group. The bridge places source

addresses in the bridge table as it learns them during the process of bridging.

6-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 6 Configuring Bridges

Configuring Basic Bridging

Spanning tree is not mandatory for an ML-Series card bridge group. But if it is configured, a

separate spanning-tree process runs for each configured bridge group. A bridge group

establishes a spanning tree based on the bridge protocol data units (BPDUs) it receives on only

its member interfaces.

Configuring Basic Bridging

Use the following steps to configure bridging:

Figure 6-1 shows a bridging example. Example 6-1 shows the configuration of ML-Series card A.

Example 6-2 shows the configuration of ML-Series card B.

Command Purpose

Step 1 Router(config)# no ip routing Enables bridging of IP packets. This command needs to be

executed once per card, not once per bridge-group. This step is

not done for integrated routing and bridging (IRB).

Step 2 Router(config)# bridge

bridge-group-number

[protocol

{drpi-rstp | rstp | ieee}]

Assigns a bridge group number and defines the appropriate

spanning-tree type:

bridge-group-number can range from 1 to 4096.

• drpri-rstp is the protocol used to interconnect dual RPR

interconnect to protect from node failure

• rstp is the IEEE 802.1W Rapid Spanning Tree.

• ieee is the IEEE 802.1D Spanning Tree Protocol.

Note Spanning tree is not mandatory for an ML-Series card

bridge group. But configuring spanning tree blocks

network loops.

Step 3 Router(config)# bridge

bridge-group-number

priority

number

(Optional) Assigns a specific priority to the bridge, to assist in

the spanning-tree root definition. Lowering the priority of a

bridge makes it more likely the bridge is selected as the root.

Step 4 Router(config)# interface

type

number

Enters interface configuration mode to configure the interface of

the ML-Series card.

Step 5 Router(config-if)# bridge-group

bridge-group-number

Assigns a network interface to a bridge group.

Step 6 Router(config-if)# no shutdown Changes the shutdown state to up and enables the interface.

Step 7 Router(config-if)# end Returns to privileged EXEC mode.

Step 8 Router# copy running-config

startup-config

(Optional) Saves your entries in the configuration file.

6-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 6 Configuring Bridges

Monitoring and Verifying Basic Bridging

Figure 6-1 Bridging Example

Example 6-1 Router A Configuration

bridge 1 protocol ieee

interface FastEthernet0

no ip address

bridge-group 1

interface POS0

no ip address

crc 32

bridge-group 1

pos flag c2 1

Example 6-2 Router B Configuration

bridge 1 protocol ieee

interface FastEthernet0

no ip address

bridge-group 1

interface POS0

no ip address

crc 32

bridge-group 1

pos flag c2 1

Monitoring and Verifying Basic Bridging

After you have set up the ML-Series card for bridging, you can monitor and verify its operation by

performing the following procedure in privileged EXEC mode:

ONS 15454

with ML100T-12

ONS 15454

with ML100T-12

fast ethernet 0

pos 0pos 0

fast ethernet 0

ML_Series_A ML_Series_B

78972

SONET/SDH

6-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 6 Configuring Bridges

Monitoring and Verifying Basic Bridging

Example 6-3 shows an example of the monitoring and verifying bridging.

Example 6-3 Monitoring and Verifying Bridging

ML-Series# show bridge

Total of 300 station blocks, 298 free

Codes: P - permanent, S - self

Bridge Group 1:

Maximum dynamic entries allowed: 1000

Current dynamic entry count: 2

Address Action Interface

0000.0001.6000 forward FastEthernet0

0000.0001.6100 forward POS0

ML-Series# show bridge verbose

Total of 300 station blocks, 298 free

Codes: P - permanent, S - self

Maximum dynamic entries allowed: 1000

Current dynamic entry count: 2

BG Hash Address Action Interface VC Age RX count TX co

unt

1 60/0 0000.0001.6000 forward FastEthernet0 -

1 61/0 0000.0001.6100 forward POS0 -

Flood ports

FastEthernet0

POS0

ML-Series# show spanning-tree brief

Bridge group 1

Spanning tree enabled protocol ieee

Root ID Priority 32769

Address 0005.9a39.6634

This bridge is the root

Command Purpose

Step 1 Router# clear bridge

bridge-group-number

Removes any learned entries from the forwarding database of a

particular bridge group, clears the transmit, and receives counts

for any statically configured forwarding entries.

Step 2 Router# show bridge

{

bridge-group-number

interface-address

}

Displays classes of entries in the bridge forwarding database.

Step 3 Router# show bridge verbose Displays detailed information about configured bridge groups.

Step 4 ML_Series# show spanning-tree

[

bridge-group-number

][brief]

Displays detailed information about spanning tree.

bridge-group-number restricts the spanning tree information to

specific bridge groups.

brief displays summary information about spanning tree.

6-5

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 6 Configuring Bridges

Transparent Bridging Modes of Operation

Hello Time 2 sec Max Age 20 sec Forward Delay 15 sec

Bridge ID Priority 32769 (priority 32768 sys-id-ext 1)

Address 0005.9a39.6634

Hello Time 2 sec Max Age 20 sec Forward Delay 15 sec

Aging Time 300

Interface Role Sts Cost Prio.Nbr Type

---------------- ---- --- --------- -------- --------------------------------

Fa0 Desg FWD 19 128.3 P2p

PO0 Desg FWD 9 128.20 P2p

Transparent Bridging Modes of Operation

The transparent bridging feature in the Cisco IOS software combines bridge-groups and IP routing. This

combination provides the speed of an adaptive spanning-tree bridge, along with the functionality,

reliability, and security of a router. The ML-Series card supports transparent bridging in the same general

manner as other Cisco IOS platforms.

Transparent bridging processes IP frames in four distinct modes, each with different rules and

configuration options. The modes are IP routing, no IP routing, bridge crb, and bridge irb. This section

covers the configuration and operation of these four modes on the ML-Series card.

For additional general Cisco IOS user documentation on configuring transparent bridging, see the

“Configuring Transparent Bridging” chapter of the Cisco IOS Bridging and IBM Networking

Configuration Guide, Release 12.2 at:

http://www.cisco.com/en/US/products/sw/iosswrel/ps1835/products_configuration_guide_chapter0918

6a00800ca767.html

IP Routing Mode

IP routing mode is the default mode. It disables the other modes (no IP routing, bridge crb, and bridge

irb). The global command ip routing enables IP routing mode.

In IP routing mode, the bridge-groups do not process IP packets. The IP packets are either routed or

discarded.

The following rules help describe packet handling in this mode:

• An input interface or subinterface configured with only a bridge-group will bridge non-IP packets

and discard IP packets (Example 6-4).

• An input interface or subinterface configured with only an IP address will route IP packets and

discard non-IP packets (Example 6-5).

• An input interface or subinterface configured with both an IP address and a bridge-group routes IP

packets and bridges non-IP packets (Example 6-6). This configuration is sometimes referred to as

fallback bridging. If a protocol cannot be routed, then the interface falls back to bridging.

• All of the interfaces or subinterfaces belonging to a specific bridge-group need consistent

configuration with regards to configuring or not configuring IP addresses. Mixing interfaces

configured with IP addresses and interfaces not configured with IP addresses in the same bridge

group can cause inconsistent or unpredictable routing at the network level.

6-6

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 6 Configuring Bridges

No IP Routing Mode

• All the interfaces and subinterface belonging to the same bridge-group need consistent configuration

with regard to IP addresses. Either all of the bridge group’s interfaces should be configured with IP

addresses or none of the bridge group’s interfaces should be configured with IP addresses.

Example 6-4 shows ML-Series card interfaces configured in a bridge group with no IP addresses.

Example 6-4 Bridge Group with No IP Address

ip routing

bridge 1 proto rstp

int f0

bridge-group 1

int pos 0

bridge-group 1

Example 6-5 shows ML-Series card interfaces configured with IP addresses but not in a bridge group.

Example 6-5 IP Addresses with No Bridge Group

ip routing

int f0

ip address 10.10.10.2 255.255.255.0

int pos 0

ip address 20.20.20.2 255.255.255.0

Example 6-6 shows ML-Series card interfaces configured with IP addresses and in a bridge group.

Example 6-6 IP Addresses with Bridge Group

ip routing

bridge 1 proto rstp

int f0

ip address 10.10.10.2 255.255.255.0

bridge-group 1

int pos 0

ip address 20.20.20.2 255.255.255.0

bridge-group 1

No IP Routing Mode

The no IP routing mode bridges all packets, both IP and non-IP, and prevents routing. Although Cisco

IOS can use the IP addresses for interfaces configured as management ports, it will not route between

these IP addresses.

The global command no ip routing enables this feature, and enabling no ip routing disables the other

modes.

The following rules help describe packet handling in this mode:

• An input interface or subinterface configured with only a bridge-group and no ip addresses bridges

all packets (Example 6-7).

6-7

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 6 Configuring Bridges

Bridge CRB Mode

• An input interface or subinterface configured with only an IP address discards all packets, except

packets with the destination MAC and IP address of the input interface, which are processed by

Cisco IOS. This is not a valid configuration.

• An input interface or subinterface configured with both an IP address and a bridge group bridges all

packets, except packets sent to the input interface MAC address. Packets sent to the input interface

MAC address and the interface IP address are processed by Cisco IOS. Other packets sent to the

input interface MAC address are discarded. This is not a valid configuration for the IP addresses.

• All of the interfaces or subinterfaces belonging to a specific bridge-group need consistent

configuration in regards to configuring or not configuring IP addresses. Mixing interfaces

configured with IP addresses and interfaces not configured with IP addresses in the same bridge

group can cause inconsistent or unpredictable routing at the network level.

Example 6-7 shows ML-Series card interfaces configured in a bridge group with no IP addresses.

Example 6-7 Bridge Group with No IP Address

no ip routing

bridge 1 proto rstp

int f0

bridge-group 1

int pos 0

bridge-group 1

Bridge CRB Mode

In bridge crb mode, the default sub-mode for every bridge group is to bridge but not route the IP packets.

This is similar to the no ip routing mode behavior. But with bridge crb, packet handling is configured

not globally but for the specific bridge group. You can selectively disable bridge groups to block IP

packets or configure fallback bridging for a group of routed interfaces.

Concurrent routing and bridging is enabled with the global command bridge crb. Enabling bridge crb

disables the other modes.

The following rules help describe packet handling in this mode:

• The command bridge x bridge ip (where x is a bridge-group number) configures a bridge-group to

bridge IP packets. Input interfaces and sub-interfaces belonging to the bridge-group will follow the

rules for no IP routing mode.

• The command bridge x route IP (where x is a bridge-group number) configures a bridge-group to

ignore IP packets. Input interfaces and sub-interfaces belonging to this bridge-group will follow the

rules for IP routing mode (Example 6-8).

• When you enable bridge crb with pre-existing bridge groups, it will generate a bridge x route IP

configuration command for any pre-existing bridge groups with an interface configured for routing

(configured with an IP address). This is a precaution when crb is first enabled.

• All of the interfaces or subinterfaces belonging to a specific bridge-group need consistent

configuration in regards to configuring or not configuring IP addresses. Mixing interfaces

configured with IP addresses and interfaces not configured with IP addresses in the same bridge

group can cause inconsistent or unpredictable routing at the network level.

• Routing between interfaces or subinterfaces that do not belong to the same bridge group could result

in inconsistent network behavior. This mode is for routing between members of a bridge-group, but

never for routing into or out of a bridge group.

6-8

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 6 Configuring Bridges

Bridge IRB Mode

Example 6-8 shows ML-Series card interfaces configured with IP addresses and multiple bridge groups.

Example 6-8 IP Addresses and Multiple Bridge Group

bridge crb

bridge 1 proto rstp

bridge 1 route ip

bridge 2 proto rstp

int f0

ip address 10.10.10.2 255.255.255.0

bridge-group 1

int pos 0

ip address 20.20.20.2 255.255.255.0

bridge-group 1

int f1

bridge-group 2

int pos 1

bridge-group 2

Tip When troubleshooting a bridge crb configuration, make sure the interfaces are not assigned IP addresses

belonging to the same subnet. Routing requires IP addresses to be in different subnets.

Bridge IRB Mode

The integrated routing and bridging mode is enabled with the global command bridge irb. Enabling

bridge irb disables the other modes.

Bridge irb mode is a super-set of the bridge crb mode. Only IRB mode supports a bridged virtual

interface (BVI), which is a virtual Layer 3 interface belonging to a specific bridge-group. A BVI requires

an IP address to function and is visible to all member interfaces of that bridge-group. The only proper

way to route into and out of a bridge-group is with a BVI.

Bridge irb behaves like bridge crb with the following additions:

• If a BVI interface is configured for a bridge-group, the BVI IP address should be the only one

configured on any member of that bridge-group (Example 6-9).

• If both an IP address and a bridge-group are configured on a single interface, enable either IP

bridging or IP routing, but not both (Example 6-10).

• If IP routing is disabled in a bridge-group, all packets will be bridged, and BVI interfaces will not

route IP. This is the default for each bridge-group.

• If IP bridging and IP routing are both enabled in a bridge-group with a BVI, then IP packets can be

bridged between bridge-group members (bridging within the same subnet), and they can be routed

in and out of the bridge-group via the BVI.

• If IP bridging is disabled, but IP routing is enabled in a bridge-group, IP packets can be routed in

and out of the bridge-group through the BVI but cannot be bridged between the Layer 2 interfaces.

The global command bridge x route ip in combination with the global command no bridge x

bridge ip disables IP bridging while enabling IP routing.

Example 6-9 shows ML-Series card interfaces configured in a bridge group and the BVI configured with

an IP address. Both bridging and routing are enabled.

6-9

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 6 Configuring Bridges

Bridge IRB Mode

Example 6-9 Bridge irb with Routing and Bridging Enabled

bridge irb

bridge 1 proto rstp

bridge 1 route ip

int f0

bridge-group 1

int pos 0

bridge-group 1

int bvi 1

ip address 10.10.10.1 255.255.255.0

Example 6-10 shows ML-Series card interfaces configured with both an IP address and a bridge-group.

IP routing is enabled and IP bridging is disabled.

Example 6-10 IP Addresses and Multiple Bridge Group

bridge irb

bridge 1 proto rstp

bridge 1 route ip

no bridge 1 bridge ip

int f0

ip address 10.10.10.1 255.255.255.0

bridge-group 1

int pos 0

ip address 20.20.20.2 255.255.255.0

bridge-group 2

Tip When troubleshooting bridge irb, make sure the BVI is configured with an IP address and the BVI bridge

members are not configured with IP addresses.

6-10

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 6 Configuring Bridges

Bridge IRB Mode

CHAPTER

7-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Configuring STP and RSTP

This chapter describes the IEEE 802.1D Spanning Tree Protocol (STP) and the ML-Series

implementation of the IEEE 802.1W Rapid Spanning Tree Protocol (RSTP). It also explains how to

configure STP and RSTP on the ML-Series card.

This chapter consists of these sections:

• STP Features, page 7-1

• RSTP, page 7-9

• Interoperability with IEEE 802.1D STP, page 7-15

• Configuring STP and RSTP Features, page 7-15

• Verifying and Monitoring STP and RSTP Status, page 7-20

STP Features

These sections describe how the spanning-tree features work:

• STP Overview, page 7-2

• Supported STP Instances, page 7-2

• Bridge Protocol Data Units, page 7-2

• Election of the Root Switch, page 7-3

• Bridge ID, Switch Priority, and Extended System ID, page 7-4

• Spanning-Tree Timers, page 7-4

• Creating the Spanning-Tree Topology, page 7-4

• Spanning-Tree Interface States, page 7-5

• Spanning-Tree Address Management, page 7-8

• STP and IEEE 802.1Q Trunks, page 7-8

• Spanning Tree and Redundant Connectivity, page 7-8

• Accelerated Aging to Retain Connectivity, page 7-9

7-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 7 Configuring STP and RSTP

STP Overview

STP is a Layer 2 link management protocol that provides path redundancy while preventing loops in the

network. For a Layer 2 Ethernet network to function properly, only one active path can exist between

any two stations. Spanning-tree operation is transparent to end stations, which cannot detect whether

they are connected to a single LAN segment or a switched LAN of multiple segments.

When you create fault-tolerant internetworks, you must have a loop-free path between all nodes in a

network. The spanning-tree algorithm calculates the best loop-free path throughout a switched Layer 2

network. Switches send and receive spanning-tree frames, called bridge protocol data units (BPDUs), at

regular intervals. The switches do not forward these frames, but use the frames to construct a loop-free

path.

Multiple active paths among end stations cause loops in the network. If a loop exists in the network, end

stations might receive duplicate messages. Switches might also learn end-station MAC addresses on

multiple Layer 2 interfaces. These conditions result in an unstable network.

Spanning tree defines a tree with a root switch and a loop-free path from the root to all switches in the

Layer 2 network. Spanning tree forces redundant data paths into a standby (blocked) state. If a network

segment in the spanning tree fails and a redundant path exists, the spanning-tree algorithm recalculates

the spanning-tree topology and activates the standby path.

When two interfaces on a switch are part of a loop, the spanning-tree port priority and path cost settings

determine which interface is put in the forwarding state and which is put in the blocking state. The port

priority value represents the location of an interface in the network topology and how well it is located

to pass traffic. The path cost value represents media speed.

Supported STP Instances

The ML-Series card supports the per-VLAN spanning tree (PVST+) and a maximum of

255 spanning-tree instances.

Bridge Protocol Data Units

The stable, active, spanning-tree topology of a switched network is determined by these elements:

• Unique bridge ID (switch priority and MAC address) associated with each VLAN on each switch

• Spanning-tree path cost to the root switch

• Port identifier (port priority and MAC address) associated with each Layer 2 interface

When the switches in a network are powered up, each functions as the root switch. Each switch sends a

configuration BPDU through all of its ports. The BPDUs communicate and compute the spanning-tree

topology. Each configuration BPDU contains this information:

• Unique bridge ID of the switch that the sending switch identifies as the root switch

• Spanning-tree path cost to the root

• Bridge ID of the sending switch

• Message age

• Identifier of the sending interface

• Values for the hello, forward delay, and max-age protocol timers

7-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 7 Configuring STP and RSTP

Election of the Root Switch

When a switch receives a configuration BPDU that contains superior information (lower bridge ID,

lower path cost, etc.), it stores the information for that port. If this BPDU is received on the root port of

the switch, the switch also forwards it with an updated message to all attached LANs for which it is the

designated switch.

If a switch receives a configuration BPDU that contains inferior information to that currently stored for

that port, it discards the BPDU. If the switch is a designated switch for the LAN from which the inferior

BPDU was received, it sends that LAN a BPDU containing the up-to-date information stored for that

port. In this way, inferior information is discarded, and superior information is propagated on the

network.

A BPDU exchange results in these actions:

• One switch in the network is elected as the root switch.

• A root port is selected for each switch (except the root switch). This port provides the best path

(lowest cost) when the switch forwards packets to the root switch.

• The shortest distance to the root switch is calculated for each switch based on the path cost.

• A designated switch for each LAN segment is selected. The designated switch incurs the lowest path

cost when forwarding packets from that LAN to the root switch. The port through which the

designated switch is attached to the LAN is called the designated port.

• Interfaces included in the spanning-tree instance are selected. Root ports and designated ports are

put in the forwarding state.

• All interfaces not included in the spanning tree are blocked.

Election of the Root Switch

All switches in the Layer 2 network participating in the spanning tree gather information about other

switches in the network through an exchange of BPDU data messages. This exchange of messages results

in these actions:

• Election of a unique root switch for each spanning-tree instance

• Election of a designated switch for every switched LAN segment

• Removal of loops in the switched network by blocking Layer 2 interfaces connected to redundant

links

For each VLAN, the switch with the highest switch priority (the lowest numerical priority value) is

elected as the root switch. If all switches are configured with the default priority (32768), the switch with

the lowest MAC address in the VLAN becomes the root switch. The switch priority value occupies the

most significant bits of the bridge ID.

When you change the switch priority value, you change the probability that the switch will be elected as

the root switch. Configuring a higher value decreases the probability; a lower value increases the

probability.

The root switch is the logical center of the spanning-tree topology in a switched network. All paths that

are not needed to reach the root switch from anywhere in the switched network are placed in the

spanning-tree blocking mode.

BPDUs contain information about the sending switch and its ports, including switch and MAC

addresses, switch priority, port priority, and path cost. Spanning tree uses this information to elect the

root switch and root port for the switched network and the root port and designated port for each

switched segment.

7-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 7 Configuring STP and RSTP

Bridge ID, Switch Priority, and Extended System ID

The IEEE 802.1D standard requires that each switch has an unique bridge identifier (bridge ID), which

determines the selection of the root switch. Because each VLAN is considered as a different

logical bridge with PVST+, the same switch must have as many different bridge IDs as VLANs

configured on it. Each VLAN on the switch has a unique 8-byte bridge ID; the two most-significant bytes

are used for the switch priority, and the remaining six bytes are derived from the switch MAC address.

The ML-Series card supports the IEEE 802.1T spanning-tree extensions, and some of the bits previously

used for the switch priority are now used as the bridge ID. The result is that fewer MAC addresses are

reserved for the switch, and a larger range of VLAN IDs can be supported, all while maintaining the

uniqueness of the bridge ID. As shown in Ta ble 7-1, the two bytes previously used for the switch priority

are reallocated into a 4-bit priority value and a 12-bit extended system ID value equal to the bridge ID.

In earlier releases, the switch priority is a 16-bit value.

Spanning tree uses the extended system ID, the switch priority, and the allocated spanning-tree MAC

address to make the bridge ID unique for each VLAN. With earlier releases, spanning tree used one MAC

address per VLAN to make the bridge ID unique for each VLAN.

Spanning-Tree Timers

Table 7-2 describes the timers that affect the entire spanning-tree performance.

Creating the Spanning-Tree Topology

In Figure 7-1, Switch A is elected as the root switch because the switch priority of all the switches is set

to the default (32768) and Switch A has the lowest MAC address. However, because of traffic patterns,

number of forwarding interfaces, or link types, Switch A might not be the ideal root switch. By

increasing the priority (lowering the numerical value) of the ideal switch so that it becomes the root

switch, you force a spanning-tree recalculation to form a new topology with the ideal switch as the root.

Table 7-1 Switch Priority Value and Extended System ID

Switch Priority Value Extended System ID (Set Equal to the Bridge ID)

Bit 16 Bit 15 Bit 14 Bit 13 Bit 12 Bit 11 Bit 10 Bit 9 Bit 8 Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1

32768 16384 8192 4096 2048 1024 512 256 128 64 32 16 8 4 2 1

Table 7-2 Spanning-Tree Timers

Variable Description

Hello timer When this timer expires, the interface sends out a Hello message to the

neighboring nodes.

Forward-delay timer Determines how long each of the listening and learning states last before the

interface begins forwarding.

Maximum-age timer Determines the amount of time the switch stores protocol information

received on an interface.

7-5

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 7 Configuring STP and RSTP

Spanning-Tree Interface States

Figure 7-1 Spanning-Tree Topology

When the spanning-tree topology is calculated based on default parameters, the path between source and

destination end stations in a switched network might not be ideal. For instance, connecting higher-speed

links to an interface that has a higher number than the root port can cause a root-port change. The goal

is to make the fastest link the root port.

Spanning-Tree Interface States

Propagation delays can occur when protocol information passes through a switched LAN. As a result,

topology changes can take place at different times and at different places in a switched network. When

an interface transitions directly from nonparticipation in the spanning-tree topology to the forwarding

state, it can create temporary data loops. Interfaces must wait for new topology information to propagate

through the switched LAN before starting to forward frames. They must allow the frame lifetime to

expire for forwarded frames that have used the old topology.

Each Layer 2 interface on a switch using spanning tree exists in one of these states:

• Blocking—The interface does not participate in frame forwarding.

• Listening—The first transitional state after the blocking state when the spanning tree determines

that the interface should participate in frame forwarding.

• Learning—The interface prepares to participate in frame forwarding.

• Forwarding—The interface forwards frames.

• Disabled—The interface is not participating in spanning tree because of a shutdown port, no link on

the port, or no spanning-tree instance running on the port.

An interface moves through these states:

1. From initialization to blocking

2. From blocking to listening or to disabled

3. From listening to learning or to disabled

4. From learning to forwarding or to disabled

5. From forwarding to disabled

83803

RP DP

RP = root port

DP = designated port

ONS 15454

with ML100T-12

ONS 15454

with ML100T-12

ONS 15454

with ML100T-12

ONS 15454

with ML100T-12

7-6

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 7 Configuring STP and RSTP

Spanning-Tree Interface States

Figure 7-2 illustrates how an interface moves through the states.

Figure 7-2 Spanning-Tree Interface States

When you power up the switch, STP is enabled by default, and every interface in the switch, VLAN, or

network goes through the blocking state and the transitory states of listening and learning. Spanning tree

stabilizes each interface at the forwarding or blocking state.

When the spanning-tree algorithm places a Layer 2 interface in the forwarding state, this process occurs:

1. The interface is in the listening state while spanning tree waits for protocol information to transition

the interface to the blocking state.

2. While spanning tree waits for the forward-delay timer to expire, it moves the interface to the

learning state and resets the forward-delay timer.

3. In the learning state, the interface continues to block frame forwarding as the switch learns

end-station location information for the forwarding database.

4. When the forward-delay timer expires, spanning tree moves the interface to the forwarding state,

where both learning and frame forwarding are enabled.

Blocking State

A Layer 2 interface in the blocking state does not participate in frame forwarding. After initialization, a

BPDU is sent to each interface in the switch. A switch initially functions as the root until it exchanges

BPDUs with other switches. This exchange establishes which switch in the network is the root or root

switch. If there is only one switch in the network, no exchange occurs, the forward-delay timer expires,

and the interfaces move to the listening state. An interface always enters the blocking state after switch

initialization.

An interface in the blocking state performs as follows:

• Discards frames received on the port

• Discards frames switched from another interface for forwarding

• Does not learn addresses

• Receives BPDUs

Power-on

initialization

Blocking

state

43569

Listening

state

Disabled

state

Learning

state

Forwarding

state

7-7

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 7 Configuring STP and RSTP

Spanning-Tree Interface States

Listening State

The listening state is the first state a Layer 2 interface enters after the blocking state. The interface enters

this state when the spanning tree determines that the interface should participate in frame forwarding.

An interface in the listening state performs as follows:

• Discards frames received on the port

• Discards frames switched from another interface for forwarding

• Does not learn addresses

• Receives BPDUs

Learning State

A Layer 2 interface in the learning state prepares to participate in frame forwarding. The interface enters

the learning state from the listening state.

An interface in the learning state performs as follows:

• Discards frames received on the port

• Discards frames switched from another interface for forwarding

• Learns addresses

• Receives BPDUs

Forwarding State

A Layer 2 interface in the forwarding state forwards frames. The interface enters the forwarding state

from the learning state.

An interface in the forwarding state performs as follows:

• Receives and forwards frames received on the port

• Forwards frames switched from another port

• Learns addresses

• Receives BPDUs

Disabled State

A Layer 2 interface in the disabled state does not participate in frame forwarding or in the spanning tree.

An interface in the disabled state is nonoperational.

A disabled interface performs as follows:

• Forwards frames switched from another interface for forwarding

• Learns addresses

• Does not receive BPDUs

7-8

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 7 Configuring STP and RSTP

Spanning-Tree Address Management

IEEE 802.1D specifies 17 multicast addresses, ranging from 0x00180C2000000 to 0x0180C2000010, to

be used by different bridge protocols. These addresses are static addresses that cannot be removed.

The ML-Series card switches supported BPDUs (0x0180C2000000 and 01000CCCCCCD) when they

are being tunneled via the protocol tunneling feature.

STP and IEEE 802.1Q Trunks

When you connect a Cisco switch to a non-Cisco device through an IEEE 802.1Q trunk, the Cisco switch

uses PVST+ to provide spanning-tree interoperability. PVST+ is automatically enabled on IEEE 802.1Q

trunks after users assign a protocol to a bridge group. The external spanning-tree behavior on access

ports and Inter-Switch Link (ISL) trunk ports is not affected by PVST+.

For more information on IEEE 802.1Q trunks, see Chapter 8, “Configuring VLANs.”

Spanning Tree and Redundant Connectivity

You can create a redundant backbone with spanning tree by connecting two switch interfaces to another

device or to two different devices. Spanning tree automatically disables one interface but enables it if

the other one fails, as shown in Figure 7-3. If one link is high speed and the other is low speed, the

low-speed link is always disabled. If the speeds are the same, the port priority and port ID are added

together, and spanning tree disables the link with the lowest value.

Figure 7-3 Spanning Tree and Redundant Connectivity

You can also create redundant links between switches by using EtherChannel groups. For more

information, see Chapter 10, “Configuring Link Aggregation.”

Workstations

Active link

Blocked link

83651

ONS 15454

with ML100T-12

ONS 15454

with ML100T-12

ONS 15454

with ML100T-12

7-9

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 7 Configuring STP and RSTP

Accelerated Aging to Retain Connectivity

The default for aging dynamic addresses is 5 minutes, which is the default setting of the bridge

bridge-group-number aging-time global configuration command. However, a spanning-tree

reconfiguration can cause many station locations to change. Because these stations could be unreachable

for 5 minutes or more during a reconfiguration, the address-aging time is accelerated so that station

addresses can be dropped from the address table and then relearned.

Because each VLAN is a separate spanning-tree instance, the switch accelerates aging on a per-VLAN

basis. A spanning-tree reconfiguration on one VLAN can cause the dynamic addresses learned on that

VLAN to be subject to accelerated aging. Dynamic addresses on other VLANs can be unaffected and

remain subject to the aging interval entered for the switch.

RSTP

RSTP provides rapid convergence of the spanning tree. It improves the fault tolerance of the network

because a failure in one instance (forwarding path) does not affect other instances (forwarding paths).

The most common initial deployment of RSTP is in the backbone and distribution layers of a Layer 2

switched network; this deployment provides the highly available network required in a service-provider

environment.

RSTP improves the operation of the spanning tree while maintaining backward compatibility with

equipment that is based on the (original) IEEE 802.1D spanning tree.

RSTP takes advantage of point-to-point wiring and provides rapid convergence of the spanning tree.

Reconfiguration of the spanning tree can occur in less than 2 second (in contrast to 50 seconds with the

default settings in the IEEE 802.1D spanning tree), which is critical for networks carrying

delay-sensitive traffic such as voice and video.

These sections describe how RSTP works:

• Supported RSTP Instances, page 7-9

• Port Roles and the Active Topology, page 7-9

• Rapid Convergence, page 7-10

• Synchronization of Port Roles, page 7-12

• Bridge Protocol Data Unit Format and Processing, page 7-13

• Topology Changes, page 7-14

Supported RSTP Instances

The ML Series supports per-VLAN rapid spanning tree (PVRST) and a maximum of 255 rapid

spanning-tree instances.

Port Roles and the Active Topology

The RSTP provides rapid convergence of the spanning tree by assigning port roles and by determining

the active topology. The RSTP builds upon the IEEE 802.1D STP to select the switch with the highest

switch priority (lowest numerical priority value) as the root switch as described in “Election of the Root

Switch” section on page 7-3. Then the RSTP assigns one of these port roles to individual ports:

7-10

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 7 Configuring STP and RSTP

Rapid Convergence

• Root port—Provides the best path (lowest cost) when the switch forwards packets to the root switch.

• Designated port—Connects to the designated switch, which incurs the lowest path cost when

forwarding packets from that LAN to the root switch. The port through which the designated switch

is attached to the LAN is called the designated port.

• Alternate port—Offers an alternate path toward the root switch to that provided by the current root

port.

• Backup port—Acts as a backup for the path provided by a designated port toward the leaves of the

spanning tree. A backup port can exist only when two ports are connected together in a loopback by

a point-to-point link or when a switch has two or more connections to a shared LAN segment.

• Disabled port—Has no role within the operation of the spanning tree.

A port with the root or a designated port role is included in the active topology. A port with the alternate

or backup port role is excluded from the active topology.

In a stable topology with consistent port roles throughout the network, the RSTP ensures that every root

port and designated port immediately transition to the forwarding state while all alternate and backup

ports are always in the discarding state (equivalent to blocking in IEEE 802.1D). The port state controls

the operation of the forwarding and learning processes. Table 7-3 provides a comparison of

IEEE 802.1D and RSTP port states.

Caution STP edge ports are bridge ports that do not need STP enabled, where loop protection is not needed out

of that port or an STP neighbor does not exist out of that port. For RSTP, it is important to disable STP

on edge ports, which are typically front-side Ethernet ports, using the command bridge

bridge-group-number spanning-disabled on the appropriate interface. If RSTP is not disabled on edge

ports, convergence times will be excessive for packets traversing those ports.

Note To be consistent with Cisco STP implementations, Ta ble 7-3 describes the port state as blocking instead

of discarding. Designated ports start in the listening state.

Rapid Convergence

The RSTP provides for rapid recovery of connectivity following the failure of switch, a switch port, or

a LAN. It provides rapid convergence for new root ports, and ports connected through point-to-point

links as follows:

Table 7-3 Port State Comparison

Operational Status STP Port State RSTP Port State Is Port Included in the

Active Topology?

Enabled Blocking Discarding No

Enabled Listening Discarding No

Enabled Learning Learning Yes

Enabled Forwarding Forwarding Yes

Disabled Disabled Discarding No

7-11

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 7 Configuring STP and RSTP

Rapid Convergence

• Root ports—If the RSTP selects a new root port, it blocks the old root port and immediately

transitions the new root port to the forwarding state.

• Point-to-point links—If you connect a port to another port through a point-to-point link and the local

port becomes a designated port, it negotiates a rapid transition with the other port by using the

proposal-agreement handshake to ensure a loop-free topology.

As shown in Figure 7-4, Switch A is connected to Switch B through a point-to-point link, and all of

the ports are in the blocking state. Assume that the priority of Switch A is a smaller numerical value

than the priority of Switch B. Switch A sends a proposal message (a configuration BPDU with the

proposal flag set) to Switch B, proposing itself as the designated switch.

After receiving the proposal message, Switch B selects as its new root port the port from which the

proposal message was received, forces all non edge ports to the blocking state, and sends an

agreement message (a BPDU with the agreement flag set) through its new root port.

After receiving an agreement message from Switch B, Switch A also immediately transitions its

designated port to the forwarding state. No loops in the network are formed because Switch B

blocked all of its non edge ports and because there is a point-to-point link between Switches A

and B.

When Switch C is connected to Switch B, a similar set of handshaking messages are exchanged.

Switch C selects the port connected to Switch B as its root port, and both ends immediately

transition to the forwarding state. With each iteration of this handshaking process, one more switch

joins the active topology. As the network converges, this proposal-agreement handshaking

progresses from the root toward the leaves of the spanning tree.

The switch determines the link type from the port duplex mode: a full-duplex port is considered to

have a point-to-point connection; a half-duplex port is considered to have a shared connection.

7-12

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 7 Configuring STP and RSTP

Synchronization of Port Roles

Figure 7-4 Proposal and Agreement Handshaking for Rapid Convergence

Synchronization of Port Roles

When the switch receives a proposal message on one of its ports and that port is selected as the new root

port, the RSTP forces all other ports to synchronize with the new root information. The switch is

synchronized with superior root information received on the root port if all other ports are synchronized.

If a designated port is in the forwarding state, it transitions to the blocking state when the RSTP forces

it to synchronize with new root information. In general, when the RSTP forces a port to synchronize with

root information and the port does not satisfy any of the above conditions, its port state is set to blocking.

After ensuring all of the ports are synchronized, the switch sends an agreement message to the designated

switch corresponding to its root port. When the switches connected by a point-to-point link are in agreement

about their port roles, the RSTP immediately transitions the port states to forwarding. The sequence of events

is shown in Figure 7-5.

Proposal

RPDP

92178

Agreement

Root

Switch A

Switch B

Proposal

Agreement

DP = designated port

RP = root port

F = forwarding

ONS 15454

with ML100T-12

ONS 15454

with ML100T-12

ONS 15454

with ML100T-12

Root

ONS 15454

with ML100T-12

Root

ONS 15454

with ML100T-12

ONS 15454

with ML100T-12

ONS 15454

with ML100T-12

7-13

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 7 Configuring STP and RSTP

Bridge Protocol Data Unit Format and Processing

Figure 7-5 Sequence of Events During Rapid Convergence

Bridge Protocol Data Unit Format and Processing

The RSTP BPDU format is the same as the IEEE 802.1D BPDU format except that the protocol version

is set to 2. A new Length field is set to zero, which means that no version 1 protocol information is

present. Table 7-4 shows the RSTP flag fields.

The sending switch sets the proposal flag in the RSTP BPDU to propose itself as the designated switch

on that LAN. The port role in the proposal message is always set to the designated port.

The sending switch sets the agreement flag in the RSTP BPDU to accept the previous proposal. The port

role in the agreement message is always set to the root port.

2. Block

9. Forward

1. Proposal4. Agreement

6. Proposal

Root port

Designated port

8. Agreement 10. Agreement

Edge port

7. Proposal

5. Forward

3. Block

11. Forward

74008

Table 7-4 RSTP BPDU Flags

Bit Function

0Topology change (TC)

1Proposal

2–3:

Port role:

Unknown

Alternate port

Root port

Designated port

4Learning

5Forwarding

6Agreement

7Topology change acknowledgement

7-14

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 7 Configuring STP and RSTP

Topology Changes

The RSTP does not have a separate topology change notification (TCN) BPDU. It uses the topology

change (TC) flag to show the topology changes. However, for interoperability with IEEE 802.1D

switches, the RSTP switch processes and generates TCN BPDUs.

The learning and forwarding flags are set according to the state of the sending port.

Processing Superior BPDU Information

If a port receives superior root information (lower bridge ID, lower path cost, etc.) than currently stored

for the port, the RSTP triggers a reconfiguration. If the port is proposed and is selected as the new root

port, RSTP forces all the other ports to synchronize.

If the BPDU received is an RSTP BPDU with the proposal flag set, the switch sends an agreement

message after all of the other ports are synchronized. If the BPDU is an IEEE 802.1D BPDU, the switch

does not set the proposal flag and starts the forward-delay timer for the port. The new root port requires

twice the forward-delay time to transition to the forwarding state.

If the superior information received on the port causes the port to become a backup or alternate port,

RSTP sets the port to the blocking state but does not send the agreement message. The designated port

continues sending BPDUs with the proposal flag set until the forward-delay timer expires, at which time

the port transitions to the forwarding state.

Processing Inferior BPDU Information

If a designated port receives an inferior BPDU (higher bridge ID, higher path cost, etc.) than currently

stored for the port with a designated port role, it immediately replies with its own information.

Topology Changes

This section describes the differences between the RSTP and the IEEE 802.1D in handling spanning-tree

topology changes.

• Detection—Unlike IEEE 802.1D in which any transition between the blocking and the forwarding

state causes a topology change, only transitions from the blocking to the forwarding state cause a

topology change with RSTP. (Only an increase in connectivity is considered a topology change.)

State changes on an edge port do not cause a topology change. When an RSTP switch detects a

topology change, it flushes the learned information on all of its non edge ports.

• Notification—Unlike IEEE 802.1D, which uses TCN BPDUs, the RSTP does not use them.

However, for IEEE 802.1D interoperability, an RSTP switch processes and generates TCN BPDUs.

• Acknowledgement—When an RSTP switch receives a TCN message on a designated port from an

IEEE 802.1D switch, it replies with an IEEE 802.1D configuration BPDU with the topology change

acknowledgement bit set. However, if the TC-while timer (the same as the topology-change timer in

IEEE 802.1D) is active on a root port connected to an IEEE 802.1D switch and a configuration

BPDU with the topology change acknowledgement bit set is received, the TC-while timer is reset.

This behavior is only required to support IEEE 802.1D switches. The RSTP BPDUs never have the

topology change acknowledgement bit set.

• Propagation—When an RSTP switch receives a TC message from another switch through a

designated or root port, it propagates the topology change to all of its non edge, edge, designated

ports, and root port (excluding the port on which it is received). The switch starts the TC-while timer

for all such ports and flushes the information learned on them.

7-15

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 7 Configuring STP and RSTP

Interoperability with IEEE 802.1D STP

• Protocol migration—For backward compatibility with IEEE 802.1D switches, RSTP selectively

sends IEEE 802.1D configuration BPDUs and TCN BPDUs on a per-port basis.

When a port is initialized, the timer is started (which specifies the minimum time during which

RSTP BPDUs are sent), and RSTP BPDUs are sent. While this timer is active, the switch processes

all BPDUs received on that port and ignores the protocol type.

If the switch receives an IEEE 802.1D BPDU after the port’s migration-delay timer has expired, it

assumes that it is connected to an IEEE 802.1D switch and starts using only IEEE 802.1D BPDUs.

However, if the RSTP switch is using IEEE 802.1D BPDUs on a port and receives an RSTP BPDU

after the timer has expired, it restarts the timer and starts using RSTP BPDUs on that port.

Interoperability with IEEE 802.1D STP

A switch running RSTP supports a built-in protocol migration mechanism that enables it to interoperate

with legacy IEEE 802.1D switches. If this switch receives a legacy IEEE 802.1D configuration BPDU

(a BPDU with the protocol version set to 0), it sends only IEEE 802.1D BPDUs on that port.

However, the switch does not automatically revert to the RSTP mode if it no longer receives

IEEE 802.1D BPDUs because it cannot determine whether the legacy switch has been removed from the

link unless the legacy switch is the designated switch. Also, a switch might continue to assign a boundary

role to a port when the switch to which this switch is connected has joined the region.

Configuring STP and RSTP Features

These sections describe how to configure spanning-tree features:

• Default STP and RSTP Configuration, page 7-16

• Disabling STP and RSTP, page 7-16

• Configuring the Root Switch, page 7-17

• Configuring the Port Priority, page 7-17

• Configuring the Path Cost, page 7-18

• Configuring the Switch Priority of a Bridge Group, page 7-19

• Configuring the Hello Time, page 7-19

• Configuring the Forwarding-Delay Time for a Bridge Group, page 7-20

• Configuring the Maximum-Aging Time for a Bridge Group, page 7-20

7-16

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 7 Configuring STP and RSTP

Default STP and RSTP Configuration

Table 7-5 shows the default STP and RSTP configuration.

Disabling STP and RSTP

STP is enabled by default on native VLAN 1 and on all newly created VLANs up to the specified

spanning-tree limit of 255. Disable STP only if you are sure there are no loops in the network topology.

Caution STP edge ports are bridge ports that do not need STP enabled, where loop protection is not needed out

of that port or an STP neighbor does not exist out of that port. For RSTP, it is important to disable STP

on edge ports, which are typically front-side Ethernet ports, using the command bridge

bridge-group-number spanning-disabled on the appropriate interface. If RSTP is not disabled on edge

ports, convergence times will be excessive for packets traversing those ports.

Caution When STP is disabled and loops are present in the topology, excessive traffic and indefinite packet

duplication can drastically reduce network performance.

Table 7-5 Default STP and RSTP Configuration

Feature Default Setting

Enable state Up to 255 spanning-tree instances

can be enabled.

Switch priority 32768 + Bridge ID

Spanning-tree port priority (configurable on a per-interface

basis—used on interfaces configured as Layer 2 access ports)

128

Spanning-tree port cost (configurable on a per-interface basis) 1000 Mbps: 4

100 Mbps: 19

10 Mbps: 100

STS-1: 37

STS-3c: 14

STS-6c: 9

STS-9c: 7

STS-12c: 6

STS-24c: 3

Hello time 2 seconds

Forward-delay time 15 seconds

Maximum-aging time 20 seconds

7-17

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 7 Configuring STP and RSTP

Configuring the Root Switch

Beginning in privileged EXEC mode, follow these steps to disable STP or RSTP on a per-VLAN basis:

To reenable STP, use the no bridge-group bridge-group-number spanning disabled interface-level

configuration command.

Configuring the Root Switch

The switch maintains a separate spanning-tree instance for each active VLAN configured on it. A

bridge ID, consisting of the switch priority and the switch MAC address, is associated with each

instance. For each VLAN, the switch with the lowest bridge ID becomes the root switch for that VLAN.

Note If your network consists of switches that both do and do not support the extended system ID, it is unlikely

that the switch with the extended system ID support will become the root switch. The extended system

ID increases the switch priority value every time the bridge ID is greater than the priority of the

connected switches that are running older software.

Configuring the Port Priority

If a loop occurs, spanning tree uses the port priority when selecting an interface to put into the

forwarding state. You can assign higher priority values (lower numerical values) to interfaces that you

want selected first, and lower priority values (higher numerical values) that you want selected last. If all

interfaces have the same priority value, spanning tree puts the interface with the lowest interface number

in the forwarding state and blocks the other interfaces.

Beginning in privileged EXEC mode, follow these steps to configure the port priority of an interface:

Command Purpose

Step 1 Router# configure terminal Enters the global configuration mode.

Step 2 Router(config)# interface

interface-id

Enters the interface configuration mode.

Step 3 Router(config-if)# bridge-group

bridge-group-number

spanning disabled

Disables STP or RSTP on a per-interface basis.

Step 4 Router(config-if)# end Returns to privileged EXEC mode.

Command Purpose

Step 1 Router# configure terminal Enters the global configuration mode.

Step 2 Router(config)# interface

interface-id

Enters the interface configuration mode, and specifies an

interface to configure.

Valid interfaces include physical interfaces and

port-channel logical interfaces (port-channel

port-channel-number).

7-18

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 7 Configuring STP and RSTP

Configuring the Path Cost

To return the interface to its default setting, use the no bridge-group id bridge-group-number priority-

value command.

Configuring the Path Cost

The spanning-tree path cost default value is derived from the media speed of an interface. If a loop

occurs, spanning tree uses cost when selecting an interface to put in the forwarding state. You can assign

lower cost values to interfaces that you want selected first and higher cost values to interfaces that you

want selected last. If all interfaces have the same cost value, spanning tree puts the interface with the

lowest interface number in the forwarding state and blocks the other interfaces.

Beginning in privileged EXEC mode, follow these steps to configure the cost of an interface:

Note The show spanning-tree interface interface-id privileged EXEC command displays information only

for ports that are in a link-up operative state. Otherwise, you can use the show running-config privileged

EXEC command to confirm the configuration.

To return the interface to its default setting, use the no bridge-group bridge-group-number path-cost

cost command.

Step 3 Router(config-if)# bridge-group

bridge-group-number priority-value

Configures the port priority for an interface that is an

access port.

For the priority-value, the range is 0 to 255; the default is

128 in increments of 16. The lower the number, the higher

the priority.

Step 4 Router(config-if)# end Return to privileged EXEC mode.

Command Purpose

Step 1 Router# configure terminal Enters the global configuration mode.

Step 2 Router(config)# interface

interface-id

Enters the interface configuration mode and specifies an

interface to configure.

Valid interfaces include physical interfaces and port-channel

logical interfaces (port-channel port-channel-number).

Step 3 Router(config-if)# bridge-group

bridge-group-number

path-cost

cost

Configures the cost for an interface that is an access port.

If a loop occurs, spanning tree uses the path cost when selecting

an interface to place into the forwarding state. A lower path cost

represents higher-speed transmission.

For cost, the range is 0 to 65535; the default value is derived

from the media speed of the interface.

Step 4 Router(config-if)# end Returns to the privileged EXEC mode.

7-19

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 7 Configuring STP and RSTP

Configuring the Switch Priority of a Bridge Group

You can configure the switch priority and make it more likely that the switch will be chosen as the root

switch.

Beginning in privileged EXEC mode, follow these steps to configure the switch priority of a bridge

group:

To return the switch to its default setting, use the no bridge bridge-group-number priority priority

command.

Configuring the Hello Time

You can configure the interval between the generation of configuration messages by the root switch by

changing the hello time.

Beginning in privileged EXEC mode, follow these steps to configure the hello time of a bridge group:

To return the switch to its default setting, use the no bridge bridge-group-number hello-time seconds

command.

Command Purpose

Step 1 Router# configure terminal Enters the global configuration mode.

Step 2 Router(config)# bridge

bridge-group-number

priority

Configures the switch priority of a bridge group.

For priority, the range is 0 to 61440 in increments of 4096; the

default is 32768. The lower the number, the more likely the switch

will be chosen as the root switch.

The value entered is rounded to the lower multiple of 4096. The

actual number is computed by adding this number to the bridge

group number.

Step 3 Router(config)# end Return to the privileged EXEC mode.

Command Purpose

Step 1 Router# configure terminal Enters global configuration mode.

Step 2 Router(config)# bridge

bridge-group-number

hello-time

seconds

Configures the hello time of a bridge group. The hello time is

the interval between the generation of configuration

messages by the root switch. These messages mean that the

switch is alive.

For seconds, the range is 1 to 10; the default is 2.

Step 3 Router(config)# end Returns to privileged EXEC mode.

7-20

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 7 Configuring STP and RSTP

Configuring the Forwarding-Delay Time for a Bridge Group

Beginning in privileged EXEC mode, follow these steps to configure the forwarding-delay time for a

bridge group:

To return the switch to its default setting, use the no bridge bridge-group-number forward-time seconds

command.

Configuring the Maximum-Aging Time for a Bridge Group

Beginning in privileged EXEC mode, follow these steps to configure the maximum-aging time for a

bridge group:

To return the switch to its default setting, use the no bridge bridge-group-number max-age seconds

command.

Verifying and Monitoring STP and RSTP Status

To display the STP or RSTP status, use one or more of the privileged EXEC commands in Table 7-6:

Command Purpose

Step 1 Router# configure terminal Enters global configuration mode.

Step 2 Router(config)# bridge

bridge-group-number

forward-time

seconds

Configures the forward time of a VLAN. The forward delay is the

number of seconds a port waits before changing from its

spanning-tree learning and listening states to the forwarding state.

For seconds, the range is 4 to 200; the default is 15.

Step 3 Router(config)# end Returns to privileged EXEC mode.

Command Purpose

Step 1 Router# configure terminal Enters global configuration mode.

Step 2 Router(config)# bridge

bridge-group-number

max-age

seconds

Configures the maximum-aging time of a bridge group. The

maximum-aging time is the number of seconds a switch waits

without receiving spanning-tree configuration messages before

attempting a reconfiguration.

For seconds, the range is 6 to 200; the default is 20.

Step 3 Router(config)# end Returns to privileged EXEC mode.

Table 7-6 Commands for Displaying Spanning-Tree Status

Command Purpose

ML_Series# show spanning-tree Displays detailed STP or RSTP information.

ML_Series# show spanning-tree

brief

Displays summary of STP or RSTP information.

7-21

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 7 Configuring STP and RSTP

Verifying and Monitoring STP and RSTP Status

Note The show spanning-tree interface interface-id privileged EXEC command displays information only

if the port is in a link-up operative state. Otherwise, you can use the show running-config interface

privileged EXEC command to confirm the configuration.

Examples of the show spanning-tree privileged EXEC command commands are shown here:

Example 7-1 show spanning-tree Commands

Router# show spanning-tree brief

Bridge group 1

Spanning tree enabled protocol ieee

Root ID Priority 32769

Address 0005.9a39.6634

This bridge is the root

Hello Time 2 sec Max Age 20 sec Forward Delay 15 sec

Bridge ID Priority 32769 (priority 32768 sys-id-ext 1)

Address 0005.9a39.6634

Hello Time 2 sec Max Age 20 sec Forward Delay 15 sec

Aging Time 300

Interface Role Sts Cost Prio.Nbr Type

---------------- ---- --- --------- -------- --------------------------------

Fa0 Desg FWD 19 128.3 P2p

PO0 Desg FWD 3 128.20 P2p

Router# show spanning-tree detail

Bridge group 1 is executing the ieee compatible Spanning Tree protocol

Bridge Identifier has priority 32768, sysid 1, address 0005.9a39.6634

Configured hello time 2, max age 20, forward delay 15

We are the root of the spanning tree

Topology change flag not set, detected flag not set

Number of topology changes 2 last change occurred 00:16:45 ago

from POS0

Times: hold 1, topology change 35, notification 2

hello 2, max age 20, forward delay 15

Timers: hello 0, topology change 0, notification 0, aging 300

Port 3 (FastEthernet0) of Bridge group 1 is forwarding

Port path cost 19, Port priority 128, Port Identifier 128.3.

Designated root has priority 32769, address 0005.9a39.6634

Designated bridge has priority 32769, address 0005.9a39.6634

Designated port id is 128.3, designated path cost 0

Timers: message age 0, forward delay 0, hold 0

Number of transitions to forwarding state: 1

Link type is point-to-point by default

BPDU: sent 641, received 0

ML_Series# show spanning-tree

interface

interface-id

Displays STP or RSTP information for the specified interface.

ML_Series# show spanning-tree

summary [totals]Displays a summary of port states or displays the total lines of

the STP or RSTP state section.

Table 7-6 Commands for Displaying Spanning-Tree Status (continued)

Command Purpose

7-22

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 7 Configuring STP and RSTP

Verifying and Monitoring STP and RSTP Status

Port 20 (POS0) of Bridge group 1 is forwarding

Port path cost 3, Port priority 128, Port Identifier 128.20.

Designated root has priority 32769, address 0005.9a39.6634

Designated bridge has priority 32769, address 0005.9a39.6634

Designated port id is 128.20, designated path cost 0

Timers: message age 0, forward delay 0, hold 0

Number of transitions to forwarding state: 6

Link type is point-to-point by default

BPDU: sent 582, received 15

Router# show spanning-tree interface fast 0

Bridge Group Role Sts Cost Prio.Nbr Type

---------------- ---- --- --------- -------- --------------------------------

Bridge group 1 Desg FWD 19 128.3 P2p

Router# show spanning-tree interface pos 0

Bridge Group Role Sts Cost Prio.Nbr Type

---------------- ---- --- --------- -------- --------------------------------

Bridge group 1 Desg FWD 3 128.20 P2p

Router# show spanning-tree summary totals

Switch is in pvst mode

Root bridge for: Bridge group 1

Name Blocking Listening Learning Forwarding STP Active

---------------------- -------- --------- -------- ---------- ----------

1 bridge 0 0 0 2 2

CHAPTER

8-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Configuring VLANs

This chapter describes VLAN configurations for the ML-Series card. It describes how to configure

IEEE 802.1Q VLAN encapsulation. For more information about the Cisco IOS commands used in this

chapter, refer to the Cisco IOS Command Reference publication.

This chapter contains the following major sections:

• Understanding VLANs, page 8-1

• Configuring IEEE 802.1Q VLAN Encapsulation, page 8-2

• IEEE 802.1Q VLAN Configuration, page 8-3

• Monitoring and Verifying VLAN Operation, page 8-5

Note Configuring VLANs is optional. Complete general interface configurations before proceeding with

configuring VLANs as an optional step.

Understanding VLANs

VLANs enable network managers to group users logically rather than by physical location. A VLAN is

an emulation of a standard LAN that allows secure intra-group data transfer and communication to occur

without the traditional restraints placed on the network. It can also be considered a broadcast domain set

up within a switch. With VLANs, switches can support more than one subnet (or VLAN) on each switch

and give routers and switches the opportunity to support multiple subnets on a single physical link. A

group of devices that belong to the same VLAN, but are part of different LAN segments, are configured

to communicate as if they were part of the same LAN segment.

VLANs enable efficient traffic separation and provide excellent bandwidth utilization. VLANs also

alleviate scaling issues by logically segmenting the physical LAN structure into different subnetworks

so that packets are switched only between ports within the same VLAN. This can be very useful for

security, broadcast containment, and accounting.

ML-Series software supports port-based VLANs and VLAN trunk ports, which are ports that carry the

traffic of multiple VLANs. Each frame transmitted on a trunk link is tagged as belonging to only one

VLAN.

ML-Series card software supports VLAN frame encapsulation through the IEEE 802.1Q standard. The

Cisco Inter-Switch Link (ISL) VLAN frame encapsulation is not supported. ISL frames are broadcast at

Layer 2 or dropped at Layer 3.

8-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 8 Configuring VLANs

Configuring IEEE 802.1Q VLAN Encapsulation

ML-Series switching supports up to 900 VLAN subinterfaces per card (for example, 200 VLANs on four

interfaces uses 800 VLAN subinterfaces). A maximum of 255 logical VLANs can be bridged per card

(limited by the number of bridge-groups). Each VLAN subinterface can be configured for any VLAN ID

in the full 1 to 4095 range. Figure 8-1 shows a network topology in which two VLANs span two

ONS 15454s with ML-Series cards.

Figure 8-1 VLANs Spanning Devices in a Network

Configuring IEEE 802.1Q VLAN Encapsulation

You can configure IEEE 802.1Q VLAN encapsulation on either type of ML-Series card interfaces,

Ethernet or Packet over SONET/SDH (POS). VLAN encapsulation is not supported on POS interfaces

configured with HDLC encapsulation.

The native VLAN is always VLAN ID 1 on ML-Series cards. Frames on the native VLAN are normally

transmitted and received untagged. On an trunk port, all frames from VLANs other than the native

VLAN are transmitted and received tagged.

To configure VLANs using IEEE 802.1Q VLAN encapsulation, perform the following procedure,

beginning in global configuration mode:

Host station

VLAN 10

VLAN 2

VLAN 10

VLAN 2 VLAN 2

Fast Ethernet 3

ONS 15454

with ML100T-12

ONS 15454

with ML100T-12

83338

Fast Ethernet 1 Fast Ethernet 4

POS 0.10 POS 0. 2

Fast Ethernet 2

Command Purpose

Step 1 Router(config)# bridge

bridge-group

number

protocol

type

Assigns a bridge group (VLAN) number and

define the appropriate spanning tree type.

Step 2 Router(config)# interface

type number

Enters interface configuration mode to configure

the interface.

Step 3 Router(config-if)# no ip address Disables IP processing.

Step 4 Router(config)# interface

type

number.subinterface-number

Enters subinterface configuration mode to

configure the subinterface.

8-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 8 Configuring VLANs

IEEE 802.1Q VLAN Configuration

Note In a bridge group on the ML-Series card, the VLAN ID does not have to be uniform across interfaces

that belong to that bridge group. For example, a bridge-group can connect from a VLAN ID subinterface

to a subinterface with a different VLAN ID, and then frames entering with one VLAN ID can be changed

to exit with a different VLAN ID. This is know as VLAN translation.

Note IP routing is enabled by default. To enable bridging, enter the no ip routing or bridge IRB command.

Note Native VLAN frames transmitted on the interface are normally untagged. All untagged frames received

on the interface are associated with the native VLAN, which is always VLAN 1. Use the command

encapsulation dot1q 1 native.

IEEE 802.1Q VLAN Configuration

The VLAN configuration example for the ML100T-12 shown in Figure 8-2 depicts the following

VLANs:

• Fast Ethernet subinterface 0.1 is in the IEEE 802.1Q native VLAN 1.

• Fast Ethernet subinterface 0.2 is in the IEEE 802.1Q VLAN 2.

• Fast Ethernet subinterface 0.3 is in the IEEE 802.1Q VLAN 3.

• Fast Ethernet subinterface 0.4 is in the IEEE 802.1Q VLAN 4.

Step 5 Router(config-subif)# encap dot1q

vlan

number

Sets the encapsulation on the VLAN to IEEE

802.1Q.

Step 6 Router(config-subif)# bridge-group

bridge-group

number

Assigns a network interface to a bridge group.

Step 7 Router(config-subif)# end Returns to privileged EXEC mode.

Step 8 Router# copy running-config startup-config (Optional) Saves your configuration changes to

NVRAM.

Command Purpose

8-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 8 Configuring VLANs

IEEE 802.1Q VLAN Configuration

Figure 8-2 Bridging IEEE 802.1Q VLANs

Example 8-1 shows how to configure VLANs for IEEE 802.1Q VLAN encapsulation. Use this

configuration for both router A and router B. The example is shown in Figure 8-2:

Example 8-1 Configure VLANs for IEEE 802.1Q VLAN Encapsulation

bridge 1 protocol ieee

bridge 2 protocol ieee

bridge 3 protocol ieee

bridge 4 protocol ieee

interface FastEthernet0

no ip address

interface FastEthernet0.1

encapsulation dot1Q 1 native

bridge-group 1

interface FastEthernet0.2

encapsulation dot1Q 2

bridge-group 2

interface FastEthernet0.3

encapsulation dot1Q 3

bridge-group 3

interface FastEthernet0.4

encapsulation dot1Q 4

bridge-group 4

interface POS0

no ip address

crc 32

ONS 15454

with ML100T-12

ONS 15454

with ML100T-12

POS 0POS 0

Router_A Router_B

83002

SONET/SDH

Fast Ethernet 0.1

Host station

VLAN 2

Host station Host station

VLAN 3

VLAN 4

Fast Ethernet 0.3

Fast Ethernet 0.2

Fast Ethernet 0.4

Switch

802.1.Q Fast Ethernet 0.1

Host station

VLAN 2

Host station Host station

VLAN 3

VLAN 4

Fast Ethernet 0.3

Fast Ethernet 0.2

Fast Ethernet 0.4

Switch

802.1.Q

Native VLAN 1 Native VLAN 1

8-5

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 8 Configuring VLANs

Monitoring and Verifying VLAN Operation

pos flag c2 1

interface POS0.1

encapsulation dot1Q 1 native

bridge-group 1

interface POS0.2

encapsulation dot1Q 2

bridge-group 2

interface POS0.3

encapsulation dot1Q 3

bridge-group 3

interface POS0.4

encapsulation dot1Q 4

bridge-group 4

Monitoring and Verifying VLAN Operation

After the VLANs are configured on the ML-Series card, you can monitor their operation by entering the

privileged EXEC command show vlans vlan-id. This command displays information on all configured

VLANs or on a specific VLAN (by VLAN ID number).

An example of the show vlans privileged EXEC command commands are shown here:

Example 8-2 show vlans Commands

ML1000-121#show vlans

Virtual LAN ID: 1 (IEEE 802.1Q Encapsulation)

vLAN Trunk Interfaces: POS1

GigabitEthernet0

This is configured as native Vlan for the following interface(s) :

POS1

GigabitEthernet0

Protocols Configured: Address: Received: Transmitted:

Virtual LAN ID: 5 (IEEE 802.1Q Encapsulation)

vLAN Trunk Interfaces: POS1.1

GigabitEthernet0.1

Protocols Configured: Address: Received: Transmitted:

Bridging Bridge Group 2 157 0

8-6

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 8 Configuring VLANs

Monitoring and Verifying VLAN Operation

CHAPTER

9-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Configuring IEEE 802.1Q Tunneling and Layer 2

Protocol Tunneling

Virtual private networks (VPNs) provide enterprise-scale connectivity on a shared infrastructure, often

Ethernet-based, with the same security, prioritization, reliability, and manageability requirements of

private networks. Tunneling is a feature designed for service providers who carry traffic of multiple

customers across their networks and are required to maintain the VLAN and Layer 2 protocol

configurations of each customer without impairing the traffic of other customers. The ML-Series cards

support IEEE 802.1Q tunneling and Layer 2 protocol tunneling.

This chapter contains the following sections:

• Understanding IEEE 802.1Q Tunneling, page 9-1

• Configuring IEEE 802.1Q Tunneling, page 9-4

• Understanding VLAN-Transparent and VLAN-Specific Services, page 9-6

• Understanding Layer 2 Protocol Tunneling, page 9-9

• Configuring Layer 2 Protocol Tunneling, page 9-10

Understanding IEEE 802.1Q Tunneling

Business customers of service providers often have specific requirements for VLAN IDs and the number

of supported VLANs. The VLAN ranges required by different customers in the same service-provider

network might overlap, and traffic of customers through the infrastructure might be mixed. Assigning a

unique range of VLAN IDs to each customer would restrict customer configurations and could easily

exceed the IEEE 802.1Q specification VLAN limit of 4096.

Using the IEEE 802.1Q tunneling (QinQ) feature, service providers can use a single VLAN to support

customers who have multiple VLANs. Customer VLAN IDs are preserved and traffic from different

customers is segregated within the service-provider infrastructure even when they appear to be on the

same VLAN. The IEEE 802.1Q tunneling expands VLAN space by using a VLAN-in-VLAN hierarchy

and tagging the tagged packets. A port configured to support IEEE 802.1Q tunneling is called a tunnel

port. When you configure tunneling, you assign a tunnel port to a VLAN that is dedicated to tunneling.

Each customer requires a separate VLAN, but that VLAN supports all of the customer’s VLANs.

Customer traffic tagged in the normal way with appropriate VLAN IDs comes from an IEEE 802.1Q

trunk port on the customer device and into a tunnel port on the ML-Series card. The link between the

customer device and the ML-Series card is an asymmetric link because one end is configured as an

IEEE 802.1Q trunk port and the other end is configured as a tunnel port. You assign the tunnel port

interface to an access VLAN ID unique to each customer (Figure 9-1).

9-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 9 Configuring IEEE 802.1Q Tunneling and Layer 2 Protocol Tunneling

Understanding IEEE 802.1Q Tunneling

Figure 9-1 IEEE 802.1Q Tunnel Ports in a Service-Provider Network

Packets coming from the customer trunk port into the tunnel port on the ML-Series card are normally

IEEE 802.1Q-tagged with an appropriate VLAN ID. The tagged packets remain intact inside the

ML-Series card, and when they exit the trunk port into the service provider network, they are

encapsulated with another layer of an IEEE 802.1Q tag (called the metro tag) that contains the VLAN

ID unique to the customer. The original IEEE 802.1Q tag from the customer is preserved in the

encapsulated packet. Therefore, packets entering the service-provider infrastructure are double-tagged,

with the outer tag containing the customer’s access VLAN ID, and the inner VLAN ID being the VLAN

of the incoming traffic.

When the double-tagged packet enters another trunk port in a service provider ML-Series card, the outer

tag is stripped as the packet is processed inside the switch. When the packet exits another trunk port on

the same core switch, the same metro tag is again added to the packet. Figure 9-2 shows the structure of

the double-tagged packet.

Customer A

VLANs 1 to 100

Customer B

VLANs 1 to 200

Customer B

VLANs 1 to 200

Customer A

VLANs 1 to 100

Tunnel port

VLAN 40

Tunnel port

VLAN 40

Trunk

Asymmetric link

Tunnel port

VLAN 30

ONS 15454

with ML100T-12

POS

Router_A

SONET STS-N

ONS 15454

with ML100T-12

Router_B

Fast Ethernet 1

Fast Ethernet 0

Fast Ethernet 1

Fast Ethernet 0

83233

Tunnel port

VLAN 30

9-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 9 Configuring IEEE 802.1Q Tunneling and Layer 2 Protocol Tunneling

Understanding IEEE 802.1Q Tunneling

Figure 9-2 Normal, IEEE 802.1Q, and IEEE 802.1Q-Tunneled Ethernet Packet Formats

When the packet enters the trunk port of the service-provider egress switch, the outer tag is again

stripped as the packet is processed internally on the switch. However, the metro tag is not added when it

is sent out the tunnel port on the edge switch into the customer network, and the packet is sent as a normal

IEEE 802.1Q-tagged frame to preserve the original VLAN numbers in the customer network.

In Figure 9-1 on page 9-2, Customer A was assigned VLAN 30, and Customer B was assigned VLAN

40. Packets entering the ML-Series card tunnel ports with IEEE 802.1Q tags are double-tagged when

they enter the service-provider network, with the outer tag containing VLAN ID 30 or 40, appropriately,

and the inner tag containing the original VLAN number, for example, VLAN 100. Even if both

Customers A and B have VLAN 100 in their networks, the traffic remains segregated within the

service-provider network because the outer tag is different. With IEEE 802.1Q tunneling, each customer

controls its own VLAN numbering space, which is independent of the VLAN numbering space used by

other customers and the VLAN numbering space used by the service-provider network.

At the outbound tunnel port, the original VLAN numbers on the customer’s network are recovered. If

the traffic coming from a customer network is not tagged (native VLAN frames), these packets are

bridged or routed as if they were normal packets, and the metro tag is added (as a single-level tag) when

they exit toward the service provider network.

If the native VLAN (VLAN 1) is used in the service provider network as a metro tag, this tag must always

be added to the customer traffic, even though the native VLAN ID is not normally added to transmitted

frames. If the VLAN 1 metro tag is not added on frames entering the service provider network, then the

customer VLAN tag appears to be the metro tag, with disastrous results. The global configuration vlan

dot1q tag native command must be used to prevent this by forcing a tag to be added to VLAN 1.

Avoiding the use of VLAN 1 as a metro tag transporting customer traffic is recommended to reduce the

risk of misconfiguration. A best practice is to use VLAN 1 as a private management VLAN in the service

provider network.

The IEEE 802.1Q class of service (COS) priority field on the added metro tag is set to zero by default,

but can be modified by input or output policy maps.

Double-tagged

frame in service

provider

infrastructure

IEE 802.1Q frame from

customer network

Original Ethernet frame

Destination

address

Length/

EtherType

Frame Check

Sequence

Source

address

SADA Len/Etype Data FCS

SADA Len/Etype DataEtype Ta g FCS

SADA Len/Etype DataEtype Ta g Etype Ta g FCS

74072

9-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 9 Configuring IEEE 802.1Q Tunneling and Layer 2 Protocol Tunneling

Configuring IEEE 802.1Q Tunneling

This section includes the following information about configuring IEEE 802.1Q tunneling:

• IEEE 802.1Q Tunneling and Compatibility with Other Features, page 9-4

• Configuring an IEEE 802.1Q Tunneling Port, page 9-4

• IEEE 802.1Q Example, page 9-5

Note By default, IEEE 802.1Q tunneling is not configured on the ML-Series.

IEEE 802.1Q Tunneling and Compatibility with Other Features

Although IEEE 802.1Q tunneling works well for Layer 2 packet switching, there are incompatibilities

with some Layer 2 features and with Layer 3 switching:

• A tunnel port cannot be a routed port.

• Tunnel ports do not support IP access control lists (ACLs).

• Layer 3 quality of service (QoS) ACLs and other QoS features related to Layer 3 information are

not supported on tunnel ports. MAC-based QoS is supported on tunnel ports.

• EtherChannel port groups are compatible with tunnel ports as long as the IEEE 802.1Q

configuration is consistent within an EtherChannel port group.

• Port Aggregation Protocol (PAgP) and Unidirectional Link Detection (UDLD) Protocol are not

supported on IEEE 802.1Q tunnel ports.

• Dynamic Trunking Protocol (DTP) is not compatible with IEEE 802.1Q tunneling because you must

manually configure asymmetric links with tunnel ports and trunk ports.

• Loopback detection is supported on IEEE 802.1Q tunnel ports.

• When a port is configured as an IEEE 802.1Q tunnel port, spanning tree bridge protocol data unit

(BPDU) filtering is automatically disabled on the interface.

Configuring an IEEE 802.1Q Tunneling Port

Beginning in privileged EXEC mode, follow these steps to configure a port as an IEEE 802.1Q tunnel

port:

Command Purpose

Step 1 Router# configure terminal Enters global configuration mode.

Step 2 Router(config)# bridge

bridge-number

protocol

bridge-protocol

Creates a bridge number and specifies a protocol.

Step 3 Router(config)# interface fastethernet

number

Enters the interface configuration mode and the interface to be

configured as a tunnel port. This should be the edge port in the

service-provider network that connects to the customer switch. Valid

interfaces include physical interfaces and port-channel logical

interfaces (port channels 1 to 64).

9-5

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 9 Configuring IEEE 802.1Q Tunneling and Layer 2 Protocol Tunneling

IEEE 802.1Q Example

Note The VLAN ID (VID) range of 2 to 4095 is recommended for IEEE 802.1Q tunneling on the ML-Series

card.

Note If VID 1 is required to be used as a metro tag, use the following command:

Router (config)# VLAN dot1Q tag native

Use the no mode dot1q-tunnel interface configuration command to remove the IEEE 802.1Q tunnel

from the interface.

IEEE 802.1Q Example

The following examples show how to configure the example in Figure 9-1 on page 9-2. Example 9-1

applies to Router A, and Example 9-2 applies to Router B.

Example 9-1 Router A Configuration

bridge 30 protocol ieee

bridge 40 protocol ieee

interface FastEthernet0

no ip routing

no ip address

mode dot1q-tunnel

bridge-group 30

interface FastEthernet1

no ip address

mode dot1q-tunnel

bridge-group 40

interface POS0

no ip address

crc 32

pos flag c2 1

interface POS0.1

encapsulation dot1Q 30

bridge-group 30

Step 4 Router(config-if)# bridge-group

number

Assigns the tunnel port to a bridge-group. All traffic from the port

(tagged and untagged) will be switched based on this bridge-group.

Other members of the bridge-group should be VLAN subinterfaces on

a provider trunk interface.

Step 5 Router(config-if)# mode dot1q-tunnel Sets the interface as an IEEE 802.1Q tunnel port.

Step 6 Router(config)# end Returns to privileged EXEC mode.

Step 7 Router# show dot1q-tunnel Displays the tunnel ports on the switch.

Step 8 Router# copy running-config

startup-config

(Optional) Saves your entries in the configuration file.

Command Purpose

9-6

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 9 Configuring IEEE 802.1Q Tunneling and Layer 2 Protocol Tunneling

Understanding VLAN-Transparent and VLAN-Specific Services

interface POS0.2

encapsulation dot1Q 40

bridge-group 40

Example 9-2 Router B Configuration

bridge 30 protocol ieee

bridge 40 protocol ieee

interface FastEthernet0

no ip routing

no ip address

mode dot1q-tunnel

bridge-group 30

interface FastEthernet1

no ip address

mode dot1q-tunnel

bridge-group 40

interface POS0

no ip address

crc 32

pos flag c2 1

interface POS0.1

encapsulation dot1Q 30

bridge-group 30

interface POS0.2

encapsulation dot1Q 40

bridge-group 40

Understanding VLAN-Transparent and VLAN-Specific Services

The ML-Series card supports combining VLAN-transparent services and one or more VLAN-specific

services on the same port. All of these VLAN-transparent and VLAN-specific services can be

point-to-point or multipoint-to-multipoint.

This allows a service provider to combine a VLAN-transparent service, such as IEEE 802.1Q tunneling

(QinQ), with VLAN-specific services, such as bridging specific VLANs, on the same customer port. For

example, one customer VLAN can connect to Internet access and the other customer VLANs can be

tunneled over a single provider VLAN to another customer site, all over a single port at each site.

Table 9-1 outlines the differences between VLAN-transparent and VLAN-specific services.

Table 9-1 VLAN-Transparent Service Versus VLAN-Specific Services

VLAN-Transparent Services VLAN-Specific Services

Bridging only Bridging or routing

One service per port Up to 254 VLAN-specific services per port

Applies indiscriminately to all VLANs on the

physical interface

Applies only to specified VLANs

9-7

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 9 Configuring IEEE 802.1Q Tunneling and Layer 2 Protocol Tunneling

VLAN-Transparent and VLAN-Specific Services Configuration Example

Note VLAN-transparent service is also referred to as Ethernet Wire Service (EWS). VLAN-specific service

is also referred to as QinQ tunneling trunk UNI in Metro Ethernet terminology.

A VLAN-specific service on a subinterface coexists with the VLAN-transparent service, often

IEEE 802.1Q tunneling, on a physical interface. VLANs configured for a VLAN-transparent service and

a VLAN-specific service follow the VLAN-specific service configuration. If you need to configure

802.1Q tunneling, configure this VLAN-transparent service in the normal manner, see the “Configuring

IEEE 802.1Q Tunneling” section on page 9-4.

A VLAN-specific service can be any service normally applicable to a VLAN. To configure an ERMS

VLAN-specific service, configure the service in the normal manner.

VLAN-Transparent and VLAN-Specific Services Configuration

Example

In this example, the Gigabit Ethernet interfaces 0 on both the ML-Series card A and ML-Series card C

are the trunk ports in an IEEE 802.1Q tunnel, a VLAN-transparent service. VLAN 10 is used for the

VLAN-transparent service, which would normally transport all customer VLANs on the ML-Series card

A’s Gigabit Ethernet interface 0. All unspecified VLANs and VLAN 1 would also be tunneled across

VLAN 10.

VLAN 30 is prevented from entering the VLAN-transparent service and is instead forwarded on a

specific-VLAN service, bridging Gigabit Ethernet interface 0 on ML-Series card A and Gigabit Ethernet

interface 0 on ML-Series card B. Figure 9-3 is used as an example to performing configuration examples

9-3, 9-4, and 9-5.

Figure 9-3 ERMS Example

Example 9-3 applies to ML-Series card A.

Example 9-3 ML-Series Card A Configuration

hostname ML-A

bridge 10 protocol rstp

802.1Q Tunnel on VLAN 10

GigabitEthernet Interface 0

ML-Series Card A

VLAN 30

ML-Series Card B

96891

VLAN 30

VLANs 0-29 and 31-4095

802.1Q Tunnel on VLAN 10

GigabitEthernet Interface 0

ML-Series Card C

9-8

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 9 Configuring IEEE 802.1Q Tunneling and Layer 2 Protocol Tunneling

VLAN-Transparent and VLAN-Specific Services Configuration Example

bridge 30 protocol ieee

interface GigabitEthernet0

no ip address

no ip route-cache

mode dot1q-tunnel

bridge-group 10

bridge-group 10 spanning-disabled

interface GigabitEthernet0.3

encapsulation dot1Q 30

no ip route-cache

bridge-group 30

interface POS0

no ip address

no ip route-cache

crc 32

interface POS0.1

encapsulation dot1Q 10

no ip route-cache

bridge-group 10

interface POS0.3

encapsulation dot1Q 30

no ip route-cache

bridge-group 30

Example 9-4 applies to ML-Series card B.

Example 9-4 ML-Series Card B Configuration

hostname ML-B

bridge 10 protocol rstp

bridge 30 protocol ieee

interface GigabitEthernet0

no ip address

interface GigabitEthernet0.3

encapsulation dot1Q 30

bridge-group 30

interface GigabitEthernet1

no ip address

shutdown

interface POS0

no ip address

crc 32

interface POS0.1

encapsulation dot1Q 10

bridge-group 10

interface POS0.3

encapsulation dot1Q 30

bridge-group 30

9-9

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 9 Configuring IEEE 802.1Q Tunneling and Layer 2 Protocol Tunneling

Understanding Layer 2 Protocol Tunneling

interface POS1

no ip address

crc 32

interface POS1.1

encapsulation dot1Q 10

bridge-group 10

interface POS1.3

encapsulation dot1Q 30

bridge-group 30

Example 9-5 applies to ML-Series card C.

Example 9-5 ML-Series Card C Configuration

hostname ML-C

bridge 10 protocol rstp

interface GigabitEthernet0

no ip address

no ip route-cache

mode dot1q-tunnel

bridge-group 10

bridge-group 10 spanning-disabled

interface POS0

no ip address

no ip route-cache

crc 32

interface POS0.1

encapsulation dot1Q 10

no ip route-cache

bridge-group 10

Understanding Layer 2 Protocol Tunneling

Customers at different sites connected across a service-provider network need to run various Layer 2

protocols to scale their topology to include all remote sites, as well as the local sites. Spanning Tree

Protocol (STP) must run properly, and every VLAN should build a proper spanning tree that includes the

local site and all remote sites across the service-provider infrastructure. Cisco Discovery Protocol (CDP)

must discover neighboring Cisco devices from local and remote sites. VLAN Trunking Protocol (VTP)

must provide consistent VLAN configuration throughout all sites in the customer network.

When protocol tunneling is enabled, edge switches on the inbound side of the service-provider

infrastructure encapsulate Layer 2 protocol packets with a special MAC address and send them across

the service-provider network. Core switches in the network do not process these packets, but forward

them as normal packets. CDP, STP, or VTP Layer 2 protocol data units (PDUs) cross the

service-provider infrastructure and are delivered to customer switches on the outbound side of the

service-provider network. Identical packets are received by all customer ports on the same VLANs with

the following results:

• Users on each of a customer’s sites are able to properly run STP and every VLAN can build a correct

spanning tree based on parameters from all sites and not just from the local site.

9-10

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 9 Configuring IEEE 802.1Q Tunneling and Layer 2 Protocol Tunneling

Configuring Layer 2 Protocol Tunneling

• CDP discovers and shows information about the other Cisco devices connected through the

service-provider network.

• VTP provides consistent VLAN configuration throughout the customer network, propagating

through the service provider to all switches.

Layer 2 protocol tunneling can be used independently or to enhance IEEE 802.1Q tunneling. If protocol

tunneling is not enabled on IEEE 802.1Q tunneling ports or on specific VLANs, remote switches at the

receiving end of the service-provider network do not receive the PDUs and cannot properly run STP,

CDP, and VTP. When protocol tunneling is enabled, Layer 2 protocols within each customer’s network

are totally separate from those running within the service-provider network. Customer switches on

different sites that send traffic through the service-provider network with IEEE 802.1Q tunneling

achieve complete knowledge of the customer’s VLAN. If IEEE 802.1Q tunneling is not used, you can

still enable Layer 2 protocol tunneling by connecting to the customer switch through access ports and

enabling tunneling on the service-provider access port.

Configuring Layer 2 Protocol Tunneling

Layer 2 protocol tunneling (by protocol) is enabled on the tunnel ports or on specific tunnel VLANs that

are connected to the customer by the edge switches of the service-provider network. ML-Series card

tunnel ports are connected to customer IEEE 802.1Q trunk ports. The ML-Series card supports Layer 2

protocol tunneling for CDP, STP, and VTP at the interface and subinterface level. Multiple STP (MSTP)

Tunneling support is achieved through subinterface protocol tunneling. The ML-Series cards connected

to the customer switch perform the tunneling process.

When the Layer 2 PDUs that entered the inbound ML-Series switch through the tunnel port exit the

switch through the trunk port into the service-provider network, the switch overwrites the customer

PDU-destination MAC address with a well-known Cisco proprietary multicast address

(01-00-0c-cd-cd-d0). If IEEE 802.1Q tunneling is enabled, packets are also double-tagged; the outer tag

is the customer metro tag and the inner tag is the customer VLAN tag. The core switches ignore the inner

tags and forward the packet to all trunk ports in the same metro VLAN. The ML-Series switches on the

outbound side restore the proper Layer 2 protocol and MAC address information and forward the

packets. Therefore, the Layer 2 PDUs are kept intact and delivered across the service-provider

infrastructure to the other side of the customer network.

This section contains the following information about configuring Layer 2 protocol tunneling:

• Default Layer 2 Protocol Tunneling Configuration, page 9-10

• Layer 2 Protocol Tunneling Configuration Guidelines, page 9-11

• Configuring Layer 2 Tunneling on a Port, page 9-11

• Configuring Layer 2 Tunneling Per-VLAN, page 9-12

• Monitoring and Verifying Tunneling Status, page 9-12

Default Layer 2 Protocol Tunneling Configuration

Table 9-2 shows the default Layer 2 protocol tunneling configuration.

9-11

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 9 Configuring IEEE 802.1Q Tunneling and Layer 2 Protocol Tunneling

Layer 2 Protocol Tunneling Configuration Guidelines

These are some configuration guidelines and operating characteristics of Layer 2 protocol tunneling:

• The ML-Series card supports Per-VLAN Protocol Tunneling (PVPT), which allows protocol

tunneling to be configured and run on a specific subinterface (VLAN). PVPT configuration is done

at the subinterface level.

• PVPT should be configured on VLANs that carry multi-session transport (MST) BPDUs on the

connected devices.

• The ML-Series card supports tunneling of CDP, STP (including MSTP and VTP protocols). Protocol

tunneling is disabled by default but can be enabled for the individual protocols on IEEE 802.1Q

tunnel ports or on specific VLANs.

• Tunneling is not supported on trunk ports. If you enter the l2protocol-tunnel interface configuration

command on a trunk port, the command is accepted, but Layer 2 tunneling does not take affect unless

you change the port to a tunnel port.

• EtherChannel port groups are compatible with tunnel ports as long as the IEEE 802.1Q

configuration is configured within an EtherChannel port group.

• If an encapsulated PDU (with the proprietary destination MAC address) is received from a tunnel

port or access port with Layer 2 tunneling enabled, the tunnel port is shut down to prevent loops.

• Only decapsulated PDUs are forwarded to the customer network. The spanning tree instance running

on the service-provider network does not forward BPDUs to tunnel ports. No CDP packets are

forwarded from tunnel ports.

• Because tunneled PDUs (especially STP BPDUs) must be delivered to all remote sites for the

customer virtual network to operate properly, you can give PDUs higher priority within the

service-provider network than data packets received from the same tunnel port. By default, the

PDUs use the same CoS value as data packets.

• Protocol tunneling has to be configured symmetrically at both the ingress and egress point. For

example, if you configure the entry point to tunnel STP, CDP, VTP, then you must configure the

egress point in the same way.

Configuring Layer 2 Tunneling on a Port

Beginning in privileged EXEC mode, follow these steps to configure a port as a Layer 2 tunnel port:

Table 9-2 Default Layer 2 Protocol Tunneling Configuration

Feature Default Setting

Layer 2 protocol tunneling Disa b l ed f o r C D P, S T P, a nd V TP.

Class of service (CoS) value If a CoS value is configured on the interface for data

packets, that value is the default used for Layer 2 PDUs. If

none is configured, there is no default. This allows existing

CoS values to be maintained, unless the user configures

otherwise.

9-12

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 9 Configuring IEEE 802.1Q Tunneling and Layer 2 Protocol Tunneling

Configuring Layer 2 Tunneling Per-VLAN

Beginning in privileged EXEC mode, follow these steps to configure a VLAN as a Layer 2 tunnel

VLAN:

Monitoring and Verifying Tunneling Status

Table 9-3 shows the privileged EXEC commands for monitoring and maintaining IEEE 802.1Q and

Layer 2 protocol tunneling.

Command Purpose

Step 1 Router# configuration terminal Enters global configuration mode.

Step 2 Router(config)# bridge

bridge-group-number

protocol

type

Creates a bridge group number and specifies a protocol.

Step 3 Router(config)# l2protocol-tunnel cos

cos-value

Associates a CoS value with the Layer 2 tunneling port. Valid numbers

for a cos-value range from 0 to 7.

Step 4 Router(config)# interface

type

number

Enters interface configuration mode for the interface to be configured

as a tunnel port.

Step 5 Router(config-if)# bridge-group

bridge-group-number

Assigns a bridge group to the interface.

Step 6 Router(config-if)# mode dot1q tunnel Sets the interface as an IEEE 802.1Q tunnel VLAN.

Step 7 Router(config-if)# l2protocol-tunnel

{all | cdp | stp | vtp]}

Sets the interface as a Layer 2 protocol tunnel port and enables all

three protocols or specifically enables CDP, STP, or VTP. These

protocols are off by default.

Step 8 Router(config-if)# end Returns to privileged EXEC mode.

Step 9 Router# show dot1q-tunnel Displays the tunnel ports on the switch.

Step 10 Router# copy running-config

startup-config

(Optional) Saves your entries in the configuration file.

Command Purpose

Step 1 Router# configuration terminal Enters global configuration mode.

Step 2 Router(config)# bridge

bridge-group-number

protocol

type

Creates a bridge group number and specifies a protocol.

Step 3 Router(config)# l2protocol-tunnel cos

cos-value

Associates a CoS value with the Layer 2 tunneling VLAN. Valid

numbers for a cos-value range from 0 to 7.

Step 4 Router(config)# interface

type

number.subinterface-number

Enters subinterface configuration mode and the subinterface to be

configured as a tunnel VLAN.

Step 5 Router(config-subif)# encapsulation

dot1q

bridge-group-number

Sets the subinterface as an IEEE 802.1Q tunnel VLAN.

Step 6 Router(config-subif)# bridge-group

bridge-group-number

Assigns a bridge group to the interface.

Step 7 Router(config-subif)# end Returns to privileged EXEC mode.

Step 8 Router# copy running-config

startup-config

(Optional) Saves your entries in the configuration file.

9-13

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 9 Configuring IEEE 802.1Q Tunneling and Layer 2 Protocol Tunneling

Monitoring and Verifying Tunneling Status

Table 9-3 Commands for Monitoring and Maintaining Tunneling

Command Purpose

show dot1q-tunnel Displays IEEE 802.1Q tunnel ports on the switch.

show dot1q-tunnel interface

interface-id

Verifies if a specific interface is a tunnel port.

show l2protocol-tunnel Displays information about Layer 2 protocol

tunneling ports.

show vlan dot1q tag native Displays IEEE 802.1Q tunnel information.

9-14

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 9 Configuring IEEE 802.1Q Tunneling and Layer 2 Protocol Tunneling

Monitoring and Verifying Tunneling Status

CHAPTER

10-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Configuring Link Aggregation

This chapter describes how to configure link aggregation for the ML-Series cards, both EtherChannel

and packet-over-SONET/SDH (POS) channel. For additional information about the Cisco IOS

commands used in this chapter, refer to the Cisco IOS Command Reference publication.

This chapter contains the following major sections:

• Understanding Link Aggregation, page 10-1

• Understanding Encapsulation over EtherChannel or POS Channel, page 10-7

• Monitoring and Verifying EtherChannel and POS, page 10-9

Understanding Link Aggregation

The ML-Series card offers both EtherChannel and POS channel. Traditionally EtherChannel is a

trunking technology that groups together multiple full-duplex IEEE 802.3 Ethernet interfaces to provide

fault-tolerant high-speed links between switches, routers, and servers. EtherChannel forms a single

higher bandwidth routing or bridging endpoint and was designed primarily for host-to-switch

connectivity. The ML-Series card extends this link aggregation technology to bridged POS interfaces.

POS channel is only supported with LEX encapsulation.

Link aggregation provides the following benefits:

• Logical aggregation of bandwidth

• Load balancing

• Fault tolerance

Port channel is a term for both POS channel and EtherChannel. The port channel interface is treated as

a single logical interface although it consists of multiple interfaces. Each port channel interfaces consists

of one type of interface, either Fast Ethernet, Gigabit Ethernet, or POS. You must perform all port

channel configurations on the port channel (EtherChannel or POS channel) interface rather than on the

individual member Ethernet or POS interfaces. You can create the port channel interface by entering the

interface port-channel interface configuration command.

Port channel connections are fully compatible with IEEE 802.1Q trunking and routing technologies.

IEEE 802.1Q trunking can carry multiple VLANs across a port channel.

Each ML100T-12, ML100X-8, or ML1000-2 card supports one POS channel, a port channel made up of

the two POS ports. A POS channel combines the two POS port capacities into a maximum aggregate

capacity of STS-48c or VC4-16c.

10-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 10 Configuring Link Aggregation

Configuring EtherChannel

Each ML100T-12 supports up to six FECs and one POS channel. Each ML100X-8 supports up to four

FECs and one POS channel. A maximum of four Fast Ethernet ports can bundle into one Fast Ethernet

Channel (FEC) and provide bandwidth scalability up to 400-Mbps full-duplex Fast Ethernet.

Each ML1000-2 supports up to two port channels, including the POS channel. A maximum of two

Gigabit Ethernet ports can bundle into one Gigabit Ethernet Channel (FEC) and provide 2-Gbps

full-duplex aggregate capacity on the ML1000-2.

Caution The EtherChannel interface is the Layer 2/Layer 3 interface. Do not enable Layer 3 addresses on the

physical interfaces. Do not assign bridge groups on the physical interfaces because doing so creates

loops.

Caution Before a physical interface is removed from an EtherChannel (port channel) interface, the physical

interface must be disabled. To disable a physical interface, use the shutdown command in interface

configuration mode.

Note Link aggregation across multiple ML-Series cards is not supported.

Note Policing is not supported on port channel interfaces.

Note The ML-Series does not support the routing of Subnetwork Access Protocol (SNAP) or Inter-Switch

Link (ISL) encapsulated frames.

Configuring EtherChannel

You can configure an FEC or a GEC by creating an EtherChannel interface (port channel) and assigning

a network IP address. All interfaces that are members of a FEC or a GEC should have the same link

parameters, such as duplex and speed.

To create an EtherChannel interface, perform the following procedure, beginning in global configuration

mode:

Command Purpose

Step 1 Router(config)# interface port-channel

channel-number

Creates the EtherChannel interface. You can

configure up to 6 FECs on the ML100T-12, 4

FECs on the ML100X-8, and 1 GEC on the

ML1000-2.

Step 2 Router(config-if)# ip address

ip-address

subnet-mask

Assigns an IP address and subnet mask to the

EtherChannel interface (required only for Layer 3

EtherChannel).

Step 3 Router(config-if)# end Exits to privileged EXEC mode.

Step 4 Router# copy running-config startup-config (Optional) Saves configuration changes to

NVRAM.

10-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 10 Configuring Link Aggregation

EtherChannel Configuration Example

For information on other configuration tasks for the EtherChannel, refer to the

Cisco IOS Configuration Fundamentals Configuration Guide.

To assign Ethernet interfaces to the EtherChannel, perform the following procedure, beginning in global

configuration mode:

EtherChannel Configuration Example

Figure 10-1 shows an example of EtherChannel. The associated commands are provided in

Example 10-1 (Switch A) and Example 10-2 (Switch B).

Figure 10-1 EtherChannel Example

Example 10-1 Switch A Configuration

hostname Switch A

bridge 1 protocol ieee

interface Port-channel 1

no ip address

Command Purpose

Step 1 Router(config)# interface fastethernet

number

Router(config)# interface gigabitethernet

number

Enters one of the interface configuration modes to

configure the Fast Ethernet or Gigabit Ethernet

interface that you want to assign to the

EtherChannel. You can assign any Ethernet

interface on the system to the EtherChannel, but

both interfaces must be either FEC or GEC.

Step 2 Router(config-if)# channel-group

channel-number

Assigns the Fast Ethernet or Gigabit Ethernet

interfaces to the EtherChannel. The channel

number must be the same channel number you

assigned to the EtherChannel interface.

Step 3 Router(config-if)# end Exits to privileged EXEC mode.

Step 4 Router# copy running-config startup-config (Optional) Saves configuration changes to

NVRAM.

ONS 15454

with ML100T-12

Fast Ethernet 0

POS 0POS 0

Fast Ethernet 0

SONET STS-N

ONS 15454

with ML100T-12

Fast Ethernet 1 Fast Ethernet 1

bridge-group 1 bridge-group 1

83234

Port-Channel

bridge-group 1

Port Channel

bridge-group 1

Switch_A Switch_B

10-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 10 Configuring Link Aggregation

Configuring POS Channel

bridge-group 1

hold-queue 150 in

interface FastEthernet 0

no ip address

channel-group 1

interface FastEthernet 1

no ip address

channel-group 1

interface POS 0

no ip routing

no ip address

crc 32

bridge-group 1

pos flag c2 1

Example 10-2 Switch B Configuration

hostname Switch B

bridge 1 protocol ieee

interface Port-channel 1

no ip routing

no ip address

bridge-group 1

hold-queue 150 in

interface FastEthernet 0

no ip address

channel-group 1

interface FastEthernet 1

no ip address

channel-group 1

interface POS 0

no ip address

crc 32

bridge-group 1

pos flag c2 1

Configuring POS Channel

You can configure a POS channel by creating a POS channel interface (port channel) and optionally

assigning an IP address. All POS interfaces that are members of a POS channel should have the same

port properties and be on the same ML-Series card.

Note POS channel is only supported with LEX encapsulation.

10-5

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 10 Configuring Link Aggregation

POS Channel Configuration Example

To create a POS channel interface, perform the following procedure, beginning in global configuration

mode:

Caution The POS channel interface is the routed interface. Do not enable Layer 3 addresses on any physical

interfaces. Do not assign bridge groups on any physical interfaces because doing so creates loops.

To assign POS interfaces to the POS channel, perform the following procedure, beginning in global

configuration mode:

POS Channel Configuration Example

Figure 10-2 shows an example of POS channel configuration. The associated code is provided in

Example 10-3 (Switch A) and Example 10-4 (Switch B).

Command Purpose

Step 1 Router(config)# interface port-channel

channel-number

Creates the POS channel interface. You can

configure one POS channel on the ML-Series card.

Step 2 Router(config-if)# ip address

ip-address

subnet-mask

Assigns an IP address and subnet mask to the POS

channel interface (required only for the Layer 3

POS channel).

Step 3 Router(config-if)# end Exits to privileged EXEC mode.

Step 4 Router# copy running-config startup-config (Optional) Saves configuration changes to

NVRAM.

Command Purpose

Step 1 Router(config)# interface pos

number

Enters the interface configuration mode to

configure the POS interface that you want to

assign to the POS channel.

Step 2 Router(config-if)# channel-group

channel-number

Assigns the POS interface to the POS channel. The

channel number must be the same channel number

that you assigned to the POS channel interface.

Step 3 Router(config-if)# end Exits to privileged EXEC mode.

Step 4 Router# copy running-config startup-config (Optional) Saves the configuration changes to

NVRAM.

10-6

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 10 Configuring Link Aggregation

POS Channel Configuration Example

Figure 10-2 POS Channel Example

Example 10-3 Switch A Configuration

bridge irb

bridge 1 protocol ieee

interface Port-channel1

no ip address

no keepalive

bridge-group 1

interface FastEthernet0

no ip address

bridge-group 1

interface POS0

no ip address

channel-group 1

crc 32

pos flag c2 1

interface POS1

no ip address

channel-group 1

crc 32

pos flag c2 1

Example 10-4 Switch B Configuration

bridge irb

bridge 1 protocol ieee

interface Port-channel1

no ip address

no keepalive

bridge-group 1

interface FastEthernet0

no ip address

bridge-group 1

interface POS0

no ip address

channel-group 1

crc 32

pos 0pos 0

bridge-group 1 bridge-group 1

port-channel 1

bridge-group 1

port-channel 1

bridge-group 1

pos 1pos 1

83447

SONET STS-N

ML_Series A ML_Series B

10-7

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 10 Configuring Link Aggregation

Understanding Encapsulation over EtherChannel or POS Channel

pos flag c2 1

interface POS1

no ip address

channel-group 1

crc 32

pos flag c2 1

Understanding Encapsulation over EtherChannel or POS

Channel

When configuring encapsulation over FEC, GEC, or POS, be sure to configure IEEE 802.1Q on the

port-channel interface, not its member ports. However, certain attributes of port channel, such as duplex

mode, need to be configured at the member port levels. Also make sure that you do not apply

protocol-level configuration (such as an IP address or a bridge group assignment) to the member

interfaces. All protocol-level configuration should be on the port channel or on its subinterface. You

must configure IEEE 802.1Q encapsulation on the partner system of the EtherChannel as well.

Configuring Encapsulation over EtherChannel or POS Channel

To configure encapsulation over the EtherChannel or POS channel, perform the following procedure,

beginning in global configuration mode:

Encapsulation over EtherChannel Example

Figure 10-3 shows an example of encapsulation over EtherChannel. The associated code is provided in

Example 10-5 (Switch A) and Example 10-6 (Switch B).

Command Purpose

Step 1 Router(config)# interface port-channel

channel-number.subinterface-number

Configures the subinterface on the created port

channel.

Step 2 Router(config-subif)# encapsulation dot1q

vlan-id

Assigns the IEEE 802.1Q encapsulation to the

subinterface.

Step 3 Router(config-subif)# bridge-group

bridge-group-number

Assigns the subinterface to a bridge group.

Step 4 Router(config-subif)# end Exits to privileged EXEC mode.

Note Optionally, you can remain in interface

configuration mode and enable other

supported interface commands to meet

your requirements.

Step 5 Router# copy running-config startup-config (Optional) Saves the configuration changes to

NVRAM.

10-8

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 10 Configuring Link Aggregation

Encapsulation over EtherChannel Example

Figure 10-3 Encapsulation over EtherChannel Example

This encapsulation over EtherChannel example shows how to set up two ONS 15454s with ML100T-12

cards (Switch A and Switch B) to interoperate with two switches that also support IEEE 802.1Q

encapsulation over EtherChannel. To set up this example, use the configurations in the following

sections for both Switch A and Switch B.

Example 10-5 Switch A Configuration

hostname Switch A

bridge irb

bridge 1 protocol ieee

bridge 2 protocol ieee

interface Port-channel1

no ip address

hold-queue 150 in

interface Port-channel1.1

encapsulation dot1Q 1 native

bridge-group 1

interface Port-channel1.2

encapsulation dot1Q 2

bridge-group 2

interface FastEthernet0

no ip address

channel-group 1

interface FastEthernet1

no ip address

channel-group 1

interface POS0

no ip address

crc 32

pos flag c2 1

interface POS0.1

encapsulation dot1Q 1 native

bridge-group 1

interface POS0.2

ONS 15454

with ML100T-12

Fast Ethernet 0

POS 0POS 0

Fast Ethernet 0

Switch_A

SONET STS-1

ONS 15454

with ML100T-12

Switch_B

Fast Ethernet 1 Fast Ethernet 1

802.1Q Trunking

VLANs 1 & 2

802.1Q Trunking

VLANs 1 & 2

83122

10-9

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 10 Configuring Link Aggregation

Monitoring and Verifying EtherChannel and POS

encapsulation dot1Q 2

bridge-group 2

Example 10-6 Switch B Configuration

hostname Switch B

bridge irb

bridge 1 protocol ieee

bridge 2 protocol ieee

interface Port-channel1

no ip address

hold-queue 150 in

interface Port-channel1.1

encapsulation dot1Q 1 native

bridge-group 1

interface Port-channel1.2

encapsulation dot1Q 2

bridge-group 2

interface FastEthernet0

no ip address

channel-group 1

interface FastEthernet1

no ip address

channel-group 1

interface POS0

no ip address

crc 32

pos flag c2 1

interface POS0.1

encapsulation dot1Q 1 native

bridge-group 1

interface POS0.2

encapsulation dot1Q 2

bridge-group 2

Monitoring and Verifying EtherChannel and POS

After FEC, GEC, or POS is configured, you can monitor its status using the show interfaces

port-channel command.

Example 10-7 show interfaces port-channel Command

Router# show int port-channel 1

Port-channel1 is up, line protocol is up

Hardware is FEChannel, address is 0005.9a39.6634 (bia 0000.0000.0000)

MTU 1500 bytes, BW 200000 Kbit, DLY 100 usec,

reliability 255/255, txload 1/255, rxload 1/255

10-10

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 10 Configuring Link Aggregation

Monitoring and Verifying EtherChannel and POS

Encapsulation ARPA, loopback not set

Keepalive set (10 sec)

Unknown duplex, Unknown Speed

ARP type: ARPA, ARP Timeout 04:00:00

No. of active members in this channel: 2

Member 0 : FastEthernet0 , Full-duplex, Auto Speed

Member 1 : FastEthernet1 , Full-duplex, Auto Speed

Last input 00:00:01, output 00:00:23, output hang never

Last clearing of "show interface" counters never

Input queue: 0/150/0/0 (size/max/drops/flushes); Total output drops: 0

Queueing strategy: fifo

Output queue :0/80 (size/max)

5 minute input rate 0 bits/sec, 0 packets/sec

5 minute output rate 0 bits/sec, 0 packets/sec

820 packets input, 59968 bytes

Received 0 broadcasts, 0 runts, 0 giants, 0 throttles

0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored

0 watchdog, 0 multicast

0 input packets with dribble condition detected

32 packets output, 11264 bytes, 0 underruns

0 output errors, 0 collisions, 0 interface resets

0 babbles, 0 late collision, 0 deferred

0 lost carrier, 0 no carrier

0 output buffer failures, 0 output buffers swapped out.

CHAPTER

11-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Configuring Networking Protocols

This chapter describes how to configure the ML-Series card for supported IP routing protocols. It is

intended to provide enough information for a network administrator to get the protocols up and running.

However, this section does not provide in-depth configuration detail for each protocol. For detailed

information, refer to the Cisco IOS IP and IP Routing Configuration Guide and the Cisco IOS IP and IP

Routing Command Reference publications.

This chapter contains the following major sections:

• Basic IP Routing Protocol Configuration, page 11-1

• Configuring IP Routing, page 11-4

• Monitoring Static Routes, page 11-32

• Monitoring and Maintaining the IP Network, page 11-33

• Understanding IP Multicast Routing, page 11-33

• Configuring IP Multicast Routing, page 11-34

• Monitoring and Verifying IP Multicast Operation, page 11-35

Basic IP Routing Protocol Configuration

IP routing is enabled by default on the ML-Series card.

For IP routing, you need the following to configure your interface:

• IP address

• IP subnet mask

You also need to do the following:

• Select a routing protocol.

• Assign IP network numbers to be advertised.

The ML Series supports the routing protocols listed and described in the following sections.

To configure IP routing protocols to run on a Fast Ethernet, Gigabit Ethernet, or

Packet-over-SONET/SDH (POS) interface, perform one of the following procedures, depending on the

protocol you are configuring.

11-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

RIP

To configure the Routing Information Protocol (RIP), perform the following procedure, beginning in

global configuration mode:

EIGRP

To configure the Enhanced Interior Gateway Routing Protocol (EIGRP), perform the following

procedure, beginning in global configuration mode:

OSPF

To configure the Open Shortest Path First (OSPF) protocol, perform the following procedure, beginning

in global configuration mode:

Command Purpose

Step 1 Router(config)# router rip Enters router configuration mode, defines RIP as the

routing protocol, and starts the RIP routing process.

Step 2 Router(config-router)# network

net-number

Specifies a directly connected network based on the

Internet Network Information Center (InterNIC) network

number—not a subnet number or individual address. The

routing process associates interfaces with the appropriate

addresses and begins processing packets on the specified

network.

Step 3 Router(config-router)# exit Returns to global configuration mode.

Command Purpose

Step 1 Router(config)# router eigrp

autonomous-system-number

Defines EIGRP as the IP routing protocol.

The autonomous system number is the

autonomous system to which this ML-Series card

belongs.

Step 2 Router(config-router)# network

net-number

Defines the directly connected networks that run

EIGRP.

The network number is the number of the network

that is advertised by this ML-Series card.

Step 3 Router(config-router)# exit Returns to global configuration mode.

11-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

BGP

To configure the Border Gateway Protocol (BGP), perform the following procedure, beginning in global

configuration mode:

Enabling IP Routing

Beginning in privileged EXEC mode, follow this procedure to enable IP routing:

Note By default, IP routing is already enabled.

Command Purpose

Step 1 Router(config)# router ospf

process-ID

Defines OSPF as the IP routing protocol.

The process ID identifies a unique OSPF router

process. This number is internal to the ML-Series

card only; the process ID here does not have to

match the process IDs on other routers.

Step 2 Router(config-router)# network

net-address

wildcard-mask

area

area-ID

Assigns an interface to a specific area.

• The net-address is the address of directly

connected networks or subnets.

• The wildcard-mask is an inverse mask that

compares a given address with interface

addressing to determine whether OSPF uses this

interface.

• The area parameter identifies the interface as

belonging to an area.

• The area-ID specifies the area associated with

the network address.

Step 3 Router(config-router)# end Returns to privileged EXEC mode.

Command Purpose

Step 1 Router(config)# router bgp

autonomous-system-number

Defines BGP as the IP routing protocol.

The autonomous system number is the autonomous

system to which this ML-Series card belongs.

Step 2 Router(config-router) # network

net-number

Defines the directly connected networks that run

BGP.

The network number is the number of the network

that is advertised by this ML-Series card.

Step 3 Router(config-router)# exit Returns to global configuration mode.

11-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Configuring IP Routing

Use the no ip routing global configuration command (Example 11-1) to disable routing.

Example 11-1 Enabling IP Routing Using RIP as the Routing Protocol

Router# configure terminal

Router(config)# ip routing

Router(config)# router rip

Router(config-router)# network 10.0.0.0

Router(config-router)# end

Configuring IP Routing

You can now set up parameters for the selected routing protocols as described in these sections:

• Configuring RIP, page 11-4

• Configuring OSPF, page 11-9

• Configuring EIGRP, page 11-20

• Configuring BGP, page 11-27

• Configuring IS-IS, page 11-29

• Configuring Static Routes, page 11-31

Configuring RIP

The Routing Information Protocol (RIP) is an Interior Gateway Protocol (IGP) created for use in small,

homogeneous networks. It is a distance-vector routing protocol that uses broadcast User Datagram

Protocol (UDP) data packets to exchange routing information. The protocol is documented in RFC 1058.

You can find detailed information about RIP in IP Routing Fundamentals, published by Cisco Press.

Command Purpose

Step 1 Router# configure terminal Enters global configuration mode.

Step 2 Router(config)# ip routing Enables IP routing (default).

Step 3 Router(config)# router

ip-routing-protocol

Specifies an IP routing protocol. This step might include

other commands, such as specifying the networks to route

with the network (RIP) router configuration command. For

information about specific protocols, refer to sections later

in this chapter and to the Cisco IOS IP and IP Routing

Configuration Guide.

Step 4 Router(config-router)# end Returns to privileged EXEC mode.

Step 5 Router(config)# show running-config Verifies your entries.

Step 6 Router(config)# copy running-config

startup-config

(Optional) Saves your entries in the configuration file.

11-5

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Configuring RIP

Using RIP, the switch sends routing information updates (advertisements) every 30 seconds. If a router

does not receive an update from another router for 180 seconds or more, it marks the routes served by

that router as unusable. If there is still no update after 240 seconds, the router removes all routing table

entries for the nonupdating router.

RIP uses hop counts to rate the value of different routes. The hop count is the number of routers that can

be traversed in a route. A directly connected network has a hop count of zero; a network with a hop count

of 16 is unreachable. This small range (0 to 15) makes RIP unsuitable for large networks.

If the router has a default network path, RIP advertises a route that links the router to the pseudo network

0.0.0.0. The 0.0.0.0 network does not exist; it is treated by RIP as a network to implement the default

routing feature. The switch advertises the default network if a default was learned by RIP or if the router

has a gateway of last resort and RIP is configured with a default metric. RIP sends updates to the

interfaces in specified networks. If an interface’s network is not specified, it is not advertised in any

RIP update.

Table 11-1 shows the default RIP configuration.

To configure RIP, enable RIP routing for a network and optionally configure other parameters.

Beginning in privileged EXEC mode, follow this procedure to enable and configure RIP:

Table 11-1 Default RIP Configuration

Feature Default Setting

Auto summary Enabled

Default-information originate Disabled

Default metric Built-in; automatic metric translations

IP RIP authentication key-chain No authentication

Authentication mode: clear text

IP RIP receive version According to the version router configuration command

IP RIP send version According to the version router configuration command

IP RIP triggered According to the version router configuration command

IP split horizon Varies with media

Neighbor None defined

Network None specified

Offset list Disabled

Output delay 0 milliseconds

Timers basic Update: 30 seconds

Invalid: 180 seconds

Hold-down: 180 seconds

Flush: 240 seconds

Validate-update-source Enabled

Version Receives RIP Version 1 and Version 2 packets;

sends Version 1 packets

11-6

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Configuring RIP

Command Purpose

Step 1 Router# configure terminal Enters global configuration mode.

Step 2 Router(config)# ip routing Enables IP routing. (Required only if IP routing is disabled.)

Step 3 Router(config)# router rip Enables a RIP routing process, and enters router configuration mode.

Step 4 Router(config-router)# network

network-number

Associates a network with a RIP routing process. You can specify

multiple network commands. RIP routing updates are sent and received

through interfaces only on these networks.

Step 5 Router(config-router)# neighbor

ip-address

(Optional) Defines a neighboring router with which to exchange routing

information. This step allows routing updates from RIP (normally a

broadcast protocol) to reach nonbroadcast networks.

Step 6 Router(config-router)# offset list

{[

access-list-number

name

]} {in |

out}

offset

[

type-number

]

(Optional) Applies an offset list to routing metrics to increase incoming

and outgoing metrics to routes learned through RIP. You can limit the

offset list with an access list or an interface.

Step 7 Router(config-router)# timers basic

update invalid holddown flush

(Optional) Adjusts routing protocol timers. Valid ranges for all timers are

0 to 4294967295 seconds.

• update—The time (in seconds) between sending of routing updates.

The default is 30 seconds.

• invalid—The timer interval (in seconds) after which a route is

declared invalid. The default is 180 seconds.

• holddown—The time (in seconds) that must pass before a route is

removed from the routing table. The default is 180 seconds.

• flush—The amount of time (in seconds) for which routing updates

are postponed. The default is 240 seconds.

Step 8 Router(config-router)# version {1 |

(Optional) Configures the switch to receive and send only RIP Version 1

or RIP Version 2 packets. By default, the switch receives Version 1 and 2

but sends only Version 1.

You can also use the interface commands ip rip {send | receive} version

{1 | 2 | 1 2} to control what versions are used for sending and receiving

on interfaces.

Step 9 Router(config-router)# no auto

summary

(Optional) Disables automatic summarization. By default, the switch

summarizes subprefixes when crossing classful network boundaries.

Disables summarization (RIP Version 2 only) to advertise subnet and host

routing information to classful network boundaries.

Step 10 Router(config-router)# no

validate-update-source

(Optional) Disables validation of the source IP address of incoming RIP

routing updates. By default, the switch validates the source IP address of

incoming RIP routing updates and discards the update if the source

address is not valid. Under normal circumstances, disabling this feature

is not recommended. However, if you have a router that is off-network

and you want to receive its updates, you can use this command.

Step 11 Router(config-router)# output-delay

delay

(Optional) Adds interpacket delay for RIP updates sent. By default,

packets in a multiple-packet RIP update have no delay added between

packets. If you are sending packets to a lower-speed device, you can add

an interpacket delay in the range of 8 to 50 milliseconds.

Step 12 Router(config-router)# end Returns to privileged EXEC mode.

11-7

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Configuring RIP

To turn off the RIP routing process, use the no router rip global configuration command.

To display the parameters and current state of the active routing protocol process, use the show ip

protocols privileged EXEC command (Example 11-2).

Example 11-2 show ip protocols Command Output (Showing RIP Processes)

Router# show ip protocols

Routing Protocol is "rip"

Sending updates every 30 seconds, next due in 15 seconds

Invalid after 180 seconds, hold down 180, flushed after 240

Outgoing update filter list for all interfaces is not set

Incoming update filter list for all interfaces is not set

Redistributing: rip

Default version control: send version 1, receive any version

Interface Send Recv Triggered RIP Key-chain

FastEthernet0 1 1 2

POS0 1 1 2

Automatic network summarization is in effect

Maximum path: 4

Routing for Networks:

192.168.2.0

192.168.3.0

Routing Information Sources:

Gateway Distance Last Update

192.168.2.1 120 00:00:23

Distance: (default is 120)

Use the show ip rip database privileged EXEC command to display summary address entries in the RIP

database (Example 11-3).

Example 11-3 show ip rip database Command Output

Router# show ip rip database

192.168.1.0/24 auto-summary

192.168.1.0/24

[1] via 192.168.2.1, 00:00:24, POS0

192.168.2.0/24 auto-summary

192.168.2.0/24 directly connected, POS0

192.168.3.0/24 auto-summary

192.168.3.0/24 directly connected, FastEthernet0

RIP Authentication

RIP Version 1 does not support authentication. If you are sending and receiving RIP Version 2 packets,

you can enable RIP authentication on an interface. The key chain determines the set of keys that can be

used on the interface. If a key chain is not configured, no authentication is performed, not even the

default.

The switch supports two modes of authentication on interfaces for which RIP authentication is enabled:

plain text and message-digest key (MD5). The default is plain text.

Step 13 Router# show ip protocols Verifies your entries.

Step 14 Router# copy running-config

startup-config

(Optional) Saves your entries in the configuration file.

Command Purpose

11-8

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Configuring RIP

Beginning in privileged EXEC mode, follow this procedure to configure RIP authentication on an

interface:

To restore clear text authentication, use the no ip rip authentication mode interface configuration

command. To prevent authentication, use the no ip rip authentication key-chain interface

configuration command.

Summary Addresses and Split Horizon

Routers connected to broadcast-type IP networks and using distance-vector routing protocols normally

use the split-horizon mechanism to reduce the possibility of routing loops. Split horizon blocks

information about routes from being advertised by a router on any interface from which that information

originated. This feature usually optimizes communication among multiple routers, especially when links

are broken.

Note In general, disabling split horizon is not recommended unless you are certain that your application

requires it to properly advertise routes.

If you want to configure an interface running RIP to advertise a summarized local IP address pool on a

network access server for dial-up clients, use the ip summary-address rip interface configuration

command.

Beginning in privileged EXEC mode, follow these steps to set an interface to advertise a summarized

local IP address pool and to disable split horizon on the interface:

Command Purpose

Step 1 Router# configure terminal Enters global configuration mode.

Step 2 Router(config)# interface

interface-id

Enters interface configuration mode, and specifies the

interface to configure.

Step 3 Router(config-if)# ip rip

authentication key-chain

name-of-chain

Enables RIP authentication.

Step 4 Router(config-if)# ip rip

authentication mode {text | md5}

Configures the interface to use plain text

authentication (the default) or MD5 digest

authentication.

Step 5 Router(config-if)# end Returns to privileged EXEC mode.

Step 6 Router# show running-config interface

[

interface-id

]

Verifies your entries.

Step 7 Router# copy running-config

startup-config

(Optional) Saves your entries in the configuration file.

Command Purpose

Step 1 Router# configure terminal Enters global configuration mode.

Step 2 Router(config)# interface

interface-id

Enters interface configuration mode, and specifies the

Layer 3 interface to configure.

Step 3 Router(config-if)# ip address

ip-address subnet-mask

Configures the IP address and IP subnet.

11-9

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Configuring OSPF

To disable IP summarization, use the no ip summary-address rip router configuration command.

Note If split horizon is enabled, neither autosummary nor interface summary addresses (those configured with

the ip summary-address rip router configuration command) are advertised.

Configuring OSPF

This section briefly describes how to configure the Open Shortest Path First (OSPF) protocol. For a

complete description of the OSPF commands, refer to the “OSPF Commands” chapter of the Cisco IOS

IP and IP Routing Command Reference publication.

OSPF is an IGP designed expressly for IP networks, supporting IP subnetting and tagging of externally

derived routing information. OSPF also allows packet authentication and uses IP multicast when sending

and receiving packets. The Cisco implementation supports RFC 1253, the OSPF MIB.

The Cisco implementation conforms to the OSPF Version 2 specifications with these key features:

• Stub areas—Definition of stub areas is supported.

• Route redistribution—Routes learned through any IP routing protocol can be redistributed into

another IP routing protocol. At the intradomain level, this means that OSPF can import and export

routes learned through protocols such as EIGRP and RIP.

• Authentication—Plain text and MD5 authentication among neighboring routers within an area are

supported.

• Routing interface parameter—Configurable parameters supported include interface output cost,

retransmission interval, interface transmit delay, router priority, router dead and hello intervals, and

authentication key.

• Virtual links—Virtual links are supported.

• Not-so-stubby-area (NSSA)—RFC 1587.

OSPF typically requires coordination among many internal routers, area border routers (ABRs)

connected to multiple areas, and autonomous system boundary routers (ASBRs). The minimum

configuration would use all default parameter values, no authentication, and interfaces assigned to areas.

If you customize your environment, you must ensure coordinated configuration of all routers.

Table 11-2 shows the default OSPF configuration.

Step 4 Router(config-if)# ip

summary-address rip

ip-address

ip-network-mask

Configures the IP address to be summarized and the IP

network mask.

Step 5 Router(config-if)# no ip split

horizon

Disables split horizon on the interface.

Step 6 Router(config-if)# end Returns to privileged EXEC mode.

Step 7 Router# show ip interface

interface-id

Verifies your entries.

Step 8 Router# copy running-config

startup-config

(Optional) Saves your entries in the configuration file.

Command Purpose

11-10

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Configuring OSPF

Table 11-2 Default OSPF Configuration

Feature Default Setting

Interface parameters Cost: No default cost predefined.

Retransmit interval: 5 seconds.

Transmit delay: 1 second.

Priority: 1.

Hello interval: 10 seconds.

Dead interval: 4 times the hello interval.

No authentication.

No password specified.

MD5 authentication disabled.

Area Authentication type: 0 (no authentication).

Default cost: 1.

Range: Disabled.

Stub: No stub area defined.

NSSA: No NSSA area defined.

Auto cost 100 Mbps.

Default-information originate Disabled. When enabled, the default metric setting is 10, and the

external route type default is Type 2.

Default metric Built-in, automatic metric translation, as appropriate for each

routing protocol.

Distance OSPF dist1 (all routes within an area): 110

dist2 (all routes from one area to another): 110

dist3 (routes from other routing domains): 110

OSPF database filter Disabled. All outgoing link-state advertisements (LSAs) are

flooded to the interface.

IP OSPF name lookup Disabled.

Log adjacency changes Enabled.

Neighbor None specified.

Neighbor database filter Disabled. All outgoing LSAs are flooded to the neighbor.

Network area Disabled.

Router ID No OSPF routing process defined.

Summary address Disabled.

Timers LSA group pacing 240 seconds.

11-11

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Configuring OSPF

Figure 11-1 shows an example of an IP routing protocol using OSPF.

Figure 11-1 IP Routing Protocol Example Using OSPF

Enabling OSPF requires that you create an OSPF routing process, specify the range of IP addresses to

be associated with the routing process, and assign area IDs to be associated with that range.

Timers shortest path first (spf) spf delay: 5 seconds.

spf-holdtime: 10 seconds.

Virtual link No area ID or router ID defined.

Hello interval: 10 seconds.

Retransmit interval: 5 seconds.

Transmit delay: 1 second.

Dead interval: 40 seconds.

Authentication key: No key predefined.

MD5: No key predefined.

Table 11-2 Default OSPF Configuration (continued)

Feature Default Setting

ONS 15454

with ML100T-12

ONS 15454

with ML100T-12

Fast Ethernet 0

192.168.1.1/24

POS 0POS 0

Fast Ethernet 0

192.168.3.1/24

ML_Series_A 192.168.2.1/24 ML_Series_B 192.168.2.2/24

OSPF Area

78971

SONET/SDH

11-12

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Configuring OSPF

Beginning in privileged EXEC mode, follow this procedure to enable OSPF:

To terminate an OSPF routing process, use the no router ospf process-id global configuration command.

Example 11-4 shows an example of configuring an OSPF routing process. In the example, a process

number of 1 is assigned. Example 11-5 shows the output of the command used to verify the OSPF

process ID.

Example 11-4 Configuring an OSPF Routing Process

Router(config)# router ospf 1

Router(config-router)# network 192.168.1.0 0.0.0.255 area 0

Example 11-5 show ip protocols Privileged EXEC Command Output

Router# show ip protocols

Routing Protocol is "ospf 1"

Outgoing update filter list for all interfaces is not set

Incoming update filter list for all interfaces is not set

Router ID 192.168.3.1

Number of areas in this router is 1. 1 normal 0 stub 0 nssa

Maximum path: 4

Routing for Networks:

192.168.2.0 0.0.0.255 area 0

192.168.3.0 0.0.0.255 area 0

Routing Information Sources:

Gateway Distance Last Update

192.168.3.1 110 00:03:34

192.168.2.1 110 00:03:34

Distance: (default is 110)

Command Purpose

Step 1 Router# configure terminal Enters global configuration mode.

Step 2 Router(config)# router ospf

process-id

Enables OSPF routing, and enters router configuration mode.

The process ID is an internally used identification parameter

that is locally assigned and can be any positive integer. Each

OSPF routing process has a unique value.

Step 3 Router(config)# network

address

wildcard-mask

area

area-id

Defines an interface on which OSPF runs and the area ID for

that interface. Use the wildcard-mask to use a single command

to define one or more multiple interfaces to be associated with

a specific OSPF area. The area ID can be a decimal value or an

IP address.

Step 4 Router(config)# end Returns to privileged EXEC mode.

Step 5 Router# show ip protocols Verifies your entries.

Step 6 Router# copy running-config

startup-config

(Optional) Saves your entries in the configuration file.

11-13

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Configuring OSPF

OSPF Interface Parameters

You can use the ip ospf interface configuration commands to modify interface-specific OSPF

parameters. You are not required to modify any of these parameters, but some interface parameters (hello

interval, dead interval, and authentication key) must be consistent across all routers in an attached

network. If you modify these parameters, be sure all routers in the network have compatible values.

Note The ip ospf interface configuration commands are all optional.

Beginning in privileged EXEC mode, follow these steps to modify OSPF interface parameters:

Command Purpose

Step 1 Router# configure terminal Enters global configuration mode.

Step 2 Router(config)# interface

interface-id

Enters interface configuration mode, and specifies the

Layer 3 interface to configure.

Step 3 Router(config-if)# ip ospf

cost

(Optional) Explicitly specifies the cost of sending a packet

on the interface.

Step 4 Router(config-if)# ip ospf

retransmit-interval

seconds

(Optional) Specifies the number of seconds between link

state advertisement transmissions. The range is 1 to 65535

seconds. The default is 5 seconds.

Step 5 Router(config-if)# ip ospf

transmit-delay

seconds

(Optional) Sets the estimated number of seconds to wait

before sending a link state update packet. The range is

1 to 65535 seconds. The default is 1 second.

Step 6 Router(config-if)# ip ospf priority

number

(Optional) Sets priority to help determine the OSPF

designated router for a network. The range is from 0 to 255.

The default is 1.

Step 7 Router(config-if)# ip ospf

hello-interval

seconds

(Optional) Sets the number of seconds between hello

packets sent on an OSPF interface. The value must be the

same for all nodes on a network. The range is

1 to 65535 seconds. The default is 10 seconds.

Step 8 Router(config-if)# ip ospf

dead-interval

seconds

(Optional) Sets the number of seconds after the last device

hello packet was seen before its neighbors declare the

OSPF router to be down. The value must be the same for all

nodes on a network. The range is 1 to 65535 seconds. The

default is 4 times the hello interval.

Step 9 Router(config-if)# ip ospf

authentication-key

key

(Optional) Assigns a password to be used by neighboring

OSPF routers. The password can be any string of

keyboard-entered characters up to 8 bytes in length. All

neighboring routers on the same network must have the

same password to exchange OSPF information.

Step 10 Router(config-if)# ip ospf message

digest-key

keyid

md5

key

(Optional) Enables authentication.

• keyid—Identifier from 1 to 255.

• key—Alphanumeric password of up to 16 bytes.

11-14

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Configuring OSPF

Use the no form of these commands to remove the configured parameter value or return to the

default value. Example 11-6 shows the output of the show ip ospf interface privileged EXEC command.

Example 11-6 show ip ospf interface Privileged EXEC Command Output

Router# show ip ospf interface

FastEthernet0 is up, line protocol is up

Internet Address 192.168.3.1/24, Area 0

Process ID 1, Router ID 192.168.3.1, Network Type BROADCAST, Cost: 1

Transmit Delay is 1 sec, State DR, Priority 1

Designated Router (ID) 192.168.3.1, Interface address 192.168.3.1

No backup designated router on this network

Timer intervals configured, Hello 10, Dead 40, Wait 40, Retransmit 5

Hello due in 00:00:01

Index 2/2, flood queue length 0

Next 0x0(0)/0x0(0)

Last flood scan length is 0, maximum is 0

Last flood scan time is 0 msec, maximum is 0 msec

Neighbor Count is 0, Adjacent neighbor count is 0

Suppress hello for 0 neighbor(s)

POS0 is up, line protocol is up

Internet Address 192.168.2.2/24, Area 0

Process ID 1, Router ID 192.168.3.1, Network Type BROADCAST, Cost: 1

Transmit Delay is 1 sec, State DR, Priority 1

Designated Router (ID) 192.168.3.1, Interface address 192.168.2.2

Backup Designated router (ID) 192.168.2.1, Interface address 192.168.2.1

Timer intervals configured, Hello 10, Dead 40, Wait 40, Retransmit 5

Hello due in 00:00:05

Index 1/1, flood queue length 0

Next 0x0(0)/0x0(0)

Last flood scan length is 2, maximum is 2

Last flood scan time is 0 msec, maximum is 0 msec

Neighbor Count is 1, Adjacent neighbor count is 1

Adjacent with neighbor 192.168.2.1 (Backup Designated Router)

Suppress hello for 0 neighbor(s)

OSPF Area Parameters

You can optionally configure several OSPF area parameters. These parameters include authentication for

password-based protection against unauthorized access to an area, stub areas, and NSSAs. Stub areas are

areas into which information about external routes is not sent. Instead, the ABR generates a default

external route into the stub area for destinations outside the autonomous system (AS). An NSSA does

not flood all LSAs from the core into the area, but can import AS external routes within the area by

redistribution.

Step 11 Router(config-if)# ip ospf

database-filter all out

(Optional) Blocks flooding of OSPF LSA packets to the

interface. By default, OSPF floods new LSAs over all

interfaces in the same area, except the interface on which

the LSA arrives.

Step 12 Router(config-if)# end Returns to privileged EXEC mode.

Step 13 Router# show ip ospf interface

[

interface-name

]

Displays OSPF-related interface information.

Step 14 Router# copy running-config

startup-config

(Optional) Saves your entries in the configuration file.

Command Purpose

11-15

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Configuring OSPF

Route summarization is the consolidation of advertised addresses into a single summary route to be

advertised by other areas. If network numbers are contiguous, you can use the area range router

configuration command to configure the ABR to advertise a summary route that covers all networks in

the range.

Note The OSPF area router configuration commands are all optional.

Beginning in privileged EXEC mode, follow these steps to configure area parameters:

Use the no form of these commands to remove the configured parameter value or to return to the

default value. Example 11-7 shows the output of the show ip ospf database and the show ip ospf

privileged EXEC commands.

Command Purpose

Step 1 Router# configure terminal Enters global configuration mode.

Step 2 Router(config)# router ospf

process-id

Enables OSPF routing, and enters router configuration

mode.

Step 3 Router(config)# area

area-id

authentication

(Optional) Allows password-based protection against

unauthorized access to the identified area. The identifier

can be either a decimal value or an IP address.

Step 4 Router(config)# area

area-id

authentication message-digest

(Optional) Enables MD5 authentication on the area.

Step 5 Router(config)# area

area-id

stub

[no-summary]

(Optional) Defines an area as a stub area. The no-summary

keyword prevents an ABR from sending summary link

advertisements into the stub area.

Step 6 Router(config)# area

area-id

nssa

{no-redistribution |

default-information-originate |

no-summary}

(Optional) Defines an area as a not-so-stubby-area. Every

router within the same area must agree that the area is

NSSA. Select one of these keywords:

• no-redistribution—Select when the router is an

NSSA ABR and you want the redistribute command

to import routes into normal areas, but not into the

NSSA.

• default-information-originate—Select on an ABR to

allow importing type 7 LSAs into the NSSA.

• no-redistribution—Select to not send summary LSAs

into the NSSA.

Step 7 Router(config)# area

area-id

range

address-mask

(Optional) Specifies an address range for which a single

route is advertised. Use this command only with area

border routers.

Step 8 Router(config)# end Returns to privileged EXEC mode.

Step 9 Router# show ip ospf [

process-id

]Displays information about the OSPF routing process in

general or for a specific process ID to verify configuration.

Step 10 Router# copy running-config

startup-config

(Optional) Saves your entries in the configuration file.

11-16

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Configuring OSPF

Example 11-7 show ip ospf database and show ip ospf Privileged EXEC Command Ouputs

Router# show ip ospf database

OSPF Router with ID (192.168.3.1) (Process ID 1)

Router Link States (Area 0)

Link ID ADV Router Age Seq# Checksum Link count

192.168.2.1 192.168.2.1 428 0x80000003 0x004AB8 2

192.168.3.1 192.168.3.1 428 0x80000003 0x006499 2

Net Link States (Area 0)

Link ID ADV Router Age Seq# Checksum

192.168.2.2 192.168.3.1 428 0x80000001 0x00A4E0

Router# show ip ospf

Routing Process "ospf 1" with ID 192.168.3.1

Supports only single TOS(TOS0) routes

Supports opaque LSA

SPF schedule delay 5 secs, Hold time between two SPFs 10 secs

Minimum LSA interval 5 secs. Minimum LSA arrival 1 secs

Number of external LSA 0. Checksum Sum 0x000000

Number of opaque AS LSA 0. Checksum Sum 0x000000

Number of DCbitless external and opaque AS LSA 0

Number of DoNotAge external and opaque AS LSA 0

Number of areas in this router is 1. 1 normal 0 stub 0 nssa

External flood list length 0

Area BACKBONE(0)

Number of interfaces in this area is 2

Area has no authentication

SPF algorithm executed 4 times

Area ranges are

Number of LSA 3. Checksum Sum 0x015431

Number of opaque link LSA 0. Checksum Sum 0x000000

Number of DCbitless LSA 0

Number of indication LSA 0

Number of DoNotAge LSA 0

Flood list length 0

Other OSPF Behavior Parameters

You can optionally configure other OSPF parameters in router configuration mode:

• Route summarization—When redistributing routes from other protocols, each route is advertised

individually in an external LSA. To help decrease the size of the OSPF link state database, you can

use the summary-address router configuration command to advertise a single router for all the

redistributed routes included in a specified network address and mask.

• Virtual links—In OSPF, all areas must be connected to a backbone area. You can establish a virtual

link in case of a backbone-continuity break by configuring two ABRs as endpoints of a virtual link.

Configuration information includes the identity of the other virtual endpoint (the other ABR) and

the nonbackbone link that the two routers have in common (the transit area). Virtual links cannot be

configured through a stub area.

• Default route—When you specifically configure redistribution of routes into an OSPF routing

domain, the route automatically becomes an ASBR. You can force the ASBR to generate a default

route into the OSPF routing domain.

11-17

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Configuring OSPF

• Domain Name Server (DNS) names for use in all OSPF show privileged EXEC command displays

make it easier to identify a router than displaying it by router ID or neighbor ID.

• Default metrics—OSPF calculates the OSPF metric for an interface according to the bandwidth of

the interface. The metric is calculated as ref-bw divided by bandwidth, where ref is 10 by default,

and bandwidth (bw) is determined by the bandwidth interface configuration command. For multiple

links with high bandwidth, you can specify a larger number to differentiate the cost on those links.

• Administrative distance—This is a rating of the trustworthiness of a routing information source, an

integer between 0 and 255, with a higher value meaning a lower trust rating. An administrative

distance of 255 means that the routing information source cannot be trusted at all and should be

ignored. OSPF uses three different administrative distances: routes within an area (intra-area),

routes to another area (interarea), and routes from another routing domain learned through

redistribution (external). You can change any of the distance values.

• Passive interfaces—Because interfaces between two devices on an Ethernet represent only one

network segment, to prevent OSPF from sending hello packets for the sending interface, you must

configure the sending device to be a passive interface. Both devices can identify each other through

the hello packet for the receiving interface.

• Route calculation timers—You can configure the delay time between when OSPF receives a

topology change and when it starts the shortest path first (SPF) calculation. You can also configure

the hold time between two SPF calculations.

• Log neighbor changes—You can configure the router to send a syslog message when an OSPF

neighbor state changes, providing a high-level view of changes in the router.

Beginning in privileged EXEC mode, follow this procedure to configure these OSPF parameters:

Command Purpose

Step 1 Router# configure terminal Enters global configuration mode.

Step 2 Router(config)# router ospf

process-id

Enables OSPF routing, and enters router configuration

mode.

Step 3 Router(config)# summary-address

address-mask

(Optional) Specifies an address and IP subnet mask for

redistributed routes so that only one summary route is

advertised.

Step 4 Router(config)# area

area-id

virtual-link

router-id

[hello-interval

seconds

] [retransmit-interval

seconds

]

[trans] {[authentication-key

key

] |

[message-digest-key

key-id

md5

key

]}

(Optional) Establishes a virtual link and set its

parameters. See the “OSPF Interface Parameters”

section on page 11-13 for parameter definitions and

Table 11-2 on page 11-10 for virtual link defaults.

Step 5 Router(config)# default-information

originate [always] [metric

metric-value

] [metric-type

type-value

]

[route-map

map-name

]

(Optional) Forces the ASBR to generate a default route

into the OSPF routing domain. Parameters are all

optional.

Step 6 Router(config)# ip ospf name-lookup (Optional) Configures DNS name lookup. The default

is disabled.

Step 7 Router(config)# ip auto-cost

reference-bandwidth

ref-bw

(Optional) Specifies an address range for which a

single route will be advertised. Use this command only

with area border routers.

Step 8 Router(config)# distance ospf

{[inter-area

dist1

] | [inter-area

dist2

] | [external

dist3

]}

(Optional) Changes the OSPF distance values. The

default distance for each type of route is 110. The range

is 1 to 255.

11-18

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Configuring OSPF

Change LSA Group Pacing

The OSPF LSA group pacing feature allows the router to group OSPF LSAs and pace the refreshing,

check-summing, and aging functions for more efficient router use. This feature is enabled by default with

a four-minute default pacing interval, and you do not usually need to modify this parameter. The

optimum group pacing interval is inversely proportional to the number of LSAs the router is refreshing,

check-summing, and aging. For example, if you have approximately 10,000 LSAs in the database,

decreasing the pacing interval would benefit you. If you have a very small database (40 to 100 LSAs),

increasing the pacing interval to 10 to 20 minutes might benefit you slightly.

Beginning in privileged EXEC mode, follow this procedure to configure OSPF LSA pacing:

To return to the default value, use the no timers lsa-group-pacing router configuration command.

Step 9 Router(config)# passive-interface

type

number

(Optional) Suppresses the sending of hello packets

through the specified interface.

Step 10 Router(config)# timers spf

spf-delay

spf-holdtime

(Optional) Configures route calculation timers.

• spf-delay—Enter an integer from 0 to 65535. The

default is 5 seconds; 0 means no delay.

• spf-holdtime—Enter an integer from 0 to 65535.

The default is 10 seconds; 0 means no delay.

Step 11 Router(config)# ospf log-adj-changes (Optional) Sends syslog message when a neighbor state

changes.

Step 12 Router(config)# end Returns to privileged EXEC mode.

Step 13 Router# show ip ospf [

process-id

[

area-id

]] database

Displays lists of information related to the OSPF

database for a specific router. For some of the keyword

options, see to the “Monitoring OSPF” section on

page 11-19.

Step 14 Router# copy running-config

startup-config

(Optional) Saves your entries in the configuration file.

Command Purpose

Step 1 Router# configure terminal Enters global configuration mode.

Step 2 Router(config)# router ospf

process-id

Enables OSPF routing, and enters router configuration mode.

Step 3 Router(config)# timers

lsa-group-pacing

seconds

Changes the group pacing of LSAs.

Step 4 Router(config)# end Returns to privileged EXEC mode.

Step 5 Router# show running-config Verifies your entries.

Step 6 Router# copy running-config

startup-config

(Optional) Saves your entries in the configuration file.

11-19

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Configuring OSPF

Loopback Interface

OSPF uses the highest IP address configured on the interfaces as its router ID. If this interface is down

or removed, the OSPF process must recalculate a new router ID and resend all its routing information

out of its interfaces. If a loopback interface is configured with an IP address, OSPF uses this IP address

as its router ID, even if other interfaces have higher IP addresses. Because loopback interfaces never fail,

this provides greater stability. OSPF automatically prefers a loopback interface over other interfaces, and

it chooses the highest IP address among all loopback interfaces.

Beginning in privileged EXEC mode, follow this procedure to configure a loopback interface:

Use the no interface loopback 0 global configuration command to disable the loopback interface.

Monitoring OSPF

You can display specific statistics such as the contents of IP routing tables, caches, and databases.

Table 11-3 lists some of the privileged EXEC commands for displaying statistics. For more show ip ospf

database privileged EXEC command options and for explanations of fields in the resulting display, refer

to the Cisco IOS IP and IP Routing Command Reference.

Command Purpose

Step 1 Router# configure terminal Enters global configuration mode.

Step 2 Router(config)# interface loopback

Creates a loopback interface, and enters interface

configuration mode.

Step 3 Router(config)# ip address

address

mask

Assigns an IP address to this interface.

Step 4 Router(config)# end Returns to privileged EXEC mode.

Step 5 Router# show ip interface Verifies your entries.

Step 6 Router# copy running-config

startup-config

(Optional) Saves your entries in the configuration file.

Table 11-3 Show IP OSPF Statistics Commands

Command Purpose

Router(config)# show ip ospf [

process-id

]Displays general information about OSPF routing

processes.

Router(config)# show ip ospf [

process-id

] database [router]

[

link-state-id

]

Displays lists of information related to the OSPF

database.

Router(config)# show ip ospf border-routes Displays the internal OSPF routing ABR and

ASBR table entries.

Router(config)# show ip ospf interface [

interface-name

]Displays OSPF-related interface information.

Router(config)# show ip ospf neighbor [

interface-name

]

[

neighbor-id

] detail

Displays OSPF interface neighbor information.

Router(config)# show ip ospf virtual-links Displays OSPF-related virtual links information.

11-20

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Configuring EIGRP

Enhanced IGRP (EIGRP) is a Cisco proprietary enhanced version of the Interior Gateway Routing

Protocol (IGRP). Enhanced IGRP uses the same distance vector algorithm and distance information as

IGRP; however, the convergence properties and the operating efficiency of Enhanced IGRP are

significantly improved.

The convergence technology employs an algorithm referred to as the Diffusing Update Algorithm

(DUAL), which guarantees loop-free operation at every instant throughout a route computation and

allows all devices involved in a topology change to synchronize at the same time. Routers that are not

affected by topology changes are not involved in recomputations.

IP EIGRP provides increased network width. With RIP, the largest possible width of your network is

15 hops. When IGRP is enabled, the largest possible width is 224 hops. Because the EIGRP metric is

large enough to support thousands of hops, the only barrier to expanding the network is the

transport-layer hop counter. EIGRP increments the transport control field only when an IP packet has

traversed 15 routers and the next hop to the destination was learned through EIGRP. When a RIP route

is used as the next hop to the destination, the transport control field is incremented as usual.

EIGRP offers the following features:

• Fast convergence

• Incremental updates when the state of a destination changes, instead of sending the entire contents

of the routing table, minimizing the bandwidth required for EIGRP packets

• Less CPU usage than IGRP because full update packets do not need to be processed each time they

are received

• Protocol-independent neighbor discovery mechanism to learn about neighboring routers

• Variable-length subnet masks (VLSMs)

• Arbitrary route summarization

• EIGRP scales to large networks

EIGRP has four basic components:

• Neighbor discovery and recovery is the process that routers use to dynamically learn of other routers

on their directly attached networks. Routers must also discover when their neighbors become

unreachable or inoperative. Neighbor discovery and recovery is achieved with low overhead by

periodically sending small hello packets. As long as hello packets are received, the Cisco IOS

software can determine that a neighbor is alive and functioning. When this status is determined, the

neighboring routers can exchange routing information.

• The reliable transport protocol is responsible for guaranteed, ordered delivery of EIGRP packets to

all neighbors. It supports intermixed transmission of multicast and unicast packets. Some EIGRP

packets must be sent reliably, and others need not be. For efficiency, reliability is provided only

when necessary. For example, on a multiaccess network that has multicast capabilities (such as

Ethernet), it is not necessary to send hellos reliably to all neighbors individually. Therefore, EIGRP

sends a single multicast hello with an indication in the packet informing the receivers that the packet

need not be acknowledged. Other types of packets (such as updates) require acknowledgment, which

is shown in the packet. The reliable transport has a provision to send multicast packets quickly when

there are unacknowledged packets pending. Doing so helps ensure that convergence time remains

low in the presence of varying speed links.

• The DUAL finite state machine embodies the decision process for all route computations. It tracks

all routes advertised by all neighbors. DUAL uses the distance information (known as a metric) to

select efficient, loop-free paths. DUAL selects routes to be inserted into a routing table based on

feasible successors. A successor is a neighboring router used for packet forwarding that has a

11-21

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Configuring EIGRP

least-cost path to a destination that is guaranteed not to be part of a routing loop. When there are no

feasible successors, but there are neighbors advertising the destination, a recomputation must occur.

This is the process whereby a new successor is determined. The amount of time it takes to recompute

the route affects the convergence time. Recomputation is processor-intensive; it is advantageous to

avoid recomputation if it is not necessary. When a topology change occurs, DUAL tests for feasible

successors. If there are feasible successors, it uses any it finds to avoid unnecessary recomputation.

• The protocol-dependent modules are responsible for network layer protocol-specific tasks. An

example is the IP EIGRP module, which is responsible for sending and receiving EIGRP packets

that are encapsulated in IP. It is also responsible for parsing EIGRP packets and informing DUAL

of the new information received. EIGRP asks DUAL to make routing decisions, but the results are

stored in the IP routing table. EIGRP is also responsible for redistributing routes learned by other

IP routing protocols.

Table 11-4 shows the default EIGRP configuration.

Table 11-4 Default EIGRP Configuration

Feature Default Setting

Auto summary Enabled. Subprefixes are summarized to the classful network

boundary when crossing classful network boundaries.

Default-information Exterior routes are accepted and default information is passed

between IGRP or EIGRP processes when doing redistribution.

Default metric Only connected routes and interface static routes can be redistributed

without a default metric. The metric includes:

• Bandwidth: 0 or greater kbps.

• Delay (tens of microseconds): 0 or any positive number that is a

multiple of 39.1 nanoseconds.

• Reliability: Any number between 0 and 255 (255 means

100 percent reliability).

• Loading: Effective bandwidth as a number between 0 and 255

(255 is 100 percent loading).

• MTU: Maximum transmission unit size of the route in bytes. 0 or

any positive integer.

Distance Internal distance: 90.

External distance: 170.

EIGRP log-neighbor changes Disabled. No adjacency changes logged.

IP authentication key-chain No authentication provided.

IP authentication mode No authentication provided.

IP bandwidth-percent 50 percent.

IP hello interval For low-speed nonbroadcast multiaccess (NBMA) networks:

60 seconds; all other networks: 5 seconds.

IP hold-time For low-speed NBMA networks: 180 seconds; all other networks:

15 seconds.

IP split-horizon Enabled.

IP summary address No summary aggregate addresses are predefined.

11-22

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Configuring EIGRP

To create an EIGRP routing process, you must enable EIGRP and associate networks. EIGRP sends

updates to the interfaces in the specified networks. If you do not specify an interface network, it is not

advertised in any EIGRP update.

EIGRP Router Mode Commands

Beginning in privileged EXEC mode, follow these steps to configure EIGRP. Configuring the routing

process is required; other steps are optional.

Metric weights tos: 0

k1 and k3: 1

k2, k4, and k5: 0

Network None specified.

Offset-list Disabled.

Router EIGRP Disabled.

Set metric No metric set in the route map.

Traffic-share Distributed proportionately to the ratios of the metrics.

Varia n ce 1 (equal-cost load balancing).

Table 11-4 Default EIGRP Configuration (continued)

Feature Default Setting

Command Purpose

Step 1 Router# configure terminal Enters global configuration mode.

Step 2 Router(config)# router eigrp

autonomous-system-number

Enables an EIGRP routing process, and enters router

configuration mode. The autonomous system number

identifies the routes to other EIGRP routers and is used to tag

routing information.

Step 3 Router(config)# network

network-number

Associates networks with an EIGRP routing process. EIGRP

sends updates to the interfaces in the specified networks. If an

interface’s network is not specified, it is not advertised in any

IGRP or EIGRP update.

Step 4 Router(config)# eigrp

log-neighbor-changes

(Optional) Enables logging of EIGRP neighbor changes to

monitor routing system stability.

Step 5 Router(config)# metric weights

tos

k1 k2 k3 k4 k5

(Optional) Adjusts the EIGRP metric. Although the defaults

have been carefully determined to provide excellent

operation in most networks, you can adjust them.

Caution Determining metrics is complex and is not

recommended without guidance from an

experienced network designer.

11-23

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Configuring EIGRP

Use the no forms of these commands to disable the feature or return the setting to the default value.

Example 11-8 shows the output for the show ip protocols privileged EXEC command.

Example 11-8 show ip protocols privileged EXEC Command Output (for EIGRP)

Router# show ip protocols

Routing Protocol is "eigrp 1"

Outgoing update filter list for all interfaces is not set

Incoming update filter list for all interfaces is not set

Default networks flagged in outgoing updates

Default networks accepted from incoming updates

EIGRP metric weight K1=1, K2=0, K3=1, K4=0, K5=0

EIGRP maximum hopcount 100

EIGRP maximum metric variance 1

Redistributing: eigrp 1

Automatic network summarization is in effect

Automatic address summarization:

192.168.3.0/24 for POS0

192.168.2.0/24 for FastEthernet0

Maximum path: 4

Routing for Networks:

192.168.2.0

192.168.3.0

Routing Information Sources:

Gateway Distance Last Update

192.168.2.1 90 00:03:16

Distance: internal 90 external 170

EIGRP Interface Mode Commands

Other optional EIGRP parameters can be configured on an interface basis.

Beginning in privileged EXEC mode, follow these steps:

Step 6 Router(config)# offset list

[{

access-list-number

name

}] { in |

out }

offset

[

type-number

]

(Optional) Applies an offset list to routing metrics to increase

incoming and outgoing metrics to routes learned through

EIGRP. You can limit the offset list with an access list or an

interface.

Step 7 Router(config)# no auto-summary (Optional) Disables automatic summarization of subnet

routes into network-level routes.

Step 8 Router(config)# ip summary-address

eigrp

autonomous-system-number

address-mask

(Optional) Configures a summary aggregate.

Step 9 Router(config)# end Returns to privileged EXEC mode.

Step 10 Router# show ip protocols Verifies your entries.

Step 11 Router# copy running-config

startup-config

(Optional) Saves your entries in the configuration file.

Command Purpose

11-24

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Configuring EIGRP

Use the no forms of these commands to disable the feature or return the setting to the default value.

Example 11-9 shows the output of the show ip eigrp interface privileged EXEC command.

Example 11-9 show ip eigrp interface Privileged EXEC Command Output

Router# show ip eigrp interface

IP-EIGRP interfaces for process 1

Xmit Queue Mean Pacing Time Multicast Pending

Interface Peers Un/Reliable SRTT Un/Reliable Flow Timer Routes

PO0 1 0/0 20 0/10 50 0

Fa0 0 0/0 0 0/10 0 0

Command Purpose

Step 1 Router# configure terminal Enters global configuration mode.

Step 2 Router(config)# interface

interface-id

Enters interface configuration mode, and specifies the

Layer 3 interface to configure.

Step 3 Router(config)# ip bandwidth-percent

eigrp

autonomous-system-number percent

(Optional) Configures the maximum percentage of

bandwidth that can be used by EIGRP on an interface.

The default is 50 percent.

Step 4 Router(config)# ip summary-address

eigrp

autonomous-system-number address

mask

(Optional) Configures a summary aggregate address

for a specified interface (not usually necessary if

autosummary is enabled).

Step 5 Router(config)# ip hello-interval eigrp

autonomous-system-number seconds

(Optional) Changes the hello time interval for an

EIGRP routing process. The range is 1 to 65535

seconds. The default is 60 seconds for low-speed

NBMA networks and 5 seconds for all other networks.

Step 6 Router(config)# ip hold-time eigrp

autonomous-system-number seconds

(Optional) Changes the hold time interval for an

EIGRP routing process. The range is 1 to 65535

seconds. The default is 180 seconds for low-speed

NBMA networks and 15 seconds for all other

networks.

Caution Do not adjust the hold time without

consulting Cisco technical support.

Step 7 Router(config)# no ip split-horizon

eigrp

autonomous-system-number

(Optional) Disables split horizon to allow route

information to be advertised by a router out any

interface from which that information originated.

Step 8 Router# end Returns to privileged EXEC mode.

Step 9 Router# show ip eigrp interface Displays the interfaces that EIGRP is active on and

information about EIGRP relating to those interfaces.

Step 10 Router# copy running-config

startup-config

(Optional) Saves your entries in the configuration file.

11-25

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Configure EIGRP Route Authentication

EIGRP route authentication provides MD5 authentication of routing updates from the EIGRP routing

protocol to prevent the introduction of unauthorized or false routing messages from unapproved sources.

Beginning in privileged EXEC mode, follow these steps to enable authentication:

Use the no forms of these commands to disable the feature or to return the setting to the default value.

Command Purpose

Step 1 Router# configure terminal Enters global configuration mode.

Step 2 Router(config)# interface

interface-id

Enters interface configuration mode, and specifies the

Layer 3 interface to configure.

Step 3 Router(config-if)# ip authentication

mode eigrp

autonomous-system-number

md5

Enables MD5 authentication in IP EIGRP packets.

Step 4 Router(config-if)# ip authentication

key-chain eigrp

autonomous-system-number

key-chain

Enables authentication of IP EIGRP packets.

Step 5 Router(config-if)# exit Returns to global configuration mode.

Step 6 Router(config)# key chain

name-of-chain

Identifies a key chain and enter key-chain

configuration mode. Match the name configured in

Step 4.

Step 7 Router(config-keychain)# key

number

In key-chain configuration mode, identifies the key

number.

Step 8 Router(config-keychain)# key-string

text

In key-chain key configuration mode, identifies the

key string.

Step 9 Router(config-keychain-key)#

accept-lifetime

start-time

{infinite

end-time

| duration

seconds

}

(Optional) Specifies the time period during which the

key can be received.

The start-time and end-time syntax can be either

hh:mm:ss Month date year or hh:mm:ss date Month

year. The default start-time (and earliest acceptable

day) is January 1, 1993. The default end-time and

duration is infinite.

Step 10 Router(config-keychain-key)#

send-lifetime

start-time

{infinite |

end-time

duration

seconds

}

(Optional) Specifies the time period during which the

key can be sent.

The start-time and end-time syntax can be either

hh:mm:ss Month day year or hh:mm:ss day Month

year. The default start-time (and earliest acceptable

day) is January 1, 1993. The default end-time and

duration is infinite.

Step 11 Router(config)# end Returns to privileged EXEC mode.

Step 12 Router# show key chain Displays authentication key information.

Step 13 Router# copy running-config

startup-config

(Optional) Saves your entries in the configuration file.

11-26

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Configure EIGRP Route Authentication

Monitoring and Maintaining EIGRP

You can delete neighbors from the neighbor table. You can also display various EIGRP routing statistics.

Table 11-5 lists the privileged EXEC commands for deleting neighbors and displaying statistics. For

explanations of fields in the resulting display, refer to the Cisco IOS IP and IP Routing Command

Reference publication.

Example 11-10 shows the output of the show ip eigrp interface privileged EXEC command.

Example 11-11 shows the output of the show ip eigrp neighbors privileged EXEC command.

Example 11-12 shows the output of the show ip eigrp topology privileged EXEC command.

Example 11-13 shows the output of the show ip eigrp traffic privileged EXEC command.

Example 11-10 show ip eigrp interface Privileged EXEC Command Output

Router# show ip eigrp interface

IP-EIGRP interfaces for process 1

Xmit Queue Mean Pacing Time Multicast Pending

Interface Peers Un/Reliable SRTT Un/Reliable Flow Timer Routes

PO0 1 0/0 20 0/10 50 0

Fa0 0 0/0 0 0/10 0 0

Example 11-11 show ip eigrp neighbors Privileged EXEC Command Output

Router# show ip eigrp neighbors

IP-EIGRP neighbors for process 1

H Address Interface Hold Uptime SRTT RTO Q Seq Type

(sec) (ms) Cnt Num

0 192.168.2.1 PO0 13 00:08:15 20 200 0 2

Example 11-12 show ip eigrp topology Privileged EXEC Command Output

Router# show ip eigrp topology

IP-EIGRP Topology Table for AS(1)/ID(192.168.3.1)

Codes: P - Passive, A - Active, U - Update, Q - Query, R - Reply,

r - reply Status, s - sia Status

Table 11-5 IP EIGRP Clear and Show Commands

Command Purpose

Router# clear ip eigrp neighbors

{

ip-address

interface

}

Deletes neighbors from the neighbor table.

Router# show ip eigrp interface

[

interface

] [

as-numbe

Displays information about interfaces configured for

EIGRP.

Router# show ip eigrp neighbors

[

type-number

]

Displays EIGRP discovered neighbors.

Router# show ip eigrp topology

{

autonomous-system-number

[

ip-address]

mask

}

Displays the EIGRP topology table for a given process.

Router# show ip eigrp traffic

[

autonomous-system-number

]

Displays the number of packets sent and received for all

or a specified EIGRP process.

11-27

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Border Gateway Protocol and Classless Interdomain Routing

P 192.168.1.0/24, 1 successors, FD is 30720

via 192.168.2.1 (30720/28160), POS0

P 192.168.2.0/24, 1 successors, FD is 10752

via Connected, POS0

P 192.168.3.0/24, 1 successors, FD is 28160

via Connected, FastEthernet0

Example 11-13 show ip eigrp traffic Privileged EXEC Command Output

Router# show ip eigrp traffic

IP-EIGRP Traffic Statistics for process 1

Hellos sent/received: 273/136

Updates sent/received: 5/2

Queries sent/received: 0/0

Replies sent/received: 0/0

Acks sent/received: 1/2

Input queue high water mark 1, 0 drops

SIA-Queries sent/received: 0/0

SIA-Replies sent/received: 0/0

Border Gateway Protocol and Classless Interdomain Routing

Border Gateway Protocol (BGP) is an Exterior Gateway Protocol (EGP) that allows you to set up an

interdomain routing system to automatically guarantee the loop-free exchange of routing information

between autonomous systems. In BGP, each route consists of a network number, a list of autonomous

systems that information has passed through (called the autonomous system path), and a list of other path

attributes.

Layer 3 switching supports BGP version 4, including CIDR. CIDR lets you reduce the size of your

routing tables by creating aggregate routes resulting in supernets. CIDR eliminates the concept of

network classes within BGP and supports the advertising of IP prefixes. CIDR routes can be carried by

OS P F, E I G R P, an d RIP.

Configuring BGP

To configure BGP routing, perform the following steps, beginning in global configuration mode:

Example 11-14 shows and example of configuring BGP routing.

Example 11-14 Configuring BGP Routing

Router(config)# ip routing

Command Purpose

Step 1 Router(config)# ip routing Enables IP routing (default).

Step 2 Router(config)# router bgp

autonomous-system

Defines BGP as the routing protocol and starts

the BGP routing process.

Step 3 Router(config-router)# network

network-number

[mask

network-mask

] [route-map

route-map-name

]

Flags a network as local to this autonomous

system and enters it in the BGP table.

Step 4 Router(config-router)# end Returns to privileged EXEC mode.

11-28

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Border Gateway Protocol and Classless Interdomain Routing

Router(config)# router bgp 30

Router(config-router)# network 192.168.1.1

Router(config-router)# neighbor 192.168.2.1

Router(config-router)# end

For more information about configuring BGP routing, refer to the “Configuring BGP” chapter in the

Cisco IOS IP and IP Routing Configuration Guide.

Verifying the BGP Configuration

Table 11-6 lists some common EXEC commands used to view the BGP configuration. Example 11-15

shows the output of the commands listed in Table 11-6.

Example 11-15 BGP Configuration Information

Router# show ip protocols

Routing Protocol is "bgp 1"

Outgoing update filter list for all interfaces is not set

Incoming update filter list for all interfaces is not set

IGP synchronization is enabled

Automatic route summarization is enabled

Redistributing: connected

Neighbor(s):

Address FiltIn FiltOut DistIn DistOut Weight RouteMap

192.168.2.1

Maximum path: 1

Routing for Networks:

Routing Information Sources:

Gateway Distance Last Update

Distance: external 20 internal 200 local 200

Router# show ip bgp neighbor

BGP neighbor is 192.168.2.1, remote AS 1, internal link

BGP version 4, remote router ID 192.168.2.1

BGP state = Established, up for 00:08:46

Last read 00:00:45, hold time is 180, keepalive interval is 60 seconds

Neighbor capabilities:

Route refresh: advertised and received(new)

Address family IPv4 Unicast: advertised and received

Received 13 messages, 0 notifications, 0 in queue

Sent 13 messages, 0 notifications, 0 in queue

Route refresh request: received 0, sent 0

Default minimum time between advertisement runs is 5 seconds

For address family: IPv4 Unicast

BGP table version 3, neighbor version 3

Index 1, Offset 0, Mask 0x2

2 accepted prefixes consume 72 bytes

Table 11-6 BGP Show Commands

Command Purpose

Router# show ip protocols [summary]Displays the protocol configuration.

Router# show ip bgp neighbor Displays detailed information about the BGP and TCP

connections to individual neighbors.

Router# show ip bgp summary Displays the status of all BGP connections.

Router# show ip bgp Displays the content of the BGP routing table.

11-29

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Configuring IS-IS

Prefix advertised 2, suppressed 0, withdrawn 0

Number of NLRIs in the update sent: max 2, min 0

Connections established 1; dropped 0

Last reset never

Connection state is ESTAB, I/O status: 1, unread input bytes: 0

Local host: 192.168.2.2, Local port: 179

Foreign host: 192.168.2.1, Foreign port: 11001

Enqueued packets for retransmit: 0, input: 0 mis-ordered: 0 (0 bytes)

Event Timers (current time is 0x45B7B4):

Timer Starts Wakeups Next

Retrans 13 0 0x0

TimeWait 0 0 0x0

AckHold 13 9 0x0

SendWnd 0 0 0x0

KeepAlive 0 0 0x0

GiveUp 0 0 0x0

PmtuAger 0 0 0x0

DeadWait 0 0 0x0

iss: 3654396253 snduna: 3654396567 sndnxt: 3654396567 sndwnd: 16071

irs: 3037331955 rcvnxt: 3037332269 rcvwnd: 16071 delrcvwnd: 313

SRTT: 247 ms, RTTO: 663 ms, RTV: 416 ms, KRTT: 0 ms

minRTT: 4 ms, maxRTT: 300 ms, ACK hold: 200 ms

Flags: passive open, nagle, gen tcbs

Datagrams (max data segment is 1460 bytes):

Rcvd: 15 (out of order: 0), with data: 13, total data bytes: 313

Sent: 22 (retransmit: 0), with data: 12, total data bytes: 313

Router# show ip bgp summary

BGP router identifier 192.168.3.1, local AS number 1

BGP table version is 3, main routing table version 3

3 network entries and 4 paths using 435 bytes of memory

2 BGP path attribute entries using 120 bytes of memory

0 BGP route-map cache entries using 0 bytes of memory

0 BGP filter-list cache entries using 0 bytes of memory

BGP activity 3/6 prefixes, 4/0 paths, scan interval 60 secs

Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd

192.168.2.1 4 1 14 14 3 0 0 00:09:45 2

Router# show ip bgp

BGP table version is 3, local router ID is 192.168.3.1

Status codes: s suppressed, d damped, h history, * valid, > best, i - internal

Origin codes: i - IGP, e - EGP, ? - incomplete

Network Next Hop Metric LocPrf Weight Path

* i192.168.1.0 192.168.2.1 0 100 0 ?

* i192.168.2.0 192.168.2.1 0 100 0 ?

*> 0.0.0.0 0 32768 ?

*> 192.168.3.0 0.0.0.0 0 32768 ?

Configuring IS-IS

To configure Intermediate System-to-Intermediate System (IS-IS) routing, perform the following steps,

beginning in global configuration mode:

11-30

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Verifying the IS-IS Configuration

Example 11-16 shows an example of IS-IS routing configuration.

Example 11-16 Configuring IS-IS Routing

Router(config)# router isis

Router(config-router)# net 49.0001.0000.0000.000a.00

Router(config-router)# interface gigabitethernet 0

Router(config-if)# ip router isis

Router(config-if)# end

For more information about configuring IS-IS routing, refer to the “Configuring Integrated IS-IS”

chapter in the Cisco IOS IP and IP Routing Configuration Guide.

Verifying the IS-IS Configuration

To verify the IS-IS configuration, use the EXEC commands listed in Table 11-7. Example 11-17 shows

examples of the commands in Table 11-7 and their output.

Note The ML Series does not support Connectionless Network Service Protocol (CLNS) routing.

Example 11-17 IS-IS Configuration

Router# show ip protocols

Routing Protocol is "isis"

Invalid after 0 seconds, hold down 0, flushed after 0

Outgoing update filter list for all interfaces is not set

Incoming update filter list for all interfaces is not set

Redistributing: isis

Command Purpose

Step 1 Router(config)# router isis [

tag

]Defines IS-IS as the IP routing protocol.

Step 2 Router(config-router)# net

network-entity-title

Configures network entity titles (NETs) for the

routing process; you can specify a name for a

NET as well as an address.

Step 3 Router(config-router)# interface

interface-type interface-id

Enters interface configuration mode.

Step 4 Router(config-if)# ip address

ip-address

mask

Assigns an IP address to the interface.

Step 5 Router(config-if)# ip router isis [

tag

]Specifies that this interface should run IS-IS.

Step 6 Router(config-if)# end Returns to privileged EXEC mode.

Table 11-7 IS-IS Show Commands

Command Purpose

Router# show ip protocols [summary]Displays the protocol configuration.

Router# show isis database Displays the IS-IS link-state database.

Router# show clns neighbor Displays the ES and IS neighbors.

11-31

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Configuring Static Routes

Address Summarization:

None

Maximum path: 4

Routing for Networks:

FastEthernet0

POS0

Routing Information Sources:

Gateway Distance Last Update

192.168.2.1 115 00:06:48

Distance: (default is 115)

Router# show isis database

IS-IS Level-1 Link State Database:

LSPID LSP Seq Num LSP Checksum LSP Holdtime ATT/P/OL

Router_A.00-00 0x00000003 0xA72F 581 0/0/0

Router_A.02-00 0x00000001 0xA293 581 0/0/0

Router.00-00 * 0x00000004 0x79F9 582 0/0/0

IS-IS Level-2 Link State Database:

LSPID LSP Seq Num LSP Checksum LSP Holdtime ATT/P/OL

Router_A.00-00 0x00000004 0xF0D6 589 0/0/0

Router_A.02-00 0x00000001 0x328C 581 0/0/0

Router.00-00 * 0x00000004 0x6A09 586 0/0/0

Router# show clns neighbors

System Id Interface SNPA State Holdtime Type Protocol

Router_A PO0 0005.9a39.6790 Up 7 L1L2 IS-IS

Configuring Static Routes

Static routes are user-defined routes that cause packets moving between a source and a destination to

take a specified path. Static routes can be important if the router cannot build a route to a particular

destination. They are also useful for specifying a gateway of last resort to which all unroutable packets

are sent.

Beginning in privileged EXEC mode, follow these steps to configure a static route:

Example 11-18 Static Route

Router(config)# ip route 0.0.0.0 0.0.0.0 192.168.2.1

Use the no ip route prefix mask {address | interface} global configuration command to remove a static

route. Use the show ip route privileged EXEC command to view information about the static IP route

(Example 11-19).

Command Purpose

Step 1 Router# configure terminal Enters global configuration mode.

Step 2 Router(config)# ip route

prefix mask

{

address

interface

} [

distance

]

Establishes a static route. Illustrated in

Example 11-18.

Step 3 Router(config)# end Returns to privileged EXEC mode.

Step 4 Router# copy running-config startup-config (Optional) Saves your entries in the

configuration file.

11-32

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Monitoring Static Routes

Example 11-19 show ip route Privileged EXEC Command Output (with a Static Route Configured)

Router# show ip route

Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP

D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area

N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2

E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP

i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area

* - candidate default, U - per-user static route, o - ODR

P - periodic downloaded static route

Gateway of last resort is 192.168.2.1 to network 0.0.0.0

C 192.168.2.0/24 is directly connected, POS0

C 192.168.3.0/24 is directly connected, FastEthernet0

S* 0.0.0.0/0 [1/0] via 192.168.2.1

The output from the show ip route privileged EXEC command lists codes for the routing protocols.

Table 11-8 shows the default administrative distances for these routing protocols.

Monitoring Static Routes

You can display statistics about static routes with the show ip route command (Example 11-20). For

more show ip privileged EXEC command options and for explanations of fields in the resulting display,

refer to the Cisco IOS IP and IP Routing Command Reference publication.

Example 11-20 show ip route Command Output (with a Static Route Configured)

Router# show ip route

Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP

D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area

N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2

E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP

i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area

* - candidate default, U - per-user static route, o - ODR

P - periodic downloaded static route

Gateway of last resort is 192.168.2.1 to network 0.0.0.0

Table 11-8 Routing Protocol Default Administrative Distances

Route Source Default Distance

Connected interface 0

Static route 1

EIRGP summary route 5

External BGP 20

Internal EIGRP 90

OSPF 110

RIP 120

External EIGRP 170

Internal BGP 200

Unknown 225

11-33

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Monitoring and Maintaining the IP Network

C 192.168.2.0/24 is directly connected, POS0

C 192.168.3.0/24 is directly connected, FastEthernet0

S* 0.0.0.0/0 [1/0] via 192.168.2.1

Monitoring and Maintaining the IP Network

You can remove all contents of a particular cache, table, or database. You can also display specific

statistics. Use the privileged EXEC commands in Table 11-9 to clear routes or display status.

Understanding IP Multicast Routing

As networks increase in size, multicast routing becomes critically important as a means to determine

which segments require multicast traffic and which do not. IP multicasting allows IP traffic to be

propagated from one source to a number of destinations, or from many sources to many destinations.

Rather than sending one packet to each destination, one packet is sent to the multicast group identified

by a single IP destination group address.

A principal component of IP multicasting is the Internet Group Management Protocol (IGMP). Hosts

identify their multicast group membership by sending IGMP messages to the ML-Series card. Traffic is

sent to all members of a multicast group. A host can be a member of more than one group at a time. In

addition, a host does not need to be a member of a group to send data to that group. When you enable

Protocol Independent Multicast (PIM) on an interface, you will have enabled IGMP operation on that

same interface.

The ML-Series cards support the protocol independent multicast (PIM) routing protocol and the

Auto-RP configuration.

PIM includes three different modes of behavior for dense and sparse traffic environments. These are

referred to as dense mode, sparse mode, and sparse-dense mode.

Table 11-9 Commands to Clear IP Routes or Display Route Status

Command Purpose

Router# clear ip route {network [

mask

*]}

Clears one or more routes from the IP routing table.

Router# show ip protocols Displays the parameters and state of the active routing

protocol process.

Router# show ip route [{

address

[

mask

]

[longer-prefixes] | [

protocol

[

process-id

]}]

Displays the current state of the routing table.

Router# show ip interface

interface

Displays detailed information about the interface.

Router# show ip interface brief Displays summary status information about all

interfaces.

Router# show ip route summary Displays the current state of the routing table in

summary form.

Router# show ip route supernets-only Displays supernets.

Router# show ip cache Displays the routing table used to switch IP traffic.

Router# show route-map [

map-name

]Displays all route maps configured or only the one

specified.

11-34

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Configuring IP Multicast Routing

PIM dense mode assumes that the downstream networks want to receive the datagrams forwarded to

them. The ML-Series card forwards all packets on all outgoing interfaces until pruning and truncating

occur. Interfaces that have PIM dense mode enabled receive the multicast data stream until it times out.

PIM dense mode is most useful under these conditions:

• When senders and receivers are in close proximity to each other

• When the internetwork has fewer senders than receivers

• When the stream of multicast traffic is constant

PIM sparse mode assumes that the downstream networks do not want to forward multicast packets for a

group unless there is an explicit request for the traffic. PIM sparse mode defines a rendezvous point,

which is used as a registration point to facilitate the proper routing of packets.

When a sender wants to send data, it first sends the data to the rendezvous point. When a ML-Series card

is ready to receive data, it registers with the rendezvous point. After the data stream begins to flow from

the sender to the rendezvous point and then to the receiver, ML-Series cards in the data path optimize

the path by automatically removing any unnecessary hops, including the rendezvous point.

PIM sparse mode is optimized for environments in which there are many multipoint data streams and

each multicast stream goes to a relatively small number of LANs in the internetwork. PIM sparse mode

is most useful under these conditions:

• When there are few receivers in the group

• When senders and receivers are separated by WAN links

• When the stream of multicast traffic is intermittent

Note The ML-Series card support Reverse Path Forwarding (RPF) multicast, but not RPF unicast.

Configuring IP Multicast Routing

To configure IP multicast routing, perform the following procedure, beginning in global configuration

mode:

Command Purpose

Step 1 Router(config)# ip multicast-routing Enables IP multicasting on the ML-Series card.

Step 2 Router(config)# interface

type number

Enters interface configuration mode to configure

any interface.

Step 3 Router(config-if)# ip pim {dense-mode |

sparse mode | sparse-dense-mode}Runs IP multicast routing on each interface on

which you enter this command. You must indicate

dense mode, sparse mode, or sparse-dense mode.

Step 4 Router(config)# ip pim rp-address

rendezvous-point ip-address

Configures a rendezvous point for the multicast

group.

Step 5 Router(config-if)# end Returns to privileged EXEC mode.

Step 6 Router# copy running-config startup-config (Optional) Saves your configuration changes to

NVRAM.

11-35

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Monitoring and Verifying IP Multicast Operation

After IP multicast routing is configured, you can monitor and verify its operation by performing the

commands listed in Table 11-10, from privileged EXEC mode.

Table 11-10 IP Multicast Routing Show Commands

Command Purpose

Router# show ip mroute Shows the complete multicast routing table and the combined

statistics of packets processed.

Router# show ip pim neighbor When used in EXEC mode, lists the PIM neighbors

discovered by the Cisco IOS software.

Router# show ip pim interface Displays information about interfaces configured for PIM.

Router# show ip pim rp When used in EXEC mode, displays the active rendezvous

points (RPs) that are cached with associated multicast routing

entries.

11-36

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 11 Configuring Networking Protocols

Monitoring and Verifying IP Multicast Operation

CHAPTER

12-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Configuring IRB

This chapter describes how to configure integrated routing and bridging (IRB) for the ML-Series card.

For more information about the Cisco IOS commands used in this chapter, refer to the

Cisco IOS Command Reference publication.

This chapter includes the following major sections:

• Understanding Integrated Routing and Bridging, page 12-1

• Configuring IRB, page 12-2

• IRB Configuration Example, page 12-3

• Monitoring and Verifying IRB, page 12-4

Caution Cisco Inter-Switch Link (ISL) and Cisco Dynamic Trunking Protocol (DTP) are not supported by the

ML-Series, but the ML-Series broadcast forwards these formats. Using ISL or DTP on connecting

devices is not recommended. Some Cisco devices attempt to use ISL or DTP by default.

Understanding Integrated Routing and Bridging

Your network might require you to bridge local traffic within several segments and have hosts on the

bridged segments reach the hosts or ML-Series card on routed networks. For example, if you are

migrating bridged topologies into routed topologies, you might want to start by connecting some of the

bridged segments to the routed networks.

Using the integrated routing and bridging (IRB) feature, you can route a given protocol between routed

interfaces and bridge groups within a single ML-Series card. Specifically, local or unroutable traffic is

bridged among the bridged interfaces in the same bridge group, while routable traffic is routed to other

routed interfaces or bridge groups.

Because bridging is in the data link layer and routing is in the network layer, they have different protocol

configuration models. With IP, for example, bridge group interfaces belong to the same network and have

a collective IP network address. In contrast, each routed interface represents a distinct network and has

its own IP network address. Integrated routing and bridging uses the concept of a Bridge Group Virtual

Interface (BVI) to enable these interfaces to exchange packets for a given protocol.

A BVI is a virtual interface within the ML-Series card that acts like a normal routed interface. A BVI

does not support bridging but actually represents the corresponding bridge group to routed interfaces

within the ML-Series card. The interface number is the link between the BVI and the bridge group.

Before configuring IRB, consider the following:

12-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 12 Configuring IRB

Configuring IRB

• The default routing/bridging behavior in a bridge group (when IRB is enabled) is to bridge all

packets. Make sure that you explicitly configure routing on the BVI for IP traffic.

• Packets of unroutable protocols such as local-area transport (LAT) are always bridged. You cannot

disable bridging for the unroutable traffic.

• Protocol attributes should not be configured on the bridged interfaces when you are using IRB to

bridge and route a given protocol. You can configure protocol attributes on the BVI, but you cannot

configure bridging attributes on the BVI.

• A bridge links several network segments into one large, flat network. To bridge a packet coming

from a routed interface among bridged interfaces, the bridge group should be represented by one

interface.

• All ports in a BVI group must have matching maximum transmission unit (MUTT) settings.

Configuring IRB

The process of configuring integrated routing and bridging consists of the following tasks:

1. Configure bridge groups and routed interfaces.

a. Enable bridging.

b. Assign interfaces to the bridge groups.

c. Configure the routing.

2. Enable IRB.

3. Configure the BVI.

a. Enable the BVI to accept routed packets.

b. Enable routing on the BVI.

4. Configure IP addresses on the routed interfaces.

5. Verify the IRB configuration.

When you configure the BVI and enable routing on it, packets that come in on a routed interface destined

for a host on a segment that is in a bridge group are routed to the BVI and forwarded to the bridging

engine. From the bridging engine, the packet exits through a bridged interface. Similarly, packets that

come in on a bridged interface but are destined for a host on a routed interface go first to the BVI. The

BVI forwards the packets to the routing engine that sends them out on the routed interface.

To configure a bridge group and an interface in the bridge group, perform the following procedure,

beginning in global configuration mode:

Command Purpose

Step 1 Router(config)# bridge

bridge-group

protocol {ieee | rstp}

Defines one or more bridge groups.

Step 2 Router(config)# interface

type number

Enters interface configuration mode.

Step 3 Router(config-if)# bridge-group

bridge-group

Assigns the interface to the specified bridge

group.

Step 4 Router(config-if)# end Returns to privileged EXEC mode.

12-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 12 Configuring IRB

IRB Configuration Example

To enable and configure IRB and BVI, perform the following procedure, beginning in global

configuration mode:

IRB Configuration Example

Figure 12-1 shows an example of IRB configuration. Example 12-1 shows the configuration code for

Router A, and Example 12-2 shows the configuration code for Router B.

Figure 12-1 Configuring IRB

Example 12-1 Configuring Router A

bridge irb

bridge 1 protocol ieee

bridge 1 route ip

interface FastEthernet0

ip address 192.168.2.1 255.255.255.0

Command Purpose

Step 1 Router(config)# bridge irb Enables IRB. Allows bridging of traffic.

Step 2 Router(config)# interface bvi

bridge-group

Configures the BVI by assigning the number of the

corresponding bridge group to the BVI. Each bridge

group can have only one corresponding BVI.

Step 3 Router(config-if)# ip address

ip-address

ip-address-subnet-mask

Configures IP addresses on routed interfaces.

Step 4 Router(config-if)# exit Exits the interface configuration mode.

Step 5 Router(config)# bridge

bridge-group

route

protocol

Enables a BVI to accept and route routable packets

received from its corresponding bridge group.

Enter this command for each protocol that you want

the BVI to route from its corresponding bridge

group to other routed interfaces.

Step 6 Router(config)# end Returns to the privileged EXEC mode.

Step 7 Router# copy running-config startup-config (Optional) Saves your configuration changes to

NVRAM.

ONS 15454

with ML100T-12

ONS 15454

with ML100T-12

fast ethernet 0

pos 0pos 0

fast ethernet 0

Router_A Router_B

SONET/SDH

192.168.2.1/24 192.168.3.1/24

pos 1 pos 1

bridge 1

BVI 1 192.168.1.1/24 BVI 1 192.168.1.2/24

83446

12-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 12 Configuring IRB

Monitoring and Verifying IRB

interface POS0

no ip address

crc 32

bridge-group 1

pos flag c2 1

interface POS1

no ip address

crc 32

bridge-group 1

pos flag c2 1

interface BVI1

ip address 192.168.1.1 255.255.255.0

router ospf 1

log-adjacency-changes

network 192.168.1.0 0.0.0.255 area 0

network 192.168.2.0 0.0.0.255 area 0

Example 12-2 Configuring Router B

bridge irb

bridge 1 protocol ieee

bridge 1 route ip

interface FastEthernet0

ip address 192.168.3.1 255.255.255.0

interface POS0

no ip address

crc 32

bridge-group 1

pos flag c2 1

interface POS1

no ip address

crc 32

bridge-group 1

pos flag c2 1

interface BVI1

ip address 192.168.1.2 255.255.255.0

router ospf 1

log-adjacency-changes

network 192.168.1.0 0.0.0.255 area 0

network 192.168.3.0 0.0.0.255 area 0

Monitoring and Verifying IRB

Table 12-1 shows the privileged EXEC commands for monitoring and verifying IRB.

12-5

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 12 Configuring IRB

Monitoring and Verifying IRB

The following is sample output from the show interfaces bvi and show interfaces irb commands:

Example 12-3 Monitoring and Verifying IRB

Router# show interfaces bvi1

BVI1 is up, line protocol is up

Hardware is BVI, address is 0011.2130.b340 (bia 0000.0000.0000)

Internet address is 100.100.100.1/24

MTU 1500 bytes, BW 145152 Kbit, DLY 5000 usec,

reliability 255/255, txload 1/255, rxload 1/255

Encapsulation ARPA, loopback not set

ARP type: ARPA, ARP Timeout 04:00:00

Last input 03:35:28, output never, output hang never

Last clearing of "show interface" counters never

Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 0

Queueing strategy: fifo

Output queue: 0/0 (size/max)

5 minute input rate 0 bits/sec, 0 packets/sec

5 minute output rate 0 bits/sec, 0 packets/sec

0 packets input, 0 bytes, 0 no buffer

Received 0 broadcasts (0 IP multicast)

0 runts, 0 giants, 0 throttles

0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort

1353 packets output, 127539 bytes, 0 underruns

0 output errors, 0 collisions, 0 interface resets

0 output buffer failures, 0 output buffers swapped out

Router# show interfaces irb

BVI1

Software MAC address filter on BVI1

Hash Len Address Matches Act Type

0x00: 0 ffff.ffff.ffff 0 RCV Physical broadcast

GigabitEthernet0

Bridged protocols on GigabitEthernet0:

clns ip

Software MAC address filter on GigabitEthernet0

Hash Len Address Matches Act Type

0x00: 0 ffff.ffff.ffff 0 RCV Physical broadcast

0x58: 0 0100.5e00.0006 0 RCV IP multicast

0x5B: 0 0100.5e00.0005 0 RCV IP multicast

0x65: 0 0011.2130.b344 0 RCV Interface MAC address

0xC0: 0 0100.0ccc.cccc 0 RCV CDP

0xC2: 0 0180.c200.0000 0 RCV IEEE spanning tree

POS0

Table 12-1 Commands for Monitoring and Verifying IRB

Command Purpose

Router# show interfaces bvi

bvi-interface-number

Shows BVI information, such as the BVI MAC

address and processing statistics. The

bvi-interface-number

is the number of the

bridge group assigned to the BVI interface.

Router# show interfaces [

type-number

] irb Shows BVI information for the following:

• Protocols that this bridged interface can

route to the other routed interface (if this

packet is routable).

• Protocols that this bridged interface bridges

12-6

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 12 Configuring IRB

Monitoring and Verifying IRB

Routed protocols on POS0:

Bridged protocols on POS0:

clns ip

Software MAC address filter on POS0

Hash Len Address Matches Act Type

0x00: 0 ffff.ffff.ffff 9 RCV Physical broadcast

0x58: 0 0100.5e00.0006 0 RCV IP multicast

0x5B: 0 0100.5e00.0005 1313 RCV IP multicast

0x61: 0 0011.2130.b340 38 RCV Interface MAC address

0x61: 1 0011.2130.b340 0 RCV Bridge-group Virtual Interface

0x65: 0 0011.2130.b344 0 RCV Interface MAC address

0xC0: 0 0100.0ccc.cccc 224 RCV CDP

0xC2: 0 0180.c200.0000 0 RCV IEEE spanning tree

POS1

SPR1

Bridged protocols on SPR1:

clns ip

Software MAC address filter on SPR1

Hash Len Address Matches Act Type

0x00: 0 ffff.ffff.ffff 0 RCV Physical broadcast

0x60: 0 0011.2130.b341 0 RCV Interface MAC address

0x65: 0 0011.2130.b344 0 RCV Interface MAC address

0xC0: 0 0100.0ccc.cccc 0 RCV CDP

0xC2: 0 0180.c200.0000 0 RCV IEEE spanning tree

Table 12-1 describes significant fields shown in the display.

Table 12-2 show interfaces irb Field Descriptions

Field Description

Routed protocols on… List of the routed protocols configured for the speci-

fied interface.

Bridged protocols on… List of the bridged protocols configured for the speci-

fied interface.

Software MAC address filter on… Table of software MAC address filter information for

the specified interface.

Hash Hash key/relative position in the keyed list for this

MAC-address entry.

Len Length of this entry to the beginning element of this

hash chain.

Address Canonical (Ethernet ordered) MAC address.

Matches Number of received packets matched to this MAC

address.

Routed protocols on… List of the routed protocols configured for the speci-

fied interface.

Bridged protocols on… List of the bridged protocols configured for the speci-

fied interface.

CHAPTER

13-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Configuring VRF Lite

This chapter describes how to configure VPN Routing and Forwarding Lite (VRF Lite) for the

ML-Series cards. For additional information about the Cisco IOS commands used in this chapter, refer

to the Cisco IOS Command Reference publication. This chapter contains the following major sections:

• Understanding VRF Lite, page 13-1

• Configuring VRF Lite, page 13-2

• VRF Lite Configuration Example, page 13-3

• Monitoring and Verifying VRF Lite, page 13-7

Note If you have already configured bridging, you may now proceed with configuring VRF Lite as an optional

step.

Understanding VRF Lite

VRF is an extension of IP routing that provides multiple routing instances. It provides a separate IP

routing and forwarding table to each VPN and is used in concert with MP-iBGP (Multi-Protocol internal

BGP) between provider equipment (PE) routers to provide Layer 3 MPLS-VPN. However, ML-Series

VRF implementation is without MP-iBGP. With VRF Lite, the ML Series is considered a PE-extension

or a customer equipment (CE)-extension. VRF Lite is considered a PE-extension since its has VRF (but

without MP-iBGP), and it is considered a CE-extension since this CE can have multiple VRFs and serves

many customer with one CE box.

Under VRF Lite, an ML-Series CE can have multiple interfaces/subinterfaces with PE for different

customers (while a normal CE is only for one customer). It holds VRFs (routing information) locally and

it does not distribute the VRFs to its connected PE. It uses VRF information to direct traffic to the correct

interfaces/subinterfaces when it receives traffic from customers’ routers or from Internet service

provider (ISP) PE router(s).

13-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 13 Configuring VRF Lite

Configuring VRF Lite

Perform the following procedure to configure VRF Lite:

Example 13-1 shows an example of configuring a VRF. In the example, the VRF name is customer_a,

the route-distinguisher is 1:1, and the interface type is Fast Ethernet, number 0.1.

Example 13-1 Configuring a VRF

Router(config)# ip vrf customer_a

Router(config-vrf)# rd 1:1

Router(config-vrf)# route-target both 1:1

Router(config)# interface fastEthernet 0.1

Router(config-subif)# ip vrf forwarding customer_a

Command Purpose

Step 1 Router(config)#

ip vrf vrf-name

Enters VRF configuration mode and assigns a VRF

name.

Step 2 Router(config-vrf)#

route-distinguisher

Creates a VPN route distinguisher (RD). An RD

creates routing and forwarding tables and specifies

the default route distinguisher for a VPN. The RD is

added to the beginning of the customer's IPv4

prefixes to change them into globally unique

VPN-IPv4 prefixes.

Either RD is an ASN-relative RD, in which case it is

composed of an autonomous system number and an

arbitrary number, or it is an IP-address-relative RD,

in which case it is composed of an IP address and an

arbitrary number.

You can enter a

route-distinguisher

in either of

these formats:

16-bit AS number: your 32-bit number

For example, 101:3.

32-bit IP address: your 16-bit number

For example, 192.168.122.15:1.

Step 3 Router(config-vrf)# route-target {import

| export | both}

route-distinguisher

Creates a list of import and/or export route target

communities for the specified VRF.

Step 4 Router(config-vrf)# import map

route-map

(Optional) Associates the specified route map with

the VRF.

Step 5 Router(config-vrf)# exit Exits the current configuration mode and enters

global configuration mode.

Step 6 Router(config)# interface

type number

Specifies an interface and enters interface

configuration mode.

Step 7 Router(config-vrf)# ip vrf forwarding

vrf-name

Associates a VRF with an interface or subinterface.

Step 8 Router(config-if)# end Exits to privileged EXEC mode.

Step 9 Router# copy running-config

startup-config

(Optional) Saves configuration changes to NVRAM.

13-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 13 Configuring VRF Lite

VRF Lite Configuration Example

Figure 13-1 shows an example of a VRF Lite configuration. The configurations for Router A and Router

B are provided in Example 13-2 and Example 13-3 on page 13-4, respectively. The associated routing

tables are shown in Example 13-4 on page 13-6 through Example 13-9 on page 13-7.

Figure 13-1 VRF Lite—Sample Network Scenario

Example 13-2 Router A Configuration

hostname Router_A

ip vrf customer_a

rd 1:1

route-target export 1:1

route-target import 1:1

ip vrf customer_b

rd 2:2

route-target export 2:2

route-target import 2:2

bridge 1 protocol ieee

bridge 2 protocol ieee

bridge 3 protocol ieee

interface FastEthernet0

no ip address

interface FastEthernet0.1

encapsulation dot1Q 2

ip vrf forwarding customer_a

ip address 192.168.1.1 255.255.255.0

Customer A

Customer BCustomer B

Customer A

ONS 15454

with ML100T-12

POS

192.168.3.2

192.168.3.1

Router_A

ONS 15454

with ML100T-12

Router_B

Fast Ethernet 1.1

192.168.5.1

Fast Ethernet 0.1

192.168.1.1.

Fast Ethernet 0.1

192.168.4.1

Fast Ethernet 1.1

192.168.2.1

Service Provider Network

STS-N

83244

13-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 13 Configuring VRF Lite

VRF Lite Configuration Example

bridge-group 2

interface FastEthernet1

no ip address

interface FastEthernet1.1

encapsulation dot1Q 3

ip vrf forwarding customer_b

ip address 192.168.2.1 255.255.255.0

bridge-group 3

interface POS0

no ip address

crc 32

no cdp enable

pos flag c2 1

interface POS0.1

encapsulation dot1Q 1 native

ip address 192.168.50.1 255.255.255.0

bridge-group 1

interface POS0.2

encapsulation dot1Q 2

ip vrf forwarding customer_a

ip address 192.168.100.1 255.255.255.0

bridge-group 2

interface POS0.3

encapsulation dot1Q 3

ip vrf forwarding customer_b

ip address 192.168.200.1 255.255.255.0

bridge-group 3

router ospf 1

log-adjacency-changes

network 192.168.50.0 0.0.0.255 area 0

router ospf 2 vrf customer_a

log-adjacency-changes

network 192.168.1.0 0.0.0.255 area 0

network 192.168.100.0 0.0.0.255 area 0

router ospf 3 vrf customer_b

log-adjacency-changes

network 192.168.2.0 0.0.0.255 area 0

network 192.168.200.0 0.0.0.255 area 0

Example 13-3 Router_B Configuration

hostname Router_B

ip vrf customer_a

rd 1:1

route-target export 1:1

route-target import 1:1

ip vrf customer_b

rd 2:2

route-target export 2:2

route-target import 2:2

13-5

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 13 Configuring VRF Lite

VRF Lite Configuration Example

bridge 1 protocol ieee

bridge 2 protocol ieee

bridge 3 protocol ieee

interface FastEthernet0

no ip address

interface FastEthernet0.1

encapsulation dot1Q 2

ip vrf forwarding customer_a

ip address 192.168.4.1 255.255.255.0

bridge-group 2

interface FastEthernet1

no ip address

interface FastEthernet1.1

encapsulation dot1Q 3

ip vrf forwarding customer_b

ip address 192.168.5.1 255.255.255.0

bridge-group 3

interface POS0

no ip address

crc 32

no cdp enable

pos flag c2 1

interface POS0.1

encapsulation dot1Q 1 native

ip address 192.168.50.2 255.255.255.0

bridge-group 1

interface POS0.2

encapsulation dot1Q 2

ip vrf forwarding customer_a

ip address 192.168.100.2 255.255.255.0

bridge-group 2

interface POS0.3

encapsulation dot1Q 3

ip vrf forwarding customer_b

ip address 192.168.200.2 255.255.255.0

bridge-group 3

router ospf 1

log-adjacency-changes

network 192.168.50.0 0.0.0.255 area 0

router ospf 2 vrf customer_a

log-adjacency-changes

network 192.168.4.0 0.0.0.255 area 0

network 192.168.100.0 0.0.0.255 area 0

router ospf 3 vrf customer_b

log-adjacency-changes

network 192.168.5.0 0.0.0.255 area 0

network 192.168.200.0 0.0.0.255 area 0

13-6

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 13 Configuring VRF Lite

VRF Lite Configuration Example

Example 13-4 Router_A Global Routing Table

Router_A# sh ip route

Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP

D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area

N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2

E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP

i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area

* - candidate default, U - per-user static route, o - ODR

P - periodic downloaded static route

Gateway of last resort is not set

C 192.168.50.0/24 is directly connected, POS0.1

Example 13-5 Router_A customer_a VRF Routing Table

Router_A# show ip route vrf customer_a

Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP

D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area

N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2

E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP

i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area

* - candidate default, U - per-user static route, o - ODR

P - periodic downloaded static route

Gateway of last resort is not set

O 192.168.4.0/24 [110/2] via 192.168.100.2, 00:15:35, POS0.2

C 192.168.1.0/24 is directly connected, FastEthernet0.1

C 192.168.100.0/24 is directly connected, POS0.2

Example 13-6 Router_A customer_b VRF Routing Table

Router_A# show ip route vrf customer_b

Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP

D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area

N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2

E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP

i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area

* - candidate default, U - per-user static route, o - ODR

P - periodic downloaded static route

Gateway of last resort is not set

C 192.168.200.0/24 is directly connected, POS0.3

O 192.168.5.0/24 [110/2] via 192.168.200.2, 00:10:32, POS0.3

C 192.168.2.0/24 is directly connected, FastEthernet1.1

Example 13-7 Router_B Global Routing Table

Router_B# sh ip route

Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP

D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area

N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2

E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP

i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area

* - candidate default, U - per-user static route, o - ODR

P - periodic downloaded static route

13-7

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 13 Configuring VRF Lite

Monitoring and Verifying VRF Lite

Gateway of last resort is not set

C 192.168.50.0/24 is directly connected, POS0.1

Example 13-8 Router_B customer_a VRF Routing Table

Router_B# sh ip route vrf customer_a

Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP

D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area

N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2

E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP

i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area

* - candidate default, U - per-user static route, o - ODR

P - periodic downloaded static route

Gateway of last resort is not set

C 192.168.4.0/24 is directly connected, FastEthernet0.1

O 192.168.1.0/24 [110/2] via 192.168.100.1, 00:56:24, POS0.2

C 192.168.100.0/24 is directly connected, POS0.2

Example 13-9 Router_B customer_b VRF Routing Table

Router_B# show ip route vrf customer_b

Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP

D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area

N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2

E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP

i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area

* - candidate default, U - per-user static route, o - ODR

P - periodic downloaded static route

Gateway of last resort is not set

C 192.168.200.0/24 is directly connected, POS0.3

C 192.168.5.0/24 is directly connected, FastEthernet1.1

O 192.168.2.0/24 [110/2] via 192.168.200.1, 00:10:51, POS0.3

Monitoring and Verifying VRF Lite

Table 13-1 shows the privileged EXEC commands for monitoring and verifying VRF Lite.

Table 13-1 Commands for Monitoring and Verifying VRF Lite

Command Purpose

Router# show ip vrf Displays the set of VRFs and interfaces.

Router# show ip route vrf

vrf-name

Displays the IP routing table for a VRF.

Router# show ip protocols vrf

vrf-name

Displays the routing protocol information for a VRF.

Router# ping vrf

vrf-name ip ip-address

Pings an ip address that has a specific VRF.

13-8

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 13 Configuring VRF Lite

Monitoring and Verifying VRF Lite

CHAPTER

14-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Configuring Quality of Service

This chapter describes the quality of service (QoS) features built into your ML-Series card and how to

map QoS scheduling at both the system and interface levels.

This chapter contains the following major sections:

• Understanding QoS, page 14-1

• ML-Series QoS, page 14-4

• QoS on Cisco Proprietary RPR, page 14-10

• Configuring QoS, page 14-12

• Monitoring and Verifying QoS Configuration, page 14-17

• QoS Configuration Examples, page 14-18

• Understanding Multicast QoS and Priority Multicast Queuing, page 14-24

• Configuring Multicast Priority Queuing QoS, page 14-25

• QoS not Configured on Egress, page 14-27

• ML-Series Egress Bandwidth Example, page 14-27

• Understanding CoS-Based Packet Statistics, page 14-29

• Configuring CoS-Based Packet Statistics, page 14-29

• Understanding IP SLA, page 14-31

The ML-Series card employs the Cisco IOS Modular QoS command-line interface (CLI), known as the

MQC. For more information on general MQC configuration, refer to the following Cisco IOS

documents:

• Cisco IOS Quality of Service Solutions Configuration Guide, Release 12.2 at this URL:

http://www.cisco.com/univercd/cc/td/doc/product/software/ios122/122mindx/l22index.htm

• Cisco IOS Quality of Service Solutions Command Reference, Release 12.2 at this URL:

http://www.cisco.com/univercd/cc/td/doc/product/software/ios122/122cgcr/fqos_r/index.htm

Understanding QoS

QoS is the ability of the network to provide better or special treatment to a set of services to the detriment

of less critical services. The ML-Series card uses QoS to dynamically allocate transmission bandwidth

for the different services it multiplexes onto the SONET/SDH circuit. Through QoS, you can configure

14-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

Priority Mechanism in IP and Ethernet

the ML-Series card to provide different levels of treatment to the different services. The different levels

are defined through the service elements of bandwidth, including loss and delay. A service-level

agreement (SLA) is a guaranteed level of these service elements.

The QoS mechanism has three basic steps. It classifies types of traffic, specifies what action to take

against a type of traffic, and specifies where the action should take place. The following sections explain

how the ML-Series card accomplishes these steps for unicast traffic. QoS for priority-multicast traffic

and traffic with unknown destination addresses is handled with a different mechanism, detailed in the

“Understanding Multicast QoS and Priority Multicast Queuing” section on page 14-24.

Priority Mechanism in IP and Ethernet

For any QoS service to be applied to data, there must be a way to mark or identify an IP packet or an

Ethernet frame. When identified, a specific priority can be assigned to each individual IP packet or

Ethernet frame. The IP Precedence field or the IP Differentiated Services Code Point (DSCP) field

prioritizes the IP packets, and the Ethernet class of service (IEEE 802.1p defined class of service [CoS])

is used for the Ethernet frames. IP precedence and Ethernet CoS are further described in the following

sections.

IP Precedence and Differentiated Services Code Point

IP precedence uses the three precedence bits in the IPv4 header’s ToS (type of service) field to specify

class of service for each IP packet (IETF RFC 1122). The most significant three bits on the IPv4 ToS

field provides up to eight distinct classes, of which six are used for classifying services and the remaining

two are reserved. On the edge of the network, the IP precedence is assigned by the client device or the

router, so that each subsequent network element can provide services based on the determined policy or

the SLA.

IP DSCP uses the six bits in the IPv4 header to specify class of service for each IP packet (IETF RFC

2474). Figure 14-1 illustrates IP precedence and DSCP. The DSCP field classifies packets into any of

the 64 possible classes. On the network edge, the IP DSCP is assigned by the client device or the router,

so that each subsequent network element can provide services based on the determined policy or the

SLA.

14-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

Ethernet CoS

Figure 14-1 IP Precedence and DSCP

Ethernet CoS

Ethernet CoS refers to three bits within a four byte IEEE 802.1Q (VLAN) header used to indicate the

priority of the Ethernet frame as it passes through a switched network. The CoS bits in the IEEE 802.1Q

header are commonly referred to as the IEEE 802.1p bits. There are three CoS bits that provide eight

classes, matching the number delivered by IP precedence. In many real-world networks, a packet might

traverse both Layer 2 and Layer 3 domains. To maintain QoS across the network, the IP ToS can be

mapped to the Ethernet CoS and vice versa, for example, in linear or one-to-one mapping, because each

mechanism supports eight classes. Similarly, a set of DSCP values (64 classes) can be mapped into each

of the eight individual Ethernet CoS values. Figure 14-2 shows an IEEE 802.1Q Ethernet frame, which

consists of a 2-byte Ethertype and a 2-byte tag (IEEE 802.1Q tag) on the Ethernet protocol header.

Figure 14-2 Ethernet Frame and the CoS Bit (IEEE 802.1p)

96499

DS-Field

Class Selector

Codepoints Currently

Unused

Differentiated Services Code Point

AFC 2474

DSCP CU

Bits

1234567

RFC 1122

RFC 1349

Must

zero

DTR-Bits

Bits (0-2): IP-Precedence Defined

111 (Network Control)

110 (Internetwork Control)

101 (CRITIC/ECP)

100 (Flash Override)

011 (Flash)

101 (Immediate)

001 (Priority)

000 (Routine)

Bits (3-6): Type of Service Defined

0000 (all normal)

1000 (minimize delay)

0100 (maximize throughput)

0010 (maximize reliability)

0001 (minimize monetary cost)

Precedence Type of Service MBZ

0Bits 1 2 3 4567

96496

Destination Address6

Source Address6

Type=81002

Tag Control Information2

Type/Length2

MAC DATA

PA D

42~1500

FCS4

IEEE 802.1Q Tag

VLAN ID

CFICoS

IEEE 802.1p

(3 bits)

14-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

ML-Series QoS

The ML-Series QoS classifies each packet in the network based on its input interface, bridge group

(VLAN), Ethernet CoS, IP precedence, IP DSCP, or Cisco proprietary resilient packet ring RPR-CoS.

After they are classified into class flows, further QoS functions can be applied to each packet as it

traverses the card. Figure 14-3 illustrates the ML-Series QoS flow.

Figure 14-3 ML-Series QoS Flow

Policing provided by the ML-Series card ensures that attached equipment does not submit more than a

predefined amount of bandwidth (Rate Limiting) into the network. The policing feature can be used to

enforce the committed information rate (CIR) and the peak information rate (PIR) available to a

customer at an interface. Policing also helps characterize the statistical nature of the information allowed

into the network so that traffic engineering can more effectively ensure that the amount of committed

bandwidth is available on the network, and that the peak bandwidth is over-subscribed with an

appropriate ratio. The policing action is applied per classification.

Priority marking can set the Ethernet IEEE 802.1p CoS bits or RPR-CoS bits as they exit the ML-Series

card. The marking feature operates on the outer IEEE 802.1p tag, and provides a mechanism for tagging

packets at the ingress of a QinQ packet. The subsequent network elements can provide QoS based only

on this service-provider-created QoS indicator.

Per-class flow queuing enables fair access to excess network bandwidth, allows allocation of bandwidth

to support SLAs, and ensures that applications with high network resource requirements are adequately

served. Buffers are allocated to queues dynamically from a shared resource pool. The allocation process

incorporates the instantaneous system load as well as the allocated bandwidth to each queue to optimize

buffer allocation. Congestion management on the ML-Series is performed through a tail drop mechanism

along with discard eligibility on the egress scheduler.

The ML-Series uses a Weighted Deficit Round Robin (WDRR) scheduling process to provide fair access

to excess bandwidth as well as guaranteed throughput to each class flow.

Admission control is a process that is invoked each time that service is configured on the ML-Series card

to ensure that QoS resources are not overcommitted. In particular, admission control ensures that no

configurations are accepted, where a sum of the committed bandwidths on an interface exceeds total

bandwidth on the interface.

Classification

Classification can be based on any single packet classification criteria or a combination (logical AND

and OR). A total of 254 classes, not including the class default, can be defined on the card. Classification

of packets is configured using the Modular CLI class-map command. For traffic transiting the Cisco

Proprietary RPR, only the input interface and/or the RPR-CoS can be used as classification criteria.

96498

Policing & MarkingClassification

QoS Actions at Ingress QoS Actions at Egress

Queueing & ScheduleingClassification

14-5

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

Policing

Dual leaky bucket policer is a process where the first bucket (CIR bucket) is filled with tokens at a known

rate (CIR), which is a parameter that can be configured by the operator. Figure 14-4 illustrates the dual

leaky bucket policer model. The tokens fill the bucket up to a maximum level, which is the amount of

burstable committed (BC) traffic on the policer. The nonconforming packets of the first bucket are the

overflow packets, which are passed to the second leaky bucket (the PIR bucket). The second leaky bucket

is filled with these tokens at a known rate (PIR), which is a parameter that can be configured by the

operator. The tokens fill the PIR bucket up to a maximum level (BP), which is the amount of peak

burstable traffic on the policer. The nonconform packets of the second bucket are the overflow packets,

which can be dropped or marked according to the policer definition.

On the dual leaky bucket policer, the packets conforming to the CIR are conform packets, the packets

not conforming to CIR but conforming to PIR are exceed packets, and the packets not conforming to

either the PIR or CIR are violate packets.

Figure 14-4 Dual Leaky Bucket Policer Model

Marking and Discarding with a Policer

On the ML-Series card’s policer, the conform packets can be transmitted or marked and transmitted. The

exceed packets can be transmitted, marked and transmitted, or dropped. The violating packets can be

transmitted, marked and transmitted, or dropped. The primary application of the dual-rate or three-color

policer is to mark the conform packets with CoS bit 2l, mark the exceed packet with CoS bit 1, and

discard the violated packets so all the subsequent network devices can implement the proper QoS

treatment per frame/packet basis based on these priority marking without knowledge of each SLA.

96497

Tokens

Ingress

Packets

Queued

Packets

OverflowTokens

Conform

OverflowTokens

Size<Tc

Transmit

Ye s

Exceed

Size>=Tc+Tp

Remark

Set DE bit

Ye s

Violate

Size>=Tc+Tp

Drop

Ye s

14-6

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

Queuing

In some cases, it might be desirable to discard all traffic of a specific ingress class. This can be

accomplished by using a police command of the following form with the class: police 96000

conform-action drop exceed-action drop.

If a marked packet has a provider-supplied Q-tag inserted before transmission, the marking only affects

the provider Q-tag. If a Q-tag is received, it is re-marked. If a marked packet is transported over the Cisco

proprietary RPR ring, the marking also affects the RPR-CoS bit.

If a Q-tag is inserted (QinQ), the marking affects the added Q-tag. If the ingress packet contains a Q-tag

and is transparently switched, the existing Q-tag is marked. In the case of a packet without any Q-tag,

the marking does not have any significance.

The local scheduler treats all nonconforming packets as discard eligible regardless of their CoS setting

or the global CoS commit definition. For Cisco proprietary RPR implementation, the discard eligible

(DE) packets are marked using the DE bit on the Cisco proprietary RPR header. The discard eligibility

based on the CoS commit or the policing action is local to the ML-Series card scheduler, but it is global

for the Cisco proprietary RPR ring.

Queuing

ML-Series card queuing uses a shared buffer pool to allocate memory dynamically to different traffic

queues. The ML-Series card uses a total of 12 MB of memory for the buffer pool. Ethernet ports share

6 MB of the memory, and packet-over-SONET/SDH (POS) ports share the remaining 6 MBs of memory.

Memory space is allocated in 1500-byte increments.

Each queue has an upper limit on the allocated number of buffers based on the class bandwidth

assignment of the queue and the number of queues configured. This upper limit is typically 30 percent

to 50 percent of the shared buffer capacity. Dynamic buffer allocation to each queue can be reduced

based on the number of queues that need extra buffering. The dynamic allocation mechanism provides

fairness in proportion to service commitments as well as optimization of system throughput over a range

of system traffic loads.

The Low Latency Queue (LLQ) is defined by setting the weight to infinity or by committing 100 percent

of the bandwidth. When a LLQ is defined, a policer should also be defined on the ingress for that specific

class to limit the maximum bandwidth consumed by the LLQ; otherwise there is a potential risk of LLQ

occupying the whole bandwidth and starving the other unicast queues.

The ML-Series includes support for 400 user-definable queues, which are assigned according to the

classification and bandwidth allocation definition. The classification used for scheduling classifies the

frames/packet after the policing action, so if the policer is used to mark or change the CoS bits of the

ingress frames/packet, the new values are applicable for the classification of traffic for queuing and

scheduling. The ML-Series provides buffering for 4000 packets.

Scheduling

Scheduling is provided by a series of schedulers that perform a WDRR as well as by priority scheduling

mechanisms from the queued traffic associated with each egress port.

Though ordinary round robin servicing of queues can be done in constant time, unfairness occurs when

different queues use different packet sizes. Deficit Round Robin (DRR) scheduling solves this problem.

If a queue was not able to send a packet in its previous round because its packet size was too large, the

remainder from the previous amount of credits a queue gets in each round (quantum) is added to the

quantum for the next round.

14-7

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

Scheduling

WDRR extends the quantum idea from the DRR to provide weighted throughput for each queue.

Different queues have different weights, and the quantum assigned to each queue in its round is

proportional to the relative weight of the queue among all the queues serviced by that scheduler.

Weights are assigned to each queue as a result of the service provisioning process. When coupled with

policing and policy mapping provisioning, these weights and the WDRR scheduling process ensure that

QoS commitments are provided to each service flow.

Figure 14-5 illustrates the ML-Series card’s queuing and scheduling.

Figure 14-5 Queuing and Scheduling Model

The weighting structure allows traffic to be scheduled at 1/2048 of the port rate. This equates to

approximately 488 kbps for traffic exiting a Gigabit Ethernet port, approximately 293 kbps for traffic

exiting an OC-12c port, and approximately 49 kbps for traffic exiting a FastEthernet port.

The unicast queues are created as the output service policy implementation on the egress ports. Each

unicast queue is assigned with a committed bandwidth and the weight of the queue is determined by the

normalization of committed bandwidth of all defined unicast queues for that port. The traffic beyond the

committed bandwidth on any queue is treated by the scheduler according to the relative weight of the

queue.

The LLQ is created as the output service policy implementation on the egress ports. Each LLQ queue is

assigned with a committed bandwidth of 100 percent and is served with lower latency. To limit the

bandwidth usage by the LLQ, a strict policer needs to be implemented on the ingress for the LLQ traffic

classes.

The DE allows some packets to be treated as committed and some as discard-eligible on the scheduler.

For Ethernet frames, the CoS (IEEE 802.1p) bits are used to identify committed and discard eligible

packets, where the RPR-CoS and the DE bits are used for Cisco proprietary RPR traffic. When

congestion occurs and a queue begins to fill, the DE packets hit a lower tail-drop threshold than the

committed packets. Committed packets are not dropped until the total committed load exceeds the

interface output. The tail-drop thresholds adjust dynamically in the card to maximize use of the shared

buffer pool while guaranteeing fairness under all conditions.

96502

Low Latency Queues

Weighted

Deficit

Round

Robin

Unicast Queues

Weighted

Deficit

Round

Robin

Weighted

Deficit

Round

Robin

Multi/Broadcast Queues

Weighted

Deficit

Round

Robin

Queues assigned by

"Priority" Command for

associated Classification

for Scheduling

Queues assigned by

"Bandwith" Command for

associated Classification

for Scheduling

Queues automatically

assigned

14-8

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

Control Packets and L2 Tunneled Protocols

The control packets originated by the ML-Series card have a higher priority than data packets. The

external Layer 2 and Layer 3 control packets are handled as data packets and assigned to broadcast

queues. Bridge protocol data unit (BPDU) prioritization in the ML-Series card gives Layer 2-tunneled

BPDU sent out the multicast/broadcast queue a higher discard value and therefore a higher priority than

than other packets in the multicast/broadcast queue. The Ethernet CoS (IEEE 802.1p) for

Layer 2-tunneled protocols can be assigned by the ML-Series card.

Egress Priority Marking

Egress priority marking allows the operator to assign the IEEE 802.1p CoS bits of packets that exit the

card. This marking allows the operator to use the CoS bits as a mechanism for signaling to downstream

nodes the QoS treatment the packet should be given. This feature operates on the outer-most

IEEE 802.1p CoS field. When used with the QinQ feature, priority marking allows the user traffic (inner

Q-tag) to traverse the network transparently, while providing a means for the network to internally signal

QoS treatment at Layer 2.

Priority marking follows the classification process, and therefore any of the classification criteria

identified earlier can be used as the basis to set the outgoing IEEE 802.1p CoS field. For example, a

specific CoS value can be mapped to a specific bridge group.

Priority marking is configured using the MQC set-cos command. If packets would otherwise leave the

card without an IEEE 802.1Q tag, then the set-cos command has no effect on that packet. If an

IEEE 802.1Q tag is inserted in the packet (either a normal tag or a QinQ tag), the inserted tag has the

set-cos priority. If an IEEE 802.1Q tag is present on packet ingress and retained on packet egress, the

priority of that tag is modified. If the ingress interface is a QinQ access port and the set-cos policy-map

classifies based on ingress tag priority, this classifies based on the user priority. This is a way to allow

the user-tag priority to determine the SP tag priority. When a packet does not match any set-cos

policy-map, the priority of any preserved tag is unchanged and the priority of any inserted IEEE 802.1Q

tag is set to 0.

The set-cos command on the output service policy is only applied to unicast traffic. Priority marking for

multicast/broadcast traffic can only be achieved by the set-cos action of the policing process on the input

service policy.

Ingress Priority Marking

Ingress priority marking can be done for all input packets of a port, for all input packets matching a

classification, or based on a measured rate. Marking of all packets of an input class can also be done with

a policing command of the form police 96000 conform-action set-cos-transmit exceed-action

set-cos-transmit. Using this command with a policy map that contains only the "class-default" will mark

all ingress packets to the value. Rate based priority marking is discussed in the section “Marking and

Discarding with a Policer” section on page 14-5.

QinQ Implementation

The hierarchical VLAN or IEEE 802.1Q tunneling feature enables the service provider to transparently

carry the customer VLANs coming from any specific port (UNI) and transport them over the service

provider network. This feature is also known as QinQ, which is performed by adding an additional

IEEE 802.1Q tag on every customer frame.

14-9

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

Ingress Priority Marking

Using the QinQ feature, service providers can use a single VLAN to support customers with multiple

VLANs. QinQ preserves customer VLAN IDs and segregates traffic from different customers within the

service-provider infrastructure, even when traffic from different customers originally shared the same

VLAN ID. The QinQ also expands VLAN space by using a VLAN-in-VLAN hierarchy and tagging the

tagged packets. When the service provider (SP) tag is added, the QinQ network typically loses any

visibility to the IP header or the customer Ethernet IEEE 802.1Q tag on the QinQ encapsulated frames.

On the ML-Series cards, the QinQ access ports (IEEE 802.1Q tunnel ports or QinQ UNI ports) have

visibility to the customer CoS and the IP precedence or IP DSCP values; therefore, the SP tag can be

assigned with the proper CoS bit, which would reflect the customer IP precedence, IP DSCP, or CoS bits.

In the QinQ network, the QoS is then implemented based on the IEEE 802.1p bit of the SP tag. The

ML-Series cards do not have visibility into the customer CoS, IP precedence, or DSCP values after the

packet is double-tagged (because it is beyond the entry point of the QinQ service).

Figure 14-6 illustrates the QinQ implementation on the ML-Series card.

Figure 14-6 QinQ

The ML-Series cards can be used as the IEEE 802.1Q tunneling device for the QinQ network and also

provide the option to copy the customer frame’s CoS bit into the CoS bit of the added QinQ tag. This

way, the service provider QinQ network can be fully aware of the necessary QoS treatment for each

individual customer frame.

Flow Control Pause and QoS

When flow control and policy-map are enabled for an interface and the policy-map is configured only

with 'class-default' having policer action, flow control handles the bandwidth. For all the packets, which

match policers drop criteria, PAUSE frames are sent upstream so that far end device can reduce it's

transmit rate accordingly. If the far end device honours the received PAUSE frames, there will not be any

drops on ML card due to policer configuration. However, if the policer gets noncompliant flow, the

packets are dropped or demarked using the policer definition of the interface.

Note The above statement is valid for an interface, which has a policer with not only a class-default ( i.e with

non-default class) configured. When the policy-map is configured only with class-default, the policer

acts instead of allowing the flow control to drop or demark the frames.

96500

Destination Address6

Source Address6

Type=81002

Tag Control Information2

Type=81002

Tag Control Information2

Type/Length2

MAC DATA

PA D

42~1500

FCS4

Customer VLAN Tag

IEEE 802.1Q Tag

VLAN ID

CFICoS

IEEE 802.1p

(3 bits)

Service Provider Tag

QinQ Tag

VLAN ID

CFICoS

SP CoS bit

(3 bits)

14-10

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

QoS on Cisco Proprietary RPR

Note QoS and policing are not supported on the ML-Series card interface when link aggregation is used.

Note Egress shaping is not supported on the ML-Series cards.

QoS on Cisco Proprietary RPR

For VLAN bridging over Cisco proprietary RPR , all ML-Series cards on the ring must be configured

with the base Cisco proprietary RPR and Cisco proprietary RPR QoS configuration. SLA and bridging

configurations are only needed at customer Cisco proprietary RPR access points, where IEEE 802.1Q

VLAN CoS is copied to the Cisco proprietary RPR CoS. This IEEE 802.1Q VLAN CoS copying can be

overwritten with a set-cos action command. The CoS commit rule applies at Cisco proprietary RPR ring

ingress.

• If the packet does not have a VLAN header, the Cisco proprietary RPR CoS for non-VLAN traffic

is set using the following rules:

• The default CoS is 0.

• If the packet comes in with an assigned CoS, the assigned CoS replaces the default. If an IP packet

originates locally, the IP precedence setting replaces the CoS setting.

• The input policy map has a set-cos action.

• The output policy map has a set-cos action (except for broadcast or multicast packets).

The Cisco proprietary RPR header contains a CoS value and DE indicator. The Cisco proprietary RPR

DE is set for noncommitted traffic.

The ML-Series card Cisco proprietary RPR transit traffic, which is defined as traffic going from POS

port to POS port around the Cisco proprietary RPR , can only be classified by Layer 2 CoS. Other match

rules are ignored. This is a ML-Series card specific implementation of QoS on Cisco proprietary RPR

designed for the CoS based QoS model of the Cisco Metro Ethernet Solution.

This Layer 2 CoS dependence prevents DSCP-based output policy maps from working properly with

Cisco proprietary RPR on the ML-Series card. Using a DSCP based policy-map causes all transit traffic

to be incorrectly treated as class-default. This results in a discard of the transit traffic without any regard

for the DSCP priority when transit station congestion occurs.

The DSCP based output policy map limitation has a work around. Each Cisco proprietary RPR frame

has it's own three bit CoS marking, which is normally copied from the VLAN CoS. This is the field on

which "match cos" classification is done for transit Cisco proprietary RPR traffic. The Cisco proprietary

RPR CoS can be marked based on the DSCP match at the input station, and then classified based on the

Cisco proprietary RPR CoS at transit stations. This method can support a maximum of eight classes. If

you are using nine classes (including class-default), two of them would need to be combined to use this

work-around.

Example 14-1 shows a class and policy-map definition configuration that would overcome the DSCP

limitation. The example also changes nine classes into eight by combining the Voice and Call-Sig

classes.

14-11

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

QoS on Cisco Proprietary RPR

Caution "Match cos 0" should not be included in the definition of any class-map, because non-VLAN-tagged

Ethernet packets are always treated as CoS 0 on input from Ethernet. Using “match cos 0” might

incorrectly match all traffic coming from Ethernet.

Example 14-1 Class and Policy-map Definition Configuration Overcoming the DSCP Limitation

class-map match-any Bulk-Data

match ip dscp af11

match cos 3

class-map match-any Crit-Data

match ip dscp af21 af31

match cos 7

class-map match-any Net-Management

match ip dscp cs2

match cos 2

class-map match-any Video

match ip dscp cs4 af41

match cos 4

class-map match-any Voice

description Includes Voice and Call Signalling

match ip dscp ef

match ip dscp cs3

match cos 5

class-map match-any Routing

match ip dscp cs6

match cos 6

class-map match-any Scavenger

match ip dscp cs1

match cos 1

policy-map MAN-QoS-DSCP

class Voice

priority percent 4

set cos 5

class Bulk-Data

bandwidth percent 20

set cos 3

class Crit-Data

bandwidth percent 20

set cos 7

class Net-Management

bandwidth percent 2

set cos 2

class Video

bandwidth percent 5

set cos 4

class Routing

bandwidth percent 2

set cos 6

class Scavenger

bandwidth percent 1

set cos 1

class class-default

bandwidth percent 45

set cos 0

14-12

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

Configuring QoS

This section describes the tasks for configuring the ML-Series card QoS functions using the MQC. The

ML-Series card does not support the full set of MQC functionality.

To configure and enable class-based QoS features, perform the procedures described in the following

sections:

• Creating a Traffic Class, page 14-12

• Creating a Traffic Policy, page 14-13

• Attaching a Traffic Policy to an Interface, page 14-16

• Configuring CoS-Based QoS, page 14-17

For QoS configuration examples, see the “QoS Configuration Examples” section on page 14-18.

Creating a Traffic Class

The class-map global configuration command is used to create a traffic class. The syntax of the

class-map command is as follows:

class-map [match-any | match-all] class-map-name

no class-map [match-any | match-all] class-map-name

The match-all and match-any options need to be specified only if more than one match criterion is

configured in the traffic class. The class-map match-all command is used when all of the match criteria

in the traffic class must be met for a packet to match the specified traffic class. The class-map

match-any command is used when only one of the match criterion in the traffic class must be met for a

packet to match the specified traffic class. If neither the match-all nor the match-any keyword is

specified, the traffic class behaves in a manner consistent with the class-map match-all command.

To create a traffic class containing match criteria, use the class-map global configuration command to

specify the traffic class name, and then use the match commands in Table 14-1, as needed.

Table 14-1 Traffic Class Commands

Command Purpose

Router(config)# class-map

class-map-name

Specifies the user-defined name of the traffic class. Names can be a

maximum of 40 alphanumeric characters. If neither match-all nor

match-any is specified, traffic must match all the match criteria to

be classified as part of the traffic class.

There is no default-match criteria.

Multiple match criteria are supported. The command matches either

all or any of the criteria, as controlled by the match-all and

match-any subcommands of the class-map command.

Router(config)# class-map match-all

class-map-name

Specifies that all match criteria must be met for traffic entering the

traffic class to be classified as part of the traffic class.

Router(config)# class-map match-any

class-map-name

Specifies that one of the match criteria must be met for traffic

entering the traffic class to be classified as part of the traffic class.

Router(config-cmap)# match any Specifies that all packets will be matched.

Router(config-cmap)# match bridge-group

bridge-group-number

Specifies the bridge-group-number against whose contents packets

are checked to determine if they belong to the class.

14-13

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

Creating a Traffic Policy

To configure a traffic policy, use the policy-map global configuration command to specify the traffic

policy name, and use the following configuration commands to associate a traffic class, which was

configured with the class-map command and one or more QoS features. The traffic class is associated

with the traffic policy when the class command is used. The class command must be issued after entering

policy-map configuration mode. After entering the class command, you are automatically in policy-map

class configuration mode, which is where the QoS policies for the traffic policy are defined.

When the bandwidth or priority action is used on any class in a policy map, then there must be a class

defined by the match-any command, which has a bandwidth or priority action in that policy map. This

is to ensure that all traffic can be classified into a default class that has some assigned bandwidth. A

minimum bandwidth can be assigned if the class is not expected to be used or no reserved bandwidth is

desired for default traffic.

The QoS policies that can be applied in the traffic policy in policy-map class configuration mode are

shown in Example 14-2 and Example 14-3.

Example 14-2 Policy-map syntax

policy-map policy-name

no policy-map policy-name

Example 14-3 Class command syntax

class class-map-name

no class class-map-name

All traffic that fails to meet the matching criteria belongs to the default traffic class. The default traffic

class can be configured by the user, but cannot be deleted.

To create a traffic policy, use the commands in Table 14-2 as needed.

Router(config-cmap)# match cos

cos-number

Specifies the CoS value against whose contents packets are checked

to determine if they belong to the class.

Router(config-cmap)# match input-interface

interface-name

Specifies the name of the input interface used as a match criterion

against which packets are checked to determine if they belong to the

class.

The shared packet ring (SPR) interface used in Cisco proprietary

RPR (SPR1) is a valid interface-name for the ML-Series card. For

more information on the SPR interface, see Chapter 17,

“Configuring Cisco Proprietary Resilient Packet Ring.”

The input-interface choice is not valid when applied to the INPUT

of an interface (redundant).

Router(config-cmap)# match ip dscp

ip-dscp-value

Specifies up to eight DSCP values used as match criteria. The value

of each service code point is from 0 to 63.

Router (config-cmap)# match ip precedence

ip-precedence-value

Specifies up to eight IP precedence values used as match criteria.

Table 14-1 Traffic Class Commands (continued)

Command Purpose

14-14

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

Creating a Traffic Policy

Table 14-2 Traffic Policy Commands

Command Purpose

Router (config)# policy-map

policy-name

Specifies the name of the traffic policy to configure. Names can

be a maximum of 40 alphanumeric characters.

Router (config-pmap)# class

class-map-name

Specifies the name of a predefined traffic class, which was

configured with the class-map command, used to classify

traffic to the traffic policy.

Router (config-pmap)# class class-default Specifies the default class to be created as part of the traffic

policy.

Router (config-pmap-c)# bandwidth {

bandwidth-kbps

percent

}

Specifies a minimum bandwidth guarantee to a traffic class in

periods of congestion. A minimum bandwidth guarantee can be

specified in kbps or by a percentage of the overall available

bandwidth.

Valid choices for the ML-Series cards are:

• Rate in kilobits per second

• Percent of total available bandwidth (1 to 100)

If multiple classes and bandwidth actions are specified in a

single policy map, they must use the same choice in specifying

bandwidth (kilobits or percent).

Note When using the bandwidth command, excess traffic

(beyond the configured commit) is allocated any

available bandwidth in proportion to the relative

bandwidth commitment of its traffic class compared to

other traffic classes. Excess traffic from two classes

with equal commits has equal access to available

bandwidth. Excess traffic from a class with a minimum

commit might receive only a minimum share of

available bandwidth compared to excess bandwidth

from a class with a high commit.

Note The true configurable bandwidth in kilobits or megabits

per second is per port and depends on how the

ML-Series card is configured. The show interface

command shows the maximum bandwidth of a port (for

example, BW 100000 Kbit). The sum of all bandwidth

and priority actions applied to the interface, plus the cos

priority-mcast bandwidth, is not allowed to exceed the

maximum bandwidth of the port.

14-15

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

Creating a Traffic Policy

Router (config-pmap-c)# police

cir-rate-bps

normal-burst-byte

[

max-burst-byte

] [

pir

pir-rate-bps

] [conform-action {set-cos-transmit |

transmit | drop}] [exceed-action {set-cos-transmit

| drop}] [violate-action {set-cos-transmit | drop}]

Defines a policer for the currently selected class when the

policy map is applied to input. Policing is supported only on

ingress, not on egress.

• For cir-rate-bps, specify the average committed

information rate (cir) in bits per second (bps). The range is

96000 to 800000000.

• For normal-burst-byte, specify the cir burst size in bytes.

The range is 8000 to 64000.

• (Optional) For maximum-burst-byte, specify the peak

information rate (pir) burst in bytes. The range is 8000 to

64000.

• (Optional) For pir-rate-bps, specify the average pir traffic

rate in bps where the range is 96000 to 800000000.

• (Optional) Conform action options are:

–

Set a CoS priority value and transmit

–

Transmit packet (default)

–

Drop packet

• (Optional) Exceed action options are:

–

Set a CoS value and transmit

–

Drop packet (default)

• (Optional) The violate action is only valid if pir is

configured. Violate action options are:

–

Set a CoS value and transmit

–

Drop packet (default)

Table 14-2 Traffic Policy Commands (continued)

Command Purpose

14-16

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

Attaching a Traffic Policy to an Interface

Use the service-policy interface configuration command to attach a traffic policy to an interface and to

specify the direction in which the policy should be applied (either on packets coming into the interface

or packets leaving the interface). Only one traffic policy can be applied to an interface in a given

direction.

Router (config-pmap-c)# priority

kbps

Specifies low latency queuing for the currently selected class.

This command can only be applied to an output. When the

policy-map is applied to an output, an output queue with strict

priority is created for this class. The only valid rate choice is in

kilobits per second.

Note This priority command does not apply to the default

class.

Note When using the priority action, the traffic in that class

is given a 100 percent CIR, regardless of the rate

entered as the priority rate. To ensure that other

bandwidth commitments are met for the interface, a

policer must be configured on the input of all interfaces

that might deliver traffic to this output class, limiting

the peak rate to the priority rate entered.

Note The true configurable bandwidth in kilobits or megabits

per second is per port and depends on how the

ML-Series card is configured. The show interface

command shows the maximum bandwidth of a port (for

example, BW 100000 Kbit). The sum of all bandwidth

and priority actions applied to the interface, plus the cos

priority-mcast bandwidth, is not allowed to exceed the

maximum bandwidth of the port.

Router (config-pmap-c)# set cos

cos-value

Specifies a CoS value or values to associate with the packet.

The number is in the range from 0 to 7.

This command can only be used in a policy-map applied to an

output. It specifies the VLAN CoS priority to set for the

outbound packets in the currently selected class. If QinQ is

used, the top-level VLAN tag is marked. If outbound packets

have no VLAN tag, the action has no effect. This action is

applied to the packet after any set-cos action done by a policer,

and therefore overrides the CoS set by a policer action.

If a packet is marked by the policer and forwarded out an

interface that also has a set-cos action assigned for the traffic

class, the value specified by the police action takes precedence

in setting the IEEE 802.1p CoS field.

This command also sets the CoS value in the Cisco proprietary

RPR header for packets exiting the ML-Series on the Cisco

proprietary RPR interface.

Table 14-2 Traffic Policy Commands (continued)

Command Purpose

14-17

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

Configuring CoS-Based QoS

Use the no form of the command to detach a traffic policy from an interface. The service-policy

command syntax is as follows:

service-policy {input | output} policy-map-name

no service-policy {input | output} policy-map-name

To attach a traffic policy to an interface, use the following commands in global configuration mode, as

needed:

Configuring CoS-Based QoS

The global cos commit cos-value command allows the ML-Series card to base the QoS treatment for a

packet coming in on a network interface on the attached CoS value, rather than on a per-customer-queue

policer.

CoS-based QoS is applied with a single global cos commit cos-value command, as shown in Table 14-3.

Monitoring and Verifying QoS Configuration

After configuring QoS on the ML-Series card, the configuration of class maps and policy maps can be

viewed through a variety of show commands. To display the information relating to a traffic class or

traffic policy, use one of the commands in Table 14-4 in EXEC mode, as needed. Table 14-4 describes

the commands that are related to QoS status.

Step 1 Router(config)# interface

interface-id

Enters interface configuration mode, and specifies the

interface to apply the policy map.

Valid interfaces are limited to physical Ethernet and POS

interfaces.

Note Policy maps cannot be applied to SPR interfaces,

subinterfaces, port channel interfaces, or Bridge

Group Virtual Interfaces (BVIs).

Step 2 Router(config-if)# service-policy

output

policy-map-name

Specifies the name of the traffic policy to be attached to the

output direction of an interface. The traffic policy evaluates

all traffic leaving that interface.

Step 3 Router(config-if)# service-policy

input

policy-map-name

Specifies the name of the traffic policy to be attached to the

input direction of an interface. The traffic policy evaluates

all traffic entering that interface.

Table 14-3 CoS Commit Command

Command Purpose

Router(config)# cos-commit

cos-value

Labels packets that come in with a CoS equal to or higher than the

cos-value as CIR and packets with a lower CoS as DE.

14-18

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

QoS Configuration Examples

Example 14-4 show examples of the QoS commands.

Example 14-4 QoS Status Command Examples

Router# show class-map

Class Map match-any class-default (id 0)

Match any

Class Map match-all policer (id 2)

Match ip precedence 0

Router# show policy-map

Policy Map police_f0

class policer

police 1000000 10000 conform-action transmit exceed-action drop

Router# show policy-map interface

FastEthernet0

service-policy input: police_f0

class-map: policer (match-all)

0 packets, 0 bytes

5 minute offered rate 0 bps, drop rate 0 bps

match: ip precedence 0

class-map: class-default (match-any)

0 packets, 0 bytes

5 minute offered rate 0 bps, drop rate 0 bps

match: any

0 packets, 0 bytes

5 minute rate 0 bps

QoS Configuration Examples

This section provides the specific command and network configuration examples:

• Traffic Classes Defined Example

• Traffic Policy Created Example

• class-map match-any and class-map match-all Commands Example

• match spr1 Interface Example

• ML-Series VoIP Example

• ML-Series Policing Example

• ML-Series CoS-Based QoS Example

Table 14-4 Commands for QoS Status

Command Purpose

Router# show class-map

name

Displays the traffic class information of the user-specified

traffic class.

Router# show policy-map Displays all configured traffic policies.

Router# show policy-map

name

Displays the user-specified policy map.

Router# show policy-map interface

interface

Displays configurations of all input and output policies

attached to an interface. Statistics displayed with this

command are unsupported and show zero.

14-19

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

Traffic Classes Defined Example

Example 14-5 shows how to create a class map called class1 that matches incoming traffic entering

interface fastethernet0.

Example 14-5 Class Interface Command Examples

Router(config)# class-map class1

Router(config-cmap)# match input-interface fastethernet0

Example 14-6 shows how to create a class map called class2 that matches incoming traffic with

IP-precedence values of 5, 6, and 7.

Example 14-6 Class IP-Precedence Command Examples

Router(config)# class-map match-any class2

Router(config-cmap)# match ip precedence 5 6 7

Note If a class-map contains a match rule that specifies multiple values, such as 5 6 7 in this example, then

the class-map must be match-any, not the default match-all. Without the match-any class-map, an error

message is printed and the class is ignored. The supported commands that allow multiple values are

match cos, match ip precedence, and match ip dscp.

Example 14-7 shows how to create a class map called class3 that matches incoming traffic based on

bridge group 1.

Example 14-7 Class Map Bridge Group Command Examples

Router(config)# class-map class3

Router(config-cmap)# match bridge-group 1

Traffic Policy Created Example

In Example 14-8, a traffic policy called policy1 is defined to contain policy specifications, including a

bandwidth allocation request for the default class and two additional classes—class1 and class2. The

match criteria for these classes were defined in the traffic classes, see the “Creating a Traffic Class”

section on page 14-12.

Example 14-8 Traffic Policy Created Example

Router(config)# policy-map policy1

Router(config-pmap)# class class-default

Router(config-pmap-c)# bandwidth 1000

Router(config-pmap)# exit

Router(config-pmap)# class class1

Router(config-pmap-c)# bandwidth 3000

Router(config-pmap)# exit

Router(config-pmap)# class class2

Router(config-pmap-c)# bandwidth 2000

Router(config-pmap)# exit

14-20

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

class-map match-any and class-map match-all Commands Example

This section illustrates the difference between the class-map match-any command and the class-map

match-all command. The match-any and match-all options determine how packets are evaluated when

multiple match criteria exist. Packets must either meet all of the match criteria (match-all) or one of the

match criteria (match-any) in order to be considered a member of the traffic class.

Example 14-9 shows a traffic class configured with the class-map match-all command.

Example 14-9 Class Map Match All Command Examples

Router(config)# class-map match-all cisco1

Router(config-cmap)# match cos 1

Router(config-cmap)# match bridge-group 10

If a packet arrives with a traffic class called cisco1 configured on the interface, the packet is evaluated

to determine if it matches the cos 1 and bridge group 10. If both of these match criteria are met, the

packet matches traffic class cisco1.

In traffic class called cisco2, the match criteria are evaluated consecutively until a successful match

criterion is located. The packet is first evaluated to the determine whether cos 1 can be used as a match

criterion. If cos 1 can be used as a match criterion, the packet is matched to traffic class cisco2. If cos 1

is not a successful match criterion, then bridge-group 10 is evaluated as a match criterion. Each matching

criterion is evaluated to see if the packet matches that criterion. When a successful match occurs, the

packet is classified as a member of traffic class cisco2. If the packet matches none of the specified

criteria, the packet is classified as a member of the traffic class.

Note that the class-map match-all command requires that all of the match criteria must be met in order

for the packet to be considered a member of the specified traffic class (a logical AND operator). In the

example, cos 1 AND bridge group 10 have to be successful match criteria. However, only one match

criterion must be met for the packet in the class-map match-any command to be classified as a member

of the traffic class (a logical OR operator). In the example, cos 1 OR bridge group 10 OR ip dscp 5 have

to be successful match criteria.

Example 14-10 shows a traffic class configured with the class-map match-any command.

Example 14-10 Class Map Match Any Command Examples

Router(config)# class-map match-any cisco2

Router(config-cmap)# match cos 1

Router(config-cmap)# match bridge-group 10

Router(config-cmap)# match ip dscp 5

match spr1 Interface Example

In Example 14-11, the SPR interface is specified as a parameter to the match input-interface CLI when

defining a class-map.

Example 14-11 Class Map SPR Interface Command Examples

Router(config)# class-map spr1-cos1

Router(config-cmap)# match input-interface spr1

Router(config-cmap)# match cos 1

Router(config-cmap)# end

Router# sh class-map spr1-cos1

Class Map match-all spr1-cos1 (id 3)

14-21

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

ML-Series VoIP Example

Match input-interface SPR1

Match cos 1

ML-Series VoIP Example

Figure 14-7 shows an example of ML-Series QoS configured for VoIP. The associated commands are

provided in Example 14-12.

Figure 14-7 ML-Series VoIP Example

Example 14-12 ML-Series VoIP Commands

Router(config)# class-map match-all voip

Router(config-cmap)# match ip precedence 5

Router(config-cmap)# exit

Router(config)# class-map match-any default

Router(config-cmap)# match any

Router(config-cmap)# exit

Router(config)# policy-map pos0

Router(config-pmap)# class default

Router(config-pmap-c)# bandwidth 1000

Router(config-pmap-c)# class voip

Router(config-pmap-c)# priority 1000

Router(config-pmap-c)# interface FastEthernet0

Router(config-if)# ip address 1.1.1.1 255.255.255.0

Router(config-if)# interface POS0

Router(config-if)# ip address 2.1.1.1 255.255.255.0

Router(config-if)# service-policy output pos0

Router(config-if)# crc 32

Router(config-if)# no cdp enable

Router(config-if)# pos flag c2 1

ML-Series Policing Example

Figure 14-8 shows an example of ML-Series policing. The example shows how to configure a policer

that restricts traffic with an IP precedence of 0 to 1,000,000 bps. The associated code is provided in

Example 14-13.

ONS 15454

with ML100T-12

Router_A

Fast Ethernet 0 POS 0

SONET/SDH

STS-1 circuit

VoIP Traffic

General Data Traffic

During periods of congestion, the ML-Series card services

all VoIP traffic before servicing any general data traffic.

83181

14-22

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

ML-Series CoS-Based QoS Example

Figure 14-8 ML-Series Policing Example

Example 14-13 ML-Series Policing Commands

Router(config)# class-map match-all policer

Router(config-cmap)# match ip precedence 0

Router(config-cmap)# exit

Router(config)# policy-map police_f0

Router(config-pmap)# class policer

Router(config-pmap-c)# police 1000000 10000 conform-action transmit exceed-action drop

Router(config-pmap-c)# interface FastEthernet0

Router(config-if)# service-policy input police_f0

ML-Series CoS-Based QoS Example

Figure 14-9 shows an example of ML-Series CoS-based QoS. The associated code is provided in the

examples that follow the figure. The CoS example assumes that the ML-Series cards are configured into

an Cisco proprietary RPR and that the ML-Series card POS ports are linked by point-to-point SONET

circuits. ML-Series Card A and ML-Series Card C are customer access points. ML-Series Card B is not

a customer access point. For more information on configuring Cisco proprietary RPR , see Chapter 17,

“Configuring Cisco Proprietary Resilient Packet Ring.”

ONS 15454

with ML100T-12

Fast Ethernet 0 POS 0

Router_a

Policer on Fast Ethernet 0 allows 1,000,000 bps of traffic with an IP ToS value of 0.

Excess traffic with an IP ToS value of 0 is dropped.

SONET/SDH

83182

14-23

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

ML-Series CoS-Based QoS Example

Figure 14-9 ML-Series CoS Example

Example 14-14 shows the code used to configure ML-Series card A in Figure 14-9.

Example 14-14 ML-Series Card A Configuration (Customer Access Point)

ML_Series_A(config)# cos commit 2

ML_Series_A(config)# policy-map Fast5_in

ML_Series_A(config-pmap)# class class-default

ML_Series_A(config-pmap-c)# police 5000 8000 8000 pir 10000 conform-action

set-cos-transmit 2 exceed-action set-cos-transmit 1 violate-action drop

Example 14-15 shows the code used to configure ML-Series card B in Figure 14-9.

Example 14-15 ML-Series Card B Configuration (Not Customer Access Point)

ML_Series_B(config)# cos commit 2

Example 14-16 shows the code used to configure ML-Series card C in Figure 14-9.

Example 14-16 ML-Series Card C Configuration (Customer Access Point)

ML_Series_B(config)# cos commit 2

ML_Series_B(config)# policy-map Fast5_in

ML_Series_B(config-pmap)# class class-default

ML_Series_B(config-pmap-c)# police 5000 8000 8000 pir 10000 conform-action

set-cos-transmit 2 exceed-action set-cos-transmit 1 violate-action drop

RPR

POS 1 POS 0

POS 0

POS 1

= STS circuit created on CTC

ML-Series Card B

96501

ML-Series Card C

Customer Access Point

ML-Series Card A

Customer Access Point

14-24

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

Understanding Multicast QoS and Priority Multicast Queuing

ML-Series card QoS supports the creation of two priority classes for multicast traffic in addition to the

default multiclass traffic class. Creating a multicast priority queuing class of traffic configures the

ML-Series card to recognize an existing CoS value in ingressing multicast traffic for priority treatment.

The multicast priority queuing CoS match is based on the “internal" CoS value of each packet. This value

is normally the same as the egress CoS value (after policer marking if enabled) but differs in two cases.

The internal CoS value is not the same as the egress value when dot1q-tunneling is used. Under

dot1q-tunnel, the internal CoS value is always the value of the outer tag CoS, both when entering the

dot1q tunnel and leaving the dot1q tunnel. The internal CoS value is also not the same as the egress value

if a packet is transported over a VLAN, and the VLAN tag is removed on egress to send the packet

untagged. In this case, the internal CoS is the CoS of the removed tag (including ingress policing and

marking if enabled).

The cos priority-mcast command does not modify the CoS of the multicast packets, but only the

bandwidth allocation for the multicast priority queuing class. The command guarantees a minimum

amount of bandwidth and is queued separately from the default multicast/broadcast queue.

Creating a multicast priority queuing class allows for special handling of certain types of multiclass

traffic. This is especially valuable for multicast video distribution and service provider multicast traffic.

For example, a service provider might want to guarantee the protection of their own multicast

management traffic. To do this, they could create a multicast priority queuing class on the ML-Series

card for the CoS value of the multicast management traffic and guarantee its minimum bandwidth. For

multicast video distribution, a multicast priority queuing class on the ML-Series card for the CoS value

of the multicast video traffic enables networks to efficiently manage multicast video bandwidth demands

on a network shared with VoIP and other Ethernet services.

Note Multicast priority queuing traffic uses port-based load-balancing over Cisco proprietary RPR and

EtherChannel. Default multicast traffic is load-balanced over Cisco proprietary RPR , but not over

EtherChannel. Multicast load balancing maps GigabitEthernet Port 0 to POS Port 0 and GigabitEthernet

Port 1 to POS Port 1. Multicast load balancing maps Fast Ethernet Port 0 and all even-numbered Fast

Ethernet ports to POS 0 and all odd-numbered Fast Ethernet ports to POS 1.

Note Multicast priority queuing bandwidth should not be oversubscribed for sustained periods with traffic

from multiple sources. This can result in reduced multicast priority queuing throughput.

Priority multicast feature is not required and is not supported in ML card while it is in IEEE-RPR mode,

as in this mode each queue created for a port can handle all of multicast,broadcast and unicast traffic.

Default Multicast QoS

Default multicast traffic is any multicast traffic (including flooded traffic) that is not classified as

multicast priority queuing. The default multicast class also includes broadcast data traffic, control traffic,

Layer 2 protocol tunneling, and flooding traffic of the unknown MAC during MAC learning.

With no QoS configured (no multicast priority queuing and no output policy map) on the ML-Series

card, the default multicast bandwidth is a 10 percent minimum of total bandwidth.

14-25

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

Multicast Priority Queuing QoS Restrictions

When bandwidth is allocated to multicast priority queuing but no output policy map is applied, the

default multicast congestion bandwidth is a minimum of 10 percent of the bandwidth not allocated to

multicast priority queuing.

When an output policy-map is applied to an interface, default multicast and default unicast share the

minimum bandwidth assigned to the default class. This default class is also known as the match-any

class. The minimum bandwidth of default multicast is 10 percent of the total default class bandwidth.

Multicast Priority Queuing QoS Restrictions

The following restrictions apply to multicast priority queuing QoS:

• The bandwidth allocation and utilization configured for multicast priority queuing traffic is global

and applies to all the ports on the ML-Series card, both POS and Fast Ethernet or Gigabit Ethernet,

regardless of whether these ports carry multicast priority queuing traffic. The rate of traffic can be

reduced for all ports on the ML-Series card when this feature is configured. Default multicast traffic

uses bandwidth only on the ports where it egresses, not globally like multicast priority queuing.

• Multicast priority queuing QoS is supported only for Layer 2 bridging.

• The ML-Series card supports a maximum of two multicast priority queuing classes.

• Unlike the rest of the ML-Series card QoS, multicast priority queuing QoS is not part of the

Cisco IOS MQC.

• Priority-mcast bandwidth allocation is per port and the maximum bandwidth configurable on an

ML1000-2 with cos priority-mcast is 1000 Mbps. But the load-balancing of multicast priority

queuing increases the effective bandwidth. For example, with an ML1000-2 with Gigabit

EtherChannel (GEC) and STS-24c circuits, the user can allocate 1000 Mbps per port, but will be

able to get 2000 Mbps total effective bandwidth due to the load-balancing.

Configuring Multicast Priority Queuing QoS

To configure a priority class for multicast traffic, use the global configuration cos priority-mcast

command, defined in Table 14-5.

14-26

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

Configuring Multicast Priority Queuing QoS

Table 14-5 CoS Multicast Priority Queuing Command

Command Purpose

Router (config)# [no] cos priority-mcast

cos-value

{

bandwidth-kbps

| mbps

bandwidth-mbps

| percent

percent

}

Creates a priority class of multicast traffic based on a multicast

CoS value and specifies a minimum bandwidth guarantee to a

traffic class in periods of congestion.

cos-value specifies the CoS value of multicast packets that will

be given the bandwidth allocation. The value matches only a

single CoS of traffic (not a range). The supported CoS range is

0 to 7.

A minimum bandwidth guarantee can be specified in kbps, in

Mbps, or by a percentage of the overall available bandwidth.

Valid choices for the ML-Series card are:

• Rate in kilobits per second

• Rate in megabits per second

• Percent of total available port bandwidth (1 to 100)

Reentering the command with the same cos-value but a

different bandwidth rate will modify the bandwidth of the

existing class.

Reentering the command with a different cos-value creates a

separate multicast priority queuing class with a maximum of

two multicast priority queuing classes.

The no form of this command removes the multicast priority

queuing class.

Note The true configurable bandwidth in kilobits or megabits

per second is per port and depends on how the

ML-Series card is configured. The show interface

command shows the maximum bandwidth of a port (for

example, BW 100000 Kbit). The sum of all bandwidth

and priority actions applied to the interface, plus the cos

priority-mcast bandwidth, is not allowed to exceed the

maximum bandwidth of the port.

Note Attempting to configure a priority-mcast bandwidth

that exceeds the true configurable bandwidth on any

port will cause the priority-mcast configuration change

to fail, and the multicast priority queuing bandwidth

guarantee will not be changed.

14-27

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

QoS not Configured on Egress

The QoS bandwidth allocation of multicast and broadcast traffic is handled separately from unicast

traffic. On each interface, the aggregate multicast and broadcast traffic are given a fixed bandwidth

commit of 10% of the interface bandwidth. This is the optimum bandwidth that can be provided for

traffic exceeding 10% of the interface bandwidth.

Figure 14-10 QoS not Configured on Egress

ML-Series Egress Bandwidth Example

This section explains with examples the utilization of bandwidth across different queues with or without

Priority Multicast.

Case 1: QoS with Priority and Bandwidth Configured Without Priority Multicast

Strict Priority Queue is always serviced first. The remaining interface bandwidth is utilized to service

other configured traffic.

In the following example, after servicing unicast customer_voice traffic, the remaining interface

bandwidth is utilized for other WRR queues such as customer_core_traffic, customer_data, and

class-default in the ratio of 1:3:5.

At any given time, the sum of the bandwidth assigned cannot exceed the interface bandwidth (in kbps).

The bandwidth share allocated to class-default will be utilized by default unicast traffic (in this

example, unicast traffic with CoS values other than 2, 5, 7) and all multicast/broadcast traffic (all CoS

values). The default unicast and all multicast/broadcast traffic will be serviced in the ratio of 9:1.

Traffic at Egress

without QoS

Multicast/Broadcast

service up to 90%

interface BW and

best effort service

for exceeding traffic

Guaranteed

Service

Best Effort

Service

False

True

False

True

Unicast Traffic?

If rate < 10%

interface BW

273826

14-28

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

ML-Series Egress Bandwidth Example

For example, if 18x bandwidth is available after servicing priority unicast traffic (CoS 5), then the

remaining bandwidth will be allocated as follows:

Unicast traffic with CoS 2 : 2x

Unicast traffic with CoS 7: 6x

Unicast default (without CoS 2, CoS 5, CoS 7): 9x

All multicast/broadcast (any CoS value): 1x

Example 14-17 QoS with Priority and Bandwidth Configured without Priority Multicast

class-map match-all customer_voice

match cos 5

class-map match-all customer_data

match cos 7

class-map match-all customer_core_traffic

match cos 2

policy-map policy_egress_bandwidth

class customer_core_traffic

bandwidth 1000

class customer_voice

priority 1000

class customer_data

bandwidth 3000

class class-default

bandwidth 5000

interface POS0

no ip address

crc 32

service-policy output policy_egress_bandwidth

Case 2: QoS with Priority and Bandwidth Configured with Priority Multicast

In this case, only multicast traffic of CoS 3 is allocated a guaranteed bandwidth. This multicast traffic

will now participate in the queue along with other WRR queues. After servicing the customer_voice

traffic, the remaining interface bandwidth is utilized for WRR queues, such as customer_core_traffic,

customer_data, class-default, and multicast CoS 3 traffic in the ratio of 1:3:5:2.

At any given time, the sum of the bandwidth assigned cannot exceed the interface bandwidth (in kbps).

Example 14-18 QoS with Priority and Bandwidth configured with Priority Multicast

cos priority-mcast 3 2000

class-map match-all customer_voice

match cos 5

class-map match-all customer_data

match cos 7

class-map match-all customer_core_traffic

match cos 2

14-29

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

Understanding CoS-Based Packet Statistics

policy-map policy_egress_bandwidth

class customer_core_traffic

bandwidth 1000

class customer_voice

priority 1000

class customer_data

bandwidth 3000

class class-default

bandwidth 5000

interface POS0

no ip address

crc 32

service-policy output policy_egress_bandwidth

Understanding CoS-Based Packet Statistics

Enhanced performance monitoring displays per-CoS packet statistics on the ML-Series card interfaces

when CoS accounting is enabled. Per-CoS packet statistics are only supported for bridged services, not

for IP routing or Multiprotocol Label Switching (MPLS). CoS-based traffic utilization is displayed at

the Fast Ethernet or Gigabit Ethernet interface or subinterface (VLAN) level, or at the POS interface

level. It is not displayed at the POS subinterface level. Cisco proprietary RPR statistics are not available

at the SPR interface level, but statistics are available for the individual POS ports that make up the SPR

interface. EtherChannel (port-channel) and BVI statistics are available only at the member port level.

Table 14-6 shows the types of statistics available at specific interfaces.

CoS-based packet statistics are available through the Cisco IOS CLI and Simple Network Management

Protocol (SNMP), using an extension of the CISCO-PORT-QOS MIB. They are not available through

CTC.

Configuring CoS-Based Packet Statistics

Note CoS-based packet statistics require the enhanced microcode image to be loaded onto the ML-Series card.

Table 14-6 Packet Statistics on ML-Series Card Interfaces

Statistics Collected Gigabit/Fast Ethernet

Interface Gigabit/Fast Ethernet

Subinterface (VLAN) POS

Interface POS

Subinterface

Input—Packets and Bytes Ye s Ye s No No

Output—Packets and Bytes Yes Yes No No

Drop Count—Packets and

Bytes1

1. Drop counts only include discards caused by output congestion and are counted at the output interface.

Yes No Ye s No

14-30

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

Configuring CoS-Based Packet Statistics

Note For IEEE 802.1Q (QinQ) enabled interfaces, CoS accounting is based only on the CoS value of the outer

metro tag imposed by the service provider. The CoS value inside the packet sent by the customer network

is not considered for CoS accounting.

For information on the enhanced microcode image, see the “Multiple Microcode Images” section on

page 3-11.

To enable CoS-based packet statistics on an interface, use the interface configuration level command

defined in Table 14-7.

After configuring CoS-based packet statistics on the ML-Series card, the statistics can be viewed

through a variety of show commands. To display this information, use one of the commands in

Table 14-8 in EXEC mode.

Example 14-19 shows examples of these commands.

Example 14-19 Commands for CoS-Based Packet Statistics Examples

Router# show interface gigabitethernet 0.5 cos

GigabitEthernet0.5

Stats by Internal-Cos

Input: Packets Bytes

Cos 0: 31 2000

Cos 1:

Cos 2: 5 400

Cos 3:

Cos 4:

Cos 5:

Cos 6:

Cos 7:

Output: Packets Bytes

Cos 0: 1234567890 1234567890

Cos 1: 31 2000

Cos 2:

Table 14-7 CoS-Based Packet Statistics Command

Command Purpose

Router(config-if)# cos accounting Enables CoS-based packet statistics to be recorded at the specific

interface and for all the subinterfaces of that interface. This

command is supported only in interface configuration mode and not

in subinterface configuration mode.

The no form of the command disables the statistics.

Table 14-8 Commands for CoS-Based Packet Statistics

Command Purpose

Router# show interface

type number cos

Displays the CoS-based packet statistics available for

an interface.

Router# show interface

type

number.subinterface-number

cos

Displays the CoS-based packet statistics available for

a FastEthernet or Gigabit Ethernet subinterface. POS

subinterfaces are not eligible.

14-31

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

Understanding IP SLA

Cos 3:

Cos 4:

Cos 5:

Cos 6: 10 640

Cos 7:

Router# show interface gigabitethernet 0 cos

GigabitEthernet0

Stats by Internal-Cos

Input: Packets Bytes

Cos 0: 123 3564

Cos 1:

Cos 2: 3 211

Cos 3:

Cos 4:

Cos 5:

Cos 6:

Cos 7:

Output: Packets Bytes

Cos 0: 1234567890 1234567890

Cos 1: 3 200

Cos 2:

Cos 3:

Cos 4:

Cos 5:

Cos 6: 1 64

Cos 7:

Output: Drop-pkts Drop-bytes

Cos 0: 1234567890 1234567890

Cos 1:

Cos 2:

Cos 3:

Cos 4:

Cos 5: 1 64

Cos 6: 10 640

Cos 7:

Router# show interface pos0 cos

POS0

Stats by Internal-Cos

Output: Drop-pkts Drop-bytes

Cos 0: 12 1234

Cos 1: 31 2000

Cos 2:

Cos 3:

Cos 4:

Cos 5:

Cos 6: 10 640

Cos 7:

Understanding IP SLA

Cisco IP SLA, formerly known as the Cisco Service Assurance Agent, is a Cisco IOS feature to assure

IP service levels. Using IP SLA, service provider customers can measure and provide service level

agreements, and enterprise customers can verify service levels, verify outsourced service level

agreements, and understand network performance for new or existing IP services and applications. IP

SLAs use unique service level assurance metrics and methodology to provide highly accurate, precise

service level assurance measurements.

14-32

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

IP SLA on the ML-Series

Depending on the specific IP SLAs operation, statistics of delay, packet loss, jitter, packet sequence,

connectivity, path, server response time, and download time are monitored within the Cisco device and

stored in both CLI and SNMP MIBs. The packets have configurable IP and application layer options

such as source and destination IP address, User Datagram Protocol (UDP)/TCP port numbers, a ToS byte

(including DSCP and IP Prefix bits), Virtual Private Network (VPN) routing/forwarding instance (VRF),

and URL web address.

IP SLAs use generated traffic to measure network performance between two networking devices such as

routers. IP SLAs starts when the IP SLAs device sends a generated packet to the destination device. After

the destination device receives the packet, and depending on the type of IP SLAs operation, the device

will respond with time-stamp information for the source to make the calculation on performance metrics.

An IP SLAs operation is a network measurement to a destination in the network from the source device

using a specific protocol such as UDP for the operation.

Because IP SLA is accessible using SNMP, it also can be used in performance monitoring applications

for network management systems (NMSs) such as CiscoWorks2000 (CiscoWorks Blue) and the

Internetwork Performance Monitor (IPM). IP SLA notifications also can be enabled through Systems

Network Architecture (SNA) network management vector transport (NMVT) for applications such as

NetView.

For general IP SLA information, refer to the Cisco IOS IP Service Level Agreements technology page

at http://www.cisco.com/warp/public/732/Tech/nmp/ipsla. For information on configuring the Cisco IP

SLA feature, see the “Network Monitoring Using Cisco Service Assurance Agent” chapter of the

Cisco IOS Configuration Fundamentals Configuration Guide, Release 12.2 at

http://www.cisco.com/en/US/products/sw/iosswrel/ps1835/products_configuration_guide_chapter0918

6a008030c773.html.

IP SLA on the ML-Series

The ML-Series card has a complete IP SLA Cisco IOS subsystem and offers all the normal features and

functions available in Cisco IOS Release 12.2S. It uses the standard IP SLA Cisco IOS CLI commands.

The SNMP support will be equivalent to the support provided in the IP SLA subsystem 12.2(S), which

is the rttMon MIB.

IP SLA Restrictions on the ML-Series

The ML-Series card supports only features in the Cisco IOS 12.2S branch. It does not support functions

available in later Cisco IOS versions, such as the IP SLA accuracy feature or the enhanced Cisco IOS

CLI support with updated IP SLA nomenclature.

Other restrictions are:

• Setting the CoS bits is supported, but set CoS bits are not honored when leaving or entering the CPU

when the sender or responder is an ONS 15454, ONS 15454 SDH, or ONS 15310-CL platform. Set

CoS bits are honored in intermediate ONS nodes.

• On Cisco proprietary RPR , the direction of the data flow for the IP SLA packet might differ from

the direction of customer traffic.

• The system clock on the ML-Series card synchronizes with the clock on the TCC2/TCC2P card. Any

NTP server synchronization is done with the TCC2/TCC2P card clock and not with the ML-Series

card clock.

14-33

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

IP SLA Restrictions on the ML-Series

• The average Round Trip Time (RTT) measured on an ML-Series IP SLA feature is more than the

actual data path latency. In the ML-Series cards, IP SLA is implemented in the software. The IP SLA

messages are processed in the CPU of the ML-Series card. The latency time measured includes the

network latency and CPU processing time. For very accurate IP SLA measurements, it is

recommended that a Cisco Router or Switch be used as an external probe or responder to measure

the RTT of the ML-Series cards in a network.

14-34

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 14 Configuring Quality of Service

IP SLA Restrictions on the ML-Series

CHAPTER

15-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Configuring the Switching Database Manager

This chapter describes the switching database manager (SDM) features built into the ML-Series card and

contains the following major sections:

• Understanding the SDM, page 15-1

• Understanding SDM Regions, page 15-1

• Configuring SDM, page 15-2

• Monitoring and Verifying SDM, page 15-3

Understanding the SDM

ML-Series cards use the forwarding engine and ternary content-addressable memory (TCAM) to

implement high-speed forwarding. The high-speed forwarding information is maintained in TCAM. The

SDM is the software subsystem that manages the switching information maintained in TCAM.

SDM organizes the switching information in TCAM into application-specific regions and configures the

size of these application regions. SDM enables exact-match and longest-match address searches, which

result in high-speed forwarding. SDM manages TCAM space by partitioning application-specific

switching information into multiple regions.

TCAM identifies a location index associated with each packet forwarded and conveys it to the

forwarding engine. The forwarding engine uses this location index to derive information associated with

each forwarded packet.

Understanding SDM Regions

SDM partitions multiple application-specific regions and interacts with the individual application

control layers to store switching information. The regions share the total available space. SDM consists

of the following types of regions:

• Exact-match region—The exact-match region consists of entries for multiple application regions

such as IP adjacencies.

• Longest-match region—Each longest-match region consists of multiple buckets or groups of

Layer 3 address entries organized in decreasing order by mask length. All entries within a bucket

share the same mask value and key size. The buckets can change their size dynamically by

borrowing address entries from neighboring buckets. Although the size of the whole application

region is fixed, you can reconfigure it.

15-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 15 Configuring the Switching Database Manager

Configuring SDM

• Weighted-exact-match region—The weighted-exact-match region consists of exact-match-entries

with an assigned weight or priority. For example, with QoS, multiple exact match entries might

exist, but some have priority over others. The weight is used to select one entry when multiple

entries match.

Table 15-1 lists default partitioning for each application region.

Configuring SDM

This section describes SDM region size and access control list (ACL) size configuration. The commands

described in this section are unique to the switching software. Configuration changes take place

immediately on the ML-100T-8 card.

Configuring SDM Regions

To configure SDM maximum size for each application region, perform the following procedure,

beginning in global configuration mode:

An example of this is shown in Example 15-1.

Example 15-1 Limiting the IP-Prefix Region to 2K Entries

ML_Series # configure terminal

ML_Series(config)# sdm size ip-prefix 200

ML_Series(config)# end

Table 15-1 Default Partitioning by Application Region

Application Region Lookup Type Key Size Default Size

IP Adjacency Exact-match 64 bits 300 (shared)

IP Prefix Longest-match 64 bits 300 (shared)

QoS Classifiers Weighted exact-match 64 bits 300 (shared)

IP VRF Prefix Longest prefix match 64 bits 300 (shared)

IP Multicast Longest prefix match 64 bits 300 (shared)

MAC Addr Longest prefix match 64 bits 8192

Access List Weighted exact match 64 bits 300 (shared)

Command Purpose

Step 1 ML_Series(config)# sdm size

region-name number-of-entries

Configures the maximum number of entries for an SDM

region.

Step 2 ML_Series(config)# end Exits to privileged EXEC mode.

15-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 15 Configuring the Switching Database Manager

Configuring Access Control List Size in TCAM

The default maximum size of the ACL is 300 64-bit entries. You can enter the sdm access-list command

to change the maximum ACL database size, as shown in Table 15-2.

An example of this is shown in Example 15-2.

Example 15-2 Configuring Entries for the ACL Region in TCAM

ML_Series# configure terminal

ML_Series(config)# sdm access-list 100

ML_Series(config)# end

Monitoring and Verifying SDM

To display the number of available TCAM entries, enter the show sdm size command from global

configuration mode:

ML_Series # show sdm size

Active Switching Database Region Maximum Sizes :

IP Adjacency : 300 64-bit entries

IP Prefix : 300 64-bit entries

QoS Classifiers : 300 64-bit entries

IP VRF Prefix : 300 64-bit entries

IP Multicast : 300 64-bit entries

MAC Addr : 8192 64-bit entries

Access List : 300 64-bit entries

Table 15-2 Partitioning the TCAM Size for ACLs

Task Command

sdm access-list

number-entries

Sets the name of the application region for which you want to

configure the size. You can enter the size as an absolute number

of entries.

15-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 15 Configuring the Switching Database Manager

Monitoring and Verifying SDM

CHAPTER

16-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Configuring Access Control Lists

This chapter describes the access control list (ACL) features built into the ML-Series card.

This chapter contains the following major sections:

• Understanding ACLs, page 16-1

• ML-Series ACL Support, page 16-1

• Modifying ACL TCAM Size, page 16-5

Understanding ACLs

ACLs provide network control and security, allowing you to filter packet flow into or out of ML-Series

interfaces. ACLs, which are sometimes called filters, allow you to restrict network use by certain users

or devices. ACLs are created for each protocol and are applied on the interface for either inbound or

outbound traffic. ACLs do not apply to outbound control plane traffic. Only one ACL filter can be

applied per direction per subinterface.

When creating ACLs, you define criteria to apply to each packet processed by the ML-Series card; the

ML-Series card decides whether to forward or block the packet based on whether or not the packet

matches the criteria in your list. Packets that do not match any criteria in your list are automatically

blocked by the implicit “deny all traffic” criteria statement at the end of every ACL.

ML-Series ACL Support

Both control-plane and data-plane ACLs are supported on the ML-Series card:

• Control-plane ACLs: ACLs used to filter control data that is processed by the CPU of the ML-Series

card (for example, distribution of routing information, Internet Group Membership Protocol (IGMP)

joins, and so on).

• Data-plane ACLs: ACLs used to filter user data being routed or bridged through the ML Series in

hardware (for example, denying access to a host, and so on). These ACLs are applied to an interface

in the input or output direction using the ip access-group command.

The following apply when using data-plane ACLs on the ML-Series card:

• ACLs are supported on all interface types, including bridged interfaces.

• Reflexive and dynamic ACLs are not supported on the ML-Series card.

• Access violations accounting is not supported on the ML-Series card.

16-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 16 Configuring Access Control Lists

IP ACLs

• ACL logging is supported only for packets going to the CPU, not for switched packets.

• IP standard ACLs applied to bridged egress interfaces are not supported in the data-plane. When

bridging, ACLs are only supported on ingress.

IP ACLs

The following ACL styles for IP are supported:

• Standard IP ACLs: These use source addresses for matching operations.

• Extended IP ACLs (control plane only): These use source and destination addresses for matching

operations and optional protocol type and port numbers for finer granularity of control.

• Named ACLs: These use source addresses for matching operations.

Note By default, the end of the ACL contains an implicit deny statement for everything if it did not find a

match before reaching the end. With standard ACLs, if you omit the mask from an associated IP host

address ACL specification, 0.0.0.0 is assumed to be the mask.

After creating an ACL, you must apply it to an interface, as shown in the “Applying the ACL to an

Interface” section on page 16-4.

Named IP ACLs

You can identify IP ACLs with a name, but it must be an alphanumeric string. Named IP ACLs allow

you to configure more IP ACLs in a router than if you used numbered ACLs. If you identify your ACL

with an alphabetic rather than a numeric string, the mode and command syntax are slightly different.

Consider the following before configuring named ACLs:

• A standard ACL and an extended ACL cannot have the same name.

• Numbered ACLs are also available, as described in the “Creating Numbered Standard and Extended

IP ACLs” section on page 16-3.

User Guidelines

Keep the following in mind when you configure IP network access control:

• You can program ACL entries into Ternary Content Addressable Memory (TCAM).

• You do not have to enter a deny everything statement at the end of your ACL; it is implicit.

• You can enter ACL entries in any order without any performance impact.

• For every eight TCAM entries, the ML-Series card uses one entry for TCAM management purposes.

• Do not set up conditions that result in packets getting lost. This situation can happen when a device

or interface is configured to advertise services on a network that has ACLs that deny these packets.

• IP ACLs are not supported for double-tagged (QinQ) packets. They will however by applied to IP

packets entering on a QinQ access port.

16-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 16 Configuring Access Control Lists

Creating IP ACLs

The following sections describe how to create numbered standard, extended, and named standard IP

ACLs:

• Creating Numbered Standard and Extended IP ACLs, page 16-3

• Creating Named Standard IP ACLs, page 16-4

• Creating Named Extended IP ACLs (Control Plane Only), page 16-4

• Applying the ACL to an Interface, page 16-4

Creating Numbered Standard and Extended IP ACLs

Table 16-1 lists the global configuration commands used to create numbered standard and extended IP

ACLs.

Table 16-1 Commands for Numbered Standard and Extended IP ACLs

Command Purpose

Router(config)# access-list

access-list-number

{deny | permit}

source

[

source-wildcard

]

Defines a standard IP ACL using a source address

and wildcard.

Router(config)# access-list

access-list-number

{deny | permit}

any

Defines a standard IP ACL using an abbreviation

for the source and source mask of 0.0.0.0

255.255.255.255.

Router(config)# access-list

extended-access-list-number

{deny | permit}

protocol source source-wildcard destination

destination-wildcard

[precedence

precedence

] [tos

tos

]

Defines an extended IP ACL number and the

access conditions.

Router(config)# access-list

extended-access-list-number

{deny | permit}

protocol

any any

Defines an extended IP ACL using an

abbreviation for a source and source wildcard of

0.0.0.0 255.255.255.255, and an abbreviation for

a destination and destination wildcard of 0.0.0.0

255.255.255.255.

Router(config)# access-list

extended-access-list-number

{deny | permit}

protocol

host

source

host

destination

Defines an extended IP ACL using an

abbreviation for a source and source wildcard of

source 0.0.0.0, and an abbreviation for a

destination and destination wildcard of

destination 0.0.0.0.

16-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 16 Configuring Access Control Lists

Creating IP ACLs

Creating Named Standard IP ACLs

To create a named standard IP ACL, perform the following procedure, beginning in global configuration

mode:

Creating Named Extended IP ACLs (Control Plane Only)

To create a named extended IP ACL, perform the following procedure, beginning in global configuration

mode:

Applying the ACL to an Interface

After you create an ACL, you can apply it to one or more interfaces. ACLs can be applied on either the

inbound or the outbound direction of an interface. When controlling access to an interface, you can use

a name or number. If a standard ACL is applied, the ML-Series card compares the source IP address with

the ACL. To apply an ACL to one or more interfaces, use the command in Table 16-2.

Note IP standard ACLs applied to the ingress of a Bridge Group Virtual Interface (BVI) will be applied to all

bridged IP traffic in the associated bridge-group, in addition to the BVI ingress traffic.

Command Purpose

Step 1 Router(config)# ip access-list standard

name

Defines a standard IP ACL using an alphabetic

name.

Step 2 Router(config-std-nac1)# deny {

source

[

source-wildcard

] | any}

permit {

source

[

source-wildcard

] | any}

In access-list configuration mode, specifies one or

more conditions as permitted or denied. This

determines whether the packet is passed or dropped.

Step 3 Router(config)# exit Exits access-list configuration mode.

Command Purpose

Step 1 Router(config)# ip access-list extended

name

Defines an extended IP ACL using an alphabetic

name.

Step 2 Router(config-ext-nacl)# {deny | permit}

protocol source source-wildcard destination

destination-wildcard

[precedence

precedence

] [tos

tos

]

{deny | permit}

protocol

any any

{deny | permit}

protocol

host

source

host

destination

In access-list configuration mode, specifies the

conditions allowed or denied.

Or:

Defines an extended IP ACL using an abbreviation

for a source and source wildcard of 0.0.0.0

255.255.255.255, and an abbreviation for a

destination and destination wildcard of 0.0.0.0

255.255.255.255.

Or:

Defines an extended IP ACL using an abbreviation

for a source and source wildcard of source 0.0.0.0,

and an abbreviation for a destination and

destination wildcard of destination 0.0.0.0.

16-5

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 16 Configuring Access Control Lists

Modifying ACL TCAM Size

You can change the TCAM size by entering the sdm access-list command. For more information on ACL

TCAM sizes, see the “Configuring Access Control List Size in TCAM” section on page 15-3.

Example 16-1 provides an example of modifying and verifying ACLs.

Note To increase the ACL TCAM size, you must decrease another region’s TCAM size, such as IP,

IP multicast, or L2 switching.

Caution You will need to increase the TCAM size if you see the following error message:

Warning:Programming TCAM entries failed

Please remove last ACL command to re-activate ACL operation.

!<ACL number or name> <IP or IPX> <INPUT_ACL or OUTPUT_ACL> from TCAM group for !<interface>

Please see the documentation to see if TCAM space can be

increased on this platform to alleviate the problem.

Example 16-1 Monitor and Verify ACLs

Router# show ip access-lists 1

Standard IP access list 1

permit 192.168.1.1

permit 192.168.1.2

Table 16-2 Applying ACL to Interface

Command Purpose

ip access-group {

access-list-number

name

} {in | out}Controls access to an interface.

16-6

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 16 Configuring Access Control Lists

Modifying ACL TCAM Size

CHAPTER

17-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Configuring Cisco Proprietary Resilient Packet

Ring

Note The terms "Unidirectional Path Switched Ring" and "UPSR" may appear in Cisco literature. These terms

do not refer to using Cisco ONS 15xxx products in a unidirectional path switched ring configuration.

Rather, these terms, as well as "Path Protected Mesh Network" and "PPMN," refer generally to Cisco's

path protection feature, which may be used in any topological network configuration. Cisco does not

recommend using its path protection feature in any particular topological network configuration.

This chapter describes how to configure Cisco proprietary resilient packet ring (RPR) and Cisco

proprietary RPR Link Fault Propagation.

This chapter contains the following major sections:

• Understanding Cisco Proprietary RPR, page 17-2

• Configuring Cisco Proprietary RPR, page 17-7

• Monitoring and Verifying Cisco Proprietary RPR, page 17-18

• Add an ML-Series Card into a Cisco Proprietary RPR, page 17-19

• Delete an ML-Series Card from a Cisco Proprietary RPR, page 17-24

• Understanding Cisco Proprietary RPR Link Fault Propagation, page 17-28

• Configuring LFP, page 17-30

• Cisco Proprietary RPR Keep Alive, page 17-32

• Configuring Cisco Proprietary RPR Keep Alive, page 17-32

• Monitoring and Verifying Cisco Proprietary RPR Keep Alives, page 17-33

• Cisco Proprietary RPR Shortest Path, page 17-34

• Monitoring and Verifying Topology Discovery and Shortest Path Load Balancing, page 17-36

• Configuring Shortest Path and Topology Discovery, page 17-36

• Understanding Redundant Interconnect, page 17-37Understa

17-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Understanding Cisco Proprietary RPR

Cisco proprietary RPR is a MAC protocol operating at the Layer 2 level. It is well suited for transporting

Ethernet over a SONET/SDH ring topology and it enables multiple ML-Series cards to become one

functional network segment or shared packet ring (SPR). Cisco proprietary RPR overcomes the

limitations of earlier schemes, such as IEEE 802.1D Spanning Tree Protocol (STP), IEEE 802.1W Rapid

Spanning Tree Protocol (RSTP), and SONET/SDH when used in this role.

In Software Release 7.2 and later, the ML-Series card supports IEEE 802.17b based RPR (RPR-IEEE)

in addition to Cisco proprietary RPR. Throughout this book, Cisco proprietary RPR is referred to as

Cisco proprietary RPR, and IEEE 802.17 based RPR is referred to as RPR-IEEE. This chapter covers

Cisco proprietary RPR. Chapter 26, “Configuring IEEE 802.17b Resilient Packet Ring” covers IEEE

802.17b based RPR.

Role of SONET/SDH Circuits

The ML-Series cards in an SPR must connect directly or indirectly through point-to-point STS/STM

circuits. The point-to-point STS/STM circuits are configured on the ONS node and are transported over

the ONS node’s SONET/SDH topology with either protected or unprotected circuits.

On circuits unprotected by the SONET/SDH mechanism, Cisco proprietary RPR provides resiliency

without using the capacity of the redundant protection path that a SONET/SDH protected circuit would

require. This frees this capacity for additional traffic. Cisco proprietary RPR also utilizes the bandwidth

of the entire ring and does not block segments like STP or RSTP.

Packet Handling Operations

When an ML-Series card is configured with Cisco proprietary RPR and is made part of an SPR, the

ML-Series card assumes a ring topology. If a packet is not destined for network devices bridged through

the Ethernet ports of a specific ML-Series card, the ML-Series card simply continues to forward this

transit traffic along the SONET/SDH circuit, relying on the circular path of the ring architecture to

guarantee that the packet will eventually arrive at the destination. This eliminates the need to queue and

process the packet flowing through the nondestination ML-Series card. From a Layer 2 or Layer 3

perspective, the entire Cisco proprietary RPR looks like one shared network segment.

An ML-Series card configured with Cisco proprietary RPR has three basic packet-handling operations:

bridge, pass-through, and strip. Figure 17-1 illustrates these operations. Bridging connects and passes

packets between the Ethernet ports on the ML-Series and the packet-over-SONET/SDH (POS) ports

used for the SONET/SDH circuit circling the ring. Pass-through lets the packets continue through the

ML-Series card and along the ring, and stripping takes the packet off the ring and discards it.

The Cisco proprietary RPR protocol, using the transmitted packet's header information, allows the

interfaces to quickly determine the operation that needs to be applied to the packet. It also uses both the

source and destination addresses of a packet to choose a ring direction. Flow-based load sharing helps

ensure that all packets populated with equal source- and destination-address pairs will be sent in the

same direction, and arrive at their destination in the correct order. Ring direction also enables the use of

spatial reuse to increase overall ring aggregate bandwidth. Unicast packets are destination stripped.

Destination stripping provides the ability to have simultaneous flows of traffic between different parts

of a ring. Traffic can be concurrently transmitted bidirectionally between adjacent nodes. It can also can

span multiple nodes, effectively reusing the same ring bandwidth. Multicast packets are source stripped.

17-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Ring Wrapping

Figure 17-1 Cisco Proprietary RPR Packet Handling Operations

Ring Wrapping

Cisco proprietary RPR initiates ring wraps in the event of a fiber cut, node failure, node restoration, new

node insertion, deletion of the circuit on POS port of SPR, SPR keepalive failure or other traffic problem.

This protection mechanism redirects traffic to the original destination by sending it in the opposite

direction around the ring after a link state change or after receiving SONET/SDH path level alarms. Ring

wrapping on the ML-Series card allows convergence times of less than 50 ms for unicast and

pass-through traffic. Cisco proprietary RPR convergence times are comparable to SONET/SDH and

much faster than STP or RSTP.

Cisco proprietary RPR on the ML-Series card survives both unidirectional and bidirectional

transmission failures within the ring. Unlike STP or RSTP, Cisco proprietary RPR restoration is scalable.

Increasing the number of ML-Series cards in a ring does not increase the convergence time.

Ring wraps occur within 50 msec after the failure condition with the default spr wrap immediate

configured. If spr wrap delay is configured, the wrap is delayed until the POS interface goes link-down.

The link goes down after the time specified with the CLI pos trigger delay <msec>. If the circuits are

VCAT then the Cisco IOS CLI command pos vcat defect delayed also needs to be configured. The delay

helps ensure that when Cisco proprietary RPR is configured with SONET/SDH bandwidth protection,

this Layer 1 protection has a chance to take effect before the Layer 2 Cisco proprietary RPR protection.

If the interface goes down without a SONET error, then the carrier delay also take effect. Figure 17-2

illustrates ring wrapping.

ML-Series RPR

Strip

Bridge

Pass through

90649

17-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Ring Wrapping

Figure 17-2 Cisco proprietary RPR Ring Wrapping

In case of a ring failure, the ML-Series cards connected to the failed section of the Cisco proprietary

RPR detect the failure through the SONET/SDH path alarms. When any ML-Series card receives this

path-AIS signal, it wraps the POS interface that received the signal.

Note Convergence times might exceed 50 ms in the case of multiple failures in the same ring, if traffic passes

through an ML-Series card configured with DRPRI (in active mode) during the reloading of the ML-Series

card, or in the case of mismatched microcode images on ML-Series cards.

Note If the carrier delay time is changed from the default, the new carrier delay time must be configured on

all the ML-Series card interfaces, including the SPR, POS, and Gigabit Ethernet or Fast Ethernet

interfaces.

Note ML-Series card POS interfaces normally send an alarm for signal label mismatch failure in the

ONS 15454 STS path overhead (PDI-P) to the far end when the POS link goes down or when

Cisco proprietary RPR wraps. ML-Series card POS interfaces do not send PDI-P to the far end when

PDI-P is detected, when a remote defection indication alarm (RDI-P) is being sent to the far end, or when

the only defects detected are generic framing procedure loss of frame delineation (GFP-LFD), generic

framing procedure client signal fail (GFP-CSF), virtual concatenation loss of multiframe (VCAT-LOM),

or virtual concatenation loss of sequence (VCAT-SQM).

Fiber Cut

ML-Series RPR

Ring Wrap

90650

17-5

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Cisco Proprietary RPR Framing Process

Cisco proprietary RPR on the ML-Series card uses a proprietary RPR frame and high-level data link

control (HDLC) or GFP-F framing. It attaches the Cisco proprietary RPR frame header to each Ethernet

frame and encapsulates the Cisco proprietary RPR frame into the SONET/SDH payload for transport

over the SONET/SDH topology. the Cisco proprietary RPR header is removed at the egress ML-Series

card. Figure 17-3 illustrates the Cisco proprietary RPR frame.

Figure 17-3 Cisco Proprietary RPR Frame for ML-Series Card

The Cisco proprietary RPR framing and header includes a number of fields, including four bytes for

source and destination station information and another four bytes for control and quality of service

(QoS). Figure 17-4 illustrates the Cisco proprietary RPR frame format. Table 17-1 defines the most

important fields.

134984

Flag Add Control Protocol

0x7E 0x0F 0x00 0x0042

1 byte 1 byte

CRC Flag

0x7F

2-4 bytes 1 byte

FCS

4 bytes

1 byte 2 bytes

RPR Payload

68-1522 bytes

RPR Address RPR Control

4 byte 4 bytes

Ethernet Payload

60-1514 bytes

Preamble SFD

7 byte 1 byte

6 bytes

Ln/Type

6 bytes

Data/Pad

46-1500 bytes

17-6

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

MAC Address and VLAN Support

Figure 17-4 Cisco Proprietary RPR Frame Fields

MAC Address and VLAN Support

Cisco proprietary RPR increases the total number of MAC addresses supported because the MAC IDs of

packets that pass through an ML-Series card are not recorded by that ML-Series card. The ML-Series

card only records the MAC IDs of the packets that are bridged or stripped by that ML-Series card. This

allows a greater number of MAC addresses in the collective address tables of the Cisco proprietary RPR.

VLANs on Cisco proprietary RPR require less interface configuration than VLANs on STP and RSTP,

which require configuration on all the POS interfaces in the ring. Cisco proprietary RPR VLANs only

require configuration on SPR interfaces that bridge or strip packets for that VLAN.

Table 17-1 Definitions of RPR Frame Fields

Field Definition

Destination Station An eight-bit field specifying the MAC address of a specific ML-Series card in

the Cisco proprietary RPR as the destination. It has two well-known addresses:

0xff for Multicast DA-MAC and 0x00 for Unknown DA-MAC.

Source Station An eight-bit field specifying the MAC address of a specific ML-Series card in

the Cisco proprietary RPR as the source.

PRI A three-bit QoS class of service (CoS) field that establishes Cisco proprietary

RPR priority.

DE A one-bit field that specifies the discard eligible flag.

TTL A nine-bit field that specifies the frame’s time to live.

Type A field indicating whether the packet is data or control.

Destination ID Destination Station

Protocol (RPR V1)

Payload (Ethernet Frame)

134982

Source ID Source Station

PRI W TTL

Wrap Station RSVD Type

15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

17-7

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Cisco Proprietary RPR QoS

The ML-Series card still has an architectural maximum limit of 255 VLANs/bridge-groups per

ML-Series card. But because the ML-Series card only needs to maintain the MAC address of directly

connected devices, a greater total number of connected devices are allowed on a Cisco proprietary RPR

network.

Cisco Proprietary RPR QoS

The ML-Series card’s Cisco proprietary RPR relies on the QoS features of the ML-Series card for

efficient bandwidth utilization with service level agreement (SLA) support. ML-Series card QoS

mechanisms apply to all SONET/SDH traffic on the ML-Series card, whether passed-through, bridged,

or stripped. For detailed Cisco proprietary RPR QoS information, see the QoS on Cisco proprietary RPR

section of Chapter 14, “Configuring Quality of Service.”

CTM and Cisco Proprietary RPR

The Cisco Transport Manager (CTM) is an element management system (EMS) designed to integrate

into an overall network management system (NMS) and interface with other higher level management

tools. CTM supports Cisco proprietary RPR provisioning on ML-Series cards. For more information,

refer to the Cisco Transport Manager User Guide at:

http://www.cisco.com/en/US/products/sw/opticsw/ps2204/products_user_guide_list.html

Configuring Cisco Proprietary RPR

You need to use both Cisco Transport Controller (CTC) and Cisco IOS to configure Cisco proprietary

RPR for the ML-Series card. CTC is the graphical user interface (GUI) that serves as the enhanced craft

tool for specific ONS node operations, including the provisioning of the point-to-point SONET/SDH

circuits required for Cisco proprietary RPR. Cisco IOS is used to configure Cisco proprietary RPR on

the ML-Series card and its interfaces.

Successfully creating a Cisco proprietary RPR requires several consecutive procedures:

1. Connecting the ML-Series Cards with Point-to-Point STS/STM Circuits, page 17-8 (CTC or TL1)

2. Configuring CTC Circuits for Cisco Proprietary RPR, page 17-8 (CTC or TL1)

3. Configuring Cisco Proprietary RPR Characteristics and the SPR Interface on the ML-Series Card,

page 17-12 (Cisco IOS)

4. Assigning the ML-Series Card POS Ports to the SPR Interface, page 17-14 (Cisco IOS)

5. Creating the Bridge Group and Assigning the Ethernet and SPR Interfaces, page 17-15 (Cisco IOS)

6. Verifying Ethernet Connectivity Between Cisco Proprietary RPR Ethernet Access Ports, page 17-18

(Cisco IOS)

7. CRC threshold configuration and detection, page 17-18.

Caution With Cisco proprietary RPR, a shutdown of the SPR interface puts ML1000-2 cards in passthrough

mode. This allows the card to participate in redundant interconnect (RI). ML1000-2 cards are the only

ML-Series cards eligible for RI. Other ML-Series cards fail to enter passthrough mode, when the SPR

interface is shutdown.

17-8

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Connecting the ML-Series Cards with Point-to-Point STS/STM Circuits

Note Transaction Language One (TL1) can be used to provision the required SONET/SDH point-to-point

circuits instead of CTC.

Connecting the ML-Series Cards with Point-to-Point STS/STM Circuits

You connect the ML-Series cards through point-to-point STS/STM circuits. These circuits use the

ONS 15454 SONET/SDH network and are provisioned using CTC in the normal manner for

provisioning optical circuits.

Configuring CTC Circuits for Cisco Proprietary RPR

These are the guidelines for configuring the CTC circuits required by Cisco proprietary RPR:

• Leave all CTC Circuit Creation Wizard options at their default settings, except Fully Protected

Path in the Circuit Routing Preferences dialog box. Fully Protected Path provides SONET/SDH

protection and should be unchecked. Cisco proprietary RPR normally provides the Layer 2

protection for SPR circuits.

• Check Using Required Nodes and Spans to route automatically in the Circuit Routing Preferences

dialog box. If the source and destination nodes are adjacent on the ring, exclude all nodes except the

source and destination in the Circuit Routing Preferences dialog box. This forces the circuit to be

routed directly between source and destination and preserves STS/STM circuits, which would be

consumed if the circuit routed through other nodes in the ring. If there is a node or nodes that do not

contain an ML-Series card between the two nodes containing ML-Series cards, include this node or

nodes in the included nodes area in the Circuit Routing Preference dialog box, along with the source

and destination nodes.

• Keep in mind that ML-Series card STS/STM circuits do not support unrelated circuit creation

options.

• A best practice is to configure SONET/SDH circuits in an east-to-west or west-to-east configuration,

from Port 0 (east) to Port 1 (west) or Port 1 (east) to Port 0 (west), around the SONET/SDH ring.

Do not configure Port 0 to Port 0 or Port 1 to Port 1. The east-to-west or west-to-east setup is also

required in order for the CTM network management software to recognize the ML-Series

configuration as an SPR.

Detailed CTC circuit procedures are available in the “Create Circuits and VT Tunnels” chapter of the

Cisco ONS 15454 Procedure Guide and the “Create Circuits and Tunnels” chapter of the

Cisco ONS 15454 SDH Procedure Guide.

CTC Circuit Configuration Example for Cisco Proprietary RPR

Figure 17-5 illustrates an example of a three-node Cisco proprietary RPR.

17-9

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Configuring CTC Circuits for Cisco Proprietary RPR

Figure 17-5 Three Node Cisco Proprietary RPR

The three-node Cisco proprietary RPR in Figure 17-5 is used for all of the examples in the consecutive

procedures. Combining the examples will give you an end-to-end example of creating a

Cisco proprietary RPR. It is assumed that the SONET/SDH node and its network is already active.

Caution The specific steps in the following procedure are for the topology shown in the example. Your own

specific steps will vary according to your network. Do not attempt this procedure without obtaining a

detailed plan or method of procedure from an experienced network architect.

To configure the circuits, you need to create three circuits in CTC:

• Create a circuit from Node 1, POS Port 0 to Node 2, POS Port 1.

• Create a circuit from Node 2, POS Port 0 to Node 3, POS Port 1.

• Create a circuit from Node 3, POS Port 0 to Node 1, POS Port 1.

Step 1 In CTC, log into Node 1 and navigate to the CTC card view for the ML-Series card that will be in the

Cisco proprietary RPR (Figure 17-6).

SPR 1

POS 1 POS 0

POS 0

POS 1

= STS circuit created on CTC

SPR Station-ID 2

SPR Station-ID 1

SPR Station-ID 3

17-10

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Configuring CTC Circuits for Cisco Proprietary RPR

Figure 17-6 CTC Card View for ML-Series Card

Step 2 Click the Circuits > Create tabs.

The first page of the Circuit Creation wizard appears (Figure 17-7).

Figure 17-7 CTC Circuit Creation Wizard

Step 3 In the Circuit Type list, select STS.

17-11

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Configuring CTC Circuits for Cisco Proprietary RPR

Step 4 Click Next.

The Circuit Attributes page appears.

Step 5 Type a circuit name in the Name field.

Step 6 Select the relevant size of the circuit from the Size drop-down list, and the appropriate state from the

State list.

Step 7 Verify that the signal degrade (SD) threshold is either set to 1E-6 (default) or in the 1E-6 to 1E-9 range

in the SD threshold field.

a. If the SD threshold is the default (1E-6) or within the acceptable range, proceed to Step 8.

b. If the SD threshold is not the default (1E-6) or within the acceptable range, select 1E-6 or a threshold

within the acceptable range from the drop-down list.

Note Lower SD thresholds increase the speed of CTC convergence, but also increase the possibility of

interface flapping (repeatedly enabling and disabling) in some situations.

Step 8 Click Next.

The Source page appears.

Step 9 Select Node 1 as the source node from the node drop-down list.

Step 10 Select the ML-Series card from the Slot drop-down list, and choose 0 (POS) from the Port drop-down

list.

Step 11 Click Next.

The Destination page appears.

Step 12 Select Node 2 as the destination node from the Node drop-down list.

Step 13 Select the ML-Series card from the Slot drop-down list, and choose 1 (POS) from the Port drop-down

list.

Step 14 Click Next.

The Circuit Routing Preferences page appears.

Step 15 Uncheck the Fully Protected Path check box.

Step 16 Click Next.

The Circuit Constraints for Automatic Routing page appears.

Step 17 Click the Node 1 icon to select it and click Next.

The Route Review/Edit page appears.

Step 18 Click Finish.

You have now completed the initial circuit.

Note A TPTFAIL alarm might appear on CTC when the circuit is created. This alarm will disappear after the

POS ports are enabled during the “Assigning the ML-Series Card POS Ports to the SPR Interface”

procedure on page 17-14.

Step 19 Build the second circuit between POS 0 on Node 2 and POS 1 on Node 3. Use the same procedure

described in Steps 1 through 18, but substitute Node 2 for Node 1 and Node 3 for Node 2.

17-12

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Configuring Cisco Proprietary RPR Characteristics and the SPR Interface on the ML-Series Card

Step 20 Build the third circuit between POS 0 on Node 3 and POS 1 on Node 1. Use the same procedure

described in Steps 1 through 18, but substitute Node 3 for Node 1 and Node 1 for Node 2.

Now all of the POS ports in all three nodes are connected by STS point-to-point circuits in an

east-to-west pattern, as shown in Figure 17-5 on page 17-9.

Step 21 The CTC circuit process is complete.

Configuring Cisco Proprietary RPR Characteristics and the SPR Interface on the

ML-Series Card

You configure Cisco proprietary RPR on the ML-Series cards by creating an SPR interface using the

Cisco IOS command-line interface (CLI). The SPR interface is a virtual interface for the Cisco

proprietary RPR . An ML-Series card supports a single SPR interface with a single MAC address. It

provides all the normal attributes of a Cisco IOS virtual interface, such as support for default routes.

An SPR interface is configured similarly to a EtherChannel (port-channel) interface. Instead of using the

channel-group command to define the members, you use the spr-intf-id command. Like the

port-channel interface, you configure the virtual SPR interface instead of the physical POS interface. An

SPR interface is considered a trunk port, and like all trunk ports, subinterfaces must be configured for

the SPR interface for it to join a bridge group.

The physical POS interfaces on the ML-Series card are the only members eligible for the SPR interface.

One POS port is associated with the SONET/SDH circuit heading east around the ring from the node,

and the other POS port is associated with the circuit heading west. When the SPR interface is used and

the POS ports are associated, Cisco proprietary RPR encapsulation is used on the SONET/SDH payload.

Caution In configuring an SPR, if one ML-Series card is not configured with an SPR interface, but valid

STS/STM circuits connect this ML-Series card to the other ML-Series cards in the SPR, no traffic will

flow between the properly configured ML-Series cards in the SPR, and no alarms will indicate this

condition. Cisco recommends that you configure all of the ML-Series cards in an SPR before sending traffic.

Caution Do not use native VLANs for carrying traffic with Cisco proprietary RPR.

Note Cisco proprietary RPR on the ML-Series card is only supported with the default LEX encapsulation, a

special CISCO-EOS-LEX encapsulation for use with Cisco ONS Ethernet line cards.

17-13

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Configuring Cisco Proprietary RPR Characteristics and the SPR Interface on the ML-Series Card

Cisco proprietary RPR needs to be provisioned on each ML-Series card that is in the Cisco proprietary

RPR. To provision it, perform the following procedure, beginning in global configuration mode:

Command Purpose

Step 1 Router(config)# bridge irb Enables the Cisco IOS software to both route and bridge

a given protocol on separate interfaces within a single

ML-Series card.

Step 2 Router(config)# interface spr 1 Creates the SPR interface on the ML-Series card or

enters the SPR interface configuration mode. The only

valid SPR number is 1.

Step 3 Router(config-if)# spr station-id

station-ID-number

Configures a station ID. The user must configure a

different number for each SPR interface that attaches to

the ring. Valid station ID numbers range from 1 to 254.

Step 4 Router(config-if)# spr wrap

{immediate | delayed}

(Optional) Sets the Cisco proprietary RPR wrap mode to

either wrap traffic the instant it detects a SONET/SDH

path alarm or to wrap traffic after the 200 msec delay,

which gives the SONET/SDH protection time to register

the defect and declare the link down. Use immediate if

Cisco proprietary RPR is running over unprotected

SONET/SDH circuits. Use delayed for bidirectional line

switched rings (BLSRs), path protection configurations,

multiplex section-shared protection rings

(MS-SPRings), or SNCP protected circuits.

The default setting is immediate.

Step 5 Router(config-if)# carrier-delay msec

milliseconds

(Optional) Sets the carrier delay time. The default setting

is 200 milliseconds, which is optimum for SONET/SDH

protected circuits.

Note If the carrier delay time is changed from the

default, the new carrier delay time must be

configured on all the ML-Series card interfaces,

including the SPR, POS, and Gigabit Ethernet or

Fast Ethernet interfaces.

Step 6 Router(config-if)# spr load-balance

{auto | port-based} (Optional) Specifies the Cisco proprietary RPR

load-balancing scheme for unicast packets. The

port-based load balancing option maps even ports to the

POS 0 interface and odd ports to the POS 1 interface. The

default auto option balances the load based on the MAC

addresses or source and destination addresses of the IP

packet.

The no form of this command reinstates the default

MAC-based load balancing.

Step 7 Router(config-if)# end Exits to privileged EXEC mode.

Step 8 Router# copy running-config

startup-config

(Optional) Saves configuration changes to NVRAM.

17-14

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Assigning the ML-Series Card POS Ports to the SPR Interface

Caution The SPR interface is the routed interface. Do not enable Layer 3 addresses or assign bridge groups on

the POS interfaces assigned to the SPR interface.

Caution When traffic coming in on an SPR interface needs to be policed, the same input service policy needs to

be applied to both POS ports that are part of the SPR interface.

The POS ports require LEX encapsulation to be used in Cisco proprietary RPR. The first step of

configuration is to set the encapsulation of POS 0 and POS 1 ports to LEX.

Each of the ML-Series card’s two POS ports must also be assigned to the SPR interface. To configure

LEX encapsulation and assign the POS interfaces on the ML-Series card to the SPR, perform the

following procedure, beginning in global configuration mode:

Command Purpose

Step 1 Router(config)# interface pos 0 Enters the interface configuration mode to configure the

first POS interface that you want to assign to the SPR.

Step 2 Router(config-if)# encapsulation lex Sets POS interface encapsulation as LEX (default).

Cisco proprietary RPR on the ML-Series card requires

LEX encapsulation.

Step 3 ( Router(config-if)# spr-intf-id

shared-packet-ring-number

Assigns the POS interface to the SPR interface. The

shared packet ring number must be 1, which is the only

shared packet ring number that you can assign to the SPR

interface.

Step 4 Router(config-if)# carrier-delay msec

milliseconds

(Optional) Sets the carrier delay time. The default setting

is 200 msec, which is optimum for SONET/SDH

protected circuits.

Note The default unit of time for setting the carrier

delay is seconds. The msec command resets the

time unit to milliseconds.

Step 5 Router(config-if)# pos trigger defect

ber_sd-b3

(Optional) Configures a trigger to bring down the POS

interface when the SONET/SDH bit error rate exceeds

the threshold set for the signal degrade alarm. Bringing

the POS interface down initiates the Cisco proprietary

RPR wrap.

This command is recommended for all Cisco proprietary

RPR POS interfaces, since excessive SONET/SDH bit

errors can cause packet loss on Cisco proprietary RPR

traffic.

Note This command should not be used when a

Cisco ONS 15310 is part of the ring. It might

cause inconsistent Cisco proprietary RPR

wrapping.

Step 6 Router(config-if)# no shutdown Enables the POS port.

17-15

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Creating the Bridge Group and Assigning the Ethernet and SPR Interfaces

The default behavior of the ML-Series cards is that no traffic is bridged over the Cisco proprietary RPR

even with the interfaces enabled. This is in contrast to many Layer 2 switches, including the

Cisco Catalyst 6500 and the Cisco Catalyst 7600, which forward VLAN 1 by default. The ML-Series

card will not forward any traffic by default, including untagged or VLAN 1 tagged packets.

For any Cisco proprietary RPR traffic to be bridged on an ML-Series card, a bridge group needs to be

created for that traffic. Bridge groups maintain the bridging and forwarding between the interfaces on

the ML-Series card and are locally significant. Interfaces not participating in a bridge group cannot

forward bridged traffic.

To create a bridge group for Cisco proprietary RPR, you determine which Ethernet interfaces need to be

in the same bridge group, create the bridge group, and associate these interfaces with the bridge group.

Then associate the SPR interface with the same bridge group to provide transport across the

Cisco proprietary RPR infrastructure.

Figure 17-8 illustrates a bridge group spanning the ML-Series card interfaces, including the SPR virtual

interface of Cisco proprietary RPR.

Step 7 Router(config-if)# interface pos 1 Enters the interface configuration mode to configure the

second POS interface that you want to assign to the SPR.

Step 8 Router(config-if)# encapsulation lex Sets POS interface encapsulation as LEX (default).

Cisco proprietary RPR on the ML-Series card requires

LEX encapsulation.

Step 9 Router(config-if)# spr-intf-id

shared-packet-ring-number

Assigns the POS interface to the SPR interface. The

shared packet ring number must be 1 (the same shared

packet ring number that you assigned in Step 3), which is

the only shared packet ring number that you can assign

to the SPR interface.

Step 10 Router(config-if)# carrier-delay msec

milliseconds

(Optional) Sets the carrier delay time. The default setting

is 200 milliseconds, which is optimum for SONET/SDH

protected circuits.

Step 11 Router(config-if)# pos trigger defect

ber_sd-b3

(Optional) Configures a trigger to bring down the POS

interface when the SONET/SDH bit error rate exceeds

the threshold set for the signal degrade alarm. Bringing

the POS interface down initiates the wrap.

This command is recommended for all Cisco proprietary

RPR POS interfaces since excessive SONET/SDH bit

errors can cause packet loss.

Step 12 Router(config-if)# no shutdown Enables the POS port.

Step 13 Router(config-if)# end Exits to privileged EXEC mode.

Step 14 Router# copy running-config

startup-config

(Optional) Saves the configuration changes to NVRAM.

Command Purpose

17-16

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Cisco Proprietary RPR Cisco IOS Configuration Example

Figure 17-8 Cisco proprietary RPR Bridge Group

Caution All Layer 2 network redundant links (loops) in the connecting network, except the Cisco proprietary

RPR topology, must be removed for correct operation. Or if loops exist, you must configure STP/RSTP.

To configure the needed interfaces, perform the following procedure, beginning in global configuration

mode:

Cisco Proprietary RPR Cisco IOS Configuration Example

Figure 17-5 on page 17-9 shows a complete example of a Cisco proprietary RPR Cisco IOS

configuration. The associated Cisco IOS code is provided in Examples 17-1, 17-2, and 17-3. The

configuration assumes that ML-Series card POS ports are already linked by point-to-point SONET/SDH

circuits configured through CTC.

Example 17-1 SPR Station-ID 1 Configuration

ML-Series# show run

bridge irb

interface SPR1

no ip address

no keepalive

spr station-id 1

ML-Series Card

134983

Ethernet

Port 0

Ethernet

Port 1

Bridge Group

POS 0

POS 1

SPR (RPR)

Interface

Command Purpose

Step 1 Router(config)# interface

type number

Enters interface configuration mode for the Ethernet

interface joining the bridge group.

Step 2 Router(config-if)# no shutdown Enables the interface.

Step 3 Router(config-if)# bridge-group

bridge-group-number

Creates the specified bridge group and assigns the bridge

group to the interface. Creating the bridge from the

interface configuration disables STP or RSTP

(spanning-disabled), which is recommended for

Cisco proprietary RPR.

Step 4 Router(config)# interface spr1 Enters interface configuration mode for the SPR

Step 5 Router(config-subif)# bridge-group

bridge-group-number

Associates the SPR interface to the specified bridge

group.

17-17

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Cisco Proprietary RPR Cisco IOS Configuration Example

bridge-group 10

bridge-group 10 spanning-disabled

hold-queue 150 in

interface GigabitEthernet0

no ip address

bridge-group 10

bridge-group 10 spanning-disabled

interface GigabitEthernet1

no ip address

shutdown

interface POS0

no ip address

carrier-delay msec 0

spr-intf-id 1

crc 32

interface POS1

no ip address

carrier-delay msec 0

spr-intf-id 1

crc 32

Example 17-2 SPR Station-ID 2 Configuration

ML-Series# show run

bridge irb

interface SPR1

no ip address

no keepalive

spr station-id 2

bridge-group 10

bridge-group 10 spanning-disabled

interface GigabitEthernet0

no ip address

bridge-group 10

bridge-group 10 spanning-disabled

interface GigabitEthernet1

no ip address

shutdown

interface POS0

no ip address

shutdown

spr-intf-id 1

crc 32

interface POS1

no ip address

spr-intf-id 1

crc 32

Example 17-3 SPR Station-ID 3 Configuration

ML-Series# show run

bridge irb

17-18

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Verifying Ethernet Connectivity Between Cisco Proprietary RPR Ethernet Access Ports

interface SPR1

no ip address

no keepalive

spr station-id 3

bridge-group 10

bridge-group 10 spanning-disabled

hold-queue 150 in

interface GigabitEthernet0

no ip address

bridge-group 10

bridge-group 10 spanning-disabled

interface GigabitEthernet1

no ip address

shutdown

interface POS0

no ip address

spr-intf-id 1

crc 32

interface POS1

no ip address

spr-intf-id 1

crc 32

Verifying Ethernet Connectivity Between Cisco Proprietary RPR Ethernet

Access Ports

After successfully completing the provisioning procedures, you can test Ethernet connectivity between

the Ethernet access ports on the separate ML-Series cards using your standard tests for Ethernet

connectivity.

CRC threshold configuration and detection

You can configure a span shutdown when the ML-Series card receives CRC errors at a rate that exceeds

the configured threshold and configured soak time. For this functionality to work in an SPR ring, make

the configurations on the POS members of SPR interface as specified in CRC Threshold Configuration,

page 4-11.

Monitoring and Verifying Cisco Proprietary RPR

After Cisco proprietary RPR is configured, you can monitor its status using the show interface spr 1

command (Example 17-4) or the show run interface spr 1 command (Example 17-5).

Example 17-4 Example of show interface spr 1 Output

ML-Series# show interfaces spr 1

SPR1 is up, line protocol is up

Hardware is POS-SPR, address is 0005.9a39.77f8 (bia 0000.0000.0000)

17-19

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Add an ML-Series Card into a Cisco Proprietary RPR

MTU 1500 bytes, BW 290304 Kbit, DLY 100 usec,

reliability 255/255, txload 1/255, rxload 1/255

Encapsulation: Cisco-EoS-LEX, loopback not set

Keepalive not set

DTR is pulsed for 27482 seconds on reset, Restart-Delay is 65 secs

ARP type: ARPA, ARP Timeout 04:00:00

No. of active members in this SPR interface: 2

Member 0 : POS1

Member 1 : POS0

Last input 00:00:38, output never, output hang never

Last clearing of "show interface" counters never

Input queue: 0/150/0/0 (size/max/drops/flushes); Total output drops: 0

Queueing strategy: fifo

Output queue: 0/80 (size/max)

5 minute input rate 0 bits/sec, 0 packets/sec

5 minute output rate 0 bits/sec, 0 packets/sec

37385 packets input, 20993313 bytes

Received 0 broadcasts (0 IP multicast)

0 runts, 0 giants, 0 throttles

0 parity

2 input errors, 2 CRC, 0 frame, 0 overrun, 0 ignored

0 input packets with dribble condition detected

37454 packets output, 13183808 bytes, 0 underruns

0 output errors, 0 applique, 4 interface resets

0 babbles, 0 late collision, 0 deferred

0 lost carrier, 0 no carrier

0 output buffer failures, 0 output buffers swapped out

0 carrier transitions

Example 17-5 Example of show run interface spr 1 Output

ML-Series# show run interface spr 1

Building configuration...

Current configuration : 141 bytes

interface SPR1

no ip address

no keepalive

spr station-id 2

bridge-group 10

bridge-group 10 spanning-disabled

hold-queue 150 in

end

Add an ML-Series Card into a Cisco Proprietary RPR

An existing Cisco proprietary RPR might need an ML-Series card added. This can be done without

taking down data traffic due to the Cisco proprietary RPR wrapping capability and ring architecture. You

can add the ML-Series card in concert with the addition of the node containing the card into the

underlying SONET/SDH architecture. You can also add an ML-Series card to a node that is already part

of the SONET/SDH topology.

The following example has a two-node Cisco proprietary RPR with two STS circuits connecting the

ML-Series cards. One circuit will be deleted. The Cisco proprietary RPR will wrap traffic on the

remaining circuit with as little as a one ping loss. The third node and ML-Series card are then added in,

and the spans and circuits for this card are created.

17-20

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Add an ML-Series Card into a Cisco Proprietary RPR

Figure 17-9 shows the existing two-node Cisco proprietary RPR with the single STS circuit and span

that will be deleted. Figure 17-10 shows the Cisco proprietary RPR after the third node is added with the

two new STS circuits and spans that will be added.

Figure 17-9 Two-Node Cisco Proprietary RPR Before the Addition

SPR 1

POS 1

POS 0

POS 1

= STS circuit created on CTC

Adjacent Node 2

Adjacent Node 1

This STS circuit

will be deleted.

New Node

145252

17-21

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Add an ML-Series Card into a Cisco Proprietary RPR

Figure 17-10 Three Node Cisco Proprietary RPR After the Addition

To add an ML-Series card to the Cisco proprietary RPR, you need to complete several general actions:

• Force away any existing non-ML-Series card circuits, such as DS-1, that use the span that will be

deleted.

• Shut down the POS ports on the adjacent ML-Series cards for the STS circuit that will be deleted to

initiate the Cisco proprietary RPR wrap.

• Test Ethernet connectivity between the access ports on the existing adjacent ML-Series cards with

a test set to ensure that the Cisco proprietary RPR wrapped successfully.

• Delete the STS circuit that will be replaced by the new circuits. (In Figure 17-9, this is the circuit

between Adjacent Node 2, POS 0 and Adjacent Node 1, POS 1.)

• Insert the new node into the ring topology if the node is not already part of the topology.

• Install the ML-Series card and load your initial configuration file or otherwise do an initial

configuration of the ML-Series card.

• Ensure the new node is configured with Cisco proprietary RPR before its POS ports are manually

enabled or enabled through the configuration file.

• Create an STS circuit from one of the POS ports of an existing adjacent ML-Series card to a POS

port on the new ML-Series card. (In Figure 17-10, this is the circuit between Adjacent Node 2,

POS Port 0 and New Node, POS Port 1.)

• Create a second STS circuit from one of the POS ports of the other existing adjacent ML-Series card

to the remaining POS port on the new ML-Series card. (In Figure 17-10, this is the circuit between

New Node, POS Port 0 and Adjacent Node 1, POS Port 1.)

• Configure the new ML-Series card to join the Cisco proprietary RPR and enable the POS ports, if

the initial configuration file did not already do this.

• Enable the POS ports on the existing adjacent ML-Series cards that connect to the new ML-Series

card. (In Figure 17-10, these are Adjacent Node 1, POS Port 1 and Adjacent Node 2, POS Port 0.)

SPR 1

POS 1 POS 0

POS 0

POS 1

= STS circuit created on CTC

Adjacent Node 2

Adjacent Node 1

New Node

145250

17-22

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Adding an ML-Series Card into a Cisco Proprietary RPR

• Test Ethernet connectivity between the access ports on the new ML-Series card with a test set to

validate the newly created three-node Cisco proprietary RPR.

• Monitor Ethernet traffic and existing routing protocols for at least an hour after the node insertion.

Caution The specific steps in the following procedure are for the topology in the example. Your own steps will

vary according to your network design. Do not attempt this procedure without obtaining a detailed plan

or method of procedure from an experienced network architect.

Adding an ML-Series Card into a Cisco Proprietary RPR

To add an ML-Series card to the Cisco proprietary RPR in the example, complete the following

procedure:

Step 1 Start a Cisco IOS CLI session for the ML-Series card in the first adjacent node. This is Adjacent Node 1

in Figure 17-9.

Step 2 Complete the following Cisco IOS configuration on the ML-Series card in the first adjacent node,

beginning in global configuration mode:

Step 3 Start a Cisco IOS CLI session for the ML-Series card in Adjacent Node 2, as shown in Figure 17-9.

Step 4 Complete the following Cisco IOS configuration on the Adjacent Node 2 ML-Series card, beginning in

global configuration mode:

Step 5 In CTC, log into Adjacent Node 1.

Step 6 Double-click the ML-Series card in Adjacent Node 1.

The card view appears.

Step 7 Click the Circuits tab.

Step 8 Click the Circuits subtab.

Step 9 Identify the appropriate STS circuit by looking under the source column and destination column for the

circuit entry that matches the POS ports at the endpoints of the circuit to be deleted.

The circuit entry is in node-name/card-slot/port-number format, such as Node-1/s12(ML100T)/pPOS-0.

Step 10 Click the circuit entry to highlight it.

Step 11 Click Delete.

A confirmation dialog box appears.

Step 12 Click Ye s .

a. Router(config)# interface pos

interface-number

Enters interface configuration mode for the POS port at one

endpoint of the circuit to be deleted.

b. Router(config-if)# shutdown Closes the interface, which initiates the wrap.

a. Router(config)# interface pos

interface-number

Enters interface configuration mode for the POS port at one

endpoint of the circuit to be deleted.

b. Router(config-if)# shutdown Closes the interface.

17-23

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Adding an ML-Series Card into a Cisco Proprietary RPR

Step 13 Use a test set to verify that Ethernet connectivity still exists between the Ethernet access ports on

Adjacent Node 1 and Adjacent Node 2.

Note The SPR interface and the Ethernet interfaces on the ML-Series card must be in a bridge group

in order for Cisco proprietary RPR traffic to bridge the Cisco proprietary RPR.

Step 14 If the new node is not already an active node in the SONET/SDH ring topology, add the node to the ring.

Refer to the “Add and Remove Nodes” chapter of the Cisco ONS 15454 Procedure Guide or the “Add

and Remove Nodes” chapter of the Cisco ONS 15454 SDH Procedure Guide for procedures for installing

ONS nodes.

Step 15 If the ML-Series card in the new node is not already installed, install the card in the node. Refer to the

“Install Cards and Fiber-Optic Cable” chapter of the Cisco ONS 15454 Procedure Guide or the “Install

Cards and Fiber-Optic Cable” chapter of the Cisco ONS 15454 SDH Procedure Guide for procedures for

installing cards in ONS nodes.

Step 16 Upload the initial startup configuration file for the new ML-Series card (see the “Loading a Cisco IOS

Startup Configuration File Through CTC” section on page 3-10). If you do not have a prepared startup

configuration file, see the “Manually Creating a Startup Configuration File Through the Serial Console

Port” section on page 3-7.

Caution Ensure that the new node is configured with Cisco proprietary RPR before its POS ports are manually

enabled or enabled through the configuration file.

Step 17 Build an STS circuit with a circuit state of In Service (IS) from the available POS port on

Adjacent Node 1 to the New Node, as shown in Figure 17-10. On the New Node, use the POS port with

the interface-number that does not match the interface-number of the available POS port on

Adjacent Node 1. For example, POS Port 0 on Adjacent Node 1would connect to POS Port 1 on the

New Node.

For detailed steps for building the circuit, see the “Configuring CTC Circuits for Cisco Proprietary RPR”

section on page 17-8.

Note A best practice is to configure SONET/SDH circuits in an east-to-west or west-to-east

configuration, from Port 0 (east) to Port 1 (west) or Port 1 (east) to Port 0 (west), around the

SONET/SDH ring.

Step 18 Build an STS circuit with a circuit state of IS from the available POS port on Adjacent Node 2 to the

remaining POS port on the New Node, as shown in Figure 17-10.

Step 19 Start or resume a Cisco IOS CLI session for the ML-Series card in Adjacent Node 1, as shown in

Figure 17-9.

Step 20 Complete the following Cisco IOS configuration, beginning in global configuration mode:

Step 21 Start a Cisco IOS CLI session for the ML-Series card in Adjacent Node 2, as shown in Figure 17-9.

a. Router(config)# interface pos

interface-number

Enters interface configuration mode for the POS port at one

endpoint of the first newly created circuit.

b. Router(config-if)# no shutdown Enables the port.

17-24

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Delete an ML-Series Card from a Cisco Proprietary RPR

Step 22 Complete the following Cisco IOS configuration on the Adjacent Node 2 ML-Series card, beginning in

global configuration mode:

Step 23 Use a test set to verify that Ethernet connectivity exists on the Cisco proprietary RPR.

Step 24 Monitor Ethernet traffic and routing tables for at least one hour after the node insertion.

Stop. You have completed this procedure.

Delete an ML-Series Card from a Cisco Proprietary RPR

An existing Cisco proprietary RPR might need an ML-Series card deleted. This can be done without

taking down data traffic due to the Cisco proprietary RPR wrapping capability and ring architecture.

The following example has a three-node Cisco proprietary RPR with three STS circuits connecting the

ML-Series cards. Two circuits will be deleted. The Cisco proprietary RPR will wrap traffic on the

remaining circuit with as little as a one ping loss. The third node and ML-Series card are then deleted

and a new STS circuit is created between the two remaining cards.

Figure 17-11 shows the existing three-node Cisco proprietary RPR with all three STS circuits and spans.

Figure 17-12 shows the Cisco proprietary RPR after the third node, circuits, and spans are deleted and

the new STS circuit and span are added.

a. Router(config)# interface pos

interface-number

Enters interface configuration mode for the POS port at one

endpoint of the second newly created circuit.

b. Router(config-if)# no shutdown Enables the port.

17-25

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Delete an ML-Series Card from a Cisco Proprietary RPR

Figure 17-11 Three Node Cisco Proprietary RPR Before the Deletion

Figure 17-12 Two Node Cisco Proprietary RPR After the Deletion

To delete an ML-Series card from the Cisco proprietary RPR, you need to complete several general

actions:

SPR 1

POS 1 POS 0

POS 0

POS 1

= STS circuit created on CTC

Adjacent Node 2

Adjacent Node 1

Delete Node

145251

SPR 1

POS 1

POS 0

POS 1

= STS circuit created on CTC

Adjacent Node 2

Adjacent Node 1

This STS circuit

was created after the deletion.

Deleted Node

145253

17-26

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Deleting an ML-Series Card from a Cisco Proprietary RPR

• Force away any existing non-ML-Series card circuits, such as DS-1, that use the spans that will be

deleted.

• Shut down the POS ports on the adjacent ML-Series cards for the STS circuits that will be deleted

to initiate the Cisco proprietary RPR wrap.

• Test Ethernet connectivity between the access ports on the existing adjacent ML-Series cards with

a test set to ensure that the Cisco proprietary RPR wrapped successfully.

• Delete the two STS circuits that will be replaced by the new circuits. (In Figure 17-11, this is the

circuit between the Delete Node and one Adjacent Node, and the circuit between the Delete Node

and the other Adjacent Node.)

• Remove the Delete Node from the ring topology if desired.

• Physically remove the delete ML-Series card from the node if desired.

• Create an STS circuit from the available POS port of one of the remaining adjacent ML-Series cards

to the available POS port on the other remaining adjacent ML-Series card. (In Figure 17-12, this is

the circuit between Adjacent Node 2, POS Port 0 and Adjacent Node 1, POS Port 1.)

• Enable the POS ports on the existing adjacent ML-Series cards. (In Figure 17-12, this is the

Adjacent Node 2, POS Port 0 and the Adjacent Node 1, POS Port 1.)

• Test Ethernet connectivity between the access ports on the adjacent ML-Series card with a test set

to validate the two-node Cisco proprietary RPR.

• Monitor Ethernet traffic and existing routing protocols for at least an hour after the node deletion.

Caution The specific steps in the following procedure are for the topology in the example. Your own steps will

vary according to your network design. Do not attempt this procedure without obtaining a detailed plan

or method of procedure from an experienced network architect.

Deleting an ML-Series Card from a Cisco Proprietary RPR

To delete an ML-Series card from a Cisco proprietary RPR, complete the following procedure:

Step 1 Start a Cisco IOS CLI session for the ML-Series card on the first adjacent node. This is Adjacent Node 1

in Figure 17-11.

Step 2 Complete the following Cisco IOS configuration on the ML-Series card in the first adjacent node,

beginning in global configuration mode:

Step 3 Start a Cisco IOS CLI session for the ML-Series card in Adjacent Node 2, as shown in Figure 17-11.

Step 4 Complete the following Cisco IOS configuration on the Adjacent Node 2 ML-Series card, beginning in

global configuration mode:

a. Router(config)# interface pos

interface-number

Enters interface configuration mode for the POS port at the

end of the circuit directly connected to the Delete Node.

b. Router(config-if)# shutdown Closes the interface, which initiates the Cisco proprietary

RPR wrap.

17-27

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Deleting an ML-Series Card from a Cisco Proprietary RPR

Step 5 Log into Adjacent Node 1 with CTC.

Step 6 Double-click the ML-Series card in Adjacent Node 1.

The card view appears.

Step 7 Click the Circuits tab.

Step 8 Click the Circuits subtab.

Step 9 Identify the appropriate STS circuit by looking under the source column and destination column for the

circuit entry that matches the POS ports at the endpoints of the first circuit to be deleted.

The circuit entry is in node-name/card-slot/port-number format, such as Node-1/s12(ML100T)/pPOS-0.

Step 10 Click the circuit entry to highlight it.

Step 11 Click Delete.

A confirmation dialog box appears.

Step 12 Click Ye s .

Step 13 Verify that Ethernet connectivity still exists between the Ethernet access ports on Adjacent Node 1 and

Adjacent Node 2 by using a test set.

Note The SPR interface and the Ethernet interfaces on the ML-Series card must be in a bridge group in order

for Cisco proprietary RPR traffic to bridge the Cisco proprietary RPR.

Step 14 Log into Adjacent Node 2 with CTC.

Step 15 Double-click the ML-Series card in Adjacent Node 2.

The card view appears.

Step 16 Click the Circuits tab.

Step 17 Click the Circuits subtab.

Step 18 Identify the appropriate STS circuit by looking under the source column and destination column for the

circuit entry that matches the POS ports at the endpoints of the second circuit to be deleted.

The circuit entry is in node-name/card-slot/port-number format, such as Node-1/s12(ML100T)/pPOS-0.

Step 19 Click the circuit entry to highlight it.

Step 20 Click Delete.

The confirmation dialog box appears.

Step 21 Click Ye s .

Step 22 If the new node will no longer be an active node in the SONET/SDH ring topology, delete the node from

the ring. Refer to the “Add and Remove Nodes” chapter of the Cisco ONS 15454 Procedure Guide or the

“Add and Remove Nodes” chapter of the Cisco ONS 15454 SDH Procedure Guide for procedures for

removing ONS nodes.

a. Router(config)# interface pos

interface-number

Enters interface configuration mode for the POS port at the

end of the circuit directly connected to the Delete Node.

b. Router(config-if)# shutdown Closes the interface.

17-28

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Understanding Cisco Proprietary RPR Link Fault Propagation

Step 23 If the ML-Series card in the new node is to be deleted in CTC and physically removed, do so now. Refer

to the “Install Cards and Fiber-Optic Cable” chapter of the Cisco ONS 15454 Procedure Guide or the

“Install Cards and Fiber-Optic Cable” chapter of the Cisco ONS 15454 SDH Procedure Guide for

procedures for installing cards in ONS nodes.

Step 24 Build an STS circuit with a circuit state of IS from the available POS port on Adjacent Node 1 to the

available POS port on Adjacent Node 2, as shown in Figure 17-12. For detailed steps on building the

circuit, see “Configuring CTC Circuits for Cisco Proprietary RPR” section on page 17-8.

Note A best practice is to configure SONET/SDH circuits in an east-to-west or west-to-east

configuration, from Port 0 (east) to Port 1 (west) or Port 1 (east) to Port 0 (west), around the

SONET/SDH ring.

Step 25 Start or resume a Cisco IOS CLI session for the ML-Series card in Adjacent Node 1.

Step 26 Complete the following Cisco IOS configuration for the ML-Series card in Adjacent Node 1, beginning

in global configuration mode:

Step 27 Start a Cisco IOS CLI session for the ML-Series card in Adjacent Node 2.

Step 28 Complete the following Cisco IOS configuration on the Adjacent Node 2 ML-Series card, beginning in

global configuration mode:

Step 29 Use a test set to verify that Ethernet connectivity exists on the Cisco proprietary RPR.

Step 30 Monitor Ethernet traffic and routing tables for at least one hour after the node deletion.

Stop. You have completed this procedure.

Understanding Cisco Proprietary RPR Link Fault Propagation

Link fault propagation (LFP), also known as link pass-through, decreases convergence times in networks

where routers interconnect through ML-Series card Cisco proprietary RPRs. It quickly relays link faults

from a master Gigabit Ethernet link to a remote slave link, either Gigabit Ethernet or Fast Ethernet. LFP

greatly improves the time it takes for a router connected to the slave link to fail over to an alternate path.

Under normal protection schemes, convergence might take as long as forty seconds. Using LFP, the slave

interface reflects the state of the master interface in less than a second. This feature is often used to

enable a link failure at a far-end hub site in order to trigger a link down state at a near-end access site.

Figure 17-13 illustrates LFP.

a. Router(config)# interface pos

interface-number

Enters interface configuration mode for the POS port at one

endpoint of the first newly created circuit.

b. Router(config-if)# no shutdown Enables the port.

a. Router(config)# interface pos

interface-number

Enters interface configuration mode for the POS port at one

endpoint of the second newly created circuit.

b. Router(config-if)# no shutdown Enables the port.

17-29

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

LFP Sequence

Figure 17-13 Cisco Proprietary RPR Link Fault Propagation Example

LFP Sequence

LFP updates are done through a Cisco discovery packet (CDP) packet extension. The update is sent

periodically and immediately after the master interface goes into a link-down state. LFP updates are sent

separately from normal CDPs, and the two types do not interact. Configuring or disabling CDP on the

interface has no effect on LFP updates.

When the master interface goes down, including an administrative shutdown, the slave interface is forced

down. When the master interface goes up, the slave interface goes back up. Administrative shutdown on

a slave interface will suspend the LFP function on that interface, and removing the shutdown will

reactivate LFP.

A link-down fault is also forced onto the slave link if the connection from the master to the slave fails.

Any of the following can cause a loss of connection:

• Removing or resetting the master ML-Series card.

• Shutdown or failure on both of the Cisco proprietary RPR paths between master and slave.

ML-Series RPR

ML-Series Card Master Interface

Original Link-fault

Hub Router

Propagated Link-faults

Access Switches and Routers

ML-Series Card Slave Interface

131696

17-30

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Propagation Delays

• Disabling LFP on the master interface.

Link faults only propagate from master to slave. Normal slave link faults are not propagated.

Cisco proprietary RPR wrapping and unwrapping has no effect on LFP.

Propagation Delays

Propagation delay includes the carrier-delay time on the slave interface. The carrier-delay time is

configurable and has a default of 200 ms. See the “Configuring Cisco Proprietary RPR” section on

page 17-7 for more information on configuring carrier-delay time.

Different propagation delays apply to different LFP scenarios:

• Propagation delay between master link-down and slave link-down is 50 ms plus the carrier-delay

time on the slave interface.

• Propagation delay between master link-up and slave link-up has an additional built-in delay at the

master interface to prevent interface flapping. Link-up propagation takes approximately 50 to

200 ms plus the carrier-delay time on the slave interface.

• Propagation delay from when the master-to-slave link fails until slave link-down occurs is

approximately 600 ms plus the carrier-delay time on the slave interface.

Configuring LFP

Figure 17-13 on page 17-29 illustrates an example of Cisco proprietary RPR configured with LFP. The

process of configuring LFP consists of the following tasks:

1. Configure one ML-Series card Gigabit Ethernet interface as a master link.

2. Configure the Gigabit Ethernet or Fast Ethernet interfaces for the other ML-Series cards as slave

links.

To enable and configure the LFP master link, perform the following procedure, beginning in global

configuration mode:

Command Purpose

Step 1 Router# interface gigabit ethernet

number

Activates interface configuration mode to

configure the Gigabit Ethernet interface.

Step 2 Router(config-if)# link-fault rpr-master Enables link-fault master status on the interface.

The no form of this command disables link-fault

master status.

Step 3 Router(config-if)# no shutdown Enables the interface by preventing it from

shutting down.

Step 4 Router(config)# end Returns to privileged EXEC mode.

Step 5 Router# copy running-config startup-config (Optional) Saves configuration changes to the

TCC2/TCC2P flash database.

17-31

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

LFP Configuration Requirements

To enable and configure the LFP slave link, perform the following procedure on an ML-Series card in

the Cisco proprietary RPR other than the ML-Series card configured for the master link. Begin in global

configuration mode:

LFP Configuration Requirements

LFP has these configuration requirement:

• A link-fault master and slave should not be configured on the same card.

• The ML-Series card must be running the Enhanced microcode image.

• All ML-Series cards in the Cisco proprietary RPR must be running Software Release 5.0 or later.

• ML-Series card configured for DRPRI should not be configured for LFP, and LFP on DRPRI is

unsupported.

• Only ML-Series card Gigabit Ethernet interfaces are eligible to become link-fault masters.

• Only one link-fault master is allowed per Cisco proprietary RPR.

• Gigabit Ethernet and Fast Ethernet interfaces are both eligible to become link-fault slaves.

• There is no configuration limit on link-fault slaves on a Cisco proprietary RPR.

Monitoring and Verifying LFP

A slave interface in link-down state raises a carrier loss (CARLOSS) alarm in CTC. CTC does not

distinguish between a local loss on the slave link and loss due to LFP. For more information on

CARLOSS, refer to refer to the “Alarm Troubleshooting” chapter of the Cisco ONS 15454

Troubleshooting Guide or the “Alarm Troubleshooting” chapter of the Cisco ONS 15454 SDH

Troubleshooting Guide.

The Cisco IOS status of link-down interface is shown as protocol down/link down. Neither the

show controller command nor the show interface command reveals the difference between a local loss

on the link and an LFP loss.

After LFP is configured, you can monitor the LFP status of each master or slave link using the show

link-fault command. Use this command to determine whether LFP caused the link down on a slave

interface. Example 17-6 illustrates the output from this command on a slave interface.

Command Purpose

Step 1 Router# interface {gigabit ethernet |

fastethernet}

number

Activates interface configuration mode to

configure the Gigabit Ethernet or Fast Ethernet

interface.

Step 2 Router(config-if)# link-fault rpr-slave Enables link-fault slave status on the interface.

The no form of this command disables link-fault

slave status.

Step 3 Router(config-if)# no shutdown Enables the interface by preventing it from

shutting down.

Step 4 Router(config)# end Returns to privileged EXEC mode.

Step 5 Router# copy running-config startup-config (Optional) Saves configuration changes to the

TCC2/TCC2P flash database.

17-32

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Cisco Proprietary RPR Keep Alive

Example 17-6 Monitor and Verify LFP

Router# show link-fault

Link Fault Propagation Configuration:

-------------------------------------

LFP Config Mode : LFP_SLAVE

LFP Master State : LFP_STATUS_DOWN

Interfaces configured for LFP:

FastEthernet0 (down)

Cisco Proprietary RPR Keep Alive

The keep alive mechanism for Cisco proprietary RPR POS interfaces sends keep-alive packets onto SPR

links connecting adjacent nodes. This mechanism protects against failures undetected by the

SONET/SDH layer. Keep alive is off by default.

With this feature enabled, the Cisco proprietary RPR POS port wraps when it fails to receive three

consecutive keep-alives.When a link is down due to an interruption in keep-alive reception, it raises a

critical LINK-KEEPALIVE alarm on SONET/SDH. The Cisco proprietary RPR POS port unwraps and

the alarm clears only after receiving ten consecutive keep-alive packets. Keep alive failures are not

dependant on cyclic redundancy check (CRC) errors. Keep-alive is also supported on DRPRI for POS

interfaces. It is not supported on Gigabit EtherChannel (GEC).

Keep alive detection takes more than 50 ms. This time is added to the standard under 50 ms switching

time of SONET/SDH to result in a total recovery time of greater than 50 ms.

Configuring Cisco Proprietary RPR Keep Alive

Caution When enabling the keep-alive feature on a Cisco proprietary RPR that is carrying traffic, it is highly

recommended that users first set the underlying POS circuit to OOS,DSBLD in SONET or

Locked,disabled in SDH, which will wrap the Cisco proprietary RPR in the standard sub-50 msec. You

can then enable the keep alive and put the circuit back to IS state in SONET or Unlocked in SDH. This

ensures that traffic experiences a sub-50 msec hit when Cisco proprietary RPR keep alives are enabled.

Note The Cisco proprietary RPR keep alive requires the spr or multiprotocol label switching (mpls) working

microcode image for the ML-Series card.

17-33

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Monitoring and Verifying Cisco Proprietary RPR Keep Alives

To enable and configure the Cisco proprietary RPR keep alives, perform the following procedure,

beginning in global configuration mode:

Monitoring and Verifying Cisco Proprietary RPR Keep Alives

After Cisco proprietary RPR keep alives are configured, you can monitor their status using the global

command show interface spr 1 and the global command show ons spr keepalive-info pos [ 0 | 1 ].

Example 17-7 and Example 17-8 illustrate the output of these commands.

Example 17-7 Show interface spr 1

Router> show interface spr 1>

SPR1 is down, line protocol is down

Command Purpose

Step 1 Router# interface pos 0 Activates interface configuration mode to

configure the POS interface.

Step 2 Router(config-if)# spr keepalive Enables Cisco proprietary RPR keep alives on the

POS interface.

The no form of this command disables the

Cisco proprietary RPR keep alives. You must shut

down both ends of the link before disabling keep

alives.The keepalive timer is not configurable in

proprietary RPR it is by default set to 5 msec

Caution It is strongly recommended that keep

alives are enabled on Cisco proprietary

RPR.

Step 3 Router# interface pos 1 Activates interface configuration mode to

configure the POS interface.

Step 4 Router(config-if)# spr keepalive Enables Cisco proprietary RPR keep alives on the

POS interface.

The no form of this command disables the

Cisco proprietary RPR keep alives. You must shut

down both ends of the link before disabling keep

alives.

Caution It is strongly recommended that keep

alives are enabled on Cisco proprietary

RPR.

Step 5 Router(config-if)# no shutdown Enables the interface by preventing it from

shutting down.

Step 6 Router(config)# end Returns to privileged EXEC mode.

Step 7 Router# copy running-config startup-config (Optional) Saves configuration changes to the

TCC2/TCC2P flash database.

17-34

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Cisco Proprietary RPR Shortest Path

Hardware is POS-SPR, address is 0005.9a3b.c140 (bia 0000.0000.0000)

MTU 1500 bytes, BW 10000 Kbit, DLY 1000 usec,

reliability 255/255, txload 1/255, rxload 1/255

Encapsulation: Cisco-EoS-LEX, loopback not set

Keepalive not set

Unknown duplex, Unknown Speed, unknown media type

ARP type: ARPA, ARP Timeout 04:00:00

SPR Wrapped information:

POS0 : SONET

POS1 : SONET KEEPALIVE

No. of active members in this SPR interface: 0

Last input never, output never, output hang never

Last clearing of "show interface" counters never

Input queue: 0/0/0/0 (size/max/drops/flushes); Total output drops: 0

Queueing strategy: fifo

Output queue: 0/0 (size/max)

5 minute input rate 0 bits/sec, 0 packets/sec

5 minute output rate 0 bits/sec, 0 packets/sec

0 packets input, 0 bytes

Received 0 broadcasts (0 IP multicast)

0 runts, 0 giants, 0 throttles

0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored

0 watchdog, 0 multicast

0 input packets with dribble condition detected

0 packets output, 0 bytes, 0 underruns

0 output errors, 0 collisions, 0 interface resets

0 babbles, 0 late collision, 0 deferred

0 lost carrier, 0 no carrier

0 output buffer failures, 0 output buffers swapped out

Example 17-8 Show ons spr keepalive-info pos

Router> show ons spr keepalive-info pos 1

Keep-alive is configured and operational

Keep-alive state is up

Interface State: UP External Memory Location: 0xD

Num. KA pkts recvd: 461033198 Num KA pkts with KAF set: 930

StreamId: 79 Src Node: 040

KA Dead Val: 3 KA Restore Val: 10

Curr FSM State: FULL Prev FSM State: KAF COUNT

Prev FSM Event: RX KA Wrap/Unwrap Event: STATE_UP

Defect Soak Count: 200 KA Fail Count: 0

Cisco Proprietary RPR Shortest Path

The Cisco proprietary RPR shortest path feature determines the shorter hop-count of the two possible

paths that can take traffic from location A to location B. Figure 17-14 illustrates a shortest path and

longest path for the same source and destination on a Cisco proprietary RPR. The shortest path from A

to B on the Cisco proprietary RPR is counter-clockwise, or east-to-west. The longest path is the opposite

direction, clockwise or west-to-east along the Cisco proprietary RPR.

17-35

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Cisco Proprietary RPR Shortest Path

Figure 17-14 Shortest and Longest Path

By always using the shortest path, traffic between two nodes can achieve the lowest possible latency.

This is especially important for delay-sensitive traffic such as voice-over-IP (VoIP) or video broadcast

TV.

The ML-Series card implements shortest path through a hop-based topology discovery mechanism based

on the IEEE 802.17 standard. Each Cisco proprietary RPR station bidirectionally floods local topology

data around the Cisco proprietary RPR to it peers through a control frame. The topology state machine

process all the received control frames and builds a map based on the collective data. Layer 2 unicast

traffic direction relies on this map.

The ML-Series card can also base its Layer 2 unicast traffic load-balancing on the shortest discovered

path, although MAC address load-balancing is the default, and port-based load balancing is also an

option.

The topology discovery mechanism also reroutes data during a protection event, such as a fiber cut. The

station that detects the failure of a Cisco proprietary RPR link starts restoring the traffic with

Cisco proprietary RPR wrapping. This causes partial traffic reorder and delivery through the reverse,

suboptimal path along the Cisco proprietary RPR to the destination. After all the stations get updated

with the new topology, which includes the link failure, they steer the traffic away from the failed span.

These are the guidelines for configuring Cisco proprietary RPR shortest path and topology discovery:

• You must configure spr topology discovery-enable on all the nodes on the Cisco proprietary RPR

for accurate topology discovery.

• When topology discovery is configured, keep alives will automatically become enabled, if not

already enabled.

• Disabling topology discovery does not disable keep alives, but a “keep alive enabled” warning

message is displayed.

• DRPRI nodes do not support topology discovery.

• Shortest path load balancing requires the spr or mpls working microcode image for the ML-Series

card. If you attempt to enable shortest path load balancing with another microcode image that does

not support it, a warning message appears. The denied configuration is saved.

• If topology discovery is enabled, enable shortest path load balancing.

• You can enable shortest path load balancing on a per-node basis. It is not dependant on the type of

load balancing running on other nodes.

RPR

151792

A B (shortest path)

RPR

A B (longest path)

17-36

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Configuring Shortest Path and Topology Discovery

To enable and configure shortest path and topology discovery, perform the following procedure,

beginning in global configuration mode:

Monitoring and Verifying Topology Discovery and Shortest Path Load

Balancing

After configuring topology discovery, you can monitor the status using the global command show spr

topology 1 to display the Cisco proprietary RPR topology information. Example 17-9 illustrates the

output of this commands.

Example 17-9 Output of show spr topology command

Router> show spr topology 1

***** ML-RPR Topology Map **************

Local Station Topology Info

Node Id : 40

West Span neighbor : 0

East Span neighbor : 0

Ring Topology: OPEN (UNSTABLE)

Advertised Protection requests:

ringlet0: IDLEringlet1: IDLE

Active Edges:

ringlet0: NO ringlet1: NO

Sequence Number: 0

=======================================================================

East Interface: POS1 West Interface: POS0

Number of nodes on east: 2

Number of nodes on west: 2

Active Topology Defects:

1. Topology Instability

Hops (POS 0) Node Id Edge W/E Request W/E

4 20 NO/NO IDLE/IDLE

6 40 NO/NO IDLE/IDLE

Hops (POS 1) Node Id Edge W/E Request W/E

2 20 NO/NO IDLE/IDLE

6 40 NO/NO IDLE/IDLE

Command Purpose

Step 1 Router# interface spr1 Activates interface configuration mode to

configure the POS interface.

Step 2 Router(config-if)# spr topology discovery Enables topology discovery on Cisco proprietary

RPR.

Step 3 Router(config-if)# spr load-balance

shortest-hop

Configures shortest path load-balancing for

Layer 2 unicast packets being added to the ring.

Step 4 Router(config-if)# no shutdown Enables the interface by preventing it from

shutting down.

Step 5 Router(config)# end Returns to privileged EXEC mode.

Step 6 Router# copy running-config startup-config (Optional) Saves configuration changes to the

TCC2/TCC2P flash database.

17-37

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

Understanding Redundant Interconnect

Ring interconnect (RI) is a mechanism to interconnect RPRs, both RPR-IEEE and Cisco proprietary

RPR, for protection from failure. It does this through redundant pairs of back-to-back Gigabit Ethernet

connections that bridge RPR networks. One connection is the active node and the other is the standby

node. During a failure of the active node, link, or card, the detection of the failure triggers a switchover

to the standby node. Figure 17-15 illustrates an example of RPR RI.

Figure 17-15 RPR RI

Characteristics of RI on the ML-Series Card

RI on the ML-Series card has these characteristics:

• Supported only on Gigabit Ethernet

• Provisioned by identifying peer RPR MACs as either primary or standby

• Uses an OAM frame to flush the spatially aware sublayer (SAS) table and MAC table at the add

stations

• Provides protection between individual RPRs, including:

–

Two RPRs

–

Two Cisco proprietary RPRs

–

A Cisco proprietary ring and an IEEE 802.17 ring

GEC

151968

Primary

pair

ML1000-2

West East

ML1000-2

West East

ML1000-2

West East

ML1000-2

West East

OC-N

Secondary

pair

17-38

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

RI for SW RPR Configuration Example

• Provides card-level redundancy when connected to a switch running EtherChannel

Caution When connecting to a switch running EtherChannel, you must configure spr ri foreign on the primary

and secondary ML-Series cards.

Caution SW RPR RI requires communication over the topology between the ML-Series cards. Traffic loss can

occur if there is not enough communication and more than one span is down on a ring, for any reason.

Caution If the primary ML-Series card goes to standby because the interconnect interface goes down, then the

ring interface is placed admininistratively down (admin down). This action signals the secondary

ML-Series card to go to active. At this time, if the user configures a no shutdown on the primary

ML-Series card ring interface, the ring interface comes up. This will signal the secondary ML-Series

card to go to standby, which causes traffic loss. This occurs with all ML-Series card microcodes and with

both RPR-IEEE and Cisco proprietary RPR.

Caution With Cisco proprietary RPR, a shutdown of the SPR interface puts ML1000-2 cards in passthrough

mode. This allows the card to participate in RI. ML1000-2 cards are the only ML-Series cards eligible

for RI. Other ML-Series cards fail to enter passthrough mode, when the SPR interface is shutdown.

RI for SW RPR Configuration Example

Excerpts of sample Cisco IOS code for an SW RPR RI for ML-Series-card-only connections are

provided in Example 17-10 and Example 17-11. Excerpts of sample Cisco IOS code for an RPR RI

where the primary and secondary ML-Series cards are connected to a foreign switch, any switch that is

not an ML-Series card, are provided in Example 17-12 and Example 17-3. Excerpts of sample Cisco IOS

code to see the status of RI in SW RPR mode is provided in Example 17-14

Example 17-10 Primary ML-Series Card Configuration

interface spr1

no ip address

spr topology discovery

spr ri mode primary peer 1

no shutdown

Example 17-11 Secondary ML-Series Card Configuration

interface spr1

no ip address

spr topology discovery

spr ri mode secondary peer 1

no shutdown

Example 17-12 Primary ML-Series Card Configuration with Connection to Switch

interface spr1

no ip address

spr topology discovery

17-39

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

RI for SW RPR Configuration Example

spr ri mode primary peer 1

spr ri foreign

no shutdown

Example 17-13 Secondary ML-Series Card Configuration with Connection to Switch

interface spr1

no ip address

spr topology discovery

spr ri mode primary peer 1

spr ri foriegn

no shutdown

Example 17-14 > Status of Redundant Interconnect can be found using

sh ons spr ri

ml1000-140#sh ons spr ri

Redundant Interconnect Data

Mode: primary

State: initialization

Peer: 1

Peer Active: false

Spans Provisioned : false

Topology: stable

Ring if: down

Interconnect if: up

Secondary IC mode: link-up, WTR-timer:60 Adjusted:61

Ucode mode: Active

Interconnect interface 0:

state: up

member port channel: false

Interconnect interface 1:

state: not up

member port channel: false

Monitored if: none

17-40

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 17 Configuring Cisco Proprietary Resilient Packet Ring

RI for SW RPR Configuration Example

CHAPTER

18-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Configuring Ethernet over MPLS

This chapter describes how to configure Ethernet over Multiprotocol Label Switching (EoMPLS) on the

ML-Series card.

This chapter includes the following major sections:

• Understanding EoMPLS, page 18-1

• Configuring EoMPLS, page 18-4

• EoMPLS Configuration Example, page 18-9

• Monitoring and Verifying EoMPLS, page 18-12

Understanding EoMPLS

EoMPLS provides a tunneling mechanism for Ethernet traffic through an MPLS-enabled Layer 3 core.

It encapsulates Ethernet protocol data units (PDUs) inside MPLS packets and using label stacking

forwards them across the MPLS network. EoMPLS is an Internet Engineering Task Force (IETF)

standard-track protocol based on the Martini draft, specifically the draft-martini-l2circuit-encap-mpls-01

and draft-martini-l2circuit-transport-mpls-05 sections.

EoMPLS allows service providers to offer customers a virtual Ethernet line service or VLAN service

using the service provider's existing MPLS backbone. It also simplifies service provider provisioning,

since the provider edge customer-leading edge (PE-CLE) equipment only needs to provide Layer 2

connectivity to the connected customer edge (CE) equipment.

Figure 18-1 shows an example of EoMPLS implemented on a service provider network. In the example,

the ML-Series card acts as PE-CLE equipment connecting to the Cisco GSR 12000 Series through an

RPR access ring. Point–to-point service is provided to CE equipment in different sites that connect

through ML-Series cards to the ML-Series card RPR access ring.

18-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 18 Configuring Ethernet over MPLS

Understanding EoMPLS

Figure 18-1 EoMPLS Service Provider Network

Implementing EoMPLS on a service provider network requires ML-Series card interfaces to play three

major roles. The ML-Series card interface roles must be configured on both sides of the EoMPLS

point-to-point service crossing the MPLS core.

• ML-Series card interfaces connect the provider’s network directly to the customer edge equipment

and are known as the PE-CLE interfaces. This PE-CLE interface on the ML-Series card is

FastEthernet or GigabitEthernet and is configured to be an endpoint on the EoMPLS point-to-point

session.

• An ML-Series card interface bridges the PE-CLE interface and the RPR network of ML-Series

cards. This RPR/SPR interface contains POS ports and is configured for MPLS IP.

• An ML-Series card interface connects to a core MPLS interface. This interface is GigabitEthernet

or FastEthernet and connects to the port of a Cisco GSR 12000 Series or similar device that is on

the MPLS network. This MPLS cloud-facing interface bridges the SPR interface and the MPLS

cloud.

Implementing EoMPLS across a service provider’s network requires setting up directed Label

Distribution Protocol (LDP) sessions (LSPs) between the ingress and egress PE-CLE routers to

exchange information for a virtual circuit (VC). Each VC consists of two LSPs, one in each direction,

since an LSP is a directed path to carry Layer 2 frames in one direction only.

EoMPLS uses a two-level label stack to transport Layer 2 frames, where the bottom/inner label is the

VC label and the top/outer label is the tunnel label. The VC label is provided to the ingress PE-CLE by

the egress PE-CLE of a particular LSP to direct traffic to a particular egress interface on the egress

PE-CLE. A VC label is assigned by the egress PE-CLE during the VC setup and represents the binding

between the egress interface and a unique and configurative VC ID. During a VC setup, the ingress and

egress PE-CLE exchange VC label bindings for the specified VC ID.

An EoMPLS VC on the ML-Series card can transport an Ethernet port or an IEEE 802.1Q VLAN over

MPLS. A VC type 5 tunnels an Ethernet port and a VC type 4 transports a VLAN over MPLS. In a

VC type 5 session, the user can expect any traffic that is received on an ML-Series card PE-CLE port

with an mpls l2transport route command to be tunneled to the remote egress interface on the far-end

ML-Series card PE-CLE port. With a VC type 4, a user can expect the tunnel to act as physical extension

to that VLAN. The EoMPLS session commands are entered on a VLAN subinterface on the PE-CLE,

and only VLAN-tagged traffic received on that port will be tunneled to the remote PE-CLE.

Core MPLS

RPR RPR

CE CE

PE-CLE PE-CLE

MPLS

Cloud-facing

Interface

MPLS

Cloud-facing

Interface

GSR 12000 GSR 12000

96983

18-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 18 Configuring Ethernet over MPLS

EoMPLS Support

EoMPLS on the ML-Series card has the following characteristics:

• EoMPLS is only supported on FastEthernet and GigabitEthernet interfaces or subinterfaces.

• MPLS tag switching is only supported on SPR interfaces.

• Class of service (CoS) values are mapped to the experimental (EXP) bits in the MPLS label, either

statically or by using the IEEE 802.1p bits (default).

• The ingress PE-CLE ML-Series card sets the time-to-live field to 2 and the tunnel label to a value

of 255.

• Ingress PE-CLE ML-Series cards set the S bit of the VC label to 1 to indicate that the VC label is at

the bottom of the stack.

• Since EoMPLS traffic is carried over the RPR, whatever load balancing is applicable for the traffic

ingressing RPR is also applicable for the EoMPLS traffic.

• EoMPLS is supported over RPR under GFP-F framing and HDLC framing.

• The Ethernet over MPLS feature is part of the Cisco Any Transport over MPLS (AToM) product set.

• The ML-Series card hosting the EoMPLS endpoint ports must be running the MPLS microcode

image to support EoMPLS. For more information on multiple microcode images, see the “Multiple

Microcode Images” section on page 3-11. Other ML-Series cards in the RPR are not restricted to

the MPLS microcode image.

EoMPLS Restrictions

EoMPLS on the ML-Series card has the following restrictions:

• Packet-based load balancing is not supported. Instead, circuit-ID based load balancing is used.

• Zero hop or hairpin VCs are not supported. A single ML-Series card cannot be both the source and

destination for a VC.

• MPLS control word for sequencing of data transmission is not supported. Packets must be received

and transmitted without control word.

• Sequence checking or resequencing of EoMPLS traffic is not supported. Both depend on the control

word to function.

• Maximum transmission unit (MTU) fragmentation is not supported.

• Explicit-null label for back-to-back LDP sessions is not supported.

Caution Since MTU fragmentation is not supported across the MPLS backbone, the network operator must make

sure the MTU of all intermediate links between endpoints is sufficient to carry the largest Layer 2 PDU.

EoMPLS Quality of Service

The EXP is a 3-bit field and part of the MPLS header. It was created by the IETF on an experimental

basis, but later became part of the standard MPLS header. The EXP bits in the MPLS header carry the

packet priority. Each label switch router along the path honors the packet priority by queuing the packet

into the proper queue and servicing the packet accordingly.

18-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 18 Configuring Ethernet over MPLS

Configuring EoMPLS

By default, the ML-Series card does not map the IEEE 802.1P bits in the VLAN tag header to the MPLS

EXP bits. The MPLS EXP bits are set to a value of 0.

There is no straight copy between Layer 2 CoS and MPLS EXP, but the user can use the

set mpls experimental action to set the MPLS EXP bit values based on a match to 802.1p bits. This mapping

occurs at the entry point, the ingress of the network.

Quality of service (QoS) for EoMPLS traffic on ML-Series cards uses strict priority and/or weighted

round robin scheduling in the egress interface of both imposition and disposition router. This requires

selection of the service class queue that determines the type of scheduling. In the imposition router, the

priority bits EXP or RPR CoS that are marked based on policing are used to select the service class queue

and in the disposition router, the dot1p CoS bits (which are copied from EXP bits of the labels) are used

to do the same. In addition to scheduling in the egress interface, the output policy action can also include

remarking of EXP and RPR CoS bits.

EoMPLS on the ML-Series card uses the Cisco Modular Quality of Service Command-Line Interface

(MQC), just like the standard QoS on the ML-Series card. But the full range of MQC commands are not

available. Table 18-1 lists the applicable MQC statements and actions for the ML-Series card interfaces.

Configuring EoMPLS

The ML-Series peer cards on both endpoints of the EoMPLS point-to-point service must be configured.

Perform the following configuration tasks to enable EoMPLS:

• VC Type 4 Configuration on PE-CLE Port, page 18-5 (Either VC type 4 or VC type 5 is required.)

• VC Type 5 Configuration on PE-CLE Port, page 18-6 (Either VC type 4 or VC type 5 is required.)

Table 18-1 Applicable EoMPLS QoS Statements and Actions

Interface Applicable MQC Match Statements Applicable MQC Actions

Imposition Ingress match cos

match ip precedence

match ip dscp

match vlan

police cir

cir-burst [pir-bust pir

pir conform [set-mpls-exp | exceed

[set-mpls-exp][violate

set-mpls-exp]

Imposition Egress match mpls exp bandwidth {bandwidth-kbps | percent

percent}

and

priority kbps

and

[set-mpls-exp]

Disposition Ingress Not applicable Not applicable

Disposition Egress match mpls exp bandwidth {bandwidth-kbps | percent

percent}

and

priority kbps

and

set-cos cos-value

18-5

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 18 Configuring Ethernet over MPLS

EoMPLS Configuration Guidelines

• EoMPLS Configuration on PE-CLE SPR Interface, page 18-8 (Required)

• Bridge Group Configuration on MPLS Cloud-facing Port, page 18-8 (Required)

• Setting the Priority of Packets with the EXP, page 18-9

EoMPLS Configuration Guidelines

These are the guidelines for configuring EoMPLS:

• Loopback addresses are used to specify the peer ML-Series card’s IP address.

• LDP configuration is required. The default Tag Distribution Protocol (TDP) will not work.

• EoMPLS uses LDP targeted session between the ML-Series cards to create the EoMPLS VCs.

• The MPLS backbone must use an Interior Gateway Protocol (IGP) routing protocol, for example,

Intermediate System-to-Intermediate System (IS-IS) Protocol or Open Shortest Path First (OSPF).

• Tag switching of IP packets must be enabled on the SPR interface for the PE-CLE ML-Series card.

VC Type 4 Configuration on PE-CLE Port

The customer-facing FastEthernet or GigabitEthernet port must be provisioned with EoMPLS and a

VC type 4 or type 5. Interface GigE 0.1 on card A and card C plays the VC type 4 role in Figure 18-2 on

page 18-10. For more information on the role of a VC type 4, see the “Understanding EoMPLS” section

on page 18-1.

To provision a VC type 4, which transport IEEE 802.1Q VLAN packets between two PE-CLE ML-Series

cards, perform the following procedure on the customer facing port, beginning in global configuration

mode:

Command Purpose

Step 1 Router(config)# mpls label protocol ldp Specifies LDP as the label distribution protocol.

LDP must be specified. The ML-Series card does not

operate EoMPLS with the default TDP as the label

distribution protocol.

Step 2 Router(config)# interface loopback0 Enters loopback interface configuration mode.

Step 3 Router(config-if)# ip address

ip-address

255.255.255.255

Assigns an IP address to the loopback interface. This

loopback IP addresses is used to identify the peer in the

EoMPLS point-to-point session.

No subnet mask is needed.

Step 4 Router(config)# interface {GigabitEthernet |

FastEthernet} interface-number

sub-interface-

number

Specifies the Ethernet subinterface for the imposition

interface. Make sure the subinterface on the adjoining

CE equipment is on the same VLAN as this subinterface.

Step 5 Router(config-subif)# no ip address Disables the IP address if an IP address is assigned.

Step 6 Router(config-subif)# encapsulation dot1Q

vlan-id

Enables the subinterface to accept 802.1q VLAN

packets. Make sure the VLAN ID is the same as the

VLAN ID on the adjoining CE equipment.

18-6

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 18 Configuring Ethernet over MPLS

VC Type 5 Configuration on PE-CLE Port

The customer-facing FastEthernet or GigabitEthernet port must be provisioned with EoMPLS and a

VC type 4 or type 5. Interface GigE 1 on card A and card C plays the VC type 5 role in Figure 18-2 on

page 18-10. For more information on the role of a VC type 5, see the “Understanding EoMPLS” section

on page 18-1.

To provision a VC type 5, which transports the configured port’s packets between two PE-CLE

ML-Series cards, perform the following procedure on the customer facing port, beginning in global

configuration mode:

Step 7 Router(config-subif)# mpls l2transport route

destination vc-id

xconnect destination vc-id encapsulation mpls

By entering the mpls l2transport route or the xconnect

interface configuration command on a dot1Q VLAN

sub-interface for VLAN-based EoMPLS, you can

configure an EoMPLS tunnel to forward traffic based on

the customer VLAN.

mpls l2transport route specifies the VC to use to

transport the VLAN packets. Initiates a remote LDP

session with the peer point-to-point endpoint interface.

• destination specifies the loopback IP address for the

remote ML-Series at the other end of the VC

(PE-CLE).

• vc-id is a value you supply. It must be unique for

each VC. The VC ID is used to connect the

endpoints of the VC. Specify the same VC ID on

both ends of the VC.

xconnect binds the 802.1q VLAN circuit to a pseudowire

for xconnect service. The encapsulation mpls

pseudowire class parameter specifies MPLS for the

tunneling method.

Note The xconnect command is a newer version of the

mpls l2transport route interface configuration

command.

Note Use the no mpls l2transport route destination

vc-id or no xconnect destination vc-id

encapsulation mpls interface command to

delete the EoMPLS tunnel.

Step 8 Router(config-subif)# end Return to privileged EXEC mode.

Step 9 Router# show mpls l2transport vc Verify the configuration.

Step 10 Router# copy running-config startup-config (Optional) Save your entries in the configuration file

Command Purpose

18-7

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 18 Configuring Ethernet over MPLS

VC Type 5 Configuration on PE-CLE Port

Command Purpose

Step 1 Router(config)# mpls label protocol ldp Specifies LDP as the label distribution protocol.

LDP must be specified. The ML-Series card does not

operate EoMPLS with the default TDP as the label

distribution protocol.

Step 2 Router(config)# interface loopback0 Enters loopback interface configuration mode.

Step 3 Router(config-if)# ip address ip-address

255.255.255.255

Assigns an IP address to the loopback interface. This

loopback IP addresses is used to identify the peer in the

EoMPLS point-to-point session.

No subnet mask is needed.

Step 4 Router(config)# interface {GigabitEthernet |

FastEthernet} interface-number

Specifies the Ethernet interface for the imposition

interface.

Step 5 Router(config-if)# no ip address Disables the IP address if an IP address is assigned.

Step 6 Router(config-subif)# mpls l2transport route

destination vc-id

xconnect destination vc-id encapsulation mpls

By entering the mpls l2transport route or the xconnect

interface configuration command on a VLAN for

VLAN-based EoMPLS, you can configure an EoMPLS

tunnel to forward traffic based on the customer VLAN.

mpls l2transport route specifies the VC to use to

transport the VLAN packets. Initiates a remote LDP

session with the peer point-to-point endpoint interface.

• destination specifies the loopback IP address for the

remote ML-Series at the other end of the VC

(PE-CLE).

• vc-id is a value you supply. It must be unique for

each VC. The VC ID is used to connect the

endpoints of the VC. Specify the same VC ID on

both ends of the VC.

xconnect binds the 802.1q VLAN circuit to a pseudowire

for xconnect service. The encapsulation mpls

pseudowire class parameter specifies MPLS for the

tunneling method.

Note The xconnect command is a newer version of the

mpls l2transport route interface configuration

command.

Note Use the no mpls l2transport route destination

vc-id or no xconnect destination vc-id

encapsulation mpls interface command to

delete the EoMPLS tunnel.

Step 7 Router(config-subif)# end Return to privileged EXEC mode.

Step 8 Router# show mpls l2transport vc Verify the configuration.

Step 9 Router# copy running-config startup-config (Optional) Save your entries in the configuration file

18-8

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 18 Configuring Ethernet over MPLS

EoMPLS Configuration on PE-CLE SPR Interface

To enable the RPR to act as an access ring for the MPLS cloud, you must provision the SPR interface on

the same ML-Series card that hosts the EoMPLS PE-CLE FastEthernet or GigabitEthernet interfaces.

Interface SPR 1 on card A and card C plays this role in Figure 18-2 on page 18-10.

To provision the SPR interface for MPLS, perform the following procedure, beginning in global

configuration mode:

Bridge Group Configuration on MPLS Cloud-facing Port

A FastEthernet or GigabitEthernet port from an ML-Series card in the RPR must connect to the interface

of a router that is part of the MPLS cloud. A bridge group must be created that contains this FastEthernet

or GigabitEthernet port and the SPR subinterface. Interface GigE 0 on card B and card D plays this role

in Figure 18-2 on page 18-10.

To provision the MPLS cloud-facing port for EoMPLS, perform the following procedure, beginning in

global configuration mode:

Command Purpose

Step 1 Router(config)# mpls label protocol

ldp

Specifies LDP as the label distribution protocol.

LDP must be specified. The ML-Series card does not

operate EoMPLS with the default TDP as the label

distribution protocol.

Step 2 Router(config)# interface spr 1 Enters RPR interface configuration mode.

Step 3 Router(config-if)# ip address

ip-address mask

Assigns an IP address to the RPR interface for MPLS.

Step 4 Router(config-if)# mpls ip Implements tag switching on the SPR interface.

Step 5 Router(config-if)# end Exits interface configuration mode.

Step 6 Router# copy running-config

startup-config

Saves the running configuration file to the startup

configuration file.

Command Purpose

Step 1 Router(config)# bridge bridge-group-number

protocol {rstp | ieee}

(Optional) Assigns a bridge group number and

defines the appropriate spanning-tree type: either

IEEE 802.1D Spanning Tree Protocol or

IEEE 802.1W Rapid Spanning Tree.

Step 2 Router(config)# interface {GigabitEthernet

| FastEthernet} interface-number

Enters interface configuration mode to configure

the MPLS cloud-facing FastEthernet or

GigabitEthernet interface of the ML-Series card.

Step 3 Router(config-if)# bridge-group

bridge-group-number

Assigns a network interface to a bridge group.

Step 4 Router(config-if)# no shutdown Changes the shutdown state to up and enables the

interface.

Step 5 Router(config)# interface

spr 1.subinterface-number

Enters SPR subinterface configuration mode for

the ML-Series card.

18-9

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 18 Configuring Ethernet over MPLS

Setting the Priority of Packets with the EXP

Ethernet over MPLS provides QoS using the three EXP bits in a label to determine the priority of

packets. To support QoS between ML-Series card point-to-point endpoints, set the experimental bits in

both the VC and tunnel labels.

Perform the following steps to set the experimental bits:

EoMPLS Configuration Example

Figure 18-2 illustrates the sample network that the configuration commands reference. Examples 18-1,

18-2, 18-3, and 18-4 list relevant portions of the configuration files for enabling EoMPLS on ML-Series

cards in a sample network.

Step 6 Router(config-if)# bridge-group

bridge-group-number

Assigns the network interface to a bridge group.

Step 7 Router(config-if)# end Returns to privileged EXEC mode.

Step 8 Router# copy running-config startup-config (Optional) Saves your entries in the configuration

file.

Command Purpose

Step 1 Router(config)# class-map

class-name

Specifies the user-defined name of the traffic class.

Step 2 Router(config-cmap)# match

any

Specifies that all packets will be matched.

Step 3 Router(config-cmap)#end Returns to global configuration mode.

Step 4 Router(config)# policy-map

policy-name

Specifies the name of the traffic policy to configure.

Step 5 Router(config-pmap)# class

class-name

Specifies the name of a predefined traffic class, which was

configured with the class-map command, used to classify traffic

to the traffic policy.

Step 6 Router (config-pmap-c)# set

mpls experimental imposition

value

Designates the value to which the MPLS bits are set if the packets

match the specified policy map.

Step 7 Router(config)# interface

GigabitEthernet

interface-number

interface FastEthernet

interface-number

Enters interface configuration mode.

Step 8 Router(config-if)#

service-policy input

policy-name

Attaches a traffic policy to an interface.

18-10

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 18 Configuring Ethernet over MPLS

EoMPLS Configuration Example

Figure 18-2 EoMPLS Configuration Example

Example 18-1 ML-Series Card A Configuration

microcode mpls

ip subnet-zero

no ip domain-lookup

mpls label protocol ldp

interface Loopback0

ip address 10.10.10.10 255.255.255.255

interface SPR1

ip address 100.100.100.100 255.255.255.0

no keepalive

spr station-id 1

mpls ip

hold-queue 150 in

interface GigabitEthernet0

no ip address

interface GigabitEthernet0.1

encapsulation dot1Q 10

mpls l2transport route 3.3.3.3 1

interface GigabitEthernet1

no ip address

mpls l2transport route 4.4.4.4 2

interface POS0

no ip address

spr-intf-id 1

crc 32

interface POS1

Core MPLS

RPR RPR

GigE 0.1

VC Type 4

SPR 1

GSR 12000

GigE 0

ML-Series Card A

ML-Series Card B

ML-Series Card C

ML-Series Card D

GigE 0

GigE 0.1

VC Type 4

SPR 1

GigE 1

VC Type 5

GigE 1

VC Type 5

GSR 12000

96982

18-11

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 18 Configuring Ethernet over MPLS

EoMPLS Configuration Example

no ip address

spr-intf-id 1

crc 32

router ospf 1

log-adjacency-changes

network 1.1.1.0 0.0.0.255 area 0

network 10.10.10.0 0.0.0.255 area 0

ip classless

no ip http server

Example 18-2 ML-Series Card B Configuration

bridge 10 protocol ieee

interface SPR1

no ip address

no keepalive

bridge-group 10

hold-queue 150 in

interface GigabitEthernet0

no ip address

bridge-group 10

Example 18-3 ML-Series Card C Configuration

microcode mpls

ip subnet-zero

no ip domain-lookup

mpls label protocol ldp

interface Loopback0

ip address 20.20.20.20 255.255.255.255

interface SPR1

ip address 100.100.100.100 255.255.255.0

no keepalive

spr station-id 4

mpls ip

hold-queue 150 in

interface GigabitEthernet0

no ip address

interface GigabitEthernet0.1

encapsulation dot1Q 10

mpls l2transport route 1.1.1.1 1

interface GigabitEthernet1

no ip address

mpls l2transport route 2.2.2.2 2

interface POS0

no ip address

spr-intf-id 1

crc 32

interface POS1

18-12

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 18 Configuring Ethernet over MPLS

Monitoring and Verifying EoMPLS

no ip address

spr-intf-id 1

crc 32

router ospf 1

log-adjacency-changes

network 1.1.1.0 0.0.0.255 area 0

network 10.10.10.0 0.0.0.255 area 0

ip classless

no ip http server

Example 18-4 ML-Series Card D Configuration

bridge 20 protocol ieee

interface SPR1

no ip address

no keepalive

bridge-group 20

hold-queue 150 in

interface GigabitEthernet0

no ip address

bridge-group 20

Monitoring and Verifying EoMPLS

Table 18-2 shows the privileged EXEC commands for monitoring and verifying EoMPLS.

Table 18-2 Commands for Monitoring and Maintaining Tunneling

Command Purpose

show mpls l2transport vc Provides information about all EoMPLS tunnels.

show mpls l2transport vc detail Provides detailed information about the EoMPLS

tunnel.

show mpls l2transport vc

vc-id

Provides information about a specific EoMPLS

tunnel.

18-13

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 18 Configuring Ethernet over MPLS

Understanding MPLS-TE

MPLS traffic is normally routed to the least cost path as calculated by OSPF or another IGP routing

protocol. This routing gives little or no consideration to varying bandwidth demands or link loads. MPLS

traffic engineering (MPLS-TE) overcomes this by mapping traffic flows to paths that take bandwidth

demands into account. These paths are known as MPLS-TE tunnels, and they may deviate from the

normal IGP calculated routes.

MPLS-TE (RFC 2702) allow service providers to create traffic engineered tunnels to reserve bandwidth

for specific types of traffic and to provide point-to-point services for end customers. The ML-Series card

supports a maximum of 24 MPLS-TE tunnels. MPLS-TE tunnels can carry a VC type 5, which tunnels

an Ethernet port, or a VC type 4, which tunnels an 802.1Q VLAN.

For the ML-Series card to use MPLS-TE, you need to configure three main components. First, you must

implement an IGP routing protocol that conveys and distributes information about the link resources

throughout the MPLS network. For this purpose, the ML-Series card supports OSPF and OSPF-TE

extensions (RFC 2328 and RFC 2370). MPLS-TE extensions for other routing protocols, such as IS-IS,

are not supported on the ML-Series card.

Second, you need to configure a signalling protocol to reserve needed resources and establish LSPs

across the MPLS network. MPLS-TE tunnels use Resource Reservation Protocol (RSVP) messages

(RFC 2205 and RFC 3209) to accomplish this. The ML-Series card supports RSVP and the RSVP

extensions for LSP tunnels on both POS interfaces and RPR (SPR) interfaces.

For the third component, you need to set up an MPLS-TE tunnel on the appropriate ML-Series card

interface. This requires creating an MPLS tunnel interface with an IP address, destination,

encapsulation, bandwidth, and explicit or dynamic path.

RSVP on the ML-Series Card

The ML-Series card uses RSVP to establish MPLS-TE tunnels and the associated tunnel labels. Targeted

LDP is still used to establish the VC Labels. Also, RSVP is only used to guarantee the bandwidth on the

intermediate nodes on the tunnel. On the ML-Series card, which will be the end-point of the MPLS-TE

tunnel, RSVP is used only for bandwidth allocation.

You configure bandwidth guarantees on the ML-Series card ports using the Cisco Modular Quality of

Service Command-Line Interface (MQC), just like the standard QoS on the ML-Series card. For more

information, see the “EoMPLS Quality of Service” section on page 18-3.

The ML-Series card does not use RSVP messages to carry the information for EoMPLS VCs. LDP

sessions are still used to exchange VC information. Also RSVP does not guarantee bandwidth. It only

allocates bandwidth.

The ML-Series card supports RSVP summary refresh and RSVP refresh reduction (RFC 2961). Refresh

reduction is a set of extensions that reduce the messaging load imposed by RSVP. This helps RSVP scale

to support larger numbers of flows. The global configuration command ip rsvp signalling refresh

reduction enables this feature.

Ethernet FCS Preservation

You can configure the ML-Series card to encapsulate and preserve the customer’s Ethernet FCS. The

ML-Series card will carry the Ethernet FCS end-to-end and unmodified across EoMPLS or EoMPLS-TE

tunnels. This end-to-end preservation of the original Ethernet FCS is useful for troubleshooting.

18-14

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 18 Configuring Ethernet over MPLS

Configuring MPLS-TE

Ethernet FCS preservation is off by default on the ML-Series card. Configure Ethernet FCS preservation

at the interface or sub-interface configuration level with the [no] fcs-preservation-on command. To

operate correctly, both ends of the EoMPLS tunnel need to be configured for FCS preservation.

Configuring MPLS-TE

Perform the following tasks on the MPLS network before you enable MPLS-TE on the ML-Series card:

• Turn on MPLS tunnels

• Turn on OSPF

To configure MPLS-TE on the ML-Series card, perform the tasks described in the following sections:

• Configuring an ML-Series Card for Tunnels Support

• Configuring an Interface to Support RSVP-Based Tunnel Signalling and IGP Flooding

• Configuring OSPF and Refresh Reduction for MPLS-TE

• Configuring an MPLS-TE Tunnel

Note The ML-Series card does not support MPLS-TE with IS-IS.

Note Cisco Express Forwarding (CEF) is on by default on the ML-Series card.

Configuring an ML-Series Card for Tunnels Support

To configure an ML-Series card to support tunnels, use the following commands in global configuration

mode:

Configuring an Interface to Support RSVP-Based Tunnel Signalling and IGP

Flooding

To configure an interface to support RSVP-based tunnel signalling and IGP flooding, use the following

commands in interface configuration mode:

Note You must enable the tunnel feature on interfaces or sub-interfaces that you want to support

MPLS-TE.

Command Purpose

Step 1 Router(config)# mpls traffic-eng tunnels Enables the MPLS-TE tunnel feature on a device.

18-15

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 18 Configuring Ethernet over MPLS

Configuring OSPF and Refresh Reduction for MPLS-TE

Note A VC type 4 requires one POS interface to be configured for MPLS-TE tunnel and the other POS

interface configured for the 802.1Q tunnel.

Configuring OSPF and Refresh Reduction for MPLS-TE

For a description of the OSPF commands (excluding the OSPF traffic engineering commands), see the

Cisco IOS IP Command Reference, Volume 2 of 3: Routing Protocols

To configure OSPF and Refresh Reduction for MPLS-TE, use the following commands beginning in

global configuration mode .

Configuring an MPLS-TE Tunnel

To configure an MPLS-TE tunnel, use the following commands, beginning in global configuration mode:

Command Purpose

Step 1 Router(config-if)# mpls traffic-eng tunnels Enables MPLS-TE tunnels on an RPR (SPR)

interface or on a POS interface.

Step 2 Router(config-if)# ip rsvp bandwidth bandwidth Enables RSVP for IP on an interface and specifies

the amount of bandwidth that will be reserved.

For a description of the ip rsvp interface command

syntax, see the Cisco IOS Quality of Service

Solutions Command Reference.

Command Purpose

Step 1 Router(config)# router ospf process-id Configures an OSPF routing process for IP and places the router in

configuration mode.

The process-id argument is an internally used identification

parameter for an OSPF routing process. It is locally assigned and

can be any positive integer. Assign a unique value for each OSPF

routing process.

Step 2 Router(config-router)# mpls

traffic-eng

area area-id

Turns on MPLS-TE for a specified OSPF area.

Step 3 Router(config-router)# mpls

traffic-eng

router-id loopback0

Specifies that the traffic engineering router identifier for the node is

the IP address associated with interface loopback0.

Step 4 Router(config)# ip rsvp signalling

refresh reduction

Reduces the messaging load imposed by RSVP

18-16

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 18 Configuring Ethernet over MPLS

MPLS-TE Configuration Example

Figure 18-3 illustrates the sample network that the configuration commands reference. Example 18-5

lists relevant portions of the configuration files for enabling MPLS-TE on ML-Series card A in the

sample network. ML-Series card A is configured with an explicit path.

Figure 18-3 MPLS-TE Configuration Example

Example 18-5 ML-Series Card A Configuration

microcode mpls

ip subnet-zero

no ip domain-lookup

mpls label protocol ldp

mpls traffic-eng tunnels

Command Purpose

Step 1 Router(config)# interface tunnel Configures an interface type and enters interface configuration

mode.

Step 2 Router(config)# ip unnumbered loopback0 Gives the tunnel interface an IP address.

An MPLS-TE tunnel interface should be unnumbered because it

represents a unidirectional link.

Step 3 Router(config-if)# tunnel destination

A.B.C.D

Specifies the destination for a tunnel.

Step 4 Router(config-if)# tunnel mode mpls

traffic-eng

Sets the tunnel encapsulation mode to MPLS-TE.

Step 5 Router(config-if)# tunnel mpls

traffic-eng autoroute announce

Specifies IGP should use the tunnel (if the tunnel is up) in its

enhanced shortest path first (SPF) calculation.

Step 6 Router(config-if)# tunnel mpls

traffic-eng bandwidth bandwidth

Configures the bandwidth for the MPLS-TE tunnel.

Step 7 Router(config-if)# tunnel mpls

traffic-eng

path-option number {dynamic |

explicit}{name path-name |

path-number} [lockdown]

Configures the tunnel to use a named IP explicit path or a dynamic

path.

Core MPLS

PE-CLE PE-CLE

MPLS

Cloud-facing

MPLS

Cloud-facing

Interface Interface

ML-Series Card B

with MPLS-TE Tunnel

ML-Series Card A

with MPLS-TE Tunnel

134598

18-17

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 18 Configuring Ethernet over MPLS

MPLS-TE Configuration Example

no mpls traffic-eng auto-bw timers frequency 0

interface Loopback0

ip address 222.222.222.222 255.255.255.255

interface Tunnel0

ip unnumbered Loopback0

tunnel destination 212.212.212.212

tunnel mode mpls traffic-eng

tunnel mpls traffic-eng autoroute announce

tunnel mpls traffic-eng path-option 1 explicit identifier 1

interface Tunnel1

ip unnumbered Loopback0

tunnel destination 212.212.212.212

tunnel mode mpls traffic-eng

tunnel mpls traffic-eng autoroute announce

tunnel mpls traffic-eng path-option 2 explicit identifier 2

interface GigabitEthernet0

no ip address

shutdown

interface GigabitEthernet1

no ip address

interface GigabitEthernet1.1

encapsulation dot1Q 10

fcs-preservation-on

mpls l2transport route 212.212.212.212 222

interface GigabitEthernet1.2

encapsulation dot1Q 20

mpls l2transport route 212.212.212.212 223

interface GigabitEthernet1.3

encapsulation dot1Q 30

mpls l2transport route 212.212.212.212 224

interface POS0

ip address 170.170.170.172 255.255.255.0

mpls traffic-eng tunnels

tag-switching ip

ip rsvp bandwidth 10000

interface POS1

ip address 2.1.1.22 255.255.255.0

mpls traffic-eng tunnels

tag-switching ip

ip rsvp bandwidth 10000

router ospf 1

mpls traffic-eng router-id Loopback0

mpls traffic-eng area 0

log-adjacency-changes

network 2.1.1.22 0.0.0.0 area 0

network 170.170.170.172 0.0.0.0 area 0

network 222.222.222.222 0.0.0.0 area 0

ip classless

no ip http server

18-18

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 18 Configuring Ethernet over MPLS

Monitoring and Verifying MPLS-TE and IP RSVP

ip explicit-path identifier 1 enable

next-address 2.1.1.1

next-address 192.168.3.2

next-address 192.168.3.1

next-address 2.2.1.1

next-address 2.2.1.2

next-address 212.212.212.212

ip explicit-path identifier 2 enable

next-address 170.170.170.171

next-address 192.168.3.2

next-address 192.168.3.1

next-address 2.2.1.1

next-address 2.2.1.2

next-address 212.212.212.212

control-plane

line con 0

exec-timeout 0 0

line vty 0 4

exec-timeout 0 0

password xxx

no login

Monitoring and Verifying MPLS-TE and IP RSVP

Table 18-3 shows the privileged EXEC commands supported to monitor and verify the state of MPLS-TE

tunnels on the ML-Series cards.

Table 18-3 Commands for Monitoring and Verifying MPLS-TE

Command Purpose

show mpls traffic-eng autoroute Displays tunnels announced to the

Interior Gateway Protocol (IGP),

including interface, destination, and

bandwidth

show mpls traffic-eng link-management

admission-control

Displays which tunnels were

admitted locally and their parameters

(such as, priority, bandwidth,

incoming and outgoing interface, and

state).

show mpls traffic-eng link-management

advertisements

Displays local link information that

MPLS traffic engineering link

management is currently flooding

into the global traffic engineering

topology.

show mpls traffic-eng link-management

bandwidth-allocation

Displays current local link

information.

18-19

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 18 Configuring Ethernet over MPLS

RPRW Alarm

Table 18-2 shows the privileged EXEC commands supported to monitor and verify the state of IP RSVP

on the ML-Series cards.

RPRW Alarm

For information on the ONS 15454 RPRW alarm, refer to the online version of the Cisco ONS 15454

Troubleshooting Guide, Release 5.0 at

http://www.cisco.com/univercd/cc/td/doc/product/ong/15400/r50docs/r50tblsh/r50alts.htm

show mpls traffic-eng link-management

igp-neighbors

Displays IGP neighbors.

show mpls traffic-eng link-management

interfaces

Displays interface resource and

configuration information.

show mpls traffic-eng link-management summary Displays a summary of link

management information including

link counts.

show mpls traffic-eng topology Displays the MPLS-TE global

topology as currently known at this

node.

show mpls traffic-eng tunnel Displays information about

MPLS-TE tunnels, including LSP

Tunnels Process and RSVP process.

show mpls traffic-eng tunnel summary Displays condensed information

about MPLS-TE tunnels.

Table 18-3 Commands for Monitoring and Verifying MPLS-TE (continued)

Command Purpose

Table 18-4 Commands for Monitoring and Verifying IP RSVP

Command Purpose

show ip rsvp interface

[

interface-type interface-number

]

Displays Resource Reservation Protocol (RSVP)-related

information.

show ip rsvp installed

[

interface-type interface-number

]

Displays RSVP-related installed filters and corresponding

bandwidth information.

show ip rsvp neighbor

[

interface-type interface-number

]

Displays current RSVP neighbors.

show ip rsvp sender [

interface-type

interface-number

]

Displays RSVP path-related sender information currently

in the database.

show ip rsvp request

[

interface-type interface-number

]

Displays RSVP-related request information being

requested upstream

show ip rsvp reservation

[

interface-type interface-number

]

Displays RSVP-related receiver information currently in

the database

18-20

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 18 Configuring Ethernet over MPLS

RPRW Alarm

CHAPTER

19-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Configuring Security for the ML-Series Card

This chapter describes the security features of the ML-Series card.

This chapter includes the following major sections:

• Understanding Security, page 19-1

• Disabling the Console Port on the ML-Series Card, page 19-2

• Secure Login on the ML-Series Card, page 19-2

• Secure Shell on the ML-Series Card, page 19-2

• RADIUS on the ML-Series Card, page 19-6

• RADIUS Relay Mode, page 19-6

• RADIUS Stand Alone Mode, page 19-7

Understanding Security

The ML-Series card includes several security features. Some of these features operate independently

from the ONS node where the ML-Series card is installed. Others are configured using the Cisco

Transport Controller (CTC) or Transaction Language One (TL1).

Security features configured with Cisco IOS include:

• Cisco IOS login enhancements

• Secure Shell ( SSH) connection

• authentication, authorization, and accounting/Remote Authentication Dial-In User Service

(AAA/RADIUS) stand alone mode

• Cisco IOS basic password (For information on basic Cisco IOS password configuration, see the

“Passwords” section on page 3-8)

Security features configured with CTC or TL1 include:

• disabled console port

• AAA/RADIUS relay mode

19-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 19 Configuring Security for the ML-Series Card

Disabling the Console Port on the ML-Series Card

There are several ways to access the Cisco IOS running on the ML-Series card, including a direct

connection to the console port, which is the RJ-11 serial port on the front of the card. Users can increase

security by disabling this direct connection, which is enabled by default. This prevents console port input

without preventing any console port output, such as Cisco IOS error messages.

You can disable console port access through CTC or TL1. To disable it with CTC, at the card-level view

of the ML-Series card, click under the IOS tab and uncheck the Enable Console Port Access box and

click Apply. The user must be logged in at the Superuser level to complete this task.

To disable it using TL1, refer to the Cisco ONS SONET TL1 Command Guide.

Secure Login on the ML-Series Card

The ML-Series card supports the Cisco IOS login enhancements integrated into Cisco IOS

Release 12.2(25)S and introduced in Cisco IOS Release 12.3(4)T. The enhancements allow users to

better secure the ML-Series card when creating a virtual connection, such as Telnet, SSH, or HTTP. The

secure login feature records successful and failed login attempts for vty sessions (audit trail) on the

ML-Series card. These features are configured using the Cisco IOS command-line interface (CLI.)

For more information, including step-by-step configuration examples, refer to the Cisco IOS Release

12.2(25)S feature guide module Cisco IOS Login Enhancements at

http://www.cisco.com/en/US/products/sw/iosswrel/ps1838/products_feature_guides_list.html.

Secure Shell on the ML-Series Card

This section describes how to configure the SSH feature.

These sections contain this information:

• Understanding SSH, page 19-2

• Configuring SSH, page 19-3

• Displaying the SSH Configuration and Status, page 19-5

For other SSH configuration examples, see the “SSH Configuration Examples” section in the

“Configuring Secure Shell” chapter of the Cisco IOS Security Configuration Guide, Cisco IOS

Release 12.2, at this URL:

http://www.cisco.com/univercd/cc/td/doc/product/software/ios122/122cgcr/fsecur_c/fothersf.htm

Note For complete syntax and usage information for the commands used in this section, see the command

reference for Cisco IOS Release 12.2 at the URL:

http://www.cisco.com/univercd/cc/td/doc/product/software/ios122/122cgcr/index.htm.

Understanding SSH

The ML-Series card supports SSH, both version 1 (SSHv1) and version 2 (SSHv2). SSHv2 offers

security improvements over SSHv1 and is the default choice on the ML-Series card.

19-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 19 Configuring Security for the ML-Series Card

Configuring SSH

SSH has two applications, an SSH server and SSH client. The ML-Series card only supports the SSH

server and does not support the SSH client. The SSH server in Cisco IOS software works with publicly

and commercially available SSH clients.

The SSH server enables a connection into the ML-Series card, similar to an inbound Telnet connection,

but with stronger security. Before SSH, security was limited to the native security in Telnet. SSH

improves on this by allowing the use of Cisco IOS software authentication.

The ONS node also supports SSH. When SSH is enabled on the ONS node, you use SSH to connect to

the ML-Series card for Cisco IOS CLI sessions.

Note Telnet access to the ML-Series card is not automatically disabled when SSH is enabled. The user can

disable Telnet access with the vty line configuration command transport input ssh.

Configuring SSH

This section has this configuration information:

• Configuration Guidelines, page 19-3

• Setting Up the ML-Series Card to Run SSH, page 19-3 (required)

• Configuring the SSH Server, page 19-4 (required)

Configuration Guidelines

Follow these guidelines when configuring the ML-Series card as an SSH server:

• The new model of AAA and a AAA login method must be enabled. If not previously enabled,

complete the “Configuring AAA Login Authentication” section on page 19-11.

• A Rivest, Shamir, and Adelman (RSA) key pair generated by a SSHv1 server can be used by an

SSHv2 server, and the reverse.

• If you get CLI error messages after entering the crypto key generate rsa global configuration

command, an RSA key pair has not been generated. Reconfigure the hostname and domain, and then

enter the crypto key generate rsa command. For more information, see the “Setting Up the

ML-Series Card to Run SSH” section on page 19-3.

• When generating the RSA key pair, the message No host name specified might appear. If it does,

you must configure a hostname by using the hostname global configuration command.

• When generating the RSA key pair, the message No domain specified might appear. If it does, you

must configure an IP domain name by using the ip domain-name global configuration command.

Setting Up the ML-Series Card to Run SSH

Follow these steps to set up your ML-Series card to run as an SSH server:

1. Configure a hostname and IP domain name for the ML-Series card.

2. Generate an RSA key pair for the ML-Series card, which automatically enables SSH.

3. Configure user authentication for local or remote access. This step is required.

Beginning in privileged EXEC mode, follow these steps to configure a hostname and an IP domain name

and to generate an RSA key pair.

19-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 19 Configuring Security for the ML-Series Card

Configuring SSH

To delete the RSA key pair, use the crypto key zeroize rsa global configuration command. After the

RSA key pair is deleted, the SSH server is automatically disabled.

Configuring the SSH Server

Beginning in privileged EXEC mode, follow these steps to configure the SSH server:

Command Purpose

Step 1 Router #configure terminal Enter global configuration mode.

Step 2 Router (config)# hostname hostname Configure a hostname for your ML-Series card.

Step 3 Router (config)# ip domain-name

domain_name

Configure a host domain for your ML-Series card.

Step 4 Router (config)# crypto key generate

rsa

Enable the SSH server for local and remote authentication on the

ML-Series card and generate an RSA key pair.

When you generate RSA keys, you are prompted to enter a modulus

length. The default modulus length is 512 bits. A longer modulus length

might be more secure, but it takes longer to generate and to use.

Step 5 Router (config)# ip ssh timeout

seconds

Specify the timeout value in seconds; the default is 120 seconds. The

range is 0 to 120 seconds. This parameter applies to the SSH negotiation

phase. After the connection is established, the ML-Series card uses the

default timeout values of the CLI-based sessions.

By default, up to five simultaneous, encrypted SSH connections for

multiple CLI-based sessions over the network are available (session 0

to session 4). After the execution shell starts, the CLI-based session

timeout value returns to the default of 10 minutes.

Step 6 Router (config)# ip ssh

authentication-retries number

Specify the number of times that a client can reauthenticate to the

server. The default is 3; the range is 0 to 5.

Step 7 Router (config)# end Return to privileged EXEC mode.

Step 8 Router # show ip ssh

Router # show ssh

Displays the version and configuration information for your SSH

server.

Displays the status of the SSH server on the ML-Series card.

Step 9 Router # show crypto key mypubkey

rsa

Displays the generated RSA key pair associated with this ML-Series

card.

Step 10 Router # copy running-config

startup-config

(Optional) Save your entries in the configuration file.

19-5

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 19 Configuring Security for the ML-Series Card

Displaying the SSH Configuration and Status

To return to the default SSH control parameters, use the no ip ssh {timeout | authentication-retries}

global configuration command.

Displaying the SSH Configuration and Status

To display the SSH server configuration and status, use one or more of the privileged EXEC commands

in Table 19-1.

Command Purpose

Step 1 Router # configure terminal Enter global configuration mode.

Step 2 Router (config)# ip ssh version [1

| 2]

(Optional) Configure the ML-Series card to run SSH Version 1 or SSH

Ve r s i o n 2 .

• 1—Configure the ML-Series card to run SSH Version 1.

• 2—Configure the ML-Series card to run SSH Version 2.

If you do not enter this command or do not specify a keyword, the SSH

server selects the latest SSH version supported by the SSH client. For

example, if the SSH client supports SSHv1 and SSHv2, the SSH server

selects SSHv2.

Step 3 Router (config)# ip ssh timeout

seconds

Specify the timeout value in seconds; the default is 120 seconds. The

range is 0 to 120 seconds. This parameter applies to the SSH negotiation

phase. After the connection is established, the ML-Series card uses the

default timeout values of the CLI-based sessions.

By default, up to five simultaneous, encrypted SSH connections for

multiple CLI-based sessions over the network are available (session 0 to

session 4). After the execution shell starts, the CLI-based session timeout

value returns to the default of 10 minutes.

Step 4 Router (config)# ip ssh

authentication-retries number

Specify the number of times that a client can reauthenticate to the server.

The default is 3; the range is 0 to 5.

Step 5 Router (config)# end Return to privileged EXEC mode.

Step 6 Router # show ip ssh

Router # show ssh

Show the version and configuration information for your SSH server.

Show the status of the SSH server connections on the ML-Series card.

Step 7 Router # copy running-config

startup-config

(Optional) Save your entries in the configuration file.

Table 19-1 Commands for Displaying the SSH Server Configuration and Status

Command Purpose

show ip ssh Shows the version and configuration information for the SSH server.

show ssh Shows the status of the SSH server.

19-6

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 19 Configuring Security for the ML-Series Card

RADIUS on the ML-Series Card

For more information about these commands, see the “Secure Shell Commands” section in the “Other

Security Features” chapter of the Cisco IOS Security Command Reference, Cisco IOS Release 12.2, at

this URL:

http://www.cisco.com/univercd/cc/td/doc/product/software/ios122/122cgcr/fsecur_r/fothercr.htm.

RADIUS on the ML-Series Card

RADIUS is a distributed client/server system that secures networks against unauthorized access. Clients

send authentication requests to a central RADIUS server, which contains all user authentication and

network service access information. The RADIUS host is normally a multiuser system running RADIUS

server software from Cisco or another software provider.

Many Cisco products offer RADIUS support, including the ONS 15454, ONS 15454 SDH, ONS 15327,

ONS 15310-CL, and ONS 15600. The ML-Series card also supports RADIUS.

The ML-Series card can operate either in RADIUS relay mode or in RADIUS stand alone mode

(default). In either mode, the RADIUS messages from the ML-Series card are passed to a RADIUS

server that is on the data communications network (DCN) used to manage the ONS node.

RADIUS Relay Mode

In RADIUS relay mode, RADIUS on the ML-Series card is configured by CTC or TL1 and uses the

AAA/RADIUS features of the ONS 15454 or ONS 15454 SDH node, which contains the ML-Series

card. There is no interaction between RADIUS relay mode and RADIUS standalone mode. For

information on ONS node security, refer to the “Security” chapter of the ONS node’s reference manual.

An ML-Series card operating in RADIUS relay mode does need to be specified as a client in the

RADIUS server entries. The RADIUS server uses the client entry for the ONS node as a proxy for the

ML-Series card.

Enabling relay mode disables the Cisco IOS CLI commands used to configure AAA/RADIUS. The user

can still use the Cisco IOS CLI commands not related to AAA/RADIUS.

In relay mode, the ML-Series card shows a RADIUS server host with an IP address that is really the

internal IP address of the active timing, communications, and control card (TCC2/TCC2P). When the

ML-Series card actually sends RADIUS packets to this internal address, the TCC2/TCC2P converts the

RADIUS packet destination into the real IP address of the RADIUS server. In stand alone mode, the

ML-Series card shows the true IP addresses of the RADIUS servers.

When in relay mode with multiple RADIUS server hosts, the ML-Series card IOS CLI show run output

also shows the internal IP address of the active TCC2/TCCP card. But since the single IP address now

represents multiple hosts, different port numbers are paired with the IP address to distinguish the

individual hosts. These ports are from 1860 to 1869, one for each authentication server host configured,

and from 1870 to 1879, one for each accounting server host configured.

The single IP address will not match the host IP addresses shown in CTC, which uses the true addresses

of the RADIUS server hosts. These same true IP addresses appear in the ML-Series card IOS CLI show

run output, when the ML-Series card is in stand alone mode.

Note A user can configure up to 10 servers for either authentication or accounting application, and one server

host can perform both authentication and accounting applications.

19-7

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 19 Configuring Security for the ML-Series Card

Configuring RADIUS Relay Mode

This feature is turned on with CTC or TL1. To enable RADIUS Relay Mode through CTC, go to the

card-level view of the ML-Series card, check the Enable RADIUS Relay box and click Apply. The user

must be logged in at the Superuser level to complete this task.

To enable it using TL1, refer to the Cisco ONS SONET TL1 Command Guide.

Caution Switching the ML-Series card into RADIUS relay mode erases any configuration in the Cisco IOS

configuration file related to AAA/RADIUS. The cleared AAA/RADIUS configuration is not restored to

the Cisco IOS configuration file when the ML-Series card is put back into stand alone mode.

Caution Do not use the Cisco IOS command copy running-config startup-config while the ML-Series card is

in relay mode. This command will save a Cisco IOS configuration file with RADIUS relay enabled.

On a reboot, the ML-Series card would come up in RADIUS relay mode, even when the Enable

RADIUS Relay box on the CTC is not checked. If this situation arises, the user should check the

Enable RADIUS Relay box and click Apply and then uncheck the Enable RADIUS Relay box and

click Apply. Doing this will set the ML-Series card in stand alone mode and clear RADIUS relay from

the ML-Series card configuration.

RADIUS Stand Alone Mode

In stand alone mode, RADIUS on the ML-Series card is configured with the Cisco IOS CLI in the same

general manner as RADIUS on a Cisco Catalyst switch.

This section describes how to enable and configure RADIUS in the stand alone mode on the ML-Series

card. RADIUS in stand alone mode is facilitated through AAA and enabled through AAA commands.

Note For the remainder of the chapter, RADIUS refers to the Cisco IOS RADIUS available when the

ML-Series card is in stand alone mode. It does not refer to RADIUS relay mode.

Note For complete syntax and usage information for the commands used in this section, see the Cisco IOS

Security Command Reference, Release 12.2.

These sections contain this configuration information:

• Understanding RADIUS, page 19-8

• RADIUS Stand Alone Mode, page 19-7

• Configuring RADIUS, page 19-8

• Displaying the RADIUS Configuration, page 19-20

19-8

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 19 Configuring Security for the ML-Series Card

Understanding RADIUS

When a user attempts to log in and authenticate to an ML-Series card with access controlled by a

RADIUS server, these events occur:

1. The user is prompted to enter a username and password.

2. The username and encrypted password are sent over the network to the RADIUS server.

3. The user receives one of these responses from the RADIUS server:

a. ACCEPT—The user is authenticated.

b. REJECT—The user is either not authenticated and is prompted to reenter the username and

password, or access is denied.

The ACCEPT and REJECT responses are bundled with additional data that is used for privileged EXEC

or network authorization. Users must first successfully complete RADIUS authentication before

proceeding to RADIUS authorization if it is enabled. The additional data included with the ACCEPT and

REJECT packets includes these items:

• Telnet, SSH, rlogin, or privileged EXEC services

• Connection parameters, including the host or client IP address, access list, and user timeouts

Configuring RADIUS

This section describes how to configure your ML-Series card to support RADIUS. At a minimum, you

must identify the host or hosts that run the RADIUS server software and define the method lists for

RADIUS authentication. You must also apply the method list to the interface on which you want

authentication to occur. For the ML-Series card, this is the vty ports. You can optionally define method

lists for RADIUS authorization and accounting.

You should have access to and should configure a RADIUS server before configuring RADIUS features

on your ML-Series card.

These sections contain this configuration information:

• Default RADIUS Configuration, page 19-9

• Identifying the RADIUS Server Host, page 19-9 (required)

• Configuring AAA Login Authentication, page 19-11 (required)

• Defining AAA Server Groups, page 19-13 (optional)

• Configuring RADIUS Authorization for User Privileged Access and Network Services, page 19-15

(optional)

• Starting RADIUS Accounting, page 19-16 (optional)

• Configuring a nas-ip-address in the RADIUS Packet, page 19-16 (optional)

• Configuring Settings for All RADIUS Servers, page 19-17 (optional)

• Configuring the ML-Series Card to Use Vendor-Specific RADIUS Attributes, page 19-18 (optional)

• Configuring the ML-Series Card for Vendor-Proprietary RADIUS Server Communication, page

19-19 (optional)

19-9

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 19 Configuring Security for the ML-Series Card

Configuring RADIUS

Default RADIUS Configuration

RADIUS and AAA are disabled by default. To prevent a lapse in security, you cannot configure RADIUS

through a network management application. When enabled, RADIUS can authenticate users accessing

the ML-Series card through the Cisco IOS CLI.

Identifying the RADIUS Server Host

ML-Series-card-to-RADIUS-server communication involves several components:

• Hostname or IP address

• Authentication destination port

• Accounting destination port

• Key string

• Timeout period

• Retransmission value

You identify RADIUS security servers by their hostname or IP address, their hostname and specific UDP

port numbers, or their IP address and specific UDP port numbers. The combination of the IP address and

the UDP port number creates a unique identifier, allowing different ports to be individually defined as

RADIUS hosts providing a specific AAA service. This unique identifier enables RADIUS requests to be

sent to multiple UDP ports on a server at the same IP address.

If two different host entries on the same RADIUS server are configured for the same service—for

example, accounting—the second host entry configured acts as a fail-over backup to the first one. Using

this example, if the first host entry fails to provide accounting services, the ML-Series card tries the

second host entry configured on the same device for accounting services.

To configure RADIUS to use the AAA security commands, you must specify the host running the

RADIUS server daemon and a secret text (key) string that it shares with the ML-Series card. A RADIUS

server, the ONS node, and the ML-Series card use a shared secret text string to encrypt passwords and

exchange responses. The system ensures that the ML-Series cards' shared secret matches the shared

secret in the NE.

Note If you configure both global and per-server functions (timeout, retransmission, and key commands) on

the switch, the per-server timer, retransmission, and key value commands override global timer,

retransmission, and key value commands. For information on configuring these settings on all RADIUS

servers, see the “Configuring Settings for All RADIUS Servers” section on page 19-17.

Note Retransmission and timeout period values are configureable on the ML-Series card in stand alone mode.

These values are not configureable on the ML-Series card in relay mode.

You can configure the ML-Series card to use AAA server groups to group existing server hosts for

authentication. For more information, see the “Defining AAA Server Groups” section on page 19-13.

Beginning in privileged EXEC mode, follow these steps to configure per-server RADIUS server

communication. This procedure is required.

19-10

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 19 Configuring Security for the ML-Series Card

Configuring RADIUS

To remove the specified RADIUS server, use the no radius-server host hostname | ip-address global

configuration command.

This example shows how to configure one RADIUS server to be used for authentication and another to

be used for accounting:

Switch(config)# radius-server host 172.29.36.49 auth-port 1612 key rad1

Switch(config)# radius-server host 172.20.36.50 acct-port 1618 key rad2

Command Purpose

Step 1 Router # configure terminal Enter global configuration mode.

Step 2 Router (config)# aaa new-model Enable AAA.

Step 3 Router (config)# radius-server host

{hostname | ip-address} [auth-port

port-number] [acct-port

port-number] [timeout seconds]

[retransmit retries] [key string]

Specify the IP address or hostname of the remote RADIUS server host.

• (Optional) For auth-port port-number, specify the UDP destination

port for authentication requests.

• (Optional) For acct-port port-number, specify the UDP destination

port for accounting requests.

• (Optional) For timeout seconds, specify the time interval that the

switch waits for the RADIUS server to reply before resending. The

range is 1 to 1000. This setting overrides the radius-server timeout

global configuration command setting. If no timeout is set with the

radius-server host command, the setting of the radius-server

timeout command is used.

• (Optional) For retransmit retries, specify the number of times a

RADIUS request is resent to a server if that server is not responding

or responding slowly. The range is 1 to 1000. If no retransmit value is

set with the radius-server host command, the setting of the

radius-server retransmit global configuration command is used.

• (Optional) For key string, specify the authentication and encryption

key used between the switch and the RADIUS daemon running on the

RADIUS server.

Note The key is a text string that must match the encryption key used

on the RADIUS server. Always configure the key as the last item

in the radius-server host command. Leading spaces are ignored,

but spaces within and at the end of the key are used. If you use

spaces in your key, do not enclose the key in quotation marks

unless the quotation marks are part of the key.

To configure the switch to recognize more than one host entry associated

with a single IP address, enter this command as many times as necessary,

making sure that each UDP port number is different. The switch software

searches for hosts in the order in which you specify them. Set the timeout,

retransmit, and encryption key values to use with the specific RADIUS

host.

Step 4 Router (config)# end Return to privileged EXEC mode.

Step 5 Router# show running-config Verify your entries.

Step 6 Router# copy running-config

startup-config

(Optional) Save your entries in the configuration file.

19-11

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 19 Configuring Security for the ML-Series Card

Configuring RADIUS

This example shows how to configure host1 as the RADIUS server and to use the default ports for both

authentication and accounting:

Switch(config)# radius-server host host1

Note You also need to configure some settings on the RADIUS server. These settings include the IP address

of the switch and the key string to be shared by both the server and the switch. For more information,

see the RADIUS server documentation.

Configuring AAA Login Authentication

To configure AAA authentication, you define a named list of authentication methods and then apply that

list to various ports. The method list defines the types of authentication to be performed and the sequence

in which they are performed; it must be applied to a specific port before any of the defined authentication

methods are performed. The only exception is the default method list, which is named default. The

default method list is automatically applied to all ports except those that have a named method list

explicitly defined.

A method list describes the sequence and authentication methods to be queried to authenticate a user.

You can designate one or more security protocols to be used for authentication, thus ensuring a backup

system for authentication in case the initial method fails. The software uses the first method listed to

authenticate users; if that method fails to respond, the software selects the next authentication method in

the method list. This process continues until there is successful communication with a listed

authentication method or until all defined methods are exhausted. If authentication fails at any point in

this cycle—meaning that the security server or local username database responds by denying the user

access—the authentication process stops, and no other authentication methods are attempted.

For additional information on AAA login, refer to the “Authentication, Authorization, and Accounting

(AAA)” chapter of the Cisco IOS Security Configuration Guide, Release 12.2 at:

http://www.cisco.com/en/US/products/sw/iosswrel/ps1835/products_installation_and_configuration_g

uides_list.html

Beginning in privileged EXEC mode, follow these steps to configure login authentication. This

procedure is required.

Command Purpose

Step 1 Router# configure terminal Enter global configuration mode.

Step 2 Router (config)# aaa new-model Enable AAA.

19-12

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 19 Configuring Security for the ML-Series Card

Configuring RADIUS

Step 3 Router (config)# aaa authentication

[method2...]

Create a login authentication method list.

• To create a default list that is used when a named list is not specified

in the login authentication command, use the default keyword

followed by the methods that are to be used in default situations. The

default method list is automatically applied to all ports.

• For list-name, specify a character string to name the list you are

creating.

• For method1..., specify the actual method the authentication

algorithm tries. The additional methods of authentication are used

only if the previous method returns an error, not if it fails.

Select one of these methods:

–

enable—Use the enable password for authentication. Before you

can use this authentication method, you must define an enable

password by using the enable password global configuration

command.

–

group radius—Use RADIUS authentication. Before you can use

this authentication method, you must configure the RADIUS

server. For more information, see the “Identifying the RADIUS

Server Host” section on page 19-9.

–

line—Use the line password for authentication. Before you can

use this authentication method, you must define a line password.

Use the password password line configuration command.

–

local—Use the local username database for authentication. You

must enter username information in the database. Use the

username name password global configuration command.

–

local-case—Use a case-sensitive local username database for

authentication. You must enter username information in the

database by using the username password global configuration

command.

–

none—Do not use any authentication for login.

Step 4 Router (config)# line [console | tty |

vty] line-number [ending-line-number]Enter line configuration mode, and configure the lines to which you want

to apply the authentication list.

Command Purpose

19-13

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 19 Configuring Security for the ML-Series Card

Configuring RADIUS

To disable AAA, use the no aaa new-model global configuration command. To disable AAA

authentication, use the no aaa authentication login {default | list-name} method1 [method2...] global

configuration command. To either disable RADIUS authentication for logins or to return to the default

value, use the no login authentication {default | list-name} line configuration command.

Defining AAA Server Groups

You can configure the ML-Series card to use AAA server groups to group existing server hosts for

authentication. You select a subset of the configured server hosts and use them for a particular service.

The server group is used with a global server-host list, which lists the IP addresses of the selected server

hosts.

Server groups also can include multiple host entries for the same server if each entry has a unique

identifier (the combination of the IP address and UDP port number), allowing different ports to be

individually defined as RADIUS hosts providing a specific AAA service, such as accounting. If you

configure two different host entries on the same RADIUS server for the same service, the second

configured host entry acts as a fail-over backup to the first one.

You use the server group server configuration command to associate a particular server with a defined

group server. You can either identify the server by its IP address or identify multiple host instances or

entries by using the optional auth-port and acct-port keywords.

Beginning in privileged EXEC mode, follow these steps to define the AAA server group and associate a

particular RADIUS server with it:

Step 5 Router (config-line)# login

authentication {default | list-name}Apply the authentication list to a line or set of lines.

• If you specify default, use the default list created with the aaa

authentication login command.

• For list-name, specify the list created with the aaa authentication

Step 6 Router (config)# end Return to privileged EXEC mode.

Step 7 Router# show running-config Verify your entries.

Step 8 Router# copy running-config

startup-config

(Optional) Save your entries in the configuration file.

Command Purpose

Step 1 Router# configure terminal Enter global configuration mode.

Step 2 Router (config)# aaa new-model Enable AAA.

19-14

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 19 Configuring Security for the ML-Series Card

Configuring RADIUS

Step 3 Router (config)# radius-server host

{hostname | ip-address} [auth-port

port-number] [acct-port

port-number] [timeout seconds]

[retransmit retries] [key string]

Specify the IP address or hostname of the remote RADIUS server host.

• (Optional) For auth-port port-number, specify the UDP destination

port for authentication requests.

• (Optional) For acct-port port-number, specify the UDP destination

port for accounting requests.

• (Optional) For timeout seconds, specify the time interval that the

switch waits for the RADIUS server to reply before resending. The

range is 1 to 1000. This setting overrides the radius-server timeout

global configuration command setting. If no timeout is set with the

radius-server host command, the setting of the radius-server

timeout command is used.

• (Optional) For retransmit retries, specify the number of times a

RADIUS request is resent to a server if that server is not responding

or responding slowly. The range is 1 to 1000. If no retransmit value is

set with the radius-server host command, the setting of the

radius-server retransmit global configuration command is used.

• (Optional) For key string, specify the authentication and encryption

key used between the switch and the RADIUS daemon running on the

RADIUS server.

Note The key is a text string that must match the encryption key used

on the RADIUS server. Always configure the key as the last item

in the radius-server host command. Leading spaces are ignored,

but spaces within and at the end of the key are used. If you use

spaces in your key, do not enclose the key in quotation marks

unless the quotation marks are part of the key.

To configure the switch to recognize more than one host entry associated

with a single IP address, enter this command as many times as necessary,

making sure that each UDP port number is different. The switch software

searches for hosts in the order in which you specify them. Set the timeout,

retransmit, and encryption key values to use with the specific RADIUS

host.

Step 4 Router (config)# aaa group server

radius group-name

Define the AAA server-group with a group name.

This command puts the ML-Series card in a server group configuration

mode.

Step 5 Router (config-sg-radius)# server

ip-address

Associate a particular RADIUS server with the defined server group.

Repeat this step for each RADIUS server in the AAA server group.

Each server in the group must be previously defined in Step 2.

Step 6 Router (config-sg-radius)# end Return to privileged EXEC mode.

Step 7 Router # show running-config Verify your entries.

Step 8 Router # copy running-config

startup-config

(Optional) Save your entries in the configuration file.

Step 9 Enable RADIUS login authentication. See the “Configuring AAA Login

Authentication” section on page 19-11.

Command Purpose

19-15

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 19 Configuring Security for the ML-Series Card

Configuring RADIUS

To remove the specified RADIUS server, use the no radius-server host hostname | ip-address global

configuration command. To remove a server group from the configuration list, use the no aaa group

server radius group-name global configuration command. To remove the IP address of a RADIUS

server, use the no server ip-address server group configuration command.

In this example, the ML-Series card is configured to recognize two different RADIUS group servers

(group1 and group2). Group1 has two different host entries on the same RADIUS server configured for

the same services. The second host entry acts as a fail-over backup to the first entry.

Switch(config)# radius-server host 172.20.0.1 auth-port 1000 acct-port 1001

Switch(config)# radius-server host 172.10.0.1 auth-port 1645 acct-port 1646

Switch(config)# aaa new-model

Switch(config)# aaa group server radius group1

Switch(config-sg-radius)# server 172.20.0.1 auth-port 1000 acct-port 1001

Switch(config-sg-radius)# exit

Switch(config)# aaa group server radius group2

Switch(config-sg-radius)# server 172.20.0.1 auth-port 2000 acct-port 2001

Switch(config-sg-radius)# exit

Configuring RADIUS Authorization for User Privileged Access and Network Services

AAA authorization limits the services available to a user. When AAA authorization is enabled, the

ML-Series card uses information retrieved from the user’s profile, which is in the local user database or

on the security server, to configure the user’s session. The user is granted access to a requested service

only if the information in the user profile allows it.

There is no support for setting the privilege level on the ML-Series card or using the priv-lvl command.

A user authenticating with a RADIUS server will only access the ML-Series card with a privilege level

of 1, which is the default login privilege level. Because of this, a priv-lvl configured on the RADIUS

server should have the priv-lvl of 0 or 1. Once a user is authenticated and gains access to the ML-Series

card, they can use the enable password to gain privileged EXEC authorization and become a super user

with a privilege level of 15, which is the default privilege level of enable mode.

This example of an ML-Series card user record is from the output of the RADIUS server and shows the

privilege level:

CISCO15 Auth-Type := Local, User-Password == "otbu+1"

Service-Type = Login,

Session-Timeout = 100000,

Cisco-AVPair = "shell:priv-lvl=1"

You can use the aaa authorization global configuration command with the radius keyword to set

parameters that restrict a user’s network access to privileged EXEC mode.

The aaa authorization exec radius local command sets these authorization parameters:

• Use RADIUS for privileged EXEC access authorization if authentication was performed by using

RADIUS.

• Use the local database if authentication was not performed by using RADIUS.

Note Authorization is bypassed for authenticated users who log in through the CLI even if authorization has

been configured.

Beginning in privileged EXEC mode, follow these steps to specify RADIUS authorization for privileged

EXEC access and network services:

19-16

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 19 Configuring Security for the ML-Series Card

Configuring RADIUS

To disable authorization, use the no aaa authorization {network | exec} method1 global configuration

command.

Starting RADIUS Accounting

The AAA accounting feature tracks the services that users are accessing and the amount of network

resources that they are consuming. When AAA accounting is enabled, the ML-Series card reports user

activity to the RADIUS security server in the form of accounting records. Each accounting record

contains accounting attribute-value (AV) pairs and is stored on the security server. This data can then be

analyzed for network management, client billing, or auditing.

Beginning in privileged EXEC mode, follow these steps to enable RADIUS accounting for each

Cisco IOS privilege level and for network services:

To disable accounting, use the no aaa accounting {network | exec} start-stop method1... global

configuration command.

Configuring a nas-ip-address in the RADIUS Packet

The ML-Series card in RADIUS relay mode allows the user to configure a separate nas-ip-address for

each ML-Series card. In RADIUS standalone mode, this command is hidden in the Cisco IOS CLI. This

allows the RADIUS server to distinguish among individual ML-Series card in the same ONS node.

Command Purpose

Step 1 Router# configure terminal Enter global configuration mode.

Step 2 Router (config)# aaa authorization

network radius

Configure the ML-Series card for user RADIUS authorization for all

network-related service requests.

Step 3 Router (config)# aaa authorization

exec radius

Configure the ML-Series card for user RADIUS authorization if the user

has privileged EXEC access.

The exec keyword might return user profile information (such as

autocommand information).

Step 4 Router (config)# end Return to privileged EXEC mode.

Step 5 Router# show running-config Verify your entries.

Step 6 Router# copy running-config

startup-config

(Optional) Save your entries in the configuration file.

Command Purpose

Step 1 Router# configure terminal Enter global configuration mode.

Step 2 Router (config)# aaa accounting

network start-stop radius

Enable RADIUS accounting for all network-related service requests.

Step 3 Router (config)# aaa accounting exec

start-stop radius

Enable RADIUS accounting to send a start-record accounting notice at

the beginning of a privileged EXEC process and a stop-record at the end.

Step 4 Router (config)# end Return to privileged EXEC mode.

Step 5 Router# show running-config Verify your entries.

Step 6 Router# copy running-config

startup-config

(Optional) Save your entries in the configuration file.

19-17

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 19 Configuring Security for the ML-Series Card

Configuring RADIUS

Identifying the specific ML-Series card that sent the request to the server can be useful in debugging

from the server. The nas-ip-address is primarily used for validation of the RADIUS authorization and

accounting requests.

If this value is not configured, the nas-ip-address is filled in by the normal Cisco IOS mechanism using

the value configured by the ip radius-source command. If no value is specified then the best IP address

routable to the server is used. If no routable address is available, the IP address of the server is used.

Beginning in privileged EXEC mode, follow these steps to configure the nas-ip-address:

Configuring Settings for All RADIUS Servers

Beginning in privileged EXEC mode, follow these steps to configure global communication settings

between the ML-Series card and all RADIUS servers:

Command Purpose

Step 1 Router# configure terminal Enter global configuration mode.

Step 2 Router (config)# [no] ip radius

nas-ip-address {hostname |

ip-address}

Specify the IP address or hostname of the attribute 4 (nas-ip-address) in the

radius packet.

If there is only one ML-Series card in the ONS node, this command does

not provide any advantage. The public IP address of the ONS node serves

as the nas-ip-address in the RADIUS packet sent to the server.

Step 3 Router (config)# end Return to privileged EXEC mode.

Step 4 Router# show running-config Verify your settings.

Step 5 Router# copy running-config

startup-config

(Optional) Save your entries in the configuration file.

Command Purpose

Step 1 Router# configure terminal Enter global configuration mode.

Step 2 Router (config)# radius-server

key string

Specify the shared secret text string used between the ML-Series card and

all RADIUS servers.

Note The key is a text string that must match the encryption key used on

the RADIUS server. Leading spaces are ignored, but spaces within

and at the end of the key are used. If you use spaces in your key, do

not enclose the key in quotation marks unless the quotation marks

are part of the key.

Step 3 Router (config)# radius-server

retransmit retries

Specify the number of times the ML-Series card sends each RADIUS

request to the server before giving up. The default is 3; the range 1 to 1000.

Step 4 Router (config)# radius-server

timeout seconds

Specify the number of seconds a ML-Series card waits for a reply to a

RADIUS request before resending the request. The default is 5 seconds; the

range is 1 to 1000.

19-18

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 19 Configuring Security for the ML-Series Card

Configuring RADIUS

To return to the default setting for the retransmit, timeout, and deadtime, use the no forms of these

commands.

Configuring the ML-Series Card to Use Vendor-Specific RADIUS Attributes

The Internet Engineering Task Force (IETF) draft standard specifies a method for communicating

vendor-specific information between the ML-Series card and the RADIUS server by using the

vendor-specific attribute (attribute 26). Vendor-specific attributes (VSAs) allow vendors to support their

own extended attributes that are not suitable for general use. The Cisco RADIUS implementation

supports one vendor-specific option by using the format recommended in the specification. Cisco’s

vendor-ID is 9, and the supported option has vendor-type 1, which is named cisco-avpair. The value is

a string with this format:

protocol : attribute sep value *

Protocol is a value of the Cisco protocol attribute for a particular type of authorization. Attribute and

value are an appropriate attribute-value (AV) pair defined in the Cisco Terminal Access Controller

Access Control System Plus (TACACS+) specification, and sep is the character = for mandatory

attributes and the character * for optional attributes. The full set of features available for TACACS+

authorization can then be used for RADIUS.

For example, this AV pair activates Cisco’s multiple named ip address pools feature during IP

authorization (during point-to-point protocol [PPP] internet protocol control protocol (IPCP) address

assignment):

cisco-avpair= ”ip:addr-pool=first“

This example shows how to specify an authorized VLAN in the RADIUS server database:

cisco-avpair= ”tunnel-type(#64)=VLAN(13)”

cisco-avpair= ”tunnel-medium-type(#65)=802 media(6)”

cisco-avpair= ”tunnel-private-group-ID(#81)=vlanid”

This example shows how to apply an input access control list (ACL) in ASCII format to an interface for

the duration of this connection:

cisco-avpair= “ip:inacl#1=deny ip 10.10.10.10 0.0.255.255 20.20.20.20 255.255.0.0”

cisco-avpair= “ip:inacl#2=deny ip 10.10.10.10 0.0.255.255 any”

cisco-avpair= “mac:inacl#3=deny any any decnet-iv”

This example shows how to apply an output ACL in ASCII format to an interface for the duration of this

connection:

Step 5 Router (config)# radius-server

deadtime minutes

Specify the number of minutes to mark as "dead" any RADIUS servers that

fail to respond to authentication requests. A RADIUS server marked as

"dead" is skipped by additional authentication requests for the specified

number of minutes. This allows trying the next configured server without

having to wait for the request to time out before. If all RADIUS servers are

marked as "dead," the skipping will not take place.

The default is 0; the range is 1 to 1440 minutes.

Step 6 Router (config)# end Return to privileged EXEC mode.

Step 7 Router# show running-config Verify your settings.

Step 8 Router# copy running-config

startup-config

(Optional) Save your entries in the configuration file.

Command Purpose

19-19

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 19 Configuring Security for the ML-Series Card

Configuring RADIUS

cisco-avpair= “ip:outacl#2=deny ip 10.10.10.10 0.0.255.255 any”

Other vendors have their own unique vendor-IDs, options, and associated VSAs. For more information

about vendor-IDs and VSAs, see RFC 2138, “Remote Authentication Dial-In User Service (RADIUS).”

Beginning in privileged EXEC mode, follow these steps to configure the ML-Series card to recognize

and use VSAs:

For a complete list of RADIUS attributes or more information about vendor-specific attribute 26, see the

“RADIUS Attributes” appendix in the Cisco IOS Security Configuration Guide, Release 12.2.

Configuring the ML-Series Card for Vendor-Proprietary RADIUS Server Communication

Although an IETF draft standard for RADIUS specifies a method for communicating vendor-proprietary

information between the ML-Series card and the RADIUS server, some vendors have extended the

RADIUS attribute set in a unique way. Cisco IOS software supports a subset of vendor-proprietary

RADIUS attributes.

As mentioned earlier, to configure RADIUS (whether vendor-proprietary or IETF draft-compliant), you

must specify the host running the RADIUS server daemon and the secret text string it shares with the

ML-Series card. You specify the RADIUS host and secret text string by using the radius-server global

configuration commands.

Beginning in privileged EXEC mode, follow these steps to specify a vendor-proprietary RADIUS server

host and a shared secret text string:

Command Purpose

Step 1 Router# configure terminal Enter global configuration mode.

Step 2 Router (config)# radius-server

vsa send [accounting |

authentication]

Enable the ML-Series card to recognize and use VSAs as defined by

RADIUS IETF attribute 26.

• (Optional) Use the accounting keyword to limit the set of recognized

vendor-specific attributes to only accounting attributes.

• (Optional) Use the authentication keyword to limit the set of

recognized vendor-specific attributes to only authentication attributes.

If you enter this command without keywords, both accounting and

authentication vendor-specific attributes are used.

The AAA server includes the authorization level in the VSA response

message for the ML-Series card.

Step 3 Router (config)# end Return to privileged EXEC mode.

Step 4 Router# show running-config Verify your settings.

Step 5 Router# copy running-config

startup-config

(Optional) Save your entries in the configuration file.

Command Purpose

Step 1 Router# configure terminal Enter global configuration mode.

Step 2 Router (config)# radius-server host {hostname |

ip-address} non-standard

Specify the IP address or hostname of the remote

RADIUS server host and identify that it is using a

vendor-proprietary implementation of RADIUS.

19-20

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 19 Configuring Security for the ML-Series Card

Displaying the RADIUS Configuration

To delete the vendor-proprietary RADIUS host, use the no radius-server host {hostname | ip-address}

non-standard global configuration command. To disable the key, use the no radius-server key global

configuration command.

This example shows how to specify a vendor-proprietary RADIUS host and to use a secret key of rad124

between the ML-Series card and the server:

Switch(config)# radius-server host 172.20.30.15 nonstandard

Switch(config)# radius-server key rad124

Displaying the RADIUS Configuration

To display the RADIUS configuration, use the show running-config privileged EXEC command.

Step 3 Router (config)# radius-server key string Specify the shared secret text string used between the

ML-Series card and the vendor-proprietary RADIUS

server. The ML-Series card and the RADIUS server

use this text string to encrypt passwords and

exchange responses.

Note The key is a text string that must match the

encryption key used on the RADIUS server.

Leading spaces are ignored, but spaces within

and at the end of the key are used. If you use

spaces in your key, do not enclose the key in

quotation marks unless the quotation marks

are part of the key.

Step 4 Router (config)# end Return to privileged EXEC mode.

Step 5 Router# show running-config Verify your settings.

Step 6 Router# copy running-config startup-config (Optional) Save your entries in the configuration file.

Command Purpose

CHAPTER

20-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

POS on ONS Ethernet Cards

This chapter describes packet-over-SONET/SDH (POS) and its implementation on ONS Ethernet cards.

This chapter contains the following major sections:

• POS Overview, page 20-1

• POS Interoperability, page 20-2

• POS Encapsulation Types, page 20-4

• POS Framing Modes, page 20-7

• POS Characteristics of Specific ONS Ethernet Cards, page 20-7

• Ethernet Clocking Versus SONET/SDH Clocking, page 20-11

POS Overview

Unlike Asynchronous Transfer Mode (ATM) and Frame Relay, Ethernet was not originally designed for

interfacing with SONET/SDH. Ethernet data packets need to be framed and encapsulated into a

SONET/SDH frame for transport across the SONET/SDH network. This framing and encapsulation

process is known as POS.

20-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 20 POS on ONS Ethernet Cards

POS Interoperability

Figure 20-1 Ethernet to POS Process on ONS Node

ONS Ethernet cards all use POS. The Ethernet frame comes into the card on a standard Fast Ethernet or

Gigabit Ethernet port and is processed through the ONS Ethernet card’s framing mechanism and

encapsulated into a POS frame. When the POS frame exits, the ONS Ethernet card in a POS circuit, this

circuit is treated as any other SONET circuit (STS) or SDH circuit (VC) in the ONS node. It is

cross-connected and rides the SONET/SDH signal out the port of an optical card and across the

SONET/SDH network.

The destination of the POS circuit is an ONS Ethernet card or other device that supports a POS interface.

The POS frames received by the destination card have the data packets stripped out and processed into

Ethernet frames. The Ethernet frames are then sent to a standard Ethernet port of the ONS Ethernet card

and transmitted onto an Ethernet network.

The G-Series, CE-Series, and E-Series (configured in port-mapper mode) ONS Ethernet cards map this

SONET/SDH or POS circuit directly to one of the card’s Ethernet ports. The ML-Series and E-Series

(configured in EtherSwitch mode) cards include the POS port as a switchport in a switching fabric that

includes the standard Ethernet ports on the card.

POS Interoperability

In addition to POS circuits between Ethernet cards of the same family, POS circuits between some

Ethernet cards of different families are possible. The Cisco Transport Controller (CTC) circuit creation

wizard shows available interoperable Ethernet cards under the destination card options, when a specific

Ethernet card type is chosen as the circuit creation source card. You cannot mix circuits from an SDH

node with circuits from a SONET node. POS circuits can be created between the mapper-type cards and

the switch-type ONS Ethernet cards.

For Ethernet card POS interoperability, three main POS port characteristics must match:

• POS encapsulation

• CRC size

• Framing Mode

Ethernet Card

ONS Node

XC Card Optical Card

Ethernet

POS

virtual

ports

Ethernet

ports

Optical

ports

POS Framing

and Encapsulation

SONET/SDH

Ethernet riding in

STS (VC) circuit

SONET/SDH circuit

multiplexed

onto Optical Card

Optical card port transmits

SONET/SDH signal

containing data frame

across SONET/SDH network

115431

20-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 20 POS on ONS Ethernet Cards

POS Interoperability

The CRC size option does not need to match on the two endpoints when using GFP-F framing mode.

All Ethernet cards do not interoperate or support all the POS port characteristic options. The following

two tables list the interoperable Ethernet cards and characteristics. Table 20-1 lists this information for

cards supporting and configured with high-level data link control (HDLC) framing mode.

Table 20-2 lists this information for cards supporting and configured with frame-mapped generic

framing procedure (GFP-F) framing mode. With Table 20-2 and GFP-F framing, the word LEX is used

to represent standard mapped Ethernet over GFP-F according to ITU-T G.7041. Under GFP-F framing,

the Cisco IOS CLI also uses this lex keyword to represent standard mapped Ethernet over GFP-F

according to ITU-T G.7041.

Table 20-1 ONS SONET/SDH Ethernet Card Interoperability under HDLC Framing with

Encapsulation Type and CRC

Port-mapped

E-Series

(ONS 15327)1

1. E-Series cards in EtherSwitch modes do not interoperate with other ONS Ethernet card types.

Port-mapped

E-Series

(ONS 15454

SONET/SDH)1

G-Series

(All

Platforms)

ML-Series

(ONS 15454

SONET/SDH)

ML-Series

(ONS 15310-CL/

ONS 15310-MA)

CE-Series

(All

Platforms)

Port-mapped

E-Series

(ONS 15327)

Proprietary

LEX (CRC

16)

Proprietary Not

compatible

LEX (CRC

16)2

2. The ML-Series card needs special Inter Packet Gap (IPG) configuration to interoperate with the ONS 15327 E-Series card in

port-mapped mode.

Not compatible Not

compatible

Port-mapped

E-Series

(ONS 15454

SONET/SDH)

Proprietary Proprietary Not

compatible

Not

compatible

Not compatible Not

compatible

G-Series

(All

Platforms)

Not

compatible

Not

compatible

LEX (CRC

16)

LEX (CRC

32)

LEX (CRC

16)

LEX (CRC

32)

LEX (CRC 32) LEX (CRC

32)

ML-Series

(ONS 15454

SONET/SDH)

LEX (CRC

16)2Not

compatible

LEX (CRC

16)

LEX (CRC

32)

LEX (CRC

16)

LEX (CRC

32)

Cisco HDLC

PPP/BCP

LEX (CRC 32) LEX (CRC

32)

ML-Series

(ONS

15310-CL/

ONS

15310-MA)

Not

compatible

Not

compatible

LEX (CRC

32)

LEX (CRC

32)

LEX (CRC 32) LEX (CRC

32)

CE-Series

(All

Platforms)

Not

compatible

Not

compatible

LEX (CRC

32)

LEX (CRC

32)

LEX (CRC 32) LEX (CRC

32)

20-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 20 POS on ONS Ethernet Cards

POS Encapsulation Types

Note Cisco proprietary RPR requires LEX encapsulation on all ML-Series cards. IEEE 802.17 RPR is not

configurable and uses IEEE 802.17b encapsulation.

Note When over GFP-F, it is standard Mapped Ethernet over GFP-F according to ITU-T G.7041.

GFP-F framing is only supported on nodes running Software Release 5.0 and later. The ML100T-12 and

ML1000-2 cards also require field programmable gate array (FPGA) version 4.0 or later for GFP-F

framing.

POS Encapsulation Types

The ONS Ethernet cards support five POS encapsulation methods: Cisco Ethernet-over-SONET LEX

(LEX), Cisco HDLC, Point-to-Point Protocol/Bridging Control Protocol (PPP/BCP), IEEE 802.17b, and

E-Series proprietary. The ONS Ethernet source card and destination card must be configured with the

same POS encapsulation to interoperate. All ONS Ethernet cards do not interoperate or support all types

of encapsulation.

IEEE 802.17b

IEEE 802.17b encapsulation is the set encapsulation when the ML-Series card mode is 802.17. It is only

supported on the ONS 15454 and ONS 15454 SDH ML-Series cards in Release 7.2 and later.

Figure 20-2 illustrates the IEEE 802.17b extended data frame used by the ML-Series card. It is used with

bridging. For comparison, the IEEE 802.17 basic data frame for IP only networks is also shown. The

extended data frame adds an extended destination address and extended source address to the basic data

frame.

Table 20-2 ONS SONET/SDH Ethernet Card Interoperability under GFP-F Framing with

Encapsulation Type

ML-Series

(ONS 15454) ML-Series

(ONS 15310) CE-Series

(All Platforms)

ML-Series

(ONS

15454 SONET/SDH)

LEX (CRC 32)

Cisco HDLC (CRC 32)

PPP/BCP (CRC 32)

IEEE 802.17b

LEX (CRC 32)

Cisco HDLC (CRC 32)

PPP/BCP (CRC 32)

LEX (CRC 32)

ML-Series

(ONS 15310-CL/

ONS 5310-MA)

LEX (CRC 32)

Cisco HDLC (CRC 32)

PPP/BCP (CRC 32)

LEX (CRC 32 or None)

Cisco HDLC (CRC 32 or None)

PPP/BCP (CRC 32 or None)

LEX (CRC 32 or

None)

CE-Series

(All Platforms)

LEX (CRC 32) LEX (CRC 32 or None) LEX (CRC 32 or

None)

20-5

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 20 POS on ONS Ethernet Cards

LEX

Figure 20-2 RPR Data Frames

LEX

The Cisco EoS LEX is the primary encapsulation of ONS Ethernet cards. This encapsulation is used

under HDLC framing, and the protocol field is set to the values specified in Internet Engineering Task

Force (IETF) Request For Comments (RFC) 1841. Under GFP-F framing, the Cisco IOS CLI also uses

the keyword lex. With GFP-F framing, the lex keyword is used to represent standard mapped Ethernet

over GFP-F according to ITU-T G.7041.

Figure 20-3 illustrates EoS LEX under HDLC framing.

LEX is supported by all the ONS Ethernet cards, except the ONS 15454 and ONS 15454 SDH E-Series

cards.

Figure 20-3 LEX Under HDLC Framing

1TTL to Dest

Base Control

FCS

Service Data Unit

Protocol Type

MAC da

TTL Base

MAC sa

Extended Control

hec

Header

Payload

Trailer

TTL to Dest

Base Control

Protocol Type

Extended SA

Extended DA

MAC da

TTL Base

MAC sa

Extended Control

hec

FCS

Service Data Unit

Header

Payload

Trailer

Basic Data Frame

Extended Data Frame

151965

AddrFlag

1 byte

Control Protocol

1 byte 1 byte 2 bytes

Data/Pad FCSSADASFDPreamble

4 bytes1 byte7 bytes 6 bytes 6 bytes 2 bytes

Ethernet Payload CRC

0x7E

Flag

1 byte

0x7E

4 bytes

0xFF 0x03 0x0041

Proprietary

46-1500 bytes*

Ln/EType

115433

20-6

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 20 POS on ONS Ethernet Cards

PPP/BCP

The PPP encapsulation is a standard implementation of RFC 2615 (PPP-over-SONET/SDH), and

provides a standard implementation of RFC 3518 (BCP) to provide the transmission of 802.1Q tagged

and untagged Ethernet frames over SONET. Figure 20-4 illustrates BCP.

Figure 20-4 BCP Under HDLC Framing

In some framing modes, the ONS 15454/ONS 15454 SDH ML-Series card supports routing functions.

When this card POS port is configured to support routing with the PPP encapsulation, the IP packets are

mapped into the HDLC frames that use the standard 0x0021 protocol code point. Figure 20-5 illustrates

PPP.

Figure 20-5 PPP Frame Under HDLC Framing

Cisco HDLC

Cisco HDLC is a Cisco-standard mapping of packets into a serial interface. This encapsulation can be

used to connect the interface on an ML-Series card to a POS interface on Cisco HDLC-compliant routers

and switches.

When used to carry IP packets, the same HDLC frame structure is used, however the protocol field is set

to 0x0800, and the payload contains the IP packet. Figure 20-6 illustrates Cisco HDLC.

Figure 20-6 Cisco HDLC Under HDLC Framing

115434

AddrFlag

1 byte

Control Protocol

1 byte 1 byte 2 bytes

Ln/Etype Data/Pad FCSSADASFDPreamble

4 bytes1 byte7 bytes 46-1500 bytes*6 bytes 6 bytes 2 bytes

Payload CRC

0x7E

Flag

1 byte

0x7E

2-4 bytes

0xFF 0x03 0x0031 00Z0

Type

0x01

115435

AddrFlag

1 byte

Control Protocol

1 byte 1 byte 2 bytes

IP Packet

Payload CRC

0x7E

Flag

1 byte

0x7E

2-4 bytes

0xFF 0x03 0x0021

Proprietary

115436

AddrFlag

1 byte

Control Protocol

1 byte 1 byte 2 bytes

Ln/EType Data/Pad FCSSADASFDPreamble

4 bytes1 byte7 bytes 6 bytes 2 bytes

Payload CRC

0x7E

Flag

1 byte

0x7E0x0F 0x00/8F 0x6558

46-1500 bytes6 bytes

24 bytes

20-7

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 20 POS on ONS Ethernet Cards

E-Series Proprietary

The E-Series uses a proprietary HDLC-like encapsulation that is incompatible with LEX, Cisco HDLC,

or PPP/BCP. This proprietary encapsulation prevents the E-Series from interoperating with other ONS

Ethernet cards.

In Release 5.0 and later, the ONS 15327 E-Series card, E10/100-4, supports LEX encapsulation with a

16-bit CRC as well as the original proprietary E-Series encapsulation.

POS Framing Modes

The framing mode is the type of framing mechanism employed by the ONS Ethernet card to frame and

encapsulate data packets into a POS signal. These data packets were originally encapsulated in Ethernet

frames that entered the standard Fast Ethernet or Gigabit Ethernet interfaces of the ONS Ethernet card.

All ONS Ethernet cards support HDLC framing. ML-Series and CE-Series cards also offer GFP-F

framing mode.

HDLC Framing

HDLC is one of the most popular Layer 2 protocols. The framing mechanism used by the HDLC

protocol, HDLC framing, is employed by a variety of other protocols, including POS on the ONS

Ethernet cards. The HDLC framing mechanism is detailed in the IETF’s RFC 1662, “PPP in HDLC-like

Framing.”

The HDLC frame uses the zero insertion/deletion process (commonly known as bit stuffing) to ensure

that the bit pattern of the delimiter flag does not occur in the fields between flags. The HDLC frame is

synchronous and therefore relies on the physical layer to provide a method of clocking and

synchronizing the transmission and reception of frames.

GFP-F Framing

GFP defines a standard-based mapping of different types of services onto SONET/SDH. The ML-Series

and CE-Series support frame-mapped GFP (GFP-F), which is the PDU-oriented client signal adaptation

mode for GFP. GFP-F maps one variable length data packet onto one GFP packet.

GFP is composed of common functions and payload specific functions. Common functions are those

shared by all payloads. Payload-specific functions are different depending on the payload type. GFP is

detailed in the ITU recommendation G.7041.

POS Characteristics of Specific ONS Ethernet Cards

The following sections list and illustrate the various framing and encapsulation options supported by

specific ONS Ethernet cards.

20-8

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 20 POS on ONS Ethernet Cards

ONS 15327 E-10/100-4 Framing and Encapsulation Options

For Software Release 5.0 and later, the E-10/100-4 card on the ONS 15327, configured in port-mapped

mode, offers the choice of configuring LEX or the original proprietary E-Series encapsulation. When

configured for LEX encapsulation, the ONS 15327 E-Series card interoperates with ML-Series cards.

When the E-10/100-4 is configured in EtherSwitch mode, it is restricted to the original proprietary

E-Series encapsulation. The E-Series card on the ONS 15327 is restricted to a 16-bit CRC. Figure 20-7

illustrates ONS 15327 E-Series framing and encapsulation.

Refer to the ONS 15327 Procedure Guide for port provisioning procedures.

Figure 20-7 ONS 15327 E-Series Encapsulation and Framing Options

ONS 15454 and ONS 15454 SDH E-Series Framing and Encapsulation Options

LEX is not available on the ONS 15454 or ONS 15454 SDH E-Series cards. These cards are limited to

the original proprietary E-Series encapsulation, which does not allow POS interoperability with

non E-Series cards. Figure 20-8 illustrates ONS 15454 and ONS 15454 SDH E-Series framing and

encapsulation.

SONET/SDH Frame

SONET/SDH Payload EnvelopeTransport Overhead

LEX

HDLC Framing

Flag Address Control Protocol Payload FCS

Encapsulation

Proprietary E-Series

115445

20-9

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 20 POS on ONS Ethernet Cards

G-Series Encapsulation and Framing

Figure 20-8 ONS 15454 and ONS 15454 SDH E-Series Encapsulation and Framing Options

G-Series Encapsulation and Framing

The G-Series cards are supported on the ONS 15454, ONS 15454 SDH, and ONS 15327 platforms. They

support LEX encapsulation and HDLC framing. There are no other POS framing modes or encapsulation

options on this card. Figure 20-9 illustrates G-Series encapsulation and framing.

Figure 20-9 ONS G-Series Encapsulation and Framing Options

SONET/SDH Frame

SONET/SDH Payload EnvelopeTransport Overhead

HDLC Framing

Flag Address Control Protocol Payload FCS

Encapsulation

Proprietary E-Series

115447

SONET/SDH Frame

SONET/SDH Payload EnvelopeTransport Overhead

LEX

HDLC Framing

Flag Address Control Protocol Payload FCS

Encapsulation

115446

20-10

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 20 POS on ONS Ethernet Cards

ONS 15454, ONS 15454 SDH, ONS 15310-CL, and and ONS 15310-MA CE-Series Cards Encapsulation and Framing

ONS 15454, ONS 15454 SDH, ONS 15310-CL, and and ONS 15310-MA CE-Series

Cards Encapsulation and Framing

CE-100T-8 cards are available for the ONS 15454, ONS 15454 SDH, ONS 15310-CL, and ONS

15310-MA platforms. CE-1000-4 cards are available for the ONS 15454 and ONS 15454 SDH

platforms. They support HDLC Framing and GFP-F framing. Under the GFP-F or HDLC framing mode,

only LEX encapsulation is supported. Figure 20-10 illustrates CE-Series framing and encapsulation.

Figure 20-10 ONS CE-100T-8 and ONS CE-1000-4 Encapsulation and Framing Options

ONS 15310 ML-100T-8 Encapsulation and Framing

The ML-100T-8 card on the ONS 15310 supports HDLC framing and GFP-F framing. Under the HDLC

framing mode, LEX is supported. Under the GFP-F framing mode, LEX, Cisco HDLC, and PPP/BCP

encapsulation are supported. LEX encapsulation is also the encapsulation for Cisco proprietary RPR on

the ML-Series card. Cisco proprietary RPR requires LEX encapsulation in either framing mode.

ONS 15454 and ONS 15454 SDH ML-Series Protocol Encapsulation and Framing

The ML-Series card on the ONS 15454 and ONS 15454 SDH supports HDLC framing and GFP-F

framing. Under both the HDLC framing mode and the GFP-F framing mode, LEX, Cisco HDLC, and

PPP/BCP encapsulation is supported. LEX encapsulation is also the encapsulation for Cisco proprietary

RPR on the ML-Series card. Cisco proprietary RPR requires LEX encapsulation in either framing mode.

802.17b encapsulation is the set encapsulation in IEEE 802.17b compliant RPR, which is only supported

in GFP-F framing. Figure 20-11 illustrates the ONS 15454 and ONS 15454 SDH framing and

encapsulation options.

SONET/SDH Frame

SONET/SDH Payload EnvelopeTransport Overhead

LEX

HDLC Framing Mode GFP-F Framing Mode

Flag Address Control Protocol Payload FCS

Encapsulation GFP-Mapped

Ethernet (LEX)

GFP-F Frame Types

115444

Core

Header

Payload

Header Payload FCS

20-11

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 20 POS on ONS Ethernet Cards

Ethernet Clocking Versus SONET/SDH Clocking

Figure 20-11 ML-Series Card Framing and Encapsulation Options

Ethernet Clocking Versus SONET/SDH Clocking

Ethernet clocking is asynchronous. IEEE 802.3 clock tolerance allows some links in a network to be as

much as 200 ppm (parts or bits per million) slower than other links (0.02%). A traffic stream sourced at

line rate on one link may traverse other links which are 0.02% slower. A fast source clock, or slow

intermediate clocks, may limit the end-to-end throughput to only 99.98% of the source link rate.

Traditionally, Ethernet is a shared media that is under utilized except for brief bursts which may combine

from multiple devices to exceed line-rate at an aggregation point. Due to this utilization model, the

asynchronous clocking of Ethernet has been acceptable. Some Service Providers accustomed to loss-less

TDM transport may find the 99.98% throughput guarantee of Ethernet surprising.

Clocking enhancements on ONS Ethernet cards, excluding the E-Series cards, ensure Ethernet transmit

rates that are at worst 50 ppm slower than the fastest compliant source clock, ensuring a worst-case

clocking loss of 50 ppm - a 99.995% throughput guarantee. In many cases, the card’s clock will be faster

than the source traffic clock, and line-rate traffic transport will have zero loss. Actual results will depend

on clock variation of the traffic source transmitter.

SONET/SDH Frame

SONET/SDH Payload EnvelopeTransport Overhead

LEX PPPCisco HDLC

HDLC Framing Mode GFP-F Framing Mode

Flag Address Control Protocol Payload FCS

BCP

Encapsulation

GFP-F Frame Types

115448

GFP-Mapped

Ethernet (LEX) GFP-PPP GFP-BCP

GFP-Cisco HDLC

Core

Header

Payload

Header Payload FCS

20-12

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 20 POS on ONS Ethernet Cards

Ethernet Clocking Versus SONET/SDH Clocking

CHAPTER

21-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Configuring RMON

This chapter describes how to configure remote network monitoring (RMON) on the ML-Series card for

the ONS 15454 SONET/SDH.

RMON is a standard monitoring specification that defines a set of statistics and functions that can be

exchanged between RMON-compliant console systems and network probes. RMON provides you with

comprehensive network-fault diagnosis, planning, and performance-tuning information. The ML-Series

card features RMON and is designed to work with a network management system (NMS).

Note For complete syntax and usage information for the commands used in this chapter, see the “System

Management Commands” section in the Cisco IOS Configuration Fundamentals Command Reference,

Release 12.2.

Note For general information about using Cisco IOS to manage RMON, refer to the “Configuring RMON

Support” chapter of the Cisco IOS Configuration Fundamentals Configuration Guide.

This chapter consists of these sections:

• Understanding RMON, page 21-1

• Configuring RMON, page 21-2

• Configuring ML-Series Card RMON for CRC Errors, page 21-15

• Displaying RMON Status, page 21-20

Understanding RMON

RMON is an Internet Engineering Task Force (IETF) standard monitoring specification that allows

various network agents and console systems to exchange network monitoring data. You can use the

RMON feature with the Simple Network Management Protocol (SNMP) agent to monitor all the traffic

flowing among ML-Series card and other switches on all connected LAN segments.

For information on the MIBs supported by the ML-Series card, see the “Supported MIBs” section on

page 22-5.

21-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 21 Configuring RMON

Configuring RMON

Figure 21-1 Remote Monitoring Example

Configuring RMON

These sections describe how to configure RMON on your ML-Series card:

• Default RMON Configuration, page 21-2

• Configuring RMON Alarms and Events, page 21-2 (required)

• Collecting Group History Statistics on an Interface, page 21-5 (optional)

• Collecting Group Ethernet Statistics on an Interface, page 21-6 (optional)

Default RMON Configuration

RMON is disabled by default; no alarms or events are configured.

Configuring RMON Alarms and Events

You can configure your ML-Series card for RMON by using the command-line interface (CLI) or an

SNMP-compatible network management station. We recommend that you use a generic RMON console

application on the NMS to take advantage of RMON’s network management capabilities. You must also

configure SNMP on the ML-Series card to access RMON MIB objects. For more information about

configuring SNMP, see Chapter 22, “Configuring SNMP.”

145951

RMON alarms and events

configured. SNMP configured.

RMON history

and statistic

collection enabled.

Workstations Workstations

Network management station with

generic RMON console application

21-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 21 Configuring RMON

Configuring RMON Alarms and Events

Beginning in privileged EXEC mode, follow these steps to enable RMON alarms and events. This

procedure is required.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 rmon event number [description string] [log] [owner string]

[trap community]

Add an event in the RMON event table that is

associated with an RMON event number.

• For number, assign an event number. The range

is 1 to 65535.

• (Optional) For description string, specify a

description of the event.

• (Optional) Use the log keyword to generate an

RMON log entry when the event is triggered.

• (Optional) For owner string, specify the owner

of this event.

• (Optional) For trap community, enter the

SNMP community string used for this trap.

Step 3 rmon alarm number variable interval {absolute | delta}

rising-threshold value [event-number]

falling-threshold value [event-number]

[owner string]

Set an alarm on a MIB object.

• For number, specify the alarm number. The

range is 1 to 65535.

• For variable, specify the MIB object to monitor.

• For interval, specify the time in seconds that the

alarm monitors the MIB variable. The range is

1 to 2147483647 seconds.

• Specify the absolute keyword to test each MIB

variable directly. Specify the delta keyword to

test the change between samples of a MIB

variable.

• For value, specify a number at which the alarm

is triggered and a number at which the alarm is

reset. The range for the rising threshold and

falling threshold values is –2147483648 to

2147483647.

• (Optional) For event-number, specify the event

number to trigger when the rising or falling

threshold exceeds its limit.

• (Optional) For owner string, specify the owner

of the alarm.

Step 4 end Return to privileged EXEC mode.

Step 5 show running-config Verify your entries.

Step 6 copy running-config startup-config (Optional) Save your entries in the configuration

file.

21-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 21 Configuring RMON

Configuring RMON Alarms and Events

To disable an alarm, use the no rmon alarm number global configuration command on each alarm you

configured. You cannot disable all the alarms that you configured by not specifying a specific number.

You must disable each alarm separately. To disable an event, use the no rmon event number global

configuration command. To learn more about alarms and events and how they interact with each other,

see RFC 1757.

You can set an alarm on any MIB object. The following example configures RMON alarm number 10 by

using the rmon alarm command. The alarm monitors the MIB variable ifEntry.20.1 once every

20 seconds to check the change in the variable’s rise or fall until the alarm is disabled. If the ifEntry.20.1

value shows a MIB counter increase of 15 or more, such as from 100000 to 100015, the alarm is

triggered. The alarm in turn triggers event number 1, which is configured with the rmon event

command. Possible events can include a log entry or an SNMP trap. If the ifEntry.20.1 value changes

by 0, the alarm is reset and can be triggered again.

ML_Series(config)# rmon alarm 10 ifInErrors.65539 20 delta rising 15 1 fall 0

Note The example does not trigger an optional event when the falling-threshold is 0.

Where 65539 is the SNMP IfIndex for interface POS 0. You can get the SNMP ifIndex for a given port

with an SNMP get. In the example output, you can see that the SNMP ifIndex for POS0 is 65539:

tuvoks-view:128> getmany -v2c 10.92.56.97 tcc@1 ifDescr

ifDescr.65536 = GigabitEthernet0

ifDescr.65537 = GigabitEthernet1

ifDescr.65538 = Null0

ifDescr.65539 = POS0

ifDescr.65540 = POS1

ifDescr.65541 = SPR1

tuvoks-view:129>

The following example creates RMON event number 1 by using the rmon event command. The event is

defined as High ifOutErrors and generates a log entry when the event is triggered by the alarm. The user

jjones owns the row that is created in the event table by this command. This example also generates an

SNMP trap when the event is triggered.

ML_Series(config)# rmon event 1 log trap eventtrap description "High ifOutErrors" owner

jjones

21-5

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 21 Configuring RMON

Collecting Group History Statistics on an Interface

You must first configure RMON alarms and events to display collection information.

Beginning in privileged EXEC mode, follow these steps to collect group history statistics on an interface.

This procedure is optional.

To disable history collection, use the no rmon collection history index interface configuration

command.

This example shows how to collect and show RMON history for the owner root:

ML_Series(config)# interface gigabitethernet1

ML_Series(config-if)# rmon collection history 2 owner root

ML_Series(config-if)# end

ML_Series# show rmon history

Entry 2 is active, and owned by root

Monitors ifIndex.393217 every 1800 second(s)

Requested # of time intervals, ie buckets, is 50,

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface interface-id Specify the interface on which to collect history, and enter

interface configuration mode.

Note Group history statistics do not work on

packet-over-SONET/SDH (POS_ interfaces, only on

Ethernet interfaces.

Step 3 rmon collection history index

[buckets bucket-number] [interval seconds]

[owner ownername]

Enable history collection for the specified number of buckets and

time period.

• For index, identify the RMON group of statistics. The range

is 1 to 65535.

• (Optional) For buckets bucket-number, specify the

maximum number of buckets desired for the RMON

collection history group of statistics. The range is 1 to

65535. The default is 50 buckets.

• (Optional) For interval seconds, specify the number of

seconds in each polling cycle. The range is 1 to 3600. The

default is 1800 seconds.

• (Optional) For owner ownername, enter the name of the

owner of the RMON group of statistics.

Step 4 end Return to privileged EXEC mode.

Step 5 show running-config Verify your entries.

Step 6 show rmon history Display the contents of the ML-Series card history table.

Step 7 copy running-config startup-config (Optional) Save your entries in the configuration file.

21-6

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 21 Configuring RMON

Collecting Group Ethernet Statistics on an Interface

Beginning in privileged EXEC mode, follow these steps to collect group Ethernet statistics on an

interface. This procedure is optional.

To disable the collection of group Ethernet statistics, use the no rmon collection stats index interface

configuration command.

This example shows how to collect RMON statistics for the owner root:

ML_Series(config)# interface gigabitethernet1

ML_Series(config-if)# rmon collection stats 2 owner root

Understanding ML-Series Card CRC Error Threshold

The POS ports on the ML-Series card report alarms for SONET/SDH defects and GFP defects, including

signal fail (SF) and signal degrade (SD) alarms. In most circumstances, these alarms alert the user to

problems that also cause excessive CRC errors on the POS port. But there are situations where excessive

CRC errors will occur on the POS port, but the link will not have any SONET defects or GFP defects to

report. Examples of this situation include an ML-Series card at the other end of the link sending out

packets with CRC errors or a bit error rate too low to trigger SF or SD defect, but high enough to cause

a meaningful CRC packet error rate.

In these situations with a default ML-Series card Cisco proprietary RPR implementation and no reported

SONET/SDH or GFP defects, the POS interface remains in the up state as a member of the shared packet

ring (SPR) interface. Traffic is lost quietly and does not trigger any alarms or action.

The FCS threshold configuration and detection feature fixes this problem. The user can now configure

the ML-Series card to raise an alarm if the percentage of packet loss due to CRC errors crosses a

configureable threshold. The alarm raised is the CRC Threshold Crossing Alarm (CRC-ALARM), which

is a service-affecting (SA) SONET/SDH alarm with a Major (MA) severity. Reported SONET/SDH

alarms can be viewed under the Alarms tab of CTC.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 interface interface-id Specify the interface on which to collect statistics, and enter

interface configuration mode.

Step 3 rmon collection stats index [owner ownername]Enable RMON statistic collection on the interface.

• For index, specify the RMON group of statistics. The range

is from 1 to 65535.

• (Optional) For owner ownername, enter the name of the

owner of the RMON group of statistics.

Step 4 end Return to privileged EXEC mode.

Step 5 show running-config Verify your entries.

Step 6 show rmon statistics Display the contents of the ML-Series card statistics table.

Step 7 copy running-config startup-config (Optional) Save your entries in the configuration file.

21-7

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 21 Configuring RMON

Threshold and Triggered Actions

The user can also configure the CRC-ALARM to trigger a link state down on the port and to wrap an

Cisco proprietary RPR . By default, the CRC-ALARM is disabled. When the alarm is configured, the

link down and wrap actions are still disabled by default. This feature is also supported on the ML-Series

card Ethernet ports.

Threshold and Triggered Actions

The configureable threshold is not set with a BER, since variable frame lengths and varying percentages

of bandwidth can impair the usefulness of this measure. Instead, the users configure a more relevant

measure using CRC error rate as a percentage of the traffic. The available triggering thresholds are:

• 10e-2 or 1% traffic (1 CRC error 100 packets)

• 10e-3 or 0.1% traffic (1 CRC error in 1000 packets) (default)

• 10e-4 or 0.01% traffic (1 CRC error in 10000 packets)

The default threshold is a CRC error rate of 0.1% of the traffic. For voice and video traffic, an error rate

of 1% is typically a critical issue and 0.1% is a major issue. Voice and video needs to trigger a wrap if

the error rate is higher than 0.1% (1 error every 1000 packets). For normal data traffic, an error rate of

10% traffic is a critical issue, requiring an immediate fix, and 1% traffic is a minor issue.

The following actions occur after the detection of excessive CRC errors:

1. The Cisco proprietary RPR wraps if this option is configured.

2. The link shuts down if this option is configured.

3. If the link shuts down, a path defect indication (PDI) is sent to the far-end ML-Series card port. This

ensures the remote end wraps.

4. A CRC-ALARM is raised against the local end ML-Series card port. (If the remote end is also

receiving excessive CRC errors, a CRC-ALARM is also raised against the far end ML-Series card

port.

SONET/GFP Suppression of CRC-ALARM

This detection of excessive CRC errors is independent of SONET/GFP defects. A problem may have the

potential to trigger both the SONET/GFP defects and the CRC-ALARM. In this scenario, the

SONET/GFP defect will trigger before the CRC-WRAP alarm because CRC error threshold detection is

a slower process. If the SONET/GFP defect causes the link to go down, this link-down happens before

the CRC-ALARM is detected, and it suppresses the CRC-ALARM. If the SONET/GFP defect that

causes CRC-ALARM is not a link-down trigger and the CRC-ALARM is configured to take the link

down, the CRC-ALARM will report and trigger the link down.

Clearing of CRC-ALARM

When the trigger action is disabled (default), the CRC-ALARM automatically clears when the error rate

falls below the threshold for a significant time period.

When the trigger action is enabled, a CRC-ALARM requires a manual clear from the user. This is

required because the wrap or link down caused by the alarm blocks both traffic and the CRC errors in

the traffic from the port. So with no CRC errors, an automatic clear would occur even though the

underlying problem, such as dirty fiber or a defective ML-Series card, still exists. Interface flapping can

occur in this situation.

21-8

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 21 Configuring RMON

Unwrap Synchronization

Before doing a manual clear, the user needs to determine the root cause of a CRC-ALARM and correct

it. After that, the user has several alternative methods to manually clear the alarm:

• Through the Cisco IOS CLI, enter the clear crc alarm interface interface-type interface-number

command at the EXEC level.

• Through the Cisco IOS CLI, do an administrative shutdown on the linked ports and then a no

shutdown to enable the ports.

• Through CTC or TL-1, disable and then re-enable the circuit.

• Through CTC or TL-1, delete the SONET/SDH circuit and create a replacement circuit with the

same source and destination.

Unwrap Synchronization

The software on the ML-Series card raises the CRC-ALARM alarm on the POS interface that sees the

errored frames. For unidirectional FCS errors, the user only needs to issue the unwrap command on the

POS port at one end of the span, the one which raised the CRC-ALARM alarm. For bidirectional failures,

both ends of the span raise the CRC-ALARM alarm and the user is required to issue the command once

at each end of the span.

Since the POS ports at each end of the link are wrapped, removing the wrap (unwrapping) when the

CRC-ALARM is cleared requires coordination. The software must also make sure that other errors that

might cause wrapping are absent. The following examples illustrate this process for both unidirectional

and bidirectional failures. For simplicity, the examples assume that excessive CRC errors is the only

existing condition that might cause wrapping.

Unidirectional Errors

Figure 21-2 shows an Cisco proprietary RPR wrapped by excessive unidirectional CRC errors on POS

port 0 of node E, which is also reporting the CRC-ALARM. This caused POS port 1 on node E and POS

port 0 on node D to wrap. The figure captions further explain the process.

21-9

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 21 Configuring RMON

Unwrap Synchronization

Figure 21-2 Wrapped Cisco proprietary RPR with Unidirectional Excessive CRC Errors

Figure 21-3illustrates the unwrap sequence for Figure 21-2. The traffic hit for the unwrap is dependent

on the soak time required to declare PDI cleared on node D.

Node B

21-10

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 21 Configuring RMON

Unwrap Synchronization

Figure 21-3 Unwrapped Cisco proprietary RPR with Unidirectional Excessive CRC Errors

Bidirectional Errors

Figure 21-4 shows a Cisco proprietary RPR wrapped by excessive bidirectional CRC errors, both ports

are reporting CRC-ALARMs. The figure captions further explain the process.

Node B

Nd C

21-11

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 21 Configuring RMON

Unwrap Synchronization

Figure 21-4 Wrapped Cisco proprietary RPR with Bidirectional Excessive CRC Errors

Figure 21-5 illustrates the first part of the unwrap sequence for Figure 21-4. This occurs after the unwrap

command is configured on node E. For unwrap in this bidirectional scenario, the user must configure the

command on the POS ports at both ends of the link.

Node B

Node C

21-12

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 21 Configuring RMON

Unwrap Synchronization

Figure 21-5 First Stage of Unwrapped Cisco proprietary RPR with Bidirectional Excessive CRC

Errors

Node E has not unwrapped POS port 1 after the first CRC-ALARM clear command. Since node D

continues to send PDI to node E, node E will raise the TPTFAIL alarm once the CRC-ALARM is cleared.

At this point, the Cisco proprietary RPR is in a state similar to the unidirectional failure. The unwrap

completes after the user issues the second unwrap command, as illustrated by Figure 21-5.

User issues

unwrap command.

Node B

Node C

21-13

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 21 Configuring RMON

Configuring the ML-Series Card CRC Error Threshold

Figure 21-6 Second Stage of Unwrapped Cisco proprietary RPR with Bidirectional Excessive CRC

Errors

Configuring the ML-Series Card CRC Error Threshold

Beginning in privileged EXEC mode, follow these steps to configure the ML-Series card CRC error

threshold:

Node B

Node C

Command Purpose

Step 1 ML_Series# configure terminal Enter global configuration mode.

Step 2 ML_Series (config)# interface interface-type

interface-number

Enters interface configuration mode.

21-14

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 21 Configuring RMON

Clearing the CRC-ALARM Wrap with the Clear CRC Error Command

The Cisco IOS CLI clear crc alarm interface interface-type interface-number command is intended to

clear the Cisco proprietary RPR wrap when it occurs due to FCS errors without corresponding

SONET/SDH errors. It is not intended to unwrap wraps due to other causes, such as SONET/SDH

defects or keep alive (KA) failures. If SONET/SDH or KA defects are present without FCS errors, the

software rejects the command with an error message. When FCS errors are present and SONET/SDH or

KA defects are present, the command is accepted by the software but the node unwraps only after all the

failures have been fixed. In this case, the user does not need to reissue the command after the

SONET/SDH or KA defect has cleared.

Note The unwrap does not occur immediately, but after conditions are met.

Step 3 ML_Series (config-if)# [no] trigger crc threshold

[threshold-value]

Sets an fcs error level as a percentage of bandwidth

to trip the SONET/SDH CRC-ALARM. Valid

values are:

• 2—10e-2 or 1% traffic (1 CRC error in100

packets)

• 3—10e-3 or 0.1% traffic (1 CRC error in 1000

packets) (default)

• 4—10e-4 or 0.01% traffic (1 CRC error in

10000 packets)

The no form of the command sets the level back to

the default threshold of 3.

Step 4 ML_Series (config-if)# [no] trigger crc action (Optional) Sets the CRC-ALARM to trigger a link

down for the reporting port. Set on an Cisco

proprietary RPR POS port, this also wraps the

Cisco proprietary RPR .

The no form of the command sets the trigger back to

the default off.

Step 5 ML_Series(config-if)# [no] trigger crc delay soak-time (Optional) Sets the minutes of soak time for

excessive CRC error detection. The valid value is

from 3 minutes to 10 minutes.

The no form of the command sets the delay back to

the default of one minute.

Step 6 ML_Series# end Return to privileged EXEC mode.

Step 7 ML_Series# show running-config Verify your entries.

Step 8 ML_Series# copy running-config startup-config (Optional) Save your entries in the configuration

file.

Command Purpose

21-15

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 21 Configuring RMON

Configuring ML-Series Card RMON for CRC Errors

Beginning in privileged EXEC mode, follow these steps to clear the ML-Series card CRC-ALARM:

Configuring ML-Series Card RMON for CRC Errors

The ML-Series card supports using an NMS for SNMP performance monitoring (PM), including

monitoring cyclic redundancy check (CRC) errors. If the NMS supports periodic polling and

programmed threshold values to monitor interface index errors (ifInErrors) for all the ML-Series card

interfaces, you can manage and monitor CRC errors by relying on the NMS.

If the NMS does not support polling or if the desired polling frequency uses too much bandwidth, you

can configure SNMP traps on the ML-Series card through the Cisco IOS CLI. This method is only for

ML-Series cards on the ONS 15454 SONET/SDH. RMON capabilities for ML-Series cards on the

ONS 15310-CL and ONS 15310-MA are best managed through Cisco Transport Controller (CTC),

Transaction Language One (TL1), or Cisco Transport Manager (CTM) in the standard manner for the

node.

Configuration Guidelines for CRC Thresholds on the ML-Series Card

These are the guidelines for determining the interface CRC errors (ifInErrors) threshold values for

generating an NMS PM alert:

• SONET/SDH bit errors also create POS CRC errors. There is no alarm suppression hierarchy

between the SONET/SDH errors and POS errors, so each set of errors creates separate alerts.

• The actual packet rate of an interface is unpredictable. A high bandwidth interface might forward

only a few packets per minute in a particular time period of low data traffic, which means a relatively

low number of CRC errors would represent a 100 percent loss. A lower bandwidth interface might

forward a high packet count (millions) per minute during a particular time period, and so a relatively

few CRC errors would represent an error rate of 10–9. This situation prevents the straightforward

determination of a maximum bit error rate (BER), which is often used for non-packet-based PM.

• You can set up the monitoring of ML-Series card CRC errors for either signs of minor trouble or

signs of major trouble. For minor trouble monitoring, set a relatively quick and sensitive error rate

trigger, such as 10 errors in a 60 second period. This method will likely generate an NMS alert every

time an interface goes up or down, a fiber error occurs, or a SONET/SDH protection event occurs

(even though protection might occur within 50 ms). To monitor only major trouble and to reduce the

number of alerts, set a relatively high threshold, such as 1000 errors in a 300 second period.

Accessing CRC Errors Through SNMP

CRC errors for each interface are reported in the IF-MIB object ifInErrors (OID 1.3.6.1.2.1.2.2.1.14).

Users can check the current value of ifInErrors through SNMP get requests. Each ML-Series card runs

a separate instance of SNMP. SNMP requests are relayed to the individual ML-Series card based on the

community string. The community string uses the following format:

com_str_configured_from_CTC@ml_slot_number

Command Purpose

Step 1 ML_Series # clear crc alarm interface interface-type

interface-number

Clears the SONET/SDH CRC-ALARM and allows

the Cisco proprietary RPR to unwrap when

conditions are met.

21-16

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 21 Configuring RMON

Configuring an SNMP Trap for the CRC Error Threshold Using Cisco IOS

The ML-Series card supports RMON trap functionality in Cisco IOS. You must use the Cisco IOS CLI

to configure RMON to monitor ifInErrors and generate a trap to an NMS when a threshold is crossed.

The ML-Series card on the ONS 15454 SONET/SDH does not support the configuration of RMON traps

through an SNMP set request, which typically initiates an action on a network device.

Beginning in privileged EXEC mode, follow these steps to configure RMON to monitor ifInErrors and

generate a trap for an NMS when a threshold is crossed:

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 rmon event number [log] [trap community] [description

string] [owner string]

Add an event in the RMON event table that is

associated with an RMON event number.

• For number, assign an event number. The range

is 1 to 65535.

• (Optional) Use the log keyword to generate an

RMON log entry when the event is triggered.

• (Optional) For trap community, enter the

SNMP community string used for this trap.

• (Optional) For description string, specify a

description of the event.

• (Optional) For owner string, specify the owner

of this event.

21-17

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 21 Configuring RMON

Configuring an SNMP Trap for the CRC Error Threshold Using Cisco IOS

Below is an example of configuring an SNMP trap for the CRC error threshold.

ML_Series # configure terminal

ML_Series(config)# rmon event 10 log trap slot15 owner config

ML_Series(config)# rmon alarm 9 ifInErrors.983043 300 delta rising-threshold 1000 10

falling-threshold 1000 10 owner config

ML_Series(config)# end

ML_Series # show running-config

ML_Series # copy running-config startup-config

The ifIndex number of an ML-Series card interface in decimal form used for the rmon alarm command

in the example is ifInErrors.983043. This variable is the MIB object to monitor combined with the

ifIndex number of an ML-Series card interface. For information on determining the ifIndex number for

an ML-Series card, see “Determining the ifIndex Number for an ML-Series Card” section on

page 21-18.

Below is an example of a rising-threshold trap generated by 1002 ifInErrors crossing a threshold of 1000

in a 5-minute period.

Step 3 rmon alarm number ifInErrors.ifIndex-number interval

{absolute | delta} rising-threshold value [event-number]

falling-threshold value [event-number]

[owner string]

Set an alarm on the MIB object.

• For number, specify the alarm number. The

range is 1 to 65535.

• The ifIndex-number variable is the ifIndex

number of an ML-Series card interface in

decimal form. (For information about

determining this number, see “Determining the

ifIndex Number for an ML-Series Card” section

on page 21-18.)

• For interval, specify the time in seconds the

alarm monitors the MIB variable. The range is

1 to 4294967295 seconds.

• Specify the absolute keyword to test each MIB

variable directly. Specify the delta keyword to

test the change between samples of a MIB

variable.

• For value, specify a number at which the alarm

is triggered and a number at which the alarm is

reset. The range for the rising threshold and

falling threshold values is –2147483648 to

2147483647.

• (Optional) For event-number, specify the event

number to trigger when the rising or falling

threshold exceeds its limit.

• (Optional) For owner string, specify the owner

of the alarm.

Step 4 end Return to privileged EXEC mode.

Step 5 show running-config Verify your entries.

Step 6 copy running-config startup-config (Optional) Save your entries in the configuration

file.

Command Purpose

21-18

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 21 Configuring RMON

Determining the ifIndex Number for an ML-Series Card

2005-03-22 16:25:38 ptlm9-454e56-97.cisco.com [10.92.56.97]:

SNMPv2-MIB:sysUpTime.0 = Wrong Type (should be Timeticks): 43026500

SNMPv2-MIB:snmpTrapOID.0 = OID: RMON-MIB:risingAlarm

RFC1271-MIB:alarmIndex.9 = 9

RFC1271-MIB:alarmVariable.9 = OID: IF-MIB:ifInErrors.983043

RFC1271-MIB:alarmSampleType.9 = deltaValue(2)

RFC1271-MIB:alarmValue.9 = 1002

RFC1271-MIB:alarmRisingThreshold.9 = 1000

SNMPv2-SMI:snmpModules.18.1.3.0 = IpAddress: 10.92.56.97

Determining the ifIndex Number for an ML-Series Card

When an NMS polls an ML-Series card for performance data, the NMS uses ifIndex numbers internally

to consolidate interface data from multiple MIBs and associate this data with an interface name. The user

can rely on the interface name and does not need to know the actual ifIndex number.

When you use the Cisco IOS CLI to configure the ML-Series card to generate traps directly, you do not

have this associated name to use. You must use the actual ifIndex number for each interface being

configured with a trap. To determine the actual ifIndex number, you can use an NMS to retrieve the

ifIndex number of each ML-Series card interface and VLAN subinterface, or you can calculate the

ifIndex number for the interface.

The user can also use a MIB browser (SNMP MIB definition lookup service) to examine the ifDescr for

the appropriate ifIndex number. The ifIndex number from the ifDescr must be the ifIndex number for the

desired port.

On an ML-Series card, the ifIndex number of Ethernet and POS interfaces is compiled from two pieces

of information:

• The chassis slot number of the card—The slot number is the number of the physical space in the

shelf that the ML-Series card resides in. It ranges from Slot 1 to Slot 6 or Slot 12 to Slot 17 on an

ONS 15454 SONET/SDH shelf. You can find this information in many ways, including through the

graphical representation of the shelf slots on CTC, or by looking at the front of the physical shelf.

• A local port number within the card—Port numbers of the ML-Series cards for the

ONS 15454 SONET/SDH match the interface numbers for Fast Ethernet and Gigabit Ethernet

interfaces. POS port numbers do not match the interface numbers and do not consecutively follow

the Ethernet port numbering. A consecutive value is skipped between the last Ethernet port number

and the first POS number (POS Port 0). Port numbers for the interfaces are listed in Table 21-1:

Table 21-1 Port Numbers for the Interfaces of ML-Series Cards

ML100T-12

FastEthernet

Interfaces ML100T-12 POS

Interfaces

ML100X-8

FastEthernet

Interfaces ML100X-8 POS

Interfaces

ML1000-2

Gigabit

Ethernet

Interfaces ML1000-2 POS

Interfaces

FE 0 = Port 0 POS 0 = Port 13 FE 0 = Port 0 POS 0 = Port 9 GE 0 = Port 0 POS 0 = Port 3

FE 1 = Port 1 POS 1 = Port 14 FE 1 = Port 1 POS 1 = Port 10 GE 1 = Port 1 POS 1 = Port 4

FE 2 = Port 2 FE 2 = Port 2

FE 3 = Port 3 FE 3 = Port 3

FE 4 = Port 4 FE 4 = Port 4

FE 5 = Port 5 FE 5 = Port 5

FE 6 = Port 6 FE 6 = Port 6

21-19

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 21 Configuring RMON

Manually Checking CRC Errors on the ML-Series Card

The slot and port are combined to form the ifIndex using the following formula:

ifIndex = (slot * 10000h) + (port)

10000h is the hexadecimal equivalent number of 65536. The resulting ifIndex is a meaningful two-part

number in hexadecimal, but seems confusing and arbitrary in decimal. For example, ifIndex E0002h is

Slot 14, Port 2. This same number in decimal notation is 917506. The rmon alarm command requires

the ifindex number in decimal form.

As an additional reference for calculating the correct ifindex value to use with the rmon alarm

command, Table 21-1 lists the base ifindex number for Slots 1 to 17. The desired port number can be

added to the slot base number to quickly determine the correct ifIndex number.

Manually Checking CRC Errors on the ML-Series Card

Users can also check the current count of ML-Series card CRC errors on an interface by using the

show interface command. The example shows six total input errors, which are all CRC errors, in the last

line of the output.

FE 7 = Port 7 FE 7 = Port 7

FE 8 = Port 8

FE 9 = Port 9

FE 10 = Port

FE 11 = Port 11

Table 21-1 Port Numbers for the Interfaces of ML-Series Cards

ML100T-12

FastEthernet

Interfaces ML100T-12 POS

Interfaces

ML100X-8

FastEthernet

Interfaces ML100X-8 POS

Interfaces

ML1000-2

Gigabit

Ethernet

Interfaces ML1000-2 POS

Interfaces

Table 21-2 Port Numbers for the Interfaces of ML-Series Cards

Slot Number for the

ML-Series Card Base ifIndex Number in

Hexidecimal Format Base ifIndex Number in

Decimal Format

1 10000h 65536

2 20000h 131072

3 30000h 196608

4 40000h 262144

5 50000h 327680

6 60000h 393216

12 C0000h 786432

13 D0000h 851968

14 E0000h 917504

15 F0000h 983040

16 100000h 1048576

17 110000h 1114112

21-20

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 21 Configuring RMON

Displaying RMON Status

ML_Series(config)# show interface pos 0

POS0 is up, line protocol is up

Hardware is Packet/Ethernet over Sonet, address is 0005.9a39.713e (bia 0005.9a39.713e)

MTU 1500 bytes, BW 48384 Kbit, DLY 100 usec,

reliability 255/255, txload 1/255, rxload 182/255

Encapsulation: Cisco-EoS-LEX, crc 32, loopback not set

Keepalive set (10 sec)

Scramble enabled

ARP type: ARPA, ARP Timeout 04:00:00

Last input never, output never, output hang never

Last clearing of "show interface" counters never

Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 0

Queueing strategy: fifo

Output queue: 0/40 (size/max)

5 minute input rate 34621000 bits/sec, 60083 packets/sec

5 minute output rate 0 bits/sec, 0 packets/sec

311190527 packets input, 931220183 bytes

Received 0 broadcasts (0 IP multicast)

6 runts, 0 giants, 0 throttles

0 parity

6 input errors, 6 CRC, 0 frame, 0 overrun, 0 ignored

Displaying RMON Status

Note RMON status commands do not work for POS interfaces.

To display the RMON status, use one or more of the privileged EXEC commands in Table 21-3.

Example 21-1 shows examples of the commands in Table 21-3.

Example 21-1 CRC Errors Displayed with show rmon Commands

ML_Series# show rmon alarms

Alarm 9 is active, owned by config

Monitors ifInErrors.983043 every 300 second(s)

Taking delta samples, last value was 0

Rising threshold is 1000, assigned to event 10

Falling threshold is 1000, assigned to event 10

On startup enable rising or falling alarm

ML_Series# show rmon events

Table 21-3 Commands for Displaying RMON Status

Command Purpose

show rmon Displays general RMON statistics.

show rmon alarms Displays the RMON alarm table.

show rmon events Displays the RMON event table.

show rmon history Displays the RMON history table.

show rmon statistics Displays the RMON statistics table.

21-21

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 21 Configuring RMON

Displaying RMON Status

Event 10 is active, owned by config

Description is

Event firing causes log and trap to community slot15,

last event fired at 0y3w2d,00:32:39,

Current uptime 0y3w6d,03:03:12

Current log entries:

index uptime description

1 0y3w2d,00:32:39

21-22

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 21 Configuring RMON

Displaying RMON Status

CHAPTER

22-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Configuring SNMP

This chapter describes how to configure the ML-Series card for operating with Simple Network

Management Protocol (SNMP).

Note For complete syntax and usage information for the commands used in this chapter, see the Cisco IOS

Configuration Fundamentals Command Reference, Release 12.2.

This chapter consists of these sections:

• Understanding SNMP, page 22-1

• Configuring SNMP, page 22-6

• Displaying SNMP Status, page 22-14

Understanding SNMP

SNMP is an application-layer protocol that provides a message format for communication between

managers and agents. The SNMP system consists of an SNMP manager, an SNMP agent, and a MIB.

The SNMP manager can be part of a network management system (NMS) such as CiscoWorks. To

configure SNMP, you define the relationship between the manager and the agent.

The SNMP agent contains MIB variables whose values the SNMP manager can request or change. A

manager can get a value from an agent or store a value in an agent. The agent gathers data from the MIB,

the repository for information about device parameters and network data. The agent can also respond to

a manager’s requests to get or set data.

An agent can send unsolicited traps to the manager. Traps are messages that alert the SNMP manager to

a condition on the network. Traps can mean improper user authentication, restarts, link status (up or

down), MAC address tracking, closing of a Transmission Control Protocol (TCP) connection, loss of

connection to a neighbor, or other significant events.

This section includes information about these topics:

• SNMP on the ML-Series Card, page 22-2

• SNMP Versions, page 22-3

• SNMP Manager Functions, page 22-3

• SNMP Agent Functions, page 22-4

• SNMP Community Strings, page 22-4

22-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 22 Configuring SNMP

SNMP on the ML-Series Card

• Using SNMP to Access MIB Variables, page 22-4

• Supported MIBs, page 22-5

• SNMP Notifications, page 22-5

SNMP on the ML-Series Card

SNMP operates in two different ways on the ONS 15454 SONET/SDH ML-Series card. One way is to

communicate directly. This is also how SNMP operates on a small Catalyst switch, using direct

communication, Cisco IOS, and the data plane. An SNMP agent interacting with an ML-Series card can

also communicate through the ONS 15454 SONET/SDH and the SONET network. Both ways are shown

in Figure 22-1.

Figure 22-1 SNMP on the ML-Series Card Example

When the ONS 15454 SONET/SDH node relays the ML-Series card SNMP communication, the node

uses a proxy agent to accept, validate, and forward get, getNext, and set requests to the ML-Series card.

These ML-Series card requests contain the slot identification of the ML-Series card cards to distinguish

the request from a general SNMP request for the ONS 15454 SONET/SDH node. The responses from

the ML-Series card are then relayed by the ONS 15454 SONET/SDH node to the requesting SNMP

agents.

SNMP access is useful for collecting Cisco IOS data plane events, alarms, and statistics for the

ML-Series card. All SNMP events and traps defined on the ML-Series card are reported to the

TCC2/TCC2P card SNMP agent by default. If the TCC2/TCC2P card SNMP agent is active, these events

are sent to the defined SNMP server.

Data

Network

TCC

ONS 15454

(GNE)

ONS 15454 (GNE)

TCC

ML Series

IOS SNMP

Agent

SONET/SDH

Network

Ethernet/IP

Data Plane Backplane

Connection

SDCC

SNMP Manager

144681

22-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 22 Configuring SNMP

SNMP Versions

Both the ML-Series card and the ONS 15454 SONET/SDH nodes support SNMP Version 1 (SNMPv1)

and SNMP Version 2c (SNMPv2c), defined as:

• SNMPv1—The Simple Network Management Protocol, a full Internet standard, defined in

RFC 1157.

• SNMPv2c replaces the party-based administrative and security framework of SNMPv2 classic with

the community-string-based administrative framework of SNMPv2c while retaining the bulk

retrieval and imroved error handling of SNMPv2classic. The bulk retrieval mechanism retrieves

tables and large quantities of information, minimizing the number of round-trips required. The

SNMPv2c improved error-handling includes expanded error codes that distinguish different kinds

of error conditions; these conditions are reported through a single error code in SNMPv1. Error

return codes in SNMPv2c report the error type.

SNMPv1 and SNMpv2c have the same security models and levels:

• Level—noAuthNoPriv

• Authentication—community string

• Encryption—none

• Result—Uses a community string match for authentication.

You must configure the SNMP agent to use the SNMP version supported by the management station.

Because an agent can communicate with multiple managers, you can configure the software to support

communications using SNMPv1, and SNMPv2c protocols.

SNMP Manager Functions

The SNMP manager uses information in the MIB to perform the operations described in Table 22-1.

Table 22-1 SNMP Operations

Operation Description

get-request Retrieves a value from a specific variable.

get-next-request Retrieves a value from a variable within a table.1

1. With this operation, an SNMP manager does not need to know the exact variable name. A sequential search is performed to

find the needed variable from within a table.

get-bulk-request2

2. The get-bulk-request command only works with SNMPv2 or later.

Retrieves large blocks of data, such as multiple rows in a table, that would

otherwise require the transmission of many small blocks of data.

get-response Replies to a get-request, get-next-request, or set-request sent by an NMS.

set-request Stores a value in a specific variable.

trap An unsolicited message sent by an SNMP agent to an SNMP manager when some

event has occurred.

22-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 22 Configuring SNMP

SNMP Agent Functions

The SNMP agent responds to SNMP manager requests as follows:

• Get a MIB variable—The SNMP agent begins this function in response to a request from the NMS.

The agent retrieves the value of the requested MIB variable and responds to the NMS with that value.

• Set a MIB variable—The SNMP agent begins this function in response to a message from the NMS.

The SNMP agent changes the value of the MIB variable to the value requested by the NMS.

The SNMP agent also sends unsolicited trap messages to notify an NMS that a significant event has

occurred on the agent. Examples of trap conditions include, but are not limited to, when a port or module

goes up or down, when spanning-tree topology changes occur, and when authentication failures occur.

SNMP Community Strings

SNMP community strings authenticate access to MIB objects and function as embedded passwords. In

order for the NMS to access the ML-Series card, the community string definitions on the NMS must

match at least one of the three community string definitions on the ML-Series card.

A community string can have one of these attributes:

• Read-only (RO)—Gives read access to authorized management stations to all objects in the MIB

except the community strings, but does not allow write access

• Read-write (RW)—Gives read and write access to authorized management stations to all objects in

the MIB, but does not allow access to the community strings

• Read-write-all—Gives read and write access to authorized management stations to all objects in the

MIB, including the community strings

Using SNMP to Access MIB Variables

An example of an NMS is the CiscoWorks network management software. CiscoWorks software uses

the ML-Series card MIB variables to set device variables and to poll devices on the network for specific

information. The results of a poll can be displayed as a graph and analyzed to troubleshoot problems,

increase network performance, verify the configuration of devices, monitor traffic loads, and more.

As shown in Figure 22-2, the SNMP agent gathers data from the MIB. The agent can send traps, or

notification of certain events, to the SNMP manager, which receives and processes the traps. Traps alert

the SNMP manager to a condition on the network such as improper user authentication, restarts, link

status (up or down), MAC address tracking, and so forth. The SNMP agent also responds to MIB-related

queries sent by the SNMP manager in get-request, get-next-request, and set-request format.

Figure 22-2 SNMP Network

get, get-next, get-bulk

Network device

get-response, traps

32632

SNMP Manager

NMS

MIB

SNMP Agent

22-5

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 22 Configuring SNMP

Supported MIBs

The complete list of supported MIBs for the ML-Series card is found in the MIBsREADME.txt file on

the ONS Software CD for your release. This software CD also includes the needed MIB modules and

information on loading MIBs.

Yo u c an a l s o locate and download MIBs for Cisco platforms, Cisco IOS releases, and feature sets, using

the Cisco MIB Locator found at the following URL:

http://www.cisco.com/go/mibs

Some of the important MIBs supported include:

• Spanning Tree Protocol (STP) traps from Bridge-MIB (RFC 1493)

• Authentication traps from RFC 1157

• Link-up and link-down traps for Ethernet ports from IF-MIB (RFC 1573)

• Export of quality of service (QoS) statistics through the CISCO-PORT-QOS-MIB extension

Note The ML-Series card CISCO-PORT-QOS-MIB extension includes support for QoS indexing based on

cost of service (CoS). It does not support configuration objects.

SNMP Notifications

SNMP allows the ML-Series card to send notifications to SNMP managers when particular events occur.

SNMP notifications can be sent as traps or as inform requests. In command syntax, unless there is an

option in the command to select either traps or inform requests, the keyword traps refers to either traps

or inform requests, or both. Use the snmp-server host command to specify whether to send SNMP

notifications as traps or inform requests.

Note SNMPv1 does not support inform requests.

Traps are unreliable because the receiver does not send an acknowledgment when it receives a trap, so

the sender cannot determine if the trap was received. When an SNMP manager receives an inform

request, it acknowledges the message with an SNMP response protocol data unit (PDU). If the sender

does not receive a response, the inform request can be sent again. Because they can be re-sent, inform

requests are more likely than traps to reach their intended destination.

The characteristics that make informs more reliable than traps also consume more resources in the

ML-Series card and in the network. Unlike a trap, which is discarded as soon as it is sent, an inform

request is held in memory until a response is received or the request times out. Traps are sent only once,

but an inform might be re-sent or retried several times. The retries increase traffic and contribute to a

higher overhead on the network. Therefore, traps and informs require a trade-off between reliability and

resources. If it is important that the SNMP manager receive every notification, use inform requests. If

traffic on the network or memory in the ML-Series card is a concern and notification is not required, use

traps.

22-6

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 22 Configuring SNMP

Configuring SNMP

This section describes how to configure SNMP on your ML-Series card. It contains this configuration

information:

• Default SNMP Configuration, page 22-6

• SNMP Configuration Guidelines, page 22-6

• Disabling the SNMP Agent, page 22-7

• Configuring Community Strings, page 22-7

• Configuring SNMP Groups and Users, page 22-9

• Configuring SNMP Notifications, page 22-10

• Setting the Agent Contact and Location Information, page 22-12

• Limiting TFTP Servers Used Through SNMP, page 22-13

• SNMP Examples, page 22-13

Default SNMP Configuration

Table 22-2 shows the default SNMP configuration.

SNMP Configuration Guidelines

When configuring SNMP, follow these guidelines:

• When configuring an SNMP group, do not specify a notify view. The snmp-server host global

configuration command autogenerates a notify view for the user and then adds it to the group

associated with that user. Modifying the group's notify view affects all users associated with that

group. For information about when you should configure notify views, see the Cisco IOS

Configuration Fundamentals Command Reference, Release 12.2.

• An SNMP group is a table that maps SNMP users to SNMP views.

• An SNMP user is a member of an SNMP group.

• An SNMP host is the recipient of an SNMP trap operation.

Table 22-2 Default SNMP Configuration

Feature Default Setting

SNMP agent Enabled

SNMP community strings Read-Only: Public

Read-Write: Private

Read-Write-all: Secret

SNMP trap receiver None configured

SNMP traps None enabled except the trap for TCP connections (tty)

SNMP version If no version keyword is present, the default is Version 1.

SNMP notification type If no type is specified, all notifications are sent.

22-7

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 22 Configuring SNMP

Disabling the SNMP Agent

• An SNMP engine ID is a name for the local or remote SNMP engine.

Disabling the SNMP Agent

Beginning in privileged EXEC mode, follow these steps to disable the SNMP agent:

The no snmp-server global configuration command disables all running versions on the device. No

specific Cisco IOS command exists to enable SNMP. The first snmp-server global configuration

command that you enter enables all versions of SNMP.

Configuring Community Strings

You use the SNMP community string to define the relationship between the SNMP manager and the

agent. The community string acts like a password to permit access to the agent on the ML-Series card

card. Optionally, you can specify one or more of these characteristics associated with the string:

• An access list of IP addresses of the SNMP managers that are permitted to use the community string

to gain access to the agent

• A MIB view, which defines the subset of all MIB objects accessible to the given community

• Read and write or read-only permission for the MIB objects accessible to the community

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 no snmp-server Disable the SNMP agent operation.

Step 3 end Return to privileged EXEC mode.

Step 4 show running-config Verify your entries.

Step 5 copy running-config startup-config (Optional) Save your entries in the configuration file.

22-8

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 22 Configuring SNMP

Configuring Community Strings

Beginning in privileged EXEC mode, follow these steps to configure a community string on the

ML-Series card:

Note To disable access for an SNMP community, set the community string for that community to the null

string (do not enter a value for the community string).

To remove a specific community string, use the no snmp-server community string global configuration

command.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 snmp-server community string [view

view-name] [ro | rw] [access-list-number]

Configure the community string.

• For string, specify a string that acts like a password and

permits access to the SNMP protocol. You can configure one

or more community strings of any length.

• (Optional) For view view-name, specify the view record

accessible to the community.

• (Optional) Specify either read-only (ro) if you want

authorized management stations to retrieve MIB objects, or

specify read-write (rw) if you want authorized management

stations to retrieve and modify MIB objects. By default, the

community string permits read-only access to all objects.

• (Optional) For access-list-number, enter an IP standard access

list numbered from 1 to 99 and 1300 to 1999.

Step 3 access-list access-list-number {deny |

permit} source [source-wildcard]

(Optional) If you specified an IP standard access list number in

Step 2, then create the list, repeating the command as many times

as necessary.

• For access-list-number, enter the access list number specified

in Step 2.

• The deny keyword denies access if the conditions are

matched. The permit keyword permits access if the conditions

are matched.

• For source, enter the IP address of the SNMP manager that are

permitted to use the community string to gain access to the

agent.

• (Optional) For source-wildcard, enter the wildcard bits in

dotted decimal notation to be applied to the source. Place ones

in the bit positions that you want to ignore.

Recall that the access list is always terminated by an implicit deny

statement for everything.

Step 4 end Return to privileged EXEC mode.

Step 5 show running-config Verify your entries.

Step 6 copy running-config startup-config (Optional) Save your entries in the configuration file.

22-9

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 22 Configuring SNMP

Configuring SNMP Groups and Users

This example shows how to assign the string comaccess to SNMP, to allow read-only access, and to

specify that IP access list 4 can use the community string to gain access to the ML-Series card SNMP

agent:

ML_Series(config)# snmp-server community comaccess ro 4

Configuring SNMP Groups and Users

You can specify an identification name (engine ID) for the local or remote SNMP server engine on the

ML-Series card. You can configure an SNMP server group that maps SNMP users to SNMP views, and

you can add new users to the SNMP group.

Beginning in privileged EXEC mode, follow these steps to configure SNMP on the ML-Series card:

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 snmp-server engineID {local

engineid-string | remote ip-address

[udp-port port-number]}

Configure a name for either the local or remote copy of SNMP.

• The engineid-string is a 24-character ID string with the name of

the copy of SNMP.

• If you select remote, specify the ip-address of the device that

contains the remote copy of SNMP and the optional UDP port on

the remote device. The UDP port default is 162.

Step 3 snmp-server group groupname {v1 | v2c

[auth | noauth | priv]} [read readview]

[write writeview] [notify notifyview]

[access access-list]

Configure a new SNMP group on the remote device.

• For groupname, specify the name of the group.

• Specify a security model:

–

v1 is the less secure model.

–

v2c is the more secure model. It allows transmission of

inform requests and integers that are twice the normal width.

Note The priv keyword is available only when the crypto software

image is installed.

• (Optional) Enter read readview with a string (not to exceed

64 characters) that is the name of the view in which you can only

view the contents of the agent.

• (Optional) Enter write writeview with a string (not to exceed

64 characters) that is the name of the view in which you can enter

data and configure the contents of the agent.

• (Optional) Enter notify notifyview with a string (not to exceed

64 characters) that is the name of the view in which you can

specify a notify, inform request, or trap.

• (Optional) Enter access access-list with a string (not to exceed

64 characters) that is the name of the access list.

22-10

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 22 Configuring SNMP

Configuring SNMP Notifications

A trap manager is a management station that receives and processes notification types (traps). Traps are

system alerts that the ML-Series card generates when certain events occur. By default, no trap manager

is defined, and no traps are sent. To enable all traps, configure the snmp-server enable traps command

with no notification type keywords specified.

Table 22-3 describes some of the more commonly used traps supported by the ML-Series card. You can

enable any or all of these traps and configure a trap manager to receive them.

You can send the snmp-server host global configuration command to a specific host to receive the

notification types listed in Table 22-3.

Step 4 snmp-server user username groupname

[remote host [udp-port port]] {v1 | v2c

[access access-list]}

Configure a new user to an SNMP group.

• The username is the name of the user on the host that connects to

the agent.

• The groupname is the name of the group with which the user is

associated.

• (Optional) Enter remote to specify a remote SNMP entity to

which the user belongs and the hostname or IP address of that

entity along with the optional UDP port number. The default UDP

port number is 162.

• Enter the SNMP version number (v1 or v2c).

• (Optional) Enter access access-list with a string (not to exceed

64 characters) that is the name of the access list.

Step 5 end Return to privileged EXEC mode.

Step 6 show running-config Verify your entries.

Step 7 copy running-config startup-config (Optional) Save your entries in the configuration file.

Command Purpose

Table 22-3 ML-Series Card Notification Types

Notification Type Keyword Description

bridge Generates Spanning Tree Protocol (STP) bridge MIB traps.

config Generates a trap for SNMP configuration changes.

config-copy Generates a trap for SNMP copy configuration changes.

entity Generates SNMP entity traps.

rsvp Generates RSVP flow change traps.

rtr Generates a trap for the SNMP Response Time Reporter (RTR).

22-11

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 22 Configuring SNMP

Configuring SNMP Notifications

Beginning in privileged EXEC mode, follow these steps to configure the ML-Series card to send traps

or inform requests to a host:

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 snmp-server engineID remote

ip-address engineid-string

Specify the IP address and engine ID for the remote host.

Step 3 snmp-server user username

groupname remote host [udp-port

port] {v1 | v2c}[access access-list]

Configure an SNMP user to be associated with the remote host created in

Step 2.

• The username is the name of the user on the host that connects to the

agent.

• The groupname is the name of the group with which the user is

associated.

• (Optional) Enter remote to specify a remote SNMP entity to which

the user belongs and the hostname or IP address of that entity along

with the optional UDP port number. The default UDP port number is

162.

• Enter the SNMP version number (v1 or v2c).

• (Optional) Enter access access-list with a string (not to exceed

64 characters) that is the name of the access list.

Note You cannot configure a remote user for an address without first

configuring the engine ID for the remote host. If you try to

configure the user before configuring the remote engine ID, you

receive an error message, and the command is not executed.

Step 4 snmp-server host host-addr

[traps | informs] [version {1 | 2c}]

community-string [udp-port port]

[notification-type]

Specify the recipient of an SNMP trap operation.

• For host-addr, specify the name or Internet address of the host (the

targeted recipient).

• (Optional) Enter traps (the default) to send SNMP traps to the host.

• (Optional) Enter informs to send SNMP inform requests to the host.

• (Optional) Specify the SNMP version (1 or 2c). SNMPv1 does not

support inform requests.

• For community-string, enter the password-like community string sent

with the notification operation.

• (Optional) For udp-port port, enter the remote device UDP port.

• (Optional) For notification-type, use the keywords listed in

Table 22-3 on page 22-10. If no type is specified, all notifications are

sent.

Step 5 snmp-server enable traps

notification-types

Enable the ML-Series card to send traps or inform requests and specify

the type of notifications to be sent. For a list of notification types, enter:

snmp-server enable traps ?

To enable multiple types of traps, you must enter a separate

snmp-server enable traps command for each trap type.

22-12

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 22 Configuring SNMP

Setting the Agent Contact and Location Information

The snmp-server host command specifies which hosts receive the notifications. The snmp-server

enable trap command globally enables the mechanism for the specified notification (for traps and

inform requests). To enable a host to receive an inform request, you must configure an

snmp-server host informs command for the host and globally enable inform requests by using the

snmp-server enable traps command.

To remove the specified host from receiving traps, use the no snmp-server host host global

configuration command. The no snmp-server host command with no keywords disables traps, but not

inform requests, to the host. To disable inform requests, use the no snmp-server host informs global

configuration command. To disable a specific trap type, use the no snmp-server enable traps

notification-types global configuration command.

Setting the Agent Contact and Location Information

Beginning in privileged EXEC mode, follow these steps to set the system contact and location of the

SNMP agent so that these descriptions can be accessed through the configuration file:

Step 6 snmp-server trap-source interface-id (Optional) Specify the source interface, which provides the IP address for

the trap message. This command also sets the source IP address for

inform requests.

Step 7 snmp-server queue-length length (Optional) Establish how many trap messages each trap host can hold

(message queue length.) The range is 1 to 1000; the default is 10.

Step 8 snmp-server trap-timeout seconds (Optional) Define how often to resend trap messages. The range is 1 to

1000; the default is 30 seconds.

Step 9 end Return to privileged EXEC mode.

Step 10 show running-config Verify your entries.

Step 11 copy running-config startup-config (Optional) Save your entries in the configuration file.

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 snmp-server contact text Set the system contact string.

For example:

snmp-server contact Dial System Operator at beeper 21555.

Step 3 snmp-server location text Set the system location string.

For example:

snmp-server location Building 3/Room 222

Step 4 end Return to privileged EXEC mode.

Step 5 show running-config Verify your entries.

Step 6 copy running-config startup-config (Optional) Save your entries in the configuration file.

22-13

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 22 Configuring SNMP

Limiting TFTP Servers Used Through SNMP

Beginning in privileged EXEC mode, follow these steps to limit the TFTP servers used for saving and

loading configuration files through SNMP to the servers specified in an access list:

SNMP Examples

This example shows how to enable all versions of SNMP. The configuration permits any SNMP manager

to access all objects with read-only permissions using the community string “public.” This configuration

does not cause the ML-Series card to send any traps.

ML_Series(config)# snmp-server community public

This example shows how to permit any SNMP manager to access all objects with read-only permission

using the community string “public.” The ML-Series card also sends VTP traps to the hosts

192.180.1.111 and 192.180.1.33 using SNMPv1 and to the host 192.180.1.27 using SNMPv2c. The

community string “public” is sent with the traps.

ML_Series(config)# snmp-server community public

ML_Series(config)# snmp-server host 192.180.1.27 version 2c public

ML_Series(config)# snmp-server host 192.180.1.111 version 1 public

ML_Series(config)# snmp-server host 192.180.1.33 public

Command Purpose

Step 1 configure terminal Enter global configuration mode.

Step 2 snmp-server tftp-server-list

access-list-number

Limit TFTP servers used for configuration file copies through

SNMP to the servers in the access list.

For access-list-number, enter an IP standard access list numbered

from 1 to 99 and 1300 to 1999.

Step 3 access-list access-list-number {deny |

permit} source [source-wildcard]

Create a standard access list, repeating the command as many times

as necessary.

• For access-list-number, enter the access list number specified

in Step 2.

• The deny keyword denies access if the conditions are matched.

The permit keyword permits access if the conditions are

matched.

• For source, enter the IP address of the TFTP servers that can

access the ML-Series card.

• (Optional) For source-wildcard, enter the wildcard bits, in

dotted decimal notation, to be applied to the source. Place ones

in the bit positions that you want to ignore.

Recall that the access list is always terminated by an implicit deny

statement for everything.

Step 4 end Return to privileged EXEC mode.

Step 5 show running-config Verify your entries.

Step 6 copy running-config startup-config (Optional) Save your entries in the configuration file.

22-14

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 22 Configuring SNMP

Displaying SNMP Status

This example shows how to allow read-only access for all objects to members of access list 4 that use

the comaccess community string. No other SNMP managers have access to any objects. SNMP

authentication failure traps are sent by SNMPv2c to the host cisco.com using the community string

“public.”

ML_Series(config)# snmp-server community comaccess ro 4

ML_Series(config)# snmp-server enable traps snmp authentication

ML_Series(config)# snmp-server host cisco.com version 2c public

This example shows how to send Entity MIB traps to the host cisco.com. The community string is

restricted. The second line specifies the destination of these traps and overwrites any previous

snmp-server host commands for the host cisco.com.

ML_Series(config)# snmp-server enable traps

ML_Series(config)# snmp-server host cisco.com restricted

This example shows how to enable the ML-Series card to send all traps to the host myhost.cisco.com

using the community string “public.”

ML_Series(config)# snmp-server enable traps

ML_Series(config)# snmp-server host myhost.cisco.com public

Displaying SNMP Status

To display SNMP input and output statistics, including the number of illegal community string entries,

errors, and requested variables, use the show snmp privileged EXEC command.You can also use the

other privileged EXEC commands in Table 22-4 to display SNMP information. For information about

the fields in the output displays, see the Cisco IOS Configuration Fundamentals Command Reference,

Release 12.2.

Table 22-4 Commands for Displaying SNMP Information

Feature Default Setting

show snmp Displays SNMP statistics.

show snmp group Displays information about each SNMP group on the network.

show snmp pending Displays information about pending SNMP requests.

show snmp sessions Displays information about the current SNMP sessions.

show snmp user Displays information about each SNMP user name in the SNMP users table.

CHAPTER

23-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

E-Series and G-Series Ethernet Operation

Note The terms "Unidirectional Path Switched Ring" and "UPSR" may appear in Cisco literature. These terms

do not refer to using Cisco ONS 15xxx products in a unidirectional path switched ring configuration.

Rather, these terms, as well as "Path Protected Mesh Network" and "PPMN," refer generally to Cisco's

path protection feature, which may be used in any topological network configuration. Cisco does not

recommend using its path protection feature in any particular topological network configuration.

This chapter covers the operation of the E-Series and G-Series Ethernet cards. E-Series and G-Series

cards are supported on the ONS 15454, ONS 15454 SDH, and ONS 15327. Provisioning is done through

Cisco Transport Controller (CTC) or Transaction Language One (TL1). Cisco IOS is not supported on

the E-Series or G-Series cards.

For Ethernet card specifications, refer to the Cisco ONS 15454 Reference Manual, Cisco ONS 15454

SDH Reference Manual, or Cisco ONS 15327 Reference Manual. For step-by-step Ethernet card circuit

configuration procedures, refer to the Cisco ONS 15454 Procedure Guide, Cisco ONS 15454 SDH

Procedure Guide, or the Cisco ONS 15327 Procedure Guide. Refer to the Cisco ONS SONET TL1

Command Guide or Cisco ONS SDH TL1 Command Guide for TL1 provisioning commands.

Chapter topics include:

• G-Series Application, page 23-1

• G-Series Circuit Configurations, page 23-6

• G-Series Gigabit Ethernet Transponder Mode, page 23-8

• E-Series Application, page 23-13

• E-Series Circuit Configurations, page 23-23

• Remote Monitoring Specification Alarm Thresholds, page 23-26

G-Series Application

The G-Series cards reliably transport Ethernet and IP data across a SONET/SDH backbone. The

G-Series cards on the the ONS 15454 and ONS 15454 SDH map up to four Gigabit Ethernet ports onto

a SONET/SDH transport network and provide scalable and provisionable transport bandwidth at signal

levels up to STS-48c/VC4-16 per card. The G-Series card on the ONS 15327 maps two Gigabit Ethernet

ports. The G-Series cards provide line rate forwarding for all Ethernet frames (unicast, multicast, and

broadcast) and can be configured to support Jumbo frames (defined as a maximum of 10,000 bytes). The

G-Series cards incorporate features optimized for carrier-class applications such as:

23-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 23 E-Series and G-Series Ethernet Operation

G1K-4 and G1000-4 Comparison

• High availability (HA), including hitless (< 50 ms) performance with software upgrades and all

types of SONET/SDH equipment protection switches

• Hitless reprovisioning

• Support of Gigabit Ethernet traffic at full line rate

• Full TL1-based provisioning capability

• Serviceability options including enhanced port states, terminal and facility loopback, and J1 path

trace

• SONET/SDH-style alarm support

• Ethernet performance monitoring (PM) and remote monitoring (RMON) functions

The G-Series cards allow you to provision and manage an Ethernet private line service like a traditional

SONET or SDH line. G-Series card applications include providing carrier-grade transparent LAN

services (TLS), 100-Mbps Ethernet private line services (when combined with an external 100-Mb

Ethernet switch with Gigabit uplinks), and high-availability transport.

On the ONS 15454 or ONS 15327, the card maps a single Ethernet port to a single STS circuit. You can

independently map the four ports on a G-Series card to any combination of STS-1, STS-3c, STS-6c,

STS-9c, STS-12c, STS-24c, and STS-48c circuit sizes, provided that the sum of the circuit sizes that

terminate on a card do not exceed STS-48c.

On the ONS 15454 SDH, the cards map a single Ethernet port to a single STM circuit. You can

independently map the four ports on the G-Series card to any combination of VC4, VC4-2c, VC4-3c,

VC4-4c, VC4-8c, and VC4-16c circuit sizes, provided the sum of the circuit sizes that terminate on a

card do not exceed VC4-16c.

To support a Gigabit Ethernet port at full line rate, an STS/VC4 circuit with a capacity greater or equal

to 1 Gbps (bidirectional 2 Gbps) is needed. An STS-24c/VC4-8c is the minimum circuit size that can

support a Gigabit Ethernet port at full line rate. A G-Series card supports a maximum of two ports at full

line rate.

The G-Series transmits and monitors the J1 Path Trace byte in the same manner as OC-N/STM-N cards.

For more information, see the appropriate platform reference book, either ONS 15454 Reference

Manual, ONS 15454 SDH Reference Manual, or ONS 15327 Reference Manual.

Note The G-Series uses LEX encapsulation. LEX is standard high-level data link control (HDLC) framing

over SONET/SDH as described in RFC 1622 and RFC 2615, with the Point-to-Point Protocol (PPP) field

set to the value specified in RFC 1841. For more information on LEX, see Chapter 20, “POS on ONS

Ethernet Cards.”

G1K-4 and G1000-4 Comparison

The G1K-4 and the G1000-4 cards comprise the ONS 15454/ONS 15454 SDH G-Series. The G1K-4 is

the hardware equivalent of the earlier G1000-4.

When installed in ONS 15454s running Software Release 3.4 and earlier, both cards require the XC10G

card to operate. However, when installed on an ONS 15454 running Software R4.0 and later, the G1K-4

card is not limited to installation in ONS 15454s with XC10G cards but can also be installed in

ONS 15454s with XC and XCVT cards. When used with XC and XCVT cards on an ONS 15454 running

Software R4.0 and later, the G1K-4 is limited to Slots 5, 6, 12, and 13.

These constraints do not apply to a G-Series card configured for Gigabit Ethernet Transponder Mode;

see the “G-Series Gigabit Ethernet Transponder Mode” section on page 23-8 for more information.

23-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 23 E-Series and G-Series Ethernet Operation

G-Series Example

Software R4.0 and later identifies G1K-4 cards at physical installation. Software R3.4 and earlier

identifies both G1000-4 and G1K-4 cards as G1000-4 cards at physical installation.

G-Series Example

Figure 23-1 shows a G-Series application. In this example, data traffic from the Gigabit Ethernet port of

a high-end router travels across the ONS node’s point-to-point circuit to the Gigabit Ethernet port of

another high-end router.

Figure 23-1 Data Traffic on a G-Series Point-to-Point Circuit

The G-Series cards carry any Layer 3 protocol that can be encapsulated and transported over Gigabit

Ethernet, such as IP or IPX. The data is transmitted on the Gigabit Ethernet fiber into the standard

Cisco Gigabit Interface Converter (GBIC) on an ONS 15454 or ONS 15454 SDH G-Series card or into

the standard Small Form-factor Pluggable (SFP) modules on an ONS 15327 G-Series card. The G-Series

card transparently maps Ethernet frames into the SONET/SDH payload by multiplexing the payload onto

an OC-N/STM-N card. When the payload reaches the destination node, the process is reversed and the

data is transmitted from the standard Cisco GBIC or SFP in the destination G-Series card onto the

Gigabit Ethernet fiber.

The G-Series cards discard certain types of erroneous Ethernet frames rather than transport them over

SONET/SDH. Erroneous Ethernet frames include corrupted frames with cycle redundancy check (CRC)

errors and under-sized frames that do not conform to the minimum 64-byte length Ethernet standard. The

G-Series cards forward valid frames unmodified over the SONET/SDH network. Information in the

headers is not affected by the encapsulation and transport. For example, packets with formats that

include IEEE 802.1Q information will travel through the process unaffected.

IEEE 802.3z Flow Control and Frame Buffering

The G-Series supports IEEE 802.3z flow control and frame buffering to reduce data traffic congestion.

To prevent over-subscription, 512 KB of buffer memory is available for the receive and transmit channels

on each port. When the buffer memory on the Ethernet port nears capacity, the G-Series uses

IEEE 802.3z flow control to transmit a pause frame to the source at the opposite end of the Gigabit

Ethernet connection.

The pause frame instructs the source to stop sending packets for a specific period of time. The sending

station waits the requested amount of time before sending more data. Figure 23-1 illustrates pause

frames being sent and received by G-Series cards and attached switches.

The G-Series cards have symmetric flow control. Symmetric flow control allows the G-Series cards to

respond to pause frames sent from external devices and to send pause frames to external devices. Prior

to Software R4.0, flow control on the G-Series cards was asymmetric, meaning that the cards sent pause

frames and discarded received pause frames.

Software Release 5.0 and later features separate CTC provisioning of autonegotiation and flow control.

A failed autonegotiation results in a link down.

67832

STS-N/VC-N

SONET/SDH

Pause Frames

Gig-E ONS Node ONS Node

Pause Frames

Gig-E

23-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 23 E-Series and G-Series Ethernet Operation

Gigabit EtherChannel/IEEE 802.3ad Link Aggregation

When both autonegotiation and flow control are enabled, the G-Series card proposes symmetrical flow

control to the attached Ethernet device. Flow control may be used or not depending on the result of the

autonegotiation.

If autonegotiation is enabled but flow control is disabled, then the G-Series proposes no flow control

during the autonegotiation. This negotiation succeeds only if the attached device agrees to no flow

control.

If autonegotiation is disabled, then the attached device’s provisioning is ignored. The G-Series card’s

flow control is enabled or disabled based solely on the G-Series card’s provisioning.

This flow-control mechanism matches the sending and receiving device throughput to that of the

bandwidth of the STS/VC circuit. For example, a router might transmit to the Gigabit Ethernet port on

the G-Series card. This particular data rate might occasionally exceed 622 Mbps, but the SONET circuit

assigned to the G-Series port might be only STS-12c (622 Mbps). In this example, the ONS 15454 sends

out a pause frame and requests that the router delay its transmission for a certain period of time. With

flow control and a substantial per-port buffering capability, a private line service provisioned at less than

full line rate capacity (STS-24c) is efficient because frame loss can be controlled to a large extent. The

same concept applies to the ONS 15454 SDH or ONS 15327.

The G-Series cards have flow control threshold provisioning, which allows a user to select one of three

watermark (buffer size) settings: default, low latency, or custom. Default is the best setting for general

use and was the only setting available prior to Software R4.1. Low latency is good for sub-rate

applications, such as voice-over-IP (VoIP) over an STS-1. For attached devices with insufficient

buffering, best effort traffic, or long access line lengths, set the G-Series to a higher latency.

The custom setting allows you to specify an exact buffer size threshold for Flow Ctrl Lo and

Flow Ctrl Hi. The flow control high setting is the watermark for sending the Pause On frame to the

attached Ethernet device; this frame signals the device to temporarily stop transmitting. The flow control

low setting is the watermark for sending the Pause Off frame, which signals the device to resume

transmitting. With a G-Series card, you can only enable flow control on a port if autonegotiation is

enabled on the device attached to that port.

Note External Ethernet devices with autonegotiation configured to interoperate with G-Series cards running

releases prior to Software R4.0 do not need to change autonegotiation settings when interoperating with

G-Series cards running Software R4.0 and later.

Gigabit EtherChannel/IEEE 802.3ad Link Aggregation

The G-Series supports all forms of link aggregation technologies including GEC, which is a Cisco

proprietary standard, and the IEEE 802.3ad standard. The end-to-end link integrity feature of the

G-Series allows a circuit to emulate an Ethernet link. This allows all flavors of Layer 2 and Layer 3

rerouting to work correctly with the G-Series. Figure 23-2 illustrates G-Series GEC support.

Figure 23-2 G-Series Gigabit EtherChannel (GEC) Support

67833

SONET/SDH Circuits

Gigabit EtherChannel

ONS Node ONS Node

23-5

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 23 E-Series and G-Series Ethernet Operation

Ethernet Link Integrity Support

Although the G-Series cards do not actively run GEC, they support the end-to-end GEC functionality of

attached Ethernet devices. If two Ethernet devices running GEC connect through G-Series cards to an

ONS network, the ONS SONET/SDH side network is transparent to the EtherChannel devices. The

EtherChannel devices operate as if they are directly connected to each other. Any combination of

G-Series parallel circuit sizes can be used to support GEC throughput.

GEC provides line-level active redundancy and protection (1:1) for attached Ethernet equipment. It can

also bundle parallel G-Series data links together to provide more aggregated bandwidth. Spanning Tree

Protocol (STP) operates as if the bundled links are one link and permits GEC to utilize these multiple

parallel paths. Without GEC, STP permits only a single nonblocked path. GEC can also provide G-Series

card-level protection or redundancy because it can support a group of ports on different cards (or

different nodes) so that if one port or card has a failure, traffic is rerouted over the other port or card.

The end-to-end Ethernet link integrity feature can be used in combination with Gigabit EtherChannel

(GEC) capability on attached devices. The combination provides an Ethernet traffic restoration scheme

that has a faster response time than alternate techniques such as spanning tree rerouting, yet is more

bandwidth efficient because spare bandwidth does not need to be reserved.

Ethernet Link Integrity Support

The G-Series supports end-to-end Ethernet link integrity (Figure 23-3). This capability is integral to

providing an Ethernet private line service and correct operation of Layer 2 and Layer 3 protocols on the

attached Ethernet devices. End-to-end Ethernet link integrity essentially means that if any part of the

end-to-end path fails, the entire path fails. Failure of the entire path is ensured by turning off the transmit

lasers at each end of the path. The attached Ethernet devices recognize the disabled transmit laser as a

loss of carrier and consequently an inactive link.

Figure 23-3 End-to-End Ethernet Link Integrity Support

Note Some network devices can be configured to ignore a loss of carrier condition. If a device configured to

ignore a loss of carrier condition attaches to a G-Series card at one end, alternative techniques (such as

use of Layer 2 or Layer 3 keep-alive messages) are required to route traffic around failures. The response

time of such alternate techniques is typically much longer than techniques that use link state as

indications of an error condition.

As shown in Figure 23-3, a failure at any point of the path causes the G-Series card at each end to disable

its Tx transmit laser, which causes the devices at both ends to detect a link down. If one of the Ethernet

ports is administratively disabled or set in loopback mode, the port is considered a “failure” for the

purposes of end-to-end link integrity because the end-to-end Ethernet path is unavailable. The port

“failure” also disables both ends of the path.

ONS Node

G-Series port

67952

ONS Node

G-Series port

STS-N/VC-N

SONET/SDH

23-6

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 23 E-Series and G-Series Ethernet Operation

Administrative and Service States with Soak Time for Ethernet and SONET/SDH Ports

Administrative and Service States with Soak Time for Ethernet and SONET/SDH

Ports

The G-Series card supports the administrative and service states for the Ethernet ports and the

SONET/SDH circuit. For more information about card and circuit service states, refer to the

“Administrative and Service States” appendix in the Cisco ONS 15454 Reference Manual or the

Cisco ONS 15454 SDH Reference Manual.

The Gigabit Ethernet ports can be set to the service states including the automatic in-service

administrative state (IS, AINS). IS, AINS initially puts the port in the out of service automatic, automatic

in-service (OOS-AU, AINS) state. In this service state, alarm reporting is suppressed, but traffic is

carried and loopbacks are allowed. After the soak period passes, the port changes to in-service, not

reported (IS-NR). Raised fault conditions, whether their alarms are reported or not, can be retrieved on

the CTC Conditions tab or by using the TL1 RTRV-COND command.

Two Ethernet port alarms/conditions, CARLOSS and TPTFAIL, can prevent the port from going into

service. This occurs even though alarms are suppressed when a G-Series circuit is provisioned with the

Gigabit Ethernet ports set to IS, AINS state. Because the G-Series link integrity function is active and

ensures that the Tx transmit lasers at either end are not enabled until all SONET and Ethernet errors

along the path are cleared. As long as the link integrity function keeps the end-to-end path down both

ports will have at least one of the two conditions needed to suppress the AINS to IS transition so the

ports will remain in the AINS state with alarms suppressed.

These states also apply to the SONET/SDH circuits of the G-Series card. If the SONET/SDH circuit had

been setup in IS, AINS state and the Ethernet error occurs before the circuit transitions to IS, then link

integrity will also prevent the circuit transition to the IS state until the Ethernet port errors are cleared at

both ends. Service state will be OOS-AU,AINS as long as the admin state is IS,AINS. Once there are no

Ethernet or SONET errors link integrity enables the Gigabit Ethernet TX transmit lasers at each end.

Simultaneously, the AINS countdown begins as normal. If no additional conditions occur during the time

period each port transitions to the IS, NR state. During the AINS countdown the soak time remaining is

available in CTC and TL1. The AINS soaking logic restarts from the beginning if a condition re-appears

during the soak period.

A SONET/SDH circuit provisioned in the IS, AINS state remains in the initial OOS state until the

Gigabit Ethernet ports on either end of the circuit transition to to the IS, NR state. The SONET/SDH

circuit transports Ethernet traffic and count statistics when link integrity turns on the Gigabit Ethernet

port Tx transmit lasers, regardless of whether this AINS to IS transition is complete.

G-Series Circuit Configurations

This section explains G-Series point-to-point circuits and manual cross-connects. Ethernet manual

cross-connects allow you to bridge non-ONS SONET/SDH network segments.

G-Series Point-to-Point Ethernet Circuits

G-Series cards support point-to-point circuit configurations (Figure 23-4). Circuits are configured

through CTC in the same manner as SONET or SDH line cards. G-Series cards support circuit service

states.

23-7

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 23 E-Series and G-Series Ethernet Operation

G-Series Manual Cross-Connects

On the ONS 15454 and ONS 15327, provisionable SONET circuit sizes are STS 1, STS 3c, STS 6c, STS

9c, STS 12c, STS 24c, and STS 48c. On the ONS 15454 SDH, provisionable SDH circuits are VC4,

VC4-2c, VC4-3c, VC4-4c, VC4-8c, and VC4-16c. Each Ethernet port maps to a unique STS/VC circuit

on the G-Series card.

Figure 23-4 G-Series Point-to-Point Circuit

The G-Series supports any combination of up to four circuits from the list of valid circuit sizes; however,

the circuit sizes can add up to no more than 48 STSs or 16 VC4s.

Due to hardware constraints, the card imposes an additional restriction on the combinations of circuits

that can be dropped onto a G-Series card. These restrictions are transparently enforced by the node, and

you do not need to keep track of restricted circuit combinations.

When a single STS-24c/VC4-8c terminates on a card, the remaining circuits on that card can be another

single STS-24c/VC4-8c or any combination of circuits of STS-12c/VC4-4c size or less that adds up to

no more than 12 STSs or 4 VC4s (that is, a total of 36 STSs or 12 VC4s on the card).

If STS-24c/VC4-8c circuits are not being dropped on the card, the full bandwidth can be used with no

restrictions (for example, using either a single STS-48c/VC4-16c or four STS-12c/VC4-4c circuits).

Because the STS-24c/VC4-8c restriction applies only when a single STS-24c/VC4-8c circuit is dropped;

this restriction’s impact can be minimized. Group the STS-24c/VC4-8c circuits together on a card

separate from circuits of other sizes. The grouped circuits can be dropped on other G-Series cards.

Note The G-Series uses STS/VC cross-connects only. No VT level cross-connects are used.

Caution G-Series cards do not connect with ONS 15454 E-Series cards. For more information on interoperability,

see Chapter 20, “POS on ONS Ethernet Cards.”

G-Series Manual Cross-Connects

ONS nodes require end-to-end CTC visibility between nodes for normal provisioning of Ethernet

circuits. When other vendors’ equipment sits between ONS nodes, Simple Network Management

Protocol/Target Identifier Address Resolution Protocol (OSI/TARP)-based equipment does not allow

tunneling of the ONS node TCP/IP-based data communications channel (DCC). To circumvent

inconsistent DCCs, the Ethernet circuit must be manually cross connected to an STS/VC channel using

the non-ONS network. Manual cross-connects allow an Ethernet circuit to run from ONS node to ONS

node while utilizing the non-ONS network (Figure 23-5).

Note In this section, “cross-connect” and “circuit” have the following meanings: Cross-connect refers to the

connections that occur within a single ONS node to allow a circuit to enter and exit an ONS node. Circuit

refers to the series of connections from a traffic source (where traffic enters the ONS node network) to

the drop or destination (where traffic exits an ONS node network).

67830

Point-to-Point Circuit

ONS Node ONS Node

Gigabit Ethernet Gigabit Ethernet

23-8

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 23 E-Series and G-Series Ethernet Operation

G-Series Gigabit Ethernet Transponder Mode

Figure 23-5 G-Series Manual Cross-Connects

G-Series Gigabit Ethernet Transponder Mode

The ONS 15454 and ONS 15454 SDH G-Series cards can be configured as transponders. ONS 15327

G-Series cards cannot be configured as transponders. Transponder mode can be used with any

G-Series-supported GBIC (SX, LX, ZX, coarse wavelength division multiplexing [CWDM], or dense

wavelength division multiplexing [DWDM]). Figure 23-6 shows a card level overview of a transponder

mode application.

Figure 23-6 Card Level Overview of G-Series One-Port Transponder Mode Application

47093

Non-ONS

Network

ONS NodeONS Node

SONET/SDH

Ethernet

90914

Server/switch/router

Conventional Gigabit

Ethernet signals

DWDM filter

FAIL

ACT

G1K

ACT/LINK

Conventional LX or ZX GBICs

CWDM or DWDM GBICs

Gigabit Ethernet over CWDM or

DWDM GBICs' TX wavelengths

23-9

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 23 E-Series and G-Series Ethernet Operation

G-Series Gigabit Ethernet Transponder Mode

A G-Series card configured as a transponder operates quite differently than a G-Series card configured

for SONET/SDH. In SONET/SDH configurations, the G-Series card receives and transmits Gigabit

Ethernet traffic out the Ethernet ports and GBICs on the front of the card. This Ethernet traffic is

multiplexed on and off the SONET/SDH network through the cross-connect card and the optical card

(Figure 23-7).

Figure 23-7 G-Series in Default SONET/SDH Mode

In transponder mode, the G-Series Ethernet traffic never comes into contact with the cross-connect card

or the SONET/SDH network, but stays internal to the G-Series card and is routed back to a GBIC on that

card (Figure 23-8).

Figure 23-8 G-Series Card in Transponder Mode (Two-Port Bidirectional)

90910

Gigabit Ethernet Ports

Gigabit Ethernet 1

G-Series Card

Gigabit Ethernet 2

Gigabit Ethernet 3

Gigabit Ethernet 4

GBICs

GBIC

Tx Port

Rx Port

ONS Node

Cross-Connect

Card

STS-N(c)

Optical Card

Ethernet TDM

90911

Gigabit Ethernet Ports

G-Series Card

Tx Port

Rx Port

ONS Node

Cross-Connect

Card

Optical Card

Tx Port

Rx Port

GBIC Standard SX, LX, ZX

GBIC CWDM or DWDM

Ethernet TDM

xWDM Lambda1

xWDM Lambda 2

23-10

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 23 E-Series and G-Series Ethernet Operation

Two-Port Bidirectional Transponder Mode

A G-Series card can be configured either for transponder mode or as the SONET/SDH default. When

any port is provisioned in transponder mode, the card is in transponder mode and no SONET/SDH

circuits can be configured until every port on the card goes back to SONET/SDH mode. To provision

G-Series ports for transponder mode, refer to the Cisco ONS 15454 Procedure Guide or the

Cisco ONS 15454 SDH Procedure Guide.

All SONET/SDH circuits must be deleted before a G-Series card can be configured in transponder mode.

An ONS 15454 or ONS 15454 SDH can host the G-Series card configured in transponder mode in any

or all of the 12 traffic slots and supports a maximum of 24 bidirectional or 48 unidirectional lambdas.

A G-Series card configured as a transponder can be in one of three modes:

• Two-port bidirectional transponder mode

• One-port bidirectional transponder mode

• Two-port unidirectional transponder mode

Two-Port Bidirectional Transponder Mode

Two-port bidirectional transponder mode maps the transmitted and received Ethernet frames of one

G-Series card port into the transmitted and received Ethernet frames of another port (Figure 23-8).

Transponder bidirectional port mapping can be done from any port to any other port on the same card.

One-Port Bidirectional Transponder Mode

One-port bidirectional transponder mode maps the Ethernet frames received at a port out the transmitter

of the same port (Figure 23-9). This mode is similar to two-port bidirectional transponder mode except

that a port is mapped only to itself instead of to another port. Although the data path of the one-port

bidirectional transponder mode is identical to that of a facility loopback, the transponder mode is not a

maintenance mode and does not suppress non-SONET/SDH alarms, such as loss of carrier (CARLOSS).

This mode can be used for intermediate DWDM signal regeneration and to take advantage of the wide

band capability of the CWDM and DWDM GBICs. This allows the node to receive on multiple

wavelengths but transmit on a fixed wavelength.

23-11

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 23 E-Series and G-Series Ethernet Operation

Two-Port Unidirectional Transponder Mode

Figure 23-9 One-Port Bidirectional Transponder Mode

Two-Port Unidirectional Transponder Mode

Ethernet frames received at one port’s receiver will be transmitted out the transmitter of another port.

This mode is similar to two-port bidirectional transponder mode except only one direction is used

(Figure 23-10). One port has to be provisioned as unidirectional transmit only and the other port as

unidirectional receive. The port configured as unidirectional transmit ignores any lack of signal on the

receive port, so the receive port fiber does not need not be connected. The port configured as

unidirectional receive does not turn on the transmit laser, so the transmit port fiber does not need to be

connected.

This mode can be used when only one direction needs to be transmitted over CWDM/DWDM, for

example, certain video on demand (VoD) applications.

90913

G-Series Card

Tx Port

Rx Port Note:

This configuration can be used when the client

terminal's optical signal is single-mode, 1310 nm,

1550 nm, or 15xx.xx nm.

ONS Node

Cross-Connect

Card

Optical Card

Tx Port

Rx Port

GBIC Standard SX, LX, ZX

GBIC CWDM or DWDM

Ethernet TDM

xWDM Lambda 1

xWDM Lambda 2

xWDM Lambda 3

xWDM Lambda 4

Gigabit Ethernet Ports

23-12

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 23 E-Series and G-Series Ethernet Operation

G-Series Transponder Mode Characteristics

Figure 23-10 Two-Port Unidirectional Transponder

G-Series Transponder Mode Characteristics

The operation of a G-Series card in transponder mode differs from a G-Series card in SONET/SDH mode

in several ways:

• A G-Series card set to transponder mode will not show up in the CTC list of provisionable cards

when the user is provisioning a SONET/SDH circuit.

• G-Series cards set to transponder mode do not require cross-connect cards (for example, XC10G),

but do require TCC2/TCC2P cards.

• G-Series ports configured as transponders do not respond to flow control pause frames and pass the

pause frames transparently through the card. In SONET/SDH mode, ports can respond to pause

frames and do not pass the pause frames through the card.

• There is no TL1 provisioning support for configuring transponder mode. However, transponder

mode and port information can be retrieved in the output for the TL1 command RTRV-G1000.

• All SONET/SDH-related alarms are suppressed when a card is in transponder mode.

• There are no slot number or cross-connect restrictions for G1000-4 or G1K-4 cards in transponder

mode.

• Facility and terminal loopbacks are not fully supported in unidirectional transponder mode, but are

supported in both bidirectional transponder modes.

• Ethernet autonegotiation is not supported and cannot be provisioned in unidirectional transponder

mode. Autonegotiation is supported in both bidirectional transponder modes.

• No end-to-end link integrity function is available in transponder mode.

90912

G-Series Card

Tx Port

Rx Port Note:

This configuration must be used when the client

terminal's optical signal is multimode, 850 nm.

ONS Node

Cross-Connect

Card

Optical Card

Tx Port

Rx Port

GBIC Standard SX, LX, ZX

GBIC CWDM or DWDM

Unused Port

Ethernet TDM

xWDM Lambda 1

xWDM Lambda 2

Gigabit Ethernet Ports

23-13

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 23 E-Series and G-Series Ethernet Operation

E-Series Application

Note In normal SONET/SDH mode, the G-Series cards supports an end-to-end link integrity function. This

function causes an Ethernet or SONET/SDH failure to disable and turn the transmitting laser off in the

corresponding mapped Ethernet port. In transponder mode, the loss of signal on an Ethernet port has no

impact on the transmit signal of the corresponding mapped port.

The operation of a G-Series card in transponder mode is also similar to the operation of a G-Series card

in SONET/SDH mode:

• G-Series Ethernet statistics are available for ports in both modes.

• Ethernet port level alarms and conditions are available for ports in both modes.

• Jumbo frame and non-Jumbo frame operation is the same in both modes.

• Collection, reporting, and threshold crossing conditions for all existing counters and PM parameters

are the same in both modes.

• Simple Network Management Protocol (SNMP) and RMON support is the same in both modes.

E-Series Application

The ONS 15454, ONS 15454 SDH and ONS 15327 all support E-Series cards. E-Series cards include

the E100T-12/E100T-G and the E1000-2/E1000-2-G on the ONS 15454 and ONS 15454 SDH. The

E100T-G is the functional equivalent of the earlier E100T-12. The E1000-2-G is the functional

equivalent of the earlier E1000-2. An ONS 15454 using XC10G cards requires the G versions (E100T-G

or E1000-2-G) of the E-Series Ethernet cards. An ONS 15454 or ONS 15454 SDH supports a maximum

of ten E-Series cards. You can insert E-Series Ethernet cards in any multipurpose slot.

The ONS 15327 E-Series card is the E10/100-4. This is the only E-Series card that supports LEX

encapsulation configuration, which allows interoperability with ML-Series cards, for more information

see Chapter 20, “POS on ONS Ethernet Cards.”

Note The ONS 15454 and ONS 15454 SDH E-Series cards do not support LEX encapsulation.

E-Series Modes

An E-Series card operates in one of three modes: multicard EtherSwitch group, single-card EtherSwitch,

or port-mapped. E-Series cards in multicard EtherSwitch group or single-card EtherSwitch mode

support Layer 2 features, including virtual local area networks (VLANs), IEEE 802.1Q, STP, and

IEEE 802.1D. Port-mapped mode configures the E-Series to operate as a straight mapper card and does

not support these Layer 2 features. Within a node containing multiple E-Series cards, each E-Series card

can operate in any of the three separate modes. At the Ethernet card view in CTC, click the

Provisioning > Ether Card tabs to reveal the card modes.

Note Port-mapped mode eliminates issues inherent in other E-Series modes and is detailed in the field notice,

“E-Series Ethernet Line Card Packet Forwarding Limitations.”

23-14

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 23 E-Series and G-Series Ethernet Operation

E-Series Modes

E-Series Multicard EtherSwitch Group

Multicard EtherSwitch group provisions two or more Ethernet cards to act as a single Layer 2 switch.

Figure 23-11 illustrates a multicard EtherSwitch configuration. Multicard EtherSwitch limits bandwidth

to STS-6c of bandwidth between two Ethernet circuit points for the ONS 15454 or ONS 15454 SDH

E-Series cards and STS-3c of bandwidth between ONS 15327 E-Series cards, but allows you to add

nodes and cards and make a shared packet ring.

Figure 23-11 Multicard EtherSwitch Configuration

Caution If you terminate two STS-3c/VC4-2c multicard EtherSwitch circuits on an Ethernet card and later delete

the first circuit, also delete the remaining STS-3c/VC4-2c circuit before you provision an STS-1/VC4

circuit to the card. If you attempt to create an STS-1/VC4 circuit after only deleting the first

STS-3c/VC4-2c circuit, the STS-1/VC4 circuit will not work and no alarms will indicate this condition.

To avoid this situation, delete the second STS-3c/VC4-2c before creating an STS-1/VC4 circuit.

E-Series Single-Card EtherSwitch

On all E-Series cards, Single-card EtherSwitch allows each Ethernet card to remain a single switching

entity within the ONS node. Figure 23-12 illustrates a single-card EtherSwitch configuration.

ONS NodeONS Node

ONS Node

Router

Ethernet card 3

Router

Ethernet card 1

Ethernet card 4

Ethernet card 2

Shared packet ring

VLAN A

45133

23-15

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 23 E-Series and G-Series Ethernet Operation

E-Series Modes

Figure 23-12 Single-Card EtherSwitch Configuration

Port-Mapped (Linear Mapper)

Port-mapped mode, also referred to as linear mapper, configures the E-Series card to map a specific

E-Series Ethernet port to one of the card’s specific STS/VC circuits (Figure 23-13). Port-mapped mode

ensures that Layer 1 transport has low latency for unicast, multicast, and mixed traffic. Ethernet and Fast

Ethernet on the E100T-G or E10/100-4 card operate at line-rate speed. Gigabit Ethernet transport is

limited to a maximum of 600 Mbps because the E1000-2-G card has a maximum bandwidth of

STS-12c/VC4-4c. Ethernet frame sizes up to 1522 bytes are also supported, which allow transport of

IEEE 802.1Q tagged frames. The larger maximum frame size of Q-in-Q frames (IEEE 802.1Q in IEEE

802.1Q wrapped frames) is not supported.

Figure 23-13 E-Series Mapping Ethernet Ports to STS/VC Circuits

Port-mapped mode disables Layer 2 functions supported by the E-Series in single-card and multicard

mode, including STP, VLANs, and MAC address learning. It significantly reduces the service-affecting

time for cross-connect and TCC2/TCC2P card switches.

Port-mapped mode does not support VLANs in the same manner as multicard and single-card mode. The

ports of E-Series cards in multicard and single-card mode can join specific VLANs. E-Series cards in

port-mapped mode do not have this Layer 2 capability and only transparently transport external VLANs

over the mapped connection between ports. An E-Series card in port-mapped mode does not inspect the

tag of the transported VLAN, so a VLAN range of 1 through 4096 can be transported in port-mapped

mode.

Port-mapped mode does not perform any inspection or validation of the Ethernet frame header. The

Ethernet CRC is validated, and any frame with an invalid Ethernet CRC is discarded.

ONS NodeONS Node

Router

Ethernet card 3

Router

Ethernet card 1

Ethernet card 4

Ethernet card 2

VLAN B

VLAN A

45132

SONET/SDH

ONS Node ONS Node

1:1 Ethernet port to STS/VC circuit mapping

83497

23-16

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 23 E-Series and G-Series Ethernet Operation

E-Series IEEE 802.3z Flow Control

Port-mapped mode also allows the creation of STS/VC circuits between any two E-Series cards,

including the E100T-G, E1000-2-G, and the E10/100-4 (the ONS 15327 E-Series card). Port-mapped

mode does not allow ONS 15454 E-Series cards to connect to the ML-Series or G-Series cards, but does

allow an ONS 15327 E10/100-4 card provisioned with LEX encapsulation to connect to the ML-Series

or G-Series cards.

Available Circuit Sizes For E-Series Modes

Table 23-1 shows the circuit sizes available for E-Series modes on the ONS 15454, ONS 15454 SDH,

and ONS 15327.

Available Total Bandwidth For E-Series Modes

Table 23-1 shows the total bandwidth available for E-Series modes on the ONS 15454, ONS 15454 SDH,

and ONS 15327.

E-Series IEEE 802.3z Flow Control

The E100T-G or E10/100-4 (operating in any mode) and the E1000-2-G (operating port-mapped mode)

support IEEE 802.3z symmetrical flow control and propose symmetric flow control when

autonegotiating with attached Ethernet devices. For flow control to operate, both the E-Series port and

the attached Ethernet device must be set to autonegotiation (AUTO) mode. The attached Ethernet device

might also need to have flow control enabled. The flow-control mechanism allows the E-Series to

respond to pause frames sent from external devices and send pause frames to external devices.

Table 23-1 ONS 15454 and ONS 15327 E-Series Ethernet Circuit Sizes

ONS 15327

E-Series

Port-Mapped

and Single-Card

EtherSwitch

ONS 15327

E-Series

Multicard

EtherSwitch

ONS 15454

E-Series

Port-Mapped and

Single-Card

EtherSwitch

ONS 15454

E-Series

Multicard

EtherSwitch

ONS 15454 SDH

E-Series

Port-Mapped and

Single-Card

EtherSwitch

ONS 15454 SDH

E-Series

Multicard

EtherSwitch

STS-1 STS-1 STS-1 STS-1 VC4 VC4

STS-3c STS-3c STS-3c STS-3c VC4-2c VC4-2c

STS-6c —STS-6c STS-6c VC4-4c —

STS-12c —STS-12c — — —

Table 23-2 ONS 15454 and ONS 15327 E-Series Total Bandwidth Available

ONS 15327

E-Series

Port-Mapped and

Single-Card

EtherSwitch

ONS 15327

E-Series

Multicard

EtherSwitch

ONS 15454

E-Series

Port-Mapped

and Single-Card

EtherSwitch

ONS 15454

E-Series

Multicard

EtherSwitch

ONS 15454 SDH

E-Series

Port-Mapped

and Single-Card

EtherSwitch

ONS 15454 SDH

E-Series

Multicard

EtherSwitch

Combined total

of STS-12c

Combined

total of

STS-3c

Combined total

of STS-12c

Combined

total of

STS-6c

Combined total

of VC4-4c

Combined total

of VC4-2c

23-17

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 23 E-Series and G-Series Ethernet Operation

E-Series VLAN Support

For the E100T-G or E10/100-4 (operating in any mode) and the E1000-2-G (operating port-mapped

mode), flow control matches the sending and receiving device throughput to that of the bandwidth of the

STS circuit. This same concept applies to the ONS 15454, ONS 15454 SDH and ONS 15327. For

example, a router might transmit to the Gigabit Ethernet port on the E-Series in port-mapped mode. The

data rate transmitted by the router might occasionally exceed 622 Mbps, but the ONS 15454 circuit

assigned to the E-Series port in port-mapped mode is a maximum of STS-12c (622.08 Mbps). In this

scenario, the ONS 15454 sends out a pause frame and requests that the router delay its transmission for

a certain period of time.

Note To enable flow control between an E-Series in port-mapped mode and a SmartBits test set, manually set

Bit 5 of the MII register to 0 on the SmartBits test set. To enable flow control between an E-Series in

port-mapped mode and an Ixia test set, select Enable the Flow Control in the Properties menu of the

attached Ixia port.

E-Series VLAN Support

You can provision E-Series VLANs with the CTC software. Specific sets of ports define the broadcast

domain for the ONS node. The definition of VLAN ports includes all Ethernet and packet-switched

SONET/SDH port types. All VLAN IP address discovery, flooding, and forwarding is limited to these

ports.

Caution A high number of VLANs (over 100) may cause traffic outage.

The IEEE 802.1Q-based VLAN mechanism provides logical isolation of subscriber LAN traffic over a

common SONET/SDH transport infrastructure. Each subscriber has an Ethernet port at each site, and

each subscriber is assigned to a VLAN. Although the subscriber’s VLAN data flows over shared circuits,

the service appears to the subscriber as a private data transport.

Note Port-mapped mode does not support VLANs.

The number of VLANs used by circuits and the total number of VLANs available for use appears in CTC

on the VLAN counter (Figure 23-14).

23-18

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 23 E-Series and G-Series Ethernet Operation

E-Series Q-Tagging (IEEE 802.1Q)

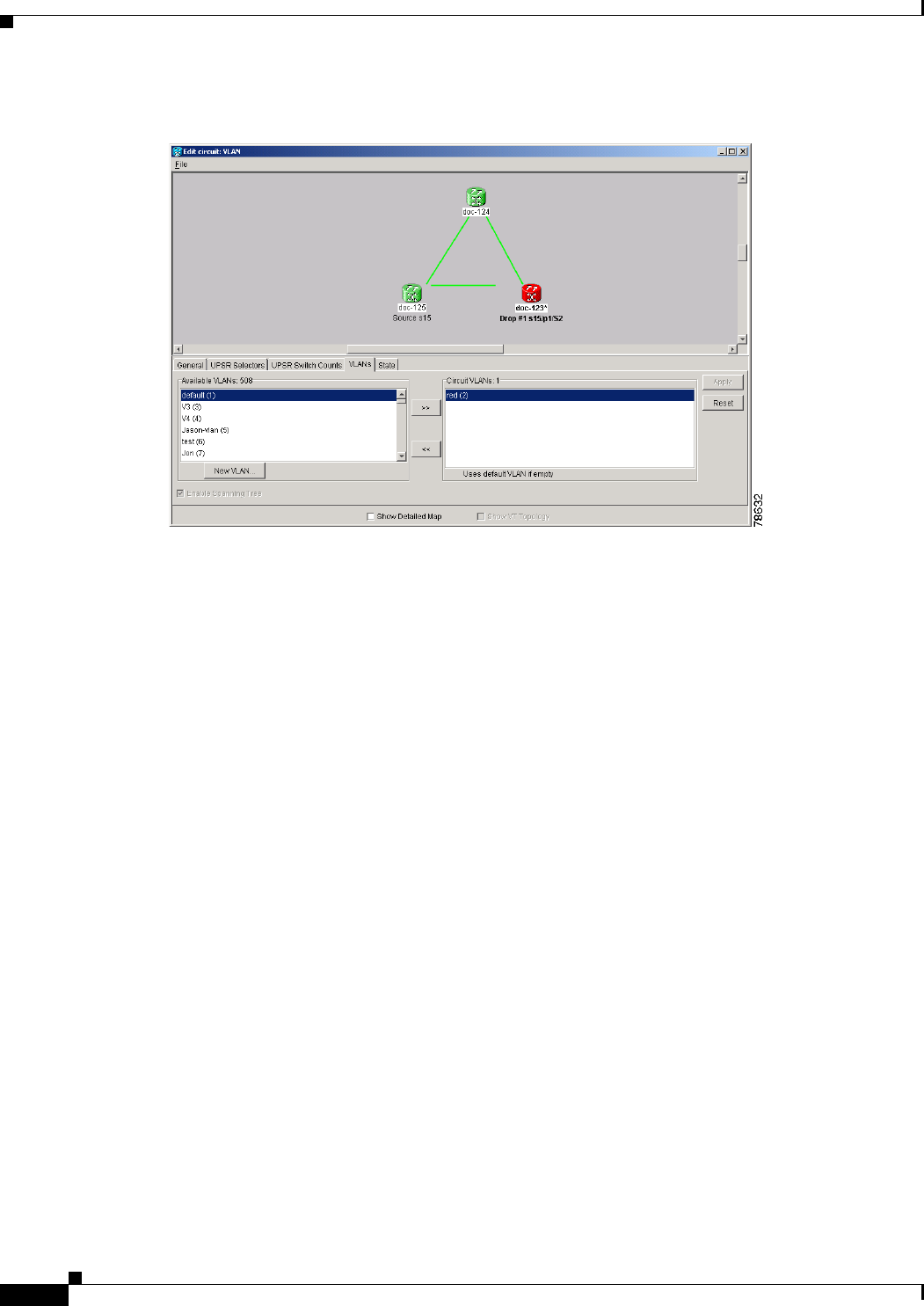

Figure 23-14 Edit Circuit Dialog Box Featuring Available VLANs

E-Series Q-Tagging (IEEE 802.1Q)

E-Series cards in single-card and multicard mode support IEEE 802.1Q. IEEE 802.1Q allows the same

physical port to host multiple IEEE 802.1Q VLANs. Each IEEE 802.1Q VLAN represents a different

logical network. E-Series cards in port-mapped mode transport IEEE 802.1Q tags (Q-tags), but do not

remove or add these tags.

The ONS node works with Ethernet devices that support IEEE 802.1Q and those that do not support

IEEE 802.1Q. If a device attached to an E-Series Ethernet port does not support IEEE 802.1Q, the ONS

node uses Q-tags internally only. The ONS node associates these Q-tags with specific ports.

With Ethernet devices that do not support IEEE 802.1Q, the ONS node takes non-tagged Ethernet frames

that enter the ONS network and uses a Q-tag to assign the packet to the VLAN associated with the ONS

network’s ingress port. The receiving ONS node removes the Q-tag when the frame leaves the ONS

network (to prevent older Ethernet equipment from incorrectly identifying the IEEE 802.1Q packet as

an illegal frame). The ingress and egress ports on the ONS network must be set to Untag for the removal

to occur. Untag is the default setting for ONS ports. Example 1 in Figure 23-15 illustrates Q-tag use only

within an ONS network.

23-19

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 23 E-Series and G-Series Ethernet Operation

E-Series Q-Tagging (IEEE 802.1Q)

Figure 23-15 Q-tag Moving Through VLAN

The ONS node uses the Q-tag attached by the external Ethernet devices that support IEEE 802.1Q.

Packets enter the ONS network with an existing Q-tag; the ONS node uses this same Q-tag to forward

the packet within the ONS network and leaves the Q-tag attached when the packet leaves the ONS

network. The entry and egress ports on the ONS network must be set to Tagged for this process to occur.

Example 2 in Figure 23-15 illustrates the handling of packets that both enter and exit the ONS network

with a Q-tag.

For more information about setting ports to Tagged and Untag, refer to the Cisco ONS 15454 Procedure

Guide, the Cisco ONS 15454 SDH Procedure Guide, or the Cisco ONS 15327 Procedure Guide.

Caution ONS nodes propagate VLANs whenever a node appears on the network view of another node, regardless

of whether the nodes are in the same SONET/SDH network or connect through DCC. For example, if

two ONS nodes without DCC connectivity belong to the same login node group, VLANs propagate

between the two ONS nodes. VLAN propagation happens even though the ONS nodes do not belong to

the same SONET/SDH ring.

Data Flow

No tag

Example 1.

The

ONS node

uses a

Q-tag internally to deliver

the frame to a specific VLAN.

The receiving

ONS node

removes the Q-tag

and forwards the frame

to the specific VLAN.

Example 2.

The

ONS node

receives

a frame with a Q-tag

and passes it on.

The receiving

ONS node

receives a frame with a

Q-tag and passes it on.

No tag

Q-tag Q-tag

Q-tag

61075

23-20

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 23 E-Series and G-Series Ethernet Operation

E-Series Priority Queuing (IEEE 802.1Q)

Networks without priority queuing handle all packets on a first-in-first-out (FIFO) basis. Priority

queuing reduces the impact of network congestion by mapping Ethernet traffic to different priority

levels. The E-Series card supports priority queuing. The E-Series card maps the eight priorities specified

in IEEE 802.1Q to two queues, low priority and high priority (Tabl e 23-3).

Q-tags carry priority queuing information through the network (Figure 23-16).

Figure 23-16 Priority Queuing Process

The ONS node uses a “leaky bucket” algorithm to establish a weighted priority. A weighted priority, as

opposed to a strict priority, gives high-priority packets greater access to bandwidth, but does not totally

preempt low-priority packets. During periods of network congestion, about 70 percent of bandwidth

goes to the high-priority queue and the remaining 30 percent goes to the low-priority queue. A network

that is too congested will drop packets.

Table 23-3 Priority Queuing

User Priority Queue Allocated Bandwidth

0,1,2,3 Low 30%

4,5,6,7 High 70%

Data Flow

No priority

ONS node

maps a frame

with port-based priority using

a Q-tag.

The receiving

ONS node

removes the Q-tag and

forwards the frame.

ONS node

uses a Q-tag to

map a frame with priority and

forwards it on.

The receiving

ONS node

receives the frame with a

Q-tag and forwards it.

Priority tag

removed

Priority Priority

Priority

Same

priority

61076

23-21

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 23 E-Series and G-Series Ethernet Operation

E-Series Spanning Tree (IEEE 802.1D)

Note IEEE 802.1Q was formerly known as IEEE 802.1P.

Note E-Series cards in port-mapped mode and G-Series cards do not support priority queing (IEEE 802.1Q).

E-Series Spanning Tree (IEEE 802.1D)

The E-Series operates IEEE 802.1D Spanning Tree Protocol (STP). The E-Series card supports common

STPs on a per-circuit basis up to a total of eight STP instances. It does not support per-VLAN STP. In

single-card mode, STP can be disabled or enabled on a per-circuit basis during circuit creation. Disabling

STP will preserve the number of available STP instances.

STP operates over all packet-switched ports including Ethernet and OC-N/STM-N ports. On Ethernet

ports, STP is enabled by default but can be disabled. A user can also disable or enable STP on a

circuit-by-circuit basis on Ethernet cards configured as single-card EtherSwitch (unstitched) in a

point-to-point configuration. However, turning off STP protection on a circuit-by-circuit basis means

that the SONET/SDH system is not protecting the Ethernet traffic on this circuit, and the Ethernet traffic

must be protected by another mechanism in the Ethernet network. On OC-N/STM-N interface ports, the

ONS node activates STP by default, and STP cannot be disabled.

The Ethernet card can enable STP on the Ethernet ports to create redundant paths to the attached Ethernet

equipment. STP connects cards so that both equipment and facilities are protected against failure.

STP detects and eliminates network loops. When STP detects multiple paths between any two network

hosts, STP blocks ports until only one path exists between any two network hosts (Figure 23-17). The

single path eliminates possible bridge loops. This is crucial for shared packet rings, which naturally

include a loop.

Figure 23-17 STP Blocked Path

To remove loops, STP defines a tree that spans all the switches in an extended network. STP forces

certain redundant data paths into a standby (blocked) state. If one network segment in the STP becomes

unreachable, the STP algorithm reconfigures the STP topology and reactivates the blocked path to

reestablish the link. STP operation is transparent to end stations, which do not discriminate between

connections to a single LAN segment or to a switched LAN with multiple segments. The ONS node

supports one STP instance per circuit and a maximum of eight STP instances per ONS node.

The Circuit window shows forwarding spans and blocked spans on the spanning tree map (Figure 23-18).

43388

Redundant path (blocked)

Primary path (forwarding)

23-22

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 23 E-Series and G-Series Ethernet Operation

E-Series Spanning Tree (IEEE 802.1D)

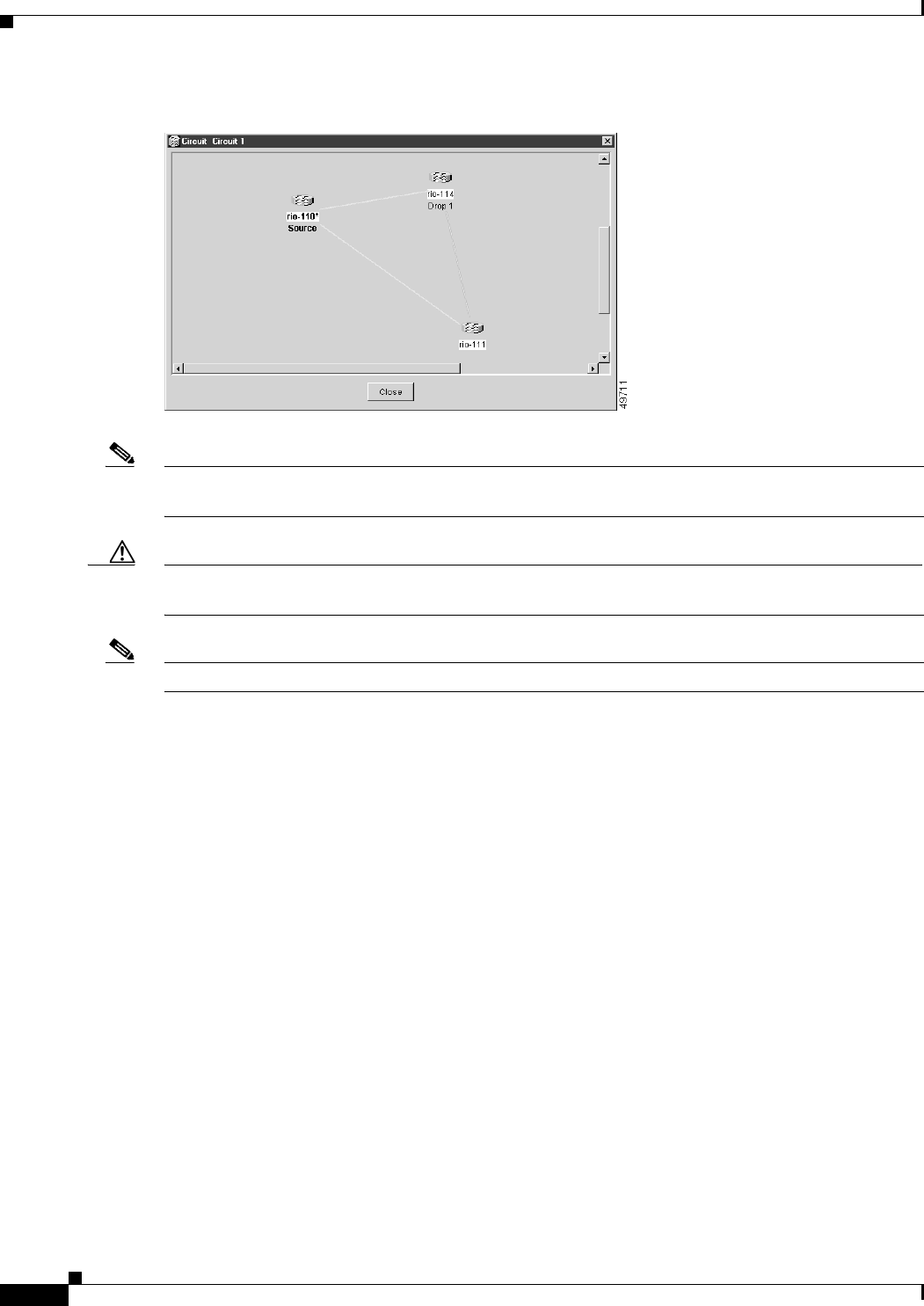

Figure 23-18 Spanning Tree Map on Circuit Window

Note Green represents forwarding spans and purple represents blocked (protect) spans. If you have a packet

ring configuration, at least one span should be purple.

Caution Multiple circuits with STP protection enabled will incur blocking if the circuits traverse a common card

and use the same VLAN.

Note E-Series port-mapped mode does not support STP (IEEE 802.1D).

E-Series Multi-Instance Spanning Tree and VLANs

The ONS node can operate multiple instances of STP to support VLANs in a looped topology. You can

dedicate separate circuits across the SONET/SDH ring for different VLAN groups. Each circuit runs its

own STP to maintain VLAN connectivity in a multi-ring environment.

Spanning Tree on a Circuit-by-Circuit Basis

You can also disable or enable STP on a circuit-by-circuit basis on single-card EtherSwitch E-Series

cards in a point-to-point configuration. This feature allows customers to mix spanning tree protected

circuits with unprotected circuits on the same card. It also allows two single-card EtherSwitch E-Series

cards on the same node to form an intranode circuit.

E-Series Spanning Tree Parameters

Default STP parameters are appropriate for most situations (Table 23-4). Contact the Cisco Technical

Assistance Center (Cisco TAC) before you change the default STP parameters. See the “Obtaining

Documentation and Submitting a Service Request” section on page xxxvii for information on how to

contact Cisco TAC.

23-23

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 23 E-Series and G-Series Ethernet Operation

E-Series Circuit Configurations

E-Series Spanning Tree Configuration

To view the spanning tree configuration, at the node view click the Provisioning > Etherbridge >

Spanning Trees tabs (Table 23-5).

E-Series Circuit Configurations

E-Series Ethernet circuits can link ONS nodes through point-to-point (straight), shared packet ring, or

hub-and-spoke configurations. Two nodes usually connect with a point-to-point configuration. More

than two nodes usually connect with a shared packet ring configuration or a hub-and-spoke

configuration. Ethernet manual cross-connects allow you to cross connect individual Ethernet circuits to

an STS/VC channel on the ONS node optical interface and also to bridge non-ONS SONET/SDH

network segments. To configure E-Series circuits, refer to the Cisco ONS 15454 Procedure Guide, the

Cisco ONS 15454 SDH Procedure Guide, or the Cisco ONS 15327 Procedure Guide.

Table 23-4 Spanning Tree Parameters

Parameter Description

BridgeID ONS node unique identifier that transmits the configuration bridge protocol data

unit (BPDU); the bridge ID is a combination of the bridge priority and the ONS

node MAC address.

TopoAge Amount of time in seconds since the last topology change.

TopoChanges Number of times the STP topology has been changed since the node booted up.

DesignatedRoot Identifies the STP’s designated root for a particular STP instance.

RootCost Identifies the total path cost to the designated root.

RootPort Port used to reach the root.

MaxAge Maximum time that received-protocol information is retained before it is discarded.

HelloTime Time interval, in seconds, between the transmission of configuration BPDUs by a

bridge that is the spanning tree root or is attempting to become the spanning tree

root.

HoldTime Minimum time period, in seconds, that elapses during the transmission of

configuration information on a given port.

ForwardDelay Time spent by a port in the listening state and the learning state.

Table 23-5 Spanning Tree Configuration

Column Default Value Value Range

Priority 32768 0–65535

Bridge max age 20 seconds 6–40 seconds

Bridge Hello Time 2 seconds 1–10 seconds

Bridge Forward Delay 15 seconds 4–30 seconds

23-24

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 23 E-Series and G-Series Ethernet Operation

E-Series Circuit Protection

Different combinations of E-Series circuit configurations and SONET/SDH network topologies offer

different levels of E-Series circuit protection. Table 23-6 details the available protection.

Note Before making Ethernet connections, choose an STS/STM circuit size.

Note To make an STS-12c/VC4-4c Ethernet circuit, Ethernet cards must be configured in single-card

EtherSwitch or port-mapped mode. Multicard mode does not support STS-12c/VC4-4c Ethernet circuits.

E-Series Point-to-Point Ethernet Circuits

The ONS nodes can set up a point-to-point (straight) Ethernet circuit as single-card, port-mapped, or

multicard circuit (Figure 23-19).

Figure 23-19 Multicard EtherSwitch Point-to-Point Circuit

Single-card EtherSwitch and port-mapped modes provide a full STS-12c of bandwidth between two

Ethernet circuit endpoints (Figure 23-20).

Table 23-6 Protection for E-Series Circuit Configurations

Configuration Path Protection

(SNCP) BLSR

(MS-SPRing) 1 + 1

Point-to-point multicard EtherSwitch None SONET/SDH SONET/SDH

Point-to-point single-card EtherSwitch SONET/SDH SONET/SDH SONET/SDH

Point-to-point port-mapped mode SONET/SDH SONET/SDH SONET/SDH

Shared packet ring multicard EtherSwitch STP SONET/SDH SONET/SDH

Common control card switch STP STP STP

43272

ONS Node 1

ONS Node 2192.168.1.100

255.255.255.0

VLAN test 1

Slot 5, Port 1

192.168.1.75

255.255.255.0

VLAN test 1

Slot 17, Port 1

192.168.1.25

255.255.255.0

VLAN test 1

Slot 4, Port 1

192.168.1.50

255.255.255.0

VLAN test 1

Slot 15, Port 1

ONS Node 3

SONET

Ethernet

23-25

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 23 E-Series and G-Series Ethernet Operation

E-Series Shared Packet Ring Ethernet Circuits

Figure 23-20 Single-Card EtherSwitch or Port-Mapped Point-to-Point Circuit

Note A port-mapped, point-to-point circuit cannot join an E-Series port-based VLAN, but can transport

external VLANs.

E-Series Shared Packet Ring Ethernet Circuits

A shared packet ring allows additional nodes (besides the source and destination nodes) access to an

Ethernet STS circuit. The E-Series card ports on the additional nodes can share the circuit’s VLAN and

bandwidth. Figure 23-21 illustrates a shared packet ring. Your network architecture might differ from

the example.

Figure 23-21 Shared Packet Ring Ethernet Circuit

ONS 15454 3ONS 15454 2

ONS 15454 1

192.168.1.50

255.255.255.0

VLAN test

Slot 15

192.168.1.25

255.255.255.0

VLAN test

Slot 4

32161

ONS NodeONS Node

Access router

Backbone router

Access router

SONET/SDH Ring

Access router Access router

ONS Node

32165

SONET

Ethernet

23-26

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 23 E-Series and G-Series Ethernet Operation

E-Series Hub-and-Spoke Ethernet Circuit Provisioning

The hub-and-spoke configuration connects point-to-point circuits (the spokes) to an aggregation point

(the hub). In many cases, the hub links to a high-speed connection and the spokes are Ethernet cards.

Figure 23-22 illustrates a hub-and-spoke ring. Your network architecture might differ from the example.

Figure 23-22 Hub-and-Spoke Ethernet Circuit

E-Series Ethernet Manual Cross-Connects

ONS nodes require end-to-end CTC visibility between nodes for normal provisioning of Ethernet

circuits. When other vendors’ equipment sits between ONS nodes, OSI/TARP-based equipment does not

allow tunneling of the ONS node TCP/IP-based DCC. To circumvent this inconsistent DCC, the Ethernet

circuit must be manually cross connected to an STS channel using the non-ONS network. The manual

cross-connect allows an Ethernet circuit to run from ONS node to ONS node utilizing the non-ONS

network.

Note In this section, “cross-connect” and “circuit” have the following meanings: cross-connect refers to the

connections that occur within a single ONS node to allow a circuit to enter and exit an ONS 15454.

Circuit refers to the series of connections from a traffic source (where traffic enters the ONS 15454

network) to the drop or destination (where traffic exits an ONS 15454 network).

Remote Monitoring Specification Alarm Thresholds

The ONS nodes features remote monitoring (RMON) that allows network operators to monitor the health

of the network with a network management system (NMS).

One of the ONS node’s RMON MIBs is the Alarm group, which consists of the alarmTable. An NMS

uses the alarmTable to find the alarm-causing thresholds for network performance. The thresholds apply

to the current 15-minute interval and the current 24-hour interval. RMON monitors several variables,

such as Ethernet collisions, and triggers an event when the variable crosses a threshold during that time

43386

ONS Node 1

ONS Node 2192.168.1.25

255.255.255.0

VLAN test

192.168.1.50

255.255.255.0

VLAN test

192.168.1.125

255.255.255.0

VLAN test

192.168.1.75

255.255.255.0

VLAN test 192.168.1.100

255.255.255.0

VLAN test

ONS Node 3

23-27

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 23 E-Series and G-Series Ethernet Operation

Remote Monitoring Specification Alarm Thresholds

interval. For example, if a threshold is set at 1000 collisions and 1001 collisions occur during the

15-minute interval, an event triggers. CTC allows you to provision these thresholds for Ethernet

statistics.

For Ethernet RMON alarm threshold procedures, refer to the Cisco ONS 15454 Troubleshooting Guide,

Cisco ONS 15454 Troubleshooting Guide or Cisco ONS 15327 Troubleshooting Guide.

23-28

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 23 E-Series and G-Series Ethernet Operation

Remote Monitoring Specification Alarm Thresholds

CHAPTER

24-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

CE-100T-8 Ethernet Operation

This chapter describes the operation of the CE-100T-8 (Carrier Ethernet) card supported on the

ONS 15454 and ONS 15454 SDH. A CE-100T-8 card installed in an ONS 15454 SONET is restricted to

SONET operation, and a CE-100T-8 card installed in an ONS 15454 SDH is restricted to SDH operation.

Another version of the CE-100T-8 card is supported on the ONS 15310-CL.

Provisioning is done through Cisco Transport Controller (CTC) or Transaction Language One (TL1).

Cisco IOS is not supported on the CE-100T-8 card.

For Ethernet card specifications, refer to the Cisco ONS 15454 Reference Manual or the

Cisco ONS 15454 SDH Reference Manual. For step-by-step Ethernet card circuit configuration

procedures, refer to the Cisco ONS 15454 Procedure Guide or the Cisco ONS 15454 SDH

Procedure Guide. Refer to the Cisco ONS SONET TL1 Command Guide or the Cisco ONS SDH Command

Guide for TL1 provisioning commands.

Chapter topics include:

• CE-100T-8 Overview, page 24-1

• CE-100T-8 Ethernet Features, page 24-2

• CE-100T-8 SONET/SDH Circuits and Features, page 24-7

CE-100T-8 Overview

The CE-100T-8 is a Layer 1 mapper card with eight 10/100 Ethernet ports. It maps each port to a unique

SONET/SDH circuit in a point-to-point configuration. Figure 24-1 illustrates a sample CE-100T-8

application. In this example, data traffic from the Fast Ethernet port of a switch travels across the

point-to-point circuit to the Fast Ethernet port of another switch.

Figure 24-1 CE-100T-8 Point-to-Point Circuit

The CE-100T-8 cards allow you to provision and manage an Ethernet private line service like a

traditional SONET/SDH line. CE-100T-8 card applications include providing carrier-grade Ethernet

private line services and high-availability transport.

115781

Point-to-Point Circuit

ONS Node ONS Node

Ethernet Ethernet

24-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 24 CE-100T-8 Ethernet Operation

CE-100T-8 Ethernet Features

The CE-100T-8 card carries any Layer 3 protocol that can be encapsulated and transported over Ethernet,

such as IP or IPX. The Ethernet frame from the data network is transmitted on the Ethernet cable into

the standard RJ-45 port on a CE-100T-8 card. The CE-100T-8 card transparently maps Ethernet frames

into the SONET/SDH payload using packet-over-SONET/SDH (POS) encapsulation. The POS circuit

with its encapsulated Ethernet inside is then multiplexed onto an optical card like any other SONET

synchronous transport signal (STS) or SDH synchronous transport mode (STM). When the payload

reaches the destination node, the process is reversed and the data is transmitted from the standard RJ-45

port in the destination CE-100T-8 card onto the Ethernet cable and data network. The POS process is

covered in detail in Chapter 20, “POS on ONS Ethernet Cards.”

The CE-100T-8 card supports ITU-T G.707 and Telcordia GR-253 based standards. It allows a soft reset,

which is errorless in most cases. During the soft reset if there is a provisioning change, or if the firmware

is replaced during the software upgrade process, the reset is equivalent to a hard reset. For more

information on a soft reset of a CE-100T-8 card using CTC, refer to the Cisco ONS 15454

Procedure Guide or the Cisco ONS 15454 SDH Procedure Guide.

CE-100T-8 Ethernet Features

The CE-100T-8 card has eight front-end Ethernet ports which use standard RJ-45 connectors for

10BASE-T Ethernet/100BASE-TX Ethernet media. Ethernet Ports 1 through 8 each map to a POS port

with a corresponding number. The console port on the CE-100T-8 card is not functional.

The CE-100T-8 cards forward valid Ethernet frames unmodified over the SONET/SDH network.

Information in the headers is not affected by the encapsulation and transport. For example, included

IEEE 802.1Q information will travel through the process unaffected.

The ONS 15454 SONET/SDH CE-100T-8 and the ONS 15310-CL CE-100T-8 support maximum

Ethernet frame sizes of 1548 bytes including the Cyclic Redundancy Check (CRC). The Maximum

Transmission Unit (MTU) size is not configurable and is set at a 1500 byte maximum (standard Ethernet

MTU). Baby giant frames in which the standard Ethernet frame is augmented by IEEE 802.1 Q-tags or

Multiprotocol Label Switching (MPLS) tags are also supported. Full Jumbo frames are not supported.

The CE-100T-8 cards discard certain types of erroneous Ethernet frames rather than transport them over

SONET/SDH. Erroneous Ethernet frames include corrupted frames with CRC errors and undersized

frames that do not conform to the minimum 64-byte length Ethernet standard.

Note Many Ethernet attributes are also available through the network element (NE) defaults feature. For more

information on NE defaults, refer to the "Network Element Defaults" appendix in the Cisco ONS 15454

Reference Manual or the Cisco ONS 15454 SDH Reference Manual.

Autonegotiation, Flow Control, and Frame Buffering

On the CE-100T-8, Ethernet link autonegotiation is on by default and when the port’s duplex or speed is

set to auto. The user can also set the link speed, duplex, and flow control manually under the card-level

Provisioning tab of CTC.

The CE-100T-8 supports IEEE 802.3x flow control and frame buffering to reduce data traffic congestion.

Flow control is on by default.

24-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 24 CE-100T-8 Ethernet Operation

Ethernet Link Integrity Support

To prevent over-subscription, buffer memory is available for each port. When the buffer memory on the

Ethernet port nears capacity, the CE-100T-8 uses IEEE 802.3x flow control to transmit a pause frame to

the attached Ethernet device. Flow control and autonegotiation frames are local to the Fast Ethernet

interfaces and the attached Ethernet devices. These frames do not continue through the POS ports.

The CE-100T-8 card has symmetric flow control and proposes symmetric flow control when

autonegotiating flow control with attached Ethernet devices. Symmetric flow control allows the

CE-100T-8 cards to respond to pause frames sent from external devices and to send pause frames to

external devices.

The pause frame instructs the source to stop sending packets for a specific period of time. The sending

station waits the requested amount of time before sending more data. Figure 24-2 illustrates pause

frames being sent and received by CE-100T-8 cards and attached switches.

Figure 24-2 Flow Control

This flow-control mechanism matches the sending and receiving device throughput to that of the

bandwidth of the STS circuit. For example, a router might transmit to the Ethernet port on the CE-100T-8

card. This particular data rate might occasionally exceed 51.84 Mbps, but the SONET circuit assigned

to the CE-100T-8 port might be only STS-1 (51.84 Mbps). In this example, the CE-100T-8 sends out a

pause frame and requests that the router delay its transmission for a certain period of time. With flow

control and a substantial per-port buffering capability, a private line service provisioned at less than full

line rate capacity (STS-1) is efficient because frame loss can be controlled to a large extent.

Ethernet Link Integrity Support

The CE-100T-8 supports end-to-end Ethernet link integrity (Figure 24-3). This capability is integral to

providing an Ethernet private line service and correct operation of Layer 2 and Layer 3 protocols on the

attached Ethernet devices.

End-to-end Ethernet link integrity means that if any part of the end-to-end path fails, the entire path fails.

It disables the Ethernet port on the CE-100T-8 card if the remote Ethernet port is unable to transmit over

the SONET/SDH network or if the remote Ethernet port is disabled.

Failure of the entire path is ensured by turning off the transmit pair at each end of the path. The attached

Ethernet devices recognize the disabled transmit pair as a loss of carrier and consequently an inactive

link or link fail.

Figure 24-3 End-to-End Ethernet Link Integrity Support

115779

STS-N

SONET

Pause Frames

Ethernet ONS Node ONS Node

Pause Frames

Ethernet

ONS Node

Ethernet port

115780

ONS Node

Ethernet port

STS-N

SONET

24-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 24 CE-100T-8 Ethernet Operation

Administrative and Service States with Soak Time for Ethernet and SONET/SDH Ports

Note Some network devices can be configured to ignore a loss of carrier condition. If a device configured to

ignore a loss of carrier condition attaches to a CE-100T-8 card at one end, alternative techniques (such

as use of Layer 2 or Layer 3 keep-alive messages) are required to route traffic around failures. The

response time of such alternate techniques is typically much longer than techniques that use link state as

indications of an error condition.

Administrative and Service States with Soak Time for Ethernet and SONET/SDH

Ports

The CE-100T-8 card supports the administrative and service states for the Ethernet ports and the

SONET/SDH circuit. For more information about card and circuit service states, refer to the

“Administrative and Service States” appendix in the Cisco ONS 15454 Reference Manual or the

Cisco ONS 15454 SDH Reference Manual.

The Ethernet ports can be set to the ESM service states including the In-Service, Automatic In-Service

(IS,AINS) administrative state. IS,AINS initially puts the port in the Out-of-Service and Autonomous,

Automatic In-Service (OOS-AU,AINS) state. In this service state, alarm reporting is suppressed, but

traffic is carried and loopbacks are allowed. After the soak period passes, the port changes to In-Service

and Normal (IS-NR). Raised fault conditions, whether their alarms are reported or not, can be retrieved

on the CTC Conditions tab or by using the TL1 RTRV-COND command.

Two Ethernet port alarms/conditions, CARLOSS and TPTFAIL, can prevent the port from going into

service. This occurs even though alarms are suppressed when a CE-100T-8 circuit is provisioned with

the Ethernet ports set to the IS,AINS state, because the CE-100T-8 link integrity function is active and

ensures that the links at both ends are not enabled until all SONET and Ethernet errors along the path

are cleared. As long as the link integrity function keeps the end-to-end path down, both ports will have

at least one of the two conditions needed to suppress the AINS-to-IS transition. Therefore, the ports will

remain in the AINS state with alarms suppressed.

ESM also applies to the SONET/SDH circuits of the CE-100T-8 card. If the SONET/SDH circuit is set

up in IS,AINS state and the Ethernet error occurs before the circuit transitions to IS, then link integrity

will also prevent the circuit transition to the IS state until the Ethernet port errors are cleared at both

ends. The service state will be OOS-AU,AINS as long as the administrative state is IS,AINS. When there

are no Ethernet or SONET errors, link integrity enables the Ethernet port at each end. Simultaneously,

the AINS countdown begins as normal. If no additional conditions occur during the time period, each

port transitions to the IS-NR state. During the AINS countdown, the soak time remaining is available in

CTC and TL1. The AINS soaking logic restarts from the beginning if a condition appears again during

the soak period.

A SONET/SDH circuit provisioned in the IS,AINS state remains in the initial Out-of-Service (OOS)

state until the Ethernet ports on each end of the circuit transition to the IS-NR state. The SONET/SDH

circuit transports Ethernet traffic and counts statistics when link integrity turns on the Ethernet port,

regardless of whether this AINS-to-IS transition is complete.

24-5

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 24 CE-100T-8 Ethernet Operation

IEEE 802.1Q CoS and IP ToS Queuing

The CE-100T-8 references IEEE 802.1Q class of service (CoS) thresholds and IP type of service (ToS)

(IP Differentiated Services Code Point [DSCP]) thresholds for priority queueing. CoS and ToS thresholds

for the CE-100T-8 are provisioned on a per port level. This allows the user to provide priority treatment

based on open standard quality of service (QoS) schemes already existing in the data network attached

to the CE-100T-8. The QoS treatment is applied to both Ethernet and POS ports.

Any packet or frame with a priority greater than the set threshold is treated as priority traffic. This

priority traffic is sent to the priority queue instead of the normal queue. When buffering occurs, packets

on the priority queue preempt packets on the normal queue. This results in lower latency for the priority

traffic, which is often latency-sensitive traffic such as voice-over-IP (VoIP).

Because these priorities are placed on separate queues, the priority queuing feature should not be used

to separate rate-based CIR/EIR marked traffic (sometimes done at a Metro Ethernet service provider

edge). This could result in out-of-order packet delivery for packets of the same application, which would

cause performance issues with some applications.

For an IP ToS-tagged packet, the CE-100T-8 can map any of the 256 priorities specified in IP ToS to

priority or best effort. The user can configure a different ToS in CTC at the card-level view under the

Provisioning > Ether Ports tabs. Any ToS class higher than the class specified in CTC is mapped to the

priority queue, which is the queue geared towards low latency. By default, the ToS is set to 255, which

is the highest ToS value. This results in all traffic being treated with equal priority by default.

Table 24-3 shows which values are mapped to the priority queue for sample IP ToS settings. (ToS

settings span the full 0 to 255 range, but only selected settings are shown.)

For a CoS-tagged frame, the CE-100T-8 can map the eight priorities specified in CoS to priority or best

effort. The user can configure a different CoS in CTC at the card-level view under the Provisioning >

Ether Ports tabs. Any CoS class higher than the class specified in CTC is mapped to the priority queue,

which is the queue geared towards low latency. By default, the CoS is set to 7, which is the highest CoS

value. This results in all traffic being treated with equal priority by default.

Table 24-3 shows which values are mapped to the priority queue for CoS settings.

Table 24-1 IP ToS Priority Queue Mappings

ToS Setting in CTC ToS Values Sent to Priority Queue

255 (default) None

250 251–255

150 151–255

100 101–255

50 51–255

01–255

Table 24-2 CoS Priority Queue Mappings

CoS Setting in CTC CoS Values Sent to Priority Queue

7 (default) None

6 7

56, 7

24-6

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 24 CE-100T-8 Ethernet Operation

RMON and SNMP Support

Ethernet frames without VLAN tagging use ToS-based priority queueing if both ToS and CoS priority

queueing is active on the card. The CE-100T-8 card’s ToS setting must be lower than 255 (default) and

the CoS setting lower than 7 (default) for CoS and ToS priority queueing to be active. A ToS setting of

255 (default) disables ToS priority queueing, so in this case the CoS setting would be used.

Ethernet frames with VLAN tagging use CoS-based priority queueing if both ToS and CoS are active on

the card. The ToS setting is ignored. CoS based priority queueing is disabled if the CoS setting is 7

(default), so in this case the ToS setting would be used.

If the CE-100T-8 card’s ToS setting is 255 (default) and the CoS setting is 7 (default), priority queueing

is not active on the card, and data gets sent to the default normal traffic queue. If data is not tagged with

a ToS value or a CoS value before it enters the CE-100T-8 card, it also gets sent to the default normal

traffic queue.

Note Priority queuing has no effect when flow control is enabled (default) on the CE-100T-8. When flow

control is enabled, a 6-kilobyte, single-priority, first-in first-out (FIFO) buffer fills, then a PAUSE frame

is sent. This results in the packet ordering priority becoming the responsibility of the external device,

which is buffering as a result of receiving the PAUSE flow-control frames.

Note Priority queuing has no effect when the CE-100T-8 is provisioned with STS-3C circuits. The STS-3c

circuit has more data capacity than Fast Ethernet, so CE-100T-8 buffering is not needed. Priority queuing

only takes effect during buffering.

RMON and SNMP Support

The CE-100T-8 card features remote monitoring (RMON) that allows network operators to monitor the

health of the network with a network management system (NMS). The CE-100T-8 uses the ONG RMON.

The ONG RMON contains the statistics, history, alarms, and events MIB groups from the standard

RMON MIB. A user can access RMON threshold provisioning through TL1 or CTC. For RMON

threshold provisioning with CTC, see the Cisco ONS 15454 Procedure Guide (NTP-A279) and the

Cisco ONS 15454 Troubleshooting Guide, or the Cisco ONS 15454 SDH Procedure Guide and the

Cisco ONS 15454 SDH Troubleshooting Guide.

Statistics and Counters

The CE-100T-8 has a full range of Ethernet and POS statistics information under Performance >

Ether Ports or Performance > POS Ports.

45, 6, 7

34, 5, 6, 7

23, 4, 5, 6, 7

12, 3, 4, 5, 6, 7

01, 2, 3, 4, 5, 6, 7

Table 24-2 CoS Priority Queue Mappings (continued)

CoS Setting in CTC CoS Values Sent to Priority Queue

24-7

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 24 CE-100T-8 Ethernet Operation

CE-100T-8 SONET/SDH Circuits and Features

The CE-100T-8 has eight POS ports, numbered one through eight, which can be managed with CTC or

TL1. Each POS port is statically mapped to a matching Ethernet port. By clicking the card-level

Provisioning > POS Ports tab, the user can configure the Administrative State, Framing Type, and

Encapsulation Type. By clicking the card-level Performance > POS Ports tab, the user can view the

statistics, utilization, and history for the POS ports.

Available Circuit Sizes and Combinations

Each POS port terminates an independent contiguous concatenation (CCAT) or virtual concatenation

(VCAT) circuit. The SONET/SDH circuit is created for these ports through CTC or TL1 in the same

manner as a SONET/SDH circuit for a non-Ethernet line card. Table 24-3 and Table 24-4 show the

circuit sizes available for the CE-100T-8.

A single circuit provides a maximum of 100 Mbps of throughput, even when a larger STS-3c or VC-4

circuit, which has a bandwidth equivalent of 155 Mbps, is provisioned. This is due to the hardware

restriction of the Fast Ethernet port. A VCAT circuit is also restricted in this manner. Table 24-5 shows

the minimum SONET circuit sizes required for wire speed service delivery.

Table 24-6 shows the minimum SDH circuit sizes required for 10 Mbps and 100 Mbps wire speed

service.

Table 24-3 Supported SONET Circuit Sizes of CE-100T-8 on ONS 15454

CCAT VCAT High Order VCAT Low Order

STS-1 STS-1-1v VT1.5-nV (n= 1 to 64)

STS-3c STS-1-2v

STS-1-3v

Table 24-4 CE-100T-8 Supported SDH Circuit Sizes of CE-100T-8 on ONS 15454 SDH

CCAT VC-3 VCAT VC-12 VCAT

VC-3 VC-3-1v VC-12-nV (n= 1 to 63)

VC-4 VC-3-2v

VC-3-3v

Table 24-5 Minimum SONET Circuit Sizes for Ethernet Speeds

Ethernet Wire Speed CCAT High Order VCAT High Order VCAT Low Order

Line Rate 100BASE-T STS-3c STS-1-3v, STS-1-2v1

1. STS-1-2v provides a total transport capacity of 98 Mbps.

VT1.5-xv (x=56-64)

Sub Rate 100BASE-T STS-1 STS-1-1v VT1.5-xv (x=1-55)

Line Rate 10BASE-T STS-1 Not applicable VT1.5-7v

Sub Rate 10BASE-T Not applicable Not applicable VT1.5-xv (x=1-6)

24-8

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 24 CE-100T-8 Ethernet Operation

Available Circuit Sizes and Combinations

The number of available circuits and total combined bandwidth for the CE-100T-8 depends on the

combination of circuit sizes configured. Table 24-7 shows the CCAT high-order circuit size

combinations available for the CE-100T-8 on the ONS 15454.

Table 24-8 shows the CCAT high-order circuit size combinations available for the CE-100T-8 on the

ONS 15454 SDH.

Table 24-9 shows the VCAT high-order circuit size combinations available for the CE-100T-8 on the

ONS 15454.

Table 24-6 SDH Circuit Sizes and Ethernet Services

Ethernet Wire Speed CCAT VC-3 VCAT VC-12 VCAT

Line Rate 100BASE-T VC-4 VC-3-3v, VC-3-2v1

1. VC-3-2v provides a total transport capacity of 98 Mbps.

VC-12-xv (x=50-63)

Sub Rate 100BASE-T VC-3 VC-3-1v VC-12-xv (x=1-49)

Line Rate 10BBASE-T VC-3 VC-3-1v VC-12-5v

Sub Rate 10BASE-T Not applicable Not applicable VC-12-xv (x=1-4)

Table 24-7 CCAT High-Order Circuit Size Combinations for SONET

Number of STS-3c Circuits Maximum Number of STS-1 Circuits

None 8

1 7

2 6

3 3

4None

Table 24-8 CCAT High-Order Circuit Size Combinations for SDH

Number of VC-4 Circuits Maximum Number of VC-3 Circuits

None 8

1 7

2 6

3 3

4None

Table 24-9 VCAT High-Order Circuit Combinations for STS-1-3v and STS-1-2v SONET

Number of STS-1-3v Circuits Maximum Number of STS-1-2v Circuits

None 4

1 3

2 2

24-9

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 24 CE-100T-8 Ethernet Operation

Available Circuit Sizes and Combinations

Table 24-10 shows VC-3-3v and VC-3-2v circuit size combinations available for the CE-100T-8 on the

ONS 15454 SDH.

A user can combine CCAT high-order, VCAT high-order and VCAT low-order circuits. The CE-100T-8

supports up to eight low-order VCAT circuits.

The available SONET circuit sizes are VT1.5-Xv, where X is the range from 1 to 64. A maximum of four

circuits are available at the largest low-order VCAT SONET circuit size, VT1.5-64v. Table 24-11 details

the maximum density service combinations for SONET.

The available SDH circuit sizes are VC-12-Xv, where X is the range from 1 to 63. A maximum of four

circuits are available at the largest low-order VCAT SDH circuit size, VC-12-63v. Table 24-12 details

the maximum density service combinations for SDH.

3 1

4None

Table 24-9 VCAT High-Order Circuit Combinations for STS-1-3v and STS-1-2v SONET (continued)

Number of STS-1-3v Circuits Maximum Number of STS-1-2v Circuits

Table 24-10 VCAT Circuit Combinations for VC-3-3v and VC-3-2v for SDH

Number of VC-3-3v Circuits Maximum Number of VC-3-2v Circuits

None 4

1 3

2 2

3 1

4None

Table 24-11 CE-100T-8 Illustrative Service Densities for SONET

Service

Combination STS-3c or

STS-1-3v STS-1-2v STS-1 VT1.5-xV Number of Active

Service

1 4 0 0 0 4

2 3 1 1 0 5

3 3 0 3 0 6

43004 (x=1–21)171

5 2 2 2 0 6

6 2 1 4 0 7

72114 (x=1–21)181

8 2 0 6 0 8

92033 (x=1–28) 8

10 2006 (x=1–28) 8

11 1 3 3 0 7

12 1 2 5 0 8

13 1223 (x=1–28) 8

24-10

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 24 CE-100T-8 Ethernet Operation

Available Circuit Sizes and Combinations

14 1115 (x=1–28) 8

15 1 0 7 0 8

16 1034 (x=1–42) 8

17 1007 (x=1–42) 8

18 0 4 4 0 8

19 0332 (x=1–42) 8

20 0 0 8 0 8

21 0044 (x=1–42) 8

22 0008 (x=1–42) 8

1. This low-order VCAT circuit combination is achievable if one of the first two circuits created on the card is a low-order

VCAT circuit. If the first two circuits created on the card are high-order VCAT or CCAT circuits, then a maximum of three

low-order VCAT circuits can be created on the card.

Table 24-12 CE-100T-8 Sample Service Densities for SDH

Service

Combination VC-4 or

VC-3-3v VC-3-2v VC-3 VC-12-xv Number of Active

Service

1 4 0 0 0 4

2 3 1 1 0 5

3 3 0 3 0 6

43003 (x=1–21) 6

5 2 2 2 0 6

6 2 1 4 0 7

72113 (x=1–21) 72

8 2 0 6 0 8

92033 (x=1–21) 8

10 2006 (x=1–21) 8

11 1 3 3 0 7

12 1 2 5 0 8

13 1223 (x=1–21) 82

14 1115 (x=1–21) 82

15 1 0 7 0 8

16 1032 (x=1–32)

plus

2 (x=1–31)

17 1007 (x=1–28) 8

18 0 4 4 0 8

Table 24-11 CE-100T-8 Illustrative Service Densities for SONET (continued)

Service

Combination STS-3c or

STS-1-3v STS-1-2v STS-1 VT1.5-xV Number of Active

Service

24-11

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 24 CE-100T-8 Ethernet Operation

CE-100T-8 Pools

2 These service combinations require creating the VC-12-xv circuit before you create the VC-3 circuits.

CE-100T-8 Pools

The CE-100T-8 total circuit capacity is divided among four pools. Each pool has a maximum capacity

of three STS-1s with SONET or three VC-3s with SDH.

Displaying CE-100T-8 Pool Information with the STS/VT Allocation or VC4/VC LO Allocation Tab

At the CTC card-level view under the Maintenance tab, the STS/VT Allocation tab on the

ONS 15454 SONET and the VC4/VC LO Allocation tab on the ONS 15454 SDH display how the

provisioned circuits populate the four pools. On both screens, the POS Port table has a row for each port

with three columns. They show the port number, the circuit size and type, and the pool it is drawn from.

The Pool Utilization table has four columns and shows the pool number, the type of circuits in that pool,

how much of the pool’s capacity is being used, and whether additional capacity is available.

Figure 24-4 displays an SDH version of the tab, and Figure 24-5 displays the SONET version of the tab.

19 0331 (x=1–32)

plus

1 (x=1–31)

20 0 0 8 0 8

21 0042 (x=1–32)

plus

2 (x=1–31)

22 0004 (x=1–32)

plus

4 (x=1–31)

Table 24-12 CE-100T-8 Sample Service Densities for SDH (continued)

Service

Combination VC-4 or

VC-3-3v VC-3-2v VC-3 VC-12-xv Number of Active

Service

24-12

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 24 CE-100T-8 Ethernet Operation

CE-100T-8 Pools

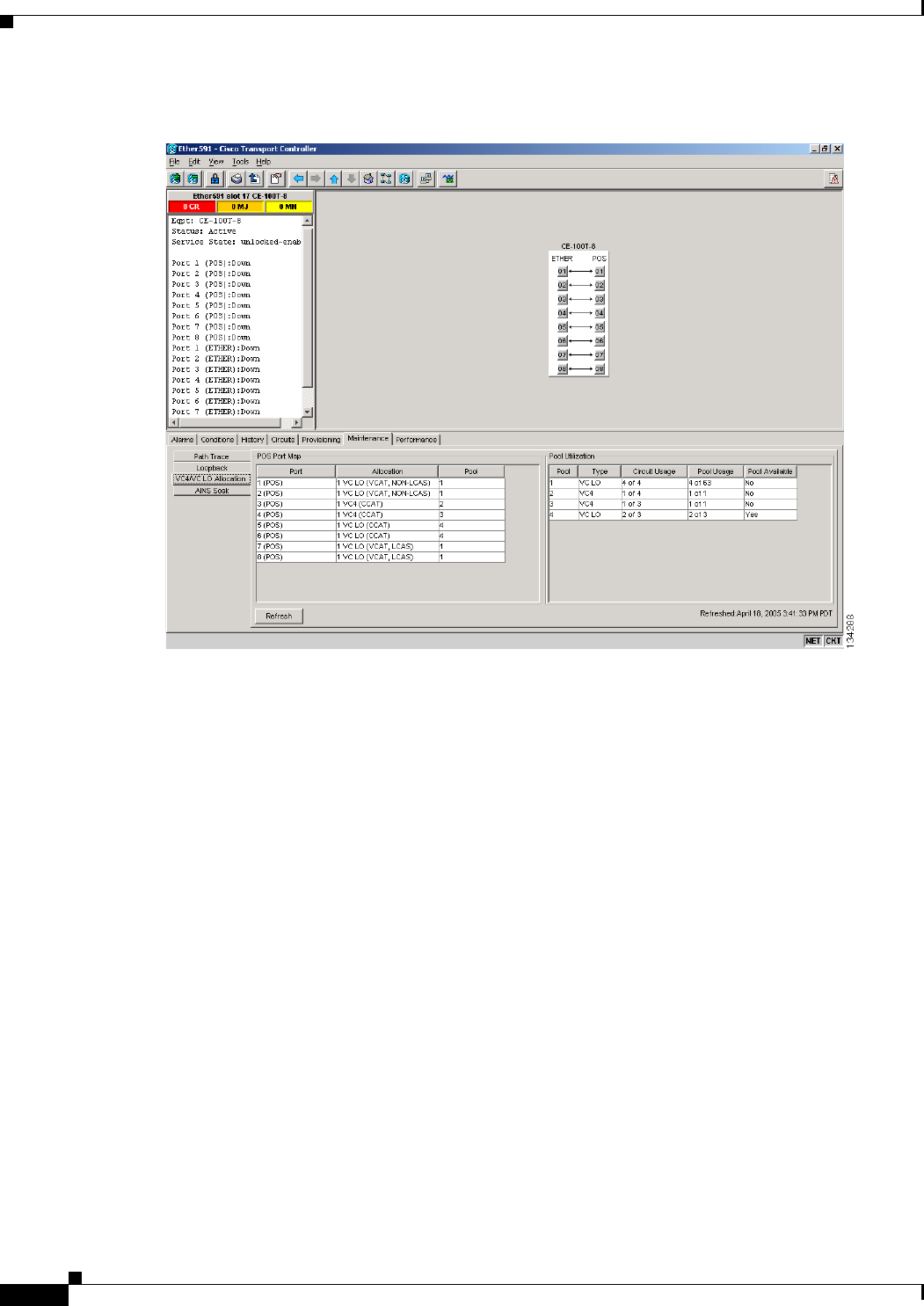

Figure 24-4 CE-100T-8 Allocation Tab for SDH

24-13

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 24 CE-100T-8 Ethernet Operation

CE-100T-8 Pools

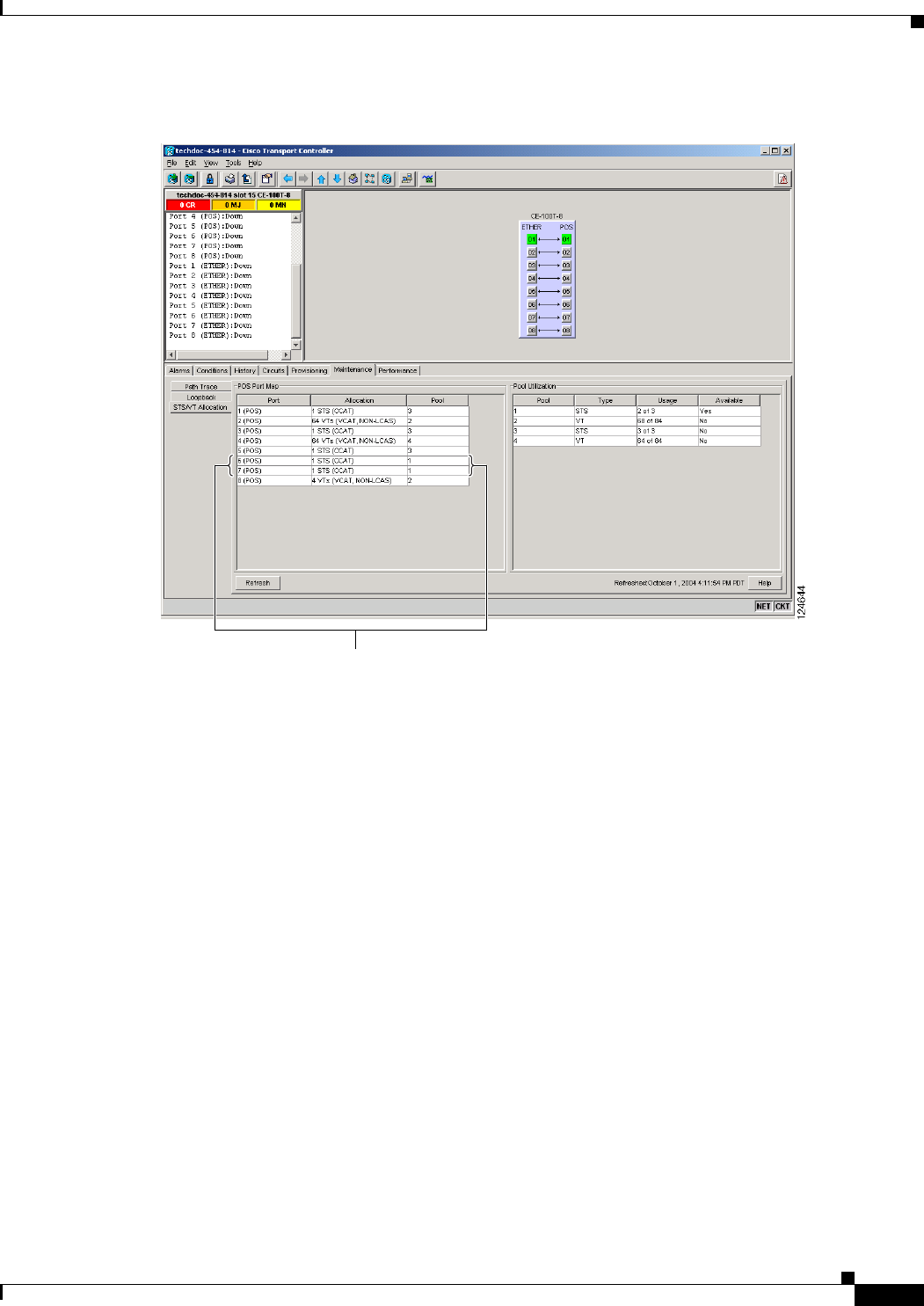

Figure 24-5 CE-100T-8 STS/VT Allocation Tab

CE-100T-8 Pool Allocation Example

This information can be useful in freeing up the bandwidth required for provisioning a circuit if there is

not enough existing capacity in any one pool for provisioning the desired circuit. The user can look at

the distribution of the existing circuits among the four pools and decide which circuits to delete in order

to free space for the desired circuit.

For example if a user needs to provision an STS-3c or STS-1-3v on the SONET CE-100T-8 card shown

in Figure 24-5, an STS-3c or STS-1-3v worth of bandwidth is not available from any of the four pools.

The user needs to delete circuits from the same pool to free bandwidth. If the bandwidth is available but

scattered among the pools, the circuit cannot be provisioned. Looking at the POS Port Map table, the

user can determine which circuits belong to which pools. The Pool and Port columns in Figure 24-5 show

that Port 6 and Port 7 are both drawn from Pool 1, and that no other circuits are drawn from Pool 1.

Deleting these two STS-1 circuits will free an STS-3c or STS-1-3v worth of bandwidth from a single

pool.

If the user did not determine what circuits to delete from the table information, he might delete the STS-1

circuits on Port 3, Port 5 and Port 6. This frees an STS-3c or STS-1-3v worth of bandwidth, but the

required bandwidth is not available from a single pool and the STS-3c or STS-1-3v circuit is not

provisionable.

Both Port 6 and Port 7

belong to Pool 1

24-14

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 24 CE-100T-8 Ethernet Operation

CE-100T-8 VCAT Characteristics

CE-100T-8 Pool Provisioning Rules

All VCAT circuit members must be from the same pool. One of the four memory pools is reserved for

the low-order VCAT circuits if sufficient bandwidth exists to support the high-order circuits in the

remaining three pools. The high-order CCAT circuits use all the available capacity from a single memory

pool before beginning to use the capacity of a new pool. The memory pools are allocated alternatively

for the first three high-order VCAT circuits if the pools have the sufficient bandwidth to support the

requested circuit size. To help prevent stranding bandwidth, provision your high-order VCAT circuits

first to distribute them evenly.

CE-100T-8 VCAT Characteristics

The ML-100T-8 card and the CE-100T-8 card (both the ONS 15310-CL version and the ONS 15454

SONET/SDH version) have hardware-based support for the ITU-T G.7042 standard Link Capacity

Adjustment Scheme (LCAS). This allows the user to dynamically resize a high order or low order VCAT

circuit through CTC or TL1 without affecting other members of the VCG (errorless).

To enable end-to-end connectivity in a VCAT circuit that traverses through a third-party network, you

must create a server trail between the ports. For more details, refer to the "Create Circuits and VT

Tunnels" chapter in the Cisco ONS 15454 Procedure Guide.

The ONS 15454 SONET/SDH ML-Series card has a software-based LCAS (SW-LCAS) scheme. This

scheme is also supported by both the ML-100T-8 card and the CE-100T-8 (both the ONS 15310-CL

version and the ONS 15454 SONET/SDH version), but only for circuits with the other end terminating

on a ONS 15454 SONET/SDH ML-Series card.

The CE-100T-8 card allows independent routing and protection preferences for each member of a VCAT

circuit. The user can also control the amount of VCAT circuit capacity that is fully protected,

unprotected, or uses Protection Channel Access (PCA) (when PCA is available). Alarms are supported

on a per-member as well as per virtual concatenation group (VCG) basis.

Note The maximum tolerable VCAT differential delay for the CE-100T-8 is 48 milliseconds. The VCAT

differential delay is the relative arrival-time measurement between members of a VCG.

CE-100T-8 POS Encapsulation, Framing, and CRC

The CE-100T-8 uses Cisco EoS LEX (LEX). LEX is the primary encapsulation of ONS Ethernet cards.

In this encapsulation, the protocol field is set to the values specified in Internet Engineering Task Force

(IETF) Request For Comments (RFC) 1841. The user can provision frame-mapped generic framing

procedure (GFP-F) framing (default) or high-level data link control (HDLC) framing. With GFP-F

framing, the user can also configure a 32-bit CRC (the default) or no CRC (nond). On CTC go to CE

card view and click the Provisioning >pos ports tab, to see the various parameters that can be configured

on the POS ports, see “Table 2-3CTC Display of POS Port Provisioning Status” task on page 2-3.

Various parameters like, admin state, service state, framing type, CRC , MTU and soak time for a port

can be configured here . When LEX is used over GFP-F it is standard Mapped Ethernet over GFP-F

according to ITU-T G.7041. HDLC framing provides a set 32-bit CRC. For more details about the

interoperability of ONS Ethernet cards, including information on encapsulation, framing, and CRC, see

the “POS on ONS Ethernet Cards” chapter.

The CE-100T-8 card supports GFP-F null mode. GFP-F CMFs are counted and discarded.

24-15

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 24 CE-100T-8 Ethernet Operation

CE-100T-8 Loopback, J1 Path Trace, and SONET/SDH Alarms

The CE-100T-8 card supports terminal and facility loopbacks. It also reports SONET/SDH alarms and

transmits and monitors the J1 Path Trace byte in the same manner as OC-N cards. Support for path

termination functions includes:

• H1 and H2 concatenation indication

• C2 signal label

• Bit interleaved parity 3 (BIP-3) generation

• G1 path status indication

• C2 path signal label read/write

• Path level alarms and conditions, including loss of pointer (LOP), unequipped, payload mismatch,

alarm indication signal (AIS) detection, and remote defect indication (RDI)

• J1 path trace for high-order CCAT paths

• J2 path trace for high-order VCAT circuits at the member level

• J2 path trace for low-order VCAT circuits at the member level

• Extended signal label for the low-order paths

24-16

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 24 CE-100T-8 Ethernet Operation

CE-100T-8 Loopback, J1 Path Trace, and SONET/SDH Alarms

CHAPTER

25-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

CE-1000-4 Ethernet Operation

Note The terms "Unidirectional Path Switched Ring" and "UPSR" may appear in Cisco literature. These terms

do not refer to using Cisco ONS 15xxx products in a unidirectional path switched ring configuration.

Rather, these terms, as well as "Path Protected Mesh Network" and "PPMN," refer generally to Cisco's

path protection feature, which may be used in any topological network configuration. Cisco does not

recommend using its path protection feature in any particular topological network configuration.

This chapter describes the operation of the CE-1000-4 (Carrier Ethernet) card supported on the

Cisco ONS 15454 and Cisco ONS 15454 SDH. A CE-1000-4 card installed in an ONS 15454 SONET

is restricted to SONET operation, and a CE-1000-4 card installed in an ONS 15454 SDH is restricted to

SDH operation.

Use Cisco Transport Controller (CTC) or Transaction Language One (TL1) to provision the CE-1000-4

card. Cisco IOS is not supported on the CE-1000-4 card.

For Ethernet card specifications, refer to the Cisco ONS 15454 Reference Manual or the

Cisco ONS 15454 SDH Reference Manual. For step-by-step Ethernet card circuit configuration

procedures, refer to the Cisco ONS 15454 Procedure Guide or the Cisco ONS 15454 SDH

Procedure Guide. Refer to the Cisco ONS SONET TL1 Command Guide or the Cisco ONS SDH Command

Guide for TL1 provisioning commands.

Chapter topics include:

• CE-1000-4 Overview, page 25-1

• CE-1000-4 Ethernet Features, page 25-2

• CE-1000-4 SONET/SDH Circuits and Features, page 25-6

CE-1000-4 Overview

The CE-1000-4 is a Layer 1 mapper card with four Gigabit Ethernet ports. It maps each port to a unique

SONET/SDH circuit in a point-to-point configuration. Figure 25-1 illustrates a sample CE-1000-4

application. In this example, data traffic from the Gigabit Ethernet port of a switch travels across the

point-to-point circuit to the Gigabit Ethernet port of another switch.

25-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 25 CE-1000-4 Ethernet Operation

CE-1000-4 Ethernet Features

Figure 25-1 CE-1000-4 Point-to-Point Circuit

The CE-1000-4 cards allow you to provision and manage an Ethernet private line service like a

traditional SONET/SDH line. The CE-1000-4 card provides carrier-grade Ethernet private line services

and high-availability transport.

The CE-1000-4 card carries any Layer 3 protocol that can be encapsulated and transported over Ethernet,

such as IP or IPX. The Ethernet frame from the data network is transmitted into the gigabit interface

converter (GBIC) on a CE-1000-4 card. The CE-1000-4 card transparently maps Ethernet frames into

the SONET/SDH payload using packet-over-SONET/SDH (POS) encapsulation. The POS circuit with

encapsulated Ethernet is then multiplexed onto an optical card like any other SONET synchronous

transport signal (STS) or SDH synchronous transport mode (STM). When the payload reaches the

destination node, the process is reversed and the data is transmitted from the GBIC in the destination

CE-1000-4 card onto the Ethernet of the data network. The POS process is covered in detail in

Chapter 20, “POS on ONS Ethernet Cards.”

The CE-1000-4 card supports ITU-T G.707 and Telcordia GR-253 based standards. It allows an errorless

soft reset. An exception to the errorless soft reset occurs when there is a provisioning change during the

reset, or if the firmware is replaced during the software upgrade process. In these cases, the reset is

equivalent to a hard reset. To perform a soft reset on a CE-1000-4 card using CTC, refer to the

Cisco ONS 15454 Procedure Guide or the Cisco ONS 15454 SDH Procedure Guide.

CE-1000-4 Ethernet Features

The CE-1000-4 card has four front-end Ethernet ports which use standard GBIC connectors for Gigabit

Ethernet. Ethernet Ports 1 through 4 each map to a POS port with a corresponding number. These

Ethernet ports can be daisy chained.

At the Ethernet port level, a user can configure several characteristics:

• Port name

• Administrative state

• Automatic in-service (AINS) soak time

• Flow control

• Flow control watermark levels

• Auto negotiation

The CE-1000-4 card forwards valid Ethernet frames unmodified over the SONET/SDH network.

Information in the headers is not affected by the encapsulation and transport. For example, IEEE 802.1Q

information will travel through the process unaffected.

The CE-1000-4 supports Jumbo frames up to a total maximum of 10004 bytes, including Ethernet cyclic

redundancy check (CRC), by default. In CTC you can also configure a total maximum frame size of 1548

bytes, including Ethernet CRC.

115781

Point-to-Point Circuit

ONS Node ONS Node

Ethernet Ethernet

25-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 25 CE-1000-4 Ethernet Operation

Autonegotiation and Frame Buffering

Note Many Ethernet attributes are also available through the network element (NE) defaults feature. For more

information on NE defaults, refer to the "Network Element Defaults" appendix in the Cisco ONS 15454

Reference Manual or the Cisco ONS 15454 SDH Reference Manual.

Autonegotiation and Frame Buffering

On the CE-1000-4 card, Ethernet link autonegotiation is on by default. You can also enable and disable

autonegotiation under the card-level Provisioning tab of CTC.

The CE-1000-4 supports field-programmable gate array (FPGA) buffering to reduce data traffic

congestion. FPGA buffering supports SONET/SDH oversubscription. When the buffer nears capacity,

the CE-1000-4 card uses IEEE 802.3x flow control to transmit a pause frame to the attached Ethernet

device. Flow control and autonegotiation frames are local to the Gigabit Ethernet interfaces and the

attached Ethernet devices. These frames do not continue through the POS ports.

Flow Control

The CE-1000-4 supports IEEE 802.3x flow control and allows you to enable symmetric flow control,

enable asymmetric flow control, or to disable flow control. The configuration is done in CTC at the port

level.

By default the CE-1000-4 card uses symmetric flow control and only proposes symmetric flow control

when autonegotiating flow control with attached Ethernet devices. Symmetric flow control allows the

CE-1000-4 cards to respond to pause frames sent from external devices and to send pause frames to

external devices.

The pause frame instructs the source to stop sending packets for a specific period of time. The sending

station waits the requested amount of time before sending more data. Figure 25-2 illustrates pause

frames being sent and received by CE-1000-4 cards and attached switches.

Figure 25-2 Flow Control

This flow-control mechanism matches the sending and receiving device throughput to that of the

bandwidth of the STS circuit. For example, a router might transmit to the Gigabit Ethernet port on the

CE-1000-4 card. This particular data rate might occasionally exceed 51.84 Mbps, but the SONET circuit

assigned to the CE-1000-4 port might be only STS-1 (51.84 Mbps). In this example, the CE-1000-4 card

sends out a pause frame and requests that the router delay its transmission for a certain period of time.

With flow control and a substantial per-port buffering capability, a private line service provisioned at less

than full line rate capacity (STS-1) is efficient because frame loss can be controlled to a large extent.

Asymmetric enables the CE-1000-4 to receive flow control pauses, but not generate flow control pauses.

This mode supports a link partner that cannot receive flow control pauses but can send flow control

pauses. The CE-1000-4 does not have a mode where it would send flow control pauses but not be able

to receive flow control pauses.

115779

STS-N

SONET

Pause Frames

Ethernet ONS Node ONS Node

Pause Frames

Ethernet

25-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 25 CE-1000-4 Ethernet Operation

Flow Control Threshold Provisioning

In pass-through mode, transmit flow control frames are not generated by the Ethernet port interfaces,

and received flow control frames pass through transparently. Pass-through mode supports end-to-end

flow control between clients using Ethernet over SONET/SDH transport.

Flow Control Threshold Provisioning

The CE-1000-4 card has flow control threshold provisioning, which allows a user to select one of three

watermark (buffer size) settings: default, low latency, or custom. Default is the best setting for general

use. Low latency is good for sub-rate applications, such as voice-over-IP (VoIP) over an STS-1. For

attached devices with insufficient buffering, best effort traffic, or long access line lengths, set a higher

latency.

The flow control high setting is the watermark for sending the Pause On frame to the attached Ethernet

device; this frame signals the device to temporarily stop transmitting. The flow control low setting is the

watermark for sending the Pause Off frame, which signals the device to resume transmitting. The default

watermark setting values are 485 for the high threshold and 25 for the low threshold. Low latency

watermark setting values are10 for the high threshold and 5 for the low threshold.

The custom setting allows you to specify an exact buffer size threshold for Flow Ctrl Lo and Flow Ctrl Hi

with a range of 1 to 511 for both thresholds, although the low threshold must be set to a smaller value

than the high threshold.

Ethernet Link Integrity Support

The CE-1000-4 card supports end-to-end Ethernet link integrity (Figure 25-3). This capability is integral

to providing an Ethernet private line service and correct operation of Layer 2 and Layer 3 protocols on

the attached Ethernet devices. Link Integrity is implemented so that the Ethernet over SONET/SDH

connection behaves more like an Ethernet cable from the viewpoint of the attached Ethernet devices.

End-to-end Ethernet link integrity means that if any part of the end-to-end path fails, the entire path fails.

It disables the Ethernet port transmitter on the CE-1000-4 card when the remote Ethernet port does not

have a receive signal or when the SONET/SDH near end of a far-end failure is detected. The failure of

the entire path is ensured by turning off the transmit pair at each end of the path. The attached Ethernet

devices recognize the disabled transmit pair as a loss of carrier and consequently an inactive link or link

fail. The transport fail alarm is also raised when the port transmitter is disabled. Link integrity will

support a double fault, which is when both Ethernet ports do not receive a signal.

Figure 25-3 End-to-End Ethernet Link Integrity Support

Some network devices can be configured to ignore a loss of carrier condition. If a device configured to

ignore a loss of carrier condition attaches to a CE-1000-4 card at one end, alternative techniques (such

as use of Layer 2 or Layer 3 keep-alive messages) are required to route traffic around failures. The

response time of such alternate techniques is typically much longer than techniques that use link state as

indications of an error condition.

ONS Node

Ethernet port

115780

ONS Node

Ethernet port

STS-N

SONET

25-5

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 25 CE-1000-4 Ethernet Operation

Administrative and Service States with Soak Time for Ethernet and SONET/SDH Ports

Administrative and Service States with Soak Time for Ethernet and SONET/SDH

Ports

The CE-1000-4 card supports the administrative and service states for the Ethernet ports and the

SONET/SDH circuit. For more information about card and circuit service states, refer to the

“Administrative and Service States” appendix in the Cisco ONS 15454 Reference Manual or the

Cisco ONS 15454 SDH Reference Manual.

Ethernet ports can be set to the In-Service, Automatic In-Service (IS,AINS) administrative state.

IS,AINS initially puts the port in the Out-of-Service and Autonomous, Automatic In-Service

(OOS-AU,AINS) state. In this service state, alarm reporting is suppressed, but traffic is carried and

loopbacks are allowed. After the soak time passes, the port changes to In-Service and Normal (IS-NR).

The default soak time is eight hours and zero minutes. The user can also configure the AINS soak time

under the Provisioning tab > Ether Ports tab or under the Provisioning tab > POS Ports tab. The user can

view the AINS soak time and the time remaining until IS under the Maintenance tab > AINS Soak tabs.

Raised fault conditions, whether their alarms are reported or not, can be retrieved on the CTC Conditions

tab or by using the TL1 RTRV-COND command.Two Ethernet port alarms/conditions, CARLOSS and

TPTFAIL, can prevent the port from going into service. This occurs even though alarms are suppressed

when a CE-1000-4 circuit is provisioned with the Ethernet ports set to the IS,AINS state, because the

CE-1000-4 link integrity function is active and ensures that the links at both ends are not enabled until

all SONET/SDH and Ethernet errors along the path are cleared. If the link integrity function keeps the

end-to-end path down, both ports will have at least one of the two conditions needed to suppress the

AINS-to-IS transition. Therefore, the ports will remain in the AINS state with alarms suppressed.

ESM also applies to the SONET/SDH circuits of the CE-1000-4 card. If the SONET/SDH circuit is set

up in IS,AINS state and the Ethernet error occurs before the circuit transitions to IS, then link integrity

will also prevent the circuit transition to the IS state until the Ethernet port errors are cleared at both

ends. The service state will be OOS-AU,AINS as long as the administrative state is IS,AINS. When there

are no Ethernet or SONET errors, link integrity enables the Ethernet port at each end. Simultaneously,

the AINS countdown begins as normal. If no additional conditions occur during the time period, each

port transitions to the IS-NR state. During the AINS countdown, the soak time remaining is available in

CTC and TL1. The AINS soaking logic restarts from the beginning if a condition appears again during

the soak period.

A SONET/SDH circuit provisioned in the IS,AINS state remains in the initial Out-of-Service (OOS)

state until the Ethernet ports on each end of the circuit transition to the IS-NR state. The SONET/SDH

circuit transports Ethernet traffic and counts statistics when link integrity turns on the Ethernet port,

regardless of whether this AINS-to-IS transition is complete.

RMON and SNMP Support

The CE-1000-4 card features remote monitoring (RMON) and simple network management protocol

(SNMP) that allows network operators to monitor the health of the network with a network management

system (NMS). The CE-1000-4 uses ONG RMON. ONG RMON contains the statistics, history, alarms,

and events MIB groups from the standard RMON MIB. A user can access RMON threshold provisioning

through TL1 or CTC. For RMON threshold provisioning with CTC, refer to the Cisco ONS 15454

Procedure Guide or the Cisco ONS 15454 SDH Procedure Guide.

25-6

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 25 CE-1000-4 Ethernet Operation

Statistics and Counters

The CE-1000-4 has a full range of Ethernet and POS statistics information under the Performance >

Ether Ports tabs or the Performance > POS Ports tabs.

CE-1000-4 SONET/SDH Circuits and Features

The CE-1000-4 card has four POS ports, numbered one through four, which can be managed with CTC

or TL1. Each POS port is statistically mapped to a matching Ethernet port. The CE-1000-4 card provides

a total bandwidth of STS-48c in any compatible slot within an ONS 15454 or a total bandwidth of

STM-16 in any compatible slot within an ONS 15454 SDH.

At the POS port level, you can configure several characteristics:

• Port name

• Administrative state

• Automatic in-service (AINS) soak time

• Framing type

• Encapsulation CRC

Note Encapsulation CRC can only be turned on and off (CRC or no CRC), when the framing type is configured

for GFP. When the framing type is set to HDLC, CRC is always on.

Click the card-level Provisioning > POS Ports tabs to configure the Administrative State, Framing Type,

and Encapsulation Type. Click the card-level Performance > POS Ports tab to view the statistics,

utilization, and history for the POS ports.

For specific circuit sizes and compatible card slots for the CE-1000-4 card, refer to the “Ethernet Cards”

chapter in the Cisco ONS 15454 Reference Manual or the Cisco ONS 15454 SDH Reference Manual.

CE-1000-4 VCAT Characteristics

The CE-1000-4 card supports the software link capacity adjustment scheme (SW-LCAS). This makes

the CE-1000-4 card compatible with the ONS 15454 SONET/SDH ML-Series cards, which also supports

SW-LCAS. The CE-1000-4 card does not support standard LCAS, which is hardware-based. The

CE-1000-4 also operates with no SW-LCAS enabled. In this mode, it is compatible with the ONS 15454

SONET/SDH’s G-Series card, CE-100T-8 card, and ML-Series card, when the ML-Series card is not

configured with SW-LCAS. For more information on Ethernet card compatibility, see Chapter 20, “POS

on ONS Ethernet Cards.”

To enable end-to-end connectivity in a VCAT circuit that traverses through a third-party network, you

must create a server trail between the ports. For more details, refer to the "Create Circuits and VT

Tunnels" chapter in the Cisco ONS 15454 Procedure Guide.

The CE-1000-4 card supports flexible VCAT groups (VCGs) and fixed (pure or non-flexible) VCGs.

Flexible VCG corresponds to SW-LCAS, fixed VCG corresponds to no LCAS. With flexible VCGs, the

CE-1000-4 can perform these operations:

• Add or remove members from groups

• Put members into or out of service, which also adds/removes them from the group

25-7

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 25 CE-1000-4 Ethernet Operation

CE-1000-4 POS Encapsulation, Framing, and CRC

• Add or remove cross-connect circuits from VCGs

• Automatically remove errored members from the group

Adding or removing members from the VCG is service-affecting. Adding or removing cross-connect

circuits is not service-affecting, if the asociated members are not in the group

The CE-1000-4 card also supports fixed (pure or non-flexible) VCGs. With non-flexible VCGs, the

CE-1000-4 is more limited an can only perform these operations:

• Put members into or out of service

• Add or remove cross-connect circuits associated with members

With non-flexible VCGs, the limitations of the CE-1000-4 include:

• Cannot add or remove members from groups

• Cannot automatically remove errored members from the group

The CE-1000-4 card allows independent routing and protection preferences for each member of a VCAT

circuit. The user can also control the amount of VCAT circuit capacity that is fully protected,

unprotected, or uses Protection Channel Access (PCA) (when PCA is available). Alarms are supported

on a per-member as well as per virtual concatenation group (VCG) basis.

The CE-1000-4 card supports VCAT common fiber routing and VCAT split fiber (diverse) routing.

Common fiber routing is compatible with two-fiber bidirectional line switched ring (BLSR) protection

schemes and APS. It does not support path protection and four-fiber BLSR protection schemes. Split

fiber routing supports all protection types: path protection, two-fiber BLSR, four-fiber BLSR, and linear

switching (1+1).

With VCAT split fiber routing, each member can be routed independently through the SONET/SDH

network instead of having to follow the same path as required by CCAT and VCAT common fiber

routing. This allows a more efficient use of network bandwidth, but the different path lengths and

different delays encountered may cause slightly different arrival times for the individual members of the

VCG. The VCAT differential delay is this relative arrival time measurement between members of a

VCG. The maximum tolerable VCAT split fiber routing differential delay for the CE-1000-4 card is

approximately 120 milliseconds. A loss of alignment alarm is generated if the maximum differential

delay supported is exceeded.

The differential delay compensation function is automatically enabled when the user chooses split fiber

routing during the CTC circuit configuration process. CCAT and VCAT common fiber routing do not

enable or need differential delay support.

Caution Protection switches of less than 60ms are not guaranteed with the differential delay compensation

function enabled. The compensation time is added to the switching time.

Note For TL-1, EXPBUFFERS parameter must be set to ON in the ENT-VCG to enable support for split fiber

routing.

CE-1000-4 POS Encapsulation, Framing, and CRC

The CE-1000-4 card uses Cisco EoS LEX (LEX). LEX is the primary encapsulation of ONS Ethernet

cards. In this proprietary HDLC-based encapsulation, the protocol field is set to the values specified in

Internet Engineering Task Force (IETF) Request For Comments (RFC) 1841.

25-8

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 25 CE-1000-4 Ethernet Operation

CE-1000-4 Loopback, J1 Path Trace, and SONET/SDH Alarms

The user can provision framing on the CE-1000-4 as either the default frame-mapped generic framing

procedure framing (GFP-F) or high-level data link control (HDLC) framing.

With GFP-F framing, the user can also configure a 32-bit CRC (default) or no CRC (none). When LEX

is used over GFP-F it is standard Mapped Ethernet over GFP-F according to ITU-T G.7041.

HDLC framing provides a set 32-bit CRC. On CTC go to CE card view and click the Provisioning >pos

ports tab, to see the various parameters that can be configured on the POS ports, see “Table 2-3CTC

Display of POS Port Provisioning Status” task on page 2-3. Various parameters like, admin state, service

state, framing type, CRC , MTU and soak time for a port can be configured here .

For more details about the interoperability of ONS Ethernet cards, including information on

encapsulation, framing, and CRC, see the “POS on ONS Ethernet Cards” chapter.

CE-1000-4 Loopback, J1 Path Trace, and SONET/SDH Alarms

The CE-1000-4 card supports terminal and facility loopbacks. It also reports SONET/SDH alarms and

transmits and monitors the J1 Path Trace byte in the same manner as OC-N cards. Support for path

termination functions include:

• H1 and H2 concatenation indication

• Bit interleaved parity 3 (BIP-3) generation

• G1 path status indication

• C2 path signal label (read only)

• Path level alarms and conditions, including loss of pointer (LOP), unequipped, payload mismatch,

alarm indication signal (AIS) detection, and remote defect indication (RDI)

• J1 path trace for high-order circuit paths

• Extended signal label for the low-order paths

CHAPTER

26-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Configuring IEEE 802.17b Resilient Packet Ring

Note The terms "Unidirectional Path Switched Ring" and "UPSR" may appear in Cisco literature. These terms

do not refer to using Cisco ONS 15xxx products in a unidirectional path switched ring configuration.

Rather, these terms, as well as "Path Protected Mesh Network" and "PPMN," refer generally to Cisco's

path protection feature, which may be used in any topological network configuration. Cisco does not

recommend using its path protection feature in any particular topological network configuration.

This chapter describes the IEEE 802.17b-based resilient packet ring (RPR-IEEE) and how to configure

it on the ML-Series card.

This chapter contains the following major sections:

• Understanding RPR-IEEE, page 26-1

• Configuring RPR-IEEE Characteristics, page 26-6

• Configuring RPR-IEEE Protection, page 26-8

• Configuring QoS on RPR-IEEE, page 26-17

• Configuration Example for RPR-IEEE QoS, page 26-21

• Verifying and Monitoring RPR-IEEE, page 26-22

• Configuring RPR-IEEE End-to-End, page 26-30

• Verifying RPR-IEEE End-to-End Ethernet Connectivity, page 26-37

• Understanding Redundant Interconnect, page 26-37

Understanding RPR-IEEE

RPR, as described in IEEE 802.17, is a metropolitan area network (MAN) technology supporting data

transfer among stations interconnected in a dual-ring configuration. The IEEE 802.17b spatially aware

sublayer amendment is not yet ratified but is expected to add support for bridging to IEEE 802.17. Since

the amendment is not yet ratified, no equipment is currently IEEE 802.17b compliant. The ML-Series

card’s RPR-IEEE is based on the expected IEEE 802.17b based standard.

The ML-Series card supports RPR-IEEE. RPR-IEEE is well suited for transporting Ethernet over a

SONET/SDH ring topology and enables multiple ML-Series cards to become one functional network

segment. When used in this role, RPR-IEEE overcomes the limitations of earlier schemes, such as

IEEE 802.1D Spanning Tree Protocol (STP), IEEE 802.1W Rapid Spanning Tree Protocol (RSTP), and

SONET/SDH.

26-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

RPR-IEEE Features on the ML-Series Card

Note Throughout this book, Cisco proprietary RPR is referred to as Cisco proprietary RPR, and

IEEE 802.17b-based RPR is referred to as RPR-IEEE. This chapter covers RPR-IEEE. Chapter 17,

“Configuring Cisco Proprietary Resilient Packet Ring” covers Cisco Proprietary RPR.

RPR-IEEE Features on the ML-Series Card

See the “ML-Series Feature List” section on page 1-2 for a list of the ML-Series card’s supported and

non-supported features based on the expected IEEE 802.17b.

Advantages of RPR-IEEE

In Software Release 7.2 and later, the ML-Series card supports RPR-IEEE in addition to Cisco

proprietary RPR. Some of the advantages of RPR-IEEE include:

• Steering. Ring protection is accomplished through steering instead of wrapping. Steering is a more

efficient way of routing around a failure.

• Dual-transit queues. Dual-transit queues offer more control in handling transit traffic.

• Best-effort traffic classifications. “Best Effort” and “EIR” traffic classifications improve

distribution of traffic across a best-effort service class.

• Interoperability. Conformance to the expected IEEE 802.17b standard increases interoperability

with third-party vendors.

• Built-in service provider support. RPR-IEEE provides built-in operations, administration, and

maintenance (OAM) support for service provider environments.

• Fairness. Fairness allows all the stations on the ring to fairly share the RPR-IEEE’s best-effort

bandwidth.

Role of SONET/SDH Circuits

The ML-Series cards in an RPR-IEEE must connect directly or indirectly through point-to-point

synchronous transport signal/synchronous transport module (STS/STM) circuits. The point-to-point

STS/STM circuits are configured on the ONS node through Cisco Transport Controller (CTC) or

Transaction Language One (TL1) and are transported over the ONS node’s SONET/SDH topology on

either protected or unprotected circuits.

On circuits unprotected by the SONET/SDH mechanism, RPR-IEEE provides resiliency without using

the capacity of the redundant protection path that a SONET/SDH protected circuit would require. This

frees this capacity for additional traffic. RPR-IEEE also utilizes the bandwidth of the entire ring and does

not block segments like STP or RSTP.

26-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

RPR-IEEE Framing Process

An RPR-IEEE is made up of dual counter-rotating rings (ringlets), one for clockwise or west data traffic

and one for counter-clockwise or east data traffic. The ringlets are identified as Ringlet 0 and Ringlet 1

in Figure 26-1. The west ringlet traffic is transmitted out the west interface and received by the east

interface. The east ringlet traffic is transmitted out the east interface and received by the west interface.

Only east-to-west or west-to-east transmission schemes are allowed.

Figure 26-1 Dual-Ring Structure

RPR-IEEE Framing Process

The ML-Series card transports data around the RPR-IEEE through packet-over-SONET/SDH (POS)

circuits. With POS, the RPR-IEEE frame is encapsulated into the SONET/SDH payload for transport

over the SONET/SDH topology. For more information about POS, see Chapter 20, “POS on ONS

Ethernet Cards.”

Figure 26-2 illustrates the IEEE 802.17 basic data frame for IP only networks and the expected

IEEE 802.17b extended data frame used with bridging. The extended data frame adds an extended

destination address and extended source address to the basic data frame.

Ringlet 1 (east)

Ringlet 0 (west)

151963

26-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

RPR-IEEE Framing Process

Figure 26-2 RPR-IEEE Data Frames

Table 26-1 defines the most important fields in the RPR-IEEE data frame.

1TTL to Dest

Base Control

FCS

Service Data Unit

Protocol Type

MAC da

TTL Base

MAC sa

Extended Control

hec

Header

Payload

Trailer

TTL to Dest

Base Control

Protocol Type

Extended SA

Extended DA

MAC da

TTL Base

MAC sa

Extended Control

hec

FCS

Service Data Unit

Header

Payload

Trailer

Basic Data Frame

Extended Data Frame

151965

Table 26-1 Definitions of RPR-IEEE Frame Fields

Field Definition

MAC Destination Address

(MAC da)

A forty-eight-bit field specifying the destination as a multicast MAC

address or the MAC address of a specific ML-Series card in the

RPR-IEEE.

MAC Source Address (MAC sa) A fourth-eight-bit field specifying the MAC address of a specific

ML-Series card in the RPR-IEEE as the source.

Base Control A field that includes the ring indicator (RI) bit, the fairness eligible

(FE) bit, the frame type (FT) bit, and the service class (SC) bit.

TTL Base A field that contains the time to live (TTL) setting. The sending station

sets the TTL, which remains unchanged for the life of the packet.

Extended Control A field that contains the flood indicator (FI) bit and the strict order

(SO) bit.

Extended DA A forty-eight-bit field specifying the MAC address of the ultimate

destination.

Extended SA A forty-eight-bit field specifying the MAC address of the ultimate

source.

26-5

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

RPR-IEEE Framing Process

Figure 26-3 illustrates the RPR-IEEE topology and protection control frame. Topology and protection

(TP) frames are usually sent to the broadcast address.

Figure 26-3 Topology and Protection Control Frame Formats

Figure 26-4 illustrates the RPR-IEEE fairness frame. Fairness frames are sent either to all stations or

only the nearest neighbor depending on whether it is a single-choke fairness frame (SCFF) or

multi-choke fairness frame (MCFF). Fairness frames are included in the total bandwidth of the QoS A0

service class. This eliminates the need for a destination address (DA). The MCFF type also includes an

additional frequency division duplexing (FDD) frame to help smooth the fairness variation. The field SA

Compact is the address of the station providing the fair rate.

Note The ML-Series card supports multi-choke fairness frames from other stations on the RPR-IEEE. The

ML-Series card does not generate these frames.

151967

Payload

Trailer

Control Version1

FCS

Control Data Unitn

Control Type1

1TTL to Dest

Base Control

MAC da

TTL Base

MAC sa

Extended Control

hec

Header

26-6

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

CTM and RPR-IEEE

Figure 26-4 Fairness Frame Format

For comparison of RPR-IEEE frames and Cisco proprietary RPR frames, see the “Cisco Proprietary RPR

Framing Process” section on page 17-5 for Cisco proprietary RPR framing information.

CTM and RPR-IEEE

Cisco Transport Manager (CTM) is an element management system (EMS) designed to integrate into an

overall network management system (NMS) and interface with other higher level management tools.

CTM supports RPR-IEEE provisioning on ML-Series cards. For more information, refer to the

Cisco Transport Manager User Guide at:

http://www.cisco.com/en/US/products/sw/opticsw/ps2204/products_user_guide_list.html

Configuring RPR-IEEE Characteristics

Configuration tasks for RPR-IEEE characteristics are presented in the following sections:

• General characteristics:

–

Configuring the Attribute Discovery Timer, page 26-7

–

Configuring the Reporting of SONET Alarms, page 26-7

–

Configuring BER Threshold Values, page 26-8

• Protection characteristics:

–

Configuring the Hold-off Timer, page 26-9

–

Configuring Jumbo Frames, page 26-10

–

Configuring Forced or Manual Switching, page 26-11

–

Configuring Protection Timers, page 26-12

–

Configuring the Wait-to-Restore Timer, page 26-13

–

Configuring a Span Shutdown, page 26-14

–

Configuring Keepalive Events, page 26-14

• QoS characteristics:

–

Configuring Traffic Rates for Transmission, page 26-18

151966

Payload

Trailer

Fairness Header

SA Compact

Base Control1

FCS

Fair Rate2

TTL1

Header

26-7

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Configuring the Attribute Discovery Timer

–

Configuring Fairness Weights, page 26-19

–

Configuring RPR-IEEE Service Classes Using the Modular QoS CLI, page 26-19

Configuring the Attribute Discovery Timer

Because station attributes are communicated separately from topology and protection packets, there is a

separate timer to control the frequency at which these packets are sent. Attribute propagation is therefore

determined by the attribute discovery (ATD) timer. The default rate is one packet per second for each

ringlet.

Note Configure both ringlets with the same value.

To enable and configure the ATD, perform the following procedure, beginning in global configuration

mode:

Configuring the Reporting of SONET Alarms

The ML-Series card reports SONET/SDH alarms through the CTC alarm panel in the same manner as

other ONS cards. The ML-Series card can also report SONET/SDH alarms through the Cisco IOS

command-line interface (CLI). Configuring CTC reporting does not affect Cisco IOS CLI reporting or

vice-versa.

Command Purpose

Step 1 Router(config)# interface rpr-ieee 0 Activates interface configuration mode to

configure the RPR-IEEE interface.

Step 2 Router(config-if)# rpr-ieee atd-timer

seconds

Specifies the time, in seconds, within which one

station attributes packet is sent for each ringlet.

The default is one packet for each ringlet per

second.

Step 3 Router(config)# no shut Enables the RPR-IEEE interface and changes the

mode from the default passthrough.

Step 4 Router(config)# end Returns to privileged EXEC mode.

Step 5 Router# copy running-config startup-config (Optional) Saves configuration changes to the

TCC2/TCC2P flash database.

26-8

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Configuring BER Threshold Values

To configure the reporting of SONET/SDH alarms on the Cisco IOS CLI, perform the following

procedure, beginning in global configuration mode:

Configuring BER Threshold Values

To configure BER threshold values for various alarms on an RPR-IEEE interface, refer to the

“DLP-A533 Create Ethernet RMON Alarm Thresholds” task in the Cisco ONS 15454 Procedure Guide

or to the “DLP-D441 Create Ethernet RMON Alarm Thresholds” task in the Cisco ONS 15454 SDH

Procedure Guide.

Configuring RPR-IEEE Protection

RPR-IEEE has three protection states:

• Closed—This is the normal steady state. Data traffic is traveling around the RPR-IEEE on both

Ringlet 0 and Ringlet 1. Figure 26-1 on page 26-3 illustrates this state.

• Open—This is the state after a protection event. A protection event, such as a fiber cut or node

failure, triggers a change in the ring topology. Each node responds to the new topology by steering.

Steering forwards data traffic so that it avoids the failure. Based on the type of failure, it will avoid

either a specific span or a node and its two adjoining spans. Figure 26-5 illustrates this state.

• Passthrough—This is the initial state of the RPR-IEEE node. It does not participate in the topology

and blindly forwards frames.

Command Purpose

Step 1 Router(config)# interface rpr-ieee 0 Activates interface configuration mode to

configure the RPR-IEEE interface.

Step 2 Router(config-if)# rpr-ieee report {all |

ptim | puneq | sd-ber-b3 | sf-ber-b3} [east

| west]

Enables reporting of specific SONET/SDH alarms

on the Cisco IOS CLI. The default is to report all

alarms on both the east and west ringlet.

(Optional) You can also specify the east or west

ringlet.

Step 3 Router(config)# no shut Enables the RPR-IEEE interface and changes the

mode from the default passthrough.

Step 4 Router(config)# end Returns to privileged EXEC mode.

Step 5 Router# copy running-config startup-config (Optional) Saves configuration changes to the

TCC2/TCC2P flash database.

26-9

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Configuring the Hold-off Timer

Figure 26-5 Each RPR-IEEE Node Responding to a Protection Event by Steering

You can modify many of the RPR-IEEE protection characteristics with the procedures in the following

sections.

Configuring the Hold-off Timer

You can delay the protection response to a failure event, such as a signal failure or signal degradation,

with the hold-off timer. When spans fail, the RPR protection switch may be triggered either by the

SONET/SDH error, or by RPR keepalive failure, whichever is detected first. The RPR protection switch

can be delayed by changing the Hold-off timer and the RPR keepalive-timer. These should be configured

according to the type of circuit

• If the TDM circuit is unprotected, then both these timers should be left at their default values. No

extra configuration is required in this case.

• When the TDM circuit is protected (e.g., path protection or BLSR), the RPR protection switch

should be delayed till the protection-switch at the TDM level has finished.

–

For example : If it takes 60ms for the TDM protection switch to complete. Then both the hold

off timer and the RPR keepalive timer must be configured higher than 60 milliseconds. If either

of these timers is left at its default value, then it will trigger the RPR protection before TDM

protection is over.

Caution It TDM protection is configured along with RPR, and if the RPR protection switch kicks in before the

TDM protection switch over is complete, the system behavior is unpredictable/unstable.

Ringlet 1 (east)

Ringlet 0 (west)

151970

fiber break

steering

26-10

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Configuring Jumbo Frames

To enable and configure the hold-off timer, perform the following procedure, beginning in global

configuration mode:

Configuring Jumbo Frames

You can configure the interface to support jumbo frames. The jumbo setting specifies that the station

support a maximum transfer unit (MTU) of up to 9100 bytes.

Caution For jumbo frame support, you must configure all the stations on the ring to support jumbo frames.

Command Purpose

Step 1 Router(config)# interface rpr-ieee 0 Activates interface configuration mode to

configure the RPR-IEEE interface.

Step 2 Router(config-if)# rpr-ieee protection

sonet holdoff-timer time [east | west]

Specifies the delay before a protection response is

sent. Values range from 0 to 20, in units of 10

milliseconds. The default is 0.

(Optional) You can also specify the east or west

ringlet.

Caution When using SW-LCAS on the

RPR-IEEE, the addition or deletion of a

SW-LCAS member circuit causes a

traffic hit with a maximum of 50 msec.

The holdoff timer requires a value

greater than 5 (50 msec) or the

SW-LCAS addition or deletion triggers

a protection response

Step 3 Router(config)# no shut Enables the RPR-IEEE interface and changes the

mode from the default passthrough.

Step 4 Router(config)# end Returns to privileged EXEC mode.

Step 5 Router# copy running-config startup-config (Optional) Saves configuration changes to the

TCC2/TCC2P flash database.

26-11

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Configuring Forced or Manual Switching

To enable and configure Jumbo frames, perform the following procedure, beginning in global

configuration mode:

Configuring Forced or Manual Switching

You can request certain protection states to take effect manually on either span of the interface to avoid

link usage or in anticipation of failures.

Command Purpose

Step 1 Router(config)# interface rpr-ieee 0 Activates interface configuration mode to

configure the RPR-IEEE interface.

Step 2 Router(config-if)# rpr-ieee protection pref

jumbo

Enables jumbo frame capability on the RPR-IEEE

interface:

jumbo—Enables handling of frames in excess of

the standard size, up to a maximum size of 9100

bytes. A jumbo-enabled station changes the

interface MTU to 9100 bytes if all stations in the

ring are jumbo enabled. A message is generated to

indicate that the ring supports jumbo frames when

all stations are configured for this preference.

The default is to not support jumbo frames.

Step 3 Router(config)# no shut Enables the RPR-IEEE interface and changes the

mode from the default passthrough.

Step 4 Router(config)# end Returns to privileged EXEC mode.

Step 5 Router# copy running-config startup-config (Optional) Saves configuration changes to the

TCC2/TCC2P flash database.

26-12

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Configuring Protection Timers

To enable and configure forced or manual switching, perform the following procedure, beginning in

global configuration mode:

Configuring Protection Timers

Protection messages are sent based on the intervals of two timers. These timers apply under different

circumstances:

• Fast timer—Immediately after a protection event occurs, a fast protection timer is used. This timer

is configured between 1 and 20 milliseconds to cause a rapid acknowledgement of the protected state

on the ring. A finite number of packets are sent at this frequency after the event. The default for this

timer is 10 milliseconds.

• Slow timer—Between protection events, the slow timer communicates the current protection state

of the ring. This timer is configured from 1 to 10 in units of 100 milliseconds. The default is 10,

which represents 100 milliseconds.

The protection timers are configured the same on both spans of an interface.

Command Purpose

Step 1 Router(config)# interface rpr-ieee 0 Activates interface configuration mode to

configure the RPR-IEEE interface.

Step 2 Router(config-if)# rpr-ieee protection

request {forced-switch | manual-switch}

{east | west}

Specifies that a switch take place on the interface:

forced-switch—Precedes all other failure events

on a ring for the span on which it is configured.

The operation protects the span indicated by the

command. In the case of steering, forwarding uses

only the topology list for the opposite span. A

forced switch is saved in the configuration.

manual-switch—Behaves similarly to a forced

switch, in that it coerces a reaction from the

protection system. The difference is that this

configuration can be usurped by higher-level

requests detected on the configured or the opposite

span. A manual switch is not saved in the

configuration. Configuring a manual Swich on a

span that has a forced switch configured wiil clear

the forced switch.

Note When a manual switch is configured, it

will neither display in the running

configuration nor save to the startup

configuration.

You must specify whether the switch is to take

place on the east or west ringlet.

Step 3 Router(config)# no shut Enables the RPR-IEEE interface and changes the

mode from the default passthrough.

Step 4 Router(config)# end Returns to privileged EXEC mode.

Step 5 Router# copy running-config startup-config (Optional) Saves configuration changes to the

TCC2/TCC2P flash database.

26-13

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Configuring the Wait-to-Restore Timer

To enable and configure the protection timers, perform the following procedure, beginning in global

configuration mode:

Configuring the Wait-to-Restore Timer

When the failure is fixed, a wait-to-restore timer defines how long before the span reverts to its original

state. This timer protects against false negatives in the detection of the failure status, which can avoid

protection-flapping through the use of larger values. Smaller values result in faster recovery times,

however. This timer can be configured between 0 and 1440 seconds, or configured to not recover

automatically. The default for the timer is 10 seconds.

To enable and configure the wait-to-restore timer, perform the following procedure, beginning in global

configuration mode:

Command Purpose

Step 1 Router(config)# interface rpr-ieee 0 Activates interface configuration mode to

configure the RPR-IEEE interface.

Step 2 Router(config-if)# rpr-ieee protection

timer {fast time | slow time}

Specifies the value of the fast or slow protection

timer:

fast—Ranges from 1 to 20 milliseconds. The

default is 10.

slow—Ranges from 1 to 10 in units of

100 milliseconds. The default is 1

(100 milliseconds).

Step 3 Router(config)# no shut Enables the RPR-IEEE interface and changes the

mode from the default passthrough.

Step 4 Router(config)# end Returns to privileged EXEC mode.

Step 5 Router# copy running-config startup-config (Optional) Saves configuration changes to the

TCC2/TCC2P flash database.

Command Purpose

Step 1 Router(config)# interface rpr-ieee 0 Activates interface configuration mode to

configure the RPR-IEEE interface.

Step 2 Router(config-if)# rpr-ieee protection

wtr-timer {time | never}

Specifies the value of the wait-to-restore timer:

time—Ranges from 0 to 1440 seconds. The default

is 10.

never—Specifies that protection is never restored

(no revert mode).

Step 3 Router(config)# no shut Enables the RPR-IEEE interface and changes the

mode from the default passthrough.

Step 4 Router(config)# end Returns to privileged EXEC mode.

Step 5 Router# copy running-config startup-config (Optional) Saves configuration changes to the

TCC2/TCC2P flash database.

26-14

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Configuring a Span Shutdown

The rpr-ieee shutdown command performs the same task as the rpr-ieee protection request

forced-switch command.

To cause a forced switch on the span of the interface, perform the following procedure, beginning in

global configuration mode:

Configuring Keepalive Events

A station receives fairness messages from a link to determine its status. When the number of

milliseconds that pass without receiving a fairness message from the neighboring stations exceeds a

specified timer, a keepalive event is triggered. The keepalive event generates a protection event.

The timer can have a different value on each span and must be greater than or equal to the hold-off timer.

This feature is independent of the fairness algorithm itself, but is still a function performed by the

fairness machine.

The RPR protection switch can be delayed by changing the Hold-off timer and the RPR keepalive-timer.

These should be configured according to the type of circuit

• If the TDM circuit is unprotected, then both these timers should be left at their default values. No

extra configuration is required in this case.

• When the TDM circuit is protected (e.g., path protection or BLSR), the RPR protection switch

should be delayed till the protection-switch at the TDM level has finished.

–

For example : If it takes 60ms for the TDM protection switch to complete. Then both the hold

off timer and the RPR keepalive timer must be configured higher than 60 milliseconds. If either

of these timers is left at its default value, then it will trigger the RPR protection before TDM

protection is over.

Caution If TDM protection is configured along with RPR, and if the RPR protection switch kicks in before the

TDM protection switch over is complete, the system behavior is unpredictable/unstable.

Command Purpose

Step 1 Router(config)# interface rpr-ieee 0 Activates interface configuration mode to

configure the RPR-IEEE interface.

Step 2 Router(config-if)# rpr-ieee shutdown {east

| west}

Causes a forced switch on a specified span of the

interface.

Step 3 Router(config)# end Returns to privileged EXEC mode.

Step 4 Router# copy running-config startup-config (Optional) Saves configuration changes to the

TCC2/TCC2P flash database.

26-15

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Configuring Triggers for CRC Errors

To enable and configure the keepalives, perform the following procedure, beginning in global

configuration mode:

Configuring Triggers for CRC Errors

You can configure a span shutdown when the ML-Series card receives CRC errors at a rate that exceeds

the configured threshold and configured soak time.

Command Purpose

Step 1 Router(config)# interface rpr-ieee 0 Activates interface configuration mode to

configure the RPR-IEEE interface.

Step 2 Router(config-if)# rpr-ieee keepalive-timer

milliseconds [east | west]

Specifies the amount of time that can pass before

a keepalive event is triggered after not receiving a

fairness message from a neighboring station.

Values range from 2 to 200 milliseconds. The

default is 3 milliseconds.

(Optional) You can also specify the east or west

ringlet.

Step 3 Router(config)# no shut Enables the RPR-IEEE interface and changes the

mode from the default passthrough.

Step 4 Router(config)# end Returns to privileged EXEC mode.

Step 5 Router# copy running-config startup-config (Optional) Saves configuration changes to the

TCC2/TCC2P flash database.

26-16

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Configuring Triggers for CRC Errors

To enable and configure the triggers for CRC errors, perform the following procedure, beginning in

global configuration mode:

Command Purpose

Step 1 Router(config)# interface rpr-ieee 0 Activates interface configuration mode to

configure the RPR-IEEE interface.

Step 2 Router(config-if)# trigger crc-error

threshold crc-error-rate {east | west |

<cr>}

Configures the threshold for the CRC errors on the

RPR-IEEE span. The threshold is the percentage

of received, continously CRC-errored frames

required during the delay period (soak time).

When the threshold is crossed, the excessive crc

alarm is declared. This also triggers the CRC error

action, if one is configured.

For crc-error-rate, specify the CRC packet

error rate variable in the range from 2 to 4. The

error rate variable corresponds to the CRC error

rate as a percentage of traffic.

• 2 is 10e-2 or 1% of traffic (1 CRC error in100

frames).

• 3 is 10e-3 or 0.1% of traffic. (1 CRC error

in1000 frames).

• 4 is 10e-4 or 0.01% of traffic (1 CRC error

in10000 frames).

The default threshold is 3.

(Optional) You can also specify the east or west

ringlet.

Step 3 Router(config-if)# trigger crc-error action

{east | west | <cr>}

Specifies whether excessive CRC errors shut down

the span. The default is for excessive CRC errors

not to shut down the span.

(Optional) You can also specify the east or west

ringlet.

Caution The user must configure both spans to

shut down on receiving excessive CRC

errors. With the default behavior of both

spans not shutting down, network

problems can occur if the ML-Series

card receives signal degrade (SD) while

in passthrough mode.

Step 4 Router(config-if)# trigger crc-error delay

soak-minutes {east | west | <cr>}

(Optional) Sets the number of minutes that CRC

errors must exceed the threshold (soak) before an

action is taken. For soak-minutes, the range is

from 3 minutes to 10 minutes. The default is 10

minutes.

(Optional) You can also specify the east or west

ringlet.

26-17

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Configuring QoS on RPR-IEEE

The different priorities of traffic can be configured with rate limiters and prescribed specific bandwidths.

This configuration on each span might be identical (default) or might vary from the other span.

The highest-priority traffic, known as service class A0, can reserve a portion of total ringlet bandwidth

using the reserved keyword. This reservation is propagated throughout the ringlet, and all stations

recognize the bandwidth allocation cumulatively. Reserved A0 ba802.17 RPR defines 3 service classes,

each with unique QOS characteristics.

1. Class A

2. Class B

3. Class C

With this different priorities of traffic can be configured with rate limiters and prescribed specific

bandwidths. This configuration on each span might be identical (default) or might vary from the other

span.

Class A

Class A is highest priority, lowest latency, and lowest jitter class . A has two types - A0 and A1. Can

reserve a portion of the ringlet bandwidth using "reserve" keyword. This bandwidth is known as A0

bandwidth. The A0 bandwidth can only be used for classA traffic. Any Reserved bandwidth that is

unused will remain unused on the ring, Reserved bandwidth is therefore expensive because it reduces

the bandwidth available for best effort. This reservation is propagated throughout the ringlet, and all RPR

stations recognize the bandwidth allocation cumulatively. Reserved A0 bandwidth can be used only by

the station that reserves it. The default allocation is 0 Mbps. The unreserved classA bandwidth is called

the A1 bandwidth. Service class A1 is configured as high-priority traffic in excess of the A0 bandwidth

reservation, and can be rate-limited using the high tx-traffic rate limiter. The default allocation for A1 is

5 Mbps.

ClassB

This is the medium traffic priority. Lower priority than classA, but higher priority than classC. The

medium transmit traffic rate limiter allows a certain amount of traffic to be added to the ringlet that is

not subject to fairness eligibility, but must compete for the unreserved bandwidth with other traffic of

the same service class. This traffic is committed information rate (B-CIR) traffic. The default allocation

is 10 Mbps.

Step 5 Router(config)# no shut Enables the RPR-IEEE interface and changes the

mode from the default passthrough.

Step 6 Router(config)# end Returns to privileged EXEC mode.

Step 7 Router# copy running-config startup-config (Optional) Saves configuration changes to the

TCC2/TCC2P flash database.

Command Purpose

26-18

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

ClassC

This is the lowest traffic priority. Class C cannot allocate any ring bandwidth guarantees

MQC -IEEE RPR CLI Characteristics

• IEEE-RPR classes are applicable to both front end and RPR-IEEE interfaces.

• A MQC class in a policy map can be mapped to one of the RPR classes using "set rpr-ieee service

class". By default the MQC class maps to IEEE-RPR class C.

• RPR classes B and C support Weighted Round Robin scheduling for multiple MQC classes mapping

to RPR class A and B. MQC classes mapped to RPR class A gets mapped to one stream, while each

MQC class mapped to RPR class B or C gets mapped to a seperate stream.

• The "Bandwidth percent" action is supported for MQC classes mapping to RPR class B and C. The

bandwidth percent for these MQC classes defines the proportion of b/w these class B and C stream

will get, out of total b/w available to class B and C (whatever remains after class A traffic) . Both

these RPR classes allow 100% each. Trying to assign more than 100% will be rejected with an error .

• The MQC class mapped to IEEE RPR class B or C with no explicit "bandwidth percent" configured

gets a default 7% bandwidth.

•Bandwidth absolute/ percent action is not supported on rpr-ieee interfaces but only on Gig/Fast

Ethernet interfaces.

Configuring Traffic Rates for Transmission

To enable and configure the traffic rates, perform the following procedure, beginning in global

configuration mode:

Command Purpose

Step 1 Router(config)# interface rpr-ieee 0 Activates interface configuration mode to

configure the RPR-IEEE interface.

Step 2 Router(config-if)# rpr-ieee tx-traffic

rate-limit {reserved | high | medium} rate

[east | west]

Specifies a rate limit on a traffic queue. The

allowable rate depends on the speed of the

interface.

reserved—Reserves bandwidth for the highest

priority traffic, known as service class A0. The

default allocation is 0 Mbps.

high—Limits the rate of service class A1. The

default allocation is 10 Mbps.

medium—Limits the rate of service class B-CIR.

The default allocation is 10 Mbps.

(Optional) Specify the east or west ringlet.

Step 3 Router(config)# no shut Enables the RPR-IEEE interface and changes the

mode from the default passthrough.

26-19

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Configuring Fairness Weights

RPR-IEEE has a configurable fairness system, used to control congestion on each ringlet. This feature

moderates bandwidth utilization of the ringlet to minimize and potentially eliminate starvation of any

station. Each station has two instances of the fairness machine, to control traffic that is being transmitted

and transited out of each span of the interface. Each fairness machine is devoted to a particular ringlet,

and controls the traffic that is destined to that ringlet.

Each ringlet in an unwrapped ring is independent, and the fairness configuration can differ for each

direction. The default is to configure both directions, but you can optionally specify east or west in the

configuration.

The local station weight impacts how congested the station appears relative to other stations in the

ringlet. It also affects how much more bandwidth a station can use. A higher weight gives the local

station a greater share of the ringlet bandwidth. A lower weight decreases the bandwidth share of the

local station. The default value is 0 configured as an exponent of 2, which yields an effective weight of 1.

To enable and configure the fairness weight, perform the following procedure, beginning in global

configuration mode:

Configuring RPR-IEEE Service Classes Using the Modular QoS CLI

Traffic is directed to the three service classes supported by RPR-IEEE by using the standard Cisco

Modular QoS CLI (MQC). MQC is a CLI structure that allows you to create traffic policies and attach

these policies to interfaces. A traffic policy contains a traffic class and one or more QoS features. A

traffic class classifies traffic, while the QoS features in the traffic policy determine how to treat the

classified traffic.

For more information on general MQC configuration, refer to the following Cisco IOS documents:

Step 4 Router(config)# end Returns to privileged EXEC mode.

Step 5 Router# copy running-config startup-config (Optional) Saves configuration changes to the

TCC2/TCC2P flash database.

Command Purpose

Step 1 Router(config)# interface rpr-ieee 0 Activates interface configuration mode to

configure the RPR-IEEE interface.

Step 2 Router(config-if)# rpr-ieee fairness weight

weight [east | west]

Specifies the weight for a station on the ringlet.

Values can range from 0 to 7 and are configured as

an exponent of 2, which results in weights ranging

from 1 to 128. The default value is zero.

(Optional

Step 3 Router(config)# no shut Enables the RPR-IEEE interface and changes the

mode from the default passthrough.

Step 4 Router(config)# end Returns to privileged EXEC mode.

Step 5 Router# copy running-config startup-config (Optional) Saves configuration changes to the

TCC2/TCC2P flash database.

26-20

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Configuring RPR-IEEE Service Classes Using the Modular QoS CLI

• Cisco IOS Quality of Service Solutions Configuration Guide, Release 12.2 at this URL:

http://www.cisco.com/univercd/cc/td/doc/product/software/ios122/122mindx/l22index.htm

• Cisco IOS Quality of Service Solutions Command Reference, Release 12.2 at this URL:

http://www.cisco.com/univercd/cc/td/doc/product/software/ios122/122cgcr/fqos_r/index.htm

Caution The cos priority-mcast command is not supported under RPR-IEEE on the ML-Series card or accepted.

The command incorrectly shows as an option under the Cisco IOS CLI.

Caution In IEEE-RPR mode if additional class maps are added to a policy map and associated the policy map with a

output interface even if no bandwidth is reserved explicitly, by default 7% bw is allocated and once the

bandwidth reaches more thant 100% further class-map configuration on that policy-map is rejected.

To enable and configure the RPR-IEEE service classes with the MQC, perform the following procedure,

beginning in global configuration mode:

Command Purpose

Step 1 Router(config)# class-map match-any

class-name

Specifies the user-defined name of the traffic class

and the logical OR operator for all matching

statements under this traffic class.

Step 2 Router(config)# match ip precedence

{ip-precedence-value |

ip-precedence-traffic-label}

Specifies an IP precedence value (0 to 7) used as

match criteria or specifies an IP precedence traffic

label.

Each value variable is mapped to a specific label

variable. Entering the command with a ? in place

of the ip-precedence-value |

ip-precedence-traffic-label variable reveals

the labels and their corresponding values.

Step 3 Router(config)# exit Exits class mode.

Step 4 Router(config)# policy-map policy-name Specifies the name of the service policy to

configure. Service policies link the configured

class maps to Layer 2 traffic priorities, or in this

case, the three service classes of RPR-IEEE.

Note An assignment has to be constructed for

each class map.

Step 5 Router(config)# class class-name Specifies the name of a predefined class, which

was defined with the class-map command, to be

included in the service policy.

Note Each of the three RPR-IEEE classes must

be configured as described in this

procedure.

Step 6 Router(config)# set rpr-ieee service-class

{a | b | c}

Specifies the appropriate RPR-IEEE service class

for the class. The three classes correspond to each

of the three RPR-IEEE service classes. Only one

service class can be configured for each MQC

class.

26-21

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Configuration Example for RPR-IEEE QoS

The following sample configurations are for RPR-IEEE QoS. Example 26-1 details a simple QoS

configuration. Example 26-7 details a more complex configuration. The configuration on your network

will differ based on your network design.

Configuration Example Using MQC to Configure Simple RPR-IEEE QoS

The following is an example of the configuration process for the three RPR-IEEE service classes:

Example 26-1 Configuration Example for a Simple RPR-IEEE QoS Configuration

class-map match-any DataHi

match cos 2 3 4

class-map match-any Control

match cos 5 6 7

policy-map EgrNNI

class Control

set rpr-ieee service-class a

class DataHi

set rpr-ieee service-class b

class class-default

set rpr-ieee service-class c

interface RPR-IEEE0

no ip address

rpr-ieee protection pref jumbo

rpr-ieee tx-traffic rate-limit high 100 east

rpr-ieee tx-traffic rate-limit high 100 west

rpr-ieee tx-traffic rate-limit medium 200 east

rpr-ieee tx-traffic rate-limit medium 200 west

service-policy output EgrNNI

Configuration Example Using MQC to Configure Complex RPR-IEEE QoS

The following is an example of a more complex RPR-IEEE QoS configuration:

Example 26-2 Configuration Example for a Complex RPR-IEEE

class-map match-all classA

match bridge-group 22

Step 7 Router(config)# exit Exits class mode.

Step 8 Router(config)# no shut Enables the RPR-IEEE interface and changes the

mode from the default passthrough.

Step 9 Router(config)# end Returns to privileged EXEC mode.

Step 10 Router# copy running-config startup-config (Optional) Saves configuration changes to the

TCC2/TCC2P flash database.

Command Purpose

26-22

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Verifying and Monitoring RPR-IEEE

policy-map EgrNNI

class classA

set rpr-ieee service-class a

class class-default

set rpr-ieee service-class c

bridge irb

interface GigabitEthernet0

no ip address

mode dot1q-tunnel

l2protocol-tunnel cdp

l2protocol-tunnel stp

l2protocol-tunnel vtp

no cdp enable

bridge-group 20

bridge-group 20 spanning-disabled

interface GigabitEthernet1

no ip address

mode dot1q-tunnel

l2protocol-tunnel cdp

l2protocol-tunnel stp

l2protocol-tunnel vtp

no cdp enable

bridge-group 22

bridge-group 22 spanning-disabled

interface RPR-IEEE0

ip address 1.1.1.3 255.255.255.0

rpr-ieee fairness mode aggressive

service-policy output EgrNNI

interface RPR-IEEE0.20

encapsulation dot1Q 20

no snmp trap link-status

bridge-group 20

bridge-group 20 spanning-disabled

interface RPR-IEEE0.22

encapsulation dot1Q 22

no snmp trap link-status

bridge-group 22

bridge-group 22 spanning-disabled

interface RPR-IEEE0.30

encapsulation dot1Q 30

no snmp trap link-status

bridge-group 30

bridge-group 30 spanning-disabled

ip classless

Verifying and Monitoring RPR-IEEE

After RPR-IEEE is configured, you can use the following commands to verify setup and monitor its

status:

26-23

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Verifying and Monitoring RPR-IEEE

• The show interface rpr-ieee interface-number command (Example 26-3) displays the following

for an interface:

–

Primary or secondary status (if RI is activated)

–

Active or standby mode (if RI is activated)

–

Up or down (pass-through mode) status

–

Monitoring status and by extension, general protection status

• The show interface rpr-ieee fairness detail command (Example 26-4) displays the following for

an interface:

–

Total bandwidth

–

Traffic class configured transmission rates

–

Fairness weight settings for the interface

–

Instances of congestion

• The show rpr-ieee protection command (Example 26-5) displays the following for an interface:

–

Station and neighbor interface MAC addresses

–

Protection timer settings

–

Ring protection status

–

Span failures

• The show rpr-ieee topology detail command (Example 26-6) displays the following for the ring:

–

Station names and neighbor MAC addresses of all stations on the ring

–

Traffic class configured transmission rates for all stations on the ring

–

Fairness weight settings for all stations on the ring

–

Jumbo frame status (on or off) for all stations on the ring

–

ATD information for all stations on the ring

–

Protection mode for all nodes on the ring

–

Secondary MAC addresses for all stations on the ring

Example 26-3 show interface rpr-ieee 0 Output

router# show interface rpr-ieee 0

RPR-IEEE0 is up, line protocol is up

Hardware is RPR-IEEE Channelized SONET, address is 000e.8312.bcf0 (bia 000e.8312.bcf0)

MTU 1500 bytes, BW 145152 Kbit, DLY 100 usec,

reliability 255/255, txload 105/255, rxload 99/255

Encapsulation: RPR-IEEE,

West Span: loopback not set

East Span: loopback not set

MAC passthrough not set

RI: primary,active peer mac 000e.8312.b870

ARP type: ARPA, ARP Timeout 04:00:00

Last input 00:00:00, output never, output hang never

Last clearing of "show interface" counters never

Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 0

Queueing strategy: fifo

Output queue: 0/40 (size/max)

West Span: 5 minutes output rate 57872638 bits/sec, 25307 packets/sec

26-24

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Verifying and Monitoring RPR-IEEE

5 minutes input rate 57786924 bits/sec, 25268 packets/sec

East Span: 5 minutes output rate 2765315 bits/sec, 1197 packets/sec

5 minutes input rate 0 bits/sec, 0 packets/sec

26310890 packets input, 3230040117 bytes

Received 0 broadcasts (0 IP multicast)

0 runts, 0 giants, 0 throttles

3 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored

0 watchdog, 0 multicast

0 input packets with dribble condition detected

32138811 packets output, 601868274 bytes, 0 underruns

0 output errors, 0 collisions, 0 interface resets

0 babbles, 0 late collision, 0 deferred

0 lost carrier, 0 no carrier

0 output buffer failures, 0 output buffers swapped out

Example 26-4 show rpr-ieee fairness detail Output

router# show rpr-ieee fairness detail

IEEE 802.17 Fairness on RPR-IEEE0:

Bandwidth: 96768 kilobits per second

Station using aggressive rate adjustment.

Westbound Tx (Ringlet 1)

Weighted Fairness:

Local Weight: 0 (1)

Single-Choke Fairness Status:

Local Congestion:

Congested? No

Head? No

Local Fair Rate:

Approximate Bandwidth: 64892 Kbps

25957 normalized bytes per aging interval

51914 bytes per ageCoef aging interval

Downstream Congestion:

Congested? No

Tail? No

Received Source Address: 0000.0000.0000

Received Fair Rate:

Approximate Bandwidth: FULL RATE

65535 normalized bytes per aging interval

Reserved Rate:

0 Kbps

0 bytes per aging interval

Unreserved Rate:

96768 Kbps

4838 bytes per aging interval

Allowed Rate:

Approximate Bandwidth: 96000 Kbps

4800 bytes per aging interval

Allowed Rate Congested:

Approximate Bandwidth: 96000 Kbps

4800 bytes per aging interval

TTL to Congestion: 255

Total Hops Tx: 4

Advertised Fair Rate:

Approximate Bandwidth: FULL RATE

65535 normalized bytes per aging interval

8191 bytes per aging interval

Eastbound Tx (Ringlet 0)

Weighted Fairness:

Local Weight: 0 (1)

Single-Choke Fairness Status:

26-25

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Verifying and Monitoring RPR-IEEE

Local Congestion:

Congested? No

Head? No

Local Fair Rate:

Approximate Bandwidth: 0 Kbps

0 normalized bytes per aging interval

0 bytes per ageCoef aging interval

Downstream Congestion:

Congested? No

Tail? No

Received Source Address: 0000.0000.0000

Received Fair Rate:

Approximate Bandwidth: FULL RATE

65535 normalized bytes per aging interval

Reserved Rate:

0 Kbps

0 bytes per aging interval

Unreserved Rate:

96768 Kbps

4838 bytes per aging interval

Allowed Rate:

Approximate Bandwidth: 96000 Kbps

4800 bytes per aging interval

Allowed Rate Congested:

Approximate Bandwidth: 96000 Kbps

4800 bytes per aging interval

TTL to Congestion: 255

Total Hops Tx: 4

Advertised Fair Rate:

Approximate Bandwidth: FULL RATE

65535 normalized bytes per aging interval

8191 bytes per aging interval

Example 26-5 show rpr-ieee protection Output

router# show rpr-ieee protection

Protection Information for Interface RPR-IEEE0

MAC Addresses

West Span (Ringlet 0 RX) neighbor 000b.fcff.9d34

East Span (Ringlet 1 RX) neighbor 0013.1991.1fc0

Station MAC address 0005.9a3c.59c0

TP frame sending timers:

fast timer: 10 msec

slow timer: 1x100 msec (100 msec)

Protection holdoff timers:

L1 Holdoff Keepalive Detection

West Span 0x10 msec ( 0 msec) West Span 5 msec

East Span 0x10 msec ( 0 msec) East Span 5 msec

Configured protection mode: STEERING

Protection Status

Ring is IDLE

Protection WTR period is 10 sec. (timer is inactive)

Self Detected Requests Remote Requests

West Span IDLE West Span IDLE

East Span IDLE East Span IDLE

Distant Requests

East Span IDLE West Span IDLE

West Span Failures: none

East Span Failures: none

26-26

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Verifying and Monitoring RPR-IEEE

Example 26-6 show rpr-ieee topology detail Output

Note The ip address field in the output of show rpr-ieee topology detail is populated only by the

IP address that is applied to the rpr 0 main interface. It is not populated by the IP address of any

of the sub-interfaces.

router# show rpr-ieee topology detail

802.17 Topology Display

RX ringlet0->West spanRX ringlet1->East span

Number of nodes on

ringlet0: 5ringlet1: 5

=======================================================================

Local Station Topology Info

=======================================================================

Topology entry:

Station MAC address: 0005.9a3c.59c0

West Span (Outer ringlet RX) neighbor 000b.fcff.9d34

East Span (Inner ringlet RX) neighbor 0013.1991.1fc0

Ring Topology: CLOSED (STABLE)

Containment Active: NO

A0 class reserved rate:

ringlet0: 0 (mbps)ringlet1: 0 (mbps)

Ringlet reserved rate:

ringlet0: 0 (mbps)ringlet1: 0 (mbps)

Ringlet unreserved rate:

ringlet0: 96 (mbps)ringlet1: 96 (mbps)

Ringlet effective unreserved rate:

ringlet0: 95.9 (mbps)ringlet1: 95.9 (mbps)

Advertised Protection requests:

ringlet0: IDLEringlet1: IDLE

Active Edges:

ringlet0: NO ringlet1: NO

Configured protection mode: STEERING

Jumbo preference: NOT SET (ring doesn't support JUMBOS)

Is revertive: YES

Measured LRTT: 0

Sequence Number: 3

ATD INFO:

ATD timer: 1 sec

Station Name: ML100T-481

A0 reserved Bandwidth:

ringlet0: 0 mbpsringlet1: 0 mbps

SAS enabled: YES

Weight:

ringlet0: 1ringlet1: 1

Secondary Mac Addresses:

MAC 1: 0000.0000.0000 (UNUSED)

MAC 2: 0000.0000.0000 (UNUSED)

=======================================================================

Topology Map for Outer ringlet

=======================================================================

Topology entry at Index 1 on ringlet 0:

Station MAC address: 000b.fcff.9d34

Valid on ringlet0: YES

Entry reachable: YES

Advertised Protection requests:

ringlet0: IDLEringlet1: IDLE

Active Edges:

26-27

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Verifying and Monitoring RPR-IEEE

ringlet0: NO ringlet1: NO

Preferred protection mode: STEERING

Jumbo preference: NOT SET (ring doesn't supports JUMBOS)

Measured LRTT: 0

Sequence Number: 3

ATD INFO:

Station Name: ML100X-491

A0 reserved Bandwidth:

ringlet0: 0 mbpsringlet1: 0 mbps

SAS enabled: YES

Weight:

ringlet0: 1ringlet1: 1

Secondary Mac Addresses:

MAC 1: 0000.0000.0000 (UNUSED)

MAC 2: 0000.0000.0000 (UNUSED)

=======================================================================

Topology entry at Index 2 on ringlet 0:

Station MAC address: 0011.2130.b568

Valid on ringlet0: YES

Entry reachable: YES

Advertised Protection requests:

ringlet0: IDLEringlet1: IDLE

Active Edges:

ringlet0: NO ringlet1: NO

Preferred protection mode: STEERING

Jumbo preference: NOT SET (ring doesn't supports JUMBOS)

Measured LRTT: 0

Sequence Number: 3

ATD INFO:

Station Name: ML1000-491

A0 reserved Bandwidth:

ringlet0: 0 mbpsringlet1: 0 mbps

SAS enabled: YES

Weight:

ringlet0: 1ringlet1: 1

Secondary Mac Addresses:

MAC 1: 0000.0000.0000 (UNUSED)

MAC 2: 0000.0000.0000 (UNUSED)

=======================================================================

Topology entry at Index 3 on ringlet 0:

Station MAC address: 0005.9a39.7630

Valid on ringlet0: YES

Entry reachable: YES

Advertised Protection requests:

ringlet0: IDLEringlet1: IDLE

Active Edges:

ringlet0: NO ringlet1: NO

Preferred protection mode: STEERING

Jumbo preference: NOT SET (ring doesn't supports JUMBOS)

Measured LRTT: 0

Sequence Number: 3

ATD INFO:

Station Name: ML1000-492

A0 reserved Bandwidth:

ringlet0: 0 mbpsringlet1: 0 mbps

SAS enabled: YES

Weight:

ringlet0: 1ringlet1: 1

Secondary Mac Addresses:

MAC 1: 0000.0000.0000 (UNUSED)

MAC 2: 0000.0000.0000 (UNUSED)

=======================================================================

26-28

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Verifying and Monitoring RPR-IEEE

Topology entry at Index 4 on ringlet 0:

Station MAC address: 0013.1991.1fc0

Valid on ringlet0: YES

Entry reachable: YES

Advertised Protection requests:

ringlet0: IDLEringlet1: IDLE

Active Edges:

ringlet0: NO ringlet1: NO

Preferred protection mode: STEERING

Jumbo preference: NOT SET (ring doesn't supports JUMBOS)

Measured LRTT: 0

Sequence Number: 3

ATD INFO:

Station Name: ML100T-482

A0 reserved Bandwidth:

ringlet0: 0 mbpsringlet1: 0 mbps

SAS enabled: YES

Weight:

ringlet0: 1ringlet1: 1

Secondary Mac Addresses:

MAC 1: 0000.0000.0000 (UNUSED)

MAC 2: 0000.0000.0000 (UNUSED)

=======================================================================

Topology entry at Index 5 on ringlet 0:

Station MAC address: 0005.9a3c.59c0

Valid on ringlet0: YES

Entry reachable: YES

Advertised Protection requests:

ringlet0: IDLEringlet1: IDLE

Active Edges:

ringlet0: NO ringlet1: NO

Preferred protection mode: STEERING

Jumbo preference: NOT SET (ring doesn't supports JUMBOS)

Measured LRTT: 0

Sequence Number: 3

ATD INFO:

Station Name: ML100T-481

A0 reserved Bandwidth:

ringlet0: 0 mbpsringlet1: 0 mbps

SAS enabled: YES

Weight:

ringlet0: 1ringlet1: 1

Secondary Mac Addresses:

MAC 1: 0000.0000.0000 (UNUSED)

MAC 2: 0000.0000.0000 (UNUSED)

=======================================================================

Topology Map for Inner ringlet

=======================================================================

Topology entry at Index 1 on ringlet 1:

Station MAC address: 0013.1991.1fc0

Valid on ringlet1: YES

Entry reachable: YES

Advertised Protection requests:

ringlet0: IDLEringlet1: IDLE

Active Edges:

ringlet0: NO ringlet1: NO

Preferred protection mode: STEERING

Jumbo preference: NOT SET (ring doesn't supports JUMBOS)

Measured LRTT: 0

Sequence Number: 3

26-29

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Verifying and Monitoring RPR-IEEE

ATD INFO:

Station Name: ML100T-482

A0 reserved Bandwidth:

ringlet0: 0 mbpsringlet1: 0 mbps

SAS enabled: YES

Weight:

ringlet0: 1ringlet1: 1

Secondary Mac Addresses:

MAC 1: 0000.0000.0000 (UNUSED)

MAC 2: 0000.0000.0000 (UNUSED)

=======================================================================

Topology entry at Index 2 on ringlet 1:

Station MAC address: 0005.9a39.7630

Valid on ringlet1: YES

Entry reachable: YES

Advertised Protection requests:

ringlet0: IDLEringlet1: IDLE

Active Edges:

ringlet0: NO ringlet1: NO

Preferred protection mode: STEERING

Jumbo preference: NOT SET (ring doesn't supports JUMBOS)

Measured LRTT: 0

Sequence Number: 3

ATD INFO:

Station Name: ML1000-492

A0 reserved Bandwidth:

ringlet0: 0 mbpsringlet1: 0 mbps

SAS enabled: YES

Weight:

ringlet0: 1ringlet1: 1

Secondary Mac Addresses:

MAC 1: 0000.0000.0000 (UNUSED)

MAC 2: 0000.0000.0000 (UNUSED)

=======================================================================

Topology entry at Index 3 on ringlet 1:

Station MAC address: 0011.2130.b568

Valid on ringlet1: YES

Entry reachable: YES

Advertised Protection requests:

ringlet0: IDLEringlet1: IDLE

Active Edges:

ringlet0: NO ringlet1: NO

Preferred protection mode: STEERING

Jumbo preference: NOT SET (ring doesn't supports JUMBOS)

Measured LRTT: 0

Sequence Number: 3

ATD INFO:

Station Name: ML1000-491

A0 reserved Bandwidth:

ringlet0: 0 mbpsringlet1: 0 mbps

SAS enabled: YES

Weight:

ringlet0: 1ringlet1: 1

Secondary Mac Addresses:

MAC 1: 0000.0000.0000 (UNUSED)

MAC 2: 0000.0000.0000 (UNUSED)

=======================================================================

Topology entry at Index 4 on ringlet 1:

Station MAC address: 000b.fcff.9d34

Valid on ringlet1: YES

Entry reachable: YES

26-30

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Configuring RPR-IEEE End-to-End

Advertised Protection requests:

ringlet0: IDLEringlet1: IDLE

Active Edges:

ringlet0: NO ringlet1: NO

Preferred protection mode: STEERING

Jumbo preference: NOT SET (ring doesn't supports JUMBOS)

Measured LRTT: 0

Sequence Number: 3

ATD INFO:

Station Name: ML100X-491

A0 reserved Bandwidth:

ringlet0: 0 mbpsringlet1: 0 mbps

SAS enabled: YES

Weight:

ringlet0: 1ringlet1: 1

Secondary Mac Addresses:

MAC 1: 0000.0000.0000 (UNUSED)

MAC 2: 0000.0000.0000 (UNUSED)

=======================================================================

Topology entry at Index 5 on ringlet 1:

Station MAC address: 0005.9a3c.59c0

Valid on ringlet1: YES

Entry reachable: YES

Advertised Protection requests:

ringlet0: IDLEringlet1: IDLE

Active Edges:

ringlet0: NO ringlet1: NO

Preferred protection mode: STEERING

Jumbo preference: NOT SET (ring doesn't supports JUMBOS)

Measured LRTT: 0

Sequence Number: 3

ATD INFO:

Station Name: ML100T-481

A0 reserved Bandwidth:

ringlet0: 0 mbpsringlet1: 0 mbps

SAS enabled: YES

Weight:

ringlet0: 1ringlet1: 1

Secondary Mac Addresses:

MAC 1: 0000.0000.0000 (UNUSED)

MAC 2: 0000.0000.0000 (UNUSED)

Configuring RPR-IEEE End-to-End

You need to use both CTC and Cisco IOS to configure RPR-IEEE for the ML-Series card. CTC is the

graphical user interface (GUI) that serves as the enhanced craft tool for specific ONS node operations,

including the provisioning of the point-to-point SONET/SDH circuits required for RPR-IEEE. Cisco

IOS is used to configure RPR-IEEE on the ML-Series card and its interfaces.

Successfully creating an RPR-IEEE requires these procedures:

• Provisioning Card Mode, page 2-4 (CTC)

• Connecting the ML-Series Cards with Point-to-Point STS/STM Circuits, page 26-31 (CTC or TL1)

• Creating the RPR-IEEE Interface and Bridge Group, page 26-32 (Cisco IOS)

• Verifying RPR-IEEE End-to-End Ethernet Connectivity, page 26-37 (Cisco IOS)

26-31

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Provisioning Card Mode

Caution High-level data link control (HDLC) framing is not supported.

Note You can use TL-1 to provision the required SONET/SDH point-to-point circuits instead of CTC.

Provisioning Card Mode

The first task in creating an end-to-end RPR-IEEE is to set the CTC card mode to 802.17. For more

information on this task, see the “Provisioning Card Mode” section on page 2-4.

Connecting the ML-Series Cards with Point-to-Point STS/STM Circuits

You connect the ML-Series cards in an RPR-IEEE through point-to-point STS/STM circuits. These

circuits use the ONS 15454 SONET/SDH network and are provisioned using CTC in the same general

manner as provisioning ONS 15454 SONET/SDH optical circuits. After putting the ML-Series card in

RPR-IEEE mode and creating the circuits through CTC, further provisioning of the ML-Series card is

done through the Cisco IOS CLI. It is assumed that the SONET/SDH node and its network are already

active.

Guidelines for Connecting the ML-Series Cards with Point-to-Point STS/STM Circuits

These are some general guidelines for configuring the circuits required by RPR-IEEE:

• Verify the CTC card mode for the ML-Series card is set to 802.17. For more information about card

mode, see the “Provisioning Card Mode” section on page 2-4.

• You must configure SONET/SDH circuits in an east-to-west configuration, from Port 0 (east) to

Port 1 (west) around the SONET/SDH ring. The ports are labeled East and West in the CTC

card-level view of the ML-Series card being provisioned and in the CTC Circuit Creation Wizard.

The east-to-west provisioning is enforced by the network control program (NCP). The east-to-west

setup is also required in order for the CTM network management software to recognize the

ML-Series configuration as an RPR-IEEE.

Detailed CTC circuit procedures are available in the NTP-A343, “Create an Automatically Routed OC-N

Circuit,” and the NTP-A344, “Create a Manually Routed OC-N Circuit,” procedures in the “Create

Circuits and VT Tunnels” chapter of the Cisco ONS 15454 Procedure Guide and in the NTP-D323,

“Create an Automatically Routed High-Order Circuit,” and NTP-D 324, “Create a Manually Routed

High-Order Circuit,” procedures in the “Create Circuits and Tunnels” chapter of the Cisco ONS 15454

SDH Procedure Guide.

26-32

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Creating the RPR-IEEE Interface and Bridge Group

Example of Connecting the ML-Series Cards with Point-to-Point STS/STM Circuits

The three-node RPR-IEEE in Figure 26-6 shows an example of the point-to-point circuits needed.

Figure 26-6 Three Node RPR-IEEE Example

To configure the circuits for the example, you would need to perform these tasks in CTC:

1. Create a circuit from Node 1, East Span to Node 2, West Span.

2. Create a circuit from Node 2, East Span to Node 3, West Span.

3. Create a circuit from Node 3, East Span to Node 1, West Span.

Creating the RPR-IEEE Interface and Bridge Group

The plug-n-play feature of RPR-IEEE automatically discovers topology and advertises station

capabilities. This allows ML-Series cards to become operational without manual intervention when the

ML-Series card is in 802.17 mode and the SONET/SDH circuits are configured. Unlike Cisco

proprietary RPR, RPR-IEEE does not require the user to configure POS interfaces.

The additional Cisco IOS CLI provisioning needed to set up basic, functional RPR is straightforward.

The user needs to complete these tasks:

1. Configure the ML-Series card for integrated routing and bridging (IRB).

2. Create the bridge group.

3. Set the encapsulation on the Ethernet interface.

4. Assign Ethernet interfaces to the bridge group.

5. Enable the Ethernet ports.

RPR

Node 1

Node 2Node 3

East Span West Span

West Span

East Span

= STS circuit created on CTC

151978

26-33

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Creating the RPR-IEEE Interface and Bridge Group

6. Enable the rpr-ieee interface.

7. Set the encapsulation on the Ethernet interface.

8. Create rpr-ieee subinterfaces and assign them to the bridge group.

Caution A duplicate MAC address on the RPR-IEEE can cause network problems.

Understanding the RPR-IEEE Interface

When the card mode is changed to IEEE 802.17, the physical rpr-ieee interface is automatically created.

It provides all the normal attributes of a Cisco IOS virtual interface, such as support for default routes.

An rpr-ieee interface is considered a trunk port, and like all trunk ports, subinterfaces must be configured

for the rpr-ieee interface to join a bridge group.

The POS interfaces are not visible or configurable in 802.17 card mode.

Understanding the RPR-IEEE Bridge Group

The default behavior of the ML-Series card is that no traffic is bridged over the RPR-IEEE even with the

interfaces enabled. This is in contrast to many Layer 2 switches, including the Cisco Catalyst 6500 series

and the Cisco Catalyst 7600 series, which forward VLAN 1 by default. The ML-Series card will not

forward any traffic by default, including untagged or VLAN 1 tagged packets.

For any RPR-IEEE traffic to be bridged on an ML-Series card, a bridge group needs to be created for

that traffic. Bridge groups maintain the bridging and forwarding between the interfaces on the ML-Series

card and are locally significant. Interfaces not participating in a bridge group cannot forward bridged

traffic. The bridge group enables data transport across the RPR-IEEE infrastructure.

Figure 26-7 illustrates a bridge group spanning the ML-Series card interfaces, including the rpr-ieee

virtual interface.

Figure 26-7 RPR-IEEE Bridge Group

Caution All Layer 2 network redundant links (loops) in the connecting network, except the RPR-IEEE topology,

must be removed for correct RPR-IEEE operation. Or if loops exist, you must configure STP/RSTP.

Caution RPR-IEEE requires GFP-F framing. High-level data link control (HDLC) framing is not supported.

ML-Series Card

151979

Ethernet

Port 0

Ethernet

Port 1

Bridge Group

East Span

West Span

RPR

Interface

26-34

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Creating the RPR-IEEE Interface and Bridge Group

To enable the rpr-ieee interface and create the bridge group, perform the following procedure, beginning

in global configuration mode:

Command Purpose

Step 1 Router(config)# bridge irb Enables the Cisco IOS software to both route and bridge

a given protocol on separate interfaces within a single

ML-Series card.

Step 2 Router(config)# interface

{fastethernet | gigabitethernet}

interface-number

Enters interface configuration mode to configure the

Ethernet interface that you want to include in the bridge

group.

Step 3 Router(config-if)# bridge-group

bridge-group-number

Assigns the network interface to a bridge group.

Note You can safely ignore the baby giant frames

warning that may appear.

Step 4 Router(config-if)# no shutdown Changes the shutdown state to up and enables the

interface.

Step 5 Router(config)# interface rpr-ieee 0 Creates the rpr-ieee interface on the ML-Series card or

enters the rpr-ieee interface configuration mode. The

only valid rpr-ieee number is 0.

Step 6 Router(config-if)# rpr-ieee

protection pref jumbo

Enables jumbo frame capability on the RPR-IEEE

interface:

jumbo—Enables handling of frames in excess of the

standard size, up to a maximum size of 9100 bytes. A

jumbo-enabled station changes the interface MTU to

9100 bytes if all stations in the ring are jumbo enabled.

A message is generated to indicate that the ring supports

jumbo frames when all stations are configured for this

preference.

The default is no jumbo frame support.

Step 7 Router(config-if)# no shutdown Changes the shutdown state to up and enables the

interface.

Step 8 Router(config-if)# interface rpr-ieee

subinterface-number

Enters subinterface configuration mode to configure the

rpr-ieee subinterface.

Step 9 Router(config-subif)# encap dot1q

bridge-group-number

Sets the encapsulation on the bridge-group to

IEEE 802.1Q.

Step 10 Router(config-subif)# bridge-group

bridge-group-number

Associates the rpr-ieee subinterface to the created bridge

group.

Step 11 Router(config)# no shut Enables the RPR-IEEE interface and changes the mode

from the default passthrough.

Step 12 Router(config-if)# end Exits to privileged EXEC mode.

Step 13 Router# copy running-config

startup-config

(Optional) Saves the configuration changes to NVRAM.

26-35

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Configuration Examples for Cisco IOS CLI Portion of End-to-End RPR-IEEE

The following examples show RPR-IEEE configurations. Example 26-7 is a simple configuration. It

does the minimum needed to bridge the ML-Series card’s Ethernet ports and the ML-Series card’s

RPR-IEEE and leaves the RPR-IEEE characteristics at default. Example 26-8 is a complex example of

RPR-IEEE with multiple bridge groups, configured characteristics, and QoS.

Example 26-7 Configuration Example for Simple RPR-IEEE

version 12.2

no service pad

service timestamps debug datetime msec localtime

service timestamps log datetime msec localtime

no service password-encryption

service internal

hostname ml

boot-start-marker

boot-end-marker

enable password x

clock timezone PST -8

clock summer-time PDT date Apr 2 2006 2:00 Oct 29 2006 2:00

ip subnet-zero

no ip routing

no ip domain-lookup

no mpls traffic-eng auto-bw timers frequency 0

bridge irb

interface GigabitEthernet0

no ip address

no ip route-cache

no ip mroute-cache

bridge-group 10

bridge-group 10 spanning-disabled

interface GigabitEthernet1

no ip address

no ip route-cache

no ip mroute-cache

shutdown

interface RPR-IEEE0

no ip address

no ip route-cache

rpr-ieee fairness mode aggressive

interface RPR-IEEE0.10

encapsulation dot1Q 10

no ip route-cache

no snmp trap link-status

bridge-group 10

bridge-group 10 spanning-disabled

ip classless

no ip http server

26-36

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Configuration Examples for Cisco IOS CLI Portion of End-to-End RPR-IEEE

Example 26-8 Configuration Example for a Complex RPR-IEEE

version 12.2

no service pad

service timestamps debug datetime msec localtime

service timestamps log datetime msec localtime

no service password-encryption

service internal

hostname ml

boot-start-marker

boot-end-marker

enable password x

clock timezone PST -8

clock summer-time PDT date Apr 2 2006 2:00 Oct 29 2006 2:00

ip subnet-zero

no ip domain-lookup

vlan dot1q tag

no mpls traffic-eng auto-bw timers frequency 0

bridge irb

interface GigabitEthernet0

no ip address

bridge-group 12

bridge-group 12 spanning-disabled

interface GigabitEthernet1

no ip address

mode dot1q-tunnel

bridge-group 22

bridge-group 22 spanning-disabled

interface RPR-IEEE0

ip address 11.1.1.1 255.255.255.0

trigger crc-error threshold 4 east

trigger crc-error threshold 4 west

trigger crc-error action east

trigger crc-error action west

trigger crc-error delay 3 east

trigger crc-error delay 3 w

rpr-ieee atd-timer 10

rpr-ieee protection wtr-timer 60

interface RPR-IEEE0.1

encapsulation dot1Q 1 native

ip address 10.1.1.4 255.255.255.0

no snmp trap link-status

interface RPR-IEEE0.10

encapsulation dot1Q 10

no snmp trap link-status

bridge-group 10

bridge-group 10 spanning-disabled

interface RPR-IEEE0.12

encapsulation dot1Q 12

ip address 1.1.1.12 255.255.255.0

no snmp trap link-status

26-37

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Verifying RPR-IEEE End-to-End Ethernet Connectivity

bridge-group 12

bridge-group 12 spanning-disabled

interface RPR-IEEE0.22

encapsulation dot1Q 22

no snmp trap

bridge-group 22

bridge-group 22 spanning-disabled

interface RPR-IEEE0.800

encapsulation dot1Q 800

ip address 8.1.1.1 255.255.255.224

no snmp trap link-status

ip classless

no ip http server

snmp-server community public RW

snmp-server ifindex persist

snmp-server trap link ietf

snmp-server host 64.101.18.178 version 2c public

snmp-server host 64.101.18.193 version 2c public

control-plane

line con 0

exec-timeout 0 0

line vty 0 4

exec-timeout 0 0

no login

end

Verifying RPR-IEEE End-to-End Ethernet Connectivity

After successfully completing the procedures to provision an RPR-IEEE, you can test Ethernet

connectivity between the Ethernet access ports on the separate ML-Series cards. To do this, use your

standard Ethernet connectivity testing.

Understanding Redundant Interconnect

Ring interconnect (RI) is a mechanism to interconnect RPRs, both RPR-IEEE and Cisco proprietary

RPR, for protection from failure. It does this through redundant pairs of back-to-back Gigabit Ethernet

connections that bridge RPR networks. One connection is the active node and the other is the standby

node. During a failure of the active node, link, or card, the detection of the failure triggers a switchover

to the standby node. Figure 26-8 illustrates an example of RPR RI.

26-38

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

Characteristics of RI on the ML-Series Card

Figure 26-8 RPR RI

Characteristics of RI on the ML-Series Card

RI on the ML-Series card has these characteristics:

• Supported only on Gigabit Ethernet

• Provisioned by identifying peer RPR MACs as either primary or standby

• Uses an OAM frame to flush the spatially aware sublayer (SAS) table and MAC table at the add

stations

• Provides protection between individual RPRs, including:

–

Two RPRs

–

Two Cisco proprietary RPRs

–

A Cisco proprietary ring and an IEEE 802.17 ring

• Provides card-level redundancy when connected to a switch running EtherChannel

Caution When connecting to a switch running EtherChannel, you must configure rpr-ieee ri foreign on the

primary and secondary ML-Series cards.

GEC

151968

Primary

pair

ML1000-2

West East

ML1000-2

West East

ML1000-2

West East

ML1000-2

West East

OC-N

Secondary

pair

26-39

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

RI Configuration Example

Caution RPR-IEEE RI requires communication over the topology between the ML-Series cards. Traffic loss can

occur if there is not enough communication and more than one span is down on a ring, for any reason.

Caution If the primary ML-Series card goes to standby because the interconnect interface goes down, then the

ring interface is placed admininistratively down (admin down). This action signals the secondary

ML-Series card to go to active. At this time, if the user configures a no shutdown on the primary

ML-Series card ring interface, the ring interface comes up. This will signal the secondary ML-Series

card to go to standby, which causes traffic loss. This occurs with all ML-Series card microcodes and with

both RPR-IEEE and Cisco proprietary RPR.

Caution With Cisco proprietary RPR, a shutdown of the SPR interface puts ML1000-2 cards in passthrough

mode. This allows the card to participate in RI. ML1000-2 cards are the only ML-Series cards eligible

for RI. Other ML-Series cards fail to enter passthrough mode, when the SPR interface is shutdown.

RI Configuration Example

Excerpts of sample Cisco IOS code for an RPR RI for ML-Series-card-only connections are provided in

Example 26-9 and Example 26-10. Excerpts of sample Cisco IOS code for an RPR RI where the primary

and secondary ML-Series cards are connected to any switch that is not an ML-Series card (foreign

switch), are provided in Example 26-9 and Example 26-10. Status of RI can be found using

Example 26-13

Example 26-9 Primary ML-Series Card Configuration

interface rpr-ieee0

no ip address

rpr-ieee ri mode

no shutdown

In the above example, after rpr-ieee ri mode you need to insert the MAC address of the primary peer. To

fetch this address, log in to the primary peer ML-Series card and enter the command show interface

rpr-ieee as follows:

Router#show interface rpr-ieee 0

RPR-IEEE0 is up, line protocol is up

Hardware is RPR-IEEE Channelized SONET, address is 0019.076c.7f71 (bia 0019.076c.7f71)

The MAC address of the primary peer is 0019.076c.7f71. The configuration would now appear as

rpr-ieee ri mode 0019.076c.7f71.

Example 26-10 Secondary ML-Series Card Configuration

interface rpr-ieee0

no ip address

rpr-ieee ri mode

no shutdown

In the above example, after rpr-ieee ri mode you need to insert the MAC address of the secondary peer.

To fetch this address, log in to the secondary peer ML-Series card and enter the command show

interface rpr-ieee as follows:

26-40

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

RI Configuration Example

Router#show interface rpr-ieee 0

RPR-IEEE0 is up, line protocol is up

Hardware is RPR-IEEE Channelized SONET, address is 0019.076c.7f72 (bia 0019.076c.7f72)

The MAC address of the secondary peer is 0019.076c.7f72. The configuration would now appear as

rpr-ieee ri mode 0019.076c.7f72.

Example 26-11 Primary ML-Series Card Configuration with Connection to Switch

interface rpr-ieee0

no ip address

rpr-ieee ri mode

rpr-ieee ri foreign

no shutdown

In the above example, after rpr-ieee ri mode you need to insert the MAC address of the primary peer. To

fetch this address, log in to the primary peer ML-Series card and enter the command show interface

rpr-ieee as follows:

Router#show interface rpr-ieee 0

RPR-IEEE0 is up, line protocol is up

Hardware is RPR-IEEE Channelized SONET, address is 0019.076c.7f73 (bia 0019.076c.7f73)

The MAC address of the primary peer is 0019.076c.7f73. The configuration would now appear as

rpr-ieee ri mode 0019.076c.7f73.

Example 26-12 Secondary ML-Series Card Configuration with Connection to Switch

interface rpr-ieee0

no ip address

rpr-ieee ri mode

rpr-ieee ri foreign

no shutdown

In the above example, after rpr-ieee ri mode you need to insert the MAC address of the secondary peer.

To fetch this address, log in to the secondary peer ML-Series card and enter the command show

interface rpr-ieee as follows:

Router#show interface rpr-ieee 0

RPR-IEEE0 is up, line protocol is up

Hardware is RPR-IEEE Channelized SONET, address is 0019.076c.7f74 (bia 0019.076c.7f74)

The MAC address of the secondary peer is 0019.076c.7f74. The configuration would now appear as

rpr-ieee ri mode 0019.076c.7f74.

Note In Figure 26-8 Cards A and C are primary cards, and B and D are secondary cards. Cards B and D are

peers. Therefore, to configure Card A’s MAC address, you need to configure Card B's RPR MAC

address. Similarly, to configure Card C’s MAC address, you need to configure Card D’s RPR MAC

address.

Example 26-13 Status of Redundant Interconnect can be found using

Router#sh ons dot17 ri

Redundant Interconnect Data

Mode: primary

State: standby

Peer: 0000.1111.2222

Peer Active: false

26-41

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

RI Configuration Example

Spans Provisioned : true

Topology: stable

Ring if: up

Interconnect if: down

Secondary IC mode: link-up, WTR-timer:60 Adjusted:65

Ucode mode: Standby

Interconnect interface 0:

state: not up

member port channel: false

Interconnect interface 1:

state: not up

member port channel: false

Monitored if: interconnect

26-42

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Chapter 26 Configuring IEEE 802.17b Resilient Packet Ring

RI Configuration Example

A-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

APPENDIX

Command Reference

Note The terms "Unidirectional Path Switched Ring" and "UPSR" may appear in Cisco literature. These terms

do not refer to using Cisco ONS 15xxx products in a unidirectional path switched ring configuration.

Rather, these terms, as well as "Path Protected Mesh Network" and "PPMN," refer generally to Cisco's

path protection feature, which may be used in any topological network configuration. Cisco does not

recommend using its path protection feature in any particular topological network configuration.

This appendix provides a command reference for those Cisco IOS commands or those aspects of

Cisco IOS commands that are unique to ML-Series cards. For information about the standard

Cisco IOS Release 12.4 commands, refer to the Cisco IOS documentation set available at

http://www.cisco.com/univercd/cc/td/doc/product/software/ios122/.

A-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

[no] bridge bridge-group-number protocol {drpri-rstp | ieee | rstp}

[no] bridge bridge-group-number protocol {drpri-rstp | ieee |

rstp}

To define the protocol employed by a bridge group, use the bridge protocol global configuration

command. If no protocol will be employed by the bridge group, this command is not needed. To remove

a protocol from the bridge group, use the no form of this command with the appropriate keywords and

arguments.

Syntax Description

Defaults N/A

Command Modes Global configuration

Usage Guidelines The Rapid Spanning Tree Protocol (RSTP) or Spanning Tree Protocol (STP) can be implemented.

Examples The following example assigns the protocol to the bridge group with the bridge group number of 100.

Router(config)# bridge 100 protocol rstp

Related Commands bridge-group

Parameter Description

drpri-rstp The protocol that enables the Dual Resilient Packet Ring Interconnect

(DRPRI) feature of the ML-Series cards.

Note DRPRI is not supported in Release 7.2.

ieee IEEE 802.1D Spanning Tree Protocol.

rstp IEEE 802.1W Rapid Spanning Tree Protocol.

bridge-group-number The identifying number of the bridge group being assigned a protocol.

A-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

[no] clock auto

Use the clock auto command to determine whether the system clock parameters are configured

automatically from the TCC2/TCC2P card. When enabled, both daylight savings time and time zone are

automatically configured, and the system clock is periodically synchronized to the TCC2/TCC2P card.

Use the no form of the command to disable this feature.

Syntax Description This command has no arguments or keywords.

Defaults The default setting is clock auto.

Command Modes Global configuration

Usage Guidelines The no form of the command is required before any manual configuration of summertime, timezone, or

clock. The no form of the command is required if Network Time Protocol (NTP) is configured in

Cisco IOS. The ONS 15454 SONET/SDH is also configured through Cisco Transport Controller (CTC)

to use a NTP or Simple Network Time Protocol (SNTP) server to set the date and time of the node.

Examples Router(config)# no clock auto

Related Commands clock timezone

clock set

A-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

interface spr 1

Use this command to create a shared packet ring (SPR) interface on an ML-Series card for a resilient

packet ring (RPR) in Cisco proprietary RPR mode. If the interface has already been created, this

command enters spr interface configuration mode. The only valid spr interface number is 1.

Defaults N/A

Command Modes Global configuration

Usage Guidelines The command allows the user to create a virtual interface for the Cisco proprietary RPR/SPR.

Commands such as spr wrap or spr station-id can then be applied to the proprietary RPR through SPR

configuration command mode.

In this command, interface can be shortened to int.

Examples The following example creates the shared packet ring interface:

Router(config)# interface spr 1

Related Commands spr-intf-id

spr station-id

spr wrap

A-5

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

[no] ip radius nas-ip-address {hostname | ip-address}

The ML-Series card allows the user to configure a separate nas-ip-address for each ML-Series card. This

allows the Remote Authentication Dial In User Services (RADIUS) server to distinguish among

individual ML-Series card in the same ONS node. If there is only one ML-Series card in the ONS node,

this command does not provide any advantage. The public IP address of the ONS node serves as the

nas-ip-address in the RADIUS packet sent to the server.

Identifying the specific ML-Series card that sent the request to the server can be useful in debugging

from the server. The nas-ip-address is primarily used for validation of the RADIUS authorization and

accounting requests.

If this value is not configured, the nas-ip-address is filled in by the normal Cisco IOS mechanism using

the value configured by the ip radius-source command. If no value is specified, then the best IP address

that routes to the server is used. If no address routing to the server is available, the IP address of the

server is used.

Syntax Description

Defaults N/A

Command Modes Global configuration

Usage Guidelines This command allows the user to specify the IP address or hostname of attribute 4 (nas-ip-address) in

the radius packet.

Examples The following example creates an IP address for attribute 4 of the RADIUS packet:

Router# configure terminal

Router(config)# [no] ip radius nas-ip-address 10.92.92.92

Related Commands aaa new-model

aaa authentication login

Parameter Description

hostname The host name of the ML card as defined by “hostname” command.

ip-address The IP address assigned to one of the ML interfaces, usually a front-end

interface such as Fast Ethernet or Gigabit Ethernet.

A-6

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

microcode fail system-reload

In the event of a microcode failure, use this command to configure the ML-Series card to save

information to the flash memory and then reboot. The information is saved for use by the Cisco Technical

Assistance Center (Cisco TAC). To contact TAC, see the Obtaining Technical Assistance, page xxxiv.

Defaults N/A

Command Modes Global configuration

Usage Guidelines This command and feature is specific to ML-Series card.

Examples router(config)# microcode fail system-reload

Related Commands N/A

A-7

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

[no] pos pdi holdoff time

Use this command to specify the time, in milliseconds, to hold off sending the path defect indication

(PDI) to the far end when a virtual concatenation (VCAT) member circuit is added to the virtual

concatenation group (VCG). Use the no form of the command to use the default value.

Syntax Description

Defaults The default value is 100 milliseconds.

Command Modes Interface configuration mode (packet-over-SONET/SDH [POS] only)

Usage Guidelines This value is normally configured to match the setting on the peer terminal equipment (PTE). The time

granularity for this command is 1 millisecond.

Examples In this example, interface is shortened to int.

Gateway(config)# int pos0

Gateway(config-if)# pos pdi holdoff 500

Related Commands pos trigger defects

Parameter Description

time Delay time in milliseconds, 100 to 1,000

A-8

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

[no] pos report alarm

Use this command to specify which alarms/signals are logged to the console. This command has no

effect on whether alarms are reported to the TCC2/TCC2P and CTC. These conditions are soaked and

cleared per Telcordia GR-253. Use the no form of the command to disable reporting of a specific

alarm/signal.

Syntax Description

Defaults The default is to report all alarms.

Command Modes Interface configuration mode (POS only)

Usage Guidelines This value is normally configured to match the setting on the peer PTE.

Examples In this example, interface is shortened to int.

Gateway(config)# int pos0

Gateway(config-if)# pos report all

Related Commands pos trigger defects

Parameter Description

alarm The SONET/SDH alarm that is logged to the console. The alarms are as

follows:

all—All link down alarm failures

ber_sd_b3—PBIP BER in excess of signal degrade (SD) threshold failure

ber_sf_b3—PBIP BER in excess of signal fail (SF) threshold failure

encap—Path signal label encapsulation mismatch failure

pais—Path alarm indication signal failure

plop—Path loss of pointer failure

ppdi—Path payload defect indication failure

pplm—Payload label mismatch path

prdi—Path remote defect indication failure

ptim—Path trace indicator mismatch failure

puneq—Path label equivalent to zero failure

A-9

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

[no] pos trigger defects condition

Use this command to specify which conditions cause the associated POS link state to change. Use the

no form of the command to disable triggering on a specific condition.

Syntax Description

Defaults The default is to report all conditions. For a list of all conditions, see the list in the Syntax Description.

Command Modes Interface configuration mode (POS only)

Usage Guidelines This value is normally configured to match the setting on the peer PTE.

Note In previous Cisco IOS releases, the pos trigger delay command was used to modify the triggering

interval. In Release 7.2, this command is not supported.

Examples In this example, interface is shortened to int.

Gateway(config)# int pos0

Gateway(config-if)# pos trigger defects all

Related Commands None

Parameter Description

condition The SONET/SDH condition that causes the link state change. The

conditions are as follows:

all—All link down alarm failures

ber_sd_b3—PBIP bit error rate (BER) in excess of SD threshold failure

ber_sf_b3—PBIP BER in excess of SF threshold failure

encap—Path Signal Label Encapsulation Mismatch failure

pais—Path Alarm Indication Signal failure

plop—Path Loss of Pointer failure

ppdi—Path Payload Defect Indication failure

pplm—Payload label mismatch path

prdi—Path Remote Defect Indication failure

ptim—Path Trace Indicator Mismatch failure

puneq—Path Label Equivalent to Zero failure

A-10

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

[no] pos scramble-spe

Use this command to enable scrambling.

Syntax Description This command has no arguments or keywords.

Defaults The default value depends on the encapsulation.

Command Modes Interface configuration mode (POS only)

Usage Guidelines This value is normally configured to match the setting on the peer PTE. This command might change the

pos flag c2 configuration.

Examples In this example, interface is shortened to int.

Gateway(config)# int pos0

Gateway(config-if)# pos scramble-spe

Related Commands None

Encapsulation Scrambling

LEX pos scramble-spe

PPP/HDLC no pos scramble-spe

A-11

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

rpr-ieee atd-timer value

Use this command to configure the attribute discovery (ATD) timer, which controls the frequency of

ATD packet transmissions on the IEEE 802.17b based RPR interface.

Syntax Description

Defaults Default is 1 second.

Command Modes IEEE 802.17b based RPR interface configuration

Usage Guidelines The ATD timer value is very rarely changed. This is usually done only if other equipment uses a different

ATD value or has processor limitations and cannot handle frames at one per second.

Examples In this example, interface is shortened to int.

router(config)# int rpr-ieee 0

router(config-if)# rpr-ieee atd-timer 1

Related Commands None

Parameter Description

value Value expressed in seconds. Range is 1 through 10.

A-12

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

rpr-ieee fairness weight value

Use this command to configure the fairness weight of an IEEE 802.17b based RPR station.

Syntax Description

Defaults The default is 0.

Command Modes IEEE 802.17b based RPR interface configuration

Usage Guidelines Weighted fairness is used to allow one card greater access (that is, transmission rate) to the ring than

other cards have. This command sets the fairness weight of the particular IEEE 702.17b based RPR

interface. By default when a ring is congested, fairness controls ring traffic to allow each station the same

amount of added traffic (or transmission rate). A higher fairness weight value on one interface allows

the station to add traffic at a higher rate during periods of congestion.

Examples In this example, interface is shortened to int.

router(config)# int rpr-ieee 0

Router(config-if)# rpr-ieee fairness weight 3

Related Commands rpr-ieee fairness active weights detect

rpr-ieee fairness mode

Parameter Description

value Number, expressed as an exponent of two. Range is 0 through 7.

A-13

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

[no] rpr-ieee ri foreign

Use this command to control the secondary card laser states and the interface wait to restore (WTR)

timer when changing from secondary mode to primary.

Foreign mode indicates that the secondary card’s transmit laser(s) are turned off while in standby mode.

In turn, the secondary card’s partner card does not send traffic through the ring redundant interconnect

(RI) interface. The time used to turn the lasers back up causes longer WTR during switchover to primary

mode.

If foreign mode is turned off as in the default setting or by using the no form of this command, the

secondary card’s transmit laser(s) remain turned on while in standby mode, and the RI interface ucode

is set to standby. In this case, the secondary card’s partner card continues to send traffic through the ring

RI interface, and the WTR time during switchover to primary mode is faster.

Syntax Description This command has no arguments or keywords.

Defaults The default form is no rpr-ieee ri foreign.

Command Modes IEEE 802.17b based RPR interface configuration

Usage Guidelines This command should be used if the ring is connected to a switch.

The no form of the command reduces a traffic outage if there is a switch from a secondary card to a

primary. The secondary card stays in active mode during the WTR interval; the primary card is in active

mode with the ucode set to standby during the WTR.

Examples In this example, interface is shortened to int.

router(config)# int rpr-ieee 0

Router(config-if)# no rpr-ieee ri foreign

Related Commands None

A-14

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

rpr-ieee keepalive-timer interval [east | west]

Use this command to configure the keepalive timer configuration on a specific IEEE 802.17b based RPR

span (east or west).

Syntax Description

Defaults The default is 1 second.

Command Modes IEEE 802.17b based RPR interface configuration

Usage Guidelines If a station does not receive fairness frames from its neighboring stations in the ring, the keepalive timer

value determines how much time will elapse before a protection event is triggered. The keepalive timer

works in tandem with the SONET holdoff timer. You would lengthen both of these timer intervals to

avoid double hits when IEEE 802.17b based RPR is running over a SONET-protected network.

Examples In this example, interface is shortened to int.

router(config)# int rpr-ieee 0

Router(config-if)# rpr-ieee keepalive-timer 100 east

Related Commands rpr-ieee protection sonet holdoff-timer

Parameter Description

east Pertains to configuration for eastbound span traffic.

west Pertains to configuration for westbound span traffic.

interval Timer interval expressed in milliseconds. Protection switch keepalive range

from 0 to 200 milliseconds.

A-15

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

[no] rpr-ieee protection pref jumbo

Use this command to set the IEEE 802.17b based RPR station MTU preference to jumbo Ethernet

frames. If all stations on the ring select jumbo preference, the ring MTU is 9,000 bytes; otherwise, it is

1,500 bytes. Use the no form of this command to select normal MTU preference.

Syntax Description This command has no arguments or keywords.

Defaults The default is jumbo preference: not set (that is, the ring does not support jumbo frames).

Command Modes IEEE 802.17b based RPR interface configuration

Usage Guidelines Jumbo frame support would be enabled to support frames larger than the standard Ethernet MTU of

1518 bytes across the IEEE 802.17b based RPR ring. In this command, protection can be shortened to

prot.

Examples In this example, interface is shortened to int.

Router(config)# int rpr-ieee 0

Router(config-if)# rpr-ieee prot pref jumbo

Related Commands None

A-16

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

[no] rpr-ieee protection request forced-switch {east | west}

Use this command to trigger a forced-switch protection event on the specified IEEE 802.17b-based RPR

span. Use the no form of this command to clear the switch.

Syntax Description

Defaults N/A

Command Modes IEEE 802.17b based RPR interface configuration

Usage Guidelines If the IEEE 802.17b based RPR forced switch is initiated with this command at the command-line

interface (CLI), traffic steers away from this span. To clear the force, use the no form of thecommand.

Note The command is not cleared if you change the port service state in CTC from OOS,DSBLD

(Locked,disabled) to IS/IS,AINS, or OOS,MT (Unlocked,enabled,automaticInService or

outofservice Maintenance).

IEEE 802.17b based RPR switching options are similar to the path protection and bidirectional line

switched ring (BLSR) protection switching options, but RPR-IEEE switching functions are only

available at the CLI and not in CTC.

In this command, protection can be shortened to prot and request can be shortened to req.

Examples In this example, interface is shortened to int.

Router(config)# int rpr-ieee

Router(config-if)# rpr-ieee prot req forced-switch east

Related Commands rpr-ieee protection request manual-switch

Parameter Description

east Pertains to configuration for eastbound span traffic.

west Pertains to configuration for westbound span traffic.

A-17

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

[no] rpr-ieee protection request manual-switch {east | west}

Use this command to trigger a manual-switch protection event on the specified IEEE 802.17b based RPR

span. Use the no form of this command to deactivate the switch.

Syntax Description

Defaults N/A

Command Modes IEEE 802.17b based RPR interface configuration

Usage Guidelines IEEE 802.17b based RPR switching options are similar to the path protection and BLSR protection

switching options, but RPR-IEEE switching is only available at the CLI and not in CTC.

In this command, protection can be shortened to prot and request can be shortened to req.

Examples In this example, interface is shortened to int.

Router(config)# int rpr-ieee 0

Router(config-if)# rpr-ieee prot req manual-switch east

Related Commands rpr-ieee protection request forced-switch

Parameter Description

east Pertains to configuration for eastbound span traffic.

west Pertains to configuration for westbound span traffic.

A-18

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

rpr-ieee protection sonet holdoff-timer interval {east | west}

Use this command to configure the SONET hold-off timer for a protection event on the specified

IEEE 802.17b based RPR span. Use the no form of this command to turn off the SONET holdoff timer.

Note This command replaces the pos vcat defect {delayed | immediate} command.

Syntax Description

Defaults The default value is 0 milliseconds.

Command Modes IEEE 802.17b based RPR interface configuration

Usage Guidelines This command is used to allow the slower SONET protection mechanisms to take effect ahead of

IEEE 802.17b based RPR protection. The SONET holdoff timer works in tandem with the keepalive

timer. You could lengthen both of these interval values to avoid double hits when RPR-IEEE is running

over a SONET-protected network.

In this command, protection can be shortenened to prot.

Examples In this example, interface is shortened to int.

Router(config)# int rpr-ieee 0

Router(config-if)# rpr-ieee prot sonet holdoff-timer 2

Related Commands rpr-ieee keepalive-timer

Parameter Description

east Pertains to configuration for eastbound span traffic.

west Pertains to configuration for westbound span traffic.

interval Timer interval expressed in milliseconds. Value is a multiple of

10 milliseconds in the range of 0 to 200 milliseconds (for example,

interval 2 sets the holdoff timer to 20 milliseconds.

A-19

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

rpr-ieee protection timer fast rate {east | west}

Use this command to configure the fast protection timer value for the specified IEEE 802.17b based RPR

span.

Syntax Description

Defaults N/A

Command Modes IEEE 802.17b based RPR interface configuration

Usage Guidelines This rate determines how quickly the fast protection timer sends a protection message after a protection

event occurs.

In this command, protection can be shortened to prot.

Examples In this example, interface is shortened to int.

Router(config)# int rpr-ieee 0

Router(config-if)# rpr-ieee prot timer fast 5 east

Related Commands rpr-ieee protection timer slow

Parameter Description

east Pertains to configuration for eastbound span traffic.

west Pertains to configuration for westbound span traffic.

rate The rate, expressed in milliseconds, at which the fast protection timer sends

a protection message. This occurs after a protection event on a particular

(east or west) span. Range is 1 to 20 milliseconds.

A-20

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

rpr-ieee protection timer slow rate {east | west}

Use this command to configure the slow protection timer value on the specified

IEEE 802.17b based RPR span.

Syntax Description

Defaults N/A

Command Modes IEEE 802.17b based RPR interface configuration

Usage Guidelines This value determines the sending rate of protection messages between protection events.

In this command, protection can be shortened to prot.

Examples In this example, interface is shortened to int.

Router(config)# int rpr-ieee 0

Router(config-if)# rpr-ieee prot timer slow 2 east

Related Commands rpr-ieee protection timer fast

Parameter Description

east Pertains to configuration for eastbound span traffic.

west Pertains to configuration for westbound span traffic.

rate The rate, expressed in milliseconds, at which the slow protection timer

sends a protection message. This occurs after a protection event on a

particular (east or west) span. The rate is stated in 100-millisecond

increments, with a value of 1 to 10. For example, a rate of 2 would be

equivalent to 200 milliseconds.

A-21

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

rpr-ieee protection wtr-timer {interval | never}

Use this command to configure the amount of time that an IEEE 802.17b based RPR span stays in

wait-to-restore (WTR) state before normal service is restored on a span. The never argument configures

an RPR-IEEE span WTR timer to disallow the WTR function.

Syntax Description

Defaults The default value is enabled, and the default interval is 10 seconds.

Command Modes IEEE 802.17b based RPR interface configuration

Usage Guidelines This command can be used to moderate an IEEE 802.17 RPR span that repeatedly changes into and out

of a protected state. It is provisioned similarly to the WTR timer used in SONET protection schemes.

Use the no argument to configure a span not to go through a WTR period before restoring service during

a protection event.

In this command, protection can be shortened to prot.b based

Examples In this example, interface is shortened to int.

Router(config)# int rpr-ieee 0

Router(config-if)# rpr-ieee prot wtr-timer 50

Related Commands None

Parameter Description

interval The value, expressed in seconds, for the WTR timer to delay in restoring

protection to the IEEE 802.17b based RPR span. Range is 0 to 1440

seconds.

never Never restore protection. Nonrevertive mode.

A-22

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

rpr-ieee flag c2 value

Use this command to specify the SONET C2 byte path overhead values for both

IEEE 802.17b based RPR spans.

Syntax Description

Defaults The default is 0x1B, which indicates GFP encapsulation.

Command Modes IEEE 802.17b based RPR interface configuration

Usage Guidelines This value would only be changed if you do not want to specify GFP encapsulation for the span. In

practical terms, ths term would almost never be changed.

Examples In this example, interface is shortened to int.

Router(config)# int rpr-ieee 0

Router(config-if)# rpr-ieee flag c2 0

Related Commands None

Parameter Description

value The bytes that the path signal uses to flag the IEEE 802.17b based RPR

interface for faults. The numeric value range is 0 to 255, and the default is

0 (0x1b) for generic framing procedure (GFP) encapsulation.

A-23

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

rpr-ieee pdi holdoff time interval

Use this command to configure the interval that occurs before a path defect indication (PDI) is raised on

an IEEE 802.17b based RPR span.

Syntax Description

Defaults The default is 100 milliseconds.

Command Modes IEEE 802.17b based RPR interface configuration

Usage Guidelines This command can be used to prevent holdoff timer switching if a PDI is raised on an IEEE 802.17b

based RPR span. The PDI is an infrequent occurrence in this kind of span configuration.

Examples In this example, interface is shortened to int.

Router(config)# int prp-ieee 0

Router(config-if)# rpr-ieee pdi holdoff time 100

Related Commands None

Parameter Description

interval The period, expressed in milliseconds. The range is 100 to 1,000

milliseconds.

A-24

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

[no] rpr-ieee report alarm

Use this command to specify which IEEE 802.17b based RPR alarms or signals are logged to the

console. Use the no form of the command to disable a particular type of notification.

Syntax Description

Defaults N/A

Command Modes IEEE 802.17b based RPR interface configuration

Usage Guidelines This command does not determine whether alarms are reported to the TCC2P or whether they are shown

in CTC. Conditions that are reported to the CLI console as a result of this command are soaked and

cleared per Telcordia GR-253-CORE. Use the no form of the command to disable reporting of a specific

alarm/signal.

Examples In this example, interface is shortened to int.

Router(config)# int rpr-ieee 0

Router(config-if)# rpr-ieee report all

Related Commands None

Parameter Description

alarm The SONET/SDH object that is logged to the console. The alarms are as

follows:

all—All link down alarm and signal failures

encap—Path signal label encapsulation mismatch failure

pais—Path alarm indication signal failure

plop—Path loss of pointer failure

ppdi—Path payload defect indication failure

pplm—Payload label mismatch path

prdi—Path remote defect indication failure

ptim—Path trace indicator mismatch failure

puneq—Path label equivalent to zero failure

sd-ber-b3—PBIP BER in excess of SD threshold failure

sf-ber-b3—PBIP BER in excess of SF threshold failure

A-25

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

[no] rpr-ieee ri {primary | secondary} peer peer-MAC-address

Use this command to set the mode for the IEEE 802.17b based RPR interface and the peer address, or

disables the feature. Use the no form to disable the feature.

Syntax Description

Command Default The default is disabled.

Command Modes IEEE 802.17b based RPR interface configuration

Usage Guidelines The peer MAC address is in hexadecimal format. If you change the MAC address, you must repeat this

command with the new address.

In this command, interface can be shortened to int. It is not necessary to use the RI term if you are

specifically indicating a primary or secondary peer, as in the following example.

Examples In this example, interface is shortened to int.

Router(config)# int rpr-ieee 0

Router(config-if)# rpr-ieee ri mode primary peer 00.24.A4.0E.9A.68

Related Commands rpr-ieee ri {primary | secondary} delay interval

Parameter Description

primary Single traffic queue mode.

secondary Dual traffic queue mode.

peer-MAC-address The MAC of the alternate station. For a primary station, this command

enters the MAC address of the secondary station. For a secondary station,

this command enters the primary station MAC address.

A-26

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

[no] rpr-ieee ri {primary | secondary} delay interval

Use this command to change the soak time for a primary card in active mode. Use the no form of this

command to set the timer to default.

Syntax Description

Command Default The default is 3,000 milliseconds.

Command Modes IEEE 802.17b based RPR interface configuration

Usage Guidelines None.

Examples In this example, interface is shortened to int.

router(config)# int rpr-ieee 0

Router(config-if)# rpr-ieee ri primary delay 1000

Related Commands rpr-ieee ri mode {primary | secondary}

Parameter Description

primary Single traffic queue mode.

secondary Dual traffic queue mode.

interval Interval that the active mode timer waits before switching to the secondary

card. Range is 1,000 to 20,000 milliseconds.

A-27

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

[no] rpr-ieee shutdown {east | west}

This command is similar to a rpr-ieee protection request forced-switch {east | west} command on the

span. This command is essentially no different in function; it is an easier way to do the same thing.

Syntax Description

Defaults Default is no shutdown.

Command Modes IEEE 802.17b based RPR interface configuration

Usage Guidelines Functionally, there is no difference between this command and the protection request commands.

In this command, shutdown can be shortened to shut.

Note This command cannot be cleared by transitioning the span state from OOS,DSBLD (Locked,disabled)

to IS/IS,AINS/OOS,MT (Unlocked,enabled,automaticInService or Locked,maintenance).

Examples In this example, interface is shortened to int.

Router(config)# int rpr-ieee 0

Router(config-if)# rpr-ieee shut east

Related Commands None

Parameter Description

east Specifies a shutdown on the east span of the interface.

west Specifies a shutdown on the west span of the interface.

A-28

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

rpr-ieee tx-traffic rate-limit high rate [east | west]

Use this command to limit the rate at which Class A1 traffic is transmitted only on a specific (east or

west) span.

Syntax Description

Defaults The default is 5 Mbps.

Command Modes IEEE 802.17b based RPR interface configuration

Usage Guidelines Class A1 traffic is used for latency-sensitive traffic, such as voice traffic, that should run at a low rate.

This command allows you to control the traffic on a specific span. It applies to only one span. Specifying

the span might not be necessary in all cases.

Examples In this example, interface is shortened to int.

Router(config)# int rpr-ieee 0

Router(config-if)# rpr-ieee tx-traffic rate-limit high 10 east

Related Commands rpr-ieee tx-traffic strict

rpr-ieee tx-traffic rate-limit medium [east | west]

rpr-ieee tx-traffic rate-limit low [east | west]

Parameter Description

east Pertains to configuration for eastbound span traffic.

west Pertains to configuration for westbound span traffic.

rate Value, expressed in Mbps, of the maximum rate a station can use to transmit

Class A1 traffic onto a particular (east or west) span. (Class A1 traffic is the

Class A traffic in excess of A0.) The rate range is 0 to 1161 Mbps.

A-29

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

rpr-ieee tx-traffic rate-limit medium rate [east | west]

Use this command to limit the rate that Class B-CIR traffic is transmitted on a specific (east or west)

span.

Syntax Description

Defaults The default is 5 Mbps.

Command Modes IEEE 802.17b based RPR interface configuration

Usage Guidelines This command is used for adding Class B traffic to a specific span. Traffic added at or below the

configured rate (for example, at or below 5 Mbps) is Class B-CIR traffic and is not fairness-eligible.

Traffic added above the configured rate (for example, above 5 Mbps) is set as class B-EIR traffic and is

fairness-eligible. This command is specific to one span and would only be used if necessary to make this

distinction.

Examples In this example, interface is shortened to int.

router(config)# int rpr-ieee 0

Router(config-if)# rpr-ieee tx-traffic rate-limit medium 2 east

Related Commands rpr-ieee tx-traffic rate-limit low [rate] {east | west}

rpr-ieee tx-traffic rate-limit high [rate] {east | west}

rpr-ieee tx-traffic rate-limit reserved

Parameter Description

east Pertains to configuration for eastbound span traffic.

west Pertains to configuration for westbound span traffic.

rate Value, expressed in Mbps, of the maximum rate a station can use to transmit

Class B-CIR traffic onto a particular (east or west) span. The rate range is

0 to 1161 Mbps.

A-30

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

rpr-ieee tx-traffic rate-limit reserved rate [east | west]

Use this command to limit the transmission rate of Class A0 reserved traffic on a specific (east or west)

span.

Syntax Description

Defaults The default is 0 Mbps.

Command Modes IEEE 802.17b based RPR interface configuration

Usage Guidelines A0 bandwidth is dedicated and cannot be reused for any other traffic, and thus should be assigned

cautiously. This command is specific to one span and would only be used if necessary to make a

distinction.

Examples In this example, interface is shortened to int.

Router(config)# int rpr-ieee 0

Router(config-if)# rpr-ieee tx-traffic rate-limit reserved 5 east

Related Commands rpr-ieee tx-traffic rate-limit low [rate] {east | west}

rpr-ieee tx-traffic rate-limit medium [rate] {east | west}

rpr-ieee tx-traffic rate-limit high [rate] {east | west}

rpr-ieee tx-traffic rate-limit reserved [rate]

Parameter Description

east Pertains to configuration for eastbound span traffic.

west Pertains to configuration for westbound span traffic.

rate Value, expressed in Mbps, of the total bandwidth a station can use to

transmit Class A0 traffic onto a particular (east or west) span. Range is 0 to

1161 Mbps.

A-31

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

[no] rpr-ieee tx-traffic strict

Use this command to configure either all or none of the traffic added by the node to have the strict order

(SO) bit set on or off in the IEEE 802.17b-based RPR header.

Syntax Description This command has no arguments or keywords.

Defaults The default is off.

Command Modes IEEE 802.17b based RPR interface configuration

Usage Guidelines By default, the SO bit is turned off. You can turn it on in the IEEE 802.17b based RPR interface with

this command if you need to accommodate an application with high sensitivity to out-of-order packets,

originating at this node. This command is seldom utilized.

Examples In this example, interface is shortened to int.

Router(config)# int rpr-ieee 0

Router(config-if)# rpr-ieee tx-traffic strict

Related Commands None

A-32

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show controller pos interface-number [detail]

Use this command to display the status of the POS controller. Use the detail argument to obtain

additional SONET and POS information for the interface.

Syntax Description

Defaults N/A

Command Modes Privileged executive

Usage Guidelines This command can be used to help diagnose and isolate POS or SONET problems.

Examples The following example is an example of POS continuous concatenation circuit (CCAT) show controller

output.

Router(config)# show controller pos 0

Router# show controller pos 0

Interface POS0

Hardware is Packet/Ethernet over Sonet

Concatenation: CCAT

Circuit state: IS

PATH

PAIS = 0 PLOP = 0 PRDI = 0 PTIM = 0

PPLM = 0 PUNEQ = 0 PPDI = 0 PTIU = 0

BER_SF_B3 = 0 BER_SD_B3 = 0 BIP(B3) = 20 REI = 2

NEWPTR = 0 PSE = 0 NSE = 0

Active Alarms : None

Demoted Alarms: None

Active Defects: None

Alarms reportable to CLI: PAIS PLOP PUNEQ PTIM PPLM PRDI PPDI BER_SF_B3 BER_SD_B3

VCAT_OOU_TPT LOM SQM

Link state change defects: PAIS PLOP PUNEQ PTIM PPLM PRDI PPDI BER_SF_B3

Link state change time : 200 (msec)

DOS FPGA channel number : 0

Starting STS (0 based) : 0

VT ID (if any) (0 based) : 255

Circuit size : VC4

RDI Mode : 1 bit

C2 (tx / rx) : 0x01 / 0x01

Framing : SDH

Path Trace

Mode : off

Transmit String :

Expected String :

Received String :

Buffer : Stable

Parameter Description

interface-number Number of the POS interface (0–1)

A-33

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show controller pos interface-number [detail]

Remote hostname :

Remote interface:

Remote IP addr :

B3 BER thresholds:

SFBER = 1e-4, SDBER = 1e-7

5 total input packets, 73842 post-HDLC bytes

0 input short packets, 73842 pre-HDLC bytes

0 input long packets , 0 input runt packets

67 input CRCerror packets , 0 input drop packets

0 input abort packets

0 input packets dropped by ucode

0 total output packets, 0 output pre-HDLC bytes

0 output post-HDLC bytes

Carrier delay is 200 msec

The following is an example of POS virtual concatenation (VCAT) show controller output.

Router# show controller pos 1

Interface POS1

Hardware is Packet/Ethernet over Sonet

Concatenation: VCAT

VCG State: VCG_NORMAL

LCAS Type:NO LCAS

Defect Processing Mode: IMMEDIATE

PDI Holdoff Time: 100 (msec)

Active Alarms : None

Demoted Alarms: None

*************** Member 1 ***************

ESM State: IS

VCG Member State: VCG_MEMBER_NORMAL

PAIS = 0 PLOP = 0 PRDI = 0 PTIM = 0

PPLM = 0 PUNEQ = 0 PPDI = 0 PTIU = 0

BER_SF_B3 = 0 BER_SD_B3 = 0 BIP(B3) = 16 REI = 17

NEWPTR = 0 PSE = 0 NSE = 0

Active Alarms : None

Demoted Alarms: None

Active Defects: None

Alarms reportable to CLI: PAIS PLOP PUNEQ PTIM PPLM PRDI PPDI BER_SF_B3 BER_SD_B3

VCAT_OOU_TPT LOM SQM

Link state change defects: PAIS PLOP PUNEQ PTIM PPLM PRDI PPDI BER_SF_B3

Link state change time : 200 (msec)

DOS FPGA channel number : 2

Starting STS (0 based) : 3

VT ID (if any) (0 based) : 255

Circuit size : VC4

RDI Mode : 1 bit

C2 (tx / rx) : 0x01 / 0x01

Framing : SDH

Path Trace

Mode : off

Transmit String :

Expected String :

Received String :

Buffer : Stable

Remote hostname :

A-34

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show controller pos interface-number [detail]

Remote interface:

Remote IP addr :

B3 BER thresholds:

SFBER = 1e-4, SDBER = 1e-7

*************** Member 2 ***************

ESM State: IS

VCG Member State: VCG_MEMBER_NORMAL

PAIS = 0 PLOP = 0 PRDI = 0 PTIM = 0

PPLM = 0 PUNEQ = 0 PPDI = 0 PTIU = 0

BER_SF_B3 = 0 BER_SD_B3 = 0 BIP(B3) = 15 REI = 35

NEWPTR = 0 PSE = 0 NSE = 0

Active Alarms : None

Demoted Alarms: None

Active Defects: None

Alarms reportable to CLI: PAIS PLOP PUNEQ PTIM PPLM PRDI PPDI BER_SF_B3 BER_SD_B3

VCAT_OOU_TPT LOM SQM

Link state change defects: PAIS PLOP PUNEQ PTIM PPLM PRDI PPDI BER_SF_B3

Link state change time : 200 (msec)

DOS FPGA channel number : 3

Starting STS (0 based) : 24

VT ID (if any) (0 based) : 255

Circuit size : VC4

RDI Mode : 1 bit

C2 (tx / rx) : 0x01 / 0x01

Framing : SDH

Path Trace

Mode : off

Transmit String :

Expected String :

Received String :

Buffer : Stable

Remote hostname :

Remote interface:

Remote IP addr :

B3 BER thresholds:

SFBER = 1e-4, SDBER = 1e-7

13 total input packets, 5031 post-HDLC bytes

0 input short packets, 5031 pre-HDLC bytes

0 input long packets , 0 input runt packets

0 input CRCerror packets , 0 input drop packets

0 input abort packets

0 input packets dropped by ucode

13 total output packets, 5031 output pre-HDLC bytes

5031 output post-HDLC bytes

Carrier delay is 200 msec

Related Commands show interface pos

clear counters

A-35

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show controller rpr-ieee interface-number [detail]

Use this command to display the status of the IEEE 802.17b based RPR controller. Use the detail

argument to obtain additional SONET and RPR-IEEE information for the interface.

Syntax Description

Defaults N/A

Command Modes Privileged executive

Usage Guidelines This command can be used to help diagnose and isolate IEEE 802.17b based RPR or SONET problems.

Examples router# show controller rpr-ieee 0 detail

Interface RPR-IEEE0

Hardware is RPR-IEEE channelized SONET

RPR Interface Defects:

PROT ACTIVE = 0 MAX STATION = 0 MIS-CONF = 0 PASSTHRU = 1

EXCEED A0 RESERVED RATE: RINGLET 0 = 0 RINGLET 1 = 0

Active Alarms : None

Demoted Alarms: None

East Span (Ringlet0 TX Ringlet1 RX)

Framing Mode: GFP

Concatenation: VCAT

East Span Defects:

FS = 0 SF = 0 SD = 0 MS = 0

WTR = 0 MATCH = 0 KEEPALIVE = 0

LFD = 0 CSF = 0 UPI = 0

Active Alarms : None

Demoted Alarms: None

Alarms reportable to CLI: PAIS PLOP PUNEQ PTIM PPLM ENCAP PRDI PPDI BER_SF_B3 BER_SD_B3

VCAT_OOU_TPT LOM SQM

*************** VCG ***************

VCG State: VCG_NORMAL

LCAS Type: SW-LCAS

Defect Processing Mode: IMMEDIATE

PDI Holdoff Time: 100 (msec)

Active Alarms : None

Demoted Alarms: None

DEGRADED = 1 DOWN = 1 LOA = 1

*************** Member 0 ***************

ESM State: IS

VCG Member State: VCG_MEMBER_NORMAL

PAIS = 0 PLOP = 0 PRDI = 0 PTIM = 0

PPLM = 0 PUNEQ = 1 PPDI = 0 PTIU = 0

BER_SF_B3 = 0 BER_SD_B3 = 0 BIP(B3) = 30 REI = 0

Parameter Description

interface-number Number of the IEEE 802.17b based RPR interface (0–1)

detail Greater detail per interface.

A-36

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show controller rpr-ieee interface-number [detail]

NEWPTR = 3 PSE = 0 NSE = 0 ENCAP = 0

OOU-TPT = 1 LOM = 1 SQM = 1 OOG = 0

Active Alarms : None

Demoted Alarms: None

Active Defects: None

DOS FPGA channel number : 0

Starting STS (0 based) : 0

VT ID (if any) (0 based) : 255

Circuit size : STS1

RDI Mode : 1 bit

C2 (tx / rx) : 0x1B / 0x1B

Framing : SONET

Path Trace

Mode : off

Transmit String :

00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................

Expected String :

00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................

Received String :

00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................

Buffer : Stable

Remote hostname :

Remote interface:

Remote IP addr :

B3 BER thresholds:

SFBER:1e-4, SDBER:1e-7, berMap:0x00, SFBER:0, SDBER:0

BER 1e-3:

BIP Sum:0, setTh:2455, clrTh:1003, BurstMap:0x0003, BurstTh:1188

Counts:0, 0,

Over threshold:FALSE, Bursty:TRUE, Clear higher:TRUE, Set level:FALSE

BER 1e-4:

BIP Sum:0, setTh:870, clrTh:201, BurstMap:0x0003, BurstTh:405

Counts:0, 0,

Over threshold:FALSE, Bursty:TRUE, Clear higher:TRUE, Set level:FALSE

BER 1e-5:

BIP Sum:0, setTh:358, clrTh:81, BurstMap:0x000F, BurstTh:71

Counts:0, 0, 0, 0,

Over threshold:FALSE, Bursty:TRUE, Clear higher:TRUE, Set level:FALSE

BER 1e-6:

BIP Sum:0, setTh:399, clrTh:89, BurstMap:0x07FF, BurstTh:22

Counts:0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,

Over threshold:FALSE, Bursty:TRUE, Clear higher:TRUE, Set level:FALSE

BER 1e-7:

BIP Sum:0, setTh:399, clrTh:89, BurstMap:0x03FF, BurstTh:25

Counts:0, 0, 0, 0, 0, 0, 0, 0, 0, 0,

Over threshold:FALSE, Bursty:TRUE, Clear higher:TRUE, Set level:FALSE

BER 1e-8:

BIP Sum:0, setTh:399, clrTh:89, BurstMap:0x03FF, BurstTh:25

Counts:0, 0, 0, 0, 0, 0, 0, 0, 0, 0,

Over threshold:FALSE, Bursty:TRUE, Clear higher:TRUE, Set level:FALSE

BER 1e-9:

BIP Sum:0, setTh:399, clrTh:89, BurstMap:0x03FF, BurstTh:25

Counts:0, 0, 0, 0, 0, 0, 0, 0, 0, 0,

Over threshold:FALSE, Bursty:TRUE, Clear higher:TRUE, Set level:FALSE

BER 1e-10:

A-37

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show controller rpr-ieee interface-number [detail]

BIP Sum:0, setTh:0, clrTh:0, BurstMap:0x0000, BurstTh:0

Counts:

Over threshold:TRUE, Bursty:FALSE, Clear higher:FALSE, Set level:TRUE

*************** Member 1 ***************

ESM State: IS

VCG Member State: VCG_MEMBER_NORMAL

PAIS = 0 PLOP = 0 PRDI = 0 PTIM = 0

PPLM = 0 PUNEQ = 1 PPDI = 0 PTIU = 0

BER_SF_B3 = 0 BER_SD_B3 = 0 BIP(B3) = 22 REI = 0

NEWPTR = 3 PSE = 0 NSE = 0 ENCAP = 0

OOU-TPT = 1 LOM = 1 SQM = 1 OOG = 0

Active Alarms : None

Demoted Alarms: None

Active Defects: None

DOS FPGA channel number : 1

Starting STS (0 based) : 1

VT ID (if any) (0 based) : 255

Circuit size : STS1

RDI Mode : 1 bit

C2 (tx / rx) : 0x1B / 0x1B

Framing : SONET

Path Trace

Mode : off

Transmit String :

00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................

Expected String :

00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................

Received String :

00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................

Buffer : Stable

Remote hostname :

Remote interface:

Remote IP addr :

B3 BER thresholds:

SFBER:1e-4, SDBER:1e-7, berMap:0x00, SFBER:0, SDBER:0

BER 1e-3:

BIP Sum:0, setTh:2455, clrTh:1003, BurstMap:0x0003, BurstTh:1188

Counts:0, 0,

Over threshold:FALSE, Bursty:TRUE, Clear higher:TRUE, Set level:FALSE

BER 1e-4:

BIP Sum:0, setTh:870, clrTh:201, BurstMap:0x0003, BurstTh:405

Counts:0, 0,

Over threshold:FALSE, Bursty:TRUE, Clear higher:TRUE, Set level:FALSE

BER 1e-5:

BIP Sum:0, setTh:358, clrTh:81, BurstMap:0x000F, BurstTh:71

Counts:0, 0, 0, 0,

Over threshold:FALSE, Bursty:TRUE, Clear higher:TRUE, Set level:FALSE

BER 1e-6:

BIP Sum:0, setTh:399, clrTh:89, BurstMap:0x07FF, BurstTh:22

Counts:0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,

Over threshold:FALSE, Bursty:TRUE, Clear higher:TRUE, Set level:FALSE

BER 1e-7:

BIP Sum:0, setTh:399, clrTh:89, BurstMap:0x03FF, BurstTh:25

Counts:0, 0, 0, 0, 0, 0, 0, 0, 0, 0,

A-38

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show controller rpr-ieee interface-number [detail]

Over threshold:FALSE, Bursty:TRUE, Clear higher:TRUE, Set level:FALSE

BER 1e-8:

BIP Sum:0, setTh:399, clrTh:89, BurstMap:0x03FF, BurstTh:25

Counts:0, 0, 0, 0, 0, 0, 0, 0, 0, 0,

Over threshold:FALSE, Bursty:TRUE, Clear higher:TRUE, Set level:FALSE

BER 1e-9:

BIP Sum:0, setTh:399, clrTh:89, BurstMap:0x03FF, BurstTh:25

Counts:0, 0, 0, 0, 0, 0, 0, 0, 0, 0,

Over threshold:FALSE, Bursty:TRUE, Clear higher:TRUE, Set level:FALSE

BER 1e-10:

BIP Sum:0, setTh:0, clrTh:0, BurstMap:0x0000, BurstTh:0

Counts:

Over threshold:TRUE, Bursty:FALSE, Clear higher:FALSE, Set level:TRUE

Input CMF Packets 0

Single bit errors cHec: 0 tHec: 0 eHec: 0

Multiple bit errors cHec: 0 tHec: 0 eHec: 0

Out of sync counts: 0

1398002919 input packets dropped by ucode

West Span (Ringlet0 RX Ringlet1 TX)

Framing Mode: GFP

Concatenation: VCAT

West Span Defects:

FS = 0 SF = 0 SD = 0 MS = 0

WTR = 0 MATCH = 0 KEEPALIVE = 0

LFD = 0 CSF = 0 UPI = 0

Active Alarms : None

Demoted Alarms: None

Alarms reportable to CLI: PAIS PLOP PUNEQ PTIM PPLM ENCAP PRDI PPDI BER_SF_B3 BER_SD_B3

VCAT_OOU_TPT LOM SQM

*************** VCG ***************

VCG State: VCG_NORMAL

LCAS Type: SW-LCAS

Defect Processing Mode: IMMEDIATE

PDI Holdoff Time: 100 (msec)

Active Alarms : None

Demoted Alarms: None

DEGRADED = 0 DOWN = 1 LOA = 0

*************** Member 0 ***************

ESM State: IS

VCG Member State: VCG_MEMBER_NORMAL

PAIS = 0 PLOP = 0 PRDI = 0 PTIM = 0

PPLM = 0 PUNEQ = 1 PPDI = 0 PTIU = 0

BER_SF_B3 = 0 BER_SD_B3 = 0 BIP(B3) = 24 REI = 0

NEWPTR = 3 PSE = 0 NSE = 0 ENCAP = 0

OOU-TPT = 1 LOM = 1 SQM = 1 OOG = 0

Active Alarms : None

Demoted Alarms: None

Active Defects: None

DOS FPGA channel number : 2

Starting STS (0 based) : 24

VT ID (if any) (0 based) : 255

Circuit size : STS1

RDI Mode : 1 bit

C2 (tx / rx) : 0x1B / 0x1B

Framing : SONET

Path Trace

Mode : off

Transmit String :

00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................

Expected String :

A-39

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show controller rpr-ieee interface-number [detail]

00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................

Received String :

00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................

Buffer : Stable

Remote hostname :

Remote interface:

Remote IP addr :

B3 BER thresholds:

SFBER:1e-4, SDBER:1e-7, berMap:0x00, SFBER:0, SDBER:0

BER 1e-3:

BIP Sum:0, setTh:2455, clrTh:1003, BurstMap:0x0003, BurstTh:1188

Counts:0, 0,

Over threshold:FALSE, Bursty:TRUE, Clear higher:TRUE, Set level:FALSE

BER 1e-4:

BIP Sum:0, setTh:870, clrTh:201, BurstMap:0x0003, BurstTh:405

Counts:0, 0,

Over threshold:FALSE, Bursty:TRUE, Clear higher:TRUE, Set level:FALSE

BER 1e-5:

BIP Sum:0, setTh:358, clrTh:81, BurstMap:0x000F, BurstTh:71

Counts:0, 0, 0, 0,

Over threshold:FALSE, Bursty:TRUE, Clear higher:TRUE, Set level:FALSE

BER 1e-6:

BIP Sum:0, setTh:399, clrTh:89, BurstMap:0x07FF, BurstTh:22

Counts:0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,

Over threshold:FALSE, Bursty:TRUE, Clear higher:TRUE, Set level:FALSE

BER 1e-7:

BIP Sum:0, setTh:399, clrTh:89, BurstMap:0x03FF, BurstTh:25

Counts:0, 0, 0, 0, 0, 0, 0, 0, 0, 0,

Over threshold:FALSE, Bursty:TRUE, Clear higher:TRUE, Set level:FALSE

BER 1e-8:

BIP Sum:0, setTh:399, clrTh:89, BurstMap:0x03FF, BurstTh:25

Counts:0, 0, 0, 0, 0, 0, 0, 0, 0, 0,

Over threshold:FALSE, Bursty:TRUE, Clear higher:TRUE, Set level:FALSE

BER 1e-9:

BIP Sum:0, setTh:399, clrTh:89, BurstMap:0x03FF, BurstTh:25

Counts:0, 0, 0, 0, 0, 0, 0, 0, 0, 0,

Over threshold:FALSE, Bursty:TRUE, Clear higher:TRUE, Set level:FALSE

BER 1e-10:

BIP Sum:0, setTh:0, clrTh:0, BurstMap:0x0000, BurstTh:0

Counts:

Over threshold:TRUE, Bursty:FALSE, Clear higher:FALSE, Set level:TRUE

*************** Member 1 ***************

ESM State: IS

VCG Member State: VCG_MEMBER_NORMAL

PAIS = 0 PLOP = 0 PRDI = 0 PTIM = 0

PPLM = 0 PUNEQ = 1 PPDI = 0 PTIU = 0

BER_SF_B3 = 0 BER_SD_B3 = 0 BIP(B3) = 24 REI = 0

NEWPTR = 3 PSE = 0 NSE = 0 ENCAP = 0

OOU-TPT = 1 LOM = 1 SQM = 1 OOG = 0

Active Alarms : None

Demoted Alarms: None

Active Defects: None

DOS FPGA channel number : 3

Starting STS (0 based) : 25

VT ID (if any) (0 based) : 255

Circuit size : STS1

RDI Mode : 1 bit

A-40

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show controller rpr-ieee interface-number [detail]

C2 (tx / rx) : 0x1B / 0x1B

Framing : SONET

Path Trace

Mode : off

Transmit String :

00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................

Expected String :

00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................

Received String :

00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................

Buffer : Stable

Remote hostname :

Remote interface:

Remote IP addr :

B3 BER thresholds:

SFBER:1e-4, SDBER:1e-7, berMap:0x00, SFBER:0, SDBER:0

BER 1e-3:

BIP Sum:0, setTh:2455, clrTh:1003, BurstMap:0x0003, BurstTh:1188

Counts:0, 0,

Over threshold:FALSE, Bursty:TRUE, Clear higher:TRUE, Set level:FALSE

BER 1e-4:

BIP Sum:0, setTh:870, clrTh:201, BurstMap:0x0003, BurstTh:405

Counts:0, 0,

Over threshold:FALSE, Bursty:TRUE, Clear higher:TRUE, Set level:FALSE

BER 1e-5:

BIP Sum:0, setTh:358, clrTh:81, BurstMap:0x000F, BurstTh:71

Counts:0, 0, 0, 0,

Over threshold:FALSE, Bursty:TRUE, Clear higher:TRUE, Set level:FALSE

BER 1e-6:

BIP Sum:0, setTh:399, clrTh:89, BurstMap:0x07FF, BurstTh:22

Counts:0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,

Over threshold:FALSE, Bursty:TRUE, Clear higher:TRUE, Set level:FALSE

BER 1e-7:

BIP Sum:0, setTh:399, clrTh:89, BurstMap:0x03FF, BurstTh:25

Counts:0, 0, 0, 0, 0, 0, 0, 0, 0, 0,

Over threshold:FALSE, Bursty:TRUE, Clear higher:TRUE, Set level:FALSE

BER 1e-8:

BIP Sum:0, setTh:399, clrTh:89, BurstMap:0x03FF, BurstTh:25

Counts:0, 0, 0, 0, 0, 0, 0, 0, 0, 0,

Over threshold:FALSE, Bursty:TRUE, Clear higher:TRUE, Set level:FALSE

BER 1e-9:

BIP Sum:0, setTh:399, clrTh:89, BurstMap:0x03FF, BurstTh:25

Counts:0, 0, 0, 0, 0, 0, 0, 0, 0, 0,

Over threshold:FALSE, Bursty:TRUE, Clear higher:TRUE, Set level:FALSE

BER 1e-10:

BIP Sum:0, setTh:0, clrTh:0, BurstMap:0x0000, BurstTh:0

Counts:

Over threshold:TRUE, Bursty:FALSE, Clear higher:FALSE, Set level:TRUE

Input CMF Packets 0

Single bit errors cHec: 0 tHec: 0 eHec: 0

Multiple bit errors cHec: 2 tHec: 0 eHec: 0

Out of sync counts: 22

88086836 input packets dropped by ucode

A-41

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show controller rpr-ieee interface-number [detail]

Related Commands show interface rpr-ieee

A-42

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show interface pos interface-number

Use this command to display the status of the POS.

Syntax Description

Defaults N/A

Command Modes Privileged executive

Usage Guidelines This command can be used to help diagnose and isolate POS or SONET/SDH problems.

In this command, interface can be shortened to int.

Examples Gateway# show interface pos 0

POS0 is up, line protocol is up

Hardware is Packet/Ethernet over Sonet

Description: foo bar

MTU 4470 bytes, BW 155520 Kbit, DLY 100 usec,

reliability 255/255, txload 1/255, rxload 1/255

Encapsulation HDLC, crc 32, loopback not set

Keepalive set (10 sec)

Scramble enabled

Last input 00:00:09, output never, output hang never

Last clearing of "show interface" counters 05:17:30

Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 0

Queueing strategy: fifo

Output queue :0/40 (size/max)

5 minute input rate 0 bits/sec, 0 packets/sec

5 minute output rate 0 bits/sec, 0 packets/sec

2215 total input packets, 223743 post-HDLC bytes

0 input short packets, 223951 pre-HDLC bytes

0 input long packets , 0 input runt packets

0 input CRCerror packets , 0 input drop packets

0 input abort packets

0 input packets dropped by ucode

0 packets input, 0 bytes

Received 0 broadcasts, 0 runts, 0 giants, 0 throttles

0 parity

0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort

2216 total output packets, 223807 output pre-HDLC bytes

224003 output post-HDLC bytes

0 packets output, 0 bytes, 0 underruns

0 output errors, 0 applique, 8 interface resets

0 output buffer failures, 0 output buffers swapped out

0 carrier transitions

Parameter Description

interface-number Number of the POS interface (0–1)

A-43

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show interface pos interface-number

Related Commands show controller pos

clear counters

A-44

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show interface rpr-ieee interface-number

Use this command to display the status of chosen IEEE 802.17b based RPR interface.

Syntax Description

Defaults N/A

Command Modes Privileged executive

Usage Guidelines This command can be used to help diagnose and isolate IEEE 802.17b based RPR interface or

SONET/SDH problems.

In this command, interface can be shortened to int.

The rpr-ieee tx-traffic rate-limit high command shows the Class A1 rate range as 0 to 1161 Mbps

Note If the Class A1transmit rate is set to 5 Mbps , this command does not provide full interface information

as it does for other typical values (3, 4, 6, 8, and 10 Mbps).

Examples router# show interface rpr-ieee 0

RPR-IEEE0 is up, line protocol is up

Hardware is RPR-IEEE Channelized SONET, address is 0005.9a3c.59c0 (bia 0005.9a3c.59c0)

MTU 1500 bytes, BW 96768 Kbit, DLY 100 usec,

reliability 255/255, txload 128/255, rxload 128/255

Encapsulation: RPR-IEEE,

West Span: loopback not set

East Span: loopback not set

MAC passthrough not set

ARP type: ARPA, ARP Timeout 04:00:00

Last input 00:00:00, output never, output hang never

Last clearing of "show interface" counters never

Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 0

Queueing strategy: fifo

Output queue: 0/40 (size/max)

West Span:5 minutes output rate 96361986 bits/sec, 76243 packets/sec

5 minutes input rate 89824634 bits/sec, 71241 packets/sec

East Span: 5 minutes output rate 71872254 bits/sec, 56867 packets/sec

5 minutes input rate 95391157 bits/sec, 75475 packets/sec

3402516571 packets input, 4038397818 bytes

Received 0 broadcasts (0 IP multicast)

0 runts, 0 giants, 0 throttles

3 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored

0 watchdog, 0 multicast

0 input packets with dribble condition detected

1355393210 packets output, 4104587724 bytes, 0 underruns

0 output errors, 0 collisions, 1 interface resets

Parameter Description

interface-number Number of the IEEE 802.17b based RPR interface (0–1)

A-45

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show interface rpr-ieee interface-number

0 babbles, 0 late collision, 0 deferred

0 lost carrier, 0 no carrier

0 output buffer failures, 0 output buffers swapped out

Related Commands show int pos

show int spr

A-46

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show ons alarm

Use this command to display all the active alarms on the ML-Series card running the Cisco IOS CLI

session.

Syntax Description This command has no arguments or keywords.

Defaults N/A

Command Modes Privileged executive

Usage Guidelines This command can be used to help diagnose and isolate card problems.

Examples router# show ons alarm

Equipment Alarms

Active: CONTBUS-IO-A CTNEQPT-PBWORK

Port Alarms

POS0 Active: None

POS1 Active: None

FastEthernet0 Active: None

FastEthernet1 Active: None

FastEthernet2 Active: None

FastEthernet3 Active: None

FastEthernet4 Active: None

FastEthernet5 Active: None

FastEthernet6 Active: None

FastEthernet7 Active: None

FastEthernet8 Active: None

FastEthernet9 Active: None

FastEthernet10 Active: None

FastEthernet11 Active: None

POS0

Active Alarms : None

Demoted Alarms: None

POS1 VCG State: VCG_NORMAL

VCAT Group

Active Alarms : None

Demoted Alarms: None

Member 0

Active Alarms : None

Demoted Alarms: None

Member 1

Active Alarms : None

Demoted Alarms: None

A-47

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show ons alarm

Related Commands show controller pos

show ons alarm defect

show ons alarm failure

A-48

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show ons alarm defect eqpt

Use this command to display the equipment-layer defects.

Syntax Description This command has no arguments or keywords.

Defaults N/A

Command Modes Privileged executive

Usage Guidelines This command displays the set of active defects for the equipment layer and the possible set of defects

that can be set.

Examples router# show ons alarm defect eqpt

Equipment Defects

Active: CONTBUS-IO-B

Reportable to TCC/CLI: CONTBUS-IO-A CONTBUS-IO-B CTNEQPT-PBWORK CTNEQPT-PBPROT EQPT

RUNCFG-SAVENEED ERROR-CONFIG

Related Commands show ons alarm failure

A-49

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show ons alarm defect port

Use this command to display the port-layer defects.

Syntax Description This command has no arguments or keywords.

Defaults N/A

Command Modes Privileged executive

Usage Guidelines This command displays the set of active defects for the link layer and the possible set of defects that can

be set. Note that the TPTFAIL defect can only occur on the POS ports and the CARLOSS defect can

only occur on the Ethernet ports.

Examples router# show ons alarm defect port

Port Defects

POS0

Active: TPTFAIL

Reportable to TCC: CARLOSS TPTFAIL

POS1

Active: TPTFAIL

Reportable to TCC: CARLOSS TPTFAIL

GigabitEthernet0

Active: None

Reportable to TCC: CARLOSS TPTFAIL

GigabitEthernet1

Active: None

Reportable to TCC: CARLOSS TPTFAIL

Related Commands show interface

show ons alarm failure

A-50

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show ons alarm defect pos interface-number

Use this command to display the link-layer defects.

Syntax Description

Defaults N/A

Command Modes Privileged executive

Usage Guidelines This command displays the set of active defects for the POS layer and the possible set of defects that can

be set.

Examples router# show ons alarm defect pos 0

POS0

Active Defects: None

Alarms reportable to TCC/CLI: PAIS PRDI PLOP PUNEQ PPLM PTIM PPDI BER_SF_B3 BER_SD_B3

Related Commands show controller pos

show ons alarm failure

Parameter Description

interface-number Number of the interface (0–1)

A-51

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show ons alarm defect rpr [interface-number]

Use this command to display the interface defects on the layer.

Syntax Description

Defaults N/A

Command Modes Privileged executive

Usage Guidelines This command displays the set of active defects for the IEEE 802.17b based RPR and the possible set of

defects that can be set.

Examples router# show ons alarm defect rpr

RPR-IEEE0

Active: None

Reportable to SC: RPR-PASSTHRU RPR-PROT_ACTIVE RPR-MAX_STATION RPR-MIS_CONF

RPR-RINGLET0_A0_EXCEED_BANDWIDTH RPR-RINGLET1_A0_EXCEED_BANDWIDTH RPR-RI_PEER_MISSING

RPR-RI_FAULT

Related Commands show ons alarm

Parameter Description

interface-number Number of the interface (0–1)

A-52

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show ons alarm failure eqpt

Use this command to display the equipment-layer failures.

Syntax Description This command has no arguments or keywords.

Defaults N/A

Command Modes Privileged executive

Usage Guidelines This command displays the active failures for the equipment layer. If an EQPT alarm is present, the

board fail defect that was the source of the alarm is displayed.

Examples router# show ons alarm failure eqpt

Equipment

Active Alarms: None

Related Commands show ons alarm defect

A-53

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show ons alarm failure port

Use this command to display the port-layer failures.

Syntax Description This command has no arguments or keywords.

Defaults N/A

Command Modes Privileged executive

Usage Guidelines This command displays the set of active failures for the link layer.

Examples router# show ons alarm failure port

Port Alarms

POS0 Active: TPTFAIL

POS1 Active: TPTFAIL

GigabitEthernet0 Active: None

GigabitEthernet1 Active: None

Related Commands show interface

show ons alarm defect

A-54

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show ons alarm failure pos interface-number

Use this command to display the link-layer failures.

Syntax Description

Defaults N/A

Command Modes Privileged executive

Usage Guidelines This command displays the set of active failures for a specific interface at the POS layer. The display

also specifies if an alarm has been demoted, as defined in Telcordia GR-253.

Examples router# show ons alarm failure pos 0

POS0

Active Alarms : None

Demoted Alarms: None

Related Commands show controller pos

show ons alarm defect

Parameter Description

interface-number Number of the interface (0–1)

A-55

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show ons alarm failure rpr [interface-number]

Use this command to display failures on a specific IEEE 802.17b based RPR interface.

Syntax Description

Defaults N/A

Command Modes Privileged executive

Usage Guidelines This command displays the set of active failures for a specific IEEE 802.17b based RPR interface. The

display also specifies if an alarm has been demoted, as defined in Telcordia GR-253-CORE.

Examples router# show ons alarm failure rpr

RPR-IEEE0

Active: None

Related Commands show ons alarm

Parameter Description

interface-number Number of the interface (0–1)

A-56

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show rpr-ieee counters

Use this command to display the various packet/byte counters for each span of the IEEE 802.17b based

RPR interface. For definitions of ML-Series card statistics, refer to the “Performance Monitoring”

chapter in the Cisco ONS 15454 SONET and DWDM Troubleshooting Guide or the Cisco ONS 15454

SDH Troubleshooting Guide.

Syntax Description This command has no arguments or keywords.

Defaults Defaults can vary by each counter.

Command Modes Privileged executive

Usage Guidelines This command is primarily a troubleshooting tool. The same counter data is also available through

Simple Network Management Protocol (SNMP) data, the Transaction Language 1 (TL1) interface, and

CTC.

Examples router# show rpr-ieee counters

Data Traffic Counters for Interface RPR-IEEE0

WEST Span:

Transit Packets Bytes

Total Low Priority 1162649477 183697386417

Total Med EIR Priority 8936750 1412005236

Total Med CIR+EIR Priority 48436675 7653001286

Total High Priority 17567660 2775677008

Total Multicast 66039554 10435555023

Total Unicast 1162614609 183690629992

Host Receive Packets Bytes

Unicast Low Priority 16147390254 2550939336924

Unicast Med EIR Priority 0 0

Unicast Med CIR Priority 0 0

Unicast High Priority 0 0

Multicast Low Priority 1389170314 219486727447

Multicast Med EIR Priority 0 0

Multicast Med CIR Priority 0 0

Multicast High Priority 0 0

Broadcast 0 N/A

Total Receive Packets Bytes

Unicast Low Priority 17319366142 2736075078618

Unicast Med EIR Priority 0 0

Unicast Med CIR Priority 0 0

Unicast High Priority 0 0

Multicast Low Priority 1389170314 219488627991

Multicast Med EIR Priority 0 0

Multicast Med CIR Priority 0 0

Multicast High Priority 0 0

Host Transmit Packets Bytes

A-57

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show rpr-ieee counters

Unicast Low Priority 18701060600 2954767575274

Unicast Med EIR Priority 0 0

Unicast Med CIR Priority 0 0

Unicast High Priority 0 0

Multicast Low Priority 233345 38183383

Multicast Med EIR Priority 456173838 72075466404

Multicast Med CIR Priority 48446005 7654468790

Multicast High Priority 192647108 30438243064

Broadcast 0 N/A

Total Transmit Packets Bytes

Unicast Low Priority 19863597488 3138448403894

Unicast Med EIR Priority 0 0

Unicast Med CIR Priority 0 0

Unicast High Priority 0 0

Multicast Low Priority 268795 45108717

Multicast Med EIR Priority 495672023 78316179634

Multicast Med CIR Priority 57382139 9066377962

Multicast High Priority 210212898 33213637884

Traffic Rate (5 Minutes) packets/sec bits/sec

Transit Low Priority 0 0

Transit Med EIR Priority 0 0

Transit Med CIR+EIR Priority 0 0

Transit High Priority 0 0

Transit Multicast 0 0

Transit Unicast 0 0

Host Receive 71269 90075869

Total Receive 71269 90076596

Host Transmit 76333 96478080

Total Transmit 76332 96478112

Control Frames: Received Transmitted

Control 26155194 8462107

OAM Echo 0 0

OAM Flush 0 0

OAM Org 0 0

OAM SAS Notify 0 0

Topology ATD 1946003 392352

Topology Checksum 4034923 4034891

Topology Protection 20174268 4034864

LRTT 0 0

FDD 0 0

Received Errors:

0 input errors, 0 CRC, 0 ignored,

0 framer runts, 0 framer giants, 0 framer aborts,

0 mac runts, 0 mac giants, 0 mac ttl strips,

0 non_we drop, 0 ltb_strict drop, 0 htb_strict drop

0 scff errors, 0 bad addr frames, 0 self sourced frames

EAST Span:

Transit Packets Bytes

Total Low Priority 2561406909 404771885533

Total Med EIR Priority 19279 3064252

Total Med CIR+EIR Priority 35591 5614688

Total High Priority 32164 5113038

Total Multicast 1389153110 219542479597

Total Unicast 1172313263 185238866568

Host Receive Packets Bytes

Unicast Low Priority 6599528894 1042960369924

Unicast Med EIR Priority 11972905593 1891155540262

Unicast Med CIR Priority 1826846617 288560828526

A-58

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show rpr-ieee counters

Unicast High Priority 3693986118 583445203252

Multicast Low Priority 42456 9288351

Multicast Med EIR Priority 39498185 6240713230

Multicast Med CIR Priority 8936134 1411909172

Multicast High Priority 17565790 2775394820

Broadcast 0 N/A

Total Receive Packets Bytes

Unicast Low Priority 7761607024 1226426632416

Unicast Med EIR Priority 11972905600 1891010247740

Unicast Med CIR Priority 1826846617 288584487022

Unicast High Priority 3693986118 583547505106

Multicast Low Priority 42456 9288351

Multicast Med EIR Priority 39498185 6235011598

Multicast Med CIR Priority 8936134 1411909172

Multicast High Priority 17565790 2775394820

Host Transmit Packets Bytes

nicast Low Priority 6356990298 1004807678284

Unicast Med EIR Priority 7701766350 1216879083616

Unicast Med CIR Priority 1830175717 289167763286

Unicast High Priority 3695903572 583952764376

Multicast Low Priority 233345 38183383

Multicast Med EIR Priority 407714881 64418951198

Multicast Med CIR Priority 96890130 15308640540

Multicast High Priority 192646933 30438215414

Broadcast 0 N/A

Total Transmit Packets Bytes

Unicast Low Priority 7529228323 1190034710362

Unicast Med EIR Priority 7701766354 1216879084248

Unicast Med CIR Priority 1830175717 289167763286

Unicast High Priority 3695903572 583952764376

Multicast Low Priority 1389383752 219580264474

Multicast Med EIR Priority 407714881 64418951198

Multicast Med CIR Priority 96890130 15308640540

Multicast High Priority 192646933 30438215414

Traffic Rate (5 Minutes) packets/sec bits/sec

Transit Low Priority 6062 7654634

Transit Med EIR Priority 0 0

Transit Med CIR+EIR Priority 0 0

Transit High Priority 0 0

Transit Multicast 6062 7654634

Transit Unicast 0 0

Host Receive 75568 95494249

Total Receive 75568 95512522

Host Transmit 56933 71958410

Total Transmit 62992 79613030

Control Frames: Received Transmitted

Control 26155236 8462109

OAM Echo 0 0

OAM Flush 0 0

OAM Org 0 0

OAM SAS Notify 0 0

Topology ATD 1946019 392355

Topology Checksum 4034954 4034891

Topology Protection 20174268 4034864

LRTT 0 0

FDD 0 0

Received Errors:

3 input errors, 0 CRC, 0 ignored,

A-59

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show rpr-ieee counters

0 framer runts, 0 framer giants, 0 framer aborts,

0 mac runts, 0 mac giants, 3 mac ttl strips,

0 non_we drop, 0 ltb_strict drop, 0 htb_strict drop 0 scff errors, 0 bad addr frames, 0

self sourced frames

Related Commands show int rpr-ieee interface-number

A-60

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show rpr-ieee failure rpr-ieee interface-number

Use this command to display all inputs used to determine the failure state of each span on the

IEEE 802.17b-based RPR interface.

Syntax Description

Defaults N/A

Command Modes Privileged executive

Usage Guidelines This command is primarily used for troubleshooting. Some of its information overlaps that obtained with

show rpr-ieee topology and show rpr-ieee protection commands.

Examples router# show rpr-ieee failure rpr-ieee0

Self Detected Failures Information for Interface RPR-IEEE0

Span WEST:

Reported Debounced Current Stable Debounce

state state state for(sec) delay(sec)

HW missing IDLE IDLE IDLE 403628 0

Layer 1 IDLE IDLE IDLE 403628 0

MAC Keepalive IDLE IDLE IDLE 403628 0

Link quality IDLE IDLE IDLE 403628 0

Mate interface IDLE IDLE IDLE 403628 0

Span mismatch IDLE IDLE IDLE 403628 0

Result Self Detect = IDLE

Span EAST:

Reported Debounced Current Stable Debounce

state state state for(sec) delay(sec)

HW missing IDLE IDLE IDLE 403628 0

Layer 1 IDLE IDLE IDLE 403628 0

MAC Keepalive IDLE IDLE IDLE 403628 0

Link quality IDLE IDLE IDLE 403628 0

Mate interface IDLE IDLE IDLE 403628 0

Span mismatch IDLE IDLE IDLE 403628 0

Result Self Detect = IDLE

Related Commands show int rpr-ieee

Parameter Description

interface-number IEEE 802.17b based RPR interface number. No space is included between

rpr-iee and the interface number (for example, rpr-ieee0).

A-61

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show rpr-ieee fairness detail

Use this command to display the state information of the fairness state machine for each span of the

IEEE 802.17b based RPR interface.

Syntax Description This command has no arguments or keywords.

Defaults N/A

Command Modes Privileged executive

Usage Guidelines This command can be used for troubleshooting traffic issues related to fairness weighting or bandwidth

usage. It provides deep detail for the fairness state of all IEEE 802.17b based RPR traffic on the

interface.

Examples router# show rpr-ieee fairness detail

IEEE 802.17 Fairness on RPR-IEEE0:

Bandwidth: 96768 kilobits per second

Station using aggressive rate adjustment.

Westbound Tx (Ringlet 1)

Weighted Fairness:

Local Weight: 0 (1)

Single-Choke Fairness Status:

Local Congestion:

Congested? No

Head? No

Local Fair Rate:

Approximate Bandwidth: 64892 Kbps

25957 normalized bytes per aging interval

51914 bytes per ageCoef aging interval

Downstream Congestion:

Congested? No

Tail? No

Received Source Address: 0000.0000.0000

Received Fair Rate:

Approximate Bandwidth: FULL RATE

65535 normalized bytes per aging interval

Reserved Rate:

0 Kbps

0 bytes per aging interval

Unreserved Rate:

96768 Kbps

4838 bytes per aging interval

Allowed Rate:

Approximate Bandwidth: 96000 Kbps

4800 bytes per aging interval

Allowed Rate Congested:

Approximate Bandwidth: 96000 Kbps

4800 bytes per aging interval

A-62

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show rpr-ieee fairness detail

TTL to Congestion: 255

Total Hops Tx: 4

Advertised Fair Rate:

Approximate Bandwidth: FULL RATE

65535 normalized bytes per aging interval

8191 bytes per aging interval

Eastbound Tx (Ringlet 0)

Weighted Fairness:

Local Weight: 0 (1)

Single-Choke Fairness Status:

Local Congestion:

Congested? No

Head? No

Local Fair Rate:

Approximate Bandwidth: 0 Kbps

0 normalized bytes per aging interval

0 bytes per ageCoef aging interval

Downstream Congestion:

Congested? No

Tail? No

Received Source Address: 0000.0000.0000

Received Fair Rate:

Approximate Bandwidth: FULL RATE

65535 normalized bytes per aging interval

Reserved Rate:

0 Kbps

0 bytes per aging interval

Unreserved Rate:

96768 Kbps

4838 bytes per aging interval

Allowed Rate:

Approximate Bandwidth: 96000 Kbps

4800 bytes per aging interval

Allowed Rate Congested:

Approximate Bandwidth: 96000 Kbps

4800 bytes per aging interval

TTL to Congestion: 255

Total Hops Tx: 4

Advertised Fair Rate:

Approximate Bandwidth: FULL RATE

65535 normalized bytes per aging interval

8191 bytes per aging interval

Related Commands show rpr-ieee fairness history

A-63

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show rpr-ieee fairness history

Use this command to retrievs performance monitoring information about local and downstream

IEEE 802.17b based RPR congestion history over a period of up to 24 hours.

Syntax Description This command has no arguments or keywords.

Defaults N/A

Command Modes Privileged executive

Usage Guidelines Use this command to determine whether the local IEEE 802.17b based RPR station has been congested

within the past 24 hr and, if so, what the time frame and degree of congestion is. Fairness history aids in

managing traffic by allowing you to monitor or diagnose the ring.

Examples router# show rpr-ieee fairness history

IEEE 802.17 Fairness History on RPR-IEEE0 for last 24 hours:

Congestion information gathered every 900 second(s)

Westbound Tx (Ringlet 1)

Local Congestion:

No. Time: Aging Intervals Seconds Percent

Congested / Total Congested / Total Congested

Instantaneous: 0 / 30 0 (ms) / 12 (ms) 0%

65 08:01:45: 0 / 2250000 0 / 900 0%

64 07:46:45:0 / 2250000 0 / 900 0%

63 07:31:45:0 / 2250000 0 / 900 0%

62 07:16:45:0 / 2250000 0 / 900 0%

61 07:01:45:0 / 2250000 0 / 900 0%

60 06:46:45:0 / 2250000 0 / 900 0%

59 06:31:45:0 / 2250010 0 / 900 0%

58 06:16:45:0 / 2250000 0 / 900 0%

57 06:01:45:0 / 2250000 0 / 900 0%

56 05:46:45:0 / 2250020 0 / 900 0%

55 05:31:45:0 / 2250000 0 / 900 0%

54 05:16:45:0 / 2250000 0 / 900 0%

53 05:01:45:0 / 2250000 0 / 900 0%

52 04:46:45:0 / 2250000 0 / 900 0%

51 04:31:45:0 / 2250000 0 / 900 0%

50 04:16:45:0 / 2250000 0 / 900 0%

49 04:01:45:0 / 2250000 0 / 900 0%

48 03:46:45:0 / 2250000 0 / 900 0%

47 03:31:45: 0 / 2250000 0 / 900 0%

46 03:16:45:0 / 2250000 0 / 900 0%

45 03:01:45:0 / 2250000 0 / 900 0%

44 02:46:45:0 / 2250000 0 / 900 0%

43 02:31:45: 0 / 2250000 0 / 900 0%

42 02:16:45:0 / 2250010 0 / 900 0%

41 02:01:45:0 / 2250000 0 / 900 0%

40 01:46:45:0 / 2250000 0 / 900 0%

39 01:31:45: 0 / 2250000 0 / 900 0%

38 01:16:45:0 / 2250000 0 / 900 0%

A-64

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show rpr-ieee fairness history

37 01:01:45:0 / 2250000 0 / 900 0%

36 00:46:45:0 / 2250000 0 / 900 0%

35 00:31:45:0 / 2250000 0 / 900 0%

34 00:16:45:0 / 2250000 0 / 900 0%

33 00:01:45:0 / 2250000 0 / 900 0%

32 23:46:45:0 / 2250030 0 / 900 0%

31 23:31:45:0 / 2250000 0 / 900 0%

30 23:16:45:0 / 2250000 0 / 900 0%

29 23:01:45:0 / 2250090 0 / 900 0%

28 22:46:45:0 / 2250000 0 / 900 0%

27 22:31:45:0 / 2250000 0 / 900 0%

26 22:16:45:0 / 2250000 0 / 900 0%

25 22:01:45:0 / 2250000 0 / 900 0%

24 21:46:45:0 / 2250000 0 / 900 0%

23 21:31:45:0 / 2250000 0 / 900 0%

22 21:16:45:0 / 2250050 0 / 900 0%

21 21:01:45:0 / 2250000 0 / 900 0%

20 20:46:45:0 / 2250000 0 / 900 0%

19 20:31:45:0 / 2250000 0 / 900 0%

18 20:16:45:0 / 2250060 0 / 900 0%

17 20:01:45:0 / 2250000 0 / 900 0%

16 19:46:45:0 / 2250000 0 / 900 0%

15 19:31:45:0 / 2250000 0 / 900 0%

14 19:16:45:0 / 2250000 0 / 900 0%

13 19:01:45:0 / 2250000 0 / 900 0%

12 18:46:45:0 / 2250090 0 / 900 0%

11 18:31:45:0 / 2250000 0 / 900 0%

10 18:16:45:0 / 2250000 0 / 900 0%

9 18:01:45: 0 / 2250000 0 / 900 0%

8 17:46:45: 0 / 2250000 0 / 900 0%

7 17:31:45: 0 / 2250000 0 / 900 0%

6 17:16:45: 0 / 2250000 0 / 900 0%

5 17:01:45: 0 / 2250000 0 / 900 0%

4 16:46:45: 0 / 2250000 0 / 900 0%

3 16:31:45: 0 / 2250000 0 / 900 0%

2 16:16:45: 0 / 2250000 0 / 900 0%

1 16:01:45; 0 / 2250000 0 / 900 0%

96 15:46:45:0 / 2250000 0 / 900 0%

95 15:31:45:0 / 2250000 0 / 900 0%

94 15:16:45:0 / 2250000 0 / 900 0%

93 15:01:45:0 / 2250000 0 / 900 0%

92 14:46:45:0 / 2250000 0 / 900 0%

91 14:31:45:0 / 2250000 0 / 900 0%

90 14:16:45:0 / 2250000 0 / 900 0%

89 14:01:45:0 / 2250000 0 / 900 0%

88 13:46:45:0 / 2250000 0 / 900 0%

87 13:31:45:0 / 2250000 0 / 900 0%

86 13:16:45:0 / 2250000 0 / 900 0%

85 13:01:45:0 / 2250000 0 / 900 0%

84 12:46:45:0 / 2250000 0 / 900 0%

83 12:31:45:0 / 2250100 0 / 900 0%

82 12:16:45:0 / 2250000 0 / 900 0%

81 12:01:45:0 / 2250000 0 / 900 0%

80 11:46:45:0 / 2250030 0 / 900 0%

79 11:31:45:0 / 2250000 0 / 900 0%

78 11:16:45:0 / 2250010 0 / 900 0%

77 11:01:45:0 / 2250000 0 / 900 0%

76 10:46:45:0 / 2250000 0 / 900 0%

75 10:31:45:0 / 2250000 0 / 900 0%

74 10:16:45:0 / 2250000 0 / 900 0%

73 10:01:45:0 / 2250000 0 / 900 0%

72 09:46:45:0 / 2250070 0 / 900 0%

71 09:31:45:0 / 2250000 0 / 900 0%

70 09:16:45:0 / 2250000 0 / 900 0%

A-65

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show rpr-ieee fairness history

69 09:01:45:0 / 2250000 0 / 900 0%

68 08:46:45:0 / 2250000 0 / 900 0%

67 08:31:45:0 / 2250000 0 / 900 0%

Downstream Congestion:

No. Time : Aging Intervals Seconds Percent

Congested / Total Congested / Total Congested

Instantaneous : 0 / 30 0 (ms) / 12 (ms) 0%

65 08:01:45 : 0 / 2250000 0 / 900 0%

64 07:46:45 : 0 / 2250000 0 / 900 0%

63 07:31:45 : 0 / 2250000 0 / 900 0%

62 07:16:45 : 0 / 2250000 0 / 900 0

61 07:01:45 : 0 / 2250000 0 / 900 0%

60 06:46:45 : 0 / 2250000 0 / 900 0%

59 06:31:45 : 0 / 2250010 0 / 900 0%

58 06:16:45 : 0 / 2250000 0 / 900 0%

57 06:01:45 : 0 / 2250000 0 / 900 0%

56 05:46:45 : 0 / 2250020 0 / 900 0%

55 05:31:45 : 0 / 2250000 0 / 900 0%

54 05:16:45 : 0 / 2250000 0 / 900 0%

53 05:01:45 : 0 / 2250000 0 / 900 0%

52 04:46:45 : 0 / 2250000 0 / 900 0%

51 04:31:45 : 0 / 2250000 0 / 900 0%

50 04:16:45 : 0 / 2250000 0 / 900 0%

49 04:01:45 : 0 / 2250000 0 / 900 0%

48 03:46:45 : 0 / 2250000 0 / 900 0%

47 03:31:45 : 0 / 2250000 0 / 900 0%

46 03:16:45 : 0 / 2250000 0 / 900 0%

45 03:01:45 : 0 / 2250000 0 / 900 0%

44 02:46:45 : 0 / 2250000 0 / 900 0%

43 02:31:45 : 0 / 2250000 0 / 900 0%

42 02:16:45 : 0 / 2250010 0 / 900 0%

41 02:01:45 : 0 / 2250000 0 / 900 0%

40 01:46:45 : 0 / 2250000 0 / 900 0%

39 01:31:45 : 0 / 2250000 0 / 900 0%

38 01:16:45 : 0 / 2250000 0 / 900 0%

37 01:01:45 : 0 / 2250000 0 / 900 0%

36 00:46:45 : 0 / 2250000 0 / 900 0%

35 00:31:45 : 0 / 2250000 0 / 900 0%

34 00:16:45 : 0 / 2250000 0 / 900 0%

33 00:01:45 : 0 / 2250000 0 / 900 0%

32 23:46:45 : 0 / 2250030 0 / 900 0%

31 23:31:45 : 0 / 2250000 0 / 900 0%

30 23:16:45 : 0 / 2250000 0 / 900 0%

29 23:01:45 : 0 / 2250090 0 / 900 0%

28 22:46:45 : 0 / 2250000 0 / 900 0%

27 22:31:45 : 0 / 2250000 0 / 900 0%

26 22:16:45 : 0 / 2250000 0 / 900 0%

25 22:01:45 : 0 / 2250000 0 / 900 0%

24 21:46:45 : 0 / 2250000 0 / 900 0%

23 21:31:45 : 0 / 2250000 0 / 900 0%

22 21:16:45 : 0 / 2250050 0 / 900 0%

21 21:01:45 : 0 / 2250000 0 / 900 0%

20 20:46:45 : 0 / 2250000 0 / 900 0%

19 20:31:45 : 0 / 2250000 0 / 900 0%

18 20:16:45 : 0 / 2250060 0 / 900 0%

17 20:01:45 : 0 / 2250000 0 / 900 0%

16 19:46:45 : 0 / 2250000 0 / 900 0%

15 19:31:45 : 0 / 2250000 0 / 900 0%

14 19:16:45 : 0 / 2250000 0 / 900 0%

13 19:01:45 : 0 / 2250000 0 / 900 0%

12 18:46:45 : 0 / 2250090 0 / 900 0%

11 18:31:45 : 0 / 2250000 0 / 900 0%

10 18:16:45 : 0 / 2250000 0 / 900 0%

9 18:01:45 : 0 / 2250000 0 / 900 0%

A-66

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show rpr-ieee fairness history

8 17:46:45 : 0 / 2250000 0 / 900 0%

7 17:31:45 : 0 / 2250000 0 / 900 0%

6 17:16:45 : 0 / 2250000 0 / 900 0%

5 17:01:45 : 0 / 2250000 0 / 900 0%

4 16:46:45 : 0 / 2250000 0 / 900 0%

3 16:31:45 : 0 / 2250000 0 / 900 0%

2 16:16:45 : 0 / 2250000 0 / 900 0%

1 16:01:45 : 0 / 2250000 0 / 900 0%

96 15:46:45 : 0 / 2250000 0 / 900 0%

95 15:31:45 : 0 / 2250000 0 / 900 0%

94 15:16:45 : 0 / 2250000 0 / 900 0%

93 15:01:45 : 0 / 2250000 0 / 900 0%

92 14:46:45 : 0 / 2250000 0 / 900 0%

91 14:31:45 : 0 / 2250000 0 / 900 0%

90 14:16:45 : 0 / 2250000 0 / 900 0%

89 14:01:45 : 0 / 2250000 0 / 900 0%

88 13:46:45 : 0 / 2250000 0 / 900 0%

87 13:31:45 : 0 / 2250000 0 / 900 0%

86 13:16:45 : 0 / 2250000 0 / 900 0%

85 13:01:45 : 0 / 2250000 0 / 900 0%

84 12:46:45 : 0 / 2250000 0 / 900 0%

83 12:31:45 : 0 / 2250100 0 / 900 0%

82 12:16:45 : 0 / 2250000 0 / 900 0%

81 12:01:45 : 0 / 2250000 0 / 900 0%

80 11:46:45 : 0 / 2250030 0 / 900 0%

79 11:31:45 : 0 / 2250000 0 / 900 0%

78 11:16:45 : 0 / 2250010 0 / 900 0%

77 11:01:45 : 0 / 2250000 0 / 900 0%

76 10:46:45 : 0 / 2250000 0 / 900 0%

75 10:31:45 : 0 / 2250000 0 / 900 0%

74 10:16:45 : 0 / 2250000 0 / 900 0%

73 10:01:45 : 0 / 2250000 0 / 900 0%

72 09:46:45 : 0 / 2250070 0 / 900 0%

71 09:31:45 : 0 / 2250000 0 / 900 0%

70 09:16:45 : 0 / 2250000 0 / 900 0%

69 09:01:45 : 0 / 2250000 0 / 900 0%

68 08:46:45 : 0 / 2250000 0 / 900 0%

67 08:31:45 : 0 / 2250000 0 / 900 0%

Eastbound Tx (Ringlet 0)

Local Congestion:

No. Time : Aging Intervals Seconds Percent

Congested / Total Congested / Total Congested

Instantaneous: 0 / 30 0 (ms) / 12 (ms) 0%

65 08:01:45 : 0 / 2250000 0 / 900 0%

64 07:46:45 : 0 / 2250000 0 / 900 0%

63 07:31:45 : 0 / 2250000 0 / 900 0%

62 07:16:45 : 0 / 2250000 0 / 900 0%

61 07:01:45 : 0 / 2250000 0 / 900 0%

60 06:46:45 : 0 / 2250000 0 / 900 0%

59 06:31:45 : 0 / 2250010 0 / 900 0%

58 06:16:45 : 0 / 2250000 0 / 900 0%

57 06:01:45 : 0 / 2250000 0 / 900 0%

56 05:46:45 : 0 / 2250020 0 / 900 0%

55 05:31:45 : 0 / 2250000 0 / 900 0%

54 05:16:45 : 0 / 2250000 0 / 900 0%

53 05:01:45 : 0 / 2250000 0 / 900 0%

52 04:46:45 : 0 / 2250000 0 / 900 0%

51 04:31:45 : 0 / 2250000 0 / 900 0%

50 04:16:45 : 0 / 2250000 0 / 900 0%

49 04:01:45 : 0 / 2250000 0 / 900 0%

48 03:46:45 : 0 / 2250000 0 / 900 0%

47 03:31:45 : 0 / 2250000 0 / 900 0%

46 03:16:45 : 0 / 2250000 0 / 900 0%

45 03:01:45 : 0 / 2250000 0 / 900 0%

A-67

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show rpr-ieee fairness history

44 02:46:45 : 0 / 2250000 0 / 900 0%

43 02:31:45 : 0 / 2250000 0 / 900 0%

42 02:16:45 : 0 / 2250010 0 / 900 0%

41 02:01:45 : 0 / 2250000 0 / 900 0%

40 01:46:45 : 0 / 2250000 0 / 900 0%

39 01:31:45 : 0 / 2250000 0 / 900 0%

38 01:16:45 : 0 / 2250000 0 / 900 0%

37 01:01:45 : 0 / 2250000 0 / 900 0%

36 00:46:45 : 0 / 2250000 0 / 900 0%

35 00:31:45 : 0 / 2250000 0 / 900 0%

34 00:16:45 : 0 / 2250000 0 / 900 0%

33 00:01:45 : 0 / 2250000 0 / 900 0%

32 23:46:45 : 0 / 2250030 0 / 900 0%

31 23:31:45 : 0 / 2250000 0 / 900 0%

30 23:16:45 : 0 / 2250000 0 / 900 0%

29 23:01:45 : 0 / 2250090 0 / 900 0%

28 22:46:45 : 0 / 2250000 0 / 900 0%

27 22:31:45 : 0 / 2250000 0 / 900 0%

26 22:16:45 : 0 / 2250000 0 / 900 0%

25 22:01:45 : 0 / 2250000 0 / 900 0%

24 21:46:45 : 0 / 2250000 0 / 900 0%

23 21:31:45 : 0 / 2250000 0 / 900 0%

22 21:16:45 : 0 / 2250050 0 / 900 0%

21 21:01:45 : 0 / 2250000 0 / 900 0%

20 20:46:45 : 0 / 2250000 0 / 900 0%

19 20:31:45 : 0 / 2250000 0 / 900 0%

18 20:16:45 : 0 / 2250060 0 / 900 0%

17 20:01:45 : 0 / 2250000 0 / 900 0%

16 19:46:45 : 0 / 2250000 0 / 900 0%

15 19:31:45 : 0 / 2250000 0 / 900 0%

14 19:16:45 : 0 / 2250000 0 / 900 0%

13 19:01:45 : 0 / 2250000 0 / 900 0%

12 18:46:45 : 0 / 2250090 0 / 900 0%

11 18:31:45 : 0 / 2250000 0 / 900 0%

10 18:16:45 : 0 / 2250000 0 / 900 0%

9 18:01:45 : 0 / 2250000 0 / 900 0%

8 17:46:45 : 0 / 2250000 0 / 900 0%

7 17:31:45 : 0 / 2250000 0 / 900 0%

6 17:16:45 : 0 / 2250000 0 / 900 0%

5 17:01:45 : 0 / 2250000 0 / 900 0%

4 16:46:45 : 0 / 2250000 0 / 900 0%

3 16:31:45 : 0 / 2250000 0 / 900 0%

2 16:16:45 : 0 / 2250000 0 / 900 0%

1 16:01:45 : 0 / 2250000 0 / 900 0%

96 15:46:45 : 0 / 2250000 0 / 900 0%

95 15:31:45 : 0 / 2250000 0 / 900 0%

94 15:16:45 : 0 / 2250000 0 / 900 0%

93 15:01:45 : 0 / 2250000 0 / 900 0%

92 14:46:45 : 0 / 2250000 0 / 900 0%

91 14:31:45 : 0 / 2250000 0 / 900 0%

90 14:16:45 : 0 / 2250000 0 / 900 0%

89 14:01:45 : 0 / 2250000 0 / 900 0%

88 13:46:45 : 0 / 2250000 0 / 900 0%

87 13:31:45 : 0 / 2250000 0 / 900 0%

86 13:16:45 : 0 / 2250000 0 / 900 0%

85 13:01:45 : 0 / 2250000 0 / 900 0%

84 12:46:45 : 0 / 2250000 0 / 900 0%

83 12:31:45 : 0 / 2250100 0 / 900 0%

82 12:16:45 : 0 / 2250000 0 / 900 0%

81 12:01:45 : 0 / 2250000 0 / 900 0%

80 11:46:45 : 0 / 2250030 0 / 900 0%

79 11:31:45 : 0 / 2250000 0 / 900 0%

78 11:16:45 : 0 / 2250010 0 / 900 0%

77 11:01:45 : 0 / 2250000 0 / 900 0%

A-68

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show rpr-ieee fairness history

76 10:46:45 : 0 / 2250000 0 / 900 0%

75 10:31:45 : 0 / 2250000 0 / 900 0%

74 10:16:45 : 0 / 2250000 0 / 900 0%

73 10:01:45 : 0 / 2250000 0 / 900 0%

72 09:46:45 : 0 / 2250070 0 / 900 0%

71 09:31:45 : 0 / 2250000 0 / 900 0%

70 09:16:45 : 0 / 2250000 0 / 900 0%

69 09:01:45 : 0 / 2250000 0 / 900 0%

68 08:46:45 : 0 / 2250000 0 / 900 0%

67 08:31:45 : 0 / 2250000 0 / 900 0%

Downstream Congestion:

No. Time : Aging Intervals Seconds Percent

Congested / Total Congested / Total Congested

Instantaneous : 0 / 30 0 (ms) / 12 (ms) 0%

65 08:01:45 : 0 / 2250000 0 / 900 0%

64 07:46:45 : 0 / 2250000 0 / 900 0%

63 07:31:45 : 0 / 2250000 0 / 900 0%

62 07:16:45 : 0 / 2250000 0 / 900 0%

61 07:01:45 : 0 / 2250000 0 / 900 0%

60 06:46:45 : 0 / 2250000 0 / 900 0%

59 06:31:45 : 0 / 2250010 0 / 900 0%

58 06:16:45 : 0 / 2250000 0 / 900 0%

57 06:01:45 : 0 / 2250000 0 / 900 0%

56 05:46:45 : 0 / 2250020 0 / 900 0%

55 05:31:45 : 0 / 2250000 0 / 900 0%

54 05:16:45 : 0 / 2250000 0 / 900 0%

53 05:01:45 : 0 / 2250000 0 / 900 0%

52 04:46:45 : 0 / 2250000 0 / 900 0%

51 04:31:45 : 0 / 2250000 0 / 900 0%

50 04:16:45 : 0 / 2250000 0 / 900 0%

49 04:01:45 : 0 / 2250000 0 / 900 0%

48 03:46:45 : 0 / 2250000 0 / 900 0%

47 03:31:45 : 0 / 2250000 0 / 900 0%

46 03:16:45 : 0 / 2250000 0 / 900 0%

45 03:01:45 : 0 / 2250000 0 / 900 0%

44 02:46:45 : 0 / 2250000 0 / 900 0%

43 02:31:45 : 0 / 2250000 0 / 900 0%

42 02:16:45 : 0 / 2250010 0 / 900 0%

41 02:01:45 : 0 / 2250000 0 / 900 0%

40 01:46:45 : 0 / 2250000 0 / 900 0%

39 01:31:45 : 0 / 2250000 0 / 900 0%

38 01:16:45 : 0 / 2250000 0 / 900 0%

37 01:01:45 : 0 / 2250000 0 / 900 0%

36 00:46:45 : 0 / 2250000 0 / 900 0%

35 00:31:45 : 0 / 2250000 0 / 900 0%

34 00:16:45 : 0 / 2250000 0 / 900 0%

33 00:01:45 : 0 / 2250000 0 / 900 0%

32 23:46:45 : 0 / 2250030 0 / 900 0%

31 23:31:45 : 0 / 2250000 0 / 900 0%

30 23:16:45 : 0 / 2250000 0 / 900 0%

29 23:01:45 : 0 / 2250090 0 / 900 0%

28 22:46:45 : 0 / 2250000 0 / 900 0%

27 22:31:45 : 0 / 2250000 0 / 900 0%

26 22:16:45 : 0 / 2250000 0 / 900 0%

25 22:01:45 : 0 / 2250000 0 / 900 0%

24 21:46:45 : 0 / 2250000 0 / 900 0%

23 21:31:45 : 0 / 2250000 0 / 900 0%

22 21:16:45 : 0 / 2250050 0 / 900 0%

21 21:01:45 : 0 / 2250000 0 / 900 0%

20 20:46:45 : 0 / 2250000 0 / 900 0%

19 20:31:45 : 0 / 2250000 0 / 900 0%

18 20:16:45 : 0 / 2250060 0 / 900 0%

17 20:01:45 : 0 / 2250000 0 / 900 0%

A-69

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show rpr-ieee fairness history

16 19:46:45 : 0 / 2250000 0 / 900 0%

15 19:31:45 : 0 / 2250000 0 / 900 0%

14 19:16:45 : 0 / 2250000 0 / 900 0%

13 19:01:45 : 0 / 2250000 0 / 900 0%

12 18:46:45 : 0 / 2250090 0 / 900 0%

11 18:31:45 : 0 / 2250000 0 / 900 0%

10 18:16:45 : 0 / 2250000 0 / 900 0%

9 18:01:45 : 0 / 2250000 0 / 900 0%

8 17:46:45 : 0 / 2250000 0 / 900 0%

7 17:31:45 : 0 / 2250000 0 / 900 0%

6 17:16:45 : 0 / 2250000 0 / 900 0%

5 17:01:45 : 0 / 2250000 0 / 900 0%

4 16:46:45 : 0 / 2250000 0 / 900 0%

3 16:31:45 : 0 / 2250000 0 / 900 0%

2 16:16:45 : 0 / 2250000 0 / 900 0%

1 16:01:45 : 0 / 2250000 0 / 900 0%

96 15:46:45 : 0 / 2250000 0 / 900 0%

95 15:31:45 : 0 / 2250000 0 / 900 0%

94 15:16:45 : 0 / 2250000 0 / 900 0%

93 15:01:45 : 0 / 2250000 0 / 900 0%

92 14:46:45 : 0 / 2250000 0 / 900 0%

91 14:31:45 : 0 / 2250000 0 / 900 0%

90 14:16:45 : 0 / 2250000 0 / 900 0%

89 14:01:45 : 0 / 2250000 0 / 900 0%

88 13:46:45 : 0 / 2250000 0 / 900 0%

87 13:31:45 : 0 / 2250000 0 / 900 0%

86 13:16:45 : 0 / 2250000 0 / 900 0%

85 13:01:45 : 0 / 2250000 0 / 900 0%

84 12:46:45 : 0 / 2250000 0 / 900 0%

83 12:31:45 : 0 / 2250100 0 / 900 0%

82 12:16:45 : 0 / 2250000 0 / 900 0%

81 12:01:45 : 0 / 2250000 0 / 900 0%

80 11:46:45 : 0 / 2250030 0 / 900 0%

79 11:31:45 : 0 / 2250000 0 / 900 0%

78 11:16:45 : 0 / 2250010 0 / 900 0%

77 11:01:45 : 0 / 2250000 0 / 900 0%

76 10:46:45 : 0 / 2250000 0 / 900 0%

75 10:31:45 : 0 / 2250000 0 / 900 0%

74 10:16:45 : 0 / 2250000 0 / 900 0%

73 10:01:45 : 0 / 2250000 0 / 900 0%

72 09:46:45 : 0 / 2250070 0 / 900 0%

71 09:31:45 : 0 / 2250000 0 / 900 0%

70 09:16:45 : 0 / 2250000 0 / 900 0%

69 09:01:45 : 0 / 2250000 0 / 900 0%

68 08:46:45 : 0 / 2250000 0 / 900 0%

67 08:31:45 : 0 / 2250000 0 / 900 0%

Related Commands show rpr-ieee fairness

A-70

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show rpr-ieee protection

Use this command to display the protection state of the local station, along with brief overview of the

station’s neighbors, timer configuration, and self-detected failures that might contribute to the current

state.

Syntax Description This command has no arguments or keywords.

Defaults N/A

Command Modes Privileged executive

Usage Guidelines Use this command to show the current protection status on the ring.

In this command, protection can be shortened to prot.

Examples router# show rpr-ieee protection

Protection Information for Interface RPR-IEEE0

MAC Addresses

West Span (Ringlet 0 RX) neighbor 000b.fcff.9d34

East Span (Ringlet 1 RX) neighbor 0013.1991.1fc0

Station MAC address 0005.9a3c.59c0

TP frame sending timers:

fast timer: 10 msec

slow timer: 1x100 msec (100 msec)

Protection holdoff timers:

L1 Holdoff Keepalive Detection

West Span 0x10 msec ( 0 msec) West Span 5 msec

East Span 0x10 msec ( 0 msec) East Span 5 msec

Configured protection mode: STEERING

Protection Status

Ring is IDLE

Protection WTR period is 10 sec. (timer is inactive)

Self Detected Requests Remote Requests

West Span IDLE West Span IDLE

East Span IDLE East Span IDLE

Distant Requests

East Span IDLE West Span IDLE

West Span Failures: none

East Span Failures: none

Related Commands None

A-71

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show rpr-ieee rate detail

Use this command to display the configured rate limits for each service class of traffic.

Syntax Description This command has no arguments or keywords.

Defaults N/A

Command Modes Privileged executive

Usage Guidelines Use this command to show the configured rates for Class A1, B-EIR, B-CIR, and reserved traffic.

Examples router# show rpr-ieee rate detail

Rate Limit Information for Interface RPR-IEEE0

West Span:

Reserved Bandwidth (Class A0): 0 Mbps

Rate Limiter High (Class A1): 20 Mbps

Rate Limiter Medium (Class B-CIR): 10 Mbps

Rate Limiter Low (Class B-EIR, C): full

East Span:

Reserved Bandwidth (Class A0): 0 Mbps

Rate Limiter High (Class A1): 20 Mbps

Rate Limiter Medium (Class B-CIR): 10 Mbps

Rate Limiter Low (Class B-EIR, C): full

Service Type: Relaxed

Idle Shaper is Enabled

Transmit at 500 packets per million when PTQ vacancy above 18432 bytes

Transmit at 250 packets per million when PTQ vacancy below 18432 bytes

Related Commands None

A-72

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show rpr-ieee topology detail

Use this command to display topology information gathered by the station from the protection and ATD

messages received on either span of an IEEE 802.17b based RPR ring.

Syntax Description This command has no arguments or keywords.

Defaults N/A

Command Modes Privileged executive

Usage Guidelines Use this command to obtain an extremely detailed status of the ring, including details about each

station’s configuration.

Examples router# show rpr-ieee topology detail

802.17 Topology Display

RX ringlet0->West spanRX ringlet1->East span

Number of nodes on

ringlet0: 5ringlet1: 5

=======================================================================

Local Station Topology Info

=======================================================================

Topology entry:

Station MAC address: 0005.9a3c.59c0

West Span (Outer ringlet RX) neighbor 000b.fcff.9d34

East Span (Inner ringlet RX) neighbor 0013.1991.1fc0

Ring Topology: CLOSED (STABLE)

Containment Active: NO

A0 class reserved rate:

ringlet0: 0 (mbps)ringlet1: 0 (mbps)

Ringlet reserved rate:

ringlet0: 0 (mbps)ringlet1: 0 (mbps)

Ringlet unreserved rate:

ringlet0: 96 (mbps)ringlet1: 96 (mbps)

Ringlet effective unreserved rate:

ringlet0: 95.9 (mbps)ringlet1: 95.9 (mbps)

Advertised Protection requests:

ringlet0: IDLEringlet1: IDLE

Active Edges:

ringlet0: NO ringlet1: NO

Configured protection mode: STEERING

Jumbo preference: NOT SET (ring doesn't support JUMBOS)

Is revertive: YES

Measured LRTT: 0

Sequence Number: 3

ATD INFO:

ATD timer: 1 sec

Station Name: ML100T-481

A0 reserved Bandwidth:

ringlet0: 0 mbpsringlet1: 0 mbps

SAS enabled: YES

A-73

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show rpr-ieee topology detail

Weight:

ringlet0: 1ringlet1: 1

Secondary Mac Addresses:

MAC 1: 0000.0000.0000 (UNUSED)

MAC 2: 0000.0000.0000 (UNUSED)

=======================================================================

Topology Map for Outer ringlet

=======================================================================

Topology entry at Index 1 on ringlet 0:

Station MAC address: 000b.fcff.9d34

Valid on ringlet0: YES

Entry reachable: YES

Advertised Protection requests:

ringlet0: IDLEringlet1: IDLE

Active Edges:

ringlet0: NO ringlet1: NO

Preferred protection mode: STEERING

Jumbo preference: NOT SET (ring doesn't supports JUMBOS)

Measured LRTT: 0

Sequence Number: 3

ATD INFO:

Station Name: ML100X-491

A0 reserved Bandwidth:

ringlet0: 0 mbpsringlet1: 0 mbps

SAS enabled: YES

Weight:

ringlet0: 1ringlet1: 1

Secondary Mac Addresses:

MAC 1: 0000.0000.0000 (UNUSED)

MAC 2: 0000.0000.0000 (UNUSED)

=======================================================================

Topology entry at Index 2 on ringlet 0:

Station MAC address: 0011.2130.b568

Valid on ringlet0: YES

Entry reachable: YES

Advertised Protection requests:

ringlet0: IDLEringlet1: IDLE

Active Edges:

ringlet0: NO ringlet1: NO

Preferred protection mode: STEERING

Jumbo preference: NOT SET (ring doesn't supports JUMBOS)

Measured LRTT: 0

Sequence Number: 3

ATD INFO:

Station Name: ML1000-491

A0 reserved Bandwidth:

ringlet0: 0 mbpsringlet1: 0 mbps

SAS enabled: YES

Weight:

ringlet0: 1ringlet1: 1

Secondary Mac Addresses:

MAC 1: 0000.0000.0000 (UNUSED)

MAC 2: 0000.0000.0000 (UNUSED)

=======================================================================

Topology entry at Index 3 on ringlet 0:

Station MAC address: 0005.9a39.7630

Valid on ringlet0: YES

Entry reachable: YES

Advertised Protection requests:

A-74

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show rpr-ieee topology detail

ringlet0: IDLEringlet1: IDLE

Active Edges:

ringlet0: NO ringlet1: NO

Preferred protection mode: STEERING

Jumbo preference: NOT SET (ring doesn't supports JUMBOS)

Measured LRTT: 0

Sequence Number: 3

ATD INFO:

Station Name: ML1000-492

A0 reserved Bandwidth:

ringlet0: 0 mbpsringlet1: 0 mbps

SAS enabled: YES

Weight:

ringlet0: 1ringlet1: 1

Secondary Mac Addresses:

MAC 1: 0000.0000.0000 (UNUSED)

MAC 2: 0000.0000.0000 (UNUSED)

=======================================================================

Topology entry at Index 4 on ringlet 0:

Station MAC address: 0013.1991.1fc0

Valid on ringlet0: YES

Entry reachable: YES

Advertised Protection requests:

ringlet0: IDLEringlet1: IDLE

Active Edges:

ringlet0: NO ringlet1: NO

Preferred protection mode: STEERING

Jumbo preference: NOT SET (ring doesn't supports JUMBOS)

Measured LRTT: 0

Sequence Number: 3

ATD INFO:

Station Name: ML100T-482

A0 reserved Bandwidth:

ringlet0: 0 mbpsringlet1: 0 mbps

SAS enabled: YES

Weight:

ringlet0: 1ringlet1: 1

Secondary Mac Addresses:

MAC 1: 0000.0000.0000 (UNUSED)

MAC 2: 0000.0000.0000 (UNUSED)

=======================================================================

Topology entry at Index 5 on ringlet 0:

Station MAC address: 0005.9a3c.59c0

Valid on ringlet0: YES

Entry reachable: YES

Advertised Protection requests:

ringlet0: IDLEringlet1: IDLE

Active Edges:

ringlet0: NO ringlet1: NO

Preferred protection mode: STEERING

Jumbo preference: NOT SET (ring doesn't supports JUMBOS)

Measured LRTT: 0

Sequence Number: 3

ATD INFO:

Station Name: ML100T-481

A0 reserved Bandwidth:

ringlet0: 0 mbpsringlet1: 0 mbps

SAS enabled: YES

Weight:

ringlet0: 1ringlet1: 1

Secondary Mac Addresses:

MAC 1: 0000.0000.0000 (UNUSED)

A-75

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show rpr-ieee topology detail

MAC 2: 0000.0000.0000 (UNUSED)

=======================================================================

Topology Map for Inner ringlet

=======================================================================

Topology entry at Index 1 on ringlet 1:

Station MAC address: 0013.1991.1fc0

Valid on ringlet1: YES

Entry reachable: YES

Advertised Protection requests:

ringlet0: IDLEringlet1: IDLE

Active Edges:

ringlet0: NO ringlet1: NO

Preferred protection mode: STEERING

Jumbo preference: NOT SET (ring doesn't supports JUMBOS)

Measured LRTT: 0

Sequence Number: 3

ATD INFO:

Station Name: ML100T-482

A0 reserved Bandwidth:

ringlet0: 0 mbpsringlet1: 0 mbps

SAS enabled: YES

Weight:

ringlet0: 1ringlet1: 1

Secondary Mac Addresses:

MAC 1: 0000.0000.0000 (UNUSED)

MAC 2: 0000.0000.0000 (UNUSED)

=======================================================================

Topology entry at Index 2 on ringlet 1:

Station MAC address: 0005.9a39.7630

Valid on ringlet1: YES

Entry reachable: YES

Advertised Protection requests:

ringlet0: IDLEringlet1: IDLE

Active Edges:

ringlet0: NO ringlet1: NO

Preferred protection mode: STEERING

Jumbo preference: NOT SET (ring doesn't supports JUMBOS)

Measured LRTT: 0

Sequence Number: 3

ATD INFO:

Station Name: ML1000-492

A0 reserved Bandwidth:

ringlet0: 0 mbpsringlet1: 0 mbps

SAS enabled: YES

Weight:

ringlet0: 1ringlet1: 1

Secondary Mac Addresses:

MAC 1: 0000.0000.0000 (UNUSED)

MAC 2: 0000.0000.0000 (UNUSED)

=======================================================================

Topology entry at Index 3 on ringlet 1:

Station MAC address: 0011.2130.b568

Valid on ringlet1: YES

Entry reachable: YES

Advertised Protection requests:

ringlet0: IDLEringlet1: IDLE

Active Edges:

ringlet0: NO ringlet1: NO

Preferred protection mode: STEERING

Jumbo preference: NOT SET (ring doesn't supports JUMBOS)

A-76

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show rpr-ieee topology detail

Measured LRTT: 0

Sequence Number: 3

ATD INFO:

Station Name: ML1000-491

A0 reserved Bandwidth:

ringlet0: 0 mbpsringlet1: 0 mbps

SAS enabled: YES

Weight:

ringlet0: 1ringlet1: 1

Secondary Mac Addresses:

MAC 1: 0000.0000.0000 (UNUSED)

MAC 2: 0000.0000.0000 (UNUSED)

=======================================================================

Topology entry at Index 4 on ringlet 1:

Station MAC address: 000b.fcff.9d34

Valid on ringlet1: YES

Entry reachable: YES

Advertised Protection requests:

ringlet0: IDLEringlet1: IDLE

Active Edges:

ringlet0: NO ringlet1: NO

Preferred protection mode: STEERING

Jumbo preference: NOT SET (ring doesn't supports JUMBOS)

Measured LRTT: 0

Sequence Number: 3

ATD INFO:

Station Name: ML100X-491

A0 reserved Bandwidth:

ringlet0: 0 mbpsringlet1: 0 mbps

SAS enabled: YES

Weight:

ringlet0: 1ringlet1: 1

Secondary Mac Addresses:

MAC 1: 0000.0000.0000 (UNUSED)

MAC 2: 0000.0000.0000 (UNUSED)

=======================================================================

Topology entry at Index 5 on ringlet 1:

Station MAC address: 0005.9a3c.59c0

Valid on ringlet1: YES

Entry reachable: YES

Advertised Protection requests:

ringlet0: IDLEringlet1: IDLE

Active Edges:

ringlet0: NO ringlet1: NO

Preferred protection mode: STEERING

Jumbo preference: NOT SET (ring doesn't supports JUMBOS)

Measured LRTT: 0

Sequence Number: 3

ATD INFO:

Station Name: ML100T-481

A0 reserved Bandwidth:

ringlet0: 0 mbpsringlet1: 0 mbps

SAS enabled: YES

Weight:

ringlet0: 1ringlet1: 1

Secondary Mac Addresses:

MAC 1: 0000.0000.0000 (UNUSED)

MAC 2: 0000.0000.0000 (UNUSED)

A-77

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

show rpr-ieee topology detail

Related Commands None

A-78

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

[no] shutdown

Use this command to place a POS or IEEE 802.17b based RPR interface in pass-through mode. This

command has no arguments or keywords. Use the no form of this command to reverse the shutdown.

Defaults The default is not shut down.

Command Modes POS or IEEE 802.17b based RPR interface configuration

Usage Guidelines For GFP and high-level data link control (HDLC) modes, the POS shutdown causes a path alarm

indication signal (AIS-P) to be sent to the peer. In RPR-IEEE mode, AIS-P is not inserted toward the

peer.

In this command, shutdown can be shortened to shut.

Examples In this example, interface is shortened to int.

Router(config)# int pos 0

Router(config-if)# shut

Related Commands None

A-79

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

spr-intf-id shared-packet-ring-number

Use this command to assign the POS interface to the SPR interface.

Syntax Description

Defaults N/A

Command Modes POS interface configuration

Usage Guidelines • The SPR number must be 1, which is the same SPR number assigned to the SPR interface.

• The members of the SPR interface must be POS interfaces.

• An SPR interface is configured similarly to a EtherChannel (port-channel) interface. Instead of

using the channel-group command to define the members, you use the spr-intf-ID command. Like

port-channel, you then configure the SPR interfaces instead of the POS interface.

Note A similar command, the spr drpri-id [0 | 1] command, is not supported in R7.2.

Examples In this example, interface is shortened to int. An ML-Series card POS interface is being assigned to an

SPR interface with a shared-packet-ring-number of 1:

Router(config)# interface pos 0

Router(config-if)# spr-intf-id 1

Related Commands interface spr 1

spr station-id

spr wrap

Parameter Description

shared-packet-ring-number The only valid shared-packet-ring-number (SPR number) is 1.

A-80

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

[no] spr load-balance {auto | port-based}

Use this command to specify the Cisco proprietary RPR load-balancing scheme for unicast packets.

Syntax Description

Defaults The default setting is auto.

Command Modes SPR interface configuration

Examples The following example configures an SPR interface to use port-based load balancing:

Router(config)# interface spr 1

Router(config-if)# spr load-balance port-based

Related Commands interface spr 1

Parameter Description

auto The default auto option balances the load based on the MAC addresses

or source and destination addresses of the IP packet.

port-based The port-based load balancing option maps even ports to the POS 0

interface and odd ports to the POS 1 interface.

A-81

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

spr station-id station-id-number

Use this command to configure a station ID.

Syntax Description

Defaults N/A

Command Modes SPR interface configuration

Usage Guidelines The different ML-Series cards attached to the RPR all have the same interface type and number, spr1.

The station ID helps to differentiate the SPR interfaces.

Examples The following example sets an ML-Series card SPR station ID to 100:

Router(config)# interface spr 1

Router(config-if)# spr station-id 100

Related Commands interface spr 1

spr-intf-id

spr wrap

Parameter Description

station-id-number The user must configure a different number for each SPR interface that

attaches to the Cisco proprietary RPR. Valid station ID numbers range

from 1 to 254.

A-82

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

spr wrap {immediate | delayed}

Use this command to set the Cisco proprietary RPR wrap mode to either wrap traffic the instant it detects

a link state change or to wrap traffic after the carrier delay, which gives the SONET protection time to

Syntax Description

Defaults The default setting is immediate.

Command Modes SPR interface configuration

Usage Guidelines Immediate should be used if Cisco proprietary RPR is running over unprotected SONET/SDH circuits.

Delayed should be run for SONET protected circuits, such as BLSR or path protection, or SDH protected

circuits, such as subnetwork connection protection (SNCP) or multiplex section-shared protection ring

(MS-SPRing).

Examples The following example sets an ML-Series card to delayed:

Router(config)# interface spr 1

Router(config-if)# spr wrap delayed

Related Commands interface spr 1

spr-intf-id

spr station-id

Parameter Description

immediate Wraps Cisco proprietary RPR traffic the instant it detects a link state

change.

delayed Wraps Cisco proprietary RPR traffic after the carrier delay time expires.

A-83

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

[no] xconnect [destination] [vc-id] [encapsulation mpls]

Use this command at customer-edge (CE) or service provider-edge customer-located equipment

(PE-CLE) ingress and egress Ethernet ports, or at dot1Q VLAN subinterfaces with a destination and

virtual connection identifier (VC ID) to route Layer 2 packets over a specified point-to-point VC by

using Ethernet over multiprotocol label switching (EoMPLS). Use the no form of this command on both

edge devices to delete the VC.

Note This command replaces the mpls l2transport route command.

Syntax Description

Note Though visible in the command-line help strings, the pw-class keyword is not supported.

Defaults No point-to-point connections are configured by default.

Command Modes Interface configuration

Usage Guidelines An MPLS VC runs across an MPLS cloud to connect Ethernet interfaces on two PE-CLE devices at each

edge of the service provider network. You must enter the command at the PE device at each edge of the

service provider network to establish a bidirectional virtual connection, which consists of two

unidirectional label-switched paths (LSPs). A VC is not established if it is not properly defined from

both ends.

For the destination parameter, specify the LDP IP address of the other PE-CLE device; do not specify

the IP address of the device on which you are entering the command.

The vc-id must be unique for each pair of provider edge devices. Therefore, in large networks, you

should keep track of the VC ID assignments to ensure that a VC ID is not assigned more than once.

Examples This example shows how to establish an EoMPLS tunnel between the PE1 VLAN 3 interfaces and the

PE2 VLAN 4 interface. PE1 has IP address 10.0.0.1/32 that PE2 discovers through routing and PE2 has

IP address 20.0.0.1/32 that PE1 discovers through routing.

destination The destination label distribution protocol (LDP) IP address of the remote

provider edge device. The IP address cannot be an IP address on the route on

which the command is entered. The destination is required for the standard

form of the command. It cannot be used with the no form of the command.

vc-id Assign a vc-id for the virtual connection between the two peer provider edge

devices. The range is 1 to 4294967295. The vc-id is required for the standard

form of the command. It cannot be used with the no form of the command.

encapsulation mpls Specify the MPLS data encapsulation method.

A-84

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix A Command Reference

[no] xconnect [destination] [vc-id] [encapsulation mpls]

At the PE1 interface:

Switch(config)# interface vlan 3

Switch(config-if)# xconnect 20.0.0.1 123 encapsulation mpls

At the PE2 interface:

Switch(config)# interface vlan 4

Switch(config-if)# xconnect 10.0.0.1 123 encapsulation mpls

Related Commands show mpls l2transport route

B-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

APPENDIX

Unsupported CLI Commands

This appendix lists some of the command-line interface (CLI) commands that are not supported in this

release, either because they are not tested, or because of hardware limitations. These unsupported

commands are displayed when you enter the question mark (?) at the CLI prompt. This is not a complete

list. Unsupported commands are listed by command mode.

Unsupported Privileged Exec Commands

clear ip accounting

show ip accounting

show ip cache

show ip tcp header-compression

show ip mcache

show ip mpacket

show controller pos pm

show controller pos [variable] pm

Unsupported Global Configuration Commands

access-list aaa <1100-1199>

access-list aaa <200-299>

access-list aaa <700-799>

async-bootp

boot

bridge <num> acquire

bridge <num> address

bridge cmf

bridge <num> bitswap-layer3-addresses

bridge <num> circuit-group

B-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix B Unsupported CLI Commands

Unsupported Global Configuration Commands

bridge <num> domain

bridge <num> lat-service-filtering

bridge <num> protocol dec

bridge <num> protocol ibm

bridge <num> protocol vlan-bridge

chat-script

class-map match access-group

class-map match class-map

class-map match destination-address

class-map match mpls

class-map match protocol

class-map match qos-group

class-map match source-address

clns

define

dialer

dialer-list

downward-compatible-config

file

ip access-list log-update

ip access-list logging

ip address-pool

ip alias

ip bootp

ip gdp

ip local

ip reflexive-list

ip security

ip source-route

ip tcp

ipc

map-class

map-list

multilink

netbios

partition

policy-map class queue-limit

priority-list

B-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix B Unsupported CLI Commands

Unsupported POS Interface Configuration Commands

queue-list

router iso-igrp

router mobile

service compress-config

service disable-ip-fast-frag

service exec-callback

service nagle

service old-slip-prompts

service pad

service slave-log

set privilege level

subscriber-policy

Unsupported POS Interface Configuration Commands

access-expression

autodetect

bridge-group x circuit-group

bridge-group x input-*

bridge-group x lat-compression

bridge-group x output-*

bridge-group x subscriber-loop-control

clock

clns

custom-queue-list

down-when-looped

fair-queue

flowcontrol

full-duplex

half-duplex

hold-queue

ip accounting

ip broadcast-address

ip load-sharing per-packet

ip route-cache

ip security

ip tcp

ip verify

B-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix B Unsupported CLI Commands

Unsupported POS Interface Configuration Commands (Cisco Proprietary RPR Virtual Interface)

iso-igrp

loopback

multilink-group

netbios

pos flag c2

pos mode gfp

pos scramble-spe

pos trigger delay

pos vcat defect <immediate | delayed>

pos vcat resequence

priority-group

pulse-time

random-detect

rate-limit

serial

service-policy history

source

timeout

transmit-interface

tx-ring-limit

Unsupported POS Interface Configuration Commands (Cisco

Proprietary RPR Virtual Interface)

shutdown (unsupported on ML-Series cards not including ML1000-2)

Note With Cisco proprietary RPR, a shutdown of the SPR interface puts ML1000-2 cards in passthrough

mode. This allows the card to participate in RI. ML1000-2 cards are the only ML-Series cards eligible

for RI. Other ML-Series cards fail to enter passthrough mode, when the SPR interface is shutdown.

Unsupported IEEE 802.17 RPR Interface Configuration

Commands

bandwidth

cos priority-mcast

rpr-ieee clock-source

B-5

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix B Unsupported CLI Commands

Unsupported FastEthernet or GigabitEthernet Interface Configuration Commands

rpr-ieee count <mac addr>

rpr-ieee fairness active-weights-detect <span>

rpr-ieee fairness mode aggressive

rpr-ieee fairness mode conservative

rpr-ieee fairness multi-choke <span>

rpr-ieee framing

rpr-ieee loopback

rpr-ieee protection pref wrap

rpr-ieee protection sonet threshold sd-ber <value>

rpr-ieee protection sonet threshold sf-ber <value>

rpr-ieee trigger defects

rpr-ieee tx-traffic idle

loopback

Unsupported FastEthernet or GigabitEthernet Interface

Configuration Commands

access-expression

clns

custom-queue-list

fair-queue

hold-queue

ip accounting

ip broadcast-address

ip load-sharing per-packet

ip route-cache

ip security

ip tcp

ip verify

iso-igrp

keepalive

loopback

max-reserved-bandwidth

multilink-group

netbios

priority-group

random-detect

B-6

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix B Unsupported CLI Commands

Unsupported Port-Channel Interface Configuration Commands

rate-limit

service-policy history

timeout

transmit-interface

tx-ring-limit

Unsupported Port-Channel Interface Configuration Commands

access-expression

carrier-delay

cdp

clns

custom-queue-list

duplex

down-when-looped

encapsulation

fair-queue

flowcontrol

full-duplex

half-duplex

hold-queue

iso-igrp

keepalive

max-reserved-bandwidth

multilink-group

negotiation

netbios

ppp

priority-group

rate-limit

random-detect

timeout

tx-ring-limit

loopback

B-7

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix B Unsupported CLI Commands

Unsupported BVI Interface Configuration Commands

access-expression

carrier-delay

cdp

clns

flowcontrol

hold-queue

iso-igrp

keepalive

l2protocol-tunnel

load-interval

max-reserved-bandwidth

mode

multilink-group

netbios

ntp

mtu

rate-limit

timeout

transmit-interface

tx-ring-limit

B-8

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix B Unsupported CLI Commands

Unsupported BVI Interface Configuration Commands

C-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

APPENDIX

Using Technical Support

This appendix describes how to resolve problems with your ML-Series card.

The appendix contains the following sections:

• Gathering Information About Your Internetwork, page C-1

• Getting the Data from Your ML-Series Card, page C-2

• Providing Data to Your Technical Support Representative, page C-3

To help resolve these problems, use the “Gathering Information About Your Internetwork” section on

page C-1 as a guideline for gathering relevant information about your network prior to calling.

Note When you have a problem that you cannot resolve, contact the Cisco Technical Assistance Center

(Cisco TAC). See the “Obtaining Documentation and Submitting a Service Request” section on

page xxxvii for more information.

Gathering Information About Your Internetwork

Before gathering any specific data, compile a list of all symptoms that users have reported on the

internetwork (such as connections dropping or slow host response).

The next step is to gather specific information. Typical information needed to troubleshoot

internetworking problems falls into two general categories: information required for any situation; and

information specific to the topology, technology, or protocol.

Information that is always required by technical support engineers includes the following:

• Network topology map for the data network and the SONET/SDH topology and provisioning.

• List of hosts and servers: Include the host and server type, number on network, and a description of

the host operating systems that are implemented.

• Configuration listing of all switch routers and switches involved.

• Complete specifications of all switch routers and switches involved.

• Version numbers of software (obtained with the show version command) and Flash code (obtained

with the show controllers command) on all relevant switch routers and switches.

• List of network layer protocols, versions, and vendors.

• List of alarms and conditions on all nodes in the SONET/SDH topology.

C-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix C Using Technical Support

Getting the Data from Your ML-Series Card

• Node equipment and configuration; including type of cross-connect cards, ML-Series cards’ slot

numbers, OC-N cards, and TCC2/TCC2P cards.

To assist you in gathering this required data, the show tech-support EXEC command has been added in

Cisco IOS Release 11.1(4) and later. This command provides general information about the switch router

that you can provide to your technical support representative when you are reporting a problem.

The show tech-support command outputs the equivalent of the show version, show running-config,

show controllers, show stacks, show interfaces, show buffers, show process memory, and show

process EXEC commands.

The specific information requirements that might be needed by technical support vary depending on the

situation. They include the following:

• Output from the following general show commands:

show interfaces

show controllers

show processes {cpu | mem}

show buffer

show mem summary

• Output from the following protocol-specific show commands:

show protocol route

show protocol traffic

show protocol interfaces

show protocol arp

• Output from provisioning show commands

• Output from relevant debug privileged EXEC commands

• Output from protocol-specific ping and trace diagnostic tests, as appropriate

• Network analyzer traces, as appropriate

• Core dumps obtained using the exception dump command, or using the write core command if the

system is operational, as appropriate

Getting the Data from Your ML-Series Card

When obtaining the information from your ML-Series card, you must tailor your method to the system

that you are using to retrieve the information. Following are some hints for different platforms:

• PC and Macintosh—Connect a PC or Macintosh to the console port of the ML-Series card and log

all output to a disk file (using a terminal emulation program). The exact procedure varies depending

on the communication package used with the system.

• Terminal connected to the console port or remote terminal—The only way to get information with

a terminal connected to the console port or with a remote terminal is to attach a printer to the AUX

port on the terminal (if one exists) and to force all screen output to go to the printer. Using a terminal

is undesirable because there is no way to capture the data to a file.

C-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix C Using Technical Support

Providing Data to Your Technical Support Representative

• UNIX workstation—At the UNIX prompt, enter the command script filename, then use Telnet to

connect to the ML-Series card. The UNIX script command captures all screen output to the

specified filename. To stop capturing output and close the file, enter the end-of-file character

(typically Ctrl-D) for your UNIX system.

Note To get your system to automatically log specific error messages or operational information to a UNIX

syslog server, enter the logging internet-address command. For more information about using the

logging command and setting up a syslog server, refer to the Cisco IOS configuration guides and

command references.

Providing Data to Your Technical Support Representative

When submitting information to your technical support representative, electronic data is preferred.

Electronic data significantly eases the transfer of information between technical support personnel and

development staff. Common electronic formats include data sent through electronic mail and files sent

using FTP.

If you are submitting data to your technical support representative, use the following list (in order of

most to least favorable) to determine the preferred method for submission:

• The preferred method of information submission is through FTP service over the Internet. If your

environment supports FTP, you can place your file in the incoming directory on the host Cisco.com.

• The next best method is to send data by e-mail. Before using this method, be sure to contact your

technical support representative, especially when transferring binary core dumps or other large files.

• Transfer through a PC-based communications protocol, such as Kermit, to upload files to

Cisco.com. Again, be sure to contact your technical support representative before attempting any

transfer.

• Transfer by disk or tape.

• The least favorable method is hard-copy transfer by fax or physical mail.

Note If you use e-mail, do not use encoding methods such as binhex or zip. Only MIME-compliant mail

should be used.

C-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Appendix C Using Technical Support

Providing Data to Your Technical Support Representative

IN-1

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

INDEX

Numerics

802.17 RPR card mode 2-4

802.1D. See STP

802.1Q. See IEEE 802.1Q

abbreviating commands 3-15

ABRs 11-9

access control lists. See ACL

access-list command 22-8

accounting with RADIUS 19-16

ACL

about 16-1

applying ACLs 16-4

creating

extended IP ACLs 16-3

IP ACLs 16-3

named extended IP ACLs 16-4

named IP ACLs 16-3

named standard IP ACLs 16-4

numbered standard IP ACLs 16-3

implementation guidelines IP ACL 16-2

named IP ACL 16-2

adapter cable 3-5

addresses

dynamic

accelerated aging 7-9

default aging 7-9

multicast, STP address management 7-8

administrative distances

OSPF 11-17

routing protocol defaults 11-32

advertisements RIP 11-5

aging time, accelerated for STP 7-9, 7-20

alarms 5-6

alarms, RMON 21-3

area border routers. See ABRs

ASBRs 11-9

attributes, RADIUS

vendor-proprietary 19-19

vendor-specific 19-18

audit trail 19-2

authentication

RADIUS

key 19-9

authorization with RADIUS 19-15

Auto-MDIX 4-5

autonegotiation 25-3

autonomous system boundary routers. See ASBRs

bandwidth command traffic classes 14-14, 18-4

BGP, about 11-27

Border Gateway Protocol. See BGP

BPDU RSTP format 7-13

bridge-group command 4-4, 4-5, 4-6, 4-11, 18-8

bridge groups, routing 12-1

bridge-group virtual interface. See BVIs

bridge irb command 12-3

bridge protocol command 18-8

bridging

configuring 6-3

Index

IN-2

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

feature list 1-2

monitoring and verifying 6-3

transparent

bridge CRB mode 6-7

bridge IRB mode 6-8

IP routing mode 6-5

no IP routing mode 6-6

overview 6-5

bvi command 12-3

BVIs

configuring 12-3

description 12-1

displaying information about 12-5

routing enabled on 12-2

cable, RJ-11 to RJ-45 adapter 3-5

card description 1-1

card mode 2-4

CDP, Layer 2 protocol tunneling 9-9

CE-1000-4

autonegotiation 25-3

circuit routing and protection 25-7

differential delay compensation 25-7

Enhanced State Model (ESM) 25-5

Ethernet features 25-2

flow control 25-3

flow control watermark provisioning 25-4

FPGA buffering 25-3

frame buffering 25-3

GFP-F framing 25-8

HDLC 25-8

IS, AINS 25-5

J1 Path Trace 25-8

LEX encapsulation 25-7

link integrity 25-4

loopback 25-8

MTU 25-2

oversubscription 25-3

overview 25-1

POS ports 25-6

RMON and SNMP support 25-5

statistics and counters 25-6

SW-LCAS 25-6

VCAT characteristics 25-6

CE-100T-8

capacity restrictions 24-11

Ethernet features 24-1

flow control 24-2

frame buffering 24-2

IEEE 802.1Q 24-5

LCAS 24-14

link integrity 24-3

maximizing bandwidth 24-11

MTU 24-2

overview 24-1

pools 24-11

priority queuing (ToS and CoS) 24-5

statistics and counters 24-6

STS/VT allocation tab 24-11

channel-group command 10-3, 10-5

circuits definition 23-7

Cisco HDLC 20-6

Cisco IOS

backing out one level 3-15

command modes 3-13 to 3-16

console configuration mode 3-14

global configuration mode 3-14

interface configuration mode 3-14

listing commands 3-15

privileged EXEC mode 3-14

software basics 3-13

startup configuration file 3-9

user EXEC mode 3-14

Cisco IOS software image 3-2

CiscoWorks 2000 22-4

Index

IN-3

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

clear bridge command 6-4

clear vlan command 8-5

clear vlan statistics command 6-4

clocking tolerances 20-11

commands

access-list 22-8

bridge-group 4-4, 4-5, 4-6, 4-11, 6-2, 18-8

bridge irb 12-3

bridge priority 6-2

bridge protocol 6-2, 18-8

bridge protocol drpri-rstp A-2

bridge protocol ieee A-2

bridge protocol rstp A-2

channel-group 10-3, 10-5

clear bridge 6-4

clear vlan 8-5

clear vlan statistics 6-4

clock auto A-3

debug vlan packet 8-5

hostname 3-9

interface bvi 12-3

interface spr 1 A-4

ip multicast-routing 11-34

ip pim 11-34

ip radius nas-ip-address hostname A-5

ip radius nas-ip-address ip-address A-5

line vty 3-9

listing 3-15

microcode fail system-reload A-6

network area 11-3

no clock auto A-3

no ip radius nas-ip-address hostname A-5

no ip radius nas-ip-address ip-address A-5

no pos pdi holdoff A-7

no pos report A-8

no pos scramble-spe A-10

no pos trigger defects A-9

no rpr-ieee keepalive-timer east A-14

no rpr-ieee keepalive-timer west A-14

no rpr-ieee protection pref jumbo A-15

no rpr-ieee protection request forced-switch

east A-16

no rpr-ieee protection request forced-switch

west A-16

no rpr-ieee protection request manual-switch

east A-17

no rpr-ieee protection request manual-switch

west A-17

no rpr-ieee report A-24

no rpr-ieee ri foreign A-13

no rpr-ieee ri primary delay A-26

no rpr-ieee ri primary peer A-25

no rpr-ieee ri secondary delay A-26

no rpr-ieee ri secondary peer A-25

no rpr-ieee shutdown east A-27

no rpr-ieee shutdown west A-27

no rpr-ieee tx-traffic strict A-31

no shutdown A-78

no spr load-balance auto A-80

no spr load-balance port-based A-80

no xconnect A-83

pos pdi holdoff A-7

pos report A-8

pos scramble-spe A-10

pos trigger defects A-9

reference chapter A-1

rmon alarm 21-3

rmon collection history 21-5

rmon collection stats 21-6

rmon event 21-3

router bgp 11-3

router eigrp 11-2

rpr-ieee atd-timer A-11

rpr-ieee fairness weight A-12

rpr-ieee flag c2 A-22

rpr-ieee keepalive-timer east A-14

rpr-ieee keepalive-timer west A-14

rpr-ieee pdi holdoff time A-23

rpr-ieee protection pref jumbo A-15

Index

IN-4

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

rpr-ieee protection request forced-switch east A-16

rpr-ieee protection request forced-switch west A-16

rpr-ieee protection request manual-switch east A-17

rpr-ieee protection request manual-switch west A-17

rpr-ieee protection sonet holdoff-timer east A-18

rpr-ieee protection sonet holdoff-timer west A-18

rpr-ieee protection timer fast east A-19

rpr-ieee protection timer fast west A-19

rpr-ieee protection timer slow east A-20

rpr-ieee protection timer slow west A-20

rpr-ieee protection wtr-timer interval A-21

rpr-ieee protection wtr-timer never A-21

rpr-ieee report A-24

rpr-ieee ri foreign A-13

rpr-ieee ri primary delay A-26

rpr-ieee ri primary peer A-25

rpr-ieee ri secondary delay A-26

rpr-ieee ri secondary peer A-25

rpr-ieee shutdown east A-27

rpr-ieee shutdown west A-27

rpr-ieee tx-traffic rate-limit high east A-28

rpr-ieee tx-traffic rate-limit high west A-28

rpr-ieee tx-traffic rate-limit medium east A-29

rpr-ieee tx-traffic rate-limit medium west A-29

rpr-ieee tx-traffic rate-limit reserved east A-30

rpr-ieee tx-traffic rate-limit reserved west A-30

rpr-ieee tx-traffic strict A-31

show bridge 6-4

show bridge group 6-4

show controller pos A-32

show controller rpr-ieee A-35

show interface pos A-42

show interface rpr-ieee A-44

show interfaces bvi 12-5

show interfaces irb 12-5

show interfaces port-channel 10-9

show ip mroute 11-35

show ons alarm A-46

show ons alarm defect eqpt A-48

show ons alarm defect port A-49

show ons alarm defect pos A-50

show ons alarm defect rpr A-51

show ons alarm failure eqpt A-52

show ons alarm failure port A-53

show ons alarm failure pos A-54

show ons alarm failure rpr A-55

show rmon 21-20

show rmon alarms 21-20

show rmon events 21-20

show rmon history 21-20

show rmon statistics 21-20

show rpr-ieee counters A-56

show rpr-ieee failure rpr-ieee A-60

show rpr-ieee fairness detail A-61

show rpr-ieee fairness history A-63

show rpr-ieee protection A-70

show rpr-ieee rate detail A-71

show rpr-ieee topology detail A-72

show sdm size 15-3

show snmp 22-14

show snmp group 22-14

show snmp pending 22-14

show snmp sessions 22-14

show snmp user 22-14

show tech-support C-2

show vlan 8-5

shutdown A-78

snmp-server community 22-8

snmp-server contact 22-12

snmp-server enable traps 22-11

snmp-server engineID 22-9

snmp-server group 22-9

snmp-server host 22-11

snmp-server location 22-12

snmp-server queue-length 22-12

snmp-server tftp-server-list 22-13

snmp-server trap-source 22-12

snmp-server trap-timeout 22-12

Index

IN-5

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

snmp-server user 22-10

spr-intf-id A-79

spr load-balance auto A-80

spr load-balance port-based A-80

spr station-id A-81

spr wrap delayed A-82

spr wrap immediate A-82

xconnect A-83

community strings

configuring 22-7

overview 22-4

configuration examples

RPR 17-8, 17-16

SNMP 22-13

configuration files

limiting TFTP server access 22-13

system contact and location information 22-12

configuration guidelines,SNMP 22-6

configuration mode

console 3-14

global 3-14

configuring

BVIs 12-3

EtherChannel encapsulation 10-7

host name 3-9

integrated routing and bridging. See IRB

interface, overview 4-1

IP 11-1

IP multicast 11-33

ISL over FEC 10-7

management port 3-8

VLANs 8-1

configuring CRC in HDLC framing 5-5

configuring GFP-F framing 5-5

connecting to console port 3-5

connection procedures 3-5 to 3-6

console port, connecting to 3-5

CoS-based Packet Statistics 14-29

CoS-based QoS 14-17

cos commit command 14-17

CRC 5-4

CRC errors

accessing through SNMP 21-15

checking manually 21-19

configuring SNMP traps 21-16

monitoring 21-15

threshold configuration guidelines 21-15

CTC

Cisco IOS on CTC 3-2

Ethernet port provisioning information 2-2

POS port provisioning information 2-3

POS statistics 2-1

SONET alarms 2-4

SONET circuit provisioning 2-5

database restore 3-11

debug vlan packet command 8-5

default configuration

EIGRP 11-21

Layer 2 protocol tunneling 9-10

OSPF 11-10

RADIUS 19-9

RIP 11-5

RMON 21-2

SNMP 22-6

STP 7-16

Default Multicast QoS 14-24

dense mode, PIM 11-34

Diffusing Update Algorithm (DUAL) 11-20

disabling console port 19-2

double-tagged packets

IEEE 802.1Q tunneling 9-2

Layer 2 protocol tunneling 9-10

drop, definition of 23-7

DUAL finite state machine, EIGRP 11-20

dynamic addresses. See addresses

Index

IN-6

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

Egress priority marking 14-8

EIGRP

authentication 11-25

components 11-20

configuring 11-22

default configuration 11-21

definition 11-20

interface parameters, configuring 11-23

monitoring 11-26

e-mail, technical support C-3

enable mode 3-14

enable passwords 3-8

enable secret passwords 3-8

encapsulation 5-4

configuring EtherChannels 10-7

configuring IEEE 802.1Q VLANs 8-2

Enhanced IGRP. See EIGRP

Enhanced performance monitoring 14-29

Enhanced State Model (ESM) 25-5

EoMPLS 18-1

error messages, logging C-3

E-Series card

applications 23-13

circuit protection 23-24

EtherSwitch

multicard 23-14

single-card 23-14

flow control 23-16

hub-and-spoke Ethernet circuit 23-26

IEEE 802.1Q 23-18

IEEE 802.3z flow control 23-16

Layer 2 switching 23-14

linear mapper 23-15

manual cross-connect 23-26

multicard EtherSwitch 23-14

point-to-point circuit 23-24

port-mapped 23-15

priority queuing 23-20

proprietary encapsulation 20-7

Q-tagging 23-18

RMON alarm thresholds 23-26

shared packed ring 23-25

single-card EtherSwitch 23-14

spanning tree (STP) 23-21

VLAN counter 23-17

VLAN support 23-17

EtherChannel

configuring encapsulation 10-7

port channels supported 10-1

Ethernet

autonegotiation 25-3

clocking 20-11

flow control 25-3

frame buffering 24-2, 25-3

oversubscription 25-3

Ethernet configuration tasks 4-4

Ethernet Wire Service (EWS) 9-7

events, RMON 21-3

extended system ID, STP 7-4

Fast Ethernet

configuring autonegotiation 4-4

configuring interfaces 4-4

feature list 1-2

FEC

cautions 10-2, 10-5, 13-3

configuring 10-2, 10-4, 13-2

configuring encapsulation 10-7

configuring ISL 10-7

port channels supported 10-1

flow control 24-2, 25-3

FPGA 2-4

FPGA versions 2-4

frame buffering 25-3

Index

IN-7

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

framing mode 5-4

GEC

configuring 10-2, 10-4, 13-2

configuring encapsulation 10-7

get-bulk-request operation 22-3

get-next-request operation 22-3, 22-4

get-request operation 22-3, 22-4

get-response operation 22-3

GFP-F framing 20-7, 25-8

Gigabit Ethernet

configuring autonegotiation 4-6, 4-10

configuring interfaces 4-6, 4-10

global configuration mode 3-14

G-Series card

application 23-1

autonegotiation 23-4

circuit restrictions 23-7

circuits 23-6

flow control watermark provisioning 23-4

frame buffering 23-3

Gigabit EtherChannel (GEC) 23-4

link integrity 23-5

manual cross-connect 23-7

point-to-point Ethernet circuit 23-6

separate autonegotiation and flow control 23-4

STS-24c/VC4-8c restrictions 23-7

transponder mode 23-8

hard reset on ML-Series 3-2

HDLC 25-8

hostname command 3-9

IEEE 9-4

IEEE 802.1D. See STP

IEEE 802.1Q tunneling

compatibility with other features 9-4

defaults 9-4

described 9-1

IEEE 802.3x. See flow control

IGMP 11-33

IGP 11-9

Ingress priority marking 14-8

integrated routing and bridging. See IRB

interface configuration mode 3-14

interface parameters, configuring

EtherChannel 10-2, 10-5, 13-2

general 4-3

overview 4-1

interface port IDs 4-2

Interior Gateway Protocol. See IGP

Internet Group Membership Protocol. See IGMP

Internet protocol multicast. See IP multicast routing

Inter-Switch Link protocol. See ISL

IOS. See Cisco IOS

IOS commands A-1

IP access control list. See ACL

IP multicast routing

description 11-33

IGMP 11-33

PIM 11-33

ip multicast-routing command 11-34

ip pim command 11-34

ip radius nas-ip-address 19-16

IP routes, monitoring 11-33

IP routing protocols, configuration tasks 11-1

IP unicast routing

administrative distances 11-32

configuring static routes 11-31

IGP 11-9

Index

IN-8

Ethernet Card Software Feature and Configuration Guide, R7.2

January 2009

IRB

BVIs 12-1

configuration considerations 12-1

configuring 12-2

description 12-1

displaying information about 12-5

monitoring and verifying 12-4

IS, AINS 25-5

J1 bytes 2-5, 25-8

keepalive command 5-6

Kermit protocol C-3

Layer 2 feature list 1-2

Layer 2 protocol tunneling 9-10

configuring 9-10

default configuration 9-10

defined 9-10

guidelines 9-11

Layer 3 feature list 1-5

LCAS 24-14

LEX encapsulation 20-5, 25-7

line vty command 3-9

link integrity 24-3, 25-4

link state advertisements (LSAs) 11-14

logging command C-3

logging router output C-2

MAC addresses 4-2

management options, SNMP 22-1

management ports
