DATA SHEET
CISCO CATALYST 4500 SERIES SWITCHES

Page 1 of 14

DATA SHEET

CISCO CATALYST 4500 SERIES SWITCHES

The Cisco Catalyst 4500 Series switches integrate resiliency for advanced control of converged networks.

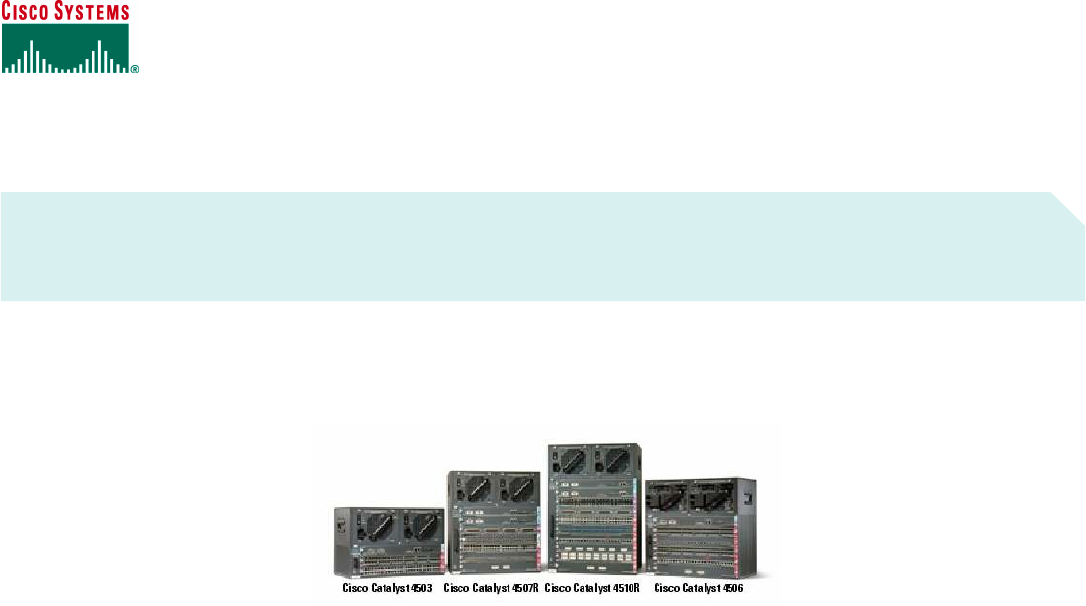

Figure 1. Cisco Catalyst 4500 Series

OVERVIEW

The Cisco® Catalyst® 4500 Series offers nonblocking Layer 2–4 switching with integrated resiliency, further enhancing control of converged

networks. Converged voice, video, and data networks with high availability help enable business resiliency for enterprises, small and medium-sized

businesses (SMBs), and Metro Ethernet customers deploying Internet-based business applications.

The Cisco Catalyst 4500 Series includes four Catalyst chassis: the Catalyst 4510R (10 slots), the Catalyst 4507R (seven slots), Catalyst 4506

(six slots), and Catalyst 4503 (three slots). Integrated resiliency enhancements offered in the Catalyst 4500 Series include 1+1 supervisor-engine

redundancy (Catalyst 4507R and 4510R), redundant fans, software-based fault tolerance, and 1+1 power-supply redundancy. Integrated resiliency

in both hardware and software minimizes network downtime, helping to ensure workforce productivity, profitability, and customer success.

The Cisco Catalyst 4500 Series extends control to the network edge with intelligent network services, including sophisticated quality of service

(QoS), predictable performance, advanced security, comprehensive management, and integrated resiliency. Offering compatibility with all Catalyst

4500 Series line cards and supervisor engines, the Catalyst 4500 Series reduces the cost of ownership by minimizing recurring operational expenses,

improving return on investment (ROI).

CISCO CATALYST 4500 SERIES CHASSIS

The Cisco Catalyst 4500 Series offers four chassis options and four supervisor-engine options. It provides a common architecture that can scale up to

384 ports. The Cisco Catalyst 4507R and 4510R offer high availability in supporting 1+1 redundant supervisor engines with subsecond failover time.

Using the same line cards and supervisor engines as the widely deployed Catalyst 4000 Series Switch, the Catalyst 4500 Series enhances the Cisco

commitment to affordable enterprise and branch scalability. It provides a cost-effective, flexible network solution that scales to meet today's high-

performance needs with investment protection (Table 1).

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com.

Page 2 of 15

Table 1. Cisco Catalyst 4500 Series Chassis Features

Feature

Cisco Catalyst 4503

Chassis

Cisco Catalyst 4506

Chassis

Cisco Catalyst 4507R

Chassis

Cisco Catalyst 4510R

Chassis

Total number of slots 3 6 7 10

Supervisor-engine slots 1* 1* 2** 2**

Supervisor-engine

redundancy

No No Yes (Supervisor Engine

II-Plus, IV, V, V-10GE)

Yes (Supervisor Engine

V and V-10GE)

Supervisor engines

supported

Supervisor Engine II-Plus,

II-Plus-TS, IV, V, V-10GE

Supervisor Engine II-

Plus, IV, V, V-10GE

Supervisor Engine II-Plus,

IV, V, V-10GE

Supervisor Engine V

and V-10GE

Line-card slots 2 5 5** 8**

Number of power-

supply bays

2 2 2 2

AC input power Yes Yes Yes Yes

DC input power Yes Yes Yes Yes

Integrated Power over

Ethernet

Yes Yes Yes Yes

Minimum number of

power supplies

1 1 1 1

Number of fan-tray bays 1 1 1 1

Location of 19-in. rack

mount***

Front Front Front Front

Location of 23-in. rack

mount

Front (option) Front (option) Front (option) Front (option)

* Slot 1 is reserved for supervisor engine only; slots 2 and higher are reserved for line cards.

** Slots 1 and 2 are reserved for supervisor engines only in Cisco Catalyst 4507R and 4510R; slots 3 and higher are reserved for line cards.

*** Chassis can be mounted in racks and cabinets that meet ANSI/EIA-310-D and ETS 300 119-3

 Supervisor-engine slots do not support switching line-card modules. Line-card slots do not support supervisor engines.

CONFIGURATION ALTERNATIVES

The Cisco Catalyst 4500 Series offers a powerful and flexible network solution that can be built with five supervisor-engine alternatives. Each

provides a high-performance, centralized, shared-memory switch fabric, protecting your line-card investment by supporting the addition of optional

higher-layer engines (Table 2).

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com.

Page 3 of 15

Table 2. Cisco Catalyst 4500 Series Supervisor Engine Support and Performance

Feature

Catalyst 4500

Series Supervisor

Engine II-Plus-TS

Catalyst 4500

Series Supervisor

Engine II-Plus

Catalyst 4000/4500

Supervisor Engine IV

Catalyst 4000/4500

Supervisor Engine V

Catalyst 4500 Series

Supervisor Engine V-

10GE

Cisco Catalyst

4503 chassis

Supported,

64 Gbps, 48 mpps

Supported,

28 Gbps, 21 mpps

Supported, 28 Gbps,

21 mpps

Supported, 28 Gbps,

21 mpps

Supported, 64 Gbps,

48 mpps

Cisco Catalyst

4506 chassis

Not supported Supported, 64

Gbps, 48 mpps

Supported 64 Gbps,

48 mpps

Supported 64 Gbps,

48 mpps

Supported. 100 Gbps,

75 mpps

Cisco Catalyst

4507R chassis

Not supported Supported, 64

Gbps, 48 mpps

Supported 64 Gbps,

48 mpps

Supported 68 Gbps,

51 mpps

Supported, 100 Gbps,

75 mpps

Cisco Catalyst

4510R chassis

Not supported Not supported Not supported Supported, 96 Gbps,

72 mpps

Supported, 136 Gbps,

102 mpps

The Cisco Catalyst 4500 Series has flexible interface types and port densities that allow network configurations to be mixed and matched to meet the

specific needs of campus networks (Table 3).

Table 3. Cisco Catalyst 4500 Series Port Densities

Cisco Catalyst 4500 Series Switching

Modules

Number of Interfaces

Supported per Line Card

Cisco Catalyst

4503

Cisco Catalyst

4506

Cisco Catalyst

4507R

Cisco Catalyst

4510R

Switched 10/100 Fast Ethernet (RJ-45) 24, 32, or 48 96 240 240 384*

Switched 10/100 Fast Ethernet (RJ-45)

with IEEE 802.3af Power over

Ethernet (PoE)

24, 48 96 240 240 384*

Switched 10/100 Fast Ethernet (RJ-21)

with or without IEEE 802.3af PoE

48 96 240 240 384*

Switched 100 FX Fast Ethernet (MT-RJ) 4**, 24, or 48 96 240 240 384*

Switched 100 LX-10 (MT-RJ) or 100

BX-D (LC) Fast Ethernet

48 96 240 240 384*

Switched 1000 Gigabit Ethernet (fiber) 2, 6, 18, or 48 104*** 240 240 384*

Switched 10/100/1000BASE-T

Gigabit Ethernet

24 or 48 108*** 240 240 384*

Switched 10/100/1000BASE-T

Gigabit Ethernet with IEEE 802.3af PoE

24 or 48 108*** 240 240 384*

Switched 10,000 (10 Gigabit Ethernet) 2 (Supervisor V-10GE) 2 2 2 2

* When using the Cisco Catalyst 4000/4500 Supervisor Engine V, 336 ports are supported. The Catalyst 4510R can support up to 384 ports with Catalyst 4500

Series Supervisor Engine V-10GE. When Catalyst 4000/4500 Supervisor Engine V is used in the Catalyst 4510R chassis, slot 10 (Flex-slot) supports a subset of

line cards: 2-port Gigabit Interface Converter (GBIC) and Access Gateway Module This is because of the switching capacity of the Catalyst 4000/4500 Supervisor

Engine V; not a limitation of Catalyst 4510R chassis. The Catalyst 4500 Series Supervisor Engine V-10GE allows slot 10 to accommodate any and all line cards.

** Four 100BASE-FX, multimode fiber (MMF) interfaces are supported through the uplink module using the Cisco Catalyst 32-port, 10/100, RJ-45 line card.

*** Cisco Catalyst 4500 Series Supervisor II-Plus-TS required for 104 1000BASE-X ports or 108 10/100/1000 ports.

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com.

Page 4 of 15

CONFIGURATION FLEXIBILITY AND MODULAR SUPERIORITY

Cisco Catalyst 4500 Series modules can be mixed and matched to suit numerous LAN Access, data center, SMB, or branch-office deployments.

Any Gigabit Ethernet port can be 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, or coarse wavelength-division multiplexing (CWDM)

by using flexible, hot-swappable, gigabit-interface-converter (GBIC) modules. The Cisco Catalyst 4500 Series supports the following switching

modules, listed by part number:

• WS-F4531—Cisco Catalyst 4500 NetFlow Services Daughter Card

• WS-X4148-FE-LX-MT—Cisco Catalyst 4500 Fast Ethernet Switching Module, 48-port 100BASE-LX10 single-mode fiber (SMF) (MT-RJ)

• WS-X4148-FE-BD-LC—Cisco Catalyst 4500 Fast Ethernet Switching Module, 48-port 100BASE-BX-D SMF (LC)

• WS-X4124-FX-MT—Cisco Catalyst 4000 Fast Ethernet Switching Module, 24-port 100BASE-FX (MT-RJ)

• WS-X4148-FX-MT—Cisco Catalyst 4500 Fast Ethernet Switching Module, 48-port 100BASE-FX multimode fiber (MMF) (MT-RJ)

• WS-X4124-RJ45—Cisco Catalyst 4500 10/100 Module, 24-port (RJ-45)

• WS-X4148-RJ—Cisco Catalyst 4500 10/100 Module, 48-port (RJ-45)

• WS-X4148-RJ21—Cisco Catalyst 4500 10/100 Module, 48-port telco (4 x RJ-21)

• WS-X4248-RJ21V—Cisco Catalyst 4500 PoE 802.3af 10/100, 48-port (RJ-21)

• WS-X4148-RJ45V—Cisco Catalyst 4500 Cisco prestandard PoE 10/100, 48-port (RJ-45)

• WS-X4224-RJ45V—Cisco Catalyst 4500 PoE 803.3af 10/100, 24-port (RJ-45)

• WS-X4248-RJ45V—Cisco Catalyst 4500 PoE 802.3af 10/100, 48-port (RJ-45)

• WS-X4232-GB-RJ—Cisco Catalyst 4500 32-port 10/100 (RJ-45), 2-Gigabit Ethernet (GBIC) Module

• WS-X4232-RJ-XX—Cisco Catalyst 4500 32-port 10/100 (RJ-45), plus modular uplink slot

• WS-U4504-FX-MT—Cisco Catalyst 4500 Fast Ethernet Uplink Daughter Card for WS-X4232-RJ-XX, 4-port 100BASE-FX (MT-RJ)

• WS-X4302-GB—Cisco Catalyst 4500 Gigabit Ethernet Module, 2-port (GBIC)

• WS-X4306-GB—Cisco Catalyst 4500 Gigabit Ethernet Module, 6-port (GBIC)

• WS-X4506-GB-T—Cisco Catalyst 4500 Gigabit Ethernet Module, 6-port 10/100/1000 802.3af PoE or 1000BASE-X (SFP)

• WS-X4418-GB—Cisco Catalyst 4500 Gigabit Ethernet Module, server switching 18-port (GBIC)

• WS-X4448-GB-LX—Cisco Catalyst 4500 48-Port 1000BASE-LX (SFP optics included)

• WS-X4448-GB-SFP—Catalyst 4500 Gigabit Ethernet Module, 48-Port 1000BASE-X (optional SFP optics)

• WS-X4424-GB-RJ45—Cisco Catalyst 4500 24-Port 10/100/1000 Module (RJ-45)

• WS-X4448-GB-RJ45—Cisco Catalyst 4500 48-Port 10/100/1000 Module (RJ-45)

• WS-X4548-GB-RJ45—Cisco Catalyst 4500 Enhanced 48-Port 10/100/1000 Module (RJ-45)

• WS-X4524-GB-RJ45V—Cisco Catalyst 4500 PoE 802.3af 10/100/1000, 24-port (RJ-45)

• WS-X4548-GB-RJ45V—Cisco Catalyst 4500 PoE 802.3af 10/100/1000, 48-port (RJ-45)

• WS-G5483—Cisco 1000BASE-T GBIC

• WS-G5484—Cisco 1000BASE-SX Short-Wavelength GBIC (multimode only)

• WS-G5486—Cisco 1000BASE-LX/LH Long-Haul GBIC (single-mode or multimode)

• WS-G5487—Cisco 1000BASE-ZX Extended-Reach GBIC (single-mode)

• GLC-T—1000BASE-T SFP

• GLC-SC-MM—GE SFP, LC connector SX transceiver

• GLC-LH-SM—GE SFP, LC connector LX/LH transceiver

• GLC-ZX-SM—1000BASE-ZX SFP

• Cisco CWDM GBIC solution

• Cisco CWDM SFP solution

• X2 Optic Support

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com.

Page 5 of 15

Table 4 lists the minimum software requirements for the Cisco Catalyst supervisor engines, and Table 5 compares the Cisco Catalyst chassis.

Table 4. Cisco Catalyst Supervisor Engine Software Minimum Requirements

Specification Minimum Software Requirement

Cisco Catalyst 4503 with Supervisor II-Plus-TS Cisco IOS® Software Release 12.2(20)EWA or later

Cisco Catalyst 4503, 4506, and 4507R with Supervisor Engine II-Plus Cisco IOS Software Release 12.1(19)EW or later

Cisco Catalyst 4503, 4506, and 4507R with Supervisor Engine IV Cisco IOS Software Release 12.1(12c)EW or later

Cisco Catalyst 4503, 4506, 4507R, and 4510R with Supervisor Engine V Cisco IOS Software Release 12.2(18)EW

Cisco Catalyst 4503, 4506, 4507R, and 4510R with Supervisor Engine V-10GE Cisco IOS Software Release 12.2(25)EW

Table 5. Comparison Between Cisco Catalyst Chassis

Feature Cisco Catalyst 4006 Cisco Catalyst 4503 Cisco Catalyst 4506 Cisco Catalyst 4507R Cisco Catalyst 4510R

Power over

Ethernet (PoE)

Yes—with external

power shelf

Yes—integrated Yes—integrated Yes—integrated Yes—integrated

PoE per line-card

slot maximum

400W 830W 830W 830W 830W

Power-supply

redundancy

2 + 1 1 + 1 1 + 1 1 + 1 1 + 1

Supervisor-engine

redundancy

No No No Yes Yes

Supported line

cards

All Catalyst 4000

Series line cards

All Catalyst 4000

Series line cards

All Catalyst 4000

Series line cards

All Catalyst 4000

Series line cards

All Catalyst 4000

Series line cards

Supervisor engines

supported

Supervisor engines

II-Plus, IV, and V

Supervisor engines

II-Plus, Supervisor

Engine II-Plus-TS,

IV, V, and V-10GE

Supervisor engines

II-Plus, IV, V, and

V-10GE

Supervisor engines II-

Plus, IV, V, and V-

10GE

Supervisor engines

V and V-10GE

Internal power

supplies supported

400W AC 1000W AC

1400W AC

1300W ACV

2800W ACV

1400W DC w/PEM

1400W DC Triple

Input

4200W AC

1000W AC

1400W AC

1300W ACV

2800W ACV

1400W DC w/PEM

1400W DC Triple

Input

4200W AC

1000W AC

1400W AC

1300W ACV

2800W ACV

1400W DC w/PEM

1400W DC Triple

Input

4200W AC

1400W AC*

2800W ACV*

1400W DC w/PEM

1400W DC Triple

Input

4200W AC

* The 1400W AC, 2800W AC, 1400W DC, and 4200W AC power supplies are required to support a fully loaded Cisco Catalyst 4510R. The 1000W AC and

1300W AC power supplies can be deployed in the Catalyst 4510R; however, power management is required.

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com.

Page 6 of 15

Standard Network Protocols

• Ethernet

– IEEE 802.3, 10BASE-T

• Fast Ethernet

– IEEE 802.3u, 100BASE-TX

– IEEE 802.3, 100BASE-FX

• Gigabit Ethernet

– IEEE 802.3z

– IEEE 802.3x

– IEEE 802.3ab

• 1000BASE-X (GBIC)

– 1000BASE-SX

– 1000BASE-LX/LH

– 1000BASE-ZX

• VLAN trunking and tagging

– IEEE 802.1Q

– IEEE 802.3ad

• Spanning Tree Protocol

– IEEE 802.1D

– IEEE 802.1w

– IEEE 802.1s

• Security

– IEEE 802.1x

• Power over Ethernet (PoE)

– IEEE 802.3af

NETWORK MANAGEMENT

CiscoWorks Resource Manager Essentials, a component of CiscoWorks LAN Management Solution (LMS), provides the following benefits to

the Cisco Catalyst 4500 Series:

• Builds and maintains an up-to-date hardware and software inventory

• Maintains an active archive and simplifies deployment of configuration changes to multiple devices

• Simplifies and accelerates software-image analysis and automates deployment

• Records and displays comprehensive reports of software, hardware, and configuration changes

• Highlights critical devices and their ability to respond

• Isolates network error conditions and suggests probable causes

• Network-topology discovery and display services

• VLAN provisioning and logical display representation

• Traffic monitoring and performance assessment

• End-station tracking with search utilities

• CiscoView graphical device management

• Network-topology integrity checking

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com.

Page 7 of 15

• Cisco Discovery Protocol

• Cisco Virtual Trunking Protocol (VTP)

• Simple Network Management Protocol (SNMP) Version 1 (RFCs 1155-1157)

• SNMP Version 2c

• Cisco Workgroup MIB

• Ethernet MIB (RFC 1643)

• Ethernet Repeater MIB (RFC 1516)

• SNMP MIB II (RFC 1213)

• Remote Monitoring (RMON) (RFC 1757)

• RMON II (RFC 2021)

• Interface table (RFC 1573)

• Bridge MIB (RFC 1493)

• Switched Port Analyzer (SPAN)

• Enhanced Switched Port Analyzer (ESPAN)

• Port snooping and connection steering

• Standard Cisco IOS Software security capabilities: passwords and TACACS+

• Telnet, Trivial File Transfer Protocol (TFTP), and BOOTP for management access

PHYSICAL SPECIFICATIONS

Tables 6 lists physical specifications of the chassis and Table 7 lists power-supply specifications for the Cisco Catalyst 4500 Series.

Table 6. Physical Specifications of Cisco Catalyst 4500 Series Chassis

Specification Cisco Catalyst 4503 Cisco Catalyst 4506 Cisco Catalyst 4507R Cisco Catalyst 4510R

Dimensions

(H x W x D)

12.25 x 17.31 x 12.50 in.

(31.12 x 43.97 x 31.70 cm)

17.38 x 17.31 x 12.50 in.

(44.13 x 43.97 x 31.70 cm)

19.19 x 17.31 x 12.50 in.

(48.74 x 43.97 x 31.70 cm)

24.35 x 17.31 x 12.50 in.

(61.84 x 43.97 x 31.70 cm)

Rack units (RU) 7 RU 10 RU 11 RU 14 RU

Chassis weight (with

fan tray)

31.25 lb (14.18 kg) 40.50 lb (18.37 kg) 44.25 lb (20.07 kg) 51.50 lb (23.36 kg)

Mounting 19- and 23-in. rack

compatible (19-in. rack

and cable guide hardware

included)

19- and 23-in. rack-

compatible (19-in. rack

and cable guide hardware

included)

19- and 23-in. rack-

compatible (19-in. rack

and cable guide hardware

included)

19- and 23-in. rack-

compatible (19-in. rack

and cable guide hardware

included)

POWER SUPPLY INDICATORS AND INTERFACES

• Fan cooling: Integrated in hot-insertion/hot-extraction unit

• Good: Green

• Fail: Red (faulty)

• SNMP MIB supported

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com.

Page 8 of 15

Table 7. Cisco Catalyst 4500 Series Data Only Power Supply Specifications

Power Supply 1000W AC 1400W AC 1400W DC Triple Input

Integrated PoE No (data only) No (data Only) No (data only)

IEEE 802.3af-compliant PoE No No No

Input current (rated) 12A @ 100 VAC,

5A @ 240 VAC

16A @ 100 VAC,

7A @ 240 VAC

2x –48 VDC @ 15A

1x –48 VDC @ 12.5A

Output current (data) 12V @ 83.4A

3.3V @ 12.2A

12V @ 113.4A

3.3V @ 12.2A

12V @ 114.0A

3.3V @ 12.5A

Output current (PoE) – – –

Output power redundant mode (data) 1000W + 40W 1360W + 40W 1368W + 40W

Output power redundant mode (PoE) – – –

Output power combined mode (data) 1667W – –

Output power combined mode (PoE) – – –

Heat dissipation* 943 Btus per hour 1048 Btus per hour 1048 Btus per hour

Holdup time 20 ms 20 ms 4ms

Number of 802.3af Class 2 power

devices supported with 1 power

supply (1+1)

– – –

Number of 802.3af Class 0 and 3

power devices supported with 1

power supply (1+1)

– – –

Cisco phones with Integrated PoE None – –

Hot swappable Yes Yes Yes

* Note that calculations for heat dissipation is based on one power supply operating at maximum output power.

Table 8. Cisco Catalyst 4500 Series PoE Power Supply Specifications

Power Supply 1300W AC 2800W AC 1400W DC-P 4200W AC 2500W AC

Integrated PoE Yes (Up to 800W) Yes (Up to 1400W) Up to 8500W (minus the

power consumed for data

when connected directly to

a DC power plant or 2

external AC power shelves

Yes (Up to 3700W) 2500W per

power supply

IEEE 802.3af-

compliant PoE

Yes Yes Yes Yes Yes

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com.

Page 9 of 15

Power Supply 1300W AC 2800W AC 1400W DC-P 4200W AC 2500W AC

Input current (rated) 16A @ 100 VAC,

7A @ 240 VAC

16A @ 200 VAC Data: 31A @ -60VDC

Inline: 180A @ -48VDC

2x 12A @ 100 VAC

2x 12A @ 200 VAC

15A @ 200VAC

Output current (data) 12V @ 84.7A

3.3V @ 12.5A

12V @ 113.3A

3.3V @ 12.1A

12V @ 120A

3.3V @ 10A

12V @ 115.3A

3.3V @ 12.5A

Output current (PoE) -50V @ 16.7A -50V @ 28A -50V @ 140A -50V @ 77.1A (200V)

-50V @ 38A (100V)

-50V @ 50A

Output power

redundant mode (data)

1000W + 40W 1360W + 40W 1367W + 40W 1360W + 40W -

Output power

redundant mode (PoE)

800W 1400W 7500W 3700W (200V)

1850W (100V)

2500W (per unit)

Output power

combined mode (data)

1667W 2473W 2267W 2766W -

Output power

combined mode (PoE)

1333W 2333W 7280W 7600W (200 V)**

3782W (100 V)

Heat dissipation* 1568 BTU/hr 2387 BTU/hr 1591 BTU/hr (data)

2905 BTU/hr (data and

PoE)

3580 BTU/hr 1210 BTU/hr

Holdup time 20 ms 20 ms 4 ms 20 ms 20 ms

Number of 802.3af

Class 2 power devices

supported with 1

power supply (1+1)

101 PDs 178 PDs 384 PDs 384 PDs (200V)

175 PDs (100V)

318 PDs

(per unit)

Number of 802.3af

Class 0 and 3 power

devices supported with

1 power supply (1+1)

46 PDs 80 PDs 384 PDs 186 PDs (200V)

79 PDs (100V)

144 PDs

(per unit)

Cisco phones with

Integrated PoE***

113 PDs 198 PDs 384 PDs 384 PDs (200 V)

195 PDs (100 V)

353 PDs

(per unit)

Hot swappable Yes Yes Yes Yes Yes

* Note that calculations for heat dissipation is based on one power supply operating at maximum output power.

** Measured when two AC power shelves are strapped together and contain 3x2500W AC power supplies.

*** Measured when using Cisco prestandard PoE line cards (WS-X4148-RJ45V).

Additional notes for Table 7 and 8:

1. Output power is per power supply, unless otherwise stated.

2. Heat dissipation numbers represent the power-conversion losses of the power supply in operation.

3. The number of power devices supported will depend on customer configuration.

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com.

Page 10 of 15

FAN TRAYS

Each Cisco Catalyst 4500 Series chassis uses a single fan tray for cooling. All fan trays are composed of independent fans. If one fan fails, the system

will continue to operate without a significant degradation in cooling. The system will detect and notify the user (through LED, command-line

interface [CLI], and SNMP) that a fan has failed and the tray needs to be replaced.

FABRIC-REDUNDANCY MODULES (CISCO CATALYST 4507R AND 4510R ONLY)

The Cisco Catalyst 4500 Series redundancy scheme uses removable fabric-redundancy modules on the passive backplane to switch traffic to the

active supervisor engine. There is one fabric-redundancy module per line card. Fabric-redundancy modules and redundant clocks ship standard with

every Cisco Catalyst 4507R and 4510R chassis. Spare fabric-redundancy modules and clock modules are available for serviceability.

ENVIRONMENTAL CONDITIONS

The Cisco Catalyst 4500 Series requires the following conditions:

• Operating temperature: 32 to 104ºF (0 to 40ºC)

• Storage temperature: –40 to 167ºF (–40 to 75ºC)

• Relative humidity: 10 to 90 percent, noncondensing

• Operating altitude: –60 to 2000 meters (m)

REGULATORY STANDARDS COMPLIANCE

Table 9 lists the regulatory standards compliance of the Cisco Catalyst 4500 Series.

Table 9. Regulatory Standards Compliance

Specification Standard

Regulatory Compliance • CE marking

Safety • UL 60950

• CAN/CSA-C22.2 No. 60950

• EN 60950

• IEC 60950

• TS 001

• AS/NZS 3260

EMC • FCC Part 15 (CFR 47) Class A

• ICES-003 Class A

• EN55022 Class A

• CISPR22 Class A

• AS/NZS 3548 Class A

• VCCI Class A

• EN 55022

• EN 55024

• EN 61000-6-1

• EN 50082-1

• EN 61000-3-2

• EN 61000-3-3

• ETS 300 386

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com.

Page 11 of 15

Specification Standard

Industry EMC, Safety, and

Environmental Standards

• GR-63-Core Network Equipment Building Standards (NEBS) Level 3

• GR-1089-Core Level 3

• ETS 300 019 Storage Class 1.1

• ETS 300 019 Transportation Class 2.3 (pending)

• ETS 300 019 Stationary Use Class 3.1

• ETS 300 386

Telecom (E1) • CTR 12/13

• CTR 4

• ACA TS016

Telecom (T1) • FCC Part 68

• Canada CS-03

• JATE Green Book

ORDERING INFORMATION

Table 10 lists the ordering information for equipment that is commonly used with the Cisco Catalyst 4500 Series.

Table 10. Ordering Information

Product Number Description

WS-C4503 Cisco Catalyst 4503 Switch (3-slot chassis), fan, no power supply

WS-C4506 Cisco Catalyst 4506 Switch (6-slot chassis), fan, no power supply

WS-C4507R Cisco Catalyst 4507R Switch (7-slot chassis), fan, no power supply, redundant supervisor capable

WS-C4510R Cisco Catalyst 4510R Switch (10-slot chassis), fan, no power supply; redundant supervisor capable

PWR-C45-1000AC Cisco Catalyst 4500 Series 1000W AC power supply (data only)

PWR-C45-1400AC Cisco Catalyst 4500 Series 1400W AC power supply (data only)

PWR-C45-1300ACV Cisco Catalyst 4500 Series 1300W AC power supply (with integrated PoE)

PWR-C45-2800ACV Cisco Catalyst 4500 Series 2800W AC power supply (with integrated PoE)

PWR-C45-1400DC-P Cisco Catalyst 4500 Series 1400W DC power supply with integrated power entry module (PEM)

PWR-C45-1400DC Cisco Catalyst 4500 Series triple input 1400W DC power supply (data only)

PWR-C45-4200ACV Cisco Catalyst 4500 Series 4200 W AC power supply (with integrated PoE)

WS-P4502-1PSU Catalyst 4500 Series auxiliary power shelf (2-slot), including 1 PWR-4502

PWR-4502 Catalyst 4500 Series auxiliary power-shelf redundant power supply

WS-X4013+ Cisco Catalyst 4500 Series Supervisor Engine II-Plus

WS-X4013+TS Cisco Catalyst 4500 Series Supervisor Engine II-Plus-TS, twelve 10/100/1000 PoE (RJ-45) and eight 1000-X

SFP ports included on supervisor-engine faceplate

WS-X4515 Cisco Catalyst 4000/4500 Supervisor Engine IV

WS-X4515/2 Cisco Catalyst 4507R Redundant Supervisor Engine IV

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com.

Page 12 of 15

Product Number Description

WS-X4516 Cisco Catalyst 4000/4500 Supervisor Engine V

WS-X4516/2 Cisco Catalyst 4507R Redundant Supervisor Engine V

WS-X4516-10GE Cisco Catalyst 4500 Series Supervisor Engine V-10GE

WS-X4516-10GE/2 Cisco Catalyst 4507R/4510R Redundant Supervisor Engine V-10GE

S4KL3-12218EW* Cisco IOS Software: basic Layer 3 software image (Routing Information Protocol [RIP], static routes,

Internetwork Packet Exchange [IPX] protocol, AppleTalk)

S4KL3K91-12218EW Cisco IOS Software: basic Layer 3 software image (RIP, static routes, IPX, AppleTalk, Triple Data Encryption

Standard [3DES])

S4KL3E-12218EW Cisco IOS Software: enhanced Layer 3 software image (Open Shortest Path First [OSPF], Enhanced Interior

Gateway Routing Protocol [EIGRP], and Intermediate System-to-Intermediate System [IS-IS] Protocol)

S4KL3EK91-12218EW Cisco IOS Software: enhanced Layer 3 software image (OSPF, EIGRP, IS-IS, and 3DES)

MEM-C4K-FLD64M Compact Flash memory, 64-MB option

MEM-C4K-FLD128M Compact Flash memory, 128-MB option

* Enhanced Layer 3 software (S4KL3E-12218EW and S4KL3EK91-12218EW) is available for the Cisco Catalyst 4000/4500 supervisor engines IV and V only

LICENSING

Use of Border Gateway Protocol Version 4 (BGP4) on the Cisco Catalyst 4000/4500 supervisor engines IV and V requires an InterDomain

Routing license (Table 10). Only one InterDomain Routing license is required per chassis.

Table 11. Licensing on the Cisco Catalyst 4500 Series

Product Number Description

FR-IRC4(=) Cisco Catalyst supervisor engines IV, V, and V-10GE InterDomain Routing feature license

WARRANTY

The warranty for the Cisco Catalyst 4500 Series is 90 days; it includes hardware replacement with a 10-day turnaround from return to manufacturer

authorization (RMA).

CISCO TECHNICAL SUPPORT SERVICES

Cisco Systems® offers Cisco Technical Support Services to help ensure that your Cisco products operate efficiently, remain highly available, and

benefit from current system software to assist you in effectively managing your network service while controlling operational costs.

Cisco Technical Support Services provide significant benefits that go beyond what is offered under the Cisco warranty policy. Services available

under a Cisco SMARTnet® service contract that are not covered under a warranty include the following:

• Latest software updates

• Rapid replacement of hardware in next-day, 4-hour, or 2-hour dispatch options

• Ongoing technical support through Cisco Technical Assistance Center (TAC)

• Registered access to Cisco.com

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com.

Page 13 of 15

Tables 12 and 13 list the components and competitive differentiators of Cisco Technical Support Services.

Table 12. Technical Support Services—Components

Service Feature Overview Benefits

Software Support Offers maintenance and minor and major updates for licensed feature set. Downloading new maintenance

releases, patches, or updates of Cisco IOS Software helps to enhance and extend the useful life of Cisco

devices. Through major software updates it is possible to extend the life of equipment and maximize

application technology investments by:

• Increasing the performance of current functions

• Adding new capability that, in many cases, requires no additional hardware investment

• Enhancing network and application availability, reliability, and stability

TAC Support With more than 1000 highly trained customer support engineers, 390 CCIE® certifications, and access to

13,000 research and development engineers, Cisco TAC complements your in-house staff with a high level

of knowledge in voice, video, and data communications networking technology. Its sophisticated call-routing

system quickly routes calls to the correct technology personnel. The Cisco TAC is available 24 hours a day,

365 days a year.

Cisco.com This award-winning Website provides 24-hour access to an extensive collection of online product and

technology information, interactive network-management and troubleshooting tools, and knowledge-transfer

resources that can help customers reduce costs by increasing staff self-sufficiency and productivity.

Advance Hardware

Replacement

Advance replacement and onsite field-engineer options supply fast access to replacement hardware and field

resources for installing hardware, minimizing the risk of potential network downtime.

Table 13. Technical Support Services—Competitive Differentiators

Feature Benefits

Worldwide Virtual Lab This extensive lab of Cisco equipment and Cisco IOS Software releases provides an invaluable engineering resource

and knowledge base for training, product information, and recreation and testing of selected network issues to help

decrease time to resolution.

TAC Training

• Boot camps

• Tech calls

• Tech forums

Cisco is committed to providing customers the latest in technology support. These TAC training programs assist

customers in case avoidance as well as provide knowledge transfer of Cisco networking expertise.

Cisco Live A powerful suite of Internet-enabled tools with firewall-friendly features; these secure, encrypted Java applets

can turn a simple phone call into an interactive collaboration session, allowing a customer and Cisco TAC support

engineer to work together more effectively.

Global Logistics Delivers award-winning, worldwide hardware-replacement support with 650 depots, covering 120 countries, at a

US$2.3 billion investment in inventory, using 10,000 onsite field engineers.

Cisco IOS Software Employs 100 discrete technologies with more than 2000 features. 400 new features are added each year. Cisco IOS

Software is installed in more than 10 million devices and is running on more than 10,000 networks worldwide. It

operates on the world’s largest IPv6 and VoIP networks and in all major service provider networks worldwide.

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com.

Page 14 of 15

Corporate Headquarters

Cisco Systems, Inc.

170 West Tasman Drive

San Jose, CA 95134-1706

USA

www.cisco.com

Tel: 408 526-4000

800 553-NETS (6387)

Fax: 408 526-4100

European Headquarters

Cisco Systems International BV

Haarlerbergpark

Haarlerbergweg 13-19

1101 CH Amsterdam

The Netherlands

www-europe.cisco.com

Tel: 31 0 20 357 1000

Fax: 31 0 20 357 1100

Americas Headquarters

Cisco Systems, Inc.

170 West Tasman Drive

San Jose, CA 95134-1706

USA

www.cisco.com

Tel: 408 526-7660

Fax: 408 527-0883

Asia Pacific Headquarters

Cisco Systems, Inc.

168 Robinson Road

#28-01 Capital Tower

Singapore 068912

www.cisco.com

Tel: +65 6317 7777

Fax: +65 6317 7799

Cisco Systems has more than 200 offices in the following countries and regions. Addresses, phone numbers, and fax numbers are listed on

the Cisco Website at www.cisco.com/go/offices.

Argentina • Australia • Austria • Belgium • Brazil • Bulgaria • Canada • Chile • China PRC • Colombia • Costa Rica • Croatia • Cyprus

Czech Republic • Denmark • Dubai, UAE • Finland • France • Germany • Greece • Hong Kong SAR • Hungary • India • Indonesia • Ireland • Israel

Italy • Japan • Korea • Luxembourg • Malaysia • Mexico • The Netherlands • New Zealand • Norway • Peru • Philippines • Poland • Portugal

Puerto Rico • Romania • Russia • Saudi Arabia • Scotland • Singapore • Slovakia • Slovenia • South Africa • Spain • Sweden • Switzerland • Taiwan

Thailand • Turkey • Ukraine • United Kingdom • United States • Venezuela • Vietnam • Zimbabwe

of Cisco Systems, Inc.; Changing the Way We Work, Live, Play, and Learn, and iQuick Study are service marks of Cisco Systems, Inc.; and Aironet, ASIST, BPX, Catalyst, CCDA,

CCDP, CCIE, CCNA, CCNP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, the Cisco IOS logo, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems

logo, Empowering the Internet Generation, Enterprise/Solver, EtherChannel, EtherSwitch, Fast Step, GigaStack, Internet Quotient, IOS, IP/TV, iQ Expertise, the iQ logo, iQ Net

Readiness Scorecard, LightStream, Linksys, MeetingPlace, MGX, MICA, the Networkers logo, Networking Academy, Network Registrar, Packet, PIX, Post-Routing, Pre-Routing,

RateMUX, Registrar, ScriptShare, SlideCast, SMARTnet, StrataView Plus, Stratm, SwitchProbe, TeleRouter, The Fastest Way to Increase Your Internet Quotient, TransPath, and VCO

are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.

All other trademarks mentioned in this document or Website are the property of their respective owners. The use of the word partner does not imply a partnership relationship between

Cisco and any other company. (0502R) 205309.CA_ETMG_CC_7.05

Printed in the USA

FOR MORE INFORMATION

To learn more about how you can take advantage of Cisco Technical Support Services, talk to your Cisco representative or visit Cisco Technical

Support Services at: http://www.cisco.com/en/US/products/svcs/ps3034/ps2827/serv_group_home.html.

For additional information about the Cisco Catalyst 4500 Series, visit: http://www.cisco.com/go/catalyst4500.

For additional information about Cisco products, contact:

• United States and Canada: 800 553-NETS (6387)

• Europe: 32 2 778 4242

• Australia: 612 9935 4107

• Other: 408 526-7209

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com.

Page 15 of 15

Cisco Systems 4500 Users Manual 0900aecd802f6f9fpdf

4500 to the manual c13040ca-b47f-4696-be78-1335ccbe7d73

Navigation menu

Versions of this User Manual:

Views

Navigation
