Contents
Preface
Introduction
Preparing for Installation
Installing the GSS
Troubleshooting the GSS Hardware
- Checking the Basics
- Checking Connections
Maintaining Your GSS
- Maintaining Your Site Environment
- Using Power Protection Devices
Specifications
Connecting a Modem to the GSS Console Port
- Configuring a Modem
- Cabling a Modem to the GSS
Index

Corporate Headquarters

Cisco Systems, Inc.

170 West Tasman Drive

San Jose, CA 95134-1706

USA

http://www.cisco.com

Tel: 408 526-4000

800 553-NETS (6387)

Fax: 408 526-4100

Cisco Global Site Selector 4491

Hardware Installation Guide

December 2004

Text Part Number: 78-16356-01

THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION

PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO

LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.

The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when

the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed

and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference, in which case users will be required to correct the interference at their own expense.

The following information is for FCC compliance of Class B devices: The equipment described in this manual generates and may radiate

radio-frequency energy. If it is not installed in accordance with Cisco’s installation instructions, it may cause interference with radio and television

reception. This equipment has been tested and found to comply with the limits for a Class B digital device in accordance with the specifications in

part 15 of the FCC rules. These specifications are designed to provide reasonable protection against such interference in a residential installation.

However, there is no guarantee that interference will not occur in a particular installation.

Modifying the equipment without Cisco’s written authorization may result in the equipment no longer complying with FCC requirements for Class

A or Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct

any interference to radio or television communications at your own expense.

You can determine whether your equipment is causing interference by turning it off. If the interference stops, it was probably caused by the Cisco

equipment or one of its peripheral devices. If the equipment causes interference to radio or television reception, try to correct the interference by

using one or more of the following measures:

• Turn the television or radio antenna until the interference stops.

• Move the equipment to one side or the other of the television or radio.

• Move the equipment farther away from the television or radio.

• Plug the equipment into an outlet that is on a different circuit from the television or radio. (That is, make certain the equipment and the television

or radio are on circuits controlled by different circuit breakers or fuses.)

Modifications to this product not authorized by Cisco Systems, Inc. could void the FCC approval and negate your authority to operate the product.

The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as

NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE

PROVIDED “AS IS” WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED

OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND

NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.

IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL

DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR

INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH

DAMAGES.

Cisco Global Site Selector 4491 Hardware Installation Guide

CCSP, the Cisco Square Bridge logo, Cisco Unity, Follow Me Browsing, FormShare, and StackWise are trademarks of Cisco Systems, Inc.; Changing

the Way We Work, Live, Play, and Learn, and iQuick Study are service marks of Cisco Systems, Inc.; and Aironet, ASIST, BPX, Catalyst, CCDA, CCDP,

CCIE, CCIP, CCNA, CCNP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the

Cisco Systems logo, Empowering the Internet Generation, Enterprise/Solver, EtherChannel, EtherFast, EtherSwitch, Fast Step, GigaDrive, GigaStack,

HomeLink, Internet Quotient, IOS, IP/TV, iQ Expertise, the iQ logo, iQ Net Readiness Scorecard, LightStream, Linksys, MeetingPlace, MGX, the

Networkers logo, Networking Academy, Network Registrar, Packet, PIX, Post-Routing, Pre-Routing, ProConnect, RateMUX, Registrar, ScriptShare,

SlideCast, SMARTnet, StrataView Plus, SwitchProbe, TeleRouter, The Fastest Way to Increase Your Internet Quotient, TransPath, and VCO are

registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.

All other trademarks mentioned in this document or Website are the property of their respective owners. The use of the word partner does not imply a

partnership relationship between Cisco and any other company. (0406R)

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

CONTENTS

Preface xiii

Audience xiv

How to Use This Guide xv

Related Documentation

In addition to this document, the GSS documentation set includes the following:

Document Title Provides

Regulatory Compliance

and Safety Information for

the Cisco Global Site

Selector 4491

Regulatory compliance and safety information for

the GSS.

Release Note for the Cisco

Global Site Selector

Information on operating considerations, caveats,

and new CLI commands for the GSS software.

Cisco Global Site Selector

Getting Started Guide

Information on getting your GSS setup, configured,

and ready to perform global server load balancing.

Cisco Global Site Selector

Global Server

Load-Balancing

Configuration Guide

Procedures on how to configure your GSS to

perform global server load-balancing, such as

configuring source address lists, domain lists,

answers, answer groups, DNS sticky, network

proximity, and DNS rules. This document also

provides an overview of the GSS device and global

server load-balancing as performed by the GSS.

Cisco Global Site Selector

Administration Guide

Procedures necessary to properly set up, manage,

and maintain your GSSM and individual GSS

devices, including login security, software

upgrades, GSSM database administration, and

logging.

Cisco Global Site Selector

Command Reference

An alphabetical list of all GSS command-line

interface (CLI) commands including syntax,

options, and related commands. This document

also describes how to use the CLI interface.

xvii

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Preface

Symbols and Conventions

Graphical user interface elements use the following conventions:

•Bold text indicates a command in a paragraph.

•Courier text indicates text that appears in a command line, including the

CLI prompt.

•Courier bold text indicates commands and text you enter in a command

line.

•Italic text indicates the first occurrence of a new term, book title, and

emphasized text.

Lists use the following conventions:

1. A numbered list indicates that the order of the list items is important.

a. An alphabetical list indicates that the order of the secondary list items is

important.

•A bulleted list indicates that the order of the list topics is unimportant.

–

An indented list indicates that the order of the list subtopics is

unimportant.

Notes, cautionary statements, and safety warnings use these conventions:

Note Means reader take note. Notes contain helpful suggestions or references to

materials not contained in this manual.

Caution Means reader be careful. You are capable of doing something that might result

in equipment damage or loss of data.

Preface

Warning Definition

xviii

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Warning Definition

Warning

IMPORTANT SAFETY INSTRUCTIONS

This warning symbol means danger. You are in a situation that could cause

bodily injury. Before you work on any equipment, be aware of the hazards

involved with electrical circuitry and be familiar with standard practices for

preventing accidents. Use the statement number provided at the end of each

warning to locate its translation in the translated safety warnings that

accompanied this device.

SAVE THESE INSTRUCTIONS

Waarschuwing

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die

lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat

werken, dient u zich bewust te zijn van de bij elektrische schakelingen

betrokken risico's en dient u op de hoogte te zijn van de standaard praktijken

om ongelukken te voorkomen. Gebruik het nummer van de verklaring

onderaan de waarschuwing als u een vertaling van de waarschuwing die bij

het apparaat wordt geleverd, wilt raadplegen.

BEWAAR DEZE INSTRUCTIES

Varoitus

TÄRKEITÄ TURVALLISUUSOHJEITA

Tämä varoitusmerkki merkitsee vaaraa. Tilanne voi aiheuttaa ruumiillisia

vammoja. Ennen kuin käsittelet laitteistoa, huomioi sähköpiirien

käsittelemiseen liittyvät riskit ja tutustu onnettomuuksien yleisiin

ehkäisytapoihin. Turvallisuusvaroitusten käännökset löytyvät laitteen

mukana toimitettujen käännettyjen turvallisuusvaroitusten joukosta

varoitusten lopussa näkyvien lausuntonumeroiden avulla.

SÄILYTÄ NÄMÄ OHJEET

xix

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Preface

Warning Definition

Attention

IMPORTANTES INFORMATIONS DE SÉCURITÉ

Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une

situation pouvant entraîner des blessures ou des dommages corporels. Avant

de travailler sur un équipement, soyez conscient des dangers liés aux circuits

électriques et familiarisez-vous avec les procédures couramment utilisées

pour éviter les accidents. Pour prendre connaissance des traductions des

avertissements figurant dans les consignes de sécurité traduites qui

accompagnent cet appareil, référez-vous au numéro de l'instruction situé à la

fin de chaque avertissement.

CONSERVEZ CES INFORMATIONS

Warnung

WICHTIGE SICHERHEITSHINWEISE

Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die

zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit

den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur

Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung

angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den

übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät

ausgeliefert wurden.

BEWAHREN SIE DIESE HINWEISE GUT AUF.

Avvertenza

IMPORTANTI ISTRUZIONI SULLA SICUREZZA

Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe

causare infortuni alle persone. Prima di intervenire su qualsiasi

apparecchiatura, occorre essere al corrente dei pericoli relativi ai circuiti

elettrici e conoscere le procedure standard per la prevenzione di incidenti.

Utilizzare il numero di istruzione presente alla fine di ciascuna avvertenza per

individuare le traduzioni delle avvertenze riportate in questo documento.

CONSERVARE QUESTE ISTRUZIONI

Preface

Warning Definition

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Advarsel

VIKTIGE SIKKERHETSINSTRUKSJONER

Dette advarselssymbolet betyr fare. Du er i en situasjon som kan føre til skade

på person. Før du begynner å arbeide med noe av utstyret, må du være

oppmerksom på farene forbundet med elektriske kretser, og kjenne til

standardprosedyrer for å forhindre ulykker. Bruk nummeret i slutten av hver

advarsel for å finne oversettelsen i de oversatte sikkerhetsadvarslene som

fulgte med denne enheten.

TA VARE PÅ DISSE INSTRUKSJONENE

Aviso

INSTRUÇÕES IMPORTANTES DE SEGURANÇA

Este símbolo de aviso significa perigo. Você está em uma situação que poderá

ser causadora de lesões corporais. Antes de iniciar a utilização de qualquer

equipamento, tenha conhecimento dos perigos envolvidos no manuseio de

circuitos elétricos e familiarize-se com as práticas habituais de prevenção de

acidentes. Utilize o número da instrução fornecido ao final de cada aviso para

localizar sua tradução nos avisos de segurança traduzidos que acompanham

este dispositivo.

GUARDE ESTAS INSTRUÇÕES

¡Advertencia!

INSTRUCCIONES IMPORTANTES DE SEGURIDAD

Este símbolo de aviso indica peligro. Existe riesgo para su integridad física.

Antes de manipular cualquier equipo, considere los riesgos de la corriente

eléctrica y familiarícese con los procedimientos estándar de prevención de

accidentes. Al final de cada advertencia encontrará el número que le ayudará

a encontrar el texto traducido en el apartado de traducciones que acompaña

a este dispositivo.

GUARDE ESTAS INSTRUCCIONES

xxi

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Preface

Warning Definition

Varning!

VIKTIGA SÄKERHETSANVISNINGAR

Denna varningssignal signalerar fara. Du befinner dig i en situation som kan

leda till personskada. Innan du utför arbete på någon utrustning måste du vara

medveten om farorna med elkretsar och känna till vanliga förfaranden för att

förebygga olyckor. Använd det nummer som finns i slutet av varje varning för

att hitta dess översättning i de översatta säkerhetsvarningar som medföljer

denna anordning.

SPARA DESSA ANVISNINGAR

Preface

Obtaining Documentation, Obtaining Support, and Security Guidelines

xxii

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Obtaining Documentation, Obtaining Support, and

Security Guidelines

For information on obtaining documentation, obtaining support, providing

documentation feedback, security guidelines, and also recommended aliases and

general Cisco documents, see the monthly What’s New in Cisco Product

Documentation, which also lists all new and revised Cisco technical

documentation, at:

http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html

CHAPTER

1-1

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Introduction

This chapter provides a basic functional overview of the Cisco Global Site

Selector 4491 (GSS) and describes the hardware, major components, and front

and rear panel indicators and controls.

This chapter contains the following major sections:

•Introduction

•System Hardware Features

•Ports and Connectors

Introduction

The GSS is a networking product that provides site selection services that are

critical for disaster recovery deployments involving Internet and intranet data

centers. The GSS globally load balances traffic between geographically

distributed data centers managed by other server load balancers (SLBs), such as:

•Cisco CSS 11500, CSS 11000, or CSS 11150

•Cisco Content Switching Module (CSM) for the Catalyst 6500 series

switches

•Cisco LocalDirector

•Cisco IOS SLB

Chapter 1 Introduction

System Hardware Features

1-2

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

The GSS is the cornerstone of disaster recovery in such distributed deployments

and enables businesses to confidently deploy global Internet and intranet

applications with the knowledge that users will be quickly routed to standby data

centers should problems occur.

The GSS is deployed at strategic locations within your network. The GSS

performs two major functions when deployed with other SLBs by:

•Taking an active role in the domain name server (DNS) infrastructure,

connecting clients to SLBs that support the requested website.

•Continuously monitoring the load and availability of SLBs in its network,

selecting the SLB that is most able to answer each client request.

By off-loading DNS resolution from traditional DNS servers, the GSS optimizes

global site selection and increases DNS responsiveness. The GSS increases the

fault tolerance and scalability of large websites and data centers through its

monitoring of load and availability.

System Hardware Features

The GSS is designed for AC-input power and has a single AC-input power supply.

The GSS includes:

•An integrated dual-port Ethernet controller that provides an interface for

connecting to 10-Mbps, 100-Mbps, or 1000-Mbps networks.

•Two 10BASE-T/100BASE-TX/1000BASE-TX Ethernet ports with RJ-45

receptacles.

Both Ethernet ports support autonegotitate, full-duplex, or half-duplex operation

on an Ethernet LAN.

This section includes the following topics:

•Front Panel Features

•Rear Panel Features

1-3

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Chapter 1 Introduction

System Hardware Features

Front Panel Features

The GSS front panel contains LED indicators, a power button, and a CD-ROM

drive. Figure 1-1 illustrates the GSS front panel.

Figure 1-1 Front Panel View

1CD-ROM drive 5USB port (not supported)

2CD-ROM indicator 6VGA port (not supported)

3CD-ROM eject button 7Power button with built-in power indicator.

The power button turns power on or off. To

turn chassis power off, press and hold this

switch for approximately four seconds.

4CD-ROM emergency eject button 8 System ID button. The System ID button

allows you to identify the GSS when it is

installed in a single rack with multiple GSS

devices. The LED illuminates on the rear

panel of the active GSS.

•Press the front System ID button to

activate the blue LED on the rear panel

of the GSS.

•Press the rear System ID button to turn

off the LED on the rear panel.

119602

Chapter 1 Introduction

System Hardware Features

1-4

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Figure 1-2 shows the LED indicators on the front panel of the GSS. Table 1-1

describes their function.

Figure 1-2 LED Indicators

119603

Table 1-1 Front Panel LED Indicators

Indicator Color State Indicates

1 Power Spike Blue On Normal operation

Blinking A power surge has occurred

2 Ethernet 0 Link Green On Ethernet 0 is connected to a network

Ethernet 0 Activity Green Blinking An active link connection on the

10/100/1000BASE-T interface for Ethernet port 0

3 Ethernet 1 Link Green On Ethernet 1 is connected to a network

Ethernet 1 Activity Green Blinking An active link connection on the

10/100/1000BASE-T interface for Ethernet port 1

4 Hard Drive Activity Green Blinking The hard drive is in use

5 Power Green On The GSS is on

Blinking The GSS is in standby mode

1-5

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Chapter 1 Introduction

System Hardware Features

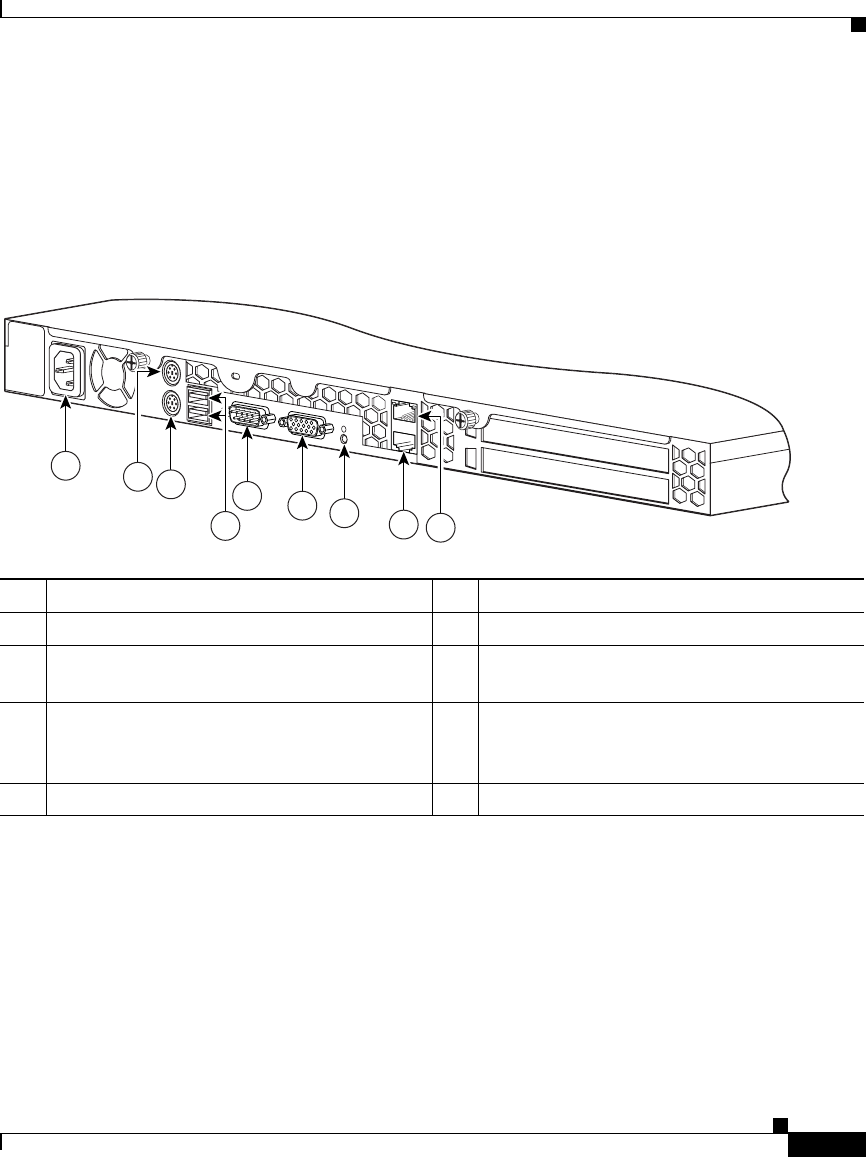

Rear Panel Features

The rear panel contains the AC power receptacle, Ethernet connectors, and the

console/serial connector. Figure 1-3 illustrates the rear panel ports and

connectors.

Figure 1-3 Rear Panel View

1AC power receptacle 6VGA port (not supported)

2PS/2 mouse port (not supported) 7System ID button/System status LED

3PS/2 keyboard port (not supported) 8RJ-45 Ethernet 1 connector with

10/100/1000-Mbit/s operation

4USB ports (not supported) 9RJ-45 Ethernet 0 connector with

10/100/1000-Mbit/s operation and status

LEDs

5Console/serial connector (see Figure 1-4)

119604

679

Chapter 1 Introduction

Ports and Connectors

1-6

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Ports and Connectors

The GSS supports the following port connectors on the rear of the chassis:

•Console Port

•Ethernet Connectors

Warning

To avoid electric shock, do not connect safety extra-low voltage (SELV) circuits

to telephone-network voltage (TNV) circuits. LAN ports contain SELV circuits,

and WAN ports contain TNV circuits. Some LAN and WAN ports both use RJ-45

connectors. Use caution when connecting cables.

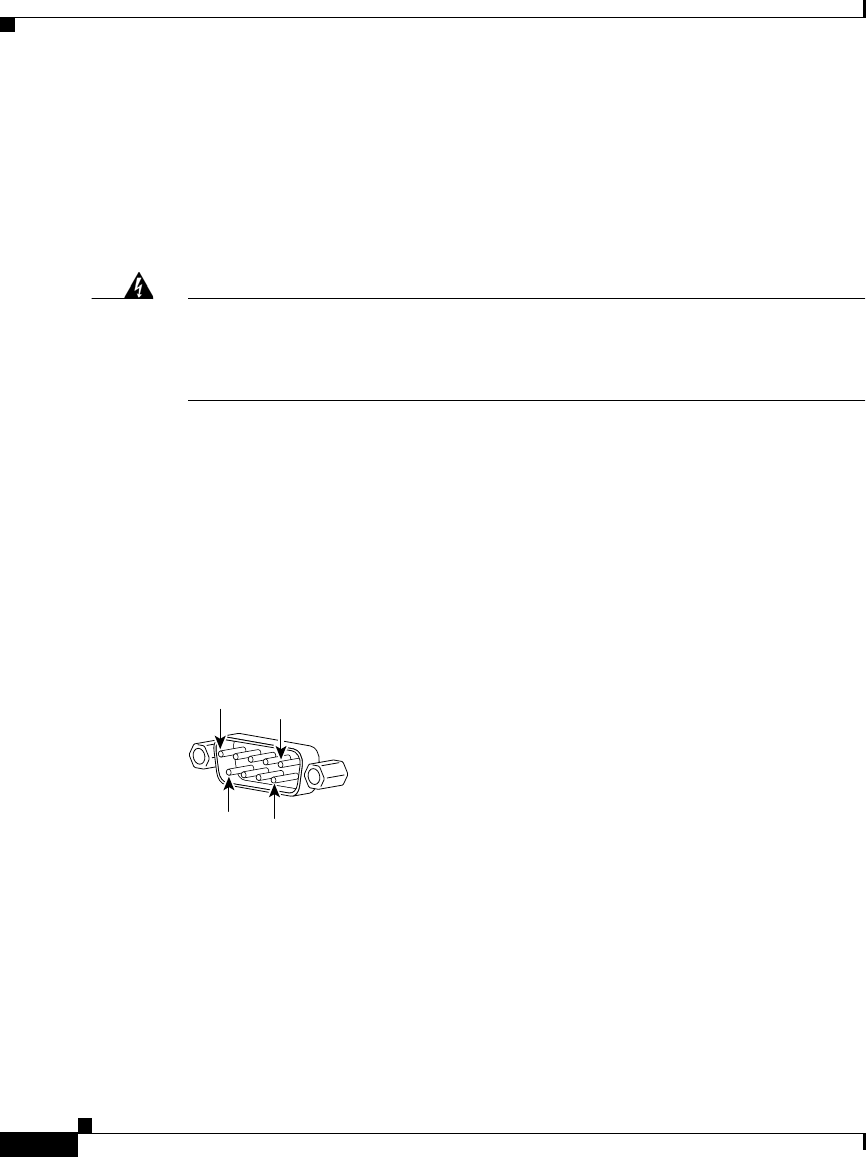

Console Port

The GSS has one standard RS-232 serial port located on the rear panel that

operates as the console port. The integrated serial port uses a 9-pin male D-shell

connector. Figure 1-4 shows the pin number assignments for the 9-pin port.

Refer to Table 1-3 for the console port connector pinouts.

Figure 1-4 Console Port Connector Pin Numbers

119657

1-7

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Chapter 1 Introduction

Ports and Connectors

The console port operates at the settings outlined in Table 1-3. These settings are

not user-configurable.

Table 1-2 Console Port Connector Pinouts

Pin Signal I/O Definition

1 DCD I Data carrier detect

2 SIN I Serial input

3 SOUT O Serial output

4 DTR O Data terminal ready

5 GND N/A Signal ground

6 DSR I Data set ready

7 RTS O Request to send

8 CTS I Clear to send

9 RI I Ring indicator

Shell N/A N/A Chassis ground

Table 1-3 GSS Console Port Settings

Parameters Settings

Baud 9600

Data Bits 8

Parity None

Stop Bits 1

Terminal Type VT100/ANSI

Flow Control None

Chapter 1 Introduction

Ports and Connectors

1-8

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Ethernet Connectors

The GSS has two integrated 10/100/1000–megabit-per-second (Mbps) Ethernet

connectors. The Ethernet controller provides an interface for connecting to

10-Mbps, 100-Mbps, or 1000-Mbps networks and supports autonegotitate,

full-duplex, or half-duplex operation on an Ethernet LAN.

To access the Ethernet port, connect a Category 3, 4, or 5 unshielded twisted-pair

(UTP) cable to the RJ-45 connector on the back of the chassis.

Note The 100BASE-TX/1000BASE-TX Ethernet standard requires that you use

standard four twisted-pair Category 5e cable at lengths up to 328.08 ft. (100 m).

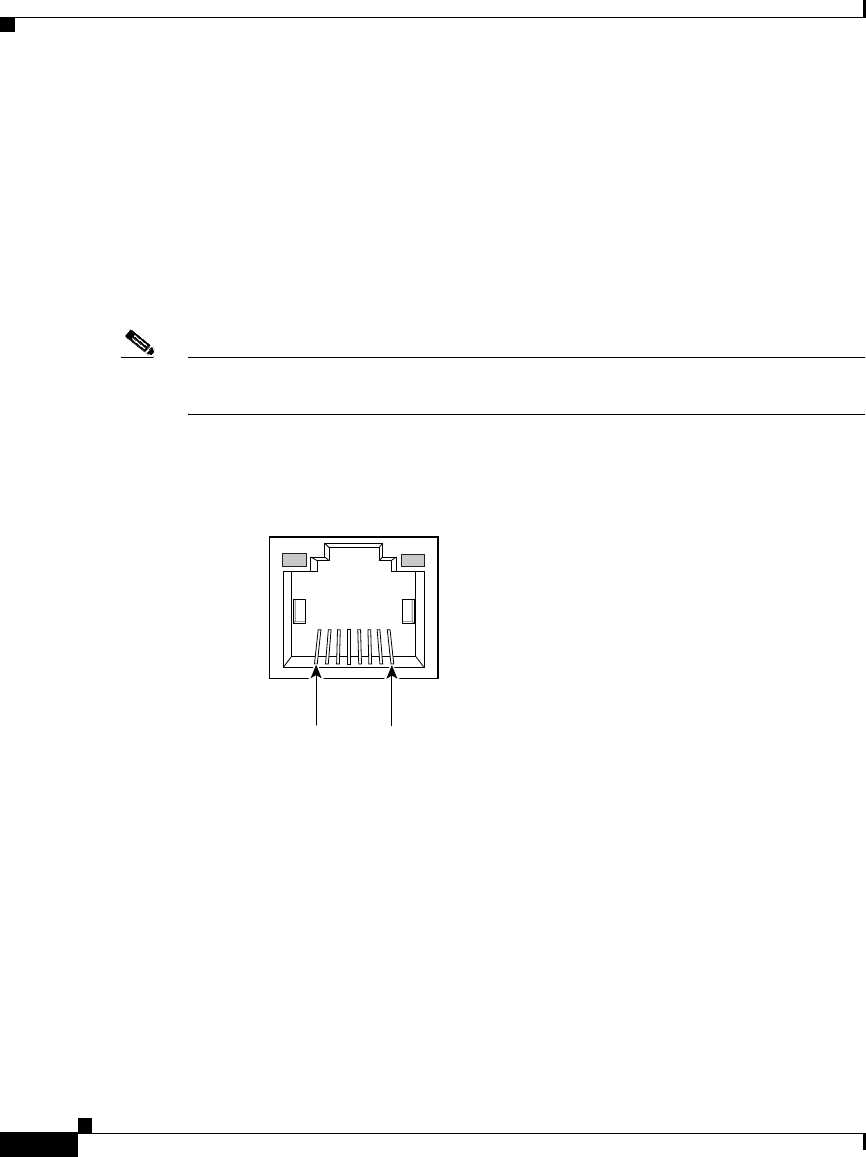

Figure 1-5 illustrates the pin number assignments for the Ethernet 0 RJ-45 port.

Figure 1-5 Ethernet Port 0 Pin Numbers

Link LED

(green)

Activity (TX/RX)LED

(green)

97447

CHAPTER

2-1

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Preparing for Installation

This chapter contains important safety information you should review before

working with the GSS. Use the following guidelines to ensure your own personal

safety and to help protect your GSS from potential damage.

Read the Regulatory Compliance and Safety Information for the Cisco Global Site

Selector 4491 document before you prepare the GSS for installation. This

document is included in the GSS accessory kit.

This chapter contains the following major sections:

•Safety

•Preparing Your Site for Installation

•Precautions for Rack-Mounting

•Precautions for Products with Modems, Telecommunications, or Local Area

Network Options

•Required Tools and Equipment

Chapter 2 Preparing for Installation

Safety

2-2

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Safety

This section provides safety information for installing the GSS. It includes the

following topics:

•Warnings and Cautions

•General Precautions

•Maintaining Safety with Electricity

•Protecting Against Electrostatic Discharge

Warnings and Cautions

Read the installation instructions in this document before you connect the GSS to

its power source. Failure to read and follow these guidelines may lead to an

unsuccessful installation and possibly damage the GSS and components.

You should observe the following safety guidelines when working with any

equipment that connects to electrical power or telephone wiring. They can help

you avoid injuring yourself or damaging the GSS.

Note The English warnings in this document are followed by a statement number. To

see the translations of a warning into other languages, look up its statement

number in the Regulatory Compliance and Safety Information for the Cisco

Global Site Selector 4491.

2-3

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Chapter 2 Preparing for Installation

Safety

The following warnings and cautions are provided to help you prevent injury to

yourself or damage to the devices:

Warning

IMPORTANT SAFETY INSTRUCTIONS

This warning symbol means danger. You are in a situation that could cause

bodily injury. Before you work on any equipment, be aware of the hazards

involved with electrical circuitry and be familiar with standard practices for

preventing accidents. Use the statement number provided at the end of each

warning to locate its translation in the translated safety warnings that

accompanied this device.

Statement 1071

SAVE THESE INSTRUCTIONS

Warning

The safety cover is an integral part of the product. Do not operate the unit

without the safety cover installed. Operating the unit without the cover in place

will invalidate the safety approvals and pose a risk of fire and electrical

hazards.

Statement 117

Warning

This equipment must be grounded. Never defeat the ground conductor or

operate the equipment in the absence of a suitably installed ground conductor.

Contact the appropriate electrical inspection authority or an electrician if you

are uncertain that suitable grounding is available.

Statement 1024

Warning

Before working on a chassis or working near power supplies, unplug the power

cord on AC units; disconnect the power at the circuit breaker on DC units.

Statement 12

Warning

Before opening the chassis, disconnect the telephone-network cables to avoid

contact with telephone-network voltages.

Statement 1041

Chapter 2 Preparing for Installation

Safety

2-4

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Warning

This unit might have more than one power cord. To reduce the risk of electrical

shock, disconnect all power supply cords before servicing the unit.

Statement

106

Warning

This product requires short-circuit (overcurrent) protection, to be provided as

part of the building installation. Install only in accordance with national and

local wiring regulations.

Statement 1045

Warning

This equipment is intended to be grounded to comply with emission and

immunity requirements. Ensure that the switch functional ground lug is

connected to earth ground during normal use.

Statement 1064

Warning

Blank faceplates and cover panels serve three important functions: they

prevent exposure to hazardous voltages and currents inside the chassis; they

contain electromagnetic interference (EMI) that might disrupt other equipment;

and they direct the flow of cooling air through the chassis. Do not operate the

system unless all cards, faceplates, front covers, and rear covers are in place.

Statement 1029

Warning

Do not work on the system or connect or disconnect cables during periods of

lightning activity.

Statement 1001

Warning

The power supply circuitry for the equipment can constitute an energy hazard.

Before you install or replace the equipment, remove all jewelry (including

rings, necklaces, and watches). Metal objects can come into contact with

exposed power supply wiring or circuitry inside the DSLAM equipment. This

could cause the metal objects to heat up and cause serious burns or weld the

metal object to the equipment.

Statement 207

2-5

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Chapter 2 Preparing for Installation

Safety

Warning

Ultimate disposal of this product should be handled according to all national

laws and regulations.

Statement 1040

Warning

Before working on a system that has an On/Off switch, turn OFF the power and

unplug the power cord.

Statement 1

Warning

Read the installation instructions before you connect the system to its power

source.

Statement 1004

Warning

There is the danger of explosion if the battery is replaced incorrectly. Replace

the battery only with the same or equivalent type recommended by the

manufacturer. Dispose of used batteries according to the manufacturer’s

instructions.

Statement 1015

Chapter 2 Preparing for Installation

Safety

2-6

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

General Precautions

Observe the following general precautions when using and working with your

GSS:

•Keep your GSS components away from radiators and heat sources, and do not

block cooling vents.

•Do not spill food or liquids on your GSS components, and never operate the

product in a wet environment. If the GSS gets wet, see Chapter 4,

Troubleshooting the GSS Hardware or contact the Cisco Technical Assistance

Center. For instructions on contacting the Technical Assistance Center, see

the Preface.

•Do not push any objects into the openings of your GSS components. Doing

so can cause fire or electric shock by shorting out interior components.

•Position cables and power cables carefully; route all cables and the power

cable and plug so that they cannot be stepped on or tripped over. Be sure that

nothing rests on your GSS cables or the power cable.

•Do not modify power cables or plugs. Consult a licensed electrician or your

power company for site modifications. Always follow your local/national

wiring rules.

•To help avoid possible damage to the system board, wait 5 seconds after

turning off the GSS before removing a component from the system board or

disconnecting a peripheral device from the GSS.

Maintaining Safety with Electricity

Follow these guidelines when working on equipment powered by electricity:

•If any of the following conditions occur contact the Cisco Technical

Assistance Center:

–

The power cable or plug is damaged.

–

An object has fallen into the product.

–

The product has been exposed to water.

–

The product has been dropped or damaged.

–

The product does not operate correctly when you follow the operating

instructions.

2-7

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Chapter 2 Preparing for Installation

Safety

•Use the correct external power source. Operate the product only from the type

of power source indicated on the electrical ratings label. If you are not sure

of the type of power source required, consult the Cisco Technical Assistance

Center or a local power company.

•Use only approved power cable(s). You have been provided with a power

cable for your GSS that is intended for its use (approved for use in your

country, based on the shipping location). Should you have to purchase a

power cable, ensure that it is rated for the product and for the voltage and

current marked on the product’s electrical ratings label. The voltage and

current rating of the cable should be greater than the ratings marked on the

product.

•To help prevent electric shock, plug the GSS, components, and peripheral

power cables into properly grounded electrical outlets. These cables are

equipped with three-prong plugs to help ensure proper grounding. Do not use

adapter plugs or remove the grounding prong from a cable.

•Observe power strip ratings. Make sure that the total ampere rating of all

products plugged into the power strip does not exceed 80% of the rating.

•To help protect your GSS and components from sudden, transient increases

and decreases in electrical power, use a surge suppressor, line conditioner, or

uninterruptible power supply (UPS).

•Do not modify power cables or plugs. Consult a licensed electrician or your

power company for site modifications. Always follow your local and national

wiring rules.

Protecting Against Electrostatic Discharge

Static electricity can harm delicate components inside your computer. To prevent

static damage, discharge static electricity from your body before you touch any of

your computer’s electronic components, such as the microprocessor. You can do

so by touching an unpainted metal surface on the computer chassis.

As you continue to work inside the computer, periodically touch an unpainted

metal surface to remove any static charge your body may have accumulated.

Chapter 2 Preparing for Installation

Preparing Your Site for Installation

2-8

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

You can also take the following steps to prevent damage from electrostatic

discharge (ESD):

•When unpacking a static-sensitive component from its shipping carton, do not

remove the component from the antistatic packing material until you are

ready to install the component in your computer. Just before unwrapping the

antistatic packaging, be sure to discharge static electricity from your body.

•When transporting a sensitive component, first place it in an antistatic

container or packaging.

•Handle all sensitive components in a static-safe area. If possible, use

antistatic floor pads and workbench pads.

Preparing Your Site for Installation

This section describes the requirements your site must meet for safe installation

and operation of your GSS. Before you select an installation site for the GSS, read

the electrical, environmental, and physical requirements as described in

Appendix A, Specifications. Ensure that your site is properly prepared before

beginning installation.

This section includes the following requirements:

•Environmental

•Choosing a Site for Installation

•Ensuring Overcurrent Protection

•Grounding the GSS

•Creating a Safe Environment

•AC Power

•Cabling

2-9

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Chapter 2 Preparing for Installation

Preparing Your Site for Installation

Environmental

When planning your site layout and equipment locations, remember the

precautions described in this section to help avoid equipment failures and reduce

the possibility of environmentally caused shutdowns. If you are experiencing

shutdowns or unusually high errors with your existing equipment, these

precautions will help you isolate the cause of failures and prevent future

problems.

Use the following precautions when planning the operating environment for your

GSS.

•Always follow the ESD-prevention procedures described in the “Protecting

Against Electrostatic Discharge”section to avoid damage to equipment.

Damage from static discharge can cause immediate or intermittent equipment

failure.

•Make sure that the chassis cover is secure. The chassis allows cooling air to

flow effectively within it. An open chassis allows air leaks, which could

interrupt and redirect the flow of cooling air from internal components.

•Electrical equipment generates heat. Ambient air temperature might not be

adequate to cool equipment to acceptable operating temperatures without

adequate circulation. Make sure that the room in which you operate has

adequate air circulation.

Choosing a Site for Installation

Warning

This unit is intended for installation in restricted access areas. A restricted

access area is where access can only be gained by service personnel through

the use of a special tool, lock and key, or other means of security, and is

controlled by the authority responsible for the location.

•Choose a site with a dry, clean, well-ventilated and air-conditioned area.

•Choose a site that maintains an ambient temperature of 10° to 35°C

(50° to 95°F).

Chapter 2 Preparing for Installation

Preparing Your Site for Installation

2-10

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Ensuring Overcurrent Protection

The GSS relies on the protective devices in the building installation for protection

against short-circuit, overcurrent, and earth (grounding) fault. Ensure that the

protective devices in the building installation are properly rated to protect the

GSS, and that they comply with national and local codes.

Grounding the GSS

Warning

Never defeat the ground conductor or operate the equipment in the absence of

a suitably installed ground conductor. Contact the appropriate electrical

inspection authority or an electrician if you are uncertain that suitable

grounding is available.

Creating a Safe Environment

Follow these guidelines to create a safe operating environment:

•Keep tools and chassis components off the floor and away from foot traffic.

•Clear the area of possible hazards, such as moist floors, ungrounded power

extension cables, and missing safety grounds.

•Keep the area around the chassis free from dust and foreign conductive

material (such as metal flakes from nearby construction activity).

AC Power

Ensure that the plug-socket combination is accessible at all times, because it

serves as the main disconnecting device. Refer to Appendix A, Specifications, for

the GSS power requirements.

Warning

This product requires short-circuit (overcurrent) protection, to be provided as

part of the building installation. Install only in accordance with national and

local wiring regulations.

2-11

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Chapter 2 Preparing for Installation

Precautions for Rack-Mounting

Cabling

Use the cables in the accessory kit to connect the GSS console port to a console

or computer that is running a console program. In addition to using the console

cable, use the provided standard Ethernet cable to connect the GSS to your

network. Refer to Chapter 1, Introduction, for information on cable requirements.

Precautions for Rack-Mounting

Warning

To prevent bodily injury when mounting or servicing this unit in a rack, you must

take special precautions to ensure that the system remains stable. The

following guidelines are provided to ensure your safety:

Observe the following precautions for rack stability and safety. Also refer to the

rack installation documentation accompanying the rack for specific warnings and

caution statements and procedures.

Note Component refers to any server, storage system, or appliance, and to various

peripherals or supporting hardware.

•Do not move large racks by yourself. Due to the height and weight of the rack,

a minimum of two people are needed to accomplish this task.

•Ensure that the rack is level and stable before extending a component from

the rack.

•Do not overload the AC supply branch circuit that provides power to the rack.

The total rack load should not exceed 80% of the branch circuit rating.

•Ensure that proper airflow is provided to components in the rack.

•Do not step or stand on any system or component when servicing other

systems and components in a rack.

•This unit should be mounted at the bottom of the rack if it is the only unit in

the rack.

Chapter 2 Preparing for Installation

Precautions for Products with Modems, Telecommunications, or Local Area Network Options

2-12

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

•When mounting this unit in a partially filled rack, load the rack from the

bottom to the top with the heaviest component at the bottom of the rack.

•If the rack is provided with stabilizing devices, install the stabilizers before

mounting or servicing the unit in the rack.

Precautions for Products with Modems,

Telecommunications, or Local Area Network

Options

Observe the following guidelines when working with these components:

•Do not connect or use a modem or telephone during a lighting storm. There

may be a risk of electrical shock from lightning.

•Never connect or use a modem or telephone in a wet environment.

•Do not plug a modem or telephone cable into the Ethernet connector.

•Disconnect the modem cable before opening a product enclosure, touching or

installing internal components, or touching an uninsulate4d modem cable or

jack.

•Do not use a telephone line to report a gas leak while you are in the vicinity

of the leak.

Required Tools and Equipment

You need the following tools and equipment to install the GSS:

•Number 2 Phillips screwdriver

•Tape measure and level

•Antistatic mat or antistatic foam

•ESD grounding strap with an alligator termination clip

CHAPTER

3-1

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Installing the GSS

This chapter explains how to install a GSS in an equipment rack, or on a table or

workbench. This chapter also provides instructions for connecting cables, AC

power, and for booting the GSS.

Warning

Read the installation instructions before connecting the GSS to the

power source.

This chapter contains the following major sections:

•Unpacking and Inspecting the GSS

•Installing Your GSS

•Connecting Cables

•Connecting AC Power

•Booting the GSS

•Establishing a Serial Console Connection

•Checking the Front Panel LEDs

•Removing or Replacing a GSS

Before you begin the installation, be sure you have read:

•Chapter 2, Preparing for Installation

•Regulatory Compliance and Safety Information for the Cisco Global Site

Selector 4491

Chapter 3 Installing the GSS

Unpacking and Inspecting the GSS

3-2

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Unpacking and Inspecting the GSS

The GSS shipment contains the following items:

•One RJ-45 to female 25-pin sub-d connector

•Two RJ-45 to female 9-pin sub-d connectors

•One RJ-45 console cable

•One four-post rack mount kit

•One two-post rack mount kit

•Four rubber feet

•Cisco Product Documentation CD-ROM and Warranty Package

•Cisco Global Site Selector 4491 Hardware Installation Guide

•Regulatory Compliance and Safety Information for the Cisco Global Site

Selector 4491

The GSS is shipped in a protective shipping carton. It is shipped as a

self-contained chassis; no components can be added or removed.

Follow these steps to unpack the GSS:

1. Remove the GSS accessories from the shipping carton. Save the packing

materials in case you need to repack the GSS later.

2. Check the configuration of the GSS and the accessories against the items

listed on the packing slip. Report any discrepancies as described in “If the

Product is Damaged”.

3. Before installing the GSS, review the information outlined in Chapter 2,

Preparing for Installation.

If the Product is Damaged

If any portion of the unit or component is damaged in transit, forward an

immediate request to the delivering carrier to perform an inspection of the product

and to prepare a damage report. Save the container and all packing materials until

the contents are verified.

3-3

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Chapter 3 Installing the GSS

Installing Your GSS

Concurrently, report the nature and extent of the damage to Customer Service.

Report the problem or deficiency to Customer Service along with the model

number and serial number. Upon receipt of this information, you will be provided

with service instructions, or a Return Material Authorization (RMA) number and

shipping information. To obtain assistance, refer to the “Preface”.

Installing Your GSS

Place the GSS in the desired location. You can mount it in a rack for your

convenience, or place it on a solid, stable surface. If you do not plan to install the

GSS in an equipment rack, proceed to the “Installing the GSS on a Workbench or

Tabletop” section.

Racks are marked in vertical increments of 1.75 inches (4.44 cm). Each increment

is referred to as a rack unit (RU). A 1-RU device is 1.75 inches (4.44 cm) tall.

Warning

To prevent bodily injury when mounting or servicing this unit in a rack, you must

take special precautions to ensure that the GSS remains stable. The following

guidelines are provided to ensure your safety:

This unit should be mounted at the bottom of the rack if it is the only unit in the

rack.

When mounting this unit in a partially filled rack, load the rack from the bottom

to the top with the heaviest component at the bottom of the rack.

If the rack is provided with stabilizing devices, install the stabilizers before mounting or

servicing the unit in the rack.

Statement 1006

This section contains the following procedures:

•Installing the GSS in a Four-Post Rack

•Attaching a Two-Post Rack Bracket to the GSS

•Installing the GSS on a Workbench or Tabletop

Chapter 3 Installing the GSS

Installing Your GSS

3-4

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Installing the GSS in a Four-Post Rack

This section provides instructions for installing the GSS in a four-post rack. The

rack must be properly secured to the floor, ceiling, or upper wall, and where

applicable, to adjacent racks. The rack should be secured using floor and wall

fasteners and bracing as specified by industry standards.

Before installing the GSS in a rack, be sure you have read Chapter 2, Preparing

for Installation, to familiarize yourself with the proper site and environmental

conditions. Failure to read and follow these guidelines may lead to an

unsuccessful installation and possible damage to the GSS and its components.

Perform the steps below when installing and servicing the GSS.

When installing and servicing the GSS:

•Disconnect all power and external cables before installing the GSS.

•Install the GSS in compliance with your local and national electrical codes:

–

United States: National Fire Protection Association (NFPA) 70; United

States National Electrical Code.

–

Canada: Canadian Electrical Code, Part, I, CSA C22.1.

–

Other countries: If local and national electrical codes are not available,

see IEC 364, Part 1 through Part 7.

•Do not work alone under potentially hazardous conditions.

•Do not perform any action that creates a potential hazard to people or makes

the equipment unsafe.

•Do not attempt to install the GSS in a rack that has not been securely anchored

in place. Damage to the GSS and personal injury may result.

•Due to the size and weight of the GSS, never attempt to install it by yourself.

Refer to Chapter 2, Preparing for Installation, the “Precautions for

Rack-Mounting” section for additional safety information on rack installation.

3-5

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Chapter 3 Installing the GSS

Installing Your GSS

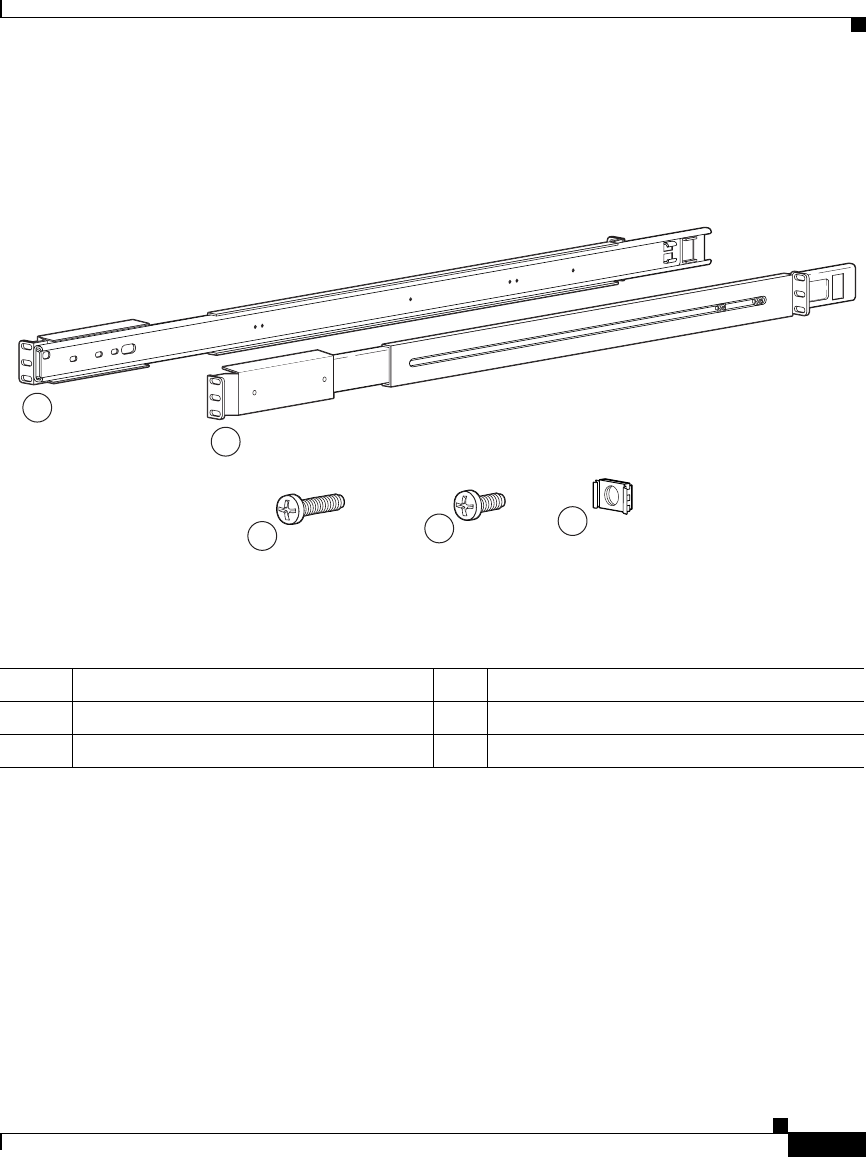

The GSS can be installed in a system 1U rack. Figure 3-1 illustrates the four-post

rack rail components. Table 3-1 describes each four-post rack rail component.

Figure 3-1 Rack Rail Components

The procedure to install the GSS into a four-post rack is divided into two parts:

•Attaching the Telescopic Rails to the Rack Assembly

•Inserting the GSS into the Rack

To install the GSS in a four-post rack by using a two-post rack bracket, see the

“Attaching a Two-Post Rack Bracket to the GSS” section.

119960

Table 3-1 Four-Post Rack Components

1Left side telescopic rail 4Round head screws (6)

2Right side telescopic rail 5Cage nuts (6)

3Round head screws with washer (9)

Chapter 3 Installing the GSS

Installing Your GSS

3-6

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Attaching the Telescopic Rails to the Rack Assembly

To attach the telescopic rails to the four-post rack assembly:

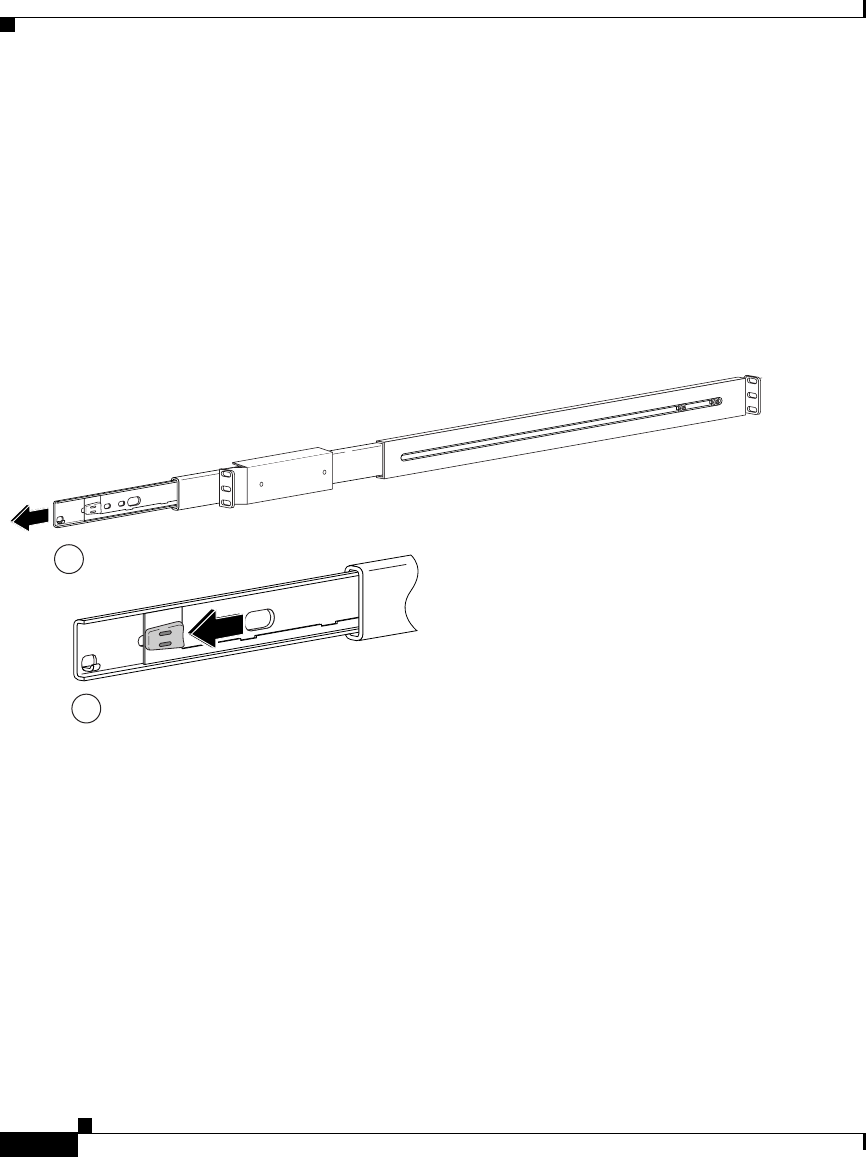

1. Extend the rail (1) as far as it will go, as shown in Figure 3-2.

2. Press the green spring plate (2) on the extended telescopic rail and remove the

inner rail. Set the rail aside for attachment to the GSS (see the “Inserting the

GSS into the Rack” section).

Figure 3-2 Removing the Inner Server Rail

119961

3-7

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Chapter 3 Installing the GSS

Installing Your GSS

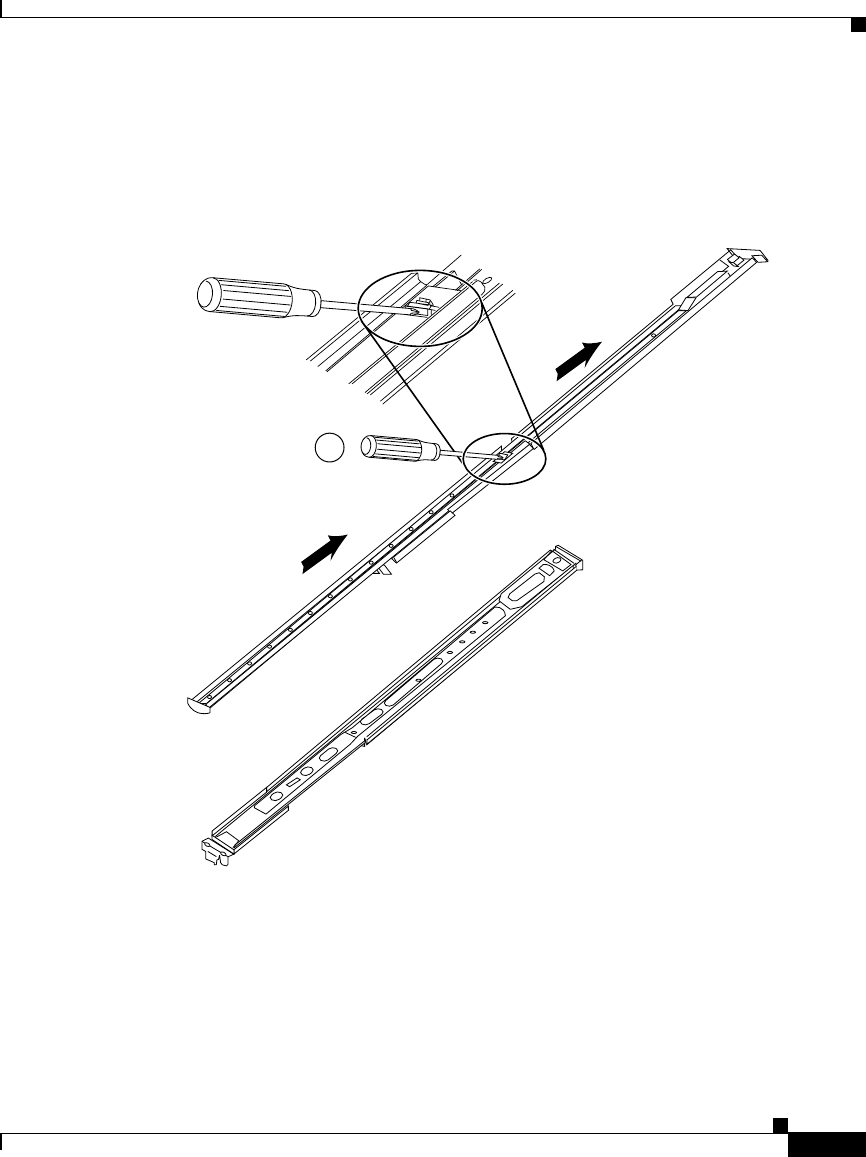

3. Using a screwdriver (1), gently press the button labelled “Push” and move the

middle section of the outer telescopic rail to its end position, as shown in

Figure 3-3.

Figure 3-3 Telescoping the Rail

99522

Chapter 3 Installing the GSS

Installing Your GSS

3-8

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

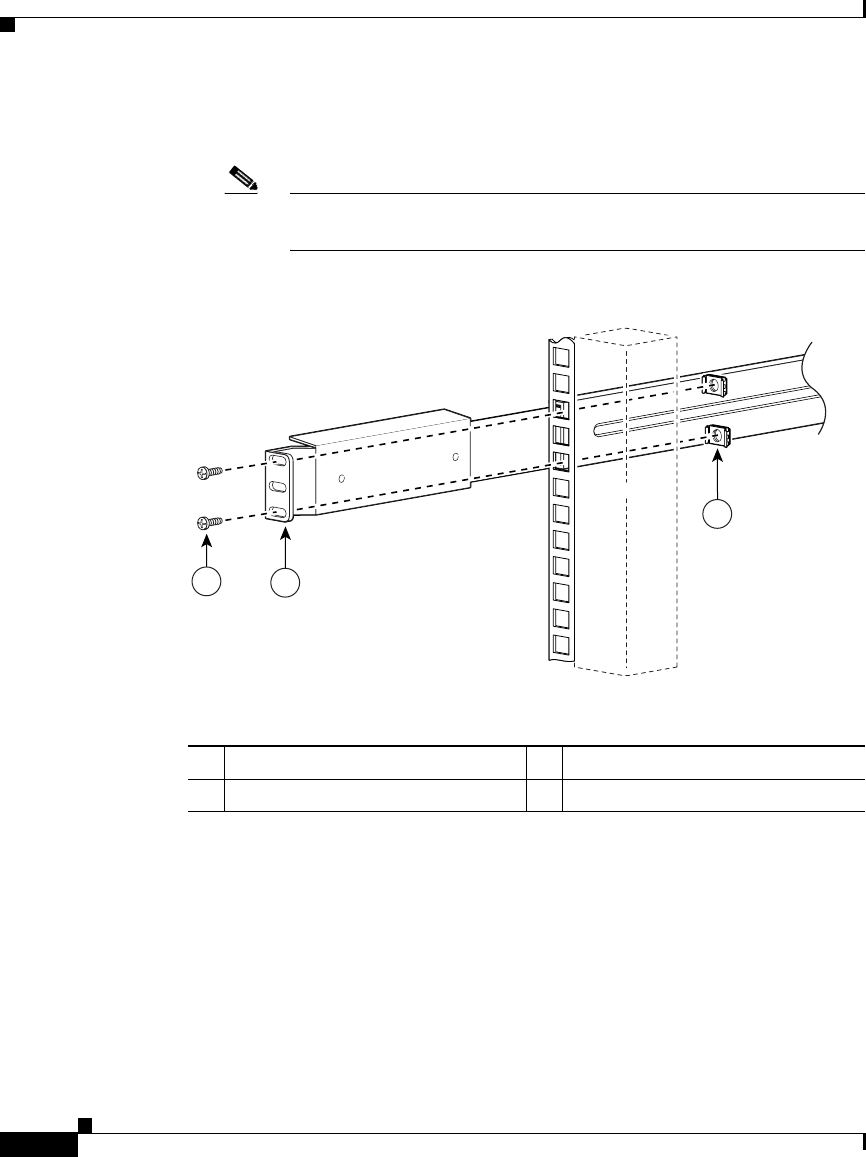

4. Select a location in the rack to mount the GSS and attach the front end of the

right outer telescopic rail to the right side of the rack, as show in Figure 3-4.

Note Racks that contain tapped mounting holes do not require the cage

nuts (3) shown in Figure 3-4.

Figure 3-4 Attaching Front Rail to the Right Side of the Rack

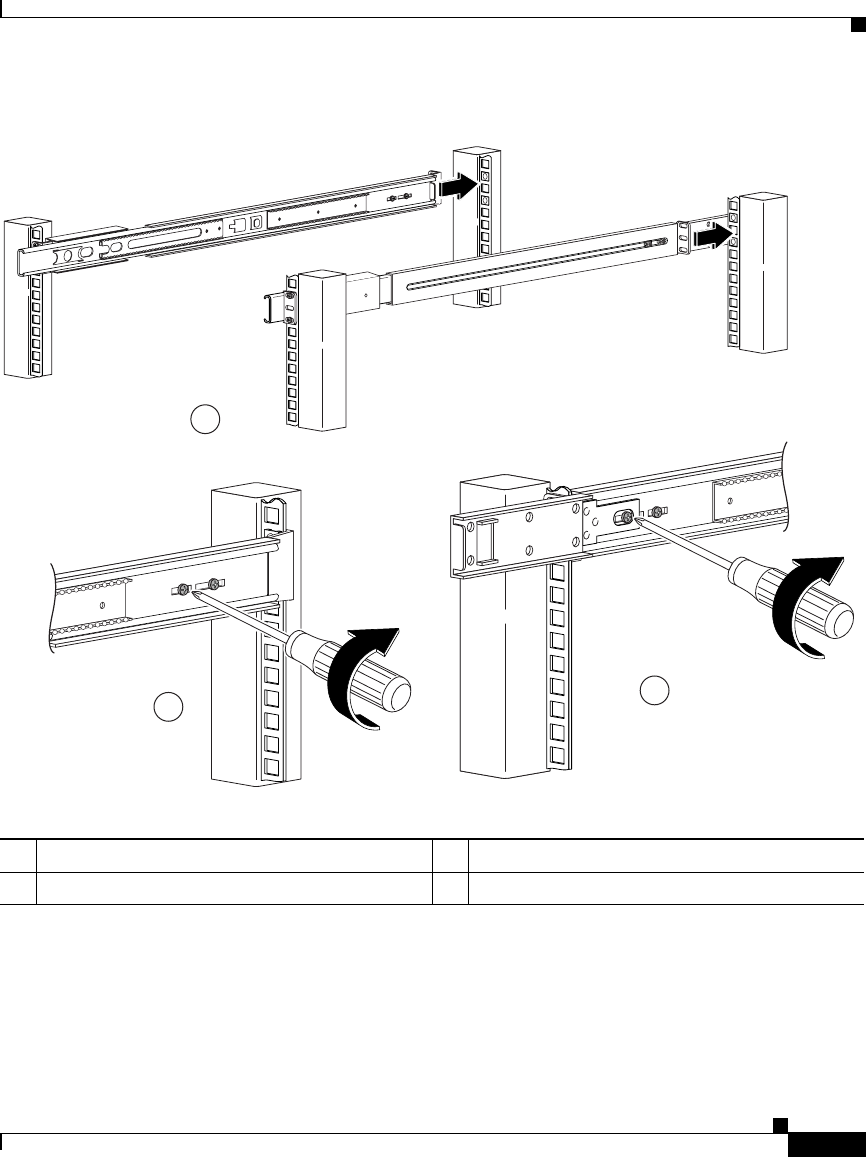

5. Extend the middle rail from the front of the rack to have free access to the two

adjustment screws located at the rear of the outer telescopic rail (Figure 3-5).

Loosen the two adjustment screws to leave some play when attaching the

back end of the outer telescopic rail to the rack, then push the middle rail back

into its original position. After the rail is attached to the rack, you can tighten

the two adjustment screws.

119962

1Round head screw and washer 3Cage nut

2Right outer telescopic rail—front

3-9

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Chapter 3 Installing the GSS

Installing Your GSS

Figure 3-5 Telescopic Rail Adjustment Screws

1Right and left rails 3Right rail adjustment screws

2Left rail adjustment screws

119964

Chapter 3 Installing the GSS

Installing Your GSS

3-10

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

6. Position and align the back end of the outer telescopic rail with the right side

of the rack. Ensure that the back end of the rail is aligned with the front end

and that it is flush with the rack post.

7. Attach the back end of the rail to the right side of the rack, as shown in

Figure 3-6.

Note Racks that contain tapped mounting holes do not require the cage

nuts (3) shown in Figure 3-6.

Figure 3-6 Attaching Back Rail to the Right Side of the Rack

119963

1Round head screw and washer 3Cage nut

2Right outer telescopic rail—rear

3-11

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Chapter 3 Installing the GSS

Installing Your GSS

8. Repeat steps 1 through 7 with the left side rail and rack assembly.

9. Tighten the two adjustment screws located at the rear of the two outer

telescopic rails (see Figure 3-5).

Inserting the GSS into the Rack

To insert the GSS into the four-post rack:

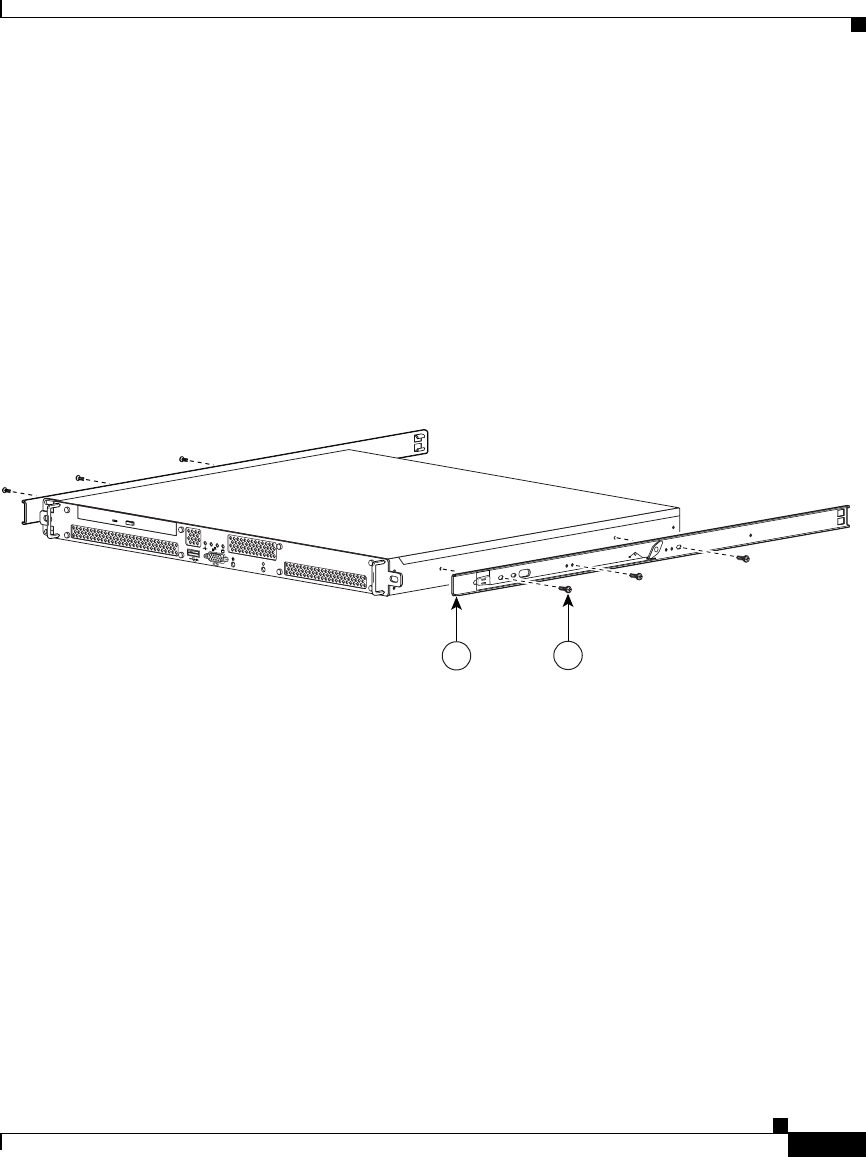

1. Secure the inner rail (1) to GSS using three round head screws (2), as shown

in Figure 3-7. Repeat this step for the other rail.

Figure 3-7 Attaching GSS to Right Rail

119965

Chapter 3 Installing the GSS

Installing Your GSS

3-12

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

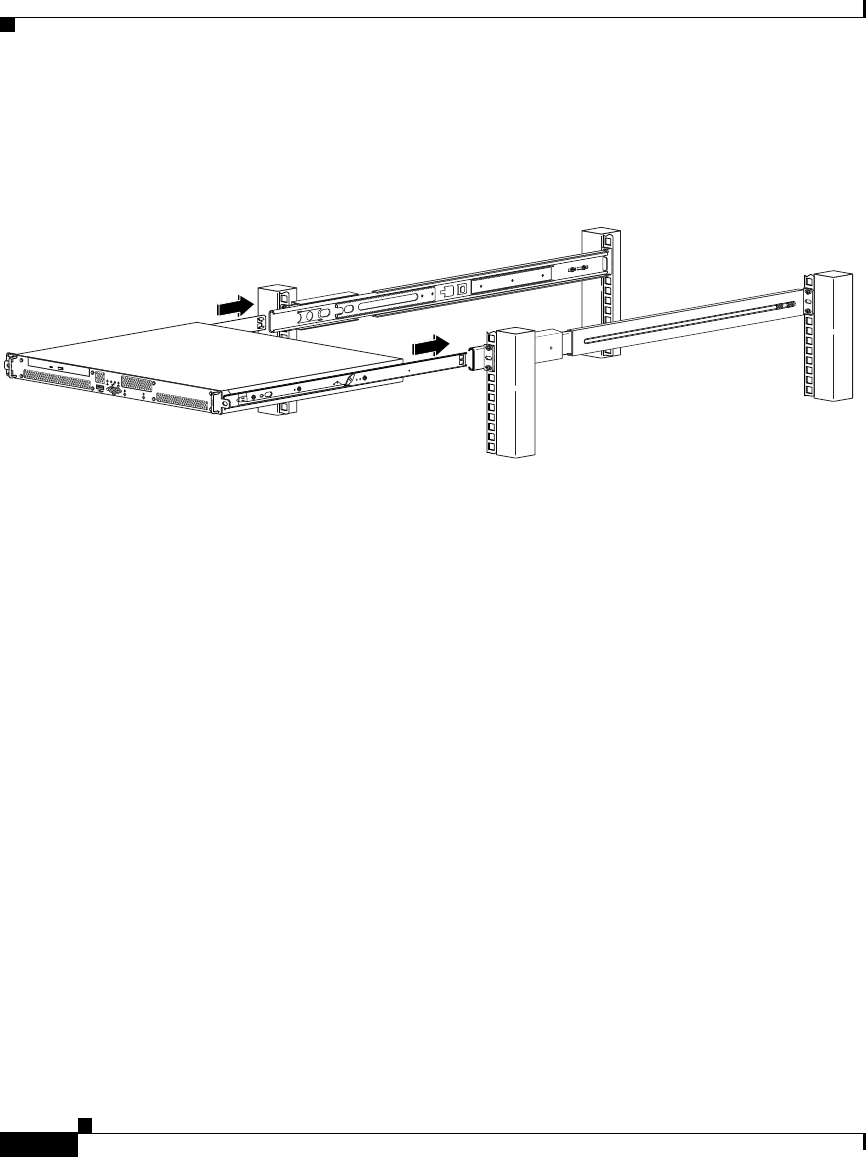

2. Insert the GSS and inner rail into the two outer telescopic rails, as shown in

Figure 3-8.

Figure 3-8 Sliding the GSS into the Four-post Rack

3. Slide the GSS and inner rails backward and forward in the two outer

telescopic rail two or three times until the GSS seats properly in the rack.

Attaching a Two-Post Rack Bracket to the GSS

You may install the GSS in either a four-post rack or a two-post rack by using the

two-post rack bracket included in the accessory kit.

To attach a two-post rack bracket to the GSS:

1. Place the right-hand bracket on the right side of the GSS as shown in

Figure 3-9. Align the bracket with the three screw holes in the GSS and use

three round head screws to secure the bracket.

Repeat this step to attach the other bracket to the GSS.

120000

3-13

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Chapter 3 Installing the GSS

Installing Your GSS

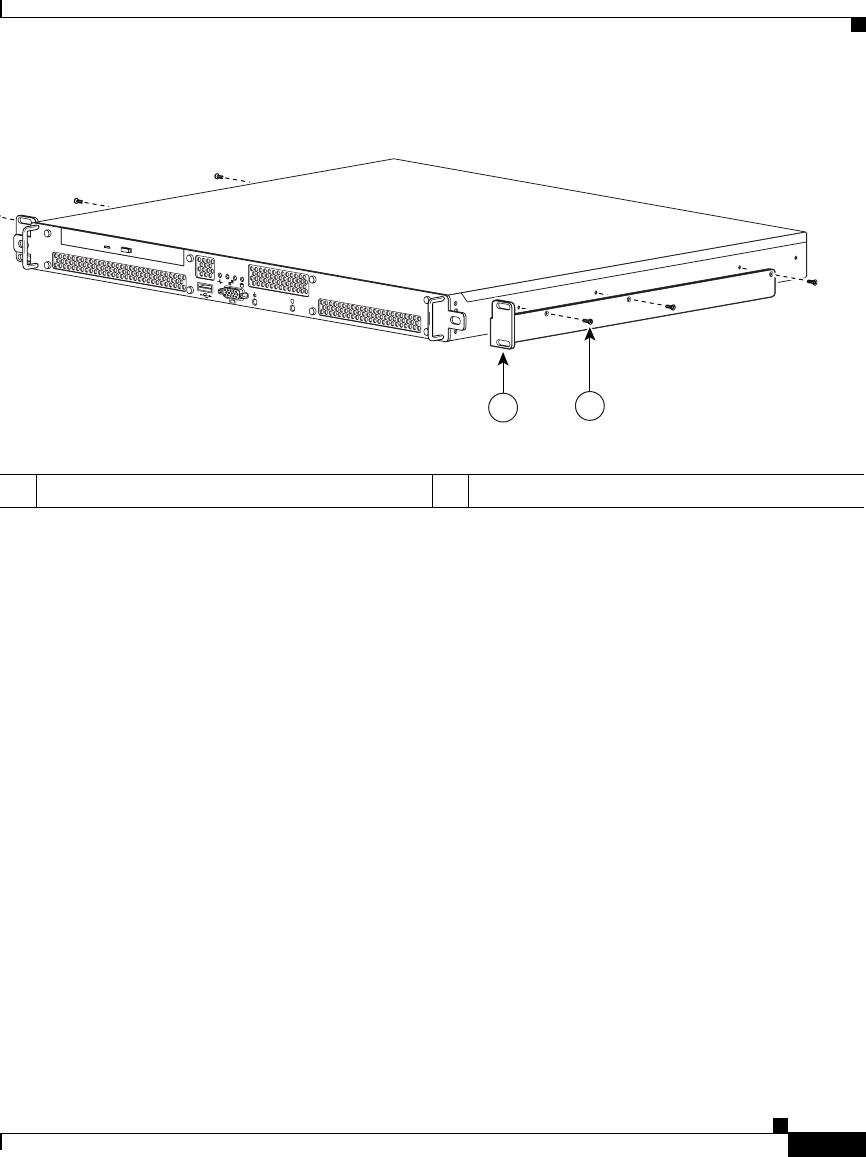

Figure 3-9 Attaching the Right Bracket to the Right Side of the GSS

2. Select a location in the rack to mount the GSS, then position the GSS and

brackets in the rack.

3. Align the right side bracket on the GSS to the front of the rack, then insert

and tighten the two round head retaining screws to secure the GSS to the rack.

Repeat this step to secure the left side bracket to the rack.

1Bracket 2Round head screws (6)

119959

Chapter 3 Installing the GSS

Installing Your GSS

3-14

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Installing the GSS on a Workbench or Tabletop

When you install a GSS on a workbench or tabletop, ensure that the surface is

clean and in a secure location and that you have complied with the following

requirements:

•The chassis should be installed off the floor. Dust that accumulates on the

floor is drawn into the interior of the chassis by the cooling fans. Excessive

dust inside the GSS can cause overtemperature conditions and component

failures.

•There must be approximately 19 inches (48.26 cm) of clearance at the front

and rear of the chassis for accessing network cables and equipment.

•The GSS must receive adequate ventilation.

Follow these steps to install the GSS on a workbench or tabletop:

1. Remove any debris and dust from the tabletop or workbench, as well as from

the surrounding area. Ensure that your path between the GSS and its new

location is unobstructed.

2. Place one rubber foot in each corner on the bottom of the GSS. The rubber

feet have an adhesive backing. Peel the protective tape off the adhesive and

adhere the feet to the bottom of a clean chassis surface.

3. Place the chassis on the tabletop or workbench.

4. Ensure that no exhaust air from other equipment will be drawn into the

chassis. Also, ensure that there is adequate clearance at the front and rear of

the chassis.

3-15

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Chapter 3 Installing the GSS

Connecting Cables

Warning

Do not work on the GSS or connect or disconnect cables during periods of

lightning activity.

To connect network and console cables to your GSS 4491:

1. For network connections, connect a Category 3, 4, or 5 unshielded

twisted-pair (UTP) cable to the Ethernet 0 or Ethernet 1 connector on the GSS

back panel (Figure 3-10).

Note The 100BASE-TX/1000BASE-TX Ethernet standard requires that

you use standard four twisted-pair Category 5e cable at lengths up to

328.08 ft. (100 m).

Figure 3-10 GSS Back Panel Ports and Connectors

1AC power receptacle 3RJ-45 Ethernet 1 connector with

10/100/1000-Mbit/s operation

2Console/serial connector 4RJ-45 Ethernet 0 connector with

10/100/1000-Mbit/s operation

119605

Chapter 3 Installing the GSS

Connecting AC Power

3-16

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

2. Connect the other end of the network cable to a hub or switch in your

network.

3. For console connections, plug the cable into the console port on the GSS back

panel.

4. Connect the other end of the console cable to a console or a

communications server.

Connecting AC Power

Warning

This equipment must be grounded. Never defeat the ground conductor or

operate

the equipment in the absence of a suitably installed ground conductor.

Contact

the appropriate electrical inspection authority or an electrician if you are uncertain

that suitable grounding is available.

Statement 1024

To connect AC power to your GSS:

1. Ensure that you have reviewed the safety information outlined in Chapter 2,

Preparing for Installation.

2. Plug the AC power cord into the power cord receptacle at the rear of the GSS

(see Figure 3-10).

3. Connect the other end of the power cord to a power source.

4. Power up all externally-connected devices.

5. Press the power control button on the front of the GSS.

3-17

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Chapter 3 Installing the GSS

Booting the GSS

When you power up the GSS, the boot process:

•Performs hardware initialization and power-on self tests

•Initializes the BIOS

•Initializes the Linux boot manager, LILO (Linux Loader)

•Boots the GSS image (kernel and software)

•Displays the startup banner and splash screen for strong encryption

•Prompts you to log in to the GSS

Note During power-up, the green power LED on the front of the GSS is on.

At this point, you are ready to use the GSS. Refer to the:

•Cisco Global Site Selector Getting Started Guide for details on setting up and

configuring the GSS device

•Cisco Global Site Selector Administration Guide for procedures to properly

manage and maintain your GSSM and GSS devices

•Cisco Global Site Selector Global Server Load-Balancing Configuration

Guide for procedures to configure your GSS devices to perform global server

load balancing

If you are booting the GSS for the first time and it boots without a

startup-configuration file, a setup script automatically runs to guide you through

the process of initially configuring the GSS. Refer to the Cisco Global Site

Selector Getting Started Guide for details about using the setup script.

Chapter 3 Installing the GSS

Establishing a Serial Console Connection

3-18

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Establishing a Serial Console Connection

Before you configure the GSS, you should establish a serial console connection

to it. This requires a PC, two DB-9 to RJ-45 adapters (provided), an RJ-45 cable

(provided), and terminal emulation communication software (Hyper Terminal or

equivalent). You may also use a serial concentrator connection, if desired.

To establish a serial console connection:

1. Connect a console to the serial console port on the rear panel:

a. Attach a DB-9 to RJ-45 adapter to the serial port of the console.

b. Attach a DB-9 to RJ-45 adapter to the serial port of the GSS. For the

location of the serial port, see Figure 3-10.

c. Use an RJ-45 cable to connect the console to the GSS.

2. If you have not already done so, power up the GSS as described in the

“Booting the GSS” section.

3. Open your terminal emulation application on your PC to access the GSS CLI.

The following procedure uses HyperTerminal for Windows:

a. Launch HyperTerminal. The Connection Description window appears.

b. Enter a name for your session in the Name field.

c. Click OK. The Connect To window appears.

d. From the drop-down list, choose the COM port to which the device is

connected.

e. Click OK. The Port Properties window appears.

f. Set the port properties:

Baud Rate = 9600

Data Bits = 8

Flow Control = none

Parity = none

Stop Bits = 1

g. Click OK to connect.

h. Press Enter to display the CLI prompt.

3-19

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Chapter 3 Installing the GSS

Checking the Front Panel LEDs

4. Once you create a session, choose Save As from the File menu to save the

connection description. Saving the connection description has the following

two advantages:

–

The next time you launch HyperTerminal, the session is listed as an

option under Start >Programs > Accessories > HyperTerminal >

Name_of_session. This option lets you reach the CLI prompt directly

without repeating the configuration steps.

–

You can connect your cable to a different device without configuring a

new HyperTerminal session. If you use this option, ensure that you

connect to the same port on the new device as was configured in the saved

HyperTerminal session. Otherwise, a blank screen appears without a

prompt.

Checking the Front Panel LEDs

When the GSS is up and running, observe the front panel LEDs to monitor GSS

operating status. Figure 3-11 shows the location of front panel LEDs, and

Table 3-2 describes their function.

Figure 3-11 GSS 4491 Front Panel LEDs

119603

Chapter 3 Installing the GSS

Removing or Replacing a GSS

3-20

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Removing or Replacing a GSS

Warning

Before working on a GSS, turn OFF the power and unplug the power cord.

Warning

Ultimate disposal of this product should be handled according to all national

laws and regulations.

Before physically removing or replacing a GSS, use the primary GSSM GUI to

logically remove the GSS from the network. You may need to logically remove a

GSS from your network when you:

•Move a GSS device between GSS networks

•Remove or replace a GSS or standby GSSM

•Send the GSS or standby GSSM out for repair or replacement

Table 3-2 Front Panel LED Indicators

Indicator Color State Indicates

1 Power Spike Blue On Normal operation

Blinking A power surge has occurred

2 Ethernet 0 Link Green On Ethernet 0 is connected to a network

Ethernet 0 Activity Green Blinking An active link connection on the

10/100/1000BASE-T interface for Ethernet port 0

3 Ethernet 1 Link Green On Ethernet 1 is connected to a network

Ethernet 1 Activity Green Blinking An active link connection on the

10/100/1000BASE-T interface for Ethernet port 1

4 Hard Drive Activity Green Blinking The hard drive is in use

5 Power Green On The GSS is on

Blinking The GSS is in standby mode

3-21

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Chapter 3 Installing the GSS

Removing or Replacing a GSS

For details about using the primary GSSM GUI to logically remove a GSS device

or the standby GSSM from the GSS network, refer to Chapter 1, Managing GSS

Devices from the GUI, in the Cisco Global Site Selector Administration Guide.

Note Do not logically remove the primary GSSM from the GSS network. If you need

to physically take the primary GSSM offline for either maintenance or repair,

temporarily switch the roles of the primary and standby GSSMs as outlined in the

Cisco Global Site Selector Administration Guide.

To physically remove a GSS from your network:

1. Power down the GSS by pressing the power button on the front panel of the

GSS.

2. Disconnect the power cords and network cables.

3. Physically remove the chassis from the rack.

To physically replace a GSS, install the new GSS and configure it using the same

configuration parameters (such as IP address) that you used for the removed GSS.

Refer to the Cisco Global Site Selector Getting Started Guide for details.

Chapter 3 Installing the GSS

Removing or Replacing a GSS

3-22

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

CHAPTER

4-1

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Troubleshooting the GSS Hardware

If your GSS is not working as expected, begin troubleshooting using the

procedures in this chapter. This chapter guides you through some initial checks

and procedures that can solve basic GSS problems.

This chapter contains the following major sections:

•Checking the Basics

•Checking Connections

Checking the Basics

To solve some basic GSS problems, follow these steps:

1. Was an alert message issued by the GSS software?

–

Ye s . Check the component named in the alert message.

–

No. Go to step 2.

Chapter 4 Troubleshooting the GSS Hardware

Checking Connections

4-2

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

2. Visually inspect the GSS. Is the GSS wet or damaged?

–

Ye s . Liquid spills, splashes, and excessive humidity can cause damage to

the GSS. If a GSS gets wet, contact your service representative for

instructions. Refer to the Preface

If the GSS was dropped or damaged while being moved, you should

check it to see if it functions properly. If an external device attached to

the GSS is dropped or damaged, contact your service representative for

instructions. Refer to the Preface.

–

No. Go to step 3.

3. Perform the steps in the “Checking Connections” section.

Is the problem resolved?

–

Ye s . The power to the GSS was faulty, or the connections were loose. You

have fixed the problem.

–

No. Go to step 4.

4. Did the GSS complete the boot routine?

–

Ye s . The GSS configuration information was correct.

–

No. Call your service representative. Refer to the Preface.

Checking Connections

Loose, incorrect, or improperly connected cables are the most likely source of

problems for the GSS or other external equipment. A quick check of all the cable

connections can solve most problems. Refer to Chapter 1, Introduction, for the

location of the front panel controls and indicators and for the location of back

panel connections on the GSS.

To check all the connections:

1. Power down the GSS. Disconnect all the power cables from their electrical

outlets.

4-3

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Chapter 4 Troubleshooting the GSS Hardware

Checking Connections

2. If the GSS is connected to a power strip or power distribution unit, turn the

power strip off and then on again.

Is the power strip receiving power?

–

Ye s . Go to step 5.

–

No. Go to step 3.

3. Plug the power strip into another electrical outlet.

Is the power strip receiving power?

–

Ye s . The original electrical outlet probably does not function. Use a

different electrical outlet.

–

No. Go to step 4.

4. Connect a GSS that you know works into the electrical outlet.

Does the GSS receive power?

–

Ye s . The power strip is probably not functioning properly. Use another

power strip.

–

No. Go to step 5.

5. Reconnect the GSS to the electrical outlet or power strip.

Make sure that all connections fit tightly together. Ensure that the Ethernet

and Console cables are correct for use with the GSS (refer to Chapter 1,

Introduction).

6. Power up the GSS.

Is the problem resolved?

–

Ye s . The connections were loose. You have fixed the problem.

–

No. Call your service representative. Refer to the Preface.

Chapter 4 Troubleshooting the GSS Hardware

Checking Connections

4-4

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

CHAPTER

5-1

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Maintaining Your GSS

Proper use of preventive maintenance procedures can keep the GSS in top

operating condition and minimize the need for time-consuming service

procedures. This chapter contains maintenance procedures that you should

perform regularly.

This chapter includes the following major sections:

•Maintaining Your Site Environment

•Using Power Protection Devices

Maintaining Your Site Environment

An exhaust fan in the power supply cools the power supply and GSS by drawing

air in through various openings and blowing it out the back panel. However, the

fan may also draws dust and other particles into the GSS, causing contaminant

buildup, which results in an increase in the GSS’s internal temperature and

interferes with the operation of various GSS components.

To avoid these conditions, we recommend keeping your work environment clean

to reduce the amount of dust and dirt around the GSS, thereby reducing the

amount of contaminants drawn into it by the power supply fan.

Chapter 5 Maintaining Your GSS

Maintaining Your Site Environment

5-2

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

This section discusses various environmental factors that can adversely affect

GSS performance and longevity. It covers:

•Temperature

•Humidity

•Altitude

•Dust and Particles

•Corrosion

•Electrostatic Discharge

•Electromagnetic and Radio Frequency Interference

•Magnetism

•Power Source Interruptions

Temperature

Temperature extremes can cause a variety of problems, including premature aging

and failure of chips or mechanical failure of devices. Extreme temperature

fluctuations can cause chips to become loose in their sockets and cause expansion

and contraction of disk drive platters, resulting in read or write data errors.

To minimize the negative effects of temperature on GSS performance, follow

these guidelines:

•Ensure that the GSS is operated in an environment no colder than 32°F (0°C)

or hotter than 104°F (40°C).

•Ensure that the GSS has adequate ventilation. Do not place it within a

closed-in wall unit or on top of cloth, which can act as insulation. Do not

place it in direct sunlight. Do not place it next to a heat source of any kind,

including heating vents during winter.

5-3

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Chapter 5 Maintaining Your GSS

Maintaining Your Site Environment

Adequate ventilation is particularly important at high altitudes. GSS performance

may not be optimum when operating at high temperatures as well as high

altitudes.

•Ensure that all slots and openings on the GSS remain unobstructed, especially

the fan vent on the back of the GSS.

•Clean the GSS at regular intervals to avoid any buildup of dust and debris,

which can cause it to overheat.

•If the GSS has been exposed to abnormally cold temperatures, allow a 2-hour

warm-up period to bring it up to normal operating temperature before turning

it on. Failure to do so may cause damage to internal components, particularly

the hard disk drive.

Humidity

High-humidity conditions can cause moisture in the GSS. This moisture can cause

corrosion of internal components and degradation of properties such as electrical

resistance, thermal conductivity, physical strength, and size. Extreme moisture

buildup inside the GSS can result in electrical shorts, which can cause serious

damage.

Each GSS is rated to operate at 8 to 80 percent relative humidity, with a humidity

gradation of 10 percent per hour. Buildings in which climate is controlled by air

conditioning in the warmer months and by heat during the colder months usually

maintain an acceptable level of humidity for the GSS. However, if a GSS is

located in an unusually humid location, use a dehumidifier to maintain the

humidity within an acceptable range.

Altitude

Operating a GSS at high altitude (low pressure) reduces the efficiency of forced

and convection cooling and can result in electrical problems related to arcing and

corona effects. This condition can also cause sealed components with internal

pressure, such as electrolytic capacitors, to fail or perform at reduced efficiency.

Chapter 5 Maintaining Your GSS

Maintaining Your Site Environment

5-4

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Dust and Particles

A clean operating environment can greatly negate the effects of dust and other

particles, which act as insulators and interfere with the operation of mechanical

components. Also, in addition to regular cleaning, follow these guidelines to deter

contamination of the GSS equipment:

•Do not permit smoking anywhere near the GSS

•Do not permit food or drink near the GSS

•Use dust covers when the GSS is not in use

•Close windows and outside doors to keep out airborne particles

Corrosion

The oil from a person’s fingers or prolonged exposure to high temperature or

humidity can corrode the gold-plated edge connectors and pin connectors on

various devices in the GSS. This corrosion on GSS connectors is a gradual process

that can eventually lead to intermittent failures of electrical circuits.

To prevent corrosion, avoid touching contacts on boards and cards. Protecting the

GSS from corrosive elements is especially important in moist and salty

environments, which tend to promote corrosion. Also, as a further deterrent to

corrosion, the GSS should not be used in extreme temperatures, as explained in

the “Temperature” section.

Electrostatic Discharge

Electrostatic discharge (ESD) results from the buildup of static electricity on the

human body and certain other objects. Static electricity is often produced by

simple movements such as walking across a carpet. ESD is a discharge of a static

electrical charge that occurs when a person whose body contains such a charge

touches a component in the GSS, especially chips, and causes the component to

fail.

ESD is a problem particularly in dry environments where the relative humidity is

below 50 percent.

5-5

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Chapter 5 Maintaining Your GSS

Maintaining Your Site Environment

To reduce the effects of ESD, observe the following guidelines:

•Wear a grounding wrist strap. If a grounding wrist strap is unavailable, touch

an unpainted metal surface on the chassis periodically to neutralize any static

charge.

•Keep components in their antistatic packaging until they are installed.

•Avoid wearing clothing made of wool or synthetic materials.

Electromagnetic and Radio Frequency Interference

Electromagnetic interference (EMI) and radio frequency interference (RFI) can

adversely affect devices such as radio and television (TV) receivers operating near

the GSS. Radio frequencies emanating from the GSS can also interfere with

cordless and low-power telephones. Conversely, RFI from high-power telephones

can cause spurious characters to appear on a monitor screen.

RFI is defined as any EMI with a frequency above 10 kHz. This type of

interference can travel from the GSS to other devices through the power cable and

power source or through the air like transmitted radio waves. The Federal

Communications Commission (FCC) publishes specific regulations to limit the

amount of EMI and RFI emitted by computing equipment. Each GSS meets these

FCC regulations.

To reduce the possibility of EMI and RFI, follow these guidelines:

•Operate the GSS only with its cover installed.

•Ensure that the screws on all peripheral cable connectors are securely

fastened to their corresponding connectors on the back of the GSS.

•Always use shielded cables with metal connector shells for attaching

peripherals to the GSS.

Chapter 5 Maintaining Your GSS

Maintaining Your Site Environment

5-6

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Magnetism

Because they store data magnetically, hard disk drives are extremely susceptible

to the effects of magnetism. D not store hard disk drives near magnetic sources

such as:

•Monitors

•TV sets

•Printers

•Telephones with real bells

•Fluorescent lights

Power Source Interruptions

The GSS is especially sensitive to variations in voltage supplied by the AC power

source. Overvoltage, undervoltage, and transients (or spikes) can erase data from

memory or even cause components to fail. To protect against these types of

problems, always properly ground power cables. Use one or both of the following

methods:

•Use one of the power protection devices described in the “Using Power

Protection Devices” section.

•Place the GSS on a dedicated power circuit (rather than sharing a circuit with

other heavy electrical equipment). In general, do not allow the GSS to share

a circuit with any of the following equipment:

–

Copier machines

–

Air conditioners

–

Vacuum cleaners

–

Space heaters

–

Power tools

–

Teletype machines

5-7

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Chapter 5 Maintaining Your GSS

Using Power Protection Devices

–

Adding machines

–

Laser printers

–

Facsimile machines

–

Any other motorized equipment

In addition to these appliances, the greatest threats to the GSS power supply are

surges or blackouts caused by electrical storms. Whenever possible, turn off the

GSS and any peripherals and unplug them from their power sources

during thunderstorms.

If a blackout occurs—even a temporary one—while the GSS is turned on, turn it

off immediately and disconnect it from the electrical outlet. Leaving the GSS on

may cause problems when the power is restored; all other appliances left on in the

area can create large voltage spikes that can damage the GSS.

Using Power Protection Devices

A number of devices are available that protect against power problems such as

power surges, transients, and power failures. The following subsections describe

some of these devices.

Surge Protectors

Surge protectors are available in a variety of types and usually provide a level of

protection commensurate with the cost of the device. Surge protectors prevent

voltage spikes, such as those caused during an electrical storm, from entering a

GSS through the electrical outlet. Surge protectors, however, do not offer

protection against brownouts, which occur when the voltage drops more than

20 percent below the normal AC line voltage level.

Chapter 5 Maintaining Your GSS

Using Power Protection Devices

5-8

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Line Conditioners

Line conditioners go beyond the overvoltage protection of surge protectors. Line

conditioners keep a GSS’s AC power source voltage at a fairly constant level and

therefore can handle brownouts. Because of this added protection, line

conditioners cost more than surge protectors—up to several hundred dollars.

However, these devices cannot protect against a complete loss of power.

Uninterruptible Power Supplies

Uninterruptible power supply (UPS) systems offer the most complete protection

against variations in power because they use battery power to keep the GSS

running when AC power is lost. The battery is charged by the AC power while it

is available, so once AC power is lost, the battery can provide power to the GSS

for a limited amount of time—from 15 minutes to an hour or so—depending on

the UPS system.

Surge protectors should be used with all UPS systems, and the UPS system should

be Underwriters Laboratories (UL) safety-approved.

A-1

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

APPENDIX

Specifications

This appendix contains the following sections that list specifications for the Cisco

GSS 4491:

•Electrical Specifications

•Environmental Specifications

•Physical Specifications

•Port Specifications

Electrical Specifications

Table A-1 describes the GSS AC electrical specifications.

Table A-1 AC Electrical Specifications

AC Specification Operational

Input Voltage (V) 100 to 240 VAC

Input Voltage (F) 50 to 60 Hz

Current Draw 3.5 Amps

Power Consumption 385 Watts

Heat Dissipation 1314 BTU/hr

Appendix A Specifications

Environmental Specifications

A-2

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Environmental Specifications

Table A-2 describes the GSS environmental specifications.

Note G is the unit of acceleration due to gravity, where 1 G equals 32.17 ft/sec2

(9.81 m/sec2).

Grms is the root mean square value of acceleration.

Table A-2 Environmental Specifications

Specification Operational Non-operational

Temperature 10 to 40° C -20° to 60° C

Humidity 90% at 40° C

(non-condensing)

90% at 60° C

(non-condensing)

Shock 31 G sinewave 71 G sine, 20 G square

Vibration 0.25 Grms from 3 to 500 Hz 0.5 Grms from 3 to 200 Hz

Acoustic

Noise

50 dBa (maximum) Not applicable

A-3

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Appendix A Specifications

Physical Specifications

Table A-3 describes the GSS physical specifications.

Port Specifications

Table A-4 describes the GSS port specifications.

Table A-3 Physical Specifications

Description Specification

Chassis Dimensions

(H x W x D)

1.69 in x 16.50 in x 23.23 in

(43 mm x 419 mm x 590 mm)

Chassis Shipping Weight 40.0 lbs. (18.2 kg)

Chassis Weight 30.8 lbs. (14 kg)

Table A-4 Port Specifications

Description Specification

Ports •1000BASE-TX, 100BASE-TX,

10BASE-T (dual) Ethernet ports

•Console port

Appendix A Specifications

Port Specifications

A-4

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

B-1

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

APPENDIX

Connecting a Modem to the GSS

Console Port

This appendix explains how to configure a dial-up modem and connect it to the

console port on the GSS. Connecting a modem to the GSS allows you to remotely

perform the same GSS console operations as you would locally. The GSS supports

the following modems:

•3Com (US Robotics) Courier Model 3453 Modem

•3Com OfficeConnect Model 3294 Modem

•3Com (US Robotics) Sportster Model 5686 Modem

•MultiTech Model MT5634ZBA Modem

This appendix includes the following sections:

•Configuring a Modem

•Cabling a Modem to the GSS

Appendix B Connecting a Modem to the GSS Console Port

Configuring a Modem

B-2

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Configuring a Modem

You must configure the modem before you can connect it to the GSS. You can

connect the modem to a terminal or a PC using a terminal emulation program,

such as Hyperterminal. If you connect the modem to the COM port on a PC, you

need the following cable and connectors:

•RJ-45-to-RJ-45 rolled cable

•RJ-45-to-DB-25 modem adapter

•DB-9-to-RJ-45 terminal adapter

Figure B-1 shows the pin number assignments for the 9-pin, male D-shell console

port connector on the back of the GSS. These pin number assignments conform to

the industry standard.

Figure B-1 Console Port Connector Pin Numbers

Table B-1 connector pinouts for the GSS console port.

119657

B-3

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Appendix B Connecting a Modem to the GSS Console Port

Configuring a Modem

You configure the modem by entering commands from the Attention (AT)

command set and, if applicable, setting the configuration switches on the modem.

Although the process to configure the modem may vary from one modem to

another, configure your modem so that its resulting behavior is as follows:

•Answers a call on the first ring

•Disables both hardware and software flow control mechanisms

•Ignores modem control signals DTR and RTS

•Suppresses echoing of command mode input

•Disables recognition of AT commands

Table B-1 Console Port Connector Pinouts

Pin Signal I/O Definition

1 DCD I Data carrier detect

2 SIN I Serial input

3 SOUT O Serial output

4 DTR O Data terminal ready

5 GND N/A Signal ground

6 DSR I Data set ready

7 RTS O Request to send

8 CTS I Clear to send

9 RI I Ring indicator

Shell N/A N/A Chassis ground

Appendix B Connecting a Modem to the GSS Console Port

Cabling a Modem to the GSS

B-4

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Cabling a Modem to the GSS

After you configure the modem, perform the following steps to connect a modem

to the GSS:

1. Unplug the flat rolled RJ-45-to-RJ-45 cable from the terminal adapter on the

PC and connect the cable to the console port on the GSS (Figure B-2).

Figure B-2 Rear Panel Ports and Connectors

1AC power receptacle 3RJ-45 Ethernet 1 connector with

10/100/1000-Mbit/s operation

2Console/serial connector 4RJ-45 Ethernet 0 connector with

10/100/1000-Mbit/s operation

119605

B-5

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Appendix B Connecting a Modem to the GSS Console Port

Cabling a Modem to the GSS

2. Ensure that the settings on the remote console match the GSS default settings

specified in Table B-2.

Note When you remotely log in to the GSS through a modem, ensure that you log out

before disconnecting from the session. Use the exec-timeout timeout command to

set the maximum amount of time that the console session can be idle on the GSS

before it logs out. By default, the timeout is 150 minutes.

Table B-2 Console Port Default Settings

Parameters Default Settings

Baud 9600

Data Bits 8

Parity None

Stop Bits 1

Terminal Type VT100/ANSI

Flow Control None

Appendix B Connecting a Modem to the GSS Console Port

Cabling a Modem to the GSS

B-6

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

IN-1

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

INDEX

AC electrical specifications A-1

AC power 2-10

connecting to GSS 3-16

cord, connecting 3-16

line conditioners 5-8

power source interruptions 5-6

protection devices 5-7

receptacle 1-5, 3-15, B-4

site installation preparation 2-10

uninterruptible power supplies 5-8

altitude, guidelines 5-3

audience xiv

booting the GSS 4491 3-17

boot sequence 3-17

cabling

cables, connecting 3-15

Category 5e cable 1-8, 3-15

front panel functions 1-3

general precautions 2-6

rear panel functions 1-5

requirements 1-8, 3-15

site preparation guidelines 2-11

troubleshooting connections 4-2

cautions, description of xvii

CD-ROM drive 1-3

cleaning operating environment, guidelines 5-4

CLI

saving connection session 3-19

serial console connection, establishing 3-18

connections

cables 3-15

console port to modem B-1

power 3-16

troubleshooting 4-2

console port

connections 3-16

connector pinouts B-2

description 1-6

establishing connection 3-18

location 1-5, 3-15

modem, connecting B-1

operating settings 1-7

Index

IN-2

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

pinouts 1-7, B-3

corrosion, preventing damage 5-4

damage to product, reporting 3-2

documentation

conventions xvii

related xvi

set xvi

dust, preventing damage 5-4

electrical specifications A-1

electricity, safety precautions 2-6

electromagnetic interference

See EMI

electrostatic discharge, protecting against 2-7,

5-4

EMI, preventing effects of 5-5

environment, maintaining 5-1

environmental

site requirements 2-9

specifications A-2

ESD, preventing damage 5-4

Ethernet interfaces

cabling requirements 1-8, 3-15

Category 5 UTP cable 3-15

connector pinout 1-8

description 1-8

Ethernet 0 Activity LED 1-4, 3-20

Ethernet 0 connector 1-5

Ethernet 0 Link LED 1-4, 3-20

Ethernet 1 Activity LED 1-4, 3-20

Ethernet 1 connector 1-5

Ethernet 1 Link LED 1-4, 3-20

Ethernet controller 1-8

specifications A-3

four-post rack mount kit

attaching chassis to rack 3-11

components 3-5

installation instructions 3-4

telescopic rails, attaching 3-6

front panel

features 1-3

illustration 1-3

LED indicators 1-4, 3-19

overview 1-3

GSS 4491

booting 3-17

boot sequence 3-17

IN-3

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Index

connections 1-5

front panel features 1-3

general precautions 2-6

hardware features 1-2

installing 3-3

LED indicators 1-4

maintaining 5-1

monitoring LED operating status 3-19

overview 1-1

ports and connectors 1-6

power button 1-3

rear panel features 1-5

removing from network 3-21

removing or replacing 3-20

reporting damage 3-2

safety warnings and cautions 2-2

shipment contents 3-2

site environment, maintaining 5-1

site requirements 2-8

technical specifications A-1

troubleshooting hardware issues 4-1

unpacking and inspecting 3-2

workbench or tabletop, installing 3-14

hard drive

indicator 1-4, 3-20

magnetism effects 5-6

hardware

features 1-2

troubleshooting 4-1

humidity guidelines 5-3

HyperTerminal

launching 3-18

saving session 3-19

installation

choosing a site 2-9

creating a safe environment 2-10

general precautions 2-6

installing in a rack 3-4

network, setting up 2-12

precautions for rack-mounting 2-11

preparing for

LAN options, precautions for 2-12

modems, precautions for 2-12

telecommunications, precautions for 2-12

required tools and equipment 2-12

site preparation 2-8

site requirements 2-8

tabletop 3-14

tools and equipment required 2-12

two-post rack bracket instructions 3-12

unpacking and inspecting 3-2

workbench 3-14

Index

IN-4

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

LAN

options, precautions for 2-12

precautions 2-12

LED indicators

Ethernet 0 Activity 1-4, 3-20

Ethernet 0 Link 1-4, 3-20

Ethernet 1 Activity 1-4, 3-20

Ethernet 1 Link 1-4, 3-20

front panel 3-19

hard drive activity 1-4, 3-20

monitoring GSS operating status 3-19

power 1-4, 3-20

power spike 1-4, 3-20

line conditioners, using 5-8

magnetism, preventing effects of 5-6

modem

connecting to console port B-1

precautions 2-12

network, physically removing a GSS 4491 3-21

physically removing a GSS 4491 from a

network 3-21

physical specifications A-3

port connectors 1-6

port specifications A-3

power

AC power receptacle 1-5

connecting to system 3-16

power indicator LED 1-4, 3-20

power source interruptions, preventing

damage 5-6

power spike indicator LED 1-4, 3-20

power button 1-3

power protection devices 5-7

power source interruptions 5-6

power supplies, using uninterruptible 5-8

rack mounting

four-post rack 3-4

identifying GSS 4491 by System ID

button 1-3, 1-5

installation considerations 3-4

precautions 2-11

procedure 3-4

two-post rack bracket 3-12

radio frequency interference. See RFI

IN-5

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

Index

rear panel

connections 1-5

features 1-5

RFI, preventing effects of 5-5

safety

creating a safe environment 2-10

electrostatic discharge 2-7

general precautions 2-6

important safety instructions 2-3

installation 2-2

precautions with electricity 2-6

preventing EMI 2-8

safe environment, creating 2-10

warnings xviii

warnings and cautions 2-2

with electricity 2-6

serial port

connection 3-18

description 1-6

location 1-5, 3-15, B-4

pinouts 1-7, B-3

server load balancers

Cisco Content Services Switch 1-1

Cisco Content Switching Module (Catalyst

6500 series) 1-1

Cisco IOS SLB 1-1

Cisco LocalDirector 1-1

overview 1-2

site

environment, maintenance factors 5-1

preparation 2-8

requirements 2-8

specifications

electrical A-1

environmental A-2

GSS 4491 A-1

physical A-3

port A-3

surge protectors, using 5-7

System ID button, identifying GSS 4491

by 1-3, 1-5

tabletop installation procedure 3-14

telecommunications, precautions 2-12

temperature guidelines 5-2

troubleshooting

basic checks 4-1

connections 4-2

switches 4-2

troubleshooting system hardware 4-1

two-post rack bracket, attaching 3-12

Index

IN-6

Cisco Global Site Selector 4491 Hardware Installation Guide

78-16356-01

uninterruptible power supplies, using 5-8

warnings

regarding

batteries and explosion danger 2-5

chassis, opening 2-3

chassis, working on 2-3

disposal of unit 2-5

explosion 2-5

faceplates and cover panels, removing 2-4

failure to ground equipment 2-4

ground conductor, defeating 2-3, 2-10

installation area 2-9

instructions, reading 2-5

jewelry 2-4

lightning activity 2-4, 3-15

On/Off switch 2-5

power cords, more than one 2-4

rack-mounting equipment 2-11

safety cover 2-3

short circuits 2-4, 2-10

translations of 2-2

workbench installation procedure 3-14
