Product Overview

This chapter provides an overview of the features available for the Cisco 812, Cisco 819, Cisco 860, 880,

890 Integrated Services Router (ISR) and contains the following sections:

•Cisco 810 Series, page 1-1

•Cisco 860, 880, 890 Series, page 1-33

Note For compliance and safety information, see Regulatory Compliance and Safety Information for Cisco

800 Series Routers.

Cisco 810 Series

This section contains the following:

•Cisco 812 Series, page 1-1

•Cisco 819 Series, page 1-10

Cisco 812 Series

This section provides an overview of the features available for the Cisco 812 Integrated Services Router

(ISR) and contains the following sections:

•General Description, page 1-1

•Hardware Features, page 1-4

•SKU Information, page 1-9

Note For compliance and safety information, see Regulatory Compliance and Safety Information for Cisco

800 Series and SOHO Series Routers.

General Description

The Cisco 812 ISR is a new router that looks like an Access Point with 3G, WLAN, and routing

capabilities.

1-2

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco 810 Series

The 3rd Generation (3G) is a generation of standards for mobile technology that facilitates growth,

increased in bandwidth, and supports more diverse applications.

The Cisco 812 ISR can be powered by an (included) external AC adapter or by a PoE+ capable Ethernet

source using an optional Cisco PoE splitter C810-POE-SPL.

A Wireless Local Area Network (WLAN) implements a flexible data communication system frequently

augmenting rather than replacing a wired LAN within a building or campus. WLANs use radio frequency

to transmit and receive data over the air, minimizing the need for wired connections. Figure 1-1 shows

the Cisco 812 ISR.

Figure 1-1 Cisco 812 ISR

344399

1-3

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco 810 Series

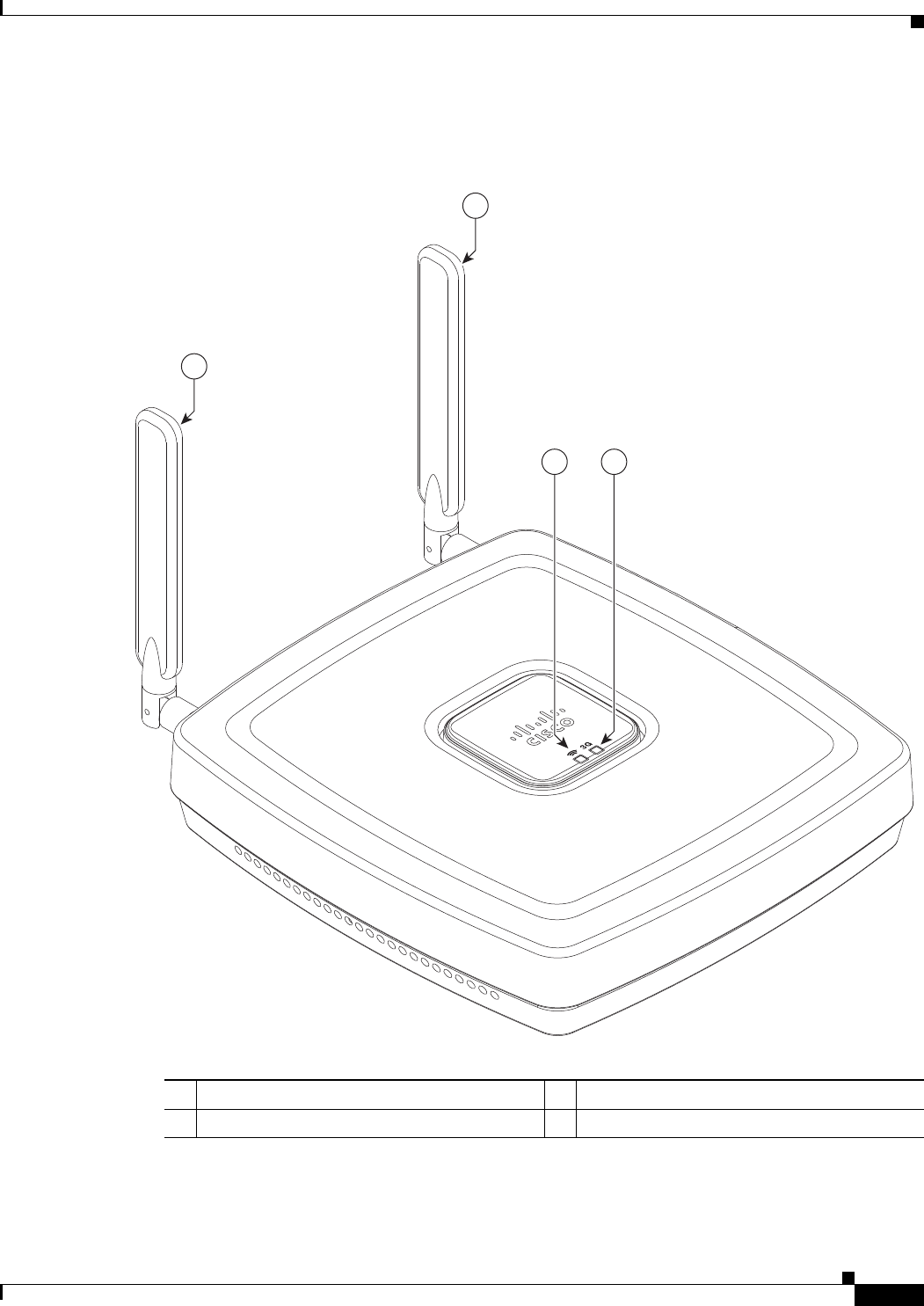

Figure 1-2 shows the 3G antenna and LEDs display.

Figure 1-2 Cisco 812 ISR 3G and LEDs Display

344400

13G diversity antenna 3WiFi LED

23G main antenna 43G LED

1-4

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco 810 Series

Figure 1-3 shows the I/O side of the Cisco 812 ISR.

Figure 1-3 Cisco 812 ISR I/O Side

Hardware Features

The Cisco 812 ISR supports the following hardware features:

•Platform Features, page 1-4

•Antenna, page 1-5

•LEDs, page 1-5

•Memory, page 1-8

•Power Supply, page 1-8

Note The WAAS Express feature is not supported. This feature will be supported for 3G and 4G interfaces

with later IOS releases.

Platform Features

The Cisco 812 ISR has the following platform features:

•1x GE Enabled WAN (1000/100/10 Base T)

•2 TNC connectors for 3G main and diversity antenna (diversity antenna multiplexed with GPS)

•512 MB Compact Flash Memory

•512 MB DRAM

•AC Power Brick (100–264 V and max 0.5 A)

•Optional PoE+ (802.3at Class 4) Power Splitter

•Built-in Grounding

MAIN

C812G

GE WAN

S L

CON/

AUX

5VDC

4.0A

DIV/GPS

3 421

344393

1GE WAN port 3Power connection port

2Console/Aux port 4Power switch

1-5

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco 810 Series

•Ceiling and Wall Mounting Option

•LED indicators for the platform

Antenna

The Cisco 812 ISR supports 3G external antenna and WiFi embedded antenna.

3G External Antenna

The Cisco 812 ISR provides two standard panel-mount TNC connectors to support 3G. The main antenna

is used for the primary 3G antenna. The second can be used as a diversity receive only 3G antenna or an

amplified GPS antenna. See Figure 1-2 for the location of the antennas.

WiFi Embedded Antenna

The Cisco 812 ISR supports Dual ports WiFi radios (802.11 a/b/g/n) with embedded 2x3 MIMO.

For compliance and safety information, see the Regulatory Compliance and Safety Information for the

Cisco 800 Series and SOHO Series Routers.

LEDs

The Cisco 812 ISR has two LEDs located on the top side of the router. The 3G LED is located on the

lower right side with respect to the Cisco logo. 3G LED supports multiple functions and colors. The WiFi

LED is located on lower left side with respect to the Cisco logo. Table 1-1 describes the 3G LED for the

Cisco 812 ISR.

Table 1-1 Cisco 812 3G LED Descriptions

ROMMON Mode

3G LED LED Color Description

System Yellow FPGA download is complete.

Green (four blinks) ROMMON is running.

Off No power.

Incomplete FPGA download.

IOS 3G Mode

3G Service Type White MC8700—2G (GPRS/EDGE)

MC5728—1xRTT

Green MC8700—3G (UMTS)

MC5728—EVDO Rev 0

Light Blue MC8700—3.5G (HSPA)

MC5728—EVDO Rev A

Blue MC8700—3.7G (HSPA+)

MC5728—N/A

Off (solid) No service.

1-6

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco 810 Series

RSSI1White, Green, Light Blue, or

Blue (solid) Signal > –60 dBm

Very strong signal

White, Green, Light Blue, or

Blue (three blinks and then a

long pause)

Signal <= –60 to 74 dBm

Strong signal.

White, Green, Light Blue, or

Blue (two blinks and then a long

pause)

Signal <= –75 to –89 dBm

Fair signal.

White, Green, Light Blue, or

Blue (one blink and then a long

pause)

Signal <= –90 to –109 dBm

Marginal signal.

Off Signal <= –110 dBm

Unusable signal.

Fault / Alarm Amber (solid) Fault detected.

Red (four blinks) Temperature alert.

Red (solid) Software failure.

Power cycle.

1. The LED colors of RSSI can be any of the four colors (White, Green, Light Blue, or Blue) listed under 3G service type.

Table 1-1 Cisco 812 3G LED Descriptions (continued)

ROMMON Mode

3G LED LED Color Description

1-7

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco 810 Series

Table 1-2 describes the WiFi LED for the Cisco 812 ISR.

Table 1-2 Cisco 812 ISR WiFi LED Descriptions

Message Type Color Description

Boot loader status sequence Blinking Green DRAM memory test in progress.

DRAM memory test is OK.

Board initialization in progress.

Initializing FLASH file system.

Initializing Ethernet.

Ethernet is OK.

Starting Cisco IOS.

Initialization successful.

Association status Green Normal operating condition with no

wireless client associated.

Blue Normal operating condition with at least

one wireless client associated.

Operating status Blinking Blue Software upgrade in progress.

Rapidly cycling through

Blue, Green, Red, and

White

Access point location command invoked.

Blinking Red Ethernet link not operational.

Yellow Router is powered up.

FPGA download is complete.

Blinking Green LED blinks four times when ROMMON is

up.

Boot loader warnings Blinking Blue Configuration recovery in progress.

(MODE button pushed for 2 to 3 seconds)

Red Ethernet failure.

Blinking Green Image recovery in progress (MODE button

released).

Boot loader errors Red DRAM memory test failure.

Blinking Red and Blue FLASH file system failure.

Blinking Red and Off Environment variable failure.

Bad MAC address.

Ethernet failure during image recovery.

Boot environment failure.

No Cisco image file.

Boot failure.

1-8

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco 810 Series

Memory

The Cisco 812 ISR supports 512 MB DRAM and 512 MB compact flash memory. The Host router

software runs on the first core. The second core runs the WLAN Access Point software.

If WLAN is not supported in an SKU, all 512 MB DRAM memory is allocated to the first core. For the

SKUs that support WLAN, 128 MB out of the 512 MB main memory is allocated to the second core.

If WLAN is not supported in an SKU, all 512 MB DRAM compact flash memory is allocated to the first

core. For the SKUs that support WLAN, 64 MB out of the 512 MB main memory is allocated to the

second core.

Power Supply

The following are power adapters supported in the Cisco 812 ISR:

•AC Power Adapter, page 1-8

•PoE+ Splitter, page 1-8

AC Power Adapter

The default configuration is AC adapter that supports up to 4 A of 5 VDC current. The supported AC

power adapter is PWR2-20W-AC that has a nominal input voltage of 100 to 240 VAC.

PoE+ Splitter

The Cisco PoE+ splitter (C810-POE-SPL) splits PoE+ into power and GE. It has connectors built into

the power supply at both input and output so cables can be used at desired length as an option. Figure 1-4

shows the I/O side of the PoE+ splitter.

Cisco IOS errors Red Software failure. Try to disconnect and

reconnect the unit power.

Cycling through Blue,

Green, Red, and Off General warning.

Table 1-2 Cisco 812 ISR WiFi LED Descriptions (continued)

Message Type Color Description

1-9

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco 810 Series

Figure 1-4 PoE+ Splitter I/O Side

SKU Information

Table 1-3 lists the different SKUs available for the Cisco 812 ISR. The AP802-AGN-X-K9 (WLAN PID)

is integrated as part of the router for the SKUs that support WLAN and is not orderable separately.

OUTPUT

65 521 3 4

345067

1Grounding location 4PoE+ input

2Power status LED 5Openings for power cord latch to lock into

enclosure

3GE0 output 6Input power connection

Table 1-3 Supported SKUs

SKU ID WLAN PID Description

C812G+7-K9 — C812 Secure Router Standalone Unit (non-US) 3.7G HSPA

+ Release 7 with SMS/GPS

WLAN is not supported.

C812G-CIFI+7-E-K9 AP802-AGN-E-K9 C812 Secure Router (non-US) 3.7G HSPA + Release 7 with

SMS/GPS and Dual WiFi Radio with ETSI

C812G-CIFI+7-N-K9 AP802-AGN-N-K9 C812 Secure Router (non-US) 3.7G HSPA + Release 7 with

SMS/GPS and Dual WiFi Radio with ANZ

C812G-CIFI-V-A-K9 AP802-AGN-A-K9 C812 Secure Router for Verizon EV-DO Rev A with

SMS/GPS and Dual WiFi Radio with FCC

C812G-CIFI-S-A-K9 AP802-AGN-A-K9 C812 Secure Router for Sprint EV-DO Rev A with

SMS/GPS and Dual WiFi Radio with FCC

1-10

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco 810 Series

Cisco 819 Series

This section provides an overview of the features available for the Cisco 819 and Cisco 819H Integrated

Services Routers (ISRs) and contains the following sections:

•General Description, page 1-10

•SKU Information, page 1-14

•Hardware Features, page 1-19

Note For compliance and safety information, see Regulatory Compliance and Safety Information Roadmap

that ships with the router and Regulatory Compliance and Safety Information for Cisco 800 Series and

SOHO Series Routers.

General Description

The Cisco 819 Integrated Services Router, part of the Cisco Integrated Services Routers Generation 2

(ISR G2) Family designed in compact hardened and non-hardened form factors, is the smallest Cisco

IOS Software router with support for integrated fourth-generation (4G LTE) and third-generation (3G)

wireless WAN (mobile broadband backhaul). The 3G Cisco 819 now supports Dual 802.11 a/b/g/n radios

WiFi. The Cisco 819 ISR machine-to-machine gateway provides a rapidly deployable, highly available,

reliable, and secure solution into machine-to-machine applications for financial, telemetry, utility, retail,

industrial automation, and transportation with comprehensive management capability. Transparently

integrated into Cisco IOS Software as an enterprise-class feature, the Cisco 819 Hardened ISR provides

highly secure data, voice, and video communications to stationary and mobile network nodes across

wired and wireless links.

Available in both non-hardened (Cisco 819G) and hardened (Cisco 819HG) versions, the Cisco 819

supporting 4G LTE and 3G wireless WAN (WWAN) speeds offers a cost-effective, rapidly deployable,

reliable, and secure primary or backup solution. With support for industrial-grade components, the

hardened Cisco 819HG extends the ISR machine-to-machine gateway footprint and provides the

flexibility for deployment in many different stationary and mobile environments where space, heat

dissipation, exposure to extreme temperatures, harsher environments, and low power consumption are

critical factors. For mobile applications, Mobile IP delivers transparent roaming across multiple wireless

networks capable of covering wide geographic areas.

The Cisco 819 ISR is a standard form factor with a commercial operating range. The 3G Cisco 819 ISRs

support the 3G speeds (High-Speed PacketAccess Plus [HSPA+] enabling up to 4G speeds and Evolution

Data Optimized [EVDO Rev A]). They are backward-compatible with High-Speed Packet Access

(HSPA), Universal Mobile Telecommunications Service (UMTS), Enhanced Data Rates for Global

Evolution (EDGE), General Packet Radio Service (GPRS), and EVDO Rev 0/1xRTT.

The 4G LTE C819 supports the latest Third-Generation Partnership Project (3GPP) Release 8 LTE

standards. The Cisco 4G multimode LTE WWAN C819 provides persistent and reliable LTE connectivity

with fallback and transparent handoff to earlier technologies. The Cisco 819HG-4G and Cisco 819G-4G

support multimode 4G LTE and have embedded Sierra Wireless multimode modem.

The Cisco 819 ISR is a desktop form factor with built-in wall-mount features, floor mount, and DIN rail

mount features in selected SKUs. These routers are powered by an external AC power or optional DC

adapter. Figure 1-5 shows the Cisco 819HG ISR.

Beginning with IOS release 15.2(4)M1, the new 3G Cisco 819HGW and Cisco 819HWD ISRs support

WiFi radios with a higher memory density and a new barrel-type power connector. A Wireless Local

Area Network (WLAN) implements a flexible data communication system frequently augmenting rather

1-11

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco 810 Series

than replacing a wired LAN within a building or campus. WLANs use radio frequency to transmit and

receive data over the air, minimizing the need for wired connections. Figure 1-6 shows the Cisco

819HGW ISR.

The WLAN for 3G Cisco 819HGW and Cisco 819HWD ISRs have the following additional features:

•Dual 802.11 a/b/g/n radios

•External WiFi antenna

•WLAN LED

Note Cisco 819 is used to refer to Cisco 819HG, Cisco 819G, Cisco 819H, Cisco 819HGW, Cisco 819HWD,

Cisco 819HG-4G, and Cisco 819G-4G ISRs unless specifically called out otherwise.

Figure 1-5 Cisco 819HG Integrated Services Router

283010

1-12

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco 810 Series

Figure 1-6 Cisco 819HGW Integrated Services Router

Figure 1-7 shows the front panel details of the Cisco 819HG ISR.

Figure 1-7 Cisco 819HG ISR Front Panel

285479

245547

1 436 7 9 10 11 12

5 8

13G main antenna 7FE ports

2LEDs 8GE WAN port

3Reset button 9Console/Aux port

1-13

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco 810 Series

Figure 1-8 shows the front panel details of the Cisco 819HGW ISR.

Figure 1-8 Cisco 819HGW ISR Front Panel

43G mini-USB diagnostic port 10 5 VDC molex power input

5Diversity/GPS antenna 11 Power switch

612-in-1 serial port 12 Ground

344077

21 436 7 9 10 11 12

5 8

13G main antenna 7FE ports

2LEDs 8GE WAN port

3Reset button 9Console/Aux port

43G mini-USB diagnostic port 10 5 VDC barrel-type power input

5Diversity/GPS antenna 11 Power switch

612-in-1 serial port 12 Ground

1-14

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco 810 Series

Figure 1-9 shows the front panel details of the Cisco 819 4G LTE ISR.

Figure 1-9 Cisco 819 4G LTE ISR Front Panel

SKU Information

Table 1-4 lists the different 3G SKUs available for the Cisco 819HG and Cisco 819G ISRs. All SKUs

support external antenna.

Note WLAN is not supported.

285447

1 436 7 9 10 11 13

5128

14G Antenna connector—M0/MAIN 8GE WAN port

2LEDs 9Console/Aux port

3Reset button 10 Power input

44G/3G port 11 Power switch

54G Antenna connector—M1/DIV 12 Active GPS antenna connector

6Serial port 13 Ground

7FE ports

Table 1-4 Supported 3G SKUs for Cisco 819HG and Cisco 819G ISRs

SKU ID Description

C819HG+7-K9 Compact Hardened 3G IOS Router with Global HSPA + Release 7 based on

MC8705

C819HG-U-K9 Compact Hardened 3G IOS Router with GLOBAL HSPA Release 6 based on

MC8795V

C819HG-V-K9 Compact Hardened 3G IOS Router with Verizon EVDO Rev A based on

MC5728V

C819HG-S-K9 Compact Hardened 3G IOS Router with Sprint EVDO Rev A based on

MC5728V

1-15

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco 810 Series

C819HG-B-K9 Compact Hardened 3G IOS Router with Bharat generic EVDO Rev A based

on MC5728V

C819G+7-K9 Compact Non-hardened 3G IOS Router with Global HSPA + Release 7 based

on MC8705

C819G-U-K9 Compact Non-hardened 3G IOS Router with GLOBAL HSPA Release 6

based on MC8795V

C819G-V-K9 Compact Non-hardened 3G IOS Router with Verizon EVDO Rev A based on

MC5728V

C819G-S-K9 Compact Non-hardened 3G IOS Router with Sprint EVDO Rev A based on

MC5728V

C819G-B-K9 Compact Non-hardened 3G IOS Router with Bharat generic EVDO Rev A

based on MC5728V

Table 1-4 Supported 3G SKUs for Cisco 819HG and Cisco 819G ISRs (continued)

SKU ID Description

1-16

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco 810 Series

Table 1-5 lists the different SKUs available for the Cisco 819HGW, Cisco 819H, and Cisco 819HWD

ISRs.

Table 1-5 Supported SKUs for Cisco 819HGW, Cisco 819H, and Cisco 819HWD ISRs

SKU ID WLAN ID WiFi External Antenna

Support Description

C819HGW+7-E-K9 AP802H-AGN-E-K9 Yes Cisco 819 Secure Hardened M2M

GW (non-US) 3.7G HSPA + Release

7 with SMS/GPS and Dual WiFi

Radio with ETSI

C819HGW+7-N-K9 AP802H-AGN-N-K9 Yes Cisco 819 Secure Hardened M2M

GW (non-US) 3.7G HSPA + Release

7 with SMS/GPS and Dual WiFi

Radio with ANZ

C819HGW+7-A-A-K9 AP802H-AGN-A-K9 Yes Cisco 819 Secure Hardened M2M

GW (North America) 3.7G HSPA +

Release 7 with SMS/GPS and Dual

WiFi Radio with FCC for ATT

C819HGW-V-A-K9 AP802H-AGN-A-K9 Yes Cisco 819 Secure Hardened Router

for Verizon EV-DO Rev A with

SMS/GPS and Dual WiFi Radio with

FCC

C819HGW-S-A-K9 AP802H-AGN-A-K9 Yes Cisco 819 Secure Hardened Router

for Sprint EV-DO Rev A with

SMS/GPS and Dual WiFi Radio with

FCC

C819H-K9 — — Cisco 819 Secure Hardened Router

with Serial

WLAN and 3G are not supported

C819HWD-E-K9 AP802H-AGN-E-K9 Yes Cisco 819 Secure Hardened Router

and Dual WiFi Radio with ETSI

3G is not supported

C819HWD-A-K9 AP802H-AGN-A-K9 Yes Cisco 819 Secure Hardened Router

and Dual WiFi Radio with FCC

3G is not supported

1-17

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco 810 Series

Table 1-6 lists the different 4G LTE SKUs available for the Cisco 819HG and Cisco 819G ISRs.

Table 1-6 Supported 4G LTE SKUs for the Cisco 819HG-4G and Cisco 819G-4G ISRs

SKU ID Mode Operating Regions Frequency Band Description

C819HG-4G-V-K9 LTE—DOrA North America 700 MHz (band 13) for LTE

800/1900 MHz for CDMA

1xRTT, 1xEVDO Rev A

Compact Hardened Cisco

819 router with

multimode LTE feature

dedicated to Verizon

Wireless networks. This

comes with a Sierra

Wireless MC7750

modem.

C819G-4G-V-K9 LTE—DOrA North America 700 MHz (band 13) for LTE

800/1900 MHz for CDMA

1xRTT, 1xEVDO Rev A

Compact Non-hardened

Cisco 819 router with

multimode LTE feature

dedicated to Verizon

Wireless networks. This

comes with a Sierra

Wireless MC7750

modem.

C819HG-4G-A-K9 LTE—HSPA+/

HSPA/UMTS/

EDGE/GPRS

North America 700 MHz(band 17)/AWS(band

4)/2100MHz(band 1) for LTE

800/850/1900/2100 MHz for

UMTS/ HSPA+/HSPA

850/900/1800/1900 MHz for

GSM/EDGE/GPRS

Compact Hardened Cisco

819 router with

multimode LTE feature

dedicated to AT&T

Wireless networks. This

comes with a Sierra

Wireless MC7700

modem.

C819G-4G-A-K9 LTE—HSPA+/

HSPA/UMTS/

EDGE/GPRS

North America 700 MHz(band 17)/AWS(band

4)/2100MHz(band 1) for LTE

800/850/1900/2100 MHz for

UMTS/ HSPA+/HSPA

850/900/1800/1900 MHz for

GSM/EDGE/GPRS

Compact Non-hardened

Cisco 819 router with

multimode LTE feature

dedicated to AT&T

Wireless networks. This

comes with a Sierra

Wireless MC7700

modem.

1-18

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco 810 Series

Rebranding of C8xx-B and EHWIC-3G-EVDO-B

The C881G-B-K9, C819G-B-K9, and EHWIC-EVDO-B (Bharat) SKUs are introduced as an umbrella

SKU to cover BSNL, Tata, and Reliance service providers in India.

Software based mechanism is introduced to identify specific carrier.

Carrier ID and name are displayed under "show cellular <unit> hardware".

The software mechanism is backward compatible with other existing CDMA SKUs such as

HWIC-3G-CDMA(-S,-V) and PCEX-3G-CDMA(-S,-V).

Cisco IOS Requirement

15.3(2)T, 15.3(3)M or later. New MIB objects for carrier ID and name will be introduced in later release.

Sample CLI Output

Router#show cellular 0/0/0 hardware

Modem Firmware Version = p2813301

Modem Firmware built = 06-24-10

Hardware Version = MC5728V Rev 1.0

Electronic Serial Number (ESN) = 0x60E62C87 [09615084679] Preferred Roaming List (PRL)

Version = 10 PRI SKU ID = 535479 Carrier ID = 19 Carrier Name = Reliance Current Modem

Temperature = 30 degrees Celsius Endpoint Port Map = 75

Router#

Router#show cellular 0/1/0 hardware

Modem Firmware Version = p2813301

Modem Firmware built = 06-24-10

Hardware Version = MC5728V Rev 1.0

Electronic Serial Number (ESN) = 0x60E62431 [09615082545] Preferred Roaming List (PRL)

Version = 10 PRI SKU ID = 535479 Carrier ID = 29 Carrier Name = Tata Current Modem

Temperature = 30 degrees Celsius Endpoint Port Map = 75

Router#

C819HG-4G-G-K9 LTE—HSPA+/

HSPA/UMTS/

EDGE/GPRS

Global 800 MHz (band 20)/900 MHz

(band 8)/1800 MHz (band

3)/2100 MHz (band 1)/2600

MHz (band 7) for LTE

900/2100 MHz for UMTS/

HSPA+/HSPA

900/1800/1900 MHz for

GSM/EDGE/GPRS

Hardened Cisco 819

router with multimode

LTE feature for global

wireless networks. This

comes with a Sierra

Wireless MC7710

modem.

C819G-4G-G-K9 LTE—HSPA+/

HSPA/UMTS/

EDGE/GPRS

Global 800 MHz (band 20)/900 MHz

(band 8)/1800 MHz (band

3)/2100 MHz (band 1)/2600

MHz (band 7) for LTE

900/2100 MHz for UMTS/

HSPA+/HSPA

900/1800/1900 MHz for

GSM/EDGE/GPRS

Non-hardened Cisco 819

router with multimode

LTE feature for global

wireless networks. This

comes with a Sierra

Wireless MC7710

modem.

Table 1-6 Supported 4G LTE SKUs for the Cisco 819HG-4G and Cisco 819G-4G ISRs (continued)

SKU ID Mode Operating Regions Frequency Band Description

1-19

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco 810 Series

Hardware Features

This section provides an overview of the following hardware features for the Cisco 819 ISR.

•Platform Features for Cisco 819 ISRs, page 1-19

•Antennas, page 1-21

•Power Switch, page 1-21

•Reset Button, page 1-21

•LEDs, page 1-21

•Memory, page 1-25

•Embedded 3G Modem, page 1-26

•Embedded 4G LTE Modem, page 1-26

•SIM Card, page 1-26

•Supported Cisco Antennas and Cables, page 1-27

•Serial Port, page 1-31

•Power Supply, page 1-32

•Accessories, page 1-33

Note The WAAS Express feature is not supported. This feature will be supported for 3G and 4G interfaces

with later IOS releases.

Platform Features for Cisco 819 ISRs

Table 1-7 lists the platform features comparison for the Cisco 819 ISRs.

Table 1-7 Cisco 819 ISRs Platform Features

Platform Features

Cisco 819HG

Cisco 819G

(with 3G)

Cisco 819HGW

Cisco 819HWD

(with WiFi)

Cisco 819HG-4G

Cisco 819G-4G

(with 4G LTE)

512 MB DRAM Yes — —

1 GB DRAM — Yes Yes

1 Gigabit Ethernet

WAN port Yes Yes Yes

12-in-1 serial

interface Yes Yes Yes

256 KB of NVRAM

storage Yes Yes Yes

256 Compact Flash

support in IDE mode

(internal)

Yes — —

1-20

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco 810 Series

1 GB Compact Flash

support in IDE mode

(internal)

—YesYes

Cisco EnergyWise Yes Yes —

Dual 802.11 a/b/g/n

Radios with Cisco

DFS, CleanAir, and

Client Link support

—Yes—

Embedded 3G

modem Yes Yes —

Embedded 4G LTE

modem ——Yes

Environmental

monitoring and

temperature logging

Yes Yes —

Four ports FE

interconnect switch

support

Yes Yes Yes

LED indicators for

the platform Yes Yes Yes

Onboard crypto

acceleration Yes Yes Yes

Power cord retention

lock —YesYes

Power switch lock — Yes Cisco 819HG-4G ISRs only

Reset button Yes Yes Yes

Real Time Clock

(RTC)1Yes Yes Yes

ScanSafe Yes Yes —

Single console/AUX

port Yes Yes Yes

SNMP Yes Yes —

TFTP support with

Ethernet WAN

interface

—Yes—

Warm reload Yes Yes —

1. A real-time clock (RTC) with battery backup provides date and time when the system is powered on. The RTC is used to verify the validity of the

Certification Authority stored on the router.

Table 1-7 Cisco 819 ISRs Platform Features (continued)

Platform Features

Cisco 819HG

Cisco 819G

(with 3G)

Cisco 819HGW

Cisco 819HWD

(with WiFi)

Cisco 819HG-4G

Cisco 819G-4G

(with 4G LTE)

1-21

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco 810 Series

Antennas

The Cisco 819 3G routers provide two standard panel-mount TNC connectors to support the 3G antenna

and the diversity and GPS external antenna. The main antenna is used for the primary 3G antenna. The

second can be used as a diversity receive only 3G antenna or GPS antenna that does not require power

supply from the router.

The Cisco 819 4G routers provide two standard panel-mount TNC connectors on the router front panel

for the main and diversity antennas. The main antenna connector is used for the primary 4G antenna. The

second antenna connector can be used as a diversity receive only 4G antenna. An SMA connector for

active GPS antenna is also available on the front panel of the router.

The Cisco 819HGW and Cisco 819HWD ISRs also support Cisco WiFi external antennas. See the

“Supported Cisco Antennas and Cables” section on page 1-27 for more information.

WiFi External Antenna

The external WiFi antenna is used to support better WiFi coverage. All external antenna supports the

following:

•Dual 802.11 a/b/g/n radios

•2x3 MIMO

•Omnidirectional

Power Switch

The power switch shuts down the router. A power switch lock is available to prevent accidental turning

off of the router in the hardened SKUs.

Reset Button

The Reset button resets the router configuration to the default configuration set by the factory. To restore

the router configuration to the default configuration set by the factory, use a standard size #1 paper clip

with wire gauge 0.033 inch or smaller and simultaneously press the reset button while applying power

to the router.

LEDs

The LEDs are located on the front panel of the router. Table 1-8 describes the 3G LEDs for the Cisco

819 ISR.

Table 1-8 3G LED Descriptions

LED Color Description

SYS Yellow FPGA download is complete.

Green (blinking) ROMMON is operational.

Green (solid) IOS is operational.

Green (four blinks

during bootup) Reset button has been pushed during the bootup.

Off After powering up, when FPGA is being downloaded (in

ROMMON).

1-22

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco 810 Series

ACT Green Network activity on FE Switch ports, GE WAN port, 3G

cellular interface, and serial interfaces.

Off No network activity.

WWAN Green Module is powered on and connected but not transmitting

or receiving.

Green (slow blinking) Module is powered on and searching for connection.

Green (fast blinking) Module is transmitting or receiving.

Off Module is not powered.

GPS Green (solid) Standalone GPS.

Green (slow blinking) GPS is acquiring.

Yellow (solid) Assisted GPS.

Yellow (slow blinking) Assisted GPS is acquiring.

Off GPS is not configured.

RSSI Green (solid) Signal > –60 dBm

Very strong signal

Green (three blinks and

then a long pause) Signal <= –60 to 74 dBm

Strong signal

Green (two blinks and

then a long pause) Signal <= –75 to –89 dBm

Fair signa

Green (one blink and

then a long pause) Signal <= –90 to –109 dBm

Marginal signal

Off Signal <= –110 dBm

Unusable signal

SIM1,2 Green / Yellow (one

green blink followed by

two yellow blinks)

SIM in slot 0 active, SIM in slot 1 is not.

Yellow / Green (one

yellow blink followed

by two green blinks)

SIM in slot 1 active, SIM in slot 0 is not.

Off / Green (two green

blinks and then a pause) No SIM in slot 0, SIM present in slot 1.

Green / Off (Slow single

green blink and then a

pause

SIM present in slot0, no SIM in slot 1.

Off / Off No SIM present in either slots.

Table 1-8 3G LED Descriptions (continued)

LED Color Description

1-23

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco 810 Series

Table 1-9 describes the WLAN LEDs for the Cisco 819HGW and Cisco 819HWD ISRs.

3G Green (one blink and

then a pause) For 1xRTT, EGPRS, or GPRS service.

Green (two blinks and

then a pause) For EVDO, EVDO/1xRTT, or UMTS.

Green (three blinks and

then a pause) For EVDO/1xRTT RevA, HSPA, or HSUPA/HSDPA.

Green (solid) For HSPA PLUS.

Off No Service.

1. Not applicable to Verizon and Sprint EVDO modems.

2. There is only one LED to indicate the status of two SIMs. A one-blink pattern represents the status of the SIM in slot 0,

followed by a two-blink pattern for the SIM in slot 1.

Table 1-8 3G LED Descriptions (continued)

LED Color Description

Table 1-9 WLAN LED Descriptions

WLAN LED Color Description

Boot loader status

sequence Blinking Green Board initialization in progress.

Initializing FLASH file system.

Initializing Ethernet.

Ethernet is OK.

Starting Cisco IOS.

Initialization is successful.

Association status Green Normal operating condition with no

wireless client associated.

Blue Normal operating condition with at least

one wireless client associated.

Operating status Blinking Blue Software upgrade in progress.

Rapidly cycling through

Blue, Green, Red, and

White

Access point location command invoked.

Blinking Red Ethernet link is not operational.

1-24

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco 810 Series

Table 1-10 describes the 4G LTE LEDs for the Cisco 819 ISR.

Boot loader errors Blinking Red and Blue FLASH file system failure.

Blinking Red and Off Environment variable failure.

Bad MAC address.

Ethernet failure during the image recovery.

Boot environment failure.

No Cisco image file.

Boot failure.

Cisco IOS errors Red Software failure. Try to disconnect and

reconnect the unit power.

Table 1-9 WLAN LED Descriptions (continued)

WLAN LED Color Description

Table 1-10 4G LTE LED Descriptions

LED Color Description

SYS Yellow FPGA download is complete.

Green (blinking) ROMMON is operational.

Green (solid) IOS is operational.

Green (four blinks

during bootup) Reset button has been pushed during the bootup.

Off After powering up, when FPGA is being downloaded (in

ROMMON).

ACT Green Network activity on FE Switch ports, GE WAN port, 3G

cellular interface, and serial interfaces.

Off No network connectivity.

WWAN Green Module is powered on and connected but not

transmitting or receiving.

Green (slow blinking) Module is powered on and searching for connection.

Green (fast blinking) Module is transmitting or receiving.

Off Module is not powered.

GPS Green (solid) Standalone GPS.

Green (slow blinking) GPS is acquiring.

Yellow (solid Assisted GPS.

Yellow (slow blinking) Assisted GPS is acquiring.

Off GPS is not configured.

1-25

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco 810 Series

Memory

The Cisco 819HG and Cisco 819G ISRs uses non-upgradable flash memory and main memory. The

onboard flash memory contains the Cisco IOS software image and the boot flash contains the ROMMON

boot code. Table 1-11 lists the memory requirements for Cisco 819 ISRs.

RSSI Green (solid) Signal > –60 dBm

Very strong signal

Green (three blinks and

then a long pause) Signal <= –60 to 74 dBm

Strong signal

Green (two blinks and

then a long pause) Signal <= –75 to –89 dBm

Fair signal

Green (one blink and

then a long pause) Signal <= –90 to –109 dBm

Marginal signal

Off Signal <= –110 dBm

Unusable signal

SIM Green / Yellow (one

green blink followed by

two yellow blinks)

SIM in slot 0 is active, SIM in slot 1 is not.

Yellow / Green (one

yellow blink followed

by two green blinks)

SIM in slot 1 is active, SIM in slot 0 is not.

Off / Green (two green

blinks and then a pause) No SIM in slot 0, SIM present in slot 1.

Green / Off (Slow single

green blink and then a

pause)

SIM present in slot 0, no SIM in slot 1.

Off / Off No SIM present in either slots.

3G/4G Green (one blink and

then a pause) For 1xRTT, EGPRS, or GPRS service.

Green (two blinks and

then a pause) For EVDO, EVDO/1xRTT, or UMTS service.

Green (three blinks and

then a pause) For EVDO/1xRTT RevA, HSPA, or HSUPA/HSDPA

service.

Green (four blinks and

then a pause) For HSPA+ service.

Green (Solid) For 4G/LTE service.

Off No Service.

Table 1-10 4G LTE LED Descriptions (continued)

LED Color Description

1-26

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco 810 Series

Embedded 3G Modem

The 3G cellular interface is the primary WAN data link, but it can also be used as a backup data link.

The 3G technology is third-generation wide-area cellular technology that is used in broadband wireless

data in a mobile environment.

Embedded 4G LTE Modem

The Cisco 819HG-4G and Cisco 819G-4G routers have an embedded 4G LTE modem provided by Sierra

Wireless. The Verizon SKUs come with an MC7750 modem, the AT&T SKUs come with an MC7700

modem, and the Global SKUs come with an MC7710 modem.

SIM Card

Table 1-12 lists the SIM Card slots available for Cisco the 819 ISRs.

Table 1-11 Memory Requirements for Cisco 819 ISRs

Memory Requirements

Cisco 819HG

Cisco 819G

(with 3G)

Cisco 819HGW

Cisco 819HWD

(with WiFi)

Cisco 819HG-4G

Cisco 819G-4G

(with 4G LTE)

256 Compact Flash support in

IDE mode (internal) Yes — —

1 GB Compact Flash support in

IDE mode (internal) —YesYes

512 MB DRAM Yes — —

1 GB DRAM — Yes Yes

Table 1-12 SIM Card Slot

Two Internal SIM Card Slots One Internal SIM Card Slot No SIM Card Slot

C819G-U-K9 C819HG-4G-V-K9 C819HG-V-K9

C819G+7-K9 C819G-4G-V-K9 C819HG-S-K9

C819HG-U-K9 C819HG-4G-A-K9 C819G-V-K9

C819HG+7-K9 C819G-4G-A-K9 C819G-S-K9

C819HGW+7-A-A-K9 C819HGW-V-A-K9

C819HGW+7-E-K9 C819HGW-S-A-K9

C819HGW+7-N-K9 C819HG-B-K9

C819HG-4G-G-K9 C819G-B-K9

C819G-4G-G-K9

1-27

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco 810 Series

Supported Cisco Antennas and Cables

The Cisco 819 ISR provides two standard panel-mount TNC connectors to support the 3G antenna and

the diversity and GPS external antenna. The main antenna is used for the primary 3G antenna. The

second can be used as a diversity receive only 3G antenna or GPS antenna that does not require power

supply from the router.

Table 1-13 lists the Cisco 3G antennas that are supported for use on Cisco 819 ISRs.

Table 1-13 Supported Cisco 3G Antennas

Cisco Part Number Antenna Type Maximum Gain and

Frequency Range Description

3G-ANTM1919D Dipole

omnidirectional 0 dBi

(806–960 MHz)

0 dBi

(1710–2170 MHz)

This is the default antenna with dual faceplate mount.

Multiband faceplate-mounted dipole antenna. For more

information, see Cisco Multiband Swivel Mount Dipole

Antenna (3G-ANTM1919D).

3G-ANTM1916-CM High-gain

ceiling-mount

omnidirectional

1.5 dBi

(806–960 MHz)

2.5 dBi

(1710–2170 MHz)

Multiband ceiling-mounted omnidirectional antenna.

For more information, see Cisco Multiband

Omnidirectional Ceiling Mount Antenna

(3G-ANTM1916-CM).

3G-AE015-R

(Antenna Extension) Extension base 0.8–6.0 GHz This antenna extension is a base with a 15-foot cable

included for use with a dipole omnidirectional antenna.

For more information, see Cisco Single-Port Antenna

Stand for Multiband TNC Male-Terminated Portable

Antenna (3G-AE015-R).

3G-ANTM-OUT-OM Outdoor

Omnidirectional +2 dBi

800/900 MHz

+4 dBi

1800/1900/2100

MHz

This is an outdoor low-profile omindirectional mast

antenna. For more information, see Cisco 3G

Omnidirectional Outdoor Antenna

(3G-ANTM-OUT-OM).

3G-ANTM-OUT-LP Low Profile Stick

Antenna

–1.5 dBi

850, 900 MHz

–2.5 dBi

1800, 1900, 2100

MHz

This is an omindirectional stick antenna. For more

information, see Cisco 3G Low Profile Outdoor Antenna

(3G-ANTM-OUT-LP).

3G-ACC-OUT-LA

(Lightning Arrestor) Lightning Arrestor 800–2200 MHz This is a quarter-wave lightning protector with

integrated high-pass filter. For more information, see

Cisco 3G Lightning Arrestor (3G-ACC-OUT-LA).

1-28

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco 810 Series

Table 1-14 lists the supported Cisco WiFi antenna for Cisco 819HGW and Cisco 819HWD ISRs.

Table 1-14 Supported Cisco WiFi Antenna

Antenna Frequency

band(s) Mounting

Mechanical IP Rating Peak Gain

2.4 GHz (dBi) Peak Gain

5 GHz (dBi) Description

AIR-ANTM2050D-R 2.4–2.5 GHz

4.9–5.9 GHz

Faceplate

Dipole

IP 41 1.4 4.5 This is the default antenna. For

more information, see Cisco

Multiband Swivel-Mount

Dipole Antenna

(AIR-ANTM2050D-R).

AIR-ANT2430V-R 2.4 GHz Ceiling IP 41 3 — For more information, see

Cisco Aironet 3-dBi

Omnidirectional Antenna

(AIR-ANT2430V-R).

AIR-ANT5140V-R 5 GHz Ceiling IP 41 — 4 For more information, see

Cisco Aironet 4-dBi

Omnidirectional Antenna

(AIR-ANT5140V-R).

AIR-ANT2440NV-R 2.4 GHz Multi-mount

(Wall/Ceiling

/Mast)

IP 54 4 — For more information, see

Cisco Aironet 2.4-GHz MIMO

Wall-Mounted

Omnidirectional Antenna

(AIR-ANT2440NV-R).

AIR-ANT5140NV-R 5 GHz Multi-mount

(Wall/Ceiling

/Mast)

IP 54 — 4 For more information, see

Cisco Aironet 5-GHz MIMO

Wall Mount Omnidirectional

Antenna

(AIR-ANT5140NV-R).

1-29

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco 810 Series

Table 1-15 lists the Cisco 4G LTE antennas that are supported for use on Cisco 819 ISRs.

Table 1-15 Supported 4G LTE Antennas

Cisco Part Number Description Maximum Gain and

Frequency Ranges Description

4G-LTE-ANTM-D Indoor 4G dipole

omnidirectional antenna •2 dBi

–

698 to 806 MHz

–

824 to 894 MHz

–

925 to 960 MHz

–

1710 to 1885 MHz

–

1920 to 1980 MHz

–

2110 to 2170 MHz

–

2500 to 2690 MHz

Multiband dipole antenna. For more

information, see Cisco 4G/3G

Omnidirectional Dipole Antenna

(4G-LTE-ANTM-D).

4G-ANTM-OM-CM Indoor ceiling-mount

omnidirectional antenna 698 to 2690 MHz Multiband omnidirectional

ceiling-mount antenna. For more

information, see Cisco 4G Indoor

Ceiling-Mount Omnidirectional

Antenna (4G-ANTM-OM-CM).

ANT-4G-OMNI-OUT-N Multiband outdoor

omnidirectional stick

antenna

•1.5 dBi

–

698 to 960 MHz

•3.5 dBi

–

1710 to 2710 MHz

–

2300 to 2700 MHz

Multiband outdoor omnidirectional

stick antenna. For more information,

see Cisco Outdoor Omnidirectional

Antenna for 2G/3G/4G Cellular

(ANT-4G-OMNI-OUT-N).

ANT-4G-SR-OUT-TNC Multiband outdoor

omnidirectional saucer

antenna

•1.5 dBi (peak gain with

10-foot cable) or 0.8 dBi

(peak gain with 15-foot

cable)

–

698 to 960 MHz

•3.7 dBi (peak gain with

10-foot cable) or 0.2 dBi

(peak gain with 15-foot

cable)

–

1710 to 2700 MHz

Low-profile outdoor saucer antenna.

For more information, see Cisco

Integrated 4G Low-Profile Outdoor

Saucer Antenna

(ANT-4G-SR-OUT-TNC).

CGR-LA-NF-NF Lighning Arrestor 800 to 2200 MHz 4G lightning arrestor kit for use on

Cisco 4G wireless devices. For more

information, see Lightning Arrestor for

the Cisco 1240 Connected Grid Router.

4G-ACC-OUT-LA Lightning Arrestor 800 to 2200 MHz 4G lightning arrestor kit for use on

Cisco 4G wireless devices. For more

information, see Cisco 4G Lightning

Arrestor (4G-ACC-OUT-LA).

1-30

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco 810 Series

Table 1-16 to Table 1-18 list the extension cables for use with 3G, WiFi, and 4G LTE antennas. The

tables include the insertion loss information for the ultra-low-loss (ULL) LMR 400 extension cables.

Table 1-16 Cisco Extension Cables for Use with 3G Antennas

Cisco Product Number Cable Length Insertion Loss Frequency (MHz)

3G-CAB-ULL-20 20 ft (6 m) 1.50 dB max 2100

3G-CAB-ULL-50 50 ft (15 m) 3.50 dB max 2100

3G-CAB-LMR240-25 25 ft (7.5 m) 3.50 dB max 2200

3G-CAB-LMR240-50 50 ft (15 m) 6.90 dB max 2200

3G-CAB-LMR240-75 75 ft (23 m) 10.5 dB max 2200

Table 1-17 Cisco Extension Cables for Use with WiFi Antennas

Cisco Product Number Cable Length Insertion Loss Frequency (MHz)

AIR-CAB005LL-R 5 ft (1.524 m)

(one RP-TNC plug, one

RP-TNC jack)

0.5 dB

0.8 dB

2400

5800

AIR-CAB020LL-R 20 ft (6 m)

(one RP-TNC plug, one

RP-TNC jack)

1.3 dB

2.5 dB

2400

5800

AIR-CAB050LL-R 50 ft (15.24 m)

(one RP-TNC plug, one

RP-TNC jack)

3.4 dB

5.75 dB

2400

5800

Table 1-18 Cisco Extension Cables for Use with 4G LTE Antennas

Cisco Product Number Cable Length Maximum Insertion

Loss Frequency (MHz) Color Plenum Rated?1

4G-AE010-R 10 ft (3 m) 1.4 dB at 700 MHz

2.0 dB at 1.9 GHz

2.1 dB at 2.1 GHz

2.3 dB at 2.5 GHz

700 to 2600 MHz Black No

4G-AE015-R 15 ft (4.6 m) 2.3 dB at 700 MHz

3.3 dB at 1.9 GHz

3.7 dB at 2.1 GHz

4.0 dB at 2.5 GHz

700 to 2600 MHz Black No

4G-CAB-LMR240-25 25 ft (7.6 m) 2.1 dB at 700 MHz

4.0 dB at 2.6 GHz

700 to 1000 MHz

1700 to 2600 MHz

Black Yes

1-31

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco 810 Series

Serial Port

The Cisco standard High Speed Smart Serial 12-in-1 connector allows the highest flexibility of

connections to various DTE/DCE devices. The 12-in-1 serial interface pins connect to the FPGA. The

FPGA configures the pin directions based on the cable type used. Figure 1-10 shows the magnified view

of the 12-in-1 serial port. For more information, see About Serial Connections.

4G-CAB-LMR240-50 50 ft (15 m) 4.1 dB at 700 MHz

7.4 dB at 2.6 GHz

700 to 1000 MHz

1700 to 2600 MHz

Black Yes

4G-CAB-LMR240-75 75 ft (23 m) 6.1 dB at 700 MHz

11.0 dB at 2.6 GHz

700 to 1000 MHz

1700 to 2600 MHz

Black Yes

4G-CAB-LMR240-25N 25 ft (7.6 m) 2.1 dB at 700 MHz

4.0 dB at 2600 MHz

700 to 1000 MHz

1700 to 2600 MHz

Black No

4G-CAB-ULL-20 20 ft (6 m) 1.8 dB 700 to 2600 MHz Black Yes

4G-CAB-ULL-50 50 ft (15 m) 4.2 dB 700 to 2600 MHz Black Yes

CAB-L400-20-TNC-N 20 ft (6 m) 1.75 dB 700 to 2600 MHz Black No

CAB-L400-50-TNC-N 50 ft (15 m) 4.0 dB 700 to 2600 MHz Black No

CAB-L400-20-N-N 20 ft (6 m) 2.75 dB 700 to 2600 MHz Black No

1. Cable can be routed within building plenum spaces.

Table 1-18 Cisco Extension Cables for Use with 4G LTE Antennas (continued)

Cisco Product Number Cable Length Maximum Insertion

Loss Frequency (MHz) Color Plenum Rated?1

1-32

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco 810 Series

Figure 1-10 12-in-1 Serial Port

Power Supply

All SKUs require a 5 VDC power source. Cisco 819HG and Cisco 819G ISRs have a self-locking Molex

mini-fit connector. Cisco 819HGW and Cisco 819HWD ISRs use a 5.5 mm barrel-type connector with

separate locking clip. An external AC power adapter is supported by default. The optional external power

adapters are available to support a variety of DC power sources, suitable for fixed, vehicle, or railway

installations. The 5 VDC power input of the router is protected from over-voltage up to 20 VDC. The

router will not power up if excessive voltage (for example, a 12 VDC adapter) is connected.

AC Power Adapter

The default configuration includes an external AC adapter that supplies up to 20 W of power. The AC

power connection is a two-pin IEC 320 C8 receptacle. A mating AC power cord is supplied. The AC

adapter does not provide chassis grounding to the router. A 1.3-meter long output cable connects to the

router.

DC Power Adapters

The optional external DC power adapters are available for 12 VDC and 24 VDC nominal vehicle power.

•12 VDC vehicle adapter has a 10 VDC to 36 VDC operating range

•24 VDC vehicle adapter has an 18 VDC to 75 VDC operating range

344749

1-33

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco 860, 880, 890 Series

The vehicle power adapters may be used for fixed or mobile installations. They do not provide electrical

isolation; the input negative is connected to the output negative (chassis ground). Input cable is 350

millimeter long with stripped and tinned bare wire connections. The input positive connection is a white

wire and the input negative is a black wire.

Note The 24 VDC vehicle adapters will be available on Q1CY13.

Railway Power Adapters

The optional external power adapters meeting Railway Standards are available from a third-party

supplier, Martek Power. Contact Martek Power directly to order and for detailed specifications. The use

of Martek Power adapters listed in the “Supported Power Adapters” section on page A-9 will maintain

Cisco warranty and support of the router; the power adapter itself is covered by Martek warranty. Input

connection to the railway adapters is by a 350 millimeter long wire with stripped and tinned bare wire

connection. A 1.3-meter long output cable connects to the router.

Accessories

Table 1-19 lists the accessories available for the Cisco 819 ISRs. For a complete list of SKUs that support

these accessories, see the “Platform Features for Cisco 819 ISRs” section on page 1-19.

Cisco 860, 880, 890 Series

This section provides an overview of the features available for the Cisco 860 series, Cisco 880 series,

and Cisco 890 series Integrated Services Routers (ISRs), and contains the following sections:

•General Description, page 1-34

•Cisco 860 Series ISRs, page 1-34

•Cisco 860VAE Series ISRs, page 1-36

•Cisco 860VAE-W-A-K9, Cisco 860VAE-W-E-K9, and Cisco 860VAE-POE-W-A-K9 ISRs,

page 1-38

•Cisco 880 Series ISRs, page 1-42

•Cisco C881, C886, and C887 Series ISRs, page 1-56

•Cisco 890 Series ISRs, page 1-62

•Cisco C891 Series ISRs, page 1-72

•Hardware Features, page 1-76

Note For compliance and safety information, see Regulatory Compliance and Safety Information Roadmap

that ships with the router and Regulatory Compliance and Safety Information for Cisco 800 Series.

Table 1-19 Cisco 819 ISR Accessories

Cisco Part Number Accessory

69-2453-01 Power cord retention lock

69-2454-01 Power switch lock cover

1-34

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco 860, 880, 890 Series

Note Some illustrations in this document show a wireless router. Both wireless and nonwireless models are

available in the Cisco 860 series, Cisco 880 series, and Cisco 890 series ISRs. Port and feature locations

are similar for both wireless and nonwireless routers.

Note Throughout this document the term VDSL refers to support for VDSL2 (ITU G.993.2) and ADSL refers

to support for ADSL, ADSL2, & ADSL2+ (ITU G.992.1, G.992.3, & G.992.5).

General Description

The Cisco 860 series, Cisco 880 series, and Cisco 890 series ISRs provide data, voice, Wi-Fi

CERTIFIED™ wireless access point (AP), integrated Virtual Private Network (VPN), and backup

capabilities to corporate teleworkers and to remote and small offices with fewer than 20 users. These

routers are capable of bridging and multiprotocol routing between LAN and WAN ports. The routers

provide advanced features, such as high speed DSL (G.SHDSL, ADSL, or VDSL), 802.11n, quality of

service (QoS), firewall, antivirus protection, and Secure Socket Layer (SSL). The Cisco 860VAE, 886VA

and 887VA series routers have the additional capability of DSL Multi-mode (VDSL/ADSL).

The Cisco 860 series, Cisco 880 series, and Cisco 890 series ISRs have a desktop form factor with

built-in wall-mount features. The Cisco 890 series ISRs also have optional rack-mount features. These

ISRs are powered by an external power supply adapter. The various models differ in the WAN interface

and features that they support.

Cisco 860 Series ISRs

The Cisco 860 series ISRs are fixed-configuration data routers that support the following features:

•An integrated 4-port 10/100 Ethernet switch for connecting to the LAN

•A10/100 Fast Ethernet (FE) port for connecting to the WAN.

•Optional, embedded Wi-Fi CERTIFIED™, 802.11b/g/n-compliant wireless AP

1-35

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco 860, 880, 890 Series

Figure 1-7 shows the front panel details of the Cisco 860 wireless router.

Figure 1-11 Front Panel of the Cisco 860 Series Wireless ISR

Figure 1-12 shows the back panel details of the Cisco 861 wireless (861W) ISR. Nonwireless routers do

not have antennas on the back panel. However, the feature locations are similar for all Cisco 860 series

routers.

Figure 1-12 Back Panel of the Cisco 861W ISR

1LEDs

231969

1Primary WAN port—10/100 5Reset button

2Antenna—captive omnidirectional dipole

WLAN antenna (wireless models only) 6Power connector

34-port 10/100 Ethernet switch 7Earth ground connection

4Serial port—console or auxiliary 8Kensington security slot

232181

31 4 6 7 852

WAN

FE 4

Cisco 861W

1-36

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco 860, 880, 890 Series

Cisco 860VAE Series ISRs

The Cisco 860VAE series ISRs are fixed-configuration data routers. This section describes the features

of the products in this series.

Interfaces

Table 1-20 describes the interfaces of the Cisco 860VAE series routers.

Note The Cisco 866VAE, 867VAE, 866VAE-K9, and 867VAE-K9 routers each have two WAN ports. Only one

of the two ports can be active at any given time.

IOS Images

Table 1-21 describes the IOS images included in Cisco 860VAE series routers.

Table 1-20 Interfaces of the Cisco 860VAE Series ISRs

Interfaces

Model

866VAE 867VAE 866VAE-K9 867VAE-K9

4 FE1 switch ports

1. FE = Fast Ethernet

xxxx

1 GE2 switch port

2. GE = Gigabit Ethernet

—— x x

1 GE WAN port xxxx

1 VDSL/ADSL over POTS port — x — x

1 VDSL/ADSL over ISDN port x — x —

Table 1-21 IOS Images of the Cisco 860VAE Series ISRs

IOS Image

Model

866VAE 867VAE 866VAE-K9 867VAE-K9

c860vae-ipbasek9-mz x x — —

c860vae-advsecurityk9-mz — — x x

c860vae-advsecurityk9_npe-mz — — x x

1-37

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco 860, 880, 890 Series

Figure 1-13 shows the front panel details of the Cisco 866VAE, Cisco 867VAE, Cisco 866VAE-K9, and

Cisco 867VAE-K9 integrated services routers (ISRs).

Figure 1-13 Front Panel of the Cisco 860VAE series ISR

Figure 1-14 shows the back panel details of the Cisco 866VAE ISR.

Figure 1-14 Back Panel of the Cisco 866VAE ISR

1LEDs

246199

Cisco 860 Series

1xDSL port1

1. Using RJ-11.

6On/Off switch

2GE WAN interface 7Power connector

3Ethernet LAN FE interfaces (FE0 through

FE3 interfaces) 8Reset button

4USB port 9Kensington security slot

5Serial port—console or auxiliary

246200

CONSOLE

AUX

FE 2 FE 1 FE 0FE 3OVER ISDN

LAN

WAN

GE0

VDSL/ADSL

12V 2.5A

RESET

Cisco 866VAE

1 2 3 4 7 8 95 6

1-38

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco 860, 880, 890 Series

Figure 1-15 shows the back panel details of the Cisco 867VAE-K9.

Figure 1-15 Back Panel of the Cisco 867VAE-K9 ISR

Cisco 860VAE-W-A-K9, Cisco 860VAE-W-E-K9, and

Cisco 860VAE-POE-W-A-K9 ISRs

This section provides a hardware overview of the following Cisco 860VAE Series Integrated Services

Routers (ISRs):

•C866VAE-W-E-K9

•C867VAE-W-A-K9

•C867VAE-W-E-K9

•C867VAE-POE-W-A-K9

Model-Specific Features

Table 1-22 describes the features specific to each of these router models:

1xDSL port 6On/Off switch

2GE WAN interface 7Power connector

3Ethernet LAN GE and FE interfaces (GE0

interface and FE0 through FE3 interfaces) 8Reset button

4USB port 9Kensington security slot

5Serial port—console or auxiliary

284558

CONSOLE

AUX

OVER POTS

WAN LAN

GE1 GE0 FE3 FE2 FE1 FE0

VDSL/ADSL

12V 2.5A

RESET

Cisco 867VAE-K9

1 2 3 4 7 8 95 6

Table 1-22 Model-Specific Router Features

Feature C866VAE-W-E-

K9 C867VAE-W-A-

K9 C867VAE-W-E-

K9 C867VAE-POE-

W-A-K9

WAN interface and mode One GE port,

DSL over

ISDN,

Europe WiFi

One GE port,

DSL over

POTS,

America WiFi

One GE port,

DSL over

POTS,

Europe WiFi

One GE port,

DSL over

POTS,

America WiFi

Power-over-Ethernet (PoE)NoNoNoYes

1-39

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco 860, 880, 890 Series

Common Features

The following key features are common to each of these router models:

•Dual WAN interface (Gigabit Ethernet [GE] and dual-mode ADSL2+ /VDSL2)

•2.4 GHz wireless LAN (WLAN) interface

•Five Layer 2 LAN switches: two Gigabit Ethernet and three Fast Ethernet

•One USB 2.0 port in high-speed host mode

•One RJ-45 console port (RS-232 interface)

•Support for up to 512 MB DRAM using DDR in 16-bit mode

•Support for 8 MB Serial Peripheral Interface Bus (SPI) flash memory for boot and 128 MB NAND

flash memory for storing IOS

•Reset/Recovery switch

•Silent convection cooling—no fan

External Interfaces

Figure 1-16 shows the back I/O panel of the Cisco 867VAE-POE-W-A-K9 series router.

Figure 1-16 Back I/O Panel

Table 1-23 describes the external interfaces included with these router models.

VDSL/ADSL WAN

GE2

LAN

GE1OVER POTS

CONSOLE

12V

RESET

2.5A

AUX

GE0 FE2 FE1

Cisco 867VAE-POE-W-A-K9

FE0(POE)

360426

Table 1-23 External Interfaces

Interface Connector Quantity Port Port

Label

FE LAN port RJ-45 3 FE LAN PORT 0 FE01

1. Provides Power-over-Ethernet (PoE) for the Cisco C867VAE-POE-W-A-K9.

FE LAN PORT 1 FE1

FE LAN PORT 2 FE2

GE LAN port RJ-45 2 GE LAN PORT 0 GE0

GE LAN PORT 1 GE1

GE WAN port (10/100/1000 Base-T) RJ-45 1 GE WAN PORT GE2

ADSL2+/VDSL2 WAN port RJ-11 1 — —

Host USB port USB 2.0 1 — —

Console port RJ-45 1 — —

1-40

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco 860, 880, 890 Series

Note For the Cisco C867VAE-POE-W-A-K9, Power-over-Ethernet (PoE) is available using port FE0, with a

60-W power supply.

USB Interface

The USB 2.0 interface enables:

•Transferring data using a USB flash token (USB memory stick) for system recovery and other tasks.

•Cisco IOS software boot from USB.

Use only the following Cisco USB 2.0 flash tokens:

•MEMUSB-128FT (128 MB)

•MEMUSB-256FT (256 MB)

•MEMUSB-1024FT (1 GB)

Note The USB 2.0 port cannot be used for connecting external devices or as a console for devices other than

those specified in the USB eToken Device and USB Flash Features Support Data Sheet, available at:

http://www.cisco.com/en/US/prod/collateral/modules/ps6247/product_data_sheet0900aecd80232473.h

tml

LED Indicators

These router models include LED indicators on the back panel for each LAN port, and additional LED

indicators on the front panel of the unit.

LED Indicators for LAN Ports

On the back panel of the unit, each LAN port includes an LED indicator. Table 1-24 describes the LED

indicators.

Table 1-24 Back Panel LED Indicators for LAN Ports

Port LED Color Description

FE Ports

FE LAN 0 Green Off—No link.

Faster flashing indicates heavier traffic.

FE LAN 1 Green Off—No link.

Faster flashing indicates heavier traffic.

FE LAN 2 Green Off—No link.

Faster flashing indicates heavier traffic.

GE Ports

GE LAN 0 Green Off—No link.

Faster flashing indicates heavier traffic.

GE LAN 1 Green Off—No link.

Faster flashing indicates heavier traffic.

1-41

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco 860, 880, 890 Series

LED Indicators on Front Panel

The front panel includes several LED indicators. Figure 1-17 shows the location of the LED indicators.

Figure 1-17 Front Panel LED Indicators

1LED indicators

346497

Cisco 860 Series

WLAN

1-42

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco 860, 880, 890 Series

Table 1-25 describes the LED indicators.

Cisco 880 Series ISRs

The Cisco 880 series ISRs have data and voice capabilities. They have the following features:

Table 1-25 Front Panel LED Indicators

LED LED Color LED Activity Description

Left Side

DSL ACT Green Flashing DSL WAN activity. Faster flashing indicates heavier

traffic.

Off — Device is powered off.

No DSL WAN activity.

DSL LINK Green Solid DSL WAN mode is selected and DSL training is complete.

Flashing DSL WAN mode is selected but DSL LinkUp state is

incomplete, such as in-training (slow initially, fast when

almost connected).

Off — Device is powered off.

GE WAN mode is selected.

GE ACT Green Flashing GE WAN activity (traffic in either direction). Faster

flashing indicates heavier traffic.

Off — Device is powered off.

No GE WAN activity.

No link.

GE MODE Green Solid GE WAN mode is selected.

Off — Device is powered off.

DSL WAN mode is selected.

Right Side

WLAN Green Solid WLAN enabled.

Flashing Indicates WLAN activity (traffic in either direction).

Off — Device is powered off.

WLAN is disabled.

Power Green Solid On—The device is powered on.

Off — Device is powered off.

1-43

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco 860, 880, 890 Series

•Integrated 4-port 10/100 Ethernet switch for connecting to the LAN

•10/100 FE, VDSLoPOTS, ADSL over POTS, ADSL over ISDN, DSL Multi-mode

(VDSL/ADSLoPOTS, VDSL/ADSLoISDN Cisco VA models only), or G.SHDSL port for

connecting to the WAN

•Optional embedded Wi-Fi CERTIFIED™, 802.11b/g/n-compliant wireless AP

•Optional 2-port Power over Ethernet (PoE)

Note The Cisco 880 series ISRs can include an optional PoE module that provides power to

802.3af-compliant devices connected to ethernet ports 0 and 1. If this feature was not

configured with the factory order, you must order and install it to enable the PoE function.

•DIMM expansion socket that can accept up to 512 MB of additional memory, for a total of 768 MB

system memory

The following features are located on the front panel:

•USB 1.1 port

•Express card slot for third-generation (3G) cellular data WAN connectivity, available only on the

Cisco 880G models

This section contains the following topics:

•Cisco 880 Series Data Routers, page 1-43

•Cisco 880 Series Voice and Data Routers, page 1-46

•Cisco 880 Series with Embedded WLAN Antennas, page 1-52

•C881G-B/S/V-K9 ISRs, page 1-54

•C881GW-S/V-A-K9 ISRs, page 1-54

•C881G-U-K9 ISRs, page 1-55

•HSPA+ Versions of the Fixed-Platform ISRs, page 1-55

Cisco 880 Series Data Routers

The Cisco 880 series data routers provide integrated VPN, embedded Wi-Fi CERTIFIED™,

802.11b/g/n-compliant wireless AP, 3G, and backup capabilities. Figure 1-18 through Figure 1-21 show

the features available on Cisco 880 series data routers. Some of the features shown may not be available

on your router.

Depending on the router model, the primary WAN port can be G.SHDSL, VDSLoPOTS, VDSL/ADSL

over ISDN, VDSL/ADSL over POTS, or 10/100 FE. See the Cisco 880 Series Integrated Services

Routers data sheet for the WAN interface that is supported on your router.

Figure 1-18 shows the front panel details of the Cisco 880 wireless data router. The USB port and the

3G card slot are located on the front panel.

1-44

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco 860, 880, 890 Series

Figure 1-18 Front Panel of the Cisco 880 Series Wireless Data Router

Figure 1-19 shows the back panel details of the Cisco 886VA data router.

Figure 1-19 Back Panel of the Cisco 886VA Router

1LEDs 3USB port

23G express card slot—Supports third-party1

3G card (Cisco 880G models only)

1. See the Cisco 880 Series Integrated Services Routers data sheet for supported vendors.

231950

1 2 3

254090

134 5 7 8 962

1Data BRI1 0 6Reset button

2Primary WAN port—VDSL/ADSL over

ISDN 7Power connector

34-port 10/100 Ethernet switch28Earth ground connection

4Serial port—console or auxiliary 9Kensington security slot

5PoE power connector—optional

1. BRI = Basic rate interface.

2. Ports 0 and 1 provide PoE with the optional PoE module installed.

The primary WAN port is designed for an RJ-45 connector only. Damage to the primary WAN port may

occur if a non-RJ-45 connector is inserted.

1-45

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco 860, 880, 890 Series

Figure 1-20 shows the back panel details of the Cisco 887VA and 886VA-M data router.

Figure 1-20 Back Panel of the Cisco 887VA and 887VA-M Router

Figure 1-21 shows the back panel details of the Cisco 888W data router. Nonwireless routers do not have

antennas on the back panel. However, the feature locations are similar across all Cisco 880 series data

routers.

Figure 1-21 Back Panel of the Cisco 888W Data Router

254139

234 6 7 851

1Primary WAN port—VDSL/ADSL over

POTS15Reset button

24-port 10/100 Ethernet switch26Power connector

3Serial port—console or auxiliary 7Earth ground connection

4PoE power connector—optional 8Kensington security slot

1. 887VA-M has Annex M support.

2. Ports 0 and 1 provide PoE with the optional PoE module installed.

For the Cisco 887VA, the primary WAN port is designed for an RJ-11 connector only. Damage to the

primary WAN port may occur if a non-RJ-11 connector is inserted.

231951

1 4 5 6 8 9 1072 3

1-46

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco 860, 880, 890 Series

Cisco 880 Series Voice and Data Routers

The Cisco 880 series voice and data routers provide both voice and data ports. The voice ports managed

voice services that interface with Foreign Exchange Station (FXS), Foreign Exchange Office (FXO), or

BRI connections.

Cisco 881 SRST and Cisco 888 SRST

Figure 1-22, Figure 1-23, and Figure 1-24 show the features available on the Cisco 881 SRST and

Cisco 888 SRST routers. The features available vary, depending on the router model. Some features may

not be available on your router.

Depending on the router model, the primary WAN port can be either G.SHDSL or 10/100 FE. See the

Cisco 880 Series Integrated Services Routers data sheet for the WAN interface and voice ports that are

supported on your router.

1ISDN port—not available on 3G models 6PoE power connector for optional PoE

module1

2Primary WAN port2—G.SHDSL,

VDSLoPOTS, ADSLoPOTS, ADSLoISDN,

or 10/100 FE

7Reset button

3Antenna—captive omnidirectional dipole

WLAN antenna (wireless models only) 8Power connector

44-port 10/100 Ethernet switch 9Earth ground connection

5Serial port—console or auxiliary 10 Kensington security slot

1. The Cisco 880 series ISRs can include an optional PoE module that provides power to 802.3af-compliant devices connected

to ethernet ports 0 and 1. If this feature was not configured with the factory order, you must order and install it to enable the

PoE function.

2. Depending on the router model, the primary WAN port can be G.SHDSL, VDSLoPOTS, or 10/100 FE. The VDSLoPOTS

port is in the same location as the G.SHDSL port. The 10/100 FE WAN port is located at the bottom left corner. See

Figure 1-12 for the location of the 10/100 FE WAN port.

1-47

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco 860, 880, 890 Series

Figure 1-22 shows the front panel details of the Cisco 881 SRST and Cisco 888 SRST wireless voice

router.

Figure 1-22 Front Panel of the Cisco 881 SRST and Cisco 888 SRST Wireless Voice Router

1LEDs 2USB port

270495

1 2

1-48

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco 860, 880, 890 Series

Figure 1-23 shows the back panel details of the Cisco 881SRST-W voice router.

Figure 1-23 Back Panel of the Cisco C881SRST-W Voice Router

1Primary WAN port1—10/100 FE

1. Depending on the router model, the primary WAN port can be either G.SHDL or 10/100 FE.

6Antenna—captive wireless omnidirectional

dipole WLAN antenna (wireless models only)

2Voice ports—four FXS2/DID3 ports, one

FXO4 port with TBP5 power failover

2. FXS = Foreign Exchange Station.

3. DID = Direct Inward Dialing.

4. FXO = Foreign Exchange Office.

5. TBP = trunk bypass.

7Reset button

34-port 10/100 Ethernet switch6

6. Ports 0 and 1 provide PoE with the optional PoE module installed.

8Power connector

4Serial port—console or auxiliary 9Earth ground connection

5PoE power connector for optional PoE

module7

7. The Cisco 880 series ISRs can include an optional PoE module that provides power to 802.3af-compliant devices connected

to ethernet ports 0 and 1. If this feature was not configured with the factory order, you must order and install the Field

Replaceable Unit (FRU) to enable the PoE function. For this you either need the FRU “800-IL-PM=2” or “800G2-POE-2”.

If your device has a separate PoE inlet, use the 800-IL-PM=2, if it has one combined inlet (a description saying “POE

OPTION REQUIRES 5A POWER ADAPTOR”), then use the 800G2-POE-2.

10 Kensington security slot

241904

31 4 7 98 1022 56

1-49

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco 860, 880, 890 Series

Figure 1-24 shows the back panel details of the Cisco 888SRST-W voice router.

Figure 1-24 Back Panel of the Cisco C888SRST-W Voice Router

Cisco 881-V, Cisco 887VA-V, and Cisco 887VA-V-W

Figure 1-25, Figure 1-26, and Figure 1-27 show the features available on the Cisco 881-V and

Cisco 887VA-V routers. The features available vary, depending on the router model. Some features may

not be available on your router.

The Cisco 881-V and Cisco 887VA-V voice and data series gives you the flexibility to use either FXS

or BRI voice ports. However, the number of concurrent calls that can be supported by the router is limited

by the codec complexity setting on the router. Table 1-26 lists the maximum number of calls that is

supported when the codec complexity command is configured for Flexible, Medium or High complexity.

1Primary WAN port1—G.SHDSL

1. Depending on the router model, the primary WAN port can be either G.SHDL or 10/100 FE.

6Antenna—captive wireless omnidirectional

dipole WLAN antenna (wireless models only)

2Voice ports—four FXS/DIDports and one

voice BRI port 7Reset button

34-port 10/100 Ethernet switch2

2. Ports 0 and 1 provide PoE with the optional PoE module installed.

8Power connector

4Serial port—console or auxiliary 9Earth ground connection

5PoE power connector for optional PoE

module3

3. The Cisco 880 series ISRs can include an optional PoE module that provides power to 802.3af-compliant devices connected

to ethernet ports 0 and 1. If this feature was not configured with the factory order, you must order and install the Field

Replaceable Unit (FRU) to enable the PoE function. For this you either need the FRU “800-IL-PM=2” or “800G2-POE-2”.

If your device has a separate PoE inlet, use the 800-IL-PM=2, if it has one combined inlet (a description saying “POE

OPTION REQUIRES 5A POWER ADAPTOR”), then use the 800G2-POE-2.

The primary WAN port on all 888E models is designed for an RJ-45 connector only. Damage to the

primary WAN port may occur if a non-RJ-45 connector is inserted.

10 Kensington security slot

241905

32 2 4 7 9 1086 51

1-50

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco 860, 880, 890 Series

Note Configuring the codec complexity setting to support secure calls uses DSP resources, but does not affect

the maximum number of supported calls.

Figure 1-25 shows the front panel details of the Cisco 881-V, Cisco 887VA-V, and Cisco 887VA-V-W.

Figure 1-25 Front Panel of the Cisco 881-V, Cisco 887VA-V, and Cisco 887VA-V-W Routers

Table 1-26 Maximum Number of Supported Calls

Flexible Complexity Medium Complexity High Complexity

C881-V986

C887VA-V886

C887VA-V-W 8 8 6

246861

1 2

1LEDs 2USB port

1-51

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco 860, 880, 890 Series

Figure 1-26 shows the back panel for the Cisco 887VA-V-W router. The Cisco 887VA-V (non-wireless)

router does not have the antennas on the back panel.

Figure 1-26 Back Panel of the Cisco 887 VA-V Router

Figure 1-27 shows the back panel for the Cisco 881-V router.

Figure 1-27 Back Panel of the Cisco 881-V Router

246864

overPOTS

VDSL/ADSL

C887VA-W VOICE

1 4 5 6 8 9 107

1Data BRI 7Reset Button

2Voice BRI 8Power connector

3Voice ports—four FXS/DID ports 9 Earth ground connection

4Fast Ethernet LAN—four ports 10 Kensington security slot

5Console Port 11 Primary WAN port—VDSL/ADSL over

POTS

6PoE power connector (optional)

246866

C881 VOICE

56 7

1 4 5 6 8 9 10732

1-52

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco 860, 880, 890 Series

Cisco 880 Series with Embedded WLAN Antennas

Some Cisco 880W, 880WD, and 880-WD ISRs have three embedded WLAN antennas.

These ISRs are fixed-platform routers that:

•Provide integrated VPN, embedded Wi-Fi CERTIFIED™, 802.11b/g/n-compliant wireless AP, and

backup capabilities.

•Use single-band (2.4 GHz) WLAN cards or dual-band (2.4 GHz and 5 GHz) WLAN cards.

•Require a single external power supply: a 30-W power supply for non-POE-enabled routers or a

60-W power supply for POE-enabled routers.

•Have a fixed 512 MB of system memory.

For information on configuring the Cisco 880 series ISRs, see Cisco 880 Series Integrated Services

Router Software Configuration Guide.

Cisco 887VA-WD

Figure 1-28 shows the front panel details of the C887VA-WD-A-K9 and C887VA-WD-E-K9 ISRs. The

front panel has LEDs only. All the ports are in the back panel.

Figure 1-28 Front Panel of the C887VA-WD-A-K9 and C887VA-WD-E-K9 ISRs

1Fast Ethernet WAN port 6PoE power connector (optional)

2Voice BRI ports 7Reset button

3Voice ports—four FXS/DID ports and one

FXO port. 8Power connector

4Fast Ethernet LAN—four ports 9Earth ground connection

5Console Port 10 Kensington security slot

284983

OK PPP

WLAN

POE

01LINK 2.4GHz 5GHz

Cisco 800 Series

FE LAN

VPN

0123

xDSL

CD DATA

1-53

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco 860, 880, 890 Series

Figure 1-29 shows the back panel details of the C887VA-WD-A-K9 and C887VA-WD-E-K9 ISRs.

Figure 1-29 Back Panel of the C887VA-WD-A-K9 and C887VA-WD-E-K9 ISRs

C881WD

Figure 1-30 shows the front panel details of the C881WD-A-K9 and C881WD-E-K9 ISRs. The front

panel has LEDs only. All the ports are in the back panel.

Figure 1-30 Front Panel of the C881WD-A-K9 and C881WD-E-K9 ISRs

284988

Cisco 887VA-WD

AUX

CONSOLE

FE LAN

POE OPTION

REQUIRES 5A

POWER

ADAPTOR

3210

RESET

12VDC 5A

overPOTS

1 2 34 5 6 7

284988

Cisco 887VA-WD

AUX

CONSOLE

FE LAN

POE OPTION

REQUIRES 5A

POWER

ADAPTOR

3210

RESET

12VDC 5A

overPOTS

1 2 34 5 6 7

1USB port 6Power connector

24-port 10/100 Ethernet switch 7Kensington security slot

3Serial port—console or auxiliary 8Power switch

4Note No separate PoE power supply is

required for routers with embedded

WLAN antennas. For information on

system power supply requirements

when PoE is enabled, see the “Power

over Ethernet Module” section on

page 1-88.

9VDSL/ADSL port

5Reset button

284982

OK PPP

FE4

WAN

WLAN

POE

01LINK 2.4GHz 5GHz

Cisco 800 Series

FE LAN

VPN

0123

1-54

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco 860, 880, 890 Series

Figure 1-31 shows the back panel details of the C881WD-A-K9 and C881WD-E-K9 ISRs.

Figure 1-31 Back Panel of the C881WD-A-K9 and C881WD-E-K9 ISRs

C881G-B/S/V-K9 ISRs

The C881G-B-K9, C881G-S-K9, and C881G-V-K9 ISRs are members of the Cisco 880 series data

routers. These routers provide integrated Virtual Private Network (VPN), 802.11b/g/n-compliant

wireless Access Point (AP), 3G, and backup capabilities.

For information on configuring Cisco 880 Series ISRs, see Cisco 880 Series Integrated Services Router

Software Configuration Guide.

C881GW-S/V-A-K9 ISRs

The C881GW-S-A-K9 and C881GW-V-A-K9 ISRs are members of the Cisco 880G series data routers.

These routers provide integrated VPN, embedded Wi-Fi CERTIFIED™, 802.11b/g/n-compliant wireless

AP, 3G, and backup capabilities.

For information on configuring Cisco 880 Series ISRs, see Cisco 880 Series Integrated Services Router

Software Configuration Guide.

284987

Cisco 881WD

AUX

CONSOLE

FE LAN

POE OPTION

REQUIRES 5A

POWER

ADAPTOR

3210

RESET

12VDC 5A

FE WAN

21 34 5 6 7 8

1Primary WAN port—10/100 FE 6Reset button

2USB port 7Power connector

34-port 10/100 Ethernet switch 8Kensington security slot

4Serial port—console or auxiliary 9Power switch

5Note No separate PoE power supply is

required for routers with embedded

WLAN antennas. For information on

system power supply requirements

when PoE is enabled, see the “Power

over Ethernet Module” section on

page 1-88.

1-55

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco 860, 880, 890 Series

C881G-U-K9 ISRs

The C881G-U-K9 ISR is a member of the Cisco 880 series data routers. These routers provide integrated

Virtual Private Network (VPN), embedded Wi-Fi CERTIFIED™, 802.11b/g/n-compliant wireless

Access Point (AP), 3G, and backup capabilities.

For information on configuring Cisco 880 Series ISRs, see Cisco 880 Series Integrated Services Router

Software Configuration Guide.

HSPA+ Versions of the Fixed-Platform ISRs

The C881G+7-K9, C886VAG+7-K9, C887VAG+7-K9, C887VAMG+7-K9, C888EG+7-K9,

C881GW+7-A-K9, C881GW+7-E-K9, C887VAGW+7-A-K9, and C887VAGW+7-E-K9 ISRs are

members of the Cisco 880G series data routers. These routers provide integrated VPN, embedded Wi-Fi

CERTIFIED™, 802.11b/g/n-compliant wireless AP, 3G, and backup capabilities.

For information on configuring Cisco 880 Series ISRs, see Cisco 880 Series Integrated Services Router

Software Configuration Guide.

1-56

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco C881, C886, and C887 Series ISRs

Cisco C881, C886, and C887 Series ISRs offer broadband speed and simplified management to small

businesses, small enterprise branches, and teleworkers. The Cisco C881, C886, and C887 Series ISR

models have a lead-free, fanless chassis and are updated versions of the previous Cisco 881, 886, and

887 series (excluding 3G and wireless models).

Information provided in this section is applicable for the following models:

•Cisco C881

•Cisco C886VA, Cisco C886VAJ (Annex J)

•Cisco C887VA, Cisco C887VAM (Annex M)

Table 1-27 provides information about important hardware specifications pertaining to Cisco C881,

C886, and C887 Series Routers.

Table 1-27 Hardware Specifications of Cisco C881, C886, and C887 Series Routers

For detailed hardware specifications, see the Cisco 880 Series hardware data sheet at:

http://www.cisco.com/en/US/prod/collateral/routers/ps380/data_sheet_c78_459542_ps380_Products_

Data_Sheet.html

Cisco C881 Router

Figure 1-32 shows the front panel of the Cisco C881 Router.

Hardware Description

Flash Memory 256 MB

Main Memory 1 GB DDR RAM; fixed and not extendable

USB port A USB 2.0-compliant port located at the back

panel

FAN Fanless chassis

PoE Two internal PoE ports

WAN •C881— FE

•C886—VDSL/ADSL over ISDN with ISDN

back up

•C887—VDSL/ADSL over POTS

Console or auxiliary port RJ-45

LAN switch 4-port 10/100BASE-T

1-57

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco C881, C886, and C887 Series ISRs

Figure 1-32 Front Panel of the Cisco C881 Router

For detailed description about the LEDs on the Cisco C880 Series Routers, see the “LEDs” section on

page 1-21.

Cisco

Cisco 800

Series

PPP

FE4

WAN

0 1

VPN 0123

FE LAN

361124

1LEDs

1-58

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco C881, C886, and C887 Series ISRs

Figure 1-33 shows the back panel of the Cisco C881 Router.

Figure 1-33 Back Panel of the Cisco C881 Router

For information on installing the Cisco C880 Series Routers, see :

http://www.cisco.com/en/US/docs/routers/access/800/860-880-890/hardware/installation/guide/2Instal

l880-860.html

Cisco C886VA Router

Figure 1-34 shows the front panel of the Cisco C886VA Router.

Figure 1-34 Front Panel of the Cisco C886VA Router

For detailed description about the LEDs on the Cisco C880 Series Routers, see the “LEDs” section on

page 1-21.

Cisco 881

FE LAN

3210

CONSOLE

AUX

FE WAN

412VDC 2.5- 5A

(POE)

RESET

361125

1 2 3 4 5 7 89

1Primary WAN port—FE 6Reset button

2USB port 7Power connector

3 4-port 10/100 Ethernet switch 8Earth ground connection

4Serial port—Console or auxiliary 9Kensington security slot

5 On/Off switch

361126

CiscoCisco 800 Series

OKOK

POEOE

PPPPPP

FE FE LAN

VPN 0 1 2 3

0 1 CD

CD DATA

xDSL

ISDNISDN

LINKLINK B1B1 B2B2

1LEDs

1-59

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco C881, C886, and C887 Series ISRs

Figure 1-35 shows the back panel of the Cisco C886VA Router.

Figure 1-35 Back Panel of the Cisco C886VA Router

For information on installing Cisco C880 Series Routers, see:

http://www.cisco.com/en/US/docs/routers/access/800/860-880-890/hardware/installation/guide/2Instal

l880-860.html

Cisco C886VAJ Router

Figure 1-36 shows the front panel of the Cisco C886VAJ Router.

Figure 1-36 Front Panel of the Cisco C886VAJ Router

For detailed description about LEDs on the Cisco 880 Series Router, see the “LEDs” section on

page 1-21.

361127

VDSL/ADSLVDSL/ADSL

over ISDNover ISDN 00

ISDN

ISDN FE LANFE LAN CONSOLECONSOLE

AUXAUX

3 2 1 0 12VDC 2.

2.5-5A-5A

(POE)(POE)

RESETRESET

21 3 4 5 6 89 10

1Primary WAN port—VDSL/ADSL over

ISDN 6 On/Off switch

2USB port 7Reset button

3ISDN 8 Power connector

44-port 10/100 Ethernet switch 9Earth ground connection

5Serial port—Console or auxiliary 10 Kensington security slot

361128

CiscoCisco 800 Series

OKOK

POEOE

PPPPPP

FE FE LAN

VPN 0 1 2 3

0 1 CD

CD DATA

xDSL

ISDNISDN

LINKLINK B1B1 B2B2

1LEDs

1-60

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco C881, C886, and C887 Series ISRs

Figure 1-37 shows the back panel of the Cisco C886VAJ Router.

Figure 1-37 Back Panel of the Cisco C886VAJ Router

For information on installing Cisco C880 Series Routers, see:

http://www.cisco.com/en/US/docs/routers/access/800/860-880-890/hardware/installation/guide/2Instal

l880-860.html

Cisco C887VA Router

Figure 1-38 shows the front panel of the Cisco C887VA Router.

Figure 1-38 Front Panel of the Cisco C887VA Router

For detailed description about the LEDs on Cisco C880 Series Router, see the “LEDs” section on

page 1-21.

361129

VDSL/ADSLVDSL/ADSL

over ISDNover ISDN 00

ISDN

ISDN FE LANFE LAN CONSOLECONSOLE

AUXAUX

3 2 1 0 12VDC 2.

2.5-5A-5A

(POE)(POE)

RESETRESET

21 3 4 5 6 89 10

1Primary WAN port—VDSL/ADSL over

ISDN 6 On/Off switch

2USB port 7Reset button

3ISDN 8Power connector

44-port 10/100 Ethernet switch 9Earth ground connection

5Serial port—Console or auxiliary 10 Kensington security slot

361130

CiscoCisco 800 Series

OKOK

POEOE

PPPPPP

FE FE LAN

VPN 01 2 3

0 1 CD

CD DATA

xDSL

1LEDs

1-61

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco C881, C886, and C887 Series ISRs

Figure 1-39 shows the back panel of the Cisco C887VA Router.

Figure 1-39 Back Panel of the Cisco C887VA Router

For information on installing Cisco C880 series routers, see the following link:

http://www.cisco.com/en/US/docs/routers/access/800/860-880-890/hardware/installation/guide/2Instal

l880-860.html

Cisco C887VAM Router

Figure 1-40 shows the front panel of the Cisco C887VAM router:

Figure 1-40 Front Panel of the Cisco C887VAM Router

For detailed description about LEDs on Cisco C880 series router, see “LEDs” section on page 1-21.

361131

Cisco

887

887VA

VDSL/ADSL

over POTS

FE LAN

3 2 1 0

CONSOLE

AUX

AUX 12VDC

2.5

-5A

(POE)

RESET

21 3 4 5 7 89

1Primary WAN port—VDSL/ADSL over

POTS 6Reset button

2USB port 7Power connector

34-port 10/100 Ethernet switch 8Earth ground connection

4Serial port—console or auxiliary 9Kensington security slot

5On/Off switch

361132

CiscoCisco 800 Series

OKOK

POEOE

PPPPPP

FE FE LAN

VPN 01 2 3

0 1 CD

CD DATA

xDSL

1LEDs

1-62

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco C881, C886, and C887 Series ISRs

Figure 1-41 shows the back panel of the Cisco C887VAM router.

Figure 1-41 Back Panel of the Cisco C887VAM Router

For information on installing the Cisco C880 Series Routers, see:

http://www.cisco.com/en/US/docs/routers/access/800/860-880-890/hardware/installation/guide/2Instal

l880-860.html

Cisco 890 Series ISRs

Cisco 891, Cisco 892, and Cisco 892F

The Cisco 891, Cisco 892, and Cisco 892F ISRs have the following features:

•Integrated 8-port 10/100 Ethernet switch for connecting to the LAN

•10/100 FE and 10/100/1000 Gigabit Ethernet (GE) port for connecting to the WAN

•Separate console and auxiliary ports

•Optional embedded Wi-Fi CERTIFIED™ dual radio 802.11a/b/g/n-compliant wireless AP

•Optional 4-port PoE

Note The Cisco 890 series ISRs can include an optional PoE module that provides power to

802.3af-compliant devices connected to ethernet ports 0 through 3. If this feature was not

configured with the factory order, you must order and install it to enable the PoE function.

•Security feature card (SFC) socket

361133

CiscoCisco 887887VAMAM

VDSL/ADSLVDSL/ADSL

over POTSover POTS

FE LANFE LAN

3 2 1 0

CONSOLE

AUXAUX 12VDC 2.2.5-5A-5A

(POE)(POE)

RESETRESET

21 3 4 5 7 89

1Primary WAN port—VDSL/ADSL over

POTS 6Reset button

2USB port 7Power connector

34-port 10/100 Ethernet switch 8Earth ground connection

4Serial port—Console or auxiliary 9Kensington security slot

5On/Off switch

1-63

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco C881, C886, and C887 Series ISRs

•DIMM expansion socket that can accept up to 512 MB of additional memory, for a total of 768 MB

system memory in Cisco 891 and 892 series ISRs, and a total of 1 GB system memory in

Cisco 892F series ISRs

•Three reverse-polarity threaded Neill-Concelman (RP-TNC) connectors on the back panel for

non-captive dual-band WLAN antenna (wireless models only)

•Support for the AIM2-CUE-K9 and AIM2-APPRE-104-K9

•GE small-form-factor pluggable (SFP) port (Cisco 892F series ISRs only)

The following feature is located on the front panel:

•Two USB 2.0 ports

Figure 1-42 shows the front panel details of the Cisco 890 wireless router.

Figure 1-42 Front Panel of the Cisco 890 Series Wireless ISR

1LEDs 2USB ports

272367

1 2

1-64

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco C881, C886, and C887 Series ISRs

Figure 1-43 shows the back panel details of the Cisco 892-W router. Nonwireless routers do not have

RP-TNC antennas or connectors on the back panel. Some of the features that are shown may not be

available on your router. However, the feature locations are similar across all Cisco 890 series routers.

Figure 1-43 Back Panel of the Cisco 892-W Router

1Antenna—dipole swivel antenna attached to

RP-TNC connectors (wireless models only) 7PoE power connector for optional PoE

module1

1. The Cisco 890 series ISRs can include an optional PoE module that provides power to 802.3af-compliant devices connected

to ethernet ports 0 through 3. If this feature was not configured with the factory order you must order and install it to enable

the PoE function.

2Backup—Data BRI2 or V.923 port

2. The Data BRI port is available only on the Cisco 892 router models.

3. The V.92 port (not shown) is available only on the Cisco 891 router models and is located between the console port and the

Ethernet switch.

8Reset button

3Primary WAN port—FE and GE 9Power connector

4Auxiliary port 10 Earth ground connection

5Console port 11 Kensington security slot

68-port 10/100 Ethernet switch

272369

14 5 6 8 9 10 1172 3

1-65

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco C881, C886, and C887 Series ISRs

Figure 1-44 shows the location of the SFP port in a Cisco 892F-W router.

Figure 1-44 SFP Port Location in a Cisco 892F-W Router

Cisco 892FSP, Cisco 896VA, Cisco 897VA, and Cisco 898EA

The Cisco 892FSP, 896VA, 897VA (897VA, 897VAM, 897VAW, 897VAMW), and 898EA routers have

the following features:

•Integrated 8-port 10/100/1000 Gigabit Ethernet(GE) switch for connecting to the LAN

•Two 10/100/1000 GE ports for the Cisco 892FSP

•One 10/100/1000 GE port for the Cisco 896VA, 897VA, and the Cisco 898EA. Either the SFP socket

or the 10/100/1000 GE port can be active at a given time, but not both.

•Single console and auxiliary ports for configuration and management

•512 MB of on-board memory (upgrade option to 1 GB)

•256 MB flash memory for the Cisco 896VA, 897VA, and Cisco 898EA

•One USB 2.0 port

•Optional internal adapter for inline PoE on 4 switch ports for IP phones or external wireless access

points for Cisco 896VA, 897VA, and 898EA models only. No PoE support on Cisco 892FSP.

Note The Cisco 892FSP does not support AIM2-CUE-K9 and AIM2-APPRE-104-K9 because it does not have

an SFC socket.

1SFP port 2SFP LEDs

278179

Cisco 892F-W

SFP

1-66

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco C881, C886, and C887 Series ISRs

Figure 1-45 shows the back panel of the Cisco 892FSP router.

Figure 1-45 Back Panel of the Cisco 892FSP Router

Figure 1-46 shows the front panel of the Cisco 892FSP router.

Figure 1-46 Front Panel of the Cisco 892FSP Router

GE WAN

SFP

12VDC 2.5A

CONSOLE

AUX

RESET

Cisco 892FSP

284781

234 5 6 8 9 1071

1GE WAN interface 6Power connector

2SFP port 7On/Off switch

3USB port 8Reset button

48-port Gigabit Ethernet switch 9Earth ground connection

5Console / Auxiliary port 10 Kensington security slot

284782

1LEDs

1-67

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco C881, C886, and C887 Series ISRs

Figure 1-47 shows the back panel of the Cisco 896VA router.

Figure 1-47 Back Panel of the Cisco 896VA Router

Figure 1-48 shows the front panel of the Cisco 896VA and the Cisco 897VA router.

Figure 1-48 Front Panel of the Cisco 896VA and Cisco 897VA Router

7 6 GELAN 5 4

3 2 POE 1 0

ISDN

GE WAN

54VDC 1.2A

12VDC 2.5A

VDSL/ADSL

overISDN

CONSOLE

RESET

Cisco 896VA

1 2 3 4 5 89 10 11

6 7

344766

1ISDN 7Power connector

2GE WAN interface 8On/Off switch

3SFP port 9Reset button

4USB port 10 Earth ground connection

58-port Gigabit Ethernet switch111 Kensington security slot

6Console / Auxiliary port 12 VDSL / ADSL over ISDN

1. Port 0 through 3 can be configured as POE. POE is an optional feature for this model. If this feature was not configured with

the factory order, you must order and install it to enable the PoE function.

344765

1LEDs

1-68

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco C881, C886, and C887 Series ISRs

Figure 1-49 shows the back panel of the Cisco 897VA router.

Figure 1-49 Back Panel of the Cisco 897VA Router

Figure 1-50 shows the back panel of the Cisco 897VAM router.

Figure 1-50 Back Panel of the Cisco 897VAM Router

7 6 GELAN 5 4

3 2 POE 1 0

ISDN

GE WAN

54VDC 1.2A

12VDC 2.5A

VDSL/ADSL

overPOTS

CONSOLE

RESET

Cisco 897VA

344767

1 2 3 4 5 89 10 11

6 7

1ISDN 7Power connector

2GE WAN interface 8On/Off switch

3SFP port 9Reset button

4USB port 10 Earth ground connection

58-port Gigabit Ethernet switch111 Kensington security slot

6Console / Auxiliary port 12 VDSL / ADSL over POTS

1. Port 0 through 3 can be configured as POE. POE is an optional feature for this model. If this feature was not configured with

the factory order, you must order and install it to enable the PoE function.

7 6 GELAN 5 4

3 2 POE 1 0

GE WAN

54VDC 1.2A

12VDC 2.5A

VDSL/ADSL

overPOTS

CONSOLE

RESET

344769

1 2 3 4 7 89 10

5 6

1GE WAN interface 7On/Off switch

2SFP port 8Reset button

3USB port 9Earth ground connection

1-69

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco C881, C886, and C887 Series ISRs

Figure 1-51 shows the front panel of the Cisco 897VAM router.

Figure 1-51 Front Panel of the Cisco 897VAM Router

Figure 1-52 shows the back panel of the Cisco 897VAW router.

Figure 1-52 Back Panel of the Cisco 897VAW Router

48-port Gigabit Ethernet switch110 Kensington security slot

5Console / Auxiliary port 11 VDSL / ADSL over POTS

6Power connector

1. Port 0 through 3 can be configured as POE. POE is an optional feature for this model. If this feature was not configured with

the factory order, you must order and install it to enable the PoE function.

344768

1LEDs

7 6 GELAN 5 4

3 2 POE 1 0

GE WAN

54VDC 1.2A

12VDC 2.5A

VDSL/ADSL

overPOTS

CONSOLE

RESET

344771

1 2 3 4 7 89 10

5 6

1GE WAN interface 7On/Off switch

2SFP port 8Reset button

3USB port 9Earth ground connection

48-port Gigabit Ethernet switch110 Kensington security slot

5Console / Auxiliary port 11 VDSL / ADSL over POTS

6Power connector

1. Port 0 through 3 can be configured as POE. POE is an optional feature for this model. If this feature was not configured with

the factory order, you must order and install it to enable the PoE function.

1-70

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco C881, C886, and C887 Series ISRs

Figure 1-53 shows the front panel of the Cisco 897VAW and the Cisco 897VAMW router.

Figure 1-53 Front Panel of the Cisco 897VAW and the Cisco 897VAMW Router

Figure 1-54 shows the back panel of the Cisco 897VAMW router.

Figure 1-54 Back Panel of the Cisco 897VAMW Router

344770

1LEDs

7 6 GELAN 5 4

3 2 POE 1 0

GE WAN

54VDC 1.2A

12VDC 2.5A

VDSL/ADSL

overPOTS

CONSOLE

RESET

344772

1 2 3 4 7 89 10

5 6

1GE WAN interface 7On/Off switch

2SFP port 8Reset button

3USB port 9Earth ground connection

48-port Gigabit Ethernet switch110 Kensington security slot

5Console / Auxiliary port 11 VDSL / ADSL over POTS

6Power connector

1. Port 0 through 3 can be configured as POE. POE is an optional feature for this model. If this feature was not configured with

the factory order, you must order and install it to enable the PoE function.

1-71

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco C881, C886, and C887 Series ISRs

Figure 1-55 shows the back panel of the Cisco 898EA router.

Figure 1-55 Back Panel of the Cisco 898EA Router

Caution The primary WAN port is designed for an RJ-45 connector only. Damage to the primary WAN

port may occur if a non-RJ-45 connector is inserted.

Figure 1-56 shows the front panel of the Cisco 898EA router.

Figure 1-56 Front Panel of the Cisco 898EA Router

7 6 GELAN 5 4

3 2 POE 1 0

GE WAN

SFP

854VDC 1.2A

12VDC 2.5A

SHDSL

RJ45 ONLY

CONSOLE

RESET

Cisco 898EA

AUX

344774

1 2 3 4 7 89 10

5 6

1GE WAN interface 7On/Off switch

2SFP port 8Reset button

3USB port 9Earth ground connection

48-port Gigabit Ethernet switch1

1. Port 0 through 3 can be configured as POE. POE is an optional feature for this model. If this feature was not configured with

the factory order, you must order and install it to enable the PoE function.

10 Kensington security slot

5Console / Auxiliary port 11 SHDSL (RJ45 Only)

6Power connector

344773

1LEDs

1-72

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco C891 Series ISRs

Cisco C891 Series ISRs are designed to deliver secure broadband, metro Ethernet, wireless LAN

(WLAN) connectivity, and business continuity. Cisco C891 Series ISRs also provide a 1-port Gigabit

Ethernet SFP socket for WAN connectivity.

This section includes the hardware information for the following models:

•Cisco C891F

•Cisco C891FW

Table 1-28 provides information about the hardware specifications of Cisco C891 Series Router.

Table 1-28 Hardware Specifications of Cisco C891 Series ISRs

For detailed hardware specifications, see the Cisco C890 Series hardware data sheet at:

http://www.cisco.com/en/US/prod/collateral/routers/ps380/data_sheet_c78-519930.html

Hardware Description

Flash Memory 256 MB

Main Memory 1 GB DDR RAM; fixed and not extendable

USB port A USB 2.0-compliant port located on the back

panel

FAN Fanless chassis

PoE 4 PoE ports

WAN 1-port GE or 1-port SFP

Data Backup • 1-port FE

• 1-port ISDN

• 1-port V.92

Console or auxiliary port RJ-45

LAN switch 8-port Gigabit Ethernet

Embedded Wireless AP Dual 802.11b/g/n and 802.11a/n radios for

C891FW

1-73

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco C891 Series ISRs

Cisco C891F Router

Figure 1-57 shows the front panel of the Cisco C891F Router:

Figure 1-57 Front Panel of the Cisco C891F Router

For detailed description about the LEDs on the Cisco C890 Series Routers, see the “LEDs” section on

page 1-21.

361136

Cisco

Cisco 800

Series

PPP

GE LAN

VPN

V.92

ISDN

OK 01 2 3 4 567

GE8

SFP8

FE0

WAN

1LEDs

1-74

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco C891 Series ISRs

Figure 1-58 shows the back panel of the Cisco C891F Router.

Figure 1-58 Back Panel of the Cisco C891F Router

For information on installing the Cisco C890 Series Routers, see:

http://www.cisco.com/en/US/docs/routers/access/800/860-880-890/hardware/installation/guide/2Instal

l880-860.html

Cisco C891FW Router

Figure 1-59 shows the front panel of the Cisco C891FW Router:

Figure 1-59 Front Panel of the Cisco C891FW Router

361137

FE FE WANAN ISDNISDN GE GE WANAN

SFPSFP

V.92.92

7 6 GE GE LANAN

CONONSOLEOLE

CiCisco 89 891F

RESRESET

AUX

5 4

3 2 POE

POE 10

8 8

054V54VDC 1.5A.5A

3.5-5A3.5-5A

12V12VDC

(POE)(POE)

1 2 3 4 5 7 813129 11

1Back up WAN port—FE WAN 8Console / Auxiliary port

2ISDN 9Power connector

3Primary WAN port—GE WAN 10 On/Off switch

4SFP 11 Reset button

5USB port 12 Earth ground connection

6V.92 backup 13 Kensington security slot

7 8-port 10/100/1000 Ethernet switch

1LEDs

1-75

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco C891 Series ISRs

For detailed description about the LEDs on Cisco C890 Series Router, see “LEDs” section on page 1-21.

1-76

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco C891 Series ISRs

Figure 1-60 shows the back panel of the Cisco C891FW Router.

Figure 1-60 Back Panel of the Cisco C891FW Router

For information on installing the Cisco C890 Series Routers, see:

http://www.cisco.com/en/US/docs/routers/access/800/860-880-890/hardware/installation/guide/2Instal

l880-860.html

Hardware Features

This section provides an overview of the following hardware features for the Cisco 860 series, 880

series, and 890 series ISRs. A feature summary is available at the end of this section.

•Kensington Lock

•Reset Button

•LEDs

•Memory

•USB Port

•Fan

•Power Supply

•Power over Ethernet Module

•3G Cellular Data WAN Connectivity

•Small Form-Factor Pluggable Port

361139

FE W

ISDN

GE W

SFP

.92

7 6

GE L

ONS

OLE

Cisco

891

RES

RESET

5 4

3 2

POE

POE 10

8 8

54V

54VDC 1

.5A

3.5-5A

12V

12VDC

(POE)

1 2 3 4 5 7 813129 11

1Back up WAN port—FE 8 Serial port—Console or auxiliary

2ISDN 9Power connector

3Primary WAN port—GE 10 On/Off switch

4SFP port 11 Reset button

5USB port 12 Earth ground connection

6V.92 backup port 13 Kensington security slot

78-port 10/100/1000 Ethernet switch

1-77

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco C891 Series ISRs

•Feature Summary

Kensington Lock

A Kensington security slot is located on the router back panel. To secure the router to a desktop or other

surface, use the Kensington lockdown equipment.

Reset Button

The Reset button is used to restore the router to the factory default configurationor to load a custom

configuration file.

There are two different ways to do this:

1. by pressing the Reset button within 5 seconds of powering up the router; or

2. by pressing the Reset button for 5 seconds while running IOS.

Note If you execute a CLI reboot command while the embedded wireless AP is running Cisco Unified IOS

software, the router reboots, but the AP continues running. Clients with Cisco Unified IOS software are

controlled by a wireless LAN controller (WLC) and can be reset only by the controller.

Cisco 860VAE Routers—Custom Configuration File

On Cisco 860VAE routers, the reset button can be used to load a custom configuration file without having

to use the CLI. The configuration file can be located on an external USB flash drive or on the router's

compact flash.

The custom configuration file must be named one of the following:

•customer-config

•SN-customer-config

where “SN” is the unique hardware serial number.

When the system attempts to load a custom configuration file, configuration files on a USB flash drive

have priority over configuration files on the router's flash drive and the “SN-customer-config” file name

has priority over the “customer-config” file name. The priority for loading a configuration file is as

follows:

1. USB flash0: SN-customer-config

2. USB flash0: customer-config

3. Router flash: SN-customer-config

4. Router flash: customer-config

If the router does not find a valid custom configuration file, the system aborts the process.

To reset the router to the factory default configuration, follow these steps:

Step 1 Verify that IOS is running correctly by checking that the system status LED is on.

1-78

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco C891 Series ISRs

Step 2 Press and hold the Reset button until the system status LED begins to flash. Typically, this occurs within

5 seconds.

The router reloads itself after the startup configuration has been replaced with the new customer

configuration.

Custom Configuration File for Cisco 892FSP, 896VA, 897VA, and Cisco 898EA

For the first method, the configuration file can be located on the router's compact flash or on the router's

nvram. The custom configuration file must use cfg as the filename extension.

When the system attempts to load a custom configuration file, configuration files on nvram have priority

over configuration files on the router's compact flash.

The priority for loading a configuration file is as follows:

1. nvram: *.cfg

2. Router flash: *.cfg

If the router does not find a valid custom configuration file, the system aborts the process.

1-79

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco C891 Series ISRs

To reset the router to the factory default configuration or to load a custom configuration file, follow these

steps:

Step 1 Turn the power on.

Step 2 Press and hold the Reset button until the system status LED begins to flash. Typically, this occurs within

5 seconds.

The router reloads itself after the startup configuration has been replaced with the new customer

configuration.

For the second method, the configuration file can be located on an external USB flash drive or on the

router's compact flash.

The custom configuration file must be named one of the following:

•customer-config

•customer-config.SN ?

where "SN" is the unique hardware serial number.

When the system attempts to load a custom configuration file, configuration files on a USB flash drive

have priority over configuration files on the router's flash drive and the "customer-config.SN" file name

has priority over the customer-config file name.

The priority for loading a configuration file is as follows:

1. usbflash0:customer-config.SN

2. usbflash0:customer-config

3. Router flash:customer-config.SN

4. Router flash:customer-config

If the router does not find a valid custom configuration file, the system aborts the process.

To reset the router to the factory default configuration or to load a custom configuration file, follow these

steps:

Step 1 Verify that IOS is running correctly by checking that the system status LED is on.

Step 2 Press and hold the Reset button until the system status LED begins to flash. Typically, this occurs within

5 seconds.

The router reloads itself after the startup configuration has been replaced with the new customer

configuration.

LEDs

The LEDs are located on the front panel of the router.

•Table 1-8 describes the LEDs for the Cisco 860 series, 880 series, and 890 series ISRs.

•Table 1-30 lists the LED descriptions for the Cisco 866VAE, Cisco 867VAE, Cisco 866VAE-K9, and

Cisco 867VAE-K9 ISRs.

•Table 1-31 lists the LED description for the Cisco 892FSP ISR, 896VA, 897VA, and 898EA.

1-80

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco C891 Series ISRs

•For a description of LEDs for Cisco 860VAE-W-A-K9, Cisco 860VAE-W-E-K9, and Cisco

860VAE-POE-W-A-K9 ISRs models, see the “Cisco 860VAE-W-A-K9, Cisco 860VAE-W-E-K9,

and Cisco 860VAE-POE-W-A-K9 ISRs” section on page 1-38.

Table 1-29 LED Descriptions for the Cisco 860 Series, Cisco 880 Series, and Cisco 890 Series ISRs

LED Color Description 860 Series 880 Series 890 Series

Power OK Green On—DC power is being supplied to the router and the

Cisco IOS software is running.

Blinking—Bootup is in process, or the router is in

Rommon monitor mode.

Off—Power is not supplied to the router.

All models All models All models

Link Status FE0 Green On—Ethernet port is connected.

Blinking—Data is either being received or being

transmitted.

Off—Ethernet port is not connected.

All models All models All models

Link Status FE1

Link Status FE2

Link Status FE3

Link Status FE4 Green On—Ethernet port is connected.

Blinking—Data is either being received or being

transmitted.

Off—Ethernet port is not connected.

— — All models

Link Status FE5

Link Status FE6

Link Status FE7

FE WAN Port

Link Status Green On—Port is connected.

Blinking—Data is either being received or being

transmitted.

Off—Port is not connected.

861

models 881

models All models

GE WAN Port

Link Status Green On—Port is connected.

Blinking—Data is either being received or being

transmitted.

Off—Port is not connected.

— — All models

WLAN

(2.4 GHz) Green On—Radio is connected, SSID1 is configured, and client

is associated, but no data is being received or being

transmitted.

Slow blinking—Radio is connected, SSID is configured,

and beacons are being transmitted.

Fast blinking—Data is either being received or being

transmitted.

Off—Radio is shut down, and no SSID is configured.

Wireless

models Wireless

models

1-81

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco C891 Series ISRs

WLAN (5 GHz) Green On—Radio is connected, SSID is configured, and client is

associated, but no data is being received or being

transmitted.

Slow blinking—Radio is connected, SSID is configured,

and beacons are being transmitted.

Fast blinking—Data is either being received or being

transmitted.

Off—Radio is shut down, and no SSID is configured.

— Wireless

models Wireless

models

WLAN LINK

(Autonomous

Mode)

Green On—Wireless link is up.

Blinking—Ethernet link is up, and data is either being

received or being transmitted.

Off—Wireless link is down.

Wireless

models Wireless

models

WLAN LINK

(Unified Mode) Green On—Ethernet link is up, and wireless access point (AP) is

communicating with LWAPP2 controller.

Blinking—Ethernet link is up, but wireless AP is not

communicating with LWAPP controller.

Off—Ethernet link is down.

— Wireless

models Wireless

models

PoE Green On—PoE is connected and powered.

Off—PoE is not installed.

—Models

with PoE Models

with PoE

Amber On—Fault with the PoE.

VPN Green On—VPN is connected. — All models All models

PPP3Green On—At least one PPP session is established. — All models All models

xDSL4 CD Green On—The xDSL interface is connected to the DSLAM5.

Blinking—Training to the line.

Off—Indicates that a connection has not been established

or the port is shut down.

— 887,

887VA,

887VA-M8

888

models

896VA,

897VA,

898EA

xDSL Data Green Blinking—The xDSL interface is either receiving or

transmitting data.

Off—No data is being transmitted or being received.

— 887,

887VA,

887VA-M8

88 models

896VA,

897VA,

898EA

xDSL ATM Green On—The router is operating in ATM6 mode.

Off—Not operating in ATM mode.

— 888E —

xDSL EFM Green Blink—The router is operating in EFM7 mode.

Off—Not operating in EFM mode.

— — 898EA

Data BRI LINK Green On—ISDN D channel is connected. — 887, 888

models 892

models

Data BRI B1 Green Blinking—B1 channel is either receiving or sending data,

or data is passing through ISDN channel 1. — 887, 888

models 892

models

Table 1-29 LED Descriptions for the Cisco 860 Series, Cisco 880 Series, and Cisco 890 Series ISRs (continued)

LED Color Description 860 Series 880 Series 890 Series

1-82

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco C891 Series ISRs

Data BRI B2 Green Blinking—B2 channel is receiving or sending data, or

data is passing through ISDN channel 2. — 887, 887V,

888

models

892

models

3G8 WWAN9Green On—Service is established.

Slow Blinking—Searching for service.

Fast Blinking—Data is either being received or being

transmitted.

— 3G models —

3G RSSI10 Green Off—Low signal strength (lower than -100 dBm).

On—High RSSI (-69 dBm or higher).

Slow Blinking—Low or medium RSSI (-99 to -90 dBm).

Fast Blinking—Medium RSSI (-89 to -70 dBm).

— 3G models —

Amber On—No service. — 3G models —

3G GSM11 Green On—Service is established.

Off—No service.

— 3G models —

3G CDMA12 Green On—Service is established.

Off—No service.

— 3G models —

FXO Voice Green On—FXO port is connected.

Blinking—FXO port is either receiving or transmitting

data.

— 88113 —

BRI Voice LNK Green On—BRI interface is connected. — — —

BRI Voice B1 Green On—BRI B1 channel is connected.

Blinking—BRI B1 channel is either receiving or

transmitting data.

———

BRI Voice B2 Green On—BRI B2 channel is connected.

Blinking—BRI B2 channel is either receiving or

transmitting data.

———

FXS/DID Voice Green On—FXS/DID port is connected.

Blinking—FXS/DID port is either receiving or

transmitting data.

—SRST

models —

V.92 Modem Green On—Modem is connected.

Blinking—V.92 port is either receiving or transmitting

data.

— — 891

models

SFP14 EN Off Not present. — — 892F

models

Green Present and enabled. — —

Amber Present with failure. — —

SFP S Green Blinking—Blinking frequency indicates port speed. — — 892F

models

1. SSID = service set identifier.

Table 1-29 LED Descriptions for the Cisco 860 Series, Cisco 880 Series, and Cisco 890 Series ISRs (continued)

LED Color Description 860 Series 880 Series 890 Series

1-83

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco C891 Series ISRs

Table 1-30 describes the LEDs for the Cisco 866VAE, Cisco 867VAE, Cisco 866VAE-K9, and Cisco

867VAE-K9 ISRs.

2. LWAPP = Lightweight Access Point Protocol.

3. PPP = Point-to-Point Protocol.

4. xDSL = General term referring to various forms of DSL, including ADSL (asymmetric digital subscriber line) and VDSL (very-high-data-rate digital

subscriber line).

5. DSLAM = digital subscriber line access multiplexer.

6. ATM = Asynchronous Transfer Mode.

7. EFM = Ethernet in the First Mile.

8. 3G = Third-Generation.

9. WWAN = wireless WAN.

10. RSSI = Received Signal Strength Indicator.

11. GSM = Global System for Mobile Communication.

12. CDMA = code division multiple access.

13. SRST = Survivable Remote Site Telephony.

14. SFP = small-form-factor pluggable.

Table 1-30 LED Descriptions for the Cisco 866VAE, Cisco 867VAE, Cisco 866VAE-K9, and Cisco 867VAE-K9 ISRs

LED Activity Description

Power/System Power/System LED: Solid

GE_MODE LED: Off

DSL_LINK LED: Off

Power is on and system running in the Rommon mode.

Note During the early booting stage, both Power/System, GE_MODE and

DSL_LINK LED will be turned on temporarily for the power on test.

DSL_LINK and GE_MODE LED will be turned off later after booting

into Rommon.

Power/System LED: Solid

GE_MODE LED: Solid

DSL_LINK LED: Off

IOS functioning in GE WAN mode.

Power/System LED: Solid

GE_MODE LED: Off

DSL_LINK LED: Solid or

flashing

IOS functioning in DSL_WAN mode.

Note In IOS DSL_WAN mode, DSL_LINK LED will be solid after DSL

training complete or flashing during training.

xDSL1 ACT Green On—DSL interface is up.

Blinking—DSL WAN activity (traffic in either direction).

Faster blinking—Heavier traffic

Off—Device is powered off or the DSL WAN interface is down.

xDSL Link Green On—DSL WAN Mode is selected and DSL training complete.

Blinking—DSL WAN Mode is selected but incomplete DSL Link Up state,

such as in-training, or controller “OFF,” or no cable attached to DSL connector.

Off—Device is powered off or GE WAN mode is selected.

1-84

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco C891 Series ISRs

GE ACT Green On—GE WAN interface is up.

Blinking—GE WAN activity (traffic in either direction).

Off—Device is powered off or GE WAN interface is down.

GE Mode Green On—GE WAN Mode is selected.

Off—Device is powered off or DSL WAN mode is selected.

1. xDSL = General term referring to various forms of DSL, including ADSL (asymmetric digital subscriber line) and VDSL (very-high-data-rate digital

subscriber line).

Table 1-30 LED Descriptions for the Cisco 866VAE, Cisco 867VAE, Cisco 866VAE-K9, and Cisco 867VAE-K9 ISRs

LED Activity Description

1-85

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco C891 Series ISRs

Table 1-31 describes the LEDs for the Cisco 892FSP.

Table 1-31LED desciption for Cisco 892FSP ISR, 896VA, 897VA, and 898EA Routers

Shared LEDs on the Cisco 881-V and Cisco 887VA-V Voice and Data Routers

On the Cisco 881-V, Cisco 887VA-V, and Cisco 887VA-V-W routers, the BRI1, BRI2 and the FXS ports

share LED indicators. The following ports share an LED indicator:

•BRI 1B1 channel and FXS 3

•BRI 1B2 channel and FSX 4

•BRI 2B1 channel and FXS 5

•BRI 2 B2 channel and FXS 6

LED Color Activity Description

PWR_OK Green Power Status Off—No power.

Steady on—Normal operation.

Blink—Boot up phase or in ROM Monitor mode.

GE0 Green/Amber Link Status Green On—Ethernet port is connected.

Amber On—Fault with PoE. There is a fault with

the inline power supply.

Green/Amber Blinking—Data is either being

received or being transmitted.

Green/Amber Off—Ethernet port is not

connected.

GE1

GE2

GE3

GE4

GE5 Green Link Status On—Ethernet port is connected.

Blinking—Data is either being received or being

transmitted.

Off—Ethernet port is not connected.

GE6

GE7

GE WAN ports Green Link Status On—Port is connected.

Blinking—Data is either being received or being

transmitted.

Off—No link.

SFP WAN

ports Green Link Status On—Port is connected.

Blinking—Data is either being received or being

transmitted.

Off—No link.

VPN_OK Green — Off—No tunnel.

Steady on—At least one tunnel is up.

PPP_OK Green — Off—No PPP session.

Steady on—At least one PPP established.

1-86

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco C891 Series ISRs

Because the LED indicators are shared, the LED illuminates (green) when either port is active. For

example, the LED indicator labeled BRI 1 B1 illuminates when either the BRI1 B1 channel is active or

when the FXS port is active. You can determine the activity status on each interface by using the

following commands.

•For activity status on the FXS ports, use the show port summary command.

•For activity status on the BRI ISDN port, use the show isdn status command.

Figure 1-61 shows a close-up view of the LED indicators.

Figure 1-61 Close-up of the BRI and FXS LED Indicators

Memory

The Cisco 860 series, 880 series, and 890 series routers contain flash memory and main memory.

Flash Memory

The Cisco 860 series, 880 series, and 890 series ISRs use non-upgradable flash memory storage. The

onboard flash memory contains the Cisco IOS software image, the boot flash contains the ROMMON

boot code, and a separate non-volatile flash contains the cookie configuration.

Table 1-32 describes the default flash memory storage.

300149

Table 1-32 Flash Memory Storage

Models Flash Memory Storage

Cisco 860 series and 880 series routers 128 MB

Cisco 880 series voice routers and Cisco 890 series routers 256 MB

Cisco 880 series routers with embedded WLAN antennas 256 MB

Cisco 860VAE routers 8 MB boot flash, 128 MB for IOS

Cisco 860VAE-K9 64 MB boot flash and IOS

1-87

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco C891 Series ISRs

Note Flash memory is not upgradable. An external USB flash memory module may be used if additional flash

memory is needed.

Main Memory

Table 1-33 describes the main onboard memory storage for different router models.

USB Port

Table 1-34 describes the USB ports for different router models.

Table 1-33 Main Onboard Memory Storage

Models Onboard Memory Storage Expandability

Cisco 860 series routers 256 MB Not expandable.

Cisco 860VAE series routers 256 MB Not expandable.

Cisco 880 series routers 256 MB

(expandable to 768 MB) A memory expansion slot accommodates

a PC2-4200, 256-MB or 512-MB double

data rate 2 (DDR2) SODIMM, for a

maximum of 768 MB.

Cisco 880 series routers with

embedded WLAN antennas 512 MB Not expandable.

Cisco 892FSP, 896VA,

897VA, 898EA routers 512 MB Expandable to 1 GB.

Table 1-34 USB Ports

Models USB

Cisco 860 series (non-VAE) No USB ports.

Cisco 860VAE series One USB 1.1-compliant port located on the back panel. The USB

port does not support eToken.

Cisco 860VAE-W-A-K9,

Cisco 860VAE-W-E-K9, and

Cisco

860VAE-POE-W-A-K9

series

For moe information, refer to the “Cisco 860VAE-W-A-K9, Cisco

860VAE-W-E-K9, and Cisco 860VAE-POE-W-A-K9 ISRs” section

on page 1-38.

Cisco 880 series One USB 1.1-compliant port located on the front panel. The USB

port provides connection for USB devices such as security tokens

and flash memory.

Cisco 890 series1

1. Except for Cisco 892FSP, Cisco 896VA, Cisco 897VA, and Cisco 898EA.

Two USB 2.0-compliant ports located on the front panel.

Cisco 892FSP, Cisco 896VA,

Cisco897VA, Cisco 898EA One USB 2.0-compliant port located on the back panel.

1-88

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco C891 Series ISRs

Fan

Some router models do not have a fan, while other models have either one or two fans.

The fans spin at full speed, as a diagnostic aid, immediately after the router is powered up. After the

router has booted, the fans spin as fast as necessary to minimize fan noise while maintaining a safe

internal operating temperature.

The following models have no fan:

•Cisco 892FSP

•Cisco 896VA

•Cisco 897VA

•Cisco 898EA

Power Supply

The Cisco 892FSP has a single +12V power supply input. The Cisco 892FSP power connector is

different from the barrel-type connector on other 890 series models. The AC adapter cable connector has

four pins and a built-in locking mechanism. Figure 3-33 shows the power adapter connector.

The Cisco 896VA, 897VA, and Cisco 898EA use PoE (12 VDC 43 W, -54 VDC 80 W) and non-PoE

(12 VDC 60 W) power supplies.

Power over Ethernet Module

The Cisco 880 series ISRs can include an optional Power over Ethernet (PoE) module that provides

power to 802.3af-compliant devices connected to FE ports 0 and 1.

The Cisco 890 series ISRs can include an optional PoE module that provides power to 802.3af-compliant

devices connected to FE ports 0, 1, 2, and 3.

The PoE module is an option available only for the Cisco 880 series and 890 series ISRs and requires a

48 V external power adapter.

This function can be added to an 880 or 890 series router by installing the PoE adapter card in the router

and inserting the PoE 48 V external power adapter.

Note The Cisco 880 series ISRs with embedded WLAN antennas require a single external power supply: a

30 W power supply for non-POE-enabled routers or a 60 W power supply for POE-enabled routers. For

the back panels of some of these routers, see Figure 1-29 and Figure 1-31.

The following PoE budget is available:

•C867VAE-POE-W-A-K9: 15.4 W (one port PoE)

•Cisco 880 series: 30.8 W (2 ports each 15.4 W)

•Cisco 890 series: 61.6 W (4 ports each 15.4 W)

1-89

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco C891 Series ISRs

3G Cellular Data WAN Connectivity

The 3G (Evolution Data Only [EVDO], Universal Mobile Telecommunications Systems [UMTS])

cellular interface is intended for use as a backup data link, but it can also be used as a primary WAN data

link. The 3G technology is third-generation wide-area cellular technology that is used in voice telephony

and broadband wireless data in a mobile environment.

Some Cisco 880G models come with a 34-mm express card slot ready for use with a commercial 3G card

radio. The 3G express card slot is located on the front panel. For a list of supported 3G cards, see the

Cisco 880 Series Integrated Services Routers Data Sheet.

Other Cisco 880G models come with embedded WAN modems for use over GSM or CDMA networks.

These routers have antenna connectors on the back panel. GSM routers have two SIM card slots. For

information on configuring Cisco 880 series ISRs for 3G, see Configuring Cisco EHWIC and 880G for

3G (EV-DO Rev A) and Configuring Cisco EHWIC and 880G for 3.7G (HSPA+)/3.5G (HSPA).

Wireless LAN Connectivity

The embedded Wi-Fi CERTIFIED™, 802.11a/b/g/n-compliant wireless AP is preinstalled in the router

as an optional feature. The Cisco 860 series routers support autonomous features and network

configurations. The Cisco 880 series and 890 series routers support both autonomous and unified

features and network configurations.

The wireless AP does not have an external Console port. Use the router’s Console port as described in

Chapter 3, “Connecting the Router.” To configure the wireless device, use the Cisco IOS command-line

interface (CLI).

Table 1-35 describes the radios and antennas for the Cisco 860 series, 880 series, and 890 series routers.

Note Cisco 860VAE ISRs do not support wireless LAN connectivity.

The 5-GHz radio operates in the Unlicensed National Information Infrastructure (UNII) 1, 2, 3, 5-GHz

frequency bands.

Table 1-35 Wireless Device Radios and Antennas

Radio Module Platform Radio Band Maximum Data

Throughput1Mode Antenna

Single-band

802.11b/g/n

draft 2.0 radio

module

Cisco 860 and 880 series

routers

Note Cisco 860VAE

ISRs do not

support wireless

LAN connectivity.

2.4 GHz Up to 100 Mb/s Cisco 860 series:

autonomous only

Cisco 880 series:

autonomous and

unified

Three captive,

omnidirectional dipole

antennas: 2 dBi at

2.4 GHz

1-90

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco C891 Series ISRs

Supported Cisco Radio Antennas

The Cisco 891, Cisco 892, and Cisco 892F come with three removable dipole antennas that can be

replaced using the Cisco approved antenna extenders listed in Table 1-36.

Note Cisco supports only the antennas listed in Table 1-36 with the Cisco 890 series dual-band radio module.

Single-band

802.11b/g/n

radio module

Cisco 880 series routers

with embedded WLAN

antennas

2.4 GHz 100 Mb/s per radio,

up to 200 Mb/s

total

Autonomous and

unified Three embedded,

omnidirectional

antennas: 2 dBi at

2.4 GHz

Dual-band

802.11a/n and

802.11b/g/n

radio modules

2.4 GHz

and

5 GHz

Three embedded,

dual-band,

omnidirectional

antennas: 2 dBi at

2.4 GHz and 5 dBi at

5 GHz

Dual-band

simultaneous

802.11a/n and

802.11b/g/n

radio modules

Cisco 890 2.4 GHz

and 5 GHz 100 Mb/s per radio,

up to 200 Mb/s

total

Autonomous and

unified Three dual-band,

removable,

2.4-GHz/5-GHz

omnidirectional dipole

RP-TNC antenna2

1. Actual data rate is highly dependent on your wireless environment.

2. The antennas require some minor installation. They must be screwed onto the RP-TNC antenna connectors on the I/O side of the chassis. See the following

document on Cisco.com for feature information: http://www.cisco.com/en/US/docs/routers/access/wireless/hardware/notes/antdip.html

Table 1-35 Wireless Device Radios and Antennas

Radio Module Platform Radio Band Maximum Data

Throughput1Mode Antenna

Table 1-36 Cisco Antennas Supported on the Cisco 890 Series ISRs

Cisco Part Number Antenna Type Maximum Gain Description

AIR-ANTM2050D-R Omnidirectional 2.0 dBi at 2.4 GHz

5.0 dBi at 5 GHz

This is the default antenna. It is a swivel-mount

dipole dual-band blade antenna. For more

information, see Cisco Multiband Swivel-Mount

Dipole Antenna (AIR-ANTM2050D-R).

AIR-ANTM4050V-R Omnidirectional 4.0 dBi at 2.4 GHz

5.0 dBi at 5 GHz

Ceiling-mount dual-band antenna. This antenna

has a clip that allows it to be mounted on a

drop-ceiling cross member. For more information,

see Cisco Multiband Diversity Omnidirectional

Ceiling-Mount Antenna.

AIR_ANTM5560P-R Patch 5.5 dBi at 2.4 GHz

6.0 dBi at 5 GHz

Wall-mount dual-band antenna. For more

information, see Cisco Multiband Wall-Mount,

Corner-Mount, or Mast-Mount Antenna.

1-91

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco C891 Series ISRs

Small Form-Factor Pluggable Port

The SFP port supports auto-media-detection, auto-failover, and remote fault indication (RFI), as

described in the IEEE 802.3ah specification.

See the Cisco 892F data sheet for a list of supported SFPs.

Feature Summary

Table 1-37 summarizes the hardware features available in the Cisco 860 series, Cisco 880 series, and

Cisco 890 series ISRs.

Table 1-37 Hardware Features Available in Cisco 860 Series, Cisco 880 Series, and Cisco 890 Series ISRs

Feature Description 860 Series 880 Series 890 Series

Reset button Resets the router configuration to the factory default. All models All models All models

Resets the router configuration to customer configuration. 866VAE,

867VAE,

866VAE-K9,

867VAE-K9

——

FE1 built-in

switch ports Provides connection to 10/100BASE-T (10/100-Mb/s)

Fast Ethernet networks. The autosensing function in these

routers eliminates the need for a crossover cable and enables

the router to detect MDI2 or MDIX3 in any other PC or hub

with a straight-through cable or a crossover cable.

All models All models 891, 892,

892F

GE4 built-in

switch port Provides connection to 10/100/1000BASE-T

(10/100/1000-Mb/s) Gigabit Ethernet networks. The

autosensing function in these routers eliminates the need for

a crossover cable and enables the router to detect MDI5 or

MDIX6 in any other PC or hub with a straight-through cable

or a crossover cable.

866VAE-K9,

867VAE-K9 — 892FSP,

896VA,

897VA,

897VAM,

897VAW,

897VAMW,

898EA

Console or AUX

port Provides a connection to the terminal or PC for software

configuration or troubleshooting. The Console port may be

configured as a virtual auxiliary port for dial backup and

remote management.

Cisco 891, Cisco 892, and Cisco 892F have separate console

and auxiliary ports.

Cisco 892FSP has combined console and auxiliary port.

All models All models All models

Security features Provides support for VPNs7, Cisco IOS Firewall, and

IPSec8. The Cisco 880 series routers also provide URL

filtering.

861, 867,

866VAE-K9,

867VAE-K9

All models All models

1-92

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco C891 Series ISRs

Embedded

wireless AP Provides Wi-Fi CERTIFIED™ 802.11a/b/g/n compliance.

The Cisco 860 series routers contain a single 802.11b/g/n

radio.

Some Cisco 880 series routers contain a single 802.11b/g/n

radio while others contain dual 802.11a/n and 802.11b/g/n

radios.

The Cisco 890 series routers contain dual 802.11b/g/n and

802.11a/n radios.

Wireless

models

802.11b/g/n

Wireless

models

802.11b/g/n9

and

802.11a/n10

Wireless

models

802.11b/g/n

and

802.11a/n

FE WAN port Provides connection to 10/100BASE-T. Can be connected to

other network devices, such as a cable modem, an xDSL11

modem, or router. The router is capable of bridging and

multiprotocol routing between the LAN and WAN ports.

861 881 891, 892,

892F

GE WAN port 10/100/1000 GE WAN Port. 866VAE,

867VAE,

866VAE-K9,

867VAE-K9

— All models

VDSLoPOTS12

port Provides connection to a VDSL network. — 887V —

ADSLoPOTS Provides ADSL connection over basic telephone service

with Annex A and Annex B ITU G. 992.1 (ADSL), G.992.3

(ADSL2), and G.992.5 (ADSL).

—— —

ADSLoISDN Provides ADSL connection over ISDN. — — —

DSL Multi-mode

(VDSL and

ADSL2/2+)

Provides ADSL2/2+ or VDSL connection over POTS or

ISDN (ISDN on 886VA only). 866VAE,

867VAE,

866VAE-K9,

867VAE-K9

886VA,

887VA,887V

A-M

892FSP,

896VA,

897VA,

897VAM,

897VAW,

897VAMW,

898EA

Real-time clock

(RTC) RTC provides nonvolatile date and time when the router is

powered on. The RTC is used for verifying the validity of the

Certification Authority stored on the router. It is backed up

by a nonreplaceable lithium battery.

866VAE,

867VAE,

866VAE-K9,

867VAE-K9

All models All models

Table 1-37 Hardware Features Available in Cisco 860 Series, Cisco 880 Series, and Cisco 890 Series ISRs (continued)

Feature Description 860 Series 880 Series 890 Series

1-93

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 1 Product Overview Cisco C891 Series ISRs

USB port, Supports USB 1.1. Provides connection for USB devices

such as security tokens and flash memory.

The Cisco 880 series routers have a single USB port; the

Cisco 890 series routers have two USB ports.

Cisco 880 series routers with embedded WLAN antennas

have one USB 2.0 port.

Cisco 892FSP and Cisco 860VAE series routers have one

USB 2.0 port on the rear panel for temporary installation of

a Cisco-approved USB memory device for maintenance

purposes only. The port supports only USB 2.0. Refer to the

product datasheet for the list of supported USB flash

memory devices.

Note Cisco 860VAE series router USB port does not

support eToken.

866VAE,

867VAE,

866VAE-K9,

867VAE-K9

All models All models

PoE13 (Optional) Provides power for 802.3af-compliant devices

(such as phones) that are connected to the router.

The Cisco 880 series routers support a 2-port PoE module;

the Cisco 890 series routers support a 4-port PoE module.

—Models with

PoE Models with

PoE

G.SHDSL14 port Provides 2-wire or 4-wire connection to a G.SHDSL

network. — 888 898EA

3G15 card slot Provides backup data link. — 3G models —

Dying gasp Detects when the router is losing power, and sends a

power-fail signal to warn the DSLAM16 about the

impending line drop.

866VAE,

867VAE,

866VAE-K9,

867VAE-K9,

xDSL

models

888EA,

xDSL models

892FSP,

896VA,

897VA,

897VAM,

897VAW,

897VAMW,

898EA

Data BRI port Provides backup and remote management functions by

connecting to the ISDN service provider if the main VDSL

or G.SHDSL link fails.

—xDSL

models,

except for the

3G and

SRST17

models

892

V.92 modem Provides dial backup and remote management functions if

the main WAN link fails. — — 891

FXO18 port An FXO interface connects local calls to a central office or

PBX. This is the interface a standard telephone provides. — 881 SRST —

FXS19/DID20

port An FXS interface connects directly to a standard telephone,

fax machine, or similar device. This interface supplies

ringing voltage and dial tone to the station.

— SRST models —

Table 1-37 Hardware Features Available in Cisco 860 Series, Cisco 880 Series, and Cisco 890 Series ISRs (continued)

Feature Description 860 Series 880 Series 890 Series

1-94

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 1 Product Overview

Cisco C891 Series ISRs

BRI voice port The ISDN BRI S/T voice interface provides a client-side

(TE) ISDN S/T physical interface for connection to an NT1

device that terminates an ISDN telephone network.

— 887V —

SFP21 port Supports auto-media-detection, auto-failover, and remote

fault indication (RFI), as described in the IEEE 802.3ah

specification.

See the Cisco 892F data sheet for a list of supported SFPs.

— — 892F

models,

892FSP,

896VA,

897VA,

897VAM,

897VAW,

897VAMW,

898EA

1. FE = Fast Ethernet.

2. MDI = media-dependent interface in normal mode.

3. MDIX = media-dependent interface in crossover mode.

4. GE = Gigabit Ethernet.

5. MDI = media-dependent interface in normal mode.

6. MDIX = media-dependent interface in crossover mode.

7. VPN = Virtual Private Network.

8. IPsec = IP security.

9. This applies to most models of the Cisco 880 series routers.

10. This applies to Cisco 880 series routers with embedded, wireless antennas.

11. xDSL = General term referring to various forms of DSL, including ADSL (asymmetric digital subscriber line), VDSL (very-high-data-rate digital

subscriber line), and G.SHDSL.

12. VDSLoPOTS = very-high-data-rate digital subscriber line 2 over plain old telephone service.

13. PoE = Power over Ethernet. This function can be added to an 880 or 890 series router by installing the PoE adapter card in the router and inserting the

PoE 48-V external power adapter.

14. G.SHDSL = (global industry standard) symmetrical high-speed DSL.

15. 3G = Third-Generation.

16. DSLAM = digital subscriber line access multiplexer.

17. SRST = Survivable Remote Site Telephony.

18. FXO = Foreign Exchange Office.

19. FXS = Foreign Exchange Station.

20. DID = Direct Inward Dialing.

21. SFP = small-form-factor pluggable.

Table 1-37 Hardware Features Available in Cisco 860 Series, Cisco 880 Series, and Cisco 890 Series ISRs (continued)

Feature Description 860 Series 880 Series 890 Series

CHAPTER

2-1

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Installing the Router

This chapter describes the equipment and the procedures for successfully installing the Cisco 860, 880,

890 ISRs, Cisco 819 ISRs, and the Cisco 812 ISRs, and contains the following sections:

•Installing the Cisco 810 ISR, page 2-1

•Installing the Cisco 860, 880, 890 ISR, page 2-38

Installing the Cisco 810 ISR

This section contains the following:

•Installing the Cisco 812 ISR, page 2-1

•Installing the Cisco 819 ISR, page 2-19

Installing the Cisco 812 ISR

This section describes the equipment and the procedures for successfully installing Cisco 812 ISR and

contains the following sections:

•Items Shipped with your Router, page 2-2

•Items Shipped with your PoE+ Splitter, page 2-2

•Installing the Cisco PoE+ Splitter, page 2-2

•Installing the SIM Card, page 2-6

•Installing the 3G Antenna, page 2-8

•Mounting the Cisco 812 ISR, page 2-9

Warning

Installation of the equipment must comply with local and national electrical codes.

Statement 1074

Warning

Voltages that present a shock hazard may exist on Power over Ethernet (PoE) circuits if

interconnections are made using uninsulated exposed metal contacts, conductors, or terminals.

Avoid using such interconnection methods, unless the exposed metal parts are located within a

restricted access location and users and service people who are authorized within the restricted

access location are made aware of the hazard. A restricted access area can be accessed only through

the use of a special tool, lock and key or other means of security.

Statement 1072

2-2

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 2 Installing the Router

Installing the Cisco 810 ISR

Items Shipped with your Router

Unpack the box and verify that all items listed on the invoice were shipped with the Cisco 812 ISR.

The following items are shipped with your router:

•AC power adapter

•Accessory kit 53-3453-01 which contains the following:

–

Pointer document 78-19961-01

–

RCSI document 78-17665-05

–

Console cable 72-3383-01

•Mounting bracket kit C810-BR-CM

–

Includes screws needed for the installation

•Two 3G Dipole antennas

Items Shipped with your PoE+ Splitter

Unpack the box and verify that all items listed on the invoice were shipped with the Cisco PoE+ splitter

(C810-POE-SPL).

The following items are shipped with your PoE+ splitter:

•GE Cat5 cable

•Power cable

•Power cord lock

•Screws needed for the installation

•Shelf bracket

Note The above items are acceptable for use in Plenums and Air-handling spaces.

Installing the Cisco PoE+ Splitter

The PoE+ splitter (C810-POE-SPL) is an optional accessory that is intended to be mounted to the ceiling

tile rails (24 inches span) using the only supported box hanger available from a Cooper B-line BA50

distributor. The screws, cables, and power cord lock needed for the installation are included in the PoE+

splitter accessory kit. A 5 VDC power cable with 1.3 meters in length connects the 5 VDC output of the

PoE+ splitter to the router power input.

To install the Cisco PoE+ splitter, perform these steps:

Step 1 Secure the PoE+ splitter mounting plate into the rail from the BA50 with two 10-24 screws (see

Figure 2-1).

2-3

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 2 Installing the Router Installing the Cisco 810 ISR

Figure 2-1 10-24 Screws

Step 2 Install the PoE+ splitter into the mounting plate with four 6-32 screws. (See Figure 2-2.)

285667

110-24 screws

2Box hanger

3Shelf bracket (PID 700-39491-01)

2-4

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 2 Installing the Router

Installing the Cisco 810 ISR

Figure 2-2 6-32 Screws

Step 3 Connect the supplied plenum rated Cat5 cable to the GE0 port on the PoE+ splitter.

Step 4 Connect the Cat5 cable from your PoE+ source to the PoE+ in port on the PoE+ splitter.

Step 5 Place the power cord lock onto the power cord behind the connector overmold as shown in Figure 2-3.

Slide the power cord lock forward so that it captures the overmold and is fully seated.

Figure 2-3 Placement of the Power Cord Lock onto the Power Cord

285668

16-32 screws 3To PoE+ power source

2Power cable with power cord lock installed 4GE CAT5 cable

345076

1Power cord connector

2Power cord lock

2-5

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 2 Installing the Router Installing the Cisco 810 ISR

Step 6 Install the power cord with power cord lock to the power jack of the PoE+ splitter while making sure

that the two arms of the power cord lock slide into the corresponding slots on the PoE+ splitter and are

fully seated with both arms locking into the slots. Figure 2-4 shows the installation of the power cord

lock and other cables.

In the event that the power cord lock needs to be removed, user your thumb and index fingers to squeeze

the ends of the tabs while pulling away from the PoE+ splitter.

Figure 2-4 Installation of the Power Cord Lock and Other Cables

Step 7 Remove one ceiling tile to gain access.

Step 8 Install the pre-assembled rail with PoE+ splitter into the T-rail. Push down the box hanger mounting clips

to lock into the T-rail as shown in Figure 2-5.

345075

2-6

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 2 Installing the Router

Installing the Cisco 810 ISR

Figure 2-5 T-Rail

Installing the SIM Card

This section describes how to install and replace the SIM card. Ensure that the router is not mounted to

a wall, rack, or DIN rail.

Caution Do not touch any part of the exposed PCB circuit area when the SIM cover is removed.

Warning

Hot surface.

Statement 1079

To install the SIM card, perform these steps:

Step 1 Power off the router and disconnect the power cable from the power source.

Step 2 Place the router on a sturdy solid surface and orient the SIM access panel up to gain access. Ensure that

any installed antennas are oriented appropriately to avoid damage.

Step 3 Remove the SIM access panel being held in place by four 6-32 screws. (See Figure 2-6).

285669

To POE Power

Source

2-7

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 2 Installing the Router Installing the Cisco 810 ISR

Figure 2-6 Accessing the SIM Card

Step 4 Remove the SIM card and install the new cards.

Step 5 Reinstall the same 6-32 flat head screws using a screw driver to secure the access panel back in place.

Figure 2-7 shows the SIM card installed and the SIM access panel closed.

344397

2-8

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 2 Installing the Router

Installing the Cisco 810 ISR

Figure 2-7 SIM Access Panel

Installing the 3G Antenna

Note Install the antenna before you mount the Cisco 812 ISR.

Warning

Do not locate the antenna near overhead power lines or other electric light or power circuits, or

where it can come into contact with such circuits. When installing the antenna, take extreme care

not to come into contact with such circuits, because they may cause serious injury or death. For

proper installation and grounding of the antenna, please refer to national and local codes (for

example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada: Canadian Electrical Code,

Section 54).

Statement 1052

To install the 3G antennas to the router, perform these steps:

Step 1 Manually screw the antenna tight to the TNC connectors on the far left corner of the front panel.

Note It may be easier to straighten out the antenna before attaching it to the TNC connector and then bend it

back to the desired orientation once it is tight.

344398

2-9

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 2 Installing the Router Installing the Cisco 810 ISR

Figure 2-8 Installing the 3G Antenna

Step 2 Orient the antenna perpendicular with respect to the floor. Figure 2-9 shows the 3G antenna installed.

Figure 2-9 3G Antenna Installed

Mounting the Cisco 812 ISR

This section describes the steps in mounting the Cisco 812 ISR in several configurations, including on

a suspended ceiling, on a hard ceiling or wall, and on an electrical or network box. This section contains

the following topics:

•Mounting Hardware, page 2-10

344395

344396

2-10

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 2 Installing the Router

Installing the Cisco 810 ISR

•Mounting Bracket, page 2-10

•Ceiling Grip Clips, page 2-11

•Mounting the Cisco 812 ISR Below a Suspended Ceiling, page 2-13

•Mounting the Cisco 812 ISR on a Hard Ceiling or a Wall, page 2-15

•Mounting the Cisco 812 ISR to a Network or Electrical Box, page 2-17

•Grounding the Cisco 812 ISR, page 2-18

Mounting Hardware

Mounting hardware for the Cisco 812 ISR consists of brackets, which connect to the bottom of the router,

and ceiling grid clips, which connect the bracket to a suspended ceiling. The bracket that you need

depends on the mounting location for the router. The ceiling grid clip that you need depends on the type

of suspended ceiling where you need to install the router. You do not need ceiling grid clips if you are

mounting the router to a hard-surface ceiling or a wall.

Mounting Bracket

The Cisco 812 ISR has only one mounting bracket. The C810-BR-CM universal bracket is versatile. It

works with electrical boxes, can be used for wall mounting, and adapts to ceiling installations.

Figure 2-10 shows the universal bracket installed on the Cisco 812 ISR.

2-11

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 2 Installing the Router Installing the Cisco 810 ISR

Figure 2-10 Universal Bracket Installed on the Cisco 812 ISR

Ceiling Grip Clips

Use a ceiling grid clip to mount the router on a suspended ceiling. The ceiling grid clip that you need

depends on the ceiling tiles on your ceiling. There are two types of ceiling grid clips:

•Ceiling Grid Clip, Recessed (AIR-AP-T-RAIL-R)—If your ceiling tiles hang below the ceiling grid,

this clip provides the best fit between the router and the ceiling.

•Ceiling Grid Clip, Flush (AIR-AP-T-RAIL-F)—If your ceiling tiles are flush with the ceiling grid,

this clip provides a snug fit between the router and the ceiling.

The standard 9/16, 15/16, and 1 ½-inch wide T-rail mounting are supported with the Ceiling Grip Clips.

285644

1Universal bracket

2-12

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 2 Installing the Router

Installing the Cisco 810 ISR

Figure 2-11 shows a ceiling grid clip.

Figure 2-11 Ceiling Grid Clip

Additional Adapters for Channel and Beam Ceiling Rails

The most common type of suspended ceiling support rail (the support for the ceiling tiles) is the ceiling

Tile rail or T-rail for short. You can attach a ceiling grid clip directly to a T-rail ceiling rail. However,

other types of ceiling rails, such as channel rails and beam rails, require an additional adapter clip

(AIR-CHNL-ADAPTER). You need two adapter clips for each router. Set screws on the clips hold them

securely on the ceiling rail.

Figure 2-12 shows the three types of ceiling rails: T-rail, channel, and beam. Figure 2-13 shows the

Cisco Access Point installed with mounting bracket, ceiling grid clip, and adapter clips.

121758

CEILING

GRID

WIDTH

382415

ABC

1-1/2 15/16 9/16

INCH

CEILING

GRID

WIDTH

382415

ABC

1-1/2 15/16 9/16

INCH

1 Locking screws 3 T-rail width detents (A, B, or C)

2 Bracket screw holes

2-13

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 2 Installing the Router Installing the Cisco 810 ISR

Figure 2-12 T-Rail, Channel, and Beam Ceiling Rail Types

Figure 2-13 Adapter Clips Installed with Ceiling Grid Clips

Mounting the Cisco 812 ISR Below a Suspended Ceiling

The recommended power option for the Cisco 812 ISR, when mounted below a suspended ceiling, is the

Cisco C810-POE-SPL (PoE+ splitter) with the use of the supplied 1.3 meter power cable and Cat5 cable

(Plenum rated). The cables can be hidden above the suspended ceiling for a clean installation. See the

“Installing the Cisco PoE+ Splitter” section on page 2-2 for details on installing the PoE+ splitter.

Use a flat screwdriver if there is a need to remove the GE/console cables.

To mount the Cisco 812 ISR below a standard or recessed suspended ceiling, perform these steps.

Step 1 Decide where you want to mount the router on your suspended ceiling.

Step 2 Open the ceiling grid clip completely.

Step 3 Place the ceiling grid clip over the T-rail and close it to the appropriate detent (A, B, or C).

Step 4 Use a screwdriver to tighten the two ceiling grid clip locking screws to prevent the clip from sliding

along the T-rail.

Step 5 Observe the ceiling grid clip width detent letter (A, B, or C) that corresponds to the T-rail width.

Step 6 Align the corresponding holes (A, B, or C) on the mounting bracket over the mounting holes on the

ceiling grid clip.

281531

281532

Adapter clips

Ceiling grid

clip

Mounting

bracket

Access

point

2-14

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 2 Installing the Router

Installing the Cisco 810 ISR

Step 7 Hold the mounting bracket and insert a 6-32 x 0.18-inch screw into each of the four corresponding holes

(A, B, or C) and tighten.

Step 8 If necessary, drill or cut a cable access hole in the ceiling tile large enough for the Ethernet and power

cables. Pull the cables through the access hole until you have about 1 foot of cable protruding from the

hole.

Step 9 (Optional). Use the ground screw to ground the router to a suitable building ground. See the “Grounding

the Cisco 812 ISR” section on page 2-18 for general grounding instructions.

Step 10 Connect the Ethernet and power cables to the router.

Step 11 Align the router feet over the keyhole mounting slots on the mounting bracket. If you created a hole for

the cables, make sure the router is positioned so that the cables reach their respective ports.

Step 12 Gently slide the router onto the mounting bracket until it clicks into place. Figure 2-14 shows the

Cisco 812 ISR mounted on a T-rail ceiling rail using a ceiling grid clip.

2-15

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 2 Installing the Router Installing the Cisco 810 ISR

Figure 2-14 Suspended Ceiling Mounting Details

Mounting the Cisco 812 ISR on a Hard Ceiling or a Wall

This procedure describes the steps required to mount the Cisco 812 ISR on a ceiling constructed of

3/4-inch (19.05 mm) or thicker plywood using #8 fasteners using the universal mounting bracket

(C810-BR-CM).

Note The Cisco 812 ISR integrated antennas perform best when the router is mounted on horizontal surfaces

such as a table top or ceiling. For advanced features such as voice, location, and router detection, ceiling

mounting is strongly recommended. However, for smaller areas such as conference rooms, kiosks,

transportation environments, or hot-spot usage where data coverage is the primary concern, the unit may

be wall mounted using wall anchors or screws.

344533

1 27 8

4 3 65

1 To PoE+ power source 5 GE CAT5 cable to PoE+ splitter

2 Ceiling T-rail 6 Power and GE cable routed through a ceiling

mounting bracket and into the router so that the

cabling is hidden from directly below

3 Ceiling tile with opening cut for

cables 7 Ceiling grip clip

4 Power cable to PoE+ splitter 8 Ceiling mount bracket

2-16

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 2 Installing the Router

Installing the Cisco 810 ISR

Note Wall mounting is only supported with the I/O (antenna) side facing up.

Step 1 Use the mounting bracket as a template to mark the locations of the mounting holes on the bracket.

Figure 2-15 shows details of the mounting bracket.

Caution Be sure to mark all four locations. To ensure a safe and secure installation, make sure you are using

adequate fasteners and mount the router using no less than four fasteners.

Caution Do not use plastic wall anchors for ceiling installations. When mounting the router on a hard ceiling, use

four fasteners capable of maintaining a minimum pullout force of 20 lbs (9 kg).

Figure 2-15 Universal Mounting Bracket Details

Step 2 Use a #29 drill (0.1360 inch [3.4772 mm]) bit to drill a pilot hole at the mounting hole locations you

marked.

Note The pilot hole size varies according to the material and thickness you are fastening. It is recommended

to test the material to determine the ideal hole size for your mounting application.

285646

1 Recommended wall mounting

screw holes 2 Mounting keyholes

2-17

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 2 Installing the Router Installing the Cisco 810 ISR

Step 3 (Optional) Drill or cut a cable access hole near and below the location of the mounting bracket cable

access cover large enough for the Ethernet cable, building ground wire, and power cables.

Step 4 Pull approximately 9 inches of cable through the hole.

Step 5 Route the Ethernet and power cables through the bracket before you attach the bracket to the ceiling or

wall.

Step 6 Route the cables through the main cable access hole and then through the smaller access hole as shown

in Figure 2-16.

Figure 2-16 Routing the Ethernet and Power Cables

Step 7 (Optional) Use the ground screw to attach the building ground wire to the ground location on the base

of the router. See the “Grounding the Cisco 812 ISR” section on page 2-18 for the general grounding

instructions.

Step 8 Position the mounting bracket mounting holes (with indents down) over the pilot holes.

Step 9 Insert a fastener into each mounting hole and tighten.

Step 10 Connect the Ethernet and power cables to the router.

Step 11 Align the router feet with the large part of the keyhole mounting slots on the mounting plate.

Step 12 Gently slide the router onto the mounting bracket keyhole slots until it clicks into place.

Mounting the Cisco 812 ISR to a Network or Electrical Box

To mount the Cisco 812 ISR to a network box or an electrical box, perform these steps:

Step 1 Position the universal mounting bracket (C810-BR-CM) over the existing network or electrical box and

align the bracket mounting holes with the box holes.

Step 2 Hold the mounting bracket in place and insert a 6-32 x 0.18-inch pan head screw into each of the

mounting holes and tighten.

Step 3 Pull approximately 9 inches of Ethernet and power cable through the hole.

344775

2-18

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 2 Installing the Router

Installing the Cisco 810 ISR

Step 4 Route the cables through the bracket before you attach the bracket to the ceiling.

Step 5 Route the cables through the main cable access hole and then through the smaller access hole as shown

in Figure 2-16.

Step 6 (Optional) Use the ground screw to attach the building ground wire to the ground location on the base

of the router. See the “Grounding the Cisco 812 ISR” section on page 2-18 for the general grounding

instructions.

Step 7 Connect the Ethernet and power cables to the router.

Step 8 Align the router feet over the keyhole mounting slots on the optional mounting bracket.

Step 9 Slide the router onto the optional mounting bracket until it clicks into place.

Grounding the Cisco 812 ISR

Grounding is not always required for indoor installations because the Cisco 812 ISR is classified as a

low-voltage device and does not contain internal power supplies. However, it is recommended that you

check your local and national electrical codes to see if grounding is a requirement. If grounding is

required in your area or you wish to ground your router, perform the following steps:

Warning

Use copper conductors only.

Statement 1025

Warning

This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the

absence of a suitably installed ground conductor. Contact the appropriate electrical inspection

authority or an electrician if you are uncertain that suitable grounding is available.

Statement 1024

Warning

When installing or replacing the unit, the ground connection must always be made first and

disconnected last.

Statement 1046

Warning

This equipment needs to be grounded. Use a green and yellow 12 to 14 AWG ground wire to connect

the host to earth ground during normal use.

Statement 242

Step 1 Find a suitable building grounding point as close to the router as possible.

Step 2 Connect a user-supplied ground wire to the building grounding point. The wire should be a minimum of

#14AWG assuming a circuit length of 25 feet (30.5 cm). Consult your local electrical codes for

additional information.

Step 3 Route the ground wire to the router.

Step 4 Attach the wire to a suitable grounding ring lug.

Step 5 Crimp or solder the wire to the lug.

Step 6 Use a Phillips screwdriver to remove the existing 6-32 screw at the grounding location as shown in

Figure 2-17.

2-19

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 2 Installing the Router Installing the Cisco 810 ISR

Figure 2-17 Connecting the Ring Lug onto the Grounding Point

Step 7 Connect the ring lug to the router grounding point and reinstall the same 6-32 screw.

Installing the Cisco 819 ISR

This section describes the equipment and the procedures for successfully installing the Cisco 819 ISR

and contains the following sections:

•Equipment, Tools, and Connections, page 2-20

•Installing the Router, page 2-22

•Mounting the DC Power Supply, page 2-37

Note For compliance and safety information, see the Regulatory Compliance and Safety Information

Roadmap that ships with the router and the Regulatory Compliance and Safety Information for Cisco 800

Series Routers.

Warning

Read the installation instructions before connecting the system to the power source.

Statement 1004

1 2

302791

16-32 ground screw

2Ground wire

2-20

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 2 Installing the Router

Installing the Cisco 810 ISR

Warning

This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the

absence of a suitably installed ground conductor. Contact the appropriate electrical inspection

authority or an electrician if you are uncertain that suitable grounding is available.

Statement 1024

Warning

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Statement

1030

Warning

No user-serviceable parts inside. Do not open.

Statement 1073

Warning

Ultimate disposal of this product should be handled according to all national laws and regulations.

Statement 1040

Warning

Read the wall-mounting instructions carefully before beginning installation. Failure to use the

correct hardware or to follow the correct procedures could result in a hazardous situation to people

and damage to the system.

Statement 378

Warning

The covers are an integral part of the safety design of the product. Do not operate the unit without the

covers installed.

Statement 1077

Warning

Do not locate the antenna near overhead power lines or other electric light or power circuits, or

where it can come into contact with such circuits. When installing the antenna, take extreme care

not to come into contact with such circuits, because they may cause serious injury or death. For

proper installation and grounding of the antenna, please refer to national and local codes (for

example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada: Canadian Electrical Code,

Section 54).

Statement 1052

Warning

This product is not intended to be directly connected to the Cable Distribution System. Additional

regulatory compliance and legal requirements may apply for direct connection to the Cable

Distribution System. This product may connect to the Cable Distribution System ONLY through a

device that is approved for direct connection.

Statement 1078

Equipment, Tools, and Connections

This section describes the equipment, tools, and connections necessary for installing your Cisco 819

ISR. It contains the following topics:

•Items Shipped with your Router, page 2-21

•Additional Items, page 2-21

•Connections, page 2-21

•Ethernet Devices, page 2-21

2-21

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 2 Installing the Router Installing the Cisco 810 ISR

Items Shipped with your Router

Unpack the box and verify that all items listed on the invoice were shipped with the Cisco 819 ISR.

The following items are shipped with your router:

•AC power supply (default)

•AC power supply cable (default)

•Cisco Configuration Professional (Cisco CP) CD

•DC power supply (optional)

•Power cord retention lock (available in Cisco 819HGW, Cisco 819HWD, Cisco 819HG-4G, and

Cisco 819G-4G ISRs only)

•Power switch lock (available in Cisco 819HGW, Cisco 819HWD, and Cisco 819HG-4G ISRs only)

•RJ-45-to-DB-9 console cable.

•Straight-through RJ-45 Ethernet cable

•Two cellular multiband swivel mount dipole antennas

•Three WiFi antennas for Cisco 819HGW and Cisco 819HWD ISRs

Note AC or DC Power supply is included based on the your order.

Additional Items

The following items are not shipped with the router but are required for installation:

•ESD-preventive cord and wrist strap.

•Screws for mounting the router on a wall.

•Two number-10 wood screws (round- or pan-head) with number-10 washers or two number-10

washer-head screws, for mounting on a wall stud. The screws must be long enough to penetrate at

least 3/4 inch (20 mm) into the supporting wood or metal wall stud.

•Two number-10 wall anchors with washers, for mounting the router on a hollow wall.

•Wire crimper for chassis grounding.

•Wire for connecting the chassis to an earth ground.

•AWG 14 (2 mm2) or larger wire for NEC-compliant chassis grounding.

•AWG 18 (1 mm2) or larger wire for EN/IEC 60950–compliant chassis grounding.

•Ring terminal with an inner diameter of 1/4 inch. (5 to 7 mm) for NEC-compliant chassis grounding.

•Ethernet cables for connecting to the Fast Ethernet (FE) WAN and LAN ports.

Connections

Obtain a broadband or Ethernet connection from your service provider.

Ethernet Devices

Identify the Ethernet devices that you will connect to the router: hub, servers, and workstations or PCs.

Ensure that each device has a network interface card (NIC) for connecting to Ethernet ports.

2-22

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 2 Installing the Router

Installing the Cisco 810 ISR

If you plan to configure the software using Cisco IOS commands through the console port, provide an

ASCII terminal or a PC that is running terminal emulation software to connect to the console port.

If you plan to connect a modem, provide the modem and modem cable.

Installing the Router

This section describes how to install the Cisco 819 ISR. These routers can be installed on a table top or

other flat horizontal surface mounted on a wall or DIN rail.

The recommended clearance when horizontally mounted is 1.5 inches on both sides for floor mount

bracket clearance and 2 inches on top. Top clearance is not required but stacking heat-dissipating objects

on top of the router is not allowed. I/O side clearance is needed as it is required to access the cable

connections. Clearance is not required on the backside (opposite side from I/O face) unless DIN rail

mounting is required. Clearance is required to attach and mount the DIN rail bracket. The same

clearances apply when mounted vertically.

This section also describes how to attach external antennas to the routers and contains the following

topics:

•Warnings, page 2-22

•Accessing the SIM Card, page 2-23

•Installing Antennas, page 2-24

•Installing a WiFi External Antenna, page 2-24

•Installing on a Table, page 2-25

•Mounting on a Wall, page 2-25

•Installing a DIN Rail, page 2-27

•Installing the Router Using the Configurable Low Profile DIN Mount, page 2-30

•Installing the Power Cord Retention Lock, page 2-34

•Installing the Power Switch Lock, page 2-35

Warnings

Warning

This equipment needs to be grounded. Use a green and yellow 12 to 14 AWG ground wire to connect

the host to earth ground during normal use.

Statement 242

Warning

This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the

absence of a suitably installed ground conductor. Contact the appropriate electrical inspection

authority or an electrician if you are uncertain that suitable grounding is available.

Statement 1024

Warning

Read the wall-mounting instructions carefully before beginning installation. Failure to use the

correct hardware or to follow the correct procedures could result in a hazardous situation to people

and damage to the system.

Statement 378

2-23

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 2 Installing the Router Installing the Cisco 810 ISR

Warning

Do not cover or obstruct the router vents located on both sides of the router; otherwise, overheating

could occur and cause damage to the router.

Warning

Do not place anything on top of the router that weighs more than 10 pounds (4.5 kilograms), and do not

stack routers on a desktop. Excessive weight on top of the router could damage the chassis.

Warning

Do not install the router or power supplies next to a heat source of any kind, including heating vents.

Accessing the SIM Card

This section describes how to install and replace the SIM card. Ensure that the router is not mounted to

a wall, floor, or DIN rail.

Caution Do not touch any part of the exposed PCB circuit area when the SIM cover is removed.

Warning

Hot surface.

Statement 1079

To access the SIM card in the Cisco 819 ISR, follow these steps:

Step 1 Power off the router and disconnect the power cable from the power source.

Step 2 Place the router on its side and ensure that any installed antennas are carefully oriented.

Step 3 Remove the SIM access panel using four flat head #6 screws. (See Figure 2-18.)

Step 4 Remove the SIM card and install the new cards.

Figure 2-18 Accessing the SIM Cards

Step 5 Replace the panel and the screws.

245829

2-24

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 2 Installing the Router

Installing the Cisco 810 ISR

Installing Antennas

Note Before you install the Cisco 819 ISR on a table, wall, or DIN rail, install the antennas on the front panel.

It is difficult to install the antennas after the router is installed.

To attach the radio antennas to your wireless router, follow these steps:

Step 1 Manually screw the antenna tight to the TNC connectors on the back of the router. (See Figure 2-19.)

Figure 2-19 Installing the Antenna

Step 2 Orient the antennas. For optimum wireless performance, antennas should be generally perpendicular to

each other.

If the router is being mounted on a desk, orient the antennas straight up.

Installing a WiFi External Antenna

This section describes how to install a WiFi external antenna.

Step 1 Install the lightning arrestor. For details in installing lightning arrestor, see Cisco Aironet Lightning

Arrestor (AIR-ACC245LA-R).

Step 2 Rotate the knurled portion of the WiFi external antenna clockwise to screw the antenna to the RP-TNC.

(See Figure 2-20.)

Note WiFi antennas should be generally perpendicular to each other to achieve best coverage.

245548

2-25

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 2 Installing the Router Installing the Cisco 810 ISR

Figure 2-20 Cisco WiFi Antenna Assembly

Installing on a Table

To install the router on a table or other flat horizontal surface, firmly place the router on a table or other

horizontal surface. Keep at least 1 inch (2.5 centimeters) of clear space for heat dissipation.

Connect the chassis to a reliable earth ground. For the chassis ground connection procedures, see the

“Installing the Router Using the Configurable Low Profile DIN Mount” section on page 2-30.

Mounting on a Wall

The Cisco 819 ISR has mounting holes on the bottom of the chassis for mounting the unit on a wall or

other vertical surface. The attachment hardware is provided.

Tip When choosing a location for wall-mounting the router, consider cable limitations and wall structure.

344030

13G Dipole External Antenna 3RP-TNC Connector

2WiFi 2.4/5 Ghz Dipole External Antenna

2-26

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 2 Installing the Router

Installing the Cisco 810 ISR

To mount the router on a wall, follow these steps:

Step 1 Remove the screws on the sides of the routers.

Step 2 Attach the standard brackets to the chassis using the three screws provided for each bracket. (See

Figure 2-21.)

Figure 2-21 Attaching the Standard Brackets

Step 3 Install the router to a wall stud using two number-10 wood screws, round- or pan-head, with number-10

washers or two number-10 washer-head screws. The screws must be long enough to penetrate at least 1.0

inch (25.4 mm) into the supporting wood or metal wall stud. (See Figure 2-22.)

Note The orientation of the Cisco 819 ISR products is critical when wall-mounting. The router must

be oriented as shown in Figure 2-22 with the left side of the router rotated up (as viewed from

the IO side) to comply with IP41 and safety criteria. No other wall mounting orientation is

supported.

282622

2-27

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 2 Installing the Router Installing the Cisco 810 ISR

Figure 2-22 Installing the Router to the Wall

Note For hollow-wall mounting, each bracket requires two wall anchors with washers. Wall anchors and

washers must be size number 10.

Step 4 Route the cables so that they do not put a strain on the connectors or mounting hardware.

To comply with IP 41, cables should be routed down relative to the router to prevent water from

travelling on the cables.

Installing a DIN Rail

You can use either the 7.5-mm or the 15-mm thick DIN rail for the Cisco 819 ISR. Secure the DIN rail

to the mounting surface approximately every 7.8 inches (200 mm) and use end-anchors appropriately.

Note DIN rail mounting is not supported on Cisco 819HGW and Cisco 819HWD ISRs.

282623

2-28

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 2 Installing the Router

Installing the Cisco 810 ISR

To attach the Cisco 819 ISR to a 35-mm wide DIN rail, follow these steps.

Step 1 Attach the DIN rail to the back of the router using the three screws provided. (See Figure 2-23.)

Figure 2-23 Attaching the DIN Rail to the Cisco 819 ISR

Step 2 Find the tab on the end of the DIN rail that extends past the router. (See Figure 2-24.) Press the tab in

and slide the DIN rail out while the tab is pressed down.

Figure 2-24 DIN Rail Tab

Step 3 Turn the router sideways so that the antenna is at the top.

Step 4 Position the rear edge of the router directly in front of the DIN rail, making sure that the DIN rail fits in

the space between the latch and hook.

Step 5 Position the router so that the hook on the DIN rail bracket hooks onto the top edge of the DIN rail. The

weight of the product can rest on the hook temporarily while the DIN rail bracket latches are secured.

Step 6 Push the DIN rail bracket latch up after the router is over the DIN rail to secure it. The router is now

installed in the DIN rail. (See Figure 2-25.)

282624

282625

2-29

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 2 Installing the Router Installing the Cisco 810 ISR

Figure 2-25 Cisco 819 ISR Installed with the DIN Rail

282626

2-30

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 2 Installing the Router

Installing the Cisco 810 ISR

Installing the Router Using the Configurable Low Profile DIN Mount

If space is limited between the DIN rail and the enclosure cover, the Configurable Low Profile DIN

Mount can be utilized to mount the router flat against the DIN rail. It can also be configured in three

different ways to allow router cabling to exit from the bottom, right or left.

Figure 2-26 Configurable Low Profile DIN Mount standard configuration

391198

2-31

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 2 Installing the Router Installing the Cisco 810 ISR

Configuring the Mount

Figure 2-27 Low Profile DIN Mount Configuration

The mount comes configured in a bottom cable exit position, with the rail latches in the slots marked

Bottom. To reconfigure the mount:

1. Remove the two DIN Rail Latch Bracket Screws (Item 2).

2. Slide the DIN Rail Latch Brackets (Item 5) and DIN Rail Latch (Item 6) against the spring pressure,

towards the edge of the tray and remove the bracket and latch assembly. Be careful not to lose the

springs.

3. Remove the DIN Rail Latch Springs (Item 4)

4. Identify the desired mounting configuration and replace the latch assemblies in slots with the

matching labels, using the reverse order of steps 1 through 3.

1Mount tray 4DIN Rail Latch Springs

2DIN Rail Latch Bracket Screws 5DIN Rail Brackets

3Mount Serial Number 6DIN Rail Latch

391199

2-32

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 2 Installing the Router

Installing the Cisco 810 ISR

Attaching the mount to the router

Figure 2-28 Cisco ISR 819 mounted in a Configurable Low Profile DIN mount

To attach the router to the mount:

1. Remove the bottom screw of the 3 screws on the sides of the router at the front.

2. Slip the router into the mount tray

3. Align the holes at the front sides of the mount with the vacant screw holes on the router and

screw the mount to the router with the longer, 6-32 x .375 Philips/Pan Head screws with locking

washer (Cisco 48-0422-01), which are included with the kit.

4. Remove the screw near the middle on the back of the router

5. Locate the “L” bracket that came with the mount, and screw the bracket to the router with the

other 6-32 x .375 Philips/Pan Head screw and locking washer (Cisco 48-0422-01).

6. Now screw the bracket to the mount with the shorter, supplied, 6-32 x .25 Philips/Pan Head

screw and locking washer (Cisco 48-0421-01).

Attaching the Assembled Router and Configurable DIN Mount to the DIN Rail

Once the mount has been configured according to need, and the router has been attached to the mount,

the assembly is ready to be snapped onto the DIN rail.

391253

2-33

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 2 Installing the Router Installing the Cisco 810 ISR

Installing the Router Ground Connection

The router must be connected to a reliable earth ground. Install the ground wire in accordance with local

electrical safety standards.

•For NEC-compliant grounding, use size 14 AWG (2 mm2) or larger copper wire and a ring terminal

with an inner diameter of 1/4 in. (5 to 7 mm).

•For EN/IEC 60950-compliant grounding, use size 18 AWG (1 mm2) or larger copper wire.

Warning

This equipment needs to be grounded. Use a green and yellow 12 to 14 AWG ground wire to connect

the host to earth ground during normal use.

Statement 242

To install the ground connection, follow these steps:

Step 1 Strip one end of the ground wire to the length required for the terminal.

Step 2 Crimp the ground wire to the ring terminal using the wire crimper.

Step 3 If you choose to install the power switch lock, perform Step 5 to Step 7. Otherwise, perform Step 4,

Step 6 and Step 7.

Step 4 Attach the ring terminal to the chassis. Use the single screw provided. Tighten the screws to a torque of

8 to 10 inch-pound (0.9 to 1.1 newton meter). (See Figure 2-29.)

Figure 2-29 Chassis Ground Connection Using Ring Terminal

Step 5 Install the power switch lock, see the “Installing the Power Switch Lock” section on page 2-35. Tighten

the screws to a torque of 8 to 10 in-lb (0.9 to 1.1 N-m). Torque the hex standoff to the same torque.

Step 6 Connect the other end of the ground wire to a known reliable earth ground point at your site.

Step 7 If you are using this router in a vehicle, attach the ring terminal to the chassis using one of the screws

provided and the green or green and yellow striped wire. Connect the other end of the wire to the vehicle

ground.

1Ring terminal

245828

2-34

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 2 Installing the Router

Installing the Cisco 810 ISR

After you install and properly ground the router, you can connect the power wiring, the LAN cables, and

the cables for administrative access as required for your installation.

Installing the Power Cord Retention Lock

The Cisco 819 ISRs have a power cord retention mechanism as an accessory. It locks the power cord to

the router so when a user accidentally pulls out the power cord, the power cord will not come out from

the router. For the complete list of Cisco 819 ISRs that support power cord retention lock, see Table 1-7.

This section describes how to install the power cord retention lock.

Step 1 Pre-assemble the o-ring onto the barrel of the power cord as shown in Figure 2-30.

Figure 2-30 Pre-assemble the O-Ring onto the Barrel

Step 2 Place the power cord lock onto the power cord behind the connector overmold as shown in Figure 2-31.

Slide the power cord lock forward so that it captures the overmold and is fully seated.

Figure 2-31 Place the Power Cord Lock onto the Power Cord

285515

1O-ring 3Power cord lock

2Power cord connector

285516

1O-ring 2Power cord lock

2-35

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 2 Installing the Router Installing the Cisco 810 ISR

Step 3 Install the power cord with power cord lock and the pre-installed o-ring to mate with the power jack on

the router while making sure that the two arms of the power cord lock slide into the corresponding slots

on the router and are fully seated with both arms locking into the slots as shown in Figure 2-32.

Figure 2-32 Installing Power Cord Lock onto the Router

Step 4 To remove the power cord lock, use your thumb and index fingers to squeeze ends of tabs while pulling

away from the router. (See Figure 2-33.)

Figure 2-33 End of Tabs

Installing the Power Switch Lock

The Cisco 819 ISRs have a power switch lock as an accessory. The power switch lock prevents

unauthorized access to a tampered proof router (for example, router in a bus). For the complete list of

Cisco 819 ISRs that support power switch lock, see Table 1-7.

This section describes how to install the power switch lock.

Step 1 Install the power switch lock by following the parts listed in Figure 2-34.

All these parts are in the accessory kit in their own bag. The ring terminal does not have to be installed.

Figure 2-35 shows the power switch lock installed.

285517

285518

1End of tabs

2-36

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 2 Installing the Router

Installing the Cisco 810 ISR

Figure 2-34 Installing Power Switch Lock

Figure 2-35 Power Switch Lock Installed

344033

1Ring terminal 4Power switch lock

2Power switch lock washer 5Pan-head screw

3Power switch lock standoff

344034

2-37

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 2 Installing the Router Installing the Cisco 810 ISR

Mounting the DC Power Supply

Warning

Read the wall-mounting instructions carefully before beginning installation. Failure to use the

correct hardware or to follow the correct procedures could result in a hazardous situation to people

and damage to the system.

Statement 378

The Cisco 800 ISR DC power supply may be mounted to a wall using four #6 pan- or round-head wood

screws for the mounting holes on the supply.

Caution Each mounting screw must go into a wall stud (wood) or a wall anchor of the appropriate type for the

wall. Screws into drywall is not sufficient to support the DC power supply.

•For attaching to a wall stud, the power supply requires #6 wood screws (round- or pan-head). The

screws must be long enough to penetrate and tap at least 0.75 inches (19.1 mm) into the supporting

wood or metal wall stud.

•For hollow-wall mounting, the power supply requires the use of appropriate-sized wall anchors that

work with the drywall thickness the unit is to be installed in. Use hollow-wall anchors that support

using #6 screws and use #6 pan- or round-head screws to secure the power supply to the wall. Each

wall anchor should be rated for at least 30 lbs.

Caution If the screws are not properly anchored, the strain of the DC supply cables could pull the router from the

wall.

Figure 2-36 DC Power Supply Wall-Mounting Features

To mount the DC power supply to the wall, follow these instructions:

Step 1 Install the four screws into the mounting holes on the DC power supply (see Figure 2-36) before being

secured to the wall studs or wall anchors.

Step 2 Hang the DC power supply by securing the screws to the wall stud or into the wall anchors.

2.05

2.44

(2.95)

(1.97)

302465

(3.63)

4X (.48)

4X .17

2-38

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 2 Installing the Router

Installing the Cisco 860, 880, 890 ISR

Note The DC supply is IP 41 compliant in all six orthogonal directions. The mounting orientation will

not affect IP 41 compliance.

Installing the Cisco 860, 880, 890 ISR

This section describes the equipment and the procedures for successfully installing the Cisco 860 series,

880 series, and 890 series ISRs, and contains the following sections:

•Equipment, Tools, and Connections, page 2-39

•Installing the Cisco 860, 880, and 890 Series Routers, page 2-40

•Installing the C881G-B/S/V-K9 ISR, page 2-54

•Installing the C881GW-S/V-A-K9 ISR, page 2-54

•Installing the C881G-U-K9 ISR, page 2-54

•Installing the Cisco 880G for 3.7G (HSPA+)/3.5G (HSPA) ISRs, page 2-56

Note For compliance and safety information, see the Regulatory Compliance and Safety Information

Roadmap that ships with the router and the Regulatory Compliance and Safety Information for Cisco 800

Series Routers.

Warning

All wireless LAN products in the 5.2/5.3GHz band cannot be used outdoors. Use the product only

indoors.

Statement 372

Warning

Read the installation instructions before connecting the system to the power source.

Statement 1004

Warning

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Statement 1030

Warning

Ultimate disposal of this product should be handled according to all national laws and regulations.

Statement 1040

Warning

Do not locate the antenna near overhead power lines or other electric light or power circuits, or

where it can come into contact with such circuits. When installing the antenna, take extreme care

not to come into contact with such circuits, because they may cause serious injury or death. For

proper installation and grounding of the antenna, please refer to national and local codes (for

example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada: Canadian Electrical Code,

Section 54).

Statement 1052

Warning

No user-serviceable parts inside. Do not open.

Statement 1073

2-39

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 2 Installing the Router Installing the Cisco 860, 880, 890 ISR

Equipment, Tools, and Connections

This section describes the equipment, tools, and connections necessary for installing your Cisco 860

series, 880 series, and 890 series ISRs. It contains the following topics:

•Items Shipped with your Router, page 2-39

•Additional Items, page 2-39

•Connections, page 2-40

•Ethernet Devices, page 2-40

Items Shipped with your Router

Unpack the box and verify that all items listed on the invoice were shipped with the router.

Table 2-1 lists the items and their quantities that are shipped with each router model.

Additional Items

The following items are not shipped with the router but are required for installation:

•ESD-preventive cord and wrist strap.

•Screws for mounting the router on a wall:

–

Two number-10 wood screws (round- or pan-head) with number-10 washers, or two number-10

washer-head screws, for mounting on a wall stud. The screws must be long enough to penetrate

at least 3/4 in. (20 mm) into the supporting wood or metal wall stud.

Table 2-1 Items and Their Quantities That Are Shipped with the Cisco 860 Series, Cisco 880

Series, and Cisco 890 Series ISRs

Item

Cisco 860

Series

Routers

Cisco

860VAE

Series

Routers1

1. By default, no cables are shipped with Cisco 860VAE models unless requested through the dynamic configuration tool.

Cisco 880

Series

Routers

Cisco 890

Series

Routers

Straight-through RJ-45 Ethernet cable 1 — 1 1

ADSL RJ-11-to-RJ-11 straight-through cable———1

RJ-11 DSL2 cable

2. DSL = digital subscriber line.

3. Shipped with Cisco 867 models only.

n/a 14

4. Shipped with Cisco 886, 887, 887M, and 886-J models only.

DSL RJ-45-to-dual-RJ-11 breakout cable — n/a 15

5. Shipped with Cisco 888E models only.

RJ-45-to-DB-9 console cable 1 — 1 1

External 12 VDC power supply adapter 1111

AC power supply cable with cable retention clip1111

Cisco Configuration Professional (Cisco CP) CD6

6. Cisco CP is optional by order and available only on some SKUs.

1111

2-40

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 2 Installing the Router

Installing the Cisco 860, 880, 890 ISR

–

Two number-10 wall anchors with washers, for mounting the router on a hollow-wall.

•Wire crimper for chassis grounding.

•Wire for connecting the chassis to an earth ground:

–

AWG 14 (2 mm2) or larger wire for NEC-compliant chassis grounding.

–

AWG 18 (1 mm2) or larger wire for EN/IEC 60950–compliant chassis grounding.

•Ring terminal with an inner diameter of 1/4 in. (5 to 7 mm), for NEC-compliant chassis grounding.

•Ethernet cables for connecting to the Fast Ethernet (FE) WAN and LAN ports.

Connections

Obtain a broadband or Ethernet connection from your service provider.

Ethernet Devices

Identify the Ethernet devices that you will connect to the router: hub, servers, and workstations or PCs.

Ensure that each device has a network interface card (NIC) for connecting to Ethernet ports.

•If you plan to configure the software using Cisco IOS commands through the console port, provide

an ASCII terminal or a PC that is running terminal emulation software to connect to the console port.

•If you plan to connect a modem, provide the modem and modem cable.

•If you plan to use the Data BRI port, provide an NT1 device and an ISDN S/T cable.

•If you plan to use the cable-lock feature, provide a Kensington or equivalent locking cable.

Installing the Cisco 860, 880, and 890 Series Routers

This section describes how to install the Cisco 860 series, 880 series, and 890 series ISRs. These routers

can either be installed on a table top or other flat horizontal surface or be mounted on a wall. The

Cisco 890 series ISRs may be mounted in a rack. This section also describes how to attach WLAN

antennas to the Cisco 890 series routers. This section contains the following topics:

•Warnings, page 2-40

•Installing on a Table, page 2-41

•Mounting on a Wall, page 2-41

•Installing the Router Ground Connection, page 2-44

•Installing the FIPS Cover, page 2-44

•Installing Antennas for Cisco 890 Series, page 2-48

•Installing Cisco 890 Series in a Rack, page 2-52

Warnings

Warning

This equipment needs to be grounded. Use a green and yellow 12 to 14 AWG ground wire to connect

the host to earth ground during normal use.

Statement 242

2-41

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 2 Installing the Router Installing the Cisco 860, 880, 890 ISR

Warning

This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the

absence of a suitably installed ground conductor. Contact the appropriate electrical inspection

authority or an electrician if you are uncertain that suitable grounding is available.

Statement 1024

Warning

Read the wall-mounting instructions carefully before beginning installation. Failure to use the

correct hardware or to follow the correct procedures could result in a hazardous situation to people

and damage to the system.

Statement 378

Note • Do not stack anything on top of the router.

•Do not cover or obstruct the router vents located on both sides and top of the routers; otherwise,

overheating could occur and cause damage to the router.

•Place router in ventilated area to avoid local air heating.

Caution Do not cover or obstruct the router vents located on both sides of the router; otherwise, overheating could

occur and cause damage to the router.

Caution Do not place anything on top of the router that weighs more than 10 pounds (4.5 kilograms), and do not

stack routers on a desktop. Excessive weight on top of the router could damage the chassis.

Caution Do not install the router or power supplies next to a heat source of any kind, including heating vents.

Caution The top surface of the router is hot since heat is dissipated through the top. Do not keep any object in

direct contact with the surface for a prolonged period.

Installing on a Table

To install the router on a table or other flat horizontal surface, firmly place the router on a table or other

horizontal surface. Keep at least 1 inch (2.5 cm) of clear space beside the cooling inlet and exhaust vents.

Connect the chassis to a reliable earth ground. For the chassis ground connection procedures, see the

“Installing Cisco 890 Series in a Rack” section on page 2-52.

Note Do not place anything on top of the router.

Mounting on a Wall

The Cisco 860 series, 880 series, and 890 series ISRs have mounting holes on the bottom of the chassis

for mounting the unit on a wall or other vertical surface.

2-42

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 2 Installing the Router

Installing the Cisco 860, 880, 890 ISR

The mounting holes are bidirectional. You can hang the router with the front bezel facing upward or

downward.

Keep at least 1 inch (2.5 cm) of clear space beside the cooling inlet and exhaust vents.

Tip When choosing a location for wall-mounting the router, consider cable limitations and wall structure.

To mount the router on a wall, follow these steps:

Step 1 Determine the required distance between mounting holes on the router. Figure 2-37 shows the

wall-mount holes located on the underside of the router.

Note For most router models, the distance between mounting holes is 8.2 inches (208 mm), as shown

in Figure 2-37. For the Cisco 866 and Cisco 867 models, the distance is 7.85 inches (199 mm).

Verify the required distance before drilling the holes.

Figure 2-37 Wall-mount Holes on the Underside of the Router

Step 2 Insert the screws, with anchors, into the wall. Leave 1/8 inch (0.32 cm) between the screw head and the

wall. See Figure 2-38.

1Wall-mount holes

231987

3.673 in.8.200 in.

5.961 in.

2-43

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 2 Installing the Router Installing the Cisco 860, 880, 890 ISR

Step 3 Hang the router on the screw without forcibly pushing towards the wall side. The screw head may

damage the protection wall inside. Place the power adapter on a nearby horizontal surface. See

Figure 2-38.

Figure 2-38 Router Mounted on the Wall

Step 4 Connect the chassis to a reliable earth ground. For the chassis ground connection procedures, see the

“Installing Cisco 890 Series in a Rack” section on page 2-52.

1Two number-10 wood screws mounted on the

wall 3Horizontal surface on which to place the

power adapter

2Wall-mount holes 4Distance between the screw head and the wall,

1/8 in. (0.32 cm)

231982

2-44

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 2 Installing the Router

Installing the Cisco 860, 880, 890 ISR

Installing the Router Ground Connection

The router must be connected to a reliable earth ground. Install the ground wire in accordance with local

electrical safety standards.

•For NEC-compliant grounding, use size 14 AWG (2 mm2) or larger copper wire and a ring terminal

with an inner diameter of 1/4 in. (5 to 7 mm).

•For EN/IEC 60950–compliant grounding, use size 18 AWG (1 mm2) or larger copper wire.

To install the ground connection, follow these steps:

Step 1 Strip one end of the ground wire to the length required for the ground lug or terminal.

Step 2 Crimp the ground wire to the ground lug or ring terminal, using the wire crimper.

Step 3 Attach the ground lug or ring terminal to the chassis, as shown in Figure 2-39. For a ground lug, use the

two provided screws with captive locking washers. For a ring terminal, use one of the screws provided.

Tighten the screws to a torque of 8 to 10 in-lb (0.9 to 1.1 N-m).

Figure 2-39 Chassis Ground Connection Using Ring Terminal

Step 4 Connect the other end of the ground wire to a known reliable earth ground point at your site.

After you install and properly ground the router, you can connect the power wiring, the WAN and LAN

cables, and the cables for administrative access as required for your installation.

Installing the FIPS Cover

To install the FIPS cover in the router, perform these steps:

1Ring terminal

231981

2-45

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 2 Installing the Router Installing the Cisco 860, 880, 890 ISR

Step 1 Remove the four mounting screws of the top cover.

284921

2-46

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 2 Installing the Router

Installing the Cisco 860, 880, 890 ISR

Step 2 Install the left-side FIPS cover, as shown in detail A.

Step 3 Rotate and bring into the close position to hinge to the correct hexagon.

Step 4 Place the adapter plate before closing by aligning the mounting holes.

284922

Detail A

Adapter

Plate

2-47

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 2 Installing the Router Installing the Cisco 860, 880, 890 ISR

Step 5 Secure the FIPS cover with two mounting screws.

Step 6 Install the right-side FIPS cover the same way as the left-side FIPS cover.

Step 7 View after both covers are installed.

284923

284924

2-48

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 2 Installing the Router

Installing the Cisco 860, 880, 890 ISR

Step 8 If the FIPS covers are installed with the rack mount brackets, the adapter plates are not required in the

installation.

Installing Antennas for Cisco 890 Series

The Cisco 890 series wireless routers have three reverse-polarity threaded Neill-Concelman (RP-TNC)

connectors on the back panel. The antennas that are shipped with the router are dual-band 2.4-GHz to

5-GHz omnidirectional dipole antennas.

Warning

All wireless LAN products in the 5.2/5.3GHz band cannot be used outdoors. Use the product only

indoors.

Statement 372

Note Before you install the Cisco 890 series wireless router on a table, wall, or rack, connect the antennas to

the back panel. It is difficult to attach the antennas after the router is installed.

284925

2-49

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 2 Installing the Router Installing the Cisco 860, 880, 890 ISR

To attach the radio antennas to your wireless router, follow these steps:

Step 1 Manually screw the antennas tight to the RP-TNC connectors on the back of the router.

Figure 2-40 Attaching Antennas to the Router

Step 2 Orient the antennas. For optimum wireless performance, the antennas should be perpendicular with

respect to the floor.

a. If the router is being mounted on a desk, orient the antennas straight up.

b. If the router is being mounted on a wall, orient the antennas perpendicular to the floor, as shown in

Figure 2-41 and Figure 2-42.

272486

2-50

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 2 Installing the Router

Installing the Cisco 860, 880, 890 ISR

Figure 2-41 Antennas Oriented Vertically Up

274774

2-51

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 2 Installing the Router Installing the Cisco 860, 880, 890 ISR

Figure 2-42 Antennas Oriented Vertically Down

274775

2-52

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 2 Installing the Router

Installing the Cisco 860, 880, 890 ISR

Installing Cisco 890 Series in a Rack

The Cisco 890 series ISRs can be mounted in a rack.

To install a Cisco 890 series ISR in a rack, follow these steps:

Step 1 Remove the screws, as shown in Figure 2-43.

Figure 2-43 Screw Locations

Step 2 Using the screws provided, attach the rack-mount brackets to the Cisco 890 series ISR chassis, as shown

in Figure 2-44. Use two screws on each side. Use a number 2 Phillips screwdriver to install the bracket

screws on both sides of the chassis.

Caution Do not over torque the screws. The recommended torque is 6 to 8 in-lb (0.7 to 0.9 N-m).

1Screws

371427

2-53

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 2 Installing the Router Installing the Cisco 860, 880, 890 ISR

Figure 2-44 Attaching the Rack-mount Brackets to the Cisco 890 Series ISR

Caution Chassis installation must allow unrestricted airflow for chassis cooling.

Step 3 Using two screws for each side (supplied with the rack), attach the Cisco 890 series ISR with rack-mount

brackets to a 19-inch rack. Start with the lower pair of screws first, resting the brackets on the lower

screws while you insert the upper pair of screws.

Note Be sure to leave space above and below each unit in a rack to allow for cooling air circulation.

Note Do not stack equipment directly above the router. Keep at least 1 rack unit of space above the

router.

Tip The screw slots in the brackets are spaced to line up with every second pair of screw holes in the

rack. When the correct screw holes are used, the small threaded holes in the brackets line up with

unused screw holes in the rack. If the small holes do not line up with the rack holes, you must

raise or lower the brackets to the next rack hole.

Step 4 Place the power adapter on a nearby horizontal surface.

Warning

To prevent bodily injury when mounting or servicing this unit in a rack, you must take special

precautions to ensure that the system remains stable. The following guidelines are provided to

ensure your safety:

• This unit should be mounted at the bottom of the rack if it is the only unit in the rack.

• When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest

component at the bottom of the rack.

• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in

the rack.

Statement 1006

272484

2-54

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 2 Installing the Router

Installing the Cisco 860, 880, 890 ISR

Step 5 Connect the chassis to a reliable earth ground. For the chassis ground connection procedures, see the

“Installing Cisco 890 Series in a Rack” section on page 2-52.

Installing the C881G-B/S/V-K9 ISR

To install the C881G-B/S/V-K9 ISR, follow the instructions in the “Installing the Cisco 860, 880, and

890 Series Routers” section on page 2-40.

However, the instructions for connecting the 3G card in the hardware installation guide do not apply to

the C881G-B/S/V-K9 ISR because it does not have a slot for adding a SIM card. These are

CDMA/EV-DO based routers and do not require a SIM card.

Installing Antennas

For instructions on installing the antennas for the Cisco 881 routers, please refer to the “Installing

Antennas” section on page 2-54.

Installing the C881GW-S/V-A-K9 ISR

To install the C881GW-S-A-K9 and C881GW-V-A-K9 ISRs, follow the instructions in the “Installing

the Cisco 860, 880, and 890 Series Routers” section on page 2-40 section.

However, the instructions for connecting the 3G card in the hardware installation guide do not apply

because these ISRs do not have a slot for adding a 3G card. Instead, a 3G modem is embedded in the

router.

Installing Antennas

For instructions on installing the antennas for the Cisco 881 routers, please refer to the “Installing

Antennas” section on page 2-54.

Installing the C881G-U-K9 ISR

To install the C881G-U-K9 ISR, follow the instructions in the “Installing the Cisco 860, 880, and 890

Series Routers” section on page 2-40.

However, the instructions for connecting the 3G card in the hardware installation guide do not apply to

the C881G-U-K9 ISR because it does not have a slot for adding a 3G card. Instead, a 3G modem is

embedded in the router.

Installing the SIM Cards

You can install one or two SIM cards into the C881G-U-K9 ISR. Installing two SIM cards lets you take

advantage of the Dual SIM feature, which provides a failover mechanism in case the primary SIM card

fails.

Figure 45 shows the SIM car installation steps.

2-55

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Chapter 2 Installing the Router Installing the Cisco 860, 880, 890 ISR

Figure 45 SIM Card Installation

282316

1 2

A B

2-56

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Chapter 2 Installing the Router

Installing the Cisco 860, 880, 890 ISR

To install the SIM cards, follow these steps:

Step 1 Open the door covering the SIM card slots.

a. Insert the tip of the screw driver into the upper latch and gently disengage it as shown in the figure.

b. Remove the door as shown.

Step 2 To insert a SIM card into the SIM 0 slot, hold the SIM card with the contacts facing up as shown and

gently push the card into place until it locks in.

Step 3 To insert a SIM card into the SIM 1 slot, hold the SIM card with the contacts facing down as shown and

gently push the card into place until it locks in.

Step 4 Reattach the door.

a. Insert the door’s bottom latches as shown.

b. Insert the door’s upper latch into place as shown.

Installing the Cisco 880G for 3.7G (HSPA+)/3.5G (HSPA) ISRs

To install the C881G+7-K9, C886VAG+7-K9, C887VAG+7-K9, C887VAMG+7-K9, C888EG+7-K9,

C881GW+7-A-K9, C881GW+7-E-K9, C887VAGW+7-A-K9, and C887VAGW+7-E-K9 ISRs, follow

the instructions in the “Installing the Cisco 860, 880, and 890 Series Routers” section on page 2-40.

However, the instructions for connecting the 3G card in the hardware installation guide do not apply

because these ISRs do not have a slot for adding a 3G card. Instead, a 3G modem is embedded in the

router.

CHAPTER

3-1

Cisco Integrated Services Router Hardware Installation Guide

OL-23125-02

Connecting the Router

This chapter describes how to install the Cisco 860, 880, 890 ISRs and the Cisco 819 ISR.

•Cisco 810 Series, page 3-1

•Cisco 860, 880, 890 Series, page 3-8

Cisco 810 Series

Cisco 819 Series

This section describes how to connect Cisco 819 ISRs to Ethernet devices and a network. The section

contains the following topics:

•Preparing to Connect the Router, page 3-1

•Connecting a PC, Server, or Workstation, page 3-2

•Connecting an External Ethernet Switch, page 3-3

•Connecting a Terminal or PC to the Console Port, page 3-4

•Connecting a Modem to the Console Port, page 3-5

•Connecting the AC Adapter, page 3-5

•Connecting the DC Adapter, page 3-6

•Verifying Connections, page 3-7

Note For compliance and safety information, see the Regulatory Compliance and Safety Information

Roadmap that ships with the router and Regulatory Compliance and Safety Information for Cisco 800

Series Routers.

Preparing to Connect the Router

Before you connect the router to the devices, install the router according to the instructions in the

“Installing the Router” section on page 2-22.

3-2

Cisco Integrated Services Router Hardware Installation Guide OL-23125-02

Chapter 3 Connecting the Router

Cisco 810 Series

Preventing Damage to the Router

To prevent damage to your router, follow these guidelines when connecting devices to your router:

•Turn off power to the devices and to the router until all connections are completed.

Caution Do not turn on the devices until after you have completed all connections to the router.

•If you must supply your own cable, see the “Cisco 860, 880, 890 Series” section on page A-11 for

cabling specifications. If this appendix does not provide specifications for a particular cable, we

strongly recommend ordering the cable from Cisco.

Connecting a PC, Server, or Workstation

To connect a PC (or other Ethernet devices) to an Ethernet switch port, follow these steps:

Step 1 Connect one end of the yellow Ethernet cable to an Ethernet switch port on the router. See Figure 3-1.

Figure 3-1 Connecting a Server, PC, or Workstation

Step 2 Connect the other end of the cable to the RJ-45 port on the network interface card (NIC) that is installed

in the PC, server, or workstation.

1Yellow Ethernet cable 3RJ-45 port on the network interface card

2Ethernet switch port on the router

245583

3-3

Cisco Integrated Services Router Hardware Installation Guide

OL-23125-02

Chapter 3 Connecting the Router Cisco 810 Series

Step 3 (Optional) Connect additional servers, PCs, or workstations to the other Ethernet switch ports.

Note Use the Cisco Configuration Express to configure the Internet connection settings. See

Cisco Configuration Professional Quick Start Guide for more information.

Connecting an External Ethernet Switch

If more than four PCs in an office must be connected to each other, you can add Ethernet connections to

the router by connecting an external Ethernet switch to the Ethernet switch on the router.

To connect an external Ethernet switch to an Ethernet switch port on the router, perform these steps:

Step 1 Connect one end of the yellow Ethernet cable to an Ethernet switch port on the router. (See Figure 3-2.)

Figure 3-2 Connecting to an Ethernet Switch

Step 2 Connect the other end of the cable to the available port on the Ethernet switch to add additional Ethernet

connections.

Step 3 Turn on the Ethernet switch.

1 Ethernet switch port on the router 3Yellow CAT5 Ethernet cable,

RJ-45–to–RJ-45, connecting to an external

Ethernet switch port

2Available port on the external Ethernet switch

245585

MODE

Catalyst 3500

SERIES

INLINE POWER

SYSTEM

15X

16X

RPS

STATUS

UTIL

DUPLX

SPEED

12345678910 11 12

15X

16X

12345678910 11 12

3-4

Cisco Integrated Services Router Hardware Installation Guide OL-23125-02

Chapter 3 Connecting the Router

Cisco 810 Series

Connecting a Terminal or PC to the Console Port

Connect a terminal or PC to the Console port either to configure the software by using the CLI or to

troubleshoot problems with the router.

To connect a terminal or PC to the console port on the router and access the CLI, follow these steps:

Step 1 Connect the RJ-45 end of a DB-9-to-RJ-45 serial cable to the RJ-45 Console port on the router.

Figure 3-3 shows the RJ-45 end of the serial cable connected to the Console port on the router.

Figure 3-3 Connecting a Terminal or PC to the Console Port

Step 2 Connect the DB-9 end of the DB-9-to-RJ-45 serial cable to the COM port on your laptop or PC.

Note Some laptops and PCs do not come with DB-9 serial port connectors and may require a

USB-to-serial port adapter.

Step 3 To communicate with the router, start a terminal emulator application.

For more information, see the Terminal Emulator Settings, page 3-16, and Applying Correct Terminal

Emulator Settings for Console Connections.

1 RJ-45 connector to the Console Aux port on

the router 2DB-9 connector

245586

3-5

Cisco Integrated Services Router Hardware Installation Guide

OL-23125-02

Chapter 3 Connecting the Router Cisco 810 Series

Connecting a Modem to the Console Port

To connect a modem to the router, follow these steps:

Step 1 Connect the RJ-45 end of the adapter cable to the Console port on the router as shown in Figure 3-4.

Figure 3-4 Connecting a Modem to the Console Port

Step 2 Connect the DB-9 end of the console cable to the DB-9 end of the modem adapter.

Step 3 Connect the DB-25 end of the modem adapter to the modem.

Step 4 Make sure that your modem and the router console port are configured for the same transmission speed

(up to 115200 b/s is supported) and support mode control with data carrier detect (DCD) and data

terminal ready (DTR).

Connecting the AC Adapter

Warning

The device is designed to work with TN power systems.

Statement 19

Warning

This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that

the protective device is rated not greater than: 120VAC, 20A U.S (240VAC, 16 to 20A international).

Statement 1005

Warning

This product requires short-circuit (overcurrent) protection, to be provided as part of the building

installation. Install only in accordance with national and local wiring regulations.

Statement 1045

245587

3-6

Cisco Integrated Services Router Hardware Installation Guide OL-23125-02

Chapter 3 Connecting the Router

Cisco 810 Series

To connect your Cisco 819 ISR to an AC power outlet, follow these steps:

Step 1 Connect the AC adapter to an AC power outlet.

Step 2 Plug the adapter cord into the router.

Connecting the DC Adapter

Warning

This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that

the protective device is rated not greater than 36 VDC, 5A

Statement 1005

Warning

This product requires short-circuit (overcurrent) protection, to be provided as part of the building

installation. Install only in accordance with national and local wiring regulations.

Statement 1045

Warning

The device is designed to work with TN power systems.

Statement 19

To connect the DC power on your Cisco 819 ISR, follow these steps:

Step 1 Connect the black and white lead wires to a 12 VDC source.

The black lead is negative or ground and the white lead is positive. The output cable is 1.3 meters while

the input cable is 1 meter in length. (See Figure 3-5 and Figure 3-6.). For the complete list of supported

power adapters, see the “Supported Power Adapters” section on page A-9.

Figure 3-5 DC Power Supply PWR1-20W-12VDC and PWR1-20W-24VDC

302470

3-7

Cisco Integrated Services Router Hardware Installation Guide

OL-23125-02

Chapter 3 Connecting the Router Cisco 810 Series

Figure 3-6 DC Power Supply PWR2-20W-12VDC and PWR2-20W-24VDC

Step 2 Plug the adapter cord into the router.

Note The power adapters have 18 AWG wires for the input connection. Tinned bare wires are used for

the input connection as there is no standard established for connector type. Screw terminal

blocks are most often used.

Verifying Connections

To verify that all devices are properly connected to the router, first turn on all the connected devices,

then check the LEDs. To verify router operation, refer to Table 3-1.

For full LED description, see Table 1-29.

302438

1Black wire (negative) 3Adapter

2White wire (positive)

Table 3-1 Verifying the Router Operation

Power and Link LEDs to Check Normal Patterns

SYS Yellow FPGA download is complete.

Green (blinking) ROMMON is operational.

Off After powering up, when FPGA is being downloaded (in

ROMMON).

3-8

Cisco Integrated Services Router Hardware Installation Guide OL-23125-02

Chapter 3 Connecting the Router

Cisco 860, 880, 890 Series

This section describes how to connect Cisco 860 series, Cisco 880 series, and Cisco 890 series ISRs to

Ethernet devices, Power over Ethernet (PoE), and a network.

Note Depending on the features available for your router, some content in this section may not apply to your

router.

The section contains the following topics:

•Safety Warnings, page 3-9

•Preparing to Connect the Router, page 3-1

•Connecting a PC, Server, or Workstation, page 3-2

•Connecting a Phone, page 3-13

•Connecting an External Ethernet Switch, page 3-3

•Connecting the V.92 modem Port, page 3-15

•Connecting a Terminal or PC to the Console Port, page 3-4

•Connecting a Modem to the Console Port, page 3-5

•Connecting the 3G Card, page 3-18

•Installing the 3G Adapter for Extended Cable/Antenna, page 3-24

•Connecting a Data BRI Port, page 3-28

•Connecting an FE Line to an FE WAN Port, page 3-30

•Connecting a GE Line to an GE WAN Port, page 3-31

•Connecting an xDSL Line, page 3-31

•Connecting Power over Ethernet, page 3-34

•Connecting the AC Adapter, page 3-5

•Connecting an FXS Line, page 3-39

•Connecting an FXO Line, page 3-40

•Connecting a Voice ISDN BRI Line, page 3-42

•Verifying Connections, page 3-7

Note For compliance and safety information, see Regulatory Compliance and Safety Information Roadmap

that ships with the router and Regulatory Compliance and Safety Information for Cisco 800 Series

Routers.

ACT Green Network activity on FE Switch ports, GE WAN port, 3G

cellular interface, and serial interfaces.

Off No network activity.

Table 3-1 Verifying the Router Operation (continued)

Power and Link LEDs to Check Normal Patterns

3-9

Cisco Integrated Services Router Hardware Installation Guide

OL-23125-02

Chapter 3 Connecting the Router Cisco 860, 880, 890 Series

Note The illustrations in this chapter show a wireless router with antennas attached. Non-wireless routers do

not have antennas or antenna connectors on the back panel. However, the procedures for connecting

devices to the router are the same for both wireless and non-wireless routers.

Safety Warnings

Warning

When installing the product, please use the provided or designated connection cables/power

cables/AC adaptors/batteries. Using any other cables/adaptors could cause a malfunction or a fire.

Electrical Appliance and Material Safety Law prohibits the use of UL-certified cables (that have the

“UL” or “CSA” shown on the cord), not regulated with the subject law by showing “PSE” on the cord,

for any other electrical devices than products designated by CISCO.

Statement 371

Warning

Do not work on the system or connect or disconnect cables during periods of lightning activity.

Statement 1001

Warning

This equipment has been designed for connection to TN and IT power systems.

Statement 1007

Warning

There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with

the same or equivalent type recommended by the manufacturer. Dispose of used batteries according

to the manufacturer’s instructions.

Statement 1015

Warning

Take care when connecting units to the supply circuit so that wiring is not overloaded.

Statement 1018

Warning

To avoid electric shock, do not connect safety extra-low voltage (SELV) circuits to telephone-network

voltage (TNV) circuits. LAN ports contain SELV circuits, and WAN ports contain TNV circuits. Some

LAN and WAN ports both use RJ-45 connectors. Use caution when connecting cables.

Statement 1021

Warning

Hazardous network voltages are present in WAN ports regardless of whether power to the unit is OFF

or ON. To avoid electric shock, use caution when working near WAN ports. When detaching cables,

detach the end away from the unit first.

Statement 1026

Warning

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Statement 1030

Warning

Do not use this product near water; for example, near a bath tub, wash bowl, kitchen sink or laundry

tub, in a wet basement, or near a swimming pool.

Statement 1035

3-10

Cisco Integrated Services Router Hardware Installation Guide OL-23125-02

Chapter 3 Connecting the Router

Cisco 860, 880, 890 Series

Warning

Never install telephone jacks in wet locations unless the jack is specifically designed for wet

locations.

Statement 1036

Warning

Never touch uninsulated telephone wires or terminals unless the telephone line has been

disconnected at the network interface.

Statement 1037

Warning

Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote

risk of electric shock from lightning.

Statement 1038

Warning

To report a gas leak, do not use a telephone in the vicinity of the leak.

Statement 1039

Warning

Before opening the unit, disconnect the telephone-network cables to avoid contact with

telephone-network voltages.

Statement 1041

Warning

This equipment contains a ring signal generator (ringer), which is a source of hazardous voltage. Do

not touch the RJ-11 (phone) port wires (conductors), the conductors of a cable connected to the RJ-11

port, or the associated circuit-board when the ringer is active. The ringer is activated by an incoming

call.

Statement 1042

Warning

Do not locate the antenna near overhead power lines or other electric light or power circuits, or

where it can come into contact with such circuits. When installing the antenna, take extreme care

not to come into contact with such circuits, because they may cause serious injury or death. For

proper installation and grounding of the antenna, please refer to national and local codes (for

example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada: Canadian Electrical Code,

Section 54).

Statement 1052

Warning

No user-serviceable parts inside. Do not open.

Statement 1073

Warning

Installation of the equipment must comply with local and national electrical codes.

Statement 1074

Preparing to Connect the Router

Before you connect the router to the devices, install the router according to the instructions in “Installing

the Cisco 860, 880, 890 ISR” section on page 2-38.

3-11

Cisco Integrated Services Router Hardware Installation Guide

OL-23125-02

Chapter 3 Connecting the Router Cisco 860, 880, 890 Series

Preventing Damage to the Router

To prevent damage to your router, follow these guidelines when connecting devices to your router:

•Turn off power to the devices and to the router until all connections are completed.

Caution Do not turn on the devices until after you have completed all connections to the router.

•Connect the color-coded cables supplied by Cisco to the color-coded ports on the back panel.

•If you must supply your own cable, see “Cable Specifications” section on page A-28 for cabling

specifications. If this appendix does not provide specifications for a particular cable, we strongly

recommend ordering the cable from Cisco.

3-12

Cisco Integrated Services Router Hardware Installation Guide OL-23125-02

Chapter 3 Connecting the Router

Cisco 860, 880, 890 Series

Connecting a PC, Server, or Workstation

To connect a PC (or other Ethernet devices) to an Ethernet switch port, follow these steps:

Step 1 Connect one end of the yellow Ethernet cable to an Ethernet switch port on the router.

Figure 3-1 shows a Cisco 888W router connected to a PC.

Figure 3-7 Connecting a Server, PC, or Workstation

Step 2 Connect the other end of the cable to the RJ-45 port on the network interface card (NIC) that is installed

in the PC, server, or workstation.

Step 3 (Optional) Connect additional servers, PCs, or workstations to the other Ethernet switch ports.

Note Use the Cisco Configuration Express to configure the Internet connection settings. See

Cisco Configuration Professional Quick Start Guide for more information.

1Yellow Ethernet cable supplied with the router 3RJ-45 port on the network interface card

2Ethernet switch port on the router

231989

3-13

Cisco Integrated Services Router Hardware Installation Guide

OL-23125-02

Chapter 3 Connecting the Router Cisco 860, 880, 890 Series

Connecting a Phone

To connect an 802.3af-compliant phone to an Ethernet switch port, follow these steps:

Note A power source must be provided for the phone to function. This can be done in two ways: the phone

can be powered via the PoE function using the PoE enabled Ethernet ports, or by using an external AC

power source connected to the phone.

Step 1 Connect one end of the yellow Ethernet cable to Ethernet switch port 0 or port 1 on the router. Figure 3-8

shows a Cisco 888W router connected to a phone.

Figure 3-8 Connecting a Phone

1Yellow Ethernet cable 3RJ-45 port on a phone

2Ethernet switch port 1 on the router

270551

ABC

DEF

JKLGHI

MNO

TUVPQRS

WXYZ

OPER

3-14

Cisco Integrated Services Router Hardware Installation Guide OL-23125-02

Chapter 3 Connecting the Router

Cisco 860, 880, 890 Series

Step 2 Connect the other end of the cable to the RJ-45 port on the phone.

Connecting an External Ethernet Switch

If more than four PCs in an office must be connected to each other, you can add Ethernet connections to

the router by connecting an external Ethernet switch to the Ethernet switch on the router.

To connect an external Ethernet switch to an Ethernet switch port on the router, perform these steps:

Step 1 Connect one end of the yellow Ethernet cable to an Ethernet switch port on the router. Figure 3-2 shows

a Cisco 888W router connected to an Ethernet switch.

Figure 3-9 Connecting to an Ethernet Switch

Step 2 Connect the other end of the cable to the available port on the Ethernet switch to add additional Ethernet

connections.

Step 3 Turn on the Ethernet switch.

1 Ethernet switch port on the router 3Yellow CAT5 Ethernet cable,

RJ-45–to–RJ-45, connecting to an external

Ethernet switch port

2Available port on the external Ethernet switch

MODE

Catalyst 3500

SERIES

INLINE POWER

SYSTEM

15X

16X

RPS

STATUS

UTIL

DUPLX

SPEED

12345678910 11 12

15X

16X

12345678910 11 12

231986

3-15

Cisco Integrated Services Router Hardware Installation Guide

OL-23125-02

Chapter 3 Connecting the Router Cisco 860, 880, 890 Series

Connecting the V.92 modem Port

Warning

Hazardous network voltages are present in WAN ports regardless of whether power to the unit is OFF

or ON. To avoid electric shock, use caution when working near WAN ports. When detaching cables,

detach the end away from the unit first.

Statement 1026

To connect the router to your service provide network through the V.92 port, follow these steps:

Step 1 Connect one end of the straight-through R-J11 cable to the V.92 port.

Figure 3-10 shows how to connect the router to the service provide through the V.92 port.

Figure 3-10 Connecting to Your Service Provider Through the V.92 port

Step 2 Connect the other end of the straight through R-J11 cable to an RJ-11 telephone wall outlet.

1V.92 port on the router 2Telephone wall outlet

272387

3-16

Cisco Integrated Services Router Hardware Installation Guide OL-23125-02

Chapter 3 Connecting the Router

Cisco 860, 880, 890 Series

Connecting a Terminal or PC to the Console Port

Connect a terminal or PC to the Console Auxiliary (Aux) port either to configure the software by using

the CLI or to troubleshoot problems with the router.

To connect a terminal or PC to the console port on the router and access the CLI, follow these steps:

Step 1 Connect the RJ-45 end of a DB-9–to–RJ-45 serial cable to the RJ-45 Console Aux port on the router.

Figure 3-3 shows the RJ-45 end of the serial cable connected to the Console Aux port on the router.

Figure 3-11 Connecting a Terminal or PC to the Console Port

Step 2 Connect the DB-9 end of the DB-9–to–RJ-45 serial cable to the to the COM port on your laptop or PC.

Note Some laptops and PCs do not come with DB-9 serial port connectors and may require a

USB-to-serial port adapter.

Step 3 To communicate with the router, start a terminal emulator application.

Terminal Emulator Settings

Use the following settings for the terminal emulator connection:

•9600 baud

•8 data bits, no parity

•1 stop bit

•No flow control

1 RJ-45 connector to the Console Aux port on

the router 2DB-9 connector

231990

3-17

Cisco Integrated Services Router Hardware Installation Guide

OL-23125-02

Chapter 3 Connecting the Router Cisco 860, 880, 890 Series

When the terminal emulator establishes communications, the router prompt is displayed.

For more information on terminal emulation settings, see Applying Correct Terminal Emulator Settings

for Console Connections.

Connecting a Modem to the Auxiliary Port

To connect a modem to the router, follow these steps:

Step 1 Connect the RJ-45 end of the adapter cable to the Aux port on the router as shown in Figure 3-4.

Figure 3-12 Connecting a Modem to the Aux Port

Step 2 Connect the DB-9 end of the console cable to the DB-9 end of the modem adapter.

Step 3 Connect the DB-25 end of the modem adapter to the modem.

Step 4 Make sure that your modem and the router auxiliary port are configured for the same transmission speed

(up to 115200 bits per second [b/s] is supported) and support mode control with data carrier detect

(DCD) and data terminal ready (DTR).

1Aux port (RJ-45) 3DB-9 to DB-25 modem adapter (if required)

2Light blue console cable 4Modem

272386

3-18

Cisco Integrated Services Router Hardware Installation Guide OL-23125-02

Chapter 3 Connecting the Router

Cisco 860, 880, 890 Series

Connecting the 3G Card

Note For information on embedded multiband, multiservice WAN modems, see Configuring Cisco EHWIC

and 880G for 3G (EV-DO Rev A) and Configuring Cisco EHWIC and 880G for 3.7G (HSPA+)/3.5G

(HSPA).

Note The Cisco 880G router does not support online insertion and removal (OIR) of the 3G card. You must

enter the shutdown command on the cellular interface before you remove the 3G card from the router.

To connect and secure the 3G card, follow these steps:

Step 1 Align the 3G card to the 3G express card slot, as shown in Figure 3-13. Keep the card parallel to the

surface and firmly push the card into the slot.

Tip Holding the 3G card on the flat metal surface makes it easier to align and insert the 3G card.

Note When inserting the card into the 3G express card slot, you may hear a metal-on-metal sound as

the 3G card rubs against the internal metal cage. The 3G card is designed to fit tightly into the

3G express card slot. Firm pressure may be required to insert the card.

Note Global System for Mobile Communications (GSM) customers need to insert a SIM card,

provided by their network carrier, into the 3G card.

3-19

Cisco Integrated Services Router Hardware Installation Guide

OL-23125-02

Chapter 3 Connecting the Router Cisco 860, 880, 890 Series

Figure 3-13 Inserting the 3G Card

Step 2 Open the top of the anti-theft locking bracket, as shown in Figure 3-14.

Figure 3-14 Opening the Anti-theft Locking Bracket

13G card with the Cisco logo facing up 4Screw holes for locking bracket

23G express card slot 5Pin holes for aligning the locking bracket

3Notches on the 3G card 6SIM slot (in HSPA1 cards only)

1. HSPA = High-Speed Packet Access.

271473

1Pins on the locking bracket for alignment

271474

Front View Back View

3-20

Cisco Integrated Services Router Hardware Installation Guide OL-23125-02

Chapter 3 Connecting the Router

Cisco 860, 880, 890 Series

Step 3 Slide the opened locking bracket under the 3G card. The locking bracket should align with the notches

on either side of the 3G card, as shown in Figure 3-15, and the pins on the locking bracket should be

inserted into the corresponding holes in the router.

Figure 3-15 Installing the Locking Bracket

13G card 3Notch on the 3G card

2Locking bracket

271726

3-21

Cisco Integrated Services Router Hardware Installation Guide

OL-23125-02

Chapter 3 Connecting the Router Cisco 860, 880, 890 Series

Step 4 Close the locking bracket, as shown in Figure 3-16.

Figure 3-16 Closing the Locking Bracket

Step 5 Insert the screws, as shown in Figure 3-17, and tighten with a number 2 Phillips screwdriver.

Figure 3-17 Inserting the Screws

Step 6 To connect the antenna to the 3G card, insert the antenna connector into the antenna connector receptacle

on the 3G card.

13G card 2Locking bracket

271580

13G card 3Screws

2Locking bracket 4Screw holes on the locking bracket

271476

342

3-22

Cisco Integrated Services Router Hardware Installation Guide OL-23125-02

Chapter 3 Connecting the Router

Cisco 860, 880, 890 Series

Note The antenna connector receptacle may be located on the left, right, or front of the 3G card, depending

on your card.

Figure 3-18 and Figure 3-19 show the antenna connected to the 3G card with an SSMB type plug, and

the antenna with the SMK-TS-9 connector.

Figure 3-18 Antenna connected to the 3G Card with SSMB connector

1Antenna on a cradle 3Antenna connector receptacle1

1. The antenna connector receptacle is located on either the left, right or front of the card for different SKUs. Please locate the

receptacle of your card before plugging in the cable.

2Antenna SSMB connector

272653

3-23

Cisco Integrated Services Router Hardware Installation Guide

OL-23125-02

Chapter 3 Connecting the Router Cisco 860, 880, 890 Series

Figure 3-19 Antenna with the SMK-TS- 9 Connector

If you are using an extension cable, you must attach the 3G adapter for extended cable antenna to the

body of the router. Depending on the SKU ordered, the adapters come with different connectors.

Table 3-2 lists the different adapters and SKUs supported by each adapter. For instructions on how to

install the adapter, see the “Installing the 3G Adapter for Extended Cable/Antenna” section on

page 3-24. Otherwise, follow Step 7.

Step 7 Clean the flat surface to which you will affix the antenna.

279085

Original

antenna assembly

SMK-TS-9

connector Cable

Table 3-2 3G Adapters and Supported SKUs

3G Adapter SKU Description SKUs Supported

3G-ACC-SMKTS9-TNC 3G adapter for extended cable/antenna

with an SMK-TS-9 to TNC connector.

Use this with the pentaband dipole

indoor antenna

(3G-ANTM-SMKTS9).

PCEX-3G-HSPA-R6,

CISCO881G-G-K9

3G-ACC-SSMB-TNC 3G adapter for extended cable/antenna

with an SSMB to TNC connector. Use

this with the pentaband dipole indoor

antenna shipped with your product.

PCEX-3G-HSPA,

PCEX-3G-HSPA-A,

PCEX-3G-CDMA-S,

PCEX-3G-CDMA-V,

PCEX-3G-CDMA-B,

CISCO881G-A-K9,

CISCO881G-S-K9,

CISCO881G-V-K9

3-24

Cisco Integrated Services Router Hardware Installation Guide OL-23125-02

Chapter 3 Connecting the Router

Cisco 860, 880, 890 Series

Step 8 Remove the protective tape from the adhesive on the bottom of the antenna cradle, then firmly press the

cradle to the flat surface.

Installing the 3G Adapter for Extended Cable/Antenna

For better signal and reception, if you are using the Cisco 3G Adapter for Extended Cable/Antenna,

3G-ACC-SMKTS9-TNC, follow these steps to install it:

Step 1 Locate and remove the Phillips screw on the left side of the router as shown in Figure 3-20. Keep the

screw aside for Step 4.

Figure 3-20 Locating the Phillips Screw

1Phillips screw on the left side of router 2Air vent holes to be aligned with adapter

279124

3-25

Cisco Integrated Services Router Hardware Installation Guide

OL-23125-02

Chapter 3 Connecting the Router Cisco 860, 880, 890 Series

Step 2 Locate the hooks on the adapter as shown in Figure 3-21.

Figure 3-21 Locating the Hooks on the Adapter

Step 3 Align and insert the hooks of the adapter into the air vent holes on the left side router body as shown in

Figure 3-22.

Figure 3-22 Inserting the Hooks

279122

1Hooks on the adapter

279123

1Hooks aligned and inserted into the router.

3-26

Cisco Integrated Services Router Hardware Installation Guide OL-23125-02

Chapter 3 Connecting the Router

Cisco 860, 880, 890 Series

Step 4 Align the circular adapter hole with the hole on the router chassis from where you removed the screw in

Step 1 and use the screw to attach the adapter to the router as shown in Figure 3-23.

Figure 3-23 Attaching the Adapter

279091

3-27

Cisco Integrated Services Router Hardware Installation Guide

OL-23125-02

Chapter 3 Connecting the Router Cisco 860, 880, 890 Series

Step 5 Connect the extension cable to the 3G card, as described in the “Connecting the 3G Card” section on

page 3-18. The complete assembly is shown in Figure 3-24.

Figure 3-24 Adapter Connected to 3G Card and Router Chassis

Now the adapter is ready for use with the extension cable.

Table 3-3 lists the loss information for the ultra-low-loss (ULL) LMR 400 cables available with the

adapter for the 3G fixed platforms.

1Router chassis 4SSMB or SMK-TS-9 connector

23G adapter for extended cable/antenna 53G card inserted into the router

3Cable 63G card

279089

3-28

Cisco Integrated Services Router Hardware Installation Guide OL-23125-02

Chapter 3 Connecting the Router

Cisco 860, 880, 890 Series

Note Antenna orientation can increase or decrease signal reception due to polarization. Typically, an SP’s

transmitting antenna on the BTS is a vertically polarized omnidirectional antenna, which means the

electromagnetic waves are transmitted from it in a vertical plane. Hence, the receiving antenna needs to

be vertically oriented too in order to receive the best signal. As the angle of the antenna orientation is

changed from vertical to horizontal, only an angular component of the signal is picked up by the antenna.

Therefore, if the antenna orientation is horizontal, the antenna picks up the least signal. The signal is

received by the antenna as a result of it bouncing off of reflective surfaces. Hence, depending on where

the antenna is placed, it may receive different signal strengths. However, the recommended position is

vertical.

For additional information on all the available cables and antennas available for 3G, go to:

http://www.cisco.com/en/US/docs/routers/access/1800/1861/software/feature/guide/mrwlsgsm.html#w

p1262730

Connecting a Data BRI Port

You can connect the Data BRI port to the ISDN service provider as a backup link to the WAN port in

case the primary xDSL (general term referring to various forms of DSL, including global industry

standard symmetrical high-speed DSL [G.SHDSL]) WAN service fails. The Data BRI connection is not

available on the third-generation (3G) models.

The cabling requirements for the ISDN S/T connection are as follows:

•You must provide two unshielded Category 5 cables. The first cable connects the NT1 box to the

splitter, and the second cable connects the splitter to the wall jack.

•There are RJ-45 connectors at both ends of the default orange ISDN S/T cable. However, an

RJ-45–to–RJ-11 ISDN S/T cable is available upon request if the wall jack at the site requires an

RJ-11 connector. Contact your router reseller for the appropriate cable.

Caution Both LAN and WAN ports use RJ-45 connectors. Use caution when connecting cables to these

connectors. To avoid damage to the router, do not connect telephone-network voltage (TNV) circuits

(such as ISDN or DSL circuits) to safety extra-low voltage (SELV) circuits (such as LAN circuits).

Table 3-3 Cisco Adapter Cables for Use with 3G Fixed Routers

Cisco Product Number Antenna Adapter

Length Insertion Loss Frequency (MHz)

3G-ACC-SSMB-TNC 14.5 inches 0.66 dB 2100

3G-ACC-TS9-TNC 13.5 inches 0.62 dB 2100

3-29

Cisco Integrated Services Router Hardware Installation Guide

OL-23125-02

Chapter 3 Connecting the Router Cisco 860, 880, 890 Series

To connect the Data BRI port to the ISDN service provider, follow these steps:

Note Although the following procedure shows a Cisco 888W data router, this procedure applies to all

Cisco 880 series router with a Data BRI port.

Step 1 Connect one end of the orange ISDN S/T cable to the Data BRI port on the router. Figure 3-25 shows a

Data BRI connection.

Figure 3-25 Connecting the Data BRI Port to the ISDN Line

Step 2 Connect the other end of the orange ISDN S/T cable to the S/T port on the NT1 box.

Step 3 Connect the first unshielded CAT 5 cable from the U-port on the NT1 box to the telephone line port on

the splitter.

1Data BRI port on the router 6U-port on the NT1 box

2ISDN S/T cable 7xDSL splitter (provided by the xDSL service

provider)

3Network termination 1 (NT1) box 8Telephone line port on the splitter

4S/T port on the NT1 box 9Telecommunication service port on the

splitter

5Unshielded CAT 5 cable 10 Wall jack

231991

3-30

Cisco Integrated Services Router Hardware Installation Guide OL-23125-02

Chapter 3 Connecting the Router

Cisco 860, 880, 890 Series

Step 4 Connect the second unshielded Category 5 cable from the telecommunication service port on the splitter

to the wall jack to allow a link to the network service provider.

Connecting an FE Line to an FE WAN Port

To connect the Fast Ethernet (FE) WAN port on the router, follow these steps:

Step 1 Connect one end of the yellow cable to the FE WAN port as shown in Figure 3-26.

Figure 3-26 Connecting the FE WAN Port

Step 2 Connect the other end of cable to an available port on the modem.

1FE WAN port 3Modem connected to the Internet

2CAT 5 cable

WAN

FE 4

Internet

231992

3-31

Cisco Integrated Services Router Hardware Installation Guide

OL-23125-02

Chapter 3 Connecting the Router Cisco 860, 880, 890 Series

Connecting a GE Line to an GE WAN Port

To connect the Gigabit Ethernet (GE) WAN port on the router, follow these steps:

Step 1 Connect one end of the yellow cable to the GE WAN port as shown in Figure 3-27.

Figure 3-27 Connecting the GE WAN Port

Step 2 Connect the other end of cable to an available port on the modem.

Connecting an xDSL Line

Warning

Hazardous network voltages are present in WAN ports regardless of whether power to the unit is OFF

or ON. To avoid electric shock, use caution when working near WAN ports. When detaching cables,

detach the end away from the unit first.

Statement 1026

1GE WAN port 3Modem connected to the Internet

2CAT 5 cable

Internet

274493

3-32

Cisco Integrated Services Router Hardware Installation Guide OL-23125-02

Chapter 3 Connecting the Router

Cisco 860, 880, 890 Series

Caution Cisco Systems DSL WAN Interfaces are tested for compliance with regulatory standards such as FCC

Part 68, ITU-T K.21, IEC 61000-4-5, and CSA/EN/IEC/UL 60950-1. These standards assume Primary

Protection devices protect the Customer Premise Equipment (CPE). These devices are normally installed

by the service provider, local exchange carrier or qualified service person and are located at the telecom

service provider entrance, network interface box, or demarcation point. See Figure 3-28 for the likely

location of the primary protection device. The primary protection device must be suitable for the xDSL

interface employed. Please contact your sales team or qualified service person for further information

and installation.

Caution To reduce the risk of fire, use only No. 26 AWG or larger (e.g., 24 AWG) UL Listed or CSA Certified

Telecommunication Line Cord.

Warning

Do not use this product near water; for example, near a bath tub, wash bowl, kitchen sink or laundry

tub, in a wet basement, or near a swimming pool.

Statement 1035

Warning

Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote

risk of electric shock from lightning.

Statement 1038

Warning

To report a gas leak, do not use a telephone in the vicinity of the leak.

Statement 1039

Warning

There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with

the same or equivalent type recommended by the manufacturer. Dispose of used batteries according

to the manufacturer’s instructions.

Statement 1015

3-33

Cisco Integrated Services Router Hardware Installation Guide

OL-23125-02

Chapter 3 Connecting the Router Cisco 860, 880, 890 Series

Figure 3-28 Primary Protection Device Location

To connect the router to a global industry standard symmetrical high-speed DSL (G.SHDSL) line,

very-high-speed digital subscriber line 2 (VDSL2) port, or an ADSL2+ line, follow these steps:

Step 1 Connect one end of an RJ-11 (RJ-45 on 880 E models) cable to the port on the router. See Figure 3-29.

Figure 3-29 Connecting the xDSL Line

Step 2 Connect the other end of the cable to the DSL wall jack.

Router

Home or Business

Service Utilities Entrance

or Demarcation Point

Network Interface Box/

Network Interface Device/

Station Protector

Building Ground Rod connected to

Service entrance and Primary Protection

* Alternative Underground Service Entrance

Note: Primary Protection

may be located Outside

or Inside of Premise

Telecom Service

Overhead Service

Entrance

281392

1G.SHDSL port, VDSL2oPOTs port, or

ADSL2+ port 2DSL wall jack

232175

3-34

Cisco Integrated Services Router Hardware Installation Guide OL-23125-02

Chapter 3 Connecting the Router

Cisco 860, 880, 890 Series

Caution The primary WAN port is designed for an RJ-45 connector only. Damage to the primary WAN port may

occur if a non-RJ-45 connector is inserted.

Note The DSL line must be provisioned by your service provider and correctly configured so that the LED

shows the carrier detect (CD) status. On Cisco 860VAE routers, check the DSL Link LED.

Connecting Power over Ethernet

Warning

This unit might have more than one power supply connection. All connections must be removed to

de-energize the unit.

Statement 1028

Warning

This product must be connected to a power-over-ethernet (PoE) IEEE 802.3af compliant power source

or an IEC60950 compliant limited power source.

Statement 353

Figure 3-30 shows how to connect the 48-VDC Power over Ethernet (PoE) power adapter to your router.

The PoE adapter provides power to ports 0 and 1 of the 4-port 10/100 FE switch on the Cisco 880 series

routers and ports 0,1, 2, and 3 of the 8-port 10/100 FE switch on the Cisco 890 series routers.

Note The router must also be connected to an AC power outlet through a 12-VDC adapter. To connect the

router to an AC outlet, see the“Connecting the AC Adapter” section on page 3-5.

Note Be sure that the internal PoE is enabled for this connection procedure to work.

3-35

Cisco Integrated Services Router Hardware Installation Guide

OL-23125-02

Chapter 3 Connecting the Router Cisco 860, 880, 890 Series

Figure 3-30 Connecting PoE for the Cisco 880 and the Cisco 890 Series Routers

The Cisco 880 series ISRs with embedded WLAN antennas require a single external power supply: a

30-W power supply for non-POE-enabled routers or a 60-W power supply for POE-enabled routers. For

the back panels of some of these routers, see Figure 1-29 and Figure 1-31.

Connecting the AC Adapter

Warning

The device is designed to work with TN power systems.

Statement 19

Warning

This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that

the protective device is rated not greater than:

120 VAC, 20 A U.S. (240 VAC, 16 to 20 A international).

Statement 1005

Warning

This unit might have more than one power supply connection. All connections must be removed to

de-energize the unit.

Statement 1028

Note The Cisco 892FSP utilizes a single 4-pin power connector type. Figure 3-33 shows the pin number

assignment of the Cisco 892FSP Power Adapter Connector.

148-VDC PoE input jack 4AC plug

2Power cord 512-VDC input power-jack plug

3Power adapter—48 VDC 6Power adapter—12 VDC

231995

3-36

Cisco Integrated Services Router Hardware Installation Guide OL-23125-02

Chapter 3 Connecting the Router

Cisco 860, 880, 890 Series

To connect your Cisco 860 series, Cisco 880 series, or the Cisco 890FSP ISR to an AC power outlet,

follow these steps:

Step 1 Connect the router to an AC power outlet as shown in Figure 3-31.

To connect the AC power outlet for the Cisco 892FSP router, see Figure 3-32.

Figure 3-31 Connecting the AC Adapter

112-VDC plug 3Power adapter—12 VDC

2Power cord 4AC plug

231996

3-37

Cisco Integrated Services Router Hardware Installation Guide

OL-23125-02

Chapter 3 Connecting the Router Cisco 860, 880, 890 Series

Figure 3-32 Connecting the AC Adapter for the Cisco 892FSP

Figure 3-33 Cisco 892FSP, 896VA, 897VA, and 898EA Power Adapter Connector Pin Assignment

7 6 GE LAN 5 4

GE WAN

SFP

12VDC 2.5A

CONSOLE

AUX

RESET

Cisco 892FSP

343746

112-VDC plug 3Power adapter—12 VDC

2Power Adapter Cord 4AC Plug

284800

Pin 3

Pin 1

Pin 4

Pin 2

Pin 1 Ground Pin 3 +12 V

Pin 2 NC1Pin 4 NC

1. NC = No Connection.

3-38

Cisco Integrated Services Router Hardware Installation Guide OL-23125-02

Chapter 3 Connecting the Router

Cisco 860, 880, 890 Series

Step 2 To secure the power cord to the router, attach the power lock clip to the power cord, slide the clip to the

end of the DC plug, and secure the retaining clip into the router chassis. See Figure 3-34.

Figure 3-34 Securing the Power Cord

1Power lock clip 3DC plug

2Power cord 4Lock holes on either side of the power

connector

270659

3-39

Cisco Integrated Services Router Hardware Installation Guide

OL-23125-02

Chapter 3 Connecting the Router Cisco 860, 880, 890 Series

Step 3 Snap the latches into the holes on either side of the power connector. See Figure 3-35.

Figure 3-35 Power Lock Clip Latched Into the Holes on Either Side of the Power Connector

Connecting an FXS Line

Use a standard straight-through RJ-11 modular telephone cable to connect a Foreign Exchange Service

(FXS) port to a telephone or fax machine.

Warning

This equipment contains a ring signal generator (ringer), which is a source of hazardous voltage. Do

not touch the RJ-11 (phone) port wires (conductors), the conductors of a cable connected to the RJ-11

port, or the associated circuit-board when the ringer is active. The ringer is activated by an incoming

call.

Statement 1042

Warning

Hazardous network voltages are present in WAN ports regardless of whether power to the unit is OFF

or ON. To avoid electric shock, use caution when working near WAN ports. When detaching cables,

detach the end away from the unit first.

Statement 1026

Warning

For connections outside the building where the equipment is installed, the following ports must be

connected through an approved network termination unit with integral circuit protection: FXS.

Statement 1044

1Power lock clip 3Power adapter

2Power cord 4AC plug

270800

3-40

Cisco Integrated Services Router Hardware Installation Guide OL-23125-02

Chapter 3 Connecting the Router

Cisco 860, 880, 890 Series

To connect the FXS line, follow these steps:

Step 1 Connect one end of the straight-through RJ-11 cable to the FXS port.

Figure 3-36 shows an FXS line connection.

Figure 3-36 Connecting an FXS Line

Step 2 Connect the other end of the cable to the RJ-11 port on the fax machine or telephone.

Connecting an FXO Line

Use a straight-through RJ-11 cable to connect the FXO voice port to the PSTN or PBX through a

telephone wall outlet.

1FXS port 3RJ-11 port

2RJ-11 cable

Fax machine

or telephone

241907

3-41

Cisco Integrated Services Router Hardware Installation Guide

OL-23125-02

Chapter 3 Connecting the Router Cisco 860, 880, 890 Series

Warning

Hazardous network voltages are present in WAN ports regardless of whether power to the unit is OFF

or ON. To avoid electric shock, use caution when working near WAN ports. When detaching cables,

detach the end away from the unit first.

Statement 1026

To connect the FXO line, follow these steps:

Step 1 Connect one end of the straight-through RJ-11 cable to the FXO port. See Figure 3-37.

Figure 3-37 Connecting an FXO Line

Step 2 Connect the other end of the RJ-11 cable to a telephone wall outlet.

Note If you have specified the use of a private line automatic ringdown (PLAR) off-premises extension (OPX)

connection mode for an FXO voice port (with loop resistance less than 8000 Ohm), you must ensure that

the soft-offhook option is enabled on the port.

1FXO port 3Telephone outlet

2RJ-11 cable

270542

3-42

Cisco Integrated Services Router Hardware Installation Guide OL-23125-02

Chapter 3 Connecting the Router

Cisco 860, 880, 890 Series

This option allows a stepped offhook resistance during seizure, which avoids overloading the circuit

during offhook in the event that ringing voltage is present on the circuit at the same time as the trunk

seizure. The stepped offhook resistance is initially set to 800 Ohms, then adjusts to 50 Ohms when

ringing voltage is not present.

To enable the soft-offhook command on the port, and to access the connection command with plar opx

syntax, see the Cisco Command Lookup Tool.

Connecting a Voice ISDN BRI Line

Use a straight-through RJ-45 cable to connect the voice BRI port to the ISDN network through a

telephone outlet or other device.

Caution To prevent damage to the router, be sure to connect the BRI cable to the BRI connector only and not to

any other RJ-45 connector.

To connect the voice BRI line, follow these steps:

Step 1 Connect one end of a straight-through RJ-45–to–RJ-45 cable to the Voice BRI port.

Note When the interface is configured as NT and is connecting to a TE device, use a crossover cable.

See Table A-27.

3-43

Cisco Integrated Services Router Hardware Installation Guide

OL-23125-02

Chapter 3 Connecting the Router Cisco 860, 880, 890 Series

Figure 3-38 shows a voice BRI line connection.

Figure 3-38 Connecting a Voice BRI Line

Step 2 Connect the other end of the cable to the RJ-45 telephone outlet or other device.

Warning

Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into

beams or view directly with optical instruments.

Statement 1051

Warning

Do not stare into the laser beam.

Statement 1010

Warning

Invisible laser radiation present.

Statement 1016

1Voice BRI port 3Telephone outlet

2RJ-45 cable

241906

3-44

Cisco Integrated Services Router Hardware Installation Guide OL-23125-02

Chapter 3 Connecting the Router

Cisco 860, 880, 890 Series

Warning

Ultimate disposal of this product should be handled according to all national laws and regulations.

Statement 1040

Warning

Invisible laser radiation may be emitted from the end of the unterminated fiber cable or connector. Do

not view directly with optical instruments. Viewing the laser output with certain optical instruments

(for example, eye loupes, magnifiers, and microscopes) within a distance of 100 mm may pose an eye

hazard.

Statement 1056

Warning

Use of controls, adjustments, or performing procedures other than those specified may result in

hazardous radiation exposure.

Statement 1057

Warning

Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into

beams or view directly with optical instruments.

Statement 1051

1Sliding latch 3Bale-clasp latch

2Swing and slide latch 4Plastic collar latch

117722

1 2 34

3-45

Cisco Integrated Services Router Hardware Installation Guide

OL-23125-02

Chapter 3 Connecting the Router Cisco 860, 880, 890 Series

Verifying Connections

To verify that all devices are properly connected to the router, first turn on all the connected devices,

then check the LEDs. To verify router operation, refer to Table 3-1.

For the full LED descriptions, see the “LEDs” section on page 1-79.

Table 3-4 Verifying the Router Operation

Power and Link LEDs to Check Normal Patterns

Power OK On when power is supplied to the router.

To servers, PCs,

workstations, or an

external Ethernet

switch connected to

the LAN ports

(FE01, FE1, FE2, or

FE3)

LAN 0, LAN 1,

LAN 2, or LAN 3 On when the FE LAN port is physically connected to a

server, PC, workstation, or external Ethernet switch.

To FE WAN line WAN FE4 On when the WAN Ethernet carrier has detected status.

Blinks when receiving or transmitting data.

To xDSL2 line xDSL CD Green when the line is connected to the xDSL DSLAM3.

xDSL Data Green when receiving or sending data.

Blinks when line is in training mode.

ATM 898EA only Green when ATM mode is selected.

EFM 898EA only Green when EFM mode is selected.

To ISDN line Data BRI LNK Green when the ISDN line is connected.

Data BRI B1 and

B2 Green when the channel is connected.

3G4WWAN5Green when service is established.

Slow blinking when searching for service.

RSSI6Amber when service is not established.

Green when signal strength is high.

Off or slow blinking when signal strength is low.

Fast blinking when signal strength is medium.

CDMA7Green when service is established.

GSM8Green when service is established.

To PPP9 clients PPP Green when either a PPPoE10 or PPPoA11 client is running.

To VPN12 tunnel VPN Green when a crypto session is running.

3-46

Cisco Integrated Services Router Hardware Installation Guide OL-23125-02

Chapter 3 Connecting the Router

Cisco 860, 880, 890 Series

To wireless LAN WLAN LINK Wireless LAN link status:

•Green if at least one client is associated.

•Off if no client is associated.

WLAN 2.4 GHz Wireless LAN 2.4-GHz status:

•Green when radio is connected, SSID13 is configured,

signal is being transmitted, and client is associated.

•Slow blinking when radio is connected, SSID is

configured, and signal is being transmitted.

WLAN 5.0 GHz Wireless LAN 5.0-GHz status:

•Green when radio is connected, SSID is configured,

signal is being transmitted, and client is associated.

•Slow blinking when radio is connected, SSID is

configured, and signal is being transmitted.

PoE14 PoE 0 (880 and

890 series only) PoE power status:

•Green when connected and powered.

•Amber when there is a fault with the inline power

supply.

PoE 1 (880 and

890 series only)

PoE 2 (890 series

only)

PoE 3 (890 series

only)

To LAN GE/FE line

(860VAE models

only)

LAN Blinking when there is LAN activity (traffic in either

direction).

Off when the link is down.

To DSL line

(860VAE models

only)

DSL LINK On when DSL WAN mode is selected and DSL training

complete.

Blinking when DSL WAN mode is selected but incomplete

DSL LinkUp state such as in-training (slow initially, fast

when almost connected), or controller "OFF", or no cable

attached to DSL connector.

Off when the device is powered off; or GE WAN mode is

selected.

DSL ACT On when the DSL interface is up.

Blinking when there is DSL WAN activity (traffic in either

direction).

Faster blinking when there is heavier traffic.

Off when the device is powered off or the DSL WAN

interface is down.

Table 3-4 Verifying the Router Operation (continued)

Power and Link LEDs to Check Normal Patterns

3-47

Cisco Integrated Services Router Hardware Installation Guide

OL-23125-02

Chapter 3 Connecting the Router Cisco 860, 880, 890 Series

To WAN GE line

(860VAE models

only)

GE Mode On when GE WAN mode is selected.

Off when the device is powered off or when DSL WAN

mode is selected.

GE ACT On when the GE WAN interface is up.

Blinking when there is GE WAN activity (traffic in either

direction).

Off when the device is powered off or when the GE WAN

interface is down.

1. FE = Fast Ethernet.

2. xDSL = General term referring to various forms of DSL, including ADSL (asymmetric digital subscriber line), VDSL

(very-high-data-rate digital subscriber line), and G.SHDSL.

3. DSLAM = digital subscriber line access multiplexer.

4. 3G = Third-Generation.

5. WWAN = wireless WAN.

6. RSSI = Received Signal Strength Indicator.

7. CDMA = code division multiple access.

8. GSM = Global System for Mobile Communications.

9. PPP = Point-to-Point Protocol.

10. PPPoE = PPP over Ethernet.

11. PPPoA = PPP over ATM.

12. VPN = Virtual Private Network.

13. SSID = service set identifier.

14. PoE = Power over Ethernet.

Table 3-4 Verifying the Router Operation (continued)

Power and Link LEDs to Check Normal Patterns

3-48

Cisco Integrated Services Router Hardware Installation Guide OL-23125-02

Chapter 3 Connecting the Router

Cisco 860, 880, 890 Series

CHAPTER

4-1

Cisco Integrated Services Router Hardware Installation Guide

OL-23125-02

Initial Configuration

This chapter provides instructions for initial configuration of the Cisco 819, 860, 880, 890 Series

Integrated Services Routers (ISRs), and contains the following sections:

•Cisco 810 Series, page 4-1

•Cisco 860, 880, 890 Series, page 4-2

Cisco 810 Series

Cisco 819 Series

This section provides instructions for initial configuration of the Cisco 819 ISRs. For the initial

configuration, we recommend using Cisco Configuration Professional Express. For instructions on how

to use Cisco Configuration Professional Express to configure the router, see Cisco Configuration

Professional Express User’s Guide.

You may also initially configure your router by using the Cisco IOS command-line interface (CLI) or by

using the setup command facility. To create the initial configuration, the setup command facility prompts

you for basic information about your router and network.

This section contains the following topics:

•Cisco IOS CLI, page 4-1

•Setup Command Facility, page 4-1

•Verifying the Initial Configuration, page 4-2

Cisco IOS CLI

To configure the initial router settings by using the Cisco IOS CLI, you must set up a console connection.

To configure the initial router settings using the Cisco IOS CLI, refer to the Cisco IOS CLI, page 4-2.

For instructions on how to set up a console connection, see the “Connecting a Terminal or PC to the

Console Port” section on page 3-16.

Setup Command Facility

For more information, refer to the “Setup Command Facility” section on page 4-4.

4-2

Cisco Integrated Services Router Hardware Installation Guide OL-23125-02

Chapter 4 Initial Configuration

Cisco 860, 880, 890 Series

Verifying the Initial Configuration

For more information, refer to the “Verifying the Initial Configuration” section on page 4-6.

Cisco 860, 880, 890 Series

This section provides instructions for initial configuration of the Cisco 860 series, 880 series, and 890

series ISRs. You may also initially configure your router by using the Cisco IOS command-line interface

(CLI) or by using the setup command facility. To create the initial configuration, the setup command

facility prompts you for basic information about your router and network.

This section contains the following topics:

•Cisco Configuration Professional Express, page 4-2

•Cisco IOS CLI, page 4-2

•Setup Command Facility, page 4-4

•Verifying the Initial Configuration, page 4-6

•Initial Configuration of the Wireless Access Point, page 4-7

Note Some SKUs may not include a default configuration file. If your router does not have a default

configuration file, go to the “Setup Command Facility” section on page 1 to configure the initial router

settings.

Cisco Configuration Professional Express

After you connect the cables and power up the router, we recommend that you use the Cisco

Configuration Professional Express web-based application to configure the initial router settings.

For instructions on how to use Cisco Configuration Professional Express to configure the router, see

Cisco Configuration Professional Express User’s Guide.

Cisco IOS CLI

To configure the initial router settings by using the Cisco IOS CLI, you must set up a console connection.

For instructions on how to set up a console connection, see the “Connecting a Terminal or PC to the

Console Port” section on page 3-16.

To configure the initial router settings using the Cisco IOS CLI, follow these steps:

Step 1 Set up a console connection to your router. The following message is displayed:

...

router con0 is now available

Step 2 Press Return. The following message is displayed:

Cisco Configuration Professional Express (Cisco CP Express) is installed on this device.

This feature requires the one-time use of the username "username1"

with the password "password1." The default username and password have a privilege level of

15.

4-3

Cisco Integrated Services Router Hardware Installation Guide

OL-23125-02

Chapter 4 Initial Configuration Cisco 860, 880, 890 Series

Please change these publicly known initial credentials using Cisco CP Express or the Cisco

IOS CLI.

Here are the Cisco IOS commands.

username <myuser> privilege 15 secret 0 <mypassword>

no username username1

Replace <myuser> and <mypassword> with the username and password you want to use.

For more information about Cisco CP please follow the instructions in the QUICK START

GUIDE for your router...

...

User Access Verification

Username:

Step 3 Enter the username username1, and press Return or Enter. The following prompt is displayed:

Password:

Step 4 Enter the password password1, and press Return or Enter. The following prompt is displayed:

Router#

A message is displayed that is similar to the first warning message. The message directs you to change

the username and password.

You are now in privileged EXEC mode.

Note You must change the username and password before you log off the router. You cannot use the

username username1 or password password1 after you log off from this session.

Step 5 Enter configuration mode using the following commands.

Router#

Router#config t

Router(config)#

Router(config)#username username privilege 15 secret 0 password

Step 6 To change the username and password, enter the following at the prompt:

username username privilege 15 secret 0 password

The username and password are the username and password that you determine.

To continue using the Cisco IOS CLI for initial configuration, see the applicable configuration

procedures in Cisco 860 Series, Cisco 880 Series, and Cisco 890 Series Integrated Services Routers

Software Configuration Guide.

Note Save your configuration changes regularly to avoid losing them during resets, power cycles, or

power outages. Use the copy running-config startup-config command at the privileged EXEC

mode prompt (Router#) to save the configuration to NVRAM.

Step 7 Verify the initial configuration. See the “Verifying the Initial Configuration” section on page 4-2.

4-4

Cisco Integrated Services Router Hardware Installation Guide OL-23125-02

Chapter 4 Initial Configuration

Cisco 860, 880, 890 Series

Setup Command Facility

The setup command facility guides you through the configuration process by prompting you for the

specific information that is needed to configure your system. Use the setup command facility to

configure a hostname for the router, to set passwords, and to configure an interface for communication

with the management network.

To use the setup command facility, you must set up a console connection with the router and enter the

privileged EXEC mode.

Note For instructions on how to set up a console connection, see the “Connecting a Terminal or PC to

the Console Port” section on page 3-16.

To configure the initial router settings by using the setup command facility, follow these steps:

Step 1 Set up a console connection to your router, and enter privileged EXEC mode. For instructions on how to

enter privileged EXEC mode, see Step 1 through Step 4 in the “Cisco IOS CLI” section on page 4-1.

Step 2 In privileged EXEC mode, at the prompt, enter setup.

yourname# setup

The following message is displayed:

--- System Configuration Dialog ---

Continue with configuration dialog? [yes/no]:

You are now in the setup command facility.

The prompts in the setup command facility vary, depending on your router model, on the installed

interface modules, and on the software image. The following steps and the user entries (in bold) are

shown as examples only.

Note If you make a mistake while using the setup command facility, you can exit and run the setup

command facility again. Press Ctrl-C, and enter the setup command at the privileged EXEC

mode prompt (Router#). For more information on using the setup command facility, see “The

Setup Command” chapter in Cisco IOS Configuration Fundamentals Command Reference,

Release 12.2T.

Step 3 To proceed using the setup command facility, enter yes.

Continue with configuration dialog? [yes/no]: yes

Step 4 When the following messages appear, enter yes to enter basic management setup.

At any point you may enter a question mark '?' for help.

Use ctrl-c to abort configuration dialog at any prompt.

Default settings are in square brackets '[]'.

Basic management setup configures only enough connectivity

for management of the system, extended setup will ask you

to configure each interface on the system

Would you like to enter basic management setup? [yes/no]: yes

4-5

Cisco Integrated Services Router Hardware Installation Guide

OL-23125-02

Chapter 4 Initial Configuration Cisco 860, 880, 890 Series

Step 5 Enter a hostname for the router (this example uses Router).

Configuring global parameters:

Enter host name [Router]: Router

Step 6 Enter an enable secret password. This password is encrypted (more secure) and cannot be seen when

viewing the configuration.

The enable secret is a password used to protect access to

privileged EXEC and configuration modes. This password, after

entered, becomes encrypted in the configuration.

Enter enable secret: xxxxxx

Step 7 Enter an enable password that is different from the enable secret password. This password is not

encrypted (less secure) and can be seen when viewing the configuration.

The enable password is used when you do not specify an

enable secret password, with some older software versions, and

some boot images.

Enter enable password: xxxxxx

Step 8 Enter the virtual terminal password, which prevents unauthenticated access to the router through ports

other than the console port.

The virtual terminal password is used to protect

access to the router over a network interface.

Enter virtual terminal password: xxxxxx

Step 9 Respond to the following prompts as appropriate for your network.

Configure SNMP Network Management? [yes]:

Community string [public]:

A summary of the available interfaces is displayed.

Step 10 Choose one of the available interfaces for connecting the router to the management network.

Enter interface name used to connect to the

management network from the above interface summary: fastethernet4

Step 11 Respond to the following prompts as appropriate for your network.

Configuring interface FastEthernet4:

Use the 100 Base-TX (RJ-45) connector? [yes]: yes

Operate in full-duplex mode? [no]: yes

Configure IP on this interface? [yes]: yes

IP address for this interface: 172.1.2.3

Subnet mask for this interface [255.255.0.0] : 255.255.0.0

Class B network is 172.1.0.0, 26 subnet bits; mask is /16

4-6

Cisco Integrated Services Router Hardware Installation Guide OL-23125-02

Chapter 4 Initial Configuration

Cisco 860, 880, 890 Series

The configuration is displayed:

The following configuration command script was created:

hostname Router

enable secret 5 $1$D5P6$PYx41/lQIASK.HcSbfO5q1

enable password xxxxxx

line vty 0 4

password xxxxxx

snmp-server community public

no ip routing

interface FastEthernet4

no shutdown

speed 100

duplex auto

ip address 172.1.2.3 255.255.0.0

Step 12 Respond to the following prompts. Enter 2 to save the initial configuration.

[0] Go to the IOS command prompt without saving this config.

[1] Return back to the setup without saving this config.

[2] Save this configuration to nvram and exit.

Enter your selection [2]: 2

Building configuration...

Use the enabled mode 'configure' command to modify this configuration.

Press RETURN to get started! RETURN

The user prompt is displayed.

Router>

Step 13 Verify the initial configuration. See the “Verifying the Initial Configuration” section on page 4-2 for

verification procedures.

After the initial configuration file is created, you can use the Cisco IOS CLI to perform additional

configuration.

Verifying the Initial Configuration

To verify that the new interfaces are operating correctly, perform the following tests:

•To verify that the interfaces and line protocol are in the correct state—up or down—enter the show

interfaces command.

•To display a summary status of the interfaces configured for IP, enter the show ip interface brief

command.

•To verify that you configured the correct hostname and password, enter the show configuration

command.

After you complete and verify the initial configuration, you can configure your Cisco router for specific

functions.

4-7

Cisco Integrated Services Router Hardware Installation Guide

OL-23125-02

Chapter 4 Initial Configuration Cisco 860, 880, 890 Series

Initial Configuration of the Wireless Access Point

The embedded wireless access point (AP) runs its own IOS. You can initially configure the embedded

wireless AP by using one of the following methods:

•Cisco Configuration Professional Express

•Setup command facility on the embedded wireless device

For information on how to do basic wireless configuration on your router see the “Basic Wireless

Device” chapter of the Cisco 860 Series, Cisco 880, and Cisco 890 Series Integrated Services Routers

Software Configuration Guide.

4-8

Cisco Integrated Services Router Hardware Installation Guide OL-23125-02

Chapter 4 Initial Configuration

Cisco 860, 880, 890 Series

A-1

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

APPENDIX

Technical Specifications

This appendix provides specifications for the Cisco 860, 880, 890 Series ISRs, Cisco 819 ISRs, and the

Cisco 812 ISRs:

•Cisco 810 Series, page A-1

•Cisco 860, 880, 890 Series, page A-11

Cisco 810 Series

This section contains the following:

•Cisco 812 Series, page A-1

•Cisco 819 Series, page A-4

Cisco 812 Series

This section provides specifications for the Cisco 812 Integrated Services Router (ISRs) and contains

the following topics:

•Router Specifications, page A-1

•Mean Time Between Failure Ground Benign Environment, page A-4

Warning

Ultimate disposal of this product should be handled according to all national laws and regulations.

Statement 1040

Note For compliance and safety information, see Regulatory Compliance and Safety Information for

Cisco 800 Series Routers.

Router Specifications

Table A-1 lists the operational limits of the Cisco 812 ISR. Operating the router outside of the limits

specified is not supported.

A-2

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Appendix A Technical Specifications

Cisco 810 Series

Table A-1 Cisco 812 ISR Specifications

Description

C812G+7-K9

(3G only)

C812G-CIFI+7-E-K9

C812G-CIFI+7-N-K9

C812G-CIFI-V-A-K9

C812G-CIFI-S-A-K9

(3G + WiFi)

Physical Characteristics

Dimensions (H x W x D) 2.01 x 8.95 x 9.49 inches (51 x 227x 241 mm)

Weight 3.96 lbs (1.8 kg)

Maximum Power Consumption 11 W 18 W

Extended Shock-vibe No

IP41 (with DC adapter) No

Environmental Operating Ranges

Operating Temperature and

Altitude –32 to 104 °F (0 to 40 °C)

Derate max operating temperature 1.5 °C per 1000 ft above 5000 ft

10,000 ft maximum except CCC1 only up to 2000 meters.

Humidity Maximum 85% non-condensing RH

Ingress Protection Rating IP 20 per IEC 60529

Standard Safety Certifications •UL 60950-1, 2nd edition

•CAN/CSA C22.2 No. 60950-1, 2nd edition

•EN 60950-1, 2nd edition

•CB to IEC 60950-1, 2nd edition with all group differences and national deviations

•AS/NZS 60950-1, Edition 1 (Australia and New Zealand)

EMC Emissions •EN55022/CISPR22

•CFR 47 Part 15

•ICES003

•VCCI-V-3

•AS/NZS CISPR22

•CNS13438

•CISPR22

•CNS13438

•EN300-386

•EN61000-3-2

•EN61000-3-3

•EN61000-6-1

EMC Immunity •EN55024/CISPR24 (EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5,

EN61000-4-6, EN61000-4-11)

•EN300-386

A-3

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Appendix A Technical Specifications Cisco 810 Series

Radio Immunity EN301 489-1, EN 301 489-7, and EN301 489-24

Transportation/Storage Conditions

Temperature –40 to158 °F (–40 to 70°C)

Humidity 5–95%

Altitude 4570 m (15,000 ft)

AC Power Adapter

Power Source 100–240 VAC

In-ceiling Plenum No

IP41 No

Extended Shock-vibe No

Maximum Power Consumption 25 W

Maximum Output Power Rating 20 W

Operating Temperature –13 to 140 °F (–25 to 60 °C)

PoE+ Splitter

Power Source PoE+ (IEEE802.3at Class 4)

In-ceiling Plenum Yes

IP41 No

Extended Shock-vibe No

Maximum Power Consumption 25 W

Maximum Output Power Rating 20 W

Operating Temperature –13 to 140 °F (–25 to 60 °C)

Embedded WiFi Antenna

Frequency Range — 2.4–2.5 Ghz

4.9–5.875 Ghz

Peak Gain — 4 dBi (2.4 GHz)

6 dBi (5.875 Ghz)

Voltage Standing Wave Ratio — 2.5:1 maximum for all bands

Nominal Impedance — 50 ohms

1. Routers shipped in People’s Republic of China.

Table A-1 Cisco 812 ISR Specifications (continued)

Description

C812G+7-K9

(3G only)

C812G-CIFI+7-E-K9

C812G-CIFI+7-N-K9

C812G-CIFI-V-A-K9

C812G-CIFI-S-A-K9

(3G + WiFi)

A-4

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Appendix A Technical Specifications

Cisco 810 Series

Mean Time Between Failure Ground Benign Environment

Table A-2 lists the Mean Time Between Failure (MTBF) values for Cisco 812 ISRs. The MTBF is

calculated based on the Ground Benign condition. The values may be adjusted based on the different

router usage.

Cisco 819 Series

This section provides router, port, cabling specifications, and power adapters for the Cisco 812 ISRs and

contains the following topics:

•Router Specifications, page A-4

•Mean Time Between Failure Ground Benign Environment, page A-8

•Supported Power Adapters, page A-9

Warning

Ultimate disposal of this product should be handled according to all national laws and regulations.

Statement 1040

Note For compliance and safety information, see the Regulatory Compliance and Safety Information

Roadmap that was shipped with the router and Regulatory Compliance and Safety Information for

Cisco 800 Series Routers.

Router Specifications

Table A-1 lists the operational limits of the Cisco 819 ISR. Operating the router outside of the limits

specified is not supported. For the complete list of SKUs available for each Cisco 819 ISRs, see the

“SKU Information” section on page 1-14.

Table A-2 MTBF Values

SKUs MTBF (hours)

C812G-CIFI-V-A-K9

C812G-CIFI-S-A-K9

210,000

C812G-CIFI+7-E-K9

C812G-CIFI+7-N-K9

280,000

C812G+7-K9 340,000

A-5

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Appendix A Technical Specifications Cisco 810 Series

Table A-3 Cisco 819 ISR Specifications

Description

Hardened Design

Specification

(Cisco 819HG and Cisco

819HG-4G ISRs)

Non-Hardened Design

Specifications

(Cisco 819G and Cisco

819G-4G ISRs)

Hardened Design Specifications

(C819HGW and C819HWD ISRs)

Physical Characteristics

Dimensions (H x W x D) 1.73 x 7.7 x 8.1 in

(44 x 196 x 206 mm)

1.67 x 7.7 x 7.2 in

(42 x 196 x 183 mm)

1.73 x 7.7 x 9.0 in

(44 x 196 x 229 mm)

Weight 3.3 lb (1.5 kg) 2.3 lb (1.0 kg) 3.4 lb (1.54 kg)

Maximum Power

Consumption 11 W 20 W

Environmental Operating Ranges

Operating Temperature and

Altitude –13 to 140°F

(–25 to 60°C)

32 to 104°F

(0 to 40°C)

–13 to 140°F

(–25 to 60°C)

Derate max operating temperature 1.5°C per 1000 feet above 5000 ft

10,000 ft maximum

Humidity Maximum 95%

non-condensing RH Maximum 85%

non-condensing RH Maximum 95% non-condensing

Environmental Tests

Ingress Protection Rating IP 41 per IEC 60529 for

Vertical Falling Water,

Pollution Degree 3

IP 20 per IEC 60529 IP 41 per IEC 60529 for Vertical

Falling Water, Pollution Degree 3

Humidity Non-condensing Relative Humidity: 5% to 95%

Pollution Pollution 3 for Dust

Military Standard MIL-STD-810G Method 514.6: Procedure 1 Category 4, Secured Cargo - Common Carrier

MIL-STD-810G Method 514.6: Procedure 1 Category 20, Ground Vehicles

MIL-STD-810G Method 516.6. Procedure 1, Functional Shock

MIL-STD-810G Method 516.6. Procedure 5, Crash Hazard

MIL-STD-810G Method 516.6. Procedure 6, Bench Handling

Vibration and Shock

(Railway Vehicles) EN61373 Functional Random Vibe - Category 1, Class B

EN61373 Simulated Non-op Long-life Vibe - Category 1, Class B

EN61373 Non-op Shock, Class B

Heavy-Duty Vehicle

Applications SAE J1455 Operating Random Vibe, Cab Mounted Truck

SAE J1455 Operating Sinusoidal Vibe, Category 3

SAE J1455 Non-operating Sinusoidal Vibe, Category 3

SAE J1455 Handling Drop Test

Certifications

A-6

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Appendix A Technical Specifications

Cisco 810 Series

Standard Safety

Certifications UL 60950-1, 2nd edition; CAN/CSA C22.2 No. 60950-1,

2nd edition, EN 60950-1, 2nd edition; CB to IEC

60950-1, 2nd edition with all group differences and

national deviations

UL 60950-1, 2nd edition;

CAN/CSA C22.2 No. 60950-1, 2nd

edition, EN 60950-1, 2nd edition;

CB to IEC 60950-1, 2nd edition

with all group differences and

national deviations; S/NZS

60950-1, first edition

(Australia/New Zealand)

EMC Emissions EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438,

CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, and EN61000-6-1

EMC Immunity EN55024/CISPR24, (EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5,

EN61000-4-6, EN61000-4-11), and EN300-386

Radio Immunity EN301 489-1, EN 301 489-7, and EN301 489-24

Transportation/Storage Conditions

Temperature –40 to158°F (–40 to 70°C) –40 to185°F

(–40 to 85°C)

Humidity 5–95%

Altitude 4570 m (15,000 ft)

Router AC Power Adapter1

Input Voltage 85–264 VAC

100–240 VAC nominal

Maximum Power

Consumption 25 W

Maximum Output Power

Rating 20 W

(5 VDC, 4 Amps)

Router DC Power Adapter

Input Voltage 12 VDC nominal

PWRx-20W-12VDC (10 VDC to 36 VDC operating range)

24 VDC nominal

PWRx-20W-24VDC (18 VDC to 75 VDC operating range)

Maximum Power

Consumption 25 W

Maximum Output Power

Rating 20 W

(5 VDC, 4 Amps)

Table A-3 Cisco 819 ISR Specifications (continued)

Description

Hardened Design

Specification

(Cisco 819HG and Cisco

819HG-4G ISRs)

Non-Hardened Design

Specifications

(Cisco 819G and Cisco

819G-4G ISRs)

Hardened Design Specifications

(C819HGW and C819HWD ISRs)

A-7

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Appendix A Technical Specifications Cisco 810 Series

Altitude Operating: –500 to 10,000 ft, de-rating operating temperature 1°C per 1,000 feet

Non-operating: –1,000 to 30,000 ft

Cable Length Input cable: 1 m

Output cable: 1.3 m

Inrush Current 50 A @ 25°C

Temperature Operating: –30 to 60°C, still air condition

Non-operating: –40 to 85°C

Humidity Operating: 10% to 95%, non-condensing

Non-operating: 10% to 95%, non-condensing

Thermal Shock Operating: –20 to 60°C at 0.5°C per minute

Non-operating: –40 to 85°C with change over time between 2 and 3 minutes.

Vibration Operating: 0.41 grms from 3 to 500 Hz with spectral break points of 0.0005 g2/Hz at 10 Hz

and 200 Hz and 5 dB/octave roll off at each end; 2 hours per axis.

Non-Operating: 1.12 grms from 3 to 500 Hz with spectral break points of 0.0065 g2/Hz at 10

Hz and 100 Hz and 5 dB/octave roll off at each end; 30 minutes per axis.

Shock Half sine (operating):

Duration = <2ms

Velocity = 2.11m/s

Number of shocks: a series of 6 shocks one on each side

Trapezoidal shock (non-operating):

Duration = 12 to 25 ms

Number of shocks: a series of 6 shocks one on each side

Martek Railway Power Adapters2

Nominal Input Voltages — — 24 V

52 V

72 V

In-ceiling Plenum — — No

IP 65 — — Yes

Extended Shock-vibe — — Yes

EN50155 (EN61373) and RIA20

Maximum Power

Consumption ——25 W

Maximum Output Power

Rating ——20 W

Operating Temperature — — –13 to 140°F

(–25 to 60°C)

Table A-3 Cisco 819 ISR Specifications (continued)

Description

Hardened Design

Specification

(Cisco 819HG and Cisco

819HG-4G ISRs)

Non-Hardened Design

Specifications

(Cisco 819G and Cisco

819G-4G ISRs)

Hardened Design Specifications

(C819HGW and C819HWD ISRs)

A-8

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Appendix A Technical Specifications

Cisco 810 Series

Mean Time Between Failure Ground Benign Environment

Table A-4 lists the Mean Time Between Failure (MTBF) values for Cisco 819 ISRs. The MTBF is

calculated based on the Ground Benign condition. The values may be adjusted based on the different

router usage.

Antenna (Diversity and Antenna 3G-ANTM1919D)

Antenna Dimensions 7.63 x 0.94 x 0.63 in (19.38 x 2.39 x 1.60 cm)

Frequency Range 806 to 960 MHz and 1710 to 2170 MHz

Gain 0 decibels relative to isotropic (dBi) (806 to 960 MHz) and 0 dBi (1710 to 2170 MHz)

Maximum Power 25 W

Connector TNC male

Voltage Standing Wave

Ratio < 2.5:1

Nominal Impedance 50 ohms

1. AC Power Adapter is not IP 41 rated. Installation must include protection of the adapter and power plug from water.

2. Contact Martek Power directly for details.

Table A-3 Cisco 819 ISR Specifications (continued)

Description

Hardened Design

Specification

(Cisco 819HG and Cisco

819HG-4G ISRs)

Non-Hardened Design

Specifications

(Cisco 819G and Cisco

819G-4G ISRs)

Hardened Design Specifications

(C819HGW and C819HWD ISRs)

Table A-4 MTBF Values

SKUs MTBF (hours)

Cisco 819HG and Cisco 819G ISRs

C819HG-U-K9

C819G-U-K9

380,000

C819HG+7-A-K9

C819HG+7-K9

C819G+7-A-K9

C819G+7-K9

420, 000

C819HG-S-K9

C819HG-V-K9

C819HG-B-K9

C819G-S-K9

C819G-V-K9

C819G-B-K9

280, 000

Cisco 819HGW, Cisco 819HWD, and Cisco 819H ISRs

A-9

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Appendix A Technical Specifications Cisco 810 Series

Supported Power Adapters

Table A-5 and Table A-6 list the supported power adapters for Cisco 819 ISRs. The PWR1 AC and DC

adapters uses molex connector while PWR2 uses barrel-type connector.

C819HGW-S-A-K9

C819HGW-V-A-K9

220,000

C819HGW+7-E-K9

C819HGW+7-N-K9

C819HGW+7-A-A-K9

293,000

C819HWD-E-K9

C819HWD-A-K9

630,000

C819H-K9 1,000,000

Cisco 819HG-4G and Cisco 819G-4G ISRs

C819HG-4G-V-K9

C819G-4G-V-K9

214,000

C819HG-4G-A-K9

C819G-4G-A-K9

226,000

C819HG-4G-G-K9

C819G-4G-G-K9

293,000

Table A-4 MTBF Values (continued)

SKUs MTBF (hours)

Table A-5 Cisco 819G ISR Power Adapters

Power Adapter Nominal Input

Range

C819G-4G-A-K9

C819G-4G-V-K9

C819G-4G-G-K9

(4G LTE SKUs)

C819G+7-K9

C819G-B-K9

C819G-S-K9

C819G-U-K9

C819G-V-K9

(3GSKUs)

PWR1-20W-AC 100–240 VAC — Yes

PWR2-20W-AC 100–240 VAC Yes —

PWR1-20W-12VDC 12 VDC — Yes

PWR2-20W-12VDC 12 VDC Yes —

PWR1-20W-24VDC 24 VDC — Yes

PWR2-20W-24VDC 24 VDC Yes —

Martek MBRH 0500-B/Q21 24 VDC — Yes

Martek MBRH 0500-C/Q21 52 VDC — Yes

Martek MBRH 0500-D/Q21 72 VDC — Yes

A-10

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Appendix A Technical Specifications

Cisco 810 Series

Martek MBRH 0500-D/2Q21 24 VDC Yes Yes

Martek MBRH 0500-D/2Q21 52 VDC Yes Yes

Martek MBRH 0500-D/2Q21 72 VDC Yes Yes

Martek MBRH 0500-D/2Q21 110 VDC Yes Yes

Martek MBRH 0500-B/Q22 24 VDC Yes —

Martek MBRH 0500-C/Q22 52 VDC Yes —

Martek MBRH 0500-D/Q22 72 VDC Yes —

Martek MBRH 0500-D/2Q22 24 VDC Yes Yes

Martek MBRH 0500-D/2Q22 52 VDC Yes Yes

Martek MBRH 0500-D/2Q22 72 VDC Yes Yes

Martek MBRH 0500-D/2Q22 110 VDC Yes Yes

Table A-5 Cisco 819G ISR Power Adapters

Power Adapter Nominal Input

Range

C819G-4G-A-K9

C819G-4G-V-K9

C819G-4G-G-K9

(4G LTE SKUs)

C819G+7-K9

C819G-B-K9

C819G-S-K9

C819G-U-K9

C819G-V-K9

(3GSKUs)

Table A-6 Cisco 819H ISR Power Adapters

Power Adapter Nominal Input

Range

C819HG-4G-A-K9

C819HG-4G-V-K9

C819HG-4G-G-K9

(4G LTE SKUs)

C819HG+7-K9

C819HG-B-K9

C819HG-S-K9

C819HG-U-K9

C819HG-V-K9

(3G SKUs)

C819HGW-S-A-K9

C819HGW-V-A-K9

C819HGW+7-E-K9

C819HGW+7-N-K9

C819HGW+7-A-A-K9

(3G + WiFi SKUs)

C819HWD-E-K9

C819HWD-A-K9

(WiFi SKUs)

C819H-K9

(Serial SKU)

PWR1-20W-AC 100–240 VAC — Yes — — —

PWR2-20W-AC 100–240 VAC Yes — Yes Yes Yes

PWR1-20W-12VDC 12 VDC — Yes — — —

PWR2-20W-12VDC 12 VDC Yes — Yes Yes Yes

PWR1-20W-24VDC 24 VDC — Yes — — —

PWR2-20W-24VDC 24 VDC Yes — Yes Yes Yes

Martek MBRH

0500-B/Q21 24 VDC — Yes — — —

Martek MBRH

0500-C/Q21 52 VDC — Yes — — —

Martek MBRH

0500-D/Q21 72 VDC — Yes — — —

A-11

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Appendix A Technical Specifications Cisco 860, 880, 890 Series

Cisco 860, 880, 890 Series

This section provides router, port, and cabling specifications for the Cisco 860 series, Cisco 880 series,

and Cisco 890 series ISRs. It contains the following topics:

•Router Specifications, page A-12

•Wireless Access Point, page A-22

•FE and GE Port Pinouts, page A-23

•Console and Auxiliary Port Connector Pinouts, page A-24

•FXS and FXO Port Connector Pinouts, page A-24

•VDSL2 Port Connector Pinouts, page A-24

•ADSL2+ Port Connector Pinouts, page A-25

•V.92 Port Connector Pinouts, page A-25

Martek MBRH

0500-D/2Q21 24 VDC Yes Yes Yes Yes Yes

Martek MBRH

0500-D/2Q21 52 VDC Yes Yes Yes Yes Yes

Martek MBRH

0500-D/2Q21 72 VDC Yes Yes Yes Yes Yes

Martek MBRH

0500-D/2Q21 110 VDC Yes Yes Yes Yes Yes

Martek MBRH

0500-B/Q22 24 VDC Yes — Yes Yes Yes

Martek MBRH

0500-C/Q22 52 VDC Yes — Yes Yes Yes

Martek MBRH

0500-D/Q22 72 VDC Yes — Yes Yes Yes

Martek MBRH

0500-D/2Q22 24 VDC Yes Yes Yes Yes Yes

Martek MBRH

0500-D/2Q22 52 VDC Yes Yes Yes Yes Yes

Martek MBRH

0500-D/2Q22 72 VDC Yes Yes Yes Yes Yes

Martek MBRH

0500-D/2Q22

110 VDC Yes Yes Yes Yes Yes

Table A-6 Cisco 819H ISR Power Adapters (continued)

Power Adapter Nominal Input

Range

C819HG-4G-A-K9

C819HG-4G-V-K9

C819HG-4G-G-K9

(4G LTE SKUs)

C819HG+7-K9

C819HG-B-K9

C819HG-S-K9

C819HG-U-K9

C819HG-V-K9

(3G SKUs)

C819HGW-S-A-K9

C819HGW-V-A-K9

C819HGW+7-E-K9

C819HGW+7-N-K9

C819HGW+7-A-A-K9

(3G + WiFi SKUs)

C819HWD-E-K9

C819HWD-A-K9

(WiFi SKUs)

C819H-K9

(Serial SKU)

A-12

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Appendix A Technical Specifications

Cisco 860, 880, 890 Series

•G.SHDSL Port Connector Pinouts, page A-25

•Data BRI Port Connector Pinouts, page A-26

•Voice ISDN BRI Interface Pin Numbers and Functions, page A-27

•SFP Port Connector Pinouts, page A-27

•Cable Specifications, page A-28

Warning

Ultimate disposal of this product should be handled according to all national laws and regulations.

Statement 1040

Note For compliance and safety information, see Regulatory Compliance and Safety Information Roadmap

that was shipped with the router and Regulatory Compliance and Safety Information for Cisco 800 Series

Routers.

Note The product has some color variation on the Power Pin. This will not impact product performance or

reliability.

Router Specifications

This sections contains the following:

•All Models Except Cisco 860VAE Series, page A-12

•Cisco 860VAE Series, page A-14

•Cisco 860VAE-W-A-K9, Cisco 860VAE-W-E-K9, and Cisco 860VAE-POE-W-A-K9 Series,

page A-15

•Cisco 870 Series, page A-16

•Cisco 880 Series, page A-17

•Cisco 880G Series 3G Wireless Integrated Services Router, page A-19

•Cisco 880VA Series, page A-19

•Cisco 890 Series, page A-21

All Models Except Cisco 860VAE Series

Table A-7 lists the system specifications for all models except the Cisco 860VAE series routers.

A-13

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Appendix A Technical Specifications Cisco 860, 880, 890 Series

Table A-7 Router Specifications

Description

Design Specification

(all models except

Cisco 860VAE series)

Physical Dimensions

Dimensions with antenna and rubber

feet (H x W x D) 1.9 x 12.8 x 10.4 in.

Weight (not including desktop power

supply) 5.5 lb (2.5 kg), maximum

Environmental Operating Ranges

Nonoperating temperature –4 to 149°F (–20 to 65°C)

Nonoperating humidity 5 to 95% relative humidity

Nonoperating altitude 0 to 15,000 ft (4570 m)

Operating temperature 32 to 104°F (0 to 40°C)

Operating humidity 10 to 85% relative humidity

Operating altitude 0 to 10,000 ft (3000 m)

Acoustic

Acoustic: Sound Pressure

(Typical/Maximum) for single fan units Low speed 31.4 dBa

High speed 44.1 dBa

Acoustic: Sound Power

(Typical/Maximum) for dual fan units Low speed 38.9 dBA

High speed 51.7 dBa

Router Power Adapter

Input voltage 100 to 240 VAC Nominal

Input frequency 47 to 63 Hz

Power output 60 W, maximum

Output voltages +12 VDC

Inline Power-over-Ethernet Adapter

Input voltage 85 to 264 VAC

Input frequency 47 to 63 Hz

Power output 80 W, maximum

Output voltage –48 VDC

A-14

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Appendix A Technical Specifications

Cisco 860, 880, 890 Series

Cisco 860VAE Series

Table A-8 lists the system specifications for the Cisco 860VAE series routers.

Table A-8 Router Specifications

Description Design Specification

Cisco 860VAE series

Physical Dimensions

Dimensions with antenna and rubber

feet (H x W x D) 1.75 x 9.5 x 9 in.

Weight (not including desktop power

supply) 3.3 lb (1.5 kg)

The total weight depends on

customer-selected options.

Environmental Operating Ranges

Nonoperating temperature –4 to 149°F (–20 to 65°C)

Nonoperating humidity 5 to 95% relative humidity

Nonoperating altitude 0 to 15,000 ft (4570 m)

Operating temperature 32 to 104°F (0 to 40°C)

Operating humidity 10 to 85% relative humidity

Operating altitude 0 to 10,000 ft (3000 m)

Acoustic

Acoustic: Sound Pressure

(Typical/Maximum) for single fan units N/A, no fan

Acoustic: Sound Power

(Typical/Maximum) for dual fan units N/A, no fan

Router Power Adapter

Input voltage 100 to 240 VAC Nominal

Input frequency 47 to 63 Hz

Power output 30 W, maximum

Output voltages +12 VDC

Inline Power-over-Ethernet Adapter

Input voltage not supported

Input frequency

Power output

Output voltage

AC Adapter for Cisco 867VAE

AC Adapter PWR-30W-AC

Environmental Operating Ranges

Nonoperating temperature –40 to 85°C

Nonoperating humidity 10% to 95%, non condensing

A-15

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Appendix A Technical Specifications Cisco 860, 880, 890 Series

Cisco 860VAE-W-A-K9, Cisco 860VAE-W-E-K9, and Cisco 860VAE-POE-W-A-K9 Series

Table A-9 lists the system specifications for the Cisco 860VAE-W-A-K9, Cisco 860VAE-W-E-K9, and

Cisco 860VAE-POE-W-A-K9 series routers.

Operating temperature -5 to 45° C

Operating humidity 10% to 90%, non condensing

Table A-8 Router Specifications (continued)

Description Design Specification

Cisco 860VAE series

Table A-9 Technical Specifications

Description Specification

Physical Dimensions

Enclosure 9.5 x 9 x 1.75 in. (W x D x H)

Storage Environment

Temperature -25 C to +70 C

Altitude 4570 m (15000 ft)

Humidity 5–95% Relative Humidity

Operating Environment

Temperature 0 C to +40 C

Altitude 3000 m (10000 ft)

Humidity 10–85% Relative Humidity

Maximum temperature of

enclosure surface No higher than 70 C when the ambient

temperature is 40 C

Acoustic

Sound Pressure N/A—Convection cooled, no fan

Power Supply

External power supply C866VAE-W-E-K9, C867VAE-W-A-K9,

C867VAE-W-E-K9 models:

Input: 100–240 VAC, Frequency range

50–60 Hz

Output: 12 VDC, 2.5 A, 30 W

C867VAE-POE-W-A-K9 model:

Input: 100–240 VAC, Frequency range

50–60 Hz

Output: 12 VDC, 5 A, 60 W

Inline Power-over-Ethernet (PoE): C867VAE-POE-W-A-K9 Model Only

IEEE 802.3af compliant

Wireless LAN

A-16

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Appendix A Technical Specifications

Cisco 860, 880, 890 Series

Cisco 870 Series

Table A-12 lists the system specifications for the Cisco 870 series routers.

Radio technology IEEE 802.11n draft 2.0 standard compliant.

Backward compatible with 802.11b/g.

Operating Frequency 2.4 GHz radio band

Bandwidth 20 MHz

Channels Country-specific:

America SKU(-W-A): Channels 1–11

Europe SKU(-W-E): Channels 1–13

Table A-9 Technical Specifications

Description Specification

Table A-10 Router Specifications

Description Design Specification

Physical Dimensions

•H x W x D = 2.00 x 10.25

x 8.50 in. (50.8 mm x

260.4 mm x 215.9.9 mm)

(nonwireless models)

•H x W x D = 2.00 x 10.25

x 9.13 in. (50.8 mm x

260.4 mm x 231.9 mm)

(wireless models with

antenna connectors,

excludes antennae)

•Weight: 2.10 lb (0.954 kg)

maximum

Optional external PoE adapter dimensions •H x W x D = 1.13 x 4.00 x

10.25 in. (28.9 x 101.6 x

260.4 mm) (cables

included)

•H x W x D = 1.13 x 4.00 x

4.25 in. (28.9 x 101.6 x

108 mm) (cables not

included)

•Weight = 0.32 lb (0.143

kg)

Environmental Operating Ranges

Nonoperating temperature -4 to 149°F (-20 to 65°C)

Nonoperating humidity 5 to 95 percent relative

humidity (noncondensing)

A-17

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Appendix A Technical Specifications Cisco 860, 880, 890 Series

Cisco 880 Series

Table A-12 lists the system specifications for the Cisco 880 series routers.

Nonoperating altitude 0 to 15,000 ft (0 to 4570m)

Operating temperature 32 to 104°F (0 to 40°C)

Operating humidity 10 to 85%, relative humidity

(noncondensing)

Operating altitude 0 to 10,000 ft (0 to 3000m)

Power Supply

AC input voltage 100 to 240 VAC

Frequency 50 to 60 Hz

Maximum output power 26W

Output voltages 5 and 12V

Optional external Inline PoE adapter

specifications

802.3af compliant (Mid-span

power delivered via pins 4,5,7

& 8)

AC Input Voltage 100 to 240 VAC

Frequency 50 to 60 Hz

AC Input Current 1A maximum

Maximum output power 80W

Output voltage 48 VDC

Table A-10 Router Specifications (continued)

Description Design Specification

A-18

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Appendix A Technical Specifications

Cisco 860, 880, 890 Series

Table A-11 Router Specifications

Description Design Specification

Physical Dimensions

Nonwireless models (H x W x D):

•1.9 x 12.8 x 9.8 in. (48 x 325 x 249 mm)

(includes rubber feet)

•1.75 x 12.8 x 9.8 in. (44 x 325 x 249 mm)

(without rubber feet)

Wireless models (H x W x D):

•1.9 x 12.8 x 10.4 in. (48 x 325 x 264 mm)

(includes rubber feet)

•1.75 x 12.8 x 10.4 in. (44 x 325 x 264 mm)

(without rubber feet; excludes antennas)

•Weight: 5.5 lb (2.5 kg) maximum

External Power Supply Universal 100 to 240 VAC input; 60W, 12 VDC

output

Router Power Specifications

AC input voltage 100 to 240 VAC

Frequency 50 to 60 Hz

Maximum output power 60W

Output voltages 12 VDC

Optional internal PoE with

external adapter

Maximum output power 80W

External output voltage 48 VDC

Environmental Operating

Ranges

Nonoperating temperature -4 to 149°F (-20 to 65°C)

Nonoperating humidity 5 to 95% relative humidity (noncondensing)

Nonoperating altitude 0 to 15,000 ft (0 to 4570m)

Operating temperature •At sea level: 32 to 104°F (0 to 40°C)

•Up 10,000 ft: 32 to 77°F (0 to 25°C)

•Derating 2.7°F/10000 ft (1.5°C/1000 ft)

Operating humidity 10 to 85% relative humidity (noncondensing)

Operating altitude 0 to 10,000 ft (0 to 3000m)

A-19

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Appendix A Technical Specifications Cisco 860, 880, 890 Series

Cisco 880G Series 3G Wireless Integrated Services Router

Table A-12 lists the system specifications for the Cisco 880G series 3G Wireless Integrated Services

routers.

Cisco 880VA Series

Table A-12 lists the system specifications for the Cisco 880VA series routers.

Table A-12 Router Specifications

Description Design Specification

Physical Dimensions

Nonwireless models •H x W X D = 1.9 x 12.8 x

9.8 in. (48 x 325 x 249

mm) (includes rubber feet)

•H x W X D = 1.75 x 12.8 x

9.8 in. (44 x 325 x 249

mm) (without rubber feet)

•Weight: 5.5 lb (2.5 kg)

maximum

Environmental Operating Ranges

Nonoperating temperature -4 to 149°F (-20 to 65°C)

Nonoperating humidity 5 to 95 percent relative

humidity (noncondensing)

Nonoperating altitude 0 to 15,000 ft (0 to 4570m)

Operating temperature 32 to 104°F (0 to 40°C)

Operating humidity 10 to 85%, relative humidity

(noncondensing)

Operating altitude 0 to 10,000 ft (0 to 3,000m)

Power Supply

External Power Supply Universal 100- to 240-VAC

input; 60W, 12-VDC output

Router Power Specifications

AC Input voltage 100 to 240 VAC

Input frequency 50 to 60 Hz

Power output 60W

Output voltages 12 VDC

Optional internal PoE with external

adapter

Maximum output power 80W

Output voltage, external 48 VDC

A-20

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Appendix A Technical Specifications

Cisco 860, 880, 890 Series

Table A-13 Router Specifications

Description Design Specification

Physical Dimensions

Nonwireless models:

•H x W x D = 1.9 x 12.8 x 9.8 in. (48

x 325 x 249 mm) (includes rubber

feet)

•H x W x D = 1.75 x 12.8 x 9.8 in. (44

x 325 x 249 mm) (without rubber

feet)

Wireless models:

•H x W x D = 1.9 x 12.8 x 10.4 in. (48

x 325 x 264 mm) (includes rubber

feet)

•H x W x D = 1.75 x 12.8 x 10.4 in. (44

x 325 x 264 mm) (without rubber

feet; excludes antennas)

•Weight: 5.5 lb (2.5 kg) maximum

Environmental Operating Ranges

Nonoperating temperature -4 to 149°F (-20 to 65°C)

Nonoperating humidity 5 to 95% relative humidity

(noncondensing)

Nonoperating altitude 0 to 15,000 ft (0 to 4570m)

Operating temperature •At sea level: 32 to 104°F (0 to 40°C)

•Up 10,000ft: 32 to 77 °F (0 to 25°C)

•Derating 2.7°F/10000 ft (1.5°C

[304.8m])

Operating humidity 10 to 85% relative humidity

(noncondensing)

Operating altitude 0 to 10,000 ft (0 to 3000m)

Power Supply

AC input voltage 100 to 240 VAC

Frequency 50 to 60 Hz

Maximum output power 60W

Output voltages 12 VDC

Optional internal PoE with

external adapter

•Maximum output power: 80W

•External output voltage: 48 VDC

A-21

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Appendix A Technical Specifications Cisco 860, 880, 890 Series

Cisco 890 Series

Table A-12 lists the system specifications for the Cisco 890 series routers.

Table A-14 Router Specifications

Description Design Specification

Physical Dimensions

Cisco 891, 892, and 892F Nonwireless models:

•H x W x D = 1.9 x 12.8 x 9.8 in. (4.8 x

32.5 x 24.9 cm) (includes rubber feet)

•H x W x D = 1.75 x 12.8 x 9.8 in. (4.5 x

32.5 x 24.9 cm) (without rubber feet)

Wireless models:

•H x W x D = 1.9 x 12.8 x 10.4 in. (4.8 x

32.5 x 26.4 cm) (includes rubber feet)

•H x W x D = 1.75 x 12.8 x 10.4 in. (4.5

x 32.5 x 26.4 cm) (without rubber feet;

excludes antennas)

•Weight: 5.5 lb (2.5 kg) maximum

Cisco 892FSP, 896VA, 897VA,

898EA and 891F •H x W x D =1.82 x 12.71 x 9.78 in. (4.62

x 32.28 x 24.84 cm) (includes rubber

feet)

•H x W x D = 1.75 x 12.71 x 9.78 in.

(4.45 x 32.28 x 24.84 cm) (without

rubber feet)

Environmental Operating Ranges

Nonoperating temperature -4 to 149°F (-0 to 65°C)

Nonoperating humidity 5 to 95% relative humidity (noncondensing)

Nonoperating altitude 0 to 15,000 ft (0 to 4570m)

Operating temperature 32 to 104°F (0 to 40°C)

Operating humidity 10 to 85% relative humidity

(noncondensing)

Operating altitude 0 to 10,000 ft (0 to 3000m)

Power Supply

External Power Supply

AC input voltage Universal 100 to 240 VAC

Frequency 50 to 60 Hz

Maximum output power 60W

Output voltages 12 VDC

A-22

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Appendix A Technical Specifications

Cisco 860, 880, 890 Series

Power Supply

Table A-15 lists the maximum input values for the power supply used with the Cisco 860, 880, 890 series

ISRs.

Wireless Access Point

Table A-16 lists the specifications for the wireless access point (AP).

Optional POE •Separate 80W POE power supply for

Cisco 891 and 892 ISRs

•Single 125W power supply required for

Cisco 896, 897, 898 and 891F for router

and PoE

External output voltage 48 VDC

Table A-14 Router Specifications (continued)

Description Design Specification

Table A-15 Maximum Input Values for the power supply used with Cisco 860, 880, 890 series ISRs

Power Supply Unit 100 Volt 240 Volt

30 W 1 Ampere 0.5 Ampere

60 W 1.5 Ampere 0.7 Ampere

Table A-16 Wireless Access Point Specifications

Description Design Specification

Radio technology IEEE 802.11n draft 2.0 standard compliant. 2x3

MIMO1 radio. Backward compatible with

802.11b/g and 802.11a (Cisco 890 series routers).

1. MIMO = Multiple Input/Multiple Output.

Operating frequency Cisco 860 series and 880 series ISRs

2.4-GHz radio band

Cisco 890 series ISRs

2.4 and 5-GH radio bands

Channels Country-specific 20 and 40 MHz

PHY Data rate 802.11b up to 11 Mb/s

802.11g up to 54 Mb/s

802.11n up to 300 Mb/s

A-23

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Appendix A Technical Specifications Cisco 860, 880, 890 Series

FE and GE Port Pinouts

Table A-17 describes the RJ-45 connector pinouts for Fast Ethernet (FE) ports with Power over Ethernet

(PoE). Some models support PoE using an optional module, and some models do not support PoE. For

ports that do not support PoE, pins 4, 5, 7, and 8 are not connected.

•Cisco 860VAE and 860VAE-K9 ISRs do not support PoE.

•Cisco 880 series ISRs can include an optional PoE module that provides power to 802.3af-compliant

devices connected to FE ports 0 and 1.

•Cisco 890 series ISRs can include an optional PoE module that provides power to 802.3af-compliant

devices connected to FE ports 0, 1, 2, and 3.

Table A-18 describes the RJ-45 connector pinouts for the Gigabit Ethernet (GE) ports of the Cisco

860VAE and 860VAE-K9 ISRs.

Table A-17 Ethernet FE LAN Port Pinouts

Pin Function

1RX+

1. RX = Receive

2RX–

3TX+

2. TX = Transmit

4 PoE—optional

5 PoE—optional

6TX–

7 PoE—optional

8 PoE—optional

Table A-18 Ethernet GE Port Pinouts

Pin GE Signal

(LAN and WAN)

1Tx A+

1. TX = Transmit

2Tx A-

3Rx B+

2. RX = Receive

4Tx C+

5Tx C-

6Rx B-

7Rx D+

8Rx D-

A-24

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Appendix A Technical Specifications

Cisco 860, 880, 890 Series

Console and Auxiliary Port Connector Pinouts

Table A-19 lists the pinouts for the console and auxiliary port connectors.

FXS and FXO Port Connector Pinouts

Table A-20 lists the FXS and FXO connector pinouts.

VDSL2 Port Connector Pinouts

Table A-21 lists the VDSL2 connector pinouts.

Table A-19 Console and Auxiliary Port Connector Pinouts

RJ-45 Pin Function

1RTS

2DTR

3TXD

4 GND

5 GND

6RXD

7DSR

8CTS

Table A-20 FXS and FXO Connector Pinouts (RJ-11-to-RJ-45)

Pin Signal

1NC

2NC

3TIP

4RING

5NC

6NC

Table A-21 VDSL2 Connector Pinouts (RJ-11-to-RJ-45)

RJ-11 Pin Function

1Unused

2Unused

3TIP

4RING

A-25

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Appendix A Technical Specifications Cisco 860, 880, 890 Series

ADSL2+ Port Connector Pinouts

Table A-22 lists the ADSL2+ connector pinouts.

V.92 Port Connector Pinouts

Table A-23 lists the V.92 connector pinouts.

G.SHDSL Port Connector Pinouts

Table A-24 lists the pinouts for the symmetrical high-speed DSL (G.SHDSL) WAN port for two-pair

products, including the following router model(s):

•C888

5Unused

6Unused

Table A-21 VDSL2 Connector Pinouts (RJ-11-to-RJ-45) (continued)

RJ-11 Pin Function

Table A-22 ADSL2+ Connector Pinouts (RJ-11)

RJ-11 Pin Function

1Unused

2Unused

3TIP

4RING

5Unused

6Unused

Table A-23 V.92 Connector Pinouts (RJ-11-to-RJ-45)

RJ-11 Pin Function

1Unused

2Unused

3TIP

4RING

5Unused

6Unused

A-26

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Appendix A Technical Specifications

Cisco 860, 880, 890 Series

Table A-25 lists the pinouts for the symmetrical high-speed DSL (G.SHDSL) WAN port for four-pair

products, including the following router models:

•C888E

•C888EW

•C888EA

Data BRI Port Connector Pinouts

Table A-26 lists the pinouts for the Data BRI port.

Table A-24 G.SHDSL WAN Port Pinouts for Two-Pair Products

Pin Function

1Unused

2 TIP (Port1)

3 TIP (Port0)

4 RING (Port0)

5 RING (Port1)

6Unused

Table A-25 G.SHDSL WAN Port Pinouts for Four-Pair Products

Pin Function

1 TIP (Port1)

2 RING (Port1)

3 TIP (Port2)

4 TIP (Port0)

5 RING (Port0)

6 RING (Port2)

7 TIP (Port3)

8 RING (Port3)

Table A-26 Data BRI Port Pinouts

Pin Function

1Unused

2Unused

3TXP

4RXP

5TXN

6TXN

A-27

Cisco Integrated Services Router Hardware Installation Guide

OL-27407-01

Appendix A Technical Specifications Cisco 860, 880, 890 Series

Voice ISDN BRI Interface Pin Numbers and Functions

Table A-27 lists the interface pin numbers and functions for the voice ISDN BRI port.

SFP Port Connector Pinouts

Table A-28 lists the pinouts for the SFP port.

7Unused

8Unused

Table A-26 Data BRI Port Pinouts (continued)

Pin Function

Table A-27 Interface Pin Numbers and Functions

ISDN BRI NT/TE Card NT Interface1

1. Use a straight-through cable for NT interfaces.

TE Interface2

2. Use a crossover cable for TE interfaces.

Pin 3/T+ Pin 3/R+ Pin 3/T+

Pin 4/R+ Pin 4/T+ Pin 4/R+

Pin 5/R- Pin 5/T- Pin 5/R-

Pin 6/T- Pin 6/R- Pin 6/T-

Table A-28 SFP Port Pinouts

Pin Function

1 TX Ground

2TX Fault

3TX disable

4 Module definition 2

5 Module definition 1

6 Module definition 0

7 Rate Select

8 Loss of signal

9 Receiver ground

10 Receiver ground

11 Receiver ground

12 Inverted received data out

13 Received data out

14 Receiver ground

15 Receiver power

A-28

Cisco Integrated Services Router Hardware Installation Guide OL-27407-01

Appendix A Technical Specifications

Cisco 860, 880, 890 Series

Cable Specifications

This section provides specifications for the following Ethernet cables:

•Straight-through cable

•Crossover cable

Because of the autocrossover (autosensing) function, both straight-through and crossover cables can be

used for the Ethernet LAN port.

Ethernet Cable Specifications

Table A-29 lists the specifications that apply to both straight-through and crossover Ethernet cables.

Maximum Cable Length

The maximum length for the Ethernet cables that connect equipment to the router is 328 feet

(100 meters). This length is also the maximum distance between the router and the equipment connected

to it.

16 Transmitter power

17 Transmitter ground

18 Transmit data in

19 Inverted transmit data in

20 Transmitter ground

Table A-28 SFP Port Pinouts (continued)

Pin Function

Table A-29 Ethernet Cable Specifications

Type Category

10BASE-T Category 3 or 5

100BASE-T Category 5 or higher

1000BASE-T Category 5 or higher

Cisco Systems Integrated Services Router Users Manual 800 Series Hardware Installation Guide

OL-27407-01 to the manual 1655f4da-e8e8-4661-a826-afc65e7ba0aa

Navigation menu

Versions of this User Manual:

Views

Navigation
