Cisco Systems Ons 15216 Edfa2 Operation Manual Operations Guide, R2.3
15216 EDFA2 to the manual 5028a3ab-2f86-4aeb-8eeb-ebd9da373914
2015-01-05
: Cisco-Systems Cisco-Systems-Ons-15216-Edfa2-Operation-Manual-202912 cisco-systems-ons-15216-edfa2-operation-manual-202912 cisco-systems pdf
Open the PDF directly: View PDF .
Page Count: 280 [warning: Documents this large are best viewed by clicking the View PDF Link!]
- CiscoONS15216EDFA2 Operations Guide
- Contents
- Preface
- Applications
- Technical Specifications
- Installation
- 3.1 Introduction
- 3.2 Standard Precautions
- 3.3 Placement and Power Connection
- 3.4 SC/UPC Optical Ports
- 3.5 Communications
- Provisioning Using ASH and SNMP

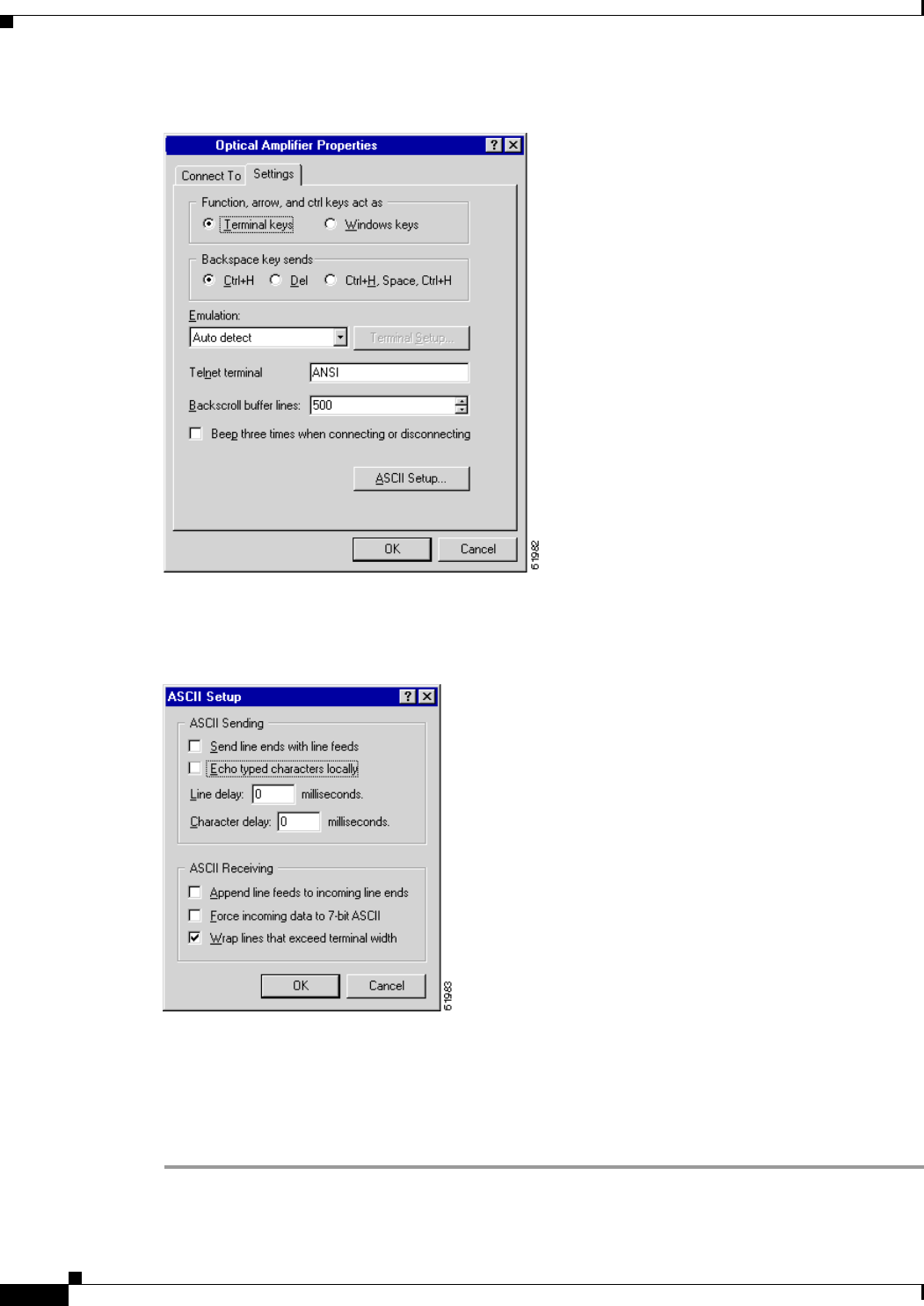

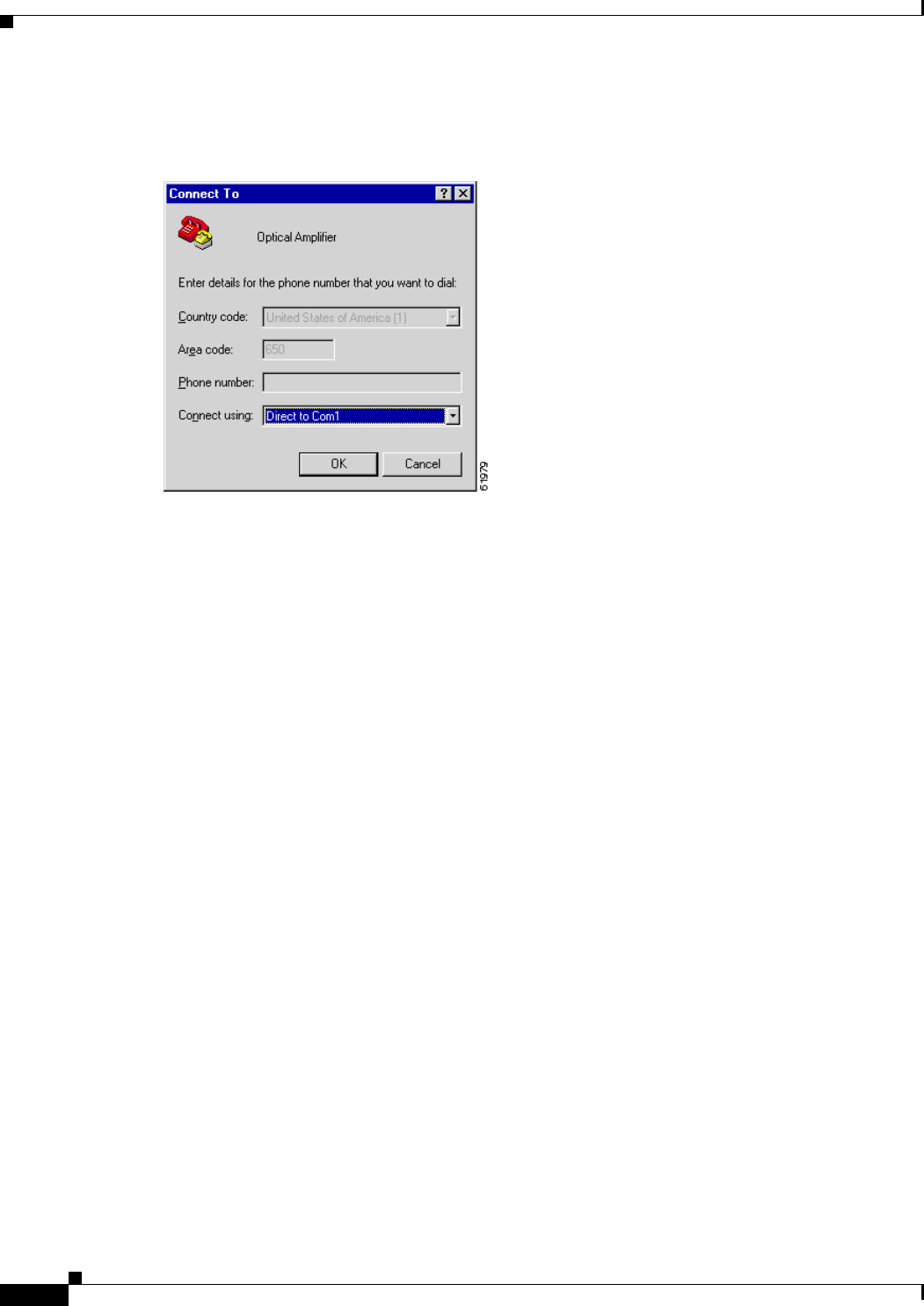

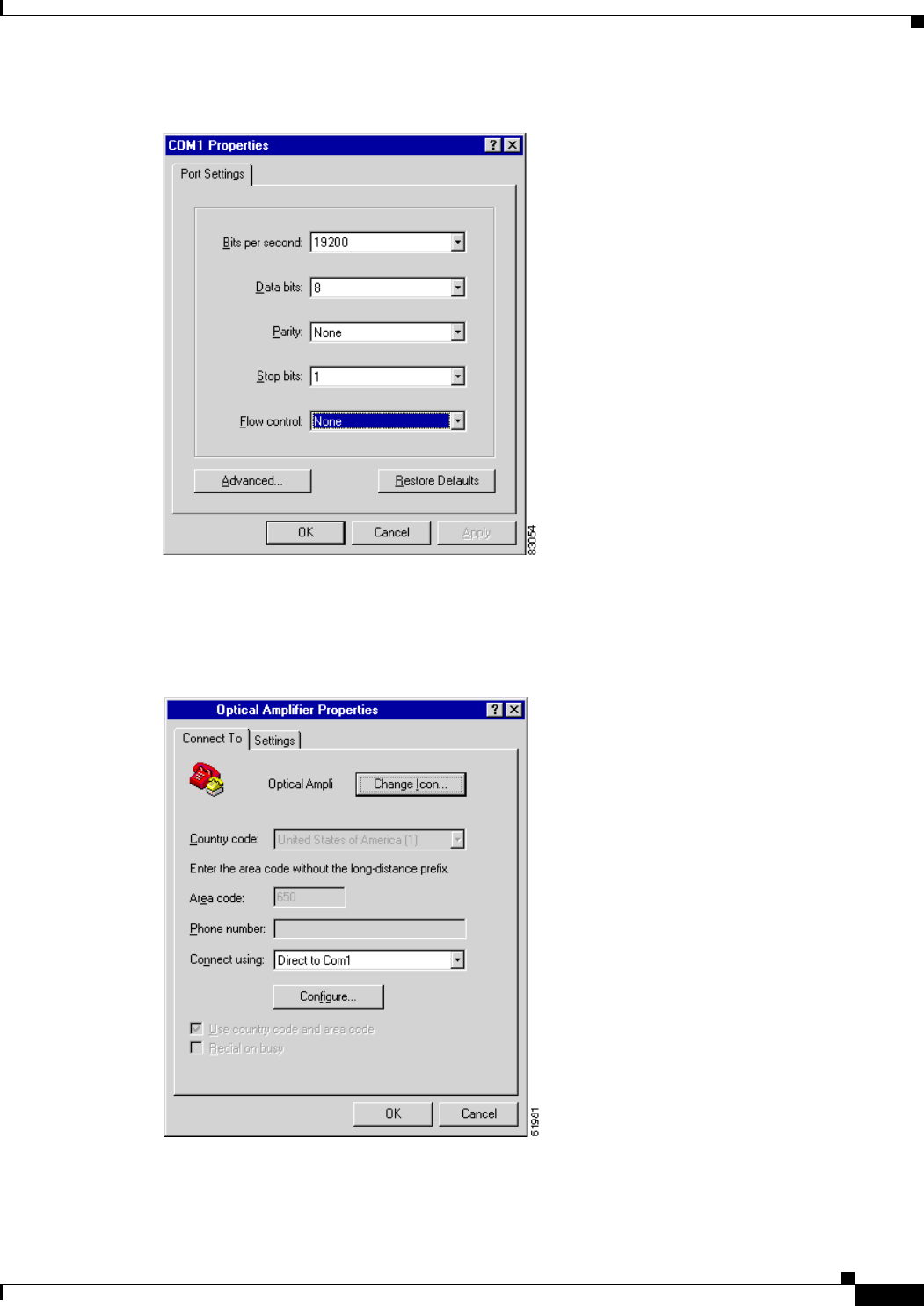

- 4.1 Log In via RS-232 (EIA/TIA-232) Port Using HyperTerminal
- 4.2 Set IP Address
- 4.3 Log In via LAN Port Using Telnet (Optional)
- 4.4 Set Date and Time
- 4.5 Set Power Bus Mode (Simplex or Duplex)
- 4.6 Verify Amplifier Operational Status
- 4.7 Set Gain
- 4.8 Set Alarm Thresholds
- 4.9 Set Password
- 4.10 Add Users
- 4.11 Save Changes
- 4.12 Log Off
- 4.13 Back Up System Configuration
- 4.14 Restore System Configuration
- 4.15 Recover Default Password
- SNMP MIB Installation and Configuration
- 5.1 SNMP Overview
- 5.2 Enabling SNMP Remote Management Community Strings
- 5.3 Setup for CTM Access
- 5.4 Tables and Groups
- 5.5 Setting Up Traps
- 5.6 Retrieving Information
- 5.7 Summary of SNMP Alarms
- ASH Commands
- 6.1 Summary of Security Permissions for ASH Commands
- 6.2 Configuration Commands
- 6.2.1 srom cfg boot display Command
- 6.2.2 srom cfg boot modify Command
- 6.2.3 srom cfg ip display Command
- 6.2.4 srom cfg ip modify Command
- 6.2.5 pdm busmode display Command
- 6.2.6 pdm busmode modify Command
- 6.2.7 pdm cfg threshold bus display Command
- 6.2.8 pdm cfg threshold bus modify Command
- 6.2.9 gain gain display Command
- 6.2.10 gain gain modify Command
- 6.2.11 voa power input display Command
- 6.3 Administrative Commands
- 6.4 Shell Commands
- 6.5 Flash File System Commands
- 6.6 SNMP Commands
- 6.6.1 snmp attribute get Command
- 6.6.2 snmp attribute list Command
- 6.6.3 snmp attribute set Command
- 6.6.4 snmp mib display Command
- 6.6.5 snmp mib get Command
- 6.6.6 snmp mib list Command
- 6.6.7 snmp row display Command
- 6.6.8 snmp row get Command
- 6.6.9 snmp row set Command
- 6.6.10 snmp subtree display Command
- 6.6.11 snmp subtree get Command
- 6.6.12 snmp subtree list Command
- 6.6.13 snmp table display Command
- 6.6.14 snmp table get Command
- 6.6.15 snmp table list Command
- 6.6.16 snmp tree attribute list Command
- 6.7 User Commands
- 6.7.1 user entry create Command
- 6.7.2 user entry edit Command
- 6.7.3 user entry delete Command
- 6.7.4 user file display and user name display Commands
- 6.7.5 user inactivity modify and user inactivity display Commands
- 6.7.6 user passwd set Command
- 6.7.7 user active list Command
- 6.7.8 user active message send Command
- 6.8 Manufacturing Information Access Commands
- 6.9 Restore Commands
- 6.10 Manufacturer Mode
- FTP Command Line
- Provisioning Using TL1
- 8.1 Log In via RS-232 (EIA/TIA-232) Port Using HyperTerminal
- 8.2 Set IP Address
- 8.3 Log In via LAN Port Using Telnet (Optional)
- 8.4 Set Date and Time
- 8.5 Set Power Bus Mode (Simplex or Duplex)
- 8.6 Verify Amplifier Operational Status
- 8.7 Set Gain
- 8.8 Set Alarm Thresholds
- 8.9 Set Password
- 8.10 Add Users
- 8.11 Log Off
- 8.12 Back Up System Configuration
- 8.13 Restore System Configuration
- TL1 Commands
- 9.1 Introduction
- 9.2 Connection to the ONS15216EDFA2
- 9.3 Explanation of Command Parameters
- 9.4 Notation
- 9.5 Summary of Autonomous Alarms and Messages
- 9.6 Summary of Security Permissions for TL1 Commands
- 9.7 TL1 Commands and Autonomous Messages
- 9.7.1 ACT-USER
- 9.7.2 ALW-MSG-ALL
- 9.7.3 APPLY
- 9.7.4 CANC-USER
- 9.7.5 COPY-RFILE
- 9.7.6 CPY-MEM
- 9.7.7 DLT-RFILE
- 9.7.8 DLT-USER-SECU
- 9.7.9 ED-DAT
- 9.7.10 ED-DWDM
- 9.7.11 ED-ENV
- 9.7.12 ED-NE-GEN
- 9.7.13 ED-PID
- 9.7.14 ED-USER-SECU
- 9.7.15 ENT-USER-SECU
- 9.7.16 INH-MSG-ALL
- 9.7.17 INIT-SYS
- 9.7.18 REPT ALM DWDM
- 9.7.19 REPT ALM ENV
- 9.7.20 REPT ALM EQPT
- 9.7.21 REPT EVT DWDM / REPT EVT ENV / REPT EVT EQPT
- 9.7.22 REPT EVT FXFR
- 9.7.23 RTRV-ALM-ALL
- 9.7.24 RTRV-ALM-DWDM
- 9.7.25 RTRV-ALM-ENV
- 9.7.26 RTRV-ALM-EQPT
- 9.7.27 RTRV-AO
- 9.7.28 RTRV-COND-ALL
- 9.7.29 RTRV-COND-DWDM
- 9.7.30 RTRV-COND-ENV
- 9.7.31 RTRV-COND-EQPT
- 9.7.32 RTRV-DFLT-SECU
- 9.7.33 RTRV-DWDM
- 9.7.34 RTRV-ENV
- 9.7.35 RTRV-HDR
- 9.7.36 RTRV-INV
- 9.7.37 RTRV-NE-GEN
- 9.7.38 RTRV-RFILE
- 9.7.39 RTRV-TH-DWDM
- 9.7.40 RTRV-TH-ENV
- 9.7.41 RTRV-TH-EQPT
- 9.7.42 RTRV-TOD
- 9.7.43 RTRV-USER-SECU
- 9.7.44 SET-ATTR-SECUDFLT
- 9.7.45 SET-TH-DWDM
- 9.7.46 SET-TH-ENV
- 9.7.47 SET-TH-EQPT
- 9.7.48 STA-LOCL-RST
- Troubleshooting
- 10.1 Alarm Indicators
- 10.2 Troubleshooting Typical Scenarios
- 10.3 Status Information Needed by Cisco TAC
- Regulatory Compliance and Safety Information
- Regulatory Compliance
- Translated Safety Warnings
- Warning Definition
- DC Power Supply Warning
- Installation Warning
- Power Cord Warning
- No On/Off Switch Warning
- SELV Circuit Warning
- Laser Radiation Warning
- Laser Beam Warning
- Power Cabling Warning
- Grounded Equipment Warning
- Ground Connection Warning
- Jewelry Removal Warning
- Qualified Personnel Warning
- Supply Circuit Warning
- Power Supply Wiring Warning
- Invisible Laser Radiation Warning
- Incorrect Connection Warning
- Ground Conductor Warning
- Voltages on DC-input Power Supply Terminals
- More Than One Power Supply
- Cisco ONS15216EDFA2 Rack Installation
- Exposed DC Power Wire Warning
- 48 VDC Power System
- Chassis Power Connection
- Cisco ONS 15216 EDFA2 Temperature Requirement
- VCCI Compliance for Class B Equipment
- SELV-IEC 60950 DC Power Supply Warning
- Cisco ONS 15216 EDFA2 Power Circuit Overload Warning
- Product Disposal Warning
- Energy Hazard
- Unit Grounding Protection Warning
- DC Power Disconnection Warning
- Ground Wire Warning
- Declaration of Conformity with Regard to the Directives 73/23/EEC and 89/336/EEC as amended by Di...
- Declaration of Conformity to R&TTE Directive 1999/5/EEC for the European Community, Switzerland, ...
- Class B EMC Warning
- Safety Requirements Warning
- Laser Radiation Warning
- Fiber Disconnect Sequence Warning
- Optical Connector Warning
- Optical Connector Disconnect Warning
- Eye Damage Warning
- Static Electricity Warning
- Connector Cleaning Warning
- Cable Connection Sequence Warning
- Module Removal Warning
- DC Power SELV Requirement Warning
- Reinforced Insulation Warning
- Power Supply Voltage Warning
- DC Power Supply Connection Warning
- Index
![](asset-1.png)
FINAL DRAFT - CISCO CONFIDENTIAL
Corporate Headquarters
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
http://www.cisco.com
Tel: 408 526-4000
800 553-NETS (6387)
Fax: 408 526-4100
Cisco ONS 15216 EDFA2
Operations Guide
Product and Software Release 2.3
August 2003
Text Part Number: 78-16033-01
FINAL DRAFT - CISCO CONFIDENTIAL
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL
STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT
WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT
SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE
OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.
The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required
to correct the interference at their own expense.
The following information is for FCC compliance of Class B devices: The equipment described in this manual generates and may radiate radio-frequency energy. If it is not
installed in accordance with Cisco’s installation instructions, it may cause interference with radio and television reception. This equipment has been tested and found to
comply with the limits for a Class B digital device in accordance with the specifications in part 15 of the FCC rules. These specifications are designed to provide reasonable
protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation.
Modifying the equipment without Cisco’s written authorization may result in the equipment no longer complying with FCC requirements for Class A or Class B digital
devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television
communications at your own expense.
You can determine whether your equipment is causing interference by turning it off. If the interference stops, it was probably caused by the Cisco equipment or one of its
peripheral devices. If the equipment causes interference to radio or television reception, try to correct the interference by using one or more of the following measures:
• Turn the television or radio antenna until the interference stops.
• Move the equipment to one side or the other of the television or radio.
• Move the equipment farther away from the television or radio.
• Plug the equipment into an outlet that is on a different circuit from the television or radio. (That is, make certain the equipment and the television or radio are on circuits
controlled by different circuit breakers or fuses.)
Modifications to this product not authorized by Cisco Systems, Inc. could void the FCC approval and negate your authority to operate the product.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public
domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH
ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT
LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF
DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING,
WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO
OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
CCIP, CCSP, the Cisco Arrow logo, the Cisco Powered Network mark, the Cisco Systems Verified logo, Cisco Unity, Follow Me Browsing, FormShare, iQ Net Readiness
Scorecard, Networking Academy, and ScriptShare are trademarks of Cisco Systems, Inc.; Changing the Way We Work, Live, Play, and Learn, The Fastest Way to Increase
Your Internet Quotient, and iQuick Study are service marks of Cisco Systems, Inc.; and Aironet, ASIST, BPX, Catalyst, CCDA, CCDP, CCIE, CCNA, CCNP, Cisco, the
Cisco Certified Internetwork Expert logo, Cisco IOS, the Cisco IOS logo, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Empowering the
Internet Generation, Enterprise/Solver, EtherChannel, EtherSwitch, Fast Step, GigaStack, Internet Quotient, IOS, IP/TV, iQ Expertise, the iQ logo, LightStream, MGX,
MICA, the Networkers logo, Network Registrar, Packet, PIX, Post-Routing, Pre-Routing, RateMUX, Registrar, SlideCast, SMARTnet, StrataView Plus, Stratm, SwitchProbe,
TeleRouter, TransPath, and VCO are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries.
All other trademarks mentioned in this document or Web site are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (0303R)
Cisco ONS 15216 EDFA2 Operations Guide
Copyright © 2003, Cisco Systems, Inc.
All rights reserved.
![](asset-3.png)
FINAL DRAFT - CISCO CONFIDENTIAL
iii
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
CONTENTS
Preface xix
Obtaining Documentation xix
Cisco.com xix
Optical Networking Product Documentation CD-ROM xix
Ordering Documentation xix
Documentation Feedback xx
Obtaining Technical Assistance xx
Cisco.com xx
Technical Assistance Center xxi
Obtaining Additional Publications and Information xxii
CHAPTER
1Applications 1-1
1.1 Bandwidth On Demand 1-1
1.2 Wavelength Protection Switching 1-1
1.3 Key Features 1-2
1.3.1 Constant Gain 1-3
1.3.2 Gain Flattening 1-3
1.3.3 Transient Suppression 1-4
1.3.4 Low Noise 1-4
1.3.5 SNMP MIBs 1-4
1.3.6 TL1 1-4
CHAPTER
2Technical Specifications 2-1
2.1 Optical Specifications 2-1
2.1.1 Maximum Input Power 2-2
2.1.2 Channel Loading 2-2
2.2 Electrical Specifications 2-3
2.3 Mechanical Specifications 2-4
2.4 External Features 2-4
2.5 Front Panel 2-5
CHAPTER
3Installation 3-1
3.1 Introduction 3-1
![](asset-4.png)
FINAL DRAFT - CISCO CONFIDENTIAL
Contents
iv
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
3.2 Standard Precautions 3-1
3.3 Placement and Power Connection 3-1
3.3.1 General Rack Considerations 3-1
3.3.2 Rack Installation and Power Supply Connection Procedures 3-2
3.4 SC/UPC Optical Ports 3-3
3.4.1 Safety Requirements 3-3
3.4.2 Optical Connection Procedure 3-3
3.4.3 Optical Amplification Operation Verification Procedure 3-4
3.5 Communications 3-5
3.5.1 Alarm Out Relay Interface (RJ-45) 3-5
3.5.2 Alarm LEDs 3-6
3.5.3 Serial Interface (EIA/TIA-232) Communication 3-7
3.5.4 Serial Interface Remote Communication via Modem 3-11
3.5.5 LAN Interface (Ethernet) 3-14
CHAPTER
4Provisioning Using ASH and SNMP 4-1
4.1 Log In via RS-232 (EIA/TIA-232) Port Using HyperTerminal 4-1
4.2 Set IP Address 4-3
4.3 Log In via LAN Port Using Telnet (Optional) 4-3
4.4 Set Date and Time 4-4
4.5 Set Power Bus Mode (Simplex or Duplex) 4-4
4.6 Verify Amplifier Operational Status 4-4
4.7 Set Gain 4-5
4.8 Set Alarm Thresholds 4-5
4.9 Set Password 4-10
4.10 Add Users 4-11
4.11 Save Changes 4-11
4.12 Log Off 4-12
4.13 Back Up System Configuration 4-12
4.14 Restore System Configuration 4-13
4.15 Recover Default Password 4-14
CHAPTER
5SNMP MIB Installation and Configuration 5-1
5.1 SNMP Overview 5-1
5.1.1 SNMP Components 5-1
5.1.2 ONS 15216 EDFA2 SNMP Elements 5-2
5.1.3 SNMP MIBs and Message Types 5-3
![](asset-5.png)
FINAL DRAFT - CISCO CONFIDENTIAL
Contents
v
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
5.1.4 Command Syntax Using the SNMP Agent 5-4
5.2 Enabling SNMP Remote Management Community Strings 5-5
5.2.1 Creating a View 5-6
5.2.2 Creating a Community Entry 5-7
5.3 Setup for CTM Access 5-10
5.4 Tables and Groups 5-11
5.4.1 CfgGroup Table 5-12
5.4.2 PumpCfgEntry Table 5-14
5.4.3 OverallStatusGroup Table 5-16
5.4.4 OverallControl Table 5-18
5.4.5 PumpStatusEntry Table 5-18
5.4.6 AlarmEntry Table 5-19
5.4.7 OpGroup Table 5-20
5.4.8 VersionGroup Table 5-21
5.5 Setting Up Traps 5-21
5.5.1 Display Trap Command 5-22
5.5.2 Set Trap Command 5-23
5.5.3 Set Agent Trap Enable 5-23
5.5.4 Get Agent Trap Enable 5-24
5.6 Retrieving Information 5-24
5.6.1 IP Address 5-24
5.6.2 Date and Time 5-25
5.6.3 Power Gain 5-26
5.6.4 Case Temperature 5-27
5.6.5 Power Bus 5-29
5.6.6 Input Power (Signal) 5-30
5.6.7 Output Power 5-31
5.6.8 Database Backup and Restore 5-34
5.6.9 Alarm Entry 5-36
5.7 Summary of SNMP Alarms 5-37
CHAPTER
6ASH Commands 6-1
6.1 Summary of Security Permissions for ASH Commands 6-1
6.2 Configuration Commands 6-6
6.2.1 srom cfg boot display Command 6-6
6.2.2 srom cfg boot modify Command 6-7
6.2.3 srom cfg ip display Command 6-7
6.2.4 srom cfg ip modify Command 6-8
6.2.5 pdm busmode display Command 6-8
![](asset-6.png)
FINAL DRAFT - CISCO CONFIDENTIAL
Contents
vi
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
6.2.6 pdm busmode modify Command 6-9
6.2.7 pdm cfg threshold bus display Command 6-9
6.2.8 pdm cfg threshold bus modify Command 6-9
6.2.9 gain gain display Command 6-9
6.2.10 gain gain modify Command 6-10
6.2.11 voa power input display Command 6-10
6.3 Administrative Commands 6-10
6.3.1 clear Command 6-11
6.3.2 exit Command 6-11
6.3.3 help Command 6-11
6.3.4 history Command 6-11
6.3.5 login and logoff Commands 6-12
6.3.6 processor reset Command 6-12
6.4 Shell Commands 6-12
6.4.1 shell lines set Command 6-13
6.4.2 shell more enable and disable Commands 6-13
6.4.3 shell status display Command 6-13
6.4.4 shell type modify Command 6-13
6.5 Flash File System Commands 6-14
6.5.1 ffs file list Command 6-14
6.6 SNMP Commands 6-15
6.6.1 snmp attribute get Command 6-15
6.6.2 snmp attribute list Command 6-16
6.6.3 snmp attribute set Command 6-17
6.6.4 snmp mib display Command 6-17
6.6.5 snmp mib get Command 6-18
6.6.6 snmp mib list Command 6-18
6.6.7 snmp row display Command 6-19
6.6.8 snmp row get Command 6-20
6.6.9 snmp row set Command 6-20
6.6.10 snmp subtree display Command 6-21
6.6.11 snmp subtree get Command 6-21
6.6.12 snmp subtree list Command 6-22
6.6.13 snmp table display Command 6-23
6.6.14 snmp table get Command 6-24
6.6.15 snmp table list Command 6-24
6.6.16 snmp tree attribute list Command 6-25
6.7 User Commands 6-25
6.7.1 user entry create Command 6-26
![](asset-7.png)
FINAL DRAFT - CISCO CONFIDENTIAL
Contents
vii
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
6.7.2 user entry edit Command 6-26
6.7.3 user entry delete Command 6-27
6.7.4 user file display and user name display Commands 6-27
6.7.5 user inactivity modify and user inactivity display Commands 6-28
6.7.6 user passwd set Command 6-28
6.7.7 user active list Command 6-29
6.7.8 user active message send Command 6-29
6.8 Manufacturing Information Access Commands 6-30
6.8.1 snmp table display local entPhysicalEntry Command 6-30
6.8.2 snmp table display local cerent15216EdfaCommTrapEntry Command 6-30
6.9 Restore Commands 6-31
6.9.1 backup system Command 6-31
6.9.2 restore system Command 6-31
6.10 Manufacturer Mode 6-32
6.10.1 manufacturer restore defaults passwords Command 6-32
6.10.2 manufacturer restore defaults all Command 6-32
CHAPTER
7FTP Command Line 7-1
7.1 FTP Command Line 7-1
7.1.1 Example of FTP from a Remote Server 7-1
7.1.2 Example of FTP to a Remote Server 7-2
7.2 FTP Commands 7-3
CHAPTER
8Provisioning Using TL1 8-1
8.1 Log In via RS-232 (EIA/TIA-232) Port Using HyperTerminal 8-1
8.2 Set IP Address 8-3
8.3 Log In via LAN Port Using Telnet (Optional) 8-3
8.4 Set Date and Time 8-4
8.5 Set Power Bus Mode (Simplex or Duplex) 8-4
8.6 Verify Amplifier Operational Status 8-4
8.7 Set Gain 8-5
8.8 Set Alarm Thresholds 8-5
8.9 Set Password 8-10
8.10 Add Users 8-11
8.11 Log Off 8-11
8.12 Back Up System Configuration 8-11
8.13 Restore System Configuration 8-12
![](asset-8.png)
FINAL DRAFT - CISCO CONFIDENTIAL
Contents
viii
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
CHAPTER
9TL1 Commands 9-1
9.1 Introduction 9-1
9.2 Connection to the ONS 15216 EDFA2 9-1
9.3 Explanation of Command Parameters 9-1
9.3.1 Source Identifier (sid) and Target Identifier (tid) 9-1
9.3.2 Command Code Modifier (ccm) 9-2
9.3.3 Access Identifier (aid) 9-2
9.3.4 Correlation Tag (ctag) 9-2
9.4 Notation 9-2
9.5 Summary of Autonomous Alarms and Messages 9-3
9.6 Summary of Security Permissions for TL1 Commands 9-6
9.7 TL1 Commands and Autonomous Messages 9-9
9.7.1 ACT-USER 9-9
9.7.2 ALW-MSG-ALL 9-9
9.7.3 APPLY 9-11
9.7.4 CANC-USER 9-12
9.7.5 COPY-RFILE 9-12
9.7.6 CPY-MEM 9-14
9.7.7 DLT-RFILE 9-15
9.7.8 DLT-USER-SECU 9-16
9.7.9 ED-DAT 9-16
9.7.10 ED-DWDM 9-17
9.7.11 ED-ENV 9-18
9.7.12 ED-NE-GEN 9-19
9.7.13 ED-PID 9-20
9.7.14 ED-USER-SECU 9-21
9.7.15 ENT-USER-SECU 9-21
9.7.16 INH-MSG-ALL 9-22
9.7.17 INIT-SYS 9-25
9.7.18 REPT ALM DWDM 9-25
9.7.19 REPT ALM ENV 9-27
9.7.20 REPT ALM EQPT 9-28
9.7.21 REPT EVT DWDM / REPT EVT ENV / REPT EVT EQPT 9-30
9.7.22 REPT EVT FXFR 9-32
9.7.23 RTRV-ALM-ALL 9-33
9.7.24 RTRV-ALM-DWDM 9-35
9.7.25 RTRV-ALM-ENV 9-37
9.7.26 RTRV-ALM-EQPT 9-38
9.7.27 RTRV-AO 9-40
![](asset-9.png)
FINAL DRAFT - CISCO CONFIDENTIAL
Contents
ix
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
9.7.28 RTRV-COND-ALL 9-41
9.7.29 RTRV-COND-DWDM 9-43
9.7.30 RTRV-COND-ENV 9-44
9.7.31 RTRV-COND-EQPT 9-46
9.7.32 RTRV-DFLT-SECU 9-47
9.7.33 RTRV-DWDM 9-48
9.7.34 RTRV-ENV 9-50
9.7.35 RTRV-HDR 9-51
9.7.36 RTRV-INV 9-51
9.7.37 RTRV-NE-GEN 9-52
9.7.38 RTRV-RFILE 9-54
9.7.39 RTRV-TH-DWDM 9-55
9.7.40 RTRV-TH-ENV 9-56
9.7.41 RTRV-TH-EQPT 9-57
9.7.42 RTRV-TOD 9-59
9.7.43 RTRV-USER-SECU 9-60
9.7.44 SET-ATTR-SECUDFLT 9-60
9.7.45 SET-TH-DWDM 9-61
9.7.46 SET-TH-ENV 9-62
9.7.47 SET-TH-EQPT 9-63
9.7.48 STA-LOCL-RST 9-64
CHAPTER
10 Troubleshooting 1
10.1 Alarm Indicators 2
10.1.1 LEDs and Office Alarms 2
10.1.2 Optical Alarms 4
10.1.3 Equipment Alarms 6
10.1.4 Environmental Alarms 7
10.2 Troubleshooting Typical Scenarios 7
10.2.1 No Output Power after Adjusting Gain Settings 7
10.2.2 2.0.1 to 2.2.1 Upgrade Attempt 8
10.2.3 Image File Download Incomplete 8
10.2.4 Boot Up Failure 8
10.2.5 No Response from RS-232 Port 9
10.2.6 No Response from LAN Port 9
10.2.7 LAN Port Activity LED Stays On 9
10.2.8 Lost Password 10
10.3 Status Information Needed by Cisco TAC 11
![](asset-a.png)
FINAL DRAFT - CISCO CONFIDENTIAL
Contents
x
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
APPENDIX
ARegulatory Compliance and Safety Information A-1
Regulatory Compliance A-1
Translated Safety Warnings A-2
Warning Definition A-4
DC Power Supply Warning A-6
Installation Warning A-7
Power Cord Warning A-7
No On/Off Switch Warning A-8
SELV Circuit Warning A-9
Laser Radiation Warning A-10
Laser Beam Warning A-11
Power Cabling Warning A-11
Grounded Equipment Warning A-12
Ground Connection Warning A-13
Jewelry Removal Warning A-14
Qualified Personnel Warning A-15
Supply Circuit Warning A-15
Power Supply Wiring Warning A-16
Invisible Laser Radiation Warning A-17
Incorrect Connection Warning A-18
Ground Conductor Warning A-19
Voltages on DC-input Power Supply Terminals A-20
More Than One Power Supply A-21
Cisco ONS 15216 EDFA2 Rack Installation A-21
Exposed DC Power Wire Warning A-22
48 VDC Power System A-23
Chassis Power Connection A-24
Cisco ONS 15216 EDFA2 Temperature Requirement A-25
VCCI Compliance for Class B Equipment A-26
SELV-IEC 60950 DC Power Supply Warning A-26
Cisco ONS 15216 EDFA2 Power Circuit Overload Warning A-27
Product Disposal Warning A-28
Energy Hazard A-29
Unit Grounding Protection Warning A-30
DC Power Disconnection Warning A-31
Ground Wire Warning A-32
Declaration of Conformity with Regard to the Directives 73/23/EEC and 89/336/EEC as amended by
Directive 93/68/EEC A-33
Declaration of Conformity to R&TTE Directive 1999/5/EEC for the European Community, Switzerland,
Norway, Iceland and Liechtenstein A-34
![](asset-b.png)
FINAL DRAFT - CISCO CONFIDENTIAL
Contents
xi
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Class B EMC Warning A-35
Safety Requirements Warning A-35
Laser Radiation Warning A-36
Fiber Disconnect Sequence Warning A-37
Optical Connector Warning A-38
Optical Connector Disconnect Warning A-38
Eye Damage Warning A-39
Static Electricity Warning A-40
Connector Cleaning Warning A-41
Cable Connection Sequence Warning A-42
Module Removal Warning A-43
DC Power SELV Requirement Warning A-44
Reinforced Insulation Warning A-45
Power Supply Voltage Warning A-46
DC Power Supply Connection Warning A-46
I
NDEX
![](asset-c.png)
FINAL DRAFT - CISCO CONFIDENTIAL
Contents
xii
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
![](asset-d.png)
FIGURES
FINAL DRAFT - CISCO CONFIDENTIAL
xiii
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Figure 1-1 Wavelength Protection Switching 1-2
Figure 1-2 ONS 15216 EDFA2 Block Diagram 1-2
Figure 1-3 Gain Flattening Filter 1-3
Figure 2-1 ONS 15216 EDFA2 Dimensions 2-5
Figure 2-2 ONS 15216 EDFA2 Front Panel 2-5
Figure 3-1 ONS 15216 EDFA2 Optical Connections 3-4
Figure 3-2 HyperTerminal Connect To Dialog Box 3-8
Figure 3-3 HyperTerminal COM1 Properties Dialog Box 3-9
Figure 3-4 Optical Amplifier Properties Dialog Box (Connect To Tab) 3-9
Figure 3-5 Optical Amplifier Properties Dialog Box (Settings Tab) 3-10
Figure 3-6 HyperTerminal ASCII Setup Dialog Box 3-10
Figure 3-7 Remote Communication 3-11
Figure 3-8 DB-9 Pinout for RS-232 (EIA/TIA-232) Port 3-14
Figure 4-1 ONS 15216 EDFA2 Front Panel 4-6
Figure 5-1 SNMP Elements 5-2
Figure 5-2 SNMP Agent and MIB 5-3
Figure 8-1 ONS 15216 EDFA2 Front Panel 8-6
![](asset-e.png)
FINAL DRAFT - CISCO CONFIDENTIAL
Figures
xiv
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
![](asset-f.png)
TABLES
FINAL DRAFT - CISCO CONFIDENTIAL
xv
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Table 2-1 ONS 15216 EDFA2 Optical Specifications 2-1
Table 2-2 Maximum Channel Power 2-2
Table 2-3 ONS 15216 EDFA2 Electrical Specifications 2-3
Table 2-4 ONS 15216 EDFA2 Mechanical Specifications 2-4
Table 2-5 ONS 15216 EDFA2 Front Panel Features 2-6
Table 3-1 Gain Range 3-4
Table 3-2 Alarm Pinout and Definitions (RJ-45) 3-5
Table 3-3 Equipment Checklist 3-7
Table 3-4 Communication Component List 3-11
Table 3-5 Modem DIP Switch Setting 3-12
Table 3-6 Modem Settings 3-13
Table 4-1 Alarm Threshold Attribute Definitions 4-7
Table 5-1 SNMP Operation Types 5-4
Table 5-2 Default Community Strings 5-5
Table 5-3 Creating a View 5-7
Table 5-4 Creating a Community Entry 5-8
Table 5-5 SNMP Operation Decimal Values 5-9
Table 5-6 cerent15216EdfaCfgGroup Variable Descriptions 5-12
Table 5-7 cerent15216EdfaPumpCfgEntry Variable Descriptions 5-14
Table 5-8 cerent15216EdfaOverallStatusGroup Variable Descriptions 5-17
Table 5-9 cerent15216EdfaOverallControl Variable Descriptions 5-18
Table 5-10 cerent15216EdfaPumpStatusEntry Variable Descriptions 5-18
Table 5-11 cerent15216EdfaAlarmEntry Variable Descriptions 5-19
Table 5-12 cerent15216EdfaOpGroup Variable Descriptions 5-20
Table 5-13 cerent15216EdfaVersionGroup Variable Descriptions 5-21
Table 5-14 Notification Types that Initiate a Trap 5-22
Table 5-15 cerent15216EdfaSromIpMgmtGroup Command Attributes 5-25
Table 5-16 cerent15216EdfaRtcDateAndTime Command Attributes 5-26
Table 5-17 SNMP Alarms 5-37
Table 6-1 ASH Commands Security Permissions (Access Levels) 6-1
Table 8-1 Alarm Threshold Attribute Definitions 8-7
![](asset-10.png)
FINAL DRAFT - CISCO CONFIDENTIAL
Tables
xvi
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Table 9-1 Command Code Modifiers 9-2
Table 9-2 Access Identifiers 9-2
Table 9-3 TL1 Notation Symbols 9-3
Table 9-4 TL1 Autonomous Alarms 9-3
Table 9-5 TL1 Autonomous Events 9-4
Table 9-6 TL1 Autonomous File Transfer Events 9-5
Table 9-7 TL1 Autonomous Clear Alarms 9-5
Table 9-8 TL1 Commands and Messages Security Permissions (Access Levels) 9-6
Table 9-9 ACT-USER Syntax Description 9-9
Table 9-10 ALW-MSG-ALL Syntax Description 9-10
Table 9-11 CANC-USER Syntax Description 9-12
Table 9-12 COPY-RFILE Syntax Description 9-13
Table 9-13 CPY-MEM Syntax Description 9-14
Table 9-14 DLT-RFILE Syntax Description 9-15
Table 9-15 DLT-USER-SECU Syntax Description 9-16
Table 9-16 ED-DAT Syntax Description 9-16
Table 9-17 ED-DWDM Syntax Description 9-17
Table 9-18 ED-ENV Syntax Description 9-18
Table 9-19 ED-NE-GEN Syntax Description 9-19
Table 9-20 ED-PID Syntax Description 9-20
Table 9-21 ED-USER-SECU Syntax Description 9-21
Table 9-22 ENT-USER-SECU Syntax Description 9-22
Table 9-23 INH-MSG-ALL Syntax Description 9-22
Table 9-24 INIT-SYS Syntax Description 9-25
Table 9-25 REPT ALM DWDM Syntax Description 9-26
Table 9-26 REPT ALM ENV Syntax Description 9-27
Table 9-27 REPT ALM EQPT Syntax Description 9-29
Table 9-28 REPT EVT DWDM / REPT EVT ENV / REPT EVT EQPT Syntax Description 9-31
Table 9-29 REPT EVT FXFR Syntax Description 9-33
Table 9-30 RTRV-ALM-ALL Syntax Description 9-34
Table 9-31 RTRV-ALM-DWDM Syntax Description 9-36
Table 9-32 RTRV-ALM-ENV Syntax Description 9-37
Table 9-33 RTRV-ALM-EQPT Syntax Description 9-38
Table 9-34 RTRV-AO Syntax Description 9-40
Table 9-35 RTRV-COND-ALL Syntax Description 9-41
![](asset-11.png)
FINAL DRAFT - CISCO CONFIDENTIAL
Tables
xvii
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Table 9-36 RTRV-COND-DWDM Syntax Description 9-43
Table 9-37 RTRV-COND-ENV Syntax Description 9-45
Table 9-38 RTRV-COND-EQPT Syntax Description 9-46
Table 9-39 RTRV-DFLT-SECU Syntax Description 9-48
Table 9-40 RTRV-DWDM Syntax Description 9-49
Table 9-41 RTRV-ENV Syntax Description 9-50
Table 9-42 RTRV-HDR Syntax Description 9-51
Table 9-43 RTRV-INV Syntax Description 9-52
Table 9-44 RTRV-NE-GEN Syntax Description 9-53
Table 9-45 RTRV-RFILE Syntax Description 9-54
Table 9-46 RTRV-TH-DWDM Syntax Description 9-55
Table 9-47 RTRV-TH-ENV Syntax Description 9-57
Table 9-48 RTRV-TH-EQPT Syntax Description 9-58
Table 9-49 RTRV-TOD Syntax Description 9-59
Table 9-50 RTRV-USER-SECU Syntax Description 9-60
Table 9-51 SET-ATTR-SECUDFLT Syntax Description 9-61
Table 9-52 SET-TH-DWDM Syntax Description 9-61
Table 9-53 SET-TH-ENV Syntax Description 9-62
Table 9-54 SET-TH-EQPT Syntax Description 9-63
Table A-1 Regulatory Standards Compliance A-1
![](asset-12.png)
FINAL DRAFT - CISCO CONFIDENTIAL
Tables
xviii
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
![](asset-13.png)
FINAL DRAFT - CISCO CONFIDENTIAL
xix
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Preface
Obtaining Documentation
Cisco provides several ways to obtain documentation, technical assistance, and other technical
resources. These sections explain how to obtain technical information from Cisco Systems.
Cisco.com
You can access the most current Cisco documentation on the World Wide Web at this URL:
http://www.cisco.com/univercd/home/home.htm
You can access the Cisco website at this URL:
http://www.cisco.com
International Cisco web sites can be accessed from this URL:
http://www.cisco.com/public/countries_languages.shtml
Optical Networking Product Documentation CD-ROM
Optical networking-related documentation, including the Cisco ONS 15216 EDFA2 Operations Guide,
is available in a CD-ROM package that ships with your product. The Optical Networking Product
Documentation CD-ROM, a member of the Cisco Connection Family, is updated as required. Therefore,
it might be more current than printed documentation. To order additional copies of the Optical
Networking Product Documentation CD-ROM, contact your local sales representative or customer
service. The CD-ROM package is available as a single unit or through an annual subscription.
Ordering Documentation
You can find instructions for ordering documentation at this URL:
http://www.cisco.com/univercd/cc/td/doc/es_inpck/pdi.htm
You can order Cisco documentation in these ways:
•Registered Cisco.com users (Cisco direct customers) can order Cisco product documentation from
the Networking Products MarketPlace:
http://www.cisco.com/en/US/partner/ordering/index.shtml
![](asset-14.png)
FINAL DRAFT - CISCO CONFIDENTIAL
xx
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Preface
Obtaining Technical Assistance
•Registered Cisco.com users can order the Documentation CD-ROM (Customer Order Number
DOC-CONDOCCD=) through the online Subscription Store:
http://www.cisco.com/go/subscription
•Nonregistered Cisco.com users can order documentation through a local account representative by
calling Cisco Systems Corporate Headquarters (California, U.S.A.) at 408 526-7208 or, elsewhere
in North America, by calling 800 553-NETS (6387).
Documentation Feedback
You can submit comments electronically on Cisco.com. On the Cisco Documentation home page, click
Feedback at the top of the page.
You can e-mail your comments to bug-doc@cisco.com.
You can submit your comments by mail by using the response card behind the front cover of your
document or by writing to the following address:
Cisco Systems
Attn: Customer Document Ordering
170 West Tasman Drive
San Jose, CA 95134-9883
We appreciate your comments.
Obtaining Technical Assistance
Cisco provides Cisco.com, which includes the Cisco Technical Assistance Center (TAC) Website, as a
starting point for all technical assistance. Customers and partners can obtain online documentation,
troubleshooting tips, and sample configurations from the Cisco TAC website. Cisco.com registered users
have complete access to the technical support resources on the Cisco TAC website, including TAC tools
and utilities.
Cisco.com
Cisco.com offers a suite of interactive, networked services that let you access Cisco information,
networking solutions, services, programs, and resources at any time, from anywhere in the world.
Cisco.com provides a broad range of features and services to help you with these tasks:
•Streamline business processes and improve productivity
•Resolve technical issues with online support
•Download and test software packages
•Order Cisco learning materials and merchandise
•Register for online skill assessment, training, and certification programs
To obtain customized information and service, you can self-register on Cisco.com at this URL:
http://www.cisco.com
![](asset-15.png)
FINAL DRAFT - CISCO CONFIDENTIAL
xxi
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Preface
Obtaining Technical Assistance
Technical Assistance Center
The Cisco TAC is available to all customers who need technical assistance with a Cisco product,
technology, or solution. Two levels of support are available: the Cisco TAC website and the Cisco TAC
Escalation Center. The avenue of support that you choose depends on the priority of the problem and the
conditions stated in service contracts, when applicable.
We categorize Cisco TAC inquiries according to urgency:
•Priority level 4 (P4)—You need information or assistance concerning Cisco product capabilities,
product installation, or basic product configuration.
•Priority level 3 (P3)—Your network performance is degraded. Network functionality is noticeably
impaired, but most business operations continue.
•Priority level 2 (P2)—Your production network is severely degraded, affecting significant aspects
of business operations. No workaround is available.
•Priority level 1 (P1)—Your production network is down, and a critical impact to business operations
will occur if service is not restored quickly. No workaround is available.
Cisco TAC Website
You can use the Cisco TAC website to resolve P3 and P4 issues yourself, saving both cost and time. The
site provides around-the-clock access to online tools, knowledge bases, and software. To access the
Cisco TAC website, go to this URL:
http://www.cisco.com/tac
All customers, partners, and resellers who have a valid Cisco service contract have complete access to
the technical support resources on the Cisco TAC website. Some services on the Cisco TAC website
require a Cisco.com login ID and password. If you have a valid service contract but do not have a login
ID or password, go to this URL to register:
http://tools.cisco.com/RPF/register/register.do
If you are a Cisco.com registered user, and you cannot resolve your technical issues by using the Cisco
TAC website, you can open a case online at this URL:
http://www.cisco.com/en/US/support/index.html
If you have Internet access, we recommend that you open P3 and P4 cases through the Cisco TAC
website so that you can describe the situation in your own words and attach any necessary files.
Cisco TAC Escalation Center
The Cisco TAC Escalation Center addresses priority level 1 or priority level 2 issues. These
classifications are assigned when severe network degradation significantly impacts business operations.
When you contact the TAC Escalation Center with a P1 or P2 problem, a Cisco TAC engineer
automatically opens a case.
To obtain a directory of toll-free Cisco TAC telephone numbers for your country, go to this URL:
http://www.cisco.com/warp/public/687/Directory/DirTAC.shtml
Before calling, please check with your network operations center to determine the level of Cisco support
services to which your company is entitled: for example, SMARTnet, SMARTnet Onsite, or Network
Supported Accounts (NSA). When you call the center, please have available your service agreement
number and your product serial number.
![](asset-16.png)
FINAL DRAFT - CISCO CONFIDENTIAL
xxii
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Preface
Obtaining Additional Publications and Information
Obtaining Additional Publications and Information
Information about Cisco products, technologies, and network solutions is available from various online
and printed sources.
•The Cisco Product Catalog describes the networking products offered by Cisco Systems as well as
ordering and customer support services. Access the Cisco Product Catalog at this URL:
http://www.cisco.com/en/US/products/products_catalog_links_launch.html
•Cisco Press publishes a wide range of networking publications. Cisco suggests these titles for new
and experienced users: Internetworking Terms and Acronyms Dictionary, Internetworking
Technology Handbook, Internetworking Troubleshooting Guide, and the Internetworking Design
Guide. For current Cisco Press titles and other information, go to Cisco Press online at this URL:
http://www.ciscopress.com
•Packet magazine is the Cisco monthly periodical that provides industry professionals with the latest
information about the field of networking. You can access Packet magazine at this URL:
http://www.cisco.com/en/US/about/ac123/ac114/about_cisco_packet_magazine.html
•iQ Magazine is the Cisco monthly periodical that provides business leaders and decision makers
with the latest information about the networking industry. You can access iQ Magazine at this URL:
http://business.cisco.com/prod/tree.taf%3fasset_id=44699&public_view=true&kbns=1.html
•Internet Protocol Journal is a quarterly journal published by Cisco Systems for engineering
professionals involved in the design, development, and operation of public and private internets and
intranets. You can access the Internet Protocol Journal at this URL:
http://www.cisco.com/en/US/about/ac123/ac147/about_cisco_the_internet_protocol_journal.html
•Training—Cisco offers world-class networking training, with current offerings in network training
listed at this URL:
http://www.cisco.com/en/US/learning/le31/learning_recommended_training_list.html
![](asset-17.png)
CHAPTER
FINAL DRAFT - CISCO CONFIDENTIAL
1-1
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
1
Applications
This manual describes how to install and operate the Cisco Optical Network System (ONS) 15216
Erbium-Doped Fiber Amplifier 2 (EDFA2). The ONS 15216 EDFA2 is an optical amplifier that enables
the migration to next-generation all-optical networks. It features bandwidth-on-demand and wavelength
protection switching that extend dense wavelength division multiplexing (DWDM) links by hundreds of
kilometers.
With the ONS 15216 EDFA2, optical signals from a span in a DWDM network can be added or dropped
without negatively affecting (degrading) other optical signals on the same span.
1.1 Bandwidth On Demand
The ONS 15216 EDFA2 is a technology for bandwidth-on-demand wavelength services. Depending on
the settings and the input power, every wavelength in a ONS 15216 EDFA2 is guaranteed to be amplified
by 13 to 22 dB. With the ONS 15216 EDFA2’s gain control technology, amplification for each
wavelength remains constant at all times as wavelengths are added or dropped from an optical fiber. As
long as the total (composite) input power of all wavelengths is between 4 dBm and –27 dBm, any number
of wavelengths can be amplified.
1.2 Wavelength Protection Switching
The ONS 15216 EDFA2 uses wavelength protection switching to restore wavelengths that are lost in the
event of a fiber cut or other loss of signal. Figure 1-1 on page 1-2 shows an example of wavelength
protection switching. In this example, two wavelengths are routed clockwise around a metro ring, and
two wavelengths are routed counter-clockwise around the same ring. Of the two counter-clockwise
wavelengths, only one transits the span linking locations D and C. If a fiber cut occurred on this span,
the affected wavelength could be restored by rerouting it (clockwise) around the ring to location D.
Wavelength protection switching minimizes the amount of bandwidth allocated for restoration because
only the affected wavelength is restored, not the entire fiber.
![](asset-18.png)
FINAL DRAFT - CISCO CONFIDENTIAL
1-2
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 1 Applications
Key Features
Figure 1-1 Wavelength Protection Switching
After a protection switch occurs, the number of wavelengths on each fiber changes. In the example, the
number of clockwise wavelengths increases to three, while the number of counter-clockwise
wavelengths decreases to one.
1.3 Key Features
Figure 1-2 shows a block diagram of the ONS 15216 EDFA2.
Figure 1-2 ONS 15216 EDFA2 Block Diagram
A
B
C
D
A
B
C
D
Fiber Cut
Wavelength is rerouted
Before After
61990
External AlarmsRx Tx
RS232
5VDC
Microcontroller
Isolator Isolator
Gain
Flattening
Filter
Pump
Laser Pump
Laser
VOA Output Input
71172
Output
Monitor
Control Circuit
![](asset-19.png)
FINAL DRAFT - CISCO CONFIDENTIAL
1-3
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 1 Applications
Key Features
The ONS 15216 EDFA2 has the following key features:
•Adjustable constant gain of 13 to 22 dB
•Gain flattening < 2 dB (peak to valley)
•Transient suppression
•Low noise figure of < 7 dB at –5 dBm input
•Simple Network Management Protocol (SNMP) MIBs
•Transaction Language 1 (TL1)
1.3.1 Constant Gain
Constant amplification (gain) per wavelength is important for ensuring that variations in power between
channels at the receivers is minimized. As wavelengths are added/dropped from an optical fiber, small
variations in gain between channels in a span can cause large variations in the power difference between
channels at the receivers. The ONS 15216 EDFA2 enables bandwidth-on-demand services by
guaranteeing that every wavelength is amplified by a value that can be set between 13 and 22 dB, no
matter how many wavelengths are being amplified.
Constant gain is achieved using an automatic control circuit that adjusts pump power when changes in
input power are detected. The ONS 15216 EDFA2 operates in Constant Gain Temperature Compensated
mode by default, but since there may be applications where other operating modes may be required, the
ONS 15216 EDFA2 can be set to operate in any one the following pump control modes:
•Constant Gain Temperature Compensated mode
•Constant Output Power mode
•Constant Pump Current mode
•Constant Pump Power mode
1.3.2 Gain Flattening
Figure 1-3 illustrates the effect of the gain flattening filter in the ONS 15216 EDFA2. Fiber (a) in the
figure shows a set of channels with equal powers being input to a cascaded network of amplifiers that
produce vastly different power levels and optical signal-to-noise ratios (OSNR) at the output. In contrast,
fiber (b) shows how the EDFAs effectively reduce this effect by introducing a gain flattening filter within
each amplifier.
Figure 1-3 Gain Flattening Filter
Gain
Flattening
Filter
a
b
61984
![](asset-1a.png)
FINAL DRAFT - CISCO CONFIDENTIAL
1-4
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 1 Applications
Key Features
1.3.3 Transient Suppression
Transients in the performance of optical amplifiers are inevitable whenever the number of signals, or the
relative power of signals, changes. The ONS 15216 EDFA2 uses transient suppression to reduce the
amount of time required by an amplifier to recover from a change. This indicates the suitability of the
amplifier for add/drop applications like those described earlier.
1.3.4 Low Noise
Whenever there is gain in an optical system, noise also occurs. The predominant source of noise in
EDFAs is amplified spontaneous emission (ASE). The ONS 15216 EDFA2 has a low noise figure of less
than 7 dB at –5 dBm input.
1.3.5 SNMP MIBs
The ONS 15216 EDFA2 SNMP MIBs contain definitions of management information that allows
network systems to be remotely monitored, configured, and controlled.
1.3.6 TL1
The ONS 15216 EDFA2 has a TL1 interface available to the network operator and craftsperson.
![](asset-1b.png)
CHAPTER
FINAL DRAFT - CISCO CONFIDENTIAL
2-1
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
2
Technical Specifications
This chapter discusses the technical specifications for the Cisco ONS 15216 EDFA2.
2.1 Optical Specifications
ONS 15216 EDFA2 optical specifications are listed and described in Table 2-1.
Table 2-1 ONS 15216 EDFA2 Optical Specifications
Requirement Specification
Input signal wavelength 1530 nm to 1563 nm
Input power (channel total) –27 dBm to 4 dBm (total all channels)
See the “Maximum Input Power” section on page 2-2 and
“Channel Loading” section on page 2-2 for more information.
Note In the event of a fiber cut or loss of connection, and
there is no input power, the ONS 15216 EDFA2 has
–3.5 dBm of output power. For additional safety
information, see the “Safety Requirements” section on
page 3-3.
Mode of operation Unidirectional (two common fibers: one transmit, one receive)
Maximum output power 17 ± 0.6 dBm
Signal gain per channel 13 dB to 22 dB
Channel gain deviation from setpoint ± 1.25 dB
Gain flattened < 2 dB (peak to valley)
Maximum noise figure < 7 dB at –5 dBm input power
Polarization mode dispersion (PMD) < 0.6 ps
Input/output optical return loss > 27 dB
Backward ASE power –30 dBm maximum
Polarization sensitivity < 0.5 dB
Automatic gain control (AGC) The ONS 15216 EDFA2 contains an active gain block with an
automatic gain control loop to minimize the effects of output
power variations per wavelength upon adding or deleting
wavelengths on the same DWDM ring.
![](asset-1c.png)
FINAL DRAFT - CISCO CONFIDENTIAL
2-2
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 2 Technical Specifications
Optical Specifications
2.1.1 Maximum Input Power
The ONS 15216 EDFA2 operates at a gain setting between 13 and 22 dB. Each gain setting has a
maximum input power. The maximum input power is defined as 17 dBm (the maximum output power)
minus the gain setting. For example, at a gain setting of 22 dB, the maximum input power is –5 dBm. At
a gain setting of 13 dB, the maximum input power is 4 dBm. Prolonged operation beyond the maximum
input power can shorten the life of the ONS 15216 EDFA2.
External optical attenuators are required to reduce the total input power to less than or equal to 4 dBm.
2.1.2 Channel Loading
You can ensure a smooth upgrade path from a single channel to the maximum numbers of channels with
a minimum disruption of service if the per-channel power of the single channel is properly set from the
start. The per-channel power should be set so that at full channel loading, the total input power is less
than the maximum power indicated in Table 2-2. For example, if the maximum number of channels at
full loading is 18 and the gain is set to 22 dB, the maximum per channel power is –17.6 dBm.
Use Table 2-2 to calculate per-channel power as a function of the maximum total number of channels at
full loading. Contact Cisco TAC with any questions or concerns regarding maximum input power or
setting the upgrade path.
Table 2-2 Maximum Channel Power
Composite Input
Power (dBm) 4 3 2 1 0 –1 –2 –3 –4 –5
Corresponding
Max. Gain (dB) 13 14 15 16 17 18 19 20 21 22
Number of
Channels at Full
Loading Maximum per Channel Input Power at Maximum Gain Setting (dBm)
1 4.0 3.0 2.0 1.0 0.0 –1.0 –2.0 –3.0 –4.0 –5.0
21.00.0–1.0 –2.0 –3.0 –4.0 –5.0 –6.0 –7.0 –8.0
3–0.8 –1.8 –2.8 –3.8 –4.8 –5.8 –6.8 –7.8 –8.8 –9.8
4–2.0 –3.0 –4.0 –5.0 –6.0 –7.0 –8.0 –9.0 –10.0 –11.0
5–3.0 –4.0 –5.0 –6.0 –7.0 –8.0 –9.0 –10.0 –11.0 –12.0
6–3.8 –4.8 –5.8 –6.8 –7.8 –8.8 –9.8 –10.8 –11.8 –12.8
7–4.5 –5.5 –6.5 –7.5 –8.5 –9.5 –10.5 –11.5 –12.5 –13.5
8–5.0 –6.0 –7.0 –8.0 –9.0 –10.0 –11.0 –12.0 –13.0 –14.0
9–5.5 –6.5 –7.5 –8.5 –9.5 –10.5 –11.5 –12.5 –13.5 –14.5
10 –6.0 –7.0 –8.0 –9.0 –10.0 –11.0 –12.0 –13.0 –14.0 –15.0
11 –6.4 –7.4 –8.4 –9.4 –10.4 –11.4 –12.4 –13.4 –14.4 –15.4
12 –6.8 –7.8 –8.8 –9.8 –10.8 –11.8 –12.8 –13.8 –14.8 –15.8
13 –7.1 –8.1 –9.1 –10.1 –11.1 –12.1 –13.1 –14.1 –15.1 –16.1
14 –7.5 –8.5 –9.5 –10.5 –11.5 –12.5 –13.5 –14.5 –15.5 –16.5
15 –7.8 –8.8 –9.8 –10.8 –11.8 –12.8 –13.8 –14.8 –15.8 –16.8
![](asset-1d.png)
FINAL DRAFT - CISCO CONFIDENTIAL
2-3
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 2 Technical Specifications
Electrical Specifications
2.2 Electrical Specifications
The ONS 15216 EDFA2 uses a power supply that meets the electrical specifications listed in Table 2-3.
16 –8.0 –9.0 –10.0 –11.0 –12.0 –13.0 –14.0 –15.0 –16.0 –17.0
17 –8.3 –9.3 –10.3 –11.3 –12.3 –13.3 –14.3 –15.3 –16.3 –17.3
18– –8.6 –9.6 –10.6 –11.6 –12.6 –13.6 –14.6 –15.6 –16.6 –17.6
19 –8.8 –9.8 –10.8 –11.8 –12.8 –13.8 –14.8 –15.8 –16.8 –17.8
20 –9.0 –10.0 –11.0 –12.0 –13.0 –14.0 –15.0 –16.0 –17.0 –18.0
21 –9.2 –10.2 –11.2 –12.2 –13.2 –14.2 –15.2 –16.2 –17.2 –18.2
22 –9.4 –10.4 –11.4 –12.4 –13.4 –14.4 –15.4 –16.4 –17.4 –18.4
23 –9.6 –10.6 –11.6 –12.6 –13.6 –14.6 –15.6 –16.6 –17.6 –18.6
24 –9.8 –10.8 –11.8 –12.8 –13.8 –14.8 –15.8 –16.8 –17.8 –18.8
25 –10.0 –11.0 –12.0 –13.0 –14.0 –15.0 –16.0 –17.0 –18.0 –19.0
26 –10.1 –11.1 –12.1 –13.1 –14.1 –15.1 –16.1 –17.1 –18.1 –19.1
27 –10.3 –11.3 –12.3 –13.3 –14.3 –15.3 –16.3 –17.3 –18.3 –19.3
28 –10.5 –11.5 –12.5 –13.5 –14.5 –15.5 –16.5 –17.5 –18.5 –19.5
29 –10.6 –11.6 –12.6 –13.6 –14.6 –15.6 –16.6 –17.6 –18.6 –19.6
30 –10.8 –11.8 –12.8 –13.8 –14.8 –15.8 –16.8 –17.8 –18.8 –19.8
31 –10.9 –11.9 –12.9 –13.9 –14.9 –15.9 –16.9 –17.9 –18.9 –19.9
32 –11.1 –12.1 –13.1 –14.1 –15.1 –16.1 –17.1 –18.1 –19.1 –20.1
Table 2-2 Maximum Channel Power (continued)
Composite Input
Power (dBm) 4 3 2 1 0 –1 –2 –3 –4 –5
Corresponding
Max. Gain (dB) 13 14 15 16 17 18 19 20 21 22
Number of
Channels at Full
Loading Maximum per Channel Input Power at Maximum Gain Setting (dBm)
Table 2-3 ONS 15216 EDFA2 Electrical Specifications
Requirement Specification
Input voltage –48 VDC
Maximum power consumption < 25 W at 65°C end of life
Minimum supply voltage –40 VDC
Minimum turn-on supply voltage –43 VDC
Maximum supply voltage –57 VDC or under
Maximum current 0.52 A
![](asset-1e.png)
FINAL DRAFT - CISCO CONFIDENTIAL
2-4
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 2 Technical Specifications
Mechanical Specifications
2.3 Mechanical Specifications
Table 2-4 lists the ONS 15216 EDFA2 mechanical specifications.
2.4 External Features
The ONS 15216 EDFA2 has the following external features:
•Front panel LEDs, graphics, and warning displays
•Brackets for rack mounting (including reversible ears that permit front, mid,
and rear mounting)
•Rear and side cooling vents
•Access door for fiber cleaning
•Fiber routing and retaining feature
•Two threaded grounding studs on rear and a pair of threaded grounding holes on each side
•Screw lug terminal block for power connection
•RJ-45 connector for external alarm connection
•RJ-45 connector for LAN connection
•SC/UPC connectors for optical interface
•DB-9 female connector for craft EIA/TIA-232 serial interface connection
Figure 2-1 on page 2-5 displays a mechanical outline of the external features and dimensions of the
ONS 15216 EDFA2.
Table 2-4 ONS 15216 EDFA2 Mechanical Specifications
Requirement Specification
Dimensions (H x W x D) 1 3/4 in. x 17 3/16 in. x 11 in. (4.4 cm x 43.7 cm x 27.9 cm)
Weight 5.45 lb (2.47 kg)
Ambient operating temperature 32 to 122°F (0 to 50°C)
Storage temperature –40 to 185°F (–40 to 85°C)
Humidity operation Relative humidities of 5 to 95%, non-condensing. With ambient
temperatures above 84° F (29°C), the relative humidity may be
limited to that corresponding to a specific humidity of 0.024
pounds of water per pound of dry air.
Humidity storage Relative humidities of 5 to 95%, non-condensing. With ambient
temperatures above 84° F (29°C), the relative humidity may be
limited to that corresponding to a specific humidity of 0.024
pounds of water per pound of dry air.
Connector types SC/UPC Bulkhead connectors
Mean time between failures
(MTBF)
12.7 years as per calculation procedure outlined in
TR-NWT-000332, Issue 4, Method 1
![](asset-1f.png)
FINAL DRAFT - CISCO CONFIDENTIAL
2-5
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 2 Technical Specifications
Front Panel
Figure 2-1 ONS 15216 EDFA2 Dimensions
2.5 Front Panel
Figure 2-2 shows the ONS 15216 EDFA2 front panel in detail. The front panel provides an all-front
access (fibers, power, alarm contact, and management interface) that complies with international
standards.
Figure 2-2 ONS 15216 EDFA2 Front Panel
Table 2-5 on page 2-6 describes the ONS 15216 EDFA2 front panel features.
11 in. Dimension
1 3/4 in. Height
17 3/16 in. Width
71177
-48V B
RET B
-48V A
RET A RS-232
(EIA/TIA-232) LAN port
LAN LEDs
Fiber
output
monitor
port
Power
level
warning
Alarm
out
Fiber
output
port
Status
LEDs
Fiber
input
port
71176
-48V A
R A
POWER
FAIL
LOS
-48V B
R B
CISCO ONS 15216
RS-232
ALARM OUT LAN
![](asset-20.png)
FINAL DRAFT - CISCO CONFIDENTIAL
2-6
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 2 Technical Specifications
Front Panel
Table 2-5 ONS 15216 EDFA2 Front Panel Features
Feature Description
Terminal strip Terminal strip for supplying power to the ONS 15216 EDFA2. Attach
AWG 18 stranded power wires to appropriate terminals.
Threaded grounding holes Threaded grounding holes (#10-32) to ground the ONS 15216 EDFA2.
Alarm Out RJ-45 connector used for alarm system connection. (See the “Alarm
Out Relay Interface (RJ-45)” section on page 3-5 for additional
information.)
Serial port connection
(EIA/TIA-232)
Serial port for local or remote (modem) data communication
connection. (See Chapter 3, “Installation” for additional information.)
Label Laser warnings, designation labels, and power level warning.
Status LEDs LEDs indicating status of power, fail, loss of signal, Ethernet link
availability and Ethernet link traffic. (See the “Alarm LEDs” section
on page 3-6.)
Fiber input SC/UPC fiber input port.
Fiber output SC/UPC fiber output port.
Monitor output SC/UPC port for fiber that taps off 1% of output signal for monitoring
purposes.
Chassis ground lugs Rear panel grounding post to attach chassis ground wire using #8-32
nut.
LAN RJ-45 connector used for 10BASE-T Ethernet connection. For more
information, see the “LAN Interface (Ethernet)” section on page 3-14.
![](asset-21.png)
CHAPTER
FINAL DRAFT - CISCO CONFIDENTIAL
3-1
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
3
Installation
3.1 Introduction
This chapter contains the installation procedures for the Cisco ONS 15216 EDFA2. The chapter is
divided into the following sections:
•Power (–48V A, RET A, –48V B, RET B, and chassis ground)
•Optical (fiber input and output ports)
•Communications (Alarm Out, LEDs, RS-232 (EIA/TIA-232), and LAN)
3.2 Standard Precautions
The following standard precautions should be taken when installing the ONS 15216 EDFA2:
•Basic electrical precautions should be taken before powering up the ONS 15216 EDFA2.
•Using standard fiber handling and cleaning procedures is critical when installing optical networking
equipment.
•Eye safety precautions should be employed when handling fiber optic patchcords.
3.3 Placement and Power Connection
3.3.1 General Rack Considerations
The following potential hazards should be considered when installing the ONS 15216 EDFA2 within a
rack:
•Elevated Operating Ambient Temperature—If installed in a closed or multi-module rack assembly,
the operating ambient temperature of the rack environment may be greater than room ambient
temperature. Consideration should be given to installing the equipment in an environment
compatible with the manufacturer’s maximum rated ambient temperature.
•Reduced Air Flow—Installation of the equipment in a rack should be such that the amount of air
flow required for safe operation of the equipment is not compromised. Do not block ventilation
holes beyond what is allowed with supplied mounting brackets.
![](asset-22.png)
FINAL DRAFT - CISCO CONFIDENTIAL
3-2
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 3 Installation
Placement and Power Connection
•Mechanical Loading—Mounting of the equipment in the rack should be such that it avoids uneven
mechanical loading.
•Circuit Overloading—Consideration should be given to the connection of the equipment to the
supply circuit and the effect that overloading of circuits might have on overcurrent protection and
supply wiring. Appropriate consideration of equipment nameplate ratings should be used.
•Reliable Earthing—Reliable grounding of rack mounted equipment should be maintained. Particular
attention should be given to supply connections other than direct connections to the branch circuit
(i.e., use of power strip, etc.).
Warning
The ONS 15216 EDFA2 is intended for installation in a restricted access area. A restricted access area
is where access can only be gained by service personnel through the use of a special tool, lock, key,
or other means of security. A restricted access area is controlled by the authority responsible for the
location.
3.3.2 Rack Installation and Power Supply Connection Procedures
Warning
Before performing any of the following procedures, ensure that the power is removed from the DC
circuit. To ensure that all power is OFF, locate the circuit breaker on the panel board that services the
DC circuit, switch the circuit breaker to the OFF position, and tape the switch handle of the circuit
breaker in the OFF position.
Follow these steps to install the ONS 15216 EDFA2 into the rack and correctly set up the power supply:
Step 1 Mount the ONS 15216 EDFA2 in the rack (19 inches or 23 inches reversible ears). Empty rack space is
not required above or below the ONS 15216 EDFA2.
Step 2 Connect the –48 VDC power cable to the office fuse panel (user-provided).
a. 1.0A fusing is required (user-provided).
b. Use 18 AWG stranded wire (and wire lugs as appropriate).
Step 3 Connect power cable from the office fuse panel to the power bus A terminals on the ONS 15216 EDFA2.
See Figure 2-2 on page 2-5.
Step 4 Repeat Step 3 for power bus B.
Step 5 Connect the facility ground to the ONS 15216 EDFA2 side panel ground using #10-32 x 3/8-inch
fasteners with lock washers and ground lugs, or connect to the rear panel ground using ring lugs for #8
studs.
Step 6 Insert 1.0A fuses into the fuse panel (user-provided).
The Power LED on the front panel of the ONS 15216 EDFA2 should illuminate when the power is
supplied.
![](asset-23.png)
FINAL DRAFT - CISCO CONFIDENTIAL
3-3
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 3 Installation
SC/UPC Optical Ports
3.4 SC/UPC Optical Ports
SC/UCP optical ports are as follows:
•Optical input signal to be amplified (INPUT)
–
Input must be between –27 dBm and +4 dBm
•Optically amplified output (OUTPUT)
•Optical monitored output signal (MONITOR OUT)
–
1% tap of output or 20 dB below output signal
3.4.1 Safety Requirements
Warning
Procedures that require the fiber connections to be open must only be performed by service personnel
trained in laser safety requirements. Use of controls or performing adjustments or procedures other
than those specified herein may result in hazardous radiation exposure.
Warning
Class 1M laser radiation when open. Anyone working with the ONS 15216 EDFA2 must not allow their
eyes or body to be exposed to the laser beam or to a reflection from a mirror-like surface. Additionally,
viewing the laser output with certain optical instruments (eye loupes, microscopes) within a distance
of 100 mm may pose an eye hazard.
Warning
In the event of a fiber cut or loss of connection and there is no input power, the ONS 15216 EDFA2 still
has –3.5 dBm of optical output power.
The TL1, SNMP, and command-line interface (CLI) commands can be used to increase the level of laser
energy. Necessary precautions must be taken to avoid exposure to laser energy when using these
commands.
3.4.2 Optical Connection Procedure
Warning
Follow all directions and warning labels when working with optical fibers. To prevent eye damage,
never look directly into a fiber or connector.
Connect the customer-supplied fiber optic patchcords to the SC/UPC optical ports of the
ONS 15216 EDFA2 using the following procedure. Refer to Figure 3-1 on page 3-4 while performing
this procedure:
Step 1 Clean both ends of the two fiber optic patchcords. Refer to the Cisco document “Cleaning Procedure for
Fiber Optic Connectors” for more information.
Step 2 Connect the first patchcord between the ONS 15216 EDFA2 OUTPUT connector and the FACILITY
LINE connection.
The measured optical output power should be approximately –3.5 dBm.
![](asset-24.png)
FINAL DRAFT - CISCO CONFIDENTIAL
3-4
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 3 Installation
SC/UPC Optical Ports
Step 3 Connect the second patchcord to TERMINAL OUTPUT. Measure and record the total optical power:
a. DWDM/OADM output
b. Terminal transmitter output
Step 4 If optical power at the end of the TERMINAL OUTPUT patchcord is less than or equal to +4 dBm,
connect the end to the ONS 15216 EDFA2 input. If the optical power is greater than + 4 dBm, additional
optical attenuation is required to bring optical power below + 4 dBm.
Figure 3-1 ONS 15216 EDFA2 Optical Connections
3.4.3 Optical Amplification Operation Verification Procedure
To verify ONS 15216 EDFA2 optical amplification, use the following procedure:
Step 1 Connect an optical power meter to the MONITOR OUT port.
Step 2 Measure and record the output power. The MONITOR OUT port level is –20 dB less than the signal.
Step 3 Verify that the ONS 15216 EDFA2 input and output power are within the range shown in Table 3-1.
For example, if the total input power is between –27 dBm and –5 dBm, expect an output power between
–5 dBm and 17 dBm.
Note Unless overridden by the user, the gain per channel is by default set to 22 dB by the ONS 15216 EDFA2.
Gain is fixed at 22 dB as long as total input power is less than or equal to –5 dBm. If your input power
is higher than –5 dBm, see the “Set Gain” section on page 4-5.
Fiber output
monitor
Fiber
output
Fiber
input
71175
-48V A
R A
POWER
FAIL
LOS
Table 3-1 Gain Range
Gain Total Input Power (dBm) Total Output Power (dBm)
(dB) Min Max Min Max
22 –27 –5–517
![](asset-25.png)
FINAL DRAFT - CISCO CONFIDENTIAL
3-5
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 3 Installation
Communications
3.5 Communications
The ONS 15216 EDFA2 can communicate in the following ways:
•Alarm Out relay contacts (RJ-45)
•Alarm LEDs
•Serial interface (EIA/TIA-232)
•Serial interface connected to a modem
•LAN interface (RJ-45)
3.5.1 Alarm Out Relay Interface (RJ-45)
The ONS 15216 EDFA2 Alarm Out (RJ-45) port reports alarm status for the following:
•Loss or degradation of electrical power
•Laser pump overheating or excessive pump current, output power, gain, and case temperature
•Loss or degradation of optical network
These alarms can be connected to a network operations center (NOC) network management system
(NMS) using the following methods:
•Cisco ONS 15454 miscellaneous discrete input
•Central Office alarm panel/system
Table 3-2 provides the ONS 15216 EDFA2 RJ-45 alarm out pinout and alarm definitions.
3.5.1.1 Alarm Relay Connection Procedure
To set up alarm contacts, follow these steps:
Step 1 Connect the RJ-45 to the stub-end cable using a #22 AWG solid wire.
Note Cable and connector are not provided.
Table 3-2 Alarm Pinout and Definitions (RJ-45)
Relay Pinout Description
0 1 (0+) Loss of electrical power
2 (0–)
1 3 (1+) Laser pump temperature or bias is out of range; input power is out of
tolerance for gain settings (Major)
4 (1–)
2 5 (2+) Loss of optical input signal or input signal is below threshold (Minor)
6 (2–)
3 7 (3+) Loss of electrical power or out of range for Bus A or Bus B while in duplex
mode
8 (3–)
![](asset-26.png)
FINAL DRAFT - CISCO CONFIDENTIAL
3-6
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 3 Installation
Communications
Step 2 Connect the alarm cable to the alarm system contacts:
a. Cisco ONS 15454 medium-dependent interface (MDI) wire wrap pins
b. Central office (CO) alarm panel
Refer to Table 3-2 on page 3-5 for information concerning alarm contacts. Refer to Alarm LEDs, page
3-6 for information on the ONS 15216 EDFA2 alarm LEDs.
3.5.2 Alarm LEDs
The ONS 15216 EDFA2 has five LEDs:
•POWER
•FAIL
•LOS
•Ethernet socket (2)
Three of these LEDs, POWER, FAIL, and LOS, are located at the left side of the front panel of the
ONS 15216 EDFA2. The two Ethernet LEDs are located at the top left and right sides of the Ethernet
socket. When the module is powered on, an LED test is performed.
3.5.2.1 POWER LED (Green)
The POWER LED is green. This LED functions as follows:
•On: –48 VDC power is within tolerance. (Power Bus A and B are powered normally.)
•Off: No –48 VDC power or power is out of tolerance from the internal power supply. (Power Bus A
and B are not powered.)
•Flashing: Power Bus A or B (in duplex mode) has failed or is out of tolerance, or Power Bus A (in
simplex mode) is out of tolerance.
In the off condition, the first pair of alarm relay contacts in the RJ-45 connector changes from a normally
open condition to a closed condition. The LED and alarm automatically reset when the condition clears.
(For additional alarm contact closure information, see the “Alarm Out Relay Interface (RJ-45)” section
on page 3-5.)
3.5.2.2 FAIL LED (Red)
The FAIL LED is red. This LED functions as follows:
•On: The laser pump bias, laser pump temperature, output power, gain, or case temperature is out of
tolerance. (A major internal failure has occurred.)
•Off: The laser pump bias or laser pump temperature is in the specified range (or no –48 VDC power
is present).
In the on condition, the second pair of alarm relay contacts in the RJ-45 connector changes from a
normally open to a closed condition. If an invalid input optical signal is applied to the
ONS 15216 EDFA2, the Fail LED is illuminated. The LED and alarm automatically reset when the
condition clears.
![](asset-27.png)
FINAL DRAFT - CISCO CONFIDENTIAL
3-7
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 3 Installation
Communications
3.5.2.3 LOS LED (Yellow)
The loss of signal (LOS) LED is yellow. This LED functions as follows:
•On: The optical input power to the ONS 15216 EDFA2 is below the loss of input threshold. (A LOS
threshold decision occurs.)
•Off: The optical input power is within the input threshold (or no –48 VDC power is present).
In the on condition, the third pair of alarm relay contacts in the RJ-45 connector changes from a normally
open condition to a closed condition. The LED and alarm automatically reset when the condition clears.
3.5.2.4 Ethernet Socket LEDs
Two LEDs are located at the top left and right sides of the Ethernet socket. These LEDs are both green.
These LEDs function as follows:
•If left Ethernet socket LED is on, the link is up.
•If right Ethernet socket LED is on or flashing, there is Ethernet traffic.
3.5.3 Serial Interface (EIA/TIA-232) Communication
This section describes communication with the ONS 15216 EDFA2 using a serial connection.
3.5.3.1 Required Equipment
Establishing a serial communications link with a ONS 15216 EDFA2 requires the equipment listed in
Table 3-3.
3.5.3.2 Serial Connection Procedure
To set up an EIA/TIA-232 link to the ONS 15216 EDFA2, use the following procedure. (The procedure
uses HyperTerminal and a connection via the COM1 port.)
Step 1 Connect the DB-9F end of the EIA/TIA-232 data cable (straight cable, user provided) to the laptop COM
port.
Step 2 Connect the DB-9M end of the EIA/TIA-232 data cable to the RS-232 (EIA/TIA-232) serial port
connection on the front panel of the ONS 15216 EDFA2.
Step 3 Open HyperTerminal. (HyperTerminal can be found in the Microsoft Windows Accessories menu.)
Step 4 Type Optical Amplifier, select an icon, and click OK.
Table 3-3 Equipment Checklist
Hardware Comments
Laptop or computer running a Terminal
application.
User-provided. HyperTerminal can be found in the
Microsoft Windows Accessories menu.
EIA/TIA-232 cable with DB-9F/DB-9M
connectors wired as shown in Figure 3-8 on
page 3-14.
Provides EIA/TIA-232 link to ONS 15216 EDFA2.
![](asset-28.png)
FINAL DRAFT - CISCO CONFIDENTIAL
3-8
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 3 Installation
Communications
Step 5 In the Connect To dialog box (Figure 3-2), click Direct to Com1 in the Connect using field. Click OK.
Figure 3-2 HyperTerminal Connect To Dialog Box
Step 6 Configure the Port Settings in the COM1 Properties dialog box as shown in Figure 3-3 on page 3-9. The
Port Settings must be configured as follows:
•Bits per second—19200
•Data bits—8
•Parity—None
•Stop bits—1
•Flow control—None
Click OK when done.
![](asset-29.png)
FINAL DRAFT - CISCO CONFIDENTIAL
3-9
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 3 Installation
Communications
Figure 3-3 HyperTerminal COM1 Properties Dialog Box
Step 7 In the HyperTerminal main window, click File > Properties.
Step 8 Click Connect To tab in the Optical Amplifier Properties dialog box as shown in Figure 3-4.
Figure 3-4 Optical Amplifier Properties Dialog Box (Connect To Tab)
Step 9 Ensure that Direct to Com1 is selected in the Connect using field.
Step 10 Click Settings (Figure 3-5 on page 3-10) and click ASCII Setup.
![](asset-2a.png)
FINAL DRAFT - CISCO CONFIDENTIAL
3-10
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 3 Installation
Communications
Figure 3-5 Optical Amplifier Properties Dialog Box (Settings Tab)
Step 11 Configure the ASCII Setup window as shown in Figure 3-6. Click OK when done.
Figure 3-6 HyperTerminal ASCII Setup Dialog Box
Step 12 Click OK to return to the main HyperTerminal window.
The ONS 15216 EDFA2 login screen appears. The appearance depends on the shell the
ONS 15216 EDFA2 is set to (TL1 is the default shell). See “Log In via RS-232 (EIA/TIA-232) Port
Using HyperTerminal” section on page 4-1 for the login procedure in ASH shell and “Log In via RS-232
(EIA/TIA-232) Port Using HyperTerminal” section on page 8-1 for the login procedure in TL1 shell.
![](asset-2b.png)
FINAL DRAFT - CISCO CONFIDENTIAL
3-11
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 3 Installation
Communications
3.5.4 Serial Interface Remote Communication via Modem
This section describes the procedure for establishing a remote dial-up connection to the
ONS 15216 EDFA2. ONS 15216 EDFA2 remote communication requires two US Robotics 56K Fax
modems set up to send data over a two-wire dial-up telephone line. (See Figure 3-7.)
This section assumes the use of the US Robotics 56K Fax modem V.90. Other modem types may require
different settings to establish a remote dial-up connection. The user should review their modem
documentation to ensure compatibility between US Robotics and other vendor modem types.
Figure 3-7 Remote Communication
3.5.4.1 Remote Communication Component Requirements
Table 3-4 lists the components required to communicate remotely with a ONS 15216 EDFA2. Table 3-4
is divided into two sections: Remote Site and Local Site. The Remote Site section lists components
needed at the site that contains the ONS 15216 EDFA2 and the Local Site section lists components
needed at the site where the user is located.
Modem
Workstation Modem
PSTN Dial up
Phone line
71458
Network
Cisco ONS 15216
EDFA2
Table 3-4 Communication Component List
Component Notes
Remote Site
1 ONS 15216 EDFA2
1 US Robotics 56K Fax modem V.90 The modem to ONS 15216 EDFA2
connection must be set for 19200 baud.
The modem to modem connection must
be set for 14400 baud.
1 10-ft DB-25M to DB-9F cable For connection between
ONS 15216 EDFA2 and modem.
1 RJ-11 to RJ-11 telephone cable For connection between the modem and
PSTN dial-up telephone line
1 public switched telephone network
(PSTN) dial-up telephone line
Local Site
1 PC running HyperTerminal
US Robotics 56K Fax modem V.90 The modem to ONS 15216 EDFA2
connection must be set for 19200 baud.
The modem to modem connection must
be set for 14400 baud.
1 10-ft DB-25M to DB-9F For connection between PC COM port
and modem.
![](asset-2c.png)
FINAL DRAFT - CISCO CONFIDENTIAL
3-12
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 3 Installation
Communications
3.5.4.2 Modem Signals
The only signals required for communication are TXD (transmit), RXD (receive), and SIGNAL
GROUND. By adjusting the modem manufacturer settings, the other signals can be ignored.
3.5.4.3 Modem Power Up
The modem has a DIP switch that overrides certain NVRAM settings during a power up. For consistent
operation throughout the power cycles, the DIP switches must be set as displayed in Table 3-5.
3.5.4.4 Modem Configuration Settings
After configuring the DIP switch settings, each modem configuration must then be set using a terminal
program such as Microsoft Windows HyperTerminal.
Connect the modem to the PC serial port using a DB-25M to DB-9F modem cable as per the
manufacturer recommendations.
Set the terminal communication parameters as follows:
•19,200 baud
•No parity
•8 bits per character
•1 stop bit, and no flow control
Table 3-6 on page 3-13 gives a brief description of the modem settings that are stored in NVRAM. These
settings survive power supply interruptions. Use these settings to configure each modem.
1 RJ-11 to RJ-11 telephone cable For connection between the modem and
PSTN dial-up telephone line.
1 PSTN dial-up telephone line
Table 3-4 Communication Component List
Component Notes
Table 3-5 Modem DIP Switch Setting
DIP Switch Setting Up (U) or Down (D) Description
1 D Data terminal ready override
2U Verbal result codes
3 U Suppress result codes
4 D No echo, offline commands
5 U Auto-answer on first ring, or higher if
specified in NVRAM
6 U Carrier detect normal
7 U Load NVRAM defaults
8 D Smart mode
![](asset-2d.png)
FINAL DRAFT - CISCO CONFIDENTIAL
3-13
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 3 Installation
Communications
3.5.4.5 Setting and Saving Modem Settings
To set and save modem settings, enter the following command to the terminal program and to each
modem:
atb0e0f1m1q1v1x1y0
at&a3&b1&c1&d0&g0&h0&i0&k0s0=1
at&m5&n8&7p1&r1&s1&t5&u8&y1s2=128
at&w0
Table 3-6 Modem Settings
Modem Setting Description
b0 ITU-T answer sequence
e0 Echo off
f1 Local echo off
m1 Speaker on until CONNECT
q1 Quiet mode; no results code
v1 Verbal codes
x1 Select result codes displayed
y0 Use profile 0 setting in NVRAM
&a3 Enable extra result codes
&b1 Fixed DTE speed
&c1 Normal CD operation
&d0 DTR override
&g0 No guard tone, U.S. and Canada
&h0 Flow control disabled
&i0 Software flow control disabled
&k0 Data compression disabled
&m5 ARQ mode
&n8 Fix highest connect speed to 14,400 bps
&p1 Pulse dialing option
&r1 Ignore Request to Send (RTS)
&s1 Modem controls Data Set Ready (DSR)
&t5 Prohibits remote digital loopback
&u8 Fix lowest connect speed to 14,400 bps
&y1 Break handling; destructive/expedited
&w0 Store configuration 0
s0=1 Auto-answer on first ring
s2=128 Disable escape to command mode
![](asset-2e.png)
FINAL DRAFT - CISCO CONFIDENTIAL
3-14
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 3 Installation
Communications
Note Modem communication is not necessary unless dial-up remote communication is desired.
3.5.4.6 PC Connection via Modem
The ONS 15216 EDFA2 and modem are connected through the RS-232 (EIA/TIA-232) port using a
DB-9 connector. The modem, PC, and ONS 15216 EDFA2 should be physically set up as displayed in
Figure 3-8. Use Figure 3-8 to properly connect the ONS 15216 EDFA2 to the modem.
Figure 3-8 DB-9 Pinout for RS-232 (EIA/TIA-232) Port
Using the terminal program from the PC, enter the ATDT command with the appropriate telephone
number to call the remote ONS 15216 EDFA2 modem. After the modems synchronize, log into the
ONS 15216 EDFA2 using the correct user name and password. Refer to Chapter 5, “SNMP MIB
Installation and Configuration,” Chapter 6, “ASH Commands,” and Chapter 9, “TL1 Commands,” for
additional information on commands.
3.5.5 LAN Interface (Ethernet)
You can connect to the ONS 15216 EDFA2 to an Ethernet LAN for remote access.
Note Before communicating and managing the ONS 15216 EDFA2 via the Ethernet port, the user must first
enter an IP address. To set an IP address, see Chapter 4, “Provisioning Using ASH and SNMP” or
Chapter 8, “Provisioning Using TL1.”
Telnet is an application that allows remote management using IP over the Ethernet LAN. The following
types of commands can be issued through a Telnet session:
•SNMP MIB commands (Chapter 5, “SNMP MIB Installation and Configuration”)
•ASH CLI commands (Chapter 6, “ASH Commands”)
•TL1 commands (Chapter 9, “TL1 Commands”)
54321
GND RXD TXD
CTSRTS
9876
71173
![](asset-2f.png)
FINAL DRAFT - CISCO CONFIDENTIAL
3-15
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 3 Installation
Communications
3.5.5.1 LAN Connection Procedure
Use the following procedure to configure the module to accept SNMP, CLI, and TL1 commands via its
RJ-45 LAN port:
Step 1 The ONS 15216 EDFA2 IP address is factory set at 0.0.0.0. The IP address must be set before the
ONS 15216 EDFA2 can be accessed via the Ethernet port. See “Set IP Address” section on page 4-3.
Step 2 Connect ONS 15216 EDFA2 to the network via the module LAN port.
Use a straight-through Cat5 Ethernet cable with RJ-45 connectors to connect to a LAN, or use a
cross-over cable if connecting directly to a PC.
Step 3 At a terminal or workstation, open the Telnet application.
Note To send CLI and TL1 commands over IP, a Telnet client is required. For SNMP management over
IP, a generic SNMP manager is required.
Step 4 Connect to the ONS 15216 EDFA2 using the module’s IP address.
If you do not specify a port number, the ONS 15216 EDFA2 responds in the shell that the
ONS 15216 EDFA2 is set to (TL1 is the default shell). Specify port number 8023 to access through the
ASH shell or port number 3083 to access through the TL1 shell.
The ONS 15216 EDFA2 login screen appears. See “Log In via RS-232 (EIA/TIA-232) Port Using
HyperTerminal” section on page 4-1 for the login procedure in ASH shell and “Log In via RS-232
(EIA/TIA-232) Port Using HyperTerminal” section on page 8-1 for the login procedure in TL1 shell.
![](asset-30.png)
FINAL DRAFT - CISCO CONFIDENTIAL
3-16
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 3 Installation
Communications
![](asset-31.png)
CHAPTER
FINAL DRAFT - CISCO CONFIDENTIAL
4-1
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
4
Provisioning Using ASH and SNMP
This chapter discusses the provisioning procedures for the Cisco ONS 15216 EDFA2 using SNMP and
a proprietary command line interface named the ASH shell. See Chapter 8, “Provisioning Using TL1”
for provisioning information using TL1 commands in the TL1 shell.
The provisioning procedure for the ONS 15216 EDFA2 in the ASH shell is as follows:
1. Log In via RS-232 (EIA/TIA-232) Port Using HyperTerminal, page 4-1
2. Set IP Address, page 4-3
3. Log In via LAN Port Using Telnet (Optional), page 4-3
4. Set Date and Time, page 4-4
5. Set Power Bus Mode (Simplex or Duplex), page 4-4
6. Verify Amplifier Operational Status, page 4-4
7. Set Gain, page 4-5
8. Set Alarm Thresholds, page 4-5
9. Set Password, page 4-10
10. Add Users, page 4-11
11. Save Changes, page 4-11
12. Log Off, page 4-12
13. Back Up System Configuration, page 4-12
14. Restore System Configuration, page 4-13
15. Recover Default Password, page 4-14
The following sections describe these steps in detail.
4.1 Log In via RS-232 (EIA/TIA-232) Port Using HyperTerminal
Logging in through the RS-232 (EIA/TIA-232) port is required to set the ONS 15216 EDFA2 IP address
before there can be access via the LAN port. (See “Log In via LAN Port Using Telnet (Optional)” section
on page 4-3.)
Step 1 Connect to the RS-232 (EIA/TIA-232) port on the front panel. See “Serial Connection Procedure”
section on page 3-7 for line connection and HyperTerminal setup instructions.
Step 2 Open HyperTerminal. (HyperTerminal can be found in the Microsoft Windows Accessories menu.)
![](asset-32.png)
FINAL DRAFT - CISCO CONFIDENTIAL
4-2
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 4 Provisioning Using ASH and SNMP
Log In via RS-232 (EIA/TIA-232) Port Using HyperTerminal
Step 3 If you see the login window shown in Example 4-1 on page 4-2, skip to Step 4.
By default the ONS 15216 EDFA2 is in TL1 shell, so this step may be required to proceed in ASH shell.
When in TL1 shell, the screen opens to a simple prompt (sidtidname:ONS15216 EDFA2>). To change to
ASH shell, log in using the procedure in “Log In via RS-232 (EIA/TIA-232) Port Using HyperTerminal”
section on page 8-1, and then enter the following command at the sid/tid name prompt:
Welcome to ONS15216 EDFA2 Console (v2.3.0)
sidtidname:ONS15216 EDFA2> ED-NE-GEN:::123:::CLI=ASH;
Then enter the following command at the hostname prompt:
sidtidname:ONS15216 EDFA2> INIT-SYS::ALL:1234::1;
The ONS 15216 EDFA2 should log you off and then bring up the ASH shell login window.
Step 4 Check that the ONS 15216 EDFA2 login window appears as shown in Example 4-1.
Example 4-1 ASH Shell Login Window
-- LOGIN ---------------------------------------------------- sysname
ONS15216 EDFA2 Optical Amplifier
--------------------------------
Software Version 2.3.0
Copyright (c) 2000-2003 Cisco Systems, Inc.
Username: { }
Password: { }
[Login]
Step 5 Enter both a user name and password.
The default user name and password is CISCO15 with no password (press Enter).
Note For security reasons, it is recommended to change the password from its default value. See Set Password,
page 4-10 or Set Password, page 8-10.
Step 6 Press Enter when [Login] becomes highlighted. Example 4-2 displays the login response.
Example 4-2 ASH Shell Login Response
Welcome to ONS15216 EDFA2 Console (v2.3.0)
ash:hostname:ONS15216 EDFA2>
An EIA/TIA-232 link to the ONS 15216 EDFA2 is established. The user can now provision the
ONS 15216 EDFA2.
![](asset-33.png)
FINAL DRAFT - CISCO CONFIDENTIAL
4-3
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 4 Provisioning Using ASH and SNMP
Set IP Address
4.2 Set IP Address
Before connecting the ONS 15216 EDFA2 to a LAN, it is mandatory to set the ONS 15216 EDFA2 IP
address through a local serial communication interface using the RS-232 (EIA/TIA-232) port on the
front of the module.
Step 1 If you do not know the ONS 15216 EDFA2’s IP address, subnet mask, gateway address, or host name,
contact your network administrator.
Step 2 At the command prompt, enter the snmp row set local cerent15216EdfaSromIpMgmtGroup
command (displayed in Example 4-3) and press Enter.
Example 4-3 Setting IP Address, Subnet Mask, Gateway Address, and Host Name
ash:hostname:ONS15216 EDFA2> snmp row set local cerent15216EdfaSromIpMgmtGroup
cerent15216EdfaSromIpMgmtEnetAddress 0.0.0.0
cerent15216EdfaSromIpMgmtEnetSubNetMask 0.0.0.0
cerent15216EdfaSromIpMgmtDefaultRouterAddress 0.0.0.0
cerent15216EdfaSromIpMgmtHostName ""
Because row set is being used in this command, the user is prompted row by row to enter the IP address,
the subnet mask, the gateway address, and the host name (community ID).
Step 3 The changes must be saved prior to terminating the session. See “Save Changes” section on page 4-11.
Step 4 The system must be rebooted to make the IP address active. Use the processor reset command. (See
“processor reset Command” section on page 6-12.)
4.3 Log In via LAN Port Using Telnet (Optional)
Provisioning of the ONS 15216 EDFA2 can be accomplished entirely through the RS-232
(EIA/TIA-232) port using CLI commands. After an IP address is assigned, it may be easier to provision
the ONS 15216 EDFA2 using Telnet or an SNMP manager. A Telnet client is needed for CLI commands
over IP. A generic SNMP manager is required for SNMP management over IP. After connecting the
ONS 15216 EDFA2 to the network through its RJ-45 LAN port (see “LAN Interface (Ethernet)” section
on page 3-14), the user can configure the module to accept SNMP and CLI commands via Telnet using
the following procedure:
Step 1 Connect to the LAN port on the front panel. See “LAN Connection Procedure” section on page 3-15.
Step 2 Click the Microsoft Windows Start menu and select Run.
Step 3 In the text field, type the following:
telnet <ONS 15216 EDFA2 IP address> 8023
Specifying port 8023 ensures login through the ASH shell. If no port is specified, the
ONS 15216 EDFA2 responds in the shell that the ONS 15216 EDFA2 is set to. (TL1 is the default shell.)
![](asset-34.png)
FINAL DRAFT - CISCO CONFIDENTIAL
4-4
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 4 Provisioning Using ASH and SNMP
Set Date and Time
Step 4 Log in again using Step 4 through Step 6 in “Log In via RS-232 (EIA/TIA-232) Port Using
HyperTerminal” section on page 4-1.
You are now connected to the ONS 15216 EDFA2 via Telnet.
4.4 Set Date and Time
Use the snmp attribute set local cerent15216EdfaRtcDateAndTimeLocalString command to set the
date, time, and time zone. Entries must follow this format: “yyyy-m-d,h:m:s.s +h:m”. Following the
space, the time zone is set as +/– hours from Greenwich Mean Time (GMT) (also designated as universal
coordinated time (UTC)) followed by a colon and minutes ahead for daylight savings. For example,
Pacific Daylight Time would be –8:60 and Greenwich Mean Time would be +0:0. See Example 4-4.
Example 4-4 Setting the Date and Time
ash:hostname:ONS15216 EDFA2> snmp attribute set local cerent15216EdfaRtcDateAndTimeLocalString
"2002-6-30,14:8:30.0 -8:60"
4.5 Set Power Bus Mode (Simplex or Duplex)
The ONS 15216 EDFA2 allows users to set a simplex (one power source–Bus A) or duplex (redundant
power source–Bus A and Bus B) Power Bus mode. Use the snmp attribute set local
cerent15216EdfaPowerBusMode command to set the desired Power Bus mode. The default mode is
duplex. See Example 4-5.
Example 4-5 Setting the Power Bus Mode
ash:hostname:ONS15216 EDFA2> snmp attribute set local cerent15216EdfaPowerBusMode simplex
4.6 Verify Amplifier Operational Status
To ensure that the amplifier is working correctly on the optical level, you must verify the amplifier
operational status. Use the snmp table display local cerent15216EdfaOverallStatusGroup command
to verify amplifier operational status. Example 4-6 displays the output of this command.
Example 4-6 Verifying the Amplifier Operations Status
ash:hostname:ONS15216 EDFA2> snmp table display local cerent15216EdfaOverallStatusGroup
CLASS CERENT-15216-EDFA-MIB.cerent15216EdfaOverallStatusGroup ::=
{
cerent15216EdfaInPoweruW = 279;
cerent15216EdfaInPowerdBm = -1555;
cerent15216EdfaOutPowermW = 476;
cerent15216EdfaOutPowerdBm = 678;
cerent15216EdfaConstGainOverallGainMeasured = 219;
cerent15216EdfaVariableGainPreAttenuationMeasured = 10;
};
![](asset-35.png)
FINAL DRAFT - CISCO CONFIDENTIAL
4-5
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 4 Provisioning Using ASH and SNMP
Set Gain
The input power (signal) should be consistent with the input power measured during the optical
connection procedure. See the “Optical Connection Procedure” section on page 3-3 for more
information. The output power value should be 22 dB greater than the input, assuming that the default
gain setting is 22 dB.
Note An input power higher than –5 dBm will return a Gain Out of Range alarm that can be cleared by
correctly setting the gain value. For more information, refer to Table 2-2 on page 2-2.
4.7 Set Gain
To ensure that the ONS 15216 EDFA2 output signal is received by the transceiver in the network
element, it is important that the gain is set correctly.
The desired output power per channel is dependent on the number of channels traversed in the amplifier.
The user sets the gain of the amplifier depending on the input power (signal) level, the network
application, and the required receiver specifications necessary for error-free operation. Gain range is
provided in Table 3-1 on page 3-4.
To set the amplifier gain, enter the snmp attribute set local cerent15216EdfaConstGainOverallGain
gainvalue command, where gainvalue is the desired gain multiplied by ten. For example, if the desired
gain is 20 dB, the gainvalue would be set to 200. Example 4-7 shows the command used to set the gain.
Example 4-7 Setting the Gain
ash:hostname:ONS15216 EDFA2> snmp attribute set local cerent15216EdfaConstGainOverallGain 200
Note Prior to changing or implementing gain changes, consult with the Cisco TAC to ensure proper network
operation.
4.8 Set Alarm Thresholds
Alarm thresholds are set so that the network operator can be notified when valid alarms occur via the
RJ-45 ALARM OUT and RJ-45 LAN ports on the front panel of the ONS 15216 EDFA2. (See Figure 4-1
on page 4-6.)
![](asset-36.png)
FINAL DRAFT - CISCO CONFIDENTIAL
4-6
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 4 Provisioning Using ASH and SNMP
Set Alarm Thresholds
Figure 4-1 ONS 15216 EDFA2 Front Panel
Alarms are reported for the following conditions:
•Loss or degradation of electrical power
•Laser pump overheating, excessive pump current
•Loss or degradation of optical input
Alarms can be connected to a network operations center (NOC) network management system (NMS) via
a network element miscellaneous discrete input and/or office alarm panel/system.
For a full description of alarm threshold command attributes, refer to Chapter 5, “SNMP MIB
Installation and Configuration” or Chapter 6, “ASH Commands.”
To display the alarm thresholds, use the snmp table display local cerent15216EdfaCfgGroup
command (Example 4-8). This command returns the current alarm threshold default values.
Example 4-8 Displaying the Alarm Thresholds
ash:hostname:ONS15216 EDFA2> snmp table display local cerent15216EdfaCfgGroup
CLASS CERENT-15216-EDFA-MIB.cerent15216EdfaCfgGroup ::=
{
cerent15216EdfaCfgSaved = false;
cerent15216EdfaLpoutSetpoint = 0;
cerent15216EdfaLpoutDeviation = 200;
cerent15216EdfaLpoutHysteresis = 100;
cerent15216EdfaLOSThreshold = -2600;
cerent15216EdfaLOSHysteresis = 100;
cerent15216EdfaCtmpMin = -5;
cerent15216EdfaCtmpMinHysteresis = 1;
cerent15216EdfaCtmpMax = 65;
cerent15216EdfaCtmpMaxHysteresis = 1;
cerent15216EdfaCLEI = "";
cerent15216EdfaPowerBusMode = duplex;
cerent15216EdfaPowerBusDCVoltageMin = 410;
cerent15216EdfaPowerBusDCVoltageMax = 560;
};
To set the alarm thresholds, use the snmp row set local cerent15216EdfaCfgGroup command. After
this command is entered, the user is prompted to modify each attribute, row by row, until all attributes
are set. Alarm threshold attributes are described in Table 4-1 on page 4-7.
-48V B
RET B
-48V A
RET A RS-232
(EIA/TIA-232) LAN port
LAN LEDs
Fiber
output
monitor
port
Power
level
warning
Alarm
out
Fiber
output
port
Status
LEDs
Fiber
input
port
71176
-48V A
R A
POWER
FAIL
LOS
-48V B
R B
CISCO ONS 15216
RS-232
ALARM OUT LAN
![](asset-37.png)
FINAL DRAFT - CISCO CONFIDENTIAL
4-7
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 4 Provisioning Using ASH and SNMP
Set Alarm Thresholds
Table 4-1 Alarm Threshold Attribute Definitions
Attribute Variable
Definition Syntax Maximum
Access Description
cerent15216Edfa
CfgSaved
Configurati
on saved
status
True Value Read-only Indicates whether the current
configuration has been saved. The value
can be true or false. If false, the
configuration is not saved.
cerent15216Edfa
LpoutSetpoint
Loss of
output
power
setpoint
Integer
(0 to 1000,
0 default)
Read-only Can be disregarded when operating
amplifier in Constant Gain Temperature
Compensated mode (manufacturer
default) and Constant Pump Current
mode. Setpoint object is only valid when
amplifier is used in Constant Output
Power and Idle modes.
cerent15216Edfa
LpoutDeviation
Loss of
output
power
deviation
Integer
(0 to 1000,
200
default)
Read-write Can be disregarded when operating
amplifier in manufacturer default
Constant Gain Temperature
Compensated mode. Deviation object is
only valid when amplifier is used in
Constant Output Power and Idle modes.
cerent15216Edfa
LpoutHysteresis
Loss of
output
power
hysteresis
Integer
(0 to 1000,
100
default)
Read-write Can be disregarded when operating
amplifier in manufacturer default
Constant Gain Temperature
Compensated mode. Hysteresis object is
only valid when amplifier is used in
Constant Output Power and Idle modes.
cerent15216Edfa
LOSThreshold
Loss of
signal
(input
power)
threshold
Integer
(–3100 to
–1500,
–3000
default)
Read-write Alarm notifies operations personnel if
the optical input signal of the
ONS 15216 EDFA2 drops below a level
that impacts proper operation of optical
network. Set this attribute at a value that
is appropriate for the intended
application so that the alarm condition is
meaningful. Consult with the Cisco TAC
to determine the threshold value for your
application. As a guideline, Cisco
recommends setting the threshold value
at 3 dBm below the current input power
level of the amplifier. Valid entries are
between –3100 and –1500 in dBm times
100. For example, if the total input power
of the amplifier is –24 dBm and the loss
of input power threshold required is –27
dBm, the loss of input power alarm
threshold is –2700.
![](asset-38.png)
FINAL DRAFT - CISCO CONFIDENTIAL
4-8
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 4 Provisioning Using ASH and SNMP
Set Alarm Thresholds
cerent15216Edfa
LOSHysteresis
Loss of
signal
(input
power)
hysteresis
Integer
(0 to 1000,
100
default)
Read-write Used to set the amount the input signal
must increase above the LOS Threshold
level before the alarm is cleared. This
attribute, in conjunction with the loss of
input signal alarm threshold, enables
efficient clearing of alarms. Set this
attribute at a value that is appropriate for
the application so that the alarm
condition will clear when input is stable.
Consult with the Cisco TAC to determine
the correct value for your application. As
a guideline, Cisco recommends setting
the value 1 dB above the LOS Threshold
value. With this setting, the module will
clear the alarm if it detects a signal level
of 1 dB above the current LOS Threshold
value. Valid entries are between 0 and
1000 and are in dB times 100. For
example, if the hysteresis required is 1
dB, the power alarm hysteresis is 100.
cerent15216Edfa
CtmpMin
Minimum
case
temperature
Integer
(–10 to 10,
–5 default)
Read-write Alarm notifies operations personnel if
the case temperature of the
ONS 15216 EDFA2 drops below a level
that impacts proper operation of the
optical network. The minimum case
temperature should be set at a value that
is appropriate for the intended
application and within product
specifications. Consult with the Cisco
TAC to determine the correct value for
your application. As a guideline, Cisco
recommends that minimum case
temperature be set at 1°C. Valid entries
are between –10 and 10°C.
cerent15216Edfa
CtmpMinHystere
sis
Minimum
case
temperature
hysteresis
Integer
(0 to 10,
1 default)
Read-write Used to set the amount that the case
temperature of the module must rise
above the minimum case temperature
alarm level before the alarm is cleared.
Set the hysteresis at a value that is
appropriate for the application so that the
alarm condition clears when the input is
stable. Consult with the Cisco TAC to
determine the correct value for your
application. As a guideline, Cisco
recommends that the hysteresis value be
set at 1°C. Valid entries are between 0
and 10°C. Setting this value to 0 disables
this option.
Table 4-1 Alarm Threshold Attribute Definitions (continued)
Attribute Variable
Definition Syntax Maximum
Access Description
![](asset-39.png)
FINAL DRAFT - CISCO CONFIDENTIAL
4-9
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 4 Provisioning Using ASH and SNMP
Set Alarm Thresholds
cerent15216Edfa
CtmpMax
Maximum
case
temperature
Integer
(20 to 70,
65 default)
Read-write Alarm notifies operations personnel if
the case temperature of the
ONS 15216 EDFA2 is at a level that may
impact proper operation of the optical
network. Set the maximum case
temperature at a value that is appropriate
for intended application and within
product specifications. Consult with the
Cisco TAC to determine the correct value
for your application. As a guideline,
Cisco recommends that maximum case
temperature value be set at 50°C. Valid
entries are between 20 and 70°C.
cerent15216Edfa
CtmpMaxHystere
sis
Maximum
case
temperature
hysteresis
Integer
(0 to 10,
1 default)
Read-write Used to set the amount that the case
temperature of module must drop below
the maximum case temperature alarm
level before the alarm is cleared. Set the
hysteresis at a value that is appropriate
for the application so that the alarm
condition clears when the input is stable.
Consult with the Cisco TAC to determine
the correct value for your application. As
a guideline, Cisco recommends setting
the value at 1°C. Valid entries are
between 0 and 10°C. Setting this value to
0 disables this option.
Table 4-1 Alarm Threshold Attribute Definitions (continued)
Attribute Variable
Definition Syntax Maximum
Access Description
![](asset-3a.png)
FINAL DRAFT - CISCO CONFIDENTIAL
4-10
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 4 Provisioning Using ASH and SNMP
Set Password
4.9 Set Password
To restrict access to the ONS 15216 EDFA2, use the user passwd set command to change the default
user password. The password must be a string of up to 10 characters, where at least 2 are non-alphabetic
characters and at least 1 is a special character. With the exception of the administrator access level
(read_write_admin), users can only modify their own passwords. For additional information on user
levels, refer to Table 6-1 on page 6-1. Example 4-9 displays the command.
Example 4-9 Changing Current User’s Password
ash:hostname:ONS15216 EDFA2> user passwd set
cerent15216Edfa
PowerBusDCVolt
ageMin
Power bus
minimum
voltage
Integer
(350 to
700, 400
default)
Read-write Minimum allowable power bus DC
voltage. The default minimum power bus
voltage is set at –40 VDC. Valid entries
are between 350 and 700 and are in
negative volts times 10. For example, if
the voltage required is –40 VDC, the
power bus setting is 400.
The power bus threshold has a 1.0V
tolerance and a 1.0V hysteresis. There is
a potential ±1.5V inaccuracy in the
ONS 15216 EDFA2 voltage
measurement. If the minimum threshold
is configured at 400 (-40 VDC), the
alarm will not raise until the voltage
measures below -39 VDC and will not
clear until the voltage measures above
-41 VDC.
cerent15216Edfa
PowerBusDCVolt
ageMax
Power bus
maximum
voltage
Integer
(350 to
700, 570
default)
Read-write Maximum allowable power bus DC
voltage. The default maximum power bus
voltage is set at –57 VDC. Valid entries
are between 350 and 700 and are in
negative volts times 10. For example, if
the voltage required is –57 VDC, the
power bus setting is 570.
The power bus threshold has a 1.0V
tolerance and a 1.0V hysteresis. There is
a potential ±1.5V inaccuracy in the
ONS 15216 EDFA2 voltage
measurement. If the maximum threshold
is configured at 570 (-57 VDC), the
alarm will not raise until the voltage
measures above -58 VDC and will not
clear until the voltage measures below
-56 VDC.
Table 4-1 Alarm Threshold Attribute Definitions (continued)
Attribute Variable
Definition Syntax Maximum
Access Description
![](asset-3b.png)
FINAL DRAFT - CISCO CONFIDENTIAL
4-11
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 4 Provisioning Using ASH and SNMP
Add Users
Password =
****
New Password =
******
Confirm New Password =
******
Note The default user name for the administrator level is CISCO15 with no default password. To start a
session for this user name, press Enter.
4.10 Add Users
Use the user entry create command to add new users to the ONS 15216 EDFA2. The syntax is to enter
the command followed by the user name and then the access level (read, read_write, read_write_admin)
as shown in Example 4-10. The ONS 15216 EDFA2 responds with a request for the password.
Passwords must be an ASCII string of up to 10 characters, where at least 2 are non-alphabetic characters with
at least one special character. Special characters are +, #, and % (defined in Telcordia GR-831-CORE).
Example 4-10 Adding a New User
ash:hostname:ONS15216 EDFA2> user entry create janedoe read_write
New Password =
*********
Confirm New Password =
*********
4.11 Save Changes
To ensure that the provisioning changes are set, you must save your changes prior to terminating the
session. To save changes, use the snmp attribute set local cerent15216EdfaOpSaveConfig perform
command (Example 4-11).
Example 4-11 Saving Changes
ash:hostname:ONS15216 EDFA2> snmp attribute set local cerent15216EdfaOpSaveConfig perform
Most SNMP configuration attributes require the above save command before terminating the session
(does not apply to TL1 shell). The exceptions to this save requirement (the attributes that are
automatically saved) are shown below:
•cerent15216EdfaPowerBusMode
•cerent15216EdfaPowerBusDCVoltageMin
•cerent15216EdfaPowerBusDCVoltageMax
•cerent15216EdfaPumpCfgControlMode and the corresponding pump control value
•cerent15216EdfaConstGainOverallGain
•cerent15216EdfaVariableGainPreAttenuation
•SromIpMgmtGroup attributes:
–
cerent15216EdfaSromIpMgmtEnetAddress
![](asset-3c.png)
FINAL DRAFT - CISCO CONFIDENTIAL
4-12
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 4 Provisioning Using ASH and SNMP
Log Off
–
cerent15216EdfaSromIpMgmtEnetSubNetMask
–
cerent15216EdfaSromIpMgmtDefaultRouterAddress
–
cerent15216EdfaSromIpMgmtHostName
•BootTable attributes:
–
cerent15216EdfaBootModuleIndex
–
cerent15216EdfaBootEntryIndex
–
cerent15216EdfaBootType
–
cerent15216EdfaBootIpAddress
–
cerent15216EdfaBootFileName
4.12 Log Off
At the end of a session, the user must log off of the ONS 15216 EDFA2. To log off, use the logoff
command. This is shown in Example 4-12.
Example 4-12 Logging Off
ash:hostname:ONS15216 EDFA2> logoff
4.13 Back Up System Configuration
The configuration information for the ONS 15216 EDFA2 can be saved in a file for later use or to
configure other ONS 15216 EDFA2 units. This file contains manufacturing information about the unit
that is being backed up (such as part number and serial number), setup information for the unit (such as
IP address and host name), all configuration information (such as alarm thresholds and pump mode), and
the user database.
The backup file is saved with cyclic redundancy code (CRC) to ensure data integrity, and the user names,
passwords, and other system settings are encrypted for security. The file header, which identifies the
node name, IP address, and software version, is text readable. Only the configuration information and
user database are copied back to the ONS 15216 EDFA2 during a restore.
Step 1 Back up the system configuration to a file on the FFS.
ash:hostname:ONS15216 EDFA2> backup system filename
The system responds with progress information:
Trying to Backup the system configuration to file filename...
Backup SNMP Data...
DONE!...
Backup NON-SNMP Config...
DONE!...
Backup USER/PASSWD Accts...
DONE!...
CRC = 6cce1bd9
Backup DONE!
![](asset-3d.png)
FINAL DRAFT - CISCO CONFIDENTIAL
4-13
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 4 Provisioning Using ASH and SNMP
Restore System Configuration
Step 2 If desired, use FTP to copy the file to a remote server. See “Example of FTP to a Remote Server” section
on page 7-2.
4.14 Restore System Configuration
The configuration information for the ONS 15216 EDFA2 can be restored form a file. During this
process, all configuration information (such as alarm thresholds and pump mode) and the user database
from the file are replaced in the ONS 15216 EDFA2 memory and FFS.
Before the restore begins, a cyclic redundancy code (CRC) check is performed to ensure data integrity.
Step 1 If desired, use FTP to copy a system configuration file from a remote server to the ONS 15216 EDFA2
FFS. See “Example of FTP from a Remote Server” section on page 7-1.
Step 2 Restore the system configuration from the file on the FFS.
ash:hostname:ONS15216 EDFA2> restore system filename
The system responds with progress information:
Restoring the system configuration from file filename...
CRC Check OK
Restore SNMP Configuration...
...............
DONE!...
Restore NON SNMP Configuration...
user inactivity modify read_write_admin 15
user inactivity modify read_write 30
user inactivity modify read 60
shell type modify ash
tl1 sid modify foo
manufacturer keep_alive modify -idle 1 -interval 75 -retries 9
snmp attribute set local cerent15216EdfaSromIpMgmtHostName "newhostname"
DONE!...
Restore USER INFO...
DONE!...
Restore DONE!
Step 3 Save the changes.
ash:hostname:ONS15216 EDFA2> snmp attribute set local cerent15216EdfaOpSaveConfig perform
Step 4 Reboot the ONS 15216 EDFA2.
ash:hostname:ONS15216 EDFA2> processor reset
After the processor reboots, user names and passwords from the new user database must be used for
access.
![](asset-3e.png)
FINAL DRAFT - CISCO CONFIDENTIAL
4-14
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 4 Provisioning Using ASH and SNMP
Recover Default Password
4.15 Recover Default Password
If the root password for CISCO15 is lost, there is a procedure to reset it to regain full administrative
control of the ONS 15216 EDFA2. The user must be connected to the ONS 15216 EDFA2 by serial
communication, perform a hard power reset, and then performs a series of commands within 60 seconds
of rebooting, according to the following procedure. This procedure resets the default user password only;
no other settings are affected.
Warning
The ONS 15216 EDFA2 ceases its optical amplification function when power is off during this process.
Traffic should be rerouted before this procedure begins.
Note If the ONS 15216 EDFA2 firmware is not version 2.3.14 or greater, the CISCO15 user resets to
read_write access level, not read_write_admin, which has full administrative control. Contact Cisco
TAC for assistance.
Step 1 Connect to the RS-232 (EIA/TIA-232) port.
Step 2 Open HyperTerminal. (HyperTerminal can be found in the Microsoft Windows Accessories menu.)
Step 3 Perform hard power reset of the ONS 15216 EDFA2 (disconnect and reconnect power).
Step 4 While the dots are present in the HyperTerminal window during the reboot process, enter Ctrl C on the
keyboard.
The ONS 15216 EDFA2 should boot from the firmware image. The prompt is %.
Step 5 At the hostname prompt, enter the following command (must be done within 60 seconds of rebooting):
hostname:edfaboot% user passwd set CISCO15 default
Step 6 At the hostname prompt, enter the following command:
hostname:edfaboot% login CISCO15
Password =
<enter>
Step 7 At the hostname prompt, enter the following command:
hostname:edfaboot% processor reset
After the processor reset, the default CISCO15 login password will be the default (the Enter key).
![](asset-3f.png)
CHAPTER
FINAL DRAFT - CISCO CONFIDENTIAL
5-1
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
5
SNMP MIB Installation and Configuration
This chapter explains how to read and understand SNMP MIB as it relates to the Cisco
ONS 15216 EDFA2. This chapter is a reference of all ONS 15216 EDFA2 SNMP commands that are
used in a network management system (NMS). For provisioning the ONS 15216 EDFA2, see Chapter 4,
“Provisioning Using ASH and SNMP”.
5.1 SNMP Overview
Simple Network Management Protocol (SNMP) is an application-layer communication protocol that
allows network devices to retrieve and modify the value of management information, as well as provide
event notification to a NMS.
The ONS 15216 EDFA2 SNMP implementation uses proprietary and standard Internet Engineering Task
Force (IETF) MIBs to convey inventory, fault, and performance management information.
SNMP allows limited management of the ONS 15216 EDFA2 by a generic, third-party SNMP manager
(for example, HP OpenView Network Node manager [NNM] or Open Systems Interconnection [OSI]
NetExpert).
The ONS 15216 EDFA2 supports SNMP Version 1 (SNMPv1) and SNMP Version 2c (SNMPv2c)
protocols.
5.1.1 SNMP Components
An SNMP-managed network consists of three primary components:
•Managed devices
•Agents
•Management systems
A managed device is a network node that contains an SNMP agent and resides on an SNMP-managed
network. Managed devices collect and store management information and use SNMP to make this
information available to management systems that use SNMP. Managed devices include routers, access
servers, switches, bridges, hubs, computer hosts, and network elements such as the ONS 15216 EDFA2.
![](asset-40.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-2
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
SNMP Overview
5.1.2 ONS 15216 EDFA2 SNMP Elements
The following three SNMP elements are used with the ONS 15216 EDFA2:
•SNMP agent
•SNMP MIB
•SNMP manager
The SNMP elements are shown in Figure 5-1.
Figure 5-1 SNMP Elements
5.1.2.1 SNMP Agent
An agent is an entity that assumes an operation role to receive, process, and respond to requests, as well
as generated event reports. The SNMP agent gathers data from the MIB, which is the repository for
device parameter and network data. To respond to requests, the agent must have network management
information access. To generate reports, an agent must be notified of internal events.
Cisco provides both an SNMP agent (installed on the ONS 15216 EDFA2) and SNMP MIB to monitor
the ONS 15216 EDFA2. The SNMP agent software and MIB are pre-installed on each module.
Figure 5-2 on page 5-3 shows the relationship between the SNMP agent and the MIB.
Management
Entity
Agent
Management
Database
Agent
NMS
Management
Database
Managed Devices
Agent
Management
Database
33930
![](asset-41.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-3
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
SNMP Overview
Figure 5-2 SNMP Agent and MIB
5.1.2.2 SNMP MIB
The SNMP MIBs (CERENT-15216-EDFA-MIB.mib and CERENT-GLOBAL-REGISTRY.mib) are files
written in ASN.1 syntax. The CERENT-15216-EDFA-MIB.mib specifies what ONS 15216 EDFA2
information needs to be controlled and monitored. This MIB is pre-installed on the SNMP agent and is
accessible via the CLI.
The CERENT-15216-EDFA-MIB.mib and other MIBs can also be installed on a third-party SNMP
manager located at a network management center. The SNMP manager at the network management
center or the SNMP manager, accessible via the CLI, (see SNMP Manager) uses the SNMP MIBs to
communicate with the SNMP agent.
5.1.2.3 SNMP Manager
The ONS 15216 EDFA2 comes with a pre-installed SNMP manager accessible via the CLI. This SNMP
manager can be accessed and used to communicate with the SNMP agent that is also pre-installed on
each ONS 15216 EDFA2. This manual displays examples of issuing SNMP commands to the amplifier
using the built-in SNMP manager.
5.1.2.3.1 Third-party, Vendor-Specific SNMP Managers
SNMP managers from third-party vendors running on a separate computer located at a network
management center are often used to manage network elements. If a third-party SNMP manager is used,
it must be able to communicate with the SNMP agent pre-installed on the ONS 15216 EDFA2.
If a third-party SNMP manager is used, it is assumed that the SNMP manager is pre-installed prior to
the SNMP MIB installation. Each vendor-specific SNMP manager has an unique set of instructions for
SNMP MIB installation. For directions on loading the SNMP MIBs, refer to SNMP manager
documentation.
Cisco does not provide or recommend a standard third-party SNMP manager.
5.1.3 SNMP MIBs and Message Types
SNMP operations can be quite powerful. A manager can retrieve or modify the value of management
information accessible by an agent, an agent can report an event to a manager, and the manager can
inform another manager of the value of management information on an agent. Using retrieval and
modification operations, a manager can cause an agent to perform an action or execute a command. The
manager can also create new and delete existing instances of management information.
A MIB is a hierarchically-organized collection of information. Network management protocols, such as
SNMP, gain access to these MIBs. MIBs consist of managed objects and are identified by object
identifiers (OID).
get, get-next, get-bulk Network device
get-response, traps
32632
SNMP Manager
NMS
MIB
SNMP Agent
![](asset-42.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-4
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
SNMP Overview
The ONS 15216 EDFA2 SNMP agent communicates with an SNMP management application (a
third-party application or the built-in SNMP manager) using SNMP messages. Table 5-1 describes
SNMP operation types.
5.1.4 Command Syntax Using the SNMP Agent
Although Cisco has its own separate SNMP manager (Cisco Transport Manager [CTM]), management
of the ONS 15216 EDFA2 is also possible using the built-in SNMP manager via the command line in the
ASH shell, as described in SNMP Commands, page 6-15. The example commands and command syntax
described in this manual are based on using the built-in ONS 15216 EDFA2 SNMP manager through the
ASH shell CLI.
Commands can be issued via Telnet over a LAN or directly through the RS-232 (EIA/TIA-232) port on
the module. (See .) After setting up a connection to the module and entering a password and user name,
the following prompt appears:
ash:hostname:ONS15216 EDFA2>
To communicate with the module using SNMP, the command must begin with “snmp”.
Note To view a list of possible SNMP operations, enter “snmp” followed by a space and press the Tab key.
(See Example 5-1.)
Example 5-1 snmp Command Followed by the Tab Key
ash:hostname:ONS15216 EDFA2> snmp
agent
attribute
host
mib
pdu
row
session
subtree
table
trap
Table 5-1 SNMP Operation Types
Operation Description
get-request Retrieves a value from a specific variable.
get-next-request Retrieves the value following the named variable; this operation is often used
to retrieve variables in a table. With this operation, an SNMP agent does not
need to know the exact variable name. The SNMP manager searches
sequentially to find the needed variable in the MIB.
get-response The reply to a get-request, get-next-request, get-bulk-request, or set-request
sent by an NMS.
get-bulk-request Similar to a get-next-request, but this operation fills the get-response with up
to the max-repetition number of get-next interactions.
trap An unsolicited message sent by an SNMP agent to an SNMP manager
indicating that an event has occurred.
set-request Sets a value of a specific variable.
![](asset-43.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-5
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Enabling SNMP Remote Management Community Strings
tree
Continue to enter operations from the list until the complete command is created. (See Example 5-2.)
Example 5-2 snmp table display Command
ash:hostname:ONS15216 EDFA2> snmp table display local cerent
cerent15216EdfaCommunityEntry
cerent15216EdfaCommTrapEntry
cerent15216EdfaViewEntry
cerent15216EdfaAgentControlGroup
cerent15216EdfaActionOpGroup
cerent15216EdfaLogEventControl
cerent15216EdfaLogEventEntry
cerent15216EdfaBootEntry
cerent15216EdfaBootImageEntry
cerent15216EdfaRtcDateAndTime
cerent15216EdfaSromIpMgmtGroup
cerent15216EdfaSromRingGroup
cerent15216EdfaCfgGroup
cerent15216EdfaOverallControl
cerent15216EdfaPumpCfgEntry
cerent15216EdfaOverallStatusGroup
cerent15216EdfaPumpStatusEntry
cerent15216EdfaAlarmEntry
cerent15216EdfaVersionGroup
cerent15216EdfaOpGroup
ash:hostname:ONS15216 EDFA2> snmp table display local cerent15216Edfa
Use these commands to set up community strings (Enabling SNMP Remote Management Community
Strings, page 5-5) and traps (Setting Up Traps, page 5-21).
5.2 Enabling SNMP Remote Management Community Strings
SNMP communities are groupings of workstations and servers (or gateways) that can manage the
ONS 15216 EDFA2. NMSs use SNMP communities to enforce security. SNMP enforces security
through password-like community strings. Access to the SNMP agent and the ONS 15216 EDFA2 can
be limited by both IP address and community string.
The CLI SNMP manager (local SNMP manager) must be used to setup remote management (via a Telnet
connection or terminal server). A third-party, vendor-specific SNMP manager cannot be used to setup
remote management.
The process for setting up community entries consists of:
•Creating a View, page 5-6
•Creating a Community Entry, page 5-7
The ONS 15216 EDFA2 has the two default community strings listed in Table 5-2.
Table 5-2 Default Community Strings
Community String Default Privileges
public read operations for all MIBs
private read and write operations for all MIBs
![](asset-44.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-6
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Enabling SNMP Remote Management Community Strings
The privileges assigned to the default strings can be modified or new communities with custom
privileges can be created.
5.2.1 Creating a View
The following command describes how to set a view entry. A view defines and restricts the MIB
attributes that a particular community can access. The view entry and the community entry are set to
factory defaults. Users should consult with the Cisco TAC before modifying these settings.
5.2.1.1 Set View Entry
Command snmp row set local cerent15216EdfaViewEntry
Syntax Description snmp row set local cerent15216EdfaViewEntry view_index_# subtree
To create a community entry, a view must first be created. A MIB view can restrict the MIBs that a
particular community can access. To create a view, type the command. view_index_# is an integer (1 to
2048) assigned to this view entry and subtree is the MIB subtree to which this view applies. Multiple
view entries can be used for each view index.
This command creates a new row in the ViewEntry table. The SNMP manager prompts the user for each
attribute.
To display a list of possible values, press the Spacebar followed by the Tab key. (See Example 5-3.)
Example 5-3 cerent15216EdfaViewEntry Set Command
ash:hostname:ONS15216 EDFA2> snmp row set local cerent15216EdfaViewEntry 1 cerent
cerent15216EdfaViewMask '0'H
cerent15216EdfaViewType included
cerent15216EdfaViewStatus
active
notInService
notReady
createAndGo
createAndWait
destroy
cerent15216EdfaViewStatus createAndGo
ash:hostname:ONS15216 EDFA2> snmp row display local cerent15216EdfaViewEntry 1 sample
CLASS cerent15216Edfa-AGENT-MIB.cerent15216EdfaViewEntry ::=
{
cerent15216EdfaViewIndex = 1;
cerent15216EdfaViewSubtree = { sample };
cerent15216EdfaViewMask = '00'H;
cerent15216EdfaViewType = included;
cerent15216EdfaViewStatus = active;
Access to the ONS 15216 EDFA2 can be restricted by IP address or community string using this
command.
Table 5-3 on page 5-7 describes the command and MIB view prompts.
![](asset-45.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-7
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Enabling SNMP Remote Management Community Strings
5.2.2 Creating a Community Entry
SNMP communities are groupings of workstations and servers (or gateways) that can manage the
ONS 15216 EDFA2. NMSs use SNMP communities to enforce security. Because access to the SNMP
agent is controlled by a community entry, every SNMP agent must be configured to recognize one or
more community names, and to provide the appropriate level of access to managers according to the
community name. The following commands describe the commands for displaying or setting community
entries. Users should consult with the Cisco TAC before modifying these settings.
5.2.2.1 Set CommunityEntry
Command snmp row set local cerent15216EdfaCommunityEntry
Syntax Description snmp row set local cerent15216EdfaCommunityEntry community_index_#
After creating a view, use the snmp row set local cerent15216EdfaCommunityEntry command to
create a community entry for that view.
The SNMP manager prompts the user for each attribute. Press the Spacebar and then the Tab key after
a prompt to view possible data inputs (Example 5-4). Refer to Table 5-4 on page 5-8 for information
concerning data for each prompt.
Example 5-4 cerent15216EdfaCommunityEntry Set Command
ash:hostname:ONS15216 EDFA2> snmp row set local cerent15216EdfaCommunityEntry 3
Table 5-3 Creating a View
Data Prompt Command Description
cerent15216EdfaViewIndex snmp row set local
cerent15216EdfaViewEntry 1
zeroDotZero
View Index: A unique value for each
MIB view.
This value is the number entered
with the command.
cerent15216EdfaViewSubTree Sub-Tree Object Identifier Sub-Tree Object Identifier: An
object identifier that designates a
sub-tree element in the MIB
hierarchy. zeroDotZero specifies the
entire CLI MIB hierarchy.
cerent15216EdfaViewMask ‘0’H A bit mask that identifies objects in
the subtree.
cerent15216EdfaViewType included A flag that specifies the status of the
view. Valid entries are included and
excluded.
cerent15216EdfaViewStatus createAndGo If the entry currently exists, use
active. (CreateAndGo cannot be
used if any entry exists.)
![](asset-46.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-8
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Enabling SNMP Remote Management Community Strings
cerent15216EdfaCommName ""
cerent15216EdfaCommViewIndex 0
cerent15216EdfaCommPrivileges 35
cerent15216EdfaCommSrcIPAddr 0.0.0.0
cerent15216EdfaCommNetMask 0.0.0.0
cerent15216EdfaCommStatus 0
cerent15216EdfaCommStatus OBJECT-TYPE
SYNTAX INTEGER
{
active(1),
notInService(2),
notReady(3),
createAndGo(4),
createAndWait(5),
destroy(6)
}
MAX-ACCESS read-create
DESCRIPTION
::= { cerent15216EdfaCommunityEntry 7 }
Table 5-4 displays the definitions for the community entry values.
Table 5-4 Creating a Community Entry
Data Prompt Description
cerent15216EdfaCommIndex Community Index: An index that uniquely identifies a
particular SNMP community. This community index is part of
the command. In Example 5-4 on page 5-7, it is “3”.
cerent15216EdfaCommName Community Name: The community string.
cerent15216EdfaCommViewIndex View Index: The view index specifies which MIBs this
particular community string can access.
cerent15216EdfaCommPrivileges Privileges: A bitmap of access privileges that govern what
management operations a particular community can perform.
These privileges are expressed as a sum of values, where each
value represents a particular operation. Refer to Table 5-5 on
page 5-9 for the SNMP Operation Decimal Values.
cerent15216EdfaCommSrcIPAddr Source IP Address: The IP address from which network
management traffic for this community originates.
cerent15216EdfaCommNetMask NetMask: The subnet mask for the source IP address.
cerent15216EdfaCommStatus Status: The status of this conceptual row in the community
table.Use createAndGo to create a new row. Use active to
modify an existing row.
![](asset-47.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-9
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Enabling SNMP Remote Management Community Strings
5.2.2.2 Display CommunityEntry
Command snmp row display local cerent15216EdfaCommunityEntry
Syntax Description snmp row display local cerent15216EdfaCommunityEntry community_index_#
After creating a community string, use this command to view its parameters. The number in the
command refers to the community index number created in the previous section.
Example 5-5 cerent15216EdfaCommunityEntry Display Command
ash:hostname:ONS15216 EDFA2> snmp row display local cerent15216EdfaCommunityEntry 1
CLASS cerent15216Edfa-AGENT-MIB.cerent15216EdfaCommunityEntry ::=
{
cerent15216EdfaCommIndex = 1;
cerent15216EdfaCommName = "private";
cerent15216EdfaCommViewIndex = 1;
cerent15216EdfaCommPrivileges = 255;
cerent15216EdfaCommSrcIPAddr = 0.0.0.0;
cerent15216EdfaCommNetMask = 255.255.255.255;
cerent15216EdfaCommStatus = active;
};
Table 5-5 displays the decimal values for the following SNMP operations.
For example, 255 is the sum of all decimal values and specifies access to all SNMP operations. This sum
is the default private community. 247 is the sum for all SNMP operations with the exception of the Set
operation. This sum is the default public community.
Table 5-5 SNMP Operation Decimal Values
SNMP Operation Decimal Values
Get 1
GetNext 2
Response (enable for all community strings) 4
Set 8
SNMPv1-Trap 16
GetBulk 32
Inform (enable for all community strings) 64
SNMPv2-Trap (enable for all community strings) 128
![](asset-48.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-10
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Setup for CTM Access
5.3 Setup for CTM Access
Use the following procedure to configure a new ONS 15216 EDFA2 for Cisco Transport Manager
(CTM) access:
Step 1 Log into the serial port. Use 19,000 bps, 8 bits, no parity, 1 stop, and no flow control over a
male-to-female straight 9-pin cable.
Amp01:ONS15216 EDFA2> ACT-USER::CISCO15:123::;
Step 2 Set the default user password to admin15##:
Amp01:ONS15216 EDFA2> ED-PID::CISCO15:124::,admin15##;
Step 3 Enter the IP address and node name configuration information:
Amp01:ONS15216 EDFA2> ED-NE-GEN:::125:::NAME= , IPADDR= , IPMASK= , DEFRTR= ;
Step 4 Set the date and time:
Amp01:ONS15216 EDFA2> ED-DAT:::126::2003-06-18,08-49-00;
Step 5 Activate the new IP address by rebooting:
Amp01:ONS15216 EDFA2> INIT-SYS::ALL:127::1;
Step 6 Telnet to the ASH shell by typing the following:
telnet <ONS 15216 EDFA2 IP address> 8023
Step 7 Login using the user name CISCO15 and the password admin15##.
Step 8 Enter the community information:
ash:hostname:ONS15216 EDFA2> snmp row set local cerent15216EdfaCommunityEntry 2 (Do not
use Entry 1 which is the RO public community)
cerent15216EdfaCommIndex = 2 (if the CommunityEntry is 2)
cerent15216EdfaCommName = "private" (must match the CTM community string entry)
cerent15216EdfaCommViewIndex = 1
cerent15216EdfaCommPrivileges = 255
cerent15216EdfaCommSrcIPAddr = 0.0.0.0 (for more security, enter CTM A's IP address)
cerent15216EdfaCommNetMask = 255.255.255.255
cerent15216EdfaCommStatus = 4
(active(1),notInService(2),notReady(3),createAndGo(4),createAndWait(5),destroy(6))
ash:hostname:ONS15216 EDFA2> snmp row set local cerent15216EdfaCommunityEntry 3
cerent15216EdfaCommIndex = 3 (if the CommunityEntry is 3)
cerent15216EdfaCommName = "private" (must match the CTM community string entry)
cerent15216EdfaCommViewIndex = 1
cerent15216EdfaCommPrivileges = 255
cerent15216EdfaCommSrcIPAddr = 0.0.0.0 (for more security, enter CTM B's IP address)
cerent15216EdfaCommNetMask = 255.255.255.255
cerent15216EdfaCommStatus = 4
(active(1),notInService(2),notReady(3),createAndGo(4),createAndWait(5),destroy(6))
Step 9 Verify the community information:
ash:hostname:ONS15216 EDFA2> snmp table display local cerent15216EdfaCommunityEntry
Step 10 Enter the trap destination information:
ash:hostname:ONS15216 EDFA2> snmp row set local cerent15216EdfaCommTrapEntry 1
![](asset-49.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-11
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Tables and Groups
cerent15216EdfaCommTrapCommunity "private"
cerent15216EdfaCommTrapDestIPAddress <CTM A's IP address>
cerent15216EdfaCommTrapDestUDPPort 162
cerent15216EdfaCommTrapViewIndex 1
cerent15216EdfaCommTrapVersion v2
cerent15216EdfaCommTrapStatus 4
ash:hostname:ONS15216 EDFA2> snmp row set local cerent15216EdfaCommTrapEntry 2
cerent15216EdfaCommTrapCommunity "private"
cerent15216EdfaCommTrapDestIPAddress <CTM B's IP address>
cerent15216EdfaCommTrapDestUDPPort 162
cerent15216EdfaCommTrapViewIndex 1
cerent15216EdfaCommTrapVersion v2
cerent15216EdfaCommTrapStatus 4
Step 11 Verify the trap destination information:
ash:hostname:ONS15216 EDFA2> snmp table display local cerent15216EdfaCommTrapEntry
Step 12 Enable traps:
ash:hostname:ONS15216 EDFA2> snmp attribute set local cerent15216EdfaAgentTrapEnable 1
Step 13 Verify that traps are enabled:
ash:hostname:ONS15216 EDFA2> snmp attribute get local cerent15216EdfaAgentTrapEnable
Step 14 Set network element (NE) ID:
ash:hostname:ONS15216 EDFA2> snmp attribute set local sysName <NE ID>
Step 15 Save the new settings:
ash:hostname:ONS15216 EDFA2> snmp attribute set local cerent15216EdfaActionOpSaveConfig
perform
Step 16 Log off:
ash:hostname:ONS15216 EDFA2> logoff
5.4 Tables and Groups
The cerent15216Edfa.mib contains several key tables that are used to review and provision the
ONS 15216 EDFA2. The following tables are listed and described in the following sections:
•CfgGroup Table, page 5-12
•PumpCfgEntry Table, page 5-14
•OverallStatusGroup Table, page 5-16
•OverallControl Table, page 5-18
•PumpStatusEntry Table, page 5-18
•AlarmEntry Table, page 5-19
•OpGroup Table, page 5-20
•VersionGroup Table, page 5-21
![](asset-4a.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-12
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Tables and Groups
5.4.1 CfgGroup Table
The cerent15216EdfaCfgGroup table is used to set or get alarm threshold configuration. The associated
table command provides a summary of all alarm thresholds. See Table 5-6 for variable definitions. For
more information on alarm thresholds, see the “Set Alarm Thresholds” section on page 4-5.
Table 5-6 cerent15216EdfaCfgGroup Variable Descriptions
Variable Syntax Maximum
Access Description
cerent15216EdfaCfgSaved True Value Read-only Indicates whether the current
configuration has been saved.
cerent15216EdfaLpoutSetp
oint
Integer
(0 to 1000)
Read-only Loss of pump output power set point
for the Lpout alarm (*10 mW).
This is set when the
cerent15216EdfaPumpCfgConstOutP
ower attribute is set for pump 2.
cerent15216EdfaLpoutDevi
ation
Integer
(0 to 1000)
Read-write Amount that the output power must
deviate from the set point to set the
Lpout alarm (*100 dB).
cerent15216EdfaLpoutHyst
eresis
Integer
(0 to 1000)
Read-write Amount that the output power must
move towards the set point before the
Lpout alarm is cleared (*100 dB).
cerent15216EdfaLOSThres
hold
Integer
(–3100 to –1500)
Read-write Loss of signal threshold (*100 dBm).
cerent15216EdfaLOSHyster
esis
Integer
(0 to 1000)
Read-write Amount above
cerent15216EdfaLOSThreshold that
the input signal must rise before the
Lpin alarm is cleared (*100 dB).
cerent15216EdfaCtmpMin Integer
(–10 to 10)
Read-write Minimum allowable case temperature
in degrees Celsius.
cerent15216EdfaCtmpMinH
ysteresis
Integer
(0 to 10)
Read-write Amount above
cerent15216EdfaCtmpMin that the
case temperature must rise before the
Ctmp alarm is cleared in degrees
Celsius.
cerent15216EdfaCtmpMax Integer
(20 to 70)
Read-write Maximum allowable case temperature
in degrees Celsius.
cerent15216EdfaCtmpMax
Hysteresis
Integer
(0 to 10)
Read-write Amount below
cerent15216EdfaCtmpMax that the
case temperature must drop before the
Ctmp alarm is cleared in degrees
Celsius.
![](asset-4b.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-13
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Tables and Groups
Use the snmp attribute set local cerent15216EdfaOpSaveConfig perform command to save changes.
cerent15216EdfaCLEI Display String
(0 to 10
characters)
Read-only Indicates the factory setting of the
Common Language Equipment
Identifier (CLEI) code (established by
Telcordia) of the Cisco
ONS 15216 EDFA2. This attribute
can be accessed but not changed by
the user.
cerent15216EdfaPowerBus
Mode
cerent15216Edfa
PowerBusMode
Read-write Simplex for one power source (Bus
A) or duplex for redundant power
source (Bus A and Bus B) Power Bus
mode.
cerent15216EdfaPowerBus
DCVoltageMin
Integer
(350 to 700)
Read-write Minimum allowable power bus DC
voltage. The default maximum power
bus voltage is set at –40 VDC. Valid
entries are between 350 and 700 and
are in negative volts times 10. For
example, if the voltage required is –40
VDC, the power bus setting is 400.
The power bus threshold has a 1.0V
tolerance and a 1.0V hysteresis. If the
minimum threshold is configured at
400 (-40 VDC), the alarm will not
raise until the voltage goes below -39
VDC and will not clear until the
voltage goes above -41 VDC.
cerent15216EdfaPowerBus
DCVoltageMax
Integer
(350 to 700)
Read-write Maximum allowable power bus DC
voltage. The default maximum power
bus voltage is set at –57 VDC. Valid
entries are between 350 and 700 and
are in negative volts times 10. For
example, if the voltage required is –57
VDC, the power bus setting is 570.
The power bus threshold has a 1.0V
tolerance and a 1.0V hysteresis. If the
maximum threshold is configured at
570 (-57 VDC), the alarm will not
raise until the voltage goes above -58
VDC and will not clear until the
voltage goes below -56 VDC.
Table 5-6 cerent15216EdfaCfgGroup Variable Descriptions (continued)
Variable Syntax Maximum
Access Description
![](asset-4c.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-14
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Tables and Groups
5.4.2 PumpCfgEntry Table
The cerent15216EdfaPumpCfgEntry table is used to set or get laser pump control mode configuration.
The associated table command displays a settings summary or allows you to set pumps. See Table 5-7
for variable definitions. The factory default pump control mode for the ONS 15216 EDFA2 is Constant
Gain Temperature Compensated. Cisco recommends that users contact the Cisco TAC prior to changing
this mode of operation.
5.4.2.1 Changing the Pump Control Mode
For Constant Gain Temperature Compensated mode, the system automatically sets the second pump to
this mode when either pump is set.
Constant Output Power mode is only valid for pump 2. If pump 2 is set to Constant Output Power Mode,
pump 1 is automatically set to Constant Pump Power mode with a value of 75 mW.
For Constant Pump Current or Constant Pump Power mode, the user should set both pump modes to be
the same.
Warning
The pump control modes Constant Pump Current, Constant Pump Power, and Constant Output Power
are to be used with very high precautions. They are service affecting and can reduce the life cycle of
the lasers if used in extreme conditions. The factory default setting and recommended mode of
operation is Constant Gain Temperature Compensated mode. Cisco recommends that users contact
the Cisco TAC before changing from this mode of operation.
Table 5-7 cerent15216EdfaPumpCfgEntry Variable Descriptions
Variable Syntax Maximum
Access Description
cerent15216EdfaPumpCfgP
umpNum
cerent15216Edfa
PumpNumber
Not
Accessible
Laser pump number (1 or 2).
cerent15216EdfaPumpCfgC
ontrolMode
cerent15216Edfa
ControlMode
Read-write Laser pump control mode. When the
mode is set directly to constCurrent,
constPower, or constOutputPower, the
current value of ConstPumpCurrent,
ConstPumpPower, or ConstOutPower
is used as the constant parameter for
the new mode.
cerent15216EdfaPumpCfgC
onstPumpCurrent
Integer (0 to 300) Read-write Constant pump current (mA).
The current that is used when the
pump control mode is changed to
constCurrent.
cerent15216EdfaPumpCfgC
onstPumpPower
Integer (0 to 100) Read-write Constant pump power (mW). The
power that is used when the control
mode is changed to constPumpPower.
cerent15216EdfaPumpCfgC
onstOutPower
Integer (0 to 650) Read-write Constant output power (*10 mW). The
power that is used when the control
mode is changed to
constOutputPower.
![](asset-4d.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-15
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Tables and Groups
To set the ONS 15216 EDFA2 to Constant Pump Current mode, use the following steps:
Step 1 Set the pump value using cerent15216EdfaPumpCfgConstPumpCurrent attribute.
a. Select pump 1.
b. Set the value.
Step 2 Repeat Step 1 for pump 2.
Step 3 Set the pump mode of operation using cerent15216EdfaPumpCfgControlMode attribute.
a. Select pump 1.
b. Set the mode.
Step 4 Repeat Step 3 for pump 2.
Example 5-6 shows how to set the ONS 15216 EDFA2 to Constant Pump Current mode and then set it
back to Constant Gain Temperature Compensated mode. (Setting pump 1 or 2 to Constant Gain
Temperature Compensated mode sets both pumps to that mode.)
Example 5-6 Setting Mode to Constant Pump Current and then Back to Constant Gain Temperature
Compensated
ash:
hostname:
ONS15216 EDFA2> snmp attribute set local cerent15216EdfaPumpCfgConstPumpCurrent 1
200
ash:
hostname:
ONS15216 EDFA2> snmp attribute set local cerent15216EdfaPumpCfgConstPumpCurrent 2
200
ash:
hostname:
ONS15216 EDFA2> snmp attribute set local cerent15216EdfaPumpCfgControlMode 1
constGainTempComp
constOutputPower
constCurrent
constPower
idle
ash:
hostname:
ONS15216 EDFA2> snmp attribute set local cerent15216EdfaPumpCfgControlMode 1
constCurrent
ash:
hostname:
ONS15216 EDFA2> snmp attribute set local cerent15216EdfaPumpCfgControlMode 2
constCurrent
ash:
hostname:
ONS15216 EDFA2> snmp attribute set local cerent15216EdfaPumpCfgControlMode 1
constGainTempComp
5.4.2.2 Changing the Pump Control Value
To change the control value for Constant Gain Temperature Compensated mode, the user must set a new
value of cerent15216EdfaConstGainOverallGain.
Constant Output Power Mode is only valid for pump 2. To change the control value for pump 2, the user
must set the new value of cerent15216EdfaPumpCfgConstOutPower for pump 2 and then set the pump
to Constant Output Power mode for the setting to take effect. Pump 1 is automatically set to Constant
Pump Power mode with a value of 75 mW.
To change the control value for Constant Pump Current mode, the user must set new values of
cerent15216EdfaPumpCfgConstPumpCurrent for both pumps and then set the pump control mode for
both pumps for the setting to take effect.
To change the control value for Constant Pump Power mode, the user must set new values of
cerent15216EdfaPumpCfgConstPumpPower for both pumps and then set the pump control mode for
both pumps for the setting to take effect.
![](asset-4e.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-16
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Tables and Groups
For example, to change the value for Constant Pump Current mode, use the following steps:
Step 1 Set the pump value using cerent15216EdfaPumpCfgConstPumpCurrent attribute.
a. Select pump 1.
b. Set the value.
Step 2 Repeat Step 1 for pump 2.
Step 3 Set the pump mode of operation using cerent15216EdfaPumpCfgControlMode attribute.
a. Select pump 1.
b. Set the mode.
Step 4 Repeat Step 3 for pump 2.
Example 5-7 shows how to set the value for Constant Pump Current mode to be 200 mA and then set the
mode to Constant Pump Current mode again for the settings to take effect.
Example 5-7 Changing Value for Constant Pump Current Mode
ash:
hostname:
ONS15216 EDFA2> snmp attribute set local cerent15216EdfaPumpCfgConstPumpCurrent 1
200
ash:
hostname:
ONS15216 EDFA2> snmp attribute set local cerent15216EdfaPumpCfgConstPumpCurrent 2
200
ash:
hostname:
ONS15216 EDFA2> snmp attribute set local cerent15216EdfaPumpCfgControlMode 1
constCurrent
ash:
hostname:
ONS15216 EDFA2> snmp attribute set local cerent15216EdfaPumpCfgControlMode 2
constCurrent
5.4.3 OverallStatusGroup Table
The cerent15216EdfaOverallStatusGroup table allows users to display the input and output of the
ONS 15216 EDFA2 amplifier. Table 5-8 on page 5-17 describes cerent15216EdfaOverallStatusGroup
table variables.
![](asset-4f.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-17
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Tables and Groups
Note The values in mW and microW units are measured values. The dBm units are converted from mW or
microW to dBm, so theses values could be slightly different. If you take the cerent15216EdfaInPoweruW,
convert it to dBm (10log(cerent15216EdfaInPoweruW)) and compare the value to the attribute
cerent15216EdfaInPowerdBm, you will see a small difference. The difference is because of rounding error.
The value cerent15216EdfaInPoweruW that is displayed on the screen has been rounded, but the value used
in the calculation has more significant digits.
Table 5-8 cerent15216EdfaOverallStatusGroup Variable Descriptions
Variable Syntax Maximum
Access Description
cerent15216EdfaInPoweruW Integer (0 to 99999) Read-only EDFA input power (*10
microW)
cerent15216EdfaInPowerdBm Integer (–999999 to
999999)
Read-only EDFA input power (*100
dBm)
cerent15216EdfaOutPowermW Integer (0 to 999999) Read-only EDFA output power (*100
mW)
cerent15216EdfaOutPowerdBm Integer (–99999 to
99999)
Read-only EDFA output power (*100
dBm)
cerent15216EdfaConstGainOver
allGainMeasured
Integer (0 to 230) Read-only The measured overall gain
(*10 dB) that is used when
the control mode in the
PumpCfg table is set to
constGainTempComp
cerent15216EdfaVariableGainPr
eAttenuationMeasured
Integer (0 to 110) Read-only The measured
pre-attenuation (*10 dB)
that is used when the
control mode in the
PumpCfg table is not set to
constGainTempComp
![](asset-50.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-18
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Tables and Groups
5.4.4 OverallControl Table
The cerent15216EdfaOverallControl table allows the user to display and configure overall gain and
pre-attenuation. Table 5-9 describes cerent15216EdfaOverallControl variables.
5.4.5 PumpStatusEntry Table
The cerent15216EdfaPumpStatusEntry table is used to display optical amplification module data.
Table 5-10 displays information regarding the cerent15216EdfaPumpStatusEntry table variables.
Table 5-9 cerent15216EdfaOverallControl Variable Descriptions
Variable Syntax Maximum
Access Description
cerent15216EdfaConst
GainOverallGain
Integer (130 to
220)
Read-write The overall gain (*10 dB) that is used when
the control mode in the PumpCfgEntry table
is set to constGainTempComp.
This variable is irrelevant in
constOutputPower, constCurrent, and
constPower modes.
cerent15216EdfaVariab
leGainPreAttenuation
Integer (10 to
100)
Read-write The pre-attenuation (*10 dB) that is used
when the control mode in the PumpCfgEntry
table is set to constOutputPower,
constCurrent, or constPower.
This variable is irrelevant in
constGainTempComp mode.
Table 5-10 cerent15216EdfaPumpStatusEntry Variable Descriptions
Variable Syntax Maximum
Access Description
cerent15216EdfaPumpStatusPumpNum cerent15216Ed
faPumpNumber
Read-only Laser pump number
cerent15216EdfaPumpStatusLaserChipTemp Integer (–9999
to 9999)
Read-only Laser chip
temperature (*10°C)
cerent15216EdfaPumpStatusLaserChipTemp
Setpoint
Integer (0 to
999)
Read-only Laser chip
temperature setpoint
(*10°C)
cerent15216EdfaPumpStatusLaserTECCurre
nt
Integer (0 to
99999)
Read-only Laser TEC current
(mA)
cerent15216EdfaPumpStatusLaserPower Integer (0 to
99999)
Read-only Laser power (*100
mW)
cerent15216EdfaPumpStatusLaserCurrent Integer (0 to
999999)
Read-only Laser current (*100
mA)
cerent15216EdfaPumpStatusAmbientTemp Integer (–9999
to 9999)
Read-only Ambient temperature
(*100°C)
![](asset-51.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-19
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Tables and Groups
5.4.6 AlarmEntry Table
The cerent15216EdfaAlarmEntry table is used to display alarm status. The associated table command
provides a summary of all alarms. Table 5-11describes the cerent15216EdfaAlarmEntry table variables.
cerent15216EdfaPumpStatusDCVoltage Integer (0 to
9999)
Read-only DC voltage (*10V)
cerent15216EdfaPumpStatusInPoweruW Integer (0 to
99999)
Read-only Input power (*10
microW)
cerent15216EdfaPumpStatusInPowerdBm Integer
(–999999 to
999999)
Read-only Input power (*100
dBm)
cerent15216EdfaPumpStatusOutPowermW Integer (0 to
999999)
Read-only Output power (*100
mW)
cerent15216EdfaPumpStatusOutPowerdBm Integer
(–99999 to
99999)
Read-only Output power (*100
dBm)
cerent15216EdfaPumpStatusGain1Integer (–9999
to 9999)
Read-only Gain (*10 dB)
1. The value of the cerent15216EdfaPumpStatusGain variable should always be around 23 dB. This variable is the internal
amplifier module gain. The cerent15216EdfaPumpStatusGain variable should not be confused with the
cerent15216EdfaConstGainOverallGain variable that is used to set the gain of the ONS 15216 EDFA2. The
cerent15216EdfaPumpStatusGain is the value of the gain of the amplification module only, it does not take into account the
VOA (variable optical attenuator) attenuation. If you try to calculate the gain using the values of the
PumpStatusOutPowerdBm – PumpStatusInPowerdBm you will not get the exact PumpStatusGain value. A more complex
calculation is required to get the gain value. It needs to take ASE (amplified spontaneous emission) into account. This is often
called the amplifier noise. This variable will be more dominant when the input power to the amplifier is low.
Table 5-10 cerent15216EdfaPumpStatusEntry Variable Descriptions (continued)
Variable Syntax Maximum
Access Description
Table 5-11 cerent15216EdfaAlarmEntry Variable Descriptions
Variable Syntax Maximum
Access Description
cerent15216EdfaAlarmIndex cerent15216EdfaIndex Not
Accessible
A unique value to
identify this entry.
cerent15216EdfaAlarmID AutonomousType Read-only The alarm this entry
refers to.
cerent15216EdfaAlarmPriority cerent15216EdfaAlarmPriority Read-only The priority of this
alarm.
cerent15216EdfaAlarmState cerent15216EdfaAlarmState Read-only The reporting state of
this alarm.
![](asset-52.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-20
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Tables and Groups
5.4.7 OpGroup Table
The cerent15216EdfaOpGroup table is used to display or set operation actions, such as saving
configuration or loading new software. The individual variables in Table 5-12 are generally used instead
of the table command. That is, when performing a cutover command, the user would use the snmp
attribute set local cerent15216EdfaOpCutover perform command.
cerent15216EdfaAlarmEnable
Status
cerent15216EdfaControl Read-write If the alarm is
enabled/disabled.
cerent15216EdfaAlarmDateAn
dTime
cerent15216EdfaDateAndTime
String
Read-only The local date and time
when the alarm entered
its current state.
Table 5-11 cerent15216EdfaAlarmEntry Variable Descriptions (continued)
Variable Syntax Maximum
Access Description
Table 5-12 cerent15216EdfaOpGroup Variable Descriptions
Variable Syntax Maximum
Access Description
cerent15216EdfaOpStatus cerent15216EdfaActio
nStatus
Read-only The status of the current
operation.
cerent15216EdfaOpResult Integer Read-only This value is used to save the error
result (if any) of the last
operation. Success is indicated by
a value of 0.
cerent15216EdfaOpRequest
Id
Integer Read-write The request identifier for this
operation. This is provided to
allow managers to match actions
and results.
cerent15216EdfaOpSaveCo
nfig
cerent15216EdfaActio
n
Read-write To save the configuration of the
optical module, write “perform”
to this object.
cerent15216EdfaOpCutover cerent15216EdfaActio
n
Read-write When “perform” is written to this
object, firmware is executed from
the current plane and the alternate
plane status is changed to the
default active plane.
cerent15216EdfaOpLoad cerent15216EdfaActio
n
Read-write When “perform” is written to this
object, new firmware is
downloaded. Before setting this
attribute, the source of the new
firmware should be specified by
setting
cerent15216EdfaOpSrcFileName
and
cerent15216EdfaOpTftpSrvAddr.
![](asset-53.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-21
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Setting Up Traps
5.4.8 VersionGroup Table
The cerent15216EdfaVersionGroup table allows users to display the currently loaded image and the
image to be loaded after cutover. Table 5-13 describes cerent15216EdfaVersionGroup table variables.
5.5 Setting Up Traps
Traps are asynchronous notifications sent from the ONS 15216 EDFA2 to a predetermined location (IP
address, subnet mask, etc.). A community entry must be created prior to remotely setting up traps using
either Telnet or a terminal server. Table 5-14 on page 5-22 displays the alarm notification types in the
cerent15216Edfa.mib that initiate a trap.
cerent15216EdfaOpSrcFile
Name
DisplayString (0 to
127 characters)
Read-write Source file name for the Load
operation.
cerent15216EdfaOpTftpSrv
Addr
IpAddress Read-write TFTP file server address for the
Load operation.
cerent15216EdfaOpReset cerent15216EdfaActio
n
Read-write When “perform” is written to this
object, a software reset is
performed.
Table 5-12 cerent15216EdfaOpGroup Variable Descriptions (continued)
Variable Syntax Maximum
Access Description
Table 5-13 cerent15216EdfaVersionGroup Variable Descriptions
Variable Syntax Maximum
Access Description
cerent15216EdfaCurrentVersion DisplayString (0 to 255
characters)
Read-only The version of the
currently loaded image.
cerent15216EdfaAlternateVersion DisplayString (0 to 255
characters)
Read-only The version of the
image to be loaded after
a cutover is performed.
![](asset-54.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-22
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Setting Up Traps
5.5.1 Display Trap Command
Command snmp table display local cerent15216EdfaCommTrapEntry
Syntax Description snmp table display local cerent15216EdfaCommTrapEntry #
Displays the communities for traps. See Example 5-8
Example 5-8 cerent15216EdfaCommTrapEntry Display Command
ash:hostname:ONS15216 EDFA2> snmp table display local cerent15216EdfaCommTrapEntry
CLASS CERENT-15216-EDFA-MIB.cerent15216EdfaCommTrapEntry ::=
{
cerent15216EdfaCommTrapIndex = 1;
cerent15216EdfaCommTrapCommunity = "private";
cerent15216EdfaCommTrapDestIPAddress = 172.22.87.50;
cerent15216EdfaCommTrapDestUDPPort = 162;
cerent15216EdfaCommTrapViewIndex = 1;
cerent15216EdfaCommTrapVersion = v2;
cerent15216EdfaCommTrapStatus = active;
};
Table 5-14 Notification Types that Initiate a Trap
Notification MIB Items Description
cerent15216EdfaOpFinished cerent15216EdfaOpSaveConfig
cerent15216EdfaOpCutover
cerent15216EdfaOpLoad
cerent15216EdfaOpReset
“Op Finished” indicates
that an operation has
completed or, in the case
of
cerent15216EdfaOpReset,
the operation is about to be
performed.
cerent15216EdfaAlarmActivated cerent15216EdfaAlarmID
cerent15216EdfaAlarmPrioriy
cerent15216EdfaAlarmDateAndTime
“Alarm Activate” is a
notification indicating an
alarm has changed to an
active state.
cerent15216EdfaAlarmCleared cerent15216EdfaAlarmID
cerent15216EdfaAlarmPrioriy
cerent15216EdfaAlarmDateAndTime
“Alarm Cleared” is a
notification indicating an
alarm has changed to a
cleared state.
![](asset-55.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-23
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Setting Up Traps
5.5.2 Set Trap Command
Command snmp row set local cerent15216EdfaCommTrapEntry
Syntax Description snmp row set local cerent15216EdfaCommTrapEntry #
The command followed by a community number permits the user to set the parameters for the SNMP
trap. Example 5-9 on page 5-23 displays the prompts that appear after entering the command.
Prompts appear for the following settings:
•cerent15216EdfaCommTrapCommunity: The trap destination community name.
•cerent15216EdfaCommTrapDestIPAddress: The trap destination IP address.
•cerent15216EdfaCommTrapDestUDPPort: The trap destination UDP port.
•cerent15216EdfaCommTrapViewIndex: The trap destination MIB view index. A trap may be sent to
this destination if it is contained in this MIB view. A 0 implies no MIB view.
•cerent15216EdfaCommTrapVersion: The trap version number.
•cerent15216EdfaCommTrapStatus: The status of this conceptual row in the
cerent15216EdfaCommunityTrapTable.
If the data needs to be changed, enter new data after the prompt.
Example 5-9 cerent15216EdfaCommTrapEntry Set Command
ash:hostname:ONS15216 EDFA2> snmp row set local cerent15216EdfaCommTrapEntry 1
cerent15216EdfaCommTrapCommunity "private"
cerent15216EdfaCommTrapDestIPAddress 172.22.87.50
cerent15216EdfaCommTrapDestUDPPort 162
cerent15216EdfaCommTrapViewIndex 1
cerent15216EdfaCommTrapVersion v2
cerent15216EdfaCommTrapStatus 4
ash:hostname:ONS15216 EDFA2>
5.5.3 Set Agent Trap Enable
Command snmp attribute set local cerent15216EdfaAgentTrapEnable
Syntax Description snmp attribute set local cerent15216EdfaAgentTrapEnable control
Enables or disables SNMP traps depending on whether the parameter control is “enabled” or “disabled”.
![](asset-56.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-24
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Retrieving Information
5.5.4 Get Agent Trap Enable
Command snmp attribute get local cerent15216EdfaAgentTrapEnable
Syntax Description snmp attribute get local cerent15216EdfaAgentTrapEnable
Gets the SNMP enable trap status. The system responds with either “enabled” or “disabled”.
5.6 Retrieving Information
The following SNMP commands access ONS 15216 EDFA2 information.
5.6.1 IP Address
Command snmp table display local cerent15216EdfaSromIpMgmtGroup
Syntax Description snmp table display local cerent15216EdfaSromIpMgmtGroup
Displays the ONS 15216 EDFA2 IP address.
The following SNMP command displays the ONS 15216 EDFA2’s IP address and other networking
information:
•snmp row display local cerent15216EdfaSromIpMgmtGroup command (Example 5-10)
Example 5-10 cerent15216EdfaSromIpMgmtGroup Display Command
ash:hostname:ONS15216 EDFA2> snmp row display local cerent15216EdfaSromIpMgmtGroup
CLASS cerent15216Edfa-SROM-IP-ADDRESS-MIB.cerent15216EdfaSromIpMgmtGroup ::=
{
cerent15216EdfaSromIpMgmtEnetAddress = 172.22.82.19;
cerent15216EdfaSromIpMgmtEnetSubNetMask = 255.255.0.0;
cerent15216EdfaSromIpMgmtDefaultRouterAddress = 172.22.82.1;
cerent15216EdfaSromIpMgmtHostName = "hostname";
};
Table 5-15 describes the other attributes displayed by these commands.
![](asset-57.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-25
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Retrieving Information
5.6.2 Date and Time
Command snmp attribute get local cerent15216EdfaRtcDateAndTime
Syntax Description snmp attribute get local cerent15216EdfaRtcDateAndTime
Displays the date and time for the ONS 15216 EDFA2.
The following SNMP command displays the date and time for the ONS 15216 EDFA2 and other time
data:
•snmp row display local cerent15216EdfaRtcDateAndTime command
The following SNMP command sets the date and time for the ONS 15216 EDFA2 and other time data:
•snmp attribute set local cerent15216EdfaRtcDateAndTimeLocalString command
When setting the local time of day, set the time zone first, set the DST offset second, and set the local
time last. Entries must follow this format: “yyyy-m-d,h:m:s.s +h:m”. Following the space, the time zone
is set as +/– hours from Greenwich Mean Time (GMT) (also designated as universal coordinated time
(UTC)) followed by a colon and minutes ahead for daylight savings. For example, Pacific Daylight Time
would be –8:60 and Greenwich Mean Time would be +0:0.
Example 5-11 displays the ONS 15216 EDFA2 command for displaying the date and time.
Example 5-11 cerent15216EdfaRtcDateAndTime Display Command
ash:hostname:ONS15216 EDFA2> snmp row display local cerent15216EdfaRtcDateAndTime
CLASS CERENT-15216-EDFA-MIB.cerent15216EdfaRtcDateAndTime ::=
{
cerent15216EdfaRtcDateAndTimeLocal = '07d20716070a2a042d083c'H;
cerent15216EdfaRtcDateAndTimeGMT = '07d207160e0a2a042b0000'H;
cerent15216EdfaRtcDateAndTimeLocalString = "2002-7-22,7:10:42.4 -8:60";
cerent15216EdfaRtcDateAndTimeGMTString = "2002-7-22,14:10:42.4 +0:0";
cerent15216EdfaRtcDateAndTimeTimezone = -8;
cerent15216EdfaRtcDateAndTimeSaving = 60;
cerent15216EdfaRtcDateAndTimeFormsString = "07/22/2002 07:10:42";
};
Table 5-16 describes the attributes displayed by these commands.
Table 5-15 cerent15216EdfaSromIpMgmtGroup Command Attributes
Attribute Description
cerent15216EdfaSromIpMgmtEnetAddress The IP address used by the system Ethernet
management port. If set to 0.0.0.0, IP traffic is not
supported over the Ethernet interface.
cerent15216EdfaSromIpMgmtDefaultRouterAd
dress
The default router (gateway) address for the
network.
cerent15216EdfaSromIpMgmtEnetSubNetMask The IP subnet mask for the Ethernet management
port.
cerent15216EdfaSromIpMgmtHostName The host name of the system.
![](asset-58.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-26
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Retrieving Information
5.6.3 Power Gain
Command snmp attribute get local cerentEdfa15216EdfaConstGainOverallGain
Syntax Description snmp attribute get local cerentEdfa15216EdfaConstGainOverallGain #
Displays the overall power gain when the ONS 15216 EDFA2 is in Constant Gain Temperature
Compensated mode.
The following commands access overall power gain when in the Constant Gain Temperature
Compensated mode:
•snmp row display local cerent15216EdfaOverallControl command
•snmp row get local cerent15216EdfaOverallControl command
The cerent15216EdfaConstGainOverallGain attribute in cerent15216EdfaOverallControl display
command shows the ONS 15216 EDFA2 power gain (Example 5-12 on page 5-26).
Example 5-12 cerent15216EdfaOverallControl Display Command
ash:hostname:ONS15216 EDFA2>snmp row display local cerent15216EdfaOverallControl
CLASS CERENT-15216-EDFA-MIB.cerent15216EdfaOverallControl ::=
{
cerent15216EdfaConstGainOverallGain = 220;
cerent15216EdfaVariableGainPreAttenuation = 10;
};
For information about all of the parameters in the cerent15216EdfaOverallStatusGroup, refer to
Table 5-8 on page 5-17.
Table 5-16 cerent15216EdfaRtcDateAndTime Command Attributes
Attribute Description
cerent15216EdfaRtcDateAndTimeLocal The current local time.
cerent15216EdfaRtcDateAndTimeGMT The current GMT time.
cerent15216EdfaRtcDateAndTimeLocalString The current local time.
cerent15216EdfaRtcDateAndTimeGMTString The current GMT time.
cerent15216EdfaRtcDateAndTimeTimezone The time zone in hours from GMT.
cerent15216EdfaRtcDateAndTimeSaving The current daylight saving offset in minutes.
cerent15216EdfaRtcDateAndTimeFormsString The current local time.
![](asset-59.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-27
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Retrieving Information
5.6.4 Case Temperature
5.6.4.1 Case Temperature Value
Command snmp attribute get local cerent15216EdfaPumpStatusAmbientTemp
Syntax Description snmp attribute get local cerent15216EdfaPumpStatusAmbientTemp pump#
Displays case temperature value (where pump# is the pump number).
The following command displays the temperature value (where pump# is the pump number) and other
pump status data:
•snmp row display local cerent15216EdfaPumpStatusAmbientTemp pump# command
The cerent15216EdfaPumpStatusAmbientTemp attribute of the cerent15216EdfaPumpStatusEntry
display command shows the case temperature (Example 5-13).
Example 5-13 cerent15216EdfaPumpStatusEntry Display Command
ash:hostname:ONS15216 EDFA2> snmp row display local cerent15216EdfaPumpStatusEntry 1
CLASS CERENT-15216-EDFA-MIB.cerent15216EdfaPumpStatusEntry ::=
{
cerent15216EdfaPumpStatusPumpNum = 1;
cerent15216EdfaPumpStatusLaserChipTemp = 260;
cerent15216EdfaPumpStatusLaserChipTempSetpoint = 260;
cerent15216EdfaPumpStatusLaserTECCurrent = 20;
cerent15216EdfaPumpStatusLaserPower = 8503;
cerent15216EdfaPumpStatusLaserCurrent = 17010;
cerent15216EdfaPumpStatusAmbientTemp = 2272;
cerent15216EdfaPumpStatusDCVoltage = 52;
cerent15216EdfaPumpStatusInPoweruW = 250;
cerent15216EdfaPumpStatusInPowerdBm = -600;
cerent15216EdfaPumpStatusOutPowermW = 5000;
cerent15216EdfaPumpStatusOutPowerdBm = 1700;
cerent15216EdfaPumpStatusGain = 220;
};
Refer to Table 5-10 on page 5-18 for information about all of the parameters in the
cerent15216EdfaPumpStatusEntry table.
5.6.4.2 Case Temperature Alarm Threshold
5.6.4.2.1 CtmpMin
Command snmp attribute get local cerent15216EdfaCtmpMin
Syntax Description snmp attribute get local cerent15216EdfaCtmpMin
This command displays minimum case temperature alarm threshold.
![](asset-5a.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-28
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Retrieving Information
5.6.4.2.2 CtmpMax
snmp attribute get local cerent15216EdfaCtmpMax
Syntax Description snmp attribute get local cerent15216EdfaCtmpMax
This command displays maximum case temperature alarm threshold.
The following command displays case temperature alarm threshold and other temperature data:
•snmp row display local cerent15216EdfaCfgGroup command
This command is shown in Example 5-14.
Example 5-14 cerent15216EdfaCfgGroup Display Command
ash:hostname:ONS15216 EDFA2> snmp row display local cerent15216EdfaCfgGroup
CLASS CERENT-15216-EDFA-MIB.cerent15216EdfaCfgGroup ::=
{
cerent15216EdfaCfgSaved = true;
cerent15216EdfaLpoutSetpoint = 0;
cerent15216EdfaLpoutDeviation = 200;
cerent15216EdfaLpoutHysteresis = 100;
cerent15216EdfaLOSThreshold = -3102;
cerent15216EdfaLOSHysteresis = 100;
cerent15216EdfaCtmpMin = -5;
cerent15216EdfaCtmpMinHysteresis = 1;
cerent15216EdfaCtmpMax = 65;
cerent15216EdfaCtmpMaxHysteresis = 1;
cerent15216EdfaCLEI = "WMM4180BRA";
cerent15216EdfaPowerBusMode = duplex;
cerent15216EdfaPowerBusDCVoltageMin = 420;
cerent15216EdfaPowerBusDCVoltageMax = 700;
};
Refer to Table 5-8 on page 5-17 for information about all of the parameters in
cerent15216EdfaOverallStatusGroup.
5.6.4.3 Case Temperature Alarm Hysteresis
5.6.4.3.1 CtmpMaxHysteresis
Command snmp attribute get local cerent15216EdfaCtmpMaxHysteresis
Syntax Description snmp attribute get local cerent15216EdfaCtmpMaxHysteresis
Displays maximum case temperature alarm hysteresis.
The cerent15216EdfaCtmpMaxHysteresis attribute in the cerent15216EdfaCfgGroup display command
shows the maximum case hysteresis temperature alarm threshold (Example 5-14 on page 5-28). Refer to
Table 5-6 on page 5-12 for information about all of the parameters in cerent15216EdfaCfgGroup.
![](asset-5b.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-29
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Retrieving Information
5.6.4.3.2 CtmpMinHysteresis
Command snmp attribute get local cerent15216EdfaCtmpMinHysteresis
Syntax Description snmp attribute get local cerent15216EdfaCtmpMinHysteresis
Displays the minimum case hysteresis temperature alarm threshold.
The following command displays case temperature alarm hysteresis and other data:
•snmp row display local cerent15216EdfaCfgGroup command
The cerent15216EdfaCfgGroup command is shown in Example 5-14 on page 5-28. For information
about all of the parameters in the cerent15216EdfaCfgGroup table, see Table 5-6 on page 5-12.
5.6.5 Power Bus
5.6.5.1 Power Bus Mode
Command snmp attribute get local cerent15216EdfaPowerBusMode
Syntax Description snmp attribute get local cerent15216EdfaPowerBusMode
Displays the power bus mode (simplex or duplex).
The following command displays power bus voltage and other data:
•snmp row display local cerent15216EdfaCfgGroup command
5.6.5.2 Power Bus Alarm Threshold
5.6.5.2.1 PowerBusDCVoltageMax
Command snmp attribute get local cerent15216EdfaPowerBusDCVoltageMax
Syntax Description snmp attribute get local cerent15216EdfaPowerBusDCVoltageMax
Displays the maximum allowable power bus DC voltage (multiplied by –10V).
The following command displays power bus voltage and other data:
•snmp row display local cerent15216EdfaCfgGroup command
![](asset-5c.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-30
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Retrieving Information
5.6.5.2.2 PowerBusDCVoltageMin
Command snmp attribute get local cerent15216EdfaPowerBusDCVoltageMin
Syntax Description snmp attribute get local cerent15216EdfaPowerBusDCVoltageMin
Displays the minimum allowable power bus DC voltage (multiplied by –10V).
The following command displays power bus voltage and other data:
•snmp row display local cerent15216EdfaCfgGroup command
5.6.6 Input Power (Signal)
5.6.6.1 Input Power (Signal) Value
5.6.6.1.1 InPowerduW
Command snmp attribute get local cerent15216EdfaInPoweruW
Syntax Description snmp attribute get local cerent15216EdfaInPoweruW
Displays input power value in microwatts.
The following command displays the ONS 15216 EDFA2 input power value and other status
information:
•snmp row display local cerent15216EdfaOverallStatusGroup command
For information about all of the parameters in the cerent15216EdfaOverallStatusGroup table, see
Table 5-8 on page 5-17.
5.6.6.1.2 InPowerdBm
Command snmp attribute get local cerent15216EdfaInPowerdBm
Syntax Description snmp attribute get local cerent15216EdfaInPowerdBm
Displays the input power value in dBm. The dBm units are converted from µW to dBm, so theses values
could be slightly different due to rounding error.
The following command displays input power value and other status information:
•snmp row display local cerent15216EdfaOverallStatusGroup command
For information about all of the parameters in the cerent15216EdfaOverallStatusGroup table, refer to
Table 5-8 on page 5-17.
![](asset-5d.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-31
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Retrieving Information
5.6.6.2 Loss of Signal (Input Power) Alarm Threshold
Command snmp attribute get local cerent15216EdfaLOSThreshold
Syntax Description snmp attribute get local cerent15216EdfaLOSThreshold
Displays the loss of signal (input power) alarm threshold.
The following command displays the loss of input power alarm threshold and other laser power and
temperature data:
•snmp row display local cerent15216EdfaCfgGroup command
The cerent15216EdfaLOSThreshold attribute in the cerent15216EdfaCfgGroup display command shows
the loss of input power alarm threshold (Example 5-14 on page 5-28).
For information about all of the parameters in the cerent15216EdfaCfgGroup table, refer to Table 5-6 on
page 5-12.
5.6.6.3 Loss of Signal (Input Power) Alarm Hysteresis
Command snmp attribute get local cerent15216EdfaLOSHysteresis
Syntax Description snmp attribute get local cerent15216EdfaLOSHysteresis
Displays the loss of signal (input power) alarm hysteresis value.
The following command displays the loss of input power hysteresis value and other laser power and
temperature data:
•snmp row display local cerent15216EdfaCfgGroup command
The cerent15216EdfaLOSHysterisis attribute in the cerent15216EdfaCfgGroup display command shows
the loss of input power alarm threshold (Example 5-14 on page 5-28). For information about all of the
parameters in the cerent15216EdfaCfgGroup table, refer to Table 5-6 on page 5-12.
5.6.7 Output Power
5.6.7.1 Output Power Value
5.6.7.1.1 OutPowermW
Command snmp attribute get local cerent15216EdfaOutPowermW
Syntax Description snmp attribute get local cerent15216EdfaOutPowermW
![](asset-5e.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-32
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Retrieving Information
Displays output power value in milliwatts.
The snmp row display local cerent15216EdfaOverallStatusGroup command displays the
ONS 15216 EDFA2 output power value and additional pump status. For information about all of the
parameters in the cerent15216EdfaOverallStatusGroup table, refer to Table 5-8 on page 5-17.
5.6.7.1.2 OutPowerdBm
Command snmp attribute get local cerent15216EdfaOutPowerdBm
Syntax Description snmp attribute get local cerent15216EdfaOutPowerdBm
Displays output power value in dBm. This command displays loss of output power value and additional
pump status data. The dBm units are converted from mW to dBm, so theses values could be slightly
different due to rounding error.
For information about all of the parameters in the cerent15216EdfaOverallStatusGroup table, refer to
Table 5-8 on page 5-17.
5.6.7.2 Loss of Output Power Alarm Setpoint
5.6.7.2.1 LpoutSetpoint
Command snmp attribute get local cerent15216EdfaLpoutSetpoint
Syntax Description snmp attribute get local cerent15216EdfaLpoutSetpoint
This attribute notifies network operations personnel notification if the output power of the
ONS 15216 EDFA2 drops below a level that impacts proper operation of the optical network.
Typically, network operations personnel should set the loss of output power alarm threshold at a value
that is appropriate for the intended network application so that the alarm condition is meaningful.
Consult with the Cisco TAC to determine threshold value for your application. As a guideline, Cisco
recommends that loss of output power alarm threshold value be set at 1 dB below the current output
power level of the amplifier.
When the ONS 15216 EDFA2 is set to Constant Gain Temperature Compensated mode (factory default),
the value for loss of output power alarm threshold cannot be changed. To display the loss of output power
alarm threshold and other power and temperature alarm data, use the snmp table display local
cerent15216EdfaCfgGroup command (shown in Example 5-14 on page 5-28). This command returns
the current alarm threshold default values.
![](asset-5f.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-33
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Retrieving Information
5.6.7.2.2 LpoutDeviation
Command snmp attribute get local cerent15216EdfaLpoutDeviation
Syntax Description snmp attribute get local cerent15216EdfaLpoutDeviation
This attribute is not required when operating in factory default Constant Gain Temperature Compensated
mode. Setting of the loss of output power alarm deviation is only necessary when the amplifier is used
in Constant Output Power mode.
This attribute is used to set the amount by which the output power must vary from the threshold set point
before the alarm is activated. This attribute, in conjunction with the loss of output power alarm threshold
and hysteresis, enables notification of network operations personnel if the output power of the
ONS 15216 EDFA2 drops below a level that would impact proper operation of the optical network.
Typically, network operations personnel should set the loss of output power alarm deviation at a value
that is appropriate for the intended network application so that the alarm condition is meaningful.
Consult with the Cisco TAC to determine the deviation value for your application. As a guideline, Cisco
recommends that the loss of output power alarm deviation value be set at 2 dB. The module triggers an
alarm if it detects a signal level of 2 dB below the current output power alarm level threshold value set
for the amplifier.
When the ONS 15216 EDFA2 is set to Constant Gain Temperature Compensated mode (factory default),
the value for the loss of output power alarm threshold cannot be changed. To display the loss of output
power alarm deviation and other power and temperature alarm data, use the snmp table display local
cerent15216EdfaCfgGroup command as shown in Example 5-14 on page 5-28. This command returns
the current alarm threshold default values.
To set the loss of output power alarm deviation when the ONS 15216 EDFA2 is configured for operation
in Constant Output Power or Constant Pump Power mode, type snmp attribute set local
cerent15216EdfaLpoutDeviation at the command prompt followed by a number (as shown in
Example 5-15 on page 5-33). Valid entries are between 0 and 1000 and are in dB times 100. For example,
if the loss of output power deviation required were 0.2 dB, the number input as the loss of output power
alarm deviation would be 20.
The user is prompted to modify the attribute. If no changes are required, press Enter to return to
command prompt.
Example 5-15 cerent15216EdfaLpoutDeviation Set Command
ash:hostname:ONS15216 EDFA2> snmp attribute set local cerent15216EdfaLpoutDeviation 200
ash:hostname:ONS15216 EDFA2> snmp row display local cerent15216EdfaCfgGroup
CLASS CERENT-15216-EDFA-MIB.cerent15216EdfaCfgGroup ::=
{
cerent15216EdfaCfgSaved = false;
cerent15216EdfaLpoutSetpoint = 0;
cerent15216EdfaLpoutDeviation = 200;
cerent15216EdfaLpoutHysteresis = 100;
cerent15216EdfaLOSThreshold = -2694;
cerent15216EdfaLOSHysteresis = 100;
cerent15216EdfaCtmpMin = -5;
cerent15216EdfaCtmpMinHysteresis = 1;
cerent15216EdfaCtmpMax = 65;
cerent15216EdfaCtmpMaxHysteresis = 1;
![](asset-60.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-34
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Retrieving Information
cerent15216EdfaCLEI = "WMAW27VLAA";
cerent15216EdfaPowerBusMode = duplex;
cerent15216EdfaPowerBusDCVoltageMin = 420;
cerent15216EdfaPowerBusDCVoltageMax = 700;
};
Changes must be saved before terminating the session. See the “Save Changes” section on page 4-11.
5.6.7.3 Loss of Output Power Alarm Hysteresis
Command snmp attribute get local cerent15216EdfaLpoutHysteresis
Syntax Description snmp attribute get local cerent15216EdfaLpoutHysteresis
This attribute is not required when operating in factory default Constant Gain Temperature Compensated
mode. Setting of the loss of output power alarm deviation is only necessary when the amplifier is used
in Constant Output Power or Constant Pump Power modes of operation.
This attribute is used to set the amount by which the output power must increase from the threshold
setpoint before the alarm is cleared. This attribute, in conjunction with the loss of output power alarm
threshold and deviation, enables efficient processing and clearing of the alarm condition.
Typically, network operations personnel should set the loss of output power alarm hysteresis at a value
that is appropriate for the intended network application so that the alarm condition is meaningful.
Consult with the Cisco TAC to determine the hysteresis value for your application. As a guideline, Cisco
recommends that loss of output power alarm hysteresis value be set at 0.2 dB. The module clears the
alarm if it detects a signal level of 0.2 dB above the current output power alarm level threshold value set
for the amplifier.
When ONS 15216 EDFA2 is set to Constant Gain Temperature Compensated mode (factory default), the
value for loss of output power alarm threshold cannot be changed. To display the loss of output power
alarm deviation and other power and temperature alarm data, use the snmp table display local
cerent15216EdfaCfgGroup command as shown in Example 5-14 on page 5-28. This command returns
the current alarm threshold default values.
To set the loss of output power alarm hysteresis when ONS 15216 EDFA2 is configured for operation in
either Constant Output Power mode or Constant Pump Power mode, type snmp attribute set local
cerent15216EdfaLpoutHysteresis at the command prompt followed by a number. Valid entries are
between 0 and 1000 and are in dB times 100. For example, if the loss of output power hysteresis required
were 0.2 dB, the number input as loss of output power alarm hysteresis would be 200.
The user is prompted to modify the attribute. If changes are not required, press Enter to return to
command prompt.
Changes must be saved before terminating the session. See the “Save Changes” section on page 4-11.
5.6.8 Database Backup and Restore
The configuration information for the ONS 15216 EDFA2 can be saved in a file for later use or to
configure other ONS 15216 EDFA2 units. This file contains manufacturing information about the unit
that is being backed up (such as part number and serial number), setup information for the unit (such as
IP address and host name), all configuration information (such as alarm thresholds and pump mode), and
the user database.
![](asset-61.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-35
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Retrieving Information
The backup file is saved with cyclic redundancy code (CRC) to ensure data integrity, and the user names,
passwords, and other system settings are encrypted for security. Only the configuration information and
user database are copied back to the ONS 15216 EDFA2 during a restore.
5.6.8.1 Database Backup Procedure
Step 1 Back up the system configuration to a file (in this case, dbbkup) on the FFS:
a. Set cerent15216EdfaOpDbFileName = "dbbkup".
b. Set cerent15216EdfaOpRequestId = 1.
c. Set cerent15216EdfaOpDbBackup = 2.
d. Wait until cerent15216EdfaOpStatus goes from inprogress to idle.
e. Verify that cerent15216EdfaOpResult is 0.
Step 2 Verify that the backup file is on the FFS by getting the table cerent15216EdfaFfsFileEntry.
Step 3 Copy the backup file to your TFTP server:
a. Set cerent15216EdfaFfsOpRequestId = 2.
b. Set cerent15216EdfaFfsOpSrcName = "dbbkup".
c. Set cerent15216EdfaFfsOpDstName = "dbbkup".
d. Set cerent15216EdfaFfsOpTftpSrvAddr = a.b.c.d (your TFTP server address).
e. Set cerent15216EdfaFfsOpOperation = 3 (put).
f. Set cerent15216EdfaFfsOpAction = 2 (perform).
Step 4 Wait for the TFTP put to complete and check that cerent15216EdfaFfsOpResult = 0 and that
cerent15216EdfaFfsOpCopyProgress contains the number of bytes in the file “dbbkup”.
Step 5 Copy file from your TFTP server to the FFS:
a. Set cerent15216EdfaFfsOpRequestId = 2.
b. Set cerent15216EdfaFfsOpSrcName = "dbbkup".
c. Set cerent15216EdfaFfsOpDstName = "dbbkup".
d. Set cerent15216EdfaFfsOpTftpSrvAddr = a.b.c.d (your TFTP server address).
e. Set cerent15216EdfaFfsOpOperation = 2 (get).
f. Set cerent15216EdfaFfsOpAction = 2 (perform).
Step 6 Verify that the file “dbbkup” is on the FFS by getting the table cerent15216EdfaFfsFileEntry.
5.6.8.2 Database Restore Procedure
The configuration information for the ONS 15216 EDFA2 can be restored form a file. During this
process, all configuration information (such as alarm thresholds and pump mode) and the user database
from the file are replaced in the ONS 15216 EDFA2 memory and FFS.
Before the restore begins, a cyclic redundancy code (CRC) check is performed to ensure data integrity.
![](asset-62.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-36
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Retrieving Information
Step 1 Restore from the backup database from a file (in this case, dbbkup) on the FFS:
a. Set cerent15216EdfaOpDbFileName = "dbbkup".
b. Set cerent15216EdfaOpRequestId = 1.
c. Set cerent15216EdfaOpDbRestore = 2.
d. Wait until cerent15216EdfaOpStatus goes from inprogress to idle.
e. Verify that cerent15216EdfaOpResult is 0.
Step 2 Save the changes by setting cerentEdfa15216OpSaveConfig = 2.
Step 3 Reboot the ONS 15216 EDFA2 by setting cerentEdfa15216OpReset = 2.
After the processor reboots, user names and passwords from the new user database must be used for
access.
5.6.9 Alarm Entry
Command snmp table display local cerent15216EdfaAlarmEntry
Syntax Description snmp table display local cerent15216EdfaAlarmEntry
Accesses the alarm status. Example 5-16 shows the cerent15216EdfaAlarmEntry display command.
Example 5-16 cerent15216EdfaAlarmEntry Display Command
ash:hostname:ONS15216 EDFA2> snmp table display local cerent15216EdfaAlarmEntry
CLASS CERENT-15216-EDFA-MIB.cerent15216EdfaAlarmEntry ::=
{
anQuasarAlarmIndex = 1;
anQuasarAlarmID = lcrnt1;
anQuasarAlarmPriority = minor;
anQuasarAlarmState = cleared;
anQuasarAlarmEnable = enabled;
anQuasarAlarmDateAndTime = "2002-10-16,13:49:42.8 -8:60";
};
CLASS CERENT-15216-EDFA-MIB.cerent15216EdfaAlarmEntry ::=
{
anQuasarAlarmIndex = 2;
anQuasarAlarmID = lcrnt2;
anQuasarAlarmPriority = minor;
anQuasarAlarmState = cleared;
anQuasarAlarmEnable = enabled;
anQuasarAlarmDateAndTime = "2002-10-16,13:31:55.4 -8:60";
};
CLASS CERENT-15216-EDFA-MIB.cerent15216EdfaAlarmEntry ::=
{
anQuasarAlarmIndex = 3;
anQuasarAlarmID = ltmp1;
...
![](asset-63.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-37
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Summary of SNMP Alarms
For information about all of the parameters in the cerent15216EdfaAlarmEntry table, refer to Table 5-11
on page 5-19.
5.7 Summary of SNMP Alarms
Table 5-17 summarizes the ONS 15216 EDFA2 SNMP alarms.
Table 5-17 SNMP Alarms
Alarm Index Alarm ID Description Priority
1 lcrnt1 Excessive pump current for pump 1. Drive current
greater than 95% of end of life value. Current must drop
to 90% of end of life value for alarm to clear.
Minor
2 lcrnt2 Excessive pump current for pump 2. Drive current
greater than 95% of end of life value. Current must drop
to 90% of end of life value for alarm to clear.
Minor
3 ltmp1 Pump 1 laser temperature out of range. Chip
temperature deviating more than 10 degrees C from the
manufacturer-defined setpoint.
Minor
4 ltmp2 Pump 2 laser temp. out of range. Chip temperature
deviating more than 10 degrees C from the
manufacturer-defined setpoint.
Minor
5 lpout Loss of output power. EDFA output power is deviating
more than the value of cerent15216EdfaLpoutDeviation
from the value of cerent15216EdfaLpoutSetpoint. This
alarm is only valid for constOutputPower and idle
modes.
Major
6 lpin Loss of input power (signal). EDFA input power is
below the value of cerent15216EdfaLOSThreshold.
Major
7 gain Gain out of range. Gain has deviated more than 1.25 dB
from the setpoint in constGainTempComp mode. This
alarm is also triggered if the input power goes outside
the manufacturer-defined range by more than 0.15 dB.
Major
8 ctmp The case temperature out of the threshold range.
Minor
9 powerBusA The Power Bus A voltage is out of the threshold range.
The power bus threshold has a 1.0V tolerance and a
1.0V hysteresis. There is a ±1.5V inaccuracy in the
ONS 15216 EDFA2 voltage measurement.
Minor/Critical1
1. A single power bus alarm is Minor. If the power system is in duplex mode and an alarm is raised on both power buses, the
second alarm is Critical.
10 powerBusB The Power Bus B voltage is out of the threshold range.
The power bus threshold has a 1.0V tolerance and a
1.0V hysteresis. There is a ±1.5V inaccuracy in the
ONS 15216 EDFA2 voltage measurement.
Minor/Critical1
![](asset-64.png)
FINAL DRAFT - CISCO CONFIDENTIAL
5-38
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 5 SNMP MIB Installation and Configuration
Summary of SNMP Alarms
![](asset-65.png)
CHAPTER
FINAL DRAFT - CISCO CONFIDENTIAL
6-1
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
6
ASH Commands
ASH commands are available in the ASH shell command line interface. ASH commands consist of
proprietary commands and command-line SNMP instructions. This chapter is a reference of ASH
commands that are used in advanced setup and troubleshooting. For provisioning the Cisco
ONS 15216 EDFA2 using ASH commands, see Chapter 4, “Provisioning Using ASH and SNMP.”
All commands discussed in this chapter are available to the default CISCO15 user and any other user
with read_write_admin (RWA) access privileges. Users with read_write (RW) and read (R) access levels
have access to a subset of the commands, as shown in Table 6-1.
6.1 Summary of Security Permissions for ASH Commands
Table 6-1 ASH Commands Security Permissions (Access Levels)
Command Description
User Access Levels
RRWRWA
clear Clears the shell screen.
See clear Command, page 6-11.
Yes Yes Yes
backup system Backs up configuration information to file.
See backup system Command, page 6-31.
No No Yes
debug memory display Displays memory. Yes Yes Yes
error log display Displays current error log. No Yes Yes
exit Exits the shell.
See exit Command, page 6-11.
Yes Yes Yes
ffs bams display Displays flash file system BAMS. No Yes Yes
ffs block compress Compresses flash file system block into spare. No Yes Yes
ffs block display Displays flash file system blocks. No Yes Yes
ffs file copy Copies flash file. No Yes Yes
ffs file delete Delete flash file. No Yes Yes
ffs file display Displays contents of flash file. No Yes Yes
ffs file list Displays the files in flash memory.
See ffs file list Command, page 6-14.
No Yes Yes
ffs file rename Renames flash file. No Yes Yes
![](asset-66.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-2
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
Summary of Security Permissions for ASH Commands
ffs format Formats flash file system. No Yes Yes
ffs status display Displays current flash file system status. No Yes Yes
ffs tftp get Copies TFTP file to flash file system. No Yes Yes
ffs tftp put Copies flash file to TFTP file system. No Yes Yes
ffs tftp record get Copies record-based TFTP file to flash file. No Yes Yes
ffs tftp record put Copies record-based flash file to TFTP file. No Yes Yes
flash block display Displays flash memory. No No Yes
flash block erase Erases specified flash block. No No Yes
flash block modify Modifies flash memory. No No Yes
flash boot erase Erases flash boot sector. No No Yes
flash boot program tftp Programs flash from TFTP file. No No Yes
flash chip block display Displays chip block flash memory. No No Yes
flash chip block erase Erases specified flash chip block. No No Yes
flash chip block modify Modifies chip block flash memory. No No Yes
flash chip display Displays flash chip information. No No Yes
flash chip erase Erases specified flash chip. No No Yes
flash chip reset Resets flash chip. No No Yes
gain attenuation display Displays target attenuation. Yes Yes Yes
gain attenuation modify Modifies target attenuation. No Yes Yes
gain gain display Displays gain setting.
See gain gain display Command, page 6-9.
Yes Yes Yes
gain gain modify Modifies gain setting.
See gain gain modify Command, page 6-10.
No Yes Yes
help Gives help about commands.
See help Command, page 6-11.
Yes Yes Yes
history Displays the history list.
See history Command, page 6-11.
Yes Yes Yes
login Allows the user to log into shell.
See login and logoff Commands, page 6-12.
Yes Yes Yes
logoff Allows the user to log off of the shell.
See login and logoff Commands, page 6-12.
Yes Yes Yes
manufacturer clei display Displays CLEI code. Yes Yes Yes
manufacturer mode enable Enables access to manufacturer commands. No No Yes
manufacturer restore
defaults all
Restores all settings to manufacturer defaults.
See manufacturer restore defaults all Command,
page 6-32.
No No Yes
Table 6-1 ASH Commands Security Permissions (Access Levels) (continued)
Command Description
User Access Levels
RRWRWA
![](asset-67.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-3
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
Summary of Security Permissions for ASH Commands
manufacturer restore
defaults passwords
Restores manufacturer password defaults.
See manufacturer restore defaults passwords
Command, page 6-32.
No No Yes
network host ftp FTPs to remote host.
See FTP Command Line, page 7-1
No Yes Yes
network host ping Pings remote host. No Yes Yes
network host telnet Telnets to remote host No Yes Yes
pdm busmode display Displays the bus mode (simplex or duplex).
See pdm busmode display Command, page 6-8
Yes Yes Yes
pdm busmode modify Modifies the bus mode (simplex or duplex).
See pdm busmode modify Command, page 6-9
No Yes Yes
pdm cfg threshold bus
display
Displays bus threshold configuration. Yes Yes Yes
pdm cfg threshold bus
modify
Modifies bus threshold configuration. No Yes Yes
pdm cfg threshold display Display threshold configuration. Yes Yes Yes
processor reset Resets the CPU.
See processor reset Command, page 6-12.
No Yes Yes
restore system Restores configuration from backup file.
See restore system Command, page 6-31.
No No Yes
shell lines set Sets the number of shell lines.
See shell lines set Command, page 6-13.
Yes Yes Yes
shell more disable Disables more.
See shell more enable and disable Commands,
page 6-13.
Yes Yes Yes
shell more enable Enables more.
See shell more enable and disable Commands,
page 6-13.
Yes Yes Yes
shell rows set Sets the number of shell rows. Yes Yes Yes
shell status display Displays the shell status.
See shell status display Command, page 6-13.
Yes Yes Yes
shell type display Displays the default shell type. Yes Yes Yes
shell type modify Modifies the default shell type.
See shell type modify Command, page 6-13.
No No Yes
snmp attribute get Gets an attribute.
See snmp attribute get Command, page 6-15.
No Yes Yes
snmp attribute list Lists an attribute.
See snmp attribute list Command, page 6-16.
No Yes Yes
snmp attribute oid get get an attribute No Yes Yes
snmp attribute oid set set an attribute No Yes Yes
Table 6-1 ASH Commands Security Permissions (Access Levels) (continued)
Command Description
User Access Levels
RRWRWA
![](asset-68.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-4
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
Summary of Security Permissions for ASH Commands
snmp attribute set Sets an attribute.
See snmp attribute set Command, page 6-17.
No Yes Yes
snmp host ip get Gets the IP address from host name. No Yes Yes
snmp host name get Gets the host name from IP address. No Yes Yes
snmp mib display Displays a MIB.
See snmp mib display Command, page 6-17.
No Yes Yes
snmp mib get Gets a MIB.
See snmp mib get Command, page 6-18.
No Yes Yes
snmp mib list Lists a MIB.
See snmp mib list Command, page 6-18.
No Yes Yes
snmp pdu send Sends a SNMP protocol data unit (PDU). No Yes Yes
snmp row display Displays a row.
See snmp row display Command, page 6-19.
No Yes Yes
snmp row get Gets a row.
See snmp row get Command, page 6-20.
No Yes Yes
snmp row line set Dumps a row. No Yes Yes
snmp row oid display Displays a row. No Yes Yes
snmp row oid get Gets a row. No Yes Yes
snmp row oid set Dumps a row. No Yes Yes
snmp row set Sets a row.
See snmp row set Command, page 6-20.
No Yes Yes
snmp session version v1 Sets default SNMP session version to v1. No Yes Yes
snmp session version v2C Sets default SNMP session version to v2C. No Yes Yes
snmp subtree display Displays a subtree.
See snmp subtree display Command, page 6-21.
No Yes Yes
snmp subtree get Gets a subtree.
See snmp subtree get Command, page 6-21.
No Yes Yes
snmp subtree list Lists a subtree.
See snmp subtree list Command, page 6-22.
No Yes Yes
snmp table display Displays a table.
See snmp table display Command, page 6-23.
See also Display Trap Command, page 5-22, IP
Address, page 5-24, and Alarm Entry, page
5-36.
No Yes Yes
snmp table get Gets a table.
See snmp table get Command, page 6-24.
No Yes Yes
snmp table list Lists a table.
See snmp table list Command, page 6-24.
No Yes Yes
snmp trap send Sends a SNMP trap. No Yes Yes
Table 6-1 ASH Commands Security Permissions (Access Levels) (continued)
Command Description
User Access Levels
RRWRWA
![](asset-69.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-5
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
Summary of Security Permissions for ASH Commands
snmp tree attribute list Lists the attributes in the MIB.
See snmp tree attribute list Command, page
6-25.
No Yes Yes
snmp tree mib list Lists the MIBs in the MIB tree. No Yes Yes
snmp tree oid display Displays object identifier (OID) for a MIB tree
object.
No Yes Yes
snmp tree syntax display Displays the syntax of a MIB tree object. No Yes Yes
snmp tree table provided
list
Lists provided tables in the MIB tree. No Yes Yes
srom cfg boot display Displays the serial ROM boot content.
See srom cfg boot display Command, page 6-6.
No Yes Yes
srom cfg boot modify Modifies the serial ROM boot contents.
See srom cfg boot modify Command, page 6-7.
No Yes Yes
srom cfg debug display Displays one config (CFG) ROM byte. No No Yes
srom cfg debug modify Modifies one CFG ROM byte. No No Yes
srom cfg display Displays CFG ROM contents. No Yes Yes
srom cfg ip display Displays the serial ROM IP contents.
See srom cfg ip display Command, page 6-7.
No Yes Yes
srom cfg ip modify Modifies the serial ROM IP contents.
See srom cfg ip modify Command, page 6-8
No Yes Yes
srom cfg modify Modifies CFG ROM contents. No Yes Yes
srom id display Displays serial ROM contents. No Yes Yes
tl1c TL1s to host. Yes Yes Yes
user active list Lists the active users.
See user active list Command, page 6-29.
No Yes Yes
user active message send Sends the message to all active users.
See user active message send Command, page
6-29.
No Yes Yes
user entry create Creates a new user.
See user entry create Command, page 6-26.
No No Yes
user entry delete Deletes the user.
See user entry delete Command, page 6-27.
No No Yes
user entry edit Edits an existing user entry.
See user entry edit Command, page 6-26.
No No Yes
user file display Displays the user names and information.
See user file display and user name display
Commands, page 6-27.
No Yes Yes
user inactivity display Displays user inactivity times.
See user inactivity modify and user inactivity
display Commands, page 6-28.
Yes Yes Yes
Table 6-1 ASH Commands Security Permissions (Access Levels) (continued)
Command Description
User Access Levels
RRWRWA
![](asset-6a.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-6
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
Configuration Commands
6.2 Configuration Commands
The following commands are useful in configuring the ONS 15216 EDFA2:
•srom cfg boot display Command, page 6-6
•srom cfg boot modify Command, page 6-7
•srom cfg ip display Command, page 6-7
•srom cfg ip modify Command, page 6-8
•pdm busmode display Command, page 6-8
•pdm busmode modify Command, page 6-9
•pdm cfg threshold bus display Command, page 6-9
•pdm cfg threshold bus modify Command, page 6-9
•gain gain display Command, page 6-9
•gain gain modify Command, page 6-10
•voa power input display Command, page 6-10
6.2.1 srom cfg boot display Command
Command srom cfg boot display
Syntax Description srom cfg boot display
Displays the serial ROM boot contents. Data displayed includes the IP address and file names. See
Example 6-1.
user inactivity modify Modifies user inactivity time.
See user inactivity modify and user inactivity
display Commands, page 6-28.
No No Yes
user name display Displays the user name.
See user file display and user name display
Commands, page 6-27.
Yes Yes Yes
user passwd set Sets the user password.
See user passwd set Command, page 6-28.
Yes Yes Yes
user passwd set username Sets another user’s password.
See user passwd set Command, page 6-28.
No No Yes
voa power input display Displays VOA power input.
See voa power input display Command, page
6-10.
Yes Yes Yes
Table 6-1 ASH Commands Security Permissions (Access Levels) (continued)
Command Description
User Access Levels
RRWRWA
![](asset-6b.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-7
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
Configuration Commands
Example 6-1 srom cfg boot display Command
ash:hostname:ONS15216 EDFA2> srom cfg boot display
Boot Count 2
Boot Record 0 type 2 Flash
IP Address 0.0.0.0
Filename 15216EdfaSw_x.x.x_bin
Boot Record 1 type 2 Flash
IP Address 0.0.0.0
Filename 15216EdfaSw_y.y.y_bin
CRC-32 8bd3cb56
6.2.2 srom cfg boot modify Command
Command srom cfg boot modify
Syntax Description srom cfg boot modify
Modifies the contents of the ROM boot. See Example 6-2.
Example 6-2 srom cfg boot modify Command
ash:hostname:ONS15216 EDFA2> srom cfg boot modify
Boot Count = 2
Boot Record 0 type 1 TFTP
2
Filename = users/name/15216EdfaSw_x.x.x_bin
15216EdfaSw_x.x.x_bin
Boot Record 1 type 2 Flash
2
Filename = orion427
15216EdfaSw_y.y.y_bin
Note Boot type 1 = TFTP and boot type 2 = Flash.
6.2.3 srom cfg ip display Command
Command srom cfg ip display
Syntax Description srom cfg ip display
Displays the serial ROM IP contents. The ROM IP contents are shown, including IP address, subnet
mask, default router address, and hostname. See Example 6-3.
![](asset-6c.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-8
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
Configuration Commands
Example 6-3 srom cfg ip display Command
ash:hostname:ONS15216 EDFA2> srom cfg ip display
Shelf ID = 1
IP Address = 192.168.60.168
Subnet Mask = 255.255.255.0
Default Router IP Address = 192.168.60.254
Hostname = hostname
SW Config = 0x00000000
CRC32 = 0x54f863a2
6.2.4 srom cfg ip modify Command
Command srom cfg ip modify
Syntax Description srom cfg ip modify
Modifies the serial ROM IP contents. The user is prompted, row by row, to change the items listed in
Example 6-4.
Example 6-4 srom cfg ip modify Command
ash:hostname:ONS15216 EDFA2> srom cfg ip modify
Shelf ID = 1
IP Address = 192.168.60.168
Subnet Mask = 255.255.255.0
Default Router IP Address = 192.168.60.254
Hostname = hostname
SW Config = 0x00000000
6.2.5 pdm busmode display Command
Command pdm busmode display
Syntax Description pdm busmode display
Displays power bus mode (simplex or duplex).
![](asset-6d.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-9
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
Configuration Commands
6.2.6 pdm busmode modify Command
Command pdm busmode modify
Syntax Description pdm busmode modify {simplex | duplex}
Modifies power bus mode to simplex (single power source–Bus A) or duplex (redundant power
source–Bus A and B).
6.2.7 pdm cfg threshold bus display Command
Command pdm cfg threshold bus display
Syntax Description pdm cfg threshold bus display
Displays the minimum and maximum allowable power bus DC voltage.
Example 6-5 pdm cfg threshold bus display Command
ash:hostname:ONS15216 EDFA2> pdm cfg threshold bus display
BUS Threshold Low = 40000(mV)
BUS Threshold High = 57000(mV)
6.2.8 pdm cfg threshold bus modify Command
Command pdm cfg threshold bus modify
Syntax Description pdm cfg threshold bus modify
Modifies minimum and maximum allowable power bus DC voltage.
Example 6-6 pdm cfg threshold bus modify Command
ash:hostname:ONS15216 EDFA2> pdm cfg threshold bus modify
BUS Threshold Low = 40000(mV)
40500
BUS Threshold High = 57000(mV)
6.2.9 gain gain display Command
Command gain gain display
![](asset-6e.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-10
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
Administrative Commands
Syntax Description gain gain display
Displays the gain setting for the ONS 15216 EDFA2.
Example 6-7 gain gain display Command
ash:hostname:ONS15216 EDFA2> gain gain display
Target = 22000(mdB), Actual = 21985(mdB)
6.2.10 gain gain modify Command
Command gain gain modify
Syntax Description gain gain modify value
Modifies the gain setting for the ONS 15216 EDFA2.
Example 6-8 gain gain modify Command
ash:hostname:ONS15216 EDFA2> gain gain modify 22000
Target = 22000(mdB), Actual = 21996(mdB)
6.2.11 voa power input display Command
Command voa power input display
Syntax Description voa power input display
Displays variable optical attenuator (VOA) power input.
6.3 Administrative Commands
The following commands are useful in administering the ONS 15216 EDFA2:
•clear Command, page 6-11
•exit Command, page 6-11
•help Command, page 6-11
•history Command, page 6-11
•login and logoff Commands, page 6-12
•processor reset Command, page 6-12
![](asset-6f.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-11
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
Administrative Commands
6.3.1 clear Command
Command clear
Syntax Description clear
Clears content from the terminal window. An empty screen with a cursor appears.
6.3.2 exit Command
Command exit
Syntax Description exit
Ends the session with the ONS 15216 EDFA2.
6.3.3 help Command
Command help
Syntax Description help
Displays a list of all CLI commands for current user security level.
6.3.4 history Command
Command history
Syntax Description history
Displays a list of commands issued by the user during that specific session. See Example 6-9.
Example 6-9 history Command
ash:hostname:ONS15216 EDFA2> history
user active list
user active message send hi
user file display
![](asset-70.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-12
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
Shell Commands
user entry create
user entry delete albert
user file display
user name display
user passwd set
help
history
6.3.5 login and logoff Commands
Command login or logoff
Syntax Description login or logoff
Used to access and exit communication with the ONS 15216 EDFA2. Logging into the module requires
both a user name and a password. Only use these commands if you have stopped the booting process or
are displaying the format for logging into the module. Type the command, the first few letters of the
attribute, and press the Tab key to view a list of attributes that can be set. See Example 6-10.
Example 6-10 login Command
ash:hostname:ONS15216 EDFA2> login
Parameters
user_name (string[0..10]) name of user
6.3.6 processor reset Command
Command processor reset
Syntax Description processor reset
Resets the processor on the ONS 15216 EDFA2. Although the performance of the amplifier is not
affected, the user must log in again.
6.4 Shell Commands
The following commands are useful in working with the shell within the ONS 15216 EDFA2 SNMP
manager:
•shell lines set Command, page 6-13
•shell more enable and disable Commands, page 6-13
•shell status display Command, page 6-13
•shell type modify Command, page 6-13
![](asset-71.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-13
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
Shell Commands
6.4.1 shell lines set Command
Command shell lines set
Syntax Description shell lines set #lines
Sets the number of lines that can be viewed on the screen without pressing Enter. 40 lines per screen is
recommended (maximum is 999).
6.4.2 shell more enable and disable Commands
Command shell more enable or shell more disable
Syntax Description shell more {enable | disable}
The shell more enable command enables the more function, limiting the output that appears on the
screen. When the more function is enabled, press Enter to view additional information on the screen.
The shell more disable command disables the more function.
6.4.3 shell status display Command
Command shell status display
Syntax Description shell status display
Displays the current shell settings, including the number of shell lines, the number of shell rows, and
whether the more setting is enabled or disabled. See Example 6-11.
Example 6-11 shell status display Command
ash:hostname:ONS15216 EDFA2> shell status display
Shell Lines: 22
Shell Rows : 80
More : On
6.4.4 shell type modify Command
Command shell type modify
![](asset-72.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-14
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
Flash File System Commands
Syntax Description shell type modify {tl1 | ash}
Sets the shell type to TL1 or ASH for the ONS 15216 EDFA2’s RS-232 (EIA/TIA-232) port (accessed
via HyperTerminal) and the default TCP/IP port on the ONS 15216 EDFA2’s LAN port (accessed via
Telnet). The default is TL1. This command requires a system reboot using the processor reset command
for changes to take effect.
To return to the ASH shell from the TL1 shell, use the command ED-NE-GEN. (See Step 3. in “Log In
via LAN Port Using Telnet (Optional), page 4-3” section on page 4-1.)
6.5 Flash File System Commands
The flash file system (FFS) file commands allow the user to manage the number of files that are on the
ONS 15216 EDFA2 Flash memory. Never erase the following files:
•Two current versions of software (15216EdfaSw_x.x.x)
•snmp.cfg
Because the snmp.cfg file contains important SNMP attributes, deleting this file would mean that the
community and view tables would have to be reset before a remote user could access the
ONS 15216 EDFA2 via SNMP.
EDFA software image files are named using a special naming convention. Do not change the file name
when image files are downloaded from an FTP server onto the box in the field when using the FTP
command shell of the ONS 15216 EDFA2.
6.5.1 ffs file list Command
Command ffs file list
Syntax Description ffs file list
List the files on the ONS 15216 EDFA2 Flash memory. See Example 6-12.
Example 6-12 ffs file list Command
ash:hostname:ONS15216 EDFA2> ffs file list
--------name-------- type status length rename_bam attributes
15216EdfaSw_2.3.0 1 fffc xxxxxxx ffffffff ffffffff
snmp.bak 1 fffc 1709 00140001 ffffffff
passwd 2 fffc -1 ffffffff ffffffff
snmp.cfg 1 fffc 1709 ffffffff ffffffff
15216EdfaSw_2.1.0 1 fffc 1681923 ffffffff ffffffff
![](asset-73.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-15
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
SNMP Commands
6.6 SNMP Commands
The SNMP commands are useful in working with the SNMP protocol to provision and configure the
ONS 15216 EDFA2. When issuing these SNMP commands, the command syntax requires that the
command must be followed by either the ONS 15216 EDFA2 IP address or the word “local”.
SNMP commands are listed as follows:
•snmp attribute get Command, page 6-15
•snmp attribute list Command, page 6-16
•snmp attribute set Command, page 6-17
•snmp mib display Command, page 6-17
•snmp mib get Command, page 6-18
•snmp mib list Command, page 6-18
•snmp row display Command, page 6-19
•snmp row get Command, page 6-20
•snmp row set Command, page 6-20
•snmp subtree display Command, page 6-21
•snmp subtree get Command, page 6-21
•snmp subtree list Command, page 6-22
•snmp table display Command, page 6-23
•snmp table get Command, page 6-24
•snmp table list Command, page 6-24
•snmp tree attribute list Command, page 6-25
6.6.1 snmp attribute get Command
Command snmp attribute get
Syntax Description snmp attribute get {IP_address | local} attribute_name index
Accesses and displays a specific MIB attribute. See Example 6-13.
Example 6-13 snmp attribute get Command
ash:hostname:ONS15216 EDFA2> snmp attribute get local sysDescr
attributes
sysDescr "hostname, Hardware Rev B0, ONS15216 EDFA2, v2.1.9,
Serial No DIT05470008, MAC Addr 00059a383d11"
Type the command, the first few letters of the attribute, and press Tab to view a list of attributes that can
be set. See Example 6-14.
![](asset-74.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-16
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
SNMP Commands
Example 6-14 snmp attribute get Command List
ash:hostname:ONS15216 EDFA2> snmp attribute get local cerent
cerent15216EdfaCommIndex
cerent15216EdfaCommName
cerent15216EdfaCommViewIndex
cerent15216EdfaCommPrivileges
cerent15216EdfaCommSrcIPAddr
cerent15216EdfaCommNetMask
cerent15216EdfaCommStatus
cerent15216EdfaCommTrapIndex
cerent15216EdfaCommTrapCommunity
cerent15216EdfaCommTrapDestIPAddress
cerent15216EdfaCommTrapDestUDPPort
cerent15216EdfaCommTrapViewIndex
cerent15216EdfaCommTrapVersion
cerent15216EdfaCommTrapStatus
cerent15216EdfaViewIndex
cerent15216EdfaViewSubtree
cerent15216EdfaViewMask
cerent15216EdfaViewType
cerent15216EdfaViewStatus
cerent15216EdfaAgentTrapEnable
...
6.6.2 snmp attribute list Command
Command snmp attribute list
Syntax Description snmp attribute list {IP_address | local} attribute_name
Lists the value of an attribute for all table rows. See Example 6-15.
Example 6-15 snmp attribute list Command
ash:hostname:ONS15216 EDFA2> snmp attribute list local cerent15216EdfaAlarmID
cerent15216EdfaAlarmID.1 = lcrnt1;
cerent15216EdfaAlarmID.2 = lcrnt2;
cerent15216EdfaAlarmID.3 = ltmp1;
cerent15216EdfaAlarmID.4 = ltmp2;
cerent15216EdfaAlarmID.5 = lpout;
cerent15216EdfaAlarmID.6 = lpin;
cerent15216EdfaAlarmID.7 = gain;
cerent15216EdfaAlarmID.8 = ctmp;
cerent15216EdfaAlarmID.9 = powerBusA;
cerent15216EdfaAlarmID.10 = powerBusB;
![](asset-75.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-17
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
SNMP Commands
6.6.3 snmp attribute set Command
Command snmp attribute set
Syntax Description snmp attribute set {IP_address | local} attribute_name index new_value
Sets the attribute for a MIB item. Type the command, the first few letters of the attribute, and press Tab
to view a list of attributes that can be set. See Example 6-16.
Example 6-16 snmp attribute set Command
ash:hostname:ONS15216 EDFA2> snmp attribute set local cerent15216EdfaAgentTrapEnable
enabled
sysContact
sysName
sysLocation
ifAdminStatus
atIfIndex
atPhysAddress
atNetAddress
ipForwarding
ipDefaultTTL
ipRouteDest
ipRouteIfIndex
ipRouteMetric1
ipRouteMetric2
ipRouteMetric3
ipRouteMetric4
ipRouteNextHop
ipRouteType
ipRouteAge
ipRouteMask
ipRouteMetric5
...
6.6.4 snmp mib display Command
Command snmp mib display
Syntax Description snmp mib display {IP_address | local} -all
Displays all writable MIB attributes (or all accessible attributes if the -all option is used).
![](asset-76.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-18
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
SNMP Commands
6.6.5 snmp mib get Command
Command snmp mib get
Syntax Description snmp mib get {IP_address | local}
Displays all MIB attributes. The data is output in two columns. The first column lists the attributes and
indices and the second column lists the data. See Example 6-17.
Example 6-17 snmp mib get Command
ash:hostname:ONS15216 EDFA2> snmp mib get local
attributes
sysDescr "mntuboot v0.0.0 ONS15216 EDFA2 v1.3.0, MAC Addr 0010b4000525"
sysObjectID cerent15216EdfaNode
sysUpTime 24703705
sysContact ""
sysName "sysname"
sysLocation ""
sysServices 0
sysORLastChange 90
index
sysORIndex 1
attributes
sysORID snmpBasicCompliance
sysORDescr ""
sysORUpTime 24704075
6.6.6 snmp mib list Command
Command snmp mib list
Syntax Description snmp mib list {IP_address | local}
Displays the values of all attributes supported by the SNMP agent. Example 6-18.
Example 6-18 snmp mib list Command
ash:hostname:ONS15216 EDFA2> snmp mib list local
sysDescr.0 = "hostname v3.0.0 ONS15216 EDFA2 v2.1.1, Serial No DIT0533000P, MAC
Addr 00059a383d10";
sysObjectID.0 = { cerent15216EdfaNode };
sysUpTime.0 = 355920;
sysContact.0 = "";
sysName.0 = "sysname";
sysLocation.0 = "";
sysServices.0 = 0;
![](asset-77.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-19
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
SNMP Commands
sysORLastChange.0 = 135;
sysORID.1 = { snmpBasicCompliance };
sysORID.2 = { rs232Compliance };
sysORDescr.1 = "";
sysORDescr.2 = "";
sysORUpTime.1 = 355925;
sysORUpTime.2 = 355925;
ifNumber.0 = 3;
ifIndex.300 = 300;
ifIndex.302 = 302;
ifIndex.350 = 350;
ifDescr.300 = "Intra-machine interface";
ifDescr.302 = "Ethernet Interface";
ifDescr.350 = "RS232 Interface";
ifType.300 = softwareLoopback;
ifType.302 = ethernetCsmacd;
ifType.350 = rs232;
ifMtu.300 = 0;
ifMtu.302 = 1500;
ifMtu.350 = 0;
ifSpeed.300 = 0;
ifSpeed.302 = 10000000;
ifSpeed.350 = 19171;
...
6.6.7 snmp row display Command
Command snmp row display
Syntax Description snmp row display {IP_address | local} row_name index
Displays a row. Use this command to obtain information to use with other commands. Type the
command, the first few letters of the attribute, and press Tab to view a list of attributes that can be set.
Type an attribute from the list to view its row data. See Example 6-19.
Example 6-19 snmp row display Command
ash:hostname:ONS15216 EDFA2> snmp row display local cerent15216Edfa
cerent15216EdfaCfgGroup
cerent15216EdfaPumpCfgEntry
cerent15216EdfaAlarmControl
cerent15216EdfaStatusGroup
cerent15216EdfaPumpStatusEntry
cerent15216EdfaAlarmEntry
cerent15216EdfaOpGroup
ash:hostname:ONS15216 EDFA2> snmp row display local cerent15216EdfaCfgGroup
CLASS CERENT-MIB.cerent15216EdfaCfgGroup ::=
{
cerent15216EdfaCfgSaved = true;
cerent15216EdfaLpoutSetpoint = 1000;
cerent15216EdfaLpoutDeviation = 200;
cerent15216EdfaLpoutHysteresis = 100;
cerent15216EdfaLOSThreshold = -2400;
cerent15216EdfaLOSHysteresis = 100;
![](asset-78.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-20
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
SNMP Commands
cerent15216EdfaCtmpMin = 5;
cerent15216EdfaCtmpMinHysteresis = 1;
cerent15216EdfaCtmpMax = 65;
cerent15216EdfaCtmpMaxHysteresis = 1;
cerent15216EdfaCLEI = "CLEI";
cerent15216EdfaPowerBusMode = duplex;
cerent15216EdfaPowerBusDCVoltageMin = 480;
cerent15216EdfaPowerBusDCVoltageMax = 570;
6.6.8 snmp row get Command
Command snmp row get
Syntax Description snmp row get {IP_address | local} row_name index
Accesses a row. Use this command to obtain information to use with other commands. See
Example 6-20.
Example 6-20 snmp row get Command
ash:hostname:ONS15216 EDFA2> snmp row get local cerent15216EdfaCfgGroup
CfgSa Lpo Lpo Lpo LOST LOS C C Ct C CLEI PowerBu Pow Pow
false 0 200 100 -3000 100 -5 1 65 1 "CLEI" duplex 480 570
6.6.9 snmp row set Command
Command snmp row set
Syntax Description snmp row set {IP_address | local} row_name index
Sets data within a row. Use the snmp row display command first to view the contents of data within a
row. See Example 6-21.
Example 6-21 snmp row set Command
ash:hostname:ONS15216 EDFA2> snmp row set local cerent15216EdfaAlarmEntry 1
cerent15216EdfaAlarmEnableStatus disabled
![](asset-79.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-21
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
SNMP Commands
6.6.10 snmp subtree display Command
Command snmp subtree display
Syntax Description snmp subtree display {IP_address | local} subtree
Displays the attributes below a node in a SNMP tree. See Example 6-22.
Example 6-22 snmp subtree display Command
ash:hostname:ONS15216 EDFA2> snmp subtree display local cerent15216EdfaCommunityEntry
BEGIN-HOST "testhost" 0.0.0.0 "private"
CLASS CERENT-15216-EDFA-MIB.cerent15216EdfaCommunityEntry ::=
{
cerent15216EdfaCommIndex = 1;
cerent15216EdfaCommName = "public";
cerent15216EdfaCommViewIndex = 1;
cerent15216EdfaCommPrivileges = 247;
cerent15216EdfaCommSrcIPAddr = 0.0.0.0;
cerent15216EdfaCommNetMask = 255.255.255.255;
cerent15216EdfaCommStatus = active;
};
CLASS CERENT-15216-EDFA-MIB.cerent15216EdfaCommunityEntry ::=
{
cerent15216EdfaCommIndex = 2;
cerent15216EdfaCommName = "private";
cerent15216EdfaCommViewIndex = 1;
cerent15216EdfaCommPrivileges = 255;
cerent15216EdfaCommSrcIPAddr = 0.0.0.0;
cerent15216EdfaCommNetMask = 255.255.255.255;
cerent15216EdfaCommStatus = active;
...
6.6.11 snmp subtree get Command
Command snmp subtree get
Syntax Description snmp subtree get {IP_address | local} subtree
Accesses a subtree. See Example 6-23.
Example 6-23 snmp subtree get Command
ash:hostname:ONS15216 EDFA2> snmp subtree get local sysDescr
index
sysORIndex 1
attributes
sysORID snmpBasicCompliance
![](asset-7a.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-22
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
SNMP Commands
sysORDescr ""
sysORUpTime 391985
index
sysORIndex 2
attributes
sysORID rs232Compliance
sysORDescr ""
sysORUpTime 391990
3
index
ifIndex 300
attributes
ifDescr "Intra-machine interface"
ifType softwareLoopback
ifMtu 0
...
6.6.12 snmp subtree list Command
Command snmp subtree list
Syntax Description snmp subtree list {IP_address | local}
Lists the attributes below a node in a SNMP tree. See Example 6-24.
Example 6-24 snmp subtree list Command
ash:hostname:ONS15216 EDFA2> snmp subtree list local
Root
ccitt
zeroDotZero
iso
org
dod
internet
directory
mgmt
mib-2
system
sysDescr
sysObjectID
sysUpTime
sysContact
sysName
sysLocation
sysServices
sysORLastChange
sysORTable
...
ash:hostname:ONS15216 EDFA2> snmp subtree list local internet
sysDescr.0 = "hostname v3.0.0 ONS15216 EDFA2 v2.3.0, Serial No DIT0533000P, MAC
![](asset-7b.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-23
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
SNMP Commands
Addr 00059a383d10";
sysObjectID.0 = { cerent15216EdfaNode };
sysUpTime.0 = 35913255;
sysContact.0 = "";
sysName.0 = "sysname";
sysLocation.0 = "";
sysServices.0 = 0;
sysORLastChange.0 = 120;
sysORID.1 = { snmpBasicCompliance };
...
6.6.13 snmp table display Command
Command snmp table display
Syntax Description snmp table display {IP_address | local}
Displays table data for the ONS 15216 EDFA2. Example 6-25 displays the command entered without a
table. After typing the command without a table and pressing the Tab key, a list of tables appears. Type
the command with a table name to display the table and its data. Data displayed using this command are
per rows. Attributes are grouped together in rows. See Example 6-25.
Example 6-25 snmp table display Command
ash:hostname:ONS15216 EDFA2> snmp table display local
system
sysOREntry
interfaces
ifEntry
atEntry
ip
ipAddrEntry
ipRouteEntry
ipNetToMediaEntry
ipForward
ipForwardEntry
ipCidrRouteEntry
icmp
tcp
tcpConnEntry
udp
udpEntry
egp
...
ash:hostname:ONS15216 EDFA2> snmp table display local system
CLASS SNMPv2-MIB.system ::=
{
sysDescr = "hostname v3.0.0 ONS15216 EDFA2 v2.3.0, Serial No DIT0533000P, MA
C Addr 00059a383d10";
sysObjectID = { cerent15216EdfaNode };
sysUpTime = 35942955;
sysContact = "";
sysName = "sysname";
![](asset-7c.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-24
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
SNMP Commands
sysLocation = "";
sysServices = 0;
sysORLastChange = 120;
};
6.6.14 snmp table get Command
Command snmp table get
Syntax Description snmp table get {IP_address | local} table
Accesses table data. See Example 6-26.
Example 6-26 snmp table get Command
ash:hostname:ONS15216 EDFA2> snmp table get local system
attributes
sysDescr "hostname, Hardware Rev A1, ONS15216 EDFA2,
v2.3.0, Serial No DIT0533000P, MAC Addr 00059a383d10"
sysObjectID cerent15216EdfaNode
sysUpTime 1330310
sysContact "username"
sysName "sysname"
sysLocation "Lab"
sysServices 0
sysORLastChange 125
6.6.15 snmp table list Command
Command snmp table list
Syntax Description snmp table list {IP_address | local} table
Lists all the data within a table. Example 6-27 below displays the command for the UDP (User Datagram
Protocol) table. This command displays data by attribute.
Example 6-27 snmp table list Command
ash:hostname:ONS15216 EDFA2> snmp table list local udp
udpInDatagrams.0 = 11341;
udpNoPorts.0 = 135;
udpInErrors.0 = 1983;
udpOutDatagrams.0 = 9233;
udpLocalAddress.172.22.82.19.161 = 172.22.82.19;
udpLocalPort.172.22.82.19.161 = 161;
![](asset-7d.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-25
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
User Commands
6.6.16 snmp tree attribute list Command
Command snmp tree attribute list
Syntax Description snmp tree attribute list
Lists all the attributes implemented by the SNMP agent. See Example 6-28.
Example 6-28 snmp tree attribute list Command
ash:hostname:ONS15216 EDFA2> snmp tree attribute list
sysDescr
sysObjectID
sysUpTime
sysContact
sysName
sysLocation
sysServices
sysORLastChange
sysORIndex
sysORID
sysORDescr
sysORUpTime
ifNumber
ifIndex
ifDescr
ifType
ifMtu
ifSpeed
ifPhysAddress
ifAdminStatus
ifOperStatus
...
6.7 User Commands
The following commands are useful in setting up and maintaining user accounts for the
ONS 15216 EDFA2:
•user entry create Command, page 6-26
•user entry edit Command, page 6-26
•user entry delete Command, page 6-27
•user file display and user name display Commands, page 6-27
•user inactivity modify and user inactivity display Commands, page 6-28
•user passwd set Command, page 6-28
•user active list Command, page 6-29
•user active message send Command, page 6-29
![](asset-7e.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-26
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
User Commands
6.7.1 user entry create Command
Command user entry create
Syntax Description user entry create name user_mode
Creates a new user. The parameters required to create a new user are user name, access level, and
password.
The user_mode (access privilege level) is set by entering either read, read_write, or read_write_admin.
See Table 6-1 on page 6-1 for the command privileges of each user level. The password must be an ASCII
string of up to 10 characters, where at least 2 are non-alphabetic characters with at least one special character.
Special characters are +, #, and %, as defined in Telcordia GR-831-CORE. See Example 6-29.
Example 6-29 user entry create Command
ash:hostname:ONS15216 EDFA2> user entry create jdoe read_write
New Password =
**********
Confirm New Password =
**********
6.7.2 user entry edit Command
Command user entry edit
Syntax Description user entry edit username
Edit a user’s parameters (name, password, and access level). This command uses the optional parameters
shown at the beginning of Example 6-30. The -user_mode parameter changes the access level (read,
read_write, or read_write_admin). If the password is not to be changed, hit the Enter key when the new
password is requested and confirmed, as shown in Example 6-31.
Example 6-30 user entry edit Command (Change Password)
ash:hostname:ONS15216 EDFA2> user entry edit
Options
-new_user_name (string[0..10]) new name of user
-user_mode (string[0..16]) mode of user
Parameters
user_name (string[0..10]) name of user
ash:hostname:ONS15216 EDFA2> user entry edit jsmith
New Password =
******
Confirm New Password =
******
![](asset-7f.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-27
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
User Commands
Example 6-31 user entry edit Command (Change Access Level)
ash:hostname:ONS15216 EDFA2> user entry edit jsmith -user_mode read_write
New Password =
Confirm New Password =
6.7.3 user entry delete Command
Command user entry delete
Syntax Description user entry delete username
Delete users. See Example 6-32.
Example 6-32 user entry delete Command
ash:hostname:ONS15216 EDFA2> user entry delete jdoe
6.7.4 user file display and user name display Commands
Command user file display or user name display
Syntax Description user file display or user name display
Type the user file display command to display a list of all the users and user information. Type the user
name display command to display the name of the current user.
The access privilege level is set by entering either read, read_write, or read_write_admin. See Table 6-1
on page 6-1 for the command privileges of each user level. Inactivity is the length of time of user
inactivity before the user is automatically logged off. See Example 6-33.
Example 6-33 user file display Command
ash:hostname:ONS15216 EDFA2> user file display
User Mode Inactivity
CISCO15 read_write_admin 15
janedoe read_write 30
jdoe read_write 30
johndoe read 60
![](asset-80.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-28
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
User Commands
6.7.5 user inactivity modify and user inactivity display Commands
Command user inactivity modify or user inactivity display
Syntax Description user inactivity modify levelvalue or user inactivity display
Inactivity is the length of time of user inactivity before the user is automatically logged off. Type the
user inactivity modify command to change the inactivity values. Type the user inactivity display
command to display the current inactivity values.
The default inactivity values for the read, read_write, and read_write_admin user access levels are 60,
30, and 15 minutes, respectively. Possible values are 0 to 99 (in minutes). A value of 0 means no timeout.
See Example 6-34 and Example 6-35.
Example 6-34 user inactivity modify Command
ash:hostname:ONS15216 EDFA2> user inactivity modify read 75
Example 6-35 user inactivity display Command
ash:hostname:ONS15216 EDFA2> user inactivity display
Mode Inactivity
read_write_admin 15
read_write 30
read 75
6.7.6 user passwd set Command
To restrict access to the ONS 15216 EDFA2, use the user passwd set command to change the default
user password. Example 6-36 displays the user passwd set syntax for a current user. Example 6-37
displays the user passwd set username command for changing another user’s password.
The password must be an ASCII string of up to 10 characters, where at least 2 are non-alphabetic
characters with at least one special character. Special characters are +, #, and %, as defined in Telcordia
GR-831-CORE. With the exception of the read_write_admin level user, the user can only modify their
own password.
Example 6-36 Changing Current User’s Password
ash:hostname:ONS15216 EDFA2> user passwd set
Password =
*****
New Password =
*******
Confirm New Password =
*******
Example 6-37 Changing Another User’s Password
ash:hostname:ONS15216 EDFA2> user passwd set jdoe
Password =
****
![](asset-81.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-29
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
User Commands
New Password =
******
Confirm New Password =
******
Note The default user name for the administrator level is CISCO15 with no default password. To start a
session for this user name, press Enter.
6.7.7 user active list Command
Command user active list
Syntax Description user active list
Displays a list of the active users. See Example 6-38.
Example 6-38 user active list Command
ash:hostname:ONS15216 EDFA2> user active list
Users
CISCO15
6.7.8 user active message send Command
Command user active message send
Syntax Description user active message send ["message"]
Sends a message to all current users on the system. See Example 6-39.
Example 6-39 user active message send Command
ash:hostname:ONS15216 EDFA2> user active message send
Parameters
message (string[0..32]) message to send
ash:hostname:ONS15216 EDFA2> user active message send "hello world"
*** Broadcast Message:
*** hello world
![](asset-82.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-30
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
Manufacturing Information Access Commands
6.8 Manufacturing Information Access Commands
6.8.1 snmp table display local entPhysicalEntry Command
Command snmp table display local entPhysicalEntry
Syntax Description snmp table display local entPhysicalEntry
Displays the entity information. See Example 6-40.
Example 6-40 snmp table display local entPhysicalEntry Command
ash:hostname:ONS15216 EDFA2> snmp table display local entPhysicalEntry
CLASS ENTITY-MIB.entPhysicalEntry ::=
{
entPhysicalIndex = 1;
entPhysicalDescr = "ONS15216 EDFA2";
entPhysicalVendorType = { cerent15216EdfaChassis };
entPhysicalContainedIn = 0;
entPhysicalClass = chassis;
entPhysicalParentRelPos = -1;
entPhysicalName = "hostname";
entPhysicalHardwareRev = "v3.0.0";
entPhysicalFirmwareRev = "v2.3.14";
entPhysicalSoftwareRev = "v2.3.0";
entPhysicalSerialNum = "DIT0533000P";
entPhysicalMfgName = "Cisco Systems";
entPhysicalModelName = "ONS15216";
entPhysicalAlias = "";
entPhysicalAssetID = "";
entPhysicalIsFRU = true;
};
6.8.2 snmp table display local cerent15216EdfaCommTrapEntry Command
Command snmp table display local cerent15216EdfaCommTrapEntry
Syntax Description snmp table display local cerent15216EdfaCommTrapEntry
Displays information about autonomous messages (SNMP traps) going to destination manager’s location
(IP address).
Example 6-41 snmp table display local cerent15216EdfaCommTrapEntry Command
ash:hostname:ONS15216 EDFA2> snmp table display local cerent15216EdfaCommTrapEntry
CLASS CERENT-15216-EDFA-MIB.cerent15216EdfaCommTrapEntry ::=
{
![](asset-83.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-31
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
Restore Commands
cerent15216EdfaCommTrapIndex = 1;
cerent15216EdfaCommTrapCommunity = "private";
cerent15216EdfaCommTrapDestIPAddress = 172.22.87.50;
cerent15216EdfaCommTrapDestUDPPort = 162;
cerent15216EdfaCommTrapViewIndex = 1;
cerent15216EdfaCommTrapVersion = v2;
cerent15216EdfaCommTrapStatus = active;
};
CLASS CERENT-15216-EDFA-MIB.cerent15216EdfaCommTrapEntry ::=
{
cerent15216EdfaCommTrapIndex = 2;
cerent15216EdfaCommTrapCommunity = "private";
cerent15216EdfaCommTrapDestIPAddress = 172.22.87.254;
cerent15216EdfaCommTrapDestUDPPort = 162;
cerent15216EdfaCommTrapViewIndex = 1;
cerent15216EdfaCommTrapVersion = v2;
cerent15216EdfaCommTrapStatus = active;
};
6.9 Restore Commands
6.9.1 backup system Command
Command backup system
Syntax Description backup system filename
Creates a backup file on the FFS with the configuration information of the ONS 15216 EDFA2. This file
contains manufacturing information about the unit that is being backed up (such as part number and
serial number), setup information for the unit (such as IP address and host name), all configuration
information (such as alarm thresholds and pump mode), and the user database.
6.9.2 restore system Command
Command restore system
Syntax Description restore system filename
Restores the configuration information from a backup file on the FFS to the ONS 15216 EDFA2. During
this process, all configuration information (such as alarm thresholds and pump mode) and the user
database from the file are replaced in the ONS 15216 EDFA2 memory and FFS. Before the restore
begins, a cyclic redundancy code (CRC) check is performed to ensure data integrity.
![](asset-84.png)
FINAL DRAFT - CISCO CONFIDENTIAL
6-32
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 6 ASH Commands
Manufacturer Mode
6.10 Manufacturer Mode
A manufacturer mode enable command is available. It raises the root access level to the fifth and
highest manufacturer level to allow undocumented commands that are used only for manufacturing
purposes.
Warning
Customers are strongly cautioned not to use this mode.
6.10.1 manufacturer restore defaults passwords Command
Command manufacturer restore defaults passwords
Syntax Description manufacturer restore defaults passwords
Restores the manufacturing factory default passwords to the ONS 15216 EDFA2.
Note If the password for the CISCO15 user is lost and there are not other users with read_write_admin access
level in the system, the password for CISCO15 can be reset by following the procedure in “Recover
Default Password” section on page 4-14.
6.10.2 manufacturer restore defaults all Command
Command manufacturer restore defaults all
Syntax Description manufacturer restore defaults all
Restores the manufacturing factory settings to the ONS 15216 EDFA2. The files on the flash file system
(FFS), the date and time, and the values of manufacturing calibration are not affected. This command
must be followed by the processor reset command to take effect.
Warning
This command resets the IP address, resets the hostname, deletes the user directory, reverts CISCO15
to the default password, and resets other parameters to restore the unit to its state as shipped from
manufacturing.
![](asset-85.png)
CHAPTER
FINAL DRAFT - CISCO CONFIDENTIAL
7-1
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
7
FTP Command Line
This chapter discusses the Cisco ONS 15216 EDFA2 FTP command line and explains how to get and
send image and configuration files between an FTP server and the ONS 15216 EDFA2.
7.1 FTP Command Line
To start an FTP session, use the following command:
ash:hostname:ONS15216 EDFA2> network host ftp FTP_server_IP_address
To log off, type quit at the FTP command line. This command disconnects the user from the remote
server and exits the FTP shell.
7.1.1 Example of FTP from a Remote Server
The following procedure shows how to FTP an image file from a remote server to the FFS of the
ONS 15216 EDFA2.
Step 1 At the hostname prompt, enter the following command to log in to the FTP site.
ash:hostname:ONS15216 EDFA2> network host ftp FTP_server_IP_address
The ONS 15216 EDFA2 should respond as follows:
connecting to FTP_server_IP_address
connected to FTP_server_IP_address
Once the login process is completed, the ftp prompt should be available.
Step 2 At the ftp prompt, enter the command as shown below to complete the FTP logon.
ftp> login FTP_username
Step 3 When prompted, enter the FTP user password as shown.
Password: *****
The ONS 15216 EDFA2 should respond as follows:
230 User FTP_username logged in.
Step 4 At the ftp prompt, change directories to where the remote file is located using the following command:
ftp> cd /Directory_of_FTP_site
![](asset-86.png)
FINAL DRAFT - CISCO CONFIDENTIAL
7-2
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 7 FTP Command Line
FTP Command Line
Step 5 At the ftp prompt, enter the following command:
ftp> type i
The ONS 15216 EDFA2 should respond as follows:
type set to BINARY
Step 6 At the ftp prompt, get the file from the remote server using the following command:
ftp> get 15216EdfaSw_2.x.x
When the command is entered, the file transfer begins. When the file transfer is complete, the following
information should be displayed:
Bytes received: 1963195
Transfer complete.
Step 7 At the ftp prompt, enter the following command:
ftp> quit
The FTP session is terminated and the following response should be displayed:
Ftp session terminated.
The ONS 15216 EDFA2 then returns to the hostname prompt.
Step 8 At the hostname prompt, check that the file was transferred and is complete using the following
command:
ash:hostname:ONS15216 EDFA2> ffs file list
7.1.2 Example of FTP to a Remote Server
The following procedure shows how to FTP a database backup file from the FFS of the
ONS 15216 EDFA2 to a remote server.
Step 1 At the hostname prompt, enter the following command to log in to the FTP site.
ash:hostname:ONS15216 EDFA2> network host ftp FTP_server_IP_address
The ONS 15216 EDFA2 should respond as follows:
connecting to FTP_server_IP_address
connected to FTP_server_IP_address
Once the login process is completed, the ftp prompt should be available.
Step 2 At the ftp prompt, enter the command as shown below to complete the FTP logon.
ftp> login FTP_username
Step 3 When prompted, enter the FTP user password as shown.
Password: *****
The ONS 15216 EDFA2 should respond as follows:
230 User FTP_username logged in.
![](asset-87.png)
FINAL DRAFT - CISCO CONFIDENTIAL
7-3
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 7 FTP Command Line
FTP Commands
Step 4 At the ftp prompt, change directories to where the file is to be placed using the following command:
ftp> cd /Directory_of_FTP_site
Step 5 At the ftp prompt, enter the following command:
ftp> type i
The ONS 15216 EDFA2 should respond as follows:
type set to BINARY
Step 6 At the ftp prompt, put the file on the remote server using the following command:
ftp> put bkupfilename.txt
When the command is entered, the file transfer begins. When the file transfer is complete, the following
information should be displayed:
Bytes sent: 18547
Transfer complete.
Step 7 At the ftp prompt, enter the following command:
ftp> quit
The FTP session is terminated and the following response should be displayed:
Ftp session terminated.
The ONS 15216 EDFA2 then returns to the hostname prompt.
Step 8 On the remote server, check that the file is present and complete.
7.2 FTP Commands
Typing the help command in FTP command line mode displays a list of all FTP commands. See
Example 7-1.
Example 7-1 FTP Help Command
ftp> help
Available commands (optional parameters are in []):
cd dir Change remote directory to dir.
cdup Change remote directory to parent.
close Close ftp connection and quit ftp shell.
get remote_file Get remote_file from remote server and save as local_file.
lls List local files.
login [username] Login to remote server as username (prompted for password).
ls [expr] Detailed listing of remote files matching expr.
nls [expr] Name only listing of remote files matching expr.
open ip_address Open a connection to server at ip_address and port.
put local_file Send local_file to remote server and save as remote_file.
pwd Show current remote directory.
quit Lose ftp connection and quit ftp shell.
type t Set type to t, either I image/binary or A ascii.
![](asset-88.png)
FINAL DRAFT - CISCO CONFIDENTIAL
7-4
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 7 FTP Command Line
FTP Commands
![](asset-89.png)
CHAPTER
FINAL DRAFT - CISCO CONFIDENTIAL
8-1
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
8
Provisioning Using TL1
This chapter discusses the provisioning procedures for the Cisco ONS 15216 EDFA2 using TL1
commands in the TL1 shell. See Chapter 4, “Provisioning Using ASH and SNMP” for provisioning
information using command-line SNMP and proprietary commands in the ASH shell.
The provisioning procedure for the ONS 15216 EDFA2 in the TL1 shell is as follows:
1. Log In via RS-232 (EIA/TIA-232) Port Using HyperTerminal, page 8-1
2. Set IP Address, page 8-3
3. Log In via LAN Port Using Telnet (Optional), page 8-3
4. Set Date and Time, page 8-4
5. Set Power Bus Mode (Simplex or Duplex), page 8-4
6. Verify Amplifier Operational Status, page 8-4
7. Set Gain, page 8-5
8. Set Alarm Thresholds, page 8-5
9. Set Password, page 8-10
10. Add Users, page 8-11
11. Log Off, page 8-11
12. Back Up System Configuration, page 8-11
13. Restore System Configuration, page 8-12
The following sections describe these steps in detail.
8.1 Log In via RS-232 (EIA/TIA-232) Port Using HyperTerminal
Logging in through the RS-232 (EIA/TIA-232) port is required to set the ONS 15216 EDFA2 IP address
before there can be access via the LAN port (see “Log In via LAN Port Using Telnet (Optional)” section
on page 8-3).
Step 1 Connect to the RS-232 (EIA/TIA-232) port on the ONS 15216 EDFA2. See “LAN Connection
Procedure” section on page 3-15 for line connection and HyperTerminal setup instructions.
Step 2 Open HyperTerminal. (HyperTerminal can be found in the Microsoft Windows Accessories menu.)
Step 3 If you see the login window shown in Example 8-1 on page 8-2, skip to Step 4.
![](asset-8a.png)
FINAL DRAFT - CISCO CONFIDENTIAL
8-2
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 8 Provisioning Using TL1
Log In via RS-232 (EIA/TIA-232) Port Using HyperTerminal
If the ONS 15216 EDFA2 has been set to ASH shell, this step may is be required to proceed in TL1 shell.
When in ASH shell, the screens opens to a multi-line login screen beginning with -- LOGIN--- and with
the cursor positioned in the Username line. To change to the TL1 shell, log in using the procedure in
“Log In via RS-232 (EIA/TIA-232) Port Using HyperTerminal” section on page 4-1, and then enter the
following command at the ASH hostname prompt:
ash:hostname:ONS15216 EDFA2> shell type modify tl1
Then enter the following command at the ASH hostname prompt:
ash:hostname:ONS15216 EDFA2> processor reset
The ONS 15216 EDFA2 should log you off and then bring up the TL1 shell login prompt.
Step 4 Check that the ONS 15216 EDFA2 login prompt appears as shown in Example 8-1.
Example 8-1 TL1 Shell Login Prompt
Welcome to ONS15216 EDFA2 Console (v2.3.0)
sidtidname:ONS15216 EDFA2>
Step 5 Log in using the ACT-USER command (see “ACT-USER” section on page 9-9) with the following
syntax:
ACT-USER:[<tid>]:<uid>:<ctag>::<pid>;
The tid is the same as the sidtidname in the command line prompt (use is optional), uid is the user name,
ctag is an arbitrary number to associate with the command, and pid is the user password. The default uid
is CISCO15 with no pid (nothing between the last colon and semicolon).
Note For security reasons, it is recommended to change the password from its default value. See Set Password,
page 8-10.
Step 6 After the semicolon is entered, the ONS 15216 EDFA2 displays the login response, as shown in
Example 8-2.
Example 8-2 TL1 Shell Login Response
sidtidname:ONS15216 EDFA2> ACT-USER::CISCO15:100;
sidtidname 2002-07-11 10:09:19
M 100 COMPLD
/* ACT-USER */
;
sidtidname:ONS15216 EDFA2>
An EIA/TIA-232 link to the ONS 15216 EDFA2 is established. The user can now provision the
ONS 15216 EDFA2.
![](asset-8b.png)
FINAL DRAFT - CISCO CONFIDENTIAL
8-3
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 8 Provisioning Using TL1
Set IP Address
8.2 Set IP Address
Before connecting the ONS 15216 EDFA2 to a LAN, it is mandatory to set the ONS 15216 EDFA2 IP
address through a local serial communication interface using the RS-232 (EIA/TIA-232) port on the
front of the module.
Step 1 If you do not know the ONS 15216 EDFA2’s IP address, subnet mask, gateway address, or sid/tid name,
contact your network administrator.
Step 2 At the command prompt, enter the ED-NE-GEN command (see “ED-NE-GEN” section on page 9-19)
according to the following syntax:
ED-NE-GEN:[<tid>]::<ctag>:::[NAME=<name>],[IPADDR=<ipaddr>],[IPMASK=<ipmask>],[DEFRTR=<def
rtr>];
The name is the sid/tid name in the command line prompt. See Example 8-3.
Example 8-3 Setting IP Address, Subnet Mask, Gateway Address, and sid/tid Name Using TL1
sidtidname:ONS15216 EDFA2> ED-NE-GEN:::101:::NAME=Amp01,IPADDR=192.167.3.4,IPMASK=255.255.
255.0,DEFRTR=192.167.3.20;
Step 3 The system must be rebooted to make the IP address active. Use the INIT-SYS command (see
“INIT-SYS” section on page 9-25), as follows:
sidtidname:ONS15216 EDFA2> INIT-SYS::ALL:102::1;
8.3 Log In via LAN Port Using Telnet (Optional)
Provisioning of the ONS 15216 EDFA2 can be accomplished entirely through the RS-232
(EIA/TIA-232) port, so this step is optional. After an IP address is assigned, it may be easier to provision
the ONS 15216 EDFA2 using Telnet. A Telnet client is needed for TL1 commands over IP. After
connecting the ONS 15216 EDFA2 to the network through its RJ-45 LAN port (see “LAN Interface
(Ethernet)” section on page 3-14), the user can configure the module to accept TL1 commands via Telnet
using the following procedure:
Step 1 Connect to the LAN port on the ONS 15216 EDFA2. See “LAN Connection Procedure” section on
page 3-15.
Step 2 Click the Microsoft Windows Start menu and select Run.
Step 3 In the text field, type the following:
telnet <ONS 15216 EDFA2 IP address> 3083
Specifying port 3083 ensures login through the TL1 shell. If no port is specified, the ONS 15216 EDFA2
responds in the shell that the ONS 15216 EDFA2 is set to. (TL1 is the default shell.)
Step 4 Log in again using Step 4 through Step 6 in “Log In via RS-232 (EIA/TIA-232) Port Using
HyperTerminal” section on page 8-1.
You are now connected to the ONS 15216 EDFA2 via Telnet.
![](asset-8c.png)
FINAL DRAFT - CISCO CONFIDENTIAL
8-4
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 8 Provisioning Using TL1
Set Date and Time
8.4 Set Date and Time
Use the ED-DAT command (see “ED-DAT” section on page 9-16) to set the date and time. A time zone
cannot be set using TL1. The time setting is restricted to universal coordinated time (UTC) according to
the following syntax:
ED-DAT:[<tid>]::<ctag>::<utcdate>,<utctime>;
The utcdate and utctime entries must follow this format: yyyy-mm-dd,hh-mm-ss. See Example 8-4.
Example 8-4 Setting the Date and Time Using TL1
sidtidname:ONS15216 EDFA2> ED-DAT:::120::2002-04-18,02-24-55;
8.5 Set Power Bus Mode (Simplex or Duplex)
The ONS 15216 EDFA2 allows users to set a simplex (one power source–Bus A) or duplex (redundant
power source–Bus A and Bus B) Power Bus mode. The default mode is duplex. Use the ED-ENV
command (see “ED-ENV” section on page 9-18) to set the desired power bus mode according to the
following syntax:
ED-ENV:[<tid>]:<aid>:<ctag>:::PWRBUSMODE=<pwrbusmode>;
The pwrbusmode value can be SIMPLEX or DUPLEX. See Example 8-5.
Example 8-5 Setting the Power Bus Mode Using TL1
sidtidname:ONS15216 EDFA2> ED-ENV::ALL:121:::PWRBUSMODE=SIMPLEX;
8.6 Verify Amplifier Operational Status
To ensure that the amplifier is working correctly on the optical level, you must verify the amplifier
operational status. Use the RTRV-DWDM command (see “RTRV-DWDM” section on page 9-48) to
verify amplifier operational status according to the following syntax:
RTRV-DWDM:[<tid>]:<aid>:<ctag>;
<sid> <date> <time>
M <ctag> COMPLD
"<aid>:INPWRMICROW=<inputpoweruw>,INPWRDBM=<inputpowerdbm>,OUTPWRMILLIW=<outputpowermw
>,OUTPWRDBM=<outputpowerdbm>,PUMP1CTRLMODE=<pump1ctrlmode>,PUMP1CTRLVALUE=<pump1ctrlvalue>
,PUMP2CTRLMODE=<pump2ctrlmode>,PUMP2CTRLVALUE=<pump1ctrlvalue>,OVERALLGAIN=<gain>,PREATT=<
preatt>"
Example 8-6 displays sample output of this command.
Example 8-6 Verifying the Amplifier Operations Status Using TL1
sidtidname:ONS15216 EDFA2> RTRV-DWDM::ALL:122;
sidtidname 2002-07-11 10:20:05
M 122 COMPLD
"1:INPWRMICROW=264,INPWRDBM=-1578,OUTPWRMILLIW=172,OUTPWRDBM=237,PUMP1CTRLMODE=GAINTEMP
,PUMP1CTRLVALUE=169,PUMP2CTRLMODE=GAINTEMP,PUMP2CTRLVALUE=169,OVERALLGAIN=169,PREATT=60"
;
![](asset-8d.png)
FINAL DRAFT - CISCO CONFIDENTIAL
8-5
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 8 Provisioning Using TL1
Set Gain
The input power should be consistent with the input power measured during the optical connection
procedure. See the “Optical Connection Procedure” section on page 3-3 for more information. The
output power value should be 22 dB greater than the input, assuming that the default gain setting is
22 dB.
Note An input power higher than –5 dBm will return a Gain Out of Range alarm that can be cleared by
correctly setting the gain value. For more information, refer to Table 2-2 on page 2-2.
8.7 Set Gain
To ensure that the ONS 15216 EDFA2 output signal is received by the transceiver in the network
element, it is important that the gain is set correctly.
The desired output power per channel is dependent on the number of channels traversed in the amplifier.
The user sets the gain of the amplifier depending on the input power level, the network application, and
the required receiver specifications necessary for error-free operation. Gain range is provided in
Table 3-1 on page 3-4.
To set the amplifier gain, use the ED-DWDM command (see “ED-DWDM” section on page 9-17),
according to the following syntax:
ED-DWDM:[<tid>]:<aid>:<ctag>:::[OVERALLGAIN=<gain>];
The gain is the desired gain multiplied by ten. For example, if the desired gain is 20 dB, the gain value
would be set to 200.
Example 8-7 Setting the Gain Using TL1
sidtidname:ONS15216 EDFA2> ED-DWDM::ALL:123:::OVERALLGAIN=200;
Note Prior to changing or implementing gain changes, consult with the Cisco TAC to ensure proper network
operation.
8.8 Set Alarm Thresholds
Alarm thresholds are set so that the network operator can be notified when valid alarms occur via the
RJ-45 ALARM OUT and RJ-45 LAN ports on the front panel of the ONS 15216 EDFA2. (See Figure 8-1
on page 8-6.)
![](asset-8e.png)
FINAL DRAFT - CISCO CONFIDENTIAL
8-6
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 8 Provisioning Using TL1
Set Alarm Thresholds
Figure 8-1 ONS 15216 EDFA2 Front Panel
Alarms are reported for the following conditions:
•Degradation of electrical power source
•Laser pump overheating or excessive pump current
•Loss or degradation of optical input (signal)
•Loss of output power or gain out of range
•Case temperature out of range
Alarms can be connected to a NOC NMS via a network element miscellaneous discrete input and/or
office alarm panel/system.
For a full description of alarm threshold command attributes, refer to Chapter 9, “TL1 Commands.”
To display the alarm thresholds, use the RTRV-TH-DWDM and RTRV-TH-EQPT commands (see
“RTRV-TH-DWDM” section on page 9-55 and “RTRV-TH-EQPT” section on page 9-57) according to
the following syntax:
RTRV-TH-DWDM:[<tid>]:<aid>:<ctag>::[<thresholdtype>][,][,];
<sid> <date> <time>
M <ctag> COMPLD
"<aid>,DWDM:<thresholdtype>,,,<thresholdvalue>"
RTRV-TH-EQPT:[<tid>]:<aid>:<ctag>::[<thresholdtype>][,][,];
<sid> <date> <time>
M <ctag> COMPLD
"<aid>:<thresholdtype>,,,<thresholdvalue>"
Example 8-8 shows sample command outputs.
Example 8-8 Displaying the Alarm Thresholds Using TL1
sidtidname:ONS15216 EDFA2> RTRV-TH-DWDM::ALL:124;
sidtidname 2002-07-11 11:15:19
M 124 COMPLD
"1,DWDM:LOSTH,,,-3000"
"1,DWDM:LOSHYST,,,5"
"1,DWDM:LPOUTDEV,,,1000"
"1,DWDM:LPOUTHYST,,,5"
"1,DWDM:LPOUTSETPT,,,0"
;
sidtidname:ONS15216 EDFA2> RTRV-TH-EQPT::ALL:125;
-48V B
RET B
-48V A
RET A RS-232
(EIA/TIA-232) LAN port
LAN LEDs
Fiber
output
monitor
port
Power
level
warning
Alarm
out
Fiber
output
port
Status
LEDs
Fiber
input
port
71176
-48V A
R A
POWER
FAIL
LOS
-48V B
R B
CISCO ONS 15216
RS-232
ALARM OUT LAN
![](asset-8f.png)
FINAL DRAFT - CISCO CONFIDENTIAL
8-7
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 8 Provisioning Using TL1
Set Alarm Thresholds
sidtidname 2002-07-11 11:16:10
M 125 COMPLD
"EQPT:MAXCTMP,,,65"
"EQPT:MAXCTMPHYST,,,5"
"EQPT:MINCTMP,,,10"
"EQPT:MINCTMPHYST,,,2"
;
To set the alarm thresholds, use the SET-TH-DWDM and SET-TH-EQPT commands (see
“SET-TH-DWDM” section on page 9-61 and “SET-TH-EQPT” section on page 9-63). Alarm threshold
attributes are described in Table 8-1.
Table 8-1 Alarm Threshold Attribute Definitions
Attribute Variable
Definition Syntax Maximum
Access Description
LOSTH Loss of signal
(input power)
threshold
Integer
(–3100 to
–1500)
Read-write Alarm notifies operations personnel if
the optical input signal of the
ONS 15216 EDFA2 drops below a
level that impacts proper operation of
optical network. Set this attribute at a
value that is appropriate for the
intended application so that the alarm
condition is meaningful. Consult with
the Cisco TAC to determine the
threshold value for your application.
As a guideline, Cisco recommends
setting the threshold value at 3 dBm
below the current input power level of
the amplifier. Valid entries are between
–3100 and –1500 dBm times 100. For
example, if the total input power of the
amplifier is –24 dBm and the loss of
input power threshold required is –27
dBm, the loss of input power alarm
threshold is –2700.
![](asset-90.png)
FINAL DRAFT - CISCO CONFIDENTIAL
8-8
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 8 Provisioning Using TL1
Set Alarm Thresholds
LOSHYST Loss of signal
(input power)
hysteresis
Integer
(0 to 1000)
Read-write Used to set the amount the input signal
must increase above the LOS
Threshold level before the alarm is
cleared. This attribute, in conjunction
with the loss of input signal alarm
threshold, enables efficient clearing of
alarms. Set this attribute at a value that
is appropriate for the application so
that the alarm condition will clear
when input is stable. Consult with the
Cisco TAC to determine the correct
value for your application. As a
guideline, Cisco recommends setting
the value 1 dB above the LOS
Threshold value. With this setting, the
module will clear the alarm if it detects
a signal level of 1 dB above the current
LOS Threshold value. Valid entries are
between 0 and 1000 and are in dB
times 100. For example, if the
hysteresis required is 1 dB, the power
alarm hysteresis is 100.
LPOUTDEV Loss of output
power
deviation
Integer
(0 to 1000)
Read-write Can be disregarded when operating
amplifier in factory default Constant
Gain Temperature Compensated mode.
Deviation object is only valid when
amplifier is used in Constant Output
Power and Idle modes.
LPOUTHYST Loss of output
power
hysteresis
Integer
(0 to 1000)
Read-write Can be disregarded when operating
amplifier in factory default Constant
Gain Temperature Compensated mode.
Hysteresis object is only valid when
amplifier is used in Constant Output
Power and Idle modes.
LPOUTSETPT Loss of output
power
setpoint
Integer
(0 to 1000)
Read-only Can be disregarded when operating
amplifier in factory default Constant
Gain Temperature Compensated mode.
Setpoint object is only valid when
amplifier is used in Constant Output
Power and Idle modes.
Table 8-1 Alarm Threshold Attribute Definitions (continued)
Attribute Variable
Definition Syntax Maximum
Access Description
![](asset-91.png)
FINAL DRAFT - CISCO CONFIDENTIAL
8-9
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 8 Provisioning Using TL1
Set Alarm Thresholds
MAXCTMP Maximum
case
temperature
Integer
(20 to 70)
Read-write Alarm notifies operations personnel if
the case temperature of the
ONS 15216 EDFA2 is at a level that
may impact proper operation of the
optical network. Set the maximum
case temperature at a value that is
appropriate for intended application
and within product specifications.
Consult with the Cisco TAC to
determine the correct value for your
application. As a guideline, Cisco
recommends that maximum case
temperature value be set at 50°C. Valid
entries are between 20 and 70°C.
MAXCTMPHYST Maximum
case
temperature
hysteresis
Integer
(0 to 10)
Read-write Used to set the amount that the case
temperature of module must drop
below the maximum case temperature
alarm level before the alarm is cleared.
Set the hysteresis at a value that is
appropriate for the application so that
the alarm condition clears when the
input is stable. Consult with the Cisco
TAC to determine the correct value for
your application. As a guideline, Cisco
recommends setting the value at 1°C.
Valid entries are between 0 and 10°C.
Setting this value to 0 disables this
option.
MINCTMP Minimum
case
temperature
Integer
(–10 to 10)
Read-write Alarm notifies operations personnel if
the case temperature of the
ONS 15216 EDFA2 drops below a
level that impacts proper operation of
the optical network. The minimum
case temperature should be set at a
value that is appropriate for the
intended application and within
product specifications. Consult with
the Cisco TAC to determine the correct
value for your application. As a
guideline, Cisco recommends that
minimum case temperature be set at
1°C. Valid entries are between –10 and
10°C.
Table 8-1 Alarm Threshold Attribute Definitions (continued)
Attribute Variable
Definition Syntax Maximum
Access Description
![](asset-92.png)
FINAL DRAFT - CISCO CONFIDENTIAL
8-10
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 8 Provisioning Using TL1
Set Password
8.9 Set Password
To restrict access to the ONS 15216 EDFA2, use the ED-PID command (see “ED-PID” section on
page 9-20) to change the default user password according to the following syntax:
ED-PID:[<tid>]:<uid>:<ctag>::<oldpid>,<newpid>;
Note that the password must be a string of up to 10 characters, where at least 2 are non-alphabetic
characters and at least 1 is a special character. See Example 8-9.
Example 8-9 Changing Current User’s Password Using TL1
sidtidname:ONS15216 EDFA2> ED-PID::CISCO15:130::OLDPW,NEWPW;
Note The default user name for the administrator level is CISCO15 with no default password.
MINCTMPHYST Minimum
case
temperature
hysteresis
Integer
(0 to 10)
Read-write Used to set the amount that the case
temperature of the module must rise
above the minimum case temperature
alarm level before the alarm is cleared.
Set the hysteresis at a value that is
appropriate for the application so that
the alarm condition clears when the
input is stable. Consult with the Cisco
TAC to determine the correct value for
your application. As a guideline, Cisco
recommends that the hysteresis value
be set at 1°C. Valid entries are between
0 and 10°C. Setting this value to 0
disables this option.
Table 8-1 Alarm Threshold Attribute Definitions (continued)
Attribute Variable
Definition Syntax Maximum
Access Description
![](asset-93.png)
FINAL DRAFT - CISCO CONFIDENTIAL
8-11
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 8 Provisioning Using TL1
Add Users
8.10 Add Users
Use the ENT-USER-SECU command (see “ED-USER-SECU” section on page 9-21) to add new users
to the ONS 15216 EDFA2 according to the following syntax:
ENT-USER-SECU:[<tid>]:<uid>:<ctag>::<pid>,,<al>[:];
The uid is the user name, pid is the password, and al is the access level (R, RW, RWA). Passwords must
be an ASCII string of up to 10 characters, where at least 2 are non-alphabetic characters with at least one
special character. Special characters are +, #, and % (defined in Telcordia GR-831-CORE). The access levels
are presented in “Summary of Security Permissions for TL1 Commands” section on page 9-6. See
Example 8-10 on page 8-11.
Example 8-10 Adding a New User Using TL1
sidtidname:ONS15216 EDFA2> ENT-USER-SECU::jsmith:140::jspasswd,,RW;
8.11 Log Off
At the end of a session, the user must log off of the ONS 15216 EDFA2. To log off, use the
CANC-USER command (see “CANC-USER” section on page 9-12) according to the following syntax:
CANC-USER:[<tid>]:<uid>:<ctag>;
See Example 8-11.
Example 8-11 Logging Off Using TL1
sidtidname:ONS15216 EDFA2> CANC-USER::CISCO15:150;
8.12 Back Up System Configuration
The configuration information for the ONS 15216 EDFA2 can be saved in a file for later use or to
configure other ONS 15216 EDFA2 units. This file contains manufacturing information about the unit
that is being backed up (such as part number and serial number), setup information for the unit (such as
IP address and host name), all configuration information (such as alarm thresholds and pump mode), and
the user database.
The backup file is saved with cyclic redundancy code (CRC) to ensure data integrity, and the user names,
passwords, and other system settings are encrypted for security. The file header, which identifies the
node name, IP address, and software version, is text readable. Only the configuration information and
user database are copied back to the ONS 15216 EDFA2 during a restore.
Step 1 Back up the system configuration to a file on the FFS.
sidtidname:ONS15216 EDFA2> CPY-MEM:Amp01::123::CFG,DBCFG,filename;
Amp01 2003-07-25 18:06:52
A 1 REPT EVT EQPT
"EQPT:DBBACKUP,TC,7-25,18-6-52,,,,:\"DATABASE BACKUP COMPLETED\""
;
Amp01 2003-07-25 18:06:52
M all COMPLD
![](asset-94.png)
FINAL DRAFT - CISCO CONFIDENTIAL
8-12
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 8 Provisioning Using TL1
Restore System Configuration
/* CPY-MEM */
;
Step 2 If desired, use the COPY-RFILE command to copy the file to a remote server. See “COPY-RFILE”
section on page 9-12.
8.13 Restore System Configuration
The configuration information for the ONS 15216 EDFA2 can be restored form a file. During this
process, all configuration information (such as alarm thresholds and pump mode) and the user database
from the file are replaced in the ONS 15216 EDFA2 memory and FFS.
Before the restore begins, a cyclic redundancy code (CRC) check is performed to ensure data integrity.
Step 1 If desired, use the COPY-RFILE command to copy a backup file from a remote server. See
“COPY-RFILE” section on page 9-12.
Step 2 Restore the system configuration from the file on the FFS.
sidtidname:ONS15216 EDFA2> CPY-MEM:::123::filename,FFS,CFG;
Amp01 2003-07-25 18:14:32
A 2 REPT EVT EQPT
"EQPT:DBRESTORE,TC,7-25,18-14-32,,,,:\"DATABASE RESTORE COMPLETED\""
;
Amp01 2003-07-25 18:14:32
M all COMPLD
/* CPY-MEM */
;
Step 3 Reboot the ONS 15216 EDFA2.
sidtidname:ONS15216 EDFA2> INIT-SYS::ALL:124::1;
After the processor reboots, user names and passwords from the new, restored user database must be used
for access.
![](asset-95.png)
CHAPTER
FINAL DRAFT - CISCO CONFIDENTIAL
9-1
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
9
TL1 Commands
9.1 Introduction
This chapter provides the details of TL1 commands supported by the Cisco ONS 15216 EDFA2. This
chapter also maps various TL1 command parameters to their SNMP counterpart attributes in the
ONS 15216 EDFA2 MIB (CERENT-15216-EDFA-MIB.mib).
9.2 Connection to the ONS 15216 EDFA2
The ONS 15216 EDFA2 system supports up to ten simultaneous Telnet connections via the Ethernet
LAN port. TL1 sessions are available on TCP/IP port 3082 for raw TL1 and/or port 3083 for TL1 over
Telnet. When connected, the ACT-USER command activates a session. (See “Log In via LAN Port
Using Telnet (Optional)” section on page 8-3.)
9.3 Explanation of Command Parameters
TL1 messages are grouped into autonomous and non-autonomous types. Autonomous messages are
generated as a result of activity on the network elements such as alarms, thresholds, alerts and status
information. No request is required in order to receive autonomous messages. Non-autonomous
messages consist of a request command and a response from the ONS 15216 EDFA2. Autonomous
messages and non-autonomous commands use a common set of parameters. Some of the most common
parameters are defined in the following sections.
9.3.1 Source Identifier (sid) and Target Identifier (tid)
The source identifier (sid) or target identifier (tid) parameters uniquely identify an ONS 15216 EDFA2.
For the ONS 15216 EDFA2, sid and tid are the same. While the TL1 shell uses the sid/tid name in its
command line prompt, the ASH shell uses the host name. The sid/tid name is the same as the sysName
in the SNMP MIBs and is displayed in the upper-right of the login screen of the ASH shell.
![](asset-96.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-2
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
Notation
9.3.2 Command Code Modifier (ccm)
The command code modifier (ccm) identifies the object of the action being applied by the verb of the
TL1 command. Some command code modifiers for the ONS 15216 EDFA2 are described in Table 9-1.
9.3.3 Access Identifier (aid)
The access identifier (aid) parameter uniquely identifies an object within the ONS 15216 EDFA2. For
the ONS 15216 EDFA2, there are four specific aids (1, PWR-A, PWR-B, EQPT) and the ALL aid, as
described in Table 9-2. All autonomous messages identify their specific aid in the message. For all
command inputs that require an aid as a mandatory parameter, the ALL aid is accepted as well as any
relevant specific aids. If the ALL aid is used in a command, the response contains the appropriate
specific aid. For the commands RTRV-ALM-ENV and RTRV-COND-ENV, inputting a specific aid
filters the response to information relevant to that aid.
9.3.4 Correlation Tag (ctag)
The correlation tag (ctag) is a unique tag associated with a command. If the user specifies a ctag while
entering a command, the response of that command from the ONS 15216 EDFA2 TL1 agent carries the
same ctag value. The ctag consists of no more than six alphanumeric characters.
9.4 Notation
The commands described in this document use the symbols shown in Table 9-3 on page 9-3 to describe
the command format. These symbols are derived from the Telcordia Network Maintenance: Network
Element and Transport Surveillance Messages Manual (Generic Requirements, GR-833-CORE).
Table 9-1 Command Code Modifiers
ccm Description
DWDM Optical parameters.
ENV Environmental (power bus) parameters.
EQPT General parameters of the ONS 15216 EDFA2.
INV Inventory parameters.
NE-GEN IP communications parameters.
Table 9-2 Access Identifiers
aid Description
1 Directly affecting the optical signal.
PWR-A Affecting Power Bus A (or both A and B).
PWR-B Affecting Power Bus B.
EQPT General parameters of the ONS 15216 EDFA2 (not
directly affecting optical signal or power bus).
ALL Any or all of the preceding (command input only).
![](asset-97.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-3
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
Summary of Autonomous Alarms and Messages
9.5 Summary of Autonomous Alarms and Messages
Table 9-4 summarizes the ONS 15216 EDFA2 autonomous alarms.
Table 9-3 TL1 Notation Symbols
Symbol Meaning Description
[ ] Optional expression Square brackets indicate the parameters are optional. An
optional parameter means that if a user inputs an empty
field for an optional parameter, then a default value (or a
default action) will be substituted automatically in the
transmitted input field. The default value, or null value,
is defined in the parameter descriptions of the messages.
< > Variable expression Angle brackets enclose one or more variable items in the
command line, e.g., <date>, <time>, <aid>, etc.
Italics are used to note variables in paragraph text, e.g.,
date, time, aid, etc.
+ More than one time Plus signs indicate that preceding symbol or group of
symbols (enclosed in parentheses) may occur one or
more times.
text Indent of three spaces An indented line indicates an entry of three spaces in the
command line.
Table 9-4 TL1 Autonomous Alarms
TL1 Autonomous
Message
Condition
Type
(condtype) Condition Descriptor
(conddescr)
Access
Identifier
(aid)
Notification
Code
(ntfcncde)
Service
Effect
(srveff)
REPT ALM DWDM1LOS
Loss Of Signal (input power)
1MJSA
REPT ALM DWDM1GAIN Gain Out Of Range 1 MJ SA
REPT ALM DWDM1LPOUT Loss Of Output Power 1 MJ SA
REPT ALM ENV PWRBUSA Power Bus A (voltage)
Alarm
PWR-A MN/CR2–
REPT ALM ENV PWRBUSB Power Bus B (voltage)
Alarm
PWR-B MN/CR2–
REPT ALM EQPT CTMP Case Temperature Out Of
Range
EQPT MN NSA
REPT ALM EQPT LCRNT1 Excessive Pump1 Current EQPT MN NSA
REPT ALM EQPT LCRNT2 Excessive Pump2 Current EQPT MN NSA
REPT ALM EQPT LTMP1 Excessive Pump1
Temperature
EQPT MN NSA
REPT ALM EQPT LTMP2 Excessive Pump2
Temperature
EQPT MN NSA
![](asset-98.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-4
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
Summary of Autonomous Alarms and Messages
Table 9-5 on page 9-4 summarizes the ONS 15216 EDFA2 autonomous events.
1. The messages for Loss of Signal (LOS), Gain Out of Range (GAIN), and Loss of Output Power (LPOUT) are prioritized (in
the order just listed) so that only one message can be delivered at one time. For example, if the ONS 15216 EDFA2 detects
both a loss of input signal and a loss of output power at the same time, it will deliver only the Loss of Signal (LOS) message
to the user. This prioritized filtering of alarms does not occur with the SNMP delivery of alarms of the ONS 15216 EDFA2.
2. A single power bus alarm is Minor. If the power system is in duplex mode and an alarm is raised on both power buses, the
second alarm is Critical.
Table 9-5 TL1 Autonomous Events
TL1 Autonomous
Message Condition Type
(condtype) Condition Descriptor
(conddescr)
Access
Identifier
(aid)
Condition
Effect
(condeff)
REPT EVT DWDM CTRLMODE1 Pump1 Control Mode
Changed
1TC
REPT EVT DWDM CTRLMODE2 Pump2 Control Mode
Changed
1TC
REPT EVT DWDM GAINCHGD Overall Gain Changed 1 TC
REPT EVT DWDM LOSHYSTCHGD LOS (loss of signal)
Hysteresis Changed
1TC
REPT EVT DWDM LOSTHCHGD LOS (loss of signal)
Threshold Changed
1TC
REPT EVT DWDM LPOUTCHGD Loss Of Output Power
Setpoint Changed
1TC
REPT EVT DWDM LPOUTDEVCHGD Lpout (loss of output
power) Deviation Changed
1TC
REPT EVT DWDM LPOUTHYSTCHGD Lpout (loss of output
power) Hysteresis Changed
1TC
REPT EVT DWDM PREATTCHGD Pre-attenuation Changed 1 TC
REPT EVT ENV PWRBUSMAXCHGD Power Bus Max (voltage)
Changed
PWR-A TC
REPT EVT ENV PWRBUSMINCHGD Power Bus Min (voltage)
Changed
PWR-A TC
REPT EVT ENV PWRBUSMODE Power Bus Mode Changed PWR-B TC
REPT EVT EQPT MAXCTMPCHGD Max Case Temperature
Changed
EQPT TC
REPT EVT EQPT
MAXCTMPHYSTCHGD
Max Ctmp (case temperature)
Hysteresis Changed
EQPT TC
REPT EVT EQPT MINCTMPCHGD Min Case Temperature
Changed
EQPT TC
REPT EVT EQPT
MINCTMPHYSTCHGD
Min Ctmp (case temperature)
Hysteresis Changed
EQPT TC
REPT EVT EQPT CUTOVERRESET (Software) Reset After
Cutover
EQPT TC
![](asset-99.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-5
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
Summary of Autonomous Alarms and Messages
Table 9-6 on page 9-5 summarizes the ONS 15216 EDFA2 file transfer events.
Table 9-7 on page 9-5 summarizes the ONS 15216 EDFA2 clear alarms.
REPT EVT EQPT SOFTWARELOAD (New) Software Load EQPT TC
REPT EVT EQPT SOFTWARERESET Software Reset EQPT TC
Table 9-5 TL1 Autonomous Events (continued)
TL1 Autonomous
Message Condition Type
(condtype) Condition Descriptor
(conddescr)
Access
Identifier
(aid)
Condition
Effect
(condeff)
Table 9-6 TL1 Autonomous File Transfer Events
Autonomous TL1
Message
File Transfer
Status
(fxfr_status)
File Transfer
Result
(fxfr_rslt)
Access
Identifier
(aid)
REPT EVT FXFR START EQPT
REPT EVT FXFR COMPLD SUCCESS EQPT
FAILURE EQPT
Table 9-7 TL1 Autonomous Clear Alarms
TL1 Autonomous
Message
Condition
Type
(condtype) Condition Descriptor
(conddescr)
Access
Identifier
(aid)
Notification
Code
(ntfcncde)
Service
Effect
(srveff)
REPT ALM DWDM LOS
Loss Of Signal (input power)
1CLSA
REPT ALM DWDM GAIN Gain Out Of Range 1 CL SA
REPT ALM DWDM LPOUT Loss Of Output Power 1 CL SA
REPT ALM ENV PWRBUSA Power Bus A (voltage)
Alarm
PWR-A CL –
REPT ALM ENV PWRBUSB Power Bus B (voltage)
Alarm
PWR-B CL –
REPT ALM EQPT CTMP Case Temperature Out Of
Range
EQPT CL NSA
REPT ALM EQPT LCRNT1 Excessive Pump1 Current EQPT CL NSA
REPT ALM EQPT LCRNT2 Excessive Pump2 Current EQPT CL NSA
REPT ALM EQPT LTMP1 Excessive Pump1
Temperature
EQPT CL NSA
REPT ALM EQPT LTMP2 Excessive Pump2
Temperature
EQPT CL NSA
![](asset-9a.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-6
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
Summary of Security Permissions for TL1 Commands
9.6 Summary of Security Permissions for TL1 Commands
Table 9-8 summarizes the security permissions (access levels) for each available TL1 command and
autonomous message.
Table 9-8 TL1 Commands and Messages Security Permissions (Access Levels)
Command or Message Description
User Access Levels
RRWRWA
ACT-USER Activates user session (login).
See ACT-USER, page 9-9.
Yes Yes Yes
ALW-MSG-ALL Allows automatic (REPT) messages.
See ALW-MSG-ALL, page 9-9.
Yes Yes Yes
APPLY Applies software cutover.
See APPLY, page 9-11.
No No Yes
CANC-USER Cancels user session (logoff).
See CANC-USER, page 9-12.
Yes Yes Yes
COPY-RFILE Copies remote or local file to FFS.
See COPY-RFILE, page 9-12.
No Yes Yes
CPY-MEM Copies log file from RAM to FFS.
See CPY-MEM, page 9-14.
No Yes Yes
DLT-RFILE Deletes file from FFS.
See DLT-RFILE, page 9-15.
No Yes Yes
DLT-USER-SECU Deletes a user.
See DLT-USER-SECU, page 9-16.
No No Yes
ED-DAT Edits date and time.
See ED-DAT, page 9-16.
No No Yes
ED-DWDM Edits optical parameters.
See ED-DWDM, page 9-17.
No Yes Yes
ED-ENV Edits power bus mode.
See ED-ENV, page 9-18.
No Yes Yes
ED-NE-GEN Edits general IP-related parameters.
See ED-NE-GEN, page 9-19.
No Yes Yes
ED-PID Edits user password.
See ED-PID, page 9-20.
Yes
(own UID)
Yes
(own UID)
Yes
(all UIDs)
ED-USER-SECU Edits a user’s name and parameters.
See ED-USER-SECU, page 9-21.
No No Yes
ENT-USER-SECU Enters new user.
See ENT-USER-SECU, page 9-21.
No No Yes
INH-MSG-ALL Inhibits some automatic messages.
See INH-MSG-ALL, page 9-22.
Yes Yes Yes
INIT-SYS Initializes (reboots) system.
See INIT-SYS, page 9-25.
No Yes Yes
![](asset-9b.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-7
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
Summary of Security Permissions for TL1 Commands
REPT ALM DWDM Message that reports optical alarm
activation/clearing.
See REPT ALM DWDM, page 9-25.
Yes Yes Yes
REPT ALM ENV Message that reports power-bus alarm
activation/clearing.
See REPT ALM ENV, page 9-27.
Yes Yes Yes
REPT ALM EQPT Message that reports general alarm
activation/clearing.
See REPT ALM EQPT, page 9-28.
Yes Yes Yes
REPT EVT DWDM
REPT EVT ENV
REPT EVT EQPT
Message that reports event logging.
See REPT EVT DWDM / REPT EVT
ENV / REPT EVT EQPT, page 9-30.
Yes Yes Yes
REPT EVT FXFR Message that reports FTP file transfer.
See REPT EVT FXFR, page 9-32.
Yes Yes Yes
RTRV-ALM-ALL Retrieves all current alarms.
See RTRV-ALM-ALL, page 9-33.
Yes Yes Yes
RTRV-ALM-DWDM Retrieves current optical alarms.
See RTRV-ALM-DWDM, page 9-35.
Yes Yes Yes
RTRV-ALM-ENV Retrieves current power-bus alarms.
See RTRV-ALM-ENV, page 9-37.
Yes Yes Yes
RTRV-ALM-EQPT Retrieves current general alarms.
See RTRV-ALM-EQPT, page 9-38.
Yes Yes Yes
RTRV-AO Retrieves most-recent autonomous
output (REPT) messages.
See RTRV-AO, page 9-40.
Yes Yes Yes
RTRV-COND-ALL Retrieves condition (state) of all
current alarms.
See RTRV-COND-ALL, page 9-41.
Yes Yes Yes
RTRV-COND-DWDM Retrieves condition (state) of current
optical alarms.
See RTRV-COND-DWDM, page 9-43.
Yes Yes Yes
RTRV-COND-ENV Retrieves condition (state) of current
power-bus alarms.
See RTRV-COND-ENV, page 9-44.
Yes Yes Yes
RTRV-COND-EQPT Retrieves condition (state) of current
general alarms.
See RTRV-COND-EQPT, page 9-46.
Yes Yes Yes
RTRV-DFLT-SECU Retrieves timeouts for access levels.
See RTRV-DFLT-SECU, page 9-47.
No No Yes
RTRV-DWDM Retrieves optical parameters.
See RTRV-DWDM, page 9-48.
Yes Yes Yes
Table 9-8 TL1 Commands and Messages Security Permissions (Access Levels) (continued)
Command or Message Description
User Access Levels
RRWRWA
![](asset-9c.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-8
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
Summary of Security Permissions for TL1 Commands
RTRV-ENV Retrieves power bus mode.
See RTRV-ENV, page 9-50.
Yes Yes Yes
RTRV-HDR Retrieves header (pings NE).
See RTRV-HDR, page 9-51.
Yes Yes Yes
RTRV-INV Retrieves inventory parameters.
See RTRV-INV, page 9-51.
Yes Yes Yes
RTRV-NE-GEN Retrieves general IP-related parameters.
See RTRV-NE-GEN, page 9-52.
Yes Yes Yes
RTRV-RFILE Retrieves files on FFS.
See RTRV-RFILE, page 9-54.
Yes Yes Yes
RTRV-TH-DWDM Retrieves optical thresholds.
See RTRV-TH-DWDM, page 9-55.
Yes Yes Yes
RTRV-TH-ENV Retrieves power-bus thresholds.
See RTRV-TH-ENV, page 9-56.
Yes Yes Yes
RTRV-TH-EQPT Retrieves general thresholds.
See RTRV-TH-EQPT, page 9-57.
Yes Yes Yes
RTRV-TOD Retrieves date and time.
See RTRV-TOD, page 9-59.
Yes Yes Yes
RTRV-USER-SECU Retrieves access level of user(s).
See RTRV-USER-SECU, page 9-60.
Yes
(own UID)
Yes
(own UID)
Yes
(all UIDs)
SET-ATTR-SECUDFLT
Sets timeout values for access levels.
See SET-ATTR-SECUDFLT, page 9-60.
No No Yes
SET-TH-DWDM Sets optical thresholds.
See SET-TH-DWDM, page 9-61.
No Yes Yes
SET-TH-ENV Sets power-bus thresholds.
See SET-TH-ENV, page 9-62.
No Yes Yes
SET-TH-EQPT Sets general thresholds.
See SET-TH-EQPT, page 9-63.
No Yes Yes
STA-LOCL-RST Resets all parameters to
manufacturer’s default values.
See STA-LOCL-RST, page 9-64.
No No Yes
Table 9-8 TL1 Commands and Messages Security Permissions (Access Levels) (continued)
Command or Message Description
User Access Levels
RRWRWA
![](asset-9d.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-9
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7 TL1 Commands and Autonomous Messages
9.7.1 ACT-USER
Command ACT-USER
Activates user session (login).
Syntax ACT-USER:[<tid>]:<uid>:<ctag>::<pid>;
Example 9-1 ACT-USER Command
Amp01:ONS15216 EDFA2> ACT-USER:Amp01:JOE:123::***;
9.7.2 ALW-MSG-ALL
Command ALW-MSG-ALL
Permits or resumes the dispatch of automatic messages from the ONS 15216 EDFA2 that were inhibited
by an INH-MSG call. All alarms in existence at the time that this command restores them are transmitted
via REPT ALM and REPT EVT messages.
Syntax ALW-MSG-ALL:[<tid>]::<ctag>::[<ntfcncde>],[<condtype>][,];
Example 9-2 ALW-MSG-ALL Command
Amp01:ONS15216 EDFA2> ALW-MSG-ALL:Amp01::123::MJ,LOS;
Table 9-9 ACT-USER Syntax Description
Parameter Syntax Description
uid string The user’s identifier (user name). Can be any combination of up
to 10 alphanumeric characters.
pid string The user’s private identifier (password). The password must be
a string of up to 10 characters, where at least 2 are
non-alphabetic characters and at least 1 is a special character.
Special characters are +, #, and %. (defined in Telcordia
GR-831-CORE).
![](asset-9e.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-10
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
Table 9-10 ALW-MSG-ALL Syntax Description
Parameter Syntax Description
ntfncde Notification code of the alarm or event that is to be
allowed (maps to cerent15216EdfaAlarmPriority for
active alarms). A null maps to none of the codes, i.e.,
with a null, all existing ntfncde inhibitions are kept
unchanged. Possible values are:
CR Critical alarm.
MJ Major alarm.
MN Minor alarm.
NA No alarm.
CL Cleared alarm.
condtype Condition type of the alarm or event that is to be allowed.
(Maps to cerent15216EdfaLogEventID.) ALL maps to
all types. A null maps to none of the types, i.e., with a
null, all existing condtype inhibitions are kept
unchanged. Possible condtype and corresponding
conddescr (in quotes) are:
LOS “Loss of Signal” (input power) alarm
(cerent15216EdfaAlarmLpin).
GAIN “Gain Out of Range” alarm
(cerent15216EdfaAlarmGain).
LPOUT “Loss of Output Power” alarm
(cerent15216EdfaAlarmLpout).
CTMP “Case Temperature Out of Range” alarm
(cerent15216EdfaAlarmCtmp).
LCRNT1 “Excessive Pump1 Current” alarm
(cerent15216EdfaAlarmLcrnt1).
LCRNT2 “Excessive Pump2 Current” alarm
(cerent15216EdfaAlarmLcrnt2).
LTMP1 “Excessive Pump1 Temperature” alarm
(cerent15216EdfaAlarmLtmp1).
LTMP2 “Excessive Pump2 Temperature” alarm
(cerent15216EdfaAlarmLtmp2).
POWERBUSA “Power Bus A (voltage) Alarm”
(cerent15216EdfaAlarmPowerBusA).
POWERBUSB “Power Bus B (voltage) Alarm”
(cerent15216EdfaAlarmPowerBusB).
CTRLMODE1 “Pump1 Control Mode Changed”
(cerent15216EdfaControlMode for
cerent15216EdfaPumpCfgPumpNumber=1).
CTRLMODE2 “Pump2 Control Mode Changed”
(cerent15216EdfaControlMode for
cerent15216EdfaPumpCfgPumpNumber=2).
![](asset-9f.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-11
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.3 APPLY
Command APPLY
Applies a software cutover in the memory. There are two boot file entries. This command exchanges boot
file entries 1 and 2 so that when the system is restarted (by the INIT-SYS command), it boots with the
image that was (before the execution of this command) at the second entry.
GAINCHGD “Overall Gain Changed”
(cerent15216EdfaConstGainOverallGain).
LOSHYSTCHGD “LOS (loss of signal) Hysteresis Changed”
(cerent15216EdfaLOSHysteresis).
LOSTHCHGD “LOS (loss of signal) Threshold Changed”
(cerent15216EdfaLOSThreshold).
LPOUTCHGD “Loss of Output Power Setpoint Changed”
(cerent15216EdfaLpoutSetpoint).
LPOUTDEVCHGD “Lpout (loss of output power) Deviation Changed”
(cerent15216EdfaLpoutDeviation).
LPOUTHYSTCHGD “Lpout (loss of output power) Hysteresis Changed”
(cerent15216EdfaLpoutHysteresis).
PREATTCHGD “Pre-attenuation Changed”
(cerent15216EdfaVariableGainPreAttenuation).
PWRBUSMAXCHGD “Power Bus Max (voltage) Changed”
(cerent15216EdfaPowerBusDCVoltageMax).
PWRBUSMINCHGD “Power Bus Min (voltage) Changed”
(cerent15216EdfaPowerBusDCVoltageMin).
PWRBUSMODE “Power Bus Mode Changed”
(cerent15216EdfaPowerBusMode).
MAXCTMPCHGD “Max Case Temperature Changed”
(cerent15216EdfaCtmpMax).
MAXCTMPHYSTCHGD “Max Ctmp (case temperature) Hysteresis Changed”
(cerent15216EdfaCtmpMaxHysteresis).
MINCTMPCHGD “Min Case Temperature Changed”
(cerent15216EdfaCtmpMin).
MINCTMPHYSTCHGD “Min Ctmp (case temperature) Hysteresis Changed”
(cerent15216EdfaCtmpMinHysteresis).
CUTOVERRESET (Software) “Reset after Cutover”
(cerent15216EdfaOpCutover).
SOFTWARELOAD (New) “Software Load” (cerent15216EdfaOpLoad).
SOFTWARERESET “Software Reset” (cerent15216EdfaOpReset).
ALL All condtype preceding.
Table 9-10 ALW-MSG-ALL Syntax Description (continued)
Parameter Syntax Description
![](asset-a0.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-12
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
Syntax APPLY:[<tid>]::<ctag>;
Example 9-3 APPLY Command
Amp01:ONS15216 EDFA2> APPLY:Amp01::1234;
9.7.4 CANC-USER
Command CANC-USER
Cancels user session (logoff).
Syntax CANC-USER:[<tid>]:<uid>:<ctag>;
Example 9-4 CANC-USER Command
Amp01:ONS15216 EDFA2> CANC-USER:Amp01:JOE:100;
9.7.5 COPY-RFILE
Command COPY-RFILE
Copies a local or remote file to the persistent memory (flash file system) on the ONS 15216 EDFA2.
Depending on the value specified for the TYPE parameter, this command can be used to download a
remote software image file to the ONS 15216 EDFA2 as its second boot entry (to cutover-upgrade later
using the APPLY command), to copy a remote or local file to the ONS 15216 EDFA2 flash file system,
or to copy a file on the ONS 15216 EDFA2 flash file system to a remote or local file. There may be a
delay while this command executes. See REPT EVT FXFR, page 9-32 for information on the
autonomous response messages.
Syntax COPY-RFILE:[<tid>]::<ctag>::TYPE=<type>,SRC=<src>,[DEST=<dest>],[OVERWRITE=<overwrite>];
Example 9-5 COPY-RFILE Command and Response
Amp01:ONS15216 EDFA2> COPY-RFILE:Amp01::1234::TYPE=SWDL,SRC="ftp://user1:passwd@192.168.85
.10:21/bin/15216EdfaSw_2.2.1",DEST="file://localhost/15216EdfaSw_2.2.1",OVERWRITE=YES;
Amp01 2002-04-30 11:34:05
M 100 COMPLD
/* COPY-RFILE */
;
Amp01 2002-04-30 11:34:05
Table 9-11 CANC-USER Syntax Description
Parameter Syntax Description
uid string The user’s identifier (user name).
![](asset-a1.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-13
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
A 7 REPT EVT FXFR
EQPT:15216EdfaSw_2.2.1,START,,
;
Amp01 2002-04-30 11:35:24
A 8 REPT EVT FXFR
EQPT:15216EdfaSw_2.2.1,COMPLD,SUCCESS,1963195
;
Table 9-12 COPY-RFILE Syntax Description
Parameter Syntax Description
type Specifies the type and direction of transfer. Possible values are:
RFR Restore a file from remote server to the ONS 15216 EDFA2’s
flash file system.
RFBU Backup a file from the ONS 15216 EDFA2’s flash file system
to the remote server (overwrite is always YES for this type).
SWDL Download a software image file to the ONS 15216 EDFA2’s
flash file system and update the second boot entry to point to
this file.
src,
dest
string src and dest must both be URLs. Both FTP and file URLs are
supported.
An FTP URL has the following format:
ftp:[//[<userid>[:<password>]@]<ftphost>[:<port>]]/<urlp
ath>
A file URL (referring to the local system) has the following
format:
file://localhost/<urlpath>
where
<userid> is the FTP user identifier
<password> is the FTP password for the user
<ftphost> is the IP address of the FTP server
<port> is the port number to connect to
<urlpath> is the path in the following format:
<cwd1>/<cwd2>/…/<cwdn>/<filename>
where <cwd1>…<cwdn> are directory levels and
<filename> is the file name
overwrite Possible values are:
YES Overwrite existing file of the same name at the destination.
NO Do not overwrite if file with same name exists at the
destination. This is the default if overwrite is null.
![](asset-a2.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-14
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.6 CPY-MEM
Command CPY-MEM
Copies the log file or system configuration file in the non-persistent memory (RAM) or a specified file
on the persistent memory (flash file system) to a file with a specified name on the persistent memory.
Syntax CPY-MEM:[<tid>]::<ctag>::[<fromfile>],[<fromdev>],[<tofile>];
Example 9-6 CPY-MEM Command and Response (Copy LOG File from RAM as aolog.txt on FFS)
Amp01:ONS15216 EDFA2> CPY-MEM:Amp01::123::LOG,MEM,;
Amp01 2002-07-16 09:49:01
M 123 COMPLD
/* CPY-MEM */
;
Example 9-7 CPY-MEM Command and Response (Copy LOG File from RAM as aolog.txt on FFS using
Null)
Amp01:ONS15216 EDFA2> CPY-MEM:Amp01::123::,,;
Amp01 2002-07-16 09:46:01
M 123 COMPLD
/* CPY-MEM */
;
Example 9-8 CPY-MEM Command and Response (Copy aolog.txt on FFS as logfile20020716.txt on
FFS)
Amp01:ONS15216 EDFA2> CPY-MEM:Amp01::123::aolog.txt,FFS,logfile20020716;
Amp01 2002-07-16 09:50:38
M 123 COMPLD
/* CPY-MEM */
;
Table 9-13 CPY-MEM Syntax Description
Parameter Syntax Description
fromfile Name of the source file. A null means LOG. Can be null only
when fromdev is also null.
CFG ONS 15216 EDFA2 system configuration file, only when
fromdev is specified to be DBCFG or null.
LOG ONS 15216 EDFA2 system log file, only when fromdev is
specified to be MEM or null.
any other string The name of the source file when fromdev is specified to be
FFS. If fromdev is specified to be MEM or null, any string other
than LOG is invalid.
File names are case sensitive.
![](asset-a3.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-15
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.7 DLT-RFILE
Command DLT-RFILE
Deletes a file from the flash file system (FFS) of the ONS 15216 EDFA2.
Syntax DLT-RFILE:[<tid>]::<ctag>::FILE=<localfilename>;
Example 9-9 DLT-RFILE Command
Amp01:ONS15216 EDFA2> DLT-RFILE:Amp01::1234::FILE=snmp.cfg;
fromdev Device on which the source file exists. A null means MEM.
Possible values are:
DBCFG ONS 15216 EDFA2 configuration parameters from IDROM,
CFGROM, RAM, and FFS.
MEM ONS 15216 EDFA2 non-persistent memory (RAM).
FFS ONS 15216 EDFA2 persistent memory (flash file system).
tofile CFG ONS 15216 EDFA2 system configuration in memory.
The system must be rebooted using INI-SYS for changes to the
system configuration to take effect.
any other string The name string of the destination file. A null value is valid
only when fromfile is LOG or null and fromdev is MEM or null.
When null is valid, the system log file (LOG) is saved as
aolog.txt.
File names are case sensitive.
If copying from RAM (MEM) and the destination file name
already exists, the destination file is overwritten. If copying
from FFS and the destination file name already exists, the
execution fails.
Table 9-13 CPY-MEM Syntax Description (continued)
Parameter Syntax Description
Table 9-14 DLT-RFILE Syntax Description
Parameter Syntax Description
localfilename string Name of the file on the flash file system of the
ONS 15216 EDFA2 that is to be deleted. File names are case
sensitive.
![](asset-a4.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-16
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.8 DLT-USER-SECU
Command DLT-USER-SECU
Deletes (removes) an existing user from the system.
Syntax DLT-USER-SECU:[<tid>]:<uid>:<ctag>;
Example 9-10 DLT-USER-SECU Command
Amp01:ONS15216 EDFA2> DLT-USER-SECU:Amp01:jsmith:123;
9.7.9 ED-DAT
Command ED-DAT
Edits the date and/or time of the ONS 15216 EDFA2.
Syntax ED-DAT:[<tid>]::<ctag>::<utcdate>,<utctime>;
Example 9-11 ED-DAT Command
Amp01:ONS15216 EDFA2> ED-DAT:Amp01::123::2001-12-18,02-24-55;
Table 9-15 DLT-USER-SECU Syntax Description
Parameter Syntax Description
uid string The user identifier (user name) of the existing user to be
removed.
Table 9-16 ED-DAT Syntax Description
Parameter Syntax Description
utcdate yyyy-mm-dd Change date to this value in universal coordinated time (UTC),
which is the same as Greenwich Mean Time (GMT) Modifies
cerent15216EdfaRtcDateAndTimeGMTString. Can not be null
if utctime is also null.
utctime hh-mm-ss Change time to this value in universal coordinated time (UTC),
which is the same as Greenwich Mean Time (GMT). (A time
zone can not be set using TL1.) Modifies
cerent15216EdfaRtcDateAndTimeGMTString. Can not be null
if utcdate is also null.
![](asset-a5.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-17
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.10 ED-DWDM
Command ED-DWDM
Configures the ONS 15216 EDFA2 optical control parameters.
Syntax ED-DWDM:[<tid>]:<aid>:<ctag>:::[PUMP1CTRLMODE=<pump1ctrlmode>],[PUMP1CTRLVALUE=<pump1ctrlv
alue>],[PUMP2CTRLMODE=<pump2ctrlmode>],[PUMP2CTRLVALUE=<pump2ctrlvalue>],[OVERALLGAIN=<gai
n>],[PREATT=<preatt>];
Example 9-12 ED-DWDM Command
Amp01:ONS15216 EDFA2> ED-DWDM:Amp01:ALL:123:::PUMP1CTRLMODE=GAINTEMP;
Table 9-17 ED-DWDM Syntax Description
Parameter Syntax Description
aid 1
ALL 1 and ALL have same input effect.
pump1ctrlmode,
pump2ctrlmode
Pump 1 or pump 2 control mode (maps to
cerent15216EdfaPumpCfgControlMode for the corresponding
pump). Generally, pump1ctrlmode and pump2ctrlmode must be
the same value. One exception is OPWR which is not valid for
pump 1 and can only be set for pump 2. Possible values are:
GAINTEMP Constant Gain Temperature Compensated mode (manufacturer
default) (cerent15216EdfaPumpCfgControlMode set to
constGainTempComp). If one pump is set to GAINTEMP, the
other pump automatically gets set to GAINTEMP also.
OPWR Constant Output Power mode
(cerent15216EdfaPumpCfgControlMode set to
constOutputPower). This is not a valid mode for pump 1. If
pump 2 is set to OPWR, pump 1 gets automatically set to PWR
with a value of 75 mW.
CRNT Constant Pump Current mode
(cerent15216EdfaPumpCfgControlMode set to constCurrent).
Must set pump 1 and pump 2 to this mode at the same time.
PWR Constant Pump Power mode
(cerent15216EdfaPumpCfgControlMode set to constPower).
Must set Pump 1 and Pump 2 to this mode at the same time.
IDLE Pump is shut down (cerent15216EdfaPumpCfgControlMode
set to idle).
![](asset-a6.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-18
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.11 ED-ENV
Command ED-ENV
Configures the ONS 15216 EDFA2 environmental (power bus) parameters.
Syntax ED-ENV:[<tid>]:<aid>:<ctag>:::PWRBUSMODE=<pwrbusmode>;
Example 9-13 ED-ENV Command
Amp01:ONS15216 EDFA2> ED-ENV:Amp01:ALL:123:::PWRBUSMODE=SIMPLEX;
pump1ctrlvalue,
pump2ctrlvalue
Pump 1 or pump 2 control value. This value’s interpretation
depends on the control mode of the corresponding pump.
Command fails if control mode is GAINTEMP. Possible values
are:
0 - 650 Output power in units of 10 mW when mode is OPWR (sets
cerent15216EdfaPumpCfgConstOutPower). The default value
is 0.
0 - 300 Current value in mA when mode is CRNT (sets
cerent15216EdfaPumpCfgConstPumpCurrent). The default
value is 0. Must set pump 1 and pump 2 at the same time.
0 - 100 Pump power in mW when mode is PWR (sets
cerent15216EdfaPumpCfgConstPumpPower). The default
value is 0. Must set pump 1 and pump 2 at the same time.
gain 130 - 220 Value of gain in units of 10 dB when mode is GAINTEMP (sets
cerent15216EdfaConstGainOverallGain). The command fails
if in other modes.
preatt 10 - 100 Gain pre-attenuation value in units of 10 dB when mode is other
than GAINTEMP (sets
cerent15216EdfaVariableGainPreAttenuation).
Table 9-17 ED-DWDM Syntax Description (continued)
Parameter Syntax Description
Table 9-18 ED-ENV Syntax Description
Parameter Syntax Description
aid PWR-A
PWR-B
ALL
PWR-A, PWR-B, and ALL have same input effect.
![](asset-a7.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-19
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.12 ED-NE-GEN
Command ED-NE-GEN
Edit general parameters of the ONS 15216 EDFA2. Edits ONS 15216 EDFA2’s sid (source
identifier)/tid (target identifier), IP address, IP mask, and IP address of the default router. The
ONS 15216 EDFA2 needs to be manually rebooted for the changes to take effect. (Use the INIT-SYS
command to manually reboot after changing parameters.) Also edits the boot table content: to return to
the TL1 shell from the ASH shell, use the ASH command shell type modify tl1 (step 3. in “Log In via
RS-232 (EIA/TIA-232) Port Using HyperTerminal” section on page 8-1).
Syntax ED-NE-GEN:[<tid>]::<ctag>:::[NAME=<name>],[IPADDR=<ipaddr>],[IPMASK=<ipmask>],[DEFRTR=<def
rtr>],[BOOTRECORDTYPE1=<bootrectype1>],[BOOTFILENAME1=<bootfilename1>],[BOOTIPADDR1=<booti
paddr1>],[BOOTRECORDTYPE2=<bootrectype2>],[BOOTFILENAME2=<bootfilename2>],[BOOTIPADDR2=<bo
otipaddr2>],[CLI=<cli>];
Example 9-14 ED-NE-GEN Command
Amp01:ONS15216 EDFA2> ED-NE-GEN:Amp01::123:::NAME=Amp01,IPADDR=192.167.3.4,IPMASK=255.255.
255.0,DEFRTR=192.167.3.20,BOOTRECORDTYPE2=TFTP,BOOTFILENAME2=15216EdfaSw_1.4.0,BOOTIPADDR2
=192.168.3.4,CLI=ASH;
pwrbusmode Power bus mode. Possible values are:
SIMPLEX Simplex mode. Requires power only to bus A. Sets
cerent15216EdfaPowerBusMode to simplex.
DUPLEX Duplex mode (default). Requires power to both bus A and bus
B. Sets cerent15216EdfaPowerBusMode to duplex.
Table 9-18 ED-ENV Syntax Description (continued)
Parameter Syntax Description
Table 9-19 ED-NE-GEN Syntax Description
Parameter Syntax Description
name string System’s sid/tid name (sysName).
ipaddr string IP address of the system
(cerent15216EdfaSromIpMgmtEnetAddress).
ipmask string Subnet mask of the system
(cerent15216EdfaSromIpMgmtEnetSubNetMask).
defrtr string IP address of the default router
(cerent15216EdfaSromIpMgmtDefaultRouterAddress).
bootrectype1 Boot record type (cerent15216EdfaBootType for first entry).
Possible values are:
FLASH Boot from flash.
TFTP Boot through TFTP.
![](asset-a8.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-20
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.13 ED-PID
Command ED-PID
Edits password.
Syntax ED-PID:[<tid>]:<uid>:<ctag>::<oldpid>,<newpid>;
Example 9-15 ED-PID Command
Amp01:ONS15216 EDFA2> ED-PID:Amp01:JOE:123::OLDPW,NEWPW;
bootfilename1 string Boot file name (cerent15216EdfaBootFileName for first entry).
File names are case sensitive.
bootipaddr1 string IP address to boot from if bootrectype1 is set to TFTP
(cerent15216EdfaBootIpAddress for first entry).
bootrectype2 Boot record type (cerent15216EdfaBootType for second entry).
Possible values are:
FLASH Boot from flash.
TFTP Boot through TFTP.
bootfilename2 string Boot file name (cerent15216EdfaBootFileName for second
entry). File names are case sensitive.
bootipaddr2 string IP address to boot from if bootrectype2 is set to TFTP
(cerent15216EdfaBootIpAddress for second entry).
cli Default type of command line interface for all EIA/TIA-232
and default telnet port user sessions with the
ONS 15216 EDFA2. Possible values are:
TL1 TL1shell interface (manufacturer default).
ASH ASH shell interface – ONS 15216 EDFA2’s native interface.
Table 9-19 ED-NE-GEN Syntax Description (continued)
Parameter Syntax Description
Table 9-20 ED-PID Syntax Description
Parameter Syntax Description
uid string The user’s identifier (user name).
oldpid string The user’s old password.
newpid string The user’s new private identifier (password). Must be a string
of up to 10 characters, where at least 2 are non-alphabetic
characters and at least 1 is a special character. Special characters
are +, #, and %. (defined in Telcordia GR-831-CORE).
![](asset-a9.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-21
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.14 ED-USER-SECU
Command ED-USER-SECU
Edits the user identifier, password and access level of an existing user. Per TR-835, only those data
parameters that are to be edited are entered while those that are unaffected are omitted. If any
position-defined parameter is omitted, a comma is to be used as the delimiter.
Syntax ED-USER-SECU:[<tid>]:<uid>:<ctag>::<newuid>,<pid>,,<al>[:];
Example 9-16 ED-USER-SECU Command
Amp01:ONS15216 EDFA2> ED-USER-SECU:Amp01:jsmith:123::johnsmith,****,,RW;
9.7.15 ENT-USER-SECU
Command ENT-USER-SECU
Creates a new user in the system; specifies the user identifier, password and access level of the new user.
Syntax ENT-USER-SECU:[<tid>]:<uid>:<ctag>::<pid>,,<al>[:];
Example 9-17 ENT-USER-SECU Command
Amp01:ONS15216 EDFA2> ENT-USER-SECU:Amp01:jsmith:123::****,,RW;
Table 9-21 ED-USER-SECU Syntax Description
Parameter Syntax Description
uid string The user identifier (user name) of the existing user whose
parameters are being modified.
newuid string New user identifier (user name) for the existing user. Can be
any combination of up to 10 alphanumeric characters.
pid string The user’s new private identifier (password). Must be a string
of up to 10 characters, where at least 2 are non-alphabetic
characters and at least 1 is a special character. Special characters
are +, #, and %. (defined in Telcordia GR-831-CORE).
al New access level of the user. See “Summary of Security
Permissions for TL1 Commands” section on page 9-6 for
access level permissions.
R Read only privileges.
RW Read and write privileges.
RWA Read, write, and administrative privileges.
![](asset-aa.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-22
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.16 INH-MSG-ALL
Command INH-MSG-ALL
Prohibits the dispatch of some automatic messages from the ONS 15216 EDFA2 as specified in the
parameters. Does not affect response from RTRV commands.
Syntax INH-MSG-ALL:[<tid>]::<ctag>::[<ntfcncde>],[<condtype>][,];
Example 9-18 INH-MSG-ALL Command
Amp01:ONS15216 EDFA2> INH-MSG-ALL:Amp01::123::MJ,LOS;
Table 9-22 ENT-USER-SECU Syntax Description
Parameter Syntax Description
uid string The user identifier (user name) of the new user being created.
Can be any combination of up to 10 alphanumeric characters.
pid string The user’s private identifier (password). Must be a string of up
to 10 characters, where at least 2 are non-alphabetic characters
and at least 1 is a special character. Special characters are +, #,
and %. (defined in Telcordia GR-831-CORE).
al Access level of the user. See “Summary of Security Permissions
for TL1 Commands” section on page 9-6 for access level
permissions.
R Read only privileges.
RW Read and write privileges.
RWA Read, write, and administrative privileges.
Table 9-23 INH-MSG-ALL Syntax Description
Parameter Syntax Description
ntfncde Notification code of the alarm or event that is to be
allowed (maps to cerent15216EdfaAlarmPriority for
active alarms). A null maps to none of the codes, i.e.,
with a null, all existing ntfncde inhibitions are kept
unchanged. Possible values are:
CR Critical alarm.
MJ Major alarm.
MN Minor alarm.
NA No alarm.
CL Cleared alarm.
![](asset-ab.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-23
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
condtype Condition type of the alarm or event that is to be
inhibited (maps to cerent15216EdfaLogEventID). ALL
maps to all types. A null maps to none of the types, i.e.,
with a null, all existing condtype allowances are kept
unchanged. Possible condtype and corresponding
conddescr (in quotes) are:
LOS “Loss of Signal” (input power) alarm
(cerent15216EdfaAlarmLpin).
GAIN “Gain Out of Range” alarm
(cerent15216EdfaAlarmGain).
LPOUT “Loss of Output Power” alarm
(cerent15216EdfaAlarmLpout).
CTMP “Case Temperature Out of Range” alarm
(cerent15216EdfaAlarmCtmp).
LCRNT1 “Excessive Pump1 Current” alarm
(cerent15216EdfaAlarmLcrnt1).
LCRNT2 “Excessive Pump2 Current” alarm
(cerent15216EdfaAlarmLcrnt2).
LTMP1 “Excessive Pump1 Temperature” alarm
(cerent15216EdfaAlarmLtmp1).
LTMP2 “Excessive Pump2 Temperature” alarm
(cerent15216EdfaAlarmLtmp2).
POWERBUSA “Power Bus A (voltage) Alarm”
(cerent15216EdfaAlarmPowerBusA).
POWERBUSB “Power Bus B (voltage) Alarm”
(cerent15216EdfaAlarmPowerBusB).
CTRLMODE1 “Pump1 Control Mode Changed”
(cerent15216EdfaControlMode for
cerent15216EdfaPumpCfgPumpNumber=1).
CTRLMODE2 “Pump2 Control Mode Changed”
(cerent15216EdfaControlMode for
cerent15216EdfaPumpCfgPumpNumber=2).
Table 9-23 INH-MSG-ALL Syntax Description (continued)
Parameter Syntax Description
![](asset-ac.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-24
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
GAINCHGD “Overall Gain Changed”
(cerent15216EdfaConstGainOverallGain).
LOSHYSTCHGD “LOS (loss of signal) Hysteresis Changed”
(cerent15216EdfaLOSHysteresis).
LOSTHCHGD “LOS (loss of signal) Threshold Changed”
(cerent15216EdfaLOSThreshold).
LPOUTCHGD “Loss of Output Power Setpoint Changed”
(cerent15216EdfaLpoutSetpoint).
LPOUTDEVCHGD “Lpout (loss of output power) Deviation Changed”
(cerent15216EdfaLpoutDeviation).
LPOUTHYSTCHGD “Lpout (loss of output power) Hysteresis Changed”
(cerent15216EdfaLpoutHysteresis).
PREATTCHGD “Pre-attenuation Changed”
(cerent15216EdfaVariableGainPreAttenuation).
PWRBUSMAXCHGD “Power Bus Max (voltage) Changed”
(cerent15216EdfaPowerBusDCVoltageMax).
PWRBUSMINCHGD “Power Bus Min (voltage) Changed”
(cerent15216EdfaPowerBusDCVoltageMin).
PWRBUSMODE “Power Bus Mode Changed”
(cerent15216EdfaPowerBusMode).
MAXCTMPCHGD “Max Case Temperature Changed”
(cerent15216EdfaCtmpMax).
MAXCTMPHYSTCHGD “Max Ctmp (case temperature) Hysteresis Changed”
(cerent15216EdfaCtmpMaxHysteresis).
MINCTMPCHGD “Min Case Temperature Changed”
(cerent15216EdfaCtmpMin).
MINCTMPHYSTCHGD “Min Ctmp (case temperature) Hysteresis Changed”
(cerent15216EdfaCtmpMinHysteresis).
CUTOVERRESET (Software) “Reset after Cutover”
(cerent15216EdfaOpCutover).
SOFTWARELOAD (New) “Software Load” (cerent15216EdfaOpLoad).
SOFTWARERESET “Software Reset” (cerent15216EdfaOpReset).
ALL All condtype preceding.
Table 9-23 INH-MSG-ALL Syntax Description (continued)
Parameter Syntax Description
![](asset-ad.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-25
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.17 INIT-SYS
Command INIT-SYS
Reboots the system.
Syntax INIT-SYS:[<tid>]:<aid>:<ctag>::<ph>;
Example 9-19 INIT-SYS Command
Amp01:ONS15216 EDFA2> INIT-SYS:Amp01:ALL:1234::1;
9.7.18 REPT ALM DWDM
Command REPT ALM DWDM
Reports when a DWDM alarm is logged or cleared (derived from cerent15216EdfaAlarmState).
Note The REPT ALM DWDM messages for Loss of Signal, Gain Out of Range, and Loss of Output Power
are prioritized (in the order just listed) so that only one message can be delivered at one time. For
example, if the ONS 15216 EDFA2 detects both a loss of input signal and a loss of output power at the
same time, it will deliver only the Loss of Signal message to the user. This prioritized filtering of alarms
does not occur with the SNMP delivery of alarms of the ONS 15216 EDFA2.
Syntax <sid> <date> <time>
<almcde> <atag> REPT ALM DWDM
"<aid>:<ntfcncde>,<condtype>,<srveff>,<ocrdat>,<ocrtm>,,:<conddescr>"
;
Example 9-20 REPT ALM DWDM Message
Amp01 2001-06-18 14:50:44
** 142 REPT ALM DWDM
"1:MJ,LOS,SA,6-18,14-50-44,,:\"Loss Of Signal\""
;
Ta b l e 9 - 24 I N I T- SYS S y n t a x D e s c ri p t i o n
Parameter Syntax Description
aid string
EQPT
ALL
EQPT and ALL have same input effect.
ph integer
1Level of initialization. Always 1.
![](asset-ae.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-26
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
Table 9-25 REPT ALM DWDM Syntax Description
Parameter Syntax Description
time hh:mm:ss Time of origination of TL1 message.
almcde The alarm severity code for the TL1 message. Possible values
are:
*C Critical alarm.
** Major alarm.
* Minor alarm.
A No alarm. Occurs only when ntfncde is NA.
atag 0 - 999 An integer between 0 and 999 used as a sequence number in
autonomous messages.
aid Always 1.
1 Directly affecting the optical signal.
conddescr Detailed text description of the event. The conddescr is 1 to 64
characters of ASCII text. See condtype below.
condtype Condition type identifies the type of alarm (maps to
cerent15216EdfaLogEventID). Possible condtype and
corresponding conddescr (in quotes) are:
LOS “Loss of Signal” (input power) alarm
(cerent15216EdfaAlarmLpin).
GAIN “Gain Out of Range” alarm (cerent15216EdfaAlarmGain).
LPOUT “Loss of Output Power” alarm (cerent15216EdfaAlarmLpout).
date yyyy-mm-dd Date of origination of TL1 message.
ntfncde Notification code (maps to cerent15216EdfaAlarmPriority).
Possible values are:
CR Critical alarm.
MJ Major alarm.
MN Minor alarm.
CL Cleared alarm.
NA No alarm.
ocrdat m-d Date (month-day) of the event occurrence (derived from
cerent15216EdfaDateAndTimeString).
ocrtm h-m-s Time (hour-minute-second) of the event occurrence (derived
from cerent15216EdfaDateAndTimeString).
sid string Source identifier uniquely identifies the source of a TL1
autonomous command.
srveff Effect on service. Possible values are:
SA Service affecting.
NSA Non-service affecting.
![](asset-af.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-27
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.19 REPT ALM ENV
Command REPT ALM ENV
Reports when a power bus alarm is logged or cleared (derived from cerent15216EdfaAlarmState).
Syntax <sid> <date> <time>
<almcde> <atag> REPT ALM ENV
"<aid>:<ntfcncde>,<condtype>,<ocrdat>,<ocrtm>,<conddescr>"
;
Example 9-21 REPT ALM ENV Message
Amp01 2001-06-18 14:48:44
** 141 REPT ALM ENV
"PWR-A:MN,PWRBUSA,6-18,14-48-44,\"Power Bus A Alarm\""
;
Table 9-26 REPT ALM ENV Syntax Description
Parameter Syntax Description
almcde The alarm severity code for the TL1 message. Possible values
are:
*C Critical alarm.
** Major alarm.
*Minor alarm.
A No alarm. Occurs only when ntfncde is NA.
atag 0 - 999 An integer between 0 and 999 used as a sequence number in
autonomous messages .
aid Possible values are:
PWR-A Affecting Power Bus A (or both A and B).
PWR-B Affecting Power Bus B.
conddescr Detailed text description of the event. The conddescr is 1 to 64
characters of ASCII text. See condtype below.
condtype Condition type identifies the type of alarm (maps to
cerent15216EdfaLogEventID). Possible condtype and
corresponding conddescr (in quotes) are:
PWRBUSA “Power Bus A (voltage) Alarm”
(cerent15216EdfaAlarmPowerBusA).
PWRBUSB “Power Bus B (voltage) Alarm”
(cerent15216EdfaAlarmPowerBusB).
date yyyy-mm-dd Date of origination of TL1 message.
![](asset-b0.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-28
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.20 REPT ALM EQPT
Command REPT ALM EQPT
Reports when a general alarm (not directly affecting optical signal or power bus) is logged or cleared
(derived from cerent15216EdfaAlarmState).
Syntax <sid> <date> <time>
<almcde> <atag> REPT ALM EQPT
"<aid>:<ntfcncde>,<condtype>,<srveff>,<ocrdat>,<ocrtm>,,:<conddescr>"
;
Example 9-22 REPT ALM EQPT Message
Amp01 2001-06-18 14:48:44
* 141 REPT ALM EQPT
"EQPT:MN,LCRNT1,NSA,6-18,14-48-44,,:\"Excessive Pump1 Current\""
;
ntfncde Notification code (maps to cerent15216EdfaAlarmPriority).
Possible values are:
CR Critical alarm.
MJ Major alarm.
MN Minor alarm.
CL Cleared alarm.
NA No alarm.
ocrdat m-d Date (month-day) of the event occurrence (derived from
cerent15216EdfaDateAndTimeString).
ocrtm h-m-s Time (hour-minute-second) of the event occurrence (derived
from cerent15216EdfaDateAndTimeString).
sid string Source identifier uniquely identifies the source of a TL1
autonomous command.
time hh:mm:ss Time of origination of TL1 message.
Table 9-26 REPT ALM ENV Syntax Description (continued)
Parameter Syntax Description
![](asset-b1.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-29
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
Table 9-27 REPT ALM EQPT Syntax Description
Parameter Syntax Description
almcde The alarm severity code for the TL1 message. Possible values
are:
*C Critical alarm.
** Major alarm.
* Minor alarm.
A No alarm. Occurs only when ntfncde is NA.
atag 0 - 999 An integer between 0 and 999 used as a sequence number in
autonomous messages .
aid Always EQPT.
EQPT General parameters of the ONS 15216 EDFA2 (not directly
affecting optical signal or power bus).
conddescr Detailed text description of the event. The conddescr is 1 to 64
characters of ASCII text. See condtype below.
condtype Condition type identifies the type of alarm (maps to
cerent15216EdfaLogEventID). Possible condtype and
corresponding conddescr (in quotes) are:
CTMP “Case Temperature Out of Range” alarm
(cerent15216EdfaAlarmCtmp).
LCRNT1 “Excessive Pump1 Current” alarm
(cerent15216EdfaAlarmLcrnt1).
LCRNT2 “Excessive Pump2 Current” alarm
(cerent15216EdfaAlarmLcrnt2).
LTMP1 “Excessive Pump1 Temperature” alarm
(cerent15216EdfaAlarmLtmp1).
LTMP2 “Excessive Pump2 Temperature” alarm
(cerent15216EdfaAlarmLtmp2).
date yyyy-mm-dd Date of origination of TL1 message.
ntfncde Notification code (maps to cerent15216EdfaAlarmPriority).
Possible values are:
CR Critical alarm.
MJ Major alarm.
MN Minor alarm.
CL Cleared alarm.
NA No alarm.
ocrdat m-d Date (month-day) of the event occurrence (derived from
cerent15216EdfaDateAndTimeString).
ocrtm h-m-s Time (hour-minute-second) of the event occurrence (derived
from cerent15216EdfaDateAndTimeString).
sid string Source identifier uniquely identifies the source of a TL1
autonomous command.
![](asset-b2.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-30
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.21 REPT EVT DWDM / REPT EVT ENV / REPT EVT EQPT
Command REPT EVT DWDM or REPT EVT ENV or REPT EVT EQPT
Reports autonomous events. Reports when an event is logged.
Syntax <sid> <date> <time>
A <atag> REPT EVT <ccm>
"<aid>:<condtype>,<condeff>,<ocrdat>,<ocrtm>,,,,:<conddescr>"
;
Example 9-23 REPT EVT DWDM Message
Amp01 2001-06-18 14:48:44
A 141 REPT EVT DWDM
"1:CTRLMODE1,TC,6-18,14-48-44,,,,:\"Pump1 Control Mode Changed\""
;
srveff Effect on service. Possible values are:
SA Service affecting.
NSA Non-service affecting.
time hh:mm:ss Time of origination of TL1 message.
Table 9-27 REPT ALM EQPT Syntax Description (continued)
Parameter Syntax Description
![](asset-b3.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-31
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
Table 9-28 REPT EVT DWDM / REPT EVT ENV / REPT EVT EQPT Syntax Description
Parameter Syntax Description
atag 0 - 999 An integer between 0 and 999 used as a sequence number
in autonomous messages .
aid Possible values are:
1 Directly affecting the optical signal.
PWR-A Affecting Power Bus A (or both A and B).
PWR-B Affecting Power Bus B.
EQPT General parameters of the ONS 15216 EDFA2 (not
directly affecting optical signal or power bus).
conddescr Detailed text description of the event. The conddescr is 1
to 64 characters of ASCII text. See condtype below.
condtype
(ccm)
Condition type identifies the type of event (maps to
cerent15216EdfaLogEventID). Possible condtype and
corresponding conddescr (in quotes) are:
CTRLMODE1
(DWDM)
“Pump1 Control Mode Changed”
(cerent15216EdfaControlMode for
cerent15216EdfaPumpCfgPumpNumber=1).
CTRLMODE2
(DWDM)
“Pump2 Control Mode Changed”
(cerent15216EdfaControlMode for
cerent15216EdfaPumpCfgPumpNumber=2).
GAINCHGD
(DWDM)
“Overall Gain Changed”
(cerent15216EdfaConstGainOverallGain).
LOSHYSTCHGD
(DWDM)
“LOS (loss of signal) Hysteresis Changed”
(cerent15216EdfaLOSHysteresis).
LOSTHCHGD
(DWDM)
“LOS (loss of signal) Threshold Changed”
(cerent15216EdfaLOSThreshold).
LPOUTCHGD
(DWDM)
“Loss of Output Power Setpoint Changed”
(cerent15216EdfaLpoutSetpoint).
LPOUTDEVCHGD
(DWDM)
“Lpout (loss of output power) Deviation Changed”
(cerent15216EdfaLpoutDeviation).
LPOUTHYSTCHGD
(DWDM)
“Lpout (loss of output power) Hysteresis Changed”
(cerent15216EdfaLpoutHysteresis).
PREATTCHGD
(DWDM)
“Pre-attenuation Changed”
(cerent15216EdfaVariableGainPreAttenuation).
PWRBUSMAXCHGD
(EVN)
“Power Bus Max (voltage) Changed”
(cerent15216EdfaPowerBusDCVoltageMax).
PWRBUSMINCHGD
(EVN)
“Power Bus Min (voltage) Changed”
(cerent15216EdfaPowerBusDCVoltageMin).
PWRBUSMODE
(EVN)
“Power Bus Mode Changed”
(cerent15216EdfaPowerBusMode).
MAXCTMPCHGD
(EQPT)
“Max Case Temperature Changed”
(cerent15216EdfaCtmpMax).
![](asset-b4.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-32
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.22 REPT EVT FXFR
Command REPT EVT FXFR
Reports autonomous events related to the FTP file transfer (see “COPY-RFILE” section on page 9-12).
Reports when an event related to the file transfer is logged.
Syntax <sid> <date> <time>
A <atag> REPT EVT FXFR
"<aid>:<filename>,<fxfr_status>[,<fxfr_rslt>][,<bytes_xfrd>]"
;
condtype
(ccm)
MAXCTMPHYSTCHGD
(EQPT)
“Max Ctmp (case temperature) Hysteresis Changed”
(cerent15216EdfaCtmpMaxHysteresis).
MINCTMPCHGD
(EQPT)
“Min Case Temperature Changed”
(cerent15216EdfaCtmpMin).
MINCTMPHYSTCHGD
(EQPT)
“Min Ctmp (case temperature) Hysteresis Changed”
(cerent15216EdfaCtmpMinHysteresis).
CUTOVERRESET
(EQPT)
(Software) “Reset after Cutover”
(cerent15216EdfaOpCutover).
SOFTWARELOAD
(EQPT)
(New) “Software Load” (cerent15216EdfaOpLoad).
SOFTWARERESET
(EQPT)
“Software Reset” (cerent15216EdfaOpReset).
condeff string
TC
Effect of the condition. Always TC (transient condition).
date yyyy-mm-dd Date of origination of TL1 message.
ocrdat m-d Date (month-day) of the event occurrence (derived from
cerent15216EdfaDateAndTimeString).
ocrtm h-m-s Time (hour-minute-second) of the event occurrence
(derived from cerent15216EdfaDateAndTimeString).
sid string Source identifier uniquely identifies the source of a TL1
autonomous command.
srveff Effect on service. Possible values are:
SA Service affecting.
NSA Non-service affecting.
time hh:mm:ss Time of origination of TL1 message.
Table 9-28 REPT EVT DWDM / REPT EVT ENV / REPT EVT EQPT Syntax Description (continued)
Parameter Syntax Description
![](asset-b5.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-33
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
Example 9-24 REPT EVT FXFR Message
Amp01 2001-06-18 14:48:44
A 141 REPT EVT FXFR
"EQPT:VMRLS20.EXE,COMPLD,SUCCESS,8051"
;
9.7.23 RTRV-ALM-ALL
Command RTRV-ALM-ALL
Generates a report on all active alarms (except environmental (ENV) alarms as per Telcordia
GR-833-CORE). Note that the ccm does not appear in the response for EQPT alarms.
Note The messages for Loss of Signal (LOS), Gain Out of Range (GAIN), and Loss of Output Power
(LPOUT) are prioritized (in the order just listed) so that only one message can be delivered at one time.
For example, if the ONS 15216 EDFA2 detects both a loss of input signal and a loss of output power at
the same time, it will deliver only the Loss of Signal (LOS) message to the user. This prioritized filtering
of alarms does not occur with the SNMP delivery of alarms of the ONS 15216 EDFA2.
Table 9-29 REPT EVT FXFR Syntax Description
Parameter Syntax Description
atag 0 - 999 An integer between 0 and 999 used as a sequence number in
autonomous messages.
aid Always EQPT.
EQPT General parameters of the ONS 15216 EDFA2 (not directly
affecting optical signal or power bus).
bytes_xfrd Total number of bytes transferred when fxfr_status is
COMPLD. See fxfr_status below.
filename Identifies the name of the file that is being transferred.
fxfr_rslt File transfer result indicates success or failure of the file
transfer. This is displayed only when the file transfer has
completed (i.e., fxfr_status is COMPLD). Possible values are:
SUCCESS File transfer was successful.
FAILURE File transfer failed.
fxfr_status File transfer status of ONS 15216 EDFA2’s file transfer at the
current time. (The option IP (in progress) has not been
implemented.) Possible values are:
START File transfer has started.
COMPLD File transfer has completed.
date yyyy-mm-dd Date of origination of TL1 message.
sid string Source identifier uniquely identifies the source of a TL1
autonomous command.
time hh:mm:ss Time of origination of TL1 message.
![](asset-b6.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-34
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
Syntax RTRV-ALM-ALL:[<tid>]::<ctag>::[<ntfcncde>],[<condtype>],[<srveff>][,,,,,];
<sid> <date> <time>
M <ctag> COMPLD
"<aid>,<ccm>:<ntfcncde>,<condtype>,<srveff>,<ocrdat>,<ocrtm>,,:<conddescr>"
;
Example 9-25 RTRV-ALM-ALL Command and Response
Amp01:ONS15216 EDFA2> RTRV-ALM-ALL:Amp01::229::MN,LCRNT1,NSA,,;
Amp01 2002-06-20 14:30:00
M 229 COMPLD
"1,DWDM:MJ,LOS,SA,6-20,14-25-30,,:\"Loss Of Signal\""
"EQPT,EQPT:MN,LCRNT1,NSA,6-20,14-25-30,,:\"Excessive Pump1 Current\""
;
Table 9-30 RTRV-ALM-ALL Syntax Description
Parameter Syntax Description
aid Possible values are:
1 Directly affecting the optical signal
EQPT General parameters of the ONS 15216 EDFA2 (not directly
affecting optical signal or power bus)
conddescr Detailed text description of the event. The conddescr is 1 to 64
characters of ASCII text. See condtype below
condtype
(ccm)
Condition type identifies the type of alarm (maps to
cerent15216EdfaLogEventID). Possible condtype and
corresponding conddescr (in quotes) are:
LOS
(DWDM)
“Loss of Signal” (input power) alarm
(cerent15216EdfaAlarmLpin).
GAIN
(DWDM)
“Gain Out of Range” alarm (cerent15216EdfaAlarmGain).
LPOUT
(DWDM)
“Loss of Output Power” alarm (cerent15216EdfaAlarmLpout).
CTMP
(EQPT)
“Case Temperature Out of Range” alarm
(cerent15216EdfaAlarmCtmp).
LCRNT1
(EQPT)
“Excessive Pump1 Current” alarm
(cerent15216EdfaAlarmLcrnt1).
LCRNT2
(EQPT)
“Excessive Pump2 Current” alarm
(cerent15216EdfaAlarmLcrnt2).
LTMP1
(EQPT)
“Excessive Pump1 Temperature” alarm
(cerent15216EdfaAlarmLtmp1).
LTMP2
(EQPT)
“Excessive Pump2 Temperature” alarm
(cerent15216EdfaAlarmLtmp2).
date yyyy-mm-dd Date of origination of TL1 message.
![](asset-b7.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-35
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.24 RTRV-ALM-DWDM
Command RTRV-ALM-DWDM
Generates a report on active DWDM alarms.
Note The messages for Loss of Signal (LOS), Gain Out of Range (GAIN), and Loss of Output Power
(LPOUT) are prioritized (in the order just listed) so that only one message can be delivered at one time.
For example, if the ONS 15216 EDFA2 detects both a loss of input signal and a loss of output power at
the same time, it will deliver only the Loss of Signal (LOS) message to the user. This prioritized filtering
of alarms does not occur with the SNMP delivery of alarms of the ONS 15216 EDFA2.
Syntax RTRV-ALM-DWDM:[<tid>]:<aid>:<ctag>::[<ntfcncde>],[<condtype>],[<srveff>][,,,,,];
<sid> <date> <time>
M <ctag> COMPLD
"<aid>,<ccm>:<ntfcncde>,<condtype>,<srveff>,<ocrdat>,<ocrtm>,,:<conddescr>"
;
Example 9-26 RTRV-ALM-DWDM Command and Response
Amp01:ONS15216 EDFA2> RTRV-ALM-DWDM:Amp01:ALL:229::,,;
Amp01 2002-06-20 14:30:00
M 229 COMPLD
ntfncde Notification code (maps to cerent15216EdfaAlarmPriority).
Possible values are:
CR Critical alarm.
MJ Major alarm.
MN Minor alarm.
CL Cleared alarm.
NA No alarm.
ocrdat m-d Date (month-day) of the event occurrence (derived from
cerent15216EdfaDateAndTimeString).
ocrtm h-m-s Time (hour-minute-second) of the event occurrence (derived
from cerent15216EdfaDateAndTimeString).
sid string Source identifier uniquely identifies the source of a TL1
autonomous command.
srveff Effect on service. Possible values are:
SA Service affecting.
NSA Non-service affecting.
time hh:mm:ss Time of origination of TL1 message.
Table 9-30 RTRV-ALM-ALL Syntax Description (continued)
Parameter Syntax Description
![](asset-b8.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-36
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
"1,DWDM:MJ,LOS,SA,6-20,14-25-30,,:\"Loss Of Signal\""
;
Table 9-31 RTRV-ALM-DWDM Syntax Description
Parameter Syntax Description
aid 1 and ALL have same input effect.
1 Directly affecting the optical signal.
ALL Any or all of the preceding (command input only).
conddescr Detailed text description of the event. The conddescr is 1 to
64 characters of ASCII text. See condtype below.
condtype Condition type identifies the type of alarm (maps to
cerent15216EdfaLogEventID). Possible condtype and
corresponding conddescr (in quotes) are:
LOS “Loss of Signal” (input power) alarm
(cerent15216EdfaAlarmLpin).
GAIN “Gain Out of Range” alarm (cerent15216EdfaAlarmGain).
LPOUT “Loss of Output Power” alarm
(cerent15216EdfaAlarmLpout).
date yyyy-mm-dd Date of origination of TL1 message.
ntfncde Notification code (maps to cerent15216EdfaAlarmPriority).
Possible values are:
CR Critical alarm.
MJ Major alarm.
MN Minor alarm.
CL Cleared alarm.
NA No alarm.
ocrdat m-d Date (month-day) of the event occurrence (derived from
cerent15216EdfaDateAndTimeString).
ocrtm h-m-s Time (hour-minute-second) of the event occurrence (derived
from cerent15216EdfaDateAndTimeString).
sid string Source identifier uniquely identifies the source of a TL1
autonomous command.
srveff Effect on service. Possible values are:
SA Service affecting.
NSA Non-service affecting.
time hh:mm:ss Time of origination of TL1 message.
![](asset-b9.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-37
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.25 RTRV-ALM-ENV
Command RTRV-ALM-ENV
Generates a report on specific or all active environmental (power bus) alarms.
Syntax RTRV-ALM-ENV:[<tid>]:<aid>:<ctag>::[<ntfcncde>],[<condtype>];
<sid> <date> <time>
M <ctag> COMPLD
"<aid>,<ccm>:<ntfcncde>,<condtype>,<ocrdat>,<ocrtm>,<conddescr>"
;
Example 9-27 RTRV-ALM-ENV Command and Response
Amp01:ONS15216 EDFA2> RTRV-ALM-ENV:Amp01:ALL:229::MN,PWRBUSA;
Amp01 2002-06-20 14:30:00
M 229 COMPLD
"PWR-A,ENV:MN,PWRBUSA,6-20,14-25-30,\"Power Bus A Alarm\""
;
Table 9-32 RTRV-ALM-ENV Syntax Description
Parameter Syntax Description
aid Specifying PWR-A or PWR-B in input has a filter effect on the
response.
PWR-A Affecting Power Bus A (or both A and B).
PWR-B Affecting Power Bus B.
ALL Any or all of the preceding (command input only).
conddescr Detailed text description of the event. The conddescr is 1 to 64
characters of ASCII text. See condtype below.
condtype Condition type identifies the type of alarm (maps to
cerent15216EdfaLogEventID). Possible condtype and
corresponding conddescr (in quotes) are:
PWRBUSA “Power Bus A (voltage) Alarm”
(cerent15216EdfaAlarmPowerBusA).
PWRBUSB “Power Bus B (voltage) Alarm”
(cerent15216EdfaAlarmPowerBusB).
date yyyy-mm-dd Date of origination of TL1 message.
ntfncde Notification code (maps to cerent15216EdfaAlarmPriority).
Possible values are:
CR Critical alarm.
MJ Major alarm.
MN Minor alarm.
CL Cleared alarm.
NA No alarm.
![](asset-ba.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-38
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.26 RTRV-ALM-EQPT
Command RTRV-ALM-EQPT
Generates a report on all active alarms (except environmental alarms as per Telcordia GR-833-CORE).
Syntax RTRV-ALM-EQPT:[<tid>]:<aid>:<ctag>::[<ntfcncde>],[<condtype>],[<srveff>][,,,,,];
<sid> <date> <time>
M <ctag> COMPLD
"<aid>:<ntfcncde>,<condtype>,<srveff>,<ocrdat>,<ocrtm>,,:<conddescr>"
;
Example 9-28 RTRV-ALM-EQPT Command and Response
Amp01:ONS15216 EDFA2> RTRV-ALM-EQPT:Amp01:ALL:229::MN,LCRNT1,NSA,,;
Amp01 2002-06-20 14:30:00
M 229 COMPLD
"EQPT:MN,LCRNT1,NSA,6-20,14-25-30,,:\"Excessive Pump1 Current\""
;
ocrdat m-d Date (month-day) of the event occurrence (derived from
cerent15216EdfaDateAndTimeString).
ocrtm h-m-s Time (hour-minute-second) of the event occurrence (derived
from cerent15216EdfaDateAndTimeString).
sid string Source identifier uniquely identifies the source of a TL1
autonomous command.
time hh:mm:ss Time of origination of TL1 message.
Table 9-32 RTRV-ALM-ENV Syntax Description (continued)
Parameter Syntax Description
Table 9-33 RTRV-ALM-EQPT Syntax Description
Parameter Syntax Description
aid EQPT and ALL have same input effect.
EQPT General parameters of the ONS 15216 EDFA2 (not directly
affecting optical signal or power bus).
ALL Any or all of the preceding (command input only).
conddescr Detailed text description of the event. The conddescr is 1 to 64
characters of ASCII text. See condtype below.
![](asset-bb.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-39
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
condtype Condition type identifies the type of alarm (maps to
cerent15216EdfaLogEventID). Possible condtype and
corresponding conddescr (in quotes) are:
CTMP “Case Temperature Out of Range” alarm
(cerent15216EdfaAlarmCtmp).
LCRNT1 “Excessive Pump1 Current” alarm
(cerent15216EdfaAlarmLcrnt1).
LCRNT2 “Excessive Pump2 Current” alarm
(cerent15216EdfaAlarmLcrnt2).
LTMP1 “Excessive Pump1 Temperature” alarm
(cerent15216EdfaAlarmLtmp1).
LTMP2 “Excessive Pump2 Temperature” alarm
(cerent15216EdfaAlarmLtmp2).
date yyyy-mm-dd Date of origination of TL1 message.
ntfncde Notification code (maps to cerent15216EdfaAlarmPriority).
Possible values are:
CR Critical alarm.
MJ Major alarm.
MN Minor alarm.
CL Cleared alarm.
NA No alarm.
ocrdat m-d Date (month-day) of the event occurrence (derived from
cerent15216EdfaDateAndTimeString).
ocrtm h-m-s Time (hour-minute-second) of the event occurrence (derived
from cerent15216EdfaDateAndTimeString).
sid string Source identifier uniquely identifies the source of a TL1
autonomous command.
srveff Effect on service. Possible values are:
SA Service affecting.
NSA Non-service affecting.
time hh:mm:ss Time of origination of TL1 message.
Table 9-33 RTRV-ALM-EQPT Syntax Description (continued)
Parameter Syntax Description
![](asset-bc.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-40
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.27 RTRV-AO
Command RTRV-AO
Retrieves autonomous output.
Allows the operating system to retrieve a copy of queued autonomous messages or missing autonomous
messages. Examples of autonomous messages are REPT ALM and REPT EVT.
Users can retrieve up to the latest 1000 autonomous messages (alarms and events). Normally, users
should limit the retrieval to less than 200 messages to prevent alarm reporting and other active users from
being impacted. To retrieve more than 200 messages, it is recommended that the user saves the
autonomous message log to a file using the CPY-MEM command and then get the file through FTP
using the COPY-RFILE command.
If none of the stored automatic messages satisfy the selection criteria, then a complete normal response
is sent. If one or more stored autonomous messages satisfy the criteria, then the messages should be
reported in the normal response in ATAG order.
Syntax RTRV-AO:[<tid>]::<ctag>:::[ATAGSEQ=<atagseq>][,MSGTYPE=<msgtype>];
Example 9-29 RTRV-AO Command
Amp01:ONS15216 EDFA2> RTRV-AO:Amp01::123:::ATAGSEQ=20&&30,MSGTYPE=EVT;
Table 9-34 RTRV-AO Syntax Description
Parameter Syntax Description
atagseq atag is an integer between 0 and 999 used by the
ONS 15216 EDFA2 to sequentially number in autonomous
messages. atagseq can be a single atag number or a range of
numbers in the form AA&&BB, where AA and BB are integers.
If null, the 20 latest messages will be retrieved.
msgtype Type of message. A null value means both ALM and EVT.
ALM Alarm message.
EVT Event message.
![](asset-bd.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-41
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.28 RTRV-COND-ALL
Command RTRV-COND-ALL
Generates a report on the condition (state) of all alarms (except environmental alarms). Note that the ccm
does not appear in the response for EQPT alarms.
Note The messages for Loss of Signal (LOS), Gain Out of Range (GAIN), and Loss of Output Power
(LPOUT) are prioritized (in the order just listed) so that only one message can be delivered at one time.
For example, if the ONS 15216 EDFA2 detects both a loss of input signal and a loss of output power at
the same time, it will deliver only the Loss of Signal (LOS) message to the user. This prioritized filtering
of alarms does not occur with the SNMP delivery of alarms of the ONS 15216 EDFA2.
Syntax RTRV-COND-ALL:[<tid>]::<ctag>::[<condtype>][,,,];
<sid> <date> <time>
M <ctag> COMPLD
"<aid>,<ccm>:<ntfcncde>,<condtype>,<srveff>,<ocrdat>,<ocrtm>,,,<conddescr>"
;
Example 9-30 RTRV-COND-ALL Command and Response
Amp01:ONS15216 EDFA2> RTRV-COND-ALL:Amp01::229::LCRNT1;
Amp01 2002-06-20 14:30:00
M 229 COMPLD
"1,DWDM:MJ,LOS,SA,6-20,14-25-30,,,\"Loss Of Signal\""
"EQPT,EQPT:MN,LCRNT1,NSA,6-20,14-25-30,,,\"Excessive Pump1 Current\""
;
Table 9-35 RTRV-COND-ALL Syntax Description
Parameter Syntax Description
aid Possible values are:
1 Directly affecting the optical signal.
EQPT General parameters of the ONS 15216 EDFA2 (not directly
affecting optical signal or power bus).
conddescr Detailed text description of the event. The conddescr is 1 to 64
characters of ASCII text. See condtype below.
![](asset-be.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-42
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
condtype
(ccm)
Condition type identifies the type of alarm (maps to
cerent15216EdfaLogEventID). Possible condtype and
corresponding conddescr (in quotes) are:
LOS
(DWDM)
“Loss of Signal” (input power) alarm
(cerent15216EdfaAlarmLpin).
GAIN
(DWDM)
“Gain Out of Range” alarm (cerent15216EdfaAlarmGain).
LPOUT
(DWDM)
“Loss of Output Power” alarm (cerent15216EdfaAlarmLpout).
CTMP
(EQPT)
“Case Temperature Out of Range” alarm
(cerent15216EdfaAlarmCtmp).
LCRNT1
(EQPT)
“Excessive Pump1 Current” alarm
(cerent15216EdfaAlarmLcrnt1).
LCRNT2
(EQPT)
“Excessive Pump2 Current” alarm
(cerent15216EdfaAlarmLcrnt2).
LTMP1
(EQPT)
“Excessive Pump1 Temperature” alarm
(cerent15216EdfaAlarmLtmp1).
LTMP2
(EQPT)
“Excessive Pump2 Temperature” alarm
(cerent15216EdfaAlarmLtmp2).
date yyyy-mm-dd Date of origination of TL1 message.
ntfncde Notification code (maps to cerent15216EdfaAlarmPriority).
Possible values are:
CR Critical alarm.
MJ Major alarm.
MN Minor alarm.
NA No alarm.
ocrdat m-d Date (month-day) of the event occurrence (derived from
cerent15216EdfaDateAndTimeString).
ocrtm h-m-s Time (hour-minute-second) of the event occurrence (derived
from cerent15216EdfaDateAndTimeString).
sid string Source identifier uniquely identifies the source of a TL1
autonomous command.
srveff Effect on service. Possible values are:
SA Service affecting.
NSA Non-service affecting.
time hh:mm:ss Time of origination of TL1 message.
Table 9-35 RTRV-COND-ALL Syntax Description (continued)
Parameter Syntax Description
![](asset-bf.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-43
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.29 RTRV-COND-DWDM
Command RTRV-COND-DWDM
Generates a report on the condition (state) of DWDM alarms.
Note The messages for Loss of Signal (LOS), Gain Out of Range (GAIN), and Loss of Output Power
(LPOUT) are prioritized (in the order just listed) so that only one message can be delivered at one time.
For example, if the ONS 15216 EDFA2 detects both a loss of input signal and a loss of output power at
the same time, it will deliver only the Loss of Signal (LOS) message to the user. This prioritized filtering
of alarms does not occur with the SNMP delivery of alarms of the ONS 15216 EDFA2.
Syntax RTRV-COND-DWDM:[<tid>]:<aid>:<ctag>::[<condtype>][,,,];
<sid> <date> <time>
M <ctag> COMPLD
"<aid>,<ccm>:<ntfcncde>,<condtype>,<srveff>,<ocrdat>,<ocrtm>,,,<conddescr>"
;
Example 9-31 RTRV-COND-DWDM Command and Response
Amp01:ONS15216 EDFA2> RTRV-COND-DWDM:Amp01:ALL:229::LOS;
Amp01 2002-06-20 14:30:00
M 229 COMPLD
"1,DWDM:MJ,LOS,SA,6-20,14-25-30,,,\"Loss Of Signal\""
;
Table 9-36 RTRV-COND-DWDM Syntax Description
Parameter Syntax Description
aid 1 and ALL have same input effect.
1 Directly affecting the optical signal.
ALL Any or all of the preceding (command input only).
conddescr Detailed text description of the event. The conddescr is 1 to 64
characters of ASCII text. See condtype below.
condtype Condition type identifies the type of alarm (maps to
cerent15216EdfaLogEventID). Possible condtype and
corresponding conddescr (in quotes) are:
LOS “Loss of Signal” (input power) alarm
(cerent15216EdfaAlarmLpin).
GAIN “Gain Out of Range” alarm (cerent15216EdfaAlarmGain).
LPOUT “Loss of Output Power” alarm (cerent15216EdfaAlarmLpout).
date yyyy-mm-dd Date of origination of TL1 message.
![](asset-c0.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-44
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.30 RTRV-COND-ENV
Command RTRV-COND-ENV
Generates a report on the condition (state) of environmental (power bus) alarms.
Syntax RTRV-COND-ENV:[<tid>]:<aid>:<ctag>::[<condtype>][,,];
<sid> <date> <time>
M <ctag> COMPLD
"<aid>,<ccm>:<ntfcncde>,<condtype>,<srveff>,<ocrdat>,<ocrtm>,,,<conddescr>"
;
Example 9-32 RTRV-COND-ENV Command and Response
Amp01:ONS15216 EDFA2> RTRV-COND-ENV:Amp01:ALL:229::PWRBUSA;
Amp01 2002-06-20 14:30:00
M 229 COMPLD
"PWR-A,ENV:MN,PWRBUSA,NSA,6-20,14-25-30,,,\"Power Bus A Alarm\""
;
ntfncde Notification code (maps to cerent15216EdfaAlarmPriority).
Possible values are:
CR Critical alarm.
MJ Major alarm.
MN Minor alarm.
NA No alarm.
ocrdat m-d Date (month-day) of the event occurrence (derived from
cerent15216EdfaDateAndTimeString).
ocrtm h-m-s Time (hour-minute-second) of the event occurrence (derived
from cerent15216EdfaDateAndTimeString).
sid string Source identifier uniquely identifies the source of a TL1
autonomous command.
srveff Effect on service. Possible values are:
SA Service affecting.
NSA Non-service affecting.
time hh:mm:ss Time of origination of TL1 message.
Table 9-36 RTRV-COND-DWDM Syntax Description (continued)
Parameter Syntax Description
![](asset-c1.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-45
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
Table 9-37 RTRV-COND-ENV Syntax Description
Parameter Syntax Description
aid Specifying PWR-A or PWR-B in input has a filter effect on the
response.
PWR-A Affecting Power Bus A (or both A and B).
PWR-B Affecting Power Bus B.
ALL Any or all of the preceding (command input only).
conddescr Detailed text description of the event. The conddescr is 1 to 64
characters of ASCII text. See condtype below.
condtype Condition type identifies the type of alarm (maps to
cerent15216EdfaLogEventID). Possible condtype and
corresponding conddescr (in quotes) are:
PWRBUSA “Power Bus A (voltage) Alarm”
(cerent15216EdfaAlarmPowerBusA).
PWRBUSB “Power Bus B (voltage) Alarm”
(cerent15216EdfaAlarmPowerBusB).
date yyyy-mm-dd Date of origination of TL1 message.
ntfncde Notification code (maps to cerent15216EdfaAlarmPriority).
Possible values are:
CR Critical alarm.
MJ Major alarm.
MN Minor alarm.
NA No alarm.
ocrdat m-d Date (month-day) of the event occurrence (derived from
cerent15216EdfaDateAndTimeString).
ocrtm h-m-s Time (hour-minute-second) of the event occurrence (derived
from cerent15216EdfaDateAndTimeString).
sid string Source identifier uniquely identifies the source of a TL1
autonomous command.
srveff Effect on service. Possible values are:
SA Service affecting.
NSA Non-service affecting.
time hh:mm:ss Time of origination of TL1 message.
![](asset-c2.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-46
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.31 RTRV-COND-EQPT
Command RTRV-COND-EQPT
Generates a report on the condition (state) of general alarms.
Syntax RTRV-COND-EQPT:[<tid>]:<aid>:<ctag>::[<condtype>][,,,];
<sid> <date> <time>
M <ctag> COMPLD
"<aid>:<ntfcncde>,<condtype>,<srveff>,<ocrdat>,<ocrtm>,,,<conddescr>"
;
Example 9-33 RTRV-COND-EQPT Command and Response
Amp01:ONS15216 EDFA2> RTRV-COND-EQPT:Amp01:ALL:229::LCRNT1;
Amp01 2002-06-20 14:30:00
M 229 COMPLD
"EQPT:MN,LCRNT1,NSA,6-20,14-25-30,,,\"Excessive Pump1 Current\""
;
Table 9-38 RTRV-COND-EQPT Syntax Description
Parameter Syntax Description
aid EQPT and ALL have same input effect.
EQPT General parameters of the ONS 15216 EDFA2 (not directly
affecting optical signal or power bus).
ALL Any or all of the preceding (command input only).
conddescr Detailed text description of the event. The conddescr is 1 to 64
characters of ASCII text. See condtype below.
condtype Condition type identifies the type of alarm (maps to
cerent15216EdfaLogEventID). Possible condtype and
corresponding conddescr (in quotes) are:
CTMP “Case Temperature Out of Range” alarm
(cerent15216EdfaAlarmCtmp).
LCRNT1 “Excessive Pump1 Current” alarm
(cerent15216EdfaAlarmLcrnt1).
LCRNT2 “Excessive Pump2 Current” alarm
(cerent15216EdfaAlarmLcrnt2).
LTMP1 “Excessive Pump1 Temperature” alarm
(cerent15216EdfaAlarmLtmp1).
LTMP2 “Excessive Pump2 Temperature” alarm
(cerent15216EdfaAlarmLtmp2).
date yyyy-mm-dd Date of origination of TL1 message.
![](asset-c3.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-47
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.32 RTRV-DFLT-SECU
Command RTRV-DFLT-SECU
Retrieves the timeout value(s) for user access level(s).
Syntax RTRV-DFLT-SECU:[<tid>]:<aid>:<ctag>;
<sid> <date> <time>
M <ctag> COMPLD
"<aid>:AL=<al>,TMOUT=<timeout>"
;
Example 9-34 RTRV-DFLT-SECU Command and Response
Amp01:ONS15216 EDFA2> RTRV-DFLT-SECU:Amp01:ALL:123;
Amp01 2002-01-12 08:01:05
M 123 COMPLD
"EQPT:AL=R,TMOUT=60"
"EQPT:AL=RW,TMOUT=30"
"EQPT:AL=RWA,TMOUT=15"
;
ntfncde Notification code (maps to cerent15216EdfaAlarmPriority).
Possible values are:
CR Critical alarm.
MJ Major alarm.
MN Minor alarm.
NA No alarm.
ocrdat m-d Date (month-day) of the event occurrence (derived from
cerent15216EdfaDateAndTimeString).
ocrtm h-m-s Time (hour-minute-second) of the event occurrence (derived
from cerent15216EdfaDateAndTimeString).
sid string Source identifier uniquely identifies the source of a TL1
autonomous command.
srveff Effect on service. Possible values are:
SA Service affecting.
NSA Non-service affecting.
time hh:mm:ss Time of origination of TL1 message.
Table 9-38 RTRV-COND-EQPT Syntax Description (continued)
Parameter Syntax Description
![](asset-c4.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-48
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.33 RTRV-DWDM
Command RTRV-DWDM
Retrieves the ONS 15216 EDFA2 optical control configuration.
Syntax RTRV-DWDM:[<tid>]:<aid>:<ctag>;
<sid> <date> <time>
M <ctag> COMPLD
"<aid>:INPWRMICROW=<inputpoweruw>,INPWRDBM=<inputpowerdbm>,OUTPWRMILLIW=<outputpowermw>
,OUTPWRDBM=<outputpowerdbm>,PUMP1CTRLMODE=<pump1ctrlmode>,PUMP1CTRLVALUE=<pump1ctrlvalue>,
PUMP2CTRLMODE=<pump2ctrlmode>,PUMP2CTRLVALUE=<pump2ctrlvalue>,OVERALLGAINMEASURED=<gainmea
sured>,CONFIGGAIN=<gain>,PREATTMEASURED=<preattmeasured>"
;
Example 9-35 RTRV-DWDM Command and Response
Amp01:ONS15216 EDFA2> RTRV-DWDM:Amp01:ALL:123;
Amp01 2002-06-20 14:30:00
M 124 COMPLD
"1:INPWRMICROW=264,INPWRDBM=-1578,OUTPWRMILLIW=172,OUTPWRDBM=237,PUMP1CTRLMODE=GAINTEMP
,PUMP1CTRLVALUE=169,PUMP2CTRLMODE=GAINTEMP,PUMP2CTRLVALUE=169,OVERALLGAINMEASURED=169,CONF
IGGAIN=170,PREATTMEASURED=60"
;
Table 9-39 RTRV-DFLT-SECU Syntax Description
Parameter Syntax Description
date yyyy-mm-dd Date of origination of TL1 message.
time hh:mm:ss Time of origination of TL1 message.
aid EQPT and ALL have same input effect.
EQPT General parameters of the ONS 15216 EDFA2 (not directly
affecting optical signal or power bus).
ALL Any or all of the preceding (command input only).
al Access level of the user. See “Summary of Security Permissions
for TL1 Commands” section on page 9-6 for access level
permissions.
R Read only privileges.
RW Read and write privileges.
RWA Read, write, and administrative privileges.
timeout integer Timeout in minutes.
![](asset-c5.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-49
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
Table 9-40 RTRV-DWDM Syntax Description
Parameter Syntax Description
date yyyy-mm-dd Date of origination of TL1 message.
time hh:mm:ss Time of origination of TL1 message.
aid 1 and ALL have same input effect.
1 Directly affecting the optical signal.
ALL Any or all of the preceding (command input only).
inputpoweruw 0 - 99999 Input power (signal) in units of 10 microW
(cerent15216EdfaInPoweruW).
inputpowerdbm –999999 -
999999
Input power (signal) in units of 100 dBm
(cerent15216EdfaInPowerdBm).
outputpowermw 0 - 999999 Output power in units of 100 mW
(cerent15216EdfaOutPowermW).
outputpowerdbm –99999 - 99999 Output power in units of 100 dBm
(cerent15216EdfaOutPowerdBm).
pump1ctrlmode,
pump2ctrlmode
Pump 1 or pump 2 control mode (maps to
cerent15216EdfaPumpCfgControlMode for the corresponding
pump). Possible values are:
GAINTEMP Constant Gain Temperature Compensated mode (manufacturer
default) (cerent15216EdfaPumpCfgControlMode set to
constGainTempComp).
OPWR Constant Output Power mode
(cerent15216EdfaPumpCfgControlMode set to
constOutputPower). A valid mode only for pump 2.
CRNT Constant Pump Current mode
(cerent15216EdfaPumpCfgControlMode set to constCurrent).
PWR Constant Pump Power mode
(cerent15216EdfaPumpCfgControlMode set to constPower).
IDLE Pump is shut down (cerent15216EdfaPumpCfgControlMode
set to idle).
pump1ctrlvalue,
pump2ctrlvalue
Pump 1 or pump 2 control value. This value’s interpretation
depends on the control mode of the corresponding pump.
Possible values are:
0 - 650 Output power in units of 10 mW when mode is OPWR (gets
cerent15216EdfaPumpCfgConstOutPower).
0 - 300 Current value in mA when mode is CRNT (gets
cerent15216EdfaPumpCfgConstPumpCurrent).
0 - 100 Pump power in mW when mode is PWR (gets
cerent15216EdfaPumpCfgConstPumpPower).
gainmeasured 0 - 230 Value of gain in units of 10 dB when mode is GAINTEMP (gets
cerent15216EdfaConstGainOverallGainMeasured).
![](asset-c6.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-50
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.34 RTRV-ENV
Command RTRV-ENV
Retrieves the ONS 15216 EDFA2 environmental parameter configuration.
Syntax RTRV-ENV:[<tid>]:<aid>:<ctag>;
<sid> <date> <time>
M <ctag> COMPLD
"<aid>:PWRBUSMODE=<pwrbusmode>"
;
Example 9-36 RTRV-ENV Command and Response
Amp01:ONS15216 EDFA2> RTRV-ENV:Amp01:ALL:123;
Amp01 2002-06-20 14:30:00
M 123 COMPLD
"PWR-B:PWRBUSMODE=DUPLEX"
;
gain 130 - 220 Value of gain setpoint in units of 10 dB when mode is
GAINTEMP (gets
cerent15216EdfaConstGainOverallGainMeasured). Same as
OVERALLGAIN.
preattmeasured 0 - 110 Gain pre-attenuation value in units of 10 dB (gets
cerent15216EdfaVariableGainPreAttenuationMeasured).
Table 9-40 RTRV-DWDM Syntax Description (continued)
Parameter Syntax Description
Table 9-41 RTRV-ENV Syntax Description
Parameter Syntax Description
date yyyy-mm-dd Date of origination of TL1 message.
time hh:mm:ss Time of origination of TL1 message.
aid PWR-A, PWR-B, and ALL have same input effect.
PWR-A Affecting Power Bus A (or both A and B).
PWR-B Affecting Power Bus B.
ALL Any or all of the preceding (command input only).
pwrbusmode Power bus mode setting (cerent15216EdfaPowerBusMode).
Possible values are:
SIMPLEX Simplex mode. Requires power only to bus A
(cerent15216EdfaPowerBusMode set to simplex).
DUPLEX Duplex mode (manufacturer default). Requires power to both
bus A and bus B (cerent15216EdfaPowerBusMode set to
duplex).
![](asset-c7.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-51
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.35 RTRV-HDR
Command RTRV-HDR
Retrieves header. Sends standard keep-alive message used to ping the ONS 15216 EDFA2. It also returns
the current date, time, and sid/tid name of the ONS 15216 EDFA2 in the reply.
Syntax RTRV-HDR:[<tid>]::<ctag>;
<sid> <date> <time>
M <ctag> COMPLD
;
Example 9-37 RTRV-HDR Command and Response
Amp01:ONS15216 EDFA2> RTRV-HDR:Amp01::100;
Amp01 2001-06-08 08:10:50
M 100 COMPLD
;
9.7.36 RTRV-INV
Command RTRV-INV
Retrieves the inventory information of the ONS 15216 EDFA2.
Syntax RTRV-INV:[<tid>]:<aid>:<ctag>;
<sid> <date> <time>
M <ctag> COMPLD
"<aid>:CLEI=<cleicode>,DESCR=<descr>,NAME=<name>,HARDWAREREV=<hwrev>,
FIRMWAREREV=<fwrev>,SOFTWAREREV=<swrev>,SERIALNUM=<serialnum>,MFGNAME=<mfg>,MODELNAME=<mod
el>"
;
Example 9-38 RTRV-INV Command and Response
Amp01:ONS15216 EDFA2> RTRV-INV:Amp01:ALL:123;
Amp01 2002-01-12 08:01:05
M 123 COMPLD
"EQPT:CLEI=IPI01AA0AAA,DESCR=ONS15216EDFA2,NAME=Amp01,HARDWAREREV=v3.0.0,
FIRMWAREREV=v2.3.14,SOFTWAREREV=v2.3.0,SERIALNUM=DIT0533000P,MFGNAME=Cisco
Systems,MODELNAME=511112"
;
Table 9-42 RTRV-HDR Syntax Description
Parameter Syntax Description
date yyyy-mm-dd Date of origination of TL1 message.
time hh:mm:ss Time of origination of TL1 message.
![](asset-c8.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-52
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.37 RTRV-NE-GEN
Command RTRV-NE-GEN
Retrieves general parameters of the ONS 15216 EDFA2. Retrieves sid/tid name, IP address and mask,
and default router information. Also retrieves the boot table content.
Syntax RTRV-NE-GEN:[<tid>]::<ctag>;
<sid> <date> <time>
M <ctag> COMPLD
"<aid>:NAME=<name>,IPADDR=<ipaddr>,IPMASK=<ipmask>,DEFRTR=<defrtr>,
BOOTRECORDTYPE1=<bootrectype1>, BOOTFILENAME1=<bootfilename1>,BOOTIPADDR1=<bootipaddr1>,
BOOTRECORDTYPE2=<bootrectype2>,BOOTFILENAME2=<bootfilename2>,
BOOTIPADDR2=<bootipaddr2>,CLI=<cli>"
;
Table 9-43 RTRV-INV Syntax Description
Parameter Syntax Description
date yyyy-mm-dd Date of origination of TL1 message.
time hh:mm:ss Time of origination of TL1 message.
aid EQPT and ALL have same input effect.
EQPT General parameters of the ONS 15216 EDFA2 (not directly
affecting optical signal or power bus).
ALL Any or all of the preceding (command input only).
cleicode string CLEI code (cerent15216EdfaCLEI).
descr string System description (cerent15216EdfaPhysicalDescr).
fwrev string Firmware revision number
(cerent15216EdfaPhysicalFirmwareRev).
hwrev string Hardware revision number
(cerent15216EdfaPhysicalHardwareRev).
mfg string Manufacturer name (cerent15216EdfaPhysicalMfgName).
model string Model name (cerent15216EdfaPhysicalModelName).
name string System’s sid/tid name (sysName).
serialnum string System serial number (cerent15216EdfaPhysicalSerialNum).
swrev string Software revision number
(cerent15216EdfaPhysicalSoftwareRev).
![](asset-c9.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-53
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
Example 9-39 RTRV-NE-GEN Command and Response
Amp01:ONS15216 EDFA2> RTRV-NE-GEN:Amp01::123;
Amp01 2002-01-12 08:01:05
M 123 COMPLD
"EQPT:NAME=Amp01,IPADDR=172.22.87.100,IPMASK=255.255.255.0,DEFRTR=172.22
.87.2,BOOTRECORDTYPE1=FLASH,BOOTFILENAME1=15216EdfaSw_2.3.0,BOOTIPADDR1=0.0.0.0,
BOOTRECORDTYPE2=TFTP,BOOTFILENAME2=bin/15216EdfaSw_2.0.1,BOOTIPADDR2=1
72.22.128.249,CLI=TL1"
;
Table 9-44 RTRV-NE-GEN Syntax Description
Parameter Syntax Description
aid Always EQPT.
EQPT General parameters of the ONS 15216 EDFA2 (not directly
affecting optical signal or power bus).
name string System’s sid/tid name (sysName).
ipaddr string IP address of the system
(cerent15216EdfaSromIpMgmtEnetAddress).
ipmask string Subnet mask of the system
(cerent15216EdfaSromIpMgmtEnetSubNetMask).
defrtr string IP address of the default router
(cerent15216EdfaSromIpMgmtDefaultRouterAddress).
bootrectype1 Boot record type (cerent15216EdfaBootType for first entry).
Possible values are:
FLASH Boot from flash.
TFTP Boot through TFTP.
bootfilename1 string Boot file name (cerent15216EdfaBootFileName for first entry).
File names are case sensitive.
bootipaddr1 string IP address to boot from if bootrectype1 is set to TFTP
(cerent15216EdfaBootIpAddress for first entry).
bootrectype2 Boot record type (cerent15216EdfaBootType for second entry).
Possible values are:
FLASH Boot from flash.
TFTP Boot through TFTP.
bootfilename2 string Boot file name (cerent15216EdfaBootFileName for second
entry). File names are case sensitive.
bootipaddr2 string IP address to boot from if bootrectype2 is set to TFTP
(cerent15216EdfaBootIpAddress for second entry).
cli Default type of command line interface for all EIA/TIA-232
and default telnet port user sessions with the
ONS 15216 EDFA2. Possible values are:
TL1 TL1shell interface (manufacturer default).
ASH ASH shell interface – ONS 15216 EDFA2’s native interface.
![](asset-ca.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-54
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.38 RTRV-RFILE
Command RTRV-RFILE
Lists a specific file or all files on the flash file system of the ONS 15216 EDFA2.
Syntax RTRV-RFILE:[<tid>]::<ctag>::[<localfilename>+];
<sid> <date> <time>
M <ctag> COMPLD
"<aid>:<localfilename>"
;
Example 9-40 RTRV-RFILE Command and Response (List all Files)
Amp01:ONS15216 EDFA2> RTRV-RFILE:Amp01::123;
Amp01 2002-01-12 08:01:05
M 123 COMPLD
"EQPT:snmp.cfg,15216EdfaSw_2.3.0,passwd"
;
Example 9-41 RTRV-RFILE Command and Response (List a Specific File)
Amp01:ONS15216 EDFA2> RTRV-RFILE:Amp01::123::snmp.cfg;
Amp01 2002-01-12 08:01:05
M 123 COMPLD
"EQPT:snmp.cfg"
;
Table 9-45 RTRV-RFILE Syntax Description
Parameter Syntax Description
aid Always EQPT.
EQPT General parameters of the ONS 15216 EDFA2 (not directly
affecting optical signal or power bus).
localfilename string Name of the file on the flash file system of the
ONS 15216 EDFA2 that is to be listed. A null value in the
request means all files are to be listed. A null value in the
response means the file specified does not exist. File names are
case sensitive.
![](asset-cb.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-55
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.39 RTRV-TH-DWDM
Command RTRV-TH-DWDM
Retrieves optical threshold and set point values for the ONS 15216 EDFA2.
Syntax RTRV-TH-DWDM:[<tid>]:<aid>:<ctag>::[<thresholdtype>][,][,];
<sid> <date> <time>
M <ctag> COMPLD
"<aid>,DWDM:<thresholdtype>,,,<thresholdvalue>"
;
Example 9-42 RTRV-TH-DWDM Command and Response
Amp01:ONS15216 EDFA2> RTRV-TH-DWDM:Amp01:ALL:123::LPOUTDEV;
Amp01 2001-06-08 09:00:05
M 123 COMPLD
"1,DWDM:LPOUTDEV,,,1000"
;
Table 9-46 RTRV-TH-DWDM Syntax Description
Parameter Syntax Description
date yyyy-mm-dd Date of origination of TL1 message.
time hh:mm:ss Time of origination of TL1 message.
aid 1 and ALL have same input effect.
1 Directly affecting the optical signal.
ALL Any or all of the preceding (command input only).
![](asset-cc.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-56
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.40 RTRV-TH-ENV
Command RTRV-TH-ENV
Retrieves threshold values of the environmental (power bus) parameters of the ONS 15216 EDFA2.
Syntax RTRV-TH-ENV:[<tid>]:<aid>:<ctag>::[<thresholdtype>][,];
<sid> <date> <time>
M <ctag> COMPLD
"<aid>,ENV:<thresholdtype>,,,<thresholdvalue>"
;
threshholdtype
and
thresholdvalue
pairs
Type of threshold or set point that is to be retrieved. A null
value is equivalent to ALL. Possible to specify values for one
or more of the following:
LOSHYST Loss of signal (input power) hysteresis
(cerent15216EdfaLOSHysteresis).
thresholdvalue can be between 0 and 1000, with default of 100,
in units of 100 dB.
LOSTH Loss of signal (input power) threshold
(cerent15216EdfaLOSThreshold).
thresholdvalue can be between –3100 and –1500, with default
of –3000, in units of 100 dBm.
LPOUTDEV Loss of output power deviation
(cerent15216EdfaLpoutDeviation).
thresholdvalue can be between 0 and 1000, with default of 200,
in units of 100 dB.
LPOUTHYST Loss of output power hysteresis
(cerent15216EdfaLpoutHysteresis).
thresholdvalue can be between 0 and 1000, with default of 100,
in units of 100 dB.
LPOUTSETPT Loss of output power set point
(cerent15216EdfaLpoutSetpoint). This read-only value is only
valid when amplifier is in Constant Output Power (OPWR) and
Constant Pump Power (PWR) modes. Can be disregarded when
in Constant Gain Temperature Compensated (GAINTEMP) or
Constant Pump Current (CRNT) mode.
thresholdvalue is read-only and automatically determined by
the pump control mode with a possible value between 0 and
1000 in units of 10 mW.
Table 9-46 RTRV-TH-DWDM Syntax Description (continued)
Parameter Syntax Description
![](asset-cd.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-57
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
Example 9-43 RTRV-TH-ENV Command and Response
Amp01:ONS15216 EDFA2> RTRV-TH-ENV:Amp01:ALL:123::PWRBUSMIN;
Amp01 2002-07-16 14:24:29
M 123 COMPLD
"PWR-A,ENV:PWRBUSMIN,,,420"
;
9.7.41 RTRV-TH-EQPT
Command RTRV-TH-EQPT
Retrieves general threshold values for the ONS 15216 EDFA2.
Syntax RTRV-TH-EQPT:[<tid>]:<aid>:<ctag>::[<thresholdtype>][,][,];
<sid> <date> <time>
M <ctag> COMPLD
"<aid>:<thresholdtype>,,,<thresholdvalue>"
;
Table 9-47 RTRV-TH-ENV Syntax Description
Parameter Syntax Description
date yyyy-mm-dd Date of origination of TL1 message.
time hh:mm:ss Time of origination of TL1 message.
aid PWR-A, PWR-B, and ALL have same input effect.
PWR-A Affecting Power Bus A (or both A and B).
PWR-B Affecting Power Bus B.
ALL Any or all of the preceding (command input only).
threshholdtype
and
thresholdvalue
pairs
Type of threshold that is to be retrieved. A null value is
equivalent to ALL. Possible to specify values for one or more
of the following:
PWRBUSMIN Power bus minimum voltage
(cerent15216EdfaPowerBusDCVoltageMin).
thresholdvalue can be between 350 and 700, with default of
400, in units of –10 VDC.
PWRBUSMAX Power bus maximum voltage
(cerent15216EdfaPowerBusDCVoltageMax).
thresholdvalue can be between 350 and 700, with default of
570, in units of –10 VDC.
![](asset-ce.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-58
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
Example 9-44 RTRV-TH-EQPT Command and Response
Amp01:ONS15216 EDFA2> RTRV-TH-EQPT:Amp01:ALL:123::MAXCTMP;
Amp01 2001-06-08 09:00:05
M 123 COMPLD
"EQPT:MAXCTMP,,,60"
;
Table 9-48 RTRV-TH-EQPT Syntax Description
Parameter Syntax Description
date yyyy-mm-dd Date of origination of TL1 message.
time hh:mm:ss Time of origination of TL1 message.
aid EQPT and ALL have same input effect.
EQPT General parameters of the ONS 15216 EDFA2 (not directly
affecting optical signal or power bus).
ALL Any or all of the preceding (command input only).
threshholdtype
and
thresholdvalue
pairs
Type of threshold or set point that is to be retrieved. A null
value is equivalent to ALL. Possible to specify values for one
or more of the following:
MAXCTMP Maximum case temperature (cerent15216EdfaCtmpMax).
thresholdvalue can be between 20 and 70, with default of 65 in
units of °C.
MAXCTMPHYST Maximum case temperature hysteresis
(cerent15216EdfaCtmpMaxHysteresis).
thresholdvalue can be between 0 and 10, with default of 1, in
units of °C.
MINCTMP Minimum case temperature (cerent15216EdfaCtmpMin).
thresholdvalue can be between –10 and 10, with default of –5,
in units of °C.
MINCTMPHYST Minimum case temperature hysteresis
(cerent15216EdfaCtmpMinHysteresis).
thresholdvalue can be between 0 and 10, with default of 1, in
units of °C.
![](asset-cf.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-59
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.42 RTRV-TOD
Command RTRV-TOD
Retrieves the date and time of the ONS 15216 EDFA2.
Syntax RTRV-TOD:[<tid>]::<ctag>[::];
<sid> <date> <time>
M <ctag> COMPLD
"<tmody>,<tmtype>,<tmsrcdv>,<tmsrcst>"
;
Example 9-45 RTRV-TOD Command and Response
Amp01:ONS15216 EDFA2> RTRV-TOD:Amp01::123;
Amp01 2002-06-20 14:30:00
M 123 COMPLD
"2002,06,20,14,30,00,000,UTC,GPS,IS-ACT"
;
Table 9-49 RTRV-TOD Syntax Description
Parameter Syntax Description
date yyyy-mm-dd Date of origination of TL1 message.
time hh:mm:ss Time of origination of TL1 message.
tmody
format:
YYYY
MM
DD
HH
MM
SS
sss
01 - 12
01 - 31
00 - 23
00 - 59
00 - 59
000
Time of day of the format: YYYY,MM,DD,HH,MM,SS,sss
Current calendar year
Month
Day
Hour
Minutes
Seconds
Sub-seconds, currently fixed at 000.
tmtype UTC Type of time, currently fixed at universal coordinated time
(UTC), which is the same as Greenwich Mean Time (GMT).
tmsrcdv GPS Time source deviation, currently fixed at GPS.
tmsrcst IS-ACT State of the time source, of the format
<primaryState>-<secondaryState> (per Telcordia
GR-1093-CORE), currently fixed at IS-ACT (In_Service,
Active).
![](asset-d0.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-60
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.43 RTRV-USER-SECU
Command RTRV-USER-SECU
Retrieves the access level of an existing user from the system. Does not return the password.
Syntax RTRV-USER-SECU:[<tid>]:<uid>:<ctag>;
<sid> <date> <time>
M <ctag> COMPLD
"<uid>,<al>"
;
Example 9-46 RTRV-USER-SECU Command and Response
Amp01:ONS15216 EDFA2> RTRV-USER-SECU:Amp01:jsmith:123;
Amp01 2002-05-13 17:23:16
M 123 COMPLD
"jsmith,RW"
;
9.7.44 SET-ATTR-SECUDFLT
Command SET-ATTR-SECUDFLT
Sets the timeout value of user sessions for users with a specific access level. If no communication occurs
for this time, the user session is closed by the ONS 15216 EDFA2 TL1 agent. Users affected by changes
to the timeout must log out and log in again for the change to take effect.
Syntax SET-ATTR-SECUDFLT:[<tid>]::<ctag>::AL=<al>,TMOUT=<timeout>[,][,][,][,][,];
Table 9-50 RTRV-USER-SECU Syntax Description
Parameter Syntax Description
sid string Source identifier uniquely identifies the source of a TL1
autonomous command.
al Access level of the user. See “Summary of Security Permissions
for TL1 Commands” section on page 9-6 for access level
permissions.
R Read only privileges.
RW Read and write privileges.
RWA Read, write, and administrative privileges.
uid string User identifier (user name) of the existing user. If no user
identifier is specified and the current user has RWA access
level, it will list all existing users and their security levels.
![](asset-d1.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-61
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
Example 9-47 SET-ATTR-SECUDFLT Command
Amp01:ONS15216 EDFA2> SET-ATTR-SECUDFLT:Amp01::123::AL=RW,TMOUT=45;
9.7.45 SET-TH-DWDM
Command SET-TH-DWDM
Sets optical threshold values for the ONS 15216 EDFA2.
Syntax SET-TH-DWDM:[<tid>]:<aid>:<ctag>::<thresholdtype>,<thresholdvalue>[,,];
Example 9-48 SET-TH-DWDM Command
Amp01:ONS15216 EDFA2> SET-TH-DWDM:Amp01:ALL:123::LOSTH,-1500;
Table 9-51 SET-ATTR-SECUDFLT Syntax Description
Parameter Syntax Description
al Access level for which the timeout is being set. See “Summary
of Security Permissions for TL1 Commands” section on
page 9-6 for access level permissions.
R Read only privileges.
RW Read and write privileges.
RWA Read, write, and administrative privileges.
timeout 0 - 99 Value of the timeout in minutes for the corresponding access
level. Defaults are:
R = 60 min.
RW = 30 min.
RWA = 15 min.
0 means no timeout.
Table 9-52 SET-TH-DWDM Syntax Description
Parameter Syntax Description
aid 1 and ALL have same input effect.
1 Directly affecting the optical signal.
ALL Any or all of the preceding (command input only).
![](asset-d2.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-62
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.46 SET-TH-ENV
Command SET-TH-ENV
Sets threshold values of the environmental (power bus) parameters of the ONS 15216 EDFA2.
Syntax SET-TH-ENV:[<tid>]:<aid>:<ctag>::<thresholdtype>,<thresholdvalue>[,,];
Example 9-49 SET-TH-ENV Command
Amp01:ONS15216 EDFA2> SET-TH-ENV:Amp01:PWR-A:100::PWRBUSMIN,450;
threshholdtype
and
thresholdvalue
pairs
string Type of threshold that is to be set. The threshold is set to the
thresholdvalue that follows the comma. Possible to specify
values for one or more of the following:
LOSHYST Loss of signal (input power) hysteresis
(cerent15216EdfaLOSHysteresis).
thresholdvalue can be between 0 and 1000, with default of
100, in units of 100 dB.
LOSTH Loss of signal (input power) threshold
(cerent15216EdfaLOSThreshold).
thresholdvalue can be between –3100 and –1500, with
default of –3000, in units of 100 dBm.
LPOUTDEV Loss of output power deviation
(cerent15216EdfaLpoutDeviation).
thresholdvalue can be between 0 and 1000, with default of
200, in units of 100 dB.
LPOUTHYST Loss of output power hysteresis
(cerent15216EdfaLpoutHysteresis).
thresholdvalue can be between 0 and 1000, with default of
100, in units of 100 dB.
Table 9-52 SET-TH-DWDM Syntax Description (continued)
Parameter Syntax Description
Table 9-53 SET-TH-ENV Syntax Description
Parameter Syntax Description
aid PWR-A, PWR-B, and ALL have same input effect.
PWR-A Sets Power Bus A and Power Bus B.
PWR-B Sets Power Bus A and Power Bus B.
ALL Any or all of the preceding (command input only).
![](asset-d3.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-63
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.47 SET-TH-EQPT
Command SET-TH-EQPT
Sets general threshold values for the ONS 15216 EDFA2.
Syntax SET-TH-EQPT:[<tid>]:<aid>:<ctag>::<thresholdtype>,<thresholdvalue>[,,];
Example 9-50 SET-TH-EQPT Command
Amp01:ONS15216 EDFA2> SET-TH-EQPT:Amp01:ALL:123::MAXCTMP,60;
threshholdtype
and
thresholdvalue
pairs
Type of threshold that is to be set. The threshold is set to the
thresholdvalue that follows the comma. Possible to specify
values for one or more of the following:
PWRBUSMIN Power bus minimum voltage
(cerent15216EdfaPowerBusDCVoltageMin).
thresholdvalue can be between 350 and 700, with default of
400, in units of –10 VDC.
The power bus threshold has a 1.0V tolerance and a 1.0V
hysteresis. If the minimum threshold is configured at 400 (-40
VDC), the alarm will not raise until the voltage goes below -39
VDC and will not clear until the voltage goes above -41VDC.
PWRBUSMAX Power bus maximum voltage
(cerent15216EdfaPowerBusDCVoltageMax).
thresholdvalue can be between 350 and 700, with default of
570, in units of –10 VDC.
The power bus threshold has a 1.0V tolerance and a 1.0V
hysteresis. If the maximum threshold is configured at 570 (-57
VDC), the alarm will not raise until the voltage goes above -58
VDC and will not clear until the voltage goes below -56 VDC.
Table 9-53 SET-TH-ENV Syntax Description (continued)
Parameter Syntax Description
Table 9-54 SET-TH-EQPT Syntax Description
Parameter Syntax Description
aid EQPT and ALL have same input effect.
EQPT General parameters of the ONS 15216 EDFA2 (not directly
affecting optical signal or power bus).
ALL Any or all of the preceding (command input only).
![](asset-d4.png)
FINAL DRAFT - CISCO CONFIDENTIAL
9-64
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 9 TL1 Commands
TL1 Commands and Autonomous Messages
9.7.48 STA-LOCL-RST
Command STA-LOCL-RST
Instructs the ONS 15216 EDFA2 to restore all the manufacturing default settings. The files on the flash
file system (FFS), the date and time, the sid/tid name (name), and the values of manufacturing calibration
are not affected. This command must be followed by the INIT-SYS command to take effect.
Warning
This command resets the IP address, deletes the user directory, reverts CISCO15 to the default
password, and resets other parameters to restore the unit to its state as shipped from manufacturing.
Syntax STA-LOCL-RST:[<tid>]::<ctag>;
Example 9-51 STA-LOCL-RST Command
Amp01:ONS15216 EDFA2> STA-LOCL-RST:Amp01::10;
threshholdtype
and
thresholdvalue
pairs
string Type of threshold that is to be set. The threshold is set to the
thresholdvalue that follows the comma. Possible to specify
values for one or more of the following:
MAXCTMP Maximum case temperature (cerent15216EdfaCtmpMax).
thresholdvalue can be between 20 and 70, with default of 65
in units of °C.
MAXCTMPHYST Maximum case temperature hysteresis
(cerent15216EdfaCtmpMaxHysteresis).
thresholdvalue can be between 0 and 10, with default of 1, in
units of °C.
MINCTMP Minimum case temperature (cerent15216EdfaCtmpMin).
thresholdvalue can be between –10 and 10, with default of
–5, in units of °C.
MINCTMPHYST Minimum case temperature hysteresis
(cerent15216EdfaCtmpMinHysteresis).
thresholdvalue can be between 0 and 10, with default of 1, in
units of °C.
Table 9-54 SET-TH-EQPT Syntax Description (continued)
Parameter Syntax Description
![](asset-d5.png)
CHAPTER
FINAL DRAFT - CISCO CONFIDENTIAL
10-1
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
10
Troubleshooting
This chapter presents basic fault information and diagnosis (troubleshooting) procedures for the 2.1.0,
2.2.1, and 2.3.0 product releases of the Cisco ONS 15216 EDFA2. Only TL1 information about the
alarm notifications and commands is provided.
This chapter describes the behavior of the ONS 15216 EDFA2 in the most expected troubleshooting
situations. It does not address all possible causes of a particular situation or all possible solutions. For
additional help, please review the Release Notes for the software version(s) being used (see “Obtaining
Documentation” section on page xix).
If a situation is experienced that cannot be resolved, contact the Cisco Technical Assistance Center
(TAC) for help (see “Obtaining Technical Assistance” section on page xx). For all interactions with the
Cisco TAC, have the current ONS 15216 EDFA2 status prepared as described in the “Status Information
Needed by Cisco TAC” section on page 10-11.
This chapter includes the following sections:
•Alarm Indicators
–
LEDs and Office Alarms
–
Optical Alarms
–
Equipment Alarms
–
Environmental Alarms
•Troubleshooting Typical Scenarios
–
No Output Power after Adjusting Gain Settings
–
2.0.1 to 2.2.1 Upgrade Attempt
–
Image File Download Incomplete
–
Boot Up Failure
–
No Response from RS-232 Port
–
No Response from LAN Port
–
LAN Port Activity LED Stays On
–
Lost Password
•Status Information Needed by Cisco TAC
![](asset-d6.png)
FINAL DRAFT - CISCO CONFIDENTIAL
10-2
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 10 Troubleshooting
Alarm Indicators
10.1 Alarm Indicators
10.1.1 LEDs and Office Alarms
The front panel of the ONS 15216 EDFA2 has five LEDs:
•POWER
•FAIL
•LOS
•Ethernet socket (2)
On the left side of the front panel of the ONS 15216 EDFA2 are the POWER, FAIL, and LOS alarm
LEDs. The Ethernet LEDs are located at the top left and right sides of the Ethernet LAN port. When the
module is powered on, a LED test is performed.
The POWER, FAIL, and LOS LEDs correspond to Office Alarm conditions sent via the RJ-45 ALARM
port (if used). For additional alarm contact pinout information, see the “Alarm Out Relay Interface
(RJ-45)” section on page 3-5.
10.1.1.1 POWER LED (Green)
The POWER LED is green when on. This LED functions as follows:
•On: –48 VDC power supply is within tolerance. (Power Bus A and B are powered normally.)
•Off: If in duplex mode, both Power Bus A and B have failed (below –40 VDC) and remain below
the minimum turn-on supply voltage (-43 VDC). If in simplex mode, Power Bus A has failed (below
–40 VDC) and remains below the minimum turn-on supply voltage (-43 VDC). Note that the power
bus turn-off threshold has a 1.0V tolerance.
•Flashing: PWRBUSA or PWRBUSB alarm. If in duplex mode, Power Bus A, or B, or both are out
of the user-settable tolerance range. If in simplex mode, Power Bus A is out of the user-settable
tolerance range. The tolerance range is defined by PWRBUSMIN and PWRBUSMAX. The power
bus alarm threshold has a 1.0V tolerance and a 1.0V hysteresis.
If flashing, the problem may be an inappropriate setting of the Power Bus alarm or a power failure. First,
check the alarm thresholds using RTRV-TH-ENV. The default values are POWERBUSMIN=400 (-40
VDC) and POWERBUSMAX=570 (-57 VDC). If the POWER LED is flashing, it means that the current
voltage applied to one of the power buses is outside that range. The command RTRV-ALARM-ENV
responds with which POWERBUS is outside of the range. If Power Bus B is absent on purpose, use the
command ED-ENV to set the POWERBUSMODE to SIMPLEX. If all the settings are correct, verify the
DC voltage of the power source.
Office Alarm: In the off condition, the first pair (0) of alarm relay contacts in the RJ-45 ALARM
connector changes from a normally open condition to a closed condition. The LED and alarm relay
automatically reset when the alarm condition clears.
In the flashing condition, the fourth pair (3) of alarm relay contacts in the RJ-45 ALARM connector
changes from a normally open condition to a closed condition. The LED and alarm relay automatically
reset when the alarm condition clears.
![](asset-d7.png)
FINAL DRAFT - CISCO CONFIDENTIAL
10-3
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 10 Troubleshooting
Alarm Indicators
10.1.1.2 FAIL LED (Red)
The FAIL LED is red when on. This LED indicates all alarm conditions except POWER and LOS, which
have their own LEDs. The FAIL LED functions as follows:
•Off: The gain, output power, case temperature, laser pump current, and laser pump temperature are
all within their specified ranges (or –48 VDC power has failed).
•On: GAIN, LPOUT, CTMP, LCRNT1, LCRNT2, LTMP1, and/or LTMP2 alarm. The gain, output
power, case temperature, laser pump current, and/or laser pump temperature are out of tolerance. (A
major internal failure has occurred.)
If on, access the ONS 15216 EDFA2 to determine which alarms have occurred. See the sections Optical
Alarms, Equipment Alarms, and Environmental Alarms that follow for information about how to
troubleshoot a particular alarm.
Office Alarm: In the on condition, the second pair (1) of alarm relay contacts in the RJ-45 ALARM
connector changes from a normally open to a closed condition. The LED and alarm relay automatically
reset when the alarm condition clears.
10.1.1.3 LOS LED (Yellow)
The Loss of Signal (LOS) LED is yellow when on. This LED functions as follows:
•Off: The optical input power is above the user-settable minimum threshold (or –48 VDC power has
failed).
•On: LOS alarm. The optical input power to the ONS 15216 EDFA2 is below the threshold defined
by LOSTH . The value of LOSHYST provides the hysteresis required for the alarm to clear.
If on, see the Optical Alarms section for information about how to troubleshoot the LOS alarm.
Office Alarm: In the on condition, the third pair (2) of alarm relay contacts in the RJ-45 ALARM
connector changes from a normally open condition to a closed condition. The LED and alarm relay
automatically reset when the alarm condition clears.
10.1.1.4 Ethernet Socket LEDs
Two LEDs are located at the top left and right sides of the Ethernet socket (LAN port). These LEDs are
both green. These LEDs function as follows:
•If the left Ethernet socket LED is on, the link is up.
•If the right Ethernet socket LED is on or flashing, there is Ethernet activity (traffic).
Note If the system is powered up without an Ethernet cable in the Ethernet socket (LAN port), the activity
LED (right side) turns on and remains on even if there is not Ethernet traffic. See “LAN Port Activity
LED Stays On” section on page 10-9.
![](asset-d8.png)
FINAL DRAFT - CISCO CONFIDENTIAL
10-4
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 10 Troubleshooting
Alarm Indicators
10.1.2 Optical Alarms
The ONS 15216 EDFA2 amplifier has three main categories of alarms: optical (DWDM), equipment
(EQPT), and environmental (ENV). The optical alarms are directly related to the signal amplification
and are usually service affecting. The ONS 15216 EDFA2 has three Optical alarms:
•LOS
•GAIN
•LPOUT
Note Most optical failures are due to dirty or damaged connectors, so it is very important to clean all
connectors. Note that there is a connector inside the transmission equipment and that a problem may
come from there as well as from the patchcord.
Warning
Follow all directions and warning labels when working with optical fibers. To prevent eye damage,
never look directly into a fiber or connector.
10.1.2.1 LOS (Loss of Signal) Alarm
This alarm is generated when the input signal is below the value of LOSTH. The value of LOSHYST
provides the hysteresis required for the alarm to clear. Possible causes for this alarm are:
•Input power is below threshold value: Verify that the threshold value is set to the correct value for
the particular ONS 15216 EDFA2 application (RTRV-TH-DWDM). Read the input power using the
RTRV-DWDM command.
•No optical signal is present at the input (RTRV-DWDM): Verify that the transmitter is working
correctly and that the upstream fiber is not broken (RTRV-DWDM).
•Power meter value is higher than the reading of the ONS 15216 EDFA2 software: Clean connector
of fiber patchcord as well as the one from inside the ONS 15216 EDFA2 by removing the fiber
access panel.
Warning
Follow all directions and warning labels when working with optical fibers. To prevent eye damage,
never look directly into a fiber or connector.
10.1.2.2 GAIN (Gain Out of Range) Alarm
This alarm is only valid when the ONS 15216 EDFA2 is in GAINTEMP mode. It occurs when the value
of OVERALLGAINMEASURED has deviated more than 1.25 dB from the manufacturer-defined set
point’s allowable range. This condition has a 0.25 dB hysteresis.
The GAIN alarm is also triggered if the value of INPWRDBM goes outside the manufacturer-defined
range by more than 0.7 dB. This condition has a 0.2 dB hysteresis.
Use the RTRV-DWDM command to retrieve the values of OVERALLGAINMEASURED and
INPWRDBM.
If both GAIN and LOS alarm conditions occur at the same time, only the LOS alarm is generated via
TL1. The GAIN alarm has a soak period of 1-2 seconds before being raised or cleared.
![](asset-d9.png)
FINAL DRAFT - CISCO CONFIDENTIAL
10-5
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 10 Troubleshooting
Alarm Indicators
Possible causes for this alarm are:
•Input power is out of range: Verify that for the current gain setting, the input power is within the
range. For example, if the Gain = 22, then the input range is –27 to –5 dBm. Every dB taken from
the Gain is added to the input range, so if the Gain =21, then the input range is –26 to –4 dBm.
•VOA attenuation is drifting out of range: Verify that the VOA set value approximately equals the
VOA current value.
To determine this, you must use the ASH shell. You can begin an ASH Telnet session using the IP
address of the ONS 15216 EDFA2 followed by port 8023.
telnet ONS_15216_EDFA2_IP_Address 8023
The following formula provides the setting of the VOA attenuation:
“VOA set value (in units of 10 dB)” =
“snmp attribute get local cerent15216EdfaPumpStatusGain 1” –
“snmp attribute get local cerent15216EdfaConstGainOverallGain”
The value of cerent15216EdfaPumpStatusGain 1 is the fixed gain of the amplifier module. The value
of cerent15216EdfaConstGainOverallGain is the set target gain. Note that the minimum VOA value
is approximately 1 dB, which corresponds to the maximum Gain of approximately 22 dB.
The following formula provides the current value of the VOA attenuation:
“VOA current value (in units of 100 dB)” =
“snmp attribute get local cerent15216EdfaInPowerdBm” –
“snmp attribute get local cerent15216EdfaPumpStatusInPowerdBm 1”
The value of cerent15216EdfaInPowerdBm (INPWRDBM) is the current signal power at the input
before the VOA. The value of cerent15216EdfaPumpStatusInPowerdBm 1 is the signal power after
the VOA.
If the “VOA set value” is different than “VOA current value” by more than a typical variation of up
to 0.5 dB, the unit must be returned to Cisco for repair.
10.1.2.3 LPOUT (Loss of Output Power) Alarm
This alarm is valid only when the ONS 15216 EDFA2 is in OPWR mode, which is rare because this
mode applies to few applications and is generally not recommended. This alarm occurs if the unit is in
OPWR mode and the output power is deviating more than the value of LPOUTDEV from the value of
LPOUTSETPT. The value of LPOUTHYST is used to clear the alarm. Use RTRV-TH-DWDM to find
the threshold values.
If both LPOUT and GAIN or LOS alarm conditions occur at the same time, only the GAIN or LOS alarm
is generated via TL1.
Possible causes for this alarm are:
•The input power may be too low to achieve the output power setting: Reduce the value of
PUMP2CTRLVALUE using the ED-DWDM command until the alarm clears.
•The LPOUTDEV value may be set too low for practical use: Increase the value of LPOUTDEV
using the RTRV-TH-DWDM command.
![](asset-da.png)
FINAL DRAFT - CISCO CONFIDENTIAL
10-6
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 10 Troubleshooting
Alarm Indicators
10.1.3 Equipment Alarms
The ONS 15216 EDFA2 amplifier has three main categories of alarms: optical (DWDM), equipment
(EQPT), and environmental (ENV). The equipment alarms are directly related to general equipment
conditions in the unit. The ONS 15216 EDFA2 has five equipment alarms:
•CTMP
•LCRNT1
•LCRNT2
•LTMP1
•LTMP2
10.1.3.1 CTMP (Case Temperature Out of Range) Alarm
This alarm occurs when the case temperature is out of the threshold range as defined by MINCTMP and
MAXCTMP. The values of MINCTMPHYST and MAXCTMPHYST provide the hysteresis required for
the alarm to clear. Possible causes for this alarm are:
•The Min and Max thresholds may not reflect the ambient temperature where the ONS 15216 EDFA2
is located: Use RTRV-TH-EQPT to get the Min and Max temperature threshold and change the
threshold using SET-TH-EQPT.
•The ambient temperature is too high for a legitimate case temperature alarm to clear: Shut down the
ONS 15216 EDFA2 and allow time for it to cool, and do not repower it until the ambient temperature
is reduced.
10.1.3.2 LCRNT1 and LCRNT2 (Excessive Pump Current) Alarms
These alarms occur when the input power exceeds input range and the ONS 15216 EDFA2 is overdriving
the pump laser to try to get the target Gain value. The manufacturer defines this condition as the drive
current at greater than 95% of end of life value. The current must drop to 90% of the end-of-life value
for the alarm to clear. Possible causes for this alarm are:
•The input power is too high for the gain setting: Reduce the input power by using an external
attenuator or by changing the OVERALLGAIN value using the ED-DWDM command.
•One pump laser is degrading: The unit needs to be replaced. Contact the Cisco TAC.
10.1.3.3 LTMP1 and LTMP2 (Excessive Pump Temperature) Alarms
These alarms occur when the pump laser has reached a critical temperature threshold. That is, the chip
temperature is deviating more than 10 degrees C from the manufacturer-defined set point.
•Ambient temperature is too high so the laser can't cool down: This condition is usually associated
with a CTMP alarm. See the CTMP (Case Temperature Out of Range) Alarm section above.
•The ONS 15216 EDFA2 has been operating with excessive pump current for a long period of time,
causing the pump(s) to overheat: This condition is usually associated with a LCRNT1 or LCRNT2
alarm. See the LCRNT1 and LCRNT2 (Excessive Pump Current) Alarms section above.
![](asset-db.png)
FINAL DRAFT - CISCO CONFIDENTIAL
10-7
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 10 Troubleshooting
Troubleshooting Typical Scenarios
10.1.4 Environmental Alarms
The ONS 15216 EDFA2 amplifier has three main categories of alarms: optical (DWDM), equipment
(EQPT), and environmental (ENV). The environmental alarms are directly related to the power bus
voltage. The ONS 15216 EDFA2 has two equipment alarms:
•PWRBUSA
•PWRBUSB
10.1.4.1 PWRBUSA and PWRBUSB (Power Bus) Alarms
These alarms occur when the Power Bus voltage is out of the threshold range as defined by
PWRBUSMIN and PWRBUSMAX. The power bus threshold has a 1.0V tolerance and a 1.0V hysteresis.
The 1.0V tolerance prevents most early alarm conditions due to a potential ±1.5V inaccuracy in the
ONS 15216 EDFA2 voltage measurement.
The problem may be an inappropriate setting of the Power Bus alarm or a power failure. First, check the
alarm thresholds using RTRV-TH-ENV. The default values are PWRBUSMIN=400 (-40 VDC) and
PWRBUSMAX=570 (-57 VDC). If the POWER LED is flashing, it means that the current voltage
applied to one of the power buses is outside that range. The command RTRV-ALARM-ENV responds
with which power buses outside of the range. If Power Bus B is not being used, check that
PWRBUSMODE=SIMPLE using RTRV-TH-ENV. If all the settings are correct, then verify the DC
voltage of the power source.
10.2 Troubleshooting Typical Scenarios
10.2.1 No Output Power after Adjusting Gain Settings
This issue occurs only with software version 2.1.0.
Release Notes 2.1.0 Caveat CSCdy50894
Issue: No output power after adjusting gain setting.
Description: The VOA pre-attenuator is stuck at maximum attenuation if the gain setting is modified
when the input power is below the minimum signal level.
Workaround: Use the following series of sample commands to recover from the VOA being stuck at
high attenuation:
For TL1:
name:ONS15216 EDFA2> ED-DWDM:name:all:100:::PUMP1CTRLMODE=PWR,PUMP1CTRLVALUE=50;
name:ONS15216 EDFA2> ED-DWDM:name:all:101:::PREATT=10;
name:ONS15216 EDFA2> ED-DWDM:name:all:102:::PUMP1CTRLMODE=GAINTEMP;
name:ONS15216 EDFA2> ED-DWDM:name:all:103:::OVERALLGAIN=160;
For ASH:
ash:hostname:ONS15216 EDFA2> snmp attribute set local cerent15216EdfaPumpCfgConstPumpPower 1 50
ash:hostname:ONS15216 EDFA2> snmp attribute set local cerent15216EdfaPumpCfgControlMode 1 constPower
ash:hostname:ONS15216 EDFA2> snmp attribute set local cerent15216EdfaVariableGainPreAttenuation 10
ash:hostname:ONS15216 EDFA2> snmp attribute set local cerent15216EdfaConstGainOverallGain 160
![](asset-dc.png)
FINAL DRAFT - CISCO CONFIDENTIAL
10-8
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 10 Troubleshooting
Troubleshooting Typical Scenarios
10.2.2 2.0.1 to 2.2.1 Upgrade Attempt
To achieve a smooth software upgrade, the ONS 15216 EDFA2 must first get upgraded from software
version v2.0.1 to v2.1.0 before being upgraded from v2.1.0 to v2.2.1.
If a unit has been upgraded directly from v2.0.1 to v2.2.1, some features of v2.2.1 may not operate
properly. In addition, the CISCO15 user has only read write access and cannot perform administrative
commands.
To fix this, the software must be reverted back to v2.0.1 using the uninstall procedure described in the
release notes, and then all firmware and software upgrade procedures must be performed in series, from
v2.0.1 to v2.1.0 and then from v2.1.0 to v2.2.1. See the 2.1.0 and 2.2.1 Release Notes for the procedures.
10.2.3 Image File Download Incomplete
If there is insufficient space in the flash file system (FFS) during an image file download, the
ONS 15216 EDFA2 may report that the download has completed successfully even though the file is
incomplete. Follow the upgrade instructions precisely to ensure that the file downloads completely and
the file length is checked.
If a new image does not boot correctly, check its file size using the ASH ffs file list command. The 2.0.1
image should be 1,683,299 bytes, the 2.1.0 image should be 2,021,467 bytes, and the 2.2.1 image should
be 1,963,195 bytes. See the 2.3.0 Release Notes for the 2.3.0 image file size.
If the file length is incorrect, delete the file, clear FFS space, and download the image file again. See the
2.1.0, 2.2.1, and 2.3.0 Release Notes for the procedures.
10.2.4 Boot Up Failure
If the primary image fails to boot, the ONS 15216 EDFA2 boots the second image. If both fail, the
ONS 15216 EDFA2 continues to try to alternately boot the images unsuccessfully.
If this occurs, the cause could be either corrupt or incomplete images, or incorrectly addressed or named
boot entries. Follow the instructions below to correct these problems.
Note If the ONS 15216 EDFA2 firmware is not version 2.3.14 or greater and the software has not been
upgraded to 2.1.0 or greater, the CISCO15 user resets to read_write access level, not read_write_admin,
which has full administrative control. Contact the Cisco TAC for assistance.
Step 1 Connect to the RS-232 (EIA/TIA-232) port.
Step 2 Open HyperTerminal. (HyperTerminal can be found in the Microsoft Windows Accessories menu.)
Step 3 While the dots are present in the HyperTerminal window during the reboot process, enter Ctrl C on the
keyboard.
The ONS 15216 EDFA2 should boot from the firmware image. The prompt is %.
Step 4 At the hostname prompt, enter the following command within 60 seconds of rebooting:
hostname:edfaboot% login CISCO15
hostname:edfaboot% password
Step 5 At the hostname prompt, enter the following command:
![](asset-dd.png)
FINAL DRAFT - CISCO CONFIDENTIAL
10-9
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 10 Troubleshooting
Troubleshooting Typical Scenarios
hostname:edfaboot% ffs file list
Determine which image files are present. Ensure that there is enough space on the FFS for two images
and that the images are complete. The 2.0.1 image should be 1,683,299 bytes, the 2.1.0 image should be
2,021,467 bytes, and the 2.2.1 image should be 1,963,195 bytes. See the 2.3.0 Release Notes for the 2.3.0
image file size. Use the ffs file delete command to remove any unwanted files as needed. Use the
network host ftp command to download new images as needed.
Step 6 At the hostname prompt, enter the following command:
hostname:edfaboot% srom cfg boot display
Check that the entries are complete and accurately reflect the image file names. Use the srom cfg boot
modify command to correct the boot entries as needed.
Step 7 When the problems with the images and boot entries have been completed, enter the following
command:
hostname:edfaboot% processor reset
The ONS 15216 EDFA2 should boot up properly. If not, use this procedure again to correct any
remaining problems.
10.2.5 No Response from RS-232 Port
If the ONS 15216 EDFA2 does not respond when connected to the RS-232 (EIA/TIA-232) port, check
that the physical connection is good, that power is supplied to the unit (POWER LED is on or flashing),
that the DB-9 pinout is correct (see “PC Connection via Modem” section on page 3-14), that the port
speed and communications configuration are correct (see “Serial Connection Procedure” section on
page 3-7), and that any terminal server settings (if used) are correct.
10.2.6 No Response from LAN Port
If the ONS 15216 EDFA2 does not respond on the RJ-45 LAN port, check that the physical connection
is good, that power is supplied to the unit (POWER LED is on or flashing), that the IP address and subnet
mask are correct (RTRV-NE-GEN command from RS-232 port), and that the application (Telnet) is
trying to access the correct IP address.
Check the two LAN port LEDs to be sure that there is a connection to the unit (the left Ethernet socket
LED is on) and that traffic is flowing (the right Ethernet socket LED is on or flashing). If the unit is not
booting correctly and is continuously resetting itself, you must us the RS-232 port to address the issue
as detailed in the “Boot Up Failure” section on page 10-8.
10.2.7 LAN Port Activity LED Stays On
Release Notes 2.1.0, 2.2.1, and 2.3.0 Caveat CSCdx41604
Issue: Ethernet activity LED initialization.
Description: When powered up without an Ethernet cable, the activity light remains on.
Work Around: The Ethernet activity light works correctly when connected to the network.
![](asset-de.png)
FINAL DRAFT - CISCO CONFIDENTIAL
10-10
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 10 Troubleshooting
Troubleshooting Typical Scenarios
10.2.8 Lost Password
If the root password for CISCO15 is lost, there is a procedure to reset it to regain full administrative
control of the ONS 15216 EDFA2. The user must be connected to the ONS 15216 EDFA2 by serial
communication, reset the power to the unit, and perform a series of commands within 60 seconds of
rebooting, according to the following procedure. This procedure resets the default user password only;
no other settings are affected.
Warning
The ONS 15216 EDFA2 ceases its optical amplification function when power is off during this process.
Traffic should be rerouted before this procedure begins.
Note If the ONS 15216 EDFA2 firmware is not version 2.3.14 or greater and the software has not been
upgraded to 2.1.0 or greater, the CISCO15 user resets to read_write access level, not read_write_admin,
which has full administrative control. Contact the Cisco TAC for assistance.
Step 1 Connect to the RS-232 (EIA/TIA-232) port.
Step 2 Open HyperTerminal. (HyperTerminal can be found in the Microsoft Windows Accessories menu.)
Step 3 Perform hard power reset of the ONS 15216 EDFA2 (disconnect and reconnect power).
Step 4 While the dots are present in the HyperTerminal window during the reboot process, enter Ctrl C on the
keyboard.
The ONS 15216 EDFA2 should boot from the firmware image. The prompt is %.
Step 5 At the hostname prompt, enter the following command within 60 seconds of rebooting:
hostname:edfaboot% user passwd set CISCO15 default
Step 6 At the hostname prompt, enter the following command:
hostname:edfaboot% login CISCO15
Password =
<enter>
Step 7 At the hostname prompt, enter the following command:
hostname:edfaboot% processor reset
After the processor reset, the default CISCO15 login password will be the default (the Enter key).
![](asset-df.png)
FINAL DRAFT - CISCO CONFIDENTIAL
10-11
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 10 Troubleshooting
Status Information Needed by Cisco TAC
10.3 Status Information Needed by Cisco TAC
To get the most from an interaction with the Cisco Technical Assistance Center (TAC), the status
information of the ONS 15216 EDFA2 should be collected in advance.
The following commands should be issued, and pasted into a text file.
•RTRV-INV: (RTRV-INV::ALL:123;)
•RTRV-NE-GEN: (RTRV-NE-GEN:::123;)
•RTRV-ALM-ALL: (RTRV-ALM-ALL:::123::;)
•RTRV-ALM-ENV: (RTRV-ALM-ENV::ALL:123::;)
•RTRV-DWDM (RTRV-DWDM::ALL:123;)
•RTRV-ENV: (RTRV-ENV::ALL:123;)
•RTRV-TH-DWDM: (RTRV-TH-DWDM::ALL:123::;)
•RTRV-TH-ENV: (RTRV-TH-ENV::ALL:123::;)
•RTRV-TH-EQPT: (RTRV-TH-EQPT::ALL:123::;)
![](asset-e0.png)
FINAL DRAFT - CISCO CONFIDENTIAL
10-12
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Chapter 10 Troubleshooting
Status Information Needed by Cisco TAC
![](asset-e1.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-1
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
APPENDIX
A
Regulatory Compliance and Safety Information
Regulatory Compliance
Table A-1 Regulatory Standards Compliance
Discipline Standard Description
EMC ETS 300 132-2: 1996 Power supply interface at the input to
telecommunications equipment; Part 2:
Operated by direct current (DC)
ACA AS/NZS3548 Conducted Emissions - Class B
Radiated Emissions - Class B
EN 300 386-2:1997
EN 55022: 1995 Amendments A1
and A2
EN 50082-2:1997
EN 61000-4-2:1995
EN 61000-4-3: 1997
ENV 50204: 1996
EN 61000-4-4: 1995
EN 61000-4-5: 1995
EN 61000-4-6: 1996
FCC Title 47 of the CFR, Part 15,
Subpart B for a Class B Digital
Device
Electromagnetic Compatibility -
Radiated Emissions for a Class B Digital
Device
NEBS GR-1089-CORE Issue 2,
December 1997, with Revision 1,
February 1999 Sections 2 and 3
Conducted Emissions Requirement
Radiated Emissions Requirement
VCCI V-1/93. 11, V-2/97. 04, V-4/97,
R-1225 and C-1287
VCCI Class B ITE, Radiated Emissions
![](asset-e2.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-2
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Translated Safety Warnings
This appendix contains the translated warnings that are required for this publication. These warnings are
required to comply with the regulatory agency requirements of several countries.
The translated safety warnings are listed in the following order:
1. English
2. Dutch
3. Finnish
4. French
5. German
6. Italian
7. Norwegian
8. Portuguese
9. Spanish
10. Swedish
11. Chinese (not all warnings translated)
12. Japanese (not all warnings translated)
13. Korean (not all warnings translated)
Safety IEC 60950
EN 60950
UL 60950
CSA-C22.2 No. 60950
TS 001
AS/NZS 3260
Environmental ETS 300 019-2-1 Storage Temperature Test
ETS 300 019-2-2 Transportation Test
ETS 300 019-2-3 Operation Test
ETS 300 019-2-4 pr A1 Waveform Test - Zone 4 Profile
GR-63-Core, Issue 1, October 1995
Section 5.1, 5.4 and 5.5
Telecom NEBS GR-1089-CORE Issue 2,
December 1997 with Revision 1,
February 1999 Type 2 Equipment
Sections 4.2, 4.5, 4.6, 5.2, 5.3, 5.4, 6.0,
7.2, 7.3, 7.4, 7.5, 7.6, 8.1, 8.2, 9.1, 9.2,
9.3, 9.4, 9.5, 9.6, 9.7, 9.8, 9.10
Network Equipment Development
Standards (NEDS) MLID #9069,
September 28, 2001, Version 3.1.1
Table A-1 Regulatory Standards Compliance (continued)
Discipline Standard Description
![](asset-e3.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-3
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
The safety warnings contained in this document are:
•Warning Definition
•DC Power Supply Warning
•Installation Warning
•Power Cord Warning
•No On/Off Switch Warning
•SELV Circuit Warning
•Laser Radiation Warning
•Laser Beam Warning
•Power Cabling Warning
•Grounded Equipment Warning
•Ground Connection Warning
•Jewelry Removal Warning
•Qualified Personnel Warning
•Supply Circuit Warning
•Invisible Laser Radiation Warning
•Incorrect Connection Warning
•Ground Conductor Warning
•Voltages on DC-input Power Supply Terminals
•More Than One Power Supply
•Cisco ONS 15216 EDFA2 Rack Installation
•Exposed DC Power Wire Warning
•48 VDC Power System
•Chassis Power Connection
•Cisco ONS 15216 EDFA2 Temperature Requirement
•VCCI Compliance for Class B Equipment
•SELV-IEC 60950 DC Power Supply Warning
•Cisco ONS 15216 EDFA2 Power Circuit Overload Warning
•Product Disposal Warning
•Energy Hazard
•Unit Grounding Protection Warning
•DC Power Disconnection Warning
•Ground Wire Warning
•Declaration of Conformity with Regard to the Directives 73/23/EEC and 89/336/EEC as amended
by Directive 93/68/EEC
•Declaration of Conformity to R&TTE Directive 1999/5/EEC for the European Community,
Switzerland, Norway, Iceland and Liechtenstein
•Class B EMC Warning
![](asset-e4.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-4
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
•Safety Requirements Warning
•Laser Radiation Warning
•Fiber Disconnect Sequence Warning
•Optical Connector Warning
•Optical Connector Disconnect Warning
•Eye Damage Warning
•Static Electricity Warning
•Connector Cleaning Warning
•Cable Connection Sequence Warning
•Module Removal Warning
•DC Power SELV Requirement Warning
•Reinforced Insulation Warning
•Power Supply Voltage Warning
•DC Power Supply Connection Warning
Warning Definition
Warning
This warning symbol means danger. You are in a situation that could cause bodily injury. Before
you work on any equipment, be aware of the hazards involved with electrical circuitry and be
familiar with standard practices for preventing accidents. To see translations of the warnings
that appear in this publication, refer to the Regulatory Compliance and Safety Information
document that accompanied this device.
Waarschuwing
Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan
veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij
elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van standaard
maatregelen om ongelukken te voorkomen. Voor vertalingen van de waarschuwingen die in deze
publicatie verschijnen, kunt u het document Regulatory Compliance and Safety Information
(Informatie over naleving van veiligheids- en andere voorschriften) raadplegen dat bij dit toestel is
ingesloten.
Varoitus
Tämä varoitusmerkki merkitsee vaaraa. Olet tilanteessa, joka voi johtaa ruumiinvammaan. Ennen
kuin työskentelet minkään laitteiston parissa, ota selvää sähkökytkentöihin liittyvistä vaaroista ja
tavanomaisista onnettomuuksien ehkäisykeinoista. Tässä julkaisussa esiintyvien varoitusten
käännökset löydät laitteen mukana olevasta Regulatory Compliance and Safety Information
-kirjasesta (määräysten noudattaminen ja tietoa turvallisuudesta).
![](asset-e5.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-5
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Attention
Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant
causer des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez
conscient des dangers posés par les circuits électriques et familiarisez-vous avec les procédures
couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions
d’avertissements figurant dans cette publication, consultez le document Regulatory Compliance
and Safety Information (Conformité aux règlements et consignes de sécurité) qui accompagne cet
appareil.
Warnung
Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu einer
Körperverletzung führen könnte. Bevor Sie mit der Arbeit an irgendeinem Gerät beginnen, seien Sie
sich der mit elektrischen Stromkreisen verbundenen Gefahren und der Standardpraktiken zur
Vermeidung von Unfällen bewußt. Übersetzungen der in dieser Veröffentlichung enthaltenen
Warnhinweise finden Sie im Dokument Regulatory Compliance and Safety Information
(Informationen zu behördlichen Vorschriften und Sicherheit), das zusammen mit diesem Gerät
geliefert wurde.
Avvertenza
Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle
persone. Prima di lavorare su qualsiasi apparecchiatura, occorre conoscere i pericoli relativi ai
circuiti elettrici ed essere al corrente delle pratiche standard per la prevenzione di incidenti. La
traduzione delle avvertenze riportate in questa pubblicazione si trova nel documento Regulatory
Compliance and Safety Information (Conformità alle norme e informazioni sulla sicurezza) che
accompagna questo dispositivo.
Advarsel
Dette varselsymbolet betyr fare. Du befinner deg i en situasjon som kan føre til personskade. Før du
utfører arbeid på utstyr, må du vare oppmerksom på de faremomentene som elektriske kretser
innebærer, samt gjøre deg kjent med vanlig praksis når det gjelder å unngå ulykker. Hvis du vil se
oversettelser av de advarslene som finnes i denne publikasjonen, kan du se i dokumentet
Regulatory Compliance and Safety Information (Overholdelse av forskrifter og
sikkerhetsinformasjon) som ble levert med denne enheten.
Aviso
Este símbolo de aviso indica perigo. Encontra-se numa situação que lhe poderá causar danos
físicos. Antes de começar a trabalhar com qualquer equipamento, familiarize-se com os perigos
relacionados com circuitos eléctricos, e com quaisquer práticas comuns que possam prevenir
possíveis acidentes. Para ver as traduções dos avisos que constam desta publicação, consulte o
documento Regulatory Compliance and Safety Information (Informação de Segurança e
Disposições Reguladoras) que acompanha este dispositivo.
¡Advertencia!
Este símbolo de aviso significa peligro. Existe riesgo para su integridad física. Antes de manipular
cualquier equipo, considerar los riesgos que entraña la corriente eléctrica y familiarizarse con los
procedimientos estándar de prevención de accidentes. Para ver una traducción de las advertencias
que aparecen en esta publicación, consultar el documento titulado Regulatory Compliance and
Safety Information (Información sobre seguridad y conformidad con las disposiciones
reglamentarias) que se acompaña con este dispositivo.
Varning!
Denna varningssymbol signalerar fara. Du befinner dig i en situation som kan leda till personskada.
Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och
känna till vanligt förfarande för att förebygga skador. Se förklaringar av de varningar som
förkommer i denna publikation i dokumentet Regulatory Compliance and Safety Information
(Efterrättelse av föreskrifter och säkerhetsinformation), vilket medföljer denna anordning.
![](asset-e6.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-6
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
DC Power Supply Warning
Warning
When stranded wiring is required, use approved wiring terminations, such as closed-loop or
spade-type with upturned lugs. These terminations should be the appropriate size for the wires
and should clamp both the insulation and conductor.
Waarschuwing
Wanneer geslagen bedrading vereist is, dient u bedrading te gebruiken die voorzien is van
goedgekeurde aansluitingspunten, zoals het gesloten-lus type of het grijperschop type waarbij de
aansluitpunten omhoog wijzen. Deze aansluitpunten dienen de juiste maat voor de draden te
hebben en dienen zowel de isolatie als de geleider vast te klemmen.
Varoitus
Jos säikeellinen johdin on tarpeen, käytä hyväksyttyä johdinliitäntää, esimerkiksi suljettua
silmukkaa tai kourumaista liitäntää, jossa on ylöspäin käännetyt kiinnityskorvat. Tällaisten
liitäntöjen tulee olla kooltaan johtimiin sopivia ja niiden tulee puristaa yhteen sekä eristeen että
johdinosan.
Attention
Quand des fils torsadés sont nécessaires, utiliser des douilles terminales homologuées telles que
celles à circuit fermé ou du type à plage ouverte avec cosses rebroussées. Ces douilles terminales
doivent être de la taille qui convient aux fils et doivent être refermées sur la gaine isolante et sur
le conducteur.
Warnung
Wenn Litzenverdrahtung erforderlich ist, sind zugelassene Verdrahtungsabschlüsse, z.B. für einen
geschlossenen Regelkreis oder gabelförmig, mit nach oben gerichteten Kabelschuhen zu
verwenden. Diese Abschlüsse sollten die angemessene Größe für die Drähte haben und sowohl die
Isolierung als auch den Leiter festklemmen.
Avvertenza
Quando occorre usare trecce, usare connettori omologati, come quelli a occhiello o a forcella con
linguette rivolte verso l’alto. I connettori devono avere la misura adatta per il cablaggio e devono
serrare sia l’isolante che il conduttore.
Advarsel
Hvis det er nødvendig med flertrådede ledninger, brukes godkjente ledningsavslutninger, som for
eksempel lukket sløyfe eller spadetype med oppoverbøyde kabelsko. Disse avslutningene skal ha
riktig størrelse i forhold til ledningene, og skal klemme sammen både isolasjonen og lederen.
Aviso
Quando forem requeridas montagens de instalação eléctrica de cabo torcido, use terminações de
cabo aprovadas, tais como, terminações de cabo em circuito fechado e planas com terminais de
orelha voltados para cima. Estas terminações de cabo deverão ser do tamanho apropriado para os
respectivos cabos, e deverão prender simultaneamente o isolamento e o fio condutor.
¡Advertencia!
Cuando se necesite hilo trenzado, utilizar terminales para cables homologados, tales como las de
tipo "bucle cerrado" o "espada", con las lengüetas de conexión vueltas hacia arriba. Estos
terminales deberán ser del tamaño apropiado para los cables que se utilicen, y tendrán que sujetar
tanto el aislante como el conductor.
Varning!
När flertrådiga ledningar krävs måste godkända ledningskontakter användas, t.ex. kabelsko av
sluten eller öppen typ med uppåtvänd tapp. Storleken på dessa kontakter måste vara avpassad till
ledningarna och måste kunna hålla både isoleringen och ledaren fastklämda.
![](asset-e7.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-7
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Installation Warning
Power Cord Warning
Warning
Read the installation instructions before you connect the system to its power source.
Waarschuwing
Raadpleeg de installatie-aanwijzingen voordat u het systeem met de voeding verbindt.
Varoitus
Lue asennusohjeet ennen järjestelmän yhdistämistä virtalähteeseen.
Attention
Avant de brancher le système sur la source d'alimentation, consulter les directives d'installation.
Warnung
Lesen Sie die Installationsanweisungen, bevor Sie das System an die Stromquelle anschließen.
Avvertenza
Consultare le istruzioni di installazione prima di collegare il sistema all’alimentatore.
Advarsel
Les installasjonsinstruksjonene før systemet kobles til strømkilden.
Aviso
Leia as instruções de instalação antes de ligar o sistema à sua fonte de energia.
¡Advertencia!
Ver las instrucciones de instalación antes de conectar el sistema a la red de alimentación.
Varning!
Läs installationsanvisningarna innan du kopplar systemet till dess strömförsörjningsenhet.
Warning
This unit might have more than one power cord. To reduce the risk of electric shock, disconnect
the two power supply cords before servicing the unit.
Waarschuwing
Dit toestel kan meer dan één netsnoer hebben. Om het risico van een elektrische schok te
verminderen, dient u de stekkers van de twee netsnoeren uit het stopcontact te halen voordat u het
toestel een servicebeurt geeft.
Varoitus
Tässä laitteessa saattaa olla useampi kuin yksi virtajohto. Irrota molemmat virtalähteestä tulevat
johtimet ennen laitteen huoltamista, jotta vältät sähköiskun vaaran.
Attention
Il est possible que cette unité soit munie de plusieurs cordons d'alimentation. Pour éviter les
risques d'électrocution, débrancher les deux cordons d'alimentation avant de réparer l'unité.
Warnung
Diese Einheit hat möglicherweise mehr als ein Netzkabel. Zur Verringerung der Stromschlaggefahr
trennen Sie beide Netzgerätekabel ab, bevor Sie die Einheit warten.
![](asset-e8.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-8
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
No On/Off Switch Warning
Avvertenza
Questa unità potrebbe essere dotata di più di un cavo di alimentazione. Per ridurre il rischio di
scossa elettrica, scollegare i due cavi di alimentazione prima di procedere alla manutenzione
dell’unità.
Advarsel
Denne enheten kan være utstyrt med mer enn én strømledning. Koble fra de to strømledningene før
det utføres reparasjonsarbeid på enheten for å redusere faren for elektriske støt.
Aviso
Esta unidade poderá ter mais do que um cabo de alimentação. Para reduzir o risco de choque
eléctrico, desligue os dois cabos de alimentação antes de efectuar reparações na unidade.
¡Advertencia!
Puede ser que este equipo posea más de un cable de alimentación. Para reducir el riesgo de
descarga eléctrica, desenchufar los dos cables antes de proceder al mantenimiento de la unidad.
Varning!
Denna enhet kan vara försedd med mer än en nätsladd. För att minska risken för elektriska stötar
skall båda nätsladdarna dras ur innan du utför underhållsarbete på enheten.
Warning
Unplug the power cord before you work on a system that does not have an on/off switch.
Waarschuwing
Voordat u aan een systeem werkt dat geen aan/uit schakelaar heeft, dient u de stekker van het
netsnoer uit het stopcontact te halen.
Varoitus
Ennen kuin teet mitään sellaiselle järjestelmälle, jossa ei ole kaksiasentokytkintä, kytke irti
virtajohto.
Attention
Avant de travailler sur un système non équipé d'un commutateur marche-arrêt, débrancher le
cordon d'alimentation.
Warnung
Bevor Sie an einem System ohne Ein/Aus-Schalter arbeiten, ziehen Sie das Netzkabel heraus.
Avvertenza
Prima di lavorare su un sistema che non è dotato di un interruttore on/off, scollegare il cavo di
alimentazione.
![](asset-e9.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-9
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
SELV Circuit Warning
Advarsel
Før det skal utføres arbeid på et system som ikke har en av/på-bryter, skal strømledningen trekkes
ut.
Aviso
Antes de começar a trabalhar num sistema que não possua um interruptor ON/OFF, desligue o cabo
de alimentação.
¡Advertencia!
Antes de trabajar sobre cualquier sistema que carezca de interruptor de Encendido/Apagado
(ON/OFF), desenchufar el cable de alimentación.
Varning!
Dra ur nätsladden innan du utför arbete på ett system utan strömbrytare.
Warning
The port labeled “Ethernet,” “10BaseT,” “Token Ring,” “Console,” and “AUX” are safety
extra-low voltage (SELV) circuits. SELV circuits should only be connected to other SELV circuits.
Because the BRI circuits are treated like telephone-network voltage, avoid connecting the SELV
circuit to the telephone network voltage (TNV) circuits.
Waarschuwing
De poorten die "Ethernet", "10BaseT", "Token Ring", "Console" en "AUX" zijn gelabeld, zijn
veiligheidscircuits met extra lage spanning (genaamd SELV = Safety Extra-Low Voltage).
SELV-circuits mogen alleen met andere SELV-circuits verbonden worden. Omdat de BRI-circuits op
dezelfde manier als telefoonnetwerkspanning behandeld worden, mag u het SELV-circuit niet
verbinden met de telefoonnetwerkspanning (TNV) circuits.
Varoitus
Portit, joissa on nimet "Ethernet", "10BaseT", "Token Ring", "Console" ja "AUX", ovat erityisen pienen
jännityksen omaavia turvallisuuspiirejä (SELV-piirejä). Tällaiset SELV-piirit tulee yhdistää
ainoastaan muihin SELV-piireihin. Koska perusluokan liitäntöjen (Basic Rate Interface- eli
BRI-liitännät) jännite vastaa puhelinverkoston jännitettä, vältä SELV-piirin yhdistämistä
puhelinverkoston jännitepiireihin (TNV-piireihin).
Attention
Les ports étiquetés « Ethernet », « 10BaseT », « Token Ring », « Console » et « AUX » sont des
circuits de sécurité basse tension (Safety Extra-Low Voltage ou SELV). Les circuits SELV ne doivent
être interconnectés qu'avec d'autres circuits SELV. Comme les circuits BRI sont considérés comme
des sources de tension de réseau téléphonique, éviter de connecter un circuit SELV à un circuit de
tension de réseau téléphonique (telephone network voltage ou TNV).
Warnung
Die mit "Ethernet", "10BaseT", "Token Ring", "Console" und "AUX" beschrifteten Buchsen sind
Sicherheitskreise mit Sicherheitskleinspannung (Safety Extra-Low Voltage, SELV). SELV-Kreise
sollten ausschließlich an andere SELV-Kreise angeschlossen werden. Da die BRI-Kreise wie
Telefonnetzspannungen behandelt werden, ist der SELV-Kreis nicht an Telefonnetzspannungskreise
(TNV) anzuschließen.
![](asset-ea.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-10
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Laser Radiation Warning
Avvertenza
Le porte contrassegnate da "Ethernet", "10BaseT", "TokenRing", "Console" e "AUX" sono circuiti di
sicurezza con tensione molto bassa (SELV). I circuiti SELV devono essere collegati solo ad altri
circuiti SELV. Dato che i circuiti BRI vengono trattati come tensioni di rete telefonica, evitare di
collegare il circuito SELV ai circuiti in cui è presente le tensione di rete telefonica (TNV).
Advarsel
Utgangene merket "Ethernet", "10BaseT", "Token Ring", "Console" og "AUX" er lavspentkretser
(SELV) for ekstra sikkerhet. SELV-kretser skal kun kobles til andre SELV-kretser. Fordi BRI-kretsene
håndteres som telenettspenning, unngå å koble SELV-kretsen til kretser for telenettspenning (TNV).
Aviso
As portas "Ethernet", "10BaseT", "Token Ring", "Console", and "AUX" são circuitos de segurança de
baixa tensão (SELV). Estes circuitos deverão ser apenas ligados a outros circuitos SELV. Devido ao
facto de os circuitos BRI (Interface de Ritmo Básico) serem tratados como sendo de tensão
equivalente à da rede telefónica, evite ligar o circuito SELV aos circuitos TNV (tensão de rede
telefónica).
¡Advertencia!
Los puertos "Ethernet", "10BaseT", "Token Ring", "Console" y "AUX" son circuitos de muy baja señal
que garantizan ausencia de peligro (Safety Extra-Low Voltage = SELV). Estos circuitos SELV deben
ser conectados exclusivamente con otros también de tipo SELV. Puesto que los circuitos tipo BRI
se comportan como aquéllos con voltajes de red telefónica, debe evitarse conectar circuitos SELV
con circuitos de voltaje de red telefónica (TNV).
Varning!
De portar som är märkta "Ethernet", "10BaseT", "Token Ring", "Console" och "AUX" är SELV-kretsar,
d.v.s. skyddskretsar med extra låg spänning (SELV: Safety Extra-Low Voltage =
skyddsklenspänning). SELV-kretsar får endast anslutas till andra SELV-kretsar. Eftersom
BRI-kretsar behandlas liksom telefonnätsspänning bör SELV-kretsen inte anslutas till
telefonnätsspänningskretsar (TNV-kretsar).
Warning
Laser radiation is present when the system is open.
Waarschuwing
Laserstraling is aanwezig wanneer het systeem open is.
Varoitus
Lasersäteitä järjestelmän ollessa avoinna.
Attention
Production d'un rayonnement laser en position ouverte.
Warnung
Laserstrahlung in geöffnetem Zustand.
Avvertenza
Emissione di radiazioni laser quando il sistema è aperto.
Advarsel
Laserstråling er til stede når enheten er åpen.
Aviso
Radiação laser presente quando aberto.
![](asset-eb.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-11
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Laser Beam Warning
Power Cabling Warning
¡Advertencia!
Radiación láser presente cuando el sistema está abierto.
Varning!
Laserstrålning pågår när enheten är öppen.
Warning
Do not stare into the beam or view it directly with optical instruments.
Waarschuwing
Niet in de straal staren of hem rechtstreeks bekijken met optische instrumenten.
Varoitus
Älä katso säteeseen äläkä tarkastele sitä suoraan optisen laitteen avulla.
Attention
Ne pas fixer le faisceau des yeux, ni l'observer directement à l'aide d'instruments optiques.
Warnung
Nicht direkt in den Strahl blicken und ihn nicht direkt mit optischen Geräten prüfen.
Avvertenza
Non fissare il raggio con gli occhi né usare strumenti ottici per osservarlo direttamente.
Advarsel
Stirr eller se ikke direkte på strålen med optiske instrumenter.
Aviso
Não olhe fixamente para o raio, nem olhe para ele directamente com instrumentos ópticos.
¡Advertencia!
No mirar fijamente el haz ni observarlo directamente con instrumentos ópticos.
Varning!
Rikta inte blicken in mot strålen och titta inte direkt på den genom optiska instrument.
Warning
Secure all power cabling when installing this unit to avoid disturbing field-wiring connections.
Waarschuwing
Zet alle stroomkabels vast wanneer dit toestel wordt geïnstalleerd om te voorkomen dat de
verbindingen van de veldbedrading worden verstoord.
Varoitus
Kiinnitä kaikki voimakaapelit tiukkaan tätä laitetta asentaessasi, jotta vältät kentän
johdinkytkentöjen vioittumista.
Attention
Lors de l’installation de cet appareil, fixer tous les câbles d’alimentation pour éviter de provoquer
des perturbations aux raccordements des câblages propres au site.
![](asset-ec.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-12
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Grounded Equipment Warning
Warnung
Bei der Installation dieser Einheit die Netzverkabelung befestigen, um die Störung von
Feldkabelanschlüssen zu vermeiden.
Avvertenza
In fase di installazione dell'unità, assicurare tutti i cablaggi di alimentazione per evitare di alterare
i collegamenti degli avvolgimenti di campo.
Advarsel
Når denne enheten installeres, må alle kraftledninger sikres for å unngå at feltkabelkoblingene
forstyrres.
Aviso
Para evitar problemas com as ligações de rede de campanha, prenda todos os cabos de corrente
quando instalar esta unidade.
¡Advertencia!
Sujetar todo el cableado de alimentación cuando se instale este equipo para evitar que se mezcle
con las conexiones del cableado "in situ".
Varning!
Fäst allt starkströmskablage vid installation av denna enhet så att fältkopplingen inte rubbas.
Warning
This equipment is intended to be grounded. Ensure that the host is connected to earth ground
during normal use.
Waarschuwing
Deze apparatuur hoort geaard te worden Zorg dat de host-computer tijdens normaal gebruik met
aarde is verbonden.
Varoitus
Tämä laitteisto on tarkoitettu maadoitettavaksi. Varmista, että isäntälaite on yhdistetty maahan
normaalikäytön aikana.
Attention
Cet équipement doit être relié à la terre. S’assurer que l’appareil hôte est relié à la terre lors de
l’utilisation normale.
Warnung
Dieses Gerät muß geerdet werden. Stellen Sie sicher, daß das Host-Gerät während des normalen
Betriebs an Erde gelegt ist.
Avvertenza
Questa apparecchiatura deve essere collegata a massa. Accertarsi che il dispositivo host sia
collegato alla massa di terra durante il normale utilizzo.
Advarsel
Dette utstyret skal jordes. Forviss deg om vertsterminalen er jordet ved normalt bruk.
Aviso
Este equipamento deverá estar ligado à terra. Certifique-se que o host se encontra ligado à terra
durante a sua utilização normal.
¡Advertencia!
Este equipo debe conectarse a tierra. Asegurarse de que el equipo principal esté conectado a tierra
durante el uso normal.
![](asset-ed.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-13
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Ground Connection Warning
Varning!
Denna utrustning är avsedd att jordas. Se till att värdenheten är jordad vid normal användning.
Warning
When installing the unit, always make the ground connection first and disconnect it last.
Waarschuwing
Bij de installatie van het toestel moet de aardverbinding altijd het eerste worden gemaakt en het
laatste worden losgemaakt.
Varoitus
Laitetta asennettaessa on maahan yhdistäminen aina tehtävä ensiksi ja maadoituksen irti
kytkeminen viimeiseksi.
Attention
Lors de l’installation de l’appareil, la mise à la terre doit toujours être connectée en premier et
déconnectée en dernier.
Warnung
Der Erdanschluß muß bei der Installation der Einheit immer zuerst hergestellt und zuletzt
abgetrennt werden.
Avvertenza
In fase di installazione dell'unità, eseguire sempre per primo il collegamento a massa e
disconnetterlo per ultimo.
Advarsel
Når enheten installeres, må jordledningen alltid tilkobles først og frakobles sist.
Aviso
Ao instalar a unidade, a ligação à terra deverá ser sempre a primeira a ser ligada, e a última a ser
desligada.
¡Advertencia!
Al instalar el equipo, conectar la tierra la primera y desconectarla la última.
Varning!
Vid installation av enheten måste jordledningen alltid anslutas först och kopplas bort sist.
![](asset-ee.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-14
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Jewelry Removal Warning
Warning
Before working on equipment that is connected to power lines, remove jewelry (including rings,
necklaces, and watches). Metal objects will heat up when connected to power and ground and
can cause serious burns or weld the metal object to the terminals.
Waarschuwing
Alvorens aan apparatuur te werken die met elektrische leidingen is verbonden, sieraden (inclusief
ringen, kettingen en horloges) verwijderen. Metalen voorwerpen worden warm wanneer ze met
stroom en aarde zijn verbonden, en kunnen ernstige brandwonden veroorzaken of het metalen
voorwerp aan de aansluitklemmen lassen.
Varoitus
Ennen kuin työskentelet voimavirtajohtoihin kytkettyjen laitteiden parissa, ota pois kaikki korut
(sormukset, kaulakorut ja kellot mukaan lukien). Metalliesineet kuumenevat, kun ne ovat
yhteydessä sähkövirran ja maan kanssa, ja ne voivat aiheuttaa vakavia palovammoja tai hitsata
metalliesineet kiinni liitäntänapoihin.
Attention
Avant d’accéder à cet équipement connecté aux lignes électriques, ôter tout bijou (anneaux,
colliers et montres compris). Lorsqu’ils sont branchés à l’alimentation et reliés à la terre, les objets
métalliques chauffent, ce qui peut provoquer des blessures graves ou souder l’objet métallique aux
bornes.
Warnung
Vor der Arbeit an Geräten, die an das Netz angeschlossen sind, jeglichen Schmuck (einschließlich
Ringe, Ketten und Uhren) abnehmen. Metallgegenstände erhitzen sich, wenn sie an das Netz und
die Erde angeschlossen werden, und können schwere Verbrennungen verursachen oder an die
Anschlußklemmen angeschweißt werden.
Avvertenza
Prima di intervenire su apparecchiature collegate alle linee di alimentazione, togliersi qualsiasi
monile (inclusi anelli, collane, braccialetti ed orologi). Gli oggetti metallici si riscaldano quando
sono collegati tra punti di alimentazione e massa: possono causare ustioni gravi oppure il metallo
può saldarsi ai terminali.
Advarsel
Fjern alle smykker (inkludert ringer, halskjeder og klokker) før du skal arbeide på utstyr som er
koblet til kraftledninger. Metallgjenstander som er koblet til kraftledninger og jord blir svært varme
og kan forårsake alvorlige brannskader eller smelte fast til polene.
Aviso
Antes de trabalhar em equipamento que esteja ligado a linhas de corrente, retire todas as jóias que
estiver a usar (incluindo anéis, fios e relógios). Os objectos metálicos aquecerão em contacto com
a corrente e em contacto com a ligação à terra, podendo causar queimaduras graves ou ficarem
soldados aos terminais.
¡Advertencia!
Antes de operar sobre equipos conectados a líneas de alimentación, quitarse las joyas (incluidos
anillos, collares y relojes). Los objetos de metal se calientan cuando se conectan a la alimentación
y a tierra, lo que puede ocasionar quemaduras graves o que los objetos metálicos queden soldados
a los bornes.
Varning!
Tag av alla smycken (inklusive ringar, halsband och armbandsur) innan du arbetar på utrustning
som är kopplad till kraftledningar. Metallobjekt hettas upp när de kopplas ihop med ström och jord
och kan förorsaka allvarliga brännskador; metallobjekt kan också sammansvetsas med
kontakterna.
![](asset-ef.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-15
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Qualified Personnel Warning
Supply Circuit Warning
Warning
Only trained and qualified personnel should be allowed to install or replace this equipment.
Waarschuwing
Installatie en reparaties mogen uitsluitend door getraind en bevoegd personeel uitgevoerd worden.
Varoitus
Ainoastaan koulutettu ja pätevä henkilökunta saa asentaa tai vaihtaa tämän laitteen.
Avertissement
Tout installation ou remplacement de l'appareil doit être réalisé par du personnel qualifié et
compétent.
Achtung
Gerät nur von geschultem, qualifiziertem Personal installieren oder auswechseln lassen.
Avvertenza
Solo personale addestrato e qualificato deve essere autorizzato ad installare o sostituire questo
apparecchio.
Advarsel
Kun kvalifisert personell med riktig opplæring bør montere eller bytte ut dette utstyret.
Aviso
Este equipamento deverá ser instalado ou substituído apenas por pessoal devidamente treinado e
qualificado.
¡Atención!
Estos equipos deben ser instalados y reemplazados exclusivamente por personal técnico
adecuadamente preparado y capacitado.
Varning
Denna utrustning ska endast installeras och bytas ut av utbildad och kvalificerad personal.
Warning
Care must be given to connecting units to the supply circuit so that wiring is not overloaded.
Waarschuwing
Let erop dat de toestellen op voedingscircuits worden aangesloten zonder het vermogen van de
bedrading te overschrijden.
Varoitus
Laiteyksiköt on yhdistettävä huolellisesti syöttöpiiriin niin, että johdot eivät ole ylikuormitettuja.
Avertissement
Veillez à bien connecter les unités au circuit d'alimentation afin de ne pas surcharger les
connections.
Achtung
Beim Anschließen der Geräte an das Stromnetz ist darauf zu achten, daß die Schaltverbindungen
nicht überlastet werden.
Avvertenza
Fare attenzione quando si collegano le unità al circuito di alimentazione, per non sovraccaricare i
cablaggi.
![](asset-f0.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-16
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Power Supply Wiring Warning
Advarsel
Vær nøye med å koble enheter til strømforsyningskretsen slik at ledningene ikke overbelastes.
Aviso
Deverá ter precaução ao ligar unidades ao circuito de fornecimento de energia, para não
sobrecarregar a instalação.
¡Atención!
Poner mucho cuidado al conectar los equipos al circuito de alimentación a fin de no sobrecargar
el cableado.
Varning
Var noga vid anslutning av enheter till matarströmkretsen så att ledningarna inte överbelastas.
Warning
The illustration shows the DC power supply terminal block. Wire the DC power supply using the
appropriate wire terminations at the wiring end, as illustrated. The proper wiring sequence is
ground to ground, positive to positive (line to L), and negative to negative (neutral to N). Note
that the ground wire should always be connected first and disconnected last
Waarschuwing
De figuur toont de aansluitstrip van de gelijkstroomvoeding. Breng de bedrading aan voor de
gelijkstroomvoeding met behulp van de juiste draadaansluitingen aan het draadeinde zoals
aangegeven. De juiste bedradingsvolgorde is aarde naar aarde, positief naar positief (lijn naar L)
en negatief naar negatief (neutraal naar N). Let op dat de aarddraad altijd het eerst verbonden en
het laatst losgemaakt wordt.
Varoitus
Kuva esittää tasavirran pääterasiaa. Liitä tasavirtalähde johdon avulla käyttäen sopivia
johdinliitäntöjä johdon päässä kuvan esittämällä tavalla. Oikea kytkentäjärjestys on maajohto
maajohtoon, positiivinen positiiviseen (johto L:ään) ja negatiivinen negatiiviseen (nollajohto
N:ään). Ota huomioon, että maajohto on aina yhdistettävä ensin ja irrotettava viimeisenä.
Attention
La figure illustre le bloc de connexion de l'alimentation en courant continu. Câbler l'alimentation
en courant continu en fixant les extrémités de fil qui conviennent aux extrémités câblées
conformément au schéma. La séquence de câblage à suivre est terre-terre, positif-positif (ligne sur
L), et négatif-négatif (neutre sur N). Noter que le fil de masse doit toujours être connecté en premier
et déconnecté en dernier.
Warnung
Die Abbildung zeigt den Terminalblock des Gleichstrom-Netzgeräts. Verdrahten Sie das
Gleichstrom-Netzgerät unter Verwendung von geeigneten Kabelschuhen am Verdrahtungsende
(siehe Abbildung). Die richtige Verdrahtungsfolge ist Erde an Erde, positiv an positiv (Leitung an L)
und negativ an negativ (neutral an N). Beachten Sie bitte, daß der Erdungsdraht immer als erster
verbunden und als letzter abgetrennt werden sollte.
Avvertenza
L’illustrazione mostra la morsettiera dell alimentatore CC. Cablare l’alimentatore CC usando i
connettori adatti all’estremità del cablaggio, come illustrato. La corretta sequenza di cablaggio è
da massa a massa, da positivo a positivo (da linea ad L) e da negativo a negativo (da neutro a N).
Tenere presente che il filo di massa deve sempre venire collegato per primo e scollegato per ultimo.
![](asset-f1.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-17
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Invisible Laser Radiation Warning
Advarsel
Figuren viser likestrømforsyningsenhetens tilkoplingsterminal. Likestrømforsyningsenheten
tilkoples ved hjelp av ledningsavslutningene, slik som vist i figuren. Riktig tilkoplingssekvens er
jord til jord, positiv til positv (linje til L), og negativ til negativ (nøytral til N). Husk at
jordingsledningen alltid bør tilkoples først og frakoples sist.
Aviso
A figura mostra o bloco do terminal de fornecimento de corrente contínua. Ligue o fornecimento de
corrente contínua recorrendo aos terminadores localizados na extremidade do cabo, conforme
ilustrado. A sequência correcta de instalação é terra-a-terra, positivo-positivo (linha para L), e
negativo-negativo (neutro para N). Note que o fio de terra deverá ser sempre o primeiro a ser ligado,
e o último a ser desligado.
¡Atención!
La figura muestra la caja de bornes de la fuente de alimentación de corriente continua. Cablear la
fuente de alimentación de corriente continua, usando los terminales apropiados, en el extremo del
cable tal como se muestra. Las conexiones deben realizarse en el siguiente orden: tierra con tierra,
positivo con positivo (la línea con la L) y negativo con negativo (el neutro con la N). Tenga en cuenta
que el conductor de tierra siempre tiene que conectarse el primero y desconectarse el último.
Varning!
Illustrationen visar anslutningsplinten för likströmförsörjningsenheten. Koppla ledningarna till
strömförsörjningsenheten med lämpliga ledningsavslutningar som bilden visar. Korrekt
kopplingssekvens är jord till jord, positiv till positiv (linje till L) och negativ till negativ (neutral till
N). Observera att jordledningen alltid skall anslutas först och kopplas bort sist.
Warning
Because invisible laser radiation may be emitted from the aperture of the port when no cable is
connected, avoid exposure to laser radiation and do not stare into open apertures.
Waarschuwing
Omdat er onzichtbare laserstraling uit de opening van de poort geëmitteerd kan worden wanneer
er geen kabel aangesloten is, dient men om blootstelling aan laserstraling te vermijden niet in de
open openingen te kijken.
Varoitus
Kun porttiin ei ole kytketty kaapelia, portin aukosta voi vuotaa näkymätöntä lasersäteilyä. Älä katso
avoimiin aukkoihin, jotta et altistu säteilylle.
Attention
Etant donné qu’un rayonnement laser invisible peut être émis par l’ouverture du port quand aucun
câble n’est connecté, ne pas regarder dans les ouvertures béantes afin d’éviter tout risque
d’exposition au rayonnement laser.
Warnung
Aus der Öffnung des Ports kann unsichtbare Laserstrahlung austreten, wenn kein Kabel
angeschlossen ist. Kontakt mit Laserstrahlung vermeiden und nicht in offene Öffnungen blicken.
Avvertenza
Poiché quando nessun cavo è collegato alla porta, da quest’ultima potrebbe essere emessa
radiazione laser invisibile, evitare l’esposizione a tale radiazione e non fissare con gli occhi porte
a cui non siano collegati cavi.
Advarsel
Usynlige laserstråler kan sendes ut fra åpningen på utgangen når ingen kabel er tilkoblet. Unngå
utsettelse for laserstråling og se ikke inn i åpninger som ikke er tildekket.
![](asset-f2.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-18
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Incorrect Connection Warning
Aviso
Evite uma exposição à radiação laser e não olhe através de aberturas expostas, porque poderá
ocorrer emissão de radiação laser invisível a partir da abertura da porta, quando não estiver
qualquer cabo conectado.
¡Advertencia!
Cuando no esté conectado ningún cable, pueden emitirse radiaciones láser invisibles por el
orificio del puerto. Evitar la exposición a radiaciones láser y no mirar fijamente los orificios
abiertos.
Varning!
Osynliga laserstrålar kan sändas ut från öppningen i porten när ingen kabel är ansluten. Undvik
exponering för laserstrålning och titta inte in i ej täckta öppningar.
Warning
Incorrect connection of this or connected equipment to a general purpose outlet could result in
a hazardous situation.
Waarschuwing
Incorrecte aansluiting van deze of aangesloten apparatuur op een stopcontact voor algemene
doeleinden kan een gevaarlijke situatie tot gevolg hebben.
Varoitus
Tämän laitteen tai siihen liitettyjen laitteiden virheellinen kytkentä yleispistorasiaan voi aiheuttaa
vaaratilanteen.
Attention
Un branchement incorrect de cet équipement ou de l’équipement branché à une prise d’usage
général peut créer une situation dangereuse.
Warnung
Inkorrektes Anschließen von diesem oder damit verbundenen Geräten an einer Allzwecksteckdose
kann eine Gefahrensituation verursachen.
Avvertenza
Un collegamento errato di questo apparecchio, o dell’apparecchiatura a esso collegato, a una
presa di uso generale può causare una situazione pericolosa.
Advarsel
Feil kobling av dette utstyret eller tilhørende utstyr til et vanlig uttak kan føre til farlige situasjoner.
Aviso
Uma conexão incorrecta a uma ficha de alimentação eléctrica normal, deste ou de qualquer
equipamento a este conectado, poderá resultar numa situação potencialmente perigosa.
¡Advertencia!
La conexión incorrecta de este equipo, o del equipo conectado, a una toma o receptáculo de tipo
general podría resultar en una situación peligrosa.
Varning!
Felaktig koppling av denna eller ansluten utrustning till ett universaluttag kan orsaka riskfylld
situation.
![](asset-f3.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-19
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Ground Conductor Warning
Warning
Never defeat the ground conductor or operate the equipment in the absence of a suitably
installed ground conductor. Contact the appropriate electrical inspection authority or an
electrician if you are uncertain that suitable grounding is available.
Waarschuwing
De aardingsleiding mag nooit buiten werking gesteld worden en de apparatuur mag nooit bediend
worden zonder dat er een op de juiste wijze geïnstalleerde aardingsleiding aanwezig is. Neem
contact op met de bevoegde instantie voor elektrische inspecties of met een elektricien als u niet
zeker weet of voor passende aarding gezorgd is.
Varoitus
Älä koskaan ohita maajohdinta tai käytä laitteita ilman oikein asennettua maajohdinta. Ota yhteyttä
asianmukaiseen sähkötarkastusviranomaiseen tai sähköasentajaan, jos olet epävarma
maadoituksen sopivuudesta.
Attention
Ne jamais rendre inopérant le conducteur de masse ni utiliser l’équipement sans un conducteur de
masse adéquatement installé. En cas de doute sur la mise à la masse appropriée disponible,
s’adresser à l’organisme responsable de la sécurité électrique ou à un électricien.
Warnung
Umgehen Sie auf keinen Fall den Erdungsleiter und nehmen Sie die Geräte nicht in Betrieb, wenn
der Erdungsleiter nicht sachgemäß installiert ist. Wenden Sie sich an die entsprechende Behörde,
die für die Inspektion elektrischer Anlagen zuständig ist, oder an einen Elektriker, wenn Sie nicht
sicher sind, ob der Anschluß ordnungsgemäß geerdet ist.
Avvertenza
Non escludere mai il conduttore di protezione né usare l’apparecchiatura in assenza di un
conduttore di protezione installato in modo corretto. Se non si sa con certezza che è disponibile un
collegamento di messa a terra adeguato, esaminare le Norme CEI pertinenti o rivolgersi a un
elettricista qualificato.
Advarsel
Jordingslederen må aldri hindres, og utstyret må aldri brukes uten at en forsvarlig jordingsleder er
installert. Kontakt elektrisitetstilsynet eller en elektriker dersom du er usikker på om riktig jording
er tilgjengelig.
Aviso
Nunca anule o condutor à terra nem opere o equipamento sem ter um condutor à terra
adequadamente instalado. Em caso de dúvida em relação ao sistema de ligação à terra, contacte
os serviços locais de inspecção eléctrica ou um electricista qualificado.
¡Advertencia!
No desactive nunca el conductor de tierra ni opere el equipo sin un conductor de tierra instalado
correctamente. Póngase en contacto con las autoridades de inspección eléctrica pertinentes o con
un electricista, si no está seguro de contar con una toma de tierra adecuada.
Varning!
Koppla aldrig från jordledningen och använd aldrig utrustningen utan en på lämpligt sätt installerad
jordledning. Om det föreligger osäkerhet huruvida lämplig jordning finns skall elektrisk
besiktningsauktoritet eller elektriker kontaktas.
![](asset-f4.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-20
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Voltages on DC-input Power Supply Terminals
Warning
Voltages might be present on the DC-input power supply terminals. Turn off the power source
circuit breaker and remove the power supply before accessing the terminals.
Waarschuwing
Er kan stroom aanwezig zijn op de voedingspolen van de gelijkstroomingang. Schakel de
stroomonderbreker van de stroombon uit en verwijder de voedingsbron voordat u toegang tot de
polen zoekt.
Varoitus
Tasavirran lähteen jakorasiassa voi olla jännitettä. Katkaise virta virtalähteen kytkimestä ja irrota
virtalähde ennen jakorasiaan koskemista.
Attention
Il est possible que des courants électriques subsistent dans les terminaux à bloc d’alimentation CC.
Mettez le disjoncteur de l’alimentation principale hors tension et retirez le bloc d’alimentation
avant d’accéder aux terminaux.
Warnung
Auf den Gleichstrom-Eingangs-Stromversorgungs-Terminals können Spannungen auftreten.
Schalten Sie den Leistungsschutzschalter der Stromversorgung ab, und entfernen Sie die
Stromversorgung, bevor Sie auf die Terminals zugreifen.
Avvertenza
I voltaggi possono essere presenti sui terminali degli alimentatori elettrici DC di immissione.
Spegnete l'interruttore per l'interruzione del circuito dell'alimentatore e togliete l'alimentatore
elettrico prima di accedere i terminali.
Advarsel
Spenning kan forekomme på likestrømsforsyningsenhetens inngangsterminaler. Slå av
strømbryteren til strømkilden, og fjern strømtilførselsenheten før aksessering av terminalene.
Aviso
Os terminais de alimentação de energia de CC de entrada podem conter voltajem. Desconecte o
disjuntor da fonte de alimentação e remova a fonte de alimentação de energia antes de aceder aos
respectivos terminais.
¡Advertencia!
Los terminales de suministro de alimentación CC de entrada pueden contener voltaje. Desconecte
el cortacircuito de la fuente de alimentación y extraiga el suministro de alimentación antes de
acceder a los terminales.
Varning!
Spänningar kan förekomma på likströmsförsörjningsenhetens ingångspoler. Innan du skaffar dig
tillträde till polerna, stäng av strömbrytaren till strömkällan och avlägsna
strömförsörjningsenheten.
![](asset-f5.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-21
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
More Than One Power Supply
Cisco ONS 15216 EDFA2 Rack Installation
Warning
This unit has more than one power supply connection; all connections must be removed
completely to completely remove power from the unit.
Waarschuwing
Deze eenheid heeft meer dan één stroomtoevoerverbinding; alle verbindingen moeten volledig
worden verwijderd om de stroom van deze eenheid volledig te verwijderen.
Varoitus
Tässä laitteessa on useampia virtalähdekytkentöjä. Kaikki kytkennät on irrotettava kokonaan, jotta
virta poistettaisiin täysin laitteesta.
Attention
Cette unité est équipée de plusieurs raccordements d’alimentation. Pour supprimer tout courant
électrique de l’unité, tous les cordons d’alimentation doivent être débranchés.
Warnung
Diese Einheit verfügt über mehr als einen Stromanschluß; um Strom gänzlich von der Einheit
fernzuhalten, müssen alle Stromzufuhren abgetrennt sein.
Avvertenza
Questa unità ha più di una connessione per alimentatore elettrico; tutte le connessioni devono
essere completamente rimosse per togliere l'elettricità dall'unità.
Advarsel
Denne enheten har mer enn én strømtilkobling. Alle tilkoblinger må kobles helt fra for å eliminere
strøm fra enheten.
Aviso
Este dispositivo possui mais do que uma conexão de fonte de alimentação de energia; para poder
remover a fonte de alimentação de energia, deverão ser desconectadas todas as conexões
existentes.
¡Advertencia!
Esta unidad tiene más de una conexión de suministros de alimentación; para eliminar la
alimentación por completo, deben desconectarse completamente todas las conexiones.
Varning!
Denna enhet har mer än en strömförsörjningsanslutning; alla anslutningar måste vara helt
avlägsnade innan strömtillförseln till enheten är fullständigt bruten.
Warning
The Cisco ONS 15216 EDFA2 must be installed in a rack that is secured to the building structure.
Waarschuwing
De Cisco ONS 15216 EDFA2 moet in een stellage worden geïnstalleerd die aan een bouwsel is
verankerd.
Varoitus
Cisco ONS 15216 EDFA2 on asennettava telineeseen, joka on kiinnitetty rakennukseen.
Attention
Le rack sur lequel est monté le Cisco ONS 15216 EDFA2 doit être fixé à la structure du bâtiment.
![](asset-f6.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-22
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Exposed DC Power Wire Warning
Warnung
Der Cisco ONS 15216 EDFA2 muß in einem Gestell installiert werden, das in der Gebäudestruktur
verankert ist.
Avvertenza
Il Cisco ONS 15216 EDFA2 deve essere installato in un telaio, il quale deve essere fissato alla
struttura dell'edificio.
Advarsel
Cisco ONS 15216 EDFA2 må installeres i et stativ som er forankret til bygningsstrukturen.
Aviso
O Cisco ONS 15216 EDFA2 deverá ser instalado numa prateleira fixa à estrutura do edificio.
¡Advertencia!
El Cisco ONS 15216 EDFA2 debe instalarse en un bastidor fijado a la estructura del edificio.
Varning!
Cisco ONS 15216 EDFA2 måste installeras i en ställning som är förankrad i byggnadens struktur.
Warning
An exposed wire lead from a DC-input power source can conduct harmful levels of electricity.
Be sure that no exposed portion of the DC-input power source wire extends from the terminal
block plug.
Waarschuwing
Een blootgestelde verbindingsdraad van een ingangsgelijkstroombron kan gevaarlijke
elektriciteitsniveaus geleiden. Zorg ervoor dat geen blootgesteld deel van het draad van de
ingangsgelijkstroombron zich uitstrekt vanuit het aansluitblok van de terminal.
Varoitus
Tasavirtalähteestä tuleva avoin johto voi johtaa vaarallisen määrän sähköä. Varmista, ettei
kaapelikengän pistokkeesta tule esille lainkaan tasavirtajohdon avointa osaa.
Attention
Pour éviter tout risque de choc électrique, vérifiez que les câbles d'alimentation secteur sont
protégés par une gaine. Aucun fil dénudé ne doit apparaître hors du bloc d'alimentation du terminal.
Warnung
Eine ungeschützte Kabelleitung von einer Gleichstrom-Eingangsspannungsquelle kann schädliche
Elektrizitätslevel führen. Achten Sie darauf, daß von dem Klemmleistenstecker aus kein
ungeschütztes Eingangsgleichstromkabel freiliegt.
Avvertenza
Un cavo elettrico scoperto proveniente da un alimentatore DC-INPUT può trasmettere scariche
elettriche ad elevata tensione. Assicuratevi che i cavi in uscita dall'alimentatore DC-input non
presentino punti scoperti.
Advarsel
En avdekket ledning fra en likestrømskilde kan lede farlig elektrisitet. Kontroller at ingen
avdekkede deler av ledningen til likestrømskilden stikker ut av terminalens koblingsblokk.
Aviso
Um fio condutor exposto de uma unidade de entrada de DC (corrente contínua) pode transportar
níveis perigosos de electricidade. Certifique-se de que nenhuma secção exposta de um fio
condutor da fonte de energia de entrada de DC se extende a partir da ficha da placa de terminais.
![](asset-f7.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-23
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
48 VDC Power System
¡Advertencia!
Un cable desnudo de una fuente de entrada de alimentación de corriente directa (DC) puede
conducir niveles de electricidad peligrosos. Asegúrese de que ninguna parte del cable de la fuente
de alimentación de DC de entrada sale del enchufe del bloque de terminal.
Varning!
En blottad trådledning från en likströmsförsörjningsenhet kan utgöra en ledare för skadliga
elektricitetsnivåer. Se till att inte någon blottad ledningsdel från likströmsförsörjningsenheten
sticker ut från stiftplinten.
Warning
The customer 48 volt power system must provide reinforced insulation between the primary AC
power and the 48 VDC output.
Waarschuwing
Het 48 volt stroomsysteem van de klant dient versterkte isolatie tussen de primaire wisselstroom
en de 48 VDC-uitgang te verschaffen.
Varoitus
Asiakkaan 48 voltin virtajärjestelmän on tarjottava vahvistettu eriste ensisijaisen
vaihtovirtalähteen ja 48 voltin tasavirtaliitännän välille.
Attention
Le bloc d'alimentation 48 volts du client doit assurer une isolation renforcée entre l'alimentation
CA principale et la sortie 48 V CC.
Warnung
Das 48-Volt-Stromsystem des Kunden muß eine verstärkte Isolierung zwischen dem primären
Wechselstrom und dem 48 VDC-Output aufweisen.
Avvertenza
Il sistema elettrico di 48 volt del cliente deve avere un isolamento fra l'alimentatore elettrico AC e
il VDC 48 di output.
Advarsel
Kundens eget 48 volts strømopplegg må ha forsterket isolasjon mellom den primære
vekselstrømskilden og den 48 volts likestrømsutgangen.
Aviso
O sistema habitual de corrente de 48 volts deverá fornecer isolamento reforçado entre a corrente
alternada (AC) principal e a saída de 48 VDC (tensão em corrente contínua).
¡Advertencia!
Aviso: El sistema del cliente de 48 voltios debe proporcionar aislamiento reforzado entre la energía
principal AC y la potencia de salida de 48 VDC.
Varning!
Kundens 48-volt strömsystem måste vara försett med förstärkt isolering mellan den primära
växelströmmen och utmatningen av 48 V likström.
![](asset-f8.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-24
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Chassis Power Connection
Warning
Before connecting or disconnecting ground or power wires to the chassis, ensure that power is
removed from the DC circuit. To ensure that all power is OFF, locate the circuit breaker on the
panel board that services the DC circuit, switch the circuit breaker to the OFF position, and tape
the switch handle of the circuit breaker in the OFF position.
Waarschuwing
Voordat u aarddraden of elektriciteitsdraden op het frame aansluit of van het frame neemt, dient u
te controleren of de stroom naar het gelijkstroomcircuit uitgeschakeld is. Om u ervan te verzekeren
dat alle stroom UIT is geschakeld, kiest u op het schakelbord de stroomverbreker die het
gelijkstroomcircuit bedient, draait de stroomverbreker naar de UIT positie en plakt de
schakelaarhendel van de stroomverbreker met plakband in de UIT positie vast.
Varoitus
Varmista, että tasavirtapiirissä ei ole virtaa ennen maadoitus- tai virtajohtojen kytkemistä
asennuspohjaan tai ennen niiden irrottamista. Varmistaaksesi, että virta on KATKAISTU täysin,
paikanna tasavirrasta huolehtivassa kojetaulussa sijaitseva suojakytkin, käännä suojakytkin
KATKAISTU-asentoon ja teippaa suojakytkimen varsi niin, että se pysyy KATKAISTU-asennossa.
Attention
Avant de connecter ou de déconnecter les câbles d'alimentation (pôles et terre) du châssis, vérifiez
que le circuit de courant continu est hors tension : localisez le disjoncteur sur le panneau de
commande du circuit de courant continu, poussez-le sur la position fermée (OFF) et, à l'aide d'un
ruban adhésif, bloquez sa poignée sur cette position.
Warnung
Gleichstrom-Unterbrechung Bevor Sie Erdungs- oder Stromkabel an das Chassis anschließen oder
von ihm abtrennen, ist sicherzustellen, daß der Gleichstrom-Stromkreis unterbrochen ist. Um
sicherzustellen, daß sämtlicher Strom AUS ist, machen Sie auf der Schalttafel den Unterbrecher für
die Gleichstromschaltung ausfindig, stellen Sie den Unterbrecher auf OFF, und kleben Sie den
Schaltergriff des Unterbrechers mit Klebeband in der AUS-Stellung fest.
Avvertenza
Prima di collegare o distaccare i cavi elettrici o di messa a terra dallo chassis, assicuratevi che il
circuito DC non sia alimentato. Per verificare che tutta l'alimentazione sia scollegata (OFF),
individuare l'interruttore automatico sul quadro strumenti che alimenta il circuito CC, mettere
l'interruttore in posizione OFF e fissarlo con nastro adesivo in tale posizione.
Advarsel
Før til- eller frakobling av jord- og strømledninger til kabinettet, kontroller at strømmen er frakoblet
likestrømkretsen. Sørg for at all strøm er slått AV. Dette gjøres ved å lokalisere strømbryteren på
brytertavlen som betjener likestrømkretsen, slå strømbryteren AV og teipe bryterhåndtaket på
strømbryteren i AV-stilling.
Aviso
Antes de conectar ou desconectar a ligação à terra ou a alimentação do chassis, certifique-se de
que desligou a fonte de alimentação de energia do circuito de corrente contínua. Para se assegurar
que toda a corrente foi DESLIGADA, localize o disjuntor no painel que serve o circuito de corrente
contínua e coloque-o na posição OFF (Desligado), segurando nessa posição a manivela do
interruptor do disjuntor com fita isoladora.
![](asset-f9.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-25
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Cisco ONS 15216 EDFA2 Temperature Requirement
¡Advertencia!
Antes de conectar o desconectar el circuito de tierra o de alimentación del chasis, asegúrese que
la alimentación del circuito CC esté cortada (OFF). Para asegurarse de que toda la alimentación
esté cortada (OFF), localice el interruptor automático en el panel que alimenta el circuito de
corriente continua, cambie el interruptor automático a la posición de apagado (OFF) y sujete con
cinta la palanca del interruptor automático en posición de apagado (OFF).
Varning!
Innan du kopplar jord- eller elledningar till eller från chassit måste du kontrollera att
strömförsörjningen till likströmskretsen är bruten. Kontrollera att all strömförsörjning är BRUTEN
genom att slå AV det överspänningsskydd som skyddar likströmskretsen och tejpa fast
överspänningsskyddets omkopplare i FRÅN-läget.
Warning
To prevent a Cisco ONS 15216 EDFA2 system from overheating, do not operate it in an area that
exceeds the maximum recommended ambient temperature of 122°F (50°C).
Waarschuwing
Om te voorkomen dat een Cisco ONS 15216 EDFA2 systeem oververhit raakt, dient u het niet te
bedienen op een plaats waar de maximale aanbevolen omgevingstemperatuur van 50°C wordt
overschreden.
Varoitus
Ettei Cisco ONS 15216 EDFA2 -järjestelmä ylikuumentuisi, sitä ei saa käyttää tilassa, jonka
lämpötila ylittää korkeimman suositellun ympäristölämpötilan 50°C.
Attention
Pour éviter toute surchauffe du système Cisco ONS 15216 EDFA2, ne l’utilisez pas dans une zone où
la température ambiante est supérieure à 50°C.
Warnung
Um ein Cisco ONS 15216 EDFA2-System vor Überhitzung zu schützen, darf dieser nicht in einer
Gegend betrieben werden, in der die Umgebungstemperatur das empfohlene Maximum von 50°C
überschreitet.
Avvertenza
Per evitare il surriscaldamento dei sistemi Cisco ONS 15216 EDFA2, non adoperateli contain in un
locale che ecceda la temperatura ambientale massima di 122°F (50°C).
Advarsel
Unngå overoppheting av et Cisco ONS 15216 EDFA2-system. Skal ikke brukes på steder der den
anbefalte maksimale omgivelsestemperaturen overstiger 50°C (122°F).
Aviso
Para evitar o sobreaquecimento do sistema Cisco ONS 15216 EDFA2, não utilize este equipamento
numa área que exceda a temperatura máxima recomendada de 50°C.
¡Advertencia!
Para impedir que un encaminador de la serie Cisco ONS 15216 EDFA2 se recaliente, no lo haga
funcionar en un área en la que se supere la temperatura ambiente máxima recomendada de 122°F
(50°C).
Varning!
Förhindra att ett Cisco ONS 15216 EDFA2-system överhettas genom att inte använda det i ett område
där den maximalt rekommenderade omgivningstemperaturen på 50°C överskrids.
![](asset-fa.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-26
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
VCCI Compliance for Class B Equipment
SELV-IEC 60950 DC Power Supply Warning
Warning
This is a Class B product based on the standard of the Voluntary Control Council for Interference
from Information Technology Equipment (VCCI). If this is used near a radio or television receiver
in a domestic environment, it may cause radio interference. Install and use the equipment
according to the instruction manual.
Warning
Connect the unit only to DC power source that complies with the Safety Extra-Low Voltage
(SELV) requirements in IEC 60950 based safety standards.
Waarschuwing
Sluit de eenheid alleen maar aan op een gelijkstroombron die voldoet aan de veiligheidsvereisten
voor extra-laag voltage (SELV) in de op IEC 60950 gebaseerde veiligheidsnormen.
Varoitus
Liitä laite ainoastaan tasavirtalähteesen, joka on yhdenmukainen IEC 60950:n suojattujen erittäisen
alhaisen jännitteen (SELV) turvavaatimusten kanssa.
Attention
Connectez l'unité uniquement à une alimentation CC compatible avec les recommandations SELV
(Safety Extra-Low Voltage) des normes de sécurité IEC 60950.
Warnung
Schließen Sie die Einheit nur an eine Gleichstrom-Stromquelle an, die mit den Safety Extra-Low
Voltage (SELV)-Anforderungen in den auf IEC 60950 basierenden Sicherheitsstandards
übereinstimmen.
Avvertenza
Collegare l’unità esclusivamente a una presa di corrente continua rispondente ai requisiti SELV
(Safety Extra-Low Voltage) in base alle norme di sicurezza IEC 60950.
Advarsel
Koble bare enheten til en likestrømsforsyning som er i henhold til kravene for lavspenning (SELV) i
IEC 60950-baserte sikkerhetsstandarder.
Aviso
Conecte a unidade apenas à fonte da energia de CC que se encontra em conformidade com os
requisitos dos circuitos de segurança de baixa tensão (SELV) constantes dos padrões de segurança
baseados no IEC 60950.
![](asset-fb.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-27
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Cisco ONS 15216 EDFA2 Power Circuit Overload Warning
¡Advertencia!
Conecte la unidad sólo en una fuente de energía DC que cumpla con los requisitos de voltaje extra
bajo (SELV - Extra-Low Voltage) en los estándares de seguridad IEC 60950.
Varning!
Anslut enheten endast till en likströmsförsörjningsenhet som uppfyller kraven för SELV
(skyddskretsar för mycket låg spänning) i IEC 60950-baserade säkerhetsstandarder.
Warning
To prevent dangerous overloading of the power circuit, read the label on the rear of the Cisco
ONS 15216 EDFA2 that indicates maximum power load ratings. Failure to follow these rating
guidelines could result in a dangerous situation.
Waarschuwing
Om gevaarlijke overbelasting van het stroomcircuit te vermijden, dient u het label op de achterkant
van de Cisco ONS 15216 EDFA2 te lezen waarop de maximale stroombelasting wordt aangegeven.
Het niet nakomen van deze richtlijnen kan leiden tot een gevaarlijke situatie.
Varoitus
Päävirtapiirin vaarallisen ylikuormittumisen estämiseksi on tarkistettava suurin sallittu
tehokuormitus Cisco ONS 15216 EDFA2:n takaosassa olevasta kyltistä. Ohjearvojen huomiotta
jättämisestä voi aiheutua vaaratilanne.
Attention
Pour éviter tout risque d'accident dangereux provoqué par une surcharge du circuit d'alimentation,
il est vivement recommandé de tenir compte des mesures maximales de charge mentionnées sur
l'étiquette à l'arrière du Cisco ONS 15216 EDFA2.
Warnung
Um eine gefährliche Überlastung des Stromkreislaufs zu verhindern, muß das Label auf der
Rückseite des Cisco ONS 15216 EDFA2 gelesen werden, auf dem die maximale Strombelastung
angegeben wird. Nichtbefolgen der dort befindlichen Angaben kann zu Sicherheitsrisiken führen.
Avvertenza
Per evitare sovraccarichi del circuito elettrico, leggete le indicazioni sul retro del Cisco ONS 15216
EDFA2 per le cariche massime di alimentazione elettriche. Rispettando queste indicazioni eviterete
situazioni pericolose.
Advarsel
Kontroller verdiene for maksimal strømbelastning på merket bak på Cisco ONS 15216
EDFA2-apparatet for å unngå faren for overbelastning av strømkretsen. Hvis retningslinjene for
maksimal belastning ikke blir fulgt, kan det oppstå farlige situasjoner.
Aviso
A fim de evitar sobrecarga perigosa do circuito de fornecimento de energia, é favor ler a etiqueta
na parte de trás do Cisco ONS 15216 EDFA2, onde se encontram indicados os níveis máximos de
carga de energia. O não cumprimento dessas indicações pode dar origem a uma situação de perigo.
![](asset-fc.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-28
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Product Disposal Warning
¡Advertencia!
Para prevenir una sobrecarga eléctrica , lea las instrucciones de la etiqueta que aparece en la
parte posterior del Cisco ONS 15216 EDFA2 que indica la carga máxima de potencia. Si no sigue
estas indicaciones podría correr riesgos de sobrecarga.
Varning!
För att förhindra att elkretsen överbelastas genomläses etiketten bakpå Cisco ONS 15216 EDFA2 där
märkdata om högsta tillåtna elbelastning anges. Följs ej märkdatans rekommendationer kan fara
uppstå.
Warning
Ultimate disposal of this product should be handled according to all national laws and
regulations.
Waarschuwing
Het uiteindelijke wegruimen van dit product dient te geschieden in overeenstemming met alle
nationale wetten en reglementen.
Varoitus
Tämä tuote on hävitettävä kansallisten lakien ja määräysten mukaisesti.
Attention
La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives
de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.
Warnung
Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes
erfolgen.
Avvertenza
Lo smaltimento di questo prodotto deve essere eseguito secondo le leggi e regolazioni locali.
Advarsel
Endelig kassering av dette produktet skal være i henhold til alle relevante nasjonale lover og
bestemmelser.
Aviso
Deitar fora este produto em conformidade com todas as leis e regulamentos nacionais.
¡Advertencia!
Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos
nacionales.
Varning!
Vid deponering hanteras produkten enligt gällande lagar och bestämmelser.
![](asset-fd.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-29
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Energy Hazard
Warning
Only trained and qualified personnel should be allowed to install, replace, or service this
equipment. This equipment contains an energy hazard. Disconnect the system before servicing.
Waarschuwing
Alleen getraind en gekwalificeerd personeel mag deze uitrusting installeren, vervangen of
onderhouden. Deze uitrusting bevat energierisico’s. Ontkoppel het systeem voordat u het
onderhoudt.
Varoitus
Tämän laitteen asennuksen, vaihdon tai huollon saa suorittaa ainoastaan koulutettu ja pätevä
henkilökunta. Laitteessa on sähköiskuvaara. Irrota järjestelmä ennen huoltoa.
Attention
Cet équipement ne doit être installé, remplacé ou entretenu que par du personnel d’entretien
qualifié et formé. Cet équipement contient de l'énergie électrique potentiellement dangereuse.
Débrancher le système avant tout entretien/révision.
Warnung
Gerät nur von geschultem, qualifiziertem Personal installieren, auswechseln oder warten lassen.
Im Gerät liegt gefährliche Spannung an. Vor allen Wartungsarbeiten Gerät vom Netz trennen.
Avvertenza
Questo apparato può essere installato, sostituito o revisionato solo da personale qualificato e
competente. Questo apparecchio presenta pericolo di scosse elettriche. Scollegare il sistema
prima di procedere alla revisione.
Advarsel
Dette utstyret skal bare monteres, skiftes ut eller vedlikeholdes av kvalifisert personell som har
gjennomgått opplæring. Det kan være fare for elektrisk støt forbundet med dette utstyret. Kople fra
systemet før igangsetting av vedlikeholdsarbeid.
Aviso
Apenas pessoal treinado e qualificado deve ser autorizado a instalar, substituir ou fazer a revisão
deste equipamento. Este equipamento constitui risco de choque eléctrico. Desligar o sistema antes
de efectuar qualquer serviço de revisão.
¡Advertencia!
Solamente el personal calificado debe instalar, reemplazar o reparar este equipo, ya que existe
riesgo de descarga eléctrica. Desenchufe el sistema antes de proceder al mantenimiento del
mismo.
Varning!
Endast utbildad och behörig personal får utföra installation, utbyte eller service av denna
utrustning. Denna utrustning kan medföra fara för elstöt. Koppla ifrån systemet innan service utförs.
![](asset-fe.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-30
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Unit Grounding Protection Warning
Warning
Never defeat the ground conductor or operate the equipment in the absence of a suitably
installed ground conductor. Contact the appropriate electrical inspection authority or an
electrician if you are uncertain that suitable grounding is available.
Waarschuwing
De aardingsleiding mag nooit buiten werking gesteld worden en de apparatuur mag nooit bediend
worden zonder dat er een op de juiste wijze geïnstalleerde aardingsleiding aanwezig is. Neem
contact op met de bevoegde instantie voor elektrische inspecties of met een elektricien als u niet
zeker weet of voor passende aarding gezorgd is.
Varoitus
Älä koskaan ohita maajohdinta tai käytä laitteita ilman oikein asennettua maajohdinta. Ota yhteyttä
asianmukaiseen sähkötarkastusviranomaiseen tai sähköasentajaan, jos olet epävarma
maadoituksen sopivuudesta.
Attention
Ne jamais rendre inopérant le conducteur de masse ni utiliser l’équipement sans un conducteur de
masse adéquatement installé. En cas de doute sur la mise à la masse appropriée disponible,
s’adresser à l’organisme responsable de la sécurité électrique ou à un électricien.
Warnung
Umgehen Sie auf keinen Fall den Erdungsleiter und nehmen Sie die Geräte nicht in Betrieb, wenn
der Erdungsleiter nicht sachgemäß installiert ist. Wenden Sie sich an die entsprechende Behörde,
die für die Inspektion elektrischer Anlagen zuständig ist, oder an einen Elektriker, wenn Sie nicht
sicher sind, ob der Anschluß ordnungsgemäß geerdet ist.
Avvertenza
Non escludere mai il conduttore di protezione né usare l’apparecchiatura in assenza di un
conduttore di protezione installato in modo corretto. Se non si sa con certezza che è disponibile un
collegamento di messa a terra adeguato, esaminare le Norme CEI pertinenti o rivolgersi a un
elettricista qualificato.
Advarsel
Jordingslederen må aldri hindres, og utstyret må aldri brukes uten at en forsvarlig jordingsleder er
installert. Kontakt elektrisitetstilsynet eller en elektriker dersom du er usikker på om riktig jording
er tilgjengelig.
Aviso
Nunca anule o condutor à terra nem opere o equipamento sem ter um condutor à terra
adequadamente instalado. Em caso de dúvida em relação ao sistema de ligação à terra, contacte
os serviços locais de inspecção eléctrica ou um electricista qualificado.
¡Advertencia!
No desactive nunca el conductor de tierra ni opere el equipo sin un conductor de tierra instalado
correctamente. Póngase en contacto con las autoridades de inspección eléctrica pertinentes o con
un electricista, si no está seguro de contar con una toma de tierra adecuada.
Varning!
Koppla aldrig från jordledningen och använd aldrig utrustningen utan en på lämpligt sätt installerad
jordledning. Om det föreligger osäkerhet huruvida lämplig jordning finns skall elektrisk
besiktningsauktoritet eller elektriker kontaktas.
![](asset-ff.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-31
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
DC Power Disconnection Warning
Warning
Before performing any of the following procedures, ensure that DC power to the transverter you
will be working on is turned OFF. To ensure that the power to the specific transverter is OFF,
locate the power/breaker switch on the front of power feed panel that services that transverter,
push the switch into the OFF position, then tape the switch in the OFF position.
Waarschuwing
Voordat u een van de onderstaande procedures uitvoert, dient u te controleren of de stroom op het
gelijkstroomcircuit is uitgeschakeld. Om u ervan te verzekeren dat alle stroom is UITgeschakeld,
kiest u op het schakelbord de stroomverbreker die het gelijkstroom circuit bedient, draait u de
stroomverbreker naar de UIT positie en plakt u de schakelaarhendel van de stroomverbreker met
plakband in de UIT positie vast.
Varoitus
Varmista ennen seuraavien toimenpiteiden suorittamista, että tasavirtapiirin virta on KATKAISTU.
Varmistaaksesi, että virta on KATKAISTU täysin, paikanna tasavirrasta huolehtivassa kojetaulussa
sijaitseva suojakytkin. Käännä suojakytkin KATKAISTU-asentoon. Teippaa suojakytkimen varsi
niin, että kytkin pysyy KATKAISTU-asennossa.
Attention
Avant d'effectuer l'une des procédures décrites ci-dessous, vérifiez que le circuit alimenté en
courant continu n'est plus sous tension. Pour vous en assurer, localisez le disjoncteur situé sur le
panneau de service du circuit en courant continu, désactivez-le (OFF) et, à l'aide d'un ruban
adhésif, bloquez la poignée du disjoncteur en position OFF.
Warnung
Vor Ausführung der folgenden Vorgänge ist sicherzustellen, daß der Transverter, mit dem Sie
arbeiten, nicht mit Strom versorgt wird. Um sicherzustellen, daß der Strom abgestellt ist, machen
Sie auf der Vorderseite der Schalttafel den Stromschalter für den Transverter ausfindig, stellen Sie
den Schalter auf AUS, und kleben Sie den Schaltergriff mit Klebeband in der AUS-Stellung fest.
Avvertenza
Prima di svolgere una qualsiasi delle procedure seguenti, verificare che il circuito in corrente
continua non sia alimentato. Per verificare che tutta l'alimentazione sia scollegata (OFF),
individuare l'interruttore automatico sul quadro strumenti che alimenta il circuito CC, mettere
l'interruttore in posizione OFF e fissarlo con nastro adesivo in tale posizione.
Advarsel
Før du utfører noen av disse prosedyrene, må du kontrollere at strømtilførselen til transformatoren
du skal bruke, er slått AV. Dette gjøres ved å lokalisere strømbryteren foran på brytertavlen som
betjener transformatoren, deretter trykker du bryteren inn i AV-stilling og fester bryteren med teip
i AV-stilling.
Aviso
Antes de executar qualquer um dos seguintes procedimentos, certifique-se de que a fonte de
alimentação de corrente contínua para o transversor em que irá trabalhar está DESLIGADA. Para se
certificar de que toda a alimentação para esse transversor foi DESLIGADA, localize o disjuntor no
painel que alimenta esse transversor e coloque-o na posição OFF (Desligado) e, em seguida, segure
o disjuntor nessa posição com fita isoladora.
![](asset-100.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-32
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Ground Wire Warning
¡Advertencia!
Antes de proceder con los siguientes pasos, comprobar que la alimentación del circuito de
corriente continua (CC) con el que se va a trabajar esté cortada (OFF). Para ello, localizar el
interruptor de corriente en la parte frontal del panel que alimenta al circuito, cambiar el interruptor
automático a la posición de Apagado (OFF) y sujetar con cinta adhesiva la palanca del interruptor
automático en posición de Apagado (OFF).
Varning!
Innan du utför någon av följande procedurer måste du kontrollera att strömförsörjningen till
likströmskretsen är bruten. Kontrollera att all strömförsörjning är BRUTEN genom att slå AV det
överspänningsskydd som skyddar likströmskretsen och tejpa fast överspänningsskyddets
omkopplare i FRÅN-läget.
Warning
A ground wire must always be a single piece of wire. Never splice two wires together for a
ground. Corrosion and weathering can lead to a poor connection at the splice, making the
ground ineffective and dangerous.
Waarschuwing
Een aardedraad moet altijd over de hele lengte uit een enkel stuk draad bestaan. Voor een
aardedraad mogen nooit twee aparte draden aan elkaar verbonden worden. Invloed van het weer
en roest kunnen de verbinding tussen de twee draden belemmeren waardoor de aardeverbinding
minder goed werkt en zelfs gevaarlijk kan worden.
Varoitus
Maajohtimen on oltava aina yksittäinen johdin. Maajohdinta ei saa koskaan tehdä liittämällä kahta
johdinta yhteen. Syöpyminen ja sään vaikutus voivat heikentää liitoksen kytkentää, mikä tekee
maadoituksesta tehottoman ja vaarallisen.
Attention
Le fil de mise à la terre doit toujours être d'une seule pièce. Ne raccordez jamais deux fils ensemble
pour fabriquer un fil de mise à la terre. La corrosion et les dommages provoqués par les intempéries
risquent d'entraîner une connexion médiocre à l'endroit du raccord, diminuant ainsi l'efficacité de
la mise à la terre et la rendant dangereuse.
Warnung
Ein Erdungsdraht darf nur aus einem einzigen Draht bestehen. Verbinden Sie nie zwei Drähte zum
Erden. Korrosion und Verwitterung können zu einer schlechten Übertragung an der
Verbindungsstelle führen, wodurch die Erdung ineffizient und gefährlich wird.
Avvertenza
I cavi di terra devono sempre essere costituiti da conduttori ininterrotti: non congiungere mai due
cavi per realizzare un collegamento di terra. La corrosione e l'usura possono ridurre la conduttività
della giunzione, rendendo così inefficace e pericoloso il collegamento a terra.
Advarsel
En jordingsledning må alltid bestå av en enkel ledning. Skjøt aldri to ledninger sammen for jording.
Korrosjon og værslitasje kan føre til dårlig kobling i skjøtet, slik at jordingen blir ueffektiv og farlig.
Aviso
Um fio terra deve ser composto de um fio único. Nunca emende dois fios para fazer um fio terra. A
corrosão e a ferrugem podem afetar a emenda e tornar o aterramento inefetivo ou perigoso.
![](asset-101.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-33
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Declaration of Conformity with Regard to the Directives 73/23/EEC and
89/336/EEC as amended by Directive 93/68/EEC
The Declaration of Conformity related to this product can be found at the following URL:
http://www.ciscofax.com/
¡Advertencia!
El cable que se utilice para la conexión a tierra siempre deberá ser de una sola pieza. Nunca
empalme dos cables para hacer vconexión a tierra. La corrosión y el deterioro debido a los agentes
atmosféricos pueden debilitar la conexión del empalme, lo cual puede hacer que la conexión a
tierra no funcione adecuadamente y sea peligrosa.
Varning!
En jordad tråd måste alltid bestå av en enda tråd. Splitsa aldrig ihop två trådar för jord. Korrosion
och exponering för väder och vind kan leda till dålig anslutning vid splitsningen, med det resultatet
att jordningen blir ineffektiv och farlig.
Deutsch:
Dieses Gerät entspricht den wesentlichen Anforderungen und weiteren Bestimmungen der
Richtlinien 73/23/EWG und 89/336/EWG mit der Ergänzung durch Richtlinie 93/68/EWG.
Dansk:
Dette udstyr er i overensstemmelse med de ufravigelige hensyn og andre bestemmelser i direktiv
73/23/EEC og 89/336/EEC som ændred i direktiv 93/68/EEC.
English:
This equipment is in compliance with the essential requirements and other provisions of Directives
73/23/EEC and 89/336/EEC as amended by Directive 93/68/EEC.
Español:
Este equipo cumple con los requisitos esenciales y otras disposiciones de las Directrices 73/23/EEC
y 89/336/EEC de acuerdo a las modificaciones de la Directriz 93/68/EEC.
Français:
Cet appareil remplit les principales conditions requises et autres dispositions des Directives
73/23/EEC et 89/336/EEC, modifiées par la Directive 93/68/EEC.
Íslenska:
Þessir búnaður samrýmist lögboðnum kröfum og öðrum ákvæðum tilskipana 73/23/EBE og
89/336/EBE, með breytingum skv. tilskipun 93/68/EBE.
Italiano:
Questa apparecchiatura è conforme ai requisiti essenziali e altre disposizioni delle Direttive
73/23/EEC e 89/336/EEC modificate con la Direttiva 93/68/EEC.
Nederlands:
Deze apparatuur voldoet aan de belangrijkste eisen en andere voorzieningen van richtlijnen
73/23/EEC en 89/336/EEC zoals gewijzigd door richtlijn 93/68/EEC.
Norsk:
Dette utstyret samsvarer med de vesentligste kravene og andre regler i direktivene 73/23/EEC og
89/336/EEC samt i tilleggsdirektiv 93/68/EEC.
Português:
Este equipamento satisfaz os requisitos essenciais e outras provisões das Directivas 73/23/EEC e
89/336/EEC, conforme amendados pela Directiva 93/68/EEC.
![](asset-102.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-34
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Declaration of Conformity to R&TTE Directive 1999/5/EEC for the European
Community, Switzerland, Norway, Iceland and Liechtenstein
Suomalainen:
Tämä laite on direktiivien 73/23/ETY ja 89/336/ETY (kuten muutettu direktiivissä 93/68/ETY)
keskeisten vaatimusten ja määräysten mukainen.
Svenska:
Denna utrustning uppfyller de väsentliga kraven och andra villkor i direktiven 73/23/EEC och
89/336/EEC enligt ändringarna i direktiv 93/68/EEC.
English
This equipment is in compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
Nederlands:
Deze apparatuur voldoet aan de essentiële vereisten en andere relevante voorzieningen van
EU-richtlijn 1999/5/EC.
Suomalainen:
Tämä laite noudattaa direktiivin 1999/5/EC keskeisiä vaatimuksia ja sen muita olennaisia
määräyksiä.
Français:
Cet équipement répond aux exigences et provisions de la Directive 1999/5/EC.
Deutsch:
Diese Geräte entsprechen den Anforderungen und anderen relevanten Bestimmungen der
Richtlinie 1999/5/EC.
Italiano:
Questa apparecchiatura rispetta i requisiti essenziali e le altre clausole rilevanti della Direttiva
1999/5/CE.
Dansk:
Dette utstyret er i samsvar med de grunnleggende kravene og andre relevante forskrifter i
1999/5/EC-direktivet.
Português:
Este equipamento está de acordo com os requisitos essenciais e outras provisões relevantes da
Diretiva 1999/5/EC.
Español:
Este equipo cumple con los requisitos esenciales y otras provisiones relevantes de la Directiva
1999/5/EC.
Svenska:
Denna utrustning uppfyller de väsentliga kraven och andra relevanta förordningar i Direktiv
1999/5/EC.
![](asset-103.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-35
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Class B EMC Warning
Safety Requirements Warning
Warning
This is a Class B Device and is registered for EMC requirements for residential use. This device
can be used not only in residential areas but in all other areas.
Warning
All safety requirements and recommendations must be read by all personnel prior to working on
the system. Failure to follow the safety requirements and recommendations could result in
injury.
Waarschuwing
Alle veiligheidsvereisten en -aanbevelingen dienen door het personeel gelezen te worden voordat
er aan het systeem wordt gewerkt. Het niet nakomen van de veiligheidsvereisten en aanbevelingen
kan leiden tot letsel.
Varoitus
Kaikkien henkilökuntaan kuuluvien on luettava kaikki turvallisuusvaatimukset ja -suositukset
ennen järjestelmän parissa työskentelyä. Näiden turvallisuusvaatimusten ja -suositusten
laiminlyönti voi aiheuttaa tapaturman.
Attention
Il est essentiel que chaque membre du personnel lise toutes les consignes et conditions
d'utilisation avant d'exploiter le système. Le moindre manquement aux consignes et mesures de
sécurité risque de provoquer des blessures.
Warnung
Alle Sicherheitshinweise und Empfehlungen müssen vom gesamten Personal gelesen werden,
bevor mit der Arbeit am System begonnen wird. Das Nichtbefolgen der Sicherheitshinweise und der
Empfehlungen kann Verletzungen zur Folge haben.
Avvertenza
Prima di intervenire sul sistema è necessario leggere tutti i requisiti e i suggerimenti relativi alla
sicurezza. Se si ignorano i requisiti e i suggerimenti relativi alla sicurezza esiste il rischio di
lesioni.
Advarsel
Alle sikkerhetskrav og -anbefalinger skal leses av alt personell før arbeidet på systemet begynner.
Hvis sikkerhetskrav og -anbefalinger ikke følges, er det fare for at skade kan oppstå.
Aviso
Todos os requisitos e recomendações de segurança devem ser lidos por todo o pessoal antes de
trabalhar no sistema. Podem ocorrer ferimentos se os requisitos e recomendações de segurança
não forem seguidos.
![](asset-104.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-36
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Laser Radiation Warning
¡Advertencia!
El personal debe leer todos los requerimientos y recomendaciones de seguridad antes de trabajar
en el sistema. El incumplimiento de tales requerimientos y recomendaciones podría provocar
lesiones o daños.
Varning!
Alla säkerhetskrav och rekommendationer måste läsas av all personal innan arbete på systemet
påbörjas. Om säkerhetskraven och rekommendationerna inte följs kan detta leda till skador.
Warning
Laser radiation presents an invisible hazard, so personnel should avoid exposure to the laser
beam. Personnel must be qualified in laser safety procedures and must use proper eye
protection before working on this equipment.
Waarschuwing
Laserstraling levert een onzichtbaar gevaar op, zodat personeel blootstelling aan de laserstraal
dient te vermijden. Het personeel dient gekwalificeerd te zijn in veiligheidsprocedures m.b.t.
lasers en dient de juiste oogbescherming te dragen voordat er aan deze apparatuur wordt gewerkt.
Varoitus
Lasersäteily muodostaa näkymättömän vaaran, joten henkilökunnan tulisi välttää altistumista
lasersäteelle. Henkilökunnan on tunnettava laserin turvalliset käyttötoimet ja käytettävä
asianmukaisia silmiensuojaimia ennen tämän laitteiston parissa työskentelyä.
Attention
Les rayonnements laser constituent un risque grave invisible ; il est donc essentiel que le personnel
évite toute exposition au rayon laser. Tout membre personnel doit avoir reçu une formation qualifiée
en matière de procédures de sécurité laser et doit revêtir un équipement de protection optique
adéquat avant d'exploiter l'équipement.
Warnung
Da Laserstrahlung eine unsichtbare Gefahr darstellt, sollte das Personal nicht mit dem Laserstrahl
in Berührung kommen. Das Personal muss mit den Laser-
Sicherheitsvorkehrungen vertraut sein und
zulässige Schutzbrillen tragen, bevor die Arbeit an diesen Geräten aufgenommen wird.
Avvertenza
Evitare l'esposizione ai raggi laser, in quanto rappresentano un rischio invisibile. Prima di
intervenire su questa apparecchiatura, occorre essere a conoscenza delle procedure di sicurezza
relative ai laser e indossare protezioni adeguate per gli occhi.
Advarsel
Laserstråling representerer en usynlig fare. Personellet må derfor unngå eksponering til
laserstrålen. Personellet må være vel kjent med lasersikkerhetsprosedyrer og må bruke passende
øyenvern før de begynner å jobbe med dette utstyret.
Aviso
A radiação de laser representa um risco invisível, portanto deve-se evitar exposição pessoal ao
feixe do laser. O pessoal deve estar qualificado em procedimentos de segurança de laser e deve
usar proteção adequada para os olhos antes de trabalhar neste equipamento.
![](asset-105.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-37
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Fiber Disconnect Sequence Warning
¡Advertencia!
La radiación láser constituye un peligro invisible; por consiguiente, el personal debe evitar
exponerse al haz láser. Los miembros del personal deben estar debidamente capacitados respecto
de los procedimientos de seguridad cuando se trabaja con equipos láser y deben utilizar
dispositivos adecuados de protección ocular antes de trabajar en este equipo.
Varning!
Laserstrålning är en osynlig fara, så personal bör undvika att exponeras för laserstrålen.
Personalen måste vara kvalificerad inom säkerhetsåtgärder för laser och måste använda korrekt
ögonskydd innan arbete på denna utrustning påbörjas.
Warning
To ensure personal safety when disconnecting fiber cable, always disconnect the input
connector first and then the output connector.
Waarschuwing
De ingangsconnector dient altijd vóór de uitgangsconnector ontkoppeld te worden om de veiligheid
van het personeel te garanderen bij het ontkoppelen van vezelkabels.
Varoitus
Kuitukaapelia irrotettaessa on henkilökunnan turvallisuuden vuoksi tuloliitin irrotettava aina ensin
ja sitten vasta lähtöliitin.
Attention
Pour assurer la sécurité de votre personne lors de la déconnexion d'un câble à fibres, commencez
toujours par débrancher le connecteur d'entrée puis celui de sortie.
Warnung
Lösen Sie bei Glasfaserkabeln immer zuerst die Eingangssteckverbinder und danach die
Ausgangssteckverbinder, um die persönliche Sicherheit zu gewährleisten.
Avvertenza
Per tutelare la sicurezza personale, quando si scollega un cavo a fibre ottiche rimuovere per primo
il connettore di ingresso e quindi quello di uscita.
Advarsel
For å sikre personvern under frakopling av fiberkabler, skal inngangskoplingen frakoples først,
deretter frakoples utgangskoplingen.
Aviso
Para garantir a segurança pessoal ao desconectar o cabo de fibra, sempre desconecte o conector
de entrada primeiro e depois o conector de saída.
¡Advertencia!
A los efectos de garantizar la seguridad personal durante la desconexión de cables de fibra,
desconecte primero el conector de entrada y luego el de salida.
Varning!
För att garantera personlig säkerhet vid frånkoppling av fiberkablar ska alltid in-anslutningen
kopplas ifrån först och sedan utanslutningen.
![](asset-106.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-38
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Optical Connector Warning
Optical Connector Disconnect Warning
Warning
Do not look directly at the optical connector output beams during connector removal and
replacement. The beams can cause permanent eye damage.
Waarschuwing
Kijk niet rechtstreeks in de uitgangsstralen van de optische connector tijdens het verwijderen en
vervangen van de connector. De stralen kunnen permanente oogschade veroorzaken.
Varoitus
Älä katso suoraan optisesta liittimestä tuleviin säteisiin liittimen irrotuksen ja vaihdon aikana.
Säteet voivat aiheuttaa pysyviä silmävaurioita.
Attention
Ne regardez jamais directement les faisceaux de sortie d'un connecteur optique lors du retrait et
du remplacement de ce dernier. Les rayonnements risquent d'endommager irrémédiablement votre
vue.
Warnung
Sehen Sie nicht direkt in die Strahlen am Ausgang des optischen Steckverbinders, während Sie den
Steckverbinder entfernen oder ersetzen. Die Strahlen können bleibende Augenschäden
hervorrufen.
Avvertenza
Durante la rimozione e la sostituzione dei connettori ottici, evitare di guardare direttamente i raggi
laser in uscita dal connettore stesso. I raggi laser possono provocare lesioni permanenti agli occhi.
Advarsel
Ikke se direkte på utgangsstrålene i den optiske koplingen ved fjerning og utskifting av koplinger.
Strålene kan forårsake varige øyenskader.
Aviso
Não olhe diretamente para os feixes de saída do conector óptico durante a remoção e a
substituição do conector. Os feixes podem causar danos permanentes aos olhos.
¡Advertencia!
No mire directamente hacia los haces de salida del conector óptico durante la remoción y
reemplazo del conector. Los haces pueden causar daños oculares irreversibles.
Varning!
Titta aldrig rakt in i den optiska kontaktens strålar vid borttagning och byte av kontakt. Strålarna
kan orsaka permanenta ögonskador.
Warning
Cap the end of a disconnected output connector immediately to disable the live laser signal to
avoid possible eye damage and protect the connector from contamination.
Waarschuwing
Dek het uiteinde van de ontkoppelde uitgangsconnector onmiddellijk af om het onder spanning
staande lasersignaal te inactiveren om mogelijke schade aan de ogen te vermijden en om de
connector te beschermen tegen contaminatie.
![](asset-107.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-39
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Eye Damage Warning
Varoitus
Estä lasersignaalin kulku sulkemalla irrotetun tuloliittimen pää välittömästi silmävaurioiden
estämiseksi ja liittimen suojaamiseksi lialta.
Attention
Couvrez immédiatement l'extrémité d'un connecteur de sortie débranché pour désactiver le signal
laser actif, afin d'éviter tout risque d'endommagement de la vue et de protéger le connecteur de
toute contamination.
Warnung
Verschließen Sie das Ende eines gelösten Ausgangssteckverbinders sofort mit einer Kappe, um das
vorhandene Lasersignal zu deaktivieren und möglichen Augenschäden vorzubeugen und um den
Steckverbinder vor Verunreinigung zu schützen.
Avvertenza
Per evitare lesioni agli occhi e proteggere il connettore da contaminazione, coprire
immediatamente i connettori di uscita scollegati in modo da bloccare il segnale laser attivo.
Advarsel
En frakoplet utgangskopling skal øyeblikkelig forsynes med hette for å deaktivere det aktive
lasersignalet for derved å unngå eventuell øyenskade og beskytte koplingen mot kontaminering.
Aviso
Tampe imediatamente a extremidade de um conector de saída desconectado para desativar o sinal
de laser ativo e evitar possíveis danos aos olhos e proteger o conector contra contaminação.
¡Advertencia!
Cubra inmediatamente el extremo de los conectores de salida que estén desconectados para así
desactivar la señal activa de láser, evitar la posibilidad de daños oculares y proteger el conector
contra la contaminación.
Varning!
Täck änden på en frånkopplad kontakt omedelbart för att sätta lasersignalen ur stånd så att
eventuella ögonskador förhindras, och för att skydda kontakten så att den inte blir smutsig.
Warning
Protective glasses such as the Laser-Gard Green CO2 (LGE Spectacle, LGS Goggle. LGW
Wraparound or LGF Full-View) or an equivalent type of covering equipment with optical density
greater than 2 should be used. See your laser safety officer.
Waarschuwing
Beschermingsbrillen zoals de Laser-Gard Green CO2 (LGE Spectacle, LGS Goggle, LGW wraparound
of LGF Full-View) of soortgelijke oogbescherming met een optische dichtheid van meer dan 2 dient
te worden gebruikt. Neem contact op met uw veiligheidsexpert.
Varoitus
Suojalaseja, kuten Laser-Gard Green CO2 (LGE Spectacle, LGS Goggle, LGW Wraparound tai LGF
Full-View) tai vastaavantyyppistä peittävää välinettä, jonka optinen tiheys yli 2, on käytettävä. Ota
yhteys laserturvallisuudesta vastaavaan henkilöön.
Attention
Il convient de porter des lunettes de protection des modèles suivants : Laser-Gard Green CO2 (LGE
Spectacle, LGS Goggle, LGW Wraparound ou LGF Full-View) ou un équipement de protection
équivalent caractérisé par une densité optique supérieure à 2. Consultez le spécialiste en sécurité
laser de votre site.
![](asset-108.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-40
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Static Electricity Warning
Warnung
Verwenden Sie Schutzbrillen wie die Laser-Gard Green CO2 (LGE Spectacle, LGS Goggle, LGW
Wraparound oder LGF Full-View) oder einen entsprechenden Augenschutz mit einer optischen
Dichte größer als 2. Wenden Sie sich an den Beauftragten für Lasersicherheit.
Avvertenza
È necessario utilizzare occhiali protettivi quali Laser-Gard Green CO2 (LGE Spectacle, LGS Goggle.
LGW Wraparound o LGF Full-View) o un dispositivo di protezione di tipo equivalente con densità
ottica superiore a 2. Consultare il responsabile per la sicurezza laser.
Advarsel
Det bør brukes vernebriller av typen Laser-Gard Green CO2 (LGE-briller, LGS vernebriller, LGW
buede briller eller LGF full synsvinkel) eller tilsvarende type verneutstyr med optisk tetthet høyere
enn 2. Ta kontakt med representanten for lasersikkerhet.
Aviso
Deve-se usar óculos protetores como o Laser-Gard Green CO2 (LGE Spectacle, LGS Goggle, LGW
Wraparound ou LGF Full-View) ou um tipo equivalente de equipamento de cobertura com densidade
óptica maior que 2. Consulte seu agente de segurança de laser.
¡Advertencia!
Se deben utilizar anteojos de protección ocular tales como el Laser-Gard Green CO2 (LGE
Spectacle, LGS Goggle, LGW Wraparound o LGF Full-View) o un tipo equivalente de equipo de
cobertura con una densidad óptica mayor que 2. Consulte al encargado de seguridad.
Varning!
Skyddsglasögon av typen Laser-Gard Green CO2 (LGE Spectacle, LGS Goggle. LGW Wraparound
eller LGF Full-View) eller motsvarande typ av täckande utrustning med en optisk densitet högre än
2 bör användas. Kontakta ansvarig för lasersäkerheten.
Warning
Static electricity can damage electro-optical modules. While handling electro-optical module,
wear a grounding wrist strap to discharge the static buildup. Wrist straps are designed to
prevent static electricity damage to equipment.
Waarschuwing
Statische elektriciteit kan elektro-optische modules beschadigen. Bij het hanteren van een
electro-optische module dient u een geaarde polsband te dragen om de statische opeenhoping te
ontladen. Polsbanden zijn ontworpen om schade van statische elektriciteit aan de apparatuur te
voorkomen.
Varoitus
Staattinen sähkö voi vahingoittaa sähköoptisia moduuleja. Sähköoptista moduulia käsiteltäessä on
käytettävä maadoitusranneketta, joka purkaa kertyneen staattisen sähkön. Rannekkeet on tehty
estämään staattisen sähkön aiheuttama laitteiden vahingoittuminen.
Attention
Les décharges électrostatiques risquent d'endommager les modules électro-optiques. Lors de toute
manipulation d'un module électro-optique, portez toujours un bracelet de protection antistatique
pour décharger l'énergie statique accumulée. Ces bracelets antistatiques sont conçus pour
empêcher tout dommage matériel dû aux décharges électrostatiques.
![](asset-109.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-41
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Connector Cleaning Warning
Warnung
Statische Elektrizität kann zu Schäden an elektro-optischen Modulen führen. Tragen Sie ein
Erdungsarmband, wenn Sie statische Energie entladen, während Sie mit elektro-optischen
Modulen hantieren. Erdungsarmbänder schützen das Gerät vor Schäden durch statische
Elektrizität.
Avvertenza
L'elettricità statica può danneggiare i moduli elettro-ottici. Per evitare l'accumulo di elettricità
statica durante la manipolazione di un modulo elettro-ottico, indossare una fascia da polso per il
collegamento a massa. Le fasce da polso sono progettate appositamente per prevenire i danni alle
apparecchiature causati dall'elettricità statica.
Advarsel
Statisk elektrisitet kan skade elektro-optiske moduler. Bruk jordet håndleddstropp ved håndtering
av elektro-optiske moduler for å lade ut statisk opplading. Håndleddsstropper er framstilt for å
forhindre skader på utstyret forårsaket av statisk elektrisitet.
Aviso
A eletricidade estática pode danificar módulos eletro-ópticos. Ao manusear um módulo
eletro-óptico, use uma pulseira de aterramento para descarregar o acúmulo de estática. As
pulseiras são projetadas para evitar danos ao equipamento por eletricidade estática.
¡Advertencia!
La electricidad estática puede dañar los módulos electro-ópticos. Al manipular módulos
electro-ópticos, lleve puesta una pulsera de conexión a tierra para descargar la acumulación de
electricidad estática. Las pulseras de descarga a tierra están diseñadas para prevenir daños a los
equipos a causa de la electricidad estática.
Varning!
Statisk elektricitet kan skada elektro-optiska moduler. Vid hantering av elektro-optiska moduler,
använd ett jordande armband för att ladda ur statisk elektricitet som byggs upp. Armbanden är
utformade för att förhindra skador på utrustning orsakade av statisk elektricitet.
Warning
Be sure that the module is off and the laser is powered down before attempting to clean a
connector. If you do not turn off and protect the module, you create a permanent health risk for
yourself and others, and a risk of permanent connector damage.
Waarschuwing
Zorg dat de module uit is en de laser uitgeschakeld is voordat u een connector probeert schoon te
maken. Als u de module niet uitschakelt en beschermt, kan dit leiden tot een permanent
gezondheidsrisico voor uzelf en anderen en kans op permanente schade aan de connector.
Varoitus
Varmista, että moduuli on pois päältä ja ettei laseriin tule virtaa, ennen kuin yrität puhdistaa
liitintä. Jos et kytke moduulia pois päältä ja suojaa sitä, voit altistaa itsesi ja muut pysyville
terveyteen kohdistuville haittavaikutuksille sekä aiheuttaa pysyviä vaurioita liittimelle.
Attention
Assurez-vous que le module est désactivé et que le laser est mis hors tension avant d'essayer de
nettoyer un connecteur. Si vous omettez de protéger le module en le mettant hors tension, vous
créez un risque de sécurité physique permanent pour vos collègues et vous-même, tout en risquant
d'endommager irrémédiablement le connecteur.
![](asset-10a.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-42
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Cable Connection Sequence Warning
Warnung
Vergewissern Sie sich, dass das Modul ausgeschaltet und der Laser deaktiviert ist, bevor Sie
versuchen, einen Steckverbinder zu reinigen. Wenn Sie das Modul nicht ausschalten und
abschirmen, erzeugen Sie ein dauerhaftes Gesundheitsrisiko für sich und andere und riskieren eine
permanente Schädigung des Steckverbinders.
Avvertenza
Prima di pulire un connettore assicurarsi che il modulo sia spento e che il laser non sia alimentato.
Se non si spegne e non si protegge il modulo esistono rischi relativi all'incolumità personale e di
altri, nonché il pericolo di danni permanenti al connettore.
Advarsel
Påse at modulen er slått av og at laseren også er slått av før rengjøring av en kopling. Hvis du ikke
slår av og beskytter modulen, utgjør du en permanent helserisiko for deg selv og andre, i tillegg til
permanent skade på koplingen.
Aviso
Verifique se o módulo e o laser estão desligados antes de tentar limpar um conector. Se você não
desligar e proteger o módulo, irá criar um risco permanente à saúde para você e para outros, e um
risco de dano permanente no conector.
¡Advertencia!
Asegúrese de que el módulo y el láser estén apagados antes de intentar limpiar los conectores. Si
no apaga y protege el módulo, corre el riesgo de dañar irreversiblemente no sólo los conectores,
sino también su salud y la de los demás.
Varning!
Se till att modulen är avstängd och att lasern har en lägre effekt före rengöring av kontakter. Om
man inte stänger av och skyddar modulen skapar man en permanent hälsorisk för sig själv och
andra, samt en risk för permanenta skador på kontakten.
Warning
To ensure personal safety when reconnecting fiber cables, always reconnect the output
connectors first before the input connectors.
Waarschuwing
De uitgangsconnectors dienen altijd vóór de ingangsconnectors opnieuw aangesloten te worden,
om de veiligheid van het personeel te garanderen bij het opnieuw aansluiten van vezelkabels.
Varoitus
Kuitukaapeleita kytkettäessä on henkilökunnan turvallisuuden vuoksi lähtöliittimet kytkettävä
aina ensin ennen tuloliittimiä.
Attention
Pour assurer la sécurité de votre personne lors de la reconnexion de câbles à fibres, commencez
toujours par reconnecter les connecteurs de sortie avant ceux d'entrée.
Warnung
Verbinden Sie immer zuerst die Ausgangssteckverbinder und erst danach die
Eingangssteckverbinder, um die persönliche Sicherheit beim erneuten Verbinden von
Glasfaserkabeln zu gewährleisten.
Avvertenza
Per tutelare la sicurezza personale quando si collega un cavo a fibre ottiche, collegare per primo
il connettore di uscita e quindi quello di ingresso.
![](asset-10b.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-43
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Module Removal Warning
Advarsel
For å sikre personvernet under gjeninnkopling av fiberkabler, må du alltid gjeninnkople
utgangskoplingene før inngangskoplingene.
Aviso
Para garantir a segurança pessoal ao reconectar cabos de fibra, sempre reconecte os conectores
de saída primeiro, antes dos conectores de entrada.
¡Advertencia!
A los efectos de garantizar la seguridad personal al volver a conectar cables de fibra, reconecte
primero los conectores de salida y luego los de entrada.
Varning!
För att garantera personlig säkerhet vid återanslutning av fiberkablar ska man alltid koppla tillbaka
ut-anslutningen först och sedan in-anslutningen.
Warning
Removal of common modules causes traffic failure. Obtain proper authorization prior to any
maintenance work.
Waarschuwing
Het verwijderen van gemeenschappelijke modules leidt tot verkeersstoring. Zorg dat u de juiste
autorisatie hebt alvorens onderhoud te verrichten.
Varoitus
Yhteismoduulien poistaminen aiheuttaa liikennehäiriöitä. Hanki asianmukainen lupa ennen
kunnossapitoa.
Attention
Le retrait de modules communs risque de provoquer un arrêt accidentel du trafic. Veillez à obtenir
les autorisations appropriées avant de procéder à tout travail de maintenance.
Warnung
Durch das Entfernen von gemeinsamen Modulen wird der Verkehr unterbrochen. Holen Sie eine
offizielle Genehmigung ein, bevor Sie irgendwelche Wartungsarbeiten durchführen.
Avvertenza
La rimozione dei moduli comuni provoca l'interruzione del traffico. Prima di qualsiasi intervento di
manutenzione, è necessario disporre della relativa autorizzazione.
Advarsel
Fjerning av fellesmoduler forårsaker trafikksvikt. Du må innhente autorisasjon før du foretar
vedlikeholdsarbeider.
Aviso
A remoção dos módulos comuns causa falha de tráfego. Obtenha a autorização adequada antes de
qualquer trabalho de manutenção.
¡Advertencia!
La remoción de módulos comunes conlleva a fallas de tráfico. Obtenga la debida autorización antes
de realizar tareas de mantenimiento.
Varning!
Borttagning av gemensamma moduler orsakar trafikstopp. Skaffa korrekt behörighet före eventuellt
underhållsarbete.
![](asset-10c.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-44
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
DC Power SELV Requirement Warning
Warning
The DC power supply systems (main, redundant, and service battery power supply systems) must
be compliant with safety extra low voltage (SELV) requirements in accordance with IEC 60950
and UL 60950.
Waarschuwing
De toevoersystemen van de gelijkstroom (hoofdtoevoersystemen, redundante en toevoersystemen
voor de servicebatterij) dienen te voldoen aan de SELV (safety extra low voltage) vereisten in
overeenstemming met IEC 60950 en UL 60950.
Varoitus
Tasavirtavoimaverkkojen (pää-, varmennus- ja käyttöakkuvirtajärjestelmät) on noudatettava
suojattuja erittäin alhaisia jännitteitä (SELV) koskevia vaatimuksia standardien IEC 60950 ja UL
60950 mukaisesti.
Attention
Les systèmes d'alimentation en courant continu (systèmes principal, de secours et d'alimentation
électrique d'entretien sur piles) doivent être conformes aux critères SELV (Safety Extra Low
Voltage) tels qu'ils sont définis dans les normes IEC 60950 et UL 60950.
Warnung
Die Systeme für die Gleichstromversorgung (Haupt-, redundante und
Wartungsbatterie-Stromversorgungssysteme) müssen den Anforderungen für besonders niedrige
Spannungen (SELV) nach den Richtlinien IEC 60950 und UL 60950 entsprechen.
Avvertenza
I sistemi di alimentazione CC (sistema principale, di riserva e di alimentazione della batteria di
servizio) devono essere conformi ai requisiti delle tensioni di sicurezza a basso voltaggio (SELV,
Safety Extra Low Voltage) in conformità alle norme IEC 60950 e UL 60950.
Advarsel
Likestrømsystemet (hovedledning, redundant og strøm fra servicebatterisystemet) må samsvare
med sikkerhets-lavspenning (SELV)-kravene i henhold til IEC 60950 og UL 60950.
Aviso
Os sistemas de fonte de alimentação CC (sistemas de fontes de alimentação principal, redundante
e de bateria de serviço) devem ser compatíveis com os requisitos SELV (safety extra low voltage,
tensão de segurança extra baixa) de acordo com as normas IEC 60950 e UL 60950.
¡Advertencia!
Los sistemas de suministro de alimentación de CC (sistemas de alimentación principal, redundante
y de batería de servicio) deben cumplir los requerimientos de voltaje de seguridad extra bajo
(SELV) de conformidad con IEC 60950 y UL 60950.
Varning!
Matarsystemen för likström (huvud-, tilläggs- och servicebatterisystem) måste följa kraven för SELV
(safety extra low voltage) i enlighet med IEC 60950 och UL 60950.
![](asset-10d.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-45
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Reinforced Insulation Warning
Warning
The customer site 48 VDC power supply systems (main, redundant, and service battery power
supply systems) must provide reinforced insulation (RI) between the primary AC power supply
and the 48 VDC output in accordance with IEC 60950 and UL 60950.
Waarschuwing
De toevoersystemen van 48 VDC op de locatie van de klant (hoofdtoevoersystemen, redundante en
toevoersystemen voor de servicebatterij) dienen versterkte isolatie (RI) te verschaffen tussen de
primaire wisselstroomtoevoer en de 48 VDC uitgang in overeenstemming met IEC 60950 en UL 60950.
Varoitus
Asiakkaan puolen 48 V:n tasavirtavoimaverkoissa (pää-, varmennus- ja
käyttöakkuvirtajärjestelmät) on oltava vahvistettu eristys (RI) ensisijaisen vaihtovirtalähteen ja 48
V:n tasavirtaulostulon välillä standardien IEC 60950 ja UL 60950 mukaisesti.
Attention
Les systèmes d'alimentation en courant continu de 48 V cc du site client (systèmes principal, de
secours et d'alimentation électrique d'entretien sur piles) doivent fournir une isolation renforcée
(RI, de l'anglais Reinforced Insulation) entre la principale source d'alimentation en ca et la sortie
de 48 V cc, conformément aux normes IEC 60950 et UL 60950.
Warnung
Die 48-Volt-Gleichstromsysteme am Kundenstandort (Haupt-, redundante und
Wartungsbatterie-Stromversorgungssysteme) müssen über eine verstärkte Isolierung (Reinforced
Insulation, RI) zwischen der Haupt-Wechselstromquelle und dem 48-Volt-Ausgang entsprechend
den Richtlinien IEC 60950 und UL 60950 verfügen.
Avvertenza
I sistemi di alimentazione a 48 V CC nella sede del cliente devono disporre di dispositivi di
isolamento supplementare (RI, Reinforced Insulation) tra l'alimentazione CA principale e l'uscita a
48 V CC, in conformità a quanto previsto dalle norme IEC 60950 e UL 60950.
Advarsel
Kundestedets 48 V likestrøms forsyningssystem (hovedledning, redundant og strøm fra
servicebatterisystemet) må gi forsterket isolasjon mellom den primære vekselstrømforsyningen og
48 V likestrøm utgangseffekt i henhold til IEC 60950 og UL 60950.
Aviso
Os sistemas de fonte de alimentação de 48 VCC das instalações do cliente (sistemas de fontes de
alimentação principal, redundante e de bateria de serviço) devem oferecer isolamento reforçado
(RI) entre a fonte de alimentação CA primária e a saída de 48 VCC de acordo com as normas IEC
60950 e UL 60950.
¡Advertencia!
Los sistemas de suministro de alimentación de 48 VCC del sitio del cliente (sistemas de
alimentación principal, redundante y de batería de servicio) deben contar con aislamiento
reforzado (RI) entre la fuente principal de alimentación de CA y la salida de 48 VCC, de conformidad
con IEC 60950 y UL 60950.
Varning!
Kundens 48 VDC matarsystem (huvud-, tilläggs- och servicebatterisystem) måste ha förstärkt
isolering (RI) mellan huvudväxelströmskällan och 48 VDC-uteffekten i enlighet med IEC 60950 och
UL 60950.
![](asset-10e.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-46
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Power Supply Voltage Warning
DC Power Supply Connection Warning
Warning
Abnormal power supply voltage must not exceed -60.0 VDC.
Waarschuwing
Abnormale stroomtoevoerspanning mag -60,0 VDC niet overschrijden.
Varoitus
Poikkeava syöttöjännite ei saa olla yli -60,0 VDC.
Attention
La tension d'alimentation électrique anormale ne peut dépasser -60 V cc.
Warnung
Spannungsabweichungen bei der Stromversorgung dürfen maximal 60,0 Volt Gleichspannung nicht
überschreiten.
Avvertenza
L'ampiezza delle anomalie nella tensione di alimentazione non deve superare -60 V CC.
Advarsel
Abnormal strømforsyningsspenning må ikke overstige -60,0 V likestrøm.
Aviso
A tensão anormal da fonte de alimentação não deve exceder -60.0 VCC.
¡Advertencia!
El voltaje anormal de la fuente de alimentación no debe ser mayor que -60 VCC.
Varning!
Avvikande matarspänning får inte överstiga -60,0 VDC.
Warning
Wire the DC power supply using the appropriate lugs at the wiring end, or with no lugs, as
indicated in the Power Distribution Panel Cabling section.
Waarschuwing
Bedraad de wisselstroomtoevoer met de juiste aansluitingen aan het draaduiteinde of zonder
aansluitingen, zoals aangegeven in de sectie Power Distribution Panel Cabling (Bekabeling van het
stroomdistributiepaneel).
Varoitus
Kytke johdot tasavirtalähteeseen käyttämällä sopivia korvakkeita johtojen päässä tai ilman
korvakkeita voimavirtapaneelin kaapelointia käsittelevän osan ohjeiden mukaisesti.
Attention
Câblez l'alimentation en courant continu (cc) à l'aide des écrous de câblage appropriés à
l'extrémité de câblage, voire sans écrous, comme l'indique la section consacrée au câblage du
panneau de distribution de l'alimentation (Power Distribution Panel Cabling).
Warnung
Verkabeln Sie die Gleichstromversorgung mit den erforderlichen Kabelschuhen an den Drahtenden
bzw. ohne Kabelschuhe, wie im Abschnitt zur Stromverteilerverkabelung beschrieben.
![](asset-10f.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-47
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
Avvertenza
Collegare l'alimentatore CC utilizzando i capicorda appropriati all'estremità o senza capicorda,
secondo quanto indicato nella sezione relativa al cablaggio del pannello di distribuzione
dell'alimentazione (Power Distribution Panel).
Advarsel
Legg opp kablene for likestrømforsyningen med egnede kabelsko på kabelenden, eller uten
kabelsko, som angitt i seksjonen Strømdistribusjon - Tavlekabling.
Aviso
Ligue a fonte de alimentação CC utilizando os terminais apropriados na extremidade de fiação ou
sem terminais, conforme indicado na seção de Cabeamento do painel de distribuição de energia.
¡Advertencia!
Conecte la fuente de alimentación de CC utilizando los conectores adecuados en el extremo del
cableado, o sin utilizar conector alguno como se indica en la sección Cableado del panel de
distribución de alimentación.
Varning!
Koppla likströmsförsörjningen med lämpliga kabelskor i kopplingsänden, eller utan kabelskor, så
som visas i sektionen Power Distribution Panel Cabling strömkablar för panelen.
![](asset-110.png)
FINAL DRAFT - CISCO CONFIDENTIAL
A-48
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Appendix A Regulatory Compliance and Safety Information
Translated Safety Warnings
![](asset-111.png)
FINAL DRAFT - CISCO CONFIDENTIAL
IN-1
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
INDEX
A
access levels
ASH 6-1
TL1 9-6
ACT-USER 8-2, 9-9
administrative commands 6-10
AgentTrapEnable 5-23, 5-24
aid 9-2
AlarmCtmp 9-29
AlarmEntry 5-19, 5-36
AlarmGain 9-26
AlarmID 5-36, 5-37, 6-16
Alarm Index 5-37
AlarmLcrnt 9-29
AlarmLpin 9-26
AlarmLpout 9-26
AlarmLtmp 9-29
alarm out 2-6, 3-5
AlarmPowerBusA 9-27
AlarmPowerBusB 9-27
AlarmPriority 5-19, 9-26, 9-28, 9-29
alarms
contacts 3-5
LEDs 3-6
SNMP 5-36, 5-37
thresholds 4-5, 8-5
TL1 autonomous 9-3
TL1 autonomous clear 9-5
ALW-MSG-ALL 9-9
amplification 2-2, 3-4
amplified spontaneous emission 1-4
amplifier status 4-4, 8-4
APPLY 9-11
ASH shell 6-1
automatic gain control 2-1
B
backup system 4-12, 6-31, 8-11, 9-14
backward amplified spontaneous emission 2-1
bandwidth on demand 1-1
BootFileName 4-12, 9-20
BootIpAddress 4-12, 9-20
BootType 4-12, 9-19
C
CANC-USER 8-11, 9-12
case temperature, See temperature, case
ccm 9-2
CfgGroup 4-6, 5-12, 5-28, 5-29, 5-30, 5-31, 5-32, 5-33, 5-34
CfgSaved 4-7, 4-11, 5-12, 5-28, 6-19
channel power 2-2
clear 6-11
CLEI 4-6, 5-13, 5-28, 6-2, 9-52
CommTrapEntry 5-22, 5-23, 6-30
CommunityEntry 5-7, 5-9
compliance, regulatory A-1
configuration commands 6-6
connection 3-3
connector types 2-4
Constant Gain Temperature Compensated mode 1-3, 5-14,
5-26, 5-32, 5-33, 5-34, 9-17, 9-49
Constant Output Power mode 5-14
Constant Pump Current mode 5-14
![](asset-112.png)
FINAL DRAFT - CISCO CONFIDENTIAL
Index
IN-2
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
Constant Pump Power mode 5-14
constCurrent 5-15, 9-17, 9-49
ConstGainOverallGain 4-5, 4-11, 5-18, 5-19, 5-26, 9-18, 9-31
ConstGainOverallGainMeasured 4-4, 5-17, 9-49, 9-50
constGainTempComp 5-15, 9-17, 9-49
constOutputPower 5-15, 9-17, 9-49
constPower 5-15, 9-17, 9-49
COPY-RFILE 9-12, 9-32
CPY-MEM 9-14
ctag 9-2
CtmpMax 4-6, 4-9, 5-12, 5-28, 6-20, 9-31, 9-58, 9-64
CtmpMaxHysteresis 4-6, 4-9, 5-12, 5-28, 6-20, 9-32, 9-58, 9-64
CtmpMin 4-6, 4-8, 5-12, 5-27, 5-28, 6-20, 9-32, 9-58, 9-64
CtmpMinHysteresis 4-6, 4-8, 5-12, 5-28, 5-29, 6-20, 9-32, 9-58,
9-64
D
date 4-4, 5-25, 8-4, 9-16
DB-9 3-7, 3-14
DLT-RFILE 9-15
DLT-USER-SECU 9-16
duplex 4-4, 5-13, 8-4, 9-19, 9-50
E
ED-DAT 8-4, 9-16
ED-DWDM 8-5, 9-17
ED-ENV 8-4, 9-18
ED-NE-GEN 4-2, 8-3, 9-19
ED-PID 8-10, 9-20
ED-USER-SECU 9-21
electrical precautions 3-1
electrical specifications 2-3
entPhysicalEntry 6-30
ENT-USER-SECU 8-11, 9-21
equipment checklist 3-7
events, TL1 autonomous 9-4, 9-5
exit 6-11
F
ffs file list 6-14
fiber input 2-6
fiber output 2-6
firmware revision 6-30, 9-52
flash file system commands 6-14
front panel 2-5
LEDs 3-6
FTP commands 7-3
G
gain 4-5, 5-26, 8-5
gain flatness 1-3, 2-1
gain gain display 6-9
gain gain modify 6-10
grounding 2-6, 3-2
H
hardware revision 6-30, 9-52
help 6-11, 7-3
history 6-11
host name 6-30, 9-1
humidity operation 2-4
HyperTerminal 3-7, 3-12, 4-1, 4-14, 8-1, 10
I
INH-MSG-ALL 9-22
INI-SYS 9-19
INIT-SYS 4-2, 9-25
InPowerdBm 4-4, 5-17, 5-30, 9-49
InPoweruW 4-4, 5-17, 5-30, 9-49
IP address 4-3, 5-24, 8-3, 9-19, 9-52
![](asset-113.png)
FINAL DRAFT - CISCO CONFIDENTIAL
Index
IN-3
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
L
LAN 2-6, 4-3, 8-3
LEDs 3-6
FAIL 3-6
LOS 3-7
POWER 3-6
loading channels 2-2
LogEventID 9-26, 9-27, 9-29, 9-31
login 4-2, 4-4, 6-12, 8-1, 8-3, 9-9
logoff 4-12, 6-12, 8-11, 9-12
LOSHYST 8-8, 9-56, 9-62
LOSHysteresis 4-6, 4-8, 5-12, 5-28, 5-31, 6-19, 9-31, 9-56, 9-62
loss of output power
alarm hysteresis 5-34
alarm threshold 5-32
LOSTH 8-7, 9-56, 9-62
LOSThreshold 4-6, 4-7, 5-12, 5-28, 5-31, 5-37, 6-19, 9-31, 9-56,
9-62
LPOUTDEV 8-8, 9-56, 9-62
LpoutDeviation 4-6, 4-7, 5-12, 5-28, 5-33, 5-37, 6-19, 9-31, 9-56,
9-62
LPOUTHYST 8-8, 9-56, 9-62
LpoutHysteresis 4-6, 4-7, 5-12, 5-28, 5-34, 6-19, 9-31, 9-56, 9-62
LpoutSetpoint 4-6, 4-7, 5-12, 5-28, 5-32, 5-37, 6-19, 9-31, 9-56
LPOUTSETPT 8-8, 9-56
M
manufacturer commands 6-32
manufacturer name 6-30
manufacturer restore defaults all 6-32
manufacturer restore defaults passwords 6-32
manufacturing information access commands 6-30
MAXCTMP 8-9, 9-58, 9-64
MAXCTMPHYST 8-9, 9-58, 9-64
mechanical specifications 2-4
MIBs 5-3
MINCTMP 8-9, 9-58, 9-64
MINCTMPHYST 8-10, 9-58, 9-64
model name 6-30
model number 9-52
modem
configuration settings 3-12
NVRAM settings 3-12
power up 3-12
requirements 3-11
signals 3-12
monitor output 2-6, 3-4
MTBF 2-4
N
network host ftp 7-1
noise 1-4, 2-1
O
ONS 1-1
OpCutover 9-32
OpCutover perform 5-20
OpGroup 5-20
OpLoad 9-32
OpReset 9-32
OpSaveConfig perform 4-11, 5-13
optical specifications 2-1
OutPowerdBm 4-4, 5-17, 5-32, 9-49
OutPowermW 4-4, 5-17, 5-31, 9-49
OverallControl 5-18, 5-26
OverallStatusGroup 4-4, 5-16, 5-30, 5-32
P
password 4-10, 8-10
default recovery 4-14
pdm busmode display 6-8
pdm busmode modify 6-9
![](asset-114.png)
FINAL DRAFT - CISCO CONFIDENTIAL
Index
IN-4
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
pdm cfg threshold bus display 6-9
pdm cfg threshold bus modify 6-9
PhysicalDescr 6-30, 9-52
PhysicalFirmwareRev 6-30, 9-52
PhysicalHardwareRev 6-30, 9-52
PhysicalMfgName 6-30, 9-52
PhysicalModelName 6-30, 9-52
PhysicalName 6-30
PhysicalSerialNum 6-30, 9-52
PhysicalSoftwareRev 6-30, 9-52
polarization mode dispersion 2-1
port
ASH 4-3
TL1 8-3, 9-1
PowerBusDCVoltageMax 4-6, 4-10, 4-11, 5-13, 5-28, 5-29,
9-31, 9-57, 9-63
PowerBusDCVoltageMin 4-6, 4-10, 4-11, 5-13, 5-28, 5-30,
9-31, 9-57, 9-63
PowerBusMode 4-4, 4-6, 4-11, 5-13, 5-28, 5-29, 9-19, 9-31, 9-50
Power Bus mode 4-4, 5-13, 8-4, 9-19, 9-50
power gain 5-26
processor reset 6-12
PumpCfgConstOutPower 5-14, 9-18, 9-49
PumpCfgConstPumpCurrent 5-14, 5-15, 5-16, 9-18, 9-49
PumpCfgConstPumpPower 5-14, 9-18, 9-49
PumpCfgControlMode 4-11, 5-14, 5-15, 5-16, 9-17, 9-49
PumpCfgEntry 5-14
PumpCfgPumpNum 5-14
PumpCfgPumpNumber 9-31
PumpStatusAmbientTemp 5-27
PumpStatusEntry 5-18, 5-27
R
remote communications 3-11
REPT ALM DWDM 9-25
REPT ALM ENV 9-27
REPT ALM EQPT 9-28
REPT EVT DWDM 9-30
REPT EVT ENV 9-30
REPT EVT EQPT 9-30
REPT EVT FXFR 9-32
restore system 4-13, 6-31, 8-12, 9-14
RJ-45 2-6, 3-5, 4-3, 8-3
RS-232 2-6, 3-7, 3-14, 4-1, 4-2, 8-1, 8-2
RtcDateAndTime 5-25
RtcDateAndTimeGMTString 9-16
RtcDateAndTimeLocalString 4-4, 5-25
RTRV-ALM-ALL 9-33
RTRV-ALM-DWDM 9-35
RTRV-ALM-EN 9-37
RTRV-ALM-EQPT 9-38
RTRV-AO 9-40
RTRV-COND-ALL 9-41
RTRV-COND-DWDM 9-43
RTRV-COND-ENV 9-44
RTRV-COND-EQPT 9-46
RTRV-DFLT-SECU 9-47
RTRV-DWDM 8-4, 9-48
RTRV-ENV 9-50
RTRV-HDR 9-51
RTRV-INV 9-51
RTRV-RFILE 9-54
RTRV-TH-DWDM 8-6, 9-55
RTRV-TH-ENV 9-56
RTRV-TH-EQPT 8-6, 9-57
RTRV-TOD 9-59
RTRV-USER-SECU 9-60
S
safety
commands, with 3-3
eye protection 3-1, 3-3
radiation exposure 3-3
regulatory compliance A-1
trained personnel 3-3
translated warnings A-2
![](asset-115.png)
FINAL DRAFT - CISCO CONFIDENTIAL
Index
IN-5
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
SC/UPC optical ports 3-3
serial connection 2-6, 3-7, 4-1, 8-1
serial number 6-30
serial number. 9-52
SET-ATTR-SECUDFLT 9-60
SET-TH-DWDM 8-7, 9-61
SET-TH-ENV 9-62
SET-TH-EQPT 8-7, 9-63
shell commands 6-12
shell lines set 6-13
shell more enable and disable 6-13
shell status display 6-13
shell type modify 6-13, 8-2
sid 9-1
sid/tid name 9-1, 9-52
signal-to-noise ratio 1-3
simplex 4-4, 5-13, 8-4, 9-19, 9-50
SNMP 5-1
agent 5-2
agent command syntax 5-4
commands 5-24, 6-15
community entry creation 5-7
community entry display 5-9
manager 5-3
message types 5-3
MIB 5-3
operation types 5-4
retrieving information 5-24
third-party managers 5-3
view creation 5-6
snmp attribute get 6-15
AgentTrapEnable 5-24
ConstGainOverallGain 5-26
CtmpMax 5-28
CtmpMaxHysteresis 5-28
CtmpMin 5-27
CtmpMinHysteresis 5-29
InPowerdBm 5-30
InPoweruW 5-30
LOSHysteresis 5-31
LOSThreshold 5-31
LpoutDeviation 5-33
LpoutHysteresis 5-34
LpoutSetpoint 5-32
OutPowerdBm 5-32
OutPowermW 5-31
PowerBusDCVoltageMax 5-29
PowerBusDCVoltageMin 5-30
PowerBusMode 5-29
PumpStatusAmbientTemp 5-27
RtcDateAndTime 5-25
snmp attribute list 6-16
snmp attribute set 6-17
AgentTrapEnable 5-23
ConstGainOverallGain 4-5
LpoutDeviation 5-33
LpoutHysteresis 5-34
OpCutover perform 5-20
OpSaveConfig perform 4-11, 5-13
PowerBusMode 4-4
PumpCfgConstPumpCurrent 5-15, 5-16
PumpCfgControlMode 5-15, 5-16
RtcDateAndTimeLocalString 4-4, 5-25
snmp mib display 6-17
snmp mib get 6-18
snmp mib list 6-18
snmp row display 6-19
CfgGroup 5-28, 5-29, 5-30, 5-31, 5-33
CommunityEntry 5-9
OverallControl 5-26
OverallStatusGroup 5-30, 5-32
PumpStatusAmbientTemp 5-27
PumpStatusEntry 5-27
RtcDateAndTime 5-25
SromIpMgmtGroup 5-24
ViewEntry 5-6
snmp row get 6-20
OverallControl 5-26
![](asset-116.png)
FINAL DRAFT - CISCO CONFIDENTIAL
Index
IN-6
Cisco ONS 15216 EDFA2 Operations Guide
78-16033-01
snmp row set 6-20
CfgGroup 4-6
CommTrapEntry 5-23
CommunityEntry 5-7
SromIpMgmtGroup 4-3
ViewEntry 5-6
snmp subtree display 6-21
snmp subtree get 6-21
snmp subtree list 6-22
snmp table display 6-23
AlarmEntry 5-36
CfgGroup 4-6, 5-32, 5-33, 5-34
CommTrapEntry 5-22, 6-30
entPhysicalEntry 6-30
OverallStatusGroup 4-4
SromIpMgmtGroup 5-24
snmp table get 6-24
snmp table list 6-24
snmp tree attribute list 6-25
software revision 6-30, 9-52
specifications
electrical 2-3
mechanical 2-4
optical 2-1
srom cfg boot display 6-6
srom cfg boot modify 6-7
srom cfg ip display 6-7
srom cfg ip modify 6-8
SromIpMgmtDefaultRouterAddress 4-3, 4-12, 5-25, 9-19
SromIpMgmtEnetAddress 4-3, 4-11, 5-25, 9-19
SromIpMgmtEnetSubNetMask 4-3, 4-12, 5-25, 9-19
SromIpMgmtGroup 4-3, 5-24
SromIpMgmtHostName 4-3, 4-12, 5-25
STA-LOCL-RST 9-64
T
telnet 4-3, 8-3
simultaneous connections 9-1
temperature
ambient 2-4, 3-1
case 5-27
case alarm 4-8, 5-12, 9-58, 9-64
storage 2-4
tid 9-1
time 4-4, 5-25, 8-4, 9-16
time zone 4-4, 5-25
TL1 notation symbols 9-3
TL1 shell 8-1
transient suppression 1-4
U
user active list 6-29
user active message send 6-29
user commands 6-25
user entry create 4-11, 6-26
user entry delete 6-27
user entry edit 6-26
user file display 6-27
user inactivity display 6-28
user inactivity modify 6-28
user name display 6-27
user passwd set 4-10, 4-14, 6-28, 10
V
VariableGainPreAttenuation 4-11, 5-18, 5-26, 9-18, 9-31
VariableGainPreAttenuationMeasured 4-4, 5-17, 9-50
VersionGroup 5-21
ViewEntry 5-6
voa power input display 6-10
voltage
minimum/maximum supply 2-3, 4-10, 5-13
