Appendix 2

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 181

October 23, 2003

Appendix O: RFS System Test (Cable Sweeps)

Introduction

Before installing the Base Station at a site, the RFS and the associated cables must be tested, and

the results of the tests documented. This procedure applies to the full RFS sub-assembly and

associated cables: data/power cable, RF cables, and the RFS unit. All results are recorded in the

RFS System Test Form P/N 40-00093-00.

Procedures – Combo & Split Chassis Base Stations

RFS Data/Power Cable (Combo and Split BTS Configurations Only)

This test will check the integrity of the data/power cable. The cable being tested consists of six

twisted pairs of conductors. The conductors will be tested for continuity, opens, and shorts. Male

connectors are on both ends of the cable. Each connector is wired the same. You will need to

check all cables – the main cable from the RFS to the data/power cable surge protector, and the

jumper cable from the data/power cable surge protector to the BTS. The pin layout is shown in

Figure O1, looking at the connector face. Table O1 provides the pin layout details.

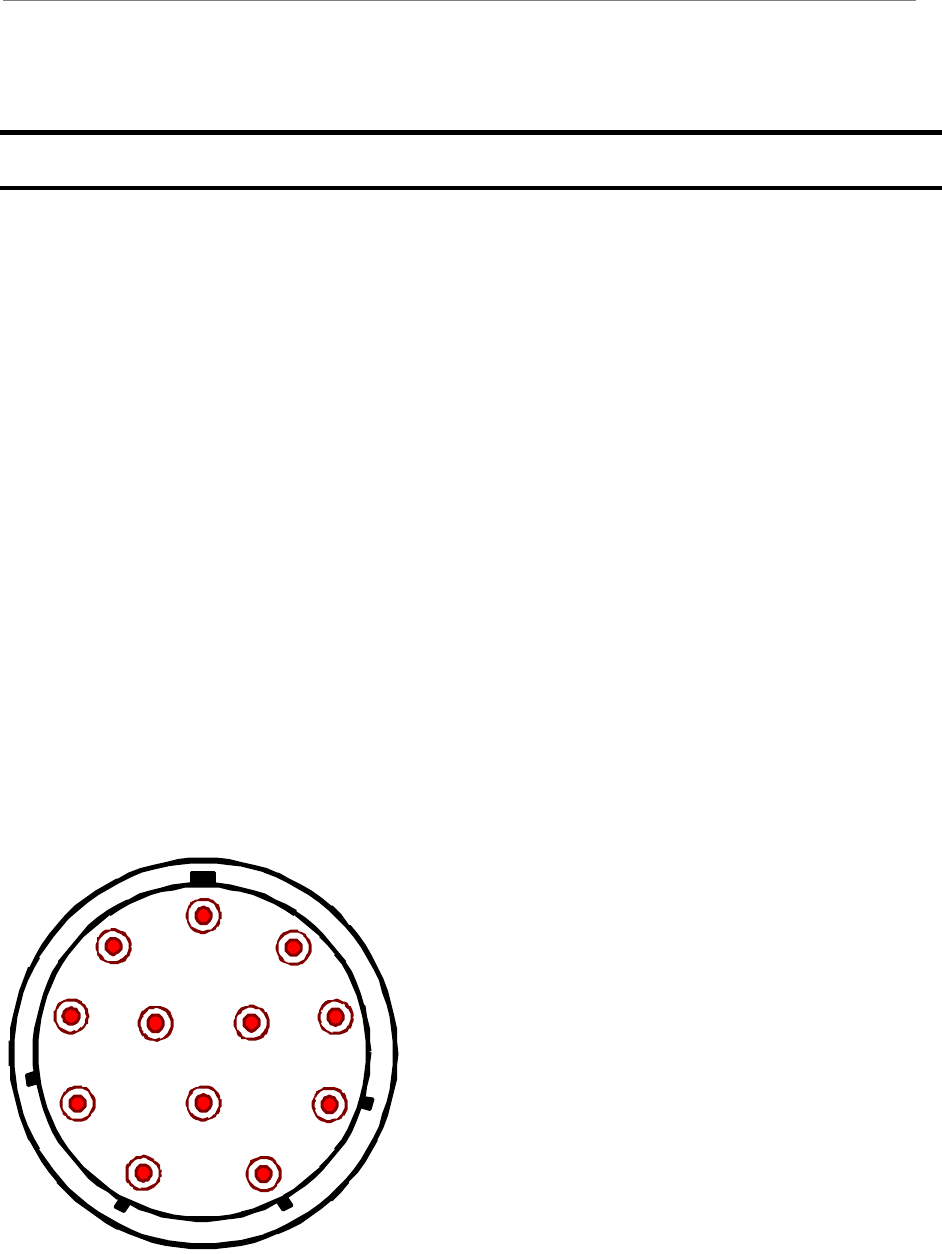

Figure O1: Pin Layout

Ripwave Base Station I&C Guide Navini Networks, Inc.

182 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Table O1: Pin layout Details

Perform the continuity test with both the Volt Ohm Meter (VOM) and the power/data cable

tester. If the power/data cable tester is not available, perform the continuity test with the VOM.

Required Equipment

?? VOM – Continuity tester

?? Jumper for shorting pins

?? RFS power/data cable tester

Continuity Test With VOM

Step 1. On one end of the cable, short a pair of conductors using a shorting device.

Step 2. Using a VOM/Digital Volt Meter (DVM) set to ohms, verify a short is present on the

pair at the other end.

Step 3. Leaving one probe on one of the paired pins, contact all of the other pins with the other

probe, ensuring an open connection.

Step 4. Check all 6 pairs of wires in the same manner.

Step 5. Verify continuity from the connector case to the drain wire (pin D) on each end of the

cable and between each connector case.

Step 6. Verify an open circuit from the connector case to each individual wire, except to the

drain wire.

Wire Color Wire Color Signal Name

RED PAIR +12V A

BLACK +12V A RTN

BROWN Heater

DRAIN GND (Shield Wire)

BLACK PAIR RX_EN_B-

WHITE RX_EN_B+

BLUE PAIR RX_EN_A+

BLACK RX_EN_A-

BLACK PAIR Diagbus-

GREEN Diagbus+

BLACK PAIR +12V B Return

YELLOW +12V B

POWER CABLE PIN OUT

Circular

Connector(s)

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 183

October 23, 2003

Continuity Test With Power/Data Cable Tester

Step 1. Connect one end of the power/data cable to the connector on the power/data cable

tester.

Step 2. Using a VOM/DVM set to ohms, check resistance to ground on the other end of the

cable. Resistance is checked from the case of the connector to the individual pin.

Resistance readings (+/– 10 percent ) are shown in Table O2.

Table O2: Resistance to Ground

Pin Resistance Pin Resistance

A 1K ohms G 6.2K ohms

B 2K ohms H 8.2K ohms

E 3.3K ohms L 10K ohms

F 5.1K ohms M 12K ohms

Step 3. Using a VOM/DVM set to ohms, check resistance between the pairs on the other end

of the cable. Resistance should be the sum of the resistance of the two pairs, +/– 10

percent. Refer to Table O3.

Table O3: Resistance of Two Pairs

Pins Resistance Pins Resistance

A & B 3K ohms G & H 14.4K ohms

E & F 8.4K ohms L & M 22K ohms

Step 4. Remove the power/data cable tester from the power/data cable.

Sweep Test of RF Cables & RFS

Sweep testing of the RF cables and the RFS is performed in three separate steps.

?? Sweep of the cables

?? Sweep of the RFS

?? Sweep of the cables and the RFS together

All results will be entered in the RFS System Test Form, P/N 40-00093-00. The total of the

insertion loss for the cables and the RFS will be equal to the insertion loss of both parts swept

together.

Ripwave Base Station I&C Guide Navini Networks, Inc.

184 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Equipment Required

?? Signal Generator - Agilent 8648C, or suitable alternative, tunable to the RFS center

frequency

?? Spectrum Analyzer - Agilent E4402B, or equivalent

?? Signal Generator cable and Spectrum Analyzer cable – Gender can be changed using a

barrel connector

?? Male and Female barrel connectors for Signal Generator cable and Spectrum Analyzer

cable connections

?? Power/data test cable

?? Navini RFS Test Box

Equipment Settings

Spectrum Analyzer:

?? Span – 5 MHz

?? RBW – 100 KHz

?? VBW – 100 KHz

?? Sweep Time – Auto

?? Frequency (Provided in Table O4)

Signal Generator:

?? Amplitude – 0 dB

?? Frequency (Provided in Table O4)

Test Setup

When performing each type of sweep, the sweep has to be performed at certain frequency

intervals (Table C5). Perform the complete test at the first frequency. Go to the next frequency

and recalibrate the test setup. Perform the complete test again. Do the same for the third

frequency. Refer to Figure O2.

Table O4: Sweep Frequencies

System Sweep 1 Sweep 2 Sweep 3

2.3 GHz High band 2348.25 2352.50 2357.50

2.3 GHz Low band 2307.50 2312.50 2316.75

2.4 GHz 2400.00 2440.00 2473.50

2.5 GHz 2500.00 2548.00 2596.00

2.6 GHz 2602.00 2620.00 2641.00

2.6 GHz EFGH 2602.00 2641.00 2683.00

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 185

October 23, 2003

1. Connect the Signal Generator cable to the Signal Generator.

2. Connect the Spectrum Analyzer cable to the Spectrum Analyzer.

3. Connect the other end of the cables together. Use a barrel connector if needed.

Figure O2: Test Setup

Test Procedure

The following procedures are for the Agilent E4402B Spectrum Analyzer. If alternative

equipment is used, refer to the manufacturer’s calibration procedures. The key point is to make

accurate microwave frequency power measurements.

Step 1. Turn the Signal Generator and Spectrum Analyzer on. Allow the equipment to warm

up for 15 minutes for the output to stabilize.

Step 2. Set the Signal Generator frequency to the desired test frequency (Table O4) of the

RFS under test.

Step 3. Set the Signal Generator output amplitude to 0 dBm.

Step 4. Set the center frequency of the Spectrum Analyzer to the center frequency of the RFS

under test.

Step 5. Set the Spectrum Analyzer to Span = 5 MHz and Resolution Bandwidth = 100 kHz.

Spectrum Analyzer

Signal Generator

Barrel Connector

(if needed)

Signal Generator

Cable

Spectrum Analyzer

Cable

Spectrum Analyzer

Signal Generator

Barrel Connector

(if needed)

Signal Generator

Cable

Spectrum Analyzer

Cable

Ripwave Base Station I&C Guide Navini Networks, Inc.

186 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

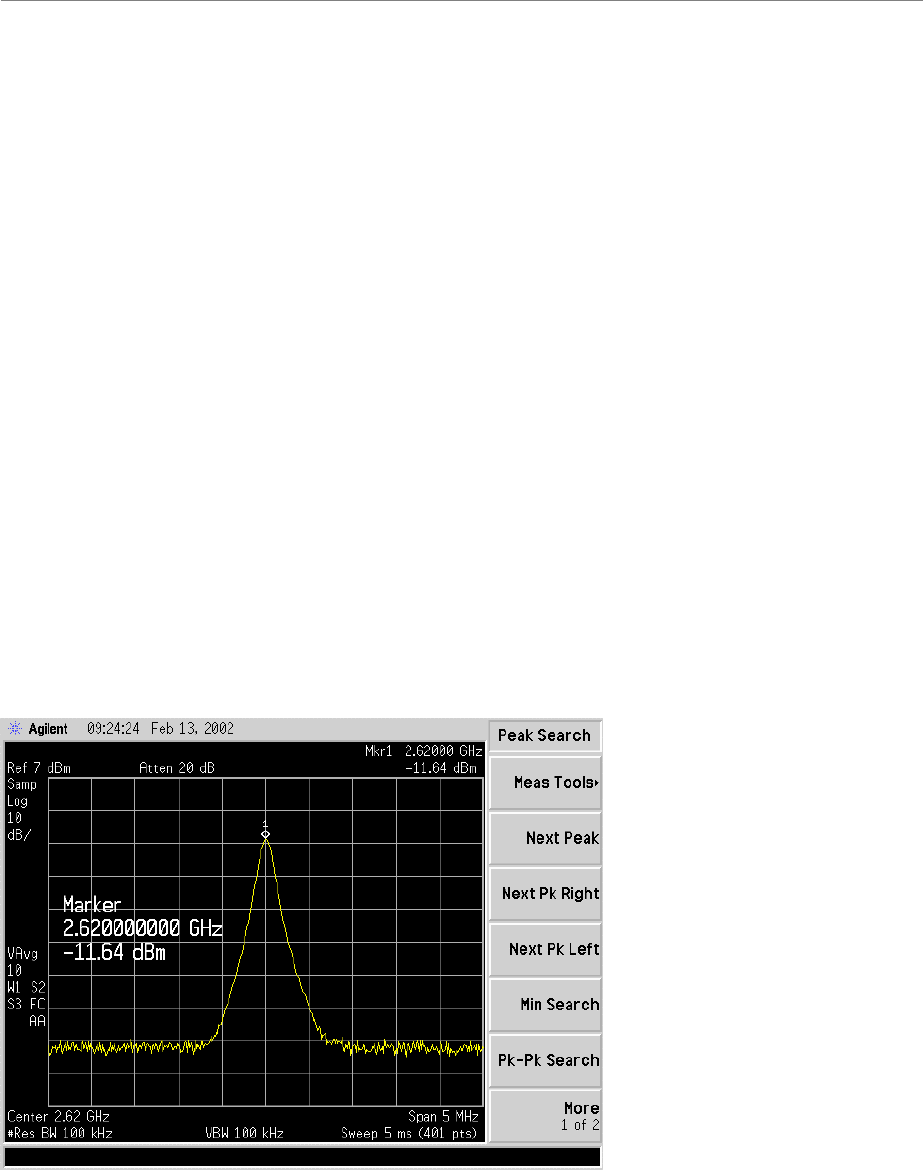

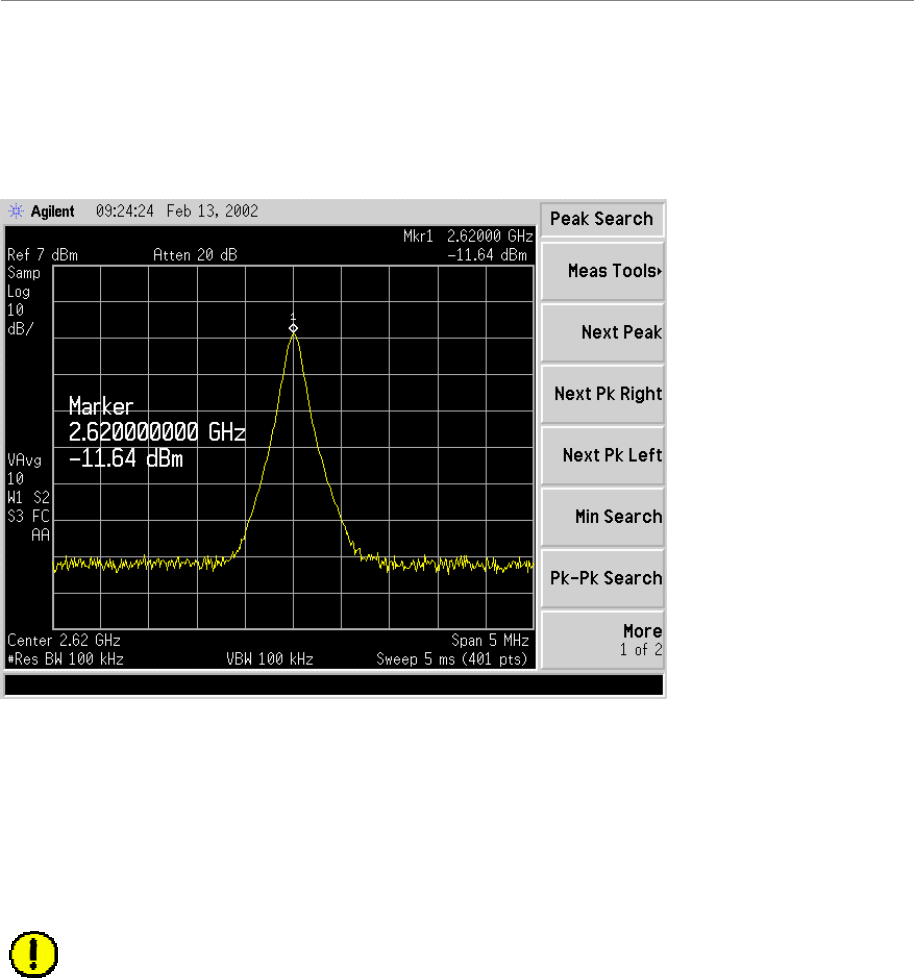

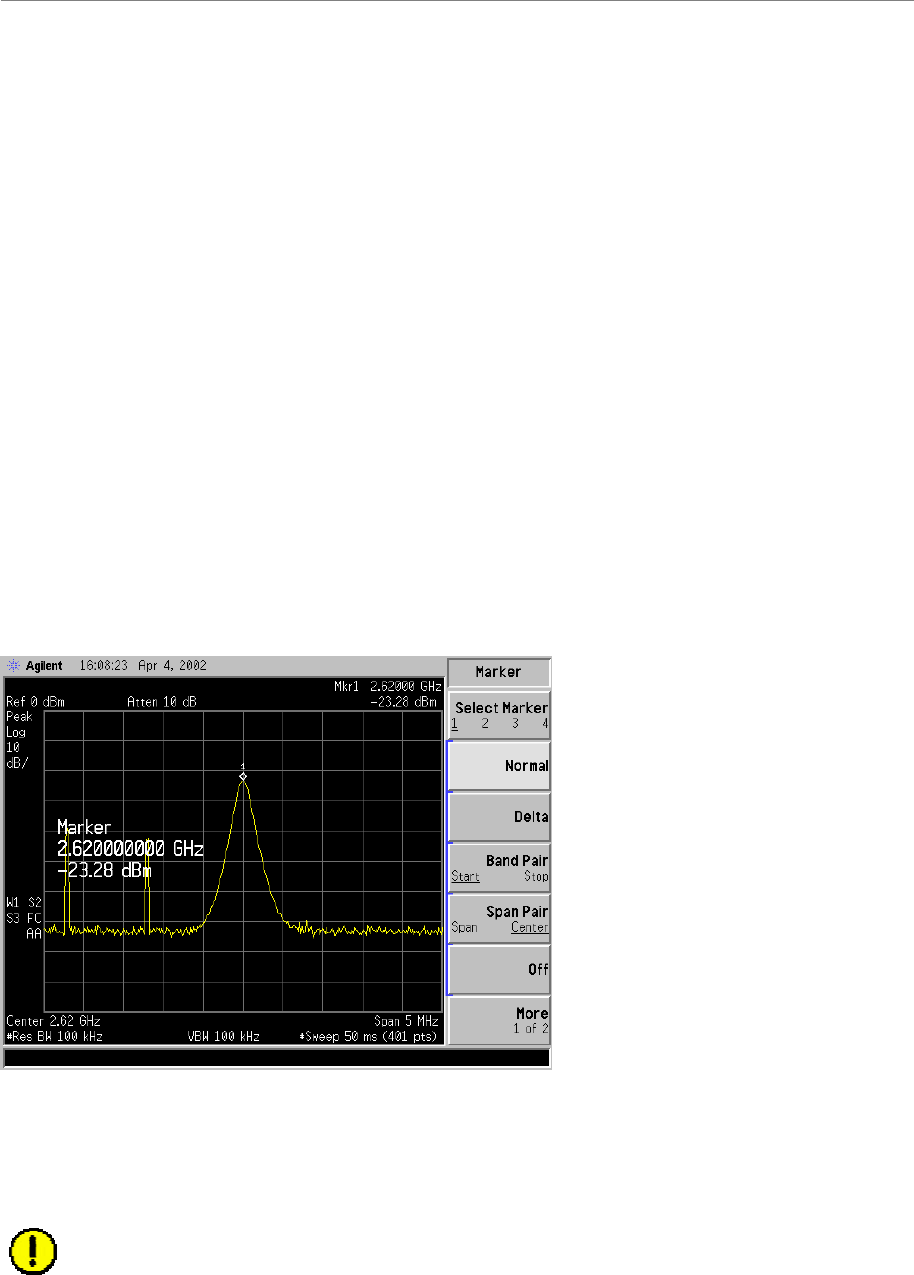

Step 6. Take a marker measurement on the Spectrum Analyzer by using the ‘marker to peak’

or the ‘peak search’ function. The screen on the Spectrum Analyzer should look

similar to that shown in Figure O3.

Figure O3: Sweep Test Marker Measurement Example

If the marker measurement doesn’t read 0.0 dBm, adjust the amplitude on the Signal Generator

until the Spectrum Analyzer marker reads 0.0 dBm, or as close to 0.0 dBm as possible. This will

remove all losses associated with the test cables. All measurement data should be recorded one

digit to the right of the decimal point, for example, 31.5dB.

Once the test setup is calibrated, these cables will remain in place and will be used

throughout the whole test. If the test cables are removed or changed, incorrect readings

will result.

RF Cable Insertion Loss

This test is performed on all RF cables that are installed in the system. This includes the eight

antenna cables, the system calibration cable, and all jumper cables. Follow the procedures for

either the cables on the ground or cables run up the tower.

Test Procedure For RF Cables on the Ground

Step 1. Ensure calibration of the test setup has been performed each time the test frequency is

changed.

Step 2. If present, remove the barrel connector from between the Signal Generator and

Spectrum Analyzer cables.

Step 3. Connect the cable from the Signal Generator to one end of the cable. Use a barrel

connector to change the gender, if required.

Step 4. Connect the cable from the Spectrum Analyzer to the other end of the cable. Use a

barrel connector to change the gender, if required.

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 187

October 23, 2003

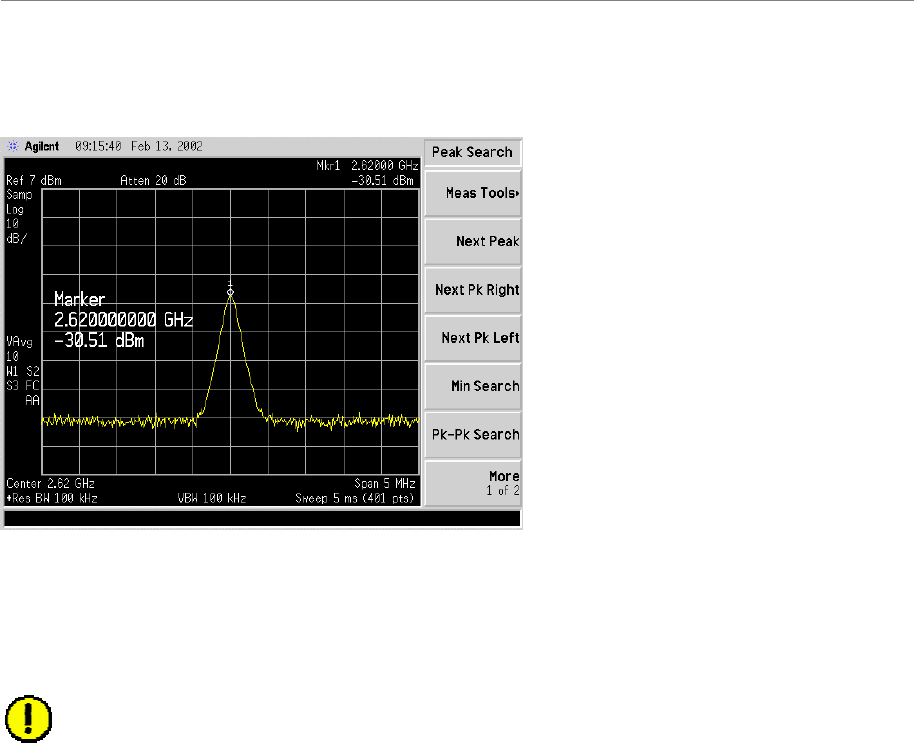

Step 5. Take a marker measurement on the Spectrum Analyzer by using the ‘marker to peak’

or the ‘peak search’ function. The screen on the Spectrum Analyzer should look similar

to the one shown in Figure O4.

Figure O4: Insertion Loss (Cables on Ground) Marker Measurement Example

Step 6. The result should be within +/– 0.5 dB of the calculated value. If the insertion loss

results do not agree with the manufacturer’s data, check the connectors for proper

connection to the cable, and check for kinks in the cable. If the Spectrum Analyzer has

a distance to fault (DTF) function, it can be used to help troubleshoot kinks in the

cable.

CAUTION! Cables with results greater than the specified limits (i.e., 2 or 3 dB high)

should not be installed, as a potential hardware fault exists.

Step 7. Record the data in the RFS System Test Form under “MAIN FEEDER LOSS” or

“JUMPER LOSS”. Ensure that the information is recorded under the channel number

that is on the cable label.

Step 8. Repeat steps 3 through 7 for all remaining cables and jumpers.

Step 9. Change the frequency to the next test frequency (refer back to the Test Setup section of

these procedures). Perform steps 1 through 8 until all cables have been successfully

tested at the frequencies shown in Table O4.

Ripwave Base Station I&C Guide Navini Networks, Inc.

188 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Test Procedure For RF Cables Already Run Up the Tower

Step 1. Ensure calibration of the test setup has been performed each time the test frequency is

changed.

Step 2. If present, remove the barrel connector from between the Signal Generator and

Spectrum Analyzer cables.

Step 3. Have a member of the tower crew positioned on the tower, at the upper end of the

cables, connect the calibration cable to antenna cable 1 with a barrel connector.

Step 4. At the lower end of the RF cables, connect the cable from the Signal Generator to the

calibration cable. Use a barrel connector to change the gender, if required.

Step 5. Connect the cable from the Spectrum Analyzer to antenna cable 1. Use a barrel

connector to change the gender, if required.

Step 6. Calculate the marker using the following formula: (the length of BOTH the calibration

cable and the antenna cable) x (loss per foot at the RFS center frequency for the type of

cable used).

Step 7. Take a marker measurement on the Spectrum Analyzer by using the ‘marker to peak’

or the ‘peak search’ function. The screen on the Spectrum Analyzer should look similar

to the one shown in Figure O5.

Figure O5: Insertion Loss (Cables on Tower) Marker Measurement Example

Step 8. The result should be within +/– 0.5 dB of the calculated value. If the insertion loss

results do not agree with the manufacturer’s data, check the cable connectors for proper

connection to the cable, and check for kinks in the cable. If the Spectrum Analyzer has

a distance to fault (DTF) function, this can be used to help troubleshoot kinks in the

cable.

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 189

October 23, 2003

Step 9. Divide this value in half and assign the result to the calibration cable and to the antenna

cable.

Caution: Cables with results greater than the specified limits (i.e., 2 or 3 dB high) should

not be installed, as a potential hardware fault exists.

Step 10. Record the data in the RFS System Test Form under “MAIN FEEDER LOSS”. Ensure

that the information is recorded under the channel number that is on the cable label.

Step 11. Repeat steps 3 through 10 for antenna cables 2 through 8.

Step 12. When finished, take the average of the eight values obtained for the calibration cable.

Use this value for the insertion loss of the calibration cable.

Step 13. Change the frequency to the next test frequency (refer back to Test Setup). Perform

steps 1 through 12 until all cables have been successfully tested at the frequencies

given in Table O4.

Step 14. Check the value of the nine jumpers at all three frequencies, per the procedure for

cables on the ground. Record the data in the RFS System Test Form under “JUMPER

LOSS”. Ensure that the information is recorded under the channel number that is on the

cable label.

RFS Test Box Setup

Step 1. For RFS only testing, connect the power/data test cable to the data connector on the

RFS and to the RFS Test Box.

- OR -

For RFS and cable testing, connect the installation power/data cable to the data

connector on the RFS and to the RFS Test Box.

Refer to Figure O6.

Step 2. Connect the RFS Test Box power supply to the RFS Test Box.

Step 3. Plug the RFS Test Box power supply into a 110 VAC outlet.

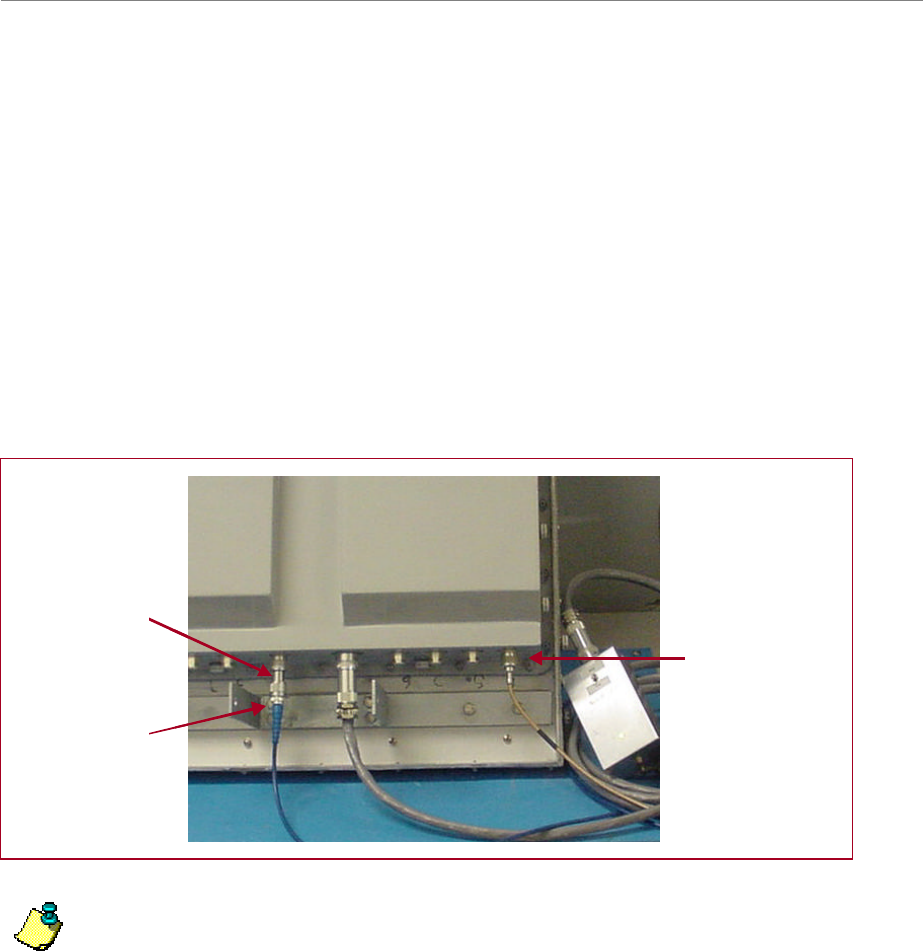

Figure O6: RFS Only Testing Setup

Power/Data cable

connected to the RFS

RFS Test Box

power supply

Power/Data cable

connected to the RFS

RFS Test Box

power supply

Ripwave Base Station I&C Guide Navini Networks, Inc.

190 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

RFS Only Transmit Verification

Ensure that the calibration of the test setup and RFS Test Box setup for RFS Only has been

performed each time the test frequency is changed. Refer to Figure O7.

Step 1. Switch the RFS Test Box to the transmit (Tx) mode.

Step 2. Connect the cable from the Spectrum Analyzer to the RFS cal connector. Use a barrel

connector to change the gender, if required.

Step 3. Connect the cable from the Signal Generator to the RFS antenna input number 1. Use a

barrel connector to change the gender, if required.

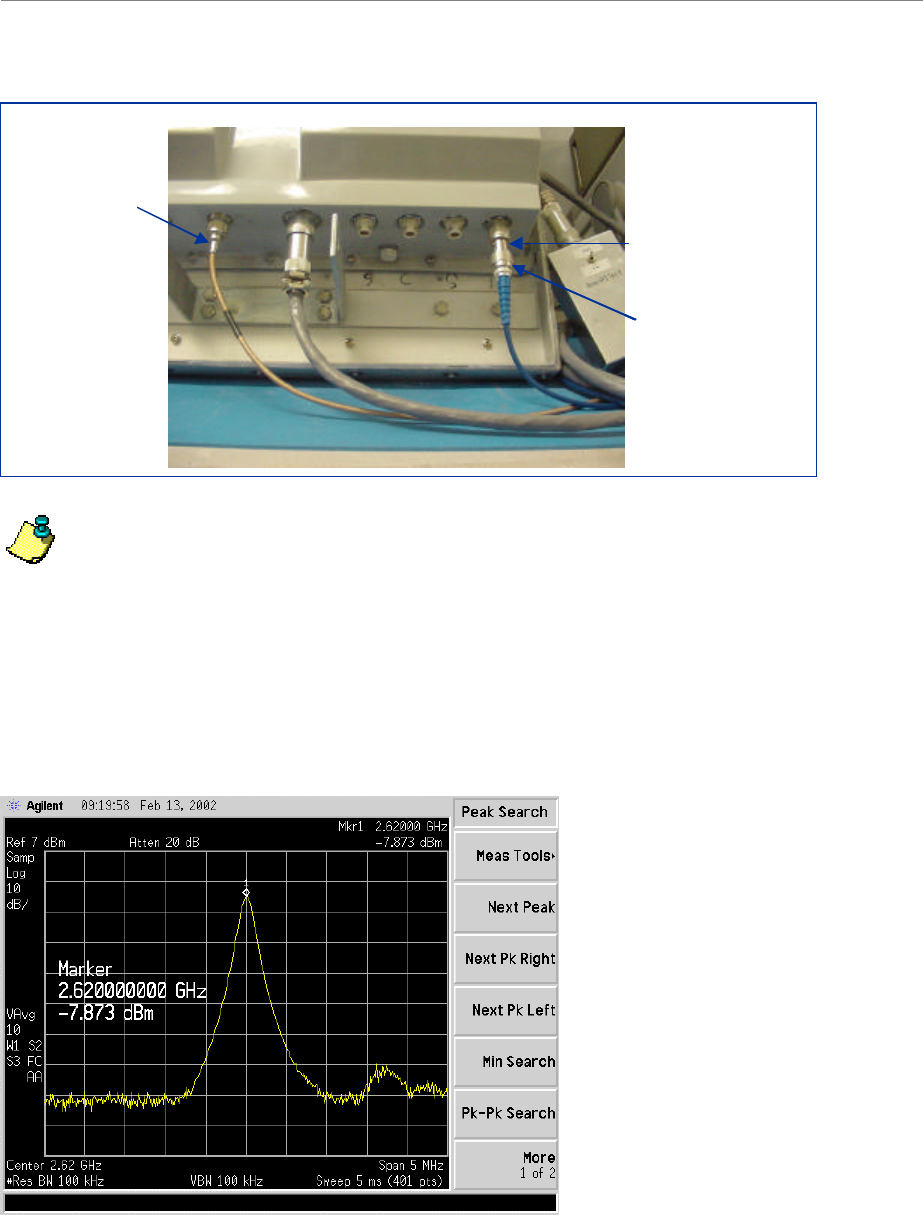

Figure O7: RFS Only Tx Verification

Note: The position of the RFS will vary the sweep results due to reflections from the test

surface.

Step 4. Take a marker measurement on the Spectrum Analyzer by using the ‘marker to peak’

or the ‘peak search’ function. The screen on the Spectrum Analyzer should look similar

to the one shown in Figure O8.

Barrel connector

Signal Generator

cable to RFS

antenna 1 connector

Spectrum Analyzer

cable to RFS cal

connector

Barrel connector

Signal Generator

cable to RFS

antenna 1 connector

Spectrum Analyzer

cable to RFS cal

connector

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 191

October 23, 2003

Figure O8: RFS Only Tx Marker Measurement Example

Step 5. The marker value should be equal to the RFS Only Tx insertion loss within +/– 2.0 dB,

per the manufacturer’s data. If the insertion loss results do not agree with the

manufacturer’s data, check the test setup.

Caution: An RFS with results greater than the +/– 2.0 dB limits should not be installed,

as a potential hardware fault exists. Contact Navini Networks Technical Support.

Step 6. Record the data in the RFS System Test Form under “RFS TX PATH LOSS (RFS

ONLY)”. Ensure that the information is recorded under the channel number of the RFS

antenna that is being tested.

Step 7. Repeat steps 5 and 6 for the remaining seven antenna inputs on the RFS.

Step 8. Change to the next test frequency (refer back to Test Setup). Perform steps 1 through 8

until the RFS has been successfully tested at the frequencies shown in Table O4.

RFS Only Receive Verification

Step 1. Ensure calibration of the test setup and RFS Test Box setup for RFS Only has been

performed each time the test frequency is changed.

Step 2. Switch the RFS Test Box to the Receive (Rx) mode.

Step 3. Connect the cable from the Signal Generator to the RFS cal connector. Use a barrel

connector to change the gender, if required.

Step 4. Connect the cable from the Spectrum Analyzer to the RFS antenna input number 1.

Use a barrel connector to change the gender, if required. See Figure O9.

Ripwave Base Station I&C Guide Navini Networks, Inc.

192 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Figure O9: RFS Only Rx Verification

Note: The position of the RFS will vary the sweep results due to reflections from the test

surface.

Step 5. Take a marker measurement on the Spectrum Analyzer by using the ‘marker to peak’

or the ‘peak search’ function. The screen on the Spectrum Analyzer should look similar

to the one shown in Figure O10.

Figure O10: RFS Only Rx Marker Measurement Example

Signal Generator

cable to RFS cal

connector

Barrel connector

Spectrum Analyzer

cable to RFS antenna

1 connector

Signal Generator

cable to RFS cal

connector

Barrel connector

Spectrum Analyzer

cable to RFS antenna

1 connector

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 193

October 23, 2003

Step 6. The marker value should be equal to the RFS Only Rx insertion loss within +/– 2.0 dB,

per the manufacturer’s data. If the insertion loss results do not agree with the

manufacturer’s data, check the test setup.

Caution: An RFS with results greater than the +/– 2.0 dB limits should not be installed,

as a potential hardware fault exists. Contact Navini Networks Technical Support.

Step 7. Record the data in the RFS System Test Form under “RFS RX PATH LOSS (RFS

ONLY)”. Ensure that the information is recorded under the channel number that is on

the RFS antenna that is being tested.

Step 8. Repeat steps 5 through 7 for the remaining seven antenna inputs on the RFS.

Step 9. Change the frequency to the next test frequency (refer back to Test Setup). Perform

steps 1 through 8 until the RFS has been successfully tested at the frequencies shown in

Table O4.

RFS & Cables Transmit Verification

This test is performed after the RFS is installed and the antenna cables, calibration cable, and

power/data cable are connected to the inputs on the RFS.

Step 1. Ensure calibration of the test setup and RFS Test Box setup for RFS and cables has

been performed each time the test frequency is changed.

Step 2. Switch the RFS Test Box to the Transmit (Tx) mode.

Step 3. Connect the cable from the Spectrum Analyzer to the RFS calibration cable connector.

Use a barrel connector to change the gender, if required.

Step 4. Connect the cable from the Signal Generator to the RFS antenna cable number 1

connector. Use a barrel connector to change the gender, if required.

Step 5. Take a marker measurement on the Spectrum Analyzer by using the ‘marker to peak’

or the ‘peak search’ function. The screen on the Spectrum Analyzer should look similar

to the one shown in Figure O11.

Ripwave Base Station I&C Guide Navini Networks, Inc.

194 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Figure O11: RFS & Cables Tx Marker Measurement Example

Step 6. The marker value should be equal to the RFS Only Tx insertion loss + calibration cable

loss + antenna cable loss + antenna cable jumper loss. Transmit insertion loss should be

within +/– 2.0 dB of the sum of the parts. If the insertion loss results do not agree with

the manufacturer’s data, check the test setup and the cable connections.

Caution: If RFS & cables test results are greater than the +/– 2.0 dB limits, they should

not be installed on a tower, as a potential hardware fault exists. Verify the connections

and contact Navini Networks Technical Support.

Step 7. Record the data in the RFS System Test Form under “TOTAL TX PATH LOSS

(CABLE-RFS)”. Ensure that the information is recorded under the channel number that

is on the cable label.

Step 8. Repeat steps 5 through 7 for the remaining seven antenna cable inputs on the RFS.

Step 9. Change the frequency to the next test frequency (refer to Test Setup). Perform steps 1

through 8 until the RFS has been successfully tested at the frequencies shown in Table

O4.

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 195

October 23, 2003

RFS & Cables Receive Verification

This test is performed after the RFS is installed and the antenna cables, calibration cable, and

power/data cable are connected to the inputs on the RFS.

Step 1. Ensure that the calibration of the test setup and RFS Test Box setup for RFS and

cables has been performed each time the test frequency is changed.

Step 2. Switch the RFS Test Box to the Receive (Rx) mode.

Step 3. If present, remove the barrel connector from between the Signal Generator and

Spectrum Analyzer cables.

Step 4. Connect the cable from the Signal Generator to the RFS calibration cable connector.

Use a barrel connector to change the gender, if required.

Step 5. Connect the cable from the Spectrum Analyzer to the RFS antenna cable number 1

connector. Use a barrel connector to change the gender, if required.

Take a marker measurement on the Spectrum Analyzer by using the ‘marker to peak’ or the

‘peak search’ function. The screen on the Spectrum Analyzer should look similar to the one

shown in Figure O12.

Figure O12: RFS & Cables Rx Marker Measurement Example

The marker value should be equal to the RFS Only RX Insertion Loss + Calibration Cable Loss

+ Antenna Cable Loss + Antenna Cable Jumper Loss. RX Insertion Loss should be within +/–

2.0 dB of the sum of the parts. If the Insertion Loss results do not agree with the manufacturers

data, check the test setup and the cable connections.

Caution: If RFS & cables test results are greater than the +/– 2.0 dB limits, they should

not be installed on a tower, as a potential hardware fault exists. Verify connections and

contact Navini Networks Technical Support.

Ripwave Base Station I&C Guide Navini Networks, Inc.

196 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Record the data in the RFS System Test Form under “TOTAL RX PATH LOSS (CABLE-

RFS)”. Ensure that the information is recorded under the channel number that is on the cable

label.

Repeat steps 5 through 8 for the remaining seven antenna cable inputs on the RFS.

Change the frequency to the next test frequency (refer to Test Setup). Perform steps 1 through 9

until the RFS has been successfully tested at the frequencies given in Table O4.

Procedures – TTA Base Station

Equipment Required

?? Signal Generator - Agilent 8648D, or suitable alternative, tunable to the RFS center

frequency

?? Spectrum Analyzer - Agilent E4404B, or equivalent

?? QMA female to SMA Female adapter

?? SMA male to N-type male test cable (Note: The cable can be changed but additional

adapters will be required.)

?? RFS test box for RFS tests only (not required for cable tests) – see Figure O13

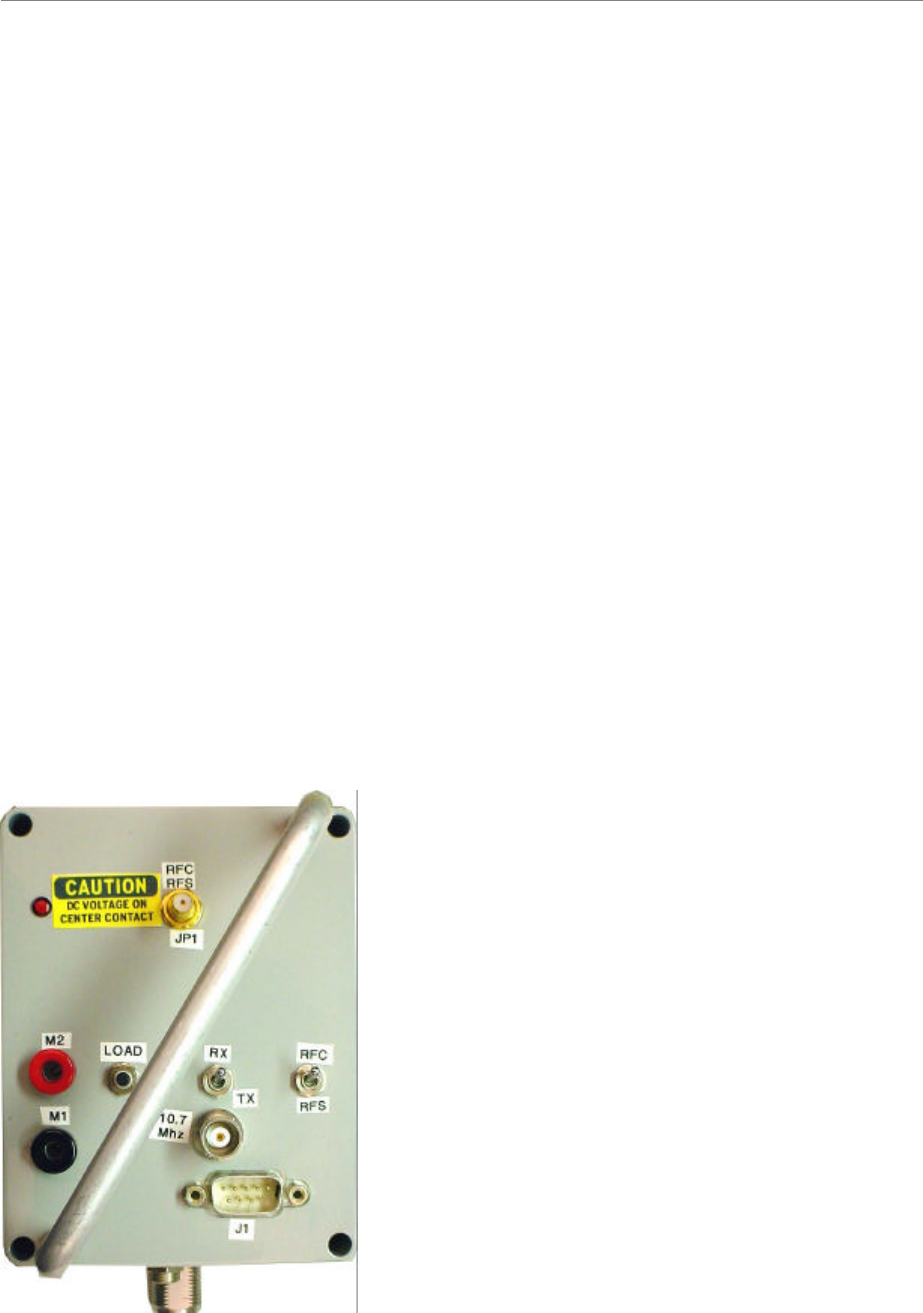

Figure O13: RFS & RFC Test Box

?? JP1 - Cable port to be connected to the RFC or the

RFS.

?? M1/M2 - RFC DC output test points.

?? Load Button - Tests RFC full Current load. Used

in conjunction with Power LED by JP1.

?? RX/TX switch - Supplies power to the RX or RX

circuit in the RFS.

?? RFC/RFS switch - Moved to the RFS for testing

of the RFS and to the RFC for testing of the RFC.

?? 10.7MHz - Test point to measure the 10.7 MHz

signal output of the RFC.

?? J1 - External control of switches. (Engineering

use only)

?? P1 - DC power supply connection. (Used for RFS

testing only)

?? JP2 - Connection point for test equipment (DC

blocked port)

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 197

October 23, 2003

Equipment Set-up

?? Spectrum Analyzer - connected to the test cable / QMA adapter on BTS end

Center Frequency: Set to frequency to be tested

Span: 10 MHz

Resolution Bandwidth: 100 KHz

Video Bandwidth: 100 KHz

Sweep Time: Auto

?? Signal Generator - connected to the RFS cable end

Frequency: Set to frequency to be tested

Signal Level: 0 dB

Equipment Calibration

Refer to Figure O14 to calibrate the test equipment.

Step 1. Perform “Equipment Set-Up”.

Step 2. Connect the test cable from the “RF Output” of the Signal Generator to the “RF input”

of the Spectrum Analyzer.

Step 3. Turn on the RF output of the Signal Generator.

Step 4. Perform a “peak search” on the Spectrum Analyzer.

Step 5. Set a Delta point. The Delta sets a zero point on the Spectrum Analyzer so that when

any additional cable or equipment is added to the link the new loss reading can be

recorded. (Note: If the Spectrum Analyzer does not have a Delta function, increase the

output of the Signal Generator until there is a 0 dB reading on the Spectrum

Analyzer.)

Figure O14: Calibrate Test Equipment

Signal Generator Spectrum Analyzer

Test cable

Ripwave Base Station I&C Guide Navini Networks, Inc.

198 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

RF Cable Sweeps Procedure

This section provides step-by-step procedures for calibrating the test equipment and performing

insertion loss measurements of the RF cable. Refer to Figure O15.

Step 1. Calibrate the test equipment.

Step 2. Connect Signal Generator to cable 1 on the RFS side to the RF cable.

Step 3. Connect spectrum analyzer to cable 1 on BTS side of RF cable. This will be done with

the test cable and the QMA/SMA adapter.

Step 4. Enable the RF on the signal generator.

Step 5. From the Delta marker found in Step 1 take the loss reading in db. Record the results.

Step 6. Perform steps 2 through 5 for all cables.

Figure O15: RF Cable Test

RF Cable

BTS End RFS End

QMA N-Type

RFS Test Procedure

This procedure is performed twice for an installation. The first sweep is performed prior to

mounting the RFS on the tower. This test verifies that all the equipment is in tact from shipment.

These sweeps will need to be compared to the factory sweeps that are shipped with the RFS.

The second sweep is performed after the RFS has been mounted on the tower and the RF cables

have been connected. This sweep verifies that no damage was done to the RFS when hoisting it,

and that the RF cables are properly connected to the RFS.

Step 1. Perform the “Equipment Set-up”.

Note: When performing the transmit (TX) side tests on the RFS, the signal level from

the Signal Generator needs to be lowered to at least –20 dB. The RFS has protection

circuits built in and will disable the PAs in the RFS if the incoming signal is too high.

Step 2. Perform the “Equipment Calibration”.

Step 3. Configure the test equipment as shown in Figure O16.

?? Spectrum Analyzer to the Cal Port

?? Signal Generator to the test equipment port of the test box.

?? Test box RFC/RFS port to the antenna

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 199

October 23, 2003

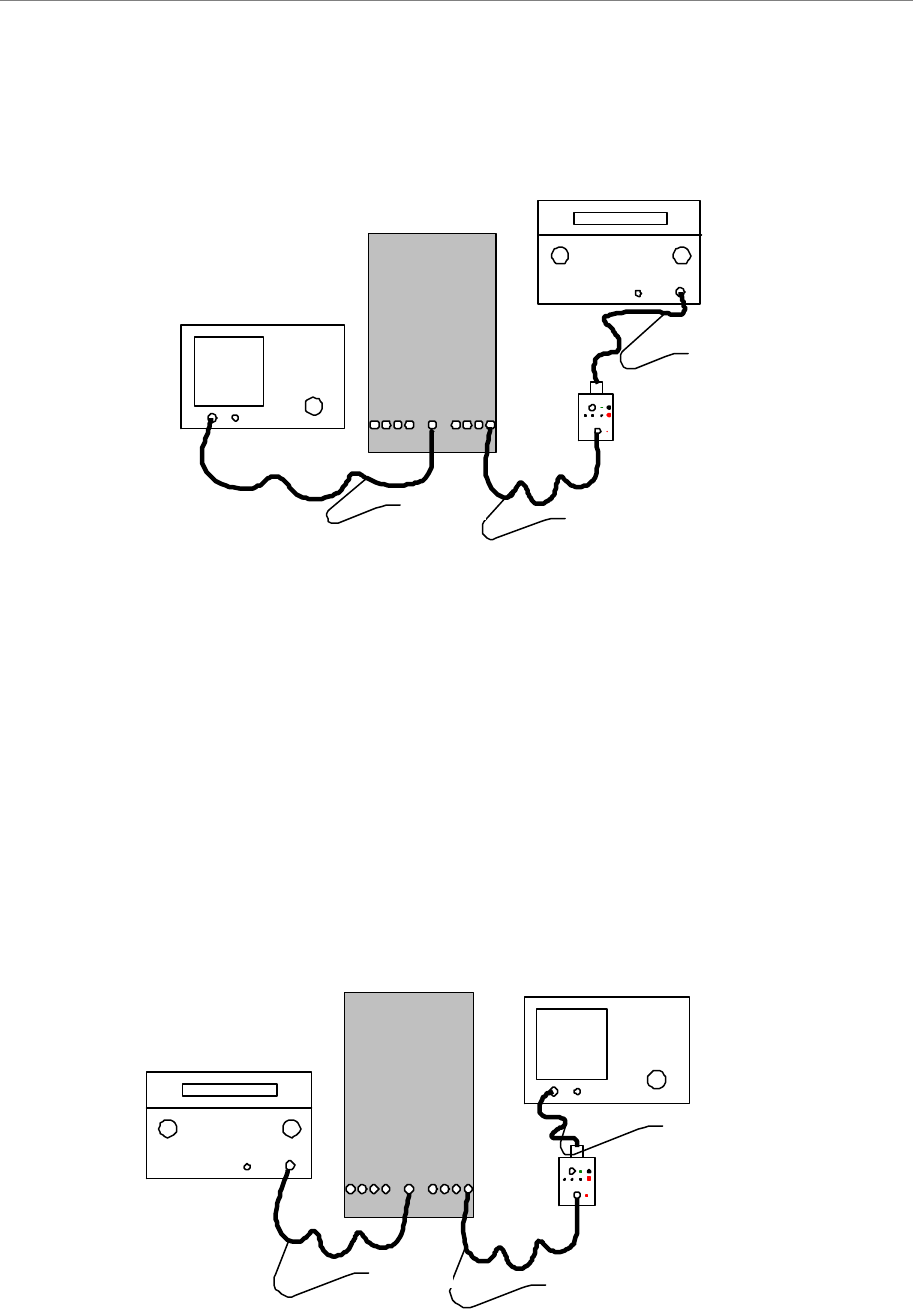

Figure O16: Transmit Side

Step 4. Set the test box to RFS and TX.

Step 5. From the Delta marker established during the calibration, record the insertion loss dB

level.

Step 6. Perform Step 5 for all eight antennas.

Step 7. Set the Signal Generator output level to 0 dB and recalibrate the test equipment.

Step 8. Configure the test equipment as shown in Figure O17.

?? Signal Generator to the Cal Port

?? Spectrum Analyzer to the test equipment port of the test box.

?? Test box RFC/RFS port to the antenna

Figure O17: Receive Side

Signal Generator

Spectrum Analyzer

Test cable

RFS

1234 5678

Test cable

Signal Generator

Spectrum Analyzer

Test cable

RFS

1234 5678

Test cable

Ripwave Base Station I&C Guide Navini Networks, Inc.

200 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Step 9. Set the test box to RX.

Step 10. From the Delta maker set on calibration, record the insertion loss value from the

Spectrum Analyzer.

Step 11. Repeat Step 10 for all eight antennas.

Compare all recorded TX and RX values with the factory sweep results that are shipped with the

RFS. If there is a mismatch, contact Navini Technical Support.

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 201

October 23, 2003

2.4 RFS System Test Form (Combo & Split Chassis)

RFS SN

NAME

DATE

MEASUREMENT DESCRIPTION

CHANNEL

RFS TX PATH LOSS (RFS ONLY)

0.00

RFS TX PATH LOSS (RFS ONLY)

0.00

RFS TX PATH LOSS (RFS ONLY)

0.00

RFS TX PATH LOSS (RFS ONLY)

0.00

RFS TX PATH LOSS (RFS ONLY)

0.00

RFS TX PATH LOSS (RFS ONLY)

0.00

RFS TX PATH LOSS (RFS ONLY)

0.00

RFS TX PATH LOSS (RFS ONLY)

0.00

RFS RX PATH LOSS (RFS ONLY)

0.00

RFS RX PATH LOSS (RFS ONLY)

0.00

RFS RX PATH LOSS (RFS ONLY)

0.00

RFS RX PATH LOSS (RFS ONLY)

0.00

RFS RX PATH LOSS (RFS ONLY)

0.00

RFS RX PATH LOSS (RFS ONLY)

0.00

RFS RX PATH LOSS (RFS ONLY)

0.00

RFS RX PATH LOSS (RFS ONLY)

0.00

JUMPER LOSS

0.00

JUMPER LOSS

0.00

JUMPER LOSS

0.00

JUMPER LOSS

0.00

JUMPER LOSS

0.00

JUMPER LOSS

0.00

JUMPER LOSS

0.00

JUMPER LOSS

0.00

JUMPER LOSS

CAL

0.00

MAIN FEEDER LOSS

0.00

MAIN FEEDER LOSS

0.00

MAIN FEEDER LOSS

0.00

MAIN FEEDER LOSS

0.00

MAIN FEEDER LOSS

0.00

MAIN FEEDER LOSS

0.00

MAIN FEEDER LOSS

0.00

MAIN FEEDER LOSS

0.00

MAIN FEEDER LOSS

CAL

0.00

TOTAL CABLE RUN LOSS

0.00

TOTAL CABLE RUN LOSS

0.00

TOTAL CABLE RUN LOSS

0.00

TOTAL CABLE RUN LOSS

0.00

TOTAL CABLE RUN LOSS

0.00

TOTAL CABLE RUN LOSS

0.00

TOTAL CABLE RUN LOSS

0.00

TOTAL CABLE RUN LOSS

0.00

TOTAL CABLE RUN LOSS

CAL

0.00

TOTAL TX PATH LOSS (CABLE-RFS)

0.00

TOTAL TX PATH LOSS (CABLE-RFS)

0.00

TOTAL TX PATH LOSS (CABLE-RFS)

0.00

TOTAL TX PATH LOSS (CABLE-RFS)

0.00

TOTAL TX PATH LOSS (CABLE-RFS)

0.00

TOTAL TX PATH LOSS (CABLE-RFS)

0.00

TOTAL TX PATH LOSS (CABLE-RFS)

0.00

TOTAL TX PATH LOSS (CABLE-RFS)

0.00

TOTAL RX PATH LOSS (CABLE-RFS)

0.00

TOTAL RX PATH LOSS (CABLE-RFS)

0.00

TOTAL RX PATH LOSS (CABLE-RFS)

0.00

TOTAL RX PATH LOSS (CABLE-RFS)

0.00

TOTAL RX PATH LOSS (CABLE-RFS)

0.00

2400MHz

2440MHz

2473MHz

AVERAGE

2.4 GHz RFS INSTALL

TEST RESULT FORM

Ripwave Base Station I&C Guide Navini Networks, Inc.

202 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

2.6 RFS System Test Form

RFS SN

NAME

DATE

MEASUREMENT DESCRIPTION

CHANNEL

RFS TX PATH LOSS (RFS ONLY)

0.00

RFS TX PATH LOSS (RFS ONLY)

0.00

RFS TX PATH LOSS (RFS ONLY)

0.00

RFS TX PATH LOSS (RFS ONLY)

0.00

RFS TX PATH LOSS (RFS ONLY)

0.00

RFS TX PATH LOSS (RFS ONLY)

0.00

RFS TX PATH LOSS (RFS ONLY)

0.00

RFS TX PATH LOSS (RFS ONLY)

0.00

RFS RX PATH LOSS (RFS ONLY)

0.00

RFS RX PATH LOSS (RFS ONLY)

0.00

RFS RX PATH LOSS (RFS ONLY)

0.00

RFS RX PATH LOSS (RFS ONLY)

0.00

RFS RX PATH LOSS (RFS ONLY)

0.00

RFS RX PATH LOSS (RFS ONLY)

0.00

RFS RX PATH LOSS (RFS ONLY)

0.00

RFS RX PATH LOSS (RFS ONLY)

0.00

JUMPER LOSS (Measured)

0.00

JUMPER LOSS (Measured)

0.00

JUMPER LOSS (Measured)

0.00

JUMPER LOSS (Measured)

0.00

JUMPER LOSS (Measured)

0.00

JUMPER LOSS (Measured)

0.00

JUMPER LOSS (Measured)

0.00

JUMPER LOSS (Measured)

0.00

JUMPER LOSS (Measured)

CAL

0.00

MAIN FEEDER LOSS (Measured)

0.00

MAIN FEEDER LOSS (Measured)

0.00

MAIN FEEDER LOSS (Measured)

0.00

MAIN FEEDER LOSS (Measured)

0.00

MAIN FEEDER LOSS (Measured)

0.00

MAIN FEEDER LOSS (Measured)

0.00

MAIN FEEDER LOSS (Measured)

0.00

MAIN FEEDER LOSS (Measured)

0.00

MAIN FEEDER LOSS (Measured)

CAL

0.00

TOTAL CABLE RUN LOSS (Measured)

0.00

TOTAL CABLE RUN LOSS (Measured)

0.00

TOTAL CABLE RUN LOSS (Measured)

0.00

TOTAL CABLE RUN LOSS (Measured)

0.00

TOTAL CABLE RUN LOSS (Measured)

0.00

TOTAL CABLE RUN LOSS (Measured)

0.00

TOTAL CABLE RUN LOSS (Measured)

0.00

TOTAL CABLE RUN LOSS (Measured)

0.00

TOTAL CABLE RUN LOSS (Measured)

CAL

0.00

TOTAL TX PATH LOSS (CABLE-RFS)

0.00

TOTAL TX PATH LOSS (CABLE-RFS)

0.00

TOTAL TX PATH LOSS (CABLE-RFS)

0.00

TOTAL TX PATH LOSS (CABLE-RFS)

0.00

TOTAL TX PATH LOSS (CABLE-RFS)

0.00

TOTAL TX PATH LOSS (CABLE-RFS)

0.00

TOTAL TX PATH LOSS (CABLE-RFS)

0.00

TOTAL TX PATH LOSS (CABLE-RFS)

0.00

TOTAL RX PATH LOSS (CABLE-RFS)

0.00

TOTAL RX PATH LOSS (CABLE-RFS)

0.00

TOTAL RX PATH LOSS (CABLE-RFS)

0.00

TOTAL RX PATH LOSS (CABLE-RFS)

0.00

TOTAL RX PATH LOSS (CABLE-RFS)

0.00

2.6 GHz RFS INSTALL

TEST RESULT FORM

AVERAGE

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 203

October 23, 2003

Appendix P: Chassis Alarms

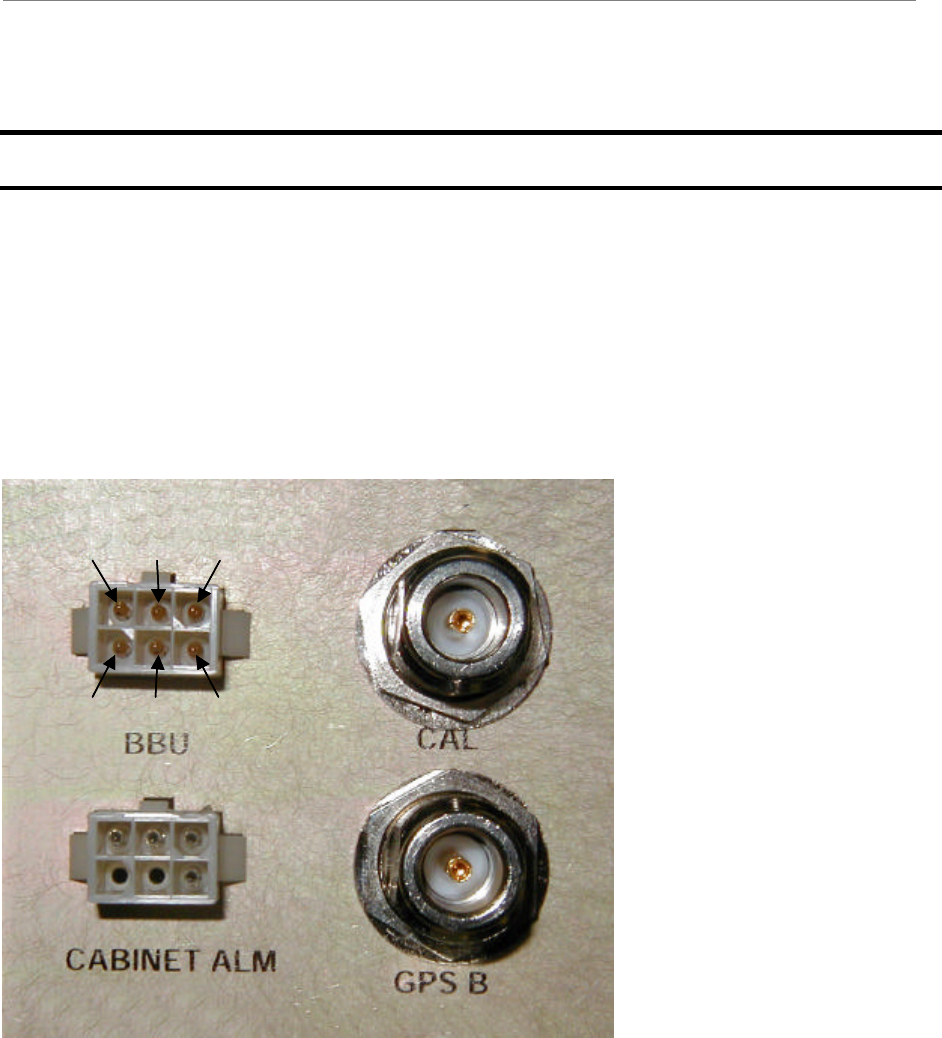

The chassis contains two connectors that are used to send alarm indications to the BTS. One of

the connectors, labeled CABINET ALARM, is used to trigger alarm conditions that occur within

the external chassis. The second connector, labeled BBU, is used to process alarms from the

battery backup unit. Both connectors contain six pins, which are numbered as shown in Figure

P1. This figure also shows the CAL and GPS-B connectors for size reference.

Figure P1: Pin Orientation

1 2 3

456

1 2 3

456

Ripwave Base Station I&C Guide Navini Networks, Inc.

204 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

The alarm connector uses only four of the six pins. The pin names can be found in Table P1.

Table P1: Pin Names

Pin Name

1 General Fail Alarm

2 Ground reference for General Fail Alarm

3 Door Open Alarm

4 Ground reference for Door Open Alarm

5 Not Connected

6 Not Connected

The first pin of the alarm connector is the General Fail Alarm. This signal should be left open to

indicate an alarm condition from the HMC module located in the outdoor chassis. If no alarm

condition exists, this pin should be driven low. Pin 2 is used as the ground reference for this

alarm. The second alarm sent to the chassis is located on pin 3, Door Open Alarm. This signal

should be driven low when the door is closed. To indicate that the door of the outdoor chassis is

open, this signal should be left open. The associated ground reference for this signal is taken

from pin 4.

The BBU connector contains four alarm signals. These signal names are listed in Table P2.

Table P2: BBU Signal Names

Pin Name

1 Digital Ground Reference

2 BBU Battery Low

3 BBU Rectifier Fail

4 BBU AC Line Fail

5 BBU Charge Fail

6 Analog Ground Reference

The first alarm signal is located on pin 2, BBU Battery Low. If the BBUs battery is running low,

the signal on pin 2 should be left open. BBU Rectifier Fail alarm is the next alarm and is located

on pin 3. This signal should be left open to indicate a failure on the Battery Backup Unit’s

rectifier. The next alarm condition occurs if the AC Line to the BBU fails. In this condition,

signal BBU AC Line Fail on pin 4 should be left open. If the BBU is unable to hold a charge,

then the BBU Charge Fail signal on pin 5 should be left open. For non-alarm conditions (normal

operation), these signals should be driven low. The digital ground reference for these signals is

located on pin 3. The analog ground reference should be located on pin 4.

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 205

October 23, 2003

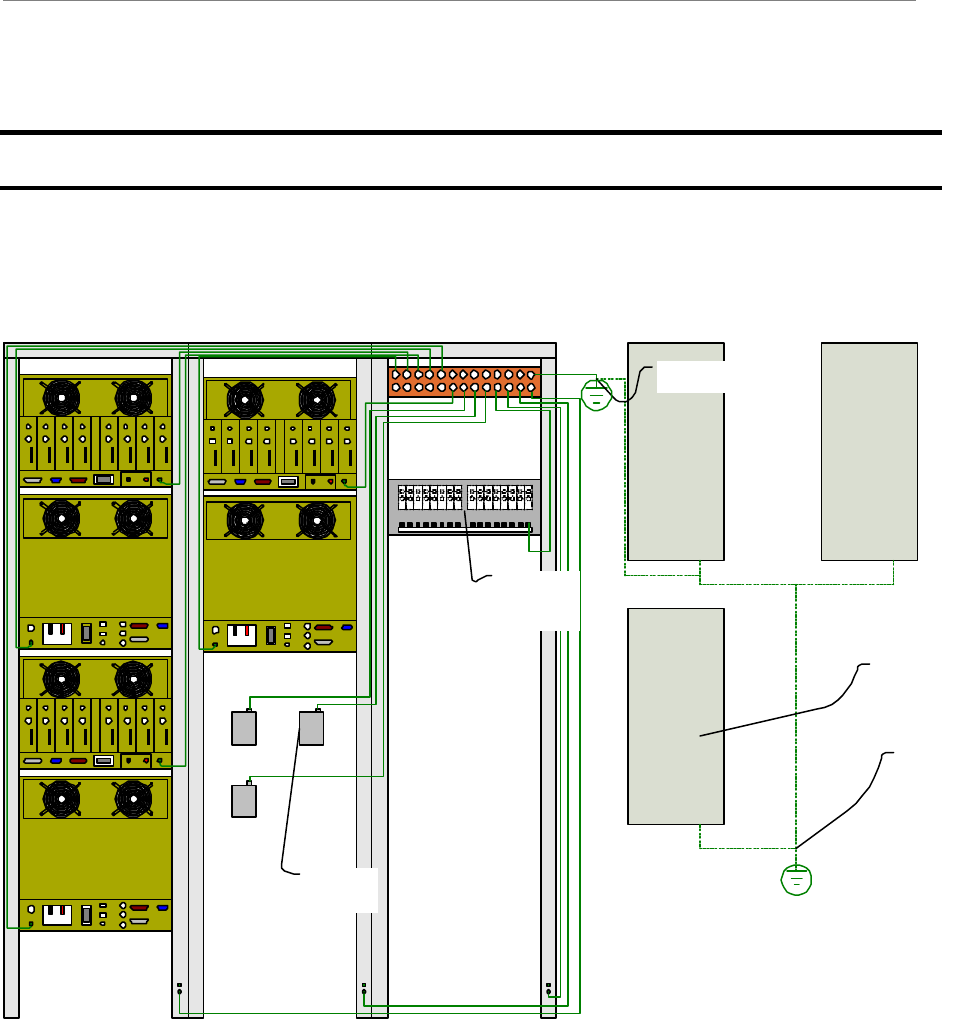

Appendix Q: Sample Tri-sector BTS Grounding

Refer to the Regulatory Information in Chapter 1, Page 8, regarding UL and NEC/CEC

compliance.

Power / Data

Cable Lightning

Protectors

Power System

Distribution Panel

(Will vary per

Manufacture)

Navini RFS

Building steel,

Centerpoise

ground, or tower

structure

Same Centerpoise

ground system <5 ohm

APPROXIMATE GROUND

LINE LUG TYPE AND

QUANTITY

#6AWG 1 HOLE = 12

#6AWG 2 HOLE = 20

#2AWG 2 HOLE = 2+

POWER RACK

SPACE AND

CONFIGURATION

WILL VARY PER

VENDOR

Ripwave Base Station I&C Guide Navini Networks, Inc.

206 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 207

October 23, 2003

Appendix R: Sample Tri-sector BTS Power

Refer to the Regulatory Information in Chapter 1, Page 8, regarding UL and NEC/CEC

compliance.

REQUIRED DC BREAKER

AMPERAGE AND QUANTITY

3 X 50A - FOR RF SHELF

3 X 20A FOR DIGITAL SHELF

APROXIMATE DC LINE LUG

TYPE AND QUANTITY

#6AWG 1 HOLE = 12

#6AWG 2 HOLE = 12

POWER RACK

SPACE AND

CONFIGURATION

WILL VARY PER

VENDOR

Ripwave Base Station I&C Guide Navini Networks, Inc.

208 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 209

October 23, 2003

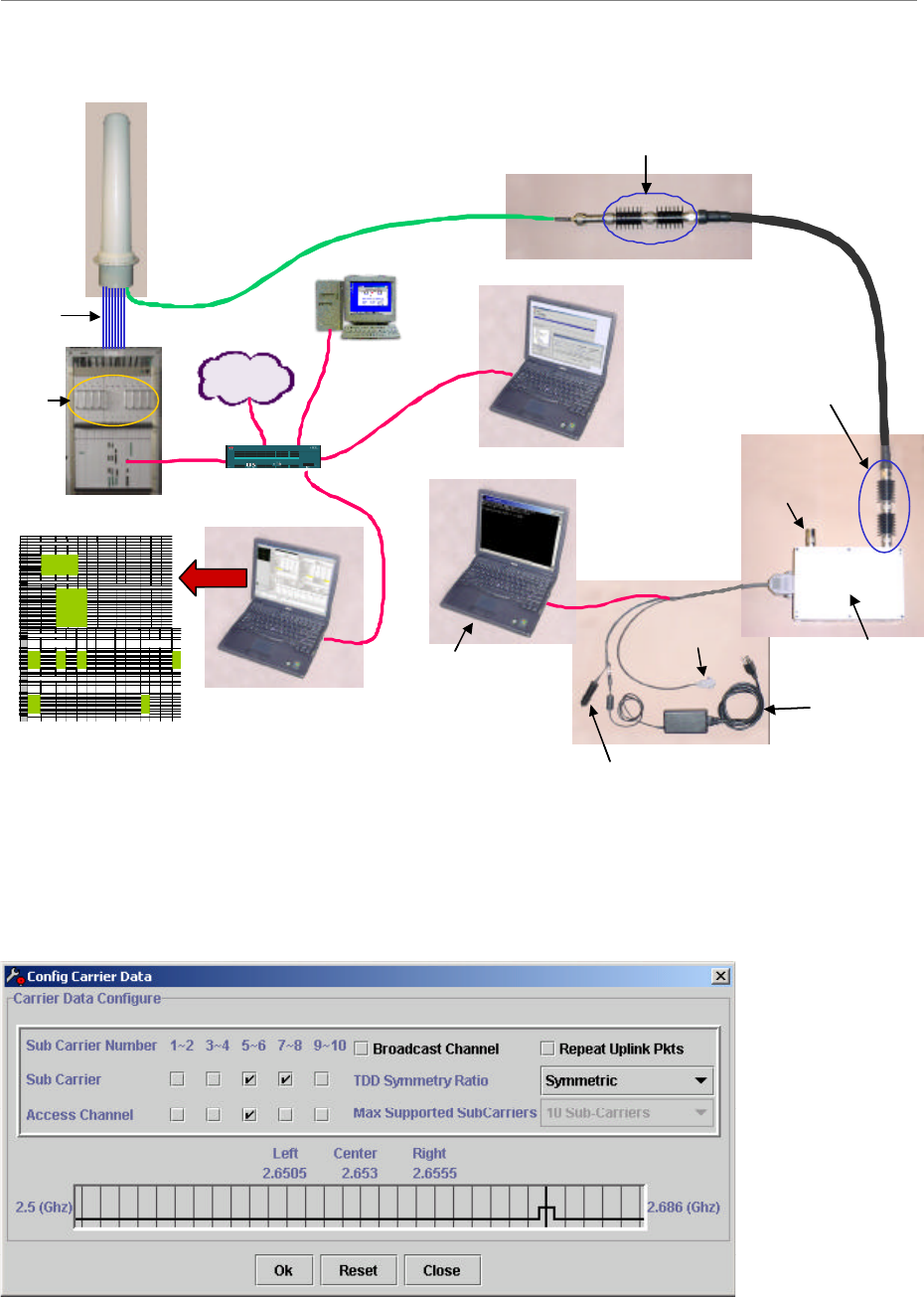

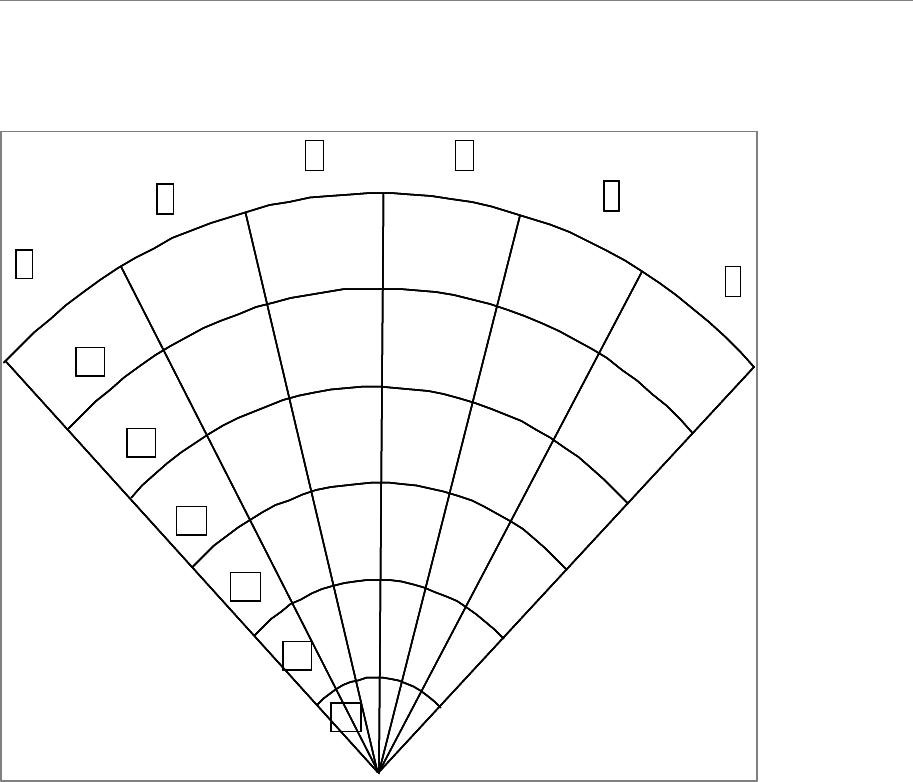

Appendix S: Single Antenna Test Procedure

Objective

The object of the RFS Single Antenna Test Procedure is to verify the functionality of each

antenna element in the Ripwave Radio Frequency Subsystem (RFS). The 8 antenna elements

work together to create the beamforming that results from using a Smart Antenna - Phased Array

technology. Using 8 combined single antenna elements creates the beamed radiation that is part

of what constitutes the gain of up to 18 dB during transmission of data.

Each antenna element has an associated (and hard cabled) RF/Power Amplifier (PA) card in the

Base Transceiver Station (BTS). In order to verify the correct beamforming and that each single

antenna is working properly, we have to turn off the individual PA that controls each antenna

element, one at a time.

The Single Antenna Test should be performed after completing an equipment check and after

performing the Base Station Calibration Verification* procedure described in the Ripwave Base

Station Installation & Commissioning Guide. This test is necessary since an equipment check

does not check the functionality of the RFS, and the Calibration Verification only sweeps for

losses in the RFS, not RFS functionality.

*Note: The Calibration Verification, where you check both transmit power and receive

sensitivity, is also sometimes referred to as the RF Sanity test.

More specifically, the Single Antenna Test checks the following:

1. Low Noise Amplifier (LNA) at the RFS. LNAs are an integral part of the smart antenna

technology.

2. Power Amplifiers. Each PA is a module in the BTS RF shelf that creates the RF

transmission. With one per element, there are a total of 8 PAs in the shelf. The

transmission is measured in dBm. This is what makes possible the transfer of data over-

the-air.

3. Modulations. As each antenna element is checked, the variable modulations are tested.

The higher the modulation, the higher the power and the better the data rate. The test

ensures that all modulations possible, i.e., QPSK, 8PSK, and QAM16, are working

properly.

Ripwave Base Station I&C Guide Navini Networks, Inc.

210 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Panel Procedure

Overview

Assuming the equipment has been installed and you have performed the calibration verification,

if the results were erroneous this Single Antenna Test will not be valid. It is important to

complete those two steps successfully before continuing.

For this test you will need two people. One person will verify the reception (Rx) of each antenna

using the Constellation Debugger Tool and a Modem. The following summarizes what will

happen during this test:

1. Person A will stay where the BTS or EMS is located. This person will control each PA in

the BTS to be tested.

2. Person B will be in the field. This person will pick a complete Line of Sight (LOS) test

point to the RFS (antenna). Person B will use the Constellation Debugger software

supplied by Navini. This software allows the tester to verify functionality.

3. Once the two people are in place, start by turning all antennas off except for Antenna #1.

NOTE: It does not matter which antenna you start with as long as the tester can keep

track of which ones have been tested and each one’s results.

4. With only one antenna powered on, Person B verifies the transmission, modulation, and

signal strength of the single antenna. Person B verifies this information for at least 30

seconds.

5. When the first antenna is checked, Person A saves the file and waits for Person B to

power on Antenna #2.

6. Steps 3 through 5 are repeated for each antenna element.

Details

The following provides more detail for each step, and includes snapshots of what to change and

what to measure.

Step 1. After calibration verifications are successful, in EMS click on the BTS tab and

highlight the specific BTS. Go to Air Interface > Layer 1, and click on the

Antenna Table tab (Figure S1). This window will show all antennas and their PA

status.

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 211

October 23, 2003

Figure S1: Antenna Tab

Step 2. After checking that all PAs are up and running, next click on Configure (Figure

S2). This function will take you to the configuration mode of this particular

window.

Figure S2: Configure Antenna Table

Ripwave Base Station I&C Guide Navini Networks, Inc.

212 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

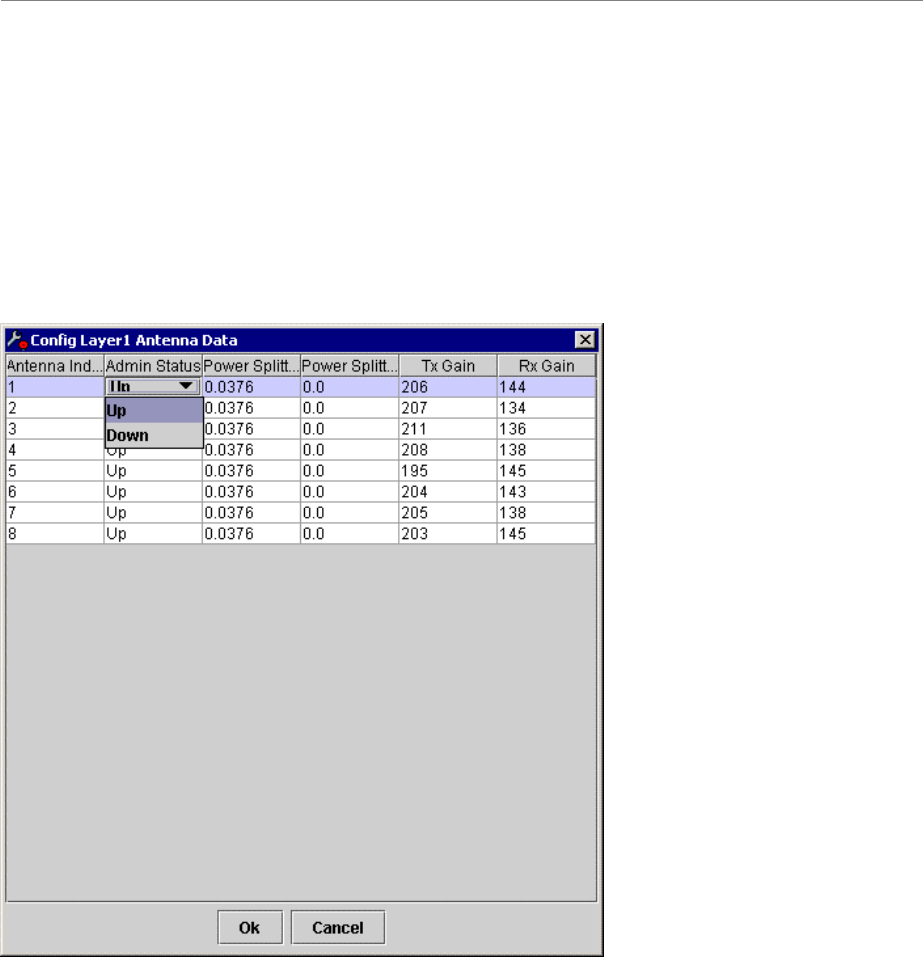

Step 3. Click on the button, Modify All. This function will allow you to modify all

antennas and PAs at the same time. Notice that this window allows you to

configure any column shown here. For our purpose we will only use the second

column, Admin Status (Figure S3). This column shows the state of each PA that

controls each antenna in the RFS. “Up” means the antenna and PA are on and

functioning. “Down” means the antenna and PA are off and not transmitting.

Figure S3: Modify All

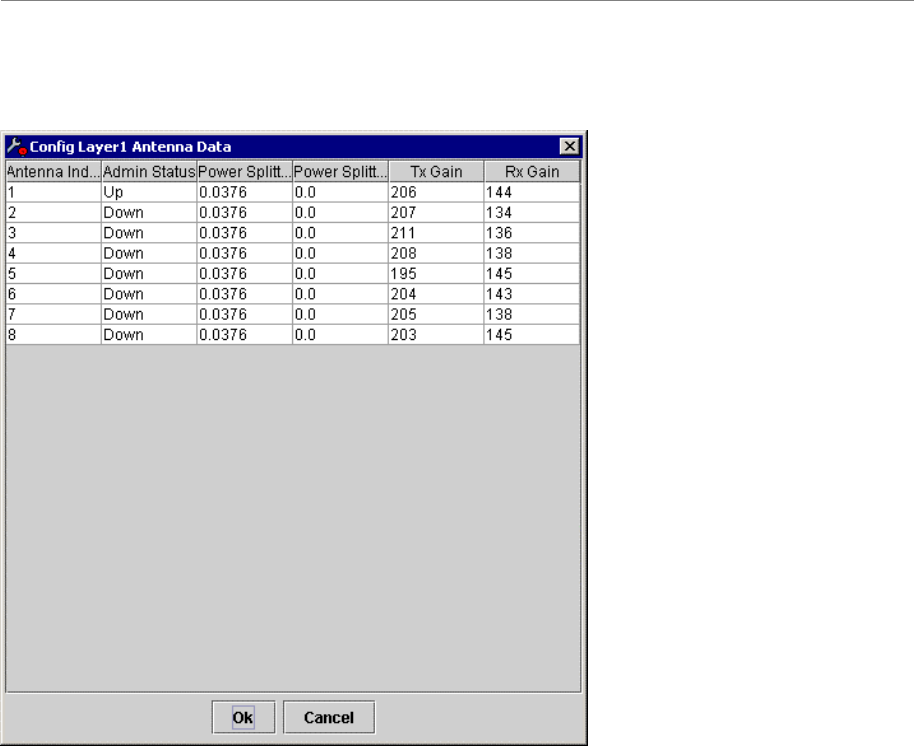

Step 4. Next, turn off (no transmission) all of the antennas and PAs except for Antenna #1.

This begins the verification of this antenna. Refer to Figure S4. When only

Antenna #1 is powered up and transmitting, the second person will verify at the

other end that the antenna is actually transmitting information to the Modem. This

can be completed by doing a Ping at the Modem side.

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 213

October 23, 2003

Figure S4: Antenna #1 On

Step 5. Start a Ping with the Modem and PC performing the test, observing the

Constellation Debugger tool. Look for the following values:

?? ACC Signal Strength

?? Absolute Sync Signal

?? Processed Sync Signal

These values, an example of which is shown in Figure S5, give you an indication if

there is something wrong with the antenna. If the values are too low or you do not see a

response from your Ping, it means that the antenna and/or the PA are not functioning

properly.

Ripwave Base Station I&C Guide Navini Networks, Inc.

214 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

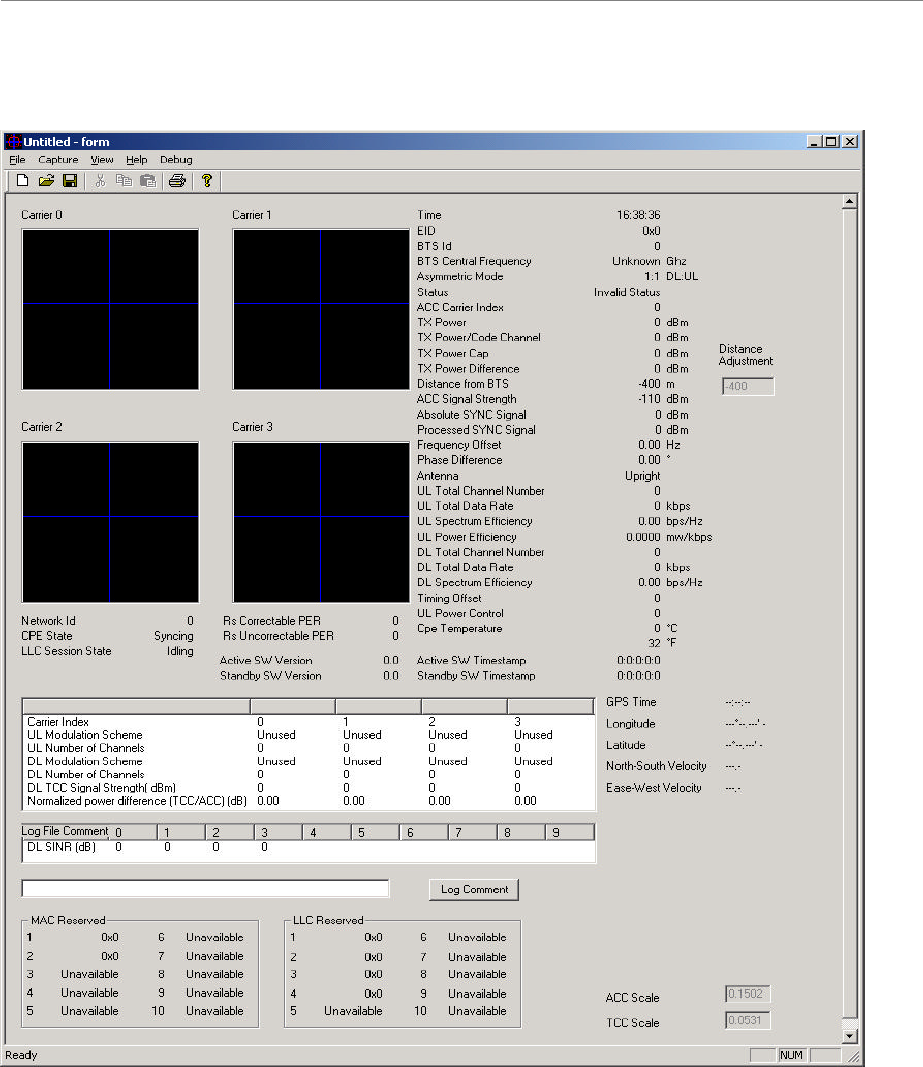

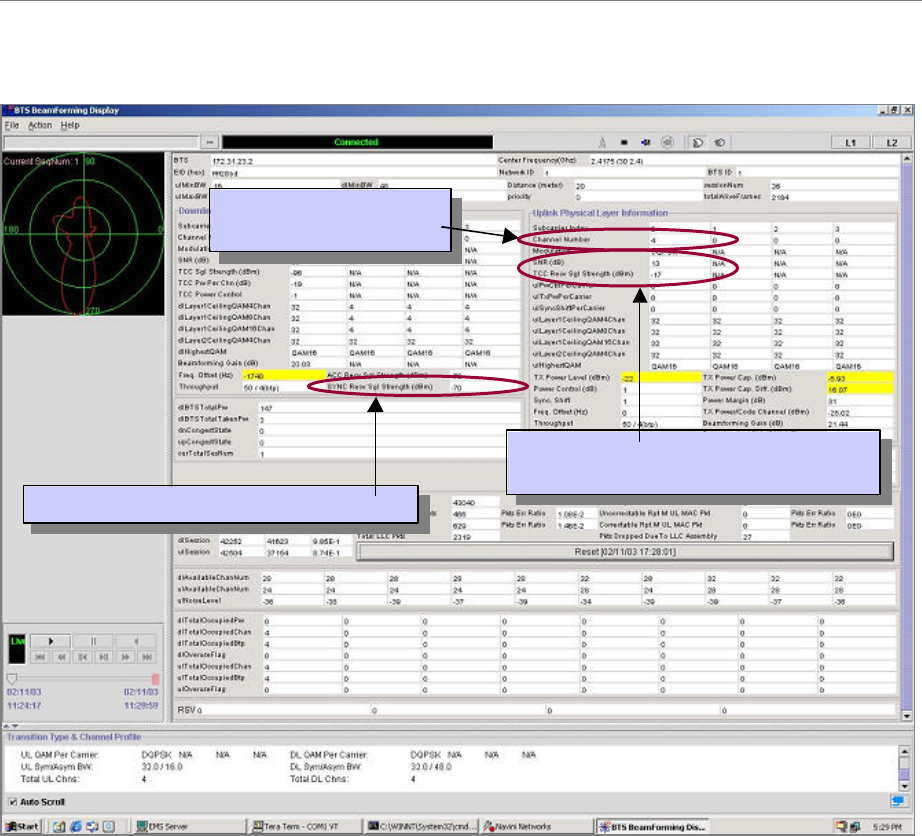

Figure S5: Constellation Debugger Values

Step 6. Repeat Steps 4 and 5 to verify each one of the antennas and the PAs. The

verification of each antenna concludes the testing procedure.

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 215

October 23, 2003

Comments & Suggestions

1. Navini Smart Antenna technology uses all the 8 antenna elements for the optimum

performance of the system. It is recommended that all antennas are verified and working

properly. If one of the antennas or PAs malfunctions or it breaks, the RFS will still work.

It will not work at its optimum operation, but it will still be functioning equipment. It is

recommended that you change or swap the bad board or equipment.

2. For the testing of each antenna it is recommended that you pick only one spot to measure

the Rx side of the RFS. This spot must to be at a distance of 2-3 km with clear line-of-

sight.

3. A difference of more than 2 dB between the Absolute and Processed SYNC Signal

strength, typically indicates the presence of multipath in the environment.

Omni Procedure

Ripwave Base Station I&C Guide Navini Networks, Inc.

216 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 217

October 23, 2003

Appendix T: Base Station Installation Certification

COMPANY

SITE NAME

SITE NO

LOCATION

SITE TYPE

ANTENNA TYPE

ANTENNA AZIMUTH

FREQUENCY BAND

BTS CENTER FREQUENCY

RFS ELECTRICAL DOWNTILT

RFS MECHANICAL TILT

RFS OVERALL DOWNTILT

BTS ENCLOSURE

Equipment Installed and Secured Per Plan

Roof/Ceiling/Wall Penetrations Patched, Sealed and Painted

Penetration(s) Inspected by Landowner Representative

Equipment Installed and Secured Per Plan

Structural Upgrades to Roof Installed Per Plan

Equipment Support Frame Installed

Equipment Installed and Secured Per Plan

Special Inspection for Foundation Steel Complete

Concrete Placed and Vibrated

Concrete Break Test Report Complete

Fencing Complete (Tie-In to Ground System) Per Plan

Gravel/Crushed Rock Placed over Weed Barrier

Above Ground Conduits Installed Plumb

Landscaping/ Erosion Control Complete Per Plan

Access Road Complete Per Plan

All Trash and Debris Hauled Off Site

Site Area restored to Original Condition

Unistruts, iron angles and Rods properly cold galvanized

RF Safety Signage Installed where Required

BTS SITE COMPLETION CERTIFICATION

Equipment Installed in Building

Equipment Installed on Roof

Equipment Installed on Grade

Civil/Site Work

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

MONOPOLE

CO-LOCATE

OMNI

SECTORIZED

INDOOR

OUTDOOR

OTHER

2.4GHz

2.3GHz

2.5GHz

2.6GHz

0 Degree

2 Degree

4 Degree

6 Degree

Uptilt

Downtilt

Ripwave Base Station I&C Guide Navini Networks, Inc.

218 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Monopole/Tower Plumb, Torqued and Free of Visible Defects

Orientation of Monopole/Tower Per Plan

Safety Climb Installed and Tensioned per Manufacturer Spec.

Weep Hole Free of Obstructions

Step Bolts Installed/ Removed Below 30 feet

6Monopole/Tower Tie-In to Ground Ring Complete

Monopole/Tower Grounding Installed

2Ground Wire Types and Size meet construction Specs

Lightning Rod Provided and Installed Per Plan

5 Ohm Megger Ground Resistance Test Complete

Buss Bars Installed Per Plan

Surge Protector Installed Between RFS Antenna and Cable

Coax Ground Kits Installed at RFS Antenna Per Plan

Coax Ground Kits Installed at Tower Base Per Plan

9Coax Ground Kits Installed at Buss Bar Prior to BTS Per Plan

Double Lug Connectors Used at All Buss Bar Attachments

Cable Tray/Ice Bridge Bonded and Grounded to Buss Bar

Surge Protectors Mounted and Secured on ground Buss Bar

13 Master Ground Buss Bar Tied-In to Ground Ring

Equipment Rack Ground Per Plan

Power Supply/UPS, Rectifier Ground Per Plan

Meter and Telco box Ground Per Plan

Fence Work Grounded Per Plan

Additional Equipment Tied-In to BTS properly Grounded

Power and Telco Conduits Installed Per Plan

Conduits Are Labeled and Pull Strings are Provided

Meter and Telco Box are Installed Per Plan

Circuit Breakers Installed and Properly Labeled

5UPS Installed and All Internal Connections Made

Rectifier Installed, Output and Wiring to BTS Checked

Telco Tie-In to Source, Tested and Complete

Network/Telco Tie-In to BTS, Tested and Complete

9EMS Installed and Connected to Network

Electrical, Telco and Network

Grounding

Monopole/Tower

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 219

October 23, 2003

Cabinet is Positioned, Secured and Leveled Per Plan

Cabinet Outer Surfaces Free from scratches, dents, corrosion

All Hardware Connections within BTS are tightened/secured

RF/GPS Coax Connectors Securely Connected to BTS

Signal/Power Cable Securely Connected to BTS

Ethernet/T1 cables Dressed and Secured to BTS

Documents, License are Stored or Posted on BTS

RFS Antenna Height and Orientation Per Plan

RFS Antenna Mount Plumb Per Axis

GPS Antenna Mounted Per Plan

Zinc Cold Galvanizing compound used everywhere

Coaxial Cables Run Straight (Not Exceeding Bend Radius)

Coaxial Cables Tagged and Color Coded Per Plan

Connectors and Jumpers Installed and Weatherproofed

Cable Hangers, Bands or Ties Spaced up every 3 Feet

Antenna Power and Data Cable Continuity Tested

Antenna System Sweep Test Performed and Passed

SW and Hard Copy of Antenna Sweep Test Results Provided

Printed Name

Signature / Date

Company

Phone No.

Printed Name

Signature / Date

Company

Phone No.

Printed Name

Signature / Date

Company

Phone No.

BTS System

Antenna and Feeder System

NOTES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

N/A

YES

Ripwave Base Station I&C Guide Navini Networks, Inc.

220 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

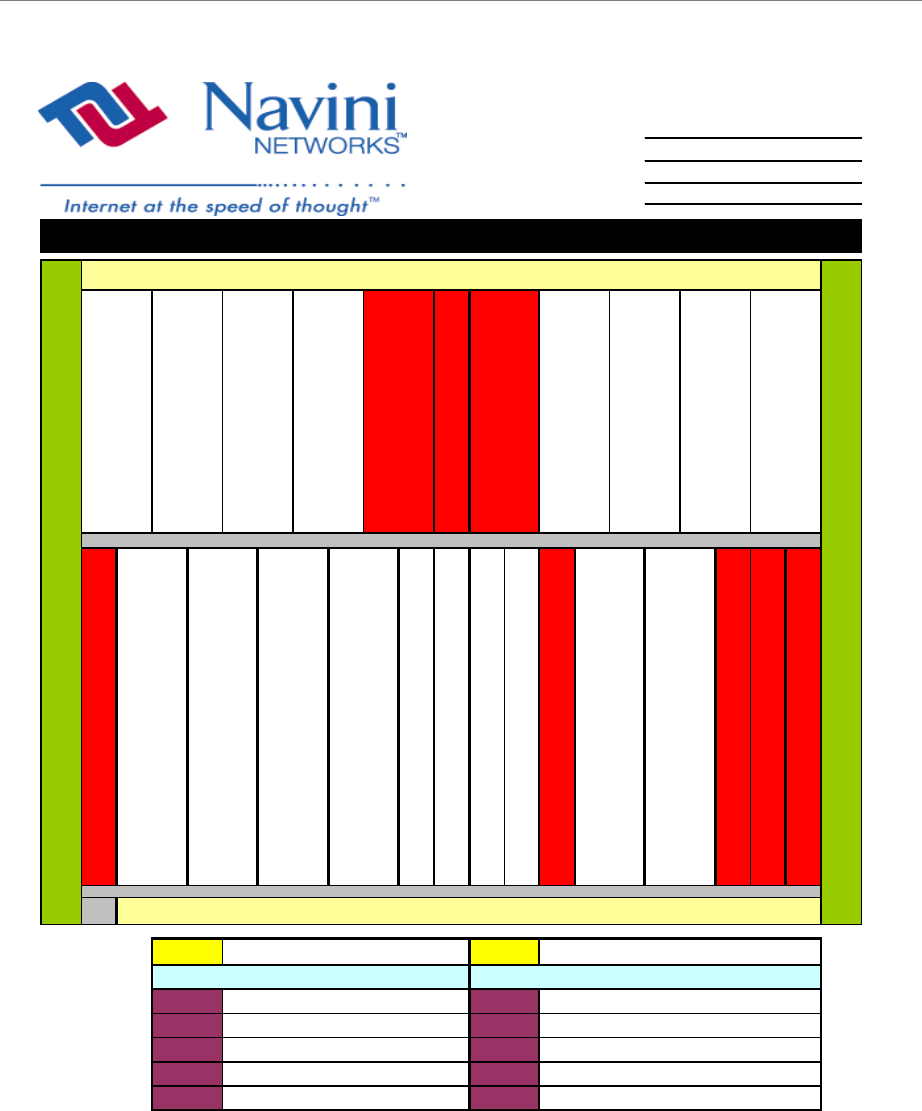

COMPANY

SITE NAME

SITE NO

LOCATION

CHP1 CHP2 MDM1 MDM2

BTS SN

RFS SN

RF SHELF

DIGITAL SHELF

SYN1

PA4

PA5

IF1

IF2

CHP1

PA1

PA2

PA3

SYN2

PA7

PA8

SYN1 SYN2 IF1 IF2 CC1 CC2

PA2

PA4

PA5

Note : Please write all Card Serial Numbers in the Spreadsheet Below

PA1

PA3

PA6

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 221

October 23, 2003

Appendix U: Excel Configuration Form

The configuration forms are used to plan and design the operating parameters for the system. The

parameters for every system element are defined in the EMS Server.

**********

EMS Configuration Data Form

(To configure EMS Servers & Clients in the Ripwave System)

Company:__________________________________________________________

Your Name:______________________________________ Date:_____________

NOTE 1: Field Values in gray rows indicate data that ordinarily should not be changed or that is populated

automatically by the system.

NOTE 2: Default Field Values are underlined.

Field Name Values Description

EMS Id Unique identifier for this EMS.

Alarm AutoAck True True or False. If True, the EMS will automatically

acknowledge all alarms except alarms with a severity

level of Warning (blue). An Alarm Engineer will only see

current alarms on the system. However, all alarm activity

is logged to an alarm file.

Server Ip Address IP address of the EMS Server.

Database Schema

Version 01 (example) Version of the EMS server database schema.

Mib Version 1.19.01 (example) Version of the BTS Management Information Base

(MIB).

BTS/CPE SW Directory loads (example) Directory where BTS and CPE software loads are stored.

Used by the EMS to obtain the location of the software

loads during downloads. Copy BTS and CPE software

loads to this directory during initial installations or

upgrades. Otherwise, the EMS cannot download the

software to the BTS. This field is used in conjunction

with the FTP Server Root Path field by the EMS to

obtain the software loads. The full path the EMS searches

for software loads is <FTP Server Root Path>\<BTS/CPE

SW Directory>. Example - C:\naviniems \ftp\loads.

continued…

Ripwave Base Station I&C Guide Navini Networks, Inc.

222 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Field Name Values Description

FTP Server Root Path The Root directory where BTS and CPE software loads

are stored. This field must match what is configured in

the FTP Daemon. Otherwise, the EMS will not be able to

download BTS and CPE software loads to the BTS. This

path is used by the EMS to obtain the location of the

software loads during downloads. Copy BTS and CPE

software loads to this root directory during initial

installations or upgrades. This field is used in conjunction

with the BTS/CPE SW Directory field by the EMS to

obtain the software loads. The full path the EMS searches

for software loads is <FTP Server Root Path>\<BTS/CPE

SW Directory>. Example - C:\naviniems \ftp\loads.

Network ID Unique identifier for this Service Provider’s wireless

network. Intended to ensure other Service Providers’

CPEs cannot operate in the identified network. A CPE

with a different BTS network ID cannot be provided

service by that BTS.

Server Name Host name of the EMS Server machine.

EMS Version 1.19.01 (example) Version of the EMS Server software.

Idl Build Number 1.18.09 (example) CORBA networking software IDL version used by the

EMS Server.

BTS/CPE SW Ftp User

Name User name for downloading BTS and CPE software from

the EMS. This field must match what is configured in the

FTP Daemon. Otherwise, the EMS cannot download

BTS and CPE software loads to the BTS.

BTS/CPE SW Ftp

Password Password used when downloading BTS and CPE

software. This field must match what is configured in the

FTP Daemon. Otherwise, the EMS cannot download

BTS and CPE software loads to the BTS.

Confirm Password Password must be re-entered for security purposes.

CPE AutoProvisioning Disabled Enable or Disable. Determines if the EMS is in

AutoProvision mode during CPE registration. If enabled,

the EMS will allow unprovisioned CPEs to access the

system with minimum bandwidth for a short period of

time. The minimum bandwidth is defined by the first

entry in the CPE Descriptor table. Once the CPE is

allowed limited access to the system, it can connect to a

default web site to enter billing information and the CPE

can be provisioned automatically with the EMS. If

disabled, the EMS will NOT allow an unprovisioned

CPE to access the system.

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 223

October 23, 2003

BTS Configuration Form

Company:_________________________________________________________

Your Name:______________________________________ Date:____________

BTS ID/NAME:____________________________________________________

NOTE 1: Field Values in gray rows indicate data that ordinarily should not be changed or that is populated

automatically by the system.

NOTE 2: Default Field Values are underlined.

General Parameters

Status

Field Name Values Description

RF Admin Status Up or Down Determines if the BTS is transmitting Radio Frequency

(RF). Up means transmitting. Down means not

transmitting. To bring the RF Admin Status Up, execute

the Enable action. To bring it Down, execute the Disable

action.

Connected Status True or False Display only. The user cannot set this field. Indicates if

the EMS can communicate with the BTS. The EMS

Server sends a message to the BTS periodically. If the

BTS responds, the EMS sets this field to True. If the BTS

does not respond in a reasonable amount of time, the

EMS changes the Connected Status to false. If the

Connected Status is False, the EMS will not send any

configuration messages to the BTS because it cannot

communicate.

Provisioned Status Provisioned or

Unprovisioned

If Provisioned, the BTS has been configured and is ready

for use.

Field Name Values Description

BTS IP Address Unique IP address for each BTS. Space bar used to

remove or skip existing digits.

EMS Server IP Address Unique IP address for an EMS. Defaults to the IP on

which the EMS Server is running. Space bar used to

remove or skip existing digits.

BTS Default Gateway Default Gateway used to route IP packets for a BTS.

BTS Subnet Mask Subnet Mask used to route IP packets for a BTS.

Street Address Physical location of this BTS.

City City in which BTS is located.

State State in which BTS is located.

Zip Zip code for location in which BTS is located

continued…

Ripwave Base Station I&C Guide Navini Networks, Inc.

224 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Field Name Values Description

BTS ID Unique numeric identification number for this BTS.

Cannot be changed once the BTS is created in the

system.

BTS Name Unique name given to this BTS. No two BTSs can have

the same name.

Suppress Alarms TRUE or FALSE To suppress alarms from BTS to EMS, set to TRUE until

problem is resolved. Useful if BTS is flooding EMS and

affecting its performance. To allow alarms to be sent, set

to FALSE.

Suppress CPE Registration TRUE or FALSE Determines if BTS can send CPE Registration messages

to EMS. Useful if BTS is flooding EMS and affecting its

performance. To allow messages to be sent, set to

FALSE.

Calibration Interval

(hours) 1 - 24 The interval of hours by which on-line calibration occurs.

Bridge Aging Timer

(minutes) 1 - 60 BTS Bridge Table timer that controls how long a PVC is

assigned to an EID (CPE). The PVC to EID association is

removed when no user traffic is received for the timer

interval. Applicable only when dynamic PVC assignment

is used.

Enable PVC Loopback TRUE or FALSE Determines if any PVC on this BTS can perform

loopback test.

BTS Contact Personnel Textual identification of a contact person for this BTS

and how to contact them.

BTS Configuration Source EMS or BTS Determines where the BTS obtains its configuration data

when reset. If provisioning BTS for first time, set to

EMS. After successful reset, defaults to BTS.

Interface Type Ethernet or ATM Indicates the backhaul to which the BTS is connected.

BTS Profile Type Unlicensed 2.4 GHz

MMDS 2.6 GHz

Select the correct system. 2.4 GHz is the only unlicensed

frequency. Any other system, 2.3, 2.5, and 2.6, select

MMDS.

Frequency 2.305 GHz - 2.359

GHz

2.40 GHz - 2.473

GHz

2.50 GHz - 2.595

GHz

2.602 - 2.686 GHz

Scroll bar that allows you to set the center frequency for

the BTS operation. The range depends on the type of

system, i.e., 2.3 GHz, 2.4 GHz, 2.5 GHz, 2.6 GHz. The

field is operated by dragging the slider of the center

frequency scroll bar left or right. The center frequency of

an MMDS band BTS must match what is hard-wired on

the RFS. During installation, the installers should check

that the configured center frequency is identical to the

center frequency labeled on the Channel Filter

component of the RFS.

CAUTION: Changing an MMDS BTS center

frequency may result in destruction of the PAs.

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 225

October 23, 2003

Diagnostics

Field Name Values Description

Enable Const Display True or False Determines if the BTS Constellation Display application

can be logged into and used on this BTS. If set to True,

this BTS can be logged into and its Constellation Display

viewed.

Max Beamform Displays 0-9 The maximum number of CPEs that can be viewed

simultaneously using the BTS Beamforming diagnostic

display.

User Name ems Authorized user of all diagnostic tools.

Password The password used to authenticate the login to all

diagnostic tools.

Enable Spec Analyzer

Display True or False Determines if the BTS Spectrum Analyzer (frequency)

application can be logged into and used on this BTS.

Confirm Password Confirms that the correct password is entered.

Performance

Field Name Values Description

Perf Log Server IP

Address IP address of the performance log collection server.

Perf Log Storage

Directory The name of the directory at the Performance Log server

where the performance logs are to be sent. Note: The

location of the log directory is “<ftp root directory>\<pm

data directory>”. Example: If the FTP root directory is set

to “d:\naviniems \ftp” and the pm data directory is set to

“performance”, the location of the log directory will be

“d:\naviniems \ftp\performance”. Therefore, when

configuring the FTP Daemon, set the FTP root directory

to “<ems install directory>\ftp”.

Upload Interval (minutes

or hours) Disable, 15 minutes, 30

minutes, 1 hour, 2

hours, etc.

The interval that the BTS uploads performance data to the

EMS.

Collection Interval

(minutes or hours) Disable, 15 minutes, 30

minutes, 1 hour The interval that the BTS collects the performance logs.

Perf Log FTP User

Name The FTP user name set in the FTP Daemon running on

the server where performance logs are captured.

Perf Log FTP Password The FTP password set in the FTP Daemon running on the

server capturing performance logs.

Confirm Password Re-enter password to confirm authorized access.

Ripwave Base Station I&C Guide Navini Networks, Inc.

226 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

GPS

Field Name Values Description

GPS Latitude North or South

0 (deg) 0 (min) 0 (sec)

The latitude of the BTS in degrees, minutes, and seconds.

GPS Longitude East or West

0 (deg) 0 (min) 0 (sec)

The longitude of the BTS in degrees, minutes, and

seconds.

GPS Height (cm) 0 The height of the BTS in centimeters.

GPS Gmt Offset (min) -360 The difference in time (minutes) between Greenwich

Mean Time (GMT), which is zero, and the time zone

where the BTS is located. For example, if the BTS is

located in Dallas, Texas, the local time is 6 hours earlier

than GMT. In this example, you would enter -360, which

is 6 hrs x 60 min. If the local time is ahead of GMT, you

would enter a + in front of the number.

Neighbor BTS Frequency List

Field Name Values Description

Center Frequency (Scroll

Bar) 2.305 GHz - 2.359 GHz

2.40 GHz - 2.473 GHz

2.50 GHz - 2.595 GHz

2.602 - 2.686 GHz

The frequency at which the neighboring BTS is

transmitting.

Co-located Checkmark or blank Click to place a checkmark indicating that the

neighboring BTS is located on the same tower as the

current BTS.

CPE Ping Table

Field Name Values Description

Ping Sequence 0, 1, 2, 3, etc. Order in which the element with this IP address is

pinged.

IP Address IP address of the element being added to the Ping Table.

Display String Alphanumeric (up to 30

characters) User-assigned designation (name/string) for this element.

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 227

October 23, 2003

Air Interface Parameters

Layer 1 - General

Field Name Values Description

RFS Active or Passive Specifies whether the RFS has active or passive circuitry.

Gps Offset 0 This is the GPS timing offset to apply to the BTS in order

of chips (2.5us). The GPS offset must be different for

each BTS sharing the same frequency so they do not

interfere with each other.

Sync Scale 0.1125 The scale setting applied to the transmitted

synchronization signal.

Acc Scale 0.0557 The scale setting applied to the Access Channel.

Tcc Scale 0.0197 The scale setting applied to the Traffic Channel.

Max Scale 0.2516 The maximum allowable scale setting for each of the

above scales: Sync, ACC, TCC.

Rx Sensitivity

(–dBm)

100.0 The target Receiver sensitivity for each antenna. This

target is used during full calibration. If it is changed, full

calibration must be performed for it to take effect.

Antenna Power

(dBm)

30.0 The target antenna power for each antenna. This target is

used during full calibration.

Cal Cable Loss (dB) 0.0 Entered in the EMS during commissioning as one of

several inputs for performing full calibration. This value

is the measured calibration cable loss. If it is changed,

full calibration must be performed for it to take effect.

Cal Backplane Loss

(dB)

5.0 Calibration Backplane Loss (dB)

Cal Total Loss (dB) 0.0 Displays the total calibration loss, calculated from the

values in Cal Cable Loss and Cal Backplane Loss fields.

Synthesizer Tx Gain Displays the Transmitter gain setting for the Synthesizer

used during calibration. This field is a result that is

automatically returned from full calibration.

Synthesizer Rx Gain Displays the Receiver gain setting for the Synthesizer

used during calibration. This field is a result that is

automatically returned from full calibration.

Synthesizer Sc Gain Displays the Loopback gain setting for the Synthesizer

used during calibration. This field is a result that is

automatically returned from full calibration.

Synthesizer Level Displays the power level of the Synthesizer.

Ripwave Base Station I&C Guide Navini Networks, Inc.

228 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Layer 1 - Antenna Table

Field Name Values Description

Antenna Index 1-8 The number of the antenna (1-8) that maps to a specific

antenna element in the RFS.

Admin Status Up or Down Determines if the antenna is transmitting RF. Up means

transmitting; Down means not transmitting.

Power Splitter_I The real element of the calibrator board characteristics

that is found in the RFS. This information captures the

loss and phase information of the board. The Power

Splitter data is unique to each RFS. An RFS

Configuration CD ships with the equipment. It provides

an RFS script and instructions for selecting the correct

value to match the specific RFS that is physically

installed with the BTS.

Power Splitter_Q The imaginary element of the calibrator board that is

found in the RFS. This information captures the loss &

amplitude information of the board. The Power Splitter

data is unique to each RFS. An RFS Configuration CD

ships with the equipment. It provides an RFS script and

instructions for selecting the correct value to match the

specific RFS that is physically installed with the BTS.

RF Tx Gain 0-255 The Transmit gains for each antenna element, ranging

from 0-255, with 0 being the lowest gain. This data is

returned as a result of full calibration.

RF Rx Gain 0-255 The Receive gains for each antenna element, ranging

from 0-255, with 0 being the lowest gain. This data is

returned as a result of full calibration.

Layer 1 - w0 Table

Field Name Values Description

Sub Carrier Id 1-5 The number (ordinal) of the subcarrier pair.

Antenna Index 1-8 The number of the antenna element.

W0 Weight_I Real elements of the vector used to control ACC spatial

pattern.

W0 Weight_Q Imaginary elements of the vector used to control ACC

spatial pattern.

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 229

October 23, 2003

Layer 1 - Calibration Table

Field Name Values Description

Sub Carrier Id 1-10 The number (ordinal) of the subcarrier.

Antenna Index 1-8 The number of the antenna element.

Tx Weight_I Real elements of the vector used while transmitting to

control ACC spatial pattern. This data is returned as a

result of any of the calibration modes.

Tx Weight_Q Imaginary elements of the vector used while transmitting

to control ACC spatial pattern. This data is returned as a

result of any of the calibration modes.

Rx Weight_I Real elements of the vector used during Receive to

control ACC spatial pattern. This data is returned as a

result of any of the calibration modes.

Rx Weight_Q Imaginary elements of the vector used during Receive to

control ACC spatial pattern. This data is returned as a

result of any of the calibration modes.

Layer 2 - Carrier Data

Field Name Values Description

Sub Carrier Number

/ Sub Carrier

1-2, 3-4, 5-6, 7-8, 9-10 These two fields identify the 10 subcarriers. You can

click on the pair of subcarriers to be enabled for this

BTS. Subcarriers are assigned in pairs.

Access Channel Checkmark or blank Access Code Channels: The ACC Channel occupies the

Code Channel with Walsh Index 0 configured on a

specified subcarrier frequency. Each checkbox indicates

which pair of subcarriers contains an Access Channel.

Broadcast Channel Checkmark or blank Broadcast Code Channel (BCC): If the box is checked,

then a BCC will be transmitted in each pair of subcarriers

that already contains an ACC. The BCCs are used to

broadcast software upgrades to the Modems.

TDD Symmetry

Ratio

Symmetric or

Asymmetric Symmetric Ratio is 1:1. Asymmetric Ratio is 1:3. This

parameter determines the variable uplink and downlink

ratio in a TDD frame. If set to Asymmetric, the downlink

will have 3 times more bandwidth than the uplink. This is

sometimes desired due to the types of users on the

system, i.e., downloading files off the Internet.

Repeat Uplink Pkts Checkmark or blank If the box is checked, the Modems will repeat uplink

packets.

Frequency

(Scroll Bar)

2.305 GHz - 2.359 GHz

2.40 GHz - 2.473 GHz

2.50 GHz - 2.595 GHz

2.602 - 2.686 GHz

Indicates the center frequency of the BTS transmit signal.

Ripwave Base Station I&C Guide Navini Networks, Inc.

230 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Layer 2 - Bandwidth

Field Name Values Description

Underload Threshold

(%) 80% The threshold crossing in which a BTS changes its load

congestion state from Overload (either Positive Access

Overload or Negative Access Overload) to Underload.

Overload Threshold (%) 85% The threshold crossing in which a BTS changes its load

congestion state from Underload to Positive Access

Overload.

Positive Access Overload

Threshold (%) 90% The threshold crossing in which a BTS changes its load

congestion state from Negative Access Overload to

Positive Access Overload.

Negative Access

Overload Threshold (%) 95% The threshold crossing in which a BTS changes its load

congestion state from either Underload or Positive

Access Overload.

Reserved Channels for

Accesses 12 Number of channels reserved for access when in the

Underload state.

CPE Inactive Time (min) 15 When a CPE has not communicated with a BTS for the

set Inactive Time, the status of the CPE changes from

active to inactive, as expressed in minutes.

Bandwidth Adjust

Interval (10ms) 20 A user’s bandwidth (uplink or downlink) is adjusted

every Adjust Time if needed when on TCC. Expressed in

units of 10 milliseconds.

Realtime Session Hold

Time (10ms) 250 The length of time a user with realtime data holds RF

resources after the incoming packet queue is empty.

Expressed in units of 10 milliseconds.

Non-realtime Session

Hold Time (10ms) 250 The length of time a user with non-realtime data holds

RF resources after the incoming packet queue is empty.

Expressed in units of 10 milliseconds.

Non RT PreRelease BW

(Kbps) 0 - 2,048

Default is 32

The bandwidth a user is assigned while in Non-realtime

Session Hold Time. The Non RT PreRelease BW is in

units of MAC packets.

Denied Req Number 5 The number of consecutive times a user’s access request

fails due to lack of RF resources before access is denied.

Average LCC Q LEN

Factor 2 Factor used to determine the average LLC queue length.

Exponential For Average 1 Average exponent for all statistical variables but power.

Average Burst Time (ms) 50 Average time for a data burst, expressed in units of 10

milliseconds.

Max Bts Power (TCC

Power) 320 Maximum RF power a BTS has. It is in units of

maximum TCC power per channel. This field is not

configurable.

DL ACC Power Per

Channel (TCC Power) 8 Downlink ACC RF power per channel. It is expressed in

units of maximum TCC power per channel.

TCC Initial Setup Power

(%) 25% Initial setup power of a TCC channel. Expressed in units

of the percentage of the max. TCC power per channel.

Average Exponential

Factor 1 Average exponent for average power.

TCC Power per Channel

Range (dB) 19 Number of decibels the downlink TCC power per

channel can vary.

Min Realtime Data

Bandwidth (Kbps) 0 - 2,048

Default is 32 The minimum bandwidth a user with realtime data holds

that is not used for acknowledgement. Expressed in units

of MAC packets (data rate). continued…

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 231

October 23, 2003

Field Name Values Description

Supported Modulations QAM4

QAM4 QAM8

QAM4 QAM16

QAM4 QAM8 QAM16

The highest QAM Rank the BTS can process.

Total Priority Level

Num. 8 The total number of QoS classes the BTS can maintain.

Each class is associated with a priority.

Max Bandwidth for

Priority 1-8 (%) 1 default 85%

2 default 10%

3 default 5%

4-8 default 0%

The percentage of the total bandwidth a QoS class

associated with a certain priority is entitled to.

Layer 2 - WAN Congestion Control

Field Name Values Description

Average Queue Size

Weight (%) 100.0 For downlink, this value - expressed as a percentage -

indicates how much the current queue size contributes to

the calculation of the average queue size. The average

queue size is used by the BTS Resource Management

software to determine how many Code Channels to give a

CPE. The greater the weight, the greater influence the

current queue size has on the average queue size. The

lower the weight, the more the queue size is an actual

average of the current queue size over time.

Max Queue Size (KB) 512 For downlink, the maximum queue size - in kilobytes -

for each priority queue (high, low, voice). Once the

queue is full (at Min Drop Threshold) all packets are

dropped.

Min to Max Drop

Probability (%) 10 For downlink, the probability of a packet being dropped

when the Min Threshold has been reached. The higher

this number, the more likely a packet will be dropped

between the Min Threshold and the Max Threshold.

NOTE: All packets are dropped at the Max Threshold.

Realtime Min Drop

Threshold (%) 100 For downlink, the minimum queue size in which voice

priority packets are considered for being dropped. For

example, if set to 10%, once the queue size reaches 11%

or more, voice priority packets may be dropped. The

Max Drop Probability field determines if a packet is

dropped once the Min Threshold is exceeded.

High Priority Min Drop

Threshold (%) 100 For downlink, the minimum queue size in which high

priority packets are considered for being dropped. For

example, if set to 10%, once the queue size reaches 11%

or more, high priority packets may be dropped. The Max

Drop Probability field determines if a packet is dropped

once the Min Threshold is exceeded.

Low Priority Min Drop

Threshold (%) 100 For downlink, the minimum queue size in which low

priority packets are considered for being dropped. For

example, if set to 10%, once the queue size reaches 11%

or more, high priority packets may be dropped. The Max

Drop Probability field determines if a packet is dropped

once the Min Threshold is exceeded.

Ripwave Base Station I&C Guide Navini Networks, Inc.

232 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Layer 2 - CPE Uplink Congestion Control

Field Name Values Description

Avg Queue Size Weight

(%) 100.0 For the uplink, this value - expressed as a percentage -

indicates how much the current queue size contributes to

the calculation of average queue size. The average queue

size is used by the BTS Resource Management software

to determine how many Code Channels to give a CPE.

The greater the weight, the greater influence the current

queue size has on the average queue size. The lower the

weight, the more the average queue size is an actual

average of the current queue size over time.

Max Queue Size (KB) 512 For the uplink, the maximum queue size for each priority

queue (high, low, voice). Once the queue is full (at Min

Drop Threshold) all packets are dropped.

Min to Max Drop

Probability (%) 10 For the uplink, the probability of a packet being dropped

when the Min threshold has been reached. The higher this

number, the more likely a packet will be dropped

between the Min Threshold and Max Threshold. Note:

All packets are dropped at the Max Threshold.

Realtime Min Drop

Threshold (%) 100 For the uplink, the minimum queue size in which voice

priority packets are considered for being dropped. For

example, if set to 10% once the queue size reaches 11%

or more, voice priority packets may be dropped. The Max

Drop Probability field determines if a packet is dropped

once the Min Threshold is exceeded.

High Priority Min Drop

Threshold (%) 100 For the uplink, the minimum queue size in which high

priority packets are considered for being dropped. For

example, if set to 10% once the queue size reaches 11%

or more, high priority packets may be dropped. The Max

Drop Probability field determines if a packet is dropped

once the Min Threshold is exceeded.

Low Priority Min Drop

Threshold (%) 100 For the uplink, the minimum queue size in which low

priority packets are considered for being dropped. For

example, if set to 10% once the queue size reaches 11%

or more, low priority packets may be dropped. The Max

Drop Probability field determines if a packet is dropped

once the Min Threshold is exceeded.

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 233

October 23, 2003

Backhaul Interface Parameters

Field Name Values Description

Admin Status Up Up or Down. Display only. The administrative

(operational) status of this T1. If Down, no traffic is able

to go through this interface. This field is not

configurable.

Line Type ESF or D4 Framing format

Send Code Send line code, Send No

Code, Send Payload

Code, Send Reset Code

Selection of codes used for far-end loopback tests

Signal Mode None Always None

Line Length (foot) 5000 Length of T1 cables from BTS to terminating equipment

Fdl None, Att54016,

AnsiT1403

Facility Data Link (FDL) signaling type

Line Status Change Trap Enabled or Disabled Enables generation of traps based on changes to the line

status

Line Index 1 The ATM IF index that this T1 is associated with

Line Coding B8ZS or AMI Type of coding used to encode bits on the line

Circuit Identifier Vendor’s transmission circuit identifier

Transmit Clock Source Loop timing or Local

Timing Source of the framer Transmit clock

Channelization Disabled Always Disabled (clear channel)

IMA Groups

Field Name Values Description

Admin Status Up Up or Down. This is the administration (operational)

status of the IMA group. If Down, no traffic is able to go

through this interface.

Symmetry Symmetric operation,

Symmetric &

Asymmetric, or

Asymmetric

Three options for the relationship of the Transmit and

Receive link throughput:

?? Symmetric operation - all links should be configured

in both directions. Tx and Rx must both be active to

use the disk.

?? Symmetric and Asymmetric operation - all links

should be configured in both directions. Transmitting

is allowed when Tx is active and Rx is not active.

?? Asymmetric operation - not required to configure the

IMA links in both Tx and Rx directions.

Min Num Rx Links 3 Minimum number of active Receive links that is

necessary for the IMA group to be active.

Tx Ima Id 0 Near-end (Transmit) IMA ID. continued…

Ripwave Base Station I&C Guide Navini Networks, Inc.

234 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Field Name Values Description

Alpha Value 2 Used to specify the number of consecutive valid ICP

cells to be detected before moving to the IMA hunt state

from the IMA sync state.

Gamma Value 1 Used to specify the number of consecutive valid ICP

cells to be detected before moving to the IMA sync state

from the IMA pre-sync state.

Index IMA group 2 IMA Group 1 or 2. Unique sequence number of the IMA

group.

Min Num Tx Links 1 Minimum number of Transmission links that have to be

active for the IMA group to be active.

Ne Tx Clk Mode ITC Near-end Transmit clock mode.

Tx Frame Length M128 Length of IMA frame being transmitted. It is defined as

M consecutive cells.

Beta Value 2 Used to specify the number of consecutive ICP cells with

errors to be detected before moving to the IMA hunt state

from the IMA sync state.

Add T1s to IMA Groups

IMA Group T1s Associated With this IMA Group Notes

IMA 1

IMA 2

ATM

Field Name Values Description

If Index T1-1 (first T1 ID) Interface (IF) Index associated with this ATM interface.

Max Vccs 1001 Maximum Virtual Channel Circuits for this interface.

Max Active Vci Bits 9 The number of bits for Virtual Channel Identifier (VCI).

Determines the maximum VCI value allowed for this

interface. The Max Value is calculated by 2^ (max active

vci bits).

Max Vpcs 0 Maximum Virtual Private Circuits for this interface.

Max Active Vpi Bits 3 The number of bits for Virtual Private Identifier.

Determines the maximum VPI value allowed for this

interface. The max value is calculated by 2^ (max active

vpi bits).

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 235

October 23, 2003

PVC

Field Name Values Description

if Index T1-1 The ATM IF index that this PVC is associated with.

Vpi (start and end) 0 Virtual Path Identifier. The VPI + VCI are in the cell

header and identify the next destination of a cell as it

passes through a series of ATM switches.

Vci (start and end) 0 Virtual Channel Identifier. The VPI + VCI are in the cell

header and identify the next destination of a cell as it

passes through a series of ATM switches.

Tr/Re Traffic Descr

Indexes 2 Index of the ATM Descriptor that applies to this PVC.

The Transmit and Receive Descriptors are the same.

AAL5 CPCS Tx SDU

Size (Byte) 1528 The maximum AAL5 CPCS SDU size, in bytes, that is

supported in the Transmit direction.

AAL5 CPCS Rx SDU

Size (Byte) 1528 The maximum AAL5 CPCS SDU size, in bytes, that is

supported in the Receive direction.

Admin Status Up Up or Down. The administrative (operational) state of the

PVC. If it is Down, this PVC may not be used for traffic.

AAL Type AAL5 (1-5) The type of ATM Adaptation Layer (AAL) used on this

PVC: AAL1, AAL2, AAL3, AAL4, or AAL5.

AAL5 Encap Type LLC encapsulation The type of data encapsulation used over the AAL5

SSCS layer.

Cast Type P2P The connection topology type.

Conn Kind PVC The type of VCL. This is always PVC.

Assign CPE to PVC

Field Name Values Description

PVC T1-1-1-100 (example) Identifies the PVC to be assigned to the specified CPE.

CPE 0 CPE assigned to specified PVC.

Data Denotes what type of PVC to assign.

Ripwave Base Station I&C Guide Navini Networks, Inc.

236 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Global Parameters Configuration Form

Company:__________________________________________________________

Your Name:______________________________________Date:______________

NOTE 1: Field Values in gray rows indicate data that ordinarily should not be changed or that is populated

automatically by the system.

NOTE 2: Default Field Values are underlined.

ATM Descriptor

Field Name Values Description

Index 0 Identifier for this ATM Descriptor

Type NOCLPNOSCR, NOCLPSCR,

CLPNOTAGGINGSCR,

CLPTAGGINGSCR,

CLPNOTAGGINGMCR,

CLPTRANSPARENTNOSCR,

CLPTRANSPARENTSCR,

NOCLPTAGGINGNOSCR

Type of ATM

Category CBR, RTVBR, NRTVBR,

ABR, UBR Category of this ATM (see parameters, below)

Frame Discard True True or False. If set to True, enables the ability to

discard ATM frames.

Param1 - Param5 0 Described below

CBR Parameters:

PCR

Peak Cell Rate

RTVBR Parameters:

PCR

SCR

MBS

Peak Cell Rate

Sustainable Cell Rate

Maximum Burst Size

NRTVBR

Parameters:

PCR

SCR

MBS

Peak Cell Rate

Sustainable Cell Rate

Maximum Burst Size

ABR Parameters:

PCR

MCR

ICR

RDF

RIF

CDF

Peak Cell Rate

Minimum Cell Rate

Initial Cell Rate

Rate Decrease Factor

Rate Increase Factor

Cutoff Decrease Factor

UBR Parameters:

PCR

Peak Cell Rate

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 237

October 23, 2003

CPE Descriptor

Field Name Values Description

Name Name given to this CPE Descriptor.

Index 1 (1-8) Unique index identifier for this CPE Descriptor.

Priority 0 The priority that a CPE with this assigned Descriptor

will receive from the BTS Resource Manager software

when requesting RF resources. This field maps to the

Layer 2 > Bandwidth Data component in the BTS.

UL Max Bandwidth

(Kbps) 0, 32, 64, 96, 128, 160,

192, 224, etc. Maximum uplink bandwidth allowable for a CPE with

this Descriptor. The maximum number of code channels

allocated for a CPE is directly related to this field.

UL Min Bandwidth

(Kbps) 0, 32, 64, 96, 128, 160,

192, 224, etc. Minimum uplink bandwidth allowable for a CPE. This

field determines the number of code channels allocated

when a CPE begins a data session. The larger this value,

the more code channels allocated at session startup.

DL Max Bandwidth

(Kbps) 0, 32, 64, 96, 128, 160,

192, 224, etc. Maximum downlink bandwidth allowable for a CPE.

The maximum number of code channels allocated for a

CPE is directly related to this field.

DL Min Bandwidth

(Kbps) 0, 32, 64, 96, 128, 160,

192, 224, etc.

Minimum downlink bandwidth allowable for a CPE.

This field determines the number of code channels

allocated when a CPE begins a data session. The larger

this value, the more code channels allocated at session

startup.

Avg Queue Size Weight

(%) 100.0 How much the current queue size contributes to the

calculation of average queue size. The average queue

size is used by the BTS Resource Manager to determine

how many resources (code channels) to give a CPE. The

greater the weight, the greater influence the current

queue size has on the average queue size. The lower the

weight, the more the average queue size is an actual

average of the current queue size over time.

Max Queue Size (KB) 512 Maximum queue size for each priority queue (high, low,

voice). Once full (Max Threshold) all packets are

dropped.

Min to Max Drop

Probability (%) 10 The probability of a packet being dropped when the Min

Threshold has been reached. The higher this number, the

more likely a packet will be dropped between the Min

and Max Threshold. All packets are dropped at Max

Threshold.

Realtime Min Drop

Threshold (%) 100 The minimum queue size at which voice-priority packets

are considered for being dropped. For example, if set to

10% once the queue size reaches 11% or more, voice

priority packets may be dropped. The Max Threshold

Probability field determines if a packet is dropped once

the Min Threshold is exceeded.

High Priority Min Drop

Threshold (%) 100 The minimum queue size at which high-priority packets

are considered for being dropped. For example, if set to

10%, once the queue size reaches 11% or more, high

priority packets may be dropped. The Max Threshold

Probability field determines if a packet is dropped once

the Min Threshold is exceeded. continued…

Ripwave Base Station I&C Guide Navini Networks, Inc.

238 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Field Name Values Description

Low Priority Min Drop

Threshold (%) 100 The minimum queue size at which low-priority packets

are considered for being dropped. For example, if set to

10%, once the queue size reaches 11% or more, low

priority packets may be dropped. The Max Threshold

Probability field determines if a packet is dropped once

the Min Threshold is exceeded.

DiffServ

Field Name Values Description

Code Point 0 Unique index (bit) to be mapped to a defined Differentiated

Service. The code point is structured as follows:

0 1 2 3 4 5 6 7

+---+---+---+---+---+---+---+---+

| DSCP | CU |

+---+---+---+---+---+---+---+---+

DSCP: Differentiated Services Code Point

CU: Currently Unused

The Type of Service (ToS) bits are included in the DSCP.

Priority Low, High, Voice Low, High, or Voice. This is the priority given to data

packets associated with this Code Point/Service. The BTS

processes data packets with Voice, then High priority before

Low priority packets.

DHCP Relay

Field Name Values Description

Relay Config Enabled (Checkbox) Enable or Disable. Clicking on the checkbox enables the

DHCP Relay feature.

Free Address Low Agent

Threshold 80

Free Address High Agent

Threshold 100

Relay Config MaxDhcp

Size 1488

Option 82 Tagging (Checkbox) Enable or Disable. Clicking on the checkbox enables the

inclusion of one or more of the following Relay

Information sub-options.

Remote Id (Checkbox) If checked (enabled), include the Modem EID as the

Remote ID Relay Information sub-option. It will be

formatted as a 6 octet string “0000<EID>”. This format

is often used in cable modem scenarios. continued…

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 239

October 23, 2003

Field Name Values Description

Circuit Id (Checkbox) If checked (enabled), include the BTS ID as the Circuit

ID Relay Information sub-option. It will be formatted as

a 4-octet string “<BTS ID>”. This format is often used

in cable modem scenarios.

VPN Id (Checkbox) If checked (enabled), include the Modem EID as the

VPN ID Relay Information sub-option. It will be

formatted as a text string “navini<EID>”. This format is

often used in DSL scenarios.

Subnet Selection/Addr (Checkbox) If checked (enabled), include the specified Subnet

Address as the Subnet Selection Relay Information sub-

option.

DOCSIS Device/Class (Checkbox) If checked (enabled), include the specified DOCSIS

Device Class as the DOCSIS Device Relay Information

sub-option.

ARP Proxy

Field Name Values Description

ARP Ingress Proxy (Checkbox) If clicked, this enables the BTS to respond to ARP

messages coming from the CPEs/Modems to the BTS.

ARP Egress Proxy (Checkbox) If clicked, this enables the BTS to respond to ARP

messages coming from the network (backhaul) to the

BTS on behalf of the CPEs/Modems.

Layer 3 Filter

Field Name Values Description

Dynamic Acl (Checkbox) If clicked, this enables the Dynamic Access Control List.

It provides the filtering rules for DHCP Relay - where a

BTS configured with these capabilities may add learned

addresses to the Modem’s Authenticated IP List (the

Modem’s Ingress Filter). When BTSs and Modems are

configured for this feature, any packet whose MAC

address cannot be found in the current Modem’s

Authenticated IP List will be discarded.

Egress Broadcast Filter (Checkbox) If clicked, this enables configured BTSs to drop all

Ethernet Broadcast packets.

Ripwave Base Station I&C Guide Navini Networks, Inc.

240 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

CPE Configuration Data Form

Company:__________________________________________________________

Your Name:______________________________________Date:______________

NOTE 1: Field Values in gray rows indicate data that ordinarily should not be changed or that is populated

automatically by the system.

NOTE 2: Default Field Values are underlined.

Add CPE

Field Name Values Description

EID (hex) 0 Equipment Identifier unique to each CPE. This value is

determined during the manufacturing process and is

displayed on the case of the CPE hardware, as well as

entered and displayed as a hexadecimal number in this

field.

Descriptor Name CPE Descriptor-1 The name of the CPE Descriptor to be used with this

CPE. The CPE Descriptor level affects Quality-of-

Service (QoS) for this CPE’s data packets.

Collect Perf Data True True or False. Collect Performance Data. If True, this

CPE sends performance metrics to the BTS at the set

interval. The BTS then uploads the performance data to

the EMS at set intervals. The interval setting for

collection and upload from the BTS to the EMS is set in

the Performance fields for the BTS.

Nomadic Disabled Enabled or Disabled. If Enabled, this CPE can access any

BTS in the network that is defined in its Available Home

BTS list at the bottom of the screen. When enabled, the

Current Home BTS list is ignored. If disabled, this CPE

can only access a BTS in its Available Home BTS list.

Admin Status Active Active or Suspended. If suspended, the CPE cannot

access any BTS. A Service Provider may decide to make

the CPE suspended due to late service payments, security

concerns, etc., rather than deleting the CPE from the

system database.

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 241

October 23, 2003

Home BTS

Field Name Values Description

Available Home BTS Add or Remove BTS Names. A list of available BTSs to

include in the Current Home BTS list for this CPE.

Current Home BTS Add or Remove BTS Names. If Nomadic is disabled,

these are the only BTSs this CPE can access. If Nomadic

is enabled, this list is ignored.

Layer 3

Field Name Values Description

Ingress Acl (Checkbox) If checkbox is clicked “on” any incoming packet whose

MAC address cannot be found in the current CPE

Authenticated IP List will be discarded.

Ingress Broadcast (Checkbox) If checkbox is clicked “on” any incoming MAC

broadcast message will be discarded.

DHCP Relay

Field Name Values Description

Free Address High Drop

Policy Drop most recently

leased or Drop least

recently leased

Drop the most recently leased or least recently leased IP

addresses

Max Address Number Drop most recently

leased or Drop least

recently leased

Drop the most recently leased or least recently leased IP

addresses

IP Address

Field Name Values Description

Static Client IP Address 0.0.0.0 Use static, rather than dynamic, IP addressing for this

device. If static IP assignment is being made, add this IP

address to the Ingress Filter Authenticated IP List.

Otherwise, leave zeroes.

Hardware Address 0:0:0:0:0:0 Enter the Ethernet address of the host computer to which

the CPE is connected and that corresponds to the above

Client IP Address.

Ripwave Base Station I&C Guide Navini Networks, Inc.

242 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 243

October 23, 2003

Appendix V: Base Station Calibration Verification

Objective

The objective of this procedure is to verify the transmit power and noise figure of the Base

Station using a Modem.

Test Equipment Required

?? Installed Base Station, powered on and calibrated

?? Navini Drive Test Box

?? PC with Beamforming Display tool installed

?? 4 Fixed Attenuators: two at 30 dB, two at 10 dB.

Low power attenuator acceptable.

?? RF cables and adaptors (3 ft or more)

?? N type Terminator for GPS

Test Procedure

Step 1. If not already done, calibrate the Base Station. Verify a successful calibration by

monitoring the console with “caldebugon”. Verify that the cal error equals zero. If

cal errors are not zero, troubleshoot the system before starting.

Step 2. Prepare the setup that is shown in Figure V1.

Step 3. Connect approximately 30-40 dB of attenuation to one end of the calibration cable.

Connect a 3-6 ft RF cable to the other end of the attenuation. Connect 40 dB of

attenuation to the end of that cable. Connect the attenuators to the Navini Drive

Test box.

Step 4. Put the Drive Test box as far away from the Base Station as possible. Terminate

the GPS connector. Calculate the path loss from the Drive Test box to the Cal

cable. In the EMS disable carriers 1-2, 3-4, and 9-10, leaving 5-6 and 7-8 enabled.

Also verify that the ACC for 5-6 is selected. This is found by clicking on the BTS

tab, highlighting the specific BTS, then selecting Air Interface > Layer 2 >

Carrier data. Refer to Figure V2.

Ripwave Base Station I&C Guide Navini Networks, Inc.

244 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Figure V1: Test Setup

NOTE: The EMS Client (CAM) and the Beamforming Display may be run from the same laptop

Figure V2: Configure Carrier Data Window

Cal Cable –40

Cables

AC power

Beamforming

Display

Drive Test

Tool

Attenuation

-40 dB

Attenuation

-30 to -40 dB

Laptop creating

traffic through

FTP or pinging

continuously

GPS

(not used)

DC power (cigarette lighter)

GPS

antenna

port

Internet

EMS

Server

EMS Client (CAM)

A B C D EFGHIJKL

26 Cable and RFS performance

28 Cable Loss

29 Cable Low Mid High Avg. loss

30 1 -6.0 -6.0 -6.0 -6.0

31 2 -6.0 -6.0 -6.0 -6.0

32 3 -6.0 -6.0 -6.0 -6.0

33 4 -6.0 -6.0 -6.0 -6.0

34 5 -6.0 -6.0 -6.0 -6.0

35 6 -6.0 -6.0 -6.0 -6.0

36 7 -6.0 -6.0 -6.0 -6.0

37 8 -6.0 -6.0 -6.0 -6.0

38 cal -6.0 -6.0 -6.0 -6.0

41 Insertion loss thru cal cable and RFS

Cal path loss

LNA gain

43 Low Mid High Average (calculated) (calculated)

TX path

-40.0

-31.0

45 RX path -18.0 -18.0 -18.0 -18.0 22.0 22.0 22.0

46 2TX path -40.0 -40.0 -40.0 -40.0 -31.0

RX path

-18.0

22.0

48 3TX path -40.0 -40.0 -40.0 -40.0 -31.0

RX path

-18.0

22.0

TX path

-40.0

-31.0

51 RX path -18.0 -18.0 -18.0 -18.0 22.0 22.0 22.0

TX path

-40.0

-31.0

53 RX path -18.0 -18.0 -18.0 -18.0 22.0 22.0 22.0

54 6TX path -40.0 -40.0 -40.0 -40.0 -31.0

RX path

-18.0

22.0

56 7TX path -40.0 -40.0 -40.0 -40.0 -31.0

RX path

-18.0

22.0

58 8TX path -40.0 -40.0 -40.0 -40.0 -31.0

59 RX path -18.0 -18.0 -18.0 -18.0 22.0 22.0 22.0

A B CDEFGHIJKLM

65 Receiver performance

Power

splitter loss UL Tcc Power UL SNR

Absolute Signal

strength Noise Level Noise Figure

RX Gain

(DAC

word)

69 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

70 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

71 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

72 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

73 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

74 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

75 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

76 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

80 Transmitter Performance

82 P out Transceiver

Absolute

Sync Level

Power

(RMS)

Power

(peak)

Power at

antenna

(RMS)

Radiated

power

(RMS)

TX Gain

(DAC

word)

85 -80.0 36.0 45.49 30.0 48.0 200

86 -80.0 36.0 45.49 30.0 48.0 200

87 -80.0 36.0 45.49 30.0 48.0 200

88 -80.0 36.0 45.49 30.0 48.0 200

89 -80.0 36.0 45.49 30.0 48.0 200

90 -80.0 36.0 45.49 30.0 48.0 200

91 -80.0 36.0 45.49 30.0 48.0 200

92 -80.0 36.0 45.49 30.0 48.0 200

94 Power

deviation 0.0 0.0 0.0

Spreadsheet

Switch

Turn

one

at a

time

Cal Cable –40

Cables

AC power

Beamforming

Display

Drive Test

Tool

Attenuation

-40 dB

Attenuation

-30 to -40 dB

Laptop creating

traffic through

FTP or pinging

continuously

GPS

(not used)

DC power (cigarette lighter)

GPS

antenna

port

InternetInternet

EMS

Server

EMS Client (CAM)

A B C D EFGHIJKL

26 Cable and RFS performance

28 Cable Loss

29 Cable Low Mid High Avg. loss

30 1 -6.0 -6.0 -6.0 -6.0

31 2 -6.0 -6.0 -6.0 -6.0

32 3 -6.0 -6.0 -6.0 -6.0

33 4 -6.0 -6.0 -6.0 -6.0

34 5 -6.0 -6.0 -6.0 -6.0

35 6 -6.0 -6.0 -6.0 -6.0

36 7 -6.0 -6.0 -6.0 -6.0

37 8 -6.0 -6.0 -6.0 -6.0

38 cal -6.0 -6.0 -6.0 -6.0

41 Insertion loss thru cal cable and RFS

Cal path loss

LNA gain

43 Low Mid High Average (calculated) (calculated)

TX path

-40.0

-31.0

45 RX path -18.0 -18.0 -18.0 -18.0 22.0 22.0 22.0

46 2TX path -40.0 -40.0 -40.0 -40.0 -31.0

RX path

-18.0

22.0

48 3TX path -40.0 -40.0 -40.0 -40.0 -31.0

RX path

-18.0

22.0

TX path

-40.0

-31.0

51 RX path -18.0 -18.0 -18.0 -18.0 22.0 22.0 22.0

TX path

-40.0

-31.0

53 RX path -18.0 -18.0 -18.0 -18.0 22.0 22.0 22.0

54 6TX path -40.0 -40.0 -40.0 -40.0 -31.0

RX path

-18.0

22.0

56 7TX path -40.0 -40.0 -40.0 -40.0 -31.0

RX path

-18.0

22.0

58 8TX path -40.0 -40.0 -40.0 -40.0 -31.0

59 RX path -18.0 -18.0 -18.0 -18.0 22.0 22.0 22.0

A B CDEFGHIJKLM

65 Receiver performance

Power

splitter loss UL Tcc Power UL SNR

Absolute Signal

strength Noise Level Noise Figure

RX Gain

(DAC

word)

69 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

70 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

71 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

72 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

73 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

74 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

75 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

76 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

80 Transmitter Performance

82 P out Transceiver

Absolute

Sync Level

Power

(RMS)

Power

(peak)

Power at

antenna

(RMS)

Radiated

power

(RMS)

TX Gain

(DAC

word)

85 -80.0 36.0 45.49 30.0 48.0 200

86 -80.0 36.0 45.49 30.0 48.0 200

87 -80.0 36.0 45.49 30.0 48.0 200

88 -80.0 36.0 45.49 30.0 48.0 200

89 -80.0 36.0 45.49 30.0 48.0 200

90 -80.0 36.0 45.49 30.0 48.0 200

91 -80.0 36.0 45.49 30.0 48.0 200

92 -80.0 36.0 45.49 30.0 48.0 200

94 Power

deviation 0.0 0.0 0.0

A B C D EFGHIJKL

26 Cable and RFS performance

28 Cable Loss

29 Cable Low Mid High Avg. loss

30 1 -6.0 -6.0 -6.0 -6.0

31 2 -6.0 -6.0 -6.0 -6.0

32 3 -6.0 -6.0 -6.0 -6.0

33 4 -6.0 -6.0 -6.0 -6.0

34 5 -6.0 -6.0 -6.0 -6.0

35 6 -6.0 -6.0 -6.0 -6.0

36 7 -6.0 -6.0 -6.0 -6.0

37 8 -6.0 -6.0 -6.0 -6.0

38 cal -6.0 -6.0 -6.0 -6.0

41 Insertion loss thru cal cable and RFS

Cal path loss

LNA gain

43 Low Mid High Average (calculated) (calculated)

TX path

-40.0

-31.0

45 RX path -18.0 -18.0 -18.0 -18.0 22.0 22.0 22.0

46 2TX path -40.0 -40.0 -40.0 -40.0 -31.0

RX path

-18.0

22.0

48 3TX path -40.0 -40.0 -40.0 -40.0 -31.0

RX path

-18.0

22.0

TX path

-40.0

-31.0

51 RX path -18.0 -18.0 -18.0 -18.0 22.0 22.0 22.0

TX path

-40.0

-31.0

53 RX path -18.0 -18.0 -18.0 -18.0 22.0 22.0 22.0

54 6TX path -40.0 -40.0 -40.0 -40.0 -31.0

RX path

-18.0

22.0

56 7TX path -40.0 -40.0 -40.0 -40.0 -31.0

RX path

-18.0

22.0

58 8TX path -40.0 -40.0 -40.0 -40.0 -31.0

59 RX path -18.0 -18.0 -18.0 -18.0 22.0 22.0 22.0

A B CDEFGHIJKLM

65 Receiver performance

Power

splitter loss UL Tcc Power UL SNR

Absolute Signal

strength Noise Level Noise Figure

RX Gain

(DAC

word)

69 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

70 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

71 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

72 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

73 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

74 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

75 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

76 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

80 Transmitter Performance

82 P out Transceiver

Absolute

Sync Level

Power

(RMS)

Power

(peak)

Power at

antenna

(RMS)

Radiated

power

(RMS)

TX Gain

(DAC

word)

85 -80.0 36.0 45.49 30.0 48.0 200

86 -80.0 36.0 45.49 30.0 48.0 200

87 -80.0 36.0 45.49 30.0 48.0 200

88 -80.0 36.0 45.49 30.0 48.0 200

89 -80.0 36.0 45.49 30.0 48.0 200

90 -80.0 36.0 45.49 30.0 48.0 200

91 -80.0 36.0 45.49 30.0 48.0 200

92 -80.0 36.0 45.49 30.0 48.0 200

94 Power

deviation 0.0 0.0 0.0

Spreadsheet

Switch

Turn

one

at a

time

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 245

October 23, 2003

Step 5. Connect approximately 20-40 dB of attenuation to the end of the calibration cable.

Connect a 3-6 ft RF cable to the other end of the attenuation. Connect the

remaining attenuation to the end of that cable. Connect the attenuators to the

Navini Drive Test box.

Step 6. Put the Drive Test box as far away from the Base Station as possible. Terminate

the GPS connector. Calculate the path loss from the Drive Test box to the Cal

cable. In the EMS disable carriers 1-2, 3-4, and 9-10, leaving 5-6 and 7-8 enabled.

Also verify that the ACC for 5-6 is selected. This is found by clicking on the BTS

tab, highlighting the specific BTS, then selecting Air Interface > Layer 2 >

Carrier data. Refer to Figure V2.

Step 7. Disable all PAs except PA #1.

Step 8. From the Beamforming, verify that the Receive Sync from the Drive Test Tool is

approximately –80 dBm. If not, adjust the value of the attenuators accordingly.

Step 9. Start an upload of a large file or ping continuously with packets 3,000 bytes or

greater. You need to acquire at least 20 code channels in one sub-carrier. If the

number of code channels is less than 20, start an additional ping sessions.

ping <ip_address> –l 3200 –t

Step 10. Capture the following parameters from the BTS Beam-forming display. Refer to

Figure V3:

Downlink: SYNC Recv Sgl Strength (dBm)

Uplink: SNR (dB)

Uplink: TCC Recv Sgl Strength (dBm)

Step 11. Capture the same parameters as in Step 10 for each of the remaining PAs, one by

one. That is, with PA #2 turned on and all other PAs turned off ; then with PA #3

turned on and all other PAs turned off; etc.

Step 12. Use the spreadsheet and input all the captured parameters to calculate the Tx

power and Noise figure.

Step 13. Measure and record attenuation value.

Ripwave Base Station I&C Guide Navini Networks, Inc.

246 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Figure V3: BTS Beamforming Display Window

Other Parameters to Capture

The following parameters should also be captured:

?? Calibration Sensitivity (set in EMS)

?? Path Loss (to be measured)

?? Cal Cable Loss (set in EMS)

?? Power Splitter Loss (set in EMS)

SYNC Recv Sgl Strength (dBm)

Number of channels

assigned to TCC

Number of channels

assigned to TCC

SNR (dB)

TCC Recv Sgl Strength (dBm)

SNR (dB)

TCC Recv Sgl Strength (dBm)

SYNC Recv Sgl Strength (dBm)

Number of channels

assigned to TCC

Number of channels

assigned to TCC

SNR (dB)

TCC Recv Sgl Strength (dBm)

SNR (dB)

TCC Recv Sgl Strength (dBm)

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 247

October 23, 2003

Results

Using the Base Station Calibration Verification form (Figure V4), submit your results to Navini

Networks for evaluation and sign-off.

Figure V4: Base Station Calibration Verification Form

A B C D EFGHI

2General information Data input by user

4Date 9/28/2003

5Site Name

6BTS ID

7Frequency (MHz)

8Software release

9Personnel

12 Cal cable loss

-6.0

13 Attenuation

70.0

14 Total Path loss

-76.0

15 RX sensitivity (set in EMS)

-90.0

Antenna power (in EMS)

30.0

17 Antenna gain

18.0

A B C D EFGHIJKL

26 Cable and RFS performance

28 Cable Loss

Cable

Low

Mid

High

Avg. loss

30 1 -6.0 -6.0 -6.0 -6.0

31 2 -6.0 -6.0 -6.0 -6.0

32 3 -6.0 -6.0 -6.0 -6.0

33 4 -6.0 -6.0 -6.0 -6.0

34 5 -6.0 -6.0 -6.0 -6.0

35 6 -6.0 -6.0 -6.0 -6.0

36 7 -6.0 -6.0 -6.0 -6.0

37 8 -6.0 -6.0 -6.0 -6.0

38 cal -6.0 -6.0 -6.0 -6.0

41 Insertion loss thru cal cable and RFS

42 Cal path loss LNA gain

43 Low Mid High Average (calculated) (calculated)

44 1TX path -40.0 -40.0 -40.0 -40.0 -31.0

RX path

-18.0

22.0

TX path

-40.0

-31.0

RX path

-18.0

22.0

TX path

-40.0

-31.0

49 RX path -18.0 -18.0 -18.0 -18.0 22.0 22.0 22.0

50 4TX path -40.0 -40.0 -40.0 -40.0 -31.0

51 RX path -18.0 -18.0 -18.0 -18.0 22.0 22.0 22.0

TX path

-40.0

-31.0

RX path

-18.0

22.0

TX path

-40.0

-31.0

55 RX path -18.0 -18.0 -18.0 -18.0 22.0 22.0 22.0

56 7TX path -40.0 -40.0 -40.0 -40.0 -31.0

57 RX path -18.0 -18.0 -18.0 -18.0 22.0 22.0 22.0

TX path

-40.0

-31.0

RX path

-18.0

22.0

Ripwave Base Station I&C Guide Navini Networks, Inc.

248 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Test Form Instructions

These instructions explain how and what to enter into the Base Station Calibration Verification

spreadsheet, as well as define each cell’s function. The cells that need an entry are shown in

green on the spreadsheet. This document and form are to be used in conjunction with the Base

Station Installation & commissioning Guide P/N 40-00047-00.

I. Section 1: General Information

A. Date (D4)

Excel will enter the current date.

B. SITE NAME (D5)

Enter site name or customer designation.

C. BTS ID (D6)

Enter BTS identification number or customer description.

D. Frequency (D7)

Enter the system operating frequency that the customer has determined to use.

E. Software Release (D8)

Enter the release number of the software load being used.

F. Name (D9)

Enter your name.

G. Cal cable loss (D12)

Excel will enter averaged value of calibration cable loss from cell E38.

A B C D EFGHIJKLM

65 Receiver performance

Power

splitter loss

UL Tcc Power UL SNR

Absolute Signal

strength

Noise Level Noise Figure

RX Gain

(DAC

word)

69 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

70 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

71 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

72 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

73 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

74 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

75 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

76 0.0316 -8.00 12.00 -114.05 -126.05 5.95 145

80 Transmitter Performance

82 P out Transceiver

83 Absolute

Sync Level Power

(RMS) Power

(peak)

Power at

antenna

(RMS)

Radiated

power

(RMS)

TX Gain

(DAC

word)

85 -80.0 36.0 45.49 30.0 48.0 200

86 -80.0 36.0 45.49 30.0 48.0 200

87 -80.0 36.0 45.49 30.0 48.0 200

88 -80.0 36.0 45.49 30.0 48.0 200

89 -80.0 36.0 45.49 30.0 48.0 200

90 -80.0 36.0 45.49 30.0 48.0 200

91 -80.0 36.0 45.49 30.0 48.0 200

92 -80.0 36.0 45.49 30.0 48.0 200

94 Power

deviation

0.0 0.0 0.0

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 249

October 23, 2003

H. Attenuation (D13)

Enter the attenuation value inserted into calibration path.

I. Total Path loss (D14)

Excel will enter the calculated value of the total path loss.

J. Receiver sensitivity (in EMS) (D15)

Enter the same number entered in the EMS under Air Interface > Layer 1 > General

tab > RX sensitivity.

K. Antenna power (in EMS) (D16)

Enter the same number entered in the EMS under Air Interface > Layer 1 > General

tab > Antenna power.

L. Antenna gain (D17)

Enter gain value of antenna elements.

II. Section 2: Cable and RFS performance

A. Cable loss (B30-D38)

Enter the values measured during the cable sweeps. Include the minus sign on all

entries. Include jumpers and surge protectors.

B. Insertion loss through cal cable and RFS (C44-E59)

Enter values measured during the RF sweeps of the cables and the RFS. Include the

minus sign for all entries.

C. Cal path loss (calculated) (H44-H58)

Calculated value based on absolute loss measured during RF sweeps. The measured

cable loss for antenna 1 plus 3dB for inherent loss in RFS (internal cables and LNA

loss) is subtracted from the measured TX path loss to give absolute calibration path

loss. It is important to check this value to ensure that it does not exceed –45 dB.

D. LNA gain (calculated) (J45-L59)

Calculated value based on absolute loss measured during RF sweeps. The absolute

value of the difference between TX path loss and RX path loss equals LNA gain for

each antenna path.

III. Section 3: Receiver Performance

A. Power splitter loss (in EMS) (A69-A76)

Before calibrating, the script must have been run to enter the decimal values of the

calibration board loss for each path. Enter those same values here.

B. UL TCC power (C69-C76)

From Beamforming Display, enter the value from the "Tcc receive signal strength"

field. There should be only one carrier active. This is the relative power per code

channel, referenced to RX sensitivity, of that carrier, being received by the Base

Station.

C. UL SNR (E69-E76)

Enter the value from the Beamforming Display. This value can be found just above

the TCC value in the same carrier column.

D. Absolute Signal strength (G69-G76)

Calculated signal strength of the receive signal converted to 5 MHz BW. TCC power

per code channel is converted to absolute by adding RX sensitivity and then

subtracting spreading gain. Multiple antenna gain is then added to show receive

Ripwave Base Station I&C Guide Navini Networks, Inc.

250 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

signal strength at each antenna. (RX sensitivity + UL TCC power - 10*LOG10(320)

+ 9).

E. Noise level (I69-I76)

Calculated digital noise floor of the system measured in a 5 MHz BW.

F. Noise Figure (K69-K76)

Calculated by adding the spreading gain of the individual carriers back in and

subtracting the thermal noise floor (KTB) in a 500 KHz BW.

G. RX gain (DAC word) (M69-M76)

The data word generated during calibration for the receiver gain DAC that controls

the IF attenuator. It is found in the EMS under Air interface > Layer 1 > Show

configuration > Antenna tab.

IV. Section 4: Transmitter Performance

A. Analyzer Readings (A90-B97)

1. Peak

The peak amplitude of the sync signal measured on the spectrum analyzer.

The measurement is taken with the spectrum analyzer in the time domain (0

Hz span) and RBW set for 5 MHz. Sweep time is typically between 10 and 20

ms. When taking the measurement, the sync signal will have peaks and

valleys associated with it. Make sure to measure the absolute peak.

2. RMS

This is a calculated value based on measurements taken on several occasions,

comparing peak power to RMS power on a Rhode & Schwartz spectrum

analyzer. It has been determined that the correction factor for peak to average

on a standard spectrum analyzer is 9.5 dB. This correction factor is the default

entry in this section. If it is possible to make the RMS measurement with the

proper equipment then that is the preferred method. The calculation is very

straightforward: peak power minus 9.5 dB = Power RMS.

B. P out transceiver (D90-E97)

Power peak and Power RMS are calculated values using the value from the spectrum

analyzer readings and the value entered for coupler/test cable loss (Cell H31).

C. Power at antenna (RMS) (G90-G97)

Calculated value using the Output Power (Pout) of the transceivers and the Cable Loss

plus the inherent loss of the RFS.

D. Radiated Power (RMS) (I90-I97)

Calculated value using Power at the antenna and the value entered for antenna gain

(Cell H32).

E. TX Gain (DAC word)

The hex data generated during calibration for the transmit gain DAC that controls the

IF attenuator. This is found in the EMS under Air interface > Layer 1 > Show

configuration > Antenna tab.

F. Max power deviation across all antennae (E99, G99, I99)

Calculated value showing the deviation between the lowest power antenna and the

highest power antenna for each column.

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 251

October 23, 2003

Appendix W: Local Modem Tests

Objective

Local Wired Modem Testing (then Over-The-Air Modem Testing) will verify that the Base

Station is working and able to transmit and receive data. Data rates are not being checked at this

time. Refer to Figure W1 when setting up and performing the Wired Modem procedures.

Wired Modem Test

Equipment Required

?? Modem

?? PC - Laptop with CPE debug tool. Connect to CPE with an Ethernet cable

?? Attenuator - 70dB fixed attenuation, plus 40 adjustable range with 1dB resolution

(cascade multiple attenuators)

?? Shielding box - Need to provide 80 dB isolation. Shielding box may not be needed if

the Modem cannot sync to BTS over-the-air at the test location.

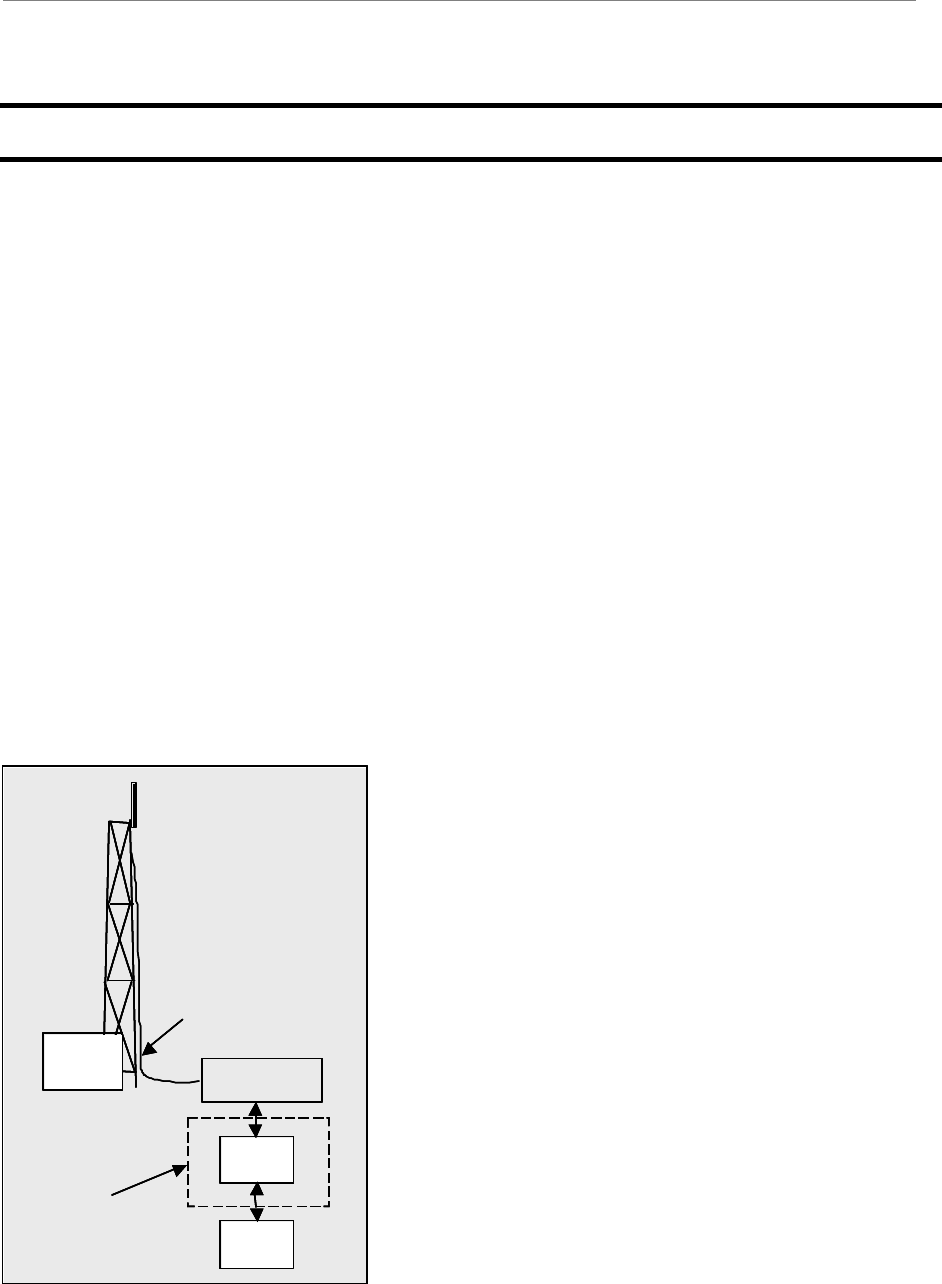

Figure W1: Wired Modem Setup

CPE

Attenuator

Shielding box

BTS

Calibration

cable

Modem

Attenuator

Shielding box

BTS

Calibration

cable

CPE

Attenuator

Shielding box

BTS

Calibration

cable

Modem

Attenuator

Shielding box

BTS

Calibration

cable

Modem

Attenuator

Shielding box

BTS

Calibration

cable

Ripwave Base Station I&C Guide Navini Networks, Inc.

252 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Equipment Settings

Part of the Test Procedures below.

Test Procedure Setup

Set up the test procedures, per the following.

Step 1. Calibrate the BTS and perform the Calibration Verification procedure.

Connect the Modem and the attenuators. The combined attenuation should be set roughly as

follows:

Total attenuation = PTX - 30 + 18 – Cal cable loss + 80

Where PTX is the Tx output power at antenna input port that is set in EMS during

calibration. Cal cable loss is the loss of the calibration cable.

The total attenuation should be partitioned between fixed and adjustable attenuators in

such a way that the adjustable attenuator is set to about 10 dB.

Disconnect the calibration cable from the back of the BTS shelf and connect it to the attenuator

as shown in the drawing

Ping the BTS continuously from the Modem.

Check the sync level at the CPE debug tool. The level should be about –80 dBm.

Test Procedure - Check Modem Sensitivity & Output Power

Follow the steps in the procedure below.

Step 1. Record the downlink TCC power level and SNR reading on the CPE debug tool.

Step 2. Calculate the effective noise floor: NF= SNRTCC – LevelTCC.

Where SNRTCC is the TCC SNR and LevelTCC is the received downlink TCC level.

NF should be close to –127 ±5.

Step 3. Check Modem output power cap difference. It should be greater than 0.

Step 4. Increase the attenuation by 10 dB (increase the attenuation of the adjustable

attenuator).

Step 5. Measure the effective noise floor and the output power cap difference gain.

Step 6. Increase the attenuation by another 10 dB and take the measurements again (if the link

is broken when the attenuation increases 10 dB, back off the attenuation by 10 dB and

then increase the attenuation with 1 dB steps until the link is broken. Then reduce the

attenuation by 4 dB).

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 253

October 23, 2003

Step 7. Calculate the maximum path allowed as follows:

Max loss = Attenuation total + Cal cable loss + 30

Where Attenuation total is the total attenuation of all attenuators (fixed + adjustable).

Test Procedure - Check BTS Sensitivity (Individual Antenna)

Step 1. Set the attenuation of the attenuator so the total attenuation is about

PTX – 30 – Cal cable loss + 80.

Step 2. Activate antenna #1 only.

Step 3. Record the uplink TCC power level and SNR reading on the BTS debug tool.

Step 4. Calculate the effective noise floor: NF = SNRTCC – LevelTCC.

Where SNRTCC is the TCC SNR and LevelTCC is the received downlink TCC level.

NF should be close to: SNR – BTS Sensitivity + 25 ±?5.

Where BTS sensitivity is the BTS sensitivity setting during calibration.

Step 5. Record the Modem output power.

Step 6. Increase the attenuation by 10 dB (increase the attenuation of the adjustable

attenuator).

Step 7. Measure BTS effective noise floor and Modem output power again.

Step 8. Increase the attenuation by another 10 dB and take the measurements again (if the link

is broken when the attenuation increases 10 dB, back off the attenuation by 10 dB and

then increase the attenuation with 1 dB steps until the link is broken. Then reduce the

attenuation by 4 dB. The same attenuation will be used for all antenna tests).

Step 9. Calculate the maximum path allowed as follows:

Max loss = Attenuation total + Cal cable loss + 30

Where Attenuation total is the total attenuation of all attenuators (fixed + adjustable).

Step 10. Repeat the steps for antennas 2 through 8.

Step 11. Average the Modem output power over antennas 1 through 8 for each attenuation

setting.

Test Procedure - Check BTS Sensitivity (Antenna Array)

Step 1. Set the initial attenuation the same as in the individual antenna testing procedure.

Step 2. Activate all antennas.

Step 3. Record the uplink TCC power level and SNR reading on BTS debug tool.

Ripwave Base Station I&C Guide Navini Networks, Inc.

254 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Step 4. Calculate the effective noise floor: NF = SNRTCC – LevelTCC.

Where SNRTCC is the TCC SNR and LevelTCC is the received uplink TCC level.

NF should be close to SNR – BTS Sensitivity + 25 ±?5.

Where BTS sensitivity is the BTS sensitivity setting during calibration.

Step 5. Record the CPE output power.

Step 6. Increase the attenuation by 10 dB (increase the attenuation of the adjustable

attenuator).

Step 7. Measure BTS effective noise floor and Modem output power again.

Step 8. Increase the attenuation by the same amount as in individual antenna tests and measure

the BTS effective noise floor and Modem output power.

Step 9. For each attenuation setting, the Modem output power should be 9 dB less compared to

those (average) in individual antenna tests.

Step 10. Increase the attenuation by another 18 dB. The link should be on.

Step 11. Calculate the maximum path allowed as follows:

Max loss = Attenuation total + Cal cable loss + 30

Where Attenuation total is the total attenuation of all attenuators (fixed + adjustable).

Test Procedure - Data Rate

Step 1. Set the attenuation of the attenuator so the total attenuation is about

PTX – 30 +18 – Cal cable loss + 80.

Step 2. Activate all antennas.

Step 3. FTP a file with size greater than 10 Mbps from Modem to BTS (uplink).

Step 4. Check the uplink data rate. It should be approximately 1 Mbps.

Step 5. FTP a file with size greater than 20 Mbps from BTS to Modem (downlink).

Step 6. Check the downlink data rate. It should be approximately 2 Mbps.

After the test is completed, reconnect the calibration cable back to the BTS and run the

calibration. The new calibration table should be the same as before (the changes in Tx and Rx

AGC should be within 2 bits).

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 255

October 23, 2003

Over-The-Air Modem Test

Equipment Required

Same as for Wired Modem Test.

Equipment Settings

Included in the Test Procedure.

Test Procedure

To set up a Modem for local over-the-air testing, follow the steps below.

Step 1. Connect a Modem to a test computer. Reference the Ripwave Modem User Guide, P/N

40-00026-00 for Modem setup procedures. The location of the test computer setup

needs to be close to the Base Station, within its coverage range.

Step 2. Ensure that the Modem is registered in the EMS. Refer to Ripwave Configuration

Guide for Modem registration procedures.

Step 3. Using FTP software, transfer a 2 Mb file over-the-air from the test computer to the

BTS. This is a system uplink transfer.

Step 4. Using FTP software, transfer a 10 Mb file over-the-air from the BTS to the test

computer. This is a system downlink transfer.

Step 5. Ensure that both files transferred during testing.

Ripwave Base Station I&C Guide Navini Networks, Inc.

256 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 257

October 23, 2003

Appendix X: Drive Study

Overview

The Drive Study is performed to confirm Base Station coverage. It is used to validate that the

Base Station can be “seen” by a Modem throughout its predicted coverage area.

The RF coverage analysis displays areas of coverage from “good” to “bad” by the use of color-

coding. An RF coverage analysis and its legend may be seen in Figure X1. The legend on the left

displays the decibel strength for a given area, with red designating ‘good coverage’ and white

designating ‘bad coverage’. The RF coverage analysis is used to map out the Drive Study route

(Figure X2), along with geographic areas of concern. You should pay particular attention to null

(white) areas and the cell edges.

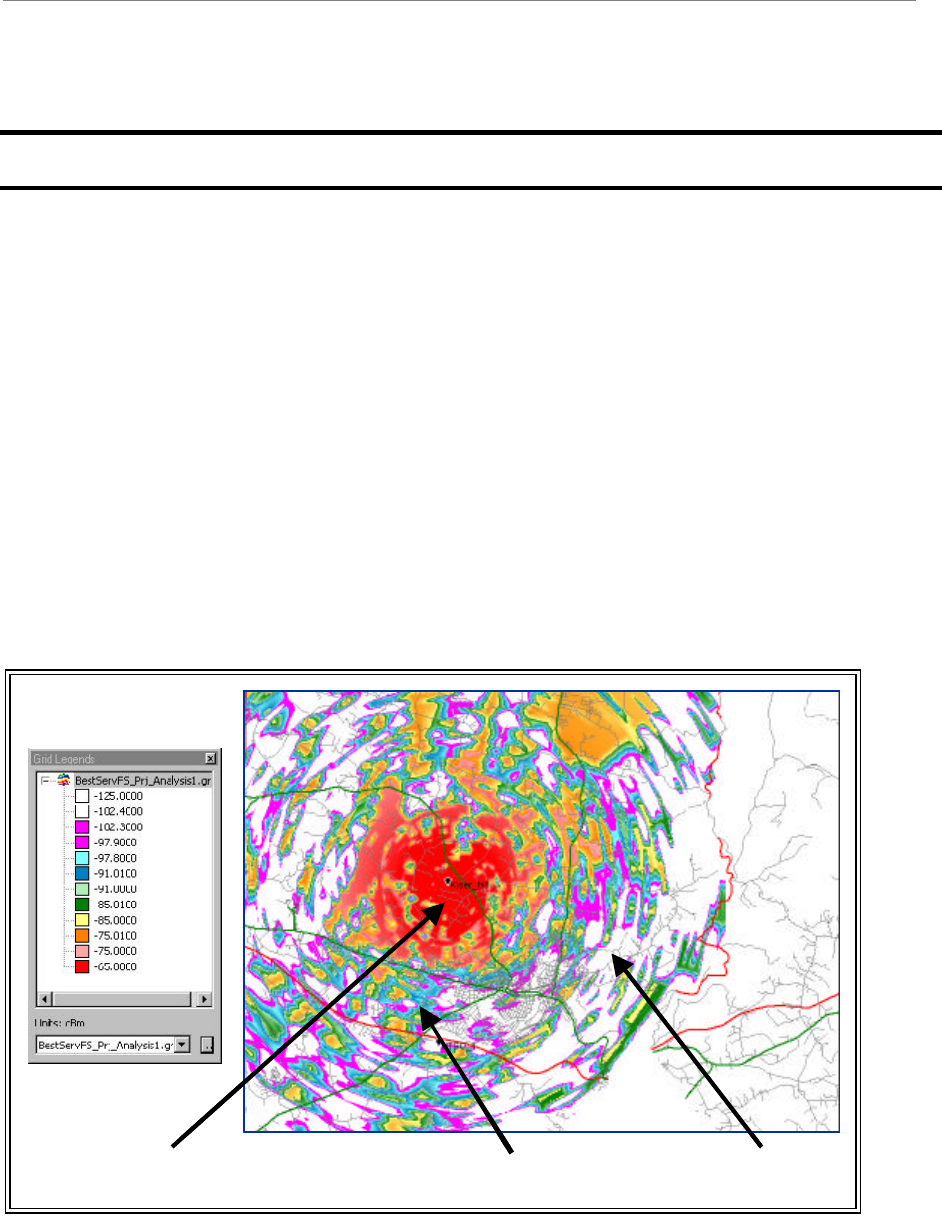

Figure X1: RF Coverage Analysis Example

Good coverage

area Medium

coverage area Bad coverage

area

Good coverage

area Medium

coverage area Bad coverage

area

Ripwave Base Station I&C Guide Navini Networks, Inc.

258 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

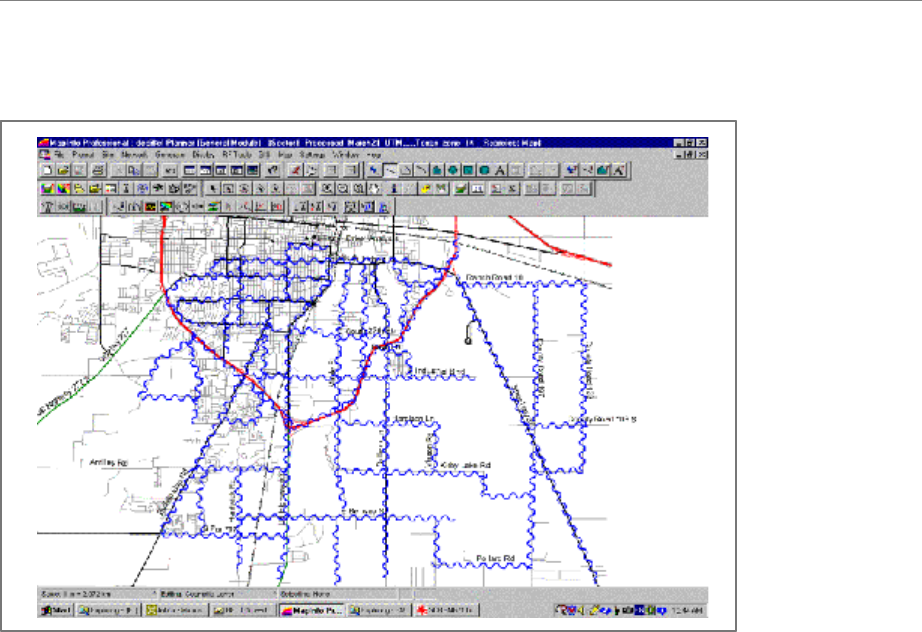

Figure X2: Drive Study Route Example

Equipment Required

?? Omni-directional antenna mounted outside vehicle

?? GPS with serial cable

?? Modem

?? Ethernet Cable

?? Modem power supply

?? DC to AC power converter

?? Laptop computer

?? Drive Study Form <shown later in this section>

Drive Test Procedure

While driving you will collect statistics to validate the coverage plot. The application takes a

reading every second and records the data in comma delimited file format. It is important to

ensure that the GPS is on and that you can see the GPS coordinates in the application.

Since the Ripwave system is not a mobile system, do not exceed 10 mph during the Drive Study.

Going any faster will negate the adaptive beamforming, as the vehicle will not be in the exact

position calculated by the Base Station.

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 259

October 23, 2003

Step 1. Ensure that the Base Station has successfully completed calibration and RF sanity

measurements at the frequency and TX/RX signal levels that were determined during

the site survey. Ensure that the Base Station is powered on and able to TX/RX data.

Step 2. Create a CPE Descriptor, and assign it to the Modems to be used for the Drive Study:

CPE Descriptor Parameters

Name: Drive Study

Index: Next available number

Priority: 1

UpLink Max Bandwidth: 64

UpLink Min Bandwidth: 32

DownLink Max Bandwidth: 96

DownLink Min Bandwidth: 64

Other parameters: Use defaults.

Step 3. Mount an omni-directional antenna on the roof of the vehicle. This will serve as the

antenna for the Modem.

Step 4. Bring the RF cable from the omni-directional antenna into the vehicle through the

window. Attach the antenna to the antenna input of the Modem. The rotating upright

antenna on the Modem needs to be removed to perform this step. You will also need to

disconnect the patch antennas inside (Figure X3).

Figure X3: Patch Antennas

Ripwave Base Station I&C Guide Navini Networks, Inc.

260 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Step 5. Connect the DC to AC power converter to the power port in the vehicle.

Step 6. If applicable, place the external antenna on the top of the vehicle.

Step 7. Connect the Modem power supply to the Modem and to the DC to AC power

converter.

Step 8. Connect the Ethernet cable to the Ethernet port on the laptop computer and to the

Ethernet port on the Modem.

Step 9. Connect the GPS to the serial port on the laptop computer.

Step 10. Optional: Connect the laptop power supply to the DC to AC power converter. (The

laptop can be run off of its battery.)

Step 11. Power on the GPS and the laptop computer.

Step 12. On the laptop computer, start the Navini Networks Drive Study application.

Step 13. Verify that the GPS location (latitude and longitude) and the GPS time are seen in the

application.

Step 14. Power on the Modem.

Step 15. Enter a memo into the log file comment field of the Constellation Debugger about the

route of the Drive Study being performed. When finished, click the log comment

button.

Step 16. Start driving along the Drive Study route determined during the RF coverage analysis.

Do not exceed 10 - 15 mph.

Step 17. When testing is completed, prepare the file(s) to be sent back to Navini for post-

processing and analysis.

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 261

October 23, 2003

Drive Study Form

Drive test area name

Date of Drive Test

Drive Tester Name

Standard Vehicle Name and Type

CPE EID

Frequency Band (ISM, MMDS)

CPE test device RF cable loss (dB)

CPE Test device Antenna gain (calibrated)

Drive Route (Map attached)

Drive test file name

BTS Transmit Power

BTS ID

BTS antenna height

BTS antenna Omni/Patch

Mounted on the top or side

Antenna Azimuth

Antenna downtilt

Drive Test Route Plan

Yes / No

Typical Clutter Height

High Density Urban Covered

Commercial/Industrial

Residential with Trees

Residential with Few Trees

Paved Areas

Grass/Agriculture

Open Area

Forested Areas

Water

Airports

Others

Things to pay attention to:

1. Make sure that the GPS data on the constellation debugger is updating all the time during the drive test.

2. Make sure that the antenna only selects the omni port all the time.

3. Make sure that the CPE is locked to the correct BTS by checking the BTS ID and frequency.

4. Make sure that the RF connections are good all the time. Check this by observing the stability of the RF signal strength in the LOS loca..

5. Please make proper log information in certain important locations.

Fill the site configuration

Navini Networks Drive Test Check list

Specify the following items before the drive test

Ripwave Base Station I&C Guide Navini Networks, Inc.

262 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 263

October 23, 2003

Appendix Y: Location (FTP) Tests

Introduction

The Location, or FTP, Test is performed to check the Ripwave system operation through file

transfers between the Base Station and the Modem. The test measures the data rate performance

at various locations within the coverage area. Data throughput is measured by executing file

transfers using the FTP protocol for both upstream and downstream links. A file server must be

in place on the same subnet with the BTS to accurately perform the file transfer, and the CPE

User computer must be loaded with an FTP Client. As the file transfer is running, a data file is

captured by the Modem tool. Data rates are captured by the FTP program.

Data is recorded in a spreadsheet format. The spreadsheet lists the location, GPS, and other

information. As data rates are captured, the results are entered manually. An average SNR and

sync RSSI can be read from the debug tool, and recorded, for quick comparison to the acceptable

criteria (see “Acceptable Criteria” section of this appendix). For NLOS indoor locations, tests are

performed both outside the building and inside, so that the obstruction loss for the building can

be determined. Unless the customer can provide indoor access, all results will be LOS or Near

NLOS.

Planning the Locations

Before the actual testing is conducted, you will need to select the locations for the testing to

occur. The sites should meet specific criteria and include a mixture of the following

environments:

?? High Power (A), low clutter; close in, residential

?? High Power (A), high clutter; close in, commercial

?? Medium Power (B), low clutter; mid-range, residential

?? Medium Power (B), high clutter; mid-range, commercial

?? Low Power (C), low clutter; distant, residential

?? Lower Power (C), high clutter; distant, commercial

Where:

(A) High Power = Sync Value greater than –70 dBm

(B) Medium Power = Sync Value between –70 dBm and –85 dBm

Ripwave Base Station I&C Guide Navini Networks, Inc.

264 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

At least 5 test points for each type are attempted. This may be difficult, depending upon the

actual deployment scenario. Results may yield a very large percentage in one of the categories.

For selecting an even spread across a 120-degree sector for a panel antenna installation, divide

the 120 degrees into 6 even slices of 20 degrees each. Then divide each slice into 2 Km

segments. This spaces each location at an approximate even distance throughout the complete

sector and yields 36 test sites.

To select an even spread across a 360-degree cell for an omni antenna installation, divide the

360-degree cell into 12 even slices of 30 degrees each. Next, divide each slice into segments

based on distance (1 Km or 2 Km, depending upon propagation). This will approximately space

each location an even distance from each other throughout the complete cell, yielding

approximately 48 test sites (based on a 4 Km cell radius). To do this, split the cell into 4

quadrants. Using the RF coverage analysis, select up to 16 locations per quadrant (Figure H1).

Pay particular attention to null areas and the cell edges. At these locations you will perform a file

transfer to measure the data rates available. The FTP/Location Test Tool program and the BTS

Beamforming Display tool will be used to record RF parameters during each test. Figures Y1 and

Y2 provide examples of simple guidelines for selecting an even spread across a cell area.

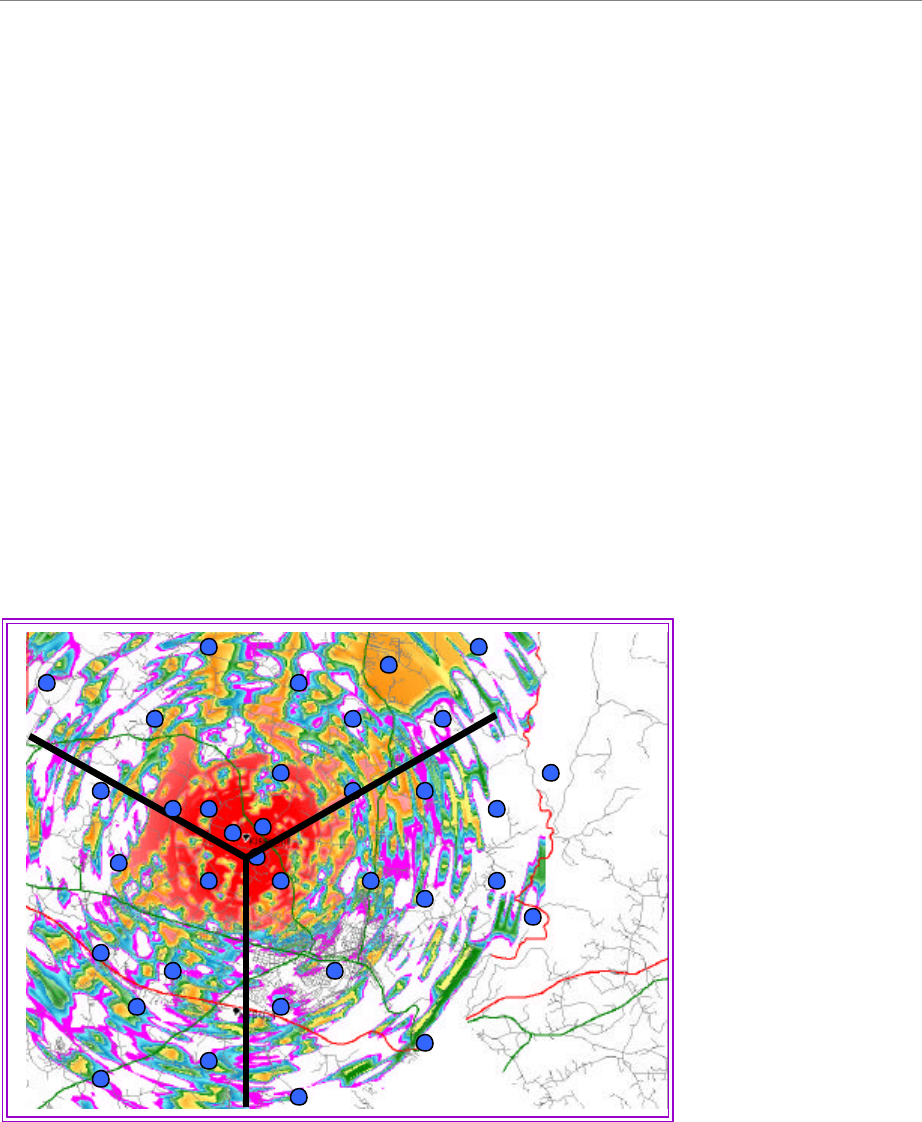

Figure Y1: Example of a 3-sector Site

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 265

October 23, 2003

Figure Y2: Example of 120° of an Omni Site

Acceptable Criteria

In order to evaluate the test results, several criteria are reviewed. These criteria are valid for both

LOS and NLOS measurements.

?? Processed Sync Signal Strength: For a given test location, ± 2 dB variation during FTP

?? Absolute Sync Signal Strength – Processed Sync Signal Strength: not greater than 2 dB

variation during FTP

?? SNR values consistent during the FTP for all carriers used:

a. QPSK: at least 11 dB

b. 8 PSK: at least 14 dB

c. QAM16: at least 17 dB

?? UL and DL Packet Error Rates (PER) not greater than 1%. This will vary according to

interference levels, but may not render the system inoperable.

?? Uplink Beamforming Gain: between 16 dB and 21 dB. Perform a comparison of UL and DL,

Beamforming Gain differences should be not greater than 3 dB.

C D

Ripwave Base Station I&C Guide Navini Networks, Inc.

266 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

?? Modem Transmit Power < 25 dBm; BTS Transmit Power < 0 dBm per code channel with

power control

?? Sync vs. Data Rate:

Absolute Sync (dBm) UL Data Rate (Mbps) DL Data Rate (Mbps)

(A) –55 to –70 0.6 to 1.0 1.5 to 2.0

(B) –70 to –85 0.5 to 1.0 1.2 to 2.0

Process

The recommended process for performing the Location (FTP) tests is described below.

First: Verify that a single Modem transmits and receives data at expected rates, as indicated

previously.

Second: Verify that multiple Modems simultaneously transmit and receive data at acceptable

rates, and the parameters listed above are being met. NOTE: The exact number of Modems is

determined by field conditions. The minimum is two.

Third: Verify operation at the full range of the system*. Include LOS Location Tests at cell

edges. The height of Modem and uplink and downlink data rates are recorded for each site. Data

rates are to be compared with expected results, as seen in the last item (Sync vs. Data Rate) of

Acceptance Criteria. For example:

*2.6 GHz : ~12 Km

*2.4 GHz: ~ 3 Km

Equipment Required

?? Laptop computer

?? GPS with serial cable

?? FTP/Location Test Tool application

?? BTS Beamforming diagnostic tool

?? Modem

?? Modem power supply

?? DC to AC power converter

?? Ethernet Cable

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 267

October 23, 2003

Location (FTP) Test Procedure

Two people are needed to perform this procedure. One will be in the car performing the location

test, and the other will be at the Base Station checking the operation using the BTS Beamforming

diagnostic tool.

1. Ensure that the Base Station has successfully completed calibration, RF sanity

measurements, and the Drive Study at the frequency and TX/RX signal levels that were

determined by the cell site survey. Also ensure that the Base Station is powered on and is

able to transmit and receive data.

2. Connect the DC to AC power converter to the power port in the vehicle.

3. Connect the Modem power supply to the CPE and to the DC to AC power converter.

4. Connect the Ethernet cable to the Ethernet port on the laptop computer and to the Ethernet

port on the Modem.

5. Connect the GPS to the serial port on the laptop computer.

6. Drive to one of the locations selected on the RF coverage analysis. Stop and turn off the

vehicle.

7. Power on the GPS, the Modem, and the laptop computer. Place the Modem on the roof of the

vehicle.

8. Start the Navini Networks FTP/Location Test Tool program.

9. Verify that the Base Station is transmitting and that the Modem establishes sync and can

communicate with the Base Station. Ping a device address on the network side of the Base

Station, and verify that a reply is received. While monitoring the Constellation Debugger,

position the Modem to reduce the difference between absolute sync and processed sync

levels to 2 or less.

10. Enter a memo into the comment field about which link of the test is being performed.

11. Verify that the GPS input is seen in the application.

12. Put the location number/site identifier into the comment field of the Navini Networks

Constellation Debugger, and press the Enter key. This will identify the site location.

13. On the EMS connected to the Base Station, start the BTS Beamforming diagnostic tool.

14. From the laptop computer with the Modem connected to it, start a downlink FTP file transfer.

Record the results on the site page or in the log.

15. On the EMS connected to the Base Station, using the BTS Beamforming diagnostic tool

verify the strength and direction of the beam during the file transfer. Record the results on the

site page or in the log.

16. Repeat the file transfer three times, stopping and starting the Debugger and Beamforming

tool for each transfer

17. Repeat steps 14-15, this time performing an uplink FTP transfer.

Ripwave Base Station I&C Guide Navini Networks, Inc.

268 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

18. When finished, remove the Modem from the roof and secure equipment for travel.

19. Drive to the next location selected on the RF coverage analysis. Stop, and turn off the

vehicle.

20. Repeat steps 7 to 19 until all locations are tested. At this point send this data to the RF

Engineers to analyze, or continue until each quadrant in the cell is complete. When you send

the results depends upon the schedule or results from the file transfers.

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 269

October 23, 2003

Location (FTP) Test Form

The form for recording the Location (FTP) test results is an Excel spreadsheet. Shown in Table

Y1, the actual column headers go across the top of the form, but are broken into two sections

here for readability.

Table Y1: Location (FTP) Test Form

BTS ID Sector Software Release

Site name File name; CPE File name; BTS

Distance

(Km) LOS NLOS CPE

CPE w/

ext

FTP Data Rate

Downlink

(Kbps)

FTP Data

Rate Uplink

(Kbps)

Absolute

Sync (dB) Remarks

0 0

288

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

00.2 0.4 0.6 0.8 1

distance Km

data rate Mbps

Downlink

Uplink

Ripwave Base Station I&C Guide Navini Networks, Inc.

270 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 271

October 23, 2003

Appendix Z: Site Installation Close-out Documentation

List of Documents

When performing a Ripwave Base Station installation, a number of tasks and forms are

completed during the process. The following is a list and a brief description of each of the

closing documents that are either required or optional for completing the Customer Acceptance

of the system once it is commissioned. If the item is designated as REQUIRED it must be sent

back to Navini Technical Services. If a required document cannot be obtained, you must retain

approval in advance from the Manager, Navini Technical Services.

_____ 1. Customer Contact List. REQUIRED (Project Manager & Customer)

_____ 2. Site Candidate Evaluation Form. REQUIRED Drawings/pictures from site.

_____ 3. Drive Instructions & Map to location. REQUIRED

_____ 4. Network Diagram. Optional.

_____ 5. Antenna Power and Cable Selection REQUIRED

_____ 6. Bill of Materials (BoM). REQUIRED This is a list of the physical materials

and their associated quantities that are used to build the site. This list includes

but is not limited to RF cable type and size, RF cable connectors, grounding,

racks, power supplies, RF cable hangers, RFS mounts, and so forth.

_____ 7. Excel Configuration Forms. REQUIRED These forms are created in Excel

spreadsheets and used to plan the system configuration parameters that must be

in place as part of the installation and commissioning of the system. The forms

are filled out according to how the EMS, BTS, Modems, and Global Parameters

are to be configured for this customer site.

_____ 8. RF Plot REQUIRED

_____ 9. Interference Data. Optional.

_____ 10. Interference Analysis Report. REQUIRED if Interfere Data Collected (RF

Planning)

Above information is required before departing to site

_____ 11. RFS System Test Form. REQUIRED This form contains the data that is

captured during the RF sweeps on the Ripwave RFS antenna and RF cables.

_____ 12. Base Station Installation Certification Form. REQUIRED This form

represents the close of a key milestone, the physical installation of the BTS and

RFS. It includes RFS antenna height, azimuth, downtilt, grounding,

weatherproofing, and other information about the site.

_____ 13. Export BTS Data. REQUIRED This is not a form that needs to be completed;

rather, it is data that is captured from the EMS once the Base Station and

Modems have been provisioned. This step should be completed prior to the

Drive Study, and then again prior to the Location (FTP) tests.

Ripwave Base Station I&C Guide Navini Networks, Inc.

272 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

_____ 14. Export EMS Data. REQUIRED

_____ 15. Export CpeDescriptors (all). Optional.

_____ 16. Base Station Calibration Verification Form. REQUIRED Calibration

Verification is sometimes referred to as the Sanity Test. The form contains the

operational results of the Base Station transmit and receive tests after the

physical installation has been completed and the BTS has been turned on.

_____ 17. Drive Study Form & Data. REQUIRED Also referred to as Drive Test. The

form contains results of driving the coverage area of the installed Base Station

site and capturing sync data on a laptop. The information is provided to Navini

Networks to help tune the RF coverage model. Need Data Constellation Display.

_____ 18. RF Plot Tuned Model. REQUIRED

_____ 19. Location (FTP) Test Form. REQUIRED This form contains data rate

information that is captured during RF throughput testing. The data is captured

at both the EMS and at the Modem location on a laptop. The number of points to

capture is determined by Navini Networks and the customer. Need BTS

Beamforming and Constellation Display.

_____ 20. RMAs. REQUIRED if replaced cards from original shipment

_____ 21. Backup of Customer Deployed EMS Server. REQUIRED

List of Pictures

The following is a list and description of the REQUIRED pictures that Navini Networks

recommends capturing during the installation project. Additional pictures are acceptable.

_____ 1. RFS antenna mounted on the tower or rooftop

_____ 2. Weatherproofed connectors on the back of the RFS antenna

_____ 3. Cable Bend radius on the tower to the RFS

_____ 4. Jumper cable to RF main feeder connections weatherproofed

_____ 5. RF cable strap ground kit installation in all places as required for installation. RF

main feeder runs.

_____ 6. Lower buss bar with lightning protectors (weatherproofed if outside the shelter)

_____ 7. Main feeder to BTS jumper connections

_____ 8. BTS jumper connections to BTS

_____ 9. RFS antenna grounding connections

_____ 10. BTS grounding connections at BTS and buss bar

_____ 11. Power connections to the BTS

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 273

October 23, 2003

_____ 12. BTS split chassis cabling

_____ 13. Ground connections to earth ground or building steel

_____ 14. Tower or mount connections to ground

Checklist

This checklist should be completed and sent to Navini Networks along with the forms and data.

Closeout Documents Completed Date File Name

Customer Contact List

2. Site Candidate Evaluation Form completed

3. Drive Instructions & Map

4. Network Diagram (optional)

5. Antenna Power & Cable Selection

6. Bill of Materials

7. Excel Configuration Forms

8. RF Plot

9. Interference Data (optional)

10.

Interference Analysis Report

11.

RFS System Test Form

12.

Base Station Installation Certification Form

13.

Exported BTS Data

14.

Exported EMS Data

15.

Exported CPE Descriptor Data (optional)

16.

Base Station Calibration Verification Form

17.

Drive Study Form & Data

18.

RF Plot Tuned Model

19.

Location (FTP) Test Form

20.

RMAs

21.

Backup from EMS

Closeout Pictures Completed Date File Name

RFS mounted

2. Weatherproofed connectors on RFS

3. Cable Bend radius

4. Jumper cable to RF main feeder

5. Cable ground kits if needed

6. Shelter bus bar with lightning arrestors

7. Main feeder to BTS jumpers

8. BTS Jumpers to BTS

9. RFS grounded

10.

BTS grounding at BTS/buss bar

Ripwave Base Station I&C Guide Navini Networks, Inc.

274 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

11.

Power connected to BTS

12.

Split chassis cabling

13.

Ground connections to earth ground

14.

Tower or mount connections to ground

Navini Networks, Inc. Ripwave Base Station I&C Guide

Part #40-00047-00 Rev F v1.0 (TTA) 275

October 23, 2003

Appendix AA: Customer Acceptance Form

Base Station Installation & Commissioning Services

Customer Acceptance Form

Customer Name:

Customer’s Authorized Representative:

Job Title:

Office Address:

Email Address:

Office Phone:

Cell Phone or Pager:

Site Name:

Site Description: ________

Site Physical Address:

INSTALLATION SECTION:

Date Installation Started: Completed: ________

Customer Acceptance By: _____________________ Title: ________________Date:

__________

COMMISSIONING SECTION:

Date Commissioning Started: Completed: _________

Customer Acceptance By: _____________________ Title: ________________Date:

______________________________

TEST ACCEPTANCE SECTION:

Date Testing Started: Completed:

Customer Acceptance By: _____________________ Title: ________________Date: ______________________________

Ripwave Base Station I&C Guide Navini Networks, Inc.

276 Part #40-00047-00 Rev F v1.0 (TTA)

October 23, 2003

This Customer Acceptance Form is subject to and governed by all of the terms and conditions set

forth in the Master Supply Agreement between the parties. The Customer acknowledges,

understands and agrees that when it’s Authorized Representative signs-off the Test Acceptance

Section of this Form, Customer has thoroughly inspected the installation and commissioning

services, and Customer’s sign-off means that completion of on-site verification that the

Equipment installed by Seller performs in accordance with the Acceptance Criteria set forth in

the Master Supply Agreement between the parties. The completed Navini Networks’ Site

Installation and Commissioning Documents referenced below and attached hereto are

incorporated by reference into this Customer Acceptance Form for all purposes.

Navini Networks Site Installation and Commissioning Documents (double-click on the box to

check or de-select a checkmark when completing the form):

Site Candidate Evaluation Report

Site Materials BoM

Site Drawings

Site Construction Specific Tests, as required – Grounding System Test Results, Concrete

Break Test Results, Tower Guy Tensioning Test Results, etc.

Site Specific Digital Photographs, as Required

RFS System Tests

Base Station Installation Certification

Base Station Calibration Verification

Location (FTP) Tests

Drive Studies

Coverage Predictions Maps

Soft Copies of Test Results, if Requested

Cisco Systems ISM-BTS-R2 ISM band BTS with 17 dBi Panel Antenna User Manual Appendix Pt 2 40 00047 09 F I C TTA

Cisco Systems, Inc ISM band BTS with 17 dBi Panel Antenna Appendix Pt 2 40 00047 09 F I C TTA

Contents

Appendix 2

Navigation menu

Namespaces

Views

Navigation
