Cisco Systems MMDS-CPE-R1 MDS Response Station User Manual CPE 2 6 Installation Manual
Cisco Systems, Inc MDS Response Station CPE 2 6 Installation Manual
Manual
Ripwave
2.6 GHz
User Guide
For Windows® 95 or later
Note: This User Guide is for Beta Users only. The contents are
subject to change at any time during the Beta test.
Version 1.0.1 Part number 40-00026-00
Produce Release 1.13 Revision B
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
i
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
TABLE OF CONTENTS
PERMISSIONS, TRADEMARKS, AND DISTRIBUTION.......................................VI
REGULATORY INFORMATION ............................................................................. VII
SAFETY........................................................................................................................VIII
INTRODUCTION............................................................................................................. 1
RIPWAVE UNIT INSTALLATION............................................................................... 2
USB connections................................................................................................................ 2
Ethernet connections ........................................................................................................ 7

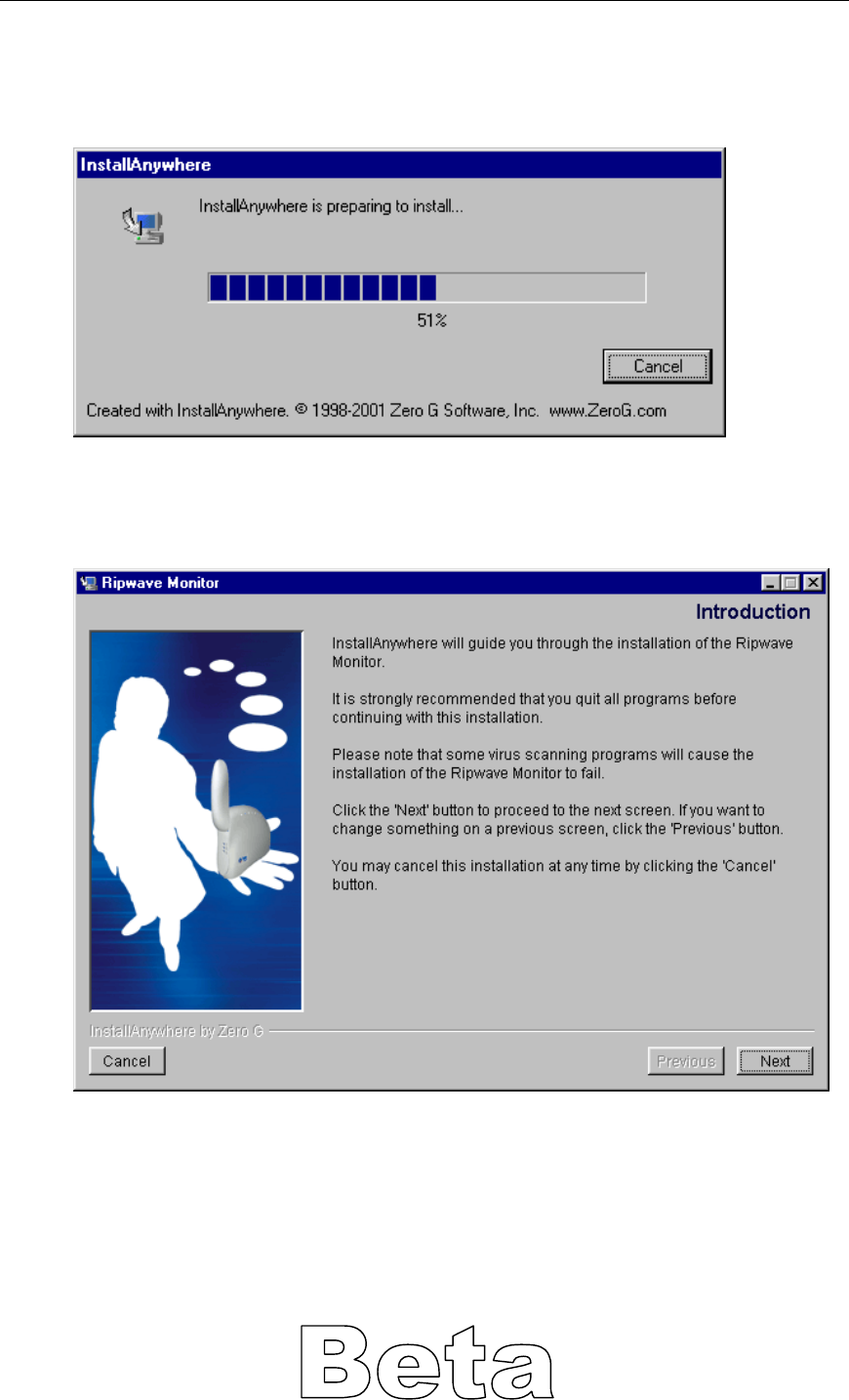

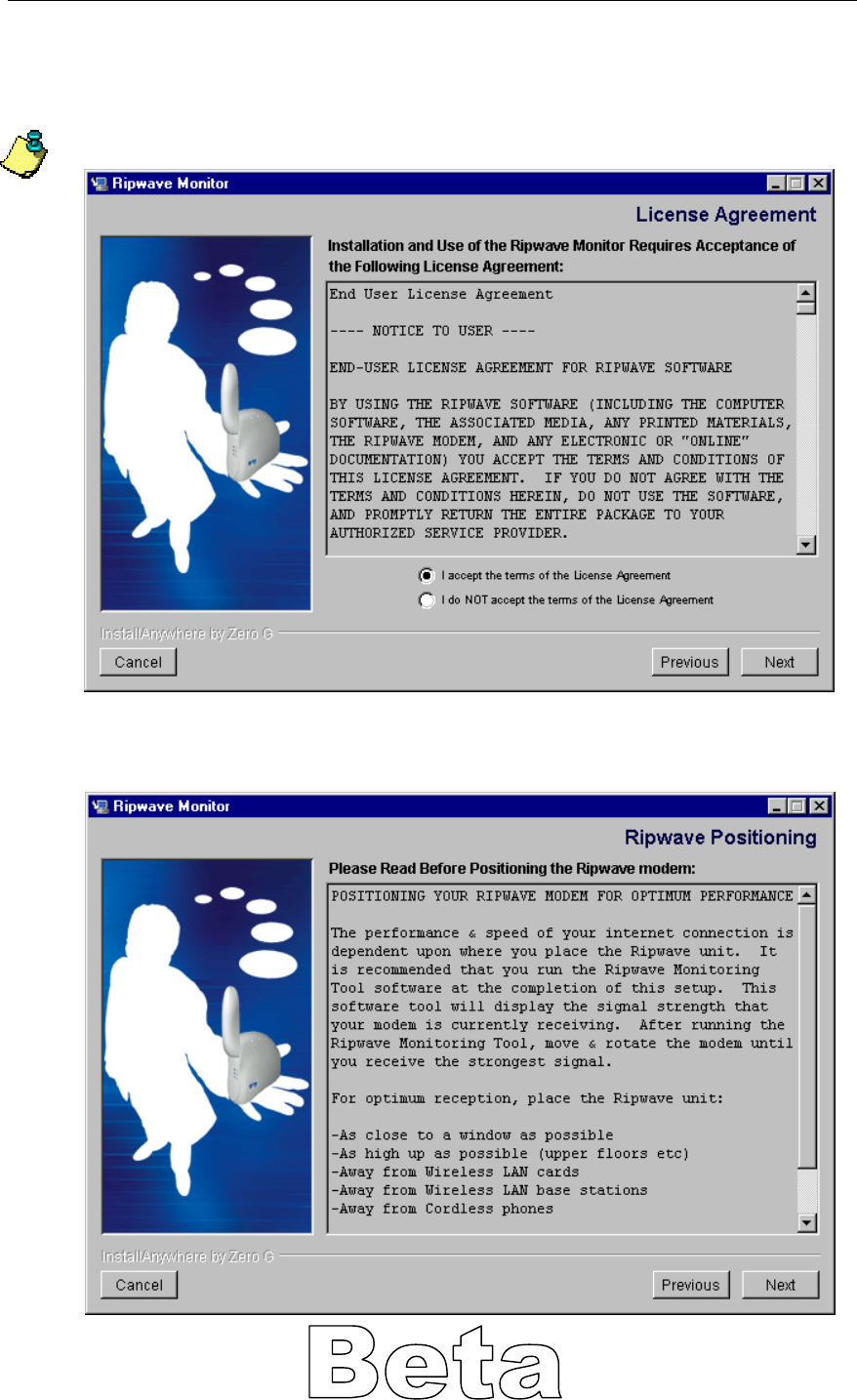

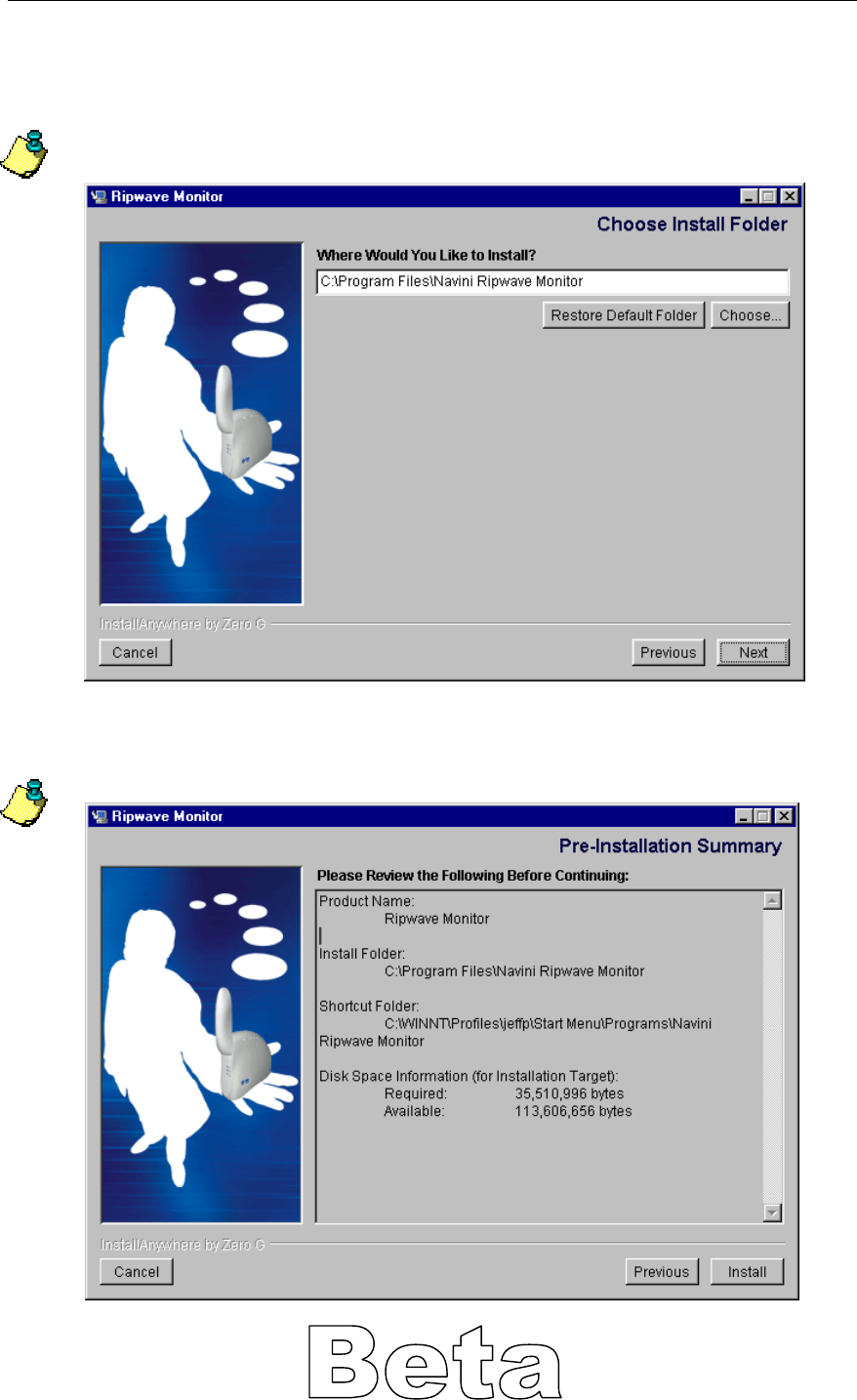

RIPWAVE MONITOR SOFTWARE INSTALLATION............................................. 9
ACCESSING THE INTERNET.................................................................................... 14
RIPWAVE UNIT INDICATOR LIGHTS ................................................................... 15

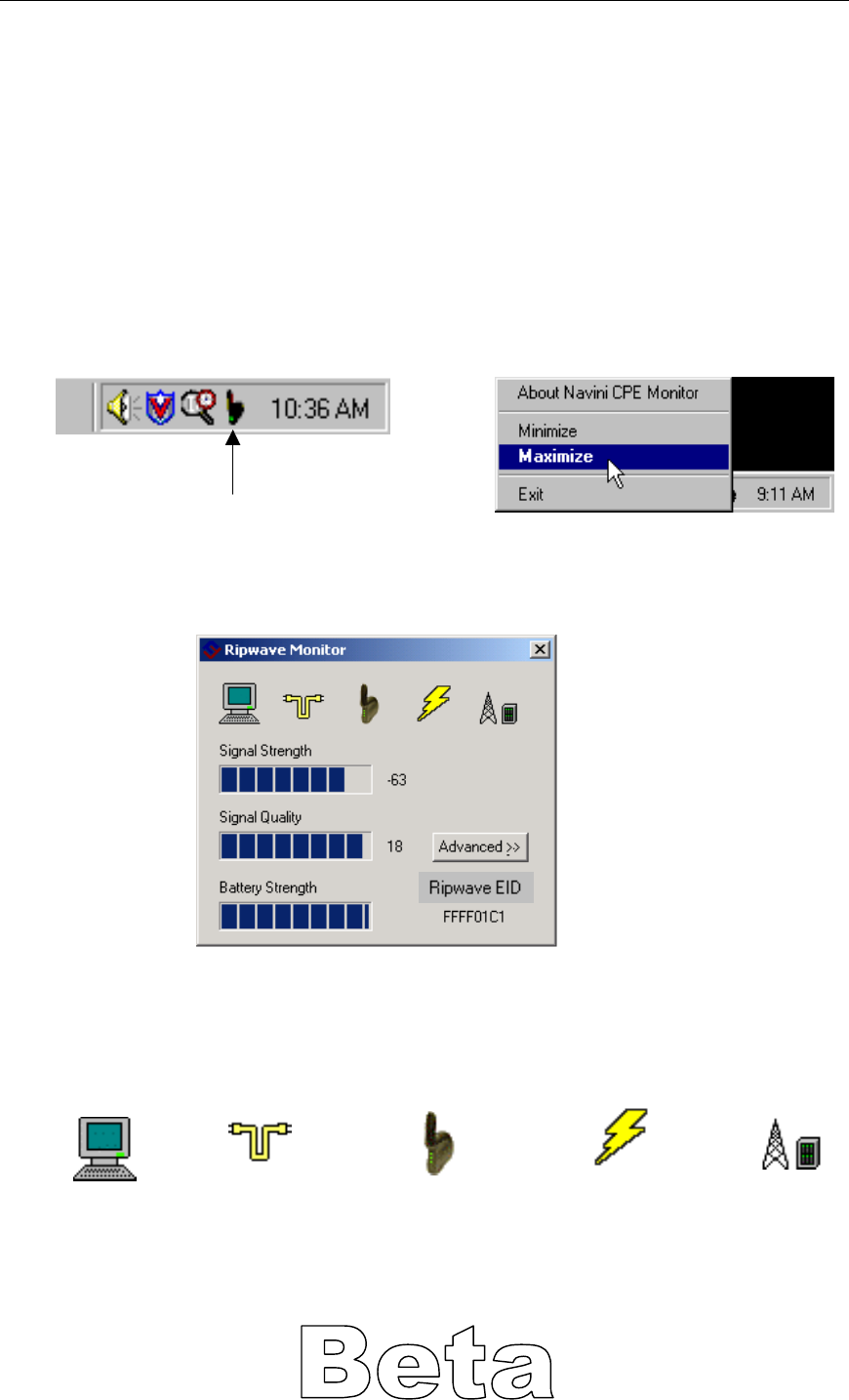

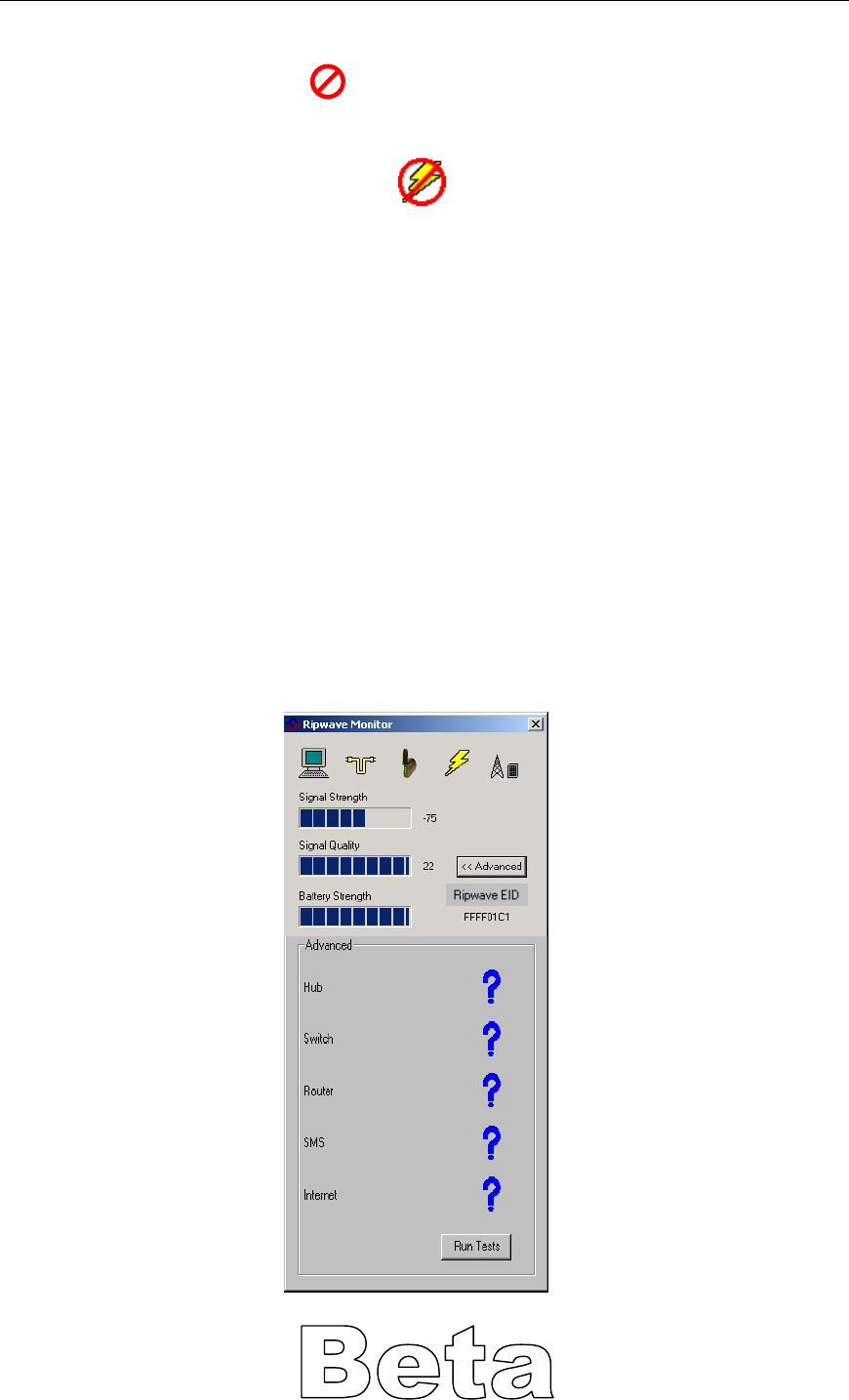

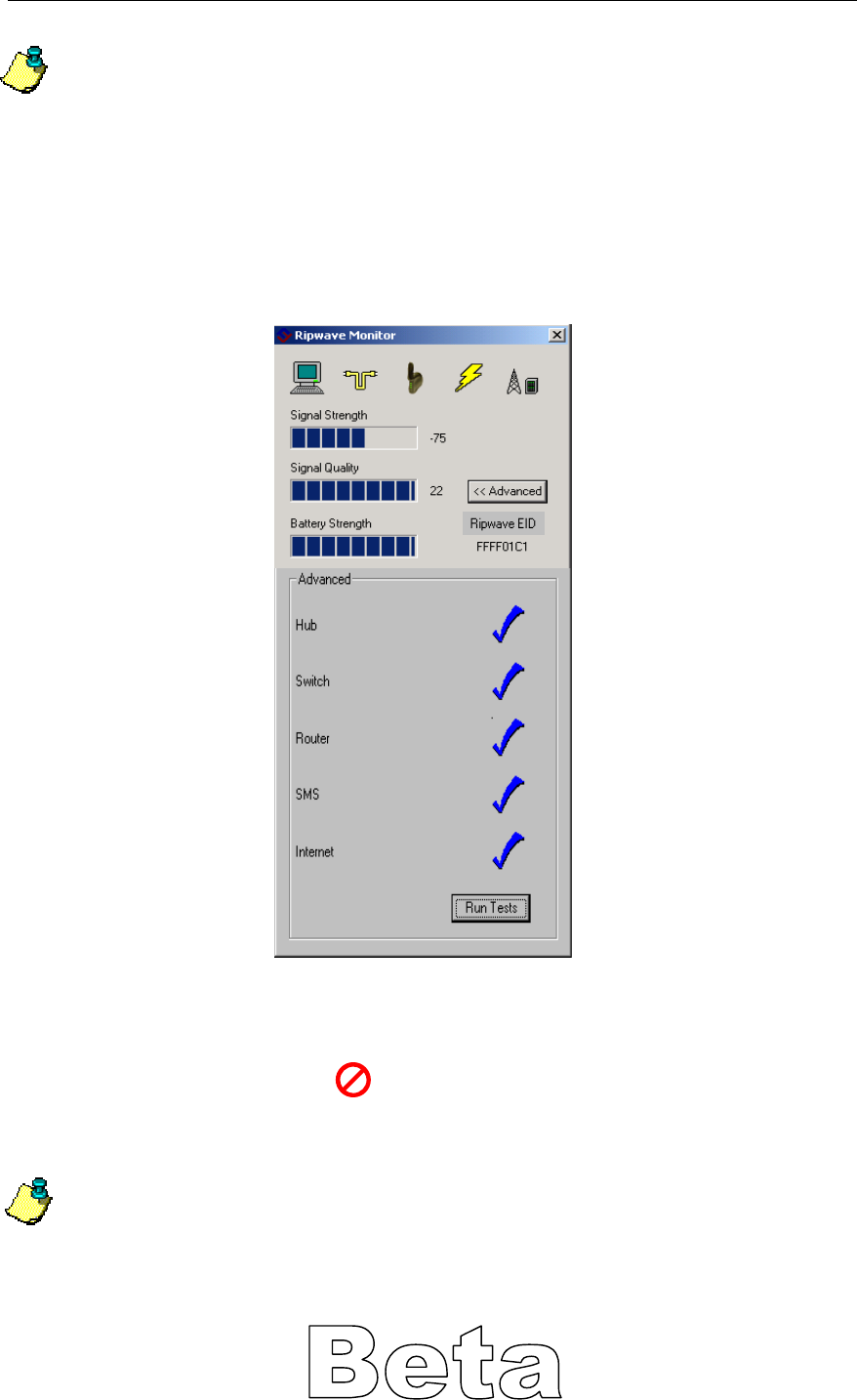

DISPLAYING THE RIPWAVE MONITOR............................................................... 16

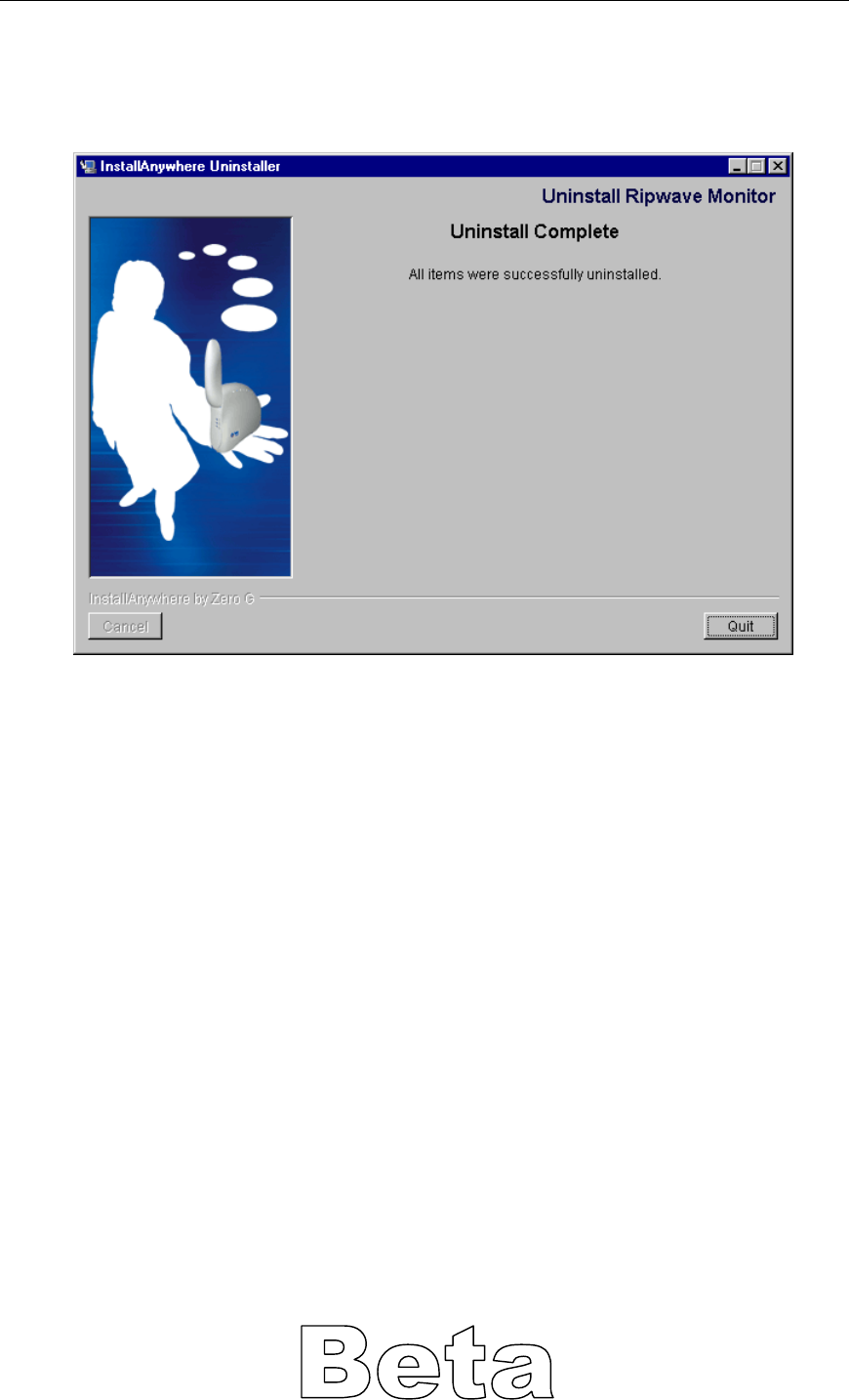

UNINSTALL RIPWAVE SOFTWARE....................................................................... 19
INSTALLING / CHARGING THE BATTERY.......................................................... 21
BETA USER GUIDE FREQUENTLY ASKED QUESTIONS.................................. 23
END USER LICENSE AGREEMENT......................................................................... 25
ii
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
iii
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Symbols
Throughout this manual, the following symbols are used to designate precautions that
need to be taken when performing the step. For your safety and protection of the
equipment, observe these precautions when installing, operating, or servicing the
equipment.
Caution
Symbol
This symbol indicates a potentially hazardous
situation that may result in equipment damage
or improper operation.
Warning
Symbol
This symbol indicates a potentially hazardous
situation that may result in death or injury to
personnel.
Notes
Notes
Symbol
This symbol indicates points, comments, or
special attention that is required during a
procedure.
iv
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
v
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Permissions, trademarks, and distribution
Copyright© November 2001 - 2002, Navini Networks, Inc. All information contained
herein and disclosed by this document is confidential and the proprietary property of
Navini Networks, Inc. and all rights therein are expressly reserved. Acceptance of this
material signifies agreement by the recipient that the information contained in this
document is confidential and that it will be used solely for the purposes set forth herein.
Acceptance of this material signifies agreement by the recipient that it will not be used,
reproduced in whole or in part, disclosed, distributed, or conveyed to others in any
manner or by any means – graphic, electronic, or mechanical, including photocopying,
recording, taping, or information storage and retrieval systems – without the express
written permission of Navini Networks, Inc.
Navini Networks™, Internet at the Speed of Thought™, zero-install™, and Ripwave™
are registered trademarks of Navini Networks, Inc. Other product and company names
mentioned herein may be trademarks and/or service marks of their respective owners.
Nothing herein constitutes any representation, warranty, assurance, or guaranty of
any kind.
Because of continuing developments and improvements in design, manufacturing, and
deployment, material in this document is subject to change without notification and does
not represent any commitment or obligation on the part of Navini Networks, Inc.
Navini Networks, Inc. shall have no liability for any error or damages resulting from the
use of this document.
The logo and all other Navini Networks trademarks are the
property of Navini Networks, Inc. Unauthorized usage is strictly prohibited without the
express written permission of Navini Networks, Inc.
Ó 2001 - 2002 Navini Networks, Inc. All rights reserved.
vi
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Regulatory Information
Caution: This device is a radio frequency transmitter. It is required to comply
with FCC RF exposure requirements for transmitting devices. A minimum
separation distance of 8 inches (20 cm) or more must be maintained between the
antenna and all persons during device operations to ensure compliance with the
FCC’s rules for Radio Frequency Exposure. If this minimum distance cannot be
maintained, exposure to RF levels that exceed the FCC’s limits may result. This
equipment must not be co-located with any other transmitting antenna.
This equipment complies with part 21 of the FCC rules. Any changes or
modifications not expressly approved by the manufacturer could void the user’s
authority to operate the equipment.
vii
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Safety
To optimize safety when using the Navini equipment, please read before using.
When using the Navini electronic equipment, always follow the basic safety precautions
to reduce the risk of electrical shock, fire, and injury to people and/or property.
1. Follow all warnings and instructions that come with the equipment.
2. Do not use the equipment while you are in a bathtub, shower, pool, or spa.
Exposure of the equipment to water could cause severe electrical shock (even
death) or serious damage to the equipment.
3. Do not allow any type of liquid to come in contact with the equipment. Unplug
the equipment from the power source before cleaning. Use a damp cloth for
cleaning. Do not use any soaps or liquid cleaners.
4. Follow all airport and FAA regulations when using the equipment on or near
aircraft.
5. Only operate the equipment from the type of power source(s) indicated in this
manual (110 VAC or Navini supplied battery). Any other type of input power
source may cause damage to the equipment.
6. Power the equipment using only the battery or the AC adapter cable provided, and
in accordance with the instructions specified in the user manual.
7. Do not use a frayed or damaged power cord. Do not place the power cord where it
can be stepped on or tripped over.
8. Do not touch wires where the insulation is frayed or worn unless the equipment
has been disconnected from its power source.
9. Do not overload wall outlets, power strips, or extension cords. This can cause
serious electrical shock or fire.
10. Do not place the equipment on an unstable surface. It can fall and cause injury or
damage to the equipment.
viii
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Safety (continued)
11. Do not dispose of the equipment or the battery in a fire. They may explode. Check
with the retailer for battery disposal guidelines.
12. Do not open or mutilate the battery. The battery contains substances that are toxic,
corrosive, or harmful to humans. If battery substances come in contact with the
skin, seek medical help immediately.
13. Do not disassemble the equipment. Removing covers exposes dangerous voltages
or other risks and also voids the warranty. Incorrect reassembly can cause
equipment damage or electrical shock. Only an authorized repair technician
should service this product.
14. Do not expose the equipment to extreme hot or cold temperatures.
15. Do not use the equipment under the following conditions:
· When the equipment has been exposed to water or moisture.
· When the equipment has been damaged.
· When the power cord is damaged or frayed.
· When the equipment does not operate properly or shows a distinct change
in performance.
CAUTION: RISK OF EXPLOSION IS POSSIBLE IF THE BATTERY IS
REPLACED WITH ONE NOT SUPPLIED BY NAVINI NETWORKS.
DISPOSE OF USED BATTERIES ACCORDING TO ENVIROMENTAL
GUIDELINES.
ix
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
x
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
xi
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Introduction
Congratulations for being selected to test the Navini Networks Ripwave product. This
manual will guide you through the simple process of installing the Navini Networks
Ripwave unit and software, which has been developed to optimize the ease and
convenience for you, our valued customer.
The Ripwave Unit Installation includes instructions for both USB and Ethernet
connections. Be sure to use the instructions that apply to your Ripwave model.
Note: You must have the Ripwave Unit model that is appropriate for your PC port:
Model 2600U for a USB connection; Model 2600E for an Ethernet connection. At
first glance, the models appear the same, but the ports and cables for the connections
are different.
A USB connection will function only with
Windows® 98, Windows® 98SE, Windows® 2000,
or Windows® ME. It will not work with
Windows® 95 or Windows NT®.
·
·
USB
Model 2600U
An Ethernet connection will function with any
Win32 Operating System (Windows® 95 or later).
Ethernet
Model 2600E
The Software Installation procedure is the same for either of the Ripwave models.
Minimum requirements:
Operating System: Windows® 95 or later – Windows XP and
Macintosh systems are not supported.
CPU: Pentium level or higher
RAM: 32MB or the Operating System minimum
(whichever is greater)
Hard Drive: 10MB free disk space
Before you start!
Verify the contents of your package. The contents should consist of the following items:
Ø Navini Networks Ripwave unit
Ø Ripwave unit AC power adapter
Ø PC-to-Ripwave unit cable (USB or Ethernet)
Ø Ripwave User Guide
Ø Ripwave Quick Installation Guide
Ø Navini Networks Ripwave Installation CD
If you do not find all of these items in your package, notify the supplier from whom you
obtained your package.
1
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Ripwave Unit Installation
USB connections
The following instructions are for the installation of the Ripwave Unit model 2600U
using a USB connection. Please read all instructions before attempting installation. It is
recommended that the computer and the Ripwave unit be turned off before performing
the installation.
1. Connect the USB cable
to the USB port on the
computer as shown.
2. Connect the other end of the
USB cable to the
Ripwave unit as shown.
3. Rotate the antenna on the
Ripwave unit clockwise
180 degrees to the ‘UP’ position.
This reveals the Ripwave unit
indicator lights.
Caution: Rotation or movement of the
antenna in any other direction may cause
damage to the Ripwave unit.
Rotate
antenna
clockwise
180 degrees
Signal Strength Indicator
Battery Indicator
Power Indicator
2
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
4. Connect the AC power adapter cable
to the Ripwave unit. Plug the other
end of the AC power adapter
cable into a 110 VAC outlet.
Caution: Only use the
AC power adapter supplied with the
Ripwave unit. Using any other adapter
may cause damage to the Ripwave Unit.
AC Power
adapter cable
j
ac
k
5. Push the On/Off switch to turn the Ripwave
unit ON.
US
B P
o
r
t
6. If the green power-indicator light is
on, proceed to step 7. If the green
power-indicator light is not on, there
is a problem with the Ripwave unit
or the AC Power Adapter. Check all
cables for proper connection.
Otherwise, contact the supplier
from whom you obtained
the package. Power on indicator
On/Off switch
7. Set the power switch on the computer to the ON position. When the system is up,
log in to the computer.
Note: For Windows® 2000, you must be logged into an account having
administrative privileges to install the Ripwave unit and its software.

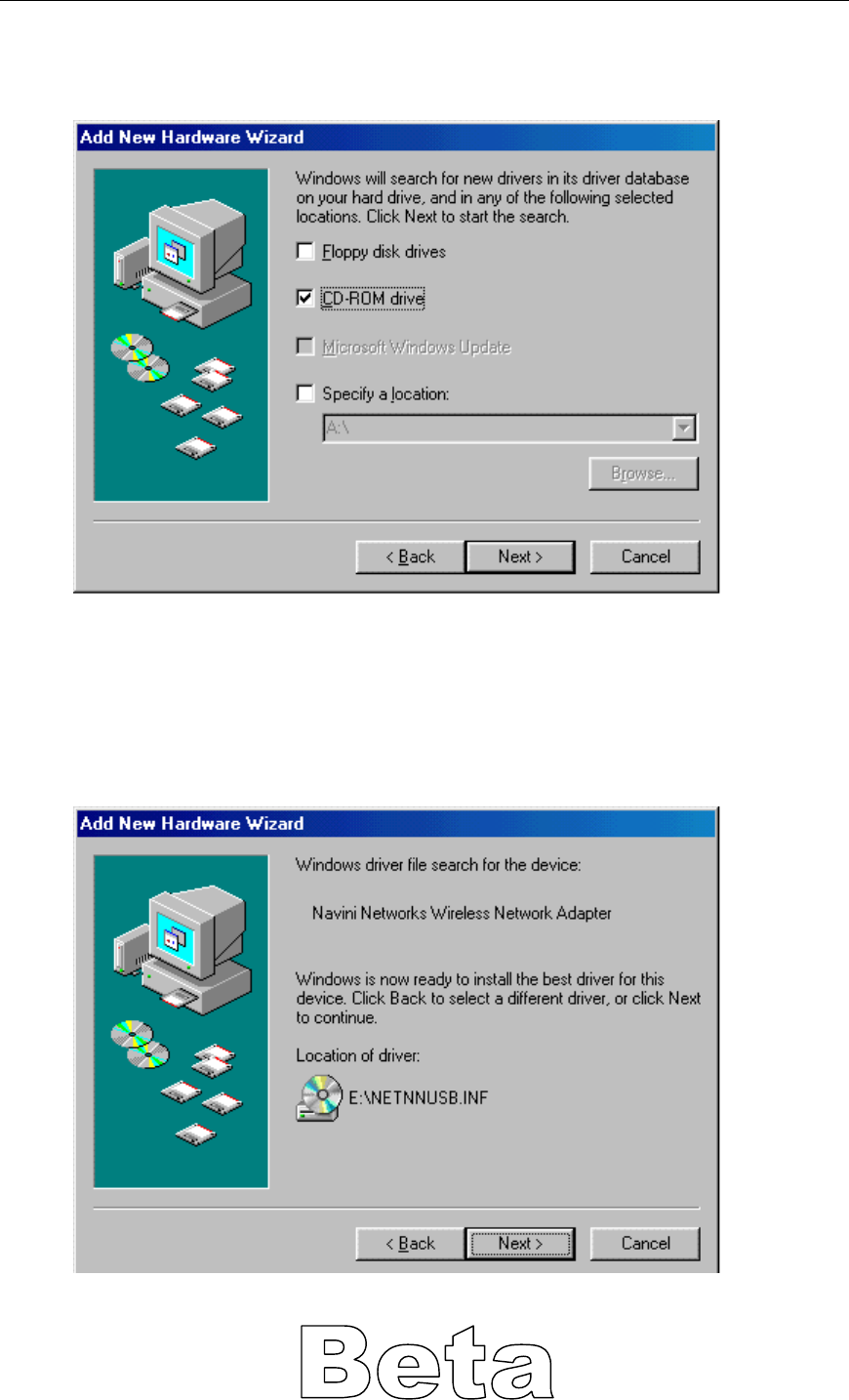

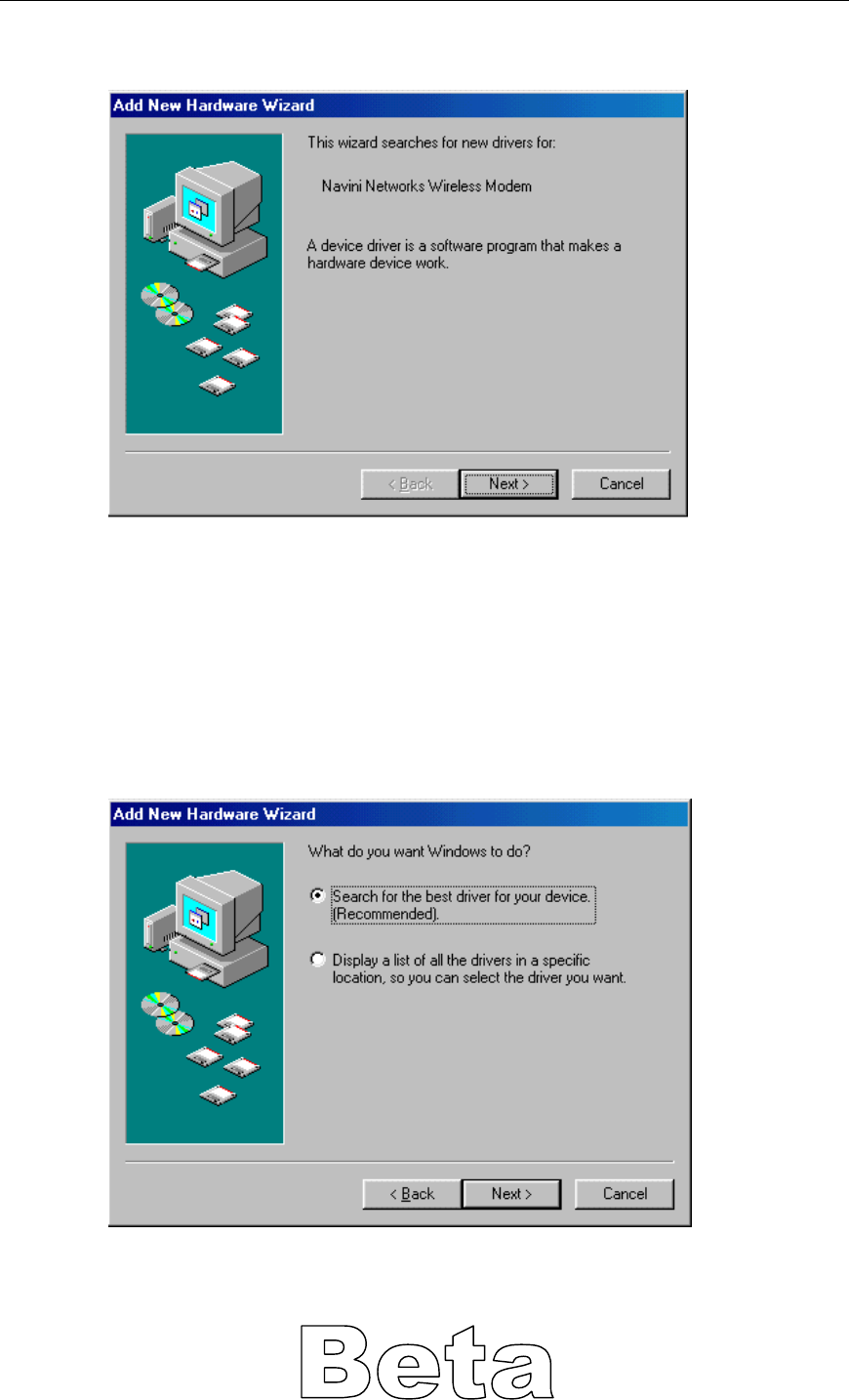

8. Plug and Play will detect the Ripwave device now attached to the PC and will
launch the Plug and Play application.
3
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
9. The Add New Hardware Wizard dialog box appears. Click Next to continue.
10. Insert the Navini Networks Ripwave installation CD in the CD-ROM drive.
11. In the next dialog box, select the ‘Search for the best driver for your device’
option. Click Next to continue.
4
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
12. In the next dialog box, select the ‘CD-ROM drive’ checkbox. Click Next to
continue.
13. In the next dialog box, confirm that the drive location is correct (the drive letter
may be different than shown below) and that the file to be installed is
NETNNUSB.INF. Click Next to continue.
5
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
14. In the next dialog box, click Finish.
Note: For Windows® 98, a window may appear asking for drivers to be installed
from the Windows® 98 setup disk. If so, insert the Windows® 98 setup disk in the
CD-ROM drive and accept the defaults.
15. After clicking Finish, the System Settings Change window appears asking if you
want to restart your computer now. Click Yes.
Note: You must restart your computer at this point before proceeding.
16. After the computer restart is complete, proceed to the Ripwave Monitor Software
Installation on page 9.
6
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Ethernet connections
The following instructions are for the installation of the Ripwave Unit model 2600E
using an Ethernet connection. Please read all instructions before attempting installation. It
is recommended that the computer and the Ripwave unit be turned off before performing
the installation.
1. Connect the Ethernet cable to the
Ethernet port on the computer
as shown.
2. Connect the other end of the
Ethernet cable to the Ripwave
unit as shown.
3. Rotate the antenna on the
Ripwave unit clockwise
180 degrees to the ‘UP’ position.
This reveals the Ripwave
indicator lights.
Caution: Rotation or movement of the
antenna in any other direction may cause
damage to the Ripwave Unit.
Rotate
antenna
clockwise
180 degrees
Signal Strength Indicator
Battery Indicator
Power Indicator
7
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
4. Connect the AC power adapter cable
to the Ripwave unit. Plug the other
end of the AC power adapter cable
into a 110 VAC outlet.
Caution: Only use the
AC power adapter supplied with the
Ripwave unit. Using any other adapter
may cause damage to the Ripwave Unit.
AC Power
adapter cable
j
ack
5. Push the On/Off switch
on the Ripwave unit to turn the
unit ON.
USB Port
6. If the green power-indicator light is
on, proceed to step 7. If the green
power-indicator light is not on, there
is a problem with the Ripwave unit
or the AC Power Adapter. Check all
cables for proper connection.
Otherwise, contact the supplier
from whom you obtained
the package. Power on indicator
On/Off switch
7. Set the power switch on the computer to the ON position. When the system is up,
log in to the computer.
8. Proceed to the Ripwave Monitor Software Installation on page 9.
8
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Ripwave Monitor Software Installation
Notes:
For Windows NT® and Windows® 2000, you must be logged into an account
having administrative privileges to install the Ripwave monitor software.
For Ripwave monitor software installation on Windows® 95, Windows® 98, and
Windows® 98SE Operating Systems, the operating system CD will be needed to
complete the installation. If prompted, insert the operating system CD in the
CD-ROM drive and accept the defaults.
Installation procedures:
The following instructions are for installing the software that monitors the operation and
performance of the Ripwave unit.
1. Shut down all programs before installing the Ripwave monitor software. This
includes all anti-virus software.
2. Insert the Navini Networks Ripwave installation CD in the CD-ROM drive.
3. Click Start > Run at the bottom left corner of your screen. In the Run window,
enter e:\setup (where “e” represents the CD drive; use the letter representing your
specific CD drive) in the Open field. Click OK to continue.
9
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
4. The InstallAnywhere window appears. The progress bar indicates that
InstallAnywhere has initialized.
5. The Ripwave Monitor Introduction screen appears. Click Next to continue.
10
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
6. The License Agreement screen appears. Read the Licensing Agreement. Select
the I accept option, and click Next to continue.
Note: If the License Agreement is not accepted, you cannot install the software.
7. The Ripwave Positioning screen appears. Read the screen for positioning the
Ripwave unit for optimum performance. Click Next to continue.
11
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
8. The Choose Install Folder screen appears. Enter the name of the folder where you
wish to install the software and click Next to continue.
Note: The default installation folder provided by the installation software is
shown below.
9. The Pre-Installation Summary screen appears. Review the contents for accuracy.
Click Install to continue.
Note: For your installation, this screen may have different information.
12
Ripwave 2.6 GHz User Guide Navini Networks, Inc.

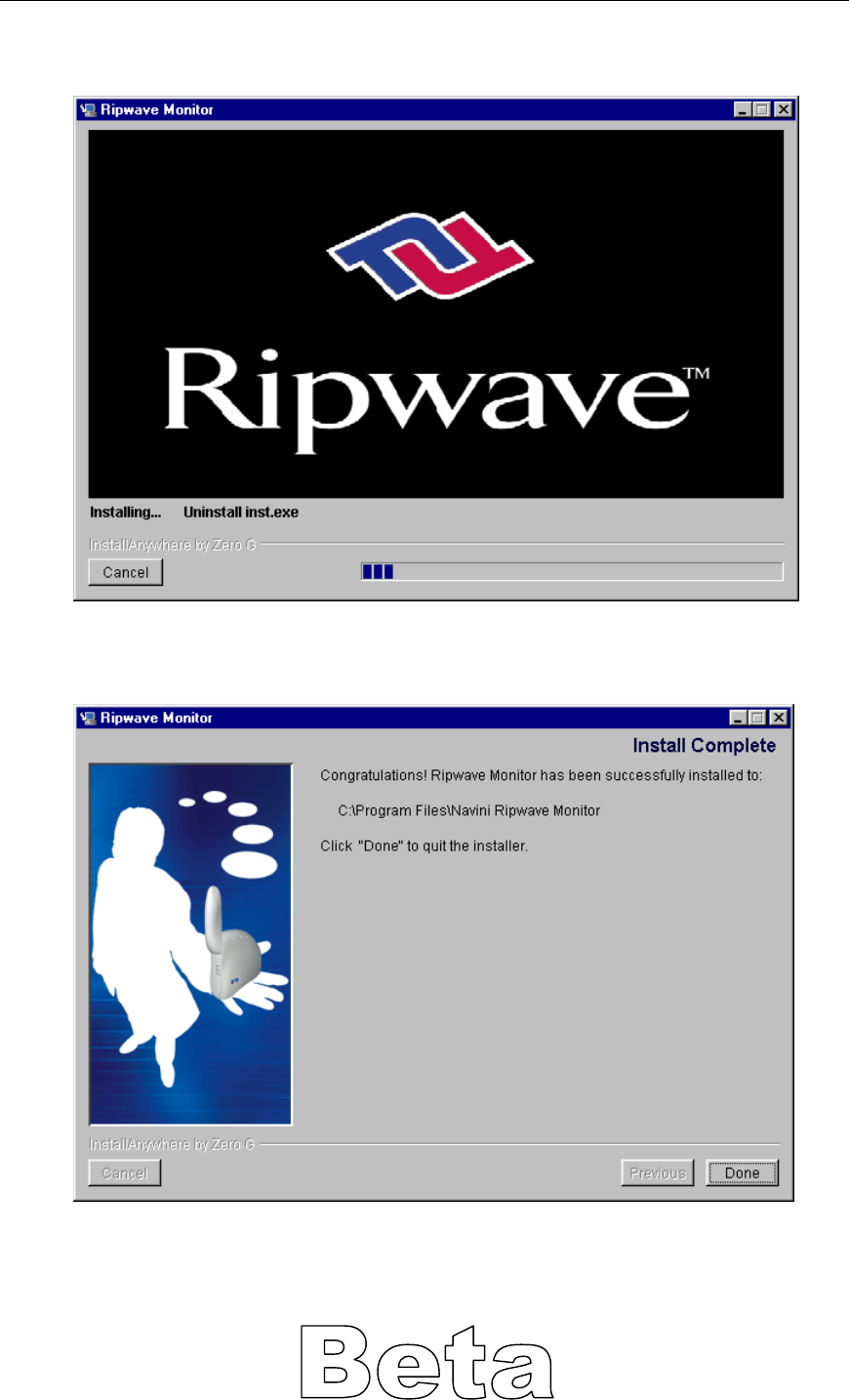

10. The Installing screen will display as the application files are loaded.
11. At the Install Complete screen, click Done to close the window.
13
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
12. After clicking Done, the System Settings Change window appears asking if you
want to restart your computer now. Click Yes.
Note: You must restart your computer at this point before proceeding.
Accessing the Internet
To access the Internet, open the web browser that is installed on the computer. You
should be able to surf the Internet.
14
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Ripwave Unit Indicator Lights
The Ripwave unit has three LEDs that indicate the operating status of the unit. The
indicator lights, along with the graphical representation next to it on the case, are as
follows:
Power Indicator
Battery Indicator
Signal Strength Indicator
The indicator lights change color to designate the state of the item that it represents. The
color designations are as follows:
Signal Strength Indicator: Battery Indicator:
Flashing red – weak signal Constant Yellow – battery is charging
Flashing yellow – medium signal Constant red – battery less than
Flashing green – strong signal 20% charged
All three colors – no signal Flashing red – battery less than
alternately flashing 10% charged
Off – battery fully
charged or not
installed
Power Indicator:
Constant Green –The unit is on (AC or DC Power)
15
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Displaying the Ripwave Monitor
Navini Networks provides Ripwave monitor software to assist you in solving problems
that you encounter with reception or network connections. The Ripwave monitor
provides information on the strength and quality of the incoming signal, battery strength,
and checks the connectivity to the Internet Service Provider (ISP) network. The following
steps will aid in using the Ripwave Monitor software.
1. To open the Navini Ripwave Monitor, right-click on the Ripwave icon in the
toolbar tray and select Maximize.
Ripwave Icon
2. The Ripwave Monitor window appears.
The icons shown across the top of the window represent each of the components
and connections throughout the system. They are:
Computer Computer to Ripwave Ripwave to Base
Ripwave Unit Base Station Station
connection wireless
connection
16
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
If a problem is detected with one of these components or if a connection is down,
a red circle with a slash ( ) will be positioned over the icon. For example, if
the Ripwave to Base Station wireless connection goes down, the icon will change
to:
When the system is on, the signal strength and quality strength will be displayed
as dynamic bar graphs in the window. To increase the strength and quality of the
signal, change the location of the Ripwave unit. Try moving it closer to a window,
to a higher location, away from other wireless devices (microwave ovens,
cordless phones), and away from metal objects (shelves, file cabinets). As the
Ripwave unit is repositioned, observe the Signal Strength and Signal Quality bar
graphs. Position the Ripwave unit for maximum signal strength and quality. The
numbers to the right of the Signal Strength and Signal Quality bar graphs and the
Ripwave EID number are for troubleshooting purposes only. During
troubleshooting, the technician may ask you for these numbers. The Battery
Strength bar graph indicates how much charge is left in the battery. If the unit is
being run by the AC power adapter, the Battery Strength bar graph will show full
strength.
3. To check connectivity to the ISP network, click the Advanced button on the
Navini Ripwave Monitor. The window displays all of the connections to the ISP
network.
17
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Notes:
If the connection from the Base Station to the Ripwave Unit is down, the
Advanced button will be disabled (grayed out).
The connections listed in the Advanced window will vary depending on your ISP
network. The above connections are used as an example.
4. Click on the Run Tests button to check the connections.
A blue checkmark indicates that the connection to the network is valid. If there is a
problem, a red circle with a slash ( ) will be displayed instead of the checkmark for
the connection. If this appears, contact your ISP for service.
Note: The features of the Advanced and Run Tests buttons are to be used in
conjunction with your ISP to resolve connection problems. There is no need to
use these features unless you are experiencing problems with the Ripwave unit.
18
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Uninstall Ripwave Software
1. To uninstall the Ripwave monitor software, click Start > Programs > Navini
Ripwave Monitor > Uninstall Ripwave Monitor. The InstallAnywhere
Uninstaller screen appears. Click Uninstall.
2. The screen will cycle through as the application files are uninstalled.
19
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
3. The Uninstall Complete screen appears when finished. Click on Quit to close the
Uninstall screen.
4. Restart the computer to complete the uninstall process. This will ensure that
the computer functions properly after the uninstall process.
20
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Installing / Charging the Battery
Note: The battery is an option and is not included with the unit.
The battery is installed in the bottom of the Ripwave unit. To install and charge the
battery, follow the steps below.
1. Using the battery pack tab, remove the battery cover from the Ripwave unit.
Battery pack tab
2. Install the battery pack into the Ripwave unit, ensuring that the contacts on the
battery pack mate with the contacts in the Ripwave unit.
Battery contacts
Battery pack contacts
21
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
3. Reinstall the battery cover on the Ripwave unit.
To charge the battery, install it in the Ripwave unit. Connect the AC adapter (see
Ripwave unit installation) to the Ripwave unit. The battery will begin charging
immediately with the on/off switch in either position. The middle indicator light on the
front of the Ripwave unit (under the antenna) will be constant yellow, indicating that the
battery is being charged.
Notes:
The battery indicator light will only be on if the on/off switch is in the on
position. When the battery is fully charged, the indicator light will go off and
charging stops.
To view the battery indicator LED, rotate the antenna clockwise. See page 2 for
details.
22
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Beta User Guide Frequently Asked Questions
1) What is the Ripwave unit?
Ripwave is a new and exciting product that allows end users to access the Internet at
broadband speeds through a small wireless device that is self installed and is
non-line-of-sight to the tower.
2) What does it cost?
As a beta user, there is no charge for using the service.
3) Are there conditions attached in beta-testing the Ripwave unit?
As a beta user, you agree to:
a) Provide feedback on your experiences with this service & hardware. You will
be notified regularly throughout the beta trial period to provide feedback.
b) Return the Ripwave unit at the termination of the beta trial.
4) When can I purchase the Ripwave unit and how much will it and the service cost?
The exact pricing and time frame for commercial deployment has not been
determined. When service is deployed in your area, you will be notified.
5) I have installed the Ripwave software and cannot connect to the Internet.
If you are having problems, contact your service provider.
6) Can I use the Ripwave unit outside of my home or in another part of the city?
As this is a beta trial, the service is only available in a limited coverage area.
Therefore, using the Ripwave unit outside of the coverage area may result in loss of
coverage. The Ripwave unit can be used anywhere there is adequate signal strength –
including outdoors – as long as there is power to the unit from the wall charger or
battery (not included for all users). Your service provider will be able to tell you the
coverage area for the beta trial.
7) How can I tell if there is adequate signal strength?
The top LED indicator on the Ripwave unit flashes green when you have
strong/adequate signal strength in a given area (see page 15 for all signal strength
indicator colors). Moving the Ripwave unit around or rotating the Ripwave unit may
help with improving signal strength. Use the Ripwave Monitor Signal Strength and the
Signal Quality bar graphs to help obtain maximum signal strength and quality. Also
ensure that the antenna is pointed straight up.
8) How can I obtain a battery for my CPE, and do I need one?
Only a select number of beta users will be given a battery for their Ripwave unit. The
battery is optional and is not necessary to operate the Ripwave unit. The battery allows
the unit to be operated without AC power.
23
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Frequently Asked Questions (continued)
9) Do I need to turn off the Ripwave unit when I am finished using it?
It is recommended that you turn off the Ripwave unit when it is not in use. The switch
is located on the front of the unit.
10) I have a friend/family member/co-worker who also wants to beta test the
Ripwave unit. Can they sign up?
All Beta users have been identified for this specific trial. No additional Beta users are
needed at this time.
11) Can I be candid on the beta test questionnaires without losing the
product/service?
Absolutely! The only way that we can improve on the quality of the product and
service is to know exactly what you think about it. Please feel free to offer any
suggestions, recommendations, or comments on all questionnaires that you will
complete during the trial.
24
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
End User License Agreement
---- NOTICE TO USER ----
END-USER LICENSE AGREEMENT FOR RIPWAVE SOFTWARE
BY USING THE RIPWAVE SOFTWARE (INCLUDING THE COMPUTER
SOFTWARE, THE ASSOCIATED MEDIA, ANY PRINTED MATERIALS, THE
RIPWAVE MODEM, AND ANY ELECTRONIC OR “ONLINE”
DOCUMENTATION) YOU ACCEPT THE TERMS AND CONDITIONS OF THIS
LICENSE AGREEMENT. IF YOU DO NOT AGREE WITH THE TERMS AND
CONDITIONS HEREIN, DO NOT USE THE SOFTWARE, AND PROMPTLY
RETURN THE ENTIRE PACKAGE TO YOUR AUTHORIZED SERVICE
PROVIDER.
IN RETURN FOR OUR GRANTING TO YOU A LICENSE TO USE THE
SOFTWARE, YOU AGREE TO THE FOLLOWING TERMS AND CONDITIONS:
IMPORTANT - READ CAREFULLY: This End-User License Agreement
("Agreement") is a legal agreement between you (either an individual or an entity) and
Navini Networks, Inc. for the Ripwave Software ("SOFTWARE"). The SOFTWARE
includes computer software, the associated media, any printed materials, and any
electronic or "online" documentation. Any software provided along with the
SOFTWARE that is associated with a separate end-user license agreement is licensed to
you under the terms of that license agreement. By installing, copying, downloading,
accessing, or otherwise using the SOFTWARE, you agree to be bound by the terms of
this AGREEMENT. If you do not agree to the terms of this AGREEMENT, Navini is
unwilling to license the SOFTWARE to you. In such event, you shall not use or copy the
SOFTWARE, and you should promptly contact your Authorized Service Provider
("ASP") for instructions on return of the SOFTWARE and Ripwave Modem. EXCEPT
FOR NON-DISCLOSURE AGREEMENTS BETWEEN THE PARTIES, THIS IS THE
ENTIRE AGREEMENT BETWEEN THE PARTIES RELATING TO THIS
SOFTWARE AND SUPERCEDES ANY PURCHASE ORDER, COMMUNICATION,
ADVERTISING, OR REPRESENTATION CONCERNING THE SOFTWARE OR
THE RIPWAVE SERVICE. NO CHANGE OR MODIFICATION OF THIS
AGREEMENT WILL BE VALID UNLESS IT IS IN WRITING AND SIGNED BY
NAVINI.
SOFTWARE LICENSE
The SOFTWARE is protected by copyright laws and international copyright treaties, as
well as other intellectual property laws and treaties. The SOFTWARE is licensed, not
sold. This Agreement does not authorize a sale or lease of the SOFTWARE. The term
"COMPUTER" shall mean a single computer system.
25
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
1. GRANT OF LICENSE. This AGREEMENT grants to you a personal,
non-exclusive, non-transferable license as follows:
1.1 Storage, Installation and Use. Except as otherwise expressly provided in this
AGREEMENT, you will be allowed to install, use, access, run, or otherwise interact with
the SOFTWARE on multiple COMPUTERS. This SOFTWARE may only be used with a
Ripwave Digital Modem ("MODEM").
2. DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS.
2.1 Multiple Processor Version Selection. The CD or diskette(s) on which the
SOFTWARE resides may contain several copies of the SOFTWARE, each of which is
compatible with different microprocessor architectures, such as the x86 architecture or
various RISC architectures ("Processor Version(s)"). You may install and use only one
copy of one Processor Version of the SOFTWARE on the COMPUTER.
2.2 Limitations on Reverse Engineering, Decompiling, and Disassembly. YOU MAY
NOT MODIFY, TRANSLATE, DISASSEMBLE, CREATE DERIVATIVE WORKS,
OR REVERSE ENGINEER THE SOFTWARE OR ANY COPY, IN WHOLE OR IN
PART.
2.3 Rental. You may not rent, lease, assign, or lend the SOFTWARE or distribute
copies of the SOFTWARE to others.
2.4 Software Transfer. You may not sell the SOFTWARE. You may not post,
distribute or transfer the SOFTWARE to anyone outside of the Beta User Trial.
2.5 Termination. This license is effective until terminated. You may terminate this
license by returning the SOFTWARE, the Ripwave modem and associated hardware and
all documentation to your service provider. Without prejudice to any other rights,
NAVINI may terminate your rights under this AGREEMENT if you fail to comply with
the terms and conditions of this AGREEMENT. In such event, you must return the
SOFTWARE and any copies, the Ripwave modem and associated hardware and all
documentation to your service provider.
2.6 Trademarks. This AGREEMENT does not grant you any rights in connection
with any trademarks or service marks of NAVINI.
2.7 Third Party Intellectual Property. Licensee acknowledges, understands and
agrees that the licensed Software covered by this License Agreement may contain
Intellectual Property owned by Third Parties and duly licensed to NAVINI NETWORKS,
INC. Copyright, Patent and other laws protect Third Party Intellectual Property
manufactured with, marketed with, or otherwise bundled with the licensed Software.
Licensee promises to keep such Third Party Intellectual Property in confidence to the
benefit of the Third Party, agrees not to reverse engineer or otherwise decompile Third
Party Intellectual Property, and agrees to stop using, destroy and/or return such Third
Party owned Intellectual Property under the same terms and conditions as the licensed
Software as set forth in this License Agreement. The Third Party is a third party
26
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
beneficiary under this License Agreement and may independently enforce its Intellectual
Property rights.
2.8 Remote Digital Access. Licensor reserves the right, but is not obligated to
digitally access the CPE and/or the Ripwave Software for the purposes of upgrading and
maintaining the software.
3. UPGRADES. If the SOFTWARE is labeled as an upgrade, you must be properly
licensed to use a product identified by NAVINI as being eligible for the upgrade in order
to use the SOFTWARE ("Eligible Software"). SOFTWARE labeled as an upgrade
replaces and/or supplements (and may disable) the Eligible Software. You may use the
resulting upgraded product only in accordance with the terms of this AGREEMENT.
4. COPYRIGHT. The SOFTWARE is provided with restrictive rights. All title and
intellectual property rights in and to the SOFTWARE (including but not limited to any
images, photographs, animations, video, audio, music, text, and "applets" incorporated
into the SOFTWARE), the accompanying printed materials, and any copies of the
SOFTWARE, are owned by NAVINI. All title and intellectual property rights in and to
the content that is not contained in the SOFTWARE but may be accessed through use of
the SOFTWARE and the MODEM is the product of the respective content owner and
may be protected by applicable copyright or other intellectual property laws and treaties.
This AGREEMENT grants you no rights to use such content. Use of any online services
that may be accessed through the SOFTWARE may be governed by the respective terms
of use for such services. If this SOFTWARE contains documentation that is provided
only in electronic form, you may print one copy of such electronic documentation. You
may not copy the printed materials accompanying the SOFTWARE. All rights not
specifically granted under this AGREEMENT are reserved by NAVINI.
5. PRODUCT SUPPORT. Product support for the SOFTWARE is not provided by
NAVINI. For product support, please refer to ASP's support number provided in their
documentation.
6. U.S. GOVERNMENT RESTRICTED RIGHTS. ALL SOFTWARE provided to
the U.S. Government pursuant to solicitations issued on or after December 1, 1995 is
provided with the commercial license rights and restrictions described elsewhere herein.
ALL SOFTWARE provided to the U.S. Government pursuant to solicitations issued prior
to December 1, 1995 is provided with “Restricted Rights” as provided for in FAR, 48
CFR 52.227-14 (June 1987) or DFAR, 48 CFR 252.227-7013 (Oct 1988), as applicable.
7. EXPORT RESTRICTIONS. The SOFTWARE is intended for distribution only in
the United States. You agree that you will not directly or indirectly export or re-export
the SOFTWARE (or portions thereof) to any country. You specifically agree not to
export or re-export the SOFTWARE (i) to any country to which the U.S. has embargoed
or restricted the export of goods or services, which currently include, but are not
necessarily limited to, Cuba, Iran, Iraq, Libya, North Korea, Sudan, and Syria, or to any
national of any such country, wherever located, who intends to transmit or transport the
SOFTWARE back to such country; (ii) to any person or entity whom you know or have
reason to know will utilize the SOFTWARE in the design, development, or production of
27
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
nuclear, chemical, or biological weapons; or (iii) to any person or entity who has been
prohibited from participating in U.S. export transactions by any federal agency of the
U.S. government.
8. WARRANTY. THE SOFTWARE IS PROVIDED ON AN "AS IS" BASIS
WITHOUT WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION ANY WARRANTIES OF MERCHANTABILITY, FITNESS
FOR A PARTICULAR PURPOSE, TITLE, NON-INFRINGEMENT, AND ANY
WARRANTY AGAINST LATENT DEFECTS. NAVINI DOES NOT WARRANT
THAT THE OPERATION OF THE SOFTWARE WILL BE UNINTERRUPTED OR
ERROR FREE. YOU ARE SOLELY RESPONSIBLE FOR DETERMINING WHICH
SOFTWARE BEST SUITS YOUR NEEDS, FOR INSTALLING THE SOFTWARE,
AND FOR RESULTS OBTAINED. YOU HAVE THE SOLE RESPONSIBILITY FOR
INSPECTING AND TESTING THE SOFTWARE TO YOUR SATISFACTION
BEFORE USING THEM WITH IMPORTANT DATA OR WITH YOUR COMPUTER.
NAVINI MAKES NO WARRANTIES OR REPRESENTATIONS WHATSOEVER
REGARDING ANY GOODS OR SERVICES PROVIDED BY ANY THIRD PARTIES
PURSUANT TO YOUR USE OF THE SOFTWARE AND NAVINI SHALL NOT BE
LIABLE FOR ANY COSTS OR DAMAGES ARISING OUT OF, EITHER DIRECTLY
OR INDIRECTLY, THE ACTIONS OR INACTIONS OF SUCH THIRD PARTY. IN
NO EVENT SHALL NAVINI NETWORKS, INC. OR ANY THIRD PARTY
INVOLVED IN THE CREATION, PRODUCTION, DELIVERY, OR LICENSING OR
THE SOFTWARE BE LIABLE TO YOU OR ANY THIRD PARTY FOR ANY
DIRECT, INDIRECT, SPECIAL, GENERAL, PUNITIVE, EXEMPLARY,
AGGRAVATED, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF
ADVISED OF THE POSSIBILITY THEREOF, WHETHER FORESEEABLE OR
UNFORESEEABLE, OF ANY KIND WHATSOEVER, INCLUDING BUT NOT
LIMITED TO LOSS OF PROFITS; UNANTICIPATED BENEFITS OR REVENUE;
ANTICIPATED PROFITS; DAMAGES OR COSTS INCURRED AS A RESULT OF:
(i) LOST TIME, DATA, OR USE OF THE SOFTWARE; (ii) HARDWARE FAILURES
FOR ANY REASON; (iii) INCOMPATIBILITY WITH HARDWARE OR OTHER
SOFTWARE; (iv) LOSS OR CLAIMS FROM THIRD PARTIES; OR (v) FROM ANY
OTHER CAUSE ARISING OUT OF USE OF OR INABILITY TO USE THE
SOFTWARE, OR CONTRIBUTION OR INDEMNITY IN RESPECT OF ANY CLAIM
RELATED TO THE SOFTWARE. IN ANY EVENT, NAVINI'S LIABILITY SHALL
NOT EXCEED THE ACTUAL PRICE PAID FOR THE LICENSE TO USE THE
SOFTWARE.
SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR ALLOW LIMITATIONS ON
HOW LONG A WARRANTY LASTS, SO THE ABOVE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU
SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS,
WHICH VARY FROM JURISDICTION TO JURISDICTION.
28
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
9. LAW. This Agreement and each Order shall be construed in accordance with the
laws (including the Uniform Commercial Code) of the State of Texas, without giving
effect to principles of conflicts of laws. Any legal action arising here from will be
brought within the state or federal courts located in Dallas county, Texas, which is agreed
by the parties to be a convenient forum. The SOFTWARE User acknowledges,
understands and agrees that this Agreement is written in the English Language, and the
SOFTWARE User expressly waives all “native language” requirements, whether based
in local statutory, regulatory or other law.
END OF AGREEMENT
Copyright © 2001, 2002 Navini Networks, Inc.
All rights reserved. Printed in the USA.
Navini Networks, Internet at the Speed of Thought, and Ripwave are registered
trademarks of Navini Networks, Inc. Other product and company names mentioned
herein may be trademarks and/or service marks of their respective owners. Rev. 020402
29
