Cisco Systems, Inc MMDS Customer Premises Equipment CPE 2 6 Installation Manual
Users manual
Ripwave
2.6 GHz
User Guide
For Windows® 95 or later
Note: This User Guide is for Beta Users only. The contents are
subject to change at any time during the Beta test.
Version 1.0.1 Part number 40-00026-00
Product Release 1.13 Revision C
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
i
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
TABLE OF CONTENTS
PERMISSIONS, TRADEMARKS, AND DISTRIBUTION.......................................VI
REGULATORY INFORMATION ............................................................................. VII
SAFETY........................................................................................................................VIII
INTRODUCTION............................................................................................................. 1
RIPWAVE UNIT INSTALLATION............................................................................... 2
USB connections................................................................................................................ 2
Ethernet connections ........................................................................................................ 7

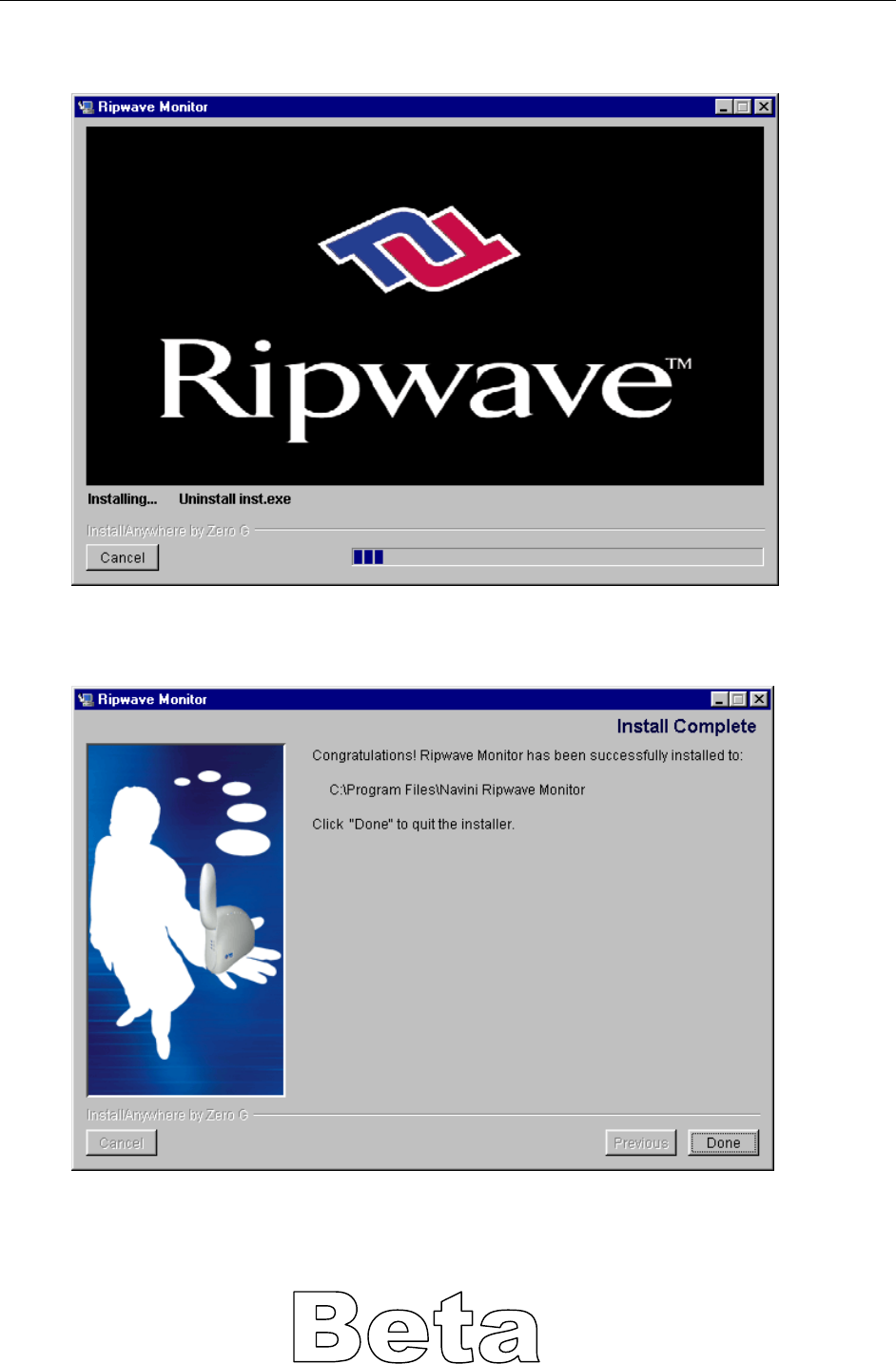

RIPWAVE MONITOR SOFTWARE INSTALLATION............................................. 9
ACCESSING THE INTERNET.................................................................................... 14
RIPWAVE UNIT INDICATOR LIGHTS ................................................................... 15
DISPLAYING THE RIPWAVE MONITOR............................................................... 16

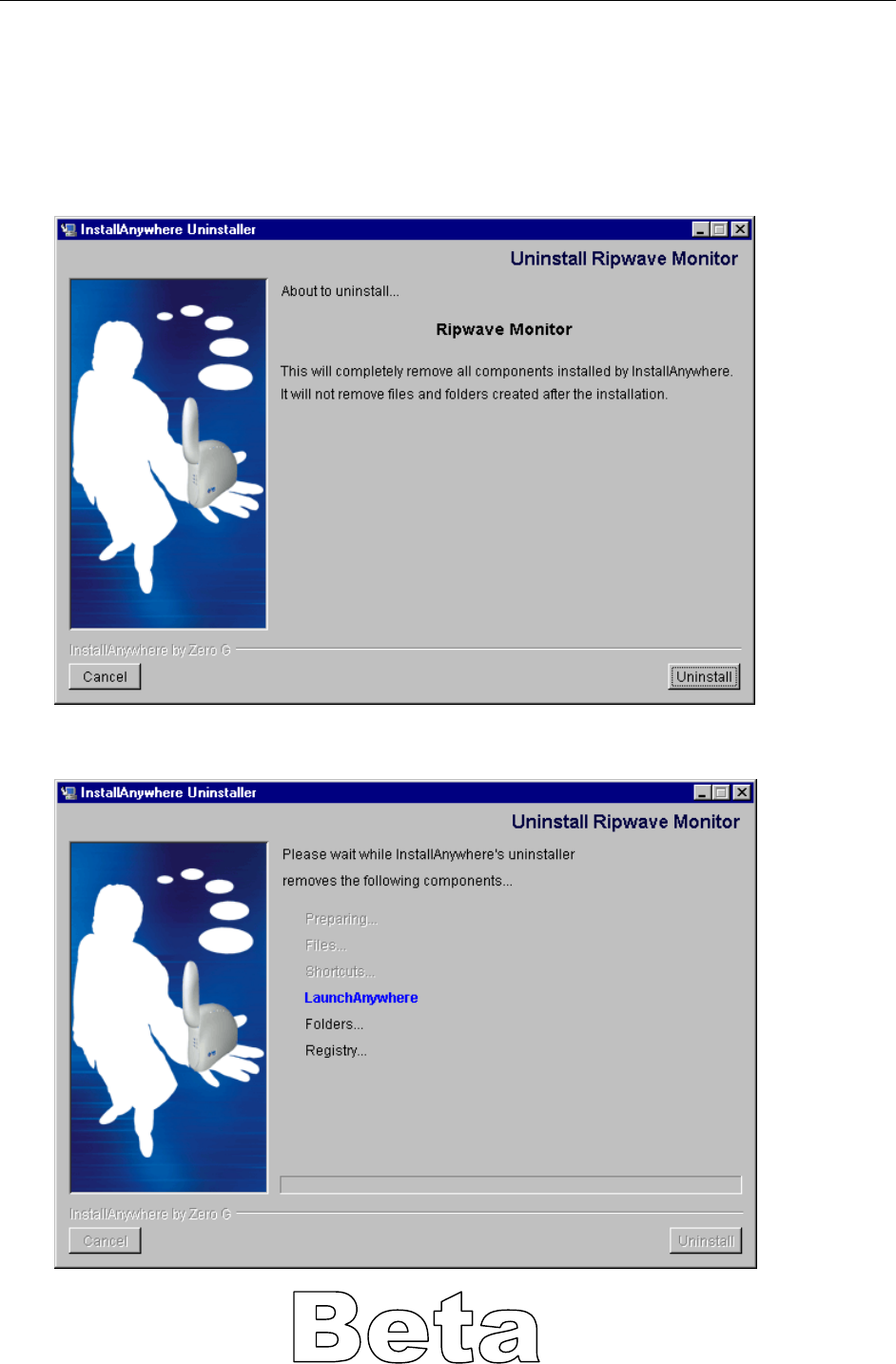

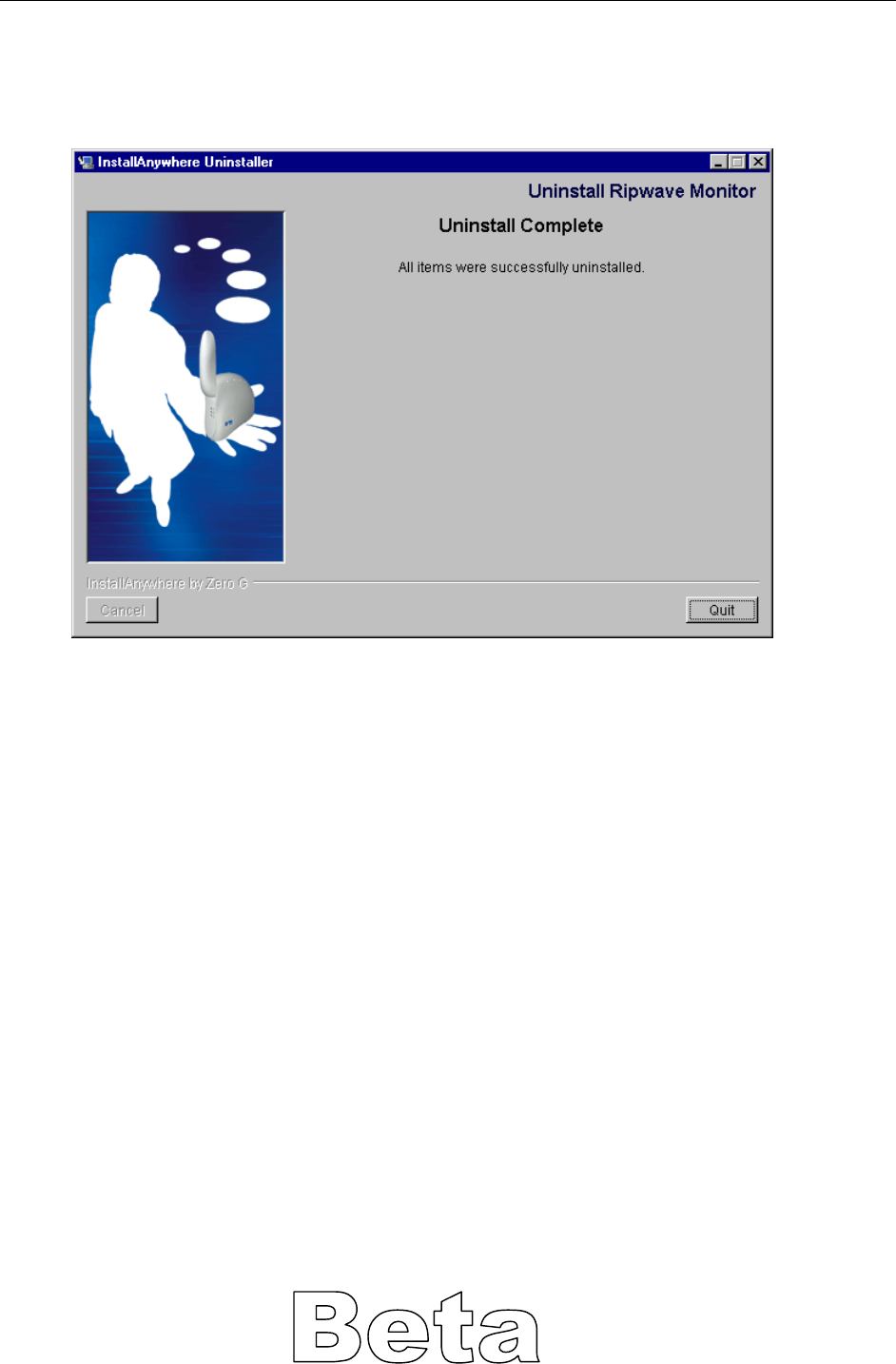

UNINSTALL RIPWAVE MONITOR SOFTWARE.................................................. 19
INSTALLING / CHARGING THE BATTERY.......................................................... 21
BETA USER GUIDE FREQUENTLY ASKED QUESTIONS.................................. 23
END USER LICENSE AGREEMENT......................................................................... 25
ii
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
iii
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Symbols
Throughout this manual, the following symbols are used to designate precautions that
need to be taken when performing the step. For your safety and protection of the
equipment, observe these precautions when installing, operating, or servicing the
equipment.
Caution
Symbol
This symbol indicates a potentially hazardous
situation that may result in equipment damage
or improper operation.
Warning
Symbol
This symbol indicates a potentially hazardous
situation that may result in death or injury to
personnel.
Notes
Notes
Symbol
This symbol indicates points, comments, or
special attention that is required during a
procedure.
iv
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
v
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Permissions, trademarks, and distribution
Copyright© November 2001 - 2002, Navini Networks, Inc. All information contained
herein and disclosed by this document is confidential and the proprietary property of
Navini Networks, Inc. and all rights therein are expressly reserved. Acceptance of this
material signifies agreement by the recipient that the information contained in this
document is confidential and that it will be used solely for the purposes set forth herein.
Acceptance of this material signifies agreement by the recipient that it will not be used,
reproduced in whole or in part, disclosed, distributed, or conveyed to others in any
manner or by any means – graphic, electronic, or mechanical, including photocopying,
recording, taping, or information storage and retrieval systems – without the express
written permission of Navini Networks, Inc.
Navini Networks™, Internet at the Speed of Thought™, zero-install™, and Ripwave™
are registered trademarks of Navini Networks, Inc. Other product and company names
mentioned herein may be trademarks and/or service marks of their respective owners.
Nothing herein constitutes any representation, warranty, assurance, or guaranty of
any kind.
Because of continuing developments and improvements in design, manufacturing, and
deployment, material in this document is subject to change without notification and does
not represent any commitment or obligation on the part of Navini Networks, Inc.
Navini Networks, Inc. shall have no liability for any error or damages resulting from the
use of this document.
The logo and all other Navini Networks trademarks are the
property of Navini Networks, Inc. Unauthorized usage is strictly prohibited without the
express written permission of Navini Networks, Inc.
Ó 2001 - 2002 Navini Networks, Inc. All rights reserved.
vi
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Regulatory Information
FCC Notice
Caution: This device is a radio frequency transmitter. It is required to comply
with FCC RF exposure requirements for transmitting devices. A minimum
separation distance of 8 inches (20 cm) or more must be maintained between the
antenna and all persons during device operations to ensure compliance with the
FCC’s rules for Radio Frequency Exposure. If this minimum distance cannot be
maintained, exposure to RF levels that exceed the FCC’s limits may result. This
equipment must not be co-located with any other transmitting antenna.
This equipment complies with part 21 of the FCC rules. Any changes or
modifications not expressly approved by the manufacturer could void the user’s
authority to operate the equipment.
vii
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Safety
To optimize safety when using the Navini equipment, please read before using.
When using the Navini electronic equipment, always follow the basic safety precautions
to reduce the risk of electrical shock, fire, and injury to people and/or property.
1. Follow all warnings and instructions that come with the equipment.
2. Do not use the equipment while you are in a bathtub, shower, pool, or spa.
Exposure of the equipment to water could cause severe electrical shock (even
death) or serious damage to the equipment.
3. Do not allow any type of liquid to come in contact with the equipment. Unplug
the equipment from the power source before cleaning. Use a damp cloth for
cleaning. Do not use any soaps or liquid cleaners.
4. Follow all airport and FAA regulations when using the equipment on or near
aircraft.
5. Only operate the equipment from the type of power source(s) indicated in this
manual (110 VAC or Navini supplied battery). Any other type of input power
source may cause damage to the equipment.
6. Power the equipment using only the battery or the AC adapter cable provided, and
in accordance with the instructions specified in the user manual.
7. Do not use a frayed or damaged power cord. Do not place the power cord where it
can be stepped on or tripped over.
8. Do not touch wires where the insulation is frayed or worn unless the equipment
has been disconnected from its power source.
9. Do not overload wall outlets, power strips, or extension cords. This can cause
serious electrical shock or fire.
10. Do not place the equipment on an unstable surface. It can fall and cause injury or
damage to the equipment.
viii
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Safety (continued)
11. Do not dispose of the equipment or the battery in a fire. They may explode. Check
with the retailer for battery disposal guidelines.
12. Do not open or mutilate the battery. The battery contains substances that are toxic,
corrosive, or harmful to humans. If battery substances come in contact with the
skin, seek medical help immediately.
13. Do not disassemble the equipment. Removing covers exposes dangerous voltages
or other risks and also voids the warranty. Incorrect reassembly can cause
equipment damage or electrical shock. Only an authorized repair technician
should service this product.
14. Do not expose the equipment to extreme hot or cold temperatures.
15. Do not use the equipment under the following conditions:
· When the equipment has been exposed to water or moisture.
· When the equipment has been damaged.
· When the power cord is damaged or frayed.
· When the equipment does not operate properly or shows a distinct change
in performance.
CAUTION: RISK OF EXPLOSION IS POSSIBLE IF THE BATTERY IS
REPLACED WITH ONE NOT SUPPLIED BY NAVINI NETWORKS.
DISPOSE OF USED BATTERIES ACCORDING TO ENVIROMENTAL
GUIDELINES.
ix
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
x
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
xi
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Introduction
Congratulations for being selected to test the Navini Networks Ripwave product. This manual
will guide you through the simple process of installing the Navini Networks Ripwave unit and
software, which has been developed to optimize the ease and convenience for you, our valued
customer.
The Ripwave Unit Installation includes instructions for both USB and Ethernet connections. Be
sure to use the instructions that apply to your Ripwave model.
Note: You must have the Ripwave Unit model that is appropriate for your PC port: Model
2600U for a USB connection; Model 2600E for an Ethernet connection. At first glance, the
models appear the same, but the ports and cables for the connections are different.
A USB connection will function only with
Windows® 98, Windows® 98SE, Windows® 2000,
Windows® ME, or Windows® XP. It will not
work with Windows® 95 or Windows NT®.
·
·
USB
Model 2600U
An Ethernet connection will function with any
Win32 Operating System (Windows® 95 or later).
Ethernet
Model 2600E
The Software Installation procedure is the same for either of the Ripwave models.
Minimum requirements:
Operating System: Windows® 95 or later – Internet Explorer 3.0 or higher is
required for installation on Windows 95 operating
systems. Macintosh systems are not supported.
CPU: Pentium level or higher
RAM: 32MB or the Operating System minimum (whichever is
greater)
Hard Drive: 10MB free disk space
Monitor Colors and Resolution: 256 colors, 800 x 600 resolution
Before you start!
Verify the contents of your package. The contents should consist of the following items:
Ø Navini Networks Ripwave unit
Ø Ripwave unit AC power adapter
Ø PC-to-Ripwave unit cable (USB or Ethernet)
Ø Ripwave User Guide
Ø Ripwave Quick Installation Guide
Ø Navini Networks Ripwave Installation CD
If you do not find all of these items in your package, notify the supplier from whom you obtained
your package.
1
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Ripwave Unit Installation
USB connections
The following instructions are for the installation of the Ripwave Unit model 2600U using a
USB connection. Please read all instructions before attempting installation. It is recommended
that the computer and the Ripwave unit be turned off before performing the installation.
1. Connect the USB cable
to the USB port on the
computer as shown.
2. Connect the other end of the
USB cable to the
Ripwave unit as shown.
AC Power
adapter cable
j
ac
k
3. Connect the AC power adapter
cable to the Ripwave unit.
Plug the other end of the AC
power adapter cable
into a 110 VAC outlet.
Caution: Only use the
AC power adapter supplied
with the Ripwave unit. Using
any other adapter may cause
damage to the Ripwave Unit.
USB Port
2
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
4. Rotate the antenna on the
Ripwave unit clockwise
180 degrees to the ‘UP’ position.
This reveals the Ripwave unit
indicator lights.
Caution: Rotation or movement
of the antenna in any other
direction may cause
damage to the Ripwave unit.
Rotate
antenna
clockwise
180 degrees

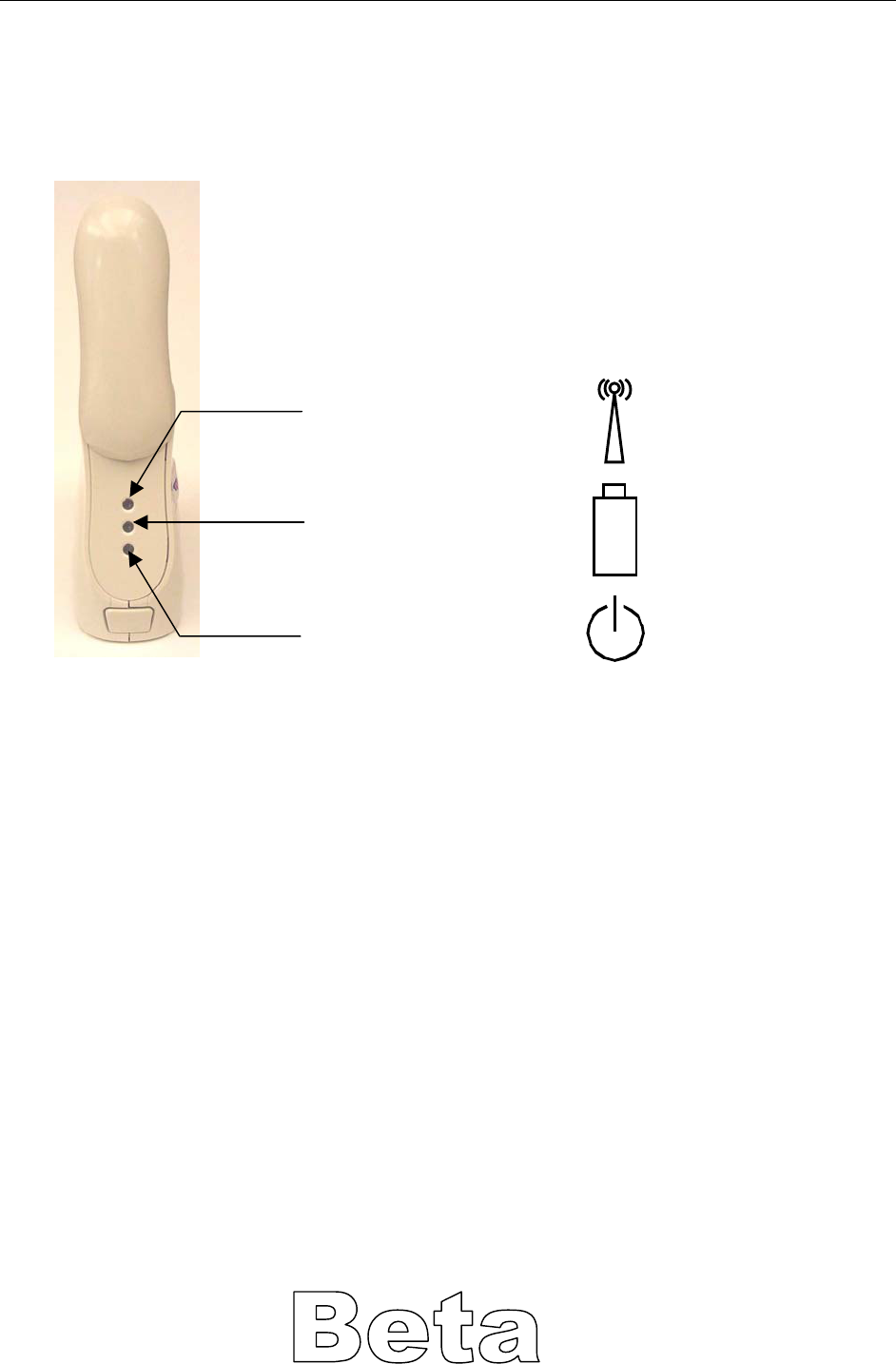

Signal Strength Indicator
Battery Indicator
Power Indicator
5. Push the On/Off switch
on the Ripwave unit to turn the
unit ON.
6. If the green power-indicator light is
on, proceed to step 7. If the green
power-indicator light is not on, there
is a problem with the Ripwave unit
or the AC Power Adapter. Check all
cables for proper connection.
Otherwise, contact the supplier
from whom you obtained
the package.
Power on indicator
On/Off switch
7. Set the power switch on the computer to the ON position. When the system is up, log in
to the computer.
Note: For Windows® 2000, you must be logged into an account having administrative
privileges to install the Ripwave unit and its software.

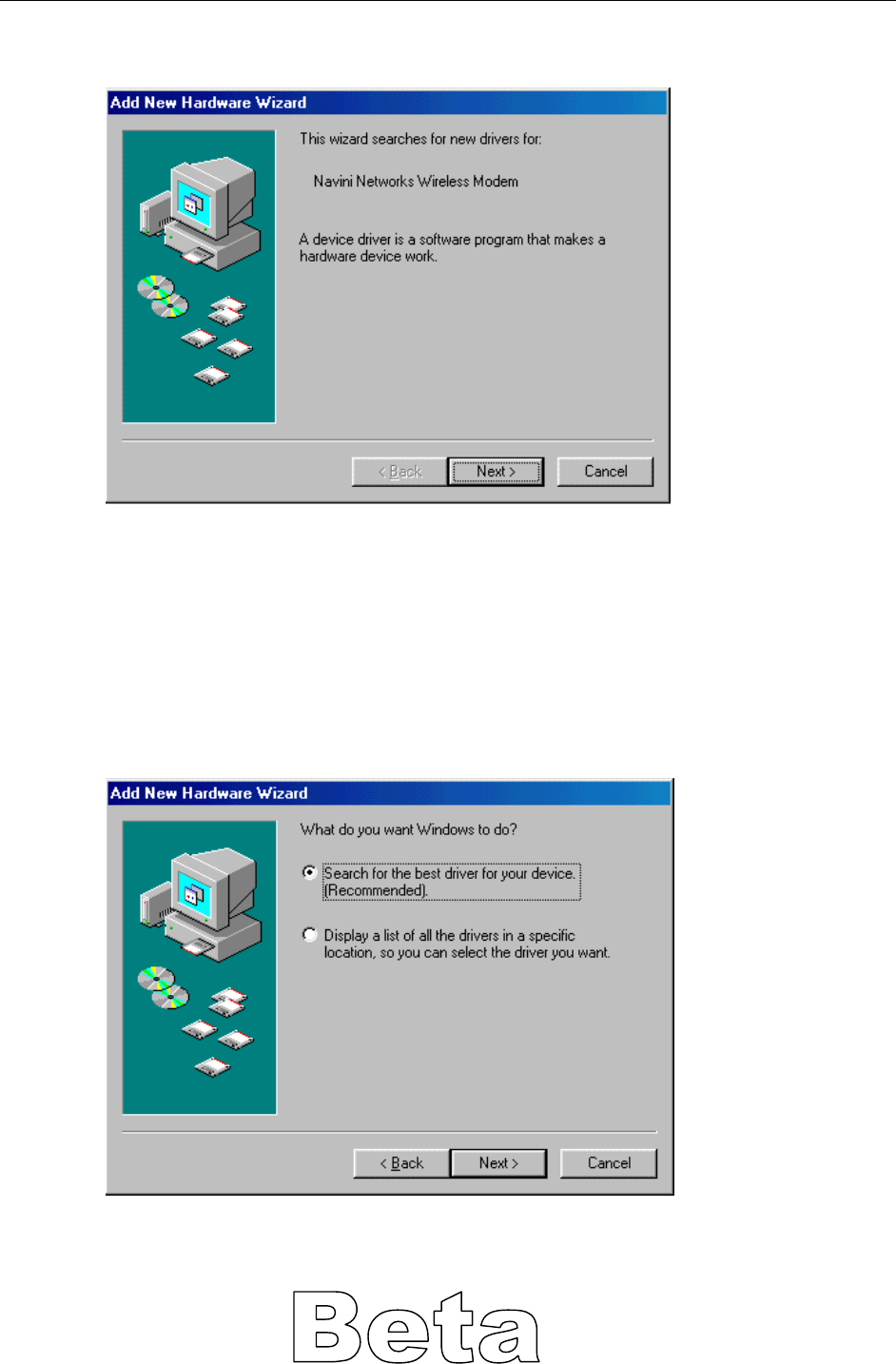

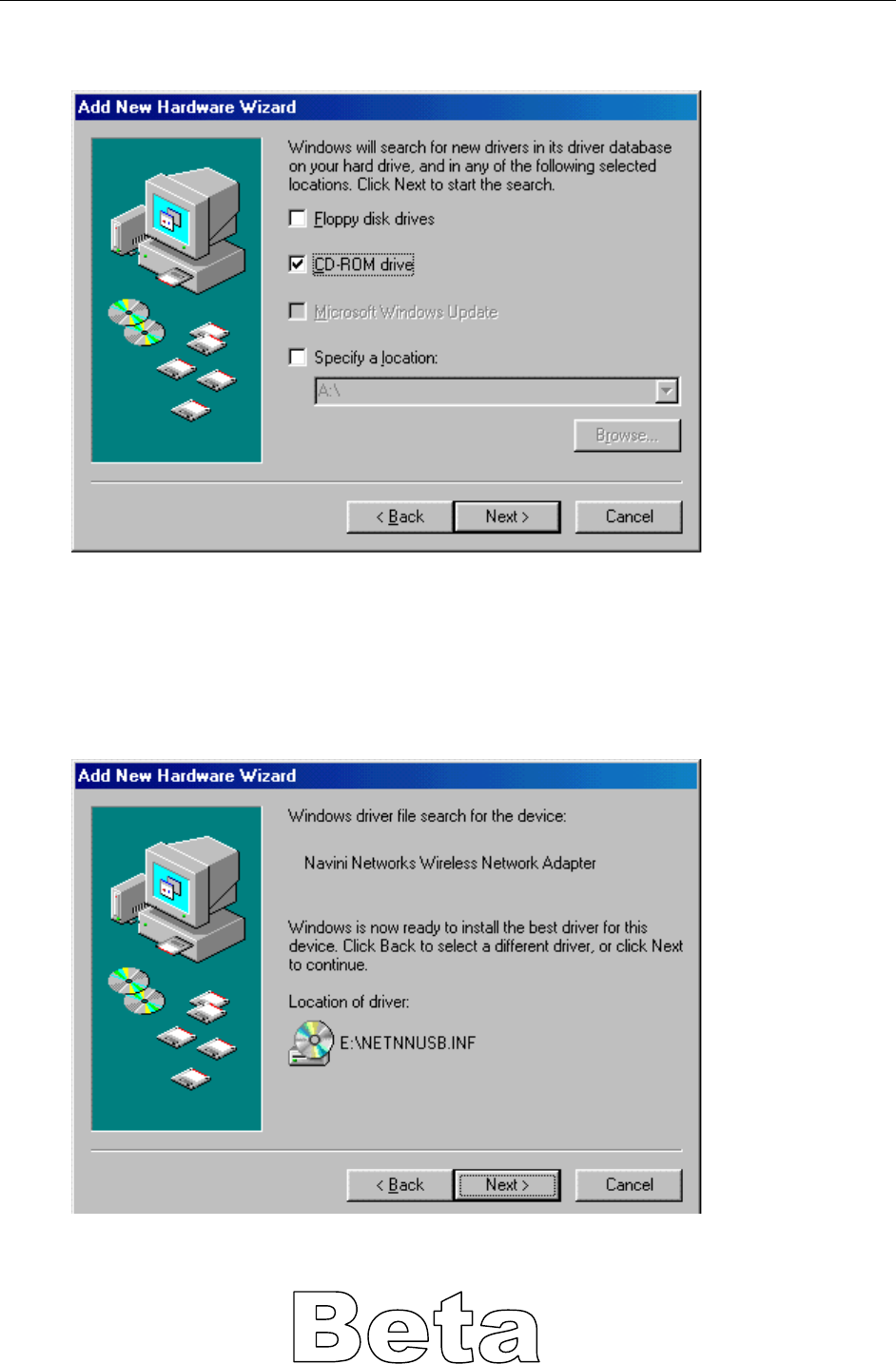

8. Plug and Play will detect the Ripwave device now attached to the PC and will launch the
Plug and Play application.
3
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
9. The Add New Hardware Wizard dialog box appears. Click Next to continue.
10. Insert the Navini Networks Ripwave installation CD in the CD-ROM drive.
11. In the next dialog box, select the ‘Search for the best driver for your device’ option. Click
Next to continue.
4
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
12. In the next dialog box, select the ‘CD-ROM drive’ checkbox. Click Next to continue.
13. In the next dialog box, confirm that the drive location is correct (the drive letter may be
different than shown below) and that the file to be installed is NETNNUSB.INF. Click
Next to continue.
5
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
14. In the next dialog box, click Finish.
Note: For Windows® 98, a window may appear asking for drivers to be installed from the
Windows® 98 setup disk. If so, insert the Windows® 98 setup disk in the CD-ROM drive
and accept the defaults.
15. After clicking Finish, the System Settings Change window appears asking if you want to
restart your computer now. Click Yes.
Note: You must restart your computer at this point before proceeding.
16. After the computer restart is complete, proceed to the Ripwave Monitor Software
Installation on page 9.
6
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Ethernet connections
The following instructions are for the installation of the Ripwave Unit model 2600E using an
Ethernet connection. Please read all instructions before attempting installation. It is
recommended that the computer and the Ripwave unit be turned off before performing the
installation.
1. Connect the Ethernet cable to the
Ethernet port on the computer
as shown.
2. Connect the other end of the
Ethernet cable to the Ripwave
unit as shown.
3. Connect the AC power adapter
cable to the Ripwave unit.
Plug the other end of the AC
power adapter cable
into a 110 VAC outlet.
Caution: Only use the
AC power adapter supplied
with the Ripwave unit. Using
any other adapter may cause
damage to the Ripwave Unit.
AC Power
adapter cable
j
ac
k
US
B P
o
r
t
7
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
4. Rotate the antenna on the
Ripwave unit clockwise
180 degrees to the ‘UP’ position.
This reveals the Ripwave
indicator lights.
Caution: Rotation or movement
of the antenna in any other
direction may cause
damage to the Ripwave Unit.
Rotate
antenna
clockwise
180 degrees
Signal Strength Indicator
Battery Indicator
P
owe
r In
d
i
cator
5. Push the On/Off switch
on the Ripwave unit to turn the
unit ON.
6. If the green power-indicator light is
on, proceed to step 7. If the green
power-indicator light is not on, there
is a problem with the Ripwave unit
or the AC Power Adapter. Check all
cables for proper connection.
Otherwise, contact the supplier
from whom you obtained
the package.
Power on indicator
On/Off switch
7. Set the power switch on the computer to the ON position. When the system is up, log in
to the computer.
8. Proceed to the Ripwave Monitor Software Installation on page 9.
8
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Ripwave Monitor Software Installation
Notes:
For Windows NT® and Windows® 2000, you must be logged into an account having
administrative privileges to install the Ripwave monitor software.
For Ripwave monitor software installation on Windows® 95, Windows® 98, and
Windows® 98SE Operating Systems, the operating system CD will be needed to
complete the installation. If prompted, insert the operating system CD in the
CD-ROM drive and accept the defaults.
Installation procedures:
The following instructions are for installing the software that monitors the operation and
performance of the Ripwave unit.
1. Shut down all programs before installing the Ripwave monitor software. This includes all
anti-virus software.
2. Insert the Navini Networks Ripwave installation CD in the CD-ROM drive.
3. Click Start > Run at the bottom left corner of your screen. In the Run window, enter
e:\setup (where “e” represents the CD drive; use the letter representing your specific CD
drive) in the Open field. Click OK to continue.
9
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
4. The InstallAnywhere window appears. The progress bar indicates that
InstallAnywhere has initialized.
5. The Ripwave Monitor Introduction screen appears. Click Next to continue.
10
Ripwave 2.6 GHz User Guide Navini Networks, Inc.

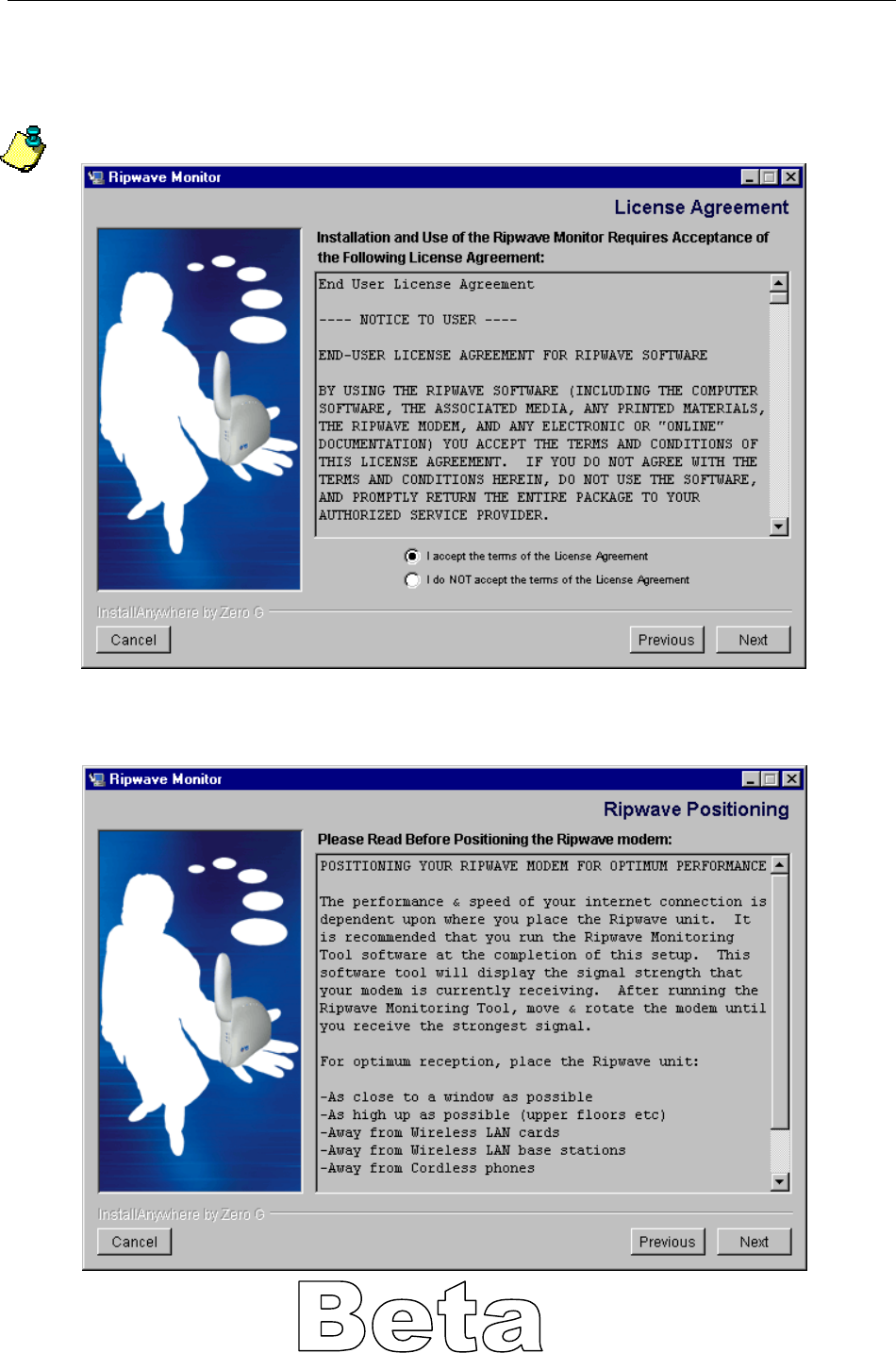

6. The License Agreement screen appears. Read the Licensing Agreement. Select the I
accept option, and click Next to continue.
Note: If the License Agreement is not accepted, you cannot install the software.
7. The Ripwave Positioning screen appears. Read the screen for positioning the Ripwave
unit for optimum performance. Click Next to continue.
11
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
8. The Choose Install Folder screen appears. Enter the name of the folder where you wish to
install the software and click Next to continue.
Note: The default installation folder provided by the installation software is shown
below.
9. The Pre-Installation Summary screen appears. Review the contents for accuracy. Click
Install to continue.
Note: For your installation, this screen may have different information.
12
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
10. The Installing screen will display as the application files are loaded.
11. At the Install Complete screen, click Done to close the window.
13
Ripwave 2.6 GHz User Guide Navini Networks, Inc.

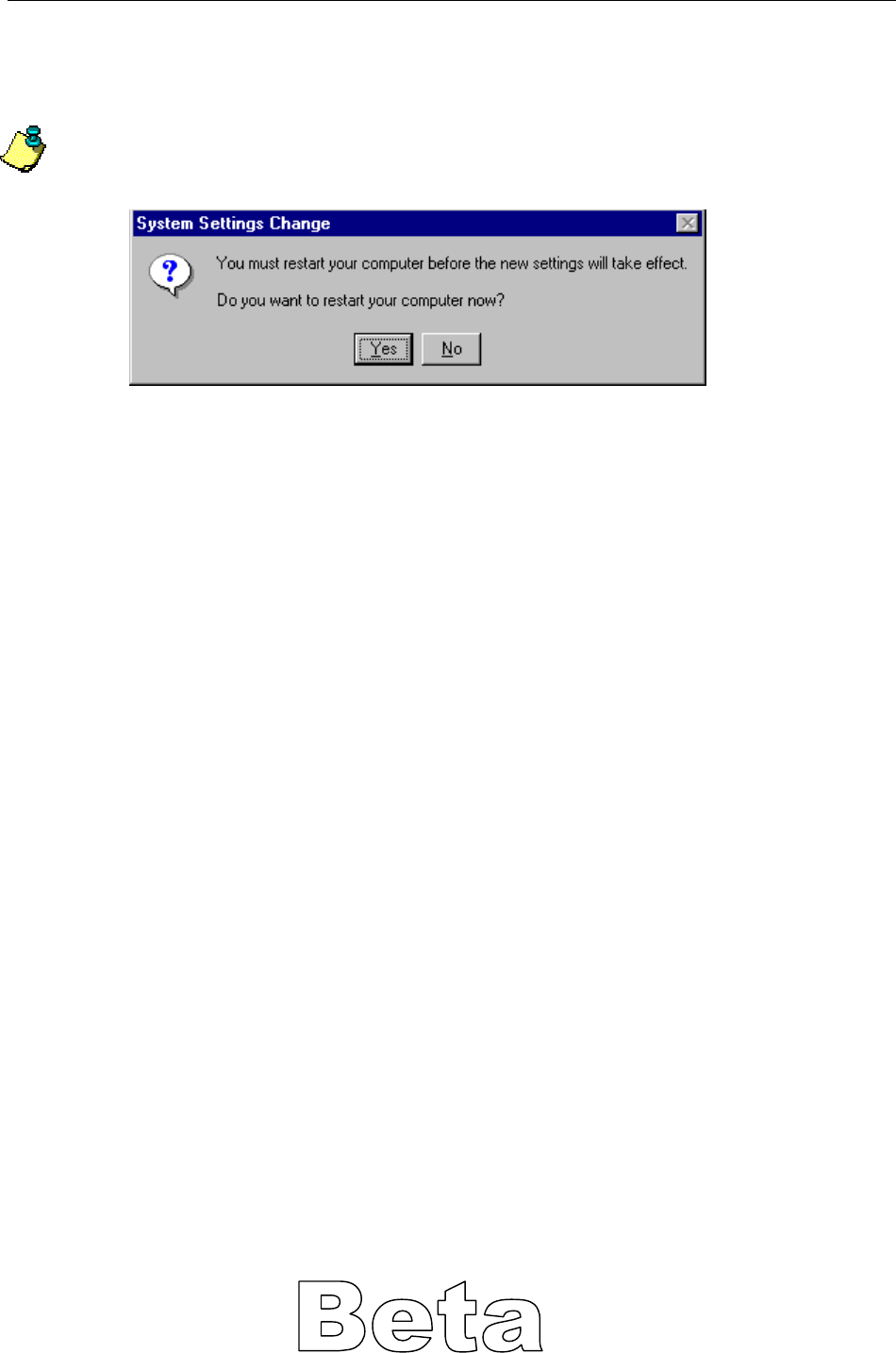

12. After clicking Done, the System Settings Change window appears asking if you want to
restart your computer now. Click Yes.
Note: You must restart your computer at this point before proceeding.
Accessing the Internet
To access the Internet, open the web browser that is installed on the computer. You should be
able to surf the Internet.
14
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Ripwave Unit Indicator Lights
The Ripwave unit has three LEDs that indicate the operating status of the unit. The indicator
lights, along with the graphical representation next to it on the case, are as follows:
Power Indicator
Battery Indicator
Signal Strength Indicator
The indicator lights change color to designate the state of the item that it represents. The color
designations are as follows:
Signal Strength Indicator: Battery Indicator:
Flashing red – weak signal Constant Yellow – battery is charging
Flashing yellow – medium signal Constant red – battery less than
Flashing green – strong signal 20% charged
All three colors – no signal Flashing red – battery less than
alternately flashing 10% charged
Off – battery fully
charged or not
installed
Power Indicator:
Constant Green –The unit is on (AC or DC Power)
15
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Displaying the Ripwave Monitor
Navini Networks provides Ripwave monitor software to assist you in solving problems that you
encounter with reception or network connections. The Ripwave monitor provides information on
the strength and quality of the incoming signal, battery strength, and checks the connectivity to
the Internet Service Provider (ISP) network. The following steps will aid in using the Ripwave
Monitor software.

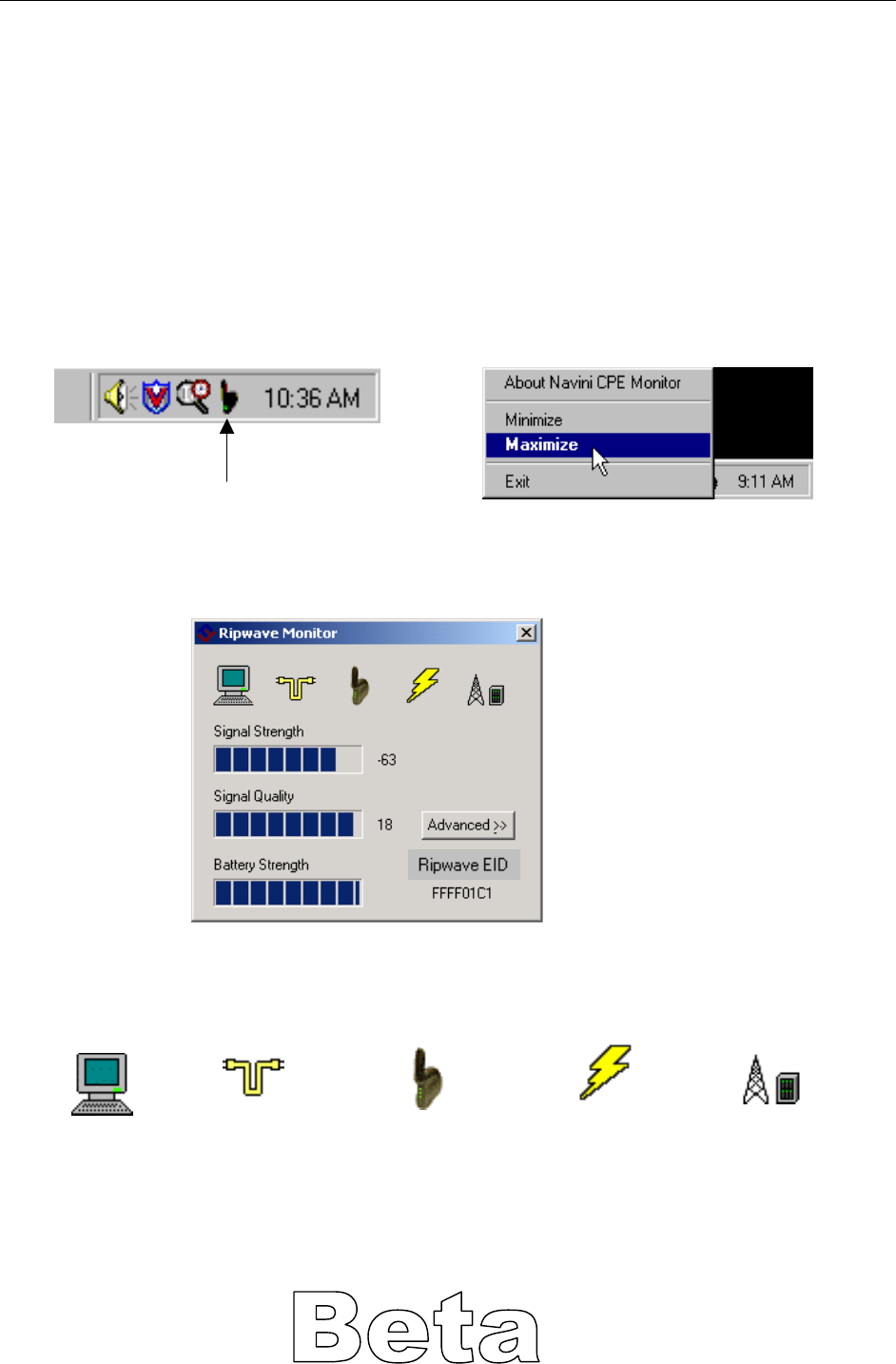

1. To open the Navini Ripwave Monitor, right-click on the Ripwave icon in the toolbar tray
and select Maximize.
Ripwave Icon
2. The Ripwave Monitor window appears.
The icons shown across the top of the window represent each of the components and
connections throughout the system. They are:
Computer Computer to Ripwave Ripwave to Base
Ripwave Unit Base Station Station
connection wireless
connection
16
Ripwave 2.6 GHz User Guide Navini Networks, Inc.

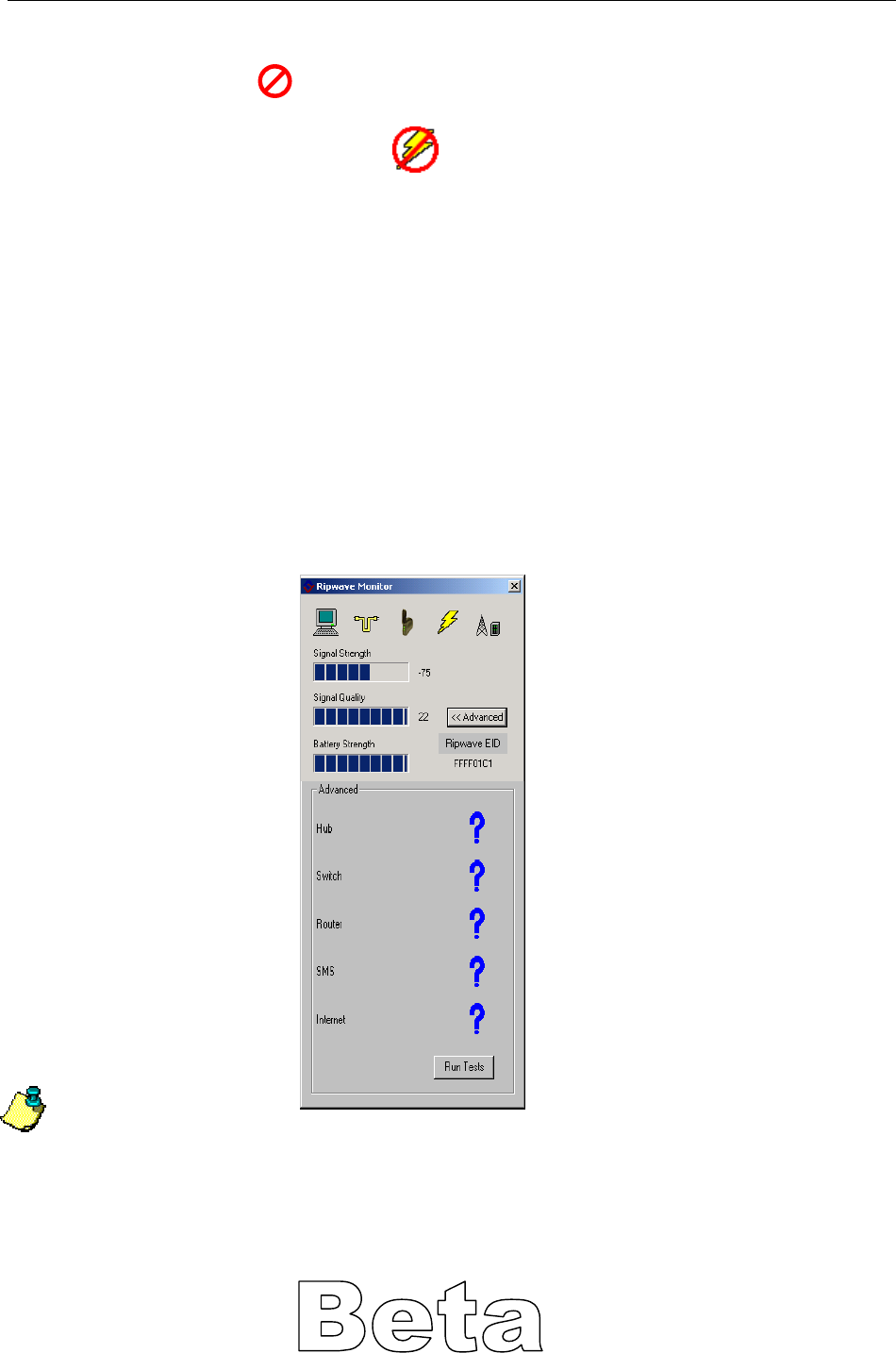

If a problem is detected with one of these components or if a connection is down, a red
circle with a slash ( ) will be positioned over the icon. For example, if the Ripwave to
Base Station wireless connection goes down, the icon will change to:
When the system is on, the signal strength and quality strength will be displayed as
dynamic bar graphs in the window. To increase the strength and quality of the signal,
change the location of the Ripwave unit. Try moving it closer to a window, to a higher
location, away from other wireless devices (microwave ovens, cordless phones), and
away from metal objects (shelves, file cabinets). As the Ripwave unit is repositioned,
observe the Signal Strength and Signal Quality bar graphs. Position the Ripwave unit for
maximum signal strength and quality. The numbers to the right of the Signal Strength and
Signal Quality bar graphs and the Ripwave EID number are for troubleshooting purposes
only. During troubleshooting, the technician may ask you for these numbers. The Battery
Strength bar graph indicates how much charge is left in the battery. If the unit is being
run by the AC power adapter, the Battery Strength bar graph will show full strength.
3. To check connectivity to the ISP network, click the Advanced button on the Navini
Ripwave Monitor. The window displays all of the connections to the ISP network.
Notes:
If the connection from the Base Station to the Ripwave Unit is down, the Advanced
button will be disabled (grayed out).
The connections listed in the Advanced window will vary depending on your ISP
network. The above connections are used as an example.
17
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
4. Click on the Run Tests button to check the connections.
A blue checkmark indicates that the connection to the network is valid. If there is a problem, a
red circle with a slash ( ) will be displayed instead of the checkmark for the connection. If
this appears, contact your ISP for service.
Note: The features of the Advanced and Run Tests buttons are to be used in conjunction
with your ISP to resolve connection problems. There is no need to use these features
unless you are experiencing problems with the Ripwave unit.
18
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Uninstall Ripwave Monitor Software
1. To uninstall the Ripwave monitor software, click Start > Programs > Navini Ripwave
Monitor > Uninstall Ripwave Monitor. The InstallAnywhere Uninstaller screen
appears. Click Uninstall.
2. The screen will cycle through as the application files are uninstalled.
19
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
3. The Uninstall Complete screen appears when finished. Click on Quit to close the
Uninstall screen.
4. Restart the computer to complete the uninstall process. This will ensure that the
computer functions properly after the uninstall process.
20
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Installing / Charging the Battery
Note: The battery is an option and is not included with the unit.
The battery is installed in the bottom of the Ripwave unit. To install and charge the battery,
follow the steps below.
1. Using the battery pack tab, remove the battery cover from the Ripwave unit.
Battery pack tab
2. Install the battery pack into the Ripwave unit, ensuring that the contacts on the battery
pack mate with the contacts in the Ripwave unit.
Battery contacts
Battery pack contacts
21
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
3. Reinstall the battery cover on the Ripwave unit.
To charge the battery, install it in the Ripwave unit. Connect the AC adapter (see Ripwave unit
installation) to the Ripwave unit. The battery will begin charging immediately with the on/off
switch in either position. The middle indicator light on the front of the Ripwave unit (under the
antenna) will be constant yellow, indicating that the battery is being charged.
Notes:
The battery indicator light will only be on if the on/off switch is in the on position. When
the battery is fully charged, the indicator light will go off and charging stops.
To view the battery indicator LED, rotate the antenna clockwise. See page 2 for details.
22
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Beta User Guide Frequently Asked Questions
1) What is the Ripwave unit?
Ripwave is a new and exciting product that allows end users to access the Internet at
broadband speeds through a small wireless device that is self installed and is
non-line-of-sight to the tower.
2) What does it cost?
As a beta user, there is no charge for using the service.
3) Are there conditions attached in beta-testing the Ripwave unit?
As a beta user, you agree to:
a) Provide feedback on your experiences with this service & hardware. You will be
notified regularly throughout the beta trial period to provide feedback.
b) Return the Ripwave unit at the termination of the beta trial.
4) When can I purchase the Ripwave unit and how much will it and the service cost?
The exact pricing and time frame for commercial deployment has not been determined. When
service is deployed in your area, you will be notified.
5) I have installed the Ripwave software and cannot connect to the Internet.
If you are having problems, contact your service provider.
6) Can I use the Ripwave unit outside of my home or in another part of the city?
As this is a beta trial, the service is only available in a limited coverage area. Therefore, using
the Ripwave unit outside of the coverage area may result in loss of coverage. The Ripwave
unit can be used anywhere there is adequate signal strength – including outdoors – as long as
there is power to the unit from the wall charger or battery (not included for all users). Your
service provider will be able to tell you the coverage area for the beta trial.
7) How can I tell if there is adequate signal strength?
The top LED indicator on the Ripwave unit flashes green when you have strong/adequate
signal strength in a given area (see page 15 for all signal strength indicator colors). Moving
the Ripwave unit around or rotating the Ripwave unit may help with improving signal
strength. Use the Ripwave Monitor Signal Strength and the Signal Quality bar graphs to help
obtain maximum signal strength and quality. Also ensure that the antenna is pointed straight
up.
8) How can I obtain a battery for my CPE, and do I need one?
Only a select number of beta users will be given a battery for their Ripwave unit. The battery
is optional and is not necessary to operate the Ripwave unit. The battery allows the unit to be
operated without AC power.
23
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
Frequently Asked Questions (continued)
9) Do I need to turn off the Ripwave unit when I am finished using it?
It is recommended that you turn off the Ripwave unit when it is not in use. The switch is
located on the front of the unit.
10) I have a friend/family member/co-worker who also wants to beta test the
Ripwave unit. Can they sign up?
All Beta users have been identified for this specific trial. No additional Beta users are needed
at this time.
11) Can I be candid on the beta test questionnaires without losing the
product/service?
Absolutely! The only way that we can improve on the quality of the product and service is to
know exactly what you think about it. Please feel free to offer any suggestions,
recommendations, or comments on all questionnaires that you will complete during the trial.
24
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
End User License Agreement
---- NOTICE TO USER ----
END-USER LICENSE AGREEMENT FOR RIPWAVE SOFTWARE
BY USING THE RIPWAVE SOFTWARE (INCLUDING THE COMPUTER SOFTWARE,
THE ASSOCIATED MEDIA, ANY PRINTED MATERIALS, THE RIPWAVE MODEM,
AND ANY ELECTRONIC OR “ONLINE” DOCUMENTATION) YOU ACCEPT THE
TERMS AND CONDITIONS OF THIS LICENSE AGREEMENT. IF YOU DO NOT AGREE
WITH THE TERMS AND CONDITIONS HEREIN, DO NOT USE THE SOFTWARE, AND
PROMPTLY RETURN THE ENTIRE PACKAGE TO YOUR AUTHORIZED SERVICE
PROVIDER.
IN RETURN FOR OUR GRANTING TO YOU A LICENSE TO USE THE SOFTWARE, YOU
AGREE TO THE FOLLOWING TERMS AND CONDITIONS:
IMPORTANT - READ CAREFULLY: This End-User License Agreement ("Agreement") is a
legal agreement between you (either an individual or an entity) and Navini Networks, Inc. for the
Ripwave Software ("SOFTWARE"). The SOFTWARE includes computer software, the
associated media, any printed materials, and any electronic or "online" documentation. Any
software provided along with the SOFTWARE that is associated with a separate end-user license
agreement is licensed to you under the terms of that license agreement. By installing, copying,
downloading, accessing, or otherwise using the SOFTWARE, you agree to be bound by the
terms of this AGREEMENT. If you do not agree to the terms of this AGREEMENT, Navini is
unwilling to license the SOFTWARE to you. In such event, you shall not use or copy the
SOFTWARE, and you should promptly contact your Authorized Service Provider ("ASP") for
instructions on return of the SOFTWARE and Ripwave Modem. EXCEPT FOR NON-
DISCLOSURE AGREEMENTS BETWEEN THE PARTIES, THIS IS THE ENTIRE
AGREEMENT BETWEEN THE PARTIES RELATING TO THIS SOFTWARE AND
SUPERCEDES ANY PURCHASE ORDER, COMMUNICATION, ADVERTISING, OR
REPRESENTATION CONCERNING THE SOFTWARE OR THE RIPWAVE SERVICE. NO
CHANGE OR MODIFICATION OF THIS AGREEMENT WILL BE VALID UNLESS IT IS
IN WRITING AND SIGNED BY NAVINI.
SOFTWARE LICENSE
The SOFTWARE is protected by copyright laws and international copyright treaties, as well as
other intellectual property laws and treaties. The SOFTWARE is licensed, not sold. This
Agreement does not authorize a sale or lease of the SOFTWARE. The term "COMPUTER"
shall mean a single computer system.
25
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
1. GRANT OF LICENSE. This AGREEMENT grants to you a personal,
non-exclusive, non-transferable license as follows:
1.1 Storage, Installation and Use. Except as otherwise expressly provided in this
AGREEMENT, you will be allowed to install, use, access, run, or otherwise interact with the
SOFTWARE on multiple COMPUTERS. This SOFTWARE may only be used with a Ripwave
Digital Modem ("MODEM").
2. DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS.
2.1 Multiple Processor Version Selection. The CD or diskette(s) on which the SOFTWARE
resides may contain several copies of the SOFTWARE, each of which is compatible with
different microprocessor architectures, such as the x86 architecture or various RISC architectures
("Processor Version(s)"). You may install and use only one copy of one Processor Version of the
SOFTWARE on the COMPUTER.
2.2 Limitations on Reverse Engineering, Decompiling, and Disassembly. YOU MAY NOT
MODIFY, TRANSLATE, DISASSEMBLE, CREATE DERIVATIVE WORKS, OR REVERSE
ENGINEER THE SOFTWARE OR ANY COPY, IN WHOLE OR IN PART.
2.3 Rental. You may not rent, lease, assign, or lend the SOFTWARE or distribute copies of
the SOFTWARE to others.
2.4 Software Transfer. You may not sell the SOFTWARE. You may not post, distribute or
transfer the SOFTWARE to anyone outside of the Beta User Trial.
2.5 Termination. This license is effective until terminated. You may terminate this license by
returning the SOFTWARE, the Ripwave modem and associated hardware and all documentation
to your service provider. Without prejudice to any other rights, NAVINI may terminate your
rights under this AGREEMENT if you fail to comply with the terms and conditions of this
AGREEMENT. In such event, you must return the SOFTWARE and any copies, the Ripwave
modem and associated hardware and all documentation to your service provider.
2.6 Trademarks. This AGREEMENT does not grant you any rights in connection
with any trademarks or service marks of NAVINI.
2.7 Third Party Intellectual Property. Licensee acknowledges, understands and agrees that
the licensed Software covered by this License Agreement may contain Intellectual Property
owned by Third Parties and duly licensed to NAVINI NETWORKS, INC. Copyright, Patent and
other laws protect Third Party Intellectual Property manufactured with, marketed with, or
otherwise bundled with the licensed Software. Licensee promises to keep such Third Party
Intellectual Property in confidence to the benefit of the Third Party, agrees not to reverse
engineer or otherwise decompile Third Party Intellectual Property, and agrees to stop using,
destroy and/or return such Third Party owned Intellectual Property under the same terms and
conditions as the licensed Software as set forth in this License Agreement. The Third Party is a
third party beneficiary under this License Agreement and may independently enforce its
Intellectual Property rights.
26
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
2.8 Remote Digital Access. Licensor reserves the right, but is not obligated to digitally
access the CPE and/or the Ripwave Software for the purposes of upgrading and maintaining the
software.
3. UPGRADES. If the SOFTWARE is labeled as an upgrade, you must be properly licensed
to use a product identified by NAVINI as being eligible for the upgrade in order to use the
SOFTWARE ("Eligible Software"). SOFTWARE labeled as an upgrade replaces and/or
supplements (and may disable) the Eligible Software. You may use the resulting upgraded
product only in accordance with the terms of this AGREEMENT.
4. COPYRIGHT. The SOFTWARE is provided with restrictive rights. All title and
intellectual property rights in and to the SOFTWARE (including but not limited to any images,
photographs, animations, video, audio, music, text, and "applets" incorporated into the
SOFTWARE), the accompanying printed materials, and any copies of the SOFTWARE, are
owned by NAVINI. All title and intellectual property rights in and to the content that is not
contained in the SOFTWARE but may be accessed through use of the SOFTWARE and the
MODEM is the product of the respective content owner and may be protected by applicable
copyright or other intellectual property laws and treaties. This AGREEMENT grants you no
rights to use such content. Use of any online services that may be accessed through the
SOFTWARE may be governed by the respective terms of use for such services. If this
SOFTWARE contains documentation that is provided only in electronic form, you may print one
copy of such electronic documentation. You may not copy the printed materials accompanying
the SOFTWARE. All rights not specifically granted under this AGREEMENT are reserved by
NAVINI.
5. PRODUCT SUPPORT. Product support for the SOFTWARE is not provided by
NAVINI. For product support, please refer to ASP's support number provided in their
documentation.
6. U.S. GOVERNMENT RESTRICTED RIGHTS. ALL SOFTWARE provided to the U.S.
Government pursuant to solicitations issued on or after December 1, 1995 is provided with the
commercial license rights and restrictions described elsewhere herein. ALL SOFTWARE
provided to the U.S. Government pursuant to solicitations issued prior to December 1, 1995 is
provided with “Restricted Rights” as provided for in FAR, 48 CFR 52.227-14 (June 1987) or
DFAR, 48 CFR 252.227-7013 (Oct 1988), as applicable.
7. EXPORT RESTRICTIONS. The SOFTWARE is intended for distribution only in the
United States. You agree that you will not directly or indirectly export or re-export the
SOFTWARE (or portions thereof) to any country. You specifically agree not to export or re-
export the SOFTWARE (i) to any country to which the U.S. has embargoed or restricted the
export of goods or services, which currently include, but are not necessarily limited to, Cuba,
Iran, Iraq, Libya, North Korea, Sudan, and Syria, or to any national of any such country,
wherever located, who intends to transmit or transport the SOFTWARE back to such country;
(ii) to any person or entity whom you know or have reason to know will utilize the SOFTWARE
in the design, development, or production of nuclear, chemical, or biological weapons; or (iii) to
any person or entity who has been prohibited from participating in U.S. export transactions by
any federal agency of the U.S. government.
27
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
8. WARRANTY. THE SOFTWARE IS PROVIDED ON AN "AS IS" BASIS WITHOUT
WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING WITHOUT
LIMITATION ANY WARRANTIES OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, TITLE, NON-INFRINGEMENT, AND ANY WARRANTY
AGAINST LATENT DEFECTS. NAVINI DOES NOT WARRANT THAT THE OPERATION
OF THE SOFTWARE WILL BE UNINTERRUPTED OR ERROR FREE. YOU ARE
SOLELY RESPONSIBLE FOR DETERMINING WHICH SOFTWARE BEST SUITS YOUR
NEEDS, FOR INSTALLING THE SOFTWARE, AND FOR RESULTS OBTAINED. YOU
HAVE THE SOLE RESPONSIBILITY FOR INSPECTING AND TESTING THE SOFTWARE
TO YOUR SATISFACTION BEFORE USING THEM WITH IMPORTANT DATA OR WITH
YOUR COMPUTER. NAVINI MAKES NO WARRANTIES OR REPRESENTATIONS
WHATSOEVER REGARDING ANY GOODS OR SERVICES PROVIDED BY ANY THIRD
PARTIES PURSUANT TO YOUR USE OF THE SOFTWARE AND NAVINI SHALL NOT
BE LIABLE FOR ANY COSTS OR DAMAGES ARISING OUT OF, EITHER DIRECTLY OR
INDIRECTLY, THE ACTIONS OR INACTIONS OF SUCH THIRD PARTY. IN NO EVENT
SHALL NAVINI NETWORKS, INC. OR ANY THIRD PARTY INVOLVED IN THE
CREATION, PRODUCTION, DELIVERY, OR LICENSING OR THE SOFTWARE BE
LIABLE TO YOU OR ANY THIRD PARTY FOR ANY DIRECT, INDIRECT, SPECIAL,
GENERAL, PUNITIVE, EXEMPLARY, AGGRAVATED, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, EVEN IF ADVISED OF THE POSSIBILITY THEREOF,
WHETHER FORESEEABLE OR UNFORESEEABLE, OF ANY KIND WHATSOEVER,
INCLUDING BUT NOT LIMITED TO LOSS OF PROFITS; UNANTICIPATED BENEFITS
OR REVENUE; ANTICIPATED PROFITS; DAMAGES OR COSTS INCURRED AS A
RESULT OF: (i) LOST TIME, DATA, OR USE OF THE SOFTWARE; (ii) HARDWARE
FAILURES FOR ANY REASON; (iii) INCOMPATIBILITY WITH HARDWARE OR OTHER
SOFTWARE; (iv) LOSS OR CLAIMS FROM THIRD PARTIES; OR (v) FROM ANY OTHER
CAUSE ARISING OUT OF USE OF OR INABILITY TO USE THE SOFTWARE, OR
CONTRIBUTION OR INDEMNITY IN RESPECT OF ANY CLAIM RELATED TO THE
SOFTWARE. IN ANY EVENT, NAVINI'S LIABILITY SHALL NOT EXCEED THE
ACTUAL PRICE PAID FOR THE LICENSE TO USE THE SOFTWARE.
SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR ALLOW LIMITATIONS ON HOW
LONG A WARRANTY LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY
NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND
YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM JURISDICTION TO
JURISDICTION.
9. LAW. This Agreement and each Order shall be construed in accordance with the laws
(including the Uniform Commercial Code) of the State of Texas, without giving effect to
principles of conflicts of laws. Any legal action arising here from will be brought within the
state or federal courts located in Dallas county, Texas, which is agreed by the parties to be a
convenient forum. The SOFTWARE User acknowledges, understands and agrees that this
Agreement is written in the English Language, and the SOFTWARE User expressly waives all
“native language” requirements, whether based in local statutory, regulatory or other law.
28
Ripwave 2.6 GHz User Guide Navini Networks, Inc.
END OF AGREEMENT
Copyright © 2001, 2002 Navini Networks, Inc.
All rights reserved. Printed in the USA.
Navini Networks, Internet at the Speed of Thought, and Ripwave are registered trademarks of
Navini Networks, Inc. Other product and company names mentioned herein may be trademarks
and/or service marks of their respective owners. Rev. 020402
29
