Cisco Systems WCS-MODEM1 Ripwave Modem User Manual Ripwave Modem User Guide

R

Ri

ip

pw

wa

av

ve

e



M

Mo

od

de

em

m

U

Us

se

er

r

G

Gu

ui

id

de

e

For use with all Ripwave Modem models

Part Number 40-00097-00

Revision E, Version 1.0

July 30, 2003

Proprietary

All information disclosed by this document is the proprietary property of Navini Networks, Inc. and is protected

by copyright, trademark, and/or trade secret laws. All rights therein are expressly reserved.

Ripwave Modem User Guide Navini Networks, Inc.

July 30, 2003

TABLE OF CONTENTS

PERMISSIONS, TRADEMARKS & DISTRIBUTION .........................................................................................3

SAFETY ......................................................................................................................................................4

REGULATORY INFORMATION .....................................................................................................................5

BATTERY PRECAUTIONS ............................................................................................................................6

INTRODUCTION.......................................................................................................................................7

PACKAGE INVENTORY .........................................................................................................................7

RIPWAVE MODELS.................................................................................................................................7

OPERATING FREQUENCIES .........................................................................................................................8

COMPUTER CONNECTIONS .........................................................................................................................8

MINIMUM COMPUTING REQUIREMENTS ......................................................................................9

PHYSICAL CHARACTERISTICS ........................................................................................................10

INSTALLING AN ETHERNET MODEM ............................................................................................12

INSTALLING A USB MODEM..............................................................................................................15

ACCESSING THE INTERNET..............................................................................................................19

TROUBLESHOOTING ...........................................................................................................................20

INDICATOR LIGHTS ..................................................................................................................................20

INSTALLING NAVINI MONITOR ................................................................................................................21

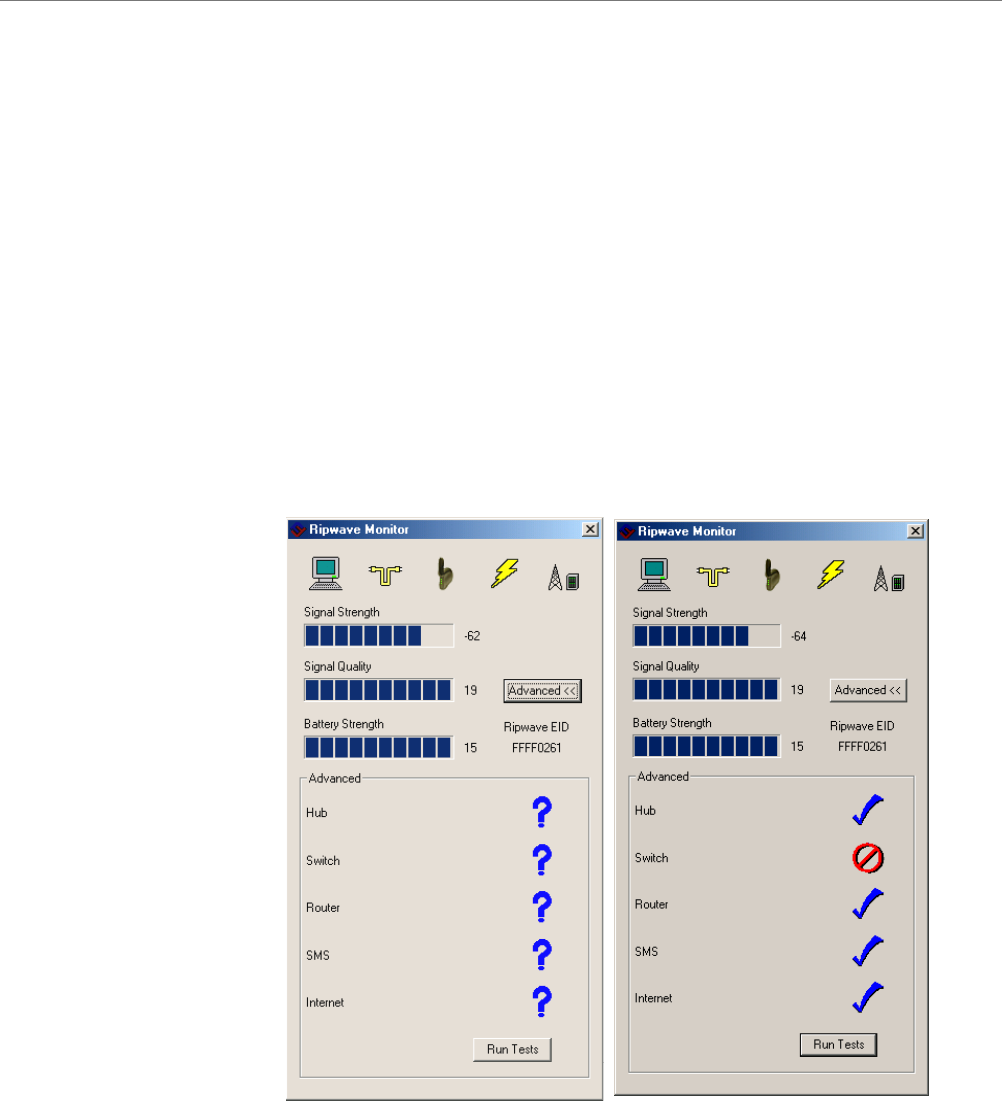

USING NAVINI MONITOR .........................................................................................................................25

UNINSTALLING NAVINI MONITOR .................................................................................................28

INSTALLING & CHARGING THE BATTERY..................................................................................29

2.4 GHZ BATTERY...................................................................................................................................29

2.3 GHZ, 2.5 GHZ & 2.6 GHZ BATTERY.................................................................................................30

CARE & MAINTENANCE .....................................................................................................................31

UPGRADING THE MODEM .................................................................................................................31

ADDENDUM 1: RIPWAVE™ MODEM - PC TROUBLESHOOTING............................................32

ADDENDUM 2: END USER SOFTWARE LICENSE AGREEMENT.............................................37

Navini Networks, Inc. Ripwave Modem User Guide

July 30, 2003

Permissions, Trademarks & Distribution

document is confidential and the proprietary property of Navini Networks, Inc. and all rights therein are

expressly reserved. Acceptance of this material signifies agreement by the recipient that the information

contained in this document is confidential and that it will be used solely for the purposes set forth herein.

Acceptance of this material signifies agreement by the recipient that it will not be used, reproduced in

whole or in part, disclosed, distributed, or conveyed to others in any manner or by any means – graphic,

electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval

systems – without the express written permission of Navini Networks, Inc.

Navini Networks, the Navini Networks logo, Internet at the Speed of Thought, Zero-Install, Ripwave,

and Unwired by Navini are trademarks of Navini Networks, Inc. Other product and company names

mentioned herein may be trademarks and/or service marks of their respective owners.

Except for the hardware warranty, nothing herein constitutes any representation, warranty,

assurance, or guaranty of any kind.

Because of continuing developments and improvements in design, manufacturing, and deployment,

material in this document is subject to change without notification and does not represent any

commitment or obligation on the part of Navini Networks, Inc.

Navini Networks, Inc. shall have no liability for any error or damages resulting from the use of this

document.

All Navini Networks logos and trademarks are the property of Navini Networks, Inc. Unauthorized usage

is strictly prohibited without the express written permission of Navini Networks, Inc.

Ripwave Modem User Guide Navini Networks, Inc.

July 30, 2003

Safety

When using Navini Ripwave electronic equipment, always follow basic safety precautions to reduce the

risk of electrical shock, fire, and injury to people and/or property. Follow all warnings and instructions

that come with the equipment.

1. Do not use the equipment while you are in a bathtub, shower, pool, or spa. Exposure of the

equipment to water could cause severe electrical shock or serious damage to the equipment.

2. Do not immerse the equipment in any type of liquid. Use a damp cloth and if needed, water and a

mild detergent to clean the plastic shell. Unplug the equipment from the power source before

cleaning.

3. Follow all airport and FAA regulations when using the equipment on or near aircraft.

4. Only operate the equipment from the type of power source(s) indicated in this manual (110 VAC

adapter or Navini supplied battery). Any other type of input power source may cause damage to the

equipment.

5. Power the equipment using only the battery or the AC adapter cable provided, and in accordance with

the instructions specified in the user manual.

6. Do not use a frayed or damaged power cord. Do not place the power cord where it can be stepped on

or tripped over.

7. Do not touch wires where the insulation is frayed or worn unless the equipment has been

disconnected from its power source.

8. Do not overload wall outlets, power strips, or extension cords. This can cause serious electrical shock

or fire.

9. Do not place the equipment on an unstable surface. It can fall and cause injury or damage to the

equipment.

10. Do not disassemble the equipment. Removing covers exposes dangerous voltages or other risks and

also voids the warranty. Incorrect reassembly can cause equipment damage or electrical shock. Only

an authorized repair technician should service this product.

11. Do not expose the equipment to extreme hot or cold temperatures.

12. Do not use the equipment under the following conditions:

13. When the equipment has been exposed to water or moisture.

14. When the equipment has been damaged.

15. When the power cord is damaged or frayed.

16. When the equipment does not operate properly or shows a distinct change in performance.

Navini Networks, Inc. Ripwave Modem User Guide

July 30, 2003

Regulatory Information

FCC Notice

CAUTION: This device is a Radio Frequency transmitter. It is required to comply with FCC RF

exposure requirements for transmitting devices. A minimum separation distance of 8 inches (20

cm) or more must be maintained between the antenna and all persons during device operations to

ensure compliance with the FCC’s rules for Radio Frequency Exposure. If this minimum distance

cannot be maintained, exposure to RF levels that exceed the FCC’s limits may result.

FCC Compliance and Advisory Statement

This equipment has been tested and found to comply with the limits for a class B digital device,

Pursuant to Part 15 of the FCC rules. The operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause

undesired operation.

These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy

and, if not installed or used in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna;

2) Increase the separation between the equipment and the receiver;

3) Connect the equipment to an outlet on a circuit different from that to which the receiver is

connected;

4) Consult the dealer or an experienced radio/TV technician for additional suggestions.

INFORMATION TO USER

This device has been authorized as a radio frequency transmitter under the appropriate rules of the

Federal Communications Commission. Any changes or modifications not expressly approved by

Navini Networks could void the user’s authority to operate the equipment.

Tested To Comply

With FCC Standards

FOR HOME OR OFFICE US

E

Ripwave Modem User Guide Navini Networks, Inc.

July 30, 2003

Battery Precautions

CAUTION! To reduce risk of injury or fire, follow these instructions when handling the battery.

1. Risk of explosion is possible if the battery is replaced with one not supplied by Navini Networks.

2. Do not dispose of the battery in a fire. They may explode. Check with the local codes for battery

disposal guidelines.

3. Do not open or mutilate the battery. The battery contains substances that are toxic, corrosive, or

harmful to humans. If battery substances come in contact with the skin, seek medical help

immediately.

4. Do not attempt to recharge the battery by any means except per the instructions in this manual.

5. Remove the battery from the equipment if the equipment is not going to be used for a long period of

time. The battery could leak and cause damage to the equipment.

6. Exercise care when handling the battery to prevent shorting the battery with conducting materials

such as bracelets, rings, and keys.

7. Store the battery pack in a dry place, 0 to +40 degrees Celsius.

8. Dispose of used batteries according to environmental guidelines.

Navini Networks, Inc. Ripwave Modem User Guide

July 30, 2003

Introduction

Package

Inventory

Ripwave Models

Congratulations! The Ripwave Modem is a user-friendly, easy-to-

install device that helps you connect wirelessly to the Internet. It

provides complete broadband Internet access to residential and

small office/home office (SOHO) customers without the necessity

of professional hardware installation. The Ripwave Modem also

provides nomadic service availability as a computer with this

device is moved from room to room, location to location, or even

city to city as long as there is coverage in the area.

Please verify the contents of your Ripwave Modem package. If you

do not find all of these items in your package, notify the supplier

from whom you obtained it.

• Ripwave Modem

• Ripwave Modem AC power adapter

• PC-to-Ripwave Modem cable (USB or Ethernet straight cable)

• Ripwave Modem User Guide

• Ripwave Modem Quick Installation Guide

• Navini Monitor Installation CD

Your Ripwave Modem will be a 2.3 GHz, 2.4 GHz, 2.5 GHz, or

2.6 GHz version. The difference is due to each one’s operating

band frequency range, described on the next page. The 2.4 GHz

model varies slightly in appearance as well.

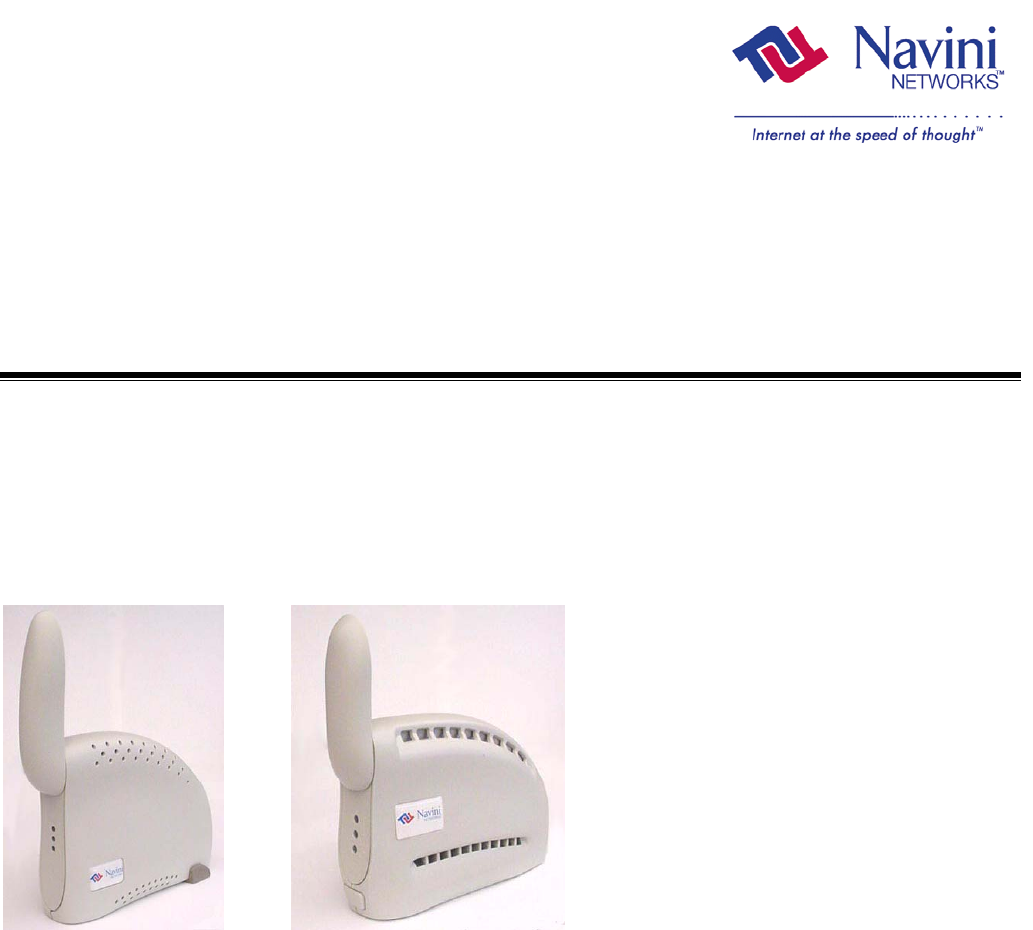

2.4 GHz Model 2.3, 2.5 & 2.6 GHz Models

Ripwave Modem User Guide Navini Networks, Inc.

July 30, 2003

Operating

Frequencies

Computer

Connections

Model Frequency Range Operating

Band

Port

Connection

2.3 GHz E 2.305 GHz to 2.360 GHz WCS Ethernet

2.3 GHz U 2.305 GHz to 2.360 GHz WCS USB

2.4 GHz E 2.400 GHz - 2.48 GHz ISM Ethernet

2.4 GHz U 2.400 GHz - 2.48 GHz ISM USB

2.5 GHz E 2.50 GHz - 2.596 GHz MMDS/ITFS Ethernet

2.5 GHz U 2.50 GHz - 2.596 GHz MMDS/ITFS USB

2.6 GHz E 2.596 GHz – 2.686 GHz MMDS/ITFS Ethernet

2.6 GHz U 2.596 GHz – 2.686 GHz MMDS/ITFS USB

The “E” in the model name stands for Ethernet, and the “U” in the

model name stands for Universal Serial Buss (USB). Your

computer will have one of these two types of ports for connecting

the Modem.

• An Ethernet connection will function with any Win32

Operating System (Windows® 95 or later).

• A USB connection will function only with Windows 98,

Windows 98SE, Windows 2000, Windows ME, or Windows

XP. It will not work with Windows 95 or Windows NT.

You must have the Ripwave Modem model with the appropriate

connection for your computer port.

Navini Networks, Inc. Ripwave Modem User Guide

July 30, 2003

Minimum

Computing

Requirements

(See, also, Addendum 1)

Operating

System1:

Ethernet Modems: Any Win32® Operating System

(OS) - Windows® 95, Windows 982, Windows

98SE2, Windows 2000, Windows ME2, Windows

XP, or later version. Windows XP must be Service

Pack Level 1 or higher. Internet Explorer 3.0 or

higher is required for installation on Windows 95

Operating Systems.

USB Modems: Windows® 982, Windows 98SE2,

Windows 2000, Windows ME2, Windows XP,

or later version. USB will not work with Windows

95 or Windows NT. Windows XP must be Service

Pack Level 1 or higher.

General Information:

 Ensure that the pc network port is enabled.

 MacIntosh systems and Lynx/Unix systems are

not supported.

CPU: Pentium level or higher

RAM: 32 MB or the Operating System minimum,

whichever is greater

Hard Drive: 10 MB free disk space for Navini Monitor software

Monitor: 256 colors, 800 x 600 resolution

1NOTE: If you are going to upgrade your Operating System after loading the

Navini Monitor software, you must first uninstall Navini Monitor prior to

upgrading the OS. Otherwise, Navini Monitor will not work. See Uninstall

instructions in this Guide.

2NOTE: The Ripwave Modem must be left powered ON whenever you shut

down or restart any Windows 98 or ME platforms. If the Modem is off, a blue

screen appears on the monitor. In the event that happens you will most likely

have to power cycle the PC.

The Ripwave Modem installation sections include instructions for

both Ethernet and USB connections. Be sure to use the instructions

that apply to your Ripwave model. The Navini Monitor software

installation procedure is the same for any of the Ripwave models.

This manual will guide you through the simple process of installing

the Ripwave Modem and software, which has been developed to

optimize the ease and convenience for you, our valued customer.

The 2.6 GHz model is used in most of the illustrations in this

manual where there are no differences in the 2.3, 2.4, 2.5, and 2.6

GHz models.

If you experience any difficulties with your unit, please contact

your Service Provider or the vendor from whom you obtained your

Ripwave Modem.

Ripwave Modem User Guide Navini Networks, Inc.

July 30, 2003

Physical

Characteristics

The 2.4 GHz Ripwave Modem varies in some aspects from the 2.3,

2.5, and 2.6 models. As well, the Ethernet connection on any

model varies from a USB connection. Notice the differences

highlighted in the photos below and on the following page.

2.4 GHz Ripwave Modem

Antenna

Indicator Lights

On/Off Switch

Power Adapter

Connection

Ethernet Cable

Connection

Back of 2.4 E Back of 2.4 U

USB Cable

Connection

Antenna

Indicator Lights

On/Off Switch

Power Adapter

Connection

Ethernet Cable

Connection

Back of 2.4 E Back of 2.4 U

USB Cable

Connection

Navini Networks, Inc. Ripwave Modem User Guide

July 30, 2003

Physical

Characteristics,

Continued

2.3, 2.5 & 2.6 GHz Ripwave Modems

Power Adapter

Connection

Ethernet Cable

Connection

USB Cable

Connection

On/Off Switch

Antenna

Indicator Lights

Back of 2.3,

2.5 & 2.6 E

Back of 2.3,

2.5 & 2.6 U

Power Adapter

Connection

Ethernet Cable

Connection

USB Cable

Connection

On/Off Switch

Antenna

Indicator Lights

Back of 2.3,

2.5 & 2.6 E

Back of 2.3,

2.5 & 2.6 U

Ripwave Modem User Guide Navini Networks, Inc.

July 30, 2003

Installing an

Ethernet Modem

(See, also, Addendum 1)

The following instructions are for the installation of a Ripwave

Modem that has a USB connection. Please read all instructions

before attempting the installation. It is advisable to turn off the

computer and the Ripwave Modem before performing the

installation.

Step Action Illustration

1. Connect the Ethernet

cable to the Ethernet

port on the computer.

2. Connect the other end of

the Ethernet cable to the

Ripwave Modem.

3. Connect the AC power

adapter to the Ripwave

Modem. Plug the other

end into a 110 VAC

outlet.

CAUTION! Only use

the AC power adapter

specifically supplied

with the Ripwave

Modem. Using any other

adapter may cause

damage to the Modem.

Ethernet

AC Power

adapter cable

j

ack

Navini Networks, Inc. Ripwave Modem User Guide

July 30, 2003

Installing an Ethernet

Modem, continued

Step Action Illustration

4. Rotate the antenna on

the Ripwave Modem

clockwise 180 degrees

to the UP position. This

reveals the Ripwave

Modem indicator lights.

CAUTION! Rotation or

movement of the

antenna in any other

direction may cause

damage to the Ripwave

Modem.

5. Push the On/Off button

on the Modem to ON.

6. If the Green Power

indicator light comes on,

proceed to Step 7. If not,

there is a problem with

the Modem or the AC

power adapter. Check all

cables for proper

connection. Otherwise,

contact the supplier

from whom you

obtained the package.

Signal Strength

Indicator (SSI)

Power

Indicator

Battery

Indicator

Antenna

Signal Strength

Indicator (SSI)

Power

Indicator

Battery

Indicator

Antenna

On/Off

Switch

2.4 GHz 2.3, 2.5 &

2.6 GHz

On/Off

Switch

2.4 GHz 2.3, 2.5 &

2.6 GHz

Power

Indicator

Power

Indicator

Ripwave Modem User Guide Navini Networks, Inc.

July 30, 2003

Installing an Ethernet

Modem, continued

Step Action Illustration

7.

Turn your computer on

and log in.

8. Proceed to the

“Troubleshooting /

Installing Navini

Monitor” section of this

manual.

Navini Networks, Inc. Ripwave Modem User Guide

July 30, 2003

Installing a USB

Modem

(See, also, Addendum 1)

The following instructions are for the installation of a Ripwave

Modem that has a USB connection. Please read all instructions

before attempting the installation. It is advisable to turn off the

computer and the Ripwave Modem before performing the

installation.

Step Action Illustration

1. Connect the USB cable

to the USB port on the

computer.

2. Connect the other end of

the USB cable to the

back of the Ripwave

Modem.

3. Connect the AC power

adapter cable to the back

of the Ripwave Modem.

Plug the other end of the

cable into a 110 VAC

outlet.

CAUTION! Only use

the AC power adapter

specifically supplied

with the Ripwave

Modem. Using any other

adapter may cause

damage to the Modem.

US

B P

o

r

t

AC Power

adapter cable

j

ack

Ripwave Modem User Guide Navini Networks, Inc.

July 30, 2003

Installing a USB Modem,

continued

Step Action Illustration

4. Rotate the antenna on

the Ripwave Modem

180 degrees to the UP

position. This reveals

the Modem’s indicator

lights.

CAUTION! Rotation of

the antenna in any other

direction may cause

damage to the Modem.

5. Push the ON/OFF

button on the Modem

to ON.

6. If the Green Power

indicator light comes on,

proceed to Step 7. If not,

there is a problem with

the Modem or the AC

Power Adapter. Check

all cables for proper

connection. Otherwise,

contact the supplier

from whom you

obtained the package.

Signal Strength

Indicator (SSI)

Power

Indicator

Battery

Indicator

Antenna

Signal Strength

Indicator (SSI)

Power

Indicator

Battery

Indicator

Antenna

On/Off

Switch

2.4 GHz 2.3, 2.5 &

2.6 GHz

On/Off

Switch

2.4 GHz 2.3, 2.5 &

2.6 GHz

Power

Indicator

Power

Indicator

Navini Networks, Inc. Ripwave Modem User Guide

July 30, 2003

Installing a USB Modem,

Continued

Step Action Illustration

7.

Turn your computer ON

and log in.

NOTE: For Windows

2000, you must be

logged into an account

having Administrative

privileges to install the

Ripwave Modem and its

software.

8. Plug-and-Play will

detect the Ripwave

device now attached to

the computer, and it will

launch the Plug-and-

Play application.

If this does not happen,

the problem may be due

to one of the following:

• Windows NT and

Windows 95 do not

support a USB

device.

• The Modem is not

turned on.

• The Modem is not

connected properly

to the computer.

9. The Add New Hardware

Wizard dialog box

appears. Click Next to

continue.

Ripwave Modem User Guide Navini Networks, Inc.

July 30, 2003

Installing a USB Modem,

Continued

Step Action Illustration

10. Insert the Ripwave

Installation CD into the

computer’s CD-ROM

drive.

11. Select the ‘Search for

the best driver for your

device’ option. Click

Next to continue.

12. Select the ‘CD-ROM

drive’ checkbox. Click

Next to continue.

13. Confirm that the drive

location is correct (it

may be different than

the one shown in the

illustration). The file to

be installed should say

‘NETNNUSB.INF”.

Click Next to continue.

Navini Networks, Inc. Ripwave Modem User Guide

July 30, 2003

Installing a USB Modem,

Continued

Accessing the

Internet

Step Action Illustration

14. Windows will finish

installing the software

files required for the

Ripwave Modem

operation. Click Finish.

NOTE: For Window 98,

a window may appear

asking for drivers to be

installed from the

Windows 98 setup disk.

If so, insert the

Windows 98 setup disk

into the CD-ROM drive

at this time and accept

the defaults.

15. After clicking Finish,

the System Settings

Change window appears

asking if you want to

restart your computer

now. Click Yes.

You must restart your

computer at this point

before proceeding.

16. After the computer

restart is complete,

proceed to the

“Troubleshooting /

Installing Navini

Monitor” section of this

manual.

With your Modem now installed, and both the Modem and

computer powered on, you should be able to surf the Internet! To

access the Internet, open the web browser that is installed on your

computer.

Ripwave Modem User Guide Navini Networks, Inc.

July 30, 2003

Troubleshooting

Indicator Lights

After installation, if you are experiencing difficulties with your

Internet connection, please review the Minimum System

Requirements and Addendum 1 to ensure your computer meets

those requirements. Next, go back over the installation procedures

and ensure those steps were completed properly.

Assuming the computer requirements are met and the installation

steps were completed as required, you will need to observe the

light indicators on the front of the Modem. You also may need to

install the Navini Monitor software. This software is provided on a

CD that came in your Modem package.

The Navini Monitor software assists in solving connection

problems as well as providing information about the battery power

(batteries are optional).

The indicator lights on the front of the Modem provide valuable

information about its operation. They change appearance to

designate the state of the items that they represent. Used in

conjunction with the Navini Monitor software, you can

troubleshoot signal issues, network connections, and power

problems.

Signal Strength

Indicator (SSI)

Power

Indicator

Battery

Indicator

Signal Strength

Indicator (SSI)

Power

Indicator

Battery

Indicator

Power

Indicator

Battery

Indicator

Navini Networks, Inc. Ripwave Modem User Guide

July 30, 2003

Indicator Lights,

Continued

Installing Navini

Monitor

Signal Strength Indicator (SSI)

Constant Green : Strong signal

Constant Yellow : Medium signal

Constant Red : Weak signal

Flashing Red : No signal

Battery Indicator

Constant Yellow : Battery is charging

Constant Red : Battery is less than 20% charged

Flashing Red : Battery is less than 10% charged

Off : Battery is fully charged or not installed

Power Indicator

Constant Green : The Modem is ON (AC or DC power)

The Navini Monitor software provides two types of information:

signal strength and quality of the incoming signal, and battery

strength (batteries are optional). It can also provide information

about the connectivity to the Service Provider’s network. These

displays may be required when troubleshooting Modem problems.

Before you install, please note:

• For Windows NT and Windows 2000 you must be logged

into an account having Administrative privileges in order to

install the Navini Monitor software.

• For Windows 95, Windows 98, and Windows 98SE

Operating Systems (OS), the OS CD may be required to

complete this installation. If prompted, insert the OS CD

into the CD-ROM drive and accept the defaults.

• If you are going to upgrade your PC Operating System after

loading the Navini Monitor software, you must first

uninstall Navini Monitor prior to upgrading the OS.

Otherwise, Navini Monitor will not work. See Uninstall

instructions in this Guide.

Ripwave Modem User Guide Navini Networks, Inc.

July 30, 2003

Installing Navini

Monitor, continued

Step Action Illustration

1. Shut down all programs,

including anti-virus

software programs,

before installing the

Navini Monitor

software.

2. Insert the Navini

Monitor Installation CD

into the CD-ROM drive.

3. At the bottom left-hand

corner of your screen,

click Start > Run. In

the Run window, enter

e:\setup in the Open

field (where “e”

represents the CD

drive). Use whatever

letter represents your

CD drive. Click OK to

continue.

4. The InstallAnywhere

window appears. The

progress bar indicates

that InstallAnywhere has

initialized.

5. The Navini Monitor

Introduction screen

appears. Click Next to

continue.

Navini Networks, Inc. Ripwave Modem User Guide

July 30, 2003

Installing Navini

Monitor, continued

Step Action Illustration

6. The License Agreement

screen appears. Read the

Licensing Agreement.

Select the I Accept

option, and click Next to

continue.

NOTE: If the License

Agreement is not

accepted, you cannot

install the software.

7. The Ripwave

Positioning screen

appears. Read the screen

for positioning the

Ripwave Modem for

optimum performance.

Click Next to continue.

8. The Choose Install

Folder screen appears.

Enter the name of the

folder where you wish to

install the software.

Click Next to continue.

The default installation

folder provided by the

software is shown in the

illustration.

Ripwave Modem User Guide Navini Networks, Inc.

July 30, 2003

Installing Navini

Monitor, continued

Step Action Illustration

9. The Pre-Installation

Summary screen

appears. Review the

contents for accuracy.

Click Install to

continue.

For your installation and

computer, this screen

may have different

information than what is

shown in the illustration.

10. The Installing screen

will display as the

application files are

loaded.

11 At the Install Complete

screen, click Done to

close the window.

12. After clicking Done the

System Settings Change

window appears, asking

if you want to restart

your computer now.

Click Yes.

NOTE: You must restart

your computer at this

point before proceeding.

Navini Networks, Inc. Ripwave Modem User Guide

July 30, 2003

Using Navini

Monitor

To open the Navini Monitor software application, right-click on the

icon of the Ripwave Modem in the toolbar tray of your computer.

Select Maximize.

A window with icons and, provided your Modem is on, bar graphs,

will pop up. Notice the bottom right corner of the window shows

the Equipment Identification (EID) for your specific Ripwave

Modem. If you talk with a Service Technician while

troubleshooting, you may be asked for this number.

The icons represent each of the components and connections

throughout the network.

Ripwave Modem Icon

10:36 AM

Ripwave Modem Icon

10:36 AM

Computer Computer to Ripwave Ripwave to Base Station

Ripwave Modem Base Station

connection wireless connection

Computer Computer to Ripwave Ripwave to Base Station

Ripwave Modem Base Station

connection wireless connection

Ripwave Modem User Guide Navini Networks, Inc.

July 30, 2003

Using Navini

Monitor, continued

The Signal Strength and Signal Quality are dynamic bar graphs

that indicate how well your Modem is receiving signals from the

Base Station. To increase the strength and quality of the signal,

change the location of the Ripwave Modem. Try moving it closer

to a window, to a higher location, away from other wireless devices

(microwave ovens, cordless phones), and away from metal objects

(shelves, file cabinets). As the Ripwave Modem is repositioned,

observe the Signal Strength and Signal Quality bar graphs. Position

the Modem for maximum signal strength and quality.

If you make a service call to your Service Provider, the Technician

may ask you to read the numbers to the right of the signal bar

graphs. These will help the Technician to evaluate the best position

for your Ripwave Modem. The Battery Strength bar graph and the

number to the right of it indicate how much charge is left in the

battery (batteries are optional). Without a battery in the Modem,

the Battery Strength bar graph and number will be disabled (grayed

out).

If a problem is detected with one of the components, or if a

connection goes down, a red circle with a slash will be

positioned over the icon.

In this example, the cable connecting the computer and Modem is

not operational; the wireless signal between Modem and Base

Station is down; and there is no battery being used.

Navini Networks, Inc. Ripwave Modem User Guide

July 30, 2003

Using Navini

Monitor, continued

To check connectivity to the Service Provider’s network, you will

click the Advanced button on the Navini Monitor. The Advanced

section of the window appears and displays all of the connections

throughout the network. The names of the network component will

vary with each Operator’s network. Note that if the connection

between the Ripwave Modem and the Base Station is down, the

Advanced button will be disabled (grayed out).

The blue question marks on the right side of the Advanced section

indicate that all connections are untested. Now click on the Run

Tests button at the bottom of the window. The blue question marks

will change to either a blue checkmark or a red slash mark. A blue

checkmark indicates that the connection is valid. A red slash mark

indicates there is a problem with that connection.

The features of the Advanced and Run Tests buttons are to be used

in conjunction with your Service Provider Technician to resolve

problems. There is no need to use these features unless you are

experiencing problems with the Modem.

Ripwave Modem User Guide Navini Networks, Inc.

July 30, 2003

Uninstalling

Navini Monitor

If for some reason you need to uninstall the Navini Monitor

software, e.g., to upgrade your Operating System software, follow

the procedure below.

Step Action Illustration

1. On your computer

screen lower left corner,

click on Start >

Programs > Navini

Navini Monitor >

Uninstall Navini

Monitor. The Install-

Anywhere Uninstaller

screen appears. Click

Uninstall.

2. The screen will cycle

through as the

application files are

uninstalled.

3. The Uninstall Complete

screen appears when

finished. Click on Quit

to close the Uninstall

screen.

4. Restart the pc to

complete the uninstall

process. This will ensure

it functions properly

after uninstalling.

Navini Networks, Inc. Ripwave Modem User Guide

July 30, 2003

Installing &

Charging the

Battery

2.4 GHz Battery

The battery pack is an option and is not included with the unit. To

order a battery for the Ripwave Modem, contact your Service

Provider or the vendor from whom you purchased the Modem.

The battery pack is installed in the bottom of the Ripwave Modem.

The battery compartment of the 2.4 GHz Ripwave Modem varies

from the 2.3, 2.5, and 2.6 GHz models. To install and charge or

remove the battery pack, follow the steps based on your model.

Step Action Illustration

1. Squeeze both tabs to

remove or install the

battery pack cover.

Note that the cover is

not used when the

battery pack is installed

in the Modem.

2. Install the battery pack

into the Ripwave

Modem, ensuring that

the contacts on the

battery pack mate with

the contacts in the

Modem and that both

slides snap down

securely.

3. To charge the battery,

connect the AC adapter

to the Modem and to an

AC power source. The

battery will begin

charging immediately

regardless of whether

the On/Off switch is on.

However, the pack will

charge faster if the

on/off switch is in the

OFF position.

If the on/off switch is

ON, the light indicator

will be constant yellow.

When fully charged, the

light will go off.

Battery contactsBattery contacts

Battery Pack Cover tabsBattery Pack Cover tabs

.

Battery

Indicator .

.

Battery

Indicator

Ripwave Modem User Guide Navini Networks, Inc.

July 30, 2003

2.3 GHz, 2.5 GHz

& 2.6 GHz Battery

Step Action Illustration

1. Applying light pressure,

push the tab on the

battery pack cover to

remove it from the

bottom of the Modem.

2. Install the battery pack

into the Modem,

ensuring that the

contacts mate and that

both sides snap down

securely.

Reinstall the battery

pack cover on the

Modem.

3. To charge the battery,

connect the AC adapter

to the Modem and to an

AC power source. The

battery will begin

charging immediately

regardless of whether

the On/Off switch is on.

However, the pack will

charge faster if the

on/off switch is in the

OFF position.

If the on/off switch is

ON, the light indicator

will be constant yellow.

When fully charged, the

light will go off.

Battery

Indicator .

Battery

Indicator .

Battery Pack Cover tabBattery Pack Cover tab

Battery contactsBattery contacts

Navini Networks, Inc. Ripwave Modem User Guide

July 30, 2003

Care &

Maintenance

Upgrading the

Modem

The Ripwave Modem is designed to give years of trouble-free

service. To ensure operation, read the following care and

maintenance instructions.

 Keep the Modem free of dust and moisture. If the Modem gets

wet, use a towel to dry it immediately.

 Handle the Modem gently. Dropping it or mishandling it can

cause damage to the plastic shell or the electronic circuitry.

 Keep the Modem away from high temperatures. Heat can cause

damage to the plastic shell or the electronic circuitry.

 Use only a mild detergent and a soft, damp cloth to clean the

Modem. Do not use any chemicals or abrasives to clean the

plastic shell.

 If there is a problem with the Modem, do not attempt to repair

it yourself. Report the problem to your Service Provider.

 If you are going to upgrade your Operating System after

loading the Navini Monitor software, you must first uninstall

Navini Monitor prior to upgrading the OS. Otherwise, Navini

Monitor will not work. See Uninstall instructions in this Guide.

 The Ripwave Modem must be left powered ON whenever you

shut down or restart any Windows 98 or ME platforms. If the

Modem is off, a blue screen appears on the monitor. In the

event this happens you will mostly likely have to power cycle

the PC.

There are two different ways to upgrade the software that makes

the Modem and Navini Monitor work. Your Service Provider may

perform an over-the-air (OTA) upgrade, where the up-to-date

software files are transferred wirelessly from the Base Station to

your Modem; or provide a downloadable web file or CD-ROM

with software that is installed on your PC and used to upgrade the

Navini Monitor and Modem.

The latter method is used only if the Modem was not powered on

during the OTA upgrade process. The OTA upgrade is normally

transparent to the user; in other words, there should be no

noticeable service interruption. The web or CD upgrade comes

with instructions and takes a minimal amount of time to complete.

Ripwave Modem User Guide Navini Networks, Inc.

Part #40-00097-00 Rev E v1.0

July 30, 2003

32

ADDENDUM 1: Ripwave™ Modem - PC Troubleshooting

- For Use With All Ripwave Modems & Navini Monitor Software -

PC Operating Systems

Prior to installing the Navini Monitor software, please check to insure that the PC Operating System

meets the criteria given in the table below. If these criteria are not met, unpredictable problems may

occur as a result of installation. It is recommended that the user have the latest Windowsc updates

installed prior to installing the Navini Monitor software.

Operating System Ethernet interface USB interface Notes

Win95 Supported Not Supported 1, 2

Win98 Supported Supported 2

Win98, 2nd ed. Supported Supported 2

WinME Supported Supported 2

Win 2000 Supported Supported 2, 4

Win NT 3.0/4.0 Supported Not Supported 2, 4

Win XP Supported Supported 3, 4

Note 1: USB was not supported in this software release

Note 2: Internet Explorer 3.0 or higher is required

Note 3: Requires Service Pack 1

Note 4: To load the Navini Monitor software, the user MUST have Administrative privileges.

USB Interface

The USB Modem allows for a single PC to be connected to the Ripwave Modem via a USB interface, or

multiple PC’s connected via a USB hub. The Modem conforms to USB 1.1 standards. The Ethernet

packets generated by the PC are encapsulated within the USB protocol and transferred to the Modem.

The packets are then sent over-the-air. The USB Modem is fully supported for PC’s using Windows 98,

Windows ME, Windows 2000, and Windows NT 5.0.

To install the Modem using a USB interface, you must connect the Modem to the PC first and insert the

Navini Monitor CD to load the drivers. This will load the Miniport driver. After installing the USB

Miniport driver, the PC may or may not need to be restarted, depending upon the type of Operating

System and the particular installation. The system will prompt if a reboot is necessary.

Run the setup on the Navini Monitor CD. This will now load the Navini Monitor software.You must

ALWAYS reboot the PC after installing the Navini Monitor software. Also, you must ALWAYS reboot

after UNinstalling the Navini Monitor software. Failure to do so under either circumstance may gravely

affect PC operation.

Navini Networks, Inc. Ripwave Modem User Guide

Part #40-00097-00 Rev E v1.0

July 30, 2003

33

Ethernet Interface

The Ethernet Modem may be connected to a PC via an Ethernet connection. This configuration also

allows multiple PC devices to be connected to a single Modem. The multi-PC configuration is

transparent to the PC users and is analogous to a multi-PC configuration on a normal Ethernet LAN. The

distinct advantage of the Ethernet Modem is that it connects to any device that has an Ethernet interface.

This makes it ideal for small businesses that have a mix of devices, such as Unix machines, Apple

Computers, etc. IP addresses can be assigned to the devices dynamically via a DHCP server, or as Fixed

IP assignments, or Point-to-Point Protocol Over Ethernet (PPPoE).

Routers & Hubs

The Navini Monitor software will not work if going through a router or if going through some USB or

Ethernet hubs. Doing so may cause Navini Monitor software not to operate.

Battery

The Ripwave Modem comes with an optional 1800 mAh Li-Ion battery that allows the user to be

nomadic. The user can be connected to the Internet anytime and anywhere there is RF coverage without

the need for a power outlet. The current Modem battery is rated to provide up to 4 hours of use without

recharging (depending on activity). The Modem can be configured by the Service Provider as sleep or

standby mode, which allows the Modem to conserve battery power when not in use.

Configuration Options

Host Computer used

as router to a network

(USB or Ethernet)

Modem shown as

one of many devices

on a USB hub

Modem connected to

a single computer

(USB or Ethernet)

Modem providing

access to the Internet

via an Ethernet HUB

Host Computer used

as router to a network

(USB or Ethernet)

Modem shown as

one of many devices

on a USB hub

Modem connected to

a single computer

(USB or Ethernet)

Modem providing

access to the Internet

via an Ethernet HUB

Ripwave Modem User Guide Navini Networks, Inc.

Part #40-00097-00 Rev E v1.0

July 30, 2003

34

Results of Correct Navini Monitor Installation

For more experienced PC users, you can check the results of the Navini Monitor installation.

When installed correctly, you should see the installation log on the PC as it appears below. The

log will be located under c:\Program Files\Navini Ripwave Monitor\. The name of the log is

“Ripwave_Monitor_InstallLog.log”.

-------

Install Begin: Wed Feb 26 13:30:09 EST 2003

Install End: Wed Feb 26 13:30:29 EST 2003

Created with Zero G's InstallAnywhere 4.5.3 Enterprise Build 1394

Summary

-------

Installation: Successful.

34 SUCCESSES

0 WARNINGS

0 NONFATAL ERRORS

0 FATAL ERRORS

Action Notes:

None.

Install Log Detail:

Custom Action: com.navini.iatool.KillMon

Status: SUCCESSFUL

Check Disk Space: D:\Program Files\Navini Ripwave Monitor

Status: SUCCESSFUL

Additional Notes: NOTE - Required Disk Space: 23,243,991; Free Disk Space: 3,977,043,968

Install Directory: D:\Program Files\Navini Ripwave Monitor\jre

Status: SUCCESSFUL

Additional Notes: NOTE - Directory already existed

Install Directory: D:\Program Files\Navini Ripwave Monitor\

Status: SUCCESSFUL

Additional Notes: NOTE - Directory already existed

Install Directory: D:\Program Files\Navini Ripwave Monitor\UninstallerData\

Status: SUCCESSFUL

Additional Notes: NOTE - Directory already existed

Custom Action: com.navini.iatool.KillMon

Status: SUCCESSFUL

Install Uninstaller: Ripwave Monitor (Install All Uninstaller Components)

Status: SUCCESSFUL

Install File: D:\Program Files\Navini Ripwave Monitor\UninstallerData\Uninstall inst.exe

Status: SUCCESSFUL

Install File: D:\Program Files\Navini Ripwave Monitor\UninstallerData\Uninstall inst.lax

Status: SUCCESSFUL

Navini Networks, Inc. Ripwave Modem User Guide

Part #40-00097-00 Rev E v1.0

July 30, 2003

35

Install Directory: D:\Program Files\Navini Ripwave Monitor\UninstallerData\resource\

Status: SUCCESSFUL

Additional Notes: NOTE - Directory already existed

Install File: D:\Program Files\Navini Ripwave Monitor\UninstallerData\resource\iawin32.dll

Status: SUCCESSFUL

Install File: D:\Program Files\Navini Ripwave Monitor\UninstallerData\resource\remove.exe

Status: SUCCESSFUL

Make Registry Entry: Key:

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Uninstall\Ripwave Monitor, Value Name:

DisplayName, Value Data: Ripwave Monitor

Status: SUCCESSFUL

Make Registry Entry: Key:

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Uninstall\Ripwave Monitor, Value Name:

UninstallString, Value Data: "D:\Program Files\Navini Ripwave Monitor\UninstallerData\Uninstall inst.exe"

Status: SUCCESSFUL

Install Uninstaller: Ripwave Monitor (Install All Uninstaller Components)

Status: SUCCESSFUL

Install File: D:\Program Files\Navini Ripwave Monitor\instpro5.exe

Status: SUCCESSFUL

Install File: D:\Program Files\Navini Ripwave Monitor\NAVMON.exe

Status: SUCCESSFUL

Install File: D:\Program Files\Navini Ripwave Monitor\navpro5.inf

Status: SUCCESSFUL

Install File: D:\Program Files\Navini Ripwave Monitor\NAVPRO5.sys

Status: SUCCESSFUL

Registry Entries: Create the InstallDir Key

Status: SUCCESSFUL

Set Environment Variable: PATH = D:\Program Files\Navini Ripwave Monitor

Status: SUCCESSFUL

Install File: D:\Program Files\Navini Ripwave Monitor\reboot.exe

Status: SUCCESSFUL

Install Directory: D:\Documents and Settings\All Users\Start Menu\Programs\

Status: SUCCESSFUL

Additional Notes: NOTE - Directory already existed

Install Directory: D:\Documents and Settings\All Users\Start Menu\Programs\Navini Ripwave Monitor\

Status: SUCCESSFUL

Additional Notes: NOTE - Directory already existed

Create Shortcut: D:\Documents and Settings\All Users\Start Menu\Programs\Navini Ripwave Monitor\Ripwave

Monitor.lnk

Status: SUCCESSFUL

Ripwave Modem User Guide Navini Networks, Inc.

Part #40-00097-00 Rev E v1.0

July 30, 2003

36

Create Shortcut: D:\Documents and Settings\All Users\Start Menu\Programs\Navini Ripwave Monitor\Uninstall

Ripwave Monitor.lnk

Status: SUCCESSFUL

Install Directory: D:\WINDOWS\System32\DRIVERS\

Status: SUCCESSFUL

Additional Notes: NOTE - Directory already existed

Install Directory: D:\Documents and Settings\All Users\Start Menu\Programs\Startup\

Status: SUCCESSFUL

Additional Notes: NOTE - Directory already existed

Create Shortcut: D:\Documents and Settings\All Users\Start Menu\Programs\Startup\Ripwave Monitor.lnk

Status: SUCCESSFUL

Install Directory: D:\WINDOWS\

Status: SUCCESSFUL

Additional Notes: NOTE - Directory already existed

Install File: D:\WINDOWS\killmon.exe

Status: SUCCESSFUL

Execute Target File: reboot.exe

Status: SUCCESSFUL

Navini Networks, Inc. Ripwave Modem User Guide

Part #40-00097-00 Rev E v1.0

July 30, 2003

37

ADDENDUM 2: End User Software License Agreement

---- NOTICE TO USER ----

END-USER LICENSE AGREEMENT FOR RIPWAVE SOFTWARE

BY USING THE RIPWAVE SOFTWARE (INCLUDING THE COMPUTER SOFTWARE, THE

ASSOCIATED MEDIA, ANY PRINTED MATERIALS, THE RIPWAVE MODEM, AND ANY

ELECTRONIC OR “ONLINE” DOCUMENTATION) YOU ACCEPT THE TERMS AND

CONDITIONS OF THIS LICENSE AGREEMENT. IF YOU DO NOT AGREE WITH THE TERMS

AND CONDITIONS HEREIN, DO NOT USE THE SOFTWARE, AND PROMPTLY RETURN THE

ENTIRE PACKAGE TO YOUR AUTHORIZED SERVICE PROVIDER.

IN RETURN FOR OUR GRANTING TO YOU A LICENSE TO USE THE SOFTWARE, YOU

AGREE TO THE FOLLOWING TERMS AND CONDITIONS:

IMPORTANT - READ CAREFULLY: This End-User License Agreement ("Agreement") is a legal

agreement between you (either an individual or an entity) and Navini Networks, Inc. for the Ripwave

Software ("SOFTWARE"). The SOFTWARE includes computer software, the associated media, any

printed materials, and any electronic or "online" documentation. Any software provided along with the

SOFTWARE that is associated with a separate end-user license agreement is licensed to you under the

terms of that license agreement. By installing, copying, downloading, accessing, or otherwise using the

SOFTWARE, you agree to be bound by the terms of this AGREEMENT. If you do not agree to the terms

of this AGREEMENT, Navini is unwilling to license the SOFTWARE to you. In such event, you shall

not use or copy the SOFTWARE, and you should promptly contact your Authorized Service Provider

("ASP") for instructions on return of the SOFTWARE and Ripwave Modem. EXCEPT FOR NON-

DISCLOSURE AGREEMENTS BETWEEN THE PARTIES, THIS IS THE ENTIRE AGREEMENT

BETWEEN THE PARTIES RELATING TO THIS SOFTWARE ANDSUPERSEDES ANY

PURCHASE ORDER, COMMUNICATION, ADVERTISING, OR REPRESENTATION

CONCERNING THE SOFTWARE OR THE RIPWAVE SERVICE. NO CHANGE OR

MODIFICATION OF THIS AGREEMENT WILL BE VALID UNLESS IT IS IN WRITING AND

SIGNED BY NAVINI.

SOFTWARE LICENSE

The SOFTWARE is protected by copyright laws and international copyright treaties, as well as other

intellectual property laws and treaties. The SOFTWARE is licensed, not sold. This Agreement does not

authorize a sale or lease of the SOFTWARE. The term "COMPUTER" shall mean a single computer

system.

Ripwave Modem User Guide Navini Networks, Inc.

Part #40-00097-00 Rev E v1.0

July 30, 2003

38

1. GRANT OF LICENSE. This AGREEMENT grants to you a personal,

non-exclusive, non-transferable license as follows:

1.1 Storage, Installation and Use. Except as otherwise expressly provided in this AGREEMENT, you

will be allowed to install, use, access, run, or otherwise interact with the SOFTWARE on multiple

COMPUTERS. This SOFTWARE may only be used with a Ripwave Digital Modem ("MODEM").

2. DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS.

2.1 Multiple Processor Version Selection. The CD or diskette(s) on which the SOFTWARE resides

may contain several copies of the SOFTWARE, each of which is compatible with different

microprocessor architectures, such as the x86 architecture or various RISC architectures ("Processor

Version(s)"). You may install and use only one copy of one Processor Version of the SOFTWARE on the

COMPUTER.

2.2 Limitations on Reverse Engineering, Decompiling, and Disassembly. YOU MAY NOT

MODIFY, TRANSLATE, DISASSEMBLE, CREATE DERIVATIVE WORKS, OR REVERSE

ENGINEER THE SOFTWARE OR ANY COPY, IN WHOLE OR IN PART.

2.3 Rental. You may not rent, lease, assign, or lend the SOFTWARE or distribute copies of the

SOFTWARE to others.

2.4 Software Transfer. You may not sell the SOFTWARE. You may not post, distribute or transfer

the SOFTWARE to anyone. You are authorized to use the SOFTWARE on your machine, which means

a machine, all of which is under your complete, direct legal and physical control.

2.5 Termination. This license is effective until terminated. You may terminate this license by

returning the SOFTWARE, the Ripwave modem and associated hardware and all documentation to your

service provider. Without prejudice to any other rights, NAVINI may terminate your rights under this

AGREEMENT if you fail to comply with the terms and conditions of this AGREEMENT. In such event,

you must return the SOFTWARE and any copies, the Ripwave modem and associated hardware and all

documentation to your service provider.

2.6 Trademarks. This AGREEMENT does not grant you any rights in connection with any

trademarks or service marks of NAVINI.

Navini Networks, Inc. Ripwave Modem User Guide

Part #40-00097-00 Rev E v1.0

July 30, 2003

39

2.7 Third Party Intellectual Property. Licensee acknowledges, understands and agrees that the

licensed Software covered by this License Agreement may contain Intellectual Property owned by Third

Parties and duly licensed to NAVINI NETWORKS, INC. Copyright, Patent and other laws protect Third

Party Intellectual Property manufactured with, marketed with, or otherwise bundled with the licensed

Software. Licensee promises to keep such Third Party Intellectual Property in confidence to the benefit

of the Third Party, agrees not to reverse engineer or otherwise decompile Third Party Intellectual

Property, and agrees to stop using, destroy and/or return such Third Party owned Intellectual Property

under the same terms and conditions as the licensed Software as set forth in this License Agreement. The

Third Party is a third party beneficiary under this License Agreement and may independently enforce its

Intellectual Property rights.

2.8 Remote Digital Access. Licensor reserves the right, but is not obligated to digitally access the

Modem and/or the Ripwave Software for the purposes of upgrading and maintaining the software.

3. UPGRADES. If the SOFTWARE is labeled as an upgrade, you must be properly licensed to use a

product identified by NAVINI as being eligible for the upgrade in order to use the SOFTWARE

("Eligible Software"). SOFTWARE labeled as an upgrade replaces and/or supplements (and may

disable) the Eligible Software. You may use the resulting upgraded product only in accordance with the

terms of this AGREEMENT.

4. COPYRIGHT. The SOFTWARE is provided with restrictive rights. All title and intellectual

property rights in and to the SOFTWARE (including but not limited to any images, photographs,

animations, video, audio, music, text, and "applets" incorporated into the SOFTWARE), the

accompanying printed materials, and any copies of the SOFTWARE, are owned by NAVINI. All title

and intellectual property rights in and to the content that is not contained in the SOFTWARE but may be

accessed through use of the SOFTWARE and the MODEM is the product of the respective content

owner and may be protected by applicable copyright or other intellectual property laws and treaties. This

AGREEMENT grants you no rights to use such content. Use of any online services that may be accessed

through the SOFTWARE may be governed by the respective terms of use for such services. If this

SOFTWARE contains documentation that is provided only in electronic form, you may print one copy of

such electronic documentation. You may not copy the printed materials accompanying the SOFTWARE.

All rights not specifically granted under this AGREEMENT are reserved by NAVINI.

5. PRODUCT SUPPORT. Product support for the SOFTWARE is not provided by NAVINI. For

product support, please refer to ASP's support number provided in their documentation.

6. U.S. GOVERNMENT RESTRICTED RIGHTS. ALL SOFTWARE provided to the U.S.

Government pursuant to solicitations issued on or after December 1, 1995 is provided with the

commercial license rights and restrictions described elsewhere herein. ALL SOFTWARE provided to

the U.S. Government pursuant to solicitations issued prior to December 1, 1995 is provided with

“Restricted Rights” as provided for in FAR, 48 CFR 52.227-14 (June 1987) or DFAR, 48 CFR 252.227-

7013 (Oct 1988), as applicable.

7. EXPORT RESTRICTIONS. You agree that you will not directly or indirectly export or re-export

the SOFTWARE (or portions thereof) to any proscribed country. You specifically agree not to export or

Ripwave Modem User Guide Navini Networks, Inc.

Part #40-00097-00 Rev E v1.0

July 30, 2003

40

re-export the SOFTWARE (i) to any country to which the U.S. has embargoed or restricted the export of

goods or services, which currently include, but are not necessarily limited to, Cuba, Iran, Iraq, Libya,

North Korea, Sudan, and Syria, or to any national of any such country, wherever located, who intends to

transmit or transport the SOFTWARE back to such country; (ii) to any person or entity whom you know

or have reason to know will utilize the SOFTWARE in the design, development, or production of

nuclear, chemical, or biological weapons; or (iii) to any person or entity who has been prohibited from

participating in U.S. export transactions by any federal agency of the U.S. government.

8. WARRANTY. THE SOFTWARE IS PROVIDED ON AN "AS IS" BASIS WITHOUT

WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION

ANY WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE,

TITLE, NON-INFRINGEMENT, AND ANY WARRANTY AGAINST LATENT DEFECTS. NAVINI

DOES NOT WARRANT THAT THE OPERATION OF THE SOFTWARE WILL BE

UNINTERRUPTED OR ERROR FREE. YOU ARE SOLELY RESPONSIBLE FOR DETERMINING

WHICH SOFTWARE BEST SUITS YOUR NEEDS, FOR INSTALLING THE SOFTWARE, AND

FOR RESULTS OBTAINED. YOU HAVE THE SOLE RESPONSIBILITY FOR INSPECTING AND

TESTING THE SOFTWARE TO YOUR SATISFACTION BEFORE USING THEM WITH

IMPORTANT DATA OR WITH YOUR COMPUTER. NAVINI MAKES NO WARRANTIES OR

REPRESENTATIONS WHATSOEVER REGARDING ANY GOODS OR SERVICES PROVIDED BY

ANY THIRD PARTIES PURSUANT TO YOUR USE OF THE SOFTWARE AND NAVINI SHALL

NOT BE LIABLE FOR ANY COSTS OR DAMAGES ARISING OUT OF, EITHER DIRECTLY OR

INDIRECTLY, THE ACTIONS OR INACTIONS OF SUCH THIRD PARTY. IN NO EVENT SHALL

NAVINI NETWORKS, INC. OR ANY THIRD PARTY INVOLVED IN THE CREATION,

PRODUCTION, DELIVERY, OR LICENSING OF THE SOFTWARE BE LIABLE TO YOU OR ANY

THIRD PARTY FOR ANY DIRECT, INDIRECT, SPECIAL, GENERAL, PUNITIVE, EXEMPLARY,

AGGRAVATED, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF ADVISED OF THE

POSSIBILITY THEREOF, WHETHER FORESEEABLE OR UNFORESEEABLE, OF ANY KIND

WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOSS OF PROFITS; UNANTICIPATED

BENEFITS OR REVENUE; ANTICIPATED PROFITS; DAMAGES OR COSTS INCURRED AS A

RESULT OF: (i) LOST TIME, DATA, OR USE OF THE SOFTWARE; (ii) HARDWARE FAILURES

FOR ANY REASON; (iii) INCOMPATIBILITY WITH HARDWARE OR OTHER SOFTWARE; (iv)

LOSS OR CLAIMS FROM THIRD PARTIES; OR (v) FROM ANY OTHER CAUSE ARISING OUT

OF USE OF OR INABILITY TO USE THE SOFTWARE, OR CONTRIBUTION OR INDEMNITY IN

RESPECT OF ANY CLAIM RELATED TO THE SOFTWARE. IN ANY EVENT, NAVINI'S

LIABILITY SHALL NOT EXCEED THE ACTUAL PRICE PAID FOR THE LICENSE TO USE THE

SOFTWARE.

Navini Networks, Inc. Ripwave Modem User Guide

Part #40-00097-00 Rev E v1.0

July 30, 2003

41

SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL

OR CONSEQUENTIAL DAMAGES, OR ALLOW LIMITATIONS ON HOW LONG A WARRANTY

LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS

WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER

RIGHTS, WHICH VARY FROM JURISDICTION TO JURISDICTION.

9. LAW. This Agreement and each Order shall be construed in accordance with the laws (including

the Uniform Commercial Code) of the State of Texas, without giving effect to principles of conflicts of

laws. Any legal action arising here from will be brought within the state or federal courts located in

Dallas county, Texas, which is agreed by the parties to be a convenient forum. The SOFTWARE User

acknowledges, understands and agrees that this Agreement is written in the English Language and

versions of this Agreement written in any other language is for convenience only, and the SOFTWARE

User expressly waives all “native language” requirements, whether based in local statutory, regulatory or

other law.

END OF AGREEMENT

Navini Networks, Internet at the Speed of Thought, Zero-Install, Ripwave, and Unwired by Navini are

trademarks of Navini Networks, Inc. Other product and company names mentioned herein may be

trademarks and/or service marks of their respective owners. Rev. 052302

Cisco Systems WCS-MODEM1 Ripwave Modem User Manual Ripwave Modem User Guide

Cisco Systems, Inc Ripwave Modem Ripwave Modem User Guide

Manual

Navigation menu

Namespaces

Views

Navigation
