CITROËN DISPATCH
2
3
ABOVE STANDARD ISSUE. WHEN OUR
DESIGNERS SAT DOWN TO REDRAW
THE CITROËN DISPATCH RANGE WE
MADE SURE THEY TICKED EVERY BOX.
IT LOOKS GREAT TOO! DYNAMIC STYLING WITH ROBUST PROTECTION. AND INSIDE?
ERGONOMICS, SUPERIOR COMFORT AND SOUNDPROOFING ENOUGH TO MAKE
EVEN THE MOST CRITICAL CREW MEMBER HAPPY.
4
5

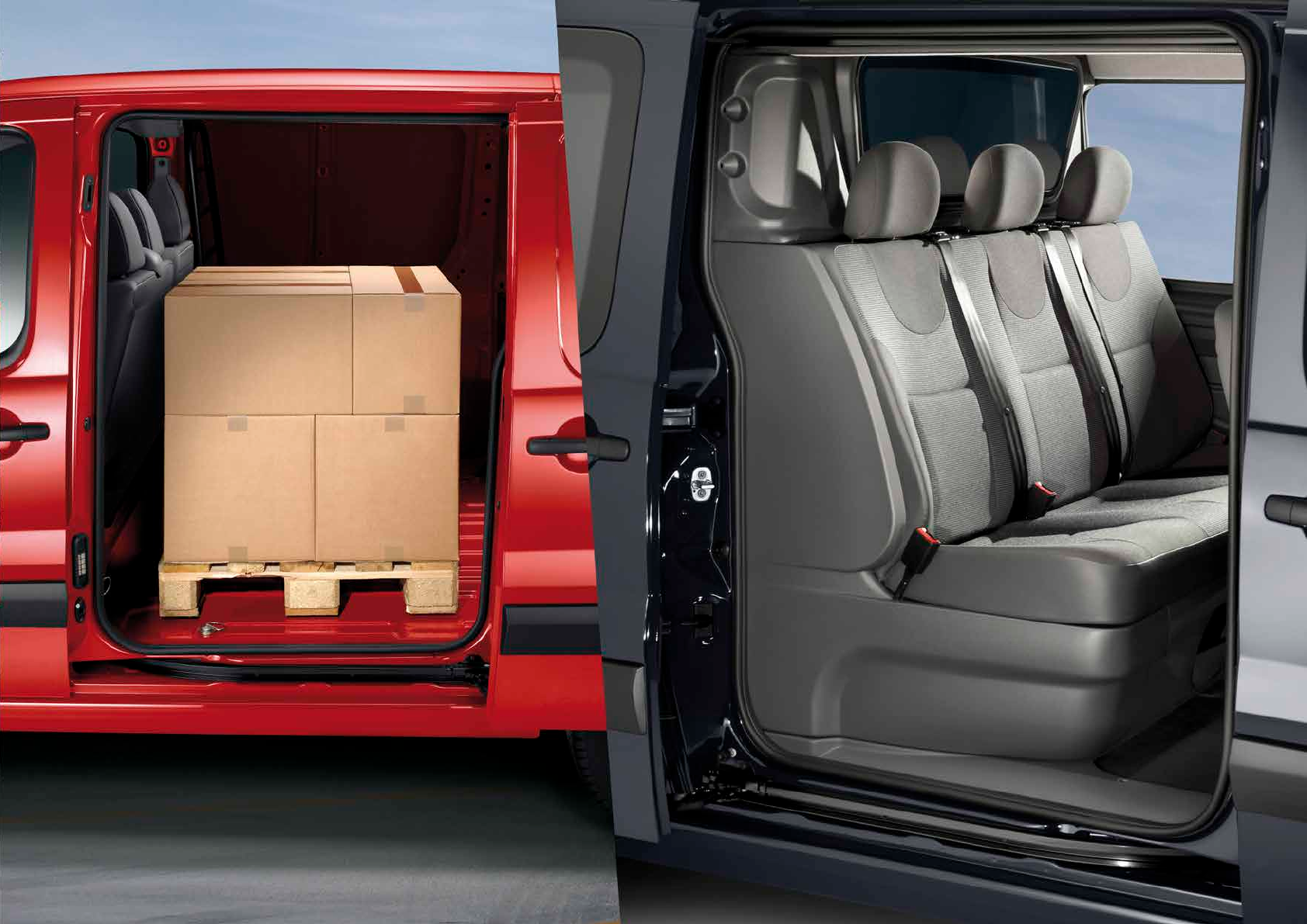

THE VERSATILE WORKER. CITROËN
DISPATCH IS ENGINEERED TO
ADAPT: TO DIFFICULT LOADS,
DIFFERENT SPACES AND EVERY
CHALLENGE YOU FACE.
EACH VERSION HAS VERSATILITY AND PRACTICAL INNOVATIONS BUILT IN,
SAVING YOU TIME AND ENERGY. FROM RIDE AND ROAD HOLDING TO AN
EASILY ADJUSTABLE LOADING HEIGHT AND EFFORTLESS ACCESSIBILITY,
CITROËN DISPATCH IS ALWAYS ON SIDE.
ENJOYABLE CONSISTENT RIDE
The adjustable pneumatic rear suspension,
optional on Panel Vans and Enterprise
(excluding HDi 90), Crew Van and Combi
models, guarantees optimal road holding
and a constant ride height under all load
conditions. This system also maintains a
constant overall height of less than 1.90m,
i.e. below the standard minimum limit for
entrances to underground car parks. Lastly,
the manual control for adjustment of the load
sill offers incomparable convenience by allowing
a reduction of the rear sill height to 49cm; the
ride height returns to normal automatically as
soon as the speed reaches 6mph.
COMPLETELY ACCOMMODATING
Designed to carry what your work demands,
an optional accessory 3m Pipe Carrier
allows you to transport standard pipe
lengths safely and securely inside the van.
In L2 models, you can accommodate
8’ X 4’ plasterboard either vertically or at
across the load oor between wheel arches.
ENTERPRISING SOLUTIONS
In addition to the huge variety of equipment
available on the Citroën Dispatch, Enterprise
models include a full steel bulkhead
(optional on Panel Van models) and
rear parking sensors (optional on Panel
Van, Crew Van and Combi models). Air
conditioning with electrically adjustable
and heated twin lens door mirrors are also
standard on Enterprise and Combi SX and
optional on all other models.
6
SAFE...
Keeping you safe on every mission, Citroën Dispatch
features Grip Control, optional on HDi 95 and HDi
125 Panel Van, Enterprise, Crew Van and Platform
Cab models. Grip Control has four selectable driving
modes – normal, all roads, snow or sand. They
enable the Citroën Dispatch to cover a variety of
challenging surfaces and rough terrain, so work
carries on whatever the weather. All models are
equipped as standard with ABS, Emergency Braking
Assistance (EBA), driver’s airbag and pretensioner
front seat belts. Together with optional Electronic
Stability Programme (ESP) and cruise control with
adjustable speed limiter, these features make Citroën
Dispatch a reassuringly protective place to be.
...AND SECURE
On Panel Van, Enterprise and Crew Van models,
Trafcmaster Smartnav guides you to your destination
without hassle, thanks to real-time trafc and road
incident data that provides you with the best possible
route and constant updates, via a colour touchscreen.
GPS Stolen Vehicle Tracking enables a stolen vehicle
to be tracked and located 24/7, every day of the
year, so you can leave your vehicle, safe in the
knowledge that it can look after itself.

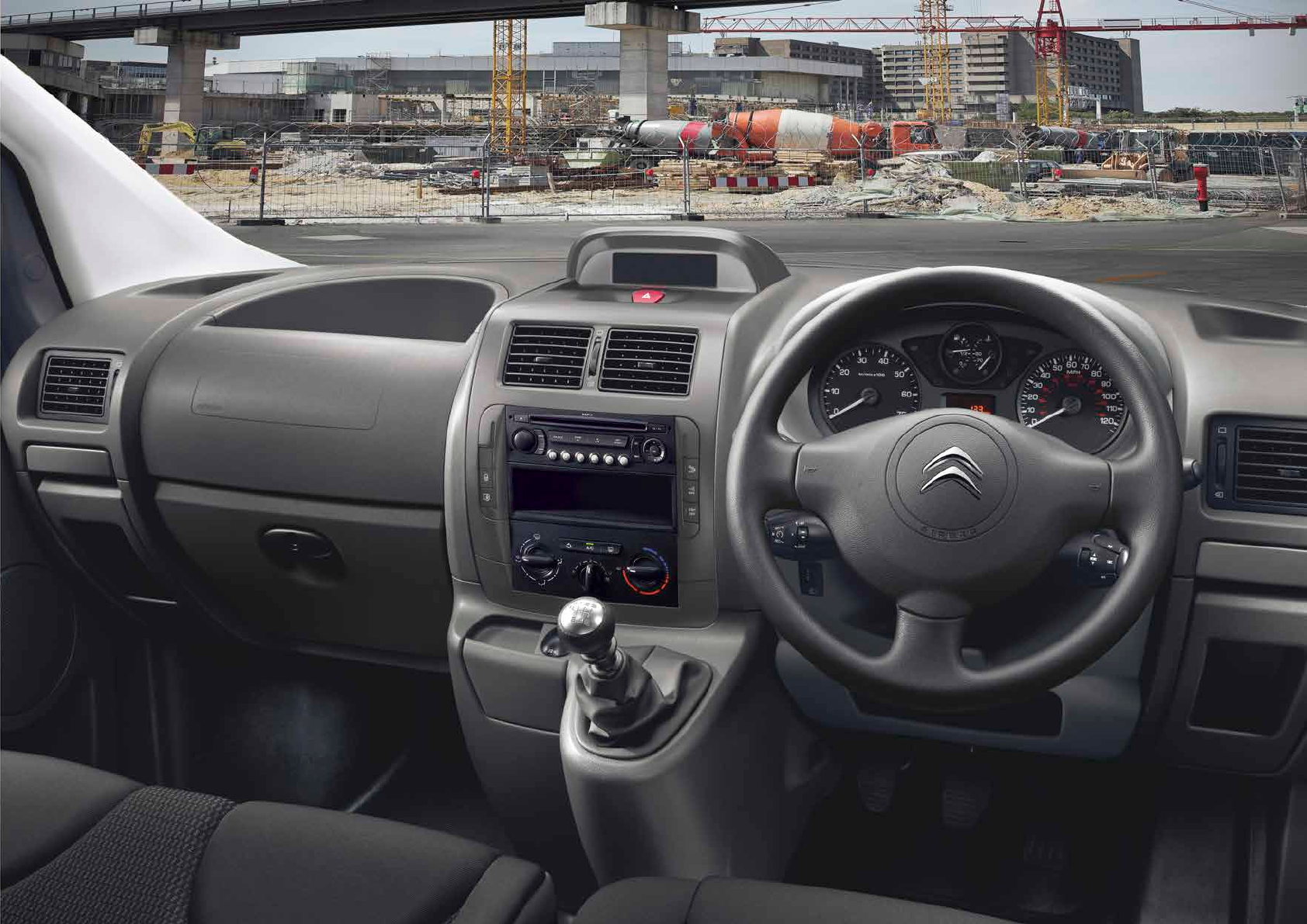

OPTIMAL COMFORT
The ergonomic design of the driver’s seat
guarantees excellent body posture, and offers
a car-like driving position giving excellent visibility
while maintaining maximum comfort even
during long periods of driving. To nd the most
comfortable driving position, the seat back is
adjustable, while the seat cushion can be adjusted
for length and height.
BODY COLOURS
Iron Grey (P) Arctic Steel (M) Golden White (M)2Hickory Brown (M)2Gunmetal (M)2
Polar White Imperial Blue Black Passion Red1Pacic Blue1
COLOURS, TRIMS & WHEEL OPTIONS
TAKE SOME TIME TO CHECK OUT HOW EASY IT IS TO PUT TOGETHER YOUR
PERFECT CITROËN DISPATCH. ENJOY!
15” STEEL WHEELS
Set of four
Tyres: 215/65 R15
Standard on Van
and Enterprise models3
16” STEEL WHEELS
Set of four
Tyres: 215/60 R16
Standard on Van4, Enterprise4, Crew
Van, Platform Cab and Combi models
16” ‘ANTIGUA’ WHEEL COVERS
Set of four
Tyres: 215/60 R16
Standard on Combi SX and
optional on Combi
5 models
16” ‘VIVACE’ ALLOY WHEELS
Set of four
Tyres: 215/60 R16
Optional on Combi
and Combi SX models
‘Transcodage’ cloth
‘Jocaste’ velour
TRIM
Panel Vans, Enterprise, Crew Van,
Platform Cab & Combi
Combi SX
1 Not available on Combi and Combi
SX models.
2 Available on Combi and Combi SX
models only.
3 HDi 90 L1H1 1000 model only.
4 Excludes HDi 90 L1H1 1000 model.
5 Available as part of optional Look Pack.
Please note: Colours and pictures shown are for illustration purposes only. Please consult your Dealer for denitive colour and trim/upholstery details.
7
NATURALLY, EVEN THE STANDARD CITROËN DISPATCH PANEL VAN REDEFINES WHAT
STANDARD SHOULD MEAN, WITH A GREAT SPECIFICATION, ACRES OF SPACE AND
TRUE ON-BOARD COMFORT. FROM HERE IT’S SIMPLY A QUESTION OF FINDING YOUR
FIT-FOR-PURPOSE, PERFECT MODEL…
PANEL VAN
CREW VAN
PLATFORM CAB
VAN
ENTERPRISE
ENGINE AVAILABILITY
HDi 90 manual L1H1 1000 ● ●
HDi 125 6-speed manual L1H1 1000 ●
HDi 90 manual L1H1 1200 ●
HDi 125 6-speed manual L1H1 1200 ● ●
HDi 125 6-speed manual L2 1200 ●
HDi 90 manual L2H1 1200 ●
HDi 125 6-speed manual L2H1 1200 ●●●
HDi 95 6-speed manual L2H2 1200 ●
HDi 125 manual L2H2 1200 ●
FOUR DIMENSIONS OF
BETTER. WHATEVER FORMAT
AND EQUIPMENT LEVEL YOUR
WORK DEMANDS, THE CITROËN
DISPATCH RANGE WILL DELIVER A
TOUGH PROFESSIONAL PARTNER.
8
CITROËN DISPATCH PANEL VAN SPECIFICATION INCLUDES:
• ABS with Emergency Braking Assistance (EBA)
• Driver’s airbag
• Variable power assisted steering
• RDS stereo radio/MP3 compatible CD player with steering mounted controls
• Remote control central locking with deadlocks
• Front electric windows with ‘one-touch’ operation and anti-pinch
• 12 volt sockets on centre console and in load compartment
• Multi-function on-board trip computer (excludes HDi 90 manual models)
• Overhead storage shelf
• Height adjustable driver’s seat
• Dual front passenger bench seat
• Driver’s side cup holder
• Ladder frame bulkhead (excludes Platform Cab)
• Twin unglazed sliding side loading doors (excludes Platform Cab)
• Twin unglazed rear doors (excludes Platform Cab)
• Open backed cab (Platform Cab only)
• Smartnav – 3 years’ Smartnav Touchscreen routes, up to 100 routes per
month, 3 years’ Stolen Vehicle Tracking, 3 years’ automatically downloaded
live trafc information, 10 Personal Assistant Smartnav routes and
3 months’ Safe Speed safety camera alerts (excludes Platform Cab)
CITROËN DISPATCH COMBI COMBINES TECHNOLOGICAL INNOVATION AND HIGH-PERFORMANCE DRIVING WITH A GENEROUS HELPING
OF COMFORT. CARRYING UP TO NINE PEOPLE, IT’S AVAILABLE IN TWO DISTINCT VERSIONS.
CITROËN DISPATCH COMBI SX SPECIFICATION
IN ADDITION TO COMBI INCLUDES:
• Front passengers’ airbag
• Leather steering wheel
• Visibility Pack – automatic illumination of headlamps,
automatic rain-sensitive windscreen wipers and front fog lights
• Passenger compartment light
• 16” steel wheels with ‘Antigua’ wheel covers
• 12 volt socket in row 3
• Rear seats in rows 2 and 3: removable fold and tilt dual passenger bench
with separate, adjustable backrests and removable individual seat, all with
adjustable rear head restraints
• Tailgate with heated rear window and wash-wipe
• Air conditioning with electrically adjustable and heated twin lens door mirrors
• Cup holders in dashboard
CITROËN DISPATCH COMBI SPECIFICATION INCLUDES:
• ABS with Emergency Braking Assistance (EBA)
• Driver’s airbag
• Variable power assisted steering
• RDS stereo radio/MP3 compatible CD player with steering mounted controls
• Remote control central locking with deadlocks
• Front electric windows with ‘one-touch’ operation and anti-pinch
• 12 volt sockets on centre console and in row 2
• Multi-function on-board trip computer
• Overhead storage shelf
• Height adjustable driver’s seat
• Dual front passenger bench seat
• Driver’s side cup holder
• Rear seats in row 2: removable dual passenger bench and individual seat,
all with adjustable rear head restraints
• Twin glazed sliding side loading doors with sliding windows
• Twin glazed rear doors
• 16” steel wheels
COMBI
COMBI SX
ENGINE AVAILABILITY
HDi 95 6-speed manual L1H1 ●
HDi 125 6-speed manual L1H1 ● ●
HDi 160 6-speed automatic L1H1 ●
HDi 95 manual L2H1 ●
HDi 125 6-speed manual L2H1 ● ●
HDi 160 6-speed manual L2H1 ●
CITROËN DISPATCH ENTERPRISE SPECIFICATION
IN ADDITION TO PANEL VAN INCLUDES:
• Connecting Box – Bluetooth® system with USB socket
• Air conditioning with electrically folding and heated twin lens door mirrors
• Rear parking sensors
• Full steel bulkhead
9
OPTIONS
PANEL VAN COMBI
VAN
ENTERPRISE
CREW VAN
PLATFORM CAB
COMBI
COMBI SX
OPTION SUMMARY
Front fog lights 1 1 1 1 ●
Rear parking sensors ●
Connecting Box – Bluetooth® system with USB socket 2●2 2 2 2 2
Enterprise Pack – Connecting box, air conditioning,
rear parking sensors and full steel bulkhead 2/3 ●2
Air conditioning with electrically adjustable
and heated twin lens door mirrors ● ●
Electrically adjustable and heated twin lens door mirrors ●
Electrically folding and heated twin lens door mirrors ●
Full steel bulkhead ●
Full steel bulkhead with inset window 4
Cruise control with driver adjustable speed limiter ●5
Electronic Stability Programme (ESP) with traction control
and cruise control with driver adjustable speed limiter 6 6 ●5
Grip Control Electronic Stability Programme (ESP) with 5-mode traction
control, Hill Start Assist function and 16” Michelin Agilis tyres 7 7 8
Individual front passenger seat
Delete row 2 seats
Front passengers’ airbag ●
Passenger, side and curtain airbags with individual front passenger seat,
lumbar support and armrest
Row 3 removable dual passenger bench and individual passenger seat 9
Row 2 removable fold and tilt dual passenger bench
and individual passenger seat 9
Row 3 removable fold and tilt dual passenger bench
and individual passenger seat
Height-adjustable driver’s seat with armrest and lumbar support,
individual front passenger seat with armrest, passenger and side airbags
Anti-theft alarm
Visibility Pack – automatic illumination of headlamps, automatic
rain-sensitive windscreen wipers and front fog lights 4 4 4 ●
PANEL VAN COMBI
VAN
ENTERPRISE
CREW VAN
PLATFORM CAB
COMBI
COMBI SX
OPTION SUMMARY
eMyWay – colour satellite navigation, live trafc information,
European mapping and Connecting Box 2
eMyWay and Visibility Pack 2
Automatic air conditioning
Cabin and rear air conditioning with Webasto non-programmable heating
Rear air conditioning with Webasto non-programmable heating
Twin glazed rear doors with rear heated windows and wash-wipe 4 4 ●
Rear heated window with wash-wipe
Tailgate with rear heated window and wash-wipe 10/11 11
Tailgate with rear heated window, wash-wipe
and dark tinted windows in row 3 11
Tailgate 11
Tailgate with dark tinted windows in row 3 11
Dark tinted windows in row 2 and 3
Rear parcel shelf and baggage cover
Sliding side windows in side loading doors ● ●
Look Pack – body colour fully painted front and rear bumpers
and side rubbing strips, body colour electrically heated and folding
door mirrors, Lion Grey exterior door handles and front fog lights
12/13 12/13 12/13 12/13/14 12/13/
15/16
Look Pack – body colour fully painted front and rear bumpers and
side rubbing strips, body colour electrically heated and folding door
mirrors and Lion Grey exterior door handles
13/15
16” ‘Antigua’ wheel covers (set of four) 17 ●
16” 'Vivace' alloy wheels (set of four)
Under body protection plate
Front metallic suspension and rear pneumatic suspension, adjustable
when vehicle is stationary, including tyre pressure sensor 18 18 8
Converter socket ●
Metallic/Pearlescent paint
Special order paint (Fleet colours) 11/12/19 12/19 12/19 12/19 11/12/19
Special order paint (derogation colours) 11/12/19 12/19 12/19 12/19 11/12/19
● Standard equipment
No cost optional factory fitted equipment
Optional factory fitted equipment
1 Available only as part of optional
Visibility Pack or Look Pack.
2 Mobile phone compatibility can vary by phone manufacturer.
Please consult your Dealer for further compatibility information.
3 Excludes HDi 90 manual L1H1 1000 and
HDi 125 6-speed manual L2H1 1200.
4 Interior rear view mirror is standard if Visibility Pack
or glazed rear doors are ordered with or without
full steel bulkhead with inset window.
5 Standard on HDi 160 6-speed manual,
optional on all other models.
6 Excludes HDi 90 L1H1 1000 models.
7 Excludes HDi 90 models.
8 Not available on HDi automatic.
9 Row 2 removable fold and tilt dual passenger bench and
individual passenger seat is not compatible with row 3
removable dual passenger bench and individual passenger seat.
10 Excludes L2H2 models.
11
Tailgate and special order paint are not compatible. If tailgate is
ordered in conjunction with special order paint, that tailgate will
be primed and not painted.
12 Look Pack and special order paint are not compatible.
13 Available on Polar White, Arctic Steel and Black body colours.
14 Rear bumper not present.
15 Available on Hickory Brown, Gunmetal and Golden White
body colours.
16 Look Pack includes 'Antigua' wheel trims on Combi models.
17 When optional Look Pack is ordered,
'Antigua' wheel covers are present.
18 Excludes HDi 90 L1H1 models.
19 When fleet or derogation special paint is ordered,
the front grille and bumper inserts remain black.
10
● Standard equipment
No cost option
Optional factory fitted equipment
1 Available only as part of optional
Visibility Pack or Look Pack.
2 Interior rear view mirror is standard if optional Visibility
Pack or glazed rear doors are ordered with or without
full steel bulkhead with inset window.
3 When MyWay is ordered, Visibility Pack is included.
4 8 anchorage points on Panel Vans and Enterprise
and 6 anchorage points on Combi models.
5 L1H1 and L2H2 versions have 5 anchorage
points each side and L2H1 versions have
6 anchorage points each side.
6 HDi 90 L1H1 1000 model only.
7 Excludes HDi 90 L1H1 1000 model.
8 When optional Look Pack is ordered,
'Antigua' wheel covers are present.
9 Includes front passenger's airbag.
10 Mobile phone compatibility can vary by phone
manufacturer. Please consult your dealer for
further compatibility information.
PANEL
VAN COMBI
VAN
ENTERPRISE
CREW VAN
PLATFORM CAB
COMBI
COMBI SX
SAFETY & SECURITY
ABS ●●●●●●
Emergency Braking Assistance (EBA) ●●●●●●
Driver's airbag ●●●●●●
Ladder frame bulkhead ●
Full steel bulkhead ●
Full bulkhead with inset window ●
Warning light and audible warning system
for driver's ‘unfastened’ seat belt ●●●●●●
Transponder immobiliser ●●●●●●
High-frequency remote control central locking
with deadlocks and dashboard mounted control ●●●●●●
Height-adjustable front seat belts ●●●●●●
Three-point inertia reel seat belts on all seats ●●●●●●
Front passengers’ airbag ●
LIGHTING & VISIBILITY
Front fog lights 1 1 1 1●
Rear fog light with twin reversing lights ●●●●●●
Height-adjustable headlamps ●●●●●●
Automatic illumination of cabin lighting via a ceiling mounted button ●●●●●●
Two-speed and intermittent speed-sensitive windscreen wipers ●●●●●●
Load compartment light ● ● ● ●
Interior rear view mirror 22● ●
Visibility Pack – automatic illumination of headlamps,
automatic rain-sensitive windscreen wipers and front fog lights 3●
Air conditioning with electrically adjustable and heated
twin lens door mirrors ●
Air conditioning with electrically folding
and heated twin lens door mirrors ●
COMFORT & CONVENIENCE
Rear parking sensors ●
Variable power assisted steering ●●●●●●
Driver's and passenger's sunvisor ●●●●●●
Height and reach adjustable steering wheel ●●●●●●
Front electric windows with ‘one-touch’ operation and anti-pinch ●●●●●●
Sliding side windows in row 2 ● ●
12 volt socket on centre console ●●●●●●
12 volt socket in load compartment/row 2 ●●● ●●
12 volt socket in row 3 ●
Converter socket ●
STORAGE
Overhead storage shelf ●●●●●●
Lockable glove box ●●●●●●
Door pockets with bottle holders ●●●●●●
Floor mounted anchorage points ●4●4●4●4●4
Anchorage points on each side of the roof (max load 170kg) ●5●5●5●5●5
PANEL
VAN COMBI
VAN
ENTERPRISE
CREW VAN
PLATFORM CAB
COMBI
COMBI SX
STYLE
EXTERIOR
Side rubbing strips ●●●●●●
Tinted windows ●●●●●●
15” steel wheels (215/65 R15) ●6●6
16” steel wheels (215/60 R16) ●7●7●●●●
16” 'Antigua' wheel covers (set of four) 8●
Twin unglazed rear doors ●●●
Twin glazed rear doors 2 2 ●
Twin glazed rear doors with heated window and wash-wipe ●
Twin sliding side loading unglazed doors ● ●
Twin sliding side loading glazed doors ● ● ●
DRIVER INFORMATION
Lockable fuel cap ●●●●●●
Rev counter ●●●●●●
Trip and total mileage recorders ●●●●●●
Hazard warning light ●●●●●●
Fuel gauge ●●●●●●
Oil level indicator ●●●●●●
Low battery charge warning light ●●●●●●
Indicator warning light ●●●●●●
Handbrake warning light ●●●●●●
Side headlamps and main beam warning lights ●●●●●●
Brake uid warning ●●●●●●
Metallic suspension ●●●●●●
SEATING
Height-adjustable front head restraints ●●●●●●
Height-adjustable driver's seat ●●●●●●
6 seats – row 2 passenger bench with adjustable head restraints,
incorporates additional under-bench load space at oor, accessible
from load area to enable storage of longer items
●
6 seats – row 2 seats include removable dual passenger bench
and individual seat, all with adjustable head restraints ●
9 seats – row 2 and 3 seats include removable fold and tilt dual
passenger bench with separate adjustable backrests and removable
individual seat, all with adjustable head restraints
●
Dual front passenger bench seat ●●●●●●9
Individual front passenger seat
Delete row 2 seats
AUDIO/NAVIGATION
Connecting Box – Bluetooth® system with USB socket 10 ●10 10 10 10 10
RDS stereo radio/MP3 compatible CD
player with steering mounted controls ●●●●●●
Smartnav – 3 years’ Smartnav Touchscreen routes, up to 100 routes
per month, 3 years’ Stolen Vehicle Tracking, 3 years’ automatically
downloaded live trafc information, 10 Personal Assistant Smartnav
routes and 3 months’ Safe Speed safety camera alerts
●●●
EQUIPMENT SPECIFICATION
11
DIMENSIONS & WEIGHTS
* Includes driver.
** Includes bodywork.
▲ On Combi models, trailer weight must be
reduced if vehicle is running at GVW to
ensure that GTW is not exceeded.
KG
Up to 7m3
of loadspace
on Panel Vans
Up to 1200kg
payload on Panel Vans
VAN, ENTERPRISE
& COMBI
PLATFORM CAB
L1 L2
H1 H1 H2
EXTERIOR DIMENSIONS (mm)
Length 4805 5135 5135 5016
Height (empty) – metallic suspension 1942 1942 2276 1942
Height (empty) – adjustable pneumatic rear
suspension at nominal setting 1894 1894 2204
Width (excluding door mirrors) 1895 1895 1895 1895
Width (with door mirrors folded) 1986 1986 1986 1986
Width (with door mirrors unfolded) 2194 2194 2194 2194
Wheelbase 3000 3122 3122 3122
Front overhang 975 975 975 975
Rear overhang 830 1038 1038 920
Front and rear track 1574 1574 1574 1574
LOAD COMPARTMENT DIMENSIONS (mm)
Load sill height (empty) – metallic suspension 562- 604 562- 604 562- 604
Load sill height (empty) – adjustable pneumatic
rear suspension 491- 500 491- 500 491- 500
Load length – van/crew van
2254/1780
2584/2110 2584
Maximum load compartment height 1449 1449 1750
Maximum load width between sides 1600 1600 1600
Maximum load width between wheel arches 1245 1245 1245
Sliding side door height 1293 -1301 1293 -1301 1293 -1301
Sliding side door width 924 924 924
Rear door height 1272 1272 1630
Rear door width (min) 1237 1237 1237
Degree to which rear doors open 90°/180° 90°/180° 90°/180°
Load compartment volume (m3) – van/crew van 5/2.9 6/3.6 7
Load compartment volume (m3) – Combi/Combi SX 3.5/3.0 4.1/3.7
CONVERTIBLE AREA DIMENSIONS (mm)
Usable platform length (behind the cab) 2618
Maximum width of conversion 2100
Maximum interior width between wheel arches 1245
GVW
KERB WEIGHT
MAXIMUM
PAYLOAD*
MEDIAN MASS
IN SERVICE
MAX PERMITTED
WEIGHT ON
FRONT AXLE**
MAX PERMITTED
WEIGHT ON
RE AR AXLE**
MAX TRAILER
▲
GTW
WEIGHTS & PAYLOADS (kg)
PANEL VAN
HDi 90 manual L1H1 1000 2661 1673 988 1780 1400 1700 1672 4333
HDi 90 manual L1H1 1000 Enterprise 2661 1673 988 1780 1400 1700 1672 4333
HDi 125 6-speed manual L1H1 1000 2698 1698 1000 1814 1400 1700 2000 4698
HDi 90 manual L1H1 1200 2861 1673 1188 1780 1400 1700 1472 4333
HDi 125 6-speed manual L1H1 1200 2898 1698 1200 1814 1400 1700 2000 4898
HDi 90 manual L2H1 1200 2880 1692 1188 1800 1400 1700 1453 4333
HDi 125 6-speed manual L2H1 1200 2932 1732 1200 1847 1400 1700 2000 4932
HDi 125 6-speed manual L2H1 1200 Enterprise 2932 1732 1200 1847 1400 1700 2000 4932
HDi 95 6-speed manual L2H2 1200 2964 1764 1200 1878 1400 1700 2000 4964
HDi 125 6-speed manual L2H2 1200 2964 1764 1200 1878 1400 1700 2000 4964
CREW VAN
HDi 125 6-speed manual L1H1 2870 1786 1084 1920 1400 1700 1880 4750
HDi 125 6-speed manual L2H1 1200 2880 1813 1067 1945 1400 1700 2000 4880
PLATFORM CAB
HDi 125 6-speed manual L2 1200 2950 1550 1400 1670 1400 1700 1930 4880
COMBI
HDi 95 6-speed manual L1H1 2780 1913 867 2013 1400 1550 2000 4780
HDi 125 6-speed manual L1H1 2780 1913 867 2013 1400 1550 2000 4780
HDi 95 6-speed manual L2H1 2810 1923 887 2044 1400 1550 2000 4810
HDi 125 6-speed manual L2H1 2810 1923 887 2044 1400 1550 2000 4810
HDi 125 6-speed manual L1H1 SX 2780 1913 867 2013 1400 1550 2000 4780
HDi 160 6-speed automatic L1H1 SX 2780 1917 863 2019 1400 1550 2000 4580
HDi 125 6-speed manual L2H1 SX 2810 1923 887 2044 1400 1550 2000 4810
HDi 160 6-speed manual L2H1 SX 2805 1953 852 2023 1400 1550 2000 4780
12
TECHNICAL SPECIFICATION
DIESEL MODELS
PANEL VAN CREW VAN PLATFORM
CAB COMBI
L1H1 L1H1 L2H1 L2H1 L2H2 L2H2 L1H1 L2H1 L2 L1H1 L1H1 L1H1 L2H1 L2H1 L2H1
HDi 90
manual
HDi 125
6-speed
manual HDi 90
manual
HDi 125
6-speed
manual
HDi 95
6-speed
manual
HDi 125
6-speed
manual
HDi 125
6-speed
manual
HDi 125
6-speed
manual
HDi 125
6-speed
manual
HDi 95
6-speed
manual
HDi 125
6-speed
manual
HDi 160
6-speed
automatic
HDi 95
6-speed
manual
HDi 125
6-speed
manual
HDi 160
6-speed
manual
ENGINE
Capacity (cc) 1560 1997 1560 1997 1997 1997 1997 1997 1997 1997 1997 1997 1997 1997 1997
Cylinders 4 in line 4 in line 4 in line 4 in line 4 in line 4 in line 4 in line 4 in line 4 in line 4 in line 4 in line 4 in line 4 in line 4 in line 4 in line
Bore and stroke (mm) 75.0 x 88.3 85.0 x 88.0 75.0 x 88.3 85.0 x 88.0 85.0 x 88.0 85.0 x 88.0 85.0 x 88.0 85.0 x 88.0 85.0 x 88.0 85.0 x 88.0 85.0 x 88.0 85.0 x 88.0 85.0 x 88.0 85.0 x 88.0 85.0 x 88.0
Max power CEE (kW/rpm) 66/4000 94/4000 66/4000 94/4000 72/4000 94/4000 94/4000 94/4000 94/4000 72/4000 94/4000 120/3750 72/4000 94/4000 120/3750
Max torque CEE (Nm/rpm) 180/1500 320/2000 180/150 0 320/2000 260/1500 320/2000 320/2000 320/2000 320/2000 260/1500 320/2000 340/2000 260/150 0 320/2000 340/2000
Fuel system High pressure direct diesel injection
Euro Status Euro 5 Euro 5 Euro 5 Euro 5 Euro 5 Euro 5 Euro 5 Euro 5 Euro 5 Euro 5 Euro 5 Euro 5 Euro 5 Euro 5 Euro 5
TRANSMISSION
Five speed manual ● ●
Six speed manual ● ●●●●●●●● ●●●
Six speed automatic ●
ECONOMY Litres/100km (mpg)
Combined
6.7 (42.2) 6.4 (44.1) 6.7 (42.2) 6.4 (4 4.1) 7.1 ( 3 9. 8 ) 7.1 (3 9. 8 ) 7.1 ( 3 9.8 ) 7. 0 ( 4 0. 4 ) 7.4 (38.2) 6.8 (41.5) 6.6 (42.8) 7.6 ( 3 7. 2 ) 6.8 (41.5) 6.6 (42.8) 6.6 (42.8)
CO2 EMISSIONS (g/km)
177 168 177 168 186 186 185 183 195 179 172 199 179 172 172
BRAKES ABS with Emergency Braking Assistance (EBA)
Front brakes/Rear brakes 1000 L1H1 HDi 90 manual - front discs, rear drums. All other models - front and rear discs.
STEERING Variable power assisted steering
Number of turns lock to lock 3.87
Turning circle between kerbs (m) L1/L2 12.2/12.6
SUSPENSION
Metallic front suspension Independent MacPherson type struts with triangulated lower suspension arms and anti-torsion bar
Metallic rear suspension Independent trailing arm suspension with semi-deformable crossmember, coil springs and inclined hydraulic dampers
Pneumatic rear suspension Independent trailing arm suspension with semi-deformable crossmember, pneumatic springs at a constant height and inclined hydraulic dampers with bump stops
FUEL TANK CAPACITY Litres (gallons) 8 0 (17.6 )
* minimum/maximum gures
MPG gures are achieved under ofcial EU test conditions, intended as a guide for
comparative purposes only, and may not reect actual on-the-road driving conditions.
13
AIRDREAM – A BENCHMARK
Citroën’s environmental commitment and
advanced efciency are perfectly illustrated
by Airdream. It’s a benchmarking scheme
that has three demanding criteria which
a vehicle must achieve before it can wear
the name. Firstly it must emit no more
than 140g/km CO2. Secondly it must be
produced at a plant that meets the rigorous
ISO 14001 certication and also it must
be 95% recoverable. Only e-HDi, electric or
Hybrid4 engined Citroëns currently qualify.
It’s no surprise that Citroën is one of the
leaders in Europe for low CO2 emissions.
THE AWARD WINNING
CITROËN VAN RANGE
Citroën has an impressive range of
vans to offer, full of innovations and
technologies that raise the bar for
comfort, safety, hard working efciency
and style. Our four model van range
goes from the fabulously compact
Citroën Nemo to the hugely versatile
Citroën Relay and includes a number
of Specialist models. Whichever you
go for you’ll get plenty of ingenious
storage and business focused
equipment, all designed to make
your work easier and extra efcient.
GO LO CO2 WITH B30
All Citroën HDi diesel vans
run on 30% bio-diesel
Citroën is a leader in
the manufacture of low CO2
emissions vehicles
GREEN EFFICIENCY. CITROËN HAS BEEN
PIONEERING CLEANER, MORE FUEL-EFFICIENT
MOTORING, SUCH AS THE COMMON RAIL HDi
ENGINES NOW FITTED IN ALL NEW CITROËN
DIESELS, LONG BEFORE ALL THE HYPE...
CITROËN HAS ALWAYS BEEN AT THE FOREFRONT OF GREENER
TECHNOLOGY AND THE CITROËN DISPATCH MAINTAINS THAT
TRADITION. IT’S WHY WE ARE FOUR TIME WINNERS OF THE GREEN
FLEET LCV MANUFACTURER OF THE YEAR, INCLUDING THEIR
MOST RECENT, 2013 AWARD. TODAY, WE HAVE ONE OF THE UK’S
WIDEST RANGES OF LOW EMISSION VEHICLES. WE ALSO PRODUCE
ONE OF THE UK’S MOST ECONOMICAL LIGHT COMMERCIAL
VEHICLES, THE CITROËN NEMO VAN.
We’ve been equipping more of our vehicles with more
environmentally friendly breakthroughs, such as Stop & Start.
Stop & Start puts the engine into idle mode as you decelerate
and stops altogether as you come to a halt. The moment
you take your foot off the brake, it restarts silently and without
vibration. The results are a dramatic reduction in both fuel
consumption and CO2 emissions, combined with responsive
performance wherever you go.
14
DRIVE YOUR WAY. GET BEHIND
THE WHEEL OF YOUR NEW
CITROËN DISPATCH, WITH
CITROËN’S RANGE OF FINANCE
AND INSURANCE PRODUCTS.
WITH THE ADDED REASSURANCE OF A WARRANTY, ROUTINE SERVICING AND MAINTENANCE,
AS WELL AS 24-HOUR ROADSIDE ASSISTANCE, YOU ARE PROTECTED.
ESSENTIAL CARE. CITROËNS
ARE RENOWNED FOR THEIR
RELIABILITY – AND THE CITROËN
DISPATCH IS NO EXCEPTION.
CITROËN WARRANTY
Every new Citroën van has the benet
of a 3 year* warranty package, plus a
5 year anti-perforation** warranty and
a 2 year paint warranty.
* 2 years’ unlimited warranty. No-fee customer
option of 1 year’s Dealer provided warranty, only
on vans sourced from Citroën UK Limited. Note:
Dealer provided warranty is limited to 100,000
miles for vans.
** Against all internal to external perforation to
bodywork or underbody.
CITROËN ASSISTANCE
In response to a free telephone call
in the UK, Citroën Assistance brings
rapid expert roadside assistance to
you in an emergency. It comes free
of charge for a full year and operates
24 hours a day in all parts of the
UK and Europe. Services include
nationwide recovery for both van
and passengers, a home call
service, replacement vehicle, hotel
accommodation and vehicle storage
if required. Please note, Citroën
Assistance only applies to incidents
covered by the new vehicle warranty,
and excludes non-vehicle faults,
such as running out of fuel,
mis-fuelling, loss of keys, lock-ins,
road trafc accidents and
punctures/wheel changes.
Full details are available
on request from
Citroën UK via
cuk_contactcentre@citroen.com
CITROËN MAINTENANCE
From roadside assistance to replacing
wear and tear parts or regular servicing,
with Citroën Maintenance you have
total peace of mind. For a one-off
fee or low monthly payment,
our experienced engineers will take
care of your Citroën, whatever happens.
To nd out more, contact your Citroën
Dealer or Citroën Authorised Repairer.
CITROËN SERVICING
Available up to 1 year from your
vehicle’s registration date, but before
its rst chargeable service, a Citroën
Servicing Package enables you to pay
in advance for your vehicle’s servicing
needs for 3 years/35,000 miles.
For further information, please contact
your Citroën Dealer.
FOR BUSINESS USERS
CITROËN CONTRACT
MOTORING
HIRE PURCHASE
A tried and tested nance package that
allows you to own your vehicle.
BUSINESS LEASE
An alternative to vehicle ownership that
allows you to control your business cash
ow and gain tax efciencies.
LEASE PURCHASE
Own a vehicle with a nance solution that
offers ultimate exibility to complement
your business cash ow.
CONTRACT HIRE
A non-ownership nance solution that
keeps costs xed and risks low.
FOR MORE INFORMATION
ON CITROËN FLEET AND
BUSINESS SALES, PLEASE CALL
CITROËN FLEET CONNECT ON
08457 940 940 OR LOOK US UP
AT WWW.CITROEN.CO.UK/FLEET
CITROËN INSURANCE
INSTANT COVER
To help you drive away your new van without
delay, we offer Instant Cover insurance,
providing you with 7 days comprehensive
insurance, for free!
MOTOR INSURANCE
Citroën Insurance has been designed
specically for our vehicles. You don’t
just get repairs you get Citroën expertise,
service, quality and parts. So, when the time
comes to renew your insurance cover, call
Citroën Insurance on 0870 024 2725.
Lines open 8am - 8pm weekdays, 9am - 5pm Saturdays. Max
call charge from a BT landline is 8p per minute. Calls from
other networks may vary. Alternatively, visit www.citroen.co.uk
for more information or to apply online.
Citroën Insurance is underwritten by UK Insurance Ltd which is
authorised and regulated by the Financial Conduct Authority.
Citroën Insurance is a trading style of Banque PSA Finance UK
of Quadrant House, Princess Way, Redhill, Surrey, RH1 1QA.
15
CRÉATIVE TECHNOLOGIE
CITROËN UK Ltd. Pinley House, 2 Sunbeam Way, Coventry CV3 1ND.
www.citroen.co.uk
K12297 JANUARY 2014 DESIGNED AND PRODUCED BY ACUITY WWW.WEAREACUITY.COM
NOTE: Every endeavour has been made to ensure that the information and details contained in this brochure were accurate at the time of going to press January 2014. However the company reserves the right, whilst preserving the
essential characteristics of the models described, to introduce at any time modications, changes of details, equipment or accessories. Every effort will be made to bring this brochure up to date, but in order to avoid any misunderstandings
please consult your Dealer. For full details of Citroën Care for Van and Driver, please see the full manufacturer’s price list. The Citroën Website contains full information on all Citroën products and offers available in the UK, together with details
of our environmental and recycling policies. The site address is: www.citroen.co.uk or you can contact Citroën directly via cuk_contactcentre@citroen.com
This brochure is made from
paper from a well-managed forest.
Citroën support responsible use
of forest resources.
Please don’t throw me
away, give me to a friend
or recycle me.
