All Rights Reserved. Copyright © 2003: Clarion Co., Ltd.
Printed in China
PE-4075K
280-7963-00
Clarion Co., Ltd.
Owner’s manual
DMZ637MP
2DIN AM/FM CD/MP3/WMA/MD PLAYER
2DIN AM/FM CD/MP3/WMA/MD 플레이어
2003/5 (D/AB)
= != !=`ä~êáçå=`çK=iíÇ==I=OMMP
!=
2DMZ637MP
280-7963-00
1. FEATURES
•MP3 and WMA File Playable with ID3-TAG and Display
•MDLP Playable with Group Management Function
•728-Variable Acryl Edge Light
•Read Ahead Memory for Shock Resistance for CD and MD
•MAGNA BASS EX for Dynamic Bass Tuning, Volume Level Dependent
•Screen Saver with User Programmable MESSAGE INFORMATION
•CeNET with Balanced Audio Line Transmission and Dynamic Noise Canceling
•CD-R/CD-RW Compatible
280-7963-00
English
Contents
1. FEATURES ...................................................................................................................................... 2
2. PRECAUTIONS ............................................................................................................................... 3
Handling Compact Discs ................................................................................................................. 4
Handling MD .................................................................................................................................... 4
3. CONTROLS ..................................................................................................................................... 5
Display Items ................................................................................................................................... 5
LCD Screen ..................................................................................................................................... 5
4. NOMENCLATURE .......................................................................................................................... 6
Names of the Buttons and their Functions ...................................................................................... 6
Major button operations when external equipment is connected to this unit ................................... 7
5. REMOTE CONTROL ....................................................................................................................... 8
Inserting the Batteries ..................................................................................................................... 8
Functions of Remote Control Unit Buttons ...................................................................................... 9
6. OPERATIONS ............................................................................................................................... 10
Basic Operations ........................................................................................................................... 10
Radio Operations ........................................................................................................................... 13
CD/MP3/MD Operations ................................................................................................................ 14
Operations Common to Each Mode .............................................................................................. 19
7. OPERATIONS OF ACCESSORIES .............................................................................................. 22
CD/MD Changer Operations .......................................................................................................... 22
TV Operations ................................................................................................................................ 24
8. IN CASE OF DIFFICULTY ............................................................................................................ 26
9. ERROR DISPLAYS ....................................................................................................................... 28
10. SPECIFICATIONS ......................................................................................................................... 30
Thank you for purchasing this Clarion product.
∗Please read this owner’s manual in its entirety before operating this equipment.
∗After reading this manual, be sure to keep it in a handy place (e.g., glove compartment).
∗Check the contents of the enclosed warranty card and keep it carefully with this manual.
∗This manual includes the operating procedures of the CD changer, MD changer and TV tuner con-
nected via the CeNET cable. The CD changer, MD changer and TV tuner have their own manuals,
but no explanations for operating them are described.
280-7963-00
DMZ637MP 38 DMZ637MP
280-7963-00 280-7963-00
DMZ637MP 4
English
English
English
2. PRECAUTIONS
Be sure to unfold and read the next page.
USE OF CONTROLS, ADJUSTMENTS, OR PER-
FORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN, MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
THE COMPACT DISC PLAYER and MINI DISC
PLAYER SHOULD NOT BE ADJUSTED OR RE-
PAIRED BY ANYONE EXCEPT PROPERLY
QUALIFIED SERVICE PERSONNEL.
CHANGES OR MODIFICATIONS NOT EX-
PRESSLY APPROVED BY THE MANUFAC-
TURER FOR COMPLIANCE COULD VOID THE
USER’S AUTHORITY TO OPERATE THE EQUIP-
MENT.
INFORMATION FOR USERS:.
CHANGES OR MODIFICATIONS TO THIS PROD-
UCT NOT APPROVED BY THE MANUFAC-
TURER WILL VOID THE WARRANTY.
Handling Compact Discs
Use only compact discs bearing the or
mark.
Do not play heart-shaped, octagonal, or other
specially shaped compact discs.
Some CDs recorded in CD-R/CD-RW mode
may not be usable.
Handling
•
Compared to ordinary music CDs, CD-R and
CD-RW discs are both easily affected by high
temperature and humidity and some of CD-R
and CD-RW discs may not be played. Therefore,
do not leave them for a long time in the car.
•New discs may have some roughness around
the edges. If such
discs are used, the
player may not work
or the sound may
skip. Use a ball-point
pen or the like to re-
move any roughness
from the edge of the
disc.
•
Never stick labels on the surface of the compact
disc or mark the surface with a pencil or pen.
•Never play a compact disc with any cello-
phane tape or other glue on it or with peeling
off marks. If you try to play such a compact
disc, you may not be able to get it back out of
the CD player or it may damage the CD
player.
•
Do not use compact discs that have large
scratches, are misshapen, cracked, etc. Use of
such discs may cause misoperation or damage.
•
To remove a compact disc from its storage case,
press down on the center of the case and lift the
disc out, holding it carefully by the edges.
•Do not use commercially available CD protec-
tion sheets or discs equipped with stabilizers,
etc. These may damage the disc or cause
breakdown of the internal mechanism.
Storage
•Do not expose compact discs to direct sunlight
or any heat source.
•Do not expose compact discs to excess hu-
midity or dust.
•Do not expose compact discs to direct heat
from heaters.
Cleaning
•To remove fingermarks and dust, use a soft
cloth and wipe in a straight line from the center
of the compact disc to the circumference.
•Do not use any solvents, such as commercially
available cleaners, anti-static spray, or thinner
to clean compact discs.
•After using special compact disc cleaner, let
the compact disc dry off well before playing it.
Ball-point pen
Roughness
CAUTION
1. When the inside of the car is very cold and the
player is used soon after switching on the
heater moisture may form on the disc or the
optical parts of the player and proper playback
may not be possible. If moisture forms on the
disc, wipe it off with a soft cloth. If moisture
forms on the optical parts of the player, do not
use the player for about one hour. The conden-
sation will disappear naturally allowing normal
operation.
2. Driving on extremely bumpy roads which cause
severe vibration may cause the sound to skip.
3. This unit uses a precision mechanism. Even in
the event that trouble arises, never open the
case, disassemble the unit, or lubricate the ro-
tating parts.
Handling MD
Use only MDs bearing the mark.
Handling
•Never open the shutter on the MD cartridge.
Storage
•Do not expose minidiscs to direct sunlignt or
any heat source.
•Do not expose minidiscs to excess humidity or
dust.
•Do not expose minidiscs to direct heat from
heaters.
Cleaning
•If the MD cartridge is dirty, wipe off the dirt
with a soft dry cloth.
•Discs recorded in monaural mode cannot be
played on this unit.
•Never play a minidisc with an index label that
is peeling off .
If you try to play such a minidisc, you may not
be able to get it back out of the MD player or it
may damage the MD player.
Cartridge
Shutter
5. REMOTE CONTROL
Rear side
AA (SUM-3, IECR-6/1.5V)
Batteries
Rear cover
Remote control unit
Inserting the Batteries
1.Turn the remote control unit over, then slide the
rear cover in the direction of the arrow.
2.Insert the AA (SUM-3, IECR-6/1.5V) batteries
that came with the remote control unit facing in
the directions shown in the figure, then close the
rear cover.
Notes:
Using batteries improperly can cause them to
explode. Take note of the following points:
•When replacing batteries, replace both batteries
with new ones.
• Do not short-circuit, disassemble or heat batteries.
• Do not dispose of batteries into fire or flames.
• Dispose of spent batteries properly.
Receiver for remote control unit
[FUNC] [DUAL ZONE]
[ ],[ ]
[ISR]
[MUTE]
[SCN]
[RPT]
[ ]
[ ],[ ]
[BAND]
[DISP]
[RDM]
Signal transmitter
Operating range: 30 in all directions
280-7963-00
DMZ637MP 75 DMZ637MP
280-7963-00
6DMZ637MP
280-7963-00
English
English
English
●When the TV is connected
∗
For details, see the section “TV operations”.
[Scan] button
•Perform preset scan while in the TV mode.
When the button is pressed and held, auto
store is performed.
[Repeat] button
•Switches between ST and MONO.
When pressed and held for 1 second:
Switches between MAIN and SUB.
[Random] button
•Switch the TV picture mode or VTR (external)
picture mode.
[Band] button
•Switch the band.
•When the button is pressed and held, switch
seek tuning or manual mode.
[Preset] knob
•Preset a station to start with in the TV mode.
[A], [D] buttons
•Select a station.
4. NOMENCLATURE
Note:
•Be sure to read this chapter referring to the front diagrams of chapter “3. CONTROLS” on page 5 (unfold).
[CD Slot]
•CD insertion slot.
[MD Slot]
•MD insertion slot.
[CD Eject] button
•Eject a CD when it is loaded into the unit.
[MD Eject] button
• Eject a MD when it is loaded into the unit.
[Rotary] knob
•Adjust the volume by turning the knob clock-
wise or counterclockwise.
•Use the knob to perform various settings.
[s] button
•Play or pause while in the CD/MD mode.
[Audio Mode] button
•Use the button to switch to the audio mode
(bass/treble, balance/fader Z-Enhancer Plus)
•Press and hold for 1 second or longer to turn
on or off the MAGNA BASS EX.
[Scan] button
•Perform scan play for 10 seconds of each
track while in the CD/MD mode.
•Press and hold the button for 1 second or
longer to perform folder (group) scan play in
the MP3/MD disc.
•Perform preset scan while in the radio mode.
When the button is pressed and held, auto
store is performed.
[Repeat] button
•
Perform repeat play while in the CD/MD mode.
•Press and hold the button for 1 second or
longer to perform folder (group) repeat play in
the MP3/MD disc.
[Random] button
•
Perform random play while in the CD/MD mode.
•Press and hold the button for 1 second or
longer to perform folder (group) random play
in the MP3/MD disc.
[Color] button
•Button’s color change to multicolor.
•Press and hold to enter the color adjustment
mode while the User Color is on.
[Title] button
•
Use the button to input a title in the Tuner, CD mode.
•Press and hold the button for 1 second or
longer to enter the adjust mode.
Names of the Buttons and their Functions

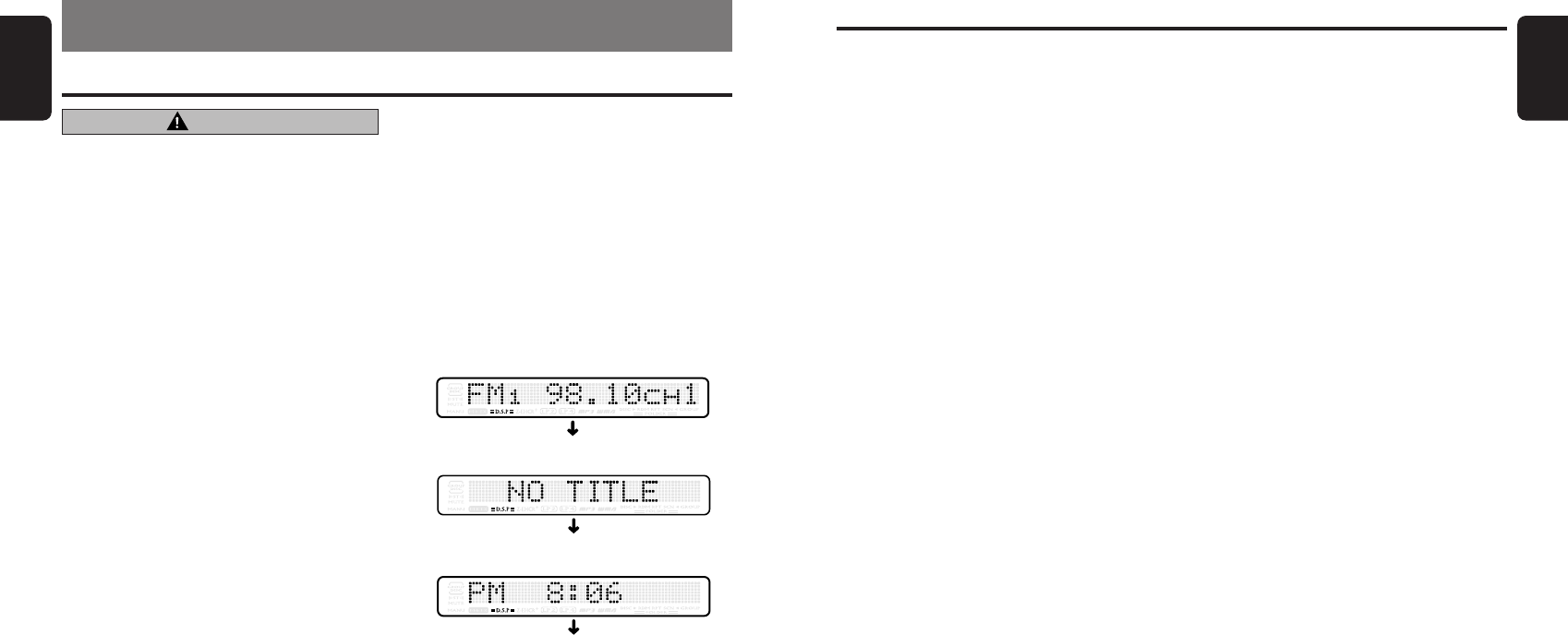

[Display] button
•Switch the display indication (Main display,
Title display, Clock display).
•When the button is pressed and held,
switches the disc titles, group titles or track
titles while in the MD mode.
•When the button is pressed and held,
switches the user titles or track titles, etc.
while in the CD mode.
[I.S.R] button
•Recall ISR radio station in memory.
•
Press and hold for 2 seconds or longer: Store cur-
rent station into ISR memory (radio mode only).
[Band] button
•Switch the band, or seek tuning or manual
tuning while in the radio mode.
•Play a first track while in the CD/MD mode.
•Press and hold for 1 second or longer to turn
on or off the group mode. when playing a
group-edited MD
[Memory] button
•
Press and hold for 1 second or longer to turn on
or off the play list mode. (MP3/WMA disc only)
•Register a preset memory.
[Function] button
•Press the button to turn on the power.
Press and hold the button for 1 second or
longer to turn off the power.
•Switches the operation mode among the ra-
dio mode, etc.
[Preset] knob
•Preset a station to start with in the radio
mode.
•Select the folder (group) in the MP3/MD disc.
•Select an item for various settings (in the ad-
just mode).
[A], [D] buttons
•
Select a station while in the radio mode or se-
lect a track when listening to a CD/MD. These
buttons are used to make various settings.
•Press and hold the button for 1 second or
longer to switch the fast-forward/fast-back-
ward.
[Z-Enhancer+] button
•
Use the button to select one of the 3 types of
sound characteristics already stored in memory.
[D.S.P] button
•Select the DSP mode.
Major button operations when external equipment is
connected to this unit
3.CONTROLS /
Source unit /
[D.S.P]
[Memory]
[Band]
[I.S.R]
[Display][
Color][Title][Random]
[Repeat]
[Scan]
[Audio Mode]
[A], [D]
[CD Slot]
[Function]
[Preset]
[Rotary]
[s]
[Z-Enhancer
+
]
[MD Slot]
[CD Eject]
[MD Eject]
Receiver for remote control unit
Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.
리모컨 수광부
●When the CD/MD/DVD changer
is connected
∗For details, see the section “CD/MD
changer operations”. For the DVD
changer, refer to the Owner’s Manual pro-
vided with the DVD changer.
[s] button
•Play or pause a CD, MD or DVD.
[Scan] button
•Perform scan play for 10 seconds of each
track. Disc scan play is performed when the
button is pressed and held.
[Repeat] button
•
Perform repeat play. Disc repeat
play is per-
formed when the button is pressed and held.
[Random] button
•
Perform random play. Disc random
play is per-
formed when the button is pressed and held.
[Title] button
•Use the button to input a title in the CD
changer mode.
•
Use the button to scroll the title during CD-text
play or MD changer play in the MD changer mode.
[Display] button
•When the button is pressed and held,
switches the disc titles or track titles while in
the MD changer mode.
•When the button is pressed and held,
switches the user titles or track titles, etc.
while in the CD changer mode.
[Band] button
•Move the next disc in increasing order.
[Preset] knob
•Select the disc.
[A], [D] buttons
•Select a track when listening to a disc.
•
Press and hold the button for 1 second or
longer to switch the fast-forward/fast-backward.
Operation status indication : Main, titles, clock, etc. are displays.
작동 상태 : 메인 화면, 제목, 시계 등이 표시
Function mode indication : The names of modes being selected,
etc. are displayed.
기능 모드 : 선택된 모드 등이 표시
Preset channel indication (1 to 6) /프리셋 채널 (1 - 6)
Disc number indication (1 to 12) /디스크 번호 (1 - 12)
:
MAGNA BASS EX indication
MAGNA BASS EX
: DSP indication/DSP
: Z-Enhancer Plus indication
Z-Enhancer Plus
: LP2 indication /LP2
: LP4 indication /LP4
: MP3 indication /MP3
: WMA indication /WMA
: Group disc indication
그룹 디스크
: Stereo indication
스테레오
: Mute indication
음소거
: Manual indication
수동 모드
: Group (Random, Repeat, Scan) indication
그룹(랜덤, 반복, 스캔)
: Disc (Random, Repeat, Scan) indication
디스크(랜덤, 반복, 스캔) 표시
:
Folder (Random, Repeat, Scan) indication
폴더 (랜덤, 반복, 스캔) 표시
: Random indication /랜덤
: Repeat indication /반복
: Scan indication /스캔
: Group indication /그룹
Display Items/
==
==
=
==
==
=
LCD Screen/
i`a=i`a=
i`a=i`a=
i`a=
In extreme cold, the screen movement may slow down and the screen may darken, but this is normal.
The screen will recover when it returns to normal temperature.
= !==I= != == != !"= = !==
= = !K= = != != != != != !"K
280-7963-00
DMZ637MP 9
English
[FUNC]
[BAND]
[ ] , [ ]
[ ] , [ ]
[ ]
[MUTE]
[ISR]
[DISP]
[SCN]
[RPT]
[RDM]
Functions of Remote Control Unit Buttons
Mode
Button
Radio CD/MP3/MD CD/MD changer
DVD changer TV
Press the button to turn on the power.
Press and hold the button for 1 second or longer to turn off the power.
Switches among radio, CD/MP3, MD, CD/MD changer, DVD changer, TV and AUX.
Switches reception
band.
Plays the first track.
Top play.
Moves the next disc
in increasing order.
Switches reception
band.
Increases and decreases volume (in all modes).
Moves preset
channels up and
down.
No function.
Moves tracks up and down.
When pressed and held for 1 second:
Fast-forward/fast-backward.
Switches between playback and pause.
Moves preset
channels up and
down.
No function.
Tu r ns mute on and off.
Recalls ISR radio station in memory.
Press and hold for 2 seconds or longer: Stores current station into ISR memory (radio mode only).
Switches among main display, title display, clock display.
Press and hold for 1 second or longer: Switches some titles.
Preset scan.
When pressed and
held for 2 seconds:
Auto store.
No function.
No function.
Scan play.
Press and hold the
button for 1 second
or longer to perform
folder (group) scan
play in the MP3/MD
disc.
Repeat play.
Press and hold the
button for 1 second
or longer to perform
folder (group) Repeat
play in the MP3/MD
disc.
Random play.
Press and hold the
button for 1 second
or longer to perform
folder (group)
Random play in the
MP3/MD disc.
Scan play.
When pressed and
held for 1 second:
Disc scan play.
Repeat play.
When pressed and
held for 1 second:
Disc repeat play.
Random play.
When pressed and
held for 1 second:
Disc random play.
Preset scan.
When pressed and
held for 2 seconds:
Auto store.
Switches between ST
and MONO.
When pressed and
held for 1 second:
Switches between
MAIN and SUB.
Switches between TV
and VTR.
∗Some of the corresponding buttons on the main unit and remote control unit have different functions.
∗[DUAL ZONE] button is not available
280-7963-00
DMZ637MP 11
English
10 DMZ637MP
280-7963-00
English
Selecting a DSP menu
The DSP (digital sound processor) function is a
function that enables the simulation of sound ef-
fects produced by digital signal process in the
car, without deteriorating the sound quality.
∗The factory default setting is “STADIUM”.
Each time you press the [D.S.P] button, the tone
effect changes in the following order:
“STADIUM” ➜ “HALL” ➜ “CLUB” ➜
“CHURCH” ➜ “L-ROOM” ➜ “DSP OFF” ➜
“STADIUM” ...
• STADIUM : A sound field with a wide ceiling
such as a stadium
• HALL : A sound field such as a large hall
• CLUB : A sound field such as a small-
sized disco hall
• CHURCH : A sound field with a tall ceiling
such as a cathedral
• L-ROOM : A sound field such as a listening
room
• DSP OFF : no sound effect
Setting the Z-Enhancer Plus
This unit are provided with 3 types of sound tone ef-
fects stored in memory. Select the one you prefer.
∗The factory default setting is “Z-EHCR+ OFF”.
Each time you press the [Z-Enhancer+] button,
the tone effect changes in the following order:
“Z-EHCR+ OFF” ➜ “BASS BOOST” ➜ “IM-
PACT” ➜ “EXCITE” ➜ “USER CUSTOM” ➜
“Z-EHCR+ OFF” ...
• BASS BOOST : bass emphasized
• IMPACT : bass and treble empha-
sized
• EXCITE : bass and treble empha-
sized mid de-emphasized
• USER CUSTOM : user custom
• Z-EHCR+ OFF : no sound effect
Adjusting the Effect
Effect means a reflecting sound that rebounds
against the walls, etc. The volume of the re-
flected sound can be changed on this unit
(When DSP function is “on”).
1. Press the [Audio Mode] button and select
the Effect to adjust.
2. Turning the [Rotary] knob for adjustment.
∗Adjustment range 0% to 70%
Adjusting the tone
Press the [Audio Mode] button and select the
item to adjust. Each time you press the [Audio
Mode] button, the item changes as following or-
der:
●When “BASS BOOST” is set
“EFFECT” ➜ “B-BOOST” ➜ “BALANCE” ➜
“FADER” ➜ Last function mode.
●When “IMPACT” is set
“EFFECT” ➜ “IMPACT” ➜ “BALANCE” ➜
“FADER” ➜ Last function mode.
●When “EXCITE” is set
“EFFECT” ➜ “EXCITE” ➜ “BALANCE” ➜
“FADER” ➜ Last function mode.
●When “USER CUSTOM” is set
“EFFECT” ➜ “BASS” ➜ “TREBLE” ➜ “BAL-
ANCE” ➜ “FADER” ➜ Last function mode.
●When “Z-EHCR+ OFF” is set
“EFFECT” ➜ “BALANCE” ➜ “FADER” ➜
Last function mode.
Adjusting the Z-Enhancer Plus
1. Press the [Z-Enhancer+] button and select
the Z-Enhancer Plus mode to adjust.
2. Press the [Audio Mode] button and select
the Z-Enhancer Plus mode to adjust.
3. Turning the [Rotary] knob for adjustment.
●When “B-BOOST 0” selected, you can ad-
just the bass in the range of –3 to 3.
●When “IMPACT 0” selected, you can adjust
the bass and treble in the range of –3 to 3.
●When “EXCITE 0” selected, you can adjust
the bass and treble in the range of –3 to 3.
Adjusting the bass (Gain,
Frequency, Q-curve)
This adjustment can be performed when the Z-
Enhancer Plus is set to “USER CUSTOM”.
1.
Press the [Audio Mode] button and select
“BASS”.
2. Turning the [Rotary] knob clockwise empha-
sizes the bass; turning it counterclockwise at-
tenuates the bass.
∗The factory default setting is “BASSÅÅ
ÅÅ
ÅG 0ÎÎ
ÎÎ
Δ.
(Adjustment range: –6 to +6)
3. Press the [A] or [D] button to select
“BASSÅÅ
ÅÅ
ÅFREQÎÎ
ÎÎ
Δ.
Turninng the [Rotary] knob clockwise or
counterclockwise to select the frequency.
Basic Operations
6. OPERATIONS
Basic Operations Note:Be sure to read this chapter referring to the front diagrams of
chapter “3. CONTROLS” on page 5 (unfold).
CAUTION
Be sure to lower the volume before switch-
ing off the unit power or the ignition key. The
unit remembers its last volume setting. If you
switch the power off with the volume up,
when you switch the power back on, the sud-
den loud volume may hurt your hearing and
damage the unit.
Turning on/off the power
Note:
• Be careful about using this unit for a long time
without running the engine. If you drain the car’s
battery too far, you may not be able to start the
engine and this can reduce the service life of the
battery.
1. Press the [Function] button.
2. The illumination and display on the unit light
up. The unit automatically remembers its last
operation mode and will automatically switch
to display that mode.
3. Press and hold the [Function] button for 1
second or longer to turn off the power for the
unit.
Note:
•System check
The first time this unit is turned on after the wire
connections are completed, it must be checked
what equipment is connected. When the power is
turned on,
“SYSTEM CHECK”
and
“Push
POWER”
appear in the display alternately, so
press the [Function] button. The system check
starts within the unit. When the system check is
complete, press the [Function] button again.
Selecting a mode
1. Press the [Function] button to change the
operation mode.
2. Each time you press the [Function] button,
the operation mode changes in the following
order:
Radio mode ➜ CD/MP3 mode ➜ MD mode
➜ CD changer mode ➜ MD changer mode
➜ DVD changer mode ➜ TV mode ➜ AUX
mode ➜ Radio mode...
∗External equipment not connected with
CeNET is not displayed.
Adjusting the volume
Turning the [Rotary] knob clockwise increases
the volume; turning it counterclockwise de-
creases the volume.
∗The volume level is from 0 (minimum) to 33 (maxi-
mum).
Switching the display
Press the [Display] button to select the desired
display.
Each time you press the [Display] button, the
display switches in the following order:
∗Once selected, the preferred display becomes
the display default. When a function adjust-
ment such as volume is made, the screen will
momentarily switch to that function’s display,
then revert back to the preferred display sev-
eral seconds after the adjustment.
∗When you have entered a title in a CD, it ap-
pears in the main display. If you have not en-
tered a title, “NO TITLE” appears in the title
display instead. For information on how to en-
ter a title, refer to the subsection “Entering
titles” in section “Operations Common to
Each Mode”.
Main display
Title display
Clock display
Main display
280-7963-00
DMZ637MP 13
English
12 DMZ637MP
280-7963-00
English
Radio Operations
FM reception
For enhanced FM performance the
®
tuner includes signal actuated stereo control,
Enhanced Multi AGC, Impulse noise reduction
curcuits and Multipath noise reduction circuits.
Listening to the radio
1. Press the [Function] button and select the ra-
dio mode. The frequency in the display.
2. Press the [Band] button and select the radio
band. Each time the button is pressed, the ra-
dio reception band changes in the following
order:
FM1 ➜ FM2 ➜ FM3 ➜ AM ➜ FM1...
3. Press the [A] or [D] button to tune in the
desired station.
Tuning
There are 3 types of tuning mode available, seek
tuning, manual tuning and preset tuning.
Seek tuning
1. Press the [Band] button and select the de-
sired band (FM or AM).
∗If “MANU” is lit in the display, press and hold
the [Band] button for 1 second or longer.
“MANU” in the display goes off and seek tun-
ing is now available.
2. Press the [A] or [D] button to automati-
cally seek a station.
When the [D] button is pressed, the station is
sought in the direction of higher frequencies; if
the [A] button is pressed, the station is
sought in the direction of lower frequencies.
Manual tuning
There are 2 ways available: Quick tuning and
step tuning.
When you are in the step tuning mode, the fre-
quency changes one step at a time. In the quick
tuning mode, you can quickly tune the desired
frequency.
1. Press the [Band] button and select the de-
sired band (FM or AM).
∗If “MANU” is not lit in the display, press and
hold the [Band] button for 1 second or longer.
“MANU” is lit in the display and manual tuning
is now available.
2. Tune into a station.
●Quick tuning:
Press and hold the [A] or [D] button for 1
second or longer to tune in a station.
●Step tuning:
Press the [A] or [D] button to manually
tune in a station.
Preset tuning
A total of 24 preset positions (6-FM1, 6-FM2, 6-
FM3, 6-AM) exists to store individual radio sta-
tions in memory.
1. Press the [Band] button and select the de-
sired band (FM or AM).
2. Turning the [Preset] knob to select a station
to start with.
Manual memory
1. Press the [Band] button and select the de-
sired band (FM or AM).
2. Press [A] or [D] button to select a station
to be put into memory. Then, press the
[Memory] button.
3. Turning the [Preset] knob to select a preset
memory number to be registered.
4. Press and hold the [Memory] button (for
about 2 seconds).
∗After a registration is completed, “CH” indica-
tion becomes lit in the display from the blink-
ing status.
Auto store
Auto store is a function for storing up to 6 sta-
tions that are automatically tuned in sequentially.
If 6 receivable stations cannot be received, a
previously stored station remains unoverwritten
at the memory position.
1. Press the [Band] button and select the de-
sired band (FM or AM).
2. Press and hold the [Scan] button for 2 sec-
onds or longer. The stations with good recep-
tion are stored automatically to the preset
channels.
Basic Operations
∗The factory default setting is “BASSÅÅ
ÅÅ
ÅF 60ÎÎ
ÎÎ
Δ.
(Adjustment 60/100/200 Hz)
4.
Press the [A] or [D] button to select
“BASS
ÅÅ
ÅÅ
Å
Q
ÎÎ
ÎÎ
Î
”.
Turninng the [Rotary] knob clockwise or
counterclockwise to select the Q-curve.
∗The factory default setting is “BASSÅÅ
ÅÅ
Å
Q 1
ÎÎ
ÎÎ
Δ.
(Adjustment 1/1.25/1.5/2)
5. When the adjustment is complete, press the
[Audio Mode] button several times until the
function mode is reached.
Adjusting the treble (Gain,
Frequency)
This adjustment can be performed when the Z-
Enhancer Plus is set to “USER CUSTOM”.
1.
Press the [Audio Mode] button and select
“TREBLE”.
2. Turning the [Rotary] knob clockwise empha-
sizes the treble; turning it counterclockwise
attenuates the treble.
∗The factory default setting is “TREBÅÅ
ÅÅ
ÅG 0ÎÎ
ÎÎ
Δ.
(Adjustment range: –6 to +6)
3. Press the [A] or [D] button to select
“TREBÅÅ
ÅÅ
ÅFREQÎÎ
ÎÎ
Δ.
Turninng the [Rotary] knob clockwise or
counterclockwise to select the frequency.
∗The factory default setting is “TREBÅÅ
ÅÅ
ÅF 10KÎÎ
ÎÎ
Δ.
(Adjustment 10 kHz/15 kHz)
4. When the adjustment is complete, press the
[Audio Mode] button several times until the
function mode is reached.
∗Press and hold the [Z-enhancer+] button for 1
second or longer, then the setting parameter
of bass/treble will be initialized with a display
“Z-EHCR+FLAT”.
Adjusting the balance
1. Press the [Audio Mode] button and select
“BALANCE”.
2. Turning the [Rotary] knob clockwise empha-
sizes the sound from the right speaker; turn-
ing it counterclockwise emphasizes the
sound from the left speaker.
∗The factory default setting is “BALANCE 0”.
(Adjustment range: L13 to R13)
3. When the adjustment is complete, press the
[Audio Mode] button several times until the
function mode is reached.
Adjusting the fader
1.
Press the [Audio Mode] button and select
“FADER”.
2. Turning the [Rotary] knob clockwise empha-
sizes the sound from the front speakers;
turning it counterclockwise emphasizes the
sound from the rear speakers.
∗The factory default setting is “FADER 0”. (Ad-
justment range: F12 to R12)
3. When the adjustment is complete, press the
[Audio Mode] button several times until the
function mode is reached.
Adjusting MAGNA BASS EX
The MAGNA BASS EX does not adjust the low
sound area like the normal sound adjustment
function, but emphasizes the deep bass sound
area to provide you with a dynamic sound.
∗The factory default setting is off.
1. Press and hold the [Audio Mode] button for
1 second or longer to turn on the MAGNA
BASS EX effect. “M-B EX” lights in the dis-
play.
2. Press and hold the [Audio Mode] button for
1 second or longer to turn off the MAGNA
BASS EX effect. “M-B EX” goes off from the
display.
280-7963-00
DMZ637MP 15
English
14 DMZ637MP
280-7963-00
English
CD/MP3/MD Operations
1. Types of recording that can be played are as
follows.
● Display when MP3/WMA type track is se-
lected:
2. Files without MP3/WMA data will not play.
The indication “––:––” appears in the play
time display if you attempt to play files with-
out MP3/WMA data.
● Logical format (File system)
1.
When writing MP3/WMA file on a CD-R disc
or CD-RW disc, please select “ISO9660 level
1, 2, 3 or JOLIET or Romeo” as the writing
software format. Normal play may not be pos-
sible if the disc is recorded on another format.
2. The folder name and file name can be dis-
played as the title during MP3/WMA play but
the title must be within 128 single byte alpha-
betical letters and numerals (including an ex-
tension).
3. Do not affix a name to a file inside a folder
having the same name.
● Folder structure
1. A disc with a folder having more than 8 hier-
archical levels will be impossible.
● Number of files or folders
1. Up to 255 files can be recognized per folder.
Up to 500 files can be played.
2.
Tracks are played in the order that they were
recorded onto a disc. (Tracks might not always
be played in the order displayed on the PC.)
3.
Some noise may occur depending on the type
of encoder software used while recording.
Multisession function
When a disc contains both normal CD type tracks
and MP3/WMA type tracks mixedly, you can se-
lect which type of the recorded tracks to play.
● Default value is “CD”.
Each time you press and hold the [Band] button
for about 1 second, the mixed mode is switched
between CD type or MP3/WMA type. The follow-
ing indication appears in the title display when
switching the track type to be played.
● Display when CD type track is selected:
MP3/WMA
What is MP3?
MP3 is an audio compression method and clas-
sified into audio layer 3 of MPEG standards.
This audio compression method has penetrated
into PC users and become a standard format.
This MP3 features the original audio data com-
pression to about 10 percent of its initial size
with a high sound quality. This means that about
10 music CDs can be recorded on a CD-R disc
or CD-RW disc to allow a long listening time
without having to change CDs.
What is WMA?
WMA is the abbreviation of Windows Media Au-
dio, an audio file format developed by Microsoft
Corporation.
Notes:
• If you play a file with DRM (Digital Rights Man-
agement) for WMA remaining ON, no audio is
output.
•Windows Media™, and the Windows ® logo are
trademarks, or registered trademarks of Microsoft
Corporation in the United States and/or other
countries.
●
To disable DRM (Digital Rights Management):
1. When using Windows Media Player 7, click
on TOOLS ➜ OPTIONS ➜ CD AUDIO;
there, uncheck the ENABLE PERSONAL
RIGHTS MANAGEMENT check box, then
construct files.
2. When using Windows Media Player for Win-
dows XP 8, click on TOOLS ➜ OPTIONS ➜
COPY MUSIC tab, then under COPY SET-
TINGS, unclick the check box for PROTECT
CONTENT. Thereafter, reconstruct files.
Personally constructed WMA files are used
at your own responsibility.
Precautions when creating MP3/WMA disc
● Usable sampling rates and bit rates:
1. MP3: Sampling rate 8k Hz-48 kHz,
Bit rate: 8 kbps-320 kbps / VBR
2. WMA: Bit rate 48 kbps-192 kbps
● File extensions
1. Always add a file extension “.MP3” or “.WMA”
to MP3 or WMA file by using single byte let-
ters. If you add a file extension other than
specified or forget to add the file extension ,
the file cannot be played.
Radio Operations
Preset scan
Preset scan receives the stations stored in pre-
set memory in order. This function is useful
when searching for a desired station in memory.
1. Press the [Scan] button.
2. When a desired station is tuned in, press the
[Scan] button again to continue receiving
that station.
Note:
•Be careful not to press and hold the [Scan] button
for 2 seconds or longer, otherwise the auto store
function is engaged and the unit starts storing
stations.
Instant station recall (ISR)
Instant station recall is a special radio preset
that instantly accesses a favorite radio station at
a touch of a button. The ISR function even oper-
ates with the unit in other modes.
●ISR memory
1. Select the station that you wish to store in ISR
memory.
2. Press and hold the [I.S.R] button for 2 sec-
onds or longer.
●Recalling a station with ISR
In any mode, press the [I.S.R] button to turn on
the radio function and tune the selected radio
station. “ISR” appears in the display. Press the
[I.S.R] button again to return to the previous
mode.
CD/MP3/MD Operations
2. After making these settings, remove the disc
and then reinsert it.
3. When a mixed mode CD is loaded and CD is
set, the track to be played first is MP3/WMA
file data and no sound is heard.
Play list mode
This function allows you to play tracks, up to lat-
est 5 time stamps, by reading the play list infor-
mation written on the disc.
1. Press and hold the [Memory] button for 1
second or longer to turn on or off the play list
mode.
2. Turning the [Preset] knob.
3. Press the [A] or [D] buttons to change
the track.
Notes:
• Play list play is possible only when there is a file
whose extension is “.M3U” or “.ASX” on the CDR-
RW.
•Up to 5 play lists can be recognized, and up to
255 files can be recognized per play list.
•The SCN/RPT/RDM functions cannot be used
while in the play list mode.
•The title display changes from folder name to play
list name.
Making a play list
1. Write desired tracks to a CD-R/RW, etc. Be
sure to use alphanumeric/ASCII characters
for all file names.
2. Make a play list by using a multimedia player,
etc. and save the data. The file format must
be M3U or ASX.
3.
Again, write this play list to the CD-R/RW, etc.
Notes:
• When writing to a CD-R/RW, etc., be sure to use
alphanumeric/ASCII characters.
•Up to 5 layers can be recognized as a list. For
written play lists, latest 5 lists are recognized in
the order in which they are written.
•When writing to a CD-R/RW, etc., turn off the Disc
At Once function.
• When adding a play list, it is recommended to
write it in the “Root” folder.
Set to MP3/WMA
Disc
Mixed with CD and
MP3/WMA type tracks
CD type track only
MP3/WMA type track only
Set to CD
Play CD
Play MP3/WMA
Setting
Play CD Play CD
Play MP3/WMA
Play MP3/WMA
280-7963-00
DMZ637MP 17
English
16 DMZ637MP
280-7963-00
English
Notes:
•If the CD playing is not a CD-text CD or no user
title has been input,
“NO TITLE”
appears in the
display.
•If MP3/WMA disc is not input TAG,
“NO TAG”
ap-
pears in the display.
•For MP3, supports ID3 Tags V2.3 / 2.2 / 1.1 / 1.0.
•Tag displays give priority to V2.3 / 2.2.
• In the case of album Tags for WMA, the informa-
tion written into the extension header is displayed.
• Only ASCII characters can be displayed in Tags.
Selecting a track
●Track-up
1. Press the [D] button to move ahead to the
beginning of the next track.
2. Each time you press the [D] button, the
track advances ahead to the beginning of the
next track.
●Track-down
1. Press the [A] button to move back to the
beginning of the current track.
2. Press the [A] button twice to move to the
beginning of the previous track.
Fast-forward/fast-backward
●Fast-forward
Press and hold the [D] button for 1 second or
longer.
●Fast-backward
Press and hold the [A] button for 1 second or
longer.
∗For MP3/WMA discs, it takes some time until the
start of searching and between tracks. In addition,
the playing time may have a margin of error.
Folder (Group) Select
●Folder Select
This function allows you to select a folder con-
taining MP3/WMA files and start playing from
the first track in the folder.
●Group Select
This function allows to select the group and start
playing from the first track within the group when
a group-edited MD is played. (When Group
Function is on).
1. Turning the [Preset] knob.
2. Press the [A] or [D] buttons to change
the track.
CD/MP3/MD Operations
Notes:
•Never insert foreign objects into the CD/MD
SLOT.
•
If the CD/MD are not inserted easily, there may be
another CD/MD in the mechanism or the unit may re-
quire service.
•Discs not bearing the or mark and
CD-ROMs cannot be played by this unit.
•An MD that does not carry the mark cannot
be used with this unit.
• Some CDs recorded in CD-R/CD-RW mode may
not be usable.
Loading 8 cm compact discs
∗No adapter is required to play an 8 cm CD.
∗
Insert the 8 cm CD into the center of the insertion slot.
Backup Eject function
Just pressing the [CD/MD Eject] button ejects
the disc even if the power to the unit was not
turned on.
1. Press the [CD/MD Eject]button. Remove the
disc after it is ejected.
Notes:
• The unit changes to the tuner mode about four
seconds after the disc is ejected.
Pausing play
1. Press the [s] button to pause play.
“PAUSE” appears in the display.
2. To resume CD/MD play, press the [s] but-
ton again.
Displaying CD/MD titles
This unit can display title data for CD-text/MP3/
WMA disc and user titles input with this unit.
1. Press the [Display] button to display the title.
2. Each time you press and hold the [Display]
button for 1 second or longer, the title dis-
play changes in the following order:
●CD-TEXT disc
User title (disc) ➜ CD-text title (disc) ➜ Artist
name ➜ CD-text title (track) ➜ User title
(disc)...
●MP3/WMA disc
Folder ➜ File ➜ Album TAG ➜ Artist TAG ➜
Title TAG ➜ Folder...
●MD disc
Disc title ➜ Group title ➜ Track itle ➜ Disc
title...
CD/MP3/MD Operations
Turning the Group Function on/off
When playing a group-edited MD with the Group
Function turned on, group play is possible.
1. Insert a group-edited MD.
∗ is lit in the display.
2. Press and hold the [Band] button (for about
1 second).
Note:
•If a regular MD is played, it is not possible to turn
the Group Function on/off.
•When the Group Function is turned off, the MD is
played in the order of track number.
Disc-In-Play function
As long as the ignition key is turned to the ON or
ACC position, this function allows you to turn the
power to the unit and start playing the disc auto-
matically when the disc is inserted even if the
power is not turned on.
•Do not try to put your hand or fingers in the
disc insertion slot. Also never insert for-
eign objects into the slot.
•Do not insert discs where adhesive comes
out from cellophane tape or a rental CD la-
bel, or discs with marks where cellophane
tape or rental CD labels were removed. It
may be impossible to extract these discs
from the unit and they may cause the unit
to break down.
Listening to a disc already loaded
in the unit
1. Press the [Function] button to select the CD/
MP3 or MD mode.
When the unit enters the CD/MP3 or MD
mode, play starts automatically.
If there is no disc loaded, the indication “NO
DISC”
appears in the title display.
∗The mode changes each time the [Function]
button is pressed. (Modes are not displayed
for equipment that is not connected.)
Top function
The top function resets the CD/MD player to the
first track of the disc. Press the [Band] button to
play the first track (track No. 1) on the disc.
∗In case of MP3/WMA, the first track of a folder be-
ing played will be returned.
Scan play
This function allows you to locate and play the
first 10 seconds of all the tracks recorded on a
disc.
1. Press the [Scan] button to perform scan play.
The indication “SCN” lights up in the display,
and “TRACK SCAN” (or “ -SCAN” when
searching for a track in the MP3/WMA file)
appears in the title display for about 2 sec-
onds, then scan play starts.
∗Scan play starts from the next track after the
track currently being played.
2. To cancel scan play, press the [Scan] button
again.
The play status indication such as “SCN” dis-
appears from the display and the current
track is played.
Folder (Group) scan play
This function allows you to locate and play the
first 10 seconds of the first track of all the folders
(group) on an MP3/WMA/MD disc.
1. Press and hold the [Scan] button for about 1
second to folder (group) scan play.
The indications “FOLDER ( )” and
“SCN” light up in the display and “ -SCAN
(GROUP SCAN)” appears for about 2 sec-
onds in the title display, and then folder
(group) scan play starts.
2. To cancel folder scan play, press the [Scan]
button again.
The play status indications such as
“FOLDER ( )” and “SCN” disappear
from the display and the current track is
played.
CAUTION
Radio MD
(CD changer)
(MD changer)
(DVD changer)
AUX (TV)
CD/MP3
280-7963-00
DMZ637MP 19
English
18 DMZ637MP
280-7963-00
English
Operations Common to Each ModeCD/MP3/MD Operations
Repeat play
This function allows you to play the current track
repeatedly.
1.
Press the [Repeat] button to perform repeat play.
The indication “RPT
”
lights up in the display
and “
TRACK
REPEAT” (or “ -REPEAT” when
performing repeated play for a track in the
MP3/WMA file) appears for about 2 seconds
in the title display, and then repeat play starts.
2. To cancel repeat play, press the [Repeat]
button again.
The play status display such as “RPT” disap-
pears from the display and normal play re-
sumes from the track currently being played.
Folder (Group) repeat play
This function allows you to play a track currently
being played in the MP3/WMA/MD folder
(group) repeatedly.
1.
Press and hold the [Repeat] button for about 1
second to perform folder (group) repeat play.
The indications “FOLDER ( )” and
“RPT” light up in the display and “ -
REPEAT (GROUP REPEAT)” appears for
about 2 seconds in the title display, and then
folder (group) repeat play starts.
2. To cancel folder repeat play, press the
[Repeat] button again.
The play status indications such “FOLDER
( )” and “RPT” disappear from the
display and normal play resumes from the
track currently being played.
Random play
This function allows you to play all tracks re-
corded on a disc in a random order.
1. Press the [Random] button to perform random
play.
The indication “RDM” lights up in the display
and “
TRACK
RANDOM” (or “ -RANDOM”
when performing random play for tracks on a
MP3/WMA disc) appears in the title display for
about 2 seconds, and then random play starts.
The tracks on the disc are then played in a
random order.
2. To cancel random play, press the [Random]
button again.
The play status indication such as “RDM” dis-
appears from the display and normal play re-
sumes from the track currently being played.
Turning the screen saver function
on or off
This unit is provided with the screen saver func-
tion which allows you to show various kinds of
patterns and characters in the Operation Status
indication area of the display in a random order.
You can turn on and off this function.
If the button operation is performed with the
screen saver function on, the operation display
corresponding to the button operation is shown
for about 30 seconds and the display returns to
the screen saver display.
∗The factory default setting is “ON”.
1. Press and hold the [Title] button for 1 second
or longer to switch to the adjustment selec-
tion display.
2. Press the [A] or [D] button to select
“SCRN SVR”.
3. Press the [s] button.
4. Turning the [Rotary] knob clockwise or coun-
terclockwise to select the setting. Each time
you turn the [Rotary] knob, the setting
changes in the following order:
OFF ➜ ON ➜ MESSAGE
5. Press the [s] button to store the setting.
6. Press the [Title] button to return to the previ-
ous mode.
Entering MESSAGE INFORMATION
When the use of the message is selected for the
screen saver setting, you can change the con-
tents of the message.
∗Up to 30 characters can be entered.
∗The factory default setting is “Welcome to Clarion”.
1. Press and hold the [Title] button for 1 second
or longer to switch to the adjustment selec-
tion display.
2. Press the [A] or [D] button to select
“MSG INPUT”.
3. Press the [s] button.
4. Press the [A] or [D] button to move the
cursor.
5. Press the [Display] button to select a char-
acter. Each time you press the [Display] but-
ton, the character changes in the following
orders:
Capital letters ➜ Small letters ➜ Numbers
and Symbols ➜ Capital letters…
6. Turning the [Rotary] knob to select the de-
sired character.
7. Repeat step 4 to 6 to enter up to 30 charac-
ters for message.
8. Press and hold the [s] button for 2 sec-
onds or longer to store the message in
memory and cancel input message.
9. Press the [Title] button to return to the previ-
ous mode.
Message display
When the unit is powered on or off, a message
is displayed. The user can turn this message
display ON or OFF.
∗The factory default setting is “ON”.
1. Press and hold the [Title] button for 1 second
or longer to switch to the adjustment selec-
tion display.
2. Press the [A] or [D] button to select
“MESSAGE”.
3. Turning the [Rotary] knob clockwise to “ON”
or counterclockwise to “OFF”.
4. Press the [Title] button to return to the previ-
ous mode.
Setting the method for title scroll
Set how to scroll in CD-TEXT, MP3/WMA Title or MD.
∗The factory default setting is “ON”.
1. Press and hold the [Title] button for 1 second
or longer to switch to the adjustment selec-
tion display.
2. Press the [A] or [D] button to select
“AUTO SCROLL”.
3. Turning the [Rotary] knob clockwise to “ON”
or counterclockwise to “OFF”.
● ON:
To scroll automatically.
● OFF:
To scroll just 1 time when the title was
changed or the title key was pressed.
4. Press the [Title] button to return to the previ-
ous mode.
Dimmer control
You can setting the dimmer control on or off.
∗The factory default setting is “HIGH”.
1. Press and hold the [Title] button for 1 second
or longer to switch to the adjustment selec-
tion display.
2. Press the [A] or [D] button to select
“DIMMER”.
Folder (Group) random play
This function allows you to play all the tracks of
all the folders (group) recorded on an MP3/
WMA/MD disc in a random order.
1. Press and hold the [Random] button for
about 1 second to perform folder (group) ran-
dom play.
The indications “FOLDER ( )” and
“RDM” light up in the display and “ -
RANDOM (GROUP RANDOM)” appear in
the title display for about 2 seconds, and
then folder (group) random play starts.
2. To cancel folder random play, press the
[Random] button again.
The play status indications such as
“FOLDER ( )” and “RDM” disappear
from the display and normal play resumes
from the track currently being played.
280-7963-00
DMZ637MP 21
English
20 DMZ637MP
280-7963-00
English
Operations Common to Each Mode
3. Turning the [Rotary] knob clockwise or coun-
terclockwise to select the setting. Each time
you turn the [Rotary] knob, the setting
changes in the following order:
HIGH ➜ MID ➜ LOW
4. Press the [Title] button to return to the previ-
ous mode.
Adjusting the display contrast
You can adjust the display contrast to match the
angle of installation of the unit.
∗The factory default setting is “8”. (Adjustment
level:1to 16)
1.
Press and hold the [Title] button for 1 second or
longer to switch to the adjustment selection display.
2. Press the [A] or [D] button to select
“CONTRAST”.
3. Turning the [Rotary] knob clockwise or coun-
terclockwise to adjust the contrast.
4. Press the [Title] button to return to the previ-
ous mode.
Setting the panel illumination
If the car illumination is lit while the ACC or the
power is turned off, the panel illumination can be
lit or unlit.
∗The factory default setting is “ON”.
1. Press and hold the [Title] button for 1 second
or longer to switch to the adjustment selec-
tion display.
2. Press the [A] or [D] button to select
“ILLUMINATION”.
3. Turning the [Rotary] knob clockwise to “ON”
or counterclockwise to “OFF”.
4. Press the [Title] button to return to the previ-
ous mode.
Setting the beep sound
The pip sound on each operation is called beep
sound. The beep sound function can be turned
off on this unit.
∗The factory default setting is “ON”.
1. Press and hold the [Title] button for 1 second
or longer to switch to the adjustment selec-
tion display.
2.
Press the [A] or [D] button to select “BEEP”.
3. Turning the [Rotary] knob clockwise to “ON”
or counterclockwise to “OFF”.
4. Press the [Title] button to return to the previ-
ous mode.
Selecting AUX IN sensitivity
Make the following settings to select the sensi-
tivity when sounds from external devices con-
nected to this unit are difficult to hear even after
adjusting the volume.
∗The factory default setting is “MID”.
1. Press and hold the [Title] button for 1 second
or longer to switch to the adjustment selec-
tion display.
2. Press the [A] or [D] button to select
“AUX SENS”.
3. Turning the [Rotary] knob clockwise or coun-
terclockwise to select the setting. Each time
you turn the [Rotary] knob, the setting
changes in the following order:
HIGH ➜ MID ➜ LOW
4. Press the [Title] button to return to the previ-
ous mode.
Setting the clock
1. Press and hold the [Title] button for 1 second
or longer to switch to the adjustment selec-
tion display.
2. Press the [A] or [D] button to select
“CLOCK”.
3. Press the [s] button.
4. Press the [A] or [D] button to select the
hour or the minute.
5. Turning the [Rotary] knob clockwise or coun-
terclockwise to set the correct time.
∗ The clock is displayed in 12-hour format.
6. Press the [s] button to store the time into
memory.
7. Press the [Title] button to return to the previ-
ous mode.
Note:
•
You cannot set the clock when it is displayed with
only the ignition on. If you drain or remove the
car’s battery or take out this unit, the clock is reset.
While setting the clock, if another button or opera-
tion is selected, the clock set mode is canceled.
Setting the button illumination
Press the [Color] button to select a color type.
Each time you press the [Color] button, the type
changes in the following order:
COLOR SCAN ➜ Indigo Blue ➜ Surf Blue ➜
Silky White ➜ Aqua Green ➜ Fresh Green ➜ Leaf
Green ➜ Moon Yellow ➜ Warm Amber ➜ Pale
Orange ➜ Passion Red ➜ Vivid Pink ➜ Dark
Violet ➜ USER COLOR 1 ➜ USER COLOR 2 ➜
USER COLOR 3 ➜ COLOR SCAN…
●Setting COLOR SCAN mode
As selecting “COLOR SCAN”, the color auto-
matically changes.
∗The factory default setting is “COLOR SCAN”.
∗After 3 second the color changes to the other.
●Setting USER mode
The factory default setting is “R>8 G>8 B>8”.
As selecting “USER COLOR”, press and hold
the [Color] button 1 second or longer “R>8 G>8
B>8” appears in the display.
1. Press the [A] or [D] button to move the
cursor.
2. Turning the [Rotary] knob clockwise or coun-
terclockwise to select from 0 to 8.
3. Press and hold the [s] button for 2 sec-
onds or longer to store the color in memory
and cancel setting mode.
Entering titles
Titles up to 10 characters long can be stored in
memory and displayed for CD, CD changer and
TV stations. The number of titles that can be en-
tered for each mode are as follows.
Operations Common to Each Mode
COLOR
Indigo Blue
Surf Blue
Silky White
Aqua Green
Fresh Green
Leaf Green
Moon Yellow
Warm Amber
Pale Orange
Passion Red
Vivid Pink
Dark Violet
USER COLOR 1
USER COLOR 2
USER COLOR 3
R
0
0
8
0
1
6
8
8
8
8
8
8
8
8
8
G
0
4
8
8
8
8
5
2
1
0
0
0
8
8
8
B
8
8
6
1
0
0
0
0
0
0
3
6
8
8
8
1. Press the [Function] button to select the
mode you want to enter a title (TUNER, CD,
CD changer or TV).
2. Select and play a CD in the CD changer or
tune in to a TV station for which you want to
enter the title.
3. Press the [Display] button and display the
title.
4. Press the [Title] button.
5.
Press the [A] or [D] button to move the cursor.
6.
Press the [Display] button to select a charac-
ter. Each time you press the [Display] button,
the character changes in the following order:
Capital letters ➜ Small letters ➜ Numbers
and Symbols ➜ Capital letters…
7. Turning the [Rotary] knob to select the de-
sired character.
8. Repeat steps 5 to 7 to enter up to 10 charac-
ters for the title.
9. Press and hold the [s] button for 2 sec-
onds or longer to store the title into memory
and cancel title input mode.
Clearing titles
1. Select and play a CD in the CD changer or
tune in to a TV station for which you want to
clear the title.
2. Press the [Display] button and display the
title.
3. Press the [Title] button.
The display switches to the title input display.
4. Press the [Band] button.
5. Press and hold the [s] button for 2 sec-
onds or longer to clear the title and cancel
title input mode.
AUX function
This system has an external input jack so you
can listen to sounds and music from external
devices connected to this unit.
CD changer mode Number of titles
DCZ625 connected 100 titles
CDC655Tz connected 100 titles
CDC1255z connected 50 titles
Mode Number of titles
CD mode 50 titles
TV mode 20 titles
Tuner mode 30 titles
280-7963-00
DMZ637MP 23
English
22 DMZ637MP
280-7963-00
English
CD/MD Changer Operations
●Track-down
1. Press the [A] button to move back to the
beginning of the current track.
2. Press the [A] button twice to move to the
beginning of the previous track.
Fast-forward/fast-backward
●Fast-forward
Press and hold the [D] button for 1 second or
longer.
●Fast-backward
Press and hold the [A] button for 1 second or
longer.
Scan play
Scan play locates and plays the first 10 seconds
of each track on a disc automatically. This func-
tion continues on the disc until it is cancelled.
∗The scan play is useful when you want to select a
desired track.
1. Press the [Scan] button to start track scan-
ning. “SCN” lights in the display.
2. To cancel the scan play, press the [Scan]
button again. “SCN” goes off from the display
and the current track continues to play.
Disc scan play
Disc scan play locates and plays the first 10 sec-
onds of the first track on each disc in the cur-
rently selected CD (MD) changer. This function
continues automatically until it is cancelled.
∗Disc scan play is useful when you want to select a
desired CD (MD).
1. Press and hold the [Scan] button for 1 sec-
ond or longer. “ ” and “SCN” light in
the display and disc scan play starts.
2. To cancel disc scan play, press the [Scan]
button again. “ ” and “SCN” go off
from the display and the current track contin-
ues to play.
Repeat play
Repeat play continuously plays the current track.
This function continues automatically until it is
cancelled.
1. Press the [Repeat] button. “RPT” lights in the
display and the current track is repeated.
2. To cancel repeat play, press the [Repeat]
button again. “RPT” goes off from the display
and normal play resumes.
Disc repeat play
After all the tracks on the current disc have been
played, disc repeat play automatically replays
the current disc over from the first track. This
function continues automatically until it is can-
celled.
1. Press and hold the [Repeat] button for 1 sec-
ond or longer. “ ” and “RPT” light in
the display and disc repeat play starts.
2. To cancel disc repeat play, press and hold
the [Repeat] button again. “ ” and
“RPT” go off from the display and normal
play resumes on the current track.
Random play
Random play selects and plays individual tracks
on the disc in no particular order. This function
continues automatically until it is cancelled.
1. Press the [Random] button. “RDM” lights in
the display and random play begins.
2. To cancel random play, press the [Random]
button again. “RDM” goes off from the display
and normal play resumes.
Disc random play
The disc random play selects and plays indi-
vidual tracks or discs automatically in no par-
ticular order. This function continues automati-
cally until it is cancelled.
1. Press and hold the [Random] button for 1
second or longer. “ ”and “RDM” light
in the display and disc random play starts.
2. To cancel disc random play, press and hold
the [Random] button again. “ ” and
“RDM” go off from the display and normal
play resumes from the current track.
CD/MD changer functions
When an optional CD/MD changer is connected
through the CeNET cable, this unit controls all
CD/MD changer functions. This unit can control
a total of 2 changers.
Press theh [Function] button and select the
CD(MD) changer mode to start play. If 2
CD(MD) changers are connected, press the
[Function] button to select the CD(MD) changer
for play.
∗ If “NO MAGAZINE” appears in the display, insert
the magazine into the CD changer. “DISC CHECK”
appears in the display while the player loads
(checks) the magazine.
∗ If “NO DISC” appears in the display, eject the maga-
zine and insert discs into each slot. Then, reinsert
the magazine back into the CD changer.
∗ If “NO DISC” appears in the display, load MDs into
the MD changer.
Note:
• Some CDs recorded in CD-R/CD-RW mode may
not be usable.
Notes:
•If the CD playing is not a CD-text CD or no user
title has been input,
“NO TITLE”
appears in the
display.
•If a CD-text CD is not input its disc title or a track
title,
“NO TITLE”
appears in the display.
Switching disc titles and track titles
(MD)
This unit can display disc titles and track titles
already entered on MDs.
∗Titles cannot be entered for MDs with this unit.
1. Press [Display] button to display the title.
The disc title or track title is displayed.
2. Each time you press and hold the [Display]
button for 1 second or longer, the display
toggles between the disc title and the track
title.
Note:
•If an MD is not input its disc title or a track title,
“NO TITLE” appears in the display.
Procedure to scroll a title
Set “SCROLL” to “ON” or “OFF”.
(The factory default setting is “ON”. Refer to the
subsection “Turning the screen saver function
on or off” in section “Operation common to
each mode”.)
●When set to “ON”
The title is automatically kept scrolling.
●When set to “OFF”
Press the [Title] button to scroll the title.
Selecting a DISC
1. Turning the [Preset] knob and press the
[Band] button.
Selecting a track
●Track-up
1. Press the [D] button to move ahead to the
beginning of the next track.
2. Each time you press the [D] button, the
track advances ahead to the beginning of the
next track.
CD/MD Changer Operations
7. OPERATIONS OF ACCESSORIES
CAUTION
CD-ROM discs cannot be played from every
CD changer, it’s depended on the model.
Pausing play
1. Press the [s] button to pause play.
“PAUSE” appears in the display.
2. To resume play, press the [s] button again.
Displaying CD titles
This unit can display title data for CD-text CDs
and user titles input with this unit.
∗ Title data for CD-text CDs can be displayed with
this unit only when it is connected to DCZ625 or
CDC655Tz.
●When connected to CDC655z or CDC1255z.
Press the [Display] button to display the title.
●When connected to DCZ625 or CDC655Tz
1. Press the [Display] button to display the title.
2. Each time you press and hold the [Display]
button for 1 second or longer, the title display
changes in the following order:
User title (disc) ➜ CD-text title (disc) ➜ Artist
title ➜ CD-text title (track) ➜ user title (disc)…
280-7963-00
DMZ637MP 25
English
24 DMZ637MP
280-7963-00
English
TV Operations
TV tuner functions
When an optional TV tuner is connected through
the CeNET cable, this unit controls all TV tuner
functions. To watch TV requires a TV tuner and
monitor.
Watching a TV
1. Press the [Function] button and select the
TV mode.
2. Press the [Band] button to select the desired
TV band (TV1 or TV2). Each time the button
is pressed, the input selection toggles be-
tween TV1 and TV2.
3. Press the [A] or [D] button to tune in the
desired TV station.
Tuning
There are 3 types of tuning mode available,
Seek tuning, manual tuning and preset tuning.
Seek tuning
1. Press the [Band] button and select the de-
sired TV band (TV1 or TV2).
∗ If “MANU” is lit in the display, press and hold
the [Band] button for 1 second or longer.
“MANU” in the display goes off and seek tun-
ing is now available.
2. Press the [A] or [D] button to automati-
cally seek a station. Press the [D] button to
automatically tune up the frequency band to
the next available TV station; press the [A]
button to automatically tune down.
TV Operations
Manual tuning
There are 2 ways available: Quick tuning and
step tuning.
When you are in the step tuning mode, the fre-
quency changes one step at a time. In the quick
tuning mode, you can quickly tune the desired
frequency.
1. Press the [Band] button and select the de-
sired band (TV1 or TV2).
∗ If “MANU” is not lit in the display, press and
hold the [Band] button for 1 second or longer.
“MANU” lights in the display and manual tun-
ing is now available.
2. Tune into a station.
●Quick tuning:
Press and hold the [A] or [D] button for 1
second or longer to tune in a station.
●Step tuning:
Press the [A] or [D] button to manually
tune in a station.
Preset tuning
A total of 12 TV stations can be stored (6-TV1
and 6-TV2). This allows you to select your favor-
ite TV stations and store them in memory for
later recall.
1. Press the [Band] button and select the de-
sired TV band (TV1 or TV2).
2. Turning the [Preset] knob to select a TV sta-
tion to start with.
Manual memory
1. Press the [Band] button and select the de-
sired TV band (TV1 or TV2).
2. Press [A] or [D] button to select a station
to be put into memory. Then, press the
[Memory] button.
3. Turning the [Preset] a preset memory num-
ber to be registered.
4. Press and hold the [Memory] button (for
about 2 seconds).
∗After a registration is completed, “CH” indica-
tion becomes lit in the display from the blink-
ing status.
Auto store
Auto store selects 6 TV stations automatically
and stores each one into preset memory.
If there are not 6 stations with good reception,
stations previously stored in memory remain
and only the strong stations are stored into
memory.
1. Press the [Band] button and select the de-
sired TV band (TV1 or TV2).
2. Press and hold the [Scan] button for 2 sec-
onds or longer. The stations with good recep-
tion are stored automatically to the preset
channels.
Preset scan
Preset scan allows the user to view each preset
position before it automatically advances to the
next preset. This function is useful for searching
for a desired TV station in memory.
1. Press the [Scan] button.
2. When the desired station is found, press the
[Scan] button again to remain tuned to that
station.
Note:
•Do not press and hold the [Scan] button for 2
seconds or longer. Doing so will trigger the auto
store function and start storing stations into
memory.
Setting the TV diver
You can change the reception setting for the TV
antenna connected to the TV tuner.
1.
Press and hold the [Title] button for 1 second or
longer to switch to the adjustment selection display.
2. Press the [A] or [D] button to select “TV
DIVER”.
3. Turning the [Rotary] knob clockwise to “ON”
or counterclockwise to “OFF”.
● ON:
Sets the diver setting to ON.
● OFF:
Sets the diver setting to OFF.
4. Press the [Title] button to return to the previ-
ous mode.
Setting the TV area
When you select the TV area (TV reception
area), the TV tuner area setting changes.
1. Press and hold the [Title] button for 1 second
or longer to switch to the adjustment selec-
tion display.
2. Press the [A] or [D] button to select “TV
AREA”.
3. Press the [s] button.
4. Turning the [Rotary] knob clockwise or coun-
terclockwise to select the reception area.
5. Press the [s] button.
6. Press the [Title] button to return to the previ-
ous mode.
∗ The above operations are required when a TV
tuner other than TTX7501z is connected.
Watching a video
The TV tuner has a VTR input terminal to which
1 external device can be connected. Connect a
12 V video cassette player (VCP) or video cas-
sette recorder (VCR) to the TV tuner input termi-
nal.
1. Press the [Random] button to select VTR.
2. To return to the TV broadcast, press the
[Random] button.
280-7963-00
DMZ637MP 27
English
26 DMZ637MP
280-7963-00
English
MD cannot be
loaded.
Sound skips or is
noisy.
Sound is bad
directly after
power is turned
on.
Another MD is already
loaded.
MD inserted wrongly.
MD is heavily scratched or
warped.
Water droplets may form on
the internal lens when the
car is parked in a humid
place.
Eject the MD before loading the new one.
Insert correctly.
Replace with an MD with no scratches.
Let dry for about 1 hour with the power on.
Problem Cause Measure
MD
8. IN CASE OF DIFFICULTY
Power does not
turn on.
(No sound is
produced.)
No sound output
when operating
the unit with
amplifiers or
power antenna
attached.
Nothing happens
when buttons are
pressed.
Display is not
accurate.
No sound heard
No sound heard
Sound skips or is
noisy.
Sound is cut or
skipped.
Noise is
generated or
noise is mixed
with sound.
Sound is bad
directly after
power is turned
on.
Wrong filename
Play list play is
not performed.
Fuse is blown.
Incorrect wiring.
Power antenna lead is
shorted to ground or
excessive current is required
for remote-on the amplifiers
or power antenna.
The microprocessor has
malfunctioned due to noise,
etc.
The speaker protection
circuit is operating.
MP3/WMA files are absent in
a disc.
Files are not recognized as
an MP3/WMA file.
File system is not correct.
Compact disc is dirty.
Compact disc is heavily
scratched or warped.
MP3/WMA files are not
encoded properly.
Water droplets may form on
the internal lens when the
car is parked in a humid
place.
File system is not correct.
File name or extension is not
correct.
Replace with a fuse of the same amperage. If the
fuse blows again, consult your store of purchase.
Consult your store of purchase.
1. Turning the unit off.
2. Remove all wires attached to the power antenna
lead. Check each wire for a possible short to
ground using an ohm meter.
3. Turning the unit back on.
4. Reconnect each amplifier remote wire to the
power antenna lead one by one. If the amplifiers
turn off before all wires are attached, use an
external relay to provide remote-on voltage
(excessive current required).
1. Turn down sound volume. Function can also be
restored by turning the power off and on again.
(Speaker volume is reduced automatically when
the speaker protection circuit operates).
2. If the sound is muted again, consult our service
department.
Write MP3/WMA files onto the disc properly.
Use MP3/WMA files encoded properly.
Use ISO9660 level 1, 2, 3 or JOLIET or Romeo file system.
Clean the compact disc with a soft cloth.
Replace with a compact disc with no scratches.
Use MP3/WMA files encoded properly.
Let dry for about 1 hour with the power on.
Use ISO9660 level 1, 2, 3 or JOLIET or Romeo file system.
Use alphanumeric/ASCII characters for MP3/WMA file name.
Use “.M3U” or “.ASX” for the file extension of a play list.
Problem Cause Measure
CD/MP3 General
Press the reset button for
about 2 seconds with a thin
rod.
Reset button
280-7963-00
DMZ637MP 29
English
28 DMZ637MP
280-7963-00
English
If an error display other than the ones described above appears, press the reset button. If the problem
persists, turn off the power and consult your store of purchase.
ERROR 2
ERROR 3
ERROR 6
ERROR P
ERROR R
CauseError Display Measure
A DISC inside the DVD changer cannot be
played.
A DISC cannot be played due to scratches,
etc.
A DISC inside the DVD changer cannot be
played because it is loaded upside-down.
Parental level error
Region code error
This is a failure of DVD mechanism and con-
sult your store of purchase.
Retry or replace with a non-scratched, non-
warped-disc.
Eject the disc then reload it properly
Set the correct Parental level.
Eject the disc and replace correct region
code disc.
DVD changer
9. ERROR DISPLAYS
If an error occurs, one of the following displays is displayed.
Take the measures described below to eliminate the problem.
ERROR 2
ERROR 3
ERROR 6
ERROR H
ERROR 2
ERROR 3
ERROR 2
ERROR 3
ERROR 6
ERROR H
ERROR 2
ERROR 3
ERROR 6
CauseError Display Measure
A CD is caught inside the CD deck and is
not ejected.
A CD cannot be played due to scratches,
etc.
A CD is loaded upside-down inside the CD
deck and does not play.
Displayed when the temperature in the MD
deck’s mechanism is too high and playback
has been stopped automatically.
An MD inside the MD deck is not loaded.
An MD cannot be played due to scratches,
etc.
A CD inside the CD changer is not loaded.
A CD inside the CD changer cannot be
played due to scratches, etc.
A CD inside the CD changer cannot be
played because it is loaded upside-down.
Displayed when the temperature in the MD
changer is too high and playback has been
stopped automatically.
An MD inside the MD changer is not loaded.
An MD inside the MD changer cannot be
played due to scratches, etc.
An MD inside the MD changer cannot be
played because it is loaded upside-down.
Displayed when a non-recorded MD is
loaded in the MD changer.
This is a failure of CD deck’s mechanism and
consult your store of purchase.
Replace with a non-scratched, non-warped-
disc.
Eject the disc then reload it properly.
Lower the surrounding temperature and wait
for a while to cool off MD deck’s mechanism.
This is a failure of MD deck’s mechanism and
consult your store of purchase.
Replace with a non-scratched, non-warped
disc.
This is a failure of CD changer’s mechanism
and consult your store of purchase.
Replace with a non-scratched, non-warped
disc.
Eject the disc then reload it properly.
Lower the surrounding temperature and wait
for a while to cool off MD changer.
This is a failure of MD changer’s mechanism
and consult your store of purchase.
Replace with a non-scratched, non-warped
disc.
Eject the disc then reload it properly.
Load a pre-recorded MD in the MD changer.
MD CD/MP3
CD changer
MD changer
30 DMZ637MP
280-7963-00
English
FM Tuner
Frequency Range:
87.0 MHz to 108 MHz
Usable Sensitivity:
9 dBf
50dB Quieting Sensitivity:
15 dBf
Alternate Channel Selectivity:
70 dB
Stereo Separation (1 kHz):
35 dB
Frequency Response (±3 dB):
30 Hz to 15 kHz
AM Tuner
Frequency Range:
531 kHz to 1629 kHz
Usable Sensitivity:
25 µV
CD Player
Frequency Response (±1 dB):
5 Hz to 20 kHz
Signal to Noise Ratio (1 kHz):
100 dBA
Dynamic Range (1 kHz):
95 dB
Harmonic Distortion:
0.01%
Channel Separation (1 kHz):
85 dB
MD Player
Frequency Response (±1 dB):
20 Hz to 20 kHz
Signal to Noise Ratio (1 kHz):
90 dBA
Dynamic Range (1 kHz):
85 dB
Harmonic Distortion:
0.01%
10. SPECIFICATIONS
Audio
Maximum Power Output:
200 W (50 W ✕ 4 ch)
Continuous Average Power Output:
17 W ✕ 4, into 4 Ω, 20 Hz to 20 kHz, 1%THD
Bass Control Action (60 Hz/100 Hz/200 Hz):
+16 dB, -12dB
Treble Control Action (10 kHz/15 kHz):
±12 dB
Line Output Level (CD 1 kHz):
1.8 V
General
Power Supply Voltage:
14.4 V DC (10.8 to 15.6 V allowable), negative
ground
Current Consumption:
Less than 15 A, 3A
Speaker Impedance:
4 Ω (4 Ω to 8 Ω allowable)
Weight / Source unit:
4.84 lb. (2.2 kg)
Weight / Remote control unit:
1 oz. (30 g) (including battery)
Dimensions / Source unit:
7" (Width) ✕ 3-15/16" (Height) ✕ 6-3/16"
(Depth)
[178 (W) ✕ 100 (H) ✕ 156.5 (D) mm]
Dimensions / Remote control unit:
1-3/4" (Width) ✕ 4-5/16" (Height) ✕ 1-1/16"
(Depth)
[44 (W) ✕ 110 (H) ✕ 27 (D) mm]
Notes:
• Specifications and design are subject to change without notice for further improvement.
•U.S. and foreign patents licensed from Dolby Laboratories Licensing Corporation.
