AM/FM CD/MP3/WMA PLAYER

•

RADIO AM/FM-LECTEUR CD/MP3/WMA

•

REPRODUCTOR DE AM/FM CD/MP3/WMA

Owner’s manual

Mode d’emploi

Manual de instrucciones

DXZ645MP

2DXZ645MP

1. FEATURES

• MP3 and WMA File Playable with ID3-TAG and WMA-TAG Display

• Flip Down Detachable Faceplate in Aluminum with 80-Variable Color LCD and Control Buttons

• Z-Enhancer Plus with 2 Band PEQ

• MAGNA BASS EX for Dynamic Bass Tuning

• 6ch RCA Output and 2ch AUX Input with 3 Level Adjustments

• Retractable Rotary Volume for Easy Operation

• Sirius Control

English

Contents

1. FEATURES ...................................................................................................................................... 2

2. PRECAUTIONS ............................................................................................................................... 3

Flip Down Panel ............................................................................................................................... 4

Handling Compact Discs ................................................................................................................. 4

3. CONTROLS ..................................................................................................................................... 5

4. NOMENCLATURE .......................................................................................................................... 6

Names of the Buttons and their Functions ...................................................................................... 6

Major button operations when external equipment is connected to this unit ................................... 7

Display Items ................................................................................................................................... 8

LCD Screen ..................................................................................................................................... 8

5. DCP ................................................................................................................................................. 9

6. REMOTE CONTROL ..................................................................................................................... 10

Inserting the Batteries ................................................................................................................... 10

Functions of Remote Control Unit Buttons .................................................................................... 11

7. OPERATIONS ............................................................................................................................... 12

Basic Operations ........................................................................................................................... 12

Radio Operations ........................................................................................................................... 14

CD/MP3/WMA Operations ............................................................................................................. 16

Different pieces of music heard by plural listeners (2-ZONE function) .......................................... 20

Operations Common to Each Mode .............................................................................................. 22

8. OPERATIONS OF ACCESSORIES .............................................................................................. 26

CD Changer Operations ................................................................................................................ 26

TV Operations................................................................................................................................ 28

9. IN CASE OF DIFFICULTY ............................................................................................................ 30

10. ERROR DISPLAYS ....................................................................................................................... 31

11. SPECIFICATIONS ......................................................................................................................... 32

Thank you for purchasing this Clarion product.

∗Please read this owner’s manual in its entirety before operating this equipment.

∗After reading this manual, be sure to keep it in a handy place (e.g., glove compartment).

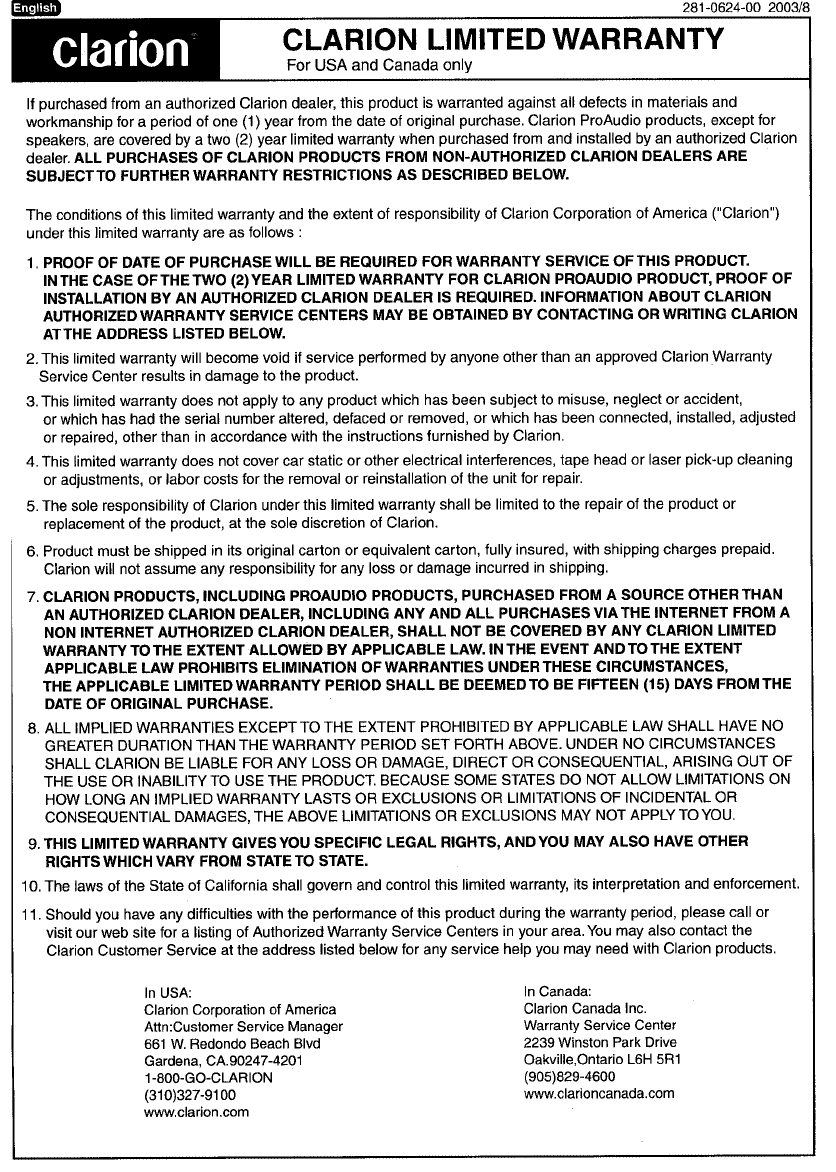

∗Check the contents of the enclosed warranty card and keep it carefully with this manual.

∗This manual includes the operating procedures of the CD changer, TV tuner connected via the

CeNET cable. The CD changer, TV tuner have their own manuals, but no explanations for operat-

ing them are described.

DXZ645MP 3

English

2. PRECAUTIONS

1. When the inside of the car is very cold and the

player is used soon after switching on the

heater moisture may form on the disc or the

optical parts of the player and proper playback

may not be possible. If moisture forms on the

disc, wipe it off with a soft cloth. If moisture

forms on the optical parts of the player, do not

use the player for about one hour. The conden-

sation will disappear naturally allowing normal

operation.

2. Driving on extremely bumpy roads which cause

severe vibration may cause the sound to skip.

3. This unit uses a precision mechanism. Even in

the event that trouble arises, never open the

case, disassemble the unit, or lubricate the ro-

tating parts.

This equipment has been tested and found to com-

ply with the limits for a Class B digital device, pur-

suant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable

protection against harmful interference in a resi-

dential installation.

This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and

used in accordance with the instructions, may

cause harmful interference to radio communica-

tions. However, there is no guarantee that inter-

ference will not occur in a particular installation.

If this equipment does cause harmful interference

to radio or television reception, which can be de-

termined by turning the equipment off and on, the

user is encouraged to consult the dealer or an ex-

perienced radio/TV technician for help.

USE OF CONTROLS, ADJUSTMENTS, OR PER-

FORMANCE OF PROCEDURES OTHER THAN

THOSE SPECIFIED HEREIN, MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.

THE COMPACT DISC PLAYER and MINI DISC

PLAYER SHOULD NOT BE ADJUSTED OR RE-

PAIRED BY ANYONE EXCEPT PROPERLY

QUALIFIED SERVICE PERSONNEL.

CHANGES OR MODIFICATIONS NOT EX-

PRESSLY APPROVED BY THE MANUFAC-

TURER FOR COMPLIANCE COULD VOID THE

USER’S AUTHORITY TO OPERATE THE EQUIP-

MENT.

INFORMATION FOR USERS:.

CHANGES OR MODIFICATIONS TO THIS PROD-

UCT NOT APPROVED BY THE MANUFAC-

TURER WILL VOID THE WARRANTY AND WILL

VIOLATE FCC APPROVAL.

Bottom View of Source Unit

CAUTION

DXZ645MP 4

English

CAUTION

Be sure to unfold and read the next page. / Veuillez déplier et vous référer à la page suivante.

Cerciórese de desplegar y de leer la página siguiente.

Handling Compact Discs

Use only compact discs bearing the or

mark.

Do not play heart-shaped, octagonal, or other

specially shaped compact discs.

Some CDs recorded in CD-R/CD-RW mode

may not be usable.

Handling

•

Compared to ordinary music CDs, CD-R and

CD-RW discs are both easily affected by high

temperature and humidity and some of CD-R

and CD-RW discs may not be played. Therefore,

do not leave them for a long time in the car.

• New discs may have some roughness around

the edges. If such

discs are used, the

player may not work

or the sound may

skip. Use a ball-point

pen or the like to re-

move any roughness

from the edge of the

disc.

•

Never stick labels on the surface of the compact

disc or mark the surface with a pencil or pen.

• Never play a compact disc with any cello-

phane tape or other glue on it or with peeling

off marks. If you try to play such a compact

disc, you may not be able to get it back out of

the CD player or it may damage the CD

player.

•

Do not use compact discs that have large

scratches, are misshapen, cracked, etc. Use of

such discs may cause misoperation or damage.

•

To remove a compact disc from its storage case,

press down on the center of the case and lift the

disc out, holding it carefully by the edges.

• Do not use commercially available CD protec-

tion sheets or discs equipped with stabilizers,

etc. These may damage the disc or cause

breakdown of the internal mechanism.

Storage

• Do not expose compact discs to direct sunlight

or any heat source.

• Do not expose compact discs to excess hu-

midity or dust.

• Do not expose compact discs to direct heat

from heaters.

Cleaning

• To remove fingermarks and dust, use a soft

cloth and wipe in a straight line from the center

of the compact disc to the circumference.

• Do not use any solvents, such as commercially

available cleaners, anti-static spray, or thinner

to clean compact discs.

• After using special compact disc cleaner, let

the compact disc dry off well before playing it.

Ball-point pen

Roughness

Flip Down Panel

This unit uses a flip-down structure that makes possible large-size displays.

When opening and closing the FLIP DOWN

PANEL, be careful not to catch your fingers.

They could be injured.

1. Always use this unit with the FLIP DOWN

PANEL closed.

2. Do not force operations or use this device

abnormally when opening or closing the

FLIP DOWN PANEL.

3. Do not use the FLIP DOWN PANEL as a tray

to place objects on when it is open.

4. When closing the FLIP DOWN PANEL, do not

press the [OPEN] button.

5. Strong impacts to the operating or display

section can cause damage or deformation.

6. If the FLIP DOWN PANEL does not open

fully, gently open it with your hand.

5DXZ645MP

English Français Español

3.CONTROLS / LES COMMANDES / CONTROLES

[ROTARY]

[a], [d]

[ ]

[SCN]

[RPT]

[RDM]

[PLAY LIST]

[DIRECT]

[DN], [UP]

[COLOR]

[ISR]

[ ]

Source unit / Appareil pilote / Unidad fuente

With the FLIP DOWN PANEL opened / Ouvrez le PANNEAU RABATTABLE

Apertura del PANEL ABATIBLE

Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.

Remarque: Veuillez déplier cette page et vous référer aux schémas quand vous lisez chaque chapitre.

Nota: Cuando lea los capítulos, despliegue esta página y consulte los diagramas.

[OPEN]

[CD SLOT]

[P/A]

[T]

[D]

[FNC]

[A-M]

[BND]

[Z+]

[]

6DXZ645MP

English

4. NOMENCLATURE

Note:

• Be sure to read this chapter referring to the front diagrams of chapter “3. CONTROLS” on page 5 (unfold).

[OPEN] button

• Deeply push in [OPEN] button to unlock the

flip down panel.

[ROTARY] knob

• Adjust the volume by turning the knob clock-

wise or counterclockwise.

• Use the knob to perform various settings.

[Z+] button

• Use the button to select one of the 3 types of

sound characteristics already stored in

memory.

[ISR] button

• Recall ISR radio station in memory.

• Press and hold for 2 seconds or longer: Store

current station into ISR memory (radio mode

only).

•

Press and hold the button for 1 second or

longer to switch the main and sub zone sound

source. (only while 2-ZONE mode on)

[COLOR] button

• Button’s color change to multicolor.

[] button

• Press and hold for 1 second or longer to turn

on or off the 2-ZONE mode.

• Press to switch the control zone between main

zone or sub zone while 2-ZONE mode on.

[D] button

• Switch the display indication (Main display,

Clock display).

[T] button

• Use the button to input a title in the Tuner, CD

mode.

• Press and hold the button for 1 second or

longer to enter the adjust mode.

[P/A] button

• Perform preset scan while in the radio mode.

When the button is pressed and held, auto

store is performed.

[UP], [DN] buttons

• Select the Folder. (MP3/WMA disc only)

[DIRECT] buttons

• Store a station into memory or recall it di-

rectly while in the radio mode.

[PLAY LIST] button

• Press and hold for 1 second or longer to turn

on or off the play list mode. (MP3/WMA disc

only)

Names of the Buttons and their Functions

[RDM] button

• Perform random play while in the CD/MP3/

WMA mode.

• Press and hold the button for 1 second or

longer to perform folder random play while in

the MP3/WMA mode.

[RPT] button

• Repeat play while in the CD/MP3/WMA

mode.

• Press and hold the button for 1 second or

longer to perform folder repeat play while in

the MP3/WMA mode.

[SCN] button

• Perform scan play for 10 seconds of each

track while in the CD/MP3/WMA mode.

• Press and hold the button for 1 second or

longer to perform folder scan play while in the

MP3/WMA mode.

[] button

• Play or pause a CD while in the CD mode.

[a], [d] buttons

• Select a station while in the radio mode or

select a track when listening to a CD. These

buttons are used to make various settings.

• Press and hold the button for 1 second or

longer to switch the fast-forward/fast-back-

ward.

[BND] button

• Switch the band, or seek tuning or manual

tuning while in the radio mode.

• Play a first track while in the CD/MP3/WMA

mode.

[A-M] button

• Use the button to switch to the audio mode

(bass/treble, balance/fader Z-Enhancer Plus)

• Press and hold for 1 second or longer to turn

on or off the MAGNA BASS EXTENED.

[FNC] button

• Press the button to turn on the power.

Press and hold the button for 1second or

longer to turn off the power.

• Switches the operation mode among the ra-

dio mode, etc.

[Q] button

• Eject a CD/MP3/WMA when it is loaded into

the unit.

[CD SLOT]

• CD insertion slot.

DXZ645MP 7

English

●When the Sirius Satellite

Radio is connected

∗For details, refer to the Owner’s Manual

provided with the Sirius Satellite Radio.

[P/A] button

• Performs category scan while in the SIRIUS

mode. When the button is pressed and held,

preset scan is performed.

[DIRECT] buttons

• Stores a station into memory or recall it di-

rectly while in the SIRIUS mode.

[] button

• Select a category.

[a], [d] button

• Press the button to select a station.

[FNC] button

• Press the button to switch the operation

mode among the SIRIUS mode, etc.

Major button operations when external equipment is

connected to this unit

●When the CD/DVD changer is

connected

∗For details, see the section “CD changer

operations”. For the DVD changer, refer to

the Owner’s Manual provided with the

DVD changer.

[D] button

• When the button is pressed and held,

switches the user titles or track titles, etc.

while in the CD changer mode.

[T] button

• Use the button to input a title in the CD

changer mode.

• Use the button to scroll the title during CD-

text play.

[UP], [DN] buttons

• Select the disc.

[RDM] button

•

Perform random play. Also perform disc ran-

dom play when the button is pressed and held.

[RPT] button

•

Perform repeat play. When this button is pressed

and held, disc repeat play is per-formed.

[SCN] button

• Perform scan play for 10 seconds of each

track. Disc scan play is performed when the

button is pressed and held.

[] button

• Play or pause a CD or DVD.

[a], [d] buttons

• Select a track when listening to a disc.

•

Press and hold the button for 1 second or

longer to switch the fast-forward/fast-backward.

[BND] button

• Move the next disc in increasing order.

●When the TV is connected

∗

For details, see the section “TV operations”.

[P/A] button

• Perform preset scan while in the TV mode.

When the button is pressed and held, auto

store is performed.

[DIRECT] buttons

• Store a station into memory or recall it directly.

[] button

• Switch the TV picture mode or VTR (external)

picture mode.

[a], [d] buttons

• Select a station.

[BND] button

• Switch the band.

• When the button is pressed and held, switch

seek tuning or manual mode.

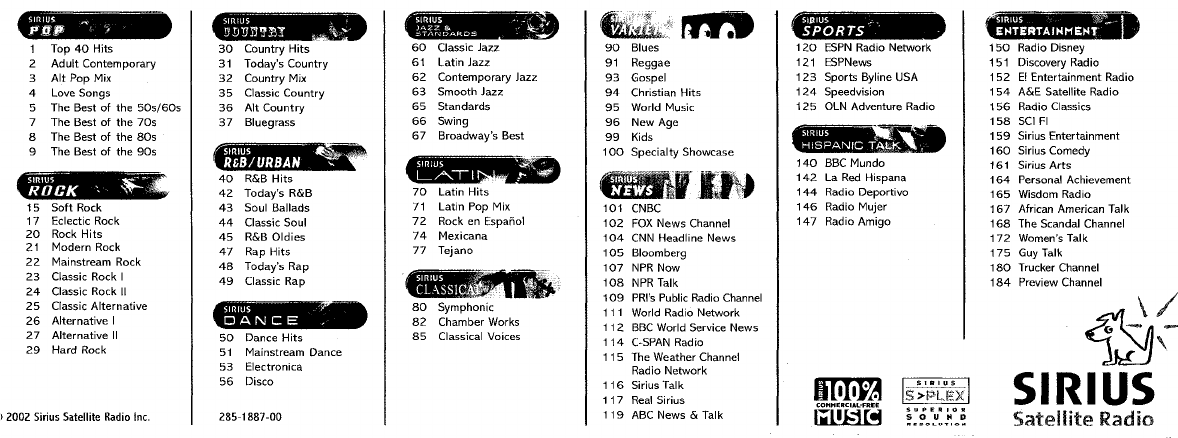

What is Sirius Satellite Radio?

Sirius is radio the way it was meant to be: Up to

100 new channels of digital quality programming

delivered to listeners coast to coast via satellite.

That means 50 channels of completely commer-

cial-free music. Plus up to 50 more channels of

news, sports, and entertainment from names like

CNBC, Discovery, SCI-FI Channel, A&E, House

of Blues, E!, NPR, Speedvision and ESPN.

Sirius is live, dynamic entertainment, completely

focused on listeners. Every minute of every day of

every week will be different. All 50 commercial-

free music channels are created in-house and

hosted by DJs who know and love the music. Do

you like Reggae? How about Classic Rock or New

Rock? Sirius has an array of choices spanning a

vast range of musical tastes including the hits of

the 50’s, 60’s, 70’s, & 80’s as well as Jazz, Coun-

try, Blues, Pop, Rap, R&B, Bluegrass, Alternative,

Classical, Heavy Metal, Dance and many others...

From its state-of-the-art, digital broadcasting fa-

cility in Rockefeller Center, New York City, Sirius

will deliver the broadest, deepest mix of radio

entertainment from coast to coast.

Sirius will bring you music and entertainment

programming that is simply not available on tra-

ditional radio in any market across the country.

It’s radio like you’ve never heard before.

So Get Sirius and Listen Up! For more infor-

mation, visit siriusradio.com.

8DXZ645MP

English

LCD Screen

In extreme cold, the screen movement may slow down and the screen may darken, but this is normal.

The screen will recover when it returns to normal temperature.

Operation status indication

Titles, clock, etc. are displays.

Preset channel indication (1 to 6)

Disc number indication (1 to 12)

Z-Enhancer Plus indication

Satellite indication

Function mode indication

The names of modes being

selected, etc. are displayed.

Mute indication

: Disc folder indication

: Scan indication

: Repeat indication

: Random indication

: Manual indication

: Stereo indication

: MAGNA BASS EXTEND indication

: MP3 indication

: WMA indication

: 2-ZONE indication

: Main indication

: Sub indication

Display Items

DXZ645MP 9

English

5. DCP

The control panel can be detached to prevent

theft. When detaching the control panel, store it

in the DCP (DETACHABLE CONTROL PANEL)

case to prevent scratches.

We recommend taking the DCP with you when

leaving the car.

Removing the DCP

1. Press the [FNC] button for 1 second or

longer to turn off the power.

2. Deeply push in [OPEN] button to unlock the

flip down panel.

∗If the flip down panel does not open fully, gen-

tly open it with your hand.

Be sure to close the HOLD FLAP for safety

when removing the DCP.

Attaching the DCP

1. Insert the right side of the DCP into the main

unit.

2. Insert the left side of the DCP into the main

unit.

3. Pull the DCP toward you and remove it.

4. Close the HOLD FLAP.

• The DCP can easily be damaged by

shocks. After removing it, be careful not to

drop it or subject it to strong shocks.

• If the FLIP DOWN PANEL is kept open, the

DCP may drop due to vibration of the car.

This results in damage to the DCP. So

close the FLIP DOWN PANEL or remove

the DCP to store into the case.

• The connector connecting the source unit

and the DCP is an extremely important

part. Be careful not to damage it by press-

ing on it with fingernails, screwdrivers, etc.

Note:

• If the DCP is dirty, wipe off the dirt with a soft, dry

cloth only.

CAUTION

DCP

DCP

HOLD FLAP

2.

1.

DCP

CAUTION

[OPEN] button

10 DXZ645MP

English

6. REMOTE CONTROL

[FUNC]

[ ],[ ]

[ISR]

[MUTE]

[SCN]

[RPT]

[ ],[ ]

[BAND]

[DISP]

[RDM]

[2-ZONE]

Rear side

AA (SUM-3, IECR-6/1.5V)

Batteries

Rear cover

Remote control unit

Inserting the Batteries

1.Turn the remote control unit over, then slide the

rear cover in the direction of the arrow.

2.Insert the AA (SUM-3, IECR-6/1.5V) batteries

that came with the remote control unit facing in

the directions shown in the figure, then close the

rear cover.

Notes:

Using batteries improperly can cause them to

explode. Take note of the following points:

• When replacing batteries, replace both batteries

with new ones.

• Do not short-circuit, disassemble or heat batteries.

• Do not dispose of batteries into fire or flames.

• Dispose of spent batteries properly.

Receiver for remote control unit

Operating range: 30˚ in all directions

Signal transmitter

DXZ645MP 11

English

[FUNC]

[BAND]

[ ] , [ ]

[ ] , [ ]

[ ]

[MUTE]

[ISR]

[DISP]

[SCN]

[RPT]

[RDM]

[2-ZONE]

Functions of Remote Control Unit Buttons

Mode

Button

Radio/SIRIUS CD/MP3/WMA CD changer

DVD changer TV

Switches among radio, SIRIUS tuner, CD/MP3/WMA, CD changer, DVD changer, TV and

AUX.

Switches reception

band.

Plays the first track.

Top play.

Moves the next disc

in increasing order.

Switches reception

band.

Increases and decreases volume (in all modes).

Moves preset

channels up and

down.

No function.

Moves tracks up and down.

When pressed and held for 1 second:

Fast-forward/fast-backward.

Switches between playback and pause.

Moves preset

channels up and

down.

No function.

Turns mute on and off.

Recalls ISR radio station in memory.

Press and hold for 2 seconds or longer: Stores current station into ISR memory (radio mode only).

Press and hold the button for 1 second or longer to switch the main and sub zone sound

source.(only while 2-ZONE mode on)

Switches among main display, clock display.

Press and hold for 1 second or longer to turn on or off the 2-ZONE mode.

Press to switch the control zone between main zone or sub zone while 2-ZONE mode on.

Preset scan.

When pressed and

held for 2 seconds:

Auto store.

No function.

No function.

Scan play.

Press and hold the

button for 1 second

or longer to perform

folder scan play while

in the MP3/WMA

mode.

Repeat play.

Press and hold the

button for 1 second

or longer to perform

folder Repeat play

while in the

MP3/WMA mode.

Random play.

Press and hold the

button for 1 second

or longer to perform

folder Random play

while in the

MP3/WMA mode.

Scan play.

When pressed and

held for 1 second:

Disc scan play.

Repeat play.

When pressed and

held for 1 second:

Disc repeat play.

Random play.

When pressed and

held for 1 second:

Disc random play.

Preset scan.

When pressed and

held for 2 seconds:

Auto store.

No function.

Switches between TV

and VTR.

∗Some of the corresponding buttons on the main unit and remote control unit have different functions.

12 DXZ645MP

English

7. OPERATIONS

Basic Operations Note:Be sure to read this chapter referring to the front diagrams of

chapter “3. CONTROLS” on page 5 (unfold).

CAUTION

Be sure to lower the volume before switch-

ing off the unit power or the ignition key. The

unit remembers its last volume setting. If you

switch the power off with the volume up,

when you switch the power back on, the sud-

den loud volume may hurt your hearing and

damage the unit.

Turning on/off the power

Note:

• Be careful about using this unit for a long time

without running the engine. If you drain the car’s

battery too far, you may not be able to start the

engine and this can reduce the service life of the

battery.

1. Press the [FNC] button.

2. The illumination and display on the unit light

up. The unit automatically remembers its last

operation mode and will automatically switch

to display that mode.

3. Press and hold the [FNC] button for 1 second

or longer to turn off the power for the unit.

Note:

• System check

The first time this unit is turned on after the wire

connections are completed, it must be checked

what equipment is connected. When the power is

turned on, “SYSTEM CHK” and “Push POWER”

appear in the display alternately, so press the

[FNC] button. The system check starts within the

unit. When the system check is complete, press

the [FNC] button again.

Selecting a mode

1. Press the [FNC] button to change the opera-

tion mode.

2. Each time you press the [FNC] button, the

operation mode changes in the following or-

der:

Radio mode ➜ SIRIUS mode ➜ CD/MP3/

WMA mode ➜ CD changer mode ➜DVD

changer mode ➜TV mode ➜ AUX mode ➜

Radio mode...

∗External equipment not connected with

CeNET is not displayed.

Adjusting the volume

1. Press the front part of the [ROTARY] knob.

The knob will pop up.

2. Turning the [ROTARY] knob clockwise in-

creases the volume; turning it counterclock-

wise decreases the volume.

∗The volume level is from 0 (minimum) to 33 (maxi-

mum).

Switching the display

Press the [D] button to select the desired dis-

play.

Each time you press the [D] button, the display

switches in the following order:

Main display ➜Clock display ➜Main display ...

∗Once selected, the preferred display becomes

the display default. When a function adjust-

ment such as volume is made, the screen will

momentarily switch to that function’s display,

then revert back to the preferred display sev-

eral seconds after the adjustment.

∗When you have entered a title in a CD, it ap-

pears in the main display. If you have not en-

tered a title, “NO TITLE” appears in the title

display instead. For information on how to en-

ter a title, refer to the subsection “Entering

titles” in section “Operations Common to

Each Mode”.

Setting the Z-Enhancer Plus

This unit are provided with 3 types of sound

tone effects stored in memory. Select the one

you prefer.

∗The factory default setting is “Z+ OFF”.

Each time you press the [Z+] button, the tone ef-

fect changes in the following order:

“Z+ OFF” ➜“BASS BOOST” ➜“IMPACT” ➜

“EXCITE” ➜“CUSTOM” ➜“Z+ OFF” ...

• BASS BOOST : bass emphasized

• IMPACT : bass and treble empha-

sized

• EXCITE : bass and treble empha-

sized mid de-emphasized

• CUSTOM : user custom

• Z+ OFF : no sound effect

DXZ645MP 13

English

Adjusting the Z-Enhancer Plus

1. Press the [Z+] button and select the Z-En-

hancer Plus mode to adjust.

2. Press the [A-M] button and turning the

[ROTARY] knob clockwise adjusts in the +

direction; turning it counterclockwise adjusts

in the – direction.

●When “B-BOOST 0” selected, you can ad-

just the bass in the range of –3 to 3.

●When “IMPACT 0” selected, you can adjust

the bass and treble in the range of –3 to 3.

●When “EXCITE 0” selected, you can adjust

the bass and treble in the range of –3 to 3.

∗When Z-Enhancer Plus is selected, press and

hold the [Z+] button for 1 second or longer to

change to the “CUSTOM” mode.

Bass/treble characteristics become flat and

the indication “Z+ FLAT” is shown in the dis-

play.

Adjusting the tone

Press the [A-M] button and select the item to

adjust. Each time you press the [A-M] button,

the item changes as following order:

●When “BASS BOOST” is set

“SW-VOL 0” ➜“B-BOOST 0” ➜“BAL 0” ➜

“FADER 0” ➜ Last function mode.

●When “IMPACT” is set

“SW-VOL 0” ➜“IMPACT 0” ➜“BAL 0” ➜

“FADER 0” ➜ Last function mode.

●When “EXCITE” is set

“SW-VOL 0” ➜“EXCITE 0” ➜“BAL 0” ➜

“FADER 0” ➜ Last function mode.

●When “CUSTOM” is set

“SW-VOL 0” ➜“BASS” ➜“TREBLE” ➜

“BAL 0” ➜“FADER 0” ➜ Last function

mode.

●When “Z+ OFF” is set

“SW-VOL 0” ➜“BAL 0” ➜“FADER 0” ➜

Last function mode.

∗If subwoofer function is set “ON”, “SW-VOL 0” can

be selected.

Adjusting the subwoofer output

volume

You can adjust the volume output from the unit’s

subwoofer output terminal.

1. Press the [A-M] button and select

“SW-VOL 0”.

2. Turning the [ROTARY] knob clockwise

increases the output volume; turning it

counterclockwise decreases the output

volume.

∗The factory default setting is “0”. (Setting range:

–6 to 6)

3. When the adjustment is complete, press the

[A-M] button several times until the function

mode is reached.

Adjusting the bass (Gain,

Frequency, Q-curve)

This adjustment can be performed when the Z-

Enhancer Plus is set to “CUSTOM”.

1.

Press the [A-M] button and select “BASS”.

2. Turning the [ROTARY] knob clockwise em-

phasizes the bass; turning it counterclock-

wise attenuates the bass.

∗The factory default setting is “BÅÅ

ÅÅ

ÅGAIN 0ÎÎ

ÎÎ

Δ.

(Adjustment range: –6 to +8)

3. Press the [a] or [d] button to select

“BÅÅ

ÅÅ

ÅFREQ 50ÎÎ

ÎÎ

Δ.

Turning the [ROTARY] knob clockwise or

counterclockwise to select the frequency.

∗The factory default setting is “BÅÅ

ÅÅ

ÅFREQ 50ÎÎ

ÎÎ

Δ.

(Adjustment 50/80/120 Hz)

4.

Press the [

a

] or [

d

] button to select “B

ÅÅ

ÅÅ

Å

Q 1

ÎÎ

ÎÎ

Î

”.

Turning the [ROTARY] knob clockwise or

counterclockwise to select the Q-curve.

∗The factory default setting is “BÅÅ

ÅÅ

Å

Q 1

ÎÎ

ÎÎ

Δ.

(Adjustment 1/1.25/1.5/2)

5. When the adjustment is complete, press the

[A-M] button several times until the function

mode is reached.

Adjusting the treble (Gain,

Frequency)

This adjustment can be performed when the Z-

Enhancer Plus is set to “CUSTOM”.

1.

Press the [A-M] button and select “TREBLE”.

2. Turning the [ROTARY] knob clockwise em-

phasizes the treble; turning it counterclock-

wise attenuates the treble.

∗The factory default setting is “TÅÅ

ÅÅ

ÅGAIN 0ÎÎ

ÎÎ

Δ.

(Adjustment range: –6 to +6)

3. Press the [a] or [d] button to select

“TÅÅ

ÅÅ

ÅFREQ 12KÎÎ

ÎÎ

Δ.

Turning the [ROTARY] knob clockwise or

counterclockwise to select the frequency.

Basic Operations

14 DXZ645MP

English

Radio Operations

FM reception

For enhanced FM performance the

®

tuner includes signal actuated stereo control,

Enhanced Multi AGC, Impulse noise reduction

curcuits and Multipath noise reduction circuits.

Listening to the radio

1. Press the [FNC] button and select the radio

mode. The frequency appears in the display.

2. Press the [BND] button and select the radio

band. Each time the button is pressed, the

radio reception band changes in the following

order:

FM1 ➜ FM2 ➜ FM3 ➜ AM ➜ FM1...

3. Press the [a] or [d] button to tune in the

desired station.

Tuning

There are 3 types of tuning mode available, seek

tuning, manual tuning and preset tuning.

Seek tuning

1. Press the [BND] button and select the de-

sired band (FM or AM).

∗If “MANU” is lit in the display, press and hold

the [BND] button for 1 second or longer.

“MANU” in the display goes off and seek tun-

ing is now available.

2. Press the [a] or [d] button to automatically

seek a station.

When the [d] button is pressed, the station is

sought in the direction of higher frequencies; if

the [a] button is pressed, the station is sought

in the direction of lower frequencies.

Manual tuning

There are 2 ways available: Quick tuning and

step tuning.

When you are in the step tuning mode, the fre-

quency changes one step at a time. In the quick

tuning mode, you can quickly tune the desired

frequency.

1. Press the [BND] button and select the de-

sired band (FM or AM).

∗If “MANU” is not lit in the display, press and

hold the [BND] button for 1 second or longer.

“MANU” is lit in the display and manual tuning

is now available.

2. Tune into a station.

Basic Operations

∗The factory default setting is “TÅÅ

ÅÅ

ÅFREQ 12KÎÎ

ÎÎ

Δ.

(Adjustment 8 kHz/12 kHz)

4. When the adjustment is complete, press the

[A-M] button several times until the function

mode is reached.

Adjusting the balance

1. Press the [A-M] button and select “BAL 0”.

2. Turning the [ROTARY] knob clockwise em-

phasizes the sound from the right speaker;

turning it counterclockwise emphasizes the

sound from the left speaker.

∗The factory default setting is “BAL 0”. (Adjust-

ment range: L13 to R13)

3. When the adjustment is complete, press the

[A-M] button several times until the function

mode is reached.

Adjusting the fader

1.

Press the [A-M] button and select “FADER 0”.

2. Turning the [ROTARY] knob clockwise em-

phasizes the sound from the front speakers;

turning it counterclockwise emphasizes the

sound from the rear speakers.

∗The factory default setting is “FADER 0”. (Ad-

justment range: F12 to R12)

3. When the adjustment is complete, press the

[A-M] button several times until the function

mode is reached.

Adjusting MAGNA BASS EXTEND

The MAGNA BASS EXTEND does not adjust

the low sound area like the normal sound ad-

justment function, but emphasizes the deep

bass sound area to provide you with a dynamic

sound.

∗The factory default setting is off.

1. Press and hold the [A-M] button for 1 second

or longer to turn on the MAGNA BASS EX-

TEND effect. “M-B EX” lights in the display.

2. Press and hold the [A-M] button for 1 second

or longer to turn off the MAGNA BASS EX-

TEND effect. “M-B EX” goes off from the dis-

play.

DXZ645MP 15

English

Radio Operations

●Quick tuning:

Press and hold the [a] or [d] button for 1

second or longer to tune in a station.

●Step tuning:

Press the [a] or [d] button to manually

tune in a station.

Recalling a preset station

A total of 24 preset positions (6-FM1, 6-FM2, 6-

FM3, 6-AM) exists to store individual radio sta-

tions in memory. Pressing the corresponding

[DIRECT] button recalls the stored radio fre-

quency automatically.

1. Press the [BND] button and select the de-

sired band (FM or AM).

2. Press the corresponding [DIRECT] button to

recall the stored station.

∗Press and hold one of the [DIRECT] buttons

for 2 seconds or longer to store that station

into preset memory.

Manual memory

1. Select the desired station with seek tuning,

manual tuning or preset tuning.

2. Press and hold one of the [DIRECT] buttons

for 2 seconds or longer to store the current

station into preset memory.

Auto store

Auto store is a function for storing up to 6 sta-

tions that are automatically tuned in sequentially.

If 6 receivable stations cannot be received, a

previously stored station remains unoverwritten

at the memory position.

1. Press the [BND] button and select the de-

sired band (FM or AM).

2. Press and hold the [P/A] button for 2 sec-

onds or longer. The stations with good recep-

tion are stored automatically to the preset

channels.

Preset scan

Preset scan receives the stations stored in pre-

set memory in order. This function is useful

when searching for a desired station in memory.

1. Press the [P/A] button.

2. When a desired station is tuned in, press the

[P/A] button again to continue receiving that

station.

Note:

• Be careful not to press and hold the [P/A] button

for 2 seconds or longer, otherwise the auto store

function is engaged and the unit starts storing

stations.

Instant station recall (ISR)

Instant station recall is a special radio preset

that instantly accesses a favorite radio station at

a touch of a button. The ISR function even oper-

ates with the unit in other modes.

●ISR memory

1. Select the station that you wish to store in ISR

memory.

2. Press and hold the [ISR] button for 2 seconds

or longer.

●Recalling a station with ISR

In any mode, press the [ISR] button to turn on

the radio function and tune the selected radio

station. “ISR” appears in the display. Press the

[ISR] button again to return to the previous

mode.

16 DXZ645MP

English

CD/MP3/WMA Operations

2. Files without MP3/WMA data will not play.

The indication “––:––” appears in the play

time display if you attempt to play files with-

out MP3/WMA data.

● Logical format (File system)

1.

When writing MP3/WMA file on a CD-R disc

or CD-RW disc, please select “ISO9660 level

1, 2 or JOLIET or Romeo” as the writing soft-

ware format. Normal play may not be possible

if the disc is recorded on another format.

2. The folder name and file name can be dis-

played as the title during MP3/WMA play but

the title must be within 128 single byte alpha-

betical letters and numerals (including an ex-

tension).

3. Do not affix a name to a file inside a folder

having the same name.

● Folder structure

1. A disc with a folder having more than 8 hier-

archical levels will be impossible.

● Number of files or folders

1. Up to 255 files can be recognized per folder.

Up to 500 files can be played.

2.

Tracks are played in the order that they were

recorded onto a disc. (Tracks might not always

be played in the order displayed on the PC.)

3.

Some noise may occur depending on the type

of encoder software used while recording.

Multisession function

When a disc contains both normal CD type tracks

and MP3/WMA type tracks mixedly, you can se-

lect which type of the recorded tracks to play.

●Default value is “CD”.

Each time you press and hold the [BND] button

for 1 second or longer, the mixed mode is

switched between CD type or MP3/WMA type.

The following indication appears in the title dis-

play when switching the track type to be played.

● Display when CD type track is selected:

MP3/WMA

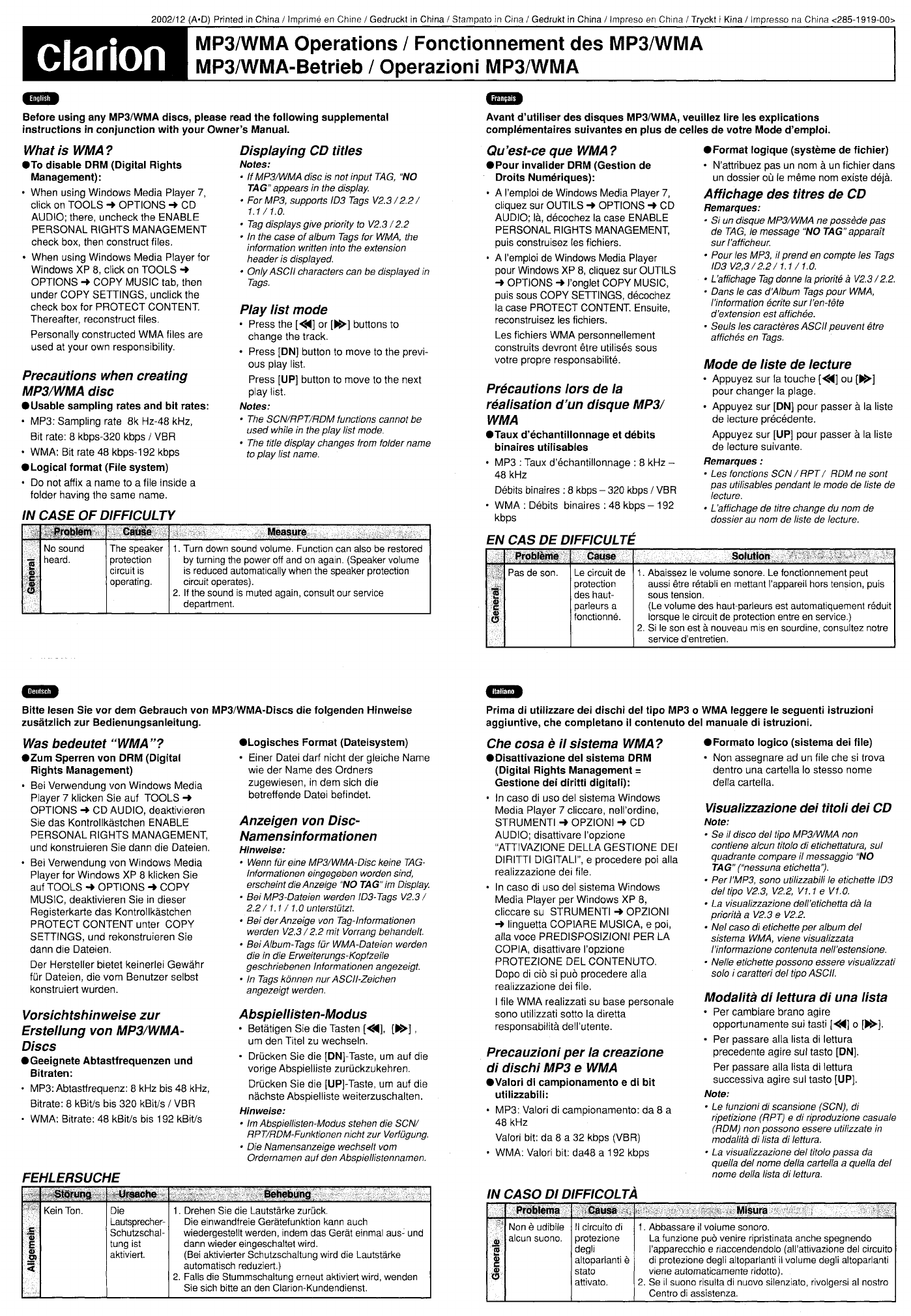

What is MP3?

MP3 is an audio compression method and clas-

sified into audio layer 3 of MPEG standards.

This audio compression method has penetrated

into PC users and become a standard format.

This MP3 features the original audio data com-

pression to about 10 percent of its initial size

with a high sound quality. This means that about

10 music CDs can be recorded on a CD-R disc

or CD-RW disc to allow a long listening time

without having to change CDs.

What is WMA?

WMA is the abbreviation of Windows Media Au-

dio, an audio file format developed by Microsoft

Corporation.

Notes:

• If you play a file with DRM (Digital Rights Man-

agement) for WMA remaining ON, no audio is

output.

• Windows Media™, and the Windows ® logo are

trademarks, or registered trademarks of Microsoft

Corporation in the United States and/or other

countries.

●

To disable DRM (Digital Rights Manage-

ment):

1. When using Windows Media Player 8, click

on TOOLS ➜ OPTIONS ➜ COPY MUSIC

tab, then under COPY SETTINGS, unclick

the check box for PROTECT CONTENT.

Then, reconstruct files.

2. When using Windows Media Player 9, click

on TOOL ➜ OPTIONS ➜ MUSIC RECORD

tab, then under Recording settings, unclick

the Check box for RECORD PROTECTED

MUSIC. Then, reconstruct files.

Personally constructed WMA files are used

at your own responsibility.

Precautions when creating MP3/WMA disc

● Usable sampling rates and bit rates:

1. MP3: Sampling rate 11.025 kHz-48 kHz,

Bit rate: 8 kbps-320 kbps / VBR

2. WMA: Bit rate 48 kbps-192 kbps

● File extensions

1. Always add a file extension “.MP3” or “.WMA”

to MP3 or WMA file by using single byte let-

ters. If you add a file extension other than

specified or forget to add the file extension ,

the file cannot be played.

1. Types of recording that can be played are as

follows.

● Display when MP3/WMA type track is se-

lected:

DXZ645MP 17

English

CD/MP3/WMA Operations

CAUTION

Listening to a disc already loaded

in the unit

Press the [FNC] button to select the CD/MP3/

WMA mode.

When the unit enters the CD/MP3/WMA mode,

play starts automatically.

If there is no disc loaded, the indication “

NO

DISC”

appears in the title display.

∗The mode changes each time the [FNC] button is

pressed. (Modes are not displayed for equipment

that is not connected.)

2. After making these settings, remove the disc

and then reinsert it.

3. When a mixed mode CD is loaded and CD is

set, the track to be played first is MP3/WMA

file data and no sound is heard.

Note:

• When playing a CCCD (Copy Control CD), set the

setting to CD type. When this is set to MP3/WWA

type, the CD cannot be played normally in some

cases.

Disc-In-Play function

As long as the ignition key is turned to the ON or

ACC position, this function allows you to turn the

power to the unit and start playing the disc auto-

matically when the disc is inserted even if the

power is not turned on.

Set to MP3/WMA

Disc

Mixed with CD and

MP3/WMA type tracks

CD type track only

MP3/WMA type track only

Set to CD

Play CD

Play MP3/WMA

Setting

Play CD Play CD

Play MP3/WMA

Play MP3/WMA

Radio (SIRIUS) CD/MP3/WMA

(CD changer)

(DVD changer)

AUX (TV)

• Do not try to put your hand or fingers in the

disc insertion slot. Also never insert for-

eign objects into the slot.

• Do not insert discs where adhesive comes

out from cellophane tape or a rental CD la-

bel, or discs with marks where cellophane

tape or rental CD labels were removed. It

may be impossible to extract these discs

from the unit and they may cause the unit

to break down.

Backup Eject function

Just pressing the [Q] button ejects the disc

even if the power to the unit was not turned on.

1. Press the [OPEN] button to open the FLIP

DOWN PANEL.

Note:

• If the FLIP DOWN PANEL will not open far

enough, open it gently with your hand.

2. Press the [Q]button. Remove the disc after it

is ejected.

3. Close the FLIP DOWN PANEL.

Note:

• Always close the FLIP DOWN PANEL once you

take out the disc.

Loading a CD

1. Press the [OPEN] button to access the CD

SLOT behind the FLIP DOWN PANEL.

2. Insert a CD into the center of the CD SLOT

with the labeled side facing up. The CD plays

automatically after loading.

Notes:

• Never insert foreign objects into the CD SLOT.

•

If the CD is not inserted easily, there may be another

CD in the mechanism or the unit may require service.

• Discs not bearing the or mark and

CD-ROMs cannot be played by this unit.

• Some CDs recorded in CD-R/CD-RW mode may

not be usable.

Loading 8 cm compact discs

∗No adapter is required to play an 8 cm CD.

∗

Insert the 8 cm CD into the center of the insertion slot.

3. Close the FLIP DOWN PANEL.

Be careful not to catch your hand or fingers

while closing the FLIP DOWN PANEL.

CAUTION

Notes:

• If the FLIP DOWN PANEL does not open fully,

gently open with your hand.

• After loading a CD, always close the FLIP DOWN

PANEL.

Pausing play

1. Press the [ ] button to pause play.

“PAUSE” appears in the display.

2. To resume CD play, press the [ ] button

again.

18 DXZ645MP

English

CD/MP3/WMA Operations

2

3

4

5

1

Root folder

∗Press the [UP] button while in the final folder

to shift to the first folder.

∗Folder without an MP3/WMA file is not select-

able.

2. To select a track, press the [a] or [d] but-

ton.

Top function

The top function resets the CD player to the first

track of the disc. Press the [BND] button to play

the first track (track No. 1) on the disc.

∗In case of MP3/WMA, the first track of a folder be-

ing played will be returned.

Scan play

This function allows you to locate and play the

first 10 seconds of all the tracks recorded on a

disc.

1. Press the [SCN] button to perform scan play.

The indication “SCN” lights up in the display,

and “

TRK SCAN”

(or “

-SCAN”

when

searching for a track in the MP3/WMA file)

appears in the title display for about 2 sec-

onds, then scan play starts.

Displaying CD titles

This unit can display title data for CD-text/MP3/

WMA disc and user titles input with this unit.

1. Press the [D] button to display the title.

2. Each time you press and hold the [D] button

for 1 second or longer, the title display

changes in the following order:

●CD-TEXT disc

User title (disc) ➜ CD-text title (disc) ➜ Artist

name ➜ CD-text title (track) ➜ User title (disc)...

●MP3/WMA disc

Folder ➜ File ➜ Album TAG ➜ Artist TAG ➜

Title TAG ➜ Folder...

Notes:

• If the CD playing is not a CD-text CD or no user

title has been input, “NO TITLE” appears in the

display.

• If MP3/WMA disc is not input TAG, “NO TAG” ap-

pears in the display.

• For MP3, supports ID3 Tags V2.3 / 2.2 / 1.1 / 1.0.

• Tag displays give priority to V2.3 / 2.2.

• In the case of album Tags for WMA, the informa-

tion written into the extension header is displayed.

• Only ASCII characters can be displayed in Tags.

Selecting a track

●Track-up

1. Press the [d] button to move ahead to the

beginning of the next track.

2. Each time you press the [d] button, the

track advances ahead to the beginning of the

next track.

●Track-down

1. Press the [a] button to move back to the

beginning of the current track.

2. Press the [a] button twice to move to the

beginning of the previous track.

Fast-forward/fast-backward

●Fast-forward

Press and hold the [d] button for 1 second or

longer.

●Fast-backward

Press and hold the [a] button for 1 second or

longer.

∗For MP3/WMA discs, it takes some time until the

start of searching and between tracks. In addition,

the playing time may have a margin of error.

Folder Select

This function allows you to select a folder con-

taining MP3/WMA files and start playing from

the first track in the folder.

1. Press the [DN] or the [UP] button.

Press the [DN] button to the previous folder.

Press the [UP] button to the next folder.

DXZ645MP 19

English

2. To cancel folder repeat play, press the [RPT]

button again.

The play status indications such “FOLDER”

and “RPT” disappear from the display and nor-

mal play resumes from the track currently be-

ing played.

Random play

This function allows you to play all tracks re-

corded on a disc in a random order.

1. Press the [RDM] button to perform random

play.

The indication “RDM” lights up in the display

and “

TRK RANDOM”

(or “

-RANDOM”

when

performing random play for tracks on a MP3/

WMA disc) appears in the title display for about

2 seconds, and then random play starts. The

tracks on the disc are then played in a random

order.

2. To cancel random play, press the [RDM] but-

ton again.

The play status indication such as “RDM” dis-

appears from the display and normal play re-

sumes from the track currently being played.

Folder random play

This function allows you to play all the tracks of

all the folders recorded on an MP3/WMA disc in

a random order.

1. Press and hold the [RDM] button for 1 sec-

ond or longer to perform folder random play.

The indications “FOLDER” and “RDM” light

up in the display and “

-RANDOM”

appear

in the title display for about 2 seconds, and

then folder random play starts.

2. To cancel folder random play, press the

[RDM] button again.

The play status indications such as

“FOLDER” and “RDM” disappear from the

display and normal play resumes from the

track currently being played.

CD/MP3/WMA Operations

∗Scan play starts from the next track after the

track currently being played.

2. To cancel scan play, press the [SCN] button

again.

The play status indication such as “SCN” dis-

appears from the display and the current

track is played.

Folder scan play

This function allows you to locate and play the

first 10 seconds of the first track of all the folders

on an MP3/WMA disc.

1. Press and hold the [SCN] button for 1 sec-

ond or longer to perform folder scan play.

The indications “FOLDER” and “SCN” light

up in the display and “

-SCAN”

appears for

about 2 seconds in the title display, and then

folder scan play starts.

∗Folder scan play starts from the next track af-

ter the track currently being played.

2. To cancel folder scan play, press the [SCN]

button again.

The play status indications such as

“FOLDER” and “SCN” disappear from the

display and the current track is played.

Repeat play

This function allows you to play the current track

repeatedly.

1.

Press the [RPT] button to perform repeat play.

The indication “RPT

”

lights up in the display

and “

TRK REPEAT”

(or “

-REPEAT”

when

performing repeated play for a track in the

MP3/WMA file) appears for about 2 seconds

in the title display, and then repeat play starts.

2. To cancel repeat play, press the [RPT] button

again.

The play status display such as “RPT” disap-

pears from the display and normal play re-

sumes from the track currently being played.

Folder repeat play

This function allows you to play a track currently

being played in the MP3/WMA folder repeatedly.

1. Press and hold the [RPT] button for 1 second

or longer to perform folder repeat play.

The indications “FOLDER” and “RPT” light

up in the display and “

-REPEAT”

appears

for about 2 seconds in the title display, and

then folder repeat play starts.

20 DXZ645MP

English

CD/MP3/WMA Operations

Play list mode

This function allows you to play tracks, up to lat-

est 5 time stamps, by reading the play list infor-

mation written on the disc.

1. Press and hold the [PLAY LIST] button for 1

second or longer to turn on or off the play list

mode.

∗Play list play is possible only when there is a

file whose extension is “.M3U” or “.ASX” on

the CDR-RW.

∗Up to 5 play lists can be recognized, and up to

255 files can be recognized per play list.

2. Press the [a] or [d] button to change the

track.

3. Press the [DN] button to move to the previ-

ous play list.

Press the [UP] button to move to the next

play list.

Notes:

• The SCN/RPT/RDM functions cannot be used

while in the play list mode.

• The title display changes from folder name to play

list name.

Making a play list

1. Write desired tracks to a CD-R/RW, etc. Be

sure to use alphanumeric/ASCII characters

for all file names.

2. Make a play list by using a multimedia player,

etc. and save the data. The file format must

be M3U or ASX.

3. Again, write this play list to the CD-R/RW,

etc.

Notes:

• When writing to a CD-R/RW, etc., be sure to use

alphanumeric/ASCII characters.

• Up to 5 layers can be recognized as a list. For

written play lists, latest 5 lists are recognized in

the order in which they are written.

• When writing to a CD-R/RW, etc., turn off the Disc

At Once function.

• When adding a play list, it is recommended to

write it in the “Root” folder.

Different pieces of music

heard by plural listeners

(2-ZONE function)

About the 2-ZONE function

The 2-ZONE function is a function that outputs

separate sounds from the MAIN zone and SUB

zone by simultaneously operating two sources in the

one center unit, thereby allowing plural listeners to

enjoy separate music sources.

This unit can control its internal sources (radio, CD,

MP3, etc.) to play back them, and further, can simul-

taneously play back sources from external equip-

ment connected via CeNET (for instance, CD

changers etc.).

The sources of the MAIN zone are played back

from the speakers of the vehicle side, and those

of the SUB zone are from the headphone sys-

tems (WH104/WH204).

Notes:

• Except AUX, the MAIN and SUB zones cannot si-

multaneously use sources inside this unit.

Also, external equipment connected via CeNET

cannot simultaneously be used.

• The TV mode while the 2-ZONE function is tuned

on is forced to change to “VTR playback.”

• The ISR function cannot be operated when the 2-

ZONE function is turned on.

• The Audio mode and Z-enhancer function cannot

be set for the sources of the SUB zone.

• If any of following external equipment is con-

nected, this function is disenabled.

• 5.1 channel surround decoder (DVC920)

Setting the 2-ZONE function

The initial setting is “OFF”.

When you have set the 2-ZONE function to “ON” in

the initial state, the MAIN zone services for sources

inside this unit and the SUB zone, for AUX. Chang-

ing a source during later use causes the latest heard

source to be invoked.

Press and hold the [ ] button for 1 second or

longer to turn on or off. When the 2-ZONE func-

tion is turned on, “2-ZONE ON” on the display

lights.

DXZ645MP 21

English

Different pieces of music heard by plural listeners (2-ZONE function)

Adjusting the sound level for the

MAIN zone

You can adjust the sound level only for the MAIN

zone. To adjust the sound level for the SUB zone,

adjust it in the headphone (WH104/WH204) side.

Turning the [ROTARY] knob to adjust the sound

level for the MAIN zone.

Counterchanging the sources of the

MAIN and SUB zones

You can supersede the music sources of the MAIN

and SUB zones.

Press and hold the [ISR] button for 1 second or

longer to counterchange the sources of the MAIN

and SUB zones.

“REVERSE” is displayed for 2 seconds on the dis-

play.

Switching sources

1. Press the [ ] button to select the control

zone (“MAIN” or “SUB”).

Every time the button is pressed, the “MAIN

ZONE” changes to the “SUB ZONE” or vice

versa.

“MAIN” or “SUB” on the display lights at that

time, thereby indicating that the relevant

zone becomes ready to operate.

2. Press the [FNC] button to select a source in

the control zone.

Every time the button is pressed, the follow-

ings appear in turn.

●For a source group included in this unit:

Radio ➜CD/MP3 ➜AUX ➜Radio...

●For a source group in external equip-

ment:

AUX ➜CD changer ➜DVD changer ➜TV

➜AUX...

∗The name of equipment that is not connected

to this unit is not displayed.

• To change a current musical performance etc., press

the button that controls the selected source ([SCN]

button, etc.).

Oparation

2-ZONE

turned off

2-ZONE

turned on

2-ZONE

turned off

Source

change

2-ZONE

turned on

MAIN zone

Radio playback

Radio playback

Radio playback

External

equipment (CD

changer)

External

equipment (CD

changer)

SUB zone

Radio playback

AUX

Radio playback

External

equipment (CD

changer)

Radio playback

● Example for source change

22 DXZ645MP

English

Operations Common to Each Mode

Turning the screen saver function

on or off

This unit is provided with the screen saver func-

tion which allows you to show various kinds of

patterns and characters in the Operation Status

indication area of the display in a random order.

You can turn on and off this function.

If the button operation is performed with the

screen saver function on, the operation display

corresponding to the button operation is shown

for about 30 seconds and the display returns to

the screen saver display.

∗The factory default setting is “ON”.

1. Press and hold the [T] button for 1 second or

longer to switch to the adjustment selection

display.

2. Press the [a] or [d] button to select

“SCRN SVR ”.

3. Press the [ ] button.

4. Turn the [ROTARY] knob clockwise or coun-

terclockwise to select the setting. Each time

you turn the [ROTARY] knob, the setting

changes in the following order:

OFF ➜ON ➜MESSAGE

5. Press the [T] button to return to the previous

mode.

Entering MESSAGE INFORMATION

When the use of the message is selected for the

screen saver setting, you can change the con-

tents of the message.

∗Up to 30 characters can be entered.

∗The factory default setting is “Welcome to Clarion”.

1. Press and hold the [T] button for 1 second or

longer to switch to the adjustment selection

display.

2. Press the [a] or [d] button to select

“MSG INPUT ”.

3. Press the [ ] button.

4. Press the [BND] button to clear the old mes-

sage.

5. Press the [a] or [d] button to move the

cursor.

6. Press the [D] button to select a character.

Each time you press the [D] button, the char-

acter changes in the following orders:

Capital letters ➜ Small letters ➜ Numbers

and Symbols ➜ Umlaut ➜ Capital letters…

7. Turn the [ROTARY] knob to select the de-

sired character.

8. Repeat step 5 to 7 to enter up to 30 charac-

ters for message.

9. Press and hold the [ ] button for 2 sec-

onds or longer to store the message in

memory and cancel input message.

10.Press the [T] button to return to the previous

mode.

Message display

When the unit is powered on or off, a message

is displayed. The user can turn this message

display ON or OFF.

∗The factory default setting is “ON”.

1. Press and hold the [T] button for 1 second or

longer to switch to the adjustment selection

display.

2. Press the [a] or [d] button to select

“MESSAGE”.

3. Turn the [ROTARY] knob clockwise or coun-

terclockwise to set the message display ON

or OFF.

4. Press the [T] button to return to the previous

mode.

Setting the method for title scroll

Set how to scroll in CD-TEXT, MP3/WMA Title.

∗The factory default setting is “ON”.

1. Press and hold the [T] button for 1 second or

longer to switch to the adjustment selection

display.

2. Press the [a] or [d] button to select

“AUTO SCRL”.

3. Turn the [ROTARY] knob clockwise or coun-

terclockwise and select “ON” or “OFF”.

●ON:

To scroll automatically.

●OFF:

To scroll just 1 time when the title was

changed or the title key was pressed.

4. Press the [T] button to return to the previous

mode.

DXZ645MP 23

English

Dimmer control

You can setting the dimmer control “ON” or

“OFF”.

∗The factory default setting is “ON”.

1. Press and hold the [T] button for 1 second or

longer to switch to the adjustment selection

display.

2. Press the [a] or [d] button to select

“DIMMER”.

3. Turn the [ROTARY] knob clockwise to “ON”

or counterclockwise to “OFF”.

4. Press the [T] button to return to the previous

mode.

Adjusting the display contrast

You can adjust the display contrast to match the

angle of installation of the unit.

∗The factory default setting is “8”. (Adjustment level:

1 to 16)

1. Press and hold the [T] button for 1 second or

longer to switch to the adjustment selection

display.

2. Press the [a] or [d] button to select

“CONTRAST”.

3. Turn the [ROTARY] knob clockwise or coun-

terclockwise to adjust the contrast.

4. Press the [T] button to return to the previous

mode.

Anti-theft indicator

The red Anti-theft indicator is a function for pre-

venting theft. When the DCP is removed from

the unit, this indicator blinks.

∗The factory default setting is “OFF”.

1. Press and hold the [T] button for 1 second or

longer to switch to the adjustment selection

display.

2. Press the [a] or [d] button and select

“BLINK LED”.

3. Turn the [ROTARY] knob clockwise to set this

function “ON” or turn it counterclockwise to

switch this function “OFF”.

4. Press the [T] button to return to the previous

mode.

Operations Common to Each Mode

Setting the sub woofer

You can set the sub-woofer on or off.

∗The factory default setting is “ON”.

1. Press and hold the [T] button for 1 second or

longer to switch to the adjustment selection

display.

2. Press the [a] or [d] button and select

“SUB-WOOFER”.

3. Turn the [ROTARY] knob clockwise to “ON”

or counterclockwise to “OFF”.

4. Press the [T] button to return to the previous

mode.

Setting LOW PASS FILTER

∗If sub-woofer function is set “ON”, “LOW PASS FIL-

TER” can be selected.

∗The factory default setting is “LPF THRGH”.

1. Press and hold the [T] button for 1 second or

longer to switch to the adjustment selection

display.

2. Press the [a] or [d] button to select

“SUB-W LPF”.

3. Turn the [ROTARY] knob clockwise or coun-

terclockwise to select the setting. Each time

you turn the [ROTARY] knob, the setting

changes in the following order:

LPF THRGH ➜ LPF 50Hz ➜ LPF 80Hz ➜

LPF 120Hz

4. Press the [T] button to return to the previous

mode.

Selecting AUX IN sensitivity

Make the following settings to select the sensi-

tivity when sounds from external devices con-

nected to this unit are difficult to hear even after

adjusting the volume.

∗The factory default setting is “MID”.

1. Press and hold the [T] button for 1 second or

longer to switch to the adjustment selection

display.

2. Press the [a] or [d] button to select

“AUX SENS”.

3. Turn the [ROTARY] knob clockwise or coun-

terclockwise as needed and select from

“HIGH”, “MID” or “LOW”.

4. Press the [T] button to return to the previous

mode.

24 DXZ645MP

English

1. Press the [FNC] button to select the mode

you want to enter a title (TUNER, CD, CD

changer or TV).

2. Select and play a CD in the CD changer or

tune in to a TV station or TUNER for which

you want to enter the title.

3. Press the [D] button and display the main.

4. Press the [T] button.

5. Press the [a] or [d] button to move the cursor.

6. Press the [D] button to select a character.

Each time you press the [D] button, the char-

acter changes in the following order:

Capital letters ➜ Small letters ➜ Numbers

and Symbols ➜ Umlaut ➜ Capital letters…

7. Turn the [ROTARY] knob to select the de-

sired character.

8. Repeat steps 5 to 7 to enter up to 10 charac-

ters for the title.

9. Press and hold the [ ] button for 2 sec-

onds or longer to store the title into memory

and cancel title input mode.

Entering titles

Titles up to 10 characters long can be stored in

memory and displayed for CD, CD changer and

TV stations. The number of titles that can be en-

tered for each mode are as follows.

COLOR

RED

MANDARIN

ORANGE

AMBER

YELLOW

G-YELLOW

LIME

GREEN

D-GREEN

R

8

8

8

8

8

6

4

2

0

G

0

1

2

5

8

8

8

8

8

Operations Common to Each Mode

Setting the clock

1. Press and hold the [T] button for 1 second or

longer to switch to the adjustment selection

display.

2. Press the [a] or [d] button to select

“CLOCK ”.

3. Press the [ ] button.

4. Press the [a] or [d] button to select the

hour or the minute.

5. Turn the [ROTARY] knob clockwise or coun-

terclockwise to set the correct time.

∗The clock is displayed in 12-hour format.

6. Press the [ ] button to store the time into

memory.

7. Press the [T] button to return to the previous

mode.

Note:

•

You cannot set the clock when it is displayed with

only the ignition on. If you drain or remove the

car’s battery or take out this unit, the clock is reset.

While setting the clock, if another button or opera-

tion is selected, the clock set mode is canceled.

Setting the button illumination

Press the [COLOR] button to select a color type.

Each time you press the [COLOR] button, the

type changes in the following order:

COLOR SCAN ➜ RED ➜ MANDARIN ➜

ORANGE ➜ AMBER ➜YELLOW ➜

G-YELLOW ➜ LIME ➜ GREEN ➜ D-GREEN

➜ USER ➜ COLOR SCAN…

●Setting COLOR SCAN mode

As selecting “COLOR SCAN”, the color auto-

matically changes.

∗The factory default setting is “COLOR SCAN”.

∗After 3 second the color changes to the other.

●Setting USER mode

The factory default setting is “R>8 G>8” (R: red,

G: green).

As selecting “USER”, press and hold the

[COLOR] button for 1 second or longer “R>8

G>8” appears in the display.

1. Press the [a] or [d] button to move the

cursor.

2. Turn the [ROTARY] knob clockwise or coun-

terclockwise to select from 0 to 8.

3. Press and hold the [ ] button for 2 sec-

onds or longer to store the color in memory

and cancel setting mode.

CD changer mode Number of titles

DCZ625 connected 100 titles

CDC655Tz connected 100 titles

CDC1255z connected 50 titles

Mode Number of titles

CD mode 50 titles

TV mode 20 titles

Tuner mode 30 titles

DXZ645MP 25

English

Operations Common to Each Mode

Clearing titles

1. Select and play a CD in the CD changer or

tune in to a TV station or TUNER for which

you want to clear the title.

2. Press the [D] button and display the main.

3. Press the [T] button.

The display switches to the title input display.

4. Press the [BND] button.

5. Press and hold the [ ] button for 2 sec-

onds or longer to clear the title and cancel

title input mode.

Triggered audio mute for cellular

telephones

This unit requires special wiring to mute the au-

dio signal automatically when a cellular tele-

phone rings in the car.

∗This function is not compatible with all cellular telephones

Contact your local authorized Clarion dealer for infor-

mation on proper installation and compatibility.

AUX function

This system has an external input jack so you

can listen to sounds and music from external

devices connected to this unit.

26 DXZ645MP

English

CD changer functions

When an optional CD changer is connected

through the CeNET cable, this unit controls all

CD changer functions. This unit can control a to-

tal of 2 changers.

Press the [FNC] button and select the CD

changer mode to start play. If 2 CD changers

are connected, press the [FNC] button to select

the CD changer for play.

∗If “NO MAG” appears in the display, insert the maga-

zine into the CD changer. “DISC CHECK” appears

in the display while the player loads (checks) the

magazine.

∗If “NO DISC” appears in the display, eject the maga-

zine and insert discs into each slot. Then, reinsert

the magazine back into the CD changer.

Note:

• Some CDs recorded in CD-R/CD-RW mode may

not be usable.

Notes:

• If the CD playing is not a CD-text CD or no user

title has been input, “NO TITLE” appears in the

display.

• If a CD-text CD is not input its disc title or a track

title, “NO TITLE” appears in the display.

Procedure to scroll a title

Set “SCROLL” to “ON” or “OFF”.

(The factory default setting is “ON”. Refer to the

subsection “Turning the screen saver function

on or off” in section “Operation common to

each mode”.)

●When set to “ON”

The title is automatically kept scrolling.

●When set to “OFF”

To scroll just 1 time when the title was changed

or the [T] button was pressed.

Selecting a CD

Press the [UP] or [DN] button to select the de-

sired disc.

∗If a CD is not loaded in a slot of magazine, pressing

the [UP] or [DN] button can not work.

Selecting a track

●Track-up

1. Press the [d] button to move ahead to the

beginning of the next track.

2. Each time you press the [d] button, the

track advances ahead to the beginning of the

next track.

●Track-down

1. Press the [a] button to move back to the

beginning of the current track.

2. Press the [a] button twice to move to the

beginning of the previous track.

Fast-forward/fast-backward

●Fast-forward

Press and hold the [d] button for 1 second or

longer.

●Fast-backward

Press and hold the [a] button for 1 second or

longer.

CD Changer Operations

8. OPERATIONS OF ACCESSORIES

CAUTION

CD-ROM discs cannot be played from every

CD changer, it’s depended on the model.

Pausing play

1. Press the [ ] button to pause play.

“PAUSE” appears in the display.

2. To resume play, press the [ ] button again.

Displaying CD titles

This unit can display title data for CD-text CDs

and user titles input with this unit.

∗Title data for CD-text CDs can be displayed with

this unit only when it is connected to CDC655Tz.

●When connected to DCZ625 or CDC1255z.

Press the [D] button to display the title.

●When connected to CDC655Tz

1. Press the [D] button to display the title.

2. Each time you press and hold the [D] button

for 1 second or longer, the title display

changes in the following order:

User title (disc) ➜ CD-text title (disc) ➜ Artist

name ➜ CD-text title (track) ➜ User title (disc)…

DXZ645MP 27

English

CD Changer Operations

Random play

Random play selects and plays individual tracks

on the disc in no particular order. This function

continues automatically until it is cancelled.

1. Press the [RDM] button. “RDM” lights in the

display and random play begins.

2. To cancel random play, press the [RDM] but-

ton again. “RDM” goes off from the display

and normal play resumes.

Disc random play

The disc random play selects and plays indi-

vidual tracks or discs automatically in no par-

ticular order. This function continues automati-

cally until it is cancelled.

1. Press and hold the [RDM] button for 1 sec-

ond or longer. “DISC” and “RDM” light in the

display and disc random play starts.

2. To cancel disc random play, press the [RDM]

button again. “DISC” and “RDM” go off from

the display and normal play resumes from

the current track.

Scan play

Scan play locates and plays the first 10 seconds

of each track on a disc automatically. This func-

tion continues on the disc until it is cancelled.

∗The scan play is useful when you want to select a

desired track.

1. Press the [SCN] button to start track scan-

ning. “SCN” lights in the display.

2. To cancel the scan play, press the [SCN] but-

ton again. “SCN” goes off from the display

and the current track continues to play.

Disc scan play

Disc scan play locates and plays the first 10 sec-

onds of the first track on each disc in the cur-

rently selected CD changer. This function contin-

ues automatically until it is cancelled.

∗Disc scan play is useful when you want to select a

desired CD.

1. Press and hold the [SCN] button for 1 sec-

ond or longer. “DISC” and “SCN” light in the

display and disc scan play starts.

2. To cancel disc scan play, press the [SCN]

button again. “DISC” and “SCN” go off from

the display and the current track continues to

play.

Repeat play

Repeat play continuously plays the current track.

This function continues automatically until it is

cancelled.

1. Press the [RPT] button. “RPT” lights in the

display and the current track is repeated.

2. To cancel repeat play, press the [RPT] button

again. “RPT” goes off from the display and

normal play resumes.

Disc repeat play

After all the tracks on the current disc have been

played, disc repeat play automatically replays

the current disc over from the first track. This

function continues automatically until it is can-

celled.

1. Press and hold the [RPT] button for 1 second

or longer. “DISC” and “RPT” light in the dis-

play and disc repeat play starts.

2. To cancel disc repeat play, press the [RPT]

button again. “DISC” and “RPT” go off from

the display and normal play resumes on the

current track.

28 DXZ645MP

English

Manual tuning

There are 2 ways available: Quick tuning and

step tuning.

When you are in the step tuning mode, the fre-

quency changes one step at a time. In the quick

tuning mode, you can quickly tune the desired

frequency.

1. Press the [BND] button and select the de-

sired band (TV1 or TV2).

∗ If “MANU” is not lit in the display, press and

hold the [BND] button for 1 second or longer.

“MANU” lights in the display and manual tun-

ing is now available.

2. Tune into a station.

●Quick tuning:

Press and hold the [a] or [d] button for 1

second or longer to tune in a station.

●Step tuning:

Press the [a] or [d] button to manually

tune in a station.

Recalling a preset station

A total of 12 TV stations can be stored (6-TV1

and 6-TV2). This allows you to select your favor-

ite TV stations and store them in memory for

later recall.

1. Press the [BND] button and select the de-

sired TV band (TV1 or TV2).

2. To recall a stored TV station, press the de-

sired [DIRECT] button to select that station.

∗ Press and hold one of the [DIRECT] buttons

for 2 seconds or longer to store the current

station into preset memory.

Manual memory

1. Select the desired station with seek tuning,

manual tuning or preset tuning.

2. Press and hold one of [DIRECT] buttons for

2 seconds or longer to store the current sta-

tion into preset memory.

TV tuner functions

When an optional TV tuner is connected through

the CeNET cable, this unit controls all TV tuner

functions. To watch TV requires a TV tuner and

monitor.

Watching a TV

1. Press the [FNC] button and select the TV

mode.

2. Press the [BND] button to select the desired

TV band (TV1 or TV2). Each time the button

is pressed, the input selection toggles be-

tween TV1 and TV2.

3. Press the [a] or [d] button to tune in the

desired TV station.

Watching a video

The TV tuner has a VTR input terminal to which

1 external device can be connected. Connect a

12 V video cassette player (VCP) or video cas-

sette recorder (VCR) to the TV tuner input termi-

nal.

1. Press the [ ] button to select VTR.

2. To return to the TV broadcast, press the

[] button.

Tuning

There are 3 types of tuning mode available,

Seek tuning, manual tuning and preset tuning.

Seek tuning

1. Press the [BND] button and select the de-

sired TV band (TV1 or TV2).

∗ If “MANU” is lit in the display, press and hold

the [BND] button for 1 second or longer.

“MANU” in the display goes off and seek tun-

ing is now available.

2. Press the [a] or [d] button to automatically

seek a station. Press the [d] button to auto-

matically tune up the frequency band to the

next available TV station; press the [a] but-

ton to automatically tune down.

TV Operations

DXZ645MP 29

English

Auto store

Auto store selects 6 TV stations automatically

and stores each one into preset memory.

If there are not 6 stations with good reception,

stations previously stored in memory remain

and only the strong stations are stored into

memory.

1. Press the [BND] button and select the de-

sired TV band (TV1 or TV2).

2. Press and hold the [P/A] button for 2 sec-

onds or longer. The stations with good recep-

tion are stored automatically to the preset

channels.

Preset scan

Preset scan allows the user to view each preset

position before it automatically advances to the

next preset. This function is useful for searching

for a desired TV station in memory.

1. Press the [P/A] button.

2. When the desired station is found, press the

[P/A] button again to remain tuned to that

station.

Note:

• Do not press and hold the [P/A] button for 2 sec-

onds or longer. Doing so will trigger the auto store

function and start storing stations into memory.

Setting the TV diver

You can change the reception setting for the TV

antenna connected to the TV tuner.

1.

Press and hold the [T] button for 1 second or longer

to switch to the adjustment selection display.

2. Press the [a] or [d] button to select “TV

DIVER”.

3. Turn the [ROTARY] knob clockwise to set to

“ON” or counterclockwise to set to “OFF”.

●ON:

Sets the diver setting to ON.

●OFF:

Sets the diver setting to OFF.

4. Press the [T] button to return to the previous

mode.

TV Operations

30 DXZ645MP

English

9. IN CASE OF DIFFICULTY

Power does not

turn on.

(No sound is

produced.)

No sound output

when operating

the unit with

amplifiers or

power antenna

attached.

Nothing happens

when buttons are

pressed.

Display is not

accurate.

No sound heard

No sound heard

Sound skips or is

noisy.

Sound is cut or

skipped.

Noise is

generated or

noise is mixed

with sound.

Sound is bad

directly after

power is turned

on.

Wrong filename

Play list play is

not performed.

Problem

Fuse is blown.

Incorrect wiring.

Power antenna lead is

shorted to ground or

excessive current is required

for remote-on the amplifiers

or power antenna.

The microprocessor has

malfunctioned due to noise,

etc.

DCP or main unit connectors

are dirty.

The speaker protection

circuit is operating.

MP3/WMA files are absent in

a disc.

Files are not recognized as

an MP3/WMA file.

File system is not correct.

Compact disc is dirty.

Compact disc is heavily

scratched or warped.

MP3/WMA files are not

encoded properly.

Water droplets may form on

the internal lens when the

car is parked in a humid

place.

File system is not correct.

File name or extension is not

correct.

Replace with a fuse of the same amperage. If the

fuse blows again, consult your store of purchase.

Consult your store of purchase.

1. Turn the unit off.

2. Remove all wires attached to the power antenna

lead. Check each wire for a possible short to

ground using an ohm meter.

3. Turn the unit back on.

4. Reconnect each amplifier remote wire to the

power antenna lead one by one. If the amplifiers

turn off before all wires are attached, use an

external relay to provide remote-on voltage

(excessive current required).

Wipe the dirt off with a soft cloth moistened with

cleaning alcohol.

1. Turn down sound volume. Function can also be

restored by turning the power off and on again.

(Speaker volume is reduced automatically when

the speaker protection circuit operates).

2. If the sound is muted again, consult our service

department.

Write MP3/WMA files onto the disc properly.

Use MP3/WMA files encoded properly.

Use ISO9660 level 1, 2 or JOLIET or Romeo file system.

Clean the compact disc with a soft cloth.

Replace with a compact disc with no scratches.

Use MP3/WMA files encoded properly.

Let dry for about 1 hour with the power on.

Use ISO9660 level 1, 2 or JOLIET or Romeo file system.

Use alphanumeric/ASCII characters for MP3/WMA file name.

Use “.M3U” or “.ASX” for the file extension of a play list.

Cause Measure

Reset button

CD/MP3/WMA General

Turn off the power, then press

the [OPEN] button and re-

move the DCP.

Press the reset button for

about 2 seconds with a thin

rod.

DXZ645MP 31

English

10. ERROR DISPLAYS

If an error display other than the ones described above appears, press the reset button. If the problem

persists, turn off the power and consult your store of purchase.

If an error occurs, one of the following displays is displayed.

Take the measures described below to eliminate the problem.

ERROR 2

ERROR 3

ERROR 6

ERROR 2

ERROR 3

ERROR 6

ERROR 2

ERROR 3

ERROR 6

ERROR P

ERROR R

AMP GUARD

Measure

A CD is caught inside the CD deck and is

not ejected.

A CD cannot be played due to scratches,

etc.

A CD is loaded upside-down inside the CD

deck and does not play.

A CD inside the CD changer is not loaded.

A CD inside the CD changer cannot be

played due to scratches, etc.

A CD inside the CD changer cannot be

played because it is loaded upside-down.

A DISC inside the DVD changer cannot be

played.

A DISC cannot be played due to scratches,

etc.

A DISC inside the DVD changer cannot be

played because it is loaded upside-down.

Parental level error

Region code error

The speaker protection circuit is operating.

During this operation, if any volume

operation is performed, the display shows

“AMP GUARD”.

This is a failure of CD deck’s mechanism and

consult your store of purchase.

Replace with a non-scratched,

non-warped-disc.

Eject the disc then reload it properly.

This is a failure of CD changer’s mechanism

and consult your store of purchase.

Replace with a non-scratched, non-warped

disc.

Eject the disc then reload it properly.

This is a failure of DVD mechanism and con-

sult your store of purchase.

Retry or replace with a non-scratched, non-

warped-disc.

Eject the disc then reload it properly

Set the correct Parental level.

Eject the disc and replace correct region

code disc.

1. Turn down sound volume. Function can

also be restored by turning the power off

and on again.

(Speaker volume is reduced automatically

when the speaker protection circuit oper-

ates).

2. If the sound is muted again, consult our

service department.

General CD/MP3/WMA

CauseError Display

CD changer

DVD changer

32 DXZ645MP

English

FM Tuner

Frequency Range:

87.9 MHz to 107.9 MHz

Usable Sensitivity:

9 dBf

50dB Quieting Sensitivity:

15 dBf

Alternate Channel Selectivity:

70 dB

Stereo Separation (1 kHz):

35 dB

Frequency Response (±3 dB):

30 Hz to 15 kHz

AM Tuner

Frequency Range:

530 kHz to 1710 kHz

Usable Sensitivity:

25 µV

CD Player

System:

Compact disc digital audio system

Usable Discs:

Compact disc

Frequency Response (±1 dB):

5 Hz to 20 kHz

Signal to Noise Ratio (1 kHz):

100 dB

Dynamic Range (1 kHz):

95 dB

Harmonic Distortion:

0.01%

11. SPECIFICATIONS

Audio

Maximum Power Output:

208 W (52 W ✕ 4 ch)

Continuous Average Power Output:

17 W ✕ 4, into 4 Ω, 20 Hz to 20 kHz, 1%THD

Bass Control Action (50 Hz/80 Hz/120 Hz):

+16 dB, -12dB

Treble Control Action (8 kHz/12 kHz):

±12 dB

Line Output Level (CD 1 kHz):

1.8 V

General

Power Supply Voltage:

14.4 V DC (10.8 to 15.6 V allowable), negative

ground

Current Consumption:

Less than 15 A, 3A

Speaker Impedance:

4Ω (4 Ω to 8 Ω allowable)

Weight / Source unit:

2.86 lb. (1.3 kg)

Weight / Remote control unit:

1 oz. (30 g) (including battery)

Dimensions / Source unit:

7" (Width) ✕ 2" (Height) ✕ 6-3/16" (Depth)

[178 (W) ✕ 50 (H) ✕ 157 (D) mm]

Dimensions / Remote control unit:

1-3/4" (Width) ✕ 4-5/16" (Height) ✕ 1-1/8"

(Depth)

[44 (W) ✕ 110 (H) ✕ 27 (D) mm]

Note:

• Specifications and design are subject to change without notice for further improvement.

2003/12

Clarion Co., Ltd.

All

Rights Reserved. Copyright ©2003: Clarion

Co.,

Ltd.

Printed in China /Imprime

en

Chine /Impreso

en

China

PE-26218

280-8002-00

2002/12 (A'D)

Printed

in

China

/

Imprime

en

Chine

/Gedruckl

in

China

/Stampala

in

Cina

/Gedrukl

in

China

/

Impresa

en

China

ITryckt i

Kina

/

Impressa

na

China

<285-1919-00>

clarion

MP3/WMA Operations /Fonctionnement des MP3/WMA

MP3/WMA-Betrieb /Operazioni MP3/WMA

Before

using

any

MP3/WMA

discs,

please

read

the

following

supplemental

instructions

in

conjunction

with

your

Owner's

Manual.

Avant

d'utiliser

des

disques

MP3/WMA,

veuillez

lire

les

explications

comph~mentaires

suivantes

en

plus

de

celles

de

votre

Mode

d'emploi.

1.

Turn

down

sound

volume. Function

can

also

be

restored

by

turning the power off

and

on

again. (Speaker volume

is

reduced automatically when the speaker protection

circuit operates).

2.

If

the sound

is

muted again, consult our service

department.

liause

.

~>

,':

:J

Pas

de

son.

Le

circuit de

1.

Abaissez

Ie

volume sonore.

Le

fonctionnement peut

~

protection aussi etre retabli

en

mettant I'appareil hors tension, puis

:des haut-

sous

tension.

parleurs a

(Le

volume des haut-parleurs est automatiquement reduit

(fonctionne. lorsque

Ie

circuit

de

protection entre

en

service.)

2.

Si

Ie

son

est anouveau

mis

en

sourdine, consultez notre

.service d'entretien.

Mode de liste de lecture

Appuyez sur la touche

[<<OIIl]

ou

[~>]

pour changer la plage.

Appuyez sur [DN] pour passer ala Iiste

de lecture precedente.

Appuyez sur [UP] pour passer ala Iiste

de lecture suivante.

Remarques:

•Les fonctions

SCN

1

RPT

1

ROM

ne

sont

pas

utilisables

pendant

Ie mode de liste

de

lecture.

• L'affichage de titre change du

nom

de

dossier au nom de liste de lecture.

eFormat

logique

(systeme

de

fichier)

•N'attribuez pas

un

nom aun fichier dans

un

dossier ou

Ie

meme nom existe deja.

Affichage des titres de

CD

Remarques:

•Si un disque MP31WMA

ne

possede

pas

de

TAG,

Ie message "NO TAG"

apparait

sur

I'afficheur.

•

Pour

les MP3, il

prend

en compte les Tags

103

V2,312.21

1.1

1

1.0.

•L'affichage

Tag

donne

la

priorite aV2.3 12.2.

•Dans Ie cas d'Album Tags

pour

WMA,

I'information ecrite

sur

I'en-tete

d'extension

est

affichee.

•Seuls les caracteres

ASCII

peuvent

etre

affiches en

Tags.

Qu'est-ce que WMA?

e

Pour

invalider

DRM

(Gestion

de

Droits

Numeriques):

• A I'emploi de Windows Media Player

7,

cliquez sur OUTILS

...

OPTIONS'"

CD

AUDIO; la, decochez la case ENABLE

PERSONAL RIGHTS MANAGEMENT,

puis construisez les fichiers.

• A I'emploi de Windows Media Player

pour Windows XP

8,

cliquez sur OUTILS

...

OPTIONS'"

I'onglet COPY MUSIC,

puis sous COPY SETTINGS, decochez

la case PROTECT CONTENT. Ensuite,

reconstruisez les fichiers.

Les fichiers WMA personnellement

construits devront etre utilises sous

votre propre responsabilite.

Precautions

lors

de la

realisation

d'un

disque

MP31

WMA

eTaux

d'echantillonnage

et

debits

binaires

utilisables

•

MP3:

Taux d'echantillonnage : 8 kHz -

48 kHz

Debits binaires : 8 kbps -320 kbps IVBR

•

WMA:

Debits

binaires:

48 kbps -192

kbps

EN CAS DE DIFFICULTE

Displaying CD titles

Notes:

•

If

MP3IWMA disc is

not

input

TAG,

"NO

TAG" appears in the display.

•For MP3, supports 103 Tags V2.3

12.21

1.111.0.

•

Tag

displays give priority

to

V2.3

12.2

•In the case

of

album Tags for WMA, the

information written into the extension

header

is displayed.

•Only

ASCII

characters can

be

displayed in

Tags.

Play

list

mode

Press the

[<<OIIl]

or

[~>]

buttons to

change the track.

Press [DN] button to move to the previ-

ous play list.

Press [UP] button to move to the next

play list.

Notes:

•The SCN/RPTIROM functions cannot

be

used

while in the

play

list mode.

•The title display changes from folder

name

to

play

list name.

The speaker

protection

circuit

is

operating.

What

is

WMA?

eTo

disable

DRM

(Digital

Rights

Management)

:

•When using Windows Media Player

7,

click on

TOOLS'"

OPTIONS'"

CD

AUDIO; there, uncheck the ENABLE

PERSONAL RIGHTS MANAGEMENT

check box, then construct files.

•When using Windows Media Player for

Windows XP

8,

click on TOOLS

...

OPTIONS'"

COPY MUSIC tab, then

under

COpy

SETTINGS, unclick the

check box for PROTECT CONTENT.

Thereafter, reconstruct files.

Personally constructed WMA files are

used at your own responsibility.

IN CASE OF DIFFICULTY

Precautions when creating

MP31WMA

disc

eUsable

sampling

rates

and

bit

rates:

•MP3: Sampling rate

8k

Hz-48 kHz,

Bit rate: 8kbps-320 kbps IVBR

•WMA: Bit rate 48 kbps-192 kbps

e

Logical

format

(File

system)

•Do not affix aname to afile inside a

folder having the same name.

Bitte

lesen

Sie

vor

dem

Gebrauch

von

MP3/WMA-Oiscs

die

folgenden

Hinweise

zusatzlich

zur

Bedienungsanleitung.

Prima

di

utilizzare

dei

dischi

del

tipo

MP3 0

WMA

leggere

Ie

seguenti

istruzioni

aggiuntive,

che

completano

iI

contenuto

del

manuale

di

istruzioni.

1.

Drehen

Sie

die Lautstarke

zurOck.

Die

einwandfreie Geratefunktion

kann

auch

wiedergestellt werden,

indem

das Gerat einmal aus-

und

dann

wieder eingeschaltet wird.

(Bei

aktivierter Schutzschaltung wird

die

Lautstarke

automatisch reduziert.)

2.

Falls die Stummschaltung erneut aktiviert wird, wenden

Sie

sich

bitte

an

den

Clarion-Kundendienst.

-.

-'

..

,.;

,:

i;J:.,~··

c.'

Non

eudibile

II

circuito

di

1.

Abbassare

il

volume sonoro.

alcun suono. protezione

La

funzione

PUQ

venire ripristinata anche spegnendo

degli I'apparecchio eriaccendendolo (all'attivazione

del

circuito

altoparlanti e

di

protezione degli altoparlanti

il

volume degli altoparlanti

stato viene automaticamente ridotto).

attivato.

2.

Se

il

suono risulta

di

nuovo silenziato, rivolgersi

al

nostro

Centro

di

assistenza.

Moda/ita

di

lettura

di

una lista

Per cambiare brano agire

opportunamente sui tasti

[<<OIIlj

0

[~>].

Per passare alia Iista

di

lettura

precedente agire sui tasto [DN].

Per passare alia lista di lettura

successiva agire sui tasto [UP].

Note:

•Le funzioni di scansione (SCN),

di

ripetizione (RPT) edi riproduzione casuale

(ROM) non possono essere utilizzate in

modalita di lista di lettura.

•La visualizzazione del titolo passa da

quella

del

nome della cartella aquella

del

nome della lista

di

lettura.

Visualizzazione dei titoli dei

CD

Note:

•

Se

il disco

del

tipo MP3IWMA non

contiene alcun titolo

di

etichettatura,

sui

quadrante compare

iI

messaggio "NO

TAG" ("nessuna etichetta'].

•Per I'MP3, sono utilizzabili

Ie

etichette 103

del

tipo V2.3, V2.2,

V1.1

eV1.0.

•La visualizzazione dell'etichetta da la

priorita aV2.3 eV2.2.

•

Nel

caso di etichette

per

album

del

sistema WMA, viene visualizzata

/'informazione contenuta nell'estensione.

•Nelle etichette possono essere visualizzati

solo icaratteri

del

tipo ASCII.

eFormato

logico

(sistema

dei

file)

Non assegnare ad un file che

si

trova

dentro una cartella

10

stesso nome

della cartella.

IN CASO DI DIFFICOLTA

Che cosa e

if

sistema WMA?

eOisattivazione

del

sistema

DRM

(Digital

Rights

Management

=

Gestione

dei

diritti

digitali):

In

caso

di

uso del sistema Windows

Media Player 7c1iccare, nell'ordine,

STRUMENTI

...

OPZIONI

...

CD

AUDIO; disattivare I'opzione

"ATTIVAZIONE DELLA GESTIONE DEI

DIRITTI DIGITALI", eprocedere poi alia

realizzazione dei file.

In

caso di uso del sistema Windows

Media Player per Windows XP

8,

cliccare su

STRUMENTI'"

OPZIONI

...

Iinguetta COPIARE MUSICA, epoi,

alia voce PREDISPOSIZIONI PER LA

COPlA, disattivare I'opzione

PROTEZIONE DEL CONTENUTO.

Dopo di cia si puo procedere alia

realizzazione dei file.

Ifile

WMA

realizzati su base personale

sona utilizzati sotta la diretta

responsabilita de/l'utente.

Precauzioni

per

la creazione

di

dischi

MP3 e

WMA

e

Valori

di

campionamento

e

di

bit

utilizzabili:

MP3: Valori

di

campionamento:

da

8 a

48 kHz

Valori bit:

da

8 a 32 kbps (VBR)

WMA: Valori bit: da48 a192 kbps

eLogisches

Format

(Dateisystem)

Einer Datei darf nicht der gleiche Name

wie der Name des Ordners

zugewiesen,

in

dem sich die

betreffende Datei befindet.

Anzeigen von Disc-

Namensinformationen

Hinweise:

•Wenn

fUr

eine MP3/WMA-Oisc keine

TAG-

Informationen eingegeben worden sind,

erscheint die Anzeige "NO TAG"

im

Display.

•

Bei

MP3-0ateien

werden 103-

Tags

V2.31

2.211.111.0

untersWtzt.

•

Bei

der

Anzeige von Tag-Informationen

werden V2.3

12.2

mit Vorrang behandelt.

•

Bei

Album-Tags

fiir

WMA-Oateien werden

die in die Erweiterungs-Kopfzeile

geschriebenen Informationen angezeigt.

•In Tags k6nnen

nur

ASCII-Zeichen

angezeigt werden.

Abspiellisten-Modus

Betatigen Sie die Tasten

[<<OIIlJ,

[~>],

um den Titel

zu

wechseln.

Drucken Sie die [DN]-Taste, um auf die

vorige Abspielliste zuruckzukehren.

Drucken Sie die [UP]-Taste, um auf die

nachste Abspielliste weiterzuschalten.

Hinweise:

•

1m

Abspiellisten-Modus stehen die

SCNI

RPT/ROM-Funktionen nicht

zur

Verfiigung.

•Die Namensanzeige wechselt vom

Ordernamen

auf

den Abspiellistennamen.

Die

Lautsprecher-

Schutzschal-

tung

ist

aktiviert.

FEHLERSUCHE

Was

bedeutet

"WMA"?

eZum

Sperren

von

DRM

(Digital

Rights

Management)

•Bei Verwendung von Windows Media

Player 7klicken Sie auf

TOOLS'"

OPTIONS'"

CD AUDIO, deaktivieren

Sie das Kontrollkastchen ENABLE

PERSONAL RIGHTS MANAGEMENT,

und konstruieren Sie dann die Dateien.

Bei Verwendung von Windows Media

Player for Windows XP 8klicken Sie

auf

TOOLS'"

OPTIONS'"

COPY

MUSIC, deaktivieren Sie

in

dieser

Registerkarte das Kontrollkastchen

PROTECT CONTENT unter COPY

SETTINGS, und rekonstruieren Sie

dann die Dateien.

Der Hersteller bietet keinerlei Gewahr

fUr

Dateien, die vom Benutzer selbst

konstruiert wurden.

Vorsichtshinweise

zur

Erstellung von MP3IWMA-

Discs

eGeeignete

Abtastfrequenzen

und

Bitraten:

MP3: Abtastfrequenz: 8kHz bis 48 kHz,

Bitrate: 8kBiVs bis 320 kBiVs IVBR

WMA: Bitrate: 48 kBiVs bis 192 kBiVs

284·9882·00

2003/11

Printed

in

China

1

imprime

en

Chine

Ilmpreso

en

China

......;...-----------......:;.;;,;;.;;.;.~-----=:::..:..=::..::.:=---------------------------------,

clarion

InstaliationlWire Connection Guide

Manuel d'installation

et

de connexion

Guia de instalaci6n/conexion de cables

GIrD

.......

-1.

BEFORE STARTING IPREPARATIFS IANTES

DE

COMENZAR

1.

This set is exclusively for use in cars with a

negative ground, 12 Vpower supply.

2. Read these instructions carefully.

3. Be sure to disconnect the battery

"8"

terminal

before starting. This is to prevent short circuits

during installation. (Figure 1)

1.

Cet appareil

est

exclusivement destine aetre

utilise dans les voitures avec une alimentation

12 Vamasse negative.

2.

lire

ces instructions attentivemen!.

3. S'assurer

de

debrancher la borne

"8"

de la

batterie avant de commencer. Cela evitera les

court-circuits pendant !'installation. (Figure 1)

1. Esta unidad

ha

sido disenada para utilizarse

exclusivamente en automoviles con fuente de

alimentacion de 12

V,

Ynegativo

amasa.

2. Lea cuidadosamente estas instrucciones.

3. Antes de comenzar, cerciorese de desconec-

tar el terminal

"8"

de la bateria. Esto es para

evitar cortocircuitos durante la instalacion.

(Figura 1)

Car

battery

Batterie

de

voiture

Bateria

del

autom6vil

Figure 1 / Figure 1/ Figura 1

..........

-2.

CAUTIONS

ON

INSTALLATION'

PRECAUTIONS

AU

SUJET

DE

L'INSTALlATION

,

PRECAUCIONES

PARA

LA

INSTALACION

1.

Prepare all articles necessary for installing the source unit before

starting.

2. Install the unit within 300

of

the horizontal plane. (Figure 2)

3. If you have to do any work on the car body, such as drilling holes,

consult your

car

dealer beforehand.

4.

Use

the enclosed screws for installation. Using other screws can

cause damage. (Figure 3)

1.

Avant de commencer,

prE3parer

toutes les pieces necessaires pour

installer I'appareil pilote.

2.

Installer I'appareil avec un angle inferieur a30° par rapport it !'ho-

rizontal. (Figure 2)

3.

S'i1

est necessaire d'effectuer certains travaux

sur

la carrosserie

comme percer des trous, consulter d'abord votre concessionnaire

automobile.

4. Utiliser les vis fournies pour I'installation. L:utilisation d'autres vis

peut causer des dommages. (Figure 3)

1. Antes de comenzar, prepare todos los elementos necesarios para

instalar la unidad fuente.

2. Instale la unidad con un angulo

de

300sobre el plano horizontal.

(Figura 2)

3. Si tiene que realizar cualquier trabajo en la carroceria, como

taladrado de orificios, etc., consulte al proveedor de su automovil.

4. Use los tornillos incluidos para la instalacion.

EI

uso

de

otros

tornillos puede causar danos. (Figura 3)

Max.

30'/30'

max.

I

Max.

30

Chassis 1Chassis 1Chasis

i;-m-I-e-m-m-m-ax-.-I

M"-ax.

8

mm

Chassis

IChassis 1

Chasis

~_-_-_-

""''''

'Oommo""

"",,

Figure

2/

Figure

2/

Figura 2Figure

3/

Figure

3/

Figura 3

..........

-3.

INSTALLING

THE

SOURCE

UNIT

'INSTALLATION

DE

L:

APPAREIL

PILOTE

'INSTALACION

DE

LA

UNlOAD

FUENTE

•Universal Mount

1.

Place the universal mounting bracket into the instrument panel, use a

screwdriver to bend each stopper

of

the universal mounting bracket

inward, t-hen secure the stopper as shown in Figure 4.

2. Wire

as

shown in Section

6.

3. Insert the source unit into the universal mounting bracket until it locks.

4. Take care

of

the top and bottom

of

the outer escutcheon and mount it

so that all

the

hooks are locked.

•Montage universel

1.

Placer

Ie

support de montage ,;niversel dans

Ie

tableau de bard,

utiliser un tournevis pour replier vers I'exterieur chaque languette du

support de montage universel. puis fixer les languettes comme

montre sur la Figure 4.

2.

Cabler comme montre dans la Section

6.

3. Inserer I'appareil pilote dans

Ie

support de montage universel jusqu'a

ce qu'iI soit bloque.

4. Reperer

Ie

haut et

Ie

bas de I'ecusson exterieur et

Ie

monter de

maniere que tous les crochets soient verrouilles.

•Montaje universal

1.

Coloque el soporte de montaje universal en el tablero de instrumen-

tos, utilice un destornillador para doblar cada reten del soporte

de

montaje universal hacia adentro, ydespues asegure

el

reten

como

se

muestra en la Figura 4.

2.

Conecte los cables como

se

muestra en la Seccion

6.

3. Inserte la unidad fuente en el soporte de montaje universal hasta

que

quede enganchado.

4. Tenga cuidado con la partes superior einferior de la pieza ornamen-

tal exterior, ymontela de forma que todos los ganchos queden

bloqueados.

Notes:

1)

Some

car

models require special mounting kits forproper

installation. Consult

your

Clarion dealer for details.

2)

Fasten the front stoppersecurely to prevent the source unit from

coming loose.

Remarques:

1)

Certains modeles de voiture necessitent un kit de montage special

pour

une installation correcte. Consulter

Ie

revendeur Clarion

pour

les details.

2) Serrer fermement la languette avant

pour

eviter que I'appareil

pilote ne

se

desserre,

Notas:

1)

Algunos modelos de autom6viles requieren juegos de montaje

especiales para realizar la instalaci6n apropiada. Solicite los

detalles a

su

proveedor Clarion.

2) Apriete con seguridad

el

retan frontal para evitar que

se

afloje la

unidad fuente.

rlnstrument panel

Tableau de bord

Tablero de instrumentos

•

Console

openIng

dimensions

•

Dimensions

d'ouverlure

de

la

console

•

Dlmensiones

de

la

abertura

de

la

consola

Top

Haut

Parte superior

t

Installation direction

/'L..,

Sens d'installation

~

Direcci6n de instalaci6n

+

Bottom

Bas

Parte inferior

Outer

escutcheon

side

view

Vue

lateraIe

de

l'ecusson

exterleur

Vista

lateral

de

la pleza

ornamental

exterior

Hole

Trou

Orificio

.----

Stoppers

Languettes

Retenes

Outer escutcheon

Ecusson exterieur

Pieza ornamental exterior

Stoppers

languetles

Retenes

ee

ee

e

//~

Hexagonal bolt

Ecrou hexagonal

Perno hexagonal

Strap

Armature

Banda

*This part is not provided in some models.

*Cette piece n'existe pas sur tous les modeles,

*Esta pieza no se suministra con algunos modelos.

Universal mounting bracket

Support de montage universel

Soporte de montaje universal

Spring

Ressort

Resorte

Note:

Before attaching the universal mounting bracket, slightly bend

the spring toward the inside with your fingers and attach it to the

side of car.

Remarque:

Avant de fixer Ie patin de montage universel, pliez iegerement

Ie

ressort vers I'interieur avec les doigts et fixez-Ie sur Ie cote de la

voiture,

Nota:

Antes de fijar

el

soporte de montaje universal, doble

Iigeramente

el

resorte hacia

el

interior con los dedos yffjelo en

la parte lateral del autom6vil.

Figure

4/

Figure

4/

Figura 4

•PRECAUTION

Remove

the

stopper

following

the

procedures

below

when

this

source

unit

is

installed

without

the

universal

mounting

bracket.

1.

Remove

the

screw

from

the

source

unit (Figure

5).

2.

Remove

the

stopper

from

the

source

unit (Figure

6).

3.

Install

the

remove

screw

to

the

source unit (Figure 7).

•

Securely

attach

the

screw.

•PRECAUCION

Retire

el

tapon

despues

de

los

siguientes

procedimientos

indicados

abajo

cuando

esta

unidad

de

la fuente

esta

instalada

sin

el

soporte

de

montaje

universal.

1,

Quite

el

tornillo

de

la

unidad

de

la

fuente

(Figura

5).

2,

Quite

el

tapon

de

la

unidad

de

la

fuente

(Figura

6).

3,

Instale

el

tornillo retirado

de

la

unidad

de

la

fuente

(Figura 7),

•Apriete firmemente

el

tornillo,

•'Precaution

Retirer

la

languette

en

procedant

comme

suit pour installer

Ie

module

source

sans

la

patte

de

montage universel.

1.

Retier la vis

du

module

source

(Figure

5).

2,

Retirer

la

languette

du

module

source

(Figure

6).

3.

Fixer la

vis

ainsi

retiree sur

Ie

module

source (Figure 7).

*Fixer

la

vis a

fond

.

Note:

Store

the

removed

stopper

in

a

safe

place together

with

the

Instruction

Manual.

Nota:

Guarde

el

tapon

retirado

en

un

lugar

seguro

junto

con

el

Manual

de

Instrucciones. Remarque:

Ranger la languette retiree

en

lieu

sOr

avec

Ie

mode

d'emploi.

Example 1/Exemple 1/Ejemplo 1Example 21Exemple 21Ejemplo 2

..

(j)

Stopper/LanguetteITap6n

®Source UnitlModuie sourcelUnidad de la fuente

..

•

PRECAUTION

Push

in

the

protruding part

as

shown

in

the

figure.

IIIIPRECAUCION

Em\?uje

la

parte saliente

como

se

muestra

en

la

figura,

•

PRECAUTION

Appuyez sur la

piece

faisant saillie

comme

indique sur la

figure,

(j)

Stopper/LanguetteITap6n

®Source UnitIModule source/Unidad de la fuente

®ScrewdriverlToumevis/Destornillador

@ScrewNislTornillo

Figure 51 Figure 5IFigura 5Figure 61 Figure

61

Figura 6Figure 7IFigure 7IFigura 7Figure 81 Figure 8IFigura 8Figure 91 Figure 9IFigura 9Figure 10 IFigure 10 IFigura 10

•Fixed Mount (Using the bracket originally equipped in vehicle)

This unit

is

designed

for

fixed

installation

in

the

dashboard.

If

the

vehicle

is

equipped

with

afactory-installed

radio,

install

the

source

unit

with

the

parts

and

screws

marked

(*). (Figure

11)

If

the

vehicle

is

not

equipped

with

afactory-installed

radio,

obtain

an

installation kit

to

install

the

source unit

in

the

following

procedure.

1.

Secure

the

mounting brackets

to

the

chassis

as

shown

in

Figure

11.

When

the

source unit

is

installed without

the

universal

mounting

bracket,

holes

exist;

modification,

such

as

drilling

new

holes,

of

the

mounting brackets

may

be

required

for

other models.

2.

Wire

as

shown

in

Installation (Section

6).

3.

Secure

the

unit

in

the

dashboard,

and

then

reassemble

the

dashboard

and

the

center

panel.

III Montage fixe (Avec la patte fixee aI'origine dans Ie vehicule)

L:apparell

est

con9u

pour

une

installation

fixe

dans

Ie

tableau

de

bordo

Si

Ie

vehicule est

equipe

d'une

radio

installee

en

usine,

installer

Ie

module

source

avec

les

pieces

et

les

vis

marquees d'un asterisque (*),

(Figure

11),

Si

Ie

vehicule n'est

pas

equipe

d'une

radio

installee

en

usiine,

se

procurer

Ie

kit

d'installation pour installer

Ie

module

source

en

procedant

comme

suit.

1,

Fixer les

pattes

de

montage

sur

la

carrosserie

comme

indique a

la

Figure

11.

Pour

installer

Ie

module

source

sans

patte

de

montage

universel,

les

orifices existent

deja;

pOllr

les

autres

modeles,

iI

faudra

peuHltre modifier

les

pattes

de

montage

(par

exemple

percer

de

nouveaux

orifices),

2,

Effeciuer

les

cablages

comme

indique

dans

Installation (Section 6),

3.

Fixer

I'appareil

dans

Ie

tableau

de

bord,

puis

remonter

Ie

tableau

de

bord

et

Ie

panneau

central.

•Montura fija (Usando

el

soporte originalmente equipado en el vehiculo)

Esta

unidad

ha

sido

disenado

para

la Instalacion fija

en

el

tablero

de

instrumentos.

Si

el

vehiculo esta equipado

con

una

radio

instalada

en

fabrica, instale la

unidad

de

la

fuente

con

las piezas los tornillos marcados

con

(*).

(Figura

11)

Si

el

vehiculo

no

esta equipado

con

una

radio

instalada

en

fabrica, obtenga

un

juego

de

instalacion para Instalar la unidad

de

la

fuente mediante

el

procedimiento

que

se

da

a

continuaci6n:

1,

Asegure los soportes

de

montaje

al

chasis

como

se

muestra

en

la Figura

11.

Cuando

la

unidad

de

la

fuente esta instalada

sin

el

soporte

de

montaje

universal,

existendo agujeros, puede requerirse

una

modificacion para otros modelos,

tal

como

pertoraci6n

de

nuevos

agujeros.

2.

Realice

el

cableado tal

como

se

muestra

en

instalaci6n

(Secci6n

6).

3.

Asegure la

unidad

en

el

tablero

de

instrumentos, yluego

vue

Iva

armar

el

tablero

de

instrumentos y

el

panel

central.

Mounting

bracket

•

-----------,

(1

pair

for

the

left

and

right

sides)

Support

de

montage

*

(1

paire,

pour

les

faces

gauche

et

dro/te)

Soporte

de

montaje

•

(1

par

para

los

lados

Izquierdo

y

derecho)

Center Panel (Note

1)

Panneau central (Flemarqure

1)

Panel central (Nota

1)

Dashboard

Tableau

de

bord

Tablero

de

Instrumentos

Figure

11

/Figure

11

/Figura

11

• :

The

parts

and

SCREW

with

this mark

are

used

to

install

radio

or

included

in

the

installation

kit.

*:

The

screws

with

this mark

are

originally attached

to

the

vehicle.

Note 1:

In

some

cases,

the

centerpanel may require some modification (trimming, filling,

etc.).

Note

2:

If

ahook

on

the

installation bracket interferes

with

the

unit,

bend and flatten it

with

anipper or asimilar

tool.

:

Les

pieces

et

la

VIS

portant cette

marque

servent

pour I'installation

de

la

radio

ou

sont fournies

avec

Ie

kit d'installation.

*:

Les

vis

portant cette

marques

sont

montees

d'origine

dans

Ie

vehicule.

Flemarque 1:

Dans

certains

cas.

if

sera parfois necessaire

de

modii/er

Ie

panneau central

(decoupe,

rempl/ssage,

etc,),

Flemarque 2: Si

Ie

crochet

de

la

patte d'installation intertere avec I'appareif,

Ie

pl/er et

rapatir araide d'une pince par

exempie,

• :

Las

piezas y

los

tornillos

con

esta

marca

se

utilizan para instalar

una

radio

0

estan

incluidos

en

el

juego

de

instalaci6n,

*:

Los

tornillos

con

esta marca

estan

original

mente

sujetos

al

vehrculo.

Nota 1:

En

algunos

casas,

elpanel central puede requerr cierta modificaci6n (Recorte,

relleno,

etc.).

Nota

2:

Si

un

gancho

en

et soporte

de

instalaci6n interfiere can

la

unidad, d6belo y

aplastelo

can

una

pinzas

de

corte uotra herramienta especial.

---

-4.

REMOVAL

OFTHE

SOURCE UNIT IDEPOSE DE L'APPAREIL PILOTE IDESMONTAJE DE LA UNlOAD FUENTE

1.

When

removing

the

source

unit,

disassemble it

in

the

reverse

of

the

order

in

Section

"3.

INSTALLING

THE

SOURCE

UNIT'.

2.

Remove

the

Detachable Control

Panel

(DCP).

*

For

instructions

on

removing

the

DCP,

refer

to

the

owner's

manual.

3.

Press

the

outer escutcheon

upward

and

remove

it.

(Figure

12)

4.

Insert

and

lock

the

hook

plates.

(Figure

13)

5.

Pull

the

hook

plates to

remove

the

source

unit.

1,

Lors

de

la

depose

de

I'appareil pilote,

demonter

dans

I'ordre

inverse

de

la

Section

"3.

INSTALLATION

DE

l:APPAREIL

PILOTE",

2,

Deposer

Ie

clavier

de

commande

amovible

(DCP),

"

Pour

les

instructions

sur

Ie

retrait

du

clavier

de

commande

amovible

(DCP),

se

reterer

au

mode

d'emploi.

3. Presser I'ecusson exterieur

vers

Ie

haul

et

Ie

retirer.

(Figure

12)

4, Inserer

et

verrouiller

les

plaques

acrochet (Figure

13)

5.

Tirer sur

les

plaques acrochet pour

retirer

I'appareil

pilote,

1.

Para

desmontar la

unidad

fuente,

realice

el

procedimiento inverso

al

de

la

Seccion

"3.

INSTALACI6N

DE

LA

UNIDAD

FUENTE".

2.

Desmonte

el

panel

de

control desmontable

(DCP).

•

Para

instrucciones

sobre

c6mo

desmontar

el

DCP,

consulte

el

manual

de

instrucciones.

3.

Presione la pieza ornamental

ex1erior

hacla afuera yextraigala.

(Figura

12)

4.

Inserte y

bloquee

las

placas

de

enganche. (Figura

13)

5.

Tire

de

las

placas

de

enganche

para

extraer la

unidad

fuente.

Figure

12/

Figure 121 Figura

12

Figure

13/

Figure

13/

Figura 13

---

-5.

CAUTIONS

ON

WIRING

I

PRECAUTIONS

AU

SUJET

DES

CONNEXIONS

I

PRECAUCIONES

PARA

LA

CONEXION

DE

CABLES

•

1.

Be

sure

to turn

the

power

off

when

wiring.

2.

Be

particularly careful where

you

route

the

wires.

Keep

them

well

away

from

the

engine, exhaust

pipe,

etc.

Heat

may

damage

the

wires.

3.

If

the

fuse should

blow,

check

that

the

wiring

is

correct.

If

it

is,

replace

the

fuse

with

a

new

one

with

the

same

amperage

rating

as

the

original

one.

(Figure

14)

Note:

There

are various types of

fuse

holder.

Do

not let

the

battery side touch other

metal parts.

4.

Connect

the

CeNET

extension

cable

fully

and

securely until it

locks.

When

the

CeNET

extension

cable

is

pulled,

hold

the

slide

cap

part

and

pull

it towards

you.

•

When

the

CeN

ET

extension

cable

is

ex1ended

or

branches,

use

extension

cable

CCA-520

(2.5m)

or

CCA-521

(0.6m), orY-adapter CCA-519

(each

of

them

is

sold

separately),

•

Use

the

CeNET

extension

cable

made

by

Clarion.

5,

When

the

main

power

supply

fuse

in

the

car

is

15

Aor

less,

purchase

an

automotive

cable

that

can

withstand

15

A

and

supply this unit

with

power

directly

from

the

battery

to

ensure that

the

unit

will

operate

normally.

Note

that afuse

must

be

installed at adistance

no

longer

than

30

cm

from

the

cable

battery terminal

to

prevent

accidents.

III

1,

S'assurer

de

mettre I'appareil

hors

circuit

avant

de

faire

Ie

cablage.

2,

Faire

particulierement attention

lors

de

I'acheminement

des

fils,

Les

eloignel'

du

moteur,

des

tuyaux

d'echappement,

etc,

La

chaleur

risque

d'endommager

ces

fils.

3.

Si

Ie

fusible

saute,

verifier

si

Ie

cablage

est

correct

Si

Ie

fusible est grille,

Ie

remplacer

par

un

fusible neuf

de

meme

amperage

que

Ie

fusible d'origine,

(Figure

14)

Remarque:

il

y a different

type

de

porte-fusible,

La

borne

du

cote batterle

ne

dolt pas

toucller d'autres pj(,ces metalliques,

4,

Connecter

Ie

cable

d'extension

CeNET

completement et

soli

dement

jusqu'a

ce

qU'il

soit verrouille,

Pour

tirer

Ie

ciible

d'extension

CeNET,

tenir

la

partie

coulissante

du

capuchon

et

tirer

vers

vous,As

*

Pour

etendre

au

deriver

Ie

cable

d'extension

CeNET,

utiliser

Ie

cable

d'extension CCA·520

(2,5

m

[8

piedsJ)

ou

CCA-521

(0,8m

[2

pieds]),

ou

l'adaptateurY CCA·519

(ces

cables

sont

vendus

separement)

*Utiliser

les

cables

d'extension

CeNET

fabriques par Clarion,

5,

Si

Ie

fusible d'alimentation principale

de

la

voiture est

de

15

A

ou

moins,

achetez

un

cable

automobile

qui

peut

supporter

15

A

et

alimenter

cet

apparell

directement apartir

de

la

batterie et

assurer

que

I'appareil fonctionnera

nonnalement.

Notez qu'un fusible

do

it

etre installe a

une

distance

de

mains

30

cm

de

borne

de

la

batterie pour eviler

tout

accident

III

1.

Antes

de

hacer

las

conexiones,

asegurese

de

desconectar

la

alimentacion

de

la

unidad.

2.

Sea

especial

mente

cuidadoso

al

dirigir yfijar

los

cables.

mantengalos alejados

del

motor,

tubo

de

escape,

etc.

EI

calor

puede

danar

los

cables.

3.

SI

el

fusible

se

quema,

revise

las

conexiones.

Si

esta

quemado,

reemplace

el

fusible por otro

nuevo

con

el

mismo

valor

de

amperaje

que

el

original. (Figura

14)

Nota:

Existen varios tipos

de

portafusibles.

No

permita que el terminal dellado

de

la

baterfa toque otras partes metal/cas.

4.

Conecte

el

cable

prolongador CeNET completa yseguramente hasta

que

chasquee.

Para

desconectar

el

cable,

sujete

la

parte

de

la tapa deslizable y

tire

hacia usted.

•

Para

prolongar 0ramificar

el

cable

prolongador

CeNET,

utilice

un

cable

prolongador CCA-520 (2,5

m)

0

CCA-521

(0,6

m),

0

un

adaptador

en

Y

CCA-

519

(vendidos aparte).

•Utilice

un

cable

prolongador CeNET fabricado por Clarion.

5.

Cuando

el

fusible

de

alimentacion principal

del

automovil

sea

de

15

A0

menos,

adquiera

un

cable

para

autom6vll

que

pueda resistir

15

AYalimente

esta

unidad

directamente

desde

la

baterfa para cerciorarse

de

que

pueda

funcionar

normal

mente.

Tenga

en

cuenta

que

para

evitar accidentes, debera instalar

un

fusible

en

al

cable

que

va

aterminales

de

la baterfa auna distancia

no

superior a

30

cm.

~

Fuse

Fusible

Fuse

case

Fusible

Boitier

a

fusible

r

Caja

de

fusible

.,

Figure 141 Figure 141 Figura 14

GIID

__

...

-6.

WIRE CONNECTIONS ICONNECTIQUE ICONEXION DE CABLES

,-oIIIICE!!!IIlJ@

'--'lIIIIl...

!!tI@

Antenna

~

Antenna

Antena

nDa=»

~®

II

1::::::1

L..-------C-e-N-ETtput

f

Entree

CeNET

Entrada

de

CeNET

® •

@...

.DXZ845MC

To

external

unit

Vers un appareil externe

Aun unidad externo

To

wireless head phone UNIT

Vers

Ie

casque sans til

Ala unidad de auriculares inalambricos

To

external amplifier

*

To

eliminate

audio

short

circuits,

do

not

remove

the

caps

of

unused

RCA

cables.

CAUTION: Please make sure when connecting external power amplifier, that you properly,

to

the car

chassis, ground the amplifier.

If

this

is

not done, severe damage

to

the source unit may

happen.

Vers un amplificateur externe

"

Pour

supprimer

les

courts-circuits

audio,

ne

pas

retlrer

les

capuchons

des

cables

RCA

non

utilises.

ATTENTION:

Lorsque vous raccordez un ampli de puissance externe, laltes bien attention

Ii

mettre

correctement I'amplificateur Ii la masse sur

Ie

chilssis de la voiture. Sinon. vous

risquez d'endommager gravement I'appareil pilote.

Aun ampllficador externo

*

Para

ehminar

los

cortocircuitos

de

audio.

no

quite

los

casquillos protectores

de

los

cables

RCA

no

utiliza-

dos.

PRECAUCI6N: Cuando conecte un amplificador de potencla externo, cerciorese de ponerlo

adecuadamente amase

en

el chasls de su automovil.SI no

10

hiclese, la unldad

fuente podrla daiiarse seriamente.

®

...

®

••

®

...

@

•®

...

®

_

__

~~1

Antenna I

~

Antenne

Antena

~~®

,

1:::::1

CeNET

input f

Entree

CeNET

Entrada

de

CeNET

.DXZ945MP/DXZ745MP

~oCIIII!illj~®

...

®

• ®

...

®

.DXZ445

•

G)

...

®

•®

...

®

•®

...

@

@

...

@

Antenna I

~

Antenne

Antena

nooJP---+j®

f---f

CeNET

input

Entree

CeNET

Entrada

de

CeNET

•®

....

®

:.

®

...

@

®

.DXZ545MP

@

•®

...

®

@

@

CeNET

input

Entree

CeNET

Entrada

de

CeNET

•DXZ645MP

Antenna I

~

Antenne

Antena

I"

-Front Right

IAvant droit

Delantero derecho

EEl

Gray

I

C£,Gris

I

EElGris

8Gray/BIack I

,'C)Gris/noir

I8Grls/negro

16-Pin Connector Extension Lead

(attached to

the

source

unit)

Fil prolongateur-connecteu'

16

broches

(attache

sur i'apparsil pliote)

Cable prolongador de 16 contactos

(fijado a

la

unidad luente)

Brown wire (Phone mute

lead)*

Fil marron

(1i1

de sourdine

de

telepl1one)*

Conductor marr6n (Conductor de sllenclamiento de

teh~1ono)*

Note:

Some units do

not

have connecting leads

or

jacks.

(Refer to

*.)

Remarque:

Certains appareils n'on! pas de condllcteurs de connexion Oll de prises.

(Voir

1<.)

Nota:

Algunas unidades

no

tienen cables de conexi6n

ni

conectores.

(Refierase a

*.)

Front Left

Avant gauche

Delantero Izquierdo

EEl

White I(£)

BianG

I

EEl

Blanco

8White/Black I

()

Blanc/noir I8Blanco/negro

Connect

to

cellular

phone

mute

lead.

Brancher

au

fii

de

sourdine

du

telephone

mobile.

Conectelo

al

conductor

de

silenciamiento

del

telelono

modular.

No.

Descripcion

(IJ

DELANTERO DERECHO Gris (Rojo)

®DELANTERO IZQUIERDA Gris (Blanco)

®TRASERO DERECHO Negro (Rojo)

@TRASERO IZQUIERDA Negro (Blanco)

@TRASERO DERECHO/(ALTAVOZ

DE

SUBGRAVES DERECHO) Negro (Rojo)

®

TRASERO

IZQUIERDAI(ALTAVOZ

DE

SUBGRAVES

IZQUIERDA)

Nearo

(Blanco)

(j)

ALTAVOZ

DE SUBGRAVES DERECHO Violado (Rojo)

®

ALTAVOZ

DE SUBGRAVES IZQUIERDA Violado (Blanco)

®Entrada auxiliar (AUX INPUT) del canal derecho (Rojo)

@l

Entrada auxiliar (AUX INPUT) del canal IZQuierdo (Blanco)

@SALIDA DE ZONA 2DERECHO VERDE (Roio)

@SALIDA DE ZONA 2IZQUIERDO VERDE (Blanco)

No.

Description

(IJ

FRONT RIGHT Gray (Red)

®FRONT LEFT Gray (White)

®REAR RIGHT Black (Red)

@REAR LEFT Black (White)

@REAR RIGHT/(SUB WOOFER RIGHT) Black (Red)

®REAR LEFT/(SUB WOOFER LEFT) Black (White»

(j)

SUB WOOFER RIGHT Violet (Red)

@SUB WOOFER LEFT Violet (White)

®AUX INPUT RIGHT Red (Red)

@l

AUX INPUT LEFT Red (White)

@

2-Z0NE

OUTPUT RIGHTGreen (Red)

@

2-Z0NE

OUTPUT LEFTGreen (White)

Fuse

(15A)

Fusible

(15A)

Fusible

(15

A)

Fuse

(3A)

Fusible

(3A)

Fusible

(3A)

Yellow

wire

(Memory

back-up

lead)

Fil

jaune

(Iii

de

soutien

memoire)

Conductor amarillo (Conductor

de

proteccion

de

la

memoria)

Connect

directly

to

battery.

Brancher directement ala

baUerie.

Conectelo directamente a

la

baterla.

Yellow wire (Bus power

lead)*

Fil jaune (fil de bus d'allmentation)*

Conductor amarillo (conductor de alimentaci6n

de

bus)*

Connect

directly to

battery.

Brancher dir9ctement ala batterie.

Conectelo directamente a

la

baterla.

BluelWhite

wire

(Amplifier turn-on

lead)

Fil

bieu/blfJl1C

(n;

de

mise

sous

tension

telecommandable

de

i'amplilicateur)

Conductor

azul/blanco

(Conductor

de

conexion

de

la

alfmentacion

del

ampliflcador)

Connect

to

vehicle

chassis

ground.

Brancher a

Ie

terre

du

chassis du vehlcule.

Conectelo a

una

parte

metalfca

del

chasis

del

vehfculo.

Red

wire

(Power

lead)

Fil

rouge

(Iii

d'alimentation)

Conductor

rojo

(Conductor

de

alimentacion)

AccessoryEEl12

V

Accessoire

(tl

12

V

AccesorioEEl12

V

Connect

to

remote

turn-on

lead

01

amplilier.

Brancher

au

Iii

de

mise

saus

tension

telecommandabie

de

I'amplificateur.

Conectelo

al

conductor

de

conexion automatlca

de

la

alimentacion

del

amplificador.

Connect

it

to

the

car

power

supply terminal

for

illumination.

La

connecter a

la

borne

d'alimentation

de

I'eclairage

de

ia

vaiture.

Conectelo

al

terminal

de

alimenlacion

del

automovil

para

iluminaci6n.

Connect

It

to

the

car

power

supply terminal lor

the

antenna.

La connecter a

Ie

borne d'alimentation de l'antenne electrlque

de

Ja

voiture,

Conectelo

al

terminal

de

alimentacion

de

la

antena.

OrangelWhile

wire

(Illumination

lead)

Fil

omn(Jeiblanc

(iii d'eclairage)

Conductor anaranjado/blanco

(conductor

de

i1uminacion)

Black

wire

(Ground

lead)

Fil

noir (fil de terre)

Conductor

negro

(Conductor

de

puesta

amasa)

Blue

wire

(Auto

antenna

lead)

Fil

blau

(fil

de

I'antenna elactrique)

Conductor

azul

(conductor

para

la

antena

motorizada)

--~

or

o

•

+

2·Speaker system

Systeme a2haut-parleurs

4·Speaker system

Systeme a4haut-parleurs

Sistema con 4altavoces

8Purpie/BIack / 8 Pourpre/noir / 8 Purpura/negro

EElPurple

I(t)Pourpre /

EEl

Purpura

8Green/Black/ OVert/noir /8Verde/negro

EEl

Green

/(i)Vert /(i)Verde

Rear Right

Arrlere droit

Trasero derecho

Sistema con 2altavoces

r----

EEl

Gray

/(i)Gris I

EElGris

Right

II

:(

Droit

Derecho

~

8Gray/Black I(';)Grisinoir I8Grislnegro !

r----

EEl

White /

CD

Blanc

/

EEl

Blanco

Left

II

:\

Gauche

Izquierdo .......... 8White/Black /

Cl

Blandnoir I8Blanco/negro (

EElPurple

/

CfJPourpre

I

EEl

Purpura

X

,)

8

Purple/Black

/

(ee)

Pourpre/nair /8Purpura/negro )

EElGreen

/(DVerl /

EElVerde

,(

tused.

ulate each wire. 8Green/BIack /()Vert/noir / 8

Verde/negro

Rear Left

Arrlere gauche

Trasero izqulerdo

No

Ins

inutilise.

Isoler chaque

m.

,

No

se utlllza.

iAIsle

tOd~~

los

conductor~s~

_

---

-7.

SYSTEM EXAMPLElEXEMPLE DE SYSTEME/EJEMPLO DESISTEMA

•Example

of

the system using an external amplifier (Audio Visual)

•Exemple de systeme utilisant un amplificateur exterieur. (audio·visuel)

•Ejemplo de sistema utilizando un amplificador externo (audiovisual)

•DXZ945MP/DXZ745MP •DXZ845MC/DXZ645MP/DXZ545MP/DXZ445

~

_

..

",

;~

,

",

Amp',

Amp'

"'

",

"'

"'

",

"'

",

"1'"

...

~

..

,

____

®_10

r--1;lr;;=:1

:;::::::::q1;l'-----12

~6:=::

~

L.:.J L.:.J

~L.!.J

~

r---------

CD

*:

0:

-

-------'

o

:::l=O--..---o<:0

~

-_.

'.,

;~_

...

_-'

",

Amp',

Amp'

",

"'

"'

",

",

"'

",

--1--'

._-~--'

®

Note:

Use a

CeNET

extension cable that is less than

20

min length. (including the Y-adapter CCA-519.)

Remarque:

Utiliser un c{jble d'extension CeNET infer/eur a

20

mde long (en complant aussi I'adaptateur YCCA-519),

Nota:

Utilice un cable prolongador

CeNET

de menos de

20

mde longitud (incluyendo

el

adaptador en YCCA-519).

Note:

DXZ445 does

not

have a

"2-Z0NE

OUTPUT'terminal. (Refer to

*.)

Remarque:

Le DXZ445

/1e

possede pas de borne

"2-Z0NE

OUTPUT'. (Voir

*.)

Nota:

EI modelo DXZ445

no

posee terminal

"2-Z0NE

OUTPUT'. (Refierase a

*.)

*This source unit

can

control atotal of 2changers except 2

DVD

changers exist

in

the system.

"

Cappareil

pilote

est

capabie

de

commander 2changeurs

au

total

en

plus

des

2changeurs

de

DVD

qui

existent dans

Ie

systeme.

*

Esta

unidad

fuente puede controlar

en

total 2cambiadores excepto los 2cambiadores

de

discos

DVD

del sistema.

G) Source unit

®GeNET extension cable

®Y·adaoter (sold separately)

@

GDchanaer

®DVD chancer

®RCA extension cable (sold seoaratelv)

<V

4-Channel oower amolifier

®Front speakers

®Rear speakers

@)

Monitor

®SIRIUS satellite radio receiver

@

TV

tuner module

@

5.1

ch surround decoder

@

5.1

ch surround decoder control unit

@Ootical connector cable

@Center speaker (with amplifier)

@Subwoofer (with amplifier)

@External unit

<w

Wireless head phone unit

~1?-

Appareil pilote

....

__

._---_._._--_

...

_-_._----

~)

"Cable d'extension GeNET

(;j)

Adaotateur Y(vendu seoarement)

@Chanoeur de CD

.

.@....

i2.b.~.!:l~!

de DV[)

_____

,

______

,

_______

..

@Cable de rallonQe RCA (vendu seoarement)

<V

Ampliflcateur de puissance 4canaux

@Haut-parleurs avant

@)

t1..§..t,lt-par!Q.l}.I2.i!!I!~~.,_,_,,

____,

______

,,

_____

....

_._

..

_____

@'

Moniteur

@Becep..teur

'.:.<1919

sat~lli~~i3~_

..

___

.

__

,,

__

._

..

__

.

____

,

______

@Module tuner TV

.~

Decodeur surround

5.

icanaux

----------_._-------_.

__

.

__

._._--~_._--_

..

_~

@Module de cornmande de decodeur surround

5.1

canaux

@Cabie de connexion ootique

@Haut-parleur central (avec amplificateur)

@

~-oof~{?~£~~plifiC?.!eurL----,

n

__

.

\f~-

Appareil externe

@Casque sans fii

G) Unidad fuente

®Cable prolongador CeNET

®Adaotador en Y(vendido aoarte)

@Cambiador

de

discos comoactos

®Cambiador

de

DVD

@Cable de extension RCA

<V

Amplificador

de

potencia de 4canales

®Altavoces delanteros

®Altavoces traseros

--

@)

Monitor

®Sintonizador SIRIUS de recepcion radio

via

satalite

@Modulo sintonizador de television

@Descodificador de

5.1

ch surround

@Unidad de control de Descodificador de

5.1

ch surround

@Cable conector ootico

@Altavoz central (con amplificador)

@Altavoz de subQraves (con amplificador)

@Unidad externo

@)

Unidad de auriculares inalambricos

---

-8.

GENERAL CAUTIONS IPRECAUTIONS GENERALES IPRECAUCIONES GENERALES

1.

Do

not

open

the

case.

There

are

no

user

serviceable

parts

inside.

If

you

drop

any1hing into

the

unit

during

installation,

consult

your

dealer

or

an

authorized

CLARION

service

center.

2.

Use

asoft,

dry

cloth

to

clean

the

case.

Never

use

hard cloth, thinner,

benzen, alcohol, etc.

For

tough

dirt,

apply

alittle

cold

or

warm

water

to

a

soft

cloth

and

wipe

off

the

dirt

gentry.

1.

Ne

pas

ouvrir

Ie coffret.

II

n'y

a

pas

de

pieces

reparables

par

I'utilisateur aI'interieur

de

I'appareil. Si un

objet

est

tombe

dans

I'appareil

pendant

!'installation, consulter votre revendeur ou un

service

apres-vente

agree

CLARION.

2. Utiliser un chiffon

doux

et

sec

pour

nettoyer Ie coffret,

ne

jamais

utiliser un chiffon rigide, un diluant,

du

benzene,

de

I'alcool, etc. Pour

enlever

la

salete

tenace,

appliquer

un

peu

d'eau

froide ou

tiMe

sur

un chiffon

doux

et

essuyer

doucement

la

salete.

1.

No

abra

la

caja.

En

el

interior

no

hay

piezas

que

pueda

reparar

el

usuario. Si

dentro

de

la

unidad

entra

algo

durante

la

instalacion,

con

suite a

su

proveedor

0a

un

centro

de

servicio

autorizado

por

CLARION.

2. Para Iimpiar

la

caja, utilice

un

pano

suave yseco.

no

use

nunca

un

pano

duro,

diluidor

de

pintura, benceno, alcohol, etc. Para

la

suciedad

resistente,

aplique

un

poco

de

agua

fria

0caliente a

un

pano

suave y

frote

suavemente

la

parte

sucia.

IMPORTANT:

Improper installation

may

cause damage to

your

unit

or

car.

If

you

do

not

have the appropriate experience, consult aqualified installer.

Cutting chassis wire leads voids the warranty.

IMPORTANT:

Une installation incorrecte

peut

endommager I'appareil

au

Ie vehicule.

Si

I'on ne possede

pas

les connaissances requises, consulter un

installateur qualifie. Couper

Ie

til

du chassis annule la garantie.

IMPORT

ANTlE:

La instalaci6n inapropiada

puede

causardafios

en

su

unidad 0

su

autom6vil.

Si

usted no posee la experiencia apropiada, consulte aun

instalador cualificado.

lEI

corte de los conductores de puesta

amasa

(carrocerfa) anulara la garantfa.

Clarion Co., Ltd.

clarion

281-0624-00 2003/8

CLARION LIMITED WARRANTY

For

USA

and

Canada

only

If purchased from an authorized Clarion dealer, this product is warranted against all defects in materials and

workmanship for aperiod of one (1) year from the date of original purchase. Clarion ProAudio products, except for

speakers, are covered by atwo (2) year limited warranty when purchased from and installed by an authorized Clarion

dealer. ALL PURCHASES OF CLARION PRODUCTS FROM NON-AUTHORIZED CLARION DEALERS ARE

SUBJECTTO FURTHER WARRANTY RESTRICTIONS AS DESCRIBED BELOW.

The

conditions of this limited warranty and the extent of responsibility of Clarion Corporation of America ("Clarion")

under this limited warranty are as

follows:

1. PROOF OF DATE OF PURCHASE WILL BE REQUIRED FOR WARRANTY SERVICE OF THIS PRODUCT.

IN THE CASE OF

THE

TWO (2) YEAR LIMITED WARRANTY FOR CLARION PROAUDIO PRODUCT, PROOF OF

INSTALLATION BY AN AUTHORIZED CLARION DEALER IS REQUIRED. INFORMATION ABOUT CLARION

AUTHORIZED WARRANTY SERVICE CENTERS MAY BE OBTAINED BY CONTACTING OR WRITING CLARION

ATTHE ADDRESS LISTED BELOW.

2. This limited warranty will become void if service performed by anyone other than an approved Clarion Warranty

Service Center results in damage to the product.

3. This limited warranty does not apply to any product which has been subject to misuse, neglect

or

accident,

or

which has had the serial number altered, defaced

or

removed,

or

which has been connected, installed, adjusted

or

repaired, other than

in

accordance with the instructions furnished by Clarion.

4. This limited warranty does not cover car static

or

other electrical interferences, tape head

or

laser pick-up cleaning

or adjustments,

or

labor costs for the removal

or

reinstallation of the unit for repair.

5. The sole responsibility of Clarion under this limited warranty shall be limited to the repair of the product

or

replacement of the product, at the sole discretion of Clarion.

6. Product must be shipped in its original carton or equivalent carton, fully insured, with shipping charges prepaid.

Clarion will not assume any responsibility for any loss

or

damage incurred in shipping.

7. CLARION PRODUCTS, INCLUDING PROAUDIO PRODUCTS, PURCHASED FROM ASOURCE OTHER THAN

AN AUTHORIZED CLARION DEALER, INCLUDING ANY AND

ALL

PURCHASES VIATHE INTERNET FROM A

NON INTERNET AUTHORIZED CLARION DEALER, SHALL NOT BE COVERED

BY

ANY CLARION LIMITED

WARRANTY TO THE EXTENT ALLOWED BY APPLICABLE LAW. IN THE EVENT AND TO

THE

EXTENT

APPLICABLE LAW PROHIBITS ELIMINATION OF WARRANTIES UNDERTHESE CIRCUMSTANCES,

THE APPLICABLE LIMITED WARRANTY PERIOD SHALL BE

DEEMEDTO

BE FIFTEEN (15) DAYS

FROMTHE

DATE

OF ORIGINAL PURCHASE.

8. ALL IMPLIED WARRANTIES EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW SHALL HAVE NO

GREATER DURATION THAN THE WARRANTY PERIOD SET FORTH ABOVE. UNDER NO CIRCUMSTANCES

SHALL CLARION BE LIABLE FOR ANY LOSS OR DAMAGE, DIRECT OR CONSEQUENTIAL, ARISING OUT OF

THE USE OR INABILITY TO USE THE PRODUCT. BECAUSE SOME STATES DO NOT ALLOW LIMITATIONS ON

HOW LONG AN IMPLIED WARRANTY LASTS OR EXCLUSIONS OR LIMITATIONS OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES, THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO

YOU.

9. THIS LIMITED WARRANTY GIVESYOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER

RIGHTS WHICH VARY FROM STATE TO STATE.

10. The laws of the State of California shall govern and control this limited warranty, its interpretation and enforcement.

11. Should you have any difficulties with the performance of this product during the warranty period, please call

or

visit our web site for alisting of Authorized Warranty Service Centers

in

your area.

You

may also contact the

Clarion Customer Service at the address listed below for any service help you may need with Clarion products.

In

USA:

Clarion Corporation of America

Attn:Customer Service Manager

661

W.

Redondo Beach Blvd

Gardena, CA.90247-4201

1-800-GO-CLARION

(310)327-9100

www.c1arion.com

In

Canada:

Clarion Canada

Inc.

Warranty Service Center

2239 Winston Park Drive

Oakville,Ontario

L6H

5R1

(905)829-4600

www.clarioncanada.com

100

CHANNELS OF THE

BEST ENTERTAINMENT ON THE ROAD

Clarion

siriusradio.com

\/

9}2,-

SIRIUS

Satellite Radio

SIRIUS

"",,;.,,.,.

I

EtlTERTAltlHEtlT

150

Radio Disney

151 Discovery Radio

1

52

E!

Entertainment Radio

154

A&E Satellite Radio

156

Radio Classics

158

SCI

FI

159

Sirius Entertainment

160

Sirius Comedy

161 Sirius

Arts

164

Personal Achievement

165

Wisdom Radio

167

African American Talk

168

The Scandal Channel

172

Women's Talk

175

Guy

Talk

180

Trucker Channel

184

Preview Channel

SiRiUs

,~_

HISPANIC

ll;~",

120

ESPN

Radio Network

121

ESPNews

123

Sports Byline USA

1

24

Speedvision

125

OLN Adventure Radio

140

BBC

Mundo

142

La

Red

Hispana

144

Radio Deportivo

146

Radio Mujer

147

Radio Amigo

~--

,

SPORTS

90

Blues

91

Reggae

93

Gospel

94

Christian

Hits

95

World Music

96

New

Age

99

Kids

100

Specialty

Showcase

fmlN.ll\»

101

CNBC

102

FOX

News

Channel

104

CNN

Headline

News

105

Bloomberg

107

NPR

Now

108

NPR

Talk

109

PRI's

Public Radio Channel

111 World Radio

Network

11

2

BSC

World Service News

114

C-SPAN

Radio

11

5The Weather Channel

Radio

Network

116

Sirius Talk

117

Real

Sirius

119

ABC

News &Talk

80

Symphonic

82

Chamber Works

85

Classical Voices

--

-------

SIRIUS

')'\,

•

LA-II

r

.,

70

Latin Hits

71

Latin

Pop Mix

72

Rock

en

Espanol

74

Mexicana

77

Tejano

60

Classic Jazz

61

Latin

Jazz

62

Contemporary Jazz

63

Smooth Jazz

65

Standards

66

Swing

67

Broadway's Best

30

Country

Hits

31 Today's Country

32

Country Mix

35

Classic

Country

36

Alt

Country

37

Bluegrass

----

-

SIIHUS

DANCE

,

50

Dance

Hits

51

Mainstream Dance

53

Electronica

56

Disco

--

-----~--

~

SIRIUS '

])D1Jl't'l'JlJ

't_

v

285-1887-00

f!II!Iir.

40

R&B

Hits

42

Today's R&B

43

Soul Ballads

44

Classic Soul

45

R&B Oldies

47

Rap Hits

48

Today's Rap

49

Classic Rap

15

50ft

Rock

17

Eclectic Rock

20

Rock

Hits

21

Modern Rock

22

Mainstream Rock

23

Classic Rock I

24

Classic Rock

II

25

Classic

Alternative

26

Alternative

I

27

Alternative

II

29

Hard Rock

SIn.IU-S--~-----

P

ClIP

I"~

1Top

40

Hits

2

Adult

Contemporary

3

Alt

Pop Mix

4Love Songs

5The Best

of

the

50s/60s

7The Best

of

the

70s

8The Best

of

the

80s

9The Best

of

the

90s

)2002 Sirius Satellite

Radio

Inc.

GET

READY

FOR

100

CHANNELS

OF

THE

BEST

IN-CAR

ENTERTAINMENT.

You've

just

purchased aSirius Satellite Radio receiver that's going

to

plug you into

60

original music channels, from today's hits

to

R&B

oldies

to

classical masterpieces. From authentic country and

real bluegrass

to

cool jazz,

hot

latin, reggae and rock. Plus

40

channels

of

world-class sports, news and entertainment, like

ESPN,

Radio Disney,

E!

Entertainment Radio,

CNBC,

Fox News and

Discovery Radio.

At

Sirius,

the

emphasis

is

on

the

music and

entertainment

you

want. From

now

on, it's

just

you,

the

road and

the

music.

ONLY

FROM

SIRIUS

-

•

100

channels

of

digital

entertainment,

coast-to-coast

•

60

original

music channels, all

commercial-free

•

40

world-class

sports,

news

and

entertainment

channels

•S>PLEX

technology

for

superior

sound resolution

EXPERIENCE

SIRIUS

IN

TWO

SIMPLE

STEPS.

If you haven't already activated

your

Sirius receiver, here's how:

1.

Contact us

at

siriusradio.com

or

call

toll-free

1-888-539-SIRIUS

(7474).

2. Have 3items on hand:

• A valid credit card

or

branded

debit

card

•Sirius ID

or

Electronic Serial Number (check on

the receiver box

or

your

display control

window)

•Your vehicle identification number (VIN)

Activate today to

get

100%

commercial-free music, plus

aWelcome

Kit

with adetailed Channel Guide. .\ /

~\

SIRIUS

Satellite Radio
