AM / FM CD / MP3 / WMA PLAYER

•

RADIO AM/FM-LECTEUR CD/MP3/WMA

•

REPRODUCTOR DE AM/FM CD/MP3/WMA

DXZ745MP

Owner’s manual

Mode d’emploi

Manual de instrucciones

2DXZ745MP

1. FEATURES

• MP3 and WMA File Playable with ID3-TAG and WMA-TAG Display

• Motorized Fold Down Detachable Faceplate in Aluminum with Negative/Positive Reversible 728-Vari-

able Color LCD and Control Buttons

• ADF(Anti Distortion Filter)

• 24 Bit Digital to Analogue Converter for Audiophile

• 4 V/ 6ch Gold Plated RCA Output and 2ch RCA AUX Input with 3 Level Adjustments

• Retractable Volume Control for Easy Operation

• Sirius Control

• 5.1ch Decoder Control

English

Contents

1. FEATURES ...................................................................................................................................... 2

2. PRECAUTIONS ............................................................................................................................... 3

Motorized Face ................................................................................................................................ 4

Handling Compact Discs ................................................................................................................. 4

3. CONTROLS ..................................................................................................................................... 5

4. NOMENCLATURE .......................................................................................................................... 6

Names of the Buttons and Their Functions ..................................................................................... 6

Major Button Operations When External Equipment is Connected to This Unit .............................. 7

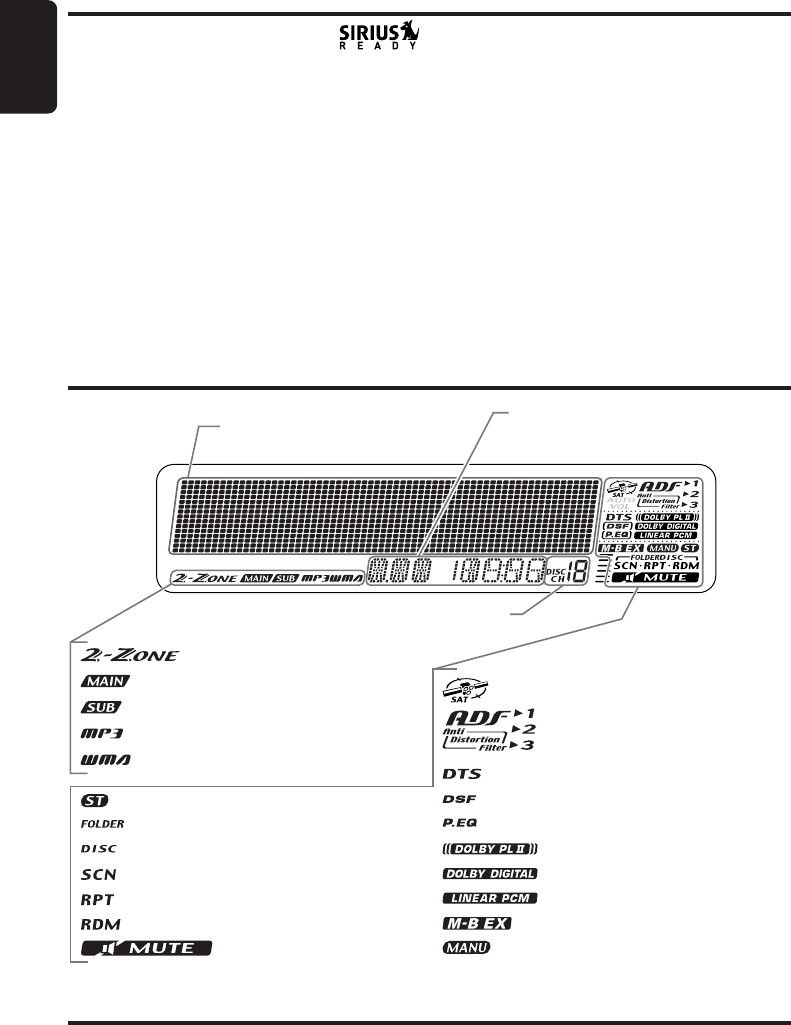

Display Items ................................................................................................................................... 8

LCD Screen ..................................................................................................................................... 8

5. DCP ................................................................................................................................................. 9

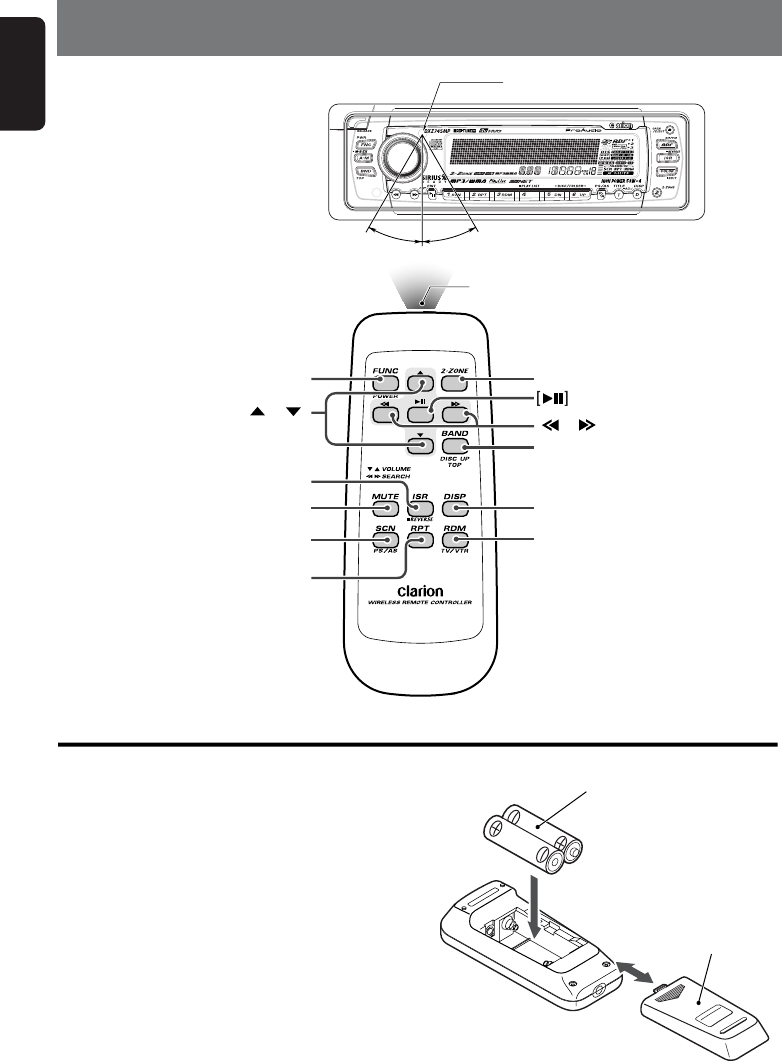

6. REMOTE CONTROL ..................................................................................................................... 10

Inserting the Batteries ................................................................................................................... 10

Functions of Remote Control Unit Buttons .................................................................................... 11

7. OPERATIONS ............................................................................................................................... 12

Basic Operations ........................................................................................................................... 12

Radio Operations ........................................................................................................................... 14

CD/MP3/WMA Operations ............................................................................................................. 16

Different pieces of music heard by plural listeners (2-ZONE function) .......................................... 21

Operations Common to Each Mode .............................................................................................. 22

8. OPERATIONS OF ACCESSORIES .............................................................................................. 26

CD Changer Operations ................................................................................................................ 26

TV Operations................................................................................................................................ 28

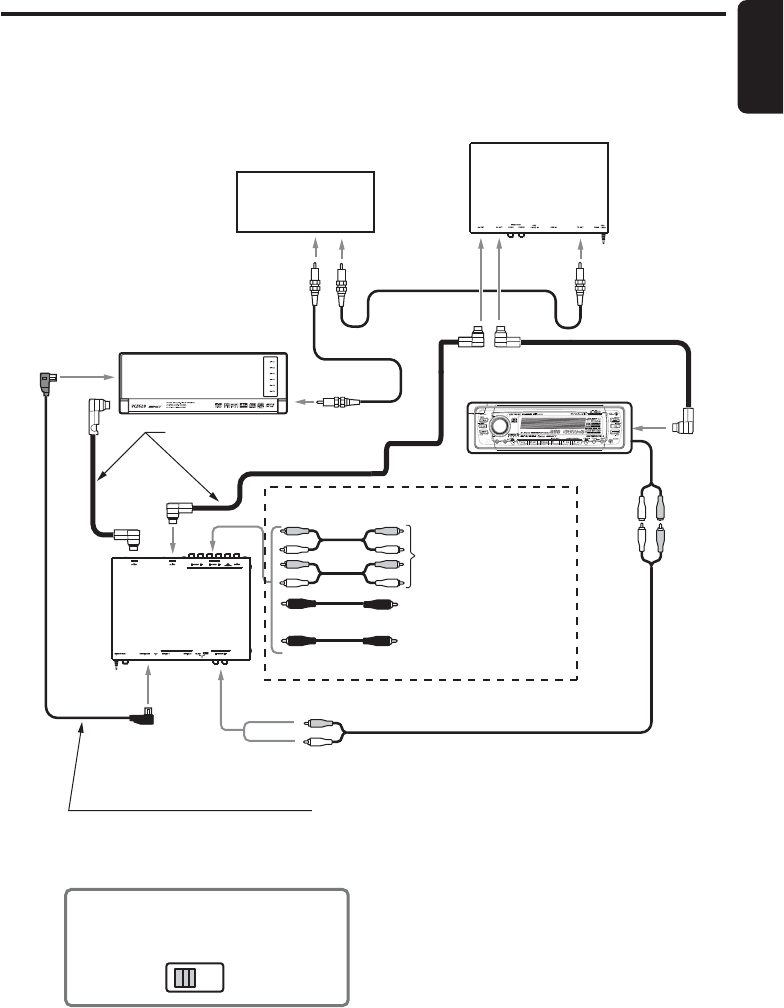

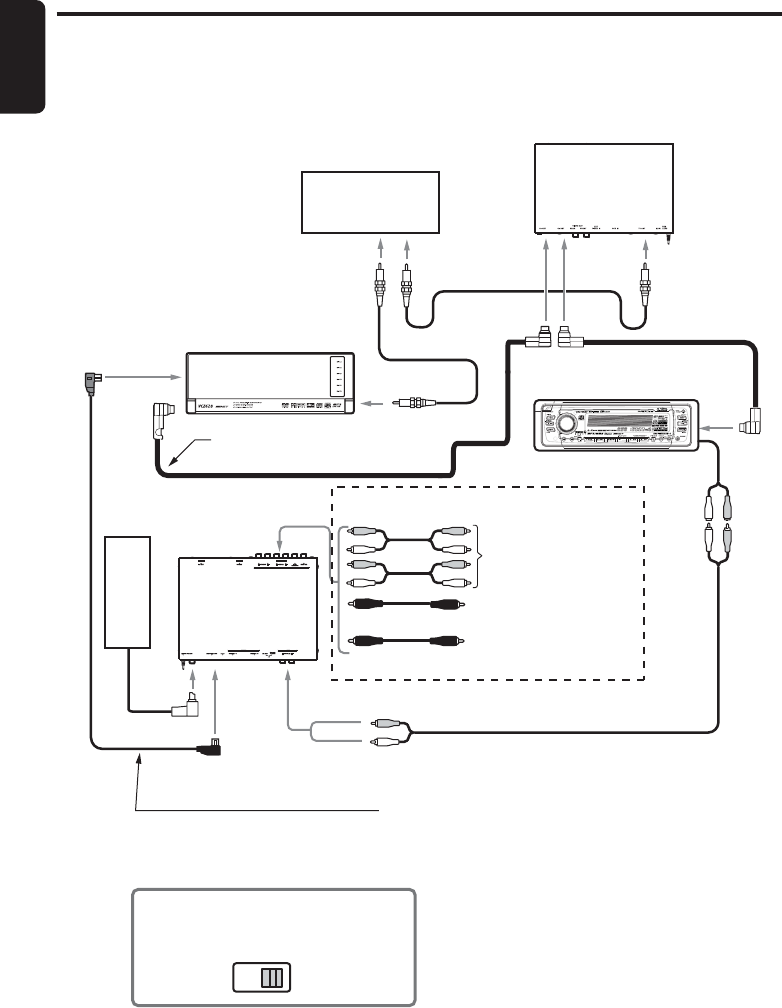

Connect with 5.1ch Surround Decorder (DVH920/DVH940) ......................................................... 30

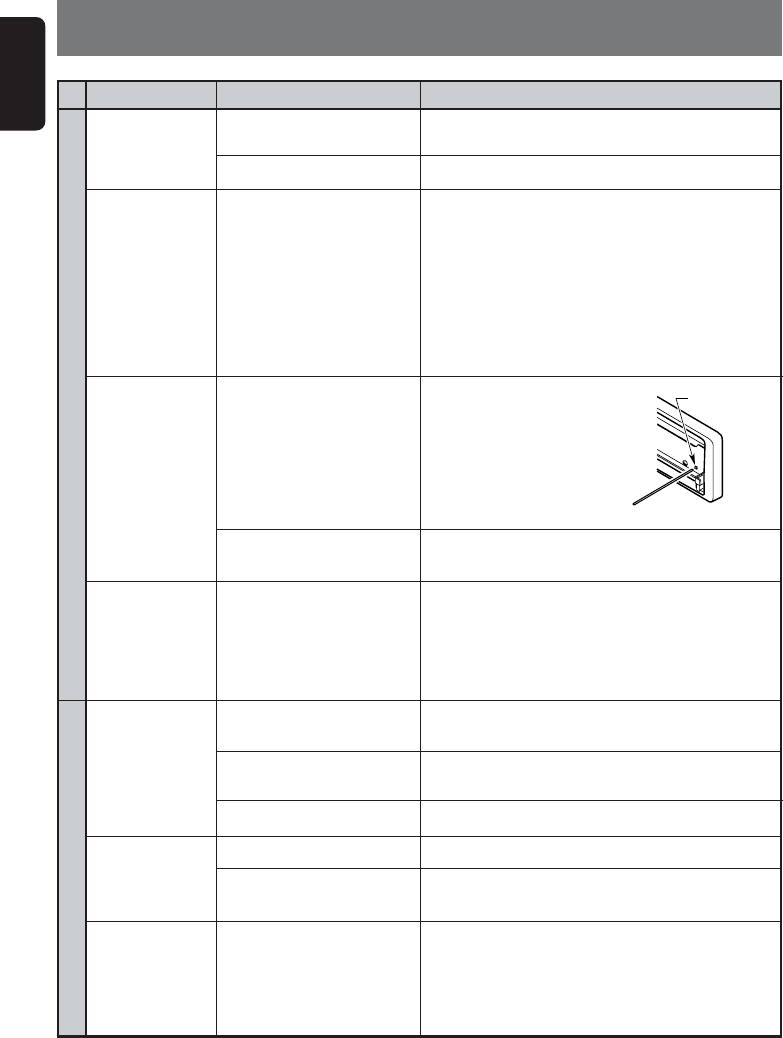

9. IN CASE OF DIFFICULTY ............................................................................................................ 32

10. ERROR DISPLAYS ....................................................................................................................... 34

11. SPECIFICATIONS ......................................................................................................................... 35

Thank you for purchasing this Clarion product.

Please read this owner’s manual in its entirety before operating this equipment.

After reading this manual, be sure to keep it in a handy place (e.g., glove compartment).

Check the contents of the enclosed warranty card and keep it carefully with this manual.

This manual includes the operating procedures of the CD changer, SIRIUS and TV tuner, BB. DTS/

AC3 connected via the CeNET cable. The CD changer and TV tuner have their own manuals, but

no explanations for operating them are described.

DXZ745MP 3

English

2. PRECAUTIONS

1. When the inside of the car is very cold and the

player is used soon after switching on the

heater moisture may form on the disc or the

optical parts of the player and proper playback

may not be possible. If moisture forms on the

disc, wipe it off with a soft cloth. If moisture

forms on the optical parts of the player, do not

use the player for about one hour. The conden-

sation will disappear naturally allowing normal

operation.

2. Driving on extremely bumpy roads which cause

severe vibration may cause the sound to skip.

3. This unit uses a precision mechanism. Even in

the event that trouble arises, never open the

case, disassemble the unit, or lubricate the ro-

tating parts.

This equipment has been tested and found to com-

ply with the limits for a Class B digital device, pur-

suant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable

protection against harmful interference in a resi-

dential installation.

This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and

used in accordance with the instructions, may

cause harmful interference to radio communica-

tions. However, there is no guarantee that inter-

ference will not occur in a particular installation.

If this equipment does cause harmful interference

to radio or television reception, which can be de-

termined by turning the equipment off and on, the

user is encouraged to consult the dealer or an ex-

perienced radio/TV technician for help.

USE OF CONTROLS, ADJUSTMENTS, OR PER-

FORMANCE OF PROCEDURES OTHER THAN

THOSE SPECIFIED HEREIN, MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.

THE COMPACT DISC PLAYER and MINI DISC

PLAYER SHOULD NOT BE ADJUSTED OR RE-

PAIRED BY ANYONE EXCEPT PROPERLY

QUALIFIED SERVICE PERSONNEL.

CHANGES OR MODIFICATIONS NOT EX-

PRESSLY APPROVED BY THE MANUFAC-

TURER FOR COMPLIANCE COULD VOID THE

USER’S AUTHORITY TO OPERATE THE EQUIP-

MENT.

INFORMATION FOR USERS:.

CHANGES OR MODIFICATIONS TO THIS PROD-

UCT NOT APPROVED BY THE MANUFAC-

TURER WILL VOID THE WARRANTY AND WILL

VIOLATE FCC APPROVAL.

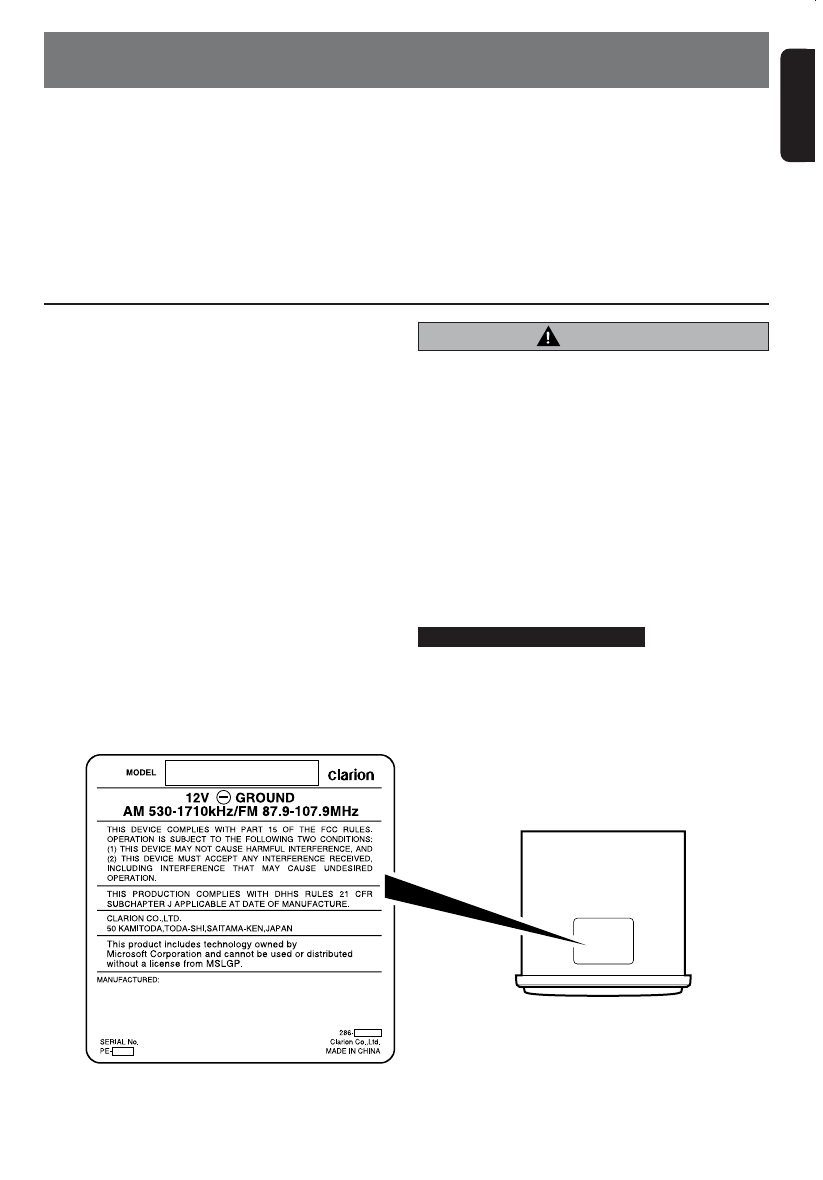

Bottom View of Source Unit

CAUTION

DXZ745MP 4

English

CAUTION

Be sure to unfold and read the next page. / Veuillez déplier et vous référer à la page suivante.

Cerciórese de desplegar y de leer la página siguiente.

Handling Compact Discs

Use only compact discs bearing the or

mark.

Do not play heart-shaped, octagonal, or other

specially shaped compact discs.

Some CDs recorded in CD-R/CD-RW mode

may not be usable.

Handling

•

Compared to ordinary music CDs, CD-R and

CD-RW discs are both easily affected by high

temperature and humidity and some of CD-R

and CD-RW discs may not be played. Therefore,

do not leave them for a long time in the car.

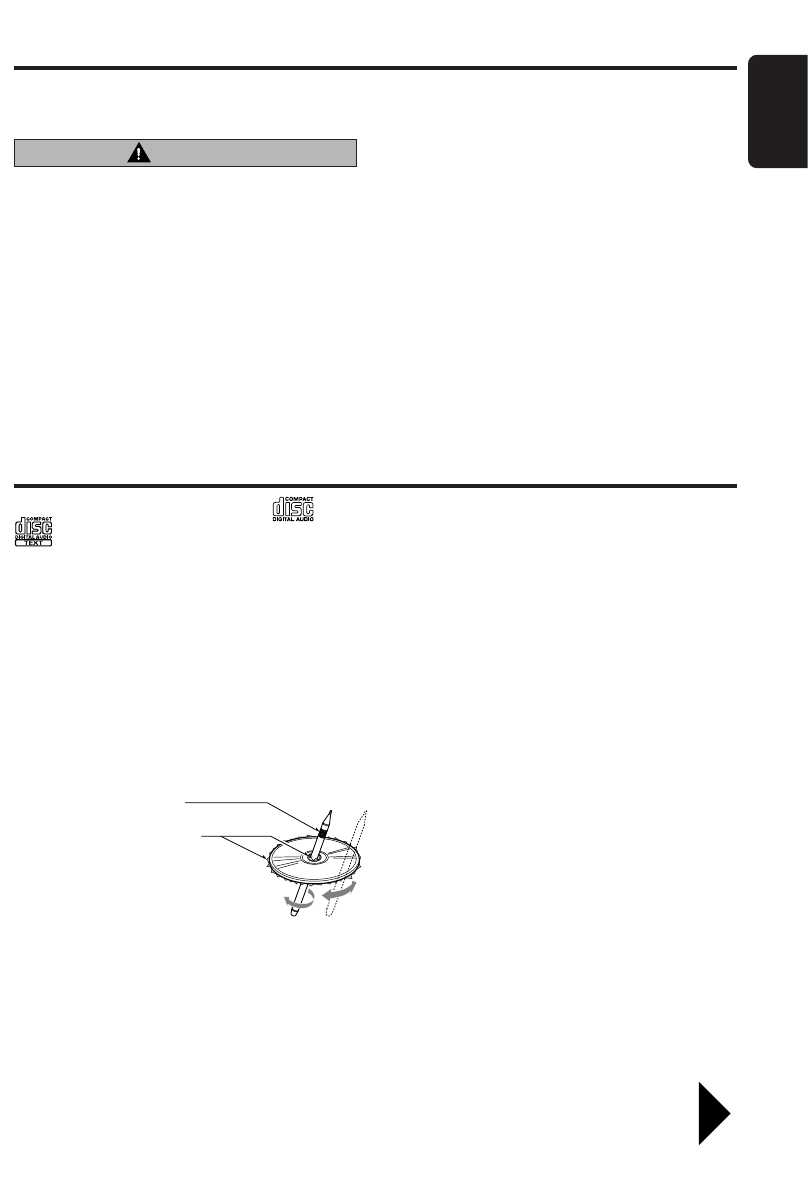

• New discs may have some roughness around

the edges. If such

discs are used, the

player may not work

or the sound may

skip. Use a ball-point

pen or the like to re-

move any roughness

from the edge of the

disc.

•

Never stick labels on the surface of the compact

disc or mark the surface with a pencil or pen.

• Never play a compact disc with any cello-

phane tape or other glue on it or with peeling

off marks. If you try to play such a compact

disc, you may not be able to get it back out of

the CD player or it may damage the CD

player.

•

Do not use compact discs that have large

scratches, are misshapen, cracked, etc. Use of

such discs may cause misoperation or damage.

•

To remove a compact disc from its storage case,

press down on the center of the case and lift the

disc out, holding it carefully by the edges.

• Do not use commercially available CD protec-

tion sheets or discs equipped with stabilizers,

etc. These may damage the disc or cause

breakdown of the internal mechanism.

Storage

• Do not expose compact discs to direct sunlight

or any heat source.

• Do not expose compact discs to excess hu-

midity or dust.

• Do not expose compact discs to direct heat

from heaters.

Cleaning

• To remove fingermarks and dust, use a soft

cloth and wipe in a straight line from the center

of the compact disc to the circumference.

• Do not use any solvents, such as commercially

available cleaners, anti-static spray, or thinner

to clean compact discs.

• After using special compact disc cleaner, let

the compact disc dry off well before playing it.

Ball-point pen

Roughness

Motorized Face

This unit uses motorized face to make large-screen displays possible.

When you use the motorized face, be sure to close it.

BE CAREFUL NOT TO GET YOUR FINGERS

CAUGHT WHEN OPENING AND CLOSING

THE MOTORIZED FACE.

1. For safety’s sake, always close the MOTOR-

IZED FACE before leaving this unit unused

for a prolonged period or switching OFF the

ignition key.

If you switch OFF the ignition key with the

MOTORIZED FACE tilted, the MOTORIZED

FACE does not close.

2. Before the MOTORIZED FACE closes, there

may be a braking sound from the safety

mechanism. This is normal.

3. If you move the MOTORIZED FACE by hand,

this may create play. To correct this play, with

the power on for the unit, press the [Q] button

to close the MOTORIZED FACE.

4. After a disc is ejected, the MOTORIZED

FACE automatically returns to the tilted or

closed state. If there is any obstruction when

the MOTORIZED FACE tries to close, the

safety mechanism is triggered and the MO-

TORIZED FACE returns to the open state. If

this happens, remove the obstruction, then

press the [Q] button.

5. To avoid scratching the compact disk, keep

the 12 or 8 cm CD level when inserting or re-

moving them.

5DXZ745MP

English Français Español

3.CONTROLS / LES COMMANDES / CONTROLES

[ROTARY]

[a], [d]

[ ]

[SCN]

[RPT]

[RDM]

[DIRECT]

[DN], [UP]

[COLOR]

[ISR]

Source unit / Appareil pilote / Unidad fuente

With the SLOPING CONSOLE opened / Ouvrez la CONSOLE RABATTABLE

Apertura de la CONSOLA INCLINABLE

Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.

Remarque: Veuillez déplier cette page et vous référer aux schémas quand vous lisez chaque chapitre.

Nota: Cuando lea los capítulos, despliegue esta página y consulte los diagramas.

[RELEASE]

[P/A]

[T]

[D]

[FNC]

[A-M]

[BND]

[ADF]

[Q]

[CD SLOT]

[PLAY LIST]

[]

6DXZ745MP

English

4. NOMENCLATURE

Note:

• Be sure to read this chapter referring to the front diagrams of chapter “3. CONTROLS” on page 5 (unfold).

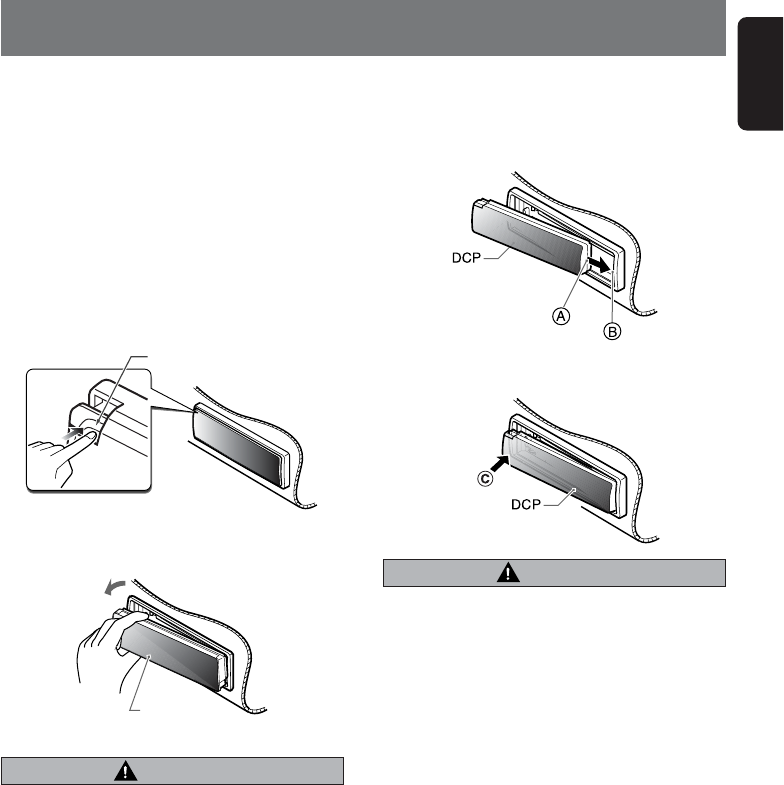

[RELEASE] button

• Deeply push in the button to unlock the DCP.

[ROTARY] knob

• Adjust the volume by turning the knob clock-

wise or counterclockwise.

• Use the knob to perform various settings.

[Q] button

• Press to eject a CD loaded in the unit.

• Press to open the CD slot and insert a CD.

[ADF] button

• Use the button to select one of the 4 types of

sound characteristics already stored in

memory.

[ISR] button

• Recall ISR radio station in memory.

• Press and hold for 2 seconds or longer: Store

current station into ISR memory (radio mode

only).

• Press and hold the button for 1 second or

longer to switch the main and sub zone

sound source. (only while 2-ZONE mode on).

[COLOR] button

• Button’s color change to multicolor.

[] button

• Press and hold for 1 second or longer to turn

on or off the 2-ZONE mode.

• Press to switch the control zone between

main zone or sub zone while 2-ZONE mode

on.

[D] button

• Switch the display indication (Main display,

Clock display).

[T] button

• Use the button to input a title in the radio, CD

mode.

• Press and hold the button for 1 second or

longer to enter the adjust mode.

[P/A] button

• Perform preset scan while in the radio mode.

When the button is pressed and held, auto

store is performed.

[UP], [DN] buttons

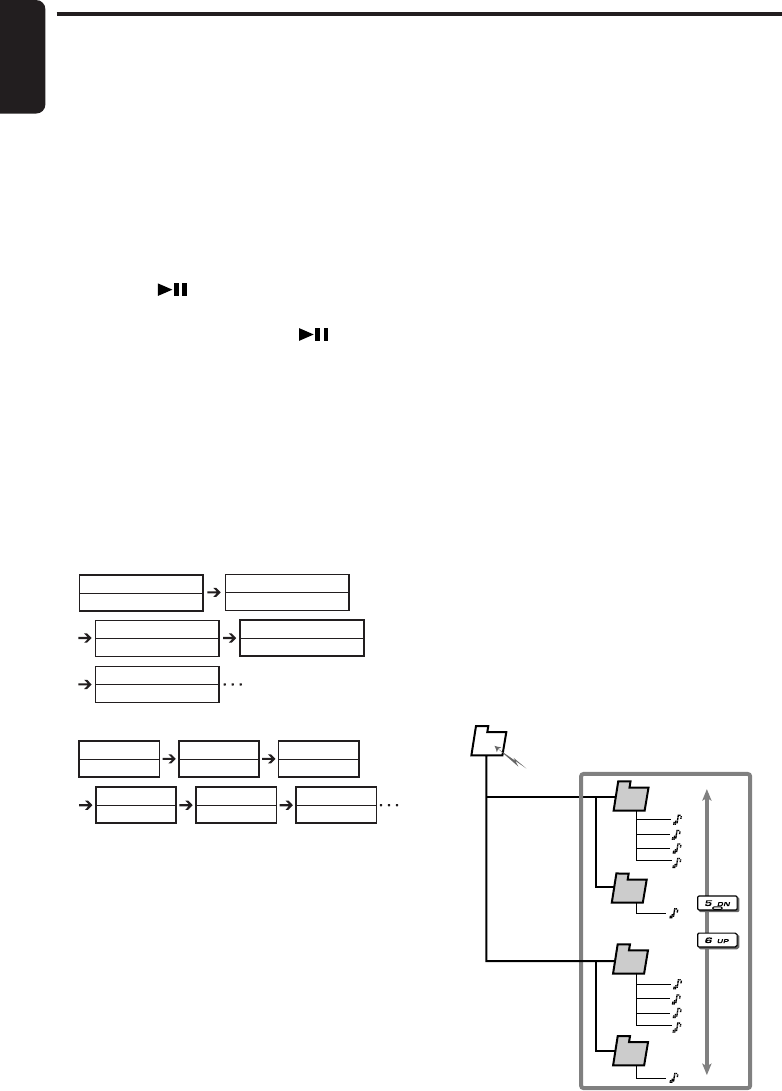

• Select the folder while in the MP3/WMA

mode.

[DIRECT] buttons

• Store a station into memory or recall it di-

rectly while in the radio mode.

Names of the Buttons and Their Functions

[PLAY LIST] button

• Press and hold for 1 second or longer to turn on

or off the play list mode. (MP3/WMA disc only)

[RDM] button

• Perform random play while in the CD/MP3/

WMA mode.

• Press and hold the button for 1 second or

longer to perform folder random play while in

the MP3/WMA mode.

[RPT] button

• Repeat play while in the CD/MP3/WMA mode.

• Press and hold the button for 1 second or

longer to perform folder repeat play while in

the MP3/WMA mode.

[SCN] button

• Perform scan play for 10 seconds of each

track while in the CD/MP3/WMA mode.

• Press and hold the button for 1 second or

longer to perform folder scan play while in the

MP3/WMA mode.

[] button

• Play or pause a CD while in the CD/MP3 mode.

[a], [d] buttons

• Select a station while in the radio mode or

select a track when listening to a CD. These

buttons are used to make various settings.

• Press and hold the button for 1 second or

longer to switch the fast-forward/fast-back-

ward.

[BND] button

• Switch the band, or seek tuning or manual

tuning while in the radio mode.

• Play a first track while in the CD/MP3/WMA

mode.

[A-M] button

• Use the button to switch to the audio mode

(bass/treble, balance/fader ADF, Magna Bass

Extended adjustment)

• Press and hold for 1 second or longer to turn

on or off the M-B EX mode.

[FNC] button

• Press the button to turn on the power.

Press and hold the button for 1second or

longer to turn off the power.

• Switch the operation mode among the radio

mode, etc.

[CD SLOT]

• CD insertion slot.

DXZ745MP 7

English

Major Button Operations When External Equipment is

Connected to This Unit

●When the CD/DVD changer is

connected

For details, see the section “CD Changer

Operations”. For the DVD changer, refer

to the Owner’s Manual provided with the

DVD changer.

[D] button

• When the button is pressed and held,

switches the user titles or track titles, etc.

while in the CD changer mode.

[T] button

• Use the button to input a title in the CD

changer mode.

• Use the button to scroll the title during CD-

text play.

[UP], [DN] buttons

• Select the disc.

[RDM] button

• Perform random play. Also perform disc ran-

dom play when the button is pressed and

held.

[RPT] button

• Perform repeat play. When this button is

pressed and held, disc repeat play is per-

formed.

[BND] button

• Move the next disc in increasing order.

[SCN] button

• Perform scan play for 10 seconds of each

track. Disc scan play is performed when the

button is pressed and held.

[] button

• Play or pause a CD or DVD.

[a], [d] buttons

• Select a track when listening to a disc.

• Press and hold the button for 1 second or

longer to switch the fast-forward/fast-back-

ward.

●When the DTS/DOLBY DIGITAL

is connected (DVH940)

[ADF] button

• Press the button to turn on the DSF.

• Press the button to turn on the PLII while the

DSF on.

[a], [d] buttons

• Press the button to change the DSF mode

while the DSF mode is on.

• Press the button to change the PLII mode

while the PLII mode is on.

●When the TV is connected

For details, see the section “TV Opera-

tions”.

[P/A] button

• Perform preset scan while in the TV mode.

When the button is pressed and held, auto

store is performed.

[] button

• Switch the TV picture mode or VTR (external)

picture mode.

[DIRECT] buttons

• Store a station into memory or recall it directly.

[a], [d] buttons

• Select a station.

[BND] button

• Switch the band.

• When the button is pressed and held, switch

seek tuning or manual mode.

●When the Sirius Satellite

Radio is connected

For details, refer to the Owner’s Manual

provided with the Sirius Satellite Radio.

[FNC] button

• Press the button to switch the operation

mode among the SIRIUS mode, etc.

[] button

• Select the CAT (Category) while in the

SIRIUS radio mode.

[DIRECT] buttons

• Stores a station into memory or recall it di-

rectly while in the SIRIUS mode.

[a], [d] buttons

• Press the button to selects a station.

8DXZ745MP

English

LCD Screen

In extreme cold, the screen movement may slow down and the screen may darken, but this is normal.

The screen will recover when it returns to normal temperature.

Display Items

Major Button Operations When External Equipment is Connected to This Unit

What is Sirius Satellite Radio?

Sirius is radio the way it was meant to be: Up

to 100 new channels of digital quality program-

ming delivered to listeners coast to coast via

satellite. That means 50 channels of completely

commercial-free music. Plus up to 50 more

channels of news, sports, and entertainment

from names like CNBC, Discovery, SCI-FI

Channel, A&E, House of Blues, E!, NPR,

Speedvision and ESPN.

Sirius is live, dynamic entertainment, com-

pletely focused on listeners. Every minute of

every day of every week will be different. All 50

commercial-free music channels are created in-

house and hosted by DJs who know and love

the music. Do you like Reggae? How about

Classic Rock or New Rock? Sirius has an array

of choices spanning a vast range of musical

tastes including the hits of the 50’s, 60’s, 70’s,

& 80’s as well as Jazz, Country, Blues, Pop,

Rap, R&B, Bluegrass, Alternative, Classical,

Heavy Metal, Dance and many others...

From its state-of-the-art, digital broadcasting fa-

cility in Rockefeller Center, New York City, Sirius

will deliver the broadest, deepest mix of radio

entertainment from coast to coast.

Sirius will bring you music and entertainment

programming that is simply not available on tra-

ditional radio in any market across the country.

It’s radio like you’ve never heard before.

So Get Sirius and Listen Up! For more infor-

mation, visit siriusradio.com.

: Satellite indication

: Anti Distortion Filter indication

: DTS indication

: DSF indication

: P.EQ indication

: DOLBY PL II indication

: DOLBY DIGITAL indication

: LINEAR PCM indication

: MAGNA BASS EXTEND indication

: Manual indication

: Stereo indication

: Folder indication

: Disc indication

: Scan indication

: Repeat indication

: Random indication

: Mute indication

Preset channel indication (1 to 6)

Disc number indication (1 to 12)

Function mode indication

The names of modes being

selected, etc. are displayed.

: 2-ZONE indication

: Main indication

: Sub indication

: MP3 indication

: WMA indication

Operation status indication

Titles, clock, etc. are displays.

DXZ745MP 9

English

5. DCP

CAUTION

CAUTION

The control panel can be detached to prevent

theft. When detaching the control panel, store it

in the DCP (DETACHABLE CONTROL PANEL)

case to prevent scratches.

We recommend taking the DCP with you when

leaving the car.

Removing the DCP

1. With the MOTORIZED FACE closed, turn off

the power.

2. Press the [RELEASE] button deeply to open

the DCP.

3. Pull the DCP toward you and remove it.

DCP

Attaching the DCP

1. Insert the DCP so that the A section on the

right side of the DCP catches on the hook B

on the unit.

2. Press the left side C of the DCP carefully to

fit it in place.

• Always close the MOTORIZED FACE before

removing the DCP.

• If you remove the DCP with the MOTOR-

IZED FACE open, the MOTORIZED FACE

closes immediately. Be careful not to get

your fingers caught.

• The DCP can easily be damaged by

shocks. After removing it, be careful not to

drop it or subject it to strong shocks.

• If the [RELEASE] button is pressed and the

DCP is not locked into place, it may fall out

from vibration of the car. This can break

the DCP, so after removing it, either install

it on the unit or put it in its DCP case.

• The connector connecting the unit and the

DCP is an extremely important part. Be

careful not to damage it by pressing on it

with fingernails, screwdrivers, etc.

Note:

• If the DCP is dirty, wipe off the dirt with a soft, dry

cloth only.

[RELEASE] button

10 DXZ745MP

English

6. REMOTE CONTROL

[FUNC]

[ ],[ ]

[ISR]

[MUTE]

[SCN]

[RPT]

[ ],[ ]

[BAND]

[DISP]

[RDM]

[2-ZONE]

Rear side

AA (SUM-3, IECR-6/1.5V)

Batteries

Rear cover

Remote control unit

Inserting the Batteries

1.Turn the remote control unit over, then slide the

rear cover in the direction of the arrow.

2.Insert the AA (SUM-3, IECR-6/1.5V) batteries

that came with the remote control unit facing in

the directions shown in the figure, then close the

rear cover.

Notes:

Using batteries improperly can cause them to

explode. Take note of the following points:

• When replacing batteries, replace both batteries

with new ones.

• Do not short-circuit, disassemble or heat batteries.

• Do not dispose of batteries into fire or flames.

• Dispose of spent batteries properly.

Receiver for remote control unit

Operating range: 30˚ in all directions

Signal transmitter

DXZ745MP 11

English

[FUNC]

[BAND]

[ ] , [ ]

[ ] , [ ]

[ ]

[MUTE]

[ISR]

[DISP]

[SCN]

[RPT]

[RDM]

[2-ZONE]

Functions of Remote Control Unit Buttons

Mode

Button

Radio/SIRIUS CD/MP3/WMA CD changer

DVD changer TV

Switches among radio, SIRIUS tuner, CD/MP3/WMA, CD changer, DVD changer, TV and

AUX.

Switches reception

band.

Plays the first track.

Top play.

Moves the next disc

in increasing order.

Switches reception

band.

Increases and decreases volume (in all modes).

Moves preset

channels up and

down.

No function.

Moves tracks up and down.

When pressed and held for 1 second:

Fast-forward/fast-backward.

Switches between playback and pause.

Moves preset

channels up and

down.

No function.

Turns mute on and off.

Recalls ISR radio station in memory.

Press and hold for 2 seconds or longer: Stores current station into ISR memory (radio mode

only).

Press and hold the button for 1 second or longer to switch the main and sub zone sound

source (only while 2-ZONE mode on).

Switches among main display, clock display.

Press and hold for 1 second or longer to turn on or off the 2-ZONE mode.

Press to switch the control zone between main zone or sub zone while 2-ZONE mode on.

Preset scan.

When pressed and

held for 2 seconds:

Auto store.

No function.

No function.

Scan play.

Press and hold the

button for 1 second

or longer to perform

folder scan play while

in the MP3/WMA

mode.

Repeat play.

Press and hold the

button for 1 second

or longer to perform

folder repeat play

while in the

MP3/WMA mode.

Random play.

Press and hold the

button for 1 second

or longer to perform

folder random play

while in the

MP3/WMA mode.

Scan play.

When pressed and

held for 1 second:

Disc scan play.

Repeat play.

When pressed and

held for 1 second:

Disc repeat play.

Random play.

When pressed and

held for 1 second:

Disc random play.

Preset scan.

When pressed and

held for 2 seconds:

Auto store.

No function.

Switches between TV

and VTR.

∗Some of the corresponding buttons on the main unit and remote control unit have different functions.

12 DXZ745MP

English

7. OPERATIONS

Basic Operations Note:Be sure to read this chapter referring to the front diagrams of

chapter “3. CONTROLS” on page 5 (unfold).

CAUTION

Be sure to lower the volume before switch-

ing off the unit power or the ignition key. The

unit remembers its last volume setting. If you

switch the power off with the volume up,

when you switch the power back on, the sud-

den loud volume may hurt your hearing and

damage the unit.

Turning on/off the power

Note:

• Be careful about using this unit for a long time

without running the engine. If you drain the car’s

battery too far, you may not be able to start the

engine and this can reduce the service life of the

battery.

1. Press the [FNC] button.

2. The illumination and display on the unit light

up. The unit automatically remembers its last

operation mode and will automatically switch

to display that mode.

3. Press and hold the [FNC] button for 1 second

or longer to turn off the power for the unit.

Note:

• System check

The first time this unit is turned on after the wire

connections are completed, it must be checked

what equipment is connected. When the power is

turned on, “SYSTEM CHCK” and “Push POWER”

appear in the display alternately, so press the

[FNC] button. The system check starts within the

unit. When the system check is complete, press

the [FNC] button again.

Selecting a mode

1. Press the [FNC] button to change the opera-

tion mode.

2. Each time you press the [FNC] button, the

operation mode changes in the following or-

der:

Radio mode ➜ SIRIUS mode ➜ CD/MP3/

WMA mode ➜ CD changer mode ➜ DVD

changer mode ➜ TV mode ➜ AUX mode ➜

Radio mode...

External equipment not connected with

CeNET is not displayed.

Adjusting the volume

1. Press the front part of the [ROTARY] knob.

The knob will pop up.

2. Turning the [ROTARY] knob clockwise in-

creases the volume; turning it counterclock-

wise decreases the volume.

The volume level is from 0 (minimum) to 33 (maxi-

mum).

Switching the display

Press the [D] button to select the desired display.

Each time you press the [D] button, the display

switches in the following order:

Main display ➜ Clock display ➜ Main display

Once selected, the preferred display becomes

the display default. When a function adjust-

ment such as volume is made, the screen will

momentarily switch to that function’s display,

then revert back to the preferred display sev-

eral seconds after the adjustment.

When you have entered a title in a CD, it ap-

pears in the main display. If you have not en-

tered a title, “NO-TITLE” appears in the title

display instead. For information on how to en-

ter a title, refer to the subsection “Entering

titles” in section “Operations Common to

Each Mode”.

Setting the Anti Distortion Filter

The adopted “Liveliness Enhancement Filter”

and “Sound Tone Compensation” functions al-

low well-modulated realistic playback without af-

fecting the characteristics of the original sound

tone.

This unit are provided with 3 types of sound

tone effects stored in memory. Select the one

you prefer.

The factory default setting is “ADF OFF”.

Each time you press the [ADF] button, the tone

effect changes in the following order:

“ADF-1”➜“ADF-2”➜“ADF-3”➜

“ADF OFF” ...

• ADF-1 : suitable for the genuine speakers

• ADF-2 : suitable for separate speakers

• ADF-3 : suitable for coaxial speakers

• ADF OFF : no sound effect

DXZ745MP 13

English

Basic Operations

Notes:

• The volume changes each time the ADF setting is

switched. Turn down the volume and the sub-

woofer volume before performing a switching op-

eration.

• Sufficient effects cannot be obtained with some

speaker systems. In such cases, adjust the vol-

ume.

Adjusting the tone

Press the [A-M] button and select the item to

adjust. Each time you press the [A-M] button,

the item changes in the following order:

●When the ADF-1 (ADF-2, ADF-3) is set

“SUB-W VOL”➜“BALANCE”➜

“FADER”➜Last function mode...

●When the ADF-OFF is set

“SUB-W VOL”➜“BASSÅGAINΔ➜

“TREBÅGAINΔ➜ “BALANCE”➜ “FADER”

➜Last function mode…

If subwoofer function is set “ON”, “SUB-W VOL” can

be selected.

Adjusting the subwoofer output

volume

You can adjust the volume output from the

unit’s subwoofer output terminal.

1. Press the [A-M] button and select

“SUB-W VOL”.

2. Turning the [ROTARY] knob clockwise

increases the output volume; turning it

counterclockwise decreases the output

volume.

The factory default setting is “0”. (Setting range:

–6 to 6)

3. When the adjustment is complete, press the

[A-M] button several times until the function

mode is reached.

Adjusting the bass

The bass gain, bass FREQ (center frequency)

and bass Q can be adjusted as follows.

1. Press the [A-M] button and select “BASS

ÅGAINΔ.

2. Press the [a] or [d] button and select from

“BASS ÅGAINΔ➜“BASS ÅFREQ Δ➜

“BASS ÅQΔ➜“BASS ÅGAINΔ…

3. Turn the [ROTARY] knob clockwise or

counterclockwise as needed and adjust the

gain, the FREQ (center frequency) and the

Q.

BASS GAIN : –6 to 8 (The factory default

setting is “0”)

BASS FREQ : 50Hz/80Hz/120Hz (The

factory default setting is

“50”)

BASS Q : 1/1.25/1.5/2 (The factory

default setting is “1”)

4. When the adjustment is complete, press the

[A-M] button several times until the function

mode is reached.

Adjusting the treble

The treble gain and treble FREQ (center

frequency) can be adjusted as follows.

1. Press the [A-M] button and select “TREB

ÅGAINΔ.

2. Press the [a] or [d] button and select

from “TREB ÅGAINΔ➜“TREB Å FREQ Δ

➜“TREB ÅGAINΔ...

3. Turn the [ROTARY] knob clockwise or

counterclockwise as needed and adjust the

gain and the FREQ (center frequency).

TREB GAIN : –6 to 6 (The factory default

setting is “0”)

TREB FREQ : 8KHz/12KHz (The factory

default setting is “12K”)

4. When the adjustment is complete, press the

[A-M] button several times until the function

mode is reached.

Adjusting the balance

1. Press the [A-M] button and select “BAL-

ANCE”.

2. Turning the [ROTARY] knob clockwise

emphasizes the sound from the right

speaker; turning it counterclockwise

emphasizes the sound from the left speaker.

The factory default setting is “0”. (Adjustment

range: L13 to R13)

3. When the adjustment is complete, press the

[A-M] button several times until the function

mode is reached.

Adjusting the fader

1. Press the [A-M] button and select “FADER”.

2. Turning the [ROTARY] knob clockwise

emphasizes the sound from the front

speakers; turning it counterclockwise

emphasizes the sound from the rear

speakers.

14 DXZ745MP

English

Basic Operations

FM reception

For enhanced FM performance the

®

tuner includes signal actuated stereo control,

Enhanced Multi AGC, Impulse noise reduction

curcuits and Multipath noise reduction circuits.

Listening to the radio

1. Press the [FNC] button and select the radio

mode. The frequency in the display.

2. Press the [BND] button and select the radio

band. Each time the button is pressed, the ra-

dio reception band changes in the following

order:

FM1 ➜ FM2 ➜ FM3 ➜ AM ➜ FM1...

3. Press the [a] or [d] button to tune in the

desired station.

Tuning

There are 3 types of tuning mode available, seek

tuning, manual tuning and preset tuning.

Seek tuning

1. Press the [BND] button and select the de-

sired band (FM or AM).

If “MANU” is lit in the display, press and hold

the [BND] button for 1 second or longer.

“MANU” in the display goes off and seek tun-

ing is now available.

2. Press the [a] or [d] button to automatically

seek a station.

When the [d] button is pressed, the station is

sought in the direction of higher frequencies; if

the [a] button is pressed, the station is sought

in the direction of lower frequencies.

Manual tuning

There are 2 ways available: Quick tuning and

step tuning.

When you are in the step tuning mode, the fre-

quency changes one step at a time. In the quick

tuning mode, you can quickly tune the desired

frequency.

1. Press the [BND] button and select the de-

sired band (FM or AM).

If “MANU” is not lit in the display, press and

hold the [BND] button for 1 second or longer.

“MANU” is lit in the display and manual tuning

is now available.

Radio Operations

The factory default setting is “0”. (Adjustment

range: F12 to R12)

3. When the adjustment is complete, press the

[A-M] button several times until the function

mode is reached.

Adjusting MAGNA BASS EXTEND

The MAGNA BASS EXTEND does not adjust

the low sound area like the normal sound ad-

justment function, but emphasizes the deep

bass sound area to provide you with a dynamic

sound.

The factory default setting is off.

1. Press and hold the [A-M] button for 1 sec-

ond or longer to turn on the MAGNA BASS

EXTEND effect. “M-B EX” lights in the dis-

play.

2. Press and hold the [A-M] button for 1 second

or longer to turn off the MAGNA BASS EX-

TEND effect. “M-B EX” goes off from the dis-

play.

DXZ745MP 15

English

Radio Operations

2. Tune into a station.

●Quick tuning:

Press and hold the [a] or [d] button for 1

second or longer to tune in a station.

●Step tuning:

Press the [a] or [d] button to manually

tune in a station.

Recalling a preset station

A total of 24 preset positions (6-FM1, 6-FM2, 6-

FM3, 6-AM) exists to store individual radio sta-

tions in memory. Pressing the corresponding

[DIRECT] button recalls the stored radio fre-

quency automatically.

1. Press the [BND] button and select the de-

sired band (FM or AM).

2. Press the corresponding [DIRECT] button to

recall the stored station.

Press and hold one of the [DIRECT] buttons

for 2 seconds or longer to store that station

into preset memory.

Manual memory

1. Select the desired station with seek tuning,

manual tuning or preset tuning.

2. Press and hold one of the [DIRECT] buttons

for 2 seconds or longer to store the current

station into preset memory.

Auto store

Auto store is a function for storing up to 6 sta-

tions that are automatically tuned in sequentially.

If 6 receivable stations cannot be received, a

previously stored station remains unoverwritten

at the memory position.

1. Press the [BND] button and select the de-

sired band (FM or AM).

2. Press and hold the [P/A] button for 2 sec-

onds or longer. The stations with good recep-

tion are stored automatically to the preset

channels.

If auto store is performed in the FM bands, the

stations are stored in FM3 even if FM1 or FM2

was chosen for storing stations.

Preset scan

Preset scan receives the stations stored in pre-

set memory in order. This function is useful

when searching for a desired station in memory.

1. Press the [P/A] button.

2. When a desired station is tuned in, press the

[P/A] button again to continue receiving that

station.

Note:

• Be careful not to press and hold the [P/A] button

for 2 seconds or longer, otherwise the auto store

function is engaged and the unit starts storing

stations.

Instant station recall (ISR)

Instant station recall is a special radio preset

that instantly accesses a favorite radio station at

a touch of a button. The ISR function even oper-

ates with the unit in other modes.

●ISR memory

1. Select the station that you wish to store in ISR

memory.

2. Press and hold the [ISR] button for 2 seconds

or longer.

●Recalling a station with ISR

In any mode, press the [ISR] button to turn on

the radio function and tune the selected radio

station. “ISR” appears in the display. Press the

[ISR] button again to return to the previous

mode.

16 DXZ745MP

English

2. Files without MP3/WMA data will not play.

The indication “––:––” appears in the play

time display if you attempt to play files with-

out MP3/WMA data.

● Logical format (File system)

1. When writing MP3/WMA file on a CD-R disc

or CD-RW disc, please select “ISO9660 level

1, 2 or JOLIET or Romeo” as the writing soft-

ware format. Normal play may not be possible

if the disc is recorded on another format.

2. The folder name and file name can be dis-

played as the title during MP3/WMA play but

the title must be within 128 single byte alpha-

betical letters and numerals (including an ex-

tension).

3. Do not affix a name to a file inside a folder

having the same name.

● Folder structure

1. A disc with a folder having more than 8 hier-

archical levels will be impossible.

● Number of files or folders

1. Up to 255 files can be recognized per folder.

Up to 500 files can be played.

2.

Tracks are played in the order that they were

recorded onto a disc. (Tracks might not always

be played in the order displayed on the PC.)

3.

Some noise may occur depending on the type

of encoder software used while recording.

Multisession function

When a disc contains both normal CD type tracks

and MP3/WMA type tracks mixedly, you can se-

lect which type of the recorded tracks to play.

● Default value is “CD”.

Each time you press and hold the [BND] button

for 1 second or longer, the mixed mode is

switched between CD type or MP3/WMA type.

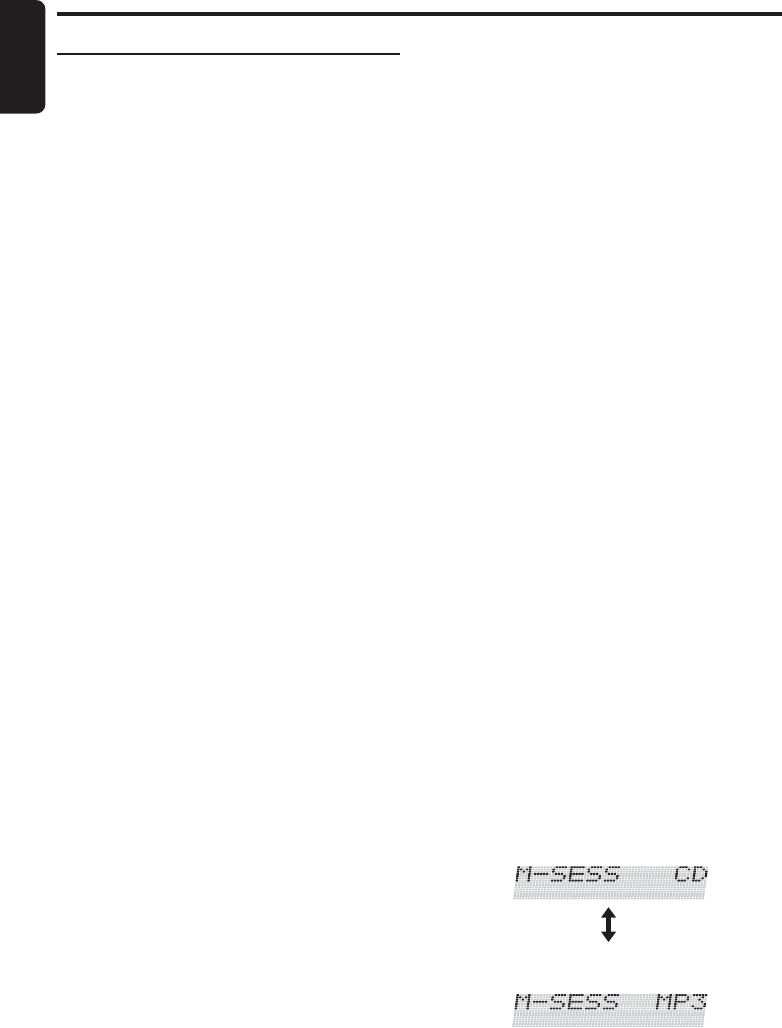

The following indication appears in the title dis-

play when switching the track type to be played.

● Display when CD type track is selected:

● Display when MP3/WMA type track is se-

lected:

1. Types of recording that can be played are as

follows.

MP3/WMA

What is MP3?

MP3 is an audio compression method and clas-

sified into audio layer 3 of MPEG standards.

This audio compression method has penetrated

into PC users and become a standard format.

This MP3 features the original audio data com-

pression to about 10 percent of its initial size

with a high sound quality. This means that about

10 music CDs can be recorded on a CD-R disc

or CD-RW disc to allow a long listening time

without having to change CDs.

What is WMA?

WMA is the abbreviation of Windows Media Au-

dio, an audio file format developed by Microsoft

Corporation.

Notes:

• If you play a file with DRM (Digital Rights Man-

agement) for WMA remaining ON, no audio is

output (The WMA indicator blinks).

• Windows Media™, and the Windows ® logo are

trademarks, or registered trademarks of Microsoft

Corporation in the United States and/or other

countries.

●

To disable DRM (Digital Rights Management):

1. When using Windows Media Player 8, click

on TOOLS ➜ OPTIONS ➜ COPY MUSIC

tab, then under COPY SETTINGS, unclick

the check box for PROTECT CONTENT.

Then, reconstruct files.

2. When using Windows Media Player 9, click

on TOOL ➜ OPTIONS ➜ MUSIC RECORD

tab, then under Recording settings, unclick

the Check box for RECORD PROTECTED

MUSIC. Then, reconstruct files.

Personally constructed WMA files are used

at your own responsibility.

Precautions when creating MP3/WMA disc

● Usable sampling rates and bit rates:

1. MP3: Sampling rate 11.025 kHz-48 kHz,

Bit rate: 8 kbps-320 kbps / VBR

2. WMA: Bit rate 48 kbps-192 kbps

● File extensions

1. Always add a file extension “.MP3” or “.WMA”

to MP3 or WMA file by using single byte let-

ters. If you add a file extension other than

specified or forget to add the file extension ,

the file cannot be played.

CD/MP3/WMA Operations

DXZ745MP 17

English

2. After making these settings, remove the disc

and then reinsert it.

3. When a mixed mode CD is loaded and CD is

set, the track to be played first is MP3/WMA

file data and no sound is heard.

Note:

• When playing a CCCD (Copy Control CD), set the

setting to CD type. When this is set to MP3/WWA

type, the CD cannot be played normally in some

cases.

Disc-In-Play function

As long as the ignition key is turned to the ON or

ACC position, this function allows you to turn the

power to the unit and start playing the disc auto-

matically when the disc is inserted even if the

power is not turned on.

CD/MP3/WMA Operations

• Do not try to put your hand or fingers in the

disc insertion slot. Also never insert for-

eign objects into the slot.

• Do not insert discs where adhesive comes

out from cellophane tape or a rental CD la-

bel, or discs with marks where cellophane

tape or rental CD labels were removed. It

may be impossible to extract these discs

from the unit and they may cause the unit

to break down.

Backup Eject function

Just pressing the [Q] button ejects the disc

even if the power to the unit was not turned on.

1. Press the [Q] button. The MOTORIZED

FACE opens and a CD ejects. “EJECT” ap-

pears in the display.

CAUTION

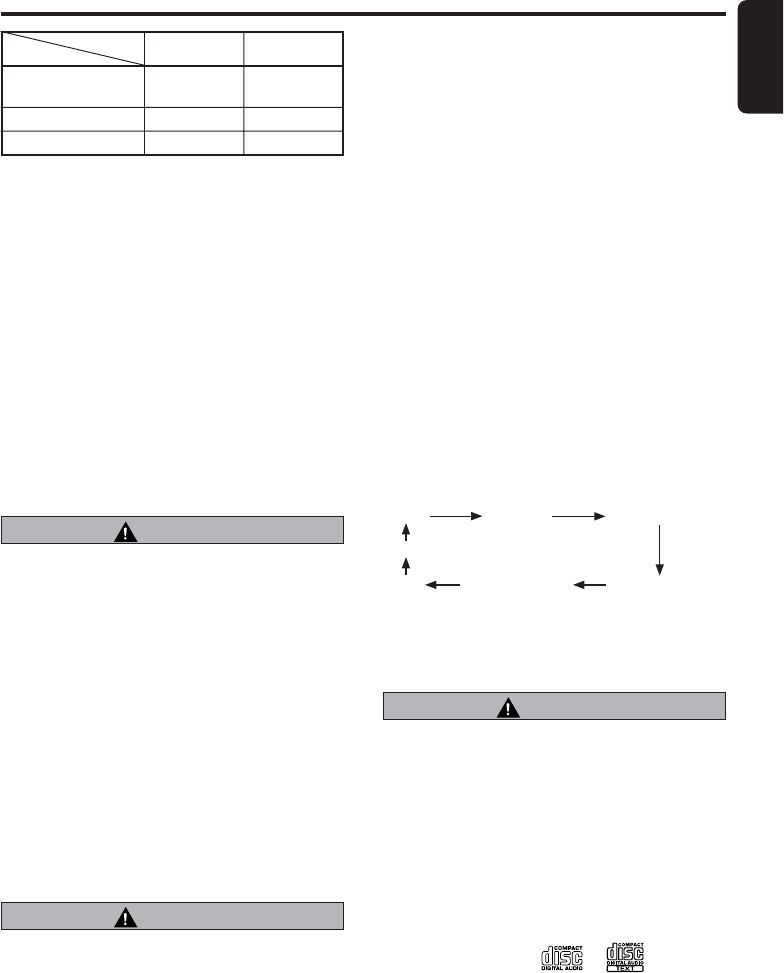

Set to MP3/WMA

Disc

Mixed with CD and

MP3/WMA type tracks

CD type track only

MP3/WMA type track only

Set to CD

Play CD

Play MP3/WMA

Setting

Play CD Play CD

Play MP3/WMA

Play MP3/WMA

CAUTION

Be careful not to get your fingers caught

when opening and closing the MOTORIZED

FACE.

2. Remove the CD and press the [Q] button to

close the MOTORIZED FACE.

Notes:

• Be sure to close the MOTORIZED FACE after re-

moving the CD.

•

The MOTORIZED FACE closes automatically 30 sec-

onds

after removing the CD.

•

If a CD (12 cm) is left in the ejected position for 15

seconds, the CD is automatically reloaded. (Auto re-

load)

•

8 cm CDs are not auto reloaded. Be sure to remove

it when ejected.

•

If you force a CD into before auto reloading, this can

damage the CD.

Listening to a disc already loaded

in the unit

Press the [FNC] button to select the CD/MP3/

WMA mode.

When the unit enters the CD/MP3/WMA mode,

play starts automatically.

If there is no disc loaded, the indication “

NO

DISC”

appears in the title display.

The mode changes each time the [FNC] button is

pressed. (Modes are not displayed for equipment

that is not connected.)

Loading a CD

1. Press the [Q] button. The MOTORIZED

FACE opens.

Be careful not to get your fingers caught

when opening and closing the MOTORIZED

FACE.

2. Insert a CD into the center of the insertion

slot with the labeled side facing up. The CD

plays automatically after loading.

Notes:

• Never insert foreign objects into the CD insertion

slot.

•

If the CD is not inserted easily, there may be another

CD in the mechanism or the unit may require service.

• Discs not bearing the or mark and

CD-ROMs cannot be played by this unit.

• Some CDs recorded in CD-R/CD-RW mode may

not be usable.

CAUTION

Radio

AUX

(TV)

(SIRIUS) CD/MP3/WMA

(CD changer)(DVD changer)

18 DXZ745MP

English

2

3

4

5

1

Root folder

Selecting a track

●Track-up

1. Press the [d] button to move ahead to the

beginning of the next track.

2. Each time you press the [d] button, the

track advances ahead to the beginning of the

next track.

●Track-down

1. Press the [a] button to move back to the

beginning of the current track.

2. Press the [a] button twice to move to the

beginning of the previous track.

Fast-forward/fast-backward

●Fast-forward

Press and hold the [d] button for 1 second or

longer.

●Fast-backward

Press and hold the [a] button for 1 second or

longer.

For MP3/WMA discs, it takes some time until the

start of searching and between tracks. In addition,

the playing time may have a margin of error.

Folder select

This function allows you to select a folder con-

taining MP3/WMA files and start playing from

the first track in the folder.

1. Press the [DN] or the [UP] button.

Press the [DN] button to move the previous

folder.

Press the [UP] button to move the next folder.

CD/MP3/WMA Operations

Loading 8 cm compact discs

No adapter is required to play an 8 cm CD.

Insert the 8 cm CD into the center of the insertion slot.

3. After loading a CD, the MOTORIZED FACE

closes automatically.

Notes:

• Note that MOTORIZED FACE closes immediately

after a CD is inserted into CD insertion slot.

• If no CD is loaded in the MOTORIZED FACE, it

closes after 30 seconds.

Pausing play

1. Press the [ ] button to pause play.

“PAUSE” appears in the display.

2. To resume CD play, press the [ ] button

again.

Displaying CD titles

This unit can display title data for CD-text/MP3/

WMA disc and user titles input with this unit.

1. Press the [D] button to display the title.

2. Each time you press and hold the [D] button

for 1 second or longer, the title display

changes in the following order:

Folder

File

● MP3/WMA disc

File

Album TAG

Album TAG

Artist TAG

Artist TAG

Title TAG

Title TAG

Folder

Folder

File

●CD-TEXT disc

Artist name

CD-text title (track)

User title(disc)

(None)

User title(disc)

(None)

CD-text title (disc)

Artist name

CD-text title (track)

CD-text title (disc)

Notes:

• If the CD playing is not a CD-text CD or no user

title has been input, “NO-TITLE” appears in the

display.

• If MP3/WMA disc is not input TAG, “NO-TAG” ap-

pears in the display.

• For MP3, supports ID3 Tags V2.3 / 2.2 / 1.1 / 1.0.

• Tag displays give priority to V2.3 / 2.2

• In the case of album Tags for WMA, the informa-

tion written into the extension header is displayed.

• Only ASCII characters can be displayed in Tags.

DXZ745MP 19

English

Press the [UP] button while in the final folder

to shift to the first folder.

Folder without an MP3/WMA file is not select-

able.

2. To select a track, press the [a] or [d] but-

ton.

Top function

The top function resets the CD player to the first

track of the disc. Press the [BND] button to play

the first track (track No. 1) on the disc.

In case of MP3/WMA, the first track of a folder be-

ing played will be returned.

Scan play

This function allows you to locate and play the

first 10 seconds of all the tracks recorded on a

disc.

1. Press the [SCN] button to perform scan play.

The indication “SCN” lights up in the display,

and “

TRK SCAN”

(or “

-SCAN”

when

searching for a track in the MP3/WMA file)

appears in the title display for about 2 sec-

onds, then scan play starts.

Scan play starts from the next track after the

track currently being played.

2. To cancel scan play, press the [SCN] button

again.

The play status indication such as “SCN” dis-

appears from the display and the current

track is played.

Folder scan play

This function allows you to locate and play the

first 10 seconds of the first track of all the folders

on an MP3/WMA disc.

1. Press and hold the [SCN] button for 1 sec-

ond or longer to perform to folder scan play.

The indications “FOLDER” and “SCN” light

up in the display and “

-SCAN”

appears for

about 2 seconds in the title display, and then

folder scan play starts.

Folder scan play starts from the next track af-

ter the track currently being played.

2. To cancel folder scan play, press the [SCN]

button again.

The play status indications such as

“FOLDER” and “SCN” disappear from the

display and the current track is played.

Repeat play

This function allows you to play the current track

repeatedly.

1.

Press the [RPT] button to perform repeat play.

The indication “RPT

”

lights up in the display

and “

TRK REPEAT”

(or “

-REPEAT”

when

performing repeated play for a track in the

MP3/WMA file) appears for about 2 seconds

in the title display, and then repeat play starts.

2. To cancel repeat play, press the [RPT] button

again.

The play status display such as “RPT” disap-

pears from the display and normal play re-

sumes from the track currently being played.

Folder repeat play

This function allows you to play a track currently

being played in the MP3/WMA folder repeatedly.

1. Press and hold the [RPT] button for 1 second

or longer to perform folder repeat play.

The indications “FOLDER” and “RPT” light

up in the display and “

-REPEAT”

appears

for about 2 seconds in the title display, and

then folder repeat play starts.

2. To cancel folder repeat play, press the [RPT]

button again.

The play status indications such “FOLDER”

and “RPT” disappear from the display and

normal play resumes from the track currently

being played.

Random play

This function allows you to play all tracks re-

corded on a disc in a random order.

1. Press the [RDM] button to perform random

play.

The indication “RDM” lights up in the display

and “

TRK RANDOM”

(or “

-RANDOM”

when

performing random play for tracks on a MP3/

WMA disc) appears in the title display for about

2 seconds, and then random play starts. The

tracks on the disc are then played in a random

order.

2. To cancel random play, press the [RDM] but-

ton again.

The play status indication such as “RDM” dis-

appears from the display and normal play re-

sumes from the track currently being played.

CD/MP3/WMA Operations

20 DXZ745MP

English

CD/MP3/WMA Operations

Folder random play

This function allows you to play all the tracks of

all the folders recorded on an MP3/WMA disc in

a random order.

1. Press and hold the [RDM] button for 1 sec-

ond or longer to perform folder random play.

The indications “FOLDER” and “RDM” light

up in the display and “

-RANDOM”

appear

in the title display for about 2 seconds, and

then folder random play starts.

2. To cancel folder random play, press the

[RDM] button again.

The play status indications such as

“FOLDER” and “RDM” disappear from the

display and normal play resumes from the

track currently being played.

Play list mode

This function allows you to play tracks, up to lat-

est 5 time stamps, by reading the play list infor-

mation written on the disc.

1. Press and hold the [PLAY LIST] button for 1

second or longer to turn on or off the play list

mode.

Play list play is possible only when there is a

file whose extension is “.M3U” on the CD-R/

RW.

Up to 5 play lists can be recognized, and up to

255 files can be recognized per play list.

2. Press the [a] or [d] button to change the

track.

3. Press the [DN] button to move to the previ-

ous play list.

Press the [UP] button to move to the next

play list.

Notes:

• The SCN/RPT/RDM functions cannot be used

while in the play list mode.

• The title display changes from folder name to play

list name.

Making a play list

1. Write desired tracks to a CD-R/RW, etc. Be

sure to use alphanumeric/ASCII characters

for all file names.

2. Make a play list by using a multimedia player,

etc. and save the data. The file format must

be M3U.

3. Again, write this play list to the CD-R/RW,

etc.

Notes:

• When writing to a CD-R/RW, etc., be sure to use

alphanumeric/ASCII characters.

• Up to 5 layers can be recognized as a list. For

written play lists, latest 5 lists are recognized in

the order in which they are written.

• When writing to a CD-R/RW, etc., turn off the Disc

At Once function.

• When adding a play list, it is recommended to

write it in the “Root” folder.

DXZ745MP 21

English

Different pieces of music heard by plural listeners (2-ZONE function)

About the 2-ZONE function

The 2-ZONE function is a function that outputs

separate sounds from the MAIN zone and SUB

zone by simultaneously operating two sources in

the one center unit, thereby allowing plural lis-

teners to enjoy separate music sources.

This unit can control its internal sources (radio,

CD, MP3, etc.) to play back them, and further,

can simultaneously play back sources from ex-

ternal equipment connected via CeNET (for in-

stance, CD changers etc.).

The sources of the MAIN zone are played back

from the speakers of the vehicle side, and those

of the SUB zone are from the headphone sys-

tems (WH104/WH204).

Notes:

• Except AUX, the MAIN and SUB zones cannot si-

multaneously use sources inside this unit.

Also, external equipment connected via CeNET

cannot simultaneously be used.

• The TV mode while the 2-ZONE function is tuned

on is forced to change to “VTR playback.”

• The ISR function cannot be operated when the 2-

ZONE function is turned on.

• The Audio mode and ADF function cannot be set

for the sources of the SUB zone.

• If any of following external equipment is con-

nected, this function is disenabled.

• 5.1 channel surround decoder (DVH920/

DVH940)

Setting the 2-ZONE function

The initial setting is “OFF”.

When you have set the 2-ZONE function to “ON”

in the initial state, the MAIN zone services for

sources inside this unit and the SUB zone, for

AUX. Changing a source during later use

causes the latest heard source to be invoked.

Press and hold the [ ] button for 1 second or

longer to turn on or off. When the 2-ZONE func-

tion is turned on, “2-ZONE ON” on the display

lights.

Switching sources

1. Press the [ ] button to select the control

zone (“MAIN” or “SUB”).

Every time the button is pressed, the “MAIN

ZONE” changes to the “SUB ZONE” or vice

versa.

“MAIN” or “SUB” on the display lights at that

time, thereby indicating that the relevant

zone becomes ready to operate.

Adjusting the sound level for the

MAIN zone

You can adjust the sound level only for the MAIN

zone. To adjust the sound level for the SUB zone,

adjust it in the headphone (WH104/WH204) side.

Turning the [ROTARY] knob to adjust the sound

level for the MAIN zone.

Counterchanging the sources of the

MAIN and SUB zones

You can supersede the music sources of the

MAIN and SUB zones.

Press and hold the [ISR] button for 1 second or

longer to counterchange the sources of the

MAIN and SUB zones.

“REVERSE” is displayed for 2 seconds on the

display.

2. Press the [FNC] button to select a source in

the control zone.

Every time the button is pressed, the follow-

ings appear in turn.

●For a source group included in this unit:

Radio ➜CD/MP3 ➜AUX ➜Radio...

●For a source group in external equip-

ment:

AUX ➜CD changer ➜DVD changer ➜TV

➜AUX...

The name of equipment that is not connected

to this unit is not displayed.

• To change a current musical performance etc., press

the button that controls the selected source ([SCN]

button, etc.).

Oparation

2-ZONE

turned off

2-ZONE

turned on

2-ZONE

turned off

Source

change

2-ZONE

turned on

MAIN zone

Radio playback

Radio playback

Radio playback

External

equipment (CD

changer)

External

equipment (CD

changer)

SUB zone

Radio playback

AUX

Radio playback

External

equipment (CD

changer)

Radio playback

● Example for source change

22 DXZ745MP

English

Turning the screen saver function

on or off

This unit is provided with the screen saver func-

tion which allows you to show various kinds of

patterns and characters in the Operation Status

indication area of the display in a random order.

You can turn on and off this function.

If the button operation is performed with the

screen saver function on, the operation display

corresponding to the button operation is shown

for about 30 seconds and the display returns to

the screen saver display.

The factory default setting is “RANDOM”.

1. Press and hold the [T] button for 1 second or

longer to switch to the adjustment selection

deisplay.

2. Press the [a] or [d] button to select

“ÅÅ

ÅÅ

ÅSCRN SVR ÎÎ

ÎÎ

Î

PUSH ENT”.

3. Press the [ ] button.

4. Turn the [ROTARY] knob clockwise or coun-

terclockwise to select the setting. Each time

you turn the [ROTARY] knob, the setting

changes in the following order:

“ÅÅ

ÅÅ

Å OFFÎÎ

ÎÎ

Δ➜ “ÅÅ

ÅÅ

ÅPattern-1ÎÎ

ÎÎ

Δ➜

“ÅÅ

ÅÅ

ÅPattern-2ÎÎ

ÎÎ

Δ➜ “ÅÅ

ÅÅ

ÅPattern-3ÎÎ

ÎÎ

Δ➜

“ÅÅ

ÅÅ

Å MESSAGEÎÎ

ÎÎ

Δ➜ “ÅÅ

ÅÅ

Å RANDOMÎÎ

ÎÎ

Δ

5. Press the [T] button to return to the previous

mode.

Entering MESSAGE INFORMATION

Message up to 30 characters long can be stored

in memory and displayed for CD, CD changer

and TV stations.

The factory default setting is “Welcome to Clarion”.

1. Press and hold the [T] button for 1 second or

longer to switch to the adjustment selection

display.

2. Press the [a] or [d] button to select

“ÅÅ

ÅÅ

ÅMSG INPUTÎÎ

ÎÎ

Î

PUSH ENT”.

3. Press the [ ] button.

4. Press the [BND] button to clear the old mes-

sage.

5. Press the [a] or [d] button to move the

cursor.

6. Press the [D] button to select a character.

Each time you press the [D] button, the char-

acter changes in the following orders:

Capital letters ➜ Small letters ➜ Numbers/

Symbols ➜ Umlaut ➜ Capital letters...

Operations Common to Each Mode

7. Turn the [ROTARY] knob clockwise or coun-

terclockwise to select the desired character.

8. Repeat step 5 to 7 to enter up to 30 charac-

ters for message.

9. Press and hold the [ ] button for 2 sec-

onds or longer to store the message in

memory and cancel input message.

10.Press the [T] button to return to the previous

mode.

Message display

When the unit is powered on or off, a message

is displayed. The user can turn this message

display ON or OFF.

The factory default setting is “ON”.

1. Press and hold the [T] button for 1 second or

longer to switch to the adjustment selection

display.

2. Press the [a] or [d] button to select

“ÅÅ

ÅÅ

ÅMESSAGE ÎÎ

ÎÎ

Δ.

3. Turn the [ROTARY] knob clockwise or coun-

terclockwise to set the message display “ON”

or “OFF”.

4. Press the [T] button to return to the previous

mode.

Setting the method for title scroll

Set how to scroll in CD-TEXT or MP3/WMA.

The factory default setting is “ON”.

1. Press and hold the [T] button for 1 second or

longer to switch to the adjustment selection

display.

2. Press the [a] or [d] button to select

“ÅÅ

ÅÅ

ÅAUTO SCRLÎÎ

ÎÎ

Δ.

3. Turn the [ROTARY] knob clockwise or coun-

terclockwise and select “ON” or “OFF”.

● ON:

To scroll automatically.

● OFF:

To scroll just 1 time when the title was

changed or the title key was pressed.

4. Press the [T] button to return to the previous

mode.

DXZ745MP 23

English

Dimmer level

You can adjust the reduced illumination level of

the dimmer.

The factory default setting is “LV 3”.

(Adjustment range is LV1 to LV5)

1. Press and hold the [T] button for 1 second or

longer to switch to the adjustment selection

display.

2. Press the [a] or [d] button to select the

“ÅÅ

ÅÅ

ÅDIMMER LVÎÎ

ÎÎ

Δ.

3. Turn the [ROTARY] knob clockwise or coun-

terclockwise to adjust the reduced illumina-

tion level of the dimmer.

● LV1 to LV5:

The dimmer operation is performed depend-

ing on the set level LV1 to LV5.

● OFF:

No dimmer operation is performed.

4. Press the [T] button to return to the previous

mode.

Adjusting the display contrast

You can adjust the display contrast to match the

angle of installation of the unit.

The factory default setting is “8”. (Adjustment level: 1

to 18)

1. Press and hold the [T] button for 1 second or

longer to switch to the adjustment selection

display.

2. Press the [a] or [d] button to select

“ÅÅ

ÅÅ

ÅCONTRAST ÎÎ

ÎÎ

Δ.

3. Turn the [ROTARY] knob clockwise or coun-

terclockwise to adjust the contrast.

4. Press the [T] button to return to the previous

mode.

Anti-theft indicator

The red Anti-theft indicator is a function for pre-

venting theft. When the DCP is removed from

the unit, this indicator blinks.

The factory default setting is “OFF”.

1. Press and hold the [T] button for 1 second or

longer to switch to the adjustment selection

display.

2. Press the [a] or [d] button and select

“ÅÅ

ÅÅ

ÅBLINK LEDÎÎ

ÎÎ

Δ.

3. Turn the [ROTARY] knob clockwise to set this

function “ON” or turn it counterclockwise to

switch this function “OFF”.

4. Press the [T] button to return to the previous

mode.

Operations Common to Each Mode

Setting the Subwoofer

You can set the subwoofer on or off.

The factory default setting is “ON”.

1. Press and hold the [T] button for 1 second or

longer to switch to the adjustment selection

display.

2. Press the [a] or [d] button and select

“ÅÅ

ÅÅ

ÅSUB-W ÎÎ

ÎÎ

Δ.

3. Turn the [ROTARY] knob clockwise or coun-

terclockwise and select “ON” or “OFF”.

4. Press the [T] button to return to the previous

mode.

Setting LOW PASS FILTER

The factory default setting is “THRGH” (Through).

If subwoofer function is set “ON”, “LOW PASS FIL-

TER” can be selected.

1. Press and hold the [T] button for 1 second or

longer to switch to the adjustment selection

display.

2. Press the [a] or [d] button and select

“ÅÅ

ÅÅ

ÅSUB-W LPFÎÎ

ÎÎ

Δ.

3. Turn the [ROTARY] knob clockwise or coun-

terclockwise to select the setting. Each time

you turn the [ROTARY] knob, the setting

changes in the following order:

THRGH ➜ 50Hz ➜ 80Hz ➜ 120Hz

4. Press the [T] button to return to the previous

mode.

Setting the external amplifier

The factory default setting is “OFF”.

1. Press and hold the [T] button for 1 second or

longer to switch to the adjustment selection

display.

2. Press the [a] or [d] button and select

“ÅÅ

ÅÅ

ÅAMP-CANCLÎÎ

ÎÎ

Δ.

3. Turn the [ROTARY] knob clockwise or coun-

terclockwise and select “ON” or “OFF”.

● ON:

Use with connected AMP.

● OFF:

Use with inside AMP.

4. Press the [T] button to return to the previous

mode.

24 DXZ745MP

English

Operations Common to Each Mode

AUX function

This system has an external input jack so you

can listen to sounds and music from external

devices connected to this unit.

Selecting AUX IN sensitivity

Make the following settings to select the sensi-

tivity when sounds from external devices con-

nected to this unit are difficult to hear even after

adjusting the volume.

The factory default setting is “MID”.

1. Press and hold the [T] button for 1 second or

longer to switch to the adjustment selection

display.

2. Press the [a] or [d] button to select

“ÅÅ

ÅÅ

ÅAUX SENS ÎÎ

ÎÎ

Δ.

3. Turn the [ROTARY] knob clockwise or coun-

terclockwise as needed and select from

“HIGH”, “MID” or “LOW”.

4. Press the [T] button to return to the previous

mode.

Triggered audio mute for cellular

telepones

This unit requires special wiring to mute the au-

dio signal automatically when a cellular tele-

phone rings in the car.

This function is not compatible with all cellular

telepones Contact your local authorized Clarion

dealer for information on proper installation and

compatibility.

Setting the clock

1. Press and hold the [T] button for 1 second or

longer to switch to the adjustment selection

display.

2. Press the [a] or [d] button to select

“ÅÅ

ÅÅ

ÅCLOCKÎÎ

ÎÎ

Î

PUSH ENT”.

3. Press the [ ] button.

4. Press the [a] or [d] button to select the

hour or the minute.

5. Turn the [ROTARY] knob clockwise or coun-

terclockwise to set the correct time.

The clock is displayed in 12-hour format.

6. Press the [ ] button to store the time into

memory.

7. Press the [T] button to return to the previous

mode.

Note:

• You cannot set the clock when it is displayed with

only the ignition on. If you drain or remove the car’s

battery or take out this unit, the clock is reset.

While setting the clock, if another button or opera-

tion is selected, the clock set mode is canceled.

Setting the button illumination

Press the [COLOR] button to select a color type.

Each time you press the [COLOR] button, the

type changes in the following orders:

COLOR SCAN ➜ Indigo Blue ➜ Surf Blue ➜

Silky White ➜ Aqua Green ➜ Fresh Green ➜

Leaf Green ➜ Warm Amber ➜ Passion Red

➜ Vivid Pink ➜ Pale Pink ➜ Dark Violet ➜

Pure Purple ➜ USER COLOR 1 ➜ USER

COLOR 2 ➜ USER COLOR 3 ➜ COLOR

SCAN ...

●Setting COLOR SCAN mode

As selecting “COLOR SCAN”, the color auto-

matically changes.

The factory default setting is “COLOR SCAN”.

After 3 seconds the color changes to the other.

●Setting USER mode

The factory default setting is “RÎ8 GÎ8 BÎ8”

(R:red, G:green, B:blue).

As selecting “USER COLOR 1, 2, 3”, press and

hold the [COLOR] button for 1 second or longer

“RÎ8 GÎ8 BÎ8” appears in the display.

1.

Press the [a] or [d] button to move the cursor.

2. Turn the [ROTARY] knob to select from 0 to 8.

3. Press and hold the [ ] button for 2 sec-

onds or longer to store the color in memory

and cancel setting mode.

COLOR

Indigo Blue

Surf Blue

Silky White

Aqua Green

Fresh Green

Leaf Green

Warm Amber

Passion Red

Vivid Pink

Pale Pink

Dark Violet

Pure Purple

USER COLOR 1

USER COLOR 2

USER COLOR 3

R

0

0

6

0

0

4

8

8

8

8

3

8

8

8

8

G

1

4

8

8

8

8

3

0

0

1

0

0

8

8

8

B

8

8

8

2

0

0

0

0

3

3

8

8

8

8

8

DXZ745MP 25

English

Operations Common to Each Mode

Entering titles

Titles up to 10 characters long can be stored in

memory and displayed for Radio, CD, CD

changer, tuner station and TV stations. The

number of titles that can be entered for each

mode are as follows.

Mode Number of titles

CD mode 50 titles

TV mode 20 titles

TUNER mode 30 titles

CD changer mode Number of titles

DCZ625 connected 100 titles

CDC655Tz connected 100 titles

CDC1255z connected 50 titles

1. Press the [FNC] button to select the mode

you want to enter a title (tuner, CD, CD

changer or TV).

2. Select and play a CD in the CD changer or

tune in to a TV station for which you want to

enter the title.

3. Press the [D] button and display the main.

4. Press the [T] button.

5. Press the [a] or [d] button to move the

cursor.

6. Press the [D] button to select a character.

Each time you press the [D] button, the char-

acter changes in the following order:

Capital letters ➜ Small letters ➜ Numbers/

Symbols ➜ Umlaut ➜ Capital letters...

7. Turn the [ROTARY] knob to select the de-

sired character.

8. Repeat steps 5 to 7 to enter up to 8 charac-

ters for the title.

9. Press and hold the [ ] button for 2 sec-

onds or longer to store the title into memory

and cancel title input mode.

Clearing titles

1. Select and play a CD in the CD changer or

tune in to a TV station for which you want to

clear the title.

2. Press the [D] button and display the main.

3. Press the [T] button.

The display switches to the title input display.

4. Press the [BND] button.

5. Press and hold the [ ] button for 2 sec-

ond or longer to clear the title and cancel title

input mode.

26 DXZ745MP

English

CD changer functions

When an optional CD changer is connected

through the CeNET cable, this unit controls all

CD changer functions. This unit can control a to-

tal of 2 changers.

Press the [FNC] button and select the CD

changer mode to start play. If 2 CD changers

are connected, press the [FNC] button to select

the CD changer for play.

If “NO MAGAZINE” appears in the display, insert

the magazine into the CD changer. “DISC CHECK”

appears in the display while the player loads

(checks) the magazine.

If “NO DISC” appears in the display, eject the maga-

zine and insert discs into each slot. Then, reinsert

the magazine back into the CD changer.

Note:

• Some CDs recorded in CD-R/CD-RW mode may

not be usable.

Notes:

• If the CD playing is not a CD-text CD or no user

title has been input, “NO-TITLE” appears in the

display.

• If a CD-text CD is not input its disc title or a track

title, “NO-TITLE” appears in the display.

Procedure to scroll a title

Set “AUTO SCROLL” to “ON” or “OFF”.

(The factory default setting is “ON”. Refer to the

subsection “Turning the screen saver function

on or off” in section “Operation Common to

Each Mode”.)

●When set to “ON”

The title is automatically kept scrolling.

●When set to “OFF”

To scroll just 1 time when the title was changed

or the [T] button was pressed.

Selecting a CD

Press the [DN] or the [UP] button to select the

desired disc.

If a CD is not loaded in a slot of magazine, pressing

the [UP] or the [DN] button cannot work.

Selecting a track

●Track-up

1. Press the [d] button to move ahead to the

beginning of the next track.

2. Each time you press the [d] button, the

track advances ahead to the beginning of the

next track.

●Track-down

1. Press the [a] button to move back to the

beginning of the current track.

2. Press the [a] button twice to move to the

beginning of the previous track.

CD Changer Operations

8. OPERATIONS OF ACCESSORIES

CAUTION

CD-ROM discs cannot be played from every

CD changer, it’s depended on the model.

Pausing play

1. Press the [ ] button to pause play.

“PAUSE” appears in the display.

2. To resume play, press the [ ] button again.

Displaying CD titles

This unit can display title data for CD-text CDs

and user titles input with this unit.

Title data for CD-text CDs can be displayed with

this unit only when it is connected to CDC655Tz.

●When connected to DCZ625 or CDC1255z.

Press the [D] button to display the title.

●When connected to CDC655Tz

1. Press the [D] button to display the title.

2. Each time you press and hold the [D] button

for 1 second or longer, the title display

changes in the following order:

Artist name

CD-text title (track)

User title(disc)

(None)

User title(disc)

(None)

CD-text title (disc)

Artist name

CD-text title (track)

CD-text title (disc)

DXZ745MP 27

English

CD Changer Operations

Fast-forward/fast-backward

●Fast-forward

Press and hold the [d] button for 1 second or

longer.

●Fast-backward

Press and hold the [a] button for 1 second or

longer.

Scan play

Scan play locates and plays the first 10 seconds

of each track on a disc automatically. This func-

tion continues on the disc until it is cancelled.

The scan play is useful when you want to select a

desired track.

1. Press the [SCN] button to start track scan-

ning. “SCN” lights in the display.

2. To cancel the scan play, press the [SCN] but-

ton again. “SCN” goes off from the display

and the current track continues to play.

Disc scan play

Disc scan play locates and plays the first 10

seconds of the first track on each disc in the cur-

rently selected CD changer. This function contin-

ues automatically until it is cancelled.

Disc scan play is useful when you want to select a

desired CD.

1. Press and hold the [SCN] button for 1 sec-

ond or longer. “DISC” and “SCN” light in the

display and disc scan play starts.

2. To cancel disc scan play, press the [SCN] but-

ton again. “DISC” and “SCN” go off from the

display and the current track continues to play.

Repeat play

Repeat play continuously plays the current track.

This function continues automatically until it is

cancelled.

1. Press the [RPT] button. “RPT” lights in the

display and the current track is repeated.

2. To cancel repeat play, press the [RPT] button

again. “RPT” goes off from the display and

normal play resumes.

Disc repeat play

After all the tracks on the current disc have been

played, disc repeat play automatically replays

the current disc over from the first track. This

function continues automatically until it is can-

celled.

1. Press and hold the [RPT] button for 1 second

or longer. “DISC” and “RPT” light in the dis-

play and disc repeat play starts.

2. To cancel disc repeat play, press the [RPT]

button again. “DISC” and “RPT” go off from

the display and normal play resumes on the

current track.

Random play

Random play selects and plays individual tracks

on the disc in no particular order. This function

continues automatically until it is cancelled.

1. Press the [RDM] button. “RDM” lights in the

display and random play begins.

2. To cancel random play, press the [RDM] but-

ton again. “RDM” goes off from the display

and normal play resumes.

Disc random play

The disc random play selects and plays indi-

vidual tracks or discs automatically in no par-

ticular order. This function continues automati-

cally until it is cancelled.

1. Press and hold the [RDM] button for 1 sec-

ond or longer. “DISC” and “RDM” light in the

display and disc random play starts.

2. To cancel disc random play, press the [RDM]

button again. “DISC” and “RDM” go off from

the display and normal play resumes from

the current track.

28 DXZ745MP

English

Manual tuning

There are 2 ways available: Quick tuning and

step tuning.

When you are in the step tuning mode, the fre-

quency changes one step at a time. In the quick

tuning mode, you can quickly tune the desired

frequency.

1. Press the [BND] button and select the de-

sired band (TV1 or TV2).

If “MANU” is not lit in the display, press and

hold the [BND] button for 1 second or longer.

“MANU” lights in the display and manual tun-

ing is now available.

2. Tune into a station.

●Quick tuning:

Press and hold the [a] or [d] button for 1

second or longer to tune in a station.

●Step tuning:

Press the [a] or [d] button to manually

tune in a station.

Recalling a preset station

A total of 12 TV stations can be stored (6-TV1

and 6-TV2). This allows you to select your favor-

ite TV stations and store them in memory for

later recall.

1. Press the [BND] button and select the de-

sired TV band (TV1 or TV2).

2. To recall a stored TV station, press the de-

sired [DIRECT] button to select that station.

Press and hold one of the [DIRECT] buttons

for 2 seconds or longer to store the current

station into preset memory.

Manual memory

1. Select the desired station with seek tuning,

manual tuning or preset tuning.

2. Press and hold one of [DIRECT] buttons for

2 seconds or longer to store the current sta-

tion into preset memory.

TV tuner functions

When an optional TV tuner is connected through

the CeNET cable, this unit controls all TV tuner

functions. To watch TV requires a TV tuner and

monitor.

Watching a TV

1. Press the [FNC] button and select the TV

mode.

2. Press the [BND] button to select the desired

TV band (TV1 or TV2). Each time the button

is pressed, the input selection toggles be-

tween TV1 and TV2.

3. Press the [a] or [d] button to tune in the

desired TV station.

Watching a video

The TV tuner has a VTR input terminal to which

1 external device can be connected. Connect a

12 V video cassette player (VCP) or video cas-

sette recorder (VCR) to the TV tuner input termi-

nal.

1. Press the [ ] button to select VTR.

2. To return to the TV broadcast, press the

[] button.

Tuning

There are 3 types of tuning mode available,

Seek tuning, manual tuning and preset tuning.

Seek tuning

1. Press the [BND] button and select the de-

sired TV band (TV1 or TV2).

If “MANU” is lit in the display, press and hold

the [BND] button for 1 second or longer.

“MANU” in the display goes off and seek tun-

ing is now available.

2. Press the [a] or [d] button to automatically

seek a station. Press the [d] button to auto-

matically tune up the frequency band to the

next available TV station; press the [a] but-

ton to automatically tune down.

TV Operations

DXZ745MP 29

English

Auto store

Auto store selects 6 TV stations automatically

and stores each one into preset memory.

If there are not 6 stations with good reception,

stations previously stored in memory remain

and only the strong stations are stored into

memory.

1. Press the [BND] button and select the de-

sired TV band (TV1 or TV2).

2. Press and hold the [P/A] button for 2 sec-

onds or longer. The stations with good recep-

tion are stored automatically to the preset

channels.

Preset scan

Preset scan allows the user to view each preset

position before it automatically advances to the

next preset. This function is useful for searching

for a desired TV station in memory.

1. Press the [P/A] button.

2. When the desired station is found, press the

[P/A] button again to remain tuned to that

station.

Note:

• Do not press and hold the [P/A] button for 2 sec-

onds or longer. Doing so will trigger the auto store

function and start storing stations into memory.

Setting the TV diver

You can change the reception setting for the TV

antenna connected to the TV tuner.

1. Press and hold the [T] button for 1 second

or longer to switch to the adjustment selec-

tion display.

2. Press the [a] or [d] button to select “TV

DIVER”.

3. Turn the [ROTARY] knob clockwise to set to

“ON” or counterclockwise to set to “OFF”.

●ON:

Sets reception emphasizing the visual.

●OFF:

Sets the diver setting to OFF.

4. Press the [T] button to return to the previous

mode.

TV Operations

30 DXZ745MP

English

Connect with 5.1ch Surround Decoder (DVH920/DVH940)

■

DVH920

SET and 5.1ch Surround Decoder connect wth

RCA pin cable (sold separately)

Gray

SLAVE STAND

ALONE

(DXZ745MP)

(VCZ625)

CeNET DVD Changer

5.1ch surround

decoder

Optical Digital cable (sold separately)

1-DIN Center Unit

Black

Refer to the OWNER’S MANUAL of DVH920.

RCA pin cable (furnished with DVH920)

wired controller

NOFADER

ANALOG INPUT

(TTX7501z)

BB TV Tuner

TV MONITOR

Set the 5.1ch surround decoder’s

[STAND-ALONE / SLAVE] switch tothe

[STAND-ALONE] position.

DCA-005 (5 m) (furnished with DVH920)

DCA-008 (1.5 m)

Connect properly in accordance withcolor of connectors

CeNET Cable (furnished with

component to be connected)

Connect to 4ch power

amplifier

Connect to powered

center speaker

Connect to powered

sub-woofer

(DVC920)

(DVH920)

DXZ745MP 31

English

Connect with 5.1ch Surround Decoder (DVH920/DVH940)

■

DVH940

SET and 5.1ch Surround Decoder connect wth

RCA pin cable (sold separately)

Gray

Optical Digital cable (sold separately)

Black

Refer to the OWNER’S MANUAL of DVH940.

RCA pin cable (furnished with DVH940)

NOFADER

ANALOG INPUT

SLAVE STAND

ALONE

TV MONITOR

Set the 5.1ch surround decoder’s

[STAND-ALONE / SLAVE] switch tothe

[STAND-ALONE] position.

DCA-005 (5 m) (furnished with DVH940)

DCA-008 (1.5 m)

Connect properly in accordance withcolor of connectors

Connect to 4ch power

amplifier

Connect to powered

center speaker

Connect to powered

sub-woofer

CeNET Cable (furnished with

component to be connected)

5.1ch surround

decoder

(DVH940)

(DXZ745MP)

1-DIN Center Unit

(VCZ625)

CeNET DVD Changer

(TTX7501z)

BB TV Tuner

32 DXZ745MP

English

9. IN CASE OF DIFFICULTY

Reset button

Power does not

turn on.

(No sound is

produced.)

No sound output

when operating

the unit with

amplifiers or

power antenna

attached.

Nothing happens

when buttons are

pressed.

Display is not

accurate.

No sound heard.

No sound heard.

Sound skips or is

noisy.

Sound is cut or

skipped.

Noise is

generated or

noise is mixed

with sound.

Problem

Fuse is blown.

Incorrect wiring.

Power antenna lead is

shorted to ground or

excessive current is required

for remote-on the amplifiers

or power antenna.

The microprocessor has

malfunctioned due to noise,

etc.

DCP or main unit connectors

are dirty.

The speaker protection circuit

is operating.

MP3/WMA files are absent

in a disc.

Files are not recognized as

an MP3/WMA file.

File system is not correct.

Disc is dirty.

Disc is heavily scratched or

warped.

MP3/WMA files are not

encoded properly.

Replace with a fuse of the same amperage. If the

fuse blows again, consult your store of purchase.

Consult your store of purchase.

1. Turn the unit off.

2. Remove all wires attached to the power antenna

lead. Check each wire for a possible short to

ground using an ohm meter.

3. Turn the unit back on.

4. Reconnect each amplifier remote wire to the

power antenna lead one by one. If the amplifiers

turn off before all wires are attached, use an

external relay to provide remote-on voltage

(excessive current required).

Wipe the dirt off with a soft cloth moistened with

cleaning alcohol.

1. Turn down sound volume. Function can also be

restored by turning the power off and on again.

(Speaker volume is reduced automatically when

the speaker protection circuit operates).

2. If the sound is muted again, consult our service

department.

Write MP3/WMA files onto the disc properly.

Use MP3/WMA files encoded properly.

Use ISO9660 level 1, 2 or JOLIET or Romeo file system.

Clean the disc with a soft cloth.

Replace with a disc with no scratches.

Use MP3/WMA files encoded properly.

Cause Measure

CD/MP3/WMA General

Turn off the power, then

press the [RELEASE]

button and remove the DCP.

Press the reset button for

about 2 seconds with a thin

rod.

DXZ745MP 33

English

Problem Cause Measure

CD/MP3/WMA

Sound is bad

directly after

power is turned

on.

Wrong filename

Play list play is

not performed.

Water droplets may form on

the internal lens when the

car is parked in a humid

place.

File system is not correct.

File name or extension is not

correct.

Let dry for about 1 hour with the power on.

Use ISO9660 level 1, 2 or JOLIET or Romeo file

system.

Use alphanumeric/ASCII characters for MP3/WMA

file name.

Use “.M3U” for the file extension of a play list.

34 DXZ745MP

English

10. ERROR DISPLAYS

If an error display other than the ones described above appears, press the reset button. If the problem

persists, turn off the power and consult your store of purchase.

If an error occurs, one of the following displays is displayed.

Take the measures described below to eliminate the problem.

ERROR 2

ERROR 3

ERROR 6

ERROR 2

ERROR 3

ERROR 6

ERROR 2

ERROR 3

ERROR 6

ERROR P

ERROR R

AMP GUARD

Measure

A CD is caught inside the CD deck and is

not ejected.

A CD cannot be played due to scratches,

etc.

A CD is loaded upside-down inside the CD

deck and does not play.

A CD inside the CD changer is not loaded.

A CD inside the CD changer cannot be

played due to scratches, etc.

A CD inside the CD changer cannot be

played because it is loaded upside-down.

A DISC inside the DVD changer cannot be

played.

A DISC cannot be played due to scratches,

etc.

A DISC inside the DVD changer cannot be

played because it is loaded upside-down.

Parental level error

Region code error

The speaker protection circuit is operating.

During this operation, if any volume

operation is performed, the display shows

“AMP GUARD”.

This is a failure of CD deck’s mechanism and

consult your store of purchase.

Replace with a non-scratched,

non-warped-disc.

Eject the disc then reload it properly.

This is a failure of CD changer’s mechanism

and consult your store of purchase.

Replace with a non-scratched, non-warped

disc.

Eject the disc then reload it properly.

This is a failure of DVD mechanism and con-

sult your store of purchase.

Retry or replace with a non-scratched, non-

warped-disc.

Eject the disc then reload it properly

Set the correct Parental level.

Eject the disc and replace correct region

code disc.

1. Turn down sound volume. Function can

also be restored by turning the power off

and on again.

(Speaker volume is reduced automatically

when the speaker protection circuit oper-

ates).

2. If the sound is muted again, consult our

service department.

General CD/MP3/WMA

CauseError Display

CD changer

DVD changer

DXZ745MP 35

English

FM Tuner

Frequency Range:

87.9 MHz to 107.9 MHz

Usable Sensitivity:

9 dBf

50dB Quieting Sensitivity:

15 dBf

Alternate Channel Selectivity:

70 dB

Stereo Separation (1 kHz):

35 dB

Frequency Response (±3 dB):

30 Hz to 15 kHz

AM Tuner

Frequency Range:

530 kHz to 1710 kHz

Usable Sensitivity:

25 µV

CD Player

System:

Compact disc digital audio system

Usable Discs:

Compact disc

Frequency Response (±1 dB):

5 Hz to 20 kHz

Signal to Noise Ratio (1 kHz):

100 dB

Dynamic Range (1 kHz):

95 dB

Harmonic Distortion:

0.01%

11. SPECIFICATIONS

Audio

Maximum Power Output:

212 W (53 W ✕ 4 ch)

Continuous Average Power Output:

18 W ✕ 4, into 4 1

, 20 Hz to 20 kHz, 1%THD

Bass Control Action (50 Hz/80 Hz/120 Hz):

+16 dB, –12 dB

Treble Control Action (8 kHz/12 kHz):

±12 dB

Line Output Level (CD 1 kHz):

4 V

General

Power Supply Voltage:

14.4 V DC (10.8 to 15.6 V allowable), negative

ground

Current Consumption:

Less than 15 A

Speaker Impedance:

41

(4 1

to 8 1

allowable)

Weight / Source unit:

2.75 lb. (1.6 kg)

Weight / Remote control unit:

1 oz. (30 g) (including battery)

Dimensions / Source unit:

7" (Width) ✕ 2" (Height) ✕ 6-1/8" (Depth)

[178 (W) ✕ 50 (H) ✕ 155 (D) mm]

Dimensions / Remote control unit:

1-3/4" (Width) ✕ 4-5/16" (Height) ✕ 1-1/8"

(Depth)

[44 (W) ✕ 110 (H) ✕ 27 (D) mm]

Note:

• Specifications and design are subject to change without notice for further improvement.

Clarion Co., Ltd.

All Rights Reserved. Copyright © 2003: Clarion Co., Ltd.

Printed in China / Imprimé en Chine / Impreso en China

2003/12

PE-2619B

280-8000-00
