(BTU-3586)INSTRUCTION MANUAL
TABLE of CONTENTS
1. OUTLINE of BTU-3586
1-1. USAGE
1-2. FEATURE
2. BLOCK DIAGRAM
2-1. BTU-3586(FRONT PCB)
2-2. BLUETOOTH MODULE(UGZZ8-732)
3. BLUETOOTH MODULE SPECIFICATION
3-1. PRODUCT NAME
3-2. MANUFACTURE
3-3. FEATURES
3-4. SPECIFICATION
3-4-1. MECHANICAL SPECIFICATION
3-4-1-1. EXTERNAL DIMENSION
3-4-1-2. MASS
3-4-2. ELECTRICAL SPECIFICATION
3-4-2-1. POWER SUPPLY VOLTAGE
3-4-2-2. OPERATING RANGE
3-4-3. RF SPECIFICATION
3-4-3-1. MODULATION METHOD
3-4-3-2. NORMAL TRANSMIT POWER ( AVERAGED POWER )
3-4-3-3. REFERENCE SENSITIVITY LEVEL ( BER = 0.001% )
3-4-3-4. DATA RATE
3-4-3-5. ENCODING METHOD
3-4-3-6. OPERATING FREQUENCY RANGE
3-4-3-7. TRANSMIT POWER LEVEL
3-4-3-8. ANTENNA TYPE
3-4-3-9. BLUETOOTH MODULE & EXTERNAL ANTENNA POSITION
3-4-4. EXTERNAL ANTENNA SPECIFICATION
3-4-4-1. PRODUCT NAME
3-4-4-2. MANUFACTURE
3-4-4-3. FEATURES
3-4-4-4. PEAK GAIN
3-4-4-5. AVERAGE GAIN
3-4-4-6. EXTERNAL DIMENSION
3-4-5. PIN ASSIGNMENT
4. BTU-3586(FRONT PCB) SPECIFICATION
4-1. EXTERNAL DIMENSION
4-2. MAJOR PARTS LAYOUT
4-3. CONNECTOR PIN ASSIGNMENT
4-3-1. BtoB CONNECTOR(9828S-30Y900) / P200
4-3-2. DEBUG CONNECTOR(SM14B-SRSS-TB) / P100
4-4. LABEL INFORMATION
4-4-1. LABEL LAYOUT
4-4-2. CONTENTS OF LABEL
4-5. GND INFORMATION
5. NOTICE
(BTU-3586)INSTRUCTION MANUAL - 1 / 9 -
Clarion Co., Ltd.
CONFIDENTIAL
1. OUTLINE of BTU-3586
1-1. USAGE
FRONT PCB with BLUETOOTH MODULE
(FRONT PCB is installed to a navigation unit)
1-2. FEATURE
MOUNTED BLUETOOTH MODULE(UGZZ8-732)
SD CARD SENSOR
DISC EJECT
2. BLOCK DIAGRAM
2-1. BTU-3586(FRONT PCB)
BtoB CN
P200
EJECT SW
SW200
SD CARD SENSOR x2
Q201&D201(SD CARD1)
Q202&D202(SD CARD2)
IC100 IMPEDANCE MATCHING CIRCUIT
BLUETOOTH MODULE R138, L103, C127
REGULATOR
RF CONNECTOR(RECEPTACLE)
IC104 R C J100
DC5V DC3.3V
L
UART I/F
RESET
OP-AMP
IC101
MIC_IN MIC_IN_P
MIC_IN_N
OP-AMP
IC103
Lch_OUT SPKR_A_P
SPKR_A_N
OP-AMP
IC102
Rch_OUT SPKR_B_P
SPKR_B_N
5->3.3V BLUETOOTH
EXTERNAL ANTENNA
BT Frequency range : 2402 -2480 MHz
(BTU-3586)INSTRUCTION MANUAL - 2 / 9 -
Clarion Co., Ltd.
CONFIDENTIAL

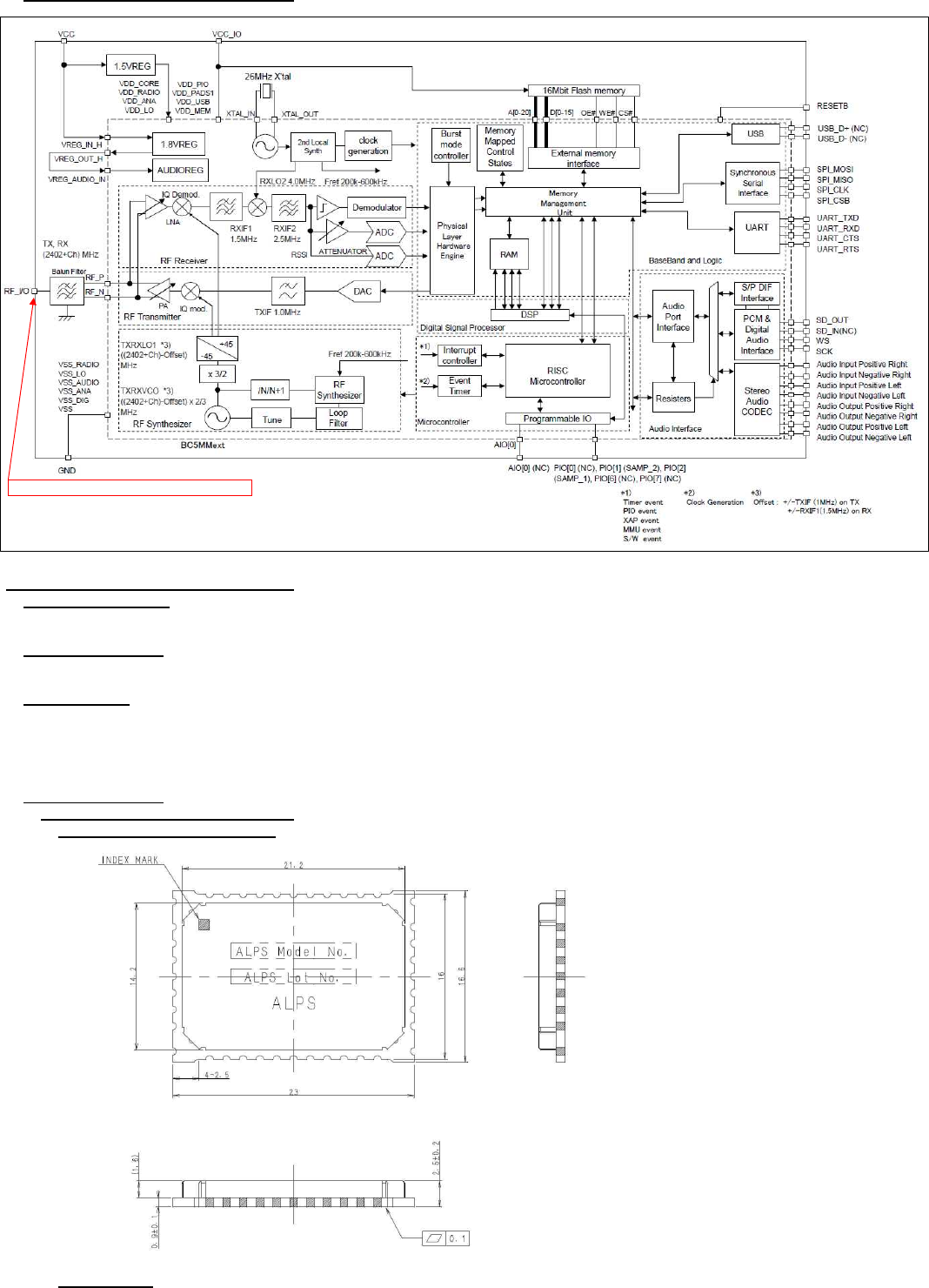

2-2. BLUETOOTH MODULE(UGZZ8-732)
3. BLUETOOTH MODULE SPECIFICATION
3-1. PRODUCT NAME
UGZZ8-732
3-2. MANUFACTURE
ALPS ELECTRIC
3-3. FEATURES
Bluetooth™ Specification V2.0+EDR support
Complete type of Bluetooth module, built in various profile
(Contains CSR BC5-Multimedia, which has complete radio, 16bit RISC processor, RAM and DSP.)
Output power class 2 compliant
3-4. SPECIFICATION
3-4-1. MECHANICAL SPECIFICATION
3-4-1-1. EXTERNAL DIMENSION
3-4-1-2. MASS
TYP.1.82 [g]
BT Frequency range : 2402 -2480 MHz
(BTU-3586)INSTRUCTION MANUAL - 3 / 9 -
Clarion Co., Ltd.
CONFIDENTIAL
3-4-2. ELECTRICAL SPECIFICATION
3-4-2-1. POWER SUPPLY VOLTAGE
DC +3.1 to 3.6 [V]
3-4-2-2. OPERATING RANGE
-40 to +85 [degree C]
3-4-3. RF SPECIFICATION
3-4-3-1. MODULATION METHOD
GFSK Bbt =0.5
π/4-DQPSK
8DPSK
3-4-3-2. NORMAL TRANSMIT POWER ( AVERAGED POWER )
-6 to +4 [dBm] @BDR(BASIC DATA RATE)
-4 to +1 [dBm] @EDR(ENHANCED DATA RATE)
3-4-3-3. REFERENCE SENSITIVITY LEVEL ( BER = 0.001% )
MAX. -70 [dBm] @BDR
MAX. -70 [dBm] @EDR
3-4-3-4. DATA RATE
BDR : 1 [Mbps]
EDR : 2 [Mbps] @ π/4-DQPSK
EDR : 3 [Mbps] @ 8DPSK
3-4-3-5. ENCODING METHOD
FHSS ( Frequency Hopping Spread Spectrum )
3-4-3-6. OPERATING FREQUENCY RANGE
2402 - 2480 [MHz] (79CH)
3-4-3-7. TRANSMIT POWER LEVEL
POWER CLASS B (max 2.5[mW])
3-4-3-8. ANTENNA TYPE
EXTERNAL ANTENNA(CONNECT MHF RECEPTACLE@I-PEX)
3-4-3-9. BLUETOOTH MODULE & EXTERNAL ANTENNA POSITION
EXTERNAL ANTENNA
BT COVER TAPE
MHF RECEPTACLE
(RF CONNECTOR)
UGZZ8-732
(BLUETOOTH
MOUNTED FRONT PCB
(BTU-3586)INSTRUCTION MANUAL - 4 / 9 -
Clarion Co., Ltd.
CONFIDENTIAL
3-4-4. EXTERNAL ANTENNA SPECIFICATION
3-4-4-1. PRODUCT NAME
CROW-002
3-4-4-2. MANUFACTURE
FUJIKURA
3-4-4-3. FEATURES
INVERTED F TYPE
FILM TYPE(t=0.12[mm]) ANTENNA
FULL CUSTOM PRODUCT of CLARION
3-4-4-4. PEAK GAIN
XY PLANE : 0.5 [dBi]
ZX PLANE : -0.6 [dBi]
3-4-4-5. AVERAGE GAIN
-5.56 [dBi]
3-4-4-6. EXTERNAL DIMENSION
3-4-5. PIN ASSIGNMENT
PROGRAMMABLE I/O
NO.
PIN NAME
I/O
DESCRIPTION
OPEN
PROGRAMMABLE I/O
PROGRAMMABLE I/O
PROGRAMMABLE I/O
SPI CLK
SPI INPUT
SPI OUTPUT
SPI CHIP SELECT
I^2S OUTPUT
OPEN
I^2S WORD SELECT
RESET(LOW ACTIVE)
UART TX
UART RX
I^2S INPUT
I^2S SERIAL CLK
USB DATA
OPEN
UART RTS
UART CTS
MIC IN
MIC IN
GND
USB DATA
SPEAKER OUT
SPEAKER OUT
MIC IN
MIC IN
GND
OPEN
SPEAKER OUT
SPEAKER OUT
GND
RF I/O
GND
PROGRAMMABLE I/O
DESCRIPTION
OPEN
IO POWER SUPPLY
MAIN POWER SUPPLY
40
PIO[1]
I/O
NO.
PIN NAME
I/O
38
PIO[6]
I/O
39
PIO[2]
I/O
36
NC
-
37
PIO[7]
I/O
34
SPI_MOSI
O
35
SPI_CS#
O
32
SPI_CLK
O
33
SPI_MISO
I
30
WS/PCM_SYNC
O
31
RST#
I
28
SD_OUT/PCM_OUT
O
29
NC
-
26
SD_IN/PCM_IN
I
27
SCK_PCM_CLK
O
24
UART_TX
O
25
UART_RX
I
22
UART_RTS
O
23
UART_CTS
I
20
USB_DN
-
21
19
USB_DP
-
I
14
MIC_B_P
NC
-
18
GND
-
16
MIC_A_P
I
17
MIC_A_N
I
15
MIC_B_N
I
12
SPKR_A_P
O
13
SPKR_A_N
O
10
SPKR_B_P
O
11
SPKR_B_N
O
8
GND
-
9
NC
-
6
GND
-
7
PIO[0]
I/O
4
GND
-
5
RF I/O
I/O
2
VCC_IO
I
3
VCC
I
1
NC
-
#1
#9
#10 #20
#21
#29
#30#40
(BTU-3586)INSTRUCTION MANUAL - 5 / 9 -
Clarion Co., Ltd.
CONFIDENTIAL
4. BTU-3586(FRONT PCB) SPECIFICATION
4-1. EXTERNAL DIMENSION
(FRONT PWB SIZE : 165 * 80.5 * 1.2 [mm])
4-2. MAJOR PARTS LAYOUT
165.5
IC101 / IC102 / IC103
OP-AMP
NJM14558V
NJRC P100
DEBUG CONNECTOR
SM14B-SRSS-TB
JST
*Only a trial product implements it.
D201 / D202
DIODE
CL-200IR-X-TS
CITIZEN ELECTRONICS
IC104
REGULATOR
S-1155B33-U5T1G
SII
J100
RF CONNECTOR
20279-001E-02
I-PEX
8.45
(2.95)
2.5
80.5
1.2
Unit : mm
IC100
BLUETOOTH MODULE
UGZZ8-732
ALPS ELECTRIC
Q201 / Q202
PHOTO-TR
CPT-184S-C-X-TS
CITIZEN ELECTRONICS
SW200
SW
SKRPABE010
ALPS ELECTRIC
P200
BtoB CONNECTOR
9828S-30Y900
IRISO
REF.
DESCRIPTION
MODEL NAME
MANUFACTURE
PURPLE CHARACTER
->> SIDE-A MOUNTED PARTS
RED CHARACTER
->> SIDE-B MOUNTED PARTS
12.15
(BTU-3586)INSTRUCTION MANUAL - 6 / 9 -
Clarion Co., Ltd.
CONFIDENTIAL
4-3. CONNECTOR PIN ASSIGNMENT
4-3-1. BtoB CONNECTOR(9828S-30Y900) / P200
4-3-2. DEBUG CONNECTOR(SM14B-SRSS-TB) / P100
4-4. LABEL INFORMATION
4-4-1. LABEL LAYOUT
(FRONT PCB SIDE-B : BLUETOOTH MODULE MOUNTED SIDE)
4-4-2. CONTENTS OF LABEL
LABEL SIZE : 16 * 13 [mm]
NO.
PIN NAME
I/O
DESCRIPTION
NO.
PIN NAME
I/O
DESCRIPTION
1
D_5V
I
POWER SUPPLY
16
MIC_IN
I
MIC IN
2
GND
-
GND
17
ILL_9V
I
ILL_9V IN
3
D_5V
I
POWER SUPPLY
18
A-GND
-
GND
4
GND
-
GND
19
CARD1_SENS
I
SD CARD SENSOR
5
D_3.3V_SENS
I
VCC DETECTION
20
B/T_R
O
SP OUT
6
N.C.
-
-
21
CARD0_SENS
I
SD CARD SENSOR
7
N.C.
-
-
22
A-GND
-
GND
8
RESET
I
RESET
23
DVD_IND
-
NOT CONNECTED
9
BT_CPU_CTS
O
UART CTS
24
B/T_L
O
SP OUT
10
CPU_BT_RTS
I
UART RTS
25
B_CAS_SENS
I
NOT USED
11
BT_NAVI
I
UART TX
26
N.C.
-
-
12
NAVI_BT
O
UART RX
27
EJECT_SW
I
EJECT SW SIGNAL
13
A_5V
I
POWER SUPPLY
28
N.C.
-
-
14
A-GND
-
GND
29
GND
-
GND
15
A_5V
I
POWER SUPPLY
30
GND
-
GND
NO.
PIN NAME
I/O
DESCRIPTION
NO.
PIN NAME
I/O
DESCRIPTION
1
N.C.
-
-
8
VCC-5V(UART)
I
POWER SUPPLY
2
SPI_MISO
I
SPI INPUT
9
BT_NAVI
O
UART TX
3
SPI_MOSI
O
SPI OUTPUT
10
NAVI_BT
I
UART RX
4
SPI_CS
O
SPI CHIP SELECT
11
BT_CTS
I
UART CTS
5
SPI_CLK
O
SPI CLK
12
BT_RTS
O
UART RTS
6
GND(SPI)
-
GND
13
BT_RST
I
RESET
7
VCC-5V(SPI)
I
POWER SUPPLY
14
GND(UART)
-
GND
MODEL NAME
16
13
TELEC MARK, FH MARK
TELEC ID
FCC ID
IC ID
COMPANY NAME
COUNTRY OF ORIGIN
(BTU-3586)INSTRUCTION MANUAL - 7 / 9 -
Clarion Co., Ltd.
CONFIDENTIAL
4-5. GND INFORMATION
1
CONNECT TO
IF PCB
IF PCB
IF PCB
IF PCB
IF PCB
IF PCB
IF PCB
IF PCB
8
SW200
SKRPABE010
SW
2
7
P200
9828S-30Y916
BtoB CONNECTOR
2,414,22,29,30
6
IC104
S-11SSB33-UST1G
REGULATOR
4
5
IC103
NJM14558V
OP-AMP
4
4
IC102
NJM14558V
OP-AMP
4,6,8,18
3
IC101
NJM14558V
OP-AMP
4
2
IC100
UGZZ8-732
BLUETOOTH MODULE IC
GND PIN NO.
1
J100
20279-001E-02
RF CONNECTOR
2
NO.
REF.
PARTS NAME
DESCRIPTION
NO.1 NO.4 NO.2
NO.3-5
NO.2
NO.7
CONNECT TO
IF PCB
CONNECT TO
CASE GND
(BTU-3586)INSTRUCTION MANUAL - 8 / 9 -
Clarion Co., Ltd.
CONFIDENTIAL
5. NOTICE
This device complies with part 15 of the FCC Rules.
-Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
-Any changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
-Please note that this users manual should not be provided to end-users.
-The following sentence has to be displayed on the outside of the device in which the module is installed:
"Contains Transmitter Module FCC ID: SJ2QY7200", or "Contains FCC ID: SJ2QY7200"
-This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
-The antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
