USERGUIDE

AlertMasterAL10

HomeAlertSystem



Clarity,aDivisionofPlantronics,Inc.

4289BonnyOaksDrive,Chattanooga,TN37406

Tel:800‐426‐3738Fax:800‐325‐8871

E‐mail:claritycs@plantronics.comWebsite:www.clarityproducts.com



trademarksorregisteredtrademarksofPlantronics,Inc.

Rev.A(04‐10)

AL10USERGUIDE‐DraftRev2

2|Page



CONTENTS

(TOBELEFTEMPTYUNTILFINALVERSIONISCREATED;THISPAGE

SHOWSTHETABLEOFCONTENTS)

AL10USERGUIDE‐DraftRev2

3|Page



IMPORTANTSAFETYINSTRUCTIONS

Whenusingyourtelephoneequipment,basicsafetyprecautionsshouldalwaysbefollowedto

reducetheriskoffire,electricshockandpersonsincludingthefollowing:



1.Readandunderstand

allinstructions.



2.Followallwarnings

andinstructions

markedonthe

product.



3.Donotusethisproductnearabathtub,washbasin,kitchensinkorlaundrytub,inawetbasement,near

a

swimmingpoolor

anywhereelsethereiswater.

4.Avoidusingatelephone(otherthanacordless

type)duringastorm.

Theremaybearemoteriskof

electricalshock

fromlightning.



5.Donotuseatelephonetoreportagasleakinthevicinityoftheleak.

6.Unplugthisproduct



fromthewalloutlets

beforecleaning.Donotuseliquidcleanersoraerosolcleanerson

theproduct.Usea

dampclothforcleaning.



7.Placethisproductonastablesurface.Seriousdamage

and/orinjurymay



resultiftheproduct

falls.



8.Donotcovertheslotsandopeningsonthis

product.Thisproduct

shouldneverbeplacednearorovera

radiatororheatregister.This

productshouldnotbe

placedinabuilt‐in

installationunless



properventilationis



provided.



9.Operatethisproductusingtheelectricalvoltageasstatedonthebaseunitorthe

owner’smanual.Ifyou



arenotsureofthevoltageinyourhome,

consultyourdealeror

localpowercompany.

10.Donotplaceanythingonthepower

cord.Installthe



productwhereno

onewillsteportriponthecord.

11.Donotoverloadwall

outletsorextension

cordsasthiscanincreasetheriskoffireorelectricalshock.

12.Neverpushanyobjectsthroughthe

slotsintheproduct.

Theycantouchdangerousvoltage

pointsorshort

out



partsthatcould

resultinariskoffireorelectricalshock.

Neverspillliquidof

anykindonthe

product.



13.Toreducetheriskofelectricalshock,donottakethisproductapart.Openingorremovingcoversmay

exposeyoutodangerousvoltagesorother

risks.Incorrect

reassemblycancauseelectricshockwhenthe

applianceis

subsequentlyused.



14.Unplugthisproduct

fromthewalloutlets

andreferservicingto

themanufacturer



underthefollowing



conditions:



A.Whenthepower

supplycordorplug

isfrayedordamaged.

B.Ifliquidhasbeen

spilledintotheproduct.

C.Iftheproducthasbeenexposedtorainorwater.

D.Iftheproductdoesnotoperate

normallyby



followingthe

operating

instructions.Adjust



onlythosecontrols



thatarecoveredbytheoperating

instructions.



Improperadjustment

mayrequire

extensiveworkbyaqualified

techniciantorestorethetelephonetonormaloperation.

E.Iftheproducthasbeendroppedorthecasehasbeendamaged.

F.Iftheproduct

exhibitsadistinct



changein



performance.



15.Neverinstalltelephone

wiringduringa

lightningstorm.



16.Neverinstalltelephonejacksinwetlocationsunlessthejackisspecificallydesignedforwetlocations.

17.Nevertouchuninsulated

telephonewiresor



terminalsunlessthe

telephonelinehas



beendisconnectedat

thenetworkinterface.

18.Usecautionwhen

installingormodifying

telephonelines.

19.Useonlythepowercordandbatteries

indicatedinthis

manual.Donotdisposeofbatteriesinafire.They

mayexplode.Checkwithlocalcodesforpossiblespecial

disposalinstructions.



AL10USERGUIDE‐DraftRev2

4|Page



ADDITIONALSAFETYNOTESFORCANADIANUSERS

ThefollowingitemsareincludedaspartoftheCS‐03Requirements.Thestandardconnectingarrangementfor

theequipmentisCA11A.ThisproductmeetstheapplicableIndustryCanadatechnicalspecifications.

NOTE:TheCanadianDepartmentofCommunicationslabelidentifiescertifiedequipment.Thiscertification

meansthattheequipmentmeetscertaintelecommunicationsnetworkprotectiveoperationalandsafety

requirements.TheDepartmentdoesnotguaranteethattheequipmentwilloperatetotheuser’ssatisfaction.

Beforeinstallingthisequipment,usersshouldensurethatitispermissibletobeconnectedtothefacilitiesof

thelocaltelecommunicationscompany.Theequipmentmustalsobeinstalledusinganacceptablemethodof

connection.Insomecases,thecompany’sinsidewiringassociatedwithasinglelineindividualservicemaybe

extendedbymeansofacertifiedconnectorassembly(telephoneextensioncord).Thecustomershouldbe

awarethatcompliancewiththeaboveconditionsmaynotpreventdegradationofserviceinsomesituations.

RepairstocertifiedequipmentshouldbemadebyanauthorizedCanadianmaintenancefacilitydesignatedby

thesupplier.Anyrepairsoralterationsmadebytheusertothisequipment,orequipmentmalfunctions,may

givethetelecommunicationscompanycausetorequesttheuserdisconnecttheequipment.

Usersshouldensurefortheirownprotectionthattheelectricalgroundconnectionsofthepowerutility,

telephonelinesandinternalmetallicwaterpipesystem,ifpresent,areconnectedtogether.



Thisprecaution

maybeparticularly



importantinruralareas.



Warning

:Usersshouldnot

attempttomakesuchconnectionsthemselves,butshouldcontactthe

appropriateelectricinspectionauthority,orelectrician,as



appropriate.TheRingerEquivalentNumberisan

indicationofthemaximumnumberofterminalsallowedtobeconnectedtoatelephoneinterface.The



terminationonaninterfacemayconsistofanycombinationofdevicessubjectonlytothe



requirementthat

thesumoftheRingerEquivalentNumberofallthedevicesnotexceedfive.



SAVETHESEINSTRUCTIONS



AL10USERGUIDE‐DraftRev2

5|Page



INTRODUCTION

Thankyouforselectingthe

excitingnew

AL10fromClarity.Ithasbeendesignedtomeetthehighestquality

standardstoprovideyouwithyearsofconvenientandtrouble‐freeservice.



Pleasereadtheseoperatinginstructionsthoroughlybeforeusingyournotificationsystem.Keepthismanualfor

futurereference.



Youmustsaveyoursalesreceiptasproofofpurchaseintheeventthatyouneed

warrantyservice.



IfyouhaveanyquestionsaboutyourAlertMasterAL10,pleasecallyourauthorizeddealerorourCustomer

ServiceDepartmentat800‐426‐3738.

E‐mail:claritycs@plantronics.com

Website:www.clarityproducts.com



AL10USERGUIDE‐DraftRev2

6|Page



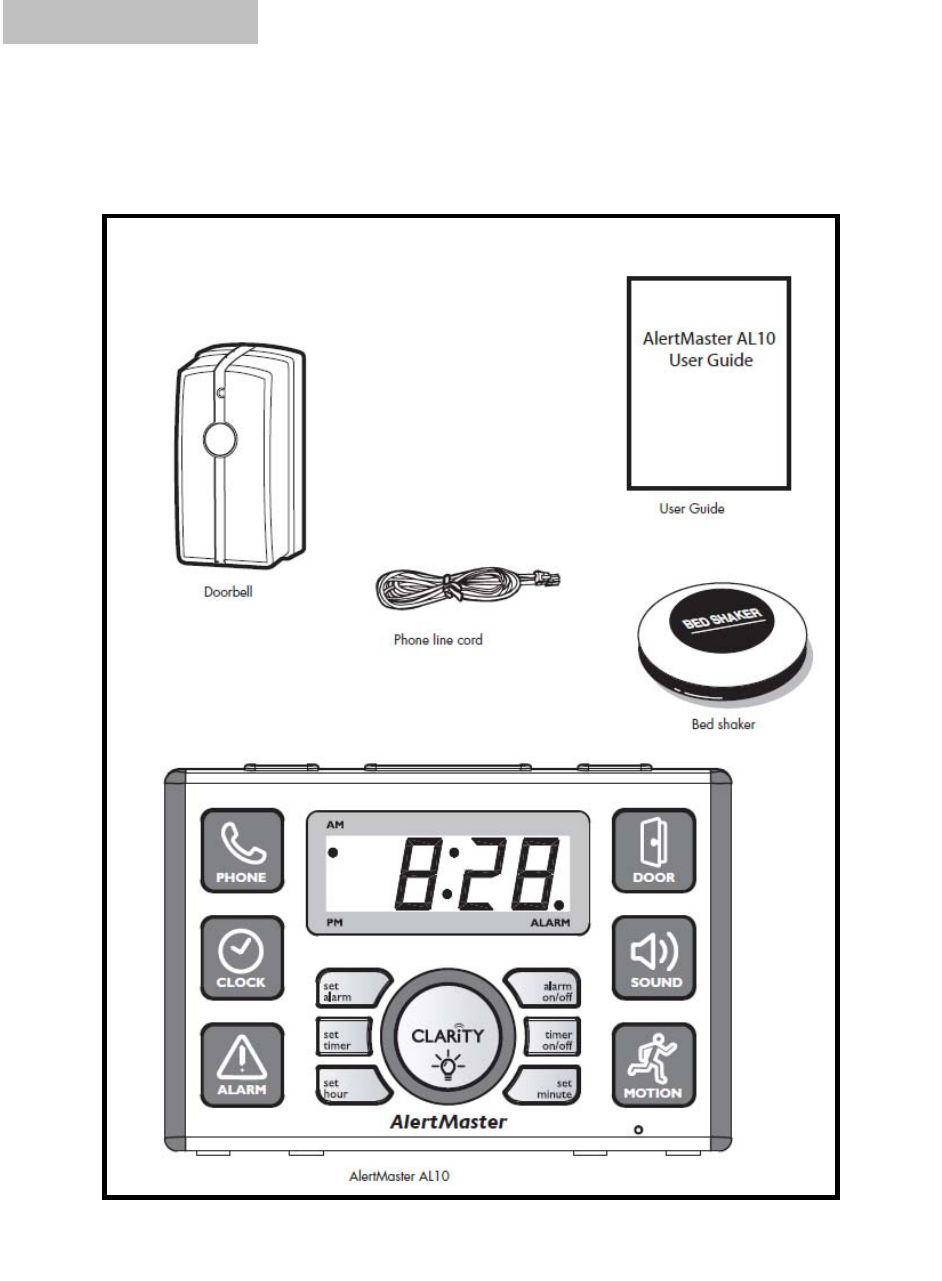

PACKAGECHECKLIST

PleasemakesureyourAL10packageincludestheitemsasshownbelow:



AL10USERGUIDE‐DraftRev2

7|Page



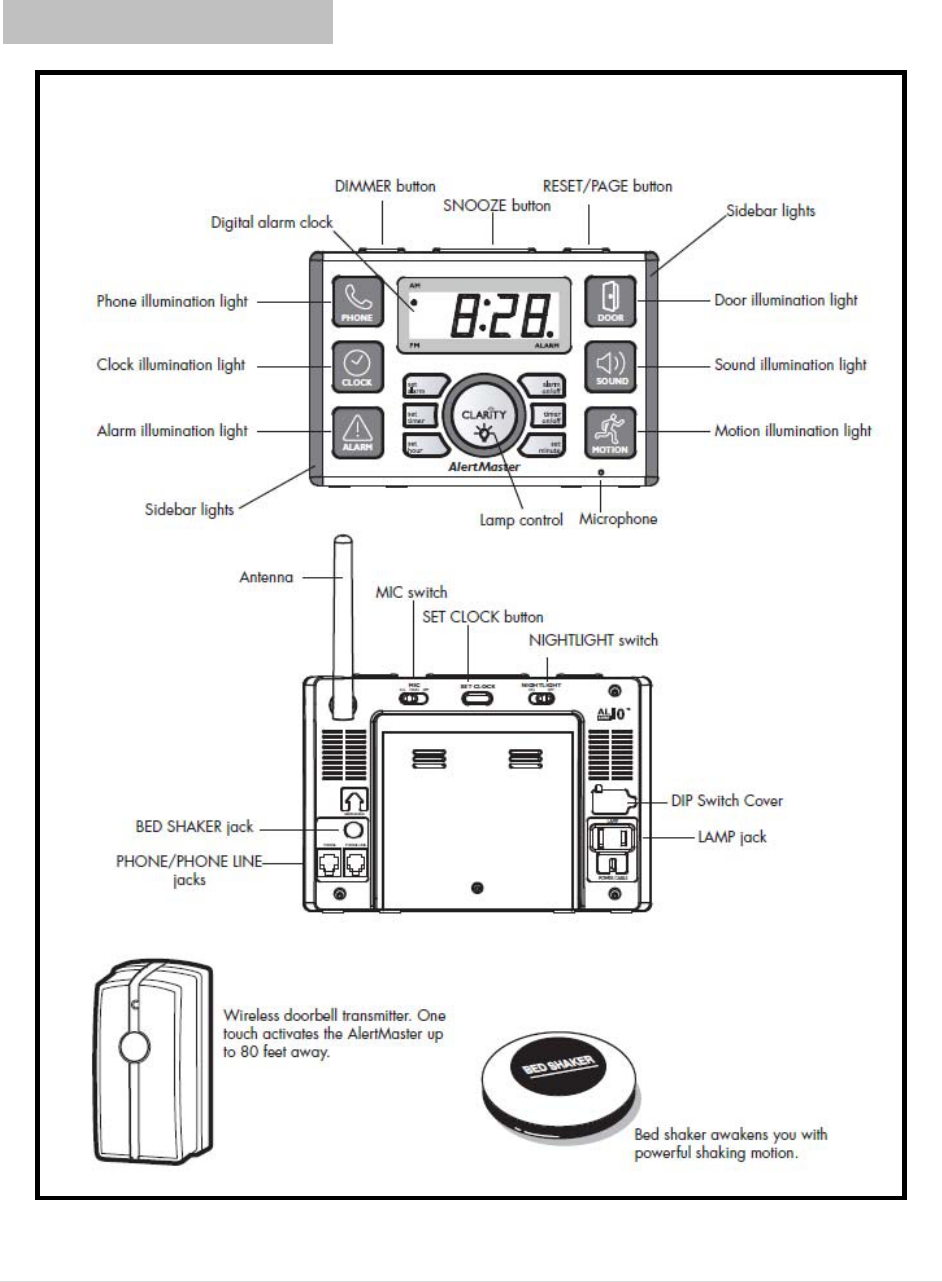

FEATURESIDENTIFICATION



AL10USERGUIDE‐DraftRev2

8|Page



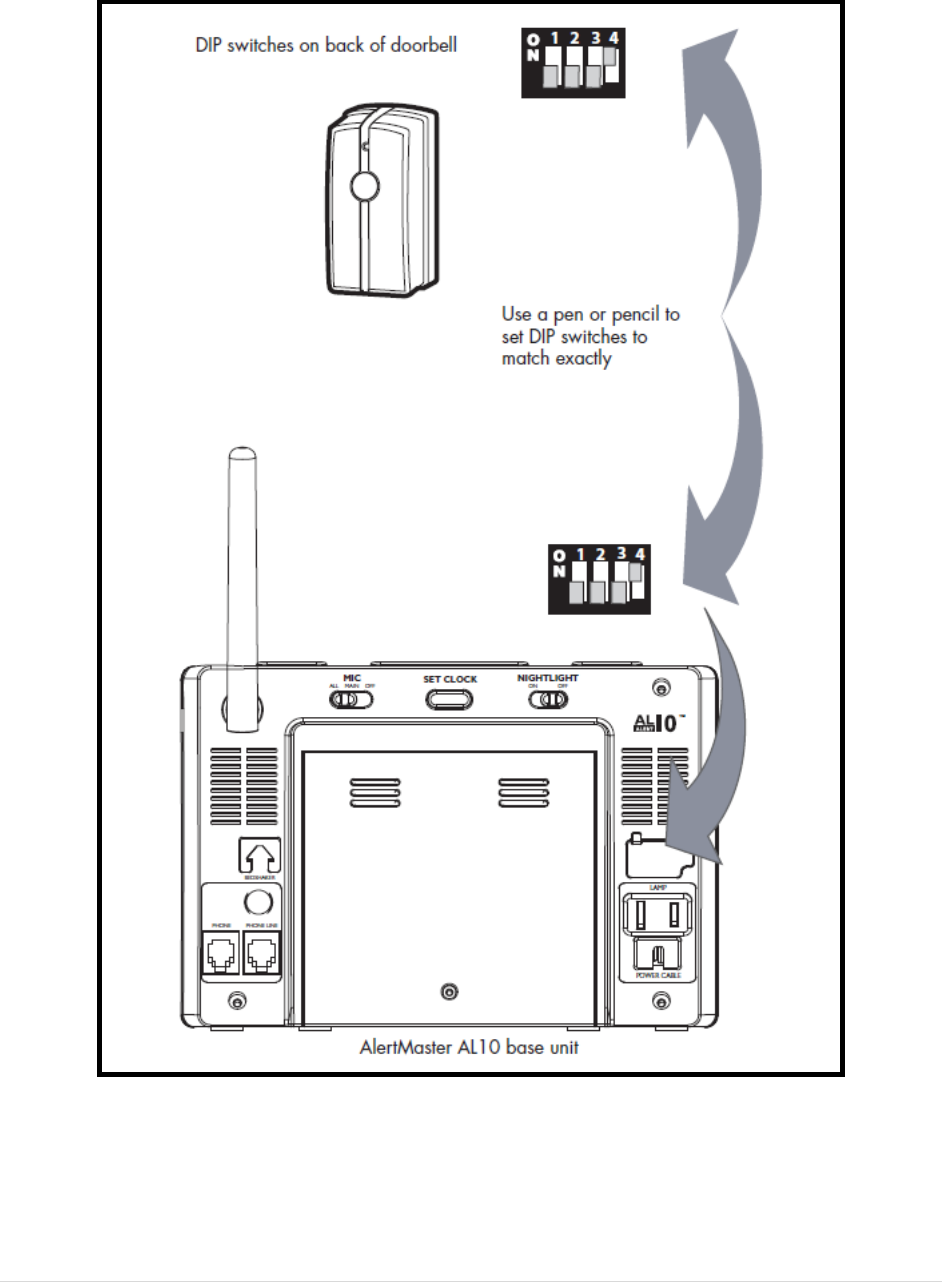

INSTALLATIONANDSET‐UP

Anideallocationforsettingupthebaseunitisinthebedroom.DonotputanyoftheAL10components

onornexttometalsurfaces,computers,television,microwaves,orotherareaswithelectronicequipment

thatcancauseinterferencetothewirelesssystem.

A.BaseUnit



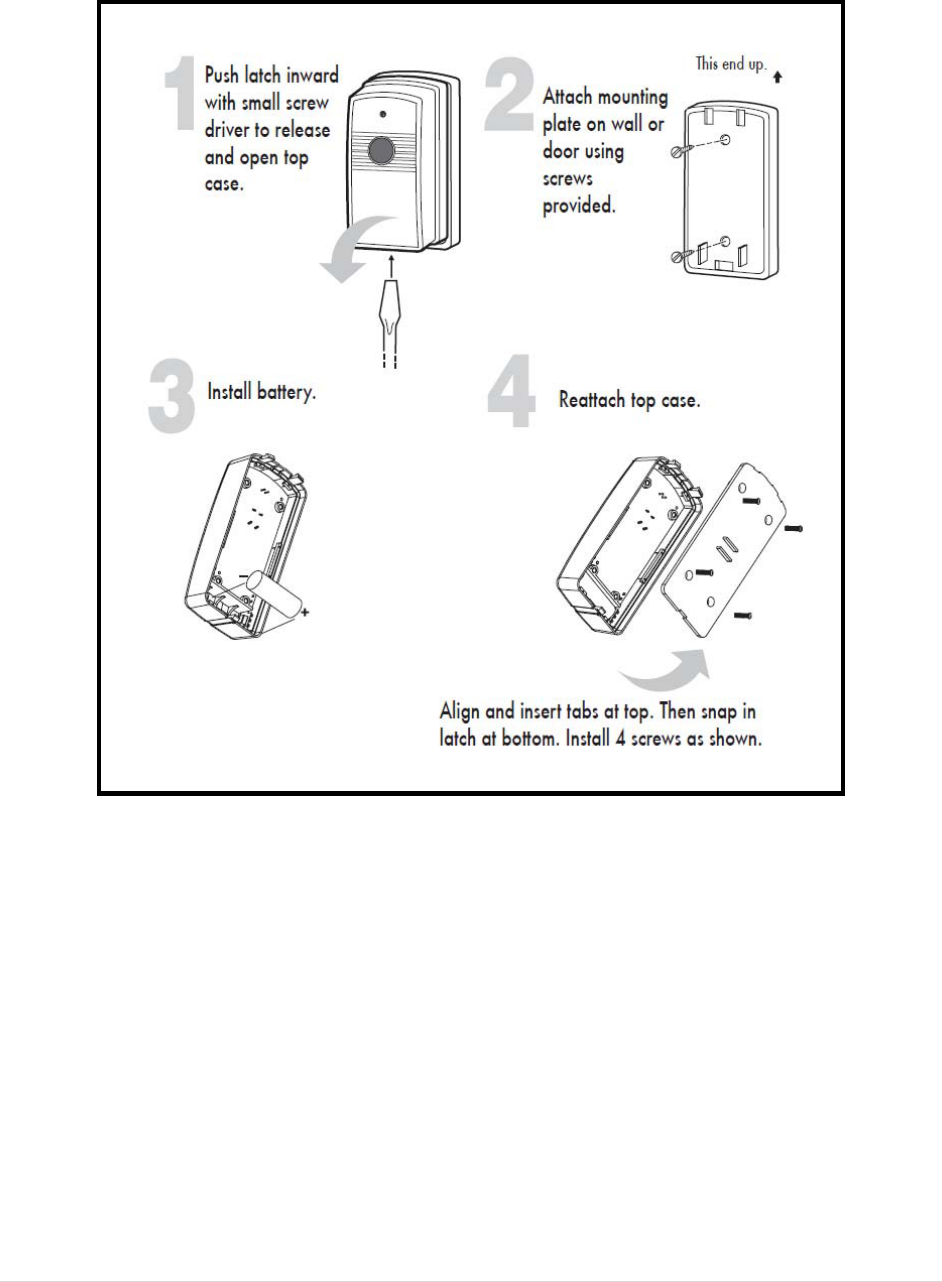

B.Doorbell

AL10USERGUIDE‐DraftRev2

9|Page



C.Clock

1.Pressthe

SETCLOCK

(onthebackoftheunit)andthe

SETHOUR

or

SETMINUTE

(bothonthe

frontoftheunit)buttonssimultaneouslytochangetimesetting.

2.PresstheSETALARMbutton(frontofunit)tocheckthealarmsetting.

3.Press

SETALARM

and

SETHOUR

(or

SETMINUTE

)buttonssimultaneouslytochange

alarmclocksetting.

4.Press

ALARMON

OFF

button

toturnalarmonoroff.(Asmallreddotappearsinthelowerrightcorner

oftheclockscreenwhenthealarmisactive,e.g.,whenitisturnedon.)



AL10USERGUIDE‐DraftRev2

10|Page



OPERATIONS



ONITORING

UNCTIONS



TheconsolehassixindicatorlightsforeachofthealertingfunctionsoftheAL10.Somefunctions

requireanoptionalaccessorytobepurchased.

AnytimetheAL10NotificationSystemisactivatedbyanyfunction(s),thelampandbedshakerwillactivate,

thenstopandresetaftertwominutes,orusetheRESET/PAGEbuttononthetopoftheconsoletostop

andresetit.Thelampflashesindifferentpatternsforeachfunction.

1.PHONE

Thephoneindicatorlightandsidebarlightsilluminatewhenthephoneisringing.Thelampwillturnonfortwo

seconds,offforfourseconds,andrepeat.AnsweringthephoneresetsthePhoneindicatorandanyotherAL

seriessystemsinyourhome.



2.DOOR

Thedoorindicatorlightandsidebarlightsilluminatewhenthedoorbellbuttonispressed.Thelampwillturnon

fortwoseconds,offfortwoseconds,andrepeat.Thisfunctionisalsoactivatedwhenasignalisreceived

fromtheoptionalDoorAnnouncer(ModelAM‐DX).

AL10USERGUIDE‐DraftRev2

11|Page



3.CLOCK/PAGING

Theclockindicatorlightandsidebarlightsilluminatewhenthealarmclockisactivated.Thebedshakerwill

vibrateandthelampwillturnonforonesecond,offfortwoseconds,andrepeat.



AL10USERGUIDE‐DraftRev2

12|Page



Alarm/Snooze

Whenthealarmclockactivates,thebedshakerwillvibrateandthelampwillflashforonehour,or

until

the

SNOOZE

or

RESET

PAGE



buttonispushed.Thisstopsthealarmclockandresetsitforthesametimeon

thenextday.

The“SNOOZE”timeonthealarmisnineminutes.

Paging

Whenthe

RESET

/

PAGE

buttonispressed

forjustamoment,itactivatesthebaseunitandany

remotereceiversorpersonalsignalersthatarewithinan80‐footrange.Theyactivateforonetwo‐

minutecycle.Thisfunctionisavailableonlywhiletheunitisinstandbymode.

4.SOUND

a.ALL

SlidetheMICswitchtotheALLposition.Thesoundindicatorlightandsidebarlightsilluminate

whencontinuoussoundisdetectedfor12secondsorlongerintheroombythebuilt‐in

microphone.Afteranother10seconddelay,thelampwillflashonforonesecond,offforone

second,andrepeat.

b.MAIN

Thelightindicatesthepresenceofsound,butitwillnottriggerthelamptobeginflashingoranyother

indicator.

c.OFF

Thesoundindicatorlightandthemonitoringfunctionaredisabled.



NOTE:Thesoundindicatorlightilluminationfunctionisalsoactivatedwhenasignalisreceivedfromtheoptional

BabySoundMonitor(AM‐BX).ThepositionoftheMICswitchisirrelevant–AM‐BXactivatesthesoundindicatorlight

regardlessofthepositionoftheMICswitch.



AL10USERGUIDE‐DraftRev2

13|Page



5.ALARM

YoumustpurchasetheoptionalAudioAlarmTransmitter(ModelAM‐AX)fromClaritytousethisfunction.When

asignalisreceivedfromtheAudioAlarmTransmitter,theindicatorlightilluminates,andthelampwillturnon

foronesecond,offforonesecond,andrepeat. 



AL10USERGUIDE‐DraftRev2

14|Page



6.MOTIONSENSORLIGHT

YoumustpurchasetheoptionalMotionSensor(ModelAM‐SX)fromClaritytousethisfunction.Whenasignalis

receivedfromtheMotionSensor,theindicatorlightilluminates,andthelampwillturnonforonesecond,off

foronesecond,onagainforonesecond,offfortwoseconds,andrepeat.



B.MasterReset

IfyouhaveseveralAlertMastersystemcomponents(suchasthe

AL10,theAL11orthe

AL12),youcan

savetimebyusingtheAL10toresetallofthematonce(masterreset).Todo

this,pressthe

RESET

PAGE

button

.

C.NotificationPriority

IftheAlertMastersystemreceivestwonotificationsignalsatthesametime,itwilldisplaythehighest

prioritysignal.Forexample,ifitreceivesaMotionSensorsignalrightafteritreceivesaPhonesignal,the

indicatorwillchangefromPHONEtoSENSOR.Thepriorityforeachnotificationsignalisshownasfollows:

1.MasterReset

2.AudioAlarm

3.BabySound

4.RoomSound

5.Phone

6.Door

7.Paging



8.AlarmClock

9.Random(Security)Timer

AL10USERGUIDE‐DraftRev2

15|Page



D.SecurityTimer

Withthisfeature,thelampconnectedtoyourAlertMastersystemwillgoonautomaticallyeveryeveningand

turnofflaterintheevening.Youcanusethistomakeitlooklikesomeoneishome.Thelightwillturnonand

offatslightlydifferenttimeseacheveningsoitisnotsoobviousthatatimerisbeingused.

Toactivatethisfeature:

1.PresstheTIMERON/OFFbuttononce.Thelampwillautomaticallygooneveryeveningatabout5

PMandturnoffatabout11PM.Toconfirmthissetting,theclockwillblinktwiceeveryfiveseconds.



a. Ifyouwantthelighttoturnonatabout6PM,press

SETTIMER

oncefortwo

secondsor

more.Toconfirmthissetting,theclockwillblinkthreetimeseveryfiveseconds.

b. Ifyouwantthelighttoturnonatabout7PM,press

SETTIMER

twicefortwo

secondsor

more.Toconfirmthissetting,theclockwillblinkfourtimeseveryfiveseconds.

c.Toreturnto5PMactivation,

pressthe

SETTIMER



buttononcefortwosecondsor

more.Toconfirmthissetting,theclockwillblinkonce



everyfiveseconds.

d.Ifyouarehomeandwantto

turnoffthe

SETTIMER



fortheevening,pressRESET

PAGE



formore

thantwoseconds.Thetimerwillresumenormaloperationthenextevening.



2.

Toturnoffthe

SECURITY

TIMER,pressTIMERON/OFFonce

.

E.Nightlight

SlidetheNIGHTLIGHTswitchtotheONpositiontoengagetheAL10nightlight.Whentheswitchis

turnedtotheONposition,theovalringaroundtheLAMPCONTROLbuttonlightsup.The

NIGHTLIGHTisturnedoffbyslidingtheswitchtoOFF.

F.Battery

TheAlertMasterAL10operateson10“AA”sizerechargeableNiMHbatteries(notincluded)duringa

power

outage.

DONOTUSE

REGULARALKALINEBATTERIES!



Poweris

providedfortheconsoleandthepillowshaker,butnotfortheconnectedlamp.

Donotburnorpuncturethebatteries.Likeotherbatteriesofthistype,iftheyareburnedorpunctured,they

couldreleasetoxicmaterialwhichcouldcauseinjury.Donotdisposeofbatteriesinhouseholdgarbage.For

informationaboutrecyclingorproperdisposal,consultyourlocalsolidwaste(garbage)collectionordisposal

organization.

Thedoorbelltransmitteroperatesonone“23A”sizebattery(included).Itnormallylasts6‐12monthsand

canbetestedbywatchingtheredpowerindicatorilluminatewhenthedoorbellbuttonispressed.Ifthe

powerindicatorisfaintoroff,replacethebattery.



AL10USERGUIDE‐DraftRev2

16|Page



CHANNELSETTINGS

TheAlertMasterSystemusesspecial

radiosignalstocommunicatebetweentheconsoleunitandallits

accessories.Fortheaccessories(DoorAnnouncer,

BabySoundMonitor,AudioAlarm

TransmitterandMotion

Sensor)to

activatethebaseunit,theyallhavetobeonthesame"channel."A"DIPswitch"isusedforchannel

selection.

Yoursystemandalltheaccessorieshavebeenpresetinthefactorytoastandardchannelsetting.Under

normaloperatingconditions,thereisnoadjustmentnecessary.

Ifyoursystemencountersinterference

andrepeatedlyactivatesitselffornoobviousreason,itmaybetriggered

byasystemnearbyinyourneighborhood.

IftheinterferencefromanotherAlertMasterNotificationSystemor

otherwirelesssourceispresent,change

channelswitchsettingsonall

components.

1.UnplugACpowerandlocate

DIPswitch(a4‐positionswitch)

onthebackoftheAlertMaster

AL10.Liftrubbercover

toaccesstheswitch.

2.Openthebatterycompartmentofthedoorbell.

3.Changetheswitchpositionofeachswitchonbothunitsusingaballpointpen.Allsettingsneedtobeidentical

forthesystemtowork.

4.Changetheswitchsettingsoneachofyourotheraccessories

(RemoteReceiver,AudioAlarmTransmitter,Baby

Sound

Monitor,etc.)tomatchthenewchannelsetting.



5.Replaceallcoversandreturnaccessoriestotheirproper

places.Press

RESET/PAGEbuttononcetoreset

theunit.



AL10USERGUIDE‐DraftRev2

17|Page



AL10USERGUIDE‐DraftRev2

18|Page



TROUBLESHOOTING

IfanyproblemshouldoccurduringoperationofyourAlertMasterNotification

System,reviewthe"Symptomand

Remedy"listbelow.MakesurenopartoftheAlertMastersystemisonornearmetalsurfacesorelectronic

equipment.Shouldthedifficultypersist,contactClarityoryourauthorizeddealerforassistance.

SymptomCauseandRemedy

Lampcontrolbuttondoesn’tworkLampisnotturnedonpriortopluggingitinto

AlertMaster.Turnthelamp’sswitchon.

Replacebulbifnecessary.

Phonerings,lampdoesnotflashCheckallphonelineconnections.Makesure

youcanturnthelamponoroffwiththelamp

controlbutton.

Alarmclockdoesn’tworkAlarmclockisnotturnedon.Slidetheswitch

totheONposition.

Bedshakerdoesn’tvibrateBedshakerisunplugged.Plugitin.Coilthe

wireoncearoundtheplasticlooptoprevent

accidentalunplugging.

Roomnoisedoesn’tactivateSwitchisOFF.SlideittotheALLposition.

Soundmustbecontinuousfor12secondsfor

roomnoisetoactivate.

LampflashesconstantlyThereisconstantnoiseintheroomandthe

soundfunctionison.SlidetheswitchtoOFF.

Doorbelldoesn’tworkDeadbattery.Depressdoorbellbutton;the

redlightonhousingshouldlightup.Ifnot,

batteryneedstobereplaced.Ifthebatteryis

fullycharged,theDIPswitchesmaybe

incorrectlyset.SeethesectiononChannel

Setting.



AL10USERGUIDE‐DraftRev2

19|Page



OPTIONALACCESSORIES

TheAlertMasterAL10isdesignedtoworkwithoptionalwirelessremotereceiversandtransmitters,eachsold

separately.

A.RemoteReceiver(AL12)

PlugthereceiverintoanACoutlet,andpluginalampandyou’llbenotifiedwhereverthereceiverisplaced‐

kitchen,livingroom,garage,bathroom,etc.Itoperatesupto80feetfromtheAlertMasterAL10

base

console.

B.PersonalSignaler(AM‐PX)



Wearthislightweightreceiver

onyourbeltanywherearoundyourhouseandyou’llbealertedtoanyactivity

inyourhome.It

hasan80‐footrangeanda

miniatureconsoleofindicatorlights,andalsoalertswithdifferent

vibratingmotionsforeachfunction.

C.PersonalTactileSignaler

(AM‐PXB)

SimilartoAM‐PXplusatouchswitchforpeoplewhoaredeafandblind.

D.AudioAlarmTransmitter

(AM‐AX)



Placethisnexttoanyaudioalarmfornotificationwhenthealarmisactivated.ItactivatestheAlarmfunctionof

theAlertMastersystemandhasarangeof

upto80feet.



E.BabySoundMonitor(AM‐BX)

Placethismonitornearyourinfant,anditwilltransmitasignaltotheAlertMastersystemwhenyour

babycries.



DoorAnnouncer(AM‐DX)

PlacetheDoorAnnouncernexttoyourexistingdoorbell,doorchime,orintercomannouncer.Itwilltransmita

signalactivatingtheDoorfunctionoftheAlertMastersystemfromupto80feetaway.Thisoptionisidealfor

apartments,condosorsuiteswithacommonsecuritydooror

gate.



AL10USERGUIDE‐DraftRev2

20|Page



REGULATORYCOMPLIANCE

ImportantInformationforCustomers

PART68OFFCCRULESINFORMATION

ThisAL10NotificationSystemcomplieswithPart68oftheFCCrulesandtherequirements

adoptedbytheACTA.Onthebottomofthisequipmentisalabelthatcontains,amongother

information,aproductidentifierintheformatUS:AAAEQ##TXXXX.Ifrequested,thisnumber

mustbeprovidedtothetelephonecompany.

Aplugandjackusedtoconnectthisequipmenttothepremiseswiringandtelephonenetworkmust

complywiththeapplicableFCCPart68rulesandrequirementsadoptedbytheACTA.Acompliant

telephonecordandmodularplug,RJ11USOC,isprovidedwiththisproduct.Itisdesignedtobe

connectedtoacompatiblemodularjackthatisalsocompliant.Seeinstallationinstructionsfordetails.



TheRENisusedtodeterminethenumberofdevicesthatmaybeconnectedtoatelephoneline.

ExcessiveRENsonatelephonelinemayresultinthedevicesnotringinginresponsetoanincomingcall.

Inmostbutnotallareas,thesumofRENsshouldnotexceedfive(5.0).Tobecertainofthenumberof

devicesthatmaybeconnectedtoaline,asdeterminedbythetotalRENs,contactthelocaltelephone

company.ForproductsapprovedafterJuly23,2001,theRENforthisproductispartoftheproduct

identifierthathastheformatUS:AAAEQ##TXXXX.Thedigitsrepresentedby##aretheRENwithouta

decimalpoint(e.g.,03isaRENof0.3).Forearlierproducts,theRENisseparatelyshownonthelabel.



Ifthistelephoneequipmentcausesharmtothetelephonenetwork,thetelephonecompanywillnotify

youinadvancethattemporarydiscontinuanceofservicemayberequired.Butifadvancenoticeisn’t

practical,thetelephonecompanywillnotifythecustomerassoonaspossible.Also,youwillbeadvised

ofyourrighttofileacomplaintwiththeFCCifyoubelieveitisnecessary.



Thetelephonecompanymaymakechangesinitsfacilities,equipment,operationsorproceduresthat

couldaffecttheoperationoftheequipment.Ifthishappensthetelephonecompanywillprovide

advancenoticeinorderforyoutomakenecessarymodificationstomaintainuninterruptedservice.



Iftroubleisexperiencedwiththistelephoneequipment,forrepairorwarrantyinformation,please

contactClarity,800‐426‐3738.Iftheequipmentiscausingharmtothetelephonenetwork,the

telephonecompanymayrequestthatyoudisconnecttheequipmentuntiltheproblemisresolved.



Thistelephoneequipmentisnotintendedtoberepairedanditcontainsnorepairableparts.Opening

theequipmentoranyattempttoperformrepairswillvoidthewarranty.Forserviceorrepairs,call800‐

426‐3738.



Connectiontopartylineserviceissubjecttostatetariffs.Contactthestatepublicutilitycommission,

publicservicecommissionorcorporationcommissionforinformation.

AL10USERGUIDE‐DraftRev2

21|Page



Ifyourhomehasspeciallywiredalarmequipmentconnectedtothetelephoneline,ensurethe

installationofthistelephoneequipmentdoesnotdisableyouralarmequipment.Ifyouhavequestions

aboutwhatwilldisablealarmequipment,consultyourtelephonecompanyoraqualifiedinstaller.



Thistelephoneequipmentishearingaidcompatible.



Customer‐OwnedCoin/CreditCardPhones



Tocomplywithstatetariffs,thetelephonecompanymustbegivennotificationpriortoconnection.In

somestates,thestatepublicutilitycommission,publicservicecommissionorcorporationcommission

mustgivepriorapprovalofconnection.



PART15OFFCCRULESINFORMATION



Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:

(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterference

received,includinginterferencethatmaycauseundesiredoperation.



YourAL10NotificationSystemhasbeentestedandfoundtocomplywiththelimitsofaClassBdigital

device,pursuanttoPart15ofFCCrules.Theselimitsaredesignedtoprovidereasonableprotection

againstharmfulinterferenceinresidentialinstallation.



Thisequipmentgenerates,uses,andcanradiateradiofrequencyenergyand,ifnotinstalledandusedin

accordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,

thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation;ifthisequipmentdoes

causeharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningthe

equipmentoffandon,youareencouragedtotrytocorrecttheinterferencebyoneofthefollowing

measures:



1.Whereitcanbedonesafely,reorientthereceivingtelevisionorradioantenna.

2.Totheextentpossible,relocatethetelevision,radioorotherreceiverwithrespecttothetelephone

equipment.(Thisincreasestheseparationbetweenthetelephoneequipmentandthereceiver.)

3.Connectthetelephoneequipmentintoanoutletonacircuitdifferencefromthattowhichthe

television,radio,orotherreceiverisconnected.

4.Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



WARNING:Changesormodificationsnotexpresslyapprovedbythemanufacturerresponsiblefor

compliancecouldvoidtheuser’sauthoritytooperatetheequipment.

AL10USERGUIDE‐DraftRev2

22|Page



INDUSTRYCANADATECHNICALSPECIFICATIONS

ThisproductmeetstheapplicableIndustryCanadatechnicalspecifications.



Beforeinstallingthisequipment,usersshouldensurethatitispermissibletobeconnectedtothe

facilitiesofthelocaltelecommunicationscompany.Theequipmentmustalsobeinstalledusingan

acceptablemethodofconnection.Insomecases,thecompany’sinsidewiringassociatedwithasingle

lineindividualservicemaybeextendedbymeansofacertifiedconnectorassembly(telephone

extensioncord).Thecustomershouldbeawarethatcompliancewiththeaboveconditionsmaynot

preventdegradationofserviceinsomesituations.



RepairstocertifiedequipmentshouldbemadebyanauthorizedCanadianmaintenancefacility

designatedbythesupplier.Anyrepairsoralterationsmadebytheusertothisequipment,orequipment

malfunctions,maygivethetelecommunicationscompanycausetorequesttheusertodisconnectthe

equipment.



Usersshouldensurefortheirownprotectionthattheelectricalgroundconnectionsofthepowerutility,

telephonelinesandinternalmetallicwaterpipesystem,ifpresent,areconnectedtogether.This

precautionmaybeparticularlyimportantinruralareas.



WARNING:Usersshouldnotattempttomakesuchconnectionsthemselves,butshouldcontactthe

appropriateelectricinspectionauthority,orelectrician,asappropriate.



TheRingerEquivalenceNumberisanindicationofthemaximumnumberofterminalsallowedtobe

connectedtoatelephoneinterface.Theterminationonaninterfacemayconsistofanycombination

ofdevicessubjectonlytotherequirementthatthesumoftheRingerEquivalenceNumbersofallthe

devicesdoesnotexceedfive.



[Theterm“IC:”beforethecertification/registrationnumberonlysignifiesthattheIndustryCanada

technicalspecificationsweremet.]

AL10USERGUIDE‐DraftRev2

23|Page



WARRANTYINFORMATION



ThiswarrantyappliesonlytoCLARITYproductsthatarepurchasedandusedintheUnitedStates,

CanadaorUnitedKingdom.



CLARITYwarrantstheALERTMASTERAL10againstanydefectinmaterialsorworkmanshipfortheperiod

ofoneyearfromthedateofpurchase.



IfyourCLARITYproductisdefectiveandreturnedwithin30daysofthedateofpurchase,your

authorizedClaritydealerwillreplaceitatnocharge.



Ifreturnedafter30daysbutwithinoneyearfromthedateofpurchase,wewillrepairorreplaceitatno

charge.IntherepairofyourAlertMasterAL10,wemayuseneworreconditionedreplacementparts.If

weelecttoreplaceyourAL10,wemayreplaceitwithaneworreconditionedproductofthesameor

similardesign.Repairorreplacementwillbewarrantedforeither90daysortheremainingtimeonthe

originalwarrantyperiod,whicheverislonger.



Impliedwarranties,includingthoseoffitnessforaparticularpurposeandmerchantability(anunwritten

warrantythattheproductisfitforordinaryuse),arelimitedtooneyearfromdateofpurchase.Wewill

notpayforlossoftime,inconvenience,lossofuseofyourAlertMasterAL10,orpropertydamage

causedbyyourAlertMasterAL10oritsfailuretowork,oranyotherincidentalorconsequential

damages.Somestatesdonotallowlimitationsonhowlonganimpliedwarrantylastsortheexclusionof

incidentalorconsequentialdamages,sotheaboveexclusionsorlimitationsmaynotapplytoyou.



TogetwarrantyserviceforyourAlertMasterAL10,youmustprovideproofofthepurchasedate.Within

30daysofthedateofpurchase,returnyourAlertMasterAL10totheplacewhereyoupurchaseditfor

immediatereplacement.After30days,callCLARITYat800426‐3738or800‐772‐2887TTY/TDDforthe

authorizedservicecenternearestyou.Youmustprepayallshippingcosts.Wesuggestyousavethe

originalpackagingmaterialsintheeventyouneedtoshiptheAlertMasterAL10.Whenshippingfor

warrantyrepair,includeyourname,address,phonenumber,proofofdateofpurchase,anda

descriptionoftheproblem.Afterrepairingtheproduct,wewillshipitbacktoyouatnocostwithinthe

UnitedStates.



Thiswarrantydoesnotcoverdefectsresultingfromaccidents,damagewhileintransittoourservice

location,alterations,unauthorizedrepair,failuretofollowinstructions,misuse,useoutsidetheUnited

States,Canada,orUnitedKingdom,fire,flood,andactsofGod.Nordowewarranttheproducttobe

compatiblewithanyparticulartelephoneequipment,partyline,keytelephonesystemsormore

sophisticatedswitchingsystems.IfyourAlertMasterAL10isnotcoveredbythiswarranty,callusat800‐

426‐3738,800‐772‐2889TTY/TDDforadviceastowhetherwewillrepairyourAlertMasterAL10and

otherrepairinformation.Therepairedpartsshallbewarrantedfor90days.

AL10USERGUIDE‐DraftRev2

24|Page



CLARITY,aDivisionofPlantronics



4289BonnyOaksDrive•Chattanooga,TN37406

Tel:800‐426‐3738•Fax:800‐325‐8871

E‐mail:claritycs@plantronics.com•Website:www.clarityproducts.com



PRINTEDINCHINA



Clarity A Division of Plantronics D100TXS Doorbell User Manual AL10 UserGuide Draft Rev2

Clarity, A Division of Plantronics, Inc. Doorbell AL10 UserGuide Draft Rev2

Users Manual

Navigation menu

Namespaces

Views

Navigation
