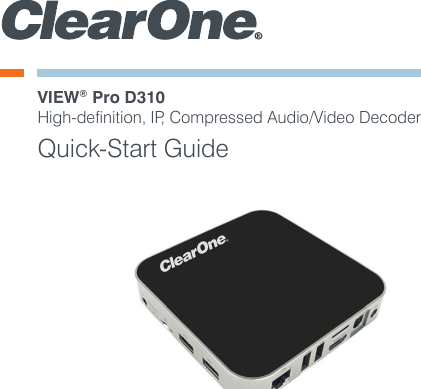

VIEW® Pro D310High-definition, IP, Compressed Audio/Video DecoderQuick-Start Guide
THE VIEW PRO ENCODER AND DECODER ................................ 1QUICK-START OVERVIEW ............................................................ 1ENCODER AND DECODERS IN A NETWORK ............................. 2PARTS INCLUDED ......................................................................... 3MOUNTING THE D310 DECODER ................................................ 4CONNECTING THE DECODER ..................................................... 6CONFIGURING THE DECODER.................................................... 7PART NUMBERS .......................................................................... 17Table of Contents

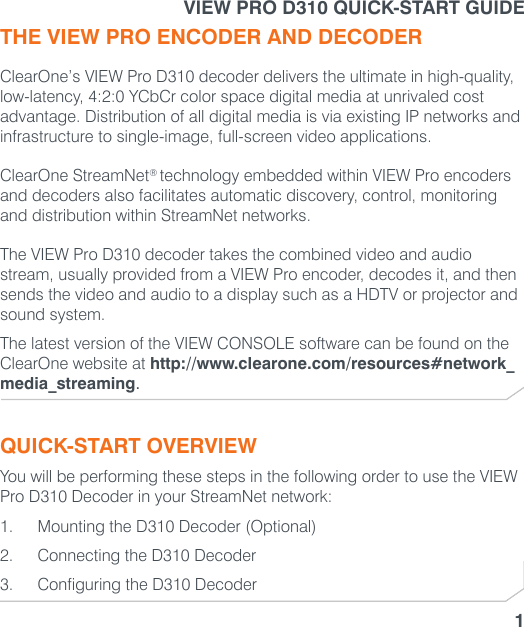

VIEW PRO D310 QUICK-START GUIDE1THE VIEW PRO ENCODER AND DECODERClearOne’s VIEW Pro D310 decoder delivers the ultimate in high-quality, low-latency, 4:2:0 YCbCr color space digital media at unrivaled cost advantage. Distribution of all digital media is via existing IP networks and infrastructure to single-image, full-screen video applications.ClearOne StreamNet® technology embedded within VIEW Pro encoders and decoders also facilitates automatic discovery, control, monitoring and distribution within StreamNet networks.The VIEW Pro D310 decoder takes the combined video and audio stream, usually provided from a VIEW Pro encoder, decodes it, and then sends the video and audio to a display such as a HDTV or projector and sound system.The latest version of the VIEW CONSOLE software can be found on the ClearOne website at http://www.clearone.com/resources#network_media_streaming.QUICK-START OVERVIEWYou will be performing these steps in the following order to use the VIEW Pro D310 Decoder in your StreamNet network:1.  Mounting the D310 Decoder (Optional)2.  Connecting the D310 Decoder 3.  Configuring the D310 Decoder
VIEW PRO ENCODER & DECODER2ENCODER AND DECODERS IN A NETWORKThe VIEW Pro encoder receives input from an AV source device such as BluRay Player, DVD Player, etc. and distributes it over a StreamNet TCP/IP network using a standard 100 Mbit or Gbit Ethernet connection. The encoder provides the IP data for VIEW Pro decoders to deliver to the displays, therefore decoders are installed at the locations of the target video displays.This picture shows an example for connecting VIEW Pro devices in a network.

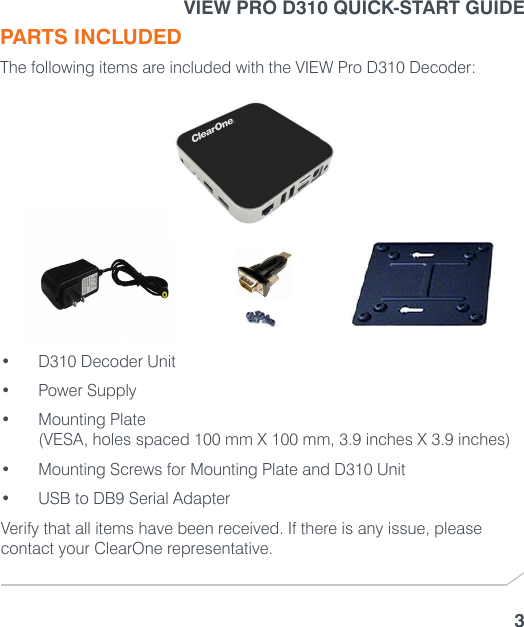

VIEW PRO D310 QUICK-START GUIDE3PARTS INCLUDEDThe following items are included with the VIEW Pro D310 Decoder:• D310 Decoder Unit• Power Supply• Mounting Plate  (VESA, holes spaced 100 mm X 100 mm, 3.9 inches X 3.9 inches)• Mounting Screws for Mounting Plate and D310 Unit• USB to DB9 Serial AdapterVerify that all items have been received. If there is any issue, please contact your ClearOne representative.

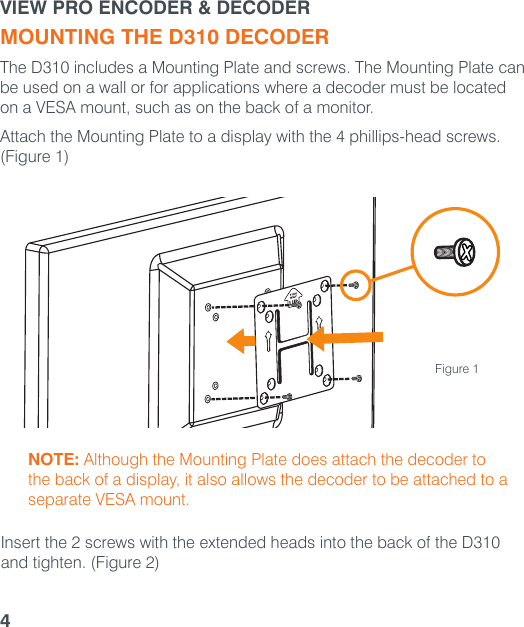

VIEW PRO ENCODER & DECODER4MOUNTING THE D310 DECODERThe D310 includes a Mounting Plate and screws. The Mounting Plate can be used on a wall or for applications where a decoder must be located on a VESA mount, such as on the back of a monitor. Attach the Mounting Plate to a display with the 4 phillips-head screws. (Figure 1)Insert the 2 screws with the extended heads into the back of the D310 and tighten. (Figure 2)NOTE: Although the Mounting Plate does attach the decoder to the back of a display, it also allows the decoder to be attached to a separate VESA mount.Figure 1

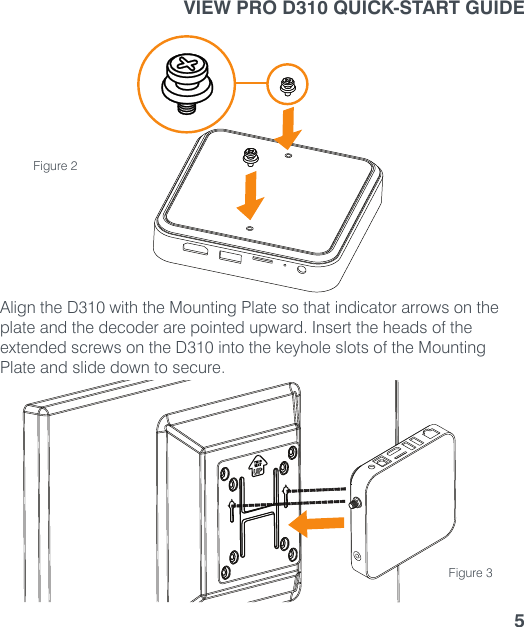

VIEW PRO D310 QUICK-START GUIDE5Align the D310 with the Mounting Plate so that indicator arrows on the plate and the decoder are pointed upward. Insert the heads of the extended screws on the D310 into the keyhole slots of the Mounting Plate and slide down to secure.Figure 2Figure 3

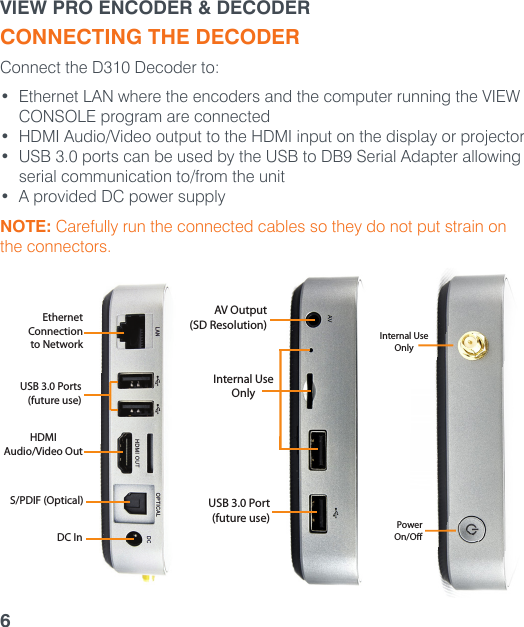

VIEW PRO ENCODER & DECODER6CONNECTING THE DECODERConnect the D310 Decoder to:• Ethernet LAN where the encoders and the computer running the VIEW CONSOLE program are connected• HDMI Audio/Video output to the HDMI input on the display or projector• USB 3.0 ports can be used by the USB to DB9 Serial Adapter allowing serial communication to/from the unit• A provided DC power supplyNOTE: Carefully run the connected cables so they do not put strain on the connectors.HDMI Audio/Video OutEthernet  Connection to NetworkDC InUSB 3.0 Ports (future use)S/PDIF (Optical) USB 3.0 Port (future use)Internal Use OnlyAV Output (SD Resolution)Power On/OInternal Use Only

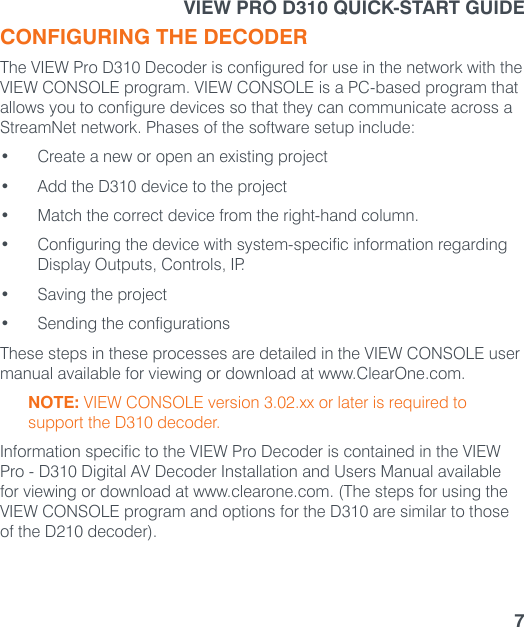

7CONFIGURING THE DECODERThe VIEW Pro D310 Decoder is configured for use in the network with the VIEW CONSOLE program. VIEW CONSOLE is a PC-based program that allows you to configure devices so that they can communicate across a StreamNet network. Phases of the software setup include:• Create a new or open an existing project• Add the D310 device to the project• Match the correct device from the right-hand column.• Configuring the device with system-specific information regarding Display Outputs, Controls, IP.• Saving the project• Sending the configurationsThese steps in these processes are detailed in the VIEW CONSOLE user manual available for viewing or download at www.ClearOne.com.NOTE: VIEW CONSOLE version 3.02.xx or later is required to support the D310 decoder. Information specific to the VIEW Pro Decoder is contained in the VIEW Pro - D310 Digital AV Decoder Installation and Users Manual available for viewing or download at www.clearone.com. (The steps for using the VIEW CONSOLE program and options for the D310 are similar to those of the D210 decoder).VIEW PRO D310 QUICK-START GUIDE

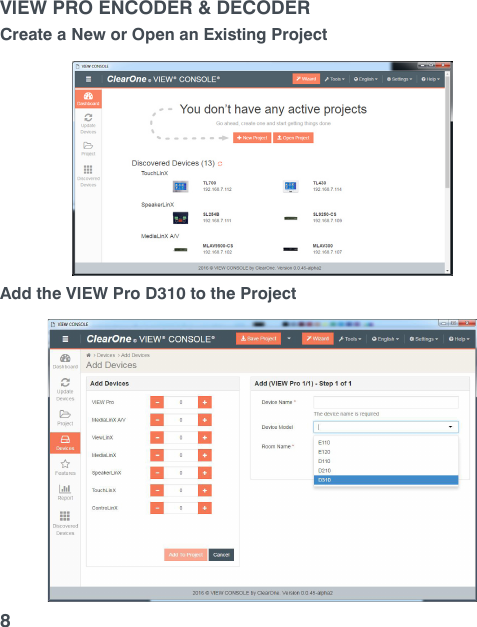

VIEW PRO ENCODER & DECODER8Create a New or Open an Existing ProjectAdd the VIEW Pro D310 to the Project

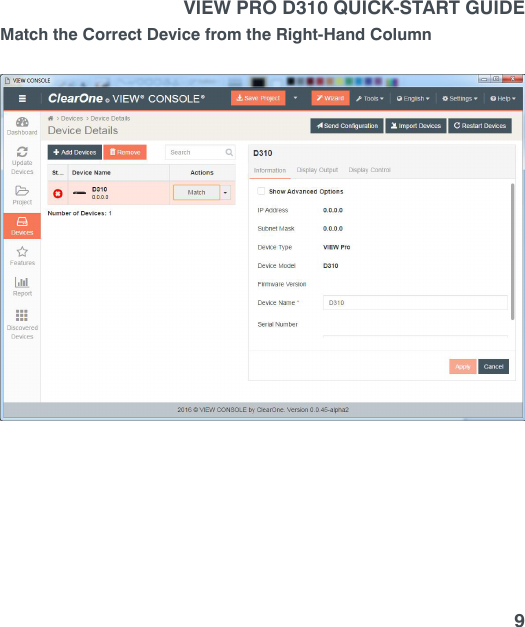

9Match the Correct Device from the Right-Hand ColumnVIEW PRO D310 QUICK-START GUIDE

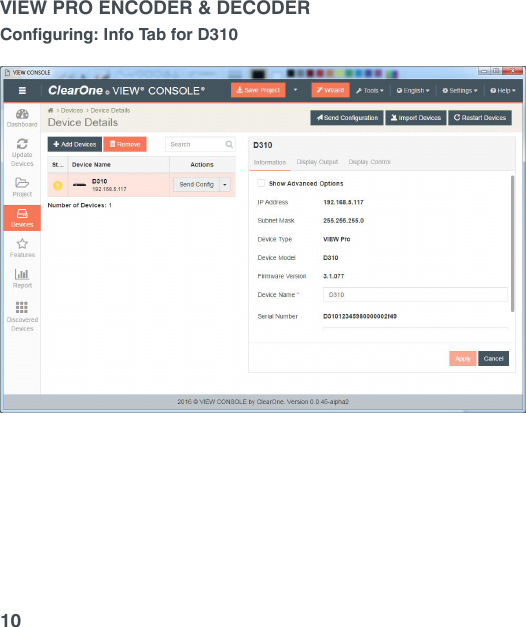

VIEW PRO ENCODER & DECODER10Configuring: Info Tab for D310

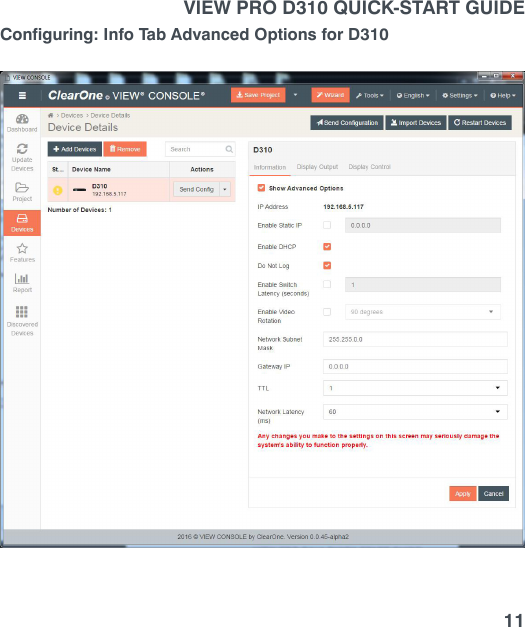

11Configuring: Info Tab Advanced Options for D310VIEW PRO D310 QUICK-START GUIDE

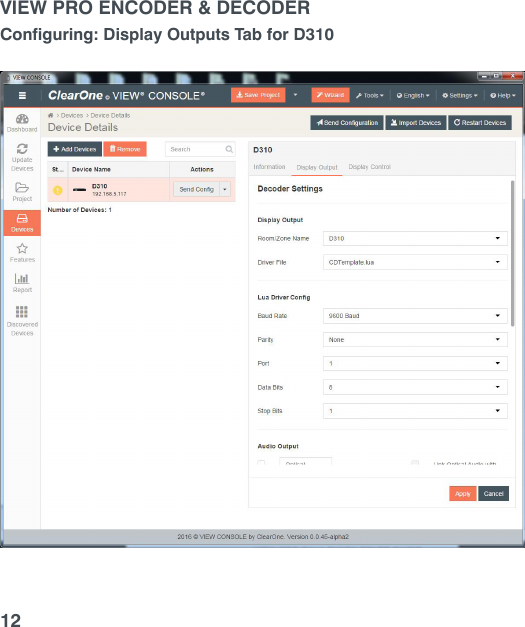

VIEW PRO ENCODER & DECODER12Configuring: Display Outputs Tab for D310

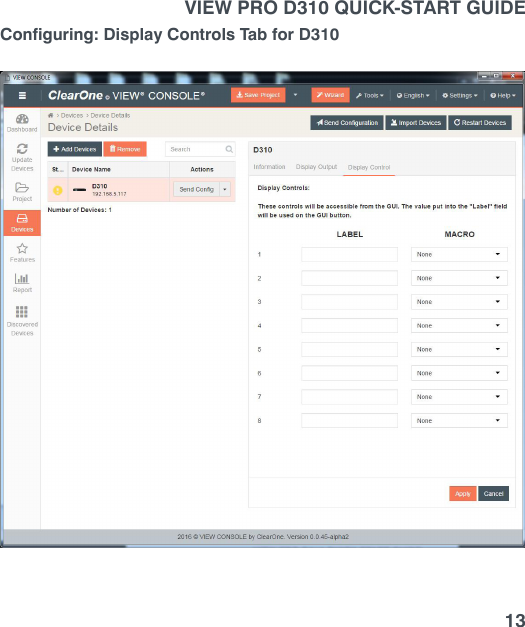

13Configuring: Display Controls Tab for D310VIEW PRO D310 QUICK-START GUIDE

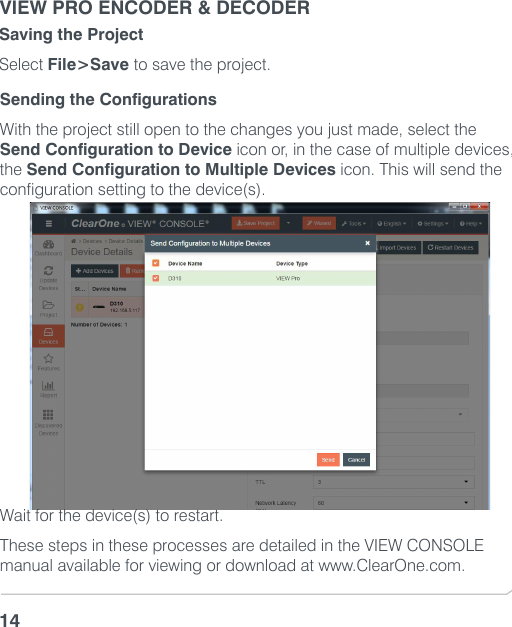

VIEW PRO ENCODER & DECODER14Sending the ConfigurationsWith the project still open to the changes you just made, select the Send Configuration to Device icon or, in the case of multiple devices, the Send Configuration to Multiple Devices icon. This will send the configuration setting to the device(s).Wait for the device(s) to restart. These steps in these processes are detailed in the VIEW CONSOLE manual available for viewing or download at www.ClearOne.com.Saving the ProjectSelect File>Save to save the project.

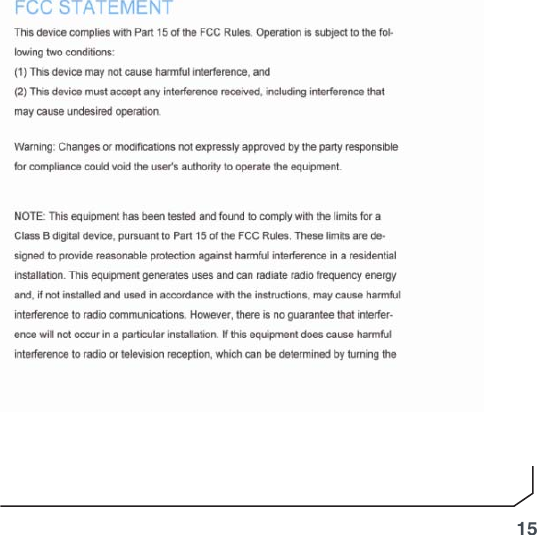

15

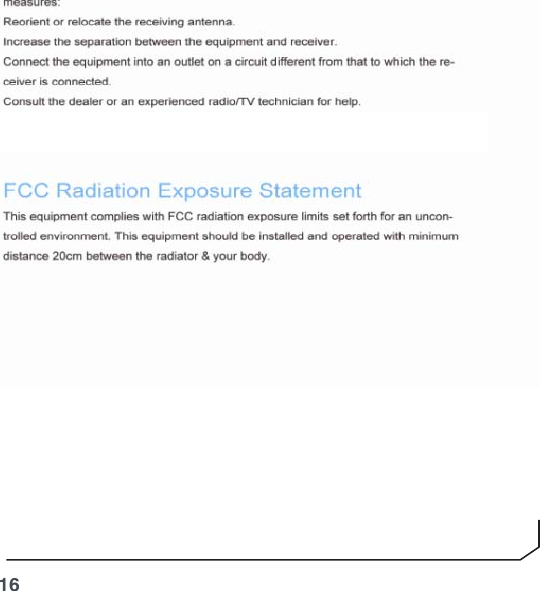

16

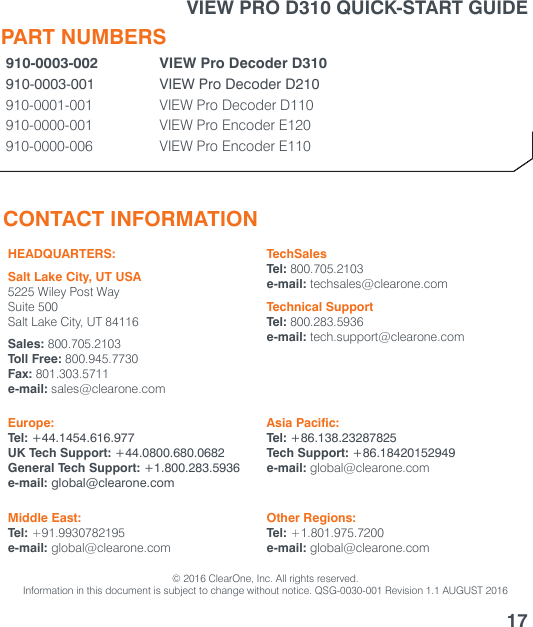

CONTACT INFORMATIONHEADQUARTERS:Salt Lake City, UT USA5225 Wiley Post WaySuite 500Salt Lake City, UT 84116Sales: 800.705.2103Toll Free: 800.945.7730Fax: 801.303.5711e-mail: sales@clearone.comTechSalesTel: 800.705.2103e-mail: techsales@clearone.comTechnical SupportTel: 800.283.5936e-mail: tech.support@clearone.comEurope:Tel: +44.1454.616.977UK Tech Support: +44.0800.680.0682General Tech Support: +1.800.283.5936e-mail: global@clearone.comAsia Pacific:Tel: +86.138.23287825Tech Support: +86.18420152949e-mail: global@clearone.comMiddle East:Tel: +91.9930782195e-mail: global@clearone.comOther Regions:Tel: +1.801.975.7200e-mail: global@clearone.com© 2016 ClearOne, Inc. All rights reserved.Information in this document is subject to change without notice. QSG-0030-001 Revision 1.1 AUGUST 201617PART NUMBERS910-0003-002 VIEW Pro Decoder D310910-0003-001 VIEW Pro Decoder D210910-0001-001 VIEW Pro Decoder D110910-0000-001 VIEW Pro Encoder E120910-0000-006 VIEW Pro Encoder E110VIEW PRO D310 QUICK-START GUIDE
