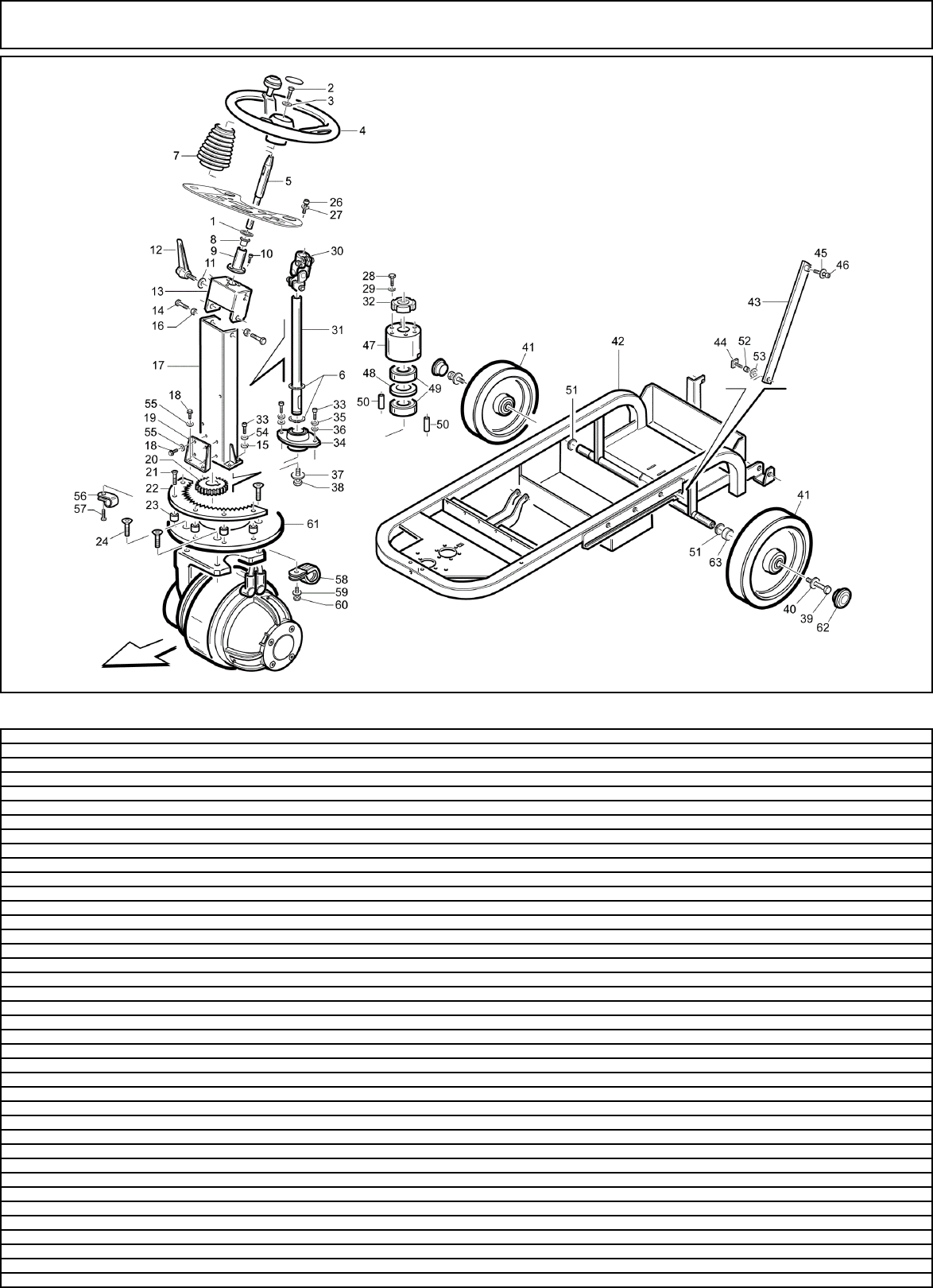

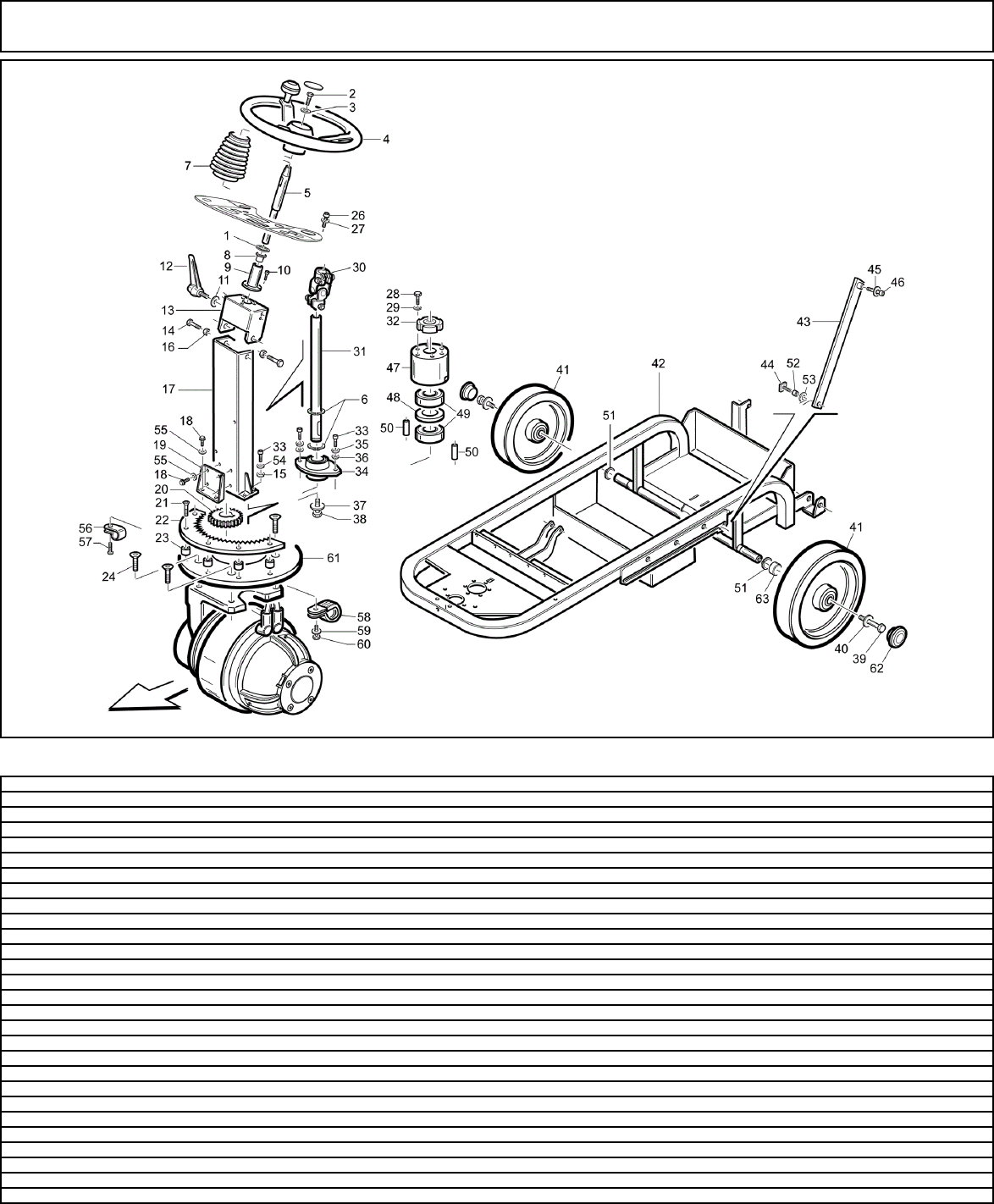

Table: TRACTION MOTOR Progressive Number: 1
Date: 22/02/2012 Selected Part: LPTB02181 Page: 1
Ref. K Part N. Customer Part N. Description Qty Validity:
From To Price
0001 VTAE17003 CIRCLIP D. 15 UNI 7435 2,00 --
0002 VTVT00457 SCREW TE M 10X30 ZINC. UNI 5739 1,00 --
0003 VTRS44254 WASHER D.10 X40X2.5 UNI6593 1,00 --
0004 MPVR47027 STEERING WHEEL D. 320 L.14 1,00 --
0005 ALTR00031 SHAFT PER VOLANTE TK 1050 ZINC. 1,00 --
0006 VTAE00032 SEEGER 20 2,00 --
0007 MPVR05237 PROTECTOR - 1,00 --
0008 LAFN75841 BUSHING TK 1000 2,00 --
0009 LAFN00149 BUSHING PORTA PIANTONE TK1050 ZIN 1,00 --
0010 VTVT62920 SCREW TE F/ROND. M 6X 16 ZB 3,00 --
0011 VTRS13946 WASHER D. 8 X24 INX UNI 6593 1,00 --
0012 MPVR05250 HANDLE M8X25 1,00 --
0013 KTRI02058 KIT REGOLAZIONE STERZO CT110 1,00 --
0014 VTVT13936 SCREW TE M 10X 20 2,00 --
0015 VTRS13947 WASHER D. 8 INX UNI 6592 4,00 --
0016 VTDD00493 NUT M10 TEF 2,00 --
0017 LAFN06362 UP STEERING CT110 1,00 --
0018 VTVT13939 SCREW TE 6X20 UNI5739 INX 6,00 03/2010 --
0018 VTVT15143 SCREW TE 6X16 UNI5739 6,00 03/2010 --
0019 LAFN06508 BRACKET PIANTONE 1,00 --
0020 LAFN06377 PINION STERZO 1,00 --
0021 VTVT00062 SCREW TSCE UNI 5933 6X25 ZB 5,00 --
0022 LAFN06373 BRAKE CT110 1,00 --
0023 LAFN06844 SPACER CORONA 5,00 --
0024 VTVT00263 SCREW TSPEI M10x30 4,00 --
0026 VTVT37012 SCREW M 4X 10 TCB-TC INX 5,00 --
0027 VTRS00515 WASHER D. 4 INX 5,00 --
0028 VTVT00410 SCREW TE M8x35 UNI5739 INOX 5,00 --
0029 VTRS15146 WASHER D. 8 INX GRW UNI 1751 5,00 --
0030 VTVR00057 ARTICULATION CARDANICO 1,00 --
0031 LAFN06374 SHAFT STERZO 1,00 --
0032 VTVR75747 RING NUT AUTOBLOK M 35 X 1,5 GUK 1,00 --
0033 VTVT13938 SCREW TE 8X20 UNI5739 INX 4,00 --
0034 CUVR00105 SUPPORT 1,00 --
0035 VTRS15146 WASHER D. 8 INX GRW UNI 1751 2,00 --
0036 VTRS13947 WASHER D. 8 INX UNI 6592 2,00 --
0037 VTRS16937 WASHER 6x24 INOX UNI 6593 1,00 --
0038 VTVT15143 SCREW TE 6X16 UNI5739 1,00 --
0039 VTVT03640 SCREW TE 10X25 UNI5740 2,00 05/2011 --
Table: TRACTION MOTOR Progressive Number: 1
Date: 22/02/2012 Selected Part: LPTB02181 Page: 2
Ref. K Part N. Customer Part N. Description Qty Validity:
From To Price
0039 VTVT13936 SCREW TE M 10X 20 2,00 05/2011 --
0040 LAFN04144 WASHER RUOTE POSTERIORI 2,00 --
0041 RTRT00507 WHEEL D.300 H=70 2,00 05/2011 --
0041 RTRT00539 WHEEL - 2,00 05/2011 --
0042 LAFN06360 FRAME CT110 1,00 --
0043 LAFN06427 LEVER CT110 1,00 --
0044 LAFN04147 SCREW ASTA SERBATOIO P185 1,00 11/2010 --
0044 VTVT15916 SCREW TE M 8X 16 UNI 5739 A2 1,00 11/2010 --
0045 VTRS00502 WASHER D. 5 0.466 UNI 6592 1,00 --
0046 VTVT00005 SCREW TE FR 5X12 ZB 1,00 --
0047 LAFN06522 PLATE CT110 1,00 --
0048 LAFN06523 SPACER Ø48 X Ø36,5 X 20 1,00 --
0049 CUVR00120 BEARING 6007-2RS1 2,00 --
0050 LAFN06387 BUSHING STERZO 2,00 --
0051 VTAE00018 SEEGER E25x1,2 DIN471 2,00 --
0052 LAFN04148 BUSHING ASTA SERBATOIO P185 1,00 --
0053 VTRS00506 WASHER D.12 UNI 6592 1,00 11/2010 --
0053 VTRS13946 WASHER D. 8 X24 INX UNI 6593 1,00 11/2010 --
0054 VTRS13947 WASHER D. 8 INX UNI 6592 4,00 --
0055 VTRS00245 WASHER D.6 UNI 6592 INOX 6,00 --
0056 MPVR02933 DUCT LOCK D.9,5 2,00 --
0057 VTVT37012 SCREW M 4X 10 TCB-TC INX 2,00 --
0058 FSVR00043 CLAMP d.16 1,00 --
0059 VTRS15144 WASHER D. 6 INX GRW UNI 1751 1,00 --
0060 VTVT15906 SCREW TE 6X 12 A2 UNI 5739 1,00 --
0061 LAFN06364 PLATE STERZO 1,00 --
0062 MPVR05951 FLAP CT15 2,00 05/2011 --
0063 LAFN08995 ARM PORTARUOTA TERGI P185 2,00 05/2011 --

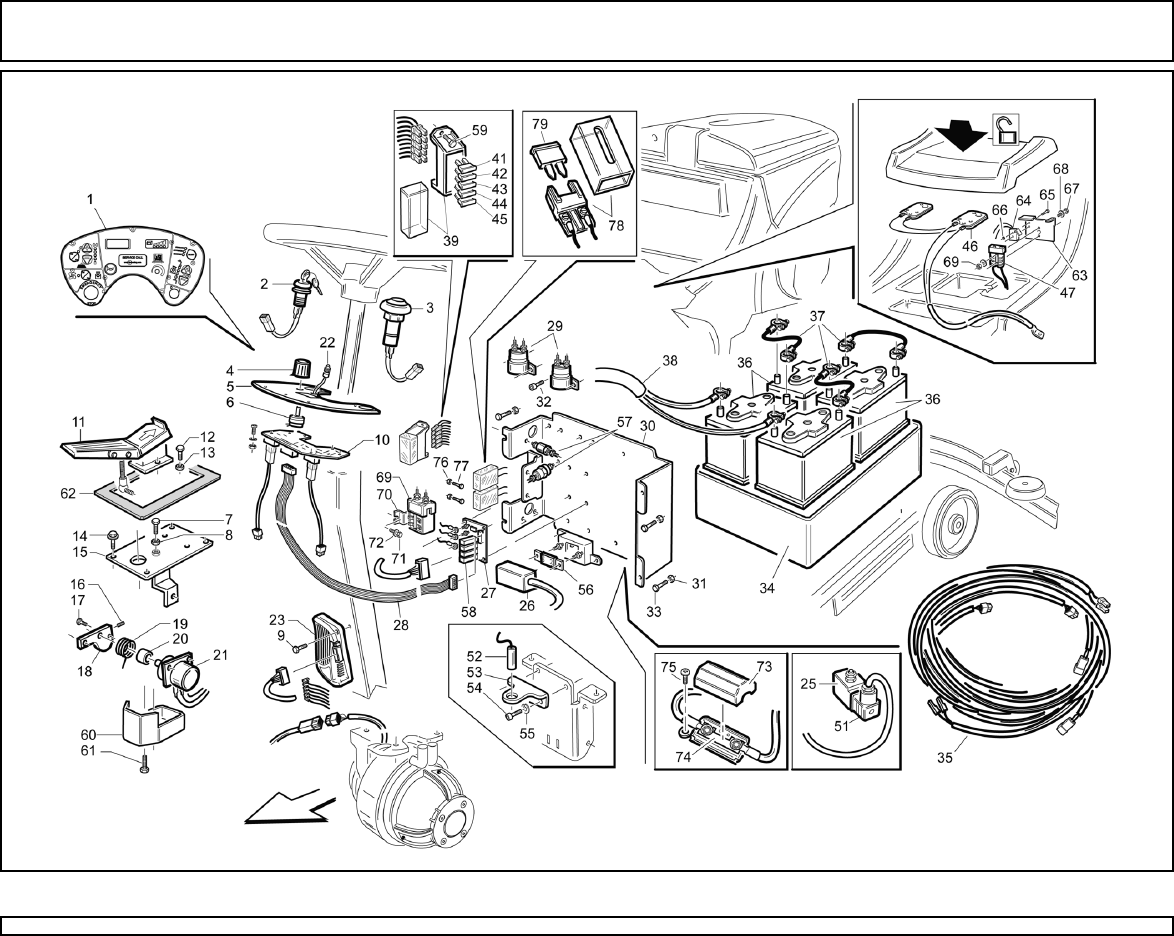

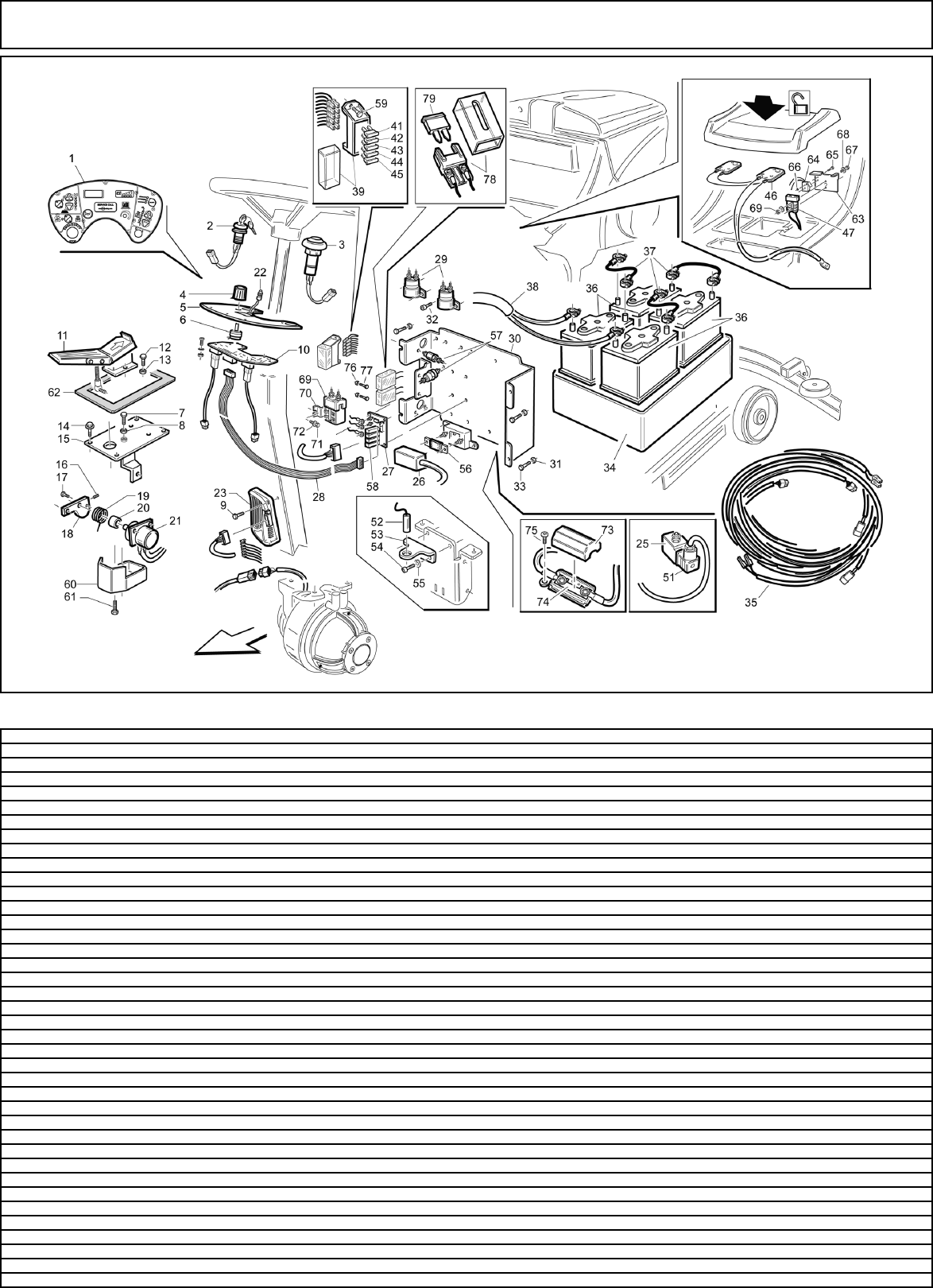

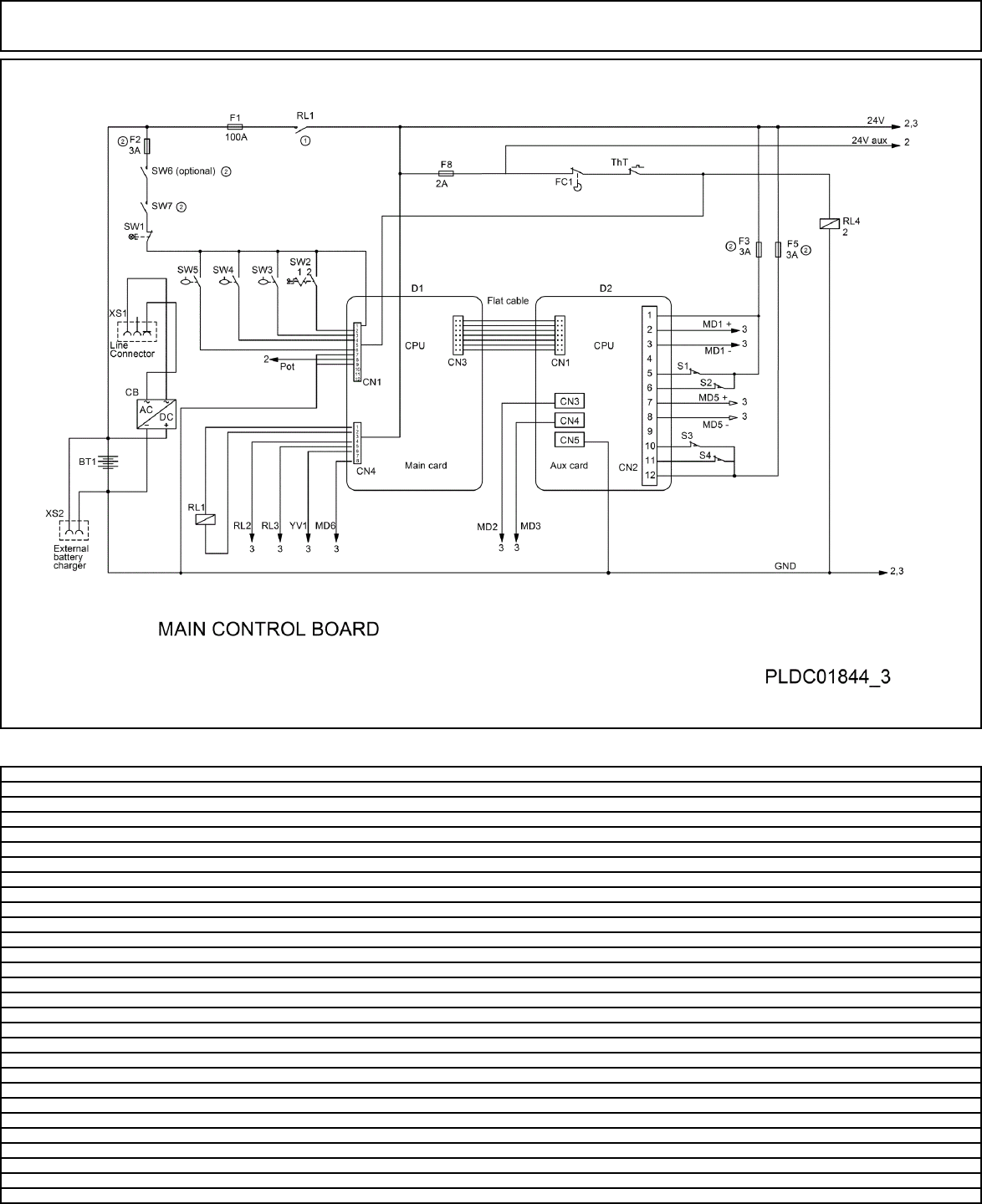

Table: ELECTRI.INSTAL. Progressive Number: 1
Date: 22/02/2012 Selected Part: LPTB02181 Page: 2
Ref. K Part N. Customer Part N. Description Qty Validity:
From To Price
0001 ETET01485 LABEL - 1,00 --
0002 MECI75805 SWITCH TK 1,00 --
0003 MECI00028 BUTTON DI EMERGENZA TK1400 24V 1,00 --
0004 KTRI01935 KIT 1050-1202 1,00 --
0005 LAFN06408 PLATE - 1,00 --
0006 MEVR01941 POTENTIOMETER 100K 1,00 --
0007 VTVT13937 SCREW TE M 8X 30 INX UNI 5739 1,00 --
0008 VTDD01696 NUT M 8 INX 1,00 --
0009 VTVT00727 SCREW TE M. 4-20 2,00 --
0010 MECE00451 BOARD 1,00 --
0011 LAFN06429 PEDALE CT110 1,00 --
0012 VTVT15143 SCREW TE 6X16 UNI5739 2,00 --
0013 VTDD15518 NUT M 6 INX 2,00 --
0014 VTVT00005 SCREW TE FR 5X12 ZB 4,00 --
0015 LAFN06521 SUPPORT ACCELERATORE 1,00 --
0016 VTVT00911 GRUB SCREW M4X8 1,00 --
0017 VTVT00727 SCREW TE M. 4-20 2,00 --
0018 LAFN06371 CONNECTING ROD POTENZIOMETRO 1,00 --
0019 MLML00301 SPRING ACCELLERATORE 1,00 04/2010 --
0019 MLML00327 SPRING - 1,00 04/2010 --
0020 MPVR05236 BUSHING - 1,00 04/2010 --
0020 MPVR05786 BUSHING 1,00 04/2010 --
0021 MEVR01700 POTENTIOMETER 0-5K 1,00 --
0023 MECE00450 BOARD 1,00 --
0025 MEEV00018 SOLENOID VALVE 1,00 --
0026 MEVR00146 FUSE-HOLDER MEGA 1,00 --
0027 MECE00452 BOARD 1,00 --
0028 MECB01021 CABLE FLAT 1,00 10/2008 --
0028 MECB01099 CABLE FLAT 1,00 10/2008 --
0029 METT45116 CONTACTOR 24V T106 P 2,00 05/2009 --
0029 METT45116 CONTACTOR 24V T106 P 3,00 05/2009 --
0030 LAFN06503 PLATE ELETTRONICA 1,00 --
0032 VTVT00005 SCREW TE FR 5X12 ZB 8,00 --
0033 VTVT00005 SCREW TE FR 5X12 ZB 4,00 --
0034 MPVR05217 CONTAINER BATTERIA 1,00 --
0035 MECB01015 WIRING CT110 1,00 --
0036 BAAC00005 BATTERY 6 V 180 AH (C5) 4,00 --
0036 BAAC00074 BATTERY 6V 180 AH IN 5H 4,00 --
0037 MEVR34820 WIRING B 450 BT 3,00 --
Table: ELECTRI.INSTAL. Progressive Number: 1
Date: 22/02/2012 Selected Part: LPTB02181 Page: 3
Ref. K Part N. Customer Part N. Description Qty Validity:
From To Price
0038 MECB01015 WIRING CT110 1,00 --
0039 MEVR00567 FUSE-HOLDER 6 VIE 1,00 --
0040 MEVR01136 FUSE 30A 1,00 10/2011 --
0041 MEVR01136 FUSE 30A 1,00 10/2011 --
0041 MEVR01428 FUSE A LAMA 2 A. UNIVAL 1,00 10/2011 --
0042 MEVR00327 FUSE 25A 1,00 --
0043 MEVR00584 FUSE 3A 1,00 --
0044 MEVR00584 FUSE 3A 1,00 --
0045 MEVR00584 FUSE 3A 1,00 --
0046 MEVR00148 DASHBOARD SEDILE 1,00 --
0047 MEVR01079 PLUG M CB50 A 600V RD. 1,00 --
0051 MECB01015 WIRING CT110 1,00 --
0052 MECI00405 SENSOR - 1,00 --
0053 LAFN06386 SUPPORT - 1,00 --
0054 VTVT15143 SCREW TE 6X16 UNI5739 2,00 --
0055 VTRS15144 WASHER D. 6 INX GRW UNI 1751 2,00 --
0056 MEVR00145 FUSE 100A 1,00 --
0057 MEVR47082 INSULATOR M6 35-CH32 1,00 --
0058 MECE00456 RELAY CT110 4,00 --
0059 VTVT00005 SCREW TE FR 5X12 ZB 2,00 --
0060 MPVR05235 COVER - 1,00 --
0061 VTVT00005 SCREW TE FR 5X12 ZB 2,00 --
0062 GUVR00292 GASKET CT110 1,00 --
0063 LAFN07362 PLATE ANDERSON 1,00 --
0064 MECI00334 MICROSWITCH V4 1,00 --
0065 VTVT00671 SCREW TC- M.2-16 OTTONE 2,00 --
0066 VTDD08634 NUT M2 2,00 --
0067 VTVT01350 SCREW M3-20 INOX 2,00 --
0068 VTRS21116 WASHER D. 3 INX 2,00 --
0069 MECI00532 CONTACTOR 24V-100A 1,00 05/2009 --
0070 LAFN07743 BRACKET - 1,00 05/2009 --
0071 VTVT01669 CARRYNG BAG 2,00 05/2009 --
0072 VTRS00501 WASHER D. 4 0.232 UNI 6592 2,00 05/2009 --
0073 MEVR31036 FUSE-HOLDER 1,00 --
0074 MEVR02042 FUSE 40A NST. 1,00 --
0075 VTVT00079 SCREW AUTOF.TC UNI6954 3,9X22 1,00 --
0076 VTDD01693 NUT M 5 INX 2,00 10/2011 --
0077 VTVT01300 SCREW TE M5X12 INOX 2,00 10/2011 --
0078 MEVR00613 FUSE CARRIER MAXIVAL with cover 2,00 10/2011 --
Table: ELECTRI.INSTAL. Progressive Number: 1
Date: 22/02/2012 Selected Part: LPTB02181 Page: 4
Ref. K Part N. Customer Part N. Description Qty Validity:
From To Price
0079 MEVR02048 FUSE 40A 2,00 10/2011 --

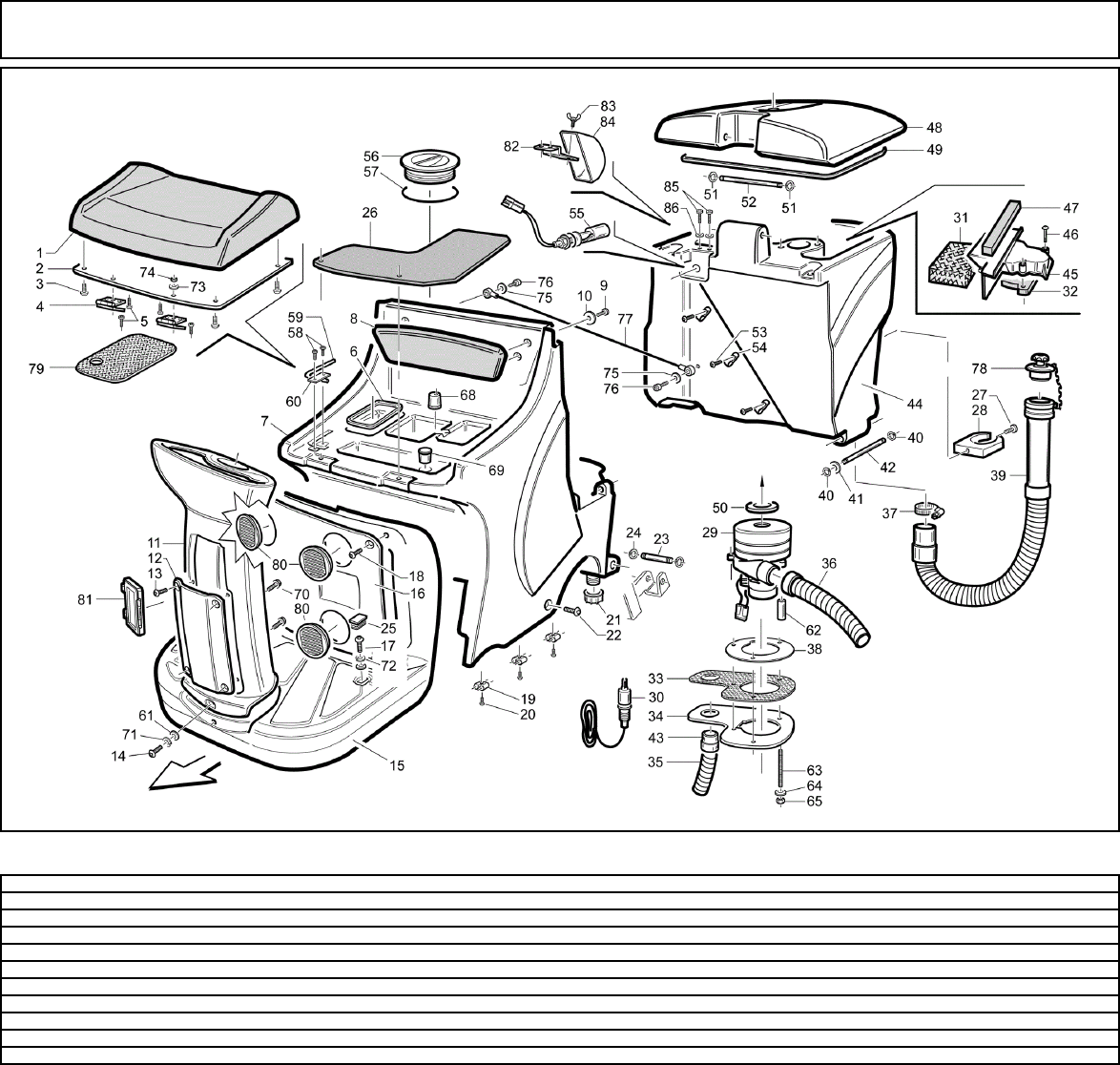

Table: TANK Progressive Number: 1
Date: 22/02/2012 Selected Part: LPTB02181 Page: 4
Ref. K Part N. Customer Part N. Description Qty Validity:
From To Price
0001 SESD00021 SEAT 1,00 --
0002 LAFN06430 PLATE CT110 1,00 --
0003 VTVT15143 SCREW TE 6X16 UNI5739 4,00 --
0004 CEVR00060 HINGE PORTA SEDILE P185 2,00 --
0005 VTVT01317 SCREW M 5X 12 TSPEI UNI 5933 4,00 --
0006 GUVR00284 GASKET CT110 1,00 --
0007 MPVR05201 TANK CT110 1,00 --
0008 SESD00020 SHEET METAL PA.CLEANTIME 1,00 --
0009 VTVT00433 SCREW TE M 6X 30 UNI 5739 INX 2,00 --
0010 VTRS13945 WASHER D. 6X18 INX UNI 6593 4,00 --
0011 MPVR05203 SIDE PANEL CT110 1,00 --
0012 MPVR05205 COVER SCHEDA POTENZA 1,00 --
0013 VTVT00005 SCREW TE FR 5X12 ZB 4,00 --
0014 VTVT15142 SCREW TE M 6x45 INOX 1,00 --
0015 MPVR05204 PLANE CT110 1,00 --
0016 MPVR05206 COVER PANNELLO ELETTRONICA 1,00 11/2011 --
0016 MPVR05986 TANK - 1,00 11/2011 --
0017 VTVT00433 SCREW TE M 6X 30 UNI 5739 INX 2,00 --
0018 VTVT00005 SCREW TE FR 5X12 ZB 4,00 --
0019 FSVR00243 CLAMP 20/30 3,00 --
0020 VTVT37012 SCREW M 4X 10 TCB-TC INX 3,00 --
0021 KTRI03463 CAP SCARICO SERBATOIO SOLUZ. 1,00 10/2011 --
0021 MPVR07073 CAP - 1,00 11/2011 --
0022 VTVT00005 SCREW TE FR 5X12 ZB 1,00 --
0023 LAFN06433 PIN ROTAZIONE 2,00 --
0024 VTAE06761 CIRCLIP D. 18 UNI 7435 4,00 --
0025 MPVR05314 CAP STR35X25 2,00 --
0026 MPVR05315 ROD CT110 1,00 --
0027 VTVT15924 SCREW M 4X 16 TCB-TC UNI 7687 1,00 --
0028 MPVR05252 CLIP D.60 1,00 --
0029 MEVR05200 CARBON MOTORE ASP.AMET.116599-13 1,00 --
0029 MOCC00273 MOTOR 3 ST.24V 116598-13 1,00 --
0030 MECI00533 SENSOR VS303-51N 1,00 --
0031 FTDP00133 FILTER 1,00 --
0032 GUGO00417 GASKET SCATOLA ASPIRAZIONE 1,00 --
0033 MPVR05103 SOUND-PROOFING ASPIRATORE 1,00 --
0034 LAFN06363 FLANGE ASPIRATORE 1,00 --
0035 TBFX00244 TUBE D 34 L200MM 1,00 --
0036 TBFX00244 TUBE D 34 L200MM 1,00 --

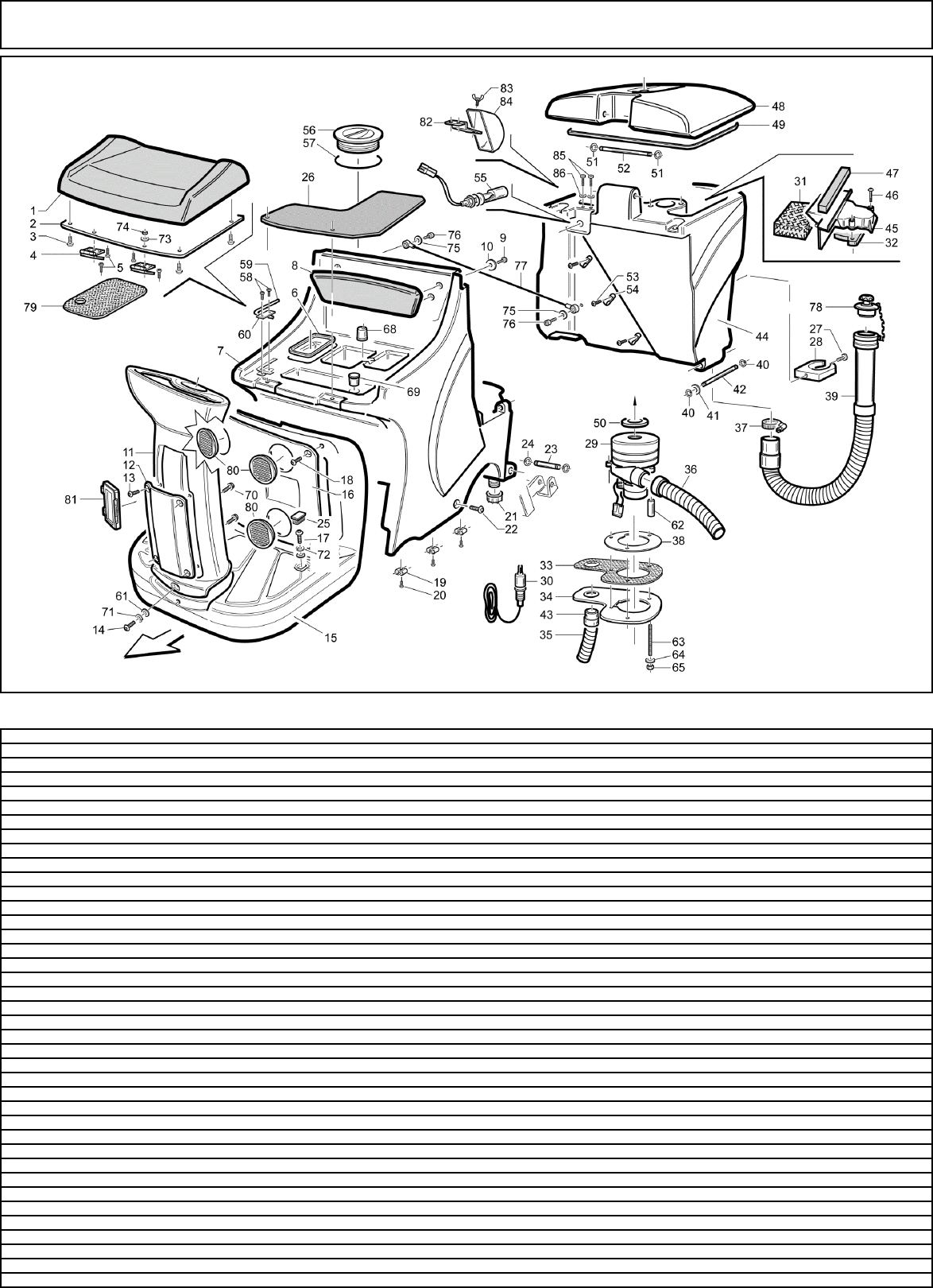

Table: TANK Progressive Number: 1
Date: 22/02/2012 Selected Part: LPTB02181 Page: 5
Ref. K Part N. Customer Part N. Description Qty Validity:
From To Price
0037 FSVR00033 CLAMP 45-60 1,00 --
0038 MPVR04724 FLANGE IN NYLON 1,00 --
0039 TBBP00401 TUBE ACQUA SPORCA 1,00 --
0040 VTAE14096 CIRCLIP D. 8 UNI 7435 2,00 --
0041 VTRS13947 WASHER D. 8 INX UNI 6592 1,00 --
0042 LAFN06434 PIN ROTAZIONE 1,00 --
0043 MPVR31077 BUSHING L.450 1,00 --
0044 MPVR05200 TANK CT110 1,00 --
0045 FTDP00185 BOX ASPIRAZIONE 1,00 01/2009 --
0045 MPVR05482 BOX - 1,00 01/2009 --
0046 VTVT01325 SCREW TCEI 5X35 INOX UNI5931 2,00 --
0047 GUGO00418 GASKET CONDOTTO ASPIRAZIONE 1,00 --
0048 MPVR05202 COVER CT110 1,00 --
0049 GUVR00272 GASKET CT110 1,00 --
0050 GUGO00272 GASKET 1,00 --
0051 VTVR00536 SEEGER 8 2,00 --
0052 LAFN06509 PIN ROTAZIONE 1,00 --
0053 VTVT37012 SCREW M 4X 10 TCB-TC INX 3,00 --
0054 MPVR02933 DUCT LOCK D.9,5 3,00 --
0055 MECI00516 SENSOR DI LIVELLO ORIZZONTALE 1,00 --
0056 MPVR05212 CAP - 1,00 06/2009 --
0057 GUVR00287 GASKET CT110 1,00 06/2009 --
0058 VTVT00849 SCREW M 4X 10 TSPEI INX U.5933 2,00 --
0059 LAFN06431 ROD CT110 1,00 --
0060 LAFN06432 PLATE CT110 1,00 --
0061 VTRS13945 WASHER D. 6X18 INX UNI 6593 1,00 --
0062 LAFN51077 SPACER PH 3,00 --
0063 VTVT00785 ROD FILETTO 3,00 --
0064 VTRS13945 WASHER D. 6X18 INX UNI 6593 3,00 --
0065 VTDD15518 NUT M 6 INX 3,00 --
0068 MPVR05273 CAP CT110 1,00 --
0069 MPVR05272 CAP CT110 1,00 12/2011 --
0069 MPVR07079 CRANKCASE FRONTALE 705 GRIGIO 1,00 12/2011 --
0070 VTVT62920 SCREW TE F/ROND. M 6X 16 ZB 4,00 --
0071 VTRS15144 WASHER D. 6 INX GRW UNI 1751 1,00 --
0072 VTRS15144 WASHER D. 6 INX GRW UNI 1751 2,00 --
0073 VTRS00502 WASHER D. 5 0.466 UNI 6592 2,00 --
0074 VTDD15517 NUT M 5 INX 2,00 --
0075 VTRS13947 WASHER D. 8 INX UNI 6592 4,00 --
Table: TANK Progressive Number: 1
Date: 22/02/2012 Selected Part: LPTB02181 Page: 6
Ref. K Part N. Customer Part N. Description Qty Validity:
From To Price
0076 VTVT13938 SCREW TE 8X20 UNI5739 INX 2,00 --
0077 CMCV00427 CABLE CT 110 1,00 --
0078 MPVR05380 CAP CT110 1,00 --
0079 GUGO00313 MOUSSE CT110 1,00 07/2008 --
0080 LAFN02931 BRACKET FAN COOLER 3,00 --
0081 MEVR00232 DOOR TO REMOVE AND RESET FUSE 1,00 06/2008 --
0082 LAFN07737 BRACKET - 1,00 06/2009 --
0083 VTVT01150 SCREW 4x10 1,00 06/2009 --
0084 MPVR05596 PROTECTION - 1,00 06/2009 --
0085 VTVT15961 SCREW M 5X 16 TCB TC UNI 7687 2,00 06/2009 --
0086 VTRS15908 WASHER D. 5 INX GRW UNI 1751 2,00 06/2009 --

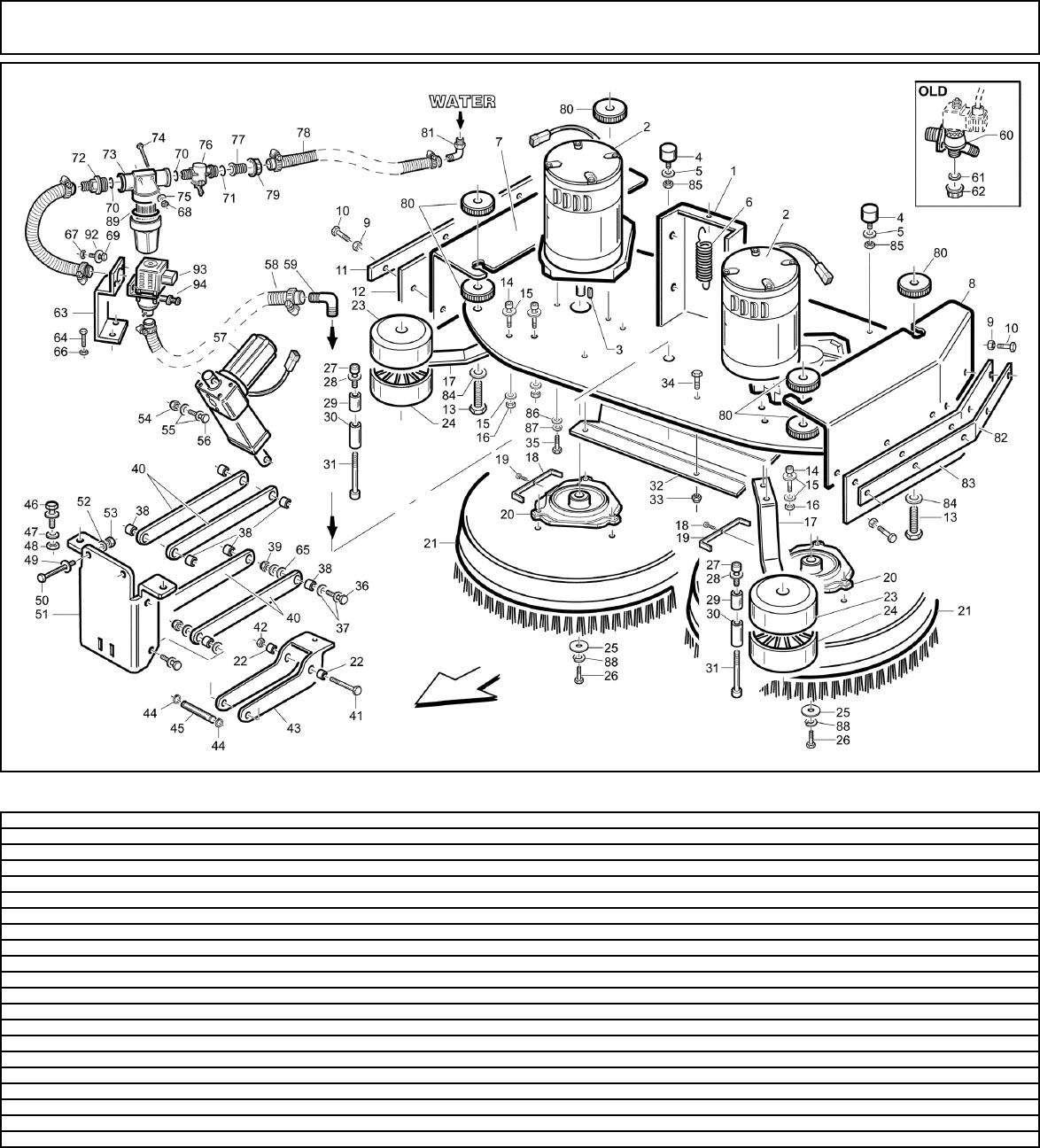

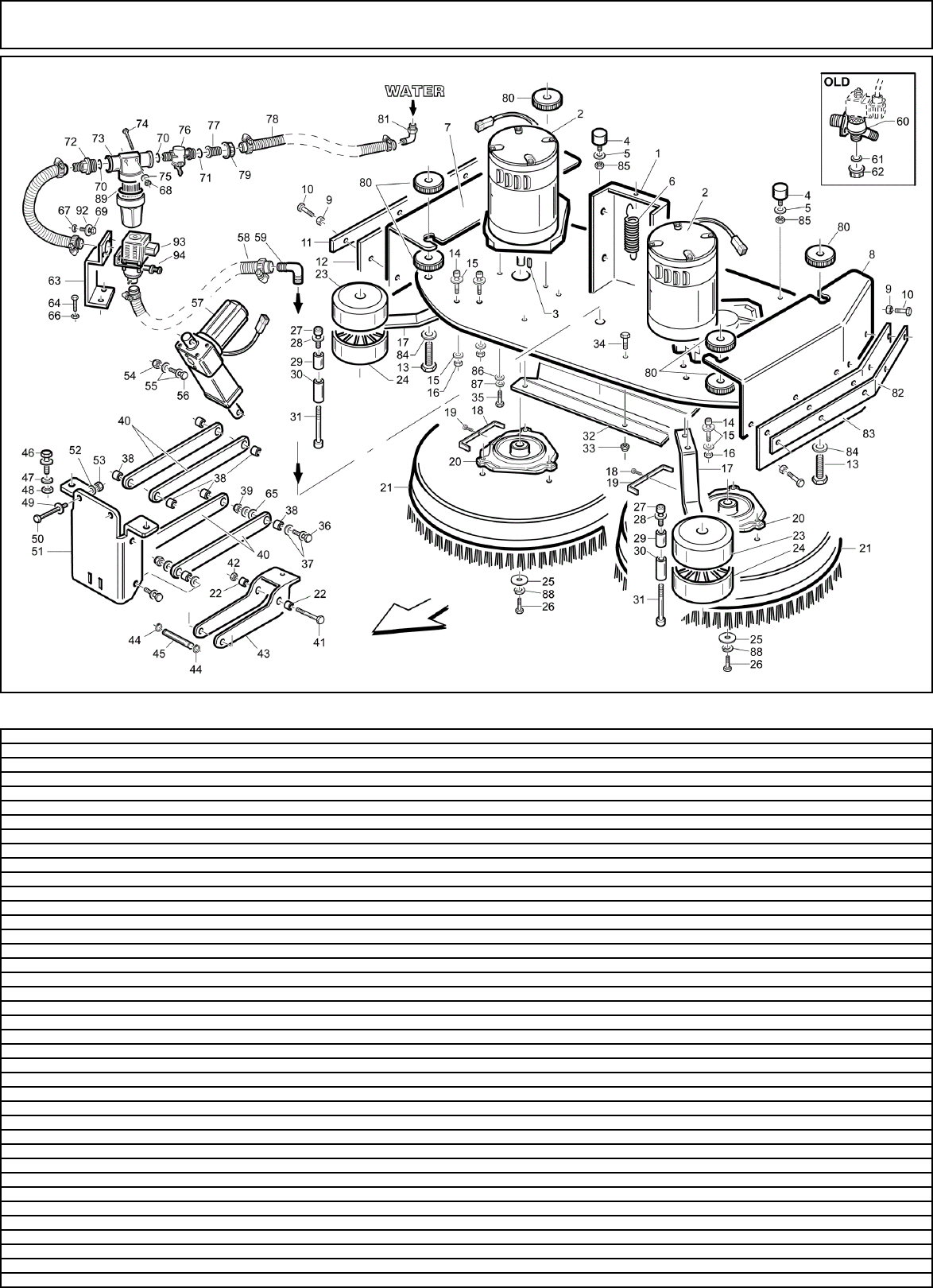

Table: HEAD Progressive Number: 1
Date: 22/02/2012 Selected Part: LPTB02181 Page: 6
Ref. K Part N. Customer Part N. Description Qty Validity:
From To Price
0001 LAFN06504 PLATE 600 1,00 --
0002 MOCC00161 MOTOR.GEARBOX 300W 2,00 04/2008 --
0002 MOCC00328 MOTOR - 2,00 04/2008 --
0002 MOCC00344 BRUSH - 1,00 --
0003 VTVR16617 KEY 6X 6X30 UNI 6604 2,00 --
0004 ABGO00019 VIBRATION DAMP.40x30 M8x2845 SH 2,00 --
0005 VTRS15146 WASHER D. 8 INX GRW UNI 1751 2,00 --
0006 MLML00241 SPRING TESTATA SPAZZOLA P185 1,00 --
0007 LAFN06369 PLANE DX 700 1,00 --
0008 LAFN06839 PLANE SX 700 1,00 --
0009 VTDD01694 NUT M 6 INX 10,00 --
0010 VTVT15143 SCREW TE 6X16 UNI5739 10,00 --
0011 LAFN06361 SHEET METAL PA.FLAP 1,00 --
0012 MPVR05222 FLAP DX 1,00 --
0013 VTVT00469 SCREW TE M 12X 60 INX UNI 5739 4,00 01/2012 --
0013 VTVT01167 SCREW TCB T 5X30 4,00 02/2012 --
0014 VTVT15907 SCREW TE 8X25 UNI5739 INX 4,00 --
0015 VTRS13947 WASHER D. 8 INX UNI 6592 8,00 --
0016 VTDD15521 NUT M 8 INX A2 UNI 5588 4,00 --
0017 LAFN07059 BRACKET FISSA RUOTA PARACOLPI 2,00 --
0018 VTVT21887 SCREW TCB-TC 4X10 8112 2,00 --
0019 MLML00230 SPRING ANTISGANCIO 70 X FLANGIA 2,00 --
0020 MFVR00212 DRIVE DISK 2,00 --
0021 SPPV00428 BRUSH NYLON D310 2,00 --
0022 LAFN04187 SPACER PER RIDUTTORE 2,00 --
0023 RTRT00502 WHEEL ANTIRIBALTAMENTO 2,00 04/2008 --
0023 RTRT00510 WHEEL ANTIRIBALTAMENTO 2,00 04/2008 --
0024 MPVR02894 ROLLER PARACOLPI 2,00 04/2008 --
0024 MPVR05295 WHEEL PARACOLPI 2,00 04/2008 --
0025 VTRS13946 WASHER D. 8 X24 INX UNI 6593 2,00 --
0026 VTVT13938 SCREW TE 8X20 UNI5739 INX 2,00 --
0027 VTVT01118 SCREW TCEI M 8X16 ZC. UNI 5931 2,00 --
0028 VTRS13947 WASHER D. 8 INX UNI 6592 2,00 --
0029 LAFN06472 PIN RUOTA 2,00 --
0030 LAFN07060 SPACER RUOTA PARACOLPI 2,00 --
0031 VTVT77509 SCREW TE 8X60 UNI5739 2,00 --
0032 LAFN05733 DISTRIBUTOR ACQUA TESTATA 1,00 04/2008 --
0032 LAFN06881 CONVEYOR 110 1,00 04/2008 --
0033 VTDD01694 NUT M 6 INX 4,00 --
Table: HEAD Progressive Number: 1
Date: 22/02/2012 Selected Part: LPTB02181 Page: 7
Ref. K Part N. Customer Part N. Description Qty Validity:
From To Price
0034 VTVT15143 SCREW TE 6X16 UNI5739 4,00 --
0035 VTVT15143 SCREW TE 6X16 UNI5739 8,00 --
0036 VTVT13937 SCREW TE M 8X 30 INX UNI 5739 4,00 --
0037 VTRS13947 WASHER D. 8 INX UNI 6592 16,00 --
0038 LAFN04151 BUSHING X PARALLELOGRAMMA 8,00 --
0039 VTDD15521 NUT M 8 INX A2 UNI 5588 4,00 --
0040 LAFN06370 LEVER PARALLELOGRAMMA 4,00 --
0041 VTVT15142 SCREW TE M 6x45 INOX 2,00 --
0042 VTDD15518 NUT M 6 INX 1,00 --
0043 LAFN05781 ARM ATTUATORE 1,00 03/2009 --
0043 LAFN07636 ARM - 1,00 03/2009 --
0044 VTAE13511 CIRCLIP D. 10 UNI 7435 2,00 --
0045 LAFN51065 PIN INFER.ATTUAT.TEST. 1,00 --
0046 VTVT13937 SCREW TE M 8X 30 INX UNI 5739 2,00 --
0047 VTRS13947 WASHER D. 8 INX UNI 6592 8,00 --
0048 VTDD01696 NUT M 8 INX 4,00 --
0049 VTRS13947 WASHER D. 8 INX UNI 6592 8,00 --
0050 VTVT13937 SCREW TE M 8X 30 INX UNI 5739 2,00 --
0051 LAFN06383 ARM TESTATA 1,00 --
0052 VTRS13947 WASHER D. 8 INX UNI 6592 2,00 --
0053 VTDD01694 NUT M 6 INX 2,00 --
0054 VTDD15521 NUT M 8 INX A2 UNI 5588 1,00 --
0055 VTRS13946 WASHER D. 8 X24 INX UNI 6593 2,00 --
0056 VTVT00410 SCREW TE M8x35 UNI5739 INOX 1,00 --
0057 MOCC00323 ATUATOR 1,00 --
0058 TBFX48011 TUBE FLEX D.12X3 ARMORV.PVC TR 0,18 --
0059 RCVR45752 HOSE FITTING "L" 3/8M - D.10 PLS. 1,00 --
0060 MEEV00018 SOLENOID VALVE 1,00 10/2011 --
0061 GUGO00268 GASKET D.21 SP.3 GOMMA 1,00 10/2011 --
0062 RCVR00353 CAP 1/2"G X ELETTROV. ACL 1,00 10/2011 --
0063 LAFN05835 BRACKET PORTAELETTROVALVOLA 1,00 --
0064 VTVT15906 SCREW TE 6X 12 A2 UNI 5739 1,00 --
0065 VTRS13946 WASHER D. 8 X24 INX UNI 6593 2,00 --
0066 VTDD15518 NUT M 6 INX 1,00 --
0067 VTDD15925 NUT M 4 INX 2,00 --
0068 VTDD01694 NUT M 6 INX 2,00 --
0069 VTVT00817 SCREW TE M4x12 UNI 5739 INOX 2,00 --
0070 GUGO36290 O-RING D. 17.04 X 3.53 NBR 70SH 2,00 --
0071 GUGO00427 GASKET - 1,00 --
Table: HEAD Progressive Number: 1
Date: 22/02/2012 Selected Part: LPTB02181 Page: 8
Ref. K Part N. Customer Part N. Description Qty Validity:
From To Price
0072 RCVR00540 CONNECTOR 1,00 --
0073 FTAC00038 FILTER G1/2 INOX 1,00 --
0074 VTVT00699 SCREW TE M. 6-70 2,00 --
0075 VTRS13945 WASHER D. 6X18 INX UNI 6593 2,00 --
0076 RCGR00078 TAP - 1,00 --
0077 RCVR00744 CONNECTOR - 1,00 --
0078 TBFX48011 TUBE FLEX D.12X3 ARMORV.PVC TR 0,45 --
0079 MPVR05240 RING NUT G1/2 1,00 --
0080 MPVR05312 ROD M12 8,00 09/2007 --
0080 VTRS05905 WASHER ZIGRINATA 8,00 09/2007 --
0081 RCVR00109 CURVE 90° 1,00 --
0082 LAFN06366 SHEET METAL PA.FLAP 1,00 --
0083 MPVR05223 FLAP SX 1,00 --
0084 VTRS15978 WASHER D.12X24 UNI 6592 INX 2,00 --
0085 VTDD15521 NUT M 8 INX A2 UNI 5588 2,00 --
0086 VTRS13945 WASHER D. 6X18 INX UNI 6593 8,00 --
0087 VTRS15144 WASHER D. 6 INX GRW UNI 1751 8,00 --
0088 VTRS15146 WASHER D. 8 INX GRW UNI 1751 2,00 --
0089 GUVR00311 GASKET FTAC00038 1,00 --
0093 MEEV00044 SOLENOID VALVE 1,00 10/2011 --
0094 MEEV00044 SOLENOID VALVE 1,00 10/2011 --

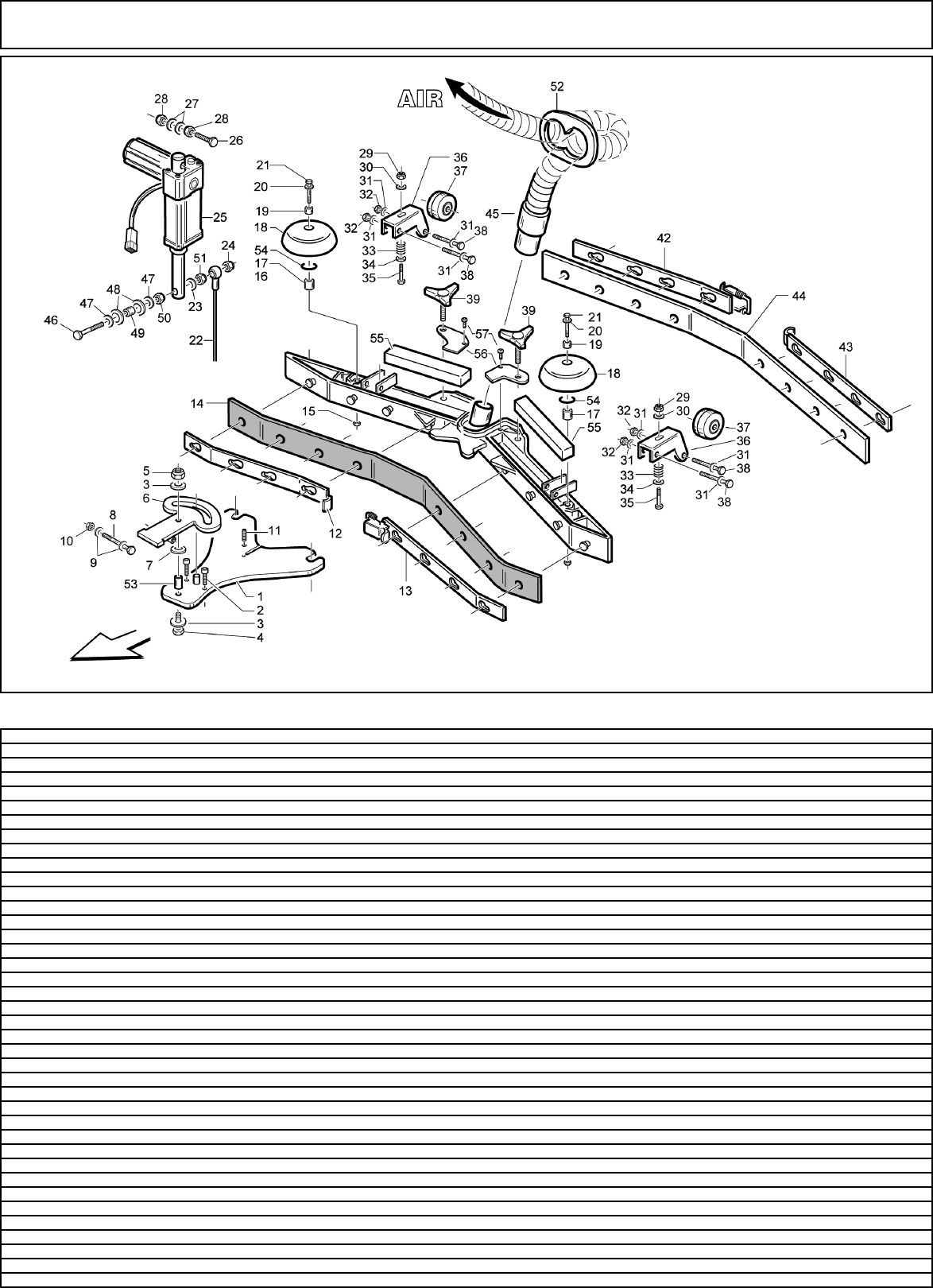

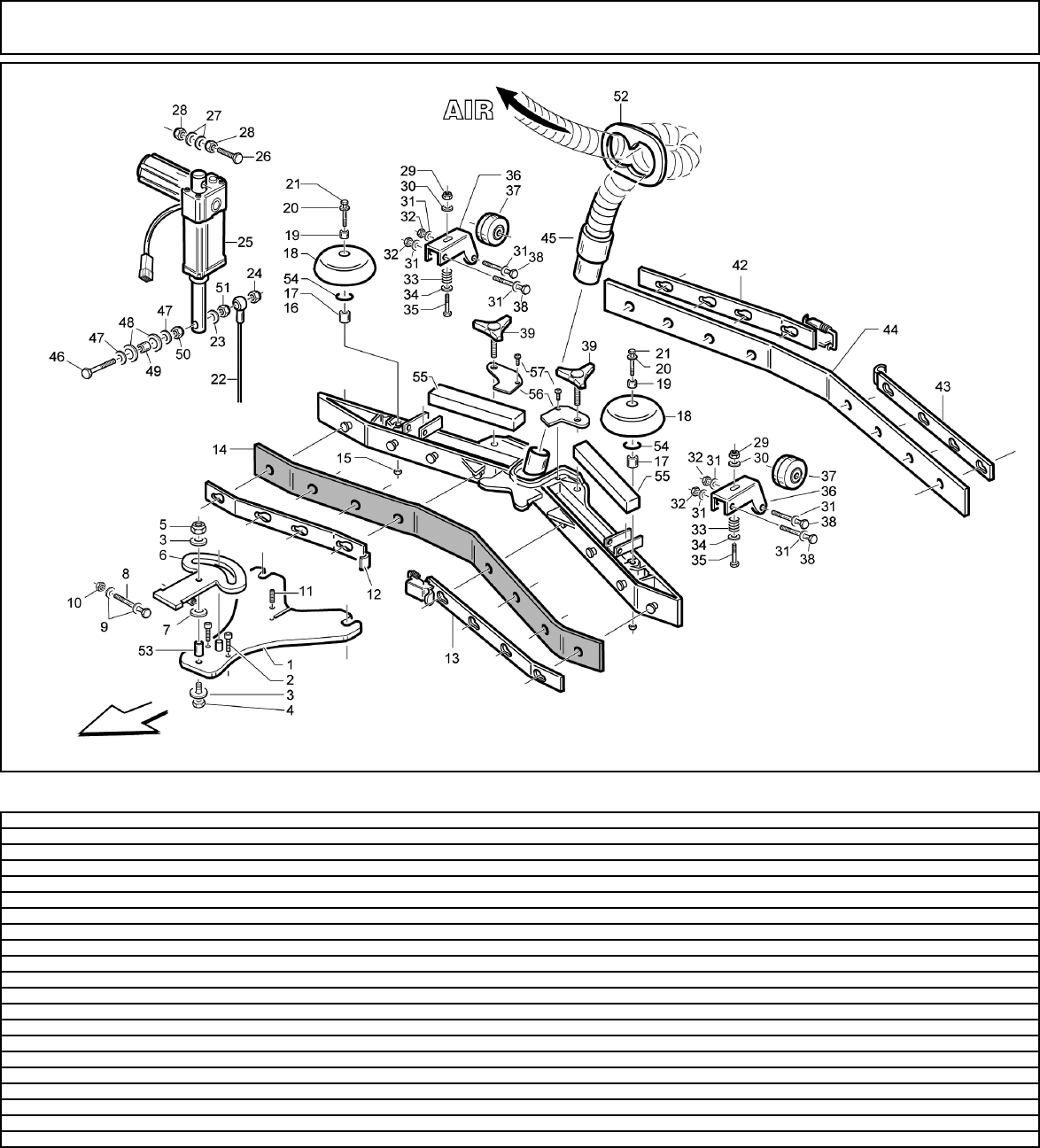

Table: SQUEEGEE Progressive Number: 1
Date: 22/02/2012 Selected Part: LPTB02181 Page: 8
Ref. K Part N. Customer Part N. Description Qty Validity:
From To Price
0001 LAFN05631 PLATE 1,00 02/2009 --
0001 LAFN07536 PLATE - 1,00 02/2009 --
0002 VTVT00876 SCREW TCEI M.8-16 2,00 --
0003 VTRS13946 WASHER D. 8 X24 INX UNI 6593 1,00 --
0004 VTVT00410 SCREW TE M8x35 UNI5739 INOX 1,00 --
0005 VTDD01695 NUT M 8 INX 1,00 --
0006 LAFN05599 SUPPORT 1,00 --
0007 VTRS43258 WASHER D.13X24 X2.5 NYL UNI6592 1,00 --
0008 VTVT00757 SCREW 1,00 --
0009 VTRS13947 WASHER D. 8 INX UNI 6592 2,00 --
0010 VTDD01695 NUT M 8 INX 1,00 --
0011 VTVT01145 CARRYNG BAG 1,00 07/2008 --
0011 VTVT01200 GRUB SCREW M8 X 16 INOX 1,00 07/2008 --
0012 LAFN51044 LAMINATION BLOCCA LAMA ANTER.DX S 1,00 --
0013 LAFN51045 BRACKET S SQUEEGEE BLOCK LEFT 1,00 --
0014 MPVR45194 RUBBER BLADE LAV. 800 ANT. 1,00 --
0015 VTDD15520 NUT M 6 A2 UNI 5588 INX 2,00 --
0016 KTRI02048 BODY SQUEEGEE PRESSOFUSO "S" 1,00 --
0017 LAFN51074 PIN PARACOLPI 2,00 --
0018 MPVR02894 ROLLER PARACOLPI 2,00 04/2008 --
0018 MPVR05295 WHEEL PARACOLPI 2,00 04/2008 --
0020 VTRS15144 WASHER D. 6 INX GRW UNI 1751 2,00 --
0021 VTVT15916 SCREW TE M 8X 16 UNI 5739 A2 2,00 --
0022 CMCV00426 CABLE CT 110 1,00 09/2008 --
0022 CMCV00438 CABLE SOLLEVAMENTO 1,00 09/2008 06/2009 --
0022 CMCV00443 CABLE SQUEEGEE CT110 1,00 06/2009 --
0023 VTRS15144 WASHER D. 6 INX GRW UNI 1751 2,00 --
0024 VTDD01694 NUT M 6 INX 2,00 --
0025 MOCC00322 ATUATOR 1,00 --
0026 VTVT15917 SCREW TE M 8X50 INOX A2 UNI 1,00 --
0027 VTRS13947 WASHER D. 8 INX UNI 6592 2,00 --
0028 VTDD01695 NUT M 8 INX 2,00 --
0029 VTDD01695 NUT M 8 INX 2,00 --
0030 VTRS13947 WASHER D. 8 INX UNI 6592 4,00 --
0031 VTRS13947 WASHER D. 8 INX UNI 6592 2,00 --
0032 VTDD15520 NUT M 6 A2 UNI 5588 INX 4,00 --
0033 MLML49422 SPRING D.15X 45 X1 2,00 --
0034 VTRS13947 WASHER D. 8 INX UNI 6592 2,00 --
0035 VTVT01304 SCREW M 8X 40 TTQST UNI 5731 2,00 --
Table: SQUEEGEE Progressive Number: 1
Date: 22/02/2012 Selected Part: LPTB02181 Page: 9
Ref. K Part N. Customer Part N. Description Qty Validity:
From To Price
0036 LAFN05559 SUPPORT RUOTINO 2,00 --
0037 RTRT49413 WHEEL D. 60-D.15 X36 NYL. 2,00 --
0038 VTVT15515 SCREW TE M 6X 50 INOX A2 2,00 --
0039 MPVR04164 HANDWHEEL M8 FILETTO PASSANTE 2,00 12/2007 --
0039 MPVR05265 KNOB 8X25 2,00 01/2008 --
0042 LAFN49284 BLADE HOLDER POSTERIORE DX (S) 1,00 --
0043 LAFN49285 BLADE HOLDER POSTERIORE SX (S) 1,00 --
0044 MPVR45195 RUBBER BLADE LAV. 800 PST.POL. 1,00 --
0045 TBBP00402 TUBE TERGI D.40 1,00 --
0046 VTVT17342 SCREW TE M 6X 60 UNI 5739 INX 1,00 --
0047 VTRS07728 WASHER D. 6 INX 3,00 --
0048 VTRS13947 WASHER D. 8 INX UNI 6592 2,00 --
0049 LAFN03840 BUSHING 1,00 --
0050 VTDD15518 NUT M 6 INX 1,00 --
0051 VTDD15518 NUT M 6 INX 1,00 --
0052 MPVR04659 FLANGE 1,00 --
0053 LAFN35608 SPACER S. BLOCK BT 530 1,00 --
0054 GUGO00164 GASKET 2,00 09/2009 --
0055 LAFN51039 WEIGHT IN QUADRO X SQUEEG. 2,00 --
0056 LAFN07805 SHEET METAL PA.- 2,00 --
0057 VTVT00881 SCREW TC+ M4x6 TRILOBATA INOX 2,00 --

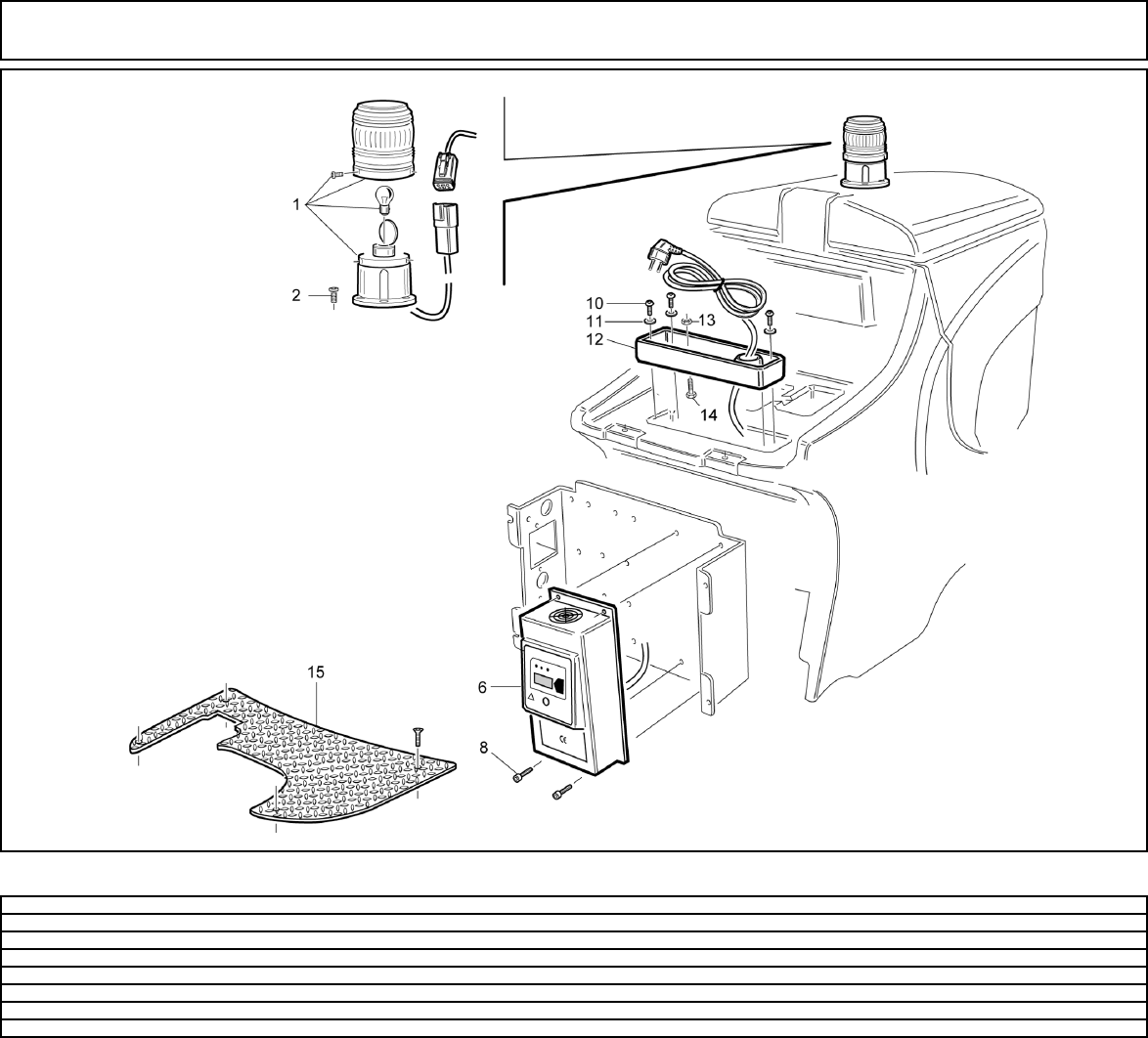

Table: KIT Progressive Number: 1
Date: 22/02/2012 Selected Part: LPTB02181 Page: 9
Ref. K Part N. Customer Part N. Description Qty Validity:
From To Price
0001 MEVR00935 FLASHING LIGHT G1050 1,00 --
0002 VTVT35376 SCREW TCB-TC 3.5X25 3,00 --
0006 BACA00117 BATTERY-CHARGER 1,00 --
0008 VTVT01300 SCREW TE M5X12 INOX 3,00 --
0010 VTVT07852 SCREW TCB-TC 4,8X16 BRN 4,00 --
0011 VTRS00516 WASHER D. 5 INX 4,00 --
0012 MPVR05213 CONTAINER - 1,00 --
0015 LAFN07414 PLANE CT110 1,00 --

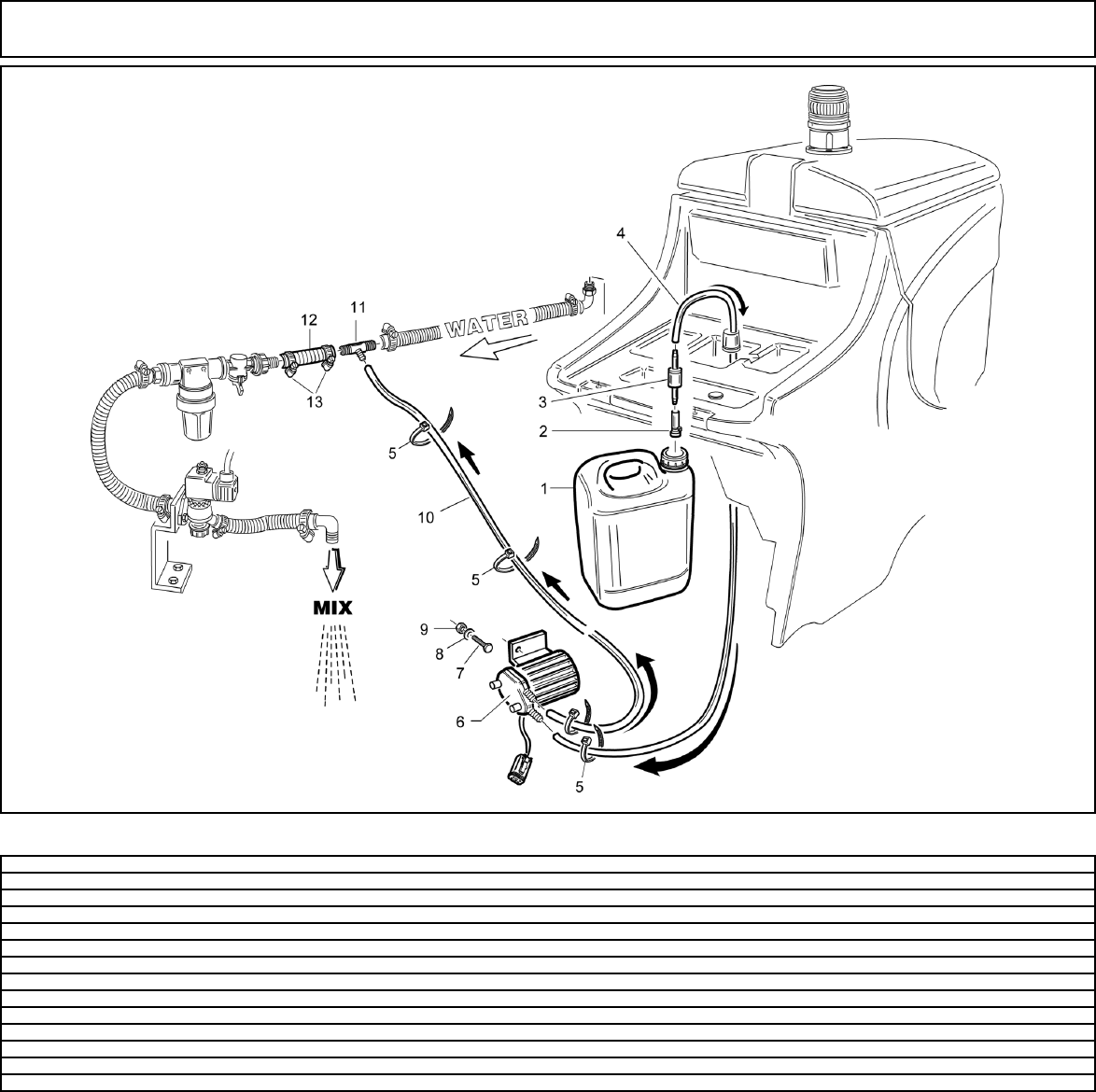

Table: KIT Progressive Number: 1
Date: 22/02/2012 Selected Part: LPTB02181 Page: 9
Ref. K Part N. Customer Part N. Description Qty Validity:
From To Price
0002 MPVR05275 REDUCTION UNIT CT110 1,00 --
0003 RCGR00079 VALVE - 1,00 --
0004 TBBP00003 TUBE CRISTALLO 6X9 0,11 11/2009 --
0004 TBBP00476 TUBE - 2,00 11/2009 --
0005 FSVR00052 CLAMP 2,5X100 5,00 --
0006 PMVR01412 PUMP GRPQ24 24V 1,00 --
0007 VTVT01300 SCREW TE M5X12 INOX 2,00 --
0008 VTRS00516 WASHER D. 5 INX 2,00 --
0009 VTDD15517 NUT M 5 INX 2,00 --
0010 TBBP00003 TUBE CRISTALLO 6X9 0,10 11/2009 --
0010 TBBP00476 TUBE - 2,00 11/2009 --
0011 RCVR00745 CONNECTOR TRS 12-6-12 1,00 --
0012 TBFX48011 TUBE FLEX D.12X3 ARMORV.PVC TR 0,10 --
0013 FSVR00091 CLAMP 14-24 2,00 --

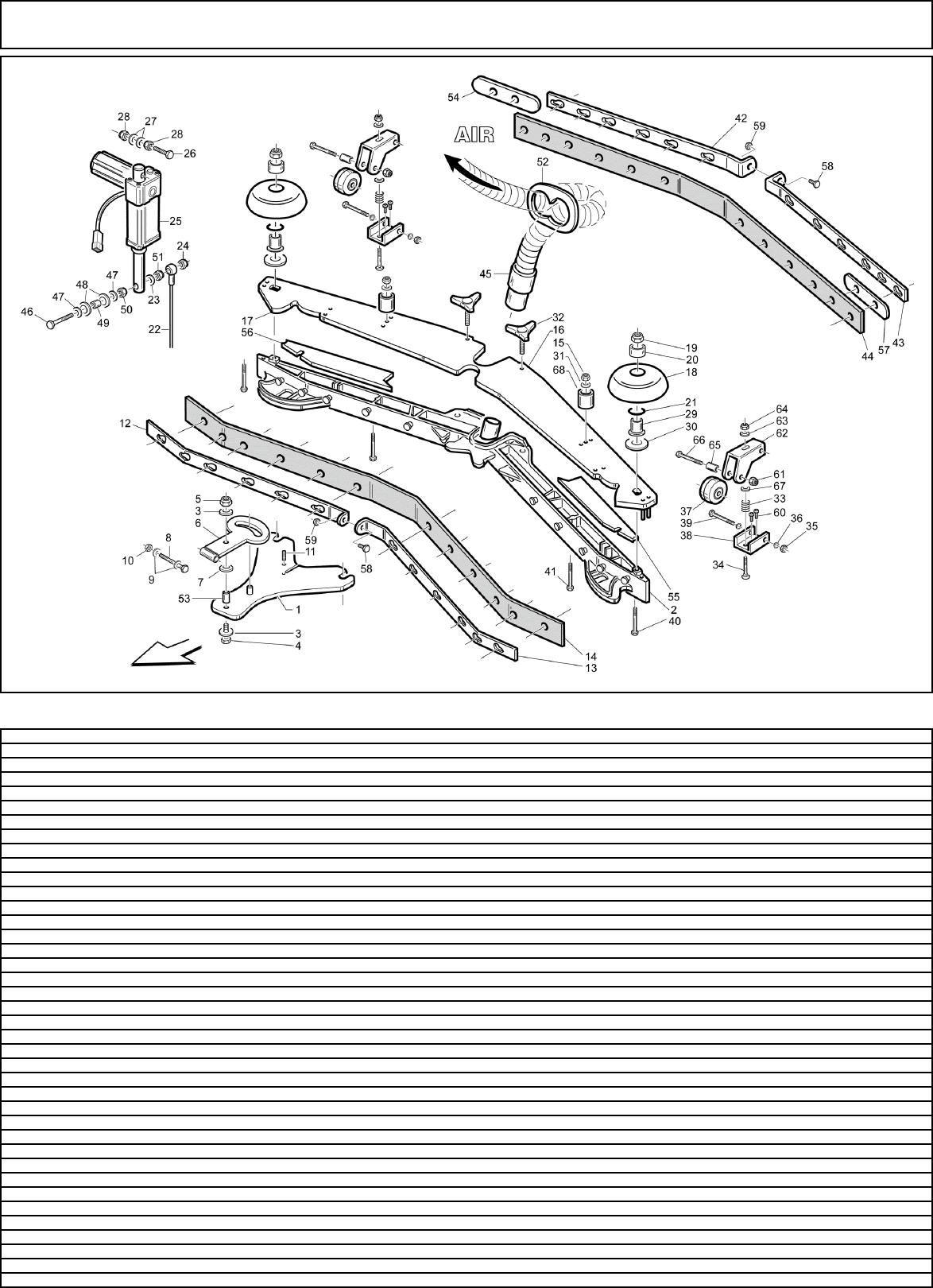

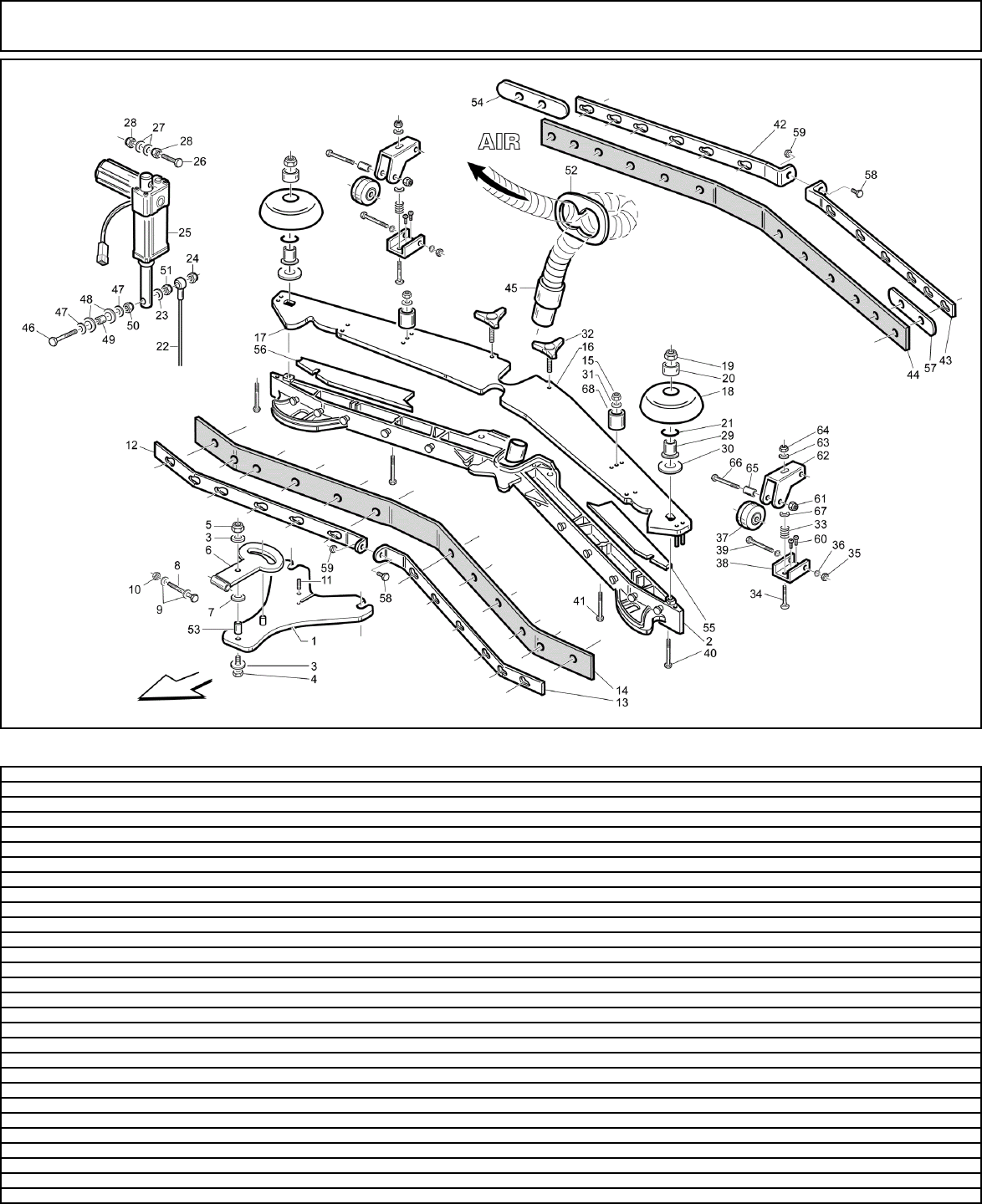

Table: SQUEEGEE Progressive Number: 1
Date: 22/02/2012 Selected Part: LPTB02181 Page: 9
Ref. K Part N. Customer Part N. Description Qty Validity:
From To Price
0001 LAFN07536 PLATE - 1,00 --
0002 KTRI02049 BODY SQUEEGEE PRESSOFUSO "L" 1,00 --
0003 VTRS13946 WASHER D. 8 X24 INX UNI 6593 1,00 --
0004 VTVT00410 SCREW TE M8x35 UNI5739 INOX 1,00 --
0005 VTDD01695 NUT M 8 INX 1,00 --
0006 LAFN09010 SUPPORT - 1,00 --
0007 VTRS15978 WASHER D.12X24 UNI 6592 INX 1,00 --
0008 VTVT00757 SCREW 1,00 --
0009 VTRS13947 WASHER D. 8 INX UNI 6592 2,00 --
0010 VTDD01695 NUT M 8 INX 1,00 --
0011 VTVT01145 CARRYNG BAG 1,00 --
0012 LAFN08952 BRACKET - 1,00 --
0013 LAFN08953 BRACKET - 1,00 --
0014 MPVR05804 RUBBER - 1,00 --
0015 VTDD01694 NUT M 6 INX 4,00 --
0016 LAFN09014 PLATE - 1,00 --
0017 LAFN09015 PLATE - 1,00 --
0018 MPVR05290 ROLLER PARACOLPI 2,00 --
0019 VTDD01694 NUT M 6 INX 2,00 --
0020 MPVR49229 BUSHING SHK 2,00 --
0021 GUGO00164 GASKET 2,00 --
0022 CMCV00443 CABLE SQUEEGEE CT110 1,00 --
0023 VTRS15144 WASHER D. 6 INX GRW UNI 1751 2,00 --
0024 VTDD01694 NUT M 6 INX 2,00 --
0025 MOCC00322 ATUATOR 1,00 --
0026 VTVT15917 SCREW TE M 8X50 INOX A2 UNI 1,00 --
0027 VTRS13947 WASHER D. 8 INX UNI 6592 2,00 --
0028 VTDD01695 NUT M 8 INX 2,00 --
0029 LAFN04100 SPACER PER RUOTINO PARACOLPI 2,00 --
0030 VTRS16937 WASHER 6x24 INOX UNI 6593 2,00 --
0031 VTRS00245 WASHER D.6 UNI 6592 INOX 2,00 --
0032 MPVR06004 KNOB AISI 304 2,00 --
0033 MLML49422 SPRING D.15X 45 X1 2,00 --
0034 VTVT01304 SCREW M 8X 40 TTQST UNI 5731 2,00 --
0035 VTDD01694 NUT M 6 INX 2,00 --
0036 VTAE45707 CIRCLIP D. 6 UNI 7434 INOX 4,00 --
0037 RTRT00540 WHEEL D.8x32 2,00 --
0038 LAFN51069 BRACKET SUPP.RUOTINO SQUEEGEE 2,00 --
0039 VTVT15515 SCREW TE M 6X 50 INOX A2 2,00 --
Table: SQUEEGEE Progressive Number: 1
Date: 22/02/2012 Selected Part: LPTB02181 Page: 10
Ref. K Part N. Customer Part N. Description Qty Validity:
From To Price
0040 VTVT00841 SCREW TE M 6X65 UNI 5739 INX 2,00 --
0041 VTVT00699 SCREW TE M. 6-70 2,00 --
0042 LAFN08954 BRACKET - 1,00 --
0043 LAFN08955 BRACKET - 1,00 --
0044 MPVR05806 RUBBER - 1,00 --
0045 TBBP00402 TUBE TERGI D.40 1,00 --
0046 VTVT17342 SCREW TE M 6X 60 UNI 5739 INX 1,00 --
0047 VTRS07728 WASHER D. 6 INX 3,00 --
0048 VTRS13947 WASHER D. 8 INX UNI 6592 2,00 --
0049 LAFN03840 BUSHING 1,00 --
0050 VTDD15518 NUT M 6 INX 1,00 --
0051 VTDD15518 NUT M 6 INX 1,00 --
0052 MPVR04659 FLANGE 1,00 --
0053 LAFN35608 SPACER S. BLOCK BT 530 1,00 --
0054 MPVR05898 CLOSURE L 1,00 --
0055 GUVR00302 GASKET - 1,00 --
0056 GUVR00303 GASKET - 1,00 --
0057 MPVR05898 CLOSURE L 1,00 --
0058 VTVT01161 SCREW M6x8 2,00 --
0059 VTDD01694 NUT M 6 INX 2,00 --
0060 VTVR01040 RIVET - 4,00 --
0061 VTDD01694 NUT M 6 INX 2,00 --
0062 LAFN05559 SUPPORT RUOTINO 2,00 --
0063 VTRS13947 WASHER D. 8 INX UNI 6592 2,00 --
0064 VTDD01695 NUT M 8 INX 2,00 --
0065 TBBP00124 TUBE D 8/6 0,01 --
0066 VTVT15515 SCREW TE M 6X 50 INOX A2 2,00 --
0067 VTRS13947 WASHER D. 8 INX UNI 6592 2,00 --
0068 MPVR06016 BRACKET - 2,00 --

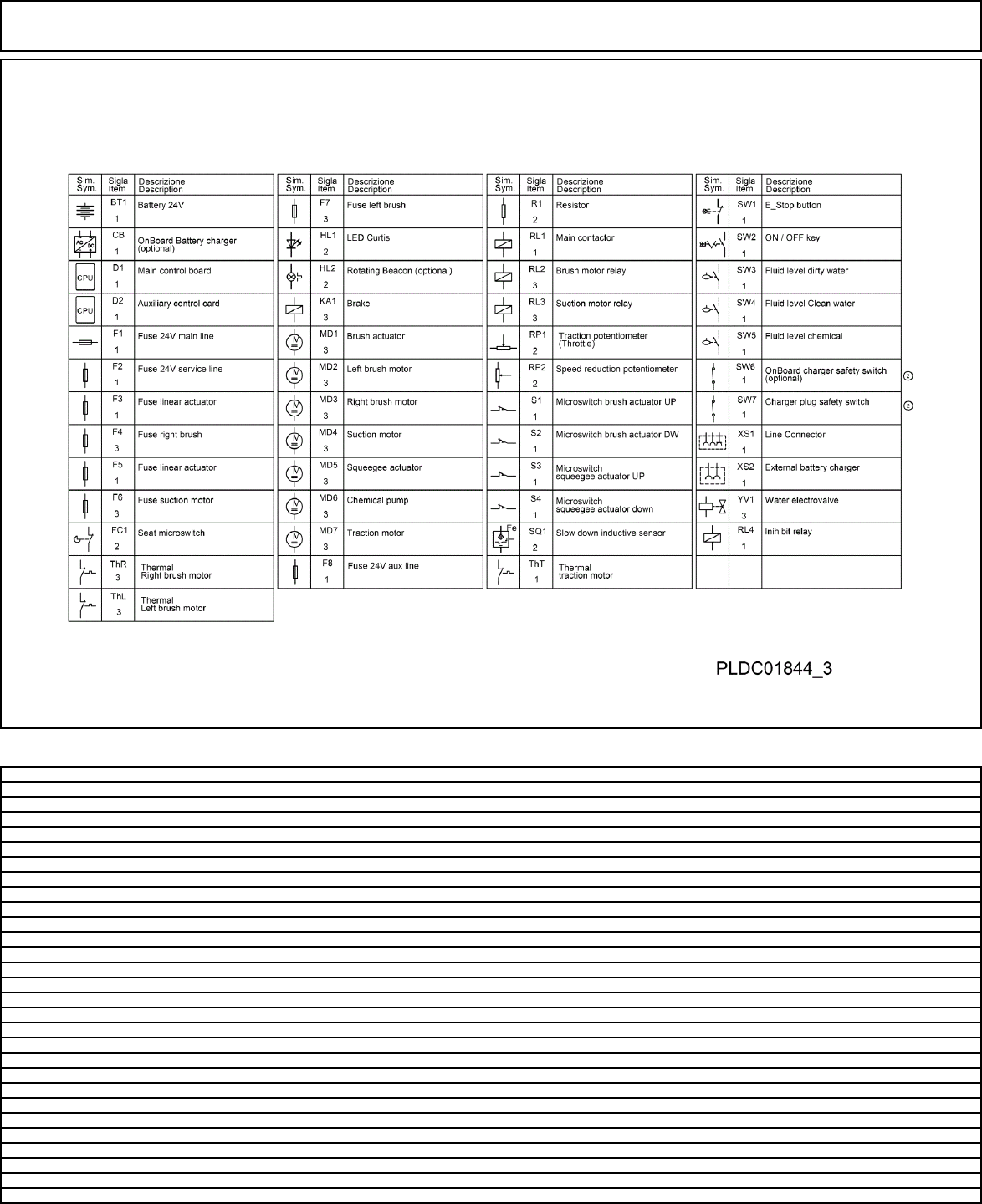

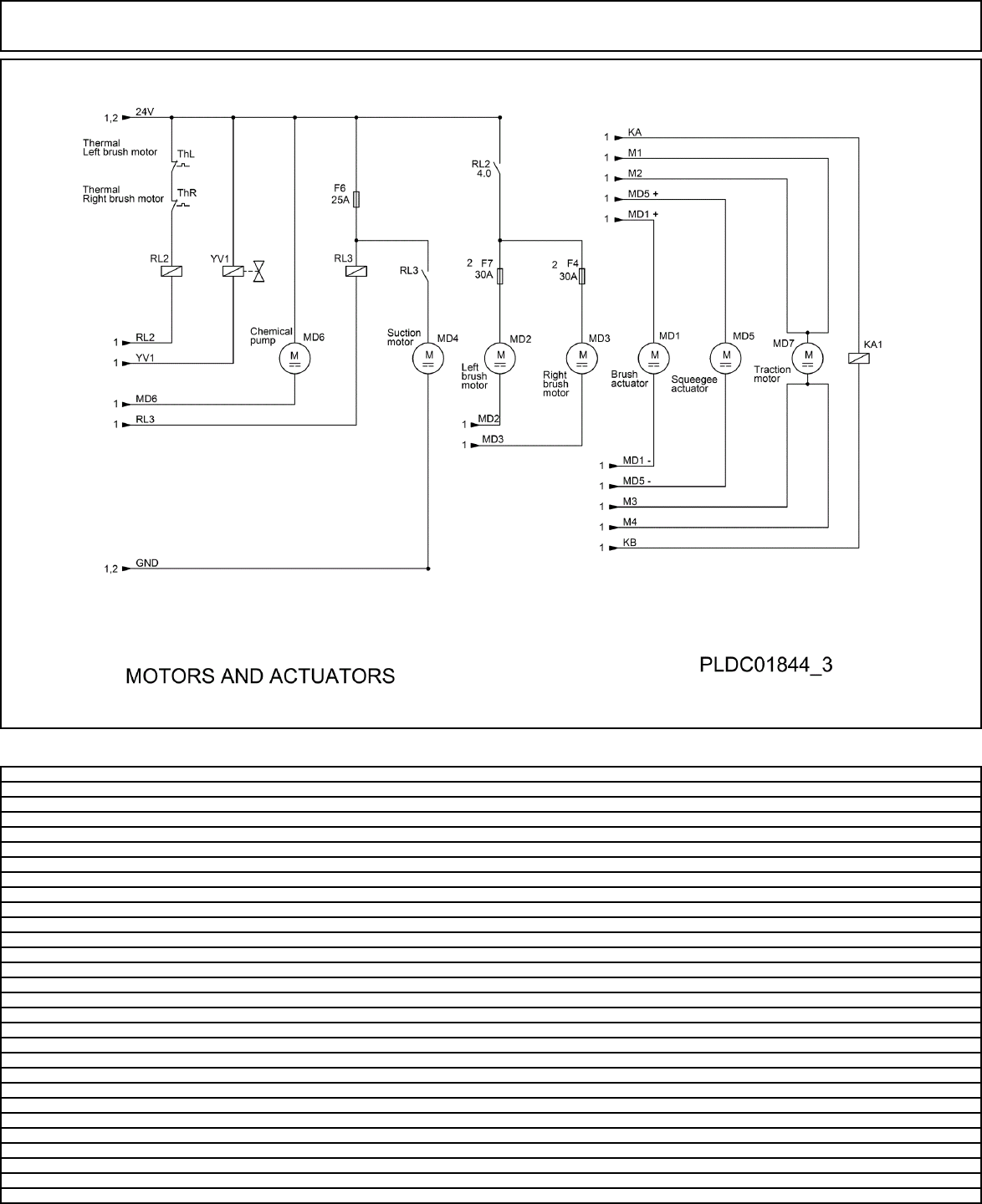

Table: ELEC. DIAGRAM Progressive Number: 1
Date: 22/02/2012 Selected Part: LPTB02181 Page: 10
Ref. K Part N. Customer Part N. Description Qty Validity:
From To Price
00CB BACA00117 BATTERY-CHARGER 1,00 --
00D1 MECE00451 BOARD 1,00 --
00F1 MEVR00145 FUSE 100A 1,00 --
00F2 MEVR01428 FUSE A LAMA 2 A. UNIVAL 1,00 --
00F3 MEVR00565 FUSE 5A 1,00 --
00F4 MEVR00379 FUSE RESETTABLE 25A -ETA- 1,00 --
00F5 MEVR00565 FUSE 5A 1,00 --
00F6 MEVR00379 FUSE RESETTABLE 25A -ETA- 1,00 --
00S1 MOCC00317 ATUATOR 1,00 --
00S2 MOCC00317 ATUATOR 1,00 --
00S3 MOCC00318 ATUATOR 1,00 --
00S4 MOCC00318 ATUATOR 1,00 --
0FC1 MEVR00148 DASHBOARD SEDILE 1,00 --
0FU7 MEVR00379 FUSE RESETTABLE 25A -ETA- 1,00 --
0HL2 MEVR00935 FLASHING LIGHT G1050 1,00 --
0MD1 MOCC00317 ATUATOR 1,00 --
0MD4 MOCC00273 MOTOR 3 ST.24V 116598-13 1,00 --
0MD5 MOCC00318 ATUATOR 1,00 --
0MD7 MOCC00316 MOTOR MR240-01 M420 1,00 --
0RL1 METT00056 CONTACTOR T-106 1,00 --
0RL2 METT00056 CONTACTOR T-106 1,00 --
0RL3 METT00056 CONTACTOR T-106 1,00 --
0RP2 MEVR01941 POTENTIOMETER 100K 1,00 --
0SQ1 MECI00405 SENSOR - 1,00 --
0SW1 MECI00341 BUTTON DI EMERGENZA 1,00 --
0SW2 MECI00340 SWITCH A CHIAVE X MOT.BATT.P185 1,00 --
0SW3 MECI00516 SENSOR DI LIVELLO ORIZZONTALE 1,00 --
0SW4 MECI00533 SENSOR VS303-51N 1,00 --
0YV1 MEEV00018 SOLENOID VALVE 1,00 --

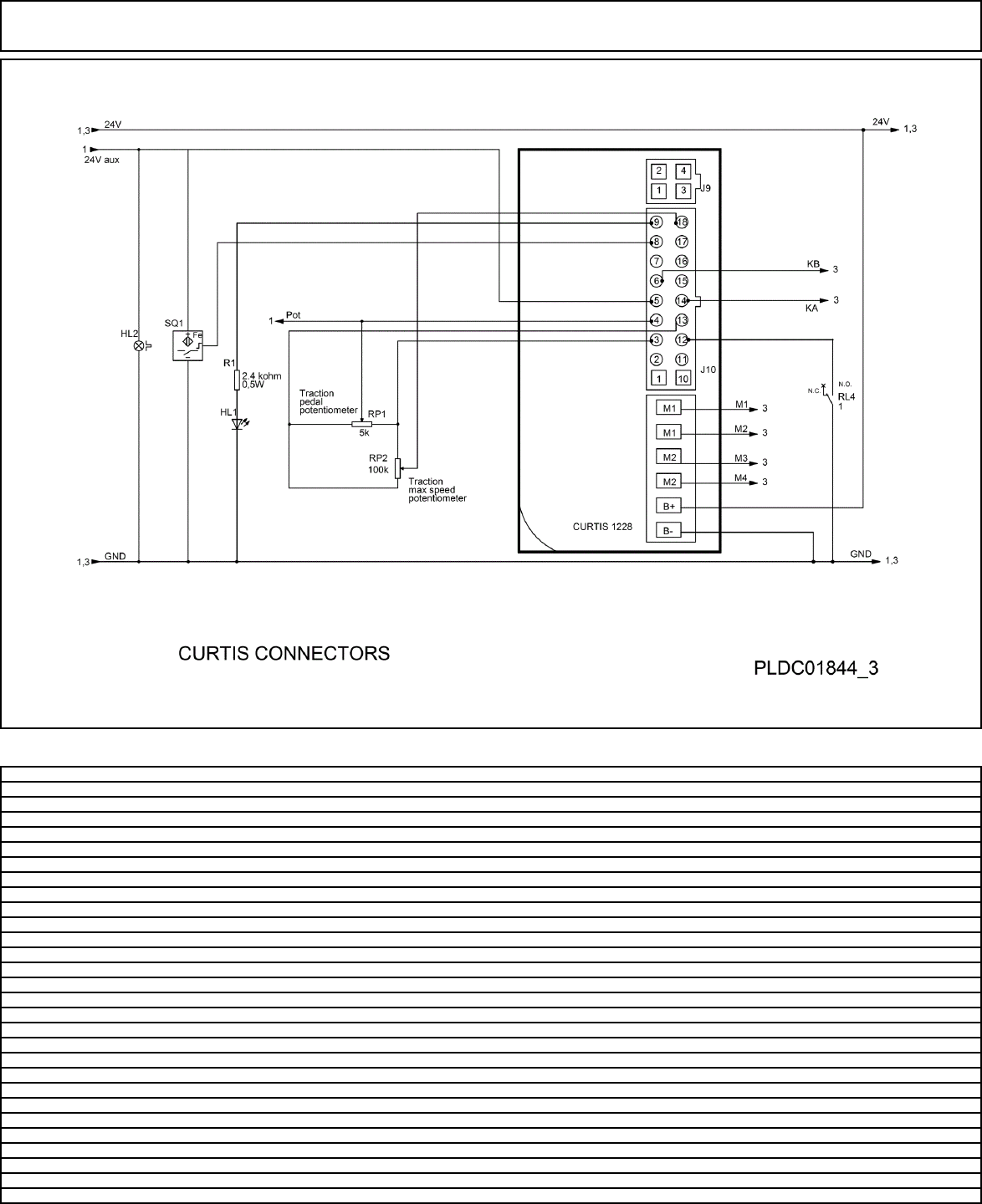

Table: ELEC. DIAGRAM Progressive Number: 1
Date: 22/02/2012 Selected Part: LPTB02181 Page: 10
Ref. K Part N. Customer Part N. Description Qty Validity:
From To Price
00CB BACA00117 BATTERY-CHARGER 1,00 --
00D1 MECE00451 BOARD 1,00 --
00F1 MEVR00145 FUSE 100A 1,00 --
00F2 MEVR01428 FUSE A LAMA 2 A. UNIVAL 1,00 --
00F3 MEVR00565 FUSE 5A 1,00 --
00F4 MEVR00379 FUSE RESETTABLE 25A -ETA- 1,00 --
00F5 MEVR00565 FUSE 5A 1,00 --
00F6 MEVR00379 FUSE RESETTABLE 25A -ETA- 1,00 --
00S1 MOCC00317 ATUATOR 1,00 --
00S2 MOCC00317 ATUATOR 1,00 --
00S3 MOCC00318 ATUATOR 1,00 --
00S4 MOCC00318 ATUATOR 1,00 --
0FC1 MEVR00148 DASHBOARD SEDILE 1,00 --
0FU7 MEVR00379 FUSE RESETTABLE 25A -ETA- 1,00 --
0HL2 MEVR00935 FLASHING LIGHT G1050 1,00 --
0MD1 MOCC00317 ATUATOR 1,00 --
0MD4 MOCC00273 MOTOR 3 ST.24V 116598-13 1,00 --
0MD5 MOCC00318 ATUATOR 1,00 --
0MD7 MOCC00316 MOTOR MR240-01 M420 1,00 --
0RL1 METT00056 CONTACTOR T-106 1,00 --
0RL2 METT00056 CONTACTOR T-106 1,00 --
0RL3 METT00056 CONTACTOR T-106 1,00 --
0RP2 MEVR01941 POTENTIOMETER 100K 1,00 --
0SQ1 MECI00405 SENSOR - 1,00 --
0SW1 MECI00341 BUTTON DI EMERGENZA 1,00 --
0SW2 MECI00340 SWITCH A CHIAVE X MOT.BATT.P185 1,00 --
0SW3 MECI00516 SENSOR DI LIVELLO ORIZZONTALE 1,00 --
0SW4 MECI00533 SENSOR VS303-51N 1,00 --
0YV1 MEEV00018 SOLENOID VALVE 1,00 --
Table: ELEC. DIAGRAM Progressive Number: 1
Date: 22/02/2012 Selected Part: LPTB02181 Page: 10
Ref. K Part N. Customer Part N. Description Qty Validity:
From To Price
00CB BACA00117 BATTERY-CHARGER 1,00 --
00D1 MECE00451 BOARD 1,00 --
00F1 MEVR00145 FUSE 100A 1,00 --
00F2 MEVR01428 FUSE A LAMA 2 A. UNIVAL 1,00 --
00F3 MEVR00565 FUSE 5A 1,00 --
00F4 MEVR00379 FUSE RESETTABLE 25A -ETA- 1,00 --
00F5 MEVR00565 FUSE 5A 1,00 --
00F6 MEVR00379 FUSE RESETTABLE 25A -ETA- 1,00 --
00S1 MOCC00317 ATUATOR 1,00 --
00S2 MOCC00317 ATUATOR 1,00 --
00S3 MOCC00318 ATUATOR 1,00 --
00S4 MOCC00318 ATUATOR 1,00 --
0FC1 MEVR00148 DASHBOARD SEDILE 1,00 --
0FU7 MEVR00379 FUSE RESETTABLE 25A -ETA- 1,00 --
0HL2 MEVR00935 FLASHING LIGHT G1050 1,00 --
0MD1 MOCC00317 ATUATOR 1,00 --
0MD4 MOCC00273 MOTOR 3 ST.24V 116598-13 1,00 --
0MD5 MOCC00318 ATUATOR 1,00 --
0MD7 MOCC00316 MOTOR MR240-01 M420 1,00 --
0RL1 METT00056 CONTACTOR T-106 1,00 --
0RL2 METT00056 CONTACTOR T-106 1,00 --
0RL3 METT00056 CONTACTOR T-106 1,00 --
0RP2 MEVR01941 POTENTIOMETER 100K 1,00 --
0SQ1 MECI00405 SENSOR - 1,00 --
0SW1 MECI00341 BUTTON DI EMERGENZA 1,00 --
0SW2 MECI00340 SWITCH A CHIAVE X MOT.BATT.P185 1,00 --
0SW3 MECI00516 SENSOR DI LIVELLO ORIZZONTALE 1,00 --
0SW4 MECI00533 SENSOR VS303-51N 1,00 --
0YV1 MEEV00018 SOLENOID VALVE 1,00 --
Table: ELEC. DIAGRAM Progressive Number: 1
Date: 22/02/2012 Selected Part: LPTB02181 Page: 10
Ref. K Part N. Customer Part N. Description Qty Validity:
From To Price
00CB BACA00117 BATTERY-CHARGER 1,00 --
00D1 MECE00451 BOARD 1,00 --
00F1 MEVR00145 FUSE 100A 1,00 --
00F2 MEVR01428 FUSE A LAMA 2 A. UNIVAL 1,00 --
00F3 MEVR00565 FUSE 5A 1,00 --
00F4 MEVR00379 FUSE RESETTABLE 25A -ETA- 1,00 --
00F5 MEVR00565 FUSE 5A 1,00 --
00F6 MEVR00379 FUSE RESETTABLE 25A -ETA- 1,00 --
00S1 MOCC00317 ATUATOR 1,00 --
00S2 MOCC00317 ATUATOR 1,00 --
00S3 MOCC00318 ATUATOR 1,00 --
00S4 MOCC00318 ATUATOR 1,00 --
0FC1 MEVR00148 DASHBOARD SEDILE 1,00 --
0FU7 MEVR00379 FUSE RESETTABLE 25A -ETA- 1,00 --
0HL2 MEVR00935 FLASHING LIGHT G1050 1,00 --
0MD1 MOCC00317 ATUATOR 1,00 --
0MD4 MOCC00273 MOTOR 3 ST.24V 116598-13 1,00 --
0MD5 MOCC00318 ATUATOR 1,00 --
0MD7 MOCC00316 MOTOR MR240-01 M420 1,00 --
0RL1 METT00056 CONTACTOR T-106 1,00 --
0RL2 METT00056 CONTACTOR T-106 1,00 --
0RL3 METT00056 CONTACTOR T-106 1,00 --
0RP2 MEVR01941 POTENTIOMETER 100K 1,00 --
0SQ1 MECI00405 SENSOR - 1,00 --
0SW1 MECI00341 BUTTON DI EMERGENZA 1,00 --
0SW2 MECI00340 SWITCH A CHIAVE X MOT.BATT.P185 1,00 --
0SW3 MECI00516 SENSOR DI LIVELLO ORIZZONTALE 1,00 --
0SW4 MECI00533 SENSOR VS303-51N 1,00 --
0YV1 MEEV00018 SOLENOID VALVE 1,00 --

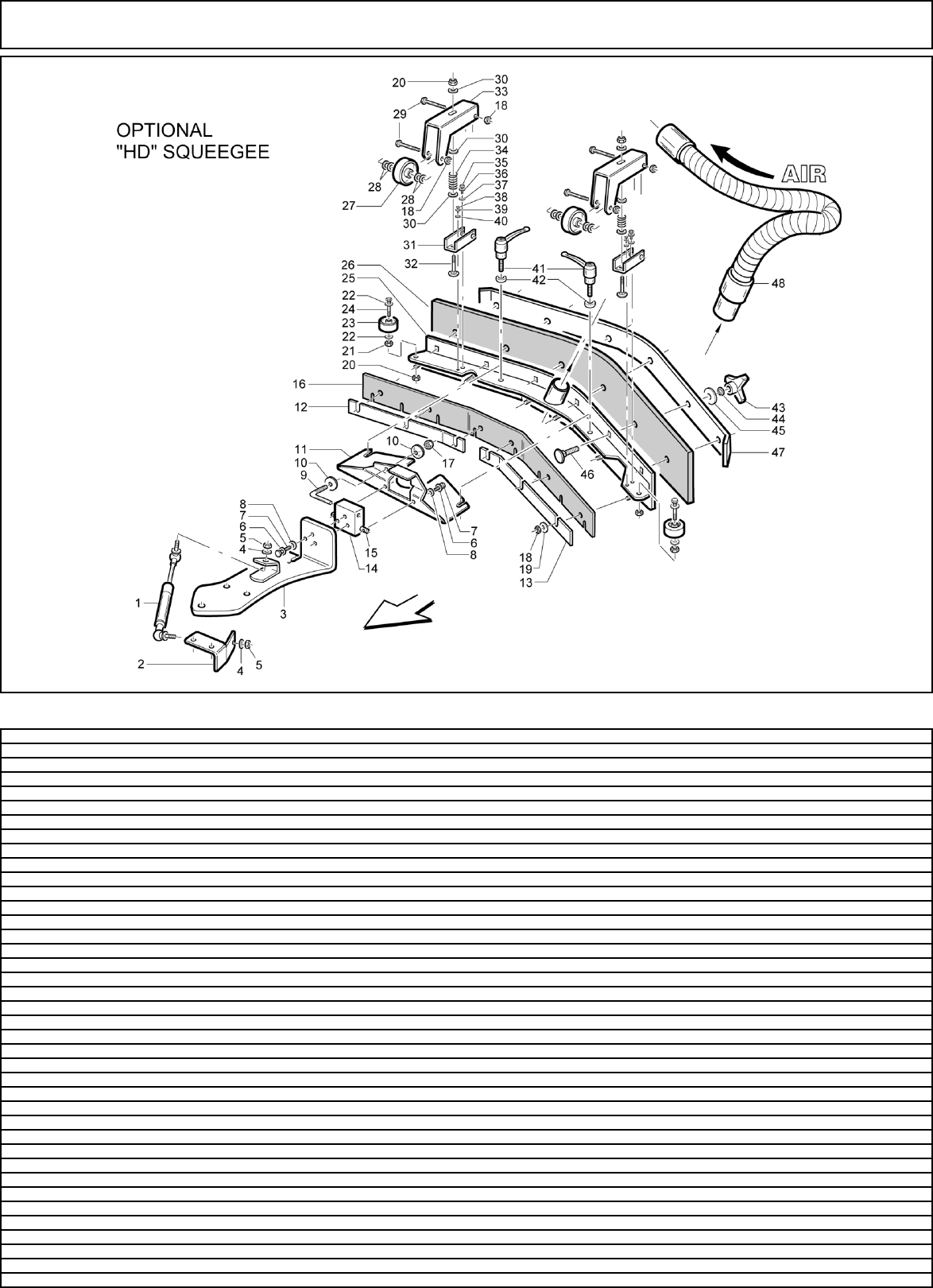

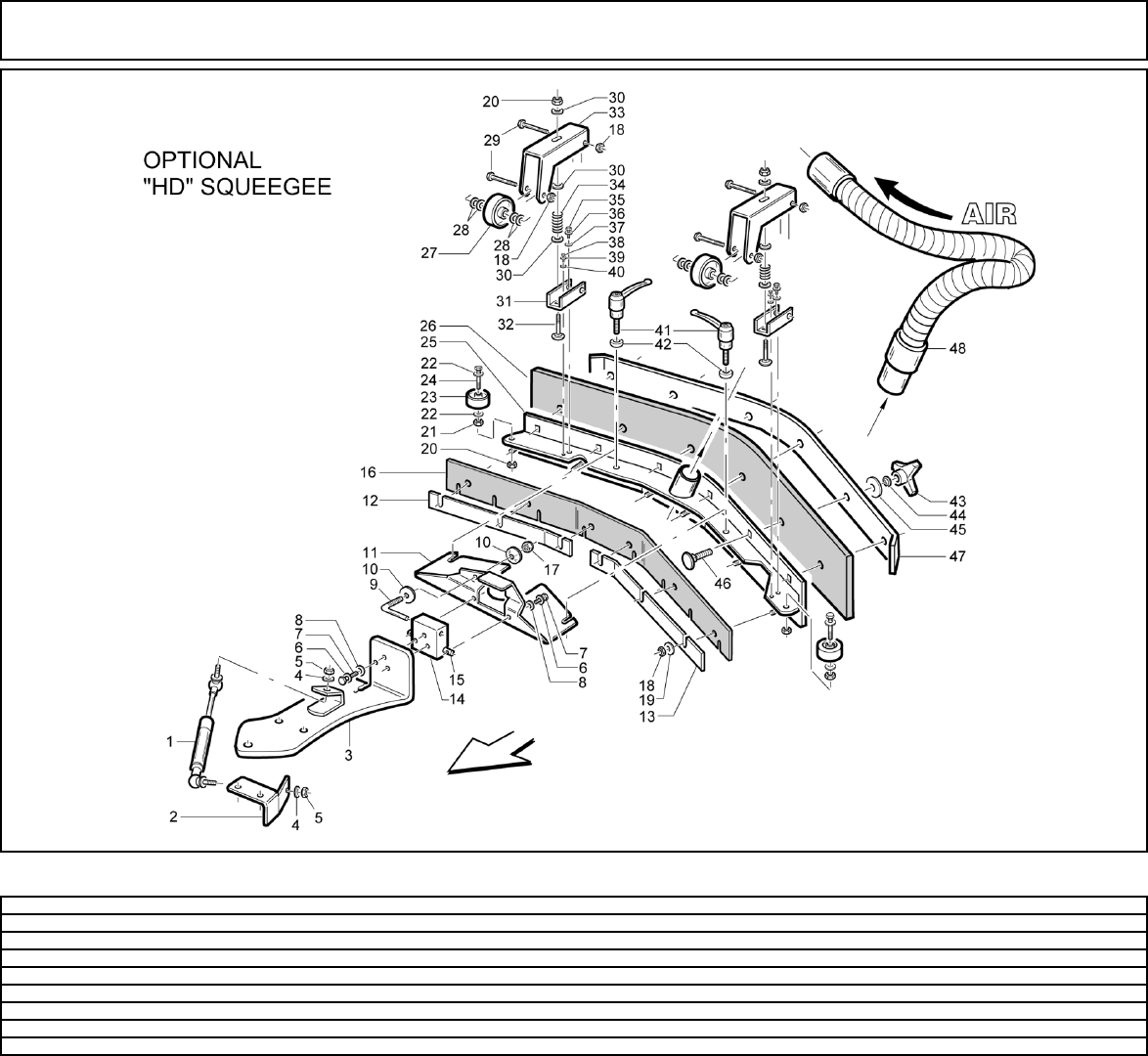

Table: KIT Progressive Number: 1
Date: 22/02/2012 Selected Part: LPTB02181 Page: 10
Ref. K Part N. Customer Part N. Description Qty Validity:
From To Price
0001 PIID00042 SPRING 156.195.5 ts1-ts1 1,00 --
0002 LAFN07422 PLATE MOLLA GAS 1,00 --
0003 LAFN07425 BRACKET TERGI 1,00 --
0004 VTRS15146 WASHER D. 8 INX GRW UNI 1751 1,00 --
0005 VTDD15521 NUT M 8 INX A2 UNI 5588 1,00 --
0006 VTRS15144 WASHER D. 6 INX GRW UNI 1751 3,00 --
0007 VTVT15143 SCREW TE 6X16 UNI5739 3,00 --
0008 VTRS00245 WASHER D.6 UNI 6592 INOX 3,00 --
0009 LAFN04135 REGISTER CAMPANATURA TERGI 1,00 --
0010 LAFN04136 KNOB REGISTRO TERGI 2,00 --
0011 LAFN07423 BRACKET TERGI 1,00 --
0012 LAFN06496 PLATE GOMMA ANTERIORE 1,00 --
0013 LAFN06497 PLATE GOMMA ANTERIORE 1,00 --
0014 VTVR00319 ARTICULATION TERGI 1,00 --
0015 LAFN04123 PIN SUPPORTO TERGI P.185 1,00 --
0016 MPVR05330 RUBBER TERGI CT110 1,00 --
0017 VTDD15519 NUT M10 INOX 1,00 --
0018 VTDD01694 NUT M 6 INX 6,00 --
0019 VTRS13945 WASHER D. 6X18 INX UNI 6593 6,00 --
0020 VTDD01695 NUT M 8 INX 2,00 --
0021 VTDD15521 NUT M 8 INX A2 UNI 5588 2,00 --
0022 VTRS13947 WASHER D. 8 INX UNI 6592 2,00 --
0023 RTRT00085 WHEEL Diameter 60, Height 24 2,00 --
0024 VTVT15917 SCREW TE M 8X50 INOX A2 UNI 2,00 --
0025 LAFN06494 SQUEEGEE LTESTATA 700 1,00 --
0026 MPVR05328 RUBBER TERGI CT110 1,00 --
0027 RTRT00512 WHEEL TERGI CT110 2,00 --
0028 VTRS00505 WASHER D.10 TE UNI 6592 8,00 --
0029 VTVT15515 SCREW TE M 6X 50 INOX A2 4,00 --
0030 VTRS13947 WASHER D. 8 INX UNI 6592 4,00 --
0031 LAFN51069 BRACKET SUPP.RUOTINO SQUEEGEE 2,00 --
0032 VTVT01304 SCREW M 8X 40 TTQST UNI 5731 2,00 --
0033 LAFN05559 SUPPORT RUOTINO 2,00 --
0034 MLML49422 SPRING D.15X 45 X1 2,00 --
0035 VTVT15906 SCREW TE 6X 12 A2 UNI 5739 2,00 --
0036 VTRS15144 WASHER D. 6 INX GRW UNI 1751 2,00 --
0037 VTRS00245 WASHER D.6 UNI 6592 INOX 2,00 --
0038 VTVT21096 SCREW TE M 4X 10 INX 2,00 --
0039 VTRS15913 WASHER D. 4 GROVER A2 UNI1751 2,00 --
Table: KIT Progressive Number: 1
Date: 22/02/2012 Selected Part: LPTB02181 Page: 11
Ref. K Part N. Customer Part N. Description Qty Validity:
From To Price
0040 VTRS00515 WASHER D. 4 INX 2,00 --
0041 VTVR00079 REGULAT. SCREW 2,00 --
0042 VTRS00069 WASHER DIN 6319-8,4-C-NI 2,00 --
0043 VTVT00199 HANDWHEEL VB 693/63B-M8 6,00 --
0044 VTRS15146 WASHER D. 8 INX GRW UNI 1751 6,00 --
0045 VTRS13946 WASHER D. 8 X24 INX UNI 6593 6,00 --
0046 VTVT00326 SCREW TTQST M8x30 UNI5592 6,00 --
0047 LAFN06495 PLATE GOMMA POSTERIORE 1,00 --
0048 TBFX00325 TUBE 1,00 --

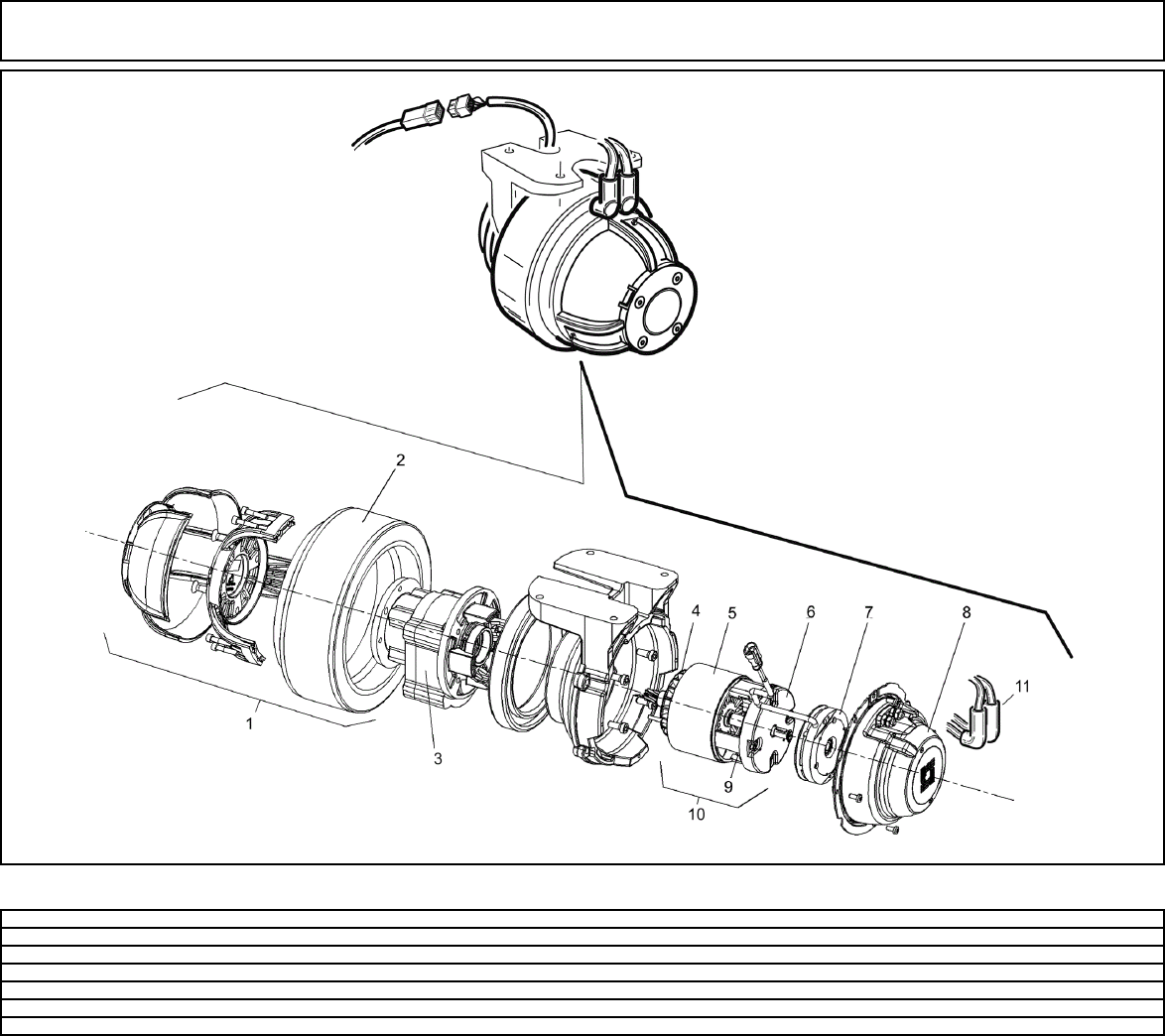

Table: DRIVE ASSEMBLY Progressive Number: 1
Date: 22/02/2012 Selected Part: LPTB02181 Page: 11
Ref. K Part N. Customer Part N. Description Qty Validity:
From To Price
0001 RTRT00533 RING MOTORWHEEL 1,00 --
0006 MPVR05990 CAP CT110 1,00 --
0007 MEVR02030 BRAKE - 1,00 --
0008 MPVR06031 COWLING MOTORUOTA 1,00 --
0009 MEVR00985 CARRYNG BAG 4,00 --
0010 MOCC00399 MOTOR MP80 1,00 --
0011 MEVR00889 PIPETTE 2,00 --

Navigation menu
