Clemas VBP TRUVOX SERVICE PARTS LIST SERIES C Valet Backpack Manual

User Manual: Clemas

Open the PDF directly: View PDF PDF.
Page Count: 4

VALET BACKPACK VACUUM
PARTS MANUAL
Clemas & Co. Unit 5 Ashchurch Business Centre, Alexandra Way, Tewkesbury,
Gloucestershire, GL20 8NB.
Tel: 01684 850777 Fax: 01684 850707
Email: info@clemas.co.uk Web: www.clemas.co.uk

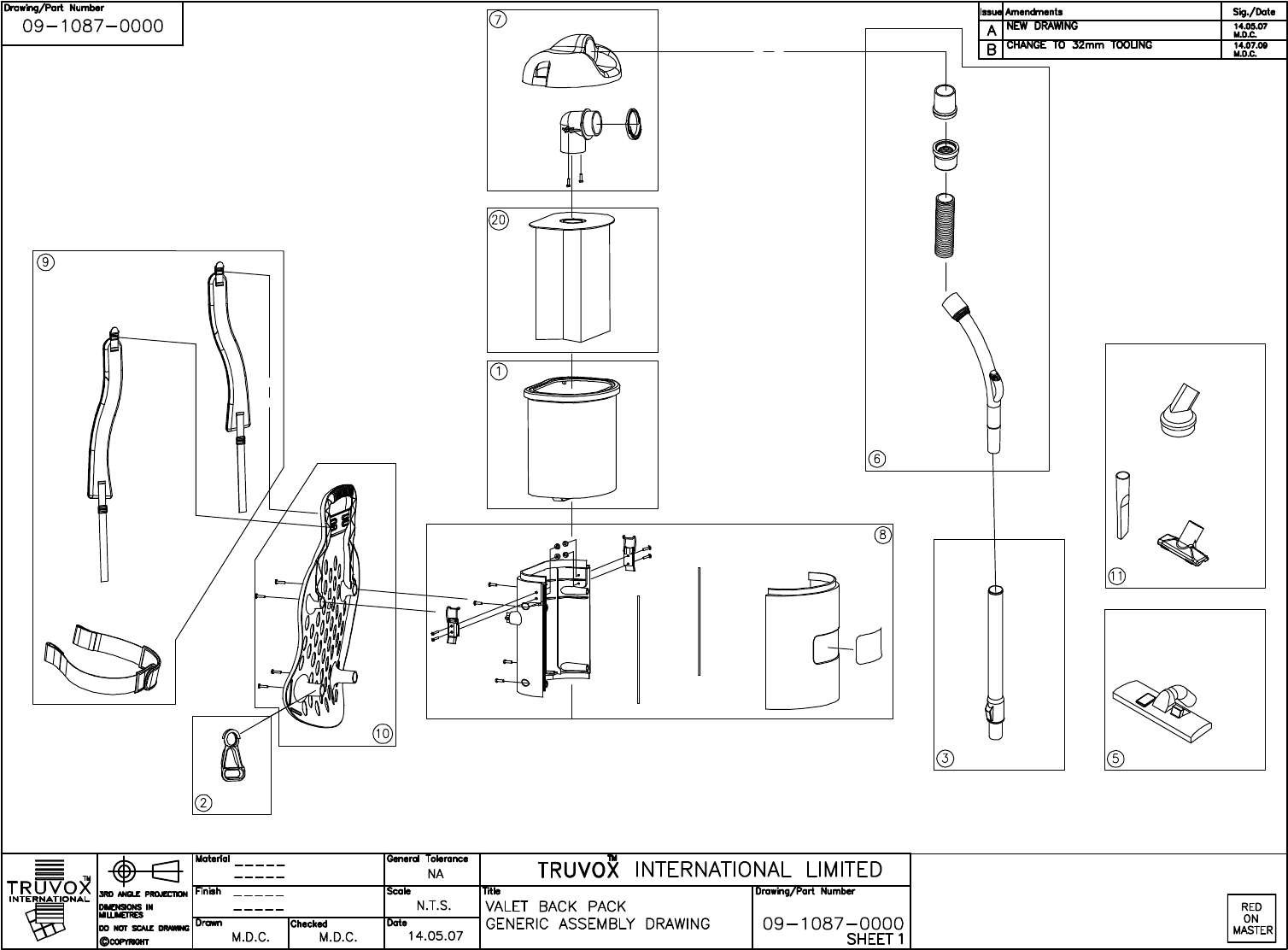

Drawing
Ref.
Part NumberDESCRIPTION Qty Per
Kit
1
BA00144000
SHAKE OUT BAG
1
2
BA00163582
CORD CLIP
1
3
BA10623582
1
4
N/A
N/A
N/A
5
BA10653582
CARPET TOOL
1
6
U2-U11-085
HOSE ASSY
1
7
TU1AB00012
COVER ASSY
1
8
TU1AB00013
CANISTER ASSY
1
9
TU1AB00014
SHOULDER STRAP ASSY
1
10
TU1AB00015
BACK REST ASSY
1
11
U2-U11-086
ACCESSORY TOOLS
1
12
TU1AB00017
SWITCH HARNESS ASSY
1
13
TU1AB00018
FILTER ASSY
1
14
TU1AB00019
FILTER FRAME ASSY
1
15
TU1AB00020
MOTOR MOUNT ASSY
1
16
TU1AB00021
MOTOR ASSY
1
17
TU1AB00022
MOTOR COMPARTMENT ASSY
1
18
TU1AB00023
WIRING ASSY
1
19a)
TU1AB00024
UK POWER CORD
1
19b)
TU1AB00025
EURO POWER CORD
1
20
U2-U11-078
PAPER BAG (PACK OF 10)
1
Ref. Drawing 09-1087-0000 Issue B Dated 14-July-2009
Service Parts List (Kits) Issue 3 Dated 10th-August-2009
Service Parts List (Kits)
Model Ref.:- VBP
SERIES C
