Users Manual

May-09-2017

TableofContents

1. INTRODUCTION __________________________________________________________________ 1

1.1. SYSTEM SPECIFICATION _____________________________________________________________ 1

2. PANEL INFORMATION _____________________________________________________________ 3

2.1. IDENTIFYING THE PARTS: _____________________________________________________________ 3

2.2. THE POWER SUPPLY: _______________________________________________________________ 4

2.3. SYSTEM REQUIREMENTS: ____________________________________________________________ 5

3. GETTING STARTED _______________________________________________________________ 6

3.1. SYSTEM DEPLOYMENT ______________________________________________________________ 6

3.2. INSTALLATION _____________________________________________________________________ 6

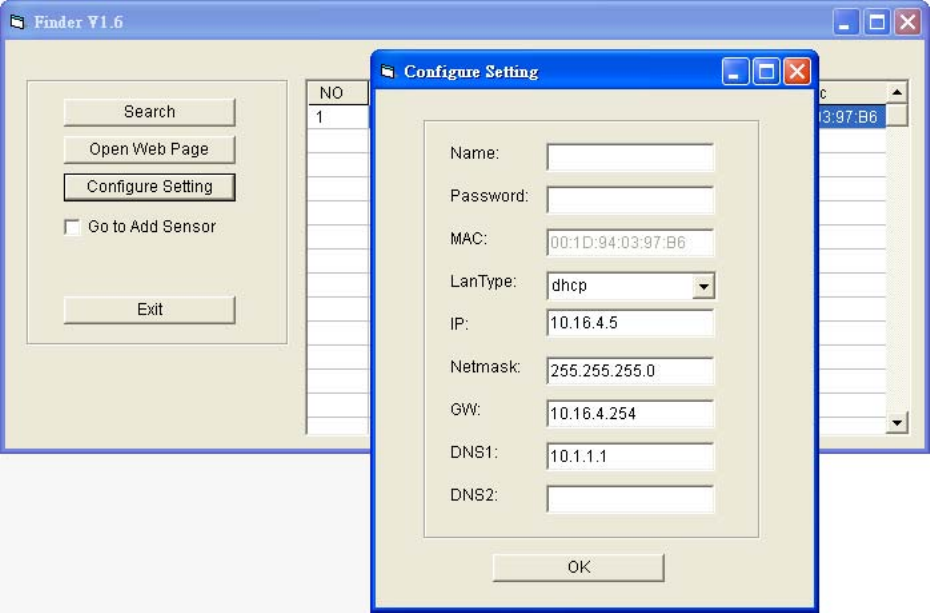

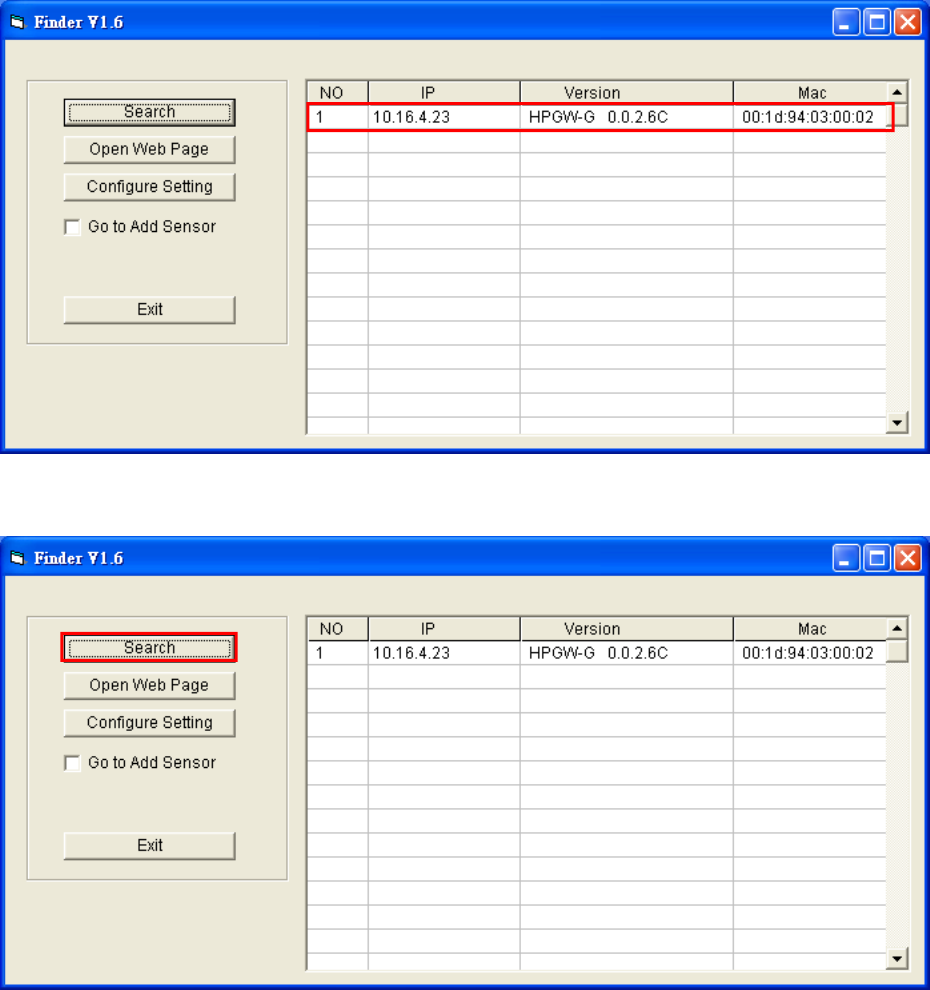

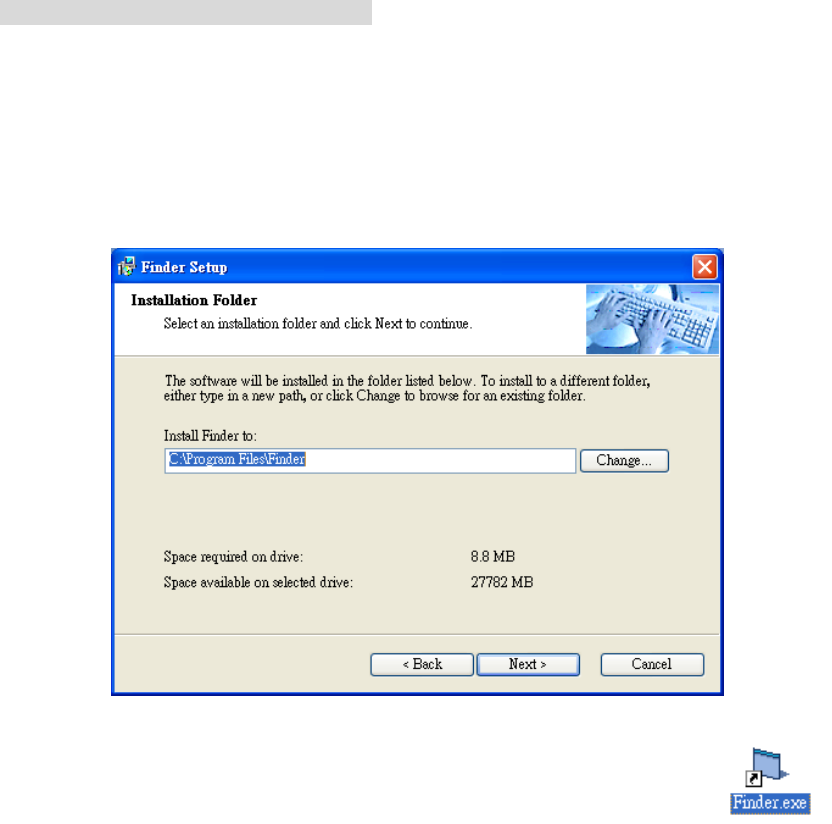

3.3. SOFTWARE INSTALLATION ____________________________________________________________ 8

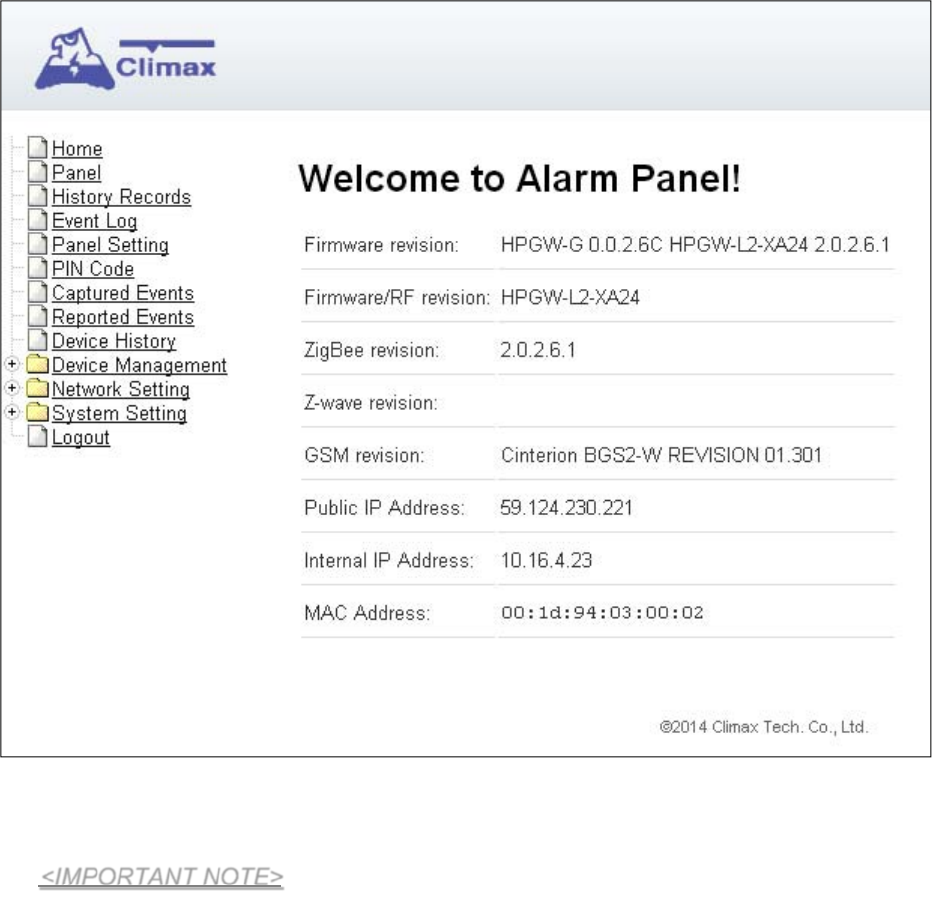

4. CONNECTION TO PANEL WEBPAGE _______________________________________________ 11

5. DEVICE MANAGEMENT __________________________________________________________ 13

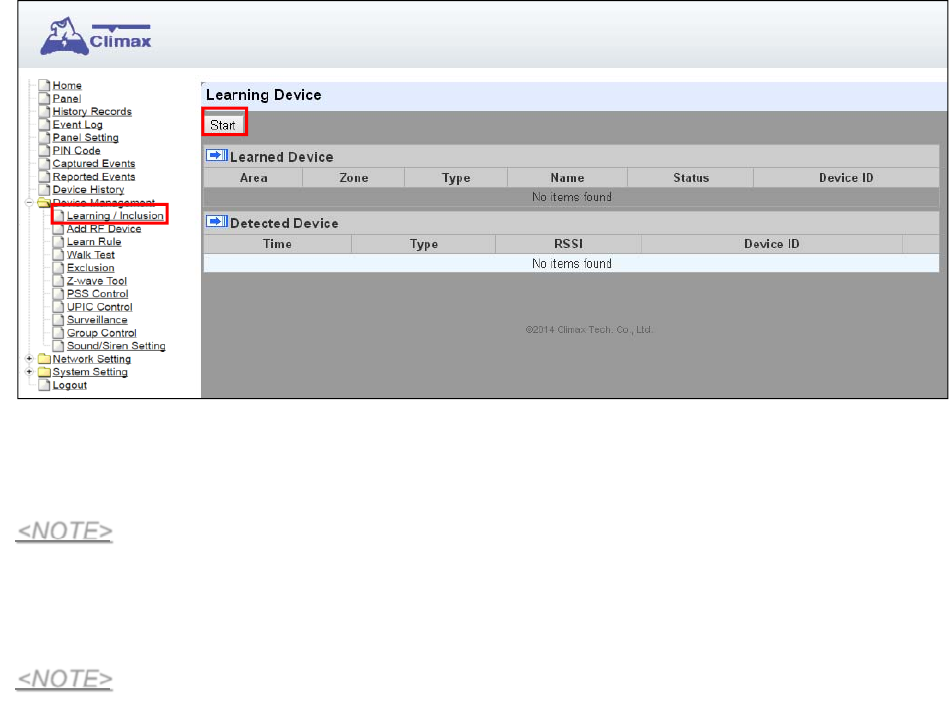

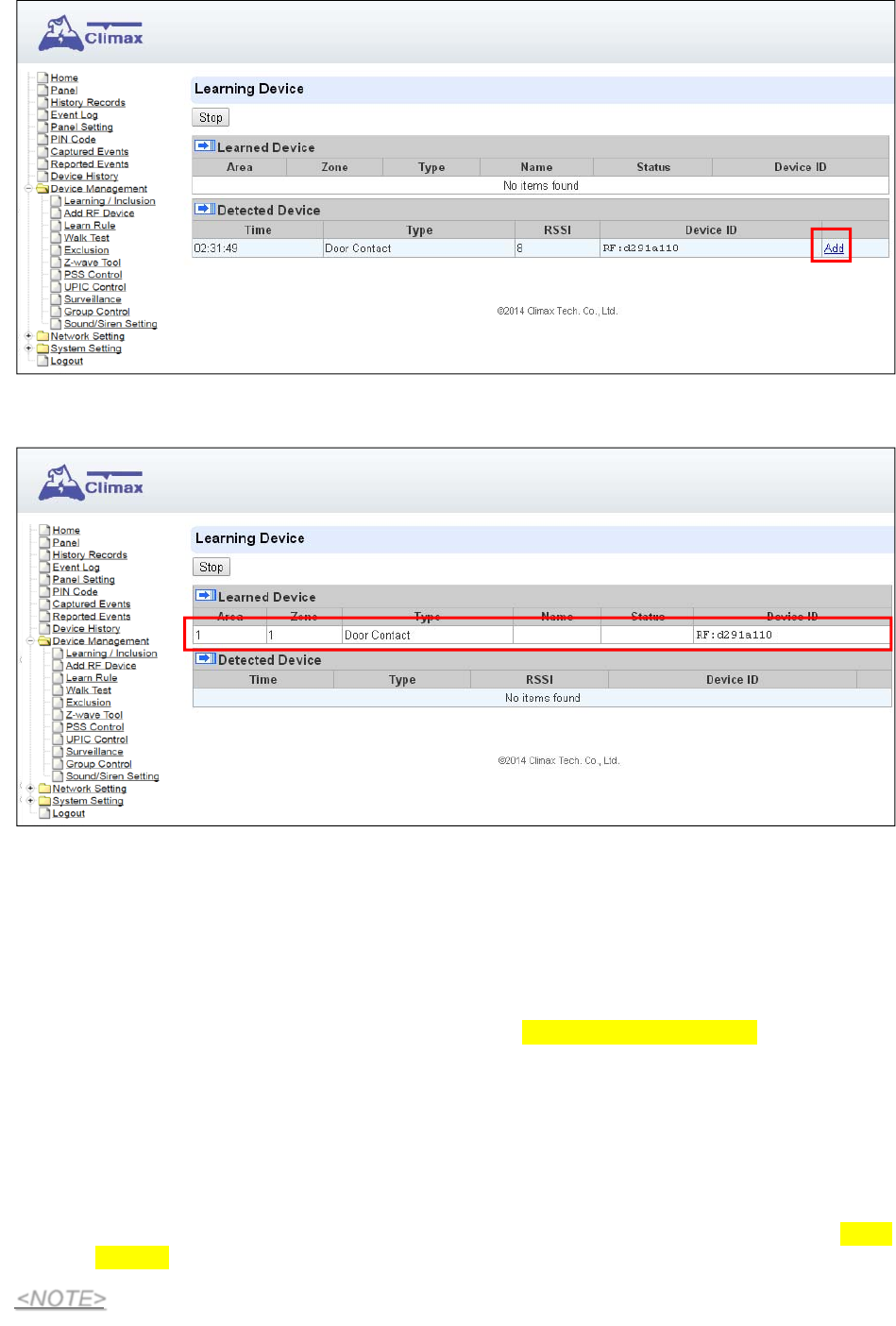

5.1. LEARNING ______________________________________________________________________ 13

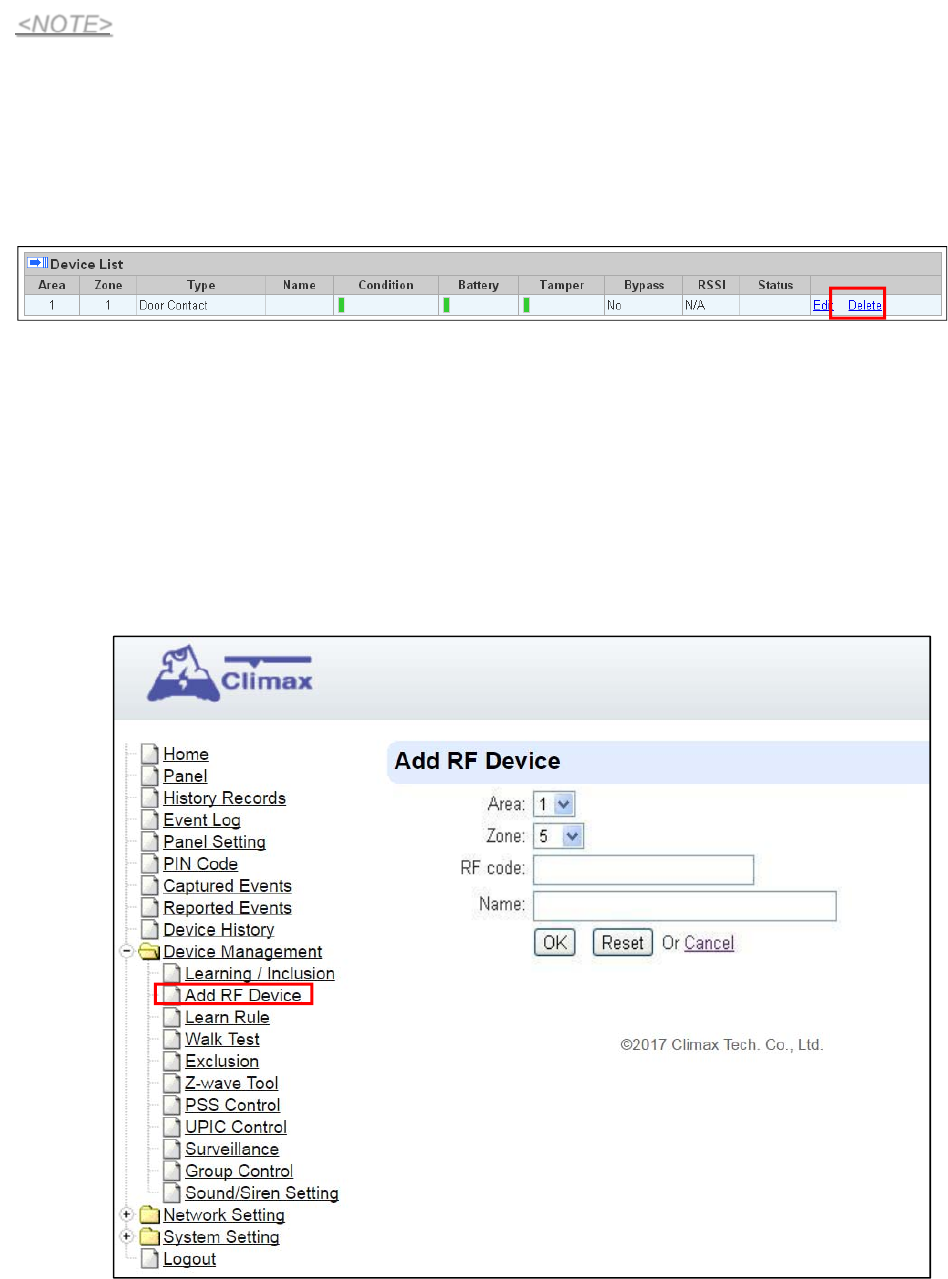

5.2. ADD RF DEVICE __________________________________________________________________ 19

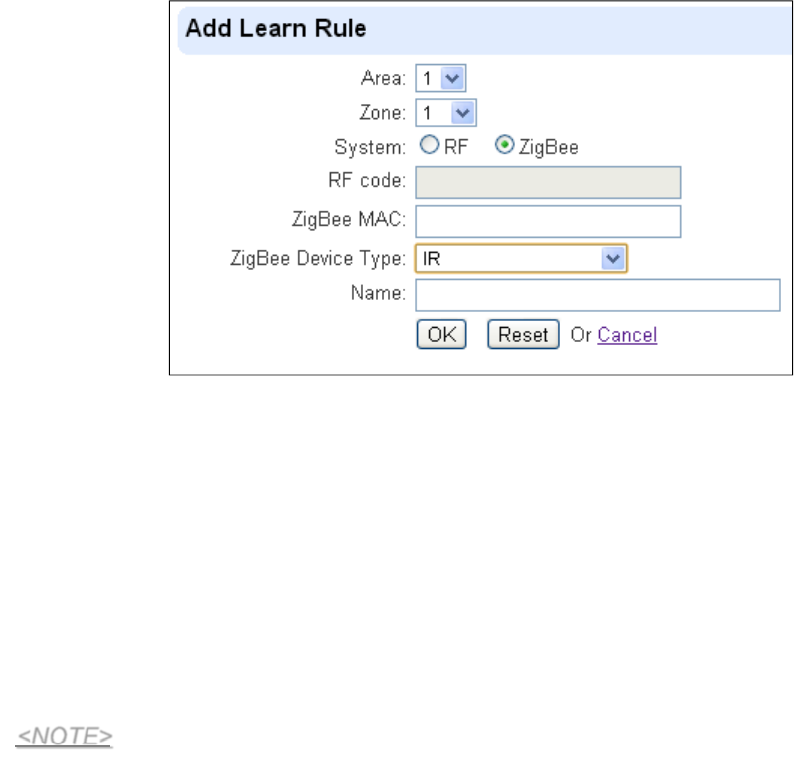

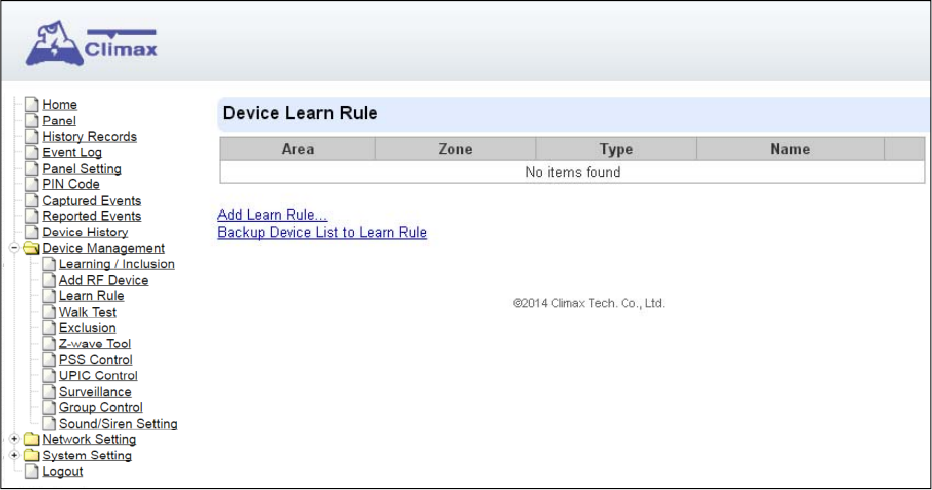

5.3. LEARN RULE ____________________________________________________________________ 20

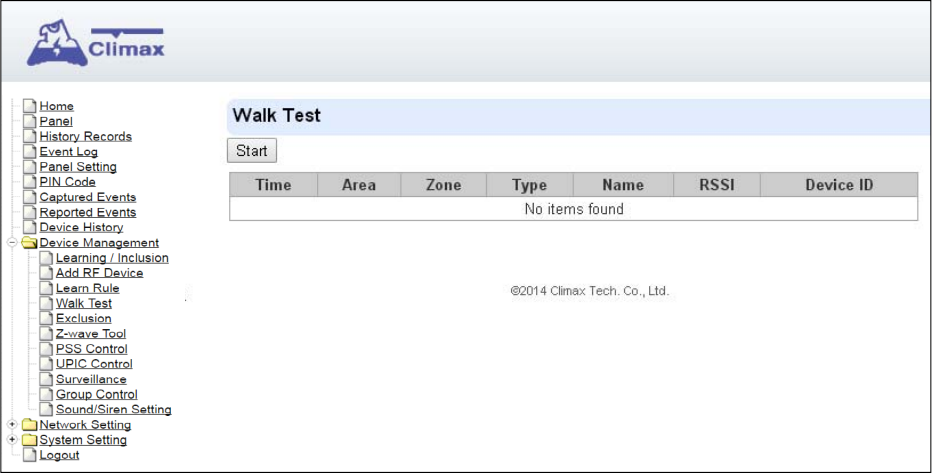

5.4. WALK TEST _____________________________________________________________________ 22

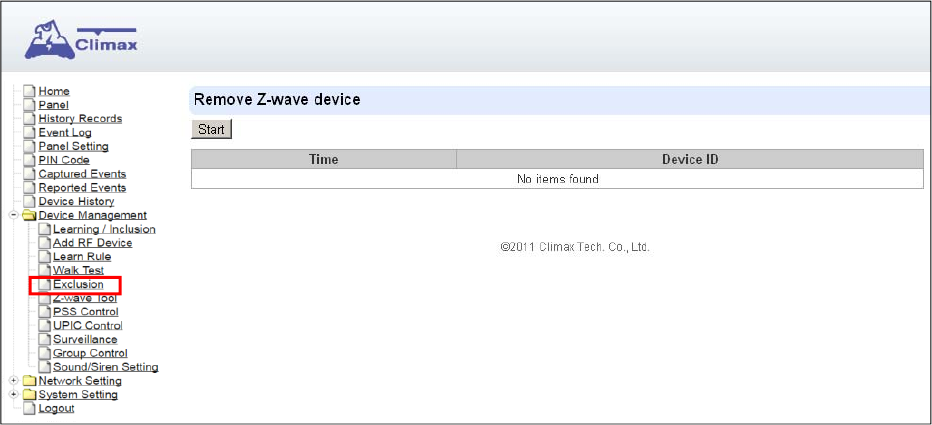

5.5. EXCLUSION _____________________________________________________________________ 23

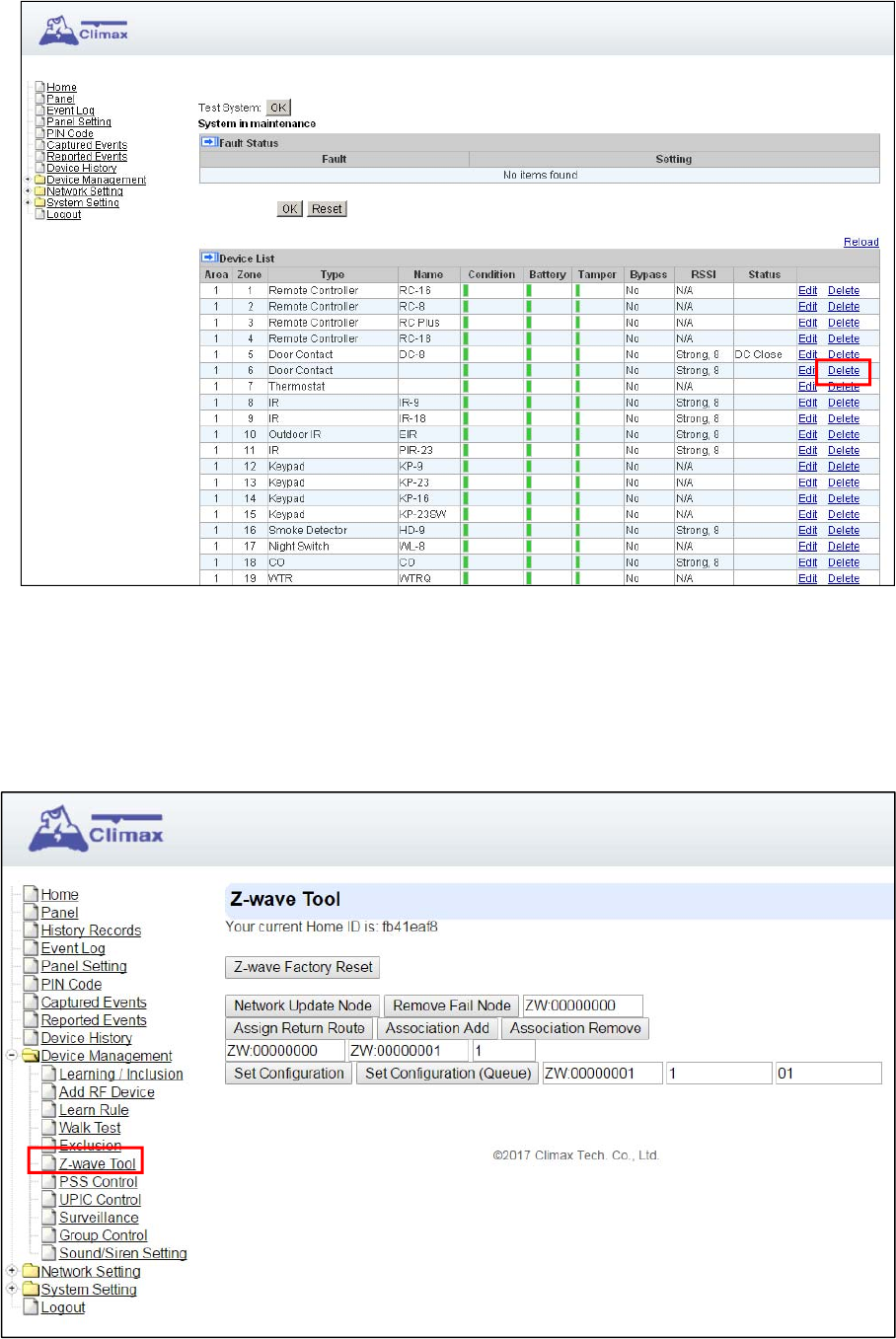

5.6. Z-WAVE TOOL ___________________________________________________________________ 24

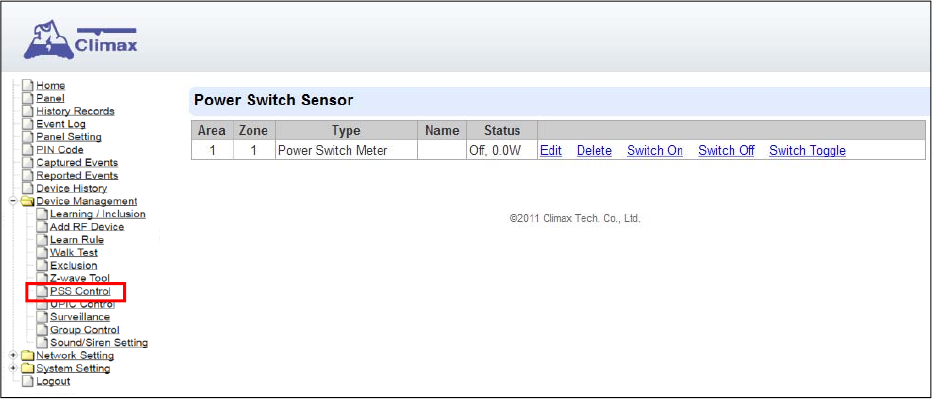

5.7. PSS CONTROL ___________________________________________________________________ 25

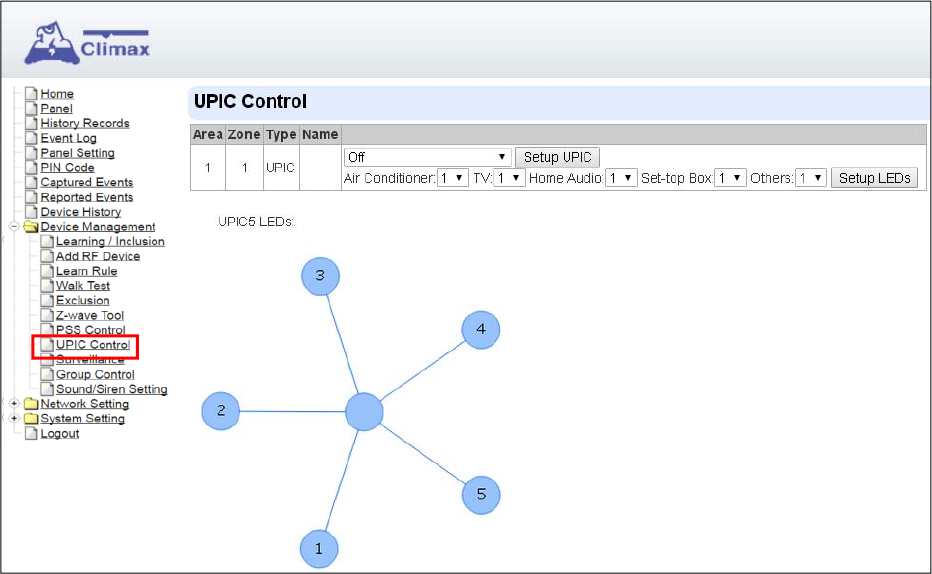

5.8. UPIC CONTROL __________________________________________________________________ 26

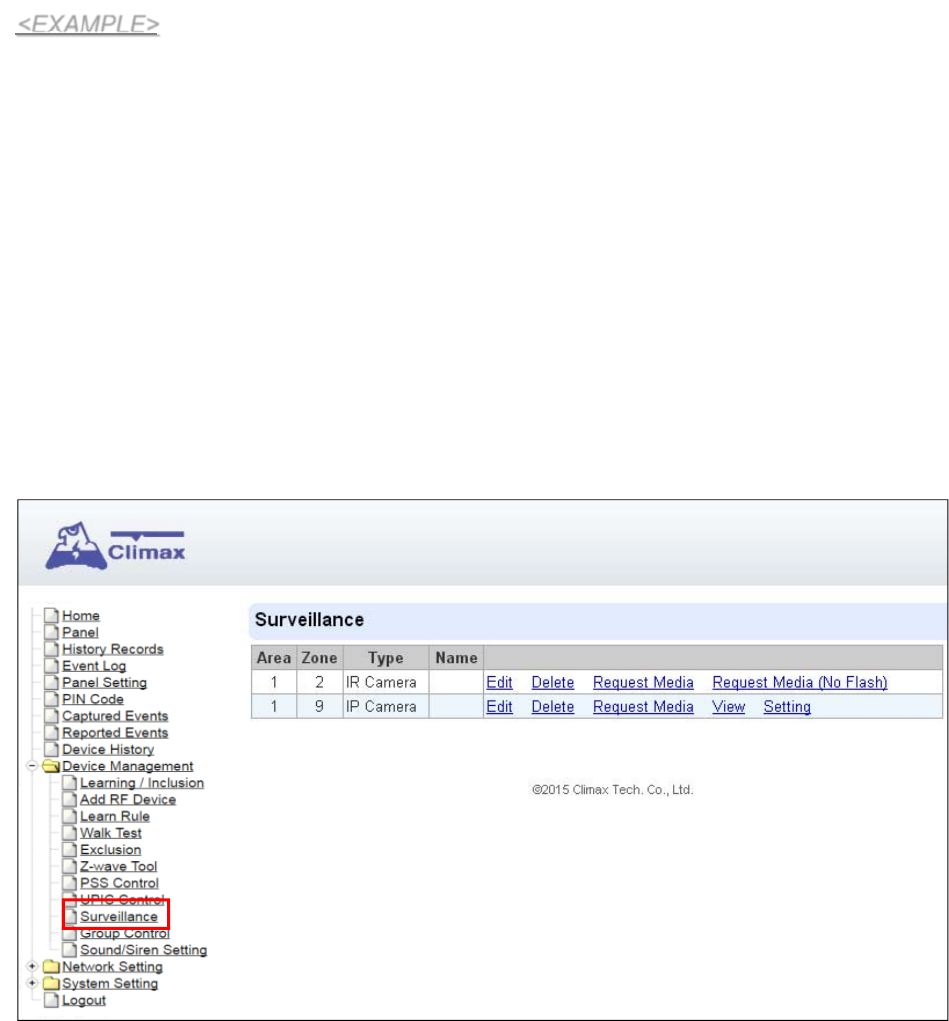

5.9. SURVEILLANCE ___________________________________________________________________ 27

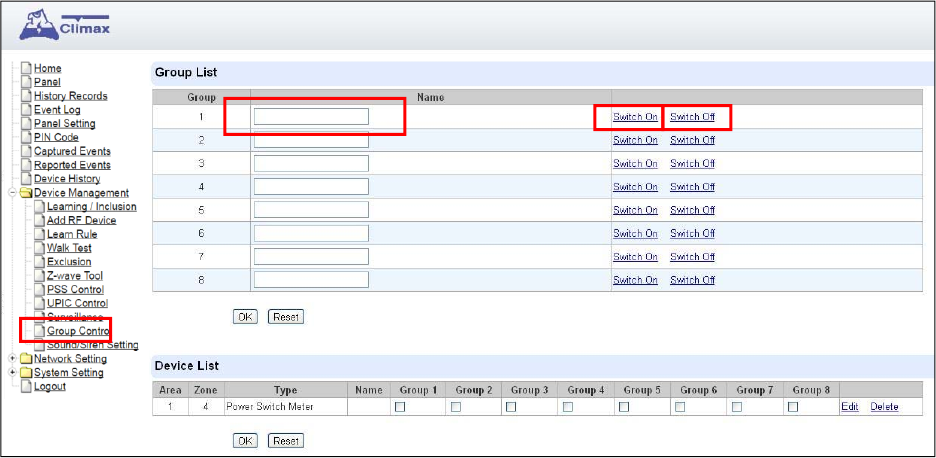

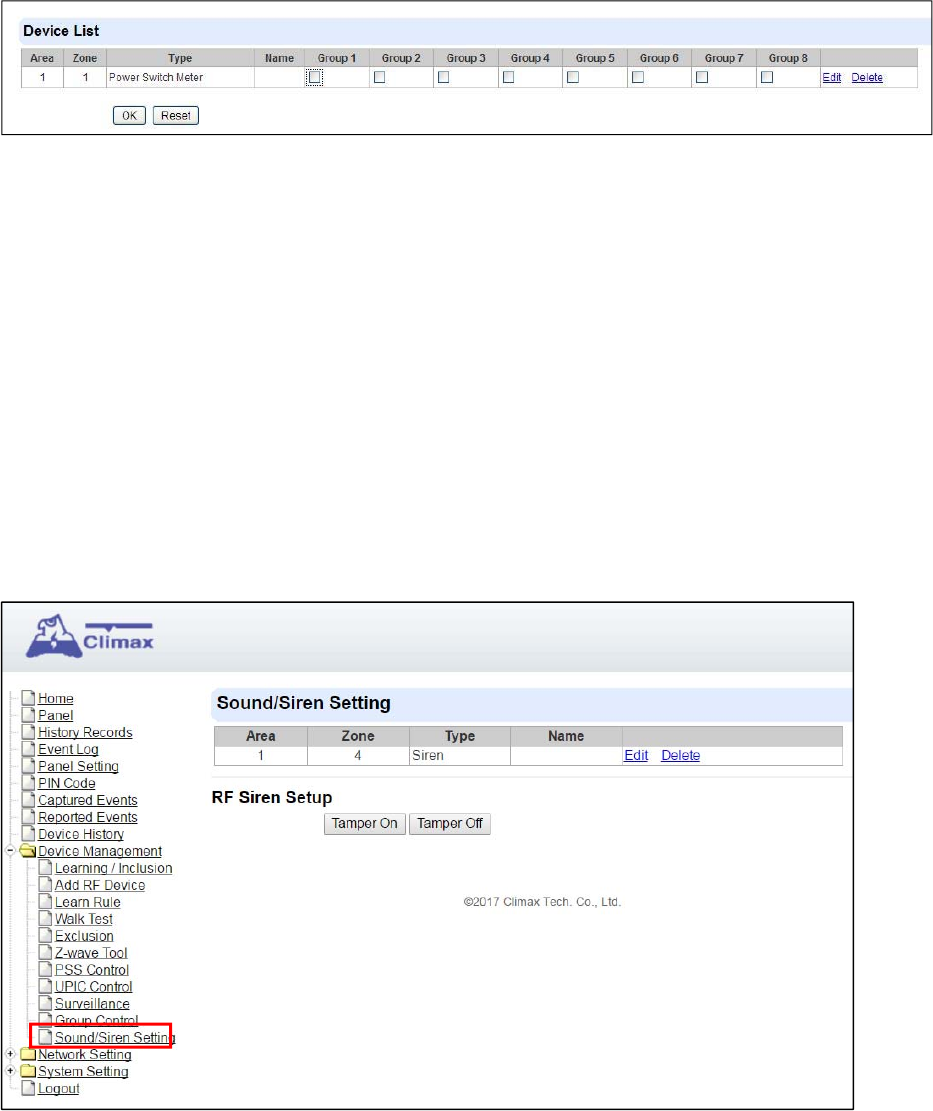

5.10. GROUP CONTROL ________________________________________________________________ 28

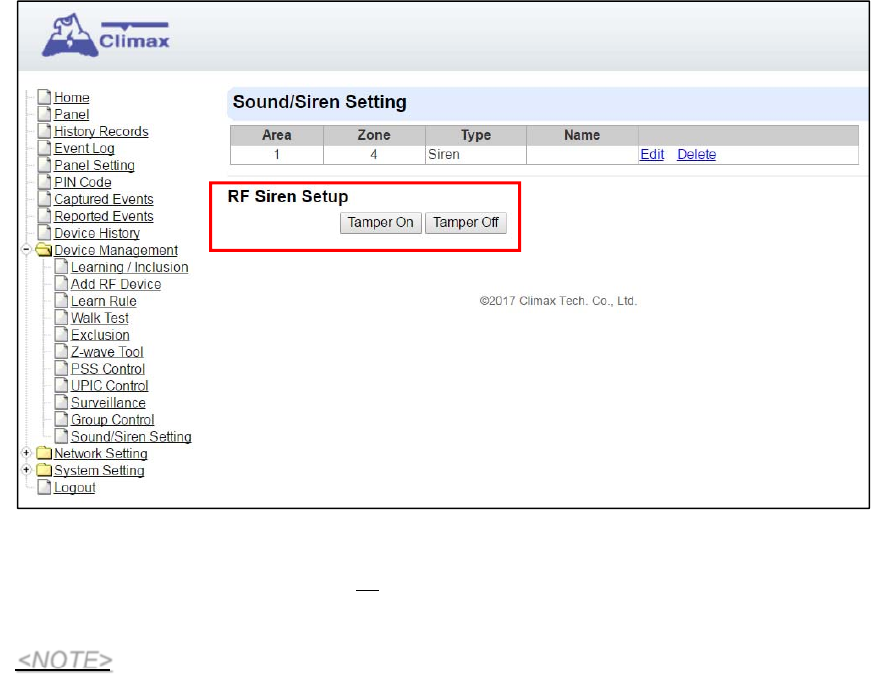

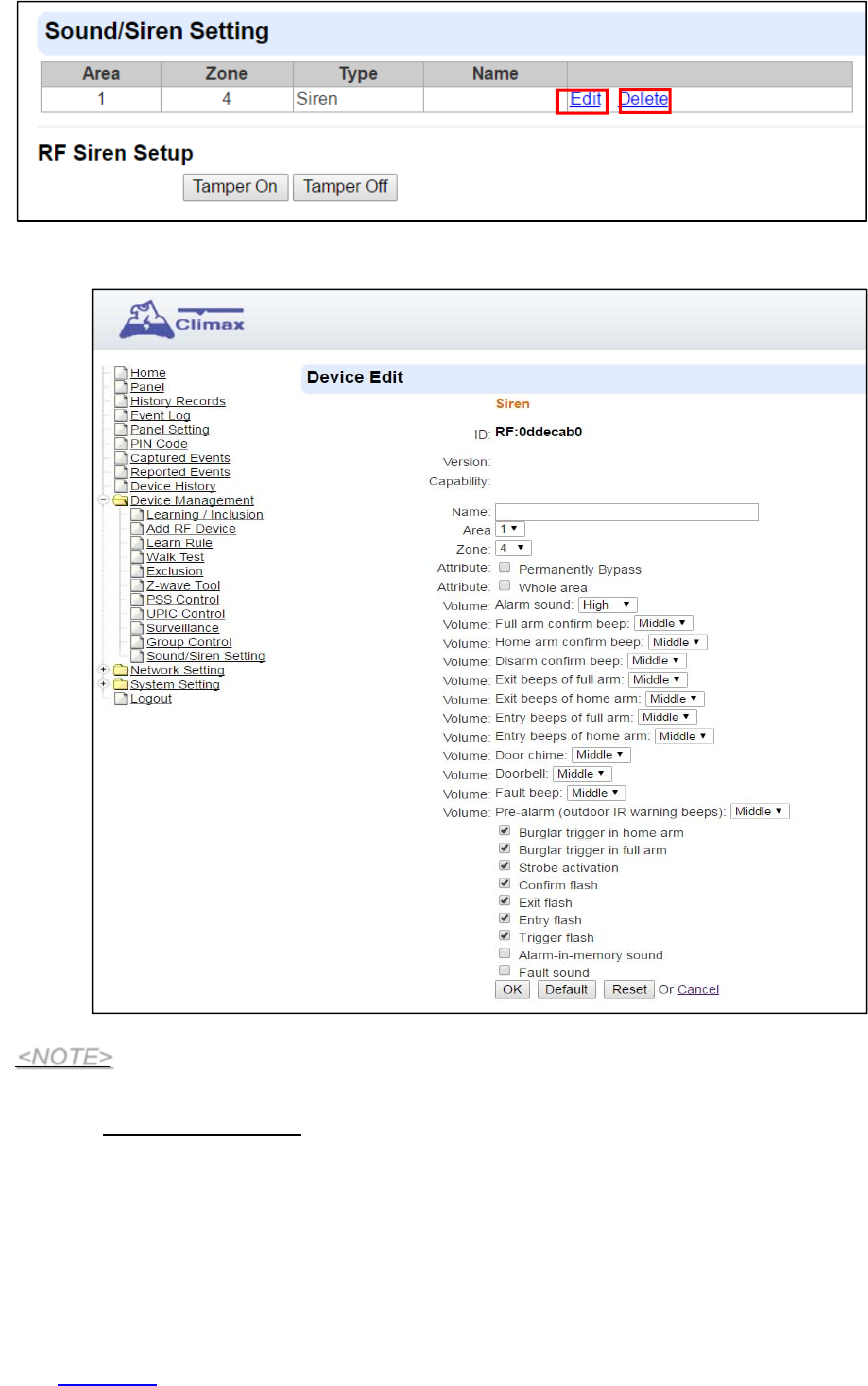

5.11. SOUND/SIREN SETTING ____________________________________________________________ 29

6. PROGRAM THE SYSTEM _________________________________________________________ 33

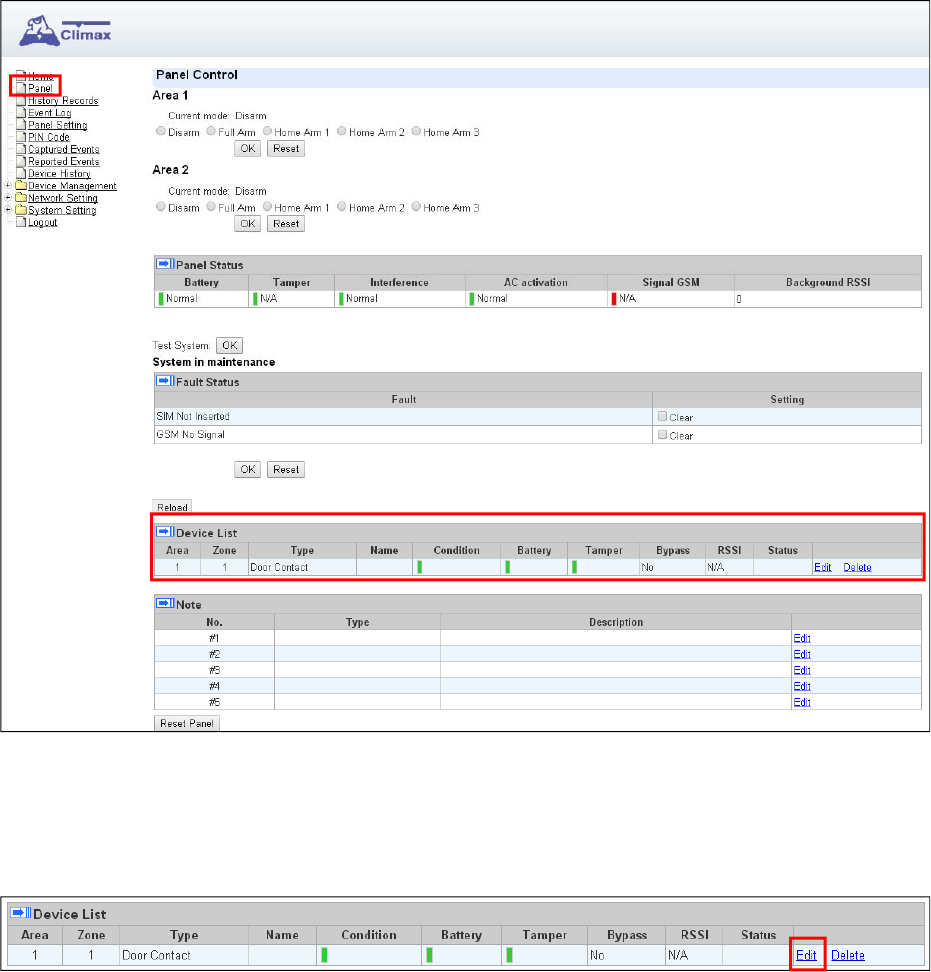

6.1. PANEL CONDITION ________________________________________________________________ 33

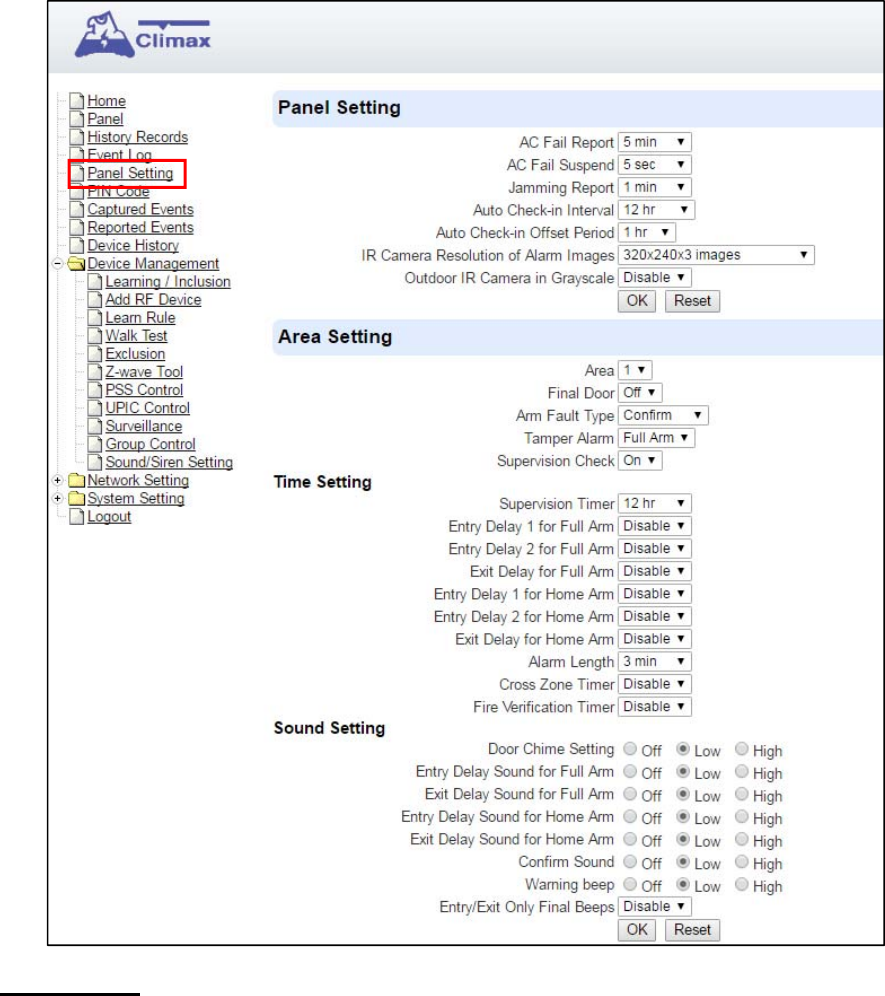

6.2. PANEL SETTINGS _________________________________________________________________ 36

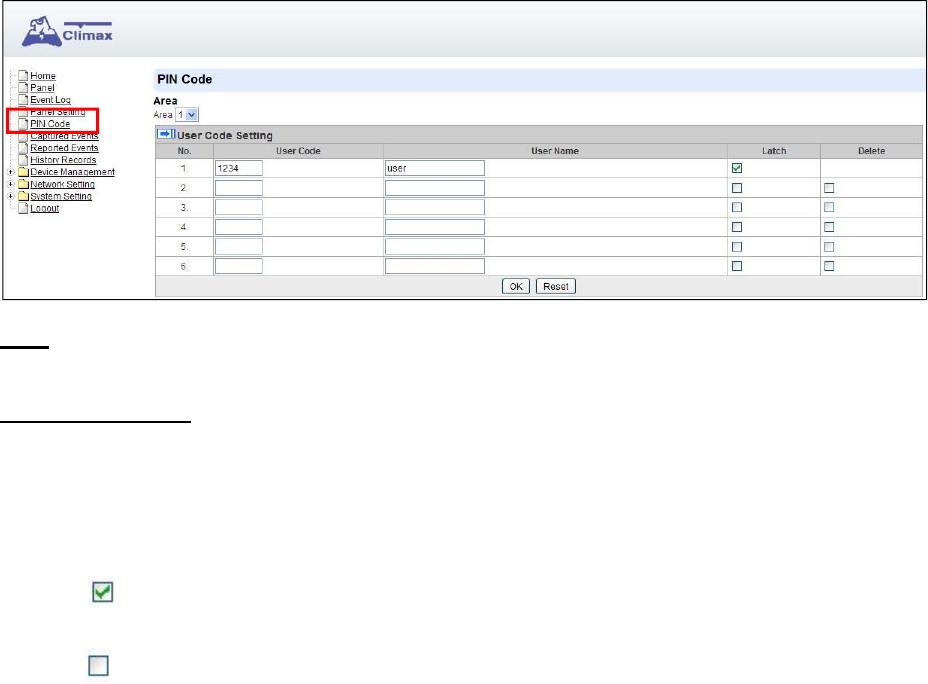

6.3. PIN CODE ______________________________________________________________________ 40

7. NETWORK SETTINGS ____________________________________________________________ 41

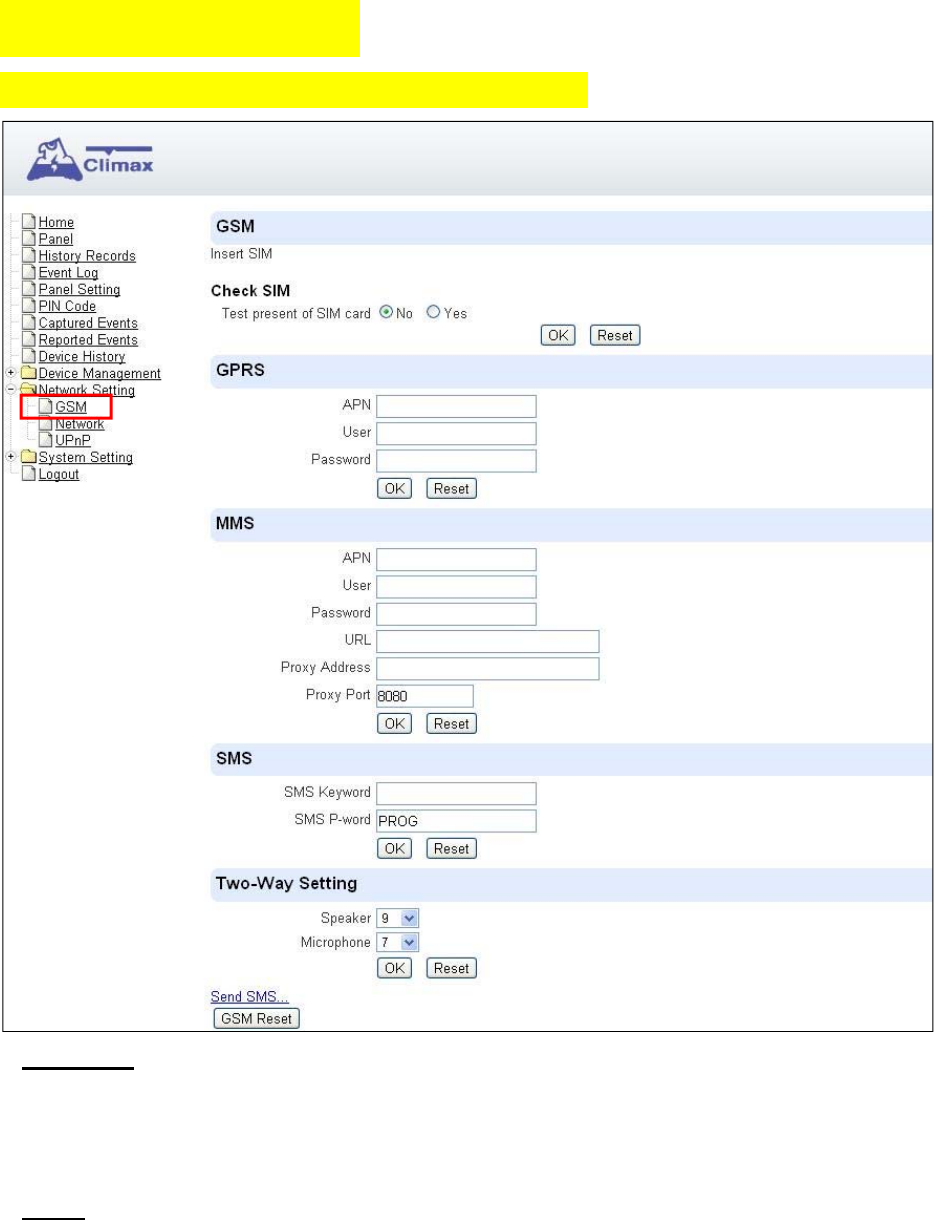

7.1. WCDMA, LTE (HSGW-G8 SERIES ONLY) _______________________________________________ 41

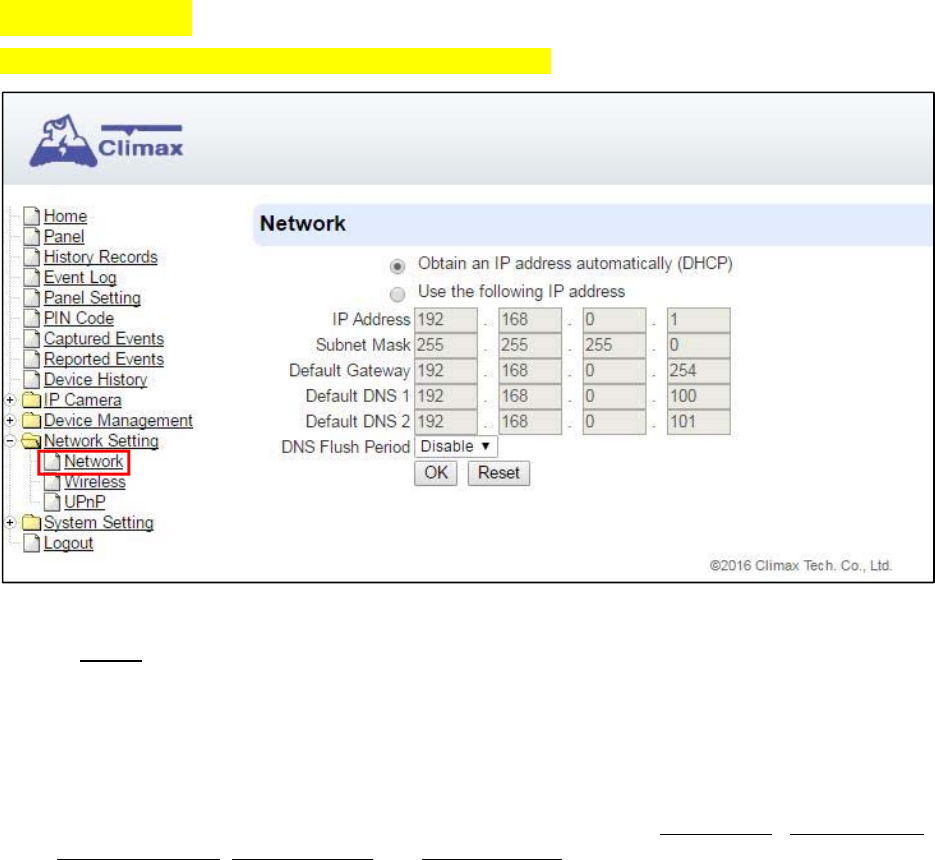

7.2. NETWORK ______________________________________________________________________ 44

7.3. WIRELESS ______________________________________________________ 錯誤! 尚未定義書籤。

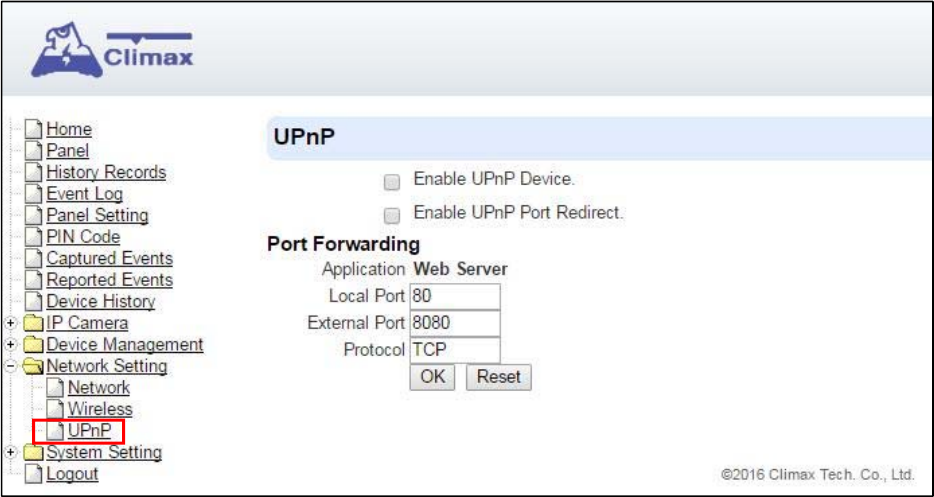

7.4. UPNP _________________________________________________________________________ 45

8. SYSTEM SETTINGS ______________________________________________________________ 46

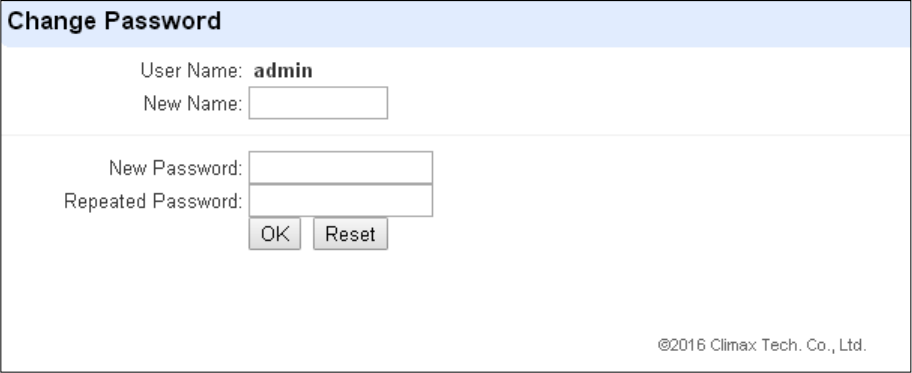

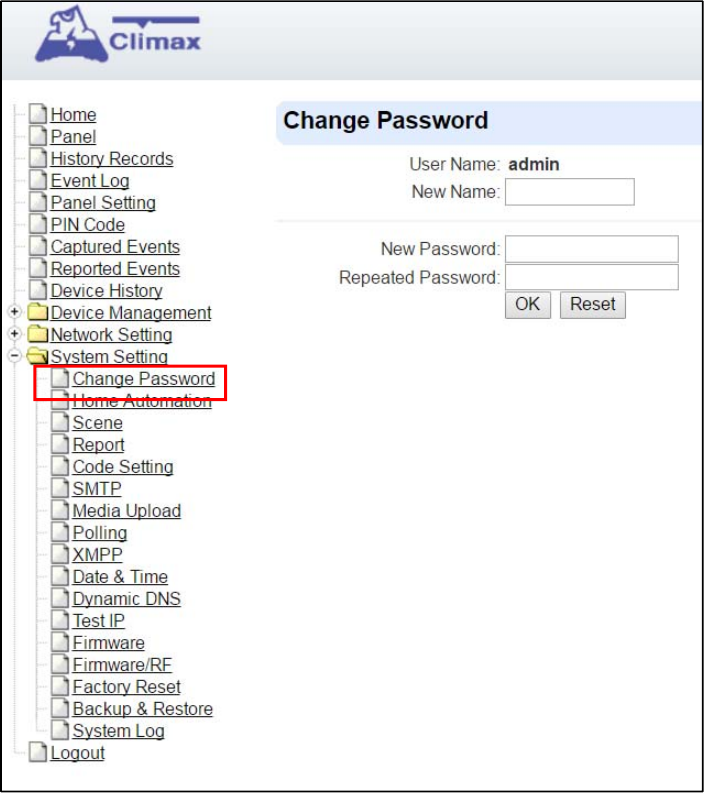

8.1. ADMINISTRATOR SETTING ___________________________________________________________ 46

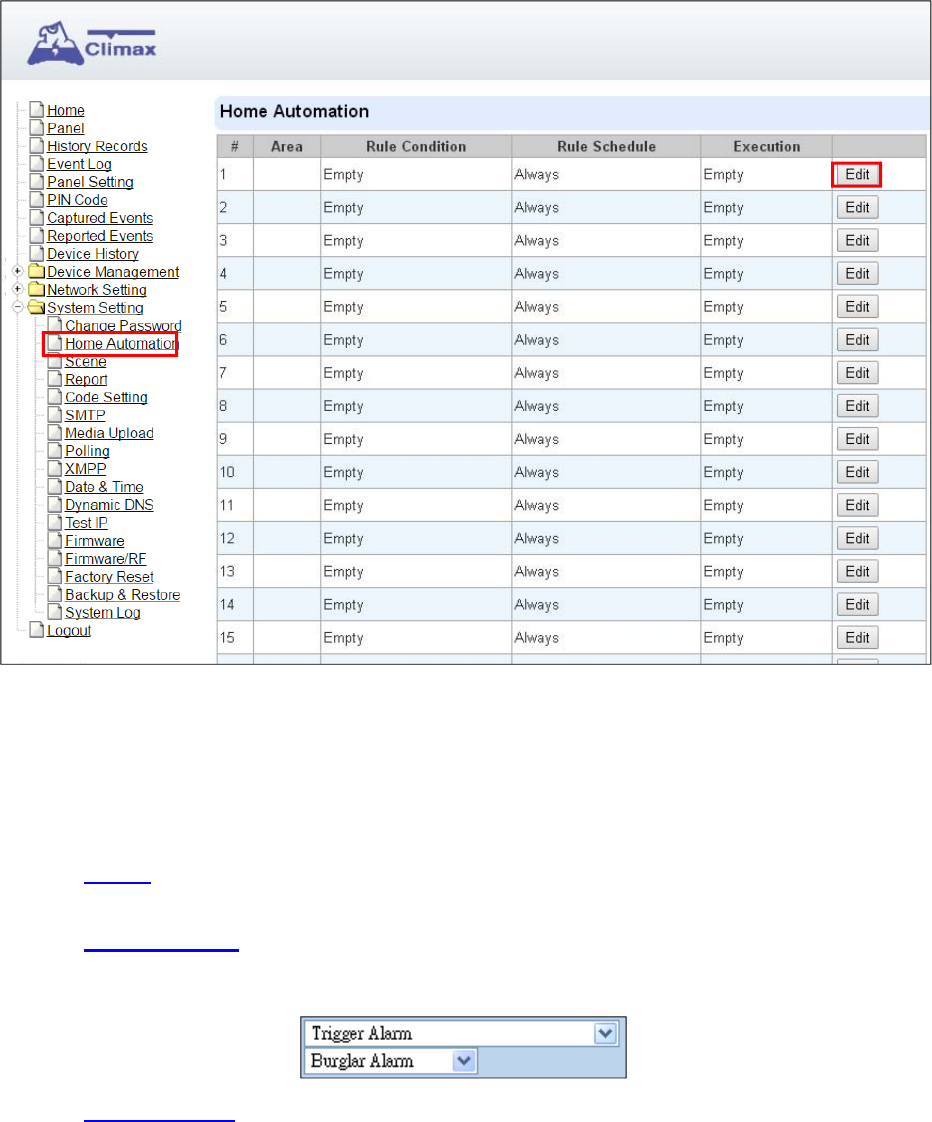

8.2. HOME AUTOMATION _______________________________________________________________ 47

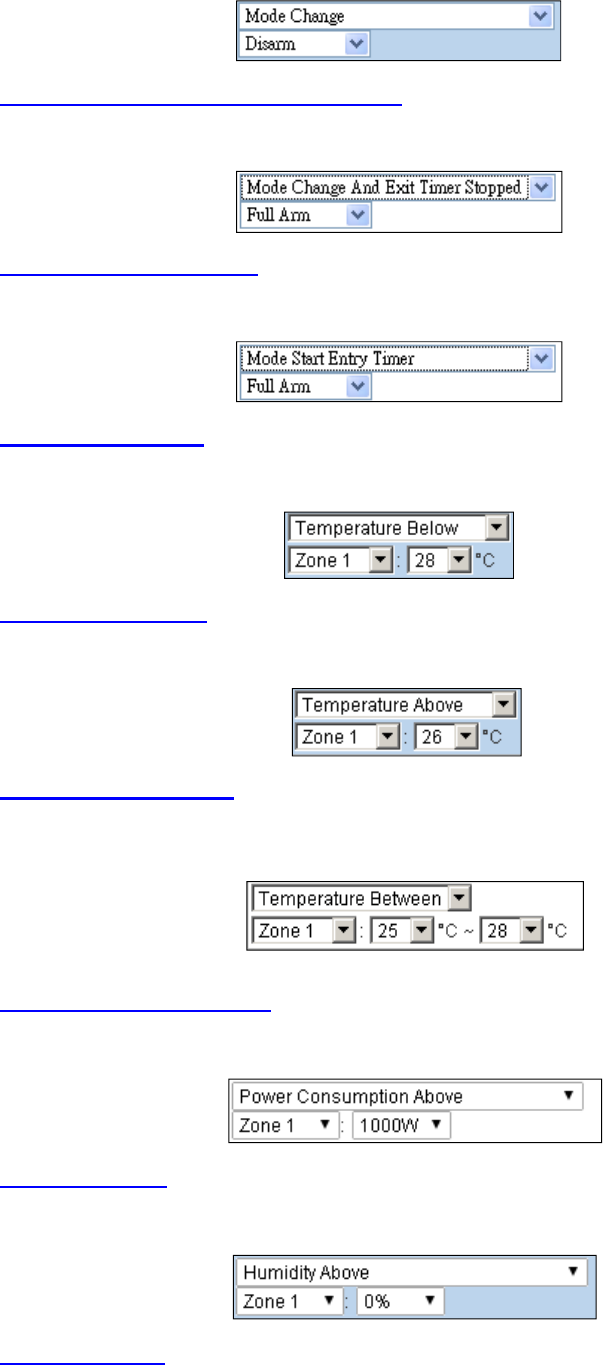

8.3. SCENE _________________________________________________________________________ 52

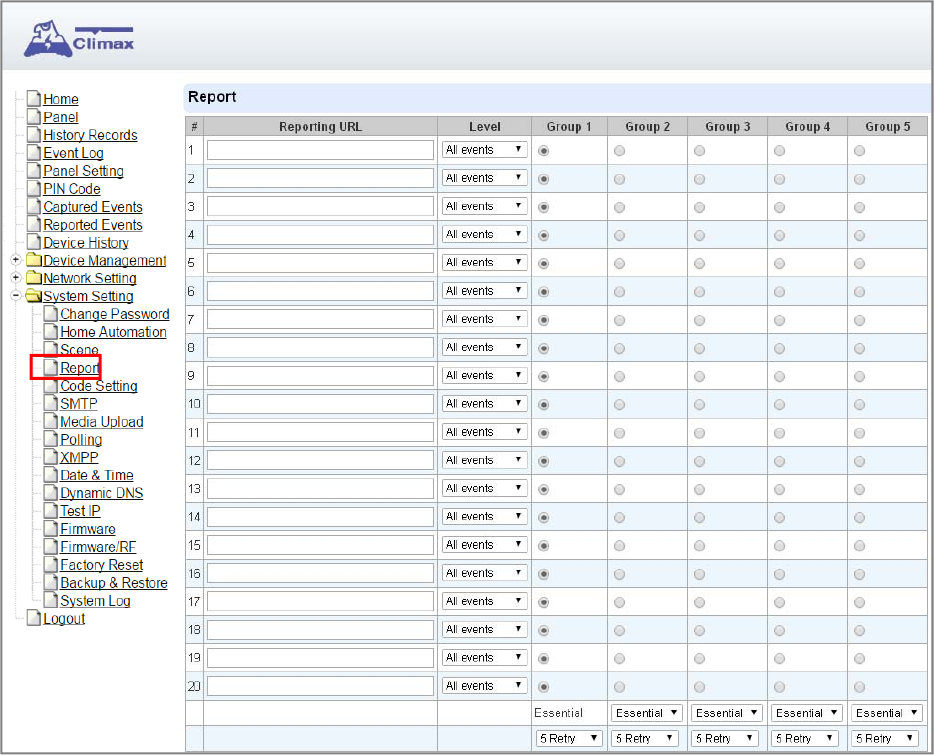

8.4. REPORTING _____________________________________________________________________ 54

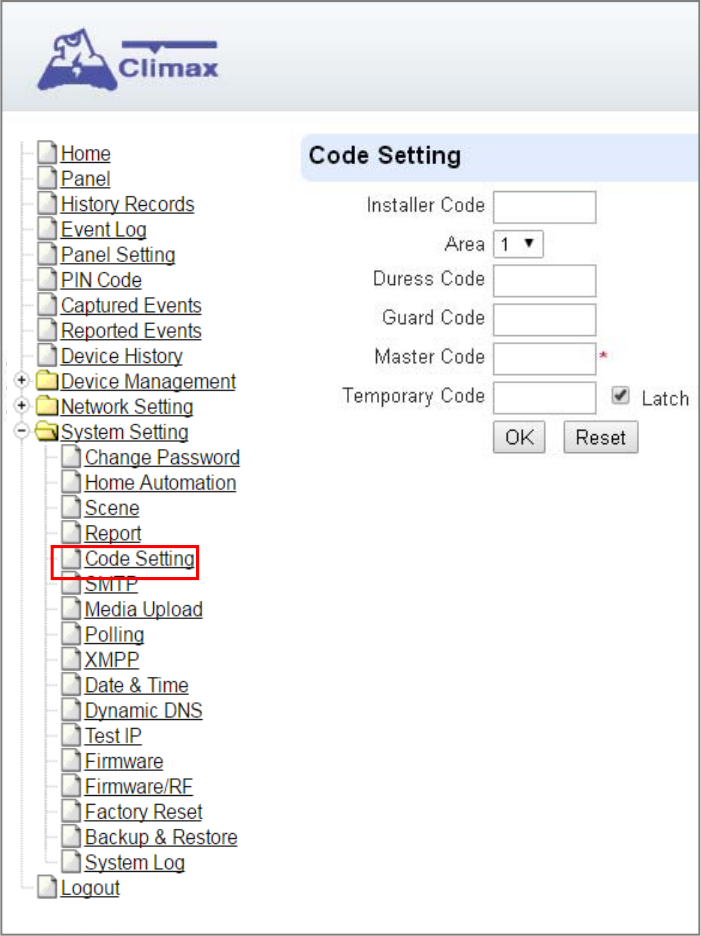

8.5. CODE SETTINGS __________________________________________________________________ 57

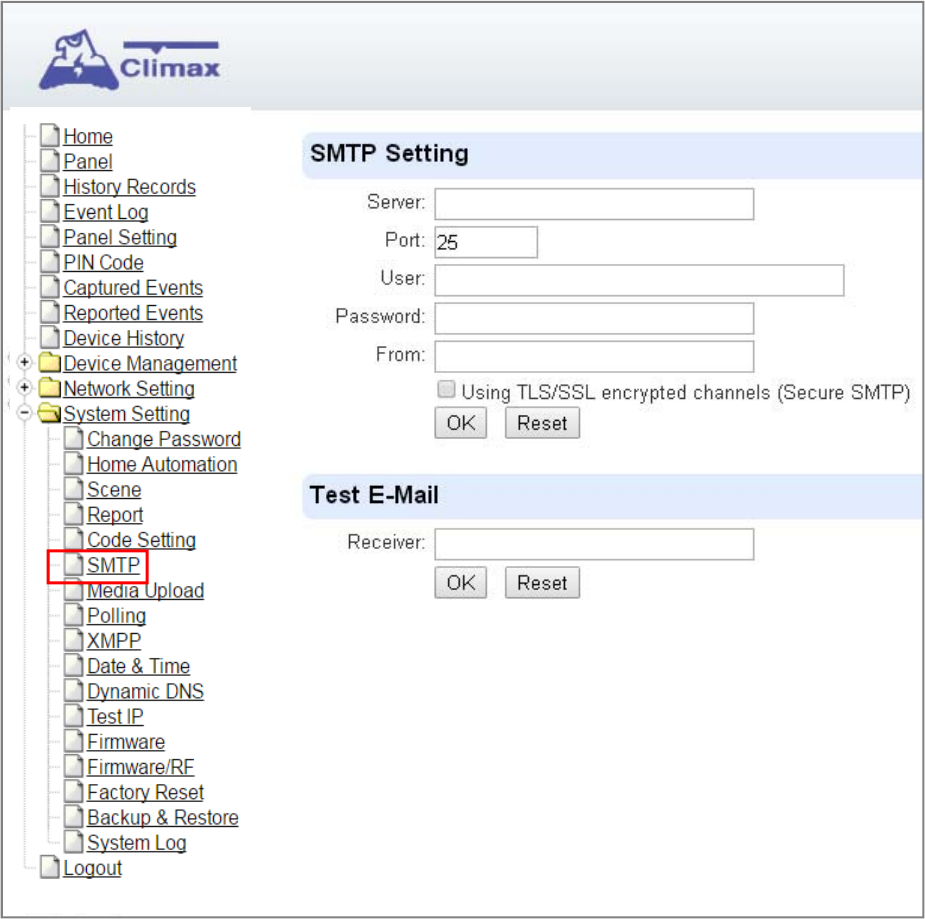

8.6. SMTP SETTING __________________________________________________________________ 59

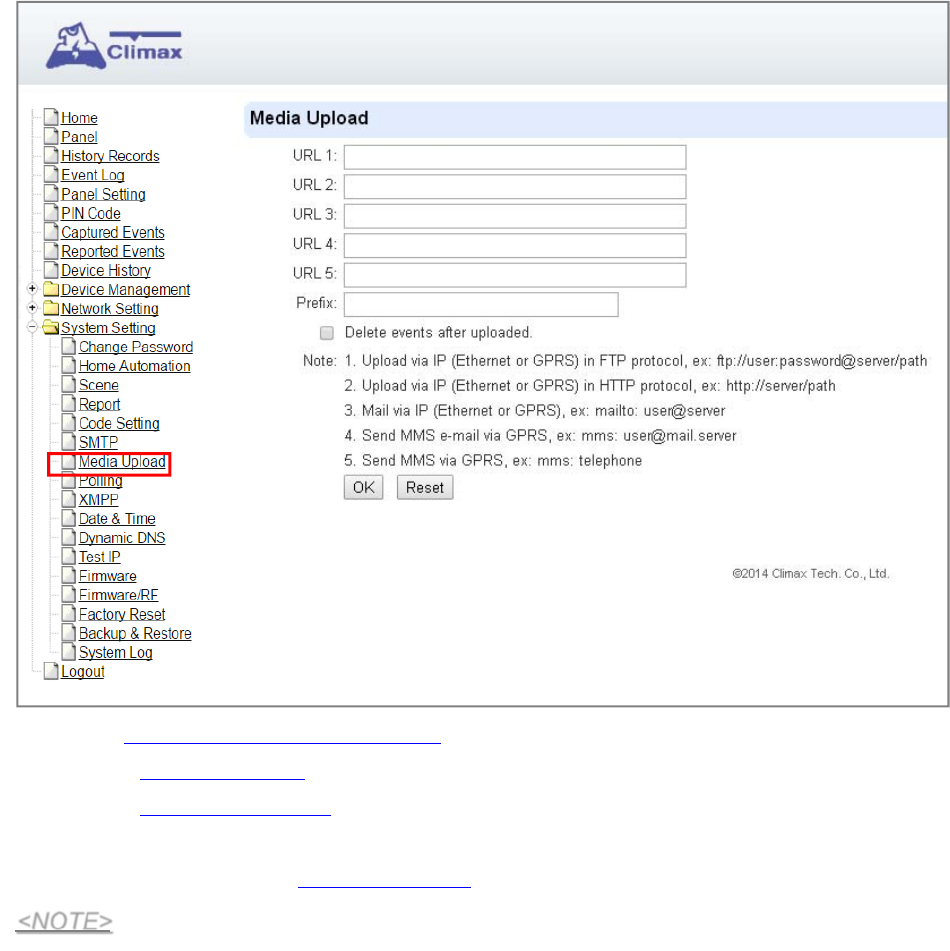

8.7. MEDIA UPLOAD __________________________________________________________________ 60

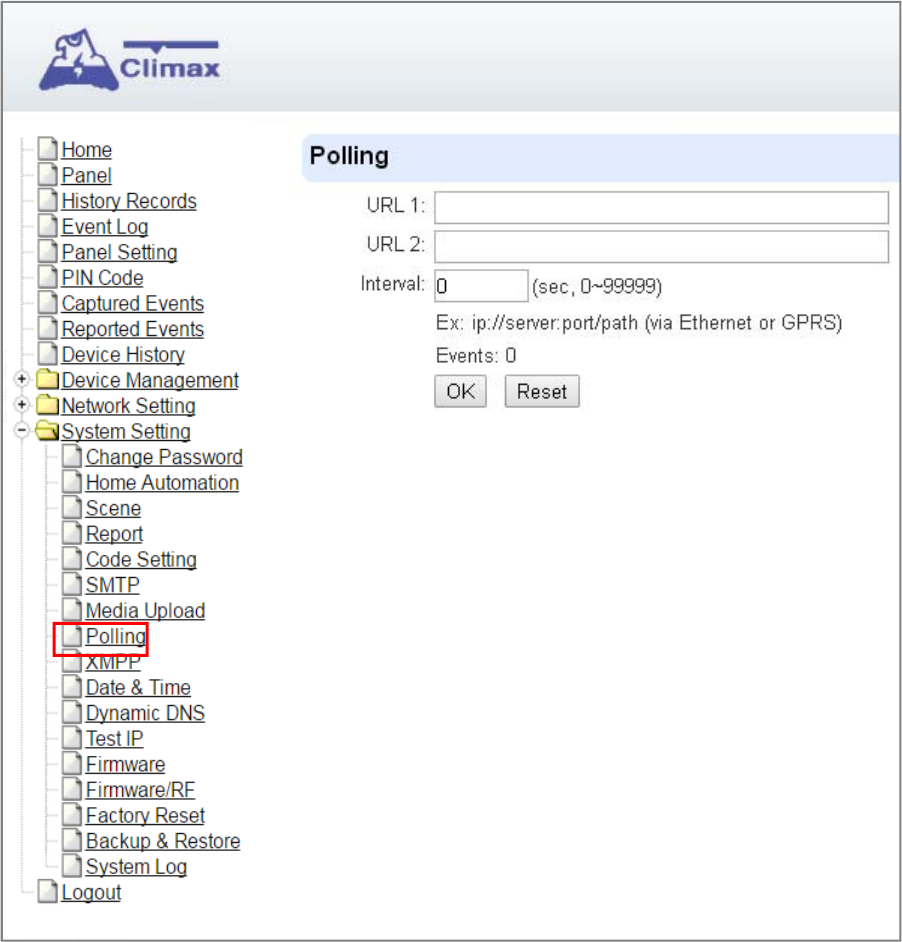

8.8. POLLING _______________________________________________________________________ 61

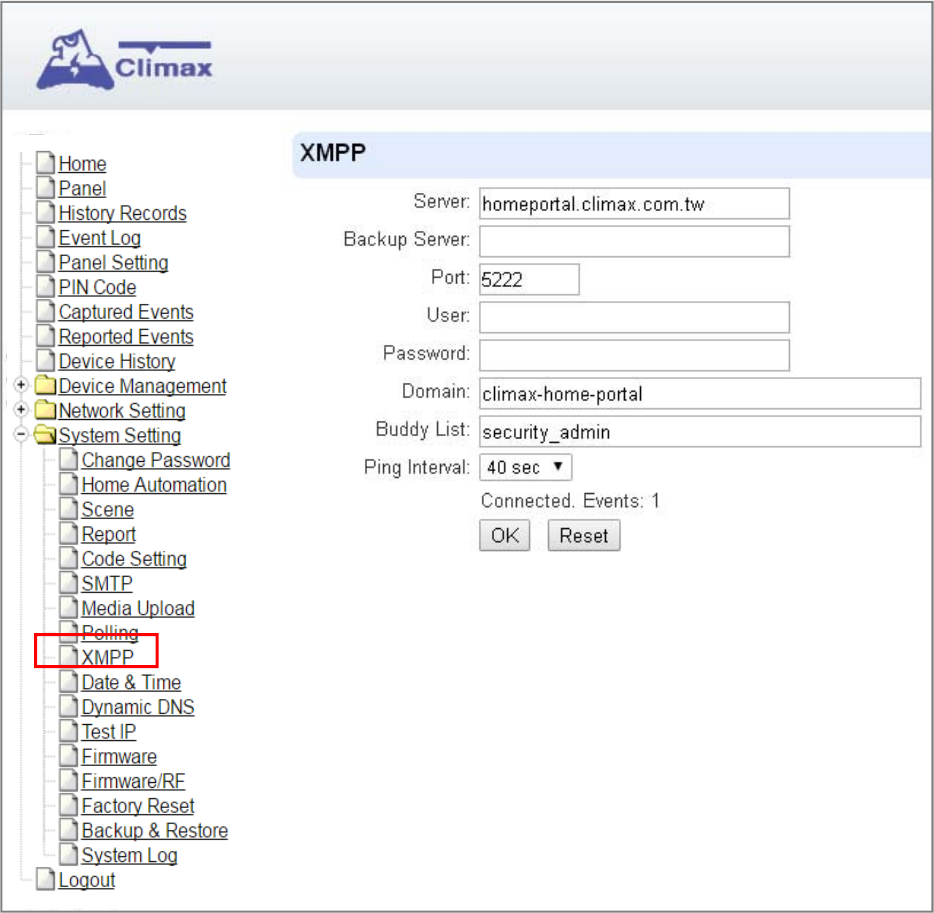

8.9. XMPP _________________________________________________________________________ 62

8.10. DATE & TIME ___________________________________________________________________ 63

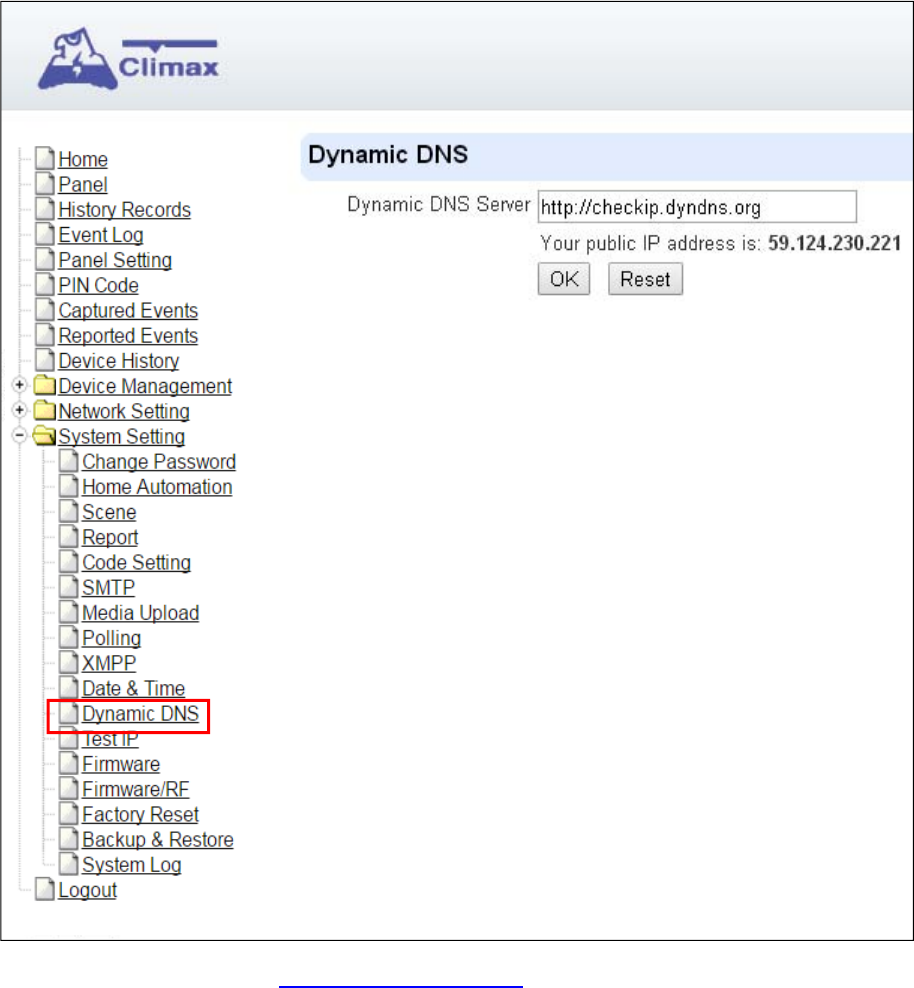

8.11. DYNAMIC DNS __________________________________________________________________ 64

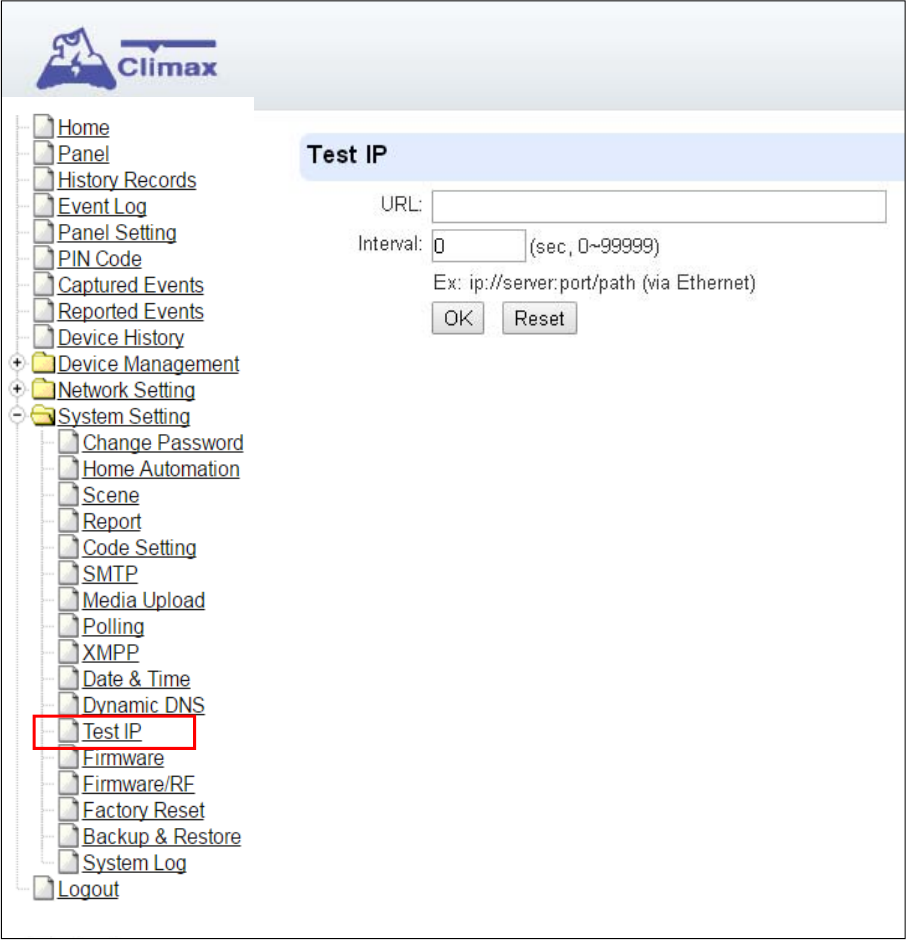

8.12. TEST IP _______________________________________________________________________ 65

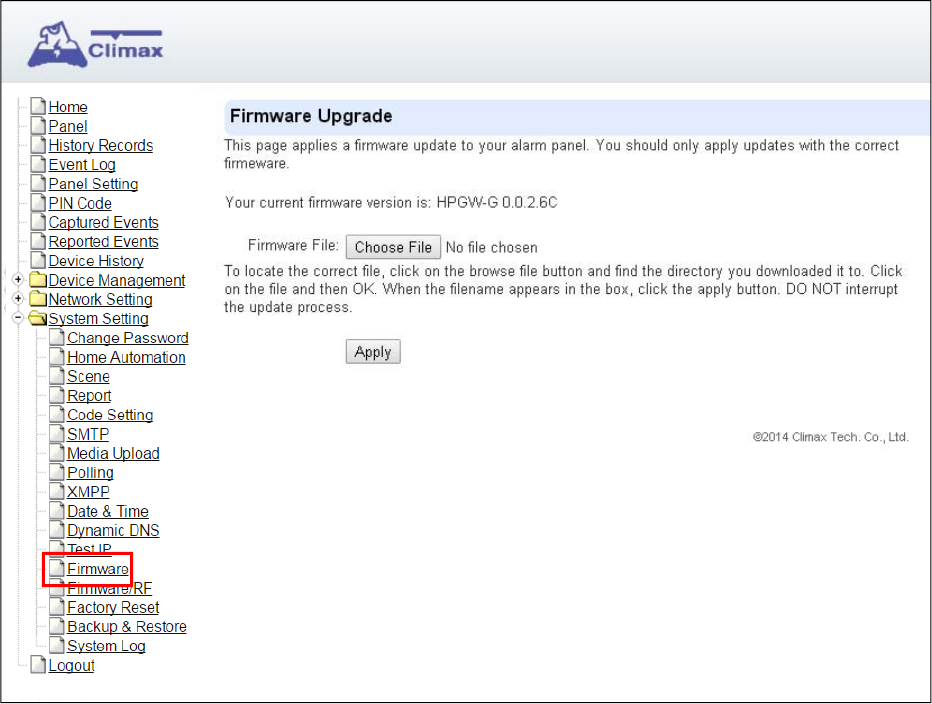

8.13. FIRMWARE UPGRADE _____________________________________________________________ 66

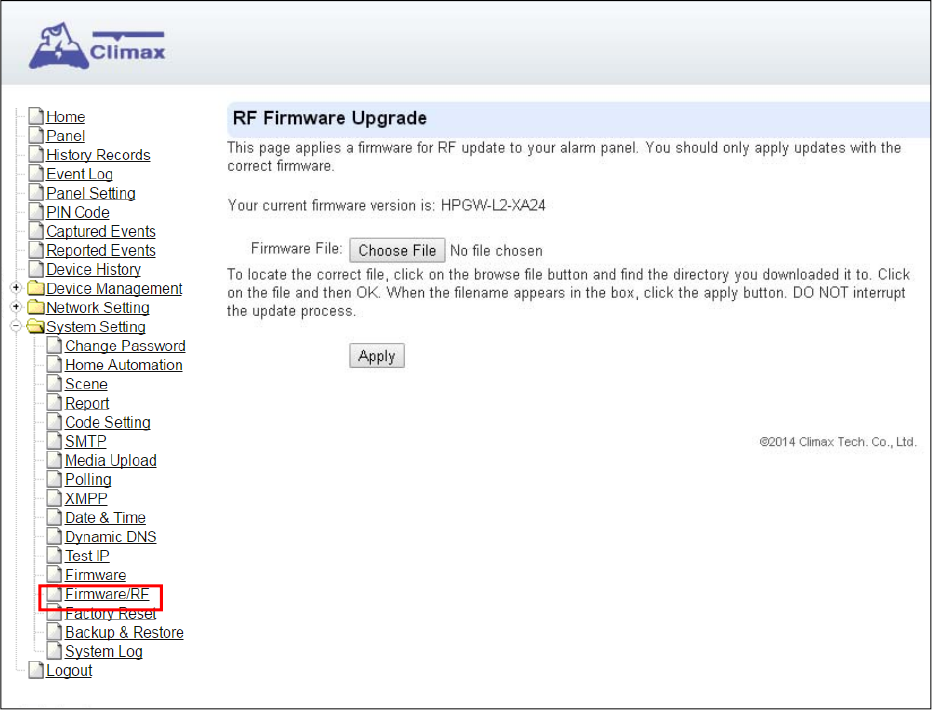

8.14. RF FIRMWARE UPGRADE __________________________________________________________ 67

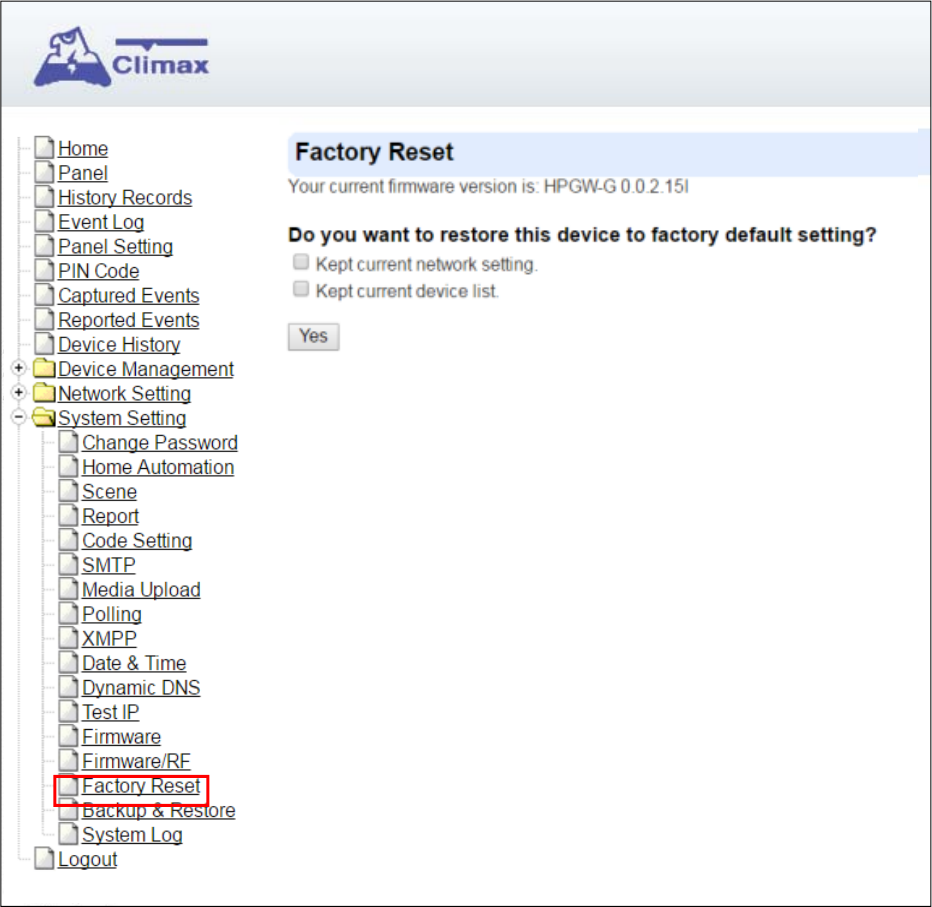

8.15. FACTORY RESET ________________________________________________________________ 68

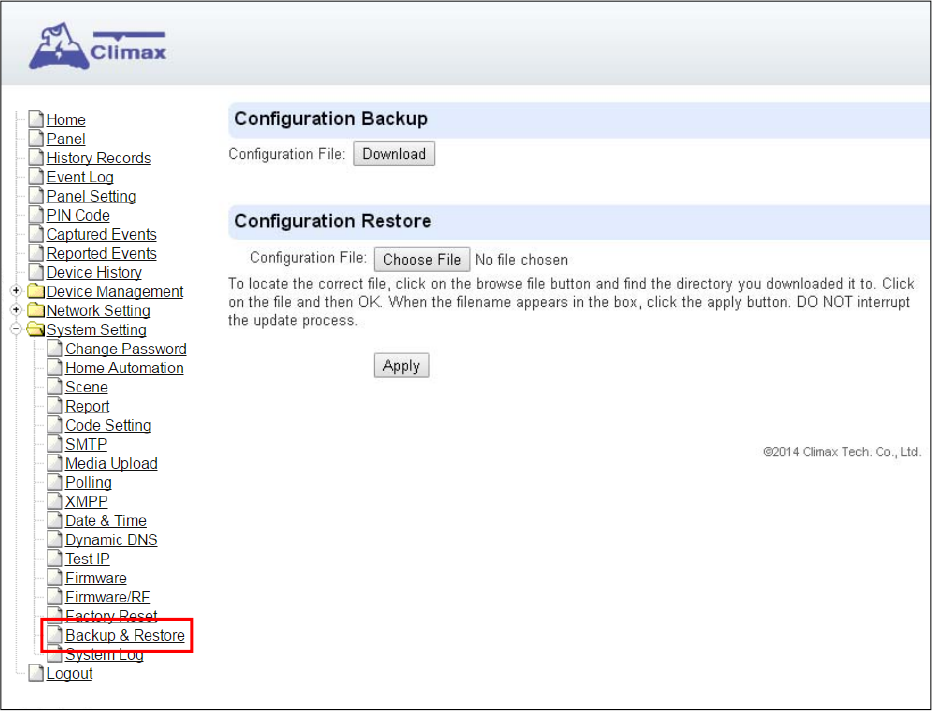

8.16. BACKUP & RESTORE ______________________________________________________________ 70

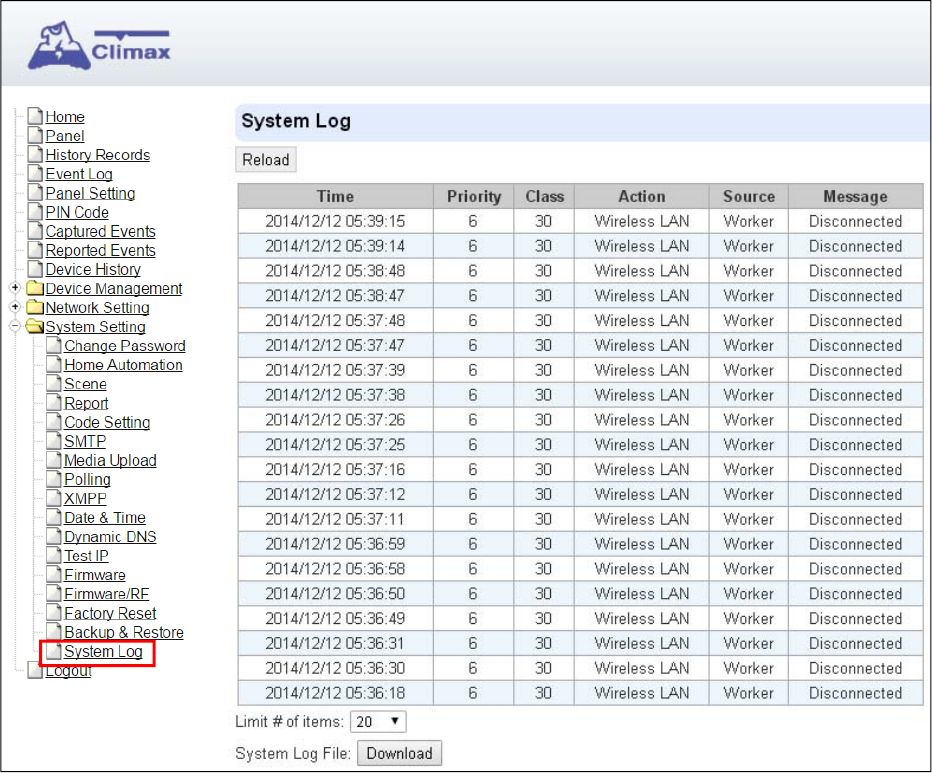

8.17. SYSTEM LOG ___________________________________________________________________ 71

9. EVENT & HISTORY ______________________________________________________________ 72

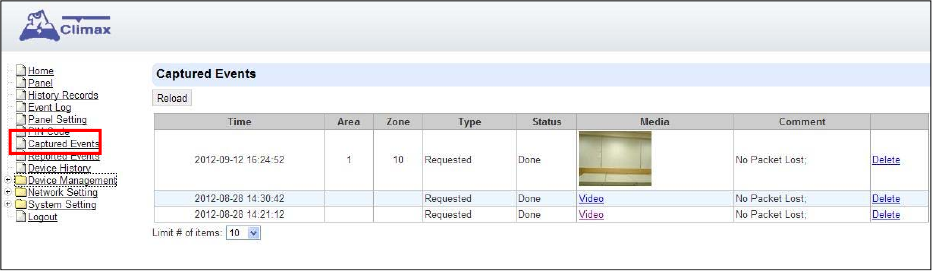

9.1. CAPTURED EVENTS _______________________________________________________________ 72

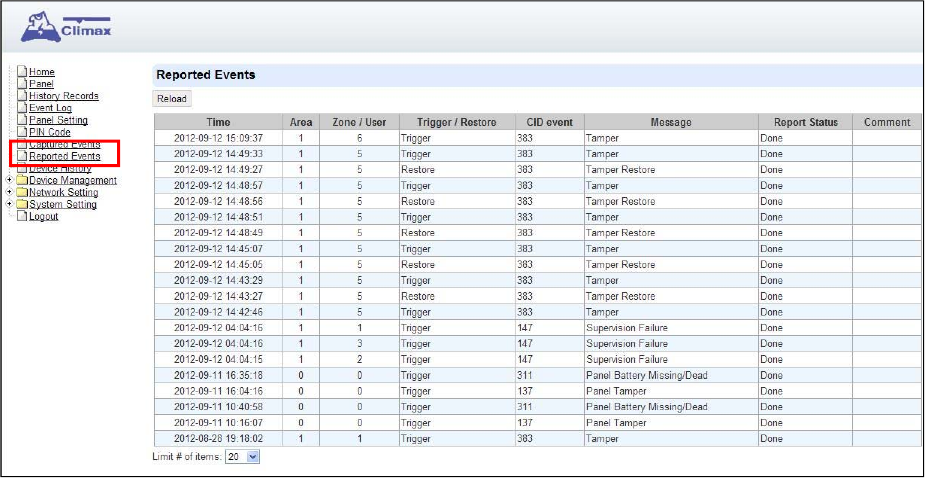

9.2. REPORTED EVENTS _______________________________________________________________ 73

9.3. EVENT LOG _____________________________________________________________________ 74

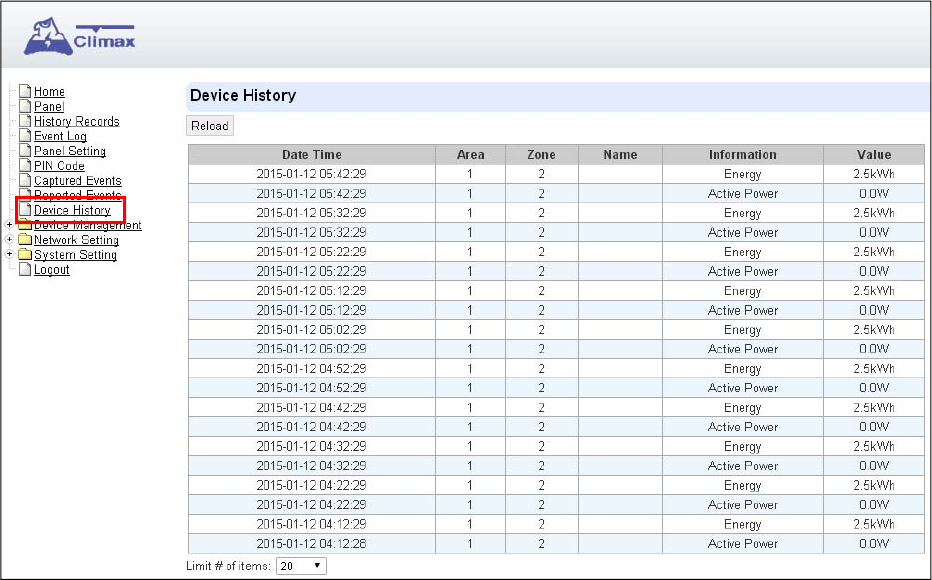

9.4. DEVICE HISTORY _________________________________________________________________ 75

10. APPENDIX _____________________________________________________________________ 76

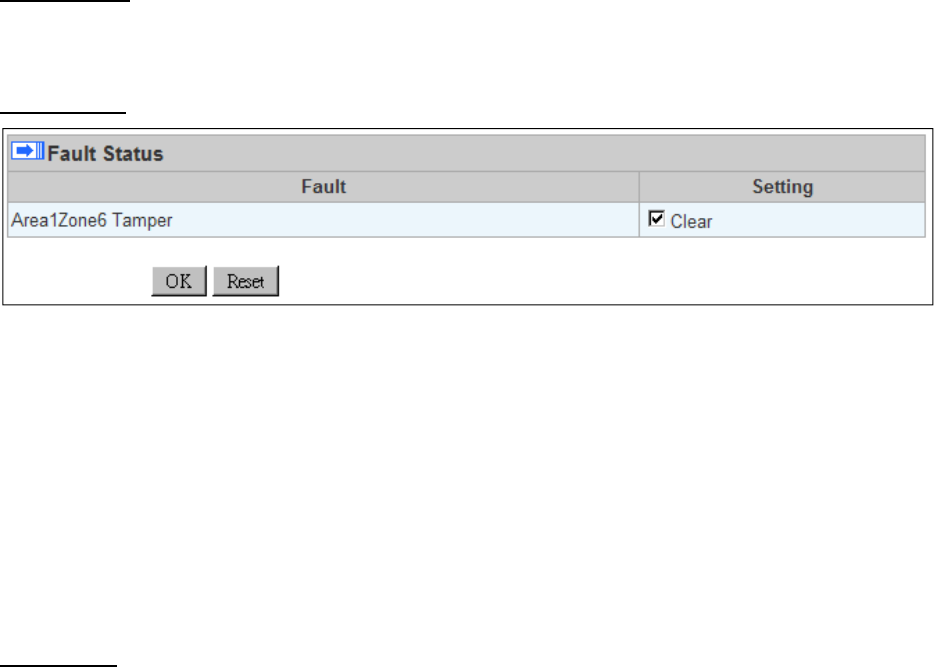

10.1. FAULT EVENT DESCRIPTION ________________________________________________________ 76

10.2. CONTROL PANEL MODE AND RESPONSE TABLE __________________________________________ 77

10.3. CROSS ZONE VERIFICATION ________________________________________________________ 79

10.4. FIRE VERIFICATION _______________________________________________________________ 79

10.5. CONTACT-ID PROTOCOL & FORMAT ___________________________________________________ 80

10.6. EVENT CODE ___________________________________________________________________ 81

1. Introduction

This section covers unpacking your IP Security System with HSGW Series IP Panel and

Security Sensors. Refer to later chapters for information on setting up and configuring the

system over the Web Page in more detail.

The advanced IP Security System with fully integrated TCP/IP technology and Ethernet

connectivity is able to take full advantage of new advances in IP Home Security and Home

Automation and multi-path signalling.

The HSGW Series include the following models:

Name Reporting Path Modules

HSGW-G1-4B/6B-ZW IP Reporting IP Gateway with built-in Z-Wave

module

HSGW-G3-4B/6B-ZW-F1 433/868 IP Reporting IP Gateway with built-in RF and

Z-Wave module

HSGW-G8-6B-ZW-F1 433/868 IP/GPRS Reporting IP Gateway with built-in RF, 3G, and

Z-Wave module

*4B = 4 batteries, 6B = 6 batteries

1.1. System Specification

Function

Zone Number 80 Wireless Zones (Includes up to 6 Remote Keypads and 20 Remote

Controllers)

Z-Wave devices

Zone Types Start Entry Delay, Burglar Follow, Burglar Instant, Burglar Outdoor, 24

Hours, Fire, Medical, Emergency, Emergency (Quiet), Water, Set/Unset,

Silent Panic, CO, Gas, Heat

For information on configuring Zone Groups, please see Appendix A

User PIN Codes 6 Users, 1 PIN Code each user (4-digits, number 0~9 ), available

combination from 0000~9999 (10000 different combinations, no

disallowed PIN Code )

Note: Input of 5 invalid User PIN codes at the remote keypad will lock

the remote keypad for 15 minutes.

Control Facilities Remote Keypad & Remote Controller

Home Portal Server

Report Destinations 20 Monitoring Stations or mobile number

Reporting Format Contact ID, SIA, SMS Text,

Arming Modes Away, Home 1, Home 2, Home 3

Alarm Type Burglar, Panic, Fire, Medical, Emergency, Water, Silent

Siren Timeout Programmable (3 min. by default), For Remote Keypad use only

Supervision Programmable time frame for inactivity alert

Special Function Tamper Protection

Real Time Clock (RTC) The Control Panel keeps and display time and date. This feature is also

used for the log file by providing the date and time of each event.

WCDMA, LTE Standards Compiles with CE & FCC standards.

Electrical

External AC adaptor 100-240V, 50/60Hz input, 9V 1A output (HSGW-X-4B series)

100-240V, 50/60Hz input, 12V 1A output (HSGW-X-6B series)

Power Supply Type PS Type A, not suitable for use external to supervised premises.

Backup Battery Ni-Mh 4.8V 1100mAH rechargeable battery pack (HSGW-X-4B series)

Ni-Mh 7.2V, 1600mAH rechargeable battery pack (HSGW-X-6B series)

APS fault Low Voltage SD

signal threshold

4.85 V ± 3% (HSGW-X-4B series)

7.5 V ± 3% (HSGW-X-6B series)

Battery Duration 6.5 hours for (HSGW-X-4B series)

13 hours or more for (HSGW-X-6B series)

Battery Recharge Time to

80% of 1100mAH/1600mAH 72 hours

Current Drain

AC Powered

Min: 94mA, Max: 103mA. (HSGW-X-4B series)

230mA standby, 639mA at full load. (HSGW-X-6B

series)

Battery Powered

Min: 167mA, Max: 183mA (HSGW-X-4B series)

117mA standby, 799mA at full load. (HSGW-X-6B

series)

Wireless

Frequency 868MHz(RF), Z-Wave

Antenna Type Monopole, On-board PIFA

Encryption Private Encryption Method

Protocol Climax

Physical Properties

Operating Temperature -10°C ~ 40°C

Humidity 85% relative humidity @23˚C

2. Panel Information

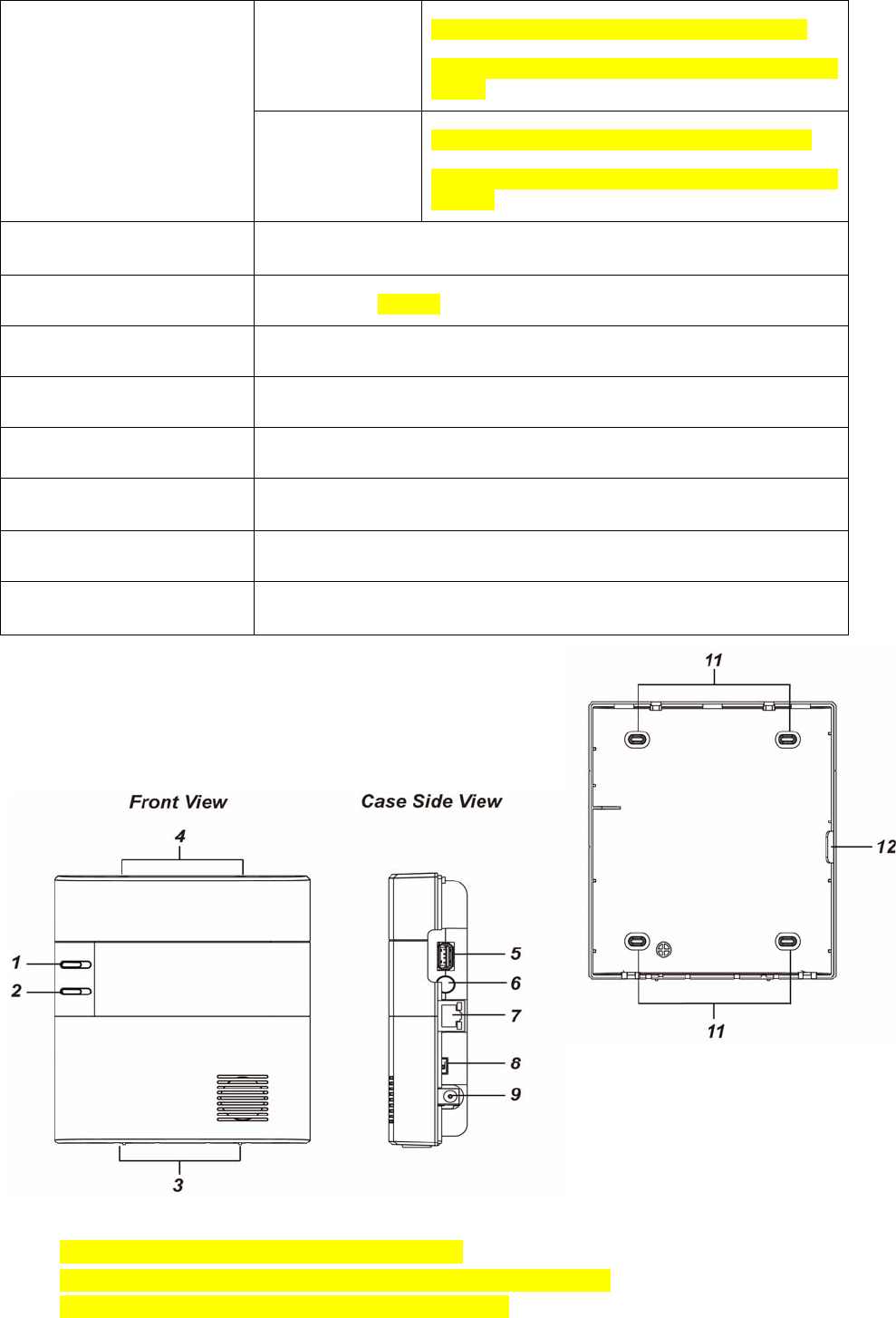

2.1. Identifying the parts:

1. LED 1 (Green/Red)

LED 1 Red On – Area 1 in the Full Arm mode.

LED 1 Red Flash– Area 1 in the Home 1/Home2/Home3 mode

LED 1 Green On – System in the learning mode.

LED 1 Green Flash – System in the Walk Test mode.

2. LED 2 (Red/Yellow)

LED 2 Red On –Alarm in Memory

LED 2 Red Flash– Alarm

LED 2 Yellow On – System Fault

3. Bottom Fixing Screw (x2)

4. Clasp Hook (x2)

5. USB Port

- Z-Wave dongle USB port

6. Reset/Learn Button

7. Ethernet Port

8. Battery Switch

9. DC Jack

- For connecting DC 9V 1A switching power.

10. Tamper Switch

11. Wall Mounting Knockouts (x4)

12. Wiring Hole

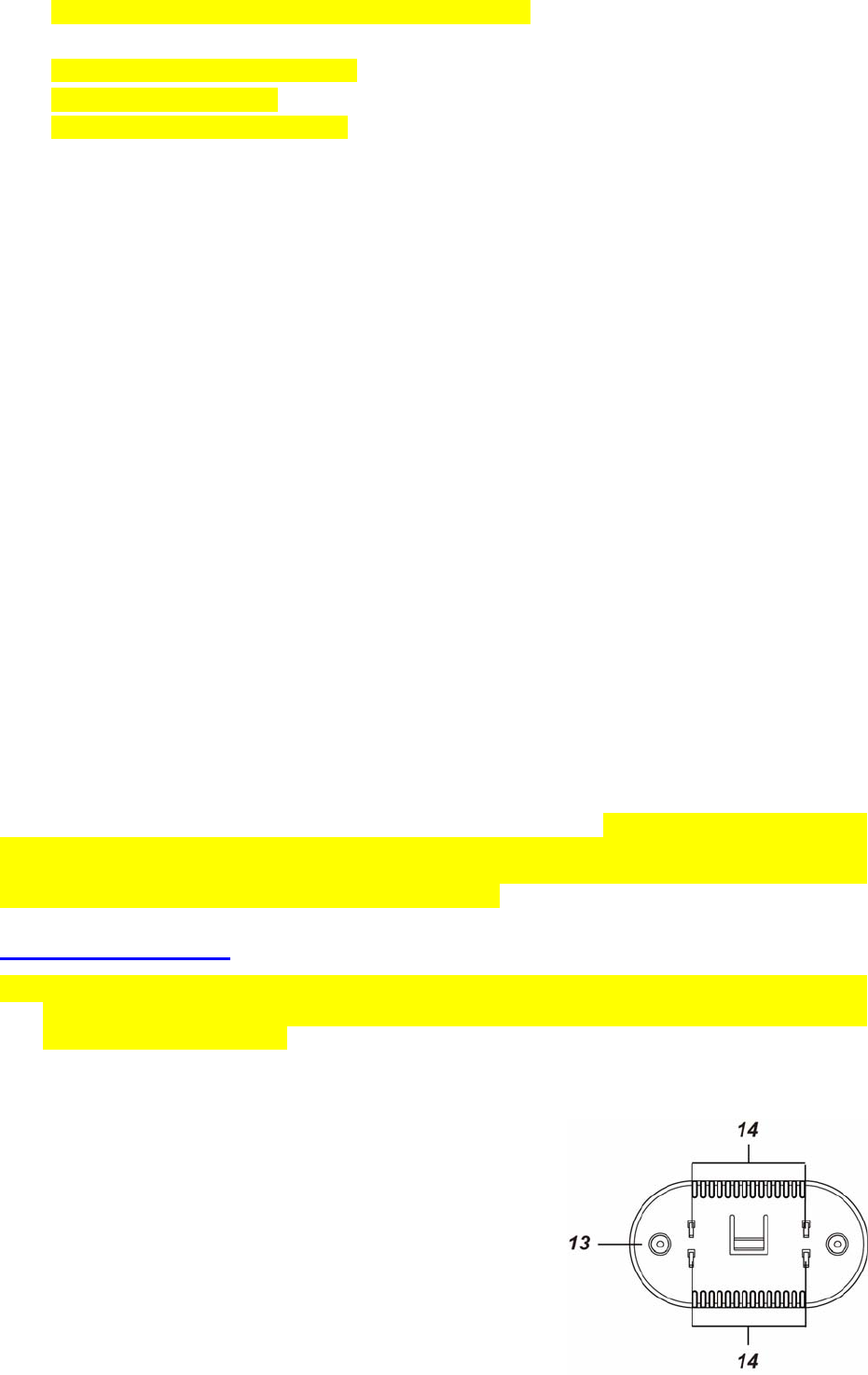

13. Bracket (for Desktop Deployment)

14. Bracket Hooks (for Desktop Deployment)

2.2. The Power Supply:

An AC power adapter is required to connect to a wall outlet. Be sure only to use an adapter with

the appropriate AC voltage rating to prevent component damage. DC 9V 1A switching power

output adaptor is generally used to power the Control Panel with 4.8V, 1100mAh Ni-mH

rechargeable battery pack and DC 12V 1A switching power is used to power the Control Panel

with 7.2V, 1600 mAh, Ni-mH rechargeable battery pack.

Rechargeable Battery

 HSGW-X-4B series includes 4.8V, 1100 mAh, Ni-mH rechargeable battery pack or

HSGW-X-6B series includes 7.2V, 1600 mAh, Ni-mH rechargeable battery pack (required

for 3Gor 3G dongle option)

 In addition to the adapter, there is a rechargeable battery inside the Control Panel, which

serves as a backup in case of a power failure.

 During normal operation, the AC power adapter is used

to supply power to the Control Panel and at the same

time recharge the battery. Slide the Battery Switch to

ON to activate and charge the battery. It takes

approximately 72 hours to fully charge the battery

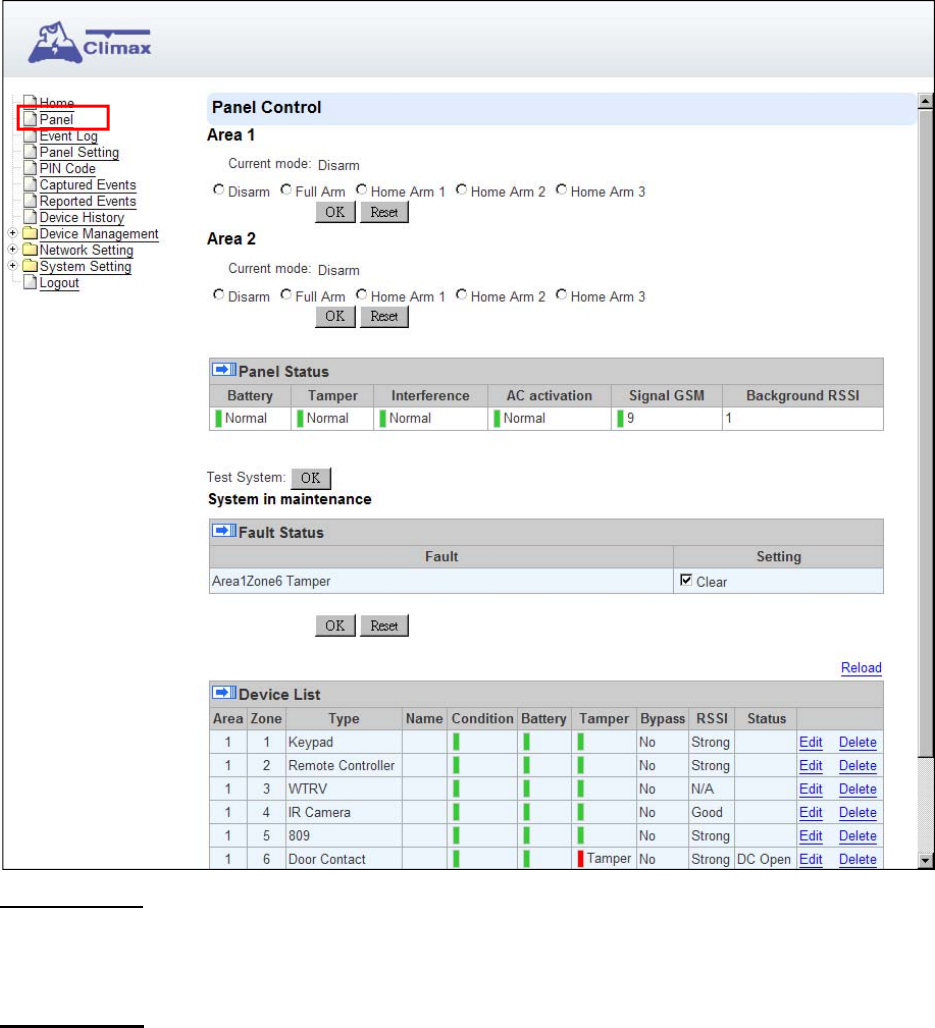

 The battery status information is displayed in the Panel

section of local area webpage.

2.3. System Requirements:

The system requires a TCP/IP network environment for you to connect to the Control Panel for

system programming.

Hardware requirement for programming the panel vial LAN webpage:

 Microsoft Windows 98, ME, NT4.0, 2000, XP, Windows 7 or 8operating system.

 Microsoft Internet Explorer 6.x, or later and Mozilla Firefox 3.0 compatible.

 CD-ROM drive

 CPU: Intel Pentium II 266MHz or above

 Memory: 32MB (64MB recommended)

 VGA resolution: 800x600 or above

3. Getting Started

Read this section of the manual to learn how to set up your Control Panel and program System

Settings over the Web page.

3.1. System Deployment

Follow guidelines below when planning installation location:

 The Control Panel requires Ethernet connection.

 The Control Panel should be installed at a location that is hidden from outside view.

 Avoid mounting the Control Panel near large metal objects which may affect wireless radio

strength.

 The Control Panel should be protected by sensors so that no intruder can reach the Control

Panel without first activating a sensor.

 Home Automation devices (Power Switches…etc) do not have this limit and can be used

with any Router.

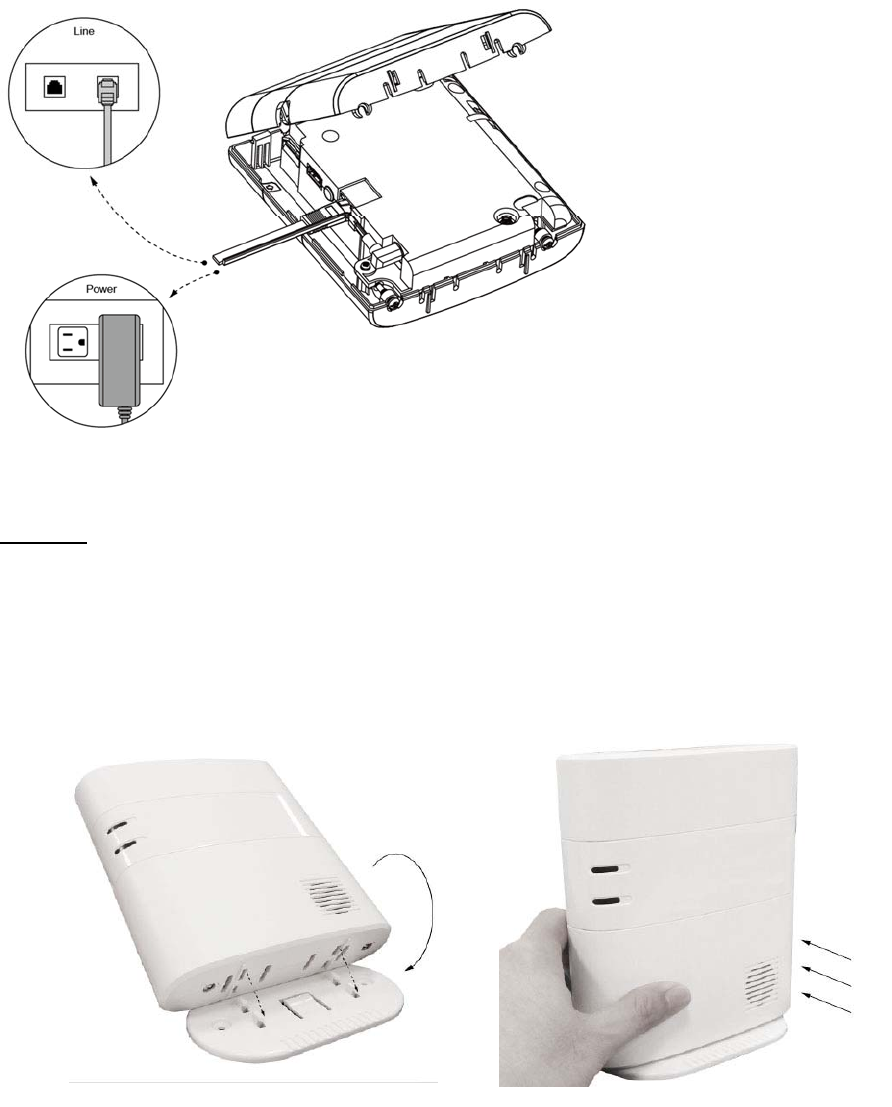

3.2. Installation

The Control Panel can be placed on deskop.

1 The panel casing is secured by two top clasp hooks and two bottom screws and lossen the

2 bottom fixing screws and then two top clasp hooks to open cover.

2 Flip over the panel for configuration:

I. Connect Ethernet cable to panel Ethernet port.

II. Connect the Power Adaptor to a Wall Outlet and the other end to the Control Panel.

After several seconds, the Control Panel will emit 2 beeps to indicate that the system

is now operational.

III. Slide Battery Switch to ON position.

3 The back cover of the panel has one line hole for wiring purpose.

4 Choose to install the panel on desktop.

Desktop:

I. Replace the back cover, wire the cable through the side line hole and tighten the 2

fixing screws on the bottom.

II. Replace the standing base bracket.

III. Put the panel at desired location to finish installation.

3.3. Software Installation

※ THIS INSTALLATION IS ONLY REQUIRED FOR FIRST TIME USER ※

1. RUNNING THE FINDER SOFTWARE

The Finder software is required for your computer to identify the control panel on the LAN. To

install the “Finder” software”

Step 1. Insert the supplied CD-ROM into your CD-ROM drive

Step 2. Find the Finder software in the CD-ROM.

Step 3. Double click on the Finder_v1.x to initiate the installation.

Step 4. Follow on screen instruction to complete installation

Step 5. Once complete, the Finder icon will be displayed on your desktop.

Step 6. Double click on the “Finder.exe” to start the software. Finder will automatically search

for control panel on the LAN and display its information. If available, the panel’s LAN

IP address, Firmware version and MAC address will be displayed

Step 7. If the panel information is not displayed, check panel power and Ethernet connection

and click on “Search” to update the panel information.

Step 8. (Optional)You can choose to edit the panel’s network setting by clicking on the panel

column, then click “Configure Setting”

The LanType is default to DHCP and does not require manual input of

IP/Netmask/Gateawy/DNS setting. If you wish to configure these setting manually,

change LanType to Static.

After finish changing network setting, enter the user name (default: admin) and

password (default: cX+HsA*7F1) then click OK to confirm. The user name and

password can be changed later in panel configuration webpage

Step 9. Click the panel information column and click on “Open Web Page”, or double click on

the panel column to link to the panel configuration webpage. Your default browser will

start automatically to connect to the LAN IP displayed in Finder.

4. Connection to Panel Webpage

For first time setup, webpage connection is only available within 1 hour after the panel is

powered on; if the panel has been powered on for more than 1 hour. Webpage access will

be disabled. Reboot the panel to enable webpage function again.

Change default password after login to gain unrestricted webpage access.

Step 1. Select the Control Panel in the Finder software and click on “Open Webpage” to

connect to panel webpage.

Alternatively, enter the Control Panel IP address displayed in Finder into your

browser’s address section and proceed.

Step 2. Enter the User name & Password to proceed

Default user name: admin

Default password: cX+HsA*7F1

(If wrong user name and password are entered for 5 times, the local webpage login

will be disabled for 5 minutes.)

Step 3. You will enter change password page. Enter and repeat a new password (username

change is optional), take care that both username and password are case sensitive.

Click OK to confirm.

Step 4. Upon confirming new username and password. You will enter panel Welcome page.

The panel will prompt you to re login with new username and password.

Step 5. You will enter panel Welcome page. The Control Panel’s information will be displayed.

Click on the pages and folders on the left to access the Control Panel’s various

functions

The Welcome page displays current control panel firmware version information

according to different panel model and MAC address.

 If the default login password is not changed, webpage access will be disabled 1 hour

after power on. Reboot the panel and changed password to allow unrestricted

webpage access.

5. Device Management

The Device Management section allows you to learn in, edit, control and view all available

accessory devices that can be included in the HSGW Series Control Panel.

5.1. Learning

Use this function to add new devices into the Control Panel. HSGW Series supports up to 160

zones of accessory devices, in 2 areas, up to 80 zones each area.

The following types of accessory devices are supported:

 RF device: All Climax RF devices are supported.

 IP Cameras: The Control Panel is compatible with Climax VST-1818 Series IP Camera. Up

to 6 IP Cameras are supported.

 Z-Wave Device: Available for Z-Wave modules only, other modules requires additional

USB Z-Wave Dongle.

5.1.1. Add Sensor

Step 1. Click on “Learning” to enter learn page.

Step 2. Click on “Start” to enter learning mode.

Step 3. Press the test or learn button on the each device or any button on the Remote

Controller. (Please refer to each sensor’s user manual for test or learn button position).

<NOTE>

 For IP Camera VST-1818 Series, press and hold the Privacy button for 10 seconds.

Step 4. When the system received the signal transmitted from device, the screen will display its

information for selection.

<NOTE>

 It takes 5-10 seconds for the Control Panel to receive a learn code from Z-Wave

Sensor.

Step 5. Click “Add” to include selected device into panel. If the sensor you wish to learn into

already exists in the system, the sensor information will be displayed in the Learned

Device section. If not, the sensor information will be displayed in the Detected Device

section.

Step 6. If the device is successfully learnt into the system, the added device will be displayed in

the “Learned Device” section.

Step 7. Repeat Step 3~5 to learn in all device, click Stop to exit learn mode when complete.

The system will automatically exit Learn mode if left idle for 5 minutes.

5.1.2. Local Learning

Instead of learning devices via configuration webpage, you can also learn in devices by using

the learn button located on the back of Control Panel.

Step 1. Press and hold the Learn Button on the back of Control Panel for 10 seconds, release

when the Control Panel emits one short beep. LED 1 Green will turn ON to indicate the

Control Panel is now in learning mode

Step 2. Press the test or learn button on each device to transmit signal, refer to device manual

for detail.

Step 3. When the Control Panel receives signal from device, it will emit 2 beeps to confirm. The

device will be included in the panel automatically.

Step 4. After finish learning all devices, press and holde the Learn button for 1 second. The

Control Panel will emit 2 short beeps to indicate it has returned to normal mode. LED1

will dim.

<NOTE>

 Device learnt in via Local Learning will be assigned to Area 1 only, which is limited to 80

devices.

 The Control Panel cannot enter learning mode when under Away Arm/Home Arm or

Walk Test mode. The Control Panel will emit 5 beeps to indicate error.

5.1.3. Edit Devices

After finish learning devices, proceed to edit the device setting.

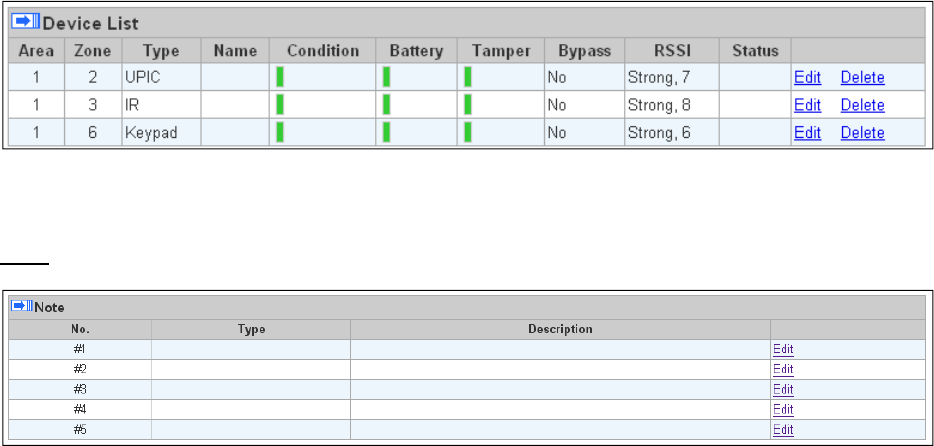

Step 1. Click Panel to enter Panel webpage. All learnt in devices will be displayed under

Device List section.

Step 1. To edit the device setting or information, click “Edit” at end of device entry.

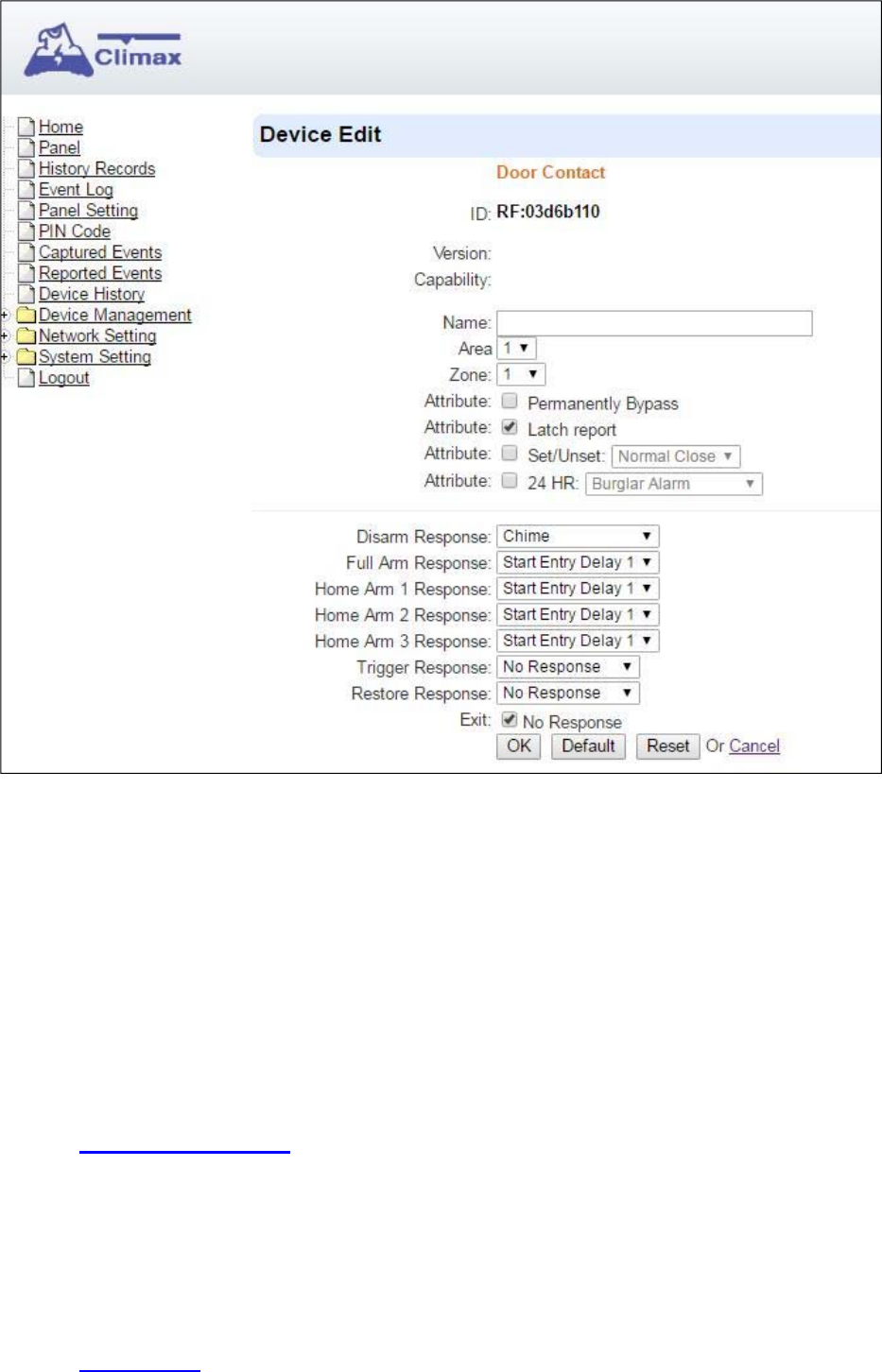

Step 2. You will enter Device Edit webpage

Step 3. Edit your device setting and information according to instruction below. Click “OK” to

save your new changes when finished. Alternatively, click “Default” to reset all

parameters to default values or click “Reset” to re-enter all the information.

 Name: Enter a name for the device.

 Area: Select the area which the device belongs to.

 Zone: Select the Device zone number.

 Attribute List:

The attribute list determines panel behaviour when the panel receives trigger signal from

the device. There are

General Attribute:

 Permanentlyt Bypass

This function allows user to permanently deactivate (bypass) the selected device.

 If bypassed, then the Control Panel will not respond at all when the sensor is

triggered.

 If bypassed, the system can be armed directly regardless the device’s fault

situation. However, its fault situation will still be monitored, logged and displayed

in the webpage.

 Latch report

This function ONLY applies to Remote Control or Door Contact with Set/Unset attribute

enabled.

 Latch Report ON: When the device is used to change systm arm mode, the

Control Panel will report the arm/disarm action by the particular device.

 Latch Report OFF: When the device is used to change systm arm mode, the

Control Panel will not report the arm/disarm action by the particular device.

 Set/Unset

This function is for Door Contact only. This function allows Door Contact to control

system mode.

 Normal Close: The system will be armed when the Door Contact is opened, and

disarmed when Door Contact is closed.

 Normal Open: The system will be armed when the Door Contact is closed, and

disarmed when Door Contact is open.

 24HR

This function enables the device to activated selected alarm event whenever it is

triggered regardless of system mode. System mode response will be disabled if 24HR

attribute is enabled.

System Mode Attributes:

The System Mode Attributes determines system behavior under particular arming mode

when the sensor is triggered.

 No Response

 When a sensor with No Response is triggered, the Control Panel will not

respond.

 Start Entry Delay 1/ Start Entry Delay 2

 When the system is under Full Arm or Home Arm mode, if a sensor with Start

Entry Delay 1/2 attribute is triggered, Control Panel will start an entry countdown

period to give enough time to disarm the system.

 When the Control Panel is in the Disarm mode, if a sensor with Start Entry Delay

1/2 attribute is triggered, the Control Panel will immediately report a burglar

interior alarm (CID code: 132).

 When the Control Panel is in the Full Arm mode, if a sensor with Start Entry

Delay 1/2 attribute is triggered, the Entry Delay 1/2 timer starts counting down.

If no correct pin code is entered during the entry delay timer to disarm the system,

the Control Panel will report a burglar perimeter alarm (CID code:131)

immediately after entry delay timer 1/2 expires.

 When the Control Panel is in the Home Arm 1/2/3 mode, if a sensor with Start

Entry Delay 1/2 attribute is triggered, the Entry Delay 1/2 timer starts counting

down. If no correct pin code is entered during the entry delay period to disam

the system, the Control Panel will report a burglar interior alarm (CID code: 132)

immediately after entry delay timer 1/2 expires.

 Chime

 When the system is in Arm/ Home Arm 1/ Home Arm 2/ Home Arm 3 mode, if a

sensor set to Chime is triggered, the Control Panel will sound a Door Chime

(Ding-Dong Sound).

 Burglar Follow

 When the system is in Full Arm or Home Arm mode mode, if a sensor set to

Burglar Follow is triggered, the Control Panel will report a burglar alarm

immediately.

 When a Start Entry sensor is triggered and the system is under Entry Delay Timer

countdown, if a sensor set to Burglar Follow is triggered, the Control Panel will

wait until the Entry Delay Timer expires before activating a burglar alarm. If the

system is disarmed before the timer expires, the Control Panel will not activate

alarm.

 Burglar Instant

 When the system is under Full arm or Home Arm/ Disarm / Entry Time mode, if a

sensor set to Burglar Instant is triggered, the Control Panel will report a burglar

alarm immediately.

 Burglar Outdoor

 When the system is in Full Arm or Home Arm / Disarm / / Entry Time mode, if a

sensor set to Burglar Outdoor is triggered, the Control Panel will report a burglar

outdoor event immediately.

 Cross Zone

 See 12.2 Appendix – Cross Zone Verification for detail.

 Apply Scene

 This function is only avaiable for Remote Keypad and Remote Control.

 Select a Home Automation Scene number for a Remote Keypad or Remote

Control button. When the button is pressed, the Control Panel will execute the

actions programming in the Scene accordingly. For more information, please

refer to 8.3. Scene.

Home Automation Attributes:

The Home Automation Attributes allows a device to control Home Automation function.

 Trigger Response

 When the device is triggered, the Control Panel will activated selected Home

Automation Scene number. Please refer to 8.3. Scene webpage for detail.

 Restore Response

 When the device transmits restore signal after trigger, the Control Panel will

activate selected Home Automation Scene number.

Other Attributes:

 Permanent Bypass

 When checked, the panel will completely ignore all signal received from this

device. A bypassed device will be unable to trigger any response, including alarm

or fault from the Control Panel. All other attribute settings will be also be ignored.

 Exit (No Response)

 If checked, the panel will ignore trigger signal from this sensor during Exit Time

countdown. If deselected, the panel will activated burglar alarm and report

immediately when the sensor triggered during Exit Delay Timer.

 24HR



A sensor set to 24HR attribute will ignore Disarm, Full Arm, Home are and Exit

response setting. The panel will activate selected alarm when this sensor is

triggered regardless of system mode under any time.

<NOTE>

 Some devices have their own unique functions and will have its own attribute setting

which is not listed in this section. Please refer to the device manual for its setting detail.

5.1.4. Delete Devices

Step 1. To delete a sensor, click “Delete” under “Device List”

Step 2. A message “Delete success” is displayed and the sensor you choose is deleted

successfully.

5.2. Add RF Device

Besides learning, you can also add RF devices into the system by entering its RF code into the

system with Add RF Device function.

Step 1. Click Add RF Device.

Step 2. Select Area and Zone number for the device you wish to add into system.

Step 3. Enter the device RF code, and preferred device name (up to 31 characters)

Step 4. Press “OK” to save

Step 5. If the RF code you entered is valid, the device will be added into the system according

to the Area and Zone number. You do not need to learn the device as instructed in

5.1.1. Add Sensor.

5.3. Learn Rule

You can enter the sensor RF code manually to assign area and zone number to this sensor.

Sensors learned with pre-assigned rule will be put under the area and zone number you

specified. This function does not work with Z-Wave devices and DECT device.

Step 1. Click Learn Rule.

Step 2. You will see the Add Learn Rule menu.

Step 3. Select Area and Zone number for this device.

Step 4. Select RF.

Step 5. Key in the RF code

Step 6. Enter a preferred name for sensor (up to 31 letters or numbers).

Step 7. Press “OK” to save.

Step 8. If the process is successful, the screen will display “Updated Successfully.” You can

then check, edit or delete the rule under the Learn Rule menu.

Step 9 Repeat the steps to add more rules.

Step 10. Learn in the sensors you have entered rules for according to 5.1.1 Add Sensor.

<NOTE>

 Learn rule function is only used to pre-assign area and zone number to sensors before

learning. To add senor to control panel, you still need to follow the instruction in 5.1.1

Add Sensor to complete the learning process.

 Backup Device List to Learn Rule

Step 1. Click “Backup Device List to Learn Rule”.

Step 2. Click OK to confirm.

Step 3. Z-wave device and IP Camera will not be included.

5.4. Walk Test

This is to test the sensor operation range for installation purpose.

Step 1. Click “Start” to enter Walk Test mode.

Step 2. Press the test button on the sensor(s) or any button on the Remote Controller or

triggering the sensor.

Step 3. When the Control Panel receives a signal, it will show as below and a 2-tone beep will

be heard to indicate that it is safe to install the particular sensor in the location.

 Time: time informaiton

 Area: operation area

 Zone: device zone

 Type: device type

 Name: device name

 Rssi: the RF signal strength between Control Panel and sensor. The Rssi value here

must be higher than the Rssi value of Panel’s background noise (please refer to 6.1

Panel Condition section for details). If not, you may still learn in the sensor; however,

please relocate the sensor and use Walk test to find a more suitable location.

 DeviceID: device’s unique identification code.

Step 4. Once all sensors are tested, click on “Stop” to exit Walk Test mode. The system will

automatically exit Walk Test mode if left idle for 5 minutes.

5.5. Exclusion

This feature is only available for Z-Wave modules only, or when a Z-wave dongle is inserted into

the Control Panel. This feature is for you to remove Z-Wave device only.

Step 1. Click on “Exclusion” and click on “Start” to start the procedure. Then the Panel will

enter the removing mode.

Step 2. Refer to the Z-Wave device manual to transmit signal.

Step 3. Select the desired Z-Wave and click delete to remove it from the Z-wave list under

Device List section (Panel). Then the Control Panel will remove the Z-Wave device.

5.6. Z-Wave Tool

The Z-wave Tool is used to reset Z-wave module to factory default and remove all Z-wave

devices, or change routing setting.

Step 1. Click ”Z-Wave Factory Reset”, the Z-Wave module is reset to factory default and all

Z-Wave devices will be removed automatically. The Control Panel Home ID will also be

changed automatically for a newly added Z-Wave device to recognize.

Step 2. The list of Z-Wave devices is still displayed in the Panel webpage. Please go to panel

webpage and remove all Z-wave devices.

 Change Z-Wave Routing Setting

Use the other functions to configure your Z-Wave routing settings.

5.7. PSS Control

This feature is designed to control/edit/delete Power Switches included in the panel.

 Click Edit to edit attributes of power switches.

 Click Delete to remove power switch from panel.

 Click Switch On/Switch Off to turn on/off power switches. Or click Switch Toggle to

toggle between on/off status. For Power Switch Dimmer, you can also set its power output

level with the slide down menu.

5.8. UPIC Control

UPIC Control webpage allows you to control UPIC IR Transmitter included in Control Panel

 Transmit IR Signal

Depending on the UPIC model number, select the function to be performed in the drop down

menu, then click “Setup UPIC” for the UPIC to transmit IR Signal.

 UPIC5 LED Setup (UPIC5 only)

UPIC5 has 6 IR LEDs, a central one and 5 surrounding ones. The central LED will always

transmit IR signal when activated; besides the central LED, one of the 5 surrounding LEDs can

be selected to activate upon IR signal transmission to increase the IR signal coverage.

Step 1: Refer to the diagram on the webpage and UPIC5 manual to determine which LED

should be used for signal transmission to each particular home appliance.

Step 2: Select the LED number from the drop down menu for each appliance type, then click

“Setup LED” to confirm. Please refer to UPIC5 manual for more information.

 If “Air Conditioner” is set to LED 1, UPIC5 will transmit all Air Condition functions with

both Central LED and LED1.

 If “TV” is set to LED 5, UPIC5 will transmit all Air Condition functions with both Central

LED and LED5.

5.9. Surveillance

The PIR Camera/Video Cameras and IP Cameras are listed under Surveillance for separate

control.

 Click Edit to edit camera attributes.

 Click Delete to remove device from panel.

 Click Request Media to capture a picture or vide

 PIR camera: A picture will be captured upon request

 PIR Video Camera: A 10-second video will be recorded upon request

 IP Camera: The IP Camera will record a video according to its video length setting

(Please refer to IP Camera manual for detail.)

 For PIR Camera/Video Camera, you can choose to take the picture/video without

activating the camera’s flash.

Picture and video captured by PIR Camera and PIR Video Camera will be stored under the

Captured Event webpage. Video Recorded by IP Camera will be stored in the IP Camera,

please refer to IP Camera manual to view the video

 For IP Camera, click “View” or “Setting” to access IP Camera webpage for video streaming

or setting configuration. A new webpage will open and you will be required to enter the

username and password for the IP Camera to access streaming or setting.

5.10. Group Control

This feature is designed for you to edit a name of group, switch on or off a group of Power

Switches. You can also assign Power Switches to groups you desire.

5.10.1. Group Control/Edit

Step 1. Specify a new name for a group.

Step 2. Click Switch On or Switch Off to turn on or off one group of power switches.

5.10.2 Device Edit/Delete

Step 1. Check on the groups you wish to assign the Power Switch. This is a multiple-choice field

and you can assign one Power Switch to multiple groups. Whenever one of the

assigned groups receives request to turn on/off, all Power Switches belonging to the

group will be activated accordingly.

Step 2. Click Edit to edit attributes of an added power switch or power switch meter or Delete to

delete this device.

5.11. Sound/Siren Setting

The Sound/Siren Setting page includes setting Siren configuration function.

5.11.1. Device Edit/Delete

Click Edit to edit the Siren’s attribute, volume and voice settings, or Delete to delete the Siren.

After clicking Edit, you will be directed to the Device Edit page:

<NOTE>

 The Device Edit page is only available for the newest BX/Siren series and BX series

without DIP Switch.

Edit your Siren setting and information accordingly to instruction below. Click “OK” to save your

new changes when finished. Alternatively, click “Default” to reset all parameters to default

values or click “Reset” to re-enter all the information.

 Name: Enter a name for the Siren.

 Area: Select the area which the Siren belongs to.

 Zone: Select the Siren zone number.

 Attribute:

 Permanently Bypass: If checked, the Control Panel will completely ignore all signal

received from the Siren. A bypassed Siren will not be able to trigger any response,

including alarm or fault from the Control Panel. All other attribute settings will also be

ignored.

 Whole Area: if checked, all the Volume, Voice and Behavior functions will be

simultaneously enabled in Area 1 and Area 2.

 Volume:

 Alarm Sound: set the volume of the alarm sound of the Siren when alarming.

 Full arm confirm beep: set the volume of the confirm beep sound of the Siren when

Control Panel is put into Full Arm Mode.

 Home arm confirm beep: set the volume of the confirm beep sound of the Siren when

Control Panel is put into Home Arm Mode.

 Disarm confirm beep: set the volume of the confirm beep sound of the Siren when

Control Panel is put into Disarm Mode.

 Exit beeps of full arm: set exit countdown beep volume under Full Arm Mode.

 Exit beeps of home arm: set exit countdown beep volume under Home Arm Mode.

 Entry beeps of full arm: set entry countdown beep volume under Full Arm Mode.

 Entry beeps of home arm: set entry countdown beep volume under Home Arm Mode.

 Door Chime: set the volume of the Door Chime sound (Ding-Dong Sound).

 Voice:

(The following functions are only available for SRV devices):

 Doorbell: set the volume of the ring tone when pressing the button on the Video Door

Phone (VDP).

 Fault beep: set the volume of the voice played when system is force armed under fault

conditions.

 Pre-alarm (outdoor IR warning beeps): set the volume of the voice played when an

outdoor burglar sensor(Door Contact, IR) is triggered.

 Behavior

(The following functions are only available for RF modules):

 Burglar trigger in home arm: Enable or Disable whether Siren is activated when an

alarm is triggered under Home Arm.

 Burglar trigger in full arm: Enable or Disable whether Siren is activated when an alarm is

triggered under Full Arm.

 Strobe activation: Enable or Disable Siren LED strobe activation.

 Confirm flash: Enable or Disable Siren LED flash when system Armed/Disarmed.

 Exit flash: Enable or Disable Siren LED flash during an exit countdown period.

 Entry flash: Enable or Disable Siren LED flash during an entry countdown period.

 Trigger flash: Enable or Disable the flashing from the Siren LED when alarming.

 Alarm-in-memory sound: Enable or Disable Alarm in Memory sound.

 Fault sound: Enable or Disable system fault sounds.

5.11.2. RF Siren Setup

 Tamper On/Off

You can enable/disable all RF Sirens tamper protection with this function. Select to

turn on or off the sirens tamper function.

<NOTE>

 When turned off, if siren tamper will be enabled again automatically after one hour if not

turn on manually during the one hour period.

6. Program the System

After the initial set-up, you can then program your system by clicking on the left menu to set

them individually.

6.1. Panel Condition

In the Panel Section, user can arm, disarm or partially arm the system. Besides, it displays the

current Panel Status & Device Information.

Panel Control

Select a choice to arm, disarm or partially arm the system.

Panel Status

The Control Panel will update the panel status periodically. However, in order to show the

current status, you must reload the screen to refresh the display.

 Battery: When battery is running low, a “low battery” message will be displayed to

inform you to recharge the battery.

 Tamper: (reserved)

 Interference: This is for you to check whether the Control Panel is purposely interfered.

Whenever the signal jamming period lasts longer than 30 seconds, a “Jamming”

message will be shown and reported to the Central Monitoring Station accordingly.

 AC activation: To check whether AC power is connected. If not, it will show “AC

Failure”.

 Background RSSI: Rssi value is for you to check the RF environment around the

Control Panel. It ranges from 0 to 9, where 0 refers to the weakest and 9 refers to the

strongest background noise. Therefore, the lower the Rssi value, the better the

environment.

Test System

The function is designed to send a command to sever over the polling or XMPP protocol.

Fault Status

The fault events that exist in the alarm system is displayed under this section. When fault event

exists in system, the control panel Fault LED will light up to indicate fault status under Disarm or

Home Arm mode (The Fault LED will not light up under Arm mode).

When fault event exists, and you attempt to arm the system, the arming action will be prohibited

and the panel will display fault information on the webpage. If you still want to arm the system,

perform the arming action again to force arm.

You can check the “Clear” box in the setting column then click “OK” to ignore the fault event.

Cleared fault event will not cause the Fault LED to light up, nor prohibit arming.

Device List

1. The Control Panel will update the device information periodically. However, in order to show

the current status, you must reload the screen to refresh the display.

 Area: operation area

 Zone: device zone

 Type: device type

 Name: device title

 Status: device’s current status, such as tamper status, battery status, out of order

condition or DC open. If PSM is added into the system, the data of PSM, such as

On/Off status, voltage, electric current and watt, will be displayed.

2. Under Device, you could further edit or delete an added device (please refer to 5.1.3 and

5.1.4 for details). Beside, you can reset Panel settings or clear the system faults by pressing

Reset Panel.

- After pressing Reset Panel, the Control Panel will restart in 60 seconds and all configured

values will be kept without any change.

Note

The function is designed for installer to make a note for each control panel. The note you make

here can be delivered to a server over XMPP or polling protocol.

6.2. Panel Settings

Program the Panel, Time and Sound Settings at your discretion.

Panel Setting

 AC Fail Report: Set the waiting time before Control Panel report to Central Monitoring

Station when AC failure is detected.

 AC Fail Suspend: After AC failure is detected, the panel will enter sleeping mode and

wake up at regular interval. Use this option to set the wake up period duration.

 Jamming Report: this function is reserved.

 Auto Check-in: this is to select whether the Control Panel needs to send check-in

reporting to the Central Station automatically and to select the period of time between

check-in reports. Options available are Disable, 1 hour, 2 hours, 3 hours… up to 4

Weeks.

 Auto Check-in Offset Period: This is to set the time delay before the first Auto

Check-In report is made. After power is supplied or re-supplied to the Control Panel, a

test report will be sent to the Central Monitoring Station (CMS) based on the Offset

Period. This is used to test whether the CMS is able to receive the report from the

Panel accurately.

After this test report is sent, the Control Panel will then send reports at regular interval

based on the setting of the Auto Check-in Report.

For example, if Offset Period is set to 2 Hours, and Auto Check-in Report is set to 12

hours, the Control Panel will transmit an event code 602 to the CMS after 2 hours, and

then report 602 event code periodically at a regular intervals of 12 hours.

 IR Camera Resolution of Alarm Images: This is to select the resolution and number

of pictures taken by PIR Camera when the camera detects a movement in armed

mode.

Options available are 320x240x3 images (Default), 320x240x6 images and

640x320x3 images.

 Outdoor IR Camera in Greysclae: This is to select whether pictures from Outdoor PIR

Camera should be taken in greyscale instead of color pictures.

Options available are: Disable(Color Picture) and Enable (Greyscale picture)

Area Setting

 Area: Select operation area to apply setting.

 Final Door: If set to On: When the system is Away Armed and under exit timer

countdown, if a opened Door Contact set to Entry attribute is closed, the system will

automatically arm the system even if the exit delay timer has not expired yet.

 Arm Fault Type: Select how the system should respond when it is being armed under

fault condition.

 Confirm: The panel will first display a “Mode Change Fault” message and emit 2

beeps. Arming again within 10 seconds will force arm the system.

 Direct Confirm: The system will be force armed directly without displaying fault

message and report an event.

 Tamper Alarm: Select whether the siren should sound alarm when the tamper is

triggered.

 Full Arm: when tamper is triggered under Full arm mode, Control Panel raises a

local alarm and sends report to the monitoring center. While under Home Arm or

Disarm modes no alarm will be activated, nor report sent.

 Always: Control Panel raises a local alarm and send report for tamper-trigger in all

modes.

 Supervision Check: Select to enable or disable system supervision function. When

ON is selected, the Control Panel will monitor the accessory devices according to the

supervision signal received.

Time Setting

 Supervision Timer: The Control Panel monitors accessory devices according to the

supervision signal transmitted regularly from the device. User this option to set a time

period for receiving supervision signals. If the Control Panel fails to receive supervision

signal from a device within this duration, it will consider the device out of order and

report the event accordingly.

 Entry Delay 1 for Full Arm: Set Entry Delay Timer 1 for full arm mode. When a sensor

set to Start Entry Delay 1 is triggered under Full Arm mode, the control panel will begin

Entry Delay Timer countdown according to duration set with this option

If the Control Panel is disarmed before the Entry Delay Timer expires, the panel returns

to Disarm mode and no alarm is activated. If the Control Panel is not disarmed before

the Entry Delay Timer expires, the alarm will be activated and the panel will send

report.

 Entry Delay 2 for Full Arm: Set Entry Delay Timer 2 for full arm mode. When a sensor

set to Start Entry Delay 2 is triggered under Full Arm mode, the control panel will begin

Entry Delay Timer countdown according to duration set with this option

If the Control Panel is disarmed before the Entry Delay Timer expires, the panel returns

to Disarm mode and no alarm is activated. If the Control Panel is not disarmed before

the Entry Delay Timer expires, the alarm will be activated and the panel will send

report.

 Exit Delay for Full Arm: Set the Exit Delay Timer when entering Full Arm mode. When

the user changes system mode to Full Arm, the panel will begin Exit Delay Timer

Countdown and enter Full Arm mode when the timer expires. The user must leave area

protected by sensors before the timer expires, otherwise an alarm will be activated with

the sensor is triggered.

 Entry Delay 1 for Home Arm: Set Entry Delay Timer 1 for Home Arm mode. When a

sensor set to Start Entry Delay 1 is triggered under Home Arm mode, the control panel

will begin Entry Delay Timer countdown according to duration set with this option

If the Control Panel is disarmed before the Entry Delay Timer expires, the panel returns

to Disarm mode and no alarm is activated. If the Control Panel is not disarmed before

the Entry Delay Timer expires, the alarm will be activated and the panel will send

report.

 Entry Delay 2 for Home Arm: Set Entry Delay Timer 2 for Home Arm mode. When a

sensor set to Start Entry Delay 2 is triggered under Home Arm mode, the control panel

will begin Entry Delay Timer countdown according to duration set with this option

If the Control Panel is disarmed before the Entry Delay Timer expires, the panel returns

to Disarm mode and no alarm is activated. If the Control Panel is not disarmed before

the Entry Delay Timer expires, the alarm will be activated and the panel will send

report.

 Alarm Length: Set the duration the external siren should sound when an alarm is

activated.

 Cross Zone Timer: Please refer to 10.3 Cross Zone Timer for details

 Fire Verification Time: Please refer to 10.4 Fire Verification Timer below for details.

Sound Setting

 Door Chime Setting: this function is available only when the attribute of Door Contact

(DC) and/or PIR detector (IR) is set as Door Chime.

The Control Panel sounds a Door Chime (Ding-Dong Sound) while the DC and/or IR is

activated in Disarm / Full / Home / Entry mode.

 Entry Delay Sound for Full Arm: this is for you to decide whether the Control Panel

sounds count-down beeps and volume of beep during the entry delay time in the full

arm mode.

 Exit Delay Sound for Full Arm: this is for you to decide whether the Control Panel

sounds count-down beeps and volume of beep during the exit delay timer in the full arm

mode.

 Entry Delay Sound for Home Arm: this is for you to decide whether the Control Panel

sounds count-down beeps and volume of beep during the entry delay time in the home

arm mode.

 Exit Delay Sound for Home Arm: this is for you to decide whether the Control Panel

sounds count-down beeps and volume of beep during the exit delay timer in the home

arm mode.

 Confirm Sound: this is for you to decide whether to turn off/or adjust Control Panel

beeping sounds when changing Arm/Home Arm/Disarm mode.

 Warning beep: this is for you to decide whether the Control Panel will sound a warning

beep whenever a fault condition has been detected and displayed. The warning beep

will be silenced after the Fault message has been read by the user. When a new fault

condition is detected, it will then again emit a warning beep every 30 sec.

 Entry/ Exit Only Final Beeps: This is for you to determine when the Control Panel

should start warning beep during Entry or Exit countdown timer. For example, if the

setting is set to 5 seconds, the Control Panel will only stat warning beep during the last

5 seconds of Entry or Exit countdown timer. When set to Disable, the Control Panel will

sound warning beep during the entire Entry or Exit countdown timer.

6.3. PIN Code

The User PIN Codes are used by Remote Keypad accessory to control system mode remotely.

The 2 areas in the control panel each has 6 User PIN Codes available for setting. Each consists

of 4 digits (numeric number 0~9). User PIN code #1 for each Area is always activated factory

default.

User PIN #1 in Area 1 User PIN #1 in Area 2

Password: 1234 Password: 4321

Area

Area: Select the area for setting User PIN Code.

User Code Setting

 User Code: Enter the 4-digit code in the field.

 User Name: Enter a user name for easy recognition of system events. Up to 17

alphanumerical characters are allow for each user name.

 Latch:

Latch  Latch Report ON = Whenever the User PIN Code is used to change

system mode, the panel will report the event.

Latch  Latch Report OFF = When the User PIN Code is used to change system

mode, the panel will not report the event.

 Delete: Check the box if you want to delete selected user. User#1 in each area cannot

be deleted

After finish all setting, click OK to confirm change.

7. Network Settings

7.1. WCDMA, LTE (HSGW-G8 Series only)

Check SIM

This is designed for the system to check the SIM card or not. (If users do not intend to use

the WCDMA, LTE funciton, please tick “NO” to ensure the system will not check if the

SIM card is inserted or not and it will not display the WCDMA, LTE fault by LED

flashing.)

GPRS

In order to allow GPRS to serve as a back-up IP Reporting method, this section will need to

be programmed before reporting.

 APN (Access Point) Name

It is the name of an access point for GPRS. Please inquire your service provider for an

APN. When APN is set, the system becomes valid for internet connection.

 User (GPRS)

It is the Log-in name to input before accessing the GPRS feature. Please inquire your

service provider.

 Password (GPRS)

It is the User Password to input before accessing the GPRS feature. Please inquire

your service provider.

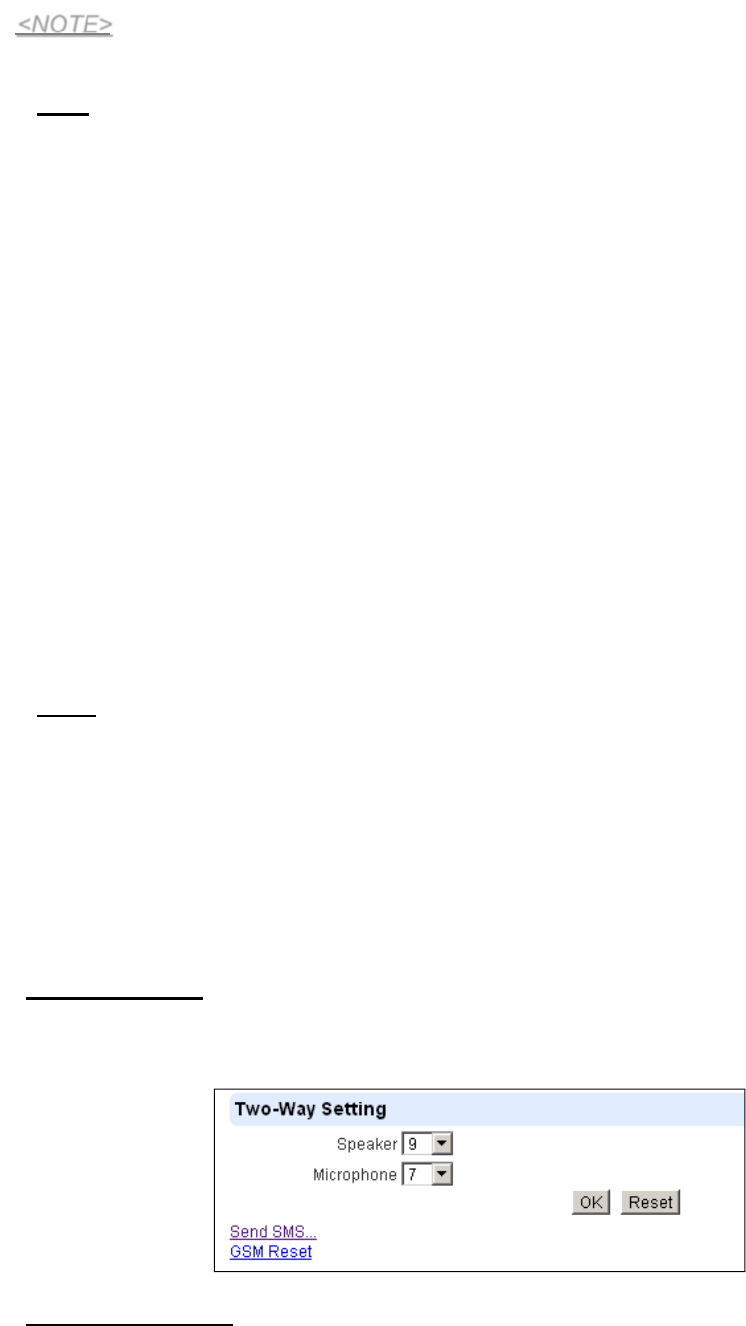

<NOTE>

 All values will be applied to both Areas 1 & 2.

MMS

The MMS settings are offered by your telecom service provider. Before configuring this

function, contact your service provider for correct MMS setting information of the inserted SIM

card.

 APN (Access Point) Name

Enter a MMS APN name provided by your service provider.

 User

Enter the Log-in name for accessing the MMS feature provided by your telecom

service provider.

 Password

Enter the password for accessing the MMS feature provided by your telecom service

provider.

 URL

Enter the MMS APN URL provided by your telecom service provider.

 Proxy Address

Enter the MMS Proxy Address provided by your telecom service provider.

 Proxy Port

Enter the MMS Proxy Port provided by your telecom service provider.

SMS

 SMS Keyword

For sending remote commands to system via SMS message, a personalized password

is required for the Control Panel to recognize your authority.

 SMS P-Word

Program Keyword is used to recognize the identity of a valid user; and to give authority

for Remote Installing (through SMS Text) or Remote Upgrading purposes (through

GPRS). This keyword will need to be inserted whenever the Remote Setting or Remote

Upgrading is required. A maximum of 15 characters is allowed.

Two Way Setting

The two-way setting is designed to adjust speaker volume and microphone sensitivity on

DECT device for two-way communication.

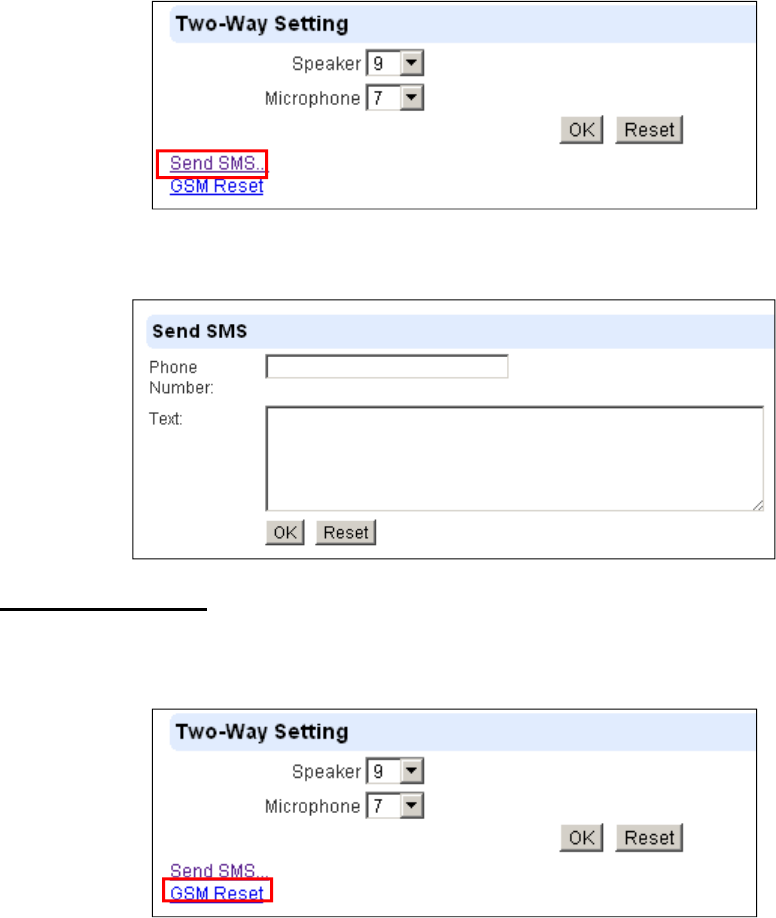

Send SMS Message

This feature is designed for you to send a SMS message on this web configuration page.

Step 1. Click Send SMS.

Step 2. Enter a desired phone number and text message.

Reset WCDMA, LTE

This feature is designed for you to reset WCDMA, LTE module.

Step 1. Click WCDMA, LTE Reset.

Step 2. A pop-out message “Are you sure?” is displayed. Click Yes to confirm resetting.

7.2. Network

This is for you to program the Network for IP connection.

 Obtain an IP address automatically (DHCP)

If DHCP is selected, the Network will obtain an IP address automatically with a valid

Network DHCP Server. Therefore, manual settings are not required.

This is only to be chosen if your Network environment supports DHCP. It will automatically

generate all information.

 Use following IP address

You can also enter the Network information manually for IP Address, Subnet Mask,

Default Gateway, Default DNS 1 and Default DNS 2.

Please make sure that you have obtained all required values according to your Network

environment. Please contact your network administrator and/or internet service provider

for more information.

 DNS Flush Period

You can set the system to clear current DNS resolution records for all entered URL

settings (Reporting, Upload, XMPP…etc.) after a set time period. The system will then

resolve the Domain Name again and acquire new IP address for the URL settings. This

function is disabled by default.

7.3. UPnP

UPnP is Universal Plug and Play, which opens networking architecture that leverages TCP/IP

and the Web technologies to enable seamless proximity networking in addition to control and

data transfer among networked devices in the home, office, and public spaces.

 Enable UPnP Device:

When enabled, you will be able to see this device via any UPnP discovery tool

 Enable UPnP Port Redirect:

The device will try to find an UPnP-supported router and set up the port to redirect to the

router.

 Port Forwarding:

1. Local Port

2. External Port

3. Protocol

8. System Settings

8.1. Administrator Setting

For setting new Administrator Log-in Name and Password. Please note both User Name and

Password are case sensitive.

Step 1. Enter the preferred User Name.

Step 2. Enter the preferred Password in the “New Password” field and repeat the same

Password in the Repeat Password field.

8.2. Home Automation

It is used to set Home Automation rules to control sensors and home appliances. You can set up

to 100 rules.

Step 1. Click on Edit.

Step 2. Select an operation area.

Step 3. Set a rule condition.

Step 4. Set a rule schedule.

Step 5. Select the corresponding action rules in the Execution field.

 Area

Select an opeartion area.

 Rule Condition

The rule condition determines under which circumstances the rule should be activated.

 Empty : When set as Empty, the system will follow the schedule time and execution

rule to respond accordingly.

 Trigger Alarm : When set as Trigger Alarm, if the specified alarm event

(Burglar/Some/Medical/Water/Silent Panic/Panic/Emergency/Fire /CO Alarm) is

triggered, the rule will be activated according to rule schedule and execution setting.

 Mode Change : When set as Mode Change, when the system enters specified mode,

the rule will be activated according to rule schedule and execution setting.

 Mode Change and Exit Timer Stopped : When set as Mode Change and Exit Timer

Stopped, when the system changes mode to and Exit Delay Timer expires, , the rule

will be activated according to rule schedule and execution setting.

 Mode Start Entry Timer : When set as Mode Start Entry Timer, when the system

begins to countdown Entry Delay, the rule will be activated according to rule schedule

and execution setting.

 Temperature Below : When set as Temperature Below, if the temperature detected

by specified temperature sensor drops below set threshold, the rule will be activated

according to rule schedule and execution setting.

 Temperature Above : When set as Temperature Below, if the temperature detected

by specified temperature sensor exceeds set threshold, the rule will be activated

according to rule schedule and execution setting.

 Temperature Between : When set as Temperature Between, if the temperature

detected by specified temperature sensor falls within the range specified, the rule will

be activated according to rule schedule and execution setting.

 High Power Consumption : When set as Power Consumption Above, if the power

output watt from a specific Power Switch exceeds, the rule will be activated according

to rule schedule and execution setting.

 Humidity Above : When set as Humidity Above,if the humidity reading from specified

room sensor rises above the level specified, the rule will be activated according to rule

schedule and execution setting.

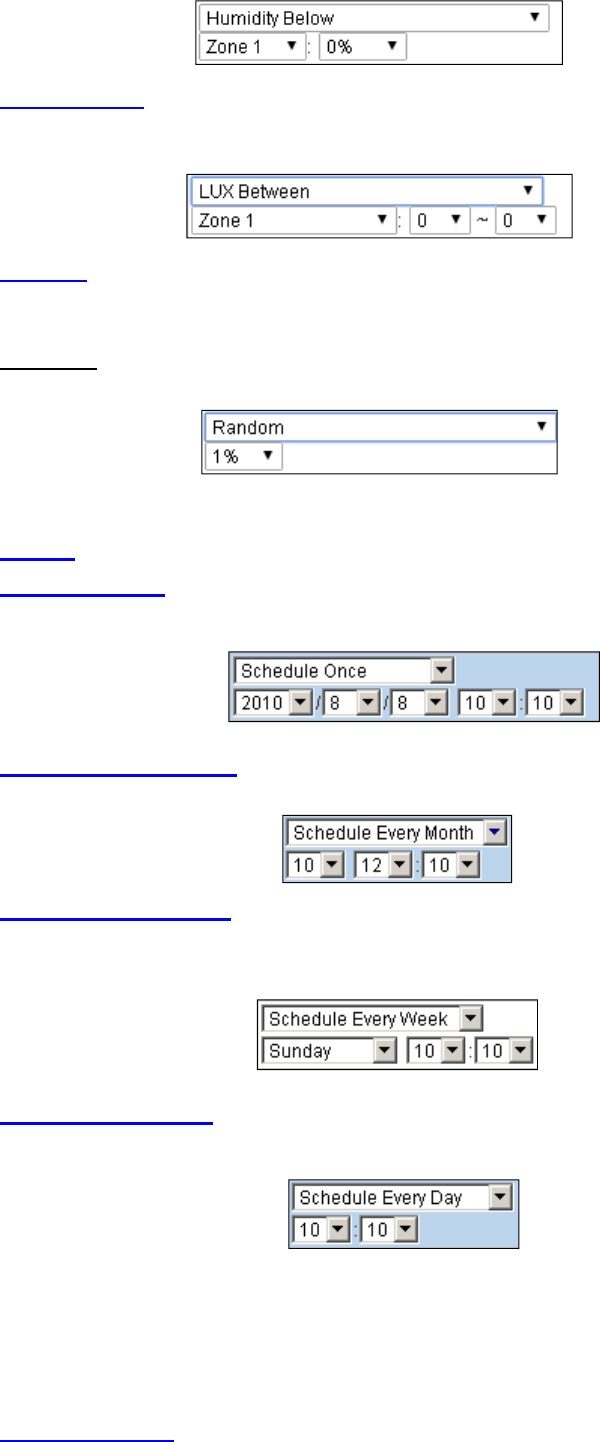

 Humidity Below : When set as Humidity Below,if the humidity reading from specified

room sensor falls below the level specified, the rule will be activated according to rule

schedule and execution setting.

 LUX Between : When set as LUX Between, if the lux reading from specified light

sensor falls below the level specified, the rule will be activated according to rule

schedule and execution setting.

 Random : The Random condition must be used along with Rule Schedule setting. Set

a percentace from 1 to 10%. When the panel time reaches programmed Rule Schedule

time. The Panel will activate rule according to set chance.

Example: If set as 10%, whenever the panel reaches programmed Rule Schedule time,

there will be a 10% chance the rule is activated.

 Rule Schedule

 Always : When set as Always, the rule can be activated anytime.

 Schedule Once : When set as Schedule Once, the system will follow the rule

condition and execute rule according to the exact date and time specifed..

 Schedule Every Month : When set as Schedule Every Month, the system will follow

the rule condition and execute rule according to date and time specified every month.

 Schedule Every Week : When set as Schedule Every Week, the system will follow

the rule condition and execute rule according to day of the week and time specified

every week.

 Schedule Every Day : When set as Schedule Every Day, the system will follow the

the rule condition and execute rule according to time specified every day

 Execution

Execution is the actual action performed by Control Panel when both Rule Condition and

Rule Schedule requirements are met

 Zone Switch Off: Turn on the Power Switch at specified zone.

 Zone Swich On : Turn on the Power Switch at specified zone.

 Zone Swich On For : Turn on the Power Switch at specified zone for a set duration.

 Zone Switch Level:: Change the power output level for Dimmer at specified zone.

 Zone Swich Toggle : Toggle on/off the Power Switch at specified zone.

 Group Switch Off : Turn off all Power Switches assigned to specified group.

 Group Switch On : Turn on all Power Switches assigned to specified group.

 Group Switch On For : Turn on all Power Switches assigned to specified group for a

set duration.

 Mode Change : The system will change to the mode as you specified.

 Request Image : The PIR Camera in specified zone will take a picture.

 Request Image (All) : All PIR Cameras in the system will take a picture.

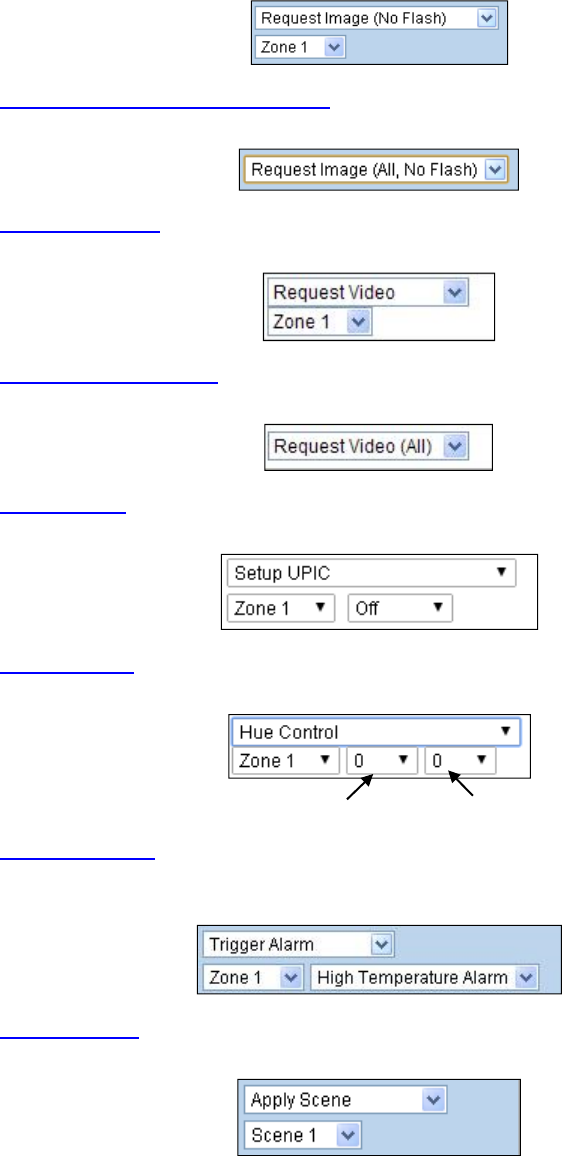

 Request Image (No Flash): The PIR Camera in specified zone will take a

picture.without activating its LED flash.

 Request Image (All, No Flash) : All PIR Cameras in the system will take a picture

without activating LED Flash.

 Request Video : The PIR Video Camera or IP Camera in specified zone will record a

video.

 Request Video (All) : All PIR Video Cameras and IP Cameras in the system will

record a video.

 Setup UPIC:: The UPIC and specified zone will transmit Off/Heat/Cool command to the

air conditioner as programmed.

 Hue Control:: Adjust the hue and saturation of the Philips Hue at sepecified zone as

programmed.

 Trigger Alarm: Choose to activate one of the following alarms: High Temperature

Alarm, Low Temperature Alarm, High Power Consumption Alarm, High Humidity Alarm

and Low Humidity Alarm

 Apply Scene:: the system will execute preprogrammed Scene number. Please refer to

8.3. Scene for detail.

Hue Saturation

8.3. Scene

The Scene setting allows you to customize a series of actions with your devices, such as Power

Switch control, image/video request, mode change and trigger alarm. The programmed scene

can be set to activated when a device is triggered. (See 5.1.3. Edit Devicesl), or when a Home

Automation Rule is excecuted. (See 8.2. Home Automation) For example, you can set a scene

to control multiple lightings, then set your Remote Controller to activate the scene when the

button is pressed, or set a Home Automation Rule to activate the scene.

Step 1. Click on Edit.

Step 2. Enter a name for the scene.

Step 3. Select an Area

Step 4. Select an action to be executed when the scene is activated. Refer to the Rule

Execution section in 8.2. Home Automation for detail.

Step 5. Repeat Step 2-3 to setup the execution you wanted. As many as 5 executions can be

included in one scene.

Step 6. Click “Done”.

Step 7. Click “OK” at bottom of webpage to confirm the new scene setting..

8.4. Reporting

This is used for installer to program/ set all requirements for reporting purposes.

 Reporting URL

This is used for installer to program report destinations.

1 Climax CID protocol via IP

Format: ip://(Account Number)@(server ip):(port)/CID

Example: ip://1234@54.183.182.247:8080/CID

2 SIA DC-09 protocol via IP

Format: ip://(Account Number)@(server ip):(port)/SIA

Example: ip://1234@54.183.182.247:8080/SIA

3 SIA DC-09 protocol via IP with AES encryption

Format: ip//(Account Number)@(server ip):(port)/SIA/KEY/(128,196 or 256 bits Key)

Example:

ip://1234@54.183.182.247:8080/SIA/KEY/ 4A46321737F890F654D632103F86B4F3

4 SIA DC-09 protocol using CID event code via IP

Format: ip://(Account Number)@(server ip):(port)/CID_SIA

Example: ip://1234@54.183.182.247:8080/CID_SIA

5 SIA DC-09 protocol using CID event code via IP, with HEX encryption.

Format: ip//(Account Number)@(server ip):(port)/CID_SIA/KEY/(HEX)

Example:

ip://1234@54.183.182.247:8080/CID_SIA/KEY/4A46321737F890F654D632103F86B4

6 CSV protocol via IP

Format: ip//(Account Number)@(server ip):(port)/CSV

Example: ip://1234@54.183.182.247:8080/CSV

7 CSV protocol via IP including username and password

Format: ip//(Account Number)@(server ip):(port)/CSV/User/Pasword

Example: ip://1234@54.183.182.247:8080/CSV/abcd/1357

8 Email

Format: mailto:user@example.com

Example: mailto:john@gmail.com

 Level

Select a reporting condition:

All events: The system will report all events to this destination.

Alarm events: The system will only report alarm event to this destination.

Status events: The system will only report status event(non-alarm events) to this

destination.

 Group

Select a group for your report destination The system will make report according to the

following principle:

 Group with higher priority will be reported first: Ex: Group 1  Group 2  Group 3….

 If reporting to the first destination in a group fails, the system will move on to the next

report destination in the group.

 If reporting to one of the report destinations in a group is successful, the system will

consider reporting to this group successful and stop reporting to rest of the destinations

in the group. It will then move on to report to the next group.

 If reporting to all destinations in a group fails, the system will retry report to group

according to retry times set below. If reporting is still unsuccessful after retries, the

system will move on to report the the next group according to Essential/Optional setting

below.

 After completing a round of reporting (From Group 1  Group 2 ….. Group5), If there

is any group set as Essential which has not received report successfully, the system

will restart the reporting cycle to retry reporting until every group set as Essential is

reported successfully.

 Essential/Optional

Essential: the system will report to all groups set as Essential. The system will never give

up trying to report to any group set as Essential until at least one of the

destinations in every Essential group successfully receives the report. Group 1

is always set as Essential and cannot be changed.

Optional: The system will only report to group set as Optional when reporting to its

previous group fails. For example: if Group 3 is set is optional, the Control Panel

will only report to Group 3 if reporting to Group 2 fails.

 1 Retry/ 3 Retry/ 5 Retry/ 10 Retry/ 99 Retry:

If reporting to all destinations in a group fails, the system will retry reporting to the group

according to the retries times set here.

<NOTE>

 When the panel is registered into Climax’s Home Portal Server, URL1 will be filled in

with Home Portal Server report information. Do not change the information once

registration is complete or reporting to Home Portal Server may encounter error.

 After registering the panel in Home Portal Server, if you wish to set more reporting

destination, the new report destination should be set to different group than URL1

otherwise it may not be able to receive report successfully.

8.5. Code Settings

The Duress Code, Master Code & Temporary Code adds the flexibility of different security level

for operation in Code Settings menu.

Step 1. Key in your preferred 4 digit Installer Code, Duress Code, Master Code, and/or

Temporary Code.

Step 2. You can also choose to have Latch Option On / Off for Temporary Code by tick the

Latch Option box and press OK to confirm the settings.

 Installer Code

The Installer Code is used for SMS Remote Programming, when sending a remote

programming message, the user needs to enter Installer Code in the message to be able

to program the system. The default Installer code is: 7982.

 Area

Each Area has different Duress Code, Master Code, and Temporary Code. Select the Area

to program the code setting in this area.

 Duress Code

The Duress Code is designed for transmitting a secret & silence alarm.

When Duress Code is used for accessing the system, the Control Panel will report a

secret alarm message without sounding the siren to the Central Monitoring Station to

indicate of a Duress Situation in Progress.

The Duress Code consists of 4 digits and is not activated as default by the factory.

 Guard Code

The Guard Code is designed for security patrol personnel to arm/disarm the system. It can

be set the same as a User PIN Code.

The Guard Code consists of 4 digits and is not activated as default by the factory.

 Master Code

This function is currently disabled.

 Temporary Code

Temporary Code is also used to arm/disarm the system, but it is for a temporary user. The

temporary Code is ONLY valid for one-access per arming and disarming. Afterwards, the

Temporary Code will be automatically erased and needs to be reset for a new Temporary

user.

The Temporary Code consists of 4 digits and is not activated as default by the factory.

 Latch Option

This is to program the Latch Key Reporting feature for Temporary Code. Please click the

box to select the options.

Latch  Latch Report ON = Whenever the system is armed, home/ day home/ night

home armed or disarmed, the Panel will transmitt Contact ID code / SMS message /

GPRS reporting (according to pre-setting) to notify the Central Monitoring Station.

Latch  Latch Reprot OFF = Whenever the system is armed, home/ day home/ night

home armed or disarmed, the Panel will NOT transmit reporting(s) to notify the Central

Monitoring Station.

 Delete

Except Master Code which can’t be disabled in any way, Temporary and Duress Code can

be disabled by cleaning the code box and leaving the box as blank.

8.6. SMTP Setting

Program the mail server related settings. The email account you set here would be used to send

report for events or picture and video clip captured by PIR Camera and PIR Video Camera.

Step 1. Enter the following settings:

 Server: set the mail server (max. 60 digits/alphabets).

 Port: set the port number (max. 5 digits/alphabets).

 User: set the mail account name (max. 30 digits/alphabets).

 Password: set the password corresponding to the mail account name (max. 30

digits/alphabets).

 From: set the email address according to your mail sever and account name. If your mail

server supports other email address, you can enter the email address here. (max. 30

digits/alphabets).

 Using TLS/SSL encrypted channels (Secure SMTP):If your mail server uses TLS or

SSL encryption method for secure transfer, please click the box to enable the setting

Step 2. Click OK to confirm the setting.

8.7. Media Upload

The system can deliver captured images and video clips captured by PIR Cameras and PIR

Video Camera to cell phone, email or ftp.



FTP: ftp://user.password@server/path



HTTP: http://ip:port/path



Email: mailto:user@server (transmitting an alarm image over Ethernet)



MMS via Telephone: mms: telephone number



MMS via GPRS: mms: user@mail.server (transmitting an alarm image over MMS)

<NOTE>

 If “Deleted events after uploaded” is checked, the system will automatically clear all

captured images which are displayed in the Captured Events menu after it successfully

sends out those captured images to preset reporting destinations.

8.8. Polling

The polling function enables the Control Panel to query the destiation you set (URL1 or URL2) in

turn as to whether it has any data to transmit.

 URL/URL2: ip://server:port/path

 Interval : interval time of polling

8.9. XMPP

XMPP setting enables the Control Panel to query the set destination. This setting is required for

the Control Panel to connect to Climax’s Home Portal Server for remote control. If the panel is

disconnected from the server, it will retry connection every 3 minutes.

 Server: server address

 Port: server’s port number

 User: authorized user account name

 Password: authorized user password

 Domain: domain address

 Buddy List: contact destination

 Ping Interval: server connection test interval

8.10. Date & Time

Program the current Date & Time and set automatic synchronization with internet time server.

 Date & Time: set current month, date and time.

 Time Zone: choose your time zone, and then the system will calculate the daylight saving

time automatically (if necessary).

 Internet Time: the system will automatically synchronize with an internet time server. Tick

the check box to enable this function. Available options: pool.ntp.gov, time.nist.gov and

tick.usno.navy.mil.

8.11. Dynamic DNS

This page is used to provide you the Control Panel’s current public IP address.

 Dynamic DNS Server: http://checkip.dyndns.org

8.12. Test IP

This is for you to test the Control Panel internet connection.

Step 1. Enter the URL destination you want to test connection to.

Step 2. Enter the test interval.

Step 3. Click “OK”

You can check the test connect result in System Log.

8.13. Firmware Upgrade

You can update the firmware via this web page.

Step 1. Click on “Browse” and locate the latest firmware file (“unzipped image.bin” file) in

your PC.

Step 2. Press “Apply” to upload the latest firmware to Control Panel

Step 3. Wait for 1 min and do NOT power off during this time.

Step 4. Once Firmware upgrading is complete, the Control Panel will reboot automatically

8.14. RF Firmware Upgrade

You can update the Control Panel’s RF firmware via this web page.

Step 1. Click on “Browse” and locate the latest firmware file (“unzipped image.bin” file) in

your PC.

Step 2. Press “Apply” to upload the latest firmware to Control Panel

Step 3. Wait for 1 min and do NOT power off during this time.

Step 4. Once Firmware upgrading is complete, the Control Panel will reboot automatically

8.15. Factory Reset

Yan can clear all programmed parameters in the Control Panel and reset it to Factory Default.

Once the Factory Reset is executed, all the programmed settings will returned to its default

value, and all the learnt-in devices will be removed. You will need to restart the programming

and learning process again.

Remote Reset

Step 1. Tick the Kept current network setting box to keep the current Network settings.

Otherwise, the system will reset its value back to factory default.

Tick the Kept current device list box to keep the current learnt-in devices. Otherwise,

the system will reset its value back to factory default.

Step 2. Press Yes to continue the Reset procedure.

Step 3. Wait for 1 min and do NOT power off during this time.

Step 4. Once reset is complete, it will automatically reboot the main unit.

Local Reset

Step 1. Disconnect the AC adaptor, slide battery switch to OFF.

Step 2. Press and Hold the reset button and connect the AC adaptor to the Control Panel. All 3

LEDs will turn on for 10 seconds.

Step 3. Keep holding the reset button for 30 seconds then release. After 10 seconds, the

Control Panel will restart and all 3 LEDs will turn on.

Step 4. Wait for 10 seconds and all 3 LEDs will turn off to indicate factory reset is complete.

8.16. Backup & Restore

Yan can backup all programmed parameters and save these programmed values into a file.

Besides, you also can restore pre-programmed settings.

8.16.1 Backup Data

Yan can backup all programmed data and save these programmed values into a file.

Step 1. Click Download configuration file.

Step 2. Click Download configuration file.

8.16.2 Restore Settings

Step 1. Click Browse, select a saved file.

Step 2. Click Apply to apply the pre-programmed values to the main unit.

8.17. System Log

The sytem log webpage logs the control panel’s detail system operation history.

 System Log File Download” Click to download a detail log files into your computer for

more information.

9. Event & History

This section introduces event history of the system.

9.1. Captured Events

This page stores all captured pictures and videos by PIR Camera and PIR Video Camera. When

a PIR Camera is triggered, it will take 3 pictures in quick succession, when a PIR Video Camera

is triggered, it will take a 10-second video clip. You can also request the PIR Camera to take a

picture and PIR Video Camera to take a 10-second video clip manually.

Caputred events will be displayed in this page with their information for you to view. Simply click

on the picture or video to view them. You can also click Delete to delete the event.

 Reload : Click to refresh the page content

 Limit # of Items: Click the drop down menu on the pageto select the numbers of captured

events you want to display.

9.2. Reported Events

This page stores all triggered events by the control panel by recording the events’ CID event

code and report status.

 Reload : Click to refresh the page content

 Limit # of Items: Click the drop down menu on the pageto select the numbers of captured

events you want to display.

9.3. Event Log

The Event Log page records specific actions performed by the Control Panel and accessory

devices.

 Reload : Click to refresh the page content

 Limit # of Items: Click the drop down menu on the pageto select the numbers of captured

events you want to display.

9.4. Device History

You can track your accessory device status history under Device History. For Power Switch

Meter or Temperature Sensor, the update history power consumption or temperature ireading

will be displayed under this page (the current info is also displayed under Panel and PSS

Control).

 Reload : Click to refresh the page content

 Limit # of Items: Click the drop down menu on the pageto select the numbers of captured

events you want to display.

10. Appendix

10.1. Fault Event Description

During operation, when the panel detects faulty events, the panel will log the event and make

reports. When fault events exist in the system, the panel Fault LED will light up and the panel will

emit a beep every 30 seconds.

 Fault Event Table

Fault Event Descriptions

Panel AC Failure

The Control Panel’s AC power is disconnected

When AC failure is detected, the panel will turn off both Ethernet and mobile

network functions when idle to conserve power. Ethernet and mobile network

will be activated temporarily when an event is detected by the panel (i.e. alarm

trigger) to send report, and will turn off again after finishing report.

ccessing the panel via remote server XMPP connection is disabled during AC

failure.

Panel Low Battery The panel’s backup battery is only used when AC failure is detected. When the

backup battery voltage is low, the panel low battery event is generated

Panel Tamper The tamper switch on back of the panel is not compressed against the back

cover. This means the panel’s cover is opened and not properly sealed.

Battery Dead/Missing The panel cannot detect backup battery, this means the battery is either

dysfunctional, or the battery switch is not slid to ON position.

Interference/Jamming The panel detects radio frequency jamming, which will affect its ability to

receive signal from RF devices (Does not include Z-wave/Wi-fi signal)

Device Low Battery The accessory device at indicated zone number is low on battery

Device AC Failure The accessory device at indicated zone number does not have AC power

connection.

Device Tamper The tamper switch of the device at indicated zone number is open

Device Supervision

Failure

The panel was unable to receive supervision signal sent from accessory device

at indicated zone number for the duration of Supervision Timer programmed.

(i.e. If Supervision Timer is set to 12 hours, the panel will generate supervision

failure event after failing to receive supervision signal for 12 hours)

10.2. Control Panel Mode and Response Table

For Alarm Activation by Events and Control Panel Responses, please refer to the following

table:

Attribute

System Mode / Status

Disarm Full Arm Home Arm Under Exit

Timer

Under Exit

Timer (No

Response)

Under Entry

Timer

No Response No

Response

Instant

Burglar

Alarm

Response No Response

Start Entry

Delay 1

Instant

Burglar

Alarm

(Interior)

Start Entry 1



Burglar

Alarm

(Perimeter)

Start Entry

1 

Burglar

Alarm

(Interior)

Instant

Burglar

Alarm

Response

Delayed

Burglar Alarm

Start Entry

Delay 2

Instant

Burglar

Alarm

(Interior)

Start Entry 2



Burglar

Alarm

(Perimeter)

Start Entry

2 

Burglar

Alarm

(Interior)

Instant

Burglar

Alarm

Response

Delayed

Burglar Alarm

Chime Door Chime Door Chime Door

Chime

Instant

Burglar

Alarm

Response Door Chime

Burglar Follow

Instant

Burglar

Alarm

Instant

Burglar

Alarm

Instant

Burglar

Alarm

Instant

Burglar

Alarm

Response

Delayed

Burglar Alarm

Burglar Instant

Instant

Burglar

Alarm

Instant

Burglar

Alarm

Instant

Burglar

Alarm

Instant

Burglar

Alarm

Response

Instant

Burglar Alarm

Burglar Outdoor

Instant

Burglar

Outdoor

Alarm

Instant

Burglar

Outdoor

Alarm

Instant

Burglar

Outdoor

Alarm

Instant

Burglar

Alarm

Response

Instant

Burglar

Outdoor

Alarm

Cross Zone See 10.3. Appendix – Cross Zone

Verification

Instant

Burglar

Alarm

Response

Delayed

Burglar Alarm

Set/Unset

(Opening) Full Arm No

Response Full Arm Full Arm No

Response No Response

Set/Unset

(Closing)

Response Disarm Disarm Disarm Disarm Disarm

24H – Burglar

Instant

Burglar

Alarm

Instant

Burglar

Alarm

Instant

Burglar

Alarm

Instant

Burglar

Alarm

Instant

Burglar

Alarm

Instant

Burglar Alarm

24H – Smoke

Instant

Smoke

Alarm

Instant

Smoke

Alarm

Instant

Smoke

Alarm

Instant

Smoke

Alarm

Instant

Smoke

Alarm

Instant

Smoke Alarm

24H – Medical

Instant

Medical

Alarm

Instant

Medical

Alarm

Instant

Medical

Alarm

Instant

Medical

Alarm

Instant

Medical

Alarm

Instant

Medical

Alarm

24H – Fire

Instant Fire

Alarm

Instant Fire

Alarm

Instant Fire

Alarm

Instant Fire

Alarm

Instant Fire

Alarm

Instant Fire

Alarm

24H – Water

Instant

Water

Alarm

Instant

Water Alarm

Instant

Water

Alarm

Instant

Water

Alarm

Instant

Water

Alarm

Instant Water

Alarm

24H – CO Instant CO

Alarm

Instant CO

Alarm

Instant CO

Alarm

Instant CO

Alarm

Instant CO

Alarm

Instant CO

Alarm

24H – Gas Instant Gas

Alarm

Instant Gas

Alarm

Instant

Gas Alarm

Instant Gas

Alarm

Instant Gas

Alarm

Instant Gas

Alarm

24H – Heat Instant Heat

Alarm

Instant Heat

Alarm

Instant

Heat Alarm

Instant Heat

Alarm

Instant

Heat Alarm

Instant Heat

Alarm

24H –

Silent Panic

Instant

Silent Panic

Alarm

Instant Silent

Panic Alarm

Instant

Silent

Panic

Alarm

Instant

Silent Panic

Alarm

Instant

Silent Panic

Alarm

Instant Silent

Panic Alarm

24H – Panic

Instant

Panic Alarm

Instant Panic

Alarm

Instant

Panic

Alarm

Instant

Panic Alarm

Instant

Panic

Alarm

Instant Panic

Alarm

24H –

Emergency

Instant

Emergency

Alarm

Instant

Emergency

Alarm

Instant

Emergency

Alarm

Instant

Emergency

Alarm

Instant

Emergency

Alarm

Instant

Emergency

Alarm

24H –

Emergency

(Quiet)

Instant

Silent

Emergency

Alarm

Instant Silent

Emergency

Alarm

Instant

Silent

Emergency

Alarm

Instant

Silent

Emergency

Alarm

Instant

Silent

Emergency

Alarm

Instant Silent

Emergency

Alarm

24H – Fire with

Verification See 10.4. Appendix – Fire Verification

Trigger Scene

Trigger

Scene

Number

Trigger

Scene

Number

Trigger

Scene

Number

Trigger

Scene

Number

Trigger

Scene

Number

Trigger

Scene

Number

<NOTE>

 “Delayed Burglar Alarm” reponse means the Control Panel will wait for the Entry Time

to expire. If the Enty Time expires without disarming the system, the Control Panel will

activate a Burglar Alarm after Entry Time expiry.

 “Silent Panic Alarm”, “Silent Emergency Alarm” and "Burglar Outdoor Alarm” does

not activate any audible alarm. The Control Panel will report the alarm event silently

without any warning sound.

10.3. Cross Zone Verification

Cross Zone Verification is use to setup cross verification for intrusion sensors.

To use Cross Zone Verification, the following sensor and panel setting must be adjusted:

1 At least 1 intrusion sensor must be set to Cross Zone attribute.

2 The Cross Zone Timer option under Panel Setting webpage must be enabled.

Cross Zone Verification Rule

 Cross Zone function does not activate under Exit and Entry Time.

 When a sensor set to Cross Zone attribute is triggered, the panel begins to sound alarm,

counts down Cross Zone Timer and reports a Cross Zone First Trip event (CID 693).

 If the Cross Zone Timer expires without any other sensor trigger, the panel reports

Cross Zone Trouble event (CID 378) when the timer expires.

 If the same sensor is triggered again during Cross Zone Timers, the Cross Zone Timer

is reset and extended.

 If another sensor is triggered during the timer:

 The Panel report Burglar (CID 130) for both sensors.

 If the newly triggered sensor is set to Cross Zone attribute, the Panel also report

Burglar Verified (CID 139) for this sensor.

 The Cross Zone Timer is reset and extended.

 When the Cross Zone Timer expires, the panel reports Cross Zone Timeout (CID

694).

10.4. Fire Verification

Fire Verification is use to setup verification for Smoke Detector.

To use Fire Verification, the following sensor and panel setting must be adjusted:

1 At least 1 Smoke Detector must be set to 24 HR – Fire with Verification attribute.

2 The Fire Verification Timer option under Panel Setting webpage must be enabled.

Fire Verification Rule

 When a Smoke Detector set to Fire Verification attribute is triggered, the panel begins to

sound alarm, counts down Fire Verification Timer and reports a Near Alarm event (CID 118).

 Triggering any Smoke Detector with Fire Verification attribute (including the original

Some Detector) during Fire Verification Timer will prompt panel to report Smoke Alarm

event (CID 111), the timer will be reset and extended.

 Triggering a regular Smoke Detector with Smoke attribute during the Fire Verification

Timer will prompt panel to report Smoke Alarm event (CID 111), the timer will not be

reset..

 When the Fire Verification Timer expires, the panel reports Fire Verification Timeout

event (CID 695).

10.5. Contact-ID Protocol & Format

Where ACCT MT QXYZ GG C1C2C3

ACCT = 4 Digit Account number (0-9, B-F)

MT = Message Type, 18H.

Q = Event qualifier, which gives specific

event information:

XYZ = Event code (3 Hex digits 0-9, B-F)

= Group, Partition number (00H), or

Area Number

- 00 = panel

- 01= area 1….....xx= area xx

C1C2C3

= 1. For devices: zone

C1C2C3 = Zone numbe

001, Zone 1

002, Zone 2

…………………..

XXX Zone XXX

2. For Panel: code

C1C2C3 =

User PIN Code 1 001

User PIN Code 2 002

User PIN Code 3 003

User PIN Code 4 004

User PIN Code 5 005

User PIN Code 6 006

Temporary Code 997

Duress Code 998

000= Control Panel

10.6. Event Code

 100 – Medical

 When a device set to Medical attribute is triggered.

 101 – Personal emergency

 When a device set to Personal Emergency attribute is triggered.

 110 – Fire

 When a device set to Fire attribute is triggered.

 111 – Smoke

 When the Smoke Detector (SD) set to Smoke Alarm is triggered.

 When the Smoke Detector (SD) set to Fire Verification verifies an alarm during Fire

Verification Time.

 118 – Near Alarm

 When the Smoke Detector (SD) set to Fire Verification is triggered.

 120 – Panic

 When a device set to Panic attribute is pressed.

 121 – Duress

 When the Duress Code is entered to disarm or arm the system.

 122 –Silent Panic

 When a device set to Silent Panic is pressed.

 130 – Burglar

 Whenever a device set as Burglar Instant is triggered.

 Whenever a device set as Burglar Instant is triggered under Disarm, Full Arm or

Home Arm mode.

 131 – Burglar Perimeter

 When a device set as Entry is triggered in Full Arm mode.

 When a device set as Burglar Follow is triggered during Full Arm Entry Time and the

system is not disarmed before entry time expiry.

 132 – Burglar Interior

 When a device set at Entry is triggered in Home Arm mode.

 When a device set as Burglar Follow is triggered during Home Arm Entry Time and

the system is not disarmed before entry time expiry.

 136 – Burglar Outdoor

 Whenever a device set at Burglar Outdoor is triggered.

 137 – Panel Tamper/ Panel Tamper Restore

 When the panel’s tamper protection is triggered.

 When the panel’s tamper function is restored.

 139 – Burglar Verified.

 When a sensor set to Cross Zone attribute verifies an alarm.

 147 – Sensor Supervision Failure/ Sensor Supervision Restore

 When the panel fails to receive supervision signal from a device within preset

supervision timer.

 When the panel receives signal again from sensor that previously failed supervision.

 154 – Water leakage

 When the Water Sensor connected to Door Contact set at Water (@W) is triggered.

 158 – High Temperature Alarm

 When high temperature alarm is triggered.

 159 – Low Temperature Alarm

 When low temperature alarm is triggered.

 162 – CO Alarm

 170 – High Power Consumption

 When high power consumption alarm is triggered.

 171 – High Humidity Alarm

 When high humidity alarm is triggered.

 172 – Low Humidity Alarm

 When low humidity alarm is triggered.

 301 – AC Failure/ AC Power Restore

 When the AC power fails for more than 10 sec.

 Restore from AC power failure.

 302 – Low battery/ Battery Normal

 When the battery voltage of the Panel is low.

 When the panel battery restores voltage.

 311 – Battery Disconnection/ Battery Reconnected

 344 – Interference/ Interference problem solved

 358 – Network Cable Unplugged

 When the Ethernet cable is disconnected.

 374 – Force Arm

 When the system is armed with existing fault events

 693 – Cross Zone Trouble

 When Cross Zone Timer expires without alarm verification.

 380 – Device AC Failure

 When an AC power device loses AC power connection.

 383 – Sensor Tamper/ Sensor Tamper Restore

 When any sensor’s tamper protection is triggered.

 When the sensor’s tamper function is restored.

 384 – Sensor Low battery/ Sensor Battery Normal

 When a device detects low battery voltage.

 When a device’s low battery condition is restored.

 400 – Arm/Disarm (by Remote Controller)

 When the system is armed or disarmed by using the Remote Controller.

 401 – Remote Arm/Disarm

 When the system is armed or disarmed by SMS message or web access

 407 – Disarm/Away Arm/Home Arm by Remote Keypad

 408 – Set/Unset Arm/Disarm

 When the DC set at Set\Unset is triggered.

 456 - Partial Arm

 When partially arm the system from Disarm to Home arm

 570 – Device out of order/ Door Contact Not Closed

 When any device is out of order after the preset exit delay time is reached

 Door Contact is not closed after the preset exit delay time is reached.

 602 – Periodic test report

 When the control panel makes periodic Check-in reporting.

 616 – Call Request

 When the service call is activated by VST-809.

 693 – Cross Zone First Trip

 When a sensor set to Cross Zone is triggered to start Cross Zone Timers.

 694 – Cross Zone Timeout

 When Cross Zone Timer expires after the alarm has been verified.

 693 – Fire Verification Timeout

 When Fire Verification Timer expires.

II. Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15, Part 22, Part 24, and Part 27 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one of the following measures:

. Reorient or relocate the receiving antenna.

. Increase the separation between the equipment and receiver.

. Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

. Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, any changes or modifications not expressly

approved by the party responsible for compliance could void the user's authority to operate this

equipment. (Example - use only shielded interface cables when connecting to computer or

peripheral devices).

FCC Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with a minimum distance of

20 centimeters between the radiator and your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or

transmitter.

The antennas used for this transmitter must be installed to provide a separation distance of at

least 20 cm from all persons and must not be co-located or operating in conjunction with

any other antenna or transmitter.

This device complies with Part 15, Part 22, Part 24, and Part 27 of the FCC Rules. Operation is

subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) This device must accept any

interference received, including interference that may cause undesired operation.

Industry Canada Statement

This device complies with Industry Canada RSS-210, RSS-130, RSS-132, RSS-133, RSS-139

standard. Operation is subject to the following two conditions: (1) this device may not cause

interference, and (2) this device must accept any interference, including interference that may

cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio

exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne

doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage

radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

IC Radiation Exposure Statement:

This equipment complies with IC RSS-102 radiation exposure limit set forth for an

uncontrolled environment. This equipment should be installed and operated with

minimum distance 20 cm between the radiator and your body.

Cet équipement est conforme aux CNR-102 d'Industrie Canada. Cet équipement

doit êtreinstallé et utilisé avec une distance minimale de 20 centimètres entre le

radiateur et votrecorps. Cet émetteur ne doit pas être co-localisées ou opérant en

conjonction avec autreantenne ou émetteur. Les antennes utilisées pour cet

émetteur doivent être installés etfournir une distance de séparation d'au moins 20

centimètre de toute personne et doit pas être co-située ni fonctionner en conjonction

avec une autre antenne ou émetteur.

Climax Technology Co HSGW Smart Home Alarm Systems User Manual

Climax Technology Co Ltd Smart Home Alarm Systems Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
