INSTRUCTION MANUAL

22” Wide LCD Screen

All in One System Built-in 8Ch DVR

MODEL: LCD2284DVR, LCD2288DVR, TFT2284C, TFT2288C

Ver. 030309, 041309, 042909, 102609

Contents

CONTENTS

ABOUT THIS MANUAL....................................................................................................................... 9

UNPACKING...................................................................................................................................... 11

22” WIDE LCD PANEL BUILT-IN 8 CH DIGITAL VIDEO RECORDER ................................................... 12

FEATURES........................................................................................................................................ 13

WHAT TO DO AT THE TIME OF INSTALLATION............................................................................ 15

SPECIFICATIONS.............................................................................................................................. 17

INSTALLATION ................................................................................................................................ 19

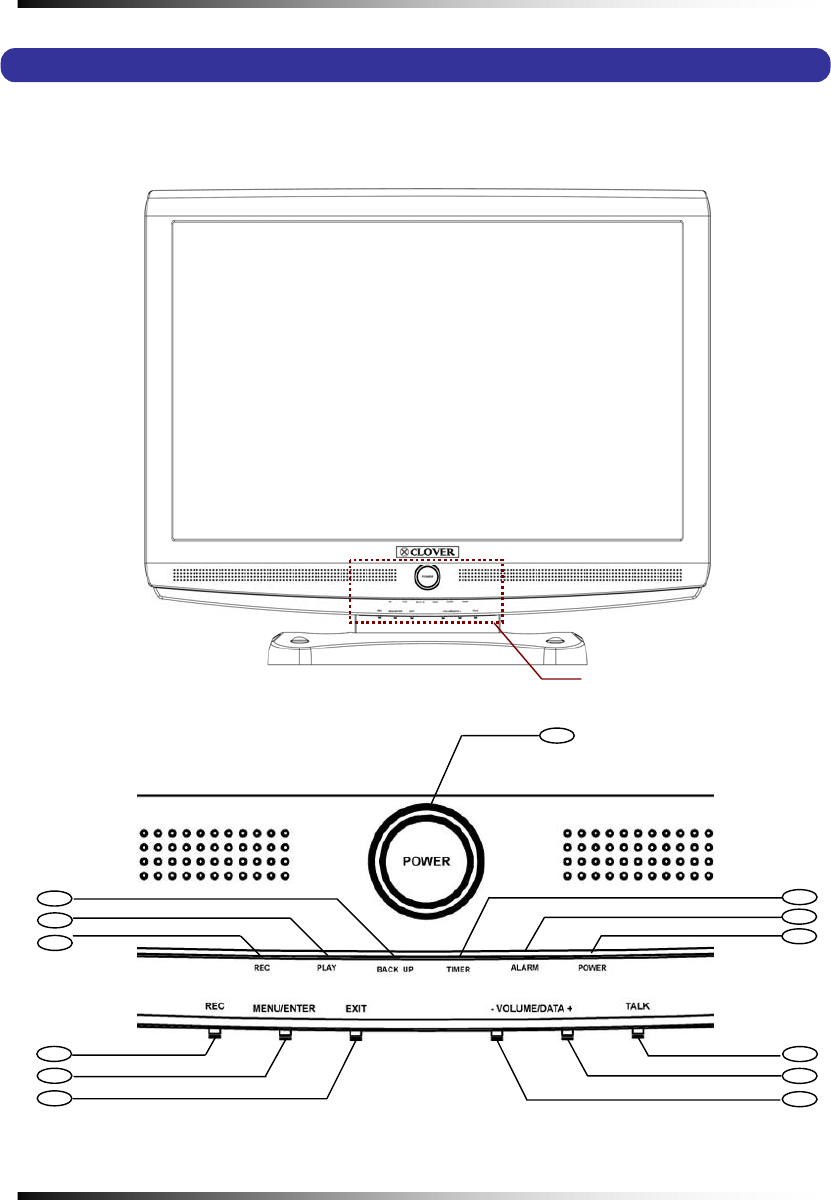

5-1. CONTROLS AND CONNECTORS............................................................................................. 20

5-2. NOTE FOR INSTALLATION ..................................................................................................... 23

5-3. SYSTEM CONNECTION ........................................................................................................ 24

5-4. INSTALLATION ..................................................................................................................... 25

5-4.1. Camera Connection .......................................................................................................................25

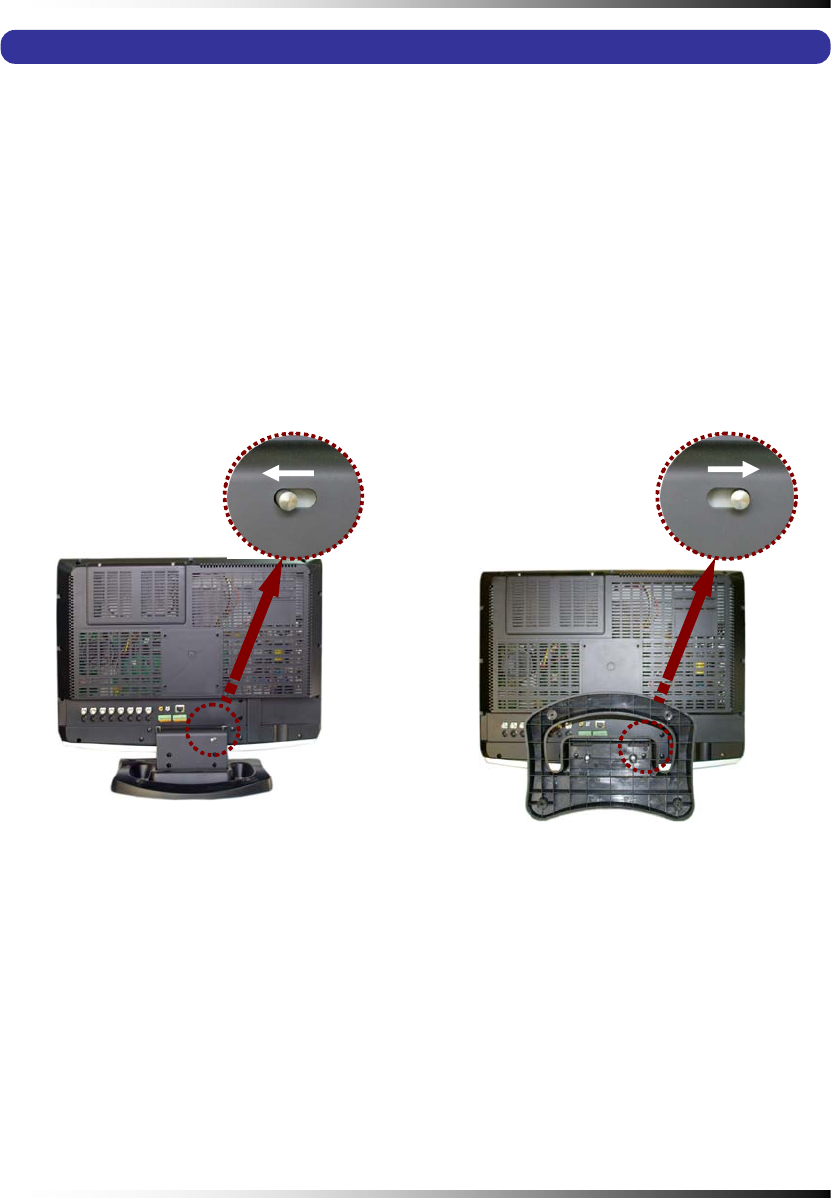

5-4.2. Installation of the Monitor...............................................................................................................25

5-4.2.1. Connection of Composite Monitor ..............................................................................................26

5-4.3. Sensor Connection and RELAY IN &OUT.....................................................................................26

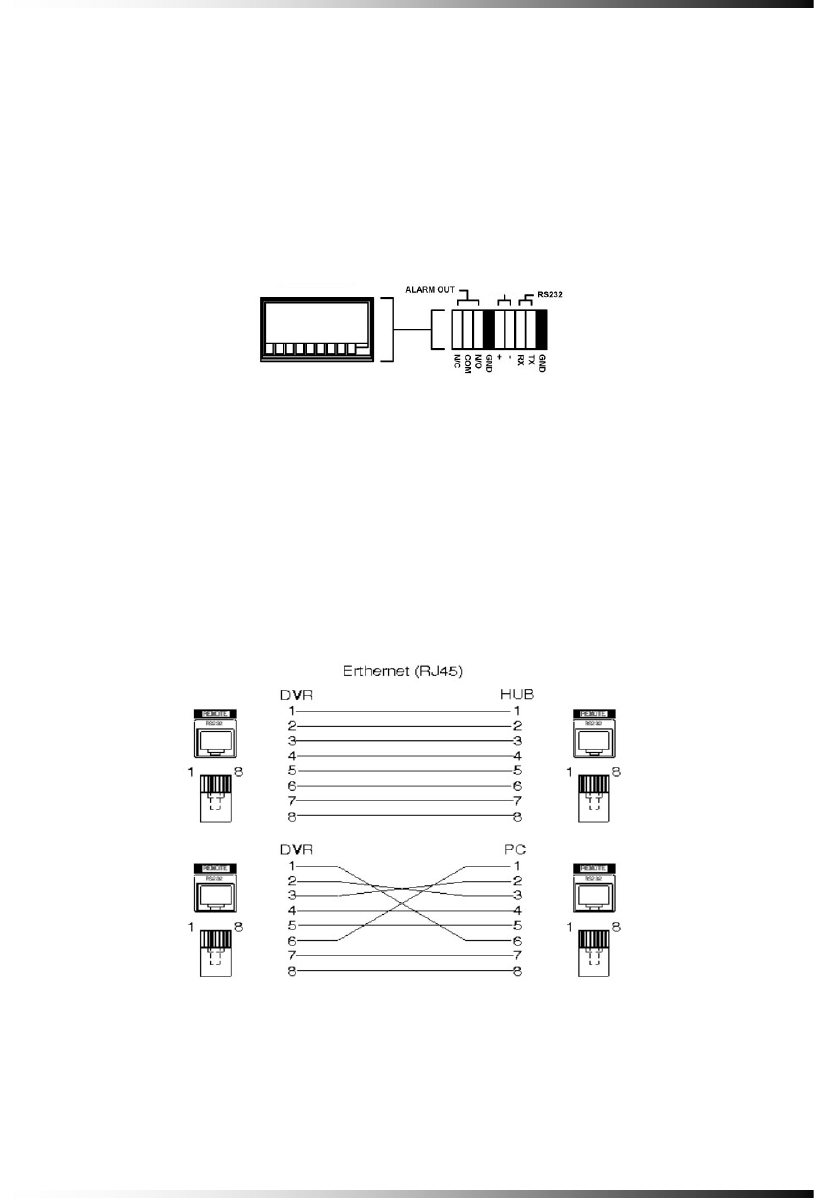

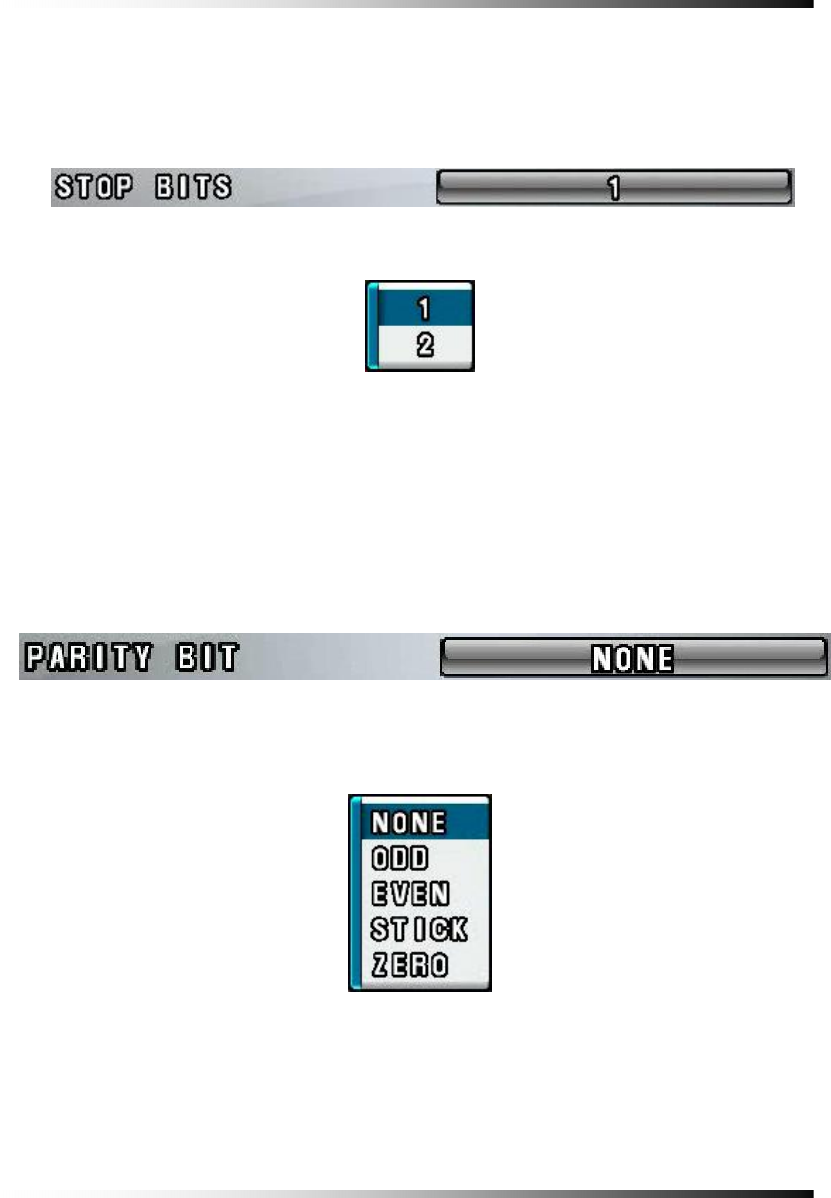

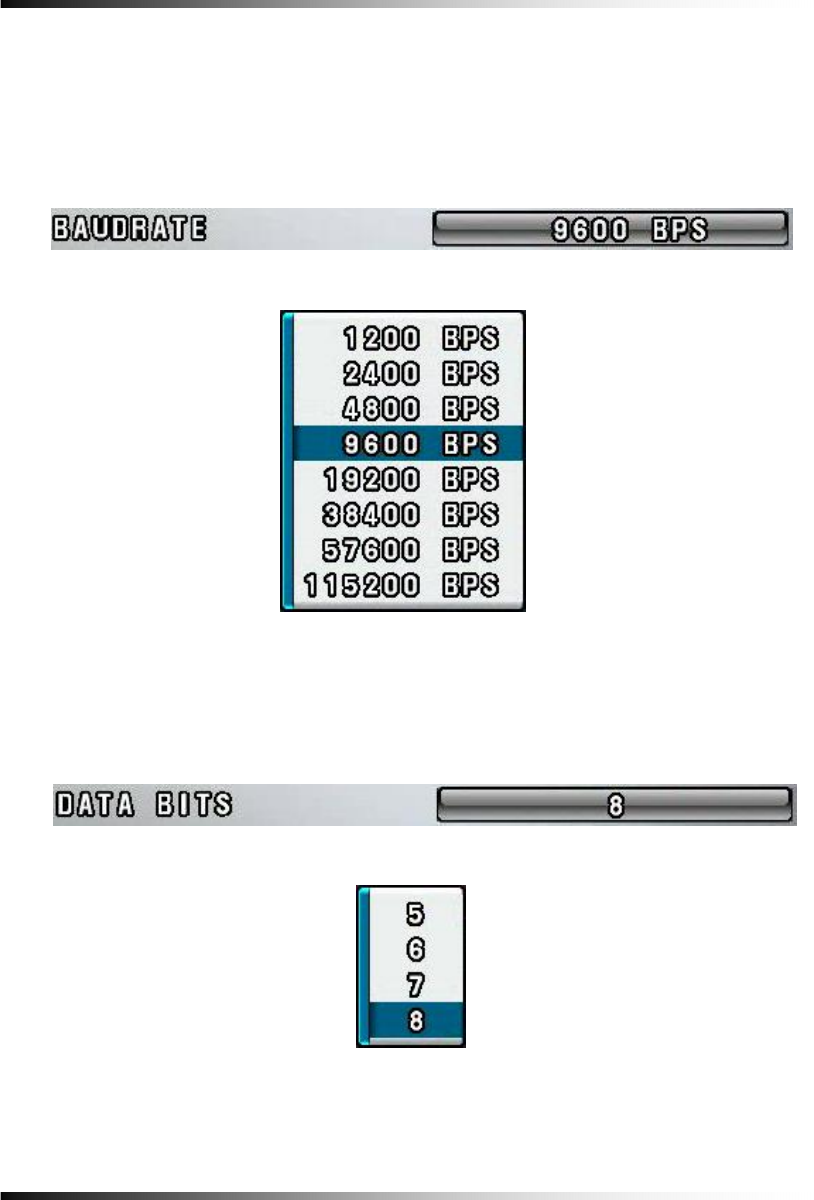

5-4.4. RS485 / RS232C Connection ........................................................................................................27

5-4.5 Connection to an Ethernet Network (Optional)...............................................................................27

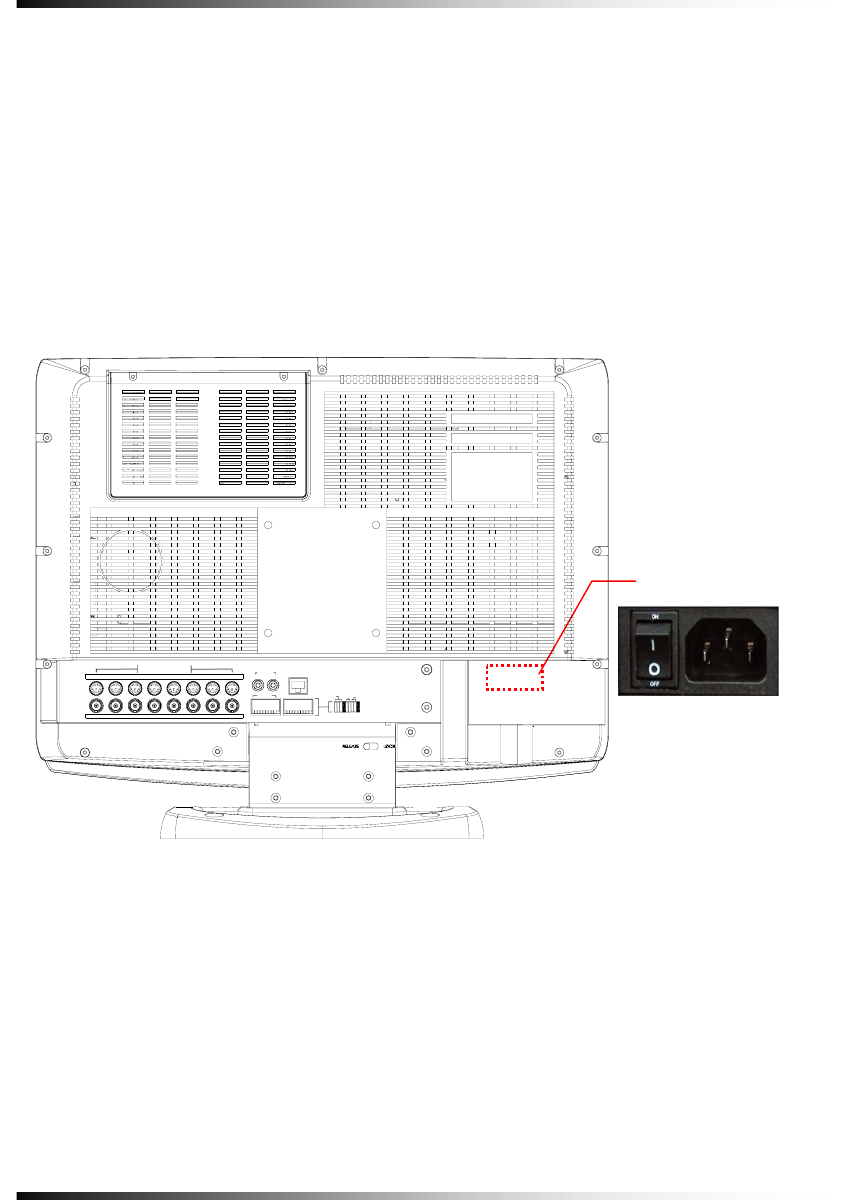

5-4.6. POWER CABLE CONNECTION ...................................................................................................28

HOW TO OPERATE ......................................................................................................................... 29

6-1. GENERAL INFORMATION ...................................................................................................... 31

6-2. OPERATING INTERFACE ....................................................................................................... 32

6-3. IR REMOTE CONTROLLER ................................................................................................... 33

6-4. POWER ON/OFF ................................................................................................................. 34

6-4.1. POWER ON ...................................................................................................................................34

6-4.2. STAND-BY POWER MODE BUTTON...........................................................................................34

6-4.3 POWER OFF ..................................................................................................................................34

6-4.4 APPEARANCE OR DISAPPEARANCE OF POWER BUTTON ....................................................35

6-5. MENU BAR ON/OFF ............................................................................................................ 36

System Instruction Manual

6-6. DISPLAY SCREEN................................................................................................................ 37

6-6.1. FULL SCREEN...............................................................................................................................37

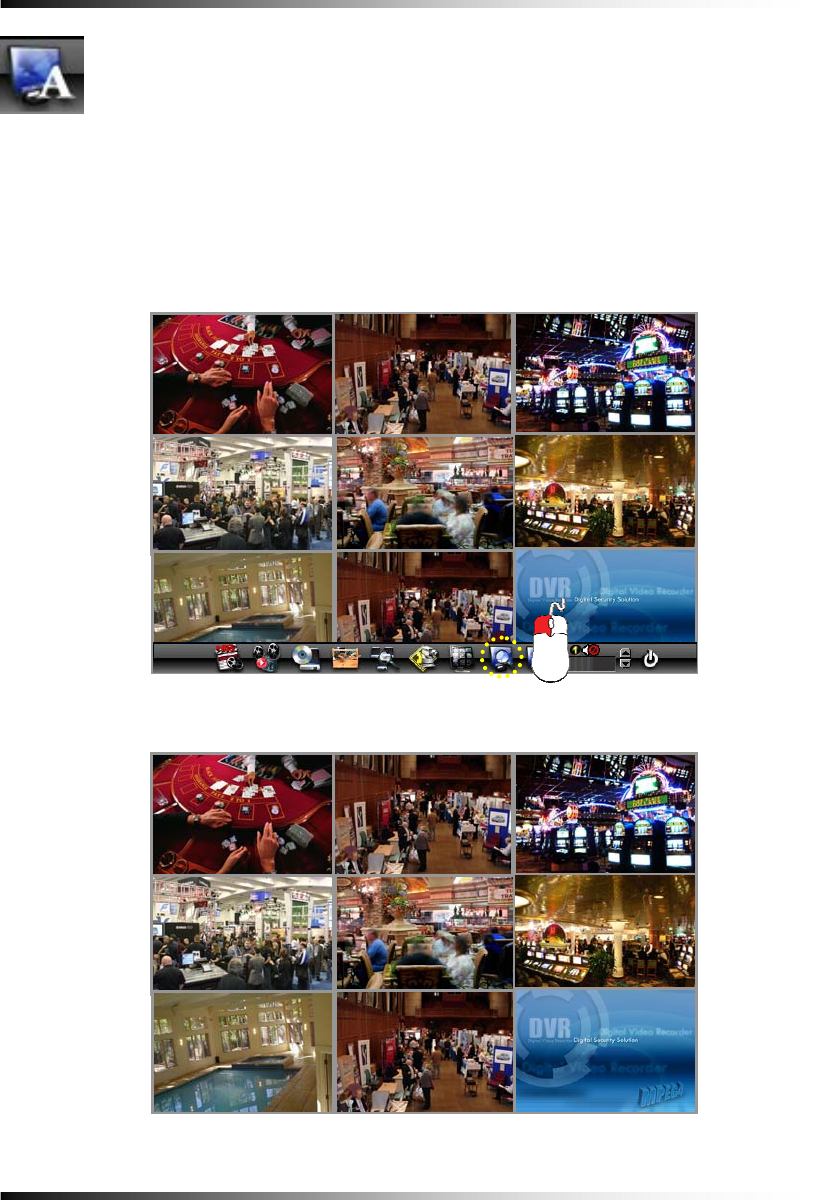

6-6.2. SPLIT SCREENS...........................................................................................................................38

6-7. LIVE ................................................................................................................................. 39

6-7.1. FULL SCREEN...............................................................................................................................39

6-7.2. SPLIT SCREEN .............................................................................................................................39

6-7.3. SEQUENCING SCREENS ............................................................................................................40

6-7.4. LIVE AUDIO ...................................................................................................................................41

6-7.4.1. COMMUNICATION BETWEEN MONITOR AND CLIENT COMPUTER VIA INTERNET .....41

6-7.4.2. COMMUNICATION BETWEEN MONITOR AND CAMERAS ................................................41

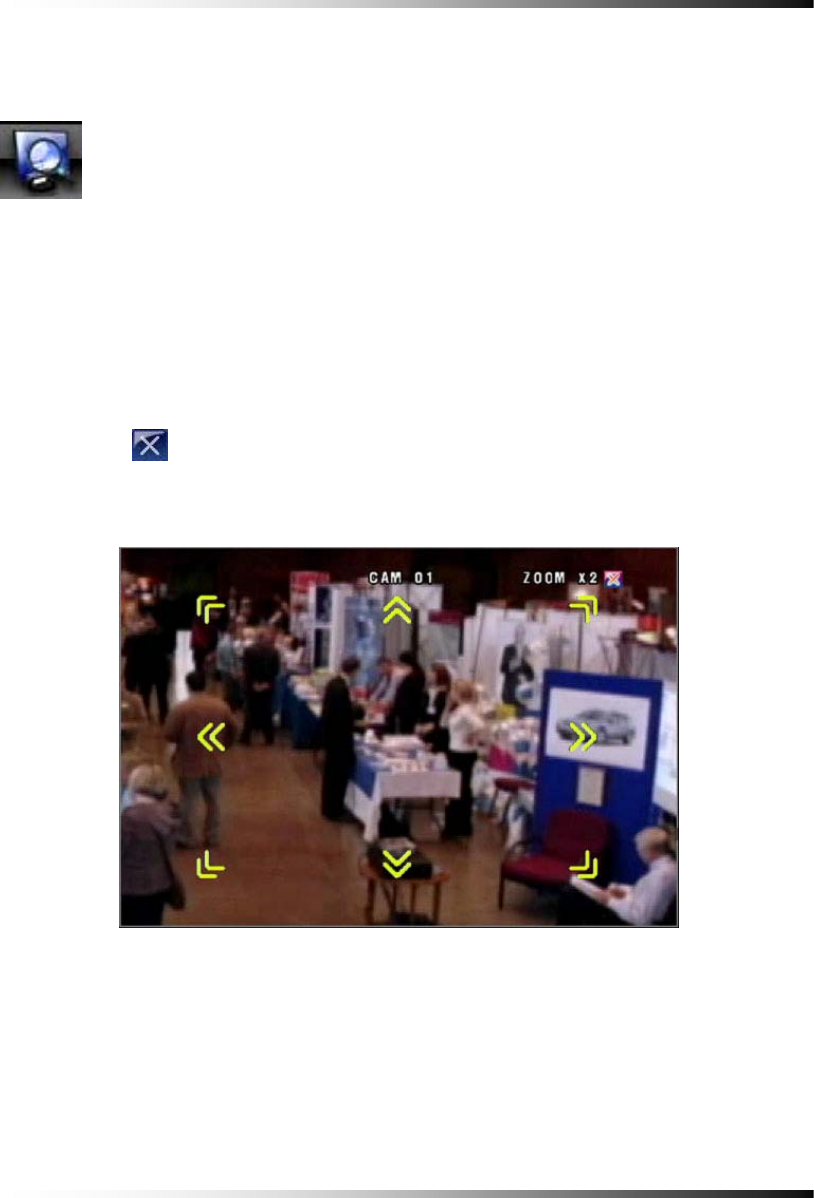

6-7.5. ZOOM.............................................................................................................................................43

6-7.6. OSD ON / OFF...............................................................................................................................44

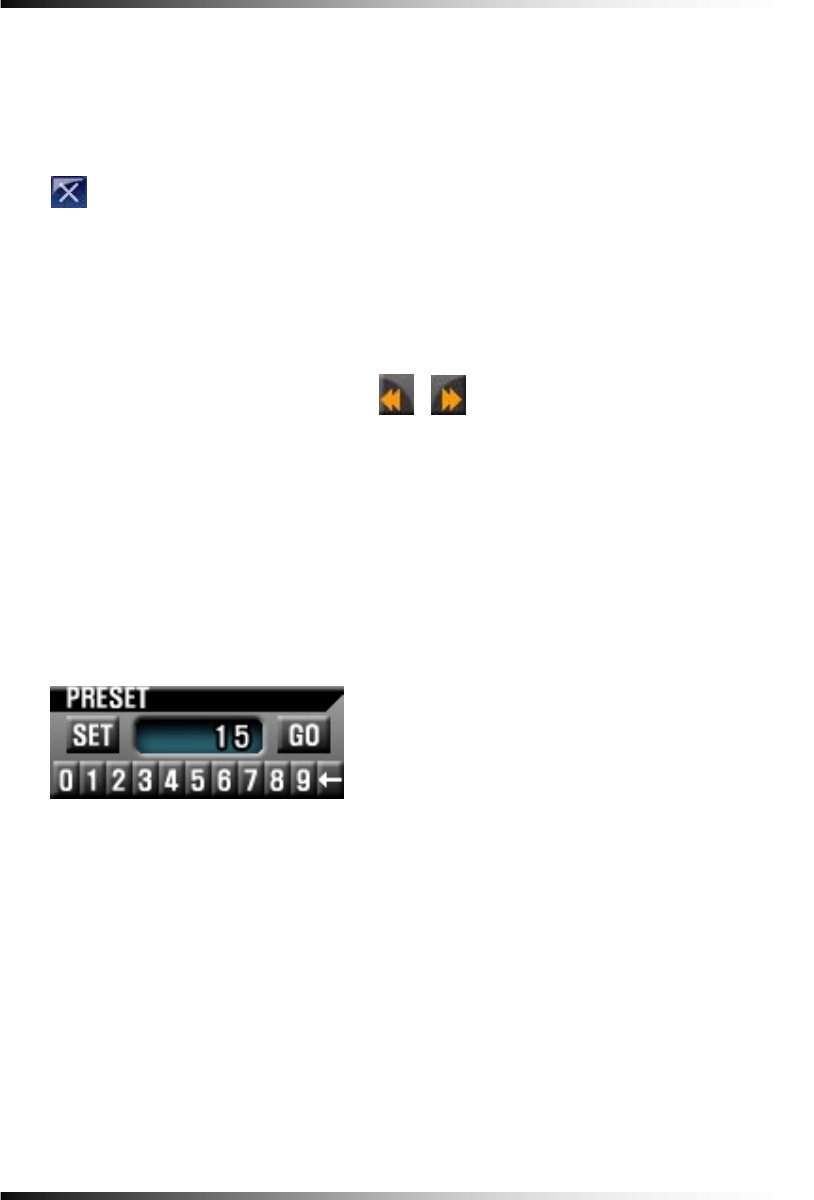

6-7.7. PAN / TILT ......................................................................................................................................45

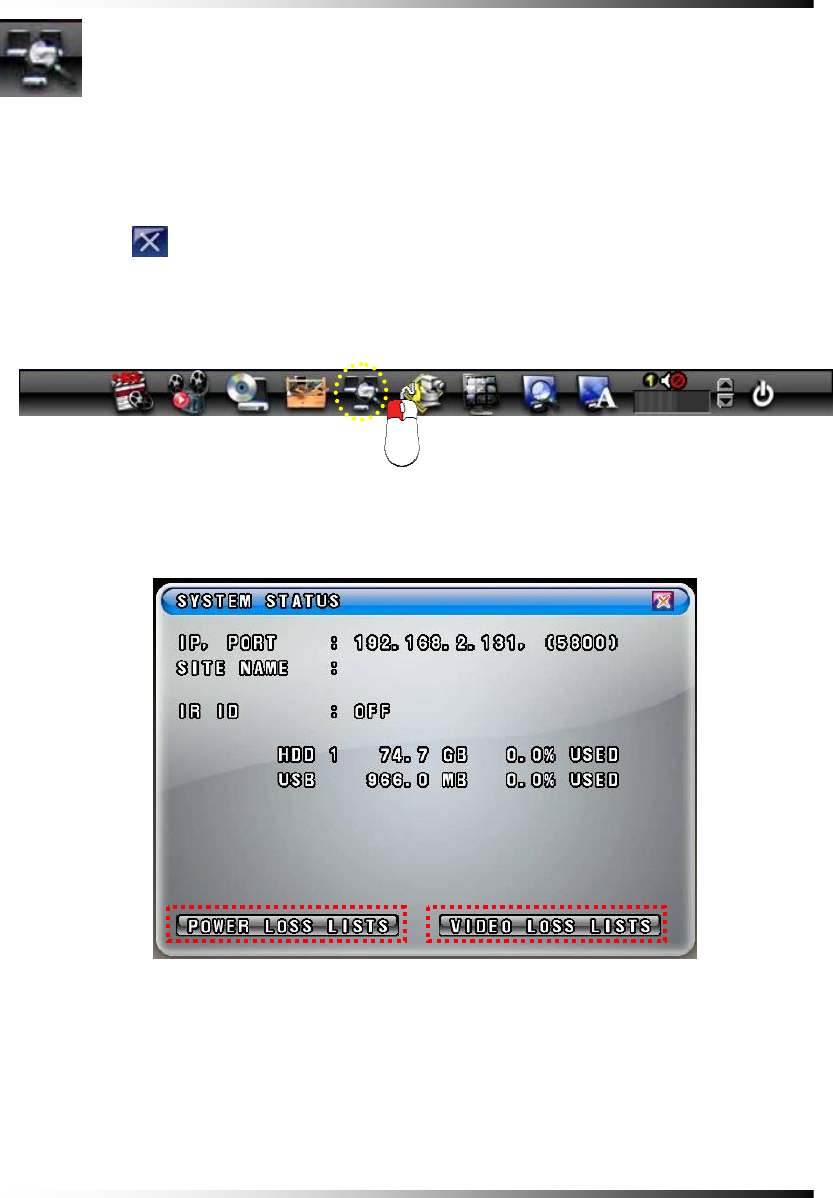

6-7.8. SYSTEM STATUS..........................................................................................................................47

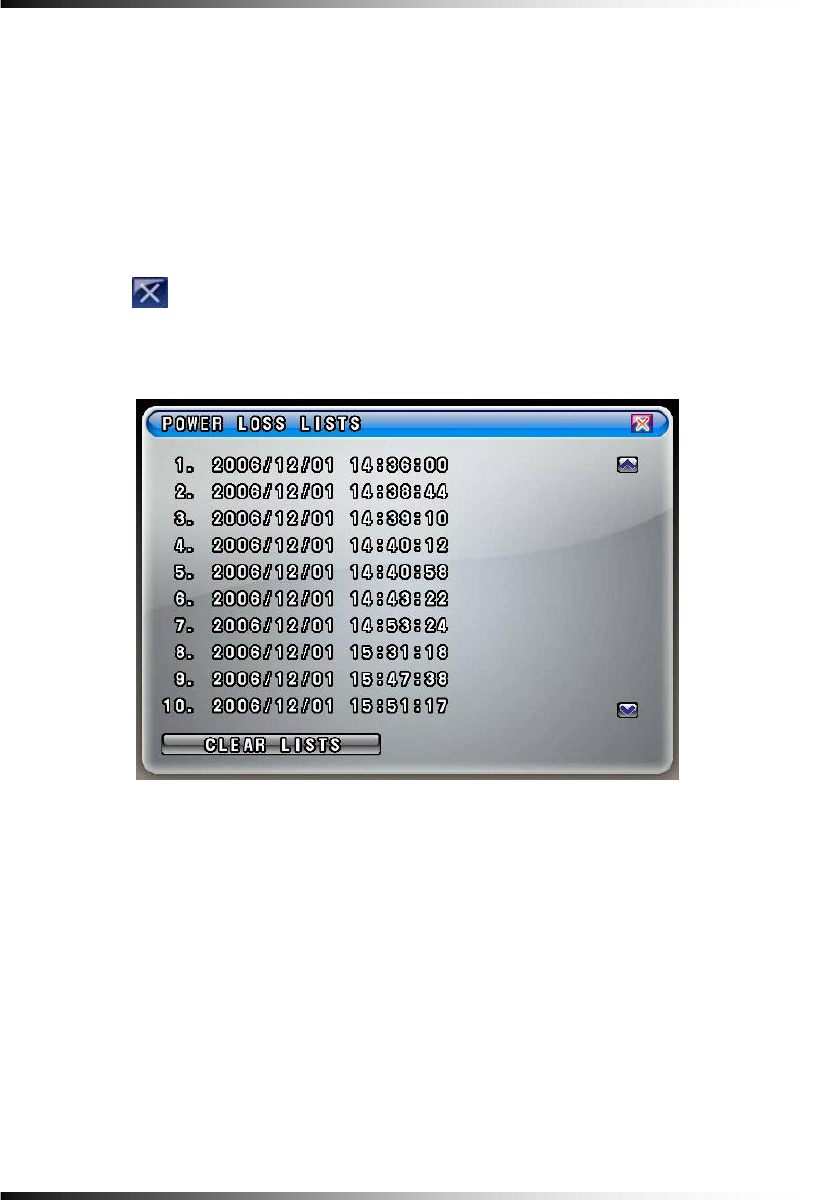

6-7.9. POWER LOSS LISTS....................................................................................................................48

6-8. RECORD ............................................................................................................................ 52

6-8.1. Manual (Continuous) recording .....................................................................................................52

6-8.2. Manual Event Recording................................................................................................................52

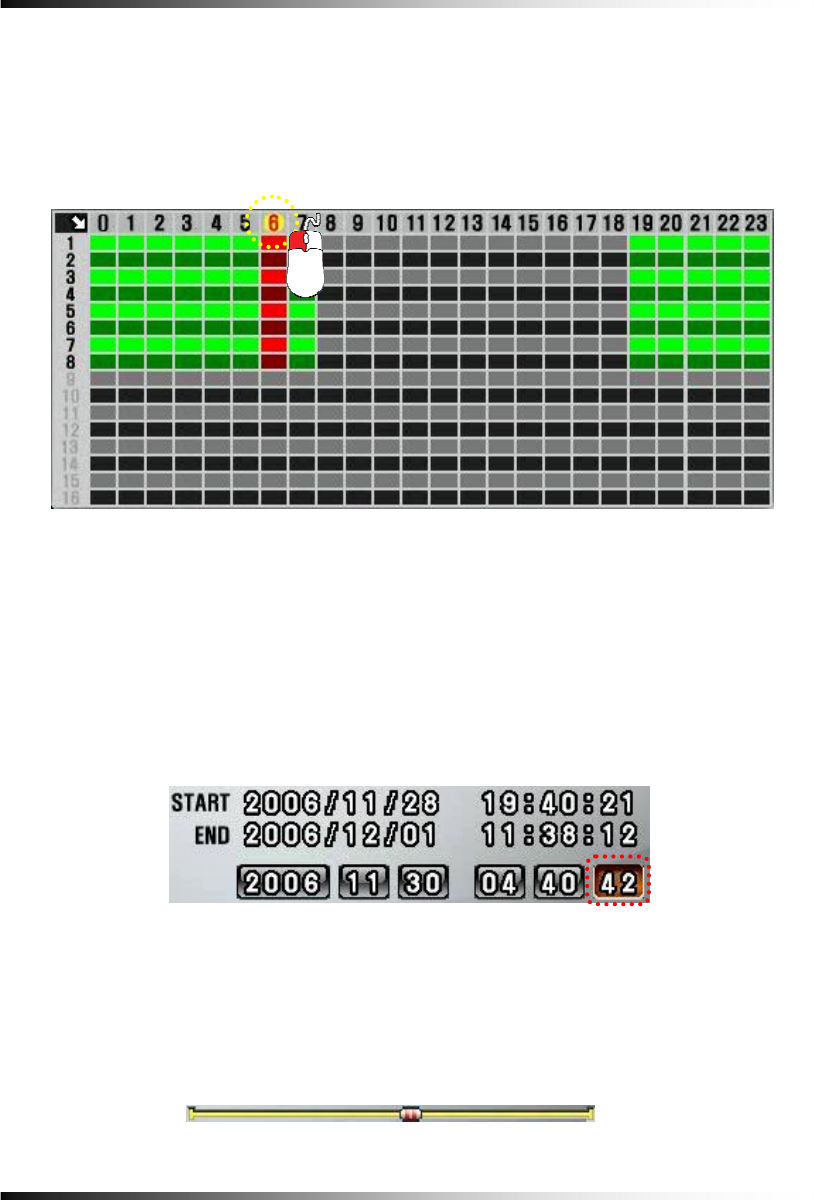

6-8.3. Timer Recording.............................................................................................................................53

6-8.4. Timer Event Recording ..................................................................................................................54

6-8.5. Recording Icons .............................................................................................................................55

6-9. REPLAY ........................................................................................................................... 56

6-9.1. QUICK REPLAY.............................................................................................................................56

6-9.2. REPLAY .........................................................................................................................................56

6-9.2.1. Playback Devices....................................................................................................................57

6-9.2.2. Set the Start Time ...................................................................................................................57

6-9.2.3. Replaying ................................................................................................................................59

6-9.2.4. Disappearance of Replay control buttons ..............................................................................61

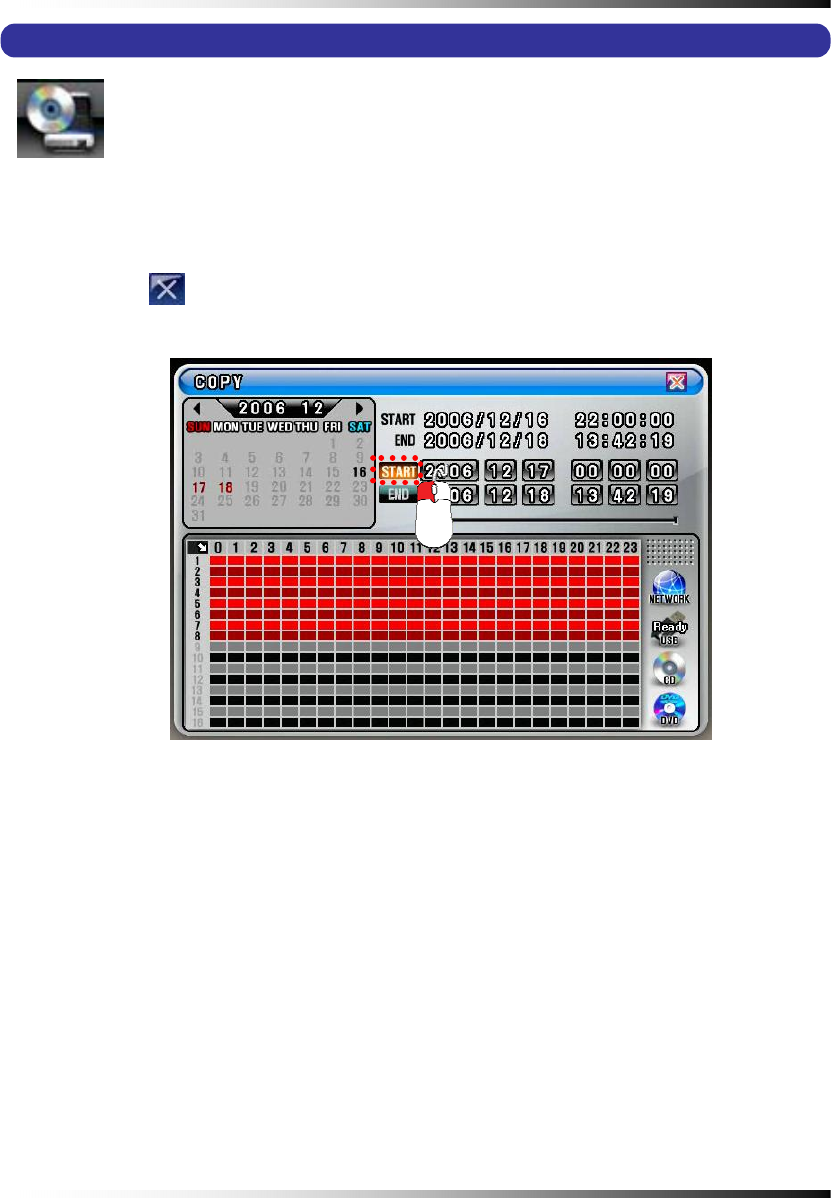

6-10. COPY............................................................................................................................. 63

6-10.1. Copying devices...........................................................................................................................63

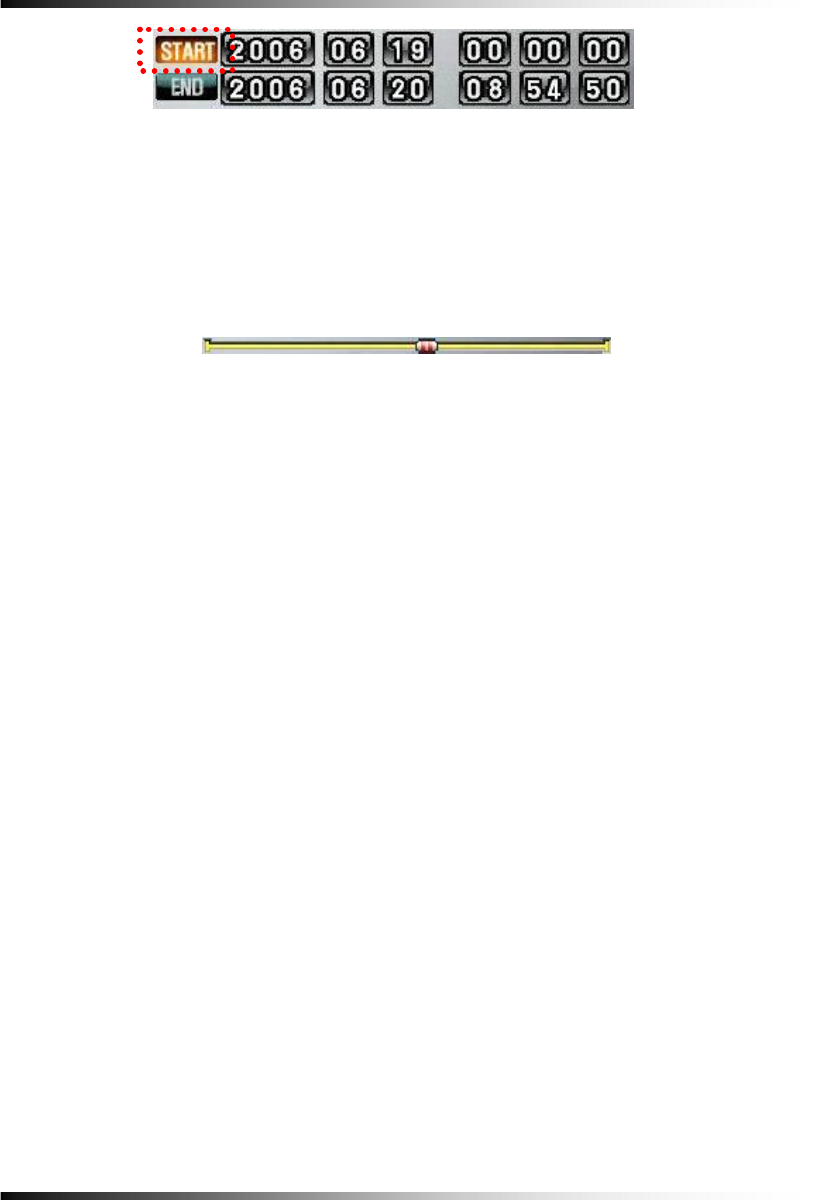

6-10.2. Set the Copy Start Time (Copying extent) ...................................................................................64

6-10.3. Set the Copy End Time (Copying extent) ....................................................................................66

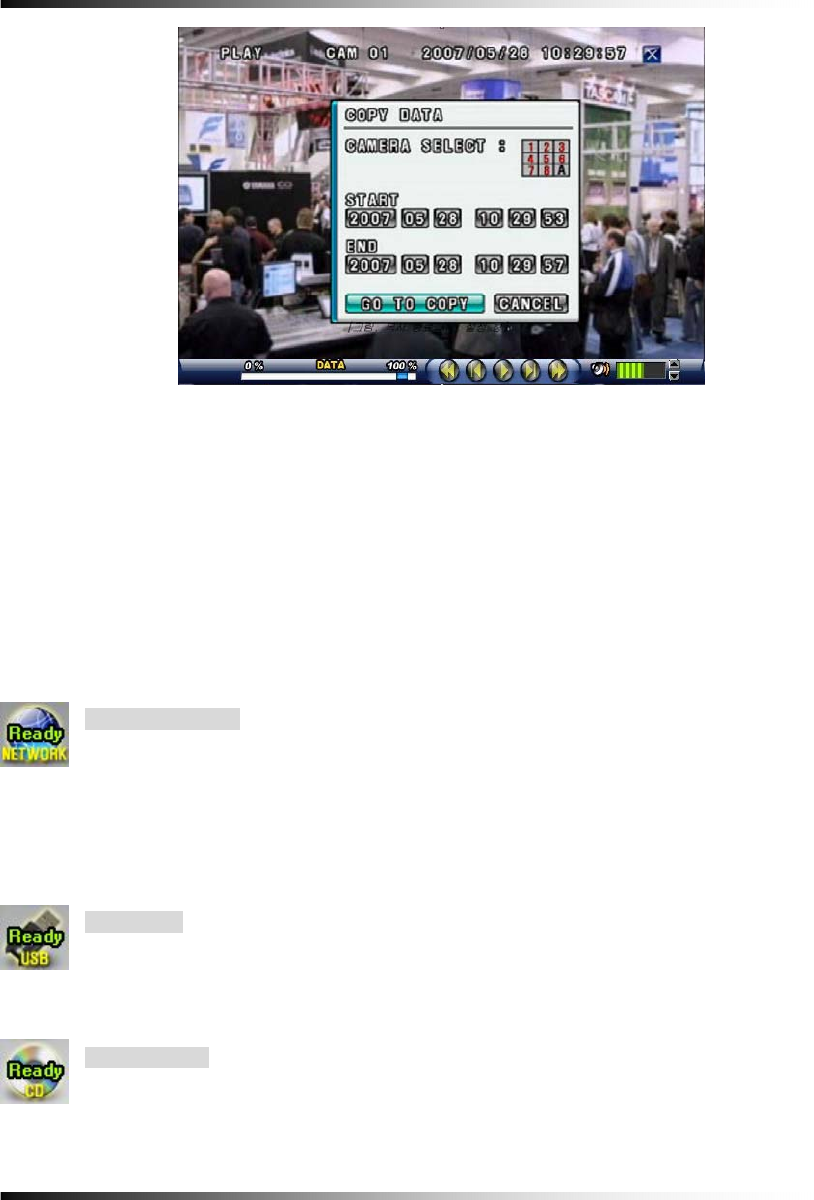

6-10.4. Copying the recorded data during replaying ...............................................................................67

Contents

SETUP............................................................................................................................................... 70

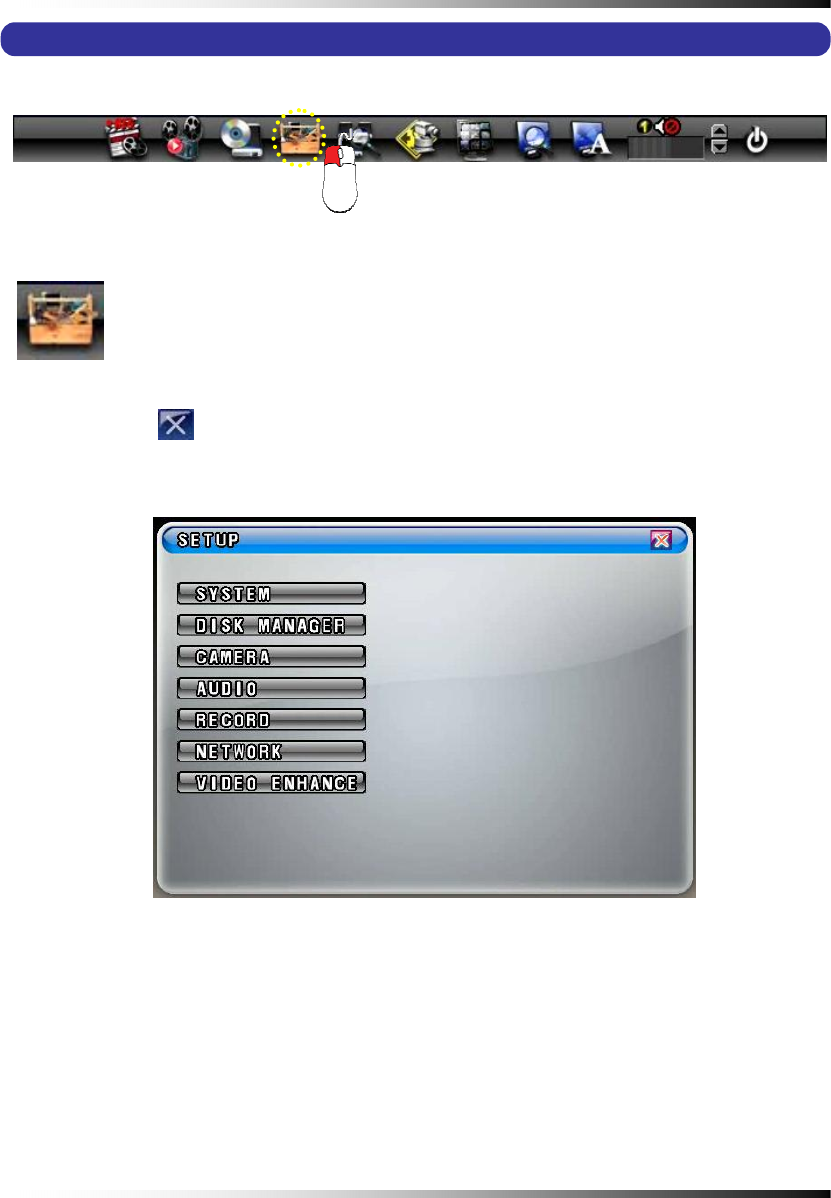

7-1. SETUP ............................................................................................................................. 73

7-2. SYSTEM ..........................................................................................................................74

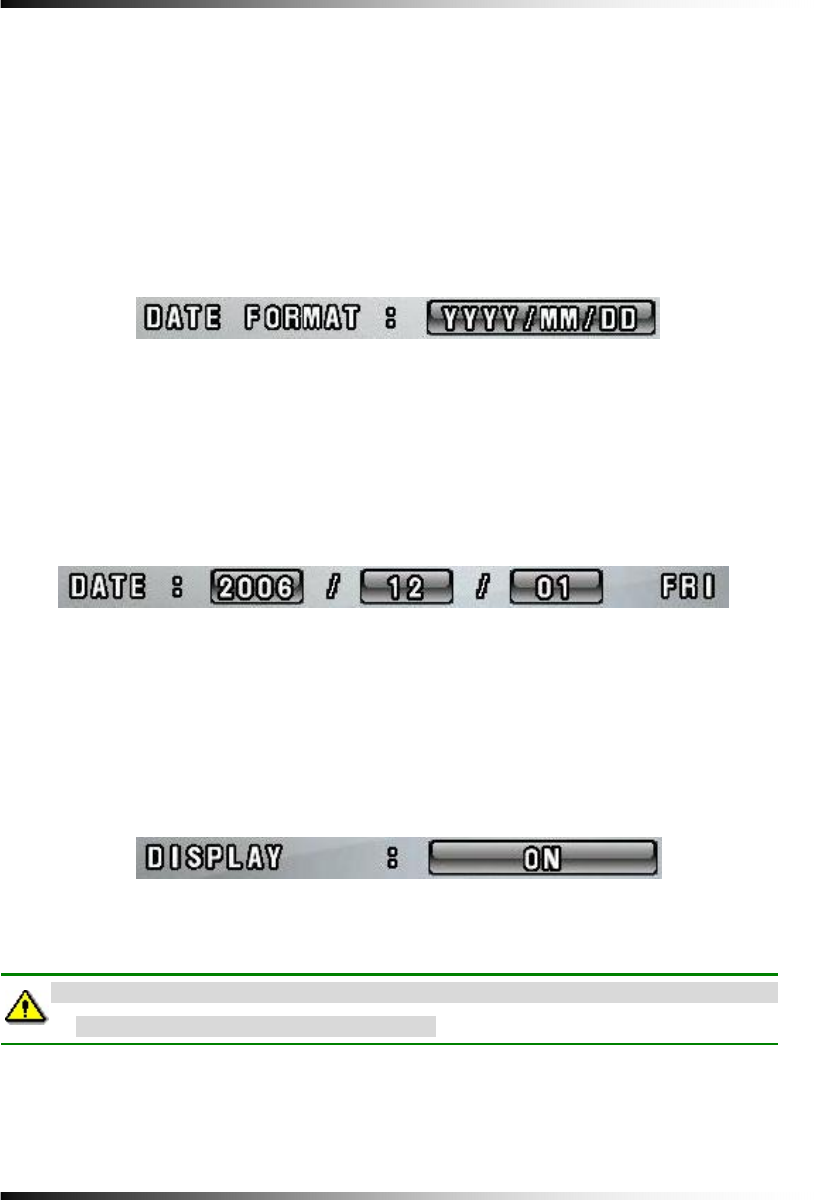

7-2.1. TIME / DATE ..................................................................................................................................75

7-2.2. SYSTEM CONFIG .........................................................................................................................77

7-2.2.1. FACTORY DEFAULT ..............................................................................................................77

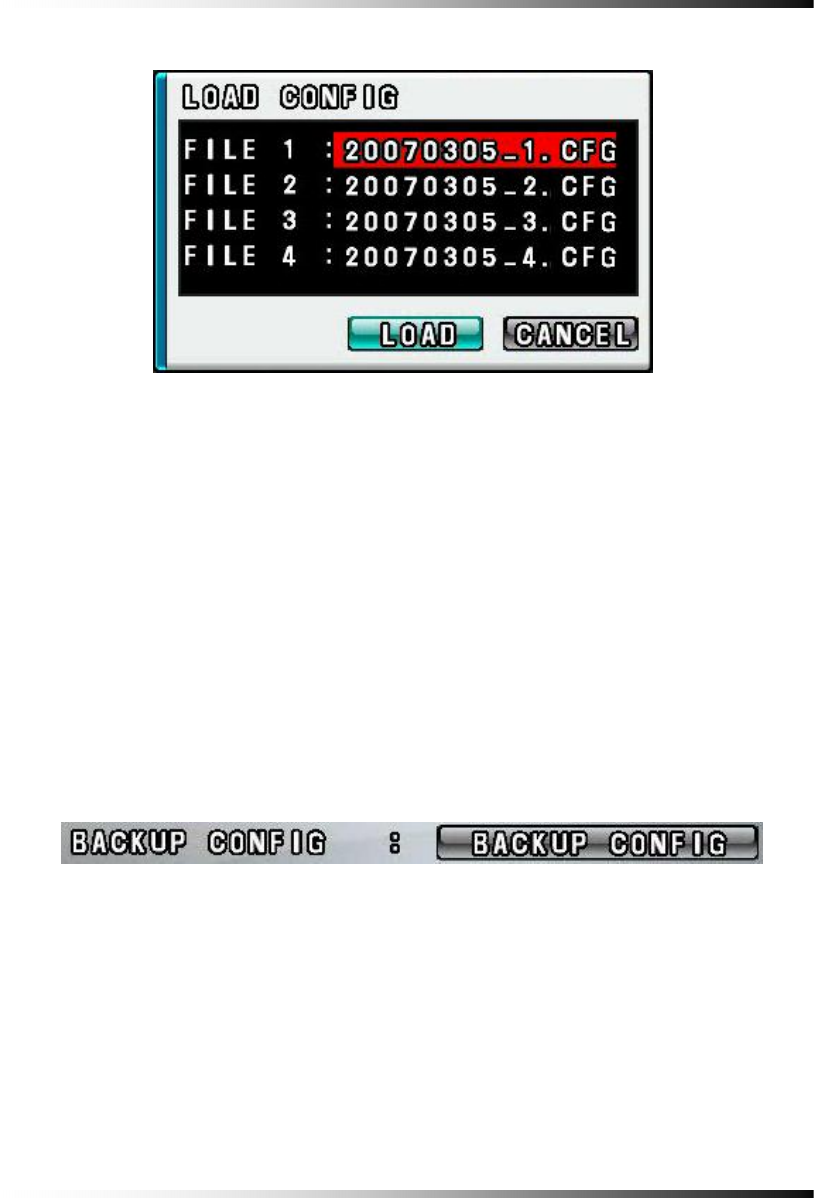

7-2.2.2. LOAD CONFIG / BACKUP CONFIG ......................................................................................78

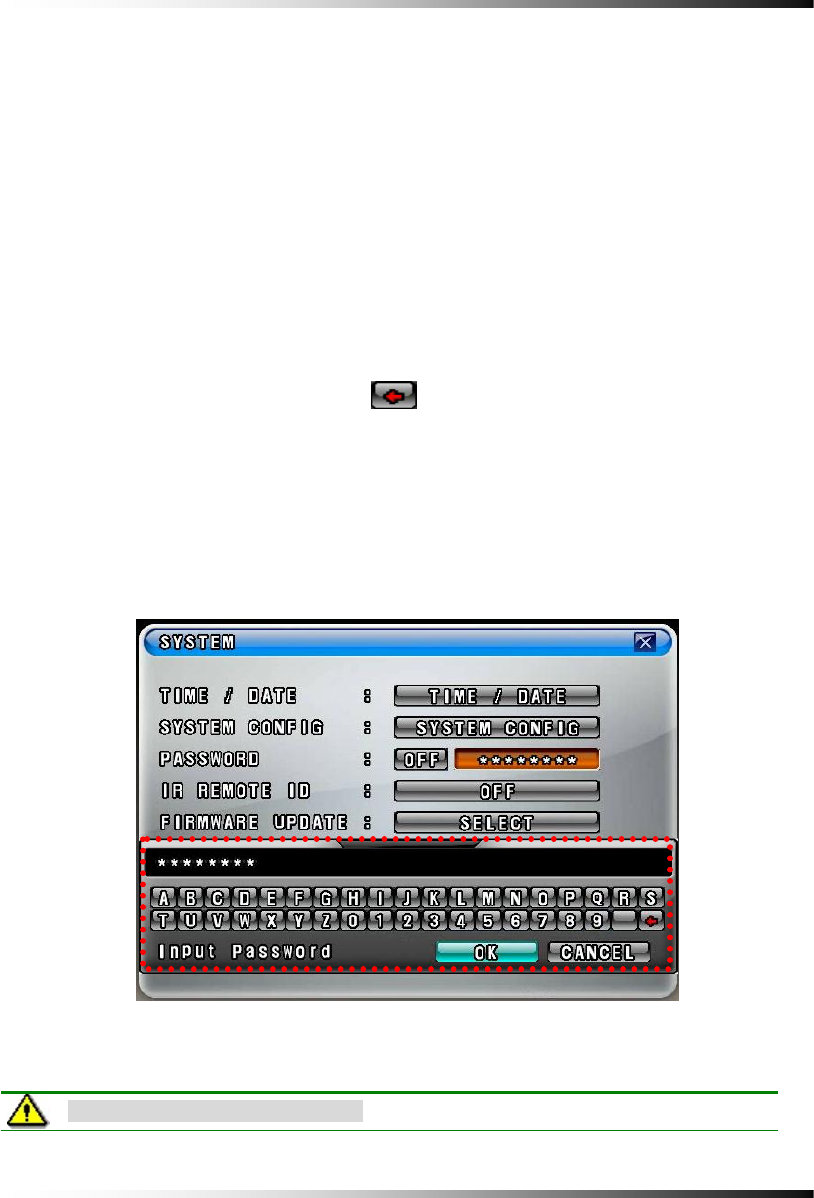

7-2.3. PASSWORD...................................................................................................................................81

7-2.4. IR REMOTE ID...............................................................................................................................82

7-2.6. SYSTEM INFO...............................................................................................................................83

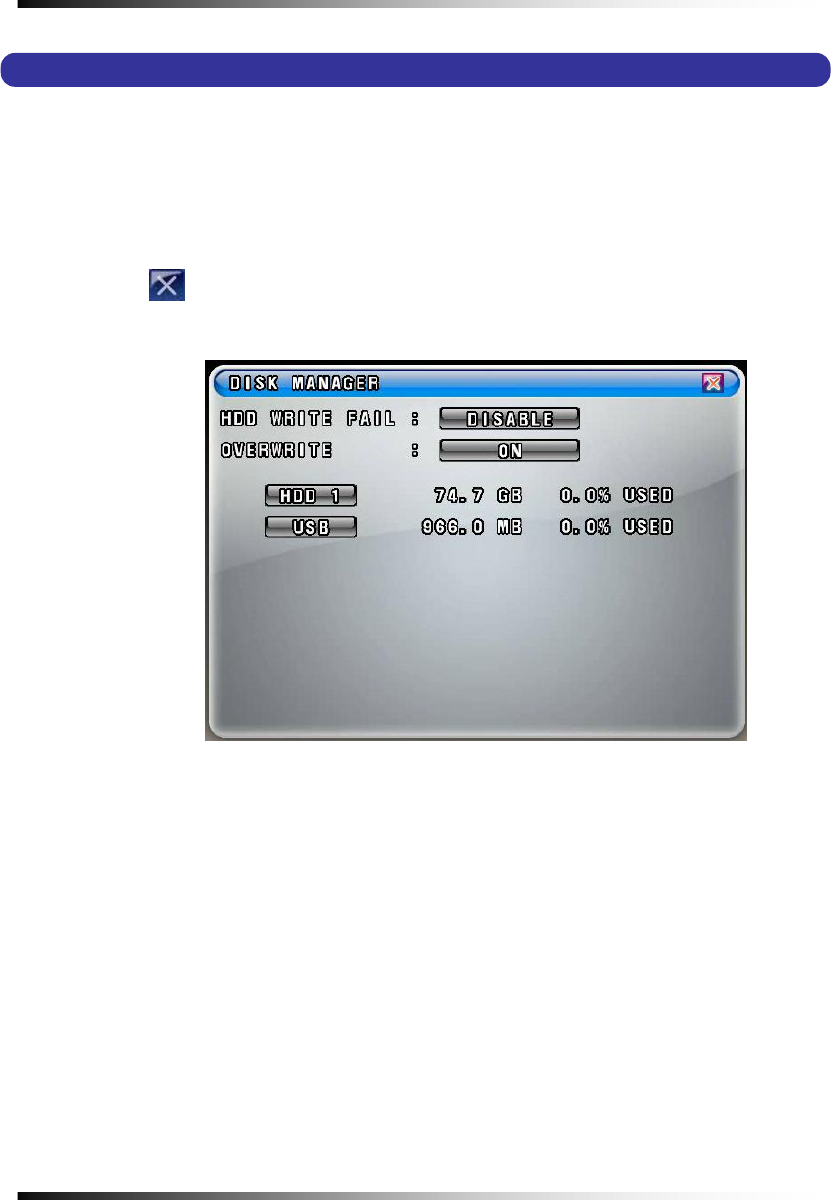

7-3. DISK MANAGER.............................................................................................................. 84

7-3.1. HDD WRITE FAIL ..........................................................................................................................85

7-3.2. HDD OVERWRITE.........................................................................................................................85

7-3.3. Format ............................................................................................................................................85

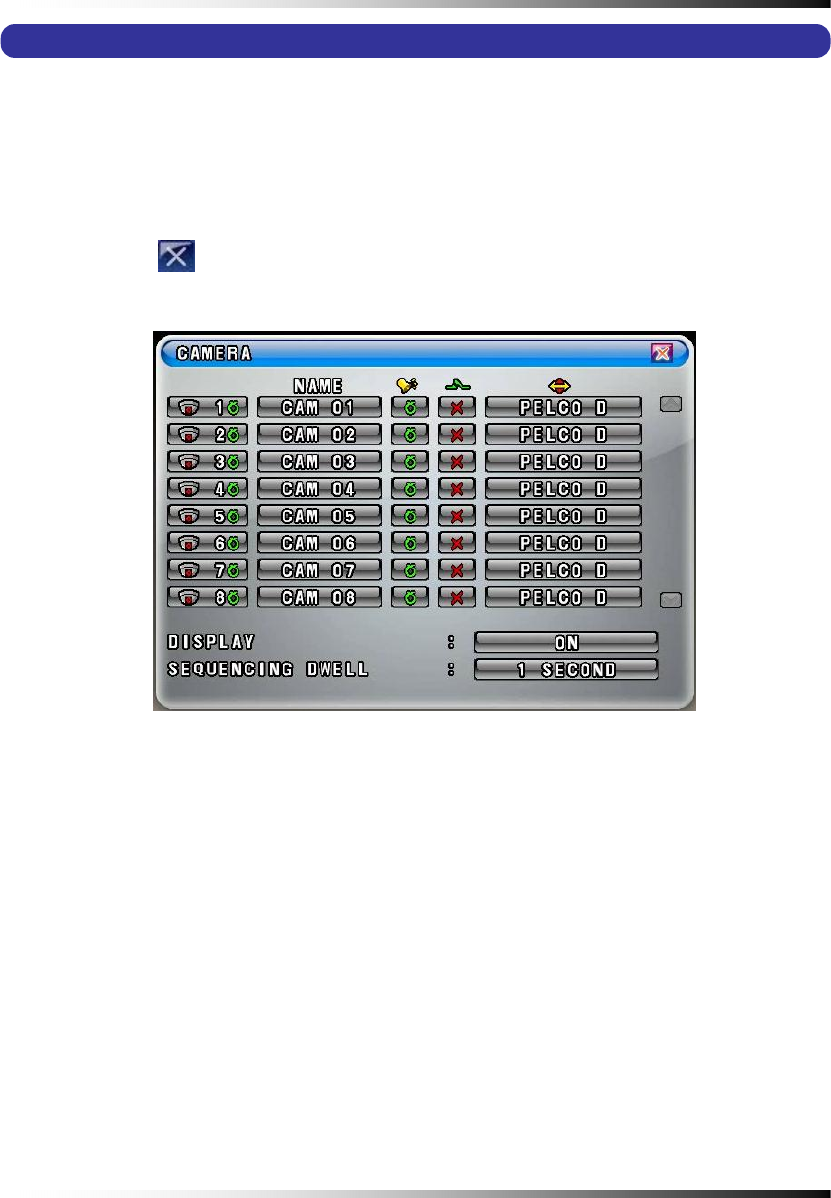

7-4. CAMERA..........................................................................................................................87

7-4.1. Camera ON/OFF............................................................................................................................88

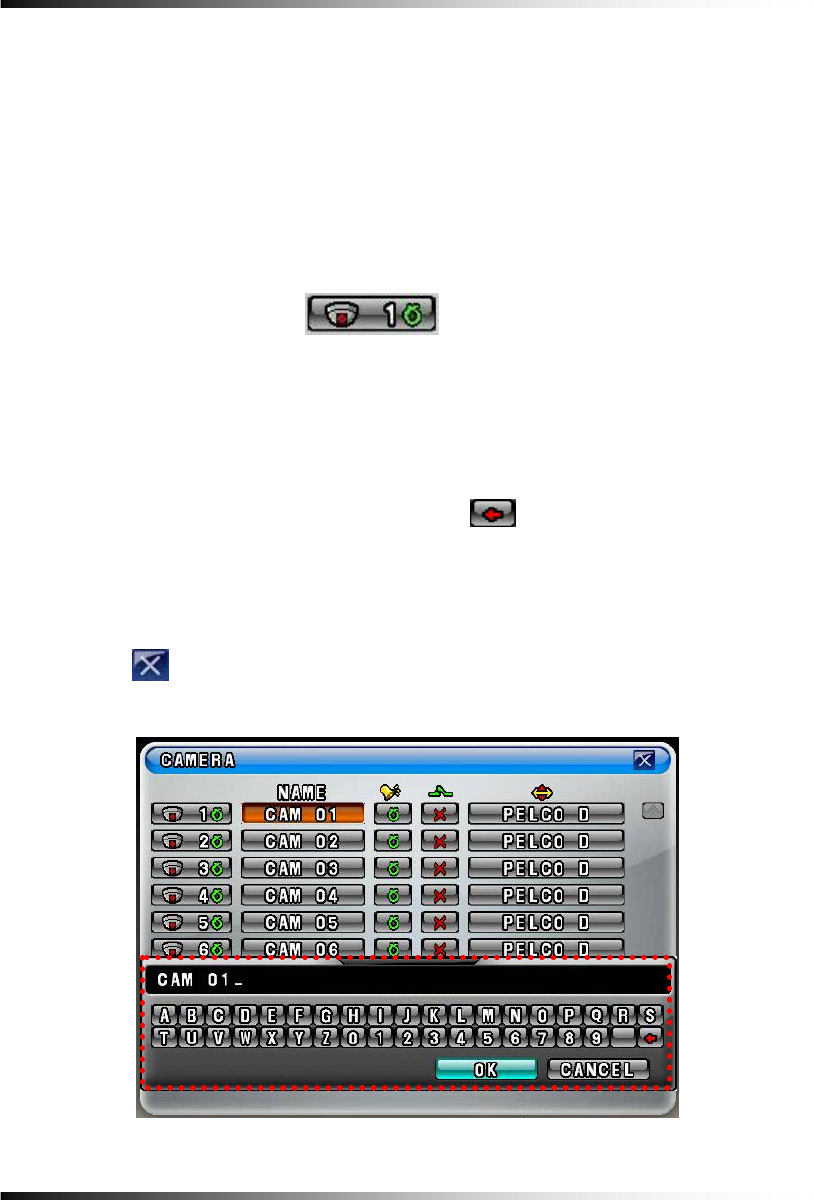

7-4.2. Camera Name (Camera Title)........................................................................................................88

7-4.3. Buzzer ............................................................................................................................................89

7-4.4. Relay ..............................................................................................................................................89

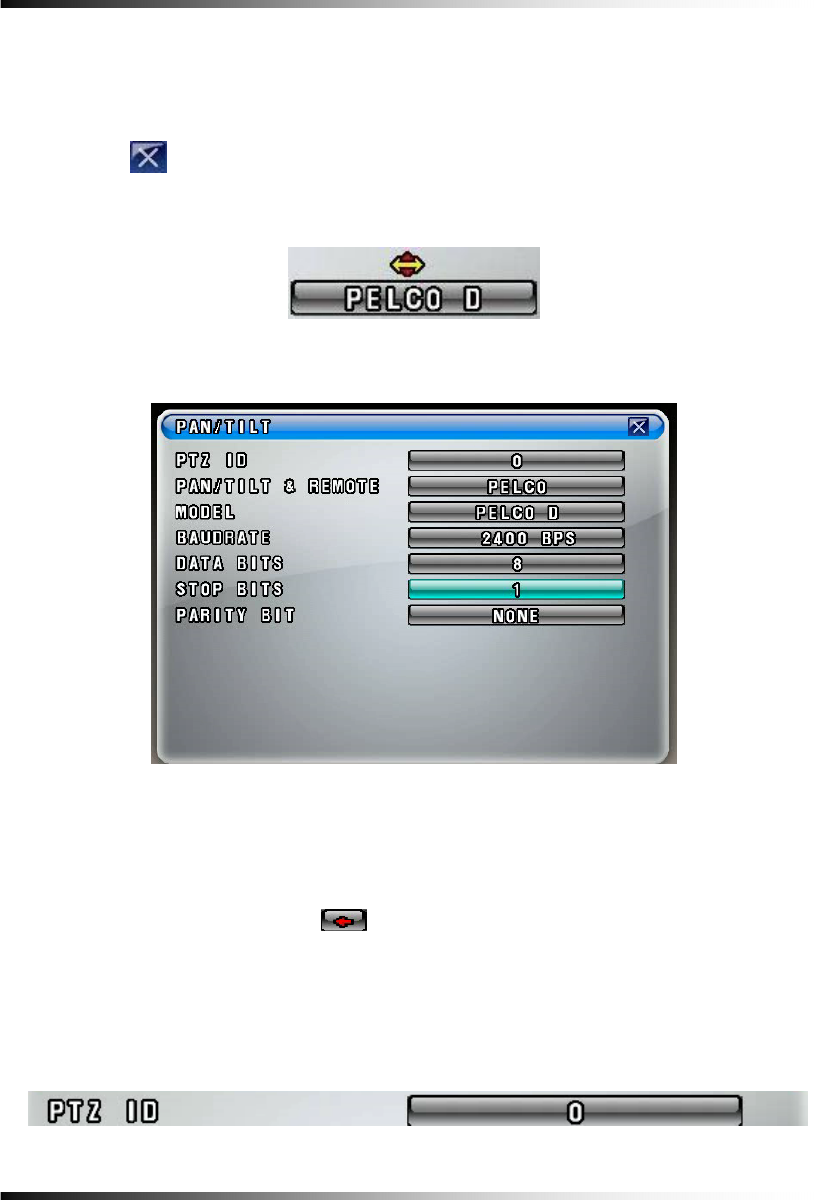

7-4.5. Pan/Tilt Settings .............................................................................................................................90

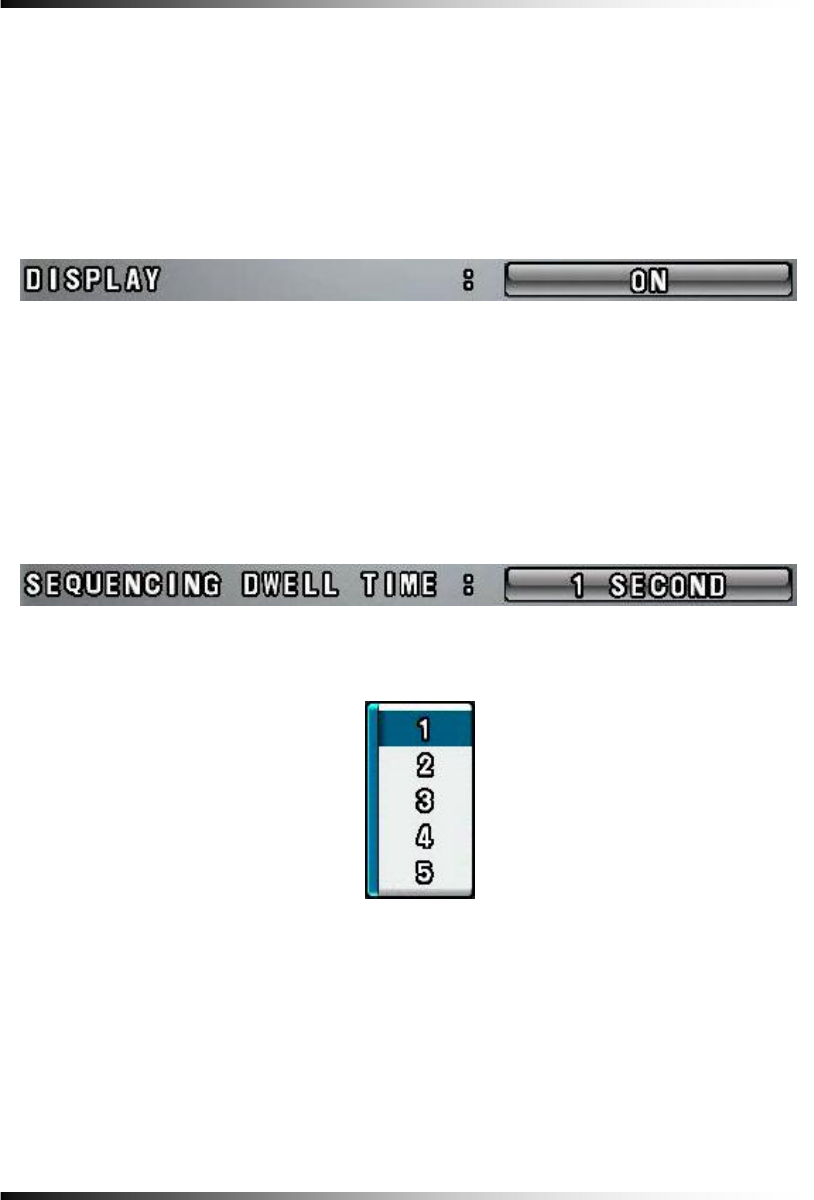

7-4.6 Display.............................................................................................................................................94

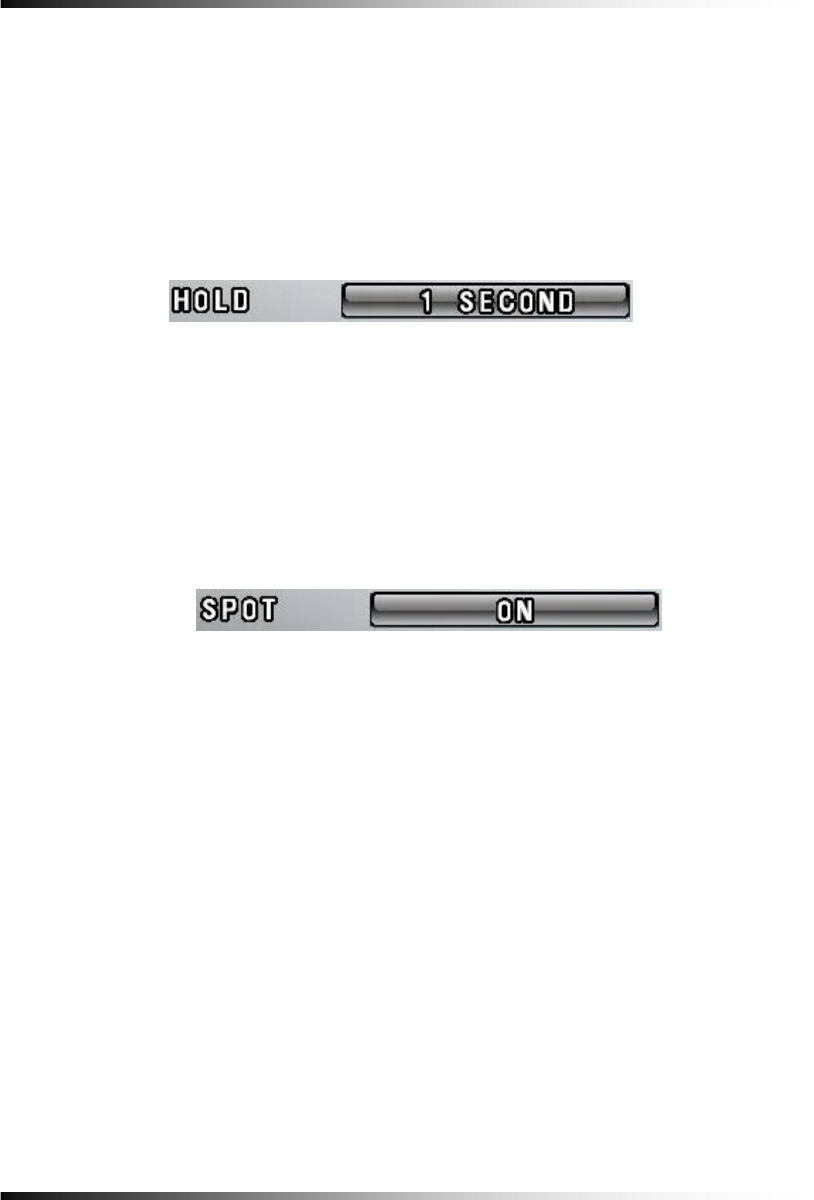

7-4.7 Sequencing dwell time ....................................................................................................................94

7-5. AUDIO.............................................................................................................................. 95

7-5.1. Audio Recording ON/OFF ..............................................................................................................96

7-5.2. Microphone Volume .......................................................................................................................96

7-6. RECORD..........................................................................................................................97

7-6.1. Record ICON Display.....................................................................................................................97

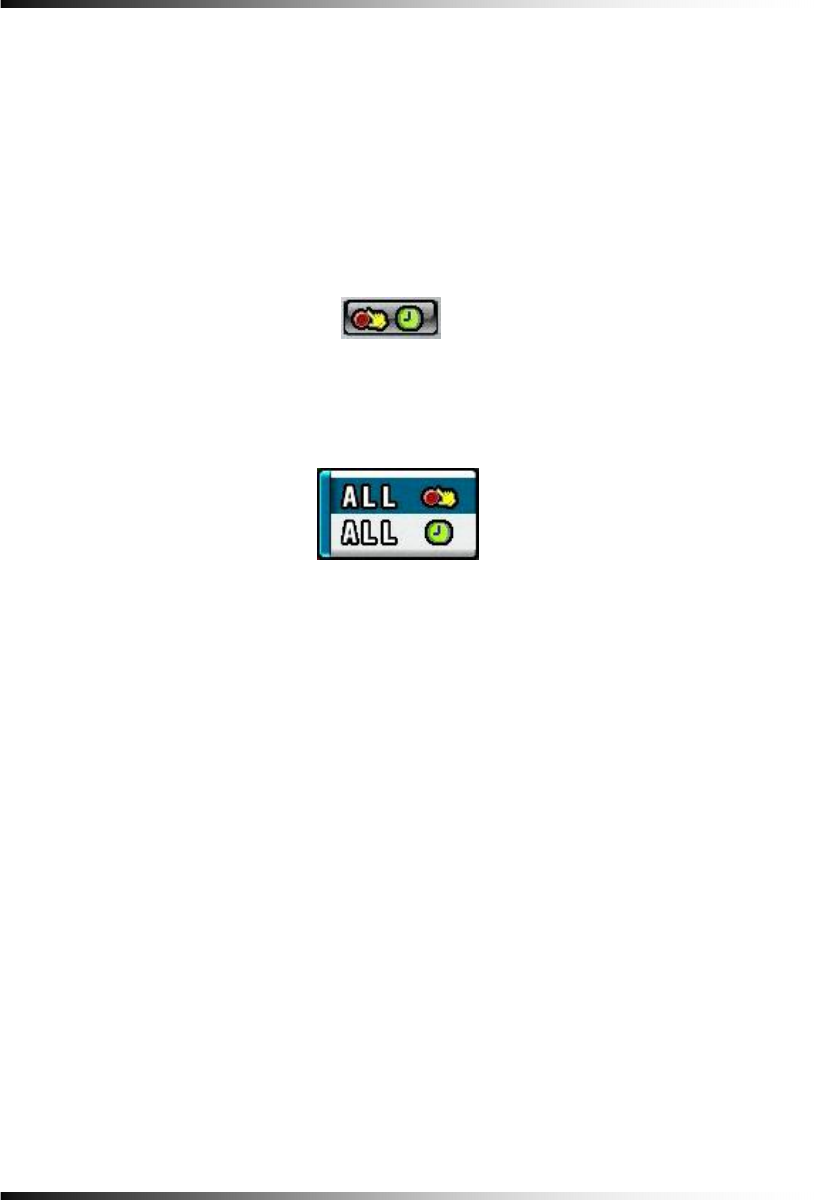

7-6.2. All Manual / Timer recording button ...............................................................................................98

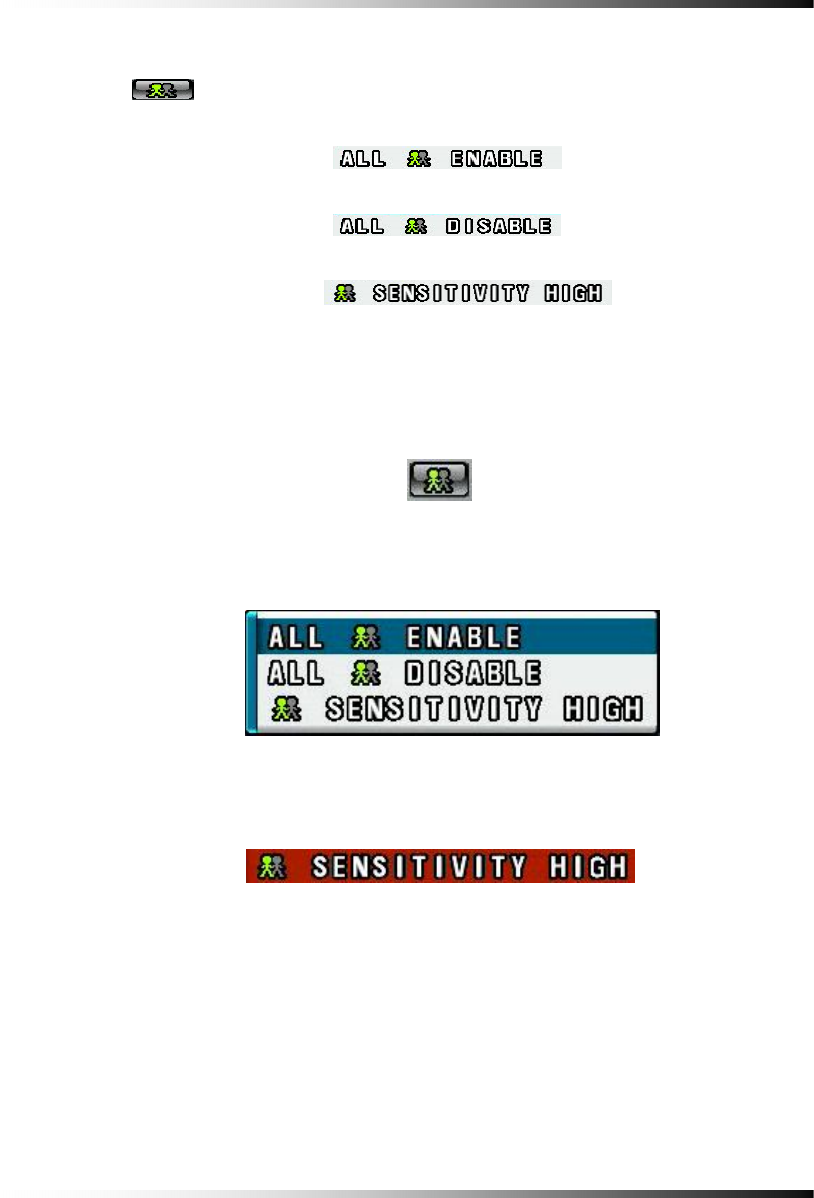

7-6.3. All Motion ON / OFF, Sensitivity and Velocity Setting....................................................................99

7-6.4. All Sensors ON / OFF ..................................................................................................................100

7-6.5. Size (Recording Resolution) ........................................................................................................100

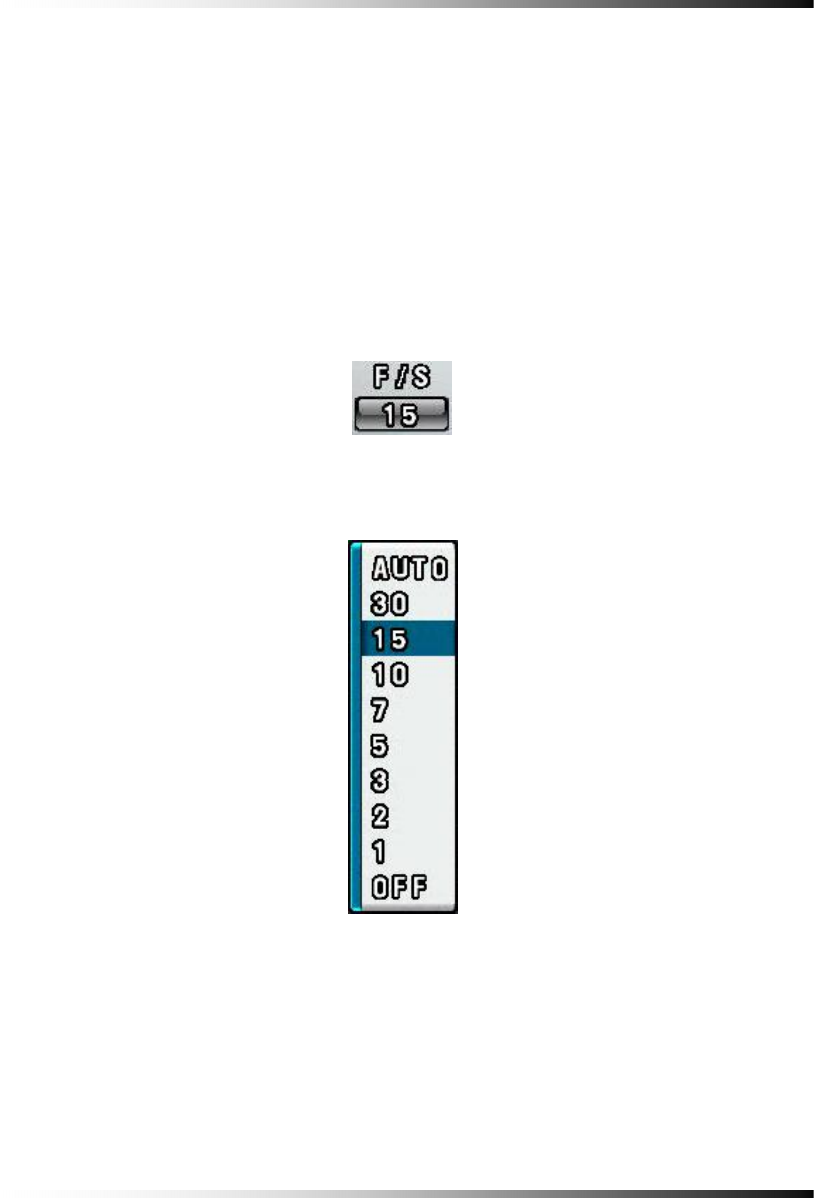

7-6.6. Recording Speed..........................................................................................................................101

7-6.7. Recording Quality.........................................................................................................................102

System Instruction Manual

7-6.8. Recording Mode...........................................................................................................................103

7-6.8.1. Manual Recording.................................................................................................................103

7-6.8.2. Manual Event Recording ......................................................................................................103

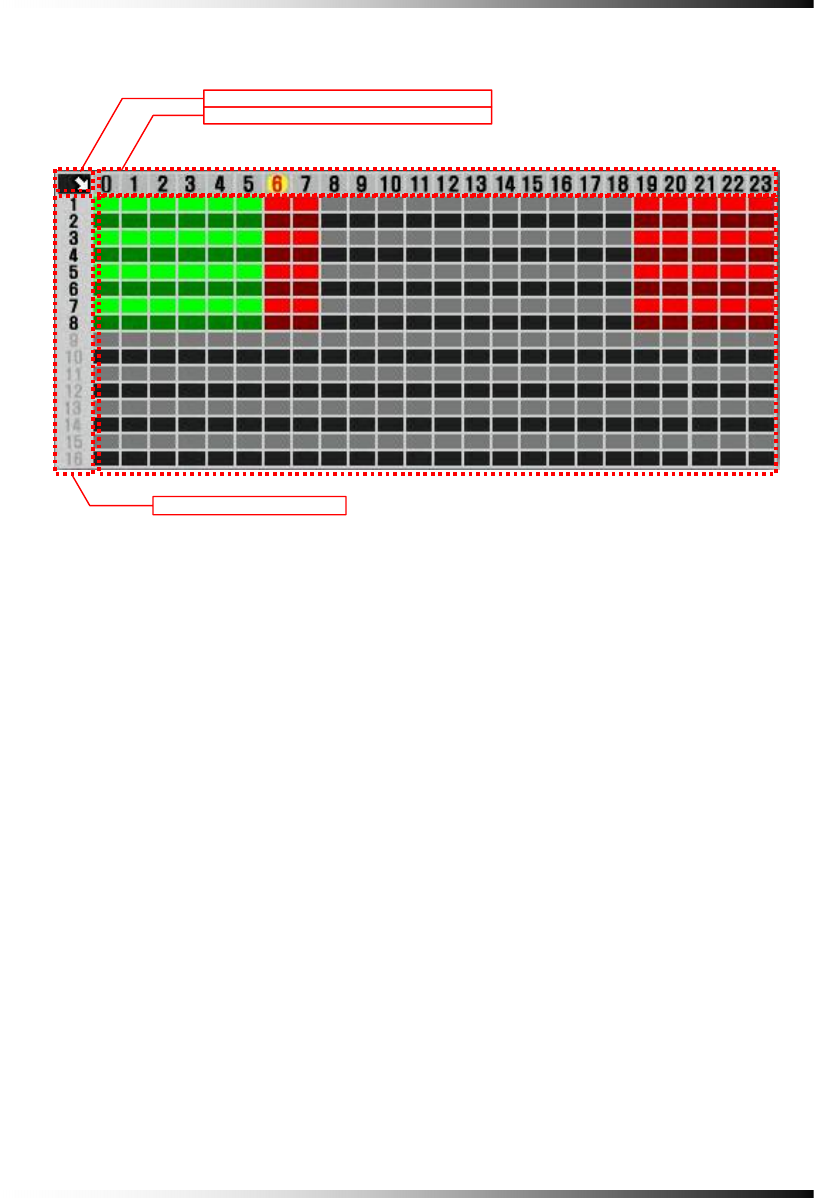

7-6.8.3. Timer Recording (Schedule Recording) ...............................................................................103

7-6.8.4. Timer Event Recording .........................................................................................................103

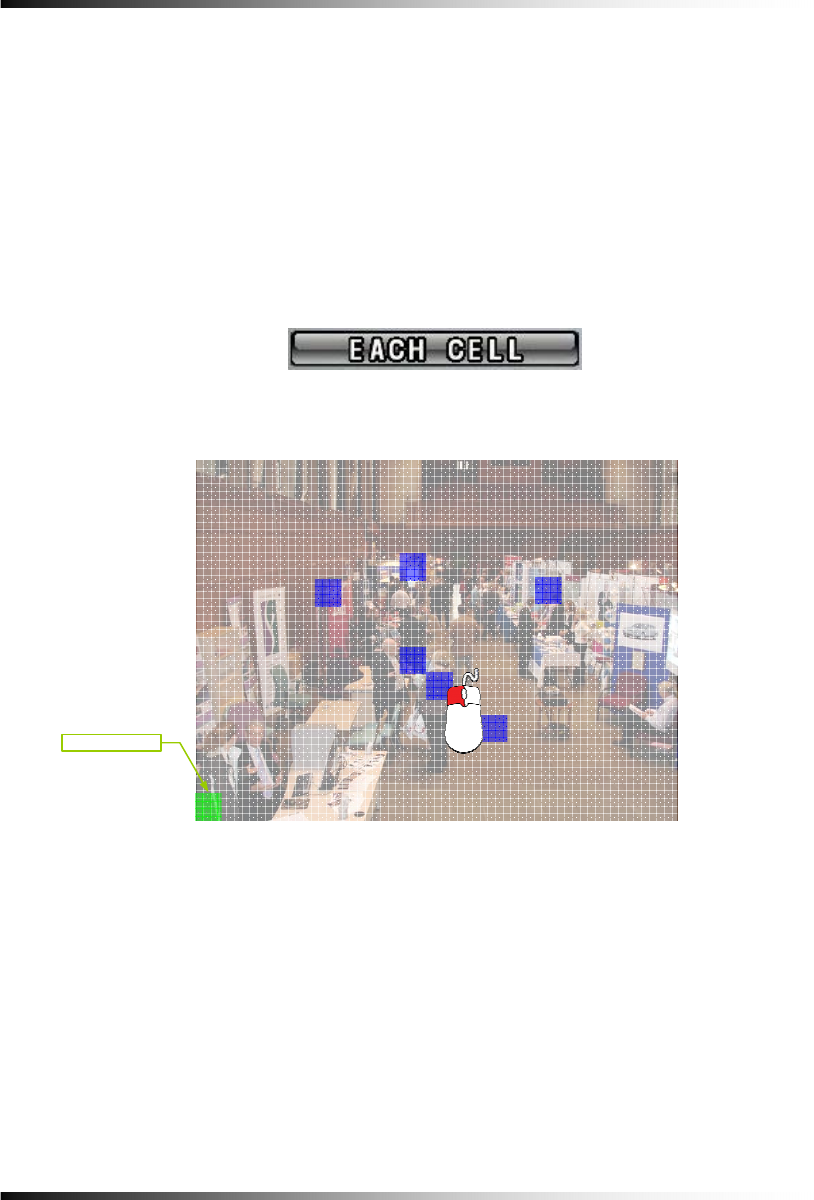

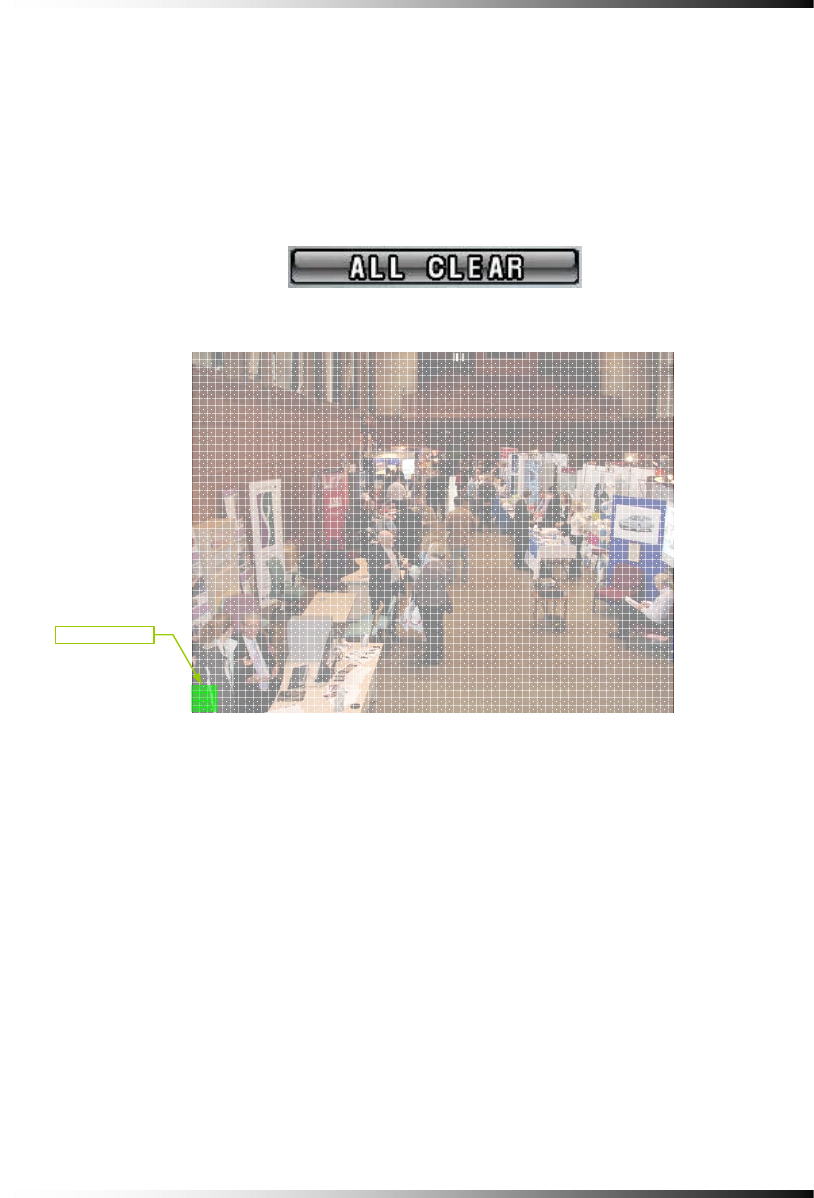

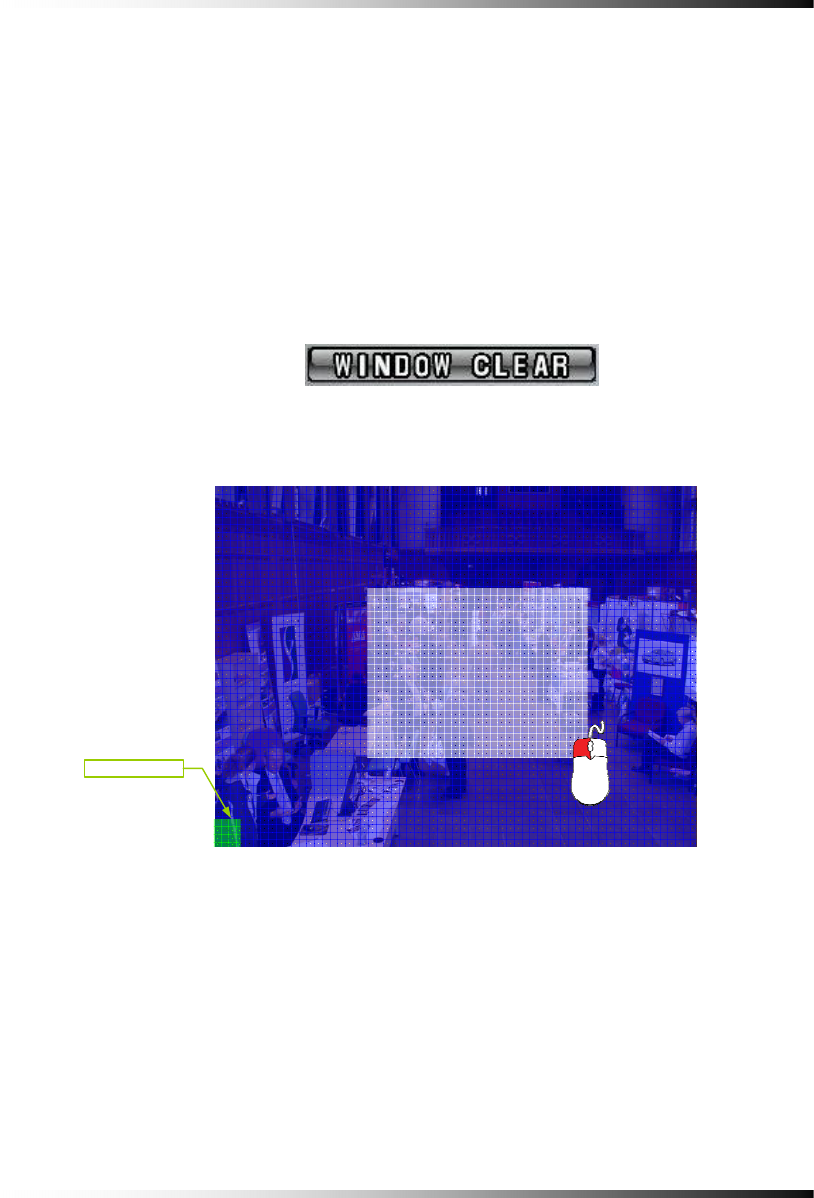

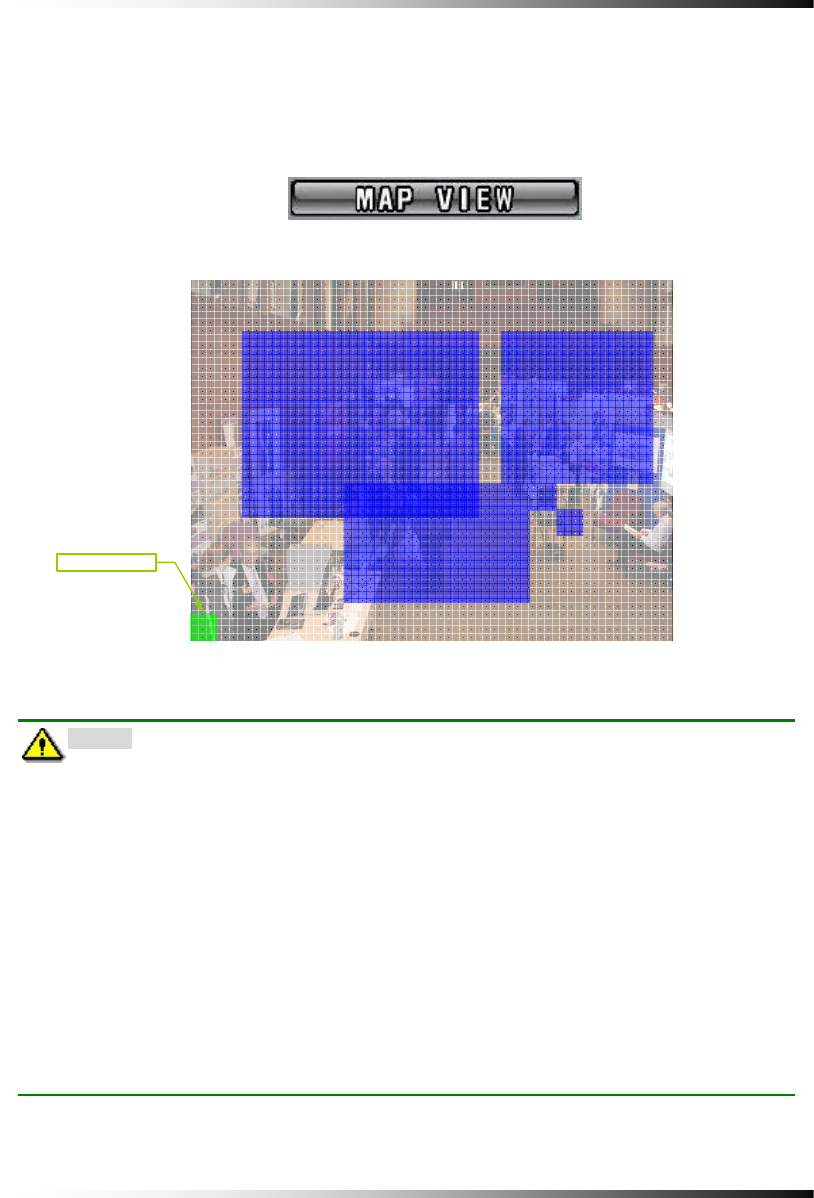

7-6.9. Recording by Motion Detection....................................................................................................104

7-6.10. Recording by Sensor (PIR Sensor) ........................................................................................... 112

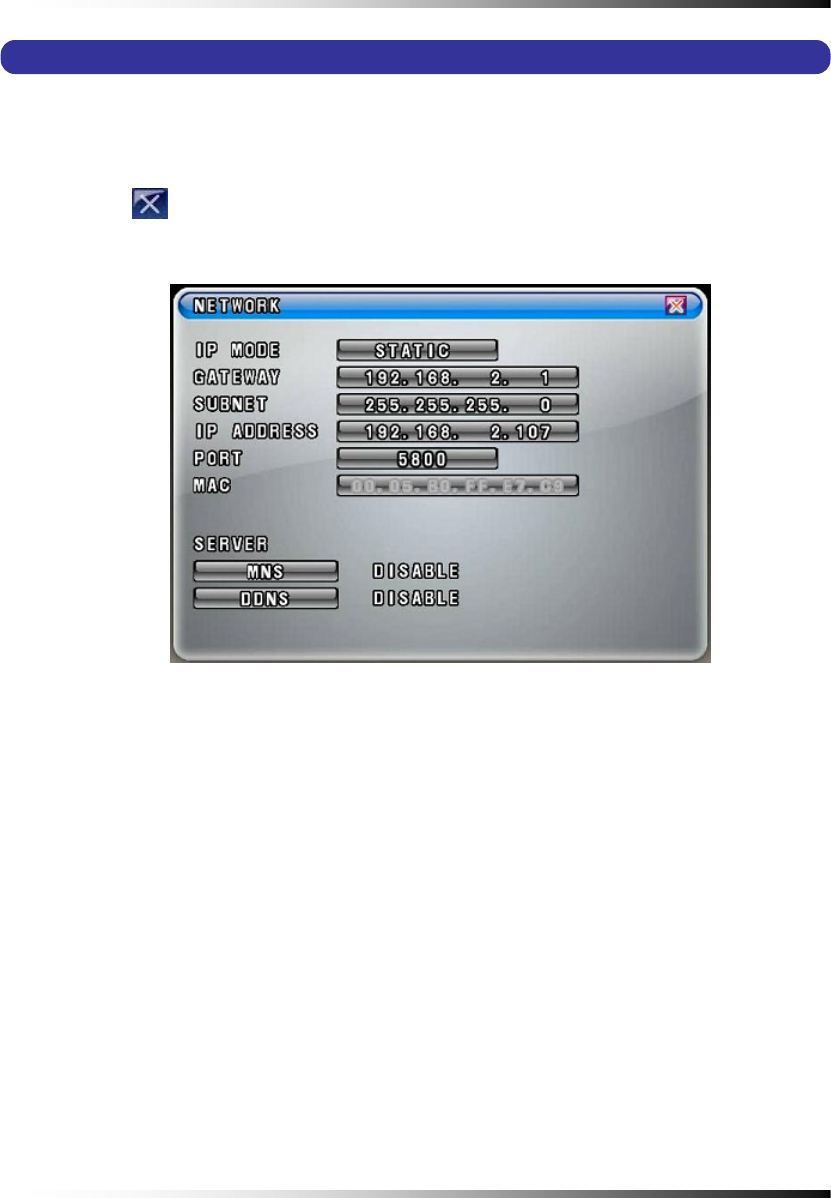

7-7. NETWORK......................................................................................................................115

7-7.1. IP Mode ........................................................................................................................................ 115

7-7.2. GATEWAY, SUBNET, IP ADDRESS ............................................................................................ 116

7-7.3. Port ............................................................................................................................................... 117

7-7.3.1 Port Forwarding ..................................................................................................................... 117

7-7.4. MAC ID......................................................................................................................................... 118

7-7.5. MNS (MAC NAME SERVER) ...................................................................................................... 118

7-7.6. DDNS (DYNAMIC DOMAIN NAME SYSTEM)............................................................................120

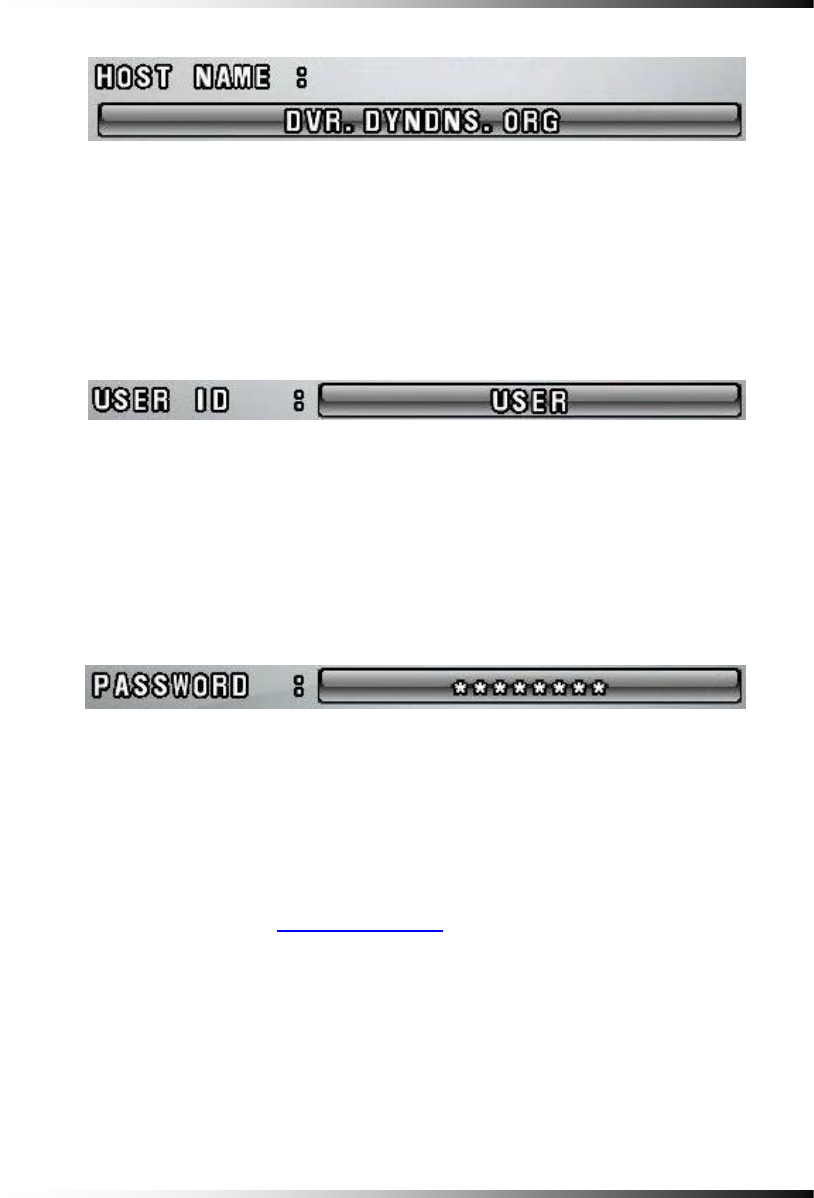

7-7.7. HOW TO SETUP AND USE THE DDNS.....................................................................................121

7-7.7.1. Router....................................................................................................................................121

7-7.7.2. Registration to the DDNS server ..........................................................................................122

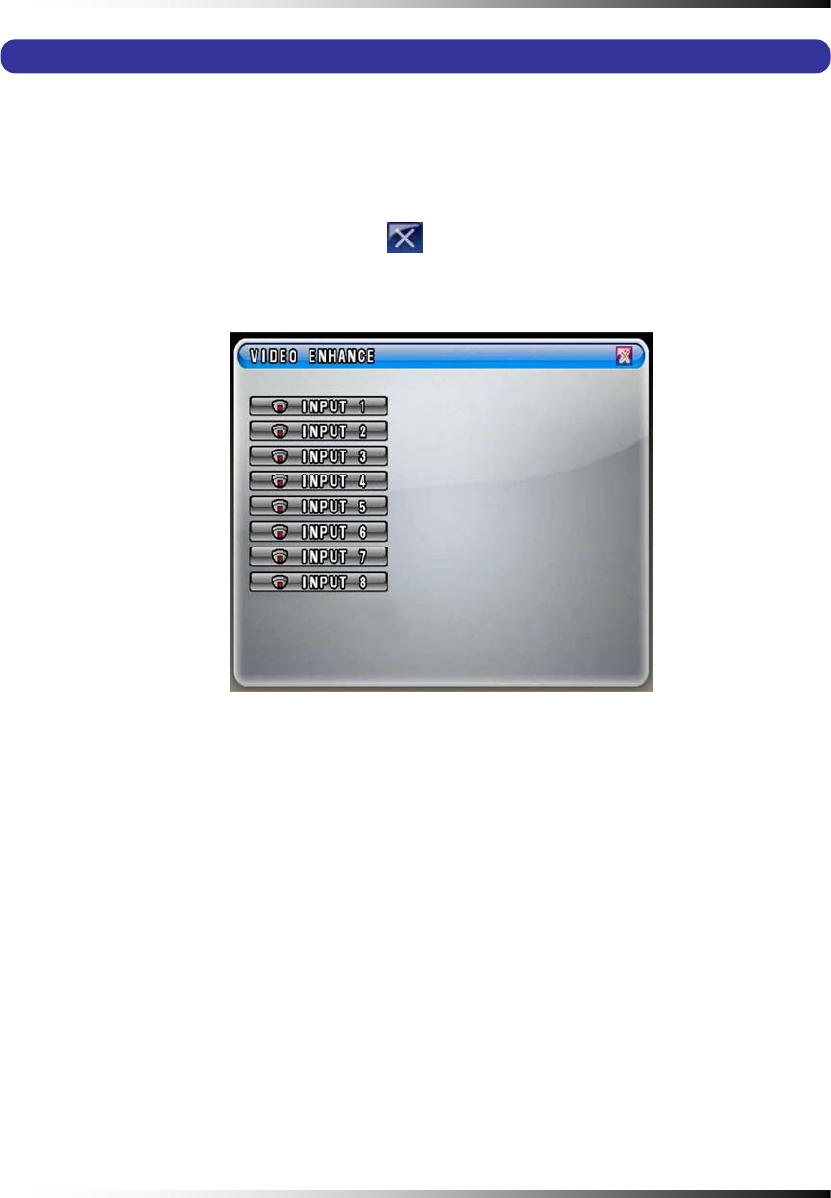

7-8. VIDEO ENHANCE.......................................................................................................... 123

7-8.1. VIDEO ENHANCEMENT ON EACH CAMERA...........................................................................124

7-8.2. VIDEO ENHANCEMENT ON VGA OUTPUT..............................................................................125

REMOTE HOST PROGRAM ............................................................................................................. 127

8-1. REMOTE PROGRAM OVERVIEW.......................................................................................... 128

8-2. INSTALLING THE PROGRAM TO PC...................................................................................... 129

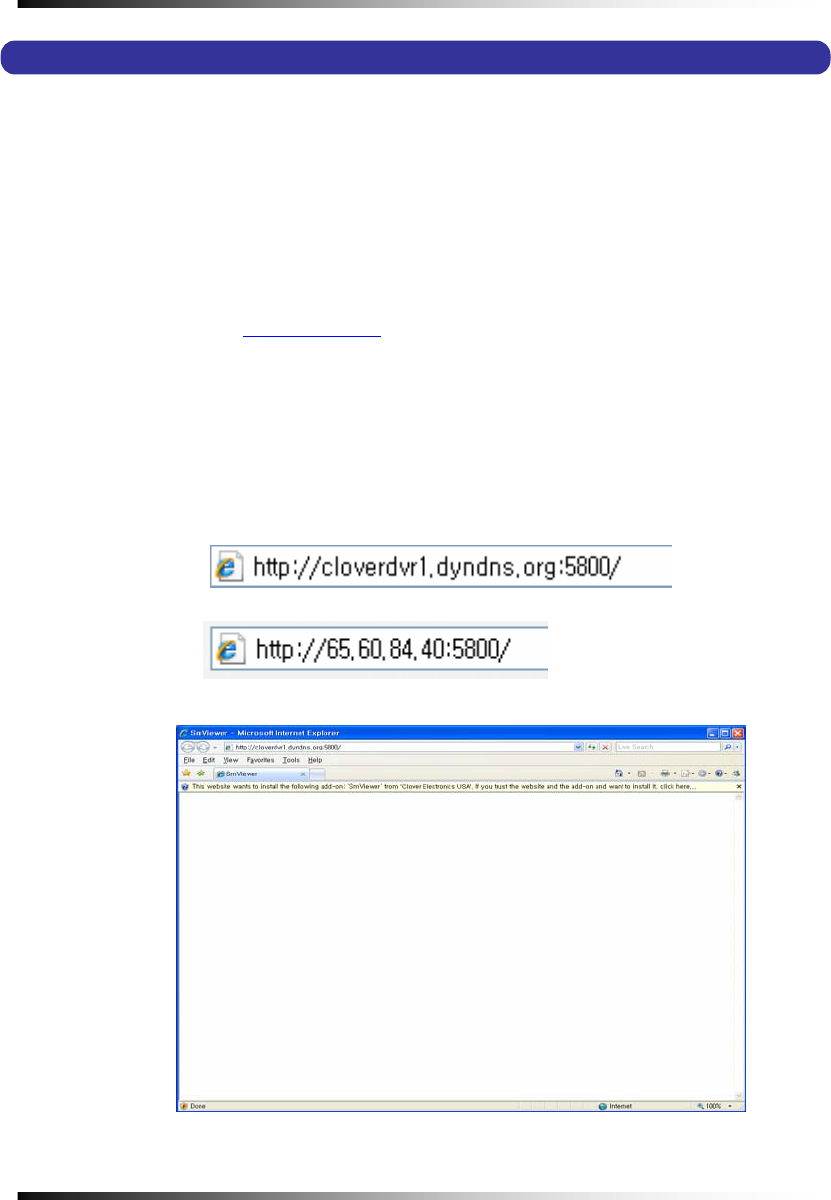

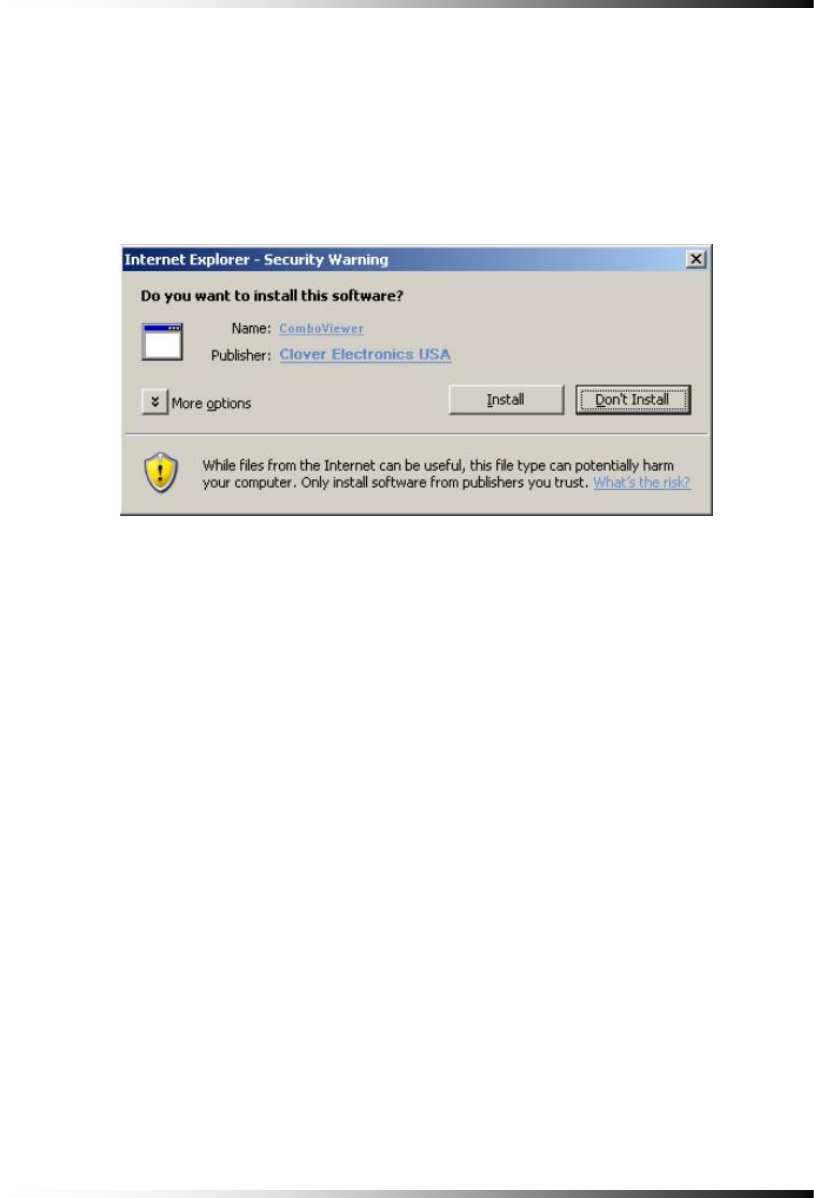

8-3. INTERNET EXPLORER ........................................................................................................ 130

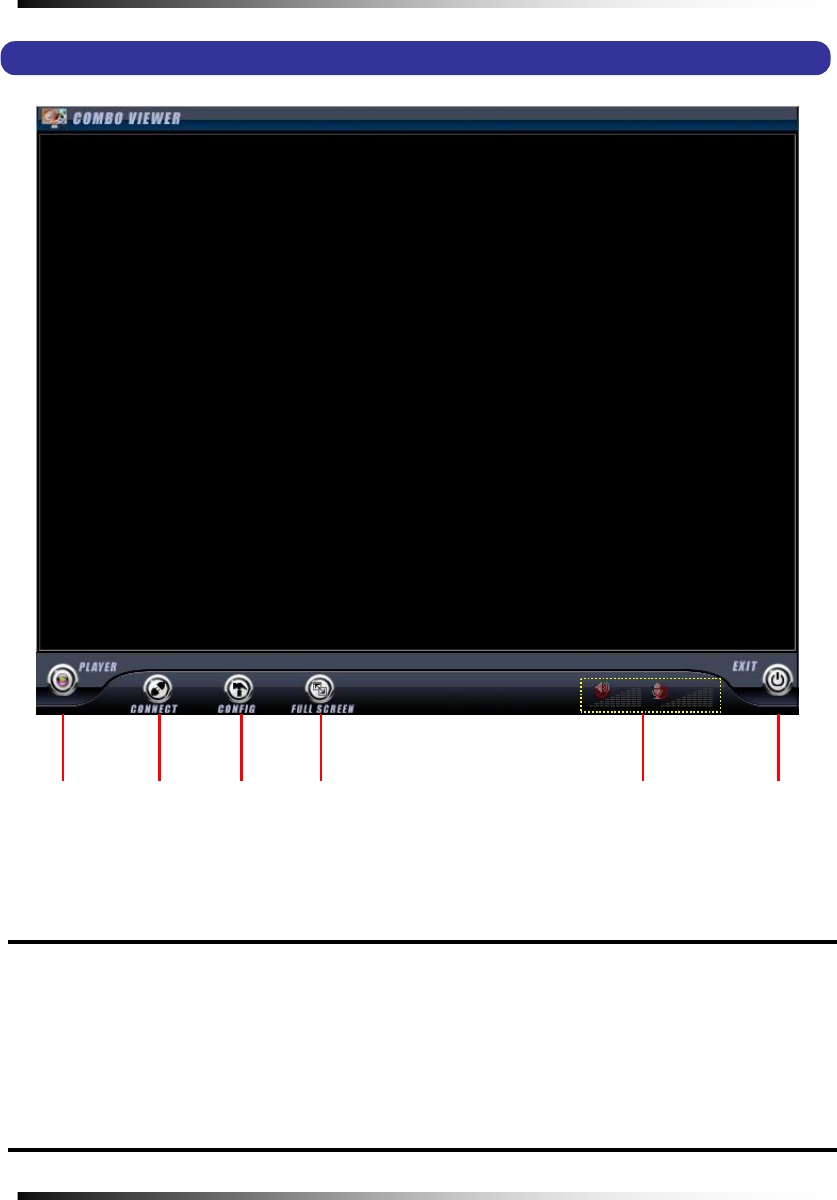

8-4. REMOTE HOST ................................................................................................................. 132

8-4.1. Setup ............................................................................................................................................133

8-4.2. Connection ...................................................................................................................................135

8-4.3. Switch the Normal Screen to Full Screen....................................................................................136

8-4.4. Speaker / Microphone ..................................................................................................................137

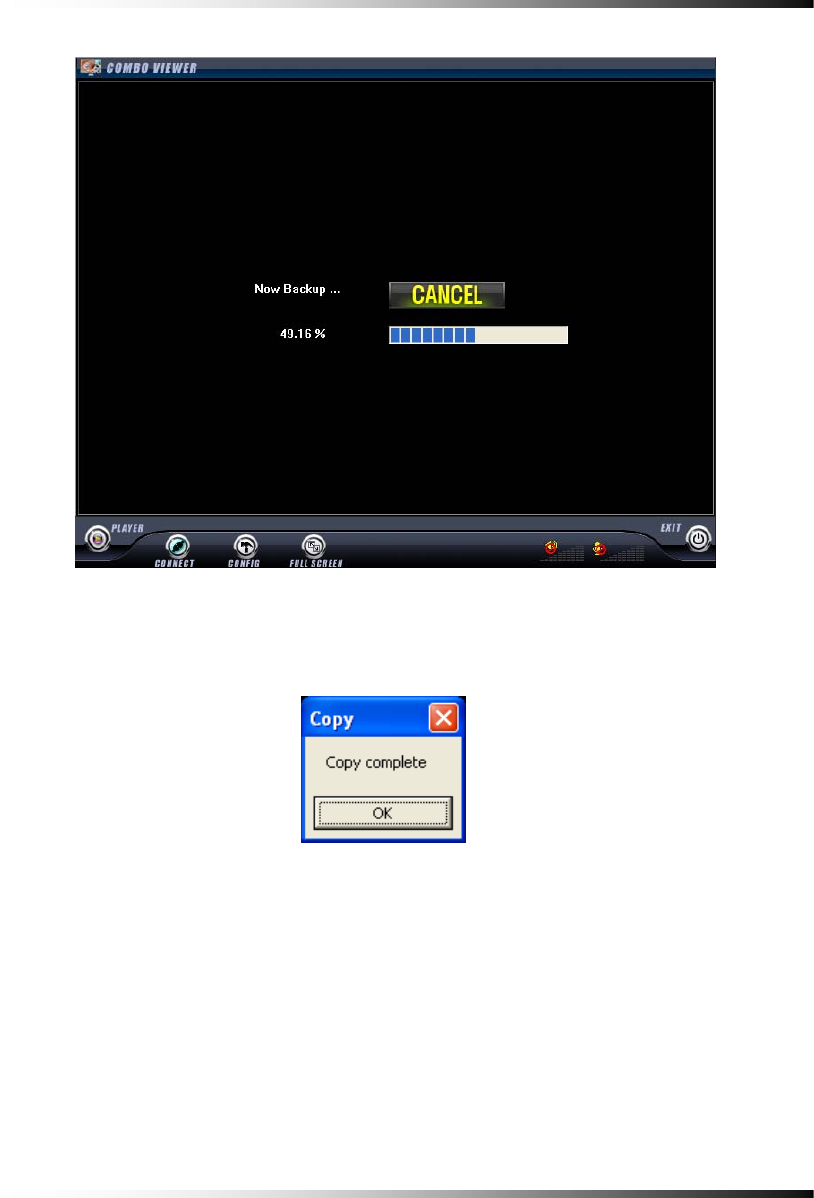

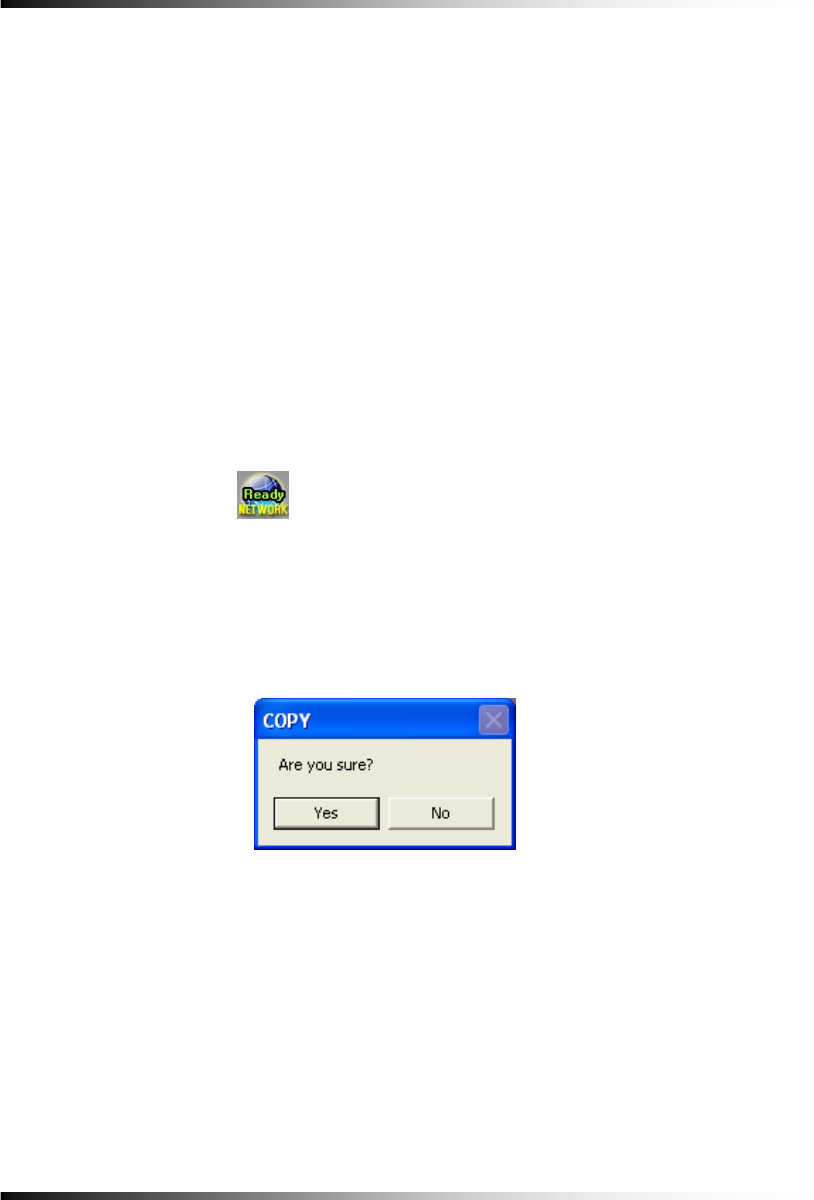

8-4.5. Copy .............................................................................................................................................138

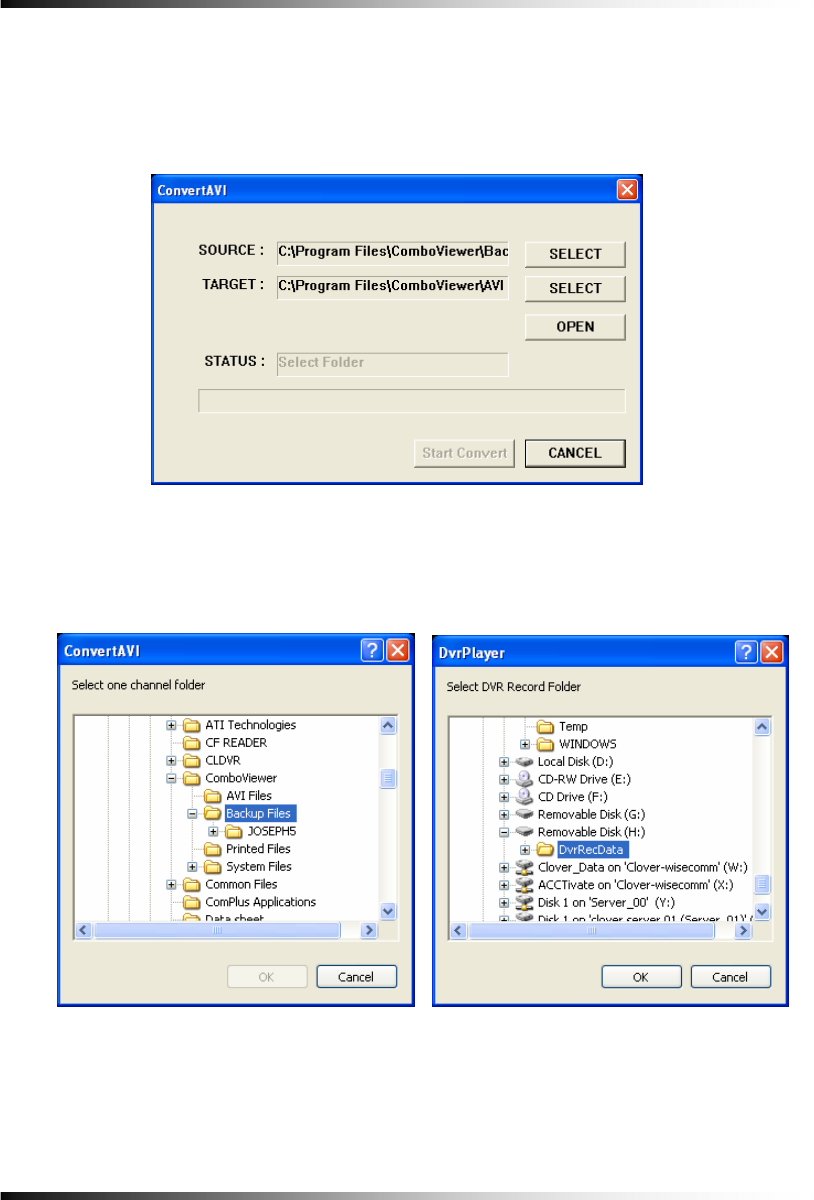

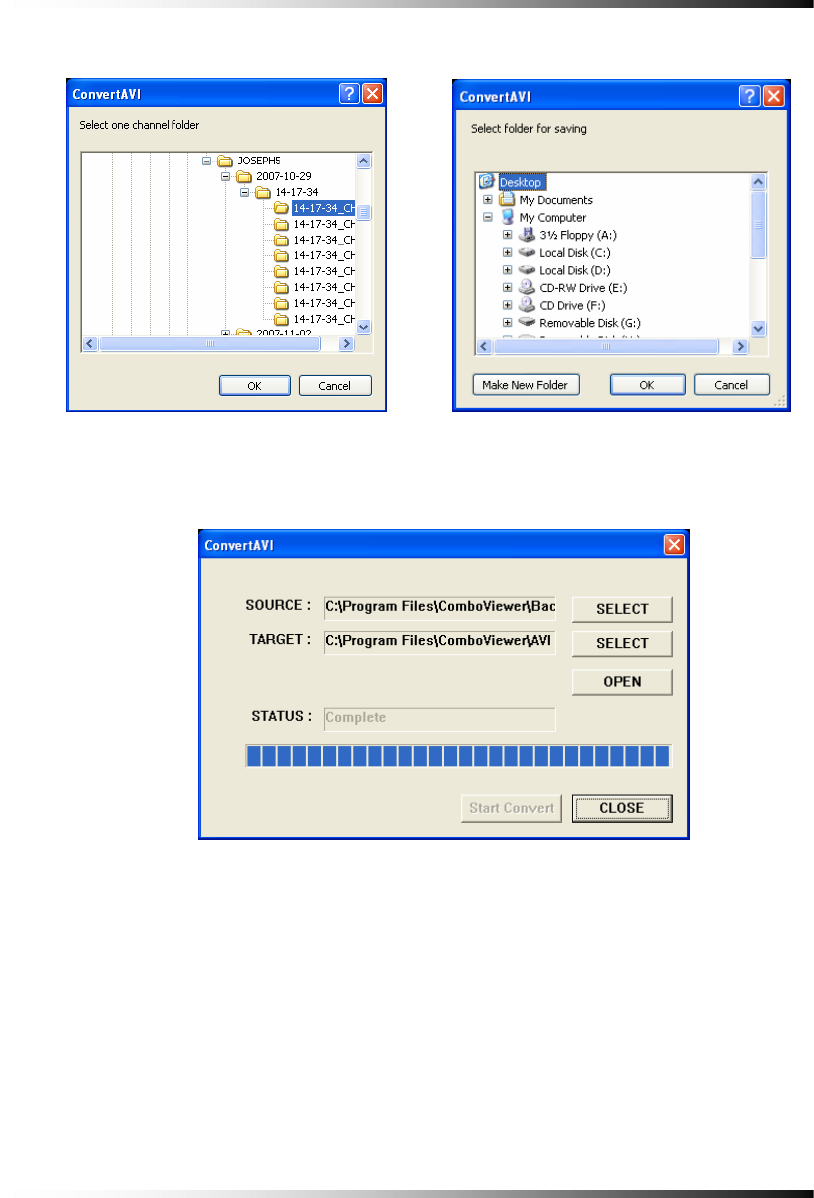

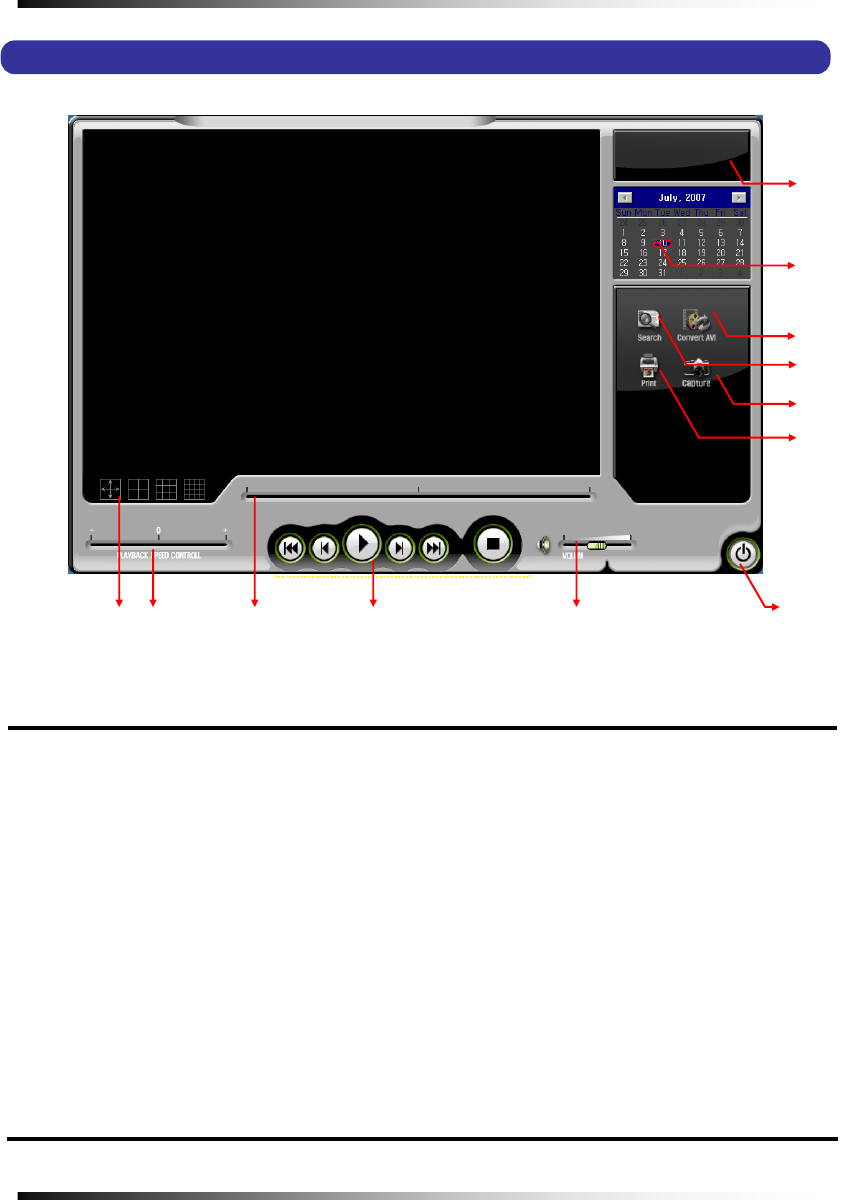

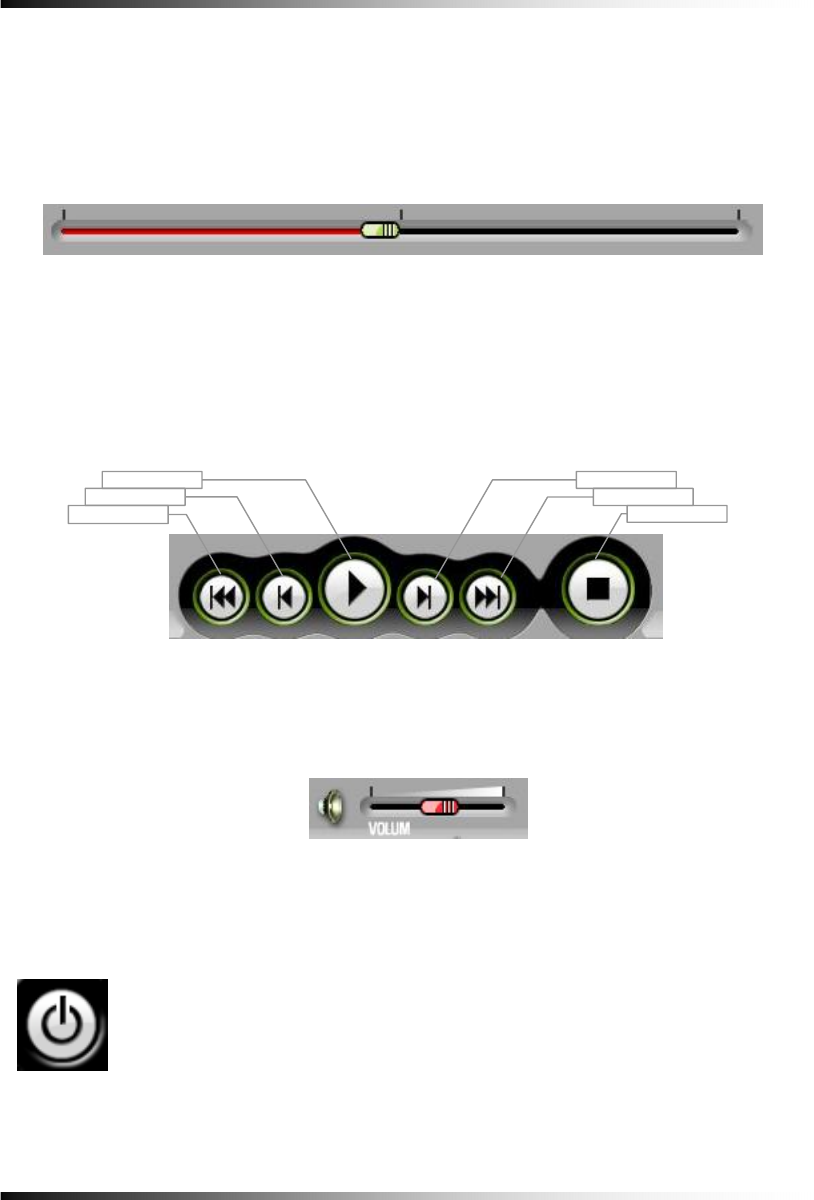

8-5. PLAYER ......................................................................................................................... 140

Contents

HDD INSTALLATION ...................................................................................................................... 147

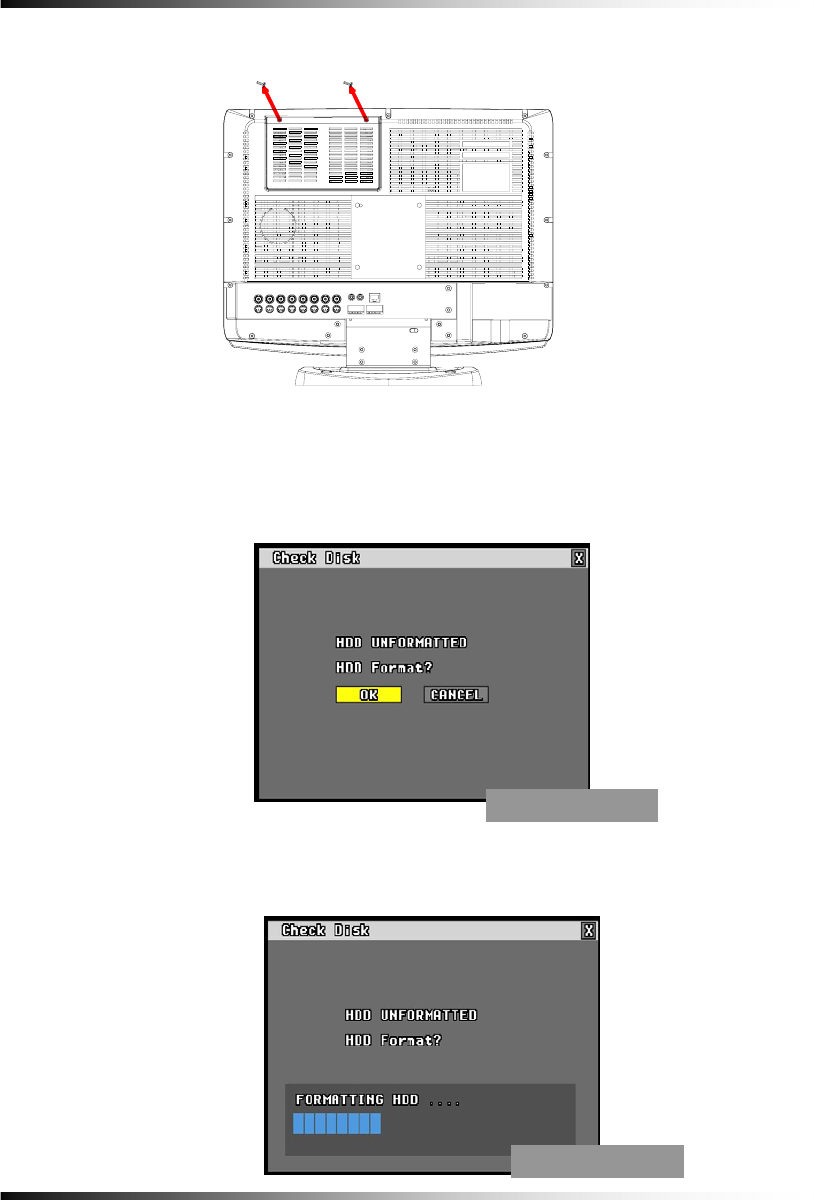

9-1. HDD (HARD DISK DRIVE) INSTALLATION ........................................................................ 148

APPENDIX....................................................................................................................................... 153

RECORDING TIME TABLE ........................................................................................................... 154

FACTORY DEFAULT SETTINGS .................................................................................................... 155

FAQ ................................................................................................................................................. 159

I CANNOT LOGIN ...................................................................................................................... 160

LIMITED 1YEAR WARRANTY ......................................................................................................... 161

HOW TO OBTAIN FACTORY SERVICE........................................................................................... 162

System Instruction Manual

About this manual

This is the Instruction Manual for 22” Wide TFT-LCD monitor built-in 8Ch DVR system,

Model LCD2284DVR, LCD2288DVR, TFT2284C and TFT2288C.

The last digit of the model numbers (e.g.: 4 and 8) represent the number of cameras

included in the system.

This Manual describes how to install and operate the 22” Wide TFT-LCD monitor built-in

8Ch DVR system and provides specifications and features.

Please read this manual thoroughly and follow the installation process before using the

system (Note: Be sure to correctly follow step 3. What to do at the time of installation).

Contact our distributors or dealers when you have any queries.

System Instruction Manual

Unpacking

Care should be taken when unpacking to avoid damaging the system.

Please check that the following items are included:

Note: Contact your dealer immediately if any components are missing.

22” LCD Monitor built-in 8 Ch DVR

2-Indoor camera with C-mount lens

2-Outdoor camera with mounting bracket

2-Mounting bracket for indoor cameras

4-6pin Din 60’ cables

Remote Controller

2-Batteries

USB Mouse

AC Power Cable

Instruction Manual

Host Program (ComboViewer) on CD

RJ-45 Cable

Warranty registration card

Quick setup guide

2-Screws & Wall studs

System Instruction Manual

22” Wide LCD Panel Built-in 8 Ch Digital Video Recorder

LCD2284DVR (LCD2288DVR, TFT2284C or TFT2288C) is the most reliable and functional

embedded DVR system available today. The system displays 8 channels of live images in Real

Time speed, compresses data digitally and records them to the Hard Disk Drive, which can be

replayed and searched easily any time.

The LCD2284DVR (LCD2288DVR, TFT2284C or TFT2288C) supports easy back up via USB

port, external Hard Disk Drive and networking in both static & dynamic IP modes.

User can remotely view live images or search the recorded images.

Under emergency situation, the remote operator can control, turn on and turn off the field

installed alarms, such as a siren or light.

It is a very user- friendly DVR system. User can control the LCD2284DVR (LCD2288DVR,

TFT2284C or TFT2288C) by Mouse or Buttons on the front panel or Remote controller.

Features

▶ 22” Wide Screen

- High resolution TFT-LCD 1,680 x 1,050, Contrast ratio 1,000:1, Response time 5 msec

▶ Multi Functional Record

- Powerful, multiple Record Modes available: Manual (Continuous), Timer, and Motion

Detection Recording.

▶ User friendly GUI

- A few simple buttons for Easy control.

▶ Automatic System Recovery

- Automatic and Complete System recovery within 10 seconds.

▶ Easy PTZ control via RS port

- No need to use PTZ controller

- PTZ control from remote PC

▶ Networking

- DHCP based automatic network set-up-Easy Network Configuration from Dynamic IP to

Dynamic IP

- Support TCP/IP and Remote Control on all DVR features

- Up to 10 users can remote access the system through ComboViewer (GUI) or Internet

Explorer simultaneously.

- DDNS support

▶ MPEG-4 Algorithm Compression

-The most advanced compression available today.

▶ High Resolution DVR 720 x 480

- Real time display 240 Frames/sec

- Recording speed 240 Frames/sec based on 720x240

- Programmable display resolution and recording speed on each channel

▶ 2 Way Audio

- Communicate between the system and cameras or between the system and client

computer through the internet

▶ Easy Data Playback in any PC

- Back Up data convertible to AVI file format.

▶ Back UP

- External HDD, Stick memory, and through network access.

▶ Desktop or Wall-mountable

System Instruction Manual

What to do at the time of

Installation

The system should be installed in the following order;

1. Make sure all the required hardware is available.

- 22” wide TFT-LCD monitor built-in 8 Ch DVR

- Up to 8 cameras ((Refer to the retail box for the number of camera in the

system).

- CCTV monitor or TV set if necessary

- Network cable if connecting to a PC

2. Connect the cameras to the monitor (Refer to Fig 5-3).

4. Confirm if live video is displayed on the monitor before going to the next step.

5. Select the Setup Menu and set current date and time (Refer to Section 7-2.1).

6. Run the FACTORY DEFAULT setting in the SYSTEM menu.

7. Perform HDD formatting.

8. Escape from Setup Menu.

9. Set values for required options.

10. Network cable should be connected to the monitor before turning the power on.

Refer to Fig 5-7 for the cable specification.

System Instruction Manual

Specifications

ITEM DESCRIPTIONS

Television System NTSC PAL

Refresh Rate 60 fields/sec 50 fields/sec

Video Resolution 720x480 720x576

Video Inputs 8- 6pin Din Cameras or 8- BNC Cameras

Video Input Signal Composite 1.0 Vp-p 75 Ohms

Video Output 1- Composite output

VIDEO SIGNAL

Video Output Signal Composite 1.0 Vp-p 75 Ohms

Live 240 Frames/sec display 200 Frames/sec display

Zoom 2 times digital

Sequence Sequence display in Full size

Display Format 1 screen(full), Quad pages split, 9 split pages, 16 split

Camera Video enhance Brightness, Contrast control on each cameras

VIDEO FEATURES

LCD Display enhance Brightness, Contrast, saturation, 4:3 or 16;9 selectable

AUDIO FEATURES G.723 4ch Input / 1ch Output

Recording Speed 240 Frames/sec 200 Frames/sec

Recording resolution 720x480,720x240,360x240 (NTSC)

720x576,720x288,360x288 (PAL)

Codec Mpeg4

Recording Timer, Motion, Alarm, Manual individually set

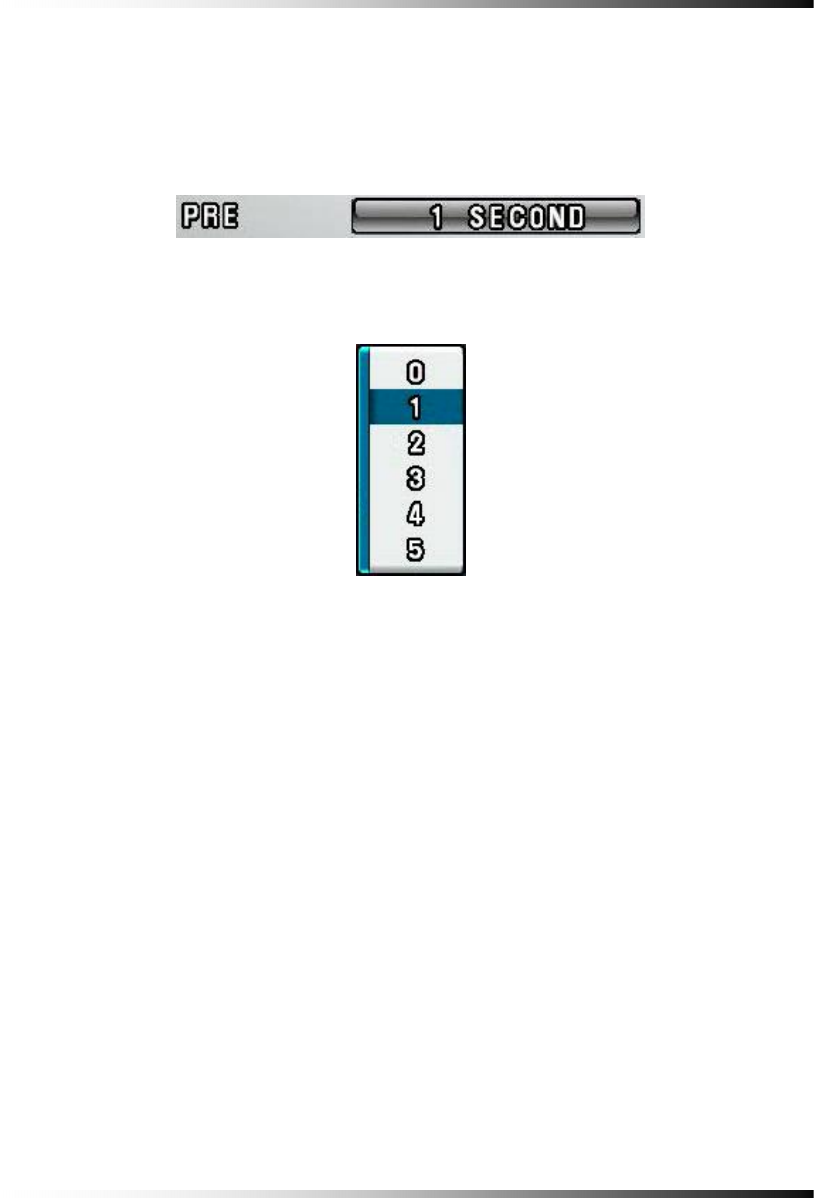

Pre record 0~30 sec

RECORD

Material SATA HDD(Auto overwrite)

SEARCH Manual, Timer ,Motion, Alarm, Each

Camera, All Camera Fast x128 , Slow, Forward, Reverse, Frame by Frame

BACKUP External HDD, USB memory,

through Network Each Camera, ALL Cameras, Time range

Recorded data lock Data protection in overwrite HDD Time range, Back up

GUI RGB 24bit full color

USER INTERFACE Operating interface Mouse, Keypad, IR remote controller, Network

NETWORK Ethernet 10/100M Auto TCP/IP, DHCP, MNS server

NOTIFICATION SMTP Server Alarm, Motion, Record ON/OFF, Replay, HDD Fail, Video

loss, Power Loss...etc

Remote viewer Same as DVR monitor (Mouse or Key button)

PC Program PC Player External HDD, USB memory, Internal HDD (Replay,

Convert, Copy, Print)

USB USB 2.0 for external DVD R/W, CD R/W, HDD, USB memory

SERIAL RS485 8 camera Pan/Tilt, Remote control

Alarm Inputs 8 Inputs

Alarm Outputs 1 Relay Output(1A max)

Alarm Latch up 1~30 sec

ALARM

Buzzer Out On/Off

HDD SATA Refer to the retail box

Input Voltage AC 110V/ 220V 50~60Hz (Free voltage)

POWER Power consumption Approx. 130W

Video Inputs 8- 6pin DIN & 8 BNC

Video Output 1 RCA for slave monitor

Audio Output 1 RCA for Speaker

Alarm In/Out Alarm In: 9pin terminal block, Alarm Out: 3pin terminal

block

RS485 2pin terminal block

Ethernet RJ45

CONNECTORS

Mouse USB mouse

Dimension(m/m) 531(W)x440(H)x79(D), 531(W)x446(H)x230(D): with

mounting bracket

MECHANICAL

Weight Approx. 19 Lbs

System Instruction Manual

Operating Temperature 0 ~ 60°C

ENVIRONMENT Humidity 10 ~ 60%

Display 22” TFT LCD active matrix

Pixel Pitch 0.282(H) x 0.282(V) mm

Active Display Area 473.76(H) x 296.1(V) mm

Display Colors 16.7M (Hi-FRC)

Display Mode Normally White

Pixel Arrangement RGB vertical stripe

Luminance of White 300 cd/㎡

Contrast Ratio(Center) 1000 : 1

Viewing Angle L/R/T/B 80 / 80 / 80 / 80 degrees

Operating Temperature 0℃ ~ 60℃

LCD

Storage Temperature -25℃ ~ 60℃

[Fig.4-1 Specifications]

Design and the specifications are subject to change without notice.

Installation

CONTENTS

5-1. CONTROLS AND CONNECTORS ................................................................................20

5-2. NOTE FOR INSTALLATION ..........................................................................................23

5-3. SYSTEM CONNECTION...............................................................................................24

5-4. INSTALLATION .............................................................................................................25

5-4.1. CAMERA CONNECTION.............................................................................................25

5-4.2. INSTALLATION OF THE MONITOR................................................................................25

5-4.2.1. CONNECTION OF COMPOSITE MONITOR ............................................................26

5-4.3. SENSOR CONNECTION AND RELAY IN &OUT ...........................................................26

5-4.4. RS485 / RS232C CONNECTION ..............................................................................27

5-4.5 CONNECTION TO AN ETHERNET NETWORK (OPTIONAL) ...............................................27

5-4.6. POWER CABLE CONNECTION ...........................................................................28

System Instruction Manual

5-1. Controls and Connectors

z Front

- A

[Fig. 5-1 Front View]

5. Installation

1. Stand-by Power Mode Button

- Turn the LCD Panel (Screen) On or Off

- Even though the LCD Screen is turned off by pressing this button, the system will be

continued to work.

2. REC Key

- Press this key to start recording.

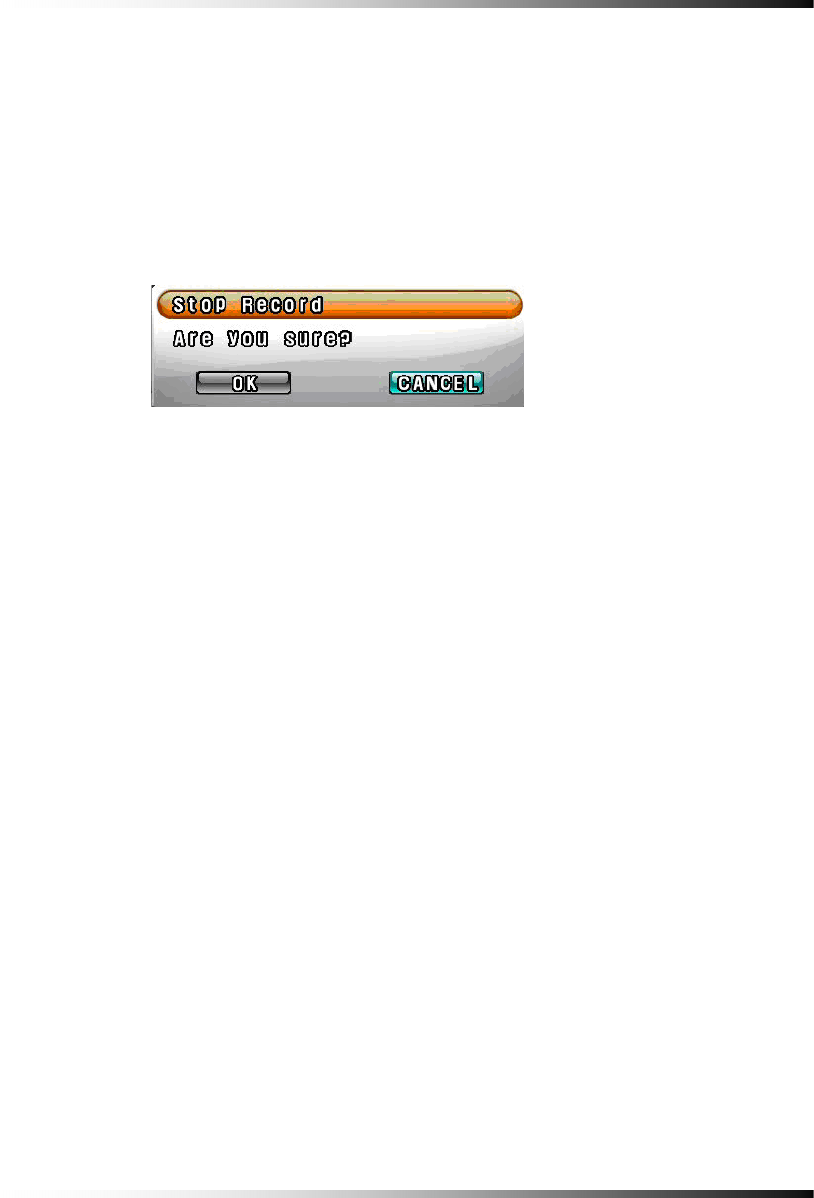

- In order to stop recording, click the REC button on the MENU Bar and the following message

will be appeared. Click the OK button.

3. MENU / ENTER Key

- This key along with (+), (-), and Exit key are used for Video enhancement on VGA output

(See section 7-8.2 for more detailed information).

4. EXIT Key

See section 7-8.2 for information.

5. TALK Key

See section 6-7.4.2 for information.

6. VOLUME / DATA (+) Key

- Used to increase Audio Volume for the system.

- See section 7-8.2 for additional information.

7. VOLUME / DATA (-) Key

- Used to decrease Audio Volume for the system.

- See section 7-8.2 for additional information.

8. BACK UP LED

- The red LED will blink when the system is in the copying mode.

9. PLAY LED

- The green LED will blink when the system is in the playing mode.

10. REC LED

- The red LED will blink when the system is in the recording mode.

11. TIMER LED

- The red LED will blink when the system is in the timer recording mode.

System Instruction Manual

12. ALARM LED

- The green LED will blink when an alarm is activated or video loss.

13. POWER LED

- The red LED is lit when the Power switch on the rear of the system is ON.

z Rear

- A

USB CONNECTO

CAMERA IN (BNC

LARM INPU

LARM OUT,

RS485 / RS232

COMPOSITE

- VIDEO OUT

- AUDIO OUT

ETHERNET

[Fig. 5-2 Rear View]

POWER INPUT

POWER SWITCH

USB PORT

5. Installation

5-2. Note for Installation

 Install the system according to the instructions described in this manual.

 The 22” LCD monitor built-in 8Ch DVR and Indoor Cameras are designed for indoor

use and should not be used outdoors.

 Avoid any area with high humidity or dust which can shorten lifetime of the system.

 Choose a well ventilated area and keep minimum of 10” away from obstructions. Do not

place the system near heat generating devices.

 Avoid any area with movement as this can interfere with the internal Hard Drive.

 Use a compatible input/output signal type of cameras and monitor.

 Contact your dealer if you have any problems in regards to the installation of this system.

The Warranty may be voided in case of unauthorized disassembling, abuse or modification.

System Instruction Manual

5-3. System Connection

[Fig 5-3 System Connection]

5. Installation

5-4. Installation

5-4.1. Camera Connection

▫ Connection of 6pin MINI DIN Cameras

Connect the supplied cameras to the Camera Input (6pin mini DIN jack) on the back of the

system as shown in [Fig. 5-2 Rear View].

▫ Connection of BNC Cameras

Connect the BNC cameras (not included) to the Camera Input (BNC connector) on the back

of the system as shown in [Fig. 5-2 Rear View].

5-4.2. Installation of the Monitor

[Fig. 5-3-1 Releasing the Lever] [Fig. 5-3-2 Locking the Lever]

▫ Desktop

- Pull the Lever to the left as shown in [Fig.5-3-1] and move the panel forward or backward until

getting the proper angle of panel (screen) for viewing.

- Release the Lever and push it to the right as shown in [Fig.5-3-2] for locking the mounting

bracket.

▫ Installation of the system on the wall

- Remove the screw cover on the top of the mounting bracket.

System Instruction Manual

- Place the system on the flat surface with soft fabric and set the proper angle of panel

(screen) as shown

[Fig.5-3-2].

- Attach the mounting bracket to the desired location on the wall. Locate wall studs and

securely fix the mounting bracket with the supplied screws.

5-4.2.1. Connection of Composite Monitor

If necessary, connect the composite Video Output (yellow RCA) and Audio Output (white

RCA) to Video IN and Audio IN on a composite monitor or TV (RCA cable: not included).

5-4.3. Sensor Connection and RELAY IN &OUT

▫ SENSOR Connection (SENSOR IN)

Connect up to 8 sensors to ALM (SENSOR) IN. The Sensors should be contactor type and

support NO (Normal Open).

[Fig 5-4 SENSOR IN PIN]

▫ ALARM OUT Connection

When necessary, use ALARM OUT. The ALARM OUTPUT is a relay contactor type and

supports NO (Normal Open) and NC (Normal Close). The Output capacity is 220V 1A. A

higher capacity can cause system failure.

[Fig 5-5]

Note:

- Pay attention to not make scratches or dents on the surface of panel (screen)

during installation of the system.

- In case of this, the warranty will be voided.

RS-485

5. Installation

5-4.4. RS485 / RS232C Connection

▫ Connect the cable to the “RS485 / RS232C PORT” on the rear of the system.

Specification of the RS232C connector is standard for “DSUB9”

The Maximum Length of cable is 45 ft. When you want to use a longer distance, use “RS323

to RS422” converter

Refer to [Fig 5-6] for connection of Connector PIN

5-4.5 Connection to an Ethernet Network (Optional)

▫ Connecting the cable to Ethernet.

Our Ethernet connector is a RJ45 type. The maximum cable length is 300 ft. When you want

to use a longer cable, we suggest using repeater.

Refer to [Fig. 5-7] for connector pin configuration.

[Fig 5-7]

[Fig 5-6]

RS-485

System Instruction Manual

5-4.6. POWER CABLE CONNECTION

Connect the provided AC power cable to the monitor and an AC outlet. AC input voltage is AC

110V to 220V 50/60Hz.

It should not be shared with other electrical equipment on the same line.

Frequent power cuts can cause crucial failures, so if you have an unstable power source we

recommend the use of an Uninterrupted Power Supply or other backup power source.

[Fig.5-8 Power cable connection]

POWER INPUT &

POWER SWITCH

CAMERA IN

EACH 12VDC. MAX 0.25A. 3W

CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8 SLAVE

V / O A / O ETHERNET

12345678G

ALARM IN

USB 1

USB 2

RS232

RS485

ALARM OUT

GND

N/O

COM

N/C

CH 9 CH 10 CH 11 CH 12 CH 13 CH 14 CH 15 CH 16

How to operate

CONTENTS

6-1. GENERAL INFORMATION............................................................................................... 31

6-2. OPERATING INTERFACE................................................................................................ 32

6-3. IR REMOTE CONTROLLER ............................................................................................ 33

6-4. POWER ON/OFF ............................................................................................................. 34

6-4.1. POWER ON .............................................................................................................. 34

6-4.2. STAND-BY POWER MODE BUTTON ....................................................................... 34

6-4.3 POWER OFF.............................................................................................................. 34

6-4.4 APPEARANCE OR DISAPPEARANCE OF POWER BUTTON................................... 35

6-5. MENU BAR ON/OFF ........................................................................................................ 36

6-6. DISPLAY SCREEN........................................................................................................... 37

6-6.1. FULL SCREEN.......................................................................................................... 37

6-6.2. SPLIT SCREENS ...................................................................................................... 38

System Instruction Manual

CONTENTS

6-7. LIVE ..............................................................................................................................39

6-7.1. FULL SCREEN .....................................................................................................39

6-7.2. SPLIT SCREEN ....................................................................................................39

6-7.3. SEQUENCING SCREENS....................................................................................40

6-7.4. LIVE AUDIO..........................................................................................................41

6-7.4.1. COMMUNICATION BETWEEN MONITOR AND CLIENT COMPUTER VIA

INTERNET.................................................................................................................41

6-7.4.2. COMMUNICATION BETWEEN MONITOR AND CAMERAS.........................41

6-7.5. ZOOM...................................................................................................................43

6-7.6. OSD ON / OFF ......................................................................................................44

6-7.7. PAN / TILT .............................................................................................................45

6-7.8. SYSTEM STATUS.................................................................................................47

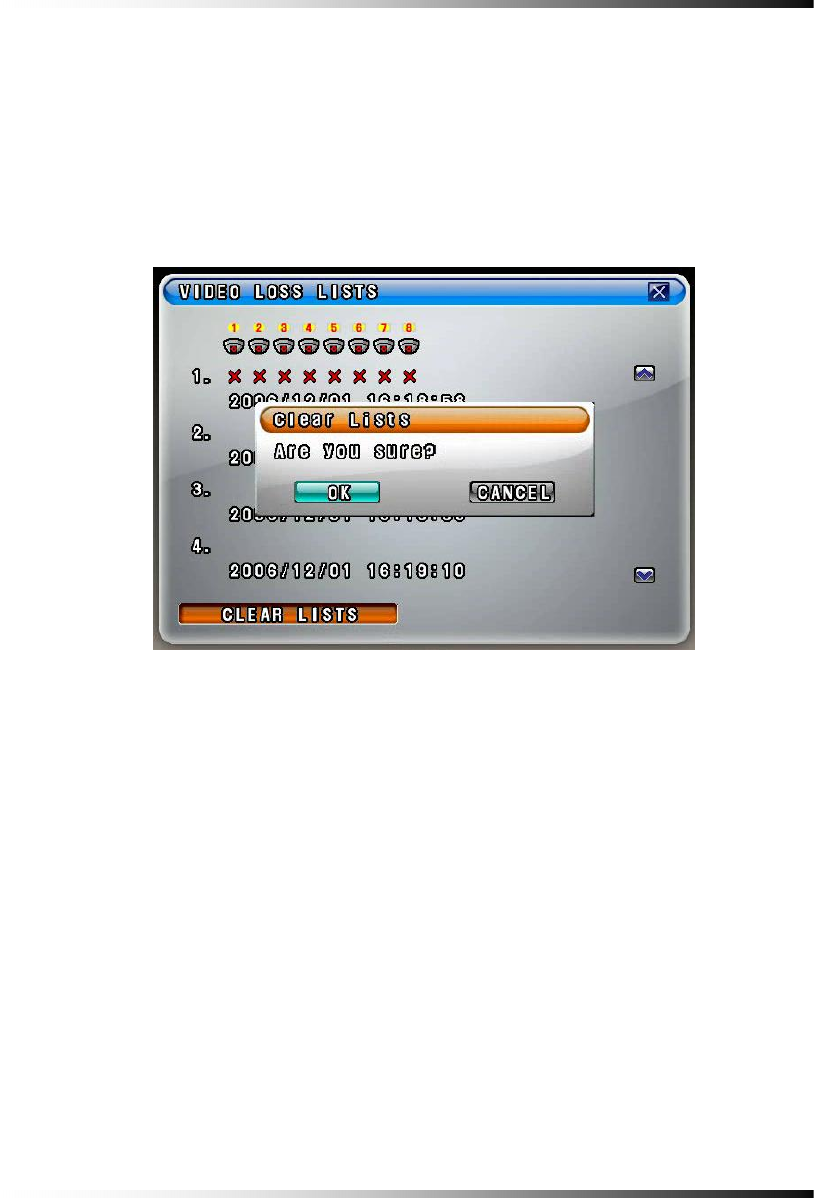

6-7.9. POWER LOSS LISTS ...........................................................................................48

6-8. RECORD.......................................................................................................................52

6-8.1. MANUAL (CONTINUOUS) RECORDING ........................................................................52

6-8.2. MANUAL EVENT RECORDING ....................................................................................52

6-8.3. TIMER RECORDING..................................................................................................53

6-8.4. TIMER EVENT RECORDING .......................................................................................54

6-8.5. RECORDING ICONS..................................................................................................55

6-9. REPLAY ........................................................................................................................56

6-9.1. QUICK REPLAY....................................................................................................56

6-9.2. REPLAY................................................................................................................56

6-9.2.1. PLAYBACK DEVICES.........................................................................................57

6-9.2.2. SET THE START TIME .......................................................................................57

6-9.2.3. REPLAYING .....................................................................................................59

6-9.2.4. DISAPPEARANCE OF REPLAY CONTROL BUTTONS ...............................................61

6-10. COPY ..........................................................................................................................63

6-10.1. COPYING DEVICES .................................................................................................63

6-10.2. SET THE COPY START TIME (COPYING EXTENT) .......................................................64

6-10.3. SET THE COPY END TIME (COPYING EXTENT) ..........................................................66

6-10.4. COPYING THE RECORDED DATA DURING REPLAYING ..................................................67

6. How to Operate

6-1. General Information

▫ You can operate all functions of the system by using the supplied remote controller or the

mouse and partly with the keys on the bottom of the system. Additionally, you can remotely

control the system via RS-422C or the Ethernet port located on the back of the system.

▫ System status is indicated by LED lights on the front panel of the system.

▫ The system is protected from any accidental pressing of any operator buttons, but care

should be taken when using the functions of HDD Formatting as this can lead to data loss.

System Instruction Manual

6-2. Operating Interface

There are 3 ways to operate the system by pressing the buttons on the bottom of the system

or buttons on the remote controller and clicking the mouse. A lot of users mostly prefer to use

a mouse on these kinds of products such as DVRs, computers and computer-aided devices.

Therefore we would like to describe all the instructions in this manual based on using the

mouse.

6. How to Operate

6-3. IR Remote Controller

1. POWER / STANDBY

2. REC

3. STATUS

4. ZOOM

5. FREEZE

6. No.1~16 Channel (Full Screen)

or IR ID Number

7. Display format (Split)

8. IR ID Set

9. MENU

10. ESC

11. UP

12. DOWN

13. LEFT

14. RIGHT

15. ENTER

16. SEARCH / PLAY

17. STOP

18. FF, REW

19. Movement forward or backward

by 1 Field.

20. QUICK SEARCH

21. PAN / TILT

22. ZOOM / FOCUS

23. FUNC

[Fig.6-1 IR Remote Controller]

System Instruction Manual

6-4. Power On/Off

6-4.1. POWER ON

On the rear panel:

Turn on the POWER switch on the rear panel (See Fig.5-2). The LED on the front panel is lit

when the POWER switch is ON.

By Stand-by Power Mode Button

Press this button on the front panel (See Fig.5-1) to turn ON the system when the POWER

(MAIN) switch is turned ON and the Stand-by Power Mode Button is turned OFF.

6-4.2. STAND-BY POWER MODE BUTTON

In order to extend the lifetime of the LCD screen and the backlights inside the monitor, press

(less than 1 second) the POWER button located on the front panel (See Fig.5-1) to turn OFF

if you don’t need to observe the system for a long time. The system will continue recording

when it is in the recording mode even though the Stand-by Power Mode Button is turned

OFF.

6-4.3 POWER OFF

By pressing the Stand-by Power Mode Button:

Press the POWER button on the front panel for 3 seconds and then the POWER OFF

message as shown in [Fig.6-2] will be displayed on the screen.

▫ Click the OK button to turn the power OFF.

On the remote controller:

Press the POWER button on the remote controller and then the following message will be

displayed on the screen.

[

-2Messa

e of POWER off

]

6. How to Operate

▫ Press the ENTER button to turn the power OFF.

By clicking the mouse:

▫ Click the POWER OFF button on the MENU bar (See Fig.6-3) and then the message (See

Fig.6-2) will be displayed on the screen.

▫ Click the OK button to turn the power OFF.

6-4.4 APPEARANCE OR DISAPPEARANCE OF POWER BUTTON

The Power On/Off button and the Audio buttons (See section 6-7.4) as shown in [Fig.6-3-1] will

always stay on the MENU bar when the system is not connected through the COMBO

VIEWER (Client Host Program or Internet Explorer). But the Power On/Off button and the

Audio buttons on the MENU bar as shown in [Fig.6-3-1] will be disappeared on the screen of

the system and the client’s computer when the system is connected through the COMBO

VIEWER and the mouse pointer is on the COMBO VIEWER [See Fig. 6-3-2].

We designed this function so that users can not turn the power On/Off or control the audio

functions on the DVR system through internet.

[Fig.6-3-1 Power & Audio buttons]

To appear the buttons (See Fig.6-3-1) on the MENU bar: just move the Mouse-

pointer on the screen of the system only, not on the COMBO VIEWER.

[Fig.6-3-2 No Power & Audio buttons]

[Fig.6-3 POWER button on MENU bar]

System Instruction Manual

6-5. Menu Bar On/Off

Right-click on the screen in the LIVE or the RECORD mode. The MENU bar will be appeared

and then displayed for 15 seconds. Right-click again, then it will be disappeared.

[Fig.6-4 LIVE Screen]

CLICK

6. How to Operate

6-6. Display Screen

6-6.1. FULL SCREEN

[Fig.6-5 FULL screen]

RECORD ICON

CURRENT TIME

UDIO

COPY STATUS

SEQUENCE ICON

CAMERA TITLE

System Instruction Manual

6-6.2. SPLIT SCREENS

8 SPLIT SCREEN

FULL SCREEN

[4B] 2nd QUAD SCREEN

[

]

1st QUAD SCREEN

SEQUENCING SCREEN

6. How to Operate

6-7. LIVE

6-7.1. FULL SCREEN

▫ A Full SCREEN is available in the LIVE mode or the RECORD mode.

▫ Click on a certain camera’s screen in the LIVE mode or in the RECORD mode and then a

FULL SCREEN will be displayed.

▫ Click the FULL screen to return to the SPLIT SCREEN.

6-7.2. SPLIT SCREEN

▫ A SPLIT SCREEN is available in the LIVE mode or the RECORD mode.

▫ Click the DISPLAY icon on the MENU bar and then the pop-up screen will be displayed

(See Fig.6-6).

▫ Click one of the SPLIT screens on the pop-up screen.

[Fig.6-6 DISPLAY pop-up screen]

System Instruction Manual

6-7.3. SEQUENCING SCREENS

▫ Displaying the cameras in SEQUENCE is available in the LIVE

mode or the RECORD mode.

Each of the channels will be displayed in sequence and the dwell

time can be adjusted in the camera set up menu (Refer to section

7-4.7).

▫ This ICON is displayed in the upper left hand corner of the screen while the system is in

the Sequencing Mode.

▫ Click a Full screen to return to the SPLIT screen while the system is sequencing.

[Fig. 6-7 LIVE Menu DISPLAY pop-up window]

[Fig. 6-8 SEQUENCING screen]

6. How to Operate

6-7.4. LIVE AUDIO

▫ The basic system (LCD2284DVR) includes two indoor cameras built-in two way audio and

two outdoor cameras built-in one way audio and IR LEDs (Infrared) to view objects in the

darkness. Audio functions up to 4 cameras.

▫ To listen, click the CHANNEL button on the MENU bar as shown below (See Fig.6-9). The

CHANNEL can be changed by clicking the mouse repeatedly.

▫ Turn the AUDIO (speaker) ON by clicking the SPEAKER icon as shown below (See Fig.6-

). If the ICON turns in red by clicking, it represents that the AUDIO is turned OFF and if it

turns in yellow, it represents that the AUDIO is turned ON.

▫ Adjust Audio Volume by Clicking the ▲ or the ▼ button when the AUDIO is turned ON.

6-7.4.1. COMMUNICATION BETWEEN MONITOR AND CLIENT COMPUTER VIA INTERNET

▫ This system is normally in listening mode between the LCD monitor and your computer

through the Internet (GUI or Internet Explorer). In order to communicate between the

system and your computer, connect a head phone or a microphone and a speaker to the

computer. Adjust the Speaker and the Microphone volume on the ComboViewer (GUI) or

Internet Explorer by clicking the amount of volume (See section 8-4.4 Speaker /

Microphone).

▫ Don’t forget to turn the AUDIO (speaker) ON by clicking the SPEAKER icon on the MENU

bar (See section 6-7.4 for more information) on the system.

6-7.4.2. COMMUNICATION BETWEEN MONITOR AND CAMERAS

▫ Turn the AUDIO (speaker) ON by clicking the SPEAKER icon on the MENU bar (See 6-

7.4 for more information).

▫ To communicate (two way Audio) with a camera, select one out of two Indoor cameras by

clicking the CHANNEL button on the MENU bar and press the TALK button on the bottom

[Fig. 6-9 Audio buttons]

CHANNEL

UDIO ON / OFF

VOLUME Control

System Instruction Manual

of the system.

▫ To listen only (one way Audio), select one out of indoor/outdoor cameras by clicking the

CHANNEL button on the MENU bar.

Note:

- It is impossible to communicate between the system and the cameras as long as

the COMBO VIEWER (GUI) is being executed, even though the Speaker and the

Microphone are turned Off.

- Exit the COMBO VIEWER by clicking the Exit button on the GUI in order to

communicate between the system and the cameras.

- In order to listen to the recorded audio in the playback mode, select the

corresponding channel to make it a full screen.

6. How to Operate

6-7.5. ZOOM

The image on the screen will be zoomed up to 2 times when the ZOOM button is clicked in

the LIVE mode (This function is available on the full screen mode only).

▫ Click the ZOOM button on the MENU bar in the LIVE mode.

▫ Move the mouse on the ZOOMED screen, and then the 8-directional arrow marks will be

appeared as shown below [Fig.6-10].

▫ Click the (EXIT) button to return to the LIVE Mode.

[Fig. 6-10 ZOOMED screen]

System Instruction Manual

6-7.6. OSD ON / OFF

OSD ON /OFF is possible in the LIVE mode or RECORD mode.

▫ Click the OSD button on the MENU bar to turn the OSD (On Screen Display) ON or OFF.

When the OSD is in OFF position, all the texts on the screen will be disappeared.

[Fig.6-12 OSD OFF SCREEN]

[Fig.6-11 OSD ON SCREEN]

CAM 01 CAM 02 CAM 03

CAM 01 CAM 02

2007/05/25 19:30: 41

6. How to Operate

6-7.7. PAN / TILT

▫ Click the PAN/TILT button on the MENU bar in the LIVE mode to access the PAN/TILT

cameras.

▫ Click the (EXIT) button to return to the LIVE mode.

[Fig.6-13 PAN/TILT button]

[Fig.6-14 PAN/TILT window]

RIGHT

LEFT

ZOOM /

PAN / T

ILT

CHANNEL

EXIT

PRESET

[Fig.6-15 PAN/TILT CONTROL

System Instruction Manual

▫ Channel Selection and Screen Conversion

To change a channel, press the CHANNEL button on the remote controller or click the

CHANNEL button on the [Fig.6-15 PAN /TILT CONTROL window]. It will be converted a full screen.

To return to the LIVE mode, press the SPLIT button on the remote controller or click the

(EXIT) button.

▫ ZOOM / FOCUS

Control the ZOOM and FOCUS of PAN/TILT camera.

Click the ZOOM/FOCUS button on the PAN/TILT CONTROL window [Fig.6-15 PAN / TILT

CONTROL window] or press the UP/DOWN/LEFT/RIGHT button on the remote controller.

▫ Button of PAN/TILT Control window

Move the PAN/TILT window as shown in Fig.6-15 by clicking the Left or Right button if

necessary.

▫ PAN / TILT

Control the PAN and TILT of PAN/TILT camera.

Click the PAN/TILT Button on the PAN/TILT CONTROL window [Fig.6-15 PAN / TILT CONTROL

window] or press the UP/DOWN/LEFT/RIGHT button on the remote controller.

▫ PRESET

[Fig.6-15-1 Preset Menu]

It is a function to preset the PTZ camera(s) which you wish to monitor frequently.

Preset Setup

- Select a position of camera you wish to preset and click the SET button in Fig.6-15-1.

- Click the number(s) for the current position of camera.

- To delete the numbers by using ← button.

Preset Execution

Click the number(s) which you preset and click GO button to move the camera.

* If you preset the number again, the previous setup is not available and only current

setup is available.

6. How to Operate

6-7.8. SYSTEM STATUS

▫ Click the SYSTEM STATUS button on the MENU bar to see the system status as shown

below [Fig.6-16].

▫ Click the (EXIT) button to return to the LIVE mode or RECORD mode.

[Fig.6-16 SYSTEM STATUS button]

[Fig.6-17 SYSTEM STATUS window]

System Instruction Manual

6-7.9. POWER LOSS LISTS

The list indicates the time/date when the system power was turned OFF.

▫ Click the POWER LOSS LISTS button on the SYSTEM STATUS window to view the

POWER LOSS LISTS.

▫ Each of the pages contains 10 lists. You can search the pages by clicking the UP/DOWN

button.

▫ Click the (EXIT) button to return to the LIVE or RECORD mode.

[Fig.6-18 POWER LOSS LISTS window]

6. How to Operate

▫ CLEAR LISTS button

Click the CLEAR LISTS button to clear the lists, you will be prompted to confirm changes.

When you click the OK button, the POWER LOSS LISTS will be deleted.

To cancel, click the CANCEL button

Fig.6-19 POWER LOSS LISTS Message

System Instruction Manual

6-7.10. VIDEO LOSS LIST

The list indicates the video loss channel and the time/date when the video signal was

disconnected.

▫ Click the VIDEO LOSS LISTS button on the SYSTEM STATUS window to view the VIDEO

LOSS LISTS.

▫ Each of the pages contains 4 lists. You can search the pages by clicking the UP/DOWN

button.

▫ Click the (EXIT) button to return to the LIVE or RECORD mode.

[Fig.6-21 VIDEO LOSS window]

[Fig.6-20 VIDEO LOSS LISTS window]

6. How to Operate

▫ CLEAR LISTS button

Click the CLEAR LISTS button to clear the lists, you will be prompted to confirm changes.

When you click the OK button, the VIDEO LOSS LISTS will be deleted.

To cancel, click the CANCEL button

[Fig.6-22 VIDEO LOSS LISTS Message window]

System Instruction Manual

6-8. Record

This system provides Watchdog function.

When power goes off during recording and then the power turns on, the system will automatically

start recording.

6-8.1. Manual (Continuous) recording

▫ Click the SETUP icon on the MENU bar in the LIVE mode.

▫ Click the RECORD button in the SETUP menu and the RECORD window will be displayed.

▫ Select the MANUAL RECORDING ( ) between the MANUAL RECORDING ( )

and the TIMER RECORDING ( ) as shown in [Fig.6-23]. All channels can be set at the

same time by clicking the ALL ( ) or each of the channels can be set by clicking

the MANUAL RECORDING ( ) on the CAM 1 through CAM 8.

The MOTION ( ) and SENSOR ( ) as shown in [Fig.6-23] should be turned OFF

in this recording mode.

▫ Press the RECORD button on the remote controller or click the RECORD icon on the

MENU bar.

6-8.2. Manual Event Recording

▫ Click the SETUP icon on the MENU bar in the LIVE mode.

▫ Click the RECORD button in the SETUP menu and the RECORD window will be displayed.

▫ Select the MANUAL RECORDING ( ) between the MANUAL RECORDING ( )

and the TIMER RECORDING ( ) as shown in [Fig.6-24]. All channels can be set at the

same time by clicking the ALL ( ) or each of the channels can be set by clicking

the MANUAL RECORDING ( ) on the CAM 1 through CAM 8.

[Fig.6-23. Manual Recording setup]

6. How to Operate

The MOTION ( ) or SENSOR ( ) as shown in [Fig.6-24] should be turned ON in

this recording mode.

▫ Press the RECORD button on the remote controller or click the RECORD icon on the

MENU bar.

6-8.3. Timer Recording

▫ Click the SETUP icon on the MENU bar in the LIVE mode.

▫ Click the RECORD button in the SETUP menu and the RECORD window will be displayed.

▫ Select the TIMER RECORDING ( ) between the MANUAL RECORDING ( )

and the TIMER RECORDING ( ) as shown in [Fig.6-25]. All channels can be set at the

same time by clicking the ALL ( ) or each of the channels can be set by clicking

the TIMER RECORDING ( ) on the CAM 1 through CAM 8.

The MOTION ( ) and SENSOR ( ) as shown in [Fig.6-25] should be turned OFF

in this recording mode.

▫ Choose one among WEEKDAY, SATURDAY and SUNDAY in the TIMER menu by clicking

the mouse on ( ) that turns to ( ). You can choose the value or

by repeatedly clicking the mouse.

▫ Select the Starting Time and Ending Time by clicking the mouse, change the values with

the mouse’s wheel and click the mouse again on the changed values to complete as

shown in [Fig.6-27]. The recording time can be set in military hour mode (24hour).

▫ Press the RECORD button on the remote controller or click the RECORD icon on the

MENU bar.

[Fig.6-24 Manual Event Recording setup]

[Fig.6-25 Timer Recording setup]

System Instruction Manual

6-8.4. Timer Event Recording

▫ Click the SETUP icon on the MENU bar in the LIVE mode.

▫ Click the RECORD button in the SETUP menu and the RECORD window will be displayed.

▫ Select the TIMER RECORDING ( ) between the MANUAL RECORDING ( )

and the TIMER RECORDING ( ) as shown in [Fig.6-26]. All channels can be set at the

same time by clicking the ALL ( ) or each of the channels can be set by clicking

the TIMER RECORDING ( ) on the CAM 1 through CAM 8.

The MOTION ( ) or SENSOR ( ) as shown in [Fig.6-26] should be turned ON in

this recording mode.

▫ Choose one among WEEKDAY, SATURDAY and SUNDAY in the TIMER menu by clicking

the mouse on ( ) that turns to ( ). You can choose the value or

by repeatedly clicking the mouse.

▫ Select the Starting Time and Ending Time by clicking the mouse, change the values with

the mouse’s wheel and click the mouse again on the changed values to complete as

shown in [Fig.6-27]. The recording time can be set in military hour mode (24hour).

▫ Press the RECORD button on the remote controller or click the RECORD icon on the

MENU bar.

[Fig.6-27 Example for Timer Recording]

[Fig.6-26 Timer Event Recording setup]

6. How to Operate

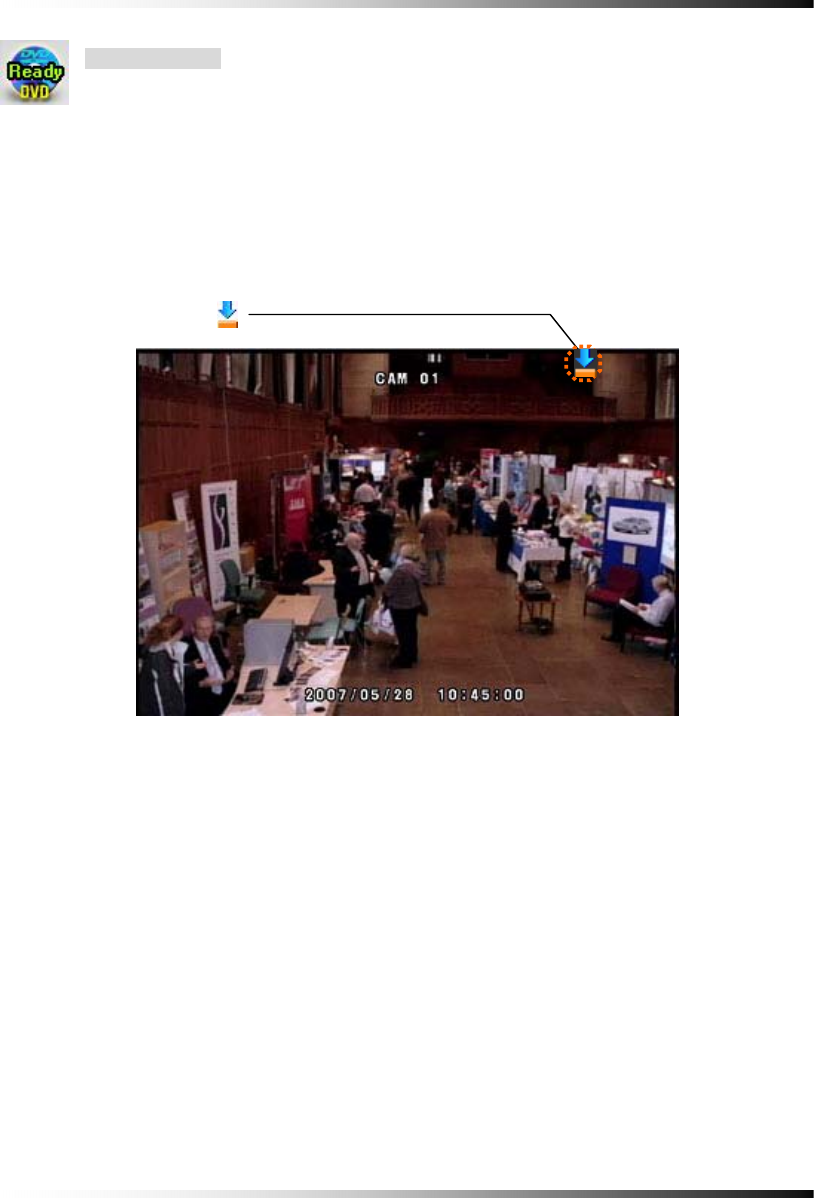

6-8.5. Recording Icons

The Recording Icons depends on recording modes are displayed in the upper left hand

corner of the screen.

▫ To turn the Recording Icon OFF, click the DISPLAY ON in the RECORD menu and then it

will be turned OFF. You can select the value ON or OFF by repeatedly clicking the mouse.

[Fig.6-28 Recording Icons]

SENSOR Event Recording

MOTION Event Recording

Manual (Continuous) Recording

Event Recording Ready

System Instruction Manual

6-9. REPLAY

6-9.1. QUICK REPLAY

It is available only by pressing the QICK SEARCH button on the remote controller.

▫ Press the PLAY button, then the recent recorded data will be played.

6-9.2. REPLAY

▫ Click the REPLAY icon on the MENU bar, then the REPLAY window as shown in [Fig.6-29]

will be displayed.

▫ Click the (EXIT) button to return to the previous mode.

[Fig.6-29 REPLAY window]

6. How to Operate

6-9.2.1. Playback Devices

In order to playback, plug the USB devices such as external USB HDD, USB memory or

USB 2.0 DVD-RW (or CD-R/W) to the USB port or insert a recorded media (CD-R/W or

DVD-R/W) into the DVD-R/W drive.

When the devices are ready to playback, the Ready on the corresponding devices will be

displayed in shown in [Fig.6-30].

▫ Click the mouse on a device among HDD, USB, CD-R/W and DVD-R/W that is displaying

the Ready (See Fig.6-30). The corresponding LED will be lit in red when the device is

selected.

6-9.2.2. Set the Start Time

▫ Select the Date (year / month / day) on the calendar by clicking the mouse on the

highlighted character in black that turns to highlighted character in red (See Fig.6-31).

The highlighted character in black indicates the dates and times that contains recorded

data, and the highlighted character in red indicates the selected dates and times.

▫ Select the month (year) by clicking the mouse on the ◄button or ► button.

[Fig.6-31 Calendar window]

[Fig.6-30 REPLAY DEVICE button]

HDD

USB

CD-RW

DVD-RW

System Instruction Manual

▫ Select the hour on the Start Time Select Window (See Fig.6-32) by clicking the mouse on

the Hour (0 – 23 hour) you wish to start to play.

The green active buttons indicate the HOUR that contains recorded data, and the red

active buttons indicate the selected Start HOUR.

By using the Replay Time set-up buttons:

The time and date can also be set on the Replay Time set-up button window (See Fig.6-33).

▫ Select the values (year/month/date and hour/minute/second) by clicking the mouse,

change the values with the mouse’s wheel and click the mouse again on the changed

values to complete as shown in [Fig.6-33].

By using the Replay Time set-up bar:

The starting time to play can also be set by clicking the slider on the bar and dragging it or

clicking the bar.

[Fig.6-32 Start Time Select window]

[Fig.6-34 Replay time set-up bar]

[Fig.6-33 Replay time set-up button]

6. How to Operate

6-9.2.3. Replaying

Replaying start time set-up can be possible within a recording time extent.

▫ Replay buttons (NORMAL / MOTION / SENSOR)

NORMAL PLAY: Click the button to play all the recorded data.

MOTION PLAY: Click the button to play the recorded data by MOTION only.

SENSOR PLAY: Click the button to play the recorded data by SENSOR only.

System Instruction Manual

▫ How to control while replaying

① Search Slider

It is possible to playback by clicking the slider on the bar or dragging it.

② PLAY / PAUSE

Click the button to pause.

Click the button to replay when in the pause mode.

③ REW/FF

During replaying, press the or button.

Keep pressing the or button to accelerate the speed up to 128 times.

④ PREV / NEXT

During replaying, press the button to view previous frame in still image and press

the button to view the next frame in still image.

[Fig.6-35 Replay screen]

① ③ ④ ② ④ ③ ⑤ ⑥

6. How to Operate

⑤ Speaker ON / OFF

Turn speaker ON or OFF.

⑥ Speaker Volume

Adjust the Audio Volume by clicking the ▲ or the ▼ button when the AUDIO is turned

ON.

6-9.2.4. Disappearance of Replay control buttons

During replaying, the replay control buttons appear on the bottom of the screen.

- To disappear, drag the mouse pointer downward until the replay control buttons disappear.

- To appear, drag the mouse pointer upward until the replay control buttons appear.

System Instruction Manual

- Click the mouse on one out of channels during replaying to view a full screen.

- Click the mouse on the full screen during replaying to return to the split screen.

[Fig.6-36 SPLIT screen during replaying]

[Fig.6-37 FULL screen during replaying]

6. How to Operate

6-10. COPY

▫ Click the COPY icon on the MENU bar, and then the COPY window as shown in [Fig.6-38]

will be displayed.

▫ Click the (EXIT) button to return to the previous mode.

6-10.1. Copying devices

In order to copy the recorded data, plug the USB devices such as external USB HDD, USB

memory or USB 2.0 DVD-RW (or CD-R/W) to the USB port and insert a blank media (CD-

R/W or DVD-R/W) into the DVD-R/W drive.

When the device and Media are ready to copy, the Ready on the corresponding device and

Media will be displayed in shown in [Fig.6-38].

We recommend you to format the USB devices prior to copy the recorded data as

follows, but the Medias such as CD-R/W and DVD-R/W don’t need to format.

[Fig.6-38 COPY window]

System Instruction Manual

▫ Connect the USB devices to the system.

▫ Click the SETUP icon on the MENU bar, and the SETUP menu will be displayed.

▫ Click the DISK MANAGER in the SETUP menu, and the DISK MENAGER will be displayed.

▫ Click the mouse on the USB button in the DISK MANAGER, and you will be asked.

▫ Click the OK, and then the progressive bar will be showing along with FORMATTING

USB….

In regards to blank Medias (CD-R/W and DVD-R/W)

Most Medias can be used with the system, but some of them may be not compatible with the

system. Refer to the included instructions related to Medias or visit the website of DVD/CD

DRIVE unit manufacturer for more information.

6-10.2. Set the Copy Start Time (Copying extent)

▫ Select the Date (year / month / day) on the calendar by clicking the mouse on the

highlighted character in red that turns to highlighted character in black (See Fig.6-39).

The highlighted character in black indicates the dates and times that contains recorded

data, and the highlighted character in red indicates the selected dates and times.

▫ Select the month (year) by clicking the mouse on the ◄button or ► button.

▫ Select the hour on the Copy Start Time and Channel Selection Window (See Fig.6-40) by

clicking the mouse on the Hour (0 – 23 hour) you wish to start to copy.

The green active buttons indicate the HOUR that contains recorded data, and the red

active buttons indicate the selected Start HOUR.

[Fig.6-39 Calendar for Copying]

6. How to Operate

① All channels, HOUR selection button.

Click the arrow button in the upper left corner as shown in [Fig.6-40] to set the full extent of

the recording and all the channels simultaneously.

② HOUR selection button

Select the start time to copy by clicking the mouse on HOUR (0-23: in the military hour).

Thereafter the extent of the copy will be saved on.

③ Channel selection button

Some channels can be selected by clicking the mouse on the corresponding channels.

By using the Copy Start/End set-up buttons:

The time and date can also be set on the Copy Start/End set-up buttons window (See Fig.6-41).

▫ Select the values (year/month/date and hour/minute/second) by clicking the mouse, change

the values with the mouse’s wheel and click the mouse again on the changed values to

complete as shown in [Fig.6-41].

[Fig.6-40 Copy Start time and Channel Selection window]

②

①

All channels

HOU

selection button

③ channel selection button

System Instruction Manual

By using the Start/End set-up bar:

The starting time to copy can also be set by clicking the slider on the bar and dragging it or just

click the bar.

6-10.3. Set the Copy End Time (Copying extent)

Refer to the above explanation (See section 6.10.2.).

[Fig.6-41 Copy Start/End setup buttons]

[Fig.6-42 Copy Start/End setup bar]

6. How to Operate

6-10.4. Copying the recorded data during replaying

The system allows users to copy the recorded data during replaying.

▫ Start replaying (See section 6-9).

▫ Right-click on the replaying screen, and then the COPY DATA screen will be displayed

(See Fig.6-43).

▫ To set the starting time and date to copy, select the values (year/month/date window

and hour/minute/second) on the COPY DATA window by clicking the mouse, change the

values with the mouse’s wheel and click the mouse again on the changed values to

complete.

▫ Select each of channels (1 through 8 in red) or “A” in black for all the channels on the

COPY DATA window, and then click on the SELECTED button to save.

▫ To set the ending time and date to copy, right-click on the replaying screen again, and

the COPY DATA window that contains end time for copying will be displayed (See Fig.6-44).

Set the ending time and date to copy as described above.

▫ To select the COPY MODE, click on the GO TO COPY button (See Fig.6-44), and then the

COPY window (See Fig.6-38) will be displayed. The time and date (starting time and ending

time) to copy can be changed on the COPY window as well (See section 6-10.2).

[Fig.6-43 Start Copy Time Setup window]

System Instruction Manual

▫ Choose one among NETWORK, USB, CD and DVD which are ready to copy (See section

6-10.1).

Select COPY Mode

Only when the device and media are ready to copy, the Ready on the corresponding

device and media will be displayed.

NETWORK COPY

Save the recorded data in PC through the COMBO VIEWER by Network.

Click the Network button on the COMBO VIEWER to start copying. It is available only

on the COMBO VIEWER (not on the system) and the networking should be

connected to the system.

USB COPY

Save the recorded data in USB Device.

Click the USB Device button to start copying.

CD-RW COPY

Save the recorded data on CD-R/W Media.

Click the CD-R/W button to start copying.

[Fig.6-44 End Copy Time Setup window]

6. How to Operate

DVD-RW COPY

Save the recorded data on DVD-R/W Media.

Click the DVD-R/W button to start copying.

▫ As soon as one of the above buttons is clicked , copying will start along with displaying the

icon as shown in [Fig.6-45].

The following icon indicates that copying is in process.

[Fig.6-45 Copying Icon]

SETUP

CONTENTS

7-1. SETUP..............................................................................................................................73

7-2. SYSTEM ...........................................................................................................................74

7-2.1. TIME / DATE ..............................................................................................................75

7-2.2. SYSTEM CONFIG .....................................................................................................77

7-2.2.1. FACTORY DEFAULT..........................................................................................77

7-2.2.2. LOAD CONFIG / BACKUP CONFIG...................................................................78

7-2.3. PASSWORD ..............................................................................................................81

7-2.4. IR REMOTE ID...........................................................................................................82

7-2.6. SYSTEM INFO...........................................................................................................83

7-3. DISK MANAGER...............................................................................................................84

7-3.1. HDD WRITE FAIL.......................................................................................................85

7-3.2. HDD OVERWRITE.....................................................................................................85

7-3.3. FORMAT ......................................................................................................................85

7. Setup

CONTENTS

7-4. CAMERA ..........................................................................................................................87

7-4.1. CAMERA ON/OFF........................................................................................................88

7-4.2. CAMERA NAME (CAMERA TITLE) ....................................................................................88

7-4.3. BUZZER.......................................................................................................................89

7-4.4. RELAY .........................................................................................................................89

7-4.5. PAN/TILT SETTINGS ......................................................................................................90

7-4.6 DISPLAY .......................................................................................................................94

7-4.7 SEQUENCING DWELL TIME ..............................................................................................94

7-5. AUDIO ..............................................................................................................................95

7-5.1. AUDIO RECORDING ON/OFF ........................................................................................96

7-5.2. MICROPHONE VOLUME .................................................................................................96

7-6. RECORD ..........................................................................................................................97

7-6.1. RECORD ICON DISPLAY ...............................................................................................97

7-6.2. ALL MANUAL / TIMER RECORDING BUTTON ......................................................................98

7-6.3. ALL MOTION ON / OFF, SENSITIVITY AND VELOCITY SETTING ..........................................99

7-6.4. ALL SENSORS ON / OFF ............................................................................................100

7-6.5. SIZE (RECORDING RESOLUTION) .................................................................................100

7-6.6. RECORDING SPEED....................................................................................................101

7-6.7. RECORDING QUALITY .................................................................................................102

7-6.8. RECORDING MODE .....................................................................................................103

7-6.8.1. MANUAL RECORDING..........................................................................................103

7-6.8.2. MANUAL EVENT RECORDING ...............................................................................103

7-6.8.3. TIMER RECORDING (SCHEDULE RECORDING) .......................................................103

7-6.8.4. TIMER EVENT RECORDING ..................................................................................103

7-6.9. RECORDING BY MOTION DETECTION............................................................................104

7-6.10. RECORDING BY SENSOR (PIR SENSOR)..................................................................... 112

System Instruction Manual

CONTENTS

7-7. NETWORK ..................................................................................................................... 115

7-7.1. IP MODE ................................................................................................................... 115

7-7.2. GATEWAY, SUBNET, IP ADDRESS ......................................................................... 116

7-7.3. PORT ........................................................................................................................ 117

7-7.3.1 PORT FORWARDING............................................................................................. 117

7-7.4. MAC ID .................................................................................................................... 118

7-7.5. MNS (MAC NAME SERVER) ................................................................................... 118

7-7.6. DDNS (DYNAMIC DOMAIN NAME SYSTEM)..........................................................120

7-7.7. HOW TO SETUP AND USE THE DDNS...................................................................121

7-7.7.1. ROUTER. ...........................................................................................................121

7-7.7.2. REGISTRATION TO THE DDNS SERVER......................................................................122

7-8. VIDEO ENHANCE ..........................................................................................................123

7-8.1. VIDEO ENHANCEMENT ON EACH CAMERA.........................................................124

7-8.2. VIDEO ENHANCEMENT ON VGA OUTPUT............................................................125

7. Setup

7-1. SETUP

It is possible to set up the menus in the LIVE mode and partly in the RECORD mode.

▫ Click the “SETUP” button on the MENU bar and then the SETUP menu will be

displayed.

▫ Click the “EXIT” button to return to the previous mode.

[Fig.7-2 SETUP menu]

[Fig.7-1 Setup Icon on MENU Bar]

System Instruction Manual

7-2. SYSTEM

▫ Click the “SYSTEM” button in the SETUP menu, and then the SYSTEM menu shown in

[Fig.7-3] will be displayed.

▫ Click the “EXIT” button to return to the SETUP menu.

[Fig.7-3 SYSTEM menu]

7. Setup

7-2.1. TIME / DATE

▫ Click the “TIME/DATE” button in the SYSTEM menu, and then the TIME/DATE menu will

be displayed (See Fig.7-4).

▫ Click the “EXIT” button to return to the SYSTEM menu.

▫ TIME FORMAT

Click the mouse on the TIME FORMAT button to change and then select 24 HOUR or 12

HOUR by clicking the mouse.

▫ TIME Settings

Select the values (AM or PM and hour/minute/second) by clicking the mouse, change the

values with the mouse’s wheel and click the mouse again on the changed values to

complete.

[Fig.7-5 Time Format button]

[Fig.7-6 Time Setting]

[Fig.7-4 TIME / DATE menu]

System Instruction Manual

▫ DATE FORMAT

There are three formats to display the time and date as follow.

• MM / DD / YYYY: For U.S.A.

• YYYY / MM / DD: For Asian countries.

• DD / MM / YYYY: For European countries.

Click the mouse on the DATE FORMAT button to change, and then select a DATE

FORMAT among YYYY/MM/DD, DD/MM/YYYY and MM/DD/YYYY.

▫ DATE Settings

Select the month, date and year by clicking the mouse, change the values with the

mouse’s wheel and click the mouse again on the changed values to complete.

▫ DISPLAY

It enables you to display the time and date on the Live screen.

Click the DISPLAY button to set display on or off.

Note: Setting the new time will cause loss of recording data. After setting the time, HDD

should be formatted prior to start recording.

[Fig. 7-7 Date Format button]

[Fig.7-8 Date Settings button]

[Fig. 7-9 Display button]

7. Setup

7-2.2. SYSTEM CONFIG

▫ Click the “SYSTEM CONFIG” button in the SYSTEM menu, and then the SYSTEM

CONFIG menu will be displayed (See Fig.7-10).

▫ Click the “EXIT” button to return to the SYSTEM menu.

7-2.2.1. FACTORY DEFAULT

▫ Click the “FACTORY DEFAULT” button in the SYSTEM CONFIG menu, and you will be

asked as shown in [Fig.7-12].

▫ Click the “OK” button in [Fig.7-12] to reset to the Factory Default Values, and then the system

will save the factory default values (settings).

Click the CANCEL button to cancel.

[Fig.7-11 Factory Default button]

[Fig.7-10 SYSTEM CONFIG]

System Instruction Manual

7-2.2.2. LOAD CONFIG / BACKUP CONFIG

You can save up to four different settings in the BACKUP CONFIG and load the files in the

LOAD CONFIG to change the settings to the system.

▫ LOAD CONFIG

This function is to load the changed settings to the system.

- Click the LOAD CONFIG button and then the LOAD CONFIG window will be displayed

(See Fig.7-14).

- Select a backup file among FILE 1, FILE 2, FILE 3 and FILE 4 by clicking the mouse and

click the LOAD button to change the settings (See Fig.7-14).

- Click the CANCEL button to cancel.

[Fig.7-13 LOAD CONFIG button]

[Fig.7-12 Confirmation window of Factory Default]

7. Setup

▫ BACKUP CONFIG

This function is to save the current settings to load the settings to the system. Save the

current settings in the BACKUP CONFIG in order to load it to the system in the near future

whenever you change the settings.

- Click the BACKUP CONFIG button and then the BACKUP CONFIG window will be

displayed (See

Fig.7-16).

- Select a blank file among FILE 1, FILE 2, FILE 3 and FILE 4 by clicking the mouse and

click the BACKUP button to save the current setting (See Fig.7-16).

- To delete, click the mouse on the saved file and click the DELETE button.

- Click the CANCEL button to cancel.

[Fig.7-15 BACKUP CONFIG button]

[Fig.7-14 LOAD CONFIG window]

System Instruction Manual

[Fig.7-16 BACKUP CONFIG window]

7. Setup

7-2.3. PASSWORD

▫ ON/OFF

Select ON or OFF by clicking the mouse.

If the ON is selected, the password has to be entered to get into the SETUP mode,

RECORD mode, COPY mode, REPLAY mode, and when trying to connect the network

through the COMBO VIEWER.

▫ PASSWORD CHANGE

Click the password “********” button and then the On Screen Keyboard will be displayed as

shown in [Fig.7-17]. The factory default password is “11111111”.

Delete the existing password with the button on the On Screen Keyboard. Enter the

new password by using the On Screen Keyboard and click the OK button to save.

The password should be 8 digits.

If you executed the factory default setting, the existing password will be changed to

“11111111”.

Note: Don’t forget the password.

[Fig.7-17 PASSWORD KEYBOARD window]

System Instruction Manual

7-2.4. IR REMOTE ID

Up to 16 DVR systems can be controlled by only one remote controller we provided, but IDs

should be assigned on each of the systems. You don’t have to assign any ID on the single

unit and you can control the system with the provided remote controller without IR REMOTE

ID, which is in the OFF mode (Skip this section).

▫ Click the IR REMOTE ID button and select one among OFF, 1 through 16 to assign an ID

for the system by clicking the mouse.

▫ When an IR Remote ID is assigned In the SYSTEM menu, press the “ID” button and the

same channel button on the remote controller as an assigned ID in the SYSTEM menu to

match the IDs between the system and the remote controller. And then press the “ID”

button one more time for setting an ID.

When the “ID” button and the channel button are pressed on the remote controller,

- if the channel button is identical to the assigned ID, the Detect IR ID as shown in Fig.7-

19 will be displayed along with the IR ID number.

- if not, the IR ID Denied as shown in Fig.7-20 will be displayed along with the denied IR ID

number.

[Fig.7-18 IR REMOTE ID button]

Fig.7-19 DETECT IR ID Message

DVR IR ID

NUMBER

Fig.7-20 IR ID DENIED Message

DVR IR ID

NUMBER

7. Setup

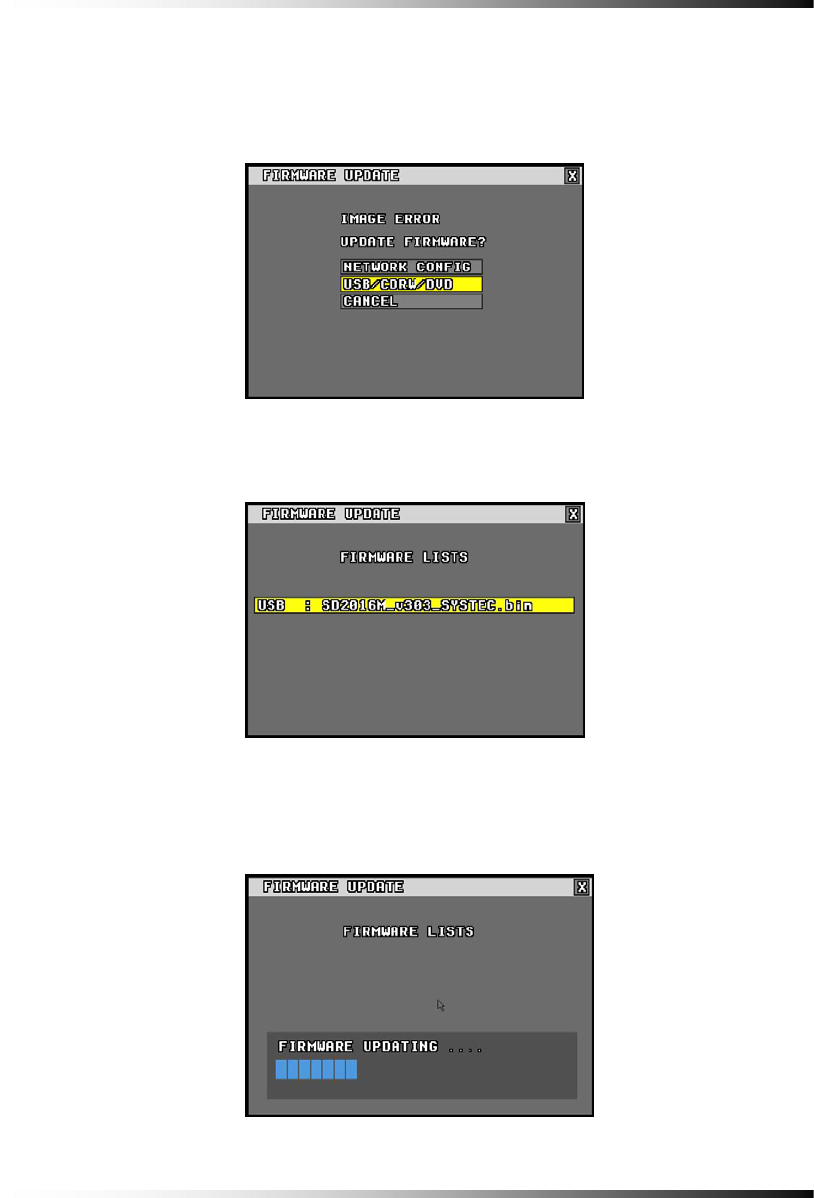

7-2.5. FIRMWARE UPDATE

There are two ways to update the firmware through USB memory and the COMBO VIEWER

(GUI). We recommend users to update the firmware only in the LIVE mode.

▫ By USB memory

- Format the USB with your computer and save the firmware file on it (not including

folder).

- Plug it on the USB port on the system.

- Click the mouse on the SELECT button in the SYSTEM menu and the FIRMWARE

LISTS will be displayed.

- Click on the list, and then you will be asked, OK or CANCEL.

- Click the OK button to update the firmware and the system will automatically start

rebooting.

- Click the CANCEL button to cancel.

▫ COMBO VIEWER (GUI)

Refer to section 8-4.1 ④ Firmware Update on page134.

7-2.6. SYSTEM INFO

▫ Click the “SYSTEM INFO” button in the SYSTEM menu and then the SYSTEM INFO that

contains the system version and the last updated date will be displayed.

▫ Click the (EXIT) button to return to the SETUP menu.

[Fig.7-21 SYSTEM INFORMATION window]

System Instruction Manual

7-3. DISK MANAGER

▫ Click the “DISK MANAGER” button in the SETUP menu and then the DISK MANAGER

window will be displayed (See Fig.7-22).

▫ A DVD R/W(USB) and 1 Hard Disk Drives can be installed, and all information in regards to

the drives will be automatically displayed on the DISK MANAGER window.

▫ Click the (EXIT) button to return to the SETUP menu.

[Fig. 7-22 DISK MANAGER window]

7. Setup

7-3.1. HDD WRITE FAIL

If the HDD is in full and the OVERWRITE is turned OFF in the recording mode, the system

will activate the relay output (See section 5-4.3) for a siren or other device.

▫ Click the HDD WRITE FAIL button in the DISK MANAGER window and select “RELAY

OUT” or “DISABLE”.

7-3.2. HDD OVERWRITE

▫ Click the mouse on the OVERWRITE button to select the ON or the OFF. If the ON is

selected, the system continues recording by overwriting start from the first index of the

recorded file even though the space of HDD is in full. If the OFF is selected, the system will

stop recording when the space of HDD is in full.

7-3.3. Format

When you install the new Hard Disk Drives (HDD), it should be formatted before recording.

Formatting is possible only when the system is in the LIVE mode.

▫ Click the “HDD or USB” button to format and then the HDD or USB FORMAT message box

will be displayed (See Fig.7-25).

▫ Click the “OK” button, and you can see the formatting process of the HDD.

▫ Click the “CANCEL” button to return to the Disk Manager.

[Fig.7-24 Overwrite button]

[Fig. 7-23 HDD Write Fail button]

System Instruction Manual

[Fig.7-25 HDD FORMAT window]

7. Setup

7-4. CAMERA

▫ Click the “CAMERA” button in the SETUP menu and then the CAMERA menu will be

displayed (See Fig.7-26). To change the settings in the CAMERA menu, stop recording by

clicking the RECORD icon on the MENU BAR.

It is possible only in the LIVE mode.

▫ Click the (EXIT) button to return to the SETUP menu.

[Fig.7-26 CAMERA menu]

System Instruction Manual

7-4.1. Camera ON/OFF

▫ Click on each of the channels to select the “O” or “X” in the CAMERA menu. If the “O” is

selected, the corresponding video channels (CAM 01 through CAM 08) will be displayed

on the screen. If the “X” is selected, the corresponding video channels (CAM 01 through

CAM 08) won’t be displayed.

7-4.2. Camera Name (Camera Title)

▫ Click the NAME (Camera Title) button in the CAMERA menu and then the On Screen

Keyboard will be displayed as shown in [Fig.7-28].

▫ Delete the existing NAME (Camera Title) with the button on the On Screen

Keyboard.

▫ Enter the new NAME up to 8 characters by using the On Screen Keyboard and click on the

OK button to save. Click on the CANCEL button to cancel.

▫ Click the (EXIT) button to return to the SETUP menu.

[Fig.7-27 Camera ON/OFF button]

[Fig.7-28 Camera Name Setting Keyboard window]

7. Setup

7-4.3. Buzzer

In order to alert users, the Buzzer will sound at that time video signal lost.

▫ Click on each of the channels you wish to turn the buzzer “ON” or “OFF”. If the “O” is

selected, the buzzer will sound when video signal lost and if the “X” is selected, the buzzer

won’t sound.

7-4.4. Relay

The system will automatically activate a siren or other device through the Relay Output on

the rear panel when video signal lost.

▫ Click on each of the channels you wish to select the Relay Output “O” or “X”. If the “O” is

selected, the Relay Output will be turned on to activate a siren or other device when video

signal lost.

[Fig.7-29 Buzzer button]

[Fig.7-31 Relay button]

[Fig.7-30 Relay button]

System Instruction Manual

7-4.5. Pan/Tilt Settings

▫ Click the PAN/TILT button on the corresponding channels in the CAMERA menu, then the

PAN/TILT window will be displayed as shown in [Fig.7-33].

▫ Click the (EXIT) button to return to the CAMERA menu.

▫ PTZ ID

- Click the PTZ ID button in the PAN/TILT window, then On Screen Keyboard will show up.

- Delete the current ID with the button and choose a number among “0” to “255” by

using the On Screen Keyboard, and then click OK button to save it. The ID should be

identical to one PTZ camera has.

- Click the “CANCEL” button to return to the previous value.

[Fig.7-32 PAN/TILT button]

[Fig.7-33 PAN/TILT window]

Fig. 7-33-1 PTZ ID

7. Setup

▫ Pan/Tilt Vendor select

Click the “PAN/TILT & REMOTE” button in the PAN/TILT window, then the vendor lists will

show up. Select a vendor on the vendor lists by clicking the mouse.

▫ Model

Click the “MODEL” button in the PAN/TILT window and select the model on the pop-up lists

by clicking the mouse.

[Fig.7-37 PAN/TILT Model pop-up window]

[Fig.7-34 PAN/TILT & REMOTE ]

[Fig.7-35 PAN/TILT Vendor lists]

[Fig.7-36 MODEL button]

System Instruction Manual

▫ Baud rate

Click the “BAUD RATE” button in the PAN/TILT window and choose a value among

1200bps, 2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 57600bps and 115200bps

on the Baud Rate pop-up window by clicking the mouse.

▫ Data Bits

Click the “DATA BITS” button in the PAN/TILT window and choose a value among 5, 6, 7

and 8 on the Data Bits pop-up window by clicking the mouse.

[Fig.7-38 BAUDRATE button]

[Fig.7-39 Baud Rate pop-up window]

[Fig.7-40 DATA BITS button]

[Fig.7-41 Data Bits pop-up window]

7. Setup

▫ Stop Bits

Click the “STOP BITS” button in the PAN/TILT window and select 1 or 2 on the Stop Bits

pop-up window by clicking the mouse.

▫ Parity Bit

Click the “PARITY BITS” button in the PAN/TILT window and choose a value among

NONE, ODD, EVEN, STICK and ZERO on the Parity Bits pop-up window by clicking the

mouse.

[Fig.7-42 STOP BITS button]

[Fig.7-43 Stop Bits pop-up window]

[Fig.7-44 PARITY BIT button]

[Fig.7-45 Parity Bit pop-up window]

System Instruction Manual

7-4.6 Display

▫ Click the DISPLAY button in the CAMERA menu and select the ON or OFF. If the “ON” is

selected, the camera name (camera title) in the LIVE mode will be displayed on the screen.

If the “OFF” is selected, the camera name (camera title) in the LIVE mode won’t be

displayed.

7-4.7 Sequencing dwell time

▫ Click the “SEQUENCING DWELL” button in the CAMERA menu and choose a value

among 1, 2, 3, 4 and 5seconds on the dwell time pop-up window by clicking the mouse.

[Fig.7-46 Display ON/OFF button]

[Fig.7-47 Sequencing Dwell Time button]

[Fig.7-48 Sequencing Dwell Time pop-up window]

7. Setup

7-5. AUDIO

▫ Click on the AUDIO button in the SETUP menu and then the AUDIO menu will be

displayed on the screen.

▫ Click the (EXIT) button to return to the SETUP menu.

[Fig.7-49 AUDIO menu]

System Instruction Manual

7-5.1. Audio Recording ON/OFF

▫ Click the REC (audio recording) button in the AUDIO menu and select the “O” or “X” by

clicking the mouse. If the “O” is selected, the corresponding channel’s audio will be

recording along with video signal. If the “X” is selected, the corresponding channel’s audio

won’t be recording but video signal will be recording continuously.

7-5.2. Microphone Volume

▫ Adjust audio volume by clicking the ▲ or ▼ button.

[Fig.7-50 Record ON/OFF button]

[Fig.7-51 Microphone Volume control button]

7. Setup

7-6. RECORD

▫ Click the “RECORD” button in the SETUP menu and then the RECORD menu will be

displayed as shown in [Fig.7-52].

▫ Click the (EXIT) button to return to the SETUP menu.

7-6.1. Record ICON Display

▫ The Recording Icons depends on recording modes are displayed in the upper left corner of

the screen.

▫ To turn the Recording Icon OFF, click the DISPLAY ON in the RECORD menu and then it

will be turned OFF. You can select the value ON or OFF by repeatedly clicking the mouse.

[Fig.7-53 Record ICON Display button]

[Fig.7-52 RECORD menu]

System Instruction Manual

7-6.2. All Manual / Timer recording button

▫ Click the All Manual / Timer recording button in the RECORD menu, then the All Manual /

Timer recording button will be displayed as shown in [Fig.7-55].

▫ Select the Manual Recording button or Timer Recording button for all the channels by

clicking the mouse in [Fig.7-55].

▫ See section 6-8.1 through 6-8.5 on page 52 through 55 for more information related to

recording.

[Fig.7-54 All Manual / Timer button]

[Fig. 7-55 All Manual / Timer pop-up window]

7. Setup

7-6.3. All Motion ON / OFF, Sensitivity Setting

▫ Click the button in the RECORD menu, then the ALL MOTION setup pop-up

window will be displayed as shown in [Fig.7-57].

▫ By clicking the mouse, select the on the pop-up window (See

Fig.7-57) to enable the system to start recording by motion detection for all the channels.

▫ By clicking the mouse, select the on the pop-up window (See

Fig.7-57) to disable the system to start recording by motion detection for all the channels.

▫ By clicking the mouse, select the on the pop-up window

(See Fig.7-57) and choose one of the sensitivity among LOW, 1, 2, 3 and HIGH for all the

channels with the mouse’s wheel, and then click it to save.

▫ See section 6-8.1 through 6-8.5 on page 52 through 55 for more information related to

recording.

[Fig.7-56 All Motion Setup button]

[Fig.7-58 All Motion Sensitivity setup button]

[Fig.7-57 All Motion Setup pop-up window]

System Instruction Manual

100

7-6.4. All Sensors ON / OFF

▫ Click the button in the RECORD menu, then the ALL SENSOR setup pop-up

window will be displayed as shown in [Fig.7-60].

▫ By clicking the mouse, select the on the pop-up window (See Fig.7-

60) to enable the system to start recording by Sensor (Passive Infrared Sensor) for all the

channels.

▫ By clicking the mouse, select the on the pop-up window (See

Fig.7-60) to disable the system to start recording by Sensor (Passive Infrared Sensor) for all

the channels.

7-6.5. Size (Recording Resolution)

Select the size of the screen for recording. The larger the size selected, the better display

quality is but the larger the data becomes.

▫ Click the SIZE (Recording Resolution) button on each of the channels in the RECORD

menu, then the SIZE (Recording Resolution) pop-up window will be displayed as shown in

[Fig.7-62].

▫ Select one of the Resolution among D1 (720x480), HALF D1 (720x240) and CIF (360x240)

on the pop-up window by clicking the mouse.

[Fig.7-61 Record Size button]

[Fig.7-62 Record Size pop-up window]

[Fig.7-60 All Sensor Setup pop-up window]

[Fig.7-59 All Sensor button]

7. Setup

101

7-6.6. Recording Speed

▫ Click the F/S (Frames Per Seconds: Recording Speed) button on each of the channels in

the RECORD menu, then the Recording Speed pop-up window will be displayed as shown

in [Fig.7-64].

▫ Select one of the Recording Speed among AUTO, 30, 15, 10, 7, 5, 3, 2, 1 and OFF on the

pop-up window by clicking the mouse.

▫ If the AUTO is selected on all the channels, the Recording Speed on all the channels

should be the same. If the OFF is selected, the corresponding channel won’t be recording.

[Fig.7-63 Record Speed button]

[Fig.7-64 Record Speed pop-up window]

System Instruction Manual

102

30 25

15 12

10 8

7 6

5 5

3 3

2 2

1 1

NTSC

OFF

PAL

OFF

7-6.7. Recording Quality

▫ Click the QUALITY button on each of the channels in the RECORD menu, then the

QUALITY pop-up window will be displayed as shown in [Fig.7-67].

▫ Select one of the Recording Quality among LOW, NORMAL, HIGH and BEST on the pop-

up window by clicking the mouse.

[Fig.7-65 Recording Speed for each channel]

[Fig.7-66 Record Quality button]

[Fig.7-67 Record Quality pop-up window]

7. Setup

103

7-6.8. Recording Mode

The factory default setting for Recording is the Manual Recording (or called Continuous

Recording), which keeps recording continuously if the OVERWRITE is set ON in the DISK

MANAGE menu. This Manual Recording mode is one of the most popular Recording modes

for users, as well as one of the most convenient Recording modes to use.

Users can select one of the following Recording modes depends on their application.

7-6.8.1. Manual Recording

See section 6-8.1 on page 52.

7-6.8.2. Manual Event Recording

See section 6-8.2 on page 52.

7-6.8.3. Timer Recording (Schedule Recording)

See section 6-8.3 on page 53.

7-6.8.4. Timer Event Recording

See section 6-8.4 on page 54.

System Instruction Manual

104

7-6.9. Recording by Motion Detection

When the menu of motion is properly set up (See section 7-6.3 for all the channels and

this section for each of the channels) and detected motion of objects, the system begins

recording automatically. The recording icon on the MENU bar should be selected in this

recording mode. If not, it won’t be recording.

▫ Click the mouse on the button for each of the channels in the RECORD menu,

then the MOTION menu will be displayed on the screen as shown in [Fig.7-68].

▫ Click the (EXIT) button to return to the RECORD menu.

▫ ON/OFF

The system will start recording when MOTION is detected and the ON is selected in the

MOTION menu by clicking the mouse. If the OFF is selected, the system won’t be

recording.

[Fig.7-69 MOTION ON/OFF button]

[Fig.7-68 MOTION menu]

7. Setup

105

▫ Pre-Alarm Time Setup

Allows you to record a section of video just prior to Motion or Sensor activation. Click the

mouse on the PRE in the MOTION menu and choose one of the values among 0, 1, 2, 3, 4

and 5 seconds with the mouse’s wheel, and then click it to save.

▫ Motion Hold Time Setup

The system continues recording for the MOTION HOLD TIME and finishes the recording.

Click the mouse on the HOLD in the MOTION menu and choose one of the values among

1 through 30 seconds with the mouse’s wheel, and then click it to save.

[Fig.7-70 Pre-Record Time setup button]

[Fig.7-71 Pre-Alarm Time Setup pop-up window]

[Fig. 7-72 Hold-Record Time Setup button]

System Instruction Manual

106

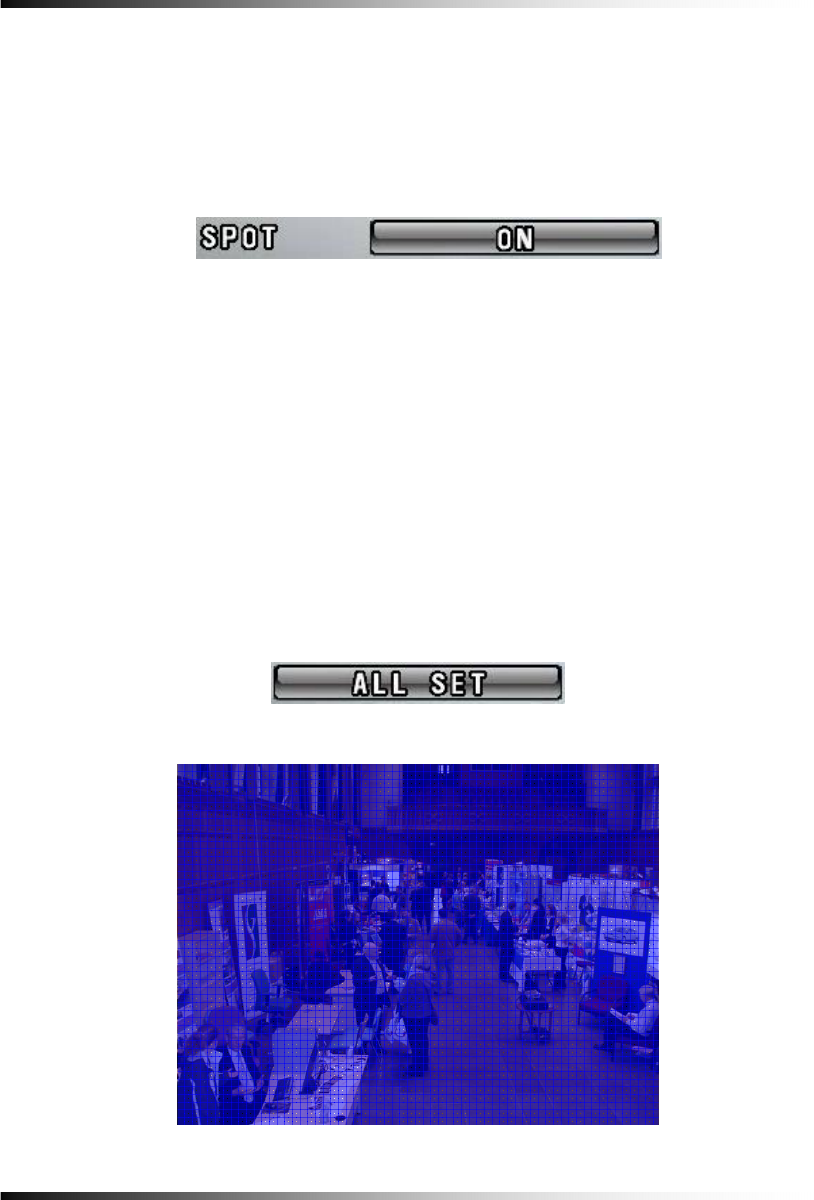

▫ Spot Setup

If the “ON” is selected by clicking the mouse on the SPOT button in the MOTION menu, a

full screen will display when a motion is detected. If the “OFF” is selected, the full screen

won’t be displayed even though motion of objects is detected.

▫ Region

The Motion Detection Area displays in blue on the screen, and it turns to yellow color when

the motion is detected. The white color on the screen represents none of detection area.

There are three kinds of REGION settings as follows.

By All Set

Click the ALL SET button in the MOTION menu on each of the cameras and then the

Motion Detection Area displays in blue on the screen as shown in [Fig.7-75]. Right-click on

the blue screen to return to the MOTION menu. The factory default value is the ALL SET.

[Fig.7-74 ALL SET button]

[Fig.7-73 Spot Setup button]

[Fig.7-75 All Set screen]

7. Setup

107

- All Clear

Click the ALL CLEAR button in the MOTION menu in order to clear the Motion

Detection Area, and then the window turns to white color as shown in [Fig.7-77].

Right-click on the current window to return to the MOTION menu.

[Fig.7-76 ALL CLEAR button]

[Fig.7-77 All Cleared screen]

CURSO

System Instruction Manual

108

By Window Set

Click the WINDOW SET button in the MOTION menu on each of the cameras and click

one of cells (1,320 cells in total) for the starting point of the area which you would like to

designate, and then click the other one of cells for the ending point of area until the motion

detection area is the size you want it to be. The multiple motion areas can be set on each

of cameras.

The motion detection by Window Set will be made on the designated area only.

Right-click on the current window to return to the MOTION menu.

[Fig.7-78 WINDOW SET button]

[Fig.7-79 Window Set screen]

CURSO

7. Setup

109

- Window Clear

Click the WINDOW CLEAR button in the MOTION menu in order to clear the Motion

Detection Area, and then the motion detection area you have created will be displayed.

Click the starting point and the ending point as much as you wish to clear or it can be

cleared by ALL CLEAR as described above (See ALL CLEAR).

Right-click on the current window to return to the MOTION menu.

[Fig.7-80 WINDOW CLEAR button]

[Fig.7-81 Window Clear setup screen]

CURSO

System Instruction Manual

110

By Each Cell

Click the EACH CELL button in the MOTION menu on each of the cameras and click the

mouse on each of the cells as much as you would like to designate the Motion Detection

Area.

To clear, click the designated cells.

Right-click on the current window to return to the MOTION menu.

[Fig.7-82 EACH CELL button]

[Fig.7-83 Each Cell Setup screen]

CURSO

7. Setup

111

▫ Map View

Click the MAP VIEW button in the MOTION menu to view the current settings for Motion

detection area.

Right-click on the current window to return to the MOTION menu.

Note : Please pay attention to the following directions in order to use the Motion

Detection function properly:

• Adjust the sensitivity level and motion area to fit your requirements.

• Do not use this function in an area where many objects are continuously moving. In

case of this, change the recording mode to the Continuous (Manual) Recording

mode.

• Use a high quality camera that does not generate video static or “noise”. The motion

detection algorithm recognizes this “noise” as a motion and records the noise even if

there was no actual motion.

• Do not point the camera toward a strong and changing lighting source; it can activate

false motion detection.

[Fig.7-84 M

[Fig.7-85 Map View screen]

CURSO

System Instruction Manual

112

7-6.10. Recording by Sensor (PIR Sensor)

▫ Click the mouse on the button for each of the channels in the RECORD menu and

then the SENSOR menu will be displayed on the screen as shown in [Fig.7-86].

▫ Click the (EXIT) button to return to the RECORD menu.

▫ ON/OFF

The system will start recording when an Alarm is detected and the ON is selected in the

SENSOR menu by clicking the mouse. If the OFF is selected, the system won’t be

recording.

If you select “OK”, it will be recorded when only sensor is activated.

[Fig.7-87 SENSOR ON/OFF button]

[Fig.7-86 SENSOR window]

7. Setup

113

▫ Pre-Alarm Time Setup

Allows you to record a section of video just prior to Sensor activation. Click the mouse on

the PRE in the SENSOR menu and choose one of the values among 0, 1, 2, 3, 4 and 5

seconds with the mouse’s wheel, and then click it to save.

[Fig.7-88 Pre-Alarm Time Setup button]

[Fig.7-89 Pre-Alarm Time Setup pop-up window]

System Instruction Manual

114

▫ Alarm Hold Time Setup

The system continues recording for the Alarm HOLD TIME and finishes the recording. Click

the mouse on the HOLD in the SENSOR menu and choose one of the values among 1

through 30 seconds with the mouse’s wheel, and then click it to save.

▫ Spot Setup

If the “ON” is selected by clicking the mouse on the SPOT button in the SENSOR menu, a

full screen will display when a motion is detected. If the “OFF” is selected, the full screen

won’t be displayed even though an alarm is detected.

[Fig.7-91 Spot Setup button]

[Fig.7-90 Alarm Hold Time Setup button]

7. Setup

115

7-7. NETWORK

▫ Click the “NETWORK” button in the SETUP menu and then the NETWORK menu will be

displayed on the screen as shown in [Fig.7-92].

▫ Click the (EXIT) button to return to the SETUP menu.

7-7.1. IP Mode

When the system uses the same IP address every time it connects to the network, it is

known as a static IP address. If the system’s IP address changes frequently, it is called a

dynamic IP address. Check with your Internet Service Provider to determine which IP

address was given. This manual will guide users through the setup process for both types.

DYNAMIC IP: automatically receives IP address from the router or gateway. It doesn’t need

to enter the GATEWAY ADDRESS, SUBNET MASK and IP ADDRESS.

STATIC IP: requires you to enter the GATEWAY ADDRESS, SUBNET MASK and IP

ADDRESS.

▫ Click the “IP MODE” button in the NETWORK menu and then the IP mode pop-up window will be

displayed on the screen (See Fig.7-94).

▫ Select the STATIC or DYNAMIC by clicking the mouse depends on your networking.

[Fig.7-92 NETWORK menu]

System Instruction Manual

116

7-7.2. GATEWAY, SUBNET, IP ADDRESS

▫ Click the GATEWAY / SUBNET / IP ADDRESS button in the STATIC IP MODE and then

the On Screen Keyboard will appear.

▫ Delete the current values with the button and enter the address numbers by using

On Screen Keyboard, and then click OK button to set with new address.

▫ Click the CANCEL button to return to the original values.

[Fig.7-93 IP Mode button]

[Fig.7-94 IP Mode pop-up window]

[Fig.7-95 Address Setup window]

[Fig.7-96 On Screen Keyboard]

7. Setup

117

7-7.3. Port

▫ PORT is the TCP address of the program, which is used to connect to the network viewer.

It can be set from 1 to 65535 values.

▫ Click the PORT button and then the On Screen Keyboard will show up.

▫ Delete the current port number with the button and enter the new port number by

using On Screen Keyboard, and then click “OK” button to set with new port number.

▫ Click the “CANCEL” button to return to the default value.

7-7.3.1 Port Forwarding

▫ Router has to be set as a virtual server (or port forwarding) in order to utilize the

MNS (Mac Name Server) or the DDNS service to use Internet Explorer (See section 8-

3) on this product.

▫ Do not use the public port numbers.

[Fig.7-97 Port Setup window]

[Fig.7-98 Port Setup Keyboard window]

System Instruction Manual

118

7-7.4. MAC ID

▫ MAC ID is connecting address for Ethernet, every unit has 12 digit addresses (HEX 6 byte).

MAC ID was already assigned with the factory default value. User can not change it.

7-7.5. MNS (MAC NAME SERVER)

As a sort of DDNS, two servers in our company (CLOVER) are being operated so that our

client can access DVR with a Dynamic IP address. If one of servers stops operating, the

other one will automatically start working.

▫ Click the MNS button in the NETWORK menu with a mouse or buttons on the remote

controller and then the MNS window will show up as below (See Fig.7-99).

▫ To return to the NETWORK window, click the (EXIT) button in the MNS menu.

▫ DISABLE / ENABLE

You can select the DISABLE or ENABLE button on both SERVER 1 and SERVER 2 by

clicking the mouse or pressing the ENTER button on the remote controller.

“DISABLE”: MSN (MAC NAME SERVER) is not working.

“ENABLE”: MSN (MAC NAME SERVER) is working.

[Fig.7-100 DISABLE/ENABLE button]

[Fig.7-99 MNS window]

7. Setup

119

▫ IP ADDRESS / PORT

DO NOT CHANGE THE IP ADDRESS AND PORT NUMBER IN THE MNS MENU IF YOU

DON’T HAVE ANY SPECIAL SERVER TO ACCESS YOUR DVR WITH A DYNAMIC IP

ADDRESS. IF YOU CHANGE THEM, YOU CAN’T NOT ONLY USE OUR MNS (MAC

NAME SERVER), BUT ALSO YOUR NETWORKING WILL BE DISCONNECTED.

▫ SITE NAME

The SITE NAME is one of the important factors to access the DVR through MNS (MAC

NAME SERVER) with the COMBO VIEWER (GUI).

You can’t access the DVR system if the SITE NAME you entered already exists on

the network. Try to connect the system with other SITE NAME.

- Click the SITE NAME button, the On Screen Keyboard will show up (See Fig.7-102).

- Delete the current SITE NAME with the button and enter the new SITE NAME by

using the On Screen Keyboard, and then click OK button to save it.

- Click the “CANCEL” button to return to the previous value.

[Fig.7-101 SITE NAME Setup button]

[Fig.7-102 SITE NAME Setup: On Screen Keyboard]

System Instruction Manual

120

7-7.6. DDNS (DYNAMIC DOMAIN NAME SYSTEM)

▫ Select the DDNS button in the NETWORK menu by clicking the mouse or pressing the

buttons on the remote controller. The DDNS menu will show up as shown in [Fig.7-103].

▫ To return to the NETWORK menu, Click the (EXIT) button.

▫ If you were in the middle of entering values on the DDNS menu, you can’t exit by clicking

the mouse. Choose the SERVER button in the DDNS menu by clicking the mouse and

select the DISABLE, and then click the (EXIT) button.

▫ SERVER

- Choose the SERVER button in the DDNS menu by clicking the mouse or pressing the

buttons on the remote controller and select the DYNDNS.ORG (or NO-IP.ORG) provided

by www.dyndns.org (or www.no-ip.org) at no cost.

▫ HOST NAME

- Click the HOST NAME in the DDNS menu and type the HOST NAME registered to the

DDNS server such as DYNDNS.ORG and NO-IP.ORG by using the On Screen Keyboard.

- After changing the values, click on the OK button.

[Fig.7-104 SERVER button]

[Fig.7-103 DDNS menu]

7. Setup

121

▫ USER ID

- Click the USER ID in the DDNS menu and type the USER ID registered to the DDNS

server by using the On Screen Keyboard.

- After changing the values, click on the OK button.

▫ PASSWORD

- Click the PASSWORD in the DDNS menu and type the PASSWORD registered to the

DDNS server by using the On Screen Keyboard.

- After changing the values, click on the OK button.

7-7.7. HOW TO SETUP AND USE THE DDNS

7-7.7.1. Router.

It has to be set as a virtual server (or port forwarding) in order to utilize the DDNS. There are

a lot of manufacturers on the market. Please read the provided manual thoroughly before

setting or visit our website at www.cloverusa.com in regards to do it.

We, the manufacturer of DVR systems will not support the solution to your individual network

issues.

** DDNS (Dynamic Domain Name System) is a method of keeping a domain name linked to

a changing IP address. This is a useful feature since many computers do not use a static IP

address.

[Fig.7-105 HOST NAME button]

[Fig.7-106 USER ID button]

[Fig.7-107 PASSWORD button]

System Instruction Manual

122

7-7.7.2. Registration to the DDNS server

Visit at www.dyndns.org to register.

Registration to DYNDNS.ORG

1. Visit at www.dyndns.com.

2. Sign up for a new user name and a password: Click the Create Account on the

upper right hand corner.

3. After signup new user, check your e-mail and confirm an e-mail from dyndns.com.

4. Go back to www.dyndns.com and log in with the ID and the Password.

5. After log in on dyndns.com front page, click on my services.

6. Click on the Add Host Service (Next to Host Level Service).

7. Click the Add Dynamic DNS Host on the Dynamic DNS.

8. The window to input Host Name will pop up, and select the dyndns.org or the

dvrdns.org on the pop-up window.

9. To complete, click the Add Host button on the bottom.

10. After registration, go to the NETWORK menu on the DVR and enter the HOST

NAME, USER ID and the PASSWORD you just registered in the DDNS menu (See

section 7-7.6).

7. Setup

123

7-8. VIDEO ENHANCE

▫ Click the VIDEO ENHANCE button in the SETUP menu to enhance the picture quality

(Contrast and Brightness) on each of channels. The VIDEO ENHANCE menu will show up

(See Fig.7-108).

▫ To return to the SETUP menu, click the (EXIT) button.

[Fig.7-108 VIDEO ENHANCE]

System Instruction Manual

124

7-8.1. VIDEO ENHANCEMENT ON EACH CAMERA

▫ Click on an INPUT button in the VIDEO ENHANCE menu.

▫ The CONTRAST and BRIGHTNESS sliders will be displayed along with camera picture as

shown in [Fig.7-109].

▫ Adjust Contrast and Brightness with the sliders by clicking the mouse.

▫ To return to the VIDEO ENHANCE menu, Click the (EXIT) button.

[Fig.7-109 CAMERA INPUT]

7. Setup

125

7-8.2. VIDEO ENHANCEMENT ON VGA OUTPUT

It is possible to enhance VGA signals only with the MENU/ENTER key on the bottom of the

system.

▫ To display the MENU, press the MENU/ENTER key to change the values. The changes

should be made in about 15 seconds. After that, the MENU will be disappeared.

▫ Choose one of items among Contrast, Brightness, Hue, Saturation and Sharpness by

using (+) or (-) key and press the MENU/ENTER key to change the values. The chosen

item along with the Slider will be displayed on the bottom of the screen.

Change the values by using (+) or (-) key and press the MENU/ENTER key to save.

▫ Color Tone

Choose the Color Tone by using (+) or (-) key and choose one among Normal, Warm

and Cool by pressing the MENU/ENTER key. Press the Exit key or choose other items by

using (+) or (-) key to save the values. The default value is Normal.

▫ Picture Format

Choose the Picture Format by using (+) or (-) key and select between 16: 9 (Aspect ratio)

and 4:3 by pressing the MENU/ENTER key. Press the Exit key or choose other items by

using (+) or (-) key to save the values. The default value is 16: 9.

▫ Picture Mode

Choose the Picture Mode by using (+) or (-) key and choose one among User, Standard,

Movie and Vivid by pressing the MENU/ENTER key. Press the Exit key or choose other

items by using (+) or (-) key to save the values. The default value is Standard.

▫ To exit, press the Exit key on the bottom of the system.

[Fig.7-110 VIDEO ENHANCE]

Brightness

Hue

Saturation

Sharpness

Color Tone

Pi F

< Normal

< 16 : 9

< Use

Contrast

System Instruction Manual

126

127

Remote Host Program

CONTENTS

8-1. REMOTE PROGRAM OVERVIEW .................................................................................128

8-2. INSTALLING THE PROGRAM TO PC.............................................................................129

8-3. INTERNET EXPLORER..................................................................................................130

8-4. REMOTE HOST..............................................................................................................132

8-4.1. SETUP.......................................................................................................................133

8-4.2. CONNECTION .............................................................................................................135

8-4.3. SWITCH THE NORMAL SCREEN TO FULL SCREEN ..........................................................136

8-4.4. SPEAKER / MICROPHONE ............................................................................................137

8-4.5. COPY ........................................................................................................................138

8-5. PLAYER..........................................................................................................................140

System Instruction Manual

128

8-1. Remote Program Overview

The Remote Host Program allows you to view live video, search archived video, control PTZ

cameras and to set up the exact same menus as the DVR system does.

The DVR system can have up to 10 simultaneous Remote Connections. Each user can

performs on the DVR system and will not affect the other users. The only exception to this is

accessing Setup. Only one user is allowed to access Setup at any time.

In order to log in to the DVR system, users should be requested to enter the password if the

password is already turned ON in the SYSTEM menu (Click SETUP – SYSTEM). This ensures

that only authorized personnel are allowed to log in.

Remote system minimum requirements

• Microsoft Windows 2000, XP or VISTA Operating System

• Pentium-4 2.0GHz or higher

• 256MB System memory

• 1024 x 768 Display Resolution, 32Bit color

• Internet or LAN Connection

• TCP/IP installed

• Microsoft DirectX 9.0c

It is recommended to have DirectX 9.0c version in client PC. DirectX 9.0 is available for

download from Microsoft homepage (www.microsoft.com/windows/directx).

8. Remote Host Program

129

8-2. Installing the Program to PC

Install the program into PC by using program CD (supplied) as follows.

How to install the program

1. Start the operating system (Windows 2000/XP/VISTA).

2. Insert the program CD into CD-ROM drive.

3. Open My Computer, and then select CD-ROM drive.

4. Double click Setup.EXE. The software installation will begin.

5. After the installation has been completed, the COMBO VIEWER icon will be created on

your desktop screen as shown below.

6. Double click the COMBO VIEWER icon and the COMBO VIEWER screen appears.

How to set Screen Resolution and Color Quality

1. Click Start, point to Control Panel and then click on it.

2. Double-click Display icon.

3. In Display Properties Window, select Settings.

4. Set Colors as True color (32 bit) and Screen area as 1024 by 768 pixels.

[Fig.8-1 ComboViewer icon]

System Instruction Manual

130

8-3. Internet Explorer

When you are trying to use this function, it is highly recommended that the password should

be turned ON in the SYSTEM menu not to enable unauthorized personnel to access your

DVR system (See section 7-2.3).

Up to 10 users can remotely access your DVR with the HOST NAME.

How to setup the Internet Explorer

• Registration to the www.dyndns.org (See section 7-7.7.2. on page 122).

• In the IP address box of Microsoft Internet Explorer, type the HOSET NAME (See Fig.8-

2) you entered in the DDNS menu and the PORT NUMBER of the DVR, and then you will

be asked to install the AciveX control software (See Fig.8-3). You should type the

protocol (http://), the host name (example: cloverdvr1.dyndns.org) or the static IP

address (See Fig.8-2-1) and the port number (:5800) in the IP Address box.

[Fig.8-2 Host Name]

[Fig.8-2-1 IP & Port]

[Fig.8-3 COMBO VIEWER- Windows Internet Explorer]

8. Remote Host Program

131

• Click on the following message.

This site wants to install the following add-on: ‘COMBOVIEWER’ from ‘Clover Electronics

USA’. If you trust the website and the add-on and want to install it, click here….

• Click the click install ActiveX Control…. on the pop-up screen and the following

window will be displayed.

[Fig.8-4 Install the SmViewer]

• Click the Install button on the above window (See Fig.8-4) and the COMBO VIEWER will

be shown. Refer to the following pages in regards to the COMBO VIEWER.

System Instruction Manual

132

8-4. Remote Host

[Fig.8-5 ComboViewer]

Buttons of Remote Host Program

① Player button

② Connection button

③ Setup (Config) button

④

⑤

Full Screen button

Speaker / Microphone volume control

⑥ EXIT button

① ② ③ ⑤ ⑥ ④

8. Remote Host Program

133

8-4.1. Setup

① Version number

It represents the current version number of the Firmware.

② Copy

Refer to Section 8-4.5 in regards to copying methods after selecting one between the Quick

Copy and the Live + Copy.

▫ Quick Copy

Click on the Quick Copy for faster copying the recorded data from the DVR system to the

Host Program (COMBO VIEWER) without live images. The copying speed of the Quick

Copy is faster than the Live + Copy.

▫ Live + Copy

Click on the Live + Copy for copying the recorded data from the DVR system to the Host

Program (COMBO VIEWER) with live images. The copying speed of the Live + Copy is

slower than the Live + Copy.

[Fig.8-6 HOST CONFIG window]

①

②

③

④

System Instruction Manual

134

③ Network Image

▫ Size

Choose a Size (Resolution) among D1, Half D1 and CIF you wish to display on the

COMBO VIEWER by clicking the mouse. This setting does not affect the DVR.

▫ Quality

Choose one among LOW, NORMAL, HIGH and BEST you wish to display on the COMBO

VIEWER by clicking the mouse. This setting does not affect the DVR.

④ Firmware Update

- Save the latest Firmware to the System Files (Open Windows Explorer – click My

Computer - click the Program Files – click ComboViewer – click System Files).

- Click the Firmware Update button on the [Fig.8-6], and then you will be asked “Do you

want to update a firmware?”

- Click the Yes to update.

- Double click the latest firmware as shown in [Fig.8-7] and then you will be asked “Shall I

update firmware?”

- Click the OK to update. The DVR will display the “Firmware Updating…..” along with the

progressive bar on the screen and it will automatically reboot.

[Fig.8-7 Firmware Files]

8. Remote Host Program

135

8-4.2. Connection

There are two ways to access the DVR system through the COMBO VIEWER as follows.

▫ With Set Direct setting

- Click the “CONNECT” button on the ComboViewer and then the “Connect Dialog menu” as

shown in Fig. 8-8 will be displayed.

- Click the “Set Direct” in the Connect Dialog menu and click the “EDIT” button.

- Enter the IP address (or WAN IP address of the Router) and Port number, which must be

the same as DVR has.

- Click the “EDIT” button again and then the connection list will be created in the Name List

(up to 20 lists).

- Choose a Site Name in the Name Lists and click the “CONNECT” button in order to access

the DVR.

▫ With Get Server setting

- Click the “CONNECT” button on the ComboViewer and then the “Connect Dialog menu” as

shown in Fig. 8-8 will be displayed.

- Click the “Get Server” in the Connect Dialog menu and click the “EDIT” button.

- Enter the IP address, Port number and Site Name, which must be the same as the MNS

has (SETUP-click NETWORK-click MNS in the NETWORK menu: Refer to section 7-7.5

MNS on page 118).

- Click the “EDIT” button again and then the connection list will be created in the Name Lists

(up to 20 lists).

- Choose a Site Name in the Name Lists and click the “CONNECT” button in order to access

the DVR.

[Fig.8-8 Connect Dialog]

System Instruction Manual

136

8-4.3. Switch the Normal Screen to Full Screen

▫ Click the “FULL SCREEN” button on the COMBO VIEWER and then the current screen size

will be enlarged to fit the monitor’s screen size, but the resolution will be lowered.

▫ Click the “FULL SCREEN” button again to go back to the NORMAL SCREEN.

[Fig.8-9 Switch the Normal Screen to Full Screen]

8. Remote Host Program

137

8-4.4. Speaker / Microphone

Buttons of Remote Host Program

① PC Speaker ON/OFF: Turn the Speaker ON or OFF by clicking the mouse.

② PC Microphone ON/OFF: Turn the Microphone ON or OFF by clicking the mouse.

③ PC Speaker Volume Control: Adjust the Speaker Volume by clicking the amount of audio

volume. It is available when the Speaker is turned ON.

④ Microphone Volume Control: Adjust the Microphone Volume by clicking the amount of audio

volume. It is available when the Microphone is turned ON.

[Fig.8-10 Speaker / Microphone]

② ①

③ ④

System Instruction Manual

138

8-4.5. Copy

There are four icons such as NETWORK, USB, CD and DVD in the COPY menu of the

COMBO VIEWER. The recorded data will be saved in the Backup Files (Open Windows

Explorer – click My Computer - click the Program Files – click ComboViewer – click Backup

Files) through the NETWORK, but the other icons such as USB, CD and DVD will only show on

the COMBO VIEWER. Therefore it is impossible to copy the recorded data to client computer

with these icons.

▫ Click the COPY button on the menu bar and the COPY menu will be displayed on the screen.

▫ In order to set the Copy starting time and the Copy ending time, select the values

(year/month/date and hour/minute/second) by clicking the mouse, change the values with the

mouse’s wheel and click the mouse again on the changed values to complete.

▫ Click the mouse on the icon only when the network is connected and you will be

asked as shown in [Fig.8-11].

▫ Click the Yes to copy and the COMBO VIEWER will show the progressive status to copy

(See Fig.8-12).

▫ Click the OK to complete the copy (See Fig.8-13).

[Fig.8-11 Copy Confirmation]

8. Remote Host Program

139

[Fig.8-12 Copying on the COMBO VIEWER]

[Fig.8-13 Copy Completion]

System Instruction Manual

140

8-5. PLAYER

[Fig.8-14 Player]

Chart. Button of Player Program

① Status window (Play mode, Date, Time)

② Calendar

③ Convert to AVI File

④ Search button for replaying

⑤ Capture button

⑥ Print button

⑦ Division button

⑧ Playback (Replay) speed Control

⑨ Search slider for replaying

⑩ Replay Control

⑪ Volume Control

⑫ Exit program button

⑨

①

②

③

④

⑥

⑤

⑫

⑪

⑩⑧ ⑦

8. Remote Host Program

141

① Status window (Play mode, Date, Time)

It indicates the play mode, date and time.

② Calendar

It shows the date that is currently being replayed.

[Fig.8-16 Calendar]

③ Convert AVI File

Convert the recorded files to AVI files.

- Click the Convert AVI button on the Player and the Convert AVI window will be displayed

(See Fig.8-17).

- Click on the SELECT button for SOURCE on the Convert AVI window and the Convert AVI

window or the DVR Player will be displayed (See Fig.8-18 and Fig.8-19).

- Select the folder that contains the recorded data and select one of the channels by clicking

the mouse and click the OK (See Fig.8-20).

- If necessary, select a folder for saving or make a new folder to save AVI files as shown in

[Fig.8-20-1].

[Fig.8-15 Status window]

System Instruction Manual

142

- Click the Start Convert button on the Convert AVI window and click the CLOSE button after

verifying the status “Complete” (See Fig.8-21).

[Fig.8-17 Convert AVI window]

[Fig.8-18 Backup Files by Networking] [Fig.8-19 DvrRecData by USB]

8. Remote Host Program

143

[Fig.8-20 Select one of the Channels] [Fig.8-20-1 Select folder for saving]

[Fig.8-21 Start Convert Button]

How to play the AVI files

By using Windows media player:

- Click the OPEN button on the Convert AVI window and double click one of the AVI files to play.

The AVI files will save in the AVI Files folder (Open Windows Explorer – click My Computer -

click the Program Files – click ComboViewer – double click one of the AVI Files).

System Instruction Manual

144

④ Search button for Replaying

- Click the Search button on the Player and the DVR Player will be displayed.

- Select the folder that contains the recorded data and click the OK button on the DVR Player.

One channel or all the channels can be replayed depends on the selection.

⑤ Capture button

- Click the Capture button when a full screen is replaying on the Player and the current

images will be saved in the Printed Files (Open Windows Explorer – click My Computer -

click the Program Files – click ComboViewer – click Printed Files) in JPEG file format.

⑥ Print button

- Click the Print button when a full screen is replaying on the Player and the current images

will print out along with comments if you write down some comments in the Print Comment

Dialog as shown in [Fig.8-22].

- Click the OK button in the Print Comment Dialog regardless of the comments to print.

8. Remote Host Program

145

⑦ Division button

Select one of the following divisions while replaying.

⑧ Playback (Replay) Speed Control

Move the slider with the mouse to control the replaying speed.

The “0” represents the normal speed, “-“and “+” represents slow speed or fast speed

respectively.

[Fig.8-22 Print command window]

Full Screen

4 Division Screen

9 Division Screen

16 Division Screen

[Fig.8-24 Division button]

[Fig. 8-25 Replay Speed Control Slider]

[Fig.8-23 Print image]

System Instruction Manual

146

⑨ Search slider for replaying

The slider can be moved left and right by clicking the slider on the bar and dragging it or just

click the bar to search the recorded data.

⑩ Replay Control

Refer to section 6-9.2.3.

⑪ Volume Control.

Control the volume when replaying in the full screen mode

⑫ Exit button

Click the Exit button on the Player to exit.

[Fig.8-26 Replay Search Slider]

[Fig.8-28 Replay Volume Control Slider]

[Fig.8-27 Replay Control buttons]

REW

PLA

STO

147

HDD Installation

CONTENTS

9-1. HDD (HARD DISK DRIVE) INSTALLATION ....................................................................148

System Instruction Manual

148

9-1. HDD (Hard Disk Drive) INSTALLATION

The system manufacturer already installed a large space of Hard Disk Drive (refer to the retail

box for capacity) in the system. Just in case, refer to the following explanation on how to install a

HDD.

▶ The power switch must be turned off before installing and unplug the power cord to prevent

an electric shock that may occur.

▶ Separate the HDD cover by removing two screws on the rear of the system as shown

illustration below.

▶ Attach the HDD to the HDD bracket and install it with four screws as below. Do not securely

fix the four screws so that the HDD moves to the left and the right. Place the HDD with the

bracket in its place inside the system.

9. Installation of additional HDDs

149

▶ After pushing the HDD to the left and securely fix the bracket to the system with two

screws. Connect the power connector and the data cable to the HDD.

▶ After pushing the HDD to the right and securely fix the bracket to the system with two

screws.

System Instruction Manual

150

▶ Assemble the HDD cover and securely fix it to the system with two screws.

▶ Plug the AC power cord to the system and an AC outlet. Turn on the power switch on the

back of the system and the following window will be displayed. Check the power cable and

the data cable connection if the system fails to recognize the HDD.

▶ Click the OK button and the system will start formatting the HDD as follows.

Check Disk

Formattin

9. Installation of additional HDDs

151

▶ Update the Firmware with USB memory (or CD-RW/DVD-RW).

Copy the Firmware to USB memory (or CD-RW/DVD-RW).

-Plug the USB memory to USB Port of the system and select USB/CDRW/DVD

on the following window.

▶ If the Firmware is detected, the Firmware lists will be showed up as below.

▶ When one of the Firmware lists is selected, the Firmware update will be proceeded and the

system will automatically start rebooting after updating.

152

153

APPENDIX

CONTENTS

FACTORY DEFAULT SETTINGS ...........................................................................................156

System Instruction Manual

154

Recording time table

HDD: 500GB

Recording Resolution: Half D1 (720 x 240)

Based on 8 cameras HOURS

Each

(Total)

30 fps

(240fps)

15 fps

(120fps)

10 fps

(80fps)

7 fps

(56fps)

5 fps

(40fps)

3 fps

(24fps)

2 fps

(16fps)

BEST 58.00 115.00 173.00 249.00 347.00 579.00 870.00

HIGH 194.00 387.00 581.00 830.00 1162.00 1937.00 2907.00

NORMAL 452.00 903.00 1356.00 1937.00 2712.00 4519.00 6778.00

LOW 917.00 1833.00 2750.00 3929.00 5500.00 9169.00 13754.00

DAYS

Each

(Total)

30 fps

(240fps)

15 fps

(120fps)

10 fps

(80fps)

7 fps

(56fps)

5 fps

(40fps)

3 fps

(24fps)

2 fps

(16fps)

BEST 2.40 4.79 7.20 10.38 14.45 24.12 36.25

HIGH 8.00 16.13 24.20 34.58 48.41 80.70 121.12

NORMAL 18.80 37.63 56.50 80.70 113.00 188.29 282.41

LOW 38.20 76.38 114.58 163.70 229.16 382.00 573.00

155

Factory default settings

(1) LIVE SCREEN

8 SPLIT

OSD ON

(2) TIME / DATE

DISPLAY : ON

TIME FORMAT : 24 HOUR

DATE FORMAT : YYYY/MM/DD

(3) LOAD / BACKUP CONFIG

NONE LISTS

(4) USER ACCOUNT

PASSWORD : SET YOUR PASSWORD ( THE PASSWORD IS NULL )

PASSWORD ON/OFF : OFF

(5) IR REMOTE ID

OFF

(6) HDD OVERWRITE

(7) CAMERA

ACTIVE : ALL ON

NAME : CAM XX

BUZZER : ALL ON

RELAY : ALL OFF

PAN/TILT VENDOR : PELCO

DISPLAY : ON

SEQ DISPLAY DWELL : 1 SEC

System Instruction Manual

156

(8) AUDIO

AUDIO 1 : RELATED CAMERA CH 1, RECORD OFF, MIC 5

AUDIO 2 : RELATED CAMERA CH 2, RECORD OFF, MIC 5

AUDIO 3 : RELATED CAMERA CH 3, RECORD OFF, MIC 5

AUDIO 4 : RELATED CAMERA CH 4, RECORD OFF, MIC 5

(9) RECORD

RECORD ICON DISPLAY : ON

SIZE : ALL HALF D1 (704 X 240)

FPS : ALL 15 fps

QUALITY : ALL HIGH

MODE : ALL MANUAL RECORD MODE

SENSITIVITY : LOW (19)

- TIMER RECORD

ACTIVE : ALL OFF

TIMER : ALL 00 : 00

- MOTION

DETECT : OFF

PRE : 1 sec.

HOLD : 1 sec.

SPOT : OFF

REGION : ALL SET

- SENSOR

DETECT : OFF

PRE : 1 sec.

HOLD : 1 sec.

SPOT : OFF

157

(10) NETWORK

TYPE : DYNAMIC

PORT : 113

SERVER 1 MODE : DISABLE

SERVER 1 IP ADDRESS : 65.60.84.25

SERVER 1 PORT : 300

SERVER 2 MODE : DISABLE

SERVER 2 IP ADDRESS : 221.149.149.117

SERVER 2 PORT : 300

SERVER SITE NAME : SXXXXXX (MAC ADDRESS)

(11) VIDEO

- CAMERA INPUT

BRIGHTNESS : 128 (Max. 255)

CONTRAST : 128 (Max. 255)

- VGA OUTPUT

BRIGHTNESS : 20 (Max. 40)

CONTRAST : 20 (Max. 40)

SATURATION : 20 (Max. 40)

System Instruction Manual

158

159

FAQ

System Instruction Manual

160

I cannot login

▶ Please check if the link LED of DVR and LAN port of PC are lit.

▶ Please check if the IP address on DVR and the PC is identical.

Check SYSTEM STATUS by pressing STATUS button of DVR

(Available on LIVE mode and RECORD mode.)

MY IP : xxx.xxx.xxx.xxx

Check Target IP Address by clicking CONF button of PC host program.

TARGET IP ADDRESS : xxx.xxx.xxx.xxx

▶ Please check whether there is a response upon PING test with DVR IP.

Type "PING -t xxx.xxx.xxx.xxx" in DOS COMMAND window and execute.

(xxx.xxx.xxx.xxx is the DVR IP)

Request timed out → Check IP address

Reply from : xxx.xxx.xxx.xxx : Check Port number. Check if other user is using this.

▶ Please check the Port number of DVR and PC is identical.

Check Port number at MENU-SETUP → SYSTEM → NETWORK IP CONFIG.

PORT : 5800 ( on DVR )

TARGET PORT NUMBER : 5800 ( on Host Program )

▶ Please confirm the Password of DVR and PC is identical.

Check Password at MENU → SETUP → SYSTEM → PASSWORD

▶ Please check whether DVR is connected another PC.

Check SYSTEM STATUS by pressing STATUS button.

FROM : xxx.xxx.xxx.xxx : IP which is presently connected.

MY IP : xxx.xxx.xxx.xxx : DVR is waiting for connection.

▶ Please check whether firewall is installed in the network.

Ask the network administrator to reconfigure the firewall.

161

Limited 1Year Warranty

This warranty gives the original purchaser specific legal rights and you may also have other rights,

which may vary from state to state. If our products do not function because of any defect in

material or workmanship, we will repair it for free for 1 year on parts and labor from the date of

original purchase. This warranty does not cover modification, abuse, incidental or consequential

damages unless the state of owner’s residence specially prohibits limitations on incidental or

consequential damages.

System Instruction Manual

162

How to obtain Factory Service

• Original purchaser must fill out the warranty card and mail it to the factory with the model

number, serial number and the date of purchase.

• We will repair or replace, and return the system to the owner under this limited warranty.

• Please pack the system carefully and securely using the original packing materials, and

send it prepaid and insured to: 13073 E. 166th St, Cerritos, CA 90703.

• Please include a check for $50.00 to cover the cost of return postage and handling. If the

system is returned within the warranty period, please include a proof of purchase. If the

system is out of warranty, you will receive an estimate of the repair cost for your approval

before repair work will be started.
