Cobra Electronics 19DXIV CB TRANSCEIVER User Manual 19DX 1
Cobra Electronics Corporation CB TRANSCEIVER 19DX 1
USERS MANUAL
A1 English
Our Thanks, The CB Story,
and Customer Assistance
Introduction
Thank you for purchasing the Cobra 19 DX IV CB Radio
Transceiver. Properly used, this Cobra product will give
you many years of reliable service.
The Citizens Band Story
The Citizens Band lies between the shortwave broadcast and 10-meter amateur radio
bands, and was established by law in 1949. The Class D two-way communications
service was opened in 1959. (CB also includes a Class A citizens band and Class C
remote control frequencies.)
Customer Assistance
Should you encounter any problems with this product, or not understand
its many features, please refer to this owner’s manual. If you require further
assistance after reading this manual, Cobra Electronics offers the following
customer assistance services:
For Assistance in the U.S.A.
Automated Help Desk English only.
24 hours a day, 7 days a week 773-889-3087 (phone).
Customer Assistance Operators English and Spanish.
8:00 a.m. to 6:00 p.m. CT Mon. through Fri. (except holidays) 773-889-3087 (phone).
Questions English and Spanish.
Faxes can be received at 773-622-2269 (fax).
Technical Assistance English only.
www.cobra.com (on-line: Frequently Asked Questions).
English and Spanish. productinfo@cobra.com (e-mail).
For Assistance Outside the U.S.A.
Contact Your Local Dealer
Customer Assistance
©2004 Cobra®Electronics Corporation
6500 West Cortland Street
Chicago, Illinois 60707 USA
www.cobra.com
MOBILE RADIO
19 DXIV
Printed in China
Part No. 480-170-P
Version A
Owner’s Manual
Nothing comes close to a Cobra®English
Nothing comes close to a Cobra®English
For more information or to
order any of our products,
please visit our website:
www.cobra.com
CB Radios
microTALK®Radios
Radar/Laser Detectors
Safety Alert®Traffic Warning Systems
Handheld GPS Receivers
Mobile GPS Navigation Systems
HighGear®Accessories
CobraMarine™VHF Radios
Power Inverters
Accessories
The Cobra line of quality products includes:
Customer Service
17
Nothing comes close to a Cobra®
Order Form and
Optional Accessories
Introduction
A3
Nothing comes close to a Cobra®
Product Features and
FCC Regulations
A2 English

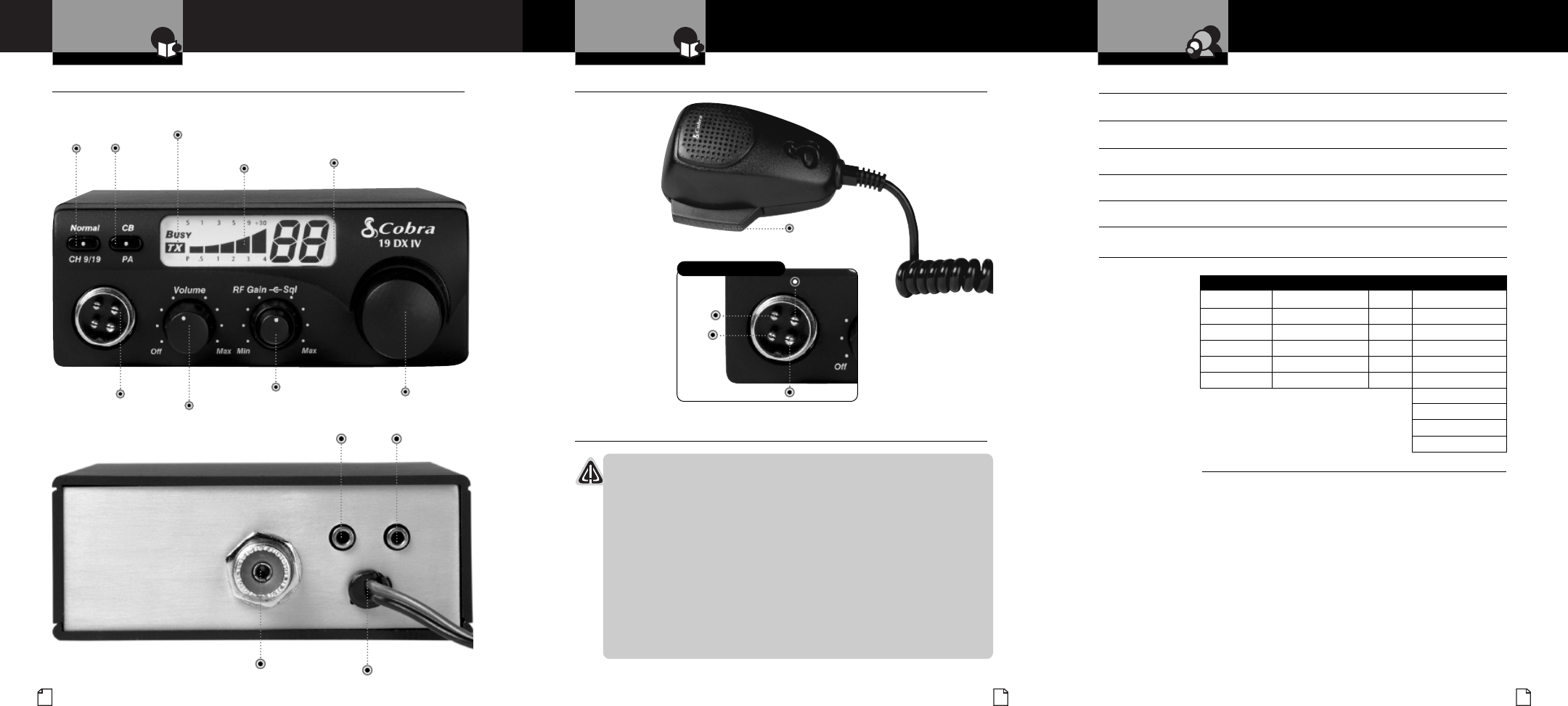

Product Features
Introduction
Channel 9/
NOR/Channel 19
Button
CB/PA
Button
On-Off/
Volume Knob
Squelch/
RF Gain Knob Channel
Selector Knob
Microphone
Connector
TX Indicator
Icon
S/RF
Power Meter
LCD Channel
Display
Antenna
Connector
External
Speaker Jack
Public
Address Jack
Power Connection
Optional Accessories •
You can find quality Cobra products and accessories at
your local Cobra dealer, or in the U.S.A., you can order
directly from Cobra.
Ordering from U.S.A.
Call 773-889-3087 for pricing or visit www.cobra.com.
For credit card orders, complete and return this order
form to fax number 773-622-2269. Or call 773-889-3087
(Press 1 from the main menu) 8:00 a.m. to 6:00 p.m. CT,
Monday through Friday.
Make check or money order payable to:
Cobra Electronics, Attn: Accessories Dept.
6500 West Cortland Street, Chicago, IL 60707 USA
To order online, please visit our website: www.cobra.com
The Cobra
line of quality
products includes:
CB Radios
microTALK®Radios
Radar/Laser Detectors
Safety Alert®Traffic
Warning Systems
Handheld GPS Receivers
Mobile GPS
Navigation Systems
HighGear®Accessories
CobraMarine™ VHF
Radios
Power Inverters
Accessories
Order Form •
Name
Address (No P.O. Boxes)
City State/Province Zip Country
Telephone
Credit Card Number Type: ❒Visa ❒MasterCard ❒Discover Exp. Date
Customer Signature
Item # U.S. Cost Each Qty Amount
U.S. Subtotal
(Tax if Applicable)
Shipping/Handling
Total
Amount Shipping/Handling*
$10.00 or less . . . . . $3.00
$10.01-$25.00 . . . . . $5.50
$25.01-$50.00 . . . . . $7.50
$50.01-$90.00 . . . . $10.50
$90.01-$130.00 . . . $13.50
$130.01-$200.00 . . $16.50
$200.01 plus . . . . . 10% of
purchase
*For AK, HI and PR add
additional $26.95 for FedEx
Next Day or $10.95 for
FedEx 2nd Day. Excludes
weekend and holiday
shipments.
Please allow two to three
weeks for delivery in the
U.S. Prices subject to
change without notice.
Tax Table
California . . . 7.25%
Illinois . . . . . 8.75%
Indiana. . . . . 6%
Michigan . . . 6%
Ohio. . . . . . . 6%
Wisconsin . . 5%
Product Features •Product Features •
Features
• 40 CB Radio
Channels
• Instant
Channel 9/
NOR
• PA System
• Compact
Size
• Dynamic
Microphone
• Nine Foot
Microphone
Cord
• Front Panel
Microphone
Connector
FCC Regulations •
FCC Regulations
FCC regulations permit only “transmission” (one-party to another) rather than
“broadcast” (to a wide audience). Thus, advertising is not allowed on CB channels
because that is “broadcasting”.
FCC Warnings
All transmitter adjustments other than those supplied by the manufacturer as front
panel operating controls, must be made by, or under the supervision of, the holder
of an FCC-issued general Radio-Telephone Operator’s License.
Replacement or substitution of transistors, regular diodes or other parts of a unique
nature, with parts other than those recommended by Cobra, may cause violation of
the technical regulations of Part 95 of the FCC Rules, or violation of Type Acceptance
requirements of Part 2 of the Rules.
You should read and understand Part 95 (included with this unit) of the FCC Rules
and Regulations, before operating your Cobra radio, even though the FCC no longer
requires you to obtain an operator’s license.
RX
TX
Audio
Shield
Microphone Connector Detail
Talk
Button
Introduction
1
Nothing comes close to a Cobra®
Contents
Introduction
Our Thanks to You . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A1
The Citizens Band Story . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A1
Customer Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A1
Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A2
FCC Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A3
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Included in this Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation and Start-Up
Mounting and Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Operating Your Mobile Radio
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Antenna Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
External Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Public Address (PA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Turning on Your Mobile Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
CB Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Microphone Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Squelch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
RF Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Selecting a Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Channel 9/NOR/Channel 19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
CB/PA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
S/RF Power Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
TX Indicator LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Ignition Noise Interference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Temporary Mobile Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Operating Procedure to Receive . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Operating Procedure to Transmit . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Maintenance/Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Frequency Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Warranty
Limited One-Year Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Customer Assistance
Product Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Order Form and Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . 17
2English
Included in this Package •
You should find all of the following items in this package:
Introduction
3
Nothing comes close to a Cobra®
Mounting and Connections
Installation and Start-Up
Warnings and
Included in this Package
Installation and Start-Up

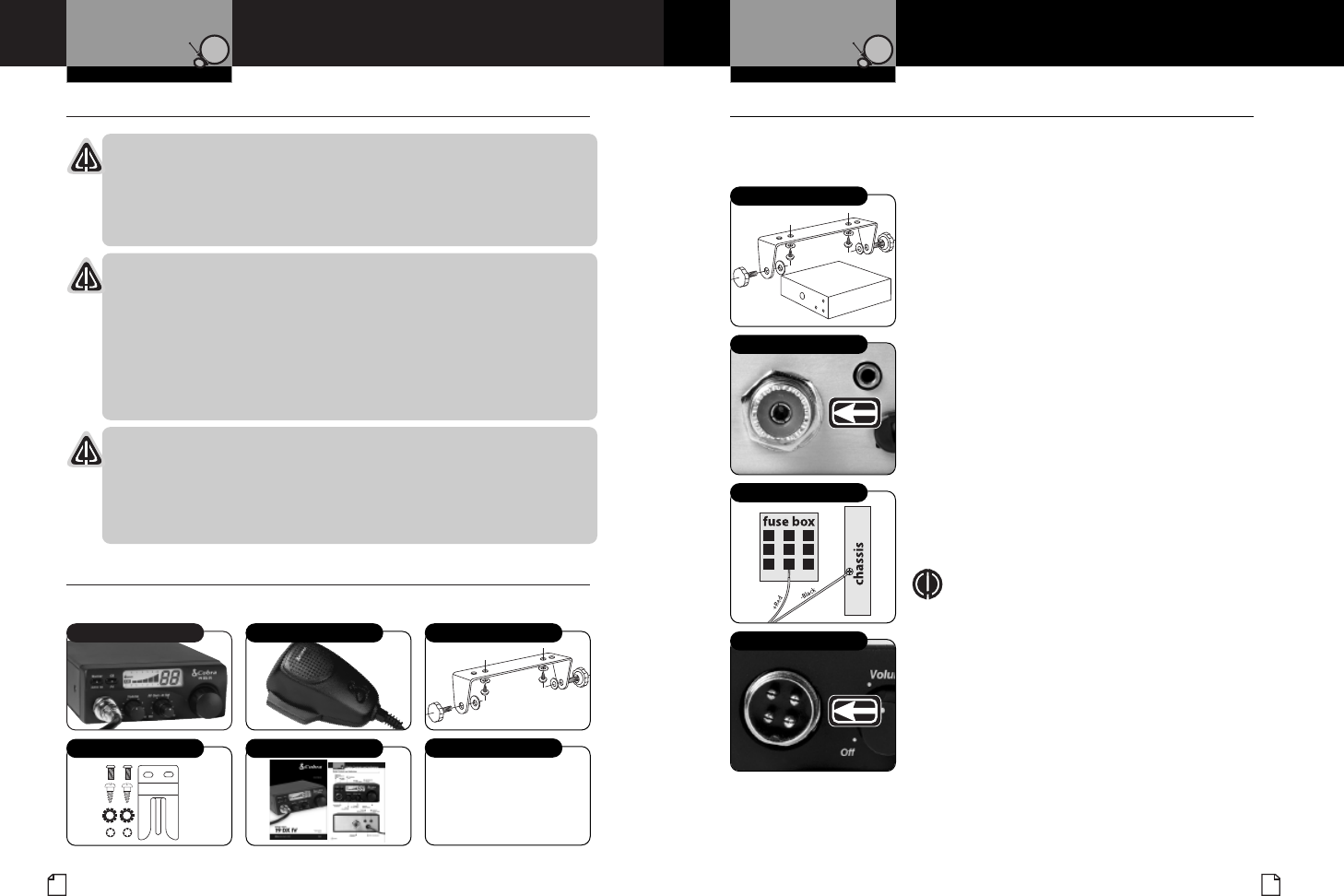

Mounting and Connections •
Select a location for the transceiver and microphone bracket that is convenient for
operation. In automobiles, the transceiver is usually mounted to the underneath of
the dash panel, with the microphone bracket beside it.
A universal mounting bracket is supplied along with self
tapping screws and star washers. The transceiver is held
in the universal mounting bracket by two thumb screws,
permitting adjustment at the most convenient angle.
To mount and connect your transceiver:
1. Hold the radio with mounting bracket in the exact
location desired. Remove the mounting bracket
and use it as a template to mark the location for
the mounting screws.
2. Drill necessary holes and secure mounting
bracket in location.
3. Connect the antenna cable plug to the receptacle
marked “ANT” on the back of the unit.
4. Connect the red lead of the DC power cord
to an accessory 12 volt fuse.
5. Connect the black lead to the negative side
of the automobile. This is usually the chassis.
Any convenient location with good electrical
contact (remove paint) may be used.
NOTE
Before installing the CB radio, visually check the
vehicle battery connections to determine which
battery terminal, positive or negative (positive is
the larger of the two) is grounded to the engine
block (or chassis).
6. Mount the microphone bracket on right side
of the transceiver or near it using two screws
supplied. When mounting in an automobile,
place the bracket under the dash so the
microphone is readily accessible.
7. Attach the four pin microphone cable to receptacle
on front of unit and install unit in bracket securely.
CB Transceiver Microphone Transceiver Bracket
FCC Rules
Microphone Bracket Operating Manual
Not pictured in previous
manual. Can Hans get the
file so that we can include?
Please advise.
CB Tranceiver
Transceiver Bracket
Antenna Connector
Fuse Connection
Microphone Connector
REPLACEMENT WARNING
Replacement or substitution of certain parts with replacements other than those
recommended by Cobra may be a violation of the technical regulations of Part 95
of the FCC rules, or of Type Acceptance requirements of Part 2 of those rules.
When making adjustments, be sure to re-read applicable portions of this instruction manual
to make certain you are following correct procedure and that the radio was properly installed.
A FEW RULES THAT SHOULD BE OBEYED
1. You are not allowed to carry on a conversation with another station for more than five minutes
at a time without taking a one-minute break to give others a chance to use the channel.
2. You are not allowed to blast others off the air by overpowering them with illegally
amplified transmitter power or illegally high antennas.
3. You are not allowed to use CB to promote illegal activities.
4. You are not allowed to use profanity.
5. You may not play music in your CB.
6. You may not use your CB to sell merchandise or professional service.
CHANNEL 9 EMERGENCY MESSAGES
Use Channel 9 for emergency messages only. The FCC gives the following examples
of permitted and prohibited types of communications for use on Channel 9. These are
guidelines and are not intended to be all-inclusive.
Permitted: “A tornado sighted six miles of town.”
Not Permitted: “This is observation post number 10. No tornado sighted.”
Warnings •
Operation •
Turning on Your Mobile Radio
Turn the On-Off/Volume knob clockwise to turn
the power on and set the desired listening volume.
CB Antenna
Only a properly matched Antenna system will
allow maximum power output. In mobile installations
(cars, trucks, boats, etc.), an Antenna system that is
non-directional should be used. When installed in a
boat, the transceiver will not operate at maximum
efficiency without a ground plate unless the vessel
has a steel hull. Before installing the transceiver
in a boat, consult your dealer for information
regarding an adequate grounding system.
NOTE
Cobra loaded-type antenna models HGA 1000,
HGA 1500 and HGA 2000 are highly recommended
for most installations. Consult your Cobra dealer
for further details (or see order form on page 17).
Three-way combination antennas are available
which allow operation of all three bands (AM-FM
and CB), using a single antenna. However, use
of this type of antenna usually results in less
than normal transmit and receive range when
compared to a standard-type “Single Band”
antenna designed for CB only.
Microphone Connector
Allows for convenient removal of the Microphone plug
when storage is required. The Microphone MUST be
connected to the unit at all times, when in use, for
proper operation.
Operating Your Mobile Radio
5
Nothing comes close to a Cobra®
4English

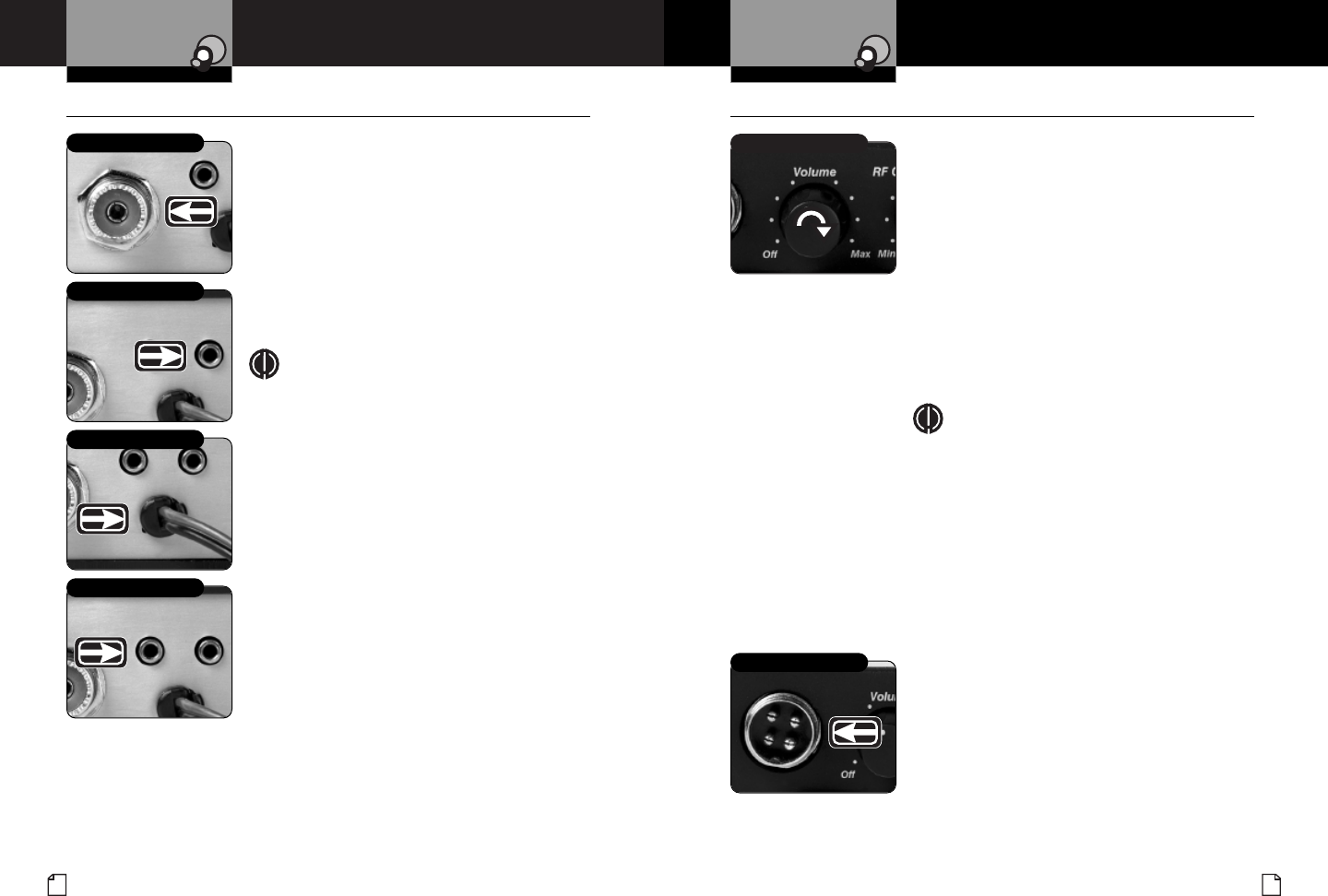

Operation
Operation •
Antenna Connector
This female Connector on the rear panel permits
connection of the transmission line cable male
connector to the transceiver.
External Speaker
The external speaker jack on the rear panel is used
for an External Speaker. The external speaker should
have 8-ohm impedance and be rated to handle at
least 4.0 watts. When the external speaker is plugged
in, the internal speaker is automatically disconnected.
NOTE
Cobra external speakers are rated 15 watts.
Power
These wires supply Power to the CB radio.
This cable is permanently attached to the radio.
If you wish to remove the radio after installation,
disconnect at fuse holder and ground connector.
Public Address (PA)
An external PA speaker may be connected
to the PA speaker jack when used as a public
address system. The speaker should be directed
away from the microphone to prevent acoustic
feed-back. Physical separation or isolation of
the microphone and speaker must be employed
when operating the PA at high output levels.
On-Off/Volume Knob
Operation
Operating Your Mobile Radio
Microphone Connector
Antenna Connector
External Speaker Jack
PA Speaker Jack
Power Cable
Operation •
Selecting a Channel
Rotate the Channel knob clockwise
until desired channel is displayed.
Channel 9/NOR/Channel 19
Set CH 9 to obtain instant access
to the emergency channel.
Set NOR position to use the channel knob
to choose any of the 40 channels.
Set CH 19 to obtain instant access to
the information and calling channel.
CB/PA
In the CB position, the PA function is disabled
and the unit will transmit and receive on the
selected channel. The PA function should not
be used unless a PA speaker is connected. In the
PA position, the transmit function is disabled and
the microphone output will go only to the PA speaker.
S/RF Power Meter
Shows relative transmitter RF output power
and input signal strength when receiving.
The Liquid Crystal Display (LCD) segments
glow green to amber to red — this indicates
receive or transmit activity.
TX Indicator LED
The TX Indicator LED will light red when
in the transmit mode.
7
Nothing comes close to a Cobra®
6English
Operation •

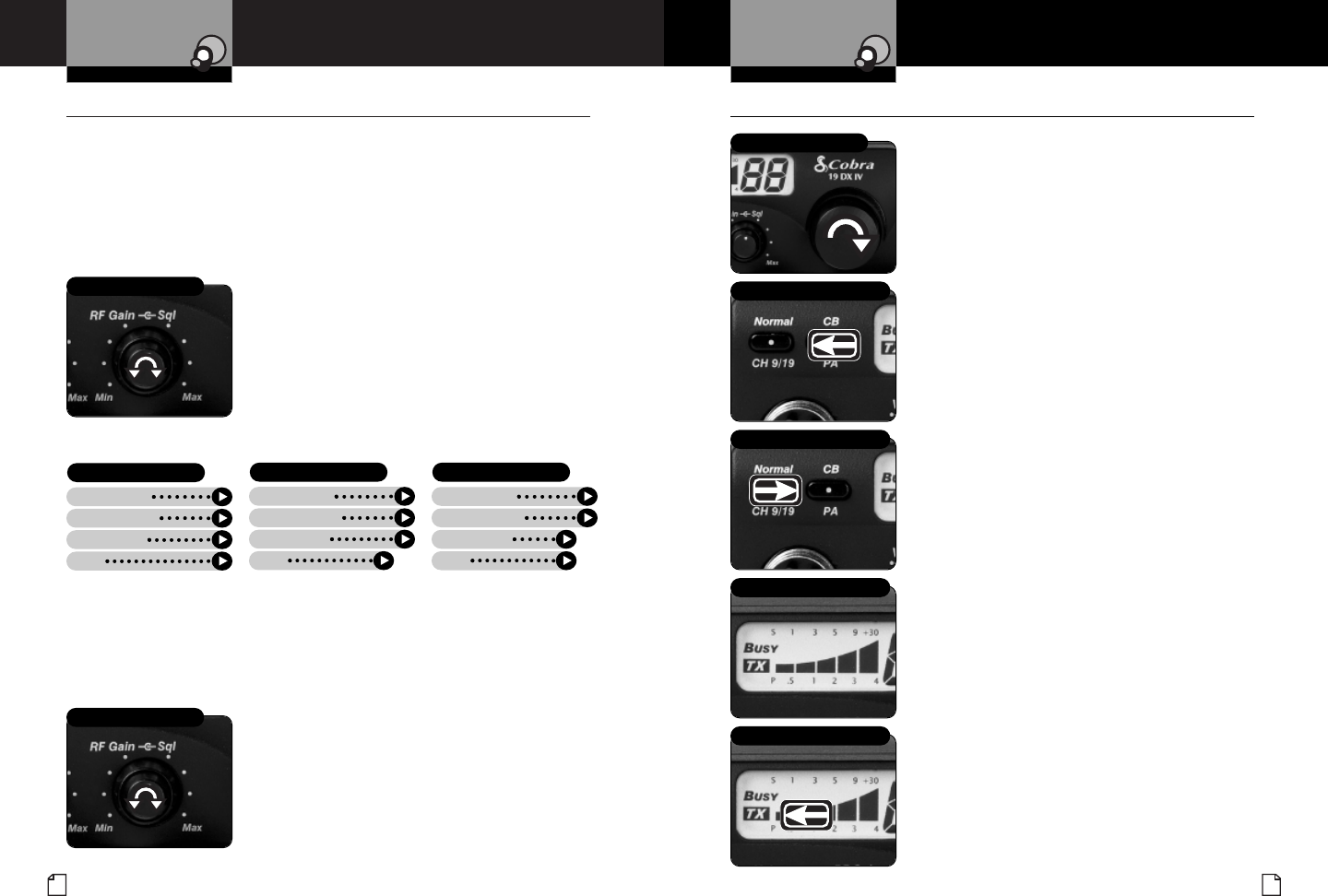

Squelch
This control is used to cut off or eliminate receiver background noise in the absence
of an incoming signal. Adjust until the receiver noise disappears. This will require the
incoming signal to be slightly stronger than average receiver noise. Further clockwise
rotation will increase the threshold level which a signal must overcome in order to be
heard. Only strong signals will be heard at a maximum clockwise setting.
Squelch is the “control gate” for incoming signals.
To squelch your radio:
1. Full clockwise rotation closes the gate,
allowing only very strong signals to enter.
2. Full counterclockwise rotation opens
the “gate,” allowing all signals in.
3. To achieve the Desired Squelch Setting (DSS),
turn the Squelch/RF Gain control counterclockwise
until you hear noise. Now turn the control clockwise
just until the noise stops. This is the DSS setting.
RF Gain
This control is used to adjust receiver sensitivity. Maximum sensitivity allows
weak signals to be received. However, very strong signals (such as from a nearby
transmitter) can cause distortion at that setting. Adjust until the distortion disappears.
Reducing the receiver’s RF Gain eliminates distortion from very strong incoming signals.
To set RF Gain:
1. Full clockwise rotation minimizes
gain for maximum distortion control.
2. To achieve the desired level of distortion control,
turn the Squelch/RF Gain knob clockwise until
the distortion is eliminated.
3. After moving away from the strong signal, turn the
Squelch/RF Gain knob fully counterclockwise to
receive all possible signals.
Channel Selector Knob
Channel 9/NOR/Channel 19 Button
CB/PA Button
S/RF Power Meter
TX Indicator LEC
Operating Your Mobile Radio OperationOperation
Operating Your Mobile Radio
Adjust Squelch/RF Gain Knob
Adjust Squelch/RF Gain Knob
Gate Closed
Strong Signals
Medium Signals
Weak Signals
Noise
Gate Open
Strong Signals
Medium Signals
Weak Signals
Noise
Desired Squelch Setting (DSS)
Strong Signals
Medium Signals
Weak Signals
Noise
9
Nothing comes close to a Cobra®
8English

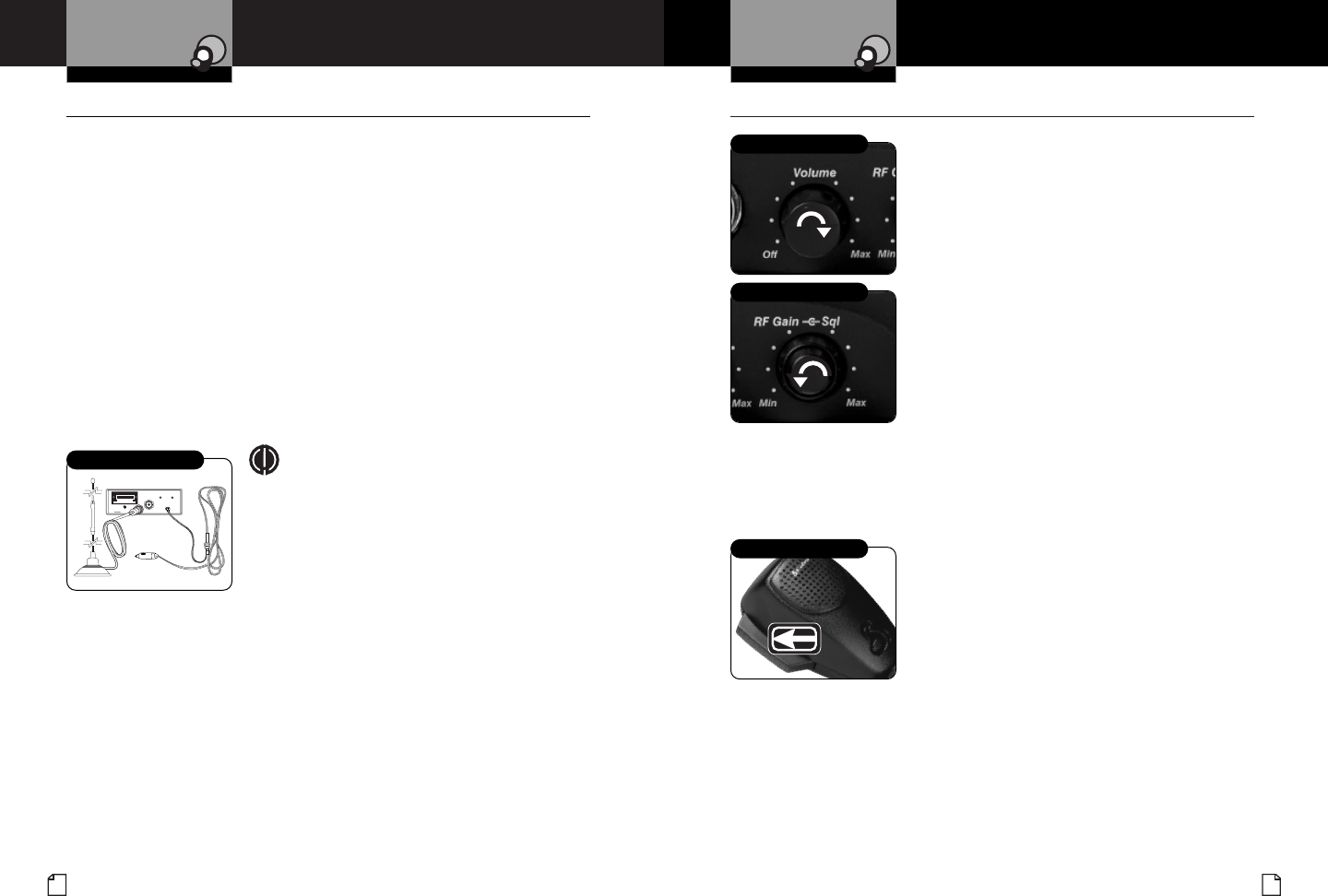

Operation •
Operating Procedure to Receive
Be sure that power cord, antenna and microphone
are connected to the proper connectors before
proceeding further. The CB/PA switch should be
in the CB position.
To receive:
1. Turn the radio on by rotating the
On-Off/Volume knob clockwise.
2. Rotate the Squelch/RF Gain knob
counterclockwise until incoming
signal is heard.
3. Select the desired channel.
4. Set the On-Off/Volume knob and the
Squelch/RF Gain knob to a comfortable
listening level.
Operating Procedure to Transmit
Be sure the antenna is properly connected to the radio before transmitting.
Prolonged transmitting without an antenna, or with a poorly matched
antenna, could cause damage to the transmitter.
To transmit:
1. Select the desired channel.
2. The receiver and transmitter are controlled by
the Press-to-Talk switch on the microphone.
Press the switch and the transmitter is activated;
release switch to receive. When transmitting
(on a clear channel), hold the microphone
two inches from the mouth and speak clearly
in a normal voice.
Operation •
Ignition Noise Interference
Use of a mobile receiver at low signal levels is normally limited by the presence
of electrical noise. Under most operating conditions, when signal level is adequate,
the background noise does not present a serious problem. Also, when extremely
low level signals are being received, the transceiver may be operated with vehicle
engine turned off. The unit requires very little current and therefore will not
significantly discharge the vehicle battery.
Even though this radio has an automatic noise limiter, in some installations
ignition interference may be high enough to make good communications
impossible. Consult your authorized Cobra dealer or a two-way radio technician
for help in locating and correcting the source of severe noise.
Temporary Mobile Operation
For Temporary Mobile Operation, you may want to purchase an additional cigarette
lighter adapter from your Cobra dealer. This adapter and a magnetic mount antenna
allow you to quickly “install” your transceiver for temporary use.
NOTE
Red Wire is connected to positive side
of socket center tip. Black Wire is connected
to negative side contacts.
Radio resets to CH 9 when connected to
cigarette lighter plug.
When using the unit with cigarette adapter,
turn off when not in use to avoid draining
the battery.
EXT
ANT
13.8V DC
PA
Temporary Mobile Operation
Press-to-Talk Switch
On-Off/Volume Knob
Adjust Squelch/RF Gain Knob
Operating Your Mobile Radio OperationOperation
Operating Your Mobile Radio
Operating Your CB Radio
11
Nothing comes close to a Cobra®

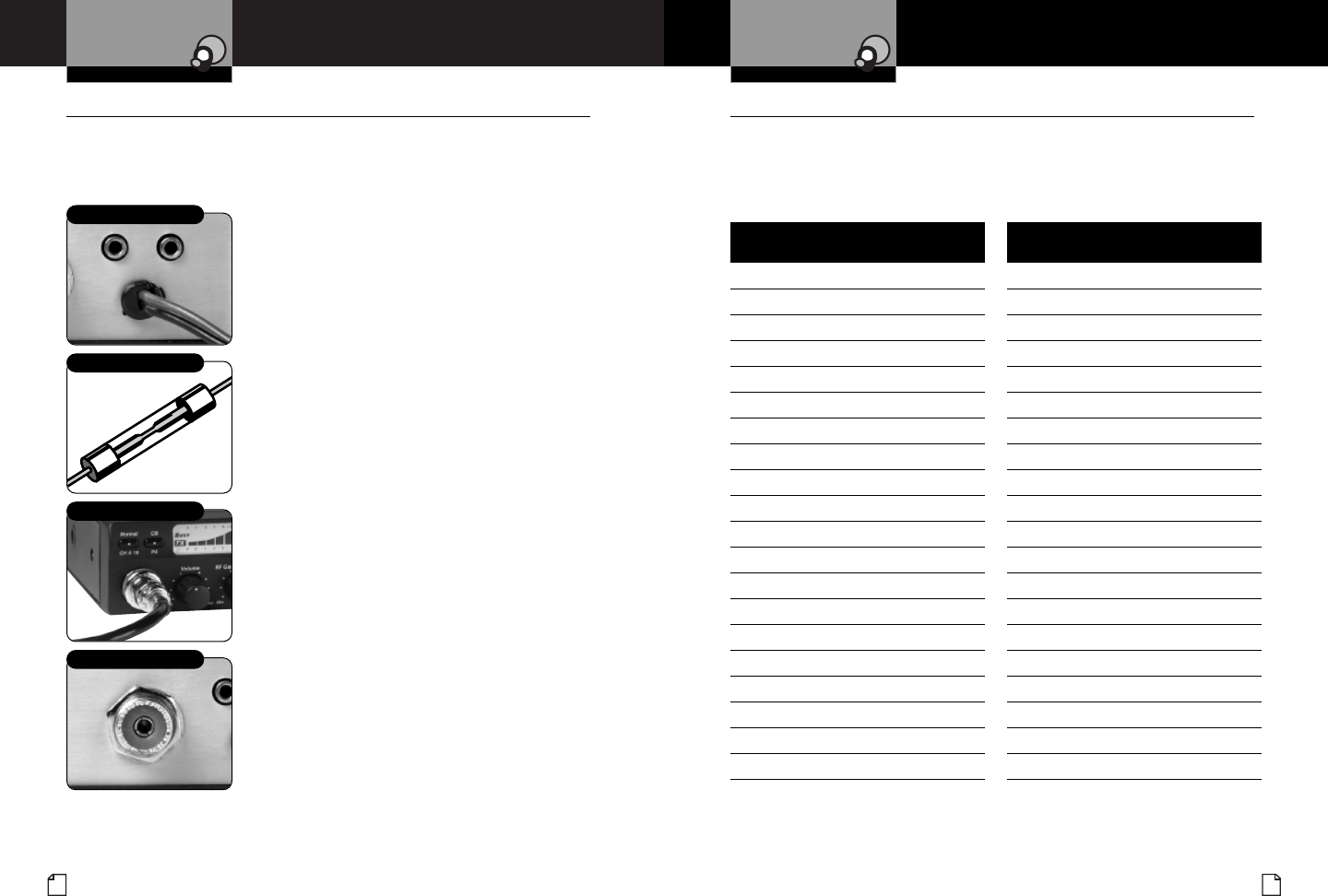

Frequency Ranges
10 English
Maintenance/Adjustment
CB Channel Channel Frequency
Channel in MHz
1 26.965
2 26.975
3 26.985
4 27.005
5 27.015
6 27.025
7 27.035
8 27.055
9 27.065
10 27.075
11 27.085
12 27.105
13 27.115
14 27.125
15 27.135
16 27.155
17 27.165
18 27.175
19 27.185
20 27.205
CB Channel Channel Frequency
Channel in MHz
21 27.215
22 27.225
23 27.255
24 27.235
25 27.245
26 27.265
27 27.275
28 27.285
29 27.295
30 27.305
31 27.315
32 27.325
33 27.335
34 27.345
35 27.355
36 27.365
37 27.375
38 27.385
39 27.395
40 27.405
Frequency Ranges •
The Cobra 19 DX IV transceiver represents one of the most advanced AM
two-way radios for use as a Class D station in the Citizens Radio Service.
This unit features advanced Phase Lock Loop (PLL) circuitry providing
complete coverage of all 40 CB channels.
Maintenance/Adjustment •
Your Cobra CB transceiver is specifically designed for the environment encountered
in mobile installations. The use of all solid state circuitry and its light weight result
in high reliability. Should a failure occur, however, review the following, then if
necessary, replace parts only with identical parts. Do not substitute.
1. Check connections to the source of power
and make sure it is the 13.8 VDC required
to operate your radio.
2. Check the fuses in the DC power cord.
The main power lead (red) has a two amp
3AG type fuse in its holder. Use only the
above specified type and size fuse for
maximum protection. Failure to do so
will void the warranty.
3. Make certain the microphone is properly
plugged in.
4. Make certain the antenna is properly
assembled and connected.
If you are unable to correct the problem,
refer to product service on page 14 for
the correct procedure for warranty and
post-warranty service from Cobra.
Operating Your Mobile RadioOperating Your Mobile Radio
Check Power Source
Check Fuses in DC Power Cord
Check Microphone Connection
Check Antenna Connection
13
Nothing comes close to a Cobra®
12 English
Specifications
Specifications •
General
Channels CB – 40 CH
Frequency Range CB – 26.965 TO 27.405 MHZ
Frequency Tolerance 0.005 %
Frequency Control PLL (Phase Lock Loop) Synthesizer
Operating Temperature Range -30° C TO + 65° C
Microphone Plug-in dynamic
Input Voltage 13.8VDC nom. (negative ground)
Current Drain Transmit: AM full mod., 1.4A (maximum)
Receive: Squelched, 0.9 A;
full audio output, 1.2A (nominal)
Size 67⁄8" D x 63⁄4" W x 17⁄8" H
Weight 3.25 lbs.
Antenna Connector UHF; SO-239
Meter LCD’s; indicates relative power
output and received signal strength
Transmitter
Power Output 4 watts
Modulation AM (Amplitude Modulation)
Frequency Response 300 to 3000 Hz
Output Impedance 50 ohms, unbalanced
Receiver
Sensitivity Less than 1 µV for 10dB (S+N)
Selectivity 6 dB @ 7 KHz, 60 dB @ 10KHz
Image Rejection 60 dB, typical
Adjacent-Channel Rejection 50 dB, typical
Automatic Noise Limiter Built-in
Operating Your Mobile Radio Warranty Warranty
Limited One-Year Warranty •
For Products Purchased in the U.S.A.
Cobra Electronics Corporation warrants that its Cobra microTALK™ radios,
and the component parts thereof, will be free of defects in workmanship and
materials for a period of one year from the date of first consumer purchase.
This warranty may be enforced by the first consumer purchaser, provided
that the product is utilized within the U.S.A.
Cobra will, without charge, repair or replace, at its option, defective
microTALK™ radios, products or component parts upon delivery to the
Cobra Factory Service department, accompanied by proof of the date of
first consumer purchase, such as a duplicated copy of a sales receipt.
You must pay any initial shipping charges required to ship the product for
warranty service, but the return charges will be at Cobra’s expense, if the
product is repaired or replaced under warranty.
This warranty gives you specific legal rights, and you may also have other
rights which may vary from state to state.
Exclusions: This limited warranty does not apply: 1) To any product damaged
by accident; 2) In the event of misuse or abuse of the product or as a result of
unauthorized alterations or repairs; 3) If the serial number has been altered,
defaced or removed; 4) If the owner of the product resides outside the U.S.A.
All implied warranties, including warranties of merchantability and fitness for a
particular purpose are limited in duration to the length of this warranty. Cobra
shall not be liable for any incidental, consequential or other damages; including,
without limitation, damages resulting from loss of use or cost of installation.
Some states do not allow limitations on how long an implied warranty lasts and/or
do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitations may not apply to you.
For Products Purchased Outside the U.S.A.
Please contact your local dealer for warranty information.
Customer Assistance
15
Nothing comes close to a Cobra®

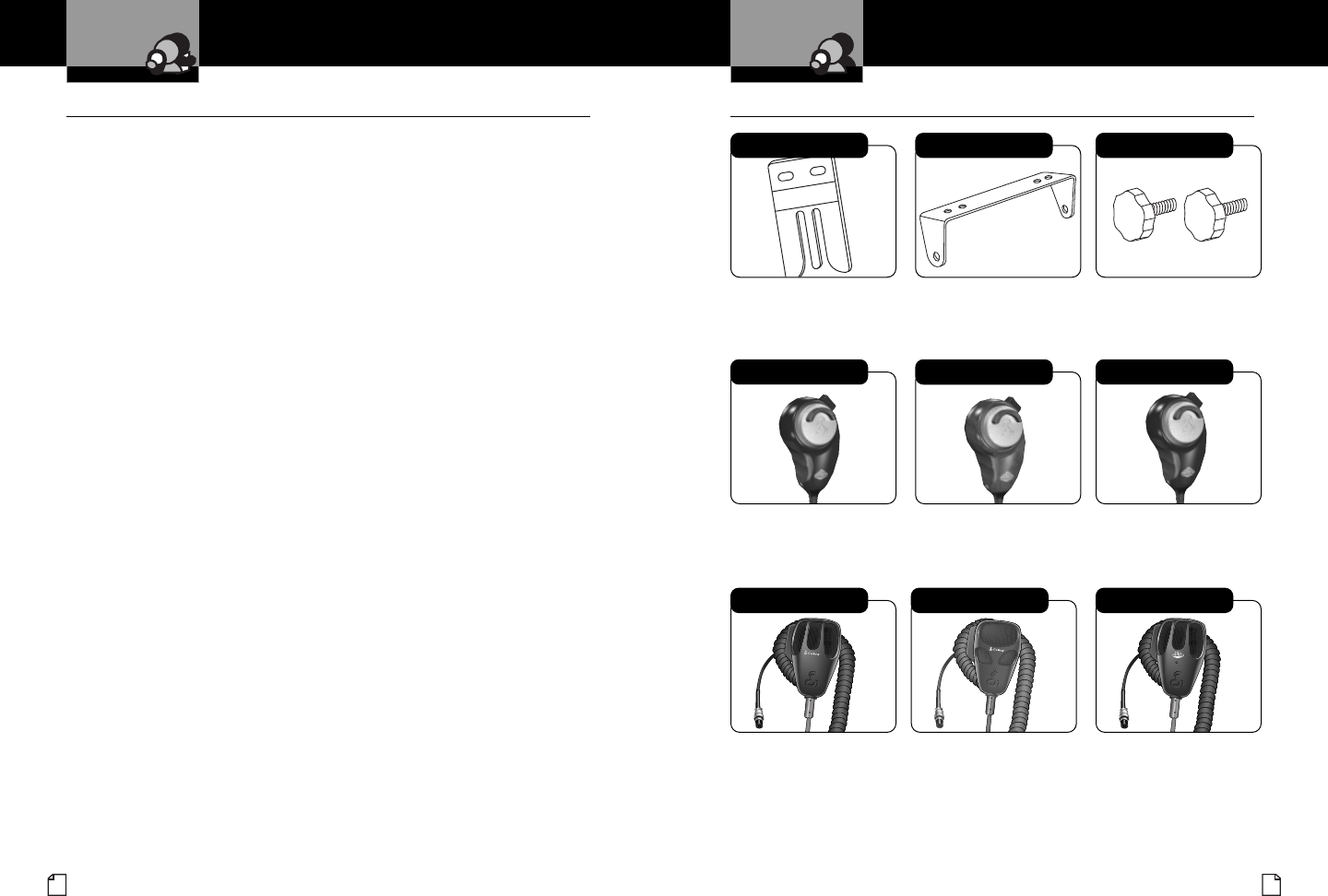

Accessories
14 English
Replacement
Microphone Bracket
741-080-9-001 $0.45
Replacement
Mounting Bracket
Part No. TBD $4.50
Replacement
Thumb Screws
634-081-9-001 $0.60
Four Pin Premium
Noise-Cancelling Microphone
HG M84 $74.95
Four Pin Premium Noise-
Cancelling Microphone
HG M84W $74.95
Wood Grain
Five Pin Premium
Noise-Cancelling Microphone
HG M85 $74.95
Four Pin Replacement
Dynamic Microphone
HG M73 $19.95
Four Pin Noise Canceling
Microphone
HG M77 $30.95
Four Pin Power
Microphone
HG M75 $25.95
Accessories •
Product Service
Product Service •
If you have any questions about operation or installing your new
Cobra product, or if you are missing parts…
Please call Cobra first! DO NOT RETURN THIS PRODUCT TO THE STORE!
See customer assistance on page A1.
For Products Purchased in the U.S.A.
If your product should require factory service, please call Cobra first before sending
your radio. This will ensure the fastest turn-around time on your repair. You may be
asked to send your radio to the Cobra factory. It will be necessary to furnish the
following to have the product serviced and returned.
1. For warranty repair include some form of proof-of-purchase,
such as a mechanical reproduction or carbon of a sales receipt.
If you send the original receipt, it cannot be returned.
2. Send the entire product.
3. Enclose a description of what is happening with the radio. Include a typed
or clearly printed name and address of where the radio is to be returned.
4. Pack radio securely to prevent damage in transit. If possible, use the
original packing material.
5. Ship prepaid and insured by way of a traceable carrier such as
United Parcel Service (UPS) or Priority Mail to avoid loss in
transit to Cobra Factory Service, Cobra Electronics Corporation,
6500 West Cortland Street, Chicago, Illinois 60707 U.S.A.
6. If the radio is in warranty, upon receipt of your radio it will either be
repaired or exchanged depending on the model.
Please allow approximately three to four weeks before contacting Cobra
for status. If the radio is out of warranty, a letter will automatically be sent informing
you of the repair charge or replacement charge. If you have any questions, please
call 773-889-3087 for assistance.
For Products Purchased in Canada
For out of warranty service, ship prepaid this product to: AVS Technologies Inc.,
2100 Trans Canada Hwy S., Montreal, Quebec, H9P 2N4. We reserve the right to
repair or replace the radio with an equivalent product. Please include the following
information: Date of Purchase, Model Number, Dealer Purchased From,
Dealer Address, Dealer Phone Number.
For Products Purchased Outside the U.S.A. or Canada
Please contact your local dealer for product service information.
Customer Assistance
16 English
Accessories
Customer Assistance

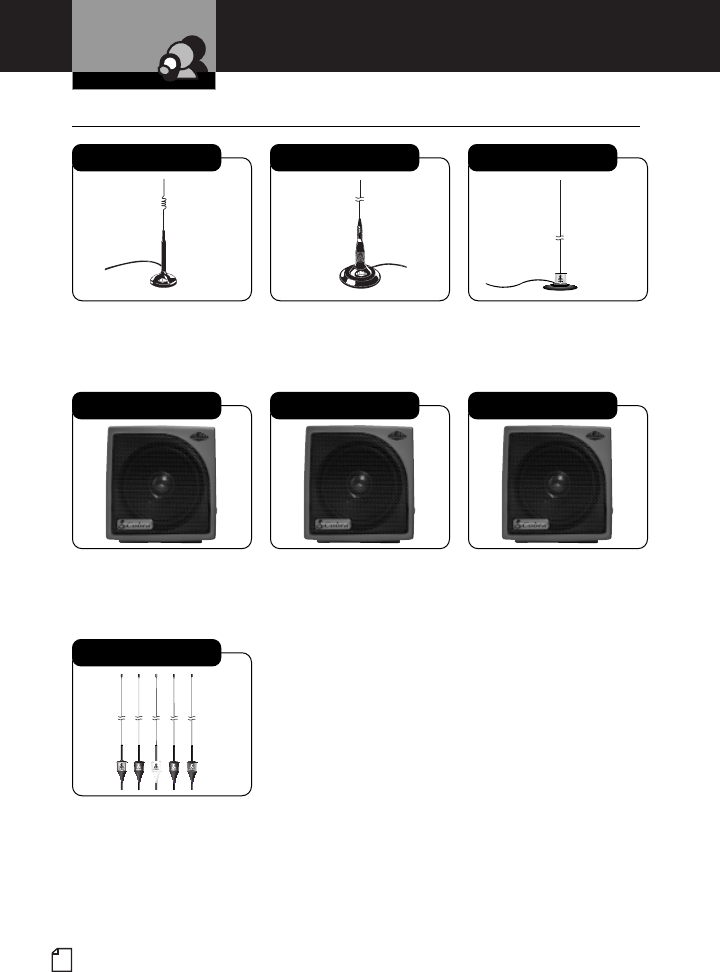

21" Base Loaded Magnet
Mount Antenna
HG A1000 $28.95
38" Base Loaded Magnet
Mount Antenna
HG A1500 $46.95
54" Base Loaded Magnet
Mount Antenna
HG A2000 $99.95
Dynamic
External Speaker
HG S100 $21.95
Noise Canceling
External Speaker
HG S300 $28.95
Noise Canceling With
Talk Back External Speaker
HG S500 $32.95
62" Center-Load
Replacement Antenna
HG A6000 $89.95
Black/Clear, Black,
Red, White, Gold
Accessories •
