Introduction
Staying in touch with your family and friends is
convenient and easy when using your microTALK®
radio. Some of the many uses you will discover include:
Communicating with others while hiking, biking and working; keeping
track of family and friends at a crowded public event; checking with
travel companions in another car; talking with neighbors; arranging
meeting spots with others while shopping at the mall.
Secure your microTALK
radio while on the go.
Carrying your microTALK radio with
you is easy when using the belt clip.
The belt clip easily attaches to your belt,
purse or backpack.
For Assistance in the U.S.A.
In this user’s manual, you should find all the information you need to
operate your microTALK radio. If you require further assistance after
reading this manual, Cobra Electronics offers the following customer
assistance services:
Automated Help Desk
English only. 24 hours a day, seven (7) days a week
773-889-3087 (phone).
Customer Assistance Operators
English and Spanish. 8:00 a.m. to 5:30 773-889-3087 (phone).
Questions
English and Spanish. Faxes can be received at 773-622-2269 (fax).
Technical Assistance
English only. www.cobra.com (on-line: Frequently Asked Questions).
English and Spanish. productinfo@cobra.com (e-mail).
For Assistance Outside the U.S.A.
Contact Your Local Dealer
Belt Clip
Customer Assistance
©2009 Cobra Electronics Corporation™
6500 West Cortland Street
Chicago, Illinois 60707 USA
www.cobra.com
A3
Product Features
A2
Product Features
Introduction Introduction
Backlit LCD Display
22 Channels
Seven shared
with FRS/GMRS,
seven FRS
only, eight
GMRS only
121 Privacy Codes
(38 CTCSS codes/
83 DCS codes)
10 Channel NOAA
All Hazards Radio
Hands-Free
Operation (VOX)
10 Channel Memory
Signal Strength
Meter
Scan
Channels, privacy
codes, memory
Selectable
Hi•Low Power
In GMRS
Backlit
LCD Display
Button Lock
Call Alert
10 selectable tones
Speaker/
Microphone/
Charge Jack
Roger Beep
Selectable on/off
Battery/Power Saver
Keystroke Tones
Selectable on/off
Auto Squelch
Maximum Range
Extender
Belt Clip
12
3
8
4
5
7
6
10
11
12
9

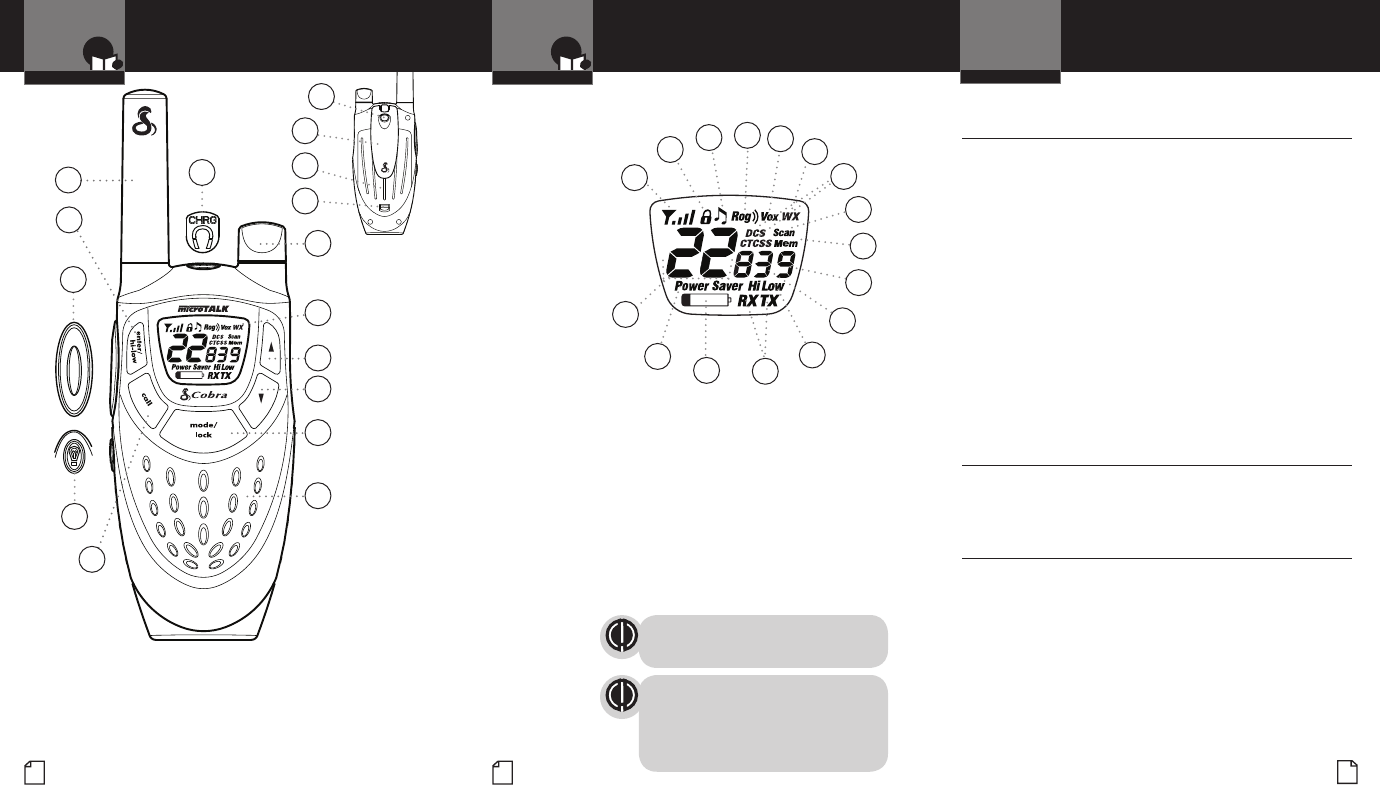

1. Antenna
2. External Speaker/
Microphone/Charge Jack
3. On/Off Volume Knob
4. Backlit LCD Display
5. Channel Up Button
6. Channel Down Button
7. Mode/Lock Button
8. Speaker/Microphone
9. Call Button
10. Light/Max Range Button
11. Talk Button
12. Enter/Hi-Low Power Button
13. Wrist Strap Connector
14. Belt Clip
15. Battery Compartment
16. Battery Door Latch
1
2346
9
10
12
14
15
16 11
13
5
8
13
14
15
16
7
Important FCC Licensing Information
This radio operates on General Mobile Radio Ser-
vice (GMRS) frequencies which require a Federal
Communications Commission (FCC) license. See
page 22 for licensing and other
related information.
Maximum range may vary and is based on
unobstructed line-of-sight communication under
ideal conditions.
1. Signal Strength Meter Icon
2. Lock Icon
3. Keystroke Tones Icon
4. Roger Beep Icon
5. VOX Icon
6. NOAA All Hazards Radio Icon
7. DCS/CTCSS Icons
8. Scan Icon
9. Memory Icon
10. Memory Location Number
11. Privacy Code Numbers
12. Hi-Low Power Icons
13. Receive/Transmit Icons
14. Battery Low Indicator
15. Power Saver Icon
16. Channel Numbers
Safety and Trademark
Acknowledgement
Safety
Safety Information for microTALK® Radios
Your wireless handheld portable transceiver contains a low power
transmitter. When the talk button is pushed, it sends out radio frequency
(RF) signals. The device is authorized to operate at a duty factor not to
exceed 50%. In August 1996, the Federal Communications Commission
(FCC) adopted RF exposure guidelines with safety levels for handheld
wireless devices.
Important:
FCC RF Exposure Requirements: For body-worn operation, this radio
has been tested and meets the FCC RF exposure guidelines when used
with Cobra accessories supplied or designated for this product. Use of
other accessories may not ensure compliance with FCC RF exposure
guidelines. Use only the supplied antenna. Unauthorized antennas,
modifications, or attachments could damage the transmitter and may
violate FCC regulations.
Normal Position:
Hold the transmitter approximately five cm (two inches) from your face and
speak in a normal voice, with the antenna pointed up and away.
Trademark Acknowledgement
Cobra®, microTALK®, Nothing Comes Close to a Cobra®, VibrAlert®
and the snake design are registered trademarks of Cobra Electronics
Corporation, USA. Cobra Electronics Corporation™ is a trademark
of Cobra Electronics Corporation, USA.
The Cobra line of quality products includes
CB Radios microTALK® Radios Radar/Laser Detectors
Safety Alert® Traffic Warning Systems HighGear® Accessories
CobraMarine® VHF Radios Power Inverters Accessories
25
1
Operation Customer Assistance Warranty
Introduction
Caring for Your microTALK Radio
Your microTALK radio will give you years of trouble-free service
if cared for properly. Handle the radio gently. Keep the radio away
from dust. Never put the radio in water or in a damp place.
Avoid exposure to extreme temperatures.
Rechargeable Batteries and
Desktop Charger

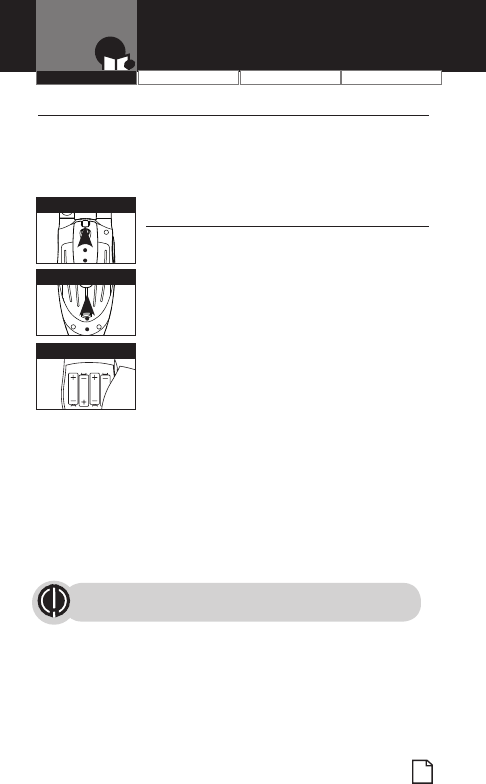

To install or replace batteries:
1. Remove belt clip by releasing belt clip
latch and sliding clip up.
2. Pull up on the battery door latch to
remove the battery compartment cover.
3. Insert batteries according to
polarity markings.
4. Replace battery compartment cover
and belt clip.
Estimated operation time on full charge: 12 hours.
These rechargeable batteries must be recycled or disposed of properly
in compliance with all applicable laws. They may not be thrown in the
trash.
Certain states or municipalities require recycling and have established
collection programs. Please contact your local waste removal authority
for instructions, or return to Cobra® for recycling.
Wrap batteries carefully and mail postage prepaid to:
Cobra Electronics Corporation, 6500 West Cortland Street,
Chicago, IL 60707 USA, Attn: Battery Recycling.
Do not put batteries into fire or expose to high heat.
They may explode.
Remove Belt Clip
Pull Up Lock Latch
Insert Batteries
Turning on Your microTALK Radio
Rotate the On/Off Volume knob clockwise to turn
on your radio and adjust the volume. A series
of tones will indicate the radio is on.
Your microTALK radio is now in Standby mode,
ready to receive transmissions. The radio is
always in Standby mode, except when the Talk,
Call or Mode/Lock buttons are pressed.
Battery Low
When battery power is low, the Battery Low icon
will blink. Your batteries should be recharged or
replaced if using alkaline batteries.
Auto Battery Save
Your microTALK radio has a unique circuit
designed to extend battery life. If there are
no transmissions for 10 seconds, the radio will
automatically switch to Battery Save mode and
the Power Saver icon will flash in the display.
This will not affect the radio’s ability to receive
incoming transmissions.
Communicating with Another Person
1. Press and hold the Talk button.
2. With the microphone about 2 inches
(5 cm) from your mouth, speak in a
normal voice.
3. Release the Talk button when you are
finished talking and listen for a response.
You cannot receive incoming calls while
pressing the Talk button.
Both radios must be tuned to
the same channel/privacy code
to communicate.
Customer Assistance WarrantyIntroduction
3
Operation
2
Using Your Radio
Operation

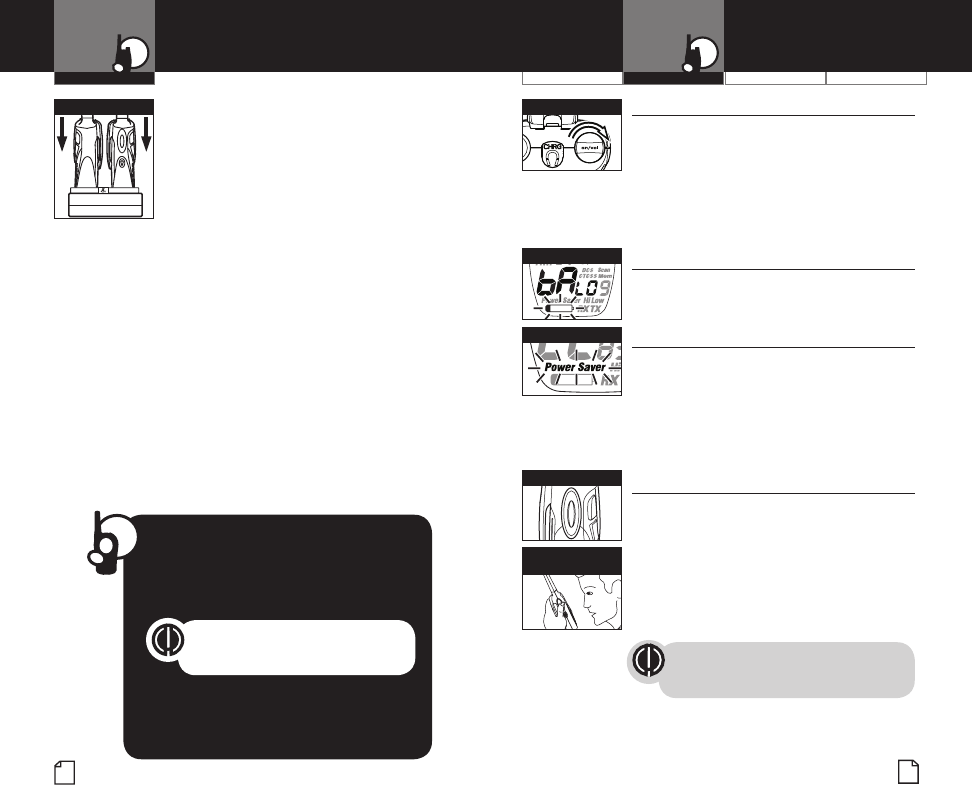

For charging microTALK radio(s) in desktop
charger:
1. Insert radio(s) into desktop charger as shown.
2. Insert round connector of 120-volt adapter into
jack on back of charger.
3. Plug 120-volt adapter into electrical outlet.
If charging light is not on, check position of radio. Radio should be
upright. The charge indicator light will stay on as long as the radio is in
the charging well, even after the batteries are fully charged.
It normally takes about 15 hours to fully recharge batteries.
Batteries will not be damaged if they stay in the charging well longer
than that.
Note: To charge a single radio, you can bypass the desktop charger
and simply insert the wall adapter’s round connector directly into the
speaker/microphone/charge jack located on the top of the radio.
Use only the supplied rechargeable batteries and charger for recharging
your Cobra microTALK radio.
Cobra recommends your radio is turned off while being charged.
Non-rechargeable alkaline batteries can also be used in your radio.
Battery Low
Battery Save Mode
On/Off PowerInsert Radio(s)
Two Inches (5 cm)
from Mouth
Talk Button
Quick Start
1. Turn the Power On/Off knob clockwise
to turn on your radio.
2. Press the Channel Up or Channel Down
button to select a channel.
Both radios must be tuned to the
same channel/privacy code to
communicate.
3. Press and hold the Talk button while
speaking into the microphone.
4. When finished talking, release the Talk
button and listen for a response.
Customer Assistance WarrantyIntroduction
5
Operation
4
Using Your Radio
Operation
Channel Number
Enter/Hi-Low Button
Channel Buttons
Hi Power Icon
Low Power Icon
Light/Max Range
Listening

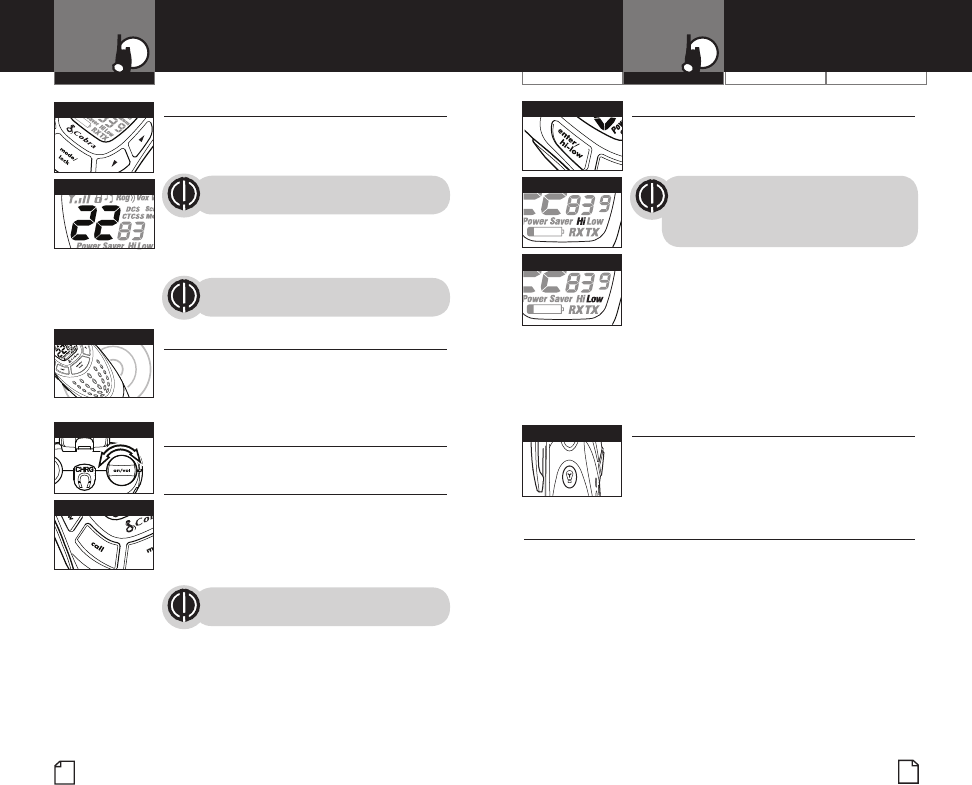

Channels
With the radio on, select any of the 22 channels
by pressing the Channel Up or Channel Down
button.
Both radios must be tuned to the
same channel to communicate.
Channels 1 through 7 are shared by FRS and
GMRS. Channels 8 through 14 are FRS only.
Channels 15 through 22 are GMRS only.
See page 21 for FRS/GMRS frequency
allocations and compatibility charts.
Listening for a Response
Release the Talk button to receive incoming
transmissions. Your microTALK radio is always in
Standby mode while the Talk or Call buttons are
not pressed.
Volume
Rotate the On/Off Volume knob.
Call Button
To alert another person that you are calling:
Press and release the Call button.
The other person will hear a two second
call tone. This tone is used only to establish voice
communications.
See page 19 on how to select from
10 available call tone settings.
Selectable High•Low Power Output
When in close proximity to another party or during
favorable conditions, you can switch
from High to Low Power to extend battery life.
This feature applies to GMRS Channels
1 through 7 and 15 through 22 only.
Channels 8 through 14 operate
exclusively on low power.
To toggle between high and low power:
Press the Enter/Hi•Low button for
two seconds.
When using Channels 1 through 7 and
15 through 22 on high power, the Hi icon
will be visible on the display.
When using those channels on low power
and on Channels 8 through 14, the Low icon
will be visible on the display.
To Illuminate Display
Press and release the Light/Max Range button
to illuminate the display for 10 seconds.
Auto Squelch/Maximum Range
Your microTALK radio is equipped with Auto Squelch, which
automatically shuts off weak transmissions and unwanted noise
due to terrain and conditions. This slightly reduces the Maximum
Range at which signals can be heard.
You can turn off auto squelch to allow all signals to be received
and extend the maximum range of your radio.
Volume Knob
Call Button
Speaker/Microphone/Charge Jack

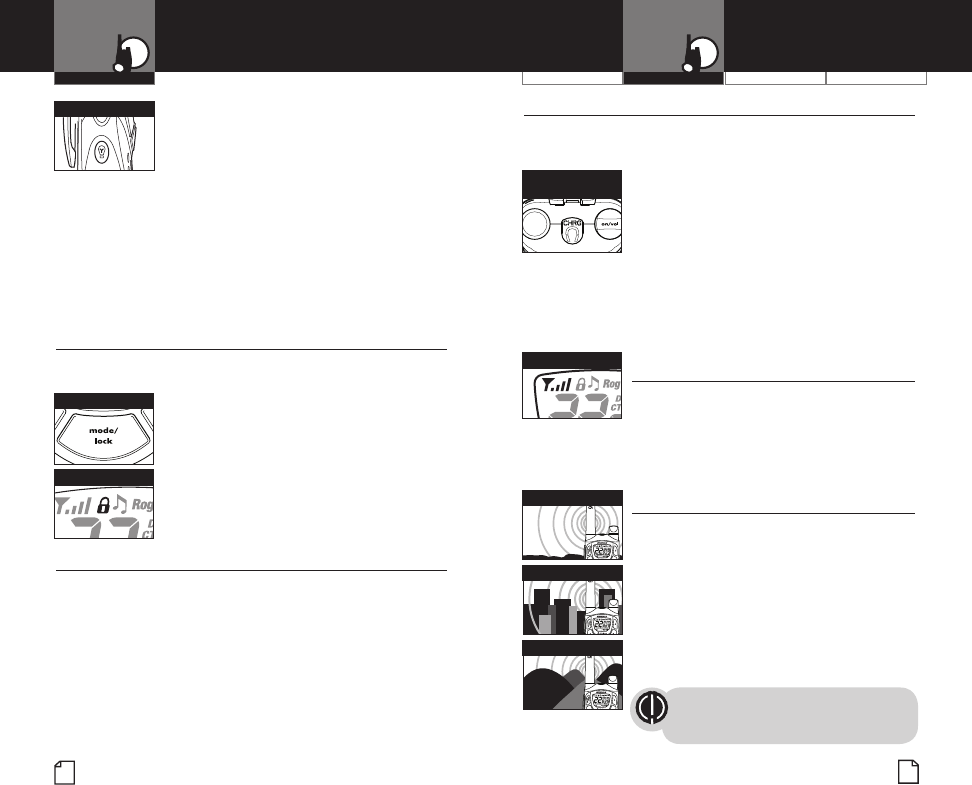

Your microTALK radio can be fitted with an external Speaker/
Microphone, freeing your hands for other tasks. This same jack also
serves as the connecting point for a wall charger/adapter.
To attach a speaker/microphone:
1. Open the speaker/microphone/charge
tab on top of your microTALK radio.
2. Insert the plug into the speaker/
microphone/charge jack.
To connect a wall charger/adapter:
1. Open the speaker/microphone/charge
tab on top of your microTALK radio.
2. Insert the wall charger/adapter plug
into the speaker/microphone/charge jack.
Signal Strength Meter
Your microTALK radio has a Signal Strength
Meter that shows the strength of your incoming
and outgoing transmissions. The ascending bars
next to the signal strength indicate the strength of
the signal. The greater the number of bars visible,
the stronger the signal. The fewer number of bars
visible, the weaker the signal.
microTALK Range
Your range will vary depending on
terrain and conditions.
In flat, open country your radio will
operate at maximum range.
Buildings and foliage in the path of the
signal can reduce the range of the radio.
Dense foliage and hilly terrain will
further reduce the range of the radio.
On FRS channels 8 through 14, your radio
automatically switches to low power, which
will limit the range the radio can communicate.
Remember, you can achieve maximum
range by using maximum range extender.
See page 6 for details.
To briefly turn off auto squelch:
Press the Light/Max Range button
for less than five seconds.
If you hear two beeps, you have turned
the maximum range extender on (see below).
To turn maximum range extender on:
Press and hold the Light/Max Range button
for at least five seconds until you hear
two beeps which indicates the maximum range
extender is on.
To turn maximum range extender off:
Press and release the Light/Max Range
button or change channels.
Lock Feature
The Lock feature locks the Channel, Mode/Lock and Enter/Hi•Low
Power buttons to prevent accidental operation.
To turn the lock feature on or off:
Press and hold the Mode/Lock button
for two seconds.
A double beep sound is used to confirm your lock
on or off request. When in Lock mode,
the Lock icon will be displayed.
Dual Function Buttons
Two of the buttons on the microTALK radio have Dual Functions;
Mode/Lock
• Press and release the button to scroll to the next mode function.
Press and hold the button for two seconds or more to turn the lock
function on or off.
Enter/Hi•Low Power
• Press and release the button to enter settings in Function mode.
Press and release to toggle between high and low power
transmission in Standby mode.
Customer Assistance WarrantyIntroduction
7
Operation
6
Using Your Radio
Operation
Light/Max Range
Lock Mode
Speaker/Microphone/
Charge Jack
Signal Strength
Mode/Lock Button
Maximum Range
Reduced Range
Reduced Range
Customer Assistance WarrantyIntroduction
9
Operation
8

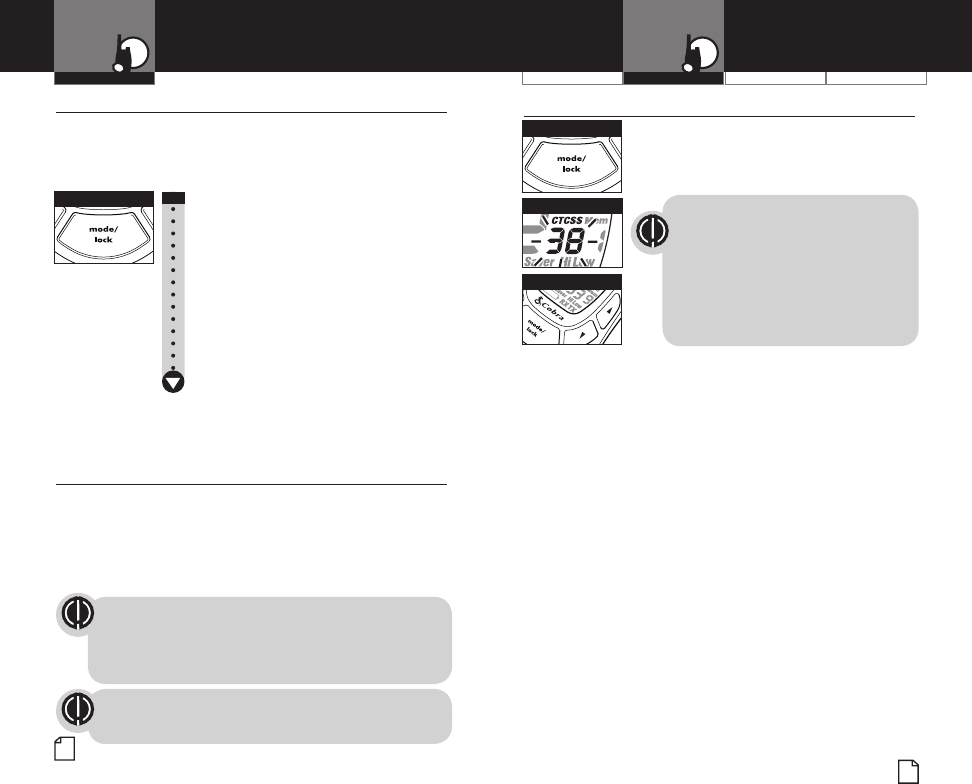

Mode Functions
Operation
CTCSS Privacy Code
Channel Buttons
Mode/Lock Button
Mode/Lock Button
Set CTCSS Privacy Codes
1. After selecting a channel, press
the Mode/Lock button until the small
numbers next to the channel number
flash on the display.
If DCS is turned on at the channel
selected, the display will flash the
CTCSS icon and “OFF.” To switch from
DCS to CTCSS, press the Channel Up
or Channel Down button while the
display is flashing “OFF.” The display
will then show the small numbers
flashing and you will then be able
to proceed to step 2.
2. Press using the Channel Up or Channel Down
button to select a privacy code. You can hold
the Up or Down button for fast advance.
3. When your desired CTCSS privacy code is
displayed, choose one of the following:
a. Press the Mode/Lock button to enter the
new setting and proceed to other functions.
b. Press the Enter/Hi•Low button to enter the
new setting and return to Standby mode.
c. Do not press any buttons for 15 seconds
to enter the new setting and return to
Standby mode.
Scrolling through Mode Functions
By scrolling through the Mode Functions, you will be able to
select or turn on/off preferred features of your microTALK radio. When
scrolling through the Mode Functions, your radio features
will be displayed in the following order:
Set CTCSS Privacy Codes
Set DCS Privacy Codes
Set NOAA All Hazards Radio Channel
Set VOX On/Off
Set VOX Sensitivity Level
Set Memory Locations
Set Channel Scan
Set CTCSS Privacy Code Scan
Set DCS Privacy Code Scan
Set Memory Location Scan
Set Call Tones
Set Roger Beep On/Off
Set Keystroke Tones On/Off
Scroll through the mode functions using the Mode/Lock button.
Each press and release of the Mode/Lock button will advance to
the next mode function. Press the Talk button at any point to
return the radio to Standby mode.
Privacy Codes
Your microTALK radio incorporates two advanced coded squelch
systems that can help to reduce interference from other users
on any given channel. CTCSS (Continuous Tone Coded Squelch System)
provides 38 privacy codes and DCS (Digitally Coded Squelch) provides
83 privacy codes. This provides a total of 121 Privacy Codes. Either
system can be used on all channels, but both systems cannot be used
on the same channel at the same time.
To successfully communicate using a privacy code, both
the sending and receiving radios must be tuned to the same
channel and to the same privacy code system (CTCSS or DCS)
and privacy code number. Each channel will remember the last
privacy code system and number you select.
The privacy code 00 is not a privacy code, but allows all
signals to be heard on a channel that is set to 00 on both
the CTCSS and DCS systems.
Customer Assistance WarrantyIntroduction Operation

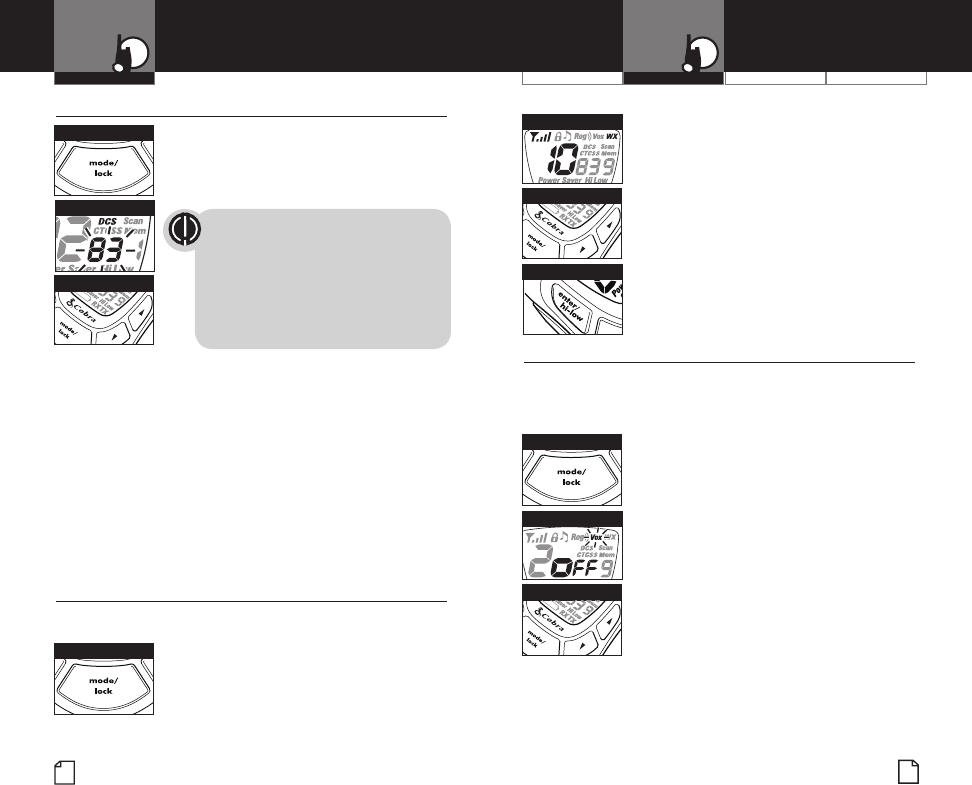

Voice Activated Transmit (VOX)
In VOX mode, your microTALK radio can be used “hands-free,”
automatically transmitting when you speak. You can set the VOX
sensitivity level to fit the volume of your voice and avoid transmissions
triggered by background noise.
To turn VOX mode on or off:
1. Press the Mode/Lock button until the VOX icon
flashes on the display. The current on
or off setting is displayed.
2. Press the Channel Up or Channel Down button
to turn VOX on or off.
3. Choose one of the following:
a. Press the Mode/Lock button to enter the
selected on or off setting and proceed to
other functions.
b. Press the Enter/Hi•Low button to enter
the selected on or off setting and return
to Standby mode.
To set VOX sensitivity:
1. Press the Mode/Lock button until the VOX icon
flashes and the current sensitivity level
is displayed.
10
Mode Functions
Operation
11
NOAA* All Hazards Radio Channels
You can use your microTALK radio to listen to NOAA All Hazards Radio
channels transmitting in your area.
To listen to All Hazards Radio channels:
1. Press the Mode/Lock button until the
All Hazards Radio icon, the currently
selected All Hazards Radio channel,
and signal strength are displayed.
2. Use the Channel Up or Channel Down
button to change All Hazards Radio channels.
VOX Icon
Channel Buttons
Mode/Lock Button
Mode/Lock Button
Set DCS Privacy Codes
To select a DCS privacy code:
1. After selecting a channel, press the Mode/Lock
button until the DCS icon appears and the small
numbers flash on the display
(01 through 83).
2. Press using the Channel Up or Channel Down
button to select a DCS privacy code. You can
hold the Up or Down button for fast advance.
3. When your desired DCS privacy code is
displayed, choose one of the following:
a. Press the Mode/Lock button to enter the new
setting and proceed to other functions.
b. Press the Enter/Hi•Low button to enter the
new setting and return to Standby mode.
c. Do not press any buttons for 15 seconds
to enter the new setting and return to
Standby mode.
3. The All Hazards Radio icon will continue to
be displayed when All Hazards Radio is on.
Choose one of the following:
a. Press the Mode/Lock button to proceed
to other functions.
b. Press the Enter/Hi-Low button to exit
All Hazards Radio channel mode and
return to Standby mode.
c. Press Talk button to exit and start on
last used transmitting channel.
*National Oceanographic and Atmospheric Administration
Enter/Hi-Low Button
Channel Buttons
Channel Buttons
Mode/Lock Button
DCS Privacy Code If CTCSS is turned on at the channel
selected, the display will flash the DCS
icon and “OFF. To switch from CTCSS to
DCS, press the Channel Up or Channel
Down button while the display is flashing
“OFF. The display will then show the
small numbers flashing and you will then
be able to proceed to step 2.
Hazards Radio Icon
Memory Icon
Channel Buttons
Mode/Lock Button
Enter/Hi-Low Button
Customer Assistance WarrantyIntroduction Operation
12
Mode Functions
Operation
6. Choose one of the following:
a. Press the Channel Up or Channel Down button to select
a CTCSS privacy code (01 through 38) for the channel.
b. Press the Enter/Hi•Low button to switch from CTCSS to
DCS. The DCS icon and privacy code numbers will flash on the
display. The Channel Up or Channel Down button can then be
used to select a DCS privacy code (01 through 83)
for the channel.
If “OFF” flashes in place of the privacy code numbers,
a privacy code is already set in the opposite (CTCSS
or DCS) system. Press the Channel Up or Channel Down
button to cancel the opposite code and select a privacy
code from the active system for the selected channel.
7. Choose one of the following:
a. Press the Enter/Hi•Low button to enter the channel/privacy code
in the selected memory location. Radio then proceeds
to next memory location, which will blink.
b. Press the Mode/Lock button to enter the channel/privacy
code in the selected memory location and proceed to other
functions on the channel/privacy code displayed before you
entered mode functions.
c. Press the Talk button to enter the channel/privacy code
in the selected memory location and exit mode functions.
Upon release of the Talk button, the radio will enter
Standby mode on the channel/privacy code just entered.
To recall a stored memory channel location:
1. Press the Mode/Lock button until the Memory
icon and the memory location number flash on
the display.
2. Press the Channel Up or Channel Down button
to select a memory location
(0 through 9).
If a location has been programmed before,
its associated channel/privacy code will be
shown on the display.
13

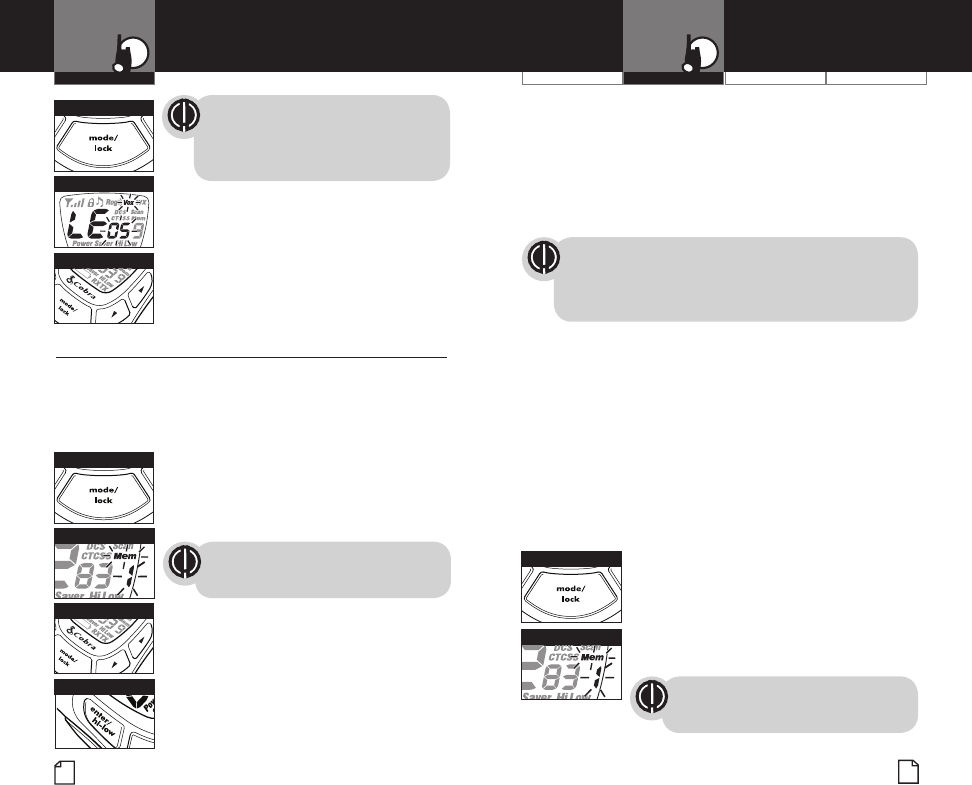

The current sensitivity level is displayed
with letters “LE” and a Number 01
through 05, with Number 05 being the most
sensitive level and Number 01
being the least sensitive level.
2. Press the Channel Up or Channel Down button
to change the setting.
3. Choose one of the following:
a. Press the Mode/Lock button to enter
the selected setting and proceed to
other functions.
b. Press the Enter/Hi•Low button to
enter the selected setting and return
to Standby mode.
10 Memory Locations
Your microTALK radio has 10 Memory Locations for storing
your most frequently used channels and channel/privacy code
combinations. These Memory Locations can be selected individually or
can be scanned. (See page 18 for memory location scan.)
To program a memory location:
1. Press the Mode/Lock button until the
Memory icon and the Memory Location
flash on the display.
2. Press the Channel Up or Channel Down button
to select the memory location
(0 through 9).
If a location has been programmed before,
its associated channel/privacy code will be
shown on the display.
3. Press the Enter/Hi•Low button to enter
a new memory location or edit an already
programmed memory location. The channel
numbers will flash on the display.
4. Press the Channel Up or Channel Down button
to select a channel (1 through 22).
5. Press the Enter/Hi•Low button. The CTCSS
icon and privacy code numbers will flash on
the display.
VOX Sensitivity Level
Channel Buttons
Mode/Lock Button
Memory Icon
Mode/Lock Button
Customer Assistance WarrantyIntroduction
15
Operation
b. Press the Mode/Lock button to enter the channel/privacy
code in the selected memory location and proceed to other
functions on the channel/privacy code displayed before you
entered mode functions.
While de-programming a memory location, if you do not press
any buttons for 15 seconds, your radio will automatically return
to Standby mode on the channel/privacy code displayed before
you entered mode functions.
Channel Scan
Your microTALK radio can automatically scan channels.
To scan channels:
1. Press the Mode/Lock button until the
Scan icon and the channel numbers
flash on the display.
2. Press the Channel Up or Channel Down button
to begin scanning channels.
The radio ignores specific privacy
codes while scanning channels.
The Scan icon will continue to be displayed
when scan is on. Your radio will continue to
scan all channels and stop if an incoming
transmission is detected. Your radio will
remain on that channel for 10 seconds.
While setting channel scan, if you do not press any buttons for
15 seconds, your radio will automatically return to Standby mode
on the channel or channel/privacy code displayed before you entered
mode functions.
During channel scan (while receiving an incoming transmission),
you can choose from the following:
a. Press and hold the Talk button to communicate on that channel.
Your radio will remain on that channel and return
to Standby mode.
b. Press the Channel Up or Channel Down button to resume
scanning channels.
14
Mode Functions

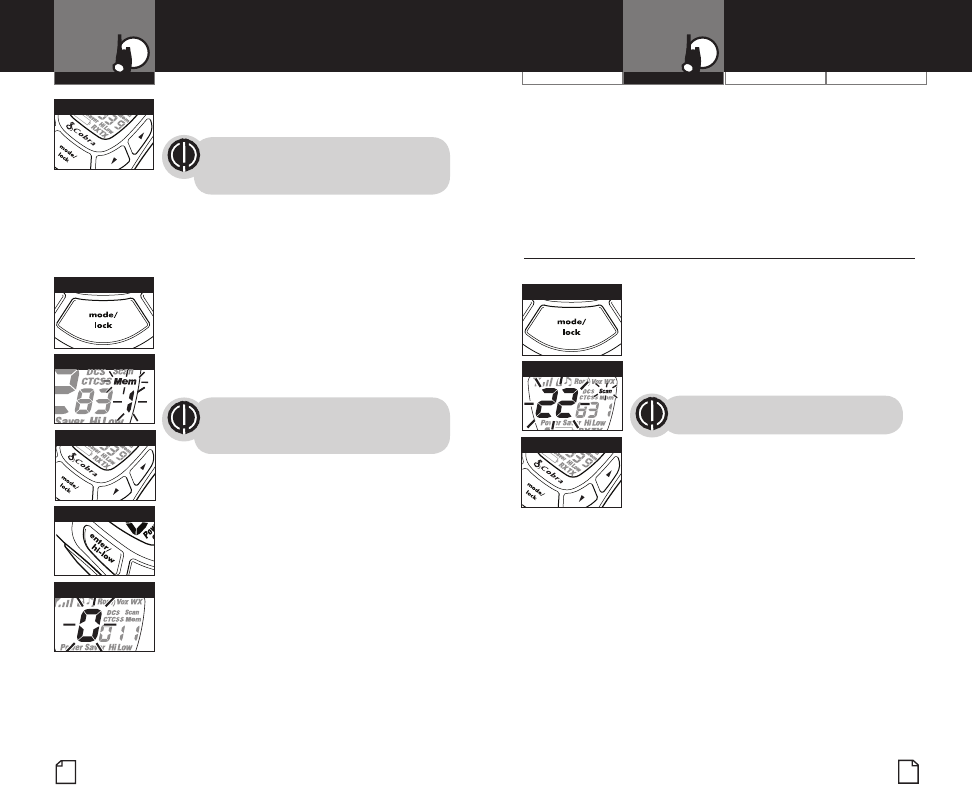

3. Press the Talk button to return to Standby
mode on the selected memory location.
A memory location can be reprogrammed
at any time it is displayed. Press the
Enter/Hi•Low button to begin.
While recalling a stored memory location, if you do not press
any buttons for 15 seconds, your radio will automatically return
to Standby mode on the channel/privacy code displayed before you
entered mode functions.
To de-program a memory location:
1. Press the Mode/Lock button until the
Memory icon and the memory location
flash on the display.
2. Press the Channel Up or Channel Down button
to select the memory location
(0 through 9).
If a location has been programmed before,
its associated channel/privacy code will be
shown on the display.
3. Press the Enter/Hi•Low button. The channel
numbers will flash on the display.
4. Press the Channel Up or Channel Down button
to select Channel 0.
5. Choose one of the following:
a. Press the Enter/Hi•Low button to enter
the channel/privacy code in the selected
memory location and return to the beginning
of memory location options.
Operation
Channel Buttons
Memory Icon
Enter/Hi-Low Button
Channel 0
Channel Buttons
Mode/Lock Button
Scanning Channels
Mode/Lock Button
Channel Buttons
If you press the Talk button while scanning, but more than 10
seconds after receiving a transmission, you will transmit on the
channel on which you last received a transmission. This will return
the radio to Standby mode.
If you do not press any button within 10 seconds after receiving
a scanned transmission, your radio will automatically resume
scanning channels.
During channel scan (while not receiving a transmission),
you can choose from the following:
a. Press and hold the Talk button to communicate on the
channel or channel/privacy code that was displayed before
you entered mode functions or the channel on which, during
scanning, you last received a transmission. This will then
return the radio to Standby mode.
b. Press the Mode/Lock button to proceed to set privacy
code scan on the channel that was either displayed before
you entered mode functions or on which, during channel
scanning, you last received a transmission (see below for
further details).
c. Press the Enter/Hi•Low button to return to Standby mode
on the channel/privacy code that was displayed before you
entered mode functions or the channel on which, during
scanning, you last received a transmission.

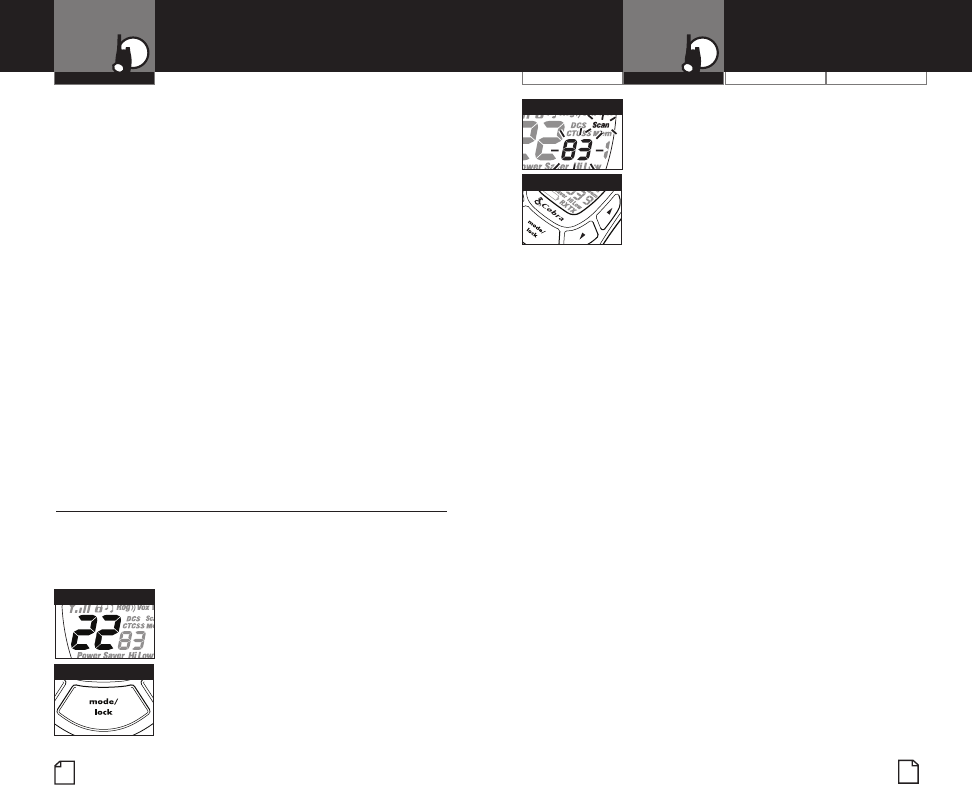

Privacy Code Scan
Your microTALK radio can automatically scan the Privacy
Codes (either CTCSS 01 through 38 or DCS 01 through 83)
within one channel. Only one set of privacy codes (CTCSS
or DCS) can be scanned at a time.
To scan privacy codes:
1. While in Standby mode, press the
Channel Up or Channel Down button
to choose the channel on which you
wish to scan privacy codes.
2. Press the Mode/Lock button until either the
CTCSS or the DCS icon appears on the
display and the Scan icon and the privacy code
numbers flash on the display.
3. Press the Channel Up or Channel Down button
to begin scanning privacy codes
within the channel you selected.
The Scan icon will continue to be displayed
when privacy code scan is on. Your radio will
continue to scan privacy codes and stop as an
incoming transmission is detected. Your radio will
remain on that channel/privacy code for
10 seconds.
While setting privacy code scan, if you do not press any buttons
for 15 seconds, your radio will automatically return to Standby
mode on the channel/privacy code that was displayed before you
entered mode functions.
During privacy code scan (while receiving an incoming
transmission), you can choose from the following:
a. Press and hold the Talk button to communicate
on that channel/privacy code. Your radio will remain
on that channel/privacy code and return to Standby mode.
b. Press the Channel Up or Channel Down button to
resume scanning privacy codes.
If you press the Talk button while scanning, but more than
10 seconds after receiving a transmission, you will transmit
on the channel/privacy code on which you last received a
transmission. This will then return the radio to Standby mode.
If you do not press any button within 10 seconds, your
radio will automatically resume scanning privacy codes.
During privacy code scan (while not receiving a transmission),
you can choose from the following:
a. Press and hold the Talk button to communicate on
the channel/privacy code that was displayed before you
entered mode functions or the channel/privacy code on
which, during scanning, you last received a transmission.
This will return the radio to Standby mode.
b. Press the Mode/Lock button to proceed to set memory
location scan (see page 18 for further details).
Customer Assistance WarrantyIntroduction
17
Operation
16
Mode Functions
Operation
Scan Privacy Codes
Channel Buttons
Select Channel
Mode/Lock Button
19
Customer Assistance WarrantyIntroduction Operation
18
Mode Functions
c. Press the Enter/Hi•Low button to return to Standby
mode on the channel/privacy code that was displayed
before you entered mode functions or the channel/
privacy code on which, during scanning, you last
received a transmission.

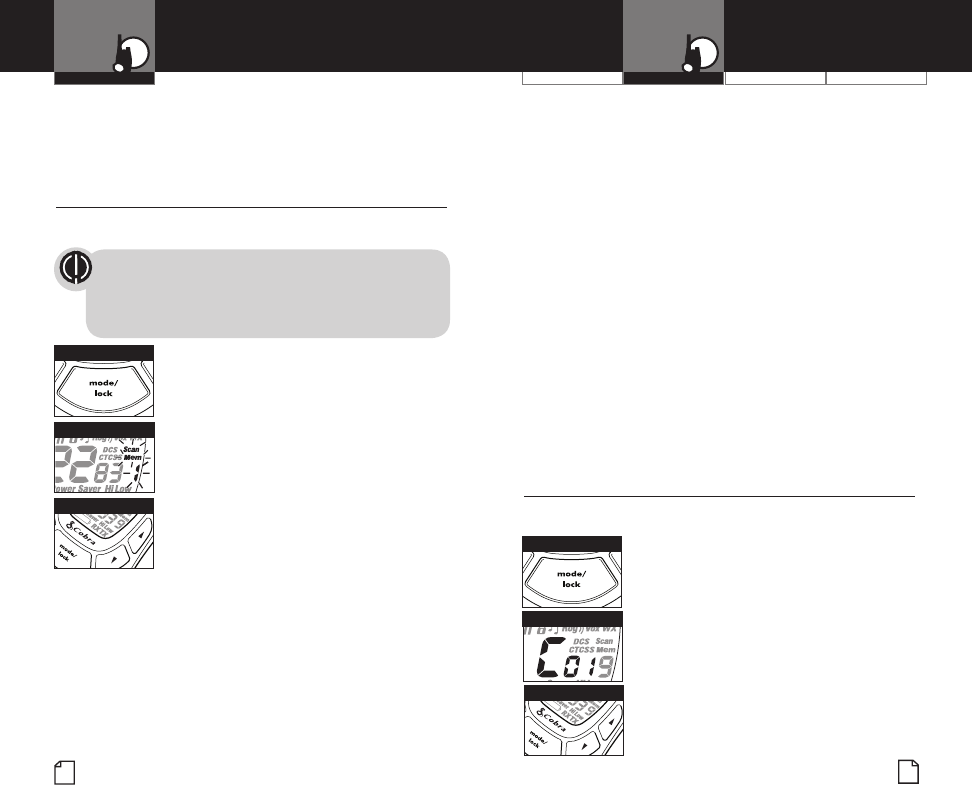

Memory Location Scan
Your microTALK radio can automatically scan up to
10 programmed Memory Locations.
If there are one or fewer memory locations
programmed in your radio, the scan memory
locations option will not be available. To program
at least two memory locations, see program
memory locations on page 12.
To scan memory locations:
1. Press the Mode/Lock button until the Scan
icon, Memory icon and the memory location
number flash on the display.
2. Press the Channel Up or Channel Down
button to begin scanning memory locations.
The Scan icon and the Memory icon will continue
to be displayed when memory
location scan is on. Your radio will continue
to scan memory locations and stop if an incoming
transmission is detected. Your
radio will remain on that memory location
for 10 seconds.
While setting memory location scan, if you do not press any
buttons for 15 seconds, your radio will automatically return
to Standby mode on the channel/privacy code displayed before
you entered mode functions.
During memory location scan (while receiving an Incoming
transmission), you can choose from the following:
a. Press and hold the Talk button to communicate on that
memory location. Your radio will remain on that memory
location and after 10 seconds of no activity, radio will start
memory location scan again.
b. Press the Channel Up or Channel Down button to resume
scanning memory locations.
If you press the Talk button while scanning, but more than
10 seconds after receiving a transmission, you will transmit on
the memory location on which, during scanning, you last received
a transmission. This will return the radio to Standby mode.
If you do not press any button within 10 seconds, your radio
will automatically resume scanning memory locations.
During memory location scan (while not receiving a
transmission), you can choose from the following:
a. Press and hold the Talk button to communicate on the channel/
privacy code that was displayed before you entered mode
functions or memory location on which, during scanning, you last
received a transmission.
b. Press the Mode/Lock button to proceed to other functions.
c. Press the Enter/Hi•Low button to return to Standby mode
on the channel/privacy code that was displayed before you entered
mode functions or the memory location on which, during scanning,
you last received a transmission.
To reduce the number of memory locations being scanned,
you may de-program any unwanted locations. (See page 14
to de-program a memory location.)
10 Call Tone Settings
You can choose from 10 different call tone settings to transmit
a unique call alert.
To change a call tone setting:
1. Press the Mode button until the letter “C” and
the current call tone number (01 through 10)
is displayed.
2. Press the Channel Up or Channel Down button
to hear the other call tone settings.
3. Choose one of the following:
a. Press the Mode/Lock button to enter the
new setting and proceed to other functions.
b. Press the Enter/Hi•Low button to enter the
new setting and return to Standby mode.
Operation
Scanning Locations
Channel Buttons
Mode/Lock Button
Call Tone Setting
Channel Buttons
Mode/Lock Button

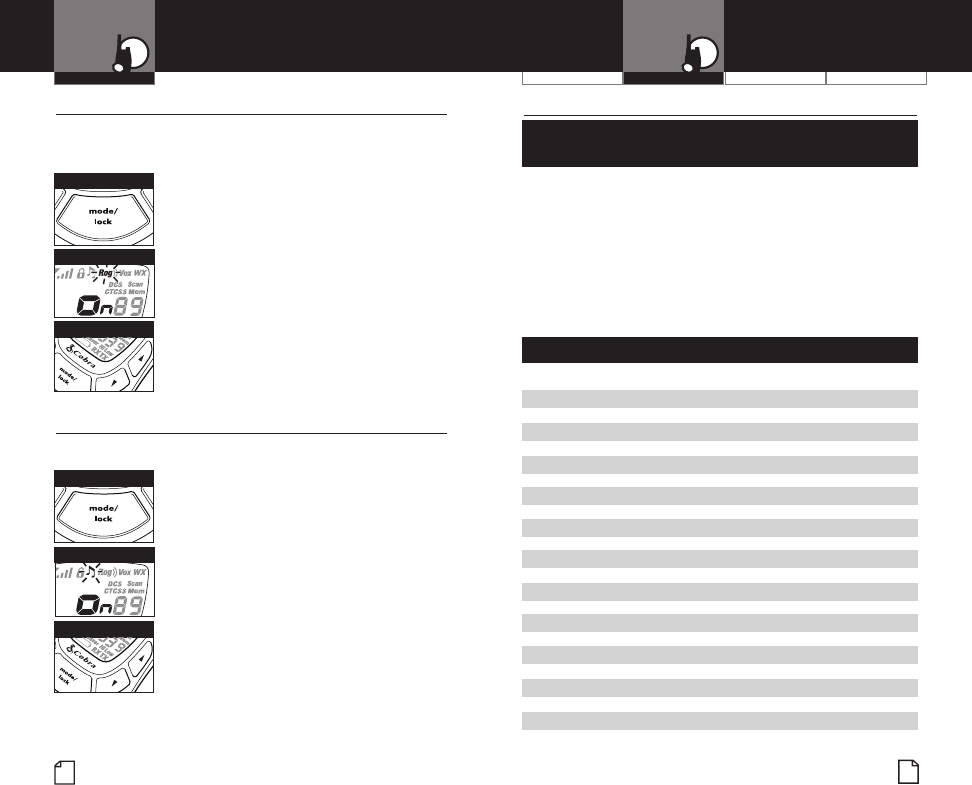

Roger Beep Confirmation Tone
Roger Beep is an audible tone that your listener will hear when
you release the Talk button. This alerts the other party that you
are finished talking and it is OK for them to speak.
To turn roger beep on or off:
1. Press the Mode button until the Roger Beep
icon flashes on the display. The current on
or off setting is displayed.
2. Press the Channel Up or Channel Down button
to select roger beep on or off.
3. Choose one of the following:
a. Press the Mode/Lock button to enter
the new setting and proceed to other
functions.
b. Press the Enter/Hi•Low button to enter the
new setting and return to Standby mode.
Keystroke Tones
With Keystroke Tones turned on, your radio will
sound beeps each time you press a button or
change a setting.
To change keystroke tones:
1. Press the Mode/Lock button until the
Keystroke Tones icon flashes on the display.
The current on or off setting is displayed.
2. Press the Channel Up or Channel Down
button to turn keystroke tones on or off.
3. Choose one of the following:
a. Press the Mode/Lock button to enter the
new setting and return to Standby mode.
b. Press the Enter/Hi•Low button to enter the
new setting and return to Standby mode.
20
Mode Functions and
General Specifications
21
Operation Customer Assistance WarrantyIntroduction Operation
General Specifications
Roger Beep On
Keystroke Tones On
Channel Buttons
Channel Buttons
Mode/Lock Button
Mode/Lock Button
FRS/GMRS Frequency
Allocation and Compatibility
Important: Please note that Cobra GMRS models with 15 Channels
may designate different channel numbers for the same frequency.
For example, a Cobra 15 Channel GMRS model would need to be
tuned to Channel 11 in order to communicate with a 22 Channel
GMRS tuned to Channel 15. Please refer to the chart below for
channel/ frequency number compatibility.
A = Channel No. for 22 Channel FRS/GMRS Models
B = Channel No. for 15 Channel GMRS Models
C = Type of Radio Service
D = Frequency in MHz
E = Power Output
A B C D E
1 1 FRS/GMRS 462.5625 High, Med, or Low
2 2 FRS/GMRS 462.5875 High, Med, or Low
3 3 FRS/GMRS 462.6125 High, Med, or Low
4 4 FRS/GMRS 462.6375 High, Med, or Low
5 5 FRS/GMRS 462.6625 High, Med, or Low
6 6 FRS/GMRS 462.6875 High, Med, or Low
7 7 FRS/GMRS 462.7125 High, Med, or Low
8 FRS 467.5625 Low
9 FRS 467.5875 Low
10 FRS 467.6125 Low
11 FRS 467.6375 Low
12 FRS 467.6625 Low
13 FRS 467.6875 Low
14 FRS 467.7125 Low
15 11 GMRS 462.5500 High, Med, or Low
16 8 GMRS 462.5750 High, Med, or Low
17 12 GMRS 462.6000 High, Med, or Low
18 9 GMRS 462.6250 High, Med, or Low
19 13 GMRS 462.6500 High, Med, or Low
20 10 GMRS 462.6750 High, Med, or Low
21 14 GMRS 462.7000 High, Med, or Low
22 15 GMRS 462.7250 High, Med, or Low
Introduction Operation
23
IMPORTANT NOTICE: FCC LICENSE REQUIRED
This two-way radio operates on GMRS (General Mobile Radio Service) frequencies
which require an FCC (Federal Communications Commission) license. A user must be
licensed prior to operating on Channels 1 through 7 on high power or 15 through 22,
which comprise the GMRS channels of this radio. Serious penalties could result for
unlicensed use of GMRS channels, in violation of FCC rules. Operation of this radio is
subject to additional rules specified in 47 C.F.R. Part 95.
Licensed users will be issued a call sign by the FCC, which should be used for
station identification when operating this radio. GMRS users should also cooperate by
engaging in permissible transmissions only, avoiding channel interference with other
GMRS users, and being prudent with the length of their transmission time.
For licensing information and application forms, please call the FCC Hotline
at 800-418-FORM. Request form #159 and form #605. Questions regarding
the license application should be directed to the FCC at 888-CALL-FCC.
Additional information is available on the FCC’s website at www.fcc.gov.
Channel 1 through 7 on low power and channels 8 through 14 comprise the
FRS (Family Radio Service). No license is required to operate on the FRS.
Safety Information for microTALK Radios
Your wireless handheld portable transceiver contains a low power transmitter.
When the talk button is pushed, it sends out radio frequency (RF) signals.
The device is authorized to operate at a duty factor not to exceed 50%.
In August 1996, the Federal Communications Commissions (FCC) adopted
RF exposure guidelines with safety levels for handheld wireless devices.
Important
FCC RF Exposure Requirements: For body-worn operation, this radio has
been tested and meets the FCC RF exposure guidelines when used with Cobra
accessories supplied or designated for this product. Use of other accessories
may not ensure compliance with FCC RF exposure guidelines. Use only the supplied
antenna. Unauthorized antennas, modifications or attachments
could damage the transmitter and may violate FCC regulations.
Normal Position
Hold the transmitter approximately 2 inches from your face and
speak in a normal voice, with the antenna pointed up and away.
FCC Licensing and
Product Service Questions
22
Customer Assistance
Product Service Questions
If you have any questions about operation or installing your
new Cobra product, or if you need to order replacement parts…
Please call Cobra first! DO NOT RETURN THIS PRODUCT
TO THE STORE! See customer assistance on page A1.
For Products Purchased in the U.S.A.
If your product should require factory service, please call Cobra first
before sending your radio. This will ensure the fastest turn-around
time on your repair. You may be asked to send your radio to the
Cobra factory. It will be necessary to furnish the following to have
the product serviced and returned.
1) For warranty repair include a copy of the original sales receipt.
If you send the original receipt, it cannot be returned.
2) Send the entire product.
3) Enclose a detailed description of the problem along with the name
and address of where the product is to be returned.
4) Pack radio securely to prevent damage in transit. If possible,
use the original packing material.
5) Ship prepaid and insured by way of a traceable carrier such
as United Parcel Service (UPS) or Priority Mail to avoid loss in
transit to Cobra Factory Service:
Cobra Electronics Corporation
6500 West Cortland Street
Chicago, Illinois 60707 U.S.A.
6) If the radio is under warranty, it will be repaired or exchanged
depending on the model.
Please allow approximately three to four weeks before
contacting Cobra for status. If the radio is out of warranty,
a letter will automatically be sent informing you of the repair
charge or replacement charge. If you have any questions,
please call 773-889-3087 for assistance.
For Products Purchased Outside the U.S.A.
Please contact your local dealer for product service information.
Warranty
Customer Assistance
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Warnings: Replacement or substitution of transistors, regular diodes or
other parts of a unique nature, with parts other than those recommended by
Cobra may cause a violation of the technical regulations of part 95 of the FCC
rules, or violation of type acceptance requirements of part 2 of the rules.
24
Limited One-Year Warranty on Radio(s) & Charger
For Products Purchased in the U.S.A.
Cobra Electronics Corporation warrants that its Cobra microTALK
radios and charger, and the component parts thereof, will be free of defects
in workmanship and materials for a period of one year from the date of
first consumer purchase. This warranty may be enforced by the first
consumer purchaser, provided that the product is utilized within the U.S.A.
Cobra will, without charge, repair or replace, at its option, defective
microTALK radios, chargers, products or component parts upon
delivery to the Cobra Factory Service department, accompanied by
proof of the date of first consumer purchase, such as a duplicated
copy of a sales receipt.
You must pay any initial shipping charges required to ship the product
for warranty service, but the return charges will be at Cobra’s expense,
if the product is repaired or replaced under warranty. This warranty gives
you specific legal rights, and you may also have other rights which may
vary from state to state.
Exclusions: This limited warranty does not apply: 1) To any product
damaged by accident; 2) In the event of misuse or abuse of the product
or as a result of unauthorized alterations or repairs; 3) If the serial number
has been altered, defaced, or removed; 4) If the owner of the product
resides outside the U.S.A.
All implied warranties, including warranties of merchantability and
fitness for a particular purpose are limited in duration to the length of this
warranty. Cobra shall not be liable for any incidental, consequential or other
damages; including, without limitation, damages resulting from loss of use
or cost of installation.
Some states do not allow limitations on how long an implied warranty
lasts and/or do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitations may not apply to you.
For Products Purchased Outside the U.S.A.
Please contact your local dealer for warranty information.
90-Day Warranty on Cobra Rechargeable Batteries
For products purchased in the U.S.A. and Canada.
Trademark Acknowledgement
Cobra®, microTALK®, Nothing Comes Close to a Cobra®, VibrAlert®
and the snake design are registered trademarks of Cobra Electronics
Corporation, USA. Cobra Electronics Corporation™ is a trademark
of Cobra Electronics Corporation, USA.
Warranty Warranty and Trademarks

Navigation menu
