Introduction
©2012 Cobra Electronics Corporation
6500 West Cortland Street
Chicago, Illinois 60707 USA
www.cobra.com
Making Life Easier and Safer
Staying in touch with your family and friends is
convenient and easy when using your microTALK®
radio. Some of the many uses you will discover include:
Communicating with others while hiking, biking, and working; keeping
track of family and friends at a crowded public event; checking with
travel companions in another car; talking with neighbors; arranging
meeting spots with others while shopping at the mall.
Secure your microTALK®
radio while on the go.
Carrying your microTALK® radio with you is easy
when using the belt clip or optional wrist strap.
The belt clip easily attaches to your belt, purse,
or backpack.
For Assistance in the U.S.A.
In this user’s manual, you should find all the information you need to
operate your microTALK® radio. If you require further assistance after
reading this manual, Cobra Electronics offers the following customer
assistance services:
Automated Help Desk
English only. 24 hours a day, 7 days a week 773-889-3087 (phone).
Customer Assistance Operators
English and Spanish. 8:00 a.m. to 5:30 p.m. Central Time,
Monday through Friday (except holidays) 773-889-3087 (phone).
Questions
English and Spanish. Faxes can be received at 773-622-2269 (fax).
Technical Assistance
English only. www.cobra.com (on-line: Frequently Asked Questions).
English and Spanish. productinfo@cobra.com (e-mail).
For Assistance Outside the U.S.A.
Contact Your Local Dealer
Customer Assistance
A1
Owner’s Manual
Nothing Comes Close to a Cobra®
Nothing Comes Close to a Cobra®
For more information or to
order any of our products,
please visit our website:
www.cobra.com
Belt Clip
Printed in China
Part No. 480-840-P
English
Version B
TWO-WAY RADIO MODEL
CXT545
CXT545_MANL.indd 1-1 1/17/13 8:11 AM
HI / LO
SCAN
HI / LO
SCAN
2

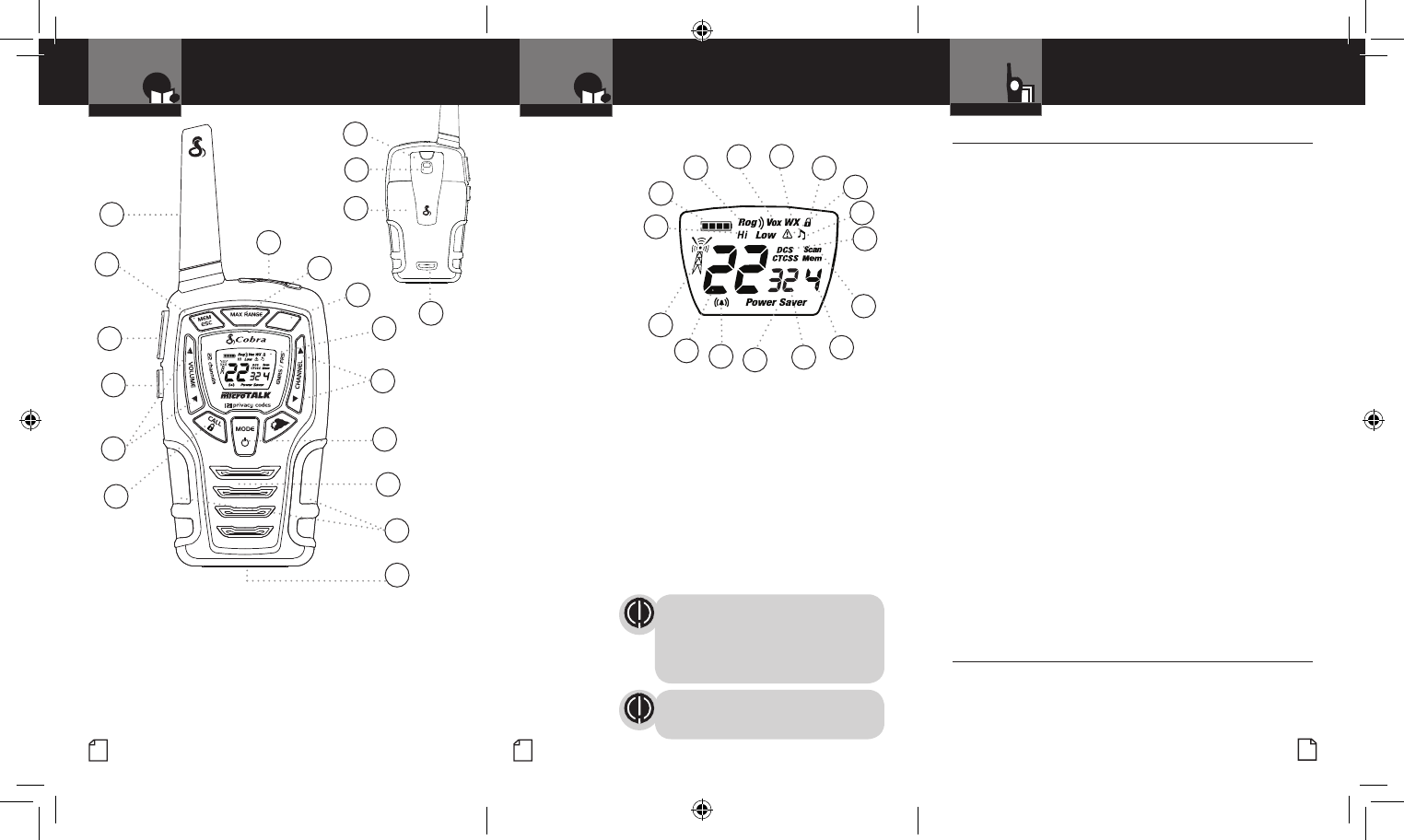

Product Features
1
3
7
4
8
11
5
15
14
16
17
10 6
9
1. Antenna
2. External Speaker/
Microphone/ USB Charge Jack
3. Mode/Power Button
4. Call/Lock Button
5. Channel Up/Down
Buttons
6. Backlit LCD Display
7. Speaker/Microphone
8. Volume Up/Down Buttons
9. LED Light Button
10. Talk Button
11. Memory/Escape Button
12. Max Range Hi/Lo Button
13. Scan Button
14. Wrist Strap Connection
15. Belt Clip
16. Battery Compartment
17. Battery Door Latch
18. Rubberized Grips
19. LED Flashlight
Product Features
A2
Introduction
12
13
19
18
Product Features
A3
Introduction
Features
• 22 Channels
Seven shared
with FRS/GMRS,
seven FRS only,
eight GMRS only.
• 10 Channel NOAA All
Hazards Radio
• Weather Alert
• 121 Privacy Codes
(38 CTCSS codes/
83 DCS codes)
• Hands-Free Operation
(VOX)
• VibrAlert®
Silent Paging
• Scan
Channels,
privacy codes
• Backlit LCD Display
• LED Flashlight
• Call Alert
Five selectable
tones
• Button Lock
• Speaker/
Microphone/
Charge Jack
• Roger Beep
Selectable On/Off
• Battery/Power Saver
• Keystroke Tones
• Battery Level
Indicator
• Low Battery
Audible Alert
• Auto Squelch
• Maximum
Range Extender
• Belt Clip
Important FCC Licensing Information
This radio operates on General Mobile Radio
Service (GMRS) frequencies which require a
Federal Communications Commission (FCC)
license. See page 15 for licensing and other
related information.
Maximum range may vary and is based on
unobstructed line-of-sight communication
under ideal conditions.
Backlit LCD Display
1. Battery Level Indicator
2. Roger Beep Icon
3. VOX Icon
4. Weather Icon
5. Lock Icon
6. Hi/Low Power Icon
7. DCS/CTCSS Icons
8. Scan/Memory Icon
9. Weather Alert Icon
10. DCS/CTCSS Privacy Code Numbers
11. Power Saver Icon
12. Channel Numbers
13. Receive/Transmit Icon
14. Memory Channel Number
15. VibrAlert® / Call Alert Icon
16. Key Tone Icon
1
2345
6
11
12
13
10
8
7
9
14
15
Limited One-Year Warranty on Radio(s) •
For Products Purchased in the U.S.A.
Cobra Electronics Corporation warrants that its Cobra microTALK® radios
and the component parts thereof, will be free of defects in workmanship and
materials for a period of one year from the date of first consumer purchase. This
warranty may be enforced by the first consumer purchaser, provided that the
product is utilized within the U.S.A.
Cobra will, without charge, repair or replace, at its option, defective microTALK®
radios, products or component parts upon delivery to the Cobra Factory Service
department, accompanied by proof of the date of first consumer purchase, such
as a duplicated copy of a sales receipt.
You must pay any initial shipping charges required to ship the product for
warranty service, but the return charges will be at Cobra’s expense,
if the product is repaired or replaced under warranty. This warranty gives you
specific legal rights, and you may also have other rights which may vary from
state to state.
Exclusions: This limited warranty does not apply: 1) To any product
damaged by accident; 2) In the event of misuse or abuse of the product or
as a result of unauthorized alterations or repairs; 3) If the serial number has
been altered, defaced, or removed; 4) If the owner of the product resides
outside the U.S.A.
All implied warranties, including warranties of merchantability and fitness for
a particular purpose are limited in duration to the length of this warranty. Cobra
shall not be liable for any incidental, consequential or other damages; including,
without limitation, damages resulting from loss of use or cost of installation.
Some states do not allow limitations on how long an implied warranty lasts
and/or do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitations may not apply to you.
For Products Purchased Outside the U.S.A.
Please contact your local dealer for warranty information.
90-Day Warranty on Rechargeable Batteries
For products purchased in the U.S.A. and Canada.
Trademark Acknowledgement •
Cobra®, microTALK®, Nothing Comes Close to a Cobra®, VibrAlert®
and the snake design are registered trademarks of Cobra Electronics
Corporation, USA. Cobra Electronics Corporation™ is a trademark
of Cobra Electronics Corporation, USA.
Warranty and Trademark
Acknowledgement
Warranty
17
Nothing Comes Close to a Cobra®
16
CXT545_MANL.indd 2-17 1/17/13 8:12 AM
Caring for Your microTALK® Radio •
Your microTALK® radio will give you years of trouble-free service
if cared for properly. Handle the radio gently. Keep the radio away from
dust. Never put the radio in water or in a damp place. Avoid exposure to
extreme temperatures.

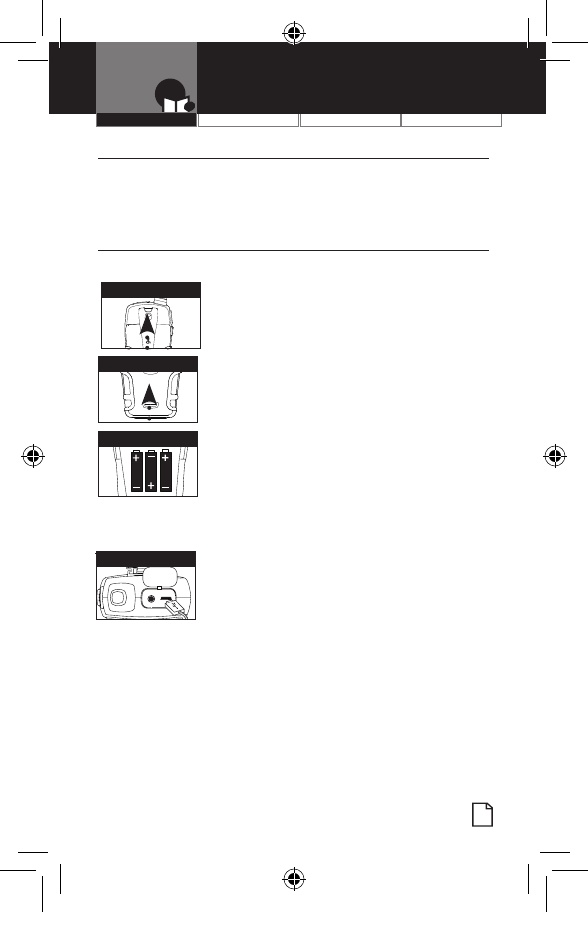

Installing Batteries •
To install or replace batteries:
1. Remove belt clip by releasing belt clip
latch and sliding clip up.
2. Pull up on the battery door latch to remove the
battery compartment cover.
3. Insert the supplied three AA rechargeable
batteries or non-rechargeable alkaline batteries.
Position batteries according to polarity markings.
4. Replace battery compartment cover and
belt clip.
• Do not attempt to charge alkaline batteries.
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc), or
rechargeable (Ni-Cd, Ni-MH, etc.) batteries.
To charge batteries in radio:
1. Check to see that the batteries have been
inserted properly.
2. Insert the cable into the charge jack located at
the top of the radio.
3. Plug the cable into USB power source.
Use only the supplied rechargeable batteries and charger for recharging
your Cobra microTALK radio.
Cobra recommends your radio is turned off while being charged.
Non-rechargeable alkaline batteries can also be used in your radio.
HI / LO
SCAN
HI / LO
SCAN
Remove Belt Clip
Pull Up Lock Latch
Insert Batteries
Operation Customer Assistance Warranty
Introduction
1
Nothing Comes Close to a Cobra®
Radio Charger Jack
CXT545_MANL.indd 1 1/17/13 8:12 AM

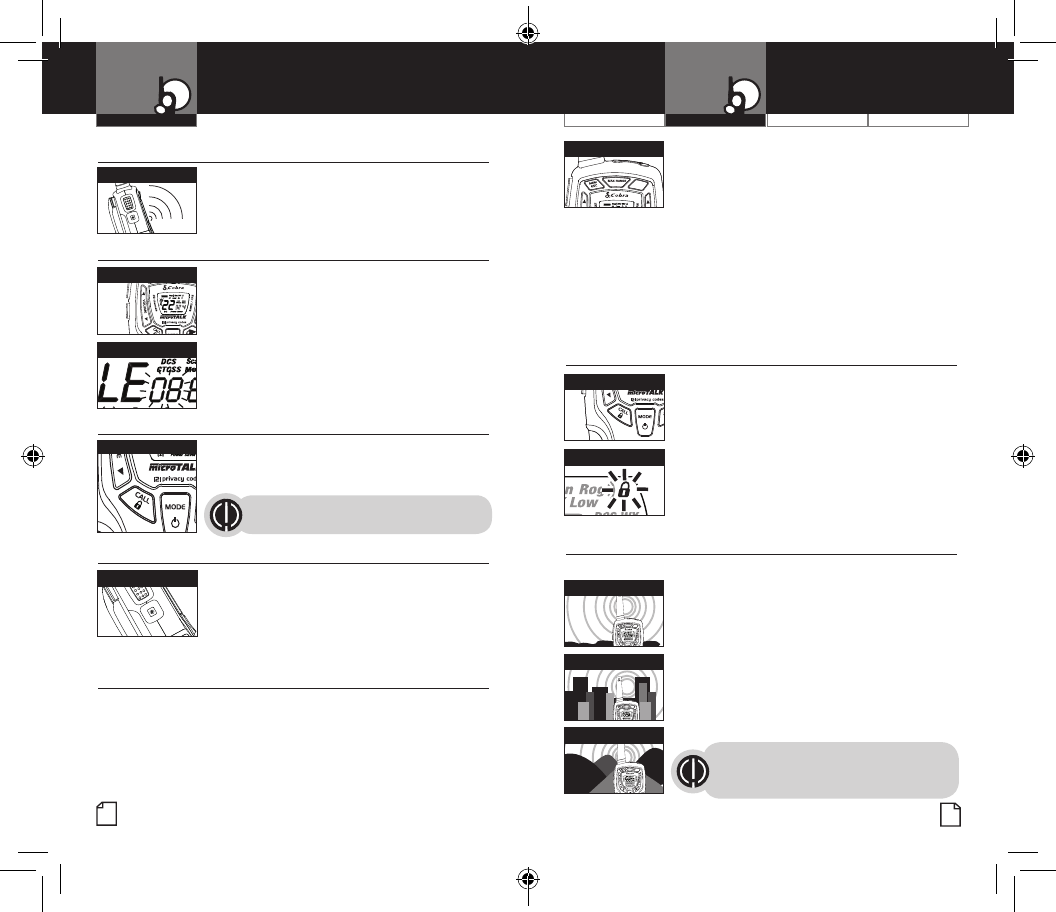

Turning on Your microTALK® Radio •
Press and hold the Mode/Power button until you hear
a series of audible tones indicating the radio is on.
Your microTALK® radio is now in Standby mode,
ready to receive transmissions. The radio is always
in Standby mode except when the Talk, Call or
Mode/Power buttons are pressed.
Customer Assistance WarrantyIntroduction Operation
Battery Low •
When battery power is low, the final bar in the Battery
Low icon will blink and an audible tone will sound twice
before the radio shuts off. Your batteries should be
replaced or recharged, if using rechargeable batteries.
Auto Battery Save •
If there are no transmissions within 10 seconds,
the radio will automatically switch to Battery Save
mode and the Power Saver icon will flash in the
display. This will not affect the radio’s ability to
receive incoming transmissions.
Communicating with Another Person •
1. Press and hold the Talk button.
2. With the microphone about two inches (5 cm) from
your mouth, speak in a normal voice.
3. Release the Talk button when you are
finished talking and listen for a response.
You cannot receive incoming calls while
pressing the Talk button.
Both radios must be tuned to the same
channel/privacy code to communicate.
2
Using Your Radio
Operation
3
Quick Start
1. Press and hold the Mode/Power button
to turn on your radio.
2. Press the Channel Up or Channel Down
button to select a channel.
Both radios must be tuned to the same
channel/privacy code to communicate.
3. Press and hold the Talk button while
speaking into the microphone.
4. When finished talking, release the Talk
button and listen for a response.
Battery Low
HI / LO
SCAN
Battery Save Mode
HI / LO
SCAN
Talk Button
Two Inches (5 cm)
from Mouth
To Select a Channel •
With the radio on, select any of the 22 channels by
pressing the Channel Up or Channel Down button.
Both radios must be tuned to the
same channel to communicate.
Channels 1 through 7 are shared with FRS/ GMRS.
Channels 8 through 14 are FRS only. Channels 15
through 22 are GMRS only.
See page 14 for FRS/GMRS frequency
allocations and compatibility charts.
HI / LO
SCAN
Channel Button
Channel Number
Nothing Comes Close to a Cobra®
The radio will display flashing battery icon
while charging.
Mode/Power

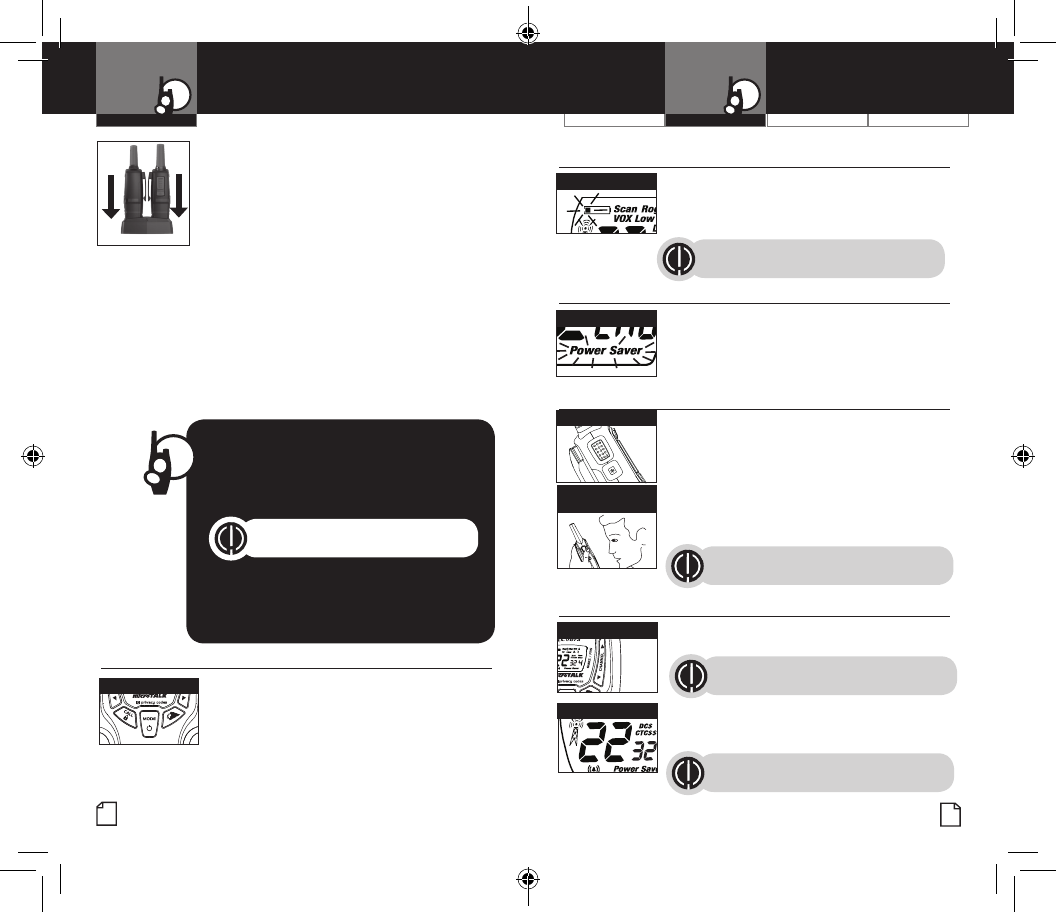

For charging microTALK radio(s) in desktop charger:
1. Insert radio(s) into desktop charger as shown.
2. Insert the micro-USB cable into jack on back
of charger.
3. Plug the cable into USB-compatible power port.
If charging light is not on, check position of radio. Radio should be
upright. The charge indicator light will stay on as long as the radio is in
the charging well, even after the batteries are fully charged.
Note: To charge a single radio, you can bypass the desktop charger and
simply insert the micro-USB’s connector directly into the charge jack
located on the top of the radio.
The radio will display flashing battery icon while charging.
Cobra recommends your radio be turned off while being charged.
Non-rechargeable alkaline batteries can also be used in your radio.
CXT545_MANL.indd 2-3 1/17/13 8:12 AM
To temporarily turn off auto squelch:
Press the Max Range Hi/Lo button for
less than five seconds.
To turn maximum range extender on:
– Press and hold the Max Range Hi/Lo button
for at least five seconds until you hear
two beeps which indicates the maximum
range extender is on.
To turn maximum range extender off:
– Press and release the Max Range Hi/Lo
button or change channels.
Lock Function •
The Lock function locks the Channel Up, Channel
Down and Mode/Power buttons to prevent
accidental operation.
To turn the lock on or off:
– Press and hold the Call/Lock button for
two seconds.
A double beep sound is used to confirm your lock
on or off request. When in Lock mode,
the Lock icon will be displayed.
Customer Assistance WarrantyIntroduction Operation
Using Your Radio
Operation
Listening for a Response •
Release the Talk button to receive incoming
transmissions. Your microTALK® radio is always in
Standby mode while the Talk or Call buttons are
not pressed.
To Adjust Volume •
Press the Volume Up or Volume
Down button.
A double beep sound is used to indicate
the minimum and maximum volume levels
(1 through 8).
Call Button •
Press and release the Call button.
The other person will hear a two second call tone. This
tone is used only to establish voice communications.
See page 13 on how to select between five
call tone settings.
45
HI / LO
SCAN
Volume Button
HI / LO
SCAN
Call Button
Listening
Volume Level
Lock Icon
HI / LO
SCAN
Light/Max Range
HI / LO
SCAN
Lock Button
LED/S.O.S. Flashlight •
Press and release the LED flashlight button below
the TALK button to use the LED flashlight located at
the bottom of the radio.
To activate S.O.S. function, press and hold the LED
flashlight button to turn on. Press and release to
turn off the flashlight or S.O.S. function.
Auto Squelch/Maximum Range •
Your microTALK® radio will automatically shut off weak transmissions
and unwanted noise due to terrain, conditions or if you’ve reached your
Maximum Range limit.
You can temporarily turn off auto squelch or turn on maximum range
extender, allowing all signals to be received and extending the maximum
range of your radio.
HI / LO
SCAN
LED/S.O.S. Flashlight
microTALK® Range •
Your range will vary depending on terrain and conditions.
In flat, open country your radio will
operate at maximum range.
Buildings and foliage in the path of the
signal can reduce the range of the radio.
Dense foliage and hilly terrain will further
reduce the range of the radio.
On FRS Channels 8 through 14, your radio
automatically switches to low power, which
will limit the range the radio can communicate.
Remember, you can achieve maximum
range by using maximum range extender.
See page 4 for details.
HI / LO
SCAN
HI / LO
SCAN
HI / LO
SCAN
Maximum Range
Reduced Range
Reduced Range
Nothing Comes Close to a Cobra®
CXT545_MANL.indd 4-5 1/17/13 8:12 AM

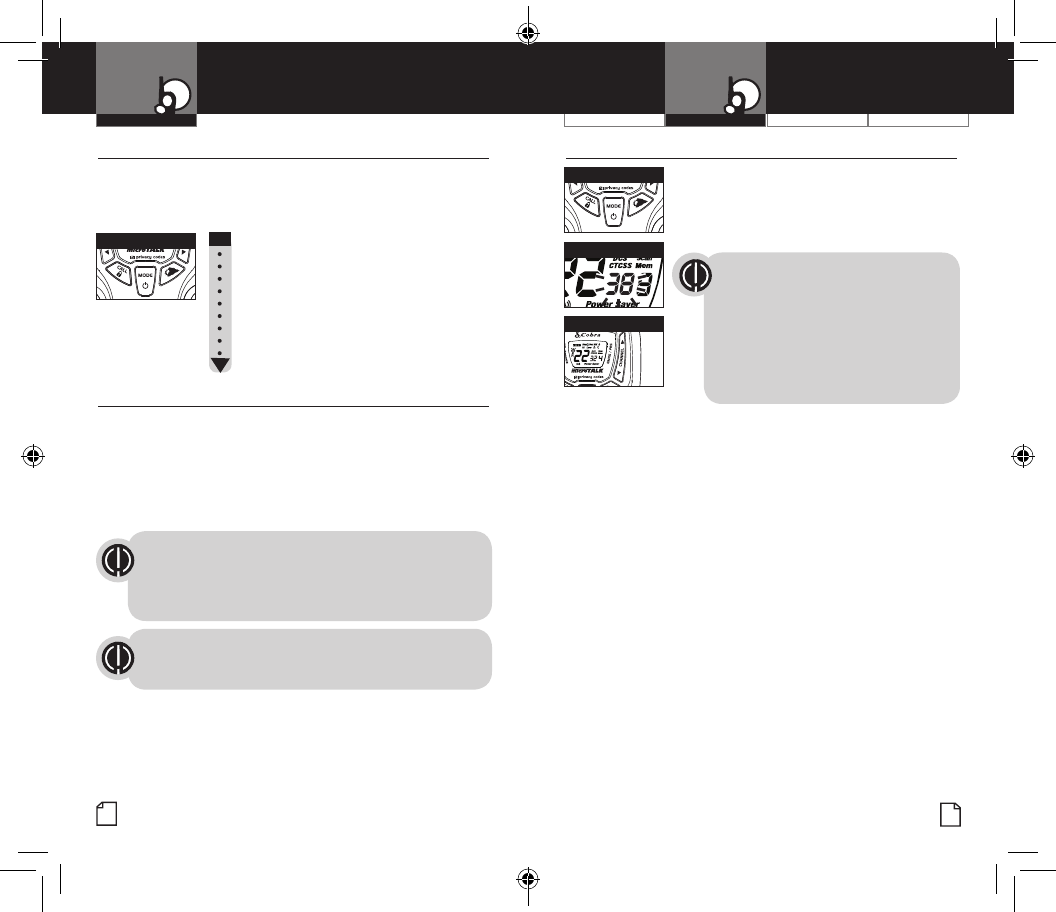

Scrolling Through the Mode Function •
By scrolling through the Mode function, you will be able to
select or turn on preferred features of your microTALK® radio. When
scrolling through the Mode function, your radio features
will be displayed in the same predetermined order:
Set CTCSS Privacy Codes
Set DCS Privacy Codes
Set Vox On/Off
Set Vox Sensitivity
Set Call Tones 1-10
Set VibrAlert On/Off
Set Roger Beep On/Off
Set Key Tones On/Off
Privacy Codes •
Your microTALK radio incorporates two advanced coded squelch
systems that can help to reduce interference from other users
on any given channel. CTCSS (Continuous Tone Coded Squelch
System) provides 38 privacy codes and DCS (Digitally Coded Squelch)
provides 83 privacy codes. This provides a total of 121 Privacy
Codes. Either system can be used on all channels, but both systems
cannot be used on the same channel at the same time.
To successfully communicate using a privacy code, both
the sending and receiving radios must be tuned to the same
channel and to the same privacy code system (CTCSS or DCS)
and privacy code number. Each channel will remember the last
privacy code system and number you select.
The privacy code 00 is not a privacy code, but allows all signals
to be heard on a channel that is set to 00 on both
the CTCSS and DCS systems.
Set CTCSS Privacy Codes •
To select a CTCSS privacy code:
1. After selecting a channel, press
the Mode/Power button until the CTCSS icon
appears and the small numbers next to the
channel number flash on the display.
If DCS is turned on at the channel selected,
the display will flash the
CTCSS icon and “OFF.” To switch from
DCS to CTCSS, press the Channel Up
or Channel Down button while the display
is flashing “OFF.” The display
will then show the small numbers flashing
and you will then be able
to proceed to step 2.
2. Press using the Channel Up or Channel Down
button to select a privacy code. You can hold the
Up or Down button for fast advance.
3. When your desired CTCSS privacy code is
displayed, choose one of the following:
a. Press the Mode/Power button to enter the
new setting and proceed to other functions.
b. Press and hold the Mode button to enter the
new setting and return to Standby mode.
c. Press Talk or Call/Lock button to enter the
new setting and return to Standby mode.
d. Do not press any buttons for 15 seconds
to enter the new setting and return to
Standby mode.
Customer Assistance WarrantyIntroduction Operation
Using Your Radio
Operation
67
Privacy Code
Nothing Comes Close to a Cobra®
HI / LO
SCAN
Mode/Power
HI / LO
SCAN
Mode/Power
HI / LO
SCAN
Channel Button
CXT545_MANL.indd 6-7 1/17/13 8:12 AM
