Cobra Electronics 2146A FRS/GMRS TRANSCEIVER User Manual
Cobra Electronics Corporation FRS/GMRS TRANSCEIVER
User Manual
Introduction
©2014 Cobra Electronics Corporation
6500 West Cortland Street
Chicago, Illinois 60707 USA
www.cobra.com
Making Life Easier and Safer
Staying in touch with your family and friends is
convenient and easy when using your microTALK®
radio. Some of the many uses you will discover include:
Communicating with others while hiking, biking, and working; keeping
track of family and friends at a crowded public event; checking with
travel companions in another car; talking with neighbors; arranging
meeting spots with others while shopping at the mall.
Secure your microTALK®
radio while on the go.
Carrying your microTALK® radio with you is easy
when using the belt clip or optional wrist strap.
The belt clip easily attaches to your belt, purse,
or backpack.
For Assistance in the U.S.A.
In this user’s manual, you should find all the information you need to
operate your microTALK® radio. If you require further assistance after
reading this manual, Cobra Electronics offers the following customer
assistance services:
Automated Help Desk
English only. 24 hours a day, 7 days a week 773-889-3087 (phone).
Customer Assistance Operators
English and Spanish. 8:00 a.m. to 5:30 p.m. Central Time,
Monday through Friday (except holidays) 773-889-3087 (phone).
Questions
English and Spanish. Faxes can be received at 773-622-2269 (fax).
Technical Assistance
English only. www.cobra.com (on-line: Frequently Asked Questions).
English and Spanish. productinfo@cobra.com (e-mail).
For Assistance Outside the U.S.A.
Contact Your Local Dealer
Customer Assistance
A1
Owner’s Manual
Nothing Comes Close to a Cobra®
Nothing Comes Close to a Cobra®
For more information or to
order any of our products,
please visit our website:
www.cobra.com
Belt Clip
Printed in China
Part No. 480-987-P
English
Version A
TWO-WAY RADIO MODEL
CXT645
CXT645_MANL.indd 1-1 9/5/14 9:55 AM
2

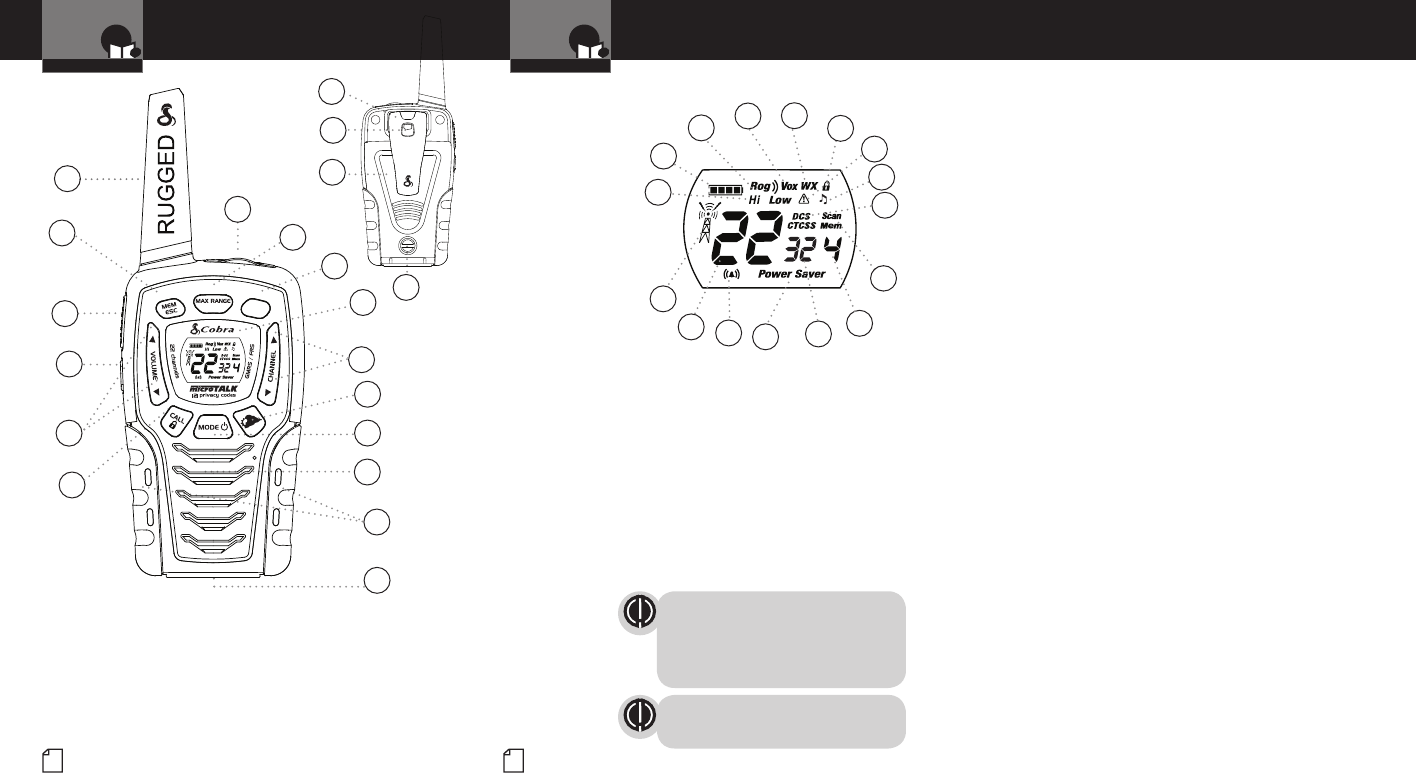

Product Features
1
3
7
4
8
11
5
15
14
16
17
10 6
9
1. Antenna
2. External Speaker/
Microphone/ USB Charge Jack
3. Mode/Power Button
4. Call/Lock Button
5. Channel Up/Down
Buttons
6. Backlit LCD Display
7. Speaker/Microphone
8. Volume Up/Down Buttons
9. LED Light Button
10. Push-to-Talk Button
11. Memory/Escape Button
12. Max Range Hi/Lo Button
13. Scan Button
14. Wrist Strap Connection
15. Belt Clip
16. Battery Compartment
17. Battery Door Screw
18. Rubberized Grips
19. LED Flashlight
20. Weather Button
Product Features
A2
Introduction
12
13
19
18
Product Features
A3
Introduction
Features
• 22 Channels
Seven shared
with FRS/GMRS,
seven FRS only,
eight GMRS only.
• 10 Channel
Weather Radio
• Weather Alert
• 121 Privacy Codes
(38 CTCSS codes/
83 DCS codes)
• Hands-Free Operation
(VOX)
• VibrAlert®
Silent Paging
• Scan
Channels,
privacy codes
• Backlit LCD Display
• LED Flashlight
• Call Alert
Five selectable
tones
• Button Lock
• Speaker/
Microphone/
Charge Jack
• Roger Beep
Selectable On/Off
• Battery/Power Saver
• Keystroke Tones
• Battery Level
Indicator
• Low Battery
Audible Alert
• Auto Squelch
• Maximum
Range Extender
• Belt Clip
Important FCC Licensing Information
This radio operates on General Mobile Radio
Service (GMRS) frequencies which require a
Federal Communications Commission (FCC)
license. See page 19 for licensing and other
related information.
Maximum range may vary and is based on
unobstructed line-of-sight communication
under ideal conditions.
Backlit LCD Display
1. Battery Level Indicator
2. Roger Beep Icon
3. VOX Icon
4. Weather Icon
5. Lock Icon
6. Hi/Low Power Icon
7. DCS/CTCSS Icons
8. Scan/Memory Icon
9. Weather Alert Icon
10. DCS/CTCSS Privacy Code Numbers
11. Power Saver Icon
12. Channel Numbers
13. Receive/Transmit Icon
14. Memory Channel Number
15. VibrAlert® / Call Alert Icon
16. Key Tone Icon
1
2345
6
11
12
13
10
8
7
9
14
15
NOTES
16
HI / LO
SCAN
20
CXT645_MANL.indd 2-17 9/5/14 9:55 AM
Caring for Your microTALK® Radio •
Your microTALK® radio will give you years of trouble-free service
if cared for properly. Handle the radio gently. Keep the radio away from
dust. Never put the radio in water or in a damp place. Avoid exposure to
extreme temperatures.

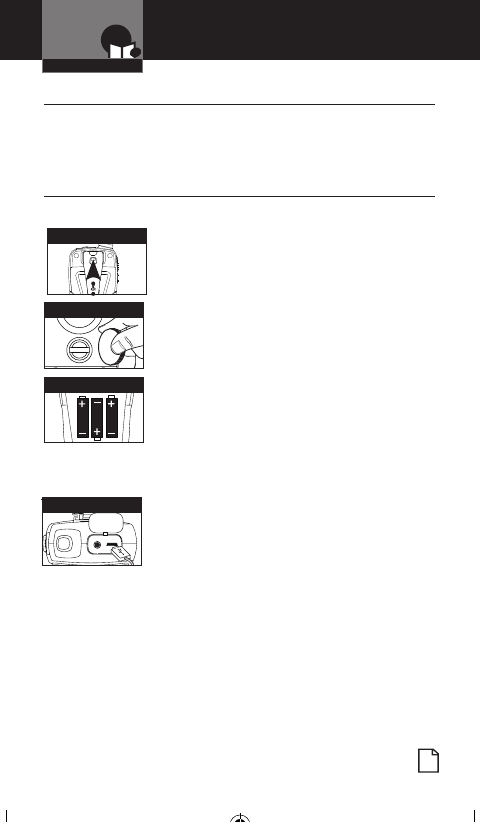

Installing Batteries •
To install or replace batteries:
1. Remove belt clip by releasing belt clip
latch and sliding clip up.
2. Using a flat head screw driver or edge of a coin
(a quarter may be used), remove the screw
securing the back battery panel.
3. Insert the supplied three AA rechargeable
batteries or non-rechargeable alkaline batteries.
Position batteries according to polarity markings.
4. Replace battery compartment cover, screw and
belt clip.
• Do not attempt to charge alkaline batteries.
• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc), or
rechargeable (Ni-Cd, Ni-MH, etc.) batteries.
To charge batteries in radio:
1. Check to see that the batteries have been
inserted properly.
2. Insert the cable into the charge jack located at
the top of the radio.
3. Plug the cable into USB power source.
Use only the supplied rechargeable batteries and charger for recharging
your Cobra microTALK radio.
Cobra recommends your radio is turned off while being charged.
Non-rechargeable alkaline batteries can also be used in your radio.
Remove Belt Clip
Remove Screw
Insert Batteries
Introduction
1
Nothing Comes Close to a Cobra®
Radio Charger Jack
CXT645_MANL.indd 1 9/5/14 9:55 AM
Operation

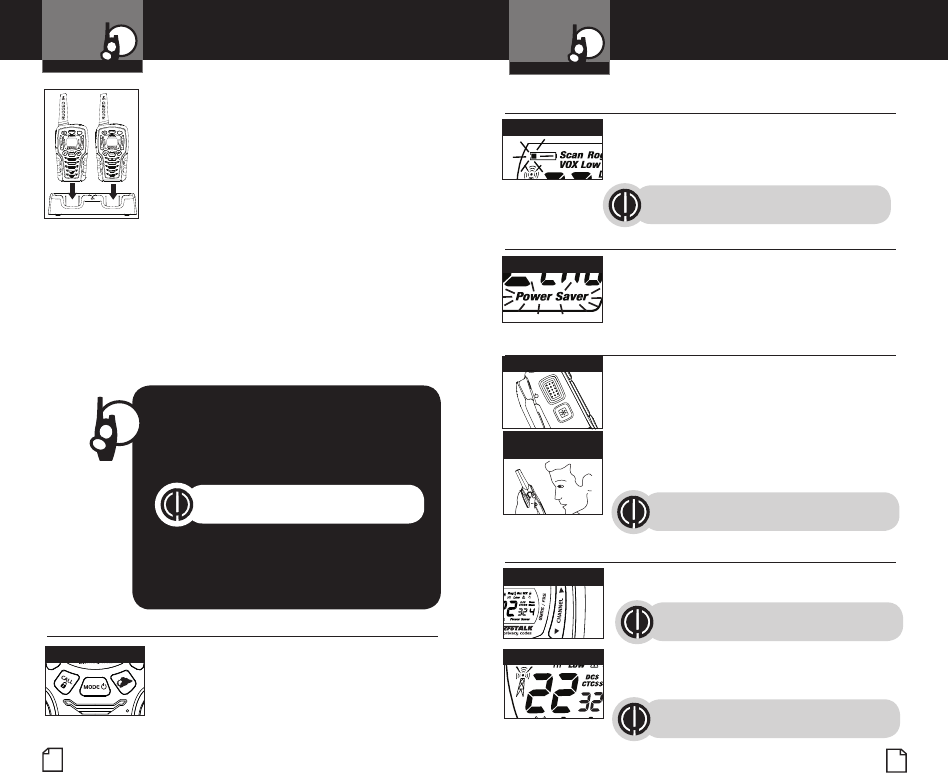

Battery Low •
When battery power is low, the final bar in the Battery
Low icon will blink and an audible tone will sound twice
before the radio shuts off. Your batteries should be
replaced or recharged, if using rechargeable batteries.
Auto Battery Save •
If there are no transmissions within 10 seconds,
the radio will automatically switch to Battery Save
mode and the Power Saver icon will flash in the
display. This will not affect the radio’s ability to
receive incoming transmissions.
Communicating with Another Person •
1. Press and hold the Talk button.
2. With the microphone about two inches (5 cm) from
your mouth, speak in a normal voice.
3. Release the Talk button when you are
finished talking and listen for a response.
You cannot receive incoming calls while
pressing the Talk button.
Both radios must be tuned to the same
channel/privacy code to communicate.
2
Using Your Radio
Operation
3
Battery Low
Battery Save Mode
Talk Button
Two Inches (5 cm)
from Mouth
To Select a Channel •
With the radio on, select any of the 22 channels by
pressing the Channel Up or Channel Down button.
Both radios must be tuned to the
same channel to communicate.
Channels 1 through 7 are shared with FRS/ GMRS.
Channels 8 through 14 are FRS only. Channels 15
through 22 are GMRS only.
See page 18 for FRS/GMRS frequency
allocations and compatibility charts.
Channel Number
Nothing Comes Close to a Cobra®
The radio will display flashing battery icon
while charging.
Turning on Your microTALK® Radio •
Press and hold the Mode/Power button until you hear
a series of audible tones indicating the radio is on.
Your microTALK® radio is now in Standby mode,
ready to receive transmissions. The radio is always
in Standby mode except when the Talk, Call or
Mode/Power buttons are pressed.
Quick Start
1. Press and hold the Mode/Power button
to turn on your radio.
2. Press the Channel Up or Channel Down
button to select a channel.
Both radios must be tuned to the same
channel/privacy code to communicate.
3. Press and hold the Talk button while
speaking into the microphone.
4. When finished talking, release the Talk
button and listen for a response.
For charging microTALK radio(s) in desktop charger:
1. Insert radio(s) into desktop charger as shown.
2. Insert the micro-USB cable into jack on back
of charger.
3. Plug the cable into USB-compatible power port.
For pluggable equipment, the socket-outlet shall
be installed near the equipment and shall be easily
accessible.
If charging light is not on, check position of radio. Radio should be
upright. The charge indicator light will stay on as long as the radio is in
the charging well, and the light will go off when the charging is complete.
Note: To charge a single radio, you can bypass the desktop charger and
simply insert the micro-USB’s connector directly into the charge jack
located on the top of the radio.
The radio will display flashing battery icon while charging.
Cobra recommends your radio be turned off while being charged.
Non-rechargeable alkaline batteries can also be used in your radio.
HI / LO
SCAN
HI / LO
SCAN
Mode/Power
HI / LO
SCAN
Channel Button
HI / LO
SCAN
CXT645_MANL.indd 2-3 9/5/14 9:55 AM

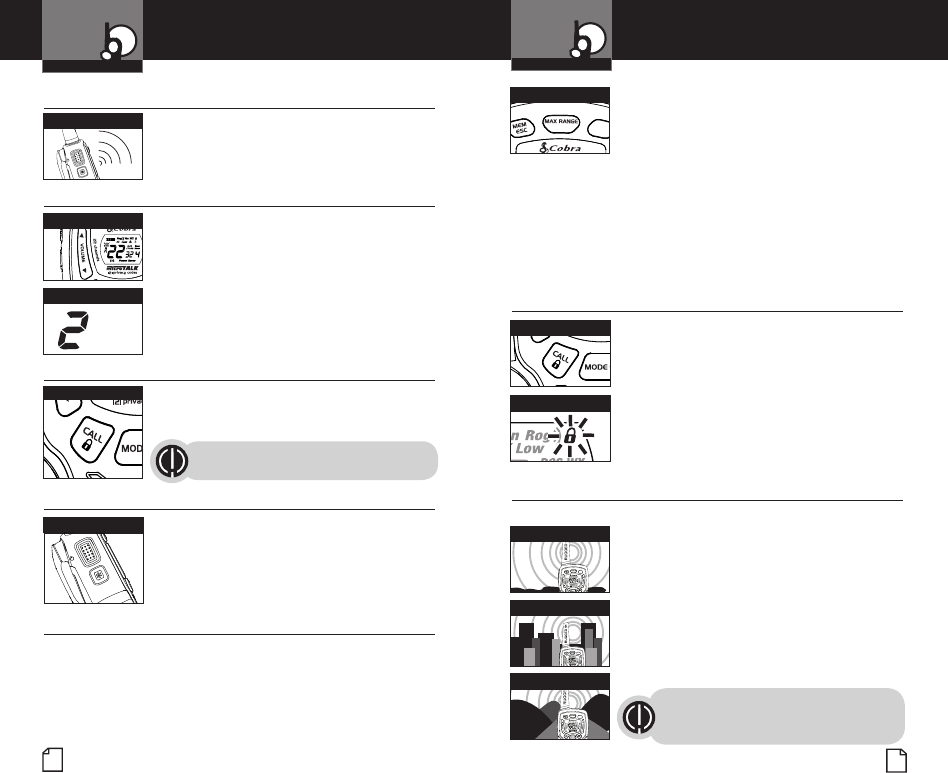

To temporarily turn off auto squelch:
Press the Max Range Hi/Lo button for
less than five seconds.
To turn maximum range extender on:
– Press and hold the Max Range Hi/Lo button
for at least five seconds until you hear
two beeps which indicates the maximum
range extender is on.
To turn maximum range extender off:
– Press and release the Max Range Hi/Lo
button or change channels.
Lock Function •
The Lock function locks the Channel Up, Channel
Down, Volume Up, Volume Down and Mode/
Power buttons to prevent accidental operation.
To turn the lock on or off:
– Press and hold the Call/Lock button for
two seconds.
A double beep sound is used to confirm your lock
on or off request. When in Lock mode,
the Lock icon will be displayed.
Operation
Using Your Radio
Operation
Listening for a Response •
Release the Talk button to receive incoming
transmissions. Your microTALK® radio is always in
Standby mode while the Talk or Call buttons are
not pressed.
To Adjust Volume •
Press the Volume Up or Volume
Down button.
A double beep sound is used to indicate
the minimum and maximum volume levels
(1 through 8).
Call Button •
Press and release the Call button.
The other person will hear a two second call tone. This
tone is used only to establish voice communications.
See page 12 on how to select between ten
call tone settings.
45
HI / LO
SCAN
Volume Button
HI / LO
SCAN
Call Button
Listening
Volume Level
Lock Icon
HI / LO
SCAN
Light/Max Range
HI / LO
SCAN
Lock Button
LED/S.O.S. Flashlight •
Press and release the LED flashlight button below
the TALK button to use the LED flashlight located at
the bottom of the radio.
To activate S.O.S. function, press and hold the LED
flashlight button to turn on. Press and release to
turn off the flashlight or S.O.S. function.
Auto Squelch/Maximum Range •
Your microTALK® radio will automatically shut off weak transmissions
and unwanted noise due to terrain, conditions or if you’ve reached your
Maximum Range limit.
You can temporarily turn off auto squelch or turn on maximum range
extender, allowing all signals to be received and extending the maximum
range of your radio.
LED/S.O.S. Flashlight
microTALK® Range •
Your range will vary depending on terrain and conditions.
In flat, open country your radio will
operate at maximum range.
Buildings and foliage in the path of the
signal can reduce the range of the radio.
Dense foliage and hilly terrain will further
reduce the range of the radio.
On FRS Channels 8 through 14, your radio
automatically switches to low power, which
will limit the range the radio can communicate.
Remember, you can achieve maximum
range by using maximum range extender.
See page 4 for details.
HI / LO
SCAN
HI / LO
SCAN
HI / LO
SCAN
Maximum Range
Reduced Range
Reduced Range
Nothing Comes Close to a Cobra®
CXT645_MANL.indd 4-5 9/5/14 9:55 AM

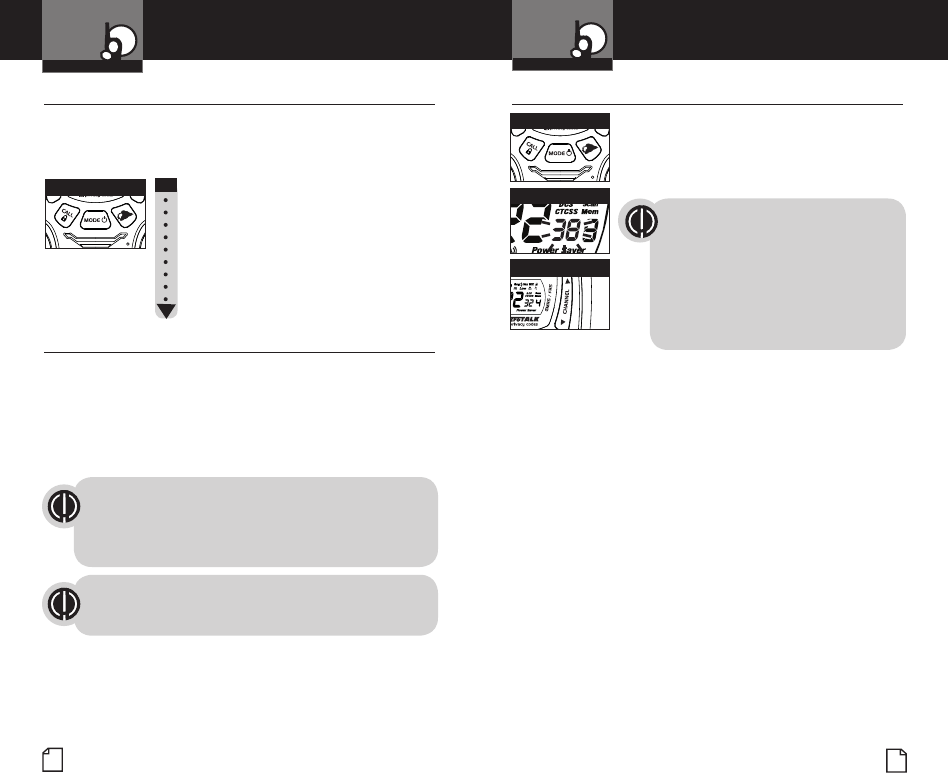

Scrolling Through the Mode Function •
By scrolling through the Mode function, you will be able to
select or turn on preferred features of your microTALK® radio. When
scrolling through the Mode function, your radio features
will be displayed in the same predetermined order:
Set CTCSS Privacy Codes
Set DCS Privacy Codes
Set Vox On/Off
Set Vox Sensitivity
Set Call Tones 1-10
Set VibrAlert On/Off
Set Roger Beep On/Off
Set Key Tones On/Off
Privacy Codes •
Your microTALK radio incorporates two advanced coded squelch
systems that can help to reduce interference from other users
on any given channel. CTCSS (Continuous Tone Coded Squelch
System) provides 38 privacy codes and DCS (Digitally Coded Squelch)
provides 83 privacy codes. This provides a total of 121 Privacy
Codes. Either system can be used on all channels, but both systems
cannot be used on the same channel at the same time.
To successfully communicate using a privacy code, both
the sending and receiving radios must be tuned to the same
channel and to the same privacy code system (CTCSS or DCS)
and privacy code number. Each channel will remember the last
privacy code system and number you select.
The privacy code 00 is not a privacy code, but allows all signals
to be heard on a channel that is set to 00 on both
the CTCSS and DCS systems.
Set CTCSS Privacy Codes •
To select a CTCSS privacy code:
1. After selecting a channel, press
the Mode/Power button until the CTCSS icon
appears and the small numbers next to the
channel number flash on the display.
If DCS is turned on at the channel selected,
the display will flash the
CTCSS icon and “OFF.” To switch from
DCS to CTCSS, press the Channel Up
or Channel Down button while the display
is flashing “OFF.” The display
will then show the small numbers flashing
and you will then be able
to proceed to step 2.
2. Press using the Channel Up or Channel Down
button to select a privacy code. You can hold the
Up or Down button for fast advance.
3. When your desired CTCSS privacy code is
displayed, choose one of the following:
a. Press the Mode/Power button to enter the
new setting and proceed to other functions.
b. Press Talk or Call/Lock button to enter the
new setting and return to Standby mode.
c. Do not press any buttons for 15 seconds
to enter the new setting and return to
Standby mode.
Operation
Using Your Radio
Operation
67
Privacy Code
Nothing Comes Close to a Cobra®
Mode/Power
HI / LO
SCAN
Mode/Power
HI / LO
SCAN
Channel Button
HI / LO
SCAN
CXT645_MANL.indd 6-7 9/5/14 9:55 AM
OperationOperation Mode Functions
89
Nothing Comes Close to a Cobra®

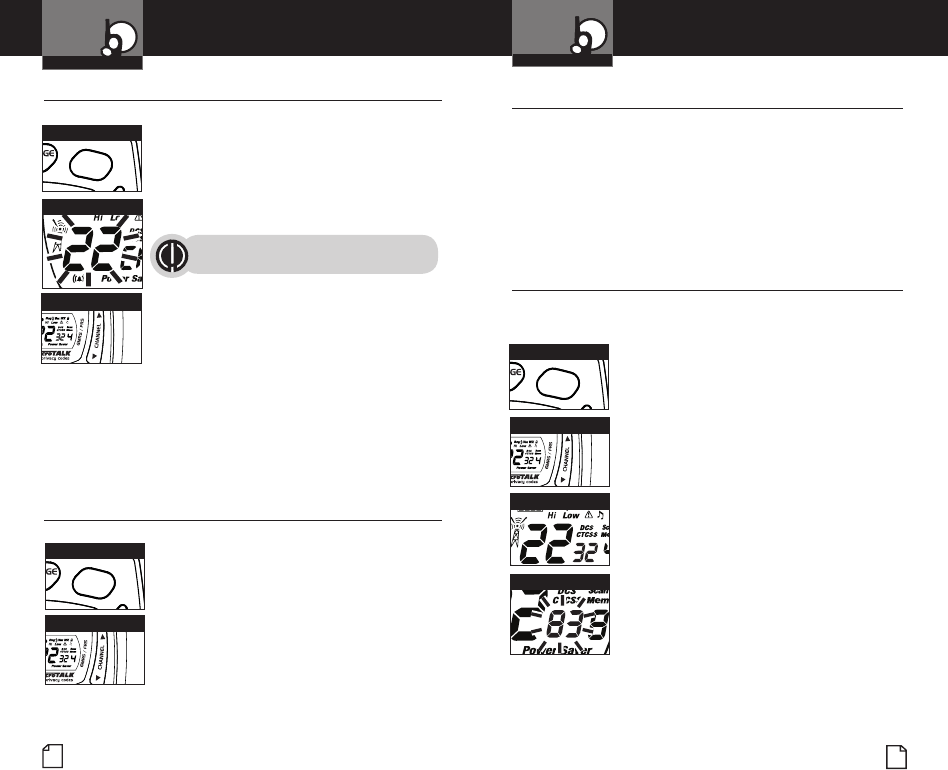

Set DCS Privacy Codes •
To select a DCS privacy code:
1. After selecting a channel, press the Mode/Power
button until the DCS icon appears and the small
numbers flash on the display (01 through 83).
2. Press using the Channel Up or Channel Down button to select a DCS
privacy code. You can hold the Up or Down button for fast advance.
3. When DCS privacy code is displayed, choose one of the following:
a. Press the Mode/Power button to enter the new setting and
proceed to other functions.
b. Press Talk or Call/Lock button to enter the new setting and return
to Standby mode.
c. Do not press any buttons for 15 seconds to enter the new setting
and return to Standby mode.
DCS Privacy Code If CTCSS is turned on at the channel
selected, the display will flash the DCS
icon and “OFF.” To switch from CTCSS to
DCS, press the Channel Up or Channel
Down button while the display is flashing
“OFF.” The display will then show the
small numbers flashing and you will then
be able to proceed to step 2.
Voice Activated Transmit (VOX) •
In VOX mode, your microTALK® radio can be used “hands-free,” automatically
transmitting when you speak. You can set the VOX sensitivity level to fit the
volume of your voice and avoid transmissions triggered by background noise.
To turn VOX mode on or off:
1. Press the Mode/Power button until the VOX icon
flashes on the display. The current On or Off
setting is displayed.
2. Press the Channel Up or Channel Down
button to turn VOX On or Off.
3. Choose one of the following:
a. Press the Mode/Power button to enter the
new setting and proceed to other functions.
b. Press Talk or Call/Lock button to enter the
new setting and return to Standby mode.
c. Do not press any buttons for 15 seconds to enter
the new setting and return to Standby mode.
To set VOX sensitivity:
1. Press the Mode/Power button until the VOX icon
flashes and the current sensitivity level is displayed.
The current VOX sensitivity level is displayed
with letters “L” and a Number 1 through 5,
with Number 5 being the most sensitive level
and Number 1 being the least sensitive level.
2. Press the Channel Up or Channel Down
button to change the setting.
3. Choose one of the following:
a. Press the Mode/Power button to enter the
new setting and proceed to other functions.
b. Press Talk or Call/Lock button to enter the
new setting and return to Standby mode.
c. Do not press any buttons for 15 seconds to enter
the new setting and return to Standby mode.
VOX Icon
VOX Sensitivity Level
Channel Button
HI / LO
SCAN
Mode/Power
HI / LO
SCAN
Mode/Power
HI / LO
SCAN
Channel Button
HI / LO
SCAN
Mode/Power
HI / LO
SCAN
Channel Button
HI / LO
SCAN
CXT645_MANL.indd 8-9 9/5/14 9:55 AM

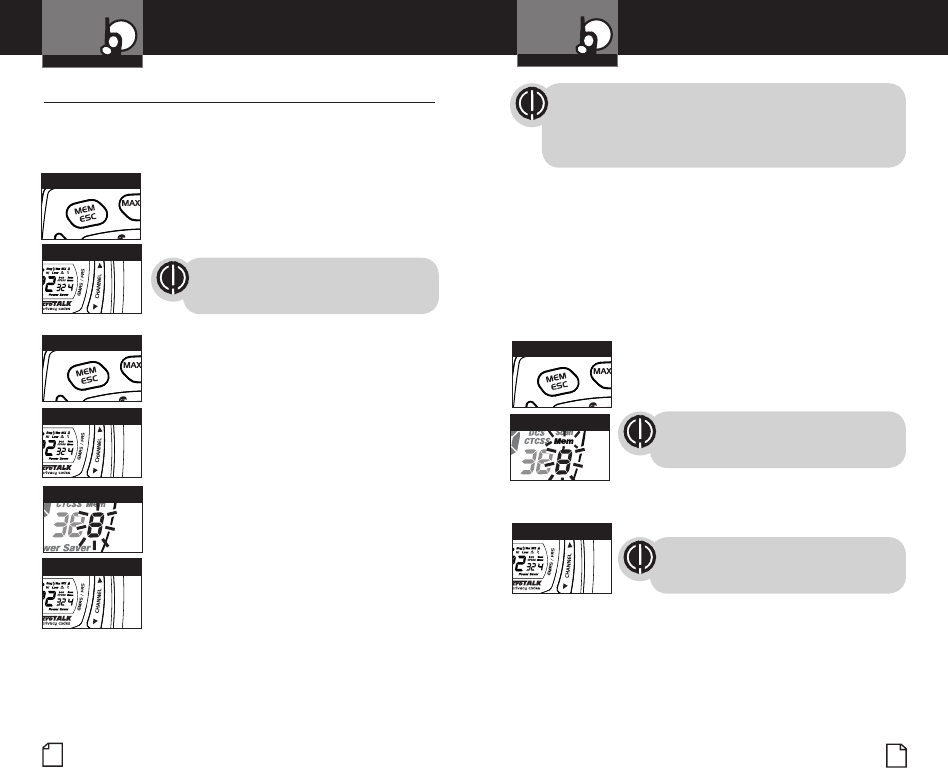

10 Memory Locations •
Your microTALK radio has 10 Memory Locations for storing
your most frequently used channels and channel/privacy code
combinations. These Memory Locations can be selected individually or
can be scanned. (See page 14 for memory location scan.)
To program a memory location:
1. Press the MEM/ESC button. Memory icon and
the Memory Location show on the display.
2. Press the Channel Up or Channel Down button
to select the memory location (0 through 9).
If a location has been programmed before,
its associated channel/privacy code will be
shown on the display.
3. Press the MEM/ESC button to enter a
new memory location or edit an already
programmed memory location.
4. Press the Channel Up or Channel Down button
to select the memory location.
5. Press the MEM/ESC button. The channel
numbers will flash on the display.
6. Press the Channel Up or Channel Down button
to select a channel (1 through 22).
7. Press the MEM/ESC button. The CTCSS icon
and privacy code numbers will flash on the
display.
8. Choose one of the following:
a. Press the Channel Up or Channel Down
button to select a CTCSS privacy code (01
through 38) for the channel.
b. Press the MEM/ESC button to switch from
CTCSS to DCS. The DCS icon and privacy code
numbers will flash on the display. The Channel
Up or Channel Down button can then be used
to select a DCS privacy code (01 through 83)
for the channel.
Operation
Operation Mode Functions
10 11
Nothing Comes Close to a Cobra®
HI / LO
SCAN
MEM/ESC Button
Memory Channel
If “oF” flashes in place of the privacy code numbers,
a privacy code is already set in the opposite (CTCSS
or DCS) system. Press the Channel Up or Channel Down
button to cancel the opposite code and select a privacy
code from the active system for the selected channel.
9. Choose one of the following:
a. Press the MEM/ESC button to enter the channel/privacy code
in the selected memory location. Radio then proceeds to next
memory location, which will blink.
b. Press and hold the MEM/ESC button to save the current state of
the Set Memory Function and return to Standby mode.
To recall a stored memory channel location:
1. Press the MEM/ESC button until the Memory
icon and the memory location number flash on
the display.
2. Press the Channel Up or Channel Down button
to select a memory location (0 through 9).
If a location has been programmed before,
its associated channel/privacy code will be
shown on the display.
3. Press and hold the MEM/ESC button to return
to Standby mode on the selected memory
location.
A memory location can be reprogrammed
at any time it is displayed. Press the
MEM/ESC button to begin.
Memory Channel
Channel Button
HI / LO
SCAN
Channel Button
HI / LO
SCAN
Channel Button
HI / LO
SCAN
Channel Button
HI / LO
SCAN
HI / LO
SCAN
MEM/ESC Button
HI / LO
SCAN
MEM/ESC Button
CXT645_MANL.indd 10-11 9/5/14 9:55 AM
VibrAlert® and Call Alert •
Your microTALK® radio can alert you to incoming
signals by sounding an audible call tone, by
vibrating silently or both.
To change call settings:
1. Press the Mode button until the Call Setting
icon flashes on the display. The current setting
(“01” vibrate + ring, “02” ring only) is displayed.
2. Press the Channel Up or Channel Down button to
change the call setting.
3. Choose one of the following:
a. Press the Mode button to enter the new
setting and proceed to other functions.
b. Press Talk or Call/Lock button to enter the
new setting and return to Standby mode.
c. Do not press any buttons for 15 seconds to enter
the new setting and return to Standby mode.
Operation
Mode Functions
12 13
Operation Mode Functions
Nothing Comes Close to a Cobra®
Ten Call Tone Settings •
You can choose between ten different Call Tone Settings to transmit
a call alert.
To change a call tone setting:
1. Press the Mode/Power button until the
letter “C” and the current call tone number
(01 through 10) is displayed. The current
call tone will sound for three seconds.
2. Press the Channel Up or Channel Down button
to hear the other call tone settings.
3. Choose one of the following:
a. Press the Mode/Power button to enter the
new setting and proceed to other functions.
b. Press Talk or Call/Lock button to enter the
new setting and return to Standby mode.
c. Do not press any buttons for 15 seconds to enter
the new setting and return to Standby mode.
Call Tone Setting
Call Tone On/
Vibrate On
Call Tone On/
Vibrate Off
Roger Beep Confirmation Tone •
Your listener will hear an audible tone when you release the Talk button.
This alerts the other party that you are finished talking and it is OK for
them to speak.
To turn roger beep on or off:
1. Press the Mode/Power button until the
Roger Beep icon flashes. The current
on or off setting is displayed.
2. Press the Channel Up or Channel Down button
to select roger beep on or off.
3. Choose one of the following:
a. Press the Mode/Power button to enter the
new setting and proceed to other functions.
b. Press Talk or Call/Lock button to enter the
new setting and return to Standby mode.
c. Do not press any buttons for 15 seconds to enter
the new setting and return to Standby mode.

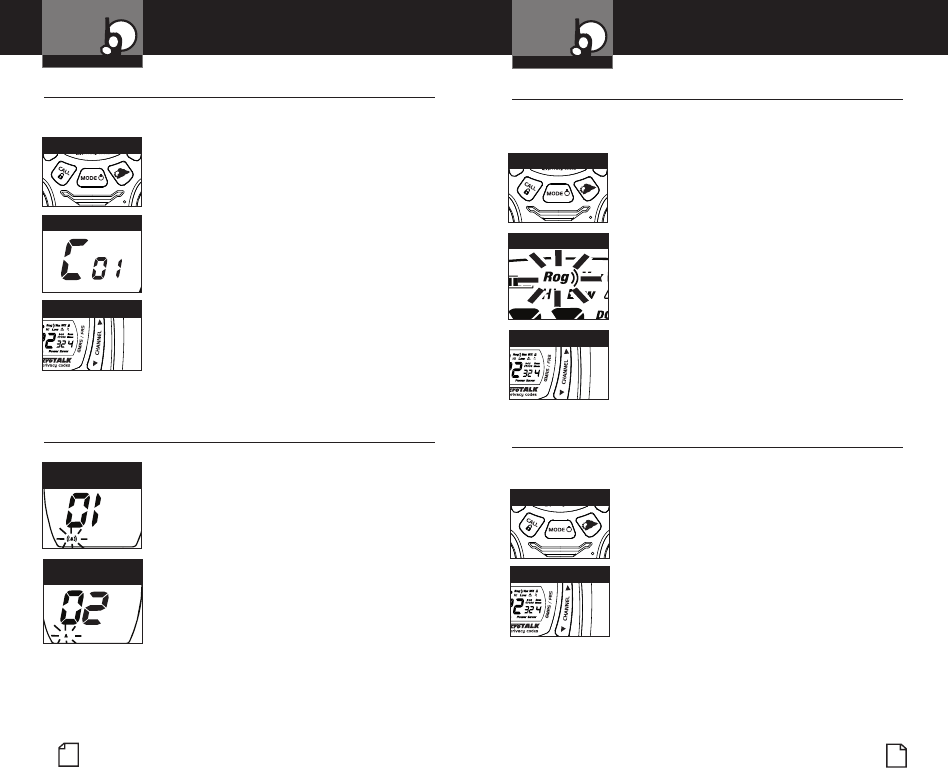

Channel Button
Roger Beep Off
Key Tone On/Off •
When Key Tone is On, an audible tone will sound each time a button
is pressed.
To turn key tone on or off:
1. Current key tone status On/Off will flash.
2. Press the Channel Up or Channel Down button
to select key tone on or off.
3. Choose one of the following:
a. Press the Mode/Power button to enter the
new setting and proceed to other functions.
b. Press Talk or Call/Lock button to enter the
new setting and return to Standby mode.
c. Do not press any buttons for 15 seconds to enter
the new setting and return to Standby mode.
Mode/Power
HI / LO
SCAN
Channel Button
HI / LO
SCAN
Mode/Power
HI / LO
SCAN
Channel Button
HI / LO
SCAN
Mode/Power
HI / LO
SCAN
Channel Button
HI / LO
SCAN
CXT645_MANL.indd 12-13 9/5/14 9:55 AM

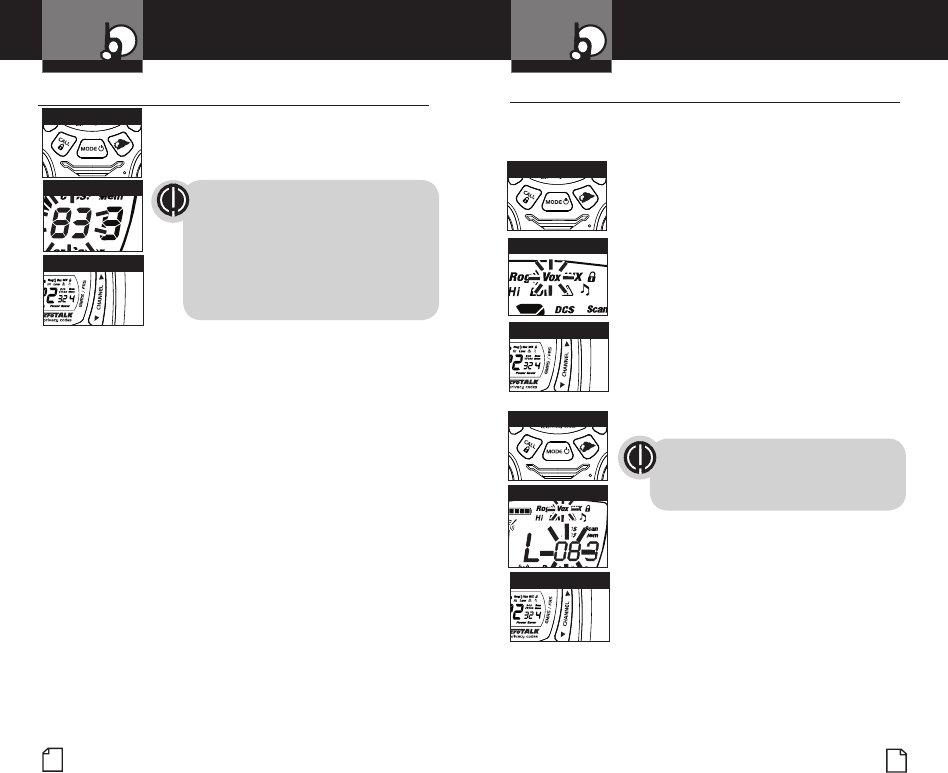

Privacy Code Scan •
Your microTALK radio can automatically scan the Privacy Codes (either
CTCSS 01 through 38 or DCS 01 through 83) within one channel. Only
one set of privacy codes (CTCSS or DCS) can be scanned at a time.
To scan privacy codes:
1. While in Standby mode, press and release the
Scan button twice (CTCSS) or three times (DCS)
until the CTCSS or DCS icon and numbers are
flashing.
2. Press and hold the Scan button to begin scanning
privacy codes within the selected channel.
The Scan icon will continue to be displayed when
privacy code scan is on. Your radio will continue
to scan privacy codes and stop as an incoming
transmission is detected. Your radio will remain on
that channel/privacy code for 10 seconds.
During scanning (while receiving an incoming
transmission),
you can choose from the following:
a. Press the Mode/Power button to enter the new
setting and proceed to other functions.
b. Press Talk or Call/Lock button to enter the new
setting and return to Standby mode.
c. Do not press any buttons for 15 seconds to enter
the new setting and return to Standby mode.
Operation
Mode Functions
Operation
14 15
Nothing Comes Close to a Cobra®
Select Channel
Scan Privacy Codes
Channel Scan •
Your microTALK® radio can automatically scan channels.
To scan channels:
1. Press and release the Scan button until the Scan
icon and the channel numbers appear
on the display.
2. Press and hold the Scan button to begin scanning
channels.
The radio ignores specific privacy
codes while scanning channels.
The Scan icon will continue to be displayed when
scan is on. Your radio will continue to scan all
channels and stop if an incoming transmission is
detected. Your radio will remain on that channel for
10 seconds.
During scanning (while receiving an incoming transmission),
you can choose from the following:
a. Press and hold the Talk button to communicate on that channel.
Your radio will remain on that channel and return to Standby mode.
b. Press the Channel Up or Channel Down button to resume
scanning channels.
c. Press and hold the Scan button to return to Standby.
Memory Scan •
Your microTALK radio can automatically scan memory channels.
To scan Memory channels:
1. Press and release the Scan button while you are
on Memory Standby mode until the Scan Mem
starts flashing.
2. Press either Channel Up or Channel Down to
begin scanning memory channels.
The Scan Mem will continue to be displayed when
scan is on. Your radio will continue to scan all memory
channels and stop if an incoming transmission is
detected. Your radio will remain on the channel for
10 seconds.
Scan Channels
HI / LO
SCAN
Scan Button
Channel Button
HI / LO
SCAN
Channel Button
HI / LO
SCAN
HI / LO
SCAN
Scan Button
HI / LO
SCAN
Scan Button
Channel Button
HI / LO
SCAN
Memory Scan continued •
During scanning (while receiving an incoming transmission),
you can choose from the following:
a. Press and hold the Talk button to communicate on that channel.
Your radio will remain on that channel and return to Memory
Standby mode.
b. Press the Channel Up or Channel Down button to resume
scanning channels.
c. Press and hold the Scan button to return to Memory Standby.
CXT645_MANL.indd 14-15 9/5/14 9:55 AM
Operation Mode Functions
16
Operation
17
Nothing Comes Close to a Cobra®
Hazards Radio Icon

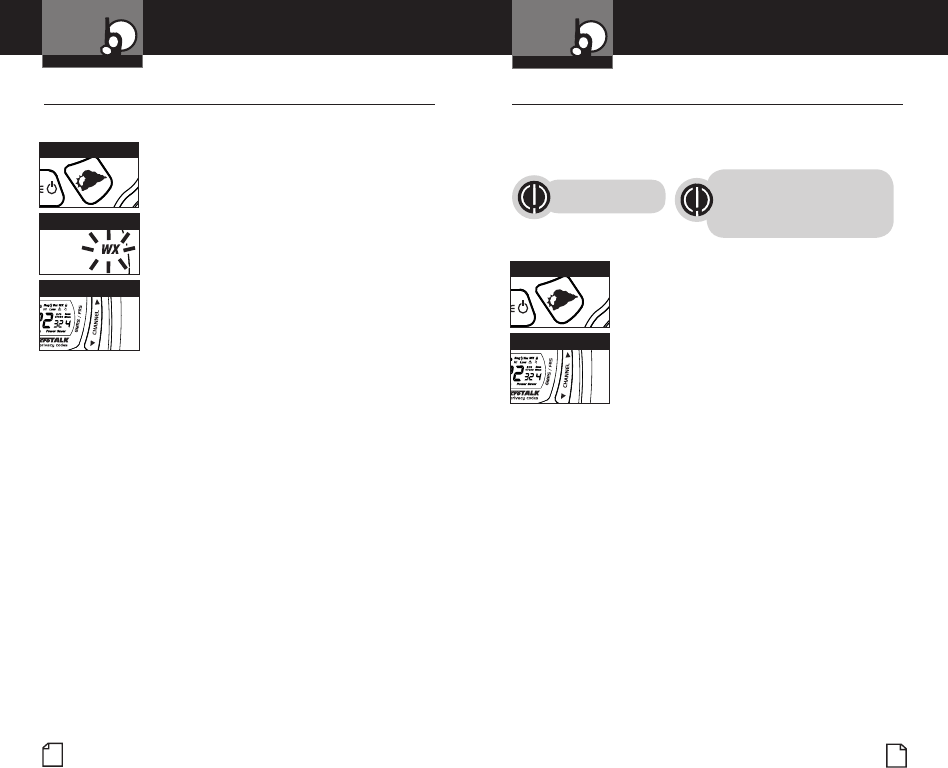

Weather (WX) Alert Mode •
Turning On the Weather Alert function will allow your radio to automatically
receive NOAA weather signals and warnings from designated weather
broadcast stations. If the radio is turned ON, it will alert to Weather and other
emergency alerts broadcast by NOAA.
To turn Weather Alert On or Off:
1. Press the Weather/Lock button until the Weather
Alert icon flashes on the display. The current On
or Off setting is displayed.
2. Press the Channel Up and Channel Down button
to turn Weather Alert On or Off.
3. Press and hold the Weather/Lock button again to
save the new setting and exit the Weather Alert
Mode and return to Standby mode.
This feature is set
to OFF by default.
Make sure the strongest
Weather channel is selected
for your area using the channel
selection in the previous menu.
NOAA* All Hazards Radio Channels •
You can use your microTALK radio to listen to NOAA All Hazards Radio
channels transmitting in your area.
To listen to All Hazards Radio channels:
1. Press the Weather button until the All Hazards
Radio icon and the currently selected All Hazards
Radio channel are displayed.
2. Use the Channel Up or Channel Down
button to change All Hazards Radio channels.
3. The All Hazards Radio icon will continue to
be displayed when All Hazards Radio is on.
4. To exit All Hazards Radio, press and hold the
Weather button until On or Off is displayed.
*National Oceanographic and Atmospheric Administration
Channel Button
HI / LO
SCAN
Channel Button
HI / LO
SCAN
HI / LO
SCAN
Weather Button
HI / LO
SCAN
Weather Button
CXT645_MANL.indd 16-17 9/5/14 9:55 AM
18
General Specifications •
FRS/GMRS Frequency
Allocation and Compatibility
Important: Please note that Cobra GMRS models with 15 Channels
may designate different channel numbers for the same frequency.
For example, a Cobra 15 Channel GMRS model would need to be
tuned to Channel 11 in order to communicate with a 22 Channel
GMRS tuned to Channel 15. Please refer to the chart below for
channel/ frequency number compatibility.
A = Channel No. for 22 Channel FRS/GMRS Models
B = Channel No. for 15 Channel GMRS Models
C = Type of Radio Service
D = Frequency in MHz
E = Power Output
A B C D E
1 1 FRS/GMRS 462.5625 High
2 2 FRS/GMRS 462.5875 High
3 3 FRS/GMRS 462.6125 High
4 4 FRS/GMRS 462.6375 High
5 5 FRS/GMRS 462.6625 High
6 6 FRS/GMRS 462.6875 High
7 7 FRS/GMRS 462.7125 High
8 FRS 467.5625 Low
9 FRS 467.5875 Low
10 FRS 467.6125 Low
11 FRS 467.6375 Low
12 FRS 467.6625 Low
13 FRS 467.6875 Low
14 FRS 467.7125 Low
15 11 GMRS 462.5500 High
16 8 GMRS 462.5750 High
17 12 GMRS 462.6000 High
18 9 GMRS 462.6250 High
19 13 GMRS 462.6500 High
20 10 GMRS 462.6750 High
21 14 GMRS 462.7000 High
22 15 GMRS 462.7250 High
General Specifications
and Licensing
Operation
19
Customer Assistance
Nothing Comes Close to a Cobra®
IMPORTANT NOTICE: FCC LICENSE REQUIRED •
MODEL CXT645:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This
device may not cause harmful interference, and 2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTE: COBRA IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY
APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE
USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Industry Canada licence-exempt RSS standard(s):
Operation is subject to the following two conditions: 1) this device may not cause interference, and 2) this device
must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de
licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de
brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and
maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference
to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power
(e.i.r.p.) is not more than that necessary for successful communication.
Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner avec une
antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le
but de réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type
d’antenne et son gain de sorte que la puissance isotrope rayonnée quivalente (p.i.r.e.) ne dépassepas l’intensité
nécessaire à l’établissement d’une communication satisfaisante.
CXT645 has been approved by Industry Canada to operate with the antenna types listed below with the
maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types
not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly
prohibited for use with this device.
CXT645 a été approuvé par industrie Canada pour fonctionner avec les types d’antenne mentionnés
ci-dessous avec le gain permis maximum et l’impédance exigée d’antenne pour chaque type d’antenne
indiqué. Les types d’antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal
indiqué, sont strictement interdits pour l’exploitation de l’émetteur.
The user manual of devices intended for controlled use shall also include information relating to the operating
characteristics of the device; the operating instructions to ensure compliance with SAR and/or RF field
strength limits; information on the installation and operation of accessories to ensure compliance with SAR
and/or RF field strength limits; and contact information where the user can obtain Canadian information on RF
exposure and compliance. Other related information may also be included.
Le mode d’emploi des appareils destinés à l’utilisation contrôlée doit aussi inclure des informations sur
les caractéristiques de fonctionnement de l’appareil; les instructions de fonctionnement pour assurer la
conformité avec SAR et / ou les limites d’intensité de champ RF; informations sur l’installation et l’exploitation
d’accessoires pour assurer le respect des SAR et / ou les limites d’intensité de champ RF; et les coordonnées
où l’utilisateur peut obtenir des informations sur l’exposition canadienne de radiofréquences et la conformité.
Autres renseignements connexes peuvent également être inclus.
CXT645_MANL.indd 18-19 9/5/14 9:55 AM
20
Safety Information for microTALK Radios •
Your wireless handheld portable transceiver contains a low power
transmitter. When the talk button is pushed, it sends out radio frequency
(RF) signals. The device is authorized to operate at a duty factor
not to exceed 50%. In August 1996, the Federal Communications
Commissions (FCC) adopted RF exposure guidelines with safety levels
for handheld wireless devices.
Important
FCC RF Exposure Requirements: For body-worn operation, this radio has
been tested and meets the FCC RF exposure guidelines when used with
Cobra accessories supplied or designated for this product. Use of other
accessories may not ensure compliance with FCC RF exposure guidelines.
Use only the supplied antenna. Unauthorized antennas, modifications or
attachments could damage the transmitter and may violate FCC regulations.
Normal Position
Hold the transmitter approximately 2 inches from your face and
speak in a normal voice, with the antenna pointed up and away.
Product Service & Support •
For any questions about operating or installing this new Cobra product,
PLEASE CONTACT COBRA FIRST…do not return this product to the
retail store. The contact information for Cobra will vary depending on the
country in which you purchased and utilize the product. For the latest
contact information, please go to www.cobra.com/support
Should there be any problems with this product or further information
needed on its features please visit www.cobra.com for support, frequently
asked questions, Declarations of Conformity, and the electronic manual.
For products purchased in the U.S.A. you may also call 1-800-262-7212
(1-800-COBRA-12).
For Products Purchased in the U.S.A., if your product should require
factory service, please go to www.cobra.com/support and follow the
instructions for returning your product to the Cobra Factory Service
Department for service.
Trademark Acknowledgement & Prop 65 •
Cobra®, microTALK®, Nothing Comes Close to a Cobra®, VibrAlert®
and the snake design are registered trademarks of Cobra Electronics
Corporation, USA. Cobra Electronics Corporation™ is a trademark
of Cobra Electronics Corporation, USA.
Product Service, Trademark
Acknowledgement & Prop 65
Customer Assistance
Limited One-Year Warranty •
Cobra Electronics Corporation warrants that this product and the component parts
thereof, will be free of defects in workmanship and materials for a period of one
year from the date of rst consumer purchase. This warranty may be enforced by
the rst consumer purchaser. If the product is under warranty, it will be repaired
or exchanged depending on the model as determined at Cobra’s sole discretion.
Such remedy shall be your sole and exclusive remedy for any breach of warranty.
The procedure for obtaining service and support, and the applicability of
this warranty, will vary depending on the country or jurisdiction in which
you purchased and utilize the product. For the details on obtaining prod-
uct service, support and warranty please visit www.cobra.com/support
Provided that the product is utilized within the U.S.A.- Cobra will, without charge,
repair or replace, at its option, defective products, products or component parts
upon delivery to the Cobra Factory Service department, accompanied by proof of
the date of rst consumer purchase, such as a duplicated copy of a sales receipt.
You must pay any initial shipping charges required to ship the product for
warranty service, but the return charges, to an address in the U.S.A., will be
at Cobra’s expense, if the product is repaired or replaced under warranty.
This warranty gives you specic legal rights, and you may also have other
rights which may vary from state to state and country to country.
Exclusions: This limited warranty does not apply: 1) To any product
damaged by accident; 2) In the event of misuse, ordinary wear, failure to
follow directions, or improper maintenance of the product or as a result
of unauthorized alterations or repairs; 3) If the serial number has been al-
tered, defaced, or removed; 4) If the product was purchased or is utilized
in a jurisdiction not covered by the limited warranty.
All implied warranties, including warranties of merchantability and tness for a
particular purpose are limited in duration to the length of this warranty. Cobra
shall not be liable for any incidental, consequential or other damages; including,
without limitation, damages resulting from loss of use or cost of installation.
Some states and countries do not allow limitations on how long an implied
warranty lasts and/or do not allow the exclusion or limitation of incidental
or consequential damages, so the above limitations may not apply to you.
This warranty gives you specic legal rights, and you may also have other
rights which vary from state to state and country to country.
Limited One-Year
Warranty
Warranty
21
Nothing Comes Close to a Cobra®
CXT645_MANL.indd 20-21 9/5/14 9:55 AM
