Cobra Electronics 75WXSTA CB Transceiver User Manual

Cobra Electronics Corporation CB Transceiver

User Manual

How to Use Your
Cobra 75 WX ST
Contents
Features...........................................................................................1
The CB Story..................................................................................A1
FCC Regulations
FCC Warnings
Included Accessories
Controls & Indicators................................................................A2
Our Thanks toYou......................................................................A3
Customer Support
Installation
Connector Box Location........................................................2
Mounting Connector Box.....................................................3
Mounting and Connections.................................................4
Connecting Wires.....................................................................6
Microphone Hnager................................................................7
Antenna.......................................................................................8
Speakers......................................................................................9
Noise Interference...................................................................9
Operating Your 75 WX ST
Turning On Your CB.................................................................10
Setting a Channel.....................................................................10
SoundTracker System.............................................................11
Activating SoundTracker.......................................................12
Testing SoundTracker.............................................................13
Setting the Squelch.................................................................14
LCD Readout..............................................................................16
Receive/Transmit......................................................................17
Emergency Channel 9 & 19..................................................18
Key Lock.......................................................................................20
Frequency Display ...................................................................21
All Channel Scan.......................................................................22
Weather Channel......................................................................23
Channel Saver............................................................................24
Memory Channels....................................................................25
Dual Watch.................................................................................26
How Your CB Can Serve You...................................................28
A Few Rules You Should Know............................................28
Channel 9 Emergency Messages.......................................29
CB 10 Codes...............................................................................30
Frequency Ranges......................................................................32
Weather Channels ......................................................................33
75 WX ST Specifications ..........................................................34
Warranty Information ..............................................................35
Optional Accessories.................................................................36
Order Form ....................................................................................37
If You Think You Need Service .............................Back Cover
Features of This Product
• Sound Tracker System
• 40 CB Radio Channels
• 10 Weather Ch a n n e l s
• One-Touch Emergency
Channel 9
• One-Touch Information
Channel 19
• Remote Mount Installation
System
• Full Featured LCD
Display Panel
• Squelch Control
• Key Lock
• Channel Saver Circuitry
• Dual Watch Channel Monitor
• Full Channel Scan
• Four Memory Locations
• 10 Foot Flexible Cord
• Quick Disconnect
1
75 WX ST Manual(5188) 2/5/01 3:00 PM Page 1
Installation
3
Mounting
Connector Box
Mounting Connect Box
Note
Make certain that nothing
will interfere with the
installation of mounting
screws,before drilling
holes.

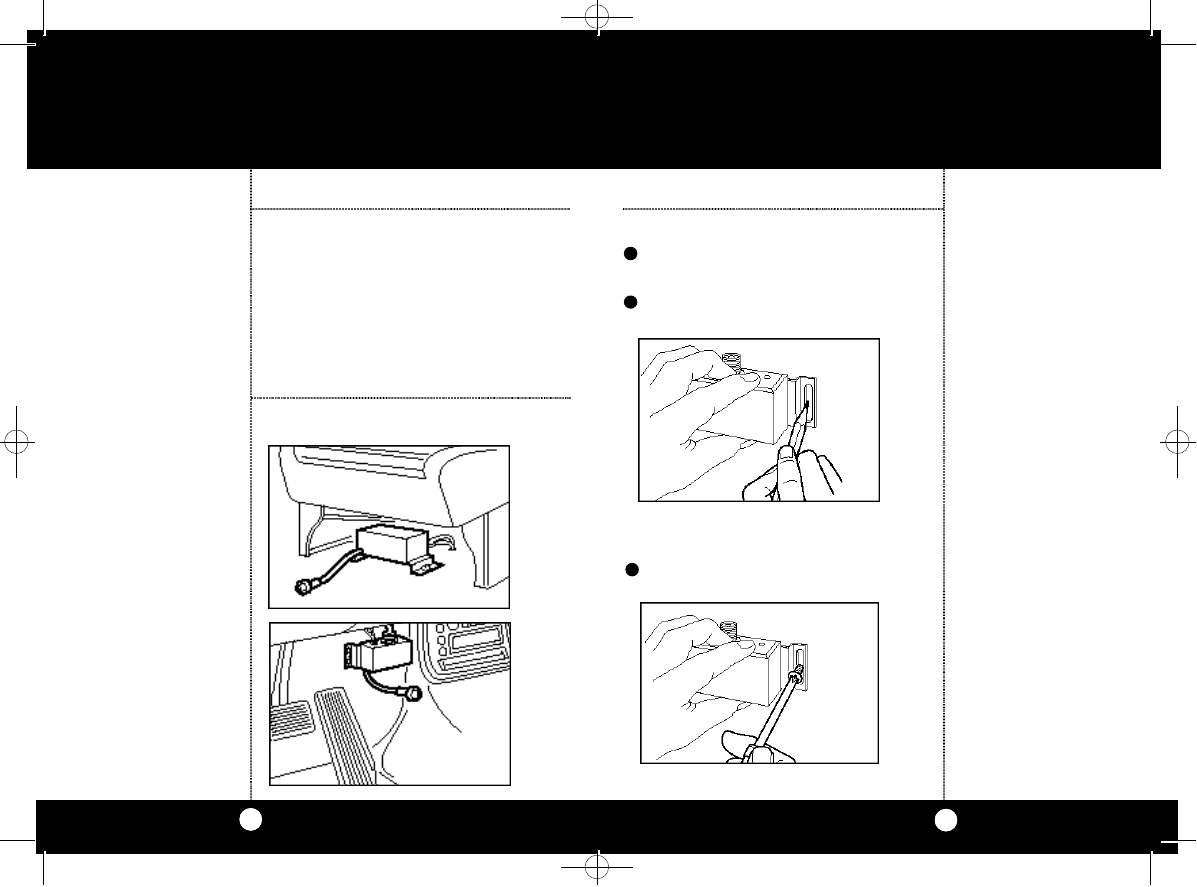

Hold Cobra 75 WX ST Connector Box in exact
location desired for mounting.
Using it as a template,mark the location for
the mounting screws (included.)
1
2
Mount Connector Box as shown.
3
Location
Note
Do not mount under the
hood,near heat ducts or in
direct line of the car’s
heater.
Under the Front
Seat Installation
Fire Wall
Installation
Location
Under the Front Seat Installation
Mount your Cobra 75 WX ST Connector Box in
a convenient location,away from moisture and
direct sunlight, in a location that will not
interfere with driving.
Cobra suggests mounting it either under the
front seat or on the fire wall.
2
Installation
75 WX ST Manual(5188) 2/5/01 3:00 PM Page 2
InstallationInstallation
Mounting and Connections
The Ju n ction Box is held by two scre ws,pe rm i t t i n g
mounting in the manner most convenient for
your installation.
Mounting hardware is supplied for mounting the
Junction Box.The mounting must be mechanically
s t rong and also provide a good elect ri cal co n n e ct i o n
to the chassis of the vehicle.Proceed as follows to
mount junction box:
Mounting and
Connections
5
Caution
Leaving the 75 WX ST on after
your car is turned off can drain
your car batte ry when co n n e cte d
to a constant 12 volt source.
When co n n e cted to an acce s s o ry
12 volt source the unit will turn
off when vehicle is turned off.
4
After you have dete rmined the most co nve n i e nt
location in your vehicle, hold the Cobra HH-75
WX ST Junction Box in the exact location
desired. If nothing will interfere with mounting
it in the desired position,use the Junction Box
as a template to mark the location for the
mounting screws.Before drilling the holes,
make sure nothing will interfere with the
installation of the mounting screws.
1
2
3

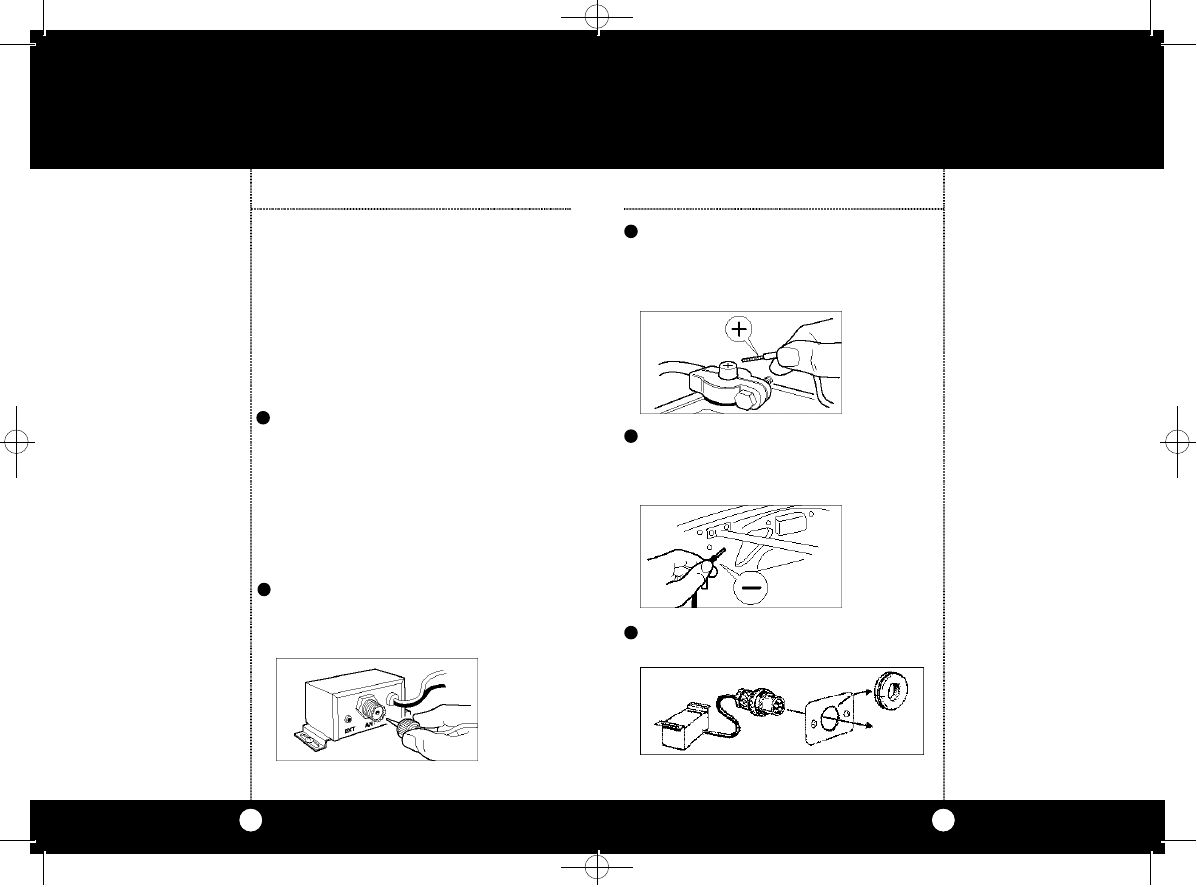

Connect the antenna cable connector to
the antenna receptacle on the unit. Most CB
antennas are terminated with a type PL-259
plug and mate with the receptacle.
For co n s t a nt 12 volt source powe r,co n n e ct
the red wire marked “ BATT ( + ) ”d i re ctly to the
po s i t i ve side of the bat te ry or to a co n n e ction
on the fuse block that is always on.
4Co n n e ct the black wire marked “Gro u n d”to the
n e g at i ve side of the ca r,usually the chassis.Any
other location with good elect ri cal co nt a c t paint
re m oved will also wo rk .
Re m ove ru b ber grommet from metal
m o u nting plate (1).
5
Mounting and
Connections
75 WX ST Manual(5188) 2/5/01 3:00 PM Page 4
Installation
6
Connecting
Wires
Installation
7
Hold microphone hanger in location desired
for mounting.Make certain that nothing will
interfere with the hanger’s installation.
Mark the location for the three mounting
screws (screws included).
1
2
Drill and mount microphone hanger.
3
Installing
Microphone
Hanger

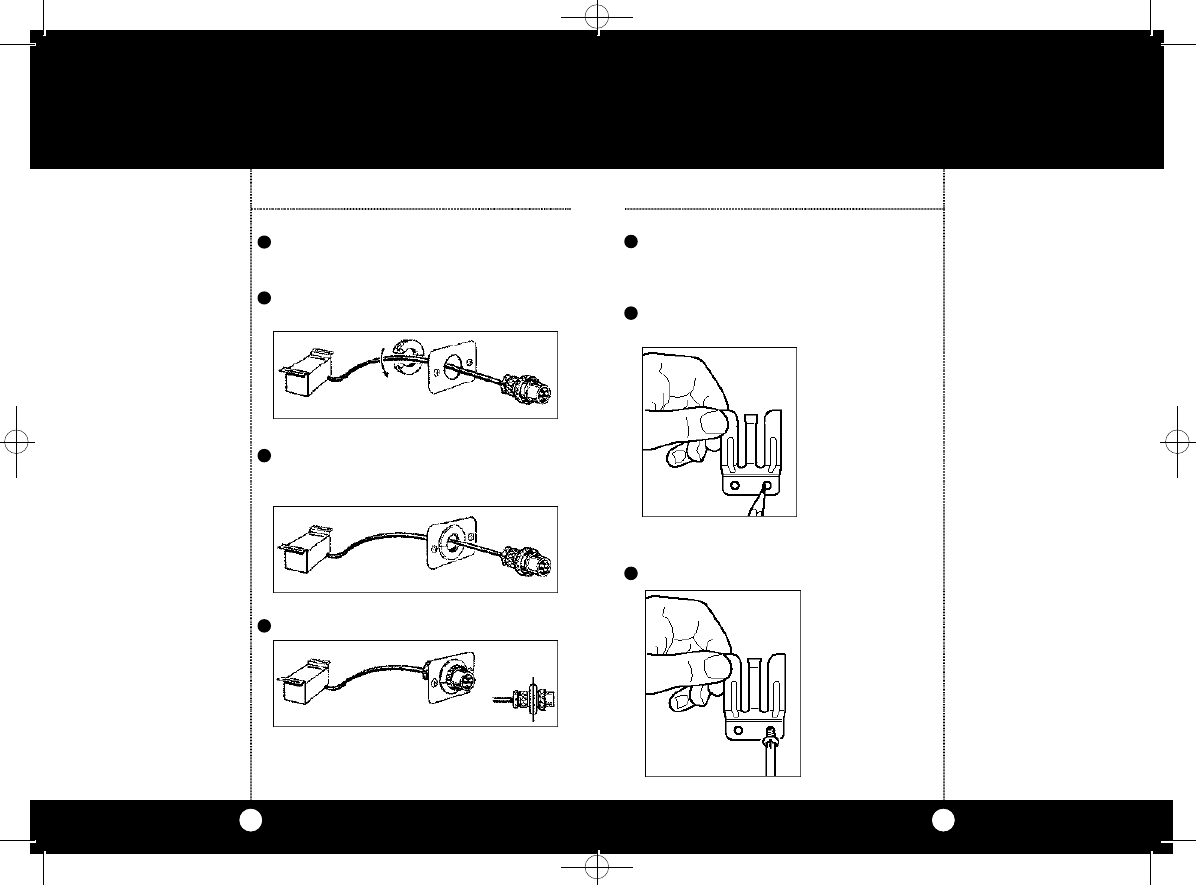

Install the metal mounting plate on any flat
s u rf a ce with the two scre ws prov i d e d.
6
I n s e rt junction box mic co n n e ctor through the
hole in the metal plate (2).
7
Slip ru b b er grommet over the black co n n e cto r
ca b l e,then press the grommet into the metal
m o u nting plate hole (2&3).
8
Slide mic co n n e ctor into ru b ber gro m m e t .
9
75 WX ST Manual(5188) 2/5/01 3:00 PM Page 6
InstallationInstallation
The alternator and ignition system in your vehicle
may limit your ability to receive low signal levels.
Other noise interference can be the result
of several different installation variables.Consult
your Cobra dealer or a 2-way radio technician to
help locate and correct the source of severe noise
interference.
CB Antenna
For the most reliable
operation and maximum
range, Cobra recom-
mends using a vertically
polarized, quarter wave
length whip antenna
(illustration A).
Shorter,loaded-type
whips are adequate when
maximum range is not
required (illustration B)
Ignition Noise Interference
External Speaker Installation
CB Antenna
Installation External
Speaker
Installation
9
Note
Mobile installations (cars,
trucks,boats,etc) should be
made only with a non-direc-
tional antenna system.
A standard antenna connector
(Type SO-239) is provided on
the Connector Box for easy con-
nection to a standard PL-259
cable termination.
Cobra antenna models are
recommended;see your
local CB dealer or order directly
from Cobra.See order form
on page 39.
For maximum efficiency in boat
installations,a ground plate is
required,unless the vessel has a
steel hull. Consult your CB deal-
er for information regarding an
adequate grounding system.
8

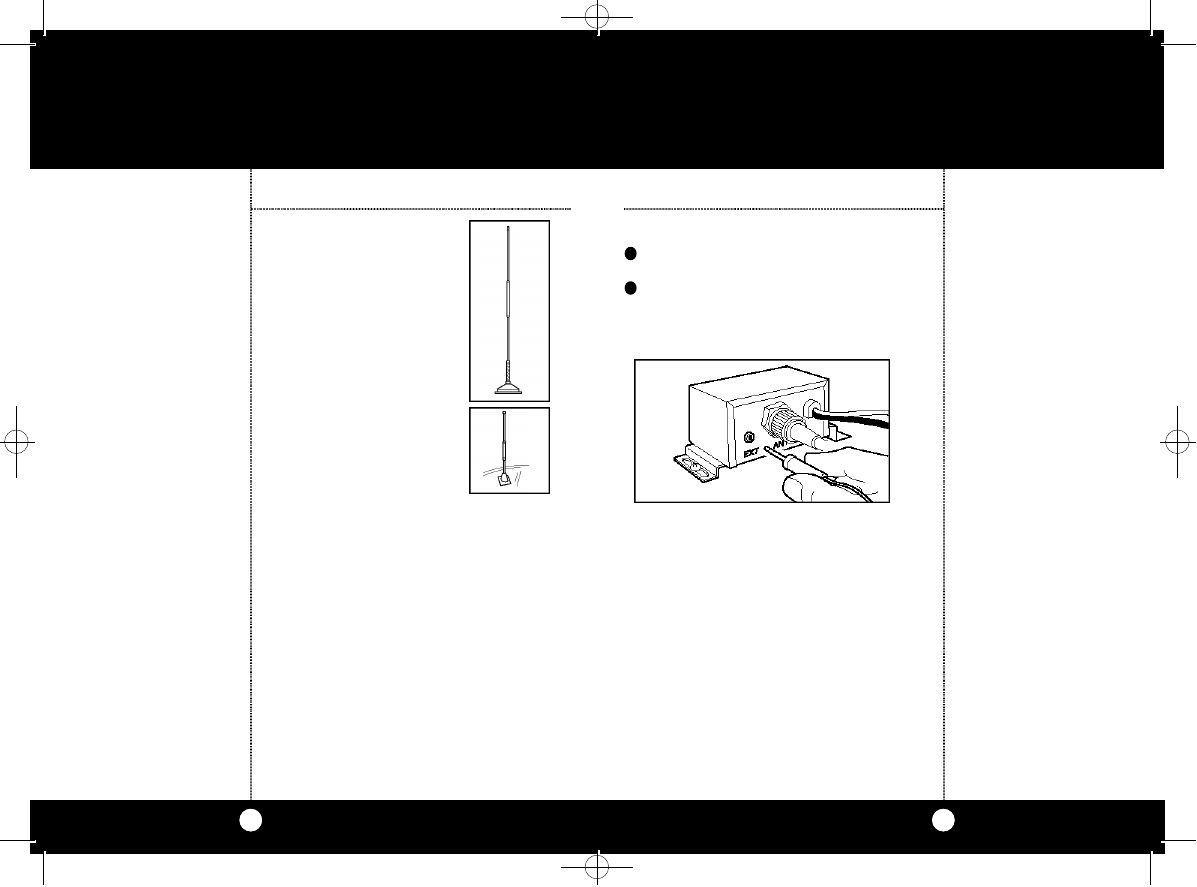

Mount external speaker in desired location.
Plug jack into the back of the Connector Box
labled EXT.
*The exte rnal spe a k er should have 4-8 ohms
i m pe d a n ce and be able to handle at least 4 wat t s .
B
A1
2
Ignition Noise
Interference
75 WX ST Manual(5188) 2/5/01 3:00 PM Page 8
Ro t ate the power
ON-OFF Volume
Co nt r ol cloc w i s e .
While previous sys t ems only “b l a n ked out”or
l i m i ted noise in higher sound fre q u e n c i e s,the
revo l u t i o n a ry new So u n d Tra c ker Sys t em act u a l l y
re d u ces noise while leaving the signal int a ct in
the re ception mod e .In the transmission mod e,i t
a ctually strengthens the signal,p roviding you with
a significa nt re d u ction in noise on re ception and
t ra n s m i s s i o n .
On Re ce p t i on–
“Cuts Noise Coming In”
With a normal CB,d i s t a nt signals fall be l ow
the squelch level and are uninte l l i g i b l e.With
a So u n d Tra c ker CB,the noise level is cut by up
to 90%,which increases the signal-to-noise
ratio and dra m at i cally improves signal clari ty.
This also allows you to significa ntly re d u c e the
squelch leve l ,which gre atly expands your
l i s tening ra n g e.
On Tra n s m i s s i on–
“St rengthens Signals Going Out”
A SoundTracker CB strengthens the transmit
signal by more effectively using the available
RF power output of the CB.The result is
improved transmission signal clarity and an
expanded transmission range.
Operation
11
Operation
Turning Your
CB On Soundtracker
System
Selecting a
Channel
10
Turning On Soundtracker System
Selecting a Channel
1
Tu r n the Sq u e l c h
Co nt rol co u n te r
c l oc kwise unt i l
noise is heard.
1
Adjust volume to a
co m fo rtable leve l.
1

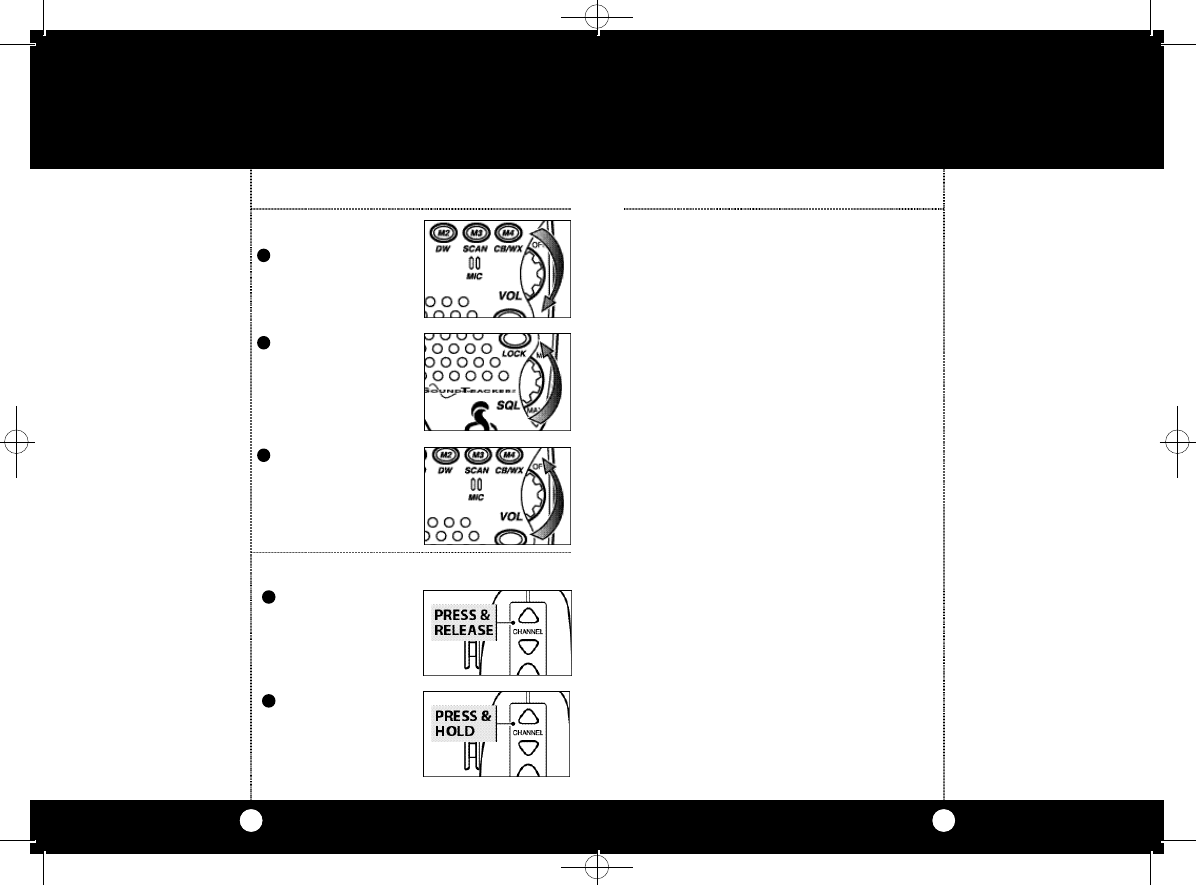

Change channels by
p ressing either the
channel ▲ up or
channel ▼ d o wn key.
To quick-advance
channels,press and
hold either key.
1
2
Note
Sound clarity is measured by
the ratio of the signal level
to the noise level.The higher
the signal-to-noise ratio, the
better the sound.
75 WX ST Manual(5188) 2/5/01 3:00 PM Page 10
Operation
13
Operation
12

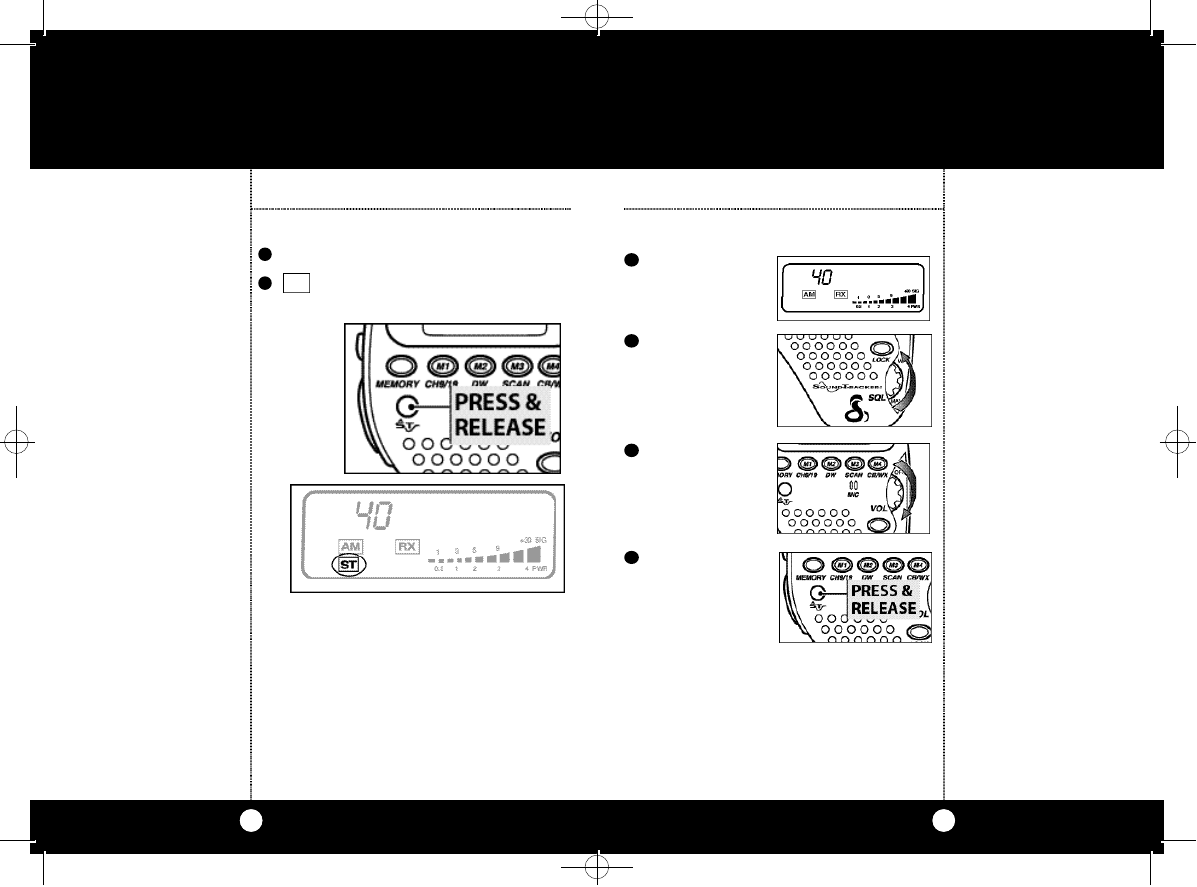

Testing
Soundtracker
Testing Soundtracker
Press and release the Sound-Tracker key.
will be displayed on the LCD readout.
1
2

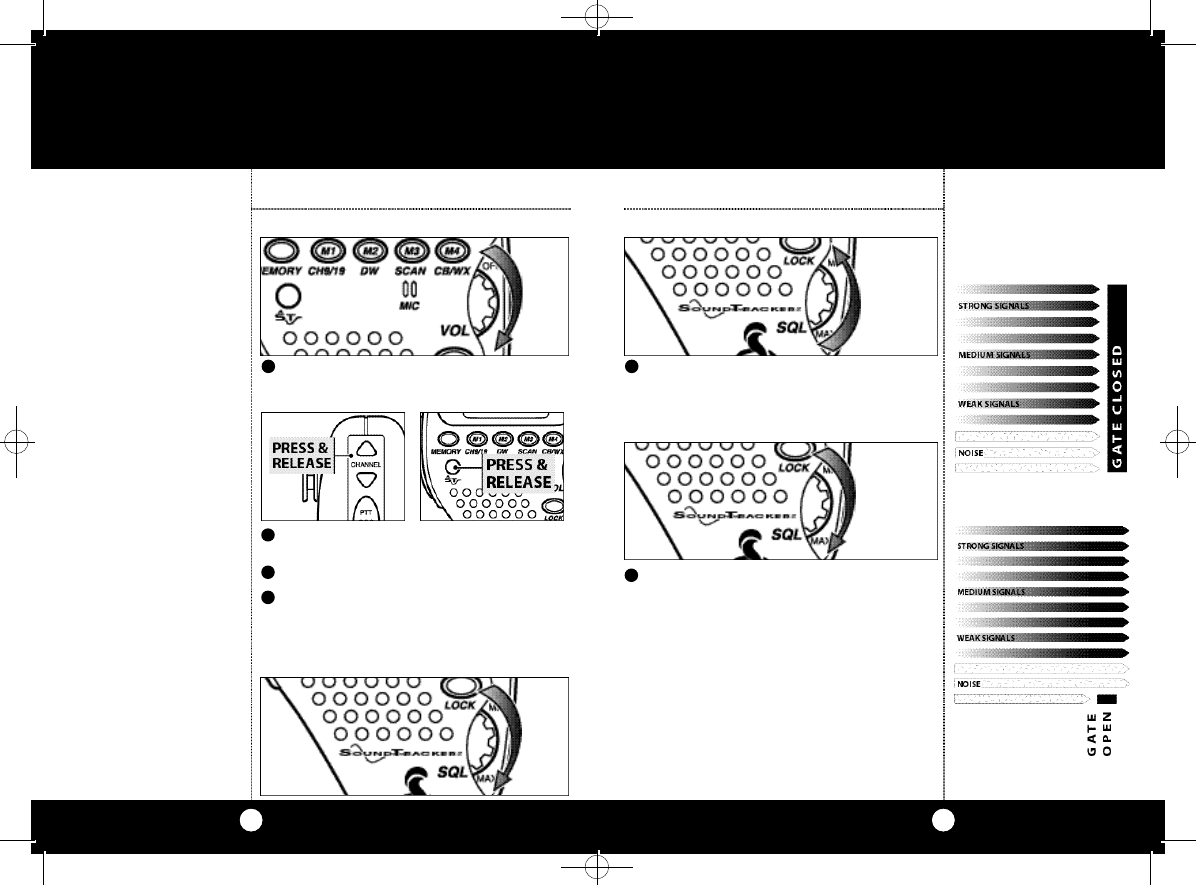

Activating
Soundtracker
Activating Soundtracker
ST Select any unused
channel on your CB.
Open the squelch
control fully by
turning the knob
counterclock-wise
until it stops.
Turn the volume
up louder than your
normal listening
level.
Press and release
the SoundTracker
key.Notice the
ignificant reduction
in noise.
1
2
3
4
75 WX ST Manual(5188) 2/5/01 3:00 PM Page 12
OperationOperation
1514
Setting the
Squelch
Gate open
Gate closed
Setting the
Squelch
If you turn the squelch control fully counter-
clockwise,it lowers the “squelch gate”so low
that everything gets through - noise,weak
signals and strong signals.
To set the “squelch gate”to the DSS-Desired
Squelch Setting, turn the squelch control
counterclockwise until you hear noise.Then
turn the squelch control back clockwise just
until the noise stops. Now only strong signals
get through.
The Desired Squelch Setting, (DSS) only allows
actual transmissions to come through. This
effectively blocks out unwanted noise.
Setting Squelch
6
5
Setting Squelch
Turn CB on by turning the volume
control clockwise. Adjust the volume to
a comfortable level.
Be fo r e setting the squelch co nt rol on your ra d i o,
you must select a channel that is not in use.
2
Tu rn on So u n d Tra c ke r
3
To achieve the Desired Squelch Setting
(DSS):Think of your Squelch Control as a gate
for incoming signals.If you turn the Squelch
Control fully clockwise, it raises the “squelch
gate”so high that no signals get through.
4
1
75 WX ST Manual(5188) 2/5/01 3:00 PM Page 14
1716
Operation Operation
ToTransmit
To Transmit

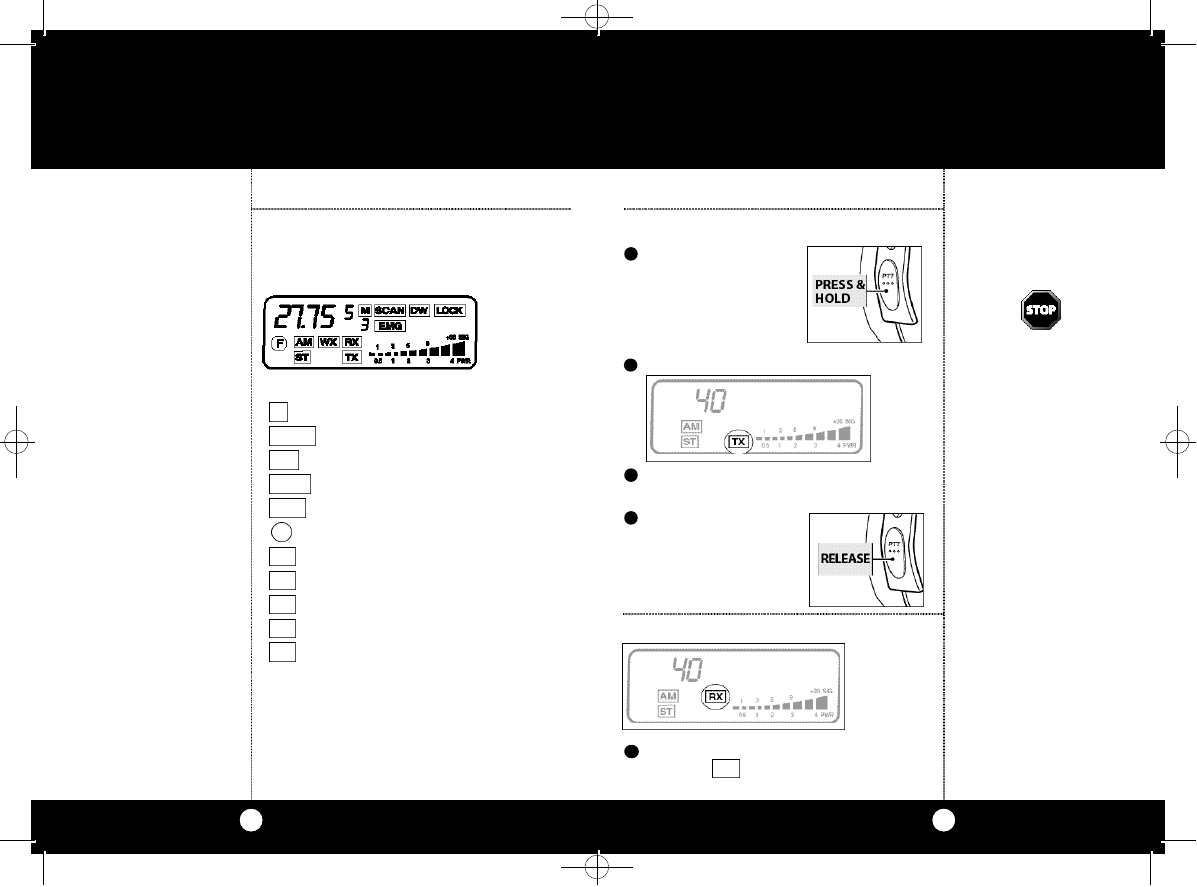

LCD Display
Press the Press-To-Talk
(PTT) key.
1
Release the PTT
button and you will
automatically be in the
receive mode again.
4
The TX icon will appear.
Hold the microphone about 2 inches from
your mouth and speak in a normal voice.
3
LCD Display
Your Cobra 75 WX ST CB is designed with a
liquid crystal display that indicates channel
number,or frequency and the operating mode.
2 digit channel display / 5 digit fre q u e n cy display
= Memory Indicator/Number
= Scan Indicator
= Dual Watch Indicator
= Lock Key Indicator
= Emergency Channel 9
= Function key indicator
= Amplitude Modulation
= Weather Station
= Receive Indicator
= SoundTracker indicator
= Transmit Indicator
Signal Strength Meter
TX
ST
RX
W X
A M
E M G
LO C K
DW
SCAN
M
F
To Receive
Your 75 WX ST is automatically in the receive
mode and is illuminated.
RX
1
2
To Receive
Note
To avoid damaging the LCD
display,do not subject your CB
radio to extreme temperatures
(below -5°F or above 140°F) for
extended periods of time.
Caution!
Be sure the antenna is properly
connected to the radio before
transmitting.Prolonged trans-
mitting without an antenna,
or a poorly matched antenna,
could cause damage to the
transmitter.
Be sure to read the F.C.C. Rules
and Regulations included with
this unit before transmitting.
75 WX ST Manual(5188) 2/5/01 3:00 PM Page 16

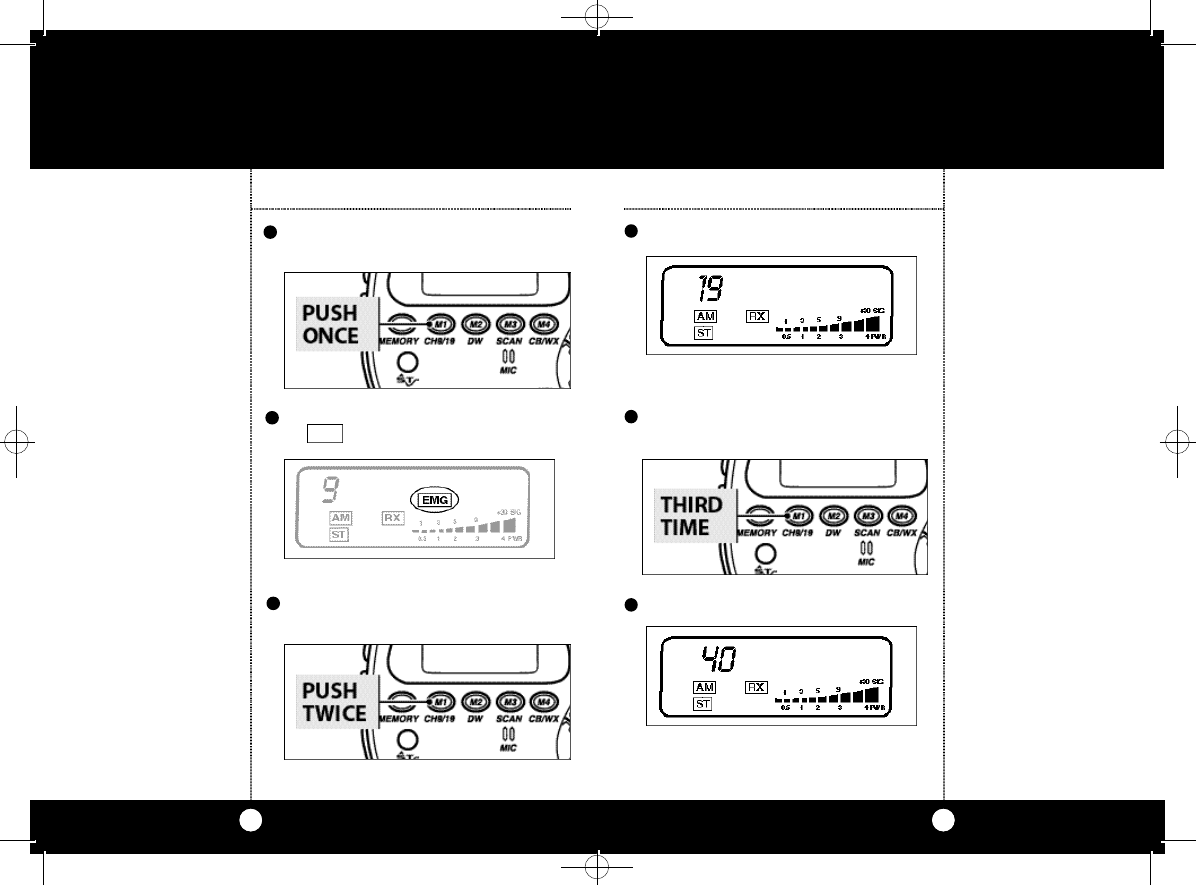

To Access emergency channel 9, press Channel
9/19 key once.
1918
Emergency
Channel 9 or
Information
Channel 19
Operation Operation
14You are now on information channel 19.
To access info rm ation channel 19,p ress Ch a n n e l
9/19 key again.
You are now on emerg e n cy channel 9 and
the icon will appear.
E M G
2
3
Press 9/19 again to return to the original
channel selected.
Original channel.
5
6
One Touch
Channel 9
and 19
75 WX ST Manual(5188) 2/5/01 3:00 PM Page 18
2120
Operation Operation

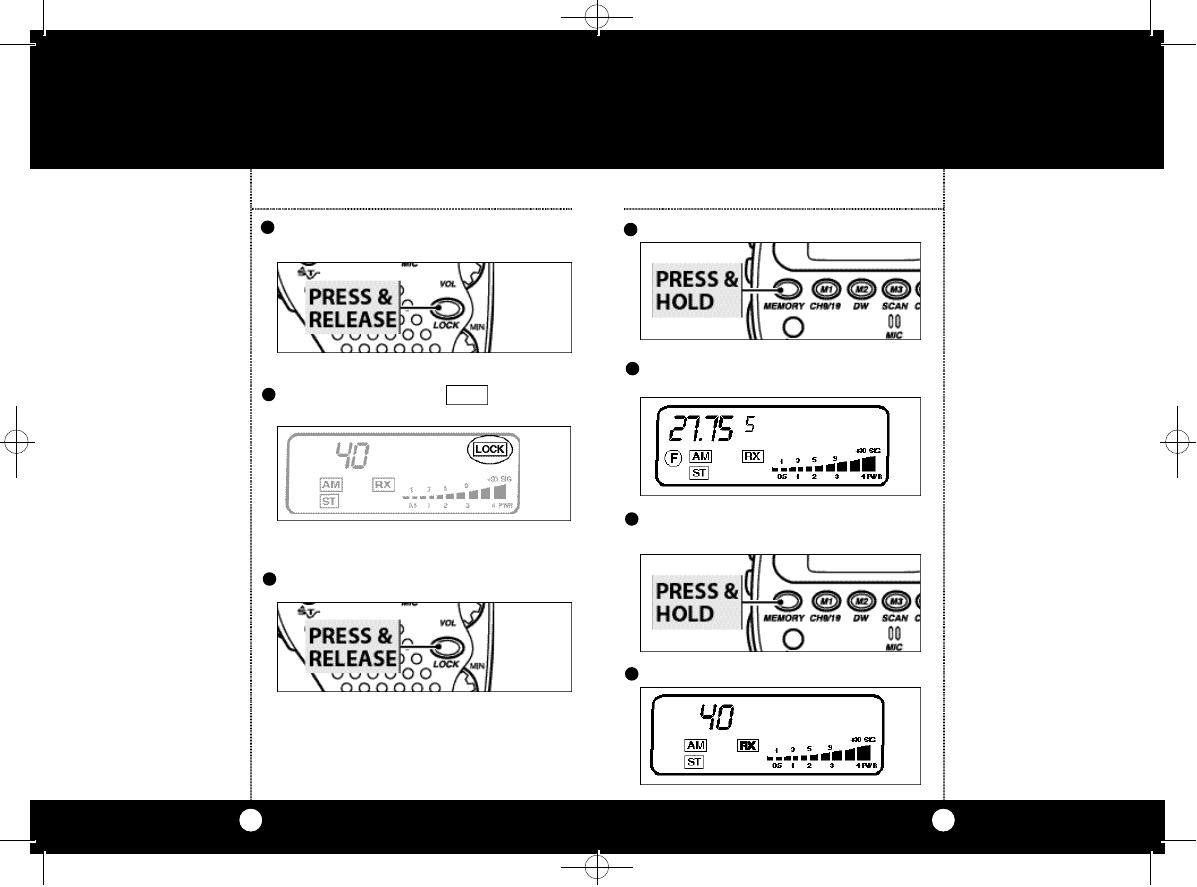

Key Lock 5 Digit
Frequency
Display
3
Press Key Lock button again to deactivate.
Push and hold Memory key for 3 seconds.
Press Key Lock button to prevent
unintentional channel changing.
You are now loc k ed and the
i con will appe a r.LO C K
1
2
Display will change back to channel display.
Display will change to the 5 digit frequency
of the channel selected.
Push and hold Memory key again for
approximately 3 seconds.
6
4
5
7
75 WX ST Manual(5188) 2/5/01 3:00 PM Page 20
OperationOperation
23
22
Weather
Channels
Weather Channels
Set Squelch Control (SQL) to desired setting
DSS.*See page 18 to set DSS.

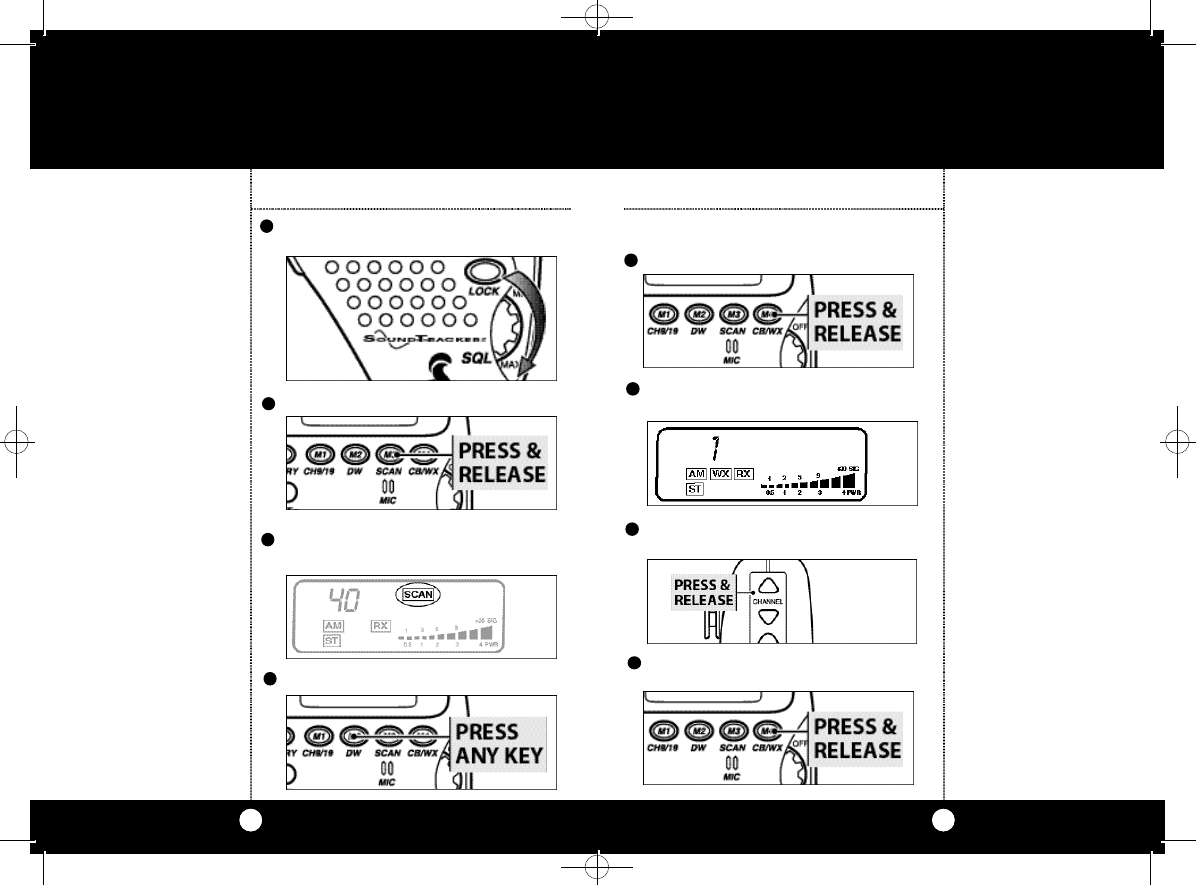

All Channel
Scan
Note
The 75 WX ST will stop scan-
ning and monitor a channel
when it receives an incoming
transmission.Five seconds
after the transmission stops,
the 75 WX ST resume the scan-
ning function.
Press Scan key.Unit will start scanning.
Press any kep to stop scanning sequence.
When activity is found on a channel scanning
will stop.Scan icon will apear.
3
1
2
4
Press the CB/WX key.
The unit will change to the WX function and
a weather channel number will be displayed.
Press Up/Down Channel keys to locate the
weather station in your area.
Press the CB/WX key to return to a normal
CB channel.
3
1
2
4
75 WX ST Manual(5188) 2/5/01 3:00 PM Page 22
PRESSand RELEASE the Memory key.
PRESSand RELEASE the desired Memory
Location key.
The channel in the memory location
will be recalled.
Repeat to recall other Memory Locations.
OperationOperation
25
24

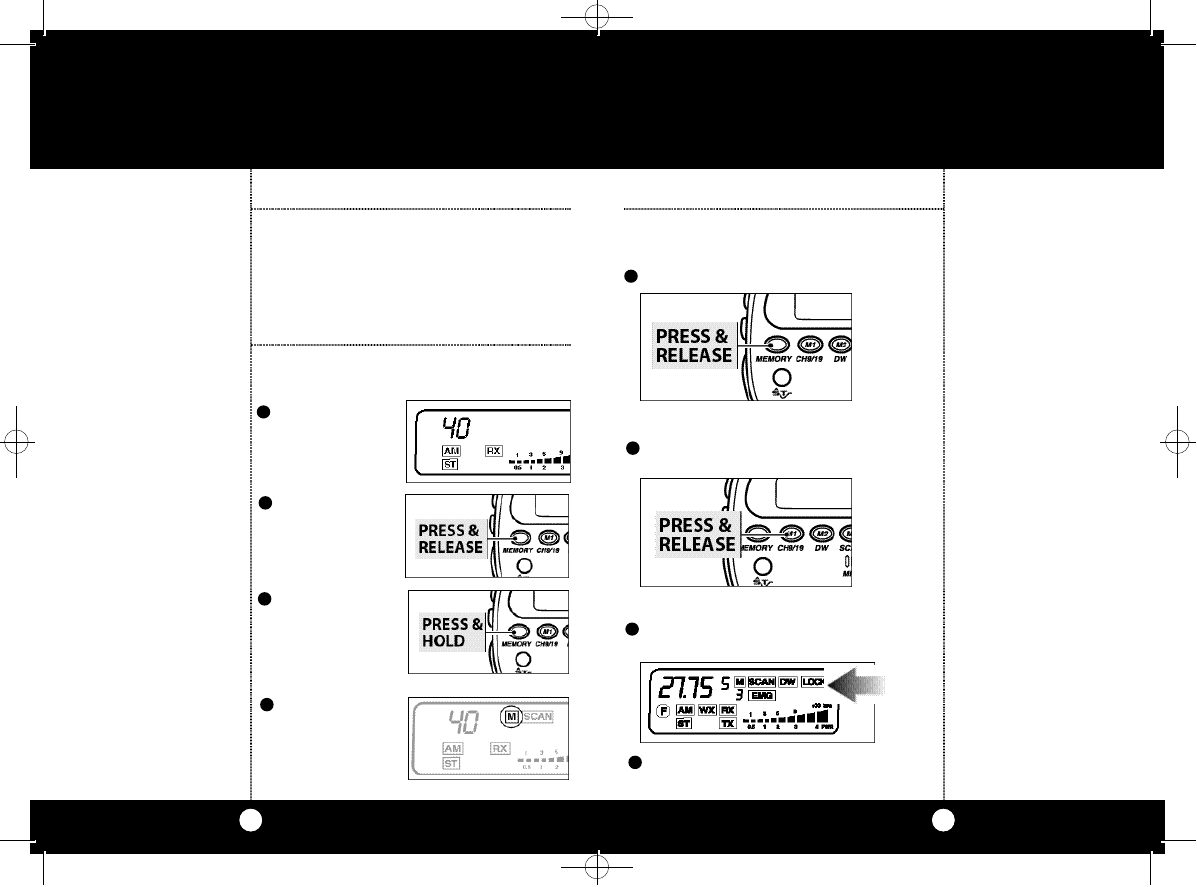

Channel Saver
Feature
Channel Saver Feature
Automatically retains the last channel used when
CB is turned off and returns you to that channel
when CB is turned back on. This feature works
only when co n n e cted to a co n s t a n t 12 volt source.
See page 5 for details.
Retrieving
Channels from
Memory
Retrieving Channels from Memory
4
Select desired
channel to store in
memory.
PRESS and RELEASE
the Memory key.
P R E S Sand H O L D
the desire d
Me m o ry Locat i o n
key to lock channel
i nto memory.
The Memory
location will appear
on the display.
Note
Leaving the 75 WX ST on after
your car is turned off can drain
your car battery when connect-
ed to a constant 12 volt source.
Note
Channel Saver Feature only
works when connected to
12 volt power source when
vehicle is off.Will work when
CB is off and vehicle
remains on.
Saving Channels in Memory
3
1
2
4
3
1
2
75 WX ST Manual(5188) 2/5/01 3:00 PM Page 24

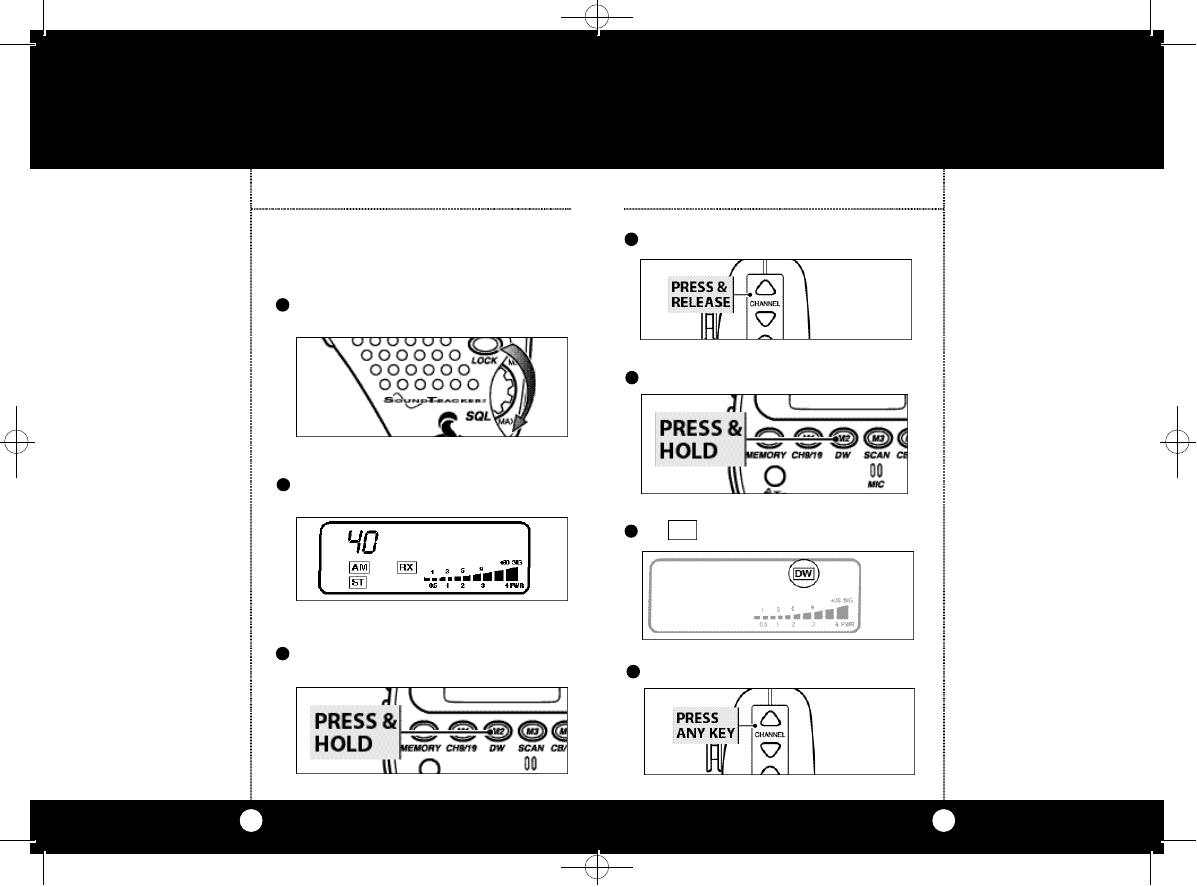

Dual Watch
27
Operation
26
Dual Watch
Dual Watch
Allows you to simultaneously monitor any two
preselected channels at one time.
Adjust squelch (SQL) setting to the DSS
level (see page 18).
Set CB to one of the stations you wish
to monitor.
PRESS and Hold the DW key until a
beep is heard.
3
1
2
Note
The 75 WX ST will alter-
nate between both
channels until it receives
an incoming transmis-
sion.Five seconds after
the transmission stops,it
will again alternate
between both channels.
6
4
5
7
Select new channel.
Press and hold DW key until a beep is heard.
The icon appears and monitoring begins.
DW
Press any key to stop monitoring function.
75 WX ST Manual(5188) 2/5/01 3:00 PM Page 26
1. Set to channel 9 for emergencies
Be sure antenna is properly connected.
2. CB Distress Data
When transmitting an emergency, you should
request a “REACT BASE”and provide the CB
distress data (called CLIP):
Call Sign Identify yourself.
Location Be exact.
Injuries Number.Type.Trapped?
Problem Give details and help needed.
Transmit C L I P re pe a tedly so any monitor can assist.
• Warn of traffic problems
• Provide weather and road data
• Provide help in event of an emergency
• Provide direct contact with home or office
• Assist police by reporting erratic drivers
• Get “local information”to find destination
• Communicate with family and friends
• Suggest spots to eat and sleep
• Keep you alert while traveling
A Few Rules You Should Know
A. Co nve r s ations cannot last more than 5 minute s
with another station. A one minute break is
required to let others use the channel.
B. You cannot blast others off the air by use of
illegally amplified transmitters or illegally
high antennas.
C. You cannot use CB to promote illegal activities.
D. Profanity is not allowed.
E. You may not transmit music with a CB.
F. Selling of merchandise and/or services is
prohibited.
How Your CB Can Serve You How Your CB Can Serve You
The FCC gives these examples of permitted and
prohibited messages for channel 9. These are
only guidelines and not all-inclusive:
Permitted Example Message
Yes “Tornado sighted six miles north
of town.”
No “Post number 10.
No tornado sighted.”
Yes “Out of gas on I-95 at mile
marker 211.”
No “Out of gas in my driveway.”
Yes “Four car accident on I-94 at
Exit 11. Send police and
ambulance.”
No “Traffic moving smoothly on I-94.”
Yes “Weather Bureau has issued
thunderstorm warning.
Bring sailboat into port.”
No “Attention motorists.
Weather Bureau advises snow
tomorrow will accumulate
4 to 6 inches.”
Yes “Fire in building at 539 Main,
Evanston.”
No “Halloween patrol number 3.
All quiet.”
2928
75 WX ST Manual(5188) 2/5/01 3:00 PM Page 28
How Your CB Can Serve You
30
How Your CB Can Serve You
31
CB 10-Codes
Citizen Bands have adopted the “10-CODES”for
standard questions and answers. These codes
p rovide quick and easy co m m u n i cat i o n ,e s pe c i a l l y
in noisy areas. Following are some of the more
common codes and meanings:
Code Meaning
10-1 Receiving poorly
10-2 Receiving well
10-3 Stop transmitting
10-4 OK,message received
10-5 Relay message
10-6 Busy,stand by
10-7 Out of service, leaving
10-8 In service,subject to call
10-9 Repeat message
10-10 Transmission completed standing by
10-11 Talking too rapidly
10-12 Visitors present
10-13 Advise weather/roads
10-16 Make pick up at
10-17 Urgent business
10-18 Anything for us?
10-19 Return to base
10-20 My location is
10-21 Call by phone
10-22 Report in person to
10-23 Stand by
10-24 Completed last assignment
10-25 Can you contact
10-26 Disregard last info
10-27 Moving to channel
10-28 Identify your station
CB 10-Codes
Code Meaning
10-29 Time is up for contact
10-30 Does not conform to FCC rules
10-33 Emergency traffic
10-34 Trouble at this station
10-35 Confidential information
10-36 Correct time is
10-37 Wrecker needed at
10-38 Ambulance needed
10-39 Message delivered
10-41 Turn to channel
10-42 Traffic accident at
10-43 Traffic tie up at
10-44 Have a message for
10-45 All units within range please report
10-50 Break channel
10-60 What is next message number?
10-62 Unable to copy.Use phone
10-63 Net directed to
10-64 Net clear
10-65 Awaiting your next message/assignment
10-67 All units comply
10-70 Fire at
10-71 Proceed, transmission in sequence
10-77 Negative contact
10-81 Reserve hotel room for
10-82 Reserve room for
10-85 My address is
10-91 Talk closer to mic
10-93 Check my frequency on this channel
10-94 Give me a long count
10-99 Mission completed,all units secure
10-200 Police needed at
75 WX ST Manual(5188) 2/5/01 3:00 PM Page 30
WEATHER CHANNEL MESSAGES
You can receive up to the minute local area
weather reports provided by NOAA (National
Oceanic Atmospheric Administration) 24
hours a day,
7 days a week. An agency of the U.S.
Department of Commerce, NOAA warns of
dangerous weather,charts our seas and skies,
guides our use and protection of ocean and
coastal resources and conducts research to
improve our understanding and stewardship
of the environment.
The National Weather Service operates about
380 stations.Approximately 90 percent of the
Nation’s population is within listening range
of a NOAA Weather Radio broadcast.
A similar network of about 15 stations using the
same frequencies broadcast continuous weath-
er information across much of southern
Canada.
If you have a question concerning NOAA
Weather Radio or wish to receive a listing of
NOAA Weather Radio receiver locations,
please contact your nearest National Weather
Service Office, or write to National Weather
Service (Attn:W/OM11),National Oceanic and
Atmospheric Administration,Silver Spring, MD.
20910.
Weather Channels
33
Frequency Ranges
32
The CO B RA 75 WXST tra n s ce i ver re p re s e nts one
of the most adva n ced AM two - way radios used
as a Class D station in the Ci t i zens Radio Se rv i ce.
This unit fe at u res adva n ced Phase Lock Loo p
(PLL) circ u i t ry providing co m p l e te cove rage of
all 40 CB channels.
Channel Channel
CB Freq. CB Freq.
Channel In MHz Channel In MHz
Weather Weather Freq.
Channel in MHz
1 162.550
2 162.400
3 162.475
4 162.425
5 162.450
6 162.500
7 162.525
8 161.650
9 161.775
0 163.275
Note
Some areas may not have
a broadcast tower within
the receiving range of
your 75 WX ST.
1 26.965 21 27.215
2 26.975 22 27.225
3 26.985 23 27.255
4 27.005 24 27.235
5 27.015 25 27.245
6 27.025 26 27.265
7 27.035 27 27.275
8 27.055 28 27.285
9 27.065 29 27.295
10 27.075 30 27.305
11 27.085 31 27.315
12 27.105 32 27.325
13 27.115 33 27.335
14 27.125 34 27.345
15 27.135 35 27.355
16 27.155 36 27.365
17 27.165 37 27.375
18 27.175 38 27.385
19 27.185 39 27.395
20 27.205 40 27.405
75 WX ST Manual(5188) 2/5/01 3:00 PM Page 32
75 WX ST Specifications
34
Limited Two Year Warranty
35
COBRA ELECTRONICS CORPORATION warrants that its
COBRA CB Radios, and the component parts thereof, will
be free of defects in workmanship and materials for period
of two (2) years from the date of first consumer purchase.
This warranty may be enforced by the first consumer
purchaser, provided that the product is utilized within
the U.S.A.
COBRA will,without charge,repair or replace,at its option,
defective CB radios, products or component parts upon
delivery to the COBRA factory Service Department,
accompanied by proof of the date of first consumer
purchase,such as a duplicated copy of a sales receipt.
You must pay any initial shipping charges required to ship
the product for warranty service, but the return charges
will be at Cobra's expense,if the product is repaired or
replaced under warranty.
This warranty gives you specific legal rights,and you may
also have other rights which vary from state to state.
Exclusions:This limited warranty does not apply;1) to any
product damaged by accident;2) in the event of misuse
or abuse of the product or as a result of unauthorized
alterations or repairs;3) if the serial number has been
altered,defaced or removed;4) if the owner of the product
resides outside the U.S.A.
All implied warranties, including warranties of
merchantability and fitness for a particular purpose
are limited in duration to the length of this warranty.
COBRA shall not be liable for any incidental,
consequential or other damages;including,without
limitation,damages resulting from loss of use or co s t
of installat i o n .
Some states do not allow limitations on how long
an implied warranty lasts and/or do not allow the
exclusion or limitation of incidental or consequential
damages,so the above limitations may not apply
to you.
Cobra Electronics
Corporation
6500 West Cortland Street
Chicago,Illinois 60707
GENERAL
CHANNELS . . . . . . . . . . . . . . . . . . . . . . .CB – 40 CH
WEATHER – 10 CH
FREQUENCY RANGE . . . . . . . . . . . . . . .CB – 26.965 TO 27.405
WEATHER – 161.650 TO 163.275 MHZ
FREQUENCY TOLERANCE. . . . . . . . . . 0.005 %
FREQUENCY CONTROL . . . . . . . . . . . . PLL (PHASE LOCK LOOP) SYNTHESIZER
OPERATING TEMPERATURE
RANGE. . . . . . . . . . . . . . . . . . . . . . . . . . . -30° C TO + 50° C
MICROPHONE. . . . . . . . . . . . . . . . . . . . ELECTRET,PUSH-TO-TALK
INPUT VOLTAGE . . . . . . . . . . . . . . . . . . 13.8VDC EXTERNAL
ANTENNA CONNECTOR . . . . . . . . . . . .SO-239
SIZE . . . . . . . . . . . . . . . . . . . . . . . . . . . . .L 2 3/4”X W 1/78”X H 4 1/4”
WEIGHT . . . . . . . . . . . . . . . . . . . . . . . . . .1 LB.
METER . . . . . . . . . . . . . . . . . . . . . . . . . . .LCD DISPLAY, ICONS
TRANSMITTER
POWER OUTPUT . . . . . . . . . . . . . . . . . .4.0 W AT 13.8 VDC
MODULATION . . . . . . . . . . . . . . . . . . . .AM
FREQUENCY RESPONSE . . . . . . . . . . . .300 TO 3000 HZ
OUTPUT IMPEDANCE . . . . . . . . . . . . . .50 OHMS,UNBALANCED
RECEIVER
CB SENSITIVITY . . . . . . . . . . . . . . . . . . .LESS THAN 1 µV FOR 10dBS /N
IF FREQUENCY . . . . . . . . . . . . . . . . . . . .DUAL CONVERSION
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .1ST:10.690 MHZ,2ND:455 KHZ
AUDIO OUTPUT . . . . . . . . . . . . . . . . . . .500 MW MAXIMUM AT 10% THD
FREQUENCY RESPONSE . . . . . . . . . . . .300-3000 HZ AT -6 DB
2ND IF IMAGE REJECTION . . . . . . . . . .GREATER THAN 60 DB
ADJACENT CH REJECTION . . . . . . . . .50 DB MIN
AUTOMATIC NOISE LIMITER . . . . . . . .BUILT IN
FREQUENCY CONTROL . . . . . . . . . . . .PPL (PHASE LOCK LOOP)
WEATHER
SENSITIVITY . . . . . . . . . . . . . . . . . . . . . . .LESS THAN 1 UV FOR 12 DB SINAD
IF FREQUENCY . . . . . . . . . . . . . . . . . . . .DUAL CONVERSION
1ST:-10.690 MHZ,2ND:-455 KHZ
AUDIO OUTPUT . . . . . . . . . . . . . . . . . . .MAXIMUM 500 MW AT 10% THD
FREQUENCY RESPONSE . . . . . . . . . . . .300 – 3000 HZ AT -6 DB
75 WX ST Manual(5188) 2/5/01 3:00 PM Page 34
You Can Find These
Fine Accessories At
Your Local
Cobra CB Dealer
If you wish,you can order
directly from Cobra.
Order by phone
Call 1.773.889.3087
(Press 1 from the main
menu) 8 a.m.-6 p.m.
M-F CST.
Order by mail or fax
Please fill out order form
on next page,and mail/fax
directly to Cobra.

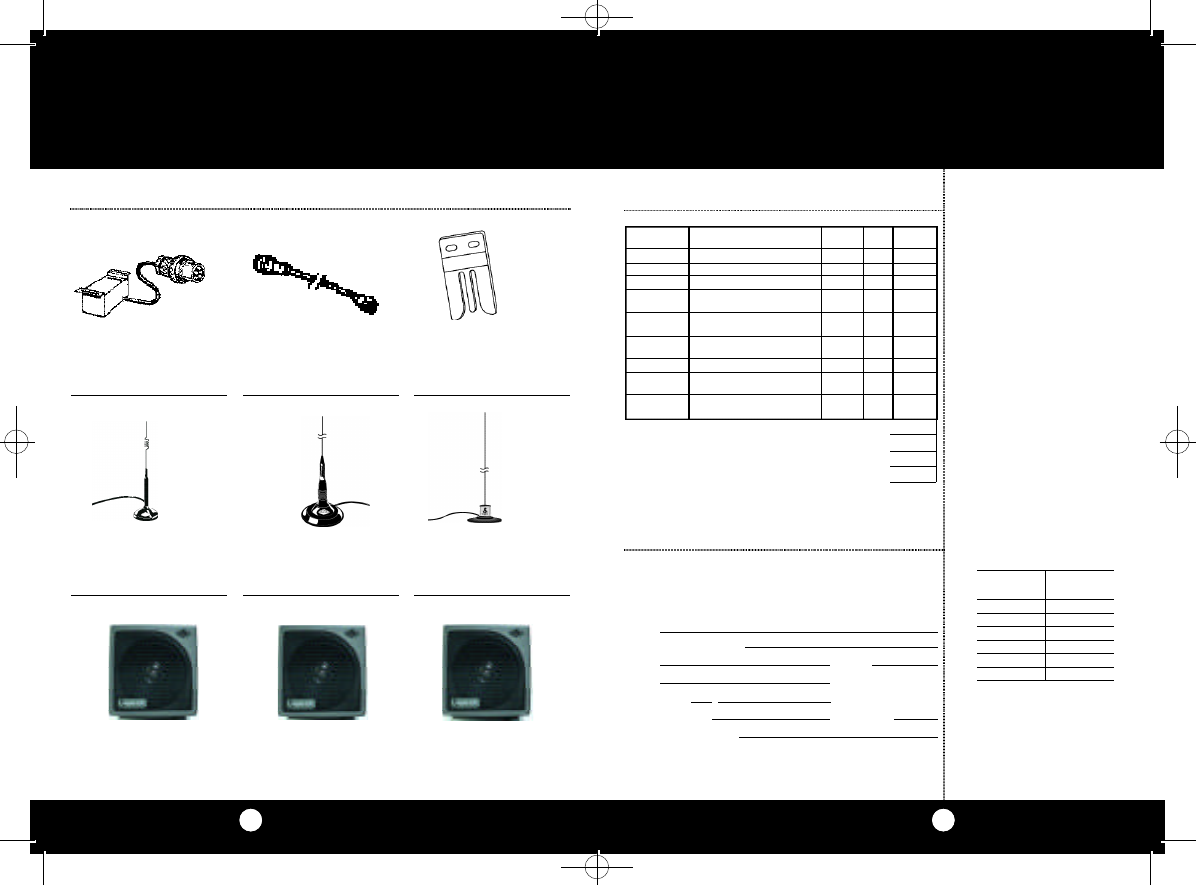

Accessory Order FormOptional Accessories
3736
Remote Connector Box
AC-701 $29.95
4 Foot Extension Cord
AC-702 $19.95
Replacement Microphone
Bracket
For in vehicle use
741-080-9-001 $0.45
21” Base Loaded Magnet
Mount Antenna
HG A1000 $28.95
Dynamic External Speaker
HG S100 $21.95
Noise Canceling External
Speaker
HG S300 $28.95
Noise Canceling With Talk
Back External Speaker
HG S500 $32.95
54” Base Loaded Magnet
Mount Antenna
HG A2000 $99.95
38” Base Loaded Magnet
Mount Antenna
HG A1500 $46.95
Tax Table
Illinois residents add 7%
Cook Co.residents add .75% (7.75% total)
Chicago residents add 1% (8.75% total)
Indiana residents add 5%
Michigan residents add 4 %
Ohio residents add 6%
Wisconsin residents add 5%
For credit card orders fill out order form
and fax to:1.773.622.2269
or call 1.773.889.3087
(Press 1 from the main menu)
8:00 am - 6:00 pm,M-F,CST.
Ma ke check or money order (no stamps)
payable to:
Cobra Accessories Dept.
6500 West Co rtland St .Ch i ca g o,IL 60707
Prices subject to change
without notice.
Please print clearly
Name
Address (No P.O. Box)
City State
Zip
Telephone ( )
Credit Card No. Exp.Date
Customer Signature
Circle One: Visa MasterCard Discover
Allow 2 to 3 weeks for delivery.
Subtotal
(Tax if applicable)
Shipping/handling
Total
Item # Description Cost Ea. Qty. Amount
Shipping & Handling
Amount of Shipping/
Order Handling
$25.00 and under $4.75 minimum
$25.01-$40.00 $6.95
$40.01-$80.00 $9.25
$80.01-$120.00 $10.25
$120.01-$160.00 $11.75
$160.01 and up $14.50
For AK,HI and PR please add
an additional $15.00 for UPS
shipments.
AC - 7 0 1 Re p l a ce m e nt Co n n e ctor Box $ 2 9 . 9 5
AC - 7 0 2 4 Foot Extension Co r d$ 1 9 . 9 5
741-080-9-001 Replacement Microphone Bracket $0.45
HG A1000 21”Base Loaded,
Magnetic Mount Antenna $28.95
HG A1500 38”Base Loaded
Magnetic Mount Antenna $46.95
HG A2000 54”Base Loaded
Magnetic Mount Antenna $99.95
HG S100 Dynamic External Speaker $21.95
HG S300 Noise-Cancelling External
Speaker $28.95
HG S500 Noise-Cancelling with Talk Back
External Speaker $32.95
75 WX ST Manual(5188) 2/5/01 3:01 PM Page 36
The Citizens B
an
broadcast and 1
and was establi
two-way comm
1959.(CB also in
and Class C rem
FCC Regulatio
FCC regulations
(one party to an
(to a wide audie
allowed on CB C
“broadcasting.
FCCWarnings
All transmitter a
supplied by the
operating contr
the supervision
General Radio-T
Re p l a ce m e nt o
diodes or other
parts other than
may cause viola
of Part 95 of the
Acceptance req
You should re a d
with this unit) o
before operatin
the FCC no long
operator’s licens

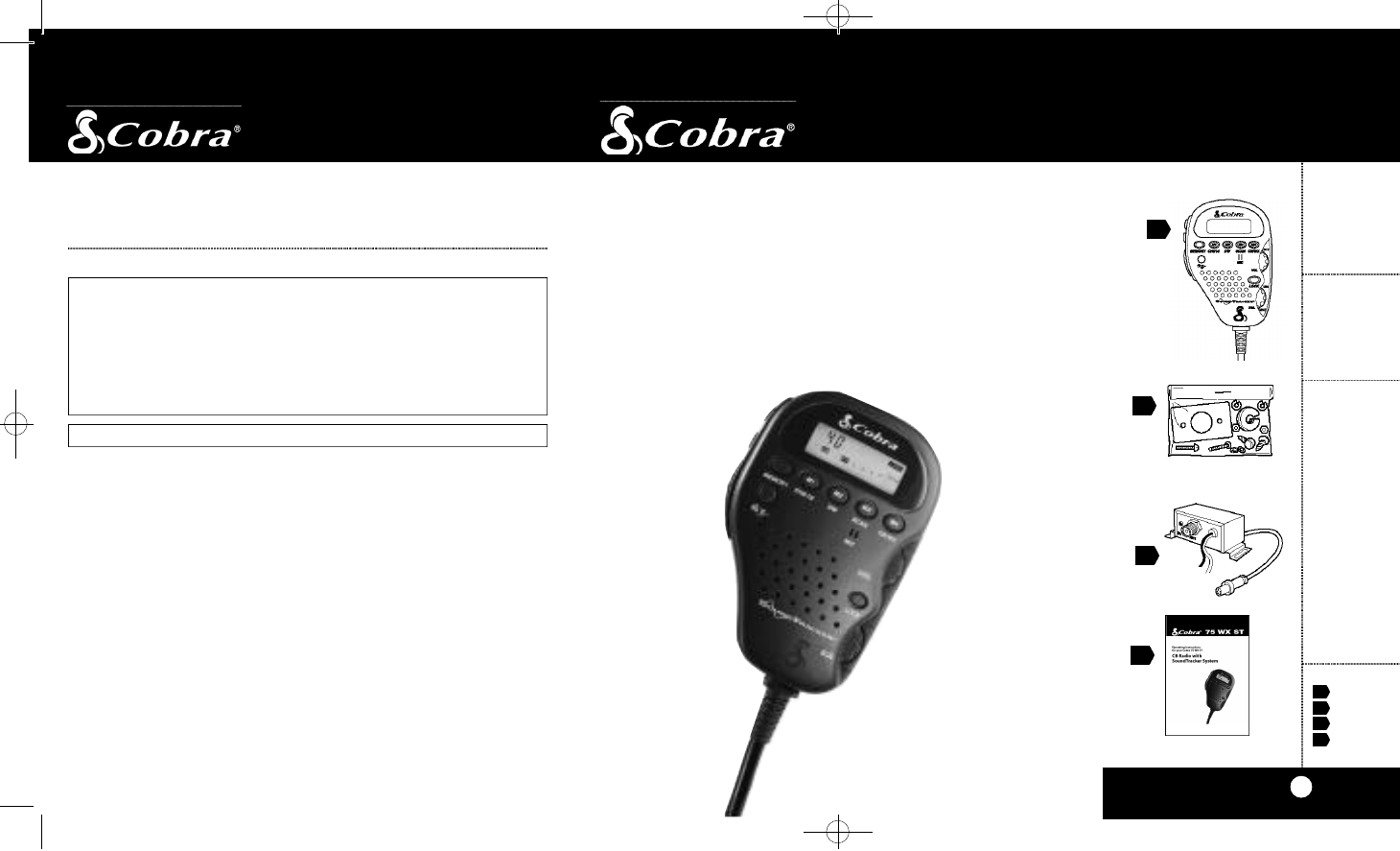

What’s Includ
1. 75 WX ST Tr
2. Installation H
3. Connector B
4. Operating M
75 WX ST
Cobra Electronics Corporation
6500 West Cortland Street
Chicago, IL60707
Cobra Electronics Corp.© 2001
Printed in China
Part No. 480-230-P-001
CB Radio with
SoundTracker System
“Ingenious Prod u cts for Easier Co m m u n i cat i o n .”
O pe rating Instru ctions
for your Co b ra 75 W X S T
A1
For te c h n i cal assistance,please call our Au to m a ted Help Desk which can assist
you by answering the most fre q u e n t l y asked questions about Co b r a prod u ct s .
(773) 889-3087
24 hours a day, 7 days a week.
A Consumer Service Representative can be reached through this same number 8:00 am - 6:00
pm,Monday through Friday,CST.
Technical assistance is also available on-line in the Frequently Asked Questions (FAQ) section at
www.cobraelectronics.com or by e-mail to productinfo@cobraelectronics.com
If you think you need service call 1.773.889.3087
“If your product should require factory service please call Cobra first before sending your unit in.
This will ensure the fastest turn-around time on your repair.”
You may be asked to send your unit to the Cobra factory.It will be necessary to furnish the follow-
ing in order to have the product serviced and returned.
1. For Warranty Repair include some form of proof-of-purchase,such as a mechanical reproduction
or carbon or a sales receipt. If you send the original receipt it cannot be returned.
2. Send the entire product.
3. Enclose a description of what is happening with the unit.Include a typed or clearly print name
and address of where the unit is to be returned.
4. Pack unit securely to prevent damage in transit. If possible,use the original packing material.
5. Ship prepaid and insured by way of a traceable carrier such as United Parcel Service (UPS) or First
Class Mail: to avoid loss in transit to: Cobra Factory Service,Cobra Electronics Corporation,6500
W.Cortland St., Chicago,IL 60707.
6. If the unit is in warranty, upon receipt of your unit it will either be repaired or exchanged
depending on the model. Please allow approximately 3 to 4 weeks before contacting us for
status.If the unit is out of warranty a letter will automatically be sent informing you of the
repair charge or replacement charge. If you have any questions, please call 1.773.889.3087
for assistance.
IfYou Think You Need Service
3
2
4
1
75 WX ST Manual(5188) 2/5/01 3:01 PM Page 38
Thank you for purchasing the Cobra 75 WXST CB
Radio.Properly used, this Cobra product will give
you many years of reliable service.
Customer Support
Should you encounter any problems with the
product or not understand its many features,
please refer to this owner’s manual. If, after
referring to the manual, you still need help,
call Cobra Customer Service at 773.889.3087.
Controls and Indicators
Cobra Customer Service
Live operators are available
M-F 8:00 am - 6:00 pm CST at:
773.889.3087
Automated Technical Assistance
available 24 hours a day, seven
days a week.E-mail questions
to: productinfo@cobraelec-
tronics.com
Cobra on the World Wide Web:
Frequently Asked Questions
(FAQ) can be found on-line at:
www.cobraelectronics.com
Our Thanks to You
A3
A2

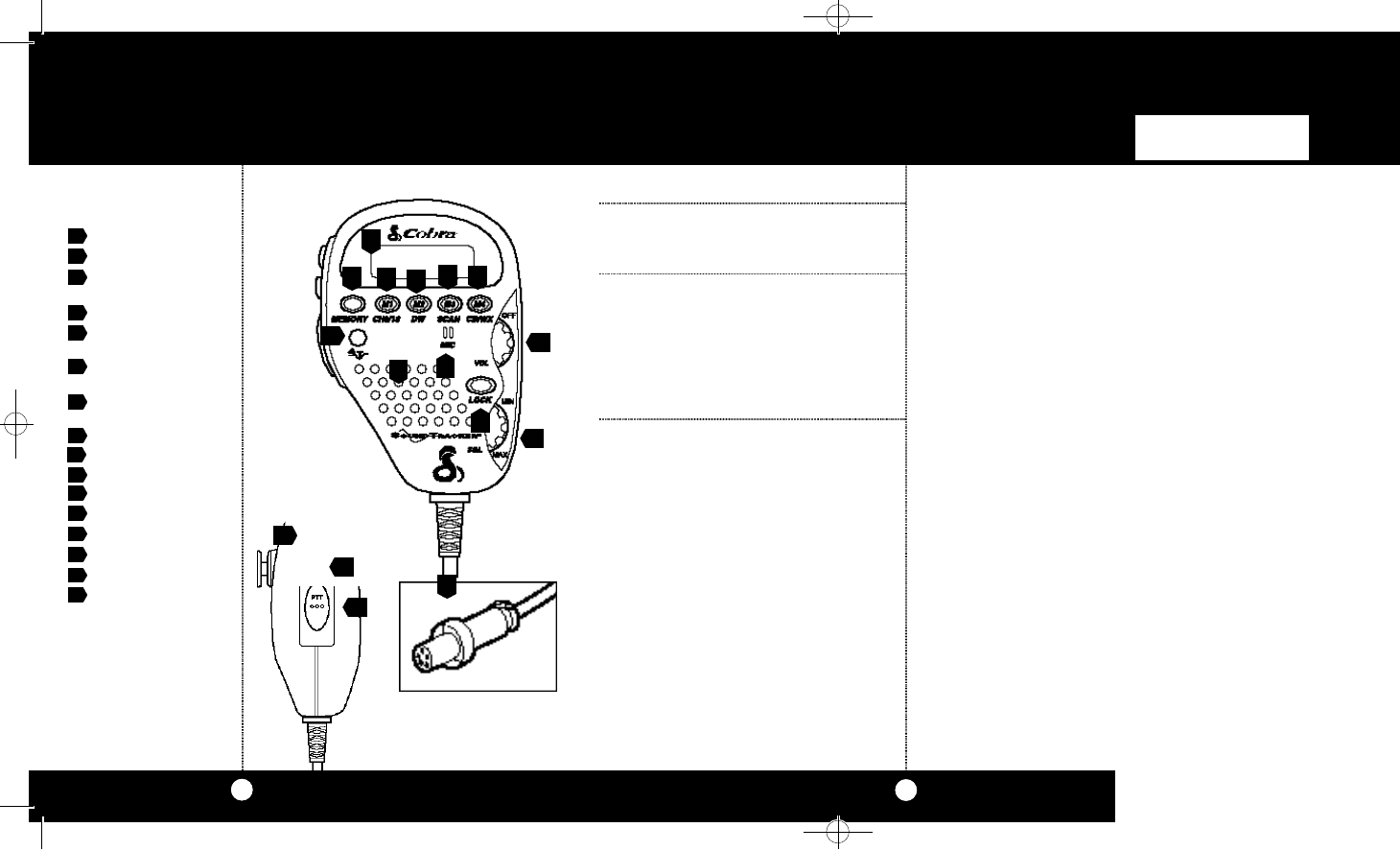

1. SoundTracker Key
2. Memory Key
3. Channel 9/19/Memory
Location 1 Key
4. LCD Display Panel
5. Dual Watch/Memory
Location 2 Key
6. Scan/Memory Location
3 Key
7. CB/Weather/Memory
Location 4 Key
8 . On/Off/Volume Control
9 . Lock Key
1 0 . Squelch Control
1 1 . Microphone
1 2 . Speaker
1 3 . Channel Up
1 4 . Channel Down
1 5 . PTT (Push-To-Talk) Key
1 6 . Quick Disconnect
Connector
9
2
4
1 0
1 1
1 3
8
7
56
1 2
3
1 5 1 6
1 4
1
The Co b ra line of qual
i
also includes:
• Mi c ro Ta lk™Ra d
• Radar De te cto r
• Sa fe ty Al e rt®
Traffic Wa rn i n g
•H i g h Ge a r™CB
•H i g h Ge a r™Pow
Nothing comes close
75 WX ST Manual(5188) 2/5/01 3:01 PM Page 41

Navigation menu
