PESDxL1BA series
Low capacitance bidirectional ESD protection diodes in
SOD323
Rev. 01 — 4 October 2004 Product data sheet
■Bidirectional ESD protection of one line ■ESD protection > 23 kV
■Max. peak pulse power: Ppp = 500 W ■IEC 61000-4-2, level 4 (ESD)
■Low clamping voltage: V(CL)R = 26 V ■IEC 61000-4-5 (surge); Ipp = 18 A
■Ultra low leakage current: IRM < 0.09 µA■Very small SMD plastic package.
■Computers and peripherals ■Data lines
■Communication systems ■CAN bus protection.
■Audio and video equipment
Table 1: Quick reference data
Symbol Parameter Conditions Min Typ Max Unit
VRWM reverse stand-off voltage
PESD3V3L1BA - - 3.3 V
PESD5V0L1BA - - 5.0 V
PESD12VL1BA - - 12 V
PESD15VL1BA - - 15 V
PESD24VL1BA - - 24 V
Cddiode capacitance VR = 0 V;
f=1MHz
PESD3V3L1BA - 101 - pF
PESD5V0L1BA - 75 - pF
PESD12VL1BA - 19 - pF
PESD15VL1BA - 16 - pF
PESD24VL1BA - 11 - pF
9397 750 13595 © Koninklijke Philips Electronics N.V. 2004. All rights reserved.
Product data sheet Rev. 01 — 4 October 2004 2 of 15
Philips Semiconductors PESDxL1BA series
Low capacitance bidirectional ESD protection diodes in SOD323

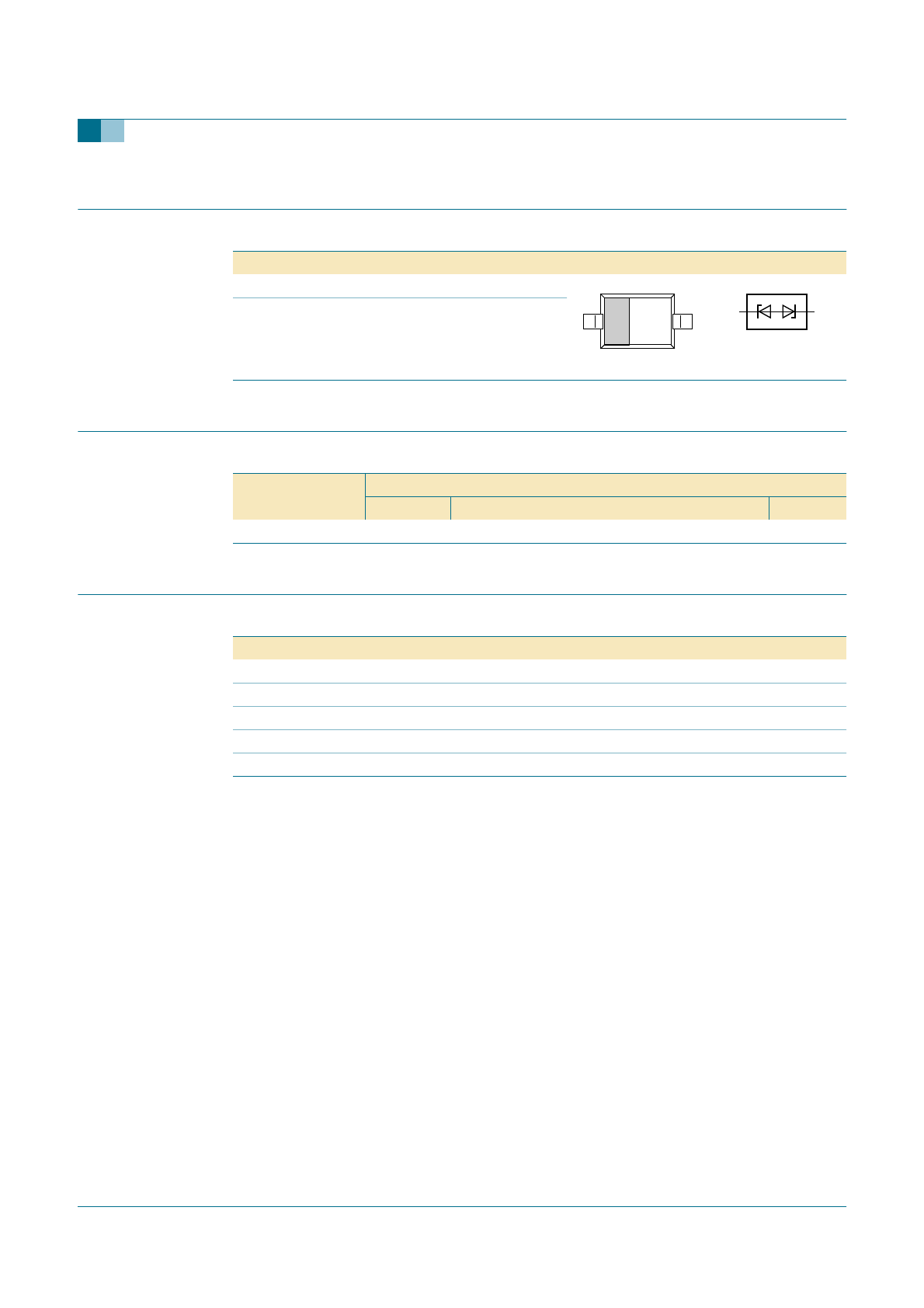

2. Pinning information
3. Ordering information
4. Marking
Table 2: Pinning
Pin Description Simplified outline Symbol
1 cathode 1
2 cathode 2 21
sym045
21
Table 3: Ordering information
Type number Package
Name Description Version
PESDxL1BA series SC-76 plastic surface mounted package; 2 leads SOD323
Table 4: Marking codes
Type number Marking code
PESD3V3L1BA AB
PESD5V0L1BA AC
PESD12VL1BA AD
PESD15VL1BA AE
PESD24VL1BA AF
9397 750 13595 © Koninklijke Philips Electronics N.V. 2004. All rights reserved.
Product data sheet Rev. 01 — 4 October 2004 3 of 15
Philips Semiconductors PESDxL1BA series
Low capacitance bidirectional ESD protection diodes in SOD323
5. Limiting values
[1] Non-repetitive current pulse 8/20 µs exponential decay waveform; see Figure 1.
[1] Device stressed with ten non-repetitive ESD pulses; see Figure 2.
Table 5: Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
Ppp peak pulse power 8/20 µs[1]
PESD3V3L1BA - 500 W
PESD5V0L1BA - 500 W
PESD12VL1BA - 200 W
PESD15VL1BA - 200 W
PESD24VL1BA - 200 W
Ipp peak pulse current 8/20 µs[1]
PESD3V3L1BA - 18 A
PESD5V0L1BA - 15 A
PESD12VL1BA - 5 A
PESD15VL1BA - 5 A
PESD24VL1BA - 3 A
Tjjunction temperature - 150 °C
Tamb ambient temperature −65 +150 °C
Tstg storage temperature −65 +150 °C
Table 6: ESD maximum ratings
Symbol Parameter Conditions Min Max Unit
ESD electrostatic discharge capability IEC 61000-4-2
(contact discharge)
[1]
PESD3V3L1BA - 30 kV
PESD5V0L1BA - 30 kV
PESD12VL1BA - 30 kV
PESD15VL1BA - 30 kV
PESD24VL1BA - 23 kV
PESDxL1BA series HBM MIL-Std 883 - 10 kV
Table 7: ESD standards compliance
Standard Conditions
IEC 61000-4-2; level 4 (ESD); Figure 2 > 15 kV (air); > 8 kV (contact)
HBM MIL-Std 883; class 3 > 4 kV
9397 750 13595 © Koninklijke Philips Electronics N.V. 2004. All rights reserved.
Product data sheet Rev. 01 — 4 October 2004 4 of 15
Philips Semiconductors PESDxL1BA series
Low capacitance bidirectional ESD protection diodes in SOD323

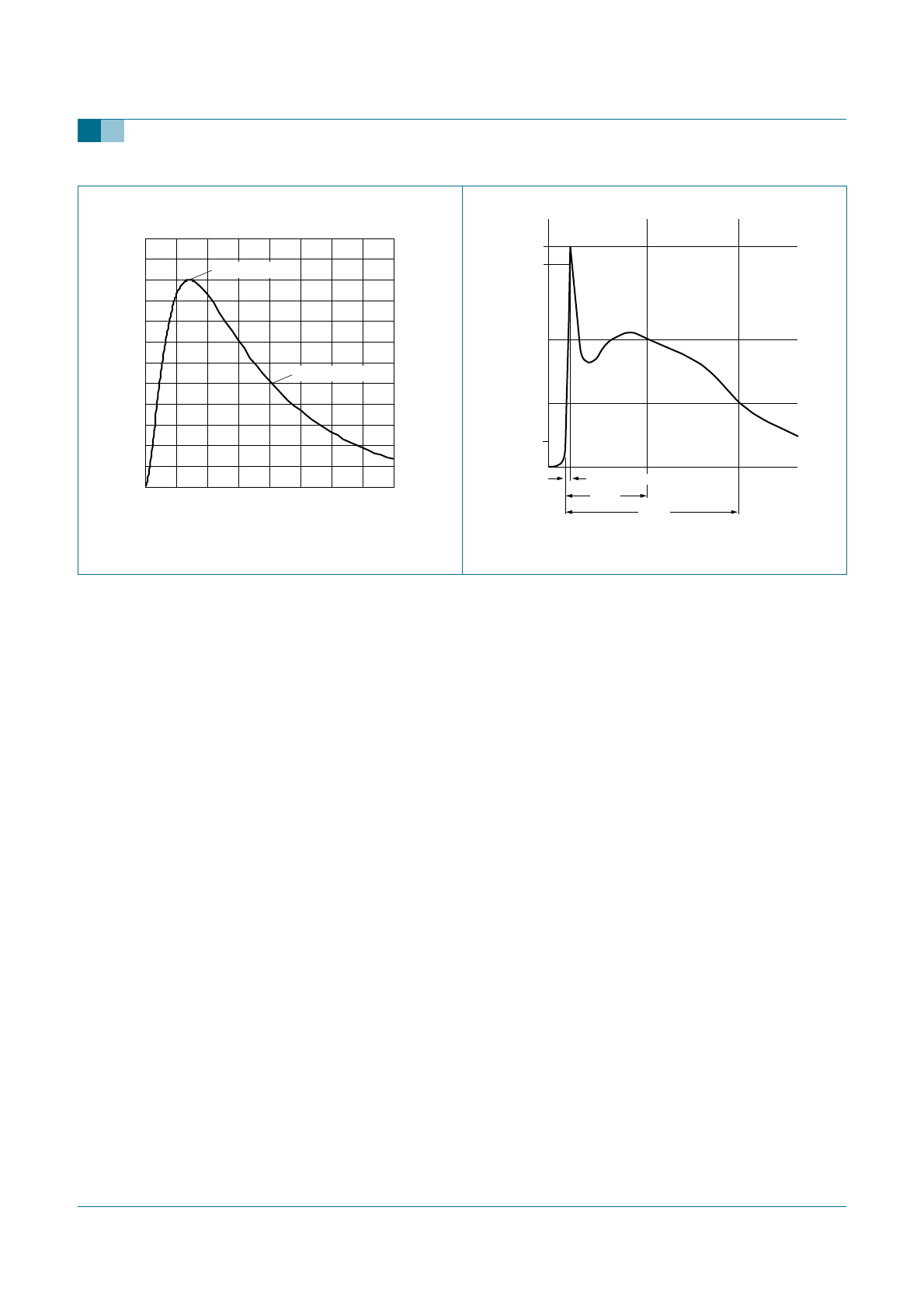

Fig 1. 8/20 µs pulse waveform according to
IEC 61000-4-5. Fig 2. ESD pulse waveform according to
IEC 61000-4-2.
t (µs)
0403010 20
001aaa630
40
80
120
Ipp
(%)
0
e−t
100 % Ipp; 8 µs
50 % Ipp; 20 µs
001aaa631
Ipp
100 %
90 %
t
30 ns
60 ns
10 %
tr = 0.7 to 1 ns
9397 750 13595 © Koninklijke Philips Electronics N.V. 2004. All rights reserved.
Product data sheet Rev. 01 — 4 October 2004 5 of 15
Philips Semiconductors PESDxL1BA series
Low capacitance bidirectional ESD protection diodes in SOD323
6. Characteristics
Table 8: Characteristics
T
amb
= 25
°
C unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit
VRWM reverse stand-off voltage
PESD3V3L1BA - - 3.3 V
PESD5V0L1BA - - 5.0 V
PESD12VL1BA - - 12 V
PESD15VL1BA - - 15 V
PESD24VL1BA - - 24 V
IRM reverse leakage current see Figure 7
PESD3V3L1BA VRWM = 3.3 V - 0.09 2 µA
PESD5V0L1BA VRWM = 5.0 V - 0.01 1 µA
PESD12VL1BA VRWM = 12 V - < 1 50 nA
PESD15VL1BA VRWM = 15 V - < 1 50 nA
PESD24VL1BA VRWM = 24 V - < 1 50 nA
V(BR) breakdown voltage IR = 5 mA
PESD3V3L1BA 5.8 6.4 6.9 V
PESD5V0L1BA 7.0 7.6 8.2 V
PESD12VL1BA 14.2 15.9 16.7 V
PESD15VL1BA 17.1 18.9 20.3 V
PESD24VL1BA 25.4 27.8 30.3 V
Cddiode capacitance VR = 0 V; f = 1 MHz;
see Figure 5 and 6
PESD3V3L1BA - 101 - pF
PESD5V0L1BA - 75 - pF
PESD12VL1BA - 19 - pF
PESD15VL1BA - 16 - pF
PESD24VL1BA - 11 - pF
V(CL)R clamping voltage [1]
PESD3V3L1BA Ipp = 1 A - - 8 V
Ipp = 18 A - - 26 V
PESD5V0L1BA Ipp = 1 A - - 10 V
Ipp = 15 A - - 33 V
PESD12VL1BA Ipp = 1 A - - 20 V
Ipp = 5A - - 37 V
PESD15VL1BA Ipp = 1 A - - 25 V
Ipp = 5 A - - 44 V
PESD24VL1BA Ipp = 1 A - - 40 V
Ipp = 3 A - - 70 V
9397 750 13595 © Koninklijke Philips Electronics N.V. 2004. All rights reserved.
Product data sheet Rev. 01 — 4 October 2004 6 of 15
Philips Semiconductors PESDxL1BA series
Low capacitance bidirectional ESD protection diodes in SOD323
[1] Non-repetitive current pulse 8/20 µs exponential decay waveform; see Figure 1.
rdif differential resistance IR = 1 mA
PESD3V3L1BA - - 400 Ω
PESD5V0L1BA - - 80 Ω
PESD12VL1BA - - 200 Ω
PESD15VL1BA - - 225 Ω
PESD24VL1BA - - 300 Ω
Table 8: Characteristics
…continued
T
amb
= 25
°
C unless otherwise specified.
Symbol Parameter Conditions Min Typ Max Unit
9397 750 13595 © Koninklijke Philips Electronics N.V. 2004. All rights reserved.
Product data sheet Rev. 01 — 4 October 2004 7 of 15
Philips Semiconductors PESDxL1BA series
Low capacitance bidirectional ESD protection diodes in SOD323
Tamb = 25 °C.
tp = 8/20 µs exponential decay waveform;
see Figure 1.
(1) PESD3V3L1BA and PESD5V0L1BA.
(2) PESD12VL1BA; PESD15VL1BA; PESD24VL1BA.

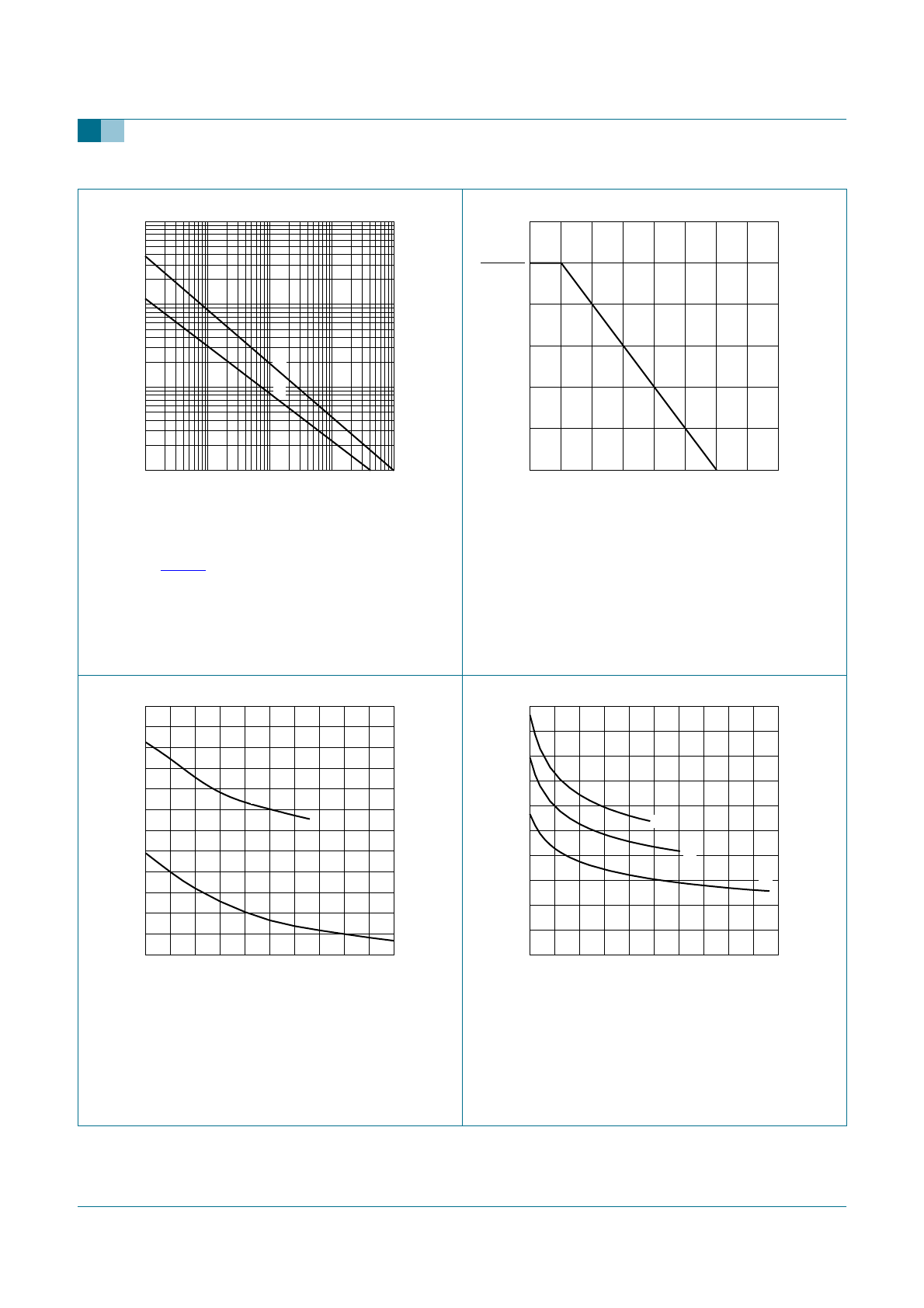

Fig 3. Peak pulse power dissipation as a function of
pulse time; typical values. Fig 4. Relative variation of peak pulse power as a
function of junction temperature; typical
values.
Tamb = 25 °C; f = 1 MHz.
(1) PESD3V3L1BA.
(2) PESD5V0L1BA.
Tamb = 25 °C; f = 1 MHz.
(1) PESD12VL1BA.
(2) PESD15VL1BA.
(3) PESD24VL1BA.
Fig 5. Diode capacitance as a function of reverse
voltage; typical values. Fig 6. Diode capacitance as a function of reverse
voltage; typical values.
006aaa066
103
102
104
Ppp
(W)
10
tp (µs)
110
4
103
10 102
(1)
(2)
Tj (°C)
0 20015050 100
001aaa193
0.4
0.8
1.2
Ppp
0
Ppp(25˚C)
VR (V)
054231
006aaa067
70
90
100
110
Cd
(pF)
50
60
80
(1)
(2)
VR (V)
0252010 155
006aaa068
8
12
4
16
20
Cd
(pF)
0
(1)
(2)
(3)
9397 750 13595 © Koninklijke Philips Electronics N.V. 2004. All rights reserved.
Product data sheet Rev. 01 — 4 October 2004 8 of 15
Philips Semiconductors PESDxL1BA series
Low capacitance bidirectional ESD protection diodes in SOD323
(1) PESD3V3L1BA; PESD5V0L1BA.
For PESD12VL1BA, PESD15VL1BA and PESD24VL1BA, IRM < 20 nA at 150 °C.

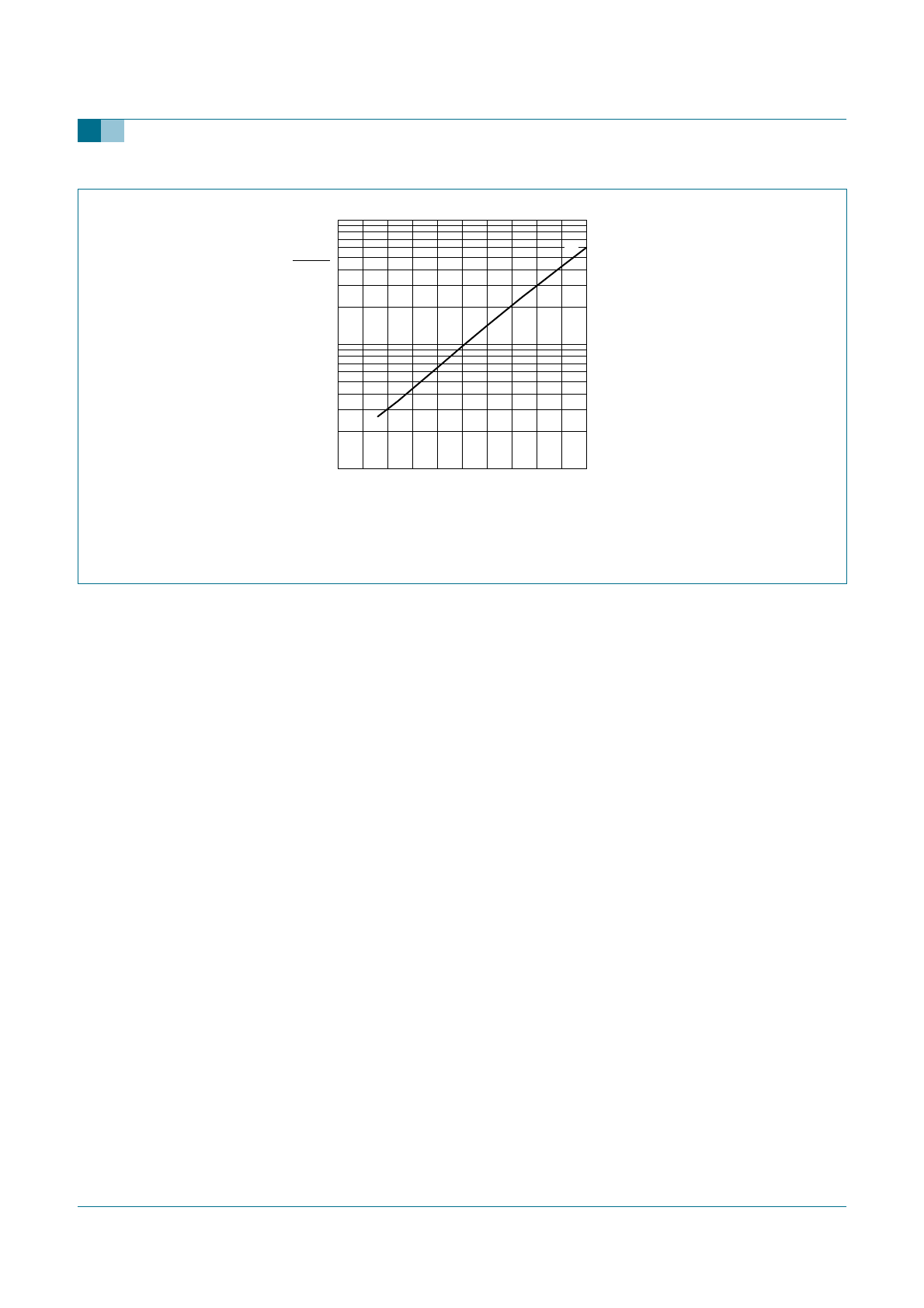

Fig 7. Relative variation of reverse leakage current as a function of junction temperature; typical values.
006aaa069
1
10
10−1
Tj (°C)
−100 150100050−50
IRM
IRM(25°C)
(1)
9397 750 13595 © Koninklijke Philips Electronics N.V. 2004. All rights reserved.
Product data sheet Rev. 01 — 4 October 2004 9 of 15
Philips Semiconductors PESDxL1BA series
Low capacitance bidirectional ESD protection diodes in SOD323

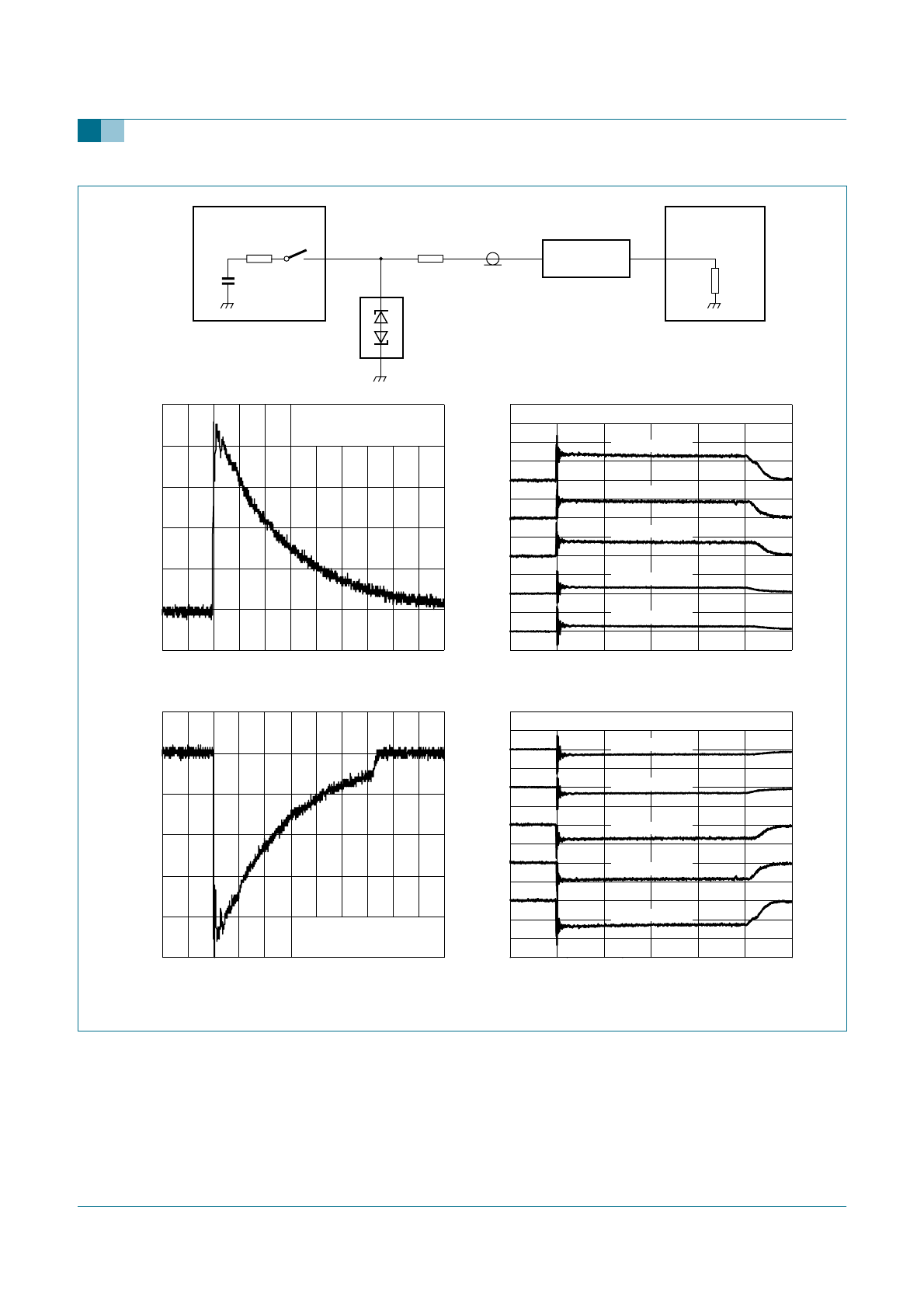

Fig 8. ESD clamping test set-up and waveforms.
006aaa070
50 Ω
RZ
CZ1
2
DUT: PESDxL1BA
vertical scale = 200 V/div
horizontal scale = 50 ns/div
unclamped +1 kV ESD voltage waveform
(IEC 61000-4-2 network) clamped +1 kV ESD voltage waveform
(IEC 61000-4-2 network)
unclamped −1 kV ESD voltage waveform
(IEC 61000-4-2 network) clamped −1 kV ESD voltage waveform
(IEC 61000-4-2 network)
vertical scale = 200 V/div
horizontal scale = 50 ns/div
vertical scale = 20 V/div; horizontal scale = 50 ns/div
vertical scale = 20 V/div; horizontal scale = 50 ns/div
GND
GND
450 Ω
RG 223/U
50 Ω coax
ESD TESTER
IEC 61000-4-2 network
CZ = 150 pF; RZ = 330 Ω
4 GHz DIGITAL
OSCILLOSCOPE
10×
ATTENUATOR
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
PESD3V3L1BA
PESD5V0L1BA
PESD12VL1BA
PESD15VL1BA
PESD24VL1BA
PESD3V3L1BA
PESD5V0L1BA
PESD12VL1BA
PESD15VL1BA
PESD24VL1BA
9397 750 13595 © Koninklijke Philips Electronics N.V. 2004. All rights reserved.
Product data sheet Rev. 01 — 4 October 2004 10 of 15
Philips Semiconductors PESDxL1BA series
Low capacitance bidirectional ESD protection diodes in SOD323
7. Application information
The PESDxL1BA series is designed for bidirectional protection of one signal line from the
damage caused by Electro Static Discharge (ESD) and surge pulses. The PESDxL1BA
series may be used on lines where the signal polarity is above and below ground. The
PESDxL1BA series provides a surge capability of up to 500 W per line for a 8/20 µs
waveform.
Circuit board layout and protection device placement
Circuit board layout is critical for the suppression of ESD, Electrical Fast Transient (EFT)
and surge transients. The following guidelines are recommended:
1. Place the protection device as close to the input terminal or connector as possible.
2. The path length between the protection device and the protected line should be
minimized.
3. Keep parallel signal paths to a minimum.
4. Avoid running protected conductors in parallel with unprotected conductor.
5. Minimize all printed-circuit board conductive loops including power and ground loops.
6. Minimize the length of the transient return path to ground.
7. Avoid using shared transient return paths to a common ground point.
8. Ground planes should be used whenever possible. For multilayer printed-circuit
boards, use ground vias.

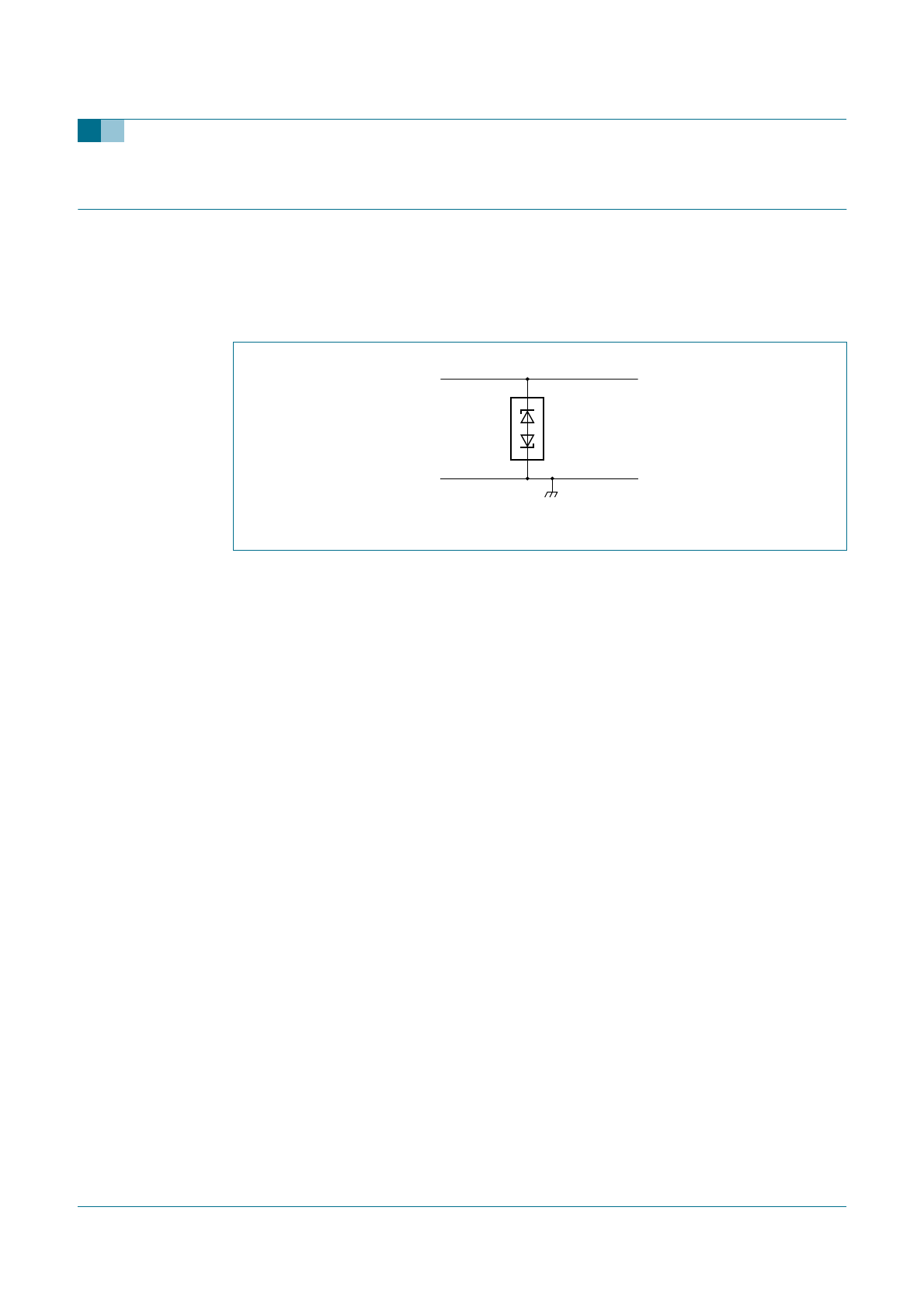

Fig 9. Typical application: Bidirectional protection of one signal line.
006aaa071
ground
PESDxL1BA
line to be protected
9397 750 13595 © Koninklijke Philips Electronics N.V. 2004. All rights reserved.
Product data sheet Rev. 01 — 4 October 2004 11 of 15
Philips Semiconductors PESDxL1BA series
Low capacitance bidirectional ESD protection diodes in SOD323
8. Package outline

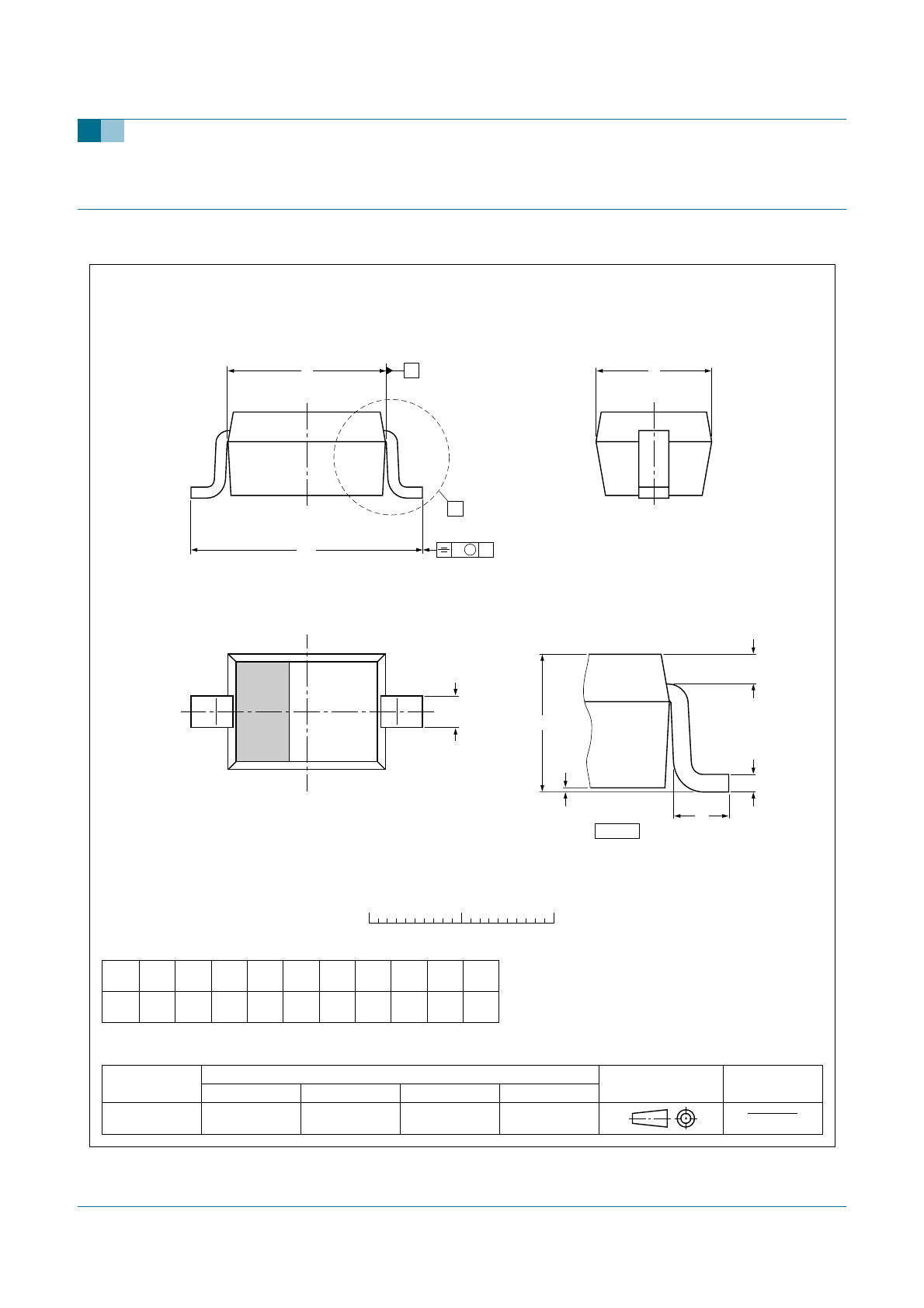

Fig 10. Package outline SOD323 (SC-76).
REFERENCES
OUTLINE
VERSION EUROPEAN
PROJECTION ISSUE DATE
IEC JEDEC JEITA
SOD323 SC-76
SOD323
99-09-13
03-12-17
Note
1. The marking bar indicates the cathode
UNIT A
mm 0.05
1.1
0.8 0.40
0.25 0.25
0.10 1.8
1.6 1.35
1.15 2.7
2.3 0.45
0.15
A1
max
DIMENSIONS (mm are the original dimensions)
Plastic surface mounted package; 2 leads
01
(1)
21
2 mm
scale
bpc D E HDQ
0.25
0.15
Lpv
0.2
A
D
A
E
Lp
bp
detail X
A1
c
Q
HDvA
M
X
9397 750 13595 © Koninklijke Philips Electronics N.V. 2004. All rights reserved.
Product data sheet Rev. 01 — 4 October 2004 12 of 15
Philips Semiconductors PESDxL1BA series
Low capacitance bidirectional ESD protection diodes in SOD323
9. Packing information
[1] For further information and the availability of packing methods, see Section 14.
Table 9: Packing methods
The indicated -xxx are the last three digits of the 12NC ordering code.
[1]
Type number Package Description Packing quantity
3000 10000
PESDxL1BA series SOD323 4 mm pitch, 8 mm tape and reel -115 -135
Philips Semiconductors PESDxL1BA series
Low capacitance bidirectional ESD protection diodes in SOD323
9397 750 13595 © Koninklijke Philips Electronics N.V. 2004. All rights reserved.
Product data sheet Rev. 01 — 4 October 2004 13 of 15
10. Revision history
Table 10: Revision history
Document ID Release date Data sheet status Change notice Doc. number Supersedes
PESDXL1BA_SER_1 20041004 Product data sheet - 9397 750 13595 -
Philips Semiconductors PESDxL1BA series
Low capacitance bidirectional ESD protection diodes in SOD323
9397 750 13595 © Koninklijke Philips Electronics N.V. 2004. All rights reserved.
Product data sheet Rev. 01 — 4 October 2004 14 of 15
11. Data sheet status
[1] Please consult the most recently issued data sheet before initiating or completing a design.
[2] The product status of the device(s) described in this data sheet may have changed since this data sheet was published. The latest information is available on the Internet at
URL http://www.semiconductors.philips.com.
[3] For data sheets describing multiple type numbers, the highest-level product status determines the data sheet status.
12. Definitions
Short-form specification — The data in a short-form specification is
extracted from a full data sheet with the same type number and title. For
detailed information see the relevant data sheet or data handbook.
Limiting values definition — Limiting values given are in accordance with
the Absolute Maximum Rating System (IEC 60134). Stress above one or
more of the limiting values may cause permanent damage to the device.
These are stress ratings only and operation of the device at these or at any
other conditions above those given in the Characteristics sections of the
specification is not implied. Exposure to limiting values for extended periods
may affect device reliability.
Application information — Applications that are described herein for any
of these products are for illustrative purposes only. Philips Semiconductors
make no representation or warranty that such applications will be suitable for
the specified use without further testing or modification.
13. Disclaimers
Life support — These products are not designed for use in life support
appliances, devices, or systems where malfunction of these products can
reasonably be expected to result in personal injury. Philips Semiconductors
customers using or selling these products for use in such applications do so
at their own risk and agree to fully indemnify Philips Semiconductors for any
damages resulting from such application.
Right to make changes — Philips Semiconductors reserves the right to
make changes in the products - including circuits, standard cells, and/or
software - described or contained herein in order to improve design and/or
performance. When the product is in full production (status ‘Production’),
relevant changes will be communicated via a Customer Product/Process
Change Notification (CPCN). Philips Semiconductors assumes no
responsibility or liability for the use of any of these products, conveys no
license or title under any patent, copyright, or mask work right to these
products, and makes no representations or warranties that these products are
free from patent, copyright, or mask work right infringement, unless otherwise
specified.
14. Contact information
For additional information, please visit: http://www.semiconductors.philips.com
For sales office addresses, send an email to: sales.addresses@www.semiconductors.philips.com
Level Data sheet status [1] Product status[2] [3] Definition
I Objective data Development This data sheet contains data from the objective specification for product development. Philips
Semiconductors reserves the right to change the specification in any manner without notice.
II Preliminary data Qualification This data sheet contains data from the preliminary specification. Supplementary data will be published
at a later date. Philips Semiconductors reserves the right to change the specification without notice, in
order to improve the design and supply the best possible product.
III Product data Production This data sheet contains data from the product specification. Philips Semiconductors reserves the
right to make changes at any time in order to improve the design, manufacturing and supply. Relevant
changes will be communicated via a Customer Product/Process Change Notification (CPCN).
© Koninklijke Philips Electronics N.V. 2004
All rights are reserved. Reproduction in whole or in part is prohibited without the prior
written consent of the copyright owner. The information presented in this document does
not form part of any quotation or contract, is believed to be accurate and reliable and may
be changed without notice. No liability will be accepted by the publisher for any
consequence of its use. Publication thereof does not convey nor imply any license under
patent- or other industrial or intellectual property rights.
Date of release: 4 October 2004
Document number: 9397 750 13595
Published in The Netherlands
Philips Semiconductors PESDxL1BA series
Low capacitance bidirectional ESD protection diodes in SOD323
15. Contents
1 Product profile . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1 General description. . . . . . . . . . . . . . . . . . . . . . 1
1.2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.3 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.4 Quick reference data. . . . . . . . . . . . . . . . . . . . . 1
2 Pinning information. . . . . . . . . . . . . . . . . . . . . . 2
3 Ordering information . . . . . . . . . . . . . . . . . . . . . 2
4 Marking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
5 Limiting values. . . . . . . . . . . . . . . . . . . . . . . . . . 3
6 Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . 5
7 Application information. . . . . . . . . . . . . . . . . . 10
8 Package outline . . . . . . . . . . . . . . . . . . . . . . . . 11
9 Packing information. . . . . . . . . . . . . . . . . . . . . 12
10 Revision history. . . . . . . . . . . . . . . . . . . . . . . . 13
11 Data sheet status . . . . . . . . . . . . . . . . . . . . . . . 14
12 Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
13 Disclaimers. . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
14 Contact information . . . . . . . . . . . . . . . . . . . . 14
