Radar/Laser Detector
Model ESD-9220 WX
Operating Instructions for your Cobra®
9 Band® Extra Sensory Detection®
Nothing comes close to a Cobra™
NOAA
Dim
City/Wx
WX
Mute
X
L
K
Ka
V
WWx
Cty
band
360
lazer
Introduction
A1
Introduction
Congratulations! You have just purchased the
most sophisticated RADAR/LASER DETECTOR
available today. This booklet contains instructions
and information designed so that you will be able
to understand how the Cobra® ESD-9220 WX
works and how radar and (LIDAR) laser are used.
Enjoy your Cobra® ESD-9220 WX Radar/Laser
Detector and drive safely.
Federal Law Governing Use of
Radar Detectors
It is not against Federal Law to receive radar
transmissions on your COBRA® Radar Detector.
The Communications Act of 1934 guarantees
your right to receive radio transmissions on
any frequency. Local laws that contravene the
Communications Act of 1934, while illegal, may
be enforced by your local law enforcement
officials until and unless they are prohibited from
doing so by Federal Court action.
WARNING: Before leaving your car, make sure
that you conceal your radar detector. This will
reduce the possibility of break-in and theft of
your unit.

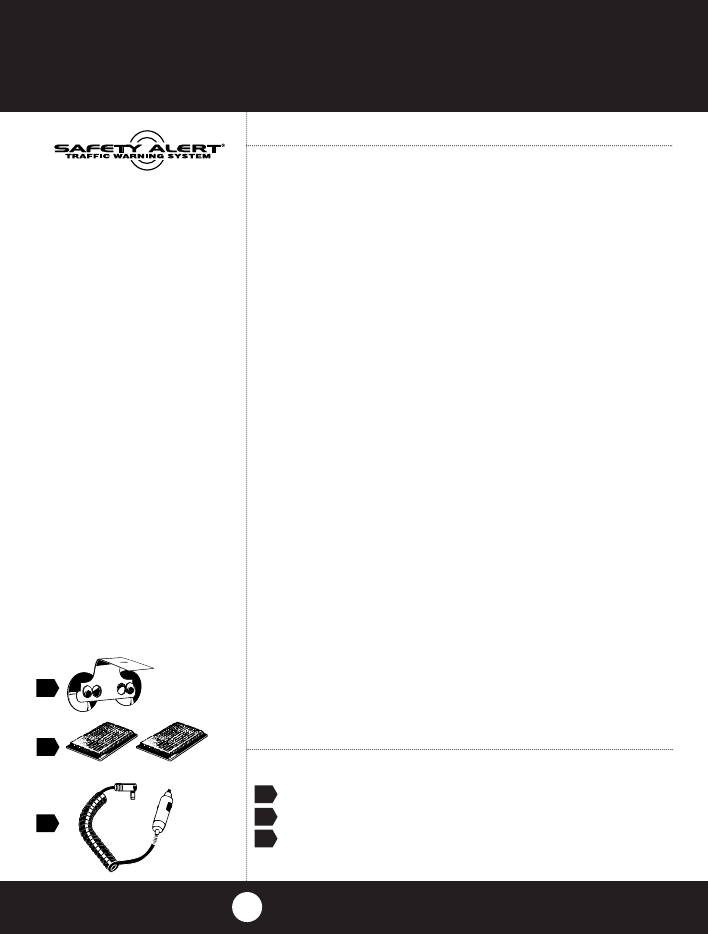

Included with your ESD-9220 WX
1. Windshield Bracket
2. Hook and Loop Material
3. Power Cord
and Strobe Alert™
Use of this product is not
intended to, and does not ensure
that the motorist and any
passenger will not be involved in
a traffic accident. It is only
intended to alert the motorist
that an emergency or service
vehicle equipped with a CODE 3,
Strobe (Opticom* or Tomar
Preemption System) or Cobra®
Safety Alert® Transmitter is in the
area as defined by the range of
the product. Please call your local
Fire/Police department to verify if
coverage exists in your area.
Motorists are expected to
exercise all due caution while
using this product, and to
observe and follow all applicable
traffic laws.Operators of
emergency or service vehicles are
also expected to exercise all due
caution while using this product,
and to observe and follow all
applicable traffic laws.
*Opticom is a registered trademark
of 3M Corporation
1.
2.
3.
How to Use Your Cobra®
ESD Radar/Laser Detector
1
Features of This Product
•10 Channel Weather Radio
•Weather Alert
•Voice Alert™
•Safety Alert® Traffic
Warning System
•360ºStrobe Alert™
•Separate Visual and
Audio Alarms
•Signal Strength Indicators
•LaserEye® 360˚ Detection
•VG-2 Undetectable
•Auto and Manual Muting
•3 Level Dim Button
•Superior Audio Volume
•Adjustable Windshield
Mounting Bracket
Contents
Introduction.......................................................................A1
Safety Alert®/Strobe Alert™
Federal Law Governing Radar Detectors
Included Accessories

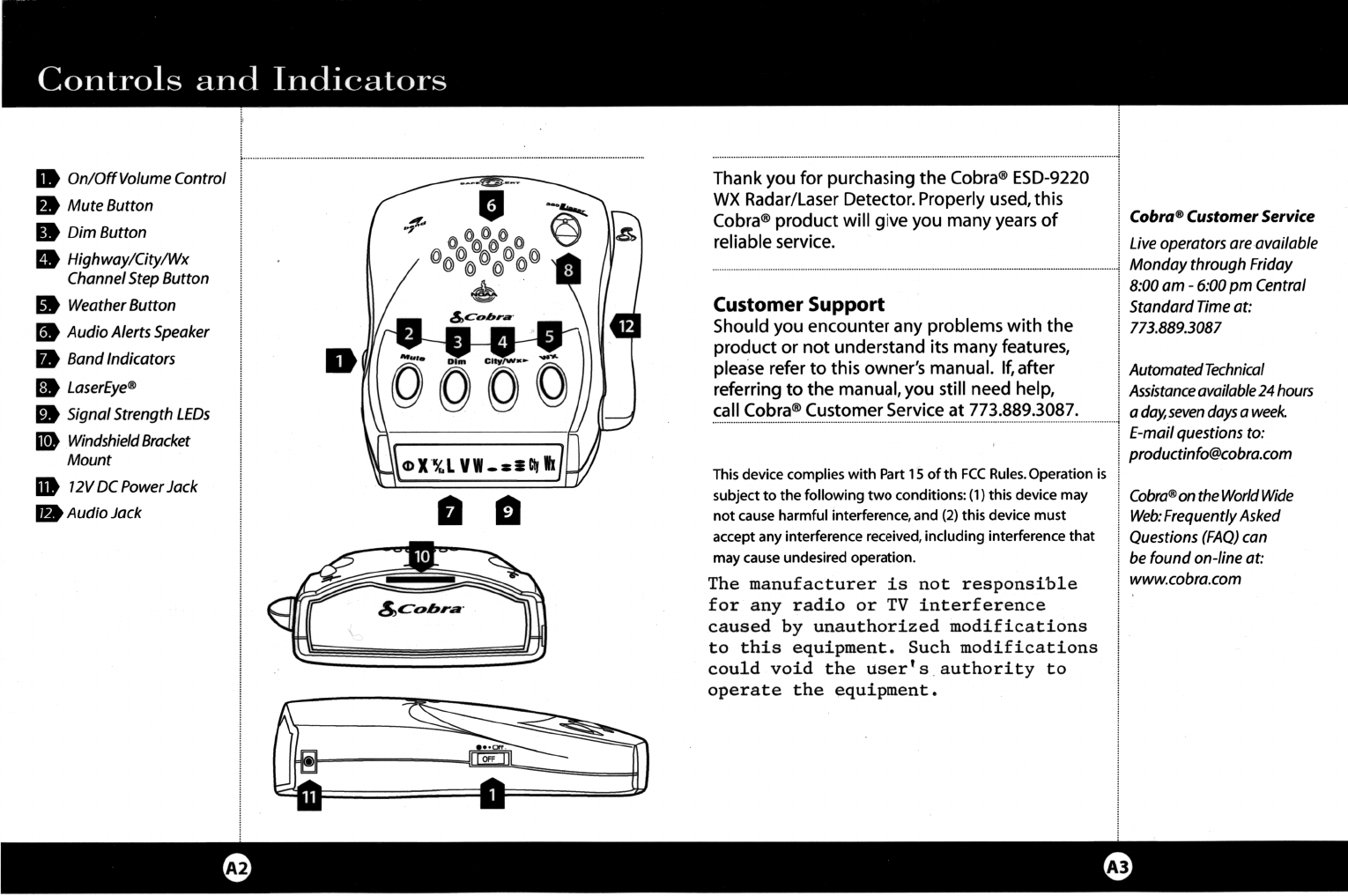

Controls & Indicators.....................................................A2
Our Thanks to You...........................................................A3
Customer Support........................................................A3
Features ..................................................................................1
Installation ............................................................................2
Quick Start.............................................................................5
LED Displays.......................................................................6
Operation...............................................................................9
Turning On .........................................................................9
Dim Button ......................................................................10
Highway/City Mode......................................................11
Muting Mode ..................................................................12
Memory Set.....................................................................12
Weather Radio................................................................13
Detection .............................................................................13
Band Detection ..............................................................14
Audible Alarm Indicator..............................................14
Radar..................................................................................15
VG-2 Undetectable .......................................................16
Safety Alert®/Strobe Alert™......................................17
Laser Detection ..............................................................17
Radar/VG-2/Laser Alerts..............................................18
Facts About Safety Alert®/Strobe Alert™.............19
Radar Frequencies.........................................................20

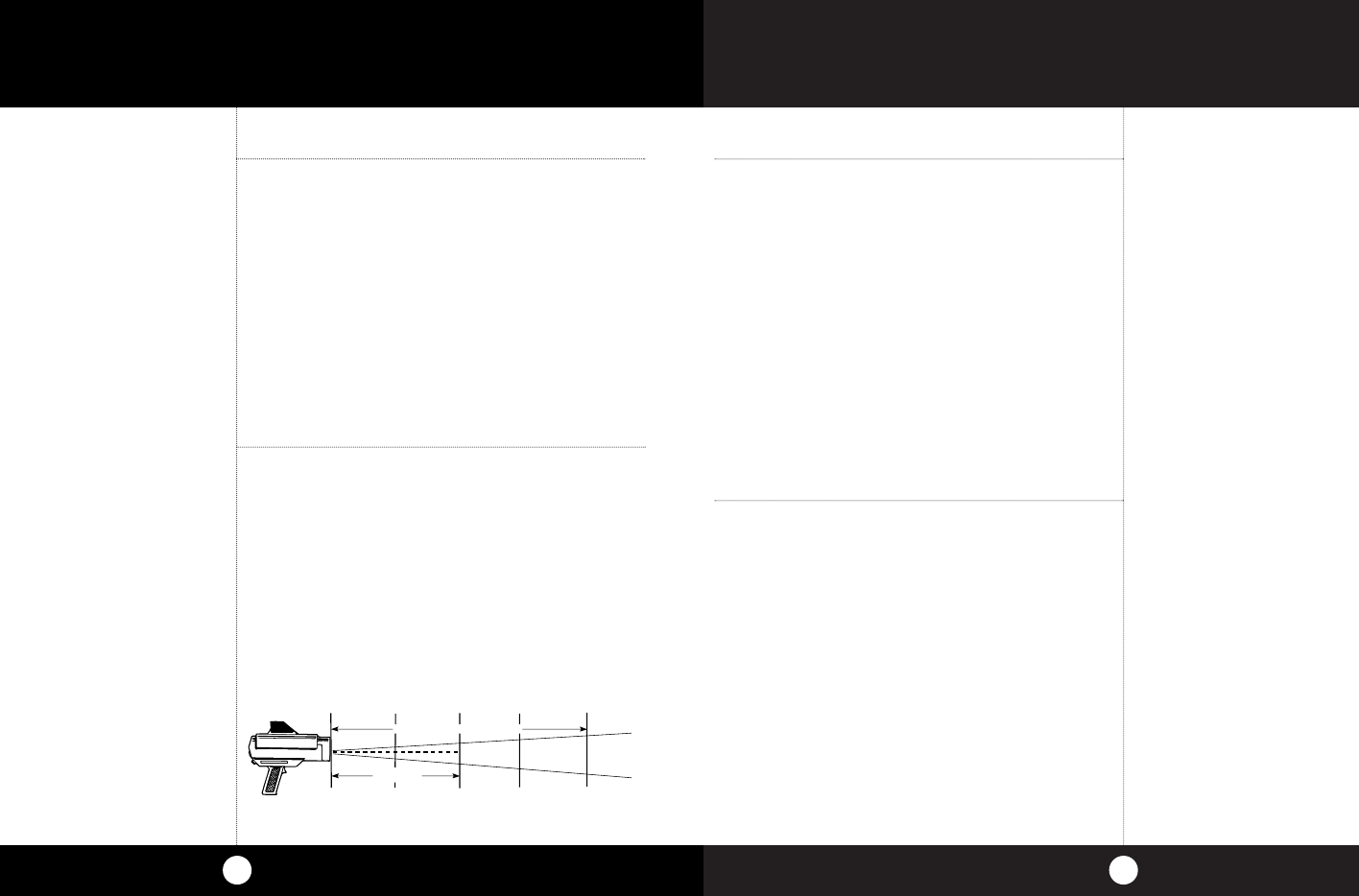

Facts About Lidar (Laser) ............................................20
Maintenance ......................................................................21
Specifications ....................................................................22
Limited One Year Warranty ........................................23

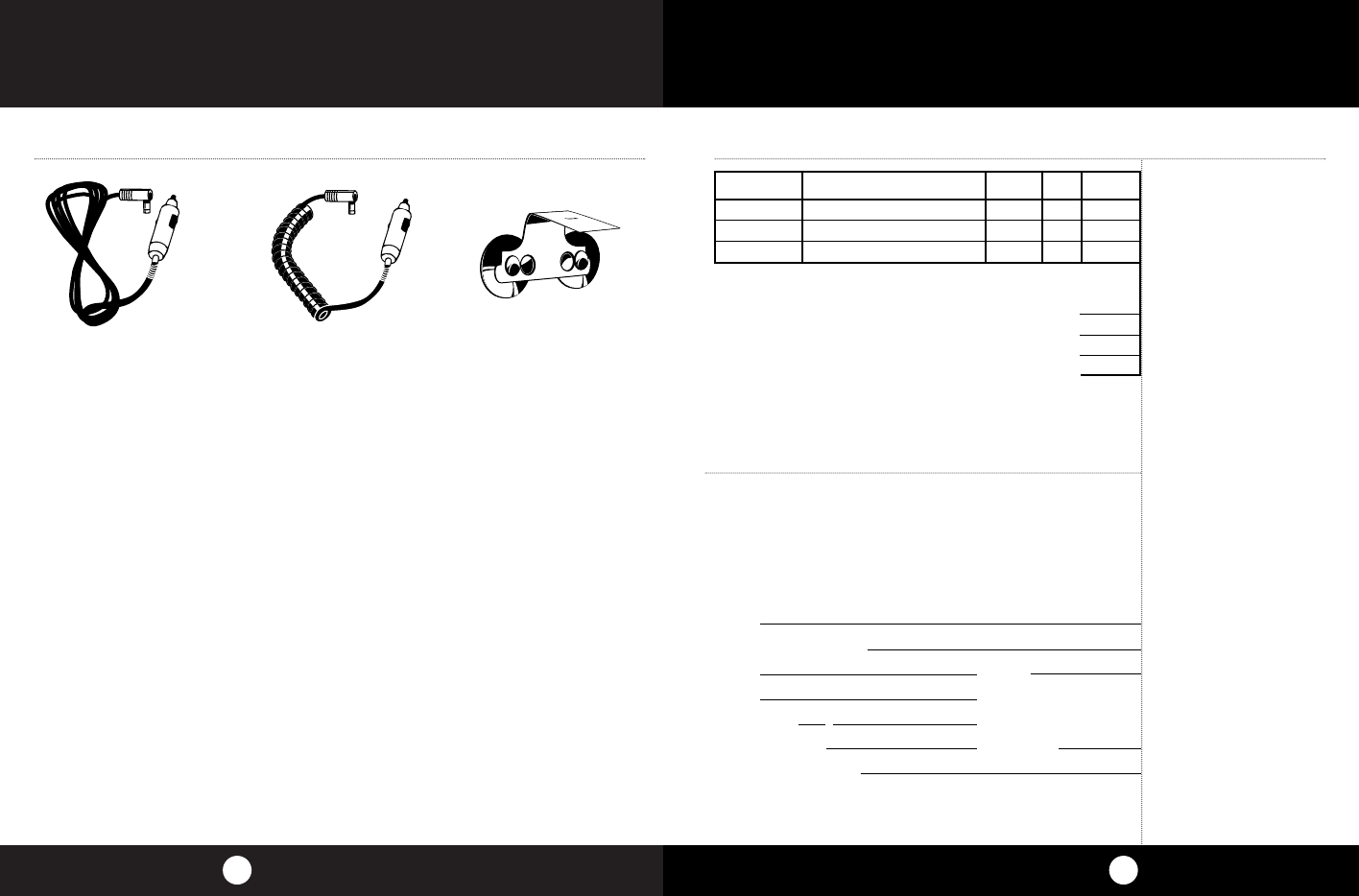

Optional Accessories.....................................................24
Order Form.........................................................................25
If You Think You Need Service.................Back Cover
Installation
3
Installation
2
Note
Adjust the bracket so that
the tip of the antenna is at
least an inch away from the
dashboard.
Dim
City Wx
Wx
Mute
BAND
Attach cups to bracket.
Attach detector to bracket.
Plug power cord into detector.
Attach bracket to windshield.
Bend bracket for correct
detection angle (if needed).
Plug power cord into
cigarette lighter.
Place antenna in upright
position for optimum reception
of weather stations.
Place antenna facing towards
dashboard if windshield
angle prevents you from
placing it upright.
56
78
Location
Selecting the proper location to mount the
Cobra® ESD-9220 WX is very important for
optimum performance. Both radar and laser
transmissions pass through glass but not through
other objects. For this reason the Cobra®
ESD-9220 WX lenses must not be blocked. It
should have a view of the rear window to take
advantage of LaserEye® 360˚ detection. It is best
to locate your detector as low on the front
windshield as possible.
Examples of metal in the windshield area that can
block or weaken incoming radar/laser signals:
1. Windshield wiper blades.
2. Mirrored sun screens.
3. Regular tinted glass does not affect radar
reception, although the darker tint at the
top of the tinted windshield prevents laser
light from penetrating.
4. Heated windshields, currently available as
an option for some Ford® (Instaclear) and
GM® (Electriclear vehicles act as an
impenetrable barrier to radar signals). If in
doubt, check with your dealer to see if this
applies to your vehicle.
Windshield Mounting
Location Windshield
Mounting
2
1
34
Quick Start
5
Turn On and Adjust Volume
Turn On and
Adjust Volume
Installation
4
Note
It will be easy for you to
remove and reinstall your
Cobra® ESD-9220 WX
detector at any time using
this hook and loop material
on the dashboard.
Remember:Without the
means to adjust the angle
of the detector (when
mounted as above), be
sure you that your Cobra®
ESD-9220 WX has a level,
clear view of the road
before you attach the hook
and loop material.
Note
Display Brightness, City/
Highway, Muting, VG-2
Audio Alert On/Off,
Weather Radio On/Off
(including last station
tuned), Wx Alert On/Off
settings are retained in
memory even when unit is
turned OFF or removed
from power source.
Dash Mounting
Dash
Mounting
Dim
City Wx
Wx
Mute
BAND
Plug power cord into
detector.
Place antenna in
upright position for
optimum reception of
weather stations.
Plug power cord into
cigarette lighter.
Peel protective paper off
one side of hook and
loop material.
Place on dash.
Peel top paper off. Place detector on hook
and loop pad.
12
34
5
7
6
Rotate ON-OFF Volume Control to left (away
from you). In both Tone and Voice Modes, the
unit will announce “Testing”followed by three
beeps. All LEDs will light up from left to right
in sequence and announce “System Ready.”
1
Quick Start
7
Set Highway/
City Mode
Set Muting
Mode
Quick Start
6

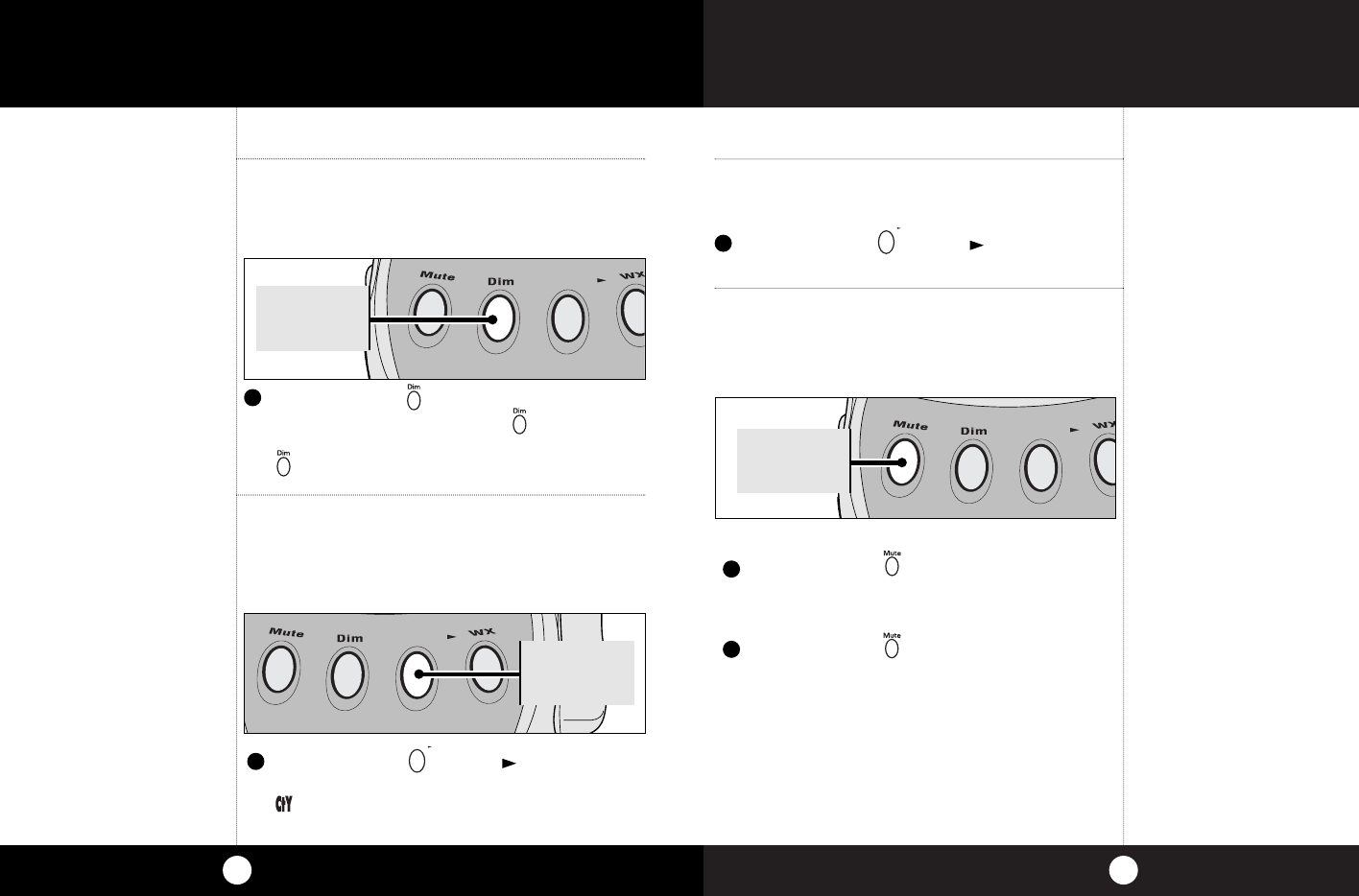

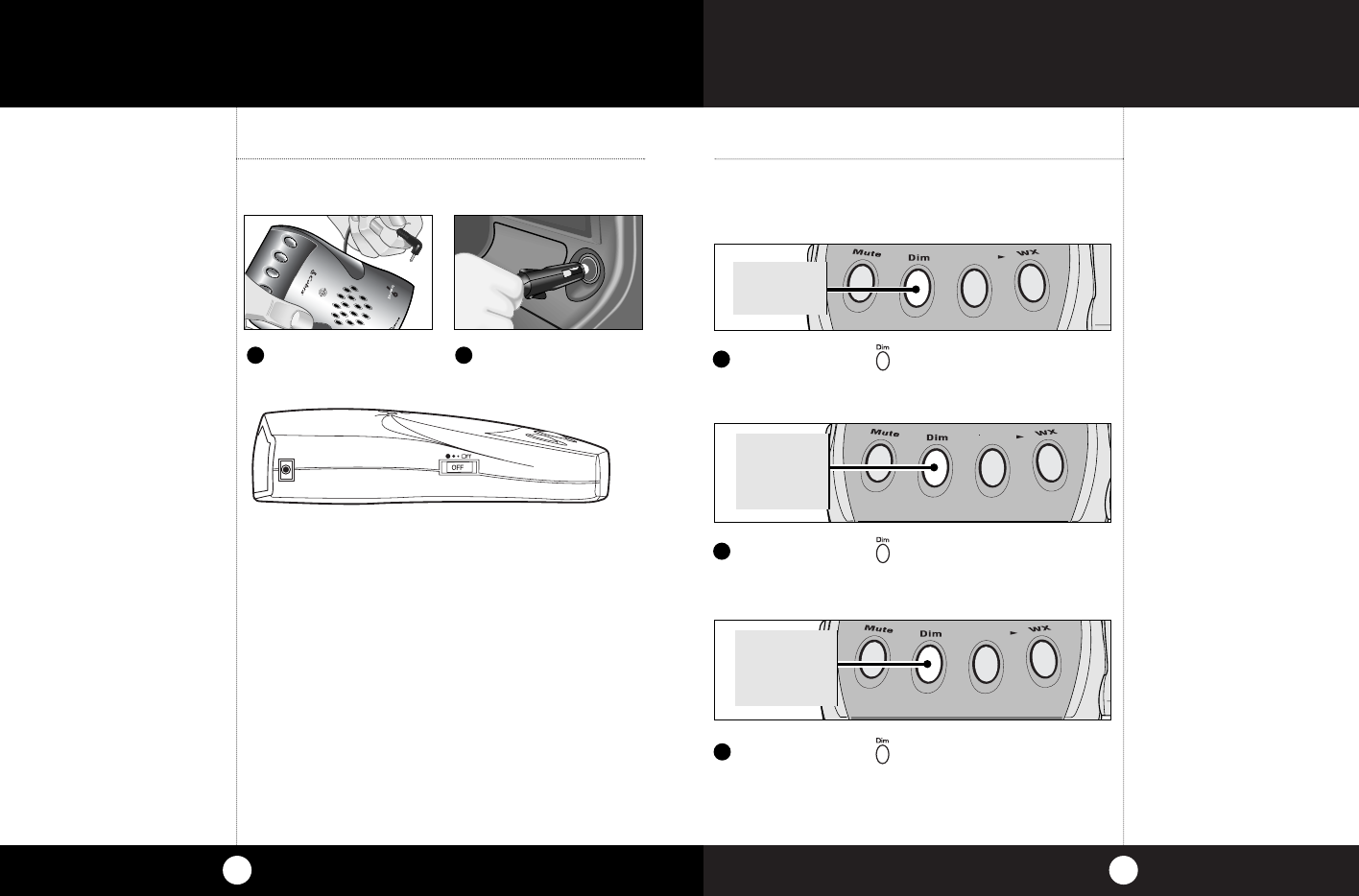

Set Display Brightness
Select from three levels of LED brightness for your
Cobra® ESD-9220 WX display: Bright, Dim and Dark.
Set Highway/City Mode
City Mode
For urban driving–reduces number of X-Band
audible alerts.
Set Display
Brightness
Set Highway/
City Mode
Highway Mode
For all other driving.
City/
Wx
PRESS &
RELEASE
PRESS &
RELEASE
City/
Wx
Press and release Dim button to select
Dim setting. Press and release Dim button
twice to select Dark setting. Press and release
Dim button a third time to select Bright setting.
Press and release CITY/WX button.
CITY LED will illuminate while in City Mode.
A single beep confirms City Mode.
City/Wx
1
1
Press and release CITY/WX button again.
A double beep confirms Highway Mode.
City/Wx
1
Set Muting Mode
Auto Muting
Automatically reduces volume of alert in progress
after 4 seconds.

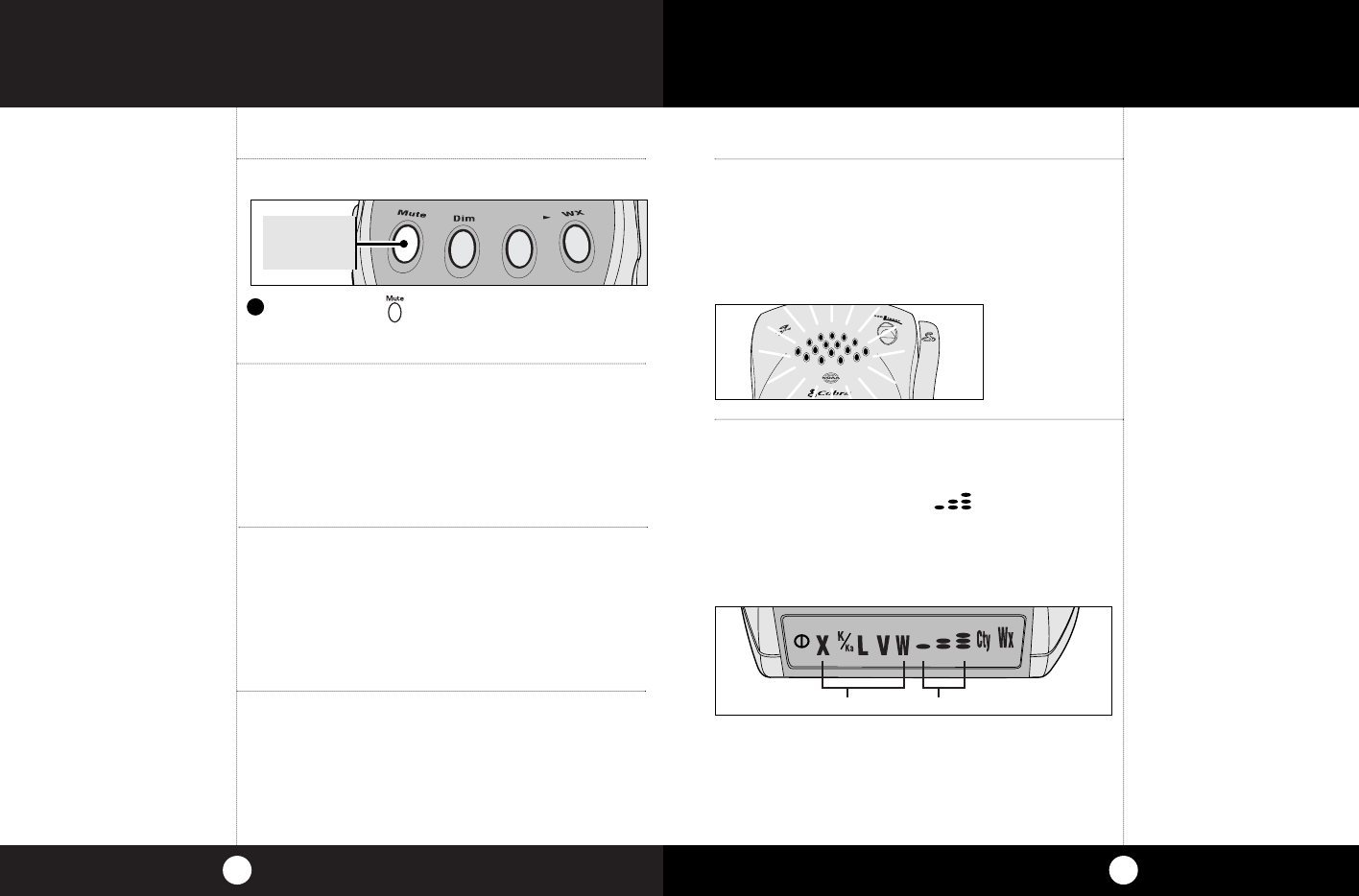

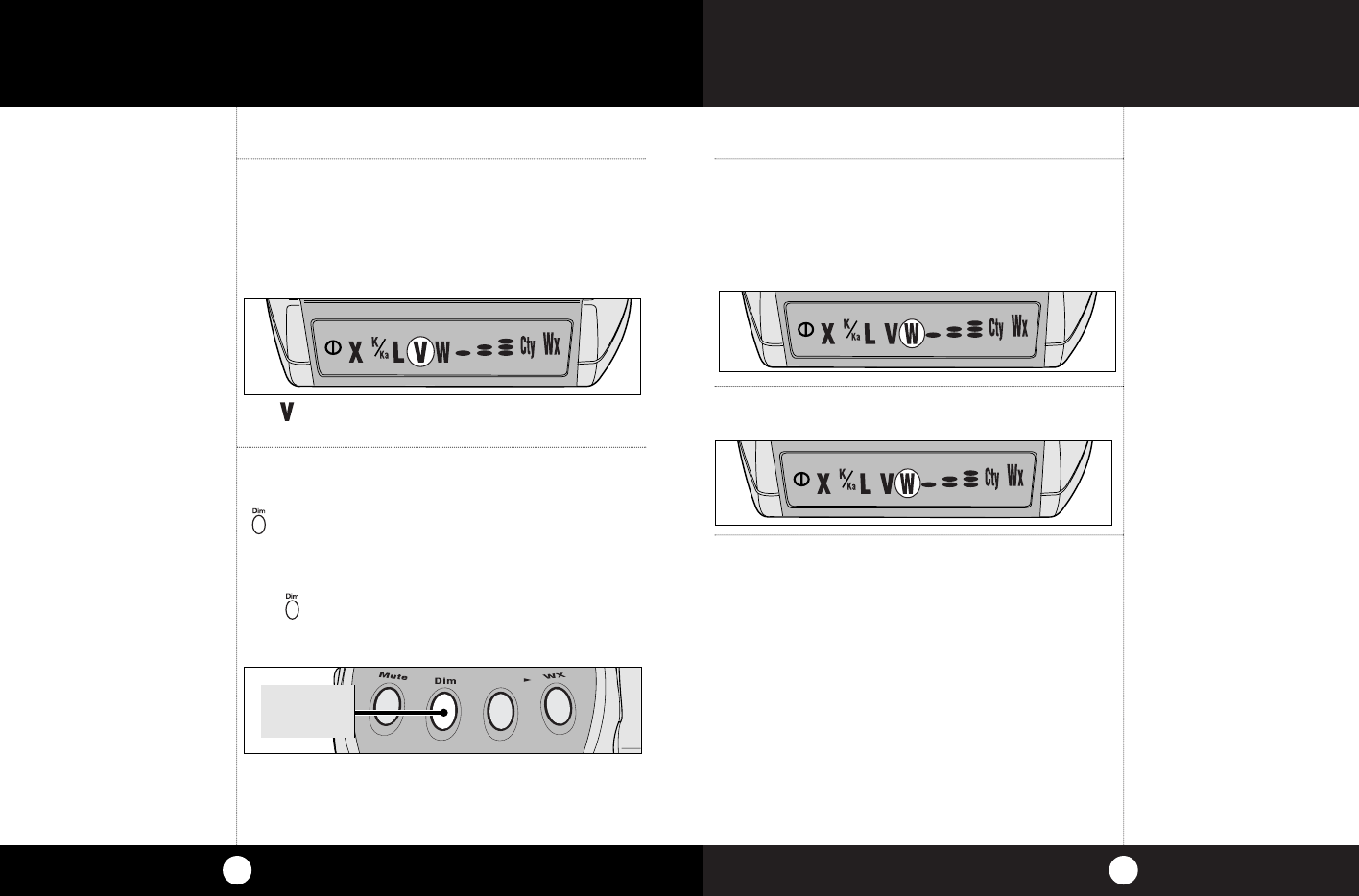

LED Displays
Note
A three level display
brightness is provided for
dusk or night driving. For
more detailed operation
instructions on set Display
Brightness, see page 10.
Note
The factory default setting
is Highway Mode.For
more detailed operation
instructions on set
Highway/City Mode,
see page 11.
Note
The factory default setting
is Auto Mute Mode. For
more detailed operation
instructions on setting
Mute Mode, see page 12.
Note
The factory default setting
is Bright Mode.
Manual Muting
Press and release MUTE button to reduce
volume of alert in progress.
To Switch Between Modes
Press and release MUTE Button when no
signal is being received, to switch from
Manual to Auto Mute.
1
1
PRESS &
RELEASE
City/
Wx
Quick Start
8
Turning On
Weather and
Changing
Stations
Quick Start
9
PRESS &
RELEASE
City/
Wx

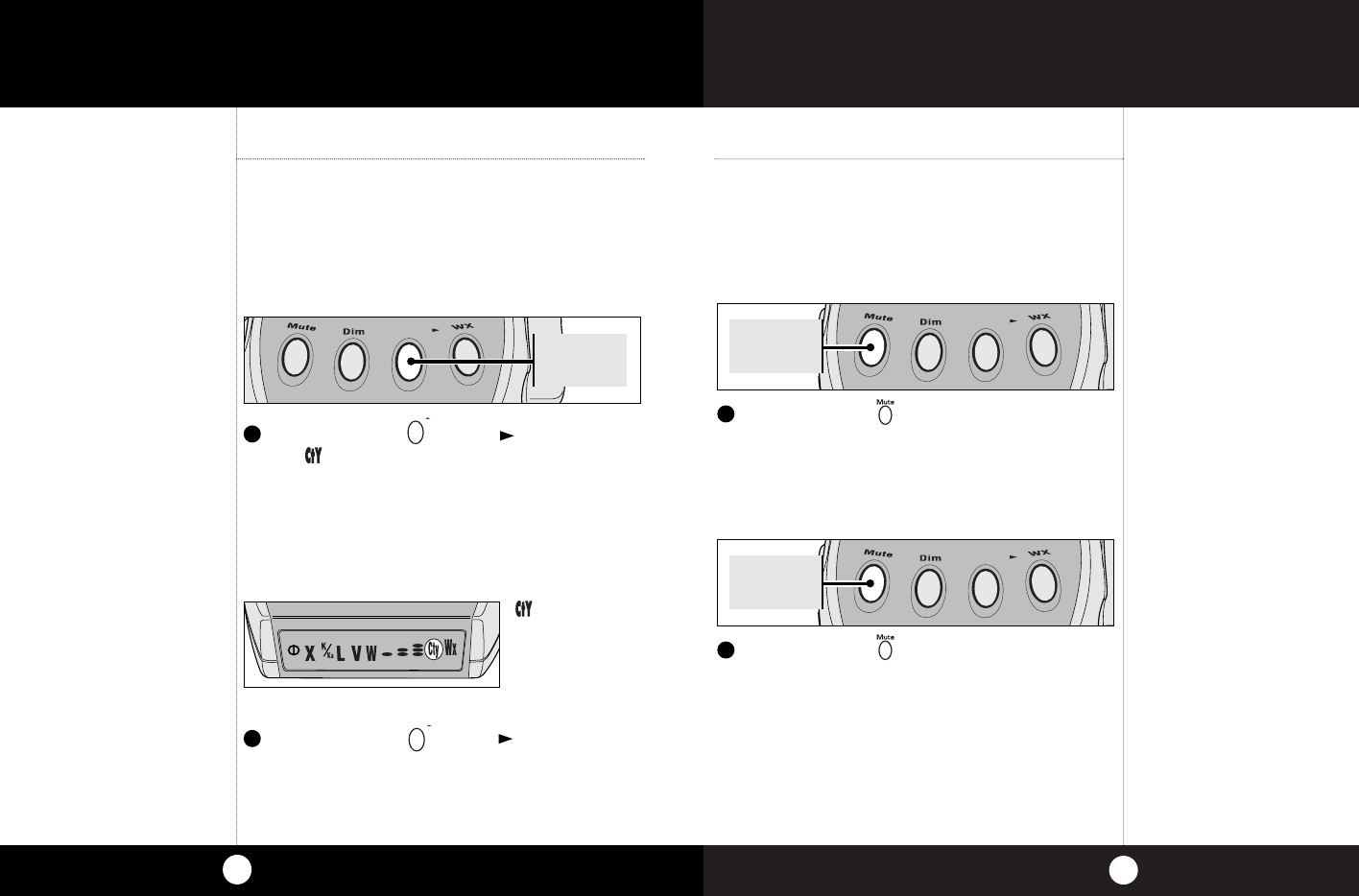

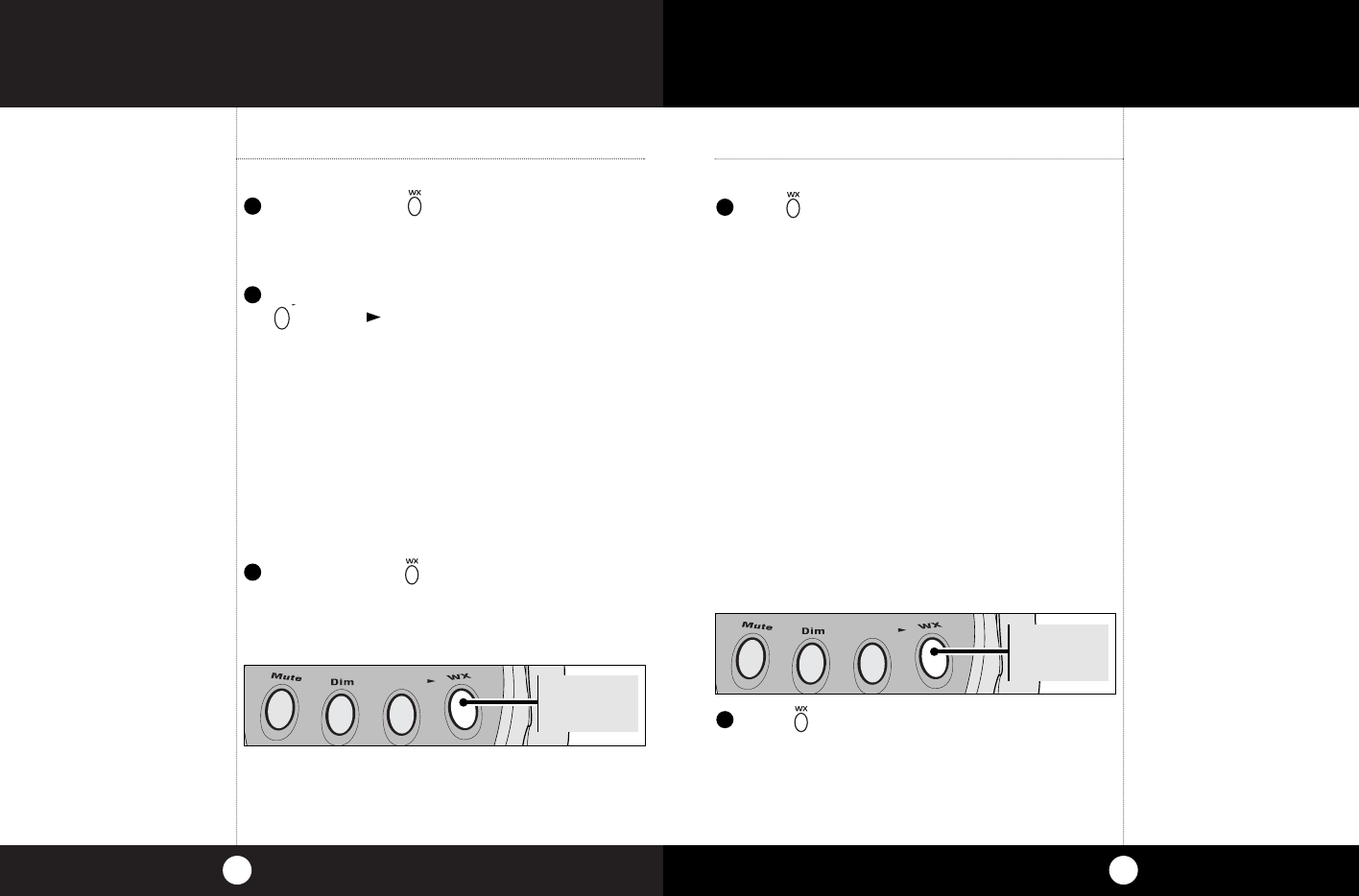

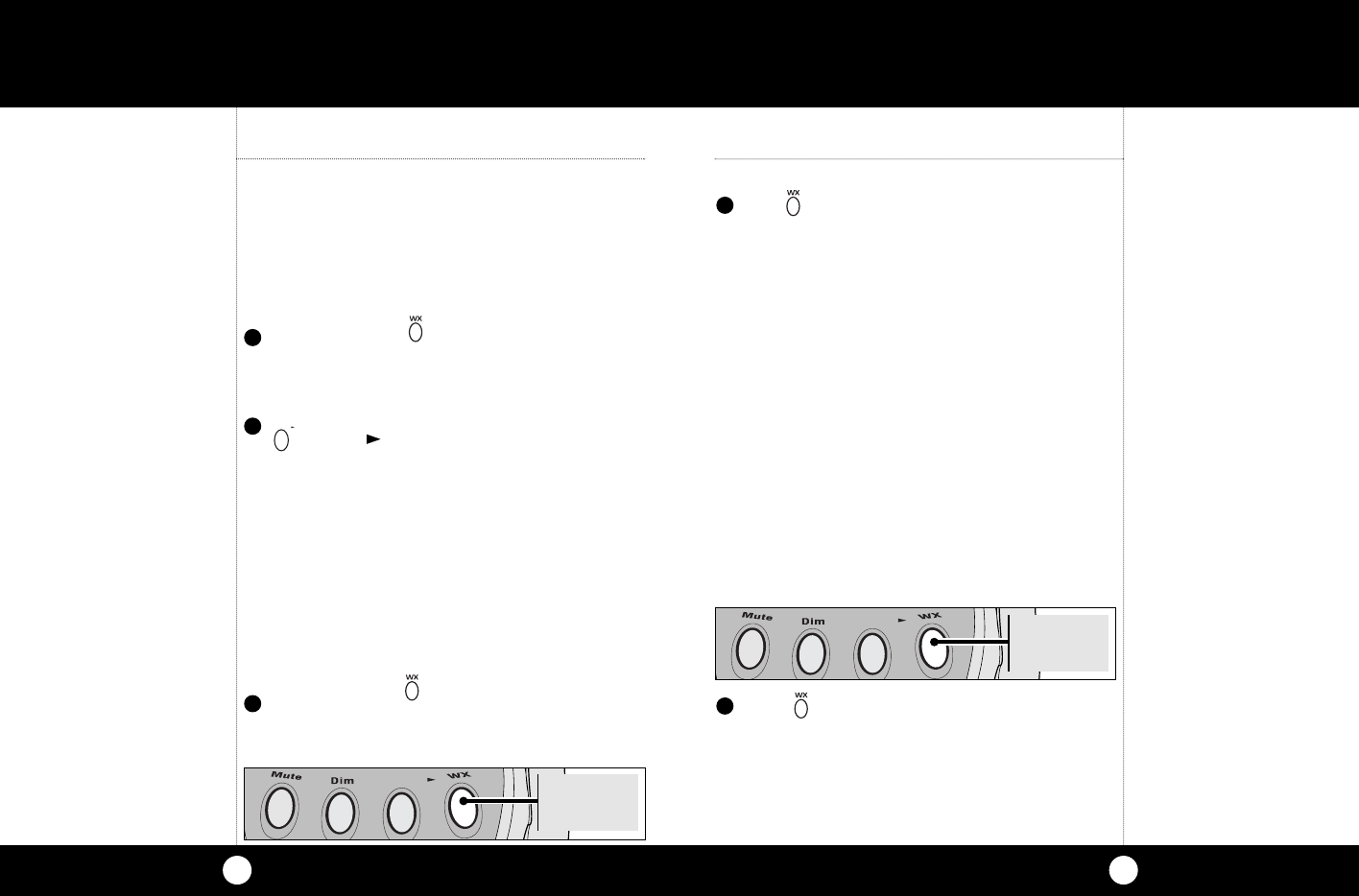

Turning on Weather and Changing Stations
Press and release Wx button to activate
weather radio.When activated the Wx LED will
come on and the unit will announce “Weather On”
in Voice Mode or signal two beeps in Tone Mode.
If no station is heard, press and release
CITY/Wx button to step through the
10 channels until a station is received and the
Wx LED stays lit.The WxLED acts like a signal
strength meter for the weather radio.When
the signal is strong, the Wx LED will stay lit. If
the station signal weakens, the Wx LED will
flicker or if the signal is completely lost, the
ESD-9220 WX will go into Radar Mode. When
a station cannot be received, the unit will
announce “Weather Signal Lost”in Voice Mode
or signal one beep in Tone Mode and the Wx
LED will turn Off.
Press and release Wx button again to turn off
weather radio.When deactivated the unit will
announce “Weather Off” in Voice Mode or
signal one beep in Tone Mode.
1
2
3
Press WX button again for more than
2 seconds to turn off Weather Alert. When
deactivated the unit will announce “Weather
Alert Off” in Voice Mode or signal one beep in
Tone Mode and the Wx LED will stop blinking.
1
2
Set Weather
Alert
Set Weather Alert
Press WX button for more than 2 seconds to
activate Weather Alert.When activated the unit
will announce “Weather Alert On” in Voice Mode
or signal two beeps in Tone Mode. When in Wx
Alert On Mode, the Wx LED will blink slowly, even
though you do not hear the weather radio. If a
Weather Alert is received,“Weather Alert On” will
be heard in Voice Mode and then the Weather
Station broadcast will be heard telling you about
the severe weather.
Caution: Weather Alert will only operate if a Weather Station
is being received and the WxLED is blinking. If the Wx LED
stops blinking, you cannot receive a Wx Alert. If you have
not received a weather station for 1 minute,“Weather Signal
Lost”will be announced in Voice Mode or one beep will be
heard in Tone Mode and the Wx LED will stop blinking.
The ESD-9220 WX however, will still monitor for that station
to return. If, after 5 minutes the station is not received,
“ Weather Alert Off”will be heard and the ESD-9220 WX will
stop monitoring.Weather Alert can then be reset by turning
on the Weather Radio and finding a different weather station.
Note
Both Weather On/Off and
Weather Alert On/Off
settings,including the last
station you were listening to,
are retained in memory even
when unit is turned OFF.
Note
Factory default setting is
Weather Off and Weather
Alert Off Mode.
Note
If you try to turn on Weather
Alert and no station can be
received, the unit will not go
into Weather Alert Mode and
announce “Weather Alert Off”
in Voice Mode or one beep
will be heard in Tone Mode
and the Wx LED will not blink.
City/Wx
PRESS &
HOLD
City/
Wx
Operation
11
Note
In Voice Alert™ Mode, the
message “Bright, Dim, or
Dark” will also be heard.
Note
Bright = “Beep-Beep”
Dim = “Beep”
Dark = “Beep”
Note
The factory default setting
is Bright Mode.
Note
The ESD-9220 WX will
retain the chosen Mode
while OFF.
Dim Button
Operation
Turning On Your ESD-9220 WX
Turning
On Your
ESD-9220 WX
Dim
City Wx
Wx
Mute
BAND
Plug power cord
into detector.
Plug power cord
into cigarette lighter.
21
Rotate ON-OFF Volume Control to the left
(away from you). In both Tone and Voice
Modes, the unit will announce “Testing”,
followed by three beeps.This confirms Power
ON. All LEDs will light up from left to right in
sequence and announce “System Ready.”
The system indicates if Voice Alert™ or Tone
Only Mode has been selected and if VG-2
Audio Alert is turned On or Off.
10
Dim Button
You may select from three levels of brightness for your
Cobra® ESD-9200 WX display: Bright, Dim, and Dark.
Press and release DIM button a third time to
return led display to Bright. A double beep
confirms normal LED brightness.
1
2
3
PRESS &
RELEASE
City/
Wx
PRESS &
RELEASE
AGAIN
City/
Wx
PRESS &
RELEASE
3RD TIME
City/
Wx
Press and release DIM button to reduce the
LED display brightness to Dim. A single beep
confirms dim LED brightness.
Press and release DIM button again to turn
LED display off. A single beep confirms no LED
display. The power LED will stay on dim.
Operation
13
Operation
12
Highway/City
Mode
Muting Mode
Highway/City Mode
The Highway/City function is controlled by a
2-step button.The Highway Mode is automatically
engaged when the unit is first powered up. In the
City Mode, false radar alerts will be reduced.
To engage City Mode:
Note
In Voice Alert™ Mode the
unit will announce “Mute” for
Manual Mute and “Auto
Mute” for Auto Mute Mode.
Note
Mute=“Beep”
Auto Mute=“Beep-Beep”
The factory default setting is
Auto Mute Mode.
Note
In either Mode, the next alarm
will begin with normal
volume.The ESD-9220 WX will
retain the chosen Mode while
OFF.
Press and release CITY/Wx button and
the LED on the front of the unit will
illuminate. A single beep confirms City Mode.
When a signal is received in City Mode the X
LED will blink to show you are receiving a
signal.The X-band alert audio will be muted
until the signal strength indicator reaches the
second level.
1
To reactivate the Highway Mode:
Press and release CITY/Wx button again.
A double beep confirms Highway Mode.
CITY LED
will illuminate
while in CITY
Mode.
PRESS &
RELEASE
City/
Wx
City/Wx
City/Wx
1
Note
Use City Mode in or near
cities where there are many
sources of false radar
signals such as microwave
relay towers and automatic
door openers.This will filter
out weak signals.
Note
In Voice Alert™ Mode,
the unit will announce
“Highway” or “City” in
Voice Mode.
Note
City =“Beep”
Highway =“Beep-Beep”
The factory default setting
is Highway Mode.
Note
The ESD-9220 WX wil retain
the chosen Mode while OFF.
Press and release MUTE button anytime to
turn off the audio alert.
Press and release MUTE button when no
signal is being received to turn Auto Mute on
and off. In Auto Mode, the alarm will be
reduced in volume after four seconds.
Muting Mode
The ESD-9220 WX offers two Mute Modes; Auto
and Manual. To switch between these Modes:
1
1
PRESS &
RELEASE
City/
Wx
PRESS &
RELEASE
City/
Wx
Auto Mode
Manual Mode
Memory Set
Automatically remembers settings of Display
Brightness, City/Highway, Muting, VG-2 Audio Alert
On/Off,Weather On/Off (including last received
channel) and Weather Alert On/Off settings.
Memory Set
Your Cobra® ESD-9220 WX
features an automatic
internal electronic memory
system. It will automatically
“remember” your settings
when the unit is turned
“OFF” or removed from
power source.
PRESS &
HOLD
City/
Wx
Set Weather Alert
Press WX button for more than 2 seconds to
activate Weather Alert.When activated the unit
will announce “Weather Alert On” in Voice Mode
or signal two beeps in Tone Mode. When in Wx
Alert On Mode, the Wx LED will blink slowly,
even though you do not hear the weather radio.
If a Weather Alert is received,“Weather Alert On”
will be heard in Voice Mode and then the
Weather Station broadcast will be heard telling
you about the severe weather.
Caution: Weather Alert will only operate if a Weather Station
is being received and the WxLED is blinking. If the Wx LED
stops blinking, you cannot receive a Wx Alert. If you have
not received a weather station for 1 minute,“Weather Signal
Lost”will be announced in Voice Mode or one beep will be
heard in Tone Mode and the Wx LED will stop blinking.
The ESD-9220 WX however, will still monitor for that station
to return.If,after 5 minutes the station is not received,
“ Weather Alert Off”will be heard and the ESD-9220 WX will
stop monitoring.Weather Alert can then be reset by turning
on the Weather Radio and finding a different weather station.
Operation
15
Operation
14
Turning On
Weather and
Changing
Stations
Set Weather
Alert
Note
If you set your ESD-9220 WX
to Weather Alert Mode, it
will automatically turn on
the Weather Radio if the US
Weather Service calls a
Severe Weather Alert. If
you receive a Weather Alert,
please listen to the
broadcast and take their
advice.
Note
If you try to turn on Weather
Alert and no station can be
received, the unit will not go
into Weather Alert Mode
and announce “Weather
Alert Off” in Voice Mode or
one beep will be heard in
Tone Mode and the Wx LED
will not blink.
Note
Both Weather On/Off and
Weather Alert On/Off
settings,including the last
station you were listening to,
are retained in memory even
when unit is turned OFF.
Note
Factory default setting is
Weather Off and Weather
Alert Off Mode.
PRESS &
RELEASE
City/
Wx
Turning on Weather and Changing Stations
Your ESD-9220 WX will allow you to listen to any
of more than 550 local weather stations in the US
and Internationally. If any Radar, Laser, or Safety
Alert® signal is detected while you are listening to
Weather, it will automatically over-ride the weather
station and give you that alert.
Press and release Wx button to activate
weather radio.When activated the Wx LED will
come on and the unit will announce “Weather On”
in Voice Mode or signal two beeps in Tone Mode.
If no station is heard, press and release
CITY/Wx button to step through the
10 channels until a station is received and the
Wx LED stays lit.The WxLED acts like a signal
strength meter for the weather radio.When
the signal is strong, the Wx LED will stay lit. If
the station signal weakens, the Wx LED will
flicker or if the signal is completely lost, the
ESD-9220 WX will go into Radar Mode. When
a station cannot be received, the unit will
announce “Weather Signal Lost”in Voice Mode
or signal one beep in Tone Mode and the Wx
LED will turn Off.
Press and release Wx button again to turn off
weather radio.When deactivated the unit will
announce “Weather Off” in Voice Mode or
signal one beep in Tone Mode.
1
2
3
City/Wx
Press WX button again for more than
2 seconds to turn off Weather Alert. When
deactivated the unit will announce “Weather
Alert Off” in Voice Mode or signal one beep in
Tone Mode and the Wx LED will stop blinking.
1
2
Detection
16
Tone Alarm
And Voice
Alert™
Detection
17
Radar
The display will show the band (X, K/Ka). The
signal strength will first be indicated by the band
being illuminated, then by signal strength
LEDs which increase in size as you approach the
radar gun. At the same time the frequency of the
beeps will increase. Distinct tones will also be
generated for each band.
Radar
Voice Alert™
Auxiliary Audio Jack
Use to connect an external speaker to your Cobra®
ESD-9220 WX in environments with high ambient
noise levels.The internal speaker will be disconnected.
The audio output will be voice or tone depending on
your selection.
Auxiliary
Audio Jack
Band Detection
This detector is designed to detect X, K,
Superwide Ka Band Radar, Laser (including LTI
20-20*, Ultra Lyte* and ProLaser* technologies),
VG-2, Safety Alert® and Strobe Alert™* signals.
*360˚ Detection
Band
Detection
Audible Alarm Speaker
A different alert tone will sound for X, K, Ka, Laser
(plus a distinctly different tone for each of the three
laser signals: LTI 20-20, Ultra Lyte and ProLaser),
VG-2, and Safety/Strobe Alert™ signals.
Audible Alarm
Speaker
Bands Signal Strength
Instant-On Detection
The Cobra® ESD-9220 WX is also designed to
detect Instant-on speed monitoring signals.
Immediate action is required when warning
is given.
Voice Alert™
The ESD-9220 WX will also announce the reception
of these signals with the statement,”Be careful...X
Alert, K Alert, Ka Alert, Laser Alert,VG-2 Alert®,
Emergency Vehicle Approaching, Road Hazard
Ahead,Train Approaching, Weather Alert.”
Voice/Tone Settings
PRESS &
RELEASE
City/
Wx
Press and hold MUTE button for two seconds
to change between Voice and Tone Alarms.
1
Note
The factory default setting
is Voice Alert™ Mode.
Detection
19
Detection
18
Laser
Indicator “W” is illuminated.
Safety Alert®
Traffic Warning
System and
Strobe Alert™
Laser
Detection with
360˚LaserEye®
Note
The display does not
indicate signal strength for
VG-2, Safety, Strobe, and
Laser alerts.
VG-2 Undetectable
The Cobra® ESD-9220 WX is undetectable by police
VG-2 detection devices. It will alert you when one is
in use near your vehicle. During this time, the unit is
still on full alert and able to detect other signals.
VG-2 Audio Alert
To turn VG-2 Audio Alert “OFF”,press and hold the
Dim Button for 2 seconds. A single confirmation
beep is heard, indicating the VG-2 Audio Alert has
been disabled.
To turn the VG-2 Audio Alert “ON”,press and hold
the Dim Button for 2 seconds again. A double
confirmation beep is heard, indicating VG-2 Audio
Alert has been activated.
The VG-2 LED on the front of the unit will
illuminate.
VG-2 Alert®
Note
In Voice Alert™ Mode, the
unit will announce “VG-2
Audio On” when the VG-2
Audio Alert is activated and
“VG-2 Audio Off” when VG-
2 Audio Alert is deactivated.
Operation of the VG-2
Audio Alert may be selected
by the user.The factory
default setting is in the
“ON” position.
Note
VG-2 Audio Alert On=
“Beep-Beep”
VG-2 Audio Alert Off=
“Beep”
Laser will trigger 3 distinct audible alerts; one
each for LTI 20-20, Ultra Lyte and ProLaser.
Safety Alert® Traffic Warning System
and Strobe Alert™
Indicator “W”is illuminated whenever a signal
from a Safety Alert® or Strobe Alert™ transmitters
are received.
PRESS &
HOLD
City/
Wx
Detection
21
Detection
20
Radar/VG-2/
Laser Alerts
Radar/VG-2/Laser Alerts
Type of Audible Signal Interpretation and Response
Your COBRA® ESD-9220 WX starts to
signal slowly, then increases in rate
very rapidly.
Most likely police radar.
FULL ALERT.
Your COBRA® ESD-9220 WX
signals just once.
Most likely a false source, or could be
pulsed radar. Exercise Caution.
Very fast signal rate instantly.
Slow signal rate as you approach
hill or bridge. Sharp increase in signal
rate as you reach hill or bridge.
Most likely police radar on other side
of hill or bridge. FULL ALERT.
Radar or VG-2 close by has been
suddenly switched on. FULL ALERT.
Short-term, weak signaling;
series of such signals.
Laser will trigger 3 distinct audible
signals; one each for LTI 20-20, Ultra
Lyte and ProLaser.
Use Full Caution.There are no false
laser signals.
Safety Alert® and Strobe Alert™ have
their own unique “European
Emergency” signal.
An emergency vehicle is approaching,
you are in the vicinity of a railroad
crossing, or you are approaching a
road hazard (construction site,
accident scene, etc.).
Most likely a false radar source.
Exercise Caution.
Facts About the Safety Alert® Traffic
Warning System
FCC-approved Safety Alert® Transmitters emit
microwave radar signals to indicate the presence of a
safety-related concern. Depending on the frequency of
these signals, as set on the transmitter, the outgoing
signal can indicate whether the transmitter is on a
speeding emergency vehicle or train, or at a stationary
road hazard location.These microwave signals are
located in the K-band and as a result, any radar
detector which detects K-band radar will detect these
Safety signals as standard K-band radar alerts. However,
unlike a standard radar detector, your Cobra®
ESD-9220 WX is designed to differentiate between a
standard K-band alert and a Safety Alert® warning.
Safety technology is relatively new so the number of
transmitters in operation is still growing. You may not
receive Safety Alert® on a daily basis and should not be
surprised to encounter some emergency vehicles, road
hazards or trains not yet equipped with these
transmitters, therefore failing to provide a signal. As
Safety Transmitters become more prevalent (the
number of operating transmitters is growing every
day), these Safety Alerts® will become more common.
The Safety Alert® Transmitter is in use in all 50 states in
limited quantities.
Facts About Strobe Alert™
Alerts motorists to over 50,000 emergency vehicles
equipped with strobe transmitters that activate red
lights at traffic intersections in emergency high speed
situations.
Note
Strobe Alert™ is available
in over 1,000 cities and
works with Tomar and
Opticom systems. Call your
local Fire/Police
department for your area
coverage or area in which
you will be traveling.
Facts About
Safety Alert
®
Traffic Warning
System
Detection
23
Detection
22
Radar Frequencies
There are now three frequencies that have been
approved by the FCC (Federal Communications
Commission) for use in speed monitoring
equipment.They are:
X Band (10.525 GHz), K Band (24.150 GHz)
Ka Band (33.400-36.000 GHz)
Your Cobra® ESD-9220 WX can detect signals in
all three radar bands including photo radar and
STALKER radar which use the Ka band, and
Cobra®’s Safety Alert® signals on the K band.
Facts About LIDAR (Laser)
What is LIDAR?
LIDAR stands for Light Detection And Ranging.
While everyone refers to it as LASER the correct
name is LIDAR.
How does LIDAR work?
LIDAR operates a lot like RADAR. Like RADAR, it
spreads out. Not as quickly, but it does spread, as
shown on the diagram below.
Radar
Frequencies
Facts About
LIDAR (Laser)
5 FT. WIDE
1/4 MILE 1/2 MILE 1MILE 1 MILE
1/2
10 FT. WIDE 20 FT. WIDE 30 FT. WIDE
LASER LIGHT EMISSION DETECTABLE BY COBRA
LASER GUN
READABLE RANGE
POLICE LASER GUN
LIDARs must have a clear
line of sight to target a
vehicle during the entire
measurement interval.
Intervening objects such as
signposts, utility poles, tree
branches, etc., will prevent
a valid speed reading.
Maintenance
Facts About
LIDAR (Laser)
Does weather have any effect on LIDAR?
Yes, rain, snow, smoke, fog, and airborne dust
particles will all reduce the effective range, and
if sufficiently dense, may prevent its operation.
Can LIDAR operate through glass?
Yes, LIDAR guns can obtain readings through
most glasses.The laser pulse, however, can also
be received through glass to easily and quickly
trigger a laser detector's alarm.
Can LIDAR operate while moving?
No, since LIDAR is line of sight, an officer cannot
drive, aim, and shoot while driving.
Is a LIDAR DETECTOR legal to use?
Yes, it is legal in all 50 states.
Maintenance
Your COBRA® ESD-9220 WX RADAR/LASER
DETECTOR will give you years of trouble-free
service with minimum maintenance.
Replacing Power Cord Fuse
Unscrew cap of cigarette lighter adapter and
remove fuse. Replace with 1-ampere fuse only.
Troubleshooting
If your COBRA® LASER DETECTOR ESD-9220 WX
isn’t operating, we suggest you make the
following checks:
1. Is the power cord properly connected?
2. Is the fuse OK?
3. Is the cigarette lighter socket clean and free
from corrosion?
Limited One Year Warranty
25
Specifications
24
GENERAL SPECIFICATIONS
A. FREQUENCIES
1. X BAND 10.525 GHz ± 50 MHz
2 . K BAND 24.150 GHz ± 100 MHz
3. Ka BAND 33.4 - 36.0 GHz
4. VG-2 11.4 GHz - 11.7 GHz
5. Safety Alert® 24.07, 24.11, 24.19 GHz
6. LTI 20-20 Laser 300 THz - 375 THz
7. Strobe Alert™ 300 THz - 770 THz
8. Ultra Lyte Laser 300 THz - 375 THz
9. ProLaser 300 THz - 375 THz
10. Weather Channels 162.275 162.500
162.400 162.525
162.425 162.550
162.450 162.650
162.475 162.775
B. UNIT DIMENSIONS
1.50”W x 3.25” H x 5.125” D
Specifications
COBRA® ELECTRONICS CORPORATION warrants that its
COBRA® 9 Band® Radar/Laser Detectors, and the component
parts thereof, will be free of defects in workmanship and
materials for period of one (1) year from the date of first
consumer purchase.This warranty may be enforced by the
first consumer purchaser, provided that the product is
utilized within the U.S.A.
COBRA® will, without charge, repair or replace, at its option,
defective 9 Band® Radar/Laser Detectors, products or
component parts upon delivery to the COBRA® factory
Service Department, accompanied by proof of the date
of first consumer purchase, such as a duplicated copy of a
sales receipt.
You must pay any initial shipping charges required to ship
the product for warranty service, but the return charges will
be at Cobra®'s expense, if the product is repaired or replaced
under warranty.
This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
Exclusions: This limited warranty does not apply; 1) to any
product damaged by accident; 2) in the event of misuse or
abuse of the product or as a result of unauthorized
alterations or repairs; 3) if the serial number has been
altered, defaced or removed; 4) if the owner of the product
resides outside the U.S.A.
All implied warranties, including warranties of
merchantability and fitness for a particular purpose
are limited in duration to the length of this warranty.
COBRA® shall not be liable for any incidental,
consequential or other damages; including, without
limitation, damages resulting from loss of use or cost of
installation.
Some states do not allow limitations on how long an
implied warranty lasts and/or do not allow the exclusion
or limitation of incidental or consequential damages, so
the above limitations may not apply to you.
Cobra® Electronics
Corporation
6500 West Cortland Street
Chicago, Illinois 60707 USA
www.cobra.com
QUALITY SEAL
QUALITY SEALQUALITY SEAL
1
Y
e
a
r
W
a
r
r
a
n
t
y
Optional Accessories
26
Accessory Order Form
27
You Can Find These Fine Accessories At Your Local
Cobra® Dealer
If you wish, you can order directly from Cobra®.
Order by phone
Call 773.889.3087 (Press 1 from the main menu)
8 a.m.-6 p.m., Monday through Friday, Central Standard Time.
Order by mail or fax
Please fill out order form on next page, and mail/fax
directly to Cobra®.
Windshield Mounting Bracket
Includes suction cups
545-139-N-001
Straight 12V DC Power Cord
Includes plug and fuse
420-080-N-001
Curled 12V DC Power Cord
Includes plug and fuse
420-080-N-002
Subtotal
(Tax if applicable)
Shipping/handling $4.00
Total
Tax Table
Illinois residents add 8.75
Indiana residents add 5%
Michigan residents add 6 %
Ohio residents add 5%
Wisconsin residents add 5%
Prices subject to change without notice.
420-080-N-001 Straight 12V Power Cord
420-080-N-002 Curled 12V Power Cord
545-139-N-001 Windshield Mounting Bracket
Item # Description Cost Ea. Qty. Amount
Please print clearly
Name
Address (No P.O. Box)
City State
Zip
Telephone ( )
Credit Card No. Exp. Date
Customer Signature
Circle One: Visa MasterCard Discover
Allow 2 to 3 weeks for delivery.Offer valid in Continental U.S.only.
For credit card orders fill out order form
and fax to: 773.622.2269
or call 773.889.3087
(Press 1 from the main menu)
8:00am - 6:00pm, Monday through Friday
Central Standard Time
Make check or money order (no stamps)
payable to:
Cobra Electronics
6500 West Cortland Street
Chicago, IL 60707 USA
Attn: Accessories Dept.
Cobra® Electronics Corporation © 2000
Printed in Korea
Part No. 480-002-P
For technical assistance, please call our Automated Help Desk which can assist
you by answering the most frequently asked questions about Cobra® products.
(773) 889-3087
24 hours a day, 7 days a week.
A Consumer Service Representative can be reached through this same number 8:00 am - 6:00 pm,
Monday through Friday, Central Standard Time
Technical assistance is also available on-line in the Frequently Asked Questions (FAQ) section at
www.cobra.com or by e-mail to productinfo@cobra.com
If you think you need service call 773.889.3087
“If your product should require factory service please call Cobra® first before sending your unit
in. This will ensure the fastest turn-around time on your repair.”
You may be asked to send your unit to the Cobra® factory. It will be necessary to furnish the
following in order to have the product serviced and returned.
1. For Warranty Repair include some form of proof-of-purchase, such as a mechanical reproduction
or carbon or a sales receipt. If you send the original receipt it cannot be returned.
2. Send the entire product.
3. Enclose a description of what is happening with the unit. Include a typed or clearly print name
and address of where the unit is to be returned.
4. Pack unit securely to prevent damage in transit. If possible, use the original packing material.
5. Ship prepaid and insured by way of a traceable carrier such as United Parcel Service (UPS) or
First Class Mail to: Cobra Factory Service, Cobra Electronics Corporation, 6500 West Cortland
Street, Chicago, IL 60707 USA.
6. If the unit is in warranty, upon receipt of your unit it will either be repaired or exchanged
depending on the model. Please allow approximately 3 to 4 weeks before contacting us for
status. If the unit is out of warranty a letter will automatically be sent informing you of the
repair charge or replacement charge. If you have any questions, please call 773.889.3087 for
assistance.
If You Think You Need Service
©2000 Cobra®Electronics Corporation
6500 West Cortland Street
Chicago, IL 60707 USA
www.cobra.com
The Cobra® line of quality products
also includes:
•CB Radios
•microTalk® Radios
•Radar/Laser Detectors
•SafetyAlert®
Traffic Warning Systems
•Accessories
•HighGear™ Accessories
Nothing comes close to a Cobra™
EDS-9220 WX is covered by one or more of the following U.S. patents.
Additional patents may be listed inside the product or pending.
5,497,148; 5,594,432; 5,612,685; 6,078,279; 6,094,148
