Cobra Electronics FRS110A Family Radio User Manual

Cobra Electronics Corporation Family Radio Users Manual

Users Manual

Th
2Way Radio
O pe rating Instru ctions for your
Nothing comes close to a Co b ra ™
obra Electronics Corporation
500 West Cortland Street
hicago, IL 60707
bra Electronics Corp.© 2000
nted in China
t No. 480-115-P-001
For te c h n i cal assistance,please call our A u to m a ted Help Desk which can assist
you by answ e ring the most fr e q u e n t ly asked questions about C o b ra prod u ct s.
(773) 889-3087
24 hours a day, 7 days a week.
A Consumer Service Representativ e can be reached thr ough this same number
8:00 am - 8:00 pm, Monday through F riday, CST.
echnical assistanc e is also available on-line in the Frequently Asked Questions (F AQ)
section at www.cobraelec.com or by e-mail t o productinfo@cobraelec.com
f you think you need service call 1.773.889.3087
your product should require factory service please call Cobra first before sending your
nit in. This will ensure the fastest turn-around time on your repair.
u may be asked to send your unit to the Cobra factory.It will be necessary to furnish the follow-
g in order to have the product serviced and returned.
or Warranty Repair include some form of proof-of-purchase, such as a mechanical reproduction
or carbon or a sales receipt. If you send the original receipt it cannot be returned.
end the entire product.
Enclose a description of what is happening with the unit.Include a typed or clearly print name
and address of where the unit is to be returned.
ack unit securely to prevent damage in transit. If possible, use the original packing material.
hip prepaid and insured by way of a traceable carrier such as United Parcel Service (UPS) or First
lass Mail to avoid loss in transit to: Cobra Factory Service,Cobra Electronics Corporation,6500
W.Cortland St., Chicago,IL 60707.
f the unit is in warranty,upon receipt of your unit it will either be repaired or exchanged
depending on the model. Please allow approximately 3 to 4 weeks before contacting us for
status.If the unit is out of warranty a letter will automatically be sent informing you of the
epair charge or replacement charge. If you have any questions,please call 1.773.889.3087 for
assistance.
You Think You Need Service
FRS 110
1
Thank you for purchasing the Cobra FRS 110
2-way Radio. Properly used,this Cobra product
will give you many years of reliable service.
Customer Support
Should you encounter any problems with the
product or not understand its many features,
please refer to this owners manual. If,after
referring to the manual, you still need help,
call Cobra Customer Service at 773.889.3087.
Our Thanks to You
A3
Cobra Customer Service
Live operators are available
M-F 8:00 am - 8:00 pm CST
at: 773.889.3087
Automated Technical
Assistance available 24
hours a day, seven days a
week.E-mail questions to:
p rod u ct i n fo @ co b ra e l e c. co m
Co b ra on the Wo rld Wi d e
We b : Frequently Asked
Questions (FAQ) can be
found on-line at:
www.cobraelec.com
Controls and Indicators
A2
Antenna
Microphone/Speaker
Jack
On/Off Power Button
LCD Display Panel
Light/Max Range Button
Down/Up Volume
Control
Speaker
Battery Compartment
Talk Button
Call Button
Channel Select Button
6
7
91 1
1 0
3
5
12
8
4
1
2
91 1
1 0
This device complies with Part
15 of the FCC rules.Operation
is subject to the following two
conditions:
(1) this device may not cause
harmful interference,and
(2) this device must accept any
i nte rfe re n c e re ce i ve d ,i n c l u d i n g
interference that may cause
undesired operation.
1
Features of This Product
Two-way static-free
radio with up to a 2
mile range
14 channels
SuperFlex™ antenna
Holster belt clip
Roger beep confirmation
tone
Backlit LCD
• Speaker/Microphone
jacks
Contents
Features...........................................................................1
The FRS Story................................................................A1
FCC Warnings
Included Accessories
Controls & Indicators.................................................A2
Our Thanks to You.......................................................A3
Customer Support...................................................A3
Operating your microTALK
Battery Installation...................................................2
Turning On..................................................................3
Illuminating the Display ........................................3
Auto Squelch.............................................................4
Maximum Range Extender/Auto Monitor......4
Select Channel..........................................................5
Auto Battery Save.....................................................5
Calling Another Party.............................................6
Talking To Another Party.......................................7
Talk Confirmation Tone..........................................8
Listening For Another Party.................................8
microTALK Range.....................................................9
Making Life Easier And Safer...............................10
External Microphone/Speaker Jack...................12
Frequency Ranges ......................................................13
Caring for Your microTALK......................................14
microTALK Specifications........................................16
Limited Two Year Warranty.....................................18
Optional Accessories.................................................19
Order Form.....................................................................20
IfYou Think You Need Service...............Back Cover
Pull lock tab down
to remove battery
cover.
Insert four AAA
batteries.Position
batteries according
to po l a ri ty marki n g s.
Operation
3
Operation
2
Note
Batteries not included with
microTALK 2-way radio.
Always use high quality
alkaline batteries.
Note
When batteries are low the
i n d i ca tor willb l i n k .
Install Batteries
Battery
Installation
1 2
Turning On Your microTALK
Note
Whenever the unit is on
you can receive communi-
cations.
Turning
On Your
microTALK
Illuminating the Display
Illuminating
the Display
1
1
Push and release the POWER button.
An audible “tone”will indicate the unit is on.
Push and release LIGHT/MAX RANGE
button to illuminate display for ten seconds.
Select any of the 14 channels by moving the
channel button up or down.
Select Channel
Turn on the microTALK 2-Way Radio.
Operation
5
Note
The Auto Battery Save
Circuit does not effect the
units ability to receive
incoming transmissions.
Select
Channel
Operation
4
Note
To learn more about the
range of your microTALK,
see page 9.
Range is dependent on
battery condition and
geographic territory.
Auto Squelch
Maximum
Range
Extender
2
1
Maximum Range Extender
Auto squelch can be temporarily removed to allow
all signals to enter (Maximum Range Extender).
Auto Battery Save
Your FRS 110 has a unique circuit designed to
extend battery life. If there are no transmissions
within 10 seconds, the unit will automatically
switch to battery save mode and will be
shown in the display.
Auto Battery
Save
Auto Squelch
Your microTALK is equipped with Auto Squelch,
which automatically shuts off weak transmissions
and unwanted noise due to terrain conditions or
if you have reached your range limit.
1Push and release LIGHT/MAX RANGE
button to allow all signals to enter.
Auto Monitor
Auto Monitor
When the signal you want to hear is consistently
weak,you may place the radio in Maximum
Range mode without having to constantly hold
the button: Press and hold the Maximum Range
Extender button for five seconds.To return to nor-
mal operation,momentarily press the Maximum
Range Extender button again or change channels.
Operation
7
Note
While the TALK button is
depressed you cannot
receive incoming calls.
Note
Your incoming Call”signal
level is dependent on your
unit volume s e t t i n g.
Talking To
Another Party
Operation
6
Calling Another Party
To alert another party that you wish to
communicate:
Turn on your microTALK 2-way radio. An audi-
ble “tone”will indicate the unit is on.
Selecta channel
by p u s h i n g t h e
CHANNEL butto n
up or down.
Push and release CALL button.The unit you
are calling will hear a two second ringing tone.
Talking To Another Party
Calling
Another
Party
Hold mic about
2 inches from
mouth. Speak in
a normal voice.
Release TALK
button and listen
for response.
Push and hold
TALK button. The TX / RX indicato r
will be displayed.
1 2
3 4
1
2
3
Operation
9
Operation
8
Roger Beep
Confirmation
Tone
microTALK Range
Your micro TALK Radio has a range of up to2 miles.
This effective range can be shortened under
some conditions. Note
To achieve maximum
range the auto squelch
can be overridden.Refer to
Maximum Range Extender
section on page 4.
microTALK
Range
Listening For Another Party
When finished talking:
Listening For
Another Party
Release TALK button to receive incoming
transmissions.
Your microTALK is always in listening mode
when the TALK button is not pressed.
Adjust volume by pushing
DOWN/UP buttons.
1
Note
While the TALK button
is depressed you cannot
receive incoming calls.
Your listener will hear an
audible tone when you
release the TALK button.
This alerts the other party
t h at you are finished talki n g
and it’s OK for them to be g i n
t a l ki n g.
1. Under flat,open
conditions you
will experience
the microTALKs
maximum range.
2. Range can be
reduced by
buildings and
foliage in the
path of the signal.
3. Range will be
further reduced by
dense foliage and
hilly terrain.
Roger Beep Confirmation Tone
2
11
5. Checking on travel-
ing companions in
another car.
6. Agree on a meeting
spot after an event.

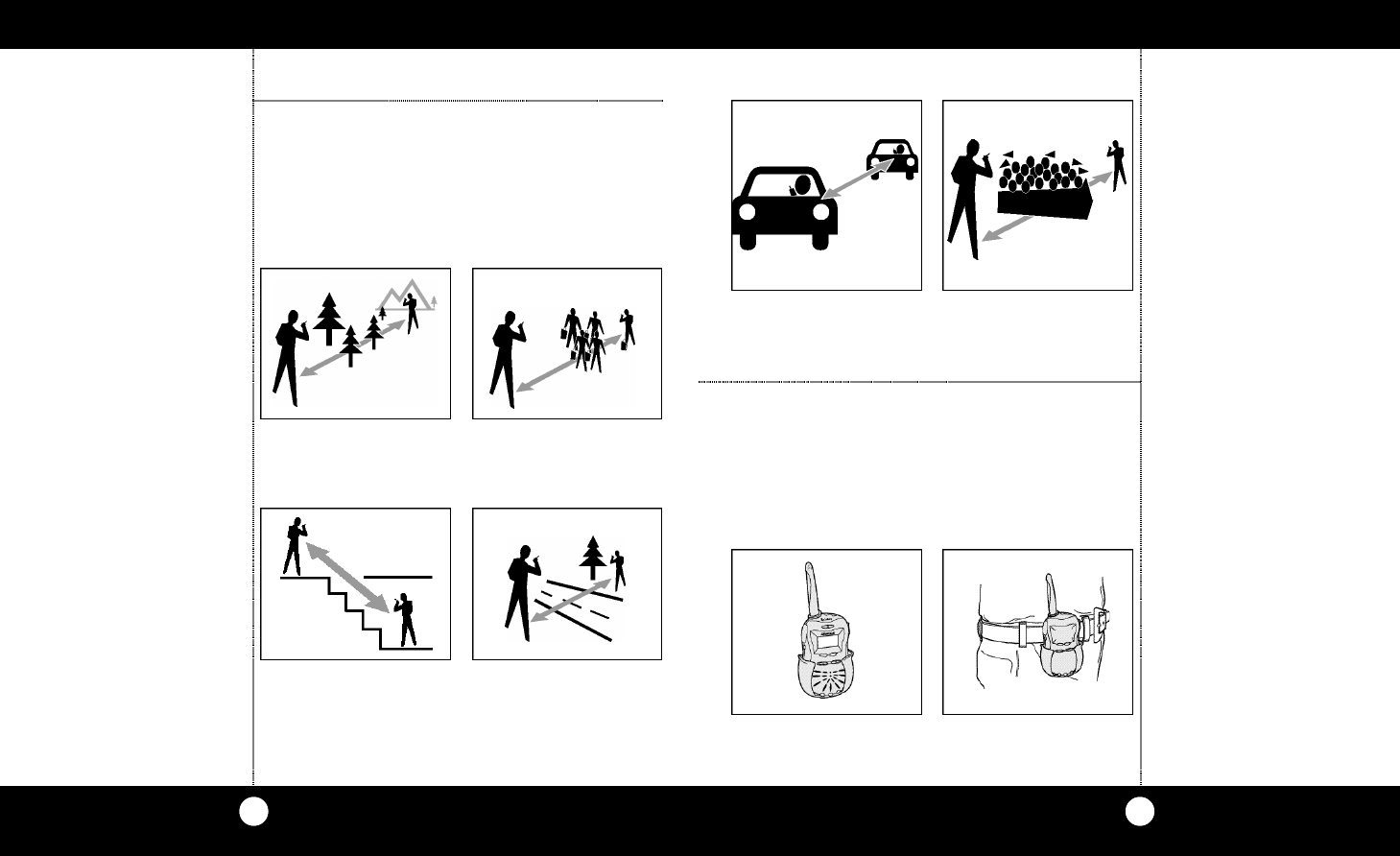

Making Life Easier and Safer
10
microTALK 2-Way Radio Can Make Life
Easier and Safer
As you become familiar with your microTALK
Radio you will find many of your own uses for the
unit.
Some suggestions include:
microTALK
2-Way Radio
Can Make
Life Easier
and Safer
1. Talking with fellow
hikers. 2. Keeping track
of the kids in a
shopping mall.
3. Communicating
between basement
and first,second or
third floor.
4. Talking to a
neighbor or a
friend.
Holster/Belt Clip/Desk Stand
Your microTALK Radio comes with a custom mold-
ed plastic holster.Its unique dual-function design
enables it to act as a handy desktop storage unit,
as well as easily attaching to your belt for maxi-
mum convenience and portability.
1. Desk Stand 2. Belt Clip
Holster-
Belt Clip and
Desk Stand
E x t e rnal Microphone/
Speaker Jack
13
E x t e rnal Microphone/
Speaker Jack
12
Note
External microphone/
speaker is not included with
the unit. See Accessories on
page 19 for available units.
External Microphone/Speaker Jack
Your microTALK 2-Way Radio can be fitted with
an external microphone/speaker,(not included)
freeing your hands for other tasks.
To attach the external microphone/speaker:
External
Microphone/
Speaker Jack
Insert plug into the Spkr/Mic jack.
Open Spkr/Mic tab on top of unit.
12
15

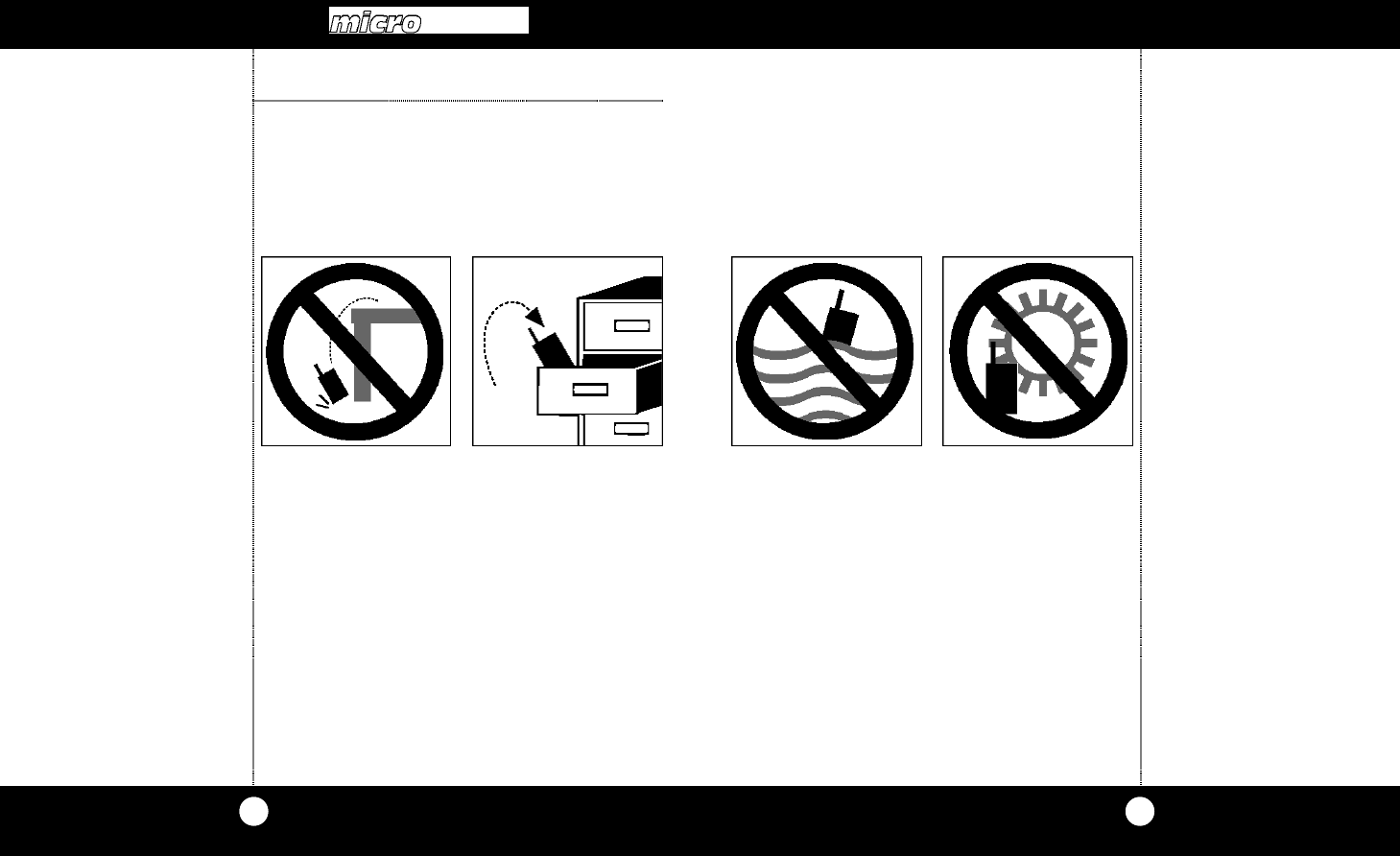

Caring for Your microTALK Radio
The microTALK 2 Way Radio will give you years
of service if cared for properly.
Here are some suggestions:
Caring for Your microTAL Radio
14
Caring
for Your
microTALK
Radio
Note
Modifying or tampering
with the radio’s internal
components can cause
malfunction and will
invalidate the warranty.
If your radio is not perform-
ing as it should, please call
Cobra at 773.889.3087.
Do not return the unit to
the retailer. 3. Never place the
unit in water or in
a moist place.
4. Avoid exposure
to extreme
temperatures.
1. Handle unit gently. 2. Keep away
from dust.
C.TRANSMITTER UNIT NOMINAL
1. EFFECTIVE RADIATED POWER mW 500
2. CARRIER FREQ.STABILITY H z 200
3. MODULATION LIMITING KHz 2.5
4. CARRIER ATTACK TIME mS 30
5. AUDIO FREQUENCY RESPONSE
@ 300 HZ dB -10
@ 2500 HZ dB 4
6. AUDIO DISTORTION % 3
7. HUM NOISE dB 38
8. TRANSIENT FREQ.BEHAVIOR
a) TX ON mS 30
b) TX OFF mS 5
D. POWER SUPPLY
1. BATTERY LIFE (1:1:18 RATIO) HR 24
2. BATTERY V 4.2 - 6.0
microTALK Specifications
17
microTALK Specifications
16
I.GENERAL SPECIFICATIONS
A. FREQUENCIES
CHANNEL ASSIGNMENT
CH 1: 462.5625MHz CH 8: 467.5625MHz
CH2: 462.5875MHz CH 9: 467.5875MHz
CH 3: 462.6125MHz CH 10: 467.6125MHz
CH 4: 462.6375MHz CH 11: 467.6375MHz
CH 5: 462.6625MHz CH 12: 467.6625MHz
CH 6: 462.6875MHz CH 13: 467.6875MHz
CH 7: 462.7125MHz CH 14: 467.7125MHz
B.RECEIVER UNIT NOMINAL
1. SENSITIVITY
FOR 12 DB SINAD uV -119
FOR CALL SIG.DETECTION uV -121
2. MAX.AUDIO OUTPUT @10% THD mW 150
3. MAX.S/N RATIO @ 1mV RF INPUT dB 45
4. SQUELCH
a) SENSITIVITY uV -121
b) ATTACK TIME mS 120
c) CLOSING TIME mS 200
5. AUDIO FREQUENCY RESP.
@ 300 HZ dB -15
@ 2500 HZ dB -10
6. SIGNAL DISPLACEMENT BW +/-KHZ 5
7. ADJACENT CH.REJECTION dB 60
8. INTERMODULATION REJECTION dB 65
9. SPURIOUS RESPONSE REJECTION dB 65
Accessory Order Form
20
Subtotal
(Tax if applicable)
Shipping/handling
Total
Tax Table
Illinois residents add 7%
Cook Co.residents add .75% (7.75% total)
Chicago residents add 1% (8.75% total)
Indiana residents add 5%
Michigan residents add 4%
Ohio residents add 6%
Wisconsin residents add 5%
Prices subject to change without notice.
M A - E B M Ear Bud Mic with PTT $ 2 9 . 9 5
M A - V OX Vox Headset Mi c $ 4 9 . 9 5
MA-SM Lapel Speaker/ Microphone $24.95
FA - H R 1 Replacement Holster $ 4 . 9 5
Item # Description Cost Ea. Qty. Amount
Please print clearly
Name
Address (No P.O.Box)
City State
Zip
Telephone ( )
Credit Card No. Exp.Date
Customer Signature
Circle One: Visa MasterCard Discover
Allow 4 to 6 weeks for delivery.Offer valid in Continental U.S.only.
For credit card orders fill out order
form and fax to:1.773.622.2269
or call 1.773.889.3087
(Press 1 from the main menu)
8:00 am - 8:00 pm,M-F,CST.
Ma ke check or money order (no stamps)
payable to:
Cobra Electronics
Attn:Accessories Dept.
6500 West Co rtland St.Ch i ca g o ,IL 60707
$25.00 and under $4.75
$25.01 - $40.00 $6.95
$40.01 - $80.00 $ 9 . 2 5
$80.01 - $120.00 $ 1 0 . 2 5
$120.01 - $160.00 $ 1 1 . 7 5
$160.01 and up $14.50
Amount Shipping/
of Order Handling
Shipping & Handling
For AK,HI and PR please
add an additional $15.00
for UPS shipments.

Navigation menu
