COBRA-010 FRS-130-2 VP.r3 10/22/01 12:47 PM Page 1

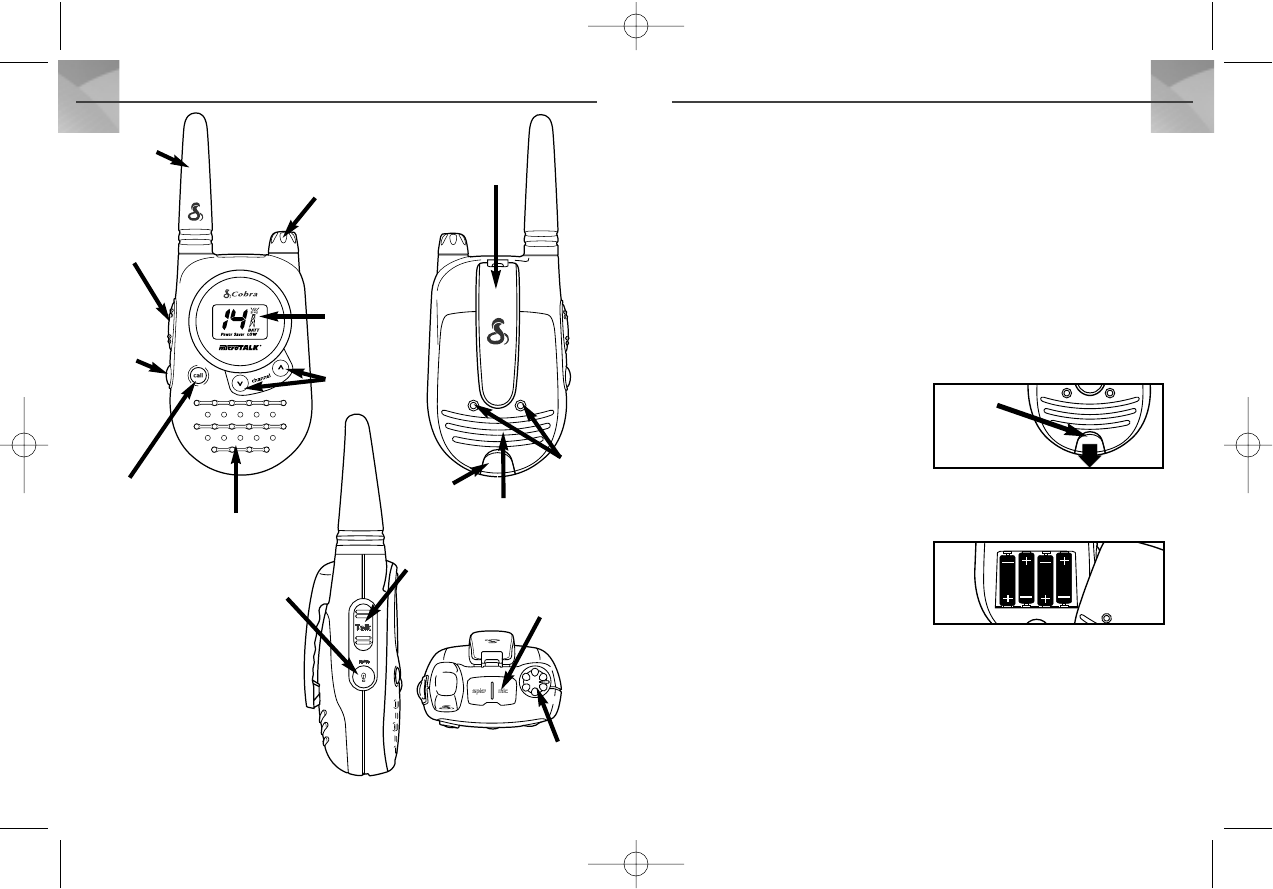

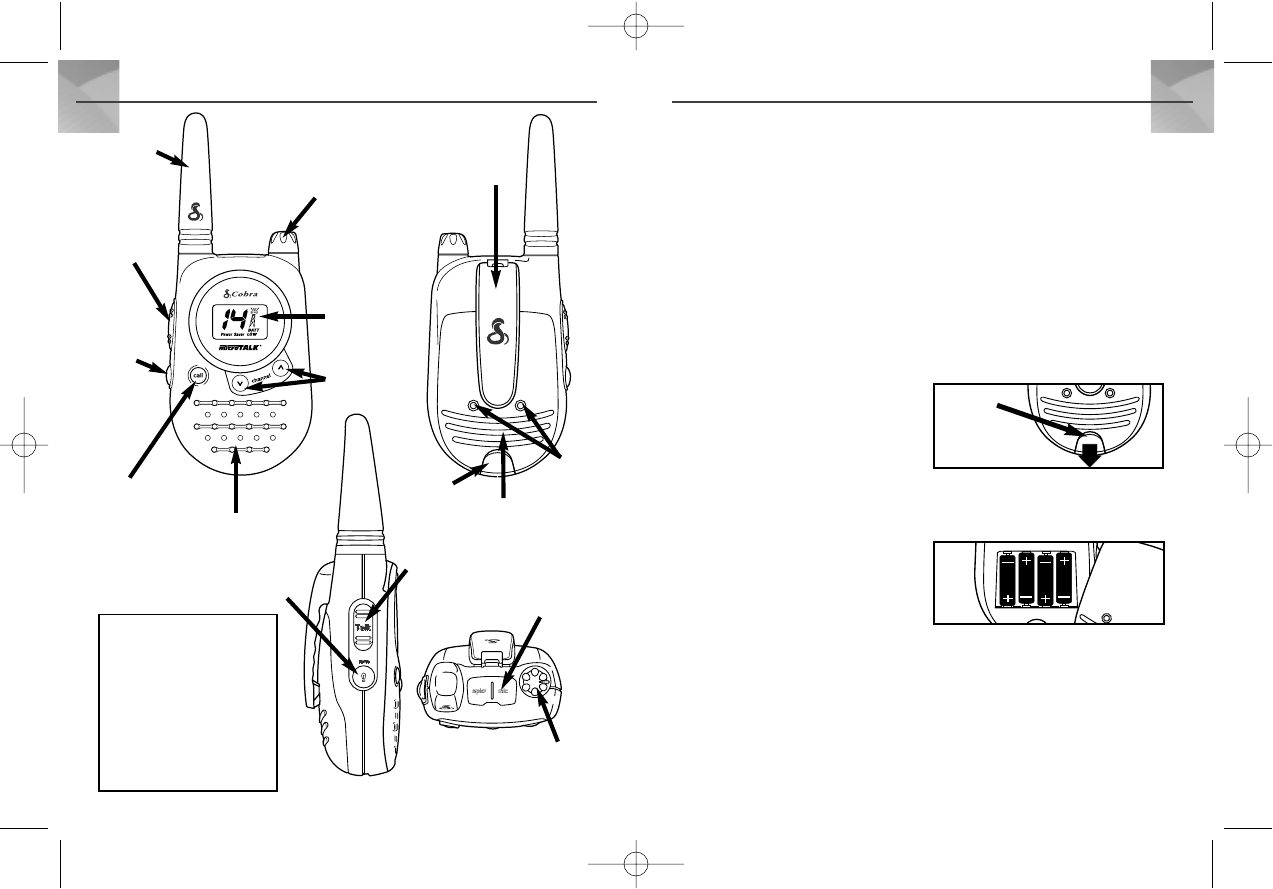

PRODUCT FEATURES ENGLISH ENGLISH
1
INTRODUCTION
This device complies with part 15 of the FCC
rules. Operation is subject to the condition that
this device does not cause harmful interference.
FCC Warnings: Replacement or substitution
of transistors, regular diodes or other parts of
a unique nature, with parts other than those
recommended by Cobra®
, may cause a
violation of the technical regulations of part
95 of the FCC Rules, or violation of Type
Acceptance requirements of Part 2 of the Rules.
ON-OFF/VOLUME
switch
backlit LCD
display
CHANNEL
SELECT
buttons
speaker/
microphone
belt clip
CALL
button
TALK
button
LIGHT/MAX
RANGE button
LIGHT/MAX
RANGE
button
ON-OFF/VOLUME
switch
external speaker/
microphone jack
battery
compartment
battery
charger
pads
LOCK tab
TALK
button
Antenna Product Features
• TWO-WAY RADIO with up to a
2 mile (3 km) range
• 14 CHANNELS
• BATTERY SAVER circuitry
• CALL ALERT
• “ROGER BEEP” confirmation tone
• AUTO SQUELCH
• MAXIMUM RANGE extender
• BACKLIT LCD display
• EXTERNAL SPEAKER/MICROPHONE jack
• BELT CLIP
• WRIST STRAP
• 2 NiCAD BATTERY packs
• 2-PORT DESKTOP CHARGER
Making Life Easier and Safer
People have found lots of convenient and
helpful ways to use their microTALK®radios.
Over time, you’re bound to discover uses of
your own. For example, you can…
• stay in touch with others while hiking,
bicycling, etc.
• keep track of family and friends in
a shopping mall
• communicate between different floors
of a building
• talk with neighbors
• check with traveling companions in
another car
• arrange a meeting spot at crowded
public events
Caring for Your
microTALK®Radio
Your microTALK®radio will give you years of
trouble-free service if cared for properly. Here are
a few suggestions: 1) Handle the radio gently,
2) Keep it away from dust, 3) Never put the
radio in water or in a damp place and
4) Avoid exposure to extreme temperatures.
Installing or
Replacing Batteries
1. Pull down the LOCK tab to remove the
battery compartment cover.
2. Insert your NiCAD battery pack or four
AAA batteries. Position batteries
according to polarity markings.
(NOTE: NiCAD batteries are included with your
microTALK®radio. When not using your NiCADs,
always use high quality alkaline batteries.
Recharge NiCAD battery pack according to the
instructions for the FA-CG charger.)
LOCK tab
2
COBRA-010 FRS-130-2 VP.r3 10/22/01 12:47 PM Page 2
OPERATION
4
ENGLISH
OPERATION
3
ENGLISH

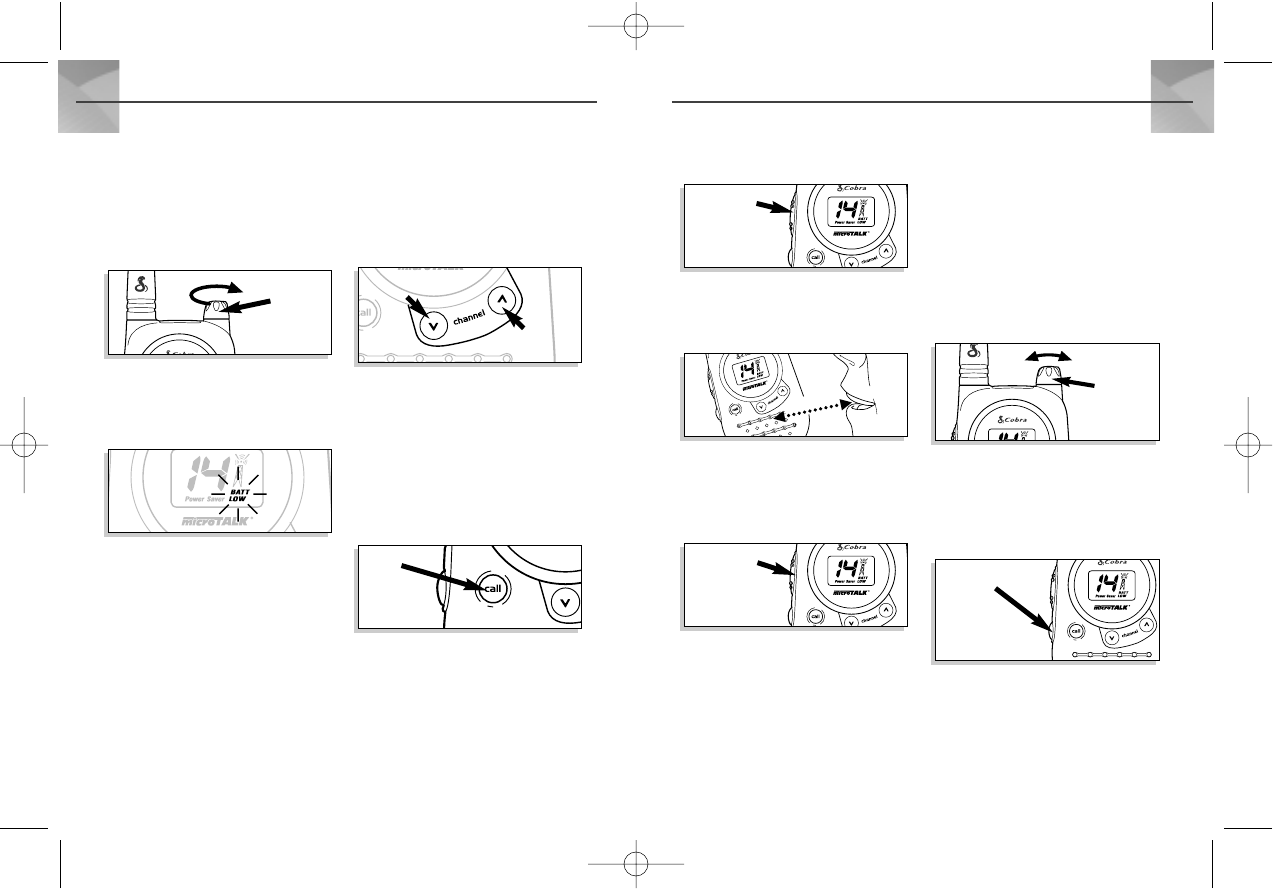

Talking to Another Person
1. Press and hold the TALK button.
2. With the microphone about 2 inches
(5 cm) from your mouth, speak in a
normal voice.
3. Release the button when you’re finished
talking and listen for a response. You
cannot receive incoming calls while
pressing the TALK button.
“Roger Beep”
Confirmation Tone
Your listener will hear an audible tone when
you release the TALK button. This alerts the
other party that you are finished talking
and it is o.k. for them to speak.
Listening for a Response
When you are finished talking:
1. Release the TALK button to receive
incoming transmissions. Your
microTALK®is always in listening
mode while the TALK button is
not pressed.
2. Adjust the volume by rotating the
ON-OFF/VOLUME switch.
Illuminating the Display
1. Press and release the LIGHT/MAX
RANGE button to illuminate the
display for 10 seconds.
TALK button
LIGHT/MAX RANGE
button
VOLUME
switch
TALK button
2 inches away
Turning On Your
microTALK®Radio
1. Rotate the ON-OFF/VOLUME switch
clockwise to turn on the unit (and to
adjust the volume). An audible tone
will indicate the radio is on.
Battery Low
When battery power is low, the BATT LOW
indicator will blink.
Auto Battery Save
Your microTALK®radio has a unique circuit
designed to extend battery life. If there are
no transmissions within 10 seconds, the
unit will automatically switch to Battery
Save mode and POWER SAVER will appear
in the display. This will not affect the unit’s
ability to receive incoming transmissions.
Selecting a Channel
1. With the radio on, select any of the
14 channels by pushing the CHANNEL UP
or CHANNEL DOWN button.
(NOTE: Both radios must be tuned to
the same channel to communicate.)
Calling Another Person
To alert another person that you are calling:
1. Press and release the CALL button.
The other person will hear a 2-second
ringing tone.
You cannot send or receive transmissions
during the 2-second call tone.
ON-OFF/
VOLUME
switch CHANNEL
UP
button
CHANNEL
DOWN
button
CALL
button

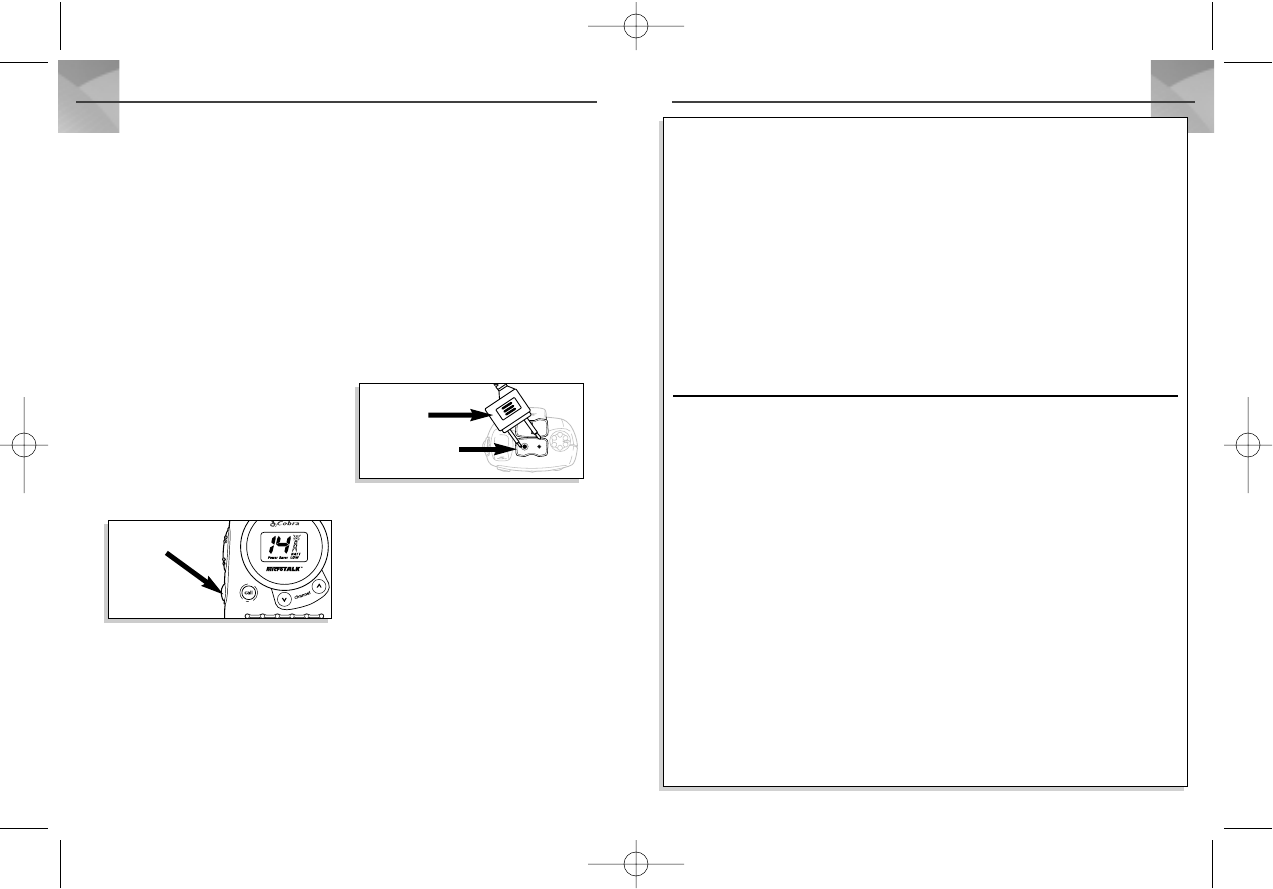

COBRA-010 FRS-130-2 VP.r3 10/22/01 12:47 PM Page 4
LIMITED 2-YEAR WARRANTY•CUSTOMER ASSISTANCE
6
OPERATION
5
ENGLISH
Customer Assistance
After reading this owner’s manual, if you have any questions
about installing or operating your microTALK®radio, or if you
are missing any parts, please contact Cobra®first. Do not
return this product to the store. Cobra®Electronics offers the
following customer support services.
• Automated Help Desk is available 24 hours
a day, 7 days a week at 773-889-3087.
• Customer Service Operators are available at
the same number 8:00 a.m. to 6:00 p.m. CST
Monday through Friday (except holidays).
• Questions can be faxed to 773-622-2269.
• Technical assistance is available on-line in the
Frequently Asked Questions (FAQ) section at
www.cobra.com or by e-mail to
productinfo@cobra.com.
If your product should require factory service please
call Cobra®first before sending your unit in. This will
ensure the fastest turn-around time on your repair.
You may be asked to send your unit to the Cobra®factory.
It will be necessary to furnish the following in order to
have the product serviced and returned.
1. For Warranty Repair include some form of proof-of-
purchase, such as a mechanical reproduction or carbon
of a sales receipt. If you send the original receipt it
cannot be returned.
2. Send the entire product.
3. Enclose a description of what is happening with the unit.
Include a typed or clearly printed name and address of
where the unit is to be returned.
4. Pack unit securely to prevent damage in transit.
If possible, use the original packing material.
5. Ship prepaid and insured by way of a traceable carrier such
as United Parcel Service (UPS) or First Class Mail to avoid
loss in transit to: Cobra Factory Service, Cobra Electronics
Corporation, 6500 W. Cortland St., Chicago, IL 60707.
6. If the unit is in warranty, upon receipt of your unit it will
either be repaired or exchanged depending on the model.
Please allow approximately 3-4 weeks before contacting
us for status. If the unit is out of warranty a letter will
automatically be sent informing you of the repair charge
or replacement charge. If you have any questions, please
call 773-889-3087 for assistance.
FOR PRODUCTS PURCHASED IN U.S.A.
Cobra Electronics Corporation warrants that its Cobra®FRS
Radios, and the component parts thereof, will be free of
defects in workmanship and materials for period of two
(2) years from the date of first consumer purchase. This
warranty may be enforced by the first consumer purchaser,
provided that the product is utilized within the U.S.A.
Cobra®will, without charge, repair or replace, at its option,
defective FRS radios, products or component parts upon delivery
to the Cobra®Factory Service Department, accompanied by proof
of the date of first consumer purchase, such as a duplicated copy
of a sales receipt.
You must pay any initial shipping charges required to ship
the product for warranty service, but the return charges will
be at Cobra's expense, if the product is repaired or replaced
under warranty.
This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
Exclusions: This limited warranty does not apply 1) to any product
damaged by accident; 2) in the event of misuse or abuse of the
product or as a result of unauthorized alterations or repairs;
3) if the serial number has been altered, defaced or removed;
4) if the owner of the product resides outside the U.S.A.
All implied warranties, including warranties of merchantability
and fitness for a particular purpose are limited in duration to
the length of this warranty. Cobra®shall not be liable for any
incidental, consequential or other damages; including, without
limitation, damages resulting from loss of use or cost of
installation.
Some states do not allow limitations on how long an implied
warranty lasts and/or do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitations
may not apply to you.
Auto Squelch
Your microTALK®radio is equipped with
Auto Squelch, which automatically shuts off
weak transmissions and unwanted noise
due to terrain conditions or if you’ve
reached your maximum range limit.
Maximum Range Extender
You can temporarily turn off Auto Squelch,
allowing all signals to be received and
extending the maximum range of your radio:
1. Press and hold the LIGHT/MAX RANGE
button for 5 seconds. You will hear
2 beeps indicating that Maximum
Range Extender is on.
2. To turn Maximum Range Extender off,
press and hold the LIGHT/MAX RANGE
button for 1 second, or change channels.
External Speaker/
Microphone Jack
Your microTALK®radio can be fitted
with an external speaker/microphone
(not included), freeing your hands for
other tasks. See page 7 for optional
accessories. To attach the external
speaker/microphone:
1. Open the SPKR/MIC tab on top of
the unit.
2. Insert the plug into the SPKR/MIC jack.
microTALK®Range
Your microTALK®radio has a range of up
to 2 miles (3 km). Your range will vary
depending on terrain and conditions. In
flat, open country your radio will operate
at maximum range.
Buildings and foliage in the path of the
signal can reduce the range. Dense
foliage and hilly terrain will further
reduce the signal.
Remember, you can achieve maximum
range by using Maximum Range Extender.
See above for details.
external speaker/
microphone
SPEAKER/
MICROPHONE jack
LIGHT/MAX RANGE
button
COBRA-010 FRS-130-2 VP.r3 10/22/01 12:47 PM Page 6

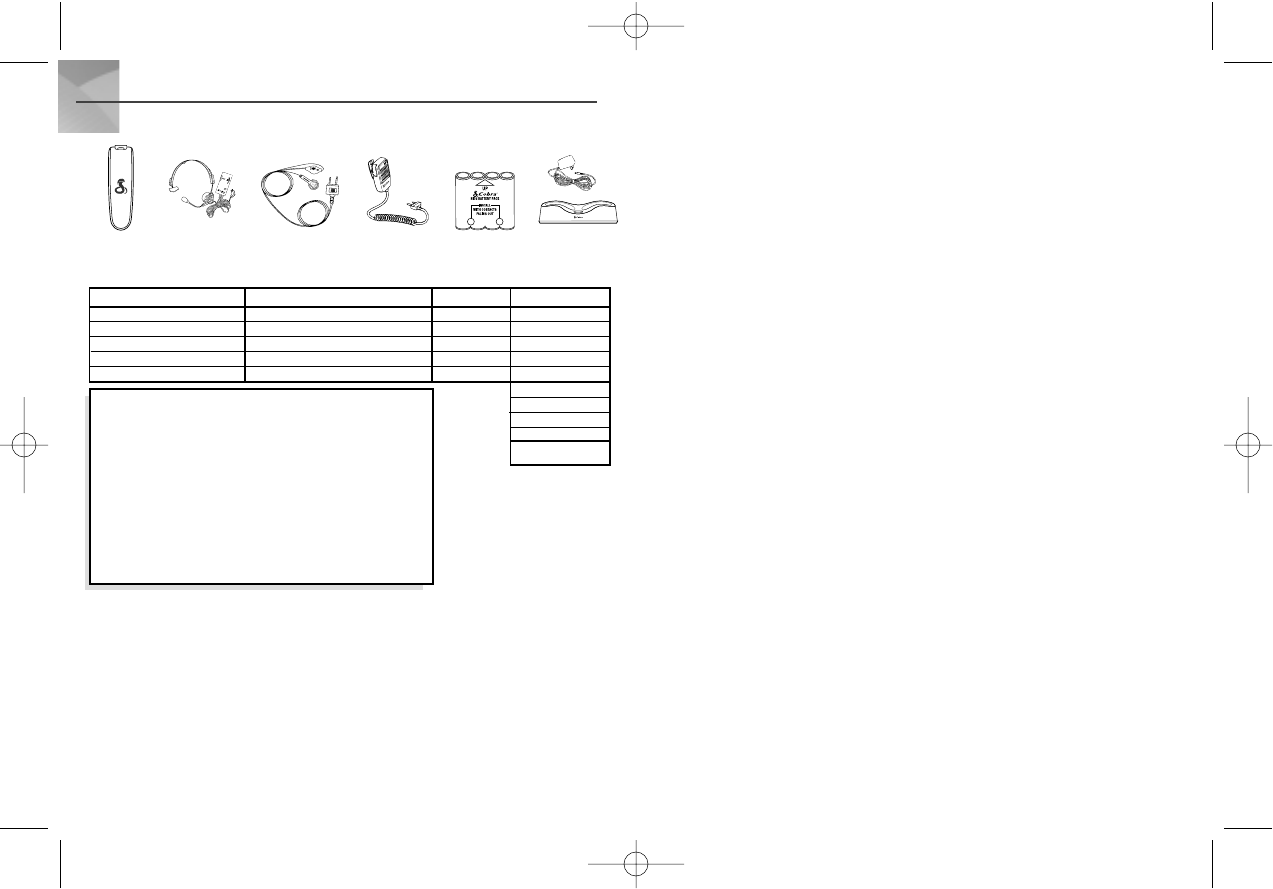

ACCESSORIES • ORDER FORM
8
ENGLISH
WARRANTY•CUSTOMER ASSISTANCE•SPECIFICATIONS
7
Name _____________________________________________________________________
Address (No P.O. Box) ___________________________________________________________
City ____________________ State/Province ______________ Zip___________ Country _______
Telephone (___) _________________________ Circle One: Visa MasterCard Discover
Credit Card No. ___________________________________ Exp. Date _____________________
Customer Signature_____________________________________________________________
Vox Headset Mic
MA-VOX Ear Bud Mic
with PTT
MA-EBM
Lapel Speaker/
Microphone
MA-SM
Replacement
Belt Clip
FA-BC3
NiMH Rechargeable
Battery Pack
FA-BP
Prices subject to change without notice.
U.S. Subtotal
(Tax if applicable)
Shipping/handling
Total
Canada Amount
G.S.T.7%
*QST 7.5%
Shipping/ handling
Total
*Quebec residents only
Ordering from Canada
(Call 514-683-1771
for pricing)
Order by phone:
Call 514-683-1771
(Press 1 from the main menu)
9 a.m. - 5p.m., M-F, EST.
Order by e-mail:
cobraextras@avs.ca
Order by mail or fax: Please
fill out order form below,
and mail/fax directly to:
AVS Technologies Inc.
2100 Trans Canada Hwy. S.
Montreal, Que. H9P 2N4
Fax to: 514-683-5307
Please allow 4-6 weeks
for delivery in Canada.
Item # US Cost Ea. Canada Cost Ea. Qty. Amount
$5.50
Ordering from U.S.
Call 773-889-3087
for pricing or visit
www.cobra.com
For credit card orders fill
out order form and fax
to 773-622-2269
Or call 773-889-3087
(Press1 from the main
menu) 8:00 am-6:00 pm,
M-F, CST.
Make check or money
order payable to:
Cobra Electronics
Attn: Accessories Dept.
6500 West Cortland St.
Chicago, IL 60707
Please allow 2-3 weeks
for delivery in U.S.
Tax
Table Illinois residents add 8.75%
Indiana residents add 5%
Michigan residents add 6%
Ohio residents add 6%
Wisconsin residents add 5%
$25.00 and under
$25.01-$40.00
$40.01-$80.00
$80.01-$120.00
$120.01-$160.00
$160.01 and up
$4.75
$6.95
$9.25
$10.25
$11.75
$14.50
Amount Shipping/Handling For AK, HI and
PR please add
an additional
$15.00 for
UPS shipments.
To order online,
please visit our website:
www.cobra.com
Click “shop Cobra®”
A. FREQUENCIES
CHANNEL ASSIGNMENT
CH 1: 462.5625MHz CH 8: 467.5625MHz
CH 2: 462.5875MHz CH 9: 467.5875MHz
CH 3: 462.6125MHz CH 10: 467.6125MHz
CH 4: 462.6375MHz CH 11: 467.6375MHz
CH 5: 462.6625MHz CH 12: 467.6625MHz
CH 6: 462.6875MHz CH 13: 467.6875MHz
CH 7: 462.7125MHz CH 14: 467.7125MHz
B. RECEIVER UNIT NOMINAL
1. SENSITIVITY
FOR 12 DB SINAD dBm -121
FOR CALL SIG DETECTION dBm -121
2. MAX. AUDIO OUTPUT @10% THD mW 200
3. MAX. S/N RATIO @ 1mV RF INPUT dB 50
4. SQUELCH
a) SENSITIVITY dB m -121
b) ATTACK TIME mS 150
c) CLOSING TIME mS 200
5. AUDIO FREQUENCY RESP.
@ 300 HZ dB -3
@ 2500 HZ dB -10
6. SIGNAL DISPLACEMENT BW +/-KHZ 5
7. ADJACENT CH. REJECTION dB 60
8. INTERMODULATION REJECTION dB 65
9. SPURIOUS RESPONSE REJECTION dB 55
C. TRANSMITTER UNIT NOMINAL
1. EFFECTIVE RADIATED POWER mW 500
2. CARRIER FREQ. STABILITY +
_Hz 500
3. MODULATION LIMITING KHz 2.5
4. CARRIER ATTACK TIME mS 30
5. AUDIO FREQUENCY RESPONSE
@ 300 HZ dB -10
@ 2500 HZ dB 4
6. AUDIO DISTORTION % 3
7. HUM NOISE dB 38
8. TRANSIENT FREQ. BEHAVIOR
a)TXON mS 30
b) TX OFF mS 5
D. POWER SUPPLY
1. BATTERY LIFE (1:1:18 RATIO) HR 24
2. BATTERY OPERATING RANGE V 4.0 - 6.0
General Specifications
Customer Assistance
After reading this owner’s manual, if you have any questions
about installing or operating your microTALK®radio, or if you
are missing any parts, please contact Cobra®first. Do not
return this product to the store. Cobra®Electronics offers the
following customer support service.
• Technical assistance is available on-line in
the Frequently Asked Questions (FAQ)
section at www.cobra.com or by e-mail
to productinfo@cobra.com.
For out of warranty service, ship prepaid this product to:
AVS Technologies Inc., 2100 TransCanada Hwy S., Montreal,
Quebec, H9P 2N4. We reserve the right to repair or replace
the unit with an equivalent product. Please include the
following information:
Date of purchase:
Model No.:
Dealer Purchased from:
Dealer address:
Dealer phone No.:
FOR PRODUCTS PURCHASED IN CANADA
Your new Cobra®FRS is covered by a two (2) year replacement
warranty. If any manufacturing defect becomes apparent in this
product within two years from the original date of purchase, it
will be replaced. Please return the FRS radio to your dealer with
original or copy of dated proof of purchase.
This warranty does not cover damages due to careless handling,
negligence, accident, abuse or failure to follow operating
instructions. Alteration of this product or defacing of the serial
number cancels all obligations of this warranty. This warranty
gives you specified legal rights. Additional warranty rights may
be provided by law in some areas.
2 Port Desktop
Charger
FA-CG
COBRA-010 FRS-130-2 VP.r3 10/22/01 12:47 PM Page 8
FRENCH INTRODUCTION
Product Features
• TWO-WAY RADIO with up to a
2 mile (3 km) range
• 14 CHANNELS
• BATTERY SAVER circuitry
• CALL ALERT
• “ROGER BEEP” confirmation tone
• AUTO SQUELCH
• MAXIMUM RANGE extender
• BACKLIT LCD display
• EXTERNAL SPEAKER/MICROPHONE jack
• BELT CLIP
• WRIST STRAP
• 2 NiCAD BATTERY packs
• 2-PORT DESKTOP CHARGER
Making Life Easier and Safer
People have found lots of convenient and
helpful ways to use their microTALK®radios.
Over time, you’re bound to discover uses of
your own. For example, you can…
• stay in touch with others while hiking,
bicycling, etc.
• keep track of family and friends in
a shopping mall
• communicate between different floors
of a building
• talk with neighbors
• check with traveling companions in
another car
• arrange a meeting spot at crowded
public events
Caring for Your
microTALK®Radio
Your microTALK®radio will give you years of
trouble-free service if cared for properly. Here are
a few suggestions: 1) Handle the radio gently,
2) Keep it away from dust, 3) Never put the
radio in water or in a damp place and
4) Avoid exposure to extreme temperatures.
Installing or
Replacing Batteries
1. Pull down the LOCK tab to remove the
battery compartment cover.
2. Insert your NiCAD battery pack or four
AAA batteries. Position batteries
according to polarity markings.
(NOTE: NiCAD batteries are included with your
microTALK®radio. When not using your NiCADs,
always use high quality alkaline batteries.
Recharge NiCAD battery pack according to the
instructions for the FA-CG charger.)
LOCK tab
10
PRODUCT FEATURES FRENCH
9
ON-OFF/VOLUME
switch
backlit LCD
display
CHANNEL
SELECT
buttons
speaker/
microphone
belt clip
CALL
button
TALK
button
LIGHT/MAX
RANGE button
LIGHT/MAX
RANGE
button
ON-OFF/VOLUME
switch
external speaker/
microphone jack
battery
compartment
battery
charger
pads
LOCK tab
TALK
button
Antenna
COBRA-010 FRS-130-2 VP.r3 10/22/01 12:47 PM Page 10
OPERATION
12
FRENCH
Talking to Another Person
1. Press and hold the TALK button.
2. With the microphone about 2 inches
(5 cm) from your mouth, speak in a
normal voice.
3. Release the button when you’re finished
talking and listen for a response. You
cannot receive incoming calls while
pressing the TALK button.
“Roger Beep”
Confirmation Tone
Your listener will hear an audible tone when
you release the TALK button. This alerts the
other party that you are finished talking
and it is o.k. for them to speak.
Listening for a Response
When you are finished talking:
1. Release the TALK button to receive
incoming transmissions. Your
microTALK®is always in listening
mode while the TALK button is
not pressed.
2. Adjust the volume by rotating the
ON-OFF/VOLUME switch.
Illuminating the Display
1. Press and release the LIGHT/MAX
RANGE button to illuminate the
display for 10 seconds.
TALK button
LIGHT/MAX RANGE
button
VOLUME
switch
TALK button
2 inches away
OPERATION
11
FRENCH
Turning On Your
microTALK®Radio
1. Rotate the ON-OFF/VOLUME switch
clockwise to turn on the unit (and to
adjust the volume). An audible tone
will indicate the radio is on.
Battery Low
When battery power is low, the BATT LOW
indicator will blink.
Auto Battery Save
Your microTALK®radio has a unique circuit
designed to extend battery life. If there are
no transmissions within 10 seconds, the
unit will automatically switch to Battery
Save mode and POWER SAVER will appear
in the display. This will not affect the unit’s
ability to receive incoming transmissions.
Selecting a Channel
1. With the radio on, select any of the
14 channels by pushing the CHANNEL UP
or CHANNEL DOWN button.
(NOTE: Both radios must be tuned to
the same channel to communicate.)
Calling Another Person
To alert another person that you are calling:
1. Press and release the CALL button.
The other person will hear a 2-second
ringing tone.
You cannot send or receive transmissions
during the 2-second call tone.
ON-OFF/
VOLUME
switch CHANNEL
UP
button
CHANNEL
DOWN
button
CALL
button

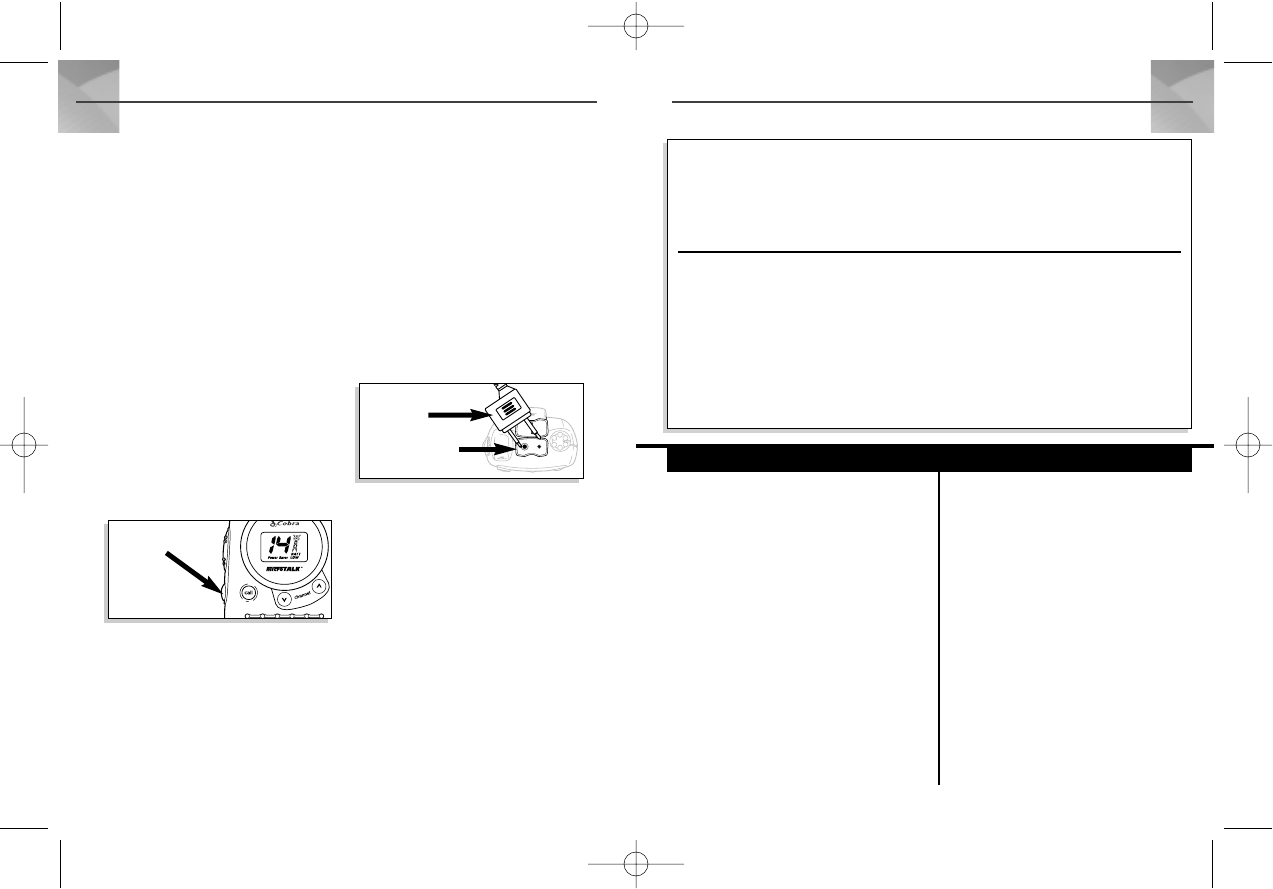

COBRA-010 FRS-130-2 VP.r3 10/22/01 12:47 PM Page 12
WARRANTY•CUSTOMER ASSISTANCE•SPECIFICATIONS
14
A. FREQUENCIES
CHANNEL ASSIGNMENT
CH 1: 462.5625MHz CH 8: 467.5625MHz
CH 2: 462.5875MHz CH 9: 467.5875MHz
CH 3: 462.6125MHz CH 10: 467.6125MHz
CH 4: 462.6375MHz CH 11: 467.6375MHz
CH 5: 462.6625MHz CH 12: 467.6625MHz
CH 6: 462.6875MHz CH 13: 467.6875MHz
CH 7: 462.7125MHz CH 14: 467.7125MHz
B. RECEIVER UNIT NOMINAL
1. SENSITIVITY
FOR 12 DB SINAD dBm -121
FOR CALL SIG DETECTION dBm -121
2. MAX. AUDIO OUTPUT @10% THD mW 200
3. MAX. S/N RATIO @ 1mV RF INPUT dB 50
4. SQUELCH
a) SENSITIVITY dB m -121
b) ATTACK TIME mS 150
c) CLOSING TIME mS 200
5. AUDIO FREQUENCY RESP.
@ 300 HZ dB -3
@ 2500 HZ dB -10
B. RECEIVER (continued)
6. SIGNAL DISPLACEMENT BW +/-KHZ 5
7. ADJACENT CH. REJECTION dB 60
8. INTERMODULATION REJECTION dB 65
9. SPURIOUS RESPONSE REJECTION dB 55
C. TRANSMITTER UNIT NOMINAL
1. EFFECTIVE RADIATED POWER mW 500
2. CARRIER FREQ. STABILITY +
_Hz 500
3. MODULATION LIMITING KHz 2.5
4. CARRIER ATTACK TIME mS 30
5. AUDIO FREQUENCY RESPONSE
@ 300 HZ dB -10
@ 2500 HZ dB 4
6. AUDIO DISTORTION % 3
7. HUM NOISE dB 38
8. TRANSIENT FREQ. BEHAVIOR
a)TXON mS 30
b) TX OFF mS 5
D. POWER SUPPLY
1. BATTERY LIFE (1:1:18 RATIO) HR 24
2. BATTERY OPERATING RANGE V 4.0 - 6.0
General Specifications
Customer Assistance
After reading this owner’s manual, if you have any questions
about installing or operating your microTALK®radio, or if you
are missing any parts, please contact Cobra®first. Do not
return this product to the store. Cobra®Electronics offers the
following customer support service.
• Technical assistance is available on-line in
the Frequently Asked Questions (FAQ)
section at www.cobra.com or by e-mail
to productinfo@cobra.com.
For out of warranty service, ship prepaid this product to:
AVS Technologies Inc., 2100 TransCanada Hwy S., Montreal,
Quebec, H9P 2N4. We reserve the right to repair or replace
the unit with an equivalent product. Please include the
following information:
Date of purchase:
Model No.
Dealer Purchased from:
Dealer address:
Dealer phone No.:
FOR PRODUCTS PURCHASED IN CANADA
Your new Cobra®FRS is covered by a two (2) year replacement
warranty. If any manufacturing defect becomes apparent in this
product within two years from the original date of purchase, it
will be replaced. Please return the FRS radio to your dealer with
original or copy of dated proof of purchase.
This warranty does not cover damages due to careless handling,
negligence, accident, abuse or failure to follow operating
instructions. Alteration of this product or defacing of the serial
number cancels all obligations of this warranty. This warranty
gives you specified legal rights. Additional warranty rights may
be provided by law in some areas.
OPERATION
13
FRENCH
Auto Squelch
Your microTALK®radio is equipped with
Auto Squelch, which automatically shuts off
weak transmissions and unwanted noise
due to terrain conditions or if you’ve
reached your maximum range limit.
Maximum Range Extender
You can temporarily turn off Auto Squelch,
allowing all signals to be received and
extending the maximum range of your radio:
1. Press and hold the LIGHT/MAX RANGE
button for 5 seconds. You will hear
2 beeps indicating that Maximum
Range Extender is on.
2. To turn Maximum Range Extender off,
press and hold the LIGHT/MAX RANGE
button for 1 second, or change channels.
External Speaker/
Microphone Jack
Your microTALK®radio can be fitted
with an external speaker/microphone
(not included), freeing your hands for
other tasks. See page 7 for optional
accessories. To attach the external
speaker/microphone:
1. Open the SPKR/MIC tab on top of
the unit.
2. Insert the plug into the SPKR/MIC jack.
microTALK®Range
Your microTALK®radio has a range of up
to 2 miles (3 km). Your range will vary
depending on terrain and conditions. In
flat, open country your radio will operate
at maximum range.
Buildings and foliage in the path of the
signal can reduce the range. Dense
foliage and hilly terrain will further
reduce the signal.
Remember, you can achieve maximum
range by using Maximum Range Extender.
See above for details.
external speaker/
microphone
SPEAKER/
MICROPHONE jack
LIGHT/MAX RANGE
button
COBRA-010 FRS-130-2 VP.r3 10/22/01 12:47 PM Page 14
ACCESSORIES • ORDER FORM
15
Name _____________________________________________________________________
Address (No P.O. Box) ___________________________________________________________
City ____________________ State/Province ______________ Zip___________ Country _______
Telephone (___) _________________________ Circle One: Visa MasterCard Discover
Credit Card No. ___________________________________ Exp. Date _____________________
Customer Signature_____________________________________________________________
Vox Headset Mic
MA-VOX Ear Bud Mic
with PTT
MA-EBM
Lapel Speaker/
Microphone
MA-SM
Replacement
Belt Clip
FA-BC3
2 Port Desktop
Charger
FA-CG
NiMH Rechargeable
Battery Pack
FA-BP
Prices subject to change without notice.
Amount
G.S.T.7%
*QST 7.5%
Shipping/ handling
Total
*Quebec residents only
Item # Cost Ea. Qty. Amount
$5.50
Ordering from Canada
Call 514-683-1771 for pricing.
Order by phone: Call 514-683-1771 (Press 1 from the main menu)
9 a.m. - 5 p.m., M-F, EST.
Order by e-mail: cobraextras@avs.ca
Order by mail or fax: Please fill out order form below,and mail/fax directly to:
AVS Technologies Inc.
2100 Trans Canada Hwy. S.
Montreal, Que. H9P 2N4
Fax to: 514-683-5307
Please allow 4-6 weeks for delivery.
For additional customer
assistance and warranty
information, contact your
local dealer.
FRENCH
16
COBRA-010 FRS-130-2 VP.r3 10/22/01 12:47 PM Page 16
SPANISH INTRODUCTION
Product Features
• TWO-WAY RADIO with up to a
2 mile (3 km) range
• 14 CHANNELS
• BATTERY SAVER circuitry
• CALL ALERT
• “ROGER BEEP” confirmation tone
• AUTO SQUELCH
• MAXIMUM RANGE extender
• BACKLIT LCD display
• EXTERNAL SPEAKER/MICROPHONE jack
• BELT CLIP
• WRIST STRAP
• 2 NiCAD BATTERY packs
• 2-PORT DESKTOP CHARGER
Making Life Easier and Safer
People have found lots of convenient and
helpful ways to use their microTALK®radios.
Over time, you’re bound to discover uses of
your own. For example, you can…
• stay in touch with others while hiking,
bicycling, etc.
• keep track of family and friends in
a shopping mall
• communicate between different floors
of a building
• talk with neighbors
• check with traveling companions in
another car
• arrange a meeting spot at crowded
public events
Caring for Your
microTALK®Radio
Your microTALK®radio will give you years of
trouble-free service if cared for properly. Here are
a few suggestions: 1) Handle the radio gently,
2) Keep it away from dust, 3) Never put the
radio in water or in a damp place and
4) Avoid exposure to extreme temperatures.
Installing or
Replacing Batteries
1. Pull down the LOCK tab to remove the
battery compartment cover.
2. Insert your NiCAD battery pack or four
AAA batteries. Position batteries
according to polarity markings.
(NOTE: NiCAD batteries are included with your
microTALK®radio. When not using your NiCADs,
always use high quality alkaline batteries.
Recharge NiCAD battery pack according to the
instructions for the FA-CG charger.)
LOCK tab
18
PRODUCT FEATURES SPANISH
17
ON-OFF/VOLUME
switch
backlit LCD
display
CHANNEL
SELECT
buttons
speaker/
microphone
belt clip
CALL
button
TALK
button
LIGHT/MAX
RANGE button
LIGHT/MAX
RANGE
button
ON-OFF/VOLUME
switch
external speaker/
microphone jack
battery
compartment
battery
charger
pads
LOCK tab
TALK
button
Antenna
COBRA-010 FRS-130-2 VP.r3 10/22/01 12:47 PM Page 18
OPERATION
20
SPANISH
Talking to Another Person
1. Press and hold the TALK button.
2. With the microphone about 2 inches
(5 cm) from your mouth, speak in a
normal voice.
3. Release the button when you’re finished
talking and listen for a response. You
cannot receive incoming calls while
pressing the TALK button.
“Roger Beep”
Confirmation Tone
Your listener will hear an audible tone when
you release the TALK button. This alerts the
other party that you are finished talking
and it is o.k. for them to speak.
Listening for a Response
When you are finished talking:
1. Release the TALK button to receive
incoming transmissions. Your
microTALK®is always in listening
mode while the TALK button is
not pressed.
2. Adjust the volume by rotating the
ON-OFF/VOLUME switch.
Illuminating the Display
1. Press and release the LIGHT/MAX
RANGE button to illuminate the
display for 10 seconds.
TALK button
LIGHT/MAX RANGE
button
VOLUME
switch
TALK button
2 inches away
OPERATION
19
SPANISH
Turning On Your
microTALK®Radio
1. Rotate the ON-OFF/VOLUME switch
clockwise to turn on the unit (and to
adjust the volume). An audible tone
will indicate the radio is on.
Battery Low
When battery power is low, the BATT LOW
indicator will blink.
Auto Battery Save
Your microTALK®radio has a unique circuit
designed to extend battery life. If there are
no transmissions within 10 seconds, the
unit will automatically switch to Battery
Save mode and POWER SAVER will appear
in the display. This will not affect the unit’s
ability to receive incoming transmissions.
Selecting a Channel
1. With the radio on, select any of the
14 channels by pushing the CHANNEL UP
or CHANNEL DOWN button.
(NOTE: Both radios must be tuned to
the same channel to communicate.)
Calling Another Person
To alert another person that you are calling:
1. Press and release the CALL button.
The other person will hear a 2-second
ringing tone.
You cannot send or receive transmissions
during the 2-second call tone.
ON-OFF/
VOLUME
switch CHANNEL
UP
button
CHANNEL
DOWN
button
CALL
button

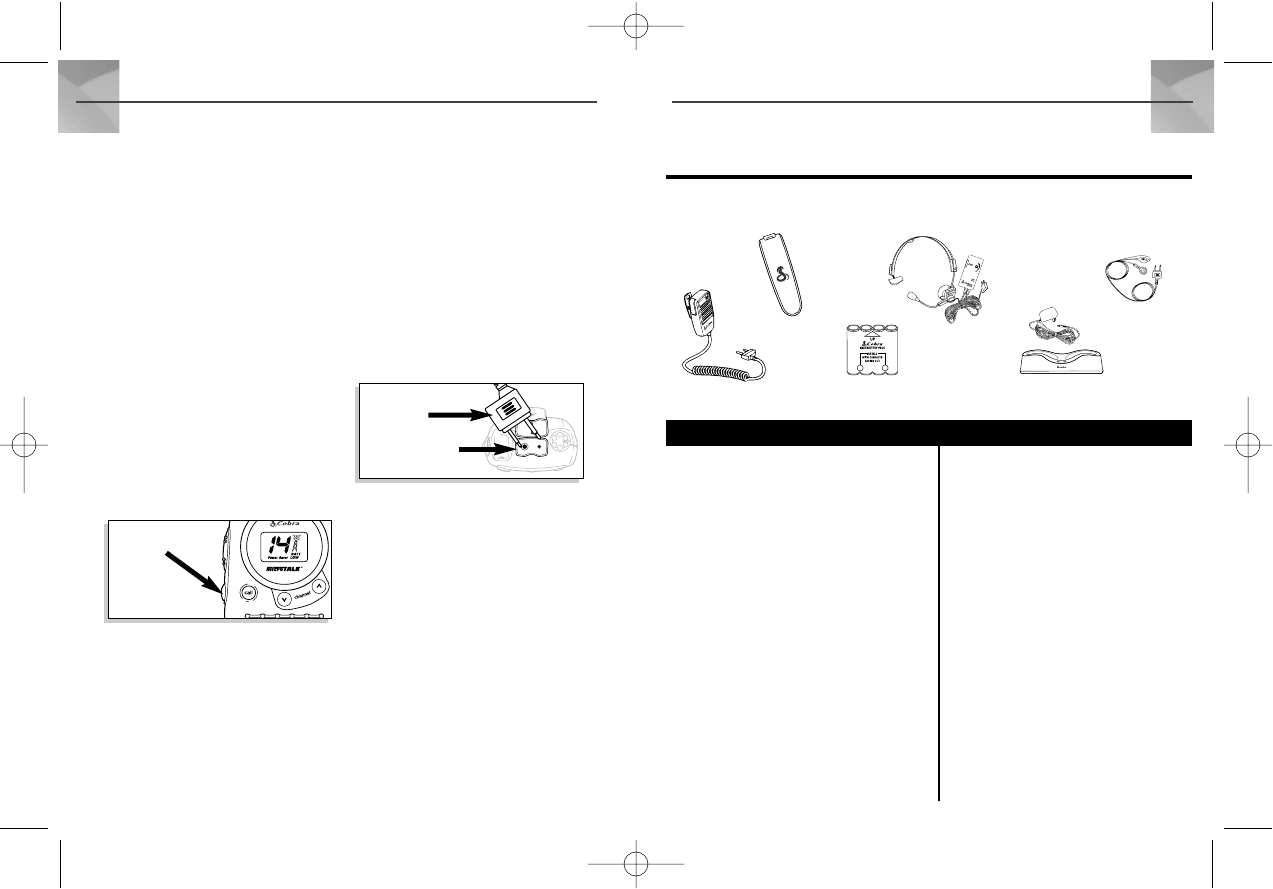

COBRA-010 FRS-130-2 VP.r3 10/22/01 12:47 PM Page 20
WARRANTY•ACCESSORIES•SPECIFICATIONS
22
A. FREQUENCIES
CHANNEL ASSIGNMENT
CH 1: 462.5625MHz CH 8: 467.5625MHz
CH 2: 462.5875MHz CH 9: 467.5875MHz
CH 3: 462.6125MHz CH 10: 467.6125MHz
CH 4: 462.6375MHz CH 11: 467.6375MHz
CH 5: 462.6625MHz CH 12: 467.6625MHz
CH 6: 462.6875MHz CH 13: 467.6875MHz
CH 7: 462.7125MHz CH 14: 467.7125MHz
B. RECEIVER UNIT NOMINAL
1. SENSITIVITY
FOR 12 DB SINAD dBm -121
FOR CALL SIG DETECTION dBm -121
2. MAX. AUDIO OUTPUT @10% THD mW 200
3. MAX. S/N RATIO @ 1mV RF INPUT dB 50
4. SQUELCH
a) SENSITIVITY dB m -121
b) ATTACK TIME mS 150
c) CLOSING TIME mS 200
5. AUDIO FREQUENCY RESP.
@ 300 HZ dB -3
@ 2500 HZ dB -10
6. SIGNAL DISPLACEMENT BW +/-KHZ 5
7. ADJACENT CH. REJECTION dB 60
8. INTERMODULATION REJECTION dB 65
9. SPURIOUS RESPONSE REJECTION dB 55
C. TRANSMITTER UNIT NOMINAL
1. EFFECTIVE RADIATED POWER mW 500
2. CARRIER FREQ. STABILITY +
_Hz 500
3. MODULATION LIMITING KHz 2.5
4. CARRIER ATTACK TIME mS 30
5. AUDIO FREQUENCY RESPONSE
@ 300 HZ dB -10
@ 2500 HZ dB 4
6. AUDIO DISTORTION % 3
7. HUM NOISE dB 38
8. TRANSIENT FREQ. BEHAVIOR
a)TXON mS 30
b) TX OFF mS 5
D. POWER SUPPLY
1. BATTERY LIFE (1:1:18 RATIO) HR 24
2. BATTERY OPERATING RANGE V 4.0 - 6.0
General Specifications
For customer assistance and warranty
information, contact your local dealer.
For accessory availability and pricing, contact your local dealer.
Vox Headset Mic
MA-VOX
Ear Bud Mic
with PTT
MA-EBM
Lapel Speaker/Microphone
MA-SM
Replacement Belt Clip
FA-BC3
2 Port Desktop Charger
FA-CG
NiMH Rechargeable Battery Pack
FA-BP
OPERATION
21
SPANISH
Auto Squelch
Your microTALK®radio is equipped with
Auto Squelch, which automatically shuts off
weak transmissions and unwanted noise
due to terrain conditions or if you’ve
reached your maximum range limit.
Maximum Range Extender
You can temporarily turn off Auto Squelch,
allowing all signals to be received and
extending the maximum range of your radio:
1. Press and hold the LIGHT/MAX RANGE
button for 5 seconds. You will hear
2 beeps indicating that Maximum
Range Extender is on.
2. To turn Maximum Range Extender off,
press and hold the LIGHT/MAX RANGE
button for 1 second, or change channels.
External Speaker/
Microphone Jack
Your microTALK®radio can be fitted
with an external speaker/microphone
(not included), freeing your hands for
other tasks. See page 7 for optional
accessories. To attach the external
speaker/microphone:
1. Open the SPKR/MIC tab on top of
the unit.
2. Insert the plug into the SPKR/MIC jack.
microTALK®Range
Your microTALK®radio has a range of up
to 2 miles (3 km). Your range will vary
depending on terrain and conditions. In
flat, open country your radio will operate
at maximum range.
Buildings and foliage in the path of the
signal can reduce the range. Dense
foliage and hilly terrain will further
reduce the signal.
Remember, you can achieve maximum
range by using Maximum Range Extender.
See above for details.
external speaker/
microphone
SPEAKER/
MICROPHONE jack
LIGHT/MAX RANGE
button
SPANISH
COBRA-010 FRS-130-2 VP.r3 10/22/01 12:47 PM Page 22
The Cobra®line of
quality products includes:
CB radios
microTALK®radios
Radar/Laser Detectors
Safety Alert®
Traffic Warning Systems
Accessories
HighGear™Accessories
Nothing comes close to a Cobra™
Printed in China Part No. 480-021-P
The Cobra®line of
quality products includes:
CB radios
microTALK®radios
Radar/Laser Detectors
Safety Alert®
Traffic Warning Systems
Accessories
HighGear™Accessories
Nothing comes close to a Cobra™
Printed in China Part No. 480-021-P
The Cobra®line of
quality products includes:
CB radios
microTALK®radios
Radar/Laser Detectors
Safety Alert®
Traffic Warning Systems
Accessories
HighGear™Accessories
For more information about
our products or to order online,
please visit our website:
www.cobra.com
Click “shop Cobra®”
Nothing comes close to a Cobra™
Printed in China Part No. 480-021-P
©2002 Cobra Electronics Corporation • 6500 West Cortland Street • Chicago, IL 60707 USA
(ENGLISH)
(SPANISH)
(FRENCH)
COBRA-010 FRS-130-2 VP.r3 10/22/01 12:47 PM Page 24
