Nothing Comes Close To A Cobra®English
Thank you for purchasing a CobraMarine™VHF radio.
Properly used, this Cobra®product will give you
many years of reliable service.

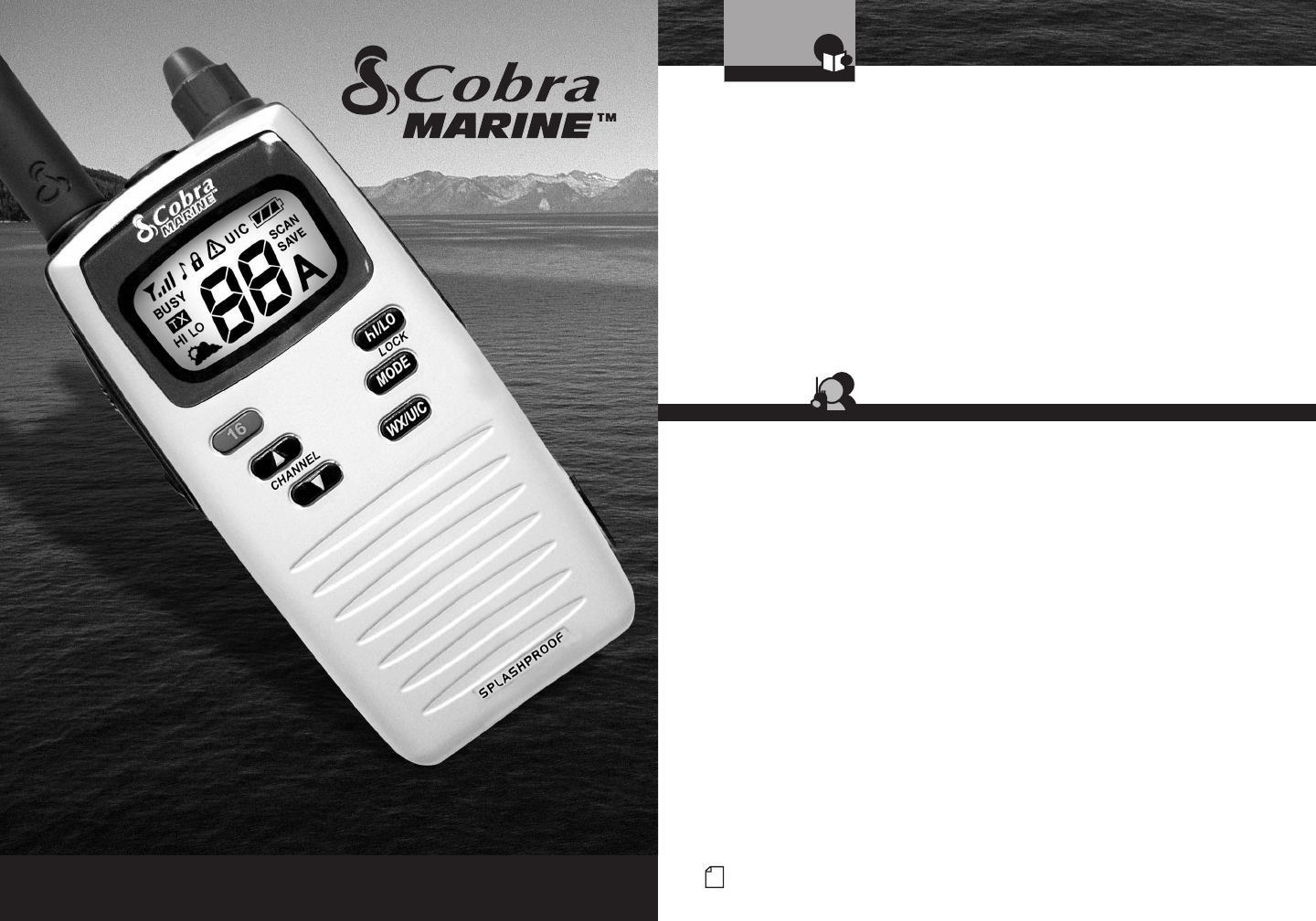

How Your CobraMarine™VHF Radio Works
This radio is a battery powered portable transceiver for use afloat. It gives you
two-way vessel-to-vessel and vessel-to-shore station communications, primarily
for safety and secondarily for navigation and operational purposes. With it, you can
call for help, get information from other boaters, talk to lock and bridge tenders,
and make radiotelephone calls to anywhere in the world through a marine operator.
Besides two-way communications, the radio can provide quick access to receive
all ten NOAA (National Oceanographic and Atmospheric Administration) weather
channels and alert you to weather emergencies with a tone on a weather channel
you can select for your area.
Customer Assistance
Should you encounter any problems with this product, or not understand
its many features, please refer to this owner’s manual. If you require further
assistance after reading this manual, Cobra®Electronics offers the following
customer assistance services:
For Assistance In the U.S.A.
Automated Help Desk English only.
24 hours a day, 7 days a week 773-889-3087 (phone).
Customer Assistance Operators English and Spanish.
8:00 a.m. to 6:00 p.m. CT Mon. through Fri. (except holidays) 773-889-3087 (phone).
Questions English and Spanish.
Faxes can be received at 773-622-2269 (fax).
Technical Assistance English only.
www.cobra.com (on-line: Frequently Asked Questions).
English and Spanish. productinfo@cobra.com (e-mail).
For Assistance Outside the U.S.A.
Contact Your Local Dealer
Customer Assistance
©2003 Cobra®Electronics Corporation
6500 West Cortland Street
Chicago, Illinois 60707 USA
www.cobra.com
Introduction
1
Nothing comes close to a Cobra®
A3 English
Indicators and
Product Features
Introduction
A2 English
Controls and Indicators
Introduction Table of Contents
Introduction
Our Thanks to You . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A1
Customer Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A1
Controls and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A2
Indicators and Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A3
Important Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Recommendations for Marine Communication . . . . . . . . . . . . . . . . . . 4
VHF Marine Radio Protocols
FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
VHF Marine Radio Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Voice Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Radiotelephone Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Emergency Messages and Distress Procedure . . . . . . . . . . . . . . . . . . . 8
VHF Marine Channel Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
NOAA Weather Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Installation
Included in This Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Wrist Strap, Belt Clip, Spkr/Mic Jack and Waterproof Pouch . . . . . . . 24
Batteries and Charger Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Operating Your Radio
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Standby/Receive and Transmit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Weather Radio and Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Advanced Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Channel 16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Channel Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Keystroke Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Warranty
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Customer Service
Product Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Optional Accessories and Order Form . . . . . . . . . . . . . . . . . . . . . . . . 40
Dual Power
Selectable to 500 mW or two (2) watts
output power for near or distant calling.
USA/International/Canada Channels
Allows operation on any of the three
different channel maps established
for these areas.
10 NOAA Weather Channels
Instant access to all of the National
Weather Channels, 24 hours a day.
Emergency Weather Alert
Can alert you with an audible tone
and visual alarm if threatening weather
is nearby.
Splashproof
Water resistant — meets Standard JIS4.
Scan
Lets you scan through all channels
to find conversations in progress.
Button Lock
Prevents accidental changes to your
settings when you set this feature.
Instant Channel 16
Instant access to priority Channel 16.
Power Saver
Uses battery saver circuitry to extend
the life of your batteries.
Keystroke Tones
Can be turned On or Off.
Waterproof Pouch
Makes the unit completely waterproof
(one pouch per radio included).

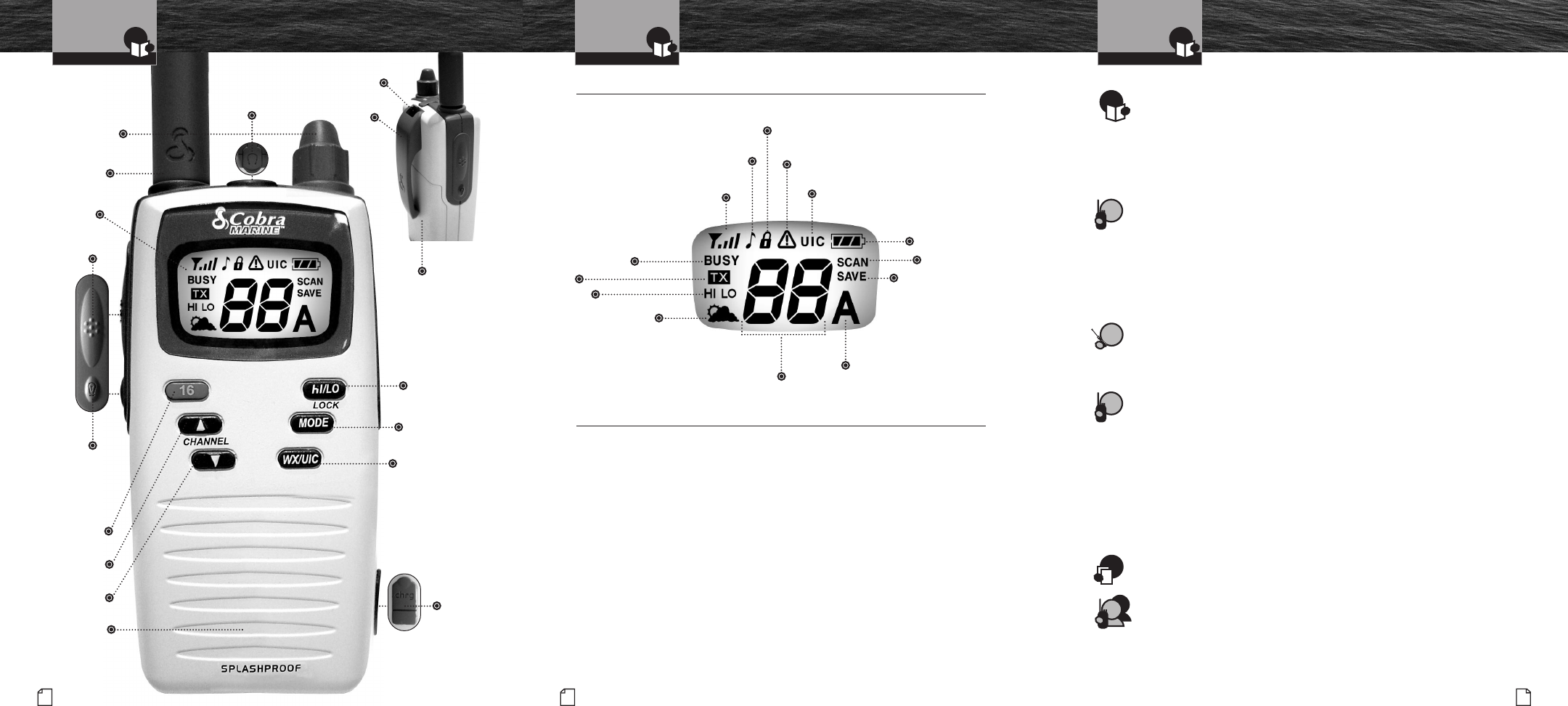

Product Features •
Channel
Numbers
Simplex
Operation
Icon
U-I-C Active
Channel Map
Icon
Weather
Alert Icon
Button
Lock Icon
Received Signal
Strength Icons
Keystroke
Tones Icon
Weather
Channel
Icon
Scan Icon
Power
Saver
Icon
Battery Power
Icon
High/Low
Power Icon
Transmit
Icon
Busy
Icon
Speaker/
Microphone
Backlit
LCD
Screen
On-Off Power/
Volume Knob
Wrist Strap
Connector
Belt
Clip
Antenna
Battery
Compartment
Instant
Channel
16 Button
Channel
Up Button
Channel
Down Button
High/Low Power –
Lock Button
Mode
Button
Weather/
UIC Button
Backlit LCD (Liquid Crystal Display) Screen •
External Speaker/
Microphone Jack
Talk
Button
Backlight/
Monitor
Button
Charge
Jack
Introduction
3
Nothing comes close to a Cobra®
2English
Important Safety Information
Introduction Important Safety Information
WARNINGS
■ DO NOT transmit more than 50% of the time the radio is in use.
■ DO NOT operate the radio in an explosive atmosphere, near blasting sites,
or in any area where signs are posted prohibiting radio transmissions.
■ DO NOT allow children or anyone unfamiliar with proper procedures
to operate the radio without supervision.
CAUTIONS
■ Your radio is splashproof only when the batteries are properly installed.
■ Avoid using or storing the radio at temperatures below -4˚F (-20˚C)
or above 140˚F (60˚C).
■Keep your radio at least three (3) feet (0.9m) away from your
vessel’s magnetic navigation compass.
■ Do not attempt to service any internal parts yourself. Have any
necessary service performed by a qualified technician.
■Changes or modifications to your radio may void its compliance
with FCC rules and make it illegal to use.
Important Safety Information •
Before assembling and using your CobraMarine™VHF radio,
please read these general precautions and warnings.
Warning and Caution Statements
To make the most of this radio, it must be assembled and used properly.
Please read the assembly and operating instructions carefully before assembling
and using it. Special attention must be paid to the WARNING and CAUTION
statements in this manual.
WARNING
Statements identify conditions that could result in personal injury or loss of life.
CAUTION
Statements identify conditions that could cause damage to the radio
or other equipment.
General Precautions
WARNINGS
■Your radio generates electromagnetic RF (radio frequency) energy
when it is transmitting. To insure that you and those around you
are not exposed to excessive amounts of that energy:
■ ALWAYS hold the radio at least two inches
(5 cm) away from you when you are transmitting.
■ NEVER allow the antenna to touch any part
of your body when transmitting.
■ KEEP the radio at least as far from bystanders
as from yourself.
5
Nothing comes close to a Cobra®
4English
Recommendations for
Marine Communication FCC Information
Recommendations for Marine Communication •
The frequencies your radio uses are set aside to enhance safety afloat and for vessel
navigation and operational messages over a range suitable for nearshore voyages.
If the two (2) watt maximum output of your radio isn’t sufficient for the distances
you travel from the coast, consider grabbing a Cobra®hand held radio with up to five
(5) watts of output power or installing a Cobra®fixed mount radio with up to 25 watts
of output power. (Visit www.cobra.com or your local dealer for model availability.)
If you will be going far offshore, you should consider adding even more powerful
radio equipment such as HF Single Sideband or Satellite Radio for your vessel.
The U.S. Coast Guard does not endorse cellular telephones as substitutes for marine
radios. They generally cannot communicate with rescue vessels and, if you make a
distress call on a cellular telephone, only the party you call will be able to hear you.
Additionally, cellular telephones may have limited coverage over water and can be
hard to locate. If you don’t know where you are, the Coast Guard will have difficulty
finding you if you’re using a cellular telephone.
However, cellular phones can have a place on board — to allow social conversations
and keep the marine frequencies uncluttered and available for their intended uses.
IMPORTANT NOTICE: FCC LICENSING INFORMATION •
CobraMarine™VHF radios comply with the FCC (Federal Communication
Commission) requirements that regulate the Maritime Radio Service.
Station License
An FCC ship station license is no longer required for any vessel traveling in U.S.A.
waters which uses a VHF marine radio, RADAR, or EPIRB (Emergency Position
Indicating Radio Beacon), and which is not required to carry radio equipment.
However, any vessel required to carry a marine radio on an international voyage,
carrying a HF single side band radiotelephone, or carrying a marine satellite
terminal must obtain a station license.
FCC license forms and applications for ship and land stations can be downloaded
through the internet at www.fcc.gov/forms. Forms can also be obtained by calling
the FCC at 888-225-5322.
Radio Call Sign
Currently, the FCC does not require recreational boaters to have a license.
The United States Coast Guard recommends that the boat’s registration
number and state of registry (e.g. Illinois AB 1234) be used as a call sign
and be clearly visible on the vessel.
Canadian Ship Station License
You may need a license if your vessel is operated in sovereign waters of a country
other than the U.S.A. If you are going to operate in Canadian waters, please contact
the nearest field office or write: Industry of Canada, Radio Regulatory Branch,
Attn: DOSP, 300 Slater Street, Ottawa, Ontario, Canada K1A 0C8.
User Responsibility and Operating Locations
All users are responsible for observing domestic and foreign government regulations
and are subject to severe penalties for violations. The VHF frequencies on your radio
are reserved for marine use and require a special license to operate from land,
including when your boat is on its trailer.
NOTE
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.
FCC Warnings: Replacement or substitution of transistors, regular diodes,
or other parts of a unique nature, with parts other than those recommended
by Cobra®may cause a violation of the technical regulations of part 95 of the
FCC Rules, or violation of type acceptance requirements of part 2 of the Rules.
VHF Marine Radio Protocols
VHF Marine Radio Protocols
Introduction
7
Nothing comes close to a Cobra®
6English
VHF Marine Radio
Procedures Voice Calling
VHF Marine Radio Procedures •
Maintain Your Watch
Whenever your boat is underway, the radio must be turned On and
be tuned to Channel 16 except when being used for messages.
Power
Try one (1) watt first if the station being called is within a few miles. If there
is no answer, switch to a higher power. This will conserve your battery and
you will sound better since your signal will not overpower the nearby station.
Calling Coast Stations
Call a coast station on its assigned channel. You may use Channel 16
when you do not know the assigned channel.
Calling Other Vessels
Call other vessels on Channel 16 or on Channel 9. (Channel 9 is preferred
for recreational vessel use.) You may also call on ship-to-ship channels
when you know that the vessel is listening on a ship-to-ship channel.
Limits On Calling
You must not call the same station for more than 30 seconds at a time.
If you do not get a reply, wait at least two (2) minutes before calling again.
After three (3) calling periods, wait at least 15 minutes before calling again.
Change Channels
After contacting another station on a calling channel, change immediately
to a channel which is available for the type of message you want to send.
Station Identification
Identify, in English, your station by your FCC call sign, ship name, the state registration
number, or other official number at both the beginning and end of each message.
Prohibited Communications
You MUST NOT transmit:
■ False distress or emergency messages.
■ Messages containing obscene, indecent, or profane words or meaning.
■ General calls, signals, or messages (messages not addressed to a particular
station) on Channel 16, except in an emergency or if you are testing your radio.
■ When you are on land.
Voice Calling •
To Call Another Vessel Or A Shore Installation Such As A Lock Or Bridge Tender:
■ Make sure your radio is On.
■ Select Channel 16 and listen to make sure it is not being used.
NOTE
Channel 9 may be used by recreational vessels for general-purpose calling. This
frequency should be used whenever possible to relieve congestion on Channel 16.
■ When the channel is quiet, press the Talk button and call the ship you wish to
call. (Hold the microphone a few inches from your face and speak directly into it
in a normal tone of voice — clearly and distinctly.) Say “[name of station being
called] THIS IS [your vessel’s name or call sign].”
■ Once contact is made on the calling channel, you must switch to
a proper working channel. See the channel listing on page 12.
The vessel Corsair calling the vessel Vagabond:
Corsair: “Vagabond, this is Corsair.”
Vagabond: “Corsair, this is Vagabond. Reply 72 (or any proper working channel).”
Corsair: “72” or “Roger”
■ After communications are completed, each vessel must sign off with its
call sign or vessel name and switch to Channel 16.
VHF Marine Radio Protocols VHF Marine Radio Protocols
For Example
MAYDAY
PAN PAN
SECURITE
9
Nothing comes close to a Cobra®
8English
Radiotelephone Calls Emergency Messages
and Distress Procedure
Radiotelephone Calls •
Boaters may make and receive telephone calls to and from any number on the
telephone network by using the services of Public Coast Stations. Calls can be made
— for a fee — between your VHF radio and telephones on land, sea, and in the air.
See pages 12 to 21 for the Public Correspondence (Marine Operator) channels.
If you plan to use these services, consider registering with the operator of the
Public Coast Station that you plan to work through. Those services can provide
you with detailed information and procedures to follow.
CAUTION
Although using these services will not damage your radio, you may disclose
privileged information during a radiotelephone call. Keep in mind that your
transmission is NOT private, as it is on a regular telephone. Both sides of the
conversation are being broadcast and can be heard by anyone who has a
VHF radio and tunes to the channel you are using.
Emergency Messages and Distress Procedure •
The ability to summon assistance in an emergency is the primary reason to have
a VHF marine radio. The marine environment can be unforgiving, and what may
initially be a minor problem can rapidly develop into a situation beyond your control.
The Coast Guard monitors Channel 16, responds to all distress calls, and coordinates
all search and rescue efforts. Depending on the availability of other capable vessels
or commercial assistance operators in your vicinity, Coast Guard or Coast Guard
Auxiliary craft may be dispatched.
In any event, do communicate with the Coast Guard (on Channel 22) as soon as
you experience difficulties and before your situation becomes an emergency. Use the
emergency message procedures only after your situation has become grave or you
are faced with a sudden danger threatening life or property and requiring immediate
help. If you are merely out of gas, do not send an emergency message. Drop your
anchor and call a friend or marina to bring the fuel you need or give you a tow.
Marine Emergency Signals
The three spoken international emergency signals are:
The distress signal MAYDAY is used to indicate that a station is threatened
by grave and imminent danger and requests immediate assistance.
The urgency signal PAN PAN is used when the safety of the vessel
or person is in jeopardy. (This signal is properly pronounced pahn-pahn.)
The safety signal SECURITE is used for messages about the safety of navigation or
important weather warnings. (This signal is properly pronounced see-cure-it-tay.)
When using an international emergency signal, the appropriate
signal is to be spoken three times prior to the message.
If You Hear A Distress Call
You must give any message beginning with one (1) of these signals priority
over any other messages. ALL stations MUST remain silent on Channel 16
for the duration of the emergency unless the message relates directly to
the emergency.
If you hear a distress message from a vessel, stand by your radio. If it is
not answered, YOU should answer. If the distressed vessel is not nearby,
wait a short time for others who may be closer to acknowledge. Even if
you cannot render direct assistance, you may be in a position to relay
the message.
VHF Marine Radio Protocols VHF Marine Radio Protocols
For Example
11
Nothing comes close to a Cobra®
Emergency Messages
and Distress Procedure
10 English
Emergency Messages
and Distress Procedure
Marine Distress Procedure
Speak slowly — clearly — calmly.
1. Make sure your radio is On.
2. Select VHF Channel 16.
3. Press Talk button and say:
“MAYDAY — MAYDAY — MAYDAY.”
(Or “PAN PAN — PAN PAN — PAN PAN,”
or “SECURITE — SECURITE — SECURITE.”)
4. Say:
“THIS IS [your vessel name or call sign].”
5. Say:
“MAYDAY (or “PAN PAN” or “SECURITE”)
[your vessel name or call sign].
6. Tell where you are:
(what navigational aids or landmarks are near).
7. State the nature of your distress.
8. State the kind of assistance needed.
9. Give number of persons aboard and conditions of any injured.
10. Estimate present seaworthiness of your vessel.
11. Briefly describe your vessel (length, type, color, hull).
12. Say:
“I WILL BE LISTENING ON CHANNEL 16.”
13. End message by saying:
“THIS IS [your vessel name or call sign] OVER.”
14. Release Talk button and listen. Someone should answer.
If not, repeat the call, beginning at Item 3 above.
Keep the radio nearby. Even after your message has been received, the Coast Guard
can find you more quickly if you can transmit a signal for a rescue boat to hone in on.
“Mayday — Mayday — Mayday”
“This is Corsair — Corsair — Corsair” (or “Illinois AB1234 “ three times)
“Mayday Corsair (or Illinois AB1234)”
“Navy Pier bears 220 degrees magnetic — distance 5 miles”
“Struck submerged object and flooding — need pump and tow”
“Four adults, three children aboard — no one injured”
“Estimate we will remain afloat one half hour”
“Corsair (or Illinois AB1234) is 26 foot sloop with blue hull and tan deck house”
“I will be listening on Channel 16”
“This is Corsair (or Illinois AB1234)
“Over”
It is a good idea to write out a script of the message form and post it where you
and others on your vessel can see it when an emergency message needs to be sent.
VHF Marine Radio Protocols VHF Marine Radio Protocols
13
Nothing comes close to a Cobra®
VHF Marine
Channel Assignments
12 English
VHF Marine
Channel Assignments
VHF Marine Channel Assignments in the U.S.A. •
Distress, Safety, and Calling
Channel 16
Getting the attention of another station (calling) or in emergencies
(distress and safety).
Calling
Channel 9
General purpose (non-emergency) calling by non-commercial vessels.
Recreational boaters are urged to use this channel to reduce congestion
on Channel 16.
Intership Safety
Channel 6
Ship-to-ship safety messages and for search and rescue messages to
Coast Guard ships and aircraft.
Coast Guard Liaison
Channel 22
To talk to the Coast Guard (non-emergency) after making contact on Channel 16.
Non-Commercial
Channels 68*, 69, 71, 72, 78, 79*, 80*
Working channels for small vessels. Messages must be about needs of the
vessel, such as fishing reports, berthing, and rendezvous. Use Channel 72 only
for ship-to-ship messages.
Commercial
Channels 1, 7, 8, 9, 10, 11, 18, 19, 63, 67, 72, 79, 80, 88*
Working channels for working ships only. Messages must be about business or
needs of the ship. Use Channels 8, 67, 72, and 88 only for ship-to-ship messages.
Public Correspondence (Marine Operator)
Channels 24, 25, 26, 27, 28, 84, 85, 86, 87, 88*
For calls to marine operators at public coast stations. You can make and receive
telephone calls through these stations.
Port Operations
Channels 1*, 5*, 11, 12*, 14*, 20, 63*, 65, 66, 73, 74, 77*
Used for directing the movement of ships in or near ports, locks, or waterways.
Messages must be about operational handling, movement, and safety of ships.
Navigational
Channels 13, 67
Channels are available to all vessels. Messages must be about navigation, including
passing or meeting other vessels. These are also the main working channels for
most locks and drawbridges. You must keep your messages short and power output
at no more than one (1) watt.
Maritime Control
Channel 17
For talking to vessels and coast stations operated by state or local governments.
Messages must be about regulation and control, boating activities, or assistance.
Digital Selective Calling
Channel 70
This channel is set aside for distress, safety, and general calling using only digital
selective calling techniques. Voice communication is prohibited; your radio cannot
transmit voice messages on this channel.
Weather
Channels Wx 1 thru 10
Receive-only channels for NOAA weather broadcasts. You cannot transmit on them.
NOTE
*These channels are restricted to the listed uses in certain parts of
the country or for certain types of users only. Consult FCC rules
or a knowledgeable radio operator before using them.
VHF Marine Radio Protocols VHF Marine Radio Protocols
Channel Channel Map Frequency Power
Number USA Int’l Canada Transmit Receive Limits
01 ••
156.050 160.650
01A •156.050 156.050
02 ••156.100 160.700
03 ••156.150 160.750
03A •156.150 156.150
04 •156.200 160.800
04A •156.200 156.200
05 •156.250 160.850
05A ••156.250 156.250
06 •••156.300 156.300
07 •156.350 160.950
07A ••156.350 156.350
08 •••156.400 156.400
09 •••156.450 156.450
10 •••156.500 156.500
11 •••156.550 156.550
12 •••156.600 156.600
13 •••
156.650 156.650 1 Watt USA and CAN
14 •••156.700 156.700
15 •Rx Only 156.750
15 ••156.750 156.750 1 Watt CAN and INT
16 •••156.800 156.800
17 •••156.850 156.850 1 Watt USA and CAN
14 English
VHF Marine
Channel Assignments
VHF Marine Radio Protocols
15
Nothing comes close to a Cobra®
VHF Marine
Channel Assignments
VHF Marine Radio Protocols
Channel Use
01 Public Correspondence (Marine Operator)
01A Port Operations and Commercial, VTS in selected areas.
02 Public Correspondence (Marine Operator)
03 Public Correspondence (Marine Operator)
03A Government Only
04 Public Correspondence (Marine Operator), Port Operations, Ship Movement
04A West Coast (Coast Guard Only); East Coast (Commercial Fishing)
05 Public Correspondence (Marine Operator), Port Operations, Ship Movement
05A Port Operations, VTS in selected areas
06 Intership Safety
07 Public Correspondence (Marine Operator), Port Operations, Ship Movement
07A Commercial
08 Commercial (Intership Only)
09 Boater Calling Channel, Non-Commercial (Recreational)
10 Commercial
11 Commercial, VTS in selected areas
12 Port Operations, VTS in selected areas
13 Intership Navigation Safety (Bridge-to-Bridge). In U.S. waters,
large vessels maintain a listening watch on this channel.
14 Port Operations, VTS in selected areas
15 Environmental (Receive Only). Used by class C EPIRB’s.
15 Canada (EPIRB Buoys Only); International (On-Board Communication)
16 International Distress, Safety and Calling
17 State Controlled (U.S.A. Only)
17
Nothing comes close to a Cobra®
VHF Marine
Channel Assignments
16 English
VHF Marine
Channel Assignments
Channel Use
18 Port Operations, Ship Movement
18A Commercial
19 Port Operations, Ship Movement
19A Commercial
20 Canada (Coast Guard Only); International (Port Operations, Ship Movement)
20A Port Operations
21 Port Operations, Ship Movement
21A U.S. (Government Only); Canada (Coast Guard Only)
22 Port Operations, Ship Movement
22A U.S. and Canadian Coast Guard Liaison and Maritime Safety Information
Broadcasts that are announced on Channel 16
23 Public Correspondence (Marine Operator)
23A Government Only
24 Public Correspondence (Marine Operator)
25 Public Correspondence (Marine Operator)
26 Public Correspondence (Marine Operator)
27 Public Correspondence (Marine Operator)
28 Public Correspondence (Marine Operator)
60 Public Correspondence (Marine Operator)
61 Public Correspondence (Marine Operator), Port Operation, Ship Movement
61A U.S. (Government Only); Canada (Coast Guard Only);
West Coast (Coast Guard Only); East Coast (Commercial Fishing)
62 Public Correspondence (Marine Operator), Port Operations, Ship Movement
62A West Coast (Coast Guard Only); East Coast (Commercial Fishing)
VHF Marine Radio Protocols VHF Marine Radio Protocols
Channel Channel Map Frequency Power
Number USA Int’l Canada Transmit Receive Limits
18 •156.900 161.500
18A ••
156.900 156.900
19 •156.950 161.550
19A ••
156.950 156.950
20 ••
157.000 161.600 1Watt CAN
20A •157.000 157.000
21 ••
157.050 161.650
21A ••
157.050 157.050
22 •157.100 161.700
22A ••
157.100 157.100
23 ••
157.150 161.750
23A •157.150 157.150
24 •••
157.200 161.800
25 •••
157.250 161.850
26 •••
157.300 161.900
27 •••
157.350 161.950
28 •••
157.400 162.000
60 ••
156.025 160.625
61 •156.075 160.675
61A ••
156.075 156.075
62 •156.125 160.725
62A • 156.125 156.125
Channel Channel Map Frequency Power
Number USA Int’l Canada Transmit Receive Limits
63 •156.175 160.775
63A •156.175 156.175
64 ••
156.225 160.825
64A ••
156.225 156.225
65 •156.275 160.875
65A •••
156.275 156.275
66 •156.325 160.925
66A •••
156.325 156.325 1 Watt CAN
67 •••
156.375 156.375 1 Watt USA
68 •••
156.425 156.425
69 •••
156.475 156.475
70 •••
RX only 156.525
71 •••
156.575 156.575
72 •••
156.625 156.625
73 •••
156.675 156.675
74 •••
156.725 156.725
77 •••
156.875 156.875 1 Watt USA and CAN
19
Nothing comes close to a Cobra®
VHF Marine
Channel Assignments
18 English
VHF Marine
Channel Assignments
Channel Use
63 Public Correspondence (Marine Operator), Port Operations, Ship Movement
63A Port Operations and Commercial, VTS in selected areas
64 Public Correspondence (Marine Operator), Port Operations, Ship Movement
64A U.S. (Government Only); Canada (Commercial Fishing)
65 Public Correspondence (Marine Operator), Port Operations, Ship Movement
65A Port Operations
66 Public Correspondence (Marine Operator), Port Operations, Ship Movement
66A Port Operations
67 U.S. (Commercial). Used for bridge-to-bridge communications in lower
Mississippi River (Intership Only); Canada (Commercial Fishing), S&R
68 Non-Commercial (Recreational)
69 U.S. (Non-Commercial, Recreational); Canada (Commercial Fishing Only);
International (Intership, Port Operations, Ship Movement)
70 Digital Selective Calling (Voice communications not allowed)
71 U.S. and Canada (Non-Commercial, Recreational);
International (Port Operations, Ship Movement)
72 Non-Commercial (Intership Only)
73 U.S. (Port Operations); Canada (Commercial Fishing Only);
International (Intership, Port Operations, Ship Movement)
74 U.S. (Port Operations); Canada (Commercial Fishing Only);
International (Intership, Port Operations, Ship Movement)
77 Port Operations (Intership only). Restricted to communications
with pilots for movement and docking of ships.
VHF Marine Radio Protocols VHF Marine Radio Protocols
Channel Channel Map Frequency Power
Number USA Int’l Canada Transmit Receive Limits
78 •156.925 161.525
78A ••
156.925 156.925
79 •156.975 161.575
79A ••
156.975 156.975
80 •157.025 161.625
80A ••
157.025 157.025
81 •157.075 161.675
81A ••
157.075 157.075
82 •157.125 161.725
82A ••
157.125 157.125
83 ••
157.175 161.775
83A ••
157.175 157.175
84 •••
157.225 161.825
84A •157.225 157.225
85 •••
157.275 161.875
85A •157.275 157.275
86 •••
157.325 161.925
86A •157.325 157.325
87 •••
157.375 161.975
87A •157.375 157.375
88 •••
157.425 162.025
88A •157.425 157.425
NOTE
Many of the plain numbered channels, such as 1, 2, and 3, transmit and receive
on different frequencies. This is termed duplex operation. The rest of the plain
numbered channels and all of the A channels, such as 01A, 03A, and 04A,
transmit and receive on a single frequency, which is termed simplex operation.
Your radio automatically adjusts to these conditions. When in simplex operation,
the A icon will appear on the LCD (see illustration on page A3).
21
Nothing comes close to a Cobra®
VHF Marine
Channel Assignments
20 English
VHF Marine
Channel Assignments
Channel Use
78 Public Correspondence (Marine Operator)
78A Non-Commercial (Recreational)
79 Port Operations, Ship Movement
79A Commercial (Also Non-Commercial only in Great Lakes)
80 Port Operations, Ship Movement
80A Commercial (Also Non-Commercial only in Great Lakes)
81 Port Operations, Ship Movement
81A U.S. (Government Only; Environmental Protection Operations)
82 Public Correspondence (Marine Operator), Port Operation, Ship Movement
82A U.S. (Government Only); Canada (Coast Guard Only)
83 Canada (Coast Guard Only)
83A U.S. (Government Only); Canada (Coast Guard Only)
84 Public Correspondence (Marine Operator)
84A Public Correspondence (Marine Operator)
85 Public Correspondence (Marine Operator)
85A Public Correspondence (Marine Operator)
86 Public Correspondence (Marine Operator)
86A Public Correspondence (Marine Operator)
87 Public Correspondence (Marine Operator)
87A Public Correspondence (Marine Operator)
88 Public Correspondence (Ship to Coast). In U.S. only within
75 miles of Canadian Border.
88A Commercial Intership only
VHF Marine Radio Protocols VHF Marine Radio Protocols
23
Nothing comes close to a Cobra®
22 English
NOAA Weather Channels Included in This Package
NOAA Weather Channels •
Monitoring the weather will probably be a frequent use of your VHF radio. The National
Oceanic and Atmospheric Administration (NOAA) provides continuous, around-the-clock
broadcasts of the latest weather information. Taped weather messages run every four (4)
to six (6) minutes and are revised every two (2) or three (3) hours, or as needed. The Coast
Guard also announces weather and other safety warnings on Channel 16, and then
broadcasts the warning on Channel 22A. Smart boaters keep an eye on safety and
an ear to the VHF radio — and never let the weather catch them unaware.
NOAA Emergency Weather Alert
In the event of a major storm or other weather condition requiring vessels at sea or on
other bodies of water to be notified, NOAA broadcasts a 1050 Hz tone that receivers
such as your CobraMarine™VHF radio can detect and warn you of an Alert Weather
condition. When the Weather Alert signal is sent on the Weather Channel you last
used, your radio will switch from Standby mode to that Weather Channel. You will
not hear the tone signal, but you will hear the Weather Alert message. The Weather
Alert icon can be turned On or Off by pressing the Mode button.
Test
To test this system, NOAA broadcasts the 1050 Hz signal every Wednesday sometime
between 11 a.m. and 1 p.m. in each local time zone. Any receiver that can detect the
weather alert tone may use this feature to verify that this feature is functioning properly.
Weather Frequency
Channel RX Frequency MHz
1 162.550
2 162.400
3 162.475
4 162.425
5 162.450
6 162.500
7 162.525
8 161.650
9 161.775
10 163.275

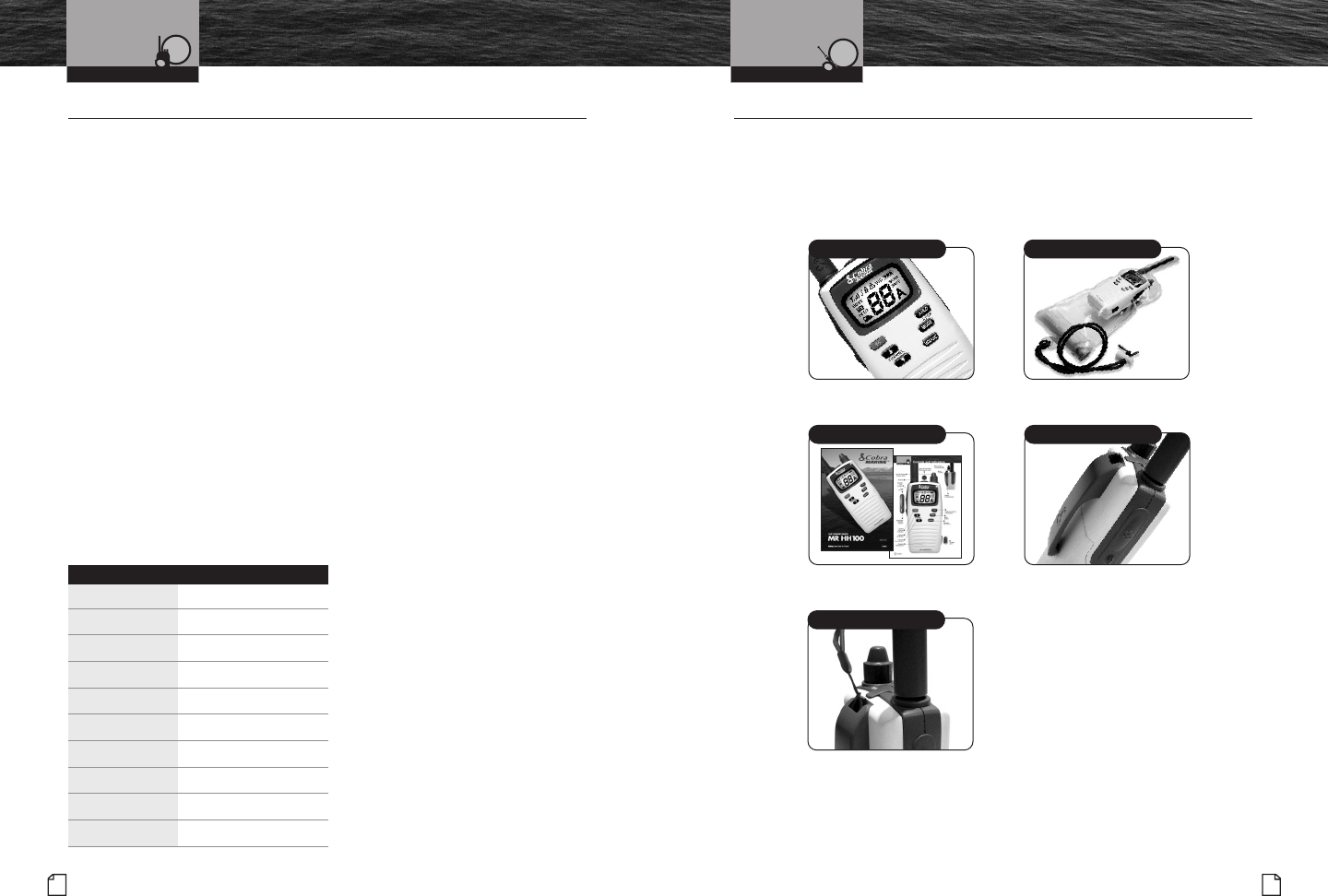

Included in This Package •
You should find all of the following items in the
package with your CobraMarine™VHF radio:
Radio Waterproof Pouch
Operating Instruction Manual Belt Clip
Wrist Strap
VHF Marine Radio Protocols Installation
25
Nothing comes close to a Cobra®
24 English
Wrist Strap, Belt Clip, Spkr/Mic
Jack and Waterproof Pouch
Installation Installation Batteries and Charger Jack
Wrist Strap, Belt Clip, Spkr/Mic Jack and Waterproof Pouch •
The radio is shipped with a wrist strap, belt clip and waterproof pouch in the
package. The speaker/microphone jack can be used with additional accessories
(see “Optional Accessories” section for optional accessories).
Wrist Strap
Your radio comes with the wrist strap already
attached. It can be easily removed if you choose
not to use it.
Belt Clip
Use the belt clip to carry your radio around with
you. Simply squeeze the clip and place it where
you prefer.
External Speaker/Microphone Jack
Your radio can be fitted with an optional external speaker/microphone
(not included), freeing your hands for other tasks. (For optional accessories,
see “Optional Accessories” section.)
To Attach The External Speaker/Microphone:
1. Open the Speaker/Microphone tab on top
of the radio.
2. Insert the plug into the Speaker/Microphone jack.
Waterproof Pouch
Use the included waterproof pouch to not only keep your radio dry,
but also dust and dirt free.
To Enclose The Radio In The Waterproof Pouch:
1. With the CobraMarine™logo facing up,
slip radio, face up, into opening under
Velcro®flap at the bottom of the
waterproof pouch.
2. Turn pouch and radio over so that the
CobraMarine™logo is facing down.
3. Roll bottom of pouch (between Velcro®
pieces) towards upper piece of Velcro®.
4. Secure bottom piece of Velcro®to
upper piece of Velcro®
.

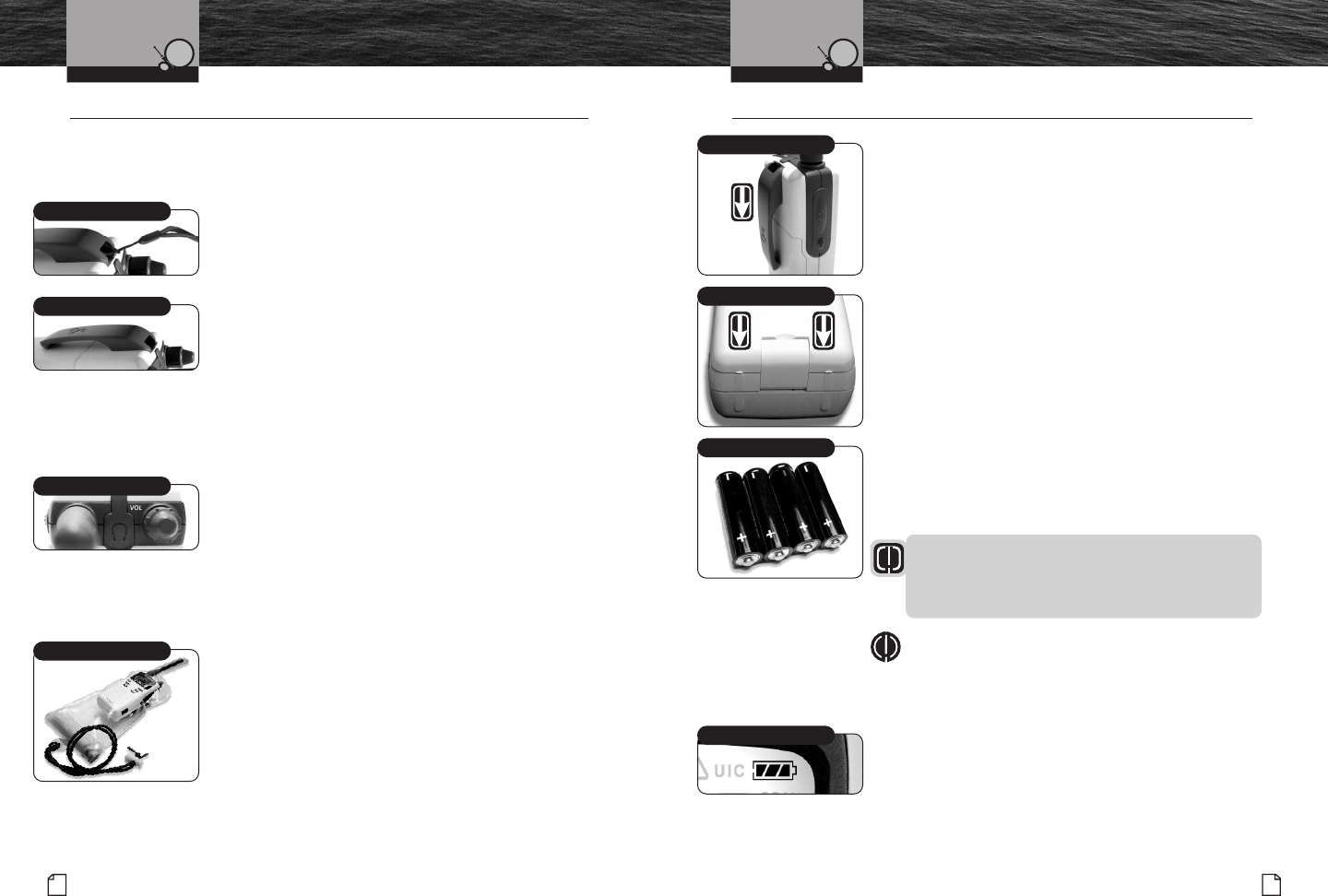

Batteries and Charger Jack •
Batteries
To Install Or Replace Batteries:
1. Remove belt clip by releasing belt clip
latch and sliding clip down.
2. Pull down on the Battery Door Latch to
remove the battery compartment cover.
3. Insert four (4) AA batteries. (Always use high
quality alkaline batteries.) Position batteries
according to polarity markings.
4. Replace Battery Compartment cover and belt clip.
Charger Jack
When the optional Cobra®NiCD rechargeable batteries
(part No. NICB) are used, the batteries can be charged
using the optional Cobra®Wall Mount Charger (part
No. WWC). Simply place the Cobra®NiCD rechargeable
batteries (part No. NICB) in the battery compartment,
open the Charge Tab on the side of the unit and insert the
plug into the charge jack to start charging. The batteries
should be fully charged in about eight (8) hours.
WARNING
Only the Cobra®NiCD rechargeable batteries,
part No. NICB (see “Optional Accessories” section),
can be recharged.
NOTE
See information on page 40 for optional
charger accessories ordering instructions.
Maintaining the Battery Charge
As you use your radio, the battery power icon will
show the battery power remaining. When the icon
shows only one or no segment, it is time to change
the batteries.
Remove Belt Clip
Remove Battery Cover
Insert Four (4) Batteries
Belt Clip
Speaker/Microphone Tab
Waterproof Pouch
Wrist Strap
Fully Charged
27
Nothing comes close to a Cobra®
26 English
Getting Started Getting Started
Getting Started •
Refer to the foldout on the front cover of this manual to identify the various
controls and indicators on your radio.
Whenever you press any button except the Talk button on your radio, a brief tone
(beep) will sound to confirm the button press. With all button presses, the appropriate
icon will appear on the LCD and the backlight will turn On. The backlight will stay
On for five (5) seconds after the button is released.
At times you will hear two (2) other sounds. Two (2) beeps will sound to confirm
your setting changes and three (3) beeps will sound to notify you of an error.

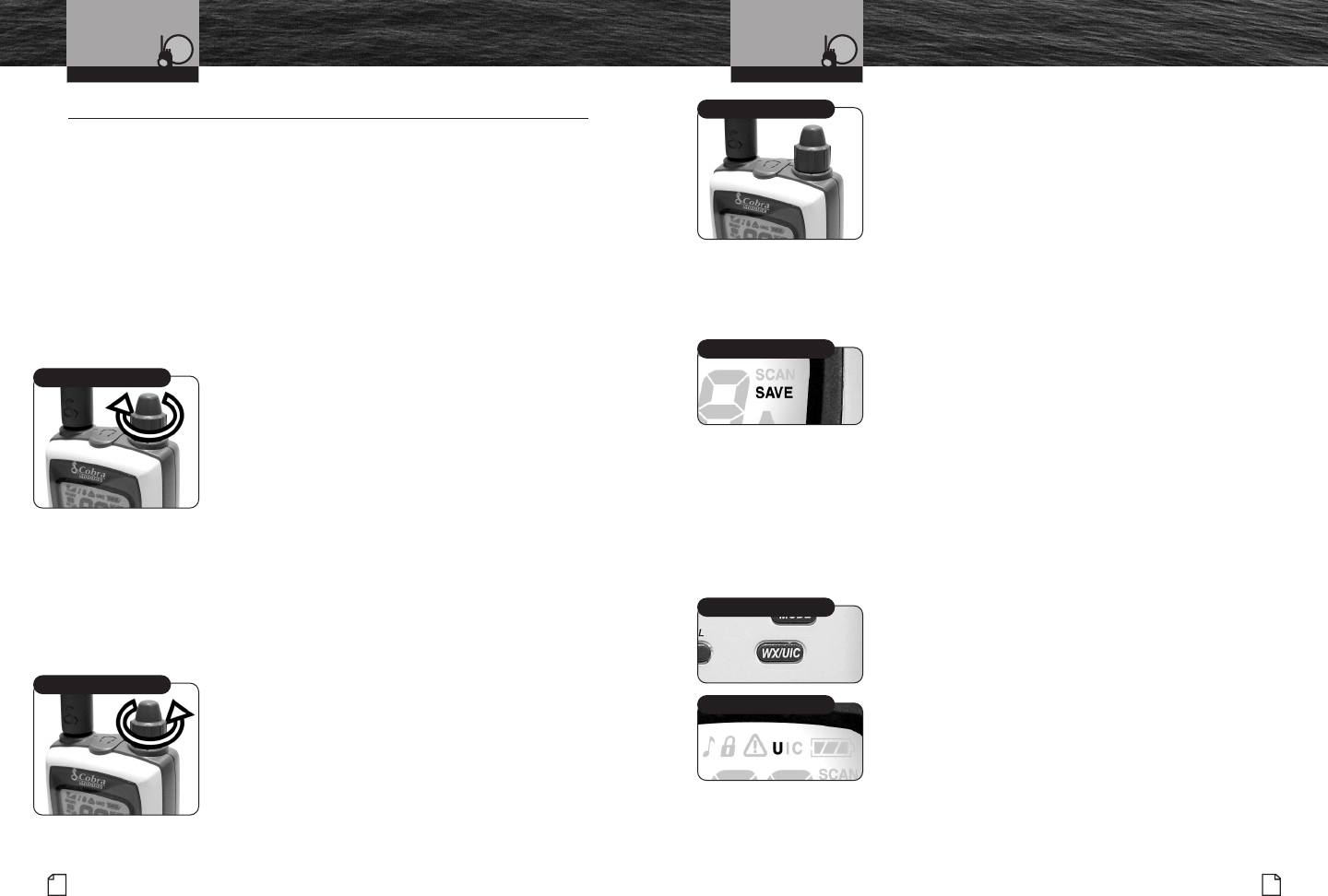

Power On-Off
The On-Off Power/Volume knob on the top of the radio is held in the Off
position by a click stop.
To Turn Your Radio On:
1. Turn the On-Off Power/Volume knob clockwise
until you hear and feel a click.
When the radio is powered On, a brief tone will sound,
the display backlight will turn On, and the display will
show all icons for two (2) seconds. All buttons will be
inoperative during these two (2) seconds.
After two (2) seconds, the radio will return to the
settings in effect when it was last powered Off, the LCD
will show the appropriate icons, and all controls will be
operative. The radio will then be in Standby mode.
When first turned on or after memory loss,
the following defaults will be set:
■ Channel 16
■ Transmit power high
■ Frequency channel map set to U.S.A.
■ Battery indicator set
To Turn Your Radio Off:
1. Turn the On-Off Power/Volume knob all the way
counter-clockwise until you hear and feel a click.
Volume
The On-Off Power/Volume knob also controls the speaker
volume. The volume adjustment applies only to what you
hear from the speaker and does not affect the volume of
your outgoing messages, which is controlled by the circuitry
of your radio.
To Increase the Volume:
1. Turn the On-Off Power/Volume knob counter-clockwise.
To Decrease the Volume:
1. Turn the On-Off Power/Volume knob clockwise.
Power Saver
Your radio has a unique circuit designed to extend battery
life. If there are no transmissions within ten (10) seconds,
the radio will automatically switch to Power Save mode and
the Save icon will flash in the LCD. This will not affect the
radio’s ability to receive incoming transmissions.
U.S.A./International/Canada Channel Maps
Three (3) sets of VHF channel maps have been established for marine use in the
U.S.A, Canada, and the rest of the world (International). Most of the channels are
the same for all three maps, but there are definite differences (see table on pages 12
to 21). Your radio has all three (3) maps built into it and will operate correctly in
whichever area you choose.
To Set Your Radio For The Area
In Which You Will Be Using It:
1. From Standby mode, press and hold the
Weather/UIC button for two (2) seconds.
The U, I, or Cicon will blink on the LCD.
2. Press the Weather/UIC button to advance
to the next channel map.
3. Press the Talk button to save the Channel
Map selection and return to Standby.
4. Repeat steps 1 through 3 to shift to the
next channel map(s).
Operating Your Radio Operating Your Radio
Power Saver Icon
Active Channel Map Icon
Weather/UIC Button
On-Off Volume Knob
On-Off Power/Volume Knob
On-Off Power/Volume Knob
Backlight
The LCD will be illuminated by the backlight whenever the
Backlight/Monitor button is pressed. It will remain On for
(10) seconds. If a button on the front panel is pressed while
the backlight is On, it will remain On for ten (10) seconds
after that button is pressed.
Key Lock
To prevent accidental changes to your settings, you can lock:
■ Channel Up Button
■ Channel Down Button
■ Mode Button
■ Weather/UIC Button
■ High/Low Power Feature
To Lock Or Unlock The Buttons:
1. Press and hold the Hi-Lo Power/Lock button
for three (3) seconds. The Lock icon will appear
or disappear in the LCD.
When Key Lock is On, pressing any of the listed buttons
on the front of the radio will result in a three (3) beep error
message. Both the Backlight/Monitor and the Talk buttons
are active — you can receive or transmit a message with
Key Lock On, but you cannot change the channel.
29
Nothing comes close to a Cobra®
28 English
Getting Started Getting Started

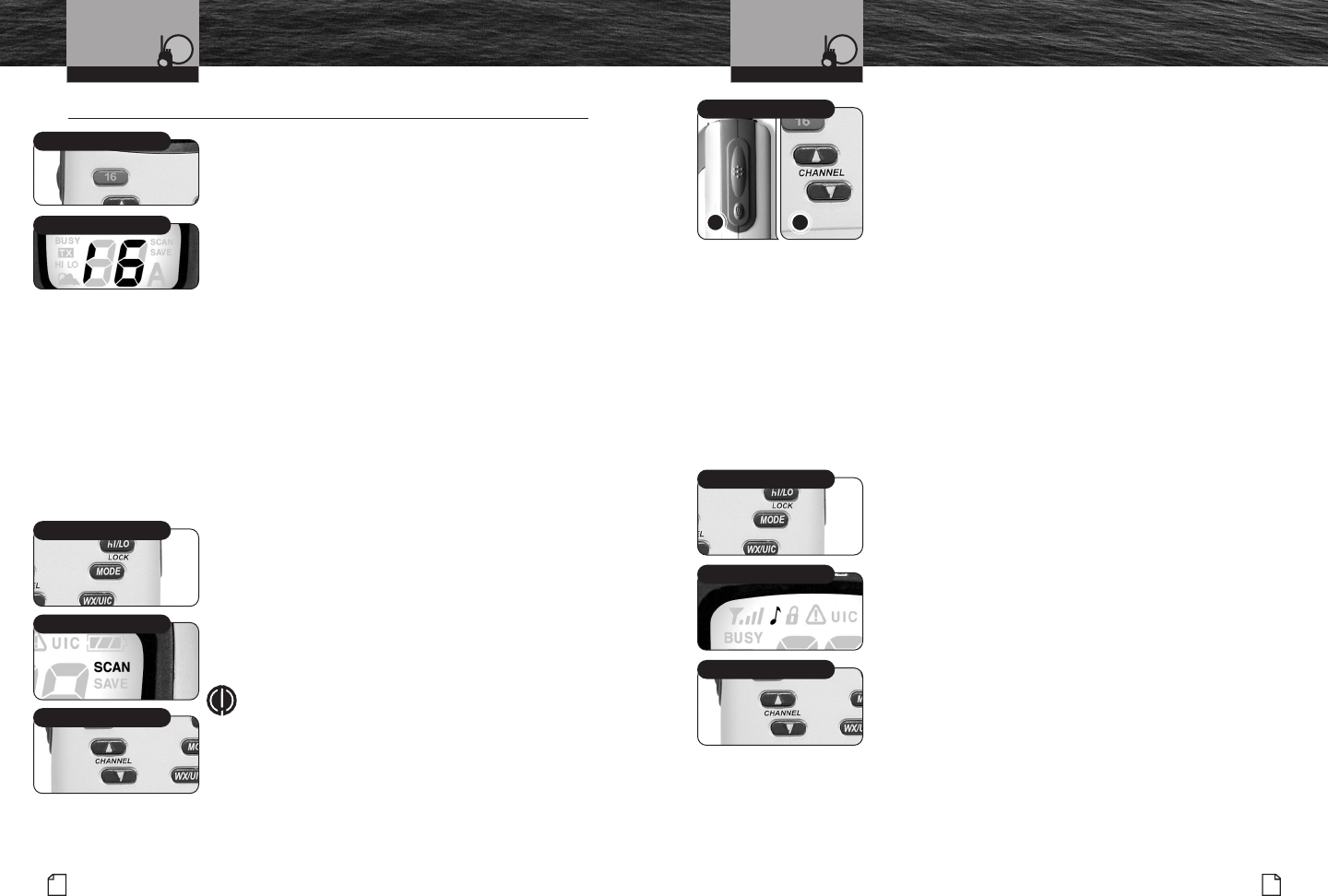

Channels
Your radio will receive and transmit VHF signals on
the channel indicated on the LCD. You can change
the channel at any time using the Channel Up and
Channel Down buttons.
To Change Channels:
1. Press the Channel Up or Channel Down button.
You are on Channel 88, pressing the Channel Up
button will advance to Channel 1. If you are on
Channel 1, pressing the Channel Down button
will advance to Channel 88.
You can hold the Channel Up or Channel Down
button for fast advance.
The beep sound will occur only at the first press
of the button and not during fast advance.
If the radio is in the Key Lock mode, the channel will not
change and the three (3) beep error signal will sound.
Transmit Power Output
Your radio can transmit selectively at one-half (1⁄2) or
two (2) watts of power. Cobra®suggests you maintain
the low power setting for short-range communications,
to conserve battery life, and to avoid overpowering nearby
stations with your signal. Use the high power setting for
long-range communications or when you do not receive
a response to a signal sent at one-half (1⁄2) watt.
To Toggle Between The High
And Low Power Modes:
1. Press the High/Low Power – Lock button.
The LCD will show which mode is in effect.

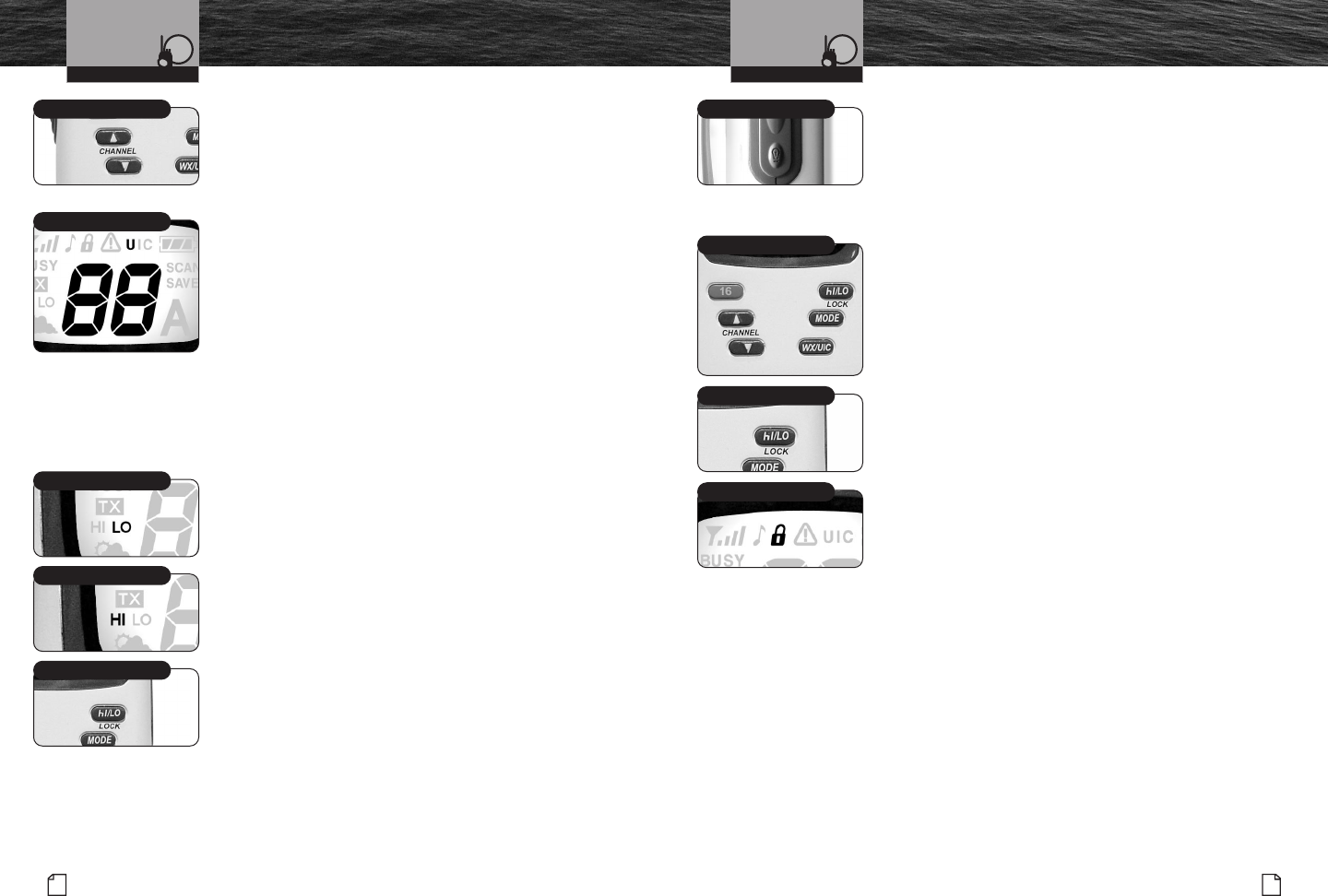

Operating Your Radio Operating Your Radio
Low Power Mode
High Power Mode
High/Low Power – Lock Button
Backlight/Monitor ButtonChannel Up or Down Buttons
Currently On Channel 88
Locked Buttons
Key Lock Icon
Backlight/Key Lock Button
31
Nothing comes close to a Cobra®
30 English

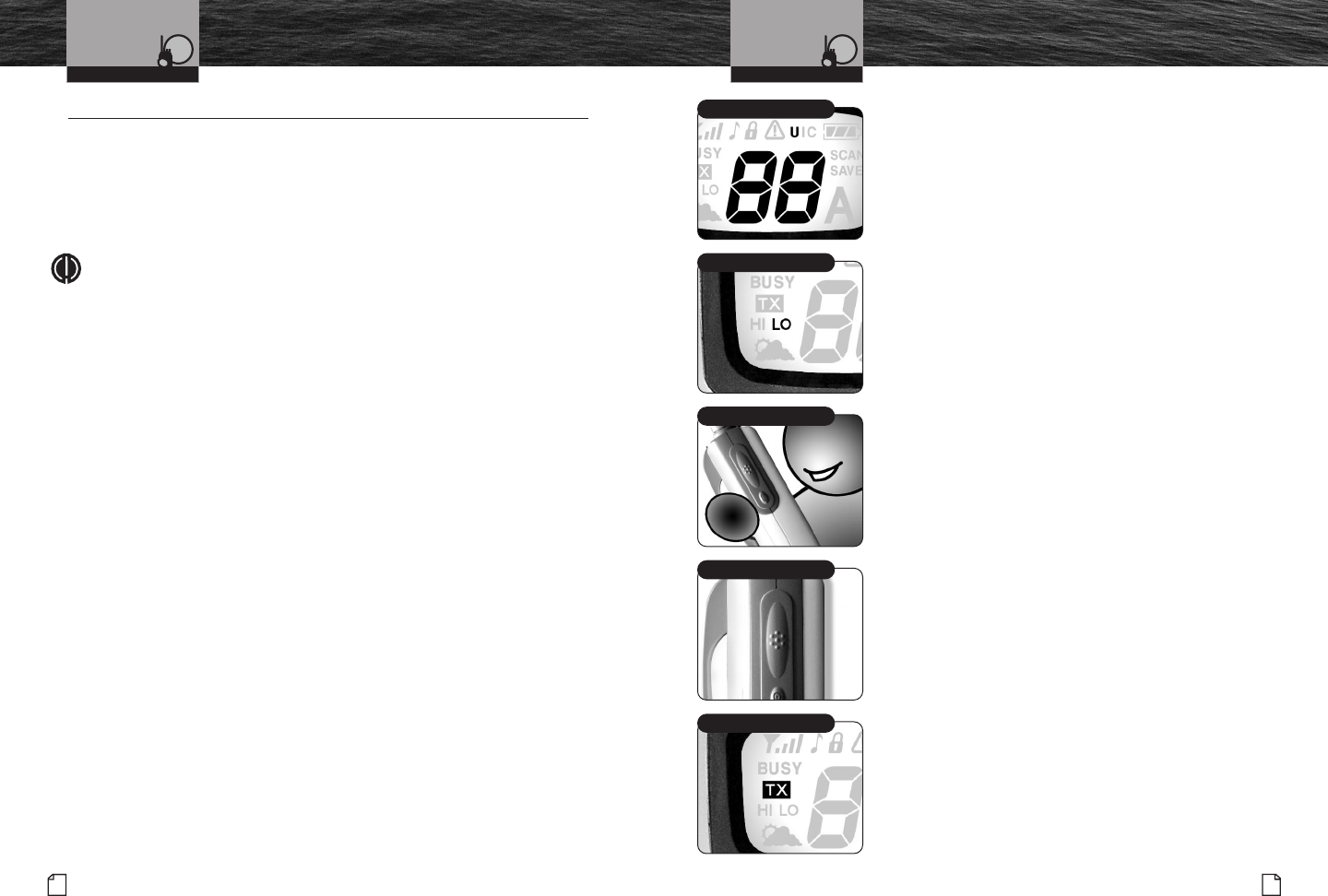

Standby/Receive and Transmit Standby/Receive and Transmit
Standby/Receive and Transmit •
Standby and Receive
Standby is the usual mode for the radio whenever it is turned On. From this
mode, you can change your settings using the buttons on the front of the radio
and switch to Transmit mode using the Talk button. Signals will be received
on the selected channel(s) and alerts broadcast by the Coast Guard and NOAA
will activate the corresponding routines in your radio.
NOTE
Coast Guard alerts are broadcast on Channel 16 and you
need to have Weather Alert turned On to receive NOAA alerts.
While in Standby mode, you will receive any messages sent on the
channel to which you are tuned.
Transmit
Transmit mode gives you the ability to interact with safety
services, other vessels, and shore stations. When you use
this capability, be sure to follow the procedures and to
observe the courtesies that govern its use so everyone
benefits. (The tables on pages 12 through 21 will help
you select the proper channels.)
To Transmit a Message:
1. Check to see that your radio is set to a proper
channel for the type of message you plan to send.
2. Toggle to the Low Power setting.
3. With the microphone about two (2) inches (5 cm)
from your mouth, press and hold the Talk button
and speak into the microphone. The Transmit icon
will appear on the LCD.
4. Release the Talk button when you are finished
speaking. Your radio can only operate in either the
Transmit or the Receive mode at any given time.
You will not hear the response to your message
unless the Talk button is released.
When the last segment disappears from the
Battery Power icon, the battery outline of the icon
will start to blink to indicate very little power is left.
The radio will still transmit until the battery voltage
drops below the minimum required to operate
the radio.
Operating Your Radio Operating Your Radio
2 Inches (5 cm) From Mouth
Low Power Mode
Check Channel Number
Talk Button
Transmit Icon
33
Nothing comes close to a Cobra®
32 English

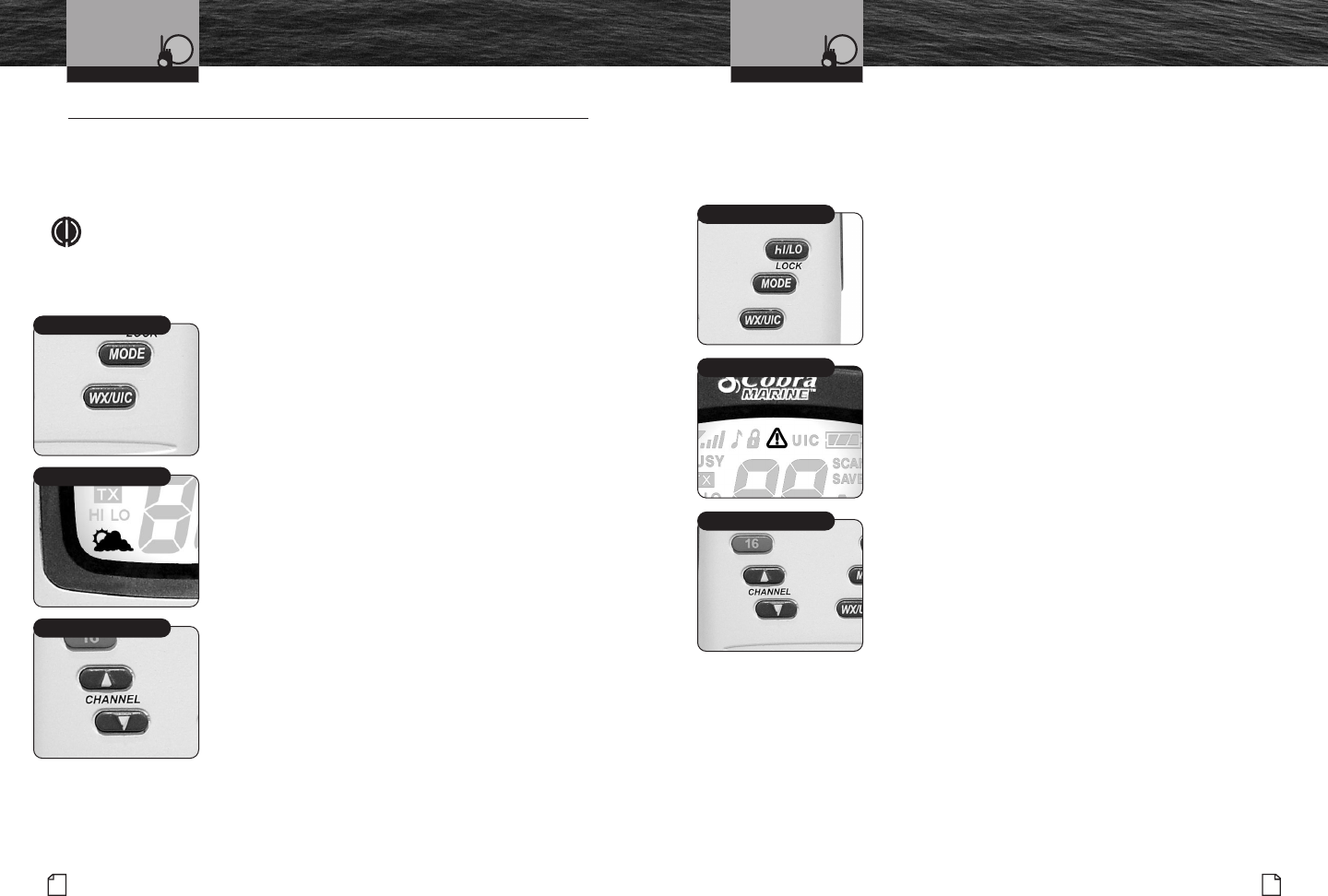

Weather Radio and Alert Weather Radio and Alert
NOAA All Hazards/Weather Radio and Alerts •
Weather Radio
NOAA broadcasts weather information as described in the NOAA Weather Channels
section on page 22 of this manual. You can tune to these ten (10) channels at any
time (only in the Receive mode).
NOTE
Only one (1) or two (2) of the weather channels will be operating in any
given location. You will need to select the channel with the strongest
signal in your location.
To Listen To The Weather Channels:
1. From Standby mode, press the Weather/UIC button.
The radio will enter the Weather mode and the icon
will show on the LCD.
2. Press the Channel Up or Channel Down button to
change the weather channels — hold the button
for fast advance.
3. To exit the Weather mode and return to Standby
mode, press the Weather/UIC button again.
Weather Alert
NOAA also broadcasts special weather alerts to warn of severe weather. These are
preceded by a special signal that your radio can detect. However, you must set your
radio to the weather channel that broadcasts a strong signal in the area where you are,
and you must activate the Weather Alert mode on your radio to benefit from this signal.
To Activate Weather Alert:
1. Press the Mode button until the Weather Alert icon
flashes and the current On or Off setting is displayed.
2. Press the Channel Up or Channel Down button
to turn Weather Alert mode On or Off.
3. Alert icon will continue to be displayed when
Weather Alert is On.
a. Press the Mode button to enter the new
setting and proceed to other functions.
b. Press the Talk button to enter the new
settings and return to Standby mode.
Weather Alert Signal
In the event of a major storm or other weather condition
requiring vessels at sea or on other bodies of water to be
notified, NOAA broadcasts a 1050 Hz tone that receivers
such as your CobraMarine™VHF radio can detect and warn
you of an Alert Weather condition. When the Weather
Alert signal is sent on the Weather Channel you last
used, your radio will switch from Standby mode to
that Weather Channel. You will not hear the tone
signal, but you will hear the Weather Alert message.
The Weather Alert icon can be turned On or Off by
pressing the Mode button.
Operating Your Radio Operating Your Radio
Mode Button
Weather Alert Icon
Channel Up or Down Buttons
Channel Up or Down Buttons
Weather/UIC Button
Weather Mode
35
Nothing comes close to a Cobra®
34 English
Advanced Operation Advanced Operation
Advanced Operation •
Channel 16
This function gives you quick access to the calling
Channel 16 — from any operational mode.
To Switch to Channel 16:
1. Press the Channel 16 button to change to Channel 16.
2. To exit the Channel 16 mode and return to whatever
status existed before entering this mode, press the
Channel 16 button a second time.
While at Channel 16 in this mode, you can also press the Channel Up and Channel
Down buttons to change channels. In that event, another press of the Channel 16
button will switch your radio to Channel 16 and the sequence will start over at step 1.
If you press this button when Key Lock mode is On, you will get a three (3) beep
error message and your radio will not change mode.
Channel Scan
During Channel Scan, the radio will rapidly switch from channel to channel.
Whenever any activity is detected, the radio will stop the scan for ten (10)
seconds to allow you to listen briefly on that channel. It will then continue
to scan unless you switch out of the Scan mode.
To Enter Channel Scan:
1. Press the Mode button until the Scan icon
flashes on the display.
2. Press the Channel Up or Channel Down
button to begin scanning channels.
The radio will immediately begin to scan the entire
Channel Map selected in the Active Channel Map.
The Scan icon will show on the LCD.
NOTE
The radio’s operation will be suspended indefinitely
until the Channel Up or Channel Down button is
pressed while the Scan icon is flashing.
To Exit Channel Scan:
1. From Scan mode, press the Talk button. This will return
the radio to Standby mode on the last scanned channel.
During An Incoming Transmission,
You Can Choose From The Following:
a. Press the Talk button to remain on that channel and end
scanning. This will return the radio to Standby mode.
b. Press the Channel Up or Channel Down button
to resume scanning channels.
If you do not press any buttons within ten (10) seconds,
your radio will automatically resume scanning channels.
During Scanning (While Not Receiving A Transmission),
You Can Choose From The Following:
a. Press the Talk button to communicate on the last
memory location scanned and return to Standby mode.
b. Press the Channel Up or Channel Down button to
change scan direction.
Keystroke Tones
With Keystroke Tones turned On, your radio will sound beeps each time
you press a button or change a setting.
To Turn Keystroke Tones On Or Off:
When you turn On your radio for the first time,
Keystroke Tones will be On.
1. Press the Mode button until the Keystroke Tones
icon flashes on the display. The current On or Off
setting is displayed.
2. Press the Channel Up or Channel Down button to
turn Keystroke Tones On or Off.
3. When your desired Keystroke Tone mode setting
is displayed, choose one of the following:
a. Press the Mode button to enter the new
setting and proceed to other functions.
b. Press the Talk button to enter the new
setting and return to Standby mode.
The setting you select will be saved when you turn
your radio off and on again. When Keystroke Tones
are On, the Keystroke Tone icon will be displayed.
Operating Your Radio Operating Your Radio
Mode Button
Channel Up or Down Buttons
Scan Icon
Channel 16 Button
Channel 16 a
Talk or Channel Up/Down
b
Mode Button
Keystroke Tones Icon
Channel Up or Down Buttons
No display on LCD when
radio is turned On Batteries are exhausted Replace batteries
Will transmit at
one-half (1⁄2) watt,
but not at two (2) watts
Batteries are low
Selected channel is
limited to one (1) watt
Replace batteries
Switch to
another channel
Will not transmit Selected channel is
limited to receive only Switch to
another channel
No sound from speaker Volume level is too low Re-adjust volume
No response to
button press Button Lock is On Press and hold
Hi-Lo/Lock button
No answer to calls Out of range of
other station
Signal is blocked
by terrain
Switch to two (2) watts
or move closer
Move until you have
a “line-of-sight” to
the other station
Problem Possible Cause(s) Solution(s)
37
Nothing comes close to a Cobra®
Specifications
36 English
Maintenance and
Troubleshooting
Specifications •
General
Frequency Range: TX 156.025 to 157.425 MHz
Frequency Range: RX 156.050 to 163.275 MHz
Number of Channels All U.S., Canadian, and International
10 NOAA Weather Channels
Channel Spacing 25 kHz
Modulation 16KOF3E
Input Voltage 6 VDC
Battery Life: 8 Hours @ 2 Watts, 10 hours @ 1⁄2Watt
5% TX, 5% RX, 95% Stand-by
Current Drain:
Stand-by 10 mA
Receive 35 mA
Transmit 700 mA @ High power 200 mA @ Low
Temperature Range -20˚C to 60˚C
Radio Dimensions
Radio Weight (Lbs)
Receiver
Frequency Range 156.050 to 163.275 MHz
Receiver Type Double Conversion Super-Heterodyne
Sensitivity:
20 dB Quieting 0.35 uV
12 dB Sinad 0.30 uV
Adjacent Channel Selectivity -50dB
Intermodulation and Rejection -60dB
Spurious and Image Rejection -50dB
AF Output .3 Watts @ 8 Ohms
Transmitter
Frequency Range: TX 156.025 to 157.425 MHz
RF Output Power 1⁄2Watt and 2 Watt
Spurious Emissions -60 dB High -55 dB Low
Microphone Type Condenser
Microphone Impedance
Frequency Stability +/-5 ppm
FM Hum and Noise -45dB
Operating Your Radio Operating Your Radio
Maintenance •
Very little maintenance is required to keep your CobraMarine™VHF radio in good
operating condition.
■ Keep the radio and charger clean by wiping with a soft cloth and mild
detergent. Rinse with fresh water. Do not use solvents or harsh or abrasive
cleaners, which could damage the case or scratch the LCD screen.
■ If the radio is exposed to salt water, rinse it in fresh water at least once a day to
prevent build-up of salt deposits, which could interfere with button operation.
■ If the radio will be stored for a long period, such as over the winter,
remove the batteries from the battery compartment and store them in a
separate package. This is especially so if you are using alkaline batteries.
Troubleshooting •
39
Nothing comes close to a Cobra®
Product Service
38 English
Warranty
Product Service •
If you have any questions about operation or installing your
new CobraMarine™VHF product, or if you are missing parts…
Please call Cobra®first! DO NOT RETURN THIS PRODUCT TO THE STORE!
See customer assistance on page A1.
If your product should require factory service, please call Cobra®first before sending
your radio. This will ensure the fastest turn-around time on your repair. You may be
asked to send your radio to the Cobra®factory. It will be necessary to furnish the
following to have the product serviced and returned:
1. For Warranty Repair include some form of proof-of-purchase, such as a
mechanical reproduction or carbon of a sales receipt. If you send the original
receipt, it cannot be returned;
2. Send the entire product;
3. Enclose a description of what is happening with the radio. Include a typed
or clearly printed name and address of where the radio is to be returned;
4. Pack radio securely to prevent damage in transit. If possible, use the
original packing material;
5. Ship prepaid and insured by way of a traceable carrier such as United Parcel
Service (UPS) or Priority Mail to avoid loss in transit to: Cobra®Factory Service,
Cobra®Electronics Corporation, 6500 West Cortland Street, Chicago, Illinois
60707 USA;
6. If the radio is in warranty, upon receipt of your radio it will either be repaired
or exchanged depending on the model. Please allow approximately 3 – 4 weeks
before contacting Cobra®for status. If the radio is out of warranty, a letter will
automatically be sent informing you of the repair charge or replacement charge.
If you have any questions, please call 773-889-3087 for assistance.
Limited 3-Year Warranty •
For Products Purchased In the U.S.A.
Cobra®Electronics Corporation warrants that its CobraMarine™VHF radio, and the
component parts thereof, will be free of defects in workmanship and materials
for a period of three (3) years from the date of first consumer purchase. This warranty
may be enforced by the first consumer purchaser, provided that the product is
utilized within the U.S.A.
Cobra®will, without charge, repair or replace, at its option, defective radios,
products or component parts upon delivery to the Cobra®Factory Service
department, accompanied by proof of the date of first consumer purchase,
such as a duplicated copy of a sales receipt.
You must pay any initial shipping charges required to ship the product for warranty
service, but the return charges will be at Cobra®’s expense, if the product is repaired
or replaced under warranty. This warranty gives you specific legal rights, and you
may also have other rights which may vary from state to state.
Exclusions: This limited warranty does not apply:
1. To any product damaged by accident;
2. In the event of misuse or abuse of the product or as a result
of unauthorized alterations or repairs;
3. If the serial number has been altered, defaced, or removed;
4. If the owner of the product resides outside the U.S.A.
All implied warranties, including warranties of merchantability and fitness for a
particular purpose are limited in duration to the length of this warranty. Cobra®
shall not be liable for any incidental, consequential or other damages; including,
without limitation, damages resulting from loss of use or cost of installation.
Some states do not allow limitations on how long an implied warranty lasts and/or
do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitations may not apply to you.
For Products Purchased Outside the U.S.A.
Please contact your local dealer for warranty information.
Warranty Customer Service
40 English
Optional Accessories
and Order Form
Optional Accessories •
You can find quality Cobra®products and accessories at
your local Cobra®dealer, or in the U.S.A., you can order
directly from Cobra®
.
Ordering From U.S.A.
Call 773-889-3087 for pricing or visit www.cobra.com.
For credit card orders, complete and return this order
form to fax number 773-622-2269. Or call 773-889-3087
(Press 1 from the main menu) 8:00 a.m. to 6:00 p.m. CT,
Monday through Friday.
Make check or money order payable to:
Cobra®Electronics, Attn: Accessories Dept.
6500 West Cortland Street, Chicago, IL 60707 USA
To order online, please visit our website: www.cobra.com
The Cobra®
line of quality
products includes:
CB Radios
microTALK®Radios
Radar/Laser Detectors
Safety Alert®Traffic
Warning Systems
Accessories
GPS (Global
Positioning System)
HighGear™Accessories
VHF Marine Radios
Power Inverters
Name
Address (No P.O. Boxes)
City State/Province Zip Country
Telephone
Credit Card Number Type: ❒Visa ❒Mastercard ❒Discover Exp. Date
Customer Signature
Item # U.S. Cost Each Qty Amount
U.S. Subtotal
(Tax if Applicable)
Shipping/Handling
Total
Amount Shipping/Handling*
$10.00 or less . . . . . $3.00
$10.01-$25.00 . . . . . $5.50
$25.01-$50.00 . . . . . $7.50
$50.01-$90.00 . . . . $10.50
$90.01-$130.00 . . . $13.50
$130.01-$200.00 . . $16.50
$200.01 plus . . . . 10% off
purchase
*For AK, HI and PR add
additional $26.95 for FedEx
Next Day or $10.95 for
FedEx 2nd Day. Excludes
weekend and holiday
shipments.
Please allow 2-3 weeks
for delivery in the U.S.
Prices subject to change
without notice.
Tax Table
Ohio, Wisconsin add 5%
Indiana, Michigan add 6%
California add 7.25%
Illinois add 8.75%
Customer Service
