Cobra Electronics HH50WXST HANDHELD CB TRANSCEIVER User Manual Manual USA

Cobra Electronics Corporation HANDHELD CB TRANSCEIVER Manual USA

Manual USA

Contents
Features .......................................................................... 1
The CB Story .................................................................A1
Included Accessories

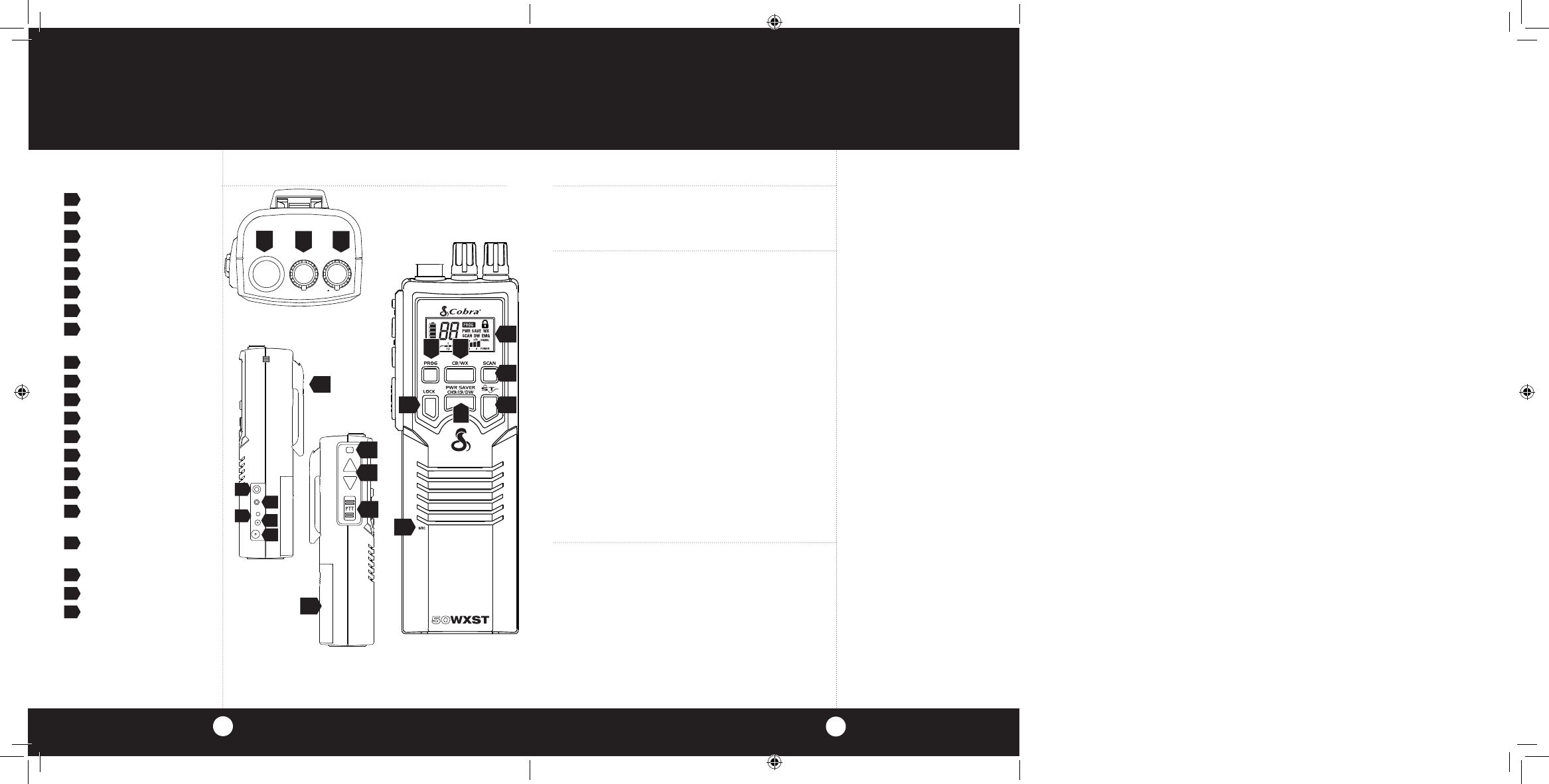

Controls & Indicators ...............................................A2
Our Thanks to You .....................................................A3
SoundTracker® System
Customer Support
Operating Your HH 50 WX ST
Antenna .......................................................................2
Battery Installation ..................................................3
Belt Clip .......................................................................3
Turning on Your CB .................................................4
Setting Squelch ........................................................4
Selecting a Channel ................................................6
LCD Display ................................................................ 7
Transmit/Receive .....................................................8
One Touch Channel 9 & 19 ..................................10
All Channel Scan ......................................................11
Dual Watch .................................................................12
Weather Channels ...................................................14
Power High/Low ......................................................16
Battery Capacity Level ............................................18
SoundTracker® System ...........................................19
Illuminated Display .................................................23

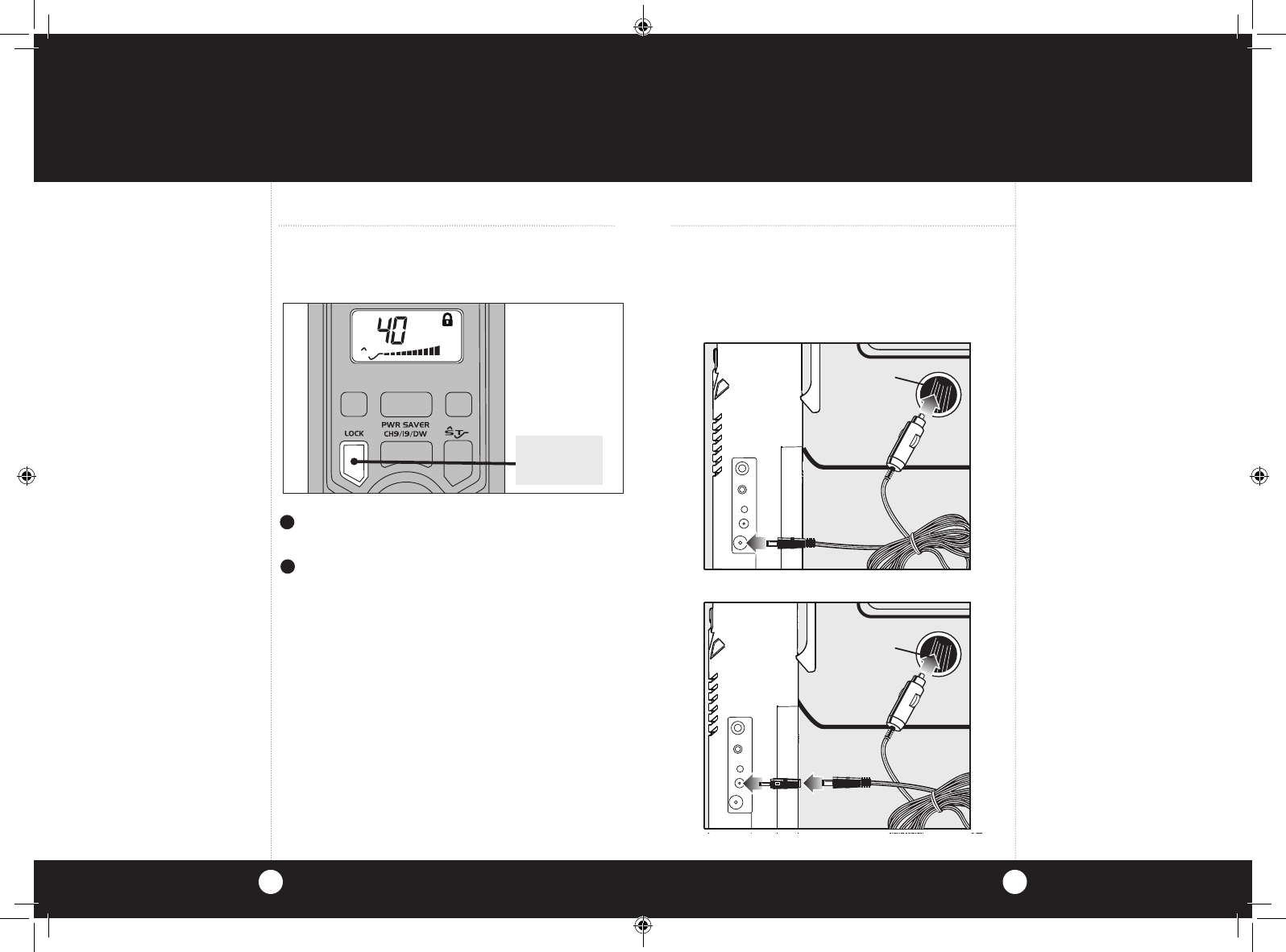

Lock Key ......................................................................24
In Vehicle Use ............................................................ 25
How Your CB Can Serve You ................................26
A Few Rules You Should Know ........................... 26
Weather Channel Messages .................................27
Channel 9 Emergency Messages .......................28
CB 10 Codes ...............................................................30
Frequency Ranges .....................................................32
HH 50 WX ST Specifications ..................................33
Warranty Information .............................................34

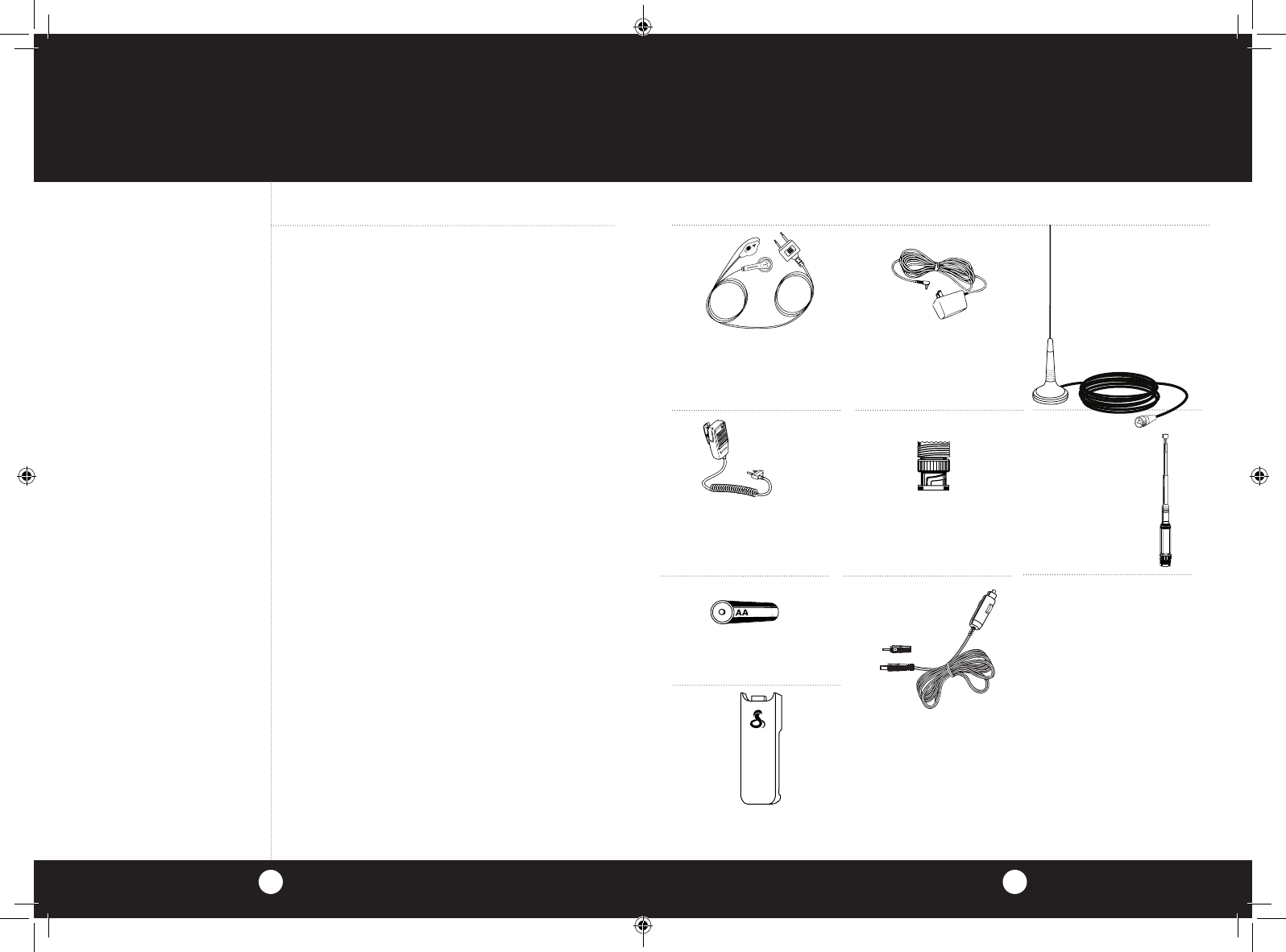

Optional Accessories ................................................35
FCC ....................................................................................36
If You Think You Need Service ...........Back Cover
Features of This Product
• 40 CB Channels
• 10 Weather Channels
• Full Feature LCD Display
• Dual Channel Watch
• Full Channel Scan
• Battery Level Meter
• External Speaker/
Microphone Jack
• Instant Channel 9 & 19
• High/Low Power Saver
Switch
• BNC Antenna Connector
• Lock Key
• Battery Charge Jack
• Battery Charge LED
1
HH50WXST_MANL.indd 1 12/14/17 3:11 PM
Turn clockwise. 1⁄4 turn.
Operation
Operation

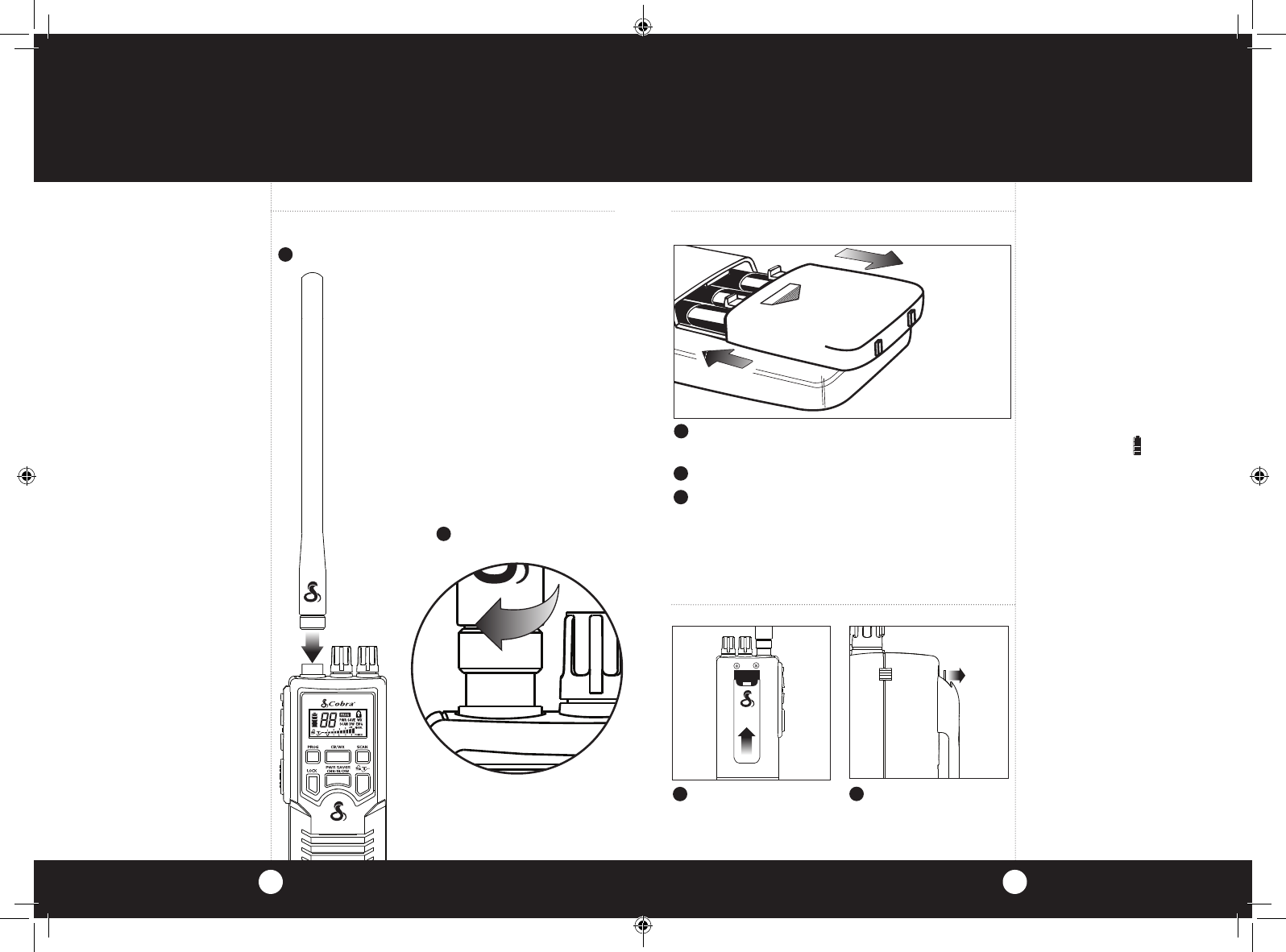

Attach Antenna
32
Attach the Antenna
Insert.
1
2
To remove battery chamber cover, press down
on the arrow and slide down.
Install the batteries by polarity markings.
Replace cover.
Battery Installation
Attach the Belt Clip
Install the Batteries
1
2
3
Note
Ignoring polarity markings (+/-)
may cause damage to both the
unit and the batteries.
The HH 50 WX ST requires
9 “AA” alkaline or NiMH
batteries rated at 1000 mAh
(not included with
the unit).

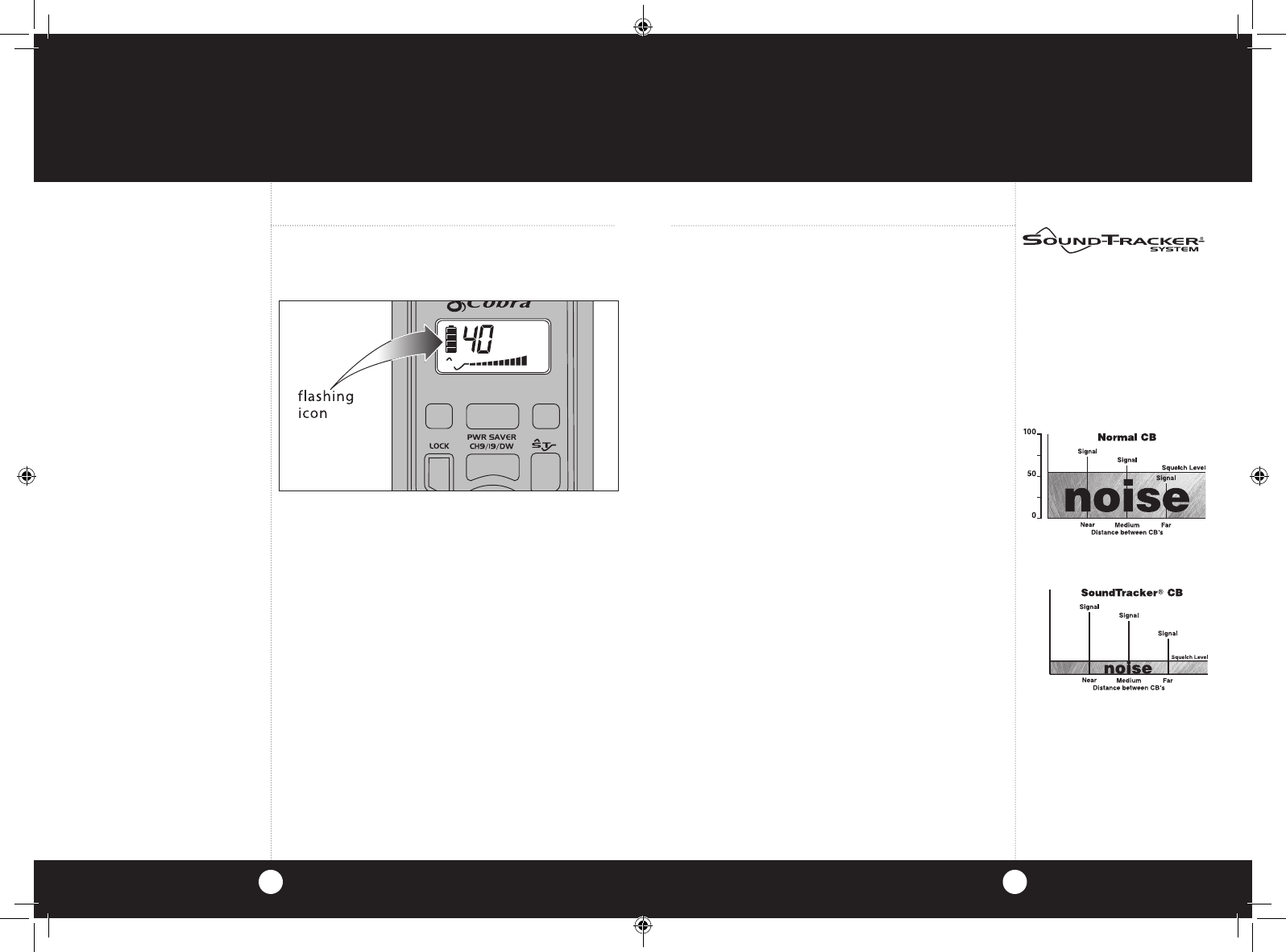

When the batteries are low or
need charging the BATTERY
icon will flash on the LCD dis-
play. Replace alkaline batteries
or recharge NiMH batteries.
NiMH rechargeable batteries
should be charged a minimum of
12 hours with a CA-45CB charger.
NiMH rechargeables should have
a rating of 1.2 vdc, 1000 mAh.
To remove the belt
clip, lift the tab out
and slide the belt
clip down.
12
Attach the Belt Clip
Slide the belt clip up
on the rails of the
base until tab locks.
Cobra Electronics Corporation
HH50 WXST
Production Graphics
Jack Callouts
Color: White
Artwork No: 571-0007 - Rev A
SPK
MIC
CHG
PWR
SPK
MIC
CHG
PWR
Press and
hold down
on arrow
and slide
down
NiMH rechargeable batteries
should be charged a minimum
of 12 hours with a CA-45CB
charger.
Note
To increase range as a
portable, use HA-TA telescopic
loaded long range antenna.
(See Accessory Page 35).
HH50WXST_MANL.indd 2-3 12/14/17 3:11 PM
Operation
Operation
5
Turning On
4
Gate closed
Gate open
Gate set to Desired
Squelch Setting (DSS)

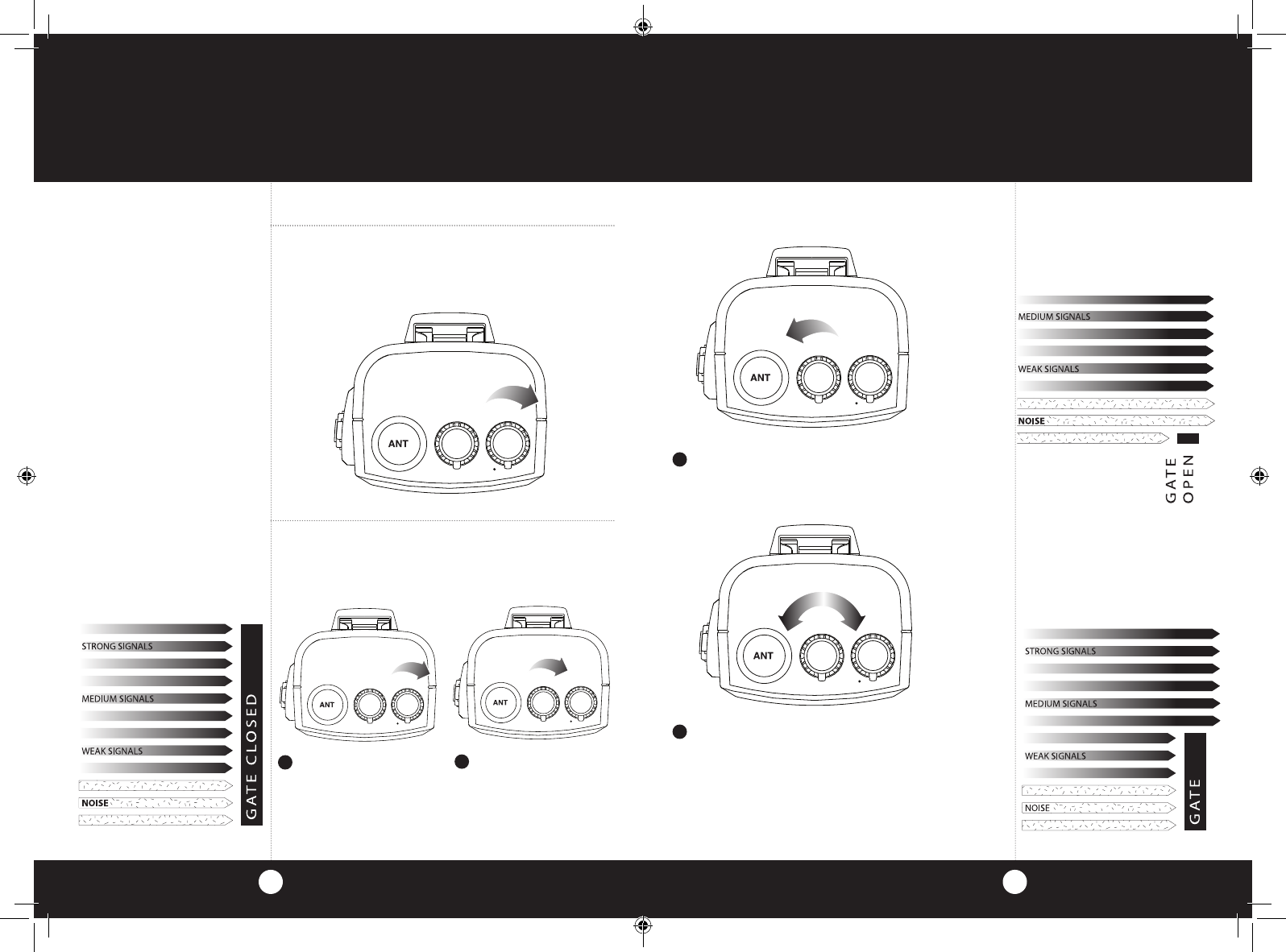

Setting Squelch
Note
Make sure the antenna is
installed on the radio.
Note
When you turn on the
HH 50 WX ST , a series of tones
will be heard and the icons will
briefly appear on the LCD
display.
LCD lights on for 5 seconds,
then turns off.
Fully counterclockwise opens the
“gate” and all signals enter.
Turning On
Rotate ON - OFF Volume Control clockwise.
Cobra Electronics Corporation
HH50 WXST
Production Graphics
Top Callouts
Color: White
Artwork No: 571-0008 - Rev A
SQUELCH VOLUME
OFF
SQUELCH VOLUME
OFF
To achieve the Desired Squelch Setting (DSS),
turn the Squelch control counterclockwise until
you hear noise. Now turn the control clock-
wise just until the noise stops. This is the DSS
setting.
3
4
Setting Squelch
Squelch is the “control gate” for incoming signals.
Turn the volume up
louder than normal.
1 Fully clockwise
closes the “gate”,
allowing no
incoming signals.
2
Cobra Electronics Corporation
HH50 WXST
Production Graphics
Top Callouts
Color: White
Artwork No: 571-0008 - Rev A
SQUELCH VOLUME
OFF
SQUELCH VOLUME
OFF
Cobra Electronics Corporation
HH50 WXST
Production Graphics
Top Callouts
Color: White
Artwork No: 571-0008 - Rev A
SQUELCH VOLUME
OFF
SQUELCH VOLUME
OFF
Cobra Electronics Corporation
HH50 WXST
Production Graphics
Top Callouts
Color: White
Artwork No: 571-0008 - Rev A
SQUELCH VOLUME
OFF
SQUELCH VOLUME
OFF
Cobra Electronics Corporation
HH50 WXST
Production Graphics
Top Callouts
Color: White
Artwork No: 571-0008 - Rev A
SQUELCH VOLUME
OFF
SQUELCH VOLUME
OFF
HH50WXST_MANL.indd 4-5 12/14/17 3:12 PM
Operation
Operation

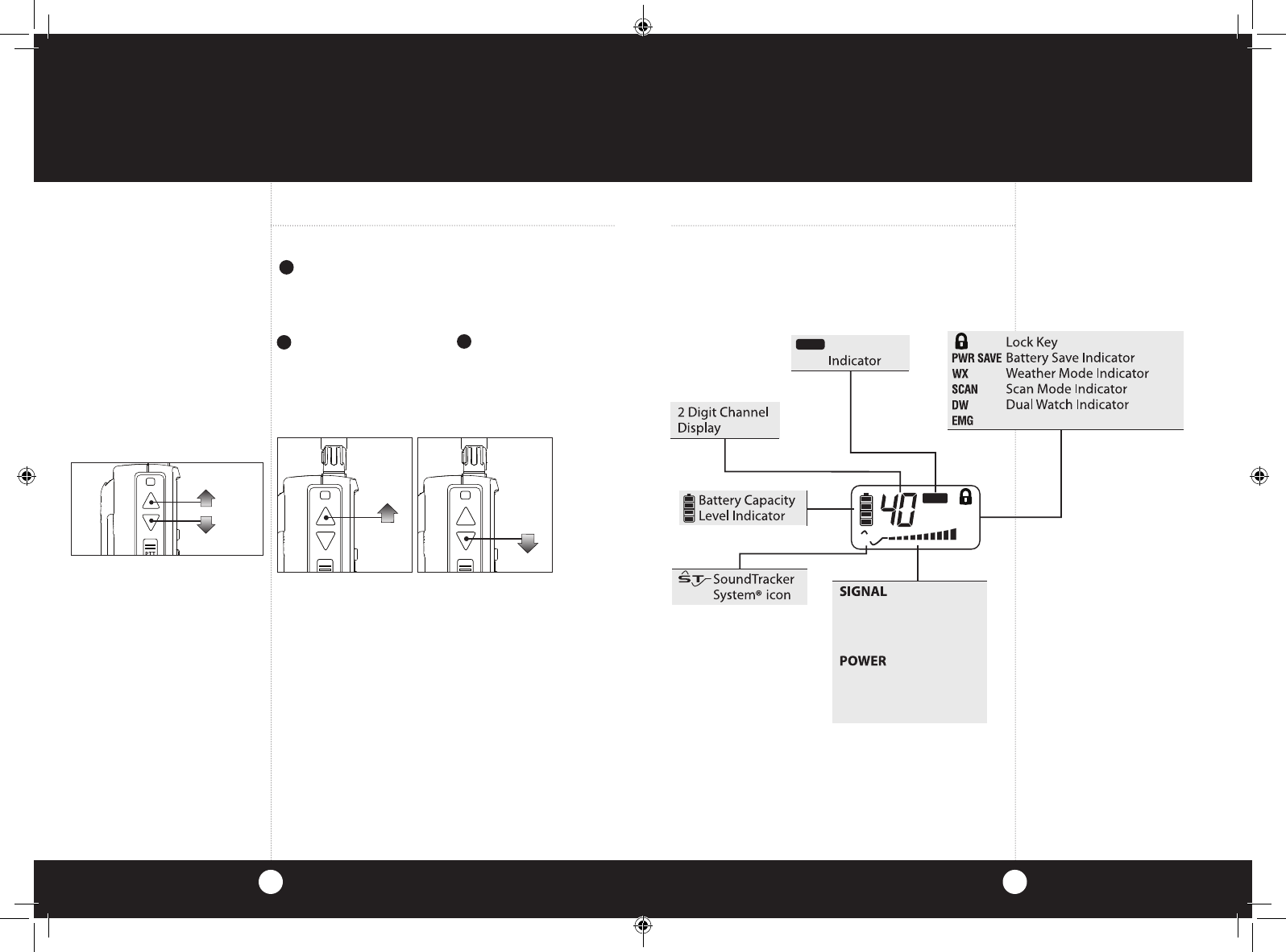

LCD Display
7
Note
For quick channel advance, push
and hold arrow key(s).
6
Select a Channel
PWR SAVE WX
S T
135+30
9
0.5 1 2 3 4
SCAN DW EMG
PROG
SIGNAL
POWER
PROGProgram Key
Emergency Channel Indicator
Displays the
strength of the
incoming signal
Displays the strength
of the outgoing
transmission
LCD Display
All needed information is displayed on the LCD
display panel.
Select a Channel
Turn power ON.
Cobra Electronics Corporation
HH50 WXST
Production Graphics
Jack Callouts
Color: White
Artwork No: 571-0007 - Rev A
SPK
MIC
CHG
PWR
For higher channels,
push UP arrow key.
For lower channels,
push DOWN arrow
key.
1
23
Cobra Electronics Corporation
HH50 WXST
Production Graphics
Jack Callouts
Color: White
Artwork No: 571-0007 - Rev A
SPK
MIC
CHG
PWR
Note
When switching from one
channel to another, squelch
will need to be reset. See Setting
Squelch on pages 4 and 5.
or
Cobra Electronics Corporation
HH50 WXST
Production Graphics
Jack Callouts
Color: White
Artwork No: 571-0007 - Rev A
SPK
MIC
CHG
PWR
HH50WXST_MANL.indd 6-7 12/14/17 3:12 PM
Hold the radio
about 2 inches
from your mouth.
Speak in a normal
voice.
3
Operation
Operation

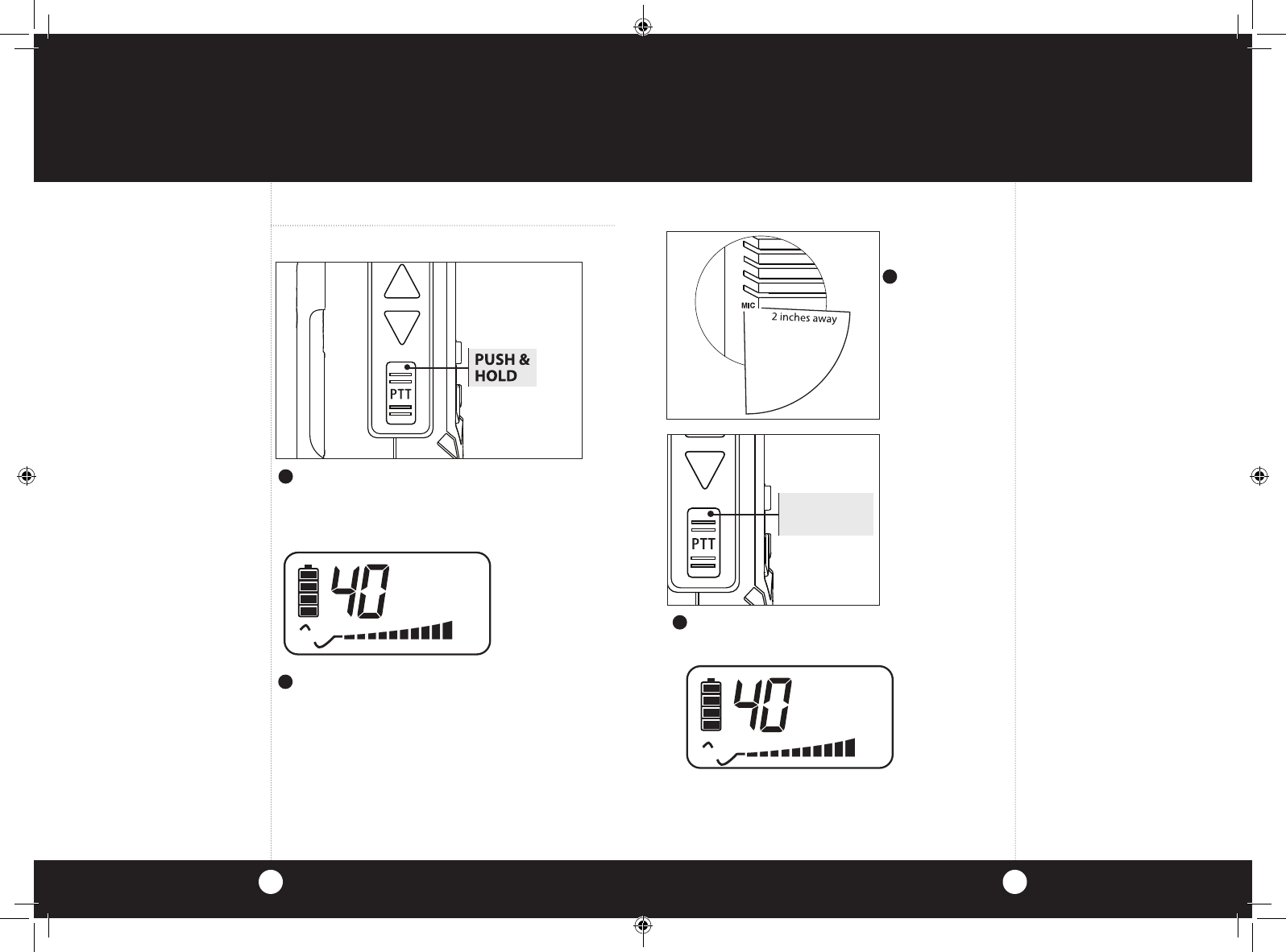

Transmit / Receive
9
Transmit/Receive
While the PTT button is depressed you
cannot receive transmissions.
Stop
Antenna must be installed
before transmitting.
Note
Your HH50 WX ST is always
ready to receive incoming
signals when the PTT button is
released.
8
The TRANSMISSION POWER METER will be
displayed when transmitting.
During transmit, your outgoing transmission
power is measured in watts and displayed on
the power bar graph.
S T
0.5 1 2 3 4
POWER
To transmit, push and hold PTT button.
1
Release the PTT button to receive incoming
transmissions.
Cobra Electronics Corporation
HH50 WXST
Production Graphics
Jack Callouts
Color: White
Artwork No: 571-0007 - Rev A
SPK
MIC
CHG
PWR
Cobra Electronics Corporation
HH50 WXST
Production Graphics
Jack Callouts
Color: White
Artwork No: 571-0007 - Rev A
SPK
MIC
CHG
PWR
RELEASE
4
2
S T
135+30
9
SIGNAL
When you are receiving an incoming signal, the
strength of that signal will be displayed on the
SIGNAL STRENGTH METER.
HH50WXST_MANL.indd 8-9 12/14/17 3:12 PM
Push SCAN key. The channels will index.
To stop scanning, push SCAN key again.
To return to the original channel, push
CH 9/19 a third time.
Push CH 9/19 once for channel 9.
Operation
Operation
11
One Touch for
Channel 9 and
Channel 19
10

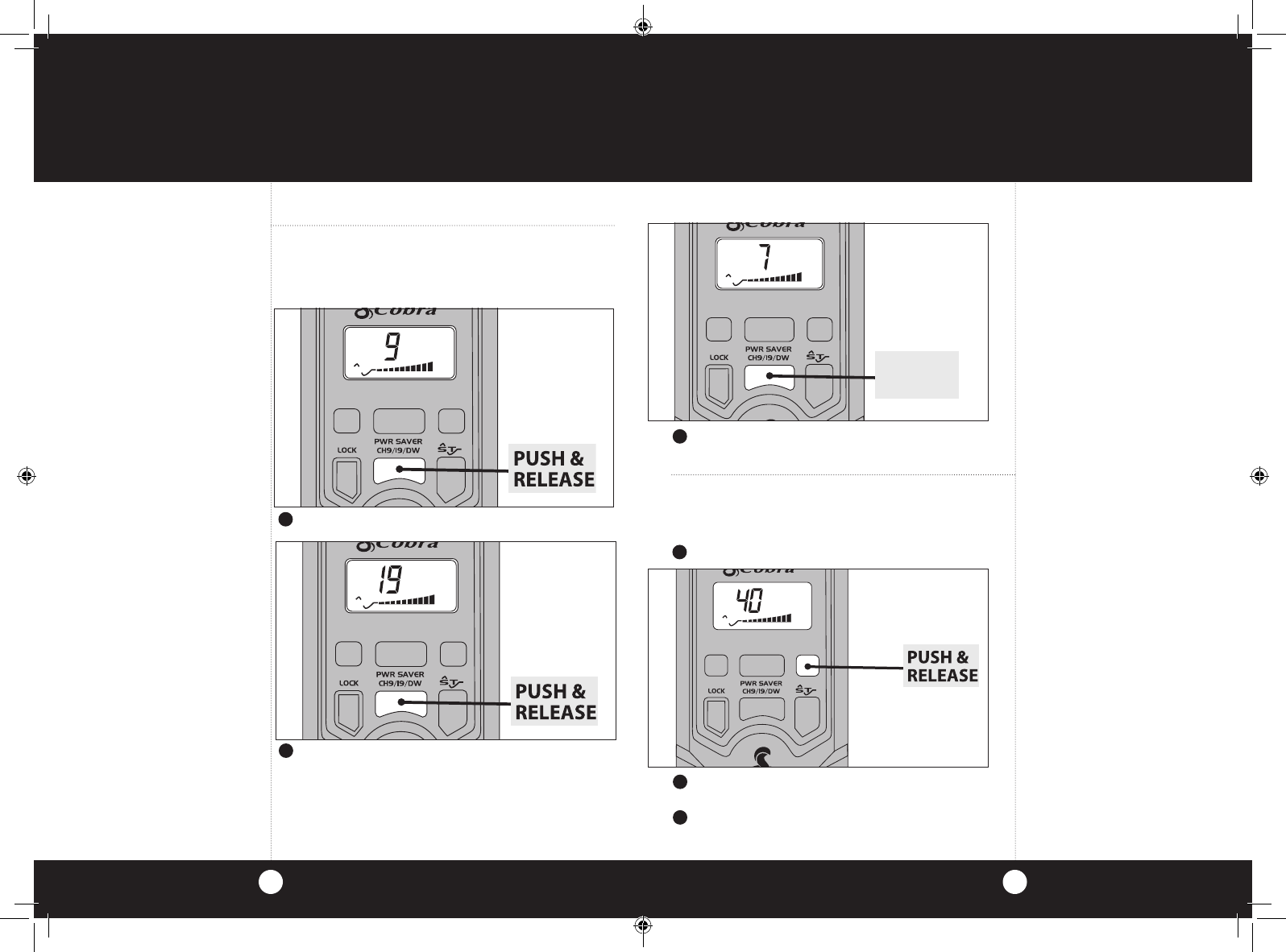

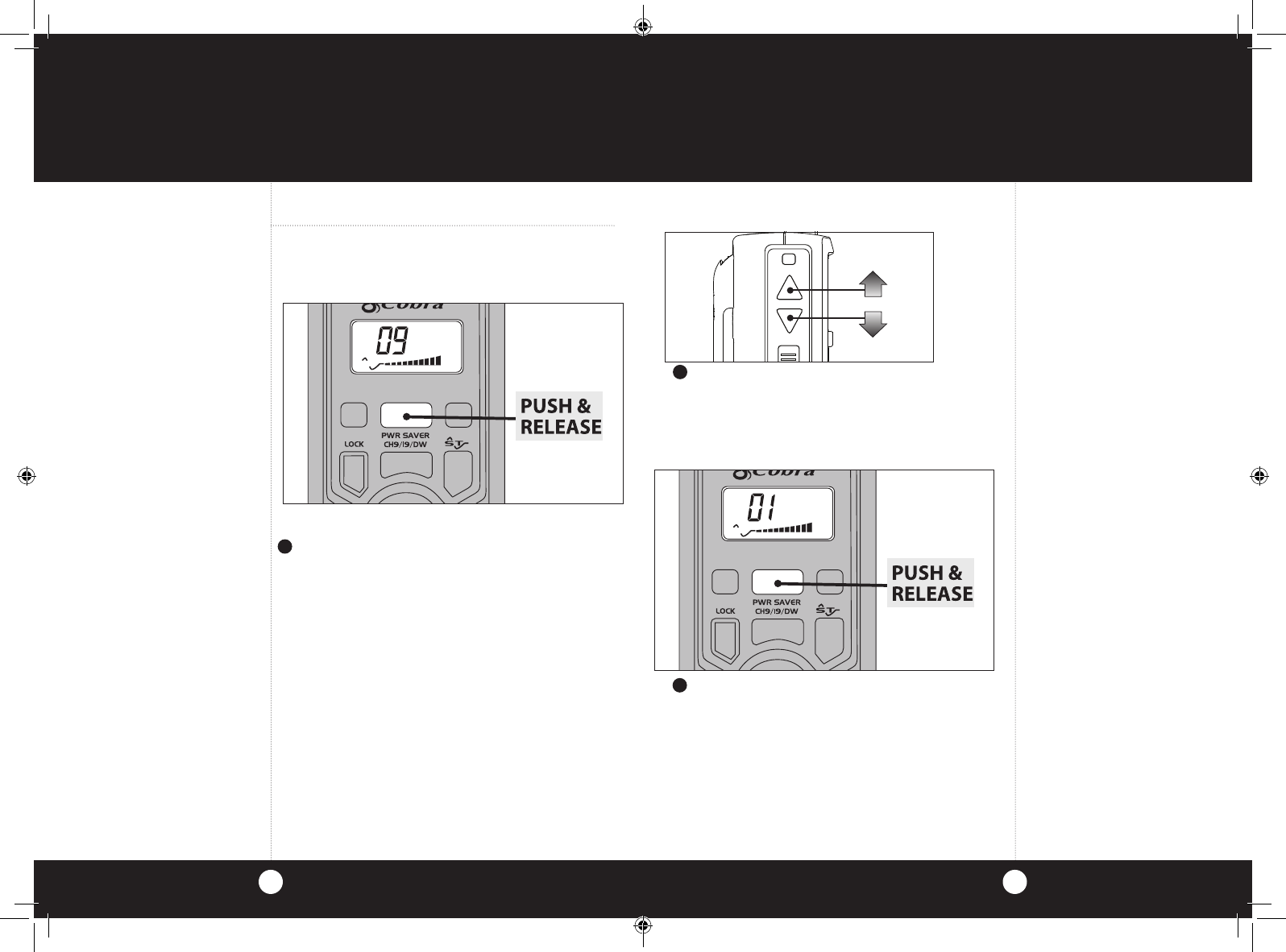

One Touch For Channel 9 and Channel 19
To gain instant access to Channels 9 (emergency)
and 19 (information) from other channels:
PROG CB / WX SCAN
S T
135+30
9
0.5 1 2 3 4
EMG
SIGNAL
Push CH 9/19 again for Channel 19.
Note
When an incoming
transmission is received the
HH 50 WX ST will stop scanning.
10 seconds after the incoming
signal stops, scanning will
resume.
Note
To set Desired Squelch Setting
(DSS) see Setting Squelch on
pages 4 and 5.
Pressing the PTT key or scan key
will terminate scan mode.

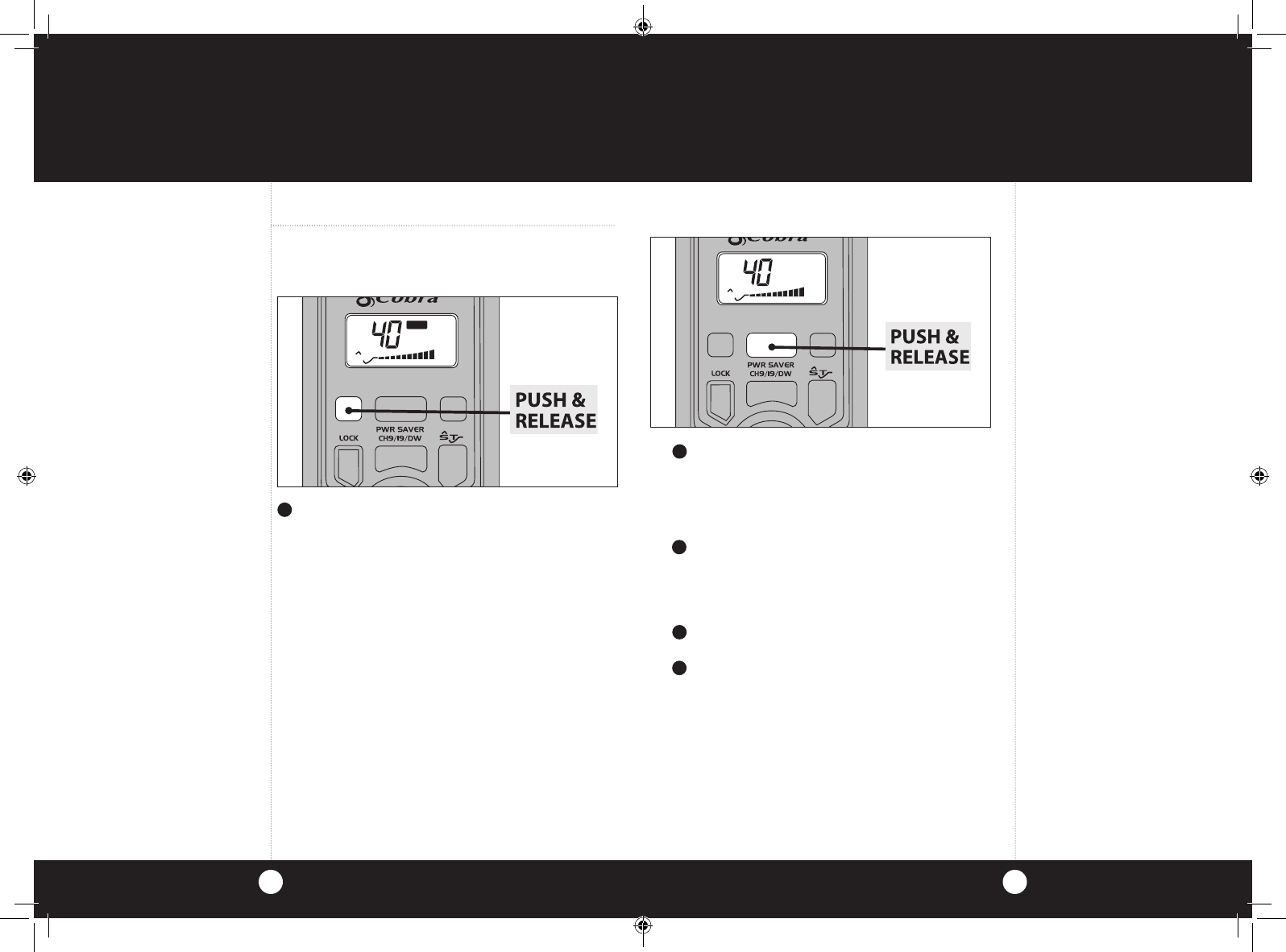

All Channel Scan
To scan all 40 channels:
Set Desired Squelch Setting (DSS).
All Channel Scan
1
2
3
1
2
3
Note
Pressing CHANNEL UP/
DOWN key will exit you
from this mode.
PROG CB / WX SCAN
S T
135+30
9
0.5 1 2 3 4
SIGNAL
PROG CB / WX SCAN
S T
135+30
9
0.5 1 2 3 4
SIGNAL
PUSH A
3RD TIME
PROG CB / WX SCAN
S T
135+30
9
0.5 1 2 3 4
SCAN
SIGNAL
HH50WXST_MANL.indd 10-11 12/14/17 3:12 PM
Push and release PWR SAVER/CH9/19/DW key,
a “beep” will be heard.
The DW icon will stay on.
Push and hold PWR SAVER/CH9/19/DW key
until “beep” is heard.
The DW icon will flash and the PROGRAM icon
will disappear.

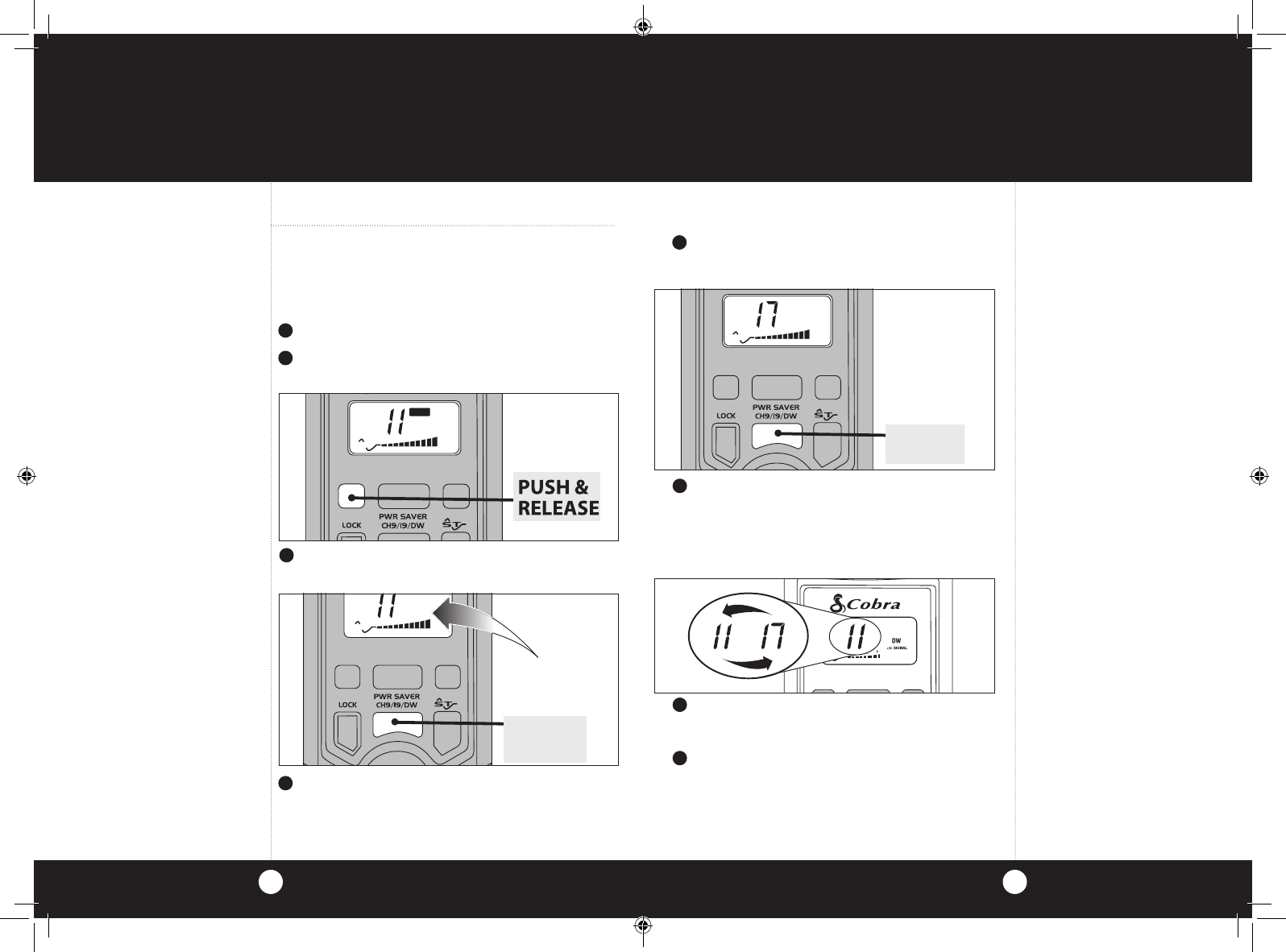

Dual Watch
Dual Watch allows simultaneous monitoring of two
user selected channels. For example, to monitor
Channel 11 and 17 for incoming transmissions:
Set Desired Squelch Setting (DSS).
Select Channel 11 with CHANNEL UP/
DOWN key.
Push and release PROGRAM key.
PROGRAM icon will be displayed.
PROG CB / WX SCAN
The HH 50 WX ST display will switch between
the selected channels.
To stop dual watch, push CHANNEL UP/ DOWN
key, or turn the radio off.
Operation
Operation
13
Note
At a later time you can recall
your last preset DW channels by
pushing and releasing the
FUNCTION key and quickly
pushing and releasing the
DW key.
12
Dual Watch Select Channel 17 with CHANNEL UP/
DOWN key.
1
2
3
4
Note
To set Desired Squelch Setting
(DSS) see Setting Squelch on
pages 4 and 5.
Note
When a incoming transmission
is received the HH 50 WX ST will
stop monitoring and remain on
the channel. After 10 seconds the
radio will continue to monitor the
2 channels.
5
6
7
8
PROG CB / WX SCAN
S T
135+30
9
0.5 1 2 3 4
PROG
SIGNAL
PROG CB / WX SCAN
S T
135+30
9
0.5 1 2 3 4
DW
SIGNAL
PUSH &
HOLD
ashing
icon
PROG CB / WX SCAN
S T
135+30
9
0.5 1 2 3 4
DW
SIGNAL
PUSH &
RELEASE
HH50WXST_MANL.indd 12-13 12/14/17 3:12 PM
Operation
Operation
15
Note
The 10 National Weather
Channels include 7 NOAA
and 3 Canadian channels.
These channels provide
full coverage to keep you
informed of weather
conditions, 24 hours a day,
7 days a week.
For a list of weather
frequencies see specifications
in the Frequency Ranges
section on page 32.
Note
Your HH 50 WX ST has a
special auto squelch circuit
for weather transmission
which disables your squelch
control.
14
To return to normal CB operation, push and
release the CB/WX key again.
The WX icon will disappear.
Weather Channels
10 National Weather Channels provide
weather transmission reception.
Weather Channels
To change weather channels push the
CHANNEL UP/DOWN arrow keys.
At times, different channels can be received.
Select the one with the clearest audio quality.
Push and release the CB/WX key and the
current weather channel will appear.
1
2
3
Note
An agency of the U.S.
Department of Commerce,
NOAA operates 500 stations
which reach about 90% of the
U.S. population. If you cannot
receive a weather station, you
may not have one in your area.
If you wish to receive a listing
of NOAA Weather Radio
Transmitter locations, contact
your nearest National Weather
Service Office, or write to:
National Weather Service
(Attn: W/OM11), NOAA
Silver Spring, MD 20910
PROG CB / WX SCAN
WX
S T
135+30
9
0.5 1 2 3 4
PROG
SIGNAL
PROG CB / WX SCAN
S T
135+30
9
0.5 1 2 3 4
SIGNAL
HH50WXST_MANL.indd 14-15 12/14/17 3:12 PM
Power Saver (HI/LOW)
Reduces the transmit power output to 1 watt to
extend the battery life.
Operation
Operation
1716
Power Saver (HI/LOW)
Note
The low power setting cuts
the transmitting range in
half. The receiving range
is not affected.
Push and release the CB/WX key.
The PWR SAVE icon will appear and the
PROGRAM icon will disappear.
To exit Power Saver (HI/LOW) mode:
Push and release PROGRAM key.
PROGRAM icon will be displayed.
Push and release the CB/WX PWR SAVER key.
PROGRAM and PWR SAVE icon will disappear
2
Note
The battery life is increased
approximately 50% while in
Power Saver Mode.
Push and release the PROGRAM key.
PROGRAM icon will be displayed.
1
2
1
3
PROG CB / WX SCAN
S T
135+30
9
0.5 1 2 3 4
PROG
SIGNAL
PROG CB / WX SCAN
S T
135+30
9
0.5 1 2 3 4
SIGNAL
PWR SAVE
HH50WXST_MANL.indd 16-17 12/14/17 3:12 PM
Operation
18
Battery Capacity
Level
Battery Capacity Level
To monitor the remaining power level of the
HH 50 WX ST battery: Check the battery icon bands.
Operation
19
The BATTERY icon will flash if the batteries are
low. Replace or recharge the batteries as soon
as possible.
Note
SoundTracker® gives you
clearer, cleaner reception to
improve CB communications
while on the air.
The SoundTracker® System
While previous systems only “blanket out” or
limit noise in higher sound frequencies, the
revolutionary SoundTracker® System actually
reduces noise while leaving the signal intact in
the reception mode. In the transmission mode,
it actually strengthens the signal, providing you
with a significant reduction in noise on reception
and transmission.
Sound clarity is measured by the ratio
of the signal level to the noise level.
The higher the signal-to-noise ratio,
the better the sound.
How SoundTracker® Works
On Reception - “Cuts noise coming in”
With a normal CB, distant signals fall below
the squelch level and are unintelligible. With a
SoundTracker® CB. the noise level is cut up to
90%, which increases the signal-to-noise ratio
and dramatically improves signal clarity. This also
allows you to significantly reduce the squelch
level, which greatly expands your listening range.
On Transmission - “Strengthens signals going out”
A SoundTracker® CB strengthens the transmit
signal by more effectively using the available
RF power output of the CB. The result is improved
transmission signal clarity and an expanded
transmission range.
PROG CB / WX SCAN
S T
135+30
9
0.5 1 2 3 4
SIGNAL
Note
The radio does not transmit if
the batteries are low.
HH50WXST_MANL.indd 18-19 12/14/17 3:12 PM
Operation
Operation
2120
Activating
SoundTracker®
Note
This engages the
SoundTracker® system and
reduces the incoming noise
level.

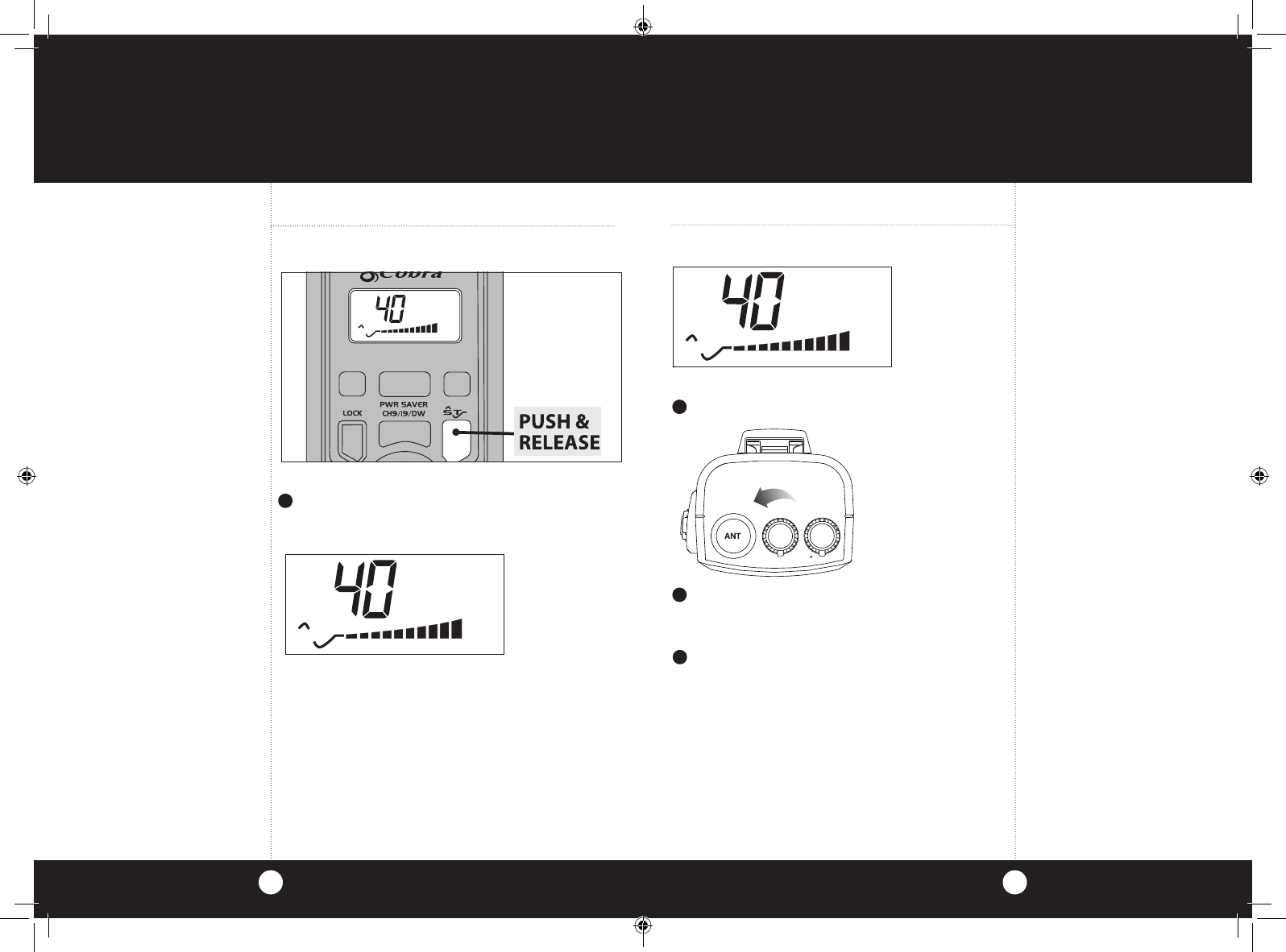

Activating SoundTracker®
Push and release the ST key.
1
The SOUNDTRACKER icon will appear.
Select any unused channel on your CB.
Testing
SoundTracker®
Testing SoundTracker®
1
Fully counterclockwise opens the “gate” and
all signals enter. Turn the knob clockwise until
it stops.
2
Deactivate soundtrack mode by pressing the
SOUNDTRACKER key.
3
continued
PROG CB / WX SCAN
S T
135+30
9
SIGNAL
PROG CB / WX SCAN
S T
135+30
9
SIGNAL
Cobra Electronics Corporation
HH50 WXST
Production Graphics
Top Callouts
Color: White
Artwork No: 571-0008 - Rev A
SQUELCH VOLUME
OFF
SQUELCH VOLUME
OFF
PROG CB / WX SCAN
S T
135+30
9
SIGNAL
HH50WXST_MANL.indd 20-21 12/14/17 3:12 PM

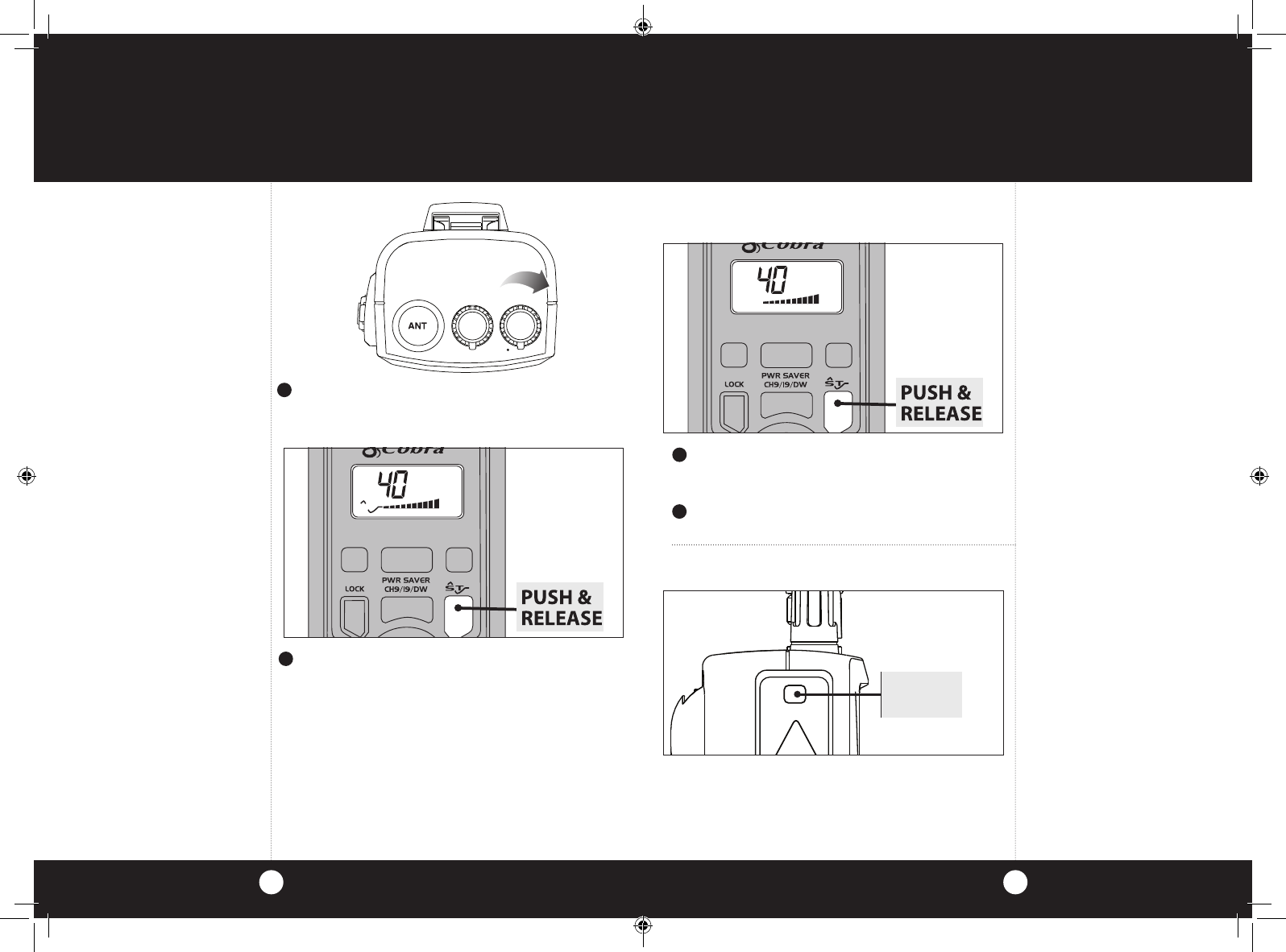

Turn the volume up louder than your normal
listening level.
Operation
23
Operation
22
1
Push and release the ST key.
The SOUNDTRACKER icon will appear.
*Notice the significant reduction in noise.
2
Note
At times you may experience
different levels of noise
reduction. Different terrains
and environments will effect
the SoundTracker® System’s
performance.
To disengage SoundTracker® push and release
the ST key again.
3
ST icon will disappear.
4
Lighted Display
To illuminate the display, push and release the
light key.
The light will remain on for about 10 seconds.
Lighted Display
Cobra Electronics Corporation
HH50 WXST
Production Graphics
Top Callouts
Color: White
Artwork No: 571-0008 - Rev A
SQUELCH VOLUME
OFF
SQUELCH VOLUME
OFF
PROG CB / WX SCAN
S T
135+30
9
SIGNAL
PROG CB / WX SCAN
135+30
9
SIGNAL
Cobra Electronics Corporation
HH50 WXST
Production Graphics
Jack Callouts
Color: White
Artwork No: 571-0007 - Rev A
SPK
MIC
CHG
PWR
PUSH &
RELEASE
HH50WXST_MANL.indd 22-23 12/14/17 3:12 PM
Operation
Operation
2524
Note
PTT , LIGHT, VOLUME,
SQUELCH and LOCK functions
are still operational while the
LOCK function is activated.
Lock Key
The purpose is to lock the front keys to avoid
accidental actuation.
Lock Key
To lock, push and hold the LOCK key.
The LOCK icon will appear.
To unlock, push and hold the LOCK key.
1
Note
Due to the characteristics of
CB transmissions, it is
necessary to use an external
car roof/truck magnet mounted
antenna (item # HG A1000) and
a BNC S0239 adapter
(item # HA-BNC) to receive
optimal performance while in
your vehicle. See Accessories
section on page 35.
Note
The HH50RT Road trip model
comes with a magnet mounted
antenna (item #HH-Mini).
SAFETY NOTICE
MPE minimum distance for
HH-Mini Antenna
The antenna used for this
transceiver must be properly
installed and maintained and
must provide a seperation
distance of at least 12 inches (31
cm) from all persons and must
not be co-located or operated
in conjunction with any other
antenna or transmitter. Never
transmit if any person is closer
than the specified distance to
the
antenna.
In Vehicle Use
In Vehicle Use
The HH 50 WX ST can be connected to your
cigarette lighter port with the provided adapter.
This power connection will also charge the
batteries with the included interchageable tip.
SPK
MIC
CHG
PWR
PROG CB / WX SCAN
PUSH &
HOLD
S T
135+30
9
0.5 1 2 3 4
SIGNAL
12V DC
2
SPK
MIC
CHG
PWR
12V DC
Connecting to power.
Charging using the interchangeable tip.
HH50WXST_MANL.indd 24-25 12/14/17 3:12 PM
How Your CB Can Serve You
How Your CB Can Serve You
2726
Note
If you wish to receive a list-
ing of NOAA Weather Radio
Transmitter locations, contact
your nearest National Weather
Service Office,
or write to:
National Weather Service
(Attn: W/OM11), NOAA
Silver Spring, MD 20910
For a list of weather frequen-
cies see specifications in the
Frequency Ranges section on
page 32.
Weather Channel Messages
Local weather reports are provided by NOAA
(National Oceanic Atmospheric Administration)
24 hours a day, 7 days a week. An agency of the
U. S. Department of Commerce, NOAA operates
500 stations which reach about 90% of the U. S.
population. If you cannot receive a weather
station, you may not have one in your area.
A similar network of 15 stations broadcasts
continuous weather information across much
of southern Canada.
A CB Radio Can:
• Warn of traffic problems
• Provide weather and road data
• Provide help in event of an emergency
• Provide direct contact with home or office
• Assist police by reporting erratic drivers
• Get local information to find a destination
• Communicate with family and friends
• Suggest spots to eat and sleep
• Keep you alert while traveling
A Few Rules You Should Know
A. Conversations cannot last more than 5 minutes
with another station. A one minute break is
required to let others use the channel.
B. You cannot blast others off the air by use of
illegally amplified transmitters or illegally
high antennas.
C. You cannot use a CB to promote illegal
activities.
D. Profanity is not allowed.
E. You may not transmit music with a CB.
F. Selling of merchandise and/or services is
prohibited.
Weather Channel
Messages
A Few Rules
You Should
Know
HH50WXST_MANL.indd 26-27 12/14/17 3:12 PM
How Your CB Can Serve You
How Your CB Can Serve You
2928
The FCC gives these examples of permitted and
prohibited messages for channel 9. These are
only guidelines and not all-inclusive:
Permitted Example Message
Yes “Tornado sighted six miles north
of town.”
No “Post number 10.
No tornado sighted.”
Yes “Out of gas on I-95 at mile
marker 211.”
No “Out of gas in my driveway.”
Yes “Four car accident on I-94 at
Exit 11. Send police and
ambulance.”
No “Traffic moving smoothly on I-94.”
Yes “Weather Bureau has issued
thunderstorm warning.
Bring sailboat into port.”
No “Attention motorists.
Weather Bureau advises snow
tomorrow will accumulate
4 to 6 inches.”
Yes “Fire in building at 539 Main,
Evanston.”
No “Halloween patrol number 3.
All quiet.”
1. Set to channel 9 for emergencies
Be sure the antenna is properly connected.
2. CB Distress Data
When transmitting an emergency, you should
request a “REACT BASE” and provide the CB
distress data (called CLIP):
C all Sign Identify yourself.
L ocation Be exact.
I njuries Number. Type. Trapped?
P roblem Give details and help needed.
Transmit CLIP repeatedly so any monitor can assist.
Channel 9 Emergency
Messages
Note
If there is no response on
channel 9, try channels 19
or 14.
Channel 9 Emergency Messages
HH50WXST_MANL.indd 28-29 12/14/17 3:12 PM
How Your CB Can Serve You
How Your CB Can Serve You
3130
Code Meaning
10-29 Time is up for contact
10-30 Does not conform to FCC rules
10-33 Emergency traffic
10-34 Trouble at this station
10-35 Confidential information
10-36 Correct time is
10-37 Wrecker needed at
10-50 Ambulance needed
10-39 Message delivered
10-41 Turn to channel
10-42 Traffic accident at
10-43 Traffic tie up at
10-44 Have a message for
10-45 All units within range please report
10-50 Break channel
10-60 What is next message number?
10-62 Unable to copy. Use phone
10-63 Net directed to
10-64 Net clear
10-65 Awaiting your next message/assignment
10-67 All units comply
10-70 Fire at
10-71 Proceed, transmission in sequence
10-77 Negative contact
10-81 Reserve hotel room for
10-82 Reserve room for
10-85 My address is
10-91 Talk closer to mic
10-93 Check my frequency on this channel
10-94 Give me a long count
10-99 Mission completed, all units secure
10-200 Police needed at
CB 10-Codes
Citizen Bands have adopted the “10-CODES” for
standard questions and answers. These codes
provide quick and easy communication, especially
in noisy areas. Following are some of the more
common codes and meanings:
Code Meaning
10-1 Receiving poorly
10-2 Receiving well
10-3 Stop transmitting
10-4 OK, message received
10-5 Relay message
10-6 Busy, stand by
10-7 Out of service, leaving
10-8 In service, subject to call
10-9 Repeat message
10-10 Transmission completed standing by
10-11 Talking too rapidly
10-12 Visitors present
10-13 Advise weather/roads
10-16 Make pick up at
10-17 Urgent business
10-18 Anything for us?
10-19 Return to base
10-20 My location is
10-21 Call by phone
10-22 Report in person to
10-23 Stand by
10-24 Completed last assignment
10-25 Can you contact
10-26 Disregard last info
10-27 Moving to channel
10-28 Identify your station
CB 10-Codes
HH50WXST_MANL.indd 30-31 12/14/17 3:12 PM
Channel Channel Weather
CB Freq. CB Freq. Weather Freq.
Channel In MHz Channel In MHz Channel In MHz
HH50 WX ST Specifications
Frequency Ranges
3332
GENERAL
CHANNELS . . . . . . . . . . . . . . . . . . . CB - 40 CH
WEATHER - 10 CH
FREQUENCY RANGE .......... CB - 26.965 TO 27.405 MHZ
WEATHER - 161.650 TO 163.275 MHZ
FREQUENCY TOLERANCE ..... 0.005 %
FREQUENCY CONTROL ....... PLL (PHASE LOCK LOOP) SYNTHESIZER
OPERATING TEMPERATURE
RANGE . . . . . . . . . . . . . . . . . . . . . . . -30° C TO + 50° C
MICROPHONE . . . . . . . . . . . . . . . . ELECTRET, PUSH-TO-TALK
INPUT VOLTAGE ............. 13.5 VDC (INTERNAL 9AA BATTERIES)
13.8 VDC, EXTERNAL
ANTENNA CONNECTOR....... BNC
METER ....................... LCD DISPLAY, ICONS
WEIGHT ...................... 10.02 oz. without batteries
15.09 oz. with batteries
TRANSMITTER
POWER OUTPUT.............. 4.0 W AT 13.8 VDC - HIGH, 1.0W - LOW
MODULATION................ AM
FREQUENCY RESPONSE....... 300 - 3000 HZ AT -6 dB
OUTPUT IMPEDANCE ......... 50 OHMS, UNBALANCED
RECEIVER
CB
SENSITIVITY ...................LESS THAN 1 uV FOR 10 dB S/N
IF .............................DUAL CONVERSION SUPERHETERODYNE
AUDIO OUTPUT ...............400 mW MAXIMUM AT 10% DISTORTION
FREQUENCY RESPONSE....... 300 - 3000 HZ AT -6 dB
2ND IF IMAGE REJECTION..... GREATER THAN 60 dB
ADJACENT CH. REJECTION .... 50 DB MIN.
AUTOMATIC NOISE LIMITER... BUILT- IN
FREQUENCY CONTROL ....... PLL (PHASE LOCK LOOP)
WEATHER
SENSITIVITY .................. LESS THAN 1 uV FOR 12 dB SINAD
IF FREQUENCY................ DUAL CONVERSION
SUPERHETERODYNE
AUDIO OUTPUT ...............MAXIMUM 400 mW AT 10% DISTORTION
FREQUENCY RESPONSE....... 300 - 3000 HZ AT -6 dB
The COBRA HH 50 WX ST transceiver represents one
of the most ad vanced AM two-way radios used as
a Class D station in the Citizens Band Radio Service.
This unit features advanced Phase Lock Loop (PLL)
circuitry providing complete cov er age of all 40 CB
chan nels and 10 weather channels as shown below.
1 26.965 21 27.215 1 162.550
2 26.975 22 27.225 2 162.400
3 26.985 23 27.255 3 162.475
4 27.005 24 27.235 4 162.425
5 162.450
5 27.015 25 27.245 6 162.500
6 27.025 26 27.265 7 162.525
7 27.035 27 27.275 8 161.650
8 27.055 28 27.285 9 161.775
9 27.065 29 27.295 00 163.275
10 27.075 30 27.305
11 27.085 31 27.315
12 27.105 32 27.325
13 27.115 33 27.335
14 27.125 34 27.345
15 27.135 35 27.355
16 27.155 36 27.365
17 27.165 37 27.375
18 27.175 50 27.505
19 27.185 39 27.395
20 27.205 40 27.405
* Canadian
weather channels
are 8, 9 and 00.
HH50WXST_MANL.indd 32-33 12/14/17 3:12 PM
Optional Accessories
Limited Two Year Warranty
3534
COBRA ELECTRONICS CORPORATION warrants that its
COBRA CB Radios, and the com po nent parts thereof, will
be free of defects in workmanship and materials for period
of two (2) years from the date of first consumer purchase.
This war ran ty may be enforced by the first consumer
pur chas er, pro vid ed that the product is utilized within
the U.S.A.
COBRA will, without charge, repair or replace, at its option,
de fec tive CB radios, products or com po nent parts upon
de liv ery to the COBRA factory Service Department,
ac com pa nied by proof of the date of first consumer
pur chase, such as a du pli cat ed copy of a sales receipt.
You must pay any initial shipping charges required to ship
the product for warranty service, but the return charges
will be at Cobra’s expense, if the product is repaired or
replaced under warranty.
Exclusions: This limited warranty does not apply; 1) to any
product dam aged by accident; 2) in the event of misuse or
abuse of the product or as a result of un au tho rized
alterations or repairs; 3) if the serial number has been
altered, defaced or re moved; 4) if the owner of the prod-
uct resides outside the U.S.A.
All implied warranties, including war ran ties of
mer chant abil i ty and fitness for a par tic u lar purpose
are limited in duration to the length of this warranty.
COBRA shall not be liable for any incidental,
con se quen tial or oth er dam ag es; including, without
lim i ta tion, damages re sult ing from loss of use or cost
of in stal la tion.
Some states do not allow limitations on how long
an implied warranty lasts and/or do not allow the
ex clu sion or limitation of incidental or con se quen tial
dam ag es, so the above lim i ta tions may not apply
to you.
Cobra Electronics
Corporation
6500 West Cortland Street
Chicago, Illinois 60707
www.cobra.com
Ear Bud Mic with PTT
Integrated speaker/mic adapter
that fits in your ear. Includes shirt
clip.
PMR-EBM
(1) High Performance NiMH
Rechargeable Battery Cell
212-001-N-001
Replacement Belt Clip
HA-BC1
BNC/SO239 Antenna Adapter
Allows connection of the
HH 50 WX ST to standard
antennas.
HA-BNC
You can find these fine
accessories at
www.cobra.com
Order by phone
Call 773.889.3087 (Press 1
from the main menu) 8 a.m.-
5:30 p.m. M-F Central Time.
Order by mail or fax
Please fill out order form
on next page, and mail/fax
directly to Cobra.
120 Volt A/C Wall Charger
with Plug
Charges 9 NiMH battery cells in
24 hours right in the unit.
CA-45CB
Lapel Microphone
Remote microphone/speaker
connection.
PMR-SM
Long Range Antenna
Doubles the range
of your HH 50 WX ST.
HA-TA
Magnetic Mount CB/
Weather Antenna
Allows greater
transmission range
while in a moving
vehicle.
HH-MINI (Included with
the HH50RT)
Replacement DC Power Cord
with Charge Adapter
To charge rechargeable
batteries or in-vehicle use.
HH50-CIG
HH50WXST_MANL.indd 34-35 12/14/17 3:12 PM
FCC
36
FCC Part 15.19 Warning Statement- (Required for all Part 15
devices)
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATION.
FCC Part 15.21 Warning Statement-
NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES
OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY
RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD
VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
FCC Part 15.105(b) Warning Statement
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-
Consult the dealer or an experienced radio/TV technician for help.
IC RSS-GEN, Sec 8.4 Warning Statement
This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada
applicables aux appareils radio exempts de licence. L’exploitation
est autorisée aux deux conditions suivantes : (1) l’appareil ne
doit pas produire de brouillage, et (2) l’utilisateur de l’appareil
doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
IC RSS-GEN, Sec 8.3 Warning Statement
This radio transmitter, 906A-HH50WXST, has been approved
by Industry Canada to operate with the antenna types listed
below with the maximum permissible gain and required antenna
impedance for each antenna type indicated. Antenna types not
included in this list, having a gain greater than the maximum
gain indicated for that type, are strictly prohibited for use with
this device.
Antennas approved for use with HH50WXST:
Model Gain Impedance
HH-ANT -5 dBi 50Ω
HG-TA -3 dBi 50Ω
HH-MINI 0 dBi 50Ω
Le présent émetteur radio (identifier le dispositif par son numéro
de certification ou son numéro de modèle s’il fait partie du
matériel de catégorie I) a été approuvé par Industrie Canada pour
fonctionner avec les types d’antenne énumérés ci-dessous et
ayant un gain admissible maximal et l’impédance requise pour
chaque type d’antenne. Les types d’antenne non inclus dans
cette liste, ou dont le gain est supérieur au gain maximal indiqué,
sont strictement interdits pour l’exploitation de l’émetteur.
HH50WXST_MANL.indd 36 12/14/17 3:12 PM
HH50 WX ST
© 2017 Cobra Electronics Corporation
Printed in China
Part No. 480-1088-P-001 Version D
Citizens Band
2-Way Handheld
CB Radio
Operating Instructions
for your Cobra HH 50 WX ST
The CB Story
A1
3
2
4
5
1
For technical assistance, please call our Automated Help Desk which can assist
you by answering the most frequently asked questions about Cobra products.
(773) 889-3087
24 hours a day, 7 days a week.
A Consumer Service Representative can be reached through this same number
8:00 am - 5:30 pm, Monday through Friday, Central Time.
Technical assistance is also available on-line in the Frequently Asked Questions (FAQ) section at
www.cobra.com or by e-mail to productinfo@cobra.com
If you think you need service call 1.773.889.3087
“If your product should require factory service please call Cobra first before sending your unit in.
This will ensure the fastest turn-around time on your repair.”
You may be asked to send your unit to the Cobra factory. It will be necessary to furnish the follow-
ing in order to have the product serviced and returned.
1. For Warranty Repair include some form of proof-of-purchase, such as a mechanical reproduction
or carbon or a sales receipt. If you send the original receipt it cannot be returned.
2. Send the entire product.
3. Enclose a description of what is happening with the unit. Include a typed or clearly print name
and address of where the unit is to be returned.
4. Pack unit securely to prevent damage in transit. If possible, use the original packing material.
5. Ship prepaid and insured by way of a traceable carrier such as United Parcel Service (UPS) or First
Class Mail: to avoid loss in transit to: Cobra Factory Service, Cobra Electronics Corporation, 6500
W. Cortland St., Chicago, IL 60707.
6. If the unit is in warranty, upon receipt of your unit it will either be repaired or exchanged
depending on the model. Please allow approximately 3 to 4 weeks before contacting us for
status. If the unit is out of warranty a letter will automatically be sent informing you of the
repair charge or replacement charge. If you have any questions, please call 1.773.889.3087 for
assistance.
Trademark Info
Cobra®, Dynamike®, Nothing Comes Close to a Cobra® SoundTracker®, and the snake design are
registered trademarks of Cobra Electronics Corporation, USA.
Cobra Electronics Corporation™ is a trademark of Cobra Electronics Corporation, USA.
The Bluetooth® word mark and logo are registered trademarks owned by Bluetooth SIG, Inc.
If You Think You Need Service The Citizens Band lies between the shortwave broadcast and
10-meter Amateur radio bands, and was established by law
in 1949. The Class D two-way communications service was
opened in 1959. (CB also includes a Class A citizens band and
Class C remote control frequencies.)
What’s Included with Your HH 50 WX ST
1. High Efficiency Antenna
2. Removable Belt Clip
3. Wrist Strap
4. 12 Volt Cigarette Lighter Plug & Charge Adapter
5. Operating Manual
HH50WXST_MANL.indd 37-39 12/14/17 3:12 PM
Cobra Electronics Corporation
HH50 WXST
Production Graphics
Jack Callouts
Color: White
Artwork No: 571-0007 - Rev A
SPK
MIC
CHG
PWR
Cobra Electronics Corporation
HH50 WXST
Production Graphics
Jack Callouts
Color: White
Artwork No: 571-0007 - Rev A
SPK
MIC
CHG
PWR
SPK
MIC
CHG
PWR
Cobra Electronics Corporation
HH50 WXST
Production Graphics
Top Callouts
Color: White
Artwork No: 571-0008 - Rev A
SQUELCH VOLUME
OFF
SQUELCH VOLUME
OFF
Thank you for purchasing the Cobra HH 50 WX ST
handheld CB. Properly used, this Cobra product
will give you many years of reliable service.
SoundTracker®
“Cuts noise coming in...strengthens signals
going out.”
This technology dramatically improves
transmission and reception of the CB signals.
The revolutionary SoundTracker® System
reconfigures the transmission signal which
allows it to be transferred more efficiently
through cluttered airwaves.
At the same time, it significantly reduces the
amount of static on all incoming CB signals.
The end result is a cleaner, clearer sounding
reception of signals and a more powerful
transmission which dramatically improves CB
communications.
Customer Support
Should you encounter any problems with the
product or not understand its many features,
please refer to this owner’s manual. If, after
referring to the manual, you still need help,
call Cobra Customer Service at 773-889-3087.
Controls and Indicators
Cobra Customer Service
Live operators are available
M-F 8:00 am - 5:30 pm Central
Time at:
773-889-3087
Automated Technical
Assistance is available 24 hours
a day, seven days a week.
E-mail questions to:
productinfo@cobra.com
Frequently Asked Questions
(FAQ) can be found on-line at:
www.cobra.com
Our Thanks to You
A3
A2
4
10
11
12
6
9
8
13
7
12 3
21
15
14
20
17
18
5
1. BNC Antenna Connector
2. Squelch Control
3. On/Off Volume Control
4. Removable Belt Clip
5. External Speaker Jack
6. External Microphone Jack
7. Charge LED
8. Rechargeable Battery
Charge Jack
9. DC Power Jack
10. Light Key
11 . Channel Up/Down Keys
12 . PTT (Push To Talk ) Key
13 . Battery Door/Chamber
14. LCD Display Panel
15 . Lock Key
16 . SoundTracker® Key
17. CB/WX Weather Key and
HI/LO Power Saver Key
18. Instant Channel 9 & 19
and Dual Watch Key
19. Program Key
20. Channel Scan
21. Microphone
16
19
HH50WXST_MANL.indd 40-42 12/14/17 3:12 PM

Navigation menu
