Owner’s Manual
Nothing Comes Close to a Cobra®English A1 English
Our Thanks to You and
Customer Assistance
Introduction
Our Thanks to You •
Thank you for purchasing a CobraMarine®VHF radio.
Properly used, this Cobra®product will give you
many years of reliable service.
How Your CobraMarine VHF Radio Works
This radio is a battery-powered portable transceiver for use afloat. It gives you
two-way vessel-to-vessel and vessel-to-shore station communications, primarily
for safety and secondarily for navigation and operational purposes. With it, you
can call for help, get information from other boaters, talk to lock or bridge tenders,
and make radiotelephone calls to anywhere in the world through a marine operator.
Besides two-way communications, the radio can provide quick access to receive
all the NOAA (National Oceanographic and Atmospheric Administration) weather
channels and alert you to weather emergencies with a tone on a weather channel
you can select for your area.
Customer Assistance •
Should you encounter any problems with this product, or not understand
its many features, please refer to this owner’s manual. If you require further
assistance after reading this manual, Cobra Electronics offers the following
customer assistance services:
For Assistance in the U.S.A.
Automated Help Desk English only.
24 hours a day, 7 days a week 773-889-3087 (phone).
Customer Assistance Operators English and Spanish.
8:00 a.m. to 5:30 p.m. Central Time Mon. through Fri. (except holidays)
773-889-3087 (phone).
Questions English and Spanish.
Faxes can be received at 773-622-2269 (fax).
Technical Assistance English only.
www.cobra.com (on-line: Frequently Asked Questions).
English and Spanish. productinfo@cobra.com (e-mail).
For Assistance Outside the U.S.A.
Contact Your Local Dealer
Customer Assistance
©2010 Cobra Electronics Corporation
6500 West Cortland Street
Chicago, Illinois 60707 USA
www.cobra.com
A2 English

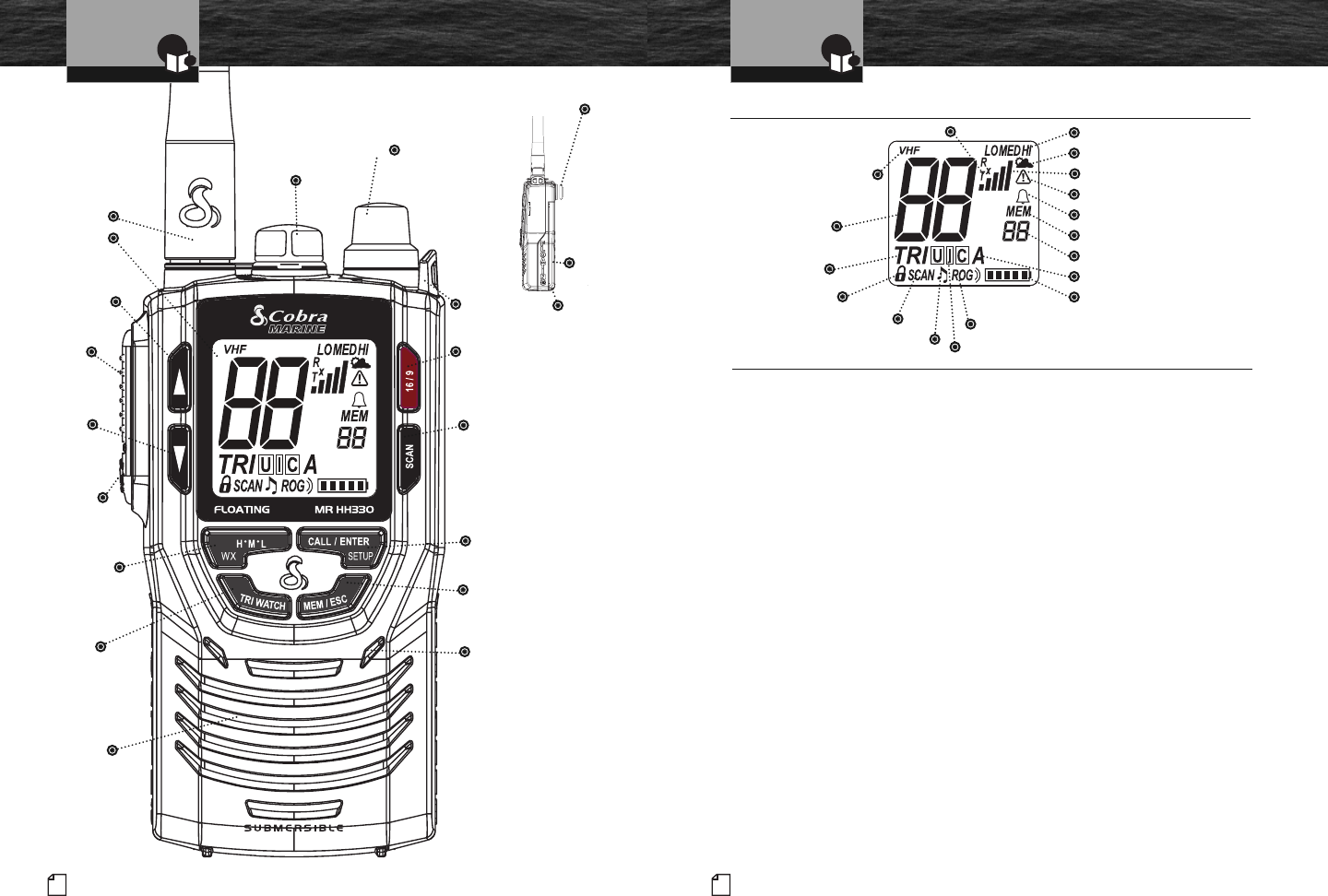

Radio Controls
and Indicators
Introduction
Instant
Channel
16/9 Button
SCAN
Button
Call/Enter
Button
Wrist
Strap
Connector
ON/OFF/
Volume Control
Speaker/
Microphone
External Cover
Antenna
Backlit
LCD
Screen
Tri-Watch
Button
Battery
Backlight/
Key Lock
Button
Memory/Escape
Button
Channel Up
Button
Push to
Talk
Button
Channel
Down
Button
Power
Level/Weather
Button
Speaker
Belt Clip
Engagement
Microphone
Battery
Clip
A3 English
Introduction
Backlit LCD (Liquid Crystal Display) Screen •
UIC Active Channel Map Icons
Roger Beep Icon
Battery Power Icon
Memory Channel
Memory Channel Icon
Call Tone Icon
Weather Alert Icon
Weather Icon
Low/Medium/High Power Icons
Signal Level Icons
Tri-Watch Icon
Frequency
Band Icon
Transmit and Receive Icons
Button Lock Icon
Scan Icon
Key Tone Icon
Power Settings
Selectable power settings produce
1, 3 or 6 watts of output power for
near or distant calling.
USA/International/Canada Channels
Allows operation on any of the three (3)
different channel maps established for
these areas.
All NOAA Weather Channels
Instant access to all National Weather
Channels, 24 hours a day.
Submersible to JIS7 Standards
Waterproof to 3.3 ft (1 m) of water
for 30 minutes.
Button/Key Lock
Prevents accidental setting changes
when button lock is set.
Channel Scan/Memory Scan
Use to scan through unlimited
channels or memory locations
to find conversations in progress.
AA Battery Compatible
Can work at full power with six (6) AA
alkaline batteries. Good for emergency
backup. Requires optional AA battery tray
(P/N CM 110-011).
Instant Channel 16/9
Provides instant access to priority
Channel 16 and calling Channel 9.
Tri-Watch
Use to monitor three (3) channels
at once — Channel 16 and two (2)
programmable channels.
Floating
This radio will float if dropped overboard.
It has an orange stripe so it's easy to
retrieve.
Must use included battery to float.
120V/12V Charger Included
Use to charge battery pack, at home,
in a car or in a boat.
Locking Desktop Charger
Holds the radio or battery in place while
charging. Vertical or horizontal mounting.
.
Product Features •
Active Channel
Numbers
Simplex Operation Icon
Backlit LCD Screen
and Product Features
Introduction NotesProduct Features
Introduction
Call Tones (Selectable)
10 selectable call tones
Emergency Weather Alert
Receive NOAA alerts when threatening
weather is nearby.
Speaker/Mic Jack
Allows connecting optional Cobra
Lapel Speaker/Mic and other Cobra
accessories.
Unlimited Memory Channels
Allows programming of unlimited
VHF memory channels.
Signal Strength Meter
Shows the strength of incoming or
outgoing signals.
Illuminated Buttons
Allows high visibility of all function
buttons.
Roger Beep Tone (Selectable)
Confirmation tone indicates the
completion of the user’s transmission
and signals to others it is clear to talk.
On or Off selectable.
BURP
The Cobra exclusive BURP feature expels
water from the speaker grill if the unit is
dropped in the water or is subjected to
extreme rain and weather.
Product Features (continued) •
A4 English
Introduction
1
Nothing Comes Close to a Cobra®
Table of Contents
Introduction
OurThankstoYou ...........................................A1
CustomerAssistance .........................................A1
RadioControlsandIndicators ..................................A2
Backlit LCD (Liquid Crystal Display) Screen . . . . . . . . . . . . . . . . . . . . . . . . A3
ProductFeatures ............................................A3
ImportantSafetyInformation....................................2
GeneralPrecautions ...........................................3
Recommendations for Marine Communication . . . . . . . . . . . . . . . . . . . . . . 5
FCCLicensingInformation......................................6
Installation
IncludedinthisPackage .......................................8
WristStrapandBeltClip .......................................9
BatteriesandCharger.........................................10
Operating Your Radio
GettingStarted..............................................14
SetupModeProgramming .....................................19
Standby/ReceiveandTransmit..................................23
NOAAWeatherChannelsandAlert ...............................25
AdvancedOperation..........................................27
FloatingFeature..............................................34
Maintenance................................................35
Troubleshooting .............................................35
VHF Marine Radio Protocols
VHFMarineRadioProcedures ..................................36
VoiceCalling ...............................................38
RadiotelephoneCalls .........................................40
Emergency Messages and Distress Procedure . . . . . . . . . . . . . . . . . . . . . . 41
Warranty and Trademark
Limited3-YearWarranty ......................................45
TrademarkAcknowledgement ...................................45
Customer Service
ProductService .............................................46
Specifications...............................................47
Appendix
VHFMarineChannelAssignments ...............................48
WeatherChannelsAssignments.................................63
Accessories ................................................64
3
Nothing Comes Close to a Cobra®
General Precautions
General Precautions •
The following WARNINGS and NOTICE information will make you aware of RF
exposure hazards and how to assure you operate the radio within the FCC RF
exposure limits established for the radio.
WARNINGS
Your radio generates electromagnetic RF (radio frequency) energy when it is transmitting.
To ensure that you and those around you are not exposed to excessive amounts of
that energy, DO NOT touch the antenna when transmitting. KEEP the radio at least
two (2) inches (5 cm) away from yourself and others when transmitting.
DO NOT operate with more than a duty cycle of 5% transmit, 5% receive and
90% standby. The radio is transmitting when the Talk button is pressed and the
transmit information shows on the LCD screen.
ALWAYS use only Cobra authorized accessories.
DO NOT operate the radio in an explosive atmosphere, near blasting sites,
or in any area where signs are posted prohibiting radio transmissions.
NEVER place the transceiver or microphone/speaker where they might interfere
with operation of your vessel or cause injury.
DO NOT allow children or anyone unfamiliar with proper procedures to operate
the radio without supervision.
Failure to observe any of these warnings may cause you to exceed FCC RF
exposure limits or create other dangerous conditions.
Introduction
2English
Important Safety Information
Introduction
Important Safety Information •
Before installing and using your CobraMarine VHF radio, please read these
general precautions and warnings.
Warning and Notice Statements
To make the most of this radio, it must be installed and used properly.
Please read the installation and operating instructions carefully before installing
and using the radio. Special attention must be paid to the WARNING and NOTICE
statements in this manual.
WARNING
Statements identify conditions that could result in personal injury or loss of life.
NOTICE
Statements identify conditions that could cause damage to the radio
or other equipment.
Safety Training Information
This CobraMarine®radio is designed for, and classified as, “Occupational Use Only.”
The radio must only be used in the course of employment by individuals aware of
both the hazards and the ways to minimize those hazards. This radio is NOT intended
for use in an uncontrolled environment by the “General Population.”
This radio has been tested and complies with the FCC RF exposure limits for
“Occupational Use Only.” This CobraMarine VHF radio also complies with the
following guidelines and standards regarding RF energy and electromagnetic
energy levels as well as evaluation of those levels for human exposure:
■FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating Compliance with
FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields.
■American National Standards Institute (C95.1-1992), IEEE Standard for Safety
Levels with Respect to Human Exposure to Radio Frequency Electromagnetic
Fields, 3 kHz to 300 GHz.
■American National Standards Institute (C95.3-1992), IEEE Recommended
Practice for the Measurement of Potentially Hazardous Electromagnetic
Fields — RF and Microwave.
Introduction
Introduction
5
Nothing Comes Close to a Cobra®
Recommendations for
Marine Communication
Recommendations for Marine Communication •
The frequencies your radio uses are set aside to enhance safety afloat and for vessel
navigation and operational messages over a range suitable for nearshore voyages.
If the 6 watt maximum output of your radio is not sufficient for the distances you travel
from the coast, consider a higher powered handheld or installing a Cobra Marine fixed
mount radio with up to 25 watts of output power. (Visit www.cobra.com or your
local dealer for model availability.)
If traveling far offshore, you should consider adding even more powerful radio
equipment such as HF single side band or satellite radio for your vessel.
The U.S. Coast Guard does not endorse cellular telephones as substitutes for marine
radios. They generally cannot communicate with rescue vessels and, if you make
a distress call on a cellular telephone, only the party you call will be able to hear
you. Additionally, cellular telephones may have limited coverage over water and
can be hard to locate. If you do not know where you are, the Coast Guard will have
difficulty finding you if you are using a cellular telephone.
However, cellular telephones can have a place on board where cellular coverage
is available — to allow social conversations and keep the marine frequencies
uncluttered and available for their intended uses.
4English
General Precautions
Introduction
NOTICE
Your radio is waterproof only when the batteries are properly installed.
AVOID using or storing the radio at temperatures below -4˚F (-20˚C) or above
140˚F (60˚C).
KEEP your radio at least 3 ft (0,9 m) away from your vessel’s magnetic
navigation compass.
DO NOT attempt to service any internal parts yourself. Have any necessary
service performed by a qualified technician.
This radio is supplied with a lithium-ion (LiON) rechargeable battery pack.
■Use only the Cobra charger to recharge lithium-ion (LiON) batteries in the radio.
■Do not short circuit the battery pack.
■When replacing the batteries, dispose of the old batteries properly. Batteries
may explode if disposed of in a fire.
Changes or modifications to your radio MAY VOID its compliance with
FCC (Federal Communications Commission) rules and make it illegal to use.
Introduction
Introduction
7
Nothing Comes Close to a Cobra®
FCC Licensing Information
User Responsibility and Operating Locations
All users are responsible for observing domestic and foreign government regulations
and are subject to severe penalties for violations. The VHF frequencies on your radio
are reserved for marine use and require a special license to operate from land,
including when your boat is on its trailer.
NOTE
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two (2) conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that
may cause undesired operation.
FCC Warnings: Replacement or substitution of transistors, regular diodes or
other parts of a unique nature, with parts other than those recommended by
Cobra may cause a violation of the technical regulations of part 80 of the FCC
Rules, or violation of type acceptance requirements of part 2 of the rules.
6English
FCC Licensing Information
FCC Licensing Information •
CobraMarine VHF radios comply with the FCC (Federal Communications
Commission) requirements that regulate the Maritime Radio Service.
The radio operates on all currently allocated marine channels and is switchable for
use according to U.S.A., International or Canadian regulations. It features instant
access to emergency Channel 16 and calling Channel 9 as well as NOAA (National
Oceanic and Atmospheric Administration) All Hazards Radio with Alert that can be
accessed by pressing one (1) button.
Station License
An FCC ship station license is no longer required for any vessel traveling in U.S.A.
waters which uses a VHF marine radio, RADAR, or EPIRB (Emergency Position
Indicating Radio Beacon), and which is not required to carry radio equipment.
However, any vessel required to carry a marine radio on an international voyage,
carrying an HF single side band radiotelephone, or carrying a marine satellite
terminal must obtain a station license.
FCC license forms and applications for ship and land stations can be downloaded
through the Internet at www.fcc.gov. Forms can also be obtained by calling the FCC
at 888-225-5322.
International Station License
If your vessel will be entering the sovereign waters of a country other than the U.S.A.
or Canada, you should contact that country’s communications regulatory authority
for licensing information.
Radio Call Sign
Currently, the FCC does not require recreational boaters to have a license. The United
States Coast Guard recommends that the boat’s registration number and state of
registry (e.g., IL 1234 AB) be used as a call sign and be clearly visible on the vessel.
Canadian Ship Station License
You need a Radio Operator’s Certificate if your vessel is operated in Canadian waters.
Radio Operator training and certification is available from the Canadian Power
Squadron. Visit their website (http://www.cps-ecp.ca/english/newradiocard.html),
contact the nearest field office or write: Industry of Canada, Radio Regulatory Branch,
Attn: DOSP, 300 Slater Street, Ottawa, Ontario, Canada K1A 0C8.
Introduction
9
Nothing Comes Close to a Cobra®

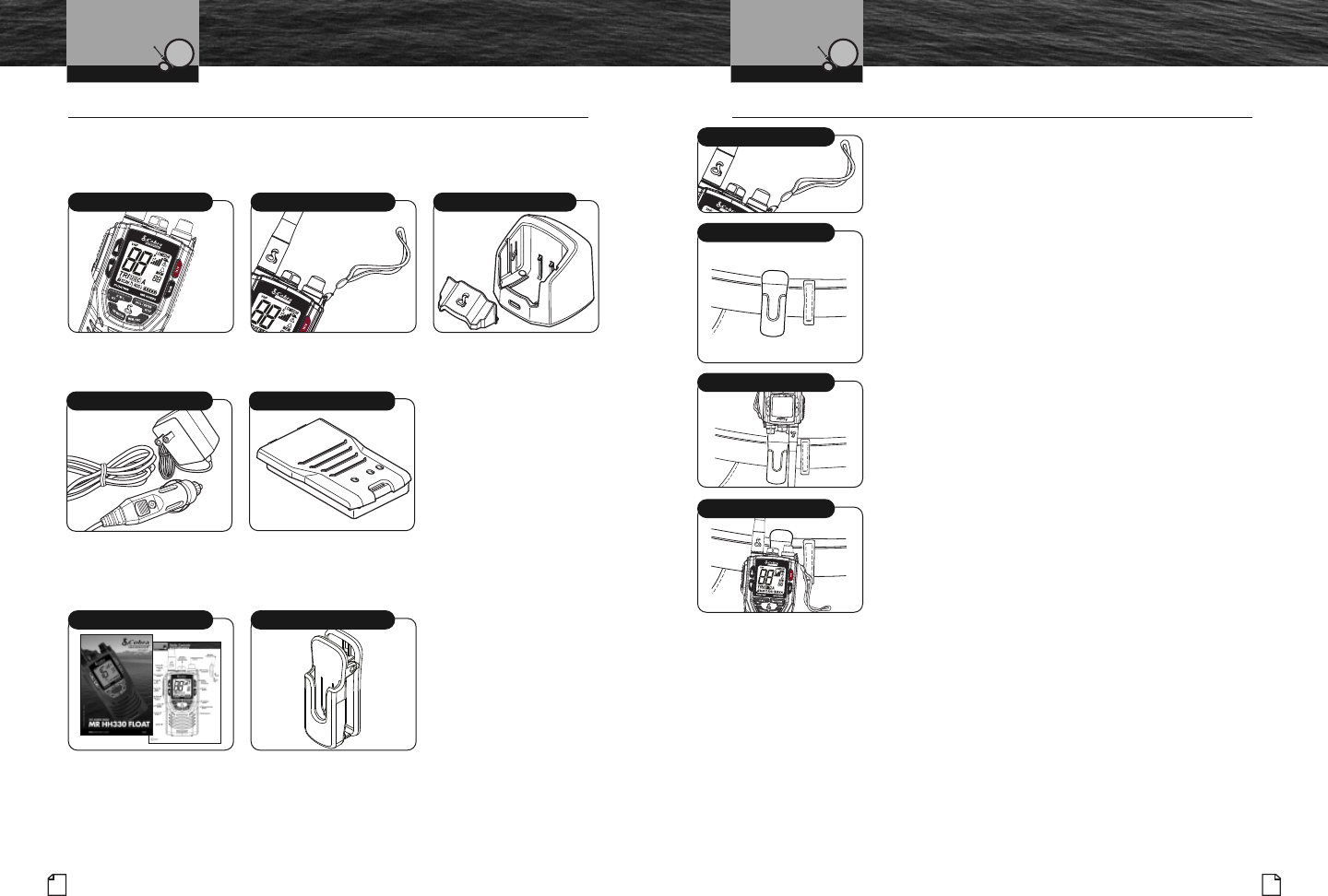

Wrist Strap and Belt Clip
Wrist Strap and Belt Clip •
Wrist Strap
The radio comes with the wrist strap already attached.
It can be easily removed if you choose not to use it.
Belt Clip
Use the spring-loaded belt clip to carry the radio on your
person.
1. Press open the belt clip, slide it over the belt and
release the clip.
2. Insert the round guide on the back of the radio into the
guide channel on the back of the belt clip. The radio must
be upside-down, as shown, to remove it from the belt clip.
3. Once the knob is inserted all the way into the belt clip
channel, the radio swings free but remains secure.
Wrist Strap
Belt Clip Secured to Belt
Insert Knob onto Belt Clip
Secure Radio
VHF Marine Radio ProtocolsInstallation
8English

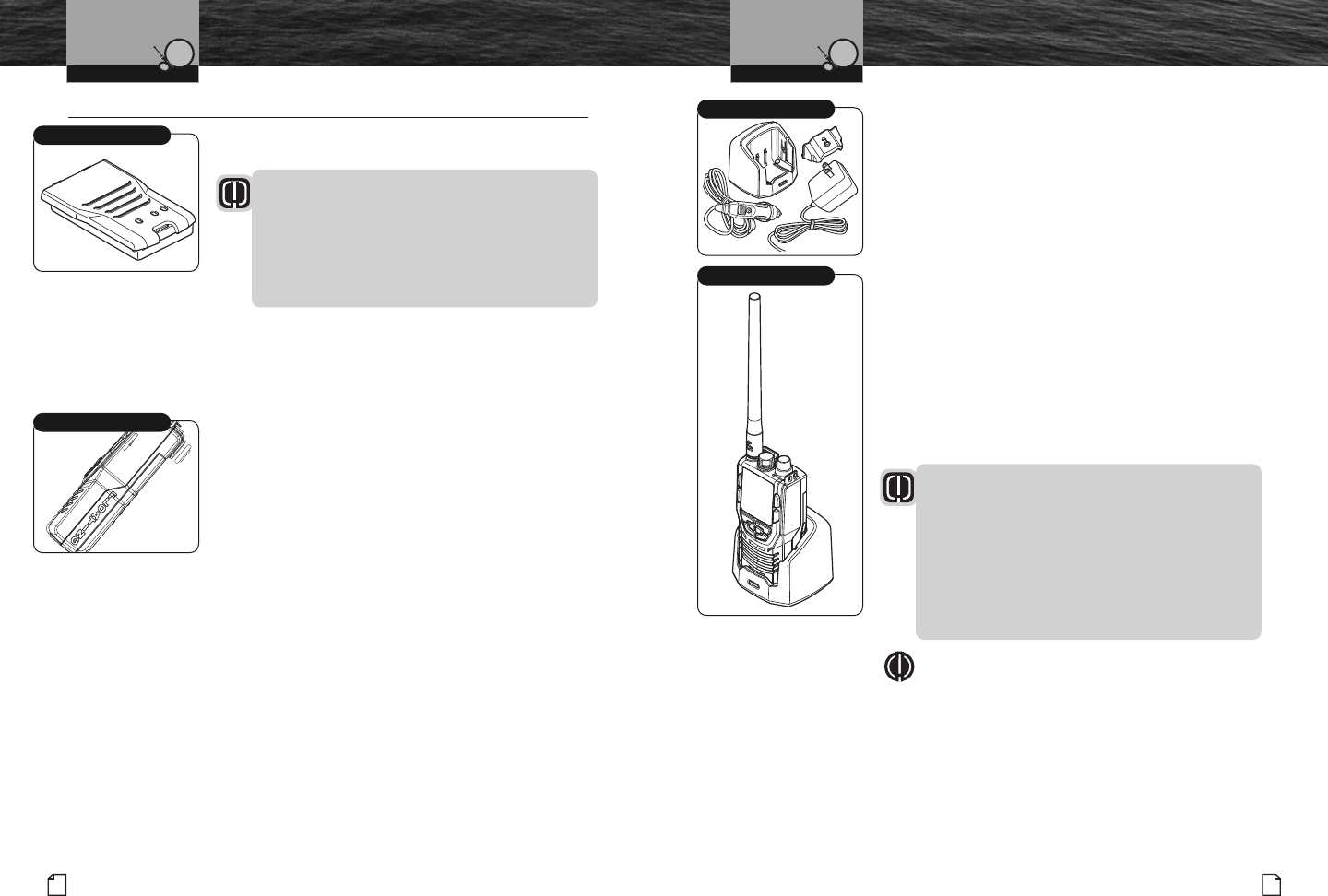

Included in this Package
Included in this Package •
You should find all of the following items in the package with
your CobraMarineVHF radio:
Radio Wrist Strap Drop-In Battery Charger
Battery Charger Power Cord
For connection to 12-volt and 120-volt
power sources.
LiON Battery Pack
Operating Instruction Manual Spring-Loaded Belt Clip
VHF Marine Radio ProtocolsInstallation
VHF Marine Radio ProtocolsInstallation
11
Nothing Comes Close to a Cobra®
Batteries and Charger
Initial Charge
The Cobra-provided LiON battery pack may be charged at
home, in a car or in a boat using the appropriate 12V or
120V power cord with the charger.
1. Insert one (1) of the power cords into the back of the
drop-in charger.
2. Insert the other end of the power cord into the appropriate
12V or 120V power source.
3. Remove the spacer from the charger and insert the entire
radio/battery into the charger. The metal charge contacts
on the battery will contact the mating prongs in the
charger to transfer the charging current.
4. Observe that the red light on the front of the charger
glows to indicate that the battery pack is properly seated
and the charger is operating.
5. Allow the batteries to charge for five (5) to six (6) hours
before use. The light will change back to green when the
battery is fully charged.
WARNING
Only the rechargeable LiON battery pack can be
recharged. You MUST use one of the charging devices
provided with this radio. Do not substitute any other
type of charging adapter or charger base for this
radio. Battery damage, fire or explosion may result.
It is equally important to prevent the lithium-ion
(LiON) battery pack from freezing to obtain best
performance from the battery pack.
NOTE
If the drop-in charger is used on a boat, Cobra
recommends you attach it to a horizontal shelf or
vertical bulkhead (using the screw holes provided)
to prevent possible damage due to the boat rolling or
pitching. The charging base has been designed to hold
the battery pack in place during rough sea conditions.
Power Sources
Initial Battery Charge
VHF Marine Radio ProtocolsInstallation
10 English
Batteries and Charger
Batteries and Charger •
The radio is shipped with a sealed lithium-ion (LiON) battery
pack (P/N CM 110-021) that is rechargeable.
WARNING
The charger provided for this radio is only to be used
to charge the battery pack provided. Do not charge
any other type of batteries in the charger as fire,
explosion or battery damage will occur. Avoiding
extreme room temperatures will also help prolong
the life of the battery pack for the radio.
When your rechargeable batteries begin to discharge too
quickly, it is time to install a new battery pack. Your radio
will also operate with six (6) high-quality AA alkaline
batteries, using the optional alkaline battery tray.

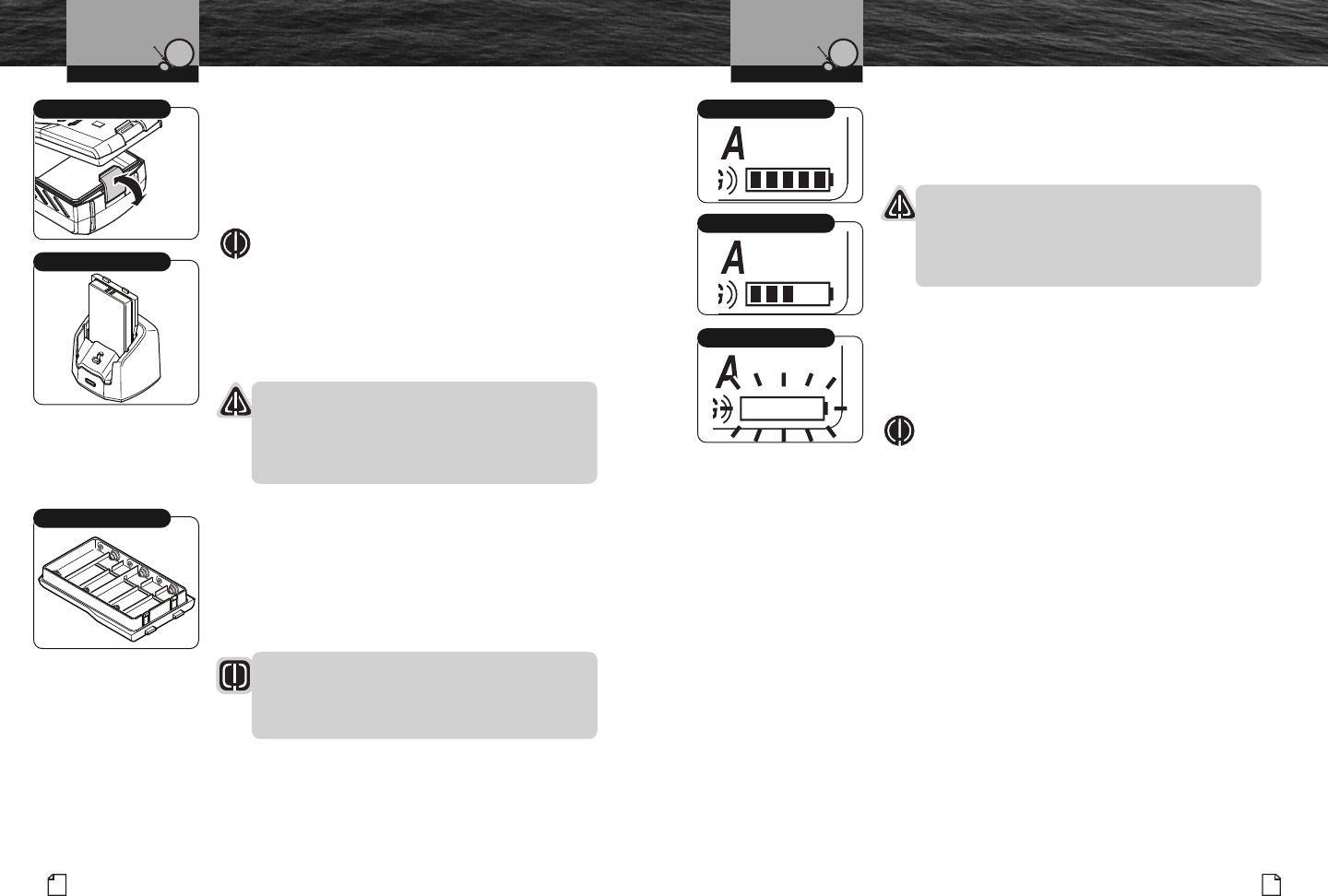

Installing the Battery Pack
1. Position the battery pack to line up the two (2) external
alignment tabs to the alignment slots in the radio.
2. Engage the battery pack into the radio until battery pack
is fully seated against the radio housing.
3. Pivot the locking tab up until it snaps into place on the
back of the battery pack.
Install Battery Pack
LiON Battery Pack
VHF Marine Radio ProtocolsInstallation
13
Nothing Comes Close to a Cobra®
Maintaining the Battery Charge
As you use your radio, the battery power icon will show the
battery power remaining. When the icon begins to flash, it is
time to recharge or change the batteries.
NOTICE
Use only the drop-in charger provided by Cobra. Do
not use the charger with alkaline batteries; only the
LiON battery pack is rechargeable. Spent alkaline
batteries must be discarded and replaced.
It is a good idea to keep a set of fresh, high-quality AA
alkaline batteries with your radio. Should the rechargeable
battery pack become discharged and no electrical power
source is available, you can insert the optional alkaline
battery tray with fresh alkaline batteries and continue to
use your radio.
NOTE
Some radios with LiON batteries have AA or AAA
battery packs which only allow low-power transmit.
The optional AA battery tray for the MR HH330 and a
fresh set of alkaline batteries will allow for full-power
emergency transmissions.
Batteries and Charger
Fully Charged
Partially Charged
Fully Discharged
VHF Marine Radio ProtocolsInstallation
12 English
Batteries and Charger
To Remove Battery Pack from Radio
1. Pivot the locking tab off of the back of the battery pack
to unlock.
2. Lift the bottom of the battery pack slightly to remove
it from the radio housing.
3. Pull battery pack out of the radio housing.
NOTE
The LiON battery pack can also be charged in the
battery charger without being installed in the radio.
Insert the spacer into the battery charger to support
the battery pack during this charging process. Follow
the same procedures in “Initial Charge” to charge the
battery pack.
NOTICE
Lithium-ion (LiON) batteries are toxic. Please dispose
of properly. Some marine suppliers accept old battery
packs for recycling and some municipal waste disposal
agencies have special provisions for battery disposal.
Alkaline Batteries
An optional alkaline battery tray (P/N CM 110-011) can be
purchased for this radio. The alkaline battery tray acts as
a backup or “Emergency” power source should the battery
pack run low on power and needs to be recharged. The
radio will transmit at full power when using six (6) new
AA alkaline batteries.
WARNING
Never attempt to recharge alkaline batteries. They are
not made to be recharged, and should be disposed of
in a proper manner.
Locking Tab
Alkaline Battery Tray
Battery Pack Charging Only
VHF Marine Radio ProtocolsOperating Your Radio
15
Nothing Comes Close to a Cobra®
Getting Started
Radio Speaker and Microphone
The internal Radio Speaker and Microphone are located on the
bottom front face of the radio below the lower control buttons.
An optional Speaker/Microphone port is located at the top
of the radio between the antenna and the Power/Volume
control. Unthread the Speaker/Microphone port cover to access
and install an optional speaker or microphone into this port.
Talk Button
Press and hold the Talk button to transmit messages.
Release the Talk button to stop transmitting.
Speaker/Mic Port
Talk Button
VHF Marine Radio ProtocolsOperating Your Radio
14 English
Getting Started
Getting Started •
Refer to the foldout at the front of this manual to identify the
various controls and indicators on your radio. Throughout
this manual you will be instructed to “Press” or to “Press
and Hold” various buttons (except “Push to Talk”) on the
radio. “Press” means a momentary press of approximately
one (1) second. “Press and Hold” means to hold the button
down for approximately two (2) seconds.
Whenever you press any button except the Talk button on
your radio, a brief tone (beep) will sound to confirm the
button press. With all button presses, the appropriate icon
will appear on the LCD and the backlight will turn On. The
backlight will stay On for 10 seconds after the button is
released.
At times, you will hear two (2) other sounds. Two (2) beeps
will sound to confirm your setting changes and three (3)
beeps will sound to notify you of an error.
Common Radio Functions
The following procedures define common operating functions of the radio when in
either Marine Standby or Weather (WX) Standby modes.

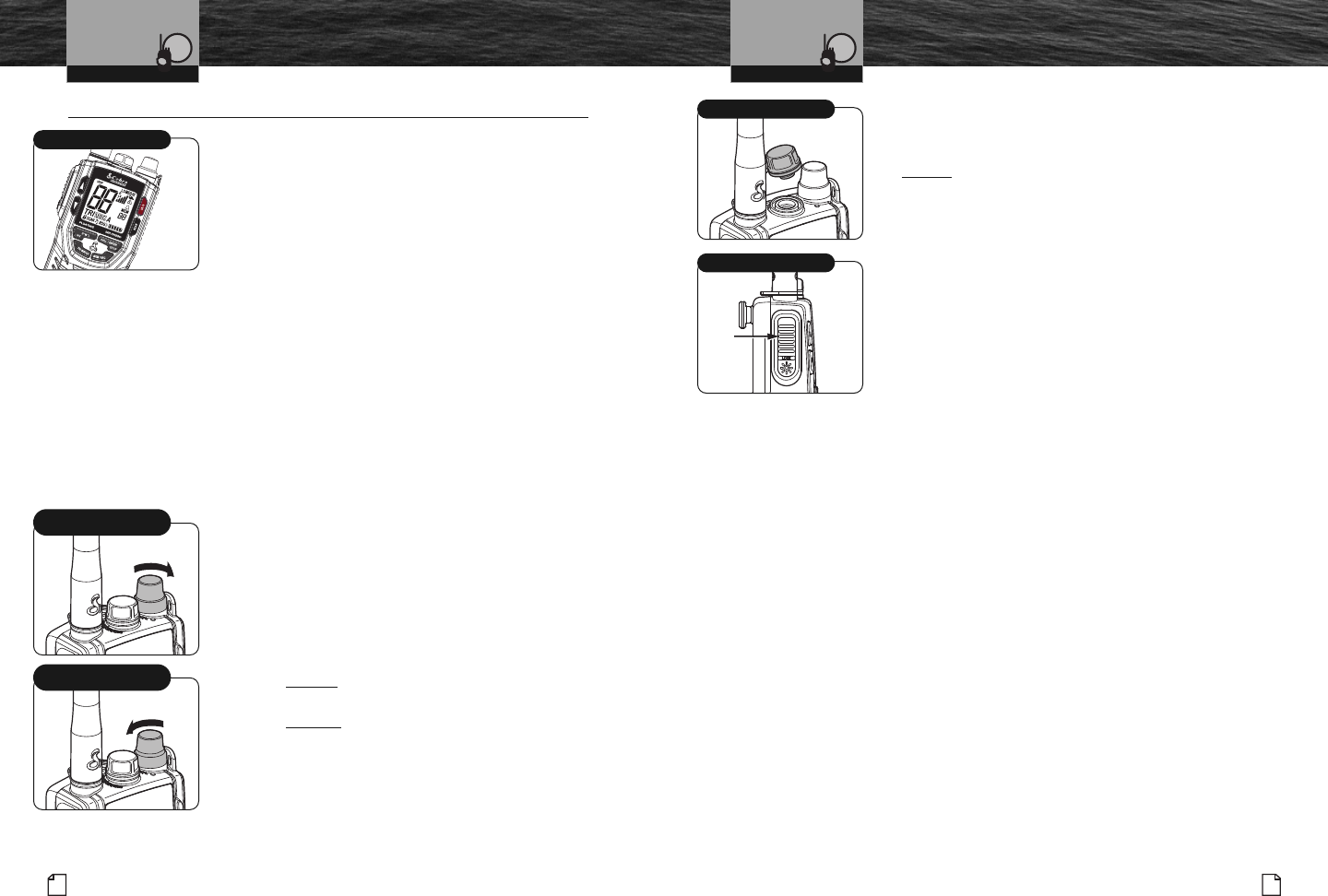

Power/Volume Control
Power On/Off Control
The On/Off/Volume control is located at the upper right
side of the radio. Turning the On/Off/Volume control
past the detent position will turn the radio On or Off.
Volume Control
Volume is controlled by turning the On/Off/Volume
control.
■To increase the volume, turn the On/Off/Volume
control clockwise.
■To decrease the volume, turn the On/Off/Volume
control counterclockwise.
On/Off/Volume Control
(Counterclockwise)
On/Off/Volume Control
(Clockwise)
HH330 Radio
VHF Marine Radio ProtocolsOperating Your Radio
17
Nothing Comes Close to a Cobra®
Getting Started

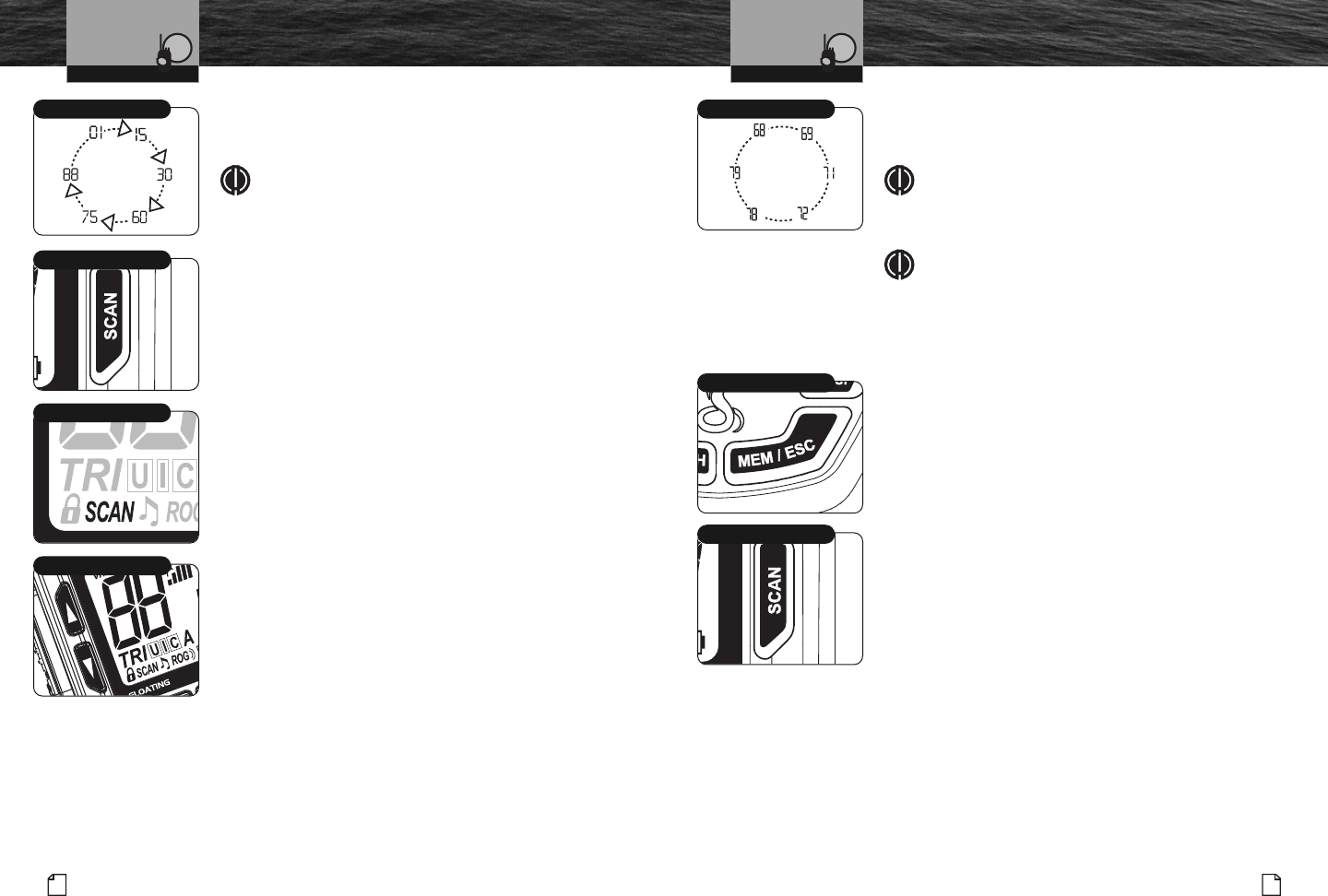

Channel Up/Down Buttons
Your radio will Receive (Rx) and Transmit (Tx) VHF signals
on the channel indicated on the LCD display. You can change
the channel at any time using the Channel Up/Down buttons.
To Change Channels:
Press the Channel Up/Down button.
If you are on Channel 88, pressing the Channel Up
button will advance to Channel 01. If you are on
Channel 01, pressing the Channel Down button will
advance to Channel 88.
You can press and hold the Channel Up/Down button
for fast advance. The beep sound will occur only at the
first press of the button and not during fast advance.
If the new channel selected is restricted to low power,
the radio will automatically switch to Low Power mode
and the Low Power icon will appear on the LCD.
If the radio is in the Key Lock mode, the channel will
not change and the three (3) beep error signal will sound.
SCAN Button
Press and release the SCAN button to scan all channels. The
SCAN icon will display on the LCD display. Scanning begins
at lower channels, and scans to higher channels. Press the
Channel Up/Down button to change the scan direction.
When a signal is received in SCAN mode, the radio will pause
10 seconds before resuming SCAN operation. The scan will
stop when the Talk button is pressed.
In Memory mode, press and release the SCAN button to
scan all memory channels. Because the unit is already in the
Memory Channel mode, only the channels in the memory
bank will be displayed.
NOTE
Memory channels need to be saved to effectively
enter the Memory Channel mode and scan all
memory channels.
SCAN Button
Channel Up/Down Buttons
Currently On Channel 88
VHF Marine Radio ProtocolsOperating Your Radio
16 English
Getting Started

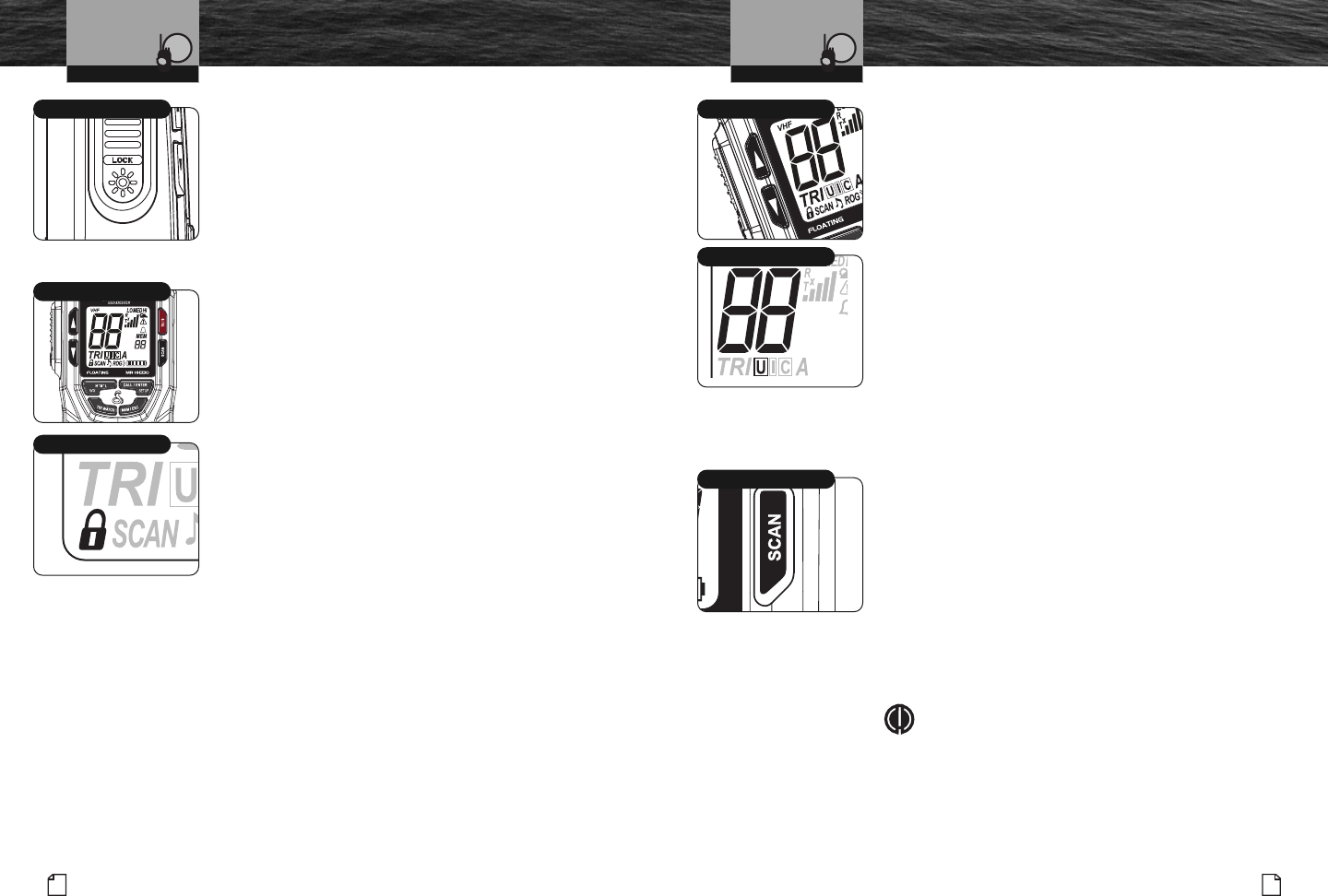

Backlight/Key Lock Button
The LCD will be illuminated by the backlight as long as any
button is pressed and will remain On for 10 seconds after the
button is released.
To Display the Backlight Momentarily:
Press the Backlight/Key Lock button. The backlight will
remain On for 10 seconds. If the backlight is already
On, another press of the Backlight/Key Lock button
will turn it Off.
Key Lock
To prevent accidental changes to your settings, you can
lock all of the following buttons:
■Channel Up Button
■Channel Down Button
■SCAN Button
■MEM/ESC Button
■WX/H-M-L Button
■16/9 Button
■TRI-WATCH Button
■Call/Enter/Setup Button
To Lock or Unlock the Buttons:
Press and hold the Backlight/Key Lock button for two
(2) seconds. The Key Lock icon will appear or disappear
in the LCD. When Key Lock is On, pressing any of the
listed buttons on the front of the radio will result in a
three (3) beep error message.
Both the Backlight/Key Lock button and the Talk button
are active — you can Receive (Rx) or Transmit (Tx)
a message with Key Lock On, but you cannot change
the channel.
Backlight/Key Lock Button
Key Locked Buttons
Key Lock Icon
VHF Marine Radio Protocols
19
Nothing Comes Close to a Cobra®
Setup Mode Programming
Setup Mode Programming •
The following series of procedures is designed to allow you to set the programmable
features of your radio. Correctly following these steps results in a minimal amount of
radio setup programming time.
NOTE
When in the Setup mode, if you stop programming for longer than 15 seconds,
your entry will be saved and the radio will go back to the Marine Standby
mode. When you return to Setup mode and continue programming you will
see the last “value” displayed. While in the Setup mode, you will not receive
any signal reception.
Programming these features will allow you to customize certain features of this radio
to enhance your “On-Water” audio needs.
Start from Marine Standby mode to begin Marine (VHF) Setup programming.
Press and hold the Call/Enter/Setup button for two (2) seconds to enter the
programming mode.
The mode programming follows this sequence:
■Squelch Level Set
■UIC Channel Map
■Tone Alert On/Off
■Call Tone Select
■Roger Beep On/Off
■Key Tone On/Off
Marine (VHF) Mode Programming
VHF Marine Radio Protocols
18 English
Getting Started

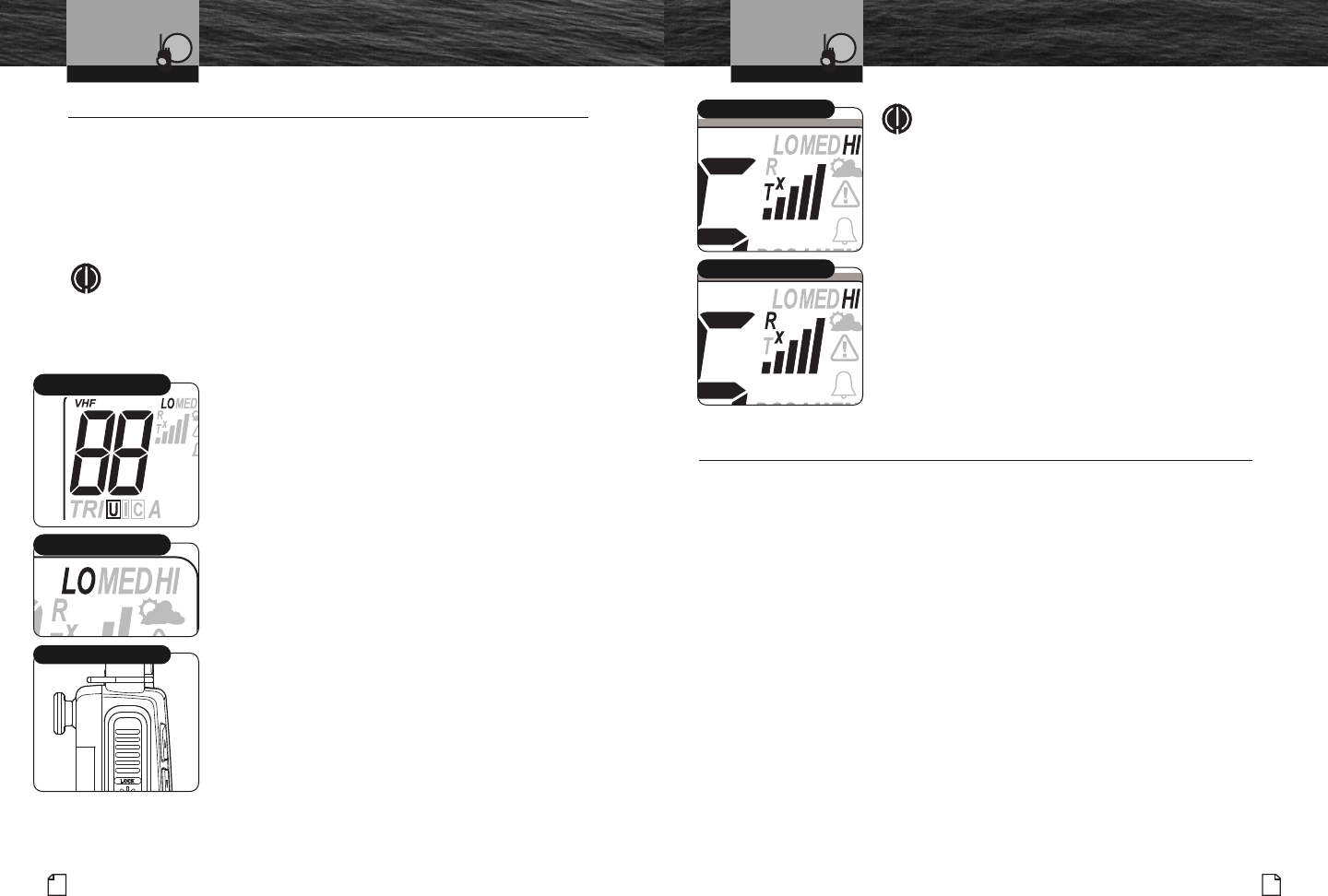

High/Medium/Low (H-M-L) Power Button
Your radio can transmit selectively at 1, 3 or 6 watts of
power. Cobra suggests you maintain the low power setting
for short-range communications. You will conserve battery
life and avoid overpowering nearby stations with a low power
setting signal. Use the high power setting for long-range
communications or when you do not receive a response to
a signal sent at 1 watt.
To Toggle Between H-M-L Power Modes:
Press the H-M-L Power button. The LCD will show
which mode is in effect. Some channels are restricted
for a maximum use of 1 watt. Your radio will
automatically set the power to Low Power mode
when you select those channels.
NOTE
Some channels, frequency bands and countries of use
might not be able to operate in High Power mode.
Call /Enter/Setup Button
The Call/Enter/Setup button has multiple functions. It is
generally used in the following ways:
■Press and release to transmit your unique Call Tone signal
to another radio.
■Press and hold to enter any Setup menu.
■Functions as an Enter button when making a selection
in any Setup menu.
H-M-L Power Button
Call/Enter/Setup Button
Operating Your RadioOperating Your Radio
VHF Marine Radio ProtocolsOperating Your Radio

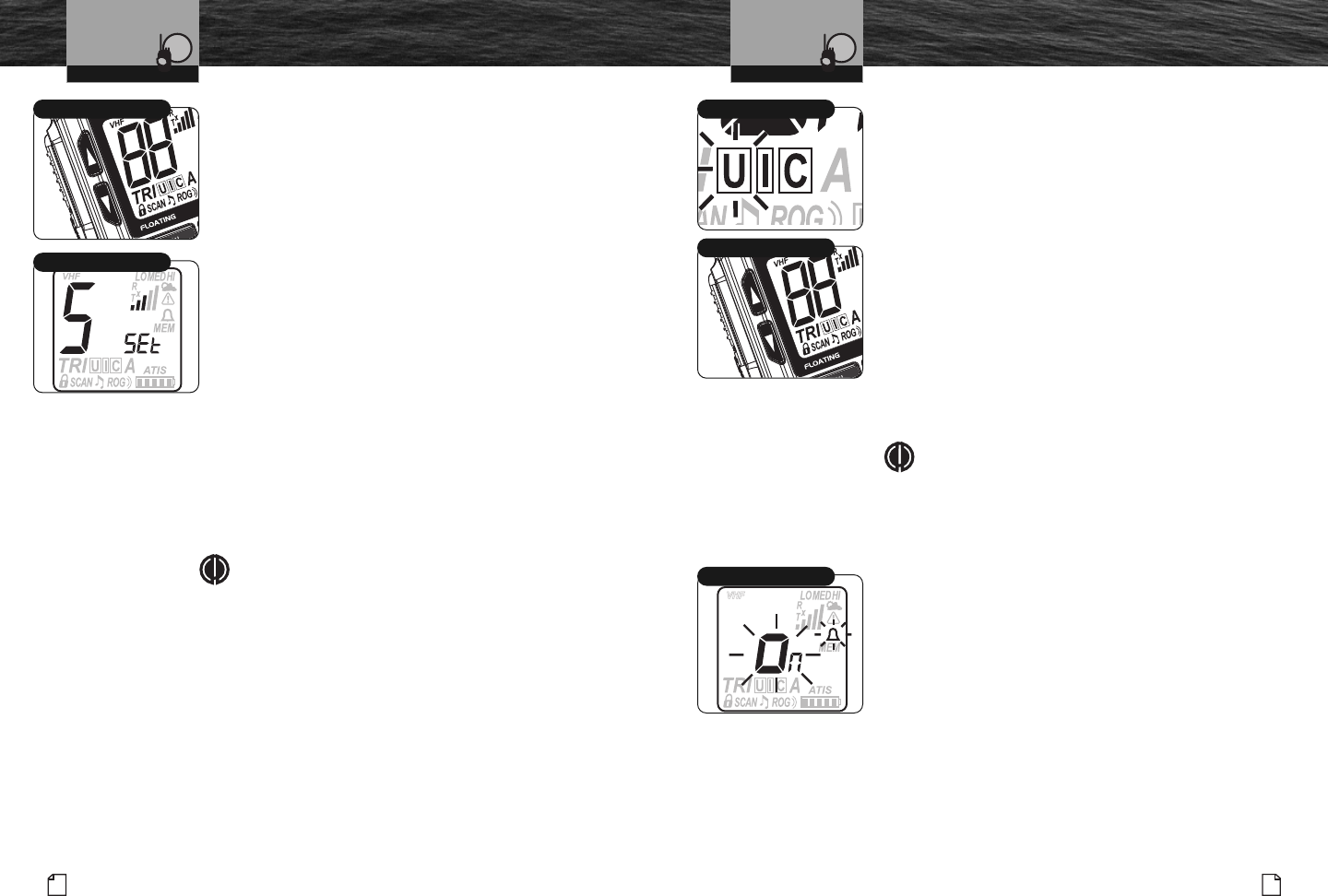

21
Nothing Comes Close to a Cobra®
Setup Mode Programming
USA/International/Canada Channel Maps
Three (3) sets of VHF Channel Maps have been established
for marine use in the USA, Canada, and the rest of the world
(International). Most of the channels are the same for all
three (3) maps, but there are definite differences (see table in
the Apendix on page 52). Your radio has all three (3) maps
built into it and will operate correctly in whichever area
you choose.
To Set Channel Map Operating Area:
1. The Channel Map mode is the second mode on
the Marine (VHF) Setup programming.
2. U, I and Cwill display, with the current setting
(the Uicon is the default) flashing.
3. Press Channel Up/Down button to select the
U, I or Cicon.
4. Press Call/Enter/Setup button to save this entry
and move to the next Setup mode programming.
NOTE
One or two of the channel maps might have been
disabled for sales of this radio in some countries.
Call Tone Alert
If Call Tone Alert is set to On, the radio will alert you to a call
from a compatible Cobra radio with a Call Alert.
To Set Call Tone On or Off:
1. Display will show Call Tone icon and ON or OFF
flashing.
2. Press Channel UP/Down button to select ON or OFF.
3. Press the Call/Enter/Setup button to save this entry
and move to the next Setup mode programming. The
Call Tone icon will show in the Standby mode when
set to ON.
Call Tone Alert
VHF Marine Radio ProtocolsOperating Your Radio
20 English
Setup Mode Programming
Active Channel Map Icon
Channel Up/Down Buttons
Squelch Control
Squelch Control filters weak signals and radio frequency (RF)
noise so that you will clearly hear the signals you want.
The Squelch Control on this radio is set through the following
keypad operation.
To Set Squelch Control:
1. With the power On, push and hold Call/Enter/Setup
button to access the Setup menu.
2. Squelch control will be the first menu item to appear.
Press the Channel Up and Channel Down buttons to
set level. The signal level bar graph shows squelch
level while you are in Setup mode on the squelch
adjust function.
3. To tune your squelch, press the Channel Down
button until you hear a hissing sound, then press
and release the Channel Up button until the hissing
stops. This will establish a “Baseline” squelch.
4. By pressing the Channel Up button further, you will
filter weak and medium strength signals. By pressing
Channel Down button, you will receive weaker signals.
5. Press the Call/Enter/Setup button to save this entry
and move to the next Setup mode programming.
NOTE
If the Squelch is set so that you can hear a continuous
hissing sound, the Memory Scan and Tri-Watch
functions will be blocked.
Squelch Control
Channel Up/Down Buttons
23
Nothing Comes Close to a Cobra®
Roger Beep Mode
Call Tone Select
VHF Marine Radio ProtocolsOperating Your Radio
22 English
Setup Mode Programming
Call Tone Select
This setting will also allow you to transmit a unique
Call Tone alert to identify your radio when you transmit
messages. You can select from one of 10 different
Call Tone signals.
To Set Call Tone:
1. From the previous press of the Call/Enter/Setup
button, the LCD will display the letter “C” and the
current Call Tone number (01 through 10).
2. Press the Channel Up/Down button to select a
different Call Tone. An example of each call tone will
sound for 1.5 seconds.
3. Press Call/Enter/Setup button to save this entry and
move to the next Setup mode programming.
NOTE
Call Tones are not usually used for Marine VHF
communications. We allow you to turn it On for your
unique communication needs.
Roger Beep Mode
In Roger Beep mode, your listener will hear an audible tone
when you release the Talk button. This alerts your listener
that you are finished talking and it is OK for them to speak.
To Set Roger Beep On or Off:

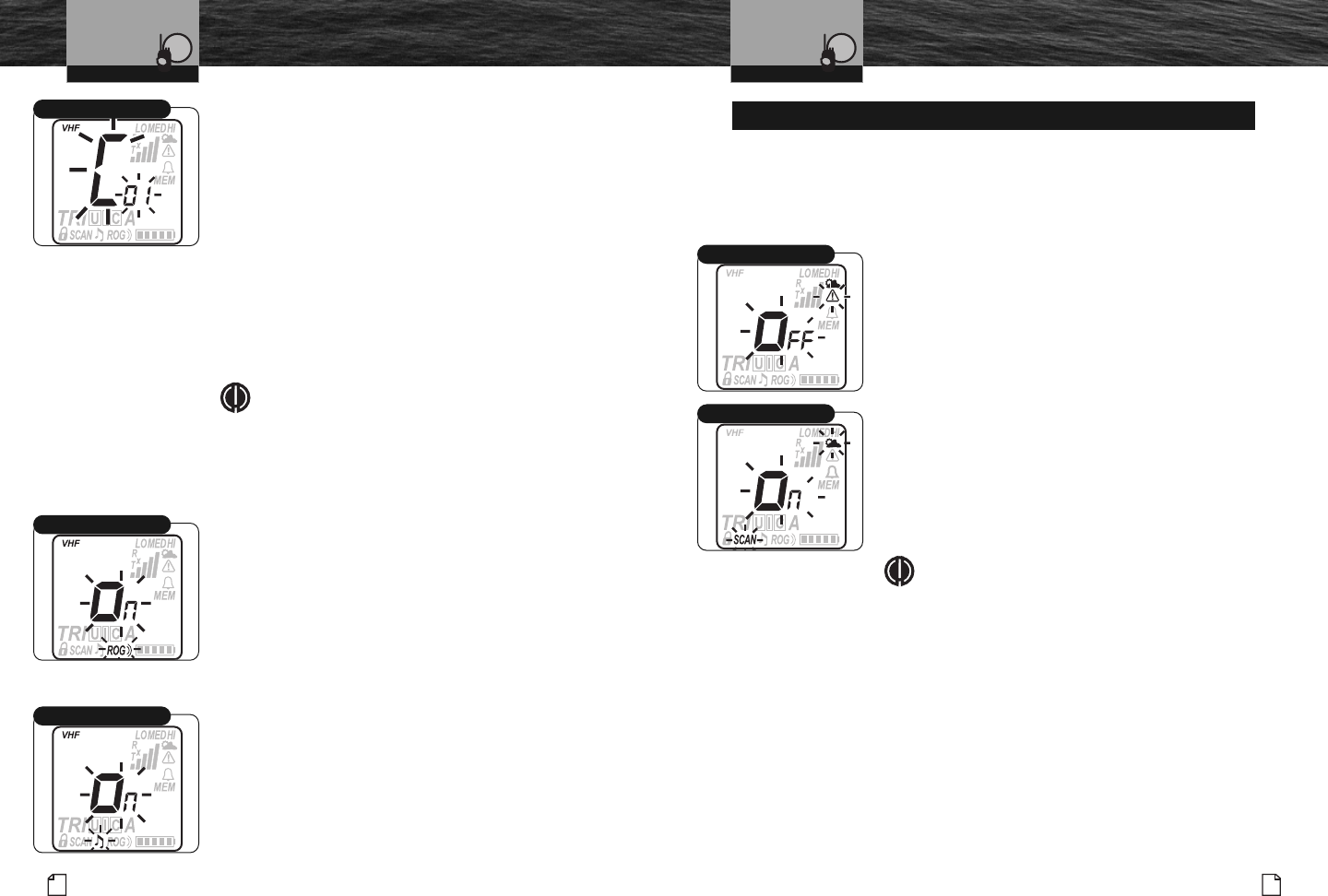

1. Display will show ROG icon and ON or OFF flashing.
2. Press Channel Up/Down button to select ON or OFF.
ROG will be displayed when On.
3. Press Call/Enter/Setup button to save this entry and
move to the next Setup mode programming.
Key Tone Mode
In Key Tone mode, an audible tone will sound each time a
button is pressed or you change a setting.
To Set Key Tone On or Off:
1.
Display will show Key Tone icon and ON or OFF flashing.
2. Press Channel Up/Down button to select ON or OFF.
3. Press Call/Enter/Setup button to save entry.
You have now ended Marine (VHF) Setup mode
programming and will enter Marine Standby mode.
VHF Marine Radio ProtocolsOperating Your Radio
Standby/Receive
and Transmit
Programming these features will allow your radio to listen to all NOAA Hazard Alert
radio channels.
Start from WX Alert Standby mode to begin WX Alert Setup programming. Press and
hold the Call/Enter/Setup button for two (2) seconds to enter the programming mode.
To Set WX Alert On or Off:
1. WX Alert mode is the first mode that begins
WX Alert Setup programming.
2. Display will show WX Alert icon and ON or OFF flashing.
3. Press Channel Up/Down button to select ON or OFF.
4. Press Call/Enter/Setup button to save this entry and
move to the next setup programming mode.
To Set WX Auto Search (SCAN) On or Off:
1. Display will show Weather icon and SCAN icons,
ON or OFF is flashing.
2. Press Channel Up/Down button to select ON or OFF.
3. Press the Call/Enter/Setup button to save entry.
You have now ended the WX Setup programming mode and
will enter the WX Alert Standby mode.
NOTE
When WX Auto Search (SCAN) is set to On, weather
channel scanning will start automatically and scan all
available weather channels until the strongest channe
l
is found. This will happen under the following
conditions:
■WX Alert is engaged.
■Radio is in VHF Standby.
■WX received signal level falls below
a preset level.
Weather (WX) Mode Programming
WX Alert On/Off
WX Auto Search (SCAN)
Key Tone Mode
VHF Marine Radio ProtocolsOperating Your Radio
25
Nothing Comes Close to a Cobra®
Standby/Receive
and Transmit
Standby/Receive and Transmit •
Marine Standby and Receive (Rx) Mode
Marine Standby mode is the default mode for the radio whenever it is turned on.
From this mode, you can change current settings by becoming familiar with the
different key functions in Marine Standby mode. While in Marine Standby mode, the
user will be able to transmit by pressing the Push to Talk (Talk) button. Signals in
Receive (Rx) mode will be received on the selected channel(s), and alerts broadcast
by NOAA will activate the corresponding NOAA weather alert channels in your radio.
NOTE
Coast Guard alerts are broadcast on Channel 16. You must have the WX Alert
turned On to receive NOAA weather alerts. While in Marine Standby mode, you
will receive any messages sent on the channel to which you are tuned.
Transmit (Tx) Mode
Transmit (Tx) mode gives you the ability to interact with
safety services, other vessels and shore stations. When you
use this capability, be sure to follow the procedures and to
observe the courtesies that govern its use so everyone
benefits. See Appendix to help you select the proper
channels.
To Transmit a Message:
1. Check to see that your radio is set to a proper channel for
the type of message you plan to send.
2. Toggle to the Low Power setting.
3. With the microphone about 2 in. [51 mm] from your
mouth, press and hold the Talk button and speak into the
microphone. The Transmit icon will appear on the LCD.
4. Release the Talk button when you are finished speaking.
Your radio can only operate in either Transmit (Tx) or
Receive (Rx) mode at any given time. You will not hear
the response to your message unless the Talk button is
released. If the Battery Power icon begins blinking on the
LCD when the Talk button is pressed, the radio will NOT
transmit.
24 English
VHF Marine Radio ProtocolsOperating Your Radio
Standby/Receive
and Transmit
NOTE
If the Talk button is held down for five (5) minutes,
the radio will automatically sound a series of beeps
and cease transmitting to prevent unwanted signal
generation and battery drain. As soon as the Talk
button is released, it can be pressed again to
resume transmission.
NOAA Weather Channels and Alert •
Monitoring the weather will probably be a frequent use of your radio. NOAA provides
continuous, around-the-clock broadcasts of the latest weather information. Taped weather
messages run every four (4) to six (6) minutes and are revised every two (2) or three (3)
hours, or as needed. The Coast Guard also announces weather and other safety warnings
on Channel 16. Smart boaters keep an eye on safety and an ear to the radio — and never
let the weather catch them unaware.
NOAA Emergency Weather Alert
In the event of a major storm or other weather condition requiring vessels at sea or on
other bodies of water to be notified, NOAA broadcasts a 1050 Hz tone that receivers such
as your CobraMarine VHF radio can detect and warn you of a weather alert condition.
When the Weather Alert mode on your radio is On, this signal will produce a loud tone
from the speaker in the radio and will automatically
switch to the alerting weather channel
so the alert broadcast
can be heard.
NOAA Test Alert System
To test this system, NOAA broadcasts the 1050 Hz signal every Wednesday sometime between
11 a.m. and 1 p.m. in each local
time zone. Any receiver that can detect the weather alert tone may
use this service to verify that this system is functioning properly.
Low Power Mode
Check Channel Number
Talk Button
Transmit (Tx) Icon
Receive (Rx) Icon
VHF Marine Radio ProtocolsOperating Your Radio
27
Nothing Comes Close to a Cobra®
Standby/Receive
and Transmit
Weather (WX) Standby Mode

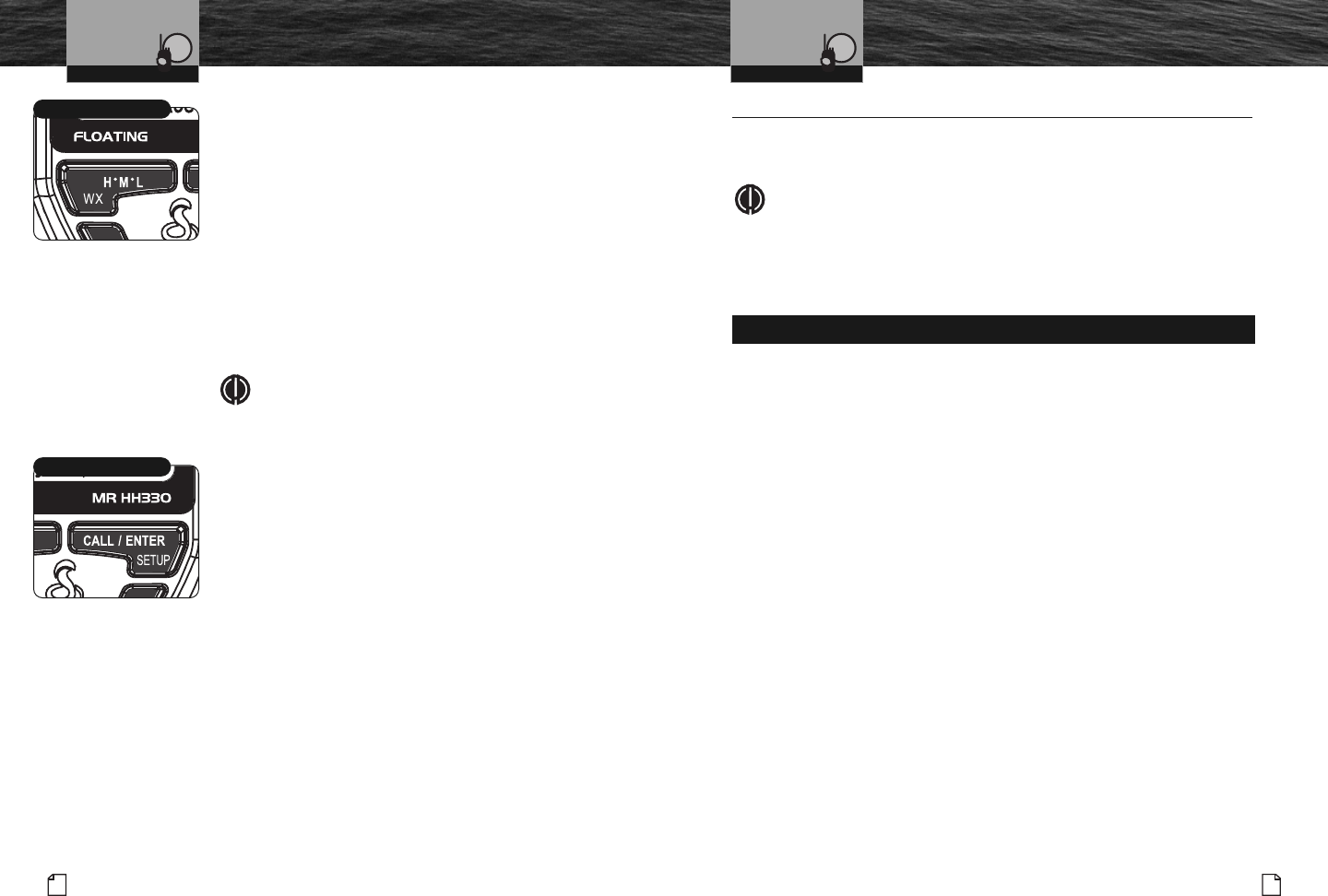

To enter the WX Standby mode, press and hold the
WX/H-M-L button.
Receiving a Weather Alert
NOAA broadcasts weather information as described in the
NOAA weather channels section on page 63 of this manual.
When NOAA broadcasts a weather alert signal and your radio
is in WX Alert Standby mode, the following items will be
displayed on the LCD display:
■The WX icon (cloud/sun) icon will be displayed.
■The last used weather channel will be displayed.
■
The bar graph will display received signal strength level.
■The WX Alert icon (safety triangle) will be displayed.
NOTE
Only one (1) or two (2) of the weather channels will
be operating in any given location [only in Receive
(Rx) mode]. You will need to select the channel with
the strongest signal in your location.
NOTE
When in the WX Alert mode, and NOAA sends the
1050 Hz alert tone, the radio will sound a series of
loud beeps regardless of the volume control setting.
WX/H-M-L Button
26 English
VHF Marine Radio ProtocolsOperating Your Radio Advanced Operation
Advanced Operation •

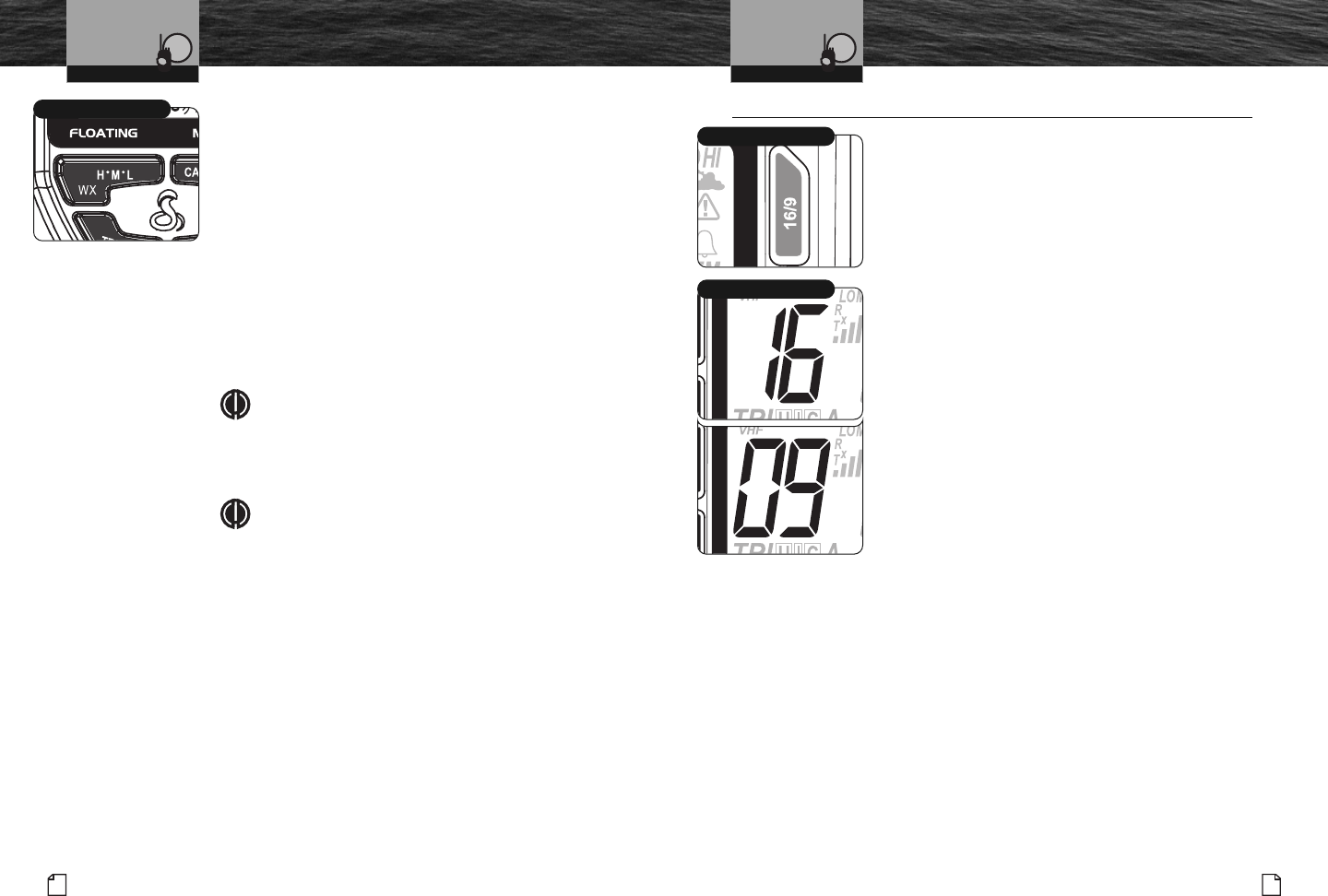

Channel 16/9 Mode
Channel 16/9 mode gives you quick access to calling on
Channel 16 and Channel 9 from any operational mode.
To Switch to Channel 16 or Channel 9:
1. Press the Channel 16/9 button to change to
Channel 16.
2. Press the Channel 16/9 button again to change
to Channel 9.
3. Press the Channel 16/9 button a third time and
return to the last used Standby channel.
Channel 16/9 Button
Channel 16 or Channel 9
VHF Marine Radio ProtocolsOperating Your Radio
29
Nothing Comes Close to a Cobra®
Advanced Operation
Using Tri-Watch

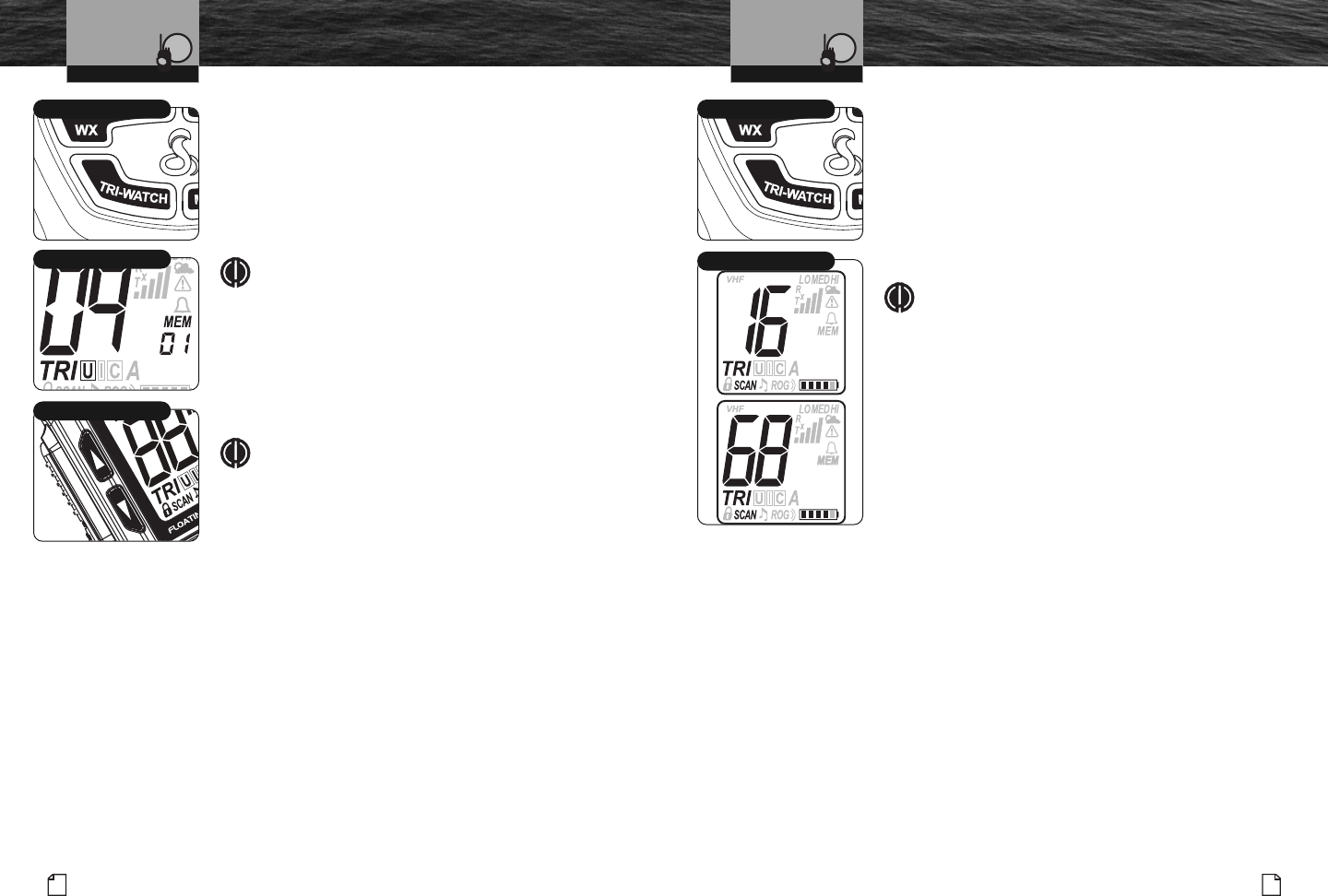

Tri-Watch Scan Mode:
1. From Marine Standby mode, press the TRI-WATCH
button. The TRI icon will appear on the LCD display
and the radio will scan through the three (3) Tri-Watch
memory channels.
2. A signal on any one (1) of the three (3) channels will
stop the scan for 10 seconds to allow you to listen to
the traffic on that location.
NOTE
After the Tri-Watch scan stops to monitor a channel,
as long as you do not press any buttons within 10
seconds, your radio will automatically resume
scanning the Tri-Watch channels.
3. Press the Channel Up/Down button to resume
scanning the Tri-Watch channels or to change the
scan direction.
4. To EXIT the Tri-Watch scan, press the TRI-WATCH
button again. The TRI icon will disappear from the
LCD and the radio will return to Marine Standby
mode.
TRI-WATCH Button
Tri-Watch Scan Mode
VHF Marine Radio ProtocolsOperating Your Radio
28 English
Advanced Operation
Tri-Watch Mode
Tri-Watch mode gives you one (1) button access to scan
a total of three (3) channels of most importance to you.
Channel 16 is preprogrammed and will always be one (1)
of the scanned locations. Two (2) other channels of your
choice can be stored in the radio. These channels can be
edited and/or recalled during future engagements of
Tri-Watch mode.
NOTE
The radio must be squelched for Tri-Watch mode to
function. See page 20 for Squelch procedure.
Tri-Watch Setup
To Program or Edit the Tri-Watch Channels:
1. Press and hold the TRI-WATCH button for two (2)
seconds to activate Tri-Watch Setup mode. The
TRI and MEM icons on the display will turn On.
NOTE
The main channel number will flash to indicate channel
position. If there is no input activity for 15 seconds, the
radio will sound two (2) beeps and return to Marine
Standby mode.
2. Press Channel Up/Down button to select the desired
Tri-Watch channel.
3. Press and release TRI-WATCH button or
Call/Enter/Setup button to confirm entry.
4. Repeat steps 2 and 3 to program the remaining
additional Tri-Watch memory channel.
5. After programming both Tri-Watch memory
channels the radio will immediately engage
Tri-Watch mode.
TRI-WATCH Button
TRI and MEM Icons
Channel Up/Down Button
VHF Marine Radio ProtocolsOperating Your Radio
31
Nothing Comes Close to a Cobra®
Advanced Operation

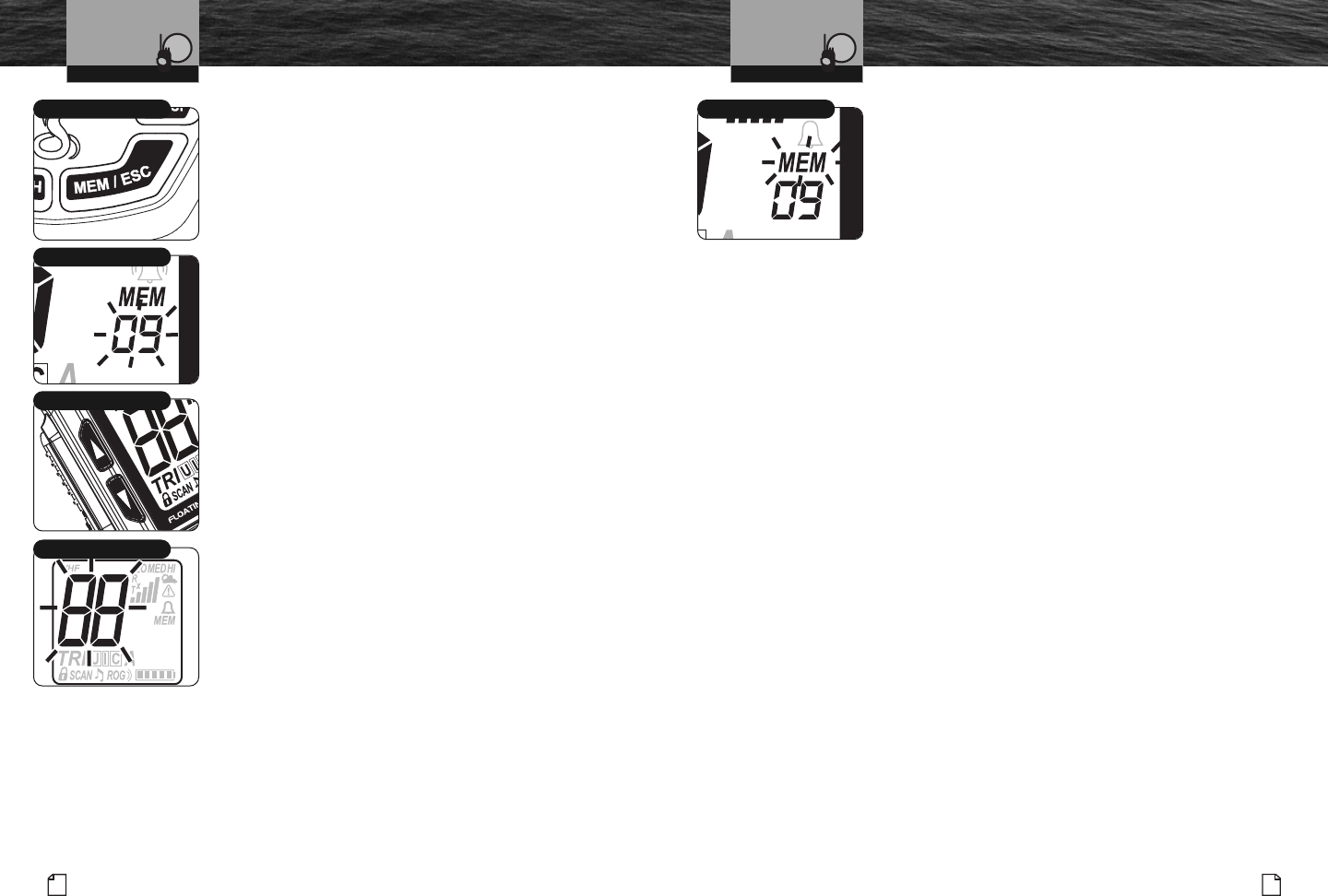

To Recall a Stored Memory Location:
1. Press the MEM/ESC button. The MEM icon will be
turned On.
2. Press the Channel Up/Down button to select the
memory location. If a memory location has been
programmed, its associated channel will display on
the LCD. Your radio is now in Marine Standby mode
on the selected memory location.
To Exit Memory Location Mode:
Press the MEM/ESC button to return the radio to
Marine Standby mode. The last channel used in
Marine Standby mode will now be displayed on the
LCD and the MEM icon will disappear.
To Erase Stored Memory Locations:
1. Press and hold the MEM/ESC button for two (2)
seconds. The memory location number will start
flashing and the MEM icon will be turned On.
2. Use the Channel Up/Down button to advance to the
memory location you want to erase.
3. Press the MEM/ESC button to select the memory
location. The memory channel number will stop
flashing and the channel number will start flashing.
4. Use the Channel Up/Down button to change to the
channel to read “00” at the selected memory
location.
5. Press the MEM/ESC button to erase that channel.
Repeat steps 2 through 5 to erase as many additional
memories as you want.
6. Press and hold the MEM/ESC button for two (2)
seconds. This will return the radio to Memory mode.
7. Press and release the MEM/ESC button again to
return to Marine Standby mode.
MEM Icon
VHF Marine Radio ProtocolsOperating Your Radio
30 English
Advanced Operation
Memory Location Mode
Your radio has unlimited memory locations for storing your
most frequently used channels. These memory locations can
be selected individually or can be scanned. (See page 33
under Memory Location Scan.)
To enter Memory mode, press MEM/ESC button. The display
will show the MEM icon and the Memory Channel bank will
be activated and displayed.
To Program Memory Locations:
1. Press and hold the MEM/ESC button for two (2)
seconds. The memory location number will start
flashing and the MEM icon will be turned On.
2. Use the Channel Up/Down button to advance to the
memory location (00-99) you want to program.
3. Press the MEM/ESC button to select the memory
location. The memory channel number will stop
flashing and the channel number will start flashing.
4. Use the Channel Up/Down button to change to the
channel you want to store into the selected memory
location.
5. Press the MEM/ESC button to program that channel.
The memory location number will flash again.
Repeat steps 2 through 5 to program as many
additional memories as you want.
6. Press and hold the MEM/ESC button for two (2)
seconds. This will return the radio to Memory mode.
7. Press and release the MEM/ESC button again to
return to Marine Standby mode.
MEM/ESC Button
Memory Location Number
Channel Up/Down Buttons
Channel Number
33
Nothing Comes Close to a Cobra®
Advanced Operation
Memory Location Scan Mode
During Memory Location Scan mode, the radio will rapidly
scan through all pre-assigned memory channels.
NOTE
The radio must be squelched for Memory Location
Scan mode to function. See page 20 for Squelch
procedure.
NOTE
If there are fewer than two (2) memory locations
programmed in the radio, the Memory Location Scan
option will not be available. To program at least two
(2) memory locations, see page 30.
To Enter Memory Location Scan:
1. From Marine Standby mode, press the MEM/ESC
button.
2. Press the SCAN button. The radio will immediately
begin to scan all pre-assigned memory channels.
The SCAN and MEM icons will show on the LCD.
3. A signal on any channel will stop the scan for 10
seconds to allow you to listen to the traffic on that
location.
4. Press the Channel Up/Down button to resume
scanning the Memory Location Scan channels or
to change the scan direction.
5. To EXIT Memory Location Scan mode, press the
SCAN button again. The SCAN and MEM icons will
disappear from the LCD and the radio will return to
Marine Standby mode.
A
A
Memory Location Scan
VHF Marine Radio ProtocolsOperating Your RadioVHF Marine Radio Protocols
32 English
Advanced Operation
Channel Scan Mode
During Channel Scan mode, the radio will rapidly switch
from channel to channel through all the channels.
NOTE
The radio must be squelched for Channel Scan mode
to function. See page 20 for Squelch procedure.
To Enter Channel Scan:
1. From Marine Standby mode, press the SCAN button.
The radio will immediately begin to scan the entire
channel map selected in the active channel map.
The SCAN icon will show on the LCD.
2. A signal on any channel will stop the scan for 10
seconds to allow you to listen to the traffic on that
location.
3. Press the Channel Up/Down button to resume
scanning the Channel Scan channels or to change
the scan direction.
4. To EXIT Channel Scan mode, press the SCAN button
again. The SCAN icon will disappear from the LCD
and the radio will return to Marine Standby mode.
SCAN Button
SCAN Icon
Scanning
Channel Up/Down Buttons
Operating Your Radio
MEM/ESC Button
SCAN Button
VHF Marine Radio ProtocolsOperating Your Radio
35
Nothing Comes Close to a Cobra®
Maintenance and
Troubleshooting
No display on LCD when
radio is turned On
Batteries are exhausted
Batteries not installed
properly
Recharge or
replace batteries
Remove batteries and
reinstall according to
polarity markings
Batteries run
down quickly
Batteries are at the
end of their life
Replace with new
batteries
Will transmit at
one (1) or three (3) watts,
but not at
six (6)
watts
Batteries are low
Selected channel is imited
to one (1) watt
Recharge or
replace batteries
Switch to
another channel
Will not transmit Selected channel is
limited to receive only
Switch to
another channel
No sound from speaker Volume level is too low or
squelch level is too deep
Re-adjust volume
and squelch
No response to
button press
Button lock is On Press Backlight/
Key Lock button
No answer to calls Out of range of
other station
Signal is blocked
by terrain
Switch to three (3) or six
(6) watts or move closer
Move until you have a “line-
of-sight” to the other station
Problem Possible Cause(s) Solution(s)
Maintenance •
Very little maintenance is required to keep your CobraMarine VHF radio
in good operating condition:
■Keep the radio and charger clean by wiping with a soft cloth and mild detergent.
Do not use solvents or harsh or abrasive cleaners, which could damage the case
or scratch the LCD screen.
■If the radio is exposed to salt water, wipe with a soft, moist cloth at least once a day to
prevent buildup of salt deposits, which could interfere with button operation.
■
If the radio will be stored for a long period, such as over the winter,
remove the batteries from the battery tray and store them in a separate
package. This is especially important if you are using alkaline batteries.
Troubleshooting •
VHF Marine Radio ProtocolsOperating Your Radio
34 English

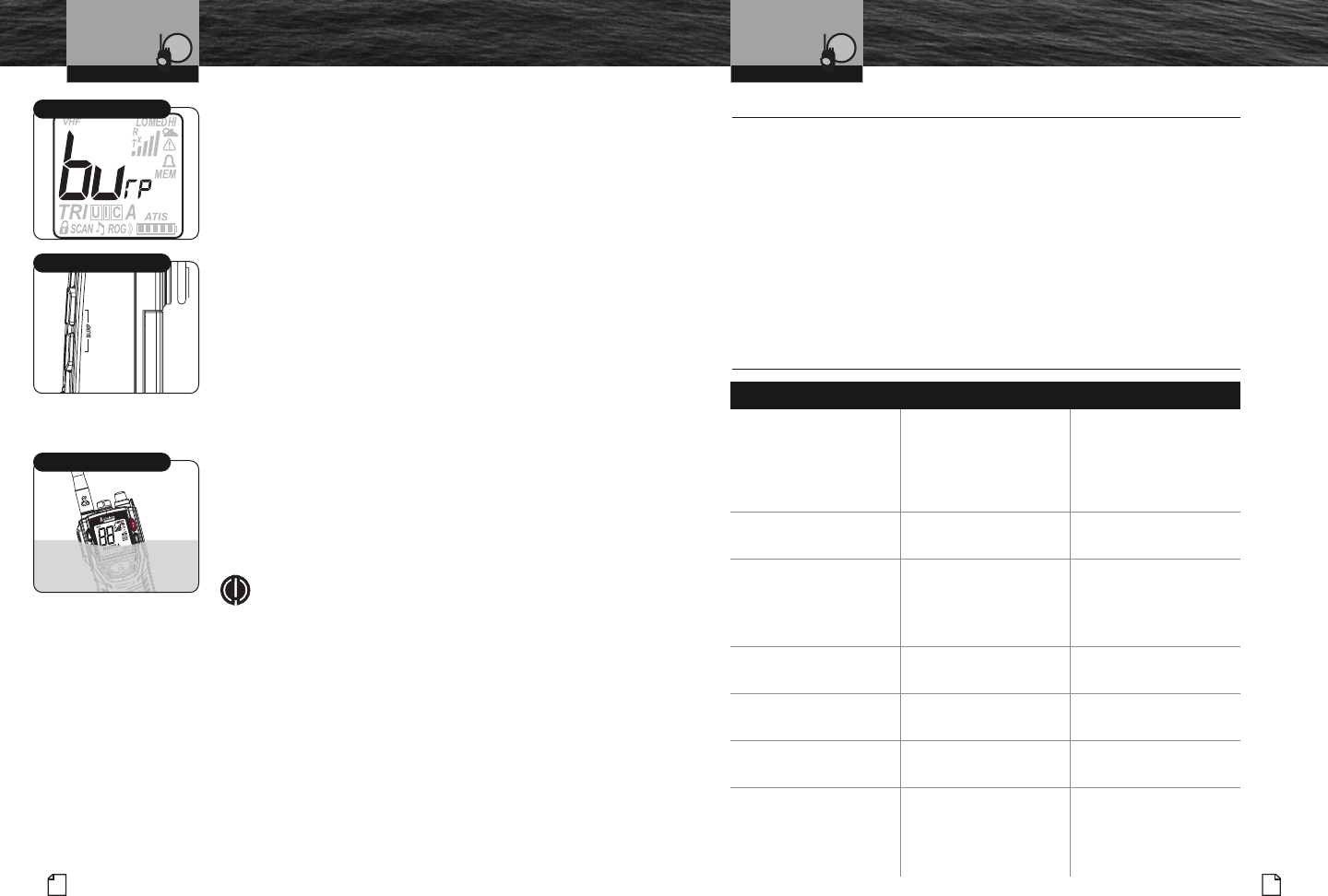

Floating Feature
Burp Feature
Cobra’s Burp feature allows the operator to expel water from
inside the speaker grill. This is especially useful if the radio is
dropped overboard or during extreme foul weather conditions.
In these conditions, water can become trapped in the
speaker grill and muffle the audio.
To Activate Burp:
1. Press and release the 16 and SCAN keys at the
same time.
2. The Burp tone(s) at maximum level will sound
from the internal speaker for eight seconds.
3. During this time, the LCD will display the following
“burp” as shown to the left.
4. Hold the radio with the speaker grill down to help
the water drain out.
5. Press the ESC key at any time to cancel the
BURP feature.
Floating Radio
This radio is designed to float if dropped overboard. The orange
center makes it visible and easy to retrieve. This
rugged radio
is also designed to meet JIS7 (IPX7) specifications
. This means
it’s designed to operate properly
after being submerged in
one meter deep water for 30 minutes.
NOTE
Do not leave the radio floating in water permanently.
This could cause premature corrosion of the battery
contacts and other damage.
The radio is only designed to float with its included
Lithium-ion battery. Using other approved batteries
might cause the radio to sink. This includes the optional
AA battery tray, depending on the weight of the AA
batteries used.
Burp Feature
Burp Feature
Floating Radio
VHF Marine Radio Protocols
37
Nothing Comes Close to a Cobra®
VHF Marine Radio
Procedures
Prohibited Communications
You MUST NOT transmit:
■False distress or emergency messages.
■Messages containing obscene, indecent or profane language.
■General calls, signals or messages (messages not addressed to a particular
station) on Channel 16, except in an emergency or if you are testing your radio.
■When you are on land.
VHF Marine Radio Protocols
36 English
VHF Marine Radio
Procedures
VHF Marine Radio Procedures •
Maintain Your Watch
Whenever your boat is underway, the radio must be turned On and be tuned to
Channel 16 except when being used for messages.
Power
Try 1 watt first, if the station being called is within a few miles. If there is no answer,
switch to 3 watts and call again. You have the ability to go up to 6 watts of output
power to increase your calling distance. Remember, the lower wattage outputs will
conserve your battery and minimize interference to other users.
Calling Coast Stations
Call a coast station on its assigned channel. You may use Channel 16 when you
do not know the assigned channel.
Calling Other Vessels
Call other vessels on Channel 16 or on Channel 9. (Channel 9 is preferred for
recreational vessel use.) You may also call on ship-to-ship channels when you know
that the vessel is listening on a ship-to-ship channel.
Initial Calling on Channel 16 or 9
The use of Channel 16 is permitted for making initial contact (hailing) another vessel.
The limits on calling must be followed. Be reminded, Channel 16’s most important
function is for Emergency Messages. If for some reason, Channel 16 is congested,
the use of Channel 9, especially in U.S. waters, may be used as the initial contact
(hailing) channel for non-emergency communication.
Limits on Calling
You must not call the same station for more than 30 seconds at a time.
If you do not get a reply, wait at least two (2) minutes before calling again.
After three (3) calling periods, wait at least 15 minutes before calling again.
Change Channels
After contacting another station on a calling channel, change immediately
to a channel which is available for the type of message you want to send.
Station Identification
Identify, in English, your station by your FCC call sign, vessel name and the state
registration number, at both the beginning and at the end of the message.
VHF Marine Radio Protocols
39
Nothing Comes Close to a Cobra®
Voice Calling
■
If the other does not respond, wait two (2) minutes and repeat. You are permitted
to attempt contact three (3) times, two (2) minutes apart. If you still have not
made contact, wait 15 minutes before trying again.
■After communications are completed, each vessel must sign off with its call
sign or vessel name and the word “out” and return to Channel 16.
NOTE
For best sound quality at the station you are calling, hold the microphone on
the front of the radio at least 2 in. (51 mm) from your mouth and slightly off to
one (1) side. Speak in a normal tone of voice.
NOTE
“Over and Out”
The most commonly misused procedure words are “over and out” within the
same transmission. “Over” means you expect a reply. “Out” means you are
finished and do not expect a reply.
VHF Marine Radio Protocols
For Example
38 English
Voice Calling
Voice Calling •
You are required to listen to Channel 16 while standing by. Channel 16 is the distress
and safety channel used for establishing initial contact with another station and for
emergency communication. The Coast Guard also monitors Channel 16 for safety
purposes for everyone on the water.
NOTE
Channel 9 may be used by recreational vessels for general-purpose calling.
This frequency should be used whenever possible to help relieve congestion
on Channel 16. The Coast Guard generally does not make urgent marine
information broadcasts or weather warnings on Channel 9. Boaters are still
asked to “keep watch” on Channel 16 whenever the radio is turned on and
not in use with another station.
To call another vessel or shore installation (e.g, lock or bridge tender):
■Make sure the radio is On.
■Make sure you are in standby listening mode on Channel 16. Make sure
Channel 16 is not in use.
■When the channel is open (quiet), press the Talk button and call a vessel.
Hold the radio or microphone several inches from your face and speak
clearly and distinctly in a normal voice tone. Say “name or station being
called,” “THIS IS [your vessel name or call sign].”
■Once contact is made, you must leave Channel 16 and go to another working
channel. See channel listing on pages 20-27.
The vessel Corsair is calling the vessel Vagabond:
Corsair: “Vagabond, this is Corsair. Over.”
Vagabond: “Please switch and answer on Channel 68 (or any proper working
channel). Over.”
Corsair: “Switching to Channel 68. Over.”
VHF Marine Radio Protocols
41
Nothing Comes Close to a Cobra®
Emergency Messages and
Distress Procedure
Emergency Messages and Distress Procedure •
The ability to summon assistance in an emergency is the primary reason
to have a VHF marine radio. The marine environment can be unforgiving,
and what may initially be a minor problem can rapidly develop into a
situation beyond your control.
The Coast Guard monitors Channel 16, responds to all distress calls,
and coordinates all search and rescue efforts. Depending on the availability
of other capable vessels or commercial assistance operators in your vicinity,
Coast Guard or Coast Guard Auxiliary craft may be dispatched.
In any event, communicate with the Coast Guard as soon as you experience difficulties
and before your situation becomes an emergency. Use the emergency message
procedures only after your situation has become grave or you are faced with a
sudden danger threatening life or property and requiring immediate help. Use
Channel 16 to communicate your emergency message. Make sure you transmit
on high power. If you are merely out of gas, do not send an emergency message.
Drop your anchor and call a friend or marina to bring the fuel you need or to give
you a tow.
VHF Marine Radio Protocols
40 English
Radiotelephone Calls
Radiotelephone Calls •
Boaters may make and receive radiotelephone calls to and from any number on the
telephone network by using the services of public coast stations. Calls can be made —
for a fee — between your radio and telephones on land, sea and in the air. See the
Appendix for the public correspondence (marine operator) channels.
If you plan to use these services, consider registering with the operator of the
public coast station that you plan to work through. These services can provide
you with detailed information and procedures to follow.
NOTICE
You may disclose privileged information during a radiotelephone call.
Keep in mind that your transmission is NOT private, as it is on a regular
telephone. Both sides of the conversation are being broadcast and can be
heard by anyone who has a radio and tunes to the channel you are using.
VHF Marine Radio Protocols
43
Nothing Comes Close to a Cobra®
Emergency Messages
and Distress Procedure
Marine Distress Procedure
Speak slowly — clearly — calmly.
1. Make sure your radio is On.
2. Select Channel 16.
3. Press Talk button and say:
“MAYDAY — MAYDAY — MAYDAY.”
(Or “PAN — PAN — PAN,”
or “SECURITE — SECURITE — SECURITE.”)
4. Say:
“THIS IS [your vessel name or call sign],” repeated three (3) times.
5. Say:
“MAYDAY (or “PAN” or “SECURITE”)
[your vessel name or call sign].
6. Tell where you are:
(what navigational aids or landmarks are nearby).
7. State the nature of your distress.
8. State the kind of assistance needed.
9. Give number of persons aboard and conditions of any injured.
10. Estimate present seaworthiness of your vessel.
11. Briefly describe your vessel (length, type, color, hull).
12. Say:
“I WILL BE LISTENING ON CHANNEL 16.”
13. End message by saying:
“THIS IS [your vessel name or call sign]. OVER.”
14. Release Talk button and listen. Someone should answer.
If not, repeat the call, beginning at step 3 above.
Keep the radio nearby. Even after your message has been received, the Coast Guard
can find you more quickly if you can transmit a signal for a rescue boat to hone in on.
VHF Marine Radio Protocols
42 English
Emergency Messages
and Distress Procedure
Marine Emergency Signals
The three (3) spoken international emergency signals are:
The distress signal MAYDAY is used to indicate that a station is threatened by grave
and imminent danger and requests immediate assistance.
The urgency signal PAN is used when the safety of the vessel or person is in
jeopardy. (This signal is properly pronounced pahn.)
The safety signal SECURITE is used for messages about the safety of navigation or
important weather warnings. (This signal is properly pronounced see-cure-ee-tay.)
When using an international emergency signal, the appropriate signal is to be spoken
three (3) times prior to the message.
If You Hear a Distress Call
You must give any message beginning with one (1) of these signals priority over any
other messages. ALL stations MUST remain silent on Channel 16 for the duration of
the emergency unless the message relates directly to the emergency.
If you hear a distress message from a vessel, stand by your radio. If it is not answered,
YOU should answer. If the distressed vessel is not nearby, wait a short time for
others
who may be closer to acknowledge. Even if you cannot render direct assistance
, you may
be in a position to relay the message.
MAYDAY
PAN
SECURITE
VHF Marine Radio Protocols
44 English
For Example
Emergency Messages
and Distress Procedure
“Mayday — Mayday — Mayday”
“This is Corsair — Corsair — Corsair” [or “IL 1234 AB,” repeated three (3) times]
“Mayday Corsair (or IL 1234 AB)”
“Navy Pier bears 220 degrees magnetic — distance 5 miles”
“Struck submerged object and flooding — need pump and tow”
“Four (4) adults, three (3) children aboard — no one injured”
“Estimate we will remain afloat one-half hour”
“Corsair (or IL 1234 AB) is 26 ft sloop with blue hull and tan deck house”
“I will be listening on Channel 16”
“This is Corsair (or IL 1234 AB)”
“Over”
It is a good idea to write out a script of the message form and post it where you
and others on your vessel can see it when an emergency message needs to be sent.
Introduction
45
Nothing Comes Close to a Cobra®
Warranty and Trademark
Acknowledgement
Limited 3-Year Warranty •
For Products Purchased In The U.S.A.
Cobra Electronics Corporation warrants that its CobraMarine VHF radio, and the
component parts thereof, will be free of defects in workmanship and materials
for a period of three (3) years from the date of first consumer purchase. This warranty
may be enforced by the first consumer purchaser, provided that the product is
utilized within the U.S.A.
Cobra will, without charge, repair or replace, at its option, defective radios, products
or component parts upon delivery to the Cobra Factory Service department, accompanied
by proof of the date of first consumer purchase, such as a duplicated copy of a
sales receipt.
You must pay any initial shipping charges required to ship the product for warranty
service, but the return charges will be at Cobra’s expense, if the product is repaired
or replaced under warranty. This warranty gives you specific legal rights, and you
may also have other rights which may vary from state to state.
Exclusions:This limited warranty does not apply:
1. To any product damaged by accident.
2. In the event of misuse or abuse of the product, or as a result
of unauthorized alterations or repairs.
3. If the serial number has been altered, defaced, or removed.
4. If the owner of the product resides outside the U.S.A.
All implied warranties, including warranties of merchantability and fitness for a
particular purpose are limited in duration to the length of this warranty. Cobra
shall not be liable for any incidental, consequential or other damages; including,
without limitation, damages resulting from loss of use or cost of installation.
Some states do not allow limitations on how long an implied warranty lasts and/or
do not allow the exclusion or limitation of incidental or consequential damages,
so the above limitations may not apply to you.
For Products Purchased Outside The U.S.A.
Please contact your local dealer for warranty information.
Trademark Acknowledgement •
Cobra®, CobraMarine®, Nothing Comes Close to a Cobra®, and the snake design are
registered trademarks of Cobra Electronics Corporation, USA.
Cobra Electronics Corporation™ is a trademark of Cobra Electronics Corporation, USA.
Warranty
Introduction
47
Nothing Comes Close to a Cobra®
Specifications
Specifications
46 English
Specifications •
General
Number of Channels All U.S., Canadian, International and
NOAA Weather Channels
Channel Spacing 25 kHz
Modulation 5 kHz Max.
Input Voltage 7.4 VDC
Battery Life: LiON: 8 hours @ 6 watts,
5% TX, 5% RX, 90% Standby 16 hours @ 1 watt
Alkaline: 18 hours @ 6 watts,
35 hours @ 1 watt
Current Drain:
Standby 40 mA
Receive (Rx) 200 mA
Transmit (Tx) 1.8 A @ High Power, 700 mA @ Low Power
Temperature Range -20˚C to 50˚C
Radio Dimensions 4.8" x 2.4" x 1.4"
(123 mm x 62 mm x 36 mm) not
including antenna
Radio Weight 0 lbs 8 oz. (228 g) without batteries
Receiver
Frequency Range 156.050 to 163.275 MHz
Receiver Type Double Conversion Super-Heterodyne
Sensitivity:
20 dB Quieting 0.35 uV
12 dB Sinad 0.30 uV
Adjacent Channel Selectivity -60 dB
Intermodulation and Rejection -60 dB
Spurious and Image Rejection -60 dB
AF Output 250 mW @ 8 Ohms
Transmitter
Frequency Range (Tx): 156.025 to 157.425 MHz
RF Output Power 1, 3 or 6 watts
Spurious Emissions -60 dB @ High Power, -55 dB @ Low
Power
Microphone Type Condenser
Frequency Stability +/-10 ppm
FM Hum and Noise 40 dB
VHF Marine Radio Protocols Product Service
Product Service •
If you have any questions about operation or installing your
new CobraMarine VHF product or if you are missing parts…
Please call Cobra first! DO NOT RETURN THIS PRODUCT TO THE STORE!
See customer assistance on page A1.
If your product should require factory service, please call Cobra first before
sending your radio. This will ensure the fastest turn-around time on your repair.
You may be asked to send your radio to the Cobra factory. It will be necessary
to furnish the following to have the product serviced and returned:
1. For warranty repair, include some form of proof-of-purchase, such as a
photocopy of a sales receipt. If you send the original receipt, it cannot be
returned.
2. Send the entire product.
3. Enclose a description of what is happening with the radio. Include a typed
or clearly printed name and address of where the radio is to be returned.
4. Pack radio securely to prevent damage in transit. If possible, use the
original packing material.
5. Ship prepaid and insured by way of a traceable carrier such as United Parcel
Service (UPS) or Priority Mail to avoid loss in transit to: Cobra Factory Service,
Cobra Electronics Corporation, 6500 West Cortland Street, Chicago, Illinois
60707 U.S.A.
6. If the radio is in warranty, upon receipt of your radio, it will either be repaired
or exchanged depending on the model. Please allow approximately three (3)
to four (4) weeks before contacting Cobra for status. If the radio is out of
warranty, a letter will automatically be sent informing you of the repair
charge or replacement charge.
7. If your radio is returned for factory repair, it will be returned to you with default
settings restored.
If you have any questions, please call 773-889-3087 for assistance.
Customer Service
Appendix
49
Nothing Comes Close to a Cobra®/Nada se compara a Cobra®
VHF Marine
Channel Assignments
Appendix
48 English
VHF Marine
Channel Assignments
Asignación de canales de VHF para radiocomunicación marítima
•
Existen tres (3) juegos de canales VHF para uso marítimo en los EE.UU., Canadá y el
resto del mundo (internacional). La mayoría de los canales coinciden en los tres (3)
mapas, pero sin duda existen diferencias (consulte las tablas en las páginas
siguientes). El radio incorpora los tres (3) mapas y funcionará correctamente en
cualquiera de las tres áreas.
A continuación presentamos en forma resumida las asignaciones de canales del
Mapa de canales para EE.UU.
Auxilio, seguridad y llamadas
Canal 16
Para ser oídos por otra estación (llamadas) o en casos de emergencia (auxilio y seguridad).
Llamadas
Canal 9
Llamadas de carácter general (excepto casos de emergencia) para embarcaciones no comerciales.
Se le pide encarecidamente a la tripulación de las embarcaciones recreativas usar este canal para
reducir la congestión del canal 16.
Seguridad entre embarcaciones
Canal 6
Para mensajes de seguridad entre embarcaciones y para mensajes de búsqueda y rescate
enviados a barcos y aviones de la guardia costera.
Enlace con la guardia costera
Canal 22A
Para hablar con las guardias costeras estadounidenses y canadienses (excepto casos de
emergencia) tras haber establecido contacto por el canal 16.
No comerciales
Canales 68*, 69, 71, 72, 78A, 79A*, 80A*
Canales activos para pequeñas embarcaciones. Los mensajes deberán estar relacionados con
necesidades de las embarcaciones, como por ejemplo, informes de pesca, atraques y agrupamientos.
Use el canal 72 solamente para mensajes entre embarcaciones.
Comerciales
Canales 1A, 7A, 8, 9, 10, 11, 18A, 19A, 63A, 67, 72, 79A, 80A, 88A*
Canales activos para embarcaciones activas solamente. Los mensajes deberán estar
relacionados con la actividad comercial o las necesidades de la embarcación. Use los
canales 8, 67, 72 y 88A solamente para mensajes entre embarcaciones.
VHF Marine Channel Assignments •
Three (3) sets of VHF channels have been established for marine use in the U.S.A.,
Canada and the rest of the world (International). Most of the channels are the same
for all three (3) maps, but there are definite differences (see table on the following
pages). Your radio has all three (3) maps built into it and will operate correctly in
whichever area you choose.
The following is a brief outline of the channel assignments in the U.S.A. Channel Map.
Distress, Safety, and Calling
Channel 16
Getting the attention of another station (calling) or in emergencies (distress and safety).
Calling
Channel 9
General-purpose (non-emergency) calling by non-commercial vessels. Recreational boaters are
urged to use this channel to reduce congestion on Channel 16.
Intership Safety
Channel 6
Ship-to-ship safety messages and for search and rescue messages to Coast Guard ships
and aircraft.
Coast Guard Liaison
Channel 22A
To talk to the Coast Guard, Canadian Coast Guard (non-emergency) after making contact on
Channel 16.
Non-Commercial
Channels 68*, 69, 71, 72, 78A, 79A*, 80A*
Working channels for small vessels. Messages must be about needs of the vessel, such as
fishing reports, berthing and rendezvous. Use Channel 72 only for ship-to-ship messages.
Commercial
Channels 1A, 7A, 8, 9, 10, 11, 18A, 19A, 63A, 67, 72, 79A, 80A, 88A*
Working channels for working ships only. Messages must be about business or needs
of the ship. Use Channels 8, 67, 72 and 88A only for ship-to-ship messages.
Channel Assignments (English) Asignaciones de canales (Español)
50 English
VHF Marine
Channel Assignments
Appendix Appendix
51
Nothing Comes Close to a Cobra®/Nada se compara a Cobra®
VHF Marine
Channel Assignments
Public Correspondence (Marine Operator)
Channels 24, 25, 26, 27, 28, 60, 61, 84, 84A, 85, 85A, 86, 86A, 87, 87A, 88*
For calls to marine operators at public coast stations. You can make and receive telephone calls
through these stations.
Port Operations
Channels 1A*, 5A*, 12*, 14*, 18, 19, 20A, 21, 22, 63A*, 65A, 66A, 73, 74, 75, 76, 77*, 79, 80, 81,
82
Used for directing the movement of ships in or near ports, locks or waterways. Messages
must be about operational handling, movement and safety of ships.
Navigational
Channels 13, 67
Channels are available to all vessels. Messages must be about navigation, including passing
or meeting other vessels. These are also the main working channels for most locks and
drawbridges. You must keep your messages short and power output at no more than 1 watt.
Maritime Control
Channel 17
For talking to vessels and coast stations operated by state or local governments. Messages must
be about regulation and control, boating activities, or assistance.
Digital Selective Calling
Channel 70
This channel is set aside for distress, safety and general calling using only digital selective
calling techniques. Voice communication is prohibited; your radio cannot transmit voice
messages on this channel.
Weather
Channels Wx 1 Thru 10
Receive-only channels for NOAA and Canadian weather broadcasts. You cannot transmit on
these channels.
NOTE
* These channels are restricted to the listed uses in certain parts of the country
or for certain types of users only. Consult FCC rules or a knowledgeable radio
operator before using them.
Channel Assignments (English) Asignaciones de canales (Español)
Correspondencia pública (operador marítimo)
Canales 24, 25, 26, 27, 28, 60, 61, 84, 84A, 85, 85A, 86, 86A, 87, 87A, 88*
Para llamadas a operadores marítimos en estaciones costeras públicas. Usted puede realizar y
recibir llamadas telefónicas a través de estas estaciones.
Operaciones portuarias
Canales 1A*, 5A*, 12*, 14*, 18, 19, 20A, 21, 22, 63A*, 65A, 66A, 73, 74, 75, 76, 77*, 79, 80, 81, 82
Usados para dirigir el movimiento de las embarcaciones dentro de áreas portuarias, esclusas o
canales. Los mensajes deberán estar relacionados con maniobras operacionales, movimientos
y seguridad de las embarcaciones.
Navegación
Canales 13, 67
Estos canales están disponibles para todas las embarcaciones. Los mensajes deberán estar
relacionados con la navegación, incluidas las maniobras para pasar o alcanzar otras
embarcaciones. Éstos también son los principales canales activos para la mayoría de las
esclusas y puentes levadizos. Usted deberá transmitir mensajes cortos y mantener la potencia de
salida en un vatio como máximo.
Control marítimo
Canal 17
Para comunicarse con embarcaciones y estaciones costeras operadas por entidades
gubernamentales locales o estatales. Los mensajes deberán estar relacionados con regulación y
control, asistencia o actividades de navegación.
Llamadas selectivas digitales
Canal 70
Este canal está reservado para solicitudes de auxilio, seguridad y llamadas de carácter general
que usen solamente técnicas de llamadas selectivas digitales. Las comunicaciones verbales
están prohibidas; el radio no puede transmitir mensajes de voz por este canal.
Meteorología
Canales Wx 1 a 10
Canales de recepción únicamente para difusión de información meteorológica NOAA y
canadiense. Usted no puede transmitir por estos canales.
NOTA
* El uso de estos canales está dedicado a las aplicaciones que aparecen en la lista, en
ciertas partes del país o para ciertos tipos de usuario solamente. Consulte las normas de
la FCC o a un operador de radio con experiencia antes de usarlos.
Appendix
53
Nothing Comes Close to a Cobra®/Nada se compara a Cobra®
VHF Marine
Channel Assignments
Appendix
52 English
VHF Marine
Channel Assignments
01 ••
156.050 160.650 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)
01A •156.050 156.050 Port Operations and Commercial, Operaciones portuarias y comerciales;
VTS in selected areas VTS en áreas selectas
02 ••156.100 160.700 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)
03 ••156.150 160.750 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)
03A •156.150 156.150 Government Only Entidades gubernamentales solamente
04 •156.200 160.800 Public Correspondence (Marine Operator), Correspondencia pública (operador marítimo)
Port Operations, Ship Movement operaciones portuarias,movimiento de embarcaciones
04A •156.200 156.200 West Coast (Coast Guard Only); Costa occidental (guardia costera solamente);
East Coast (Commercial Fishing) Costa oriental (pesca comercial)
05 •156.250 160.850 Public Correspondence (Marine Operator), Correspondencia pública (operador marítimo)
Port Operations, Ship Movement operaciones portuarias,movimiento de embarcaciones
05A • • 156.250 156.250 Port Operations, VTS in selected areas Operaciones portuarias; VTS en áreas selectas
06 •••156.300 156.300 Intership Safety Seguridad entre embarcaciones
07 •156.350 160.950 Public Correspondence (Marine Operator), Correspondencia pública (operador marítimo)
Port Operations, Ship Movement operaciones portuarias,movimiento de embarcaciones
07A • • 156.350 156.350 Commercial Comerciales
08 •••156.400 156.400 Commercial (Intership Only) Comercial (entre embarcaciones solamente)
09 •••156.450 156.450 Boater Calling Channel, Canal de llamada de la tripulación,
Non-Commercial (Recreational) no comercial (recreativo)
10 •••156.500 156.500 Commercial Comerciales
11 •••156.550 156.550 Commercial, VTS in selected areas Comercial; VTS en áreas selectas
12 •••156.600 156.600 Port Operations, VTS in selected areas Operaciones portuarias; VTS en áreas selectas
13 •••156.650 156.650 1 watt USA and CAN Intership Navigation Safety (Bridge-to-
Bridge). In U.S. waters, large vessels
maintain a listening watch on this channel.
Channel Use (English) Uso de canales (Español)
Channel Map
Mapa de canales
Channel
Number
Número
de canal
Power Limits
Límites de potencia
Frequency
Frecuencia
USA Int’l Canada Transmit Receive
EE.UU. nternac Canadá Transm. Recepción
1 vatio EE.UU. y Canadá
Seguridad marítima entre embarcaciones (de
puente de mando a puente de mando). En aguas
estadounidenses, las grandes embarcaciones se
mantienen vigilantes con sus radios sintonizados
en este canal
Appendix
55
Nothing Comes Close to a Cobra®/Nada se compara a Cobra®
VHF Marine
Channel Assignments
Appendix
54 English
VHF Marine
Channel Assignments
14 •••156.700 156.700 Port Operations, VTS in selected areas Operaciones portuarias; VTS en áreas selectas
15 •Rx Only 156.750 Environmental (Receive Only). Medioambiental (recepción solamente).
Usado por radiobalizas de localización
de siniestros (EPIRB) clase C
15 ••156.750 156.750 1 watt CAN and INT Canada (EPIRB Buoys Only); International Canadá (boyas de EPIRB solamente);
(On-Board Communication) Internacional (comunicación de a bordo)
16 •••156.800 156.800 International Distress, Safety and Calling Llamadas, seguridad y solicitud
de auxilio internacional
17 •••156.850 156.850 1 watt USA and CAN State Controlled (U.S.A. Only) Controlado a nivel estatal (EE.UU. solamente)
18 •156.900 161.500 Port Operations, Ship Movement Operaciones portuarias,
movimiento de embarcaciones
18A ••
156.900 156.900 Commercial Comerciales
19 •156.950 161.550 Port Operations, Ship Movement Operaciones portuarias,
movimiento de embarcaciones
19A ••
156.950 156.950 Commercial Comerciales
20 •••
157.000 161.600 1 watt CAN Canada (Coast Guard Only); International Canadá (guardia costera solamente);
(Port Operations, Ship Movement) Internacional (operaciones portuarias,
movimiento de embarcaciones)
20A •157.000 157.000 Port Operations Operaciones portuarias
21 ••
157.050 161.650 Port Operations, Ship Movement Operaciones portuarias,
movimiento de embarcaciones
21A ••
157.050 157.050 U.S. (Government Only); EE.UU. (entidades gubernamentales solamente);
Canada (Coast Guard Only) Canadá (guardia costera solamente)
21B •RX only 161.650 Coast Guard Only – Weather Broadcasts Solamente Guardacostas –
Transmisiones Meteorológicas
22 •157.100 161.700 Port Operations, Ship Movement Operaciones portuarias,
movimiento de embarcaciones
22A ••
157.100 157.100 U.S. and Canadian Coast Guard Liaison and Enlace entre las guardias costeras estadounidenses
Maritime Safety Information Broadcaststhat y canadienses, y difusión de información sobre
are announced on Channel 16 seguridad marítima anunciada por el canal 16
23 ••
157.150 161.750 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)
23A •157.150 157.150 Government Only Entidades gubernamentales solamente
Channel Use (English) Uso de canales (Español)
Channel Map
Mapa de canales
Channel
Number
Número
de canal
Frequency
Frecuencia
USA Int’l Canada Transmit Receive
EE.UU. nternac Canadá Transm. Recepción
1 vatio Canadá y Internac.
1 vatio EE.UU. y Canadá
1 vatio Canadá
Appendix
57
Nothing Comes Close to a Cobra®/Nada se compara a Cobra®
VHF Marine
Channel Assignments
Appendix
56 English
VHF Marine
Channel Assignments
24 •••
157.200 161.800 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)
25 •••
157.250 161.850 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)
25B •RX only 161.850 Safety: Continuous Marine Broadcast (CMB) Seguridad: Transmisión Marítima Continua (CMB)
service by MCTS Canada servicio por MCTS Canadá
26 •••
157.300 161.900 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)
27 •••
157.350 161.950 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)
28 •••
157.400 162.000 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)
28B •RX only 162.000 Safety: Continuous Marine Broadcast (CMB) Seguridad: Transmisión Marítima Continua (CMB)
service by MCTS Canada servicio por MCTS Canadá
60 ••
156.025 160.625 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)
61 •156.075 160.675 Public Correspondence (Marine Operator) Correspondenciapública(operadormarítimo),
Port Operation, Ship Movement operacionesportuarias,movimientodeembarcaciones
61A ••
156.075 156.075 U.S. (Government Only); Canada (Coast
Guard Only); West Coast (Coast Guard
Only); East Coast (Commercial Fishing)
62 •156.125 160.725 Public Correspondence (Marine Operator), Correspondenciapública(operadormarítimo),
Port Operations, Ship Movement operacionesportuarias, movimientodeembarcaciones
62A •156.125 156.125 West Coast (Coast Guard Only); Costa occidental (guardia costera solamente);
East Coast (Commercial Fishing) Costa oriental (pesca comercial)
63 •156.175 160.775 Public Correspondence (Marine Operator), Correspondencia pública (operador marítimo),
Port Operations, Ship Movement operacionesportuarias, movimiento deembarcaciones
63A •156.175 156.175 Port Operations and Commercial, Operaciones portuarias y comerciales;
VTS in selected areas VTS en áreas selectas
64 ••
156.225 160.825 Public Correspondence (Marine Operator), Correspondencia pública (operador marítimo),
Port Operations, Ship Movement operacionesportuarias, movimiento deembarcaciones
64A ••
156.225 156.225 U.S. (Government Only); EE.UU. (entidades gubernamentales
Canada (Commercial Fishing) solamente); Canadá (pesca comercial)
65 •156.275 160.875 Public Correspondence (Marine Operator), Correspondencia pública (operador marítimo),
Port Operations, Ship Movement operacionesportuarias, movimiento deembarcaciones
65A •••
156.275 156.275 Port Operations Operaciones portuarias
66 •156.325 160.925 Public Correspondence (Marine Operator), Correspondencia pública (operador marítimo),
Port Operations, Ship Movement operacionesportuarias, movimiento deembarcaciones
Channel Use (English) Uso de canales (Español)
Channel Map
Mapa de canales
Channel
Number
Número
de canal
Power Limits
Límites de potencia
Frequency
Frecuencia
USA Int’l Canada Transmit Receive
EE.UU. nternac Canadá Transm. Recepción
EE.UU. (entidades gubernamentales
solamente); Canadá (guardia costera
solamente); Costa occidental (guardia costera
solamente); Costa oriental (pesca comercial)
Appendix
59
Nothing Comes Close to a Cobra®/Nada se compara a Cobra®
VHF Marine
Channel Assignments
Appendix
58 English
VHF Marine
Channel Assignments
66A •••
156.325 156.325 1 watt CAN Port Operations Operaciones portuarias
67 •••
156.375 156.375 1 watt USA
68 •••
156.425 156.425 Non-Commercial (Recreational) No comercial (recreativo)
69 •••
156.475 156.475 U.S. (Non-Commercial, Recreational); Canada
(Commercial Fishing Only); International
(Intership, Port Operations, Ship Movement)
70 •••
RX only 156.525 Digital Selective Calling Llamadas selectivas digitales
(Voice communications not allowed) (las comunicaciones verbales están prohibidas)
71 •••
156.575 156.575 U.S. and Canada (Non-Commercial, Recreational); EE.UU. y Canadá (no comercial, recreativo);
International (Port Operations, Ship Movement) Internacional (operaciones portuarias,
movimiento de embarcaciones)
72 •••
156.625 156.625 Non-Commercial (Intership Only) No comercial (entre embarcaciones solamente)
73 •••
156.675 156.675 U.S. (Port Operations); Canada (Commercial EE.UU. (operaciones portuarias); Canadá (pesca
Fishing Only); International (Intership, comercial solamente); Internacional (comunicaciones
Port Operations, Ship Movement) entre embarcaciones, operaciones portuarias,
movimiento de embarcaciones)
74 •••
156.725 156.725 U.S. (Port Operations); Canada (Commercial EE.UU. (operaciones portuarias); Canadá (pesca
Fishing Only); International (Intership, comercial solamente); Internacional (comunicaciones
Port Operations, Ship Movement) entre embarcaciones, operaciones portuarias,
movimiento de embarcaciones)
75 •156.775 156.775 1 watt Only Int. Port Operations (Intership Only) Operaciones portuarias
(entre embarcaciones solamente)
76 •156.825 156.825 1 watt Only Int. Port Operations (Intership Only) Operaciones portuarias
(entre embarcaciones solamente)
77 •••
156.875 156.875 1 watt USA and CAN Port Operations (Intership only). Restricted to Operaciones portuarias (entre embarcaciones
communications with pilots for movement and solamente). Restringido a comunicaciones con
docking of ships. pilotos para el movimiento y atraque de
embarcaciones.
Channel Use (English) Uso de canales (Español)
Channel Map
Mapa de canales
Channel
Number
Número
de canal
Power Limits
Límites de potencia
Frequency
Frecuencia
USA Int’l Canada Transmit Receive
EE.UU. nternac Canadá Transm. Recepción
U.S. (Commercial). Used for bridge-to-bridge
communications in lower Mississippi River
(IntershipOnly);Canada(CommercialFishing), S&R
EE.UU. (comercial). Usado para comunicaciones
de puente de mando a puente de mando en la
parte baja del Río Misisipí (entre embarcaciones
solamente); Canadá (pesca comercial)
(transmisión y recepción)
EE.UU. (no comercial, recreativo); Canadá
(pesca comercial solamente); Internacional
(comunicaciones entre embarcaciones,
operaciones portuarias, movimiento de
embarcaciones)
1 vatio Canadá
1 vatio EE.UU.
Sólo 1 vatio Int.
Sólo 1 vatio Int.
1 vatio EE.UU. y Canadá
Appendix
61
Nothing Comes Close to a Cobra®/Nada se compara a Cobra®
VHF Marine
Channel Assignments
Appendix
60 English
VHF Marine
Channel Assignments
78 •156.925 161.525 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)
78A ••
156.925 156.925 Non-Commercial (Recreational) No comercial (recreativo)
79 •156.975 161.575 Port Operations, Ship Movement Operaciones portuarias,
movimiento de embarcaciones
79A ••
156.975 156.975 Commercial (Also Non-Comercial Comercial (en los Grandes
only in Great Lakes) Lagos también no comercial)
80 •157.025 161.625 Port Operations, Ship Movement Operaciones portuarias,
movimiento de embarcaciones
80A ••
157.025 157.025 Commercial (Also Non-Commercial Comercial (en los Grandes
only in Great Lakes) Lagos también no comercial)
81 •157.075 161.675 Port Operations, Ship Movement Operaciones portuarias,
movimiento de embarcaciones
81A ••
157.075 157.075 U.S. (Government Only; Environmental EE.UU. (entidades gubernamentales solamente;
Protection Operations) operaciones de protección medioambiental)
82 •157.125 161.725 Public Correspondence (Marine Operator), Correspondencia pública (operador marítimo),
Port Operation, Ship Movement operacionesportuarias,movimientodeembarcaciones
82A ••
157.125 157.125 U.S. (Government Only); Canada EE.UU. (entidades gubernamentales solamente);
(Coast Guard Only) Canadá (guardia costera solamente)
83 ••
157.175 161.775 Canada (Coast Guard Only) Canadá (guardia costera solamente))
83A ••
157.175 157.175 U.S. (Government Only); Canada EE.UU. (entidades gubernamentales solamente);
(Coast Guard Only) Canadá (guardia costera solamente)
83B •RX only 161.775 Coast Guard Only – Weather Broadcasts Solamente Guardacostas –
Transmisiones Meteorológicas
84 •••
157.225 161.825 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)
84A •157.225 157.225 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)
85 •••
157.275 161.875 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)
85A •157.275 157.275 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)
86 •••
157.325 161.925 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)
86A •157.325 157.325 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)
87 •••
157.375 161.975 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)
87A •157.375 157.375 Public Correspondence (Marine Operator) Correspondencia pública (operador marítimo)
88 •••
157.425 162.025 Public Correspondence (Ship to Coast). Correspondencia pública (entre embarcación y costa).
In U.S. only within 75 miles of Canadian Border. EnlosEE.UU., solamente dentrodelos casi
121 kilómetros (75 millas) de la frontera canadiense
88A •157.425 157.425 Commercial Intership only Comercial entre embarcaciones solamente
Channel Use (English) Uso de canales (Español)
Channel Map
Mapa de canales
Channel
Number
Número
de canal
Power Limits
Límites de potencia
Frequency
Frecuencia
USA Int’l Canada Transmit Receive
EE.UU. nternac Canadá Transm. Recepción
Appendix
63
Nothing Comes Close to a Cobra®/Nada se compara a Cobra®
Weather Channel
Assignments
Appendix
62 English
NOAA Weather Channels
and Alert
VHF Marine Channel
Assignments
NOTE
Many of the plain-numbered channels, such as 01, 02 and 03, transmit and
receive on different frequencies. This is termed duplex operation. The rest of the
plain-numbered channels and all of the A channels, such as 01A, 03A and
04A, transmit and receive on a single frequency, which is termed simplex
operation. Your radio automatically adjusts to these conditions. When in simplex
operation, the A icon will appear on the LCD (see illustration on page A3).
NOTE
All channels are preprogrammed at the factory according to international
regulations and those of the FCC (U.S.A.) and Industry Canada (Canada).
They cannot be altered by the user nor can modes of operation be changed
between simplex and duplex.
NOTA
Muchos de los canales de números simples, como 01, 02 y 03, transmiten
y reciben en diferentes frecuencias. A esto se le llama operación dúplex. El
resto de los canales de números simples y todos los canales A, como 01A,
03A y 04A, transmiten y reciben en una sola frecuencia, a la que se le llama
operación simple (simplex). Su radio se ajusta automáticamente a estas
condiciones. Cuando esté en operación simple, el icono A aparecerá en la
pantalla de cristal líquido (vea la ilustración de la página A3).
NOTA
Todos los canales vienen programados previamente de fábrica conforme
a los reglamentos internacionales y a los de la FCC (EE. UU) e Industry Canada
(Canadá). No pueden ser alterados por el usuario, así como tampoco pueden
cambiarse los modos de operación entre simple y dúplex.
Weather Channel Assignments
Asignaciones de canales meteorológicos •
RX Frequency MHz
Frecuencia de recepción (MHz)
Channel
Number
Número
de canal
1162.550 NOAA
2162.400 NOAA
3162.475 NOAA
4162.425 NOAA
5162.450 NOAA
6162.500 NOAA
7162.525 NOAA
8161.650 Canada
9161.775 Canada
10 163.275 NOAA
Weather Channel
Weather Channel
VHF Marine Channel Assignments (English)
Asignación de canales de VHF para radiocomunicación marítima (Español)

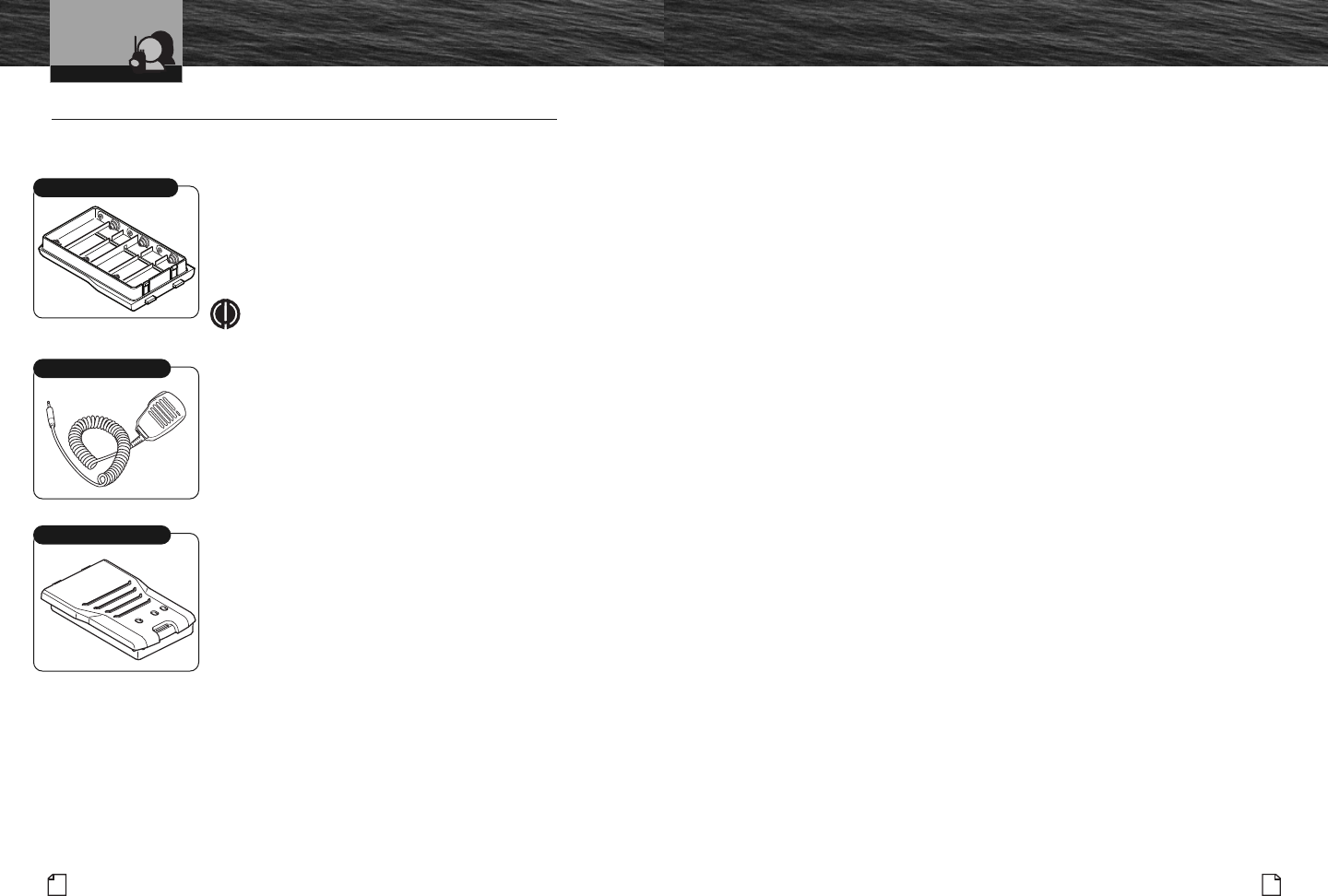

Introduction Accessories
Accessories •
Your Cobra radio has several optional accessories available to enhance the use
of the radio. Some are listed below:
Alkaline Battery Tray
A special alkaline battery tray (P/N CM 110-011)
is available as an optional accessory to have as an
emergency backup. By using six (6) high-quality
AA alkaline batteries, you can have a spare battery
backup source for your radio.
NOTE
Alkaline batteries are not rechargeable.
Lapel Speaker/Microphone
A speaker/microphone, that attaches to your lapel,
by ordering P/N CM 330-001.
This unique accessory allows you to wear the radio
on your belt while still being able to communicate
with other vessels. A small Push to Talk (PTT) button
on the lapel
speaker/microphone allows you to answer
any incoming call.
Long Life Battery
A long life replacement battery. P/N CM 110-010.
1900 mAh LiON replacement battery. Can be used
with the charger included with this radio. The radio
will NOT float with this battery attached.
Lapel Speaker/Microphone
Alkaline Battery Tray
Accessories
64 English 65
Nothing Comes Close to a Cobra®
This page intentionally left blank
LiON Battery Pack
