Coby Communications MID9052 Mobile Internet Device User Manual
Coby Communications Ltd. Mobile Internet Device Users Manual
Users Manual

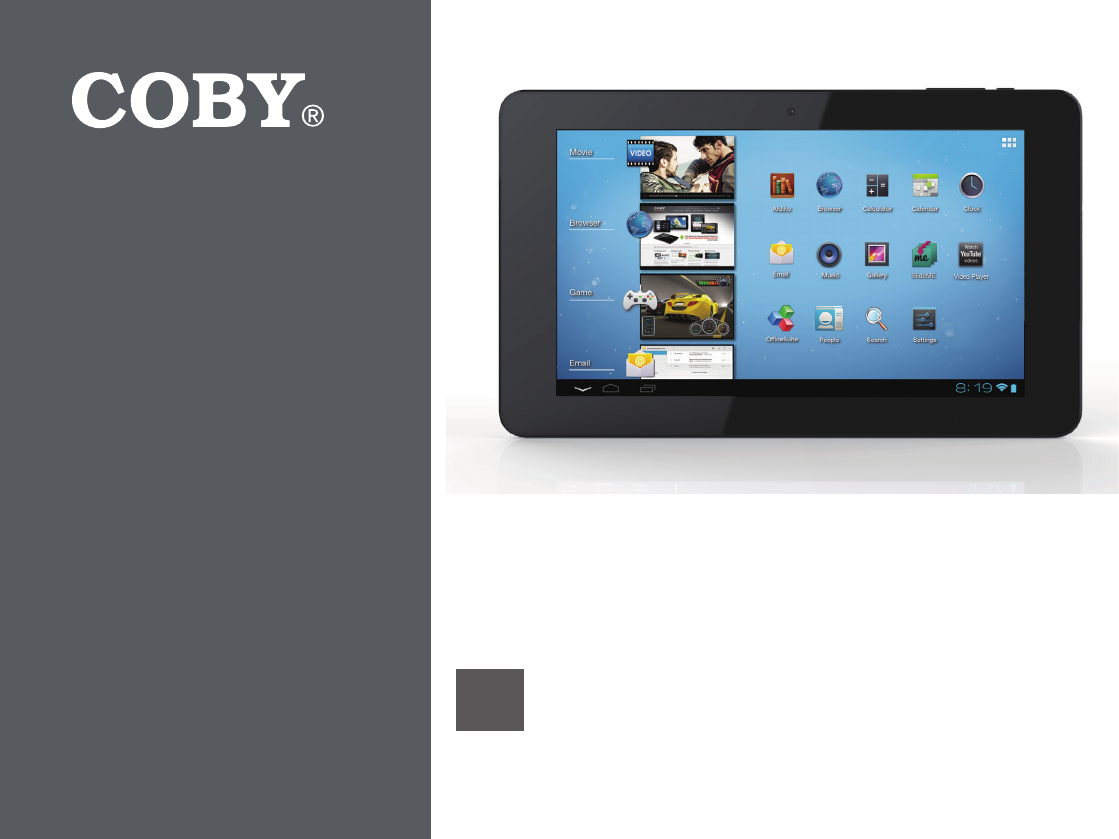

EN Coby® Kyros® Internet Tablet
Quick Start Guide ................................................ Page 2
Please read carefully before use • Léa el manual antes de usar • Veuillez lire ce livret avant utilisation
For series /
Para la serie /
Pour la série
MID9052
Page 2 Table Of Contents
English
THANK YOU .....................................................3
Package Contents ........................................................3
Features..........................................................................4
GETTING TO KNOW THE INTERNET TABLET .....5
Unit at a Glance ...........................................................5
About the Touchscreen ...............................................8
About the Orientation Sensor .....................................9
Charging the Tablet ...................................................10
Inserting a Memory Card or USB Flash Drive...........10
Resetting the Tablet ....................................................12
GETTING STARTED ......................................... 13
Turning the Tablet on and off ................................... 13
Home Screen at a Glance ........................................15
About Applications ....................................................16
About Widgets ............................................................19
..................................................... 19
CONNECTING TO THE INTERNET ..................21
Requirements ..............................................................21
Connect to a Wi-Fi network ..................................... 22
BROWSING THE WEB .....................................24
Browser menu ..............................................................26
MANAGING APPLICATIONS ........................28
OPTIONAL CONNECTIONS ..........................31
Connecting to a Computer ......................................31
Connecting to a TV ....................................................32
Connecting Headphones ........................................ 33
SETTING THE SYSTEM OPTIONS ....................34
SPECIFICATIONS ...........................................35
SUPPORT ........................................................36
SAFETY NOTICES ...........................................37
ÂTable of Contents
Thank You Page 3
English
ÂThank You
Congratulations on your purchase of a Coby® Kyros®
Internet Tablet. This guide is provided to help you get
started quickly with your player; please read it carefully
and save it for future reference.
For detailed instructions, up-to-date information, and helpful
tips, please visit the Coby website at www.cobyusa.com.
This manual is available for download from the
To view PDF documents, download and install
the free Adobe Acrobat reader from the Adobe
website at
Package Contents
Please make sure that the items shown below are
included in the package. Should an item be missing,
please contact the local retailer from which you pur-
chased this product.
Coby® Kyros® Internet
Tablet
Protective pouch
USB cable
Power adapter
This package may contain plastic bags or other
sure to safely dispose of all packing materials
Page 4 Thank You
English
Features
Browse the Web.
Visit your favorite websites
Check your e-mail
Keep in touch with friends and family
Watch YouTube™ videos
Browse the world’s most popular video-sharing com-
munity
Read your favorite books
Download thousands of books with the included
E-book reader *
Discover thousands of apps for Android™
Games, applications, and more with the installed
marketplace
HDMI™ output to your TV **
Enjoy videos, photos and more in the comfort of your
living room
Connect to the Internet wirelessly
High-speed Wi-Fi 802.11 b/g/n networking
Enjoy your media library anywhere
Portable powerhouse plays popular music, video,
and photo formats
microSDHC memory card reader
Increase your storage capacity (up to 32 GB sup-
ported)
Built-in camera
Convenient front and rear-facing cameras
Automatic orientation detection
Read any way you want; the display adjusts auto-
matically!
* Reading books in the ePub format requires the included
E-book reader application.
** Requires optional HDMI cable (Type A-to-Type C). 1080p
Streaming video quality will be affected by the source, and
the quality and condition of your network connection.
Getting To Know The Internet Tablet Page 5
English
ÂGetting to Know the Internet Tablet
Unit at a Glance
Name Description
1/12 Camera Front and Rear Facing cameras
Page 6 Getting To Know The Internet Tablet
English
Name Description
2Power key Press to turn the unit on, or to turn the
screen on and o.
Press and hold to access the Power O
menu.
3 Volume +
key
Press to increase the volume level.
4 Volume –
key
Press to decrease the volume level.
5Speaker Speaker output is automatically muted
when using headphone Jack.
12
55
Getting To Know The Internet Tablet Page 7
English
Name Description
6 Power jack
(DC input)
Charge and power the tablet with the
included power adapter.
7Headphone
jack
Audio output connection for head-
phones.
Note: Speaker output is automatically
disabled when headphones are con-
nected to the player.
8 USB 2.0 Hi-
speed port
Connect to a computer to transfer data
(e.g., music, videos, photos, les).
9Reset key Press to reset the tablet if it freezes or
otherwise behaves abnormally. (Use a
paperclip or other small object to gen-
tly press this key.)
10 HDMI jack
(mini Type C)
Connect to a TV or other display.
11 microSDHC
card slot
Load external microSDHC memory
cards here.
7
10
11
8
9
6
MIC
Page 8 Getting To Know The Internet Tablet
English
About the Touchscreen
Your tablet comes equipped with an easy-to-use touch-
screen.
touch on the glass screen to activate tablet’s functions.
stylus may be used. Make sure it is for capacitive touch-
screens.
To avoid damaging the screen, do not touch it
with excessive force or with any object other
your hands are clean before using the touch-
Protective Film
and peel it away from the screen.
Touchscreen Actions
You can control the functions of the tablet by using
the touchscreen in combination with the three touch
buttons, menu items, the on-screen keyboard, and other
items displayed on the screen.
You can perform the following actions on the touchscreen
Touch: To activate an on-screen item (e.g.,
application icons, buttons, menu
items, and the letter/symbols of the
on-screen keyboard), simply touch
Touch and
Hold:
Some on-screen items have an
alternate action if you touch and hold
it (e.g., opening an alternate menu, or
to activate the drag function). To touch
and hold an item, touch the item and
occurs.
Getting To Know The Internet Tablet Page 9
English
Drag: Drag an on-screen item to change its
position (e.g., an application icon on
the home screen).
To drag an item, touch and hold it for
a moment, then without lifting your
screen until the item reaches its target
destination.
Swipe: Swipe up/down on the screen to scroll
through a list. On some screens,
you may be able to swipe left/right to
change the view.
To swipe, touch the screen and then
Do not pause on the screen with your
or you may accidentally drag an item
instead.
Double-tap: Quickly tap the screen twice on a
webpage or other application screen
the browser, double-tapping a web-
page section will cause the browser to
of the screen.
About the Orientation Sensor
The tablet contains a sensor that will automatically
change the orientation of most screens as you rotate the
tablet. The sensor works best when the tablet is rotated
perpendicular to the ground (i.e., when the tablet is held
upright and not fat on its back).
The orientation sensor can be turned on and off in the
Display settings menu.
Page 10 Getting To Know The Internet Tablet
English
Charging the Tablet
The tablet comes with a built-in rechargeable lithium-
polymer battery.
Before using the tablet, the battery should be charged
fully. Press lower right corner settings, next to battery
icon is charging percentage.
To charge the battery:
1. Plug one end of the included power adapter into an
AC 100-240V outlet.
2. Plug the other end of the included power adapter into
the Power jack on the tablet.
3. Disconnect the power adapter when the tablet is fully
charged.
The battery used in this device may present a
not leave the de-vice in a place subject to direct
not connect the device to a power source other
than that which is indicated here or on the label
Inserting a Memory Card or USB
Flash Drive
The tablet accepts microSDHC memory cards and USB
-
rately) is required to connect USB Flash Drives:
Increase the memory capacity of your tablet
To insert a memory card:
1. Align the memory card with the card slot. The metal
contacts of the memory card should face down away
from the LCD screen.
2. Slide the card into the spring-loaded slot. Push the
card in until it clicks into place.
To connect a USB Flash drive:
USB port (micro-USB or mini-USB).
On-the-Go (OTG) cable adapter that corresponds to your
USB port.
Getting To Know The Internet Tablet Pa g e 11
English
3. The USB OTG cable will adapt the Tablet’s USB port
Do not attempt to insert objects other than a
the card slot; if you encounter resistance, check
Avoid touching the gold contacts of the memory
To release and remove a memory card:
1. UNMOUNT the memory card.
a. From the home screen, tap the Launcher Tab,
and then touch Settings to show the settings
menu.
b. Touch Storage to show the storage settings.
c. Touch Unmount SD card to prepare the memory
card for safe removal.
2. Push the card further into the slot until you hear a
click. The card will spring out of the slot.
3. Grasp the card by its edge to remove it.
4.
Page 12 Getting To Know The Internet Tablet
English
To avoid damage and data corruption, do not
remove a memory card while data is being
The available menu items are dependent on the
Resetting the Tablet
otherwise malfunction.
1. Disconnect your tablet if it is connected to a com-
puter.
2. Press and hold the POWER key for about 8 seconds
to turn off the tablet, and then press and hold the
POWER key until you see Coby logo.
Getting Started Page 13
English
ÂGetting Started
Turning the Tablet on and off
To turn the tablet on:
Press and hold the Power key until the LCD screen
turns on and you see Coby Logo, then wait until you
see the Unlock screen.

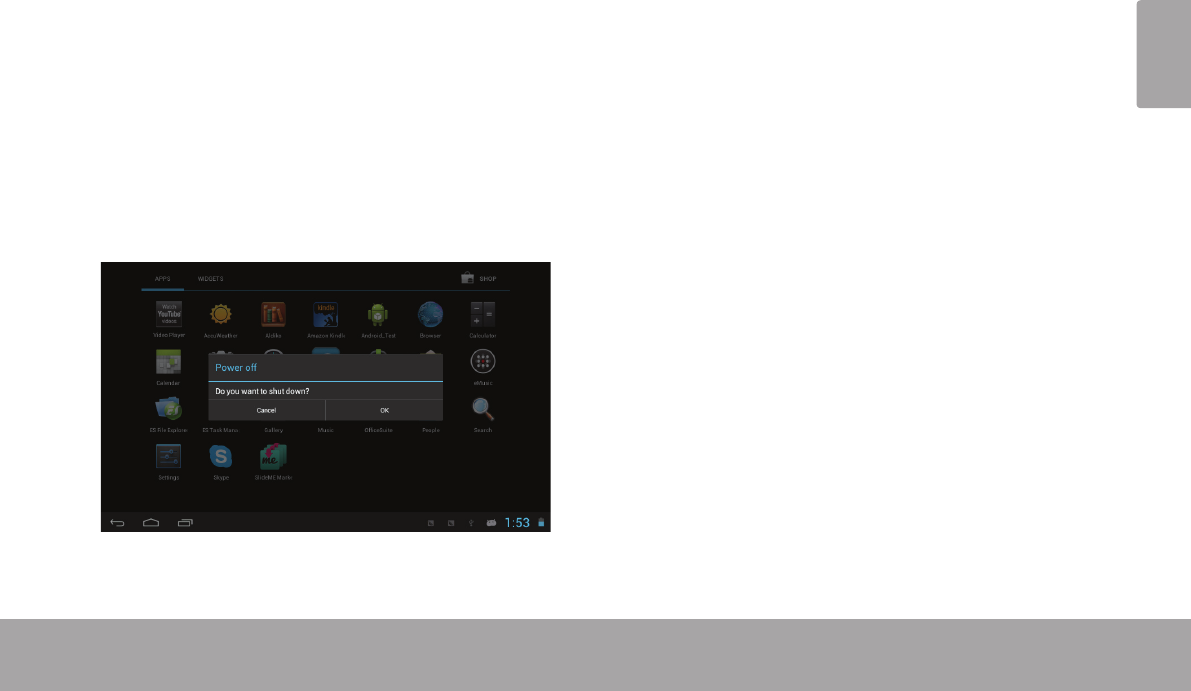

To turn the tablet off:
1. Press and hold the Power
message appears.
2. Touch OK to turn off the tablet.
Page 14 Getting Started
English
Turning the Screen On and Off (Standby)
When the tablet is on, you can turn off the screen to
conserve battery power. Simply press the Power key
once to turn the screen off. Press the Power key again to
turn the screen back on.
To conserve battery power, the screen can be
set to turn off automatically when the tablet is
not in use (between 15 seconds and 30 min-
Sleep option can be found in the
Display
Unlocking the Screen
When the screen turns off, you will have to unlock the
screen when you turn it back on.
To unlock the screen, touch and drag the lock icon to the
edge of the circle that appears.
Getting Started Page 15
English
unlocking the screen. The Screen Unlock password can
be set in the Security settings menu.
WARNING: Please write down your password
-
-
covering the unit will reset the device back to
ALL YOUR DATA & PRO-
GRAMS WILL BE LOST.
Home Screen at a Glance
The home screen is the starting point for all of the
features of your tablet.
5
6
1
7
2
3
4
Name Description
1Google
Search
Touch to search with Google browser.
2Home icon Touch to back to the central Home Screen.
3Back icon Touch to back to the previous screen.
Page 16 Getting Started
English
Name Description
4Recent Apps Touch to display the list of thumbnail im-
ages of apps you have worked recently.
Touch an App to open it.
5Launcher
Tab
Open the Launcher to view the list of all
Applications and Widgets installed on the
tablet. Touch the Launcher tab to open
the Launcher.
6Icons Touch an icon to open an application or
folder.
7Notication
bar
Shows notication icons such as time, bat-
tery level, and the network signal strength;
touch the bar to open the full Notications
panel. Touch a Notication icon to display
more detail.
About Applications
To open an application, touch the application icon on the
home screen or in the Launcher.
Launcher screen:
The screen shown above is for illustrative
Getting Started Page 17
English
Preinstalled Applications
Some applications have been installed on your tablet for
your convenience. These applications include:
Download and read thousands of e-books.
Supports the ePub standard.
Get $10 of music from eMusic.
Browse the web.
Access to thousands of apps with SlideME
Marketplace.
Display the calendar or record events and
appointments to manage your schedule.
Perform simple mathematical operations.
Take pictures or videos with the front-
facing camera.
View the current time, or set an alarm.
Check your e-mail.
View and manage les stored on the tablet.
Visit http://www.estrongs.com/en/products/
le-explorer.html for more information.
Turn o background apps to conserve bat-
tery power.
Visit http://www.estrongs.com/en/products/
task-manager.html for more information.
Page 18 Getting Started
English
View photos and videos, plus edit photos.
Play music.
Access the Settings menu to adjust the
tablet’s options.
Launch the mobile YouTube™ browser page
to watch internet videos.
Installing Applications
You can also download an install additional applications
from the device’s applications marketplace, the web
browser, or other sources.
The tablet must be set to allow installation of applications
from non-Market sources. The Unknown sources option
can be set in the Application settings menu.
access to, or information on, content, products,
use of such third party content, products,
applications and services is at the discretion of
such third party and expressly governed by such
third party’s terms of use, including any such
third party’s privacy policies, for such content,
Electronics Corporation is not responsible for
and expressly disclaims all warranties of any
kind with respect to all such third party content,
Electronics Corporation will not be responsible
for any loss, costs, or damages incurred due to
your access to or use of third party content,
Getting Started Page 19
English
About Widgets
Widgets are self-contained applications that you can
place on the Home screens to access your favorite
features.
Adding Widgets to a Home Screen
1. Navigate to the Home screen which you want to
place the Widget on.
2. Touch the Launcher Tab.
3. Touch WIDGETS to show all widgets, and then hold
on a widget icon to add it to the Home screen.
Removing Widgets
Touch and hold the Widget until Remove icon appears
at the top side of the screen, then drag the Widget to the
Remove icon to remove it.
bottom right corner of the screen alerts you when new
messages arrive or alarms or other application events
occur.
Touch the
panel.
Page 20 Getting Started
English
will launch.
Touch any other area of screen except the
Touch the Back icon.
Connecting To The Internet Page 21
English
ÂConnecting to the Internet
Wireless Wi-Fi technology can provide Internet access at distances of over 300 feet; however, this distance can be af-
fected by your surrounding environment and Wi-Fi router.In general, being closer to Wi-Fi router improve performance.
Requirements
In order to connect to the Internet, you will need either of
the following:
A wireless router or access point with a broad-
band Internet connection
The tablet has 802.11 b/g/n Wi-Fi radio. The tablet will also
work on wireless routers that only support 802.11 b/g.
A minimum connection speed of 64 Kbps is rec-
You will need to know the name of your network (SSID),
as well as the password or other credentials if your
network is secured. These settings can usually be found
on the administration webpage of your wireless router.
Please refer to your wireless router’s documentation for
help, or ask your network administrator for details.
You may encounter open Wi-Fi networks, or “hot
so that you can simply connect to them without
needing to know its settings; the tablet will obtain
all the information it needs from the router auto-
Page 22 Connecting To The Internet
English
Connect to a Wi-Fi network
tablet’s Wi-Fi status.
Connected to a Wi-Fi network (waves
indicate connection strength).
[no icon] There are no Wi-Fi networks in range, or
the Wi-Fi radio is off.
1. Turn on the Wi-Fi radio if it is not already on. To
turn on Wi-Fi:
a. Go to the Home screen:
Touch the Home icon.
b. Open the Launcher screen:
Touch the Launcher Tab, then touch Settings.
c. Open the Wireless & networks menu:
Touch WIRELESS & NETWORKS.
d. Open the Wi-Fi settings menu:
Touch WiFi.
e. Make sure that the Wi-Fi option box is setted to
ON: Touch and slide the block right to enable
the Wi-Fi connection.
When Wi-Fi is on, the tablet will look for and display a list
of available Wi-Fi networks.
If a network that you have connected to previ-
If you don’t see your network in the list, you
-
works, tap the SCAN icon that located on the
2. Select an available Wi-Fi network to connect to:
In the same Wi-Fi settings menu above, touch a network
in the list.
Connecting To The Internet Page 23
English
If the network is open, the tablet will prompt you to
Connect to
If the network is secured (as indicated by a Lock icon),
the tablet will prompt you to enter a password or other
credentials. Touch the Wireless password box to show
the on-screen keyboard and then use it to enter the
password. Touch Connect
When you have successfully connected to a Wi-Fi
will show a Wi-Fi signal indicator.
To learn about how to add a Wi-Fi network when
it is not in range or when the router is set to ob-
advanced Wi-Fi options, please refer to the man-
Page 24 Browsing The Web
English
ÂBrowsing the Web
friends, or enjoy video from YouTube™, the world’s most popular video-sharing community.
To use Browser, the tablet must be connected to the
Internet. Read the section “Connecting to the Internet” to
learn how to connect to the Internet.
To open Browser, touch the Browser icon on the Home
screen or in the Launcher.
1
2
435
Name Description
1Address bar Displays the address (URL) of the
current page. Touch the bar to
enter a new address or to search
the web.
2Goto Bookmarks
icon
Touch to view bookmarks, to view
your most visited sites, or to view
your browser history.
3Search icon Touch to search with Google
browser.
4Add Bookmark
icon
Touch to add bookmarks.
5 New Window (+) Creates new browser window.
Browsing The Web Page 25
English
Some common Browser actions are described below.
To go to a webpage.
1. Touch the Address
bar at the top of the
Browser screen. The
keyboard will open
automatically. (If the
Address bar is not
visible, drag the page
down to return to the
top of the Browser
screen.)
2. Use the keyboard to
enter the ad-dress
(URL) of the webpage
(e.g., www.cobyusa.
com).
3. Touch Enter key to
open the webpage.
To bookmark a webpage.
Bookmark your favorite webpages in order to visit
them quickly without entering a URL.
1. Go to the web-
page that you
want to bookmark
2. Touch the Add
Bookmark icon.
3. If desired, you can
modify the name
of the bookmark
or its location
(URL address).
Otherwise, touch
OK
adding the book-
mark.
Page 26 Browsing The Web
English
To go to a bookmarked webpage.
1. Touch the Goto
Bookmark icon.
2. Touch a bookmark
tile to open it.
To delete a bookmarked webpage.
1. Touch the Goto
Bookmark icon.
2. Touch and hold a
bookmark tile to
open the option
menu.
3. Touch “Delete
bookmark“.
4.
Browser menu
While viewing a webpage, touch the icon show
as right to open the Browser Menu, the icon is
locate on the top right corner of the screen, the
options are:
Refresh: Refresh the current webpage.
Forward: Go to the next webpage.
New tab: Open the webpage in a new window, under
a new tab.
New incognito tab: Open the webpage in a new win-
dow, under a new tab, and the pages you view in the
new window will not appear in your browser history
or search history. See the on-screen explanation of
going incognito.
Share page: Use Email to send the webpage URL.
Find on page: Search for content on the current
page.
Browsing The Web Page 27
English
Request desktop site:
-
ternal memory, then you can read it when the internet
connection is disable.
Page info: View information about the current page,
including the URL.
Page 28 Managing Applications
English
ÂManaging Applications
Downloading and installing new applications to your tablet can extend its functionality in many ways.
You can download and install applications from the
included Applications store. To open the Applications
store:
1. Touch the Launcher icon.
2. Touch the Apps Marketplace icon.
When installing an application, it will tell you what func-
tions it needs to control and if it needs access to your
data. Make sure you review these access requirements
carefully before completing the installation.
request access to many functions or to a
responsible for the results of applications
Managing Applications Page 29
English
You can learn more about SlideME, and browse for ap-
plications by visiting their website at http://slideme.org/.
Some developers allow you to download and in-
access to, or information on, content, products,
use of such third party content, products,
applications and services is at the discretion of
such third party and expressly governed by such
third party’s terms of use, including any such third
party’s privacy policies, for such content, products,
Corporation is not responsible for and expressly
disclaims all warranties of any kind with respect to
all such third party content, products, applications
not be responsible for any loss, costs, or damages
incurred due to your access to or use of third party
To uninstall an application:
1. From the Home screen, touch the Launcher Tab.
2. Touch Settings to open the Settings menu.
3. Touch Apps, a list of all applications installed on the
tablet will display on screen.
Page 30 Managing Applications
English
4. Touch the name of the application you want to
uninstall; the Application Info screen will open.
5. Touch Uninstall. The tablet will prompt you to
6. Touch OK to uninstall the application.
Or you can uninstall an application from the
-
plication icon until the Uninstall icon
appears, drag the application icon to the Unin-
stall
Optional Connections Page 31
English
ÂOptional Connections
Connecting to a Computer
1. Connect your tablet to the computer.
With the included USB cable:
Plug the small end of the cable into the USB 2.0 Hi-
speed connector of the tablet.
Plug the large end of the cable into an available USB
2.0 Hi-speed port on the computer.
When your tablet is connected, a USB icon will
panel.
with many operating systems including:
® Windows® XP, Vista, 7 or higher and
Page 32 Optional Connections
English
2. Mount the storage drive.
Touch USB connected to mount the tablet’s built-in
storage, then touch “Turn on USB storage” and “OK”
your tablet and the computer. To learn more about copy-
your computer or operating system.
Connecting to a TV
Connect to a TV to enjoy your tablet from the comfort of
your living room. An HDMI cable (Type A-to-Type C) is
required to connect the tablet to a TV.
TV automatically.
To connect the tablet to the TV:
1. Plug the small end of the HDMI cable into the mini
HDMI connector of the tablet.
2. Plug the large end of the HDMI cable into the HDMI
port on the TV.
3. Turn on the TV, and set its display mode to the HDMI
port that the tablet is connected to.
The tablet’s display will be output to the TV screen.
If you need help setting the display mode of the
TV, please refer to the documentation provided
Optional Connections Page 33
English
Connecting Headphones
Connect a pair of headphones (or earphones) to the
tablet to enjoy media in private.
Lower the volume level of the tablet before connecting
headphones, and then slowly raise the volume to a
comfortable listening level.
The headphones must have a 3.5 mm (1/8 in) plug.
When headphones are connected, speaker output
will be disabled automatically.
Hearing experts advise against the constant
Constant exposure to high volumes can lead to
the ears or hearing loss, discontinue use and
Page 34 Setting The System Options
English
ÂSetting the System Options
Open the system settings menu to adjust how the tablet looks and functions.
To open the Settings menu:
1. From the Home screen, touch the Launcher Tab.
2. Touch Settings to open the Settings menu.
The settings are grouped by category. Touch a category to open and adjust its
settings on the right side.
Page 35
English
Â
Please visit www.cobyusa.com
change without notice.
Processor CortexTM -A9 (1 GHz)
RAM 512 MB
Storage Built-in-Storage is model dependant
and indicated on product packaging.
microSDHC card slot (max. 32GB sup-
ported)
Display 9” TFT LCD (800 x 480), capacitive
touchscreen
Networking Wi-Fi ( 802.11 b/g/n )
Video Output Mini HDMI, type C (1080p and 720p
supported)
Audio Output 3.5 mm headphone
PC Interface USB 2.0 Hi-speed
(MicroUSB connector)
Additional
Features
Front and Rear-facing camera
2MP for Rear-facing Camera
Built-in microphone
Stereo speaker
Operating
System
Android™ 4.1
Power Rechargeable Li-poly battery Power
Adapter (DC 5V)2
1
2
Page 36 Support
English
ÂSupport
If you have a problem with this device, please check our website at www.cobyusa.com for Frequently Asked
Questions (FAQ) and product updates. If these resources do not resolve the problem, please contact Technical
Support.
Coby Electronics Technical Support
Email: techsupport@cobyusa.com
Web: www.cobyusa.com
Phone: For US Residents: 877-302-2629, Monday-Friday (9:00AM-9:00PM EST)
For Canadian Residents: 855-542-8917, Monday-Friday (8:00AM-8:00PM EST)
Safety Notices Page 37
English
ÂSafety Notices
For recycling or disposal information about this prod-
uct, please contact your local authorities or the Elec-
tronics Industries Alliance:
For Customer Use:
WARNING:
Protect your hearing: -
Note:
• Turn o the unit by pushing and holding the slide button
at the right (Power o position) for 15 seconds.
• Turn on the unit again
Page 38 Safety Notices
English
FCC Statement:
Note:
FCC Radiation Exposure Statement:
Safety Notices Page 39
English
Important Safety Instructions
1. Read Instructions: All the safety and operating instruc-
tions should be read before the product is operated.
2. Retain Instructions: The safety and operating instruc-
tions should be retained for future reference.
3. Heed Warnings: All warnings on the product and in
the operating instructions should be adhered to.
4. Follow Instructions: All operating and usage instruc-
tions should be followed.
5. Cleaning: Unplug this product from the wall outlet be-
fore cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
6. Attachments: Use only attachments recommended by
the manufacturer. Use of other attachments may be
7. Water and Moisture: Do not use this product near
water (e.g., near a bath tub, washbowl, kitchen sink,
laundry tub, in wet basements, or near a swimming
pool and the like).
8. Ventilation: Slots and openings in the cabinet are
provided for ventilation to ensure reliable operation of
the product and to protect it from overheating. These
openings should never be blocked by placing the
product on a bed, sofa, rug, or other similar surface.
This product should not be placed in a built-in installa-
tion such as a bookcase or rack unless proper ventila-
tion is provided or the manufacturer instructions have
been adhered to.Do not charge the device in a closed
or non-air circulated environment. Even If the device
does not have ventilation slots make sure to charge
and use is in non-closed well air circulated environ-
ment.
9. Power Sources: This product should be operated only
from the type of power source indicated on the rating
label. If you are not sure of the type of power supply to
your home, consult your product dealer or local power
company. For products intended to operate from bat-
tery power or other sources, refer to the operating
instructions.
10. Overloading: Do not overload wall outlets, extension
cords, or integral convenience receptacles as this can
11. Object and Liquid Entry: Never push objects of any
kind into this product through openings as they may
touch dangerous voltage points or shout-out parts that
of any kind on the product.
12. Servicing: Do not attempt to service this product your-
self as opening or removing covers may expose you to
-
13. Damage Requiring Service: Unplug this product from
Page 40 Safety Notices
English
personnel under the following conditions: a) when the
power-supply or plug is damaged; b) if liquid has been
spilled or if objects have fallen into the product; c) if
the product has been exposed to rain or water; d) if
the product does not operate normally by following the
operating instructions. Adjust only those controls that
are covered by the operating instructions as improper
adjustment of other controls may result in damage and
-
cian to restore the product to its normal operation; e)
if the product has been dropped or damaged in any
way; f) when the product exhibits a distinct change in
performance—this indicates a need for service.
14. Replacement Parts: When replacement parts are re-
quired, be sure that your service technician has used
have the same characteristics as the original part.
15. Safety Check: Upon completion of any service or
repairs to this product, ask the service technician to
perform safety checks to ensure that the product is in
proper operating condition.
16. Heat: The product should be situated away from heat
sources such as radiators, heat registers, stoves, or
heat.
17. Lithium-ion battery caution: This product is equipped
with a Lithium-Ion battery. Do not pierce, open, disas-
semble it, or use it in a humid and/or corrosive envi-
ronment. Don not put, store or leave your product in or
near sources of heat, in direct strong sunlight, in a high
a microwave oven. Do not expose it to temperatures
over 60°C (140°F). If the battery leaks and you come
water and seek medical attention immediately. Failure
to follow these instructions could cause the Lithium-
Ion battery to leak acid, become hot, explode or ignite
and cause injury and/or damage.
18. Operate battery in right way: Do not charge the de-
vice in a closed or non-air circulated environment.
Make sure to charge the battery in non-closed well
air circulated environment.Do not leave your battery
charging for more than one week. Doing so runs the
risk of overcharging the battery and shortening its to-
tal life span. If the device is not used for an extended
period of time, the battery will slowly discharge and
the device will need to be recharged before using
again. Unplug the charger from the wall when it is not
being used.
19. Do not install your tablet in your vehicle or use it while
driving. Using your tablet while driving could put you
and others at greater risk of an accident causing seri-
ous injury. Do not use a charging accessory in a ve-
Safety Notices Page 41
English
hicle to avoid a risk of misusage.
20. Operating and Storage Temperatures:
Tablet operating: 32°F~104°F (0°C to 40°C)
Tablet storage: 14°F~104°F (-10°C to 40°C)
Charger operating: 32°F~104°F (0°C to 40°C)
Legal and Trademark Notices
No portion of this package, including shape, graphics,
and design, may be reproduced or transmitted in any
form or by any means, electronic or mechanical, includ-
ing by photocopying, recording or use of any information
storage and retrieval system without express written
reproduction or distribution of this package, design,
or any portion of it will be prosecuted to the maximum
extent possible under law.
Coby and Kyros are trademarks of Coby Electronics
Corporation. Android, Google, YouTube and other marks
are trademarks of Google Inc. The Android robot is
by Google and used according to terms described in the
Creative Commons 3.0 Attribution License. HDMI, the
trademarks or registered trademarks of HDMI Licensing
LLC. microSDHC is a trademark of SD-3C, LLC. USB is
a registered trademark of USB Implementers Forum, Inc.
SlideME and SlideME logo are trademarks of SlideME
CLOUDLINK logo is a trademark of Cloudlink, LLC
and any logo or trademark used from Partners within
its Productivity Tool are trademarks of their respective
owners. All other trademarks, registered trademarks,
and logos are of their respective owners. This unit may
feature content, applications, products and/or services
offered or controlled by third parties and your use of
same is governed by such third parties’ terms of use.
Coby Electronics Corporation is not responsible for any
such third party content, applications, products and/or
services. Please consult unit manual for further details.
Coby is a registered trademark of Coby Electronics Corporation.
Printed in China.
COBY es la marca registrada de COBY Electronics Corporation.
Imprimido en China.
Coby est une marque de fabrique de Coby Electronics Corporation.
Imprimé en Chine.
Coby Electronics Corp.
1991 Marcus Ave, Suite 301
Lake Success, NY 11042
www.cobyusa.com
www.ecoby.com
