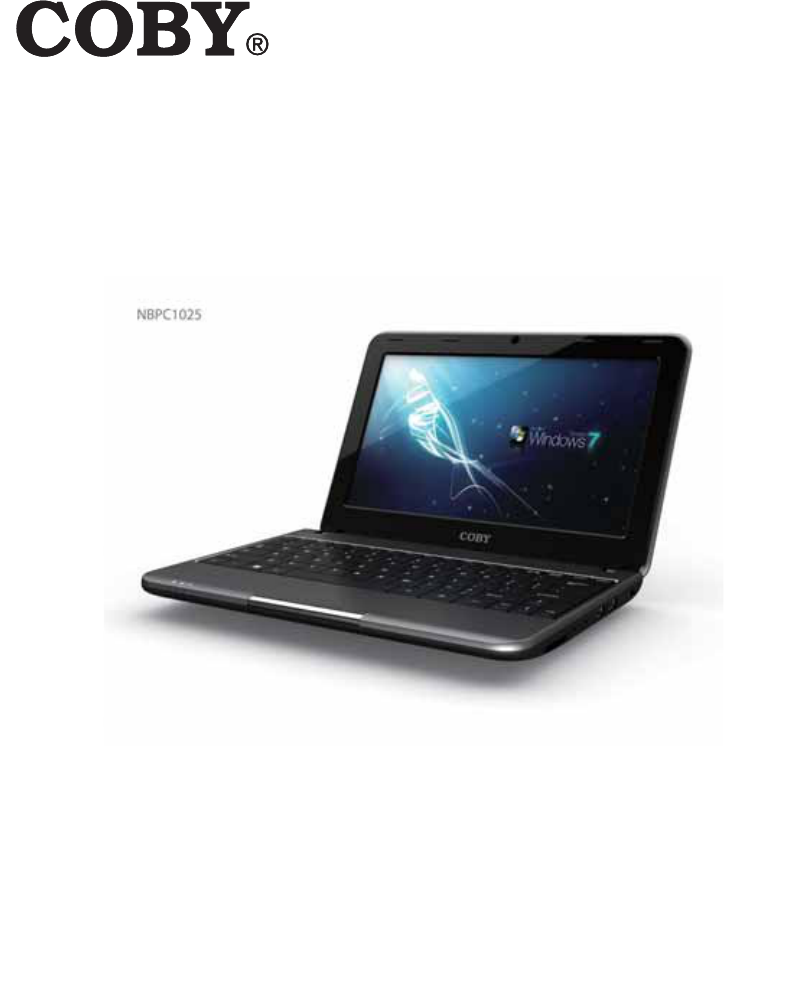

Coby Communications NBPC1165-1025 NETBOOK User Manual
Coby Communications Ltd. NETBOOK
User manual
NBPC1025/NBPC1165
ES
FR
DE
PT
Please read carefully before use
English
Table of Contents
PACKAGE CONTENTS ........................................................ 4
SAFETY PRECAUTIONS ..................................................... 5
General Operation .................................................................................................. 5
Battery ........................................................................................................................ 6
Power Connection ................................................................................................... 6
Unit Components .................................................................................................... 7
NETBOOK AT A GLANCE ................................................... 8
Top View ..................................................................................................................... 8
Left View ................................................................................................................... 10
Bottom View ............................................................................................................ 11
BASIC OPERATION ...........................................................12
Power ......................................................................................................................... 12
AC Power ................................................................................................... 12
Battery Power ........................................................................................... 12
Getting Started ....................................................................................................... 14
Turning On Your Computer ................................................................. 14
Sleep Mode ............................................................................................... 14
Shut Down ................................................................................................ 14
Keyboard Functions .............................................................................................. 15
Function Key Combinations ................................................................ 15
Numeric Keypad ...................................................................................... 16
Using the Touchpad .............................................................................................. 17
www.cobyusa.com Page 3
English
Table of Contents
FEATURES .........................................................................18
Using Memory Cards ............................................................................................ 18
Using the Web Camera ........................................................................................ 18
Using the Internet .................................................................................................. 18
LAN Port ..................................................................................................... 18
Wireless ...................................................................................................... 19
Installing Device Drivers ...................................................................................... 19
EXTERNAL DEVICES ........................................................ 20
Connecting a Universal Serial Bus (USB) Device ..........................................20
Connecting an External Display ........................................................................20
Connecting an Audio Device ............................................................................. 21
Connecting an External Microphone .............................................................. 21
TROUBLESHOOTING ....................................................... 22
SPECIFICATIONS .............................................................. 27
FCC STATEMENT .............................................................28
Page 4 Coby Electronics Corporation
English
Package Contents
Congratulations on your purchase of a Coby netbook computer. This
instruction manual guides you in setting up and using your new com-
puter. Please read the manual carefully before operation, and keep it
for future reference.
This package contains:
Coby computer unit
–V AC adapter
NBPC1025: -cell lithium-ion battery
NBPC1165: -cell lithium-ion battery or
6-cell lithium-ion battery
This package may contain plastic bags or other materials that
pose a hazard to children. Be sure to safely dispose of all pack-
ing materials after opening.
Product names used herein are for identification purposes only
and may be the trademarks of their respective companies. Mi-
crosoft®, Windows® XP, Windows® 7, and Windows Sound Sys-
tem are trademarks of Microsoft Corporation. Intel®, Intel®
Core™, Intel® HD Audio (Azalia) are registered trademark of Intel
Corporation. All other brands or product names mentioned in
this manual are trademarks or registered trademarks of their
respective companies.
English
Safety Precautions
Follow the guidelines below to ensure the safe operation of
your computer.
General Operation
Set up and store the computer on a firm, flat surface. Make sure
that your workspace allows for proper ventilation.
To avoid overheating, do not operate the computer on a soft
surface, such as a bed, for long periods of time.
Keep the computer away from water. Exposure to moisture may
cause malfunction or risk of electric shock.
Do not expose the computer to excessive heat, including direct
sunlight and heat-producing appliances.
To avoid potential damage to the hard drive, do not expose the
computer to electromagnetic fields from stereos, microwaves, or
other household appliances.
If liquid is spilled on or into the computer, unplug it immediately
and contact customer service.
Clean with a damp cloth or mild detergent; do not use harsh
chemicals.
Handle your computer gently to avoid hard drive damage. Do not
drop the computer.
Back up your hard drive regularly to avoid loss of data in the event
of damage.
English
Safety Precautions
Battery
Use only the recommended battery pack.
Keep metallic objects, such as keys and clips, away from the bat-
tery pack.
To avoid risk of fire, keep electrical appliances away from the bat-
tery pack.
Do not expose the battery pack to heat or moisture.
Do not short-circuit the battery terminals.
To avoid damage to the battery, make sure that the battery catch
locks firmly in place upon installation.
Power Connection
Connect to a properly grounded outlet of the recommended volt-
age, only.
Do not use the power cord if it is damaged or frayed.
Do not connect the power cord to a loose or damaged socket.
To unplug the power cord, hold the body of the plug and pull
gently. Do not yank or stress the cord.
Disconnect the cord before cleaning the computer.
Disconnect the cord during electrical storms.
English
Safety Precautions
Unit Components
Do not connect the LAN port to a telephone line.
Connect only appropriate devices and drives to the SD, USB and
modem ports on the unit. Do not insert other objects into these
ports.
Do not stress, bend, or scratch the LCD. Doing so may cause it to
break.
Do not touch or ingest the liquid that spills from a broken LCD.
Do not operate the wireless internet within meters of a micro-
wave oven or plasma lamp.
Page 8 Coby Electronics Corporation
English
Netbook at a Glance
Illustrations in this manual may di er from the actual product.
Top View
1. Web camera
2. Display panel
3. Power button
4. Keyboard
5. WIFI status indicator
6. Battery power status indicator
7. Power status indicator
8. Integrated mouse(left/right click)
9. Touchpad
10. AC adapter jack
1
2
3
89
4
7
5
6
13
10
11
12
14
15
16
17
18
11.LAN connection (broadband
or cable internet input)
12. VGA connection (monitor or
projector input)
13. Vent
14. HDMI
15. USB port (x2)
16. Headphone jack
17. Microphone jack
18. SD card slot (SDHC compatible
www.cobyusa.com Page 9
English

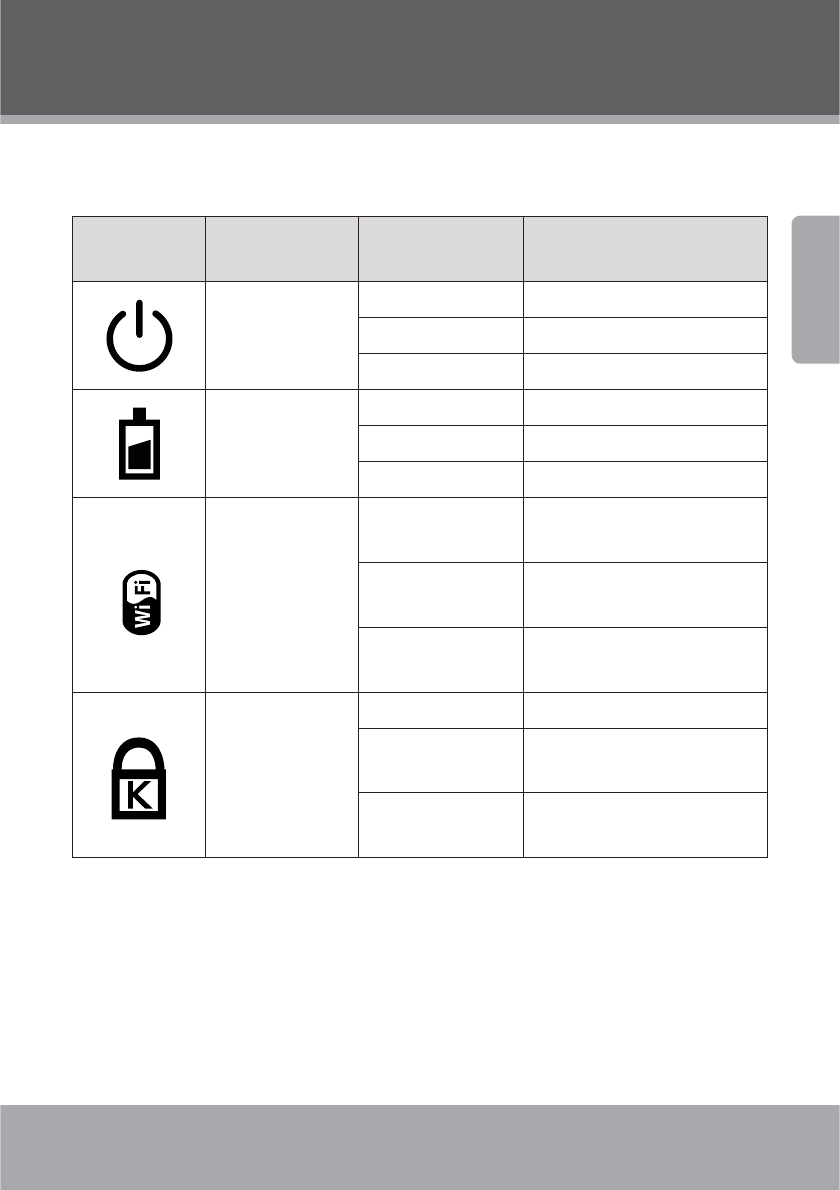

These indicators display your computer’s current status. Please refer to
the table below for more information.
Indicator
Symbol
Indicator TypeAppearanceStatus
Power Solid blue System on
Flashing blue System in standby mode
O System o/hibernating
Battery O Battery charged
Solid red Charging
Flashing red Low battery
Wireless LAN O No power to wireless card/ RF
deactivated
Flashing blue, slow Wireless client is not associ-
ated with the network
Flashing blue, rapid Wireless transmitting/receiv-
ing data
Caps/Number
Lock
Solid blue Caps lock on
Solid red Number lock on/numeric
keypad active
Solid pink Caps lock on, Number lock on/
numeric keypad active
Netbook at a Glance
Page 10 Coby Electronics Corporation
English
Left View

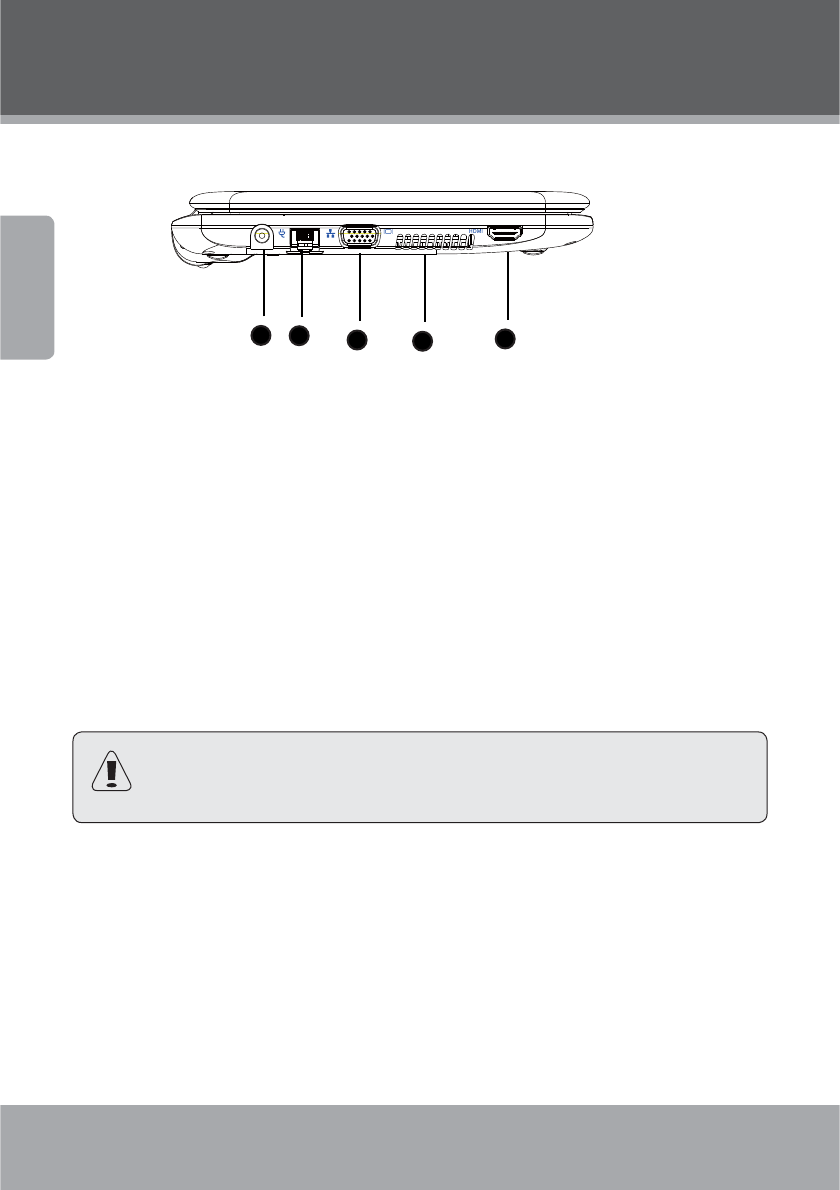

1. AC adapter jark
2. LAN connection(broadband or cable internet input)
3. VGA connection(monitor or projector input)
4. Vent
5. HDMI (HD port)
To avoid overheating, do not block the vents when the com-
puter is in use.
Netbook at a Glance
12345
www.cobyusa.com Page 11
English
Bottom View
1. Battery latch (manual)
2. Battery pack
3. Battery latch (automatic/
spring-loaded)
4. Vent
5. Hard drive compartment
Do not attempt to disassemble or replace your hard drive. For
assistance with hard drive replacement and repair, contact a
qualified service professional.
To avoid overheating, do not block the vents when the com-
puter is in use.
Netbook at a Glance
12
3
4
5
English
Basic Operation
Power
Your computer includes both an AC adapter and built-in, rechargeable
lithium-ion battery for maximum portability.
AC Power
Use the AC adapter to run your computer on AC power and charge the
battery. To connect the AC adapter:
Connect the power cord to the transformer pack.
Plug the power cord into an electrical outlet.
Connect the AC adapter to the AC power adapter jack of the com-
puter.
Battery Power
Make sure the battery is fully charged before first use. The battery
power status indicator will flash when the battery is low. Connect the
AC adapter as instructed above to charge the battery.

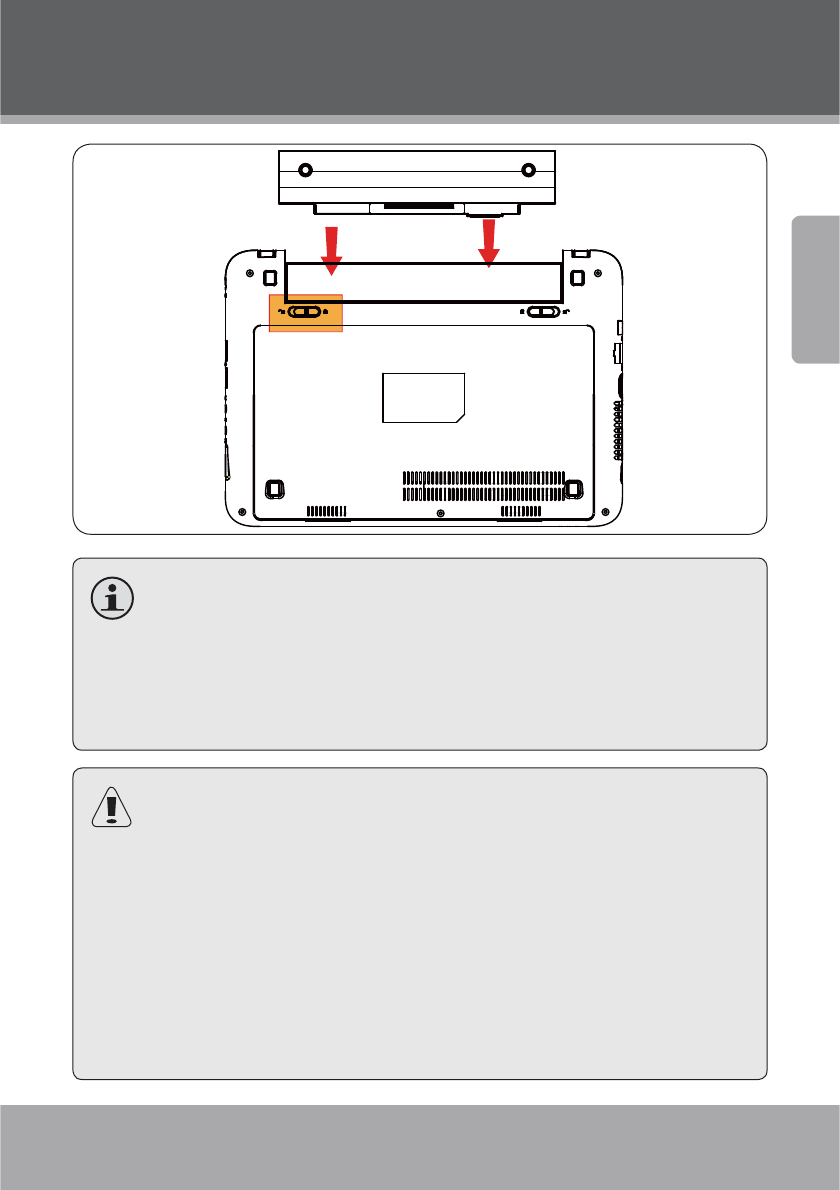

To replace the battery:
Shut down the computer and disconnect all cables, including the
AC power cord.
Turn the computer over to access the battery release. Slide the bat-
tery release latch to the unlock position and hold.
Slide the battery out.
Slide the replacement battery into the bay until it clicks into place.
Slide the release latch to the locked position.
www.cobyusa.com Page 13
English
The components and programs on your computer consume
power at dierent rates. Using power-intensive components/
programs will cause the battery to drain faster.
Your computer’s operating system may run more slowly when
operating on battery power.
Use only approved battery packs to power your computer. Us-
ing an incompatible battery may increase the risk of fire or ex-
plosion.
Do not attempt to disassemble or modify the battery pack. A
battery pack other than the one specified by us, or a disassem-
bled or modified battery pack, is not covered by the warranty.
When disposing of the battery, comply with local ordinances
and regulations. Do not attempt to dispose of the battery in
your household trash.
Basic Operation
English
Getting Started
Open the computer and adjust the display panel for comfortable viewing.
Turning On Your Computer
Press the power button to turn on the computer.
Sleep Mode
When you finish working with your computer, you can put it to sleep
or shut it down.
Use sleep mode if you will be away from your computer for only a
short time. To enter sleep mode:
Click the Start menu and select Sleep, or
Press Fn + Esc.
To wake the computer, press the Power button.
Wait until the power indicator light starts blinking (indicating
that the computer is in sleep) before you move your computer.
Moving your computer while the hard disk is spinning may
cause damage or loss of data.
Shut Down
Your computer should be shut down when not in use for hours or
more. Enter the Start menu and select Shut Down to turn off the com-
puter.
Basic Operation
English
Keyboard Functions
Your computer’s standard keyboard incorporates a numeric keypad
and function keys.
Function Key Combinations
The function keys allow you to change your computer’s operating
features instantly. See below for more information on using function
key combinations.
Key Description
Fn + Esc Put your computer in sleep mode.
Fn + F1 Enable/disable the built-in wireless internet.
Fn + F3 Mute.
Fn + F4 Enable/disable the touch pad.
Fn + F5 Shift to other connected display devices, i.e. another monitor.
Fn + F6 Decrease display brightness.
Fn + F7 Increase display brightness.
Fn + F8 Decrease computer volume.
Fn + F9 Increase computer volume.
Fn + F10 Turn on/off the LCD screen.
Fn + Ins/NumLk Enable/disable the Numeric keypad.
Basic Operation
English
Basic Operation
Numeric Keypad
When enabled, the keys indicated below can be used as a -key nu-
meric keypad. To enable or disable the numeric keypad, press Fn+Ins/
NumLk.
www.cobyusa.com Page 17
English
Basic Operation
Using the Touchpad
Use the touchpad and integrated mouse to navigate your computer’s
operating system. To move the cursor on the screen, slide your fingertip
over the touchpad in the direction in which you want the cursor to move.
Use the left/right click buttons on the integrated mouse just as you
would the left/right click on a conventional mouse to select objects,
open programs, or retrieve information.
1. Touchpad
2. Left click
3. Right click
Use one finger only to navigate the touchpad. Moisture or dirt
may cause the touchpad to function incorrectly.
Sharp objects or excessive pressure may damage the touch-
pad’s surface.
Do not attempt to remove the cover of the touchpad.
English
Features
Using Memory Cards
Your computer includes an SD memory card slot for easy transfer of
data. To insert a memory card, orient the memory card with the label
upward. Gently slide the card into the slot.
To remove a memory card, grasp it by the end and pull gently.
When a memory card is fully inserted, the rear half of the card
will remain outside of the card slot.
Using the Web Camera
The built-in web camera can be used for capturing photos, recording
video, or as a component of chat and conferencing applications.
Windows users will need to install a third-party dedicated applica-
tion in order to take pictures and video using the webcam.
Using the Internet
Your computer comes with LAN port for Ethernet connection or local
area network (LAN), as well as a built-in wireless connection.
LAN Port
The LAN port supports a standard RJ- connector, and allows you to con-
nect the computer to an Ethernet connection and local area network (LAN).
Do not attempt to connect a telephone cable (types RJ11,
RJ14, RJ25, RJ61) to the LAN port. Doing so may short-circuit
your computer.
English
Wireless
An antenna system is built into the display for optimal reception,
enabling wireless communication wherever you are. To connect to the
internet wirelessly, press Fn + F.
Installing Device Drivers
A compatible device driver is required to ensure correct operation and
performance of each component in your computer.
Most installations require a reboot to update the driver. Be sure
to perform this step when prompted.
Failing to reboot may compromise the system’s stability and re-
quire reinstallation of the operating system.
Features
!
English
External Devices
Your computer includes multiple connection ports for maximum
performance and productivity.
Do not connect or disconnect any external device cables other than
USB cables while the computer power is on. To avoid possible damage
to attached devices, wait at least five seconds after the computer is
shut down to disconnect external devices.
Connecting a Universal Serial Bus (USB)
Device
Your computer comes with three Universal Serial Bus Ports compatible
with USB . or USB . devices such as a keyboard, mouse, camera,
hard disk drive, printer, and scanner. USB devices may be connected
and disconnected without rebooting the computer (hot swapping),
and allow specific classes of hardware to be used without requiring
individual device drivers to be installed.
When using a high power consumption USB device such as
USB HDD, use an external device power adapter to avoid sys-
tem damage.
Connecting an External Display
You can connect a VGA monitor via the computer’s built-in VGA port.
To connect a VGA monitor, plug the -pin display cable into the cor-
responding VGA port on your computer.
To shift to other connected display devices, press Fn + F. You may
also select a device using the Control Panel Æ Display menu.
English
Connecting an Audio Device
Your computer includes one headphone jack for use in connecting
headphones, speakers, or other audio output devices. To connect,
insert the audio device plug into the jack.
Connecting an External Microphone
Your computer includes one external jack for connecting a micro-
phone. To connect, insert the microphone plug into the jack.
External Devices
English
Troubleshooting
If you have a problem with this device, please read the troubleshoot-
ing guide below and check our website at www.cobyusa.com for
Frequently Asked Questions (FAQ) and firmware updates. If these re-
sources do not resolve the problem, please contact Technical Support.
Address
Coby Electronics Technical Support
Knowlton Way
Savannah GA
(PDLO
PCsupport@cobyusa.com
:HE
www.cobyusa.com
3KRQH
--: Monday–Friday, :AM–:PM EST
"
English
ProblemSolution
Display
Computer does not turn on. If using AC power, check that the AC adapter is securely con-
nected to the computer and the power cord is plugged into a
working electrical outlet.
If using battery power, check that the battery is charged.
Computer turns on, but
there is no screen image.
Confirm that the screen brightness level is not at its minimum
setting. (To increase brightness, press Fn +F7.)
If using battery power, check that the battery is installed
correctly.
If using AC power, check that the AC adapter is connected to
the computer and the power cord is plugged into a working
electrical outlet.
Screen goes blank while
the computer is on.
Screen saver may be enabled; touch the touchpad or any key to
exit screen saver mode.
If power management is enabled, the computer may have en-
tered sleep mode. Press the power button to exit sleep mode.
Keyboard
A number appears when
you enter a letter.
The numeric lock function is enabled. To disable it, press Fn +
Insert.
All or some of the keys
on the external numeric
keypad do not work.
Make sure that the external numeric keypad is securely con-
nected to the computer.
Sleep/Hibernation Mode
The computer enters sleep
mode unexpectedly.
Check that the battery is charged.
Troubleshooting
English
ProblemSolution
If the processor overheats, the computer will automatically
enter sleep mode to allow the computer to cool and to protect
the processor and other internal components. Check that the
computer is properly ventilated and not hot to the touch.
Check the sleep mode settings. The computer enters sleep
mode (the sleep indicator turns on) immediately after Power-
on self-test (POST).
The critical low-battery er-
ror message appears, and
the computer immediately
turns off.
Connect the AC adapter to the computer, or replace the battery
with a fully charged one.
The computer does not
return from sleep mode,
or the sleep indicator stays
on and the computer does
not work.
Check the sleep indicator light to confirm that your system is
in sleep mode. If it has turned off, your computer has gone into
hibernation mode. Press the power button to exit hibernation
mode.
Check that the battery is charged. A depleted battery will
cause the computer to automatically enter hibernation mode.
If the battery is depleted, connect to AC power and press the
power button to exit hibernation mode.
If the system still does not return from sleep mode, your sys-
tem has stopped responding. Reset the computer by pressing
and holding the Power button for 4 seconds or more. Unsaved
data may be lost.
If the computer fails to reset, unplug the AC adapter and
remove, then reinsert, the battery.
Troubleshooting
English
ProblemSolution
The screen is unreadable or
distorted.
Check that screen resolution and color quality are correctly set.
Check that the monitor type is correct. This information is
available under the menu Display Settings Æ Monitor.
Confirm that the display device driver is installed correctly. This
information is available under the menu Personalize Æ Display
Settings Æ Advanced Settings Æ Adapter. The Adapter Infor-
mation window should display the correct device driver name.
NOTE: The device driver name depends on the video chip that
has been installed on your computer. Click the Properties button
and check the “Device status” box to confirm that the device is
working properly. If not, click the Troubleshoot button.
Incorrect characters appear
on the screen.
Check that your application and operating system are correctly
installed.
Missing, discolored, or
bright dots appear on the
screen every time you turn
on your computer.
Check that the surface of the screen is not scratched or dam-
aged. If there is no visible damage, these small idiosyncrasies
are a standard element of TFT screen technology and will not
affect the computer’s performance.
Sound
No sound can be heard from
the speaker even when the
volume is turned up.
Confirm that the Mute function is off.
Check that no external device, such as a headphone or speaker,
is plugged into the audio output (headphone) jack.
Check that speakers are selected as a playback device.
Battery
Your computer shuts down
before the battery status in-
dicator turns on, or continues
to operate after the battery
status indicator lights.
Remove and reinsert the battery. If the problem persists, you
may need to replace the battery.
Troubleshooting
English
ProblemSolution
The operating time for a
fully charged battery is
short, or the computer
does not operate with a
fully charged battery.
Remove and reinsert the battery. If the problem persists, you
may need to replace the battery.
The surge protector in the battery might be active. Turn off the
computer for one minute to reset the protector; then turn on
the computer again.
The battery does not
charge.
Replace the battery.
Hard Drive
The hard disk drive does
not work.
In the Boot menu in AMI Setup Utility, make sure that the hard
disk drive is included in the Boot Sequence.
Other Problems
The computer does not
respond.
Turn off the computer by pressing and holding the power
button for 4 seconds or more. If the computer still does not
respond, remove the AC adapter and the battery.
Your computer may lock if it enters sleep mode during a
communication operation. To prevent this from happening,
disable the sleep timer when you are working on the internet
or network.
For your safety, never attempt to repair the device yourself.
Attempting to do so will invalidate the warranty. Internal components
of the device carry a risk of electric shock.
Troubleshooting
www.cobyusa.com Page 27
English
Specifications
Display Type NBPC1025: 10” TFT LCD;
Display Resolution NBPC1025: 1024x600 (WSVGA);NBPC1165: 1366x768
PROCESSOR NBPC1025: Intel Cedartrail-M, N2600,1.66G Dual core
NBPC1165: Intel Cedartrail-M, N2600,1.66G Dual core/N2800,1.8
G Dual core
Hard DriveNBPC1025: 320GB 2.5” SATA HDD
NBPC1165: 320GB 2.5” SATA HDD,Upgradeable to 2GB
Memory
CORE LOGIC TigerPoint NM10
GRAPHIC GMA3600
OS Windows 7
CARD READER Support SD, MMC, MS/MS Pro
Networking Wi-Fi 802.11 b/g
Ethernet 10/100 Mb
Connectivity 3 USB 2.0 Ports
Keyboard US-International
Battery
Specifications are subject to change without notice.
NBPC1165: 11.6 ” TFT LCD
NBPC 1025: 1GB DDR3-1066MHz
NBPC1165: 1GB DDR3-1066MHz, Upgradeable to 2GB
AUDIO 2 Jack( Mic in & Headphone out)
NBPC1025: 3 Cells/10.8V/2200mAH
NBPC1165: 3 Cells/10.8V/2200mAH OR 6 Cells/10.8V/4400mAH
ADAPTER AC 110~240V, DC 15V@36W AC Adapter
BLUETOOTH Optional
WEB CAMERA NBPC 1025: 0.3 M Pixels
NBPC 1165: 0.3M Pixels ,1.3M Pixels(optional)
Certications FCC,CE,CCC
www.cobyusa.com Page 28
English
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Changes or modications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment.
NOTE:
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit dierent from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
